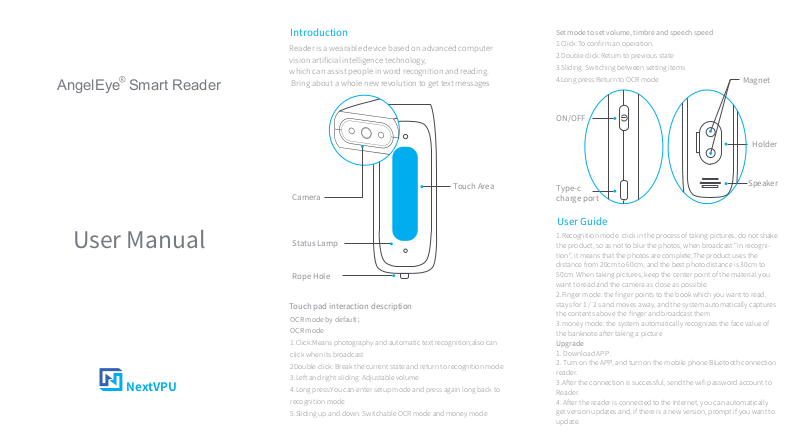

Page 1
AngelEye Smart Reader
User Manual
Nex
tVPU
Introduc
ader is a wearable device based on advanced computer
Re
vision artificial intelligence technology,
which can assist people in word recognition and reading.
Bring about a whole new revolution to get text messages
Camera
Status Lamp
Rope Hole
Touch p
OCR mode by def
OCR mode
1.Click:Means photography and automatic text recognition;also can
click when its broadcast
2Double click: Break the current state and return to recognition mode
3.Left and right sliding: Adjustable volume
4.Long press:You can enter setup mode and press again long back to
recognition mode
5.Sliding up and down: Switchable OCR mode and money mode
tion
ad interaction description
ault；
T
ouch Area
Set mode to set volume, timbre and speech speed
1.Click:To confirm an operation.
2.Double click:Return to previous state
3.Sliding: Switching between setting items
4.Long press:Return to OCR mode
ON/OFF
-c
Type
charge port
Magnet
Holder
Speak
User Guide
1.Rec
ognition mode: click in the process of taking pictures, do not shake
the product, so as not to blur the photos; when broadcast "in recognition", it means that the photos are complete;The product uses the
distance from 20cm to 60cm, and the best photo distance is 30cm to
50cm. When taking pictures, keep the center point of the material you
want to read and the camera as close as possible.
2.Finger mode: the finger points to the book which you want to read,
stays for 1 / 2 s and moves away, and the system automatically captures
the contents above the finger and broadcast them
3.money mode: the system automatically recognizes the face value of
the banknote after taking a picture
Upgrade
1. Download APP .
2. Turn on the APP, and turn on the mobile phone Bluetooth connection
reader.
3.After the connection is successful, send the wifi password account to
Reader.
4. After the reader is connected to the Internet, you can automatically
get version updates and, if there is a new version, prompt if you want to
update.
er
Page 2
App Download
Official Wechat QR Code
NEXT VPU (shanghai)Co
.Ltd
Address: Rm 501-07, Section A, Bldg. 1#3000 Longdong Rd,
Pudong New District, Shanghai, P.R. China 201203
Phone：400-606-8806
Email：[email protected]
Spec
and:Ang
Br
elEye
Name:AngelEye smart reader
Dimension：72mm*27mm*15mm
Type：SR-W1
erial：ABS+PC
Mat
Recognition speed:Within 8s
Frequency use:1.5-2H
Money recognition :98%
Power：5V1A
Battery capacity:500mah
Packing Lis
Reader Host Glass
User Manual
t
Typc-c Charge Line
Warranty Card
Certification Card
Screwdriver Buckle Buckle Silicone Pad
Storage Pouch
Produc
Aut
t Feature
omatic recognize book,email ,text,magazine
Adapter
Page Analysis Background Fliter
Finger R
ecognition
Offline Use
Sling
Money Recognition
Chinese And English
Bilingual
中
Q&A
1 . The te
A:Currently only support closer scenario,with use distance
20cm-60cm，best photo distance from 30cm to 50cm
2 . Voice broadcast random code？
A : Caused by blurring of photos, it is recommended to keep
still as much as possible when taking pictures.
Safe
Notice：
A
xt in the distance cannot be recognized?
ty Information
Take it lightly, don't hit or vibrate seriously.
Avoid exposure to harmful chemicals, do not approach
strong magnetic fields or electric fields, and stay away from
heat sources such as flames.
Do not rinse, or place too wet to avoid damage to the
components
Do not disassemble, repair or retrofit this machine. Please
place this machine in a place that is not accessible to young
children.
This machine has done many tests, it is not recommended
to put it in a seriously polluted environment for testing, so
as not to cause unnecessary harm to health
Waste packaging, batteries, electronic components, etc.,
please sort out
FCC Statement
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
FCC RF Exposure Information and Statement
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Product Type:
AngelEye Smart Reader(FCC ID: 2AOQI-SRW1) has also been tested against this SAR
limit. The highest SAR value reported under this standard during product certification
for use on the head hold is 0.38W/kg.
