INTRODUCTION
Thank you for purchasing a NEXT-proaudio X Series speaker. The NEXT-proaudio X Series has
been designed to cover almost all install applications such as nightclubs, bars, restaurants, convention
centers, hotels, museums and houses of worship in a very compact enclosure. With X Series, the
NEXT-proaudio’s engineering team, developed the most powerful and compact series providing high
performance and sound fidelity. This manual will provide you with useful and important information
about your X Series element. Please devote some time reading this manual and keep it at hand for
future reference. NEXT-proaudio is concerned with your safety and well-being, so please follow all
instructions and heed all warnings. Also, a better understanding of some specific features of the X
Series will help you to operate it to its full potential. With a continuous evolution of techniques and
standards, NEXT-proaudio, reserves the right to change the specifications of its products without early
warning. For the most current data, please visit our website: www.next-proaudio.com
UNPACKING
NEXT-proaudio X Series are built in Europe (Portugal) by NEXT-proaudio, according to the
highest quality standards and thoroughly inspected before they leave the factory. When unpacking
your X Series unit, please examine it carefully for any signs of possible transit damage and inform
your dealer immediately if any such damage has occurred.
It is suggested that you retain the original packaging so that the speaker can be repacked in
the future if necessary. Please note that NEXT-proaudio and its authorized distributors cannot accept
any responsibility for damage to any returned product through the use of non-approved packaging.
When the product has reached the end of its useful life, please dispose of it responsibly through
a recycling centre.
X SERIES OVERVIEW
NEXT-proaudio engineered these series of passive point source speakers, specifically for
installations, musicians and DJs who want the state-of-the-art in acoustics and electronics. The family
currently consists of four full-range cabinets, with driver sizes comprehended between 8” and 15”.
The passive full-range models are complemented by a high-performance subwoofer of 18”, Xh18.
This speaker line employs premium-quality lightweight plywood with a hardening, durable,
and scratch-resistant coating. The enclosures are fitted with a very accurate and optimised crossover
for the best frequency and phase response. This series is made up of speakers and subwoofers that
bind together forming the perfect combination. Several combinations of speakers and subwoofers can
be done in order to satisfy your needs.
The X8 speaker counts on a 90ºx60º constant directivity horn while the X12 and X15 speakers
feature an asymmetric horn that ranges from 50º in the horizontal far-field to 100º in the horizontal
near-field and 50º vertical, fully rotatable, meaning you can use it either vertical or on its side and still
maintain the same directivity pattern. Widening the possibilities of this series there is a double 12”
speaker, X212, that maintains a 60ºH x 40ºV dispersion pattern, better for stacking and larger venue
applications. It is also possible, in all X series models, to rotate the high frequency section horn in
order to change the high frequency directivity.
The Xh18 is a single horn-loaded subwoofer with two versions, Left and Right, that can be
combined to get a bigger horn located at the centre of the array.
Page 5
NEXT X Series - User Manual
www.next-proaudio.com
- 4 -
V201805
SAFETY FIRST
Please pay close attention to this chapter. Failure to comply with these instructions may
result on injury or death.
NEXT-proaudio X Series systems are capable of producing extremely high
sound pressure levels and should be used with care. Hearing loss is
cumulative and can result from levels above 90dB if people are exposed for
a long period. Never stand close to loudspeakers driven at high levels.

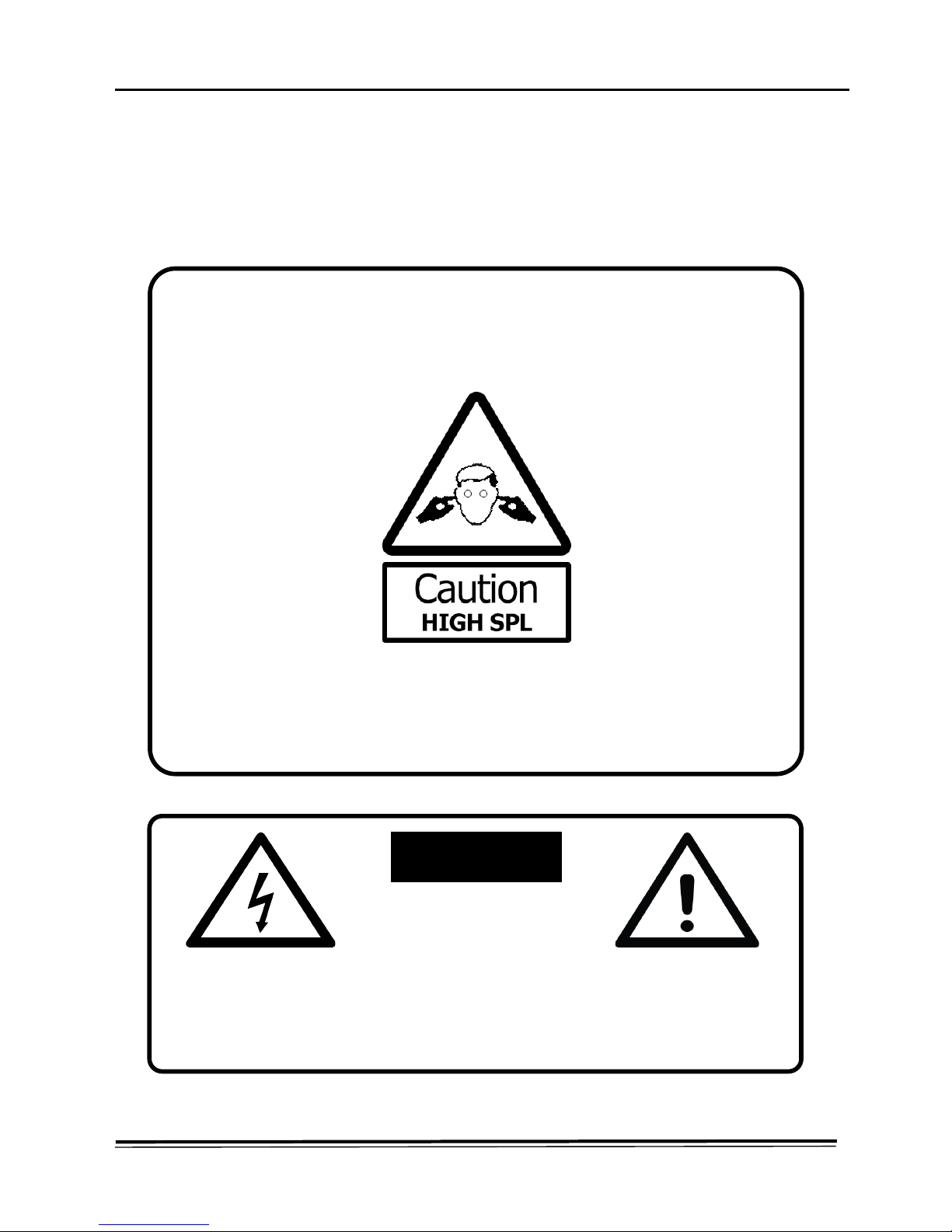

DANGER – HEARING DAMAGE
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICE TO QUALIFIED PERSONNEL
Page 6
NEXT X Series - User Manual
www.next-proaudio.com
- 5 -
• Do not use your X Series unit near any sources of water, like swimming pools, lakes, water
streams, exposed to rain, high humidity environments or any other source of water or moisture.
• Use only a soft dry cloth to clean your X Series unit.
• Never use your X Series unit too close to any heat source, such as radiators, or any other device
that produces heat.
• When mounted on a pole, always ensure that the floor or structure where the stack will take
place is even and can withstand the weight.
• Place cables in a way that they do not present a trip hazard.
• Do not place any objects on top of the stack, they can fall accidentally and cause injuries.
• Do not attempt to move the enclosures while connected.
• Do not attempt to service the X Series unit beyond what is described in this manual. All other
service or repair of this product should be carried only by qualified personnel.
• To prevent electric shock, do not use any extension cord, receptacle or other outlets where the
blades of the connectors cannot be fully inserted.
• Precautions should be taken to prevent grounding failure or polarity switch.
• It is advised to unplug the X Series unit during storms or when not in use for a long period of
time.
RIGGING AND SUSPENSION SAFETY CONSIDERATIONS
X Series enclosures are designed for portable applications but can be suspended by means of the
threaded inserts provided. These enclosures are fitted internally with steel corner reinforcement
brackets to ensure that each cabinet is strong enough to be hung from its top.
• Before rigging or suspending NEXT-proaudio X Series systems, inspect all components and all
hardware for any signs of damage or missing parts. If you find any damaged, corroded or
deformed parts, do not use them, replace them immediately.
• Do not use hardware that isn’t load rated or that its rating is not enough to handle the system’s
weight with a good safety factor (minimum 4:1).
• Suspended systems installation should only be carried out by qualified personnel.
• Always use adequate protective clothing and equipment to prevent possible injuries.
• Be sure you understand all local and national regulations regarding equipment installation.
Page 7
NEXT X Series - User Manual
www.next-proaudio.com
- 6 -
V201805

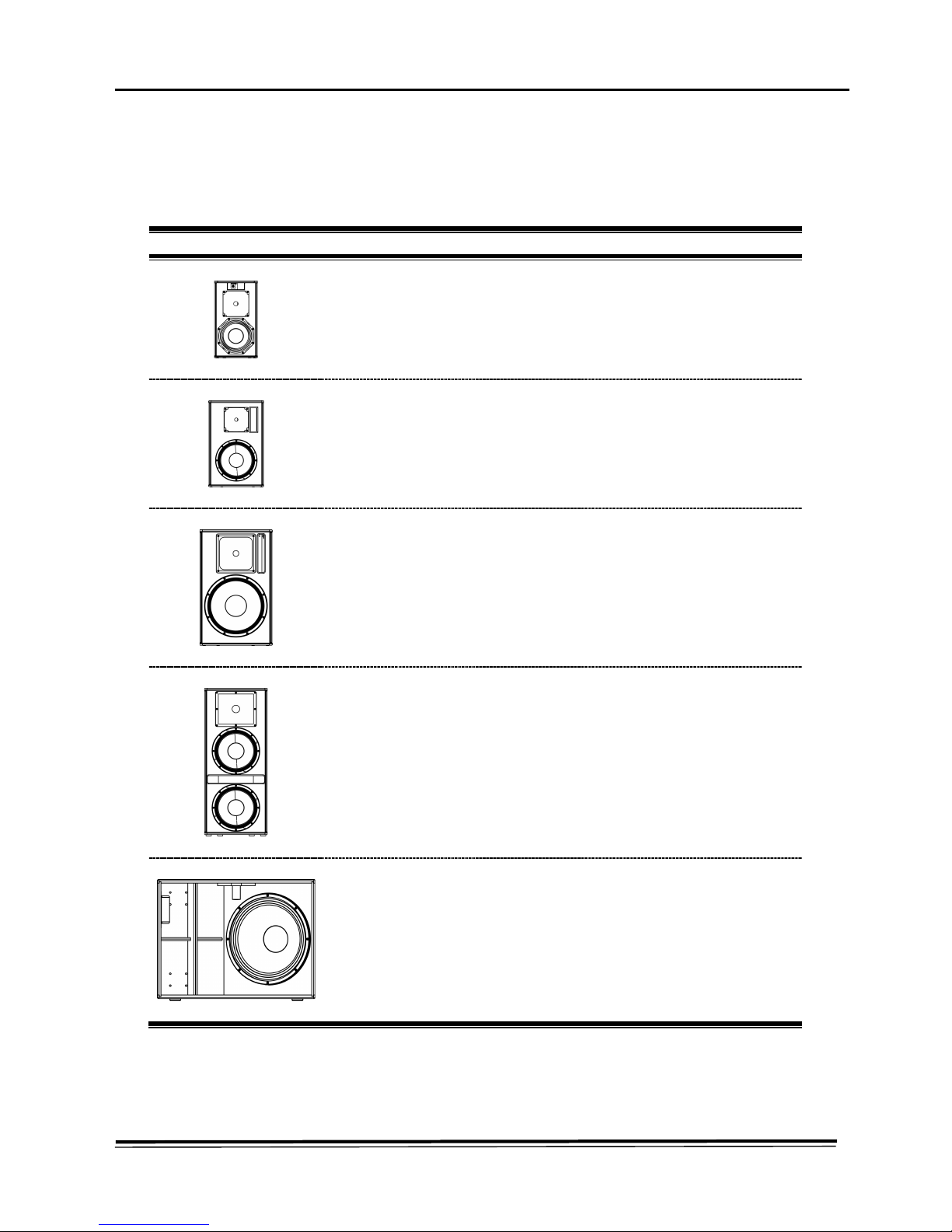

X Series FA M ILY
Model
Drivers
Freq. Resp.
Dispersion
Power
X8 1 x 8”
72Hz to
20kHz
90ºx60º 400W
X12 1 x 12”
57Hz to
20kHz
50-100º x 50º 700W
X15 1 x 15”
53Hz to
18kHz
50-100º x 50º 800W
X212 2 x 12”
52Hz to
20kHz
60ºx40º 1400W
Xh18 1 x 18”
38Hz to
160Hz
Omnidirectional 2400W
Page 8
NEXT X Series - User Manual
www.next-proaudio.com
- 7 -

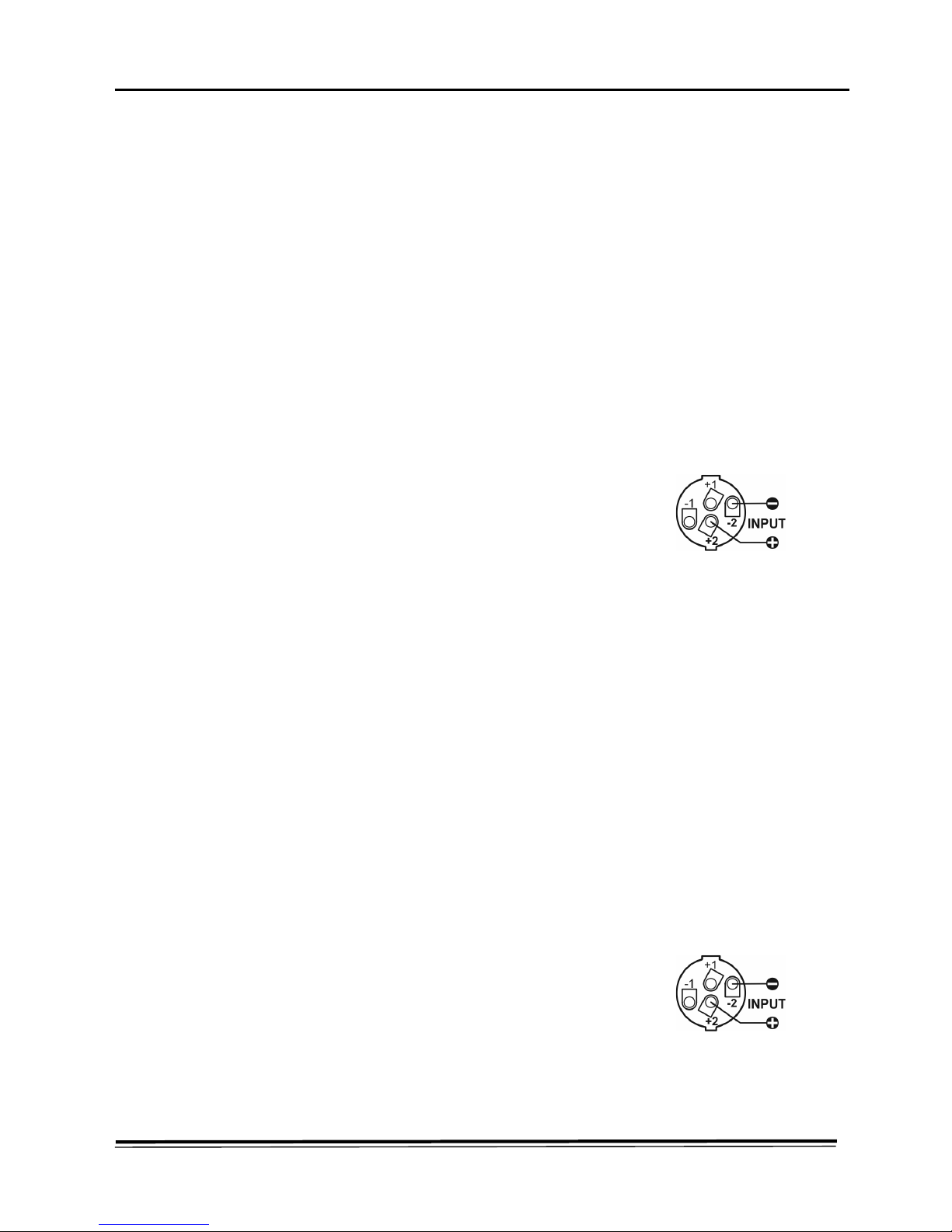

X Series IN DETAIL
X8
The X8 is a versatile, 2-way full-range cabinet, designed for applications where high output is
required from an ultra-compact enclosure. It features an 8” low frequency driver with a high energy
neodymium magnet and a 1" HF compression driver mounted on a constant directivity 90ºH x 60°V
rotatable horn. The enclosure is provided with 14xM6 rigging points, which gives a wide range of
flying options, or mounting configurations. It is also provided with a top hat fitting to use with a tripod
or as a pole socket to place above an X-line subwoofer. This cabinet is also an excellent solution when
used as an ultra-compact floor monitor (45º degrees with the floor). The use of the NEXT LMS242,
Digital Signal Processor, will improve the speaker’s performance as well as its durability. The
speaker’s use without the LMS242 will result in poorer sound quality and the components damage
may occur.
Applications:
• General Applications Requiring High Quality Sound Reproduction
• Theatres and Houses of Worship
• Night-Clubs
• Compact Voice Reinforcement
• Under Balcony System
• Portable or Installed Audio-Visual Reproduction
X12
The X12 is a 2-way passive cabinet, designed to provide exceptional club sound reinforcement
and stage monitoring from a very compact enclosure. It features a powerful neodymium 12” low
frequency driver and a 1" HF compression driver mounted on a constant directivity 50º-100ºH x 50°V
asymmetric horn. Depending on the application, the HF horn can be rotated to allow the multi-angle
enclosure to be used in either its vertical or horizontal orientation. To rotate the horn for horizontal
use, remove the grille unscrew the horn and rotate it by 90 degrees. The enclosure also contains
14xM6 threaded inserts for a variety of mounting configurations. It is also provided with a top hat
fitting underneath to use with a tripod or as a pole socket to install above an X-line subwoofer. This
cabinet is also an excellent solution when used as a floor monitor (45º degrees with the floor). The
use of the NEXT LMS242, Digital Signal Processor, will improve the speaker’s performance as well
as its durability. The speaker’s use without the LMS242 will result in poorer sound quality and the
components damage may occur.
Applications:
• Theatres and Houses of Worship
• Night-Clubs
• Live Performances
• FOH System (Small to Medium Indoor Venues)
• Under Balcony System
• Floor Monitor
Page 9
NEXT X Series - User Manual
www.next-proaudio.com
- 8 -
V201805

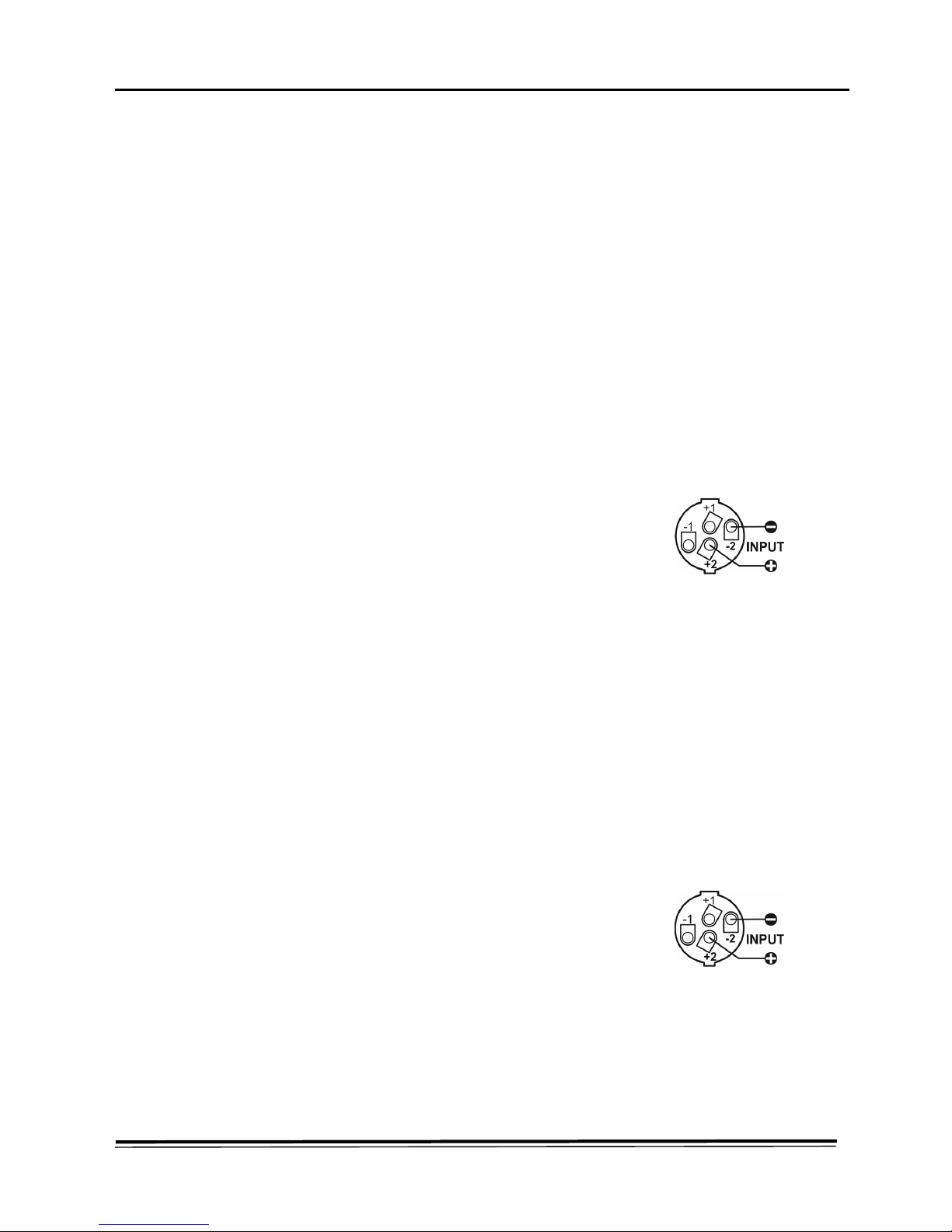

X15
The X15 is a 2-way passive system, designed to provide exceptional club sound reinforcement
and stage monitoring from a very compact enclosure. It features a powerful neodymium 15” low
frequency driver and a 1.4" HF compression driver mounted on a constant directivity 50º-100ºH x
50°V asymmetric horn. Depending on the application, the HF horn can be rotated to allow the multiangle enclosure to be used in either its vertical or horizontal orientation. To rotate the horn for
horizontal use, remove the grille unscrew the horn and rotate it by 90 degrees. The enclosure also
contains 14xM6 threaded inserts for a variety of mounting configurations. It is also provided with a
top hat fitting underneath to use with a tripod or as a pole socket to install above an X-line subwoofer.
This cabinet is also an excellent solution when used as a floor monitor (45º degrees with the floor).
The use of the NEXT LMS242, Digital Signal Processor, will improve the speaker’s performance as
well as its durability. The speaker’s use without the LMS242 will result in poorer sound quality and
the components damage may occur.
Applications:
• Theatres and Houses of Worship
• Night-Clubs
• Live Performances
• FOH System (Small Outdoor Venues)
• Floor Monitor
X212
The X212 is a 2-way passive system, designed to provide exceptional club sound reinforcement
and stage monitoring from a very compact enclosure. It features a powerful Neodymium 12” low
frequency driver and a 2" HF compression driver mounted on a constant directivity 60°H x 40°V horn.
The enclosure also contains 14xM6 threaded inserts for a variety of mounting configurations. The use
of the NEXT LMS242, Digital Signal Processor, will improve the speaker’s performance as well as its
durability. The speaker’s use without the LMS242 will result in poorer sound quality and the
components damage may occur.
Applications:
• Theatres
• Night-Clubs
• Live Performances
• FOH System (Small to Medium Outdoor Venues)
Page 10
NEXT X Series - User Manual
www.next-proaudio.com
- 9 -
Xh18
The Xh18 subwoofer can be used with any of the X Series speaker’s range, X8, X12, X15 and
X212, in order to extend and increase the total low frequency output power. The Xh18 is a hybridhorn loaded subwoofer enclosure that provides a powerful bass from a long excursion 18” driver with
100mm voice coil, extending the frequency response of the complete system down to 30Hz. The
Xh18 enclosure provides a top hat fitting to be used as a pole socket to mount a X8, X12 or X15
speaker. The use of the NEXT LMS242, Digital Signal Processor, will improve the speaker’s
performance as well as its durability. The speaker’s use without the LMS242 will result in poorer
sound quality and the components damage may occur.
There are two different kinds on this model, the left and the right version. The main purpose
is to have the horns together when coupling several Xh18 elements.
Applications:
• Theatres
• Night-Clubs
• Live Performances
• FOH System (Small to Medium Outdoor Venues)

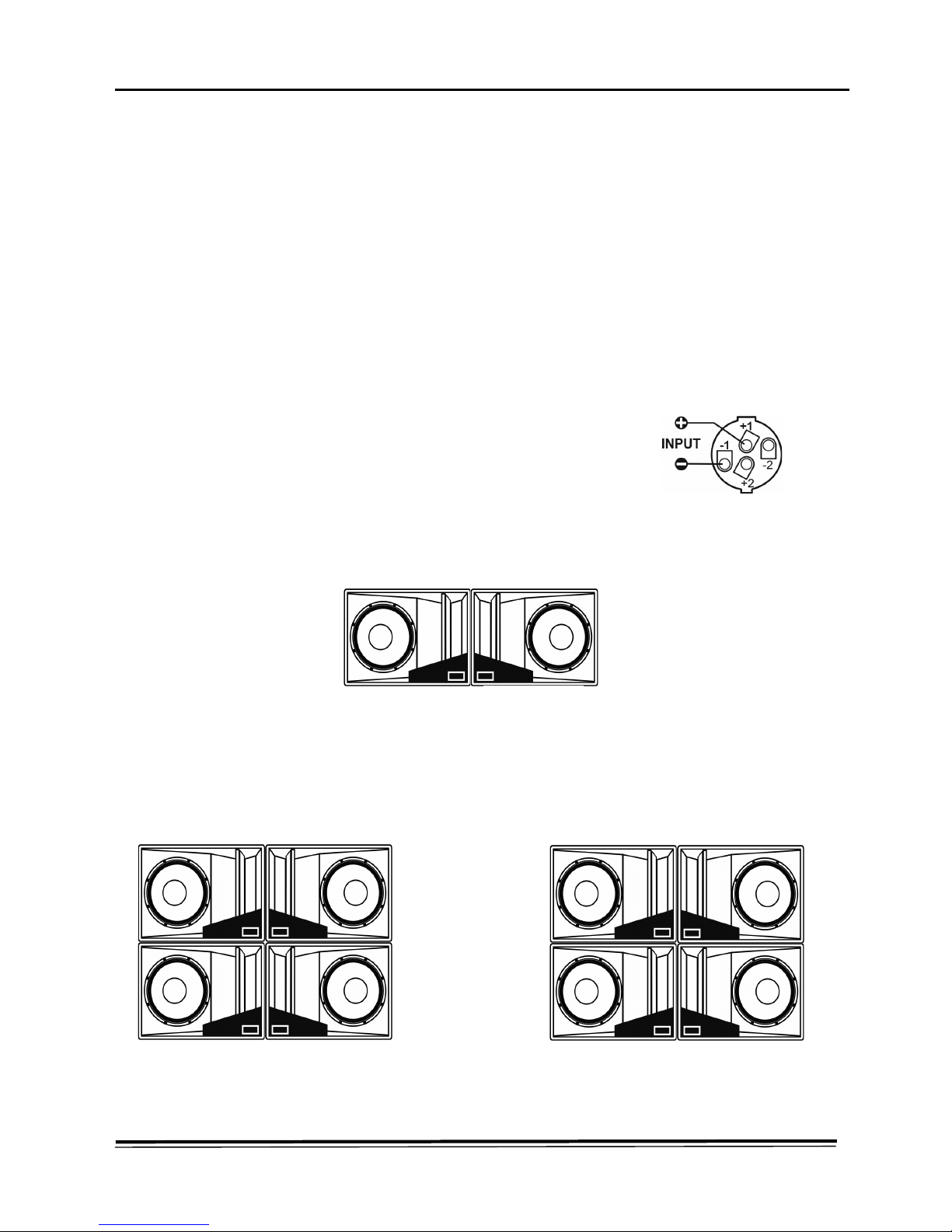

L-R Stack Configuration
Centre Configuration
Left Version
Right Version
Left Version
Left Version
Right Version
Right Version
LEFT SIDE
RIGHT SIDE
Page 11
NEXT X Series - User Manual
www.next-proaudio.com
- 10 -
V201805

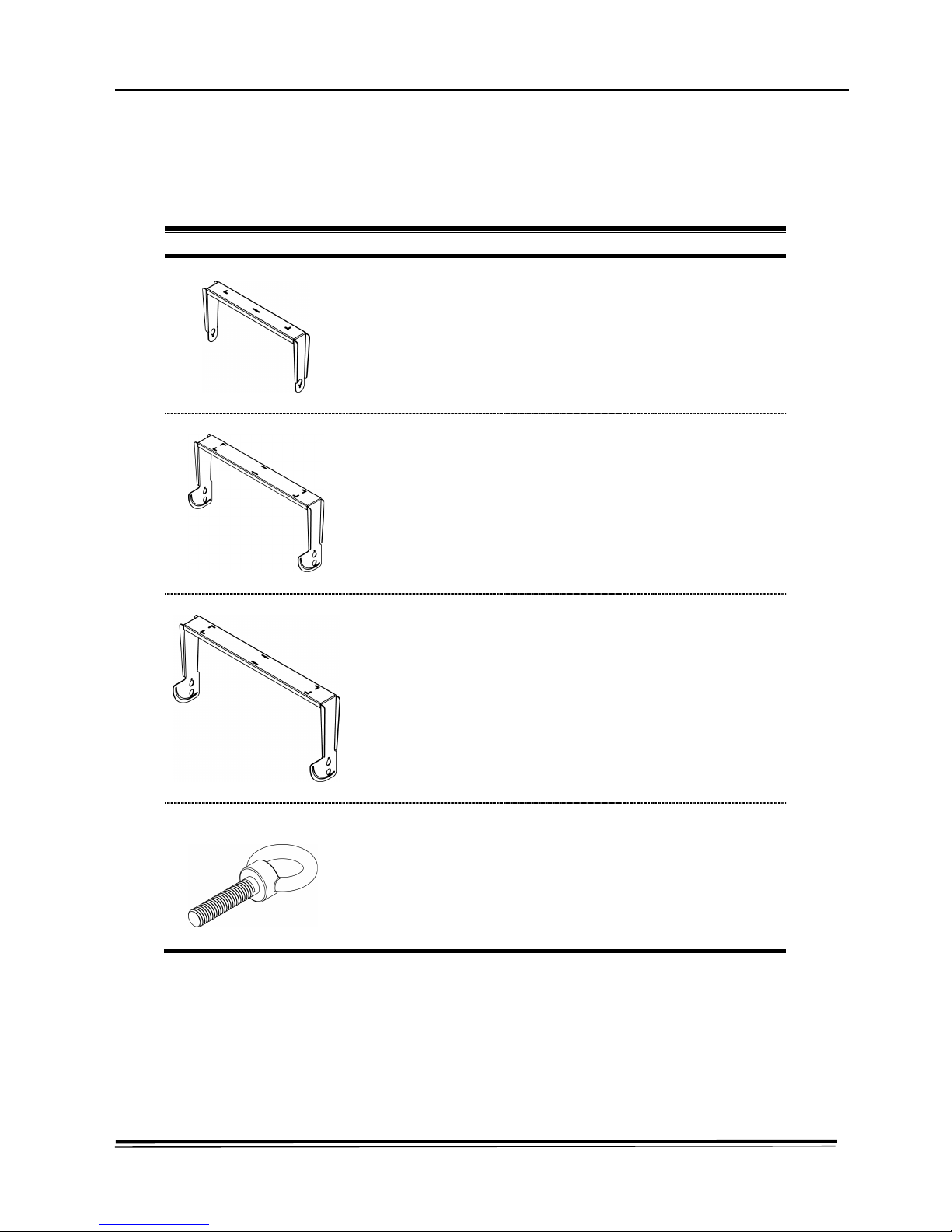

X Series ACCESSORIES
Type
Application
Model
U-Bracket
Wall/Ceiling
Mounting
X8
U-Bracket
Wall/Ceiling
Mounting
X12
U-Bracket
Wall/Ceiling
Mounting
X15
Eye Bolt Suspension
X8/X12/X15/X212
Page 12
NEXT X Series - User Manual
www.next-proaudio.com
- 11 -

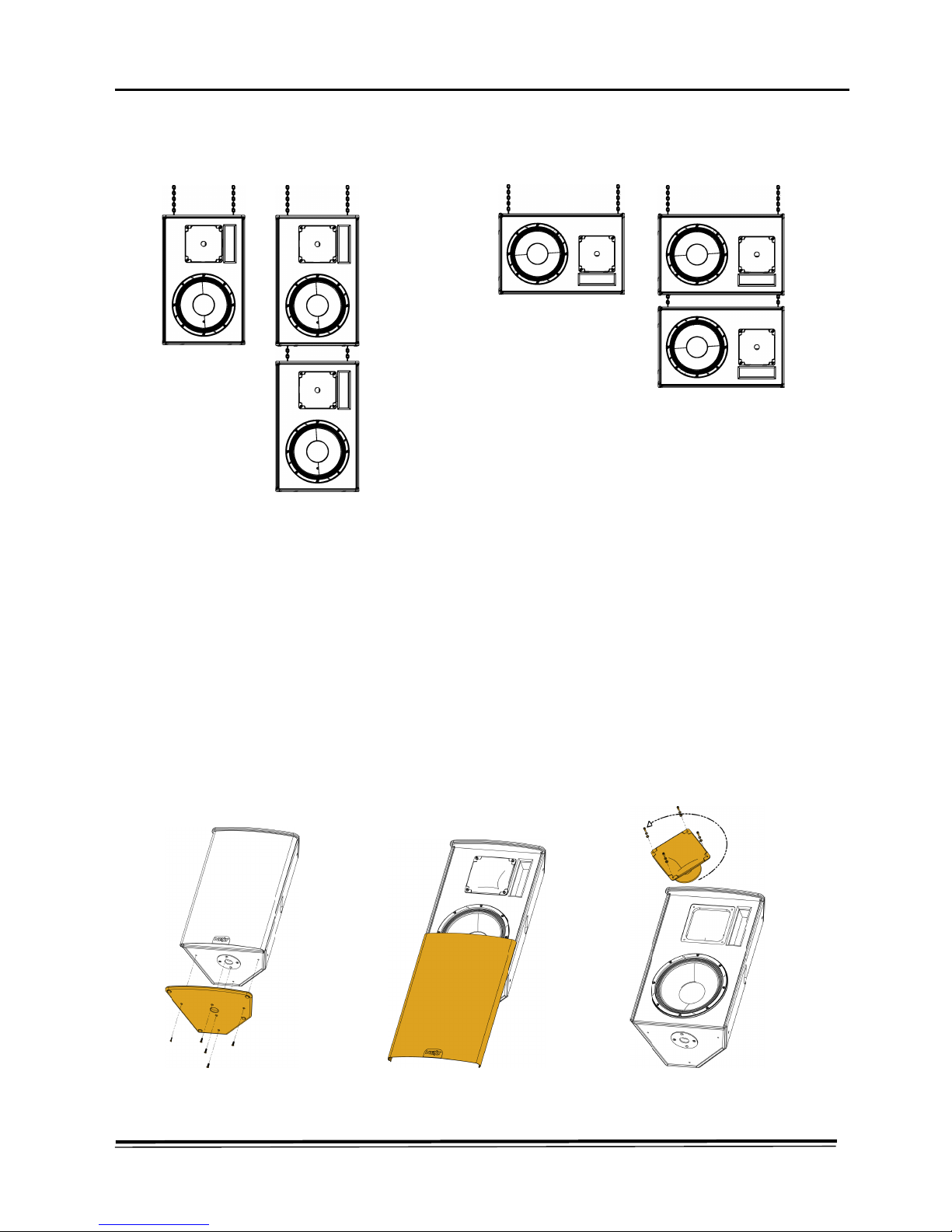

X Series SUSPENSION EXAMPLES
Vertical Suspension Example Horizontal Suspension Example
X8, X12, X15 – Horn Rotation Procedure
When using the point source speakers on its horizontal position, the horn can be rotated to maintain
the same dispersion pattern. Only three steps are needed to accomplish the modification. Please
follow the step by step procedure below.
1. Unscrew the 5 hex screws on the speaker’s bottom. Remove the bottom part.
2. Carefully remove the front grille by simply sliding it down.
3. Unscrew the 4 hex screws on the horn. Remove the horn, rotate it by 90º and re-assemble it.
4. Repeat step 1 and step 2 on the reverse order to re-assemble the speaker.
Step 1. Step 2. Step 3.
Page 13
NEXT X Series - User Manual
www.next-proaudio.com
- 12 -
V201805
POWER CABLE SELECTING
Selecting a cable consists of calculating the correct cable section (size) in relation to the load
impedance and the required cable length. A small cable section will increase its serial resistance,
which will induce power-loss and response variations (damping factor).
The following table indicates, for 3 common sizes, a cable length with a maximum serial
resistance equal to 4% of the load impedance (damping factor = 25):
Cable section
Maximum Length related to load impedance
8Ω
4Ω
1.5mm² [16AWG]
12m [40 ft]
6m [20 ft]
2.5mm² [14AWG]
20m [64 ft]
10m [32 ft]
4mm² [12AWG]
32m [104 ft]
16m [52 ft]
TROUBLESHOOTING
Simple troubleshooting does not require sophisticated measurement equipment and can be
easily undertaken by users. The technique should be to segment the system in order to identify the
faulty system component: signal source, controller, amplifier, loudspeaker or cable? Most installations
are multi-channel, it is often the case that one channel works and others do not. Trying different
combinations of system elements can usually help to isolate and locate the fault.
Some cabinet faults can be quite easily identified and corrected by the user. A simple sweep with
a sine wave generator can be very helpful though it MUST be made at a fairly low level to prevent
damage to the speakers. A sine wave sweep can help find:
• Vibrations due to loose screws.
• Air-leak noises: check that no screws are missing, particularly where the accessories attach
to the cabinet.
• Vibrations due to a front grille badly positioned on the quick release fixings.
• Foreign object that has fallen into the cabinet after repair or through the ports.
• Internal connection wires or absorbing material touching the loudspeaker diaphragm: check
by removing the bass loudspeaker.
• Loudspeaker not connected or phase reversed following a previous inspection, test or repair.
Do not attempt to service your X Series unit beyond what is described in this manual. All
other service or repair of this product should be carried only by qualified personnel.
Page 14
NEXT X Series - User Manual
www.next-proaudio.com
- 13 -

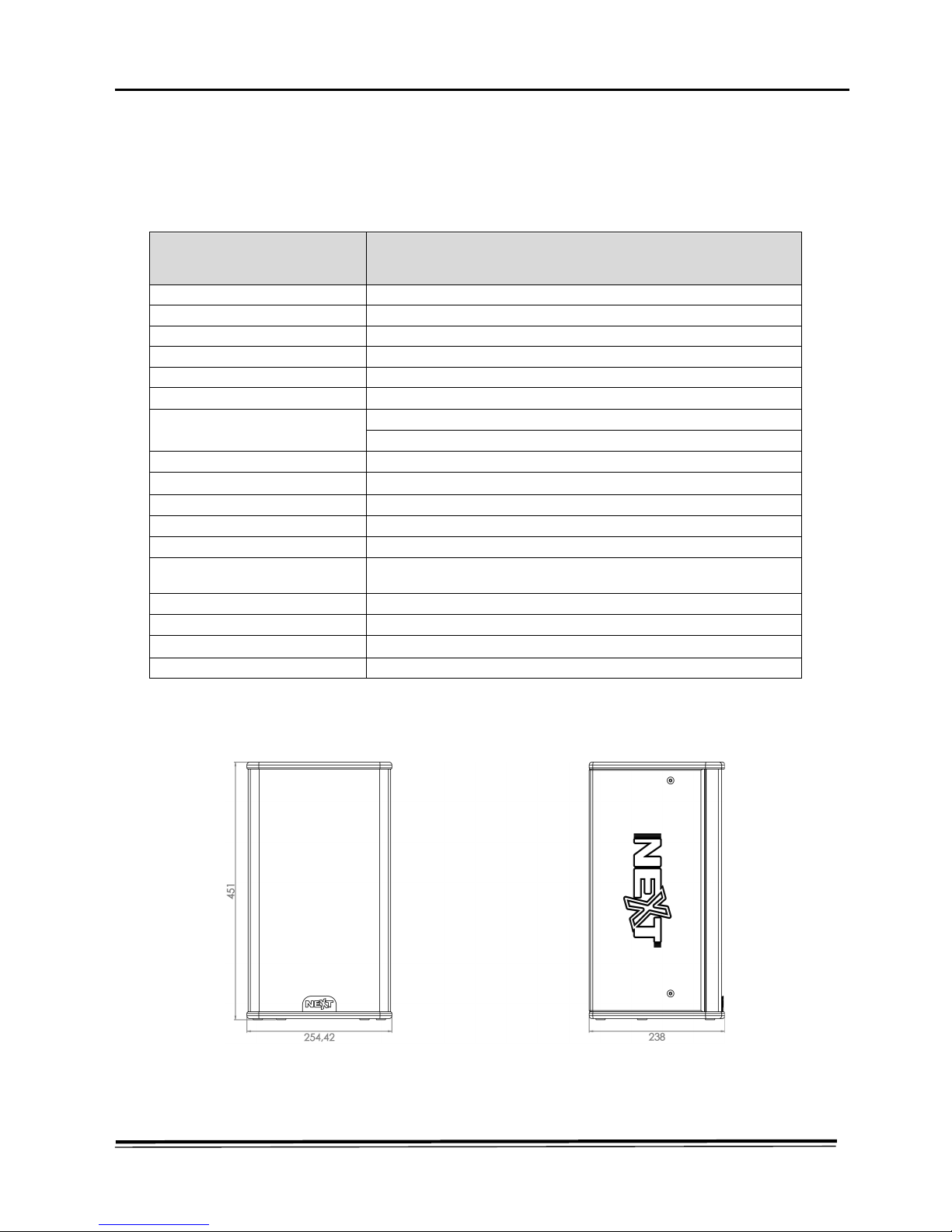

TECHNICAL SPECIFICATIONS
X8
TECHNICAL
SPECIFICATIONS
X8
Speaker Type
Passive High Performance Full-Range Speaker/Monitor
Frequency Response (-6dB)
72Hz - 20.000Hz
Low Frequency Extension (-10dB)
64Hz
Sensitivity (1W@1m)
94dB (Full-Space)
Recommended HPF.
55Hz, 18dB/oct Butterworth
Calculated Max. SPL (Cont./Peak)
120dB / 126dB (Full-Space)
Components
LF: 1 x 8” / 2” Voice Coil B&C Custom Speaker
HF: 1 x 1” / 1.4” Voice Coil Custom B&C Compression Driver
Directivity H x V (-6dB)
90º x 60º User Rotatable
Program Power
400W
Nominal Impedance
8Ω
Recommended Amplifier
MA1700
Construction
12mm Multi-laminate Birch Plywood, Screwed and Glued
Finish
Black Textured Scratch Resistant Paint (also available in other colours
and finishing)
Grille
Black Perforated Steel
Connectors
2 x Neutrik NL4 (2+/2-)
Dimensions (W x H x D)
254 x 451 x 238 mm (10 x 17.76 x 9.37 in)
Net Weight
8.9 kg (19.6 lb)
Page 15
NEXT X Series - User Manual
www.next-proaudio.com
- 14 -
V201805

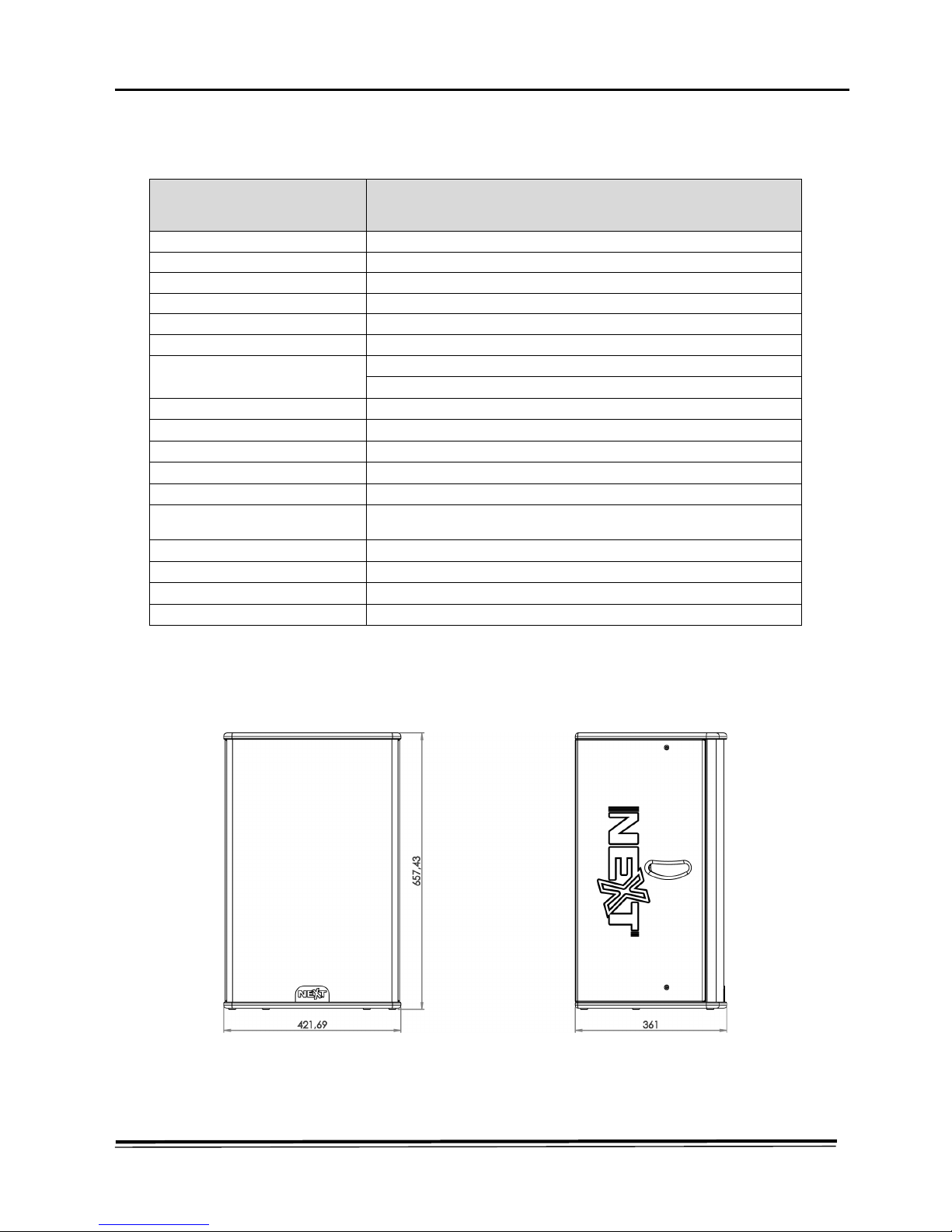

X12
TECHNICAL
SPECIFICATIONS
X12
Speaker Type
Passive High Performance Full-Range Speaker/Monitor
Frequency Response (-6dB)
57Hz - 20.000Hz
Low Frequency Extension (-10dB)
50Hz
Sensitivity (1W@1m)
99dB (Full-Space)
Recommended HPF.
46Hz, 18dB/oct Butterworth
Calculated Max. SPL (Cont./Peak)
127.5dB / 133.5dB (Full-Space)
Components
LF: 1 x 12” / 3” Voice Coil B&C Custom Speaker
HF: 1 x 1” / 1.7” Voice Coil Custom B&C Compression Driver
Directivity H x V (-6dB)
50º-100º x 50º User Rotatable
Program Power
700W
Nominal Impedance
8Ω
Recommended Amplifier
MA3200
Construction
15mm Multi-laminate Birch Plywood, Screwed and Glued
Finish
Black Textured Scratch Resistant Paint (also available in other colours
and finishing)
Grille
Black Perforated Steel
Connectors
2 x Neutrik NL4 (2+/2-)
Dimensions (W x H x D)
422 x 657 x 361 mm (16.61 x 25.87 x 14.21 in)
Net Weight
23.6 kg (52 lb)
Page 16
NEXT X Series - User Manual
www.next-proaudio.com
- 15 -

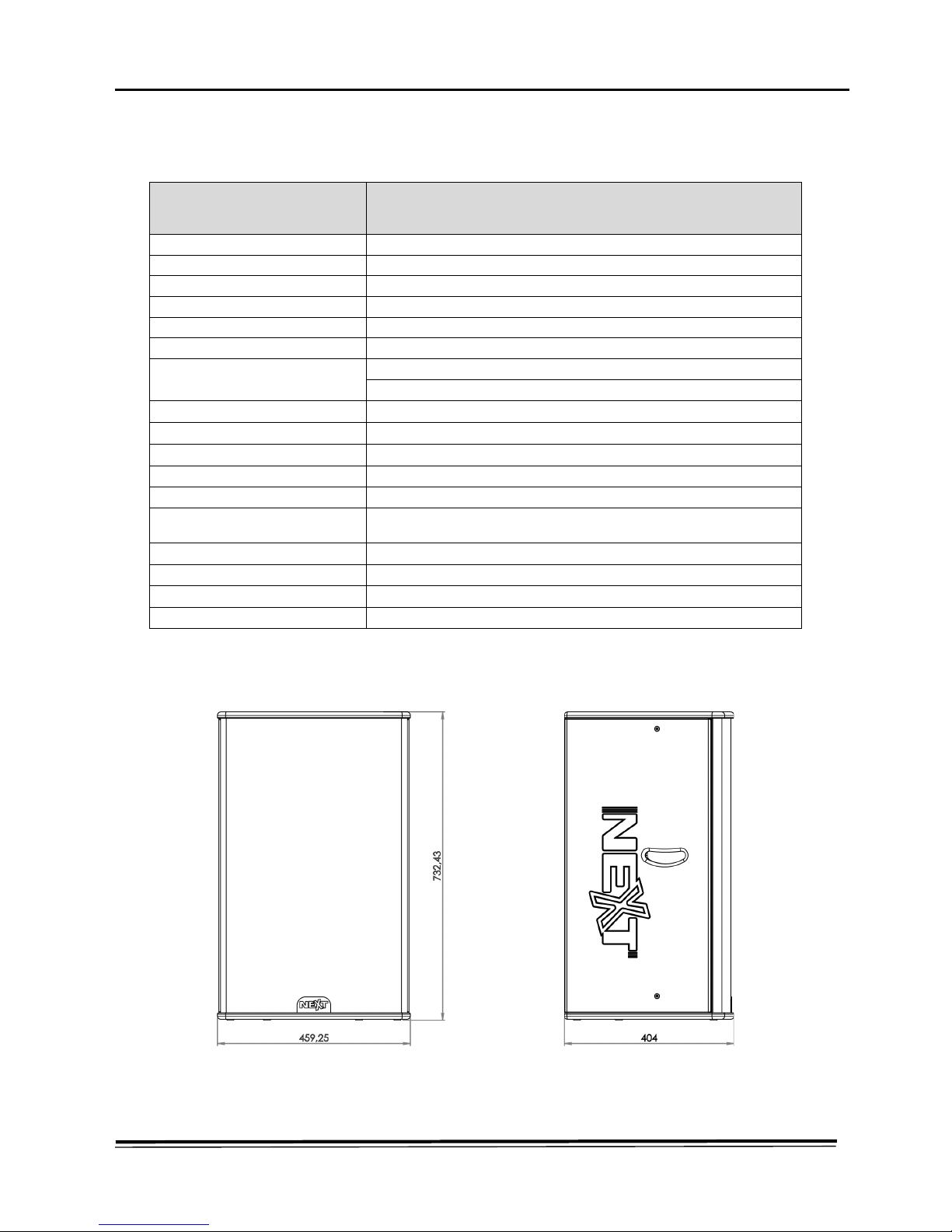

X15
TECHNICAL
SPECIFICATIONS
X15
Speaker Type
Passive High Performance Full-Range Speaker/Monitor
Frequency Response (-6dB)
53Hz - 18.000Hz
Low Frequency Extension (-10dB)
48Hz
Sensitivity (1W@1m)
100dB (Full-Space)
Recommended HPF.
42Hz, 18dB/oct Butterworth
Calculated Max. SPL (Cont./Peak)
129dB / 135dB (Full-Space)
Components
LF: 1 x 15” / 3” Voice Coil B&C Custom Speaker
HF: 1 x 1.4” / 3” Voice Coil Custom B&C Compression Driver
Directivity H x V (-6dB)
50º-100º x 50º User Rotatable
Program Power
800W
Nominal Impedance
8Ω
Recommended Amplifier
MA3200
Construction
15mm Multi-laminate Birch Plywood, Screwed and Glued
Finish
Black Textured Scratch Resistant Paint (also available in other colours
and finishing)
Grille
Black Perforated Steel
Connectors
2 x Neutrik NL4 (2+/2-)
Dimensions (W x H x D)
459 x 732 x 404 mm (18.11 x 28.86 x 15.9 in)
Net Weight
31.4 kg (69.2 lb)
Page 17
NEXT X Series - User Manual
www.next-proaudio.com
- 16 -
V201805

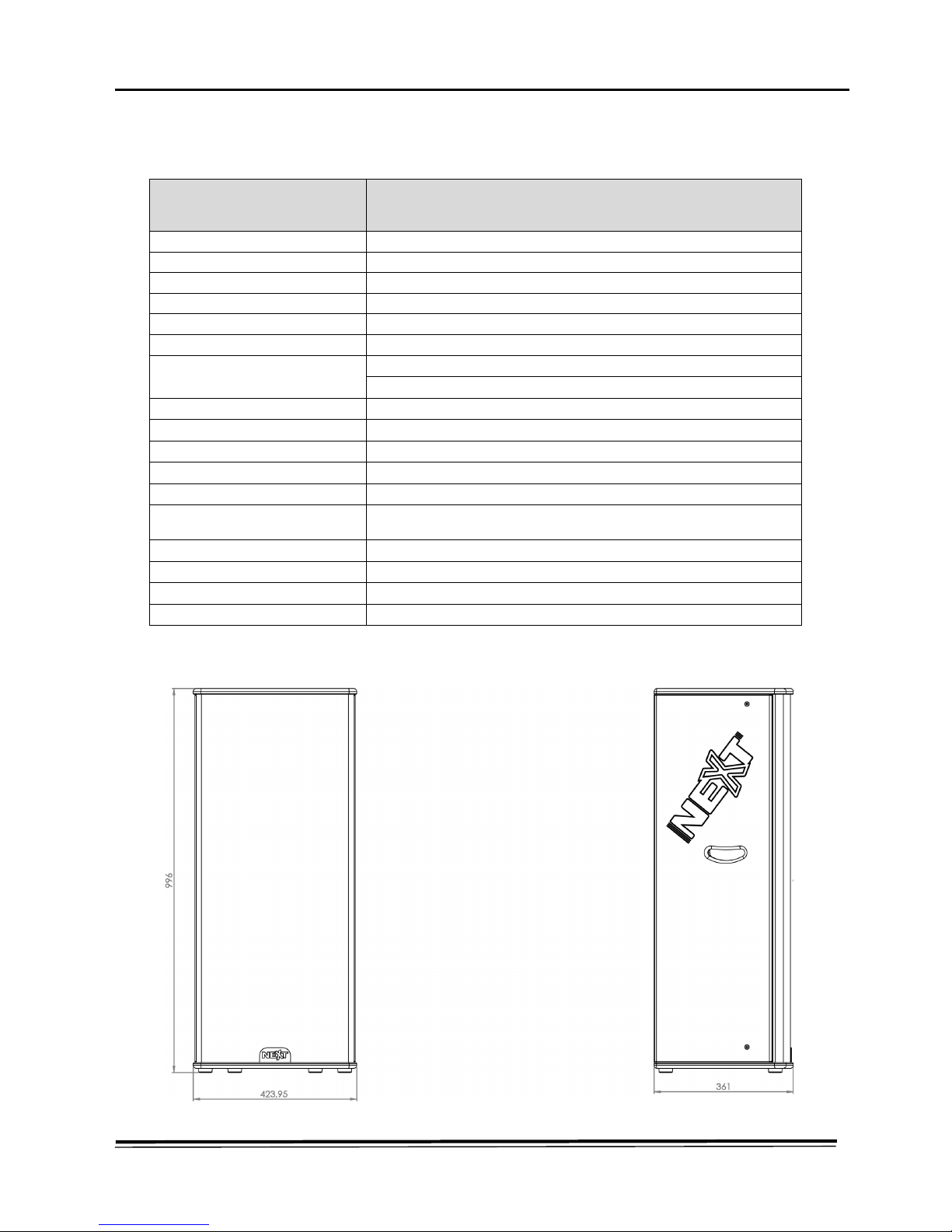

X212
TECHNICAL
SPECIFICATIONS
X212
Speaker Type
Passive High Performance Full-Range Speaker/Monitor
Frequency Response (-6dB)
52Hz - 20.000Hz
Low Frequency Extension (-10dB)
48Hz
Sensitivity (1W@1m)
102dB (Full-Space)
Recommended HPF.
46Hz, 18dB/oct Butterworth
Calculated Max. SPL (Cont./Peak)
133.5dB / 139.5dB (Full-Space)
Components
LF: 2 x 12” / 3” Voice Coil B&C Custom Speaker
HF: 1 x 2” / 3” Voice Coil Custom B&C Compression Driver
Directivity H x V (-6dB)
60º x 40º User Rotatable
Program Power
1400W
Nominal Impedance
4Ω
Recommended Amplifier
MA3800
Construction
15mm Multi-laminate Birch Plywood, Screwed and Glued
Finish
Black Textured Scratch Resistant Paint (also available in other colours
and finishing)
Grille
Black Perforated Steel
Connectors
2 x Neutrik NL4 (2+/2-)
Dimensions (W x H x D)
424 x 996 x 361 mm (16.69 x 39.21 x 14.21 in)
Net Weight
40.2 kg (88.6 lb)
Page 18
NEXT X Series - User Manual
www.next-proaudio.com
- 17 -

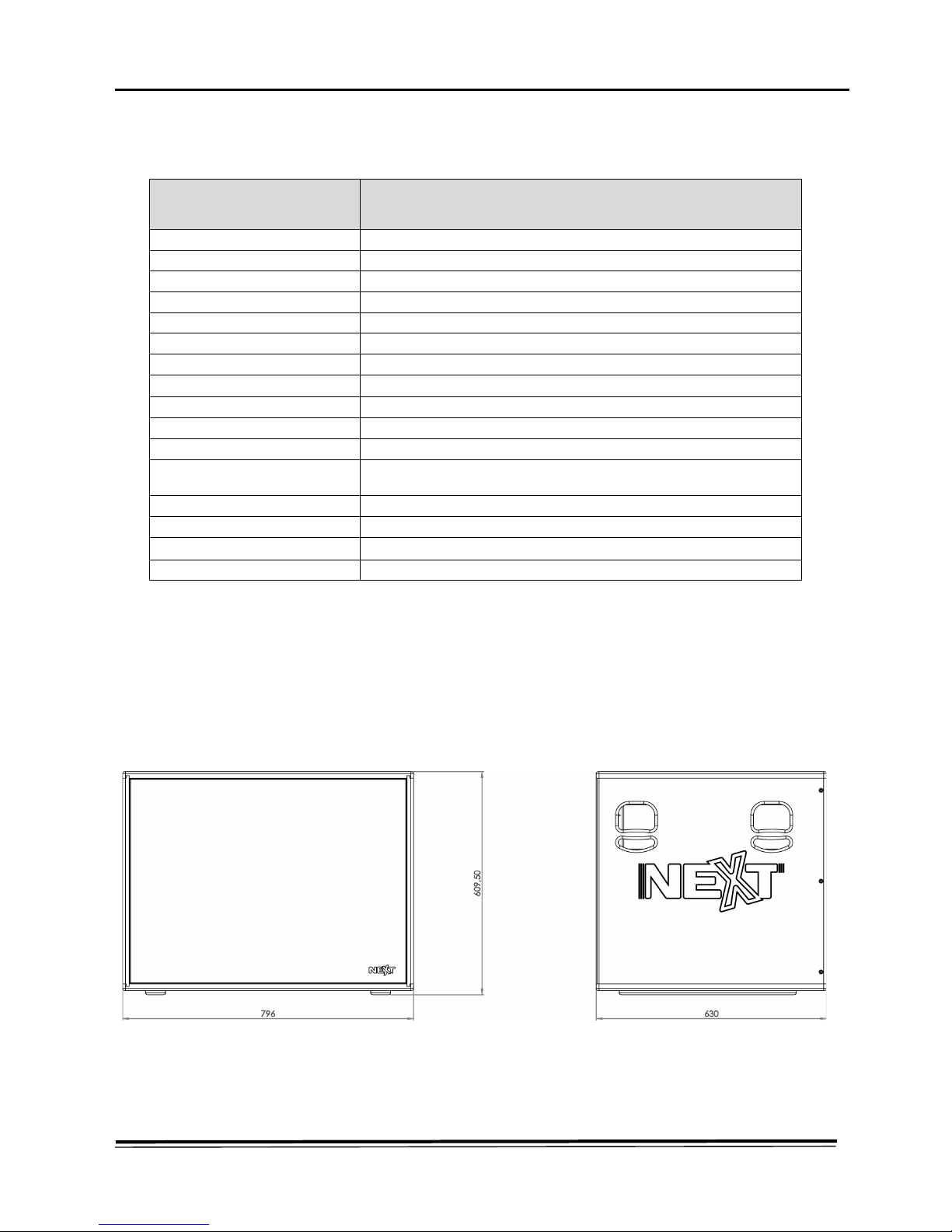

Xh18
TECHNICAL
SPECIFICATIONS
Xh18
Speaker Type
Passive Hybrid Horn Subwoofer
Frequency Response (-6dB)
38Hz – 16Hz
Low Frequency Extension (-10dB)
32Hz
Sensitivity (1W@1m)
105dB (Half-Space)
Recommended HPF.
34Hz, 18dB/oct Butterworth
Calculated Max. SPL (Cont./Peak)
139dB / 145dB (Half-Space)
Components
LF: 1 x 18” / 4” VC Long Excursion B&C Custom Speaker
Program Power
2400W
Nominal Impedance
8Ω
Recommended Amplifier
MA6000
Construction
18mm Plywood, Screwed and Glued
Finish
Black Textured Scratch Resistant Paint (also available in other colours
and finishing)
Grille
Black Perforated Steel
Connectors
2 x Neutrik NL4 (1+/1-)
Dimensions (W x H x D)
796 x 610 x 630 mm (31.34 x 24.02 x 24.8 in)
Net Weight
55.8 kg (123 lb)
Page 19
NEXT X Series - User Manual
www.next-proaudio.com
- 18 -
V201805
WARRANTY
NEXT-proaudio’s products are warranted, by NEXT-proaudio, against manufacturing defects
in materials or craftsmanship over a period of 5 years for the passive loudspeakers, and 2 years for
all other products counting from the date of original purchase. The original receipt of purchase is
mandatory for warranty validation purposes, and the product must have been bought from a NEXTproaudio authorized dealer.
The warranty can be transferred to a subsequent owner during the warranty period; however,
this cannot extend the warranty period beyond the original warranty period of five years from the
original date of purchase stated on the NEXT-proaudio’s invoice.
During the warranty period NEXT-proaudio will, at its own discretion, either repair or replace
a product which prove to be defective provided that the product is returned in its original packaging,
shipping prepaid, to an authorized NEXT-proaudio service agent or distributor.
NEXT-proaudio cannot be held responsible for defects caused by unauthorized modifications,
improper use, negligence, exposure to inclement weather conditions, act of God or accident, or any
use of this product that is not in accordance with the instructions provided by this manual and/or
NEXT-proaudio. NEXT-proaudio is not liable for consequential damages.
This warranty is exclusive and no other warranty is expressed or implied. This warranty does
not affect your statutory rights.
CONTACTS
Write us:
NEXT-proaudio
Rua da Venda Nova, 295
4435-469 Rio Tinto
Portugal
Contact us:
Tel. +351 22 489 00 75
Search our website:
www.next-proaudio.com
Follow us on:
Facebook: facebook.com/nextproaudio
Instagram: instagram.com/nextproaudio
LinkedIn: linkedin.com/company/next-proaudio
Twitter: twitter.com/next_proaudio
Youtube: youtube.com/user/NEXTmanufacturer
Loading...
