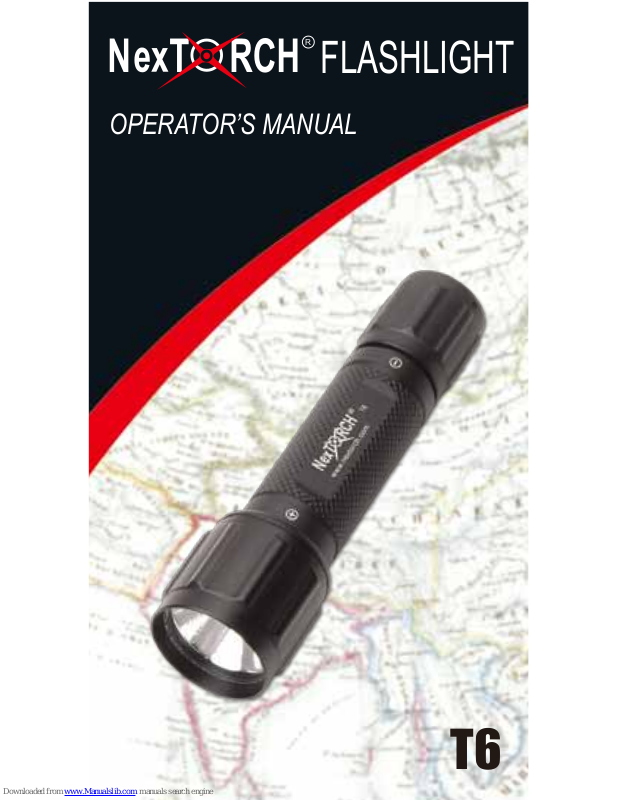

Nextorch T6 Operator's Manual

Download

OPERATOR’S MANUAL

FLASHLIGHT

Quick start guide

. . . . . . . . . . . . . . . . . .

Flashlight's structure

. . . . . . . . . . . . . . .

2,3

T6 xenon flashlight features

. . . . . . . . . . . . .

Instruction

. . . . . . . . . . . . . . . . . . . . . .

Notice and maintenance

. . . . . . . . . . . . . .

Lifetime warranty / about NT123A battery

. . . . . .

Battery safety guide

. . . . . . . . . . . . . . . . .

Accessories

. . . . . . . . . . . . . . . . . . . .

9,10

Index

CON TENTS

内容

English

…………………………………………………………………

中文版

………………………………………………………………

English

尊敬的客户，恭喜您拥有了纳丽德手电筒。它选用

最好的材料，经过科学的设计，精密的制造工艺，呈现

在您的面前。为了您能对我们的产品有全面的了解，请

仔细阅读我们为您准备的《使用手册》。

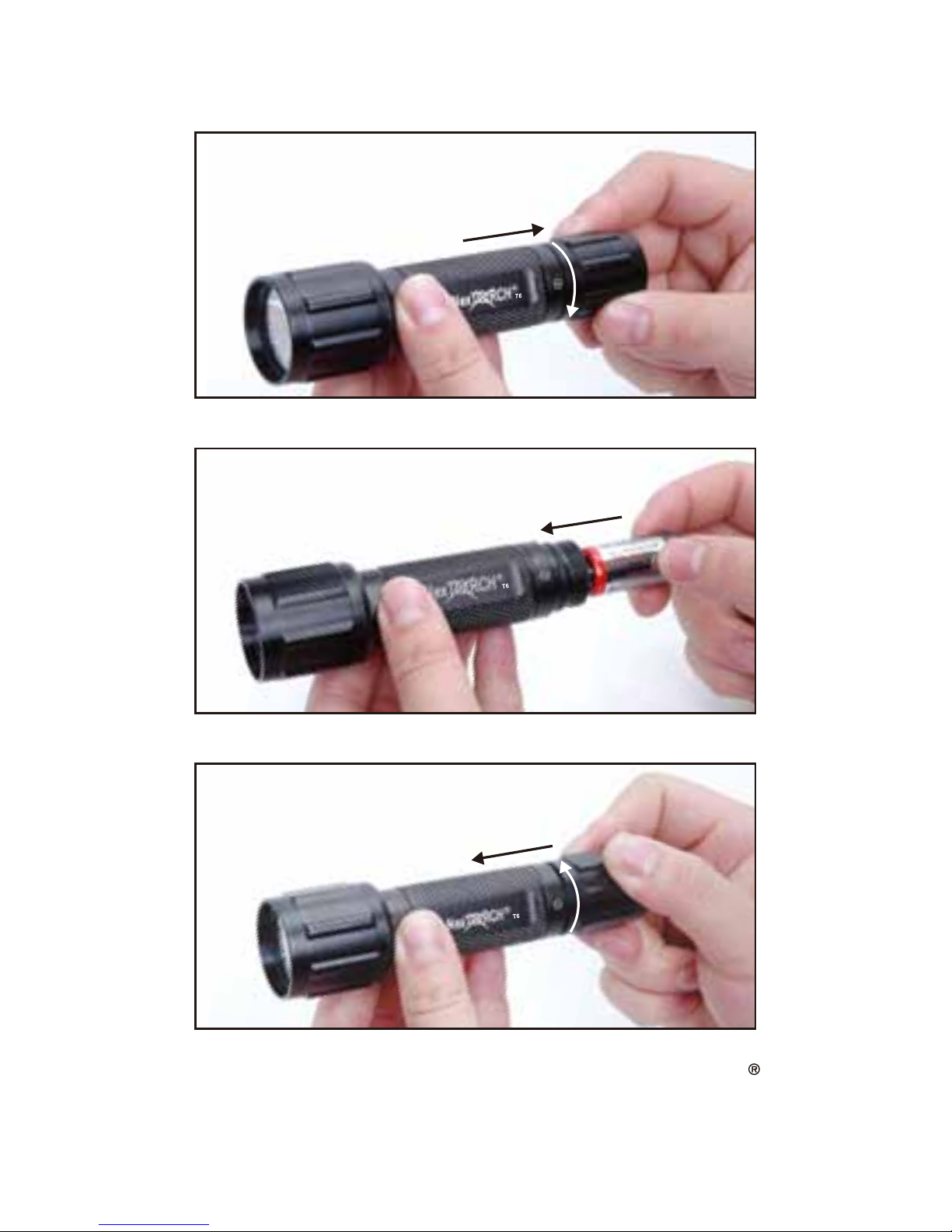

QUICK START GUIDE

Step 1: Screw off the tailcap.

Now you can enjoy the convenience and happiness that NexTORCH

brings to you.

Step 2: Insert the batteries correctly as the anode and cathode indicated on the barrel

Step 3: Screw the tailcap back to the barrel.

T 6 F l a s h l ig h t

S T R UCTU R E

E x p l o d e d V i e w

LIT HIUM BAT T E RIES

NT1 23A

XE NON L AMP

O - R I N G

O-R ING

CAU DAL PAN

B A R R E L

RUB BER TA ILCAP

METALLIC REFLECTOR

POLYCARBONATE LENS

2 3

T6 TACTICAL XENON

F L A S H L I G H T F E AT U R E S

Product Model T6

Bulb

Xenon gas-filled bi-pin bulb, max 80 Lumens

Battery Two NT123A 3V Lithium Battery

Material

Aerospace grade aluminum 6061-T6 with hard-anodized finish

Lens' Material

Runtime

Up to 60 minutes

Dimensions

Length:129mm Barrel diameter: 27mm Head Diameter: 34mm

Weight

111g (Batteries excluded)

Special Features

Compact size, click tailcap, patent anti-rolling structure, watertight structure.

Anti- scratch Polycarbonate

INSTRUCTION

BATT E RIE S IN STA LLATI O N

ON / OFF

LA M P REP L ACE MEN T

Screw off the tailcap, insert the

NT123A batteries with correct plority.

Press the rubber tailcap to switch between ON and OFF.

Remove the head by rotating the barrel until it is free of the barrel. Put the replacing lamp assembly back to the barrel and repeat the reverse steps to finish your lamp replacement.

Thank you for choosing NexTORCH

flashlight. It produces

not only brilliant, extraordinary white light, but also a lot of heat.

In case of damaging your flashlight and the things around the

flas hlight, please pay at tention to the follow ing:

Do no t put t he t he he ad of fl a shl i g ht s tr aight o n the f la t,

which w ould damage th e bulb or even cause a fire as the

hea t can't release from the flashlight.

2. Do not shine the eyes s traigh t as the powerful light could

cause a permanent injury.

3. Do not disma ntle the b ulb assemb ly.

4. Tact ica l fla sh lig ht is i nte nd ed fo r sho rt te rm us ag e a nd

should not be used for more than 15 minutes continuously.

NOT I CE

MAI N TEN ANCE

To keep your flashlight always in a perfect condition, follow

the instructions as below.

1. Clean your flashlight with a soft clean cloth ( Ne xTORCH

offers you a professional lens cleaning tool ( It em # LC 6).

Please check the accessories right after this instruction).

2. Wash the flashlight (make sure the flashlight is well screwed

on and no water can sink in) by clean water after using in

the seawater or causticity liquid, and dry it by hot air.

When the tailcap doesn't rotate smoothly, lay on some silicone

grease on the "O" ring (you can buy the silicon grease

(Item# SL6)in the outdoor shops, most of the hardware

shops or our retail shops that sell the NexTORCH

flashlights)

Please rel ease th e b attery and keep them dr y and c ool

when you wouldn't use the flashlight for a time.

NexTORCH guarantees that all products under NexTORCH brand

are free from manufacture defects. NexTORCH will repair or

replace any defective products,Please contact your local dealer

or e-mail to

info@nextorch.com.

This warranty excludes the following:

1). Failure of product due to misuse and/or lack of maintenance.

2). Internal water damage.

NexTORCH LIFETIME WARRANTY

READ THE FOLLOWING BEFORE USING

It is strongly recommend that the user takes the following precautions to avoid fire, violent rupture, personal injury or death when using the Lithium-Manganese Dioxide Cylindrical Batteries.

NT123A, NT2 Lithium Battery Safety Guide

HANDLE WITH CARE

If liquid discharged from a lithium battery comes in contact with

clothing, rinse well with water. If the

discharged liquid comes into

contact with eyes or skin, rinse immediately with water and seek

medical

attention if necessary.

DO NOT HEAT OR DISPOSE OF THEM IN A FIRE

When heated, lithium batteries may leak. When short circuited,

they may burst or combust. If

disposed of them in a fire, they

may

violently rupture, causing personal injury.

DO NOT CHARGE

Charging a lithium battery may cause swelling, over heating,

leakage, violent rupture or fire.

DO NOT FORCED DISCHARGE

Forced discharge may result in swelling, overheating, leakage,

violent rupture or fire.

DO NOT SHORT CIRCUIT

Short circuiting a lithium battery may lead to swelling, overheating,

leakage, violent rupture or fire.

DO NOT DISASSEMBLE, PERFORATE, DEFORM OR APPLY MECHANICAL PRESSURE

Disassembly or perforation of a lithium battery may lead to generation

of gas or overheating. Pressure or

deformation may lead to an

internal short circuit.

DO NOT USE WITH OTHER TYPES OF BATTERIES OR OLDER LITHIUM BATTERIES

Different types of batteries or older lithium batteries may exhibit

different voltage or capacity characteristics.

Using with a new lithium battery may cause over discharge, resulting in swelling,

overheating, leakage,

violent rupture or fire.

OBSERVE THE PROPER POLARITY

If a lithium battery is inserted backwards, the resulting polarity reversal may lead to a short circuit or over charging. This can

cause swelling, overheating, leakage, violent rupture or fire.

DO NOT SWALLOW OR TAKE INTERNALLY

Always store batteries out of the reach of children and assure that

batteries cannot be easily removed

from equipment. If lithium

batteries are swallowed, seek immediate medical attention.

STORE BATTERIES PROPERLY

Store lithium batteries in a cool, dry place out of direct sunlight.

Excessive moisture or humidity may lead

to deterioration, corrosion

and generation of combustible gas.

DO NOT SOLDER OR WELD ON THE BATTERY SURFACE DISPOSAL

Recycle used lithium batteries. Do not dispose of them in the

trash.

AC CE SS OR IES

NexTORCH

offers a full range of product accessories

suited for your flashl ight.

NT123A

LT2 111

FT32

IRF

FIR

V66

V30F

V5012

Lamp assembly

Lithium battery

Lanyard

LED upgrade assembly

Infrared filter

Express clip

Infrared filter lens

3 colors filter

Blue filter lens

Red filter lens

V2844

V4018

LC6

V1438

LT2 113

SL6

Holster

Green filter lens

Holster

Lens cleaner

Silicone grease

Express clip

T6电筒结构

. . . . . . . . . . . . . . . . . . .

12,13

T6快速安装指引

. . . . . . . . . . . . . . . . . . .

T6电筒具体参数

. . . . . . . . . . . . . . . . . . .

T6使用方法

. . . . . . . . . . . . . . . . . . . . .

T6使用注意事项及保养注意事项

. . . . . . . . . . .

关于NT123A锂锰电池及安全使用指引

. . . . . . . . .

附件

. . . . . . . . . . . . . . . . . . . . . . .

19,20

索引

T6 电筒结构

12 13

防刮树脂镜片

金属反光杯

T 6 电筒装配图

头盖

氙气灯泡

N T 1 2 3 A 锂锰电池

筒身

尾盖

按纽开关

防水圈

T6快速安装指引

第一步：拧开尾盖。

第三步：拧上尾盖。

完成以上步骤，您就可以开始使用它，享受N exTOR CH 给您带来的方便和乐趣。

第二步：放入电池，注意正确放置正负极。

T6氙气战术电筒具体参数

产品编号 T 6

灯泡

6V氙气灯泡

光束亮度 80流明

电源

NT123A 3V锂锰电池×2

材质

航天等级强化铝材6061-T6

表面处理

硬质阳极氧化-钛黑色

镜片材料

防刮树脂镜片

电池寿命持续照明60分钟

尺寸

长 129mm × 握柄 27mm （灯头直径：34mm）

重量

111g (不含电池)

产品特点

紧凑型设计,专利防滚动结构，按钮尾盖，防水结构设计

T6使用方法

电池安装

打开

灯头替换

拧开尾盖，注意电池的正负极，把 NT123A电池放入，拧上尾盖。

电筒处于关闭状态时，按动尾盖橡胶帽听见“咔吧”声表示电筒打开，重复以上步骤即关闭。

手持筒身,逆时针方向旋转头盖，直到头盖离开筒身，取出灯头并放入替换灯头，重复相反步聚，即可成功实现灯头替换。

T6使用注意事项

感谢您选择了品质卓越的NexTORCH 系列电筒。由于电

筒在工作时会散发较大的热量。为了避免使您的电筒和物品

造成损失，使用时请注意以下事项：

1. 电筒在打开状态时请不要将灯头朝下放在平面上，那样

会阻碍灯头内气体流动。使灯头内的热量无法散发出去，

从而损坏灯泡甚至造成火灾。

2. 不要将光线直射入人的眼睛，较强的光线会对眼睛造成

永久性伤害。

3. 灯头不要经常拆解，以免造成反光杯或灯泡损伤。

4. 战术灯建议连续使用时间不要超过15分钟。

5. 请不要将两节不一样的电池混合使用。

每次使用后请遵循以下几点对电筒进行必要的保养，使

其能继续为您提供高质量的服务。

1. 每次使用后请用干净的软布对电筒进行擦拭。

(NexTORCH

为您提供一个专业的镜片清洁工具，请参考

后面的附件说明)。

2. 当电筒在沾染海水或腐蚀性液体时请及时用清水清洗，并

用电吹风吹干。

3. 当灯头及尾盖拧动不畅时，请在接口处涂少许硅脂。

（您可以到专业的户外店、五金店购买到此类产品，或使

用由NexTORCH

为您准备的专业硅脂，请参考后面的附件

说明）。

4. 电筒在不使用时请将电池取出，放在阴凉处保存。

T6保养注意事项

重要提示

由于电池使用不当，有可能引起火灾、爆炸等危险，以致造成灾难。强烈建议使用前仔细阅读以下安全使用指引。

NT123A、NT2锂锰电池安全使用指引

漏液处理

若电池发生漏液并沾染身体或衣物，请立即用清水冲洗。必要时请寻求医院帮助。

请勿将电池加热或投入火中

电池加热后会发生漏液，引起短路，轻则燃烧，重则爆炸。若将电池投入火中，则会引起爆炸，造成

人员伤亡。

请勿充电

NT123A,N T 2锂锰电池为一次性电池，不可进行充电。强行充电会使电池过热、泄露，甚至爆炸、引起火灾。

请勿过放

当电池耗尽前（氙气灯光色偏红，LED在1米内无法看清楚被照物体），请立即更换电池。过放会使电池过热、泄露，甚至爆炸、引起火灾。

请勿短路

电池的正负极短路会使电池过热、泄漏，甚至爆炸、引起火灾。

请勿拆解、毁坏电池

电池被拆解后会释放对人体有害的气体，或者造成电池过热。毁坏电池则可能引起电池短路。

新电池请勿与旧电池或不同类型的电池混用

旧电池或不同类型的电池具有不同的电性能，与新电池混用会发生过放

电，使电池过热、泄露，甚至爆

炸、引起火灾。

正确放置电池正负极

正负极反向会引起短路或超负荷，使电池过热、泄露，甚至爆炸、引起

火灾。

请勿吞食电池或放入口中

电池不可食用，慎防小童吞食电池或放入口中。万一吞食电池，请立即寻

求医院救助。

正确存放电池

若长时间不使用，请将电池从电筒取出，放置于阴凉干爽处，避免太阳

直射或潮湿环境。

NT123A锂锰电池是为NexTORCH 系列电筒专门设计制作的。它具有优良的安全性能。外壳

采用铝合金，达到电池轻量化；1400毫安时高容量锂电，比普通 CR123 A容量增加了10%；电压为

3.0伏（标称电压），比一般的CR123A锂电池放电时间；延长了20%.

附件

为了满足您对电筒的不同需求，并使电筒得到全面的维护，我们设计了一系列的配件。请根据您的个人需要进行选择，如需详细了解附件参数请登陆我们的网站 www.ne xtorch.com。

NT123A

LT2 111

FT32

IRF

FIR

V66

V30F

V5012

灯头组

锂锰电池

手绳

LED灯头组

红外滤镜

8字扣

红外滤镜镜片

红绿蓝光滤镜

蓝光滤镜镜片

红光滤镜镜片

V2844

V4018

LC6

V1438

LT2 113

SL6

电筒套

绿光滤镜镜片

电筒套

擦镜布

硅油

8字扣
