Page 1

VIDEO STORAGE

Portable Storage for Professional Video Cameras

User Guide

Version 03/11

NextoDI Co., Ltd.

www.nextodi.com

Page 2

Thank you for purchasing this NEXTO VIDEO STORAGE(NVS1501) product. NVS1501 product allows videographers to save footages from camcorders to a hard drive, without using a computer. The camcorder can then be used to record new data. NextoDI has optimized performance so that data transfers from memory card to NVS1501 more quickly than to other storage devices. Data stored on NVS1501 can later be copied to a computer. NVS1501 supports professional video cameras from various manufacturers, and memory formats such as Compact Flash (CF), Microdrive (MD), SDHC, SDXC and Memory Stick(MS) Card. Please read this manual before using the product. Follow operating instructions carefully to avoid any damage to the product, or any personal injury. This guide assumes that your NVS1501 unit contains a properly formatted hard disk and a charged battery. If this is not the case, refer to the User Manual for instructions on formatting a hard disk and charging the battery.

Important safety notice

● Do not drop, jar, bump, shock, or expose NVS1501 to severe vibration during video preview or while data is being transferred.

● Do not use near open flames (candles, stoves, grills, fires,) or sparks

(fireworks, welding torches.).

● Backup your data. Under no conditions is NextoDI Co., Ltd. liable for loss of or

damage to a computer; or loss of, or damage to, a program, records, or data; or any consequential or incidental damages.

For more inquiries, contact or consult our technical advisory service: http://www.nextodi.com/support/en_qna.php

"NextoDI", "NEXTO VIDEO STORAGE", "NVS1501" and "X-Copy" are registered trademark or trademarks of NextoDI Co., Ltd. "Windows" is a trademark or registered trademarks of U.S. Microsoft Corporation in the USA and other countries. "Mac OS" is a trademark of Apple Inc. in the USA and other countries. All other trademarks are the property of their respective owners.

All company names and product designations contained herein are trademarks of the respective owners. All rights are reserved.

* NextoDI Co., Ltd. reserves the right to make improvements and/or changes to the product and programs described in this User's Guide at any time without notice.

Page 3



Table of Contents

1. PRODUCT DESCRIPTION

2. CONTENTS OF THE NEXTO VIDEO STORAGE PRO

3. SYMBOLS USED IN THIS DOCUMENT

4. SAFETY INSTRUCTIONS

5. DEVICE DIAGRAM

6. ABOUT THE RECHARGEABLE BATTERY

7. CHARGING THE RECHARGEABLE BATTERY

8. NVS1501 INTERFACE

9. FORMATTING THE HARD DRIVE

10. USING THE NVS1501 AS A HARD DRIVE

11. DATA BACKUP(COPY) AND VERIFY

12. VIDEO/PHOTO PREVIEW

13. USING AN EXTERNAL HARD DRIVE

14. MAKING TWO COPIES IN A SINGLE BACKUP(MULTI-COPY)

15. MAKING A SECONDARY COPY(SYNC)

...................................................................

......................

.............................................

....................................................................

..............................................................................

........................................

.................................

.....................................................................

...................................................

...................................

..............................................

.............................................................

............................................

.................................

16. BAD SECTOR RECOVREY

17. ADVANCED FUNCTIONS

CAPACITY CHECK

SELF TEST BUZZER

......................................................................................

..........................................................................................

FIRMWARE UPDATE DELETE TMP FOLDER LANGUAGE SETTING

18. BURNING A BLU-RAY DISC

19. EXAMPLES OF BASIC FUNCTIONS

20. AUTO-GENERATION OF INDEX FILE

21. TROUBLESHOOTING TIPS

22. BATTERY DISPOSAL

..............................................................

................................................................

............................................................................

.....................................................................

..................................................................

...................................................................

............................................................

...............................................

............................................

............................................................

........................................................................

35 37 38 39 43 43 45 46 47 51 54 56 59

1 4 5 5 7 8

9 10 13 15 18 21 29

31 33

Page 4

1. Product Description

The NEXTO VIDEO STORAGE (hereinafter NVS1501) includes a 2.5”Serial ATA (SATA) hard drive and a Li-Poly battery. The NVS1501 provides the following functions:

1. Memory card backup

The NVS1501 contains a 2.5”SATA hard drive and a Li-Poly rechargeable battery. The NVS1501 can copy the contents of a memory card to the internal hard drive without a PC--even in the field where no electric power source is available. You can copy through the CF/MD card slot and SDHC/SDXC/MS card slot on the top of the device. For IKEGAMI GFPAK, you can copy through the USB_host port on the bottom of the NVS1501. For complete backup information, refer to Chapter 11 of this manual.

6. Button operation

All of the functions of the NVS1501 are controlled by two buttons, one for power (On/Off) and the other for function control (control key). The power button can also be used as a function key in some instances. For details on Power (On/Off) and control key operation, see chapter 8.

7. Bad Sector Recovery

When a video file stored in the NVS1501 cannot be copied or edited on a computer, the problem may be a bad sector on the hard drive. The NVS1501 has a sector recovery function which may recover the video file. For details on Sector recovery, see chapter 16.

2. Video/Photo Preview

The NVS1501 can display video footage taken with professional video cameras on a color TFT LCD. The NVS1501 provides a “best effort” preview of the video clip-that is, the resolution and speed may be lower than on a regular device. For details on Video Preview, see chapter 12.

8. Internal/External rechargeable battery

The NVS1501 contains an internal Li-Poly battery that enables the NVS1501 to be used without the power adapter. The power adapter is used to charge the internal battery, supplying power to the main unit. The external battery can be used to charge the internal battery. For details on Charging the Internal Battery, see chapter 7.

3. Multi-Copy

NVS1501 can copy the contents of a memory card to the internal hard drive and an USB external hard drive at the same time, allowing you to make two copies in a single operation using this function. For details of the Multi-Copy feature, see chapter 14.

4. Sync

The NVS1501 can synchronize the contents of a folder with the folder on an USB external hard drive. This allows you to make a secondary copy of the backup folder to an USB external hard drive without using a computer. For details of the Sync function, see chapter 15.

5. Computer connection

The NVS1501 can be connected via USB2.0, FireWire 800 (IEEE 1394b) to a corresponding port on a computer, in order to copy data. For details of Computer Connections, see chapter 10.

PRODUCT DESCRIPTION PRODUCT DESCRIPTION

9. Internal hard drive

The NVS1501 offers these functions for the internal hard drive:

[Hard drive format] [Hard drive capacity check] [Hard drive self test]

For details see chapter 9 and chapter 17.

10. Firmware upgrade

When NextoDI develops new functionality—or offers support for new video formats--firmware is provided to users through the website’s download page. You can download the new firmware to a memory card or the internal hard drive of the NVS1501. You can then upgrade your NVS1501 using the firmware update function of the NVS1501. For details, see chapter 17.

Page 5

2. Contents of the NEXTO VIDEO STORAGE

11. Language selection

The NVS1501 supports various languages. You can select a language from the menu of the NVS1501. For details, see chapter 17.

12. Buzzer on/off

The NVS1501 uses a buzzer to note the results of various operations. A user can turn the buzzer on or off via the menu. For details, see chapter 17.

13. Auto-generation of Index File

After a memory card has been copied, the NVS1501 generates HTML files containing metadata and thumbnails of the video footage. For details, see chapter 20.

14. Burning Blu-ray Disc

Users can copy video files that are stored in the NVS1501 to a Blu-ray disc using a USB Blu-ray driver. After copying the footage, the NVS1501 will support video preview from the Blu-ray Disc. For details, see chapter 18.

1. Main Package

③

145.0 GB

XCopy Ready

Menu Off

⑥

④

⑦

①

⑤

②

① Main storage unit

② Shock protective rubber jacket

③ AC power adapter (wall plug; 12V/1A)

④ AA battery holder for recharging internal Li-Poly battery

⑤ Car Charger Cable for recharging internal battery

⑥ USB cable for computer connection or connecting external USB hard drive

and GFPAK

⑦ FireWire 800 (IEEE 1394b) cable for computer connection

⑧ User’s Guide

⑧

PRODUCT DESCRIPTION CONTENTS OF THE NEXTO VIDEO STORAGE

Page 6

3. Symbols Used in This Document

Warning

Caution

Reference

The flash icon in a triangle is used to alert you to personal injury hazards such as electric shock

An exclamation mark in a triangle indicates important instructions in this operating manual which must be observed.

The "hand" icon gives you special tips and notes on the operation.

4. Safety Instructions

Caution

In case of any damage due to failure to observe these operating instructions, the warranty is voided. NextoDI does not assume liability for consequential damages. Nor do we assume liability for damage to property or personal injury caused by improper use or failure to observe the safety instructions. The warranty is void in any such case. The following safety instructions and warnings are not only to protect you, but also to protect the device. Please read the following warnings:

Warning

● Unauthorized conversion and/or modification of the product is

forbidden for safety reasons.

● Never open the product. This device is not user serviceable.

● Damaging the Li-Poly rechargeable may result in explosion or fire!

● Maintenance, or repairs may only be carried out by authorized

repair center.

● The AC power adapter unit is intended for use in dry conditions to avoid electric shock!

Warning

● The case of the hard disk must not get damp or wet.

Protect the device from humidity and water, from sun, excessive heat (>113°F) or cold (<32ºF), dust and dirt.

● When the product is brought from a cold place into a warm room,

condensation may form. This could damage the product. Always let the product get to room temperature before use or before

connecting the AC power adapter unit. This can take several hours.

● Do not use in tropical climate conditions

● The AC power adapter unit complies with safety class II. As a voltage

source only a proper power socket of the public power supply system

may be used. Note the input voltage/frequency imprinted on the AC Adapter. It must correspond to the voltage/frequency of the power outlet. The AC power adapter is equipped with an input voltage range of 100 ~ 240V, 50/60Hz. Adapters may be necessary for use in countries other than the US.

● The product is not a toy and should be kept out of reach of children!

● Do not place liquid near the product. Liquid could get inside

the housing and cause a fire or electric shock. In case of fire

damage or short circuit, de-energize the respective socket (e.g. turn off circuit breaker) and only then pull the AC power adapter unit from the socket. Do not attempt to use the product!

Take it to your dealer for repair immediately.

● Never touch the AC power adapter unit when your hands are damp

or wet.

● In industrial facilities, safety regulations for electrical equipment

and facilities must be observed. If the product is used at schools,

training facilities, or do-it-yourself/hobby shops, it should not be

handled unless supervised by trained, responsible personnel.

● Do not drop NVS1501 device.

Caution

The product must not get damp or wet. This product is not a toy. It contains fragile and swallowable glass parts, small parts, and a rechargeable battery. Any use other than that described above may damage the product. Read these operating instructions thoroughly and carefully. The instructions contain important information for installation, operation, and handling. Take note of all safety instructions.

SYMBOLS USED IN THIS DOCUMENT SYMBOLS USED IN THIS DOCUMENT

Page 7

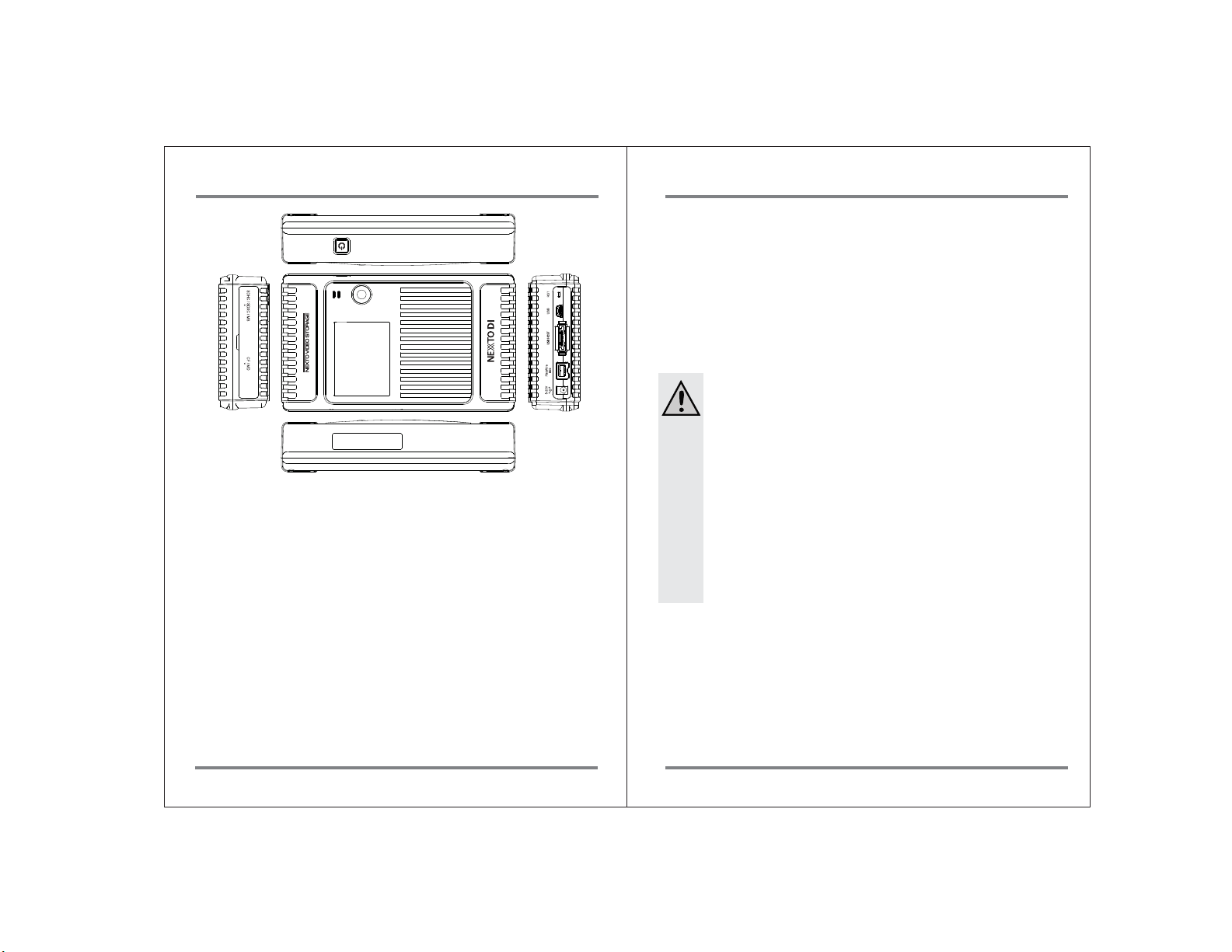

5. Device Diagram

⑧

⑦

⑨

⑧

① "DC IN" slot for AC power adapter unit (wall plug; 5~25V).

② Connector " Firewire 800 (IEEE 1394b)" to connect to the computer with max

800Mbps speed.

③ USB Host slot to connect USB external hard drive or IKEGAMI GFPAK or USB Blu-ray driver.

④ "USB” slot for USB2.0 device connection to a computer

⑤ Recessed Reset key, to be pressed with a tooth pick or similar tool;

switches off NVS1501 in the event of a hardware or software malfunction.

⑥ LCD Display

⑦ Control key. Controls up/down/left/right/select of cursor when power is on.

⑧ Power key. Controls power on/off and selecting command when power is on.

⑨ Compact Flash slot

⑩ 3-in-1 connector for SDHC/SDXC/MS

⑥

6. About the Rechargeable Battery

A "Li-Poly" (lithium-polymer) rechargeable battery is integrated into the NVS1501. This rechargeable battery does not have the so-called "memory effect"-the rechargeable battery can be charged whenever you want. Furthermore, it has a higher energy content than conventional NiCd and NiMH rechargeable batteries. Note these important instructions when handling the Li-Poly rechargeable battery.

⑤

④

③

②

①

The rechargeable battery can be recharged 400 times. If the battery operation time gets shorter, it may be time to replace the battery. Consult your authorized NEXTODI dealer to replace the internal battery.

Caution

● Never damage the rechargeable battery--do not remove it from

the NVS1501. Consult the chapter on "Battery Disposal". Damaging the wrapping of the rechargeable battery might cause an explosion or fire.

● Never short circuit the contacts of the rechargeable battery. Never

touch the connections or electrical components inside the NVS1501 with metal objects.

● Charge the rechargeable battery regularly, even if you do not use

the product. The NVS1501 needs some "current" (a small quantity) at all times. Due to the Li-Poly rechargeable battery technology, it is not necessary to discharge the battery before recharging. Recharge the battery completely, about once a month. The device will be ready for use at any time.

DEVICE DIAGRAM ABOUT THE RECHARGEABLE BATTERY

Page 8

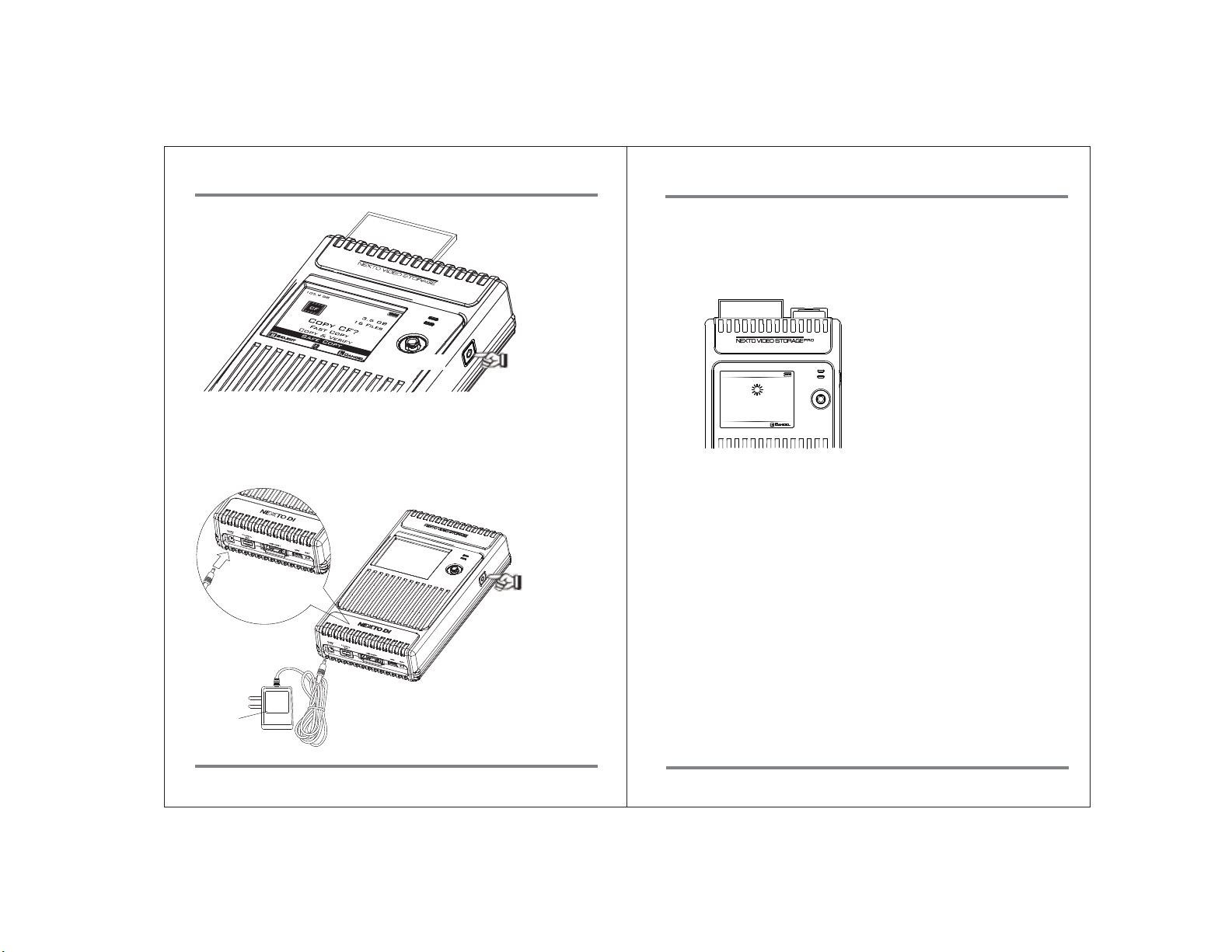

7. Charging the Rechargeable Battery

1. Internal battery

The battery can be charged using the AC power adapter unit delivered with this product.

① Turn off NVS1501. ② Connect the charger’s wall plug to the NVS’s "DC IN" slot. ③ Plug the AC power adapter unit into a wall socket. ④ The LED above the Control key shows red during the charging. ⑤ When the battery is charged, the red LED turns off. ⑥ If there is an error when charging, the LED blinks. If this happens, unplug the AC adapter unit and plug it in again.

Users can charge the NVS1501 via the USB/FireWire 800 (IEEE 1394b) cable, or the AA battery holder.

With a completely empty rechargeable battery, the charging procedure lasts approximately 4 hours using the AC power adapter, or the FireWire 800 (IEEE 1394b) cable. With the USB cable, charging takes about 7 hours. With the AA battery holder, charging takes about 10 hours. An AA battery pack charges about 40% of the internal battery capacity.

8. NVS1501 Interface

1. Turning NVS1501 on/off

Press the power key on the right side of device for more than 2sec in order to switch NVS1501 on. The power up logo and firmware version is shown on the LCD. When you see the logo on the LCD screen, release the button. Otherwise, the NVS1501

Ver 1.0

NEXTO VIDEO STORAGE pro

145.0 GB

XCopy Ready

will automatically power down.

After checking the system, the NVS1501 goes into [XCopy ready] mode.

You can copy a memory card in this mode.

Reference

● You must turn off the NVS1501 in order to charge the unit.

● The NVS1501 can be charged via USB without using the AC power adapter

included in the box. A high powered USB connection is needed, i.e. a USB connection with its own power supply, such as the USB port of a computer or a USB hub with a power unit.

● If the NVS1501 is operated with a notebook, you must always use the AC

power adapter unit to charge the NVS1501. Notebooks may not deliver the necessary amount of current via USB

● The NVS1501 will operate for about two hours with a fully charged internal

battery.

● When connected to a computer using FireWire 800 (IEEE 1394b) or USB,

the NVS1501 draws power from the computer, not the internal battery.

● If the NVS1501’s battery is completely discharged, the performance of

the battery may be degraded. It is recommended that the NVS1501’s battery be recharged before the battery gauge reaches the empty level.

● See Chapter 8 for more information on the battery gauge.

Menu Off

102.3 GB

Power Off

The NVS1501 turns off automatically after about 50 seconds if you do not use it. When the (L) Off control option appears on the LCD, the NVS1501 can be powered off by pressing down on the control key or power key for more than 2 seconds.

Reference

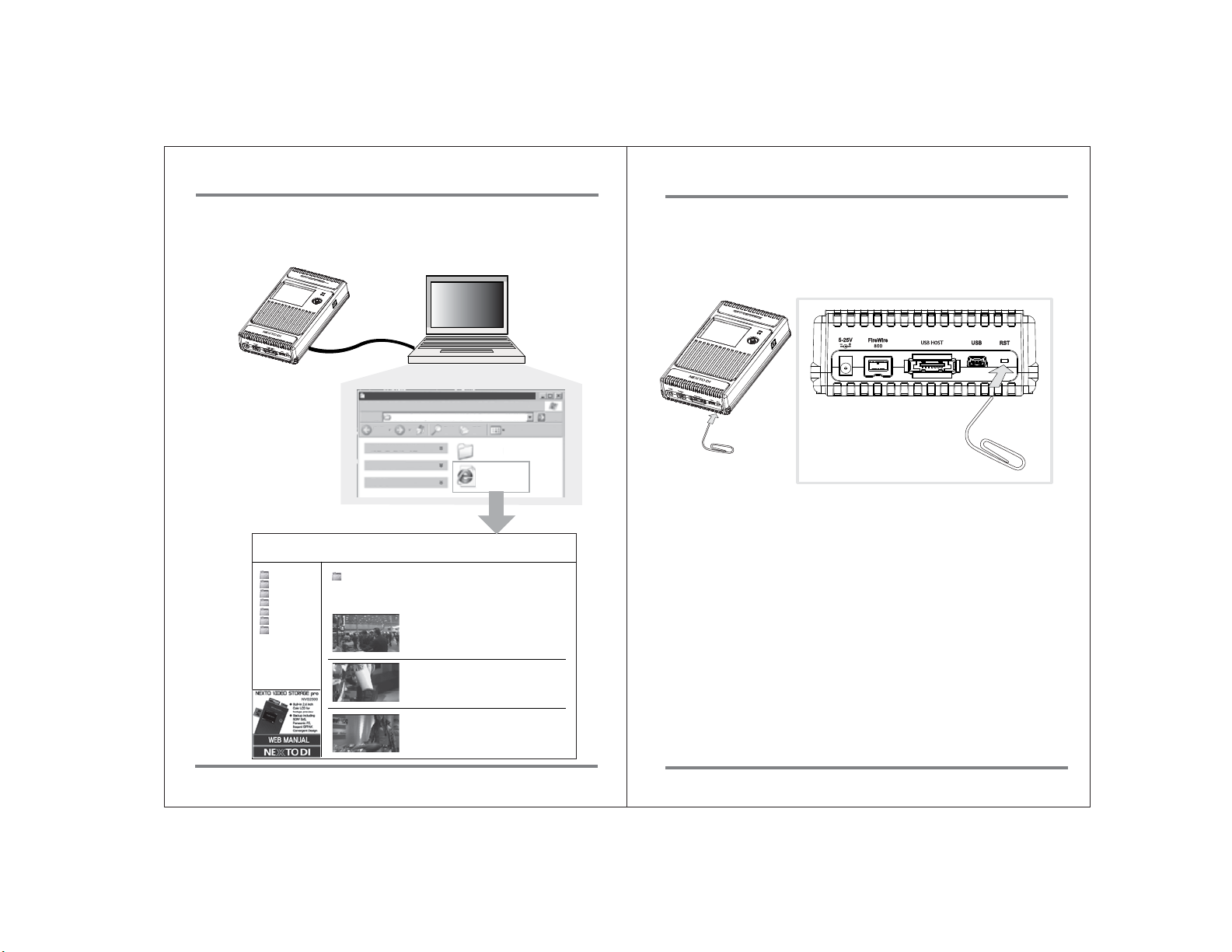

● The NVS1501 can be reset via the recessed RESET key (see chapter 5 and

chapter 22). This will also turn the power off.

Caution

● Car charger cable should be used only for charging the internal

(or external) battery.

CHARGING THE RECHARGEABLE BATTERY NVS1501 INTERFACE

Page 9

2. Key operation

The NVS1501 is operated by a single control key which can be used in five different ways. The display shows you the “S” (Short) or “L” (Long) symbol as a means to invoke the desired function.

Symbols

▲▼◀▶

If the control key is not working: If the control key is malfunctioning, the menu sub-functions cannot be used. However, functions such as copy and verify can be controlled through the power key. The user could thus rely on the power key—instead of the control key—to select the desired function from the menu.

Press once and release immediately.

Press and hold the key for more than two seconds.

Push the key in the appropriate direction. Up/down/left/right movements are supported. Pushing and Holding the key in the up or down direction, results in repeated executions of the operation.

Operation

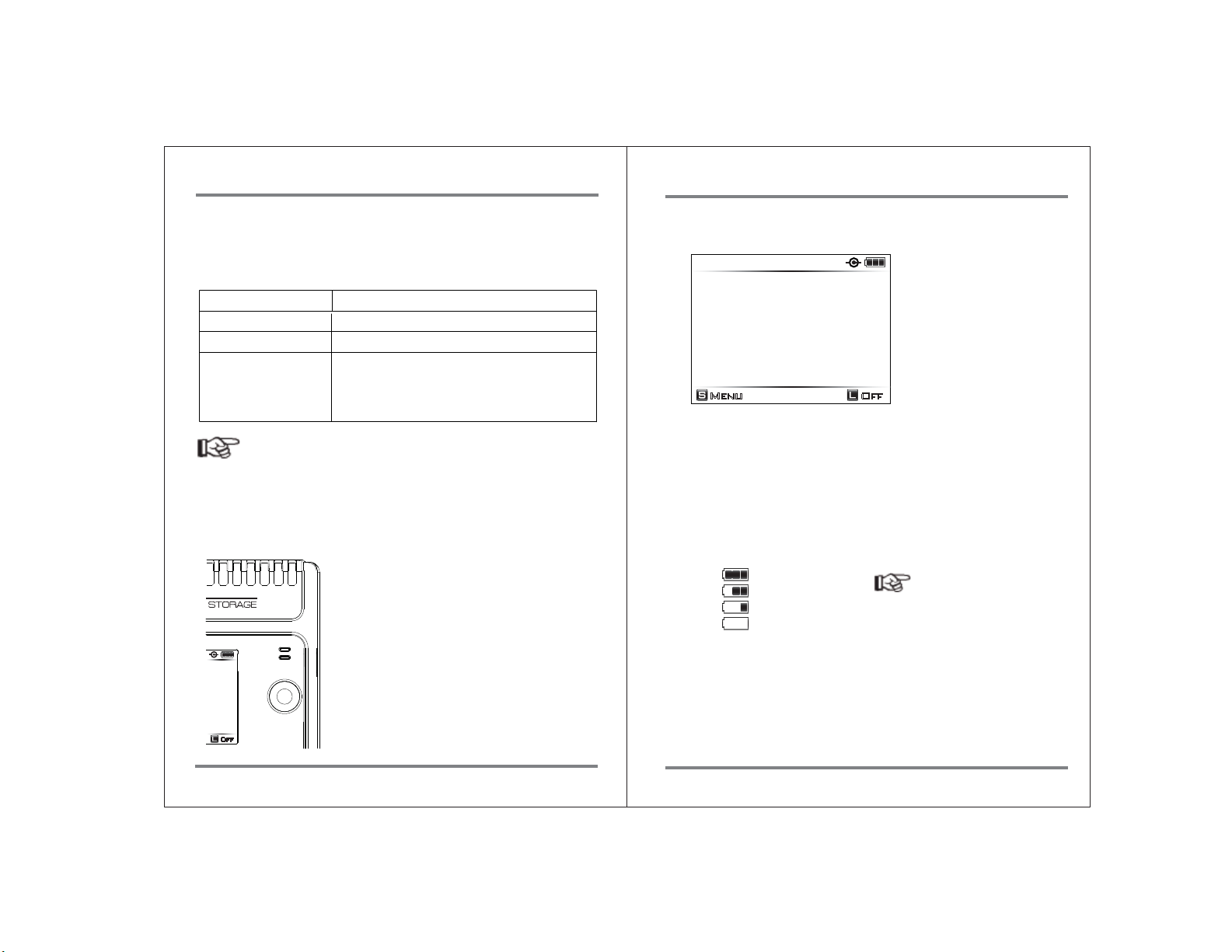

3. The LED indicator

① Red indicates battery is being charged. Green indicates “power on”.

② Blinking red indicates that a data transfer is occurring.

LCD

Off

① ②

Control

Button

4. The LCD Display

① ②

145.0 GB

XCopy Ready

③

Menu Off

④

① Remaining capacity of the internal hard disk. If the capacity of the internal hard disk is uncertain, the display will be grayed out. A capacity check will be performed automatically during power on or power off. The capacity check can also be activated from the menu. If an external hard drive is connected to the NVS1501, the capacity of external hard drive will be displayed next to the capacity of the internal hard drive.

② Remaining capacity of the rechargeable battery The battery capacity is displayed four ways: (3→2→1→empty) by the battery gauge.

③ Current status of the device.

④ Available functions for the current screen. The display varies depending on

the function in use.

(Full): 80% ~ 100%

Gauge): 30% ~ 80%

Gauge): 5% ~ 30%

(Empty): Under 5%

Reference

● Once the capacity counter has

decreased, it will not increase until fully charged

NVS1501 INTERFACE

Page 10

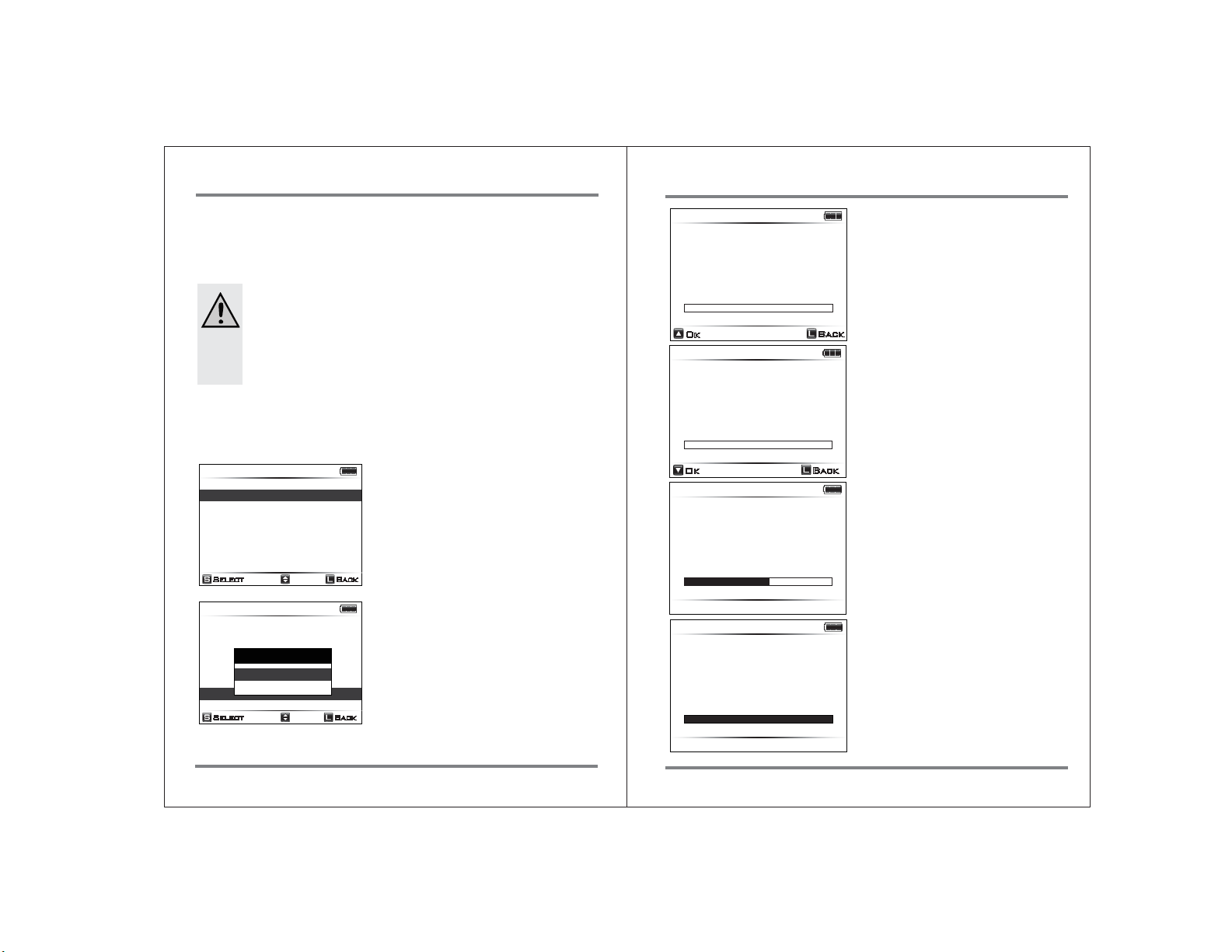

9. Formatting the Hard Drive

The hard disk in the NVS1501 should already be formatted with the "FAT32" or "exFAT" file system. Only one (or the first) partition can be used. Do not attempt to format the NVS1501 disk with a computer. Use only the format function on the NVS1501. This will allow the hard disk to be read by either the Windows or Mac operating systems.

Caution

The NVS1501 can work only with one partition in the file format "FAT32" or "exFAT". Therefore, NVS1501 offers users the function for formatting the hard disk in the "FAT32 file system" or "exFAT file system". If you using SDXC card then NVS1501 should be formatted with the "exFAT" file system.

To Format a New Hard Disk

The NVS1501 must not be connected with a computer via USB or FireWire 800 (IEEE 1394b). Remove any memory card or USB device.

149.0 GB

Preview

HDD Management

SectprRecpvery

Buzzer On Index AutoGen. On Sync Language Firmware Update

Select

To re-partition/format the hard disk, press the control key once at the [XCopy Ready] mode to get to the menu ("S-Menu"). Move the highlighted cursor to the [HDD Management] menu by pushing the control key downward. Press the control key once to select [HDD Management].

Back

149.0 GB

HDD Format

All data in HDD

will be deleted

Format HDD ?

149.0 GB

HDD Format

All data in HDD

will be deleted

Format HDD ?

149.0 GB

HDD Format

Formatting

Confirm the selection by pushing the control key upward. You can cancel the operation by pressing and holding the control key or power key.

Note: With Windows XP, hard disks and partitions are formatted (with a size of more than 32GB) only with the file system "NTFS"; the "FAT32" option is no longer

Back

available. For MAC OS, hard drives are formatted with the file system HFS+ (MAC OS Extended). These formats are incompatible with the NVS1501.

Then you can repartition and reformat the hard disk; to confirm, push the control key downward. All data on the hard disk will be lost!

You can cancel the operation by pressing

Back

and holding the control key or power key.

The NVS1501 indicates the progress of the formatting operation.

149.0 GB

HDD Management

Format

HDD Info Self Test

FAT32

TMP Folders

exFAT

Format

Select Back

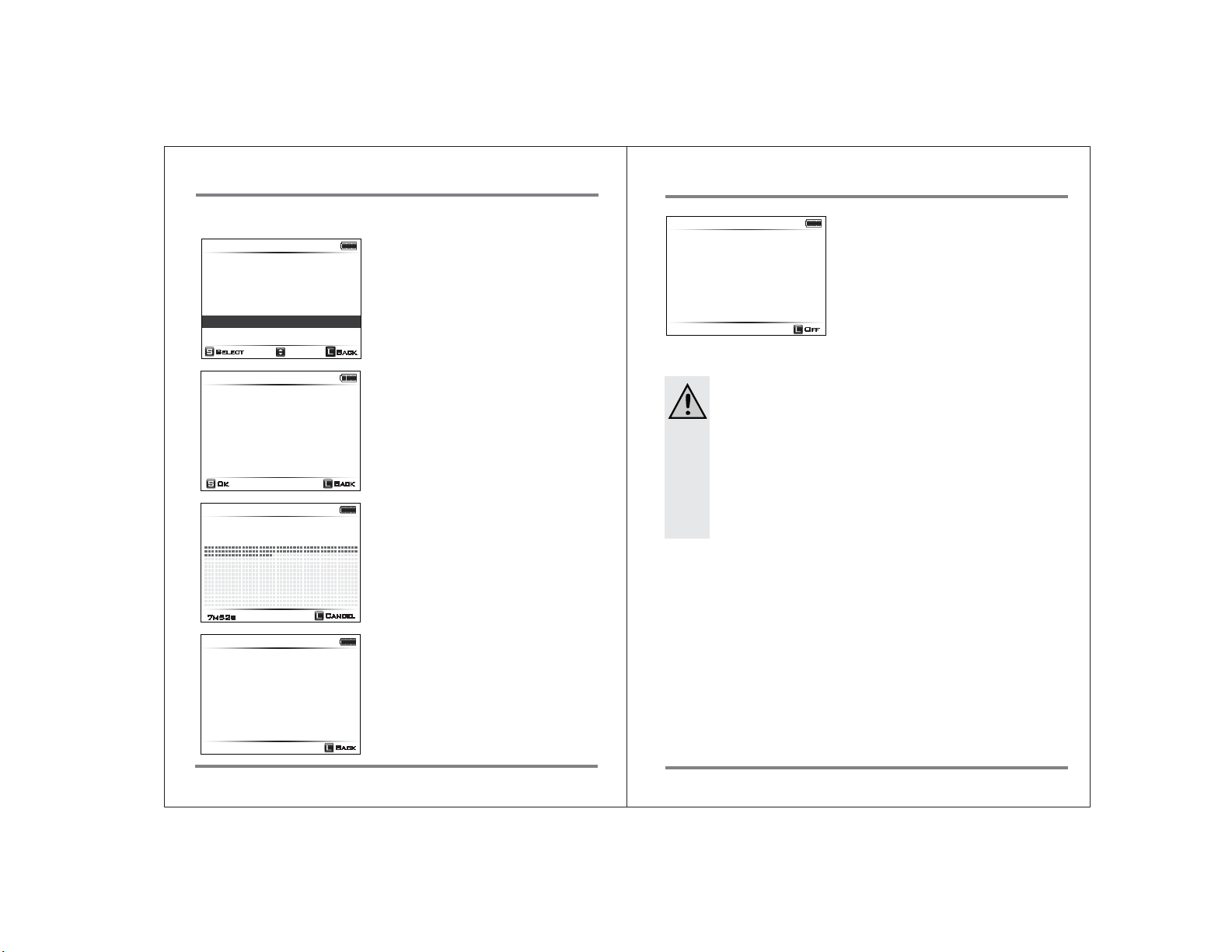

FORMAT TING THE HARD DRIVE

Move the highlighted cursor to the [Format] menu option with the control key. Press the control key once to select [Format]. Select [FAT32] or [exFAT] and briefly press the control key [S] to move to the next step.

149.0 GB

HDD Format

Completed

When the formatting is completed you are ready to copy data to the hard disk.

FORMAT TING THE HARD DRIVE

Page 11

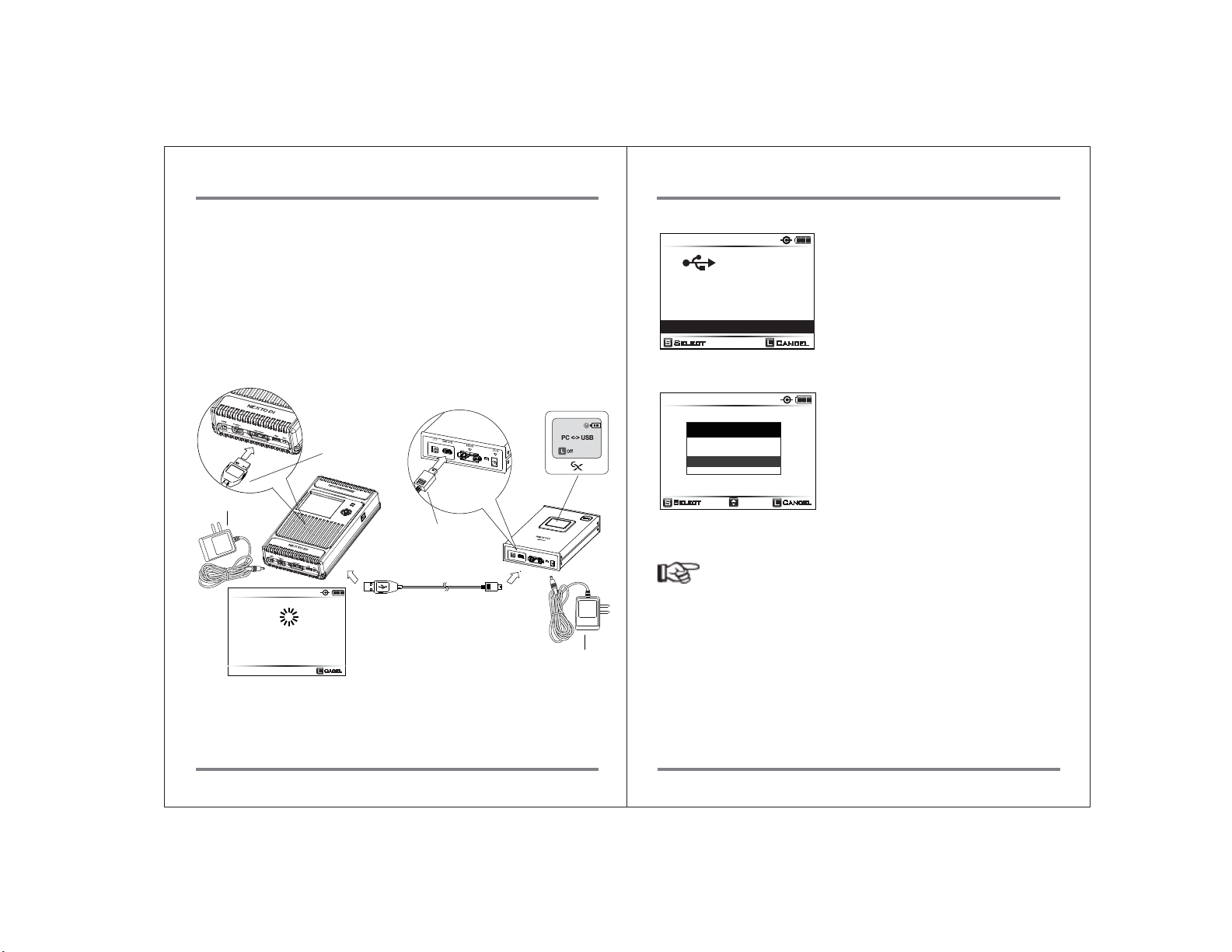

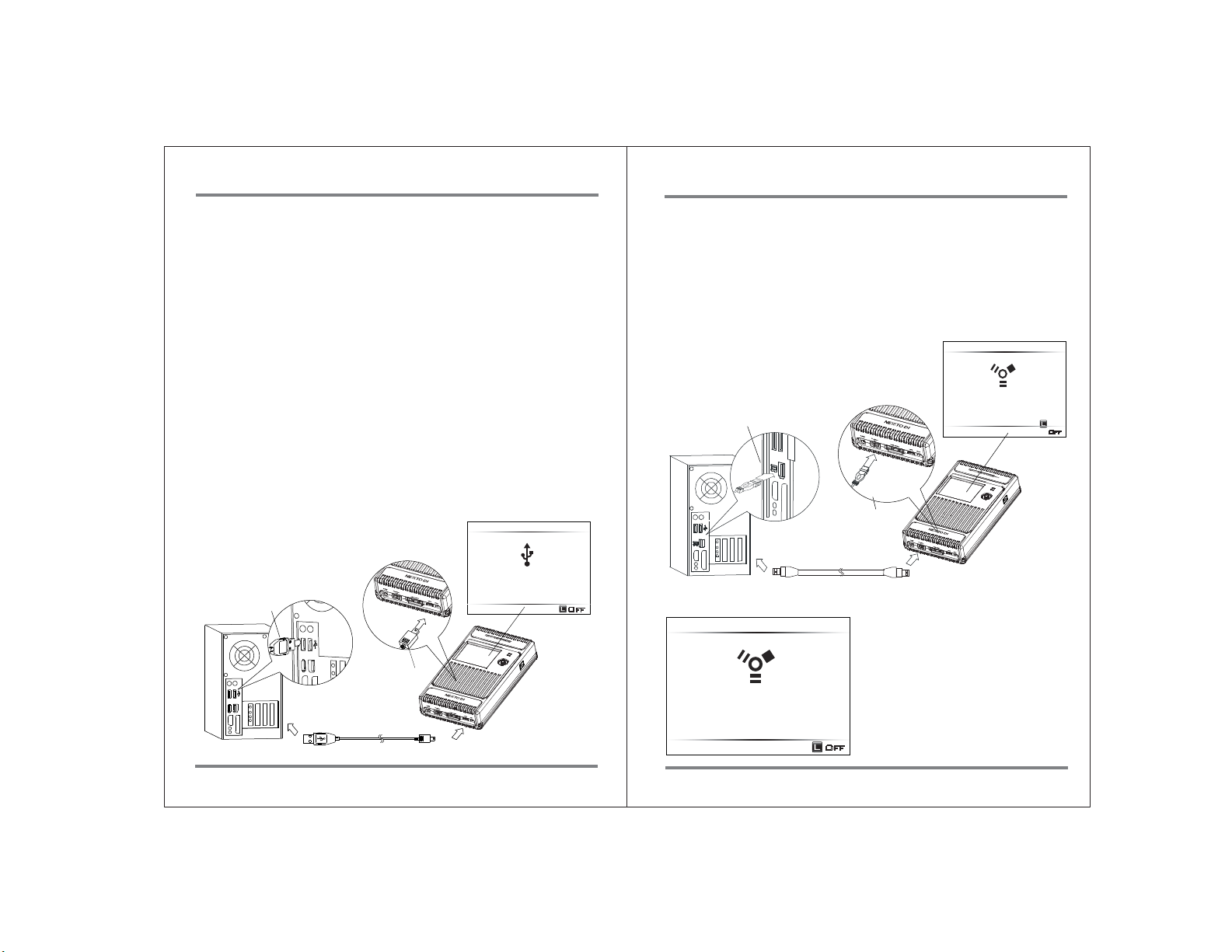

10. Using the NVS1501 as a Hard Drive

The NVS1501 can be connected to your computer for use as an external hard disk. Two connection methods are supported.

1. Connect to the computer’s USB2.0 slot via the NVS1501 "USB slot" and the USB cable.

2. Connect to the computer’s Firewire 800 (IEEE 1394b) slot via the NVS1501 "Firewire 800 (IEEE 1394b) slot" and the Firewire 800 (IEEE 1394b) cable.

Device drivers for the NVS1501 are included in the Microsoft Windows 7, Vista, ME, XP and 2000 operating systems. Drivers for Windows 98 systems can be downloaded from the NextoDI website. To download drivers, go to http://www.nextodi.com/support http://www.nextodiusa.com/support.htm When you have successfully connected the NVS1501 to your computer, the contents of the NVS1501 hard disk will appear in Windows File Explorer.

1. Connect via USB

① Turn your computer on. Wait until the operating system is completely booted. ② Turn your NVS1501 on. ③ Connect the NVS1501 "USB" slot via the USB cable with a free USB2.0 port

on your computer. A USB1.1 port can also be used.

④ Check the "PC Connection" on the NVS1501’s LCD display. ⑤ If your computer detects the NVS1501 correctly,

a new drive named [NEXTODI] will appear in the “My Computer” display.

PC Connection

USB(Standard-A)

USB(mini-B)

Off

2. Connect via Firewire 800 (IEEE 1394b)

① Turn your computer on. Wait until the operating system is completely booted. ② Turn your NVS1501 on. ③ Connect the NVS1501 "Firewire 800 (IEEE 1394b)" slot via the Firewire 800

(IEEE 1394b) cable with a free Firewire 800 (IEEE 1394b) port on your computer.

④ Check the "PC Connection" on the NVS1501’s LCD display. ⑤ If your computer detects the NVS1501 correctly, a new drive named

[NEXTODI] will appear in the “My Computer” display.

FireWire 800 (IEEE 1394b)

FireWire 800 (IEEE 1394b) Cable

Connect Power

PC Connection

FireWire 800 (IEEE 1394b)

The 4pin-9pin Firewire 800 (IEEE 1394b) cable does not provide power. Use the AC power adapter unit or USB cable to provide power. If no power is provided, the NVS1501 shows the “Connect power” message and waits for external power to be applied.

PC Connection

Off

USB Cable

USING THE NVS1501 AS A HARD DRIVE USING THE NVS2501 AS A HARD DRIVE

Off

Page 12

3. Browsing the contents of your hard drive

If your computer detects the NVS1501 correctly, a new drive named [NEXTODI] will appear on 'My Computer'.

My Computer

File Edit View Favorites Tools Help

Back

Address

My Computer

내 컴퓨터

Local Disk (C:)

G:\

File Edit View Favorit

Address

G:\

back

Control Panel

My Document

My Computer

Local Disk (C:)

Local Disk (D:) DVD-RAM Drive (E:)

Skylark (F:)

NEXTODI (G:)

NVSPRO

20090601.000

CLPR

-01_002_01

-01_003_01

TMP.000

TMP.001

Search Folders

NEXTODI (G:)

Back up data is stored in the "NVSPRO" folder. This folder is created automatically. The NVS1501 generates a new folder for each memory card copy. The name of the folder is determined by the shooting

date.

For example, 20081112.000 means the last footage recorded on November 12, 2008. (If you copy multiple items on a single day, the last three digits will be changed to indicate the download sequence – “000, 001,002, 003, etc.) The date code comes from the video cameras. If the date setting on the video camera is incorrect, the folder name of NVS1501 will also be incorrect.

If a copying failure occurs, the copy is stored on your computer as a TMP folder. The TMP folder contains

the same file names, but the data may be abnormal. You may delete the TMP folder.

4. Disconnecting the NVS1501 from Your Computer

For Windows Right click the Storage device icon in the System Tray (lower right corner of your screen) and select “Safely Remove Hardware” or “Unplug” or “Eject Hardware”. Then disconnect the cable from your NVS1501 and your computer.

For MAC Drag and drop the NEXTODI icon to the trash. Then disconnect the cable from your NVS1501 and your computer.

11. Data Backup(Copy) and Verify

This chapter represents the ‘Copy’ and ‘Verify’ functions.

Insert a memory card into the corresponding memory slot. The slot for CF/MD/SDHC/SDXC/MS is located on the top side of the NVS1501. The Ikegami GFPAK flash memory device can be connected via the “USB-Host” slot using the USB cable.

When copying from a memory card, the NVS1501 must not be connected to a computer. The NVS1501 can copy a memory card onto the internal hard disk via the built-in memory slot or via the "USB-Host" slot connector with a USB cable. After the backup, the copy procedure can be verified. The data on the memory card and the data on the hard disk are compared with one another. This ensures that the data has been copied properly (“Verify”). You can choose the “New Copy” or the “Verify” function according to whether the contents of the memory card have been copied before.

Do not connect more than one memory card or USB external HDD to the NVS1501. Only the first one connected will be detected.

● Insert the memory card carefully. The pin may get bent if you insert

incorrectly.

1. Parsing the memory

102.3 GB

CF Detected

Checking...

2. Copy

(1) If the memory card contains new data.

105.9 GB

Copy CF?

Fast Cop y

Copy & Verify

Safe Copy

Select

3.6 GB

16 Files

The data on the memory card is compared with the data stored on the NVS1501 hard disk to determine whether it is new data or if the data or a portion of the data has already been stored on the NVS1501. According to the comparison result, the NVS1501 operates as follows:

Cancel

The NVS1501 will make a new folder on the hard disk and copy all the files and folders in the memory card onto the internal hard disk. The contents of the memory card will not be deleted.

: To Copy, press the control key briefly.

: To Cancel the copy, press the control key

Cancel

for more than 2 seconds.

USING THE NVS2501 AS A HARD DRIVE

DATA BACKUP(COPY) AND VERIFY

Page 13

Three options are available for copy using up/down key selection.

Fast Copy

Verify&Copy

Safe Copy

Make new folder and copy all the memory card data into the folder.

Same as [Fast Copy] but after copying, the data on the memory card is compared with the copied data in the NVS1501 hard drive. Each bit is verified.

Before copying data, the NVS1501 verifies that its hard drive area is safe. If a bad sector is detected, a new, safe area is found – then copying [Fast Copy] will begin.

(2) Memory card with copied data

If the memory card was copied before and not modified since, then you can choose to [Verify] or [Copy] or [Delete].

102.3 GB

Same Copy is in

20090618.000 Verify CF?

Verify DeleteCopy

Select

Verify

Copy

3.6 GB

16 Files

Cancel

Compare data stored in the hard drive to the data stored in the memory card.

Copy again. Make a new folder and copy all of the data in the memory card to the hard drive.

Delete the data on the memory card so that it can be reused. Delete

102.3 GB

Same Copy is in

20090618.000 New Copy CF?

Copy Delete

Verify

Select

3.6 GB

16 Files

Cancel

102.3 GB

Same Copy is in

20090618.000 Delete CF?

Select

3.6 GB

16 Files

DeleteVerify Copy

3. Verify

102.3 GB

Same Copy is in

20090618.000 Verify CF?

3.6 GB

16 Files

Sample Full

Select

Two options are available for verification using left/right key selection.

Sample verify

Full verify

Compare first 1MByte of each file.

All the data is compared

When you choose the verify function, the NVS1501 compares the data stored on the hard drive to that on the memory card. The verification logic entails a full bit-by-bit verification, and detects any differences.

: For verification, press the control key briefly

: Another option: press the control key for more

Cancel

than 2 seconds. Select to make one more copy of this memory card.

Cancel

4. Status

Current operation status is shown on the LCD display.

(1) Total number of files in the memory card versus the number of copied files. (2) Amount of data copied.

102.3 GB

Copying

4/16 1.1 GB

(3) Elapsed time

5. Indication of Results

If the operation completes successfully, the user is notified with a beep sound and the lapsed time is displayed.

(1) Total number of files in the memory card versus the number of copied files. (2) Amount of data copied. (3) Copy speed in (MB/s)

0m30s

98.7 GB

Copy Success

Copy Done Remove CF

16/16 3.6 GB

10.7 MB/s

Cancel

Off

Reference

● Remove the memory card to return to the initial display.

● If you don't remove the memory card, the NVS1501 will automatically turn off

within 50 seconds to preserve battery life.

6. Error Display

The NVS1501 displays the previous operational status at the next power up. The user will then know whether the last backup was successful.

102.3 GB

91.4 Gb

Error

Device Read Error

ErrorNo: 0x33006000

Copy Failed

20090618.003

16 Files

3.6 GB

DATA BACKUP(COPY) AND VERIFY DATA BACKUP(COPY) AND VERIFY

Page 14

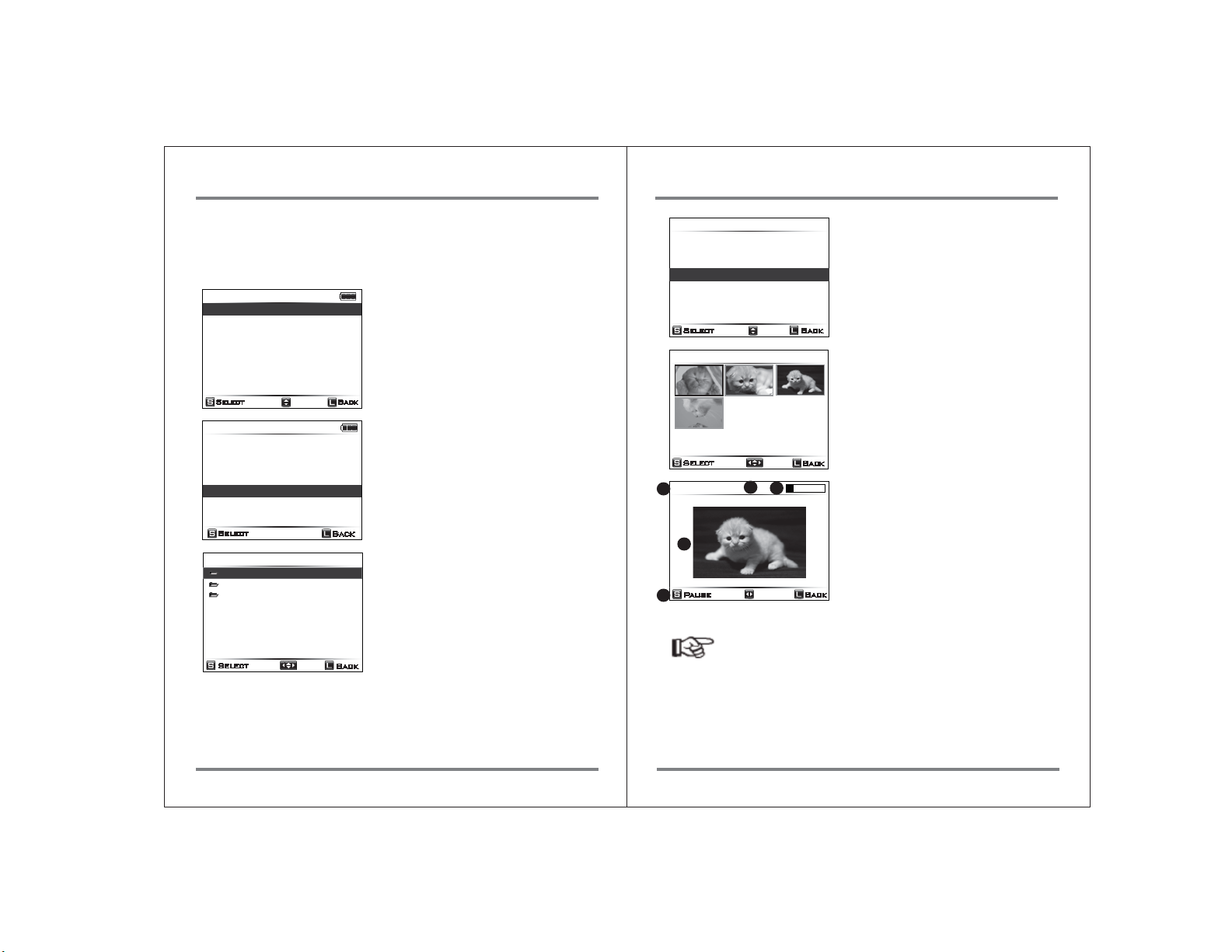

12. Video/Photo Preview

The NVS1501 shows stored video or photo files after backup depending on the file format. A preview of both the internal and external device (CF/MD/SDHC/SDXC/ MS/USB) is supported. Users can also choose to delete the backup folders.

1. Preview from the internal hard drive

149.0 GB

Preview

HDD Management Sector Recovery Buzzer Off Index AutoGen. Off Sync Language Firmware Update

Select Back

149.0 GB

Preview

Select a Source

Internal HDD

External Device

Select

20090701.000

20090630.000

20090601.000

Select

Press the control key once at the “XCopy Ready” mode to activate the menu. Press the control key and select “Preview”.

Select “INTERNAL HDD” to preview the video file stored in the internal hard drive.

Back

2/3

The NVS1501 will display the contents of the backup folder in date order. The most recent folder is shown first. After you select a folder, the NVS1501 will display a brief list of the contents as shown in the figure below.

Back

20090601.000

55 Files/ 528 MB

Show Video ... 4

Show Image ... 0

Delete This Backup

Copy to External Device

Select

720p_123.mxf

Select

1x 00:00:05

Pause

The user can select [Show Video] for video preview, [Show Image] for photo preview, [Delete] for deleting this backup, or [Copy] for copying to an external hard drive.

Back

1/1

If “SHOW VIDEO” is selected, the NVS1501 will display the video files contained in that folder as thumbnails. Unsupported video files are shown with an [X] mark. Video clips are selected for preview by using an up/down/left/right push of the control key. Press the control key briefly to select a clip.

Back

The NVS1501 will show a preview of the video file at reduced resolution. The user can select play/pause by pressing the control key. The user can also adjust the preview speed by pushing the control key to the left/right.

(1) Preview speed (2) Elapsed time (3) Progress of preview in %

Back

(4) Preview video (5) Selectable command

Reference

● See http://www.nextodi.com/manual for supporting preview format.

● The preview of the NVS1501 is a “best effort” preview. The preview speed

differs depending on the video format.

VIDEO/PHOTO PREVIEW

Page 15

2. Image Preview

20090601.000

55 Files / 528 MB

Show Video ... 0

Show Image ... 3

Delete This Backup

Copy to External Device

Select


Select

JPG

1 2

Auto View

3872x2592

Select [Show Image] at the preview menu. The number on the right is the number of image files.

Back

1/1

The NVS1501 shows a list of image files contained in that folder as thumbnails-just like [Show Video].

Back

If you select an image, the NVS1501 shows the larger one. A user can control the “left/ right” button to preview the next image or can short press the key([S]) to preview in slide show mode.

(1) File extension (2) Size of Images

Back

(3) Preview Images (4) Selectable command

Reference

● See http://www.nextodi.com/manual for supporting preview format.

3. Delete the backup data

20090601.000

55 Files / 528 MB

Show Video ... 4

Show Image ... 0

Delete This Backup

Copy to External Device

Select Back

20090629.000

1 Files

1.4 GB

4 Video Files

Delete?

Select

20090629.000

4 Video Files

1 Files

1.4 GB

Back

Are You Sure?

Select

20090629.000

Back

Deleted

Select “Delete This Backup” from the Preview menu.

The NVS1501 will ask you twice to confirm the delete operation. (If you do not want to delete, press the button for more than 2 seconds to go back to the main menu.) Push the control key up and down to confirm the deletion.

The specific folder is deleted. Return to the main menu by pressing the control key once.

VIDEO/PHOTO PREVIEW

Page 16

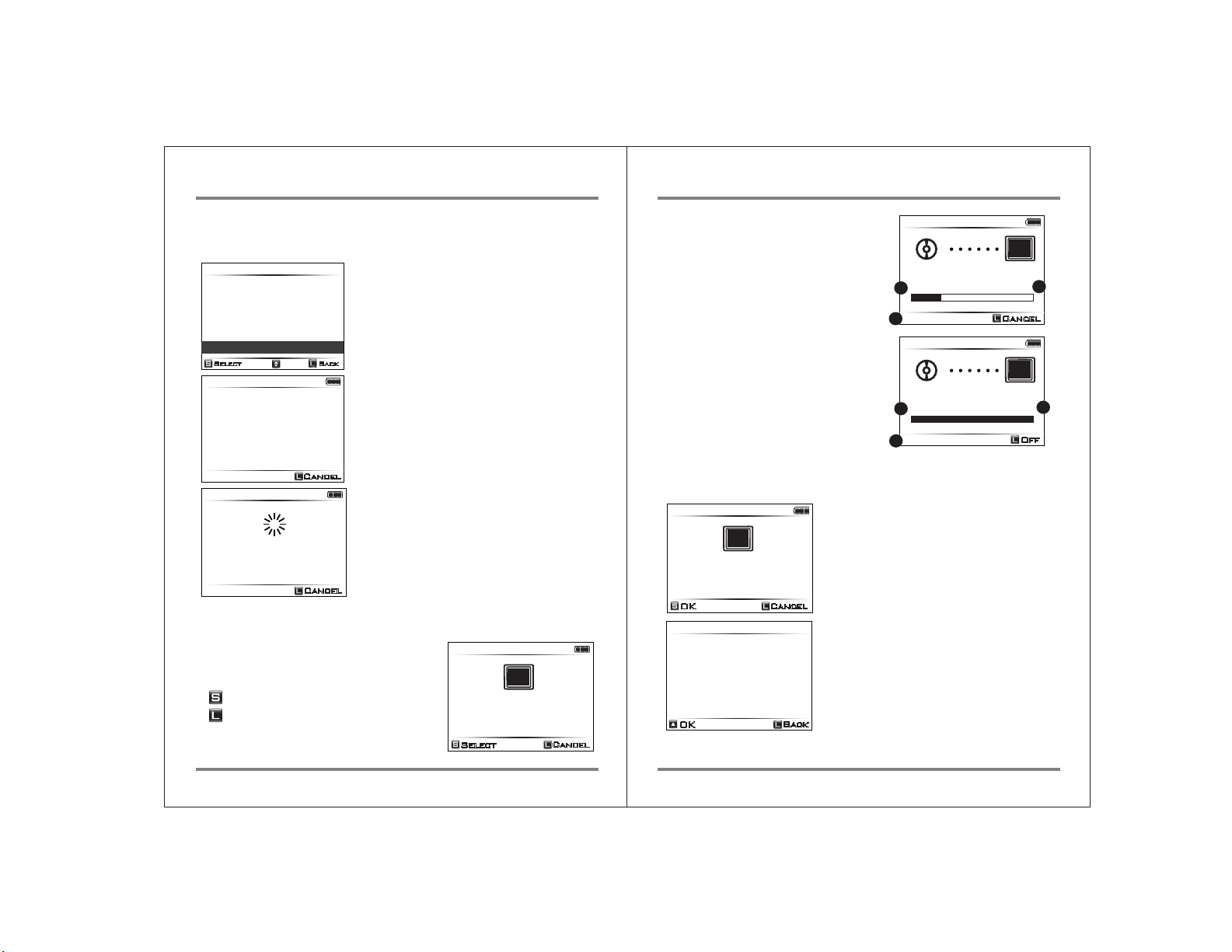

4. Copy to External Device

A user can upload the backup folder inside the NVS1501 to a memory card using the “Copy to external device” function provided by the NVS1501.

20090601.000

16 Files / 20.1 GB

Show Video ... 4 Show Image ... 3

Delete This Backup

Copy to External Device

Select Back

148.0 Gb

Copy

Insert a

External Device

(CF/SDHC/SDXC/MS)

Select a backup folder in the preview menu. Choose “Copy to External Device” to copy that backup folder to an external memory card.

Connect memory card (CF/SDHC/SDXC/MS) to the 3-in-1 connector or CompactFlash slot.

Current operation status is shown on the LCD display.

(1) Total number of files in the memory card versus the number of copied files. (2) Size of files to be copied (3) Elapsed time

If the operation completes successfully, the NVs2501 will make a beeping sound and the display will show:

(1) Total number of files in the memory card versus number of copied files. (2) Copied capacity (3) Copy speed in (MB/s)

102.3 Gb

Copying

4/16 3.6 Gb

0m30s

102.3 Gb

Copy Done Remove CF

16/16 20.1 Gb

50.7Mb/s

Cancel

Off

Cancel

102.3 Gb

The NVS1501 checks for the memory card.

CF Detected

Checking...

Cancel

4.1. If the memory card is empty

Copying all of the files inside the selected folder onto a memory card.

: To Copy, press the control key briefly

: To cancel the Copy, press the control key for more than 2 seconds.

VIDEO/PHOTO PREVIEW

102.3 Gb

Select

Copy to CF?

Cancel

4.2. If the memory card is NOT empty

102.3 Gb

CF is NOT Empty

All data in CF

will be Deleted

20090629.000

16 Files

20.1 Gb

4 Video Files

Delete ?

Cancel

The NVS1501 will ask you twice to confirm the memory card deletion operation. If you do not wish to proceed with deleting the data from the memory card, press the control key for more than 2 seconds to go back to the main menu.

Back

VIDEO/PHOTO PREVIEW

Page 17

20090629.000

16 Files

20.1 Gb

4 Video Files

Are You Sure ?

20090629.000

16 Files

20.1 Gb

4 Video Files

Deleted

102.3 Gb

Copying

4/16 3.6 Gb

0m30s

102.3 Gb

Copy Done Remove CF

16/16 20.1 Gb

50.7Mb/s

Cancel

Use the Control key (up or down motion) to confirm that you wish to delete the contents of the memory card.

Back

The contents of the memory card have been deleted. The copy operation is initiated automatically.

Current operation status is shown on the LCD display.

(1) Total number of files in the memory card versus the number of copied files.

(2) Size of files to be copied (3) Elapsed time

If the operation completes successfully, the NVS1501 will make a beeping sound and the

display will show:

(1) Total number of files in the memory card

versus the number of copied files. (2) Size of files to be copied

Off

(3) Copy speed (in MB/s)

4.3. If the capacity of the memory card is smaller than the backup folder

The NVS1501 does not support “Copy to External Device” if the capacity of an inserted memory card is less than the size of a selected backup folder.

102.3 Gb

NOT enough space

in CF

Remove CF

Off

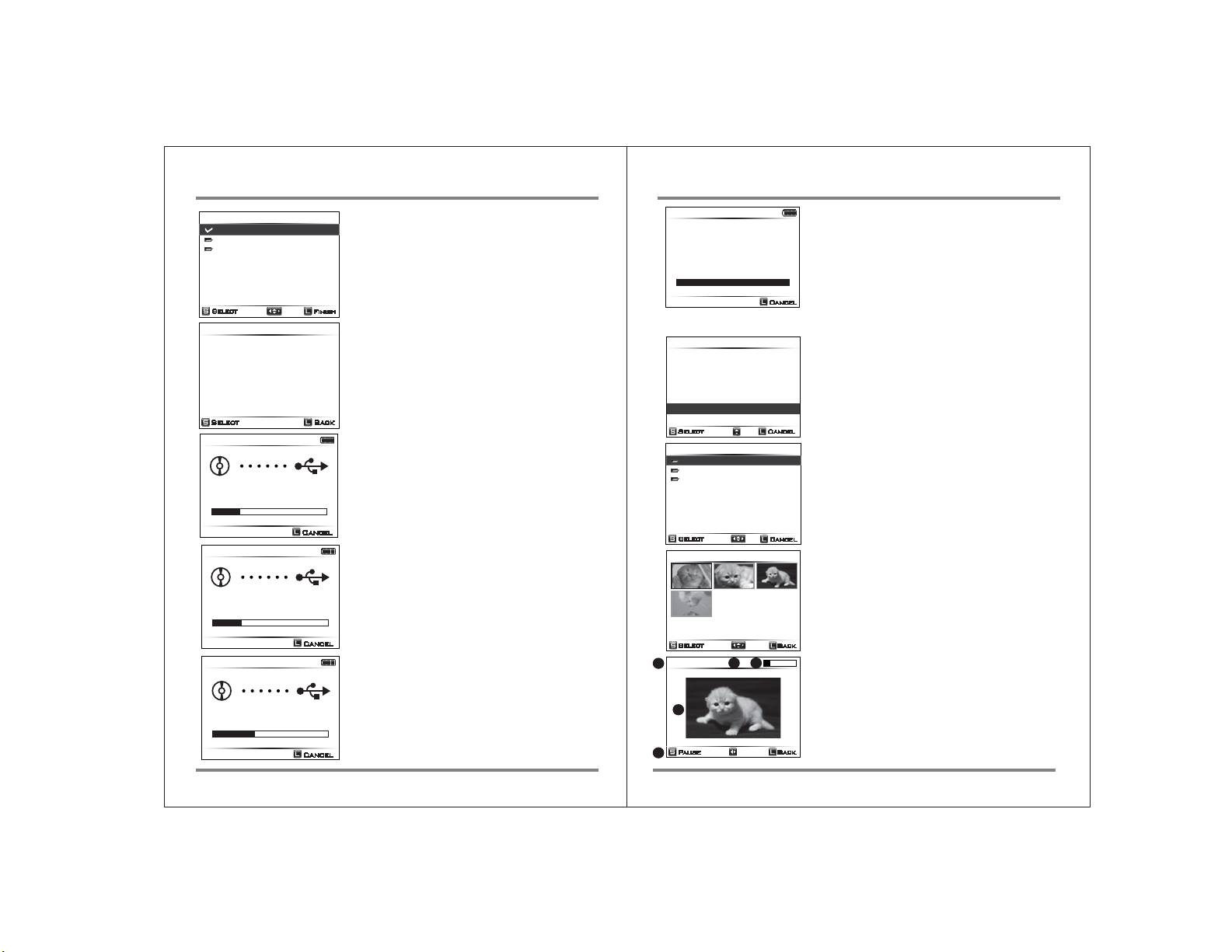

5. Preview from an external device

149.0 GB

Preview

Select a Source

Internal HDD

External Device

Select

148.0 GB

Preview

Insert an

External Device

(CF/SDHC/SDXC/USB)

2 Files / 257.2 MB

Show Video... 1

Show Image... 0

Select

20090421.000

20090417.002

Select

102.3 GB

Preview

Remove USB

The NVS1501 supports the preview of video files stored on an USB external hard drive—as well as video files stored on memory cards such as: SDHC, SDXC, MS, MD and CF.

Select “External device” from the preview menu.

Back

Then connect the external device to the NVS1501.

Cancel

(1) If a memory card contains video or image files—and is inserted into the NVS1501--

information about the video or image files will be displayed.

Back

1/2

(2) If an USB hard drive is connected, the NVS1501 will detect and analyze the backup folders. The NVS1501 will then display the backup folders as in the figure. The rest of operations are the same as previewing from the internal hard drive

Back

If you select “Back” by pressing and holding the control key, then a “remove (device type)” message will appear on the LCD display. Once the cable or memory card has been removed, you will automatically be returned to the main menu.

Off

VIDEO/PHOTO PREVIEW

Page 18

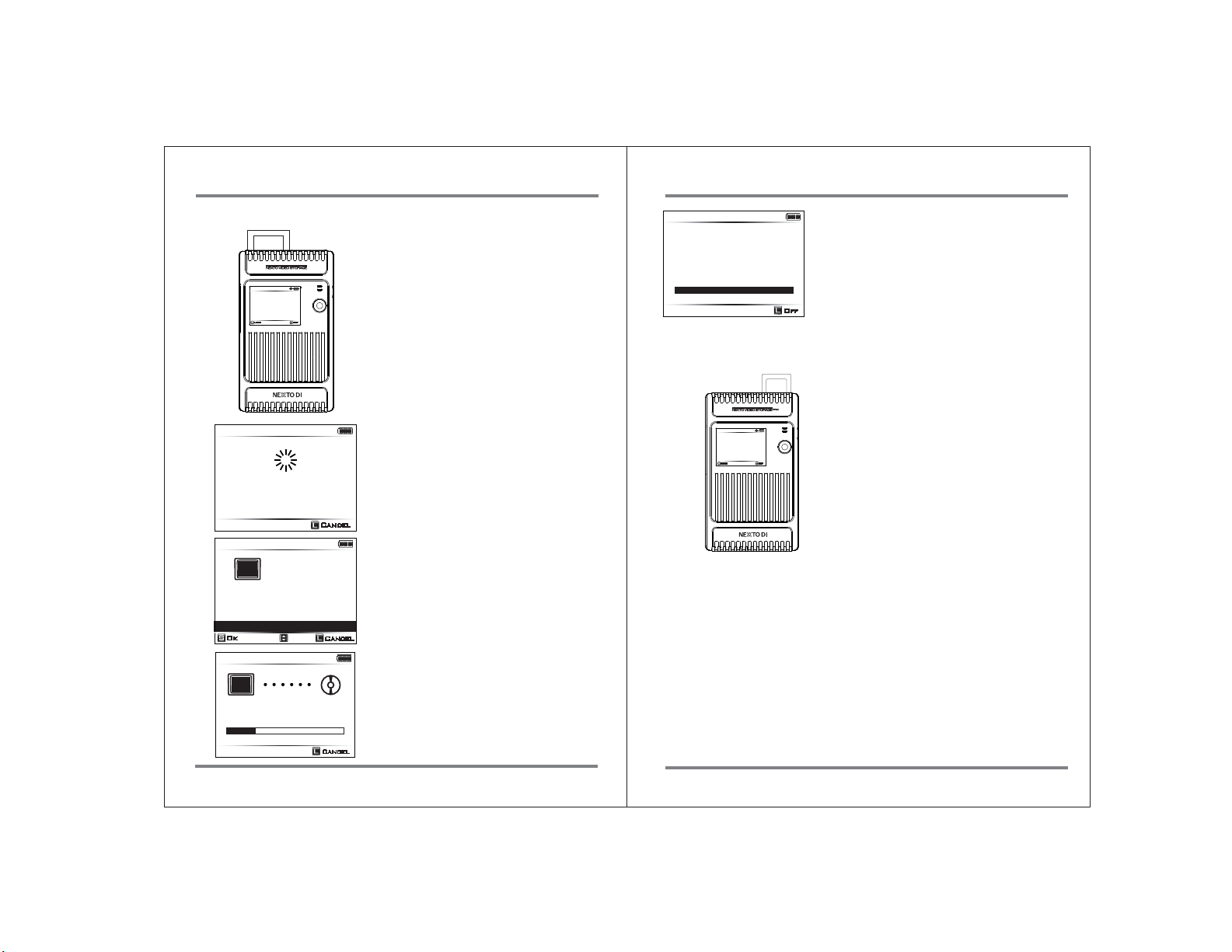

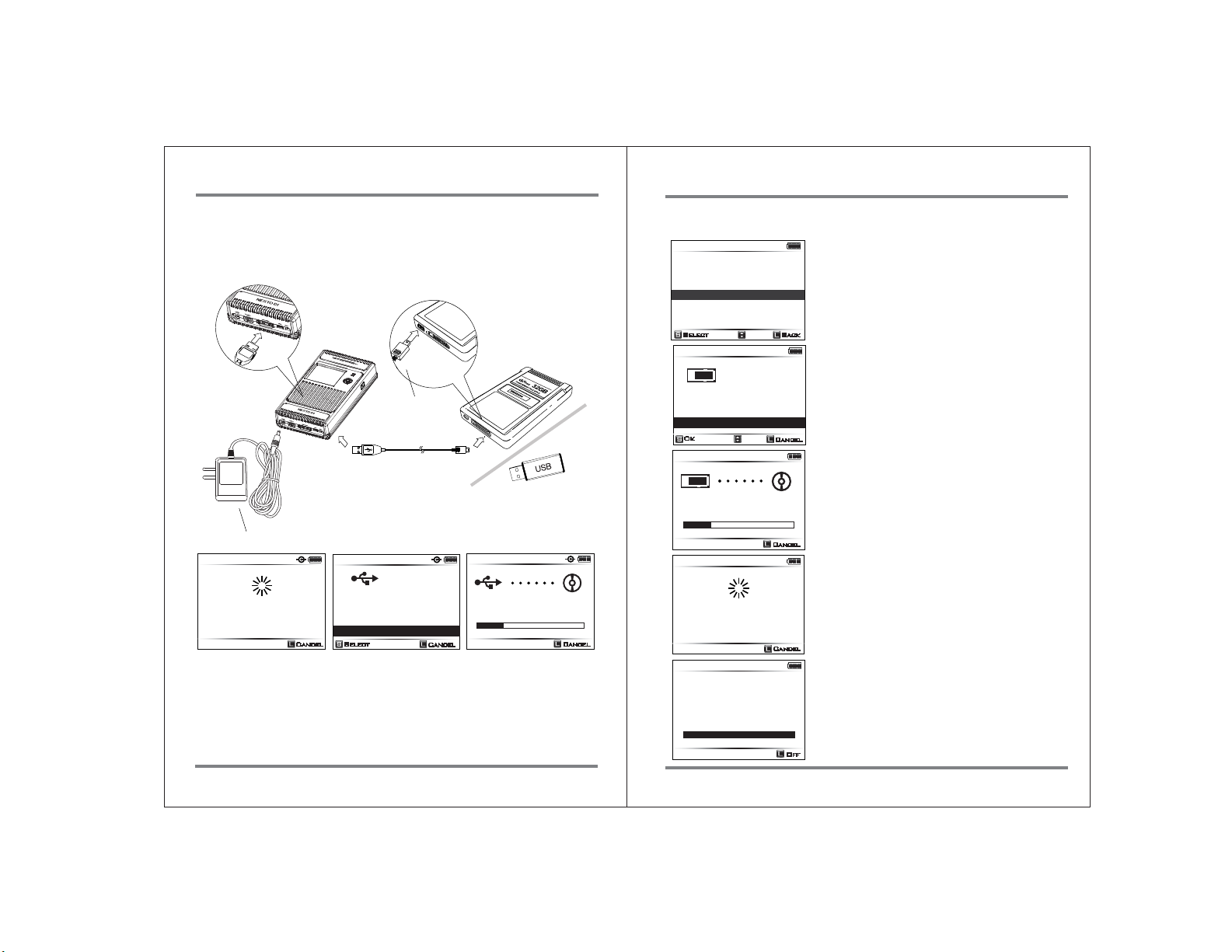

13. Using An External Hard Drive

The NVS1501 allows a user to copy a memory card to both the NVS1501 hard drive and to an USB external hard drive at the same time, making two copies of data in a single operation. The NVS1501 provides “Multi-copy” and “Sync” functions to make backup more reliable. Users can also choose to copy from an external USB device (USB HDD / USB Card Reader) to the NVS1501 internal hard drive.

1. Connecting an external USB hard drive

Connect an external USB hard drive using the supplied USB mini-B cable during “XCopy ready” mode. Connect the larger plug to the USB HOST port of the NVS1501. The NVS1501 will detect the device and check the external hard drive.

USB(Standard-A)

Adapter

USB(mini-B)

102.3 GB

USB Detected

Checking...

Cacel

USB Cable

Adapter

2. When the USB drive capacity is less than 128GB

105.9 GB

Copy USB?

Fast Copy

Copy & Verify

Safe Copy

Select

3.6 GB

16 Files

Cancel

If the drive capacity is less than 128GB, this capacity will be detected and only the Copy menu option will be displayed. The NVS1501 can copy data from an external USB hard drive or from a USB card reader to the internal hard drive. For details, see chapter 11.

3. When the USB drive capacity is more than 128GB

105.9 GB

Select

231.0 GB

Select Mode

Copy from USB

MCopy / Sync

Cancel

If the drive capacity is more than 128GB, a user can choose between “Copy from USB device” or “Multi-copy/Sync” to a USB device.

For details on copy, see chapter 11. For details on “MCopy/Sync”, see chapters 14 and 15.

Reference

● The “MCopy/Sync” is possible only when the capacity of the USB external hard drive is more than 128GB.

● The wall power adapter should be connected to both the NVS1501 and the USB external hard drive. The USB power supplied by the NVS1501 may not be enough to run an external USB hard drive.

USING AN EXTERNAL HARD DRIVE

Page 19

14. Making Two Copies In A Single Backup(Multi-Copy)

Copying a memory card to both the internal hard drive and an external USB hard drive at the same time makes two copies of data in a single operation. The “Multi-copy” function of the NVS1501 makes backup more reliable.

98.7 GB

USB HDD Info

Used: 360.9 Gb

Total: 98.3Gb

MCopy Sync

Select

98.7 GB

231.0 GB

If the proper external hard drive is connected, the NVS1501 shows information about the drive. Quickly [S] press the key or wait 10 seconds-the NVS1501 will automatically go into the “Multi-Copy” mode. (If the external USB hard drive connects before the power is on, the NVS1501 will go directly into “Multi-Copy” mode)

Cancel

The remaining operation is the same as the “XCopy ready” mode. This mode can be exited by holding and pressing the key or by removing

MCopy Ready

98.7 GB

231.0 GB

Multi Copy

Fast Copy

Copy & Verify

동시 복사 하겠습니까?

Safe Copy

Select

SxS를

3.6 GB

16 Files

the USB cable from the NVS1501.

Off

Insert the memory card when you are in the “MCopy ready” mode. The NVS1501 detects/ parses the contents of the memory card and asks you to confirm the mode of copy. Three options are available as in the normal XCopy mode. For details, see chapter 11.

: Copy: briefly press the key.

Cancel

: Cancel the copy: press and hold the key for more than 2 seconds.

98.7 GB

Multi Copying

14/16 964.3 MB

1m47s

95.0 GB

Copy Success

Copy Done

Remove CF

16/16 3.6 GB

95.0 GB

MCopy Success

20090618.003

16 Files

3.6 GB

When Multi-Copy is in progress, do not remove the memory card or disconnect the USB external hard drive.

Cancel

Multi-Copy completed. Remove the memory card to return to the initial display. If you do not remove the memory card within 50 seconds, the NVS1501 will automatically turn off in order to preserve battery life. See chapter 10 for the location and name of the backup folders.

Off80.7 MB/s

The NVS1501 displays the previous backup status during the next power on.

Preview

MAKING TWO COPIES IN SINGLE BACKUP(MULTI-COPY) MAKING TWO COPIES IN SINGLE BACKUP(MULTI-COPY)

Page 20

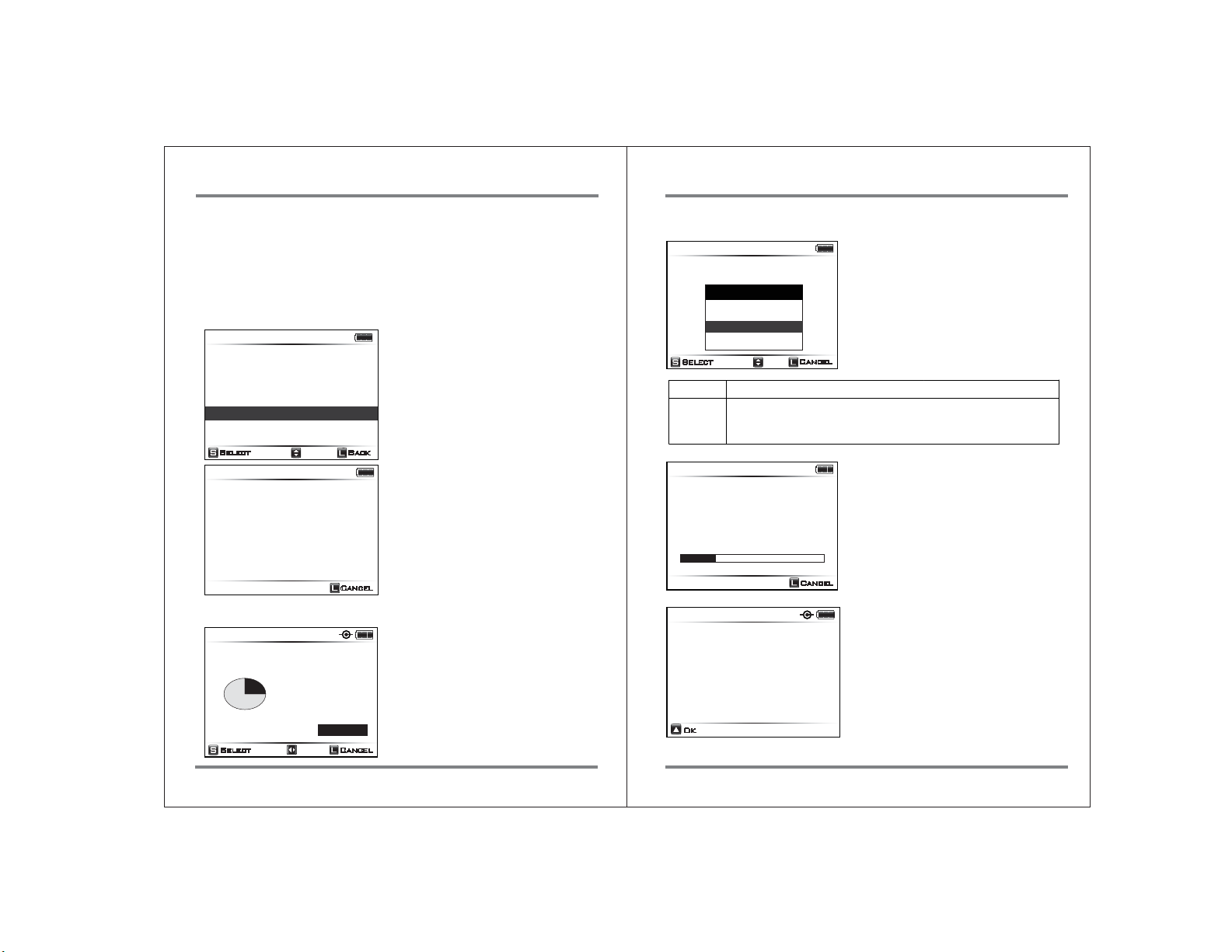

15. Making A Secondary Copy (Sync)

The “Sync” function synchronizes data between the [NVSPRO] folder of the NVS1501 and the [NEXTO] folder of an external USB hard drive connected on the “USB Host” connector via USB cable. This function compares the folders stored in the [NVSPRO] folder of the NVS1501 and the [NEXTO] folder of an external hard drive. A new folder will be copied to the external hard drive only if a folder is in the [NVSPRO] folder of the NVS1501—but not in [NEXTO] folder of an external hard drive.

(1) Selecting “SYNC” from the menu

149.0 GB

Preview

HDD Management Sector Recovery Buzzer Off Index AutoGen. Off

Sync

Language Firmware Update

Select Back

148.0 GB

Sync

Insert an

External Device

Move to “SYNC” on the main menu and select it.

Connect the USB external hard drive to the [USB-Host] combo port of the NVS1501 as shown in chapter 13.

Cancel

(3) Sync function

102.3 GB

Sync

Sync to

Fast Copy

External ESATA HDD?

Safe Copy

Select

Fast Copy

Safe Copy

102.3 GB

Duplicates new folder to external hard drive

Before duplication, the NVS1501 verifies that the copy area of the external hard drive is safe. If the copy area is not safe, the NVS1501 will automatically search for a new safe area and copy to that area.

Sync

20090725.000

4/16 20.1 GB

A user can select two modes of duplication, fast copy or safe copy. Highlight the desired mode using the up/down key, then briefly press to select the mode. Press and hold the key [L] to cancel the operation and go back to the main menu.

Cancel

The NVS1501 compares the [NVSPRO] folder of the internal hard drive and the [NEXTO] folder of the external hard drive. If there is data in the [NVSPRO] but not in the [NEXTO] folder, then the NVS1501 copies those folders from the internal hard drive to the [NEXTO] folder of the external hard drive. The end result is that the two folders—on both the NVS1501 and the external hard drive—contain

Cancel0m30s

the same information

(2) Connecting the USB hard drive during “XCopy ready” mode

149.0 GB

USB HDD Info

Used: 37.9 Mb

Total: 149.0Gb

SyncMCopy

Select

MAKING A SECONDARY COPY(SYNC) MAKING A SECONDARY COPY(SYNC)

If a proper external hard drive is connected, the NVS1501 will display the status of that drive. Press the control key button to the left to highlight “Sync” and briefly press the key to select “Sync”.

Cancel

91.4 GB

Sync Failed

If an error occurs during the “Sync” function, the NVS1501 will automatically shut down and display an error message at the next power up-- as shown in the figure. Press the control key upwards to go back to the main menu.

Page 21

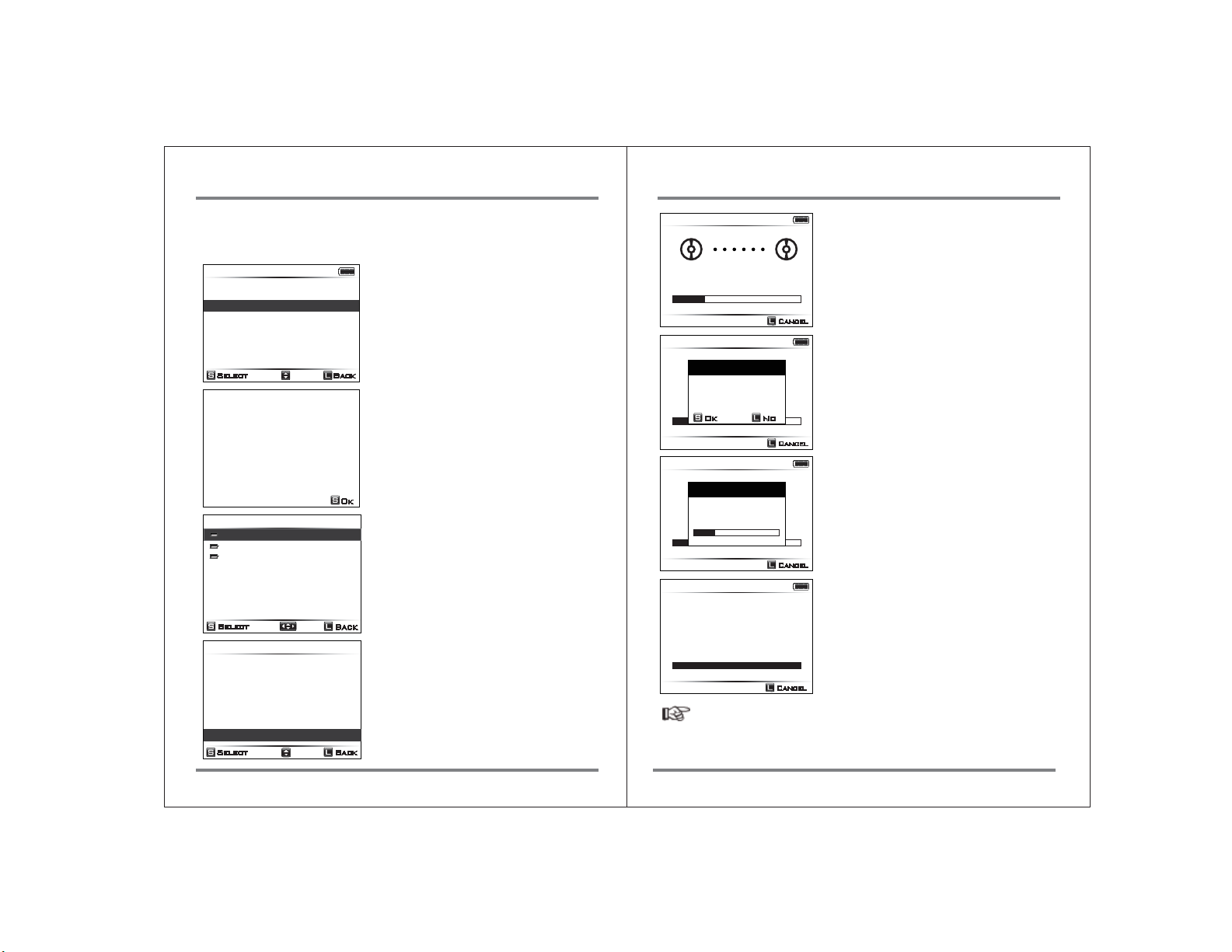

16. Bad Sector Recovery

The NVS1501 features a bad sector recovery function. If an offloaded video file contains bad sector(s), those areas are filled with dummy files, so that the front/back frames are usable for editing/playing on an NLE system.

149.0 GB

Preview

HDD Management

Sector Recovery

Buzzer Off Index AutoGen. Off

Sync

Language Firmware Update

Select

Sector Recovery

1. Check bad sectors in selected folder

Briefly press [S] SECTOR RECOVERY under the Main MENU.

Back

A description of the recovery function appears on the screen. Briefly press the control key [S] to move to the next screen

2. If found, duplicate folder to safe area

3. The data in bad area is lost

2/3

20090701.000

20090630.000

20090601.000

The next screen displays all data as folders in ascending order from the most recent date or from a large extension number if folder dates are the same. Select a folder and briefly press the control key [S] to move to the next screen

Select

20090701.000

55 Files / 20.2 GB

Back

The next screen displays information about the selected folder. You can delete a folder—or preview the folder if it contains a

Show Video... 23

Show Image... 0

Delete This Backup

Sector Recovery

Select Back

video file. Select SECTOR RECOVERY and briefly press the control key [S] to move to the next step.

102.3 GB

The NVS1501 will begin scanning to see if there are any bad sectors inside of the folder.

Checking...

4/16 137.1 MB

0m30s

102.3 GB

Sector Recovery

Recovery

BadCluster

검사 중입니다.

Found

Recover?

4/55 20.1 GB

Ok No

0m45s

102.3 GB

Sector Recovery

Recovery

Checking

검사 중입니다.

BaCluster

4/55 13.0GB

1m03s

102.3 GB

4 Bads Recovered

RECOVERY.001

16/55 20.2 GB

2m33s

Cancel

If a bad sector is found, a popup window will appear. Briefly press the control key to begin the recovery.

Cancel

The data will be copied to a safe area on the internal hard drive—while the faulty sectors are being filled with dummy files.

Cancel

This final screen displays the total number of bad sectors found and a folder name that has been created during the recovery process. You should now connect your NVS1501 to a computer and check the recovered folder.

Cancel

Reference

● The "Bad Sector Recovery" feature is supported with previewable video codec

only.

● See http://www.nextodi.com/manual for a list of supported preview formats.

BAD SECTOR RECOVREY BAD SECTOR RECOVREY

Page 22

17. Advanced Functions

NVS1501 has several advanced function menus, accessible from the Main Menu.

Menu Operation

Capacity Check

Self Test

Delete TMP folder

Buzzer

Language Selection

Firmware

Upgrade

Checks the used capacity and the remaining recordable capacity on the NVS1501 hard drive.

Built-in test utility for detecting physical errors on the internal hard drive. This function does not fix errors. If an error is detected during the self-test, consult your authorized NEXTODI dealer.

If the copy function fails, a TMP folder will be generated. A user can delete the TMP folder using this menu.

On/Off setting for buzzer sound. Factory setting is On.

Change the language setting.

Upgrade to new firmware with the firmware file stored in the internal hard drive or on a memory card.

Enter Main Menu

145.0 GB

Press the control key briefly [S] in order to get to the main menu.

XCopy Ready

1. Capacity Check

149.0 GB

Preview

HDD Management

Sector Recovery

Buzzer Off Index AutoGen. Off

Sync

Language Firmware Update

Select

149.0 GB

HDD Management

HDD Info

Self Test

TMP Folders

Format

Select

149.0 GB

HDD Info

Used: 37.9 Mb

Total: 149.0Gb

Capacity Check

Select

149.0 GB

Capacity Check

Checking

Select “HDD Management” from the main menu.

Back

Select “HDD Info” submenu from the “HDD Management” menu.

Cancel

The NVS1501 will show the capacity status of the internal hard drive using a pie diagram.

Back

Select OK by pressing the control key briefly [S]. The capacity check will then begin.

Menu Off

ADVANCED FUNCTIONS ADVANCED FUNCTIONS

Cancel

Page 23

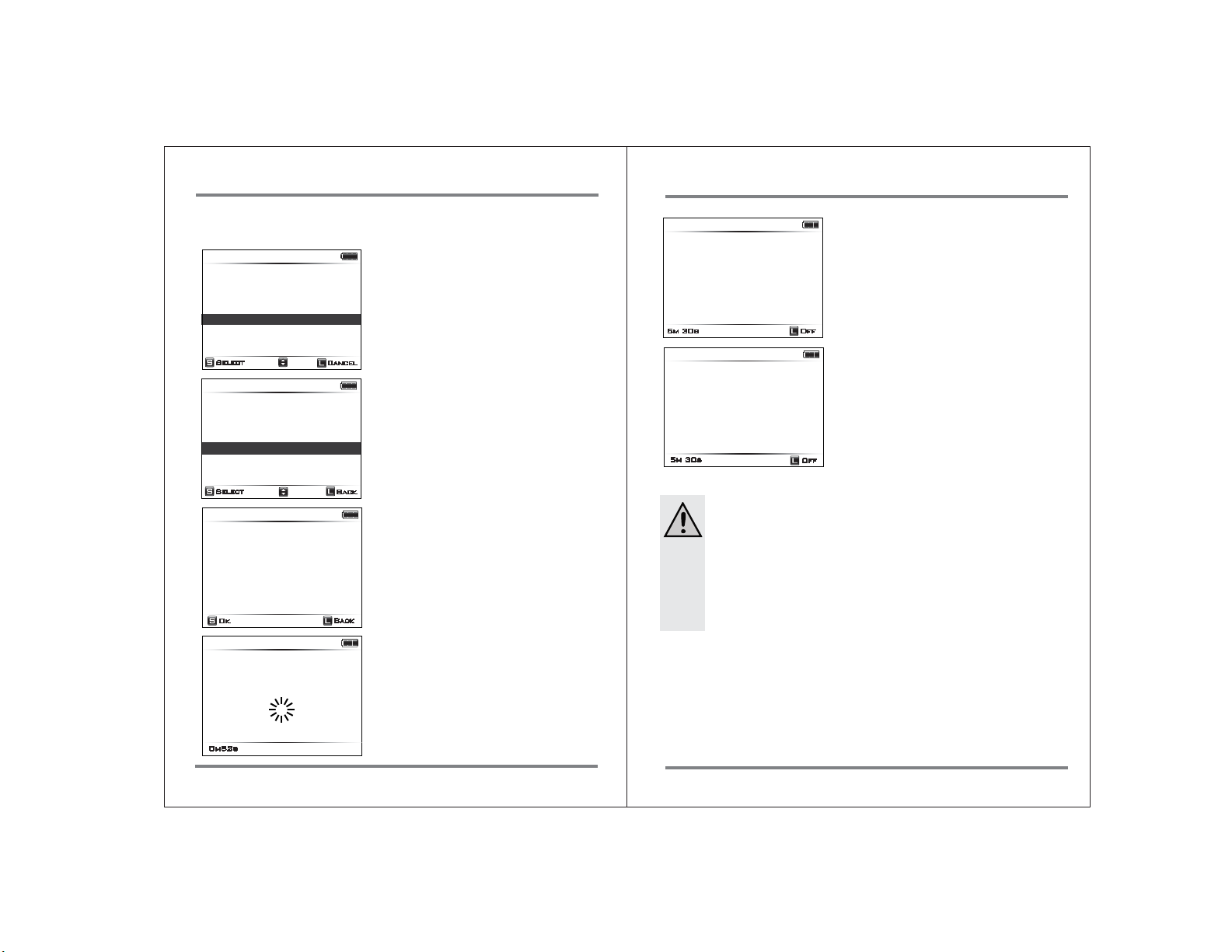

2. Self Test

(1) Quick test

149.0 GB

HDD Management

HDD Info

Self Test

TMP Folders

Format

Select

149.0 GB

Self Test

Select a Method

HDD Smart Test

HDD Full Test

Select “Self test” submenu from the “HDD Management” menu

Cancel

The User can choose between a quick test or a full test. Choose the quick test. The quick test uses a S.M.A.R.T test provided by the hard drive.

149.0 GB

No problems found during the quick test.

HDD Smart Test

Smart Test OK.

5m 30s

149.0 GB

HDD Smart Test

This HDD may have some errors. Please Check it again at PC.

5m 30s

Off

Error found during quick test. Further use of

NVS1501 may result in loss of backup data. Consult your authorized NEXTODI dealer for

service.

Off

Select

149.0 GB

HDD Smart Test

It will take several

minutes to test.

Are you Ready?

149.0 GB

HDD Smart Test

0m52s

ADVANCED FUNCTIONS

Back

The quick test takes several minutes to test the internal hard drive. Pressing the control key initiates the quick test.

Back

The display tells the user that the S.M.A.R.T test is in progress. This process takes several minutes

Caution

● The NVS1501 buzzer indicates the completion of the test.

The power does not turn off automatically at completion of the test.

● The NVS1501 returns to the initial mode only after the user presses

the control key for more than 2 seconds.

● It is strongly recommended that the AC adapter be used during this

test in order to prevent battery failure during the process.

ADVANCED FUNCTIONS

Page 24

(2) Full test

149.0 GB

Self Test

Select a Method HDD Smart Test

HDD Full Test

Select

149.0 GB

HDD Full Test

It will take several

hours to test.

Are you Ready?

149.0 GB

HDD Full Test

0 Bad Clusters Found

7m52s

149.0 GB

HDD Full Test

0 Bad Clusters Found.

Full Test OK.

Select “FULL TEST” from the self test menu.

Back

The full test will take several hours. It will read all the sectors in the internal hard drive to discover if any bad sectors exist.

Back

Full test in progress. This process will take about 2~3 hours. The user can cancel the full test by pressing the control key for more than 2 seconds.

Cancel

No errors found.

149.0 GB

HDD Full Test

0 Bad Clusters Found.

Check it again at PC.

Caution

● The NVS1501 indicates the completion of the test using the buzzer

sound. The power does not turn off automatically at the completion of the test.

● The NVS1501 returns to the initial mode only after the user pushes

the control key for more than 2 seconds.

● It is strongly recommended that the AC adapter be connected for

this test in order to prevent battery failure during the process.

Error found during full test. Further use of

NVS1501 may result in the loss of backup data. Consult your authorized NEXTODI dealer for

service.

Off

Back

ADVANCED FUNCTIONS

Page 25

3. Buzzer

149.0 GB

Preview

HDD Management

Sector Recovery

Buzzer On

Index AutoGen. Off Sync

Language Firmware Update

Select Back

149.0 GB

Preview

HDD Management

Sector Recovery

Buzzer Off

Index AutoGen. Off Sync

Language Firmware Update

Select Back

4. Firmware Update

149.0 GB

Preview

HDD Management

Sector Recovery Buzzer On Index AutoGen. Off Sync

Language

Firmware Update

Select Back

v1.0

Firmware Update

Select a File

in HDD

in Memory Card

Select

The Buzzer is on. Select “BUZZER “from the main menu to turn the buzzer sound on/off with by briefly pressing the control key. The factory default setting is buzzer on.

The Buzzer is now off. If the control key is briefly pressed, the buzzer setting will go to “buzzer on.”

Select “FIRMWARE UPDATE” from the main menu.

The firmware file (NVSPRO.BIN) should be placed in the root directory of a memory card or the internal hard drive. Select [In HDD] (hard disk drive) if the firmware file is to be placed in the root directory of the internal hard drive. Select [In Memory Card] if the firmware is in the root directory of the memory card. If you selected the memory card, insert the memory card into the NVS1501.

Back

v1.0

Firmware Update

No Valid FW Files

If a valid firmware file is not contained in the specified device, the NVS1501 indicates an error. Check whether the device contains valid firmware in the root directory and repeat the previous process.

Off

v1.0 v1.01

Firmware Update

FW File Found

Update ?

Select

v1.0 v1.01

Firmware Update

Updating

v1.0 v1.01

Firmware Update

If valid firmware is found at the specified location, the NVS1501 indicates a “FW File Found” message on the LCD. Confirm the firmware upgrade by pressing the control key briefly [S].

Cancel

The LCD screen indicates that the NVS1501 firmware is being updated. Do not turn the power off during the firmware upgrade. Use of the AC power adapter is recommended.

Firmware upgrade completed. The NVS1501 turns off automatically.

Update Completed

ADVANCED FUNCTIONS

Page 26

5. Delete TMP folder

149.0 GB

Preview

HDD Management

Sector Recovery

Buzzer On Index AutoGen. Off

Sync

Language Firmware Update

Select

149.0 GB

HDD Management

HDD Info

Self Test

TMP Folders

Format

Select

149.0 GB

TMP Folders

3 TMP Folders

Delete TMP Folders

149.0 GB

TMP Folders

Deleting

Select “HDD Management” from the main menu.

Back

Select the “TMP folders” submenu from the “HDD Management” menu.

Cancel

If the TMP folder exists inside the [NVSPRO] folder, then the number of TMP folders will appear on the LCD. Press the control key briefly [S] to delete the TMP folders.

Back

The LCD screen displays the message “Deleting the TMP Folders.”

6. Language setting

149.0 GB

Preview HDD Management Sector Recovery

Buzzer On Index AutoGen. Off

Sync

Language

Firmware Update

Select

149.0 GB

Language

English

Français Español

Русский

Select

한글

中文

Back

日本語

Italiano

Deutsch

Cancel

The user can select the preferred language using this function.

Select “Language” submenu from the main menu.

Select the desired Language using the up/down/left/right key function. Press the key briefly to set the language as the default.

ADVANCED FUNCTIONS

Page 27

18. Burning a Blu-ray Disc

A user can connect a USB Blu-ray drive to the NVS1501 through an USB HOST port. The NVS1501 supports the burning of Blu-Ray Discs--or the preview of Blu-ray Discs-- without the use of a computer. Only the BD-R or BD-RE is supported. There is no support for burning a CD or DVD.

1. Connecting the USB Blu-ray Drive

Connect the USB Blu-ray drive to the [USB-Host] port of the NVS1501 as shown below. The NVS1501 detects the drive and displays information.

102.3 GB

Detected USB

Checking...

149.0 GB

Cancel

BD Info

MATSHITABD -MLT

J240AS 1.00

If a Blu-ray drive is properly connected, the NVS1501 will detect it and display the information as shown in the figure. Press the control key briefly [S] to go to the next step.

Select

2. Burning the Blu-ray Disc

149.0 GB

Non-Blank Disc

Select

149.0 GB

22.5GB

BD Burning

BD Play

BD-RE

Cancel

BD Burning

1. Select Folders

2. Compile Data

3. Initialize BD

4. Copy Data

5.Compare Data

Select

Select Folders

20090701.000

20090630.000

20090601.000

Select

20090701.000

BD Burning

428.2MB

6 Video Files

Ok Cancel

Select

Select?

2/3

Finish

1/6

Back

① Capacity of the Blu-ray Disc ② Type of discs

- BD-R (record once)

- BD-RE (rewritable) ③ Disc status

BD-R BD-RE

BLANK DISC

NON-BLANK DISC

Recordable

Non-recordable

Recordable

If you select “Burning BD,” the NVS1501 will show you the burning process. Press the control key briefly [S] to begin the procedure.

First, select backup folders that you wish to transfer. By using the up/down function on the control key, highlight the folder that you want to archive. Press briefly to select the folder.

The NVS1501 shows you the video clip stored in the backup folder, then asks if you wish to select it. Press the control key briefly to select the folder for burning --or press the key more than two seconds to unselect the folder.

BURNING A BLU-RAY DISC BURNING A BLU-RAY DISC

Page 28

29.6GB Selected

20090701.000

20090630.000

20090601.000

Select

1 Dirs Selected

57 Files

29.6GB

6 Video Files

Record

Selected Backups

into BD-RE?

Select Back

102.3 GB

Compiling Data

14/57 428.2MB

2/3

The selected folder will be highlighted and a check mark will be shown at the head of folder name. A user can select multiple folders at this stage, but the total capacity of selected folder(s) should not exceed the capacity of the Blu-ray Disc. Press the key more than two seconds to initiate

Finish

burning.

Confirm selection.

It will take the Blu-ray Disc about 20 minutes to prepare for burning.

102.3 GB

BD Burn Success

16/16 428.2MB

9.1MB/s

Cancel

3. Play the Blu-ray Disc

22.5GB BD-RE

Non-Blank Disc

BD Burning

BD Play

Select Cancel

20090701.000

20090630.000

20090601.000

2/3

The LCD screen on the NVS1501 shows the completion of the Disc burning. The USB cable can now be removed

Connect the external USB Blu-ray drive, then select “BD Play” to preview the video in the Blu-ray Disc.

The NVS1501 shows the list of backup folders.

0m30s

102.3 GB

Cancel

The progress of the Blu-ray disc burning is shown.

Select

20090630.000

Cancel

The NVS1501 shows a list of video files contained

1/6

in the selected folder as thumbnails. Unsupported video files are shown with an [X] mark. Select a

Burning BD

15/57 448.2MB

video clip for preview using the up/down/left/ right function of the control key.

Press the control key once to select a clip. The

0m41s

102.3 GB

Cancel

Select

1x 00:00:05

312

After burning the Blu-ray Disc, the NVS1501 will verify the data in both the Disc and the hard

Comparing Data

17/57 458.2MB

1m34s

BURNING BLU-RAY DISC BURNING BLU-RAY DISC

Cancel

drive.

Pause

NVS1501 shows a preview of that video file with

Back

reduced resolution. The user can select play/pause with a press of the control key. The user can also control the preview speed using a left/right push of the control key. (1) Preview speed (2) Elapsed time (3) Progress of preview in % (4) Preview video

Back

(5) Selectable command

Page 29

19. Examples of Basic Functions

1. Copying from an CF card

CF/MD Card

145.0 GB

XCopy Ready

Menu Off

102.3 GB

Detected CF

Checking...

105.9 GB

Copy CF?

Fase Copy

Copy & Verify

Safe Copy

102.3 GB

Copying

4/16 20.1 GB

3.6 GB

16 Files

Cancel

(1) Turn on the NVS1501 by pressing the power button for more than 2 seconds. Wait for the “XCopy ready ”mode, then insert an CF card into the CF/MD slot located on the top of the device.

(2) The NVS1501 detects the memory card and analyzes it.

(3) The result of the backup analysis is shown on the LCD. The total number of files- in addition to the data capacity of the CF card -- is shown on the LCD. The NVS1501 will wait for the completion of the backup analysis before starting to copy.

Cancel

(4) The copy status is shown on the LCD.

98.7 GB

Copy Success

Copy Done Remove CF

16/16 3.6 GB

10.7 MB/s

(5) If the copy is successfully completed, the result will be shown on the LCD. Remove the CF card to return to the initial “XCopy ready”mode.

Off

3. Copying a SDHC/SDXC/MS card

SDHC/SDXC/MS Card

The Memory card slot for a SDHC/SDXC/MS card

145.0 GB

XCopy Ready

Menu Off

is located on the top of the NVS1501. Insert the SDHC/SDXC/MS card into the slot. The remaining procedure is the same as for CF memory cards.

0m30s

EXAMPLES OF BASIC FUNCTIONS EXAMPLES OF BASIC FUNCTIONS

Cancel

Page 30

4. Copying from an IKEGAMI GFPAK or a USB memory card reader

The NVS1501 supports copying from the IKEGAMI GFPAK or a USB memory card reader. Simply attach the GFPAK or memory card reader to the “USB-Host” slot using the supplied USB cable.

USB(Standard-A)

Adapter(12V)

105.9 GB

Detected USB

Checking...

Cancel

When copying from a USB device, the NVS1501 should be powered by the AC power adapter. The detailed connection is shown above.

105.9 GB

If the USB device is connected correctly, the NVS1501 will automatically detect the device and prepare for Copying.

Copy USB?

Fast Copy

Copy & Verify

Safe Copy

Select

USB(mini-B)

USB Cable

3.6 GB

16 Files

105.9 GB

Copying

4/16 20.1GB

0m30s

Cancel

Copying from a USB device: After copying, remove the USB cable connected to the USB device.

Cancel

20. Auto-Generation of Index Files

The NVS1501 automatically generates HTML index files which contain metadata and thumbnails of each video file.

149.0 GB

Preview HDD Managemnet Sector Recovery

Buzzer Off

Index AutoGen. On

Sync Language

Firmware Update

Select

105.9 GB

Fast Copy

Copying

3.6 GB

16 Files

SxS

Copy SxS?

Copy & Verify

Safe Copy

102.3 GB

SxS

4/16 20.1 GB

0m30s

102.3 GB

Building

Index Files

98.7 GB

Copy Success

Copy Done

Remove SxS

16/16 3.6 GB

10.7 MB/s

This function can be turned on or off from the main menu.

Back

If a memory card with new data is inserted, the NVS1501 asks you to begin copying.

Cancel

This screen indicates that the NVS1501 is copying the memory card data to the internal hard drive.

Cancel

After copying, the NVS1501 generates an index file that displays thumbnails of the video footage.

Cancel

Backup and index generation has successfully completed.

Off

EXAMPLES OF BASIC FUNTIONS

AUTO-GENERATION OF INDEX FILE

Page 31

This index file is in HTML format and can be accessed via a computer using the web browser. The HTML file (NEXTOIDX.HTM) is stored in the root directory of the NVS1501. To access a video file, simply connect the NVS1501 to a computer and double-click on the NEXTOIDX.HTM file in the root directory.

G:\

File Edit View Favorites Tool Help

address

G:\

Back

Folders

NVSPRO

NEXTOIDX.HTM HTML Document 1KB

이동

NEXTOIDX.HTM

Table of Contents

20100614.000

20100604.002

20100604.001

20100604.000

20100426.016

20100426.014

20100426.005

20100614.000

Total File: 235 Total Video: 27 Total Size: 2.4GB

File name: 0001V001.MXF Manufacturer: Ikegami Model: HDS-V10 Duration: 00:00:15 File Size: 92.5MB Modification Time: Tue Oct 1 11:26:32 2002 Codec Info: MPEG2

File name: 0002V001.MXF Manufacturer: Ikegami Model: HDS-V10 Duration: 00:00:13 File Size: 85.5MB Modification Time: Tue Oct 1 11:26:50 2002 Codec Info: MPEG2

File name: 0003V001.MXF Manufacturer: Ikegami Model: HDS-V10 Duration: 00:00:25 File Size: 152.5MB Modification Time: Tue Oct 1 11:27:24 2002 Codec Info: MPEG2

21. Troubleshooting Tips

IF THE POWER ON THE NVS1501 CANNOT BE TURNED OFF VIA THE ON/OFF BUTTON:

Press the RESET button using a toothpick or paper clip.

The RESET button will turn the power off safely so that the data stored in the hard drive will not be lost or altered.

IF THE CONTROL KEY IS NOT RESPONDING:

If you are unable to select an operation that involves the pressing of the control key in an up/down/left/right direction, you can still perform the [COPY] or [VERIFY] functions of the NVS1501 by using the power (on/off) button.

First, turn on your NVS1501 by pressing the power button for over two seconds. Next, place your memory card into the appropriate slot. When the LCD screen shows [SAFE COPY], briefly press the power button to begin copying. Please note that you will be initiating the “Safe Copy” function— which is slower, but is the most reliable method of backup.

When the copying is done, remove your memory card. Now re-insert the memory card and wait until your NVS1501 asks [VERIFY?] A brief press of the power button will begin the “Verify” process.

AUTO-GENERATION OF INDEX FILE

TROUBLESHOOTING TIPS

Page 32

IF MULTIPLE MEMORY CARDS INTERETD TO THE NVS1501 AT THE SAME TIME:

Do not connect more than one memory card or USB external HDD to the NVS1501 at the same time. Only the first connected one will be detected.

Control Button

Power On/Off Button and Select Button

IF THE POWER CANNOT BE TURNED ON:

The NVS1501 has an internal rechargeable battery. If you cannot turn on the NVS1501 with the On/Off button, it may be that the internal battery has been discharged. Connect the power adapter to the NVS1501 and push the power button for more than 2 seconds to turn the NVS1501 on.

Press and hold the key for more than two second.

Adapter(12V)

TROUBLESHOOTING TIPS

102.3 GB

CF Detected

Checking...

Cancel

IF THE FILES IN NVS1501 CANNOT BE COPIED OR EDITED AT THE COMPUTER :

TROUBLESHOOTING TIPS

Page 33

22. Battery Disposal

Batteries/rechargeable batteries containing harmful substances are marked with the following symbols: Cd=cadmium, Hg=mercury, Pb=lead. You can return batteries/rechargeable batteries free of charge to any authorized disposal station in your area, in our stores or in any other store where batteries/rechargeable batteries are sold. Do not dispose of used batteries in the household trash.

The Li-Poly rechargeable battery integrated into the NVS1501 must be removed from the housing prior to disposal. Please see your authorized NVS1501 dealer for this service.

FCC Rules and Regulations – Part 15

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment under FCC rules.

Device

Model Number

Card Slots

External Harddrive Support

Battery

AC Power Adapter

Bus Power Operation

Computer Interface

File System Format

OS Compatibility

Dimensions

Weight

Contents

Technical Specifications

NEXTO VIDEO STORAGE

NVS1501

2.4”Color TFT LCD: 320*240, 64K colorsLCD

CF CF Type 1/2, Micro Drive

3in1 SDHC/SDXC/MS

USB 2.0: 480Mbit/sec

Internal: 3.7V 4400mAH rechargeable Li-Poly battery (120 min) * Rechargeable by AC adapter, USB cable, FireWire 800 (IEEE 1394b) cable (9-9pin), and Car charger cable External : Battery holder for recharging Internal battery with four standard AA cell batteries (40 min)

Input: 100-240V AC Output: 12V/1A DC

Operate with USB bus power or FireWire 800 (IEEE 1394b) cable power

USB 2.0 : 480Mbit/sec FireWire 800 (IEEE 1394b) : 800 Mbit/sec

Internal hard drive : FAT32 / exFAT Memory card (including SxS) : FAT12/16/32/exFAT

Windows VISTA/XP/2000/ME MAC OS 10.6 or above Linux2.4.18 or above

154mm * 91mm * 33mm

430g/15.1oz (with Hard drive)

NVS1501 Main unit / Manual / AC power adapter / USB cable / IEEE 1394b (FireWire 800) cable (9-9pin) / AA battery holder / Rubber jacket for shock protection

(6.1 inches * 3.6 inches * 1.3 inches)

BAT TERY DISPOSAL
