Page 1

NEXTO PHOTO STORAGE

Portable Backup Storage for Professionals

USER MANUAL V1.0

NEXTO DI

www.nextodi.com

Page 2

INTRODUCTION INTRO

Thank you for purchasing the NEXTO PHOTO STORAGE (NPS-10).

The NPS-10 allows camera and camcorder users to save data from their memory cards to a hard drive(or SSD) without the use of a computer. The performance of the NPS-10 has been optimized so that data transfers from a memory card to the NPS-10 more quickly than to other storage devices. Data stored on the NPS-10 can be copied to a computer later. The NPS-10 supports various memory cards from cameras, camcorders and any digital devices. The NPS-10 came in three models; CF (Compact Flash), XQD (CFexpress) and CFast. All models have 2 SD slots and 1 microSD slot in common. Please read this manual before using the product. Follow operating instructions carefully to avoid damage to the product, or personal injury. This guide assumes that your NPS10 unit contains a properly formatted hard drive and a charged battery. If not the case, please refer to the User Manual for instructions on formatting a hard drive and charging the battery. The NPS-10's internal storage can be a hard drive or solid state drive (SSD). For best performance and safety, SSD is recommended.

"NextoDI", "NEXTO PHOTO STORAGE", "NPS-10" and "X-Copy" are registered trademarks of NextoDI Co., Ltd. "Windows" is a registered trademark of U.S. Microsoft Corporation in the USA and in other countries. "Mac OS" is a registered trademark of Apple Inc. in the USA and in other countries. All other trademarks are the property of their respective owners.

All company names and product designations contained herein are trademarks of their respective owners. All rights are reserved.

Important safety notice

• Do not drop, jar, bump, shock, or expose the NPS-10 to severe vibration previewing photo or transferring data.

• Do not use near open 󽗊ames (candles, stoves, grills, 󽗉res) or sparks (󽗉reworks, welding torches).

• Backup your data. Under no conditions is NextoDI Co., Ltd. liable for loss of, or damage to, a computer; or loss of, or damage to, a program, records, or data; or any consequential or incidental damages. For more inquiries, contact or consult our technical advisory service:

https://www.nextodi.com/support/qa/

NextoDI Co., Ltd. reserves the right to make improvements and/or changes to the  

* product and programs described in this User's Guide at any time without notice.

Page 3

CONTENTS

01. CONTENTS

02. DEVICE DIAGRAM

03. PRODUCT DESCRIPTION

04. SYMBOLS USED IN THIS DOCUMENT

05. IMPORTANT SAFETY INFORMATION

06. INSTALLATION OF HARD DRIVE (OR SSD)

07. CHARGING THE RECHARGEABLE BATTERY

08. NPS-10 INTERFACE

08.1 TURNING THE NPS-10 ON/OFF

08.2 KEY OPERATION

17 17 18

08.3 THE LED INDICATOR

08.4 THE LCD DISPLAY

9. FORMATTING THE HARD DRIVE (OR SSD)

10. CONNECTING THE MEMORY CARD

10.1. CONNECTING A MEMORY CARD INTO THE BUILT-IN SLOT

10.2. CONNECTING THE MEMORY CARD BY USING USB CARD READER

11. DATA BACKUP (COPY) AND VERIFY

11.1. COPY PROCESS

11.2. PARSING THE MEMORY CARD

11.3. COPY & VERIFY

11.4. STATUS

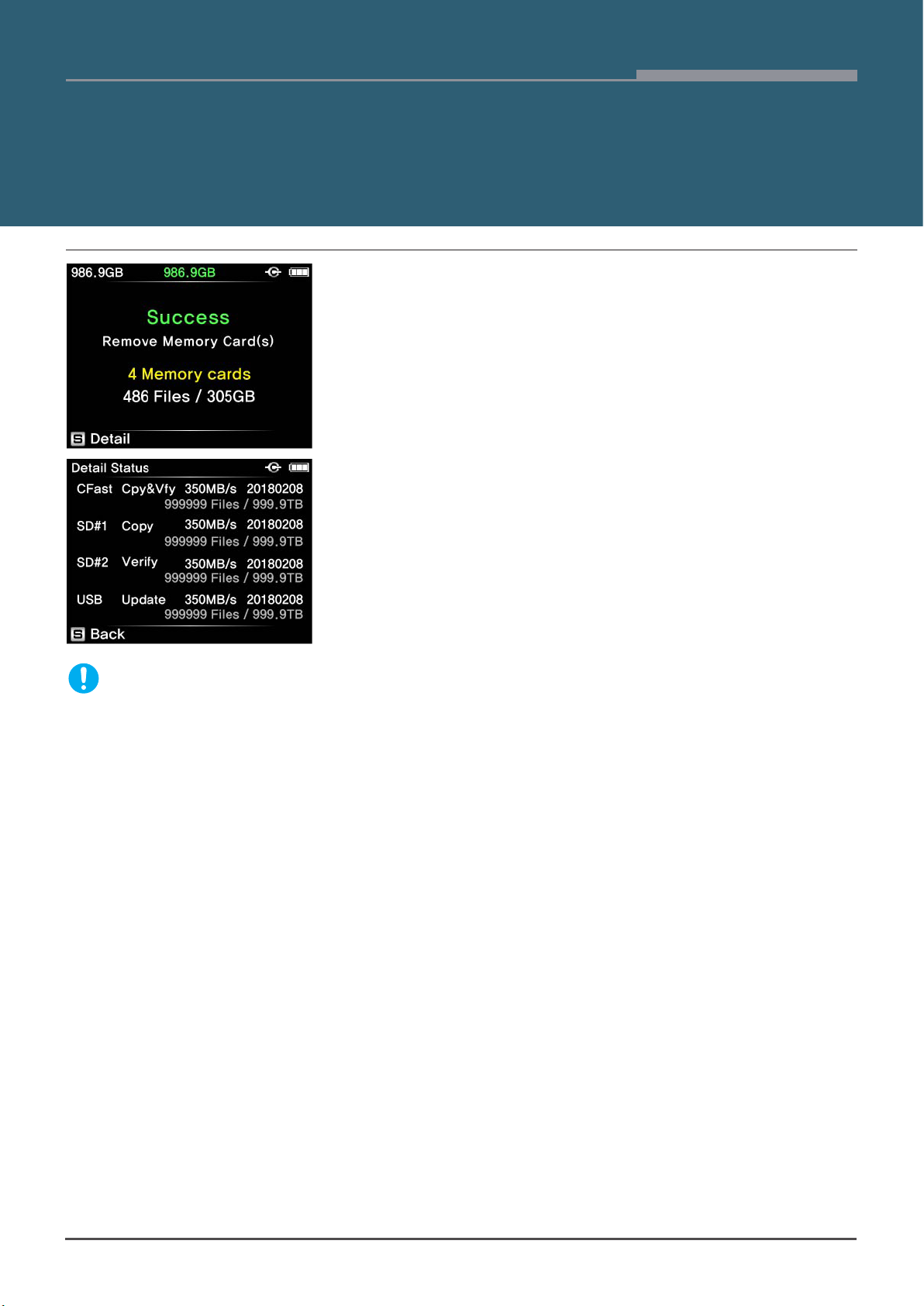

11.5. INDICATION OF RESULTS

11.6. ERROR DISPLAY

19 20

23 23 24

25 25 27 28 30 31 32

Page 4

CONTENTS

12. VIDEO/PHOTO PREVIEW

12.1. BROWSE FOLDERS

12.2. SHOW VIDEO

12.3. IMAGE PREVIEW

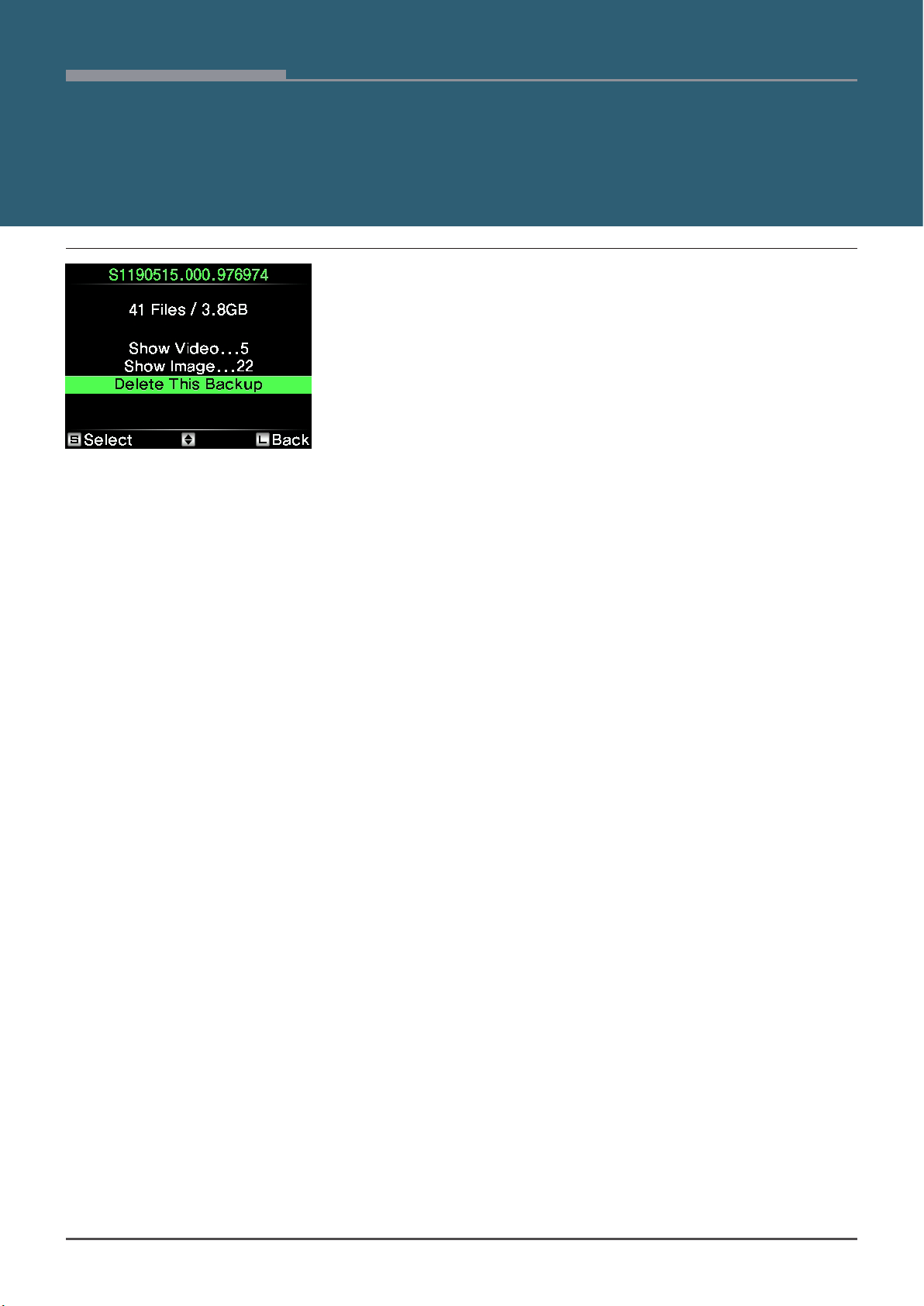

12.4. DELETE THE BACKUP DATA

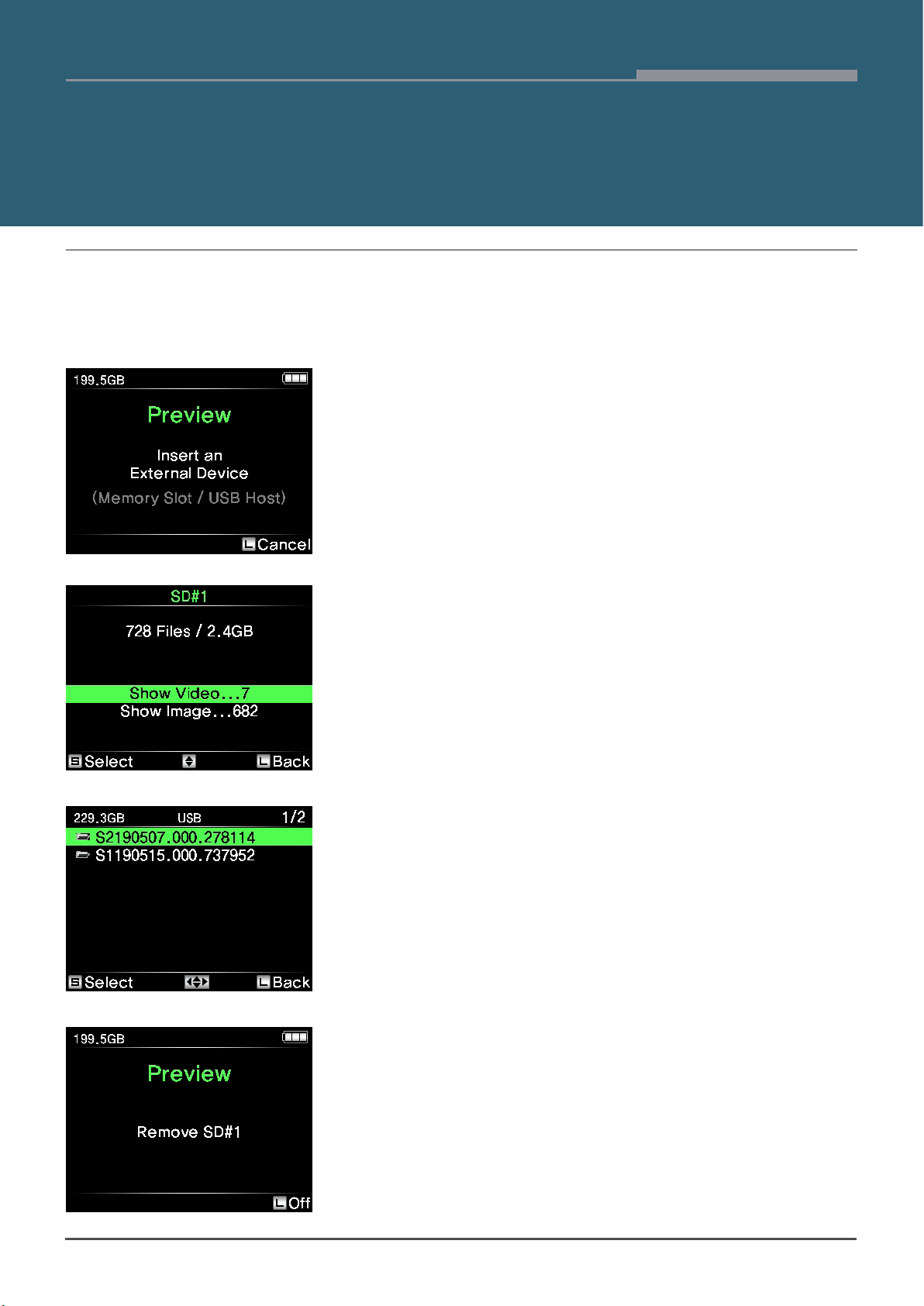

12.5. PREVIEW FROM AN EXTERNAL DEVICE

13 USING A USB EXTERNAL DRIVE

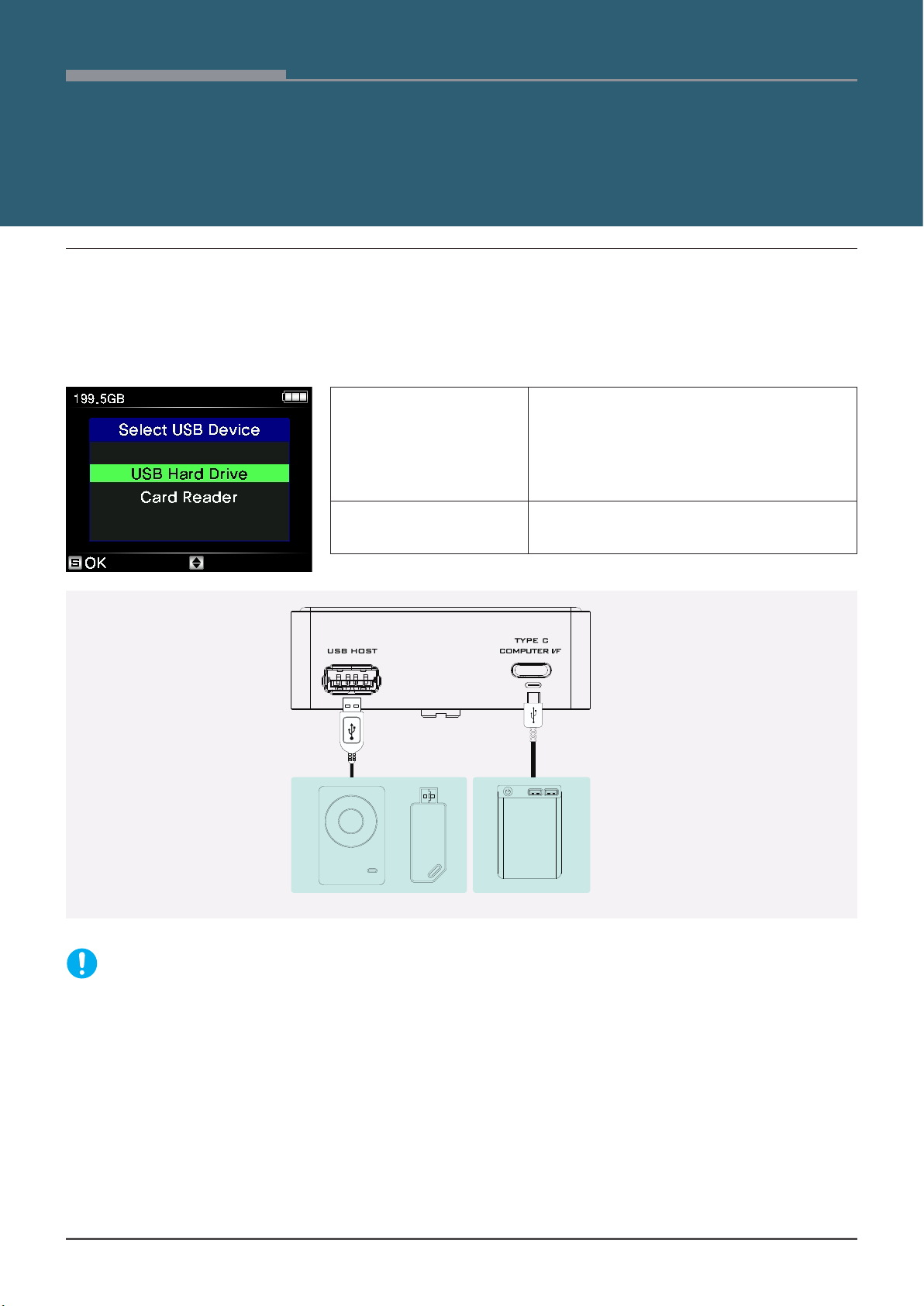

13.1. SELECTING TYPE OF USB DRIVE

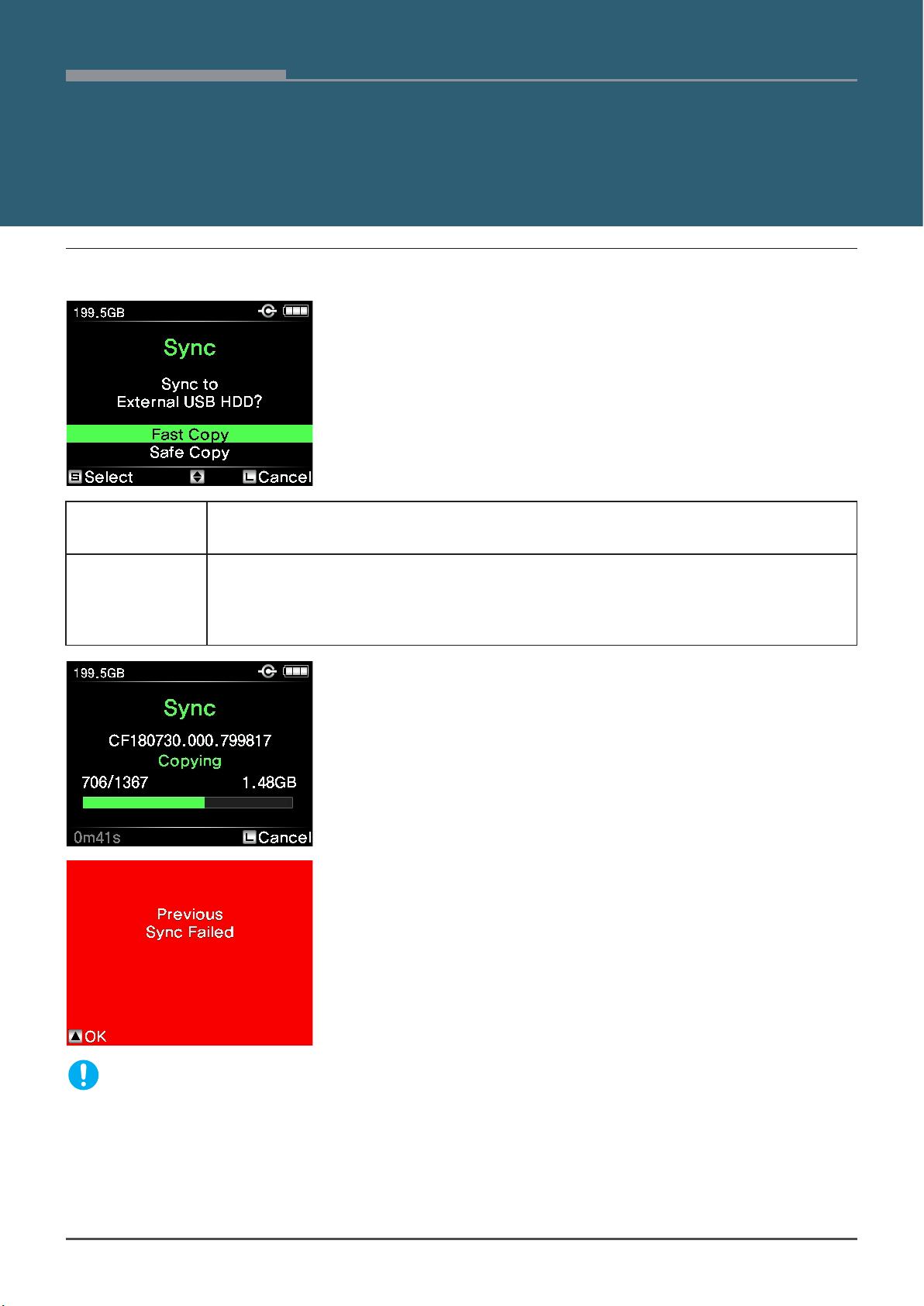

14. MAKING A SECONDARY COPY (SYNC)

15. USING THE NPS-10 AS AN USB EXTERNAL DRIVE

15.1. CONNECTION TO COMPUTER

15.2. BROWSING THE CONTENTS OF YOUR HARD DRIVE

15.3. DISCONNECTING THE NPS-10 FROM YOUR COMPUTER

33 33 34 35 36 37

38 38

41 41 42 43

16. DEVICE MANAGEMENT

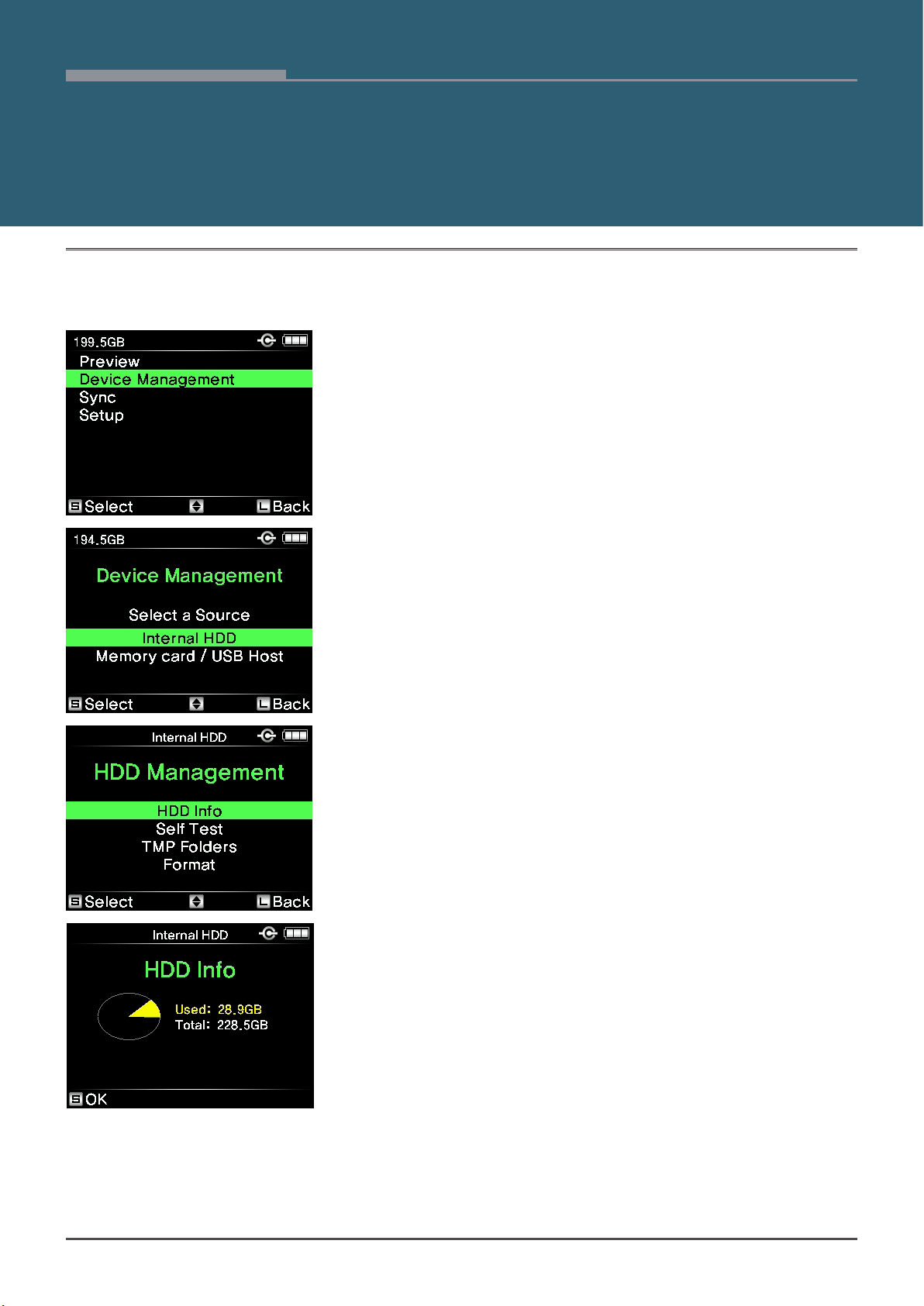

16.1. DRIVE INFO

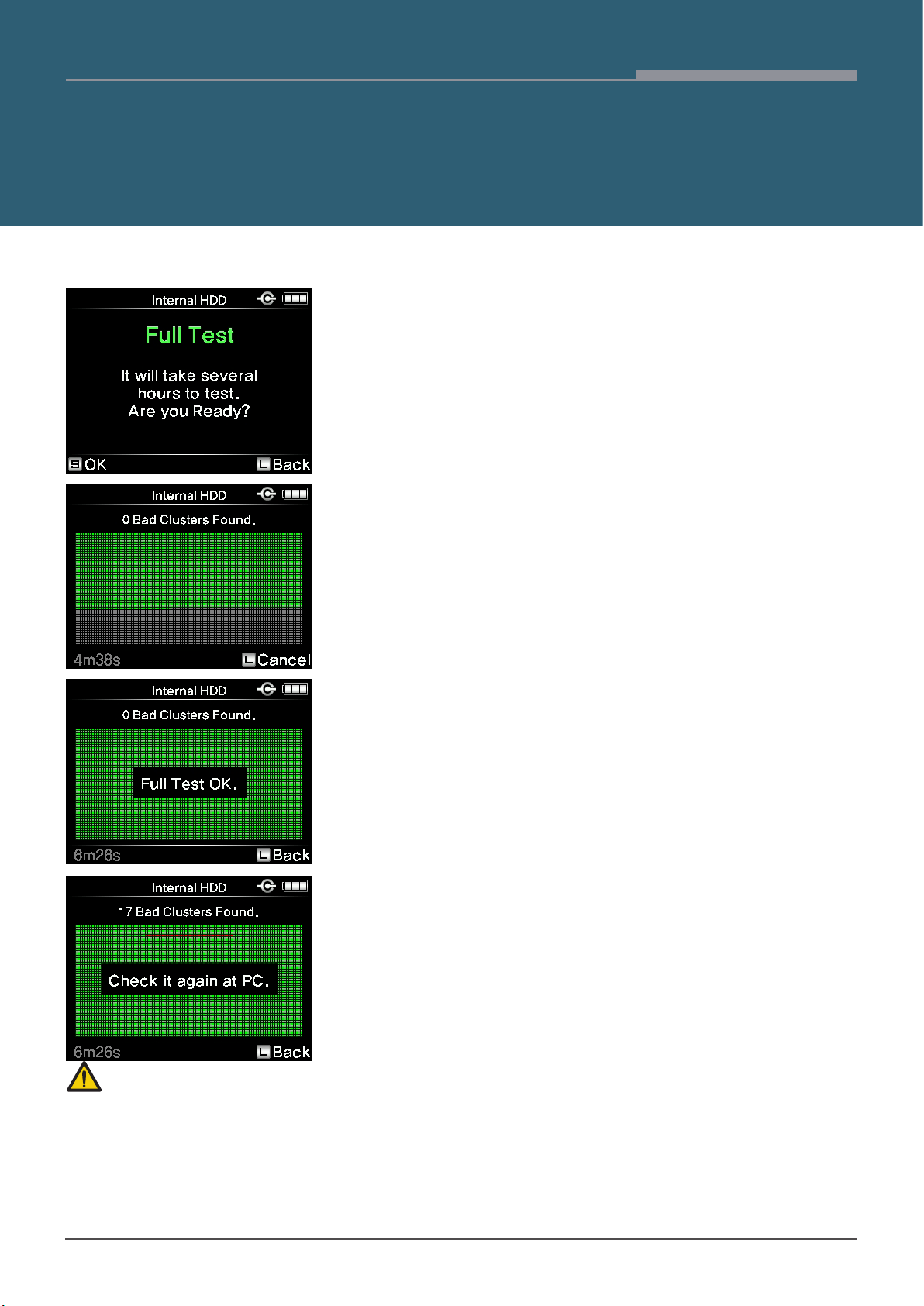

16.2. SELF TEST

16.3. DELETE TMP FOLDER

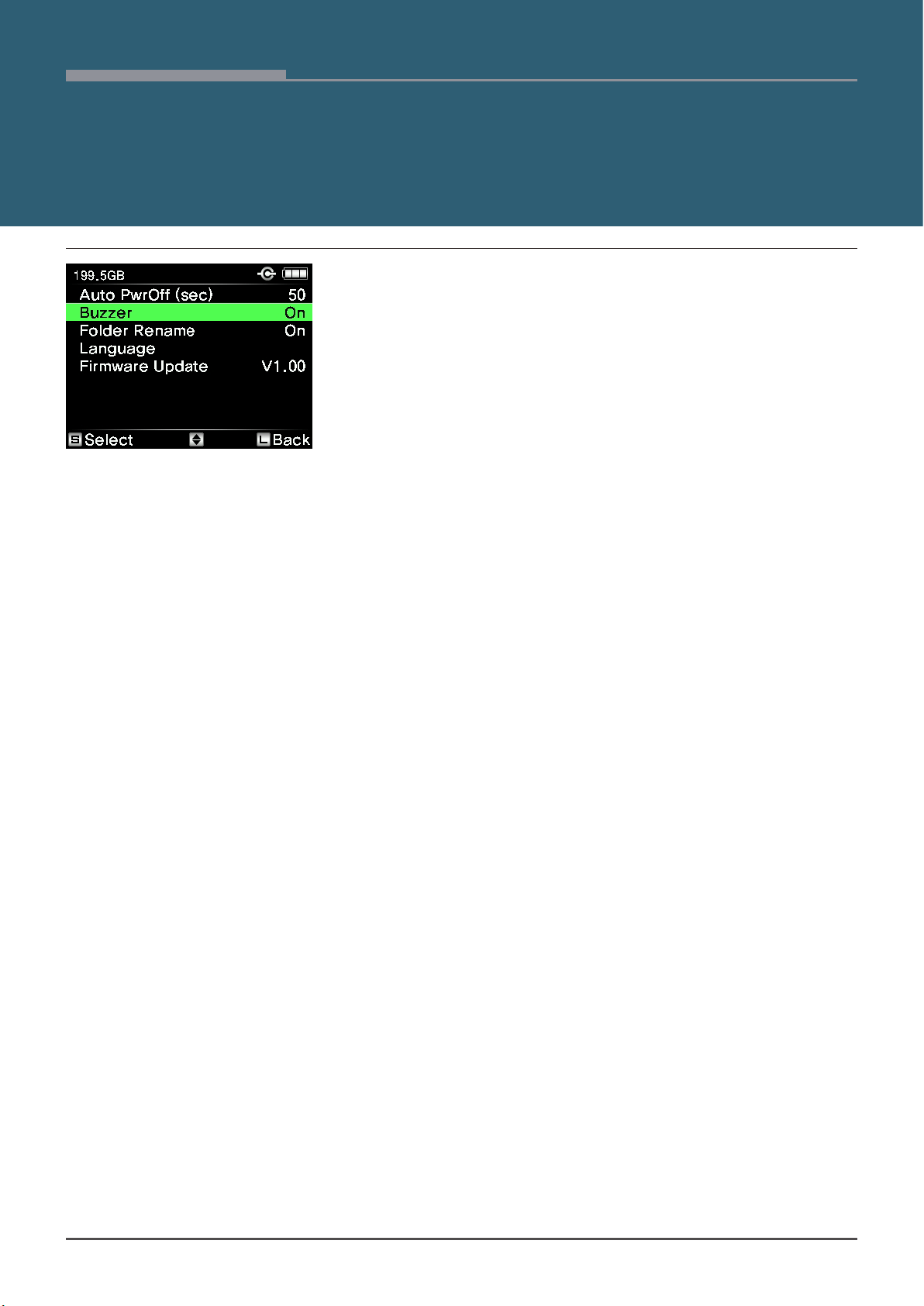

17. SETUP FUNCTIONS

17.1. AUTO POWER OFF

17.2. SOUND

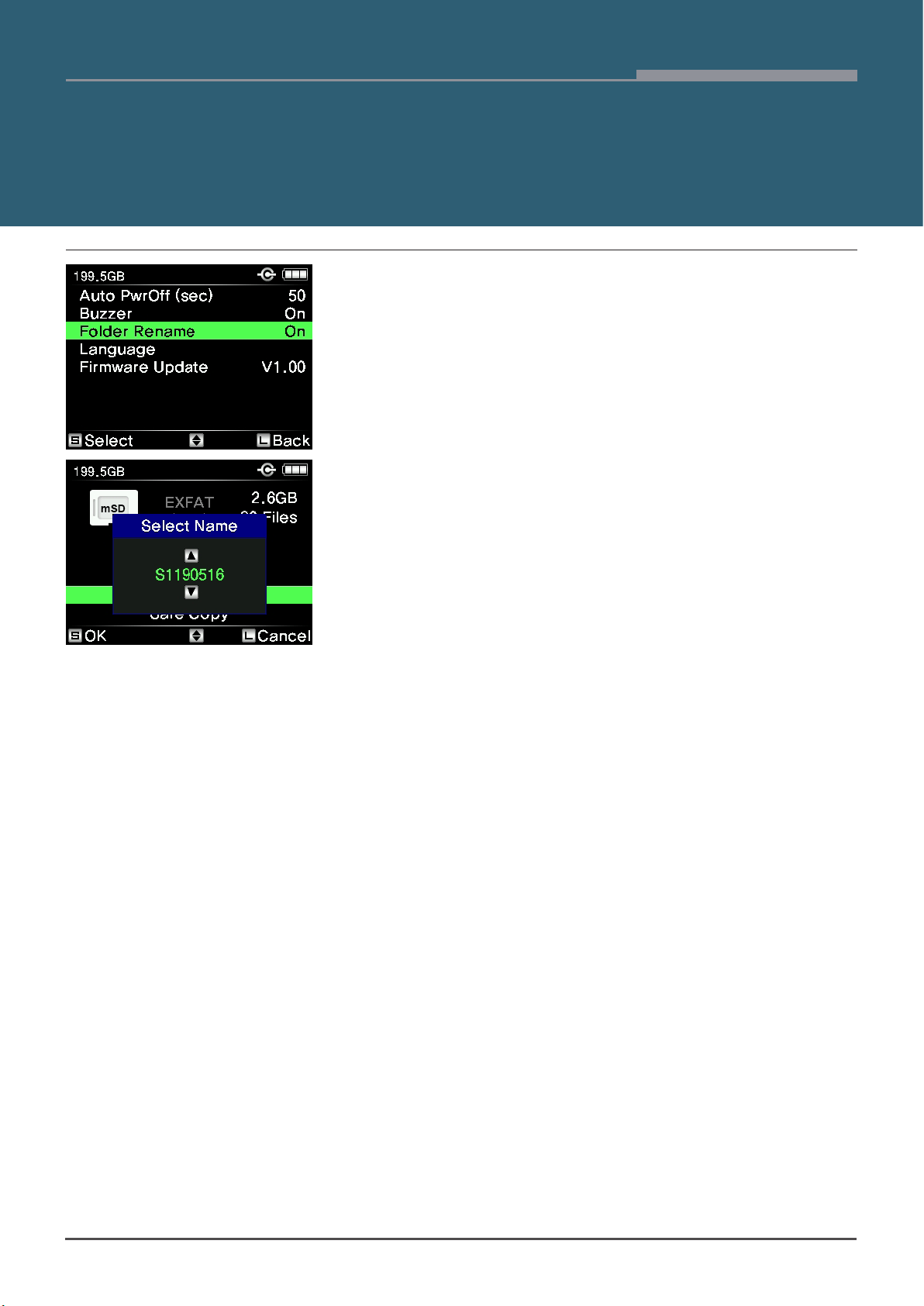

17.3. FOLDER RENAME

17.4. LANGUAGE SETTING

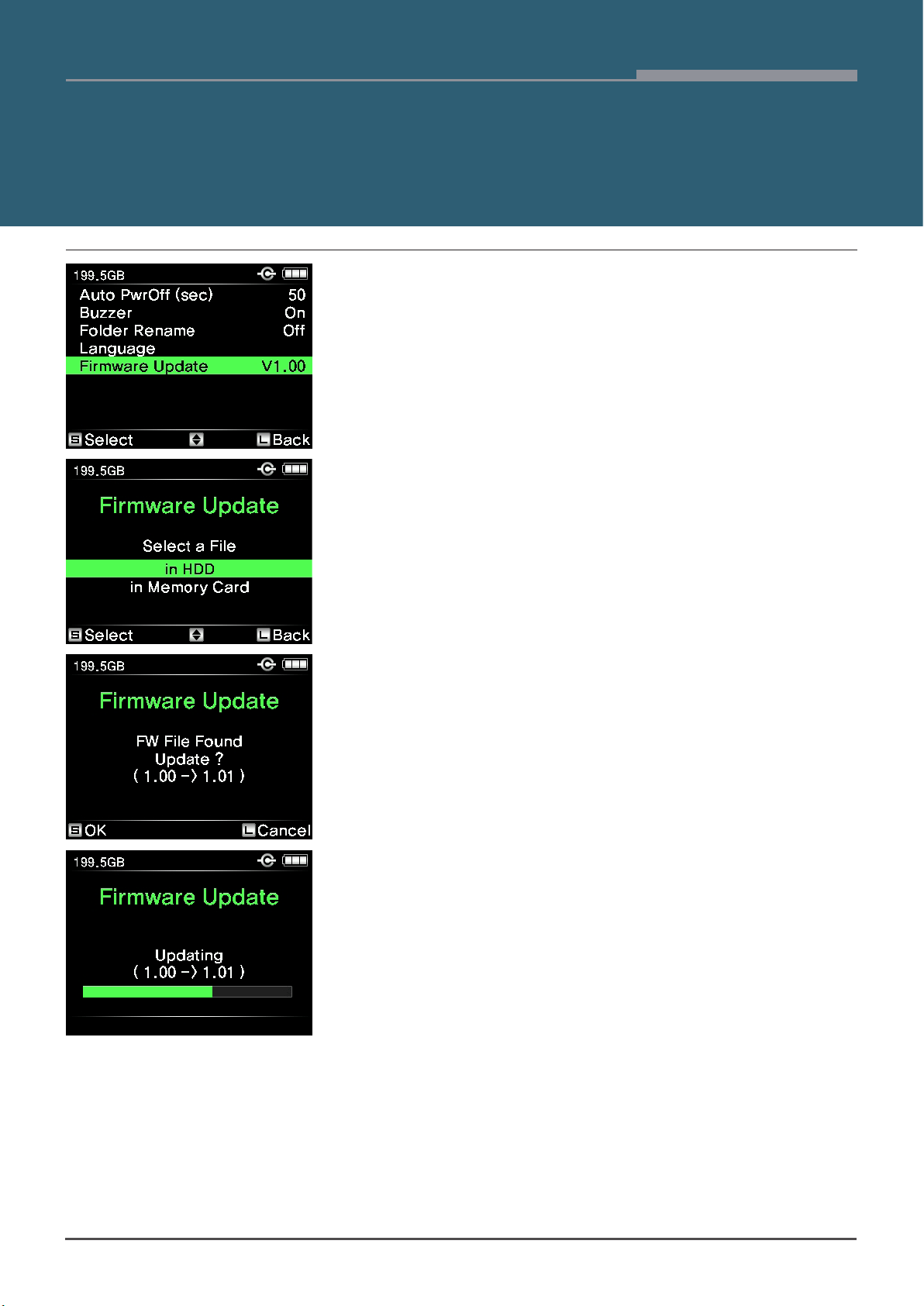

17.5. FIRMWARE UPDATE

18. TROUBLESHOOTING TIPS



19. BATTERY DISPOSAL

20. TECHNICAL SPECIFICATIONS

44 44 45 48

49 49 50 51 52 53

Page 5

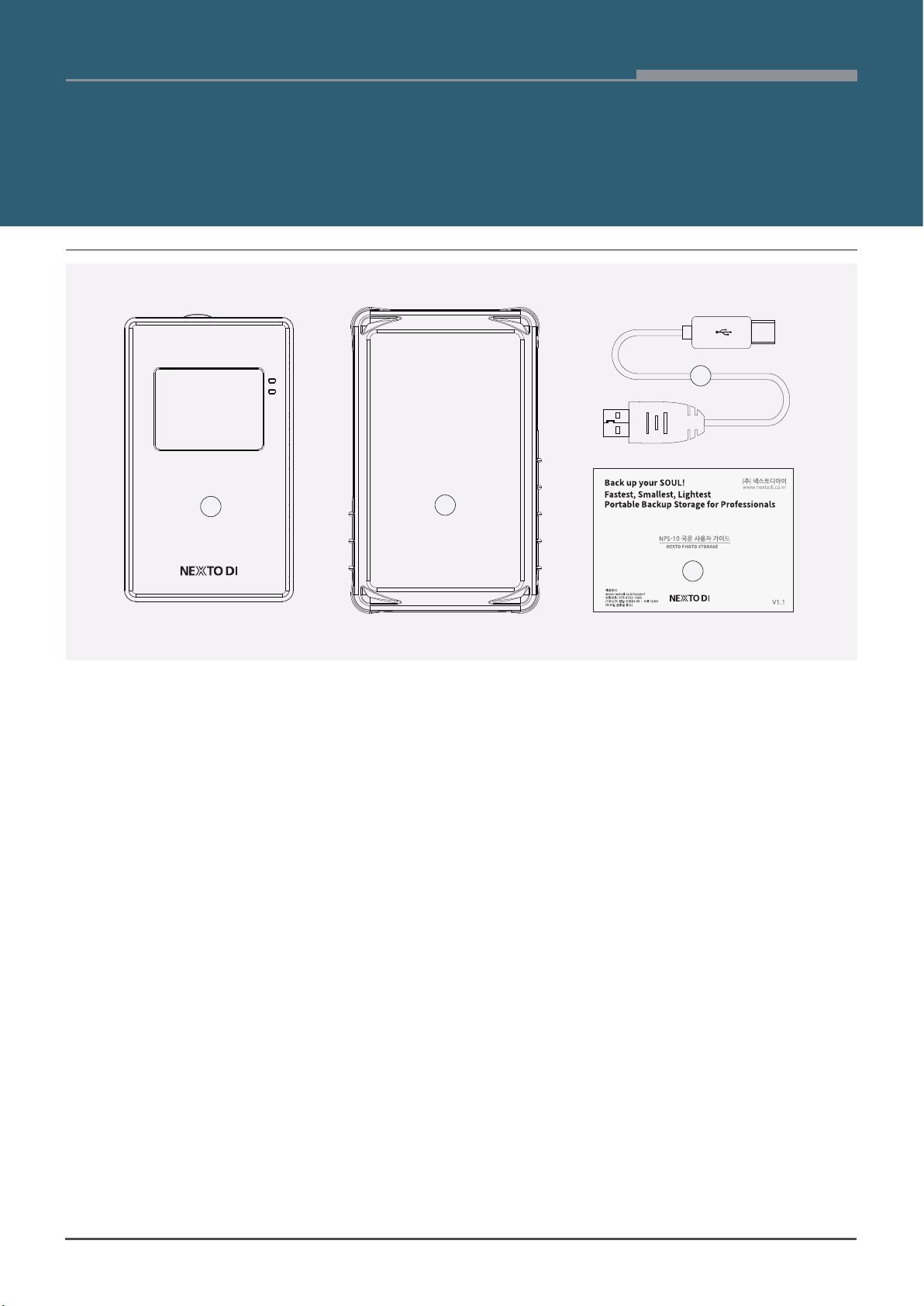

01 Contents of the NEXTO PHOTO STORAGE

① Main storage unit (without hard disk drive): Three di󽗈erent types depending on the   supported memory cards. Add hard drive or SSD according to the direction on Chap. 6.

② Shock protective rubber case

③ USB 3.1 Type-C Cable: Battery charging and PC connecting

④ Quick guide

Page 6

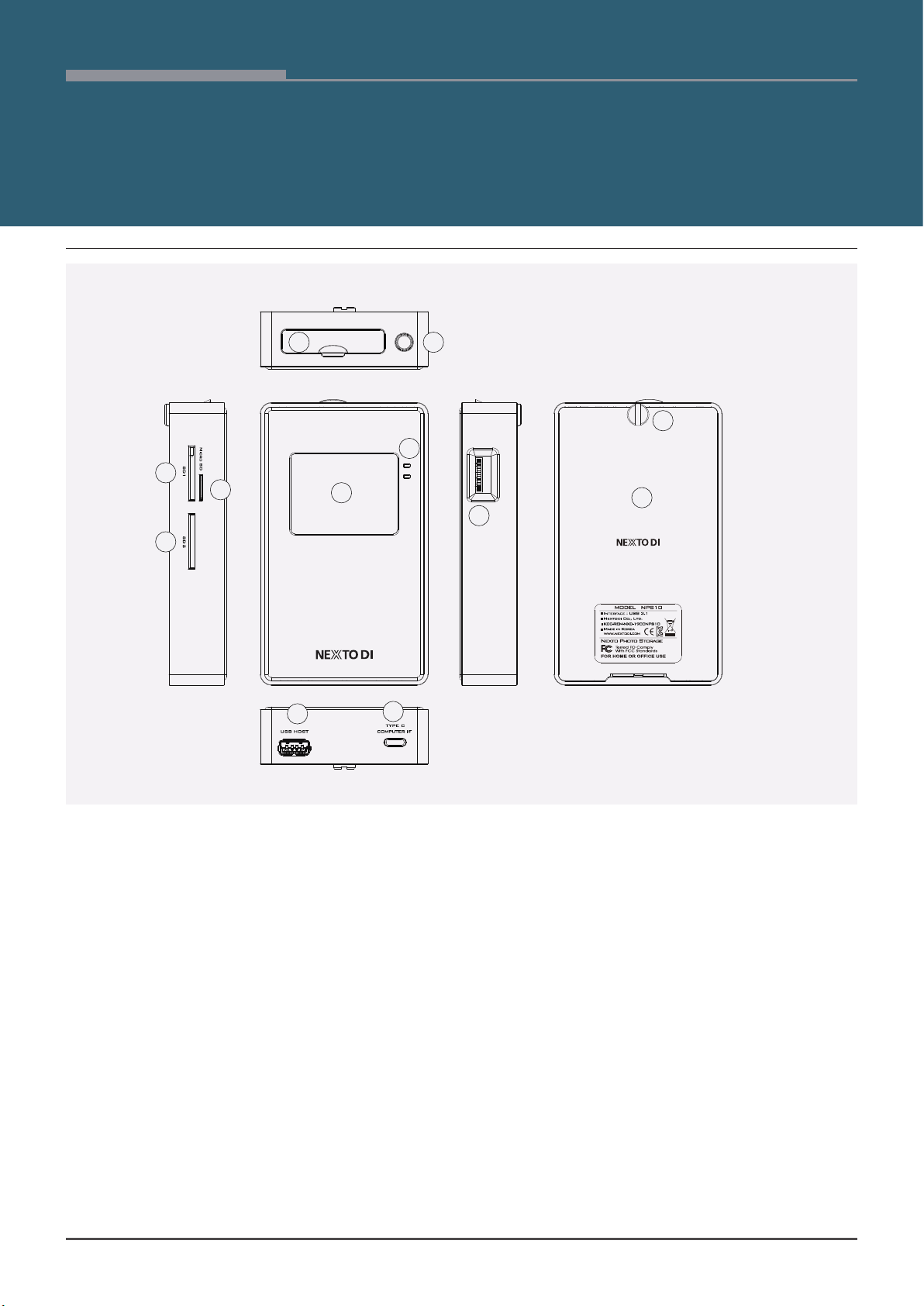

02 Device Diagram

① CF / CFast / XQD Slot: Depending on product type (CF, CFast, XQD). ② Fixing hole: Tripod compatible size. 1/4-20UNC ③ SD1 Slot: A slot for connecting SDHC/SDXC Card ④ SD2 Slot: A slot for connecting SDHC/SDXC Card ⑤ microSD Slot: A slot for connecting microSD Card. The SD1 slot and the microSD slot   cannot be used at the same time. ⑥ LCD Display ⑦ LED Indicator ⑧ Control Button: Used to turn on/o󽗈 and control the product. ⑨ Rear cover 󽗉xing captive screws: A screw for fastening the aluminum rear cover. ⑩ Rear cover: A rear cover for an internal HDD/SDD. ⑪ USB Host Slot: A slot for connecting a USB external drive or a USB memory card reader.

- Used to connect to a USB external drive to make a copy. Available only when power is 

supplied through USB Type-C slot.

- The USB memory card reader can operate with built-in battery without external  

power. Only one memory card is recognized at a time. ⑫ USB Type-C Slot: Used to charge the product or connect to a computer.

Page 7

03 Product Description

The NEXTO PHOTO STORAGE (hereinafter NPS-10) o󽗈ers su󽗋cient space for the installation of a 2.5” Serial ATA(SATA) hard disk drive or SSD (not included in the delivery) and includes a Li-Poly rechargeable battery. The NPS-10 provides the following functions:

3.1. Memory card backup and verify

The NPS-10 can copy the contents of a memory card to the internal hard drive (or SSD) without a PC-even in the 󽗉eld where no electric power source is available. You can copy SD, SDHC, SDXC, microSD cards through the SD slot on the left side of the device. Depending on the model purchased, one of the [CF / XQD / CFast] cards can be copied through the card slot on the top of the unit. For complete backup information, refer to chapter “11. Data Backup (Copy) and Verify “of this manual.

3.2. Sequential copy

Used to back up all inserted memory cards sequentially in a single operation when multiple memory cards are inserted. Refer to the “11. Data Backup (Copy) and Verify” chapter for more information.

3.3. Incremental copy

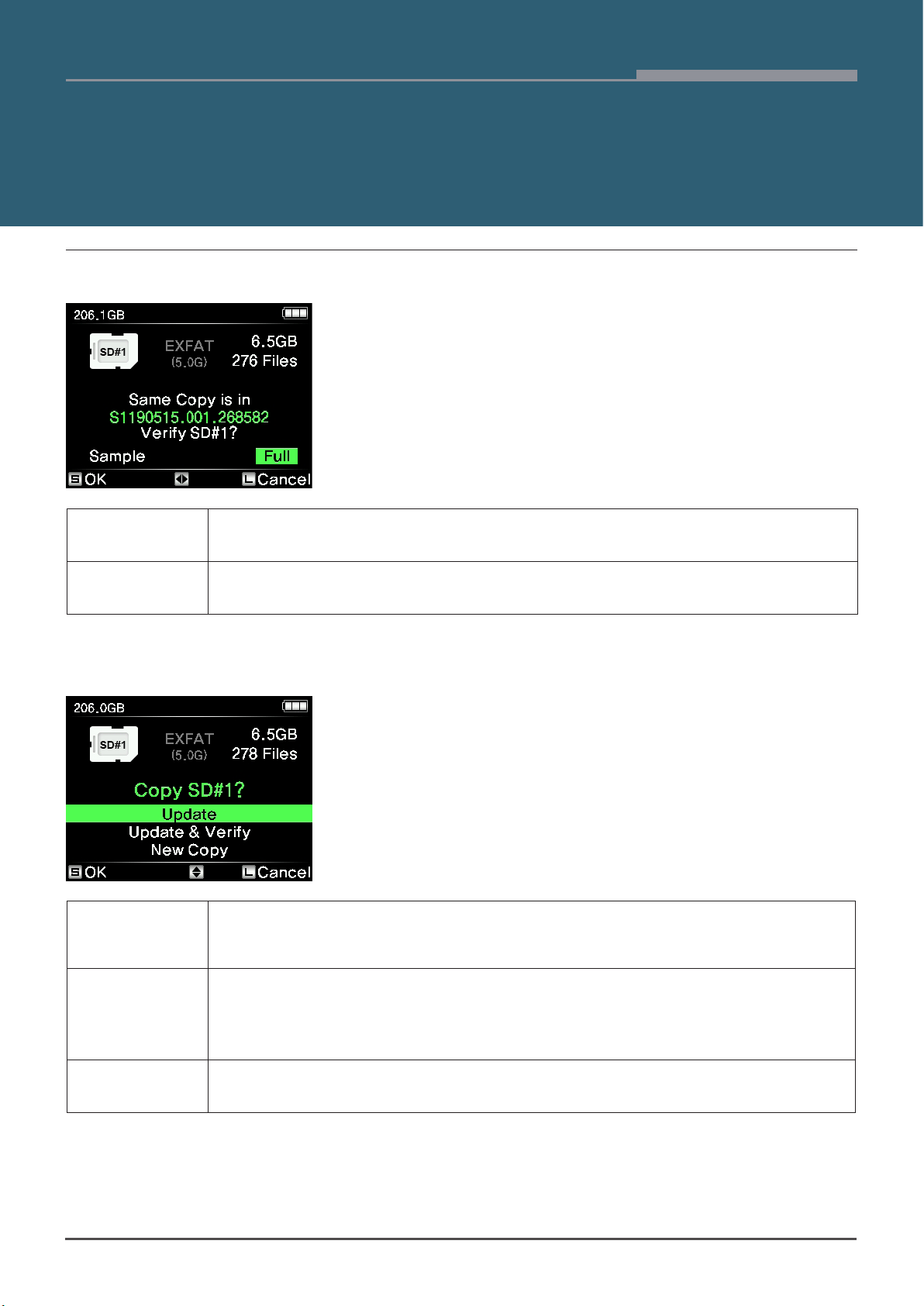

The NPS-10 supports the “Incremental copy” function which enables you to back up memory card multiple times without erasing the card. You can back up only the added 󽗉les that are added after the last backup. Refer to the “11. Data Backup (Copy) and Verify” chapter for more information.

3.4. Making a secondary copy (Sync)

The NPS-10 can synchronize the contents of a folder with the folder on an external USB hard drive. This allows you to make a secondary copy of the backup folder to an external USB hard drive without using a computer. For details of the Sync function, see chapter “14. Making A Secondary Copy (Sync)”.

3.5. Folder name change

When backing up a memory card, you can change the folder name to begin with C1~C9(e.g., C1160301.000) instead of the date-based folder name(e.g., 20160301.000). * C1 ~ C9 means Camera1 ~ Camera9. For details of the folder name change, refer to the "17. Setup Functions".

Page 8

03 Product Description

3.6. Video & Photo preview

The NPS-10 can display photo and video taken with digital cameras/camcorders on a color TFT LCD. The NPS-10 provides a “best e󽗈ort” preview of the video & photo clip. For details on Photo Preview, see chapter “12. Video/Photo Preview”.

3.7. Changeable internal drive

It is possible for users to change the internal hard drive (or SSD). The NPS-10 o󽗈ers many features such as capacity check, self-test, format and etc. for its internal drive. Please refer to “6. Installation of the Hard Drive (or SSD)”and “9. Formatting the Hard Drive(or SSD)” and "17. Setup Functions" for detailed information.

3.8. Computer connection

The NPS-10 can be connected to the corresponding port on your computer via the USB Type C slot to copy data. For Computer Connections, see chapter “15. Using the NPS-10 as an USB External Drive”.

3.9. Simple operation

All functions of the NPS-10 are controlled by one button. A long press for power (On/O󽗈) and Up/Down/Center press for the other functions. For details on Power (On/Off) and control key operations, see chapter “8. NPS-10 Interface”.

3.10. Internal rechargeable battery

The NPS-10 contains an internal Li-Poly battery that allows you to use the NPS-10 without an external power source. The USB Type C cable is used to charge the built-in Li-poly battery from the USB charger. For details on charging the internal battery, see chapter “7. Charging the Rechargeable Battery”.

3.11.LOG File

The NPS-10 generates a LOG 󽗉le (CRC-protected) to keep track of usage by the user and then saves it on each attached drive (internal drive & USB external drive). The log files are stored in the NPSLOG folder and provide information about XCopy, MCopy, Sync, computer connectivity, etc. For details on keeping track of usage with LOG 󽗉le, see chapter “15. Using the NPS-10 as an USB External Drive”.

Page 9

03 Product Description

3.12. Firmware upgrade

In the case of any additional improved or new functions, new 󽗉rmware will be updated. For details on updates of F/W, see chapter “17. Setup Functions”.

3.13. Language selection

The NPS-10 supports various languages. You can select a language from the menu of the NPS-10. For details, see chapter “17. Setup Functions”.

Page 10

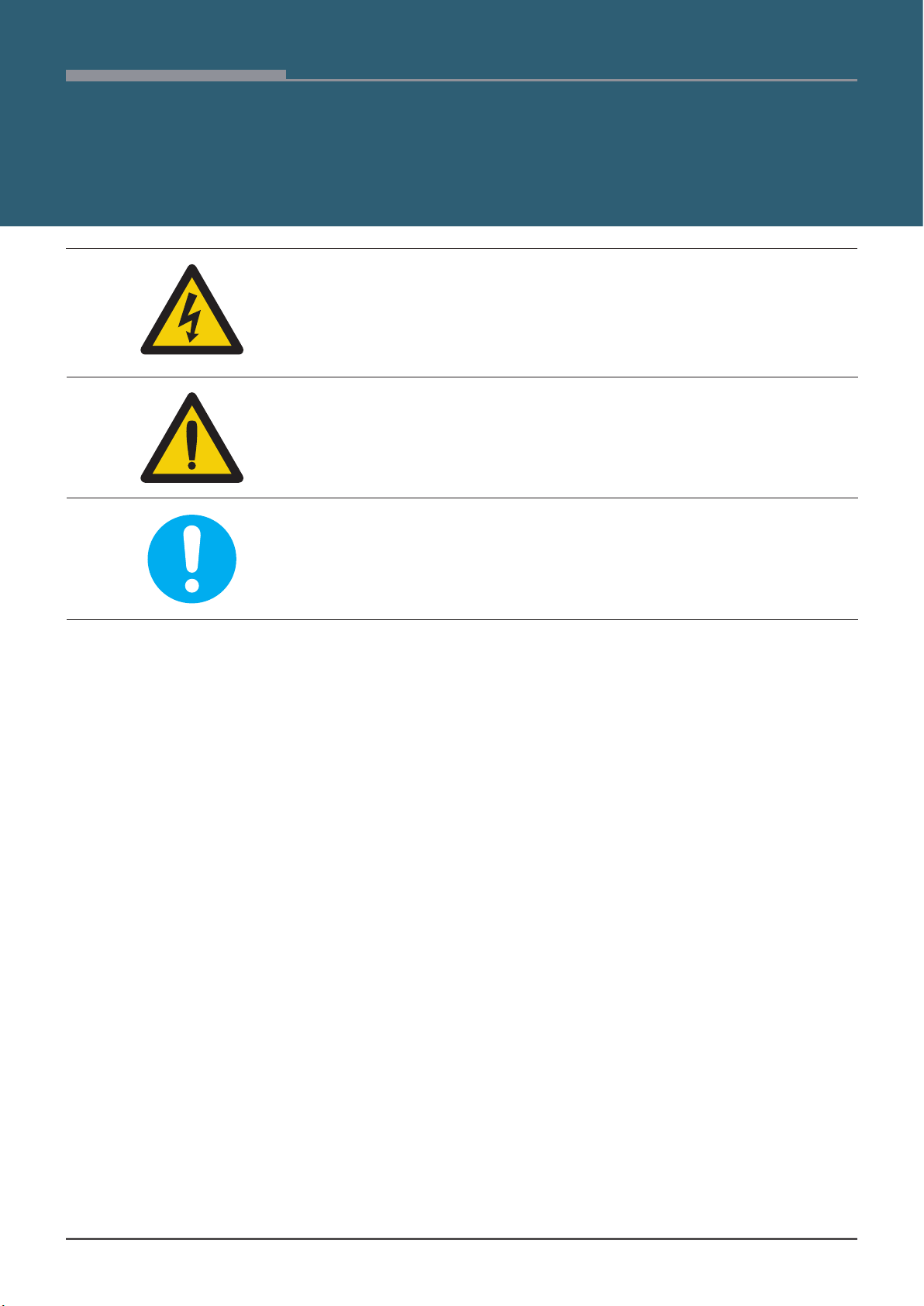

04 Symbols Used in This Document

WARNING

The flash icon in a triangle indicates warning for personal injury hazards such as electric shock.

CAUTION

An exclamation mark in a triangle indicates important instructions in this operating manual which must be observed.

REFERENCE

The exclamation mark icon gives you special tips and notes on the operation.

Page 11

05Important Safety Information

CAUTION

In case of any damage due to failure to observe these operating instructions, the warranty is voided. NextoDI does not assume liability for consequential damages. Nor do we assume liability for damage to property or personal injury caused by improper use or failure to observe the safety instructions. The warranty is void in any such case. The following safety instructions and warnings are not only to protect you, but also to protect the device. Please read the following warnings:

WARNING

• Unauthorized conversion and/or modi󽗉cation of the product is forbidden.

• Never open the product housing. This device is not user serviceable.

• Damage to the Li-Poly rechargeable battery may result in explosion or 󽗉re.

• Maintenance or repairs may only be carried out by an authorized repair center.

• The case of the hard drive must not get damp or wet. Protect the device from humidity and water, from sun, excessive heat (>113°F) or cold (<32ºF), dust and dirt.

• When the product is brought from a cold place into a warm room, condensation may form. This could damage the product. Always let the product get to room temperature before use or before connecting the USB charger or external USB battery. This can take several hours.

• Do not use in tropical climate conditions.

• The product is not a toy and should be kept out of reach of children.

• Do not place liquid near the product. Liquid could get inside the housing and cause a fire or electric shock. In case of fire damage or short circuit, de-energize the respective socket (e.g. turn o󽗈 circuit breaker) and only then pull the USB charger from the socket. Do not attempt to use the product! Take it to your dealer for repair immediately.

• Never touch the USB charger unit when your hands are damp or wet.

• In industrial facilities, safety regulations for electrical equipment and facilities must be observed. If the product is used at schools, training facilities, or do-it-yourself/ hobby shops, it should not be handled unless supervised by trained, responsible personnel.

• Do not drop the NPS-10 device.

Page 12

05Important Safety Information

CAUTION

The product must not get damp or wet. This product is not a toy. It contains fragile and swallowable glass parts, small parts, and a rechargeable battery. Any use other than that described above may damage the product. Read these operating instructions thoroughly and carefully. The instructions contain important information for installation, operation, and handling. Take note of all safety instructions.

Page 13

06 Installation of Hard Drive (or SSD)

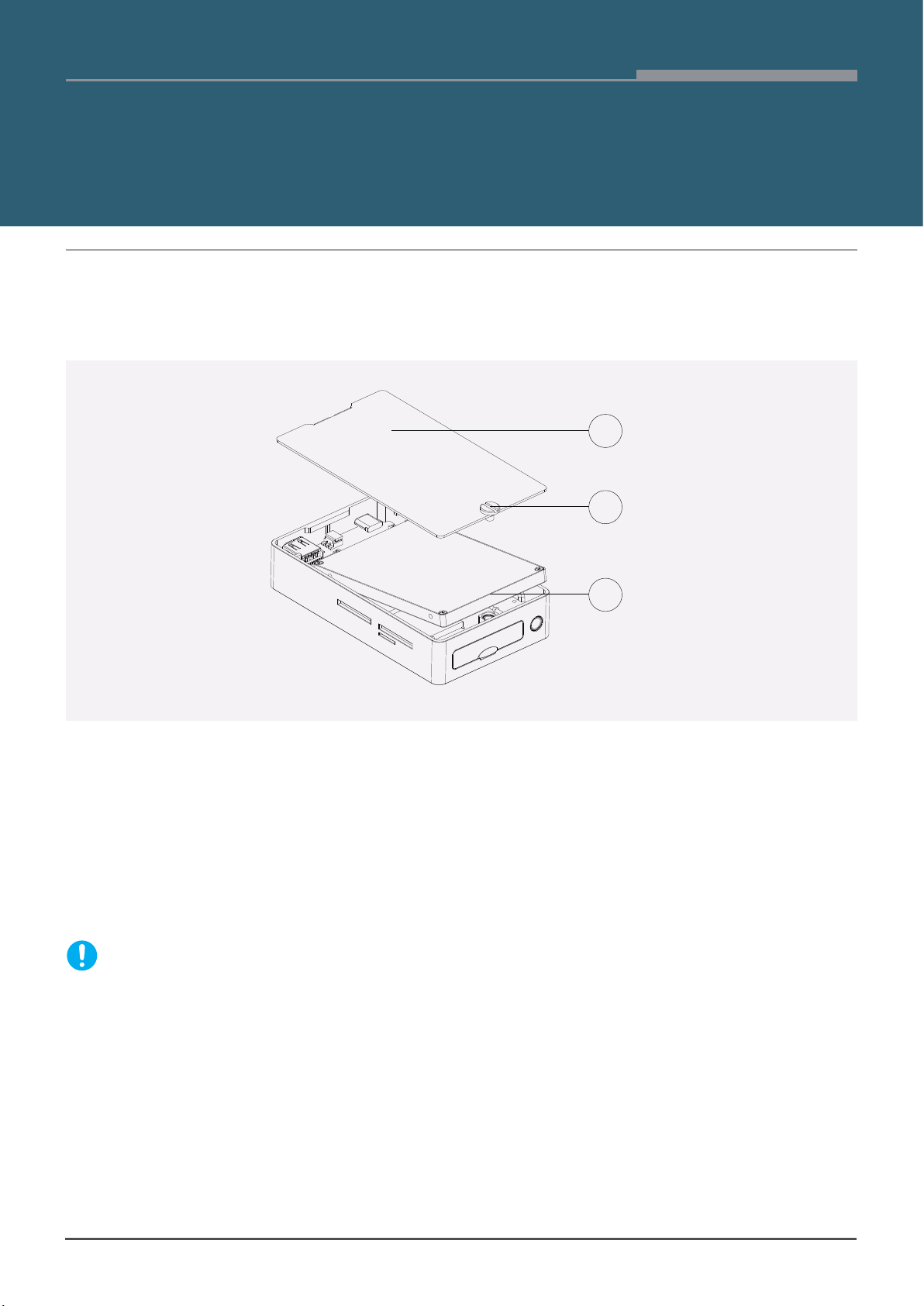

You can install the hard drive (or SSD) directly on your own. The NPS-10 accepts 2.5-inch SATA hard drive (or SSD) used for laptop computer. The maximum allowable capacity of the internal drive is 32TB. And the thickness of the internal drive should be less than

7.2mm.

❸

❶

❷

1. Take o󽗈 the aluminum rear cover. (The case is not screwed when you purchase.)

2. Slide in the drive to the internal drive slot of the NPS-10. To put it easily, recline the hard drive (or SSD) and push it inside as deeply as possible.

3. Install the rear cover to the NPS-10 and use a coin to tighten the screws on the rear cover.

REFERENCE

The hard drive must subsequently be formatted. For this purpose, see chapter “9. Formatting the Hard Drive (or SSD).

Page 14

07Charging the Rechargeable Battery

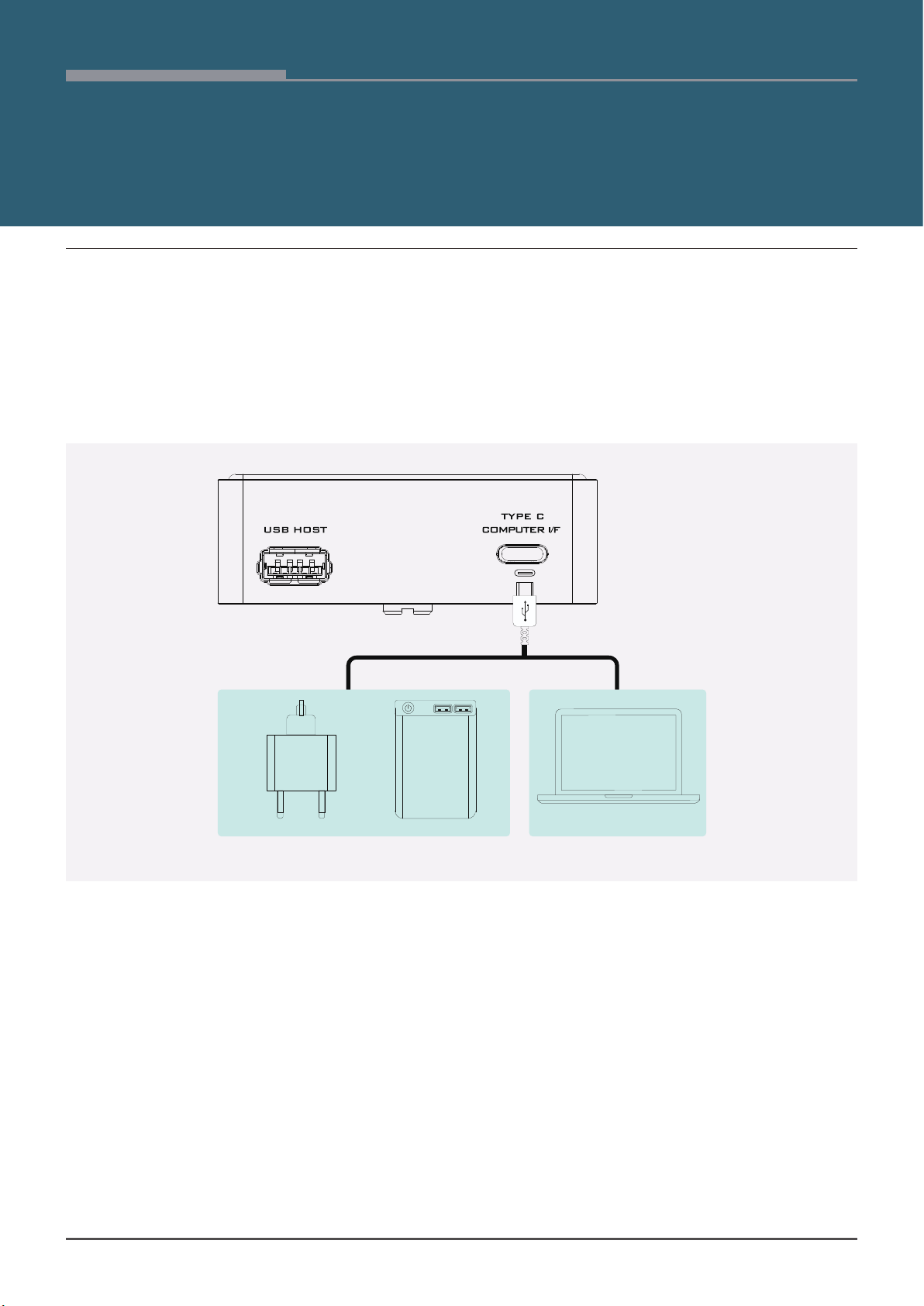

The NPS-10 can be charged via USB Type-C slot using the USB Type-C cable included in the box. You can charge it by connecting to a USB charger(output current capacity 5V 2A or more), USB Battery pack(output current capacity 2A or more) or a USB terminal of the computer as shown below.

When charging starts, the red LED on the top right of the product turns on and when charging is 󽗉nished, the LED turns o󽗈.

BATTERY

PAC K

Page 15

07Charging the Rechargeable Battery

It takes approximately 3 hours to charge the built-in battery.

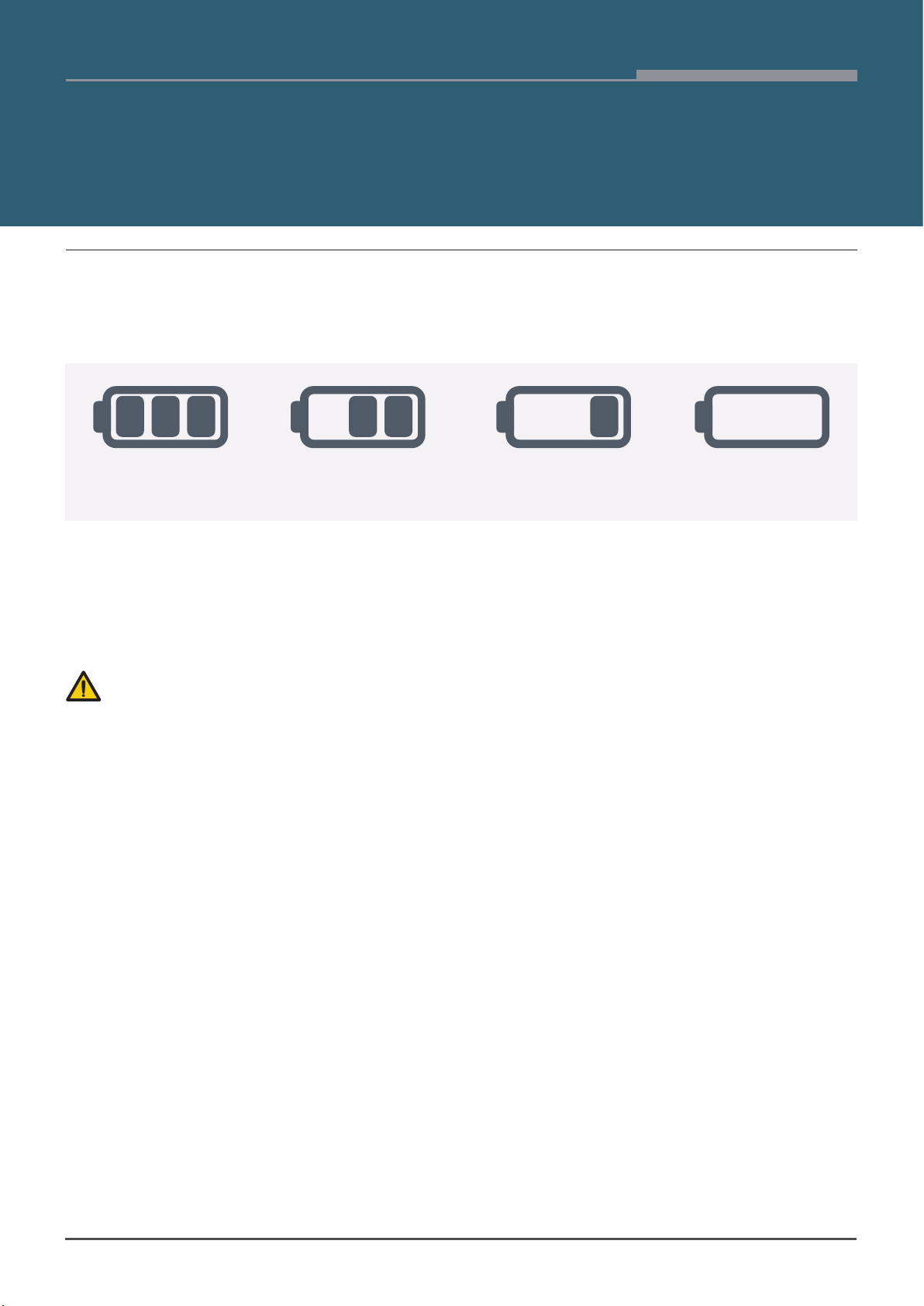

The remaining battery power level can be checked with the battery power indicator on the top right of the LCD.

70~100%

84~120 min. left

When the battery goes 󽗊at, warning message will be displayed on LCD and the power will be off. When it occurs during the backup, the copy may be incomplete. And you should check the backup result. When the device is switched on again, the previous backup status will be displayed; either “Success” or “Failed”.

30~70%

32~84 min. left

5~30%

5~32 min. left

5% 미만

Less than 5 min. left

CAUTION

• Never damage the rechargeable battery--do not remove it from the NPS-10. Consult the chapter on "Battery Disposal". Damaging the wrapping of the rechargeable battery might cause an explosion or 󽗉re.

• Never short circuit the contacts of the rechargeable battery. Never touch the connections or electrical components inside the NPS-10 with metal objects.

• Charge the rechargeable battery regularly, even if you do not use the product. The NPS-10 needs some "current" (a small quantity) at all times. Due to the Li-Poly rechargeable battery technology, it is not necessary to discharge the battery before recharging. Recharge the battery completely, about once a six month. The device will be ready for use at any time.

Page 16

07Charging the Rechargeable Battery

REFERENCE

• The NPS-10 is charged only when the power is o󽗈, or when connected to a computer and used as an external storage device.

• Please use a USB charger and a USB battery pack with output current capacity of 5V 2A or more.

• When the battery gauge goes down, the gauge will not seem to go up until the battery is fully charged.

• When connecting to the computer via the USB cable, the USB power from the computer may not be su󽗋cient. Then, the built-in battery will be used together. Even if the power is supplied, the built-in battery may be exhausted and the power may be cut o󽗈 during operation.

• Always keep the battery charged one or more of the gauge remaining on LCD. If the battery is completely discharged, it shortens the battery life.

• If the NPS-10’s battery is completely discharged, the performance of the battery may be degraded. It is recommended that the NPS-10’s battery be recharged before the battery gauge reaches the empty level.

• If the NPS-10 is fully charged and is using the internal battery only, you may use the “Backup” function for about 2 hours. (However, when the other functions such as the Video/Photo Preview are used, the usable time for the backup function may be reduced.)

• The rechargeable battery can be recharged 400 times. If the battery operation time gets shorter, it may be time to replace the battery. Consult your authorized NEXTODI dealer to replace the internal battery.

Page 17

08 NPS-10 Interface

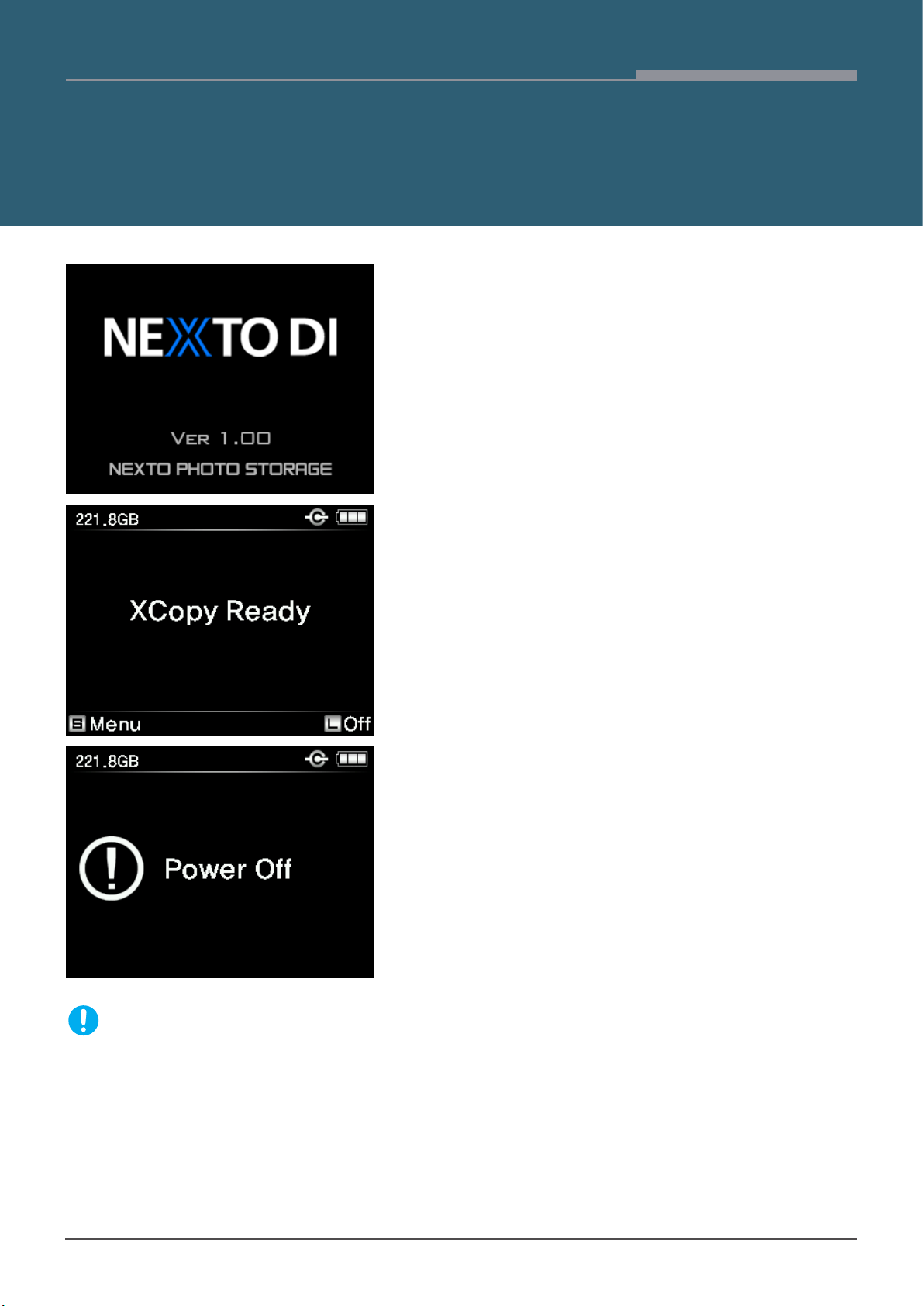

08.1_Turning the NPS-10 on/o󽗈

Press the control key on the right side of the device for a few seconds in order to turn the NPS-10 on. The power up logo and firmware version will be shown on the LCD. When you see the logo on the LCD screen, release the key. Otherwise, the NPS-10 will automatically power o󽗈.

After checking the system, the NPS-10 goes into [XCopy ready] mode. You can copy a memory card in this mode.

The NPS-10 will automatically turn o󽗈 when not in use. The user can choose the amount of idle time (e.g. 30/40/50/60/90 seconds) prior to an automatic power o󽗈. The NPS-10 can be powered off by pressing down on the control button for more than 1 second. For details on Setting Auto Power Off, see chapter 17. Setup functions.

REFERENCE

The NPS-10 can be o󽗈 via the power key by pressing for more than 8 seconds when frozen.

Page 18

08 NPS-10 Interface

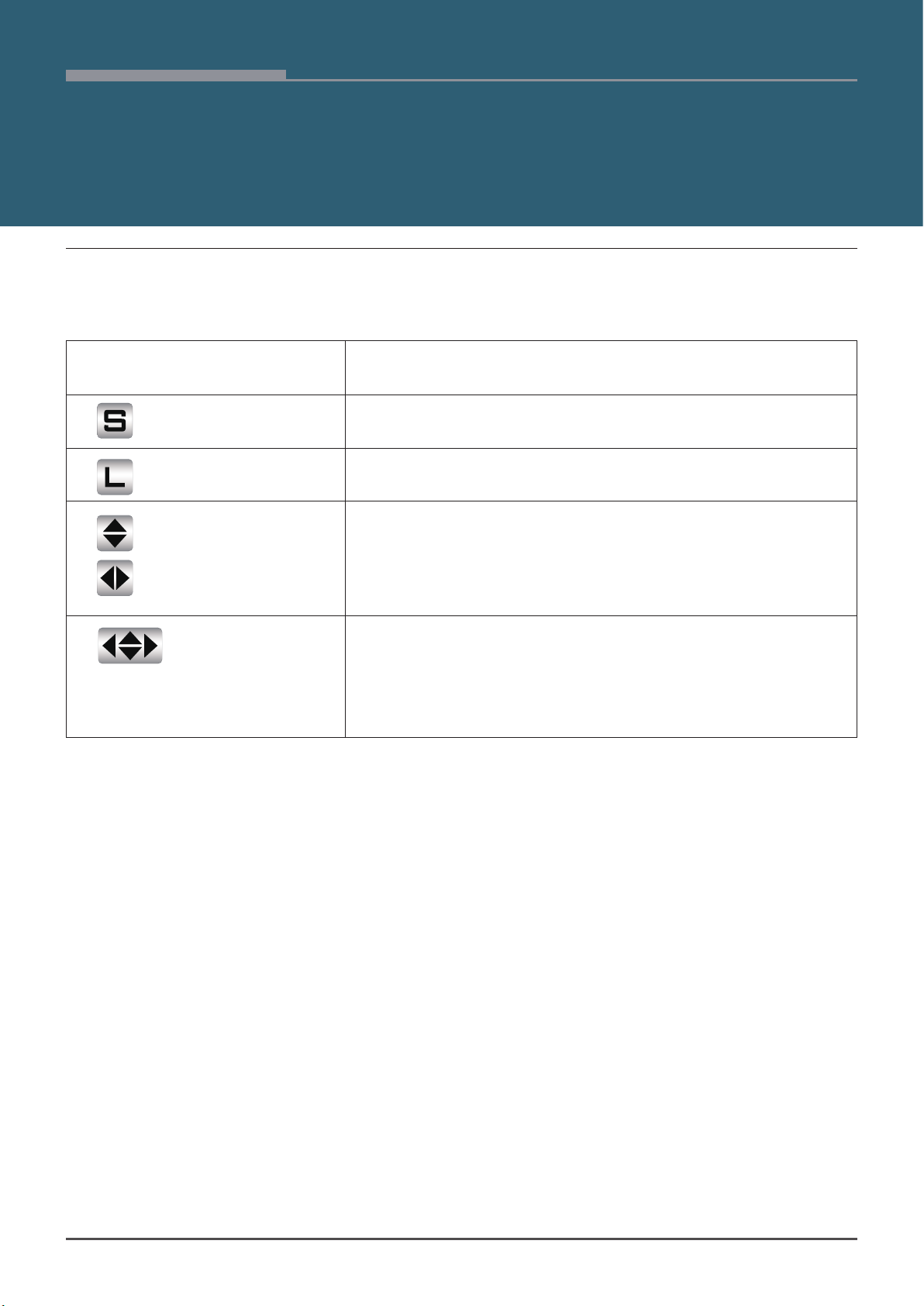

08.2_Key operation

The NPS-10 is operated by a single control button which can be used in five different ways. The display shows you the “S” (Short) or “L” (Long) symbol as a means to invoke the desired function.

Symbols Operation

(Short Press) Press once and release immediately.

(Long Press) Press and hold the key for more than one second.

(Up/Down)

(Left/Right)

(Right/ Left & Page movement)

Turn the control button up/down. Turn the contrl button left/right.

Shown when page up/down is active for preview 󽗉le selection. To move the page up or down, hold down the button and move the button up or down.

Page 19

08 NPS-10 Interface

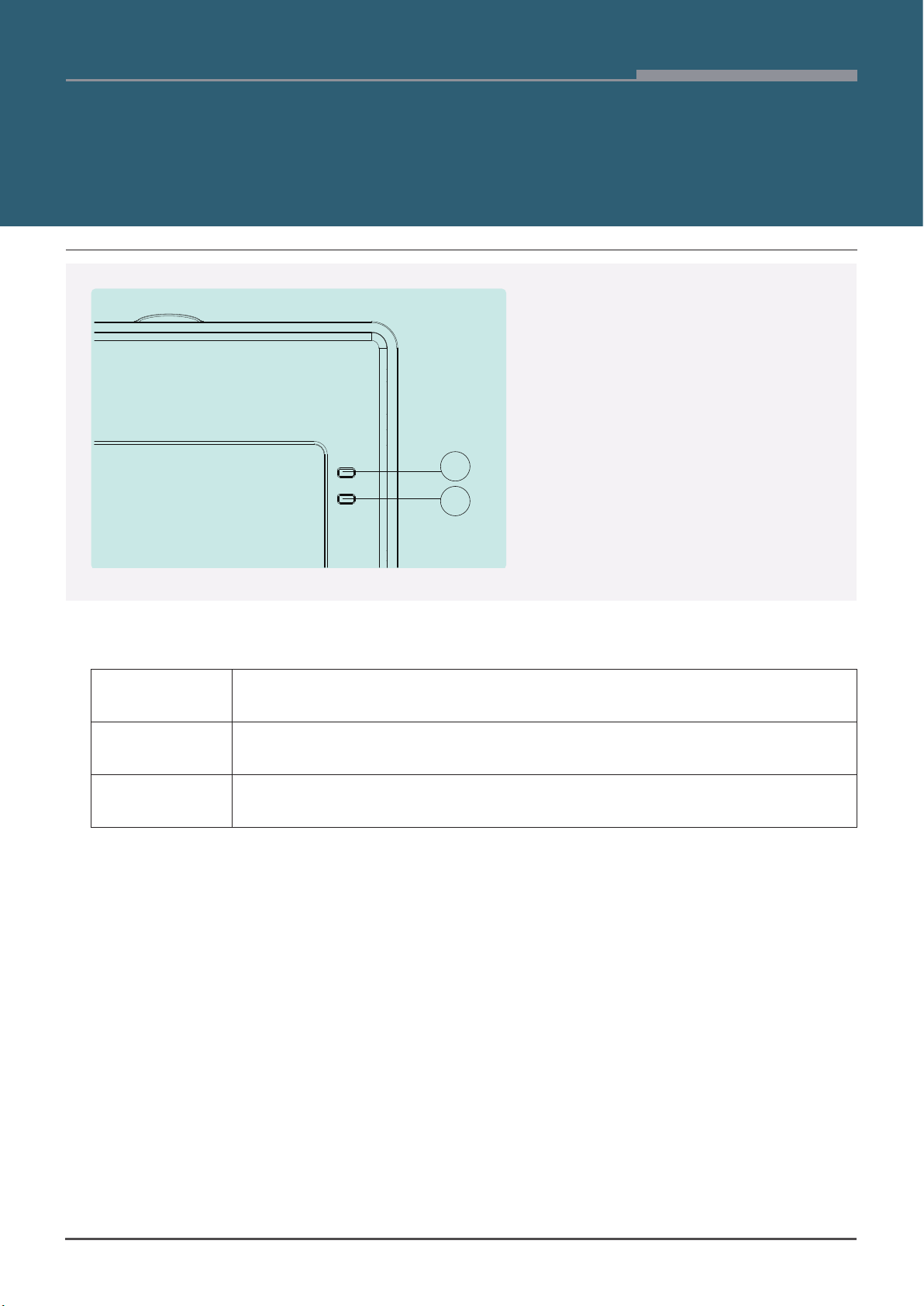

08.3_The LED indicator

❶

① Power & Charge LED

Red Indicates battery is being charged.

Green Indicates “power on”.

Orange Indicates “power on” and charging (ex. Computer connection)

② Internal drive activity indication LED

- Blinking red indicates that the data transfer is occurring.

Page 20

08 NPS-10 Interface

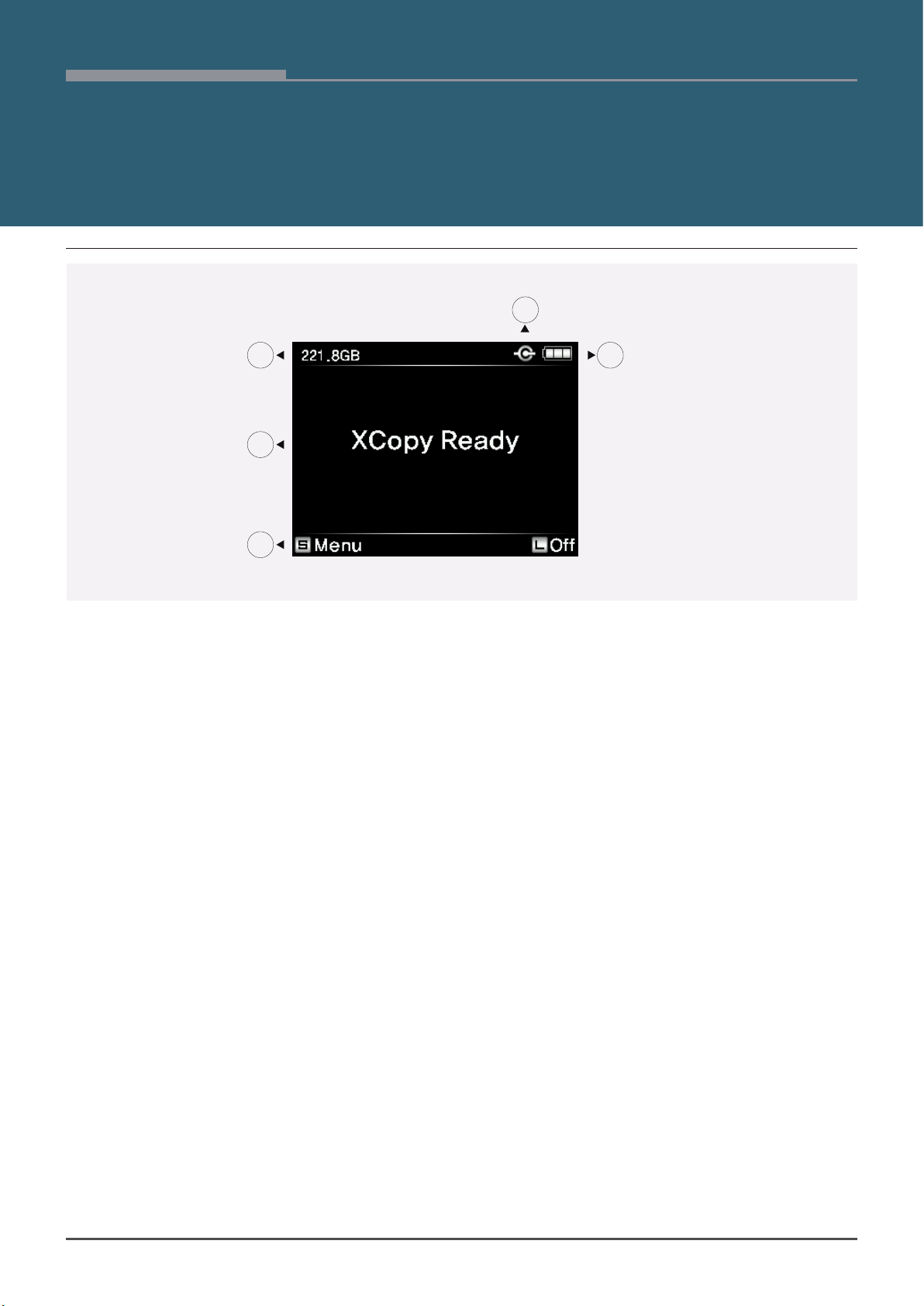

08.4_The LCD Display

① Remaining capacity of the internal hard drive.  A capacity check will be performed automatically during power on. If an external hard   drive is connected to the NPS-10, the capacity of external hard drive will be displayed   next to the capacity of the internal hard drive.

② External Power Connection Display.  When an external power source is connected through USB Type C cable, a round 󽗉gure   is displayed on the left side of the battery indication.

③ Remaining capacity of the rechargeable battery.  The battery capacity is displayed in four levels: (3→2→1→empty) by the battery gauge.   When empty, the gauge is displayed in red. For more details, see Chapter. 7 “Charging   the Rechargeable Battery”.

④ Current status of the device.

⑤ Available functions for the current screen.  The display varies depending on the function in use.

Page 21

09 Formatting the Hard Drive (or SSD)

The hard drive (or SSD) installed in the NPS-10 requires to be self-formatted. The NPS-10 only supports the self-formatted file system by its own hard drive management feature.

CAUTION

• Please back up all data to an extra hard drive before formatting the NPS-10’s internal hard drive or USB external hard drive.

• The NPS-10 can only work with one partition in the 󽗉le format "exFAT".

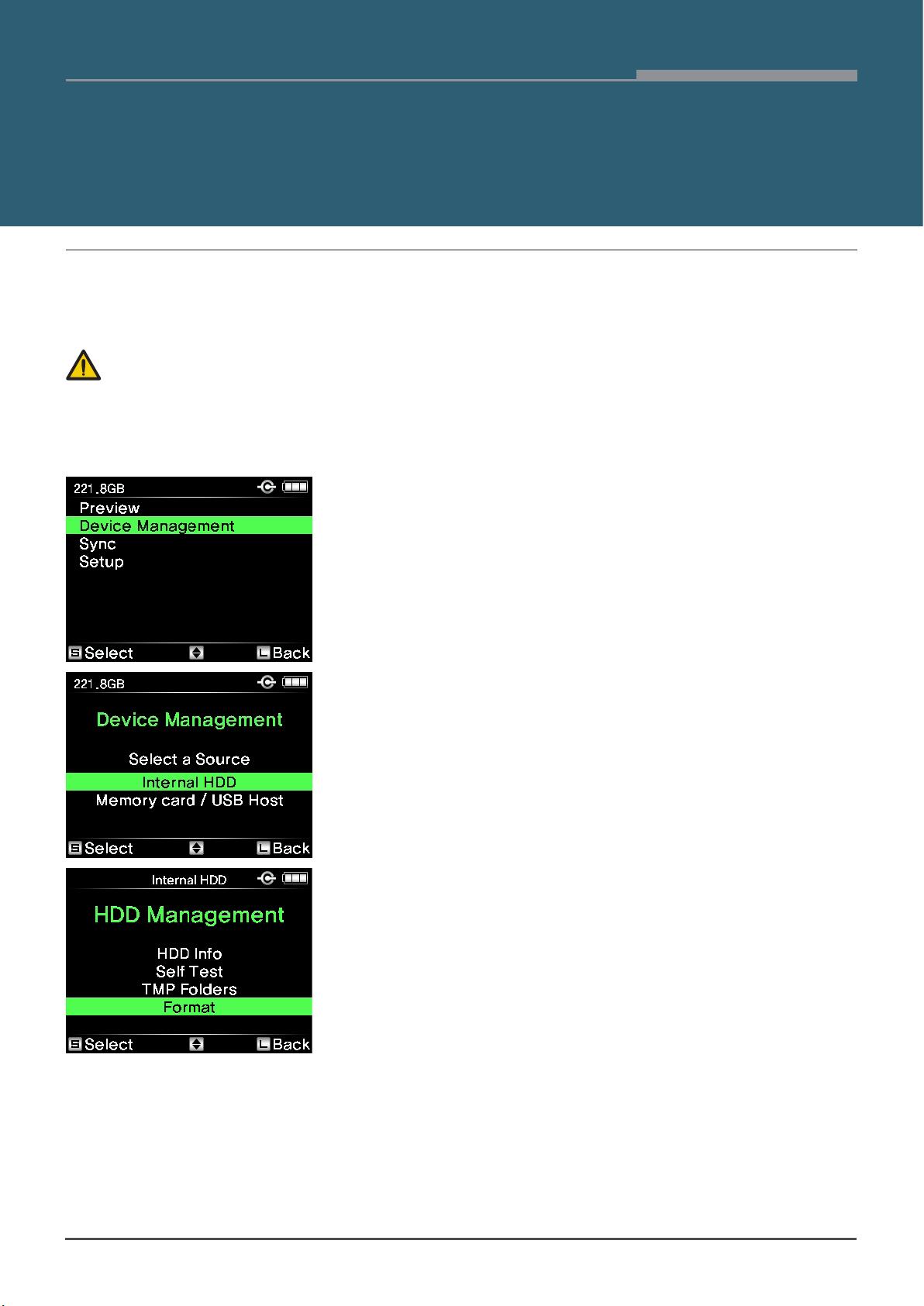

Press the control key once at the [XCopy Ready] mode to get to the menu ("S-Menu"). Move the highlighted cursor to the [Device Management] menu by pushing the control key downward. Press the control key to select the [Device Management].

Select “Internal drive” by pressing the control key shortly.

Move the highlighted cursor to the [Format] menu option with the control key. Press the control key to select [Format].

Page 22

09 Formatting the Hard Drive (or SSD)

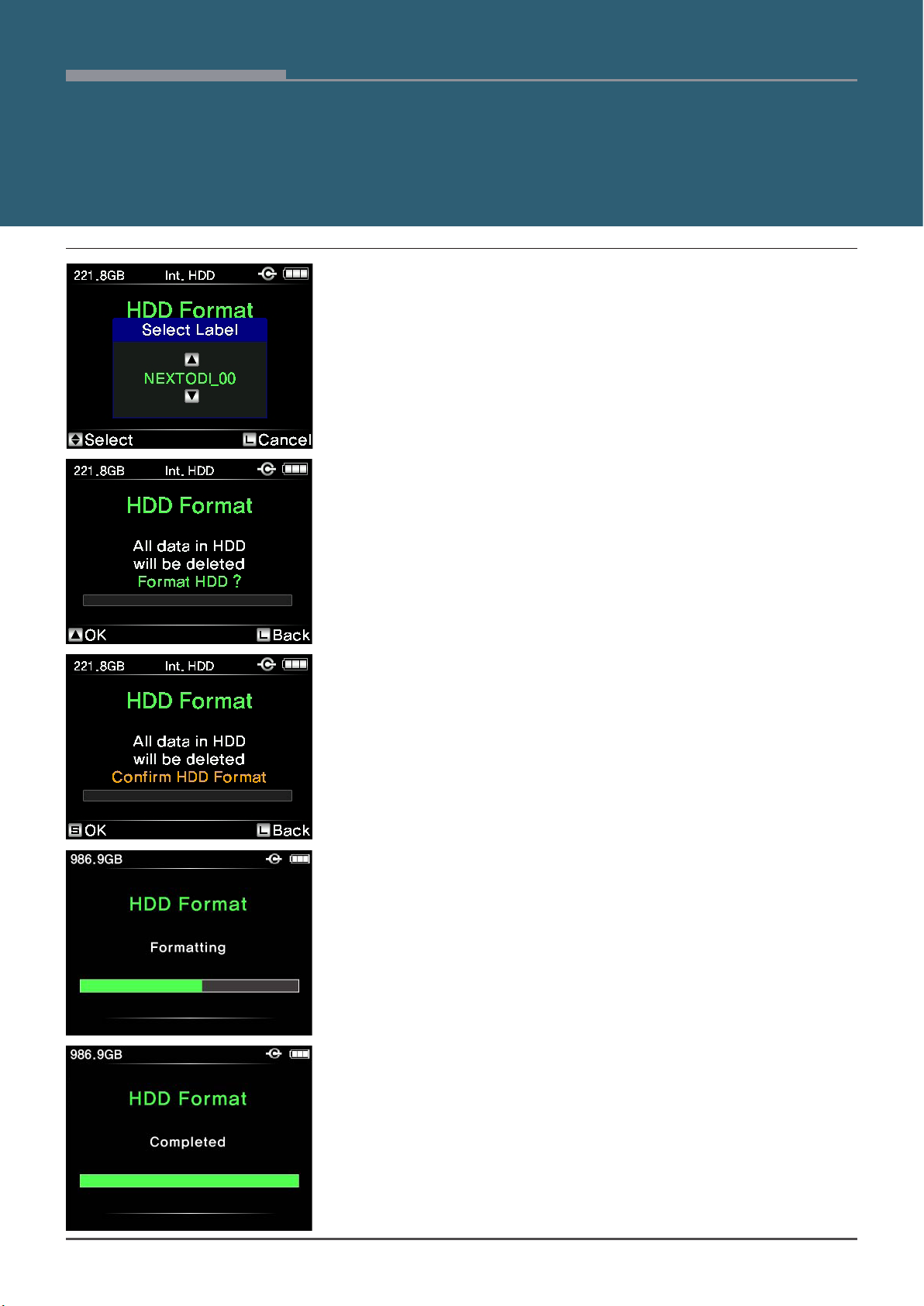

Move the button up or down to select volume label of the drive, then press the control key shortly[S].

Con󽗉rm the selection by pushing the control key upward. You can cancel the operation by pressing and holding the control key.

Then you can repartition and reformat the hard drive; to con󽗉rm, press the control key shortly. All data on the hard drive (or SSD) will be lost.

The NPS-10 indicates the progress of the formatting operation. Formatting the hard drive takes about 5 seconds. For the SSDs, it may take up to one minute, depending on the capacity of the SSD. In case of the SSD, the data is not recoverable after formatting because the Secure Erase that initializes all data together with formatting is executed together.

When the formatting is completed, you are ready to copy the data to the hard drive (or SSD).

Page 23

10 Connecting the Memory Card

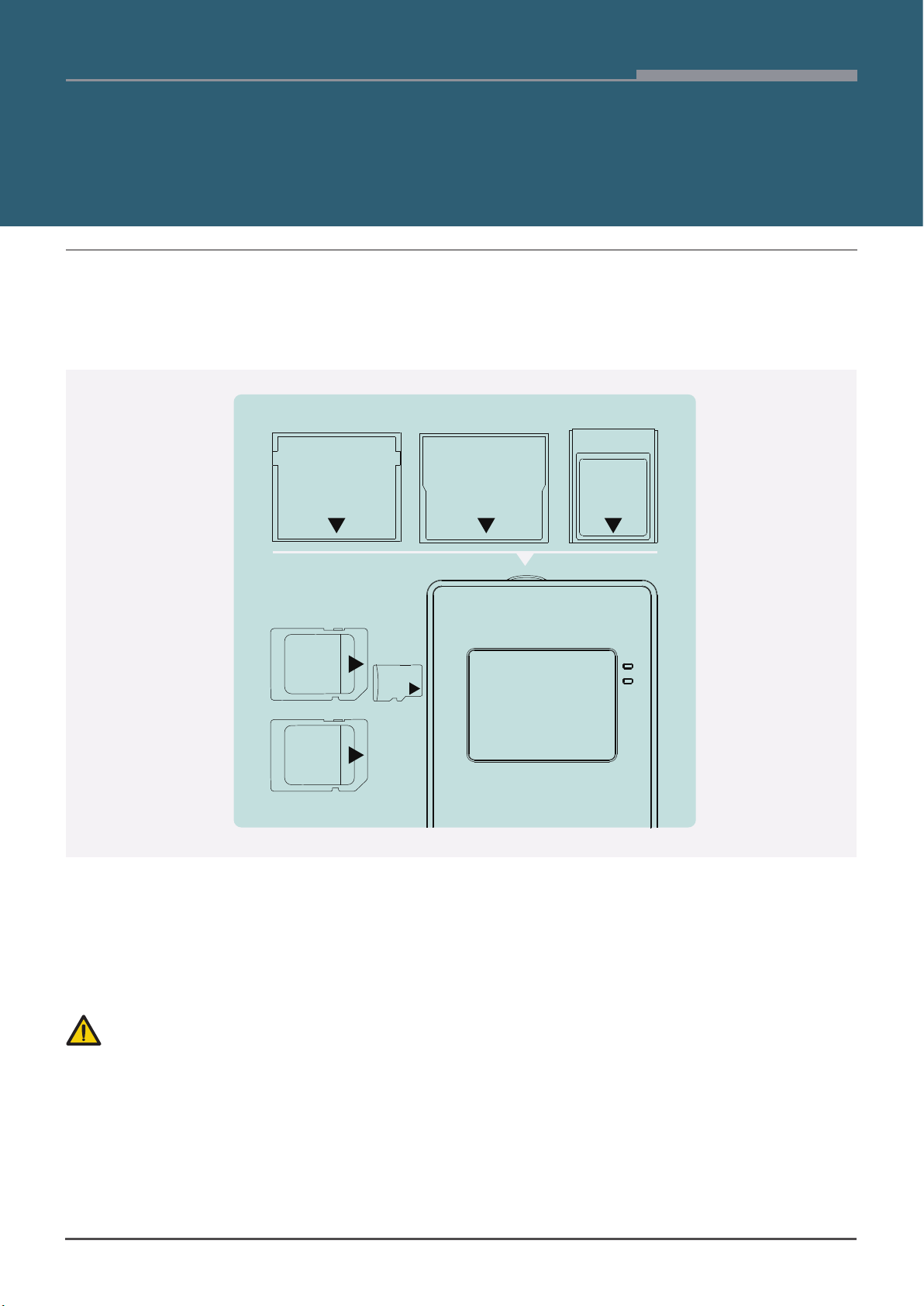

10.1_Connecting a memory card into the built-in slot

Many types of the memory cards can be backed up on the NPS-10 either by connecting the cards directly into the applicable slots or by using the USB card reader through the USB3.0 Host port on the bottom side of the NPS-10. Please refer to chapter “11. Data Backup (Copy) and Verify“ for more details.

CFCfast

• microSD and/or SDHC/SDXC cards can be inserted directly into the slots located at the left side of the device.(microSD and SD#1 slot cannot be connected at the same time.)

• [CF / CFast / XQD](supported slot vary by the product type) card can be inserted directly into the slot located at the top of this device.

micro SD

XQD

CAUTION

• Insert the memory card carefully. The pins may bend if you insert the memory card incorrectly.

Page 24

10 Connecting the Memory Card

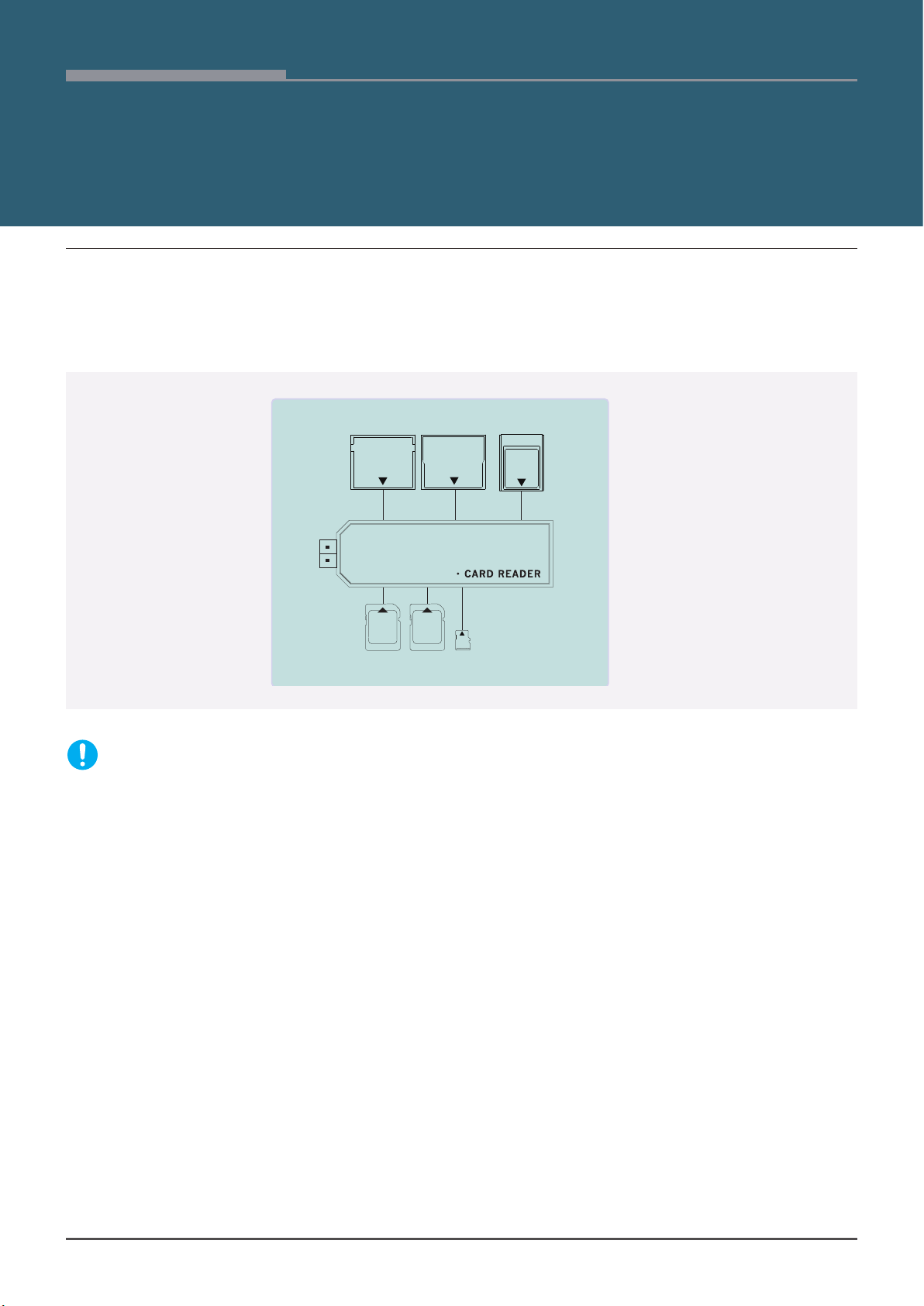

10.2_Connecting the memory card by using USB card reader

Connect the USB card reader that supports memory cards such as XQD, CF to the “USB3.0 Host” slot located at the bottom of the device. The USB card reader is powered by the internal battery of the NPS-10 so that it is possible to connect without having a separate adaptor or any other external power sources.

Cfast

SD SD

micro SD

XQD

REFERENCE

• There must be only one memory card inserted for it to be detected.

Page 25

11 Data Backup (Copy) and Verify

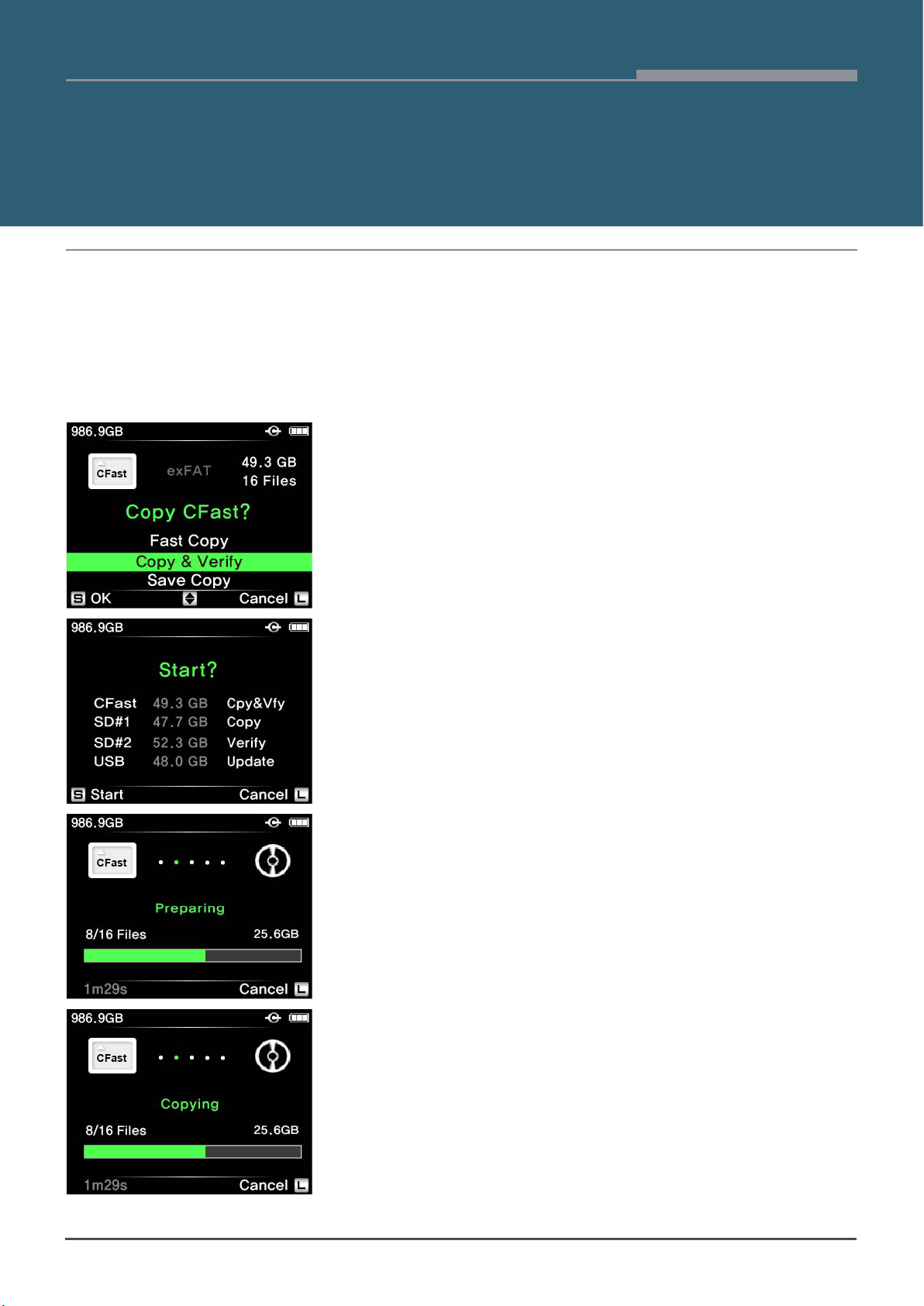

11.1_Copy process

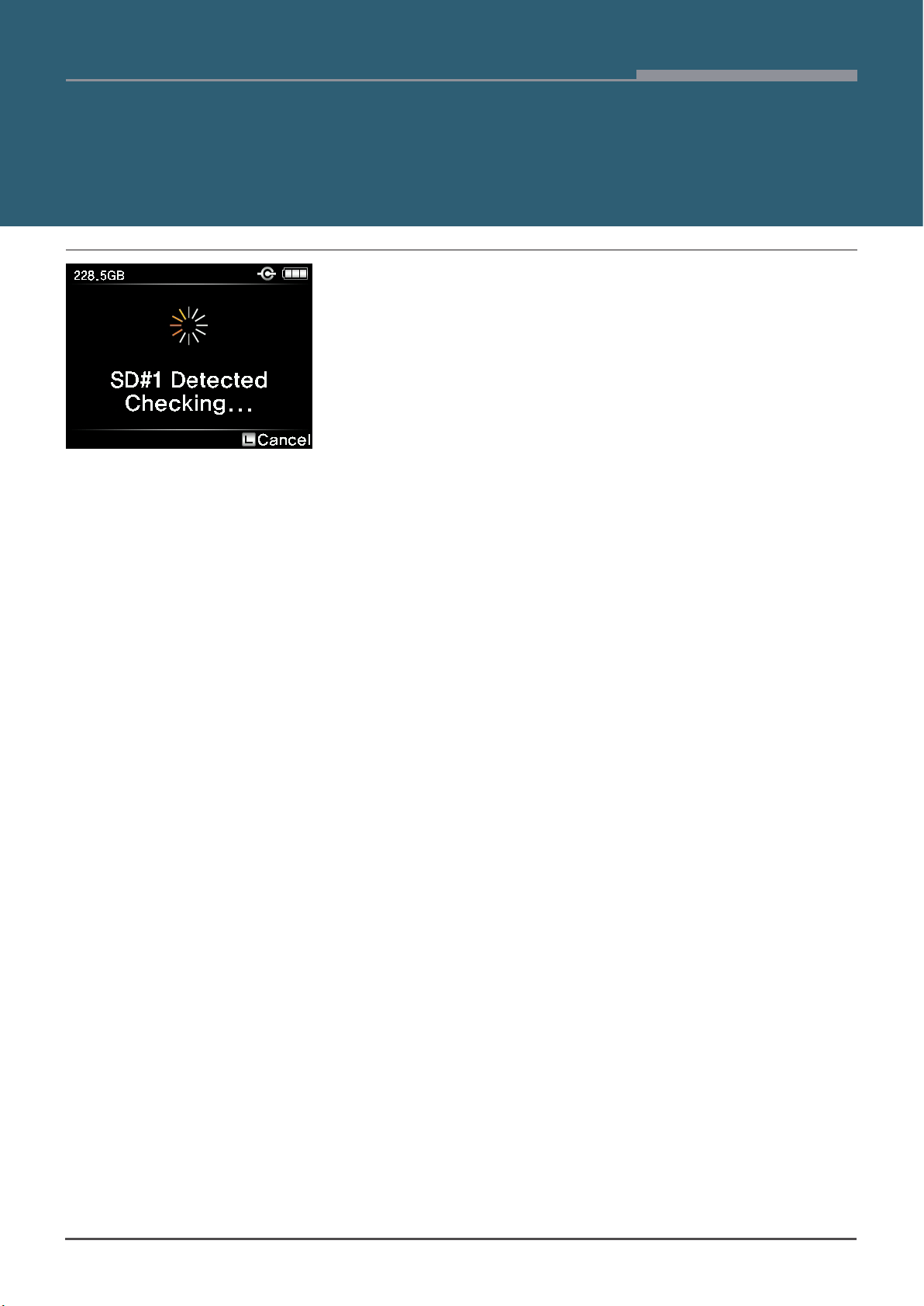

When you insert the memory card to the NPS-10, it can detect and back up the contents of the memory card automatically. Please refer to chapter “10. Connecting the memory card” for more details on memory card detection.

The NPS-10 supports the Sequential copy function that sequentially backs up memory cards when inserting multiple memory cards.

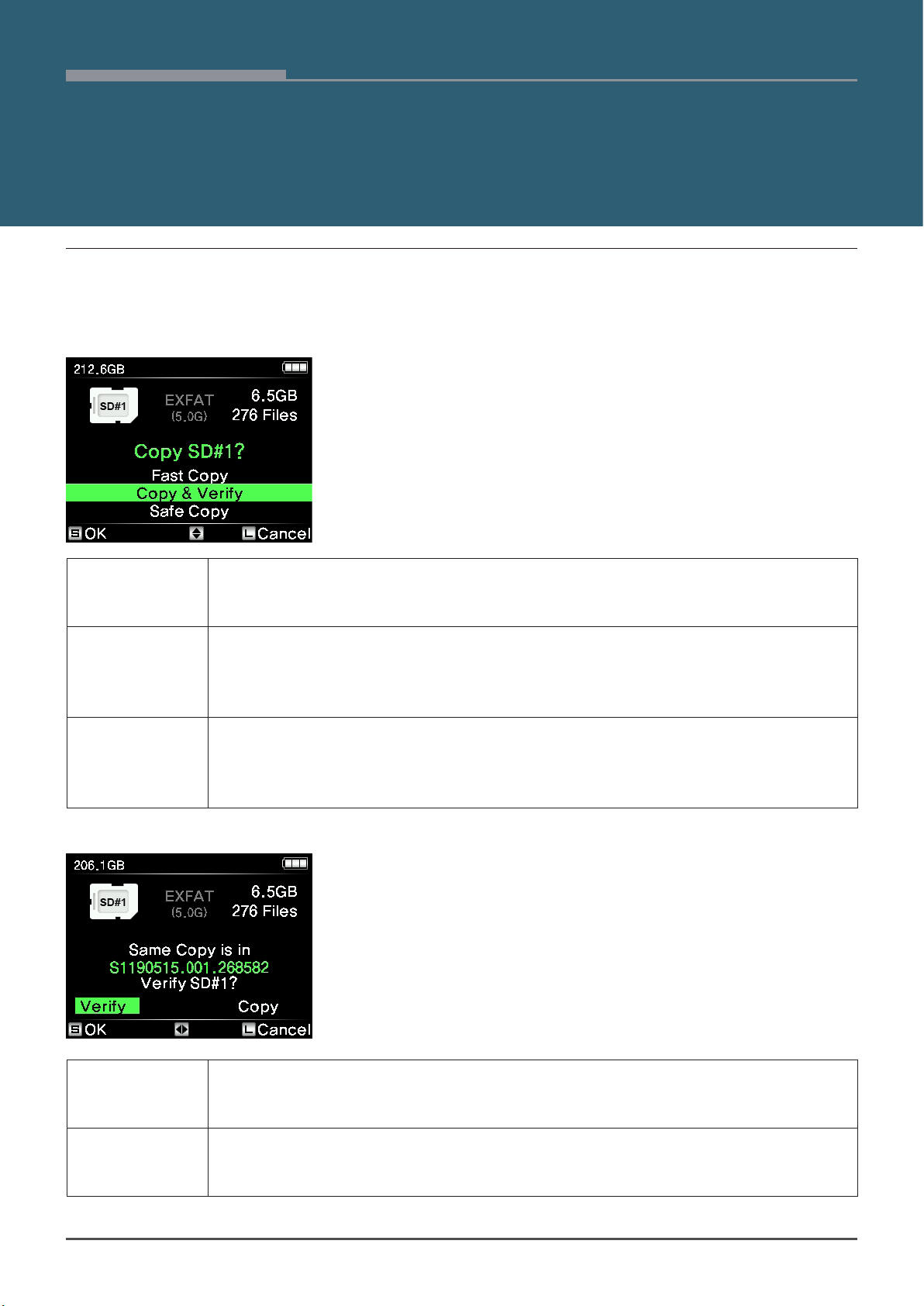

(1) Select the operating mode for each memory card.

(2) Press the control key brie󽗊y to start operation.

(3) It will display a message to prepare operations according to the selected operating mode.

(4) Operations are performed on a card-by-card basis and are repeated until all operations are completed.

Page 26

11 Data Backup (Copy) and Verify

11.1_Copy process

(5)When all the operations are completed, the results are displayed on the LCD. Press the control key brie󽗊y to see the details.

(6)You can see the name of the backup folder and the copy speed of each card.

Page 27

11 Data Backup (Copy) and Verify

11.2_Parsing the memory card

The data on the memory card is compared with the data stored on the NPS-10 to determine whether it is new data or already stored data. According to the comparison result, the NPS-10 operates as follows:

Page 28

11 Data Backup (Copy) and Verify

11.3_Copy / Verity

11.3.1 Copy

(1) If the memory card contains new data

When a new memory card is inserted, the NPS-10 shows three kinds of copy menu as the left picture. Choose the copy you want using the up/down key selection. [S]: To Copy, press the control key brie󽗊y. [L]: To Cancel the copy, press the control key for more than 1 second.

Fast Copy

Verify & Copy

Safe Copy

(2) Memory card with copied data

Make a new folder on the hard drive (or SSD) and copy all the memory card data into the folder.

Same as the [Fast Copy] but after copying, the data on the memory card is compared with the copied data in the hard drive (or SSD). Each bit is veri󽗉ed.

Before copying data, the hard drive (or SSD) verifies that its hard drive area is safe. If a bad sector is detected, search for a new, safe area –then copying the [Fast Copy] will begin.

Each time you put in the memory card, the NPS-10 parse the folder structure then compare it with the stored backup folders. If the memory card was copied before, and not modi󽗉ed since, then you can choose to [Verify] or [Copy].

Verify

Copy

Compare data stored in the hard drive to the data stored in the memory card.

Copy again. Make a new folder and copy all of the data in the memory card to the hard drive.

Page 29

11 Data Backup (Copy) and Verify

11.3_Copy / Verity

11.3.2 Select the verify optins

When you re-insert a memory card that has been already backed up once, the name of the folder saved in the internal drive will appear on display and you are able to choose one of the two veri󽗉cation options using up/down key selection. [S]: For veri󽗉cation, press the control key brie󽗊y [L]: Cancel veri󽗉cation, press the control key for more than 1 seconds.

Sample verify

Full verify All the data is compared.

Compare 󽗉rst 1MByte of each 󽗉le.

11.3.3. Select the update options

An additional ‘Update’ option appears on the copy menu. By choosing ‘Update’, the NPS-10 copies added data from the memory card to the existing backup folder in the internal drive.

[S]: To Copy, press the control key brie󽗊y. [L]: To Cancel the copy, press the control key for more than 1 seconds.

Update

Copy only added files to the existing backup folder in the internal drive.

Same as the [Update] but after copying, the data on the memory card

Update & Verify

New Copy Make a new folder and copy all the memory card data into the folder.

is compared with the copied data in the NPS-10 internal drive. Each bit is veri󽗉ed.

Page 30

11 Data Backup (Copy) and Verify

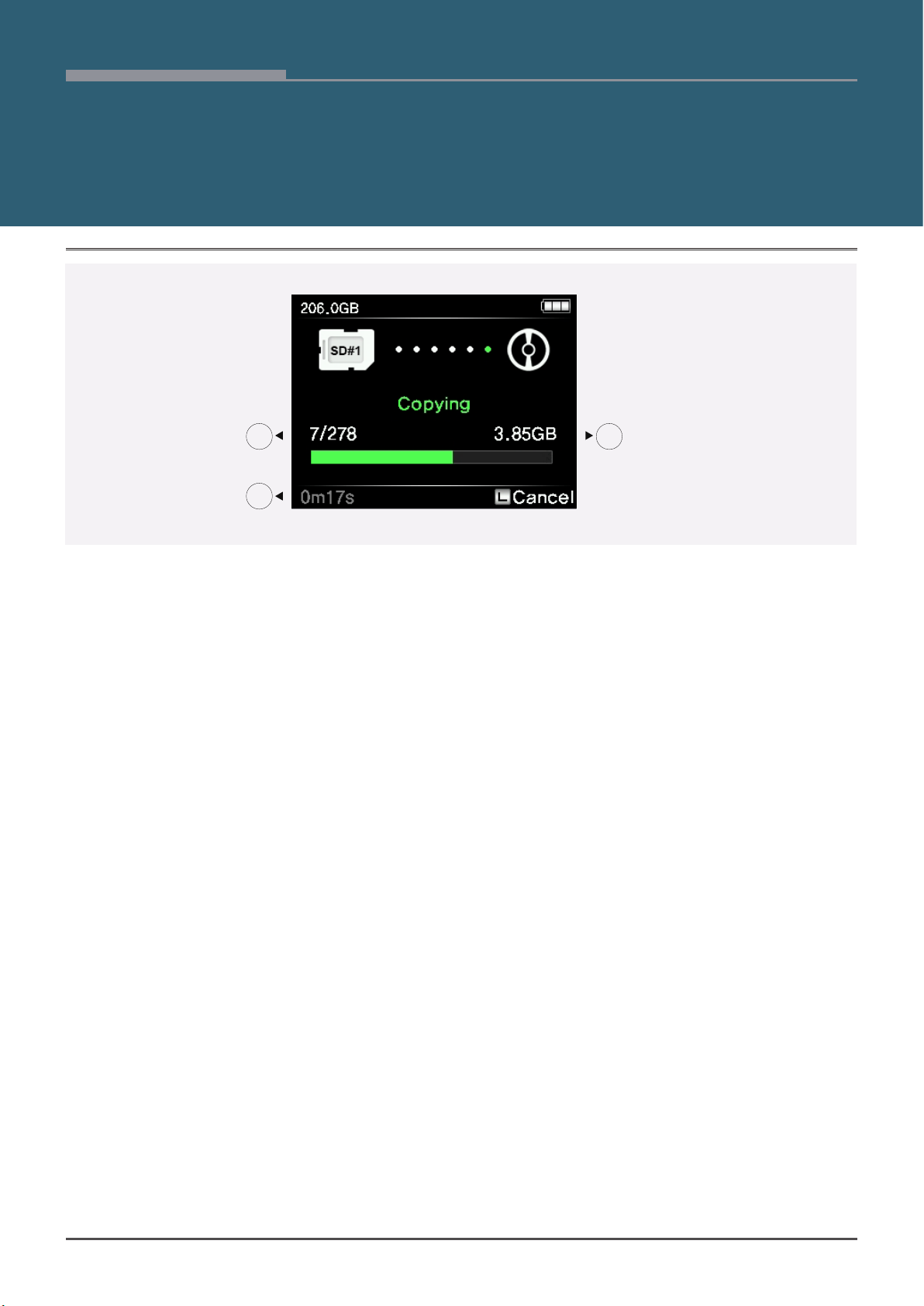

11.4_Status

① Total number of 󽗉les in the memory card versus the number of copied 󽗉les. ② Amount of data copied. ③ Elapsed time.

Page 31

11 Data Backup (Copy) and Verify

11.5_Indication of Results

Displays the copy and verification results of all memory cards. Press control key brie󽗊y to see the details.

You can see the name of the backup folder and the copy speed of each card.

REFERENCE

• Remove all the memory cards to return to the initial display.

• If you don't remove the memory card, the NPS-10 will automatically turn o󽗈 within user set-up time (e.g., 50 seconds) to preserve battery life.

• For “The Location of Stored Data” and “The Name of Back up Folder”, please refer to Chapter “15. Using the NPS-10 as an USB External Drive”.

Page 32

11 Data Backup (Copy) and Verify

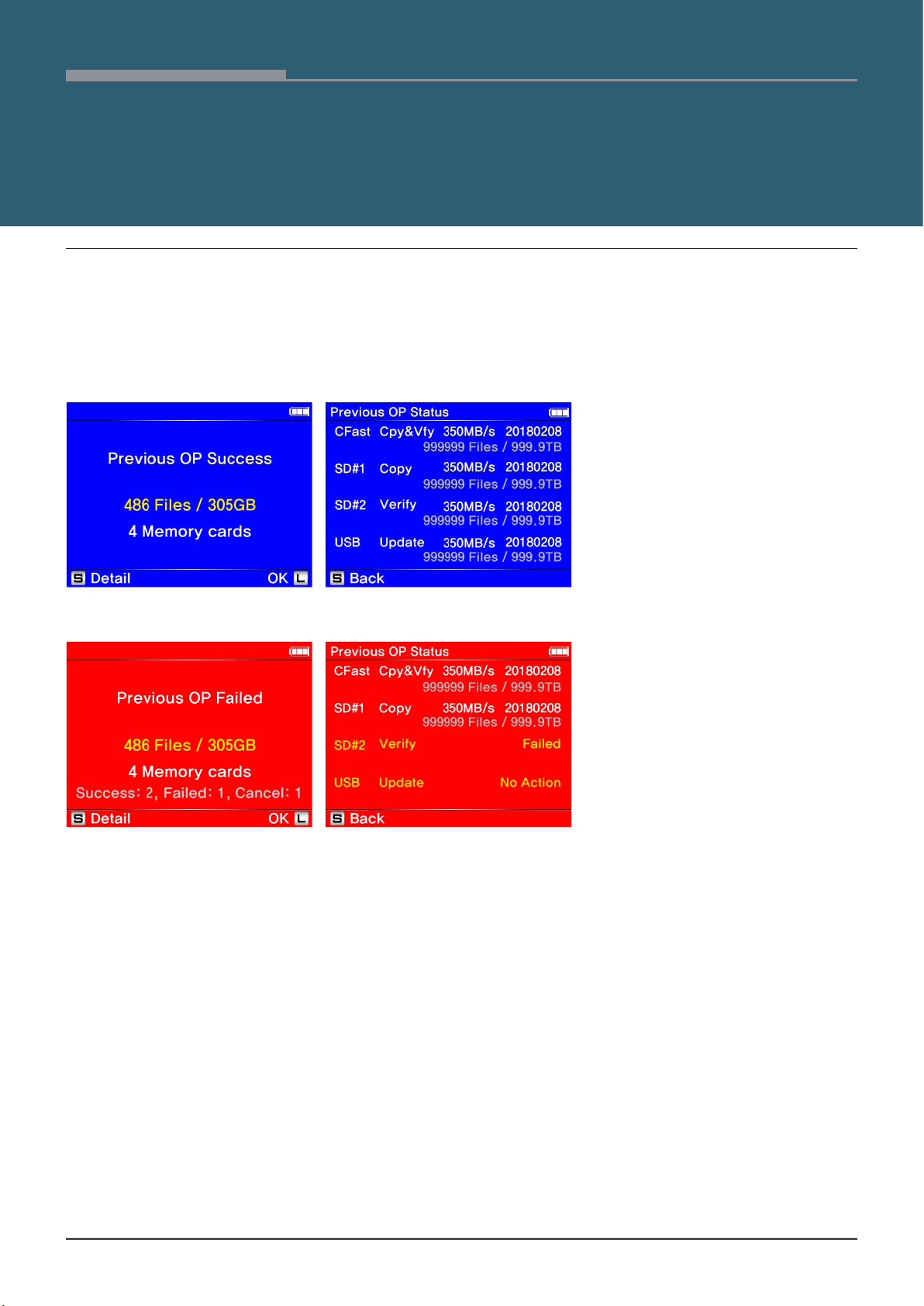

11.6_Error Display

When the error occurs during the backup, the error message is displayed and the NPS-10 will automatically turn o󽗈. For the reminding of user, the NPS-10 displays the previous operational status at the next power up. The user will then know whether the last backup was successful.

[If the previous operation was successful – displays the status in BLUE screen]

[If the previous operation was failed – the error message is displayed on the RED screen]

Press the control key for more than 1 second to return to the “X-copy ready” state. Or, press the control key brie󽗊y to check the details of the previous operation.

Page 33

12 Video/Photo Preview

12.1_Browse Folders

You can check the contents stored in the internal hard drive (or SSD) or the external drive or memory card with the function of Browse Folders.

Press the control key once at the “XCopy Ready” mode to activate the menu. Press the control key and select “Preview”.

Move the control key up or down to choose either the internal hard drive (or SSD) or external device to view your backup folder and press the key shortly to select a drive.

The NPS-10 will display the contents of the backup folder in date order. The most recent folder is shown first. After you select a folder, the NPS-10 will display a brief list of the contents as shown in the 󽗉gure below. Please select a backup folder.

Backup contents will be shown on display as the picture on the left. Selected folder information and the menu will appear on display. Move the control key up and down to select the menu you want and press the key shortly.

Page 34

12 Video/Photo Preview

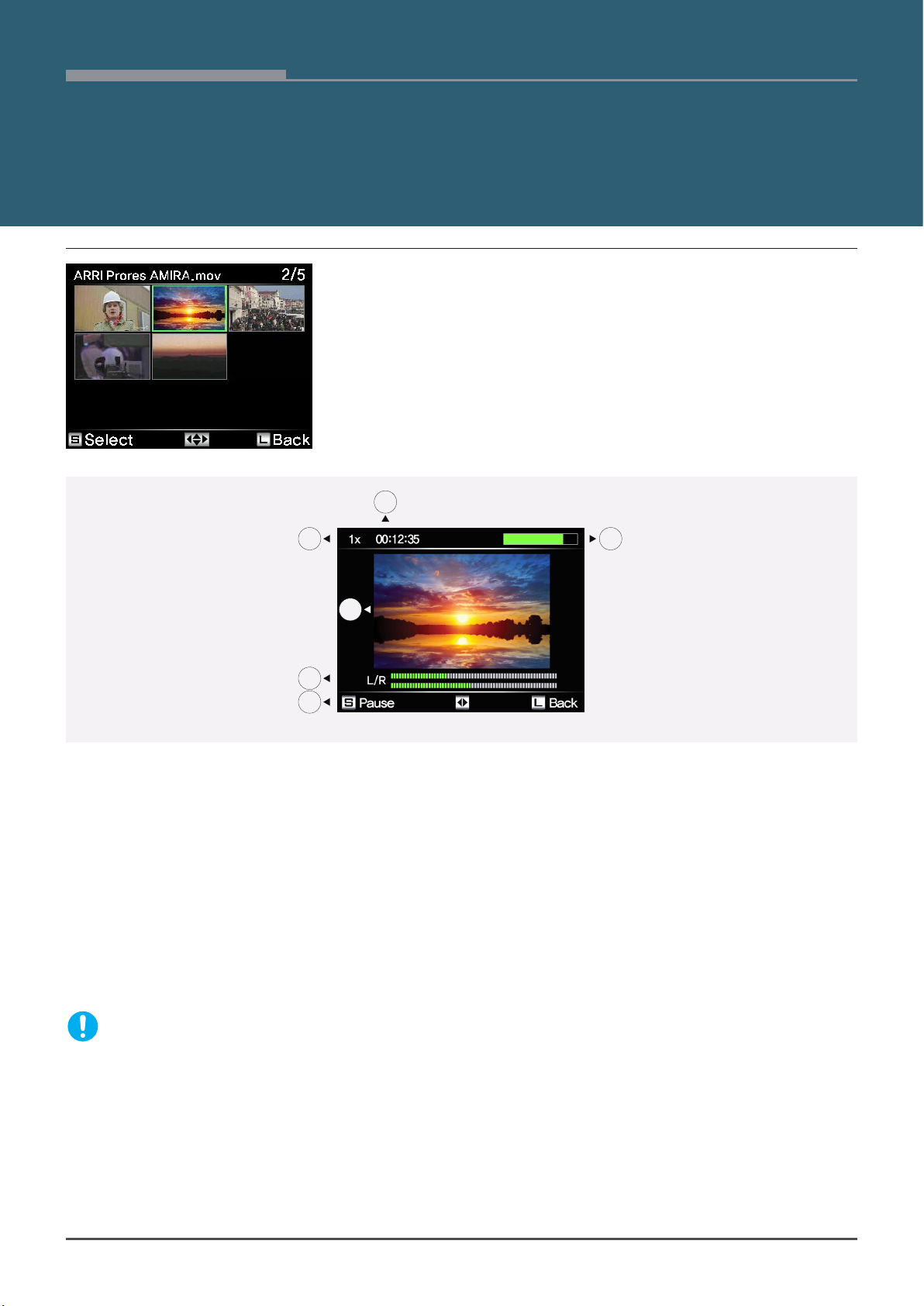

12.2_Show Video

If you press “Show Video”, thumbnails of the video are displayed as the example on the left. Unsupported video files are shown with an [X] mark. Video clips are selected for preview by using an up/down push of the control key. Press the control key brie󽗊y to select a clip.

5 6

he NPS-10 will show a preview of the video 󽗉le at reduced resolution. The user can select play/pause by pressing the control key. The user can also adjust the preview speed by pushing the control key to the up/down.

① Preview speed ② Elapsed time ③ Progress of preview in % ④ Preview video ⑤ Audio bar ⑥ Selectable command

REFERENCE

• See https://www.nextodi.com/products/nps-10/performance/ for supported preview formats.

• The preview of the NPS-10 is a “best e󽗈ort” preview. Various preview speeds, ranging from 1X to 32X, are supported.

Page 35

12 Video/Photo Preview

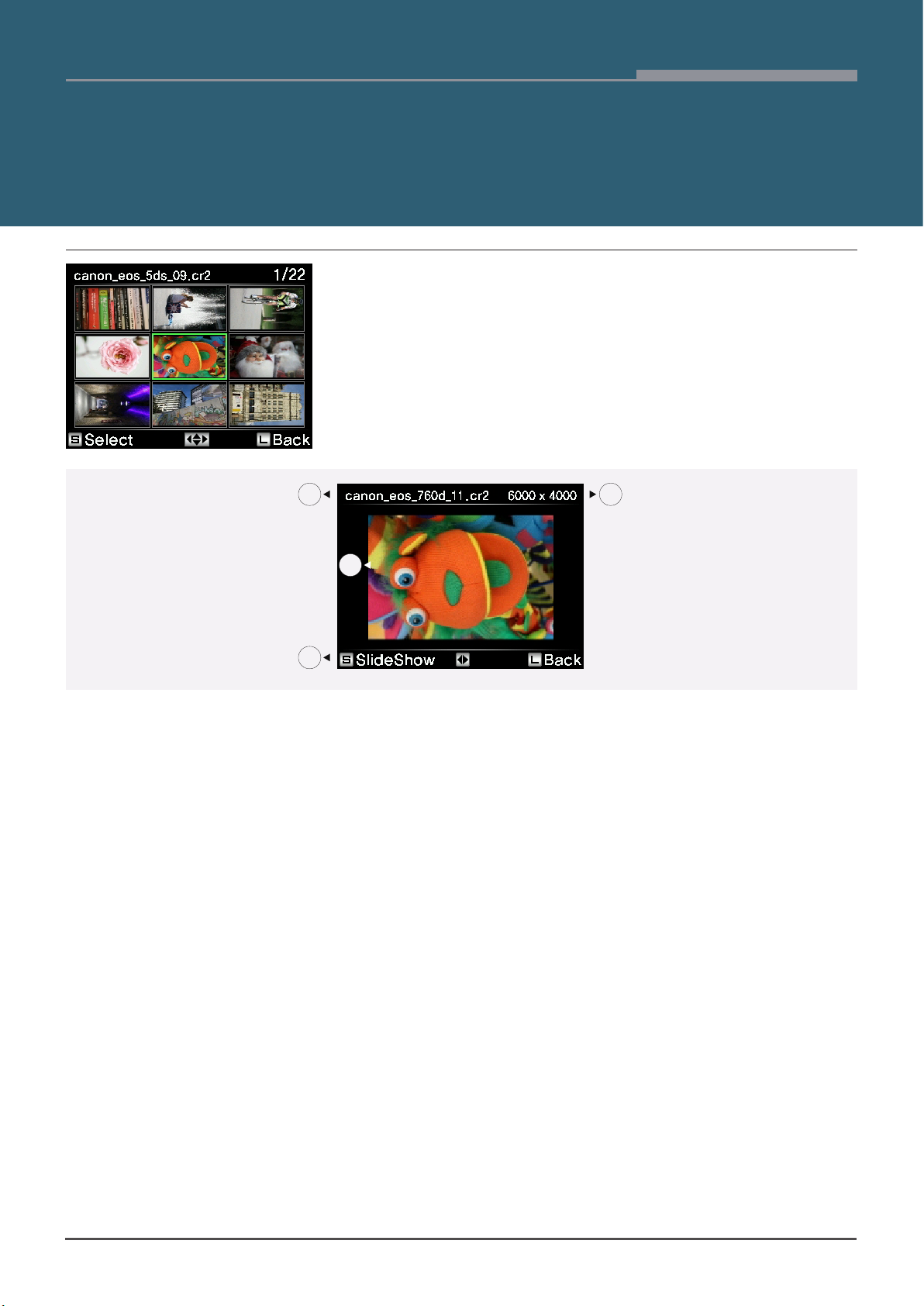

12.3_Image Preview

If you press “Show Image”, thumbnails of the image are displayed as the example on the left. Unsupported image 󽗉les are shown with an [X] mark. Image clips are selected for preview by using an up/down push of the control key. Press the control key brie󽗊y to select a clip.

If you select an image, the NPS-10 shows the larger one. A user can control the “up/down” key to preview the next image or can short press the key ([S]) to preview in slide show mode.

① File name ② Resolution of images ③ Preview Images ④ Selectable command

Page 36

12 Video/Photo Preview

12.4_Delete the backup data

You can delete the folder you select. Be careful. Deleted folders cannot be restored. Move the control key up or down to choose the “Delete This Folder” option and press the key shortly.

Page 37

12 Video/Photo Preview

12.5_Preview from an external device

The NPS-10 supports the preview of video files and the playing of audio files stored on a USB external drive. In addition, the NPS-10 supports the preview of video and the playing of audio 󽗉les that are stored on memory cards. Please refer to “10. Connecting the Memory Card” and “13. Using a USB external drive” chapters for more details.

It will display a message to connect an external device. Now you can connect an external USB hard drive to play a video or insert a memory card directly into the slot or connect the USB card reader.

(1) When inserting a memory card.

If a memory card contains video or image files — and is inserted into the NPS-10 -- information about the video or image 󽗉les will be displayed.

(2) When connecting an external USB drive

If an external USB hard drive is connected, the NPS-10 will detect and analyze the backup folders. The NPS-10 will then display the backup folders as in the figure. The rest of the operations are the same as previewing from the internal hard drive.

(3) When removing external USB drive

If you select “Back” by pressing and holding the control key, then a “Remove External USB Drive” message will appear on the LCD display. Once the cable or memory card has been removed, you will automatically be returned to the main menu.

Page 38

13 Using a USB external drive

13.1_Selecting type of USB drive

The NPS-10 can be connected to USB external drive through the USB 3.0 interface (USB 3.0 Host slot) so that it is possible to copy from USB card reader or SYNC to USB hard drive.

The NPS-10 prompts you for select the USB drive type whenever you connect a new USB device to the USB host slot.

SYNC to make a secondary copy

USB hard drive

USB card reader Copy from the USB card reader.

on the USB hard drive. Requires external power connected via USB Type C slot.

BATTERY

PAC K

HDD

SSD

CARD

READER

REFERENCE

• Any USB external hard drive(including 4K sector drive) is supported.

• To use the USB external drive, the NPS-10 must be connected to an external power

source. If the USB power is not enough, the built-in battery will be used together. Even if the power is supplied, the built-in battery may be exhausted and the power may be cut o󽗈 during operation.

• A 3.5-inch USB external drive must have its own power connected to a power source.

Page 39

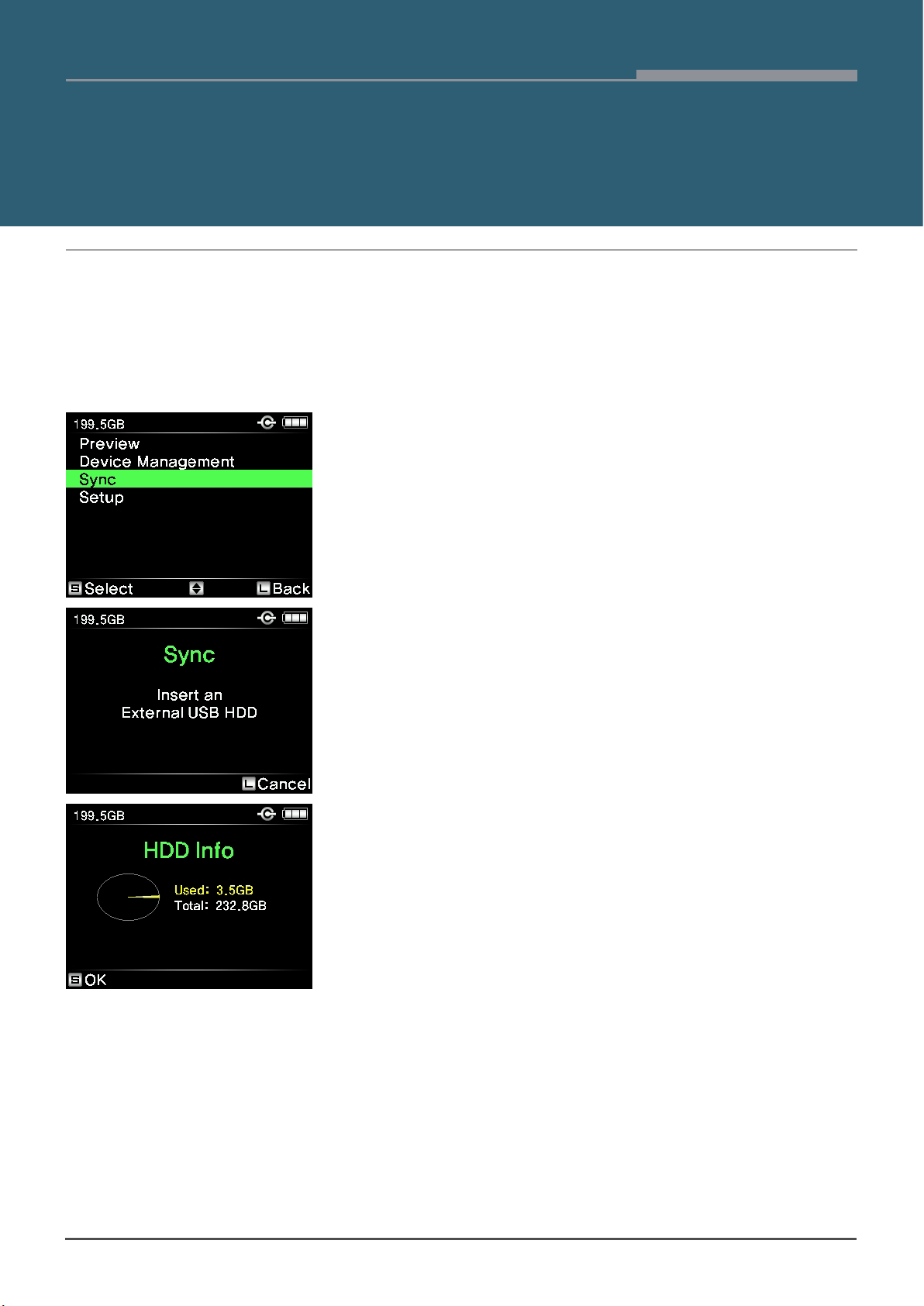

14 Making a Secondary Copy (Sync)

The “Sync” function synchronizes data between the [NPS10] folder of the NPS-10 and the [NPS10] folder of an USB hard drive connected to the “USB3.0 Host” connector via the USB 3.0 cable. This function compares the folders stored in the [NPS10] folder of the NPS10 with the [NPS10] folder of an USB hard drive. A new folder can only be copied to the USB hard drive if it resides in the NPS10 folder of the NPS-10 unit—but not in the USB hard drive.

Move to “SYNC” on the main menu and select it.

Connect the USB external drive to the [USB3.0 Host] port of the NPS-10 as shown in chapter “13. Using a USA external drive”.

If the USB external drive is successfully detected, it will show the details of the drive as the picture shown on the left.

Page 40

14 Making a Secondary Copy (Sync)

(1) Sync function

If there isn’t any problem with the connected USB external drive, it will show two copy options as the picture show on the left. Move the control key up or down to choose the copy option you prefer. [S]: Press the button shortly to perform the synchronizing process [L]: Press the button for longer than one second to cancel the synchronizing process and go back to the menu screen.

Fast Copy Duplicates new folder to external hard drive.

Before duplication, the NPS-10 verifies that the copy area of the USB

Safe Copy

external drive is safe. If the copy area is not safe, the NPS-10 will automatically search for a new safe area and copy to that area.

All of the data from the backup folder of the internal drive would be copied onto the USB external drive. However, the data from the USB external drive would not be copied onto the NPS-10’s internal drive.

If an error occurs during the “Sync” function, the NPS-10 will automatically shut down and display an error message at the next power up-- as shown in the figure. Press the control key upwards to go back to the main menu.

REFERENCE

• If you don’t make any operation after the completion of backup, the power is turned o󽗈 automatically.

• In case of that the NPS-10 is automatically turned off, it displays the previous operational status at the next power up whether the last backup was successful.

Page 41

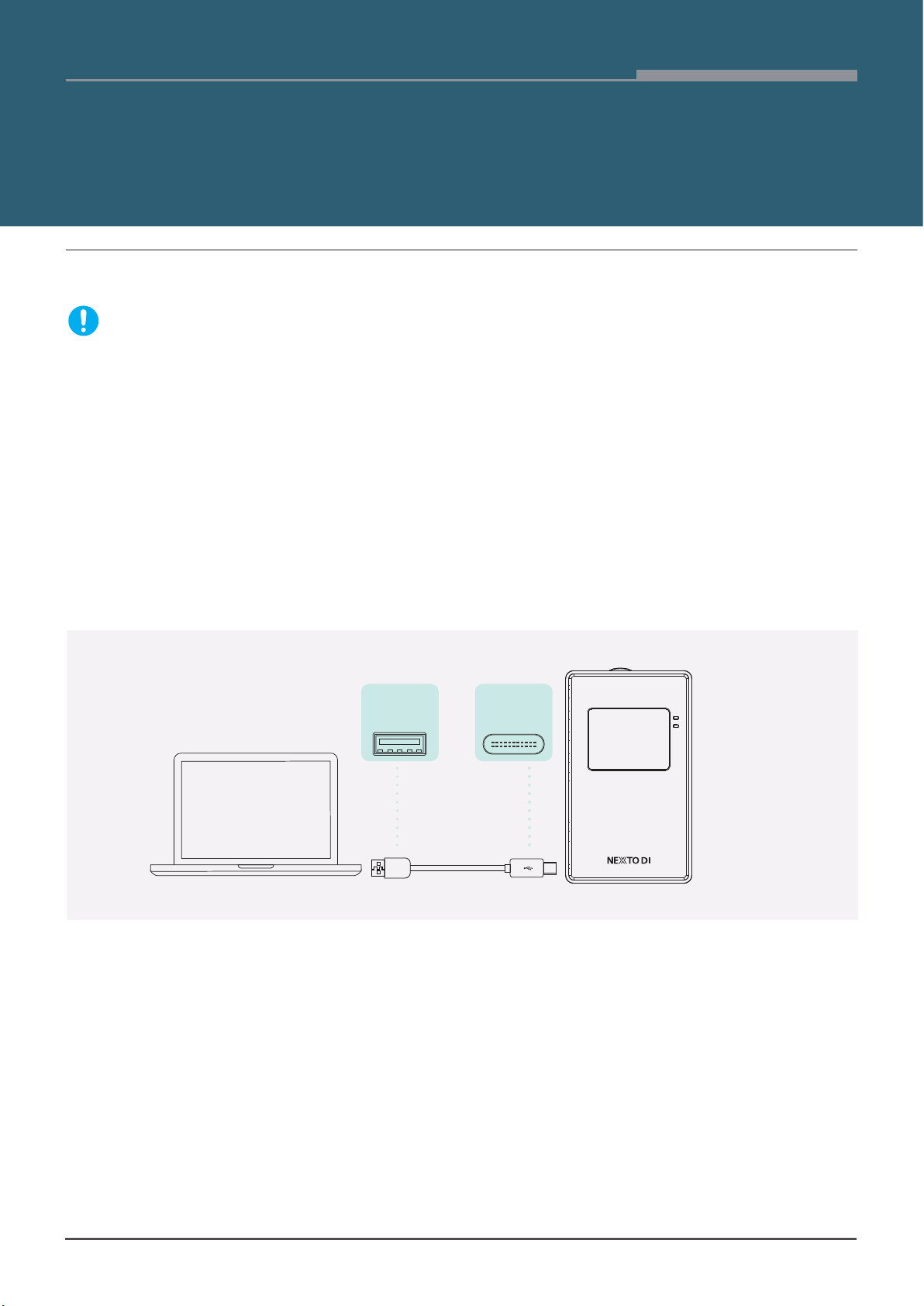

15 Connction to Computer

15.1_Connection to computer

The NPS-10 can be connected to your computer for use as an external hard drive.



REFERENCE

• Windows 8 / 7 / VISTA(Service Pack 1) and MAC OS 10.6.6 and Linux 2.4.18 and later can fully access exFAT 󽗉le systems.

• Users of Windows XP must have Service Pack 2 or later and install an update to support exFAT.

• The NPS-10 cannot be read by any version of Windows prior to Windows XP (Service Pack 1).

• computer can only recognize the NPS-10. A computer cannot recognize a USB external drive or any memory cards that are connected to the NPS-10. Thus, the NPS-10 cannot be used as a memory card reader.

• If connecting to the NPS-10 via USB, use the back slot of the computer.

The front slot might not be able to process the high speed signal.

USB

3.0

USB

C TYPE

Page 42

15 Connction to Computer

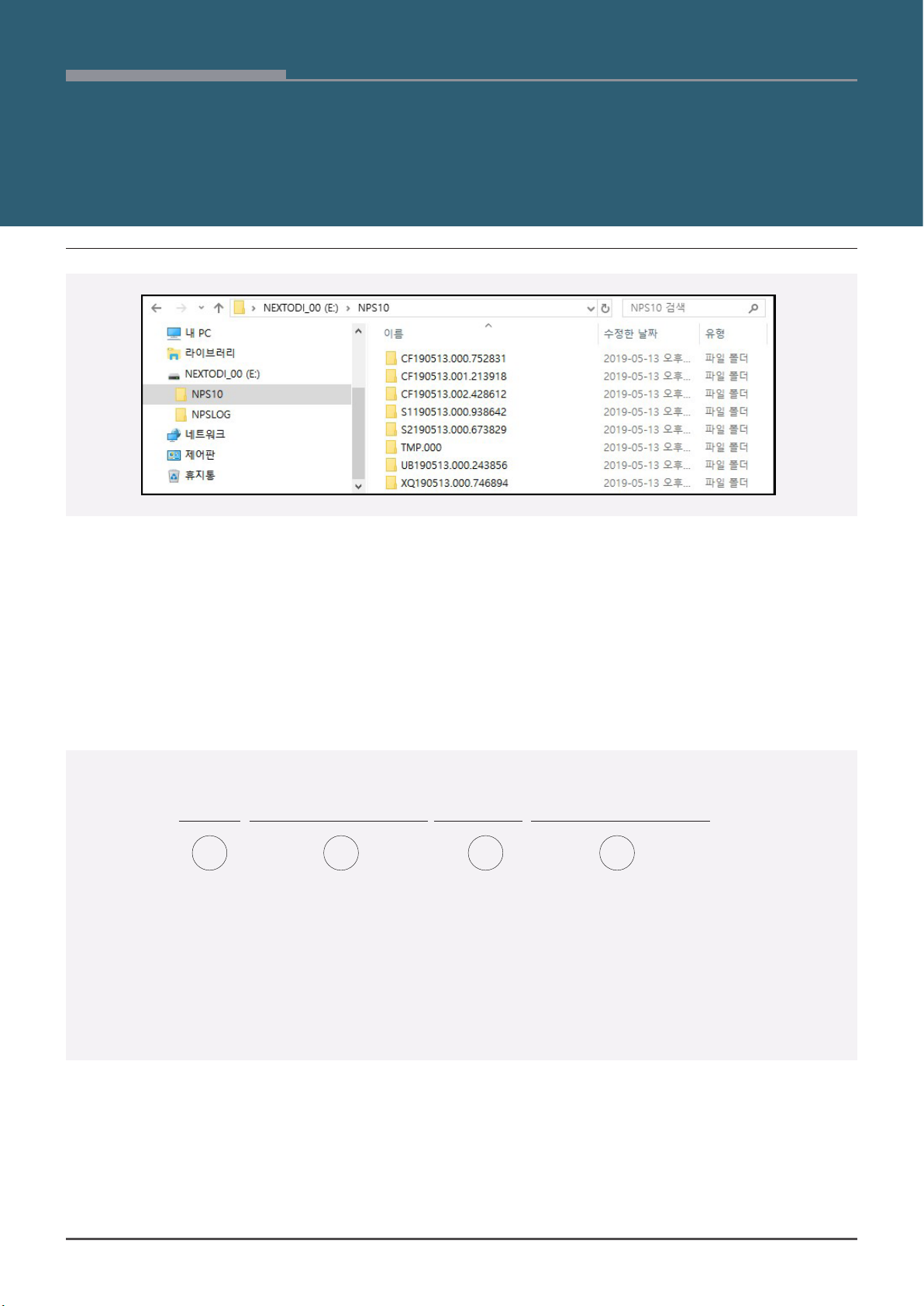

15.2_Browsing the contents of your hard drive

• Back up data is stored in the " NPS10 " and subfolders is created automatically. The log 󽗉le is stored in the subfolder of " NPSLOG ".

• For each memory card backup, the NPS-10 creates a date-coded folder automatically. Also, it stores all of the contents of the memory card into that date-coded folder.

• The name of the folder is determined by the shooting date.

For example, 20160301.000.123456 means the last footage recorded on March 1, 2016. (If you copy multiple items on a single day, the last three digits will be changed to indicate the download sequence – “000, 001,002, 003, etc.)

S1190513.000.938642

1 2 3 4

① Origin of data CF : CF slot CT : CFast slot XQ : XQD slot S1 : SD#1 slot S2 : SD#2 slot UB : USB card reader

• The date code comes from the video cameras. If the date on the video camera is incorrect, the folder name of the NPS-10 will also be incorrect.

• If a copying failure occurs, the copy is stored on your computer as a TMP folder. The TMP folder contains the same file names, but the data may be abnormal. You may delete the TMP folder. For details, see the function of TMP deletion in the chapter “16. Device Management”.

② YYMMDD Date code ③ Sequence number ④ Random number

Page 43

15 Connction to Computer

15.3_Disconnecting the NPS-10 from Your Computer

(1) For Windows

Right click the Storage device icon in the System Tray (lower right corner of your screen) and select “Safely Remove Hardware” or “Unplug” or “Eject Hardware”. Then disconnect the cable from the NPS-10 and your computer.

(2) For MAC

Drag and drop the NEXTODI icon in the trash. Then disconnect the cable from the NPS10 and your computer.

Page 44

16 Device Management

16.1_Drive Info

This is the function of Device management of the NPS-10’s internal hard drive (or SSD), USB external drive and memory cards.

Select “Device Management” from the main menu.

Move the control key up or down to choose the target device.

Select the appropriate menu for further processing. If the target device is a memory card, only the “Drive info” and “Self test” menus are displayed on the LCD.

The NPS-10 will show the capacity status of the target device using a pie diagram.

Page 45

16 Device Management

16.2_Self Test

Built-in test utility is for detecting physical errors on the target device. This function does not 󽗉x errors. If an error is detected during the self-test, consult your authorized NEXTODI dealer.

Select the “Self Test” sub-menu from the “Device Management” menu to choose one of the two test options shown as the picture on the left. Move the control key up or down to choose the method you prefer. The “SMART” test is only available for the internal drive.

(1) S.M.A.R.T Test

The SMART test takes several minutes to test the internal drive. If you want to start test, press the control key shortly.

The display shows the user that the S.M.A.R.T test is in progress.

No problems found during the SMART test. Press the control key for more than 1 second to turn o󽗈 the power.

Page 46

16 Device Management

16.2_Self Test

Error found during quick test. Further use of the NPS-10 may result in loss of backup data. Consult your authorized NEXTODI dealer for service.

CAUTION

• The NPS-10 buzzer—repeating every 3 seconds--indicates the completion of the test. The power does not turn o󽗈 automatically at the completion of the test.

• The NPS-10 returns to the initial mode only after the user presses the control key for more than 1 second.

• It is strongly recommended that external USB power be supplied during this test in order to prevent battery failure during the process.

Page 47

16 Device Management

16.2_Self Test

(2) Full test

The full test will take several hours. It will read all the sectors in the selected drive to discover if any bad sectors exist.

The full test is in progress. This process will take about 2~3 hours.

No errors found.

Error found during full test. Further use of the NPS-10 may result in the loss of backup data. Consult your authorized NEXTODI dealer for service.

CAUTION

• The NPS-10 indicates the completion of the test using the buzzer sound. The power does not turn o󽗈 automatically at the completion of the test.

• The NPS-10 returns to the initial mode only after the user pushes the control key for more than 1 second.

• It is strongly recommended that external USB power be supplied during this test in order to prevent battery failure during the process.

Page 48

16 Device Management

16.3_Delete TMP folder

If the TMP folder exists inside the [NPS10] folder, then the number of TMP folders will appear on the LCD. Press the control key brie󽗊y [S] to delete the TMP folders.

Deleting the TMP folders.

The TMP folder has been deleted successfully. Press the control key shortly.



REFERENCE

• The 󽗉les in the TMP folder are abnormal and invalid 󽗉les.

The TMP folder is created when error occurred during the X-copy operation.

Page 49

17 Setup Functions

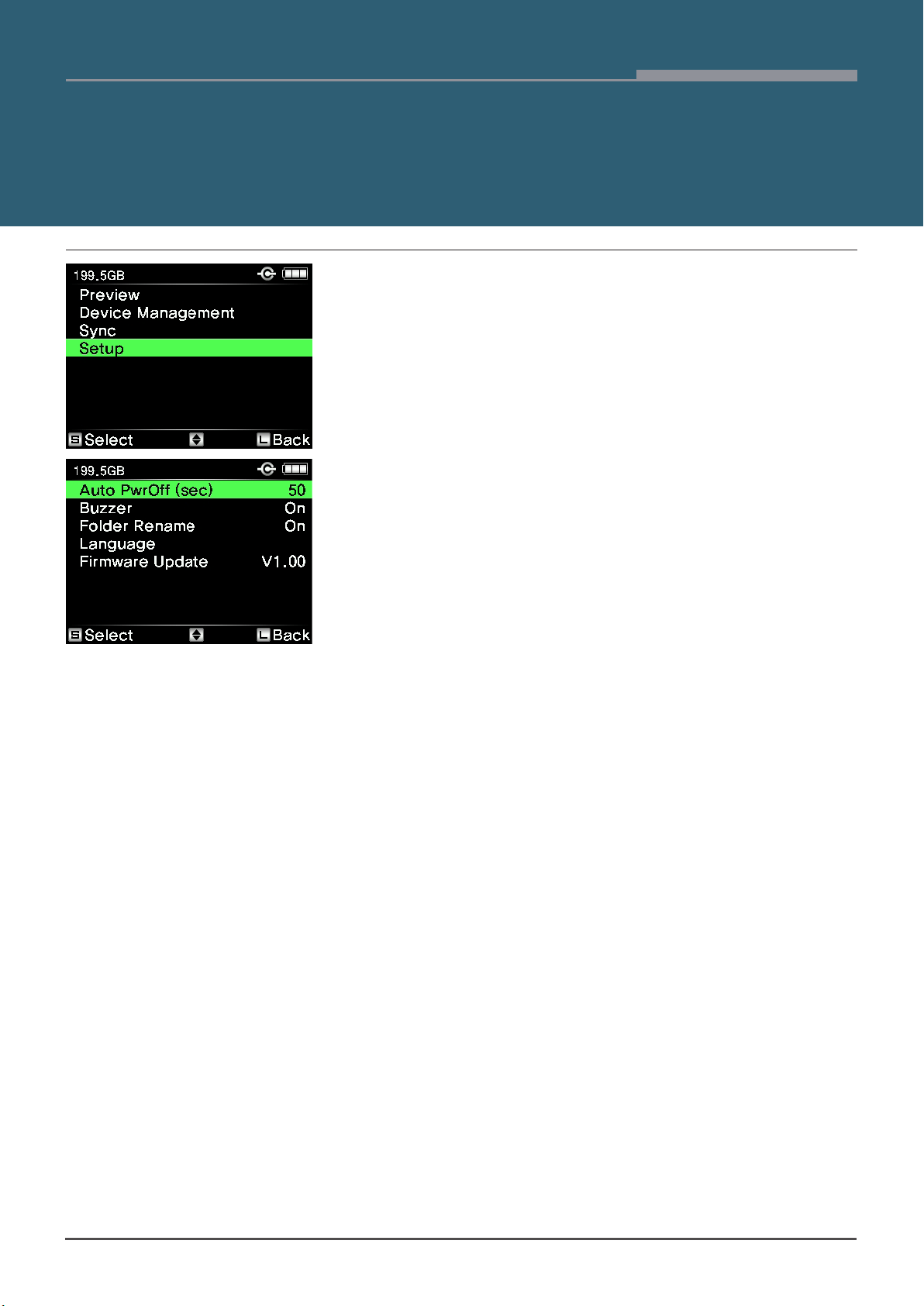

17.1_Auto Power O󽗈

Move the control key up or down to choose “Setup” function then press the key shortly.

Select the “Auto Power Off” at the set up menu. You can choose the time interval of the auto power o󽗈 as 30, 40, 50, 60 and 90 seconds by pressing the control key shortly.

Page 50

17 Setup Functions

17.2_Sound

You can set sound on/off, the buzzer sound to tell the backup succeed/failed & other operative conditions.

Page 51

17 Setup Functions

17.3_Folder Rename

The name of the folder is determined by the shooting date (e.g., 20160301.000.123456). At the “Set Up” menu, the user can select the “Folder Rename” menu as ON, and then can change the folder name to begin with A1~J9.

User can choose the folder name before back up.

Page 52

17 Setup Functions

17.4_Language setting

The user can select the preferred language using this function. Select “Language” sub-menu from the main menu.

Select the desired language using the up/down key function. Press the key briefly to set the language as the default.

Page 53

17 Setup Functions

17.5_Firmware Update

The NPS-10 provides you with update of the new version of 󽗉rmware through memory cards or internal hard drive (or SSD).

Move the control key up or down to choose the option you want and press the key shortly.

If valid 󽗉rmware is found at the speci󽗉ed location, the NPS10 indicates a “FW File Found” message on the LCD. If you press the control key shortly, it will perform a 󽗉rmware update.

The LCD screen indicates that the NPS-10 󽗉rmware is being updated. Do not turn the power off during the firmware upgrade. Use of the external USB power is recommended.

Page 54

17 Setup functions

17.5_Firmware Update

Firmware upgrade completed. The NPS-10 turns o󽗈 automatically.

If a valid firmware file is not contained in the specified device, the NPS-10 will indicate an error. Please try again from the beginning after downloading 󽗉rmware again.

Page 55

18 Troubleshooting Tips

18.1.If the power of the NPS-10 cannot be turned o󽗈 :

In the event of a hardware or software malfunction, press the control key for at least 8 seconds. This will turn the power o󽗈 safely so that the data stored in the NPS-10 will not be lost or altered.

18.2.If the power cannot be turned on :

The NPS-10 has an internal rechargeable battery. If you cannot turn on the NPS-10 with the control key, it may be that the internal battery has been discharged. Connect the USB charger to the NPS-10 with the USB Type-C cable and recharge it for more than 10 minutes. Push the control key for more than three seconds to turn the NPS-10 on.

18.3.When inserting SD#1 and microSD at the same time :

SD#1 and microSD slot cannot be connected at the same time. Remove both memory cards and insert only one memory card.

18.4.If a backup error occurs to a computer :

When a video file stored in the NPS-10 cannot be copied or edited on a computer, the problem may be a bad sector on the hard drive (or SSD) of NPS-10. If an error is detected, consult your authorized NEXTODI dealer or proper restoration company.

18.5.When Compact Flash is not detected by the NPS-10 :

Insert the compact 󽗊ash carefully. The pins may become bent if you insert the compact 󽗊ash incorrectly. If a pin in the slot becomes bent, the NPS-10 will not be able to detect the compact flash correctly. In that case, you can straighten the pin using tools for emergency use. Contact your reseller for after service.

Page 56

19 Battery Disposal

Batteries/rechargeable batteries containing harmful substances are marked with the following symbols: Cd=cadmium, Hg=mercury, Pb=lead. You can return batteries/ rechargeable batteries free of charge to any authorized disposal station in your area, in our stores or in any other store where batteries/rechargeable batteries are sold. Do not dispose of used batteries in the household trash. The Li-Poly rechargeable battery integrated into the NPS-10 must be removed from the housing prior to disposal. Please see your authorized NPS-10 dealer for this service.

FCC Rules and Regulations – Part 15

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment under FCC rules.

Page 57

20 Technical Speci󽗉cations

20.1_Technical Speci󽗉cations

Model name NEXTO PHOTO STORAGE

Model number NPS-10

TYPE 1 : CF (Type 1), SD (UHS-II) x 2, microSD x 1

Memory suppoprt

Storage 2.5" SATA drive with thickness under 7.2mm

TYPE 2 : CFast (2.0), SD (UHS-II) x 2, microSD x 1 TYPE 3 : XQD & CFexpress, SD (UHS-II) x 2, microSD x 1

File System

Video Preview

Image CODEC

Internal Battery

Computer I/F USB 3.1 Gen 2 : 10 Gbit/sec

OS Compatibility

Power

Memory card: FAT32, exFAT, UDF, HFS+

DV, DVCPRO HD AVCHD, H.264, AVC-Intra MPEG2 4:4:4 / 4:2:2 / 4:2:0 XAVC 2K/4K, AVC Ultra 2K/4K

JPEG, TIFF(*1) RAW Photo : ARW, CR2, CR3(*1), DNG, NEF, ORF, PEF, RAF, RWL, RW2, SRW,

Rechargeable Li-Poly battery, 3.7V 4000mAH

- 3 hours of charging

- 2 hours of operating time(X-copy mode)

Windows XP / VISTA / 7 / 8 / 10 (Windows XP (SP 2, 3) requires exFAT patch update) MAC OS 10.6.5 or later, Linux 2.4.18 or later

Rechargeable via USB Type C cable

- USB charger : Use of 2A or higher output current is recommended

- Can be charged by PC connection

XF-AVC 2K/4K, PRORES 2K/4K DNxHD 2K

Dimension 129.5 x 77 x 25.3 (mm) / 5 x 3 x 0.99 (inches)

Weight 200g/0.44lb (w/o Internal Drive)

Contents

*1 : Some functions will be supported by 󽗉rmware update later.

NPS-10 main unit / USB Type-C cable / Rubber jacket / User guide

Page 58

Page 59

Page 60

NextoDI co.,Ltd

For more inquires www.nextodi.com/support +82-70-4762-1986
