Page 1

PHOTO STORAGE

Portable Storage for Digital Cameras

User Guide

Version 06/11

NEXTODI CO., Ltd.

www.nextodi.com

Page 2

Thank you for purchasing the NEXTO PHOTO STORAGE (ND2730). The ND2730 allows digital camera users to save photo from their cameras to a hard drive without the use of a computer. The performance of the ND2730 has been optimized so that data transfers from a memory card to the ND2730 more quickly than to other storage devices. Data stored on the ND2730 can later be copied to a computer. The ND2730 supports digital cameras from various manufacturers, in addition to supporting a variety of memory card formats, such as: Compact Flash (CF), SD, SDHC and SDXC. Please read this manual before using the product. Follow operating instructions carefully to avoid damage to the product, or personal injury. This guide assumes that your ND2730 unit contains a properly formatted hard disk and a charged battery. If this is not the case, please refer to the User Manual for instructions on formatting a hard disk and charging the battery.

"NextoDI", "NEXTO PHOTO STORAGE", "ND2730" and "X-Copy" are registered trademarks of NextoDI Co., Ltd. "Windows" is a registered trademark of U.S. Microsoft Corporation in the USA and in other countries. "Mac OS" is a registered trademark of Apple Inc. in the USA and in other countries. All other trademarks are the property of their respective owners.

All company names and product designations contained herein are trademarks of their respective owners. All rights are reserved.

Important safety notice

● Do not drop, jar, bump, shock, or expose the ND2730 to severe vibration

during the photo preview operation or while data is being transferred.

● Do not use near open flames (candles, stoves, grills, fires) or sparks

(fireworks, welding torches).

● Backup your data. Under no conditions is NextoDI Co., Ltd. liable for

loss of, or damage to, a computer; or loss of, or damage to, a program, records, or data; or any consequential or incidental damages. For more inquiries, contact or consult our technical advisory service:

http://www.nextodi.com/en/support/en_qna.php

* NextoDI Co., Ltd. reserves the right to make improvements and/or changes to the product and programs described in this User's Guide at any time without notice.

Page 3



Table of Contents

1. PRODUCT DESCRIPTION

2. CONTENTS OF THE NEXTO PHOTO STORAGE

3. SYMBOLS USED IN THIS DOCUMENT

4. SAFETY INSTRUCTIONS

5. INSTALLATION OF A HARD DISK DRIVE

6. DEVICE DIAGRAM

7. ABOUT THE RECHARGEABLE BATTERY

8. CHARGING THE RECHARGEABLE BATTERY

9. NVS2501 INTERFACE

10. FORMATTING THE HARD DISK DRIVE

11. USING THE ND2730 AS A HARD DISK DRIVE

12. DATA BACKUP(COPY) AND VERIFY

13. PHOTO PREVIEW

...................................................................

..............................................

....................................................................

..........................................

...............................................................................

...........................................

........................................................................

.........................................

.............................................

.............................................................................

..............................

..................................

...............................

14. ADVANCED FUNCTIONS SELF TEST AUTO COPY BUZZER

.....................................................................................

..................................................................................

..........................................................................................

FIRMWARE UPDATE DELETE TMP FOLDER

15. TROUBLESHOOTING TIPS

16. BATTERY DISPOSAL

...............................................................

.....................................................................

...................................................................

.............................................................

........................................................................

Page 4

1. Product Description

The NEXTO PHOTO STORAGE (hereinafter ND2730) offers sufficient space for the installation of a 2.5” Serial ATA(SATA) hard disk drive (not included in the delivery) and includes a Li-Poly rechargeable battery. The ND2730 provides the following functions:

1. Memory card backup

The ND2730 can copy the contents of a memory card to the internal hard drive without a PC--even in the field where no electric power source is available. You can copy CF cards through the CF slot on the top of the device. You can copy SD, SDHC, SDXC cards through the SD slot on the left side of the device. For complete backup information, refer to Chapter 12 of this manual.

2. Photo Preview (Future Functionality)

The ND2730 can display photo taken with digital cameras on a color TFT LCD. The ND2730 provides a “best effort” preview of the photo clip. For details on Photo Preview, see chapter 13. This function may not be included when delivered. In that case, the photo preview function shall be provided by a free firmware upgrade in the future.

3. Computer connection

The ND2730 can be connected via USB 2.0 or FireWire 800 (IEEE1394b) to a corresponding port on a computer in order to copy data. For details of Computer Connections, see chapter 11.

4. Simple operation

All of the functions of the ND2730 are controlled by two buttons, one for power (On/Off) and the other for function control (control key). The power button can also be used as a function key in some instances. For details on Power (On/Off) and control key operations, see chapter 9.

6. Internal hard drive

The ND2730 offers these functions for the internal hard drive:

[Installation of SATA hard disk drive] [Formatting hard drive] [Hard drive self test]

For details see chapter 5, chapter 10 and chapter 14.

7. Firmware upgrade

When NextoDI develops new functionality—or offers support for new photo formats--firmware is provided to users through the website’s download page. You can download the new firmware to a memory card or the internal hard disk drive of the ND2730. You can then upgrade your ND2730 using the firmware update function of the ND2730. For details, see chapter 14.

8. Buzzer on/off

The ND2730 uses a buzzer to note the results of various operations. A user can turn the buzzer on or off via the menu. For details, see chapter 14.

5. Internal rechargeable battery

The ND2730 contains an internal Li-Poly battery that enables the ND2730 to be used without the power adapter. The power adapter is used to charge the internal battery, supplying power to the main unit. For details on Charging the Internal Battery, see chapter 7 and 8.

PRODUCT DESCRIPTION PRODUCT DESCRIPTION

Page 5

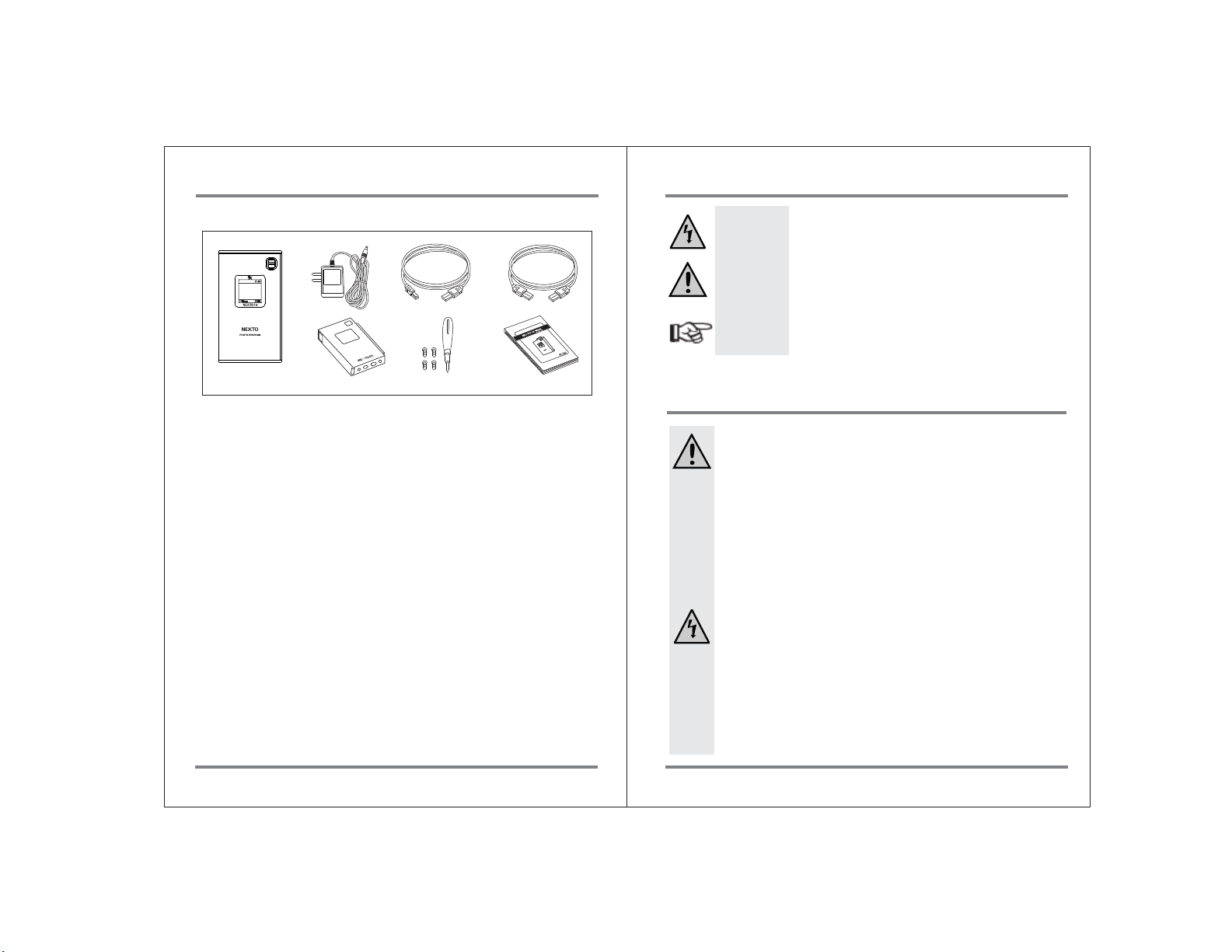

2. Contents of the NEXTO PHOTO STORAGE

3. Symbols Used in This Document

1. Main Package

②

245.0 GB

XCopy Ready

Menu Off

③

⑥

①

① Main storage unit (without hard disk drive)

② AC power adapter (wall plug; 5~25V)

③ USB cable for computer connection

④ FireWire 800 (IEEE 1394b) cable for computer connection.

⑤ Leather case

⑥ Mini screwdriver and screw set

⑦ User’s Guide

⑤

⑦

④

Warning

Caution

Reference

The flash icon in a triangle is used to alert you to personal injury hazards such as electric shock

An exclamation mark in a triangle indicates important instructions in this operating manual which must be observed.

The "hand" icon gives you special tips and notes on the operation.

4. Safety Instructions

Caution

In case of any damage due to failure to observe these operating instructions, the warranty is voided. NextoDI does not assume liability for consequential damages. Nor do we assume liability for damage to property or personal injury caused by improper use or failure to observe the safety instructions. The warranty is void in any such case. The following safety instructions and warnings are not only to protect you, but also to protect the device. Please read the following warnings:

Warning

● Unauthorized conversion and/or modification of the product is

forbidden.

● Never open the product housing. This device is not user serviceable.

● Damage to the Li-Poly rechargeable battery may result in explosion

or fire.

● Maintenance or repairs may only be carried out by an authorized

repair center.

● The AC power adapter unit is intended for use in dry conditions to

avoid electric shock

CONTENTS OF THE NEXTO PHOTO STORAGE SYMBOLS USED IN THIS DOCUMENT

Page 6

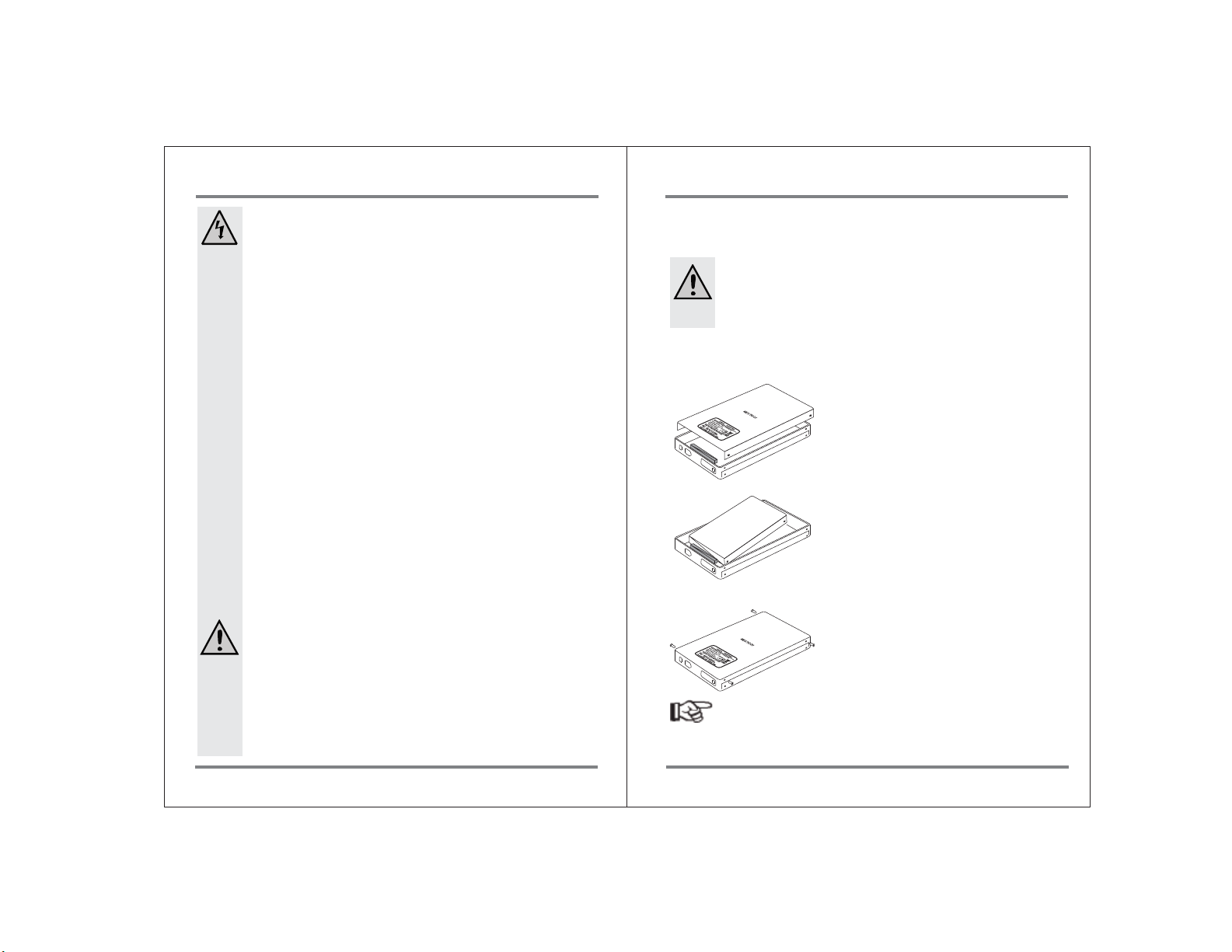

5. Installation of a hard disk drive

Warning

● The case of the hard disk must not get damp or wet. Protect the

device from humidity and water, from sun, excessive heat (>113°F) or cold (<32ºF), dust and dirt.

● When the product is brought from a cold place into a warm room,

condensation may form. This could damage the product. Always let the product get to room temperature before use or before connecting the AC power adapter unit. This can take several hours.

● Do not use in tropical climate conditions

● The AC power adapter unit complies with safety class II. As a voltage

source only a proper power socket of the public power supply system may be used. Note the input voltage/frequency imprinted on the AC

Adapter. It must correspond to the voltage/frequency of the power

outlet. The AC power adapter is equipped with an input voltage range of 100 ~ 240V, 50/60Hz. Adapters may be necessary for use in countries other than the US.

● The product is not a toy and should be kept out of reach of children.

● Do not place liquid near the product. Liquid could get inside the housing and cause a fire or electric shock. In case of fire damage or

short circuit, de-energize the respective socket (e.g. turn off circuit breaker) and only then pull the AC power adapter unit from the socket. Do not attempt to use the product! Take it to your dealer for repair immediately.

● Never touch the AC power adapter unit when your hands are damp

or wet.

● In industrial facilities, safety regulations for electrical equipment and facilities must be observed. If the product is used at schools,

training facilities, or do-it-yourself/hobby shops, it should not be handled unless supervised by trained, responsible personnel.

● Do not drop the ND2730 device.

Caution

The product must not get damp or wet. This product is not a toy.

It contains fragile and swallowable glass parts, small parts, and a

rechargeable battery. Any use other than that described above may damage the product. Read these operating instructions thoroughly and carefully. The instructions contain important information for installation, operation, and handling. Take note of all safety instructions.

The ND2730 is delivered without a hard disk drive. A user can install a 2.5” Serial ATA (SATA) hard disk drive with 9.5mm height. Supported hard disk drive capacity is up to 2,000 GB (2 TB).

Caution

● ND2730 does not support Parallel ATA (PATA) or IDE hard disk drive.

Disconnect all cables and remove any memory cards from the ND2730 before installing a hard drive. The ND2730 should be in power “off” state.

Remove the cover on the lower side.

Insert a 2.5” SATA hard disk drive.

The protective film must be placed between the circuit board and the hard disk drive.

Make sure that the pins of the hard disk drive are inserted exactly in the socket board inside the case.

Put the cover on again. Make sure to observe the

correct orientation. The larger foam part on the inside of the cover should face in the direction of the power socket/USB port.

Reference

● The hard disk drive must subsequently be formatted.

For this purpose, see chapter 10.

SAFETY INSTRUCTIONS INSTALLATION OF A HARD DISK DRIVE

Page 7

6. Device Diagram

⑧

⑨

① ②

③

⑦

④

⑤

7. About the Rechargeable Battery

A "Li-Poly" (lithium-polymer) rechargeable battery is integrated into the ND2730. This rechargeable battery does not have the so-called “memory effect.” As a result, the rechargeable battery can be charged whenever you want. Furthermore, it has a higher energy content than conventional NiCd and NiMH rechargeable batteries. Note these important instructions when handling the Li-Poly rechargeable battery.

The rechargeable battery can be recharged 400 times. If the battery operation time gets shorter, it may be time to replace the battery. Consult your authorized NEXTODI dealer to replace the internal battery.

⑥

① “DC IN" slot for AC power adapter unit (wall plug; 5~25V).

② Recessed Reset key, to be pressed with a tooth pick or similar tool.

switches off the ND2730 in the event of a hardware or software malfunction.

③ Connector " FireWire 800 (IEEE 1394b)" to connect to the computer with

max 800Mbps speed.

④ "USB2.0” slot for USB 2.0 device connection to a computer.

⑤ Connector “BAT” for external rechargeable battery pack (optional)

⑥ SD/SDXC/SDHC slot

⑦ LCD Display

⑧ Control key. Controls movement of cursor (up/down/ select) when power is

on. Press the button for more than 2 seconds to switch the ND2730 on or off.

⑨ Compact Flash slot.

DEVICE DIAGRAM ABOUT THE RECHARGEABLE BATTERY

Caution

● Never damage the rechargeable battery--do not remove it from

the ND2730. Consult the chapter on "Battery Disposal". Damaging the wrapping of the rechargeable battery might cause an explosion or fire.

● Never short circuit the contacts of the rechargeable battery. Never

touch the connections or electrical components inside the ND2730 with metal objects.

● Charge the rechargeable battery regularly, even if you do not use

the product. The ND2730 needs some "current" (a small quantity) at all times. Due to the Li-Poly rechargeable battery technology, it is not necessary to discharge the battery before recharging. Recharge the battery completely, about once a month. The device will be ready for use at any time.

Page 8

8. Charging the Rechargeable Battery

1. Internal battery

The battery can be charged using the AC power adapter unit delivered with this product. A. Turn off the ND2730. B. Connect the charger’s wall plug to the ND2730’s "DC IN" slot C. Plug the AC power adapter unit into a wall socket D. The LED above the control key shows red when charging E. When the battery is charged, the red LED turns off F. If there is an error when charging, the LED blinks. If this happens, unplug the AC adapter unit and plug it in again.

Users can charge the ND2730 via the car charger, the USB/ FireWire 800 (IEEE 1394b) cable, or the AA battery holder (optional).

With a completely empty rechargeable battery, the charging procedure lasts approximately 4 hours using the AC power adapter, the car charger cable, the USB cable, or the FireWire 800 (IEEE 1394b) cable.

Reference

● You must turn off the ND2730 in order to charge the unit.

● The ND2730 can be charged via USB without using the AC power adapter

included in the box. A high powered USB connection is needed, i.e. a USB connection with its own power supply, such as the USB port of a computer or a USB hub with a power unit.

● If the ND2730 is operated with a notebook, you must always use the AC power

adapter unit to charge the ND2730. Notebooks may not deliver the necessary amount of current via USB.

● The ND2730 will operate for about two hours with a fully charged internal

battery.

● When connected to a computer using FireWire 800 (IEEE 1394b) or USB,

the ND2730 draws power from the computer, not the internal battery.

● If the ND2730’s battery is completely discharged, the performance of the

battery may be degraded. It is recommended that the ND2730‘s battery be recharged before the battery gauge reaches the empty level.

9. ND2730 Interface

1. Turning the ND2730 On/Off

Press the control key for more than 2 seconds in order to turn the ND2730 on. The power up logo and firmware version is shown on the LCD. When you see the logo on the LCD screen, release

Ver 1.00

PHOTO STORAGE

245.0 G

XCopy Ready

Menu Off

Power Off !!

Reference

● The ND2730 can be reset via the recessed RESET key (see chapter 6).

This will also turn the power off.

the button. Otherwise, the ND2730 will automatically power down.

After checking the system, the ND2730 goes into

[XCopy ready] mode. You can copy a memory card

in this mode.

The ND2730 turns off automatically after about 30 seconds if you do not use it. When the Off control option appears on the LCD, the ND2730 can be powered off by pressing down on the control key for more than 2 seconds.

CHARGING THE RECHARGEABLE BATTERY ND2730 INTERFACE

Page 9

2. Key operation

The ND2730 is operated by a single control key which can be used in five different ways. The display shows you the “ ” (Short) or “ ” (Long) symbol as a means to invoke the desired function.

Symbols

(Short)

(Long)

▲▼

Press once and release immediately

Press and hold the key for more than two seconds.

Push the key in the appropriate direction. Up/down movements are supported.

Operation

10. Formatting the Hard Disk Drive

The hard disk drive in the ND2730 should be formatted with the "FAT32" file system. Only one (the first) partition can be used. Do not attempt to format the ND2730 disk drive with a computer. Use only the format function on the ND2730. This will allow the hard disk to be read by either the Windows or Mac operating systems.

Caution

● The ND2730 can work only with one partition in the file format

"FAT32". Therefore, the ND2730 formats the hard drive in the "FAT32 file system."

3. The LCD Display

245.0 G

① ②

XCopy Ready

③

④

Menu Off

Remaining capacity of the internal hard disk drive.

① If the capacity of the internal hard disk drive is uncertain, the display will be grayed out. A capacity check will be performed automatically during power on or power off.

② Remaining capacity of the rechargeable battery The battery capacity is displayed four ways: (3→2→1→ empty) by the battery gauge.

Full: 80% ~ 100%

Gauge: 30% ~ 80%

Gauge: 5% ~ 30%

Empty: Under 5%

③ Current status of the device.

④ Available functions for the current screen. The display varies depending on

the function in use.

ND2730 INTERFACE

To Format a New Hard Disk

The ND2730 must not be connected to a computer via USB or FireWire 800 (IEEE 1394b). Remove any memory card or USB device.

245.0 G

Preview

Self Test Auto Copy On Buzzer: On

Format

Sel Back

245.0 G

HDD Format

All data in HDD

will be deleted

Format HDD?

OK Back

To re-partition/format the hard disk drive, press the control key once at the [XCopy Ready] mode to get to the menu ("S-Menu"). Move the highlighted cursor to the [Format] menu option with the control key. Press the control key once to select [Format].

Confirm the selection by pushing the control key upward. You can cancel the operation by pressing and holding the control key or power key.

Reference

● With Windows XP, hard drives are formatted only with the file system “NTFS”—the

FAT32 option is no longer available. For MAC OS, hard drives are formatted with the file system HFS+. NTFS and HFS+ are incompatible with the ND2730.

FORMATTING THE HARD DISK DRIVE

Page 10

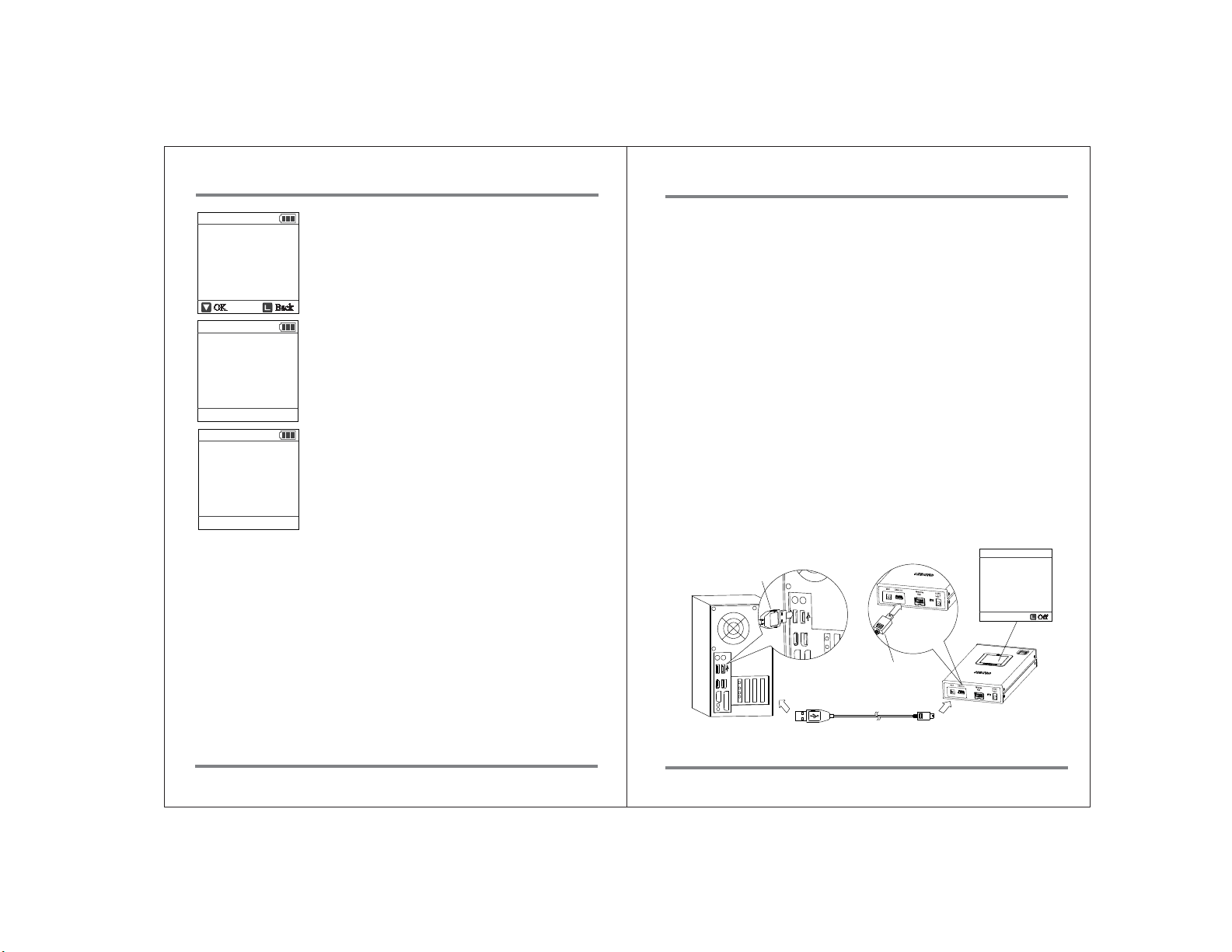

11. Using the ND2730 as a Hard Disk Drive

245.0 G

HDD Format

Are You Sure?

245.0 G

HDD Format

Formatting

245.0 G

HDD Format

Completed

Then you can repartition and reformat the hard disk; to confirm, push the control key downward. All data on the hard disk will be lost!

You can cancel the operation by pressing and holding the control key.

Back

The ND2730 indicates the progress of the formatting operation.

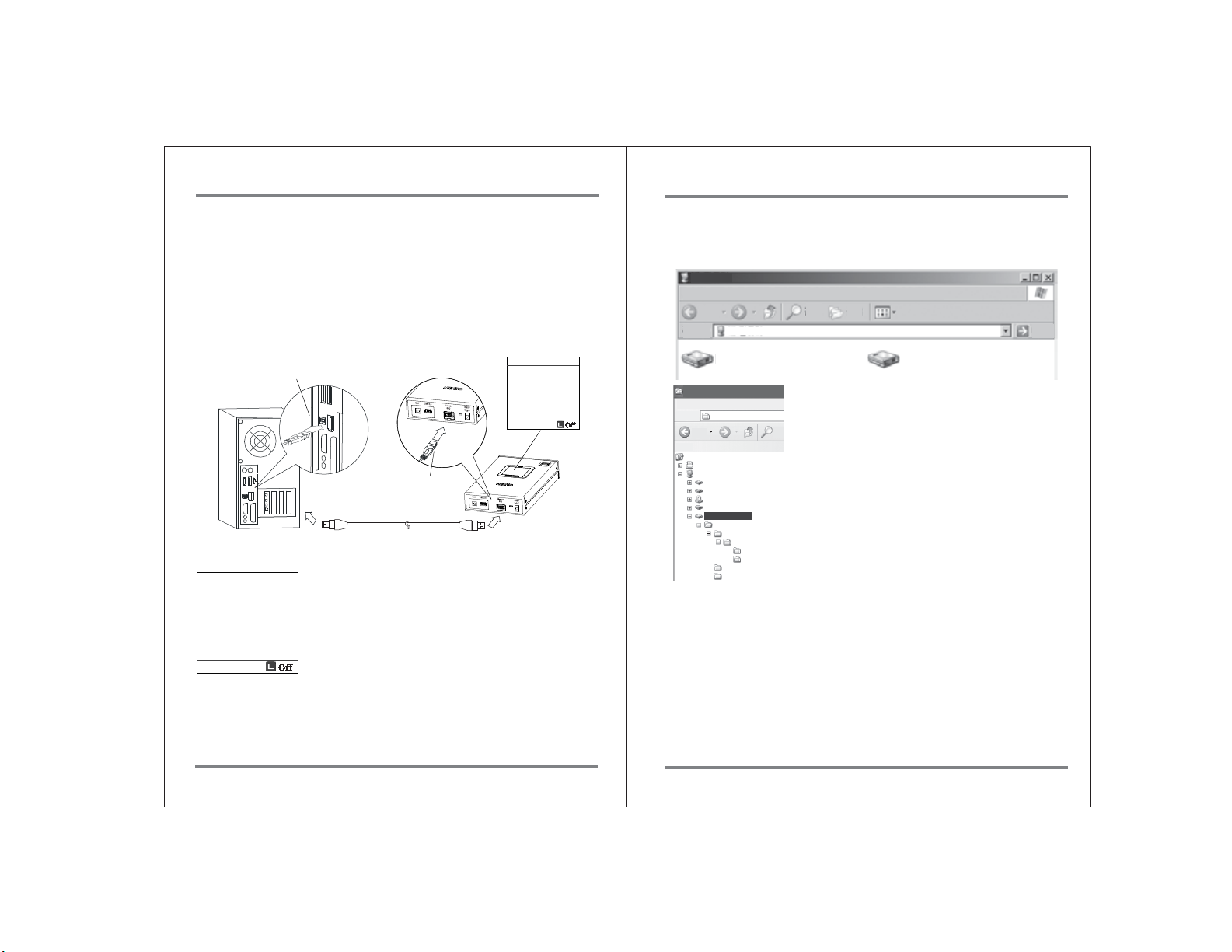

The ND2730 can be connected to your computer for use as an external hard disk. Two connection methods are supported.

1. Connect to the computer’s USB 2.0 slot via the ND2730 "USB slot" and the USB cable.

2. Connect to the computer’s Firewire 800 (IEEE 1394b) slot via the ND2730 " Firewire 800 (IEEE 1394b) slot" and the Firewire 800 (IEEE 1394b) cable.

Device drivers for the ND2730 are included in the Microsoft Windows 7, Vista, ME, XP and 2000 operating systems. Drivers for Windows 98 systems can be downloaded from the NextoDI website. To download drivers, go to http://www.nextodi.com/support/ http://www.nextodiusa.com/support.htm When you have successfully connected the ND2730 to your computer, the contents of the ND2730 hard disk drive will appear in Windows File Explorer.

1. Connect via USB

When the formatting has completed you are ready to copy data to the hard disk.

① Turn your computer on. Wait until the operating system is completely booted. ② Turn your ND2730 on. ③ Connect the ND2730 "USB" slot via the USB cable with a free USB 2.0 port on

your computer. A USB 1.1 port can also be used.

④ Check the "PC ↔ USB" on the ND2730’s LCD display. ⑤ If your computer detects the ND2730 correctly, a new drive named [NEXTODI]

will appear in the “My Computer” display

USB (Standard - A)

PC ↔ USB

Off

FORMATTING THE HARD DISK DRIVE

USB (mini - B)

USB Cable

USING THE ND2730 AS A HARD DISK DRIVE

Page 11

2. Connect via FireWire 800 (IEEE 1394b)

① Turn your computer on. Wait until the operating system is completely booted. ② Turn your ND2730 on. ③ Connect the ND2730 "FireWire 800 (IEEE 1394b)" slot via the FireWire 800

(IEEE 1394b) cable with a free FireWire 800 (IEEE 1394b) port on your computer. ④ Check the "PC ↔ 1394" on the ND2730’s LCD display. If your computer detects the ND2730 correctly, a new drive named [NEXTODI] will appear in the “My Computer” display.

IEEE 1394b(FireWire 800)

PC ↔ 1394

Off

IEEE 1394b (FireWire 800)

IEEE 1394b(FireWire 800) Cable

PC ↔ 1394

Connect

Power!

The 4pin-9pin FireWire 800 (IEEE 1394b) cable does not provide power. Use the AC power adapter unit or USB cable to provide power. If no power is provided, the ND2730 shows the “Connect power!” message and waits for external power to be applied.

Off

3. Browsing the contents of your hard drive

If your computer detects the ND2730 correctly, a new drive named [NEXTODI] will appear on 'My Computer'.

My Computer

File Edit View Favorites Tools Help

Back

Address

My Computer

내 컴퓨터

Local Disk (C:)

G:\

File Edit View Favorit

Address

G:\

back

Control Panel

My Document

My Computer

Local Disk (C:)

Local Disk (D:) DVD-RAM Drive (E:)

Skylark (F:)

NEXTODI (G:)

NEXTOPS

20090601.000

DCIM

100EOS5D

479CANNON

TMP.000

TMP.001

Search Folders

NEXTODI (G:)

● Back up data is stored in the "NEXTOPS " folder. This

folder is created automatically. The ND2730 generates a new folder for each memory card copy. The name of the folder is determined by the shooting

date.

● For example, 20081112.000 means the last photo

taken on November 12, 2008. (If you copy multiple items on a single day, the last three digits will be changed to indicate the download sequence – “000, 001,002, 003, etc.) The date code comes from the digital cameras If the date setting on the digital camera is incorrect, the folder name of the ND2730 will also be incorrect.

● If a copying failure occurs, the copy is stored on

your computer as a TMP folder. The TMP folder contains the same file names, but the data may be

abnormal. You may delete the TMP folder (see chapter 14).

4. Disconnecting the ND2730 from Your Computer

For Windows Right click the Storage device icon in the System Tray (lower right corner of your screen) and select “Safely Remove Hardware” or “Unplug” or “Eject Hardware”. Then disconnect the cable from your ND2730 and your computer.

For MAC Drag and drop the NEXTODI icon to the trash. Then disconnect the cable from your ND2730 and your computer.

USING THE ND2730 AS A HARD DISK DRIVE

Page 12

12. Data Backup (Copy) and Verify

This chapter explains the ‘Copy’ and ‘Verify’ functions. Insert a memory card into the corresponding memory slot. The slot for the Compact Flash(CF) card is located on the top side of the ND2730. The slot for the SD/SDXC/SDHC card is located on the left side of ND2730. When copying from a memory card, the ND2730 must not be connected to a computer. The ND2730 can copy a memory card onto the internal hard disk drive via the built-in memory slot. After the backup, the copy procedure can be verified. The data on the memory card and the data on the hard disk drive are compared with one another. This ensures that the data has been copied properly (“Verify”). You can choose the “New Copy” or the “Verify” function according to whether the contents of the memory card have been copied before.

Reference

● Do not insert more than one memory card at a time into the ND2730.

Only the first memory card will be detected.

● Insert the memory card carefully. The pins may become bent if

you insert the memory card incorrectly.

1. Parsing the memory

245.0 G

CF Detected

2. Copy

(1) If the memory card contains new data.

245.0 G

21 Files

13.83 GB

Fast Copy

Copy & Verify

OK Cancel

Two options are available for copy using up/down key selection.

The data on the memory card is compared with the data stored on the ND2730 hard disk drive to determine whether it is new data or if the data or a portion of the data has already been stored on the ND2730. According to the comparison result, the ND2730 operates as follows:

The ND2730 will make a new folder on the hard disk and copy all the files and folders in the memory card onto the internal hard disk. The contents of the memory card will not be deleted.

: To Copy, press the control key briefly.

: To Cancel the copy, press the control key for more than 2 seconds.

Fast Copy)

Copy & Verify

(2) Memory card with copied data

If the memory card was copied before, and not modified since, then you can choose to [Verify] or [Copy] or [Delete].

245.0 G

Vfy(Verify)

Cpy(Copy)

Make a new folder and copy all the memory card data into the folder.

Same as [Fast Copy] but after copying, the data on the memory card is compared with the copied data in the ND2730 hard disk drive. Each bit is verified.

245.0 G

Same is in

20100421.000 Verify CF?

Vfy Cpy Del

OK Cancel

Compare data stored in the hard drive to the data stored in the memory card.

Copy again. Make a new folder and copy all of the data in the memory card to the hard drive.

Delete the data on the memory card so that it can be reused. Del(Delete)

Same is in

20100421.000 Copy CF?

Vfy Cpy Del

OK Cancel

245.0 G

Same is in

20100421.000 Delete CF?

Vfy Cpy Del

OK Cancel

3. Verify

245.0 G

Same is in

20100421.000 Verify CF?

SAMPLE FULL

OK Cancel

Two options are available for verification using up/down key selection.

Sample Verify

Full Verify

When you choose the verify function, the ND2730 compares the data stored on the hard drive to that on the memory card. The verification logic entails a full bit-by-bit verification, and detects any differences.

: For verification, press the control key briefly

: Cancel the verification

Compare first 1MB of each file.

All of the data is compared.

DATA BACKUP (COPY) AND VERIFY DATA BACKUP (COPY) AND VERIFY

Page 13

13. Photo Preview

245.0 G

CF → HDD

Copying

15/21

123MB

3m15s Cancel

245.0 G

Copy

Success!

Remove CF

21/21

50MB/s

4. Status

Current operation status is shown on the LCD display.

① Total number of files in the memory card versus the number of copied files.

② Amount of data copied. ③ Elapsed time

5. Indication of Results

If the operation completes successfully, the user is notified with a beep sound and the lapsed time is displayed.

① Total number of files in the memory card versus the number of copied files.

Off

② Copy speed in (MB/s)

Reference

● Remove the memory card to return to the initial display.

● If you don't remove the memory card, the ND2730 will automatically turn off within 30 seconds to preserve battery life.

6. Error Display

The ND2730 displays the previous operational status at the next power up. The

user will then know whether the last backup was successful.

245.0 G

CF Error!

Error message

No: 0x00000000

245.0 G

Copy

Fail!

The ND2730 shows stored photo files after backup. For clarification on supported file formats, see the “Reference hand icon” below in this Photo Preview section. A preview of both the internal and external devices (CF/SD/SDXC/SDHC) is

supported. Users can also choose to delete the backup folders.

1. Preview from the internal hard drive

245.0 G

Preview

Self Test Auto Copy On Buzzer: On Format

Sel Back

245.0 G

Preview

Select a Source

Internal HDD

External DEV

Sel Back

HDD 1/4

20110502.000

20110501.000

20110430.000

20110428.001

20110428.000

20110502.000

13 Files

14.1 GB

Show Photo

Delete Folder

Copy to Ext Dev

Sel Back

Press the control key once at the “XCopy Ready” mode

to activate the menu.

Press the control key and select “Preview”.

Select “Internal HDD” to preview a photo file stored

in the internal hard drive.

The ND2730 will display the contents of the backup

folder in date order. The most recent folder is shown

first. After you select a folder, the ND2730 will display

a brief list of the contents as shown in the figure below.

Back

The user can select [Show Photo] for photo preview, [Delete] for deleting this backup, or [Copy] for copying to an external device

DATA BACKUP (COPY) AND VERIFY

PHOTO PREVIEW

Page 14

IMG_2913.JPG 1/3

Sel Back


AutoView Back

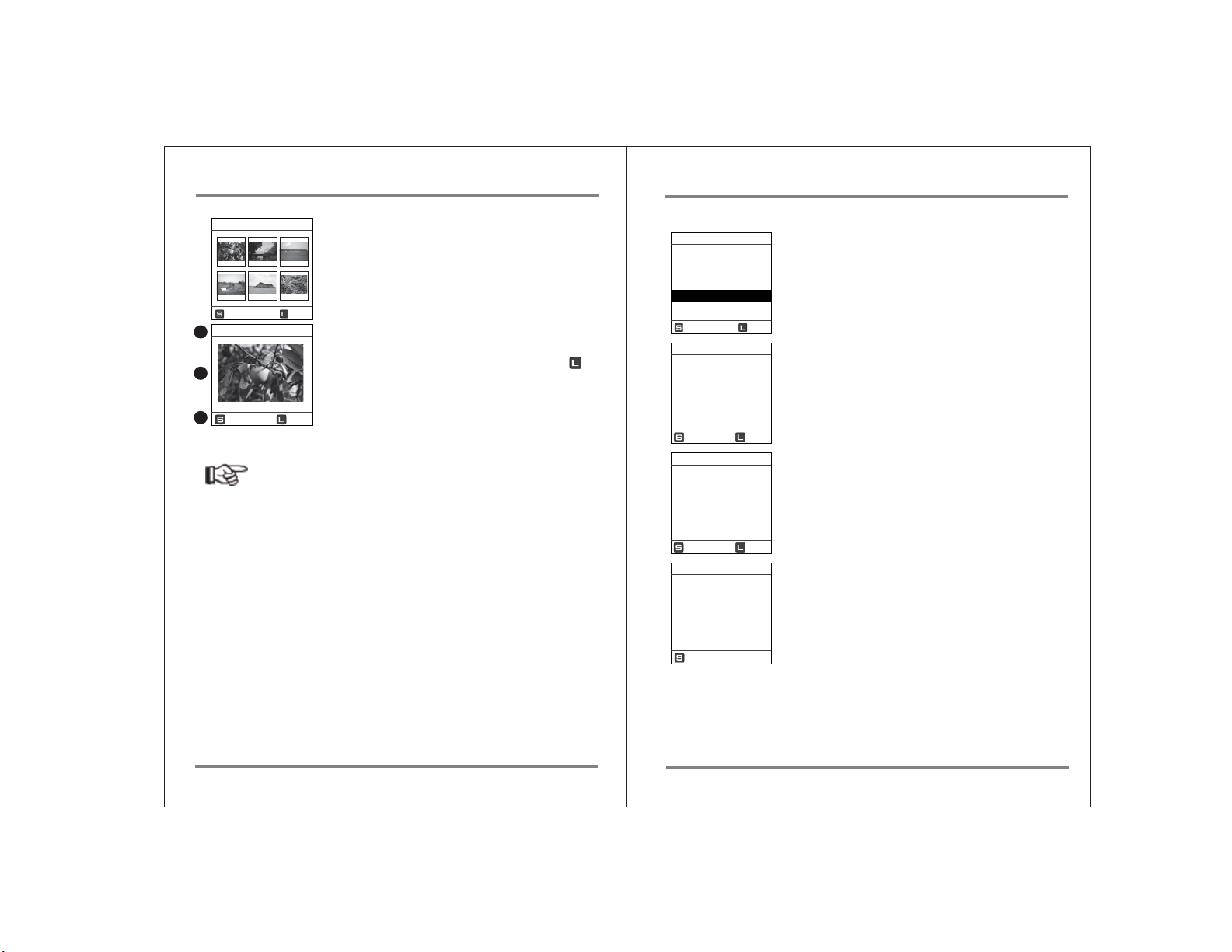

If “Show Photo” is selected, the ND2730 will display the photo files contained in that folder as thumbnails. Unsupported photo files are shown with an [X] mark. Photo clips are selected for preview by using an up/ down push of the control key. Press the control key briefly to select a clip.

If you select an image, the ND2730 shows the larger one. A user can control the “up/down” button to preview the next image or can long press the key( ) to preview in slide show mode.

① File extension ② Preview Images ③ Selectable command

Reference

● See http://www.nextodi.com for supported preview formats.

2. Delete the backup data

20110502.000

13 Files

14.1 GB

Show Photo

Delete Folder

Copy to Ext Dev

Sel Back

20110502.000

Delete?

OK Back

20110502.000

Delete?

Are You Sure?

OK Back

20110502.000

Deleting

Completed

Select “Delete Folder” from the [Preview] menu.

The ND2730 will ask you twice to confirm the delete operation. (If you do not want to delete, press the button for more than 2 seconds to go back to the main menu.) Push the control key up and down to confirm the deletion.

The specific folder is deleted. Return to the main menu by pressing the control key once.

PHOTO PREIVEW

Page 15

14. Advanced Functions

3. Preview from an external device

The ND2730 supports the preview of photo files stored on an external device— as well as photo files stored on memory cards such as: CF, SD, SDXC and SDHC.

245.0 G

Preview

Select a Source

Internal HDD

External DEV

Sel Back

245.0 G

Preview

Insert a

External DEV

(CF/SD/MS)

245.0 G

13 Files

14.1 GB

Show Photo

Sel Back

245.0 G

Preview

Cancelled

Remove CF

Select “External DEV” from the [Preview] menu.

Then connect the external device to the ND2730.

Cancel

If a CF, SD, SDXC or SDHC memory card contains photo files—and is inserted into the ND2730--information about the photo files will be displayed.

If you select “Back” by pressing and holding the control key, then a “remove (device type)” message will appear on the LCD display. Once the cable or memory card has been removed, you will automatically be returned to the main menu.

Off

ND2730 has several advanced function menus, accessible from the Main Menu.

Menu Operation

Built-in test utility for detecting physical errors on the internal hard drive.

Self Test

Auto Copy

TMP Folder

Buzzer

FW Update

This function does not fix errors. If an error is detected during the self-test, consult your authorized NEXTODI dealer.

On/Off setting for auto copy option. Factory setting is Off. If this function is activated, “Copy” of a memory card will be automatically initiated when you insert the memory card into one of the built-in slots.

If the copy function fails, a TMP folder will be generated. A user can delete the TMP folder using this menu.

On/Off setting for buzzer sound. Factory setting is On.

Upgrade to new firmware with the firmware file stored in the internal hard drive or on a memory card.

Enter Main Menu

245.0 G

Press the control key briefly in order to get to

XCopy Ready

the main menu.

PHOTO PREVIEW

Menu Off

ADVANCED FUNCTIONS

Page 16

1. Self Test

(1) HDD Smart Test

245.0 G

Preview

Self Test

Auto Copy On Buzzer: On Format

Sel

245.0 G

Back

Self Test

Select a Method

HDD SmartTest

HDD FullTest

Sel Back

245.0 G

HDD Smart Test

It will take

several min…

Are you Ready?

OK Back

245.0 G

HDD Smart Test

Testing

Press the control key once at the “XCopy Ready” mode to activate the menu. Press the control key and select “Self Test”.

The User can choose between an HDD Smart Test or an HDD Full Test. Choose the HDD Smart Test. The HDD Smart Test uses a S.M.A.R.T test provided by the hard drive.

The HDD Smart Test takes several minutes to test the internal hard drive. Pressing the control key initiates the HDD Smart Test.

The display tells the user that the S.M.A.R.T test is in progress. This process takes several minutes.

245.0 G

HDD Smart Test

No problems found during the HDD Smart Test.

Smart Test

6m 30s

245.0 G

HDD Smart Test

This HDD may

have errors.

Off

Error found during quick test. Further use of ND2730 may result in loss of backup data. Consult your authorized NEXTODI dealer for service.

HDD change

Recommended.

6m 30s

Off

Caution

● The ND2730 buzzer indicates the completion of the test. The power

does not turn off automatically at completion of the test.

● The ND2730 returns to the initial mode only after the user presses

the control key for more than 2 seconds.

● It is strongly recommended that the AC adapter be used during this

test in order to prevent battery failure during the process

3m 23s

ADVANCED FUNCTIONS

Page 17

(2) HDD Full Test

245.0 G

Self Test

Select a Method

HDD SmartTest

HDD FullTest

Sel Back

245.0 G

HDD Full Test

It will take

several hours.

Are you Ready?

Connet Power!

OK Back

245.0 G

0 Bad Found

30m 27s Cancel

245.0 G

HDD Full Test

0 Bad Found

Select “HDD Full Test” from the [Self Test] menu.

The HDD Full Test will take several hours. So you need to connect power to the ND2730. It will read all the sectors in the internal hard drive to discover if any bad sectors exist.

The HDD Full Test in progress. This process will take about 2~3 hours. The user can cancel the HDD Full Test by pressing the control key for more than 2 seconds.

245.0 G

0 Bad Found

No errors found.

Full Test OK.

99m 03s Cancel

245.0 GB

12 Bad Found

HDD Change

Error found during the HDD Full Test. Further use of ND2730 may result in the loss of backup data. Consult your authorized NEXTODI dealer for service.

Recommend

99m 03s Cancel

Caution

● The ND2730 indicates the completion of the test using the buzzer

sound. The power does not turn off automatically at the completion of the test.

● The ND2730 returns to the initial mode only after the user pushes

the control key for more than 2 seconds.

● It is strongly recommended that the AC adapter be connected for

this test in order to prevent battery failure during the process.

Test Cancelled

30m 56s Off

ADVANCED FUNCTIONS

Page 18

245.0 G

Preview Self Test

Auto Copy Off

Buzzer: On Format

Sel Back

245.0 G

Preview Self Test

Auto Copy On

Buzzer: On Format

Sel Back

245.0 G

21 Files

13.83 GB

Auto Copy? 5

Select “Auto Copy “from the main menu to turn the Auto Copy on/off by briefly pressing the control key. The factory default setting is Auto Copy off.

The Auto Copy is now on. If the control key is briefly pressed, the Auto Copy setting will go to “Auto Copy off.”

If this position is in the “On” state, data “Copy” will be automatically started 5 second after the insertion of the memory card. Short press the control key to select changing the status of this option. Default function is Copy & Verify. (See chapter 12.)

3. Buzzer2. Auto Copy On/Off

245.0 G

Preview Self Test Auto Copy On

Buzzer: On

Format

Sel Back

245.0 G

Preview Self Test Auto Copy On

Buzzer: Off

Format

Sel Back

4. Firmware Update

245.0 G

TMP Folder

FW Update

Sel Back

1.00

FW Update

Select a File

internal HDD

external DEV

Sel Back

The Buzzer is on. Select “BUZZER “from the main menu to turn the buzzer sound on/off by briefly pressing the control key. The factory default setting is “Buzzer On”.

The Buzzer is now off. If the control key is briefly pressed, the buzzer setting will go to “Buzzer On.”

Select “FW Update” from the main menu.

The firmware file (NEXTOPS.BIN) should be placed in the root directory of a memory card or the internal hard drive. Select [In HDD] (hard disk drive) if the firmware file is to be placed in the root directory of the internal hard drive. Select [In Memory Card] if the firmware is in the root directory of the memory card. If you selected the memory card, insert the memory card into the ND2730.

ADVANCED FUNCTIONS

Page 19

1.00

FW Update

No valid FW File!

1.00 → 1.01

FW Update

FW File Found

Update?

OK Cancel

1.00 → 1.01

FW Update

Updating

1.00 → 1.01

FW Update

Completed

If a valid firmware file is not contained in the specified device, the ND2730 indicates an error. Check whether the device contains valid firmware in the root directory and repeat the previous process.

Back

If valid firmware is found at the specified location, the ND2730 indicates a “FW File Found” message on the LCD. Confirm the firmware upgrade by pressing the control key briefly [S].

The LCD screen indicates that the ND2730 firmware is being updated. Do not turn the power off during the firmware upgrade. Use of the AC power adapter is recommended.

Firmware upgrade completed. The ND2730 turns off automatically. After turns on the ND2730, It may take more time than usual.

Back

5. Delete TMP folder

245.0 G

TMP Folder

FW Update

Sel Back

245.0 G

TMP Folder

5 TMP Folders

Delete TMP?

OK Cancel

245.0 G

TMP Folder

Deleting

Select “TMP Folder” from the main menu.

If the TMP folder exists inside the [NEXTOPS] folder, then the number of TMP folders will appear on the LCD. Press the control key briefly [S] to delete the TMP folders.

The LCD screen displays the message “Deleting”.

ADVANCED FUNCTIONS

Page 20

15. Troubleshooting Tips

If the power on the ND2730 cannot be turned OFF via the On/Off button:

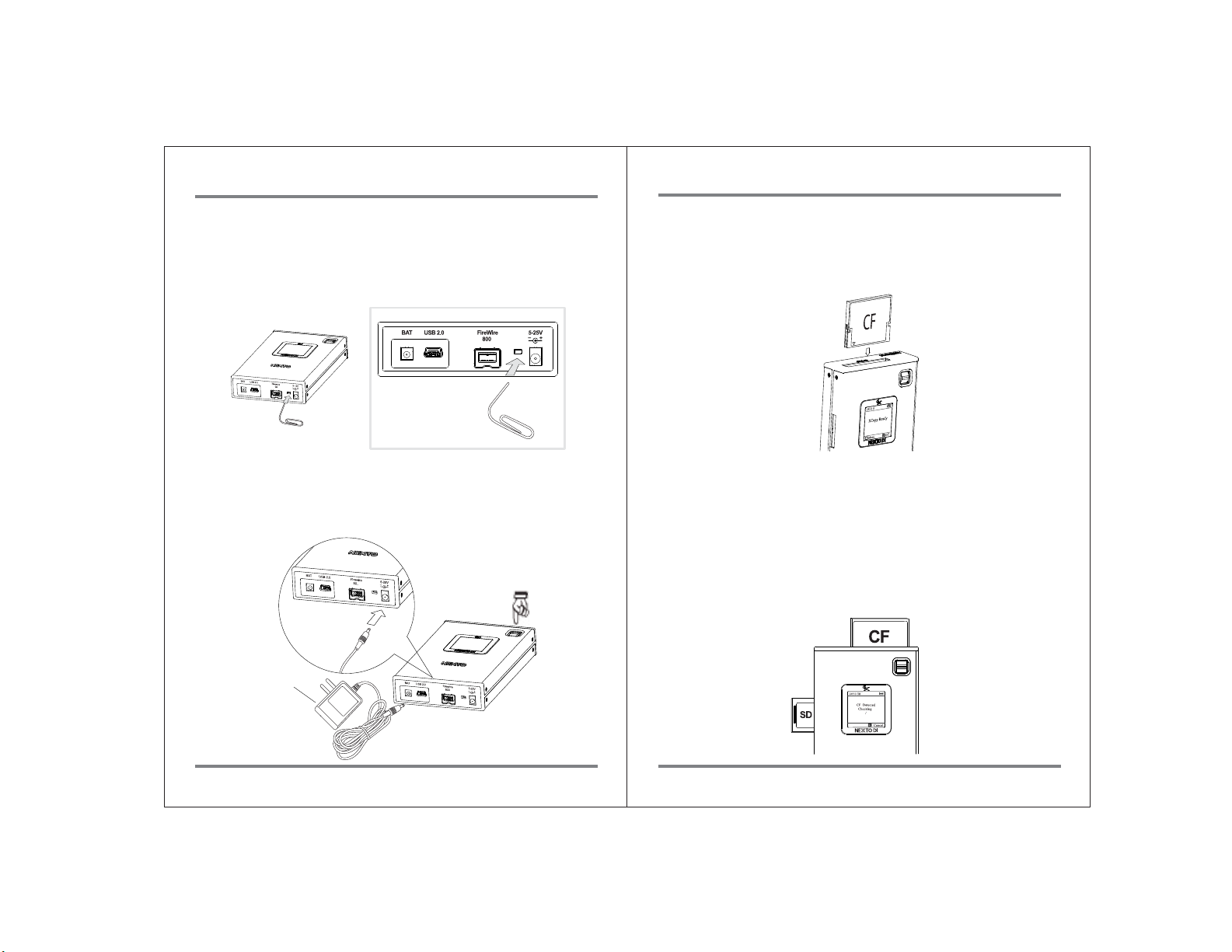

Press the recessed Reset key using a toothpick or paper clip. The Reset key is located on the bottom of the ND2730 to the right of the FireWire 800 port. (See diagram below.) The Reset key will turn the power off safely so that the data stored in the hard drive will not be lost or altered.

IF THE POWER CANNOT BE TURNED ON:

The ND2730 has an internal rechargeable battery. If you cannot turn on the ND2730 with the On/Off button, it may be that the internal battery has been discharged. Connect the AC power adapter to the ND2730 and push the power button for more than 2 seconds to turn the ND2730 on.

Press and hold the key for more than two second.

WHEN MEMORY CARD IS NOT DETECTED BY THE ND2730:

Insert the memory card carefully. The pins may become bent if you insert the memory card incorrectly. If a pin in the slot becomes bent, the ND2730 will not be able to detect the memory card correctly. In that case, you can straighten the pin using tools for emergency use. Contact your reseller for after service.

IF MULTIPLE MEMORY CARDS ARE INSERTED INTO THE ND2730 AT THE SAME TIME:

Only one memory card should be inserted into the ND2730 at a time. If more than one card is inserted into the ND2730, only the first card will be detected. In rare instances, the insertion of two memory cards at the same time will cause the message on the LCD screen to be unrecognizable. If this occurs, you may need to turn off the ND2730 via the recessed Reset key using a toothpick or paper clip. The Reset key is located on the bottom of the unit to the right of the FireWire 800 port. The Reset key will turn the power off safely so that the data stored in the hard drive will not be lost or altered.

AC Adapter

TROUBLESHOOTING TIPS

Page 21

16. Battery Disposal

Batteries/rechargeable batteries containing harmful substances are marked with the following symbols: Cd=cadmium, Hg=mercury, Pb=lead. You can return batteries/rechargeable batteries free of charge to any authorized disposal station in your area, in our stores or in any other store where batteries/rechargeable batteries are sold. Do not dispose of used batteries in the household trash.

The Li-Poly rechargeable battery integrated into the ND2730 must be removed from the housing prior to disposal. Please see your authorized ND2730 dealer for this service.

FCC Rules and Regulations – Part 15

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment under FCC rules.

Device

Model Number

Card Slots

Battery

AC Power Adapter

Bus Power Operation

Computer Interface

File System Format

OS Compatibility

Dimensions

Weight

Contents

Technical Specifications

NEXTO PHOTO STORAGE

ND2730

1.44" Color TFT LCD : 128*128, 16 bit colorLCD

CF CF Type 1/2 (Max 70 MB/s)

3in1 SD/SDHC/SDXC (Max 14 MB/s)

Internal: 3.7V 2300mAH rechargeable Li-Poly battery (120 min) * Rechargeable by AC adapter, USB cable, IEEE1394b(FireWire800) cable (9-9pin)

Input: 100-240VAC Output: 5V/2A or 12V/1A DC

Operate with USB bus power or FireWire 800 (IEEE 1394b) cable power

USB 2.0 : 480Mbit/sec FireWire 800 (IEEE 1394b) : 800 Mbit/sec

Internal hard drive : FAT32 Memory card : FAT12/16/32/exFAT

Windows 7/VISTA/XP/2000/ME MAC OS 10.6 or above Linux2.4.18 or above

128 mm * 77 mm * 23 mm (5.0 inches * 3.0 inches * 0.9 inches)

130 g/4.6 oz (without Hard drive), 230 g /8.11 oz (with hard drive)

ND2730 Main unit / Manual / AC power adapter / USB cable / IEEE1394b(FireWire800) cable (9-9pin) / Leather case / Mini screwdriver and screw set

BATTERY DISPOSAL
