NextoDI ND2725 User Manual

Portable Storage for Professional
Video Cameras

● English

● Deutsch

● 한국어

User Guide

Version 08/08

1P ~ 32P
33P ~ 64P
65P ~ 94P

www.nextodi.com

Thank you for purchasing this Nexto Video Storage product.

Nexto Video Storage allows videographers to save footage from camcorders to a
hard drive, without using a computer. The camcorder can then be used to record
new data. NextoDI has optimized the performance of the Nexto Video Storage so
that data transfers from camcorders to Nexto Video Storage more quickly than to
other storage devices. Data stored on the Nexto Video Storage can later be copied
to a computer. Nexto Video Storage can also be used as a computer backup device.

Nexto Video Storage supports professional video cameras from many manufacturers,
including Sony and Panasonic (which use high speed PCI Express/PCMCIA flash
memory cards for HD video), and memory formats such as Compact Flash(CF), Secure
Digital(SD), SDHC, Multi Memory Card(MMC), Memory Stick(MS), and xD Picture Card.

Please read this manual before using the product. Follow operating instructions
carefully to avoid damage to the product, or personal injury. This guide assumes
that your Nexto Video Storage unit contains a properly formatted hard drive and
a charged battery. If this is not the case, refer to the later chapters on inserting
a hard drive and charging the battery.

All company names and product designations contained herein are trademarks of
the respective owners. All rights are reserved.



Important safety notice

● Do not drop, jar, bump, shock, or expose Nexto Video Storage to

severe vibration during data transfer.

● Do not use near open flames(candles, stoves, grills, fires) or sparks

(fireworks, welding torches).

● Under no conditions is NextoDI, Inc. liable for loss of, or damage to,

a computer; nor loss of, or damage to, programs, records, or data;
nor any consequential or incidental damages.

For more information, consult our technical advisory service:

http://www.nextodi.com/en/support/en_qna.php

※ NextoDI, Inc. reserves the right to make improvements and/or
changes to the product and programs described in this User Guide
at any time without notice.

Table of Contents

1. Product Description

2. Contents of the Nexto Video Storage Package

3. Device Diagram

4. Safety Instructions

5. The Nexto Video Storage Interface

6. The Built-in File Browser

7. Using Nexto Video Storage with Professional Video Cameras

8. Using Nexto Video Storage with Camcorders and Other Devices

9. Using the Nexto Video Storage as a Hard Drive

10. Data Backup and Verification

11. Advanced Functions

12. Charging and Installing Batteries

13. Installing and Formatting a Hard Drive

14. Battery Disposal

15. Technical Specifications

.....................................................

....................

.........................................................

......................................................

.................................

..............................................

..................

......................................

................................................

.................................

..........................

......................................................

............................................

......

1
2
3
4
6
7

10

..

12
15
18
21
26
27
31
32

1. Product Description

2. Contents of the Nexto Video Storage Package

The Nexto Video Storage product allows videographers to save footage from
camcorders to a hard drive, without using a computer. The camcorder can then
be used to record new data. NextoDI has optimized the performance of the
Nexto Video Storage so that data transfers from camcorders to Nexto Video
Storage more quickly than to other storage devices.

The Nexto Video Storage device uses a 2.5" Serial ATA (SATA) hard drive. Data
stored on the Nexto Video Storage can later be copied to a computer – any
computer that recognizes USB or eSATA drives, including PCs and Macintoshes.
Nexto Video Storage can also be used as a computer backup device. The main
task of the product is to copy data from camcorders or other devices onto the
hard drive without using a computer.

A Compact Flash slot, a 4in1 memory slot for SD/SDHC/MMC/MS/xD and a USB
mini-AB type connector are available. A USB flash drive or a card reader can be
connected to mini USB port with the USB host adapter cable.

When copying data from camcorders, memory cards, or USB devices to the Nexto
Video Storage, transfers are faster than with comparable products, because of
NextoDI’s proprietary xCopy technology.

Power is supplied via a built-in LiPo rechargeable battery or via an AC power
adapter unit which is also responsible for charging the batteries.

Functions are controlled via a built-in LCD display with easy one-key operation.
The features include:

● Built-in LiPo rechargeable battery for extended running time and easy

charging.

● Ability to copy data (via Compact Flash slot, 4in1 slot or USB type mini-AB

connector) to the hard drive, without using a computer.

● Quick data transfer from memory cards to the hard drive.

● Hardware based full bit-bit data verification for error free data copy.

● Two ways to connect to a computer - via USB2.0 and high speed eSATA.

Read these operating instructions carefully. They contain important
information on installation, operation and handling of the Nexto Video
Storage.

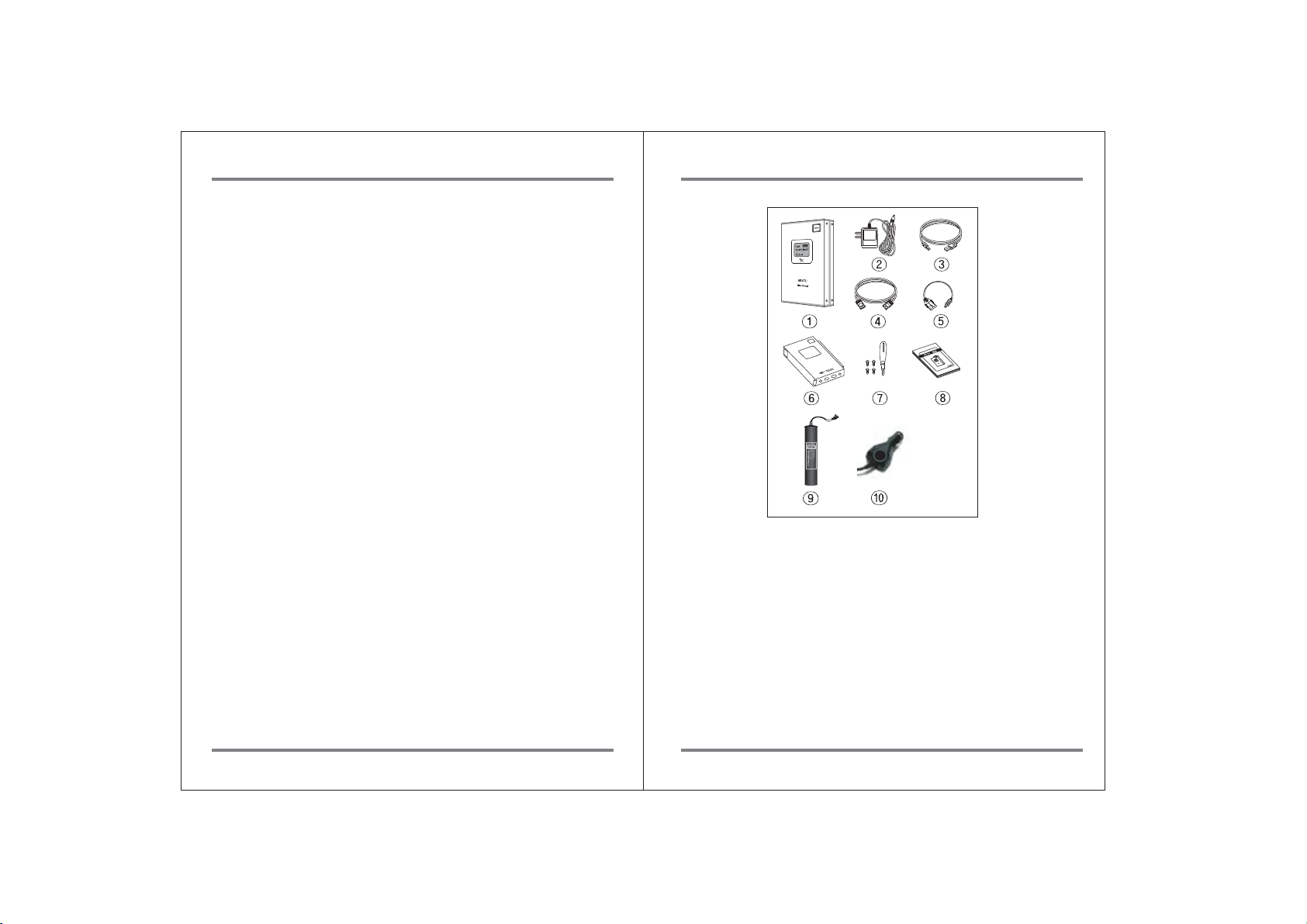

① Hard drive enclosure with built-in LiPo rechargeable battery
② AC power adapter(wall plug charger)
③ USB cable for computer connection
④ eSATA cable for computer connection
⑤ USB host adapter cable for USB device connection.

(such as a USB card reader or camcorder)

⑥ Protective case
⑦ Mini screwdriver and screw set
⑧ User manual
⑨ LiIon rechargeable external battery
⑩ Car Charger Cable

1 Product Description Contents of the Nexto Video Storage Package 2

3. Device Diagram

Video Storage

4. Safety Instructions

Symbol Explanation

The flash icon in a triangle is used to alert you to potential
personal injury hazards such as electric shock.

An exclamation mark in a triangle indicates important instructions
in this operating manual which absolutely have to be observed.

The "hand" icon gives you special tips and notes on the operation.

These safety instructions and warnings are essential to protect your personal
safety, and to protect the device. Please read the following section carefully.

① "BAT" connection for external rechargeable battery pack.

② "USB OTG” port for USB2.0 device connection to a computer or for USB2.0 host

connection to USB devices such as a card reader or camcorder.

③ "eSATA" port to connect to a computer. "eSATA" devices do not provide power, so use
the AC power adapter or a USB power connection when using eSATA.

④ Recessed Reset key, to be pressed with a tooth pick, or similar tool; switches off the
Nexto Video Storage device in the event of a hardware or software malfunction.

⑤ "DC IN" connection for AC power adapter unit (wall plug).

⑥ 4in1 slot to download data from SD/SDHC/MMC/MS/xD devices.

⑦ LCD Display.

⑧ Control (Copy) key. Controls power on/off and most other commands.

⑨ LED.

• Green indicates “power on.”

• Red indicates battery is charging.

• Blinking red indicates that a data transfer is occurring.

⑩ CompactFlash slot .

In case of any damage due to failure to observe these
operating instructions, the warranty is void.

NextoDI does not assume liability for consequential damages.
Nor do we assume liability for damage to property or personal
injury, caused by improper use or the failure to observe the
safety instructions. The warranty is void in any such case.

3 Device Diagram Safety Instructions 4

5. The Nexto Video Storage Interface

Unauthorized conversion and/or modification of the product is forbidden for
safety reasons.

• Never open the product (except to install a hard drive.) This device is not
user serviceable.

• Damaging the LiPo rechargeable may result in explosion or fire.

• Maintenance or repairs may only be carried out by a qualified technician.

• The AC power adapter unit is intended for use in dry conditions to avoid
electric shock.

• The Nexto Video Storage must not get damp or wet. Protect the device from
humidity or water, from sun, excessive heat (>35°C) or cold (<0 ºC), dust and

dirt.

• When the product is brought from a cold to a warm room condensation may
form. This could damage the product. Always let the product get to room
temperature before use or before connecting the AC power adapter unit.

• Do not use in tropical climate conditions.

• The AC power adapter unit complies with safety class II. As a voltage source
only a proper power socket of the public power supply system may be used.
Note the input voltage/frequency imprinted on the AC Adapter. It must
correspond to the voltage/frequency of the power outlet. The AC power
adapter is equipped with an input voltage range of 100-240V~, 50/60Hz.
Adapters may be necessary for use in countries other than the US.

• The product is not a toy. Keep out of reach of children.

• Do not place liquid near the product. Liquid could get inside the housing
and cause fire or electric shock. In case of fire, damage, or short circuit,
turn off circuit breaker and only then pull the AC power adapter unit from
the socket. Afterwards, the product must no longer be used; take it to a

repair shop.

• Never touch the AC power adapter unit when your hands are damp or wet.

• In industrial facilities, safety regulations for electrical equipment and
facilities must be observed. If the product is used at schools, training
facilities, or do-it-yourself /hobby shops it should not be handled unless
supervised by trained, responsible personnel.

• Do not drop the Nexto Video Storage.

Turning the Nexto Video Storage On/Off

Press the control key for more than 2 seconds in order to turn the Nexto Video Storage on
or off. The device turns itself off automatically after approx. 30 seconds of inactivity.

The Nexto Video Storage can be reset via the recessed RESET key. This is useful
if a hardware or software malfunction causes it to “hang”. Use a tooth pick or
other tool to press the RESET key (see the device diagram).

The Control (Copy) Key

The Nexto Video Storage is operated by a single Control (Copy) key, which can be used in four
different ways. The display shows you the “S”, “D” or “L” symbol as a cue to how to invoke

the desired function.

Symbols

S

L

D

On/Off

Abbreviation

Short

Long

Double-click

On/Off

Press once and release immediately.

Press and hold the key for more than one second.

Double click - press twice. Similar to a mouse double click.

Press and hold the key for more than two seconds.

Operation

The LCD Display

① Remaining capacity of the hard drive.

' ' indicates that the remaining capacity of hard

② The
drive may not be correct. Nexto Video Storage
recalculates the capacity when it automatically powers

off.

Menu Off

The display varies depending on the function in use. See the chapters in this
manual for more information.

③ Remaining capacity of the rechargeable battery.
④ Indicates external power source in use.

USB power. AC adapter power.

⑤ Current status.
⑥ Available control command.

5 Safety instructions The Nexto Video Storage Interface 6

6. The Built-in File Browser

A simple file browser has been built in to search for, delete and copy files and directories
on the hard drive. The Nexto Video Storage supports bi-directional copy. That is, you may
copy files from the Nexto Video Storage’s hard drive to computers or other storage devices
(such as USB drives). You may also copy files from memory cards or other devices to the
Nexto Video Storage’s hard drive. You can select a file or folder for copy or delete.

All the browser functions are invoked by using the Control (Copy) key. The display shows
you the “S”, “D” or “L” symbol as a cue to how to invoke the desired function.

Viewing, Deleting or Copying Data on the Hard drive

● Turn the Nexto Video Storage on. The Nexto Video Storage

must not be connected to a computer.

● Press and release the control key quickly(S=short) to get to the

Menu Off

menu ("S -Menu").




● Select the menu item "Browse"; confirm the selection (press

the key for more than 1 second).






The file and folder name is shown at the LCD display.



● You can control the file browser via these keystrokes.

[S]: Next - Press and release the Control (Copy) key to move to
the next line.

VS

[D]: Previous - A double click jumps to the previous line.
[L]: Select - Press and hold, and the current selection (one file,
one directory) is confirmed.

● Move to [NEXTOVS] folder and select by pressing and holding

for one second.

● In a directory, the following menu functions exist at the top

VS

in the selection.

Exit - Back to the main menu.
Copy - Copy selected file or folder to the memory card or USB
device connected via "USB OTG" connector.
Del - Delete selected file or directory.
[...] - Jump one directory level upward.

The Nexto Video Storage supports English only. Other language based file and
directory names appear as "???".

● You can select a device to browse. To browse the internal hard

drive, select the menu item "HDD" and confirm the selection
(press the key for more than 1 second).





● A display indicates the number of available directories and files.

● In this case, two folders and 10 files are contained in this

directory. Also the total size of those 10 files is 190KB.

● Press the control key briefly to select "Continue".



Deleting Files & Folders

VS

Deleted folders and files cannot be recovered.

● You can delete an entire directory, and all its sub-directories

and individual files. OR, one single file can be selected for
deletion; simply move the cursor as described above.
To confirm the deletion, press and hold the control key (longer
than 1 second). A menu with the commands "EXIT", "Copy" and
"Del" is displayed.

● The Nexto Video Storage will ask you to confirm or cancel the

deletion. Press ans hold to delete the selected items.
Press and release to cancel.





7 The Built-in File Browser The Built-in File Browser 8

Copying Files & Folders

Directories or individual files can be copied via the file browser. You can decide, via the
file browser, which directory or which file should be copied from memory slot (or “USB
OTG” connection) onto the internal hard drive. Or, you can copy data from the internal
hard drive onto a memory card or a USB flash drive.

Copying directories or individual files via a file browser is different from the backup
function described elsewhere in this manual. With the backup function, the entire
content of the data medium (e.g. Memory card or USB flash drive) is transferred onto
the internal hard drive of the Nexto Video Storage.



● If you select copy, the Nexto Video Storage asks you to confirm

the copy function by pressing and holding the control key (L).
To cancel, press and release the control key (S).

● The Nexto Video Storage asks you to connect a CF card or a

corresponding USB device (e.g. USB flash drive, card reader
with an inserted memory card or similar).

● Insert memory card or connect USB device. Once the device is

detected, you can browse the contents and select the
destination folder to copy.



Viewing, Deleting or Copying Data from a CF card or USB Device

These operations are almost the same as in the examples above. However, you must
select "CF/USB" at the "Browse" menu. Then insert the memory card or USB device as
indicated. From this point, the prompts and responses are the same as in the examples
above.



▶ ▶

7. Using Nexto Video Storage with Professional Video Cameras

Some professional video cameras store video footage on high speed PCI Express/PCMCIA
flash memory cards. The Nexto Video Storage can copy the footage from those cameras
via a USB connection. For cameras which store the video footage in other flash memory
cards, the Nexto Video Storage will copy footage via its built-in memory card slots. See
the next chapter for instructions on inserting memory cards into the Nexto Video Storage.

The Nexto Video Storage’s backup capability is;

Model

SONY PMW-EX1

Panasonic HVX200

Memory

8GB

16GB

8GB

16GB

Backup Time

10m 24sec

20m 50sec

5m 40sec

11m 30sec

9 The Built-in File Browser Using Nexto Video Storage with Professional Video Cameras 10

How to Connect Nexto Video Storage via USB Cables to Professional Video
Cameras

1. Connect the USB host connector cable to
the “USB OTG” port on the bottom of the
Nexto Video Storage unit.

3. Make sure your camcorder is charged, or connect it to AC power (a wall outlet).

4. Turn on your camcorder.

5. Turn on the Nexto Video Storage unit.

6. Set your camcorder to connect to a computer and copy files as in the following example.
Please refer to the camcorder’s user manual if you are not sure of the correct setting.

2. Connect the standard USB cable to the
USB connector cable and the camcorder.

Example

1. Power on your camcorder.

4. You may see a message from the LCD display of the camcorder that the USB connection
has been made.

5. The Nexto Video Storage display says “USB connected” -> “Parsing USB...” ->
“Copy Data? (S)Yes (L)No”.

6. To copy data, press and release the Control (Copy) key.

Only one memory card should be connected to the camcorder. If two memory
cards are conencted, only the memory card in the primary slot is copied.

2. Select the USB Interface.

3. Choose the USB device to
be connected.

8. Using Nexto Video Storage with Camcorders and Other Devices

The Nexto Video Storage must not be connected to a computer during the data
transfer. As shown in the figure, insert a memory card in the corresponding
memory slot or connect a USB device via USB host adapter cable. The Nexto Video
Storage can copy memory cards on to the internal hard drive via built in memory
slot or via "USB OTG" connector with USB host adapter.

Copying Data from Flash Memory Cards to the Nexto Video Storage

1. The Nexto Video Storage must not be
connected to a computer.

2. Insert a memory card in the Nexto Video
Storage’s corresponding memory slot.

3. Turn on the Nexto Video Storage.

4. The display says “XX detected” -> “Parsing XX”

-> “Copy Data? (S)Yes (L)No” (XX represents the
type of memory card detected, such as CF, SD,
MS or xD).

5. To copy the data, press and release the Control
(Copy) key.

6. The display tells you “Copy Complete.”

11 Using Nexto Video Storage with Professional Video Cameras

Using Nexto Video Storage with Camcorders and Other Devices 12

Copying Data from Camcorder or Camera to the Nexto Video Storage using
USB cable

1. Connect the USB host connector cable to the “USB OTG” port on the bottom of the Nexto
Video Storage unit.

2. Connect the standard USB cable to the USB host connector cable and the camcorder/
camera.

3. Make sure your camcorder/camera is charged, or connect it to AC power (a wall outlet).

4. Turn on your camcorder/camera.

5. Turn on the Nexto Video Storage unit.

6. Set your camcorder/camera to connect to a computer and copy files. Some camcorder/
camera is set to this mode automatically after the previous steps are done.
Please refer to the camcorder or camera’s user manual if you are not sure of the correct
setting.

7. The display says “USB connected” -> “Parsing USB” -> “Copy Data? (S)Yes (L)No”

8. To copy the data, press and release the Control (copy) key.

Copying Data from a USB Flash Drive or Card Reader

USB Flash Drive or
USB Card Reader

1. Connect the USB host connector cable to the “USB OTG” port on the bottom of the Nexto
Video Storage unit.

2. Connect your USB flash drive or USB card reader to the USB host connector cable.

3. Turn on the Nexto Video Storage unit.

4. The display says “USB connected” -> “Parsing USB” -> “Copy Data? (S)Yes (L)No”

5. To copy the data, press and release the Control (copy) key.

After download, any copy procedure can be verified. The data on the memory
card and the data on the hard drive are compared with one another. This tells
you whether the data has been copied properly. Refer to the ‘Data Backup and
Verification’ chapter for more information.

Do not connect more than one memory card or USB device to the Nexto
Video Storage. Only the first one connected will be detected.

13 Using Nexto Video Storage with Camcorders and Other Devices

Using Nexto Video Storage with Camcorders and Other Devices 14

9. Using the Nexto Video Storage as a Hard Drive

The Nexto Video Storage can be attached to your computer as an external hard drive. Two
connection methods are supported.

1. Connect to the computer’s USB2.0 port via the Nexto Video Storage "USB OTG” port and
the USB cable.

2. Connect to the computer’s eSATA port via the Nexto Video Storage "eSATA" port and the
eSATA cable

The CF slot and the 4in1 memory card slot don’t work when connected to a computer.
Therefore, the Nexto Video Storage cannot be used to connect CF cards, or other flash
memory cards, to your computer.

Device drivers for the Nexto Video Storage are included in the Microsoft Windows Vista, ME,
XP and 2000 operating systems. Drivers for Windows 98 systems can be downloaded from
the NextoDI website. To download drivers, go to

http://www.nextodi.com/en/support/en_qna.php

When you have successfully connected the Nexto Video Storage to your computer, the content
of the Nexto Video Storage’s hard drive appears in Windows File Explorer.

Connect via USB

1. Switch your computer on. Wait until the operating system is completely booted.

2. Switch the Nexto Video Storage on.

3. Connect the Nexto Video Storage "USB OTG" port via the USB cable with a free USB2.0 port
on your computer. A USB1.1 port can be used also.

4. Check the "PC <->USB" at the LCD display of Nexto Video Storage.

5. If the computer detects the Nexto Video Storage, a new drive named [NEXTODI] appears in
the 'My Computer' display (Windows users) or on your Desktop (MAC users.)

USB (Standard-A)

USB (mini - B)

USB Cable

Connect via eSATA

1. Switch your computer on and wait until the operating system is completely booted.

2. Switch the Nexto Video Storage on.

3. Connect the Nexto Video Storage "eSATA" port via the eSATA cable with a free eSATA
port of your computer. The eSATA cable does not provide power. If the Nexto Video
Storage will be used for a long time, use the AC power adapter unit or USB cable to
provide power.

4. Check the Nexto Video Storage LCD display. If the connection has been made, you will
see "PC <->eSATA”.

5. If the computer detects the Nexto Video Storage, a new drive named [NEXTODI] appears
in the 'My Computer' display (Windows users) or on your Desktop (MAC users.)

See the diagram below.

eS ATA

PC<->SATA

eS ATA

eSATA Cable

15 Using the Nexto Video Storage as a Hard Drive Using the Nexto Video Storage as a Hard Drive 16

If the computer detects Nexto Video Storage correctly, a new drive named [NEXTODI] will
appear in 'My Computer' (Windows users) or on your Desktop (MAC users).



●Back up data is stored in "NEXTOVS" folder. This folder is

created automatically.

● Nexto Video Storage generates new folder for each memory

card copy.

●The name of folder is determined by the shooting date.

For example, 20081112.000 means the most recent file in the

NEXTOVS

DCIM

20080404.000

20080404.001

camcorder was created on November 12 2008.

(If you copy multiple items taken on a single day, the last three
digits will be changed to indicate the download sequence –

000, 001,002, 003, etc.)

Disconnecting Nexto Video Storage from your computer.

When you finished transferring files between your computer and the Nexto Video Storage,
follow these steps to disconnect.

For Windows

Right click the Storage device icon in the System Tray (lower right corner of your screen)
and select Safely Remove Hardware or Unplug or Eject Hardware. Then remove the
USB cable from the Nexto Video Storage and your computer.



For MAC

Drag and drop the NEXTODI icon to the trash. Then remove the USB cable from Nexto Video
Storage and your computer.

• The CF slot and the 4in1 memory card slot don’t work when connected to a

computer.

• The Nexto Video Storage cannot be used to connect CF cards, or other video

cards, to your computer.

10. Data Backup and Verification

This chapter explains the ‘Copy’, ‘Move’ and ‘Verify’ functions.

As shown on the figure, insert a memory card in the corresponding Nexto Video Storage slot,
or connect a USB device via USB host adapter cable. The Nexto Video Storage must not be
connected to a computer during this operation.

After the backup, the copy procedure can be verified. The data on the memory card and the
data on the hard drive are compared with one another. This ensures that the data has been
copied properly (“Verify”).

Do not connect more than one memory card or USB device to the Nexto
Video Storage. Only the first one connected will be detected.



17 Using the Nexto Video Storage as a Hard Drive Data Backup and Verification 18

Comparing Data on Memory Card to the Hard Drive Data

The data on the memory card is compared with the data stored on hard drive.

If the contents of the memory card are

New
Copy

Verify

completely new, then Nexto Video Storage
makes a new folder on hard drive, and copies
memory card data to hard drive.

f the memory card was copied to Nexto Video
Storage before and has not been changed, then
Nexto Video Storage compares (verifies) the
data.





Verify

Compares the data stored on hard drive and memory.
The HW verification logic compares full bit-by-bit verification,
and detects any single bit difference.



: Verify, press the key briefly
: Copy, press the key for more than 1 second.



Current operation status is shown at the LCD display.


① Total number of files in the memory card

② Number of files copied

③ Current mode of operation

'C' : Coping
'V' : Verifying





New Copy

When you choose new copy, Nexto Video Storage makes a new
folder on the hard drive and copies all the file and folders in the
memory card on to the internal hard drive.

Copy : Copy the content of memory card onto the hard drive.
The content of memory card is not deleted.

: Copy, press the key briefly
: Cancel, press the key for more than 1 second.

If the operation completes successfully, the Nexto Video Storage beeps, and the copying
time is displayed.

■Remove the memory card to return to initial display.

■If you don't remove the memory card, after 30 seconds,

then the Nexto Video Storage automatically turns itself off.

19 Data Backup and Verification Data Backup and Verification 20

11. Advanced Functions

The Nexto Video Storage has seven advanced function menus, accessible from the Main Menu

 

Main Menu Allow user to choose one of the seven functions below.

Format

Browse

Sync

Self Test

Buzzer

AutoVrfy

PwrOff
time

Format internal hard drive. See chapter 13 for more details.

Built in simple file browser for searching, deleting and copying files and
directories of the hard drive. See chapter 6 for more details.

Synchronize the data stored in Nexto Video Storage and external USB hard
drive connected at "USB OTG" connector via USB host cable. Used for backing
up data.

Built-in test utility for testing physical errors on internal hard drive or memory
card.

On/Off setting for buzzer sound. Factory setting is On.

On/Off setting for auto verification option. Factory setting is Off.
If this option is set, full verification is done after each memory card copy.



Change the power off time. Factory setting is 30 seconds.



Main Menu

PwrOff : 30s







● Press the control key briefly to get to the main menu page.




Menu Off

There are three menu pages. You can move to any function by pressing and releasing the
control key. Press and hold (press more than 1 second) to select the function. See chapter
13 and 6 for "Format" and "Browse" function



Sync function

● The "Sync" synchronizes data between [NEXTOVS] folder of the Nexto Video Storage

and [NEXTO] folder of external USB hard drive connected to the "USB OTG" connector
via USB host adapter.

● This function compares the folders stored in the [NEXTOVS] folder of the Nexto Video

Storage and the [NEXTO] folder of USB hard drive. New folders will be copied to the
other device, i.e. if a folder is in [NEXTOVS] but not in [NEXTO], then that folder will
be copied to [NEXTO]. If a folder is in [NEXTO] but not in [NEXTOVS] then that folder
will be copied to [NEXTOVS]. The copy direction is selected during the function set

Be sure to connect the power adapter of external USB hard drive. The Nexto
Video Storage may not be able to provide the amount of power needed by
external USB hard drive.

21 Advanced Functions Advanced functions 22

If you select "Sync", the Nexto Video Storage will ask you the direction of copy.


[S] : Press and release control key - to copy new folders from
[NEXTO] folder of external USB hard drive to [NEXTOVS]
folder of Nexto Video Storage

[L] : Press and hold (more than 1 second) control key to copy new
folders from [NEXTOVS] folder of Nexto Video Storage to
[NEXTO] folder of external USB hard drive.

Insert USB
for Sync

USB->Nexto

Insert USB
for Sync

Nexto->USB

Now connect external USB hard drive to
the "USB OTG" connector via USB host
cable.

The "SYNC" operation starts automatically. 

● The "Quick test" takes about 1~2 minute for testing hard drive.

This function uses S.M.A.R.T function provided by hard drive.

● The time is displayed during the test.







The "Full test" tests all the area of hard drive.
It takes about 1 minute per 2GB. If the hard drive is 320GB, it takes more than 2 hours.
So you must use AC power adapter and a wall outlet.

Self test function

Exit
HDD
USB/CARD

● If you select "Self test", then Nexto Video Storage asks you to

select the device for testing.

● You can select internal hard drive or memory card connected

in built-in slots or USB device connected via the "USB OTG"

Testing "CF/USB" is also done by this "Full test".

The 'Self test" does not fix errors or modify data on the storage device. If your
storage media contains errors, use a different card or drive, or consult an IT
professional.

connector.



Exit
Quick Test
Full Test

● The Nexto Video Storage offers two test methods for hard

drive.



Buzzer On/Off

Press and hold the control key to change
the status of this option.




23 Advanced Functions Advanced functions 24

12. Charging and Installing Batteries

Auto Verify On/Off

If this option is "On" state, full verification will be automatically executed after the
backup from memory card or USB device. Choosing this option doubles the copy/backup
time.



PwrOff : 30s



Press and hold the control key to change the status of this option.
There are three options.

1. Non for don't verify during backup.

2. 'S' for sample verification after backup.

3. 'F' for full verification after backup.



S F

PwrOff : 30s







PwrOff : 30s



Change Power Off Time

The Nexto Video Storage automaticaly powers off if it's not used for certain amount of
time. The factory setting is 30sec. You can select either 15/30/60 seconds from this
menu.



PwrOff : 30s



A "LiPo" rechargeable battery is included in the Nexto Video Storage (lithium-polymer). This
rechargeable battery does not have the so-called "memory effect", i.e., the rechargeable
battery can be charged whenever you want. Furthermore, it is more powerful than
conventional NiCad and NiMH rechargeable batteries. Note these important instructions
when handling the LiPo rechargeable battery

● Never damage the rechargeable battery. Damaging the wrapping of the

rechargeable battery might cause explosion or fire. If battery fails, see the
chapter on "Disposal".

● Never short circuit the contacts of the rechargeable battery. Never touch
connections or electric components inside the Nexto Video Storage with
metal objects.

● Charge the rechargeable battery regularly, even if you do not use the
product. The Nexto Video Storage needs "current" (a small quantity) at all
times. Due to the rechargeable battery technology, it is not necessary to
discharge the battery before recharging. Recharge the battery completely,
about once a month. The device will be ready for use at all times.

The battery can be charged using the AC power adapter unit delivered with this product.

1. Connect the charger’s wall plug to the Nexto Video Storage’s "DC IN" connection.

2. Plug the AC power adapter unit into a wall socket.

3. The LED on the Control (Copy) key shows red during the charging.

4. When the battery is charged, the red LED turns off.

5. If there is an error when charging, the LED blinks. If this happens unplug the AC adapter
unit and plug in it again.

6. If the optional external battery is connected to the "BAT" connector, both internal and
external battery charged at the same time.

7. With a completely empty rechargeable battery, the charging procedure lasts
approximately 5 hours.

● Charging via USB (without the AC power adapter unit) is possible. A high

power USB connection is needed, i.e. a USB connection with its own power
supply (such as the USB port of a computer or a USB hub with power unit).
Charging via USB takes place only when the Nexto Video Storage is turned
off.

● If the Nexto Video Storage is operated with a notebook, then you must

always use the AC power adapter unit to charge the Nexto Video Storage,
as notebooks cannot deliver the necessary current via USB.

25 Advanced Functions Charging and Installing Batteries 26

13. Installing and Formatting a Hard Drive

The Nexto Video Storage is sometimes delivered with a hard drive installed. If a drive is not
included, or if the drive fails, or if you wish to install another hard drive, you may do so. You
need a 2.5" Serial ATA hard drive; its installation height must not exceed 9.5mm. Supported
hard drive capacity is up to 2,000GB.

Nexto Video Storage does not support PATA or IDE hard drives.

Disconnect all cables from the case.

●Remove the cover on the lower side.




●Insert a 2.5" SATA hard drive.

The protective film must be placed between
circuit board and hard drive.

●Make sure that the pins of the hard drive are

inserted exactly in the socket board inside
the case.

●Put the cover on again. Make sure to observe the

correct orientation; the larger foam insert on the
inside of the cover faces in the direction of the
power socket/USB port.

● Fasten the cover via the four small screws;

a suitable screwdriver is included.



The hard drive must then be formatted.

Formatting the Hard Drive

The hard drive in the Nexto Video Storage must be formatted as file system "FAT32". Only
one (or the first) partition can be used. With Windows XP, hard drives and partitions are
formatted (with a size of more than 32GB) only with the file system "NTFS"; no “FAT32”
format option is available. For Mac OS, hard drives are formatted with the file system HFS+
(Mac OS Extended).

If you are installing a 60Gbyte hard drive and creating and formatting a partition
via the operating system "Windows XP”, the file system "NTFS" will be installed.
Via USB2.0, the hard drive in the Nexto Video Storage can be used like a
conventional external hard drive. If the Nexto Video Storage is disconnected
from the computer and you want to copy the data from a memory card onto the
hard drive, then this is not possible. The Nexto Video Storage can work with one
partition in the file format "FAT32" only. Therefore, Nexto Video Storage offers
its own possibility of formatting the hard drive in the file system "FAT32".

To Format a New Hard Drive

The Nexto Video Storage must not be connected to the computer via USB or eSATA. Remove
any memory cards or USB devices from the Nexto Video Storage.

● When the Nexto Video Storage is turned on after installing a new hard drive, an error
message appears ("Disk Format Error"), indicating that the drive is not formatted (new hard
drives are usually delivered non-partitioned and non-formatted).

● Press the control key for more than one second ("L format"); Nexto Video Storage will format
the new hard drive; the available space on the hard drive is formatted as one partition in the
FAT32 Format.

Confirm HDD

▶ ▶

Format !

27 Installing and Formatting a Hard Drive Installing and Formatting a Hard Drive 28

Menu Off

● After partitioning and the formatting. Nexto Video Storage



indicates how much space is available at the top left corner of
the display.

● The readout "X-Copy Not Available" means that no data can be

copied to the hard drive, but data can be copied to the
computer through USB or eSATA.

Menu Off

●To re-partition/format the hard drive, press the control key

once to get to the menu ("S-Menu").



● By pressing the control key several times ("S - Next") you

select the menu item "Format" .The small star "*" indicates the
selected menu item.

● Confirm the selection by pressing and holding the control key

for longer than 1 second.

Using a Hard Drive which is Already Formatted

If you have a spare 2.5" hard drive you may use it in the Nexto Video Storage. If the

partition (or the first partition, if several are created) is a FAT32-partition, then it can be

used directly. The existing data will not be overwritten or deleted. Further partitions (e.g.

the second or third partition existing on the hard drive) cannot be used; they are available

● Afterwards, you can repartition and reformat the hard drive;

to confirm press the control key for longer than 1 second (to
cancel, briefly press the control key ).

●All data on the hard drive will be lost!

to your computer when the Nexto Video Storage is connected to the computer via USB or

eSATA. Also, you can use the old hard drive by, partitioning/reformatting it. However all
data on the hard drive will be lost. Connect the Nexto Video Storage via USB to the
computer and back up the drive first if necessary.

● The Nexto Video Storage is ready to copy data from/to hard

drive.


Menu Off

All existing partitions will be deleted. One single new partition of the whole
existing memory of the hard drive will be created in the file system "FAT32".

Be sure to backup data on the hard disk before using it in the Nexto Video
Storage.

29 Installing anf Formatting a Hard Drive Installing and Formatting a Hard Drive 30

14. Battery Disposal

15. Technical Specifications

Batteries/rechargeable batteries containing harmful substances are marked with the
following symbols: Cd=cadmium, Hg=mercury, Pb=lead. You can return your
batteries/rechargeable batteries free of charge to any authorized disposal station in your
area, in our stores or in any other store where batteries/rechargeable batteries are sold.
Do not dispose of used batteries in household trash.

The LiPo rechargeable battery integrated in the Nexto Video Storage must be removed
from the housing before disposal. Proceed with care using the screwdriver supplied with
the unit, or a similar small screwdriver. Remove both covers of the housing (unscrew 4
small screws). Remove the small 2-pole plug (behind the hard drive connection) from the
socket. The LiPo rechargeable battery is located on the other side underneath the display.
Remove it with caution (it is fastened with a double-sided adhesive tape). Do not lift it
with a sharp tool! Dispose of rechargeable battery and housing separately.

FCC Rules and Regulations – Part 15

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the
user's authority to operated the equipment under FCC rules.

Product Name

Model Name

Memory Card
Support

Transfer Rate

Hard Drive
Interface

Battery Internal : 3.7V 1550mAH rechargeable Li-Poly battery.

External Power Adapter : 100-240V AC to 5V/2A DC

Computer
Interface

File System Hard drive : FAT32, Memory Card : FAT12/16/32

OS
Compatibility

Dimensions 128mm(L) * 77mm(W) * 23mm(H) (5.03” * 3.03” * 0.91”)

Weight 130g (4.59oz) without a hard drive, 230g (8.11oz) with a hard drive

Accessories

Nexto Video Storage

ND2725

Built-in CF Slot

Built-in 4in1 Slot

Built-in
USB Hosting

Memory card to ND2725 : Max. 66MByte/sec, Avg. 25MByte/sec
ND2725 to computer : eSATA avg. 60MByte/sec, USB avg. 25MByte/se

2.5' SATA Hard drive Capacity up to 2,000GB

60GB backup on a single charge
External : 3.7V 2200mAH rechargeable Li-Ion battery.

80GB backup on a single charge
* Rechargeable via USB or external power adapter.
Takes 5hr for full charge

USB : Runs on USB power from a computer
Car charger cable

eSATA : 3.0Gbit/sec, USB2.0 : 480Mbit/sec

Windows VISTA/XP/2000/ME/98SE, MAC OS 9.2 & later,
Linux2.4.18 and later

USB cable / AC power adapter / Protective case/ Screw driver /
4 screws / Manual / USB host adapter cable /
Rechargeable exetrnal battery / Car charger cable

CompactFlash type 1 & type 2 / MicroDrive

SD / SDHC / MMC / MMCPlus / MemoryStick /
MS Pro-HG / MS Pro MagicGate
xD type S & type M & type H

* with SD or MS adapter(not included)

- miniSD / TransFlash / MMC mobile / RSMMC

- MS Duo / MS Duo MagicGate / MS Pro Duo /

MS Pro Duo MagicGate

Specialy adjusted for professional video cameras

31 Installing and Formatting a Hard Drive Technical Specifications 32
