WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
-
-
-
-
-
CAUTIONS
-
-
INCLUDED ACCESSORIES BAG
Read all instructions before installing.
System is intended for installation by a qualified electrician in accordance with the National Electrical Code and local regulations.
Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or
switch ”OFF” the circuit breaker switch(es) that control the power to the fixture or room that you are working on.
Place the wall switch in the “OFF” position.
Supply conductors (Power Wires) Connecting the fixture must be rated minimum 90°C. If uncertain, consult an electrician.
These luminaries (fixtures) are designed to meet the latest NEC requirements and are certified in full compliance with cETL .
Before attempting installation, check your local electrical code, as it sets the wiring standards for your locality.
Live Your
YOU SHOULD PREPARE
Best Light
screwsx2
instructionx1

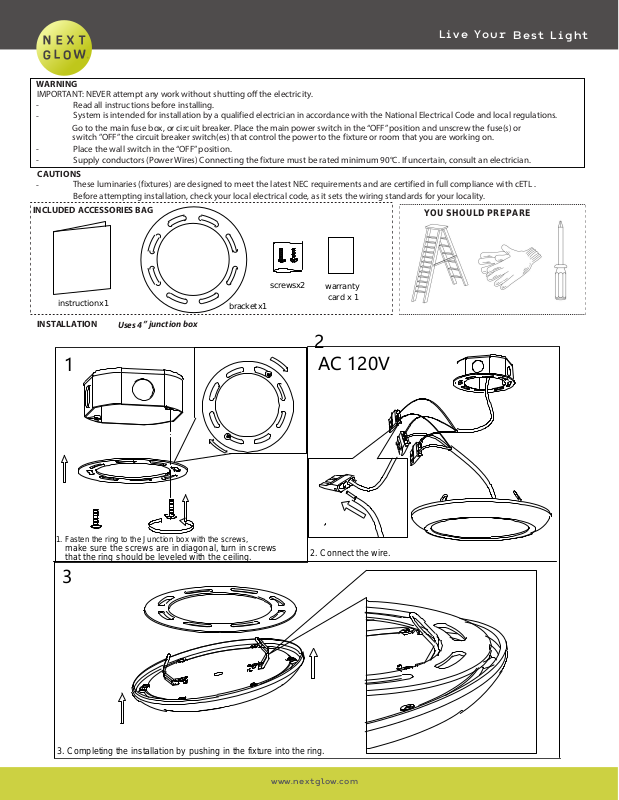

INSTALLATION
Uses 4
” junction box
bracketx1
1
1. Fasten the ring to the Junction box with the screws,
make sure the screws are in diagonal, turn in screws
that the ring should be leveled with the ceiling.
warranty
card x 1
2
AC 120V
2. Connect the wire.
3
3. Completing the installation by pushing in the fixture into the ring.
