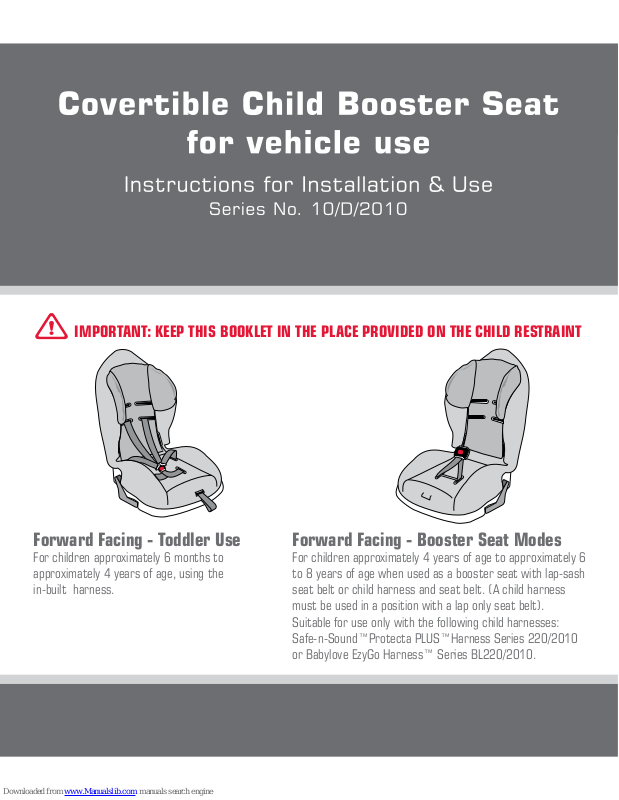

Next generation 10/D/2010 Installation Manual

Forward Facing - Toddler Use

For children approximately 6 months to approximately 4 years of age, using the in-built harness.

Forward Facing - Booster Seat Modes

For children approximately 4 years of age to approximately 6 to 8 years of age when used as a booster seat with lap-sash seat belt or child harness and seat belt. (A child harness must be used in a position with a lap only seat belt). Suitable for use only with the following child harnesses: Safe-n-Sound™Protecta PLUS™Harness Series 220/2010 or Babylove EzyGo Harness™ Series BL220/2010.

IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT

INTRODUCTION

INDEX

The child restraint is suitable for toddlers and older children as a convertible booster seat. This child restraint is tted with our exclusive VERSATETHER™ catch that allows it to use the Safe-n-Sound Protecta

PLUS™

child harness

or Babylove EzyGo™ child harness in booster seat mode for older children.

To be used in forward-facing position with in-built harness by children whose shoulders are above the lower shoulder height marker (approximately 6 months of age) until their shoulders reach the middle shoulder height marker (approximately 4 years of age). Then to be used with either a lap-sash seatbelt or an add-on accessory child harness until their shoulders reach the upper shoulder height marker (approximately 6 to 8 years of age). Continue to use this child restraint until the child reaches this limit. Children are safest in a booster seat until their shoulders reach the upper shoulder height marker of the booster seat. Do not use this restraint until child’s shoulders are above the lower shoulder height marker. Just using a seatbelt is not recommended for children that have outgrown this seat. Use a larger booster.

Only the

Safe-n-Sound™Protecta PLUS™Harness Series 220/2010 or Babylove EzyGo Harness™ Series

BL220/2010 Child Harnesses

are suitable for use with this product. No other child harness is suitable unless recommended by Next Generation Nursery Products Pty. Ltd. WHEN USED WITH IN-BUILT HARNESS- TO BE USED WITH A LAP-SASH OR LAP ONLY SEAT BELT IN THE BACK OF MOST CARS WITH FORWARD FACING SEATS. WHEN USED AS A BOOSTER SEAT- THIS RESTRAINT MUST BE USED IN CARS WITH FORWARD FACING SEATS WITH A LAP-SASH SEAT BELT OR WITH A SEAT BELT AND CHILD HARNESS. When using a child harness with the seat it may be

used in seating positions with either a lap or lap-sash seat belt which are tted with a child restraint anchor tting.

THIS BOOSTER SEAT MAY ONLY BE SUITABLE FOR USE WITH A CHILD HARNESS IN THE UPRIGHT POSITION. IN THE RECLINE POSITION, THE CAR'S SEATBELT MAY NOT BE LONG ENOUGH. When used with a lap-sash seat belt the Booster Seat mode may only be suitable for use in upright position as the car's seatbelt may not be long enough for use in the reclined position. No child restraint can guarantee absolute protection from injury in every crash. However, to ensure that your child gets all the protection designed into the restraint PLEASE READ AND FOLLOW THESE INSTRUCTIONS EXACTLY and use only parts and accessories recommended by Next Generation Nursery Products Pty. Ltd. Carefully read all the instructions for installation in this book. If in doubt about the method of installation, consult

Next Generation Nursery Products Pty. Ltd. or agent or a child restraint tting station authorized by a relevant transport authority or, in New Zealand, the agent for the vehicle or authorised child restraint tter.

THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT IN THE CAR. REFER TO CAR OWNER’S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS. REFER TO A CHILD RESTRAINT FITTING STATION IF NO ANCHORAGE POINTS ARE IN THE MOTOR CAR (REFER TO PAGES 59 TO 62).

Keep these instructions in the place provided in the pocket at the back of the cover.

Page

3 Introduction

4 Warnings

6 Shoulder height markers & a growing child

8 Shoulder height labels & the next step

For Toddler Use: With in-built harness

10 Special Features - Toddler Restraint

12 Suitable for use / Warnings

13 How to set-up

19 How to install

23 How to use

For Child Use: Booster Seat Modes

26 Special Features - Child Booster

28 Suitable for use / Warnings

29 How to set-up

35 How to use with lap-sash seat belt

39 How to install with a child harness

General Instructions

54 Care & maintenance

55 How to clean

57 Accessories & features

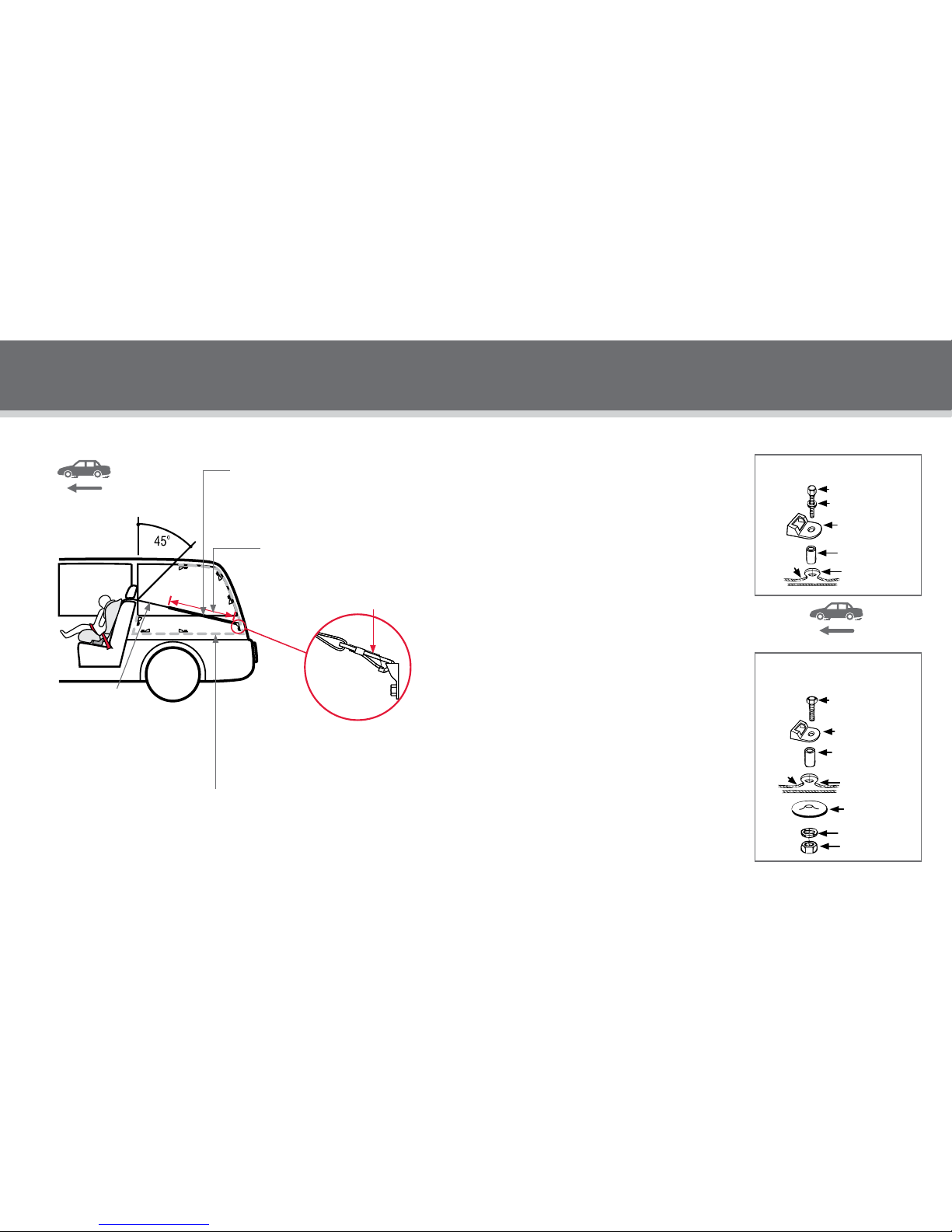

59 Pre-installation anchor tting

63 Precautions

WHEN USED WITH THE 'IN-BUILT ' HARNESS

• Fit the restraint rmly to the car.

• Fit the harness rmly to the child.

• A loose restraint or harness is dangerous.

• When used in this mode the restraint must be used in conjunction with a lap or lap-sash seat belt.

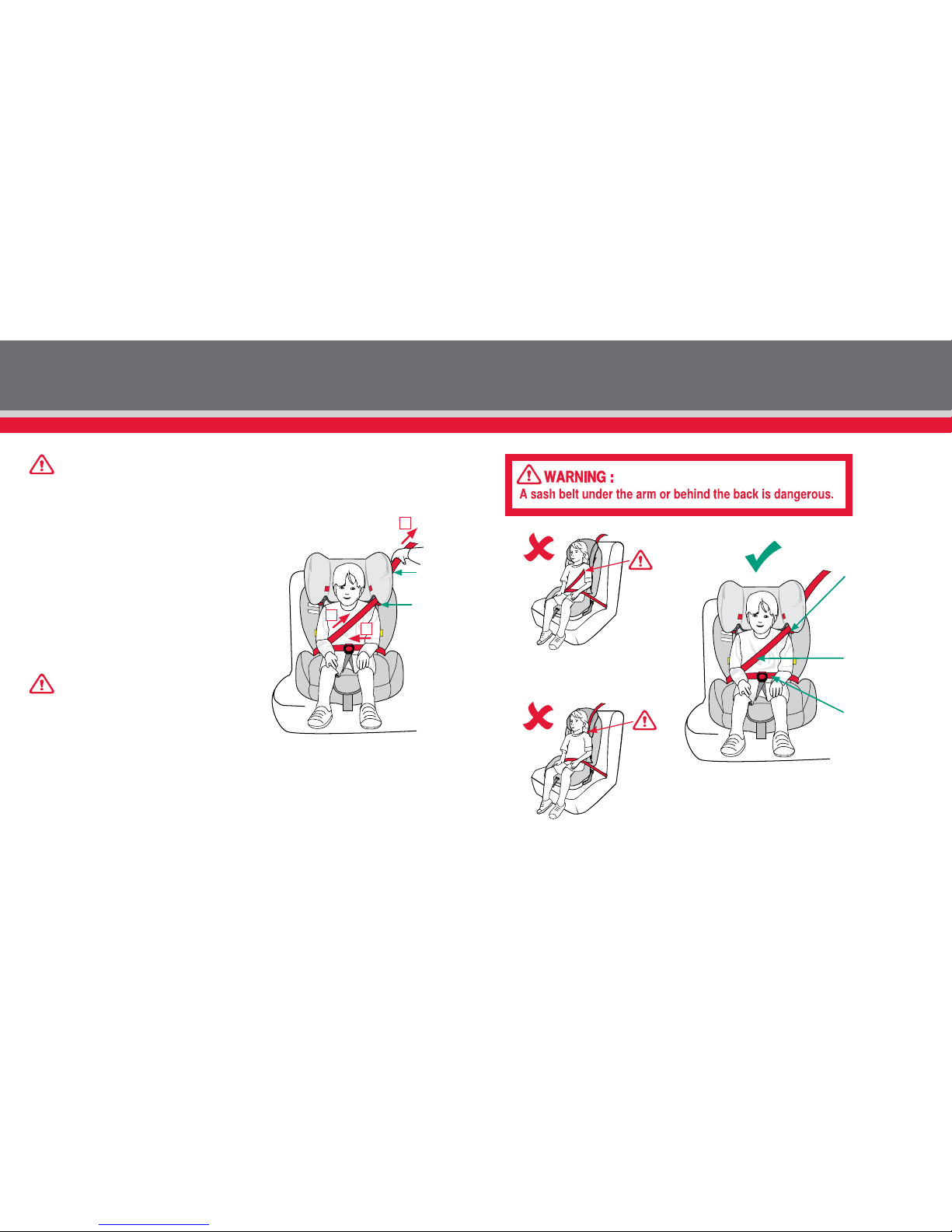

AS A BOOSTER SEAT (with or without a separately supplied Child Harness)

• DO NOT USE WITH JUST A LAP BELT. You must use with a lap-sash belt or with a seat belt and child harness.

• The lap part of the seat belt must be rmly across the thighs and the sash straps tted diagonally across

the chest and on the shoulder.

• If used with a child harness, the lap strap of the seat belt must be adjusted rmly rst and then the harness,

so that the lap strap is not lifted off the child’s lap when the harness is adjusted.

• Do not use with the integral harness when in booster mode. This in-built harness must be stored.

• Use only with a lap-sash seat belt or with an add-on accessory child harness and either a lap or lap-sash

seat belt.

GENERAL WARNINGS- also see warnings on pages 12 and 28.

• Supervision of children is needed because they may be able to undo buckles and adjusters.

• Use the restraint exactly as shown in the instructions.

• DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.

• Do not alter or modify this restraint.

• Repairs must only be done by the manufacturer or agent. Use only recommended parts and accessories.

• Do not allow the restraint to come into contact with polishes, oils, bleach and other chemicals.

• Destroy the restraint if it has been in a severe crash, even if no damage is visible. See page 64.

• DO NOT USE THIS RESTRAINT WITHOUT THE COVER.

• Regularly check the restraint components, straps and other tments for correct function and condition.

Seek prompt repair.

• IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE FITTED, FOLLOW

THE VEHICLE MANUFACTURERS WARNINGS AND INSTRUCTIONS.

• Straps may be damaged by unsecured cargo in a collision. Secure or remove hazardous cargo before using

this restraint. Hatch-back or Wagon: Do not use the child restraint where this strap may fall into a split in the seat back. Always attach hook and remove slack.

• Protect all webbing from abrasion and cutting by sharp corners and edges.

• The restraint should not be purchased or sold as a second hand item. It is recommended not to use child

restraints older than 10 years as the protection in an accident may be reduced.

• This restraint must be used in conjunction with a lap or lap-sash seat belt.

• THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE ANCHORAGE STRAP MAY FALL INTO A SPLIT IN THE

SEAT BACK (E.G. HATCHBACK OR WAGON).

• Seat belt extenders should not be used if the seat belt is not long enough to t around the child. If a seat

belt extender is used then the seat belt buckle must not be in contact with the child.

• Do not store in areas that may get hot, like in car boots, roof space, beside shed walls which get hot in

summer. Do not place heavy items on top of the seat as this may distort the plastic

DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.

YOUNG TODDLER

Shoulders must not be below the lowest shoulder height marker. Use the in-built harness up to the middle marker.

From approximately 6 months of age.

AS A BOOSTER SEAT With Lap-sash seat belt

To approximately 6-8 years of age.

OLDER CHILD

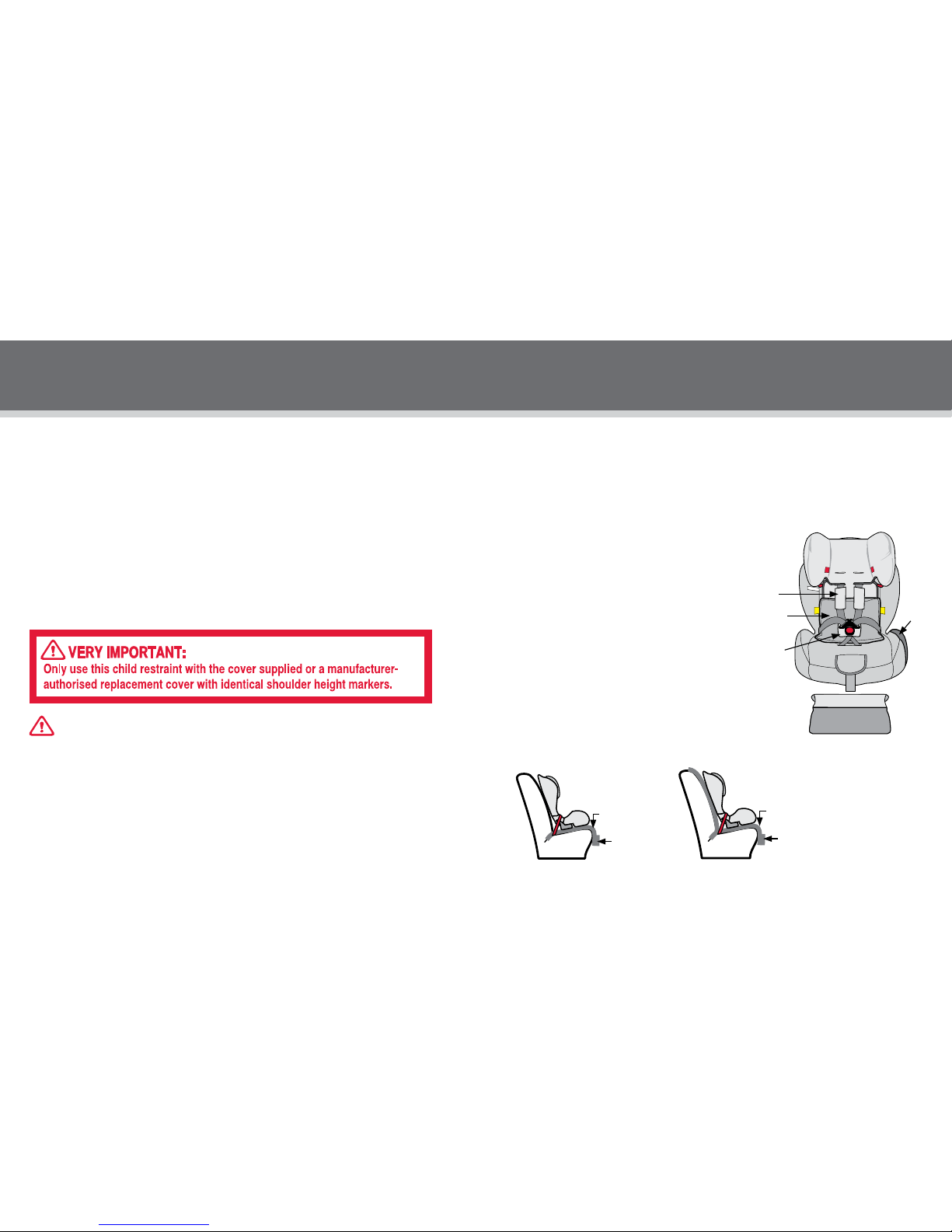

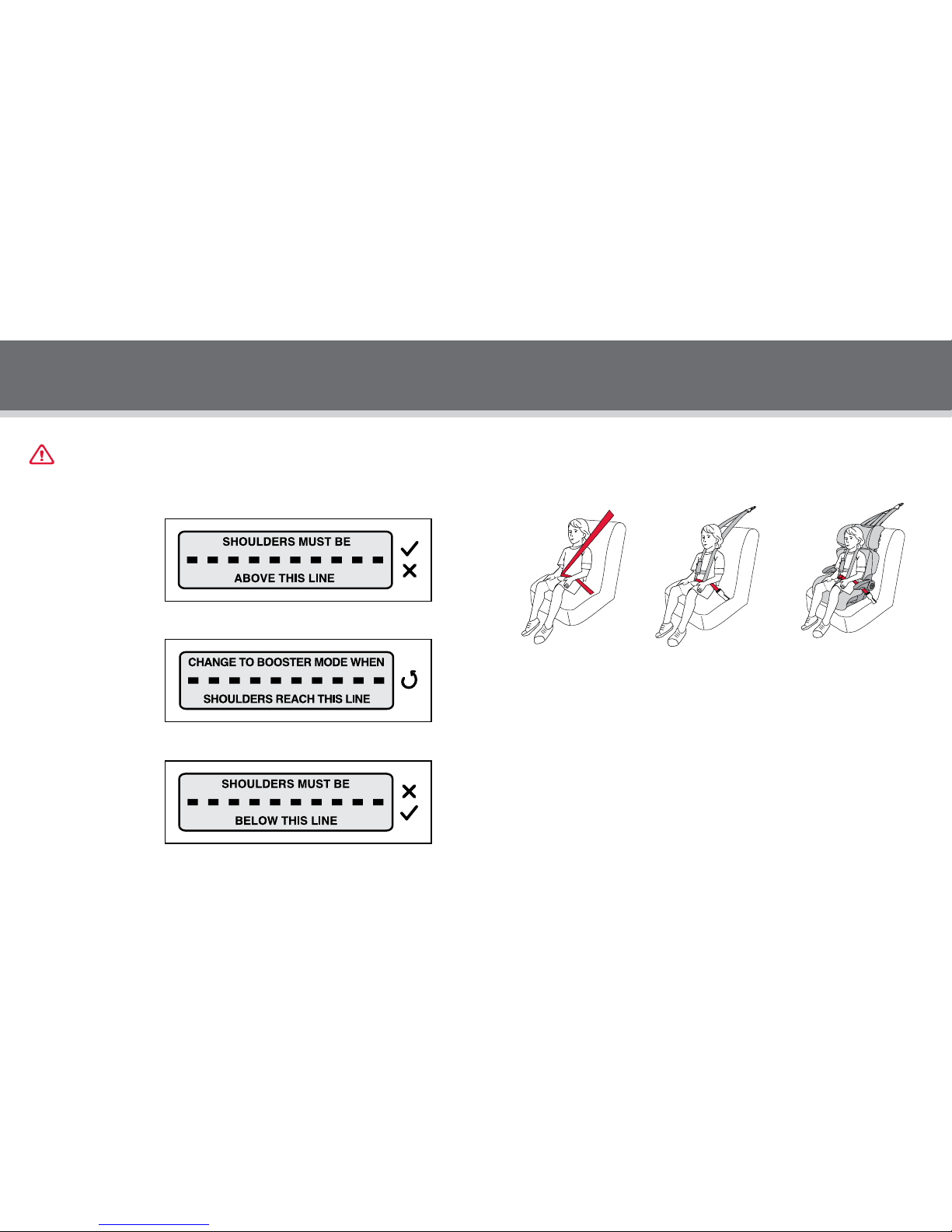

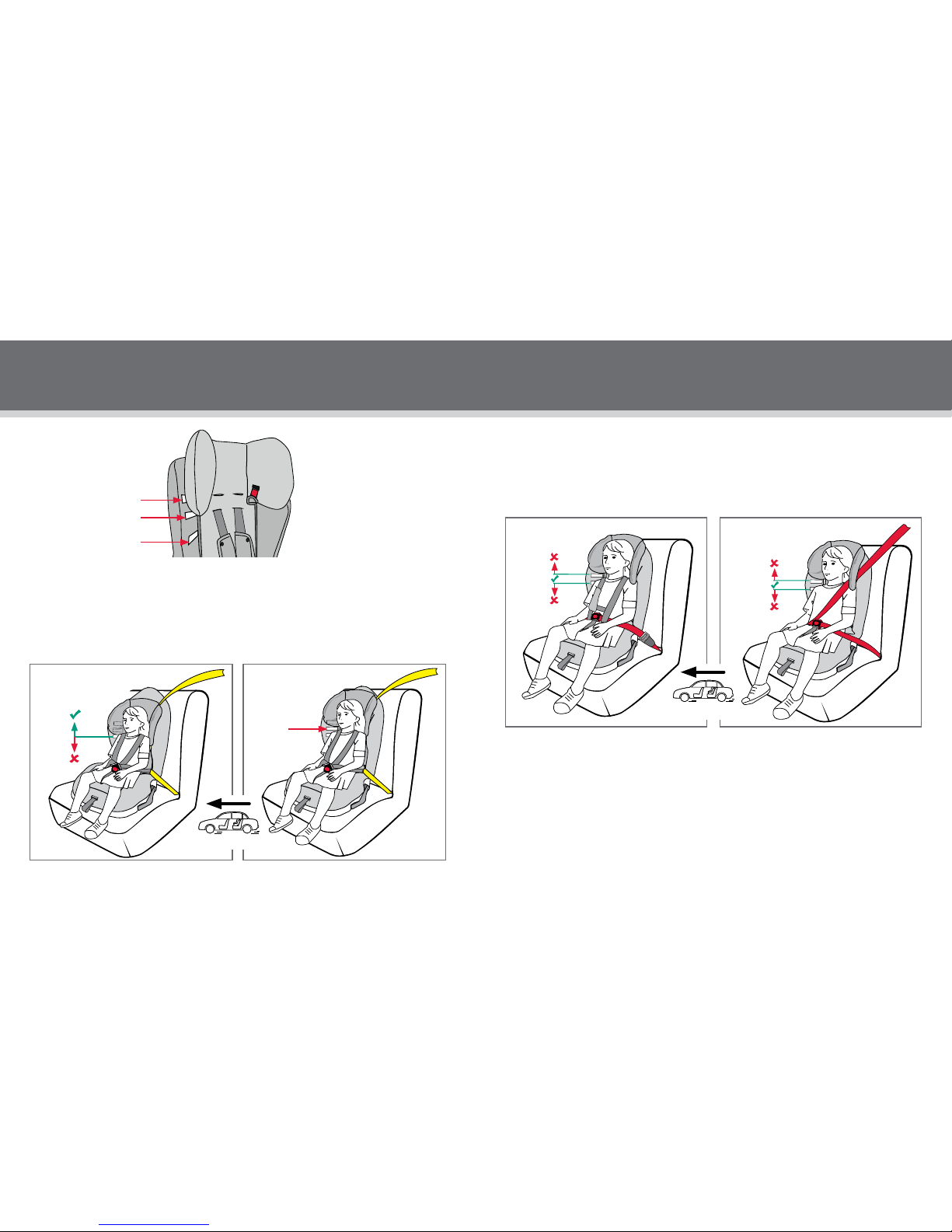

SHOULDER HEIGHT MARKERS & A GROWING CHILD

SHOULDER HEIGHT MARKERS &

A GROWING CHILD

Marker B

Markers B and C are visible with the headrest in the upper positions.

6 7

Marker C

Marker B

Marker A

AS A BOOSTER SEAT With Seat Belt & Child Harness

To approximately 6-8 years of age.

Marker A

OLDER TODDLER

Shoulders inline with middle shoulder height marker. Change to Booster Seat mode.

To approximately 4 years of age.

Shoulders above middle shoulder height marker but below upper shoulder height marker.

Change to the next type of booster seat or child restraint when shoulders reach the upper shoulder height marker when the headrest is in the highest position.

A child harness must be used if the car’s seating position is tted with a lap only seat belt. If a child no longer physically ts in the seat then move to the next form of child restraint.

Marker B

Marker C

Marker B

Marker C

Front of Vehicle

When your child has outgrown the seat, you can either use:

IMPORTANT: Follow this advice.

SHOULDER HEIGHT LABELS & THE NEXT STEP

Next type of restraint that can be used in the car for your child.

Or you can use a Child Harness and lap seat belt. Lap seat belts can be dangerous without a Child Harness.

Just the car's lap-sash

seatbelt.

Or you can use a narrow booster seat suitable for children up to 8-10 years of age. An accessory Child Harness may be used.

Marker A Smaller Toddler - LOWER SHOULDER HEIGHT MARKER

Marker B Larger Toddler - MIDDLE SHOULDER HEIGHT MARKER

Using the in-built harness, The child’s shoulders must be in-line with this marker or above this marker. If the child’s shoulders are below then the child should remain in their previous child restraint. Approximately 6 months.

When the child’s shoulders reach this marker, convert the child restraint to booster seat mode and use either a lap-sash seat belt or a child harness and lap-sash seat belt or lap only seat belt. Approximately 4 years.

When the child’s shoulders reach this upper marker, or the child no

longer ts in the child restraint,

approximately 6 to 8 years of age, then the child must be moved to the next form of child restraint, see next page.

Marker C Larger Child - UPPER SHOULDER HEIGHT MARKER

NOTE: Not all features are supplied on some models. "if supplied" is used to indicate some of the features that

may not be supplied with the seat.

To be used only in a forward-facing position with the in-built harness for a toddler whose shoulders are above the lower shoulder height marker (approximately 6 months to 4 years of age) until the shoulders reach the middle shoulder height marker.

Front of Vehicle

Harness Tongues

Harness Buckle

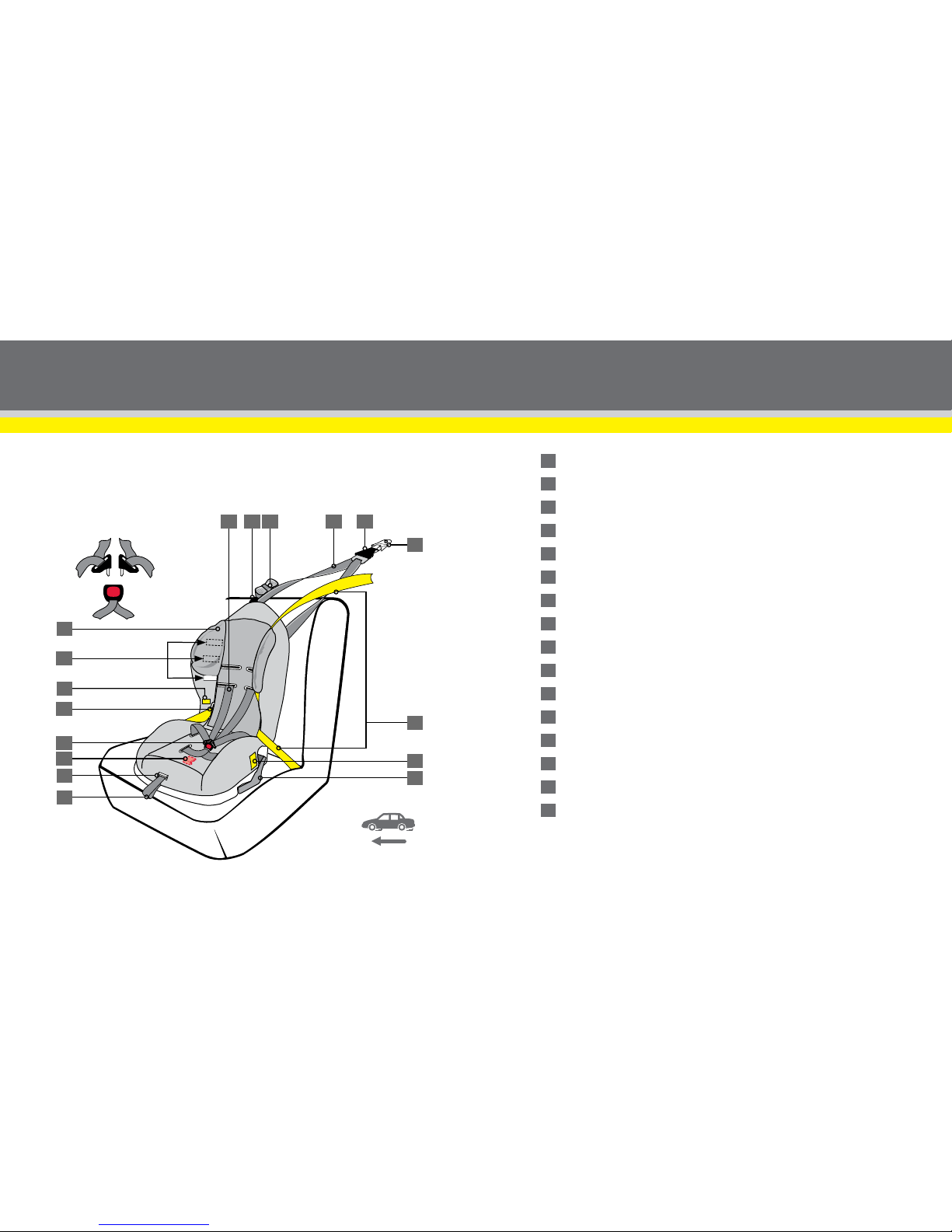

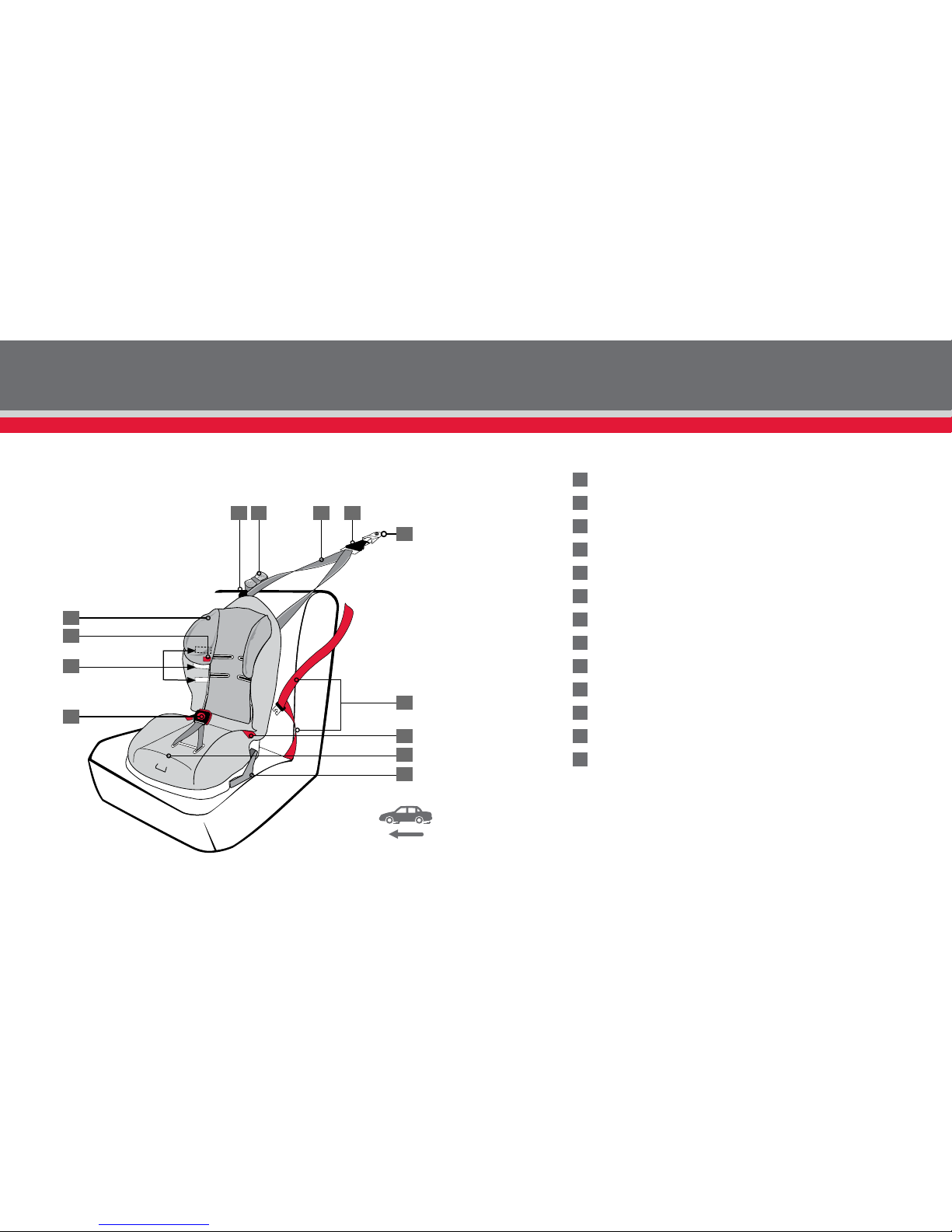

SPECIAL FEATURES - TODDLER RESTRAINTSPECIAL FEATURES - TODDLER RESTRAINT

Car's Anchor Fitting.

Car’s lap-sash seat belt or lap only seatbelt.

Forward Facing belt path labels (each side).

Recline Foot in upright installation.

Harness Adjustment Strap.

Harness Adjuster Lever.

Lap Belt Positioning Converter for Booster mode (shown stored under cover).

Quick release Harness Buckle (red button).

Seat belt path slot.

Shoulder Height Markers.

Adjustable Headrest (with speakers, if supplied).

Fully Adjustable 6 point harness.

Upper anchorage Strap Adjuster.

Upper Anchorage Storage Band.

Adjustable Upper Anchorage Strap.

Attachment Clip and VERSATETHER™ catch.

13 14 15 16

TODDLER USE: WITH IN-BUILT HARNESS

12 13

HOW TO SET-UP

TO BE USED WITH A LAP-SASH OR LAP ONLY SEAT BELT IN THE BACK OF MOST CARS WITH FORWARD-FACING SEATS.

To be used in forward-facing position by children whose shoulders are above the lower shoulder height marker (approximately 6 months of age) until their shoulders reach the upper shoulder height marker (approximately 4 years of age).

Continue to use this infant restraint until the child reaches this limit. Do not use this restraint until the child’s shoulders are above the lower shoulder height marker. Infants are at risk of serious injury if they face forward too early. Children are at risk of serious injury if they move to booster seats too early. The child should not sit in this forward facing child restraint until their neck muscles are able to support their

head. Stay in a rear facing child restraint. Regional Road Rules may prohibit the use of this restraint in the front seat until the child is 4 years of age.

Check your Regional Rules for exemptions.

• Fit the restraint rmly to the car seat and then t the harness rmly to the child.

• A loose restraint or harness is dangerous.

• Do not use in a front seat, unless it has a child restraint anchorage point and your child is over 4 years of

age or in accordance with the applicable Road Rules in your region.

• Do not use the restraint without the Upper Anchorage Strap correctly attached.

• Do not use on any vehicle seat which faces sideways or rearwards.

• WHERE AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURERS WARNINGS AND INSTRUCTIONS.

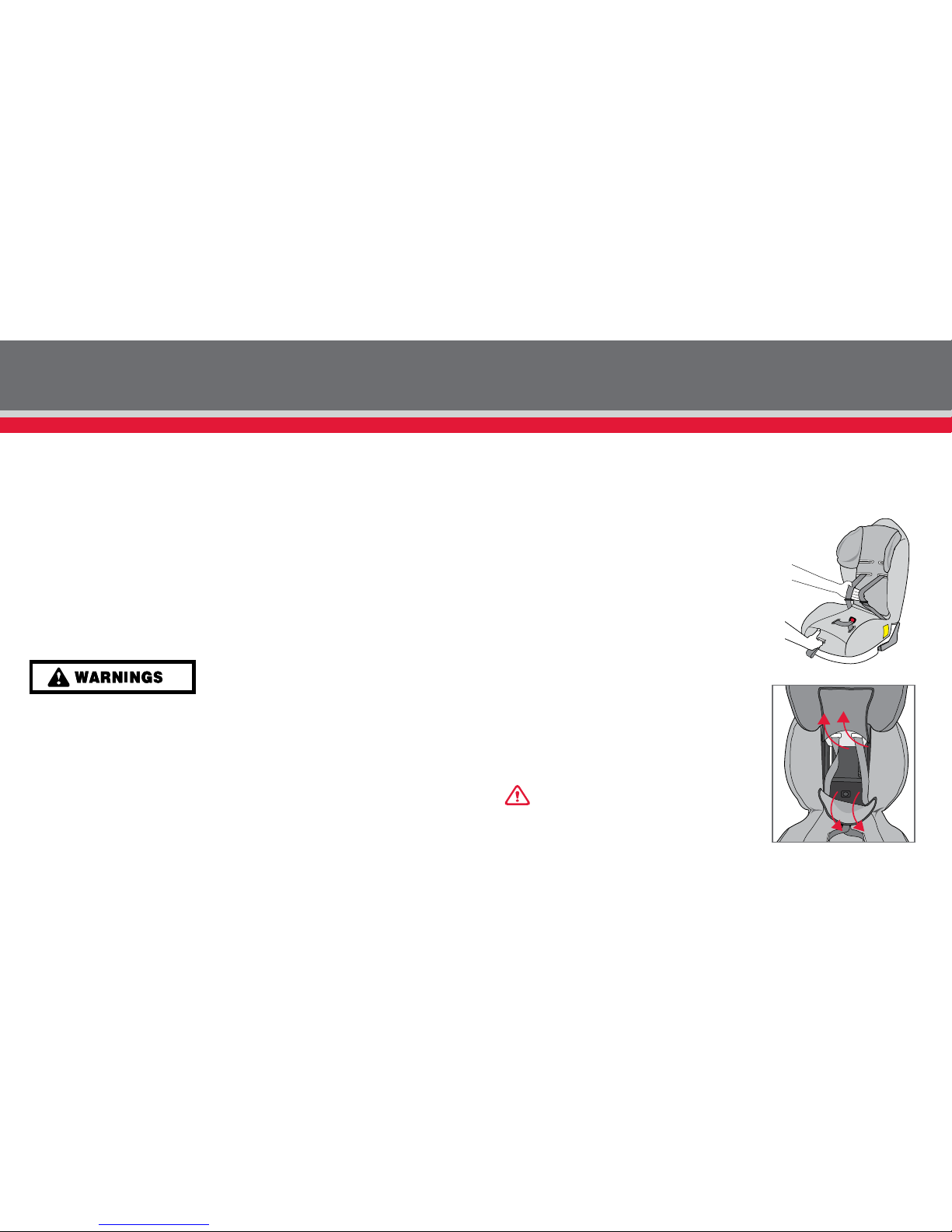

• IMPORTANT: Use lap or lap-sash seat belt and upper anchorage strap to attach the child restraint to the

vehicle seat.

• Ensure that the Lap Belt Positioning Clip is stored in the recess under the cover when the seat is used in

Toddler mode, so as to avoid injury or discomfort.

SUITABLE FOR USE

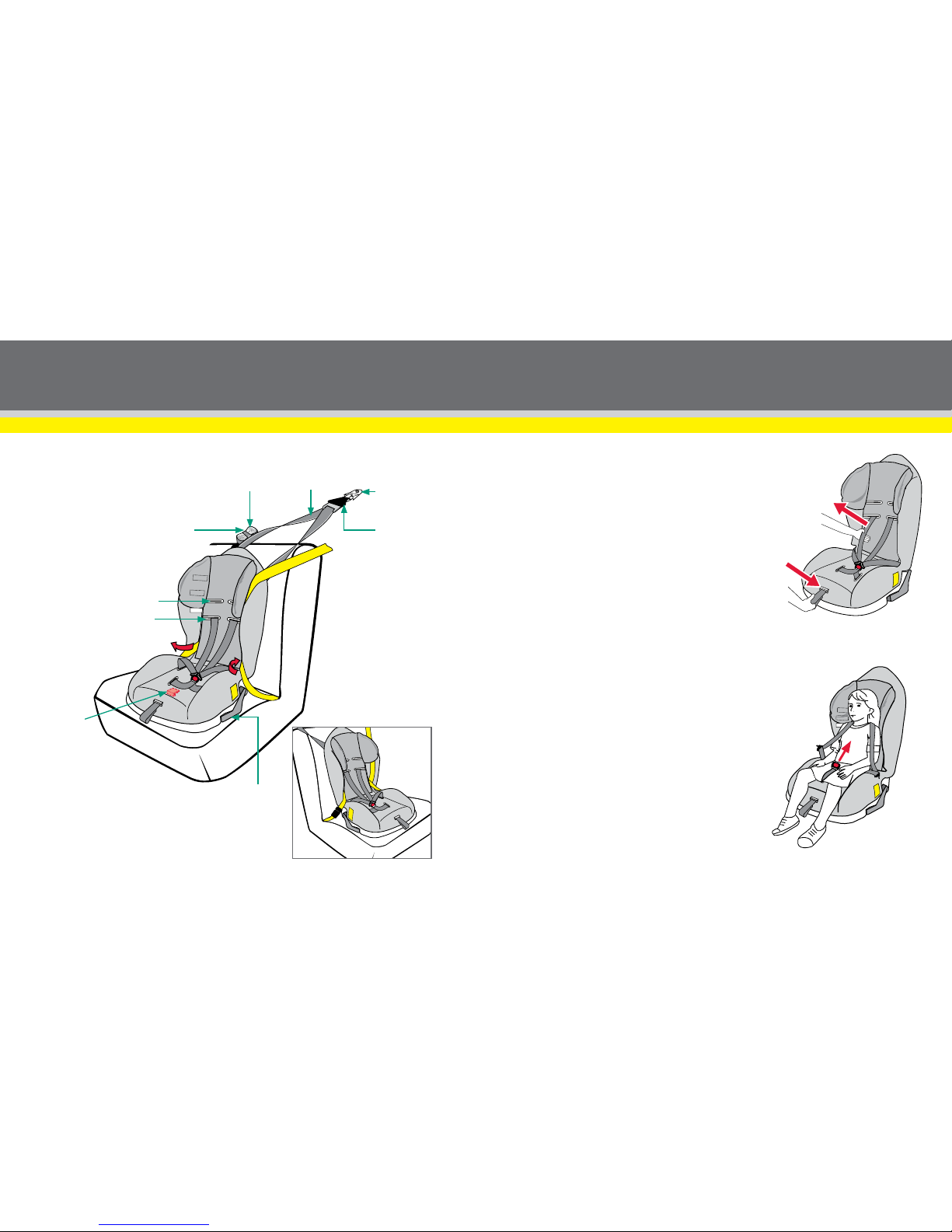

INSTALLATION AND USE OF RESTRAINT

For Toddlers who have reached the shoulder height limit on their infant restraint refer to pages 10-25. For Children who have reached the middle shoulder height marker and need to use a booster seat refer to pages 26-53.

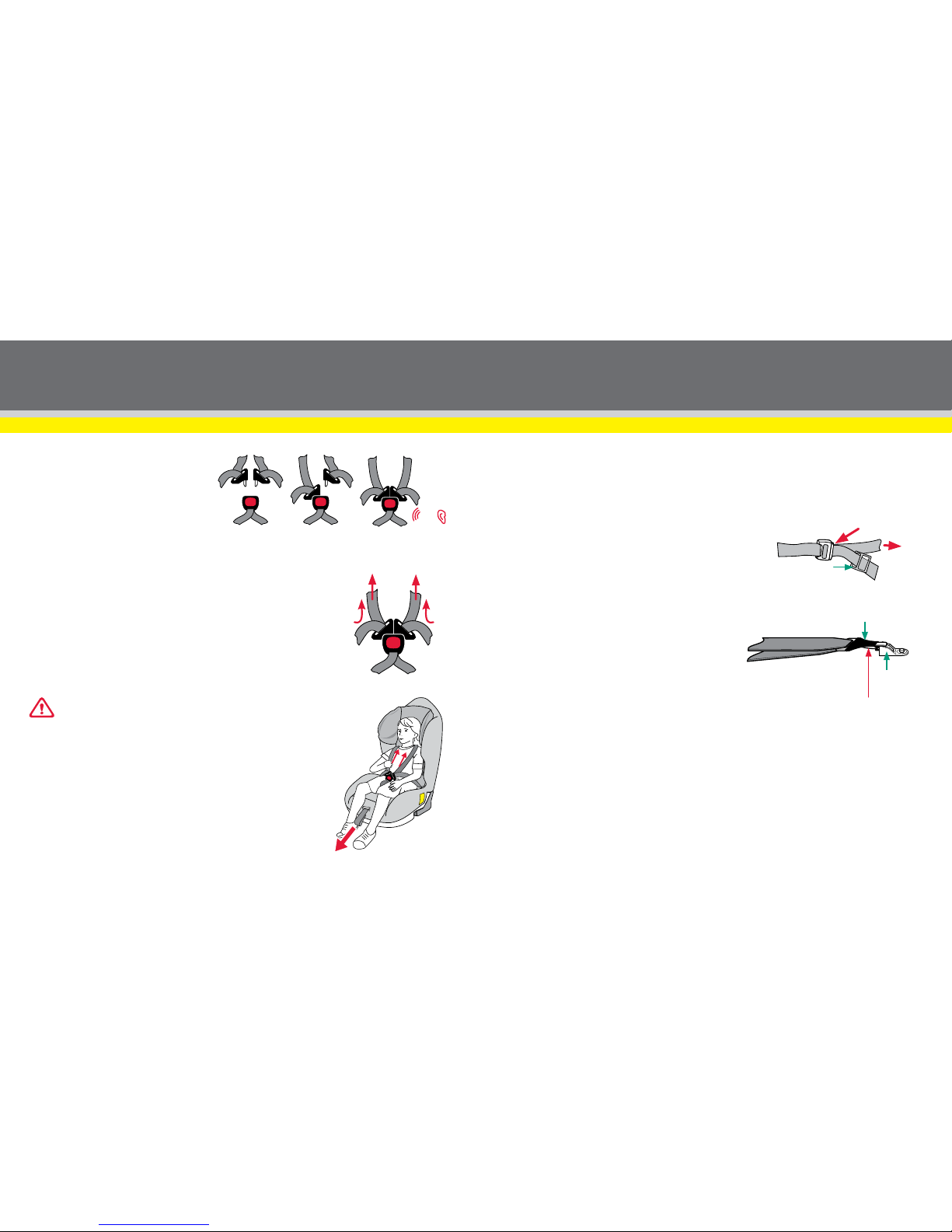

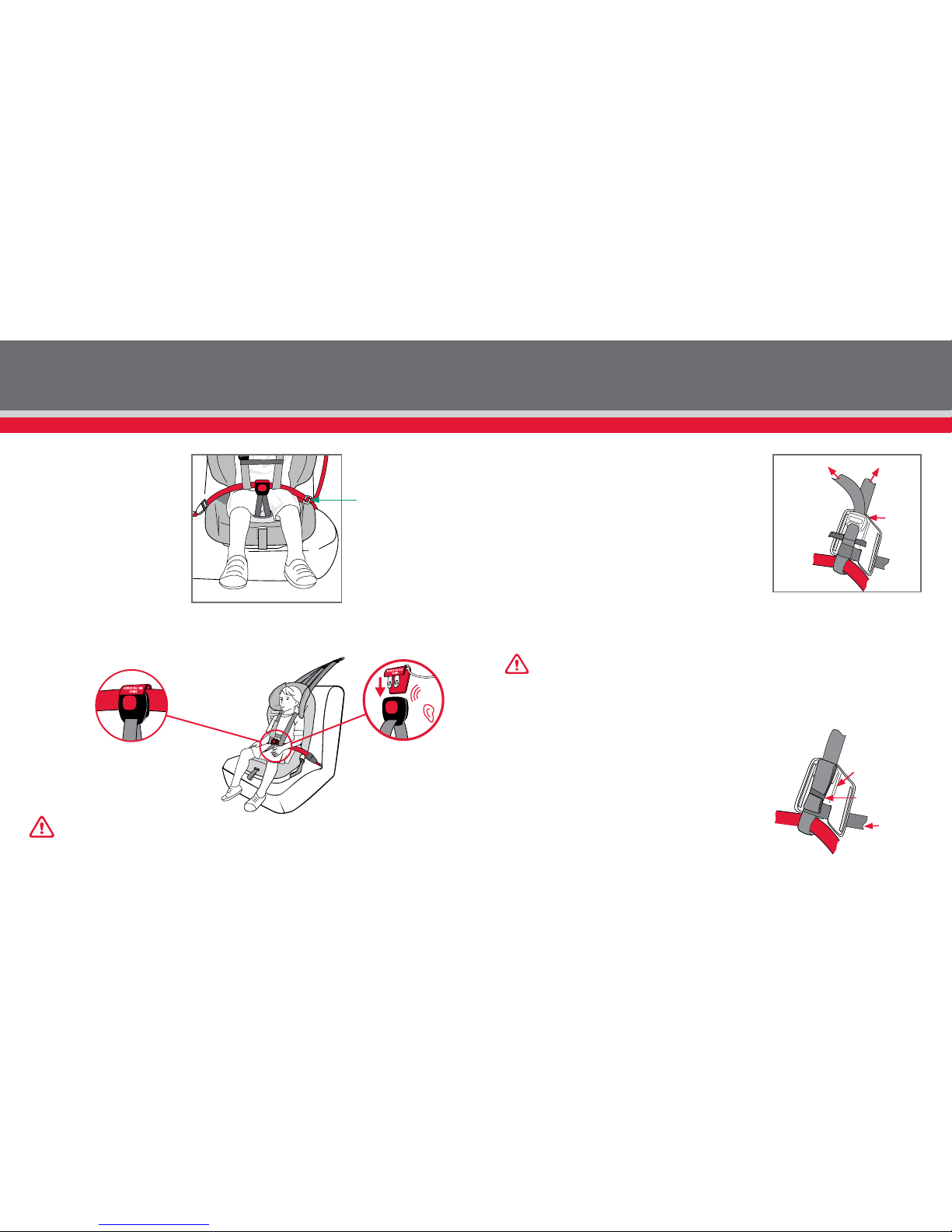

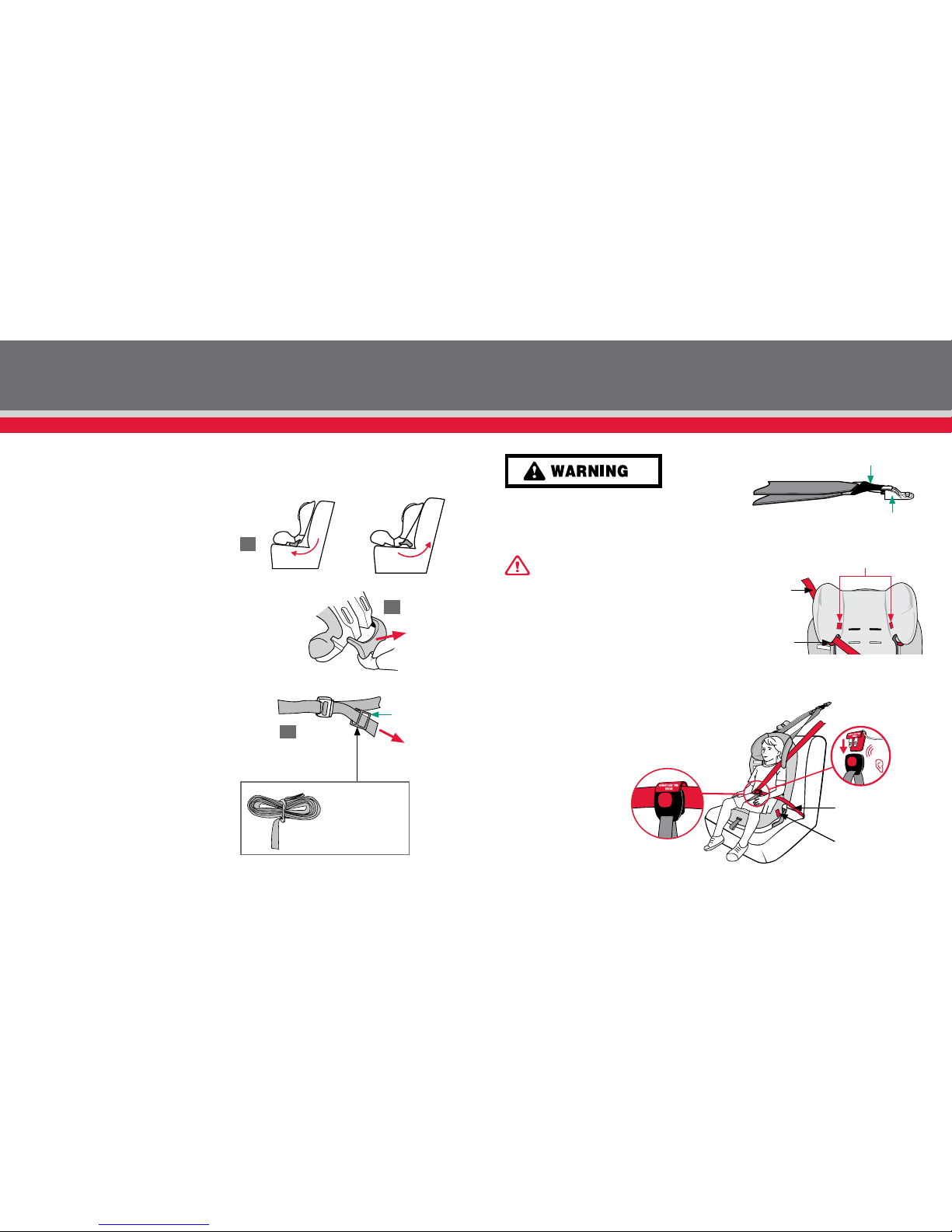

HARNESS ADJUSTMENT

To slacken the harness lift the harness adjuster lever and pull both shoulder straps with the other hand.

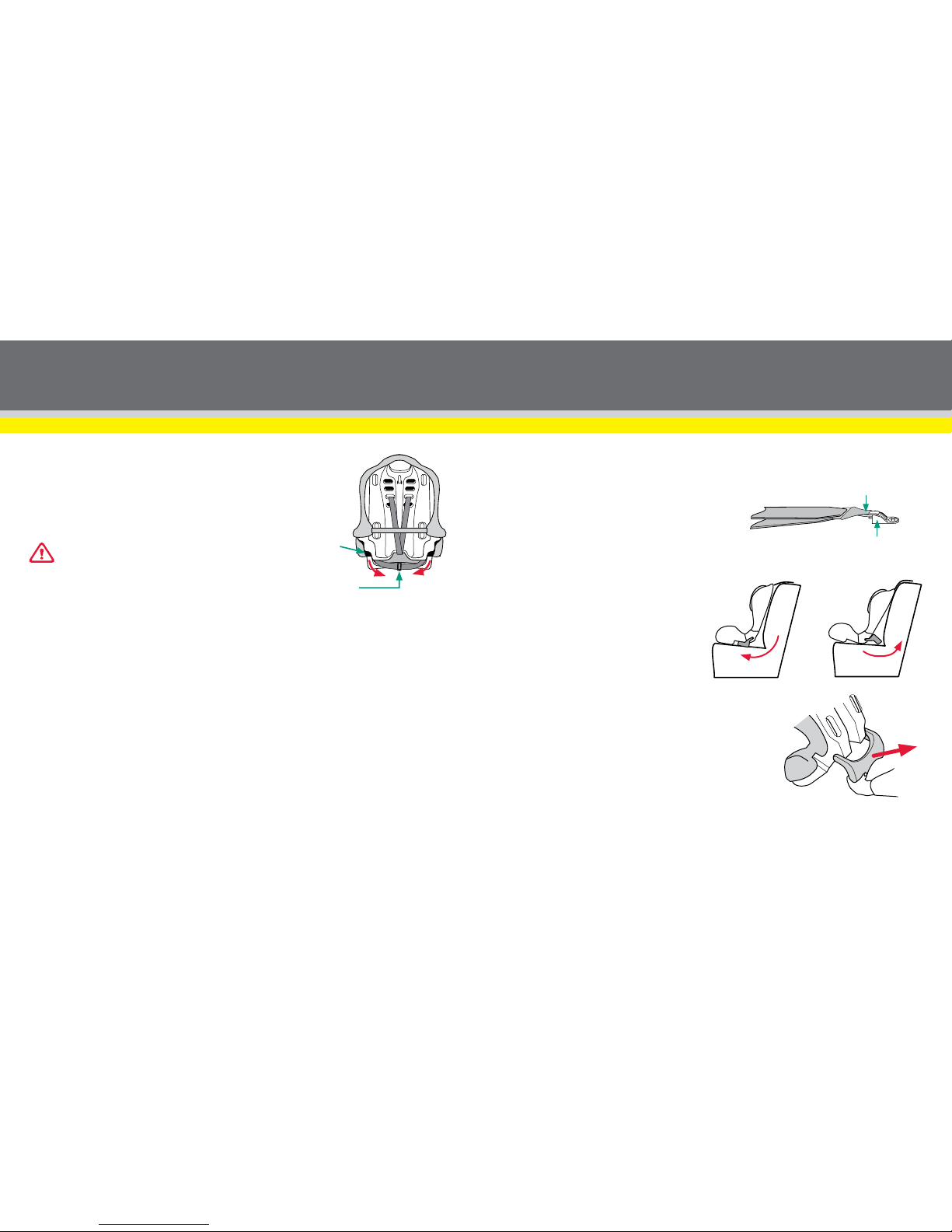

HOW TO USE THE HEADREST

First remove both harness straps (Refer to page 16). Then rotate lever down to loosen headrest clamp (a). Slide the headrest up or down to suit the height of your child, (refer to page 14 for toddler use or page 32 for child use). In toddler mode, move the headrest so that the bottom slots in the headrest line up with the top of the child's shoulders. Then move the headrest so that the slots line up with the nearest slots in the shell. Ensure that the shoulder slots are correctly aligned with the shoulders otherwise, move up to the next set of slots in the shell. Rotate the lever upward to tighten the headrest clamp (b). Then ret both harness straps, ensuring that there are no twists and that each strap is in the correct and matching slots in both the seat shell and headrest (Refer to page 17).

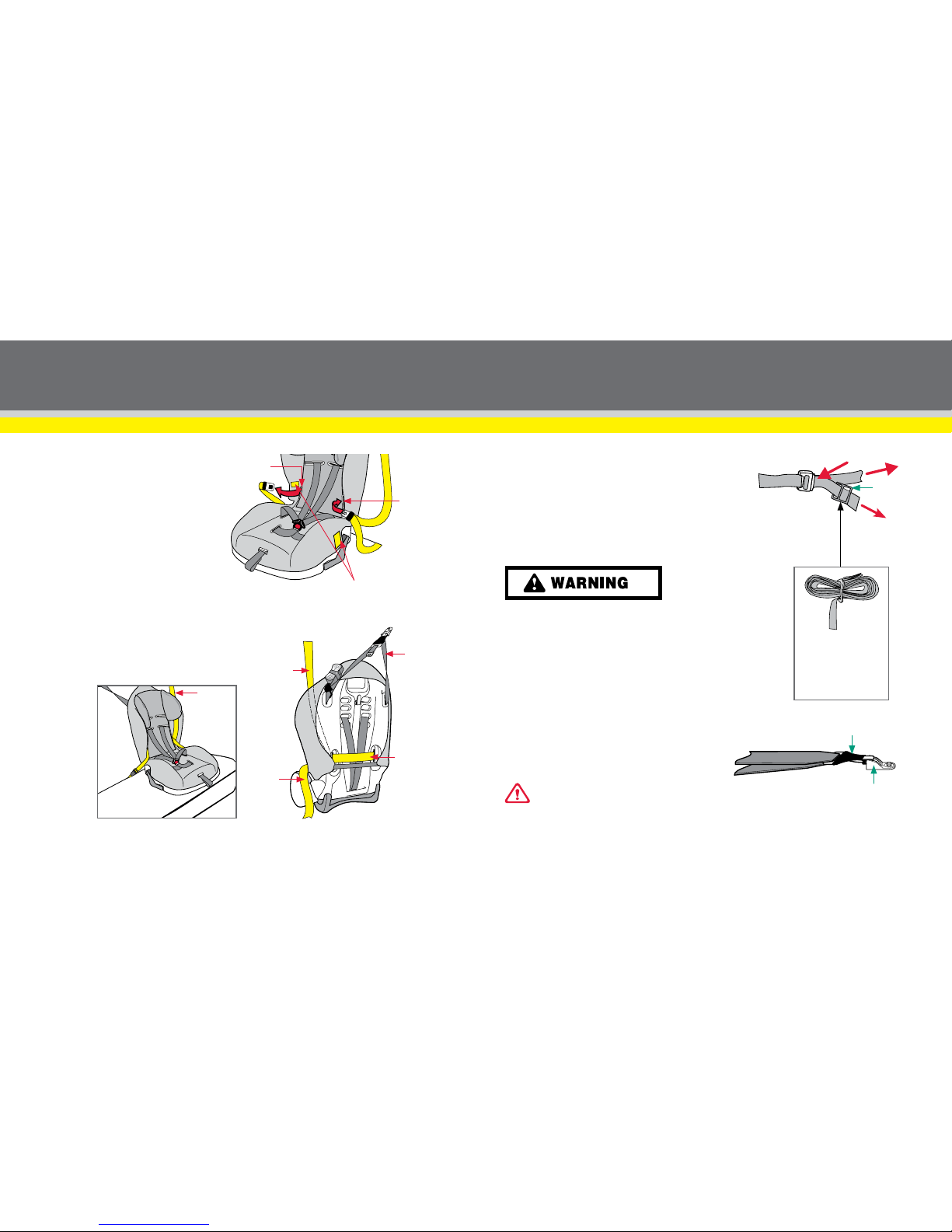

UPPER ANCHORAGE

There needs to be an anchor tting in the car behind the desired

seating position. Refer to your car owner’s manual for the

location of the anchor tting. If the car is not tted with a child restraint anchor tting then refer to page 59 for the installation of the anchor tting provided with this child restraint.

(a) To Release

Attachment Clip (hook)

Car's Anchor Fitting

(b) To Lock

Pull Straps

Lift and hold Harness Adjuster lever up

TODDLER USE: WITH IN-BUILT HARNESS

HOW TO SET-UP

ADJUSTING HARNESS STRAP HEIGHT & HEADREST:

Correct tment of the harness is very important as it restrains the child in the restraint. The harness must t rmly around the upper torso of the child and be positioned so as to leave the child's arms and legs free.

FOR TODDLER USE:

The shoulder straps must be in the slots which are nearest to the child’s shoulders, but not more than 25mm below the child's shoulders. If shoulders are above the middle shoulder height marker then the child is too large for toddler use with the in-built harness and the restraint must then be converted for child use as a booster seat. (Booster Seat Mode - see pages 26 onwards).

Note: If child’s shoulders touch the headrest side wings, Raise the headrest to the next shoulder strap position. Typically slots (1), (2) and (3) will be used with the in-built harness.

IMPORTANT:

You must adjust the crotch strap to the correct length for your child before installing the restraint as it cannot be adjusted in the car. The crotch strap should only be extended if the harness tongues are located low against your child's legs, thus creating discomfort. The buckle should always be positioned low down on your child's body. DO NOT attempt to remove the crotch strap from the adjuster. Adjustment is made by feeding the crotch strap through the adjuster as shown and does not need to be removed from the seat.

SETTING UP THE HARNESS

A. Sit the restraint against a wall for stability and get the child to sit

comfortably in position.

B. Determine the desired headrest and shoulder strap position as

described on pages 13 and 14.

C. Remove the child and adjust the buckle strap and shoulder straps

using the following methods.

D. Conrm the correct set-up of the in-built harness, and repeat

steps A, B and C if required.

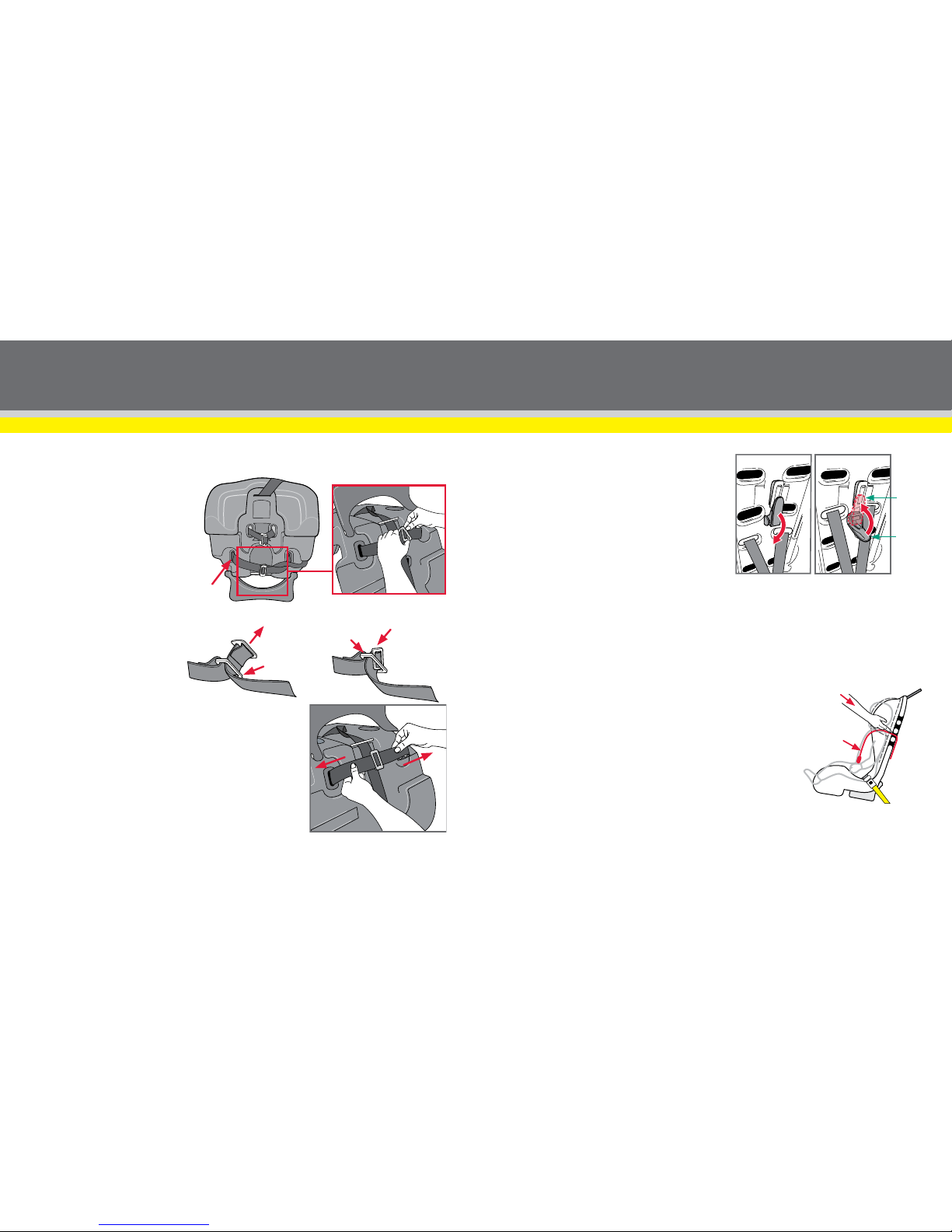

Adjusting the Crotch Buckle Height

Seats are tted with an adjustable length crotch strap where

the webbing needs to be threaded through a 3 bar adjuster plate, as follows;

A. Locate the crotch strap adjuster under the seat (turn seat

upside down).

B. To change the length of the crotch strap, thread through the

adjuster in the direction of the arrows shown and remove any slack.

C. Adjust the crotch buckle to the correct position for your child.

With the centre of the buckle button level with the top of the child's thighs, the buckle is in an ideal position. Ensure that the harness tongues do not push into your child's thighs as this will cause discomfort.

D. Check the buckle position on the child after adjustment.

Lengthen

Shorten

Centre of button on buckle, level with top of child's thighs (with all slack removed from crotch strap.)

Buckle Position OK

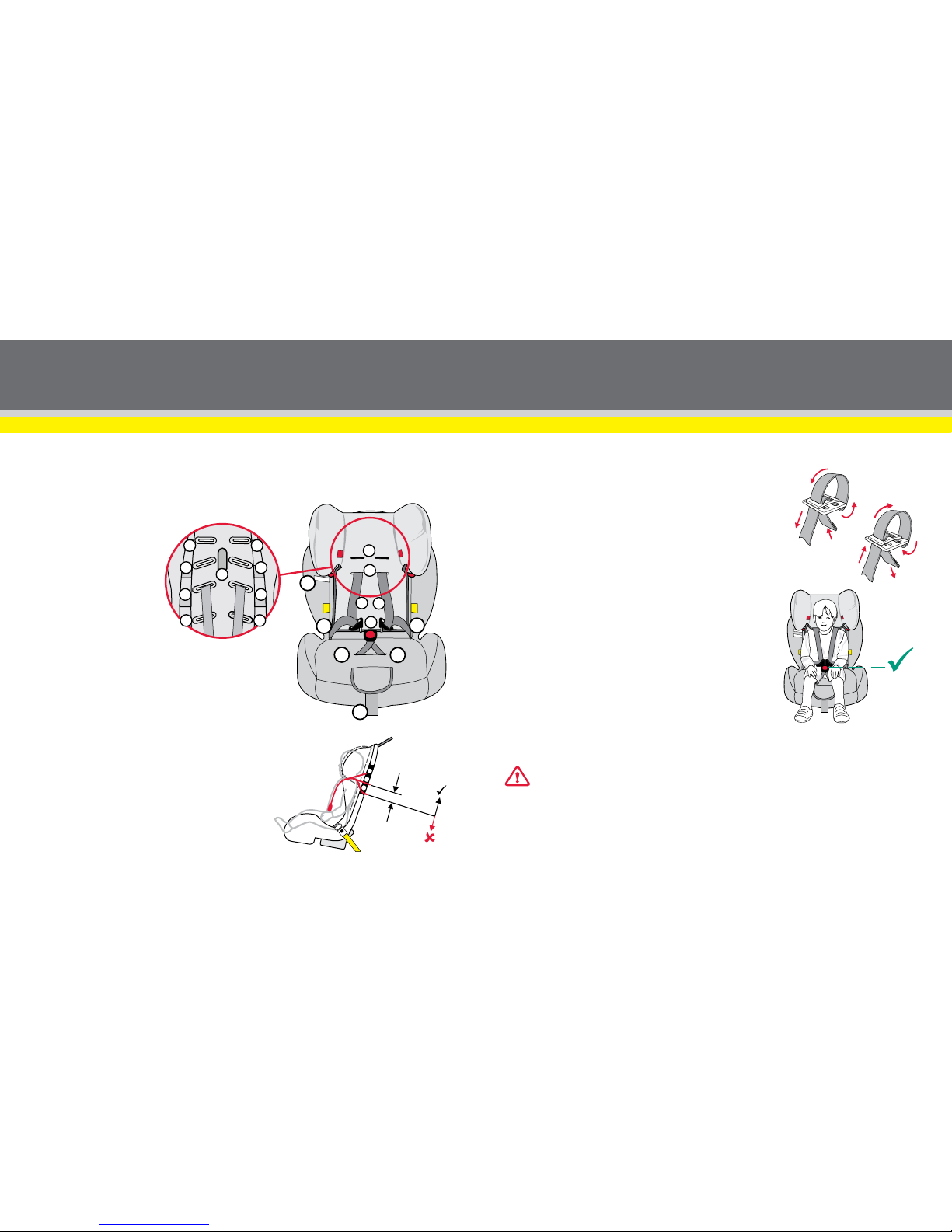

1. Lower shoulder strap slots.

2. Mid shoulder strap slots.

3. Upper shoulder strap slots.

4. Top slots in seat back

5. Bottom slots in headrest

6. Top slots in headrest.

7. Headrest clamp.

8. Shoulder harness straps.

9. Harness tongues & buckle.

10. Lap strap slots.

11. Crotch strap slots.

12. Harness adjustment strap.

13. Shoulder Height Markers.

Rear view of Child Restraint

1 1

2 2

3 3

4 4

TODDLER USE: WITH IN-BUILT HARNESS

25mm

(b) To Lock

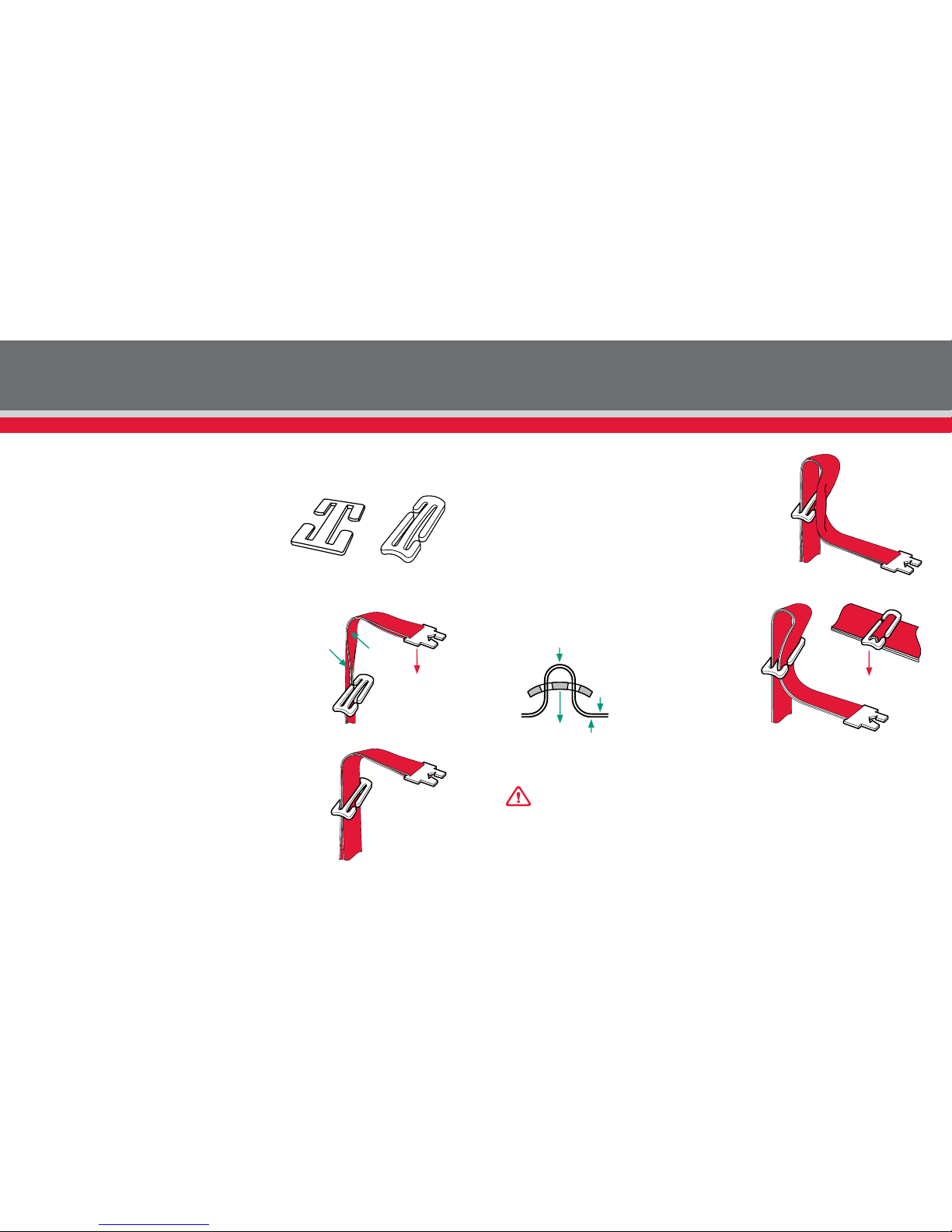

STEPS IN CHANGING SHOULDER STRAP SLOTS

A. Remove the restraint from vehicle.

B. Turn the seat upside down and

locate the connection of the harness strap. Pull 3-Bar Slide away from 2-Bar Slide then turn the 3-Bar Slide and push through 2-Bar Slide as shown right.

C. Feed 3-Bar Slide through Lap Strap

slot in restraint & cover.

D. Push Harness Tongue and 3-Bar

Slide through shoulder strap slot at the front of the headrest.

1716

HOW TO SET-UP HOW TO SET-UP

2-Bar Slide

Pull 3-Bar slide

Push and turn 3-Bar slide through 2-Bar slide

2-Bar Slide

F. Insert shoulder straps through the lower headrest

slots which will position shoulder strap level with or above the child’s shoulders, as shown right. Ensure that the Shoulder strap passes through matching slots in the restraint.

Only use the lower set of slots in the headrest for the

in-built harness, the top slots in the headrest are only for use with the Child Harness (See pages 39 to 53).

Insert nger above the webbing to

ensure shoulder slots in headrest and restraint match up.

Harness Shoulder Straps

Locked

Unlocked

(a) To Release

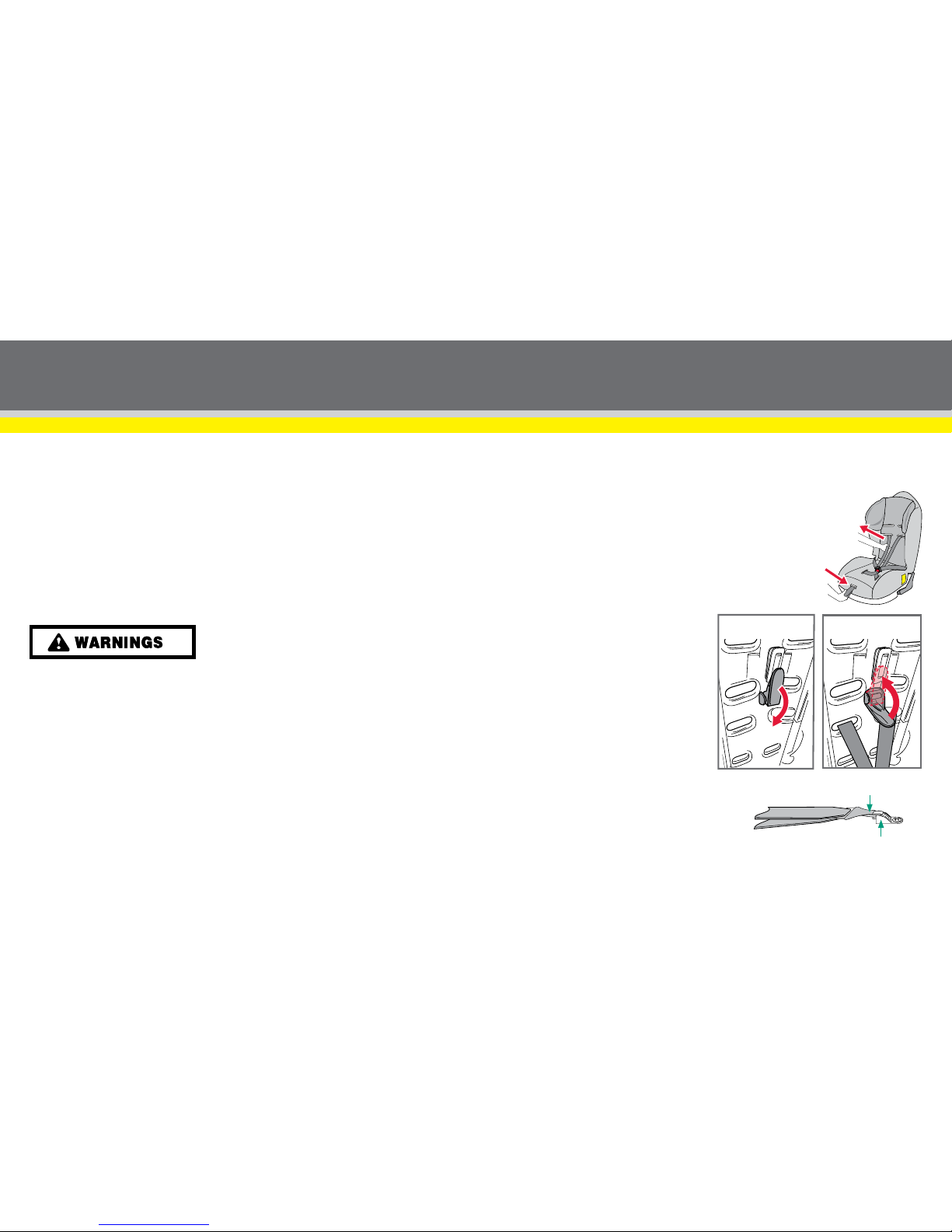

E. To release the headrest, go to the back of the

restraint and rotate lever down to loosen headrest clamp. Slide the headrest up or down to suit the height of your child (see pages 13 and 14). Ensure that the headrest slots match up with the corresponding slots of the restraint body. Then, rotate the lever upward to lock the headrest clamp.

DO NOT lock the headrest in any other positions,

otherwise the slots will not align correctly.

Lap strap slot

Pull to check connection

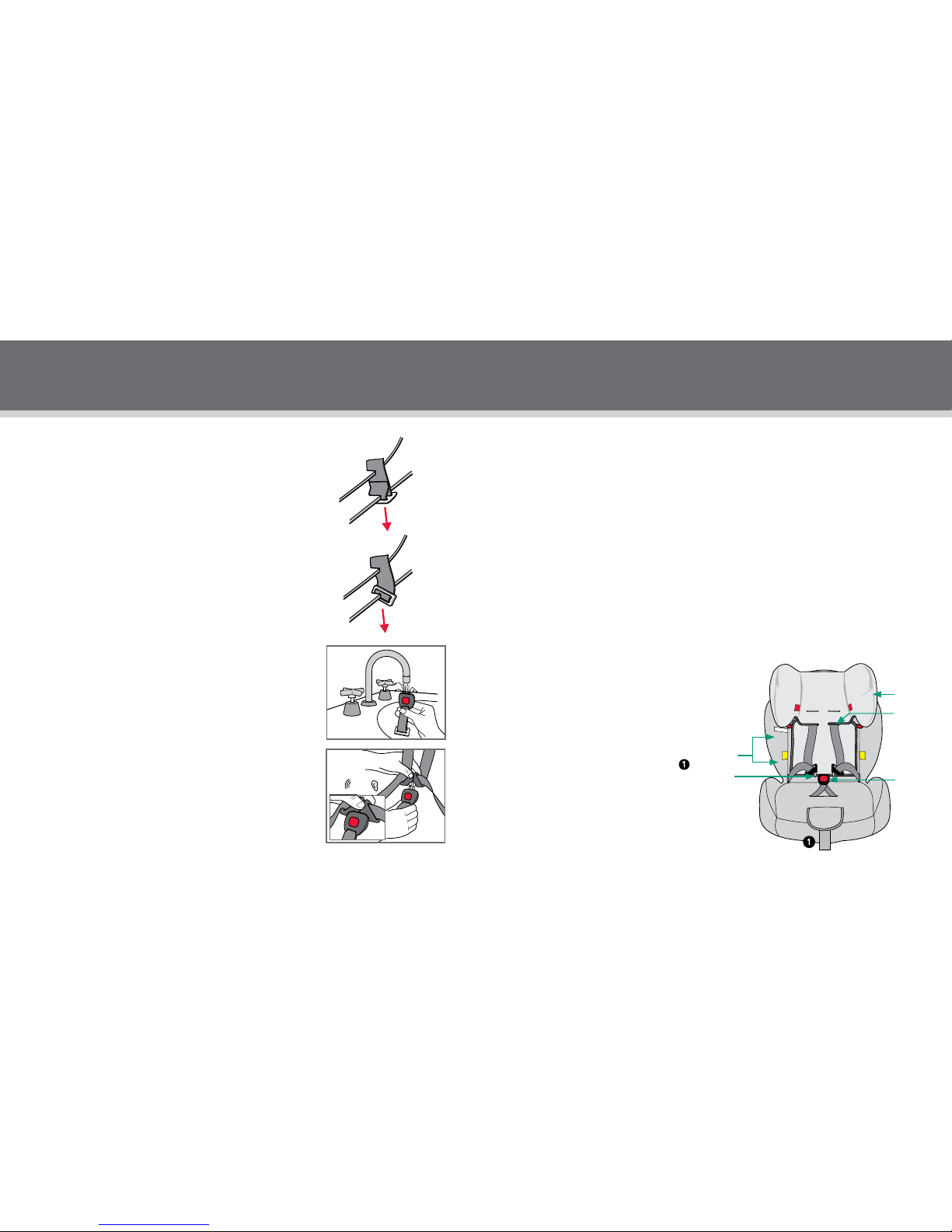

TODDLER USE: WITH IN-BUILT HARNESS

Re-Connect the 3-bar slide to 2-bar slide.

Lap strap slot (each side)

G. Insert the shoulder straps through the lap strap slots

in the cover and the restraint.

H. Ensure there are no twists in the harness strap and

the buckle tongues face the correct way.

I. Re-engage the 3-Bar slide to 2-Bar slide. Pull on straps

to ensure the slides are locked into position.

IMPORTANT:

Do not use the restraint with harness shoulder straps set at different heights or fed through mismatching slots. Ensure harness straps are not twisted and that all straps are secure by pulling each harness strap.

HOW TO SET-UP HOW TO INSTALL

INSTALLING INTO VEHICLE (FORWARD FACING) (UPRIGHT OR RECLINED)

B. Determine whether an upright or reclined

installation is preferred as shown.

C. To move the Recline Foot from under restraint, lift the restraint

and swing the foot back as shown. Place back on the vehicle seat.

UPRIGHT

RECLINED

Recline Foot position for upright installation.

Recline Foot position for reclined installation.

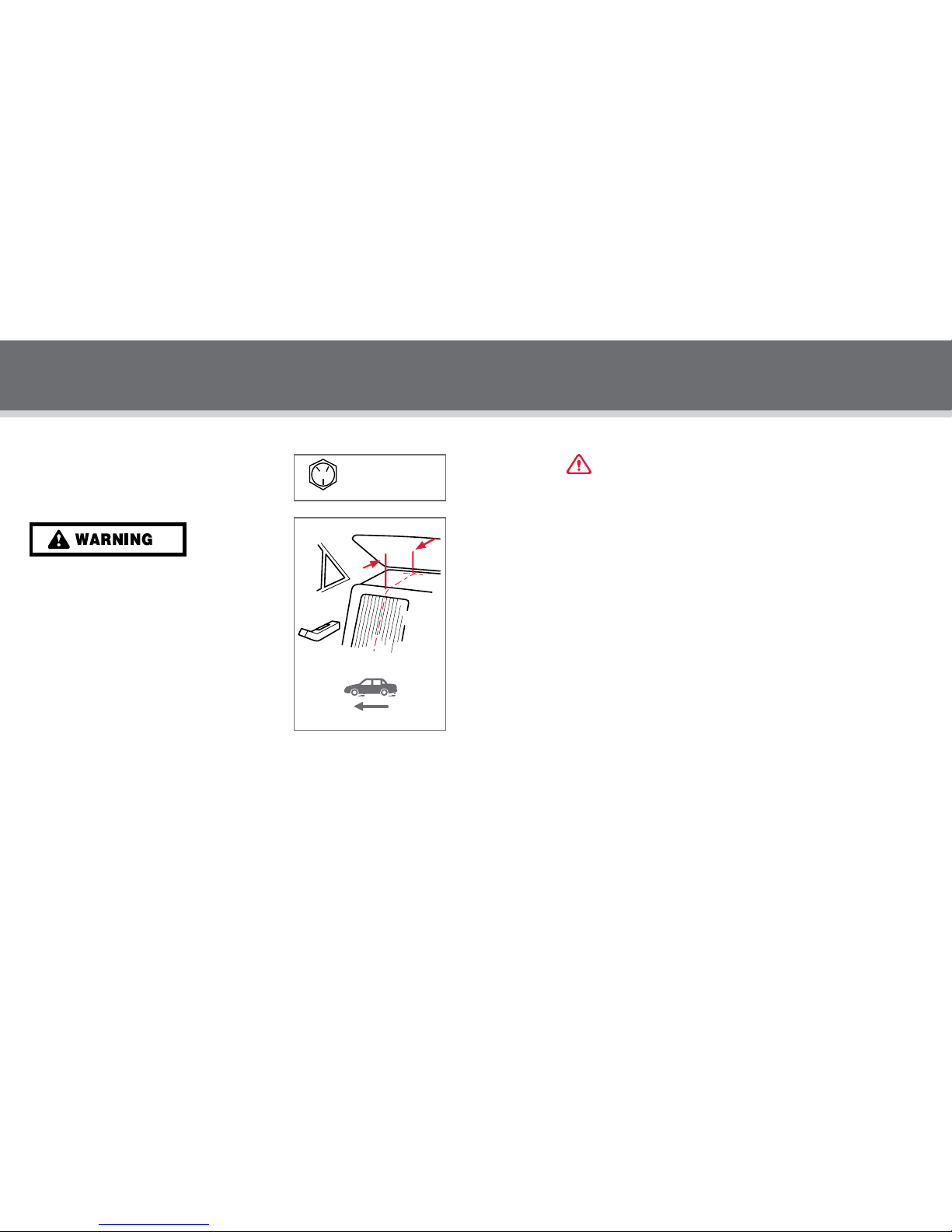

A. There needs to be an anchor tting in the car behind the

desired seating position. Refer to your vehicle owner’s

manual for the location of the anchor tting. If the vehicle is not tted with a child restraint anchor tting then refer to page 59 for the installation of the anchor tting

provided with this child restraint.

Attachment Clip (hook)

Car's Anchor Fitting

D. Position restraint in forward facing mode and align restraint centrally to the chosen seating position and the

car's child restraint anchor tting. Some vehicle seat fabrics (particularly velours) may be damaged by a child

restraint used continuously. We recommend the use of a thick towel or other protection to keep the vehicle seat in good condition.

1918

TODDLER USE: WITH IN-BUILT HARNESS

HOW TO INSTALLHOW TO INSTALL

2120

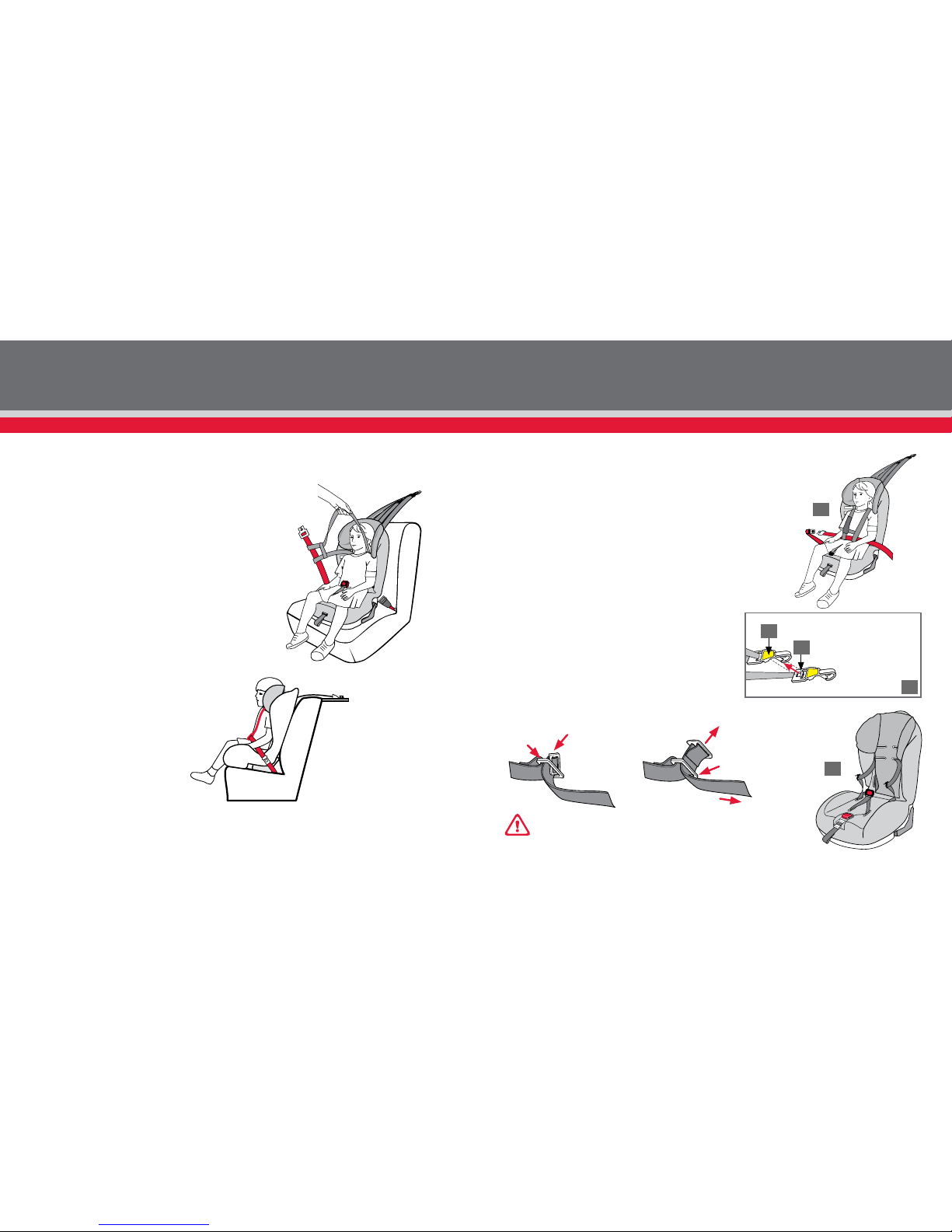

E. Fully lengthen lap or lap sash seat belt and insert

in through near seatbelt slot in the seat back. Ensure the seatbelt is between the harness straps at the back of the restraint and the vehicle seat. From the back of the restraint, push seatbelt out through the far seatbelt slot to the front of the seat.

F. Engage seat belt buckle and tongue ensuring that lap part

of seat belt is within the recessed area. Push down on the

restraint and adjust the seat belt to hold the restraint rmly

against the vehicle seat by pulling on sash strap to remove slack in lap strap. Pass the sash belt between the side of the headrest and the side of the seat. For retractor seat belts, allow excess belt to feed back into retractor.

NOTE: Some vehicle seats have more rearward slope than others. Use a rolled up towel or padding under the seat for contoured vehicle seats to prevent excessive recline.

Upper Anchorage strap

Sash belt

Seat belt on the outside of the harness straps

Lap belt

Sash belt

Near Seat belt Slot

Yellow marker identies

FORWARD FACING BELT PATH

Far Seat belt Slot

G. Fully press Upper Anchorage Strap Adjuster

Button (1) while pulling Upper Anchorage Strap (2) to slacken as shown right.

H. Fit the Attachment Clip to the Anchor Fitting

making sure to remove as many twists as possible. Pull Upper Anchorage Adjustment Strap (3) to remove slack.

ALWAYS roll up excess strap tightly and neatly

store away from child’s reach using the storage band.

IMPORTANT:

Always ensure that the car seat belt and upper anchorage

strap are rmly restraining the restraint on the vehicle seat.

Always attach hook and remove slack.

Attachment Clip and Cover

Pull Adjustment Strap to remove slack

Storage Band

Car's Anchor Fitting

Roll up excess strap tightly so the webbing is thick enough to be held in the storage band.

TODDLER USE: WITH IN-BUILT HARNESS

Upper Anchorage Strap

Attachment Cover

Car's Anchor Fitting

Recline Foot in upright installation

Lower Headrest Slots (For In-built Harness)

Upper Headrest Slots (For Child Harness use only)

Ensure Belt positioning clip stored in recess (Used for Booster mode only)

Upper Anchorage Storage band

Storage Band

HOW TO INSTALL

2322

PLACING TODDLER IN THE RESTRAINT

A. Lengthen harness by lifting Harness Adjuster Lever up (under

ap) while pulling on either shoulder strap until the harness

will accommodate the child. Release the buckle tongue and place on each side of the seat.

Pull Straps

Lift and hold Harness Adjuster Lever up

HOW TO USE

B. Place child in the restraint and feed each arm through shoulder

straps. Pull harness buckle up between child's legs.

TODDLER USE: WITH IN-BUILT HARNESS

Pull to tighten

2524

HOW TO USE HOW TO USE

C. Fit either harness buckle tongue into the

harness buckle followed by the other tongue until a click is heard. Should the second tongue not insert - press the red button and reinsert the tongues. Ensure secure engagement by pulling harness straps.

D. Ensure slack is removed from harness lap strap by pulling shoulder

straps then pull harness adjuster strap to adjust harness to a

comfortable but rm t. See illustration above. Ensure that any

slack in harness straps is removed. Shoulder Harness Straps must

t rmly to the child. A loose harness could result in serious injury

in an accident.

Do not use restraint if straps do not tighten and contact customer service for repair. (See back page).

TO REMOVE TODDLER

Press red button on harness buckle then both harness tongues will be released. Lift the shoulder straps from the child’s shoulders. Lengthen harness if needed.

Pull to remove slack from

harness lap strap

Shoulder Strap

Harness Lap strap

Crotch Straps

Click

TO REMOVE RESTRAINT FROM VEHICLE

A. Disengage seat belt tongue from buckle and remove from

restraint.

B. Release the stored strap and fully press Upper Anchorage

Strap Adjuster Button (1) while pulling Upper Anchorage Strap (2) to slacken as shown right. In some vehicles

loosening of the Upper Anchorage Strap may be difcult. If

so, try pushing the restraint against the vehicle seat back or slightly lifting the restraint to release the tension.

C. Disengage Attachment Clip from Anchor Fitting. The child

restraint is now disconnected.

Storage Band

Attachment Clip and Cover

Car's Anchor Fitting

Lift tab

and un-clip

CAUTION: A LOOSE HARNESS IS DANGEROUS.

Do not use restraint if straps do not tighten and contact your local authorised service agent for repair.

TODDLER USE: WITH IN-BUILT HARNESS

To be used with either a lap-sash seatbelt or an add-on accessory child harness by children whose shoulders are in-line with or above the middle shoulder height marker (approximately 4 years of age). This mode can be used until the child's shoulders reach the upper shoulder height marker (approximately 6 to 8 years of age).

NOTE: Not all features are supplied on some models. "if supplied" is used to indicate some of the features that may not be on the seat supplied.

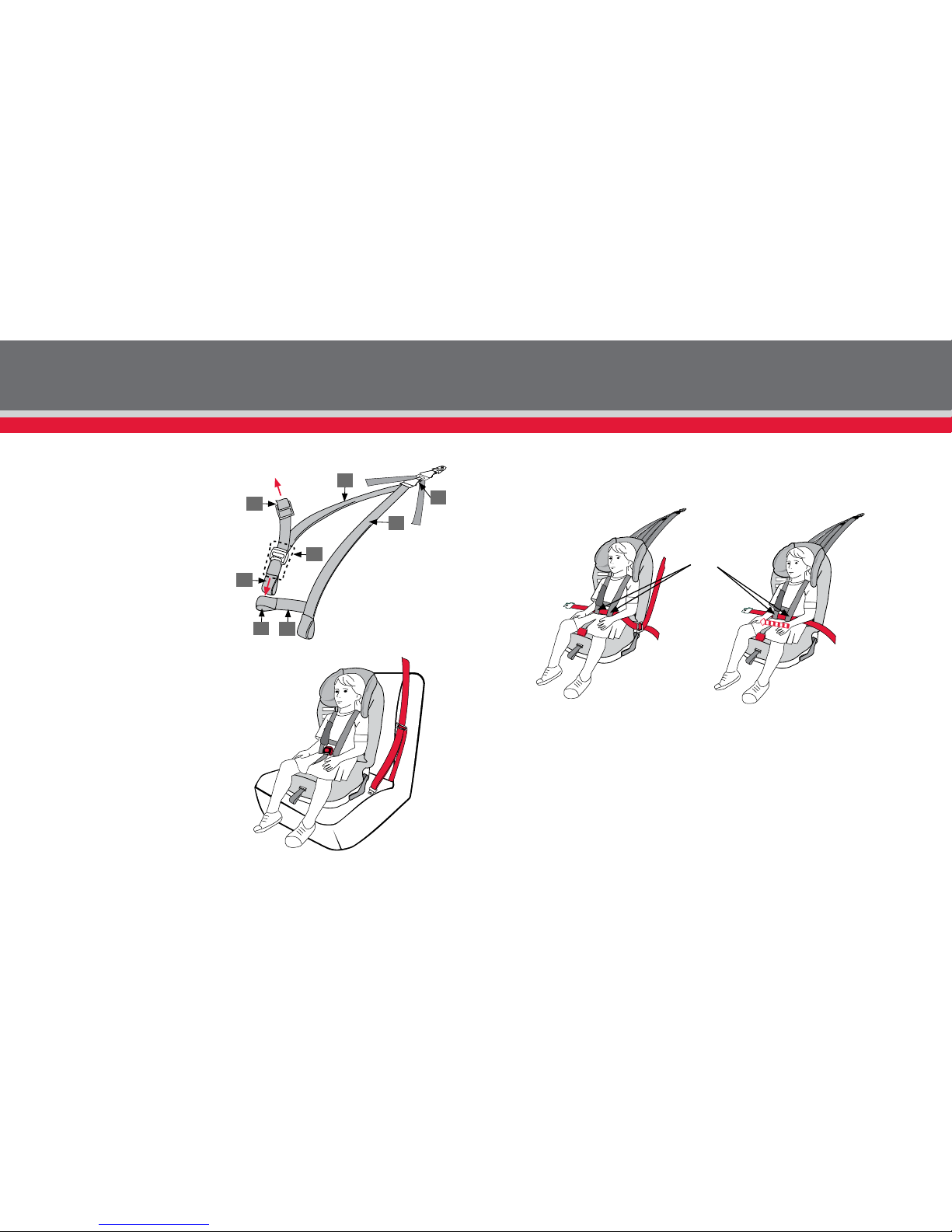

SPECIAL FEATURES - CHILD BOOSTERSPECIAL FEATURES - CHILD BOOSTER

Front of Vehicle

Car's Anchor Fitting.

Car’s lap-sash seat belt or lap belt.

Red Booster Seatbelt Path Labels (each side).

Storage location for Lap Belt Positioning Clip.

Recline Foot (shown in upright installation).

Buckle tted with Lap Belt Positioning Clip Converter.

Shoulder Height Markers.

Sash Guide in Headrest with red seat belt path labels (each side).

Adjustable Headrest (with speakers, if supplied).

Upper Anchorage Strap Adjuster.

Upper Anchorage Storage band.

Adjustable Upper Anchorage Strap.

Attachment Clip with VERSATETHER™ Connection.

BOOSTER SEAT MODEBOOSTER SEAT MODE

SUITABLE FOR USE HOW TO SET-UP

To be used with either a lap-sash seatbelt or an add-on accessory child harness by children whose shoulders are above the lower shoulder height marker with the head restraint in the lowest position (approximately 4 years of age) until their shoulders reach the upper shoulder height marker with the head restraint in the highest position (approximately 6 to 8 years of age).

Continue to use this child restraint until child reaches the limit. Children are safest in a booster seat until their shoulders reach the upper shoulder height marker of the booster seat.

Do not use in this mode until the shoulders reach the middle shoulder height marker. THIS RESTRAINT MUST BE USED IN CARS WITH FORWARD-FACING SEATS WITH A LAP-SASH SEAT BELT OR

WITH A SEAT BELT AND CHILD HARNESS. THIS BOOSTER SEAT MAY ONLY BE SUITABLE FOR USE WITH A CHILD HARNESS IN THE UPRIGHT POSITION. IN

THE RECLINE POSITION, THE CAR'S SEATBELT MAY NOT BE LONG ENOUGH. When used with a lap-sash seat belt the Booster Seat mode may only be suitable for use in upright position as the car's seatbelt may not be long enough for use in the reclined position.

SUITABLE ONLY FOR USE WITH SAFE-N-SOUND™PROTECTA PLUS™HARNESS SERIES 220/2010 OR BABYLOVE

EZYGO HARNESS™ SERIES BL220/2010. When using a child harness then either a lap or lap-sash seatbelt may be used.

DO NOT USE WITH JUST A LAP BELT. You must use with a lap-sash belt or with a seat belt and child harness. If used with a child harness, the lap strap of the seat belt must be adjusted rmly rst and then

the harness, so that the lap strap is not lifted off the child’s lap when the harness is adjusted. ALWAYS USE THE LAP BELT POSITIONING CLIP IN BOOSTER SEAT MODE. Do not use the restraint without the Upper Anchorage Strap correctly attached. Do not use with the in-built harness when in booster mode. This in-built harness must be stored (see page 29). Do not use in a front seat, unless it has a child restraint anchorage point. Do not use on any vehicle seat which faces sideways or rearwards. WHERE AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE FITTED,

FOLLOW THE VEHICLE MANUFACTURERS WARNINGS AND INSTRUCTIONS.

Do not use with just a lap seat belt (unless using a Child Harness - refer to page 39-53).

CONVERTING THE TODDLER RESTRAINT INTO CHILD BOOSTER

To use this child restraint as a booster seat the harness needs to be stored under the cover.

Upper anchorage strap must be connected to the car's anchor tting in booster mode. You do not need to disengage the upper anchorage strap from the anchor tting, but you must disengage and

remove the seat belt from the restraint.

CAUTION:

Ensure harness straps are fully lengthened when storing into

seat belt slots. Conrm tongues are through to the back of

the restraint to ensure tongues do not cause discomfort or injury to the occupant in the event of an accident.

BOOSTER SEAT MODEBOOSTER SEAT MODE

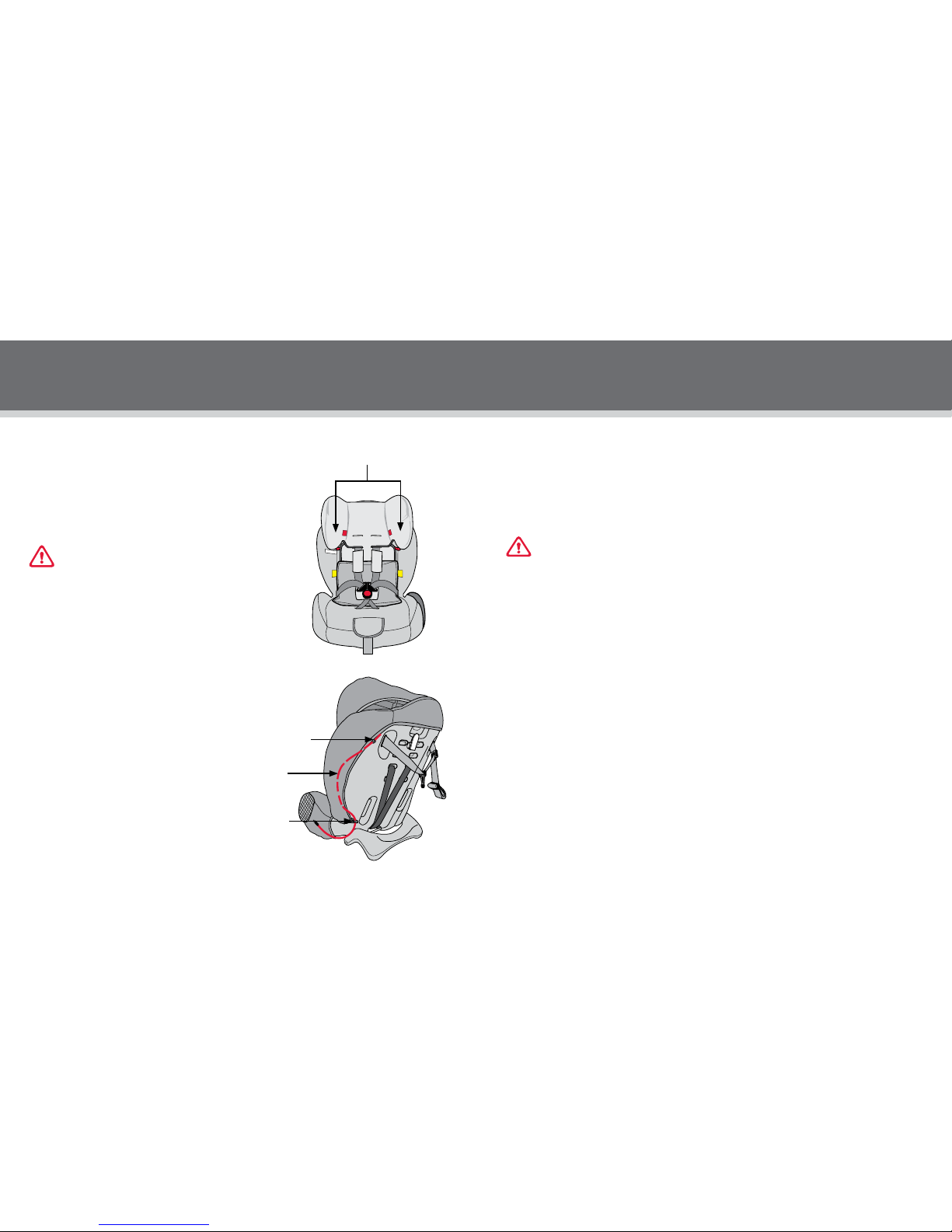

STORING THE HARNESS

A. Fully lengthen the harness by lifting the harness adjuster

lever and pulling both shoulder straps with the other hand.

B. Undo the hook and loop strips from the side centre panel

of the restraint cover. for storing harness, (cover does not

need to be removed). Lift the headrest ap up and pull the lower ap forward.

C. Tuck shoulder harness straps completely through seat

belt slots in restraint shell.

Ret the centre panel of the cover with the harness

behind the cover.

D. Disconnect the front edge of the seat cover and pull the

buckle through the opening.

E. Remove Lap Belt Positioning Converter from recess area

and then engage into harness buckle to form the Lap Belt Positioning Clip.

F. Adjust the crotch strap length if necessary. See page

32 and 33.

G. Ret the cover to the front of the seat, check cover is

tting neatly all over. Align cover and re-engage hook and

loop strips on cover. Ensure the Lap Belt Positioning Clip is pulled through the slot in the cover.

H. Roll up the harness adjuster strap and tuck under the

adjuster under the ap.

HOW TO SET-UP HOW TO SET-UP

BOOSTER SEAT MODE

3130

Lap Belt Positioning Converter

Lap Belt Positioning Clip

Harness Adjustment Strap

Stored Harness Adjuster Strap

Click

HOW TO SET-UP HOW TO SET-UP

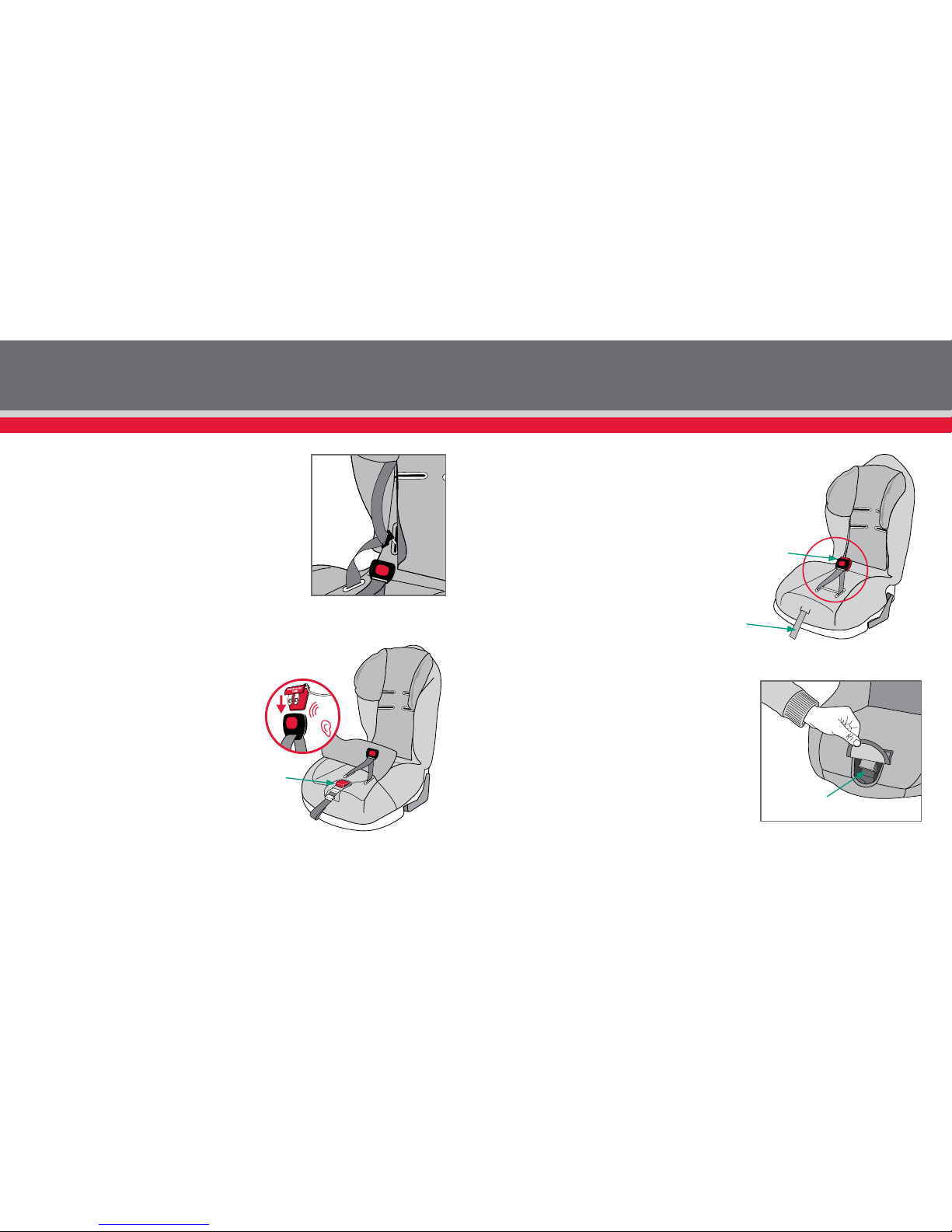

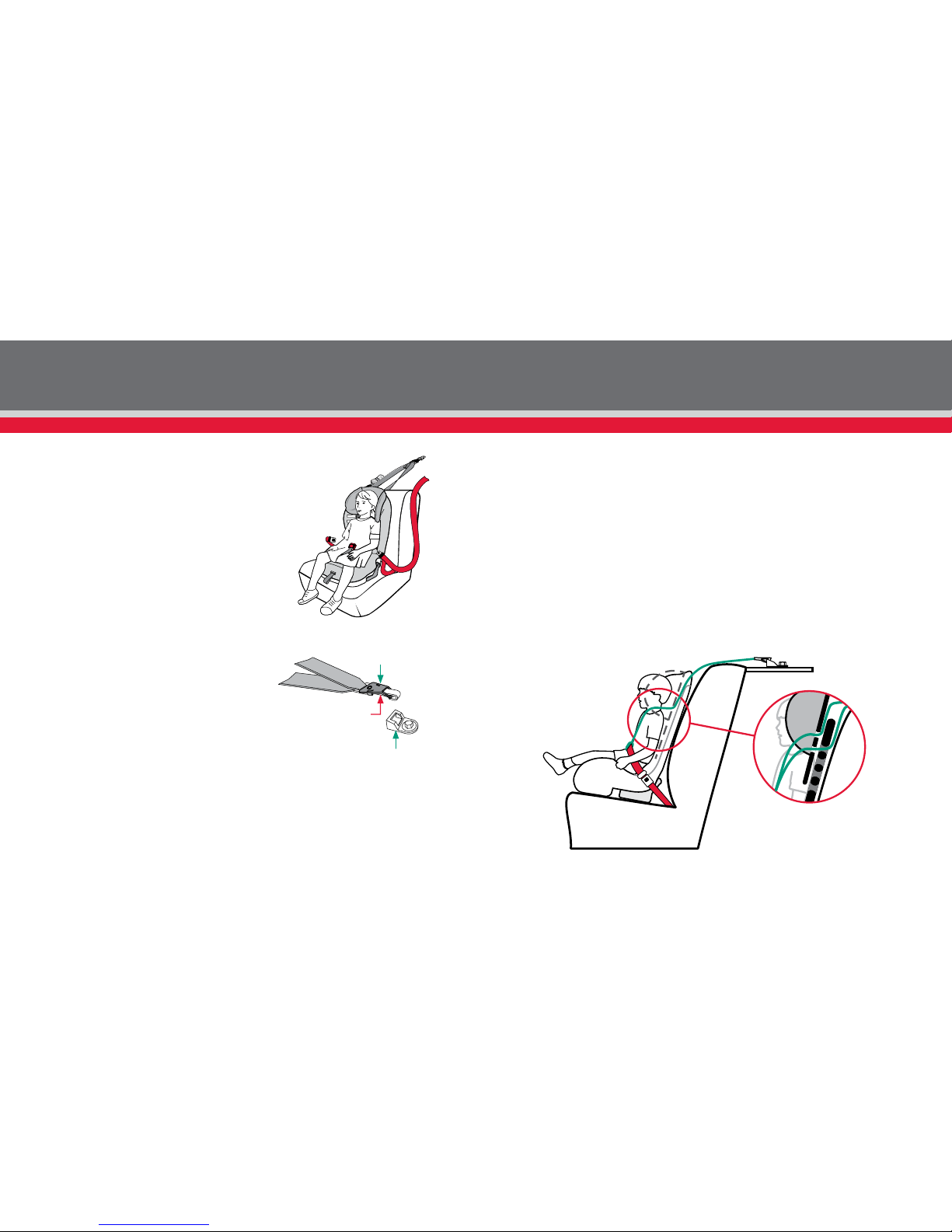

ADJUSTING THE LAP BELT POSITIONING CLIP POSITION AND HEADREST

IMPORTANT:

You must adjust the crotch strap to the correct length for your child before installing the restraint as it cannot be adjusted in the car. The Lap Belt Positioning Clip MUST always be used to position the lap belt on the child's thighs. The lap belt must not be on the abdomen. The crotch strap must be adjusted so it is not too high or too low. DO NOT attempt to remove the crotch strap from the adjuster.

IMPORTANT: ALWAYS USE THE LAP BELT POSITIONING CLIP

Headrest no more than 30mm above the shoulder.

When used as a Booster Seat using either a lap-sash seatbelt or child harness and seatbelt, adjust the headrest so that the sides of the headrest are no more than 30mm above. If the upper anchorage strap is still attached to the car, rotate the seat and unlock the headrest to move

it when required to t the child. Lock the headrest

by rotating the lever upwards. (for headrest adjustment see page 13)

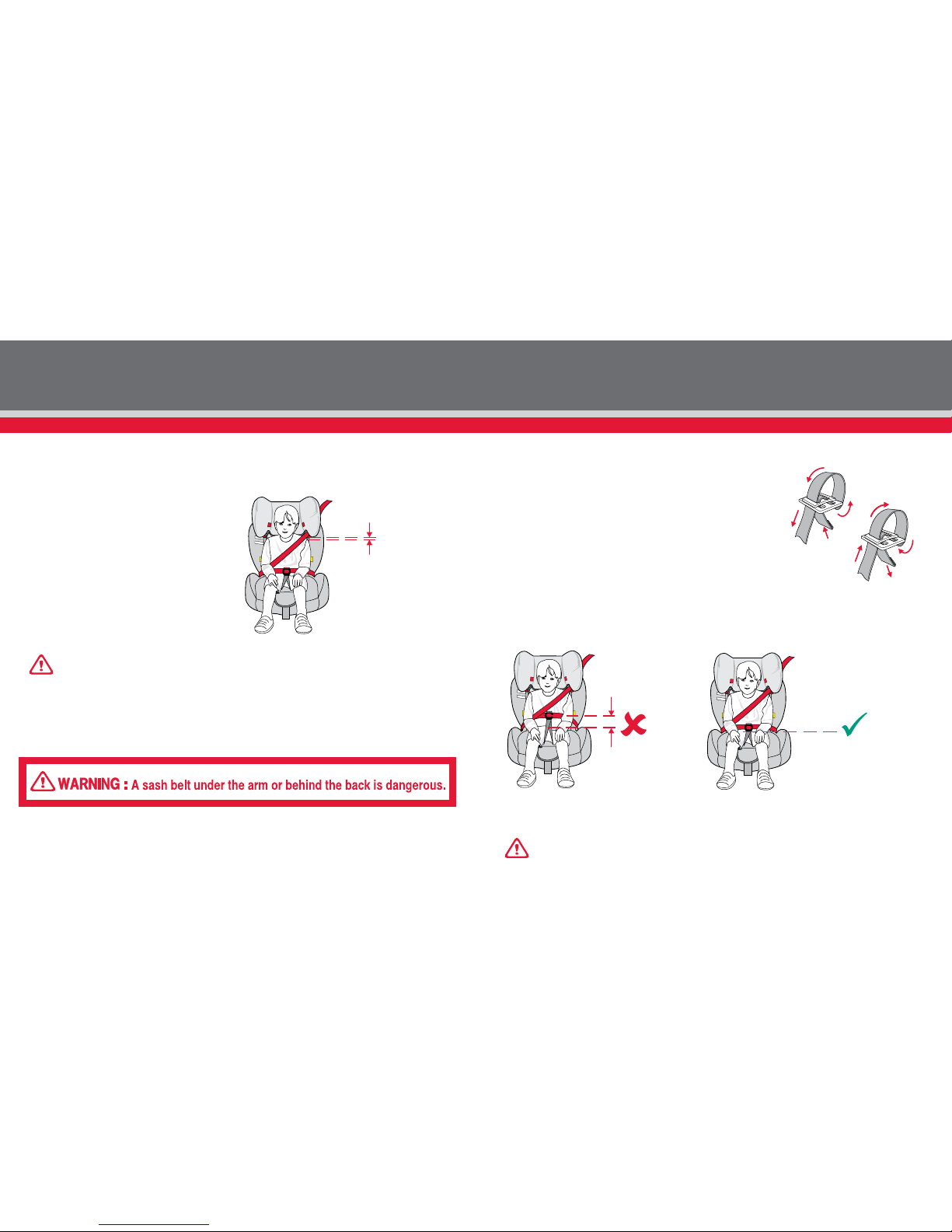

SETTING UP AS A BOOSTER SEAT

NOTE: The Lap Belt Positioning Clip ensures that the child does not slump and ensures the lap belt is always positioned on the child’s hips and thighs. If the seat belt rides up on to the stomach then a child can be seriously injured in a crash.

A. Unlock the headrest (see page 13)

B. Sit the restraint against a wall for stability and get the child to

sit comfortably in position.

C. Adjust the headrest so that the sides are just above the child's

shoulder.

D. Determine the correct buckle position. The bottom edge of the

buckle needs to be level with the top of the legs. Without the seat you can hold the buckle up to determining the approximate distance to adjust.

Bottom edge of buckle, level with top of legs (with all slack removed from crotch strap.)

Lap Belt Positioning Clip Position TOO HIGH

Lap Belt Positioning Clip Position OK

E. Remove the child and adjust the buckle strap length as shown above. F. Check height with the child and re-adjust if required. G. Lock the headrest by rotating the lever upwards.

BOOSTER SEAT MODE

Lengthen

Shorten

Fit the Lap Belt Positioning Clip to lap belt with the Red button (of the buckle) facing forward.

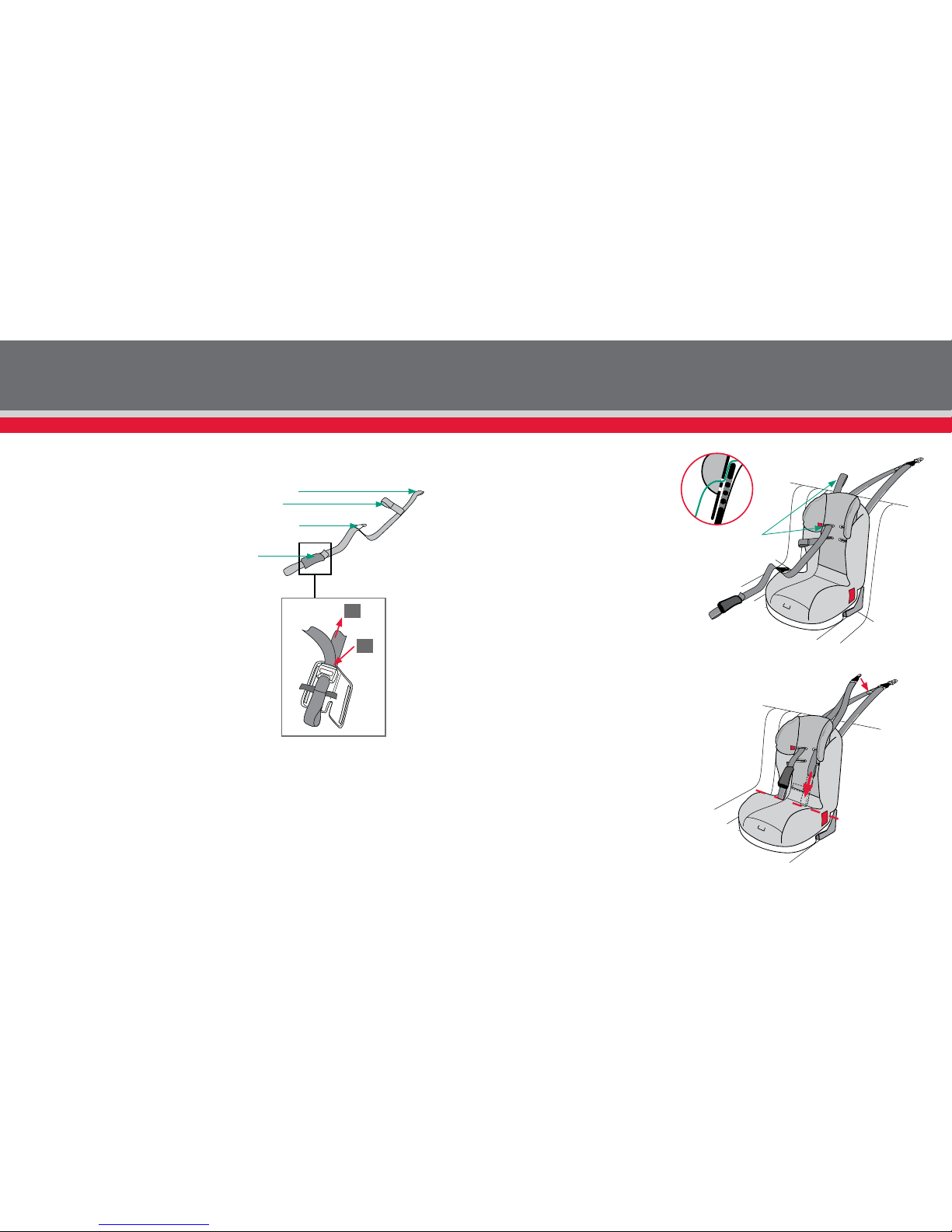

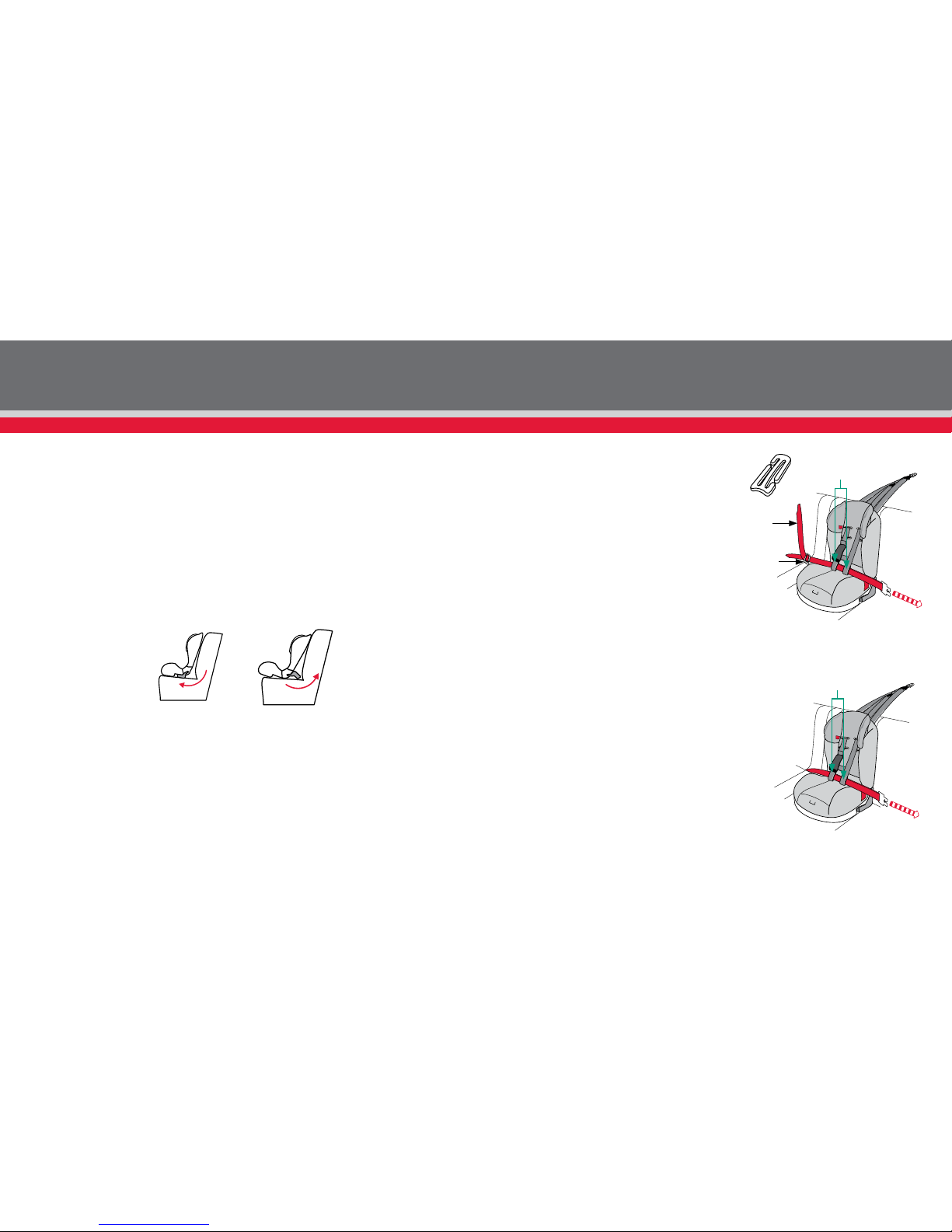

PLACING CHILD IN THE RESTRAINT USING LAP SASH SEAT BELT & UPPER ANCHORAGE STRAP ENGAGED

A. Determine whether an upright or reclined

installation is preferred as shown.

UPRIGHT

Recline Foot position for upright installation.

RECLINED

Recline Foot position for reclined installation.

C. The restraint is now ready for use as a child

booster, ensure the upper anchorage strap is

still engaged into the anchor tting and tighten

if necessary by pulling the adjustment strap (3). Do not overtighten causing the seat to lift.

ALWAYS roll up excess strap tightly and neatly

store away from child’s reach using the storage band.

Always attach hook and remove slack.

HOW TO USE HOW TO USE

Sash

Sash Guide

E. Seat the child on the restraint and ensure that the headrest is

in the correct position for your child (see page 32) and adjust if necessary (see page 13).

F. Position the lap-sash belt over the child ensuring the lap portion

is positioned into the lap recess area. Fit the Lap Belt Positioning Clip to the lap belt as shown below so that the lap belt is on the child's thighs.

G. Engage seat belt buckle and tongue ensuring there are no twists

in the belt. If the seat belt buckle is adjustable, adjust the buckle as low as possible away from the child.

CAUTION: ALWAYS USE THE SASH GUIDE.

D. Feed the sash belt through the sash guide.

Lap part of seat belt in recess area.

Remove Lap Belt Positioning Converter from recess are and engage into harness buckle.

Red BOOSTER

SEAT BELT PATH

Red BOOSTER

SEAT BELT PATH

3534

Attachment Clip

Pull Adjustment Strap to remove slack

Storage Band

Car's Anchor Fitting

B. To move the Recline Foot from reclined to upright

mode or vice versa pull the Foot outwards to unlock it, then rotate the foot. Push to lock in place. Swing

the seat back until it sits rmly on the vehicle seat.

NOTE: Some seat belts may be too short and may not

t around the child when the seat is reclined.

Roll up excess strap tightly so the webbing is thick enough to be held in the storage band.

BOOSTER SEAT WITH LAP-SASH SEATBELT

Click

H. The Sash Guide in the headrest must be used to

position the sash portion of the lap-sash seat belt across the child’s shoulders and chest.

I. Pull lap portion of seat belt rmly across the child’s

lap (1) and the sash on the child's chest (2 and 3).

J. If using the Inertia Reel Retractor seat belt, adjust

the lap portion of the seat belt rmly around the

child and restraint, then let the slack sash portion retract up into the sash retractor.

IMPORTANT:

The Lap Belt Positioning Clip MUST be used when the child is using the Booster Seat. Always ensure the seat belt is correctly restraining the child on the restraint.

NOTE: Change to the next type of Booster Seat or other restraint when shoulders reach the upper shoulder height marker. See page 9

HOW TO USE HOW TO USE

Sash

36 37

SEAT BELT UNDER THE ARM

IS DANGEROUS

SEAT BELT BEHIND THE BACK

IS DANGEROUS

NOTE: Seat belt extenders should not be used if the seat belt is not

long enough to t around the child. If a seat belt extender is used

then the seat belt buckle must not be in contact with the child.

Seat belt across the chest.

Lap belt must

always be rm on

the thighs. The child should not slump or slouch.

Sash belt though the Sash Guide which locates the sash across the child's shoulders & chest.

Sash Guide in headrest

NOTE: Some vehicle seats have more rearward slope than others. Use a rolled up towel or padding under the seat for contoured vehicle seats to prevent excessive recline.

CAUTION: ALWAYS USE THE SASH GUIDE.

BOOSTER SEAT WITH LAP-SASH SEATBELT

TO REMOVE CHILD

Disengage seat belt tongue and buckle, remove the lap portion of seat belt from the Lap Belt Positioning Clip and remove seatbelt from child.

When Booster is not being used, secure in position by engaging seat belt over the booster seat.

TO REMOVE THE SEAT

Disconnect the upper anchorage Attachment Clip and remove the seat.

38 39

Lift tab and unclip

Attachment Clip

Car's Anchor Fitting

USING WITH CHILD HARNESS IN BOOSTER SEAT MODE

Either Safe-n-Sound™Protecta PLUS™ Harness Series 220/2010 or Babylove™ EzyGo™ Harness Series BL220/2010 are suitable for use with this seat.

VERSATETHER™ compatible child harnesses are suitable with this child restraint and are sold separately. Refer to the Harness instructions for full details of using and installing the Child Harness. When installing the harness, connect its attachment clip to the VERSATETHER™ Catch on the Booster Seat's upper tether strap (as shown in pages 42-43).

Use the extension strap (supplied with the Protecta Plus™) for all other instances to attach the harness to

anchor points in the luggage area such as the vehicle oor or ceiling.

This Booster Seat is not suitable for child harnesses that are not VERSATETHER™compatible.

Typically, the top shoulder slot or next slot down will be used for children using the Child Harness.

HEADREST POSITION:

Before installation ensure that the headrest is set to the correct height for your child (refer to page 30). Headrest should be just above the child's shoulders. This will ensure that: The Child Harness shoulder straps must be in the slots which are nearest to the child's shoulders, but not lower than the child’s shoulders.

BOOSTER SEAT WITH LAP-SASH SEATBELT

BOOSTER SEAT WITH CHILD HARNESS

HOW TO USE HOW TO INSTALL WITH A CHILD HARNESS

HOW TO INSTALL WITH A CHILD HARNESSHOW TO INSTALL WITH A CHILD HARNESS

40 41

INSTALLING CHILD HARNESS INTO SEAT

A. If the seat is tted to the car, remove it as

it will be easier to t the child's harness.

B. Prepare the child harness by lengthening the child

harness by pressing the adjuster button (1) and pulling the shoulder strap (2).

Left hand Strap

Adjuster under cover

Attachment Clip

Cross Strap

C. Adjust headrest to the appropriate

height and lock in to position. Feed the left hand Harness Strap & Cross Strap through the appropriate right hand upper slot in the headrest and then over the top of the seat back. See page 39. (It may be easier to

t the child harness if the headrest

is fully raised but remember to reposition the headrest so it is just above the child's shoulders.)

D. Pull the left hand Harness Strap &

Cross Strap through the opposite shoulder slot. Make sure that the Anchor Clip also feeds through to the back of the restraint. Hook the Attachment Clip onto the Harness VERSATETHER™ Catch and ensure that the straps line up to an equal length.

Hook the Attachment Clip onto VERSATETHER™Catch.

Pull left hand Harness Strap through the opposite slot until the straps are of equal length.

Feed left hand Harness Strap and Cross Strap through right hand slot and over the top of the seat.

BOOSTER SEAT WITH CHILD HARNESSBOOSTER SEAT WITH CHILD HARNESS

HOW TO INSTALL WITH A CHILD HARNESSHOW TO INSTALL WITH A CHILD HARNESS

Installing into vehicle without extension strap

Hook the Child Harness attachment clip (1) onto VERSATETHER™ Catch (2). Then hook attachment clip (3)

onto anchor tting. Ensure that none of the straps are twisted and not passing over any sharp edges.

1. Attachment Clip from Child Harness.

2. VERSATETHER™ Catch.

3. Booster seat Attachment Clip.

4. Anchor Fitting in the car.

Child Harness Attachment Clip attaches to the VERSATETHER™ Catch

42 43

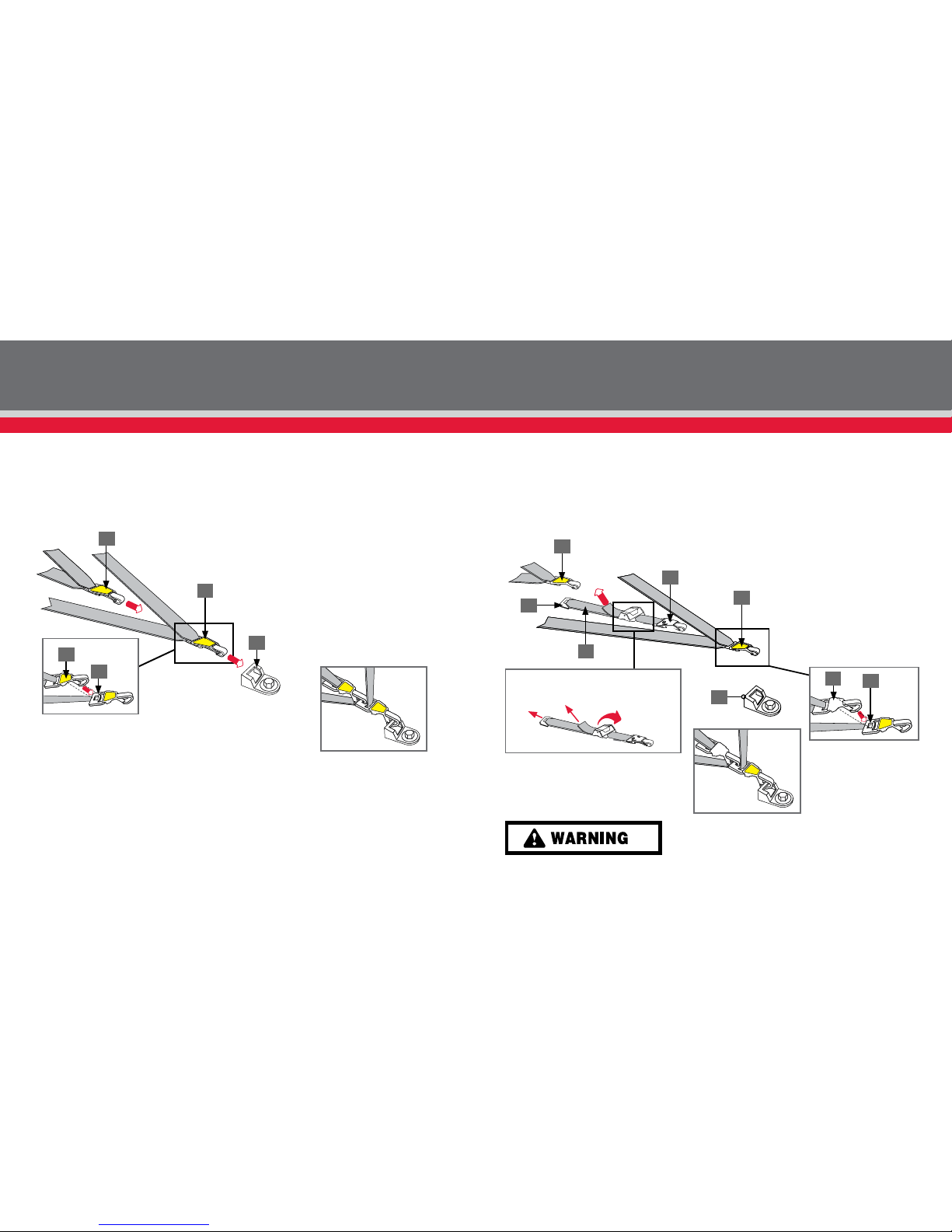

Installing into vehicle with an extension strap

Hook the Harness clip rst onto the extension strap catch, then hook the extension strap hook onto the

VERSATETHER™ Catch on the Booster Seat’s upper anchorage strap as shown below. Ensure that none of the straps are twisted or catching on sharp edges. Tighten the Booster Seat’s upper anchorage strap (refer to page 34) then remove excess slack from the extension strap (5) by pulling the adjuster strap as illustrated below.

Always attach the hook and remove the slack.

Pull to remove

slack

Attachment Clip attaches to the VERSATETHER™ Catch

1. Attachment clip from the Child Harness

2. VERSATETHER™ Catch

3. Booster Seat Attachment Clip

4. Anchor Fitting in the Car

5. Adjustable Extension Strap

6. Extension Strap Catch

7. Extension Strap Attachment Clip

Pull to remove slack

Rotate the Adjuster to lengthen

Pull to lengthen

To lengthen the Adjustable Extension strap, rotate the adjuster and pull the main strap.

BOOSTER SEAT WITH CHILD HARNESS

HOW TO INSTALL WITH A CHILD HARNESS

CHOOSING METHOD OF INSTALLATION

The Child Harness can be installed using either of the following methods.

METHOD 1 : Using a lap sash seat belt in conjunction with Gated 3-bar Slide (provided with the Child Harness) to convert to lap belt plus upper anchorage strap.

METHOD 2 : Using lap seat belt plus upper anchorage strap. Before installing the Child Harness determine which method of installation is required and follow instructions carefully.

When using the Child Harness, ensure the 'in-built ' shoulder harness is stored and set up the Lap Belt Positioning Clip - Refer to pages 29-32.

If required to be in recline position, recline foot rearwards.

METHOD 1: USING LAP-SASH SEAT BELT WITH CHILD HARNESS. (Using Gated Slide provided with Child Harness).

Refer to Child Harness instruction to t gated slide.

Adjust the headrest to align with the top shoulder slots of the restraint. Fit the Child Harness as shown above. Then connect the cross strap as shown below. Thread the converted lap-sash seat belt through the harness strap loops as shown right.

METHOD 2: USING LAP SEAT BELT WITH CHILD HARNESS.

Adjust the headrest to align with the top shoulder slots of the restraint. Fit the Child Harness as shown above. Then connect the cross strap as shown below. Thread the lap seat belt through the harness strap loops as shown right.

BOOSTER SEAT WITH CHILD HARNESSBOOSTER SEAT WITH CHILD HARNESS

Harness strap loops

Fit Gated Slide here

Converted lap-sash seat belt

Harness strap loops

UPRIGHT

Recline Foot position for upright installation.

RECLINED

Recline Foot position for reclined installation.

NOTE: THIS BOOSTER SEAT MAY ONLY BE SUITABLE FOR USE WITH A CHILD HARNESS IN THE UPRIGHT POSITION. IN THE RECLINE POSITION, THE CAR’S SEATBELT MAY NOT BE LONG ENOUGH.

Note: Some vehicle seat belts are too short and you may experience some difculty tting the converted lap-

sash around your child. If so, adjust the gated slide nearer to your child, ideally under the armrest and lap belt

recess area, (ensure the slide does not touch your child). This should provide more belt length to t your child, but if the belt still will not t, try another location in the vehicle, e.g. side seat. If the vehicle belts are still too

short, then contact the vehicle manufacturer for advice on longer seat belts.

B. The two straps should slide freely in the Gated Slide slot.

C. Repeat previous step A for the

other slot in the Gated Slide.

Hollow side towards child.

D. Feed the straps through the Gated Slide to remove

any slack. This has now converted the lap-sash seat belt so it will act like a lap only seat belt.

TO ENSURE CORRECT CONVERSION OF LAP-SASH SEAT BELT TO LAP SEAT BELT FOLLOW THESE STEPS.

IMPORTANT:

The Gated Slide must be removed from the seat belt if the booster seat and child harness are no longer used in the car so that other users can use the seat belt as a lap sash seat belt.

A seat belt extender should not be used if the seat belt is not long enough to secure the child. If a seat belt extender is used then the buckle must not be in contact with the child.

Strap portion

Lap portion

Loop on top

Hollow side

towards the child

Always ensure the Hollow

side is towards child

Curved

Flat

FITTING THE GATED SLIDE TO THE LAP-SASH SEAT BELT

There may be one of two types of Gated Slides available as shown right provided with the Child Harness. Only use the Gated Slide provided with the Child Harness. If cur ved Gated Slide, then the belt route through this can only go one way as shown.

Before using the Protecta PLUS™ Harness with a Lap-Sash Seat Belt, you need to convert the seat belt to a Lap Seat Belt by using the Gated Slide provided.

IMPORTANT: Face the hollow side of the Gated Slide towards the child. Do not use Gated Slide for any other purpose.

Faces towards child.

Outer strap.

Inner strap.

A. Hold the lap and sash straps together and fold as shown

right. Slide the inner strap into the Gated Slide followed by the outer strap.

HOW TO INSTALL WITH A CHILD HARNESSHOW TO INSTALL WITH A CHILD HARNESS

46 47

BOOSTER SEAT WITH CHILD HARNESSBOOSTER SEAT WITH CHILD HARNESS

HOW TO INSTALL WITH A CHILD HARNESSHOW TO INSTALL WITH A CHILD HARNESS

48 49

A. With the child seated, place each of the harness

straps over each shoulder.

B. Feed the Right hand strap (loop end) into the

cross strap loop to connect the two sides.

These instructions apply to tting with a lap only

seatbelt or a converted lap-sash seatbelt. Connect the Child Harness to the VERSATETHER™ Catch as detailed on pages 42 and 43.

HARNESSING THE CHILD INTO THE BOOSTER SEAT

1. Attachment Clip

2. Left Hand Harness Strap

3. Right Hand Harness Strap

4. Storage strap

5. Cover Pad (Not shown)

6. Right Hand Harness Strap Loop

7. Cross Strap Loop

8. Cross Strap

Pull to remove slack

C. Feed the adult belt (lap belt or converted lap/sash) through the harness loops, ensuring that the cross

strap loop does not disconnect. Also ensure there are no twists in the harness, cross strap and seat belt.

Thread the converted lap-sash seat belt or lap seat belt through the harness strap loops as shown.

Harness

Strap loops.

Lap belt.

Converted lap-sash seat belt.

BOOSTER SEAT WITH CHILD HARNESSBOOSTER SEAT WITH CHILD HARNESS

HOW TO INSTALL WITH A CHILD HARNESS

IMPORTANT: ALWAYS USE THE LAP BELT POSITIONING CLIP

Fit the Lap Belt Positioning Clip to the lap belt, centrally between the shoulder straps of the harness loops, ensuring that the Red button of the crotch buckle is facing forward.

Remove Lap Belt Positioning Converter from recess area and engage into harness buckle.

Click

HOW TO INSTALL WITH A CHILD HARNESS

D. Engage the seat belt tongue to the

buckle and adjust the seat belt to

sit rmly around the child’s hips and

thighs. The seat belt buckle should be located as low as possible below the child’s hip. If using a lap-sash seatbelt and Gated Slide you will need to

adjust it so that the seatbelt is rm

on the child’s thighs and the Gated Slide is close to the Child but not touching the child.

The Gated Slide needs to be close to the child but not touching the child. The Gated Slide needs to be under the armrest.

E. Remove Lap Belt Positioning Clip converter from recess area (refer to page 30), then engage into harness

buckle before placing the child into the seat.

CAUTION:

The lap portion of the belt must be adjusted rmly rst, and then the harness, so that the belt is not lifted

off the child's lap when the harness is adjusted.

G. Finally, roll up the free end of the adjuster strap,

secure using the storage strap, then place it into the top of the adjuster cover as shown right.

NOTE: The shoulder straps must be in the slots which are nearest to the child’s shoulders but no lower than the child’s shoulders. This is achieved with the headrest slightly above the child’s shoulders.

F. With the lap belt (or converted lap/sash) adjusted to be a

rm t on the child's thighs, then adjust the Child Harness

to remove slack in the shoulder straps. Pull the Adjuster Strap (3) to remove slack.

Once adjusted, further adjustments are necessary only

to the upper extension straps and to accommodate the growth of the child.

Press (1) and pull the shoulder strap (2) to lengthen.

Fully press adjuster button (1) while pulling the Upper Anchorage Strap (2) to lengthen.

Adjuster

Pull Adjuster strap to remove slack

BOOSTER SEAT WITH CHILD HARNESSBOOSTER SEAT WITH CHILD HARNESS

Fold the adjuster strap and secure with Storage strap.

Adjuster Cover

Storage Strap

Cross Strap

HOW TO INSTALL WITH A CHILD HARNESS HOW TO INSTALL WITH A CHILD HARNESS

H. Disengage seat belt tongue and buckle,

remove the lap portion of seat belt from the Lap Belt Positioning Clip and remove the Child Harness and seatbelt from child.

NOTE: It maybe easier to unthread the

car's seat belt out of the loops before lifting the child harness over the child’s head.

TO REMOVE CHILD FROM HARNESS AND SEAT

NOTE: For larger children; Do not pass the child

harness over the headrest as this can damage the headrest parts.

Note: Cease using this child restraint when the child’s shoulders reach the Upper Shoulder Height Marker with the headrest in the top position.

A. Pull the seat belt out of harness strap loops.

B. Disconnect the Child Harness attachment clip from the

VERSATETHER™ Catch and feed the left hand Harness Strap

out the shoulder slot. Pull the right hand harness Strap to remove the harness off the seat. (Store the Protecta PLUS™ Child Harness in a safe place for later use.)

C. Remove the in-built harness from the storage recess

under the cover. Feed crotch strap and harness adjuster strap out of the seat cover.

Remove the Lap Belt Positioning Converter from the buckle

and store above the adjuster at the front of the seat and under the cover.

D. Feed shoulder straps through appropriate shoulder slots

in the headrest and seat back and re-engage the 3-Bar slide to 2-Bar slide. Pull on straps to ensure the slides are locked into position. See pages 13 to 25 for instructions on adjusting the headrest, harness strap, crotch strap and reinstalling and using the seat with the in-built harness.

RESTORING THE RESTRAINT FOR TODDLER USE

52 53

IMPORTANT:

When child harness is no longer being used, disconnect the gated slide so that the seat belt can be correctly used as a lap-sash seat belt for other users.

BOOSTER SEAT WITH CHILD HARNESSBOOSTER SEAT WITH CHILD HARNESS

Lift child harness strap over child’s head.

1. Attachment Clip

from Child Harness.

2. VERSATETHER™ Catch on Booster Seat.

Turn and pull 3-Bar slide through 2-Bar slide

2-Bar Slide

3-Bar slide

Pull on strap to lock in position

TO REMOVE CHILD FROM THE VEHICLE

Disengage the seatbelt from the Child Harness, then unhook the Attachment Clip from the car and remove the seat. The Child Harness can be unthreaded from the shoulder strap slots.

Click

CARE & MAINTENANCE

HOW TO CLEAN

A. Disengage Harness Tongues from Harness

Crotch Buckle. Remove the cable for the

speaker if tted to the cover.

B. Feed the Shoulder & Lap Harness Straps

through the slots in the restraint and headrest.

C. Peel headrest cover away from shell. D. Feed Crotch Buckle & harness adjustment strap

through slot in cover.

E. Peel cover away from outer rim starting at

from under restraint. Then lay restraint on its back ensuring recline foot is in upright mode & stretch bottom elastic over recline foot towards the back of the restraint.

F. Reposition restraint upright and continue to

peel cover off the restraint until completely removed.

Cover

Body

3- bar slide

REGULAR CARE OF THIS RESTRAINT:

Please check the following items regularly to ensure the safety of your child:

A. Check the webbing for fraying. B. Check that the buckle clicks and is not sluggish or sticky in operation. C. Ensure there are no cracks in moulding or the plastic moulding. D. Check the harness adjuster is operating and is clamping the webbing. E. If any part of the restraint is cracked or broken, seek repair immediately

or replace the child restraint.

F. Use only mild soap and water to clean all metal and plastic parts of the

restraint. Do not use chemicals or cleaning agents.

TO CLEAN HARNESS BUCKLE:

If sticky liquids such as baby formula, fruit juice, etc. get inside your Harness Buckle, it may become sluggish. An indication of a sluggish Harness Buckle is that you cannot hear a click when engaging the Harness Tongues. To restore the Harness Buckle to good working order it needs to be cleaned as follows:

A. From the underside of the restraint pull each crotch 3-bar slide then turn

3-bar slide and push through each slot to remove the Harness Buckle from the restraint.

B. Place the Harness Buckle under warm (max. 40 degrees Celsius) running

water as shown below. Let the water run through the mouth of the

buckle for ve minutes.

C. Engage and disengage the Harness Tongues and Buckles several times

until a strong audible click is heard.

D. If you still cannot hear a strong audible click after engaging the Harness

Tongues & Buckle, then repeat cleaning several times. If the Harness Buckle cannot be returned to its original working condition then contact Next Generation Nursery Products Pty. Ltd. Customer Service.

E. Ret the harness buckle to the restraint with the red button facing out &

feeding each 3-bar slide through appropriate slot.

HOW TO CLEAN THE COVER

The restraint has a ame retardant cover which is removable for cleaning. Cleaning instructions are on the

care label attached to the cover. When washing cover engage hook & loop strips together to eliminate other garments being caught. Use only mild soap and water to clean all metal and plastic parts of the restraint. Do not use chemicals or cleaning agents.

COVER (STYLE MAY VARY)

The cover has been designed to protect your child when seated in the restraint. Care should be taken if children either eat or drink while in the restraint as some food or drink products may cause damage or marking to the cover.

IMPORTANT: Do not pull sticky items from covers as the cover may be damaged - soak in water and gently remove.

TO REMOVE COVER

You do not have to remove the shoulder harness assembly from the restraint. However, you do need to disconnect the shoulder harness straps by disconnecting the 3-Bar slide from 2-Bar slide at the base of the restraint (opposite action of illustrations on Page 16).

The following instructions apply to accessories that may be supplied with this restraint at point of purchase. If not, a variety of accessories are available from various retailers of Next Generation Nursery Products Pty Ltd. In the case of a small baby, accessories are available to improve the installed position of the baby in the restraint.

PADDED INSERT (IF SUPPLIED)

The Padded Insert is designed to snugly support the baby for extra comfort. Simply place the padded insert on the restraint between Harness straps and the restraint back. Ensure padded insert is lined up with or below the shoulder straps. Discontinue use if the Insert causes discomfort.

SHOULDER PADS (IF SUPPLIED)

Shoulder Pads are designed to provide extra comfort for baby

or child and are easily tted to the shoulder harness straps by:

i. Pull apart fasteners and remove shoulder pads from harness. ii. Re-t shoulder pads to harness and attach fasteners for use.

If threads on the shoulder strap disconnect the strap as detailed on page 16 and remove one at a time.

MESSY MAT™ SEAT PROTECTOR

Place ribbed or pocket end of the Messy Mat™ seat protector

on edge of car seat, smooth back toward seat join (A) and t in

any excess Messy Mat™ into the join of the car seat (A).

NOTE: The pocket is only for small, light items. DO NOT overload the pocket with heavy, bulky items as this may damage the pocket or cause passengers to trip over them.

Padded Insert

Crotch Pad

Pocket

Messy Mat

Shoulder Pads

ACCESSORIES & FEATURES

Ribs

Pockets (if supplied)

Long Messy Mat™

Short Messy Mat™

Ribs

Pockets (if supplied)

TO REPLACE COVER

1. Fit cover over restraint starting at top ensure that both back and bottom elastics are at the back of

restraint.

2. Stretch bottom elastic over the recline foot under the restraint.

3. Align cover with the seat.

4. Fit and align headrest cover over headrest shell.

5. Feed shoulder Harness Straps through matching slots on the headrest and restraint, and re-attach to strap

connector at the back of the seat or ret the Child Harness.

6. Feed Crotch Buckle through slot in cover.

7. Feed Harness Adjustment Strap through the cover at the front.

8. Refer to appropriate sections in this book for full details. From page 13 for in-built harness or from page 44

for a Child Harness.

9. Feed the cable for the speakers (if supplied) as shown on page 58.

HOW TO CLEAN

IMPORTANT: ONLY USE SEAT COVERS AND ACCESSORIES THAT ARE DESIGNED

AND TESTED FOR USE WITH THIS PRODUCT AND RECOMMENDED BY NEXT GENERATION NURSERY PRODUCTS PTY. LTD.

STEREO SPEAKERS (IF SUPPLIED)

Speakers have been supplied to provide enjoyment for your child. The speakers compatible with MP3 players (not included) are recommended for use with these speakers that accept the stereo plug provided. Recommended storage locations for the

music player are in the trim side pocket. The cable is tted to

the headrest and the trim.

CAUTION:

Speaker cable must always be stored using the elastic loops on the side of trim and out of reach of children. The cable has potential to cause strangulation. The music player must be stored safely as any loose items have the potential to cause injury in an accident. Music player volume should be turned to low or off before connecting speaker cable. Hearing experts advise against constant use of personal stereo played at high volume. Constant high volume can lead to hearing loss. Ensure the volume adjustment does not cause discomfort to your child. The volume may be louder for your child than you think. Discontinue use if any part of the speaker, cable and/or connections are damaged in any way.

Always ret the cable as shown as long length of cable

may cause strangulation of the occupant.

Technical Details Speaker System : Stereo-32 ohm

Feed cable through loop

Feed cable through underside of trim

ACCESSORIES & FEATURES

Speakers tted to headrest

PRE-INSTALLATION ANCHOR FITTING

Consult the vehicle owner's handbook for location of anchorage ttings or anchorage points and the possible use of spacers. Some vehicles may have an anchor tting tted by the vehicle manufacturer. If anchorage points cannot be found refer to car manufacturer or local child restraint tting station or trafc authority for optimum

position of anchorage point and the use of spacers.

UPPER ANCHORAGE STRAP

IMPORTANT:

THE ATTACHMENT CLIP COVER MUST ALWAYS BE USED AS IT PREVENTS THE RISK OF INCORRECT FITMENT OF

THE ATTACHMENT CLIP TO THE ANCHOR FITTING. ALWAYS ENSURE THAT THE ATTACHMENT CLIP IS CORRECTLY

ENGAGED TO THE ANCHOR FITTING AND NOT HOOKED OR FITTED TO ANY OTHER OBJECT BEFORE EACH USE OF THE RESTRAINT. THIS IS ESPECIALLY IMPORTANT IN VEHICLES SUCH AS STATION WAGONS, VANS, HATCH BACKS OR VEHICLES WITHOUT A FIXED PARCEL SHELF, SINCE THE ANCHOR POINT IS USUALLY NOT VISIBLE.

IMPORTANT INSTALLATION NOTE:

In some vehicles the anchor tting in the rear vertical panel can only be installed in one way. Please refer to vehicle owner's handbook or a child restraint tting station for correct method.

PRE-INSTALLATION ANCHOR FITTING PRE-INSTALLATION ANCHOR FITTING

Anchorage Clip Cover

The shaded areas of this diagram illustrate the possible locations of the anchor tting. Within each shaded area is an anchor tting showing the correct way to install the tting. Ensure the anchor tting is aligned as illustrated unless stated otherwise in the vehicle owner’s handbook.

DISTANCE TO MEASURE TO THE ANCHOR POINT

Correct engagement of attachment

clip to anchor tting.

Adjustable Upper Anchorage Strap

Front of Vehicle

Extension Strap distance to be measured. Length 300mm (Use Safe-n-Sound part 0035) Length 600mm (Use Safe-n-Sound part 0036) Available from all major child restraint retailers.

IF THE CAR IS FITTED WITH CHILD RESTRAINT ANCHORAGE POINT

Locate the anchorage point behind the rear seating position. (consult the car owners handbook for the location of the anchorage point). The anchorage point should be directly behind and central to the restraint. Remove thread plug from the parcel

shelf/oor/roof, etc. and install anchor bolt and tting as shown

in Fig.1.

CAUTION: DO NOT OVERTIGHTEN ANCHOR BOLT. OVERTIGHTENING MAY FRACTURE OR BREAK BOLT. MAXIMUM

TORQUE IS 20 N.M. (14.75 ft.lb.)

Note: Minimum of ve full turns of anchor bolt is required before

tightening force is applied.

IF THE CAR IS NOT FITTED WITH CHILD RESTRAINT ANCHORAGE POINTS

For Sedans only - Drill 9mm diameter hole in the parcel shelf on

the centre line of the seating position as shown in Fig.3. Before drilling the hole, check the underside for accessibility. Install the anchor bolt as shown in Fig.2.

For vehicles other than Sedans - In Australia, consult your

nearest child restraint tting station or trafc authority for vehicle inspection to nd the best, correct position for

the placement of the anchorage point, and for the correct attachment bolt length and use of spacers. In New Zealand, consult the agent for the vehicle.

Note to Queensland purchasers: The installation of anchorage

points must be approved by authorised ofcers appointed by Queensland Transport. Authorised ofcers can be sourced from

all Queensland Transport Customer Service and Queensland Ambulance Service Centres.

UPPER ANCHORAGE FITTING

Attachment Bolt Lock washer

Anchor tting

Spacer(s) if required

Vehicle metal

structure

Vehicle

trim

Attachment Bolt

Anchor tting

Spacer(s) if required

Vehicle metal

structure

Reinforcing washer (cone downwards)

Lock washer

Secure nut

UPPER ANCHORAGE FITTINGS FOR SEDANS ONLY

Vehicle

trim

Fig.1.

Fig.2.

Front of Vehicle

6160

PRE-INSTALLATION ANCHOR FITTING

PRECAUTIONS

CHILD RESTRAINTS MUST NOT BE ATTACHED TO UNSOUND METAL OR TO WOOD, OR SYNTHETIC STRUCTURES. WHEN DRILLING 9 MM HOLE DO NOT DRILL THROUGH FUEL LINES, FUEL TANKS, ELECTRICAL WIRING, OR RADIO SPEAKERS.

WEBBING STRAPS MUST BE PROTECTED FROM SHARP CORNERS AND EDGES. THE ANCHOR FITTING MUST BE USED ONLY AS DESCRIBED ABOVE. IT MUST NOT BE HOOKED ONTO ANY OTHER OBJECT.

Centre line of seating position

200mm min

Fig.3.

ONLY USE A 5/16 UNC GRADE 5 BOLT. IF THE BOLT IS NOT THE CORRECT LENGTH THE CAR MANUFACTURER’S HAND BOOK CAN

PROVIDE ADVICE ON THE CORRECT LENGTH BOLT.

Note: Marking on the top of a Grade 5 Bolt.

Front of Vehicle

CAR INSTALLATION ACCESSORIES

(Available from all major child restraint retailers)

EXTRA ANCHOR KITS: Available for using the restraint in additional cars. Re-order no: 0038

EXTENSION STRAPS: May be required for cars without a xed parcel shelf.

Re-order no: 0035 (length 300mm) or 0036 (length 600mm)

GATED 3-BAR SLIDE (Locking clip): For converting lap-sash seat belt to lap belt, and to obtain a

better t to the car where the tted lock-off may not be suitable. Most cars will not need this,

Re-order no: 0215.

Precautions to prevent reducing the safety

offered by this child restraint.

With In-built Harness

1. Ensure seatbelt is tted rmly to the seat.

2. Ensure upper anchorage strap is attached to the car's anchor tting and slack is removed.

3. Ensure the in-built harness is rmly tted to the child. A loose harness is dangerous.

As a Booster Seat

1. Ensure the seatbelt is used and tted correctly. The lap belt must be on thighs and not the abdomen and the

sash belt must always be across the chest and over the shoulder.

2. Always thread the sash belt through sash guide.

3. Always use the Lap Belt Positioning Clip.

4. Ensure the child does not slouch or slump where the sash belt is across the abdomen. This is dangerous.

5. Do not place the seatbelt behind the back or under the arm. It is dangerous.

6. Do not use the seat belt in any other way other than following the red

BOOSTER SEATBELT PATH seat belt

path labels.

7. Ensure that if you are using a child safety harness that the lap belt is rm on the child’s thighs and not on

the abdomen. Do not tighten the Child Harness tether strap, just remove slack.

8. Ensure you advise the child not to undo the seat belt buckle unless told to do so.

9. Always use the Sash Guide set at the correct height to guide the sash across the chest and over the

shoulder.

NOTES

IN CASE OF A CRASH

If your restraint has been involved in a severe crash, you should destroy the restraint even if no damage is obvious. Some insurance companies offer vehicle insurance which covers or partially covers the replacement of your child restraint. Contact your insurance company for further details.

Your insurance company may require you to keep the child restraint for assessment, but do not use the child

restraint after a severe crash.

NOTES

Customer Service:

P/No. 2200587/A

We reserve the right to alter this product without notice in our constant endeavor for improvement.

©2007-2011 Next Generation Nursery Products Pty. Ltd. Cargo and Hipod Trademarks are the property of Next Generation Nursery Products Pty. Ltd. Babylove and EzyGo trademarks are the property of Nursery Elegance Pty Ltd.

Safe-n-Sound, Protecta Plus, Messy Mat and VERSATETHER trademarks are the property of

Britax Childcare Pty Ltd. VERSATETHER is used by permission of Britax Childcare Pty Ltd. This product is covered by Australian and Overseas patents and applications. Patents Pending.

Next generation 10/D/2010 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
