Console (CCE) Series
Table of Contents
Water-Loop Heat Pump Applications 14
Water Quality Standards
Thermostat Wiring
Warranties
Unit Revision: A & B
Tranquility Console
(TRC) Series
TM
Commercial Console
Water-Source Heat Pumps
50Hz & 60Hz
Installation, Operation &
Maintenance Instructions
97B0035N01
Revision: 30 June, 2008B
Page 2
Page 3
THE SMART SOLUTION FOR ENERGY EFFICIENCY
T R C AA0 9 CG S S C S R S
94 5 6
7
8101112131415
TRC = Console
Power Termination
Revision Level
Voltage
Controls
Cabinet Construction
D = Bottom Return w/Locking Control Door
Subbase
A = Copper Water Coil w/E-Coated Air Coil
Heat Exchanger Options
C = Copper Water Coil
J = Cupro-Nickel Water Coil w/E-Coated Air Coil
N = Cupro-Nickel Water Coil
R = Right Piping
Piping Connections
L = Left Piping
Standard
B = Front Return
M = Bottom Return
S = 5” Subbase
H = 5” Subbase w/Motorized Damper
N = None
V = Copper Water Coil w/E-Coated Air Coil & Extended Range Insulation
E = Copper Water Coil w/Extended Range Insulation
M = Cupro-nickel Water Coil w/E-Coated Air Coil & Extended Range Insulation
F = Cupro-nickel Water Coil w/Extended Range Insulation
1 2 3
S = Standard
None S F M
Motorized Water Valve AG N
Autoflow (2.25 Gpm/Ton) BH P
Autoflow (3.0 Gpm/Ton) C J Q
Motorized Water Valve & A fr (2.25) DK R
Motorized Water Valve & A fr (3.0) EL T
Secondary Circulation PumpUV W
Water Circuit Options
E = Front Return w/Locking Control Door
C = No Cabinet Chassis Only
09, 12, 15, 18
A = Current Revision
Model Type
Unit Size
A = Field Connected (Hard Wire)
Sweat FPT MPT
B = Size 09 (115V) & Size 18 (265V)
L = Bottom Return w/Locking Control Door
F = Front Return
S = Bottom Return
G = Front Return w/Locking Control Door
N = No Cabinet Chassis Only
With UltraQuiet Without UltraQuiet
A = MCO Unit Mounted Tstat w/CXM
B = MCO Unit Mounted Tstat w/DXM
C = ACO Unit Mounted Tstat w/CXM
D = ACO Unit Mounted Tstat w/DXM
R = Remote Mounted Tstat w/CXM
S = Remote Mounted Tstat w/DXM
L = Remote Mounted w/CXM & LON
M = Remote Mounted w/DXM & LON
N = Remote Mounted w/CXM & MPC
P = Remote Mounted w/DXM & MPC
G = 208-230/60/1
B = 20Amp Plug & Cord
D = Disconnect Switch & 15Amp Fuse
F = Disconnect Switch (Non Fused)
H = 20Amp Plug, Cord, Receptacle,
Disconnect Switch & 15Amp Fuse
K = 20Amp Plug, Cord, Receptacle &
Disconnect Switch (Non Fused)
A = 115/60/1
E = 265/60/1
Rev.: 11 June, 2008B
Consoles
Rev.: 30 June, 2008B
Model Nomenclature: Console (CCE) Series
www.climatemaster.com
3
Page 4
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
T R C AA0 9 CG S S C S R S
94 5 6
7
8101112131415
TRC = Console
Power Termination
Revision Level
Voltage
Controls
Cabinet Construction
D = Bottom Return w/Locking Control Door
Subbase
A = Copper Water Coil w/E-Coated Air Coil
Heat Exchanger Options
C = Copper Water Coil
J = Cupro-Nickel Water Coil w/E-Coated Air Coil
N = Cupro-Nickel Water Coil
R = Right Piping
Piping Connections
L = Left Piping
Standard
B = Front Return
M = Bottom Return
S = 5” Subbase
H = 5” Subbase w/Motorized Damper
N = None
V = Copper Water Coil w/E-Coated Air Coil & Extended Range Insulation
E = Copper Water Coil w/Extended Range Insulation
M = Cupro-nickel Water Coil w/E-Coated Air Coil & Extended Range Insulation
F = Cupro-nickel Water Coil w/Extended Range Insulation
1 2 3
S = Standard
None S F M
Motorized Water Valve AG N
Autoflow (2.25 Gpm/Ton) BH P
Autoflow (3.0 Gpm/Ton) C J Q
Motorized Water Valve & Afr (2.25) DK R
Motorized Water Valve & Afr (3.0) EL T
Secondary Circulation PumpUV W
Water Circuit Options
E = Front Return w/Locking Control Door
C = No Cabinet Chassis Only
09, 12, 15, 18
A = Current Revision
Model Type
Unit Size
A = Field Connected (Hard Wire)
Sweat FPT MPT
B = Size 09 (115V) & Size 18 (265V)
L = Bottom Return w/Locking Control Door
F = Front Return
S = Bottom Return
G = Front Return w/Locking Control Door
N = No Cabinet Chassis Only
With UltraQuiet Without UltraQuiet
A = MCO Unit Mounted Tstat w/CXM
B = MCO Unit Mounted Tstat w/DXM
C = ACO Unit Mounted Tstat w/CXM
D = ACO Unit Mounted Tstat w/DXM
R = Remote Mounted Tstat w/CXM
S = Remote Mounted Tstat w/DXM
L = Remote Mounted w/CXM & LON
M = Remote Mounted w/DXM & LON
N = Remote Mounted w/CXM & MPC
P = Remote Mounted w/DXM & MPC
G = 208-230/60/1
B = 20Amp Plug & Cord
D = Disconnect Switch & 15Amp Fuse
F = Disconnect Switch (Non Fused)
H = 20Amp Plug, Cord, Receptacle,
Disconnect Switch & 15Amp Fuse
K = 20Amp Plug, Cord, Receptacle &
Disconnect Switch (Non Fused)
A = 115/60/1
E = 265/60/1
Rev.: 11 June, 2008B
TRC FB12 EV S S E S R S
94 5 6
7
8 10 11 12 13 14 15
TRC = Tranquility Console
POWER TERMINATION & OPTIONS
REVISION LEVEL
VOLT AGE
CONTR OLS
CABINET
SUBBASE
A = Copper Water Coil w/E-Coated Air Coil
HEAT EXCHANGER OPTIONS
C = Copper Water Coil w/Non-Coated Air Coil
J = Cupro-Nickel Water Coil w/E-Coated Air Coil
N = Cupro-Nickel Water Coil w/Non-Coated Air Coil
R = Right Piping
PIPING CONNECTIONS
L = Left Piping
S = STANDARD
F = Front Return (Standard)
S = Bottom Return (Standard)
S = 5” Subbase (Black)
H = 5” Subbase w/Motorized Damper
N = None
V = Copper Water Coil w/E-Coated Air Coil & Extended R ange Insulation
E = Copper Water Coil w/Non-Coated Air Coil & Extended R ange Insulation
M = Cupro-Nickel Water Coil w/E-Coated Air Coil & Extended R ange Insulation
F = Cupro-Nickel Water Coil w/Non-Coated Air Coil & Extended Range Insulation
1 2 3
Sweat FPT MPT
None
S F M
Motorized Water Valve
A G N
AutoFlow (2.25 gpm/ton)
B H P
AutoFlow (3.0 gpm/ton)
C J Q
Motorized Water Valve & AFR (2.25)
D K R
Motorized Water Valve & AFR (3.0)
E L T
WATER CIRCUIT OPTIONS
G = Front Return w/Locking Control Door (Standard)
N = No Cabinet Chassis Only (Standard)
09
12
15
18
B = Current Revis ion
SERIES
UNIT SIZE
OPTION
A
B
D
F
H
K
DISCONNECT
SWITCH
-
X
X
X
X
FIELD
CONNECTED
(HARD WIRE)
X
-
-
-
-
-
20 Amp
PLUG &
CORD
-
X
-
X
X
15 Amp
FUSE
-
X
X
-
RECEPTACLE
-
-
-
X
X
L = Bottom Return w/Locking Control Door (Standard)
V = 220-240/50/1
E = MCO Unit Mounted Tstat w/CXM
J = MCO Unit Mounted Tstat w/DXM
F = ACO Unit Mounted Tstat w/CXM
K = ACO Unit Mounted Tstat w/DXM
Q = Remote Mounted Tstat w/CXM
G = Remote Mounted Tstat w/DXM
H = Remote Mounted LON w/CXM
V = Remote Mounted LON w/DXM
T = Remote Mounted MPC w/CXM
U = Remote Mounted MPC w/DXM
Rev.: 21 Nov, 2007J
CE Mark
Consoles
Rev.: 30 June, 2008B
Model Nomenclature: Tranquility Console (TRC) Series (60Hz)
Model Nomenclature: Tranquility Console (TRC) Series (50Hz)
4
ClimateMaster Water-Source Heating and Cooling Systems
Page 5
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B
General Information
Safety
Warnings, cautions and notices appear throughout this manual.
Read these items carefully before attempting any installation,
service or troubleshooting of the equipment.
DANGER: Indicates an immediate hazardous situation, which
if not avoided will result in death or serious injury. DANGER
labels on unit access panels must be observed.
WARNING: Indicates a potentially hazardous situation, which if
not avoided could result in death or serious injury.
WARNING!
WARNING! Verify refrigerant type before proceeding. Units
are shipped with R-22, R-407c and R-410A (EarthPure
refrigerants. The unit label will indicate which refrigerant is
provided. The EarthPure® Application and Service Manual
should be read and understood before attempting to service
refrigerant circuits with R-407c or R-410A.
®
)
WARNING!
WARNING! To avoid the release of refrigerant into the
atmosphere, the refrigerant circuit of this unit must be
serviced only by technicians who meet local, state, and
federal prociency requirements.
CAUTION: Indicates a potentially hazardous situation or an
unsafe practice, which if not avoided could result in minor or
moderate injury or product or property damage.
NOTICE: Notication of installation, operation or maintenance
information, which is important, but which is not hazardrelated.
WARNING!
WARNING! All refrigerant discharged from this unit must be
recovered WITHOUT EXCEPTION. Technicians must follow
industry accepted guidelines and all local, state, and federal
statutes for the recovery and disposal of refrigerants. If a
compressor is removed from this unit, refrigerant circuit oil will
remain in the compressor. To avoid leakage of compressor oil,
refrigerant lines of the compressor must be sealed after it is
removed.
CAUTION!
CAUTION!
these units as a source of heating or cooling during the
construction process. The mechanical components and
lters will quickly become clogged with construction dirt
and debris, which may cause system damage.
To avoid equipment damage, DO NOT use
www.climatemaster.com
5
Page 6
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B
General Information
Inspection
Upon receipt of the equipment, carefully check the
shipment against the bill of lading. Make sure all units
have been received. Inspect the packaging of each unit,
and inspect each unit for damage. Insure that the carrier
makes proper notation of any shortages or damage on all
copies of the freight bill and completes a common carrier
inspection report. Concealed damage not discovered
during unloading must be reported to the carrier within
15 days of receipt of shipment. If not led within 15 days,
the freight company can deny the claim without recourse.
Note: It is the responsibility of the purchaser to le all
necessary claims with the carrier. Notify your equipment
supplier of all damage within fteen (15) days of shipment.
Storage
Equipment should be stored in its original packaging in
a clean, dry area. Store units in an upright position at all
times. Stack units a maximum of 3 units high.
Unit Protection
Cover units on the job site with either the original
packaging or an equivalent protective covering. Cap
the open ends of pipes stored on the job site. In areas
where painting, plastering, and/or spraying has not been
completed, all due precautions must be taken to avoid
physical damage to the units and contamination by foreign
material. Physical damage and contamination may prevent
proper start-up and may result in costly equipment clean-
up.
painting, etc. is nished.
3. Verify refrigerant tubing is free of kinks or dents and
that it does not touch other unit components.
4. Inspect all electrical connections. Connections must
be clean and tight at the terminals.
5. Remove any blower support packaging.
6. Loosen compressor bolts on units equipped with
compressor spring vibration isolation until the
compressor rides freely on the springs. Remove
shipping restraints.

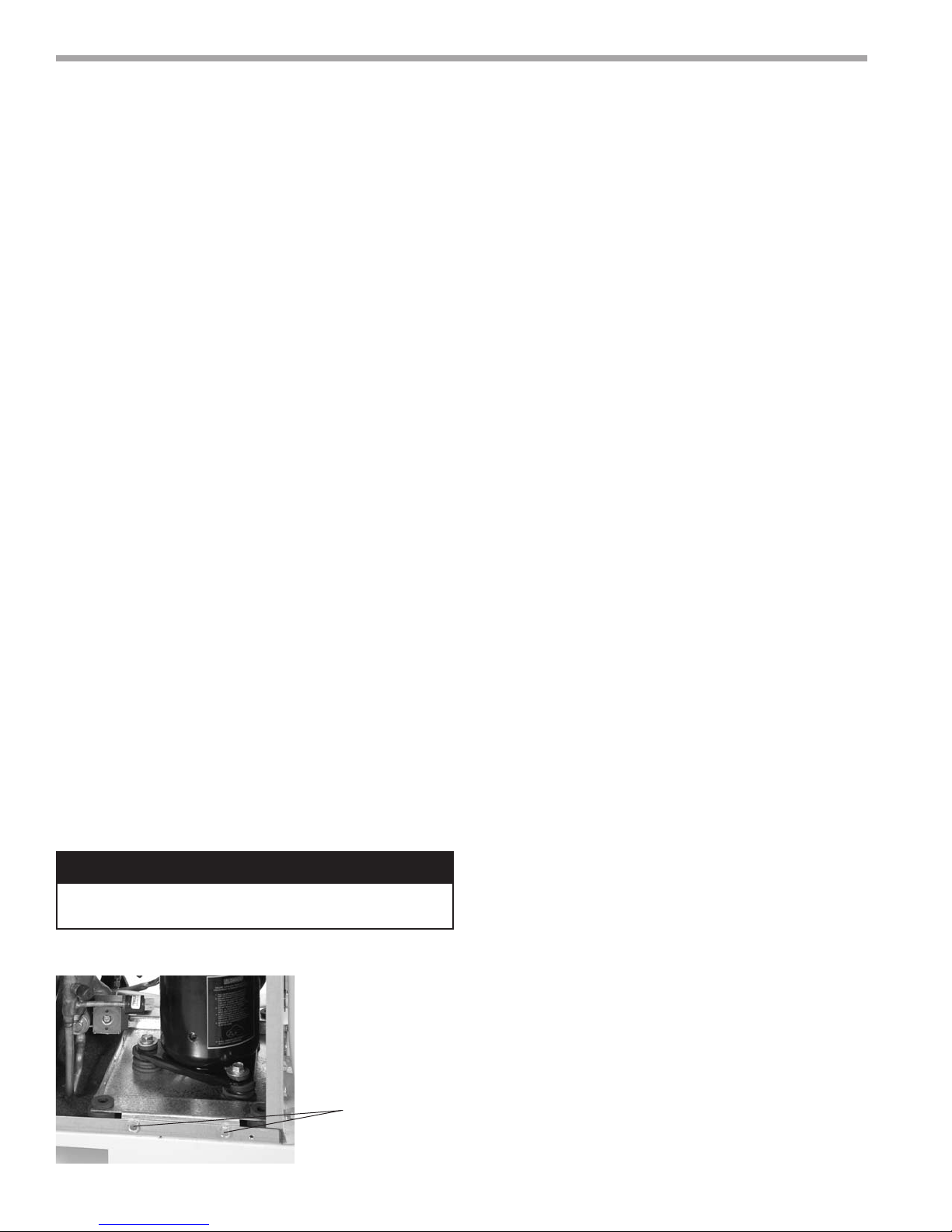

7. REMOVE COMPRESSOR SUPPORT PLATE 1/4”
SHIPPING BOLTS (2 on each side) TO MAXIMIZE
VIBRATION AND SOUND ATTENUATION.
CAUTION!
CAUTION! DO NOT store or install units in corrosive
environments or in locations subject to temperature or
humidity extremes (e.g., attics, garages, rooftops, etc.).
Corrosive conditions and high temperature or humidity can
signicantly reduce performance, reliability, and service life.
Always move and store units in an upright position. Tilting
units on their sides may cause equipment damage.
CAUTION!
CAUTION! CUT HAZARD - Failure to follow this caution
may result in personal injury. Sheet metal parts may have
sharp edges or burrs. Use care and wear appropriate
protective clothing, safety glasses and gloves when
handling parts and servicing heat pumps.
Examine all pipes, ttings, and valves before installing
any of the system components. Remove any dirt or
debris found in or on these components.
Pre-Installation
Installation, Operation, and Maintenance instructions
are provided with each unit. Horizontal equipment is
designed for installation above false ceiling or in a ceiling
plenum. Other unit congurations are typically installed
in a mechanical room. The installation site chosen
should include adequate service clearance around the
unit. Before unit start-up, read all manuals and become
familiar with the unit and its operation. Thoroughly check
the system before operation.
Prepare units for installation as follows:
1. Compare the electrical data on the unit nameplate
with ordering and shipping information to verify that
the correct unit has been shipped.
2. Keep the cabinet covered with the original packaging
until installation is complete and all plastering,
6
ClimateMaster Water-Source Heating and Cooling Systems
NOTICE! Failure to remove shipping brackets from springmounted compressors will cause excessive noise, and could
cause component failure due to added vibration.
Page 7
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Console (CCE) Series
Model 07 09 12 15 19
Compressor (1 Each) Rotary
Factory Charge R22 (oz) [kg] 16 [0.454] 16 [0.454] 21 [0.595] 27 [0.765] 24 [0.680]
PSC Fan Motor & Blower (3 Speeds)
Fan Motor (hp) [W] 1/20 [27] 1/15 [50] 1/15 [50] 1/6 [124] 1/6 [124]
Blower Wheel Size (dia x w) (in) [mm]
Water Connection Size
O.D. Sweat (in) [mm] 5/8 [15.9] 5/8 [15.9] 5/8 [15.9] 5/8 [15.9] 5/8 [15.9]
Optional IPT Fittings (in) 1/2 1/2 1/2 1/2 1/2
Optional EPT Fittings (in) 1/2 1/2 1/2 1/2 1/2
Condensate Connection Size
I.D. Vinyl Hose (In) [mm] 5/8 [15.9] 5/8 [15.9] 5/8 [15.9] 5/8 [15.9] 5/8 [15.9]
Air Coil Size
Dimensions (h x w) - (in) [mm] 8 x 26 [20.3 x 66.0] 10 x 26 [25.4 x 66.0]
Filter Size
Bottom Return (in) [cm] 1 - 8 x 29-1/2 x 3/8 [20.3 x 74.9 x 0.95]
Front Return (In) [cm] 1 - 7 x 29-1/2 x 1/8 [17.8 x 74.9 x 0.32]
Cabinet Size
Bottom Return (Std. 3" Base)
(W x H x D) - (In) [cm]
Bottom Return (Std. 5" Base)
(W x H x D) - (In) [cm]
Bottom Return (No Subbase)
(W x H x D) - (In) [cm]
Unit Weight
Weight - Operating, (lbs) [kg] 173 [78.5] 177 [80.3] 187 [84.5] 193 [87.5] 198 [89.8]
Weight - Packaged, (lbs) [kg] 181 [82.1] 185 [83.9] 195 [88.5] 201 [91.2] 206 [93.4]
5-1/4 x 6-1/4
[133 x 159]
5-1/4 x 6-1/4
[133 x 159]
48 x 24 x 12 [121.9 x 61.0 x 30.5]
48 x 26 x 12 [121.9 x 66.0 x 30.5]
48 x 21 x 12 [121.9 x 53.3 x 30.5]
5-1/4 x 6-1/4
[133 x 159]
5-1/4 x 6-1/4
[133 x 159]
5-1/4 x 6-1/4
[133 x 159]
Consoles
Rev.: 30 June, 2008B
Unit Physical Data
www.climatemaster.com
7
Page 8
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B
Unit Physical Data
Tranquility Console (TRC) Series (60Hz)
Model 06 09 12 15 18
Compressor (1 Each) Rotary
Factory Charge R410A (oz) [kg] * 28 [0.794] 29 [0.822] 37 [1.049] 39 [1.105]
PSC Fan Motor & Blower (3 Speeds)
Fan Motor (hp) [W] * 1/20 [37] 1/12 [62] 1/8 [93] 1/8 [93]
Blower Wheel Size (dia x w) (in) [mm] - Qty 2
Water Connection Size
O.D. Sweat (in) [mm] * 1/2 [12.7] 3/4 [19.1]
Optional IPT Fittings (in) * 1/2 3/4
Optional EPT Fittings (in) * 1/2 3/4
Condensate Connection Size
I.D. Vinyl Hose (In) [mm] * 5/8 [15.9]
Air Coil Size
Dimensions (h x w) - (in) [mm] *
Filter Size
Bottom Return (in) [cm] * 1 - 10 x 30 x 1 [25.4 x 76.2 x 2.5]
Front Return (In) [cm] * 1 - 7 x 29.5 x 1/8 [17.8 x 74.9 x 0.32]
Cabinet Size
Bottom Return (Std. 5" Base)
(W x H x D) - (In) [cm]
Front Return (No Subbase)
(W x H x D) - (In) [cm]
Cabinet Size
Weight - Operating, (lbs) [kg] * 175 [79] 180 [82] 190 [86.2] 220 [99.8]
Weight - Packaged, (lbs) [kg] * 185 [83.9] 190 [86] 200 [90.8] 232 [105.2]
* 5.25 x 6.25 [133 x 159]
8 x 26
[20.3 x 66.0]
* 48 x 26 x 12 [121.9 x 66.0 x 30.5]
* 48 x 21 x 12 [121.9 x 53.3 x 30.5]
10 x 26 [25.4 x 66.0]
10 x 32
[25.4 x 81.2]
2 - 10 x 16 x 1
[25.4 x 40.6 x 2.5]
7 x 31.5 x 1/8
[17.8 x 80.0 x .32]
54 x 26 x 12
[137.2 x 66.0 x 30.5]
54 x 21 x 12
[137.2 x 53.3 x 30.5]
* Data not available at time of publication.
All units have rubber grommet compressor mountings, isolation plate, and TXV expansion devices.
8
ClimateMaster Water-Source Heating and Cooling Systems
Page 9
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Tranquility Console (TRC) Series (50Hz)
Model 09 12 15 18
Compressor (1 Each) Rotary
Factory Charge R410A (oz) [kg] 26 [0.737] 29 [0.822] 33 [0.936] 30 [0.850]
PSC Fan Motor & Blower (3 Speeds)
Fan Motor (hp) [W] 1/20 [37] 1/12 [62] 1/8 [93] 1/8 [93]
Blower Wheel Size (dia x w) (in) [mm] - Qty 2
Water Connection Size
O.D. Sweat (in) [mm] 1/2 [12.7] 3/4 [19.1]
Optional IPT Fittings (in) 1/2 3/4
Optional EPT Fittings (in) 1/2 3/4
Condensate Connection Size
I.D. Vinyl Hose (In) [mm] 5/8 [15.9]
Air Coil Size
Dimensions (h x w) - (in) [mm]
8 x 26
[20.3 x 66.0]
Filter Size
Bottom Return (in) [cm] 1 - 10 x 30 x 1 [25.4 x 76.2 x 2.5]
Front Return (In) [cm] 1 - 7 x 29.5 x 1/8 [17.8 x 74.9 x 0.32]
Cabinet Size
Bottom Return (Std. 5" Base)
(W x H x D) - (In) [cm]
Front Return (No Subbase)
(W x H x D) - (In) [cm]
48 x 26 x 12 [121.9 x 66.0 x 30.5]
48 x 21 x 12 [121.9 x 53.3 x 30.5]
Cabinet Size
Weight - Operating, (lbs) [kg] 175 [79] 180 [82] 190 [86.2] 220 [99.8]
Weight - Packaged, (lbs) [kg] 185 [83.9] 190 [86] 200 [90.8] 232 [105.2]
5.25 x 6.25 [133 x 159]
10 x 26 [25.4 x 66.0]
10 x 32
[25.4 x 81.2]
10 x 36 x 1
[25.4 x 91.4 x 2.5]
7 x 31.5 x 1/8
[17.8 x 80.0 x .32]
54 x 26 x 12
[137.2 x 66.0 x 30.5]
54 x 21 x 12
[137.2 x 53.3 x 30.5]
Consoles
Rev.: 30 June, 2008B
Unit Physical Data
All units have rubber grommet compressor mountings, isolation plate, and TXV expansion devices.
www.climatemaster.com
9
Page 10
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B
Installation
The installation of Console Water-Source Heat Pumps
and all associated components, parts and accessories
that make up the installation shall be in accordance with
the regulations of ALL Authorities having jurisdiction
and MUST conform to all applicable Codes. It is the
responsibility of the Installing Contractor to determine
and comply with ALL applicable Codes and Regulations.
NOTE: An Installation Checklist is provided in this
manual. Complete this checklist after all installation
procedures are completed. A periodic maintenance
checklist provided in the Maintenance section outlines
recommended maintenance schedules. A Start-Up
Inspection Log is also included at the end of this manual
to encourage thorough unit checkout at initial start-up.
These checklists are not a substitute for the detailed
information found in the Installation section of this
manual
1. Console units are typically installed along an outside
2. Unpack the Console Unit from the shipping carton.
3. Remove compressor isolation plate shipping screws
4. Using a carpenter's square and a level, ensure the
5. Select the proper fasteners to connect the backplate
.
wall of the room. Provide adequate space in front
of the unit for service and maintenance. Locate
the Console Unit so that it provides adequate air
circulation throughout the room.
Remove the front cabinet by lifting up and away from
the backplate. Protect the cabinet from damage
during installation by returning it to its original
packaging until required.
(4) as shown in Figure 1a.
unit is level. Shim the unit if necessary to assure
proper installation.
securely to the wall.
CAUTION!
Poor or inadequate installation may result in noisy unit
operation or unattractive installation.
Figure 1a: Compressor Shipping Bolts
6. Fasten the backplate onto the wall through the screw
holes located in the back ange. Secure the subbase
in place.
7. Make all necessary electrical connections as
described in the Electrical Wiring section of this
manual. Consult the wiring diagram to ensure proper
hook-up.
8. Connect the nal piping as described in the Supply
and Return Piping and Condensate Piping section
of the manual. Install shut-off valves, piping and/or
hoses and other accessories as specied.
9. Before making the nal water connections, ush
the system as described in the Start Up section
of this manual. After ushing the system, connect
piping and hoses to the proper supply, return and
condensate connections of the unit.
NOTE: When necessary, use adapters to connect hoses.
10. Install any other system components as required
following manufacturer's instructions.
11. After Start-up, reinstall the front cabinet by
carefully lowering the front cabinet over the chassis
onto the backplate.
Supply and Return Hoses
Optional pressure-rated hose assemblies are available
for use with ClimateMaster Console Units. Use the
following guidelines when installing supply and return
hose assemblies.
1. Install supply and return hoses tted with swivel-joint
ttings at one end to prevent the hose from twisting.
2. Use adapters to secure the hose assembly to the unit
and the riser.
3. Do not allow the hose to twist during installation.
Twisting may damage the hose wall or the interior
rubber compound.
4. Use pipe joint compound sparingly on the pipe
threads of the tting adapters.
5. Prevent sealant from reaching the ared surfaces of
the joint.
6. Do not use pipe joint compound when teon thread
tape is pre-applied to hose assemblies or when
ared-end connections are used.
7. Maximum torque which may be applied to brass
ttings is 30 ft-lbs [41 N-m]. When a torque wrench
is not used, tighten brass ttings nger-tight plus one
quarter turn.
8. Tighten steel ttings as necessary.
9. Shut-off/balancing valves, ow indicators, and drain
tees in the supply runout and return at each oor to
aid in loop balancing and servicing.
10
ClimateMaster Water-Source Heating and Cooling Systems
Page 11
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B
Installation
CAUTION!
Loop Fluids should be of good quality with no more than 0.50
ppm of chlorides w/copper heat exchangers (125 ppm w/
Cupro-nickel) to prevent corrosion and should also be ltered
to a maximum 800 micron [0.8mm particle size to prevent
erosion of the heat exchangers.
Condensate Piping
Unit is supplied with condensate drain hose, 5/8
inch [16mm] I.D. exible plastic nonpressure-rated,
protruding from piping side of unit. Connect this hose
to building drain. Avoid making kinks in hose to ensure
an unobstructed ow of condensate from the unit to the
drain. DO NOT twist, pull hose out, or push excess
hose into unit. If hose will not connect to your building
drain several options include, relocate end of building
drain, add to or cut hose, use hard plastic or copper
elbow ttings for tight radii (put inside hose). Keep hose
positioned within or over subbase area so hose does not
interfere with front cabinet. Cabinet should not push or
reroute hose. Clamp all joints watertight. Check for leaks.
Internally the drain hose is clamped to drain pan and
pitched correctly. Horizontal runs of condensate hose
should be pitched downward 1/4 inch minimum for every
foot [10mm per 46cm] of hose. Avoid low points because
dirt collects in these areas and may cause blockage. If
blocked the condensate level in drain pan increases.
When the level gets too high, the Console unit has sensor
switch that will shut unit off. Overow may still occur.
If the building drain connection is parallel with oor,
the height can be up to 1-1/2 inches [38mm] above
the subbase for proper pitch and correct drainage. Up
to 5 inches [127mm] above the subbase is allowable,
but drainage will be slower. When the drain connection
is 2-1/2 to 5 inches [64 to 127mm] above, the hose
inside the unit will act as a trap. Heights of more than 5
inches [127mm] above the subbase are NOT allowable
(condensate overow may occur). If the unit has a
disconnect option, drain locations are limited. See unit
conguration pages for details.
Field installation of a trap or vent is not required unless
specied by local codes. Console units are designed
in a blow-through conguration. The condensate drain
pan is located on the outlet side of the blower so that
the pressure in the drain pan is higher than atmospheric
pressures.
When drain connection is completed check for proper
drainage and leaks. Correct if necessary.
If trap is used, check and clean often. See Preventive
Maintenance Instructions.
www.climatemaster.com
11
Page 12
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Notes:

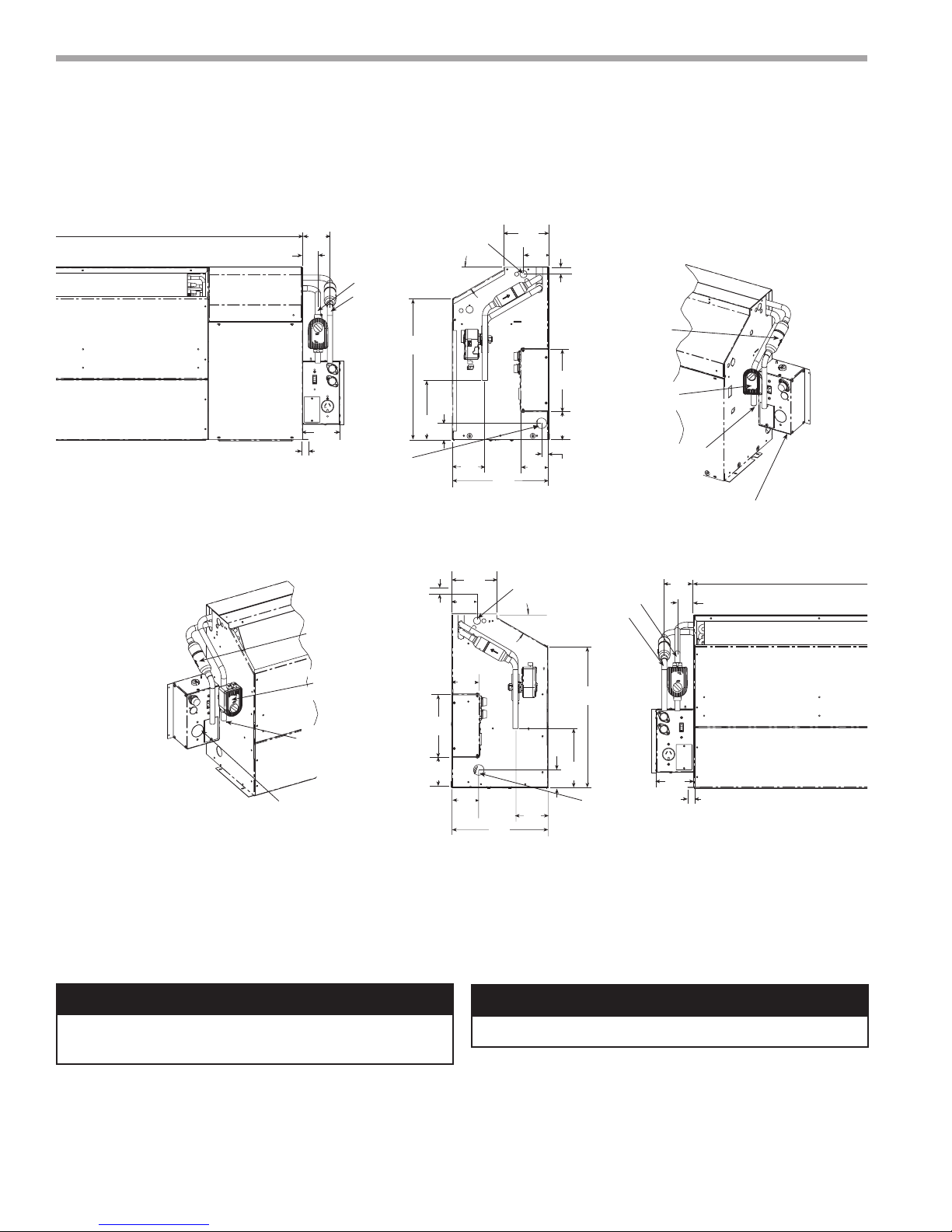

All Dimensions are in inches (mm)
* For installed dimension, add to dimension shown 2.9" [74mm] with 3" subbase and 4.9" [124mm] for 5" subbase.
Optional autoflow valve, motorized water valve and disconnect box are shown.
Water connection in same location regardless of connection type.
Rev.: 08/12/03 B
Left Hand Configuration
Power Supply
Water In
Water Out
Blower Deck
Blower Access Panel
Compressor
Access
Panel
Control Box
3.50
(89)
1.93
(49)
40.98
(1041)
4.49
(114)
0.75
(19)
3.88
(99)
11.54
(293)
3.22
(82)
*1.94
(49)
*16.66
(423)
*7.06
(179)
30ϒ
0.87
(22)
3.01
(76)
5.36
(136)
Condensate
5/8" (15.9 mm)
ID Vinyl Hose
Optional
Disconnect Box
(mounted to cabinet
not chassis)
Optional
Motorized
Water Valve
Optional
Autoflow
Valve
Water Connections
5/8" (15.9 mm)
OD Copper,
1/2" IPT or
1/2" EPT
7.5
(191)
3.42
(87)
3.56
(90)
Right Hand Configuration
Power Supply
Water In
Water Out
Compressor
Access
Panel
Control Box
7.5
(191)
0.87
(22)
0.99
(25)
3.88
(99)
11.54
(293)
3.43
(87)
*1.94
(49)
*7.06
(179)
*16.66
(423)
30ϒ
3.01
(76)
5.36
(136)
0.75
(19)
4.46
(113)
1.84
(47)
3.28
(83)
Condensate
5/8" (15.9 mm)
ID Vinyl Hose
Optional
Disconnect Box
(mounted to cabinet
not chassis)
Optional
Motorized
Water Valve
Optional
Autoflow
Valve
Water Connections
5/8" (15.9 mm)
OD Copper,
1/2" IPT or
1/2" EPT
3.56
(90)
Consoles
Rev.: 30 June, 2008B
Piping Connections
Figure 1b: Water Connection Details
CAUTION!
CAUTION! Corrosive system water requires corrosion re-
sistant ttings and hoses, and may require water treatment.
CAUTION!
CAUTION! Piping must comply with all applicable codes.
12
ClimateMaster Water-Source Heating and Cooling Systems
Page 13
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Rib Crimped
Length
(2 ft [0.6m] Length Standard)
Swivel
Brass
Fitting
Brass
Fitting
EPT
Consoles
Rev.: 30 June, 2008B
Piping Connections
Installation of Supply and Return Piping
Follow these piping guidelines.
1. Install a drain valve at the base of each supply and
return riser to facilitate system ushing.
2. Install shut-off / balancing valves and unions at each
unit to permit unit removal for servicing.
3. Place strainers at the inlet of each system
circulating pump.
4. Select the proper hose length to allow slack between
connection points. Hoses may vary in length by +2%
to -4% under pressure.
5. Refer to Table 1. Do not exceed the minimum bend
radius for the hose selected. Exceeding the minimum
bend radius may cause the hose to collapse, which
reduces water ow rate. Install an angle adapter to
avoid sharp bends in the hose when the radius falls
below the required minimum.
Insulation is not required on loop water piping except
where the piping runs through unheated areas, outside
the building or when the loop water temperature is
below the minimum expected dew point of the pipe
ambient conditions. Insulation is required if loop water
temperature drops below the dew point (insulation is
required for ground loop applications in most climates).
Table 1: Metal Hose Minimum Bend Radii
Hose Diameter Minimum Bend Radii
1/2" [12.7mm] 2-1/2" [6.4cm]
3/4" [19.1mm] 4" [10.2cm]
1" [25.4mm] 5-1/2" [14cm]
1-1/4" [31.8mm] 6-3/4" [17.1cm]
CAUTION!
CAUTION! Do not bend or kink supply lines or hoses.
NOTICE! Do not allow hoses to rest against structural
building components. Compressor vibration may be
transmitted through the hoses to the structure, causing
unnecessary noise complaints.

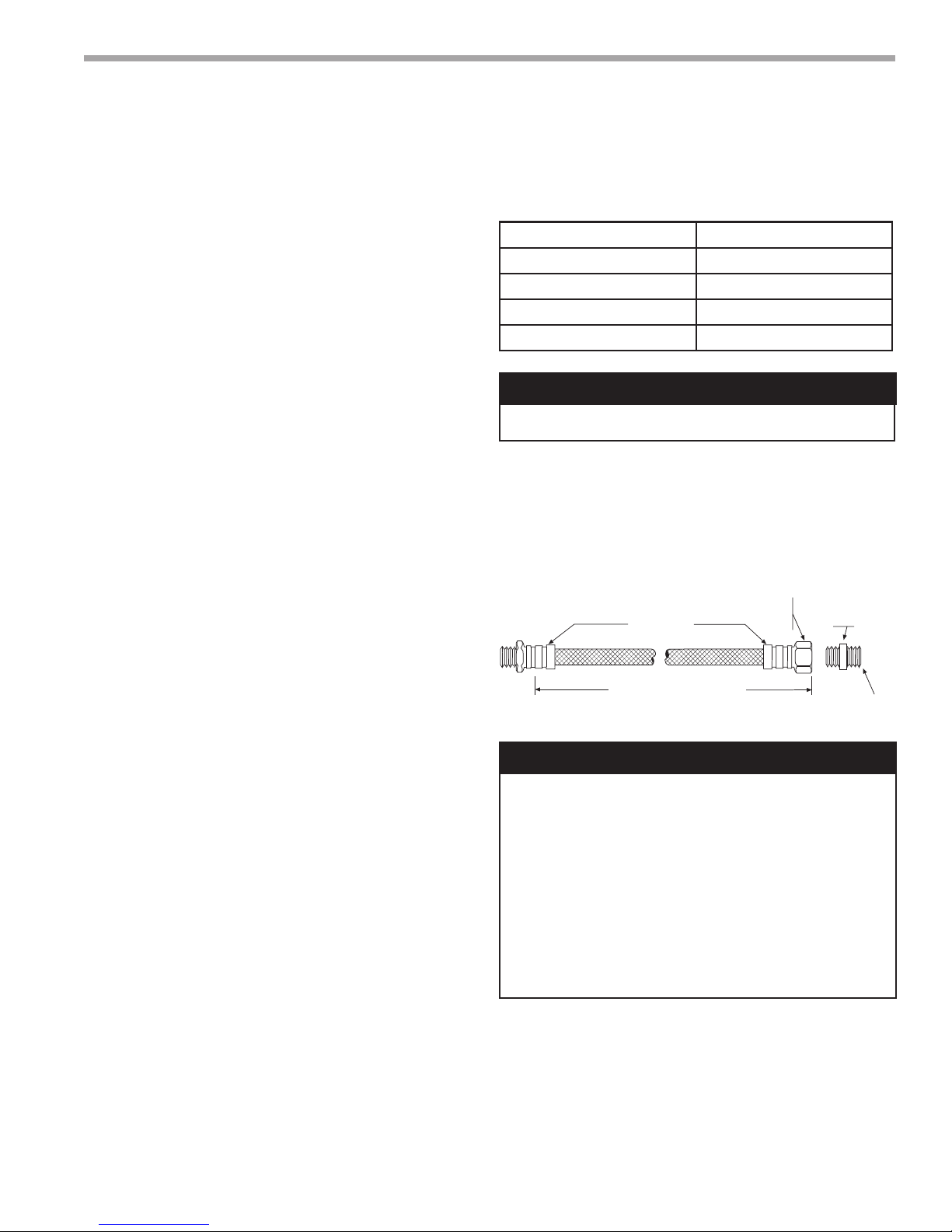

Figure 2: Supply/Return Hose Kit
Pipe joint compound is not necessary when Teon®
thread tape is pre-applied to hose assemblies or when
ared-end connections are used. If pipe joint compound
is preferred, use compound only in small amounts on
the external pipe threads of the tting adapters. Prevent
sealant from reaching the ared surfaces of the joint.
Note: When anti-freeze is used in the loop, insure
that it is compatible with the Teon tape or pipe joint
compound that is applied.
Maximum allowable torque for brass ttings is 30 ft-lbs
[41 N-m]. If a torque wrench is not available, tighten
nger-tight plus one quarter turn. Tighten steel ttings
as necessary.
Optional pressure-rated hose assemblies designed
specically for use with ClimateMaster units are available.
Similar hoses can be obtained from alternate suppliers.
Supply and return hoses are tted with swivel-joint
ttings at one end to prevent kinking during installation.
Refer to Figure 2 for an illustration of a typical supply/
return hose kit. Adapters secure hose assemblies to
the unit and risers. Install hose assemblies properly and
check regularly to avoid system failure and reduced
service life.
www.climatemaster.com
CAUTION!
CAUTION! Many units installed with a factory or eld
supplied manual or electric shut-off valve. DAMAGE WILL
OCCUR if shut-off valve is closed during unit operation. A
high pressure switch must be installed on the heat pump side
of any eld provided shut-off valves and connected to the
heat pump controls in series with the built-in refrigerant circuit
high pressure switch to disable compressor operation if water
pressure exceeds pressure switch setting. The eld installed
high pressure switch shall have a cut-out pressure of 300
psig and a cut-in pressure of 250 psig. This pressure switch
can be ordered from ClimateMaster with a 1/4” internal are
connection as part number 39B0005N02.
13
Page 14
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B
Water-Loop Heat Pump Applications
Commercial Water Loop Applications
Commercial systems typically include a number of
units connected to a common piping system. Any unit
plumbing maintenance work can introduce air into the
piping system; therefore air elimination equipment is
a major portion of the mechanical room plumbing. In
piping systems expected to utilize water temperatures
below 50°F [10°C], 1/2” (13mm) closed cell insulation is
required on all piping surfaces to eliminate condensation
(extended range units required). Metal to plastic
threaded joints should never be used due to their
tendency to leak over time.
Teon tape thread sealant is recommended to minimize
internal fouling of the heat exchanger. Do not over
tighten connections and route piping so as not to
interfere with service or maintenance access. Hose
kits are available from ClimateMaster in different
congurations for connection between the unit and the
piping system. Depending upon selection, hose kits
may include shut off valves, P/T plugs for performance
measurement, high pressure stainless steel braided
hose, “Y” type strainer with blow down valve, and/or “J”
type swivel connection. Balancing valves and an external
low pressure drop solenoid valve for use in variable
speed pumping systems may also be included in the
hose kit.
The piping system should be ushed to remove dirt,
piping chips, and other foreign material prior to operation
(see “Piping System Cleaning and Flushing Procedures”
in this manual). The ow rate is usually set between 2.25
and 3.5 gpm per ton [2.9 and 4.5 l/m per kW] of cooling
capacity. ClimateMaster recommends 3 gpm per ton
[3.9 l/m per kW] for most applications of water loop heat
pumps. To insure proper maintenance and servicing,
P/T ports are imperative for temperature and ow
verication, as well as performance checks.
Water loop heat pump (cooling tower/boiler) systems
typically utilize a common loop, maintained between 60 90°F [16 - 32°C]. The use of a closed circuit evaporative
cooling tower with a secondary heat exchanger between
the tower and the water loop is recommended. If an
open type cooling tower is used continuously, chemical
treatment and ltering will be necessary.
Low Water Temperature Cutout Setting
CXM or DXM Control
When antifreeze is selected, the FP1 jumper (JW3) should
be clipped to select the low temperature (antifreeze 13°F
[-10.6°C]) set point and avoid nuisance faults (see “Low
Water Temperature Cutout Selection” in this manual). NOTE:
Low water temperature operation requires extended range
equipment.
Table 2: Antifreeze Percentages by Volume
Table 3. Antifreeze Percentages by Volume
Type Minimum Temperature for Freeze Protection
10°F [-12.2
Methanol 25% 21% 16% 10%
100% USP food grade Propylene Glycol 38% 30% 22% 15%
14
ClimateMaster Water-Source Heating and Cooling Systems
°C] 15°F [-9.4°C] 20°F [-6.7°C] 25°F [-3.9°C]
Page 15
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B
Ground-Loop Heat Pump Applications
CAUTION!
CAUTION! The following instructions represent industry
accepted installation practices for closed loop earth
coupled heat pump systems. Instructions are provided
to assist the contractor in installing trouble free ground
loops. These instructions are recommendations only.
State/provincial and local codes MUST be followed and
installation MUST conform to ALL applicable codes. It is the
responsibility of the installing contractor to determine and
comply with ALL applicable codes and regulations.
CAUTION!
CAUTION! Ground loop applications require extended range
equipment and optional refrigerant/water circuit insulation.
Pre-Installation
Prior to installation, locate and mark all existing
underground utilities, piping, etc. Install loops for new
construction before sidewalks, patios, driveways, and
other construction has begun. During construction,
accurately mark all ground loop piping on the plot plan
as an aid in avoiding potential future damage to the
installation.
Piping Installation
All earth loop piping materials should be limited to
polyethylene fusion only for in-ground sections of the
loop. Galvanized or steel ttings should not be used at
any time due to their tendency to corrode. All plastic to
metal threaded ttings should be avoided due to their
potential to leak in earth coupled applications. A anged
tting should be substituted. P/T plugs should be used
so that ow can be measured using the pressure drop of
the unit heat exchanger.
Earth loop temperatures can range between 25 and
110°F [-4 to 43°C]. Flow rates between 2.25 and 3 gpm
per ton [2.41 to 3.23 l/m per kW] of cooling capacity is
recommended in these applications.
Test individual horizontal loop circuits before backlling.
Test vertical U-bends and pond loop assemblies prior to
installation. Pressures of at least 100 psi [689 kPa] should
be used when testing. Do not exceed the pipe pressure
rating. Test entire system when all loops are assembled.
Flushing the Earth Loop
Upon completion of system installation and testing, ush
the system to remove all foreign objects and purge to
remove all air.
Antifreeze
In areas where minimum entering loop temperatures
drop below 40°F [5°C] or where piping will be routed
through areas subject to freezing, antifreeze is required.
Alcohols and glycols are commonly used as antifreeze;
however your local sales manager should be consulted
for the antifreeze best suited to your area. Freeze
protection should be maintained to 15°F [9°C] below
the lowest expected entering loop temperature. For
example, if 30°F [-1°C] is the minimum expected entering
loop temperature, the leaving loop temperature would be
25 to 22°F [-4 to -6°C] and freeze protection should be at
15°F [-10°C]. Calculation is as follows:
30°F - 15°F = 15°F [-1°C - 9°C = -10°C].
All alcohols should be premixed and pumped from
a reservoir outside of the building when possible or
introduced under the water level to prevent fumes.
Calculate the total volume of uid in the piping system.
Then use the percentage by volume shown in table
2 for the amount of antifreeze needed. Antifreeze
concentration should be checked from a well mixed
sample using a hydrometer to measure specic gravity.
Low Water Temperature Cutout Setting
CXM or DXM Control
When antifreeze is selected, the FP1 jumper (JW3) should
be clipped to select the low temperature (antifreeze 13°F
[-10.6°C]) set point and avoid nuisance faults (see “Low
Water Temperature Cutout Selection” in this manual). NOTE:
Low water temperature operation requires extended range
equipment.
www.climatemaster.com
15
Page 16
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B
Ground-Water Heat Pump Applications
Open Loop - Ground Water Systems
Shut off valves should be included for ease of servicing.
Boiler drains or other valves should be “tee’d” into the
lines to allow acid ushing of the heat exchanger. Shut
off valves should be positioned to allow ow through
the coax via the boiler drains without allowing ow into
the piping system. P/T plugs should be used so that
pressure drop and temperature can be measured. Piping
materials should be limited to copper or PVC SCH80.
Note: Due to the pressure and temperature extremes,
PVC SCH40 is not recommended.
Water quantity should be plentiful and of good quality.
Consult table 3 for water quality guidelines. The unit can
be ordered with either a copper or cupro-nickel water
heat exchanger. Consult Table 3 for recommendations.
Copper is recommended for closed loop systems and
open loop ground water systems that are not high
in mineral content or corrosiveness. In conditions
anticipating heavy scale formation or in brackish water,
a cupro-nickel heat exchanger is recommended. In
ground water situations where scaling could be heavy
or where biological growth such as iron bacteria will
be present, an open loop system is not recommended.
Heat exchanger coils may over time lose heat exchange
capabilities due to build up of mineral deposits. Heat
exchangers must only be serviced by a qualied
technician, as acid and special pumping equipment
is required. Desuperheater coils can likewise become
scaled and possibly plugged. In areas with extremely
hard water, the owner should be informed that the
heat exchanger may require occasional acid ushing.
In some cases, the desuperheater option should not
be recommended due to hard water conditions and
additional maintenance required.
Water Quality Standards
Table 3 should be consulted for water quality
requirements. Scaling potential should be assessed
using the pH/Calcium hardness method. If the pH
<7.5 and the calcium hardness is less than 100 ppm,
scaling potential is low. If this method yields numbers
out of range of those listed, the Ryznar Stability and
Langelier Saturation indecies should be calculated.
Use the appropriate scaling surface temperature for the
application, 150°F [66°C] for direct use (well water/open
loop) and DHW (desuperheater); 90°F [32°F] for indirect
use. A monitoring plan should be implemented in these
probable scaling situations. Other water quality issues
such as iron fouling, corrosion prevention and erosion
and clogging should be referenced in Table 3.
Expansion Tank and Pump
Use a closed, bladder-type expansion tank to minimize
mineral formation due to air exposure. The expansion
tank should be sized to provide at least one minute
continuous run time of the pump using its drawdown
capacity rating to prevent pump short cycling. Discharge
water from the unit is not contaminated in any manner
and can be disposed of in various ways, depending on
local building codes (e.g. recharge well, storm sewer,
drain eld, adjacent stream or pond, etc.). Most local
codes forbid the use of sanitary sewer for disposal.
Consult your local building and zoning department to
assure compliance in your area.
Water Control Valve
Always maintain water pressure in the heat exchanger
by placing the water control valve(s) on the discharge
line to prevent mineral precipitation during the off-cycle.
Pilot operated slow closing valves are recommended
to reduce water hammer. If water hammer persists, a
mini-expansion tank can be mounted on the piping
to help absorb the excess hammer shock. Insure that
the total ‘VA’ draw of the valve can be supplied by the
unit transformer. For instance, a slow closing valve can
draw up to 35VA. This can overload smaller 40 or 50
VA transformers depending on the other controls in the
circuit. A typical pilot operated solenoid valve draws
approximately 15VA..
Flow Regulation
Flow regulation can be accomplished by two methods.
One method of ow regulation involves simply adjusting
the ball valve or water control valve on the discharge
line. Measure the pressure drop through the unit heat
exchanger, and determine ow rate. Since the pressure is
constantly varying, two pressure gauges may be needed.
Adjust the valve until the desired ow of 1.5 to 2 gpm per
ton [2.0 to 2.6 l/m per kW] is achieved. A second method
of ow control requires a ow control device mounted
on the outlet of the water control valve. The device is
typically a brass tting with an orice of rubber or plastic
material that is designed to allow a specied ow rate.
On occasion, ow control devices may produce velocity
noise that can be reduced by applying some back
pressure from the ball valve located on the discharge line.
Slightly closing the valve will spread the pressure drop
over both devices, lessening the velocity noise. NOTE:
When EWT is below 50°F [10°C], 2 gpm per ton (2.6
l/m per kW) is required.
16
ClimateMaster Water-Source Heating and Cooling Systems
Page 17
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B
Ground-Loop Heat Pump Applications
Water Coil Low Temperature Limit Setting
For all open loop systems the 30°F [-1.1°C] FP1 setting
(factory setting-water) should be used to avoid freeze
damage to the unit. See “Low Water Temperature Cutout
Selection” in this manual for details on the low limit
setting.
CAUTION!
CAUTION! Many units installed with a factory or eld
supplied manual or electric shut-off valve. DAMAGE WILL
OCCUR if shut-off valve is closed during unit operation. A
high pressure switch must be installed on the heat pump side
of any eld provided shut-off valves and connected to the
heat pump controls in series with the built-in refrigerant circuit
high pressure switch to disable compressor operation if water
pressure exceeds pressure switch setting. The eld installed
high pressure switch shall have a cut-out pressure of 235
psig and a cut-in pressure of 190 psig. This pressure switch
can be ordered from ClimateMaster with a 1/4” internal are
connection as part number 39B0005N01.
NOTICE! Ground-water applications for commercial
buildings with more than 2-3 units should include a plate
frame heat-exchanger to isolate the heat pumps from the
ground-water and conne heat exchanger cleanings to one
location and lessen maintenance. Direct use of ground-water
may increase the frequency of heat pump maintenance and
may shorten life expectancy.
www.climatemaster.com
17
Page 18
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Water Quality
Parameter
HX
Material
Closed
Recirculating
Open Loop and Recirculating Well
Scaling Potential - Primary Measurement
pH/Calcium Hardness
All
pH < 7.5 and Ca Hardness <100ppm
Method
Index Limits for Probable Scaling Situations -
(Operation outside these limits is not recommended)
Ryznar
All
- 6.0 - 7.5
Stability Index If >7.5 minimize steel pipe use.
Langelier
All
-
-0.5 to +0.5
Saturation Index
If <-0.5 minimize steel pipe use. Based upon 150°F [66°C] HWG and
Direct well, 85°F [29°C] Indirect Well HX
Iron Fouling
Iron Fe2+(Ferrous)
All
-
<0.2 ppm (Ferrous)
(Bacterial Iron potential)
If Fe
2+
(ferrous)>0.2 ppm with pH 6 - 8, O2<5 ppm check for iron bacteria
Iron Fouling
All
-
<0.5 ppm of Oxygen
Above this level deposition will occur.
Corrosion Prevention
pH
All
6 - 8.5
6 - 8.5
Monitor/treat as
needed
Minimize steel pipe below 7 and no open tanks with pH <8
Hydrogen Sulfide (H
2
S)
All
- <0.5 ppm
At H
2
S>0.2 ppm, avoid use of copper and copper nickel piping or HX's.
Rotten egg smell appears at 0.5 ppm level.
Copper alloy (bronze or brass) cast components are OK to <0.5 ppm.
Ammonia ion
All
-
<0.5 ppm
as hydroxide, chloride,
nitrate and sulfate
compounds
Maximum
Maximum Allowable at maximum water temperature.
Chloride Levels
50°F (10°C) 75°F (24°C) 100ϒF (38ϒC)
Copper - <20ppm NR NR
CuproNickel - <150 ppm NR NR
304 SS - <400 ppm <250 ppm <150 ppm
316 SS - <1000 ppm <550 ppm < 375 ppm
Titanium - >1000 ppm >550 ppm >375 ppm
Erosion and Clogging
Particulate Size and
Erosion
All
<10 ppm of particles
and a maximum
velocity of 6 fps [1.8 m/s].
Filtered for maximum
800 micron [800mm,
20 mesh] size.
<10 ppm (<1 ppm "sandfree" for reinjection) of particlesand a maximum
velocity of 6 fps [1.8 m/s]. Filtered for maximum 800 micron [800mm,
20 mesh] size.Any particulate that is not removed can potentially
clog components.
Notes:
Rev.: 03/28/08S
• NR - Application not recommended.
• "-" No design Maximum.
• Closed Recirculating system is identified by a
closed pressurized piping system.
• Recirculating open wells should observe the open recirculating design considerations.
Above the given limits, scaling is likely to occur. Scaling indexes should be calculated using the limits below.
Scaling indexes should be calculated at 150°F [66°C] for direct use and HWG applications,
and at 90°F [32°C] for indirect HX use. A monitoring plan should be implemented.
Consoles
Rev.: 30 June, 2008B
Water Quality Standards
Table 2: Water Quality Standards
18
ClimateMaster Water-Source Heating and Cooling Systems
Page 19
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B
Electrical - Line Voltage
WARNING!
WARNING! To avoid possible injury or death due to
electrical shock, open the power supply disconnect switch
and secure it in an open position during installation.
CAUTION!
CAUTION!
electrical wiring. Unit terminals are not designed to accept other
types of conductors.
Electrical - Line Voltage
All eld installed wiring, including electrical ground,
must comply with the National Electrical Code as well
as all applicable local codes. Refer to the unit electrical
data for fuse sizes. Consult wiring diagram for eld
connections that must be made by the installing (or
electrical) contractor.All nal electrical connections must
be made with a length of exible conduit to minimize
vibration and sound transmission to the building.
Table 4: CCE Electrical Data
Use only copper conductors for eld installed
General Line Voltage Wiring
Be sure the available power is the same voltage and
phase shown on the unit serial plate. Line and low
voltage wiring must be done in accordance with local
codes or the National Electric Code, whichever is
applicable.
Power Connection
Line voltage connection is made by connecting the
incoming line voltage wires to the “L” side of the
contactor. Consult Tables 4 through 5 for correct fuse
size.
208 Volt Operation
All commercial 208-230 Volt units are factory wired for
208 Volt operation. The transformer may be switched
to the 230V tap as illustrated on the wiring diagram by
switching the red (208V) and the orange (230V) wires at
the contactor terminal.
Model
CCE07
CCE07
CCE07
CCE09
CCE09
CCE09
CCE12
CCE12
CCE12
CCE15
CCE15
CCE19
CCE19
Voltage
Code
A 115/60/1 104-126 1 7.1 46.5 0.50 7.6 9.3 15
G 208-230/60/1 197-254 1 3.7 19.0 0.33 4.0 5.0 15
E 265/60/1 239-292 1 2.8 16.0 0.35 3.1 3.8 15
A 115/60/1 104-126 1 9.0 46.5 1.30 10.3 12.5 20
G 208-230/60/1 197-254 1 4.7 23.0 0.50 5.2 6.3 15
E 265/60/1 239-292 1 3.8 16.0 0.50 4.3 5.3 15
A 115/60/1 104-126 1 10.6 63.0 1.30 11.9 14.6 25
G 208-230/60/1 197-254 1 6.1 29.0 0.50 6.6 8.1 15
E 265/60/1 239-292 1 4.8 21.6 0.50 5.3 6.5 15
G 208-230/60/1 197-254 1 7.0 33.2 1.10 8.1 9.8 15
E 265/60/1 239-292 1 5.4 29.0 1.00 6.4 7.8 15
G 208-230/60/1 197-254 1 7.7 38.0 1.10 8.8 10.7 15
E 265/60/1 239-292 1 5.8 29.0 1.00 6.8 8.2 15
Voltage
Min/Max
Voltage
QTY RLA LRA
Compressor
Fan
Motor
FLA
Total
Unit
FLA
Min
Circuit
Amps
Max
Fuse/
HACR
www.climatemaster.com
19
Page 20
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B
Electrical - Line Voltage
Table 5a: TRC Electrical Data (60Hz)
Model
TRC06
TRC09
TRC12
TRC15
TRC18
Voltage
Code
A 115/60/1 104-126 1 8.1 46.5 0.6 8.6 10.7 15
G 208-230/60/1 197-254 1 4.5 23.0 0.4 4.9 6.0 15
E 265/60/1 239-292 1 3.1 24.0 0.4 3.5 4.3 15
A 115/60/1 104-126 1 10.6 55.8 1.0 11.6 14.3 25
G 208-230/60/1 197-254 1 5.2 24.0 0.6 5.8 7.1 15
E 265/60/1 239-292 1 4.2 25.0 0.4 4.6 5.7 15
G 208-230/60/1 197-254 1 6.1 30.0 0.8 6.9 8.4 15
E 265/60/1 239-292 1 4.7 28.5 0.6 5.3 6.5 15
G 208-230/60/1 197-254 1 6.8 38.0 0.7 7.5 9.2 15
E 265/60/1 239-292 1 6.2 29.0 0.6 6.8 8.4 15
Voltage
Min/Max
Voltage
QTY RLA LRA
Compressor
Data not available at time of publication.
Fan
Motor
FLA
Total
Unit
FLA
Table 5b: TRC Electrical Data (50Hz)
Compressor
QTY RLA LRA
Model
Voltage
code
Voltage
Min/Max
Voltage
TRC09 T 220-240/50/1 198-264 1 3.2 17 0.4 3.6 4.4 15.0
TRC12 T 220-240/50/1 198-264 1 4.0 19 0.4 4.4 5.4 15.0
TRC15 T 220-240/50/1 198-264 1 4.7 23 0.6 5.3 6.5 15.0
TRC18 T 220-240/50/1 198-264 1 5.6 25 0.6 6.2 7.6 15.0
Fan
Motor
FLA
Total
Unit
FLA
Min
Circ
Amp
Min
Circuit
Amps
Max
Fuse/
HACR
Max
Fuse/
HACR
20
ClimateMaster Water-Source Heating and Cooling Systems
Page 21
THE SMART SOLUTION FOR ENERGY EFFICIENCY

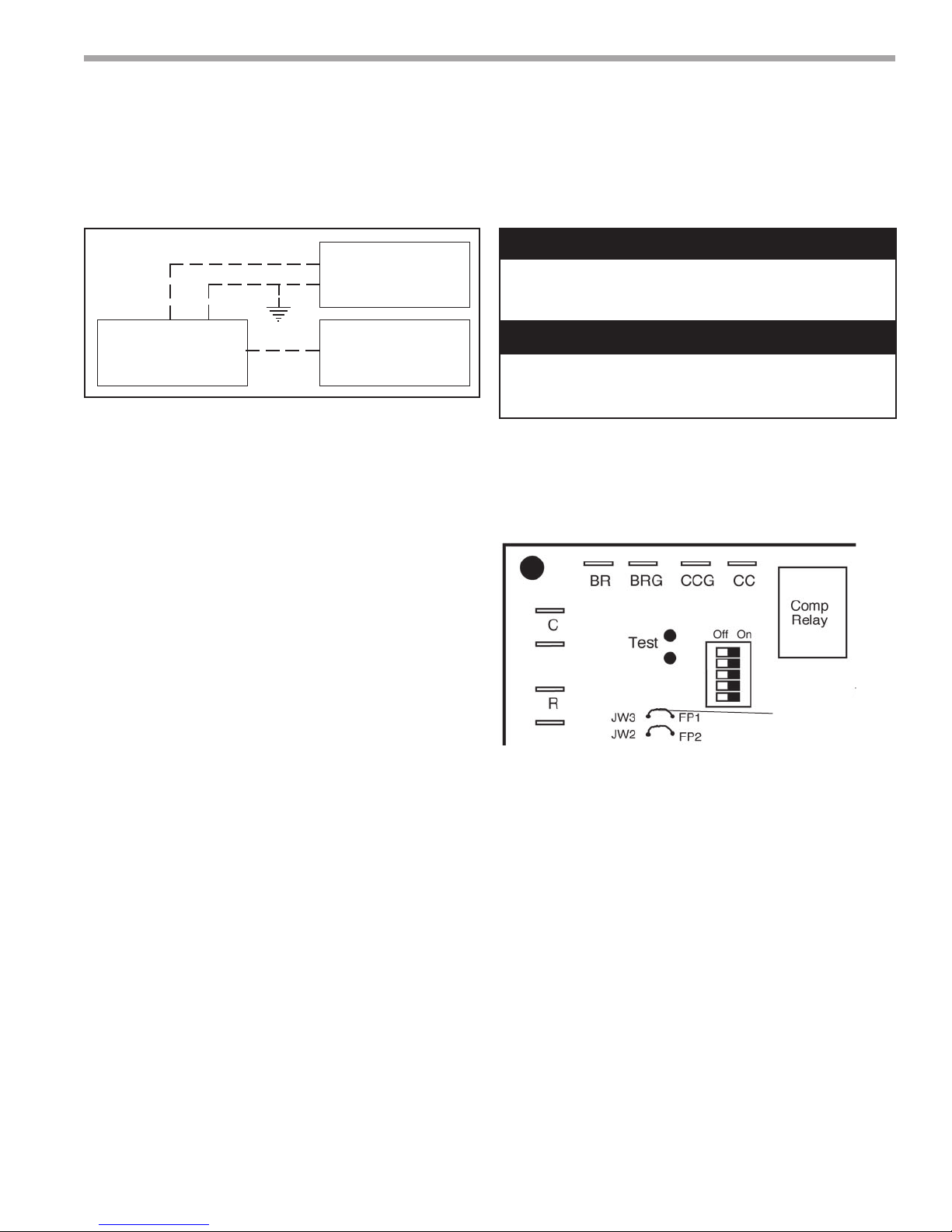

Figure 3: Typical Field Installed Wiring
Consoles
Rev.: 30 June, 2008B
Electrical - Line Voltage
A
Field Supplied
Disconnect Switch
Heat Pump
B
Room Thermostat
A= Two power wires on single-phase units: three power
wires on three-phase units. B= 1 heat /1 cool /manual
or Auto Change-over remote 24V thermostat. Note: All
customer-supplied wiring to be copper only and must
conform to NEC and local electrical codes. Wiring
shown with dashed lines must be eld-supplied and
eld-installed. "B" only required with systems employing
remote mounted thermostats.
Low Water Temperature Cutout Setting
CXM or DXM Control
When antifreeze is selected, the FP1 jumper (JW3) should
be clipped to select the low temperature (antifreeze 13°F
[-10.6°C]) set point and avoid nuisance faults (see “Low
Water Temperature Cutout Selection” in this manual). NOTE:
Low water temperature operation requires extended range
equipment.
WARNING!
WARNING! To avoid possible injury or death due to
electrical shock, open the power supply disconnect switch
and secure it in an open position during installation.
CAUTION!
CAUTION!
electrical wiring. Unit terminals are not designed to accept other
types of conductors.
Figure 4: FP1 Limit Setting
Use only copper conductors for eld installed
JW3-FP1
jumper should
be clipped for
low temperature
operation
CXM PCB
www.climatemaster.com
21
Page 22

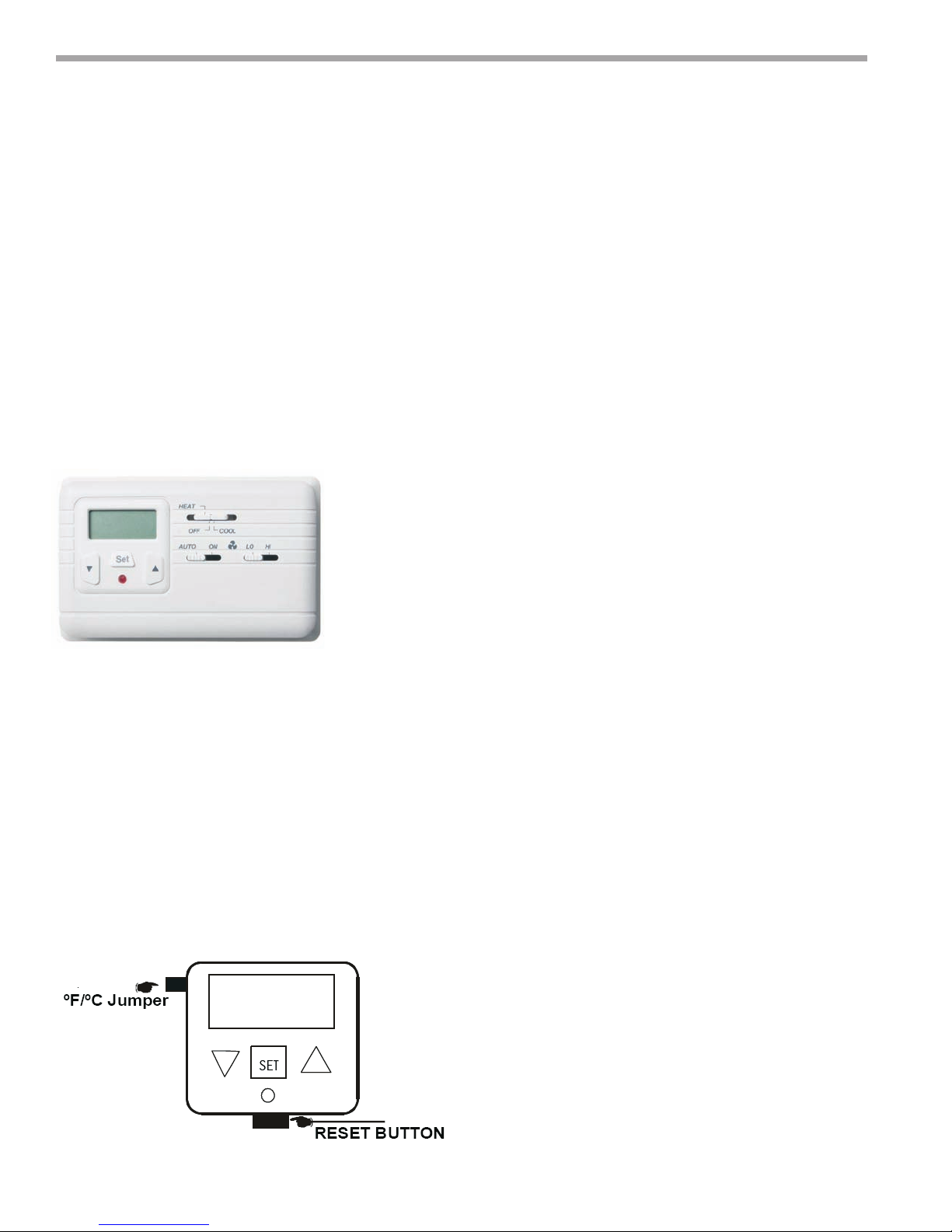

thermostats in either manual changeover (MCO) or
eld-installed low-voltage wiring is required.
When desired, the unit can be furnished with a 24-volt
thermostat must comply with all applicable electrical
The room temperature will appear after the set point has
for display in degrees Farhenheit. To change display to
top left of display case (see illustration, below).
jumper in place for °F selection.
Page 23
THE SMART SOLUTION FOR ENERGY EFFICIENCY

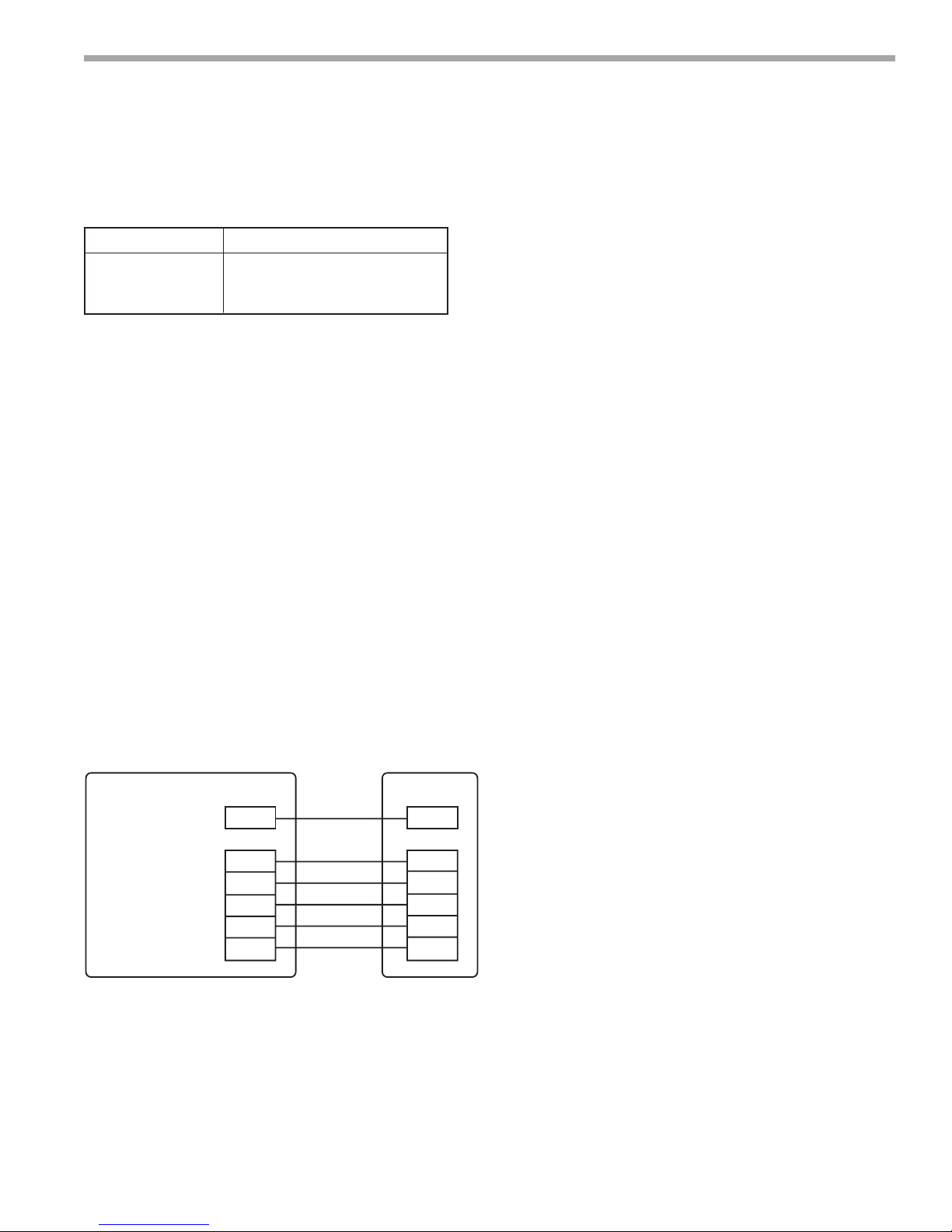

Thermostat
Connection to CXM Control
Compressor
Reversing Valve
Fan
24Vac Hot
24Vac Common
Fault LED
Y
O
G
R
C
L
Y
O
G
R
C
AL1
CXM
Table 6: Recommended Thermostat Wire Sizes
WIRE SIZE MAX. WIRE LENGTH*
18-Gauge 75 feet [22m]
16-Gauge 125 feet [38m]
14-Gauge 200 feet [60m]
*Length = Physical distance from thermostat to unit.
Thermostat Installation
The thermostat should be located on an interior wall
in a larger room, away from supply air drafts. DO NOT
locate the thermostat in areas subject to sunlight, drafts
or on external walls. The wire access hole behind the
thermostat may in certain cases need to be sealed to
prevent erroneous temperature measurement. Position
the thermostat back plate against the wall so that it
appears level and so the thermostat wires protrude
through the middle of the back plate. Mark the position
of the back plate mounting holes and drill holes with
a 3/16” (5mm) bit. Install supplied anchors and secure
plate to the wall. Thermostat wire must be 18 AWG wire.
Wire the appropriate thermostat as shown in Figure 7 to
the low voltage terminal strip on the CXM or DXM control
board. Practically any heat pump thermostat will work
with ClimateMaster units, provided it has the correct
number of heating and cooling stages.
Consoles
Rev.: 30 June, 2008B
Electrical - Low Voltage
Figure 7: Typical Thermostat Wiring
www.climatemaster.com
23
Page 24
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B
Typical Wiring Diagram - Manual Change
Over CCE Units (Rev. A) with CXM Controller
24
ClimateMaster Water-Source Heating and Cooling Systems
Page 25
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B

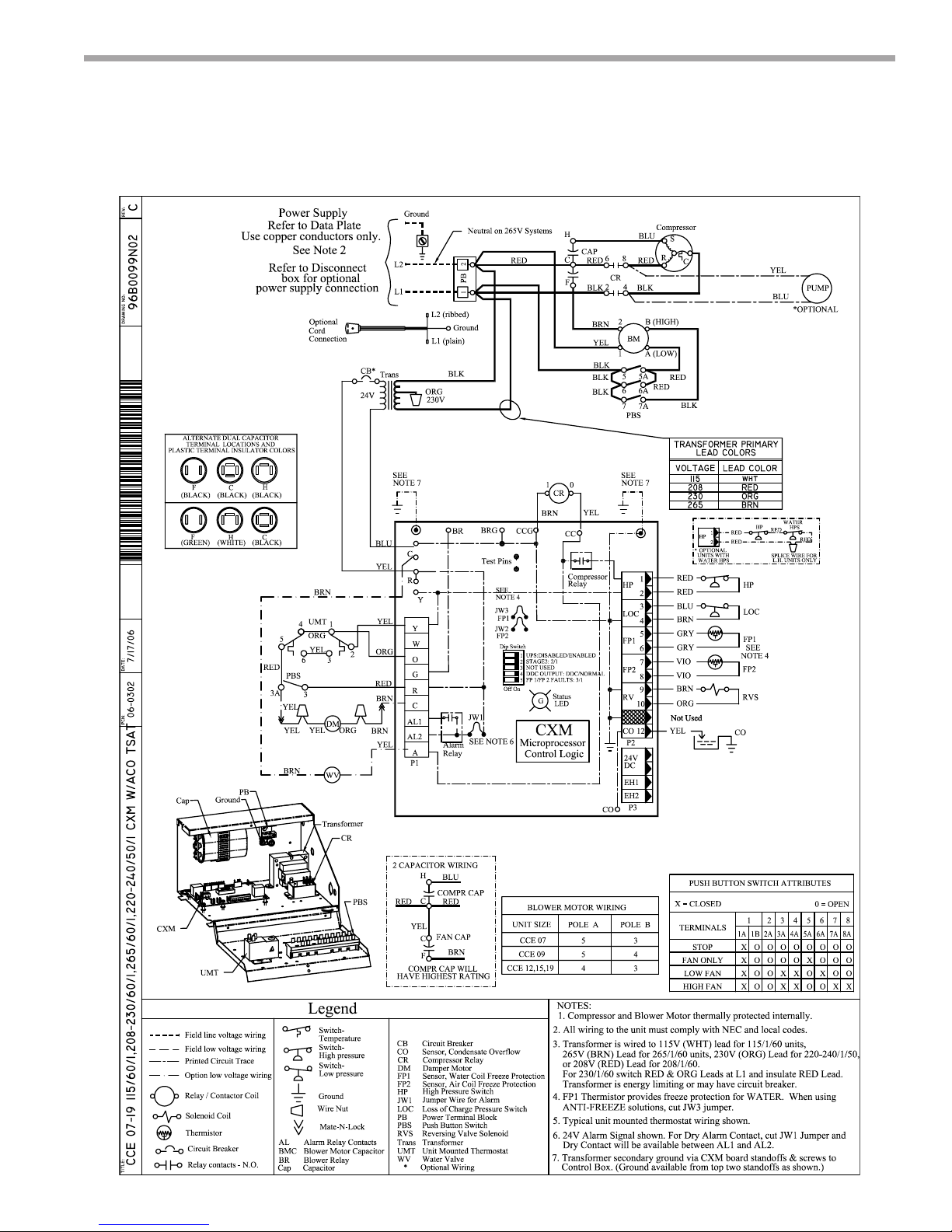

Typical Wiring Diagram - Auto Change Over
CCE Units (Rev. A) with CXM Controller
www.climatemaster.com
25
Page 26
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B

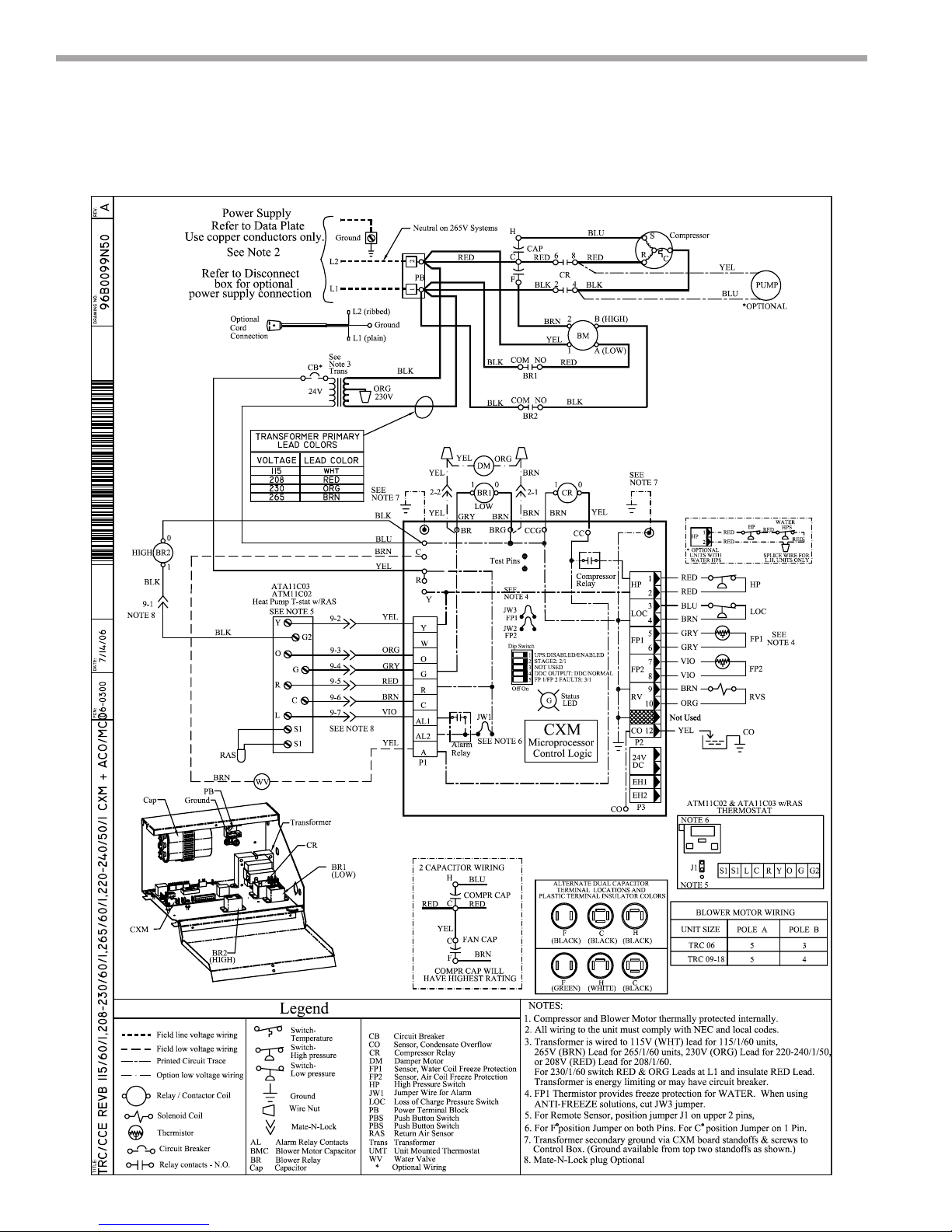

Typical Wiring Diagram - Manual & Auto Change
Over CCE Units (Rev. B) & TRC Units with CXM Controller
26
ClimateMaster Water-Source Heating and Cooling Systems
Page 27
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B

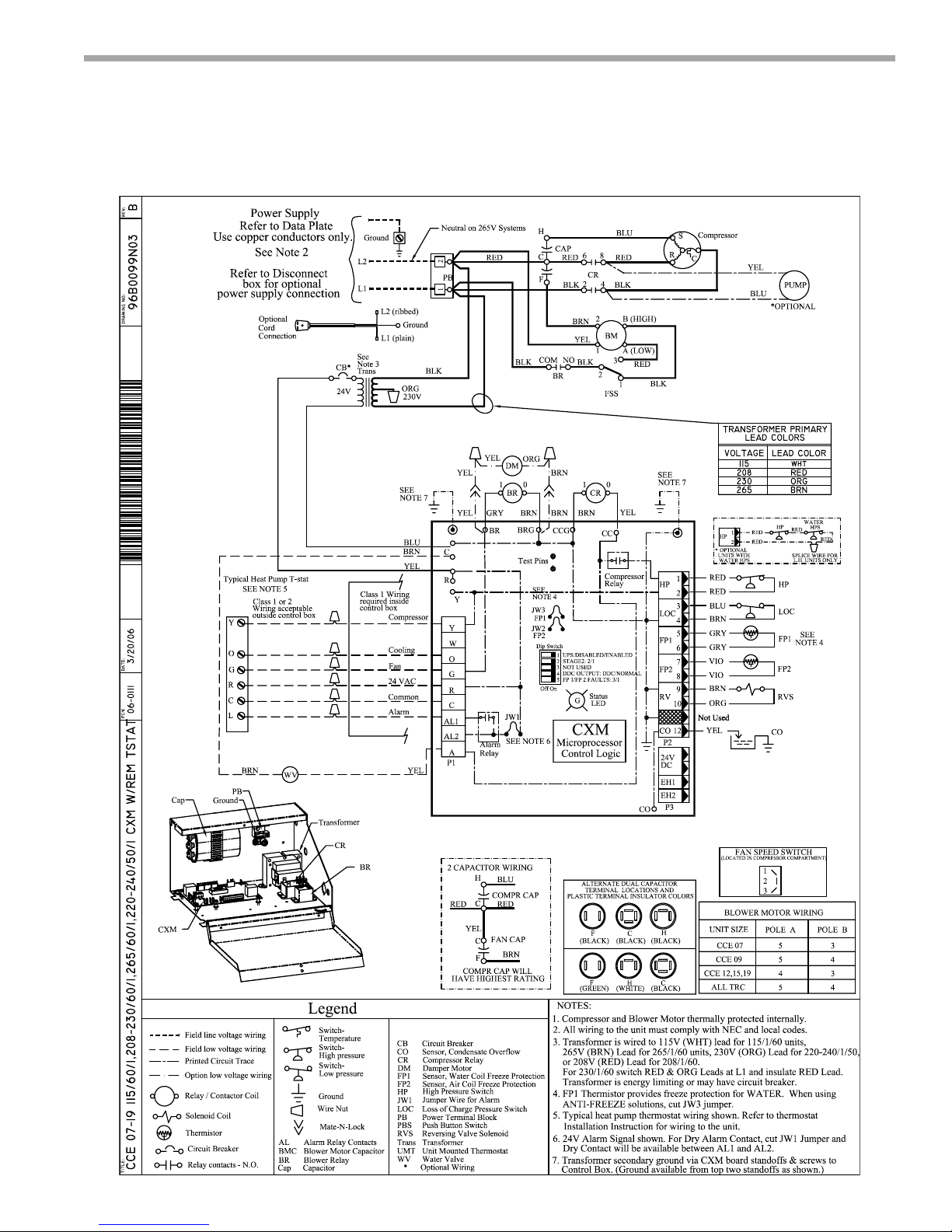

Typical Wiring Diagram - Remote Mounted
Thermosat CCE & TRC Units with CXM Controller
www.climatemaster.com
27
Page 28
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B

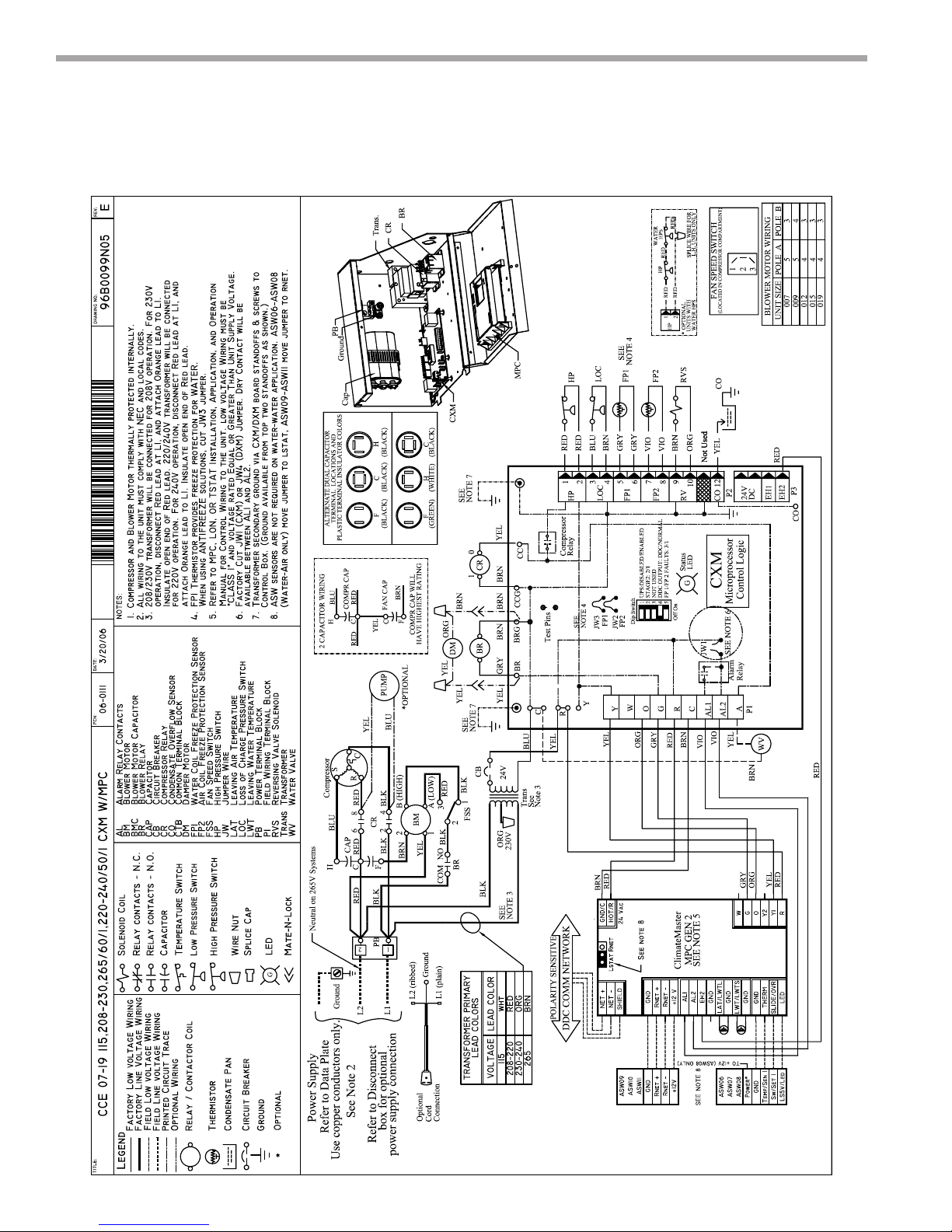

Typical Wiring Diagram - CCE & TRC Units
with CXM & MPC Controller
28
ClimateMaster Water-Source Heating and Cooling Systems
Page 29
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B

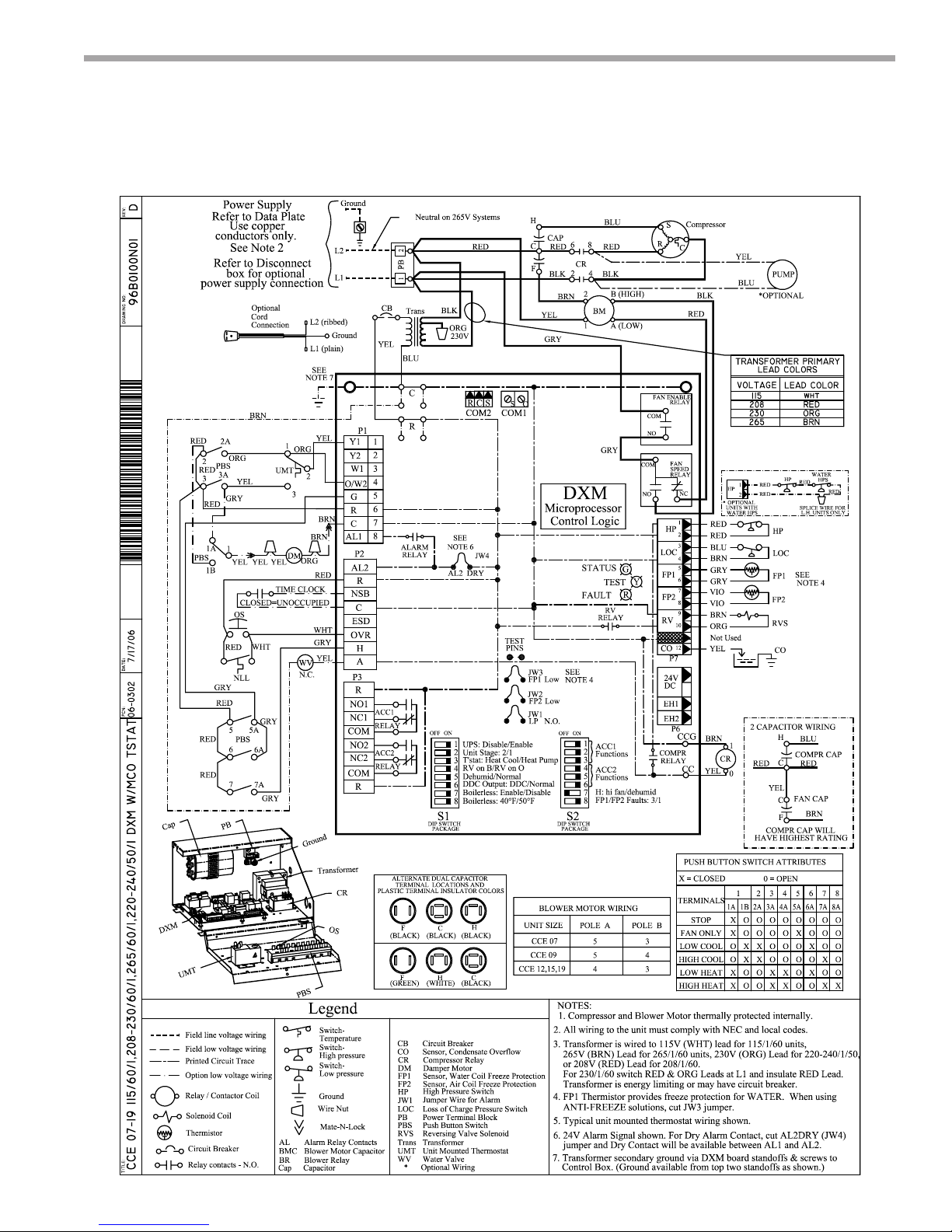

Typical Wiring Diagram - Manual Change
Over CCE Units (Rev. A) with DXM Controller
www.climatemaster.com
29
Page 30
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B

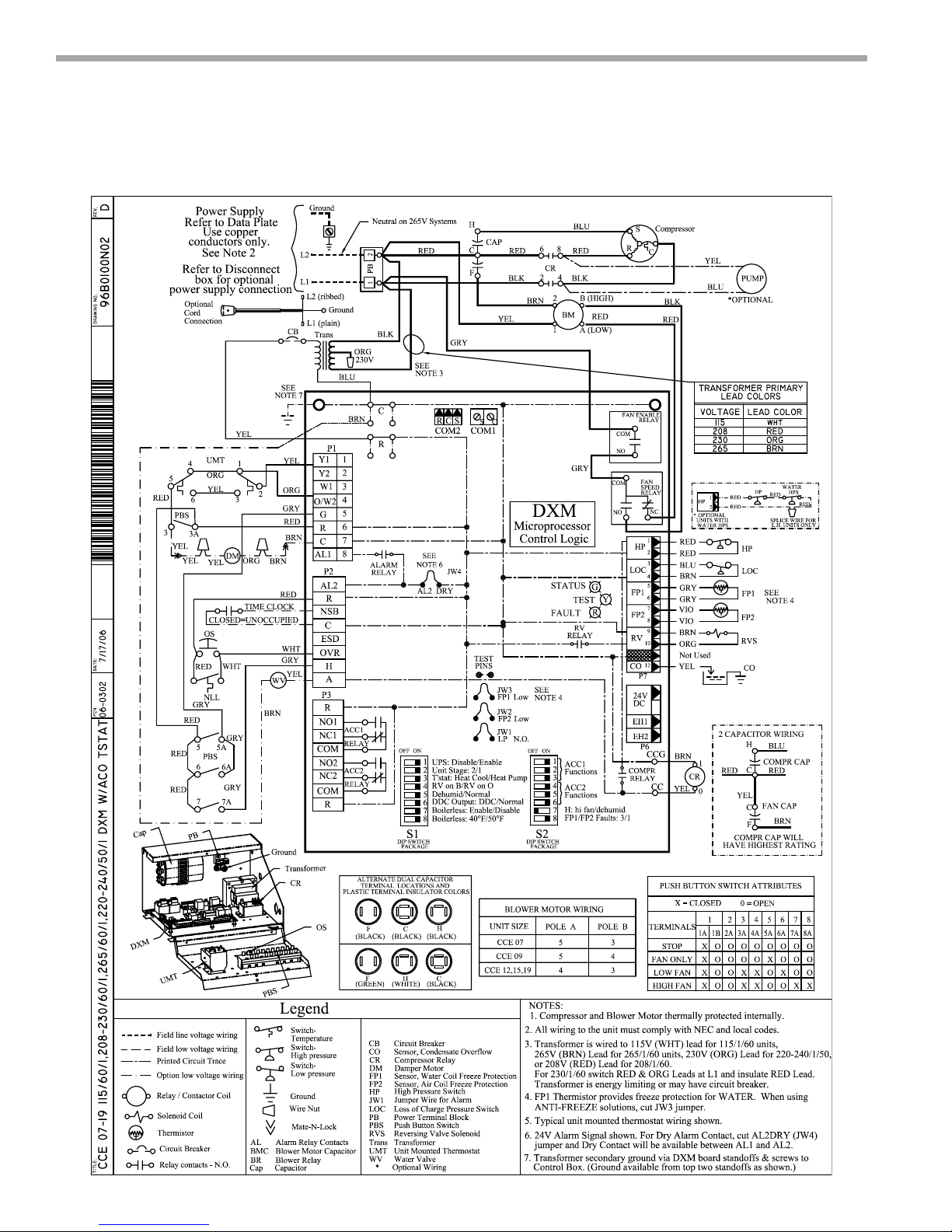

Typical Wiring Diagram - Auto Change
Over CCE Units (Rev. A) with DXM Controller
30
ClimateMaster Water-Source Heating and Cooling Systems
Page 31
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B

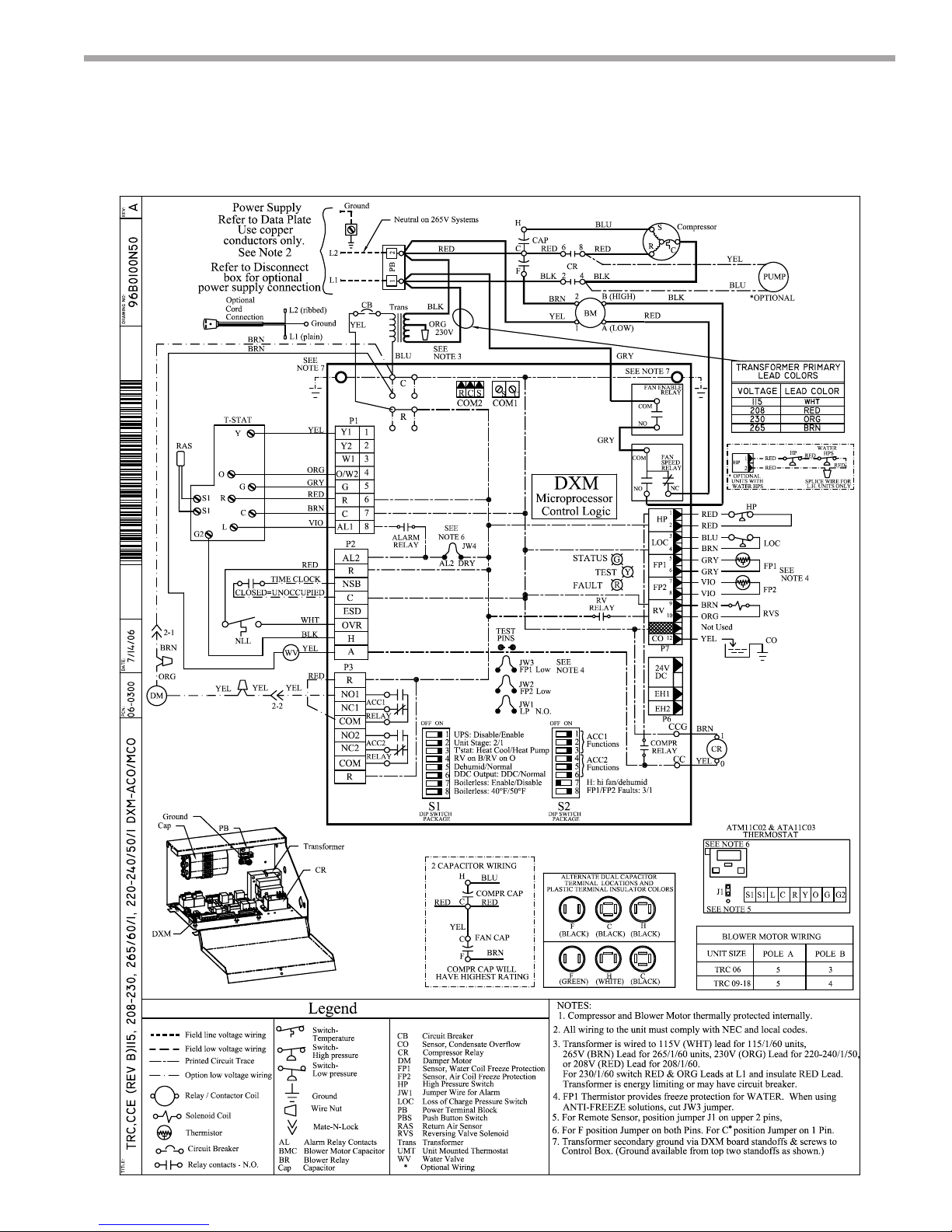

Typical Wiring Diagram - Manual & Auto Change
Over CCE Units (Rev. B) & TRC Units with DXM Controller
www.climatemaster.com
31
Page 32
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B

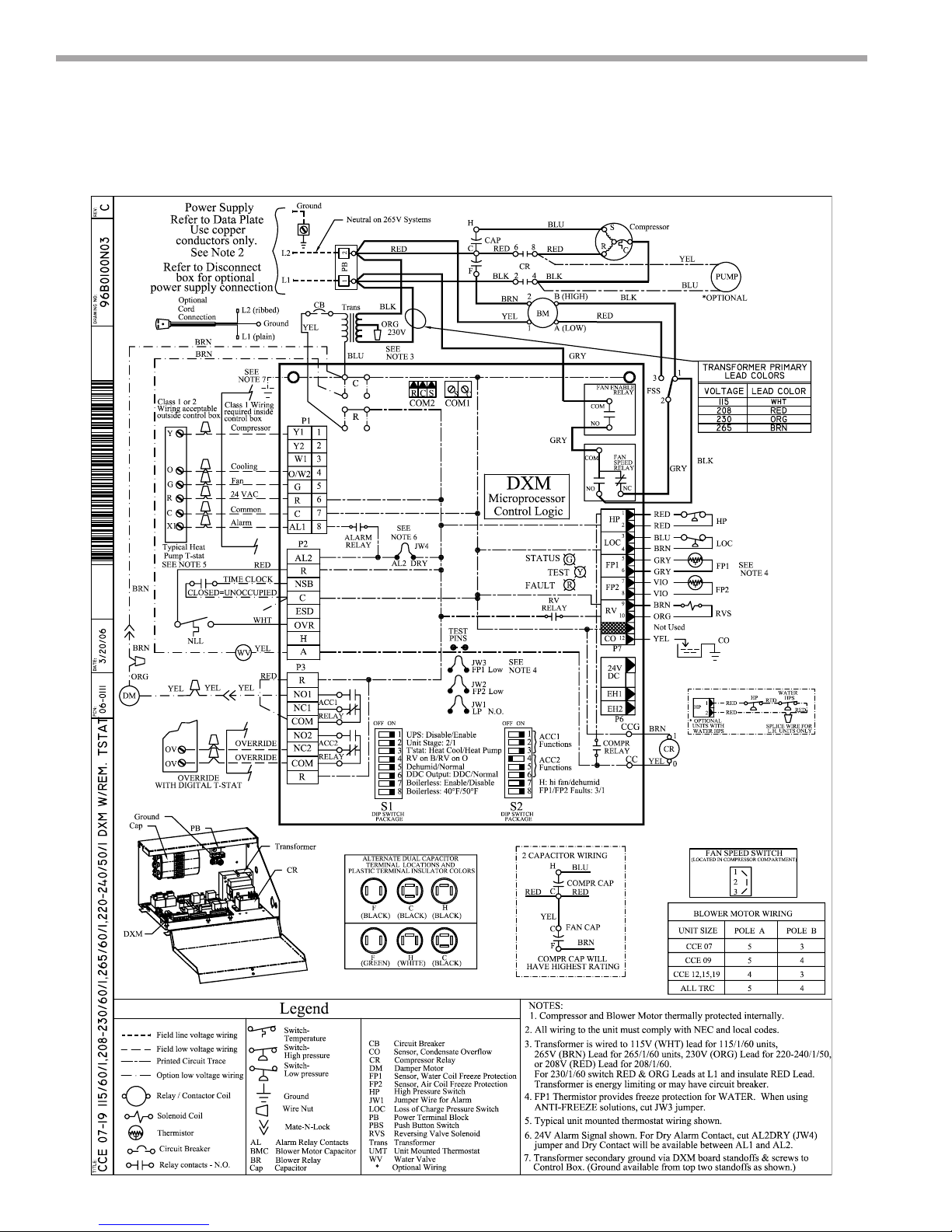

Typical Wiring Diagram - Remote Mounted
Thermostat CCE & TRC Units with DXM Controller
32
ClimateMaster Water-Source Heating and Cooling Systems
Page 33
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B
Typical Wiring Diagram - CCE & TRC Units
with DXM & MPC Controller
www.climatemaster.com
33
Page 34
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B

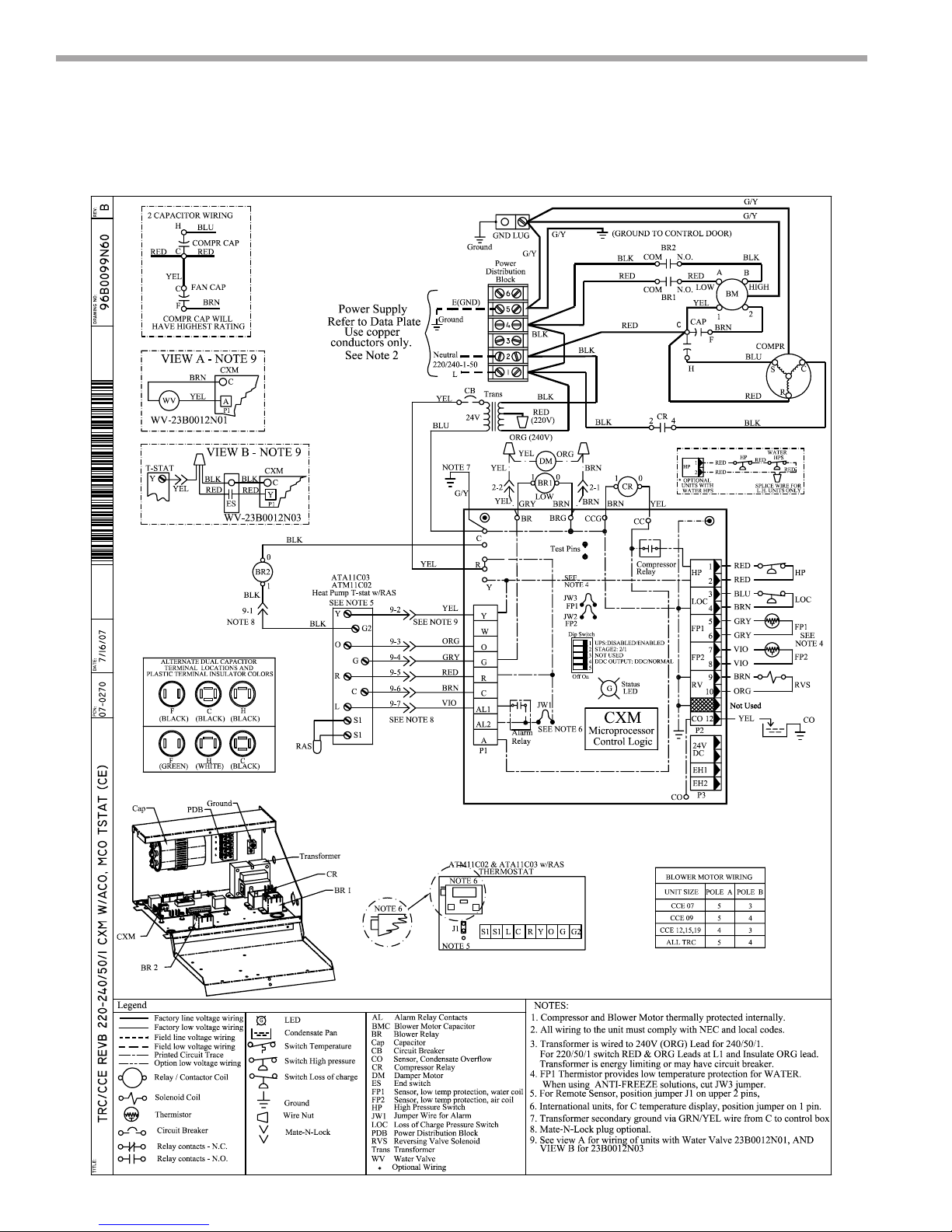

Typical Wiring Diagram - Manual & Auto Change
Over TRC Units 50Hz with CXM Controller
34
ClimateMaster Water-Source Heating and Cooling Systems
Page 35
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B

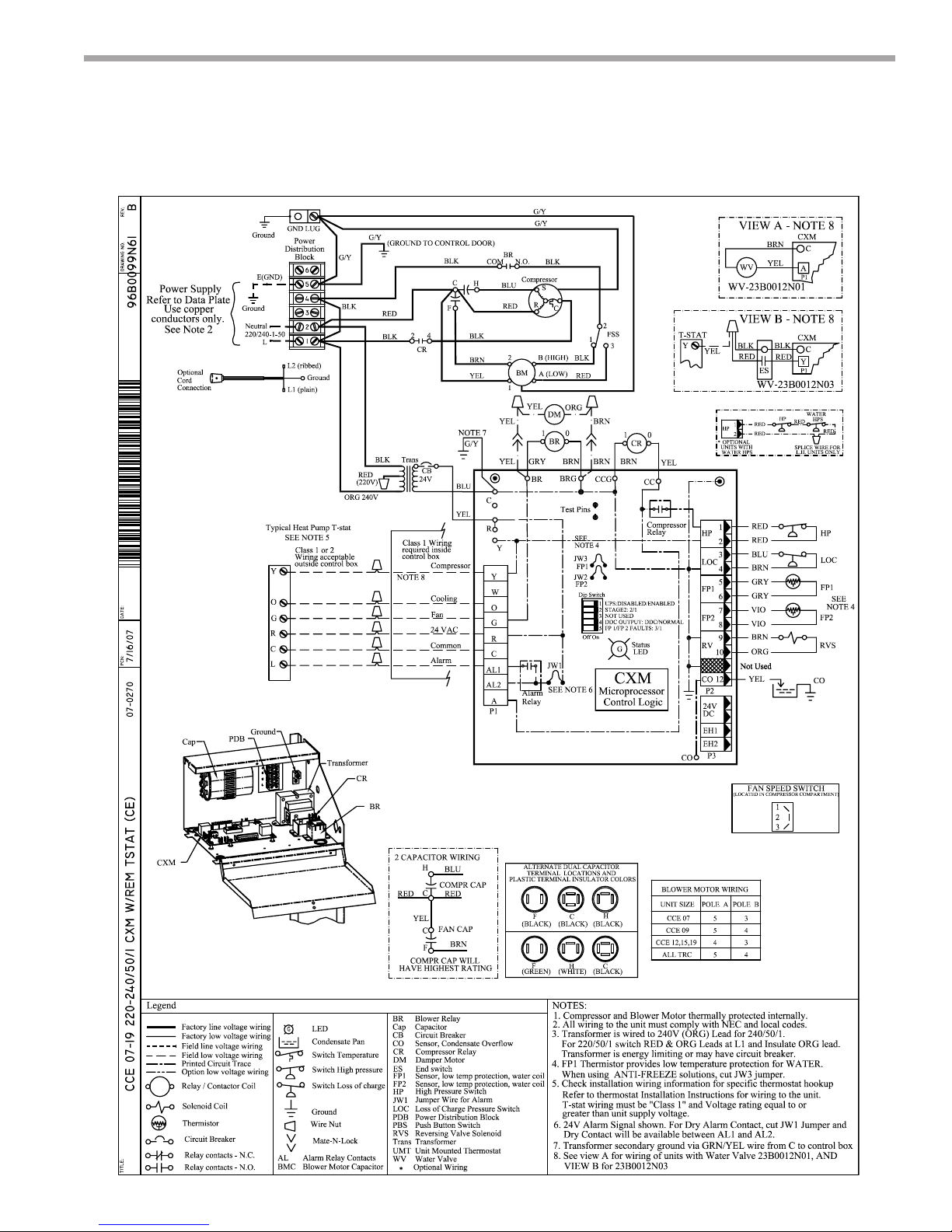

Typical Wiring Diagram - Remote Mounted Thermostat
TRC Units 50Hz with CXM Controller
www.climatemaster.com
35
Page 36
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B

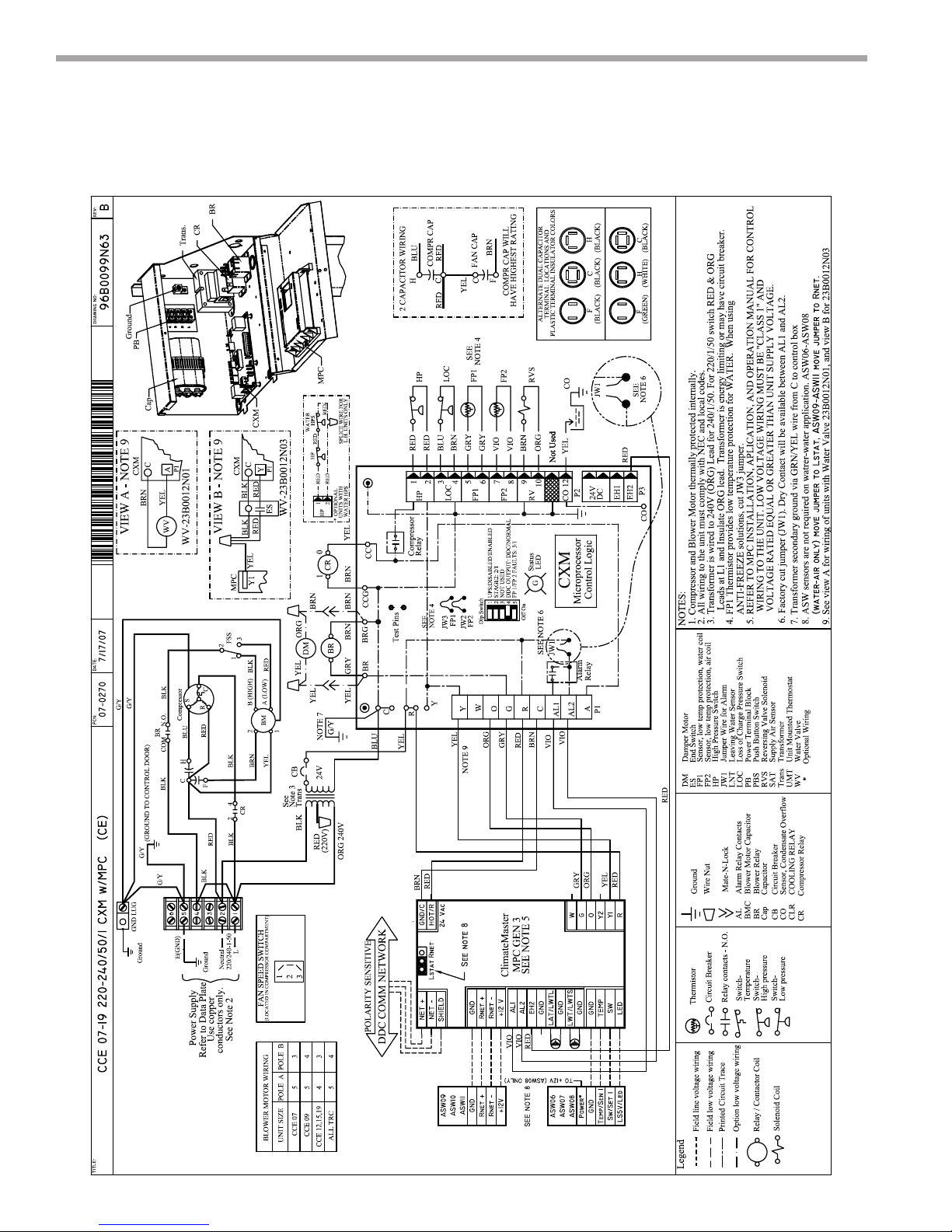

Typical Wiring Diagram - TRC Units 50Hz
with CXM & DXM Controller
36
ClimateMaster Water-Source Heating and Cooling Systems
Page 37
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B

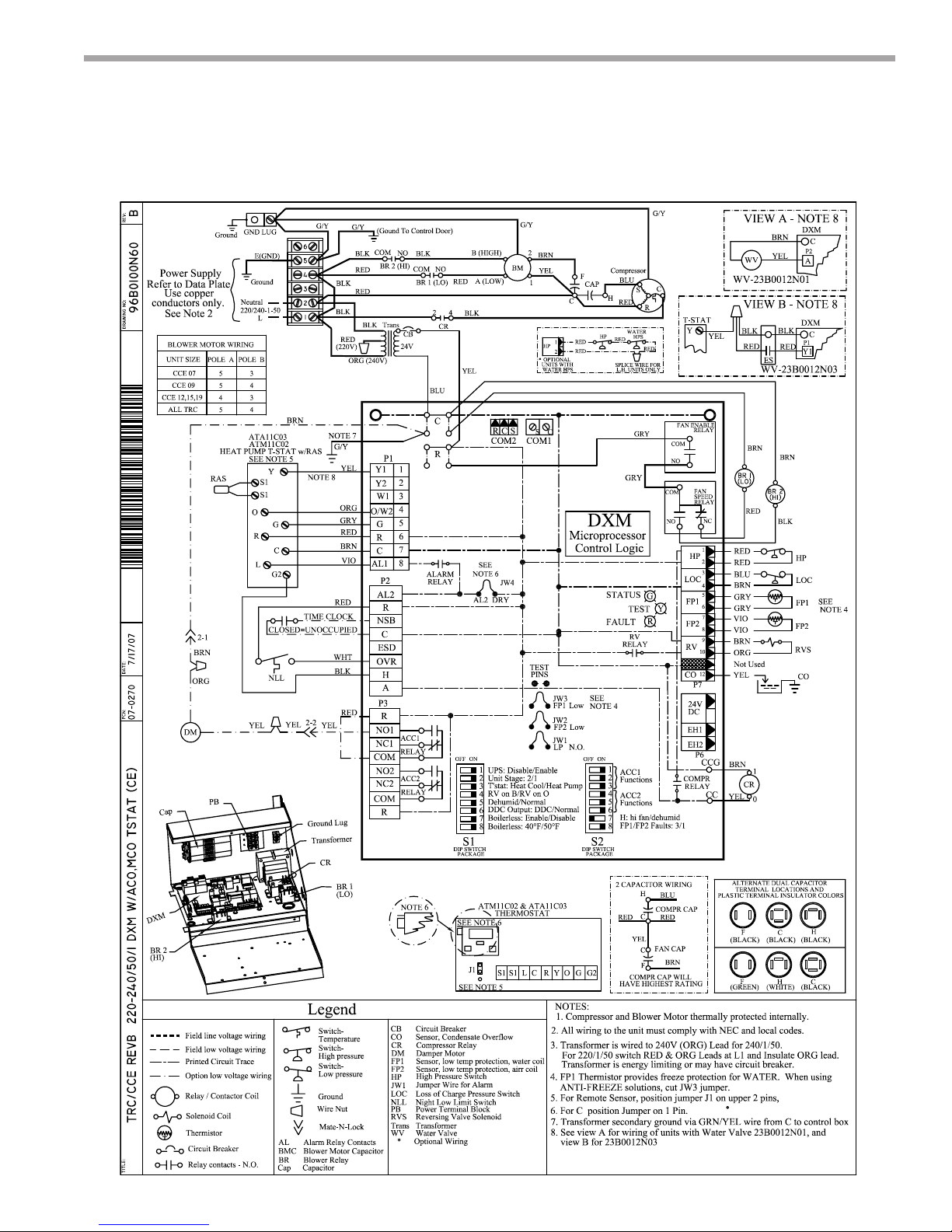

Typical Wiring Diagram - Manual & Auto Change Over
TRC Units 50Hz with DXM Controller
www.climatemaster.com
37
Page 38
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B

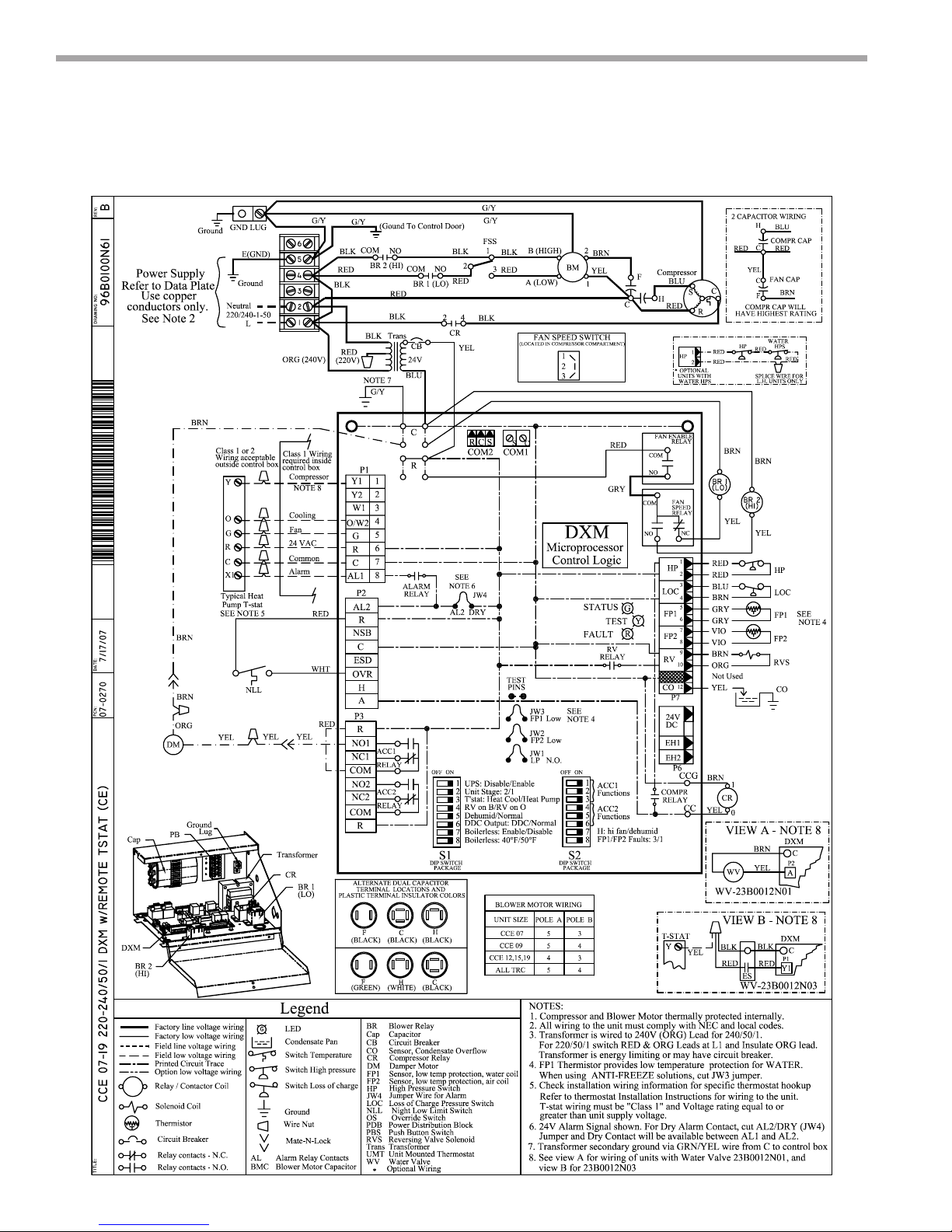

Typical Wiring Diagram - Remote Mounted Thermostat
TRC Units 50Hz with DXM Controller
38
ClimateMaster Water-Source Heating and Cooling Systems
Page 39
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B

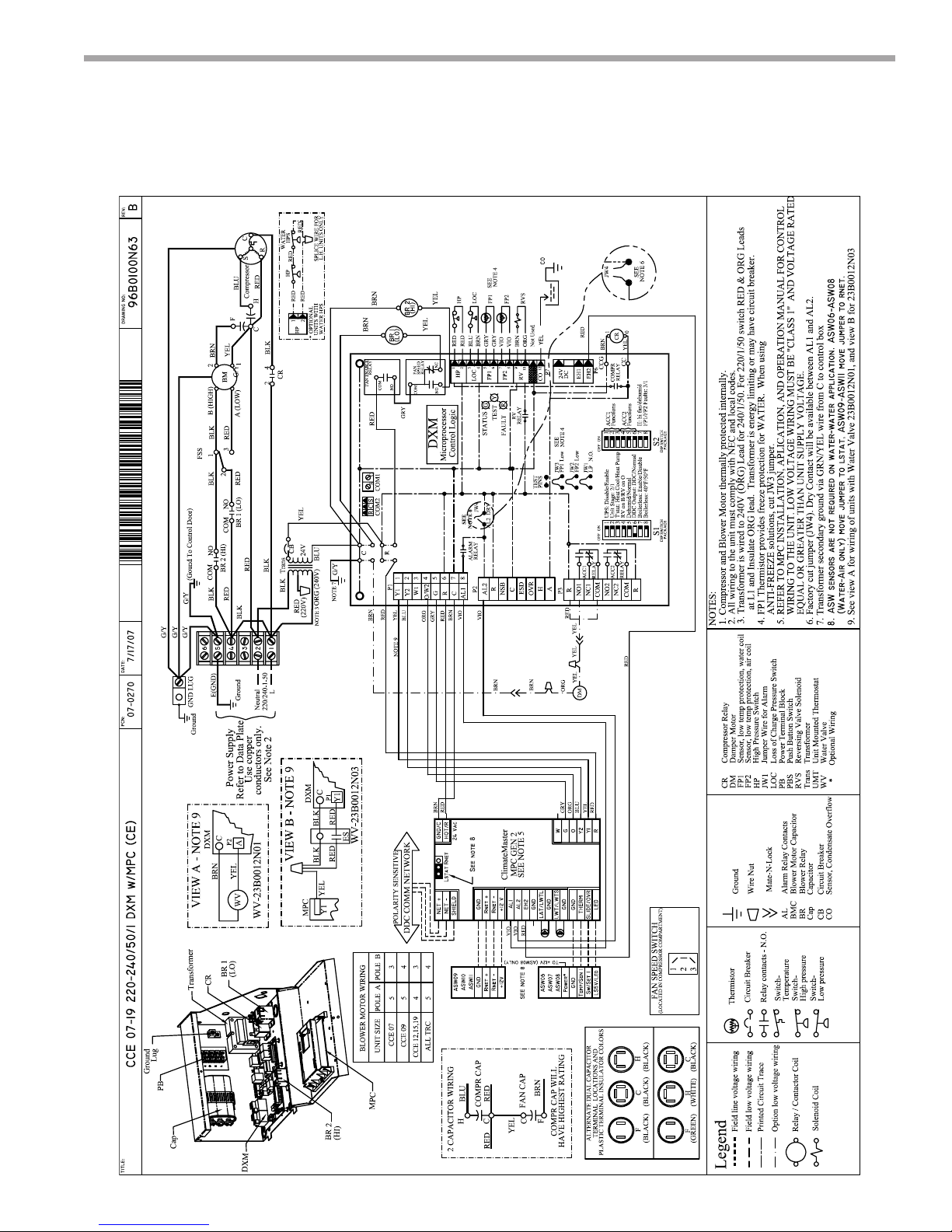

Typical Wiring Diagram - TRC Units 50Hz
with DXM & MPC Controller
www.climatemaster.com
39
Page 40
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Description of Operation LED Alarm Relay
Normal Mode On Open
Normal Mode with UPS Warning On Cycle (closed 5 sec., Open 25 sec.)
CXM is non-functional Off Open
Fault Retry Slow Flash Open
Lockout Fast Flash Closed
Over/Under Voltage Shutdown Slow Flash Open (Closed after 15 minutes)
Test Mode - No fault in memory Flashing Code 1 Cycling Code 1
Test Mode - HP Fault in memory Flashing Code 2 Cycling Code 2
Test Mode - LP Fault in memory Flashing Code 3 Cycling Code 3
Test Mode - FP1 Fault in memory Flashing Code 4 Cycling Code 4
Test Mode - FP2 Fault in memory Flashing Code 5 Cycling Code 5
Test Mode - CO Fault in memory Flashing Code 6 Cycling Code 6
Test Mode - Over/Under
shutdown in memory
Flashing Code 7 Cycling Code 7
Test Mode - UPS in memory Flashing Code 8 Cycling Code 8
Test Mode - Swapped Thermistor Flashing Code 9 Cycling Code 9
Consoles
Rev.: 30 June, 2008B
CXM Controls
CXM Control
For detailed control information, see CXM/DXM
Application, Operation and Maintenance (AOM) manual
(part #97B0003N08).
Field Selectable Inputs
Test mode: Test mode allows the service technician to
check the operation of the control in a timely manner. By
momentarily shorting the test terminals, the CXM control
enters a 20 minute test mode period in which all time
delays are sped up 15 times. Upon entering test mode,
the status LED will ash a code representing the last fault.
For diagnostic ease at the thermostat, the alarm relay will
also cycle during test mode. The alarm relay will cycle
on and off similar to the status LED to indicate a code
representing the last fault, at the thermostat. Test mode
can be exited by shorting the test terminals for 3 seconds.
Retry Mode: If the control is attempting a retry of a fault,
the status LED will slow ash (slow ash = one ash
every 2 seconds) to indicate the control is in the process
of retrying.
Field Conguration Options
Note: In the following eld conguration options, jumper
wires should be clipped ONLY when power is removed
from the CXM control.
DIP switch 2: Stage 2 Selection - provides selection of
whether compressor has an “on” delay. If set to stage
2, the compressor will have a 3 second delay before
energizing. Also, if set for stage 2, the alarm relay will
NOT cycle during test mode.
On = Stage 1. Off = Stage 2
DIP switch 3: Not Used.
DIP switch 4: DDC Output at EH2 - provides selection for
DDC operation. If set to “DDC Output at EH2,” the EH2
terminal will continuously output the last fault code of
the controller. If set to “EH2 normal,” EH2 will operate as
standard electric heat output.
On = EH2 Normal. Off = DDC Output at EH2.
NOTE: Some CXM controls only have a 2 position DIP
switch package. If this is the case, this option can be
selected by clipping the jumper which is in position 4
of SW1.
Jumper not clipped = EH2 Normal. Jumper clipped =
DDC Output at EH2.
DIP switch 5: Factory Setting - Normal position is “On.”
Do not change selection unless instructed to do so by
the factory.
Table 7a: CXM/DXM LED And Alarm
Relay Operations
Water coil low temperature limit setting: Jumper 3 (JW3-
FP1 Low Temp) provides eld selection of temperature
limit setting for FP1 of 30°F or 10°F [-1°F or -12°C]
(refrigerant temperature).
Not Clipped = 30°F [-1°C]. Clipped = 10°F [-12°C].
Air coil low temperature limit setting: Jumper 2 (JW2-FP2
Low Temp) provides eld selection of temperature limit
setting for FP2 of 30°F or 10°F [-1°F or -12°C] (refrigerant
temperature). Note: This jumper should only be clipped
under extenuating circumstances, as recommended by
the factory.
Not Clipped = 30°F [-1°C]. Clipped = 10°F [-12°C].
Alarm relay setting: Jumper 1 (JW1-AL2 Dry) provides
eld selection of the alarm relay terminal AL2 to be
jumpered to 24VAC or to be a dry contact (no connection).
Not Clipped = AL2 connected to R. Clipped = AL2 dry
contact (no connection).
DIP Switches
Note: In the following eld conguration options, DIP
switches should only be changed when power is removed
from the CXM control.
DIP switch 1: Unit Performance Sentinel Disable -
provides eld selection to disable the UPS feature.
On = Enabled. Off = Disabled.
40
ClimateMaster Water-Source Heating and Cooling Systems
-Slow Flash = 1 ash every 2 seconds
-Fast Flash = 2 ashes every 1 second
-Flash code 2 = 2 quick ashes, 10 second pause, 2 quick
ashes, 10 second pause, etc.
-On pulse 1/3 second; off pulse 1/3 second
Page 41
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Description of
Operation
Status LED
(green)
Test LED
(yellow)
Fault LED (red) Alarm Relay
Normal mode On -Off Open
Normal mode with UPS On - Flashing Code 8
Cycle (closed 5 sec,
open 25 sec)
DXM is non-functional OffOff Off Open
Fault Retry Slow Flash - Flashing fault code Open
Lockout Fast Flash - Flashing fault code Closed
Test Mode -On-Night Setback Flashing Code 2 --ESD Flashing Code 3 ---
HP Fault Slow Flash - Flashing Code 2 Open
LP Fault Slow Flash - Flashing Code 3 Open
FP1 Fault Slow Flash - Flashing Code 4 Open
FP2 Fault Slow Flash - Flashing Code 5 Open
CO Fault Slow Flash - Flashing Code 6 Open
Over/Under Voltage Slow Flash - Flashing Code 7
Open (closed after 15
minutes)
Invalid T-stat Inputs Flashing Code 4 ---
Consoles
Rev.: 30 June, 2008B
DXM Controls
DXM Control
For detailed control information, see CXM/DXM
AOM (part #97B0003N08), Lon controller AOM (part
#97B0013N01) or MPC AOM (part # 97B0031N01).
Table 7b: DXM LED And Alarm Relay Operations
-Slow Flash = 1 ash every 2 seconds
-Fast Flash = 2 ashes every 1 second
-Flash code 2 = 2 quick ashes, 10 second pause, 2 quick
ashes, 10 second pause, etc.
-On pulse 1/3 second; off pulse 1/3 second
Field Selectable Inputs
Test mode: Test mode allows the service technician to
check the operation of the control in a timely manner. By
momentarily shorting the test terminals, the DXM control
enters a 20 minute test mode period in which all time
delays are sped up 15 times. Upon entering test mode, the
status LED will ash a code representing the last fault. For
diagnostic ease at the thermostat, the alarm relay will also
cycle during test mode. The alarm relay will cycle
off similar to the status LED to indicate a code representing
the last fault, at the thermostat. Test mode can be exited by
shorting the test terminals for 3 seconds.
Retry mode: If the control is attempting a retry of a fault, the
status LED will slow ash (slow ash = one ash every 2
seconds) to indicate the control is in the process of retrying.
Field Conguration Options
Note: In the following eld conguration options, jumper
wires should be clipped ONLY when power is removed
from the DXM control.
Water coil low temperature limit setting: Jumper 3 (JW3-
FP1 Low Temp) provides eld selection of temperature
limit setting for FP1 of 30°F or 10°F [-1°F or -12°C]
on and
www.climatemaster.com
(refrigerant temperature).
Not Clipped = 30°F [-1°C]. Clipped = 10°F [-12°C].
Air coil low temperature limit setting: Jumper 2 (JW2-
FP2 Low Temp) provides eld selection of temperature
limit setting for FP2 of 30°F or 10°F [-1°F or -12°C]
(refrigerant temperature). Note: This jumper should only
be clipped under extenuating circumstances,
as recommended by ClimateMaster technical
services.
Not Clipped = 30°F [-1°C]. Clipped = 10°F
[-12°C].
Alarm relay setting: Jumper 4 (JW4-AL2 Dry)
provides eld selection of the alarm relay
terminal AL2 to be jumpered to 24VAC or to be
a dry contact (no connection).
Not Clipped = AL2 connected to R.
Clipped = AL2 dry contact
(no connection).
Low pressure normally open: Jumper 1 (JW1-
LP norm open) provides eld selection for
low pressure input to be normally closed or
normally open.
Not Clipped = LP normally closed. Clipped =
LP normally open.
DIP Switches
Note: In the following eld conguration options, DIP
switches should only be changed when power is removed
from the DXM control.
DIP Package #1 (S1)
DIP Package #1 has 8 switches and provides the
following setup selections:
1.1 - Unit Performance Sentinel (UPS) disable: DIP Switch
1.1 provides eld selection to disable the UPS feature.
On = Enabled. Off = Disabled.
1.2 - Compressor relay staging operation: DIP 1.2
provides selection of compressor relay staging operation.
The compressor relay can be selected to turn on with
a stage 1 or stage 2 call from the thermostat. This is
used with dual stage units (2 compressors where 2 DXM
controls are being used) or with master/slave applications.
In master/slave applications, each compressor and fan will
stage according to its appropriate DIP 1.2 setting. If set
to stage 2, the compressor will have a 3 second on-delay
before energizing during a Stage 2 demand. Also, if set for
stage 2, the alarm relay will NOT cycle during test mode.
On = Stage 1. Off = Stage 2.
1.3 - Thermostat type (heat pump or heat/cool): DIP 1.3
provides selection of thermostat type. Heat pump or
heat/cool thermostats can be selected. When in heat/
cool mode, Y1 is the input call for cooling stage 1; Y2 is
41
Page 42
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B
DXM Controls
the input call for cooling stage 2; W1 is the input call for
heating stage 1; and O/W2 is the input call for heating
stage 2. In heat pump mode, Y1 is the input call for
compressor stage 1; Y2 is the input call for compressor
stage 2; W1 is the input call for heating stage 3 or
emergency heat; and O/W2 is the input call for reversing
valve (heating or cooling, depending upon DIP 1.4).
On = Heat Pump. Off = Heat/Cool.
1.4 - Thermostat type (O/B): DIP 1.4 provides selection of
thermostat type for reversing valve activation. Heat pump
thermostats with “O” output (reversing valve energized
for cooling) or “B” output (reversing valve energized for
heating) can be selected with DIP 1.4.
On = HP stat with “O” output for cooling. Off = HP stat
with “B” output for heating.
1.5 - Dehumidication mode: DIP 1.5 provides
selection of normal or dehumidication fan mode. In
dehumidication mode, the fan speed relay will remain
off during cooling stage 2. In normal mode, the fan speed
relay will turn on during cooling stage 2.
On = Normal fan mode. Off = Dehumidication mode.
1.6 - DDC output at EH2: DIP 1.6 provides selection for
DDC operation. If set to “DDC Output at EH2,” the EH2
terminal will continuously output the last fault code of
the controller. If set to “EH2 normal,” EH2 will operate as
standard electric heat output.
On = EH2 Normal. Off = DDC Output at EH2.
1.7 - Boilerless operation: DIP 1.7 provides selection of
boilerless operation. In boilerless mode, the compressor
is only used for heating when FP1 is above the
temperature specied by the setting of DIP 1.8. Below
DIP 1.8 setting, the compressor is not used and the
control goes into emergency heat mode, staging on EH1
and EH2 to provide heating.
On = normal. Off = Boilerless operation.
1.8 - Boilerless changeover temperature: DIP 1.8
provides selection of boilerless changeover temperature
set point. Note that the FP1 thermistor is sensing
refrigerant temperature between the coaxial heat
exchanger and the expansion device (TXV or cap tube).
Therefore, the 50°F [10°C] setting is not 50°F [10°C]
water, but approximately 60°F [16°C] EWT.
On = 50°F [10°C]. Off = 40°F [16°C].
characteristics). See table 6c for description of functionality.
2.3 - Accessory1 relay personality: DIP 2.3 provides
selection of ACC 1 relay options. See table 6c for
description of functionality.
2.4 - Accessory2 relay personality: DIP 2.4 provides
selection of ACC 2 relay personality (relay operation/
characteristics). See table 6c for description of functionality.
2.5 - Accessory2 relay personality: DIP 2.5 provides
selection of ACC 2 relay personality (relay operation/
characteristics). See table 6c for description of functionality.
2.6 - Accessory2 relay personality: DIP 2.6 provides
selection of ACC 2 relay options. See table 6c for
description of functionality.
2.7 - Auto dehumidication fan mode or high fan mode: DIP
2.7 provides selection of auto dehumidication fan mode
or high fan mode. In auto dehumidication mode, the fan
speed relay will remain off during cooling stage 2 IF the H
input is active. In high fan mode, the fan enable and fan
speed relays will turn on when the H input is active.
On = Auto dehumidication mode. Off = High fan mode.
2.8 - Special factory selection: DIP 2.8 provides special
factory selection. Normal position is “On.” Do not change
selection unless instructed to do so by the factory.
Table 7c: Accessory DIP Switch Settings
DIP 2.1 DIP 2.2 DIP 2.3 ACC1 Relay Option
On On On Cycle with fan
Off On On Digital NSB
On Off On Water Valve - slow opening
On On Off OAD
Off Off Off Reheat Option - Humidistat
Off On Off Reheat Option - Dehumidistat
DIP 2.4 DIP 2.5 DIP 2.6 ACC2 Relay Option
On On On Cycle with compressor
Off On On Digital NSB
On Off On Water Valve - slow opening
On On Off OAD
All other DIP combinations are invalid
DIP Package #2 (S2)
DIP Package #2 has 8 switches and provides the
following setup selections:
2.1 - Accessory1 relay personality: DIP 2.1 provides
selection of ACC1 relay personality (relay operation/
characteristics). See table 6c for description of functionality.
2.2 - Accessory1 relay personality: DIP 2.2 provides
selection of ACC 1 relay personality (relay operation/
42
ClimateMaster Water-Source Heating and Cooling Systems
Page 43
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B
Safety Features - CXM/DXM Controls
Safety Features – CXM/DXM Control
The safety features below are provided to protect
the compressor, heat exchangers, wiring and other
components from damage caused by operation outside
of design conditions.
Anti-short cycle protection: The control features a 5
minute anti-short cycle protection for the compressor.
Note: The 5 minute anti-short cycle also occurs at power
up.
Random start: The control features a random start upon
power up of 5-80 seconds.
Fault Retry: In Fault Retry mode, the Status LED begins
slowly ashing to signal that the control is trying to
recover from a fault input. The control will stage off the
outputs and then “try again” to satisfy the thermostat
input call. Once the thermostat input call is satised,
the control will continue on as if no fault occurred.
If 3 consecutive faults occur without satisfying the
thermostat input call, the control will go into “lockout”
mode. The last fault causing the lockout will be stored
in memory and can be viewed at the “fault” LED (DXM
board) or by going into test mode (CXM board). Note:
FP1/FP2 faults are factory set at only one try.
Lockout: In lockout mode, the status LED will begin fast
ashing. The compressor relay is turned off immediately.
Lockout mode can be “soft” reset by turning off the
thermostat (or satisfying the call). A “soft” reset keeps
the fault in memory but resets the control. A “hard” reset
(disconnecting power to the control) resets the control
and erases fault memory.
Lockout with emergency heat: While in lockout mode,
if W becomes active (CXM), emergency heat mode will
occur. If DXM is congured for heat pump thermostat
type (DIP 1.3), emergency heat will become active if O/
W2 is energized.
High pressure switch: When the high pressure switch
opens due to high refrigerant pressures, the compressor
relay is de-energized immediately since the high pressure
switch is in series with the compressor contactor coil.
The high pressure fault recognition is immediate (does not
delay for 30 continuous seconds before de-energizing the
compressor).
High pressure lockout code = 2
Example: 2 quick ashes, 10 sec pause, 2 quick ashes,
10 sec. pause, etc.
Low pressure switch: The low pressure switch must be
open and remain open for 30 continuous seconds during
“on” cycle to be recognized as a low pressure fault. If
the low pressure switch is open for 30 seconds prior to
compressor power up it will be considered a low pressure
(loss of charge) fault. The low pressure switch input is
bypassed for the initial 60 seconds of a compressor run
cycle.
Low pressure lockout code = 3
Water coil low temperature (FP1): The FP1 thermistor
temperature must be below the selected low
temperature limit setting for 30 continuous seconds
during a compressor run cycle to be recognized as a
FP1 fault. The FP1 input is bypassed for the initial 60
seconds of a compressor run cycle. FP1 is set at the
factory for one try. Therefore, the control will go into
lockout mode once the FP1 fault has occurred.
FP1 lockout code = 4
Air coil low temperature (FP2): The FP2 thermistor
temperature must be below the selected low
temperature limit setting for 30 continuous seconds
during a compressor run cycle to be recognized as a
FP2 fault. The FP2 input is bypassed for the initial 60
seconds of a compressor run cycle. FP2 is set at the
factory for one try. Therefore, the control will go into
lockout mode once the FP2 fault has occurred.
FP2 lockout code = 5
Condensate overow: The condensate overow sensor
must sense overow level for 30 continuous seconds to
be recognized as a CO fault. Condensate overow will
be monitored at all times.
CO lockout code = 6
Over/under voltage shutdown: An over/under voltage
condition exists when the control voltage is outside
the range of 19VAC to 30VAC. Over/under voltage shut
down is a self-resetting safety. If the voltage comes back
within range for at least 0.5 seconds, normal operation
is restored. This is not considered a fault or lockout. If
the CXM/DXM is in over/under voltage shutdown for 15
minutes, the alarm relay will close.
Over/under voltage shut down code = 7
Unit Performance Sentinel-UPS (patent pending): The
UPS feature indicates when the heat pump is operating
inefciently. A UPS condition exists when:
a) In heating mode with compressor energized, FP2 is
greater than 125°F [52°C] for 30 continuous seconds,
or:
b) In cooling mode with compressor energized, FP1 is
greater than 125°F [52°C] for 30 continuous seconds,
or:
www.climatemaster.com
43
Page 44
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B
Safety Features - CXM/DXM Controls
c) In cooling mode with compressor energized, FP2 is
less than 40°F [4.5°C] for 30 continuous seconds.
If a UPS condition occurs, the control will immediately
go to UPS warning. The status LED will remain on as if
the control is in normal mode. Outputs of the control,
excluding LED and alarm relay, will NOT be affected
by UPS. The UPS condition cannot occur during a
compressor off cycle. During UPS warning, the alarm
relay will cycle on and off. The cycle rate will be “on”
for 5 seconds, “off” for 25 seconds, “on” for 5 seconds,
“off” for 25 seconds, etc.
UPS warning code = 8
Swapped FP1/FP2 thermistors: During test mode, the
control monitors to see if the FP1 and FP2 thermistors
are in the appropriate places. If the control is in test
mode, the control will lockout with code 9 after 30
seconds if:
a) The compressor is on in the cooling mode and the
FP1 sensor is colder than the FP2 sensor, or:
b) The compressor is on in the heating mode and the
FP2 sensor is colder than the FP1 sensor.
Swapped FP1/FP2 thermistor code = 9.
ESD (DXM only): The ESD (Emergency Shut Down)
mode can be enabled from an external common signal
to terminal ESD to shut down the unit. The green status
light will ash code 3 when the unit is in ESD mode.
ESD mode = code 3 (green “status” LED)
Do not restart units without inspection and remedy of
faulting condition. Damage may occur.
CXM/DXM Control Start-up Operation
The control will not operate until all inputs and safety
controls are checked for normal conditions. The
compressor will have a 5 minute anti-short cycle delay
at power-up. The rst time after power-up that there is a
call for compressor, the compressor will follow a 5 to 80
second random start delay. After the random start delay
and anti-short cycle delay, the compressor relay will
be energized. On all subsequent compressor calls, the
random start delay is omitted.
CXM/DXM Controls
Diagnostic Features
The LED on the CXM board advises the technician of the
current status of the CXM control. The LED can display
either the current CXM mode or the last fault in memory
if in test mode. If there is no fault in memory, the LED will
ash Code 1 (when in test mode).
The green status LED and red fault LED on the DXM board
advise the technician of the current status of the DXM
control. The status LED will indicate the current mode that
the DXM control is in. The fault LED will ALWAYS ash a
code representing the LAST fault in memory. If there is
no fault in memory, the fault LED will ash Code 1. The
yellow test LED will turn on when in test mode. CAUTION:
44
ClimateMaster Water-Source Heating and Cooling Systems
Page 45
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B
Unit Starting and Operating Conditions
Operating Limits
Environment – Units are designed for indoor installation
only. Never install units in areas subject to freezing or
where humidity levels could cause cabinet condensation
(such as unconditioned spaces subject to 100% outside
2. Voltage utilization range complies with ARI
air).
Power Supply – A voltage variation of +/– 10% of
nameplate utilization voltage is acceptable.
Determination of operating limits is dependent primarily
upon three factors: 1) return air temperature. 2) water
Starting Conditions
Consult Table 9 for the particular model number.
Starting conditions vary depending upon model number
and are based upon the following notes:
Notes:
1. Conditions in Table 8 are not normal or continuous
temperature, and 3) ambient temperature. When any one
of these factors is at minimum or maximum levels, the
other two factors should be at normal levels to insure
proper unit operation.
Extreme variations in temperature and humidity and/
or corrosive water or air will adversely affect unit
performance, reliability, and service life.
Table 8: Operating Limits
Air Limits
Minimum Ambient Air 50°F [10°C] 50°F [10°C]
Rated Ambient Air 80.6°F [27°C] 68°F [20°C]
Maximum Ambient Air 100°F [38°C] 85°F [29°C]
Minimum Entering Air 50°F [10°C] 50°F [10°C]
Rated Entering Air db/wb 80.6/66.2°F [27/19°C] 68°F [20°C]
Maximum Entering Air db/wb 100/83°F [38/28°C] 80°F [27°C]
Water Limits
Minimum Entering Water *30°F [-1°C] *20°F [-7°C]
Normal Entering Water 85°F [29°C] 70°F [21°C]
TRC & CCE Units
Cooling Heating
operating conditions. Minimum/maximum limits are
start-up conditions to bring the building space up to
occupancy temperatures. Units are not designed to
operate under these conditions on a regular basis.
Standard 110.
* Requires optional insulation
package when operating below
the dew point.
Table 9: Water Temperature Change Through
Heat Exchanger
www.climatemaster.com
45
Page 46
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B
Piping System Cleaning and Flushing
Piping System Cleaning and Flushing
Cleaning and ushing the WLHP piping system is the
single most important step to insure proper start-up and
continued efcient operation of the system.
Follow the instructions below to properly clean and ush
the system:
1.
Insure that electrical power to the unit is
disconnected.
2. Install the system with the supply hose connected
directly to the return riser valve. Use a single length
of exible hose.
3. Open all air vents. Fill the system with water. DO
NOT allow system to overow. Bleed all air from the
system. Pressurize and check the system for leaks
and repair as appropriate.
4.
Verify that all strainers are in place (ClimateMaster
recommends a strainer with a #20 stainless steel wire
mesh). Start the pumps, and systematically check
each vent to ensure that all air is bled from the system.
5. Verify that make-up water is available. Adjust make-
up water as required to replace the air which was
bled from the system. Check and adjust the water/air
level in the expansion tank.
6. Set the boiler to raise the loop temperature to
approximately 86°F [30°C]. Open a drain at the
lowest point in the system. Adjust the make-up water
replacement rate to equal the rate of bleed.
7. Rell the system and add trisodium phosphate in
a proportion of approximately one pound per 150
gallons [1/2 kg per 750 l] of water (or other equivalent
approved cleaning agent). Reset the boiler to raise
the loop temperature to 100°F [38°C]. Circulate the
solution for a minimum of 8 to 24 hours. At the end
of this period, shut off the circulating pump and drain
the solution. Repeat system cleaning if desired.
8. When the cleaning process is complete, remove the
short-circuited hoses. Reconnect the hoses to the
proper supply, and return the connections to each of
the units. Rell the system and bleed off all air.
9. Test the system pH with litmus paper. The system
water should be in the range of pH 6.0 - 8.5 (see
table 3). Add chemicals, as appropriate to maintain
neutral pH levels.
10. When the system is successfully cleaned, ushed,
relled and bled, check the main system panels,
safety cutouts and alarms. Set the controls to
properly maintain loop temperatures.
CAUTION!
CAUTION! To avoid possible damage to a plastic (PVC)
piping system, do not allow temperatures to exceed 113°F
[45°C].
NOTE:
ClimateMaster strongly recommends all piping
connections, both internal and external to the unit,
be pressure tested for leakage by an appropriate
method prior to any nishing of the interior space
or before access to all connections is limited.
ClimateMaster will not be responsible or liable for
damages from water leaks due to inadequate or a
lack of pressurized leak testing during installation.
DO NOT use “Stop Leak” or similar chemical agent in
this system. Addition of chemicals of this type to the
loop water will foul the heat exchanger and inhibit unit
operation.
46
ClimateMaster Water-Source Heating and Cooling Systems
Page 47
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Unit and System Checkout
BEFORE POWERING SYSTEM, please check the following:
UNIT CHECKOUT
Balancing/shutoff valves: Insure that all isolation
valves are open and water control valves are wired.
Line voltage and wiring: Verify that voltage is within
an acceptable range for the unit and wiring and
fuses/breakers are properly sized. Verify that low
voltage wiring is complete.
Unit control transformer: Insure that transformer
has the properly selected voltage tap. Commercial
208-230V units are factory wired for 208V operation
unless specied otherwise.
Entering water and air: Insure that entering water and
air temperatures are within operating limits of Table 8.
Low water temperature cutout: Verify that low water
temperature cut-out on the CXM/DXM control is
properly set.
Unit fan: Manually rotate fan to verify free rotation
and insure that blower wheel is secured to the
motor shaft. Be sure to remove any shipping
supports if needed. DO NOT oil motors upon startup. Fan motors are pre-oiled at the factory. Check
unit fan speed selection and compare to design
requirements.
Condensate line: Verify that condensate line is open
and properly pitched toward drain.
Water ow balancing: Record inlet and outlet water
temperatures for each heat pump upon startup. This
check can eliminate nuisance trip outs and high
velocity water ow that could erode heat exchangers.
Unit air coil and lters: Insure that lter is clean and
accessible. Clean air coil of all manufacturing oils.
Unit controls: Verify that CXM or DXM eld selection
options are properly set.
Consoles
Rev.: 30 June, 2008B
Unit and System Checkout Procedure
can cause poor operation or system corrosion.
Cooling tower/boiler: Check equipment for proper set
points and operation.
Standby pumps: Verify that the standby pump is
properly installed and in operating condition.
System controls: Verify that system controls function
and operate in the proper sequence.
Low water temperature cutout: Verify that low water
temperature cut-out controls are provided for the
outdoor portion of the loop. Otherwise, operating
problems may occur.
System control center: Verify that the control center
and alarm panel have appropriate set points and are
operating as designed.
Miscellaneous: Note any questionable aspects of
the installation.
CAUTION!
CAUTION! Verify that ALL water control valves are open
and allow water ow prior to engaging the compressor.
Freezing of the coax or water lines can permanently
damage the heat pump.
CAUTION!
CAUTION! To avoid equipment damage, DO NOT
leave system lled in a building without heat during the
winter unless antifreeze is added to the water loop. Heat
exchangers never fully drain by themselves and will freeze
unless winterized with antifreeze.
NOTICE! Failure to remove shipping brackets from springmounted compressors will cause excessive noise, and could
cause component failure due to added vibration.
SYSTEM CHECKOUT
System water temperature: Check water temperature
for proper range and also verify heating and cooling
set points for proper operation.
System pH: Check and adjust water pH if necessary
to maintain a level between 6 and 8.5. Proper pH
promotes longevity of hoses and ttings (see Table
3).
System ushing: Verify that all hoses are connected
end to end when ushing to insure that debris
bypasses the unit heat exchanger, water valves and
other components. Water used in the system must
be potable quality initially and clean of dirt, piping
slag, and strong chemical cleaning agents. Verify that
all air is purged from the system. Air in the system
www.climatemaster.com
47
Page 48
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Consoles
Rev.: 30 June, 2008B
Unit Start-Up Procedure
Unit Start-up Procedure
1. Turn the thermostat fan position to “ON”. Blower
should start.
2. Balance air ow at registers.
3. Adjust all valves to their full open positions. Turn on
the line power to all heat pumps.
4. Room temperature should be within the minimummaximum ranges of table 8. During start-up checks,
loop water temperature entering the heat pump
should be between 60°F [16°C] and 95°F [35°C].
5.
Two factors determine the operating limits
of ClimateMaster heat pumps, (a) return air
temperature, and (b) water temperature. When any
one of these factors is at a minimum or maximum
level, the other factor must be at normal level to
insure proper unit operation.
a. Adjust the unit thermostat to the warmest setting.
Place the thermostat mode switch in the “COOL”
position. Slowly reduce thermostat setting until
the compressor activates.
b. Check for cool air delivery at the unit grille within a
few minutes after the unit has begun to operate.
Note: Units have a ve minute time delay in the
control circuit that can be eliminated on the CXM/
DXM control board as shown below in Figure 8.
See controls description for details.
c. Check the elevation and cleanliness of the
condensate lines. Dripping may be a sign of a
blocked line. Check that the condensate trap is
lled to provide a water seal.
d.
Refer to Table 9. Check the temperature of
both entering and leaving water. If temperature
is within range, proceed with the test. If
temperature is outside of the operating range,
check refrigerant pressures.
e.
Check air temperature drop across the air coil
when compressor is operating. Air temperature
drop should be between 15°F and 25°F [8°C and
14°C].
f. Turn thermostat to “OFF” position. A hissing noise
indicates proper functioning of the reversing valve.
6. Allow ve (5) minutes between tests for pressure to
equalize before beginning heating test.
a. Adjust the thermostat to the lowest setting.
Place the thermostat mode switch in the “HEAT”
position.
b. Slowly raise the thermostat to a higher
temperature until the compressor activates.
c. Check for warm air delivery within a few minutes
after the unit has begun to operate.
d.
Refer to Table 9. Check the temperature of
both entering and leaving water. If temperature
is within range, proceed with the test. If
temperature is outside of the operating range,
check refrigerant pressures.
e.
Check air temperature rise across the air coil when
compressor is operating. Air temperature rise
should be between 20°F and 30°F [11°C and 17°C].
f. Check for vibration, noise, and water leaks.
7. If unit fails to operate, perform troubleshooting
analysis (see troubleshooting section). If the check
described fails to reveal the problem and the unit
still does not operate, contact a trained service
technician to insure proper diagnosis and repair of
the equipment.
8. When testing is complete, set system to maintain
desired comfort level.
9. BE CERTAIN TO FILL OUT AND FORWARD
ALL WARRANTY REGISTRATION PAPERS TO
CLIMATEMASTER.
Note: If performance during any mode appears
abnormal, refer to the CXM/DXM section or
troubleshooting section of this manual. To obtain
maximum performance, the air coil should be cleaned
before start-up. A 10% solution of dishwasher detergent
and water is recommended.
WARNING!
WARNING! When the disconnect switch is closed, high
voltage is present in some areas of the electrical panel.
Exercise caution when working with energized equipment.
CAUTION!
CAUTION! Verify that ALL water control valves are open and
allow water ow prior to engaging the compressor. Freezing
of the coax or water lines can permanently damage the heat
pump.

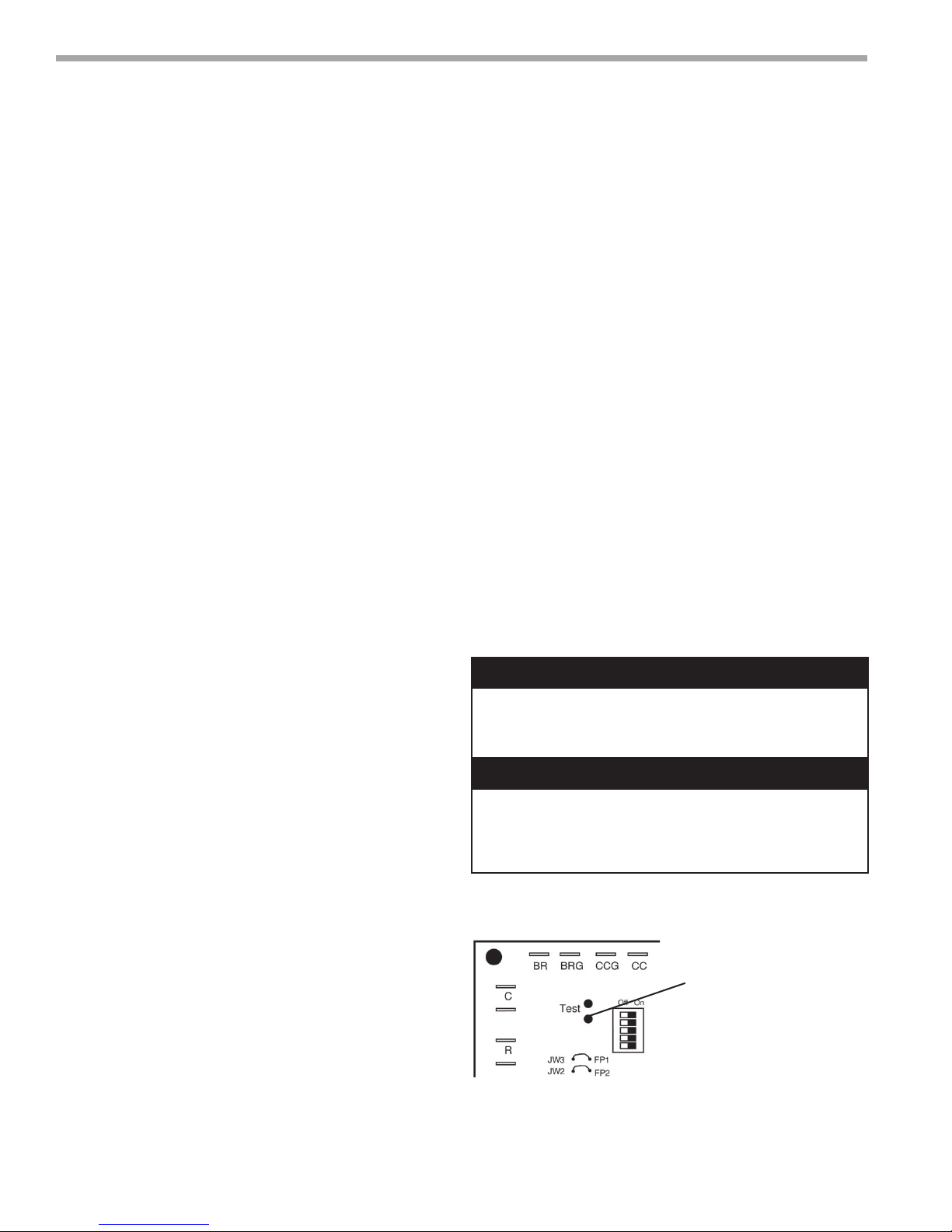

Figure 8: Test Mode Pins
Short test pins
together to enter Test
Mode and speed-up
timing and delays for
20 minutes.
48
ClimateMaster Water-Source Heating and Cooling Systems
Page 49
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B
Preventive Maintenance
Water Coil Maintenance
(Direct ground water applications only)
If the system is installed in an area with a known high
mineral content (125 P.P.M. or greater) in the water, it is
best to establish a periodic maintenance schedule with
the owner so the coil can be checked regularly. Consult
the well water applications section of this manual for
a more detailed water coil material selection. Should
periodic coil cleaning be necessary, use standard coil
cleaning procedures, which are compatible with the heat
exchanger material and copper water lines. Generally,
the more water owing through the unit, the less chance
for scaling. Therefore, 1.5 gpm per ton [2.0 l/m per kW]
is recommended as a minimum ow. Minimum ow rate
for entering water temperatures below 50°F [10°C] is 2.0
gpm per ton [2.6 l/m per kW].
Water Coil Maintenance
(All other water loop applications)
Generally water coil maintenance is not needed for
closed loop systems. However, if the piping is known to
have high dirt or debris content, it is best to establish a
periodic maintenance schedule with the owner so the
water coil can be checked regularly. Dirty installations
are typically the result of deterioration of iron or
galvanized piping or components in the system. Open
cooling towers requiring heavy chemical treatment and
mineral buildup through water use can also contribute
to higher maintenance. Should periodic coil cleaning be
necessary, use standard coil cleaning procedures, which
are compatible with both the heat exchanger material
and copper water lines. Generally, the more water
owing through the unit, the less chance for scaling.
However, ow rates over 3 gpm per ton (3.9 l/m per kW)
can produce water (or debris) velocities that can erode
the heat exchanger wall and ultimately produce leaks.
Filters
Filters must be clean to obtain maximum performance.
Filters should be inspected every month under normal
operating conditions and be replaced when necessary.
Units should never be operated without a lter.
Washable, high efciency, electrostatic lters, when dirty,
can exhibit a very high pressure drop for the fan motor
and reduce air ow, resulting in poor performance. It is
especially important to provide consistent washing of
these lters (in the opposite direction of the normal air
ow) once per month using a high pressure wash similar
to those found at self-serve car washes.
Condensate Drain
In areas where airborne bacteria may produce a “slimy”
substance in the drain pan, it may be necessary
to treat the drain pan chemically with an algaecide
approximately every three months to minimize the
problem. The condensate pan may also need to be
cleaned periodically to insure indoor air quality. The
condensate drain can pick up lint and dirt, especially
with dirty lters. Inspect the drain twice a year to avoid
the possibility of plugging and eventual overow.
Compressor
Conduct annual amperage checks to insure that amp
draw is no more than 10% greater than indicated on the
serial plate data.
Fan Motors
All units have lubricated fan motors. Fan motors should
never be lubricated unless obvious, dry operation
is suspected. Periodic maintenance oiling is not
recommended, as it will result in dirt accumulating in the
excess oil and cause eventual motor failure. Conduct
annual dry operation check and amperage check to
insure amp draw is no more than 10% greater than
indicated on serial plate data.
Air Coil
The air coil must be cleaned to obtain maximum
performance. Check once a year under normal operating
conditions and, if dirty, brush or vacuum clean. Care
must be taken not to damage the aluminum ns while
cleaning. CAUTION: Fin edges are sharp.
Cabinet
Do not allow water to stay in contact with the cabinet
for long periods of time to prevent corrosion of the
cabinet sheet metal. The cabinet can be cleaned using a
mild detergent.
Refrigerant System
To maintain sealed circuit integrity, do not install service
gauges unless unit operation appears abnormal.
Reference the operating charts for pressures and
temperatures. Verify that air and water ow rates are at
proper levels before servicing the refrigerant circuit.
www.climatemaster.com
49
Page 50
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Fault Htg Clg Possible Cause Solution
Main power Problems XXGreen Status LED Off Check Line Voltage circuit breaker and disconnect
Check for line voltage between L1 and L2 on the contactor
Check for 24VAC between R and C on CXM/DXM
Check primary/secondary voltage on transformer
HP Fault-Code 2 X Reduced or no water flow Check pump operation or valve operation/setting
High pressure in cooling
Check water flow adjust to proper flow rate
X
Water Temperature out of range in
cooling
Bring water temp within design parameters
X Reduced or no Air flow Check for dirty air filter and clean or replace
in heating Check fan motor operation and airflow restrictions
Dirty Air Coil- construction dust etc.
Too high of external static. Check static vs blower table
X
Air Temperature out of range in
heating
Bring return air temp within design parameters
XX
Overcharged with refrigerant
Check superheat/subcooling vs typical operating condition
table
XX
Bad HP Switch Check switch continuity and operation. Replace
LP/LOC Fault-Code 3 XXInsufficient charge Check for refrigerant leaks
Low Pressure/Loss of Charge X
Compressor pump down at startup
Check charge and start-up water flow
FP1 Fault - Code 4 X Reduced or no water flow Check pump operation or water valve operation/setting
Water Coil low
temperature limit
in heating Plugged strainer or filter. Clean or replace.
Check water flow adjust to proper flow rate
X Inadequate anti-freeze level Check antifreeze density with hydrometer
X
Improper temperature limit setting
(30°F vs 10°F [-1°C vs -12°C])
Clip JW3 jumper for antifreeze (10°F [-12°C]) use
X Water Temperature out of range Bring water temp within design parameters
XXBad thermistor Check temp and impedance correlation per chart
FP2 fault - Code 5 X Reduced or no Air flow Check for dirty air filter and clean or replace
Air Coil low
temperature limit
in cooling Check fan motor operation and airflow restrictions
Too high of external static. Check static vs blower table
X Air Temperature out of range
Too much cold vent air? Bring entering air temp within
design parameters
X
Improper temperature limit setting
(30°F vs 10°F [-1°C vs -12°C])
Normal airside applications will require 30°F [-1°C] only
XXBad thermistor Check temp and impedance correlation per chart
Condensate Fault-Code
6
XXBlocked Drain Check for blockage and clean drain
XXImproper trap Check trap dimensions and location ahead of vent
X Poor Drainage Check for piping slope away from unit
Check slope of unit toward outlet
Poor venting. Check vent location
X Moisture on sensor Check for moisture shorting to air coil
Over/Under VoltageCode 7
XXUnder Voltage
Check power supply and 24VAC voltage before and during
operation.
(Auto resetting) Check power supply wire size
Check compressor starting. Need hard start kit?
Check 24VAC and unit transformer tap for correct power
supply voltage
XX
Over Voltage
Check power supply voltage and 24VAC before and during
operation.
Check 24VAC and unit transformer tap for correct power
supply voltage
Unit Performance
Sentinel-Code 8
X Heating mode FP2>125°F [52°C] Check for poor air flow or overcharged unit.
X
Cooling Mode FP1>125°F [52°C]
OR FP2< 40ϒF [4ϒC]
Check for poor water flow, or air flow
No Fault Code Shown XXNo compressor operation See "Only fa n operates"
XXCompressor Overload Check and Replace if necessary
XXControl board Reset power and check operation
Unit Short Cycles XXDirty Air Filter Check and Clean air filter
XXUnit in "Test Mode" Reset power or wait 20 minutes for auto exit.
XXUnit selection
Unit may be oversized for space. Check sizing for actual
load of space.
XXCompressor Overload Check and Replace if necessary
Only Fan Runs XXThermostat position Insure thermostat set for heating or cooling operation
XXUnit locked out Check for lockout codes. Reset power.
XXCompressor Overload Check compressor overload. Replace if necessary.
XXThermostat wiring
Check thermostat wiring at heat pump. Jumper Y and R
for compressor operation in test mode.
Consoles
Rev.: 30 June, 2008B
Functional Troubleshooting
50
ClimateMaster Water-Source Heating and Cooling Systems
Page 51
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Only Compressor Runs XXThermostat wiring
Check G wiring at heat pump. Jumper G and R for fan
operation.
XXFan motor relay
Jumper G and R for fan operation. Check for Line voltage
across BR contacts.
Check fan power enable relay operation (if present)
XXFan motor Check for line voltage at motor. Check capacitor
XXThermostat wiring
Check thermostat wiring at heat pump. Jumper Y and R for
compressor operation in test mode.
Unit Doesn't Operate in
Cooling
X Reversing Valve
Set for cooling demand and check 24VAC on RV coil and at
CXM/DXM board.
If RV is stuck, run high pressure up by reducing water flow
and while operating engage and disengage RV coil voltage
to push valve.
X Thermostat setup Check for 'O' RV setup not 'B'
X Thermostat wiring
Check O wiring at heat pump. Jumper O and R for RV coil
'Click'.
X
Thermostat wiring
Put thermostat in cooling mode. Check for 24VAC on O
(check between C and O); check for 24VAC on W (check
between W and C). There should be voltage on O, but not
on W. If voltage is present on W, thermostat may be bad
or wired incorrectly.
Only Compressor Runs XXThermostat wiring
Check G wiring at heat pump. Jumper G and R for fan
operation.
XXFan motor relay
Jumper G and R for fan operation. Check for Line voltage
across BR contacts.
Check fan power enable relay operation (if present)
XXFan motor Check for line voltage at motor. Check capacitor
XXThermostat wiring
Check thermostat wiring at heat pump. Jumper Y and R for
compressor operation in test mode.
Unit Doesn't Operate in
Cooling
X Reversing Valve
Set for cooling demand and check 24VAC on RV coil and at
CXM/DXM board.
If RV is stuck, run high pressure up by reducing water flow
and while operating engage and disengage RV coil voltage
to push valve.
X Thermostat setup Check for 'O' RV setup not 'B'
X Thermostat wiring
Check O wiring at heat pump. Jumper O and R for RV coil
'Click'.
Performance
Troubleshooting
Htg Clg Possible Cause Solution
Insufficient capacity/ XXDirty Filter Replace or clean
Not cooling or heating X Reduced or no Air flow Check for dirty air filter and clean or replace
properly in heating Check fan motor operation and airflow restrictions
Too high of external static. Check static vs blower table
X Reduced or no Air flow Check for dirty air filter and clean or replace
in cooling Check fan motor operation and airflow restrictions
Too high of external static. Check static vs blower table
XXLeaky duct work
Check supply and return air temperatures at the unit and at
distant duct registers if significantly different, duct leaks
are present
XXLow refrigerant charge Check superheat and subcooling per chart
XXRestricted metering device Check superheat and subcooling per chart. Replace.
X Defective Reversing Valve Perform RV touch test
XXThermostat improperly located Check location and for air drafts behind stat
XXUnit undersized
Recheck loads & sizing check sensible clg load and heat
pump capacity
XXScaling in water heat exchanger Perform Scaling check and clean if necessary
XXInlet Water too Hot or Cold Check load, loop sizing, loop backfill, ground moisture.
High Head Pressure X Reduced or no Air flow Check for dirty air filter and clean or replace
in heating Check fan motor operation and airflow restrictions
Too high of external static. Check static vs blower table
X Reduced or no water flow Check pump operation or valve operation/setting
in cooling Check water flow adjust to proper flow rate
X Inlet Water too Hot Check load, loop sizing, loop backfill, ground moisture.
X
Air Temperature out of range in
heating
Bring return air temp within design parameters
X Scaling in water heat exchanger Perform Scaling check and clean if necessary
XXUnit Overcharged Check superheat and subcooling. Reweigh in charge
XXNon-condensables insystem Vacuum system and reweigh in charge
XXRestricted metering device Check superheat and subcooling per chart. Replace.
Low Suction Pressure X Reduced water flow Check pump operation or water valve operation/setting
in heating Plugged strainer or filter. Clean or replace.
Check water flow adjust to proper flow rate
XWater Temperature out of range Bring water temp within design parameters
X Reduced Air flow Check for dirty air filter and clean or replace
in cooling Check fan motor operation and airflow restrictions
Too high of external static. Check static vs blower table
X Air Temperature out of range
Too much cold vent air? Bring entering air temp within
design parameters
XXInsufficient charge Check for refrigerant leaks
Low discharge air
temperature in heating
XToo high of air flow Check fan motor speed selection and airflow chart
X Poor Performance See 'Insufficient Capacity'
High humidity XToo high of air flow Check fan motor speed selection and airflow chart
X Unit oversized
Recheck loads & sizing check sensible clg load and heat
pump capacity
X
Thermostat wiring
Put thermostat in cooling mode. Check for 24VAC on O
(check between C and O); check for 24VAC on W (check
between W and C). There should be voltage on O, but not
on W. If voltage is present on W, thermostat may be bad
or wired incorrectly.
Consoles
Rev.: 30 June, 2008B
Functional Troubleshooting
Performance Troubleshooting
www.climatemaster.com
51
Page 52
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Packaged Unit Refrigeration Schematic
Rev. 3/04
Customer: _____________________________________
Antifreeze: ________________________
Model#: ________________________ Serial#: ________________ Loop type: _______________
Complaint: ________________________________________________________________________
COAX
COMPRESSOR
DISCHARGE
SUCTION
HWG
COOLING CYCLE ANALYSIS -
COAX
COMPRESSOR
DISCHARGE
SUCTION
HWG
HEATING CYCLE ANALYSIS -
PSI
SAT
PSI
SAT
ϒF
ϒF
AIR
COIL
ϒF ϒF
FP2: HEATING
LIQUID LINE
ϒF
EXPANSION
VALVE
AIR
COIL
ϒF ϒF
PSI
SAT
PSI
SAT
ϒF
ϒF
ϒF ϒF
WATER IN WATER OUT
PSI PSI
ϒF ϒF
WATER IN WATER OUT
PSI PSI
Look up pressure drop in
I.O.M. or spec.catalog to
determine flow rate.
Look up pressure drop in
I.O.M. or spec.catalog to
determine flow rate.
†
Use 500 for water, 485 for antifreeze.
FILTER
DRIER*
FLASH
GAS LINE
ϒF
FP1
SENSOR
ϒF
EXPANSION
VALVE
FILTER
DRIER*
FP2: FLASH
GAS LINE
ϒF
OTHER SIDE
OF FILTR DR
ϒF
FP1: CLG
LIQ LINE
ϒF
*Filter drier not on some units with R22 refrigerant.
Refrigerant Type:
R410A
R22
R407C
Heat of Extraction (Absorption) or Heat of Rejection =
________ flow rate ( diff. ( factor = _____________
(Btu/hr)
Superheat
Subcooling
Suction temperature- suction saturation temp.
Discharge saturation temp.-liquid line temp.
=
=
=
=
(deg F)
(deg F)
gpm) x ________ temp. deg. F) x ________ fluid
†
Date: ________________________
Voltage: ________
Comp Amps: _______
To tal Amps: ________
Consoles
Rev.: 30 June, 2008B
Troubleshooting Form
Note: Never connect refrigerant gauges during startup procedures. Conduct water-side analysis
using P/T ports to determine water ow and temperature difference. If water-side analysis shows
poor performance, refrigerant troubleshooting may be required. Connect refrigerant gauges as a
last resort.
52
ClimateMaster Water-Source Heating and Cooling Systems
Page 53
THE SMART SOLUTION FOR ENERGY EFFICIENCY
CLIMATE MASTER, INC.
LIMITED EXPRESS WARRANTY/ LIMITATION OF REMEDIES AND LIABILITY
It is expressly understood that unless a statement is specifically identified as a warranty, statements made by Climate Master, Inc., a Delaware corporation, (“CM”) or its representatives, relating to CM’s products, whether oral,
written or contained in any sales literature, catalog or agreement, are not express warranties and do not form a part of the basis of the bargain, but are merely CM’s opinion or commendation of CM’s products. EXCEPT AS
SPECIFICALLY SET FORTH HEREIN, THERE IS NO EXPRESS WARRANTY AS TO ANY OF CM’S PRODUCTS. CM MAKES NO WARRANTY AGAINST LATENT DEFECTS. CM MAKES NO
WARRANTY OF MERCHANTABILITY OF THE GOODS OR OF THE FITNESS OF THE GOODS FOR ANY PARTICULAR PURPOSE.
GRANT OF LIMITED EXPRESS WARRANTY
CM warrants CM products purchased and retained in the United States of America and Canada to be free from defects in material and workmanship under normal use and maintenance as follows: (1) All complete air
conditioning, heating and/or heat pump units built or sold by CM for twelve (12) months from date of unit start-up or eighteen (18) months from date of shipment (from factory), whichever comes first; (2) Repair and
replacement parts, which are not supplied under warranty, for nintey (90) days from date of shipment (from factory). All parts must be returned to CM’s factory in Oklahoma City, Oklahoma, freight prepaid, no later than sixty
(60) days after the date of the failure of the part; if CM determines the part to be defective and within CM’s Limited Express Warranty, CM shall, when such part has been either replaced or repaired, return such to a factory
recognized dealer, contractor or service organization, F.O.B. CM’s factory, Oklahoma City, Oklahoma, freight prepaid. The warranty on any part repaired or replaced under warranty expires at the end of the original warranty
period.
This warranty does not cover and does not apply to: (1) Air filters, fuses, refrigerant, fluids, oil; (2) Products relocated after initial installation; (3) Any portion or component of any system that is not supplied by CM, regardless
of the cause of the failure of such portion or component; (4) Products on which the unit identification tags or labels have been removed or defaced; (5) Products on which payment to CM is or has been in default; (6) Products
which have defects or damage which result from improper installation, wiring, electrical imbalance characteristics or maintenance; or are caused by accident, misuse or abuse, fire, flood, alteration or mis application of the
product; (7) Products which have defects or damage which result from a contaminated or corrosive air or liquid supply, operation at abnormal temperatures, or unauthorized opening of refrigerant circuit; (8) Mold, fungus or
bacteria damages; (9) Products subjected to corrosion or abrasion; (10) Products manufactured or supplied by others; (11) Products which have been subjected to misuse, negligence or accidents; (12) Products which have been
operated in a manner contrary to CM’s printed instructions; or (13) Products which have defects, damage or insufficient performance as a result of insufficient or incorrect system design or the improper application of CM’s
products.
CM is not responsible for: (1) The costs of any fluids, refrigerant or other system components, or associated labor to repair or replace the same, which is incurred as a result of a defective part covered by CM’s Limited Express
Warranty; (2) The costs of labor, refrigerant, materials or service incurred in removal of the defective part, or in obtaining and replacing the new or repaired part (except for the limited labor coverage set forth above); or, (3)
Transportation costs of the defective part from the installation site to ClimateMaster or of the return of any part not covered by CM’s Limited Express Warranty.
Limitation: This Limited Express Warranty is given in lieu of all other warranties. If, notwithstanding the disclaimers contained herein, it is determined that other warranties exist, any such express warranty, including without
limitation any express warranties or any implied warranties of fitness for particular purpose and merchantability, shall be limited to the duration of the Limited Express Warranty.
LIMITATION OF REMEDIES
In the event of a breach of the Limited Express Warranty, CM will only be obligated at CM’s option to repair the failed part or unit or to furnish a new or rebuilt part or unit in exchange for the part or unit which has failed. If
after written notice to CM’s factory in Oklahoma City, Oklahoma of each defect, malfunction or other failure and a reasonable number of attempts by CM to correct the defect, malfunction or other failure and the remedy fails of
its essential purpose, CM shall refund the purchase price paid to CM in exchange for the return of the sold good(s). Said refund shall be the maximum liability of CM. THIS REMEDY IS THE SOLE AND EXCLUSIVE
REMEDY OF THE BUYER OR PURCHASER AGAINST CM FOR THE BREACH OF CONTRACT, FOR THE BREACH OF ANY WARRANTY OR FOR CM’S NEGLIGENCE OR IN STRICT LIABILITY.
LIMITATION OF LIABILITY
CM shall have no liability for any damages if CM’s performance is delayed for any reason or is prevented to any extent by any event such as, but not limited to: any war, civil unrest, government restrictions or restraints, strikes
or work stoppages, fire, flood, accident, shortages of transportation, fuel, material, or labor, acts of God or any other reason beyond the sole control of CM. CM EXPRESSLY DISCLAIMS AND EXCLUDES ANY
LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGE IN CONTRACT, FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, OR IN TORT, WHETHER FOR CM’s NEGLIGENCE OR
AS STRICT LIABILITY.
OBTAINING WARRANTY PERFORMANCE
Normally, the contractor or service organization who installed the products will provide warranty performance for the owner. Should the installer be unavailable, contact any CM recognized dealer, contractor or service
organization. If assistance is required in obtaining warranty performance, write or call:
Climate Master, Inc. • Customer Service • 7300 S.W. 44th Street • Oklahoma City, Oklahoma 73179 (405) 745-6000
NOTE: Some states or Canadian provinces do not allow limitations on how long an implied warranty lasts, or the limitation or exclusions of consequential or incidental damages, so the foregoing exclusions and limitations may
not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state and from Canadian province to Canadian province.
Please refer to the CM Installation, Operation and Maintenance Manual for operating and maintenance instructions.
*LC083*
Rev.: 3/03 LC083
Consoles
Rev.: 30 June, 2008B
Warranty (U.S. & Canada)
www.climatemaster.com
53
Page 54
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
CLIMATE MASTER, I NC .
LIMITE D EX PR ESS WARR AN TY /LIMITATIO N OF REMEDIE S A ND L IA BILITY
(FOR I NT ER NATIONA L C LA SS P RODUCTS)
It is expressly understood that unless a statement is specifically identified as a warranty, statements made by Climate Master, Inc., a Delaware corporation, U. S. A. (“CM”) or its representatives, relating to CM’s products, whether oral,
written or contained in any sales literature, catalog or agreement, are not express warranties and do not form a part of the basis of the bargain, but are merely CM’s opinion or commendation of CM’s products. EXCEPT AS
SPECIFICALLY SET FORTH HEREIN, THERE IS NO EXPRESS WARRANTY AS TO ANY OF CM’S PRODUCTS. CM MAKES NO WARRANTY AGAINST LATENT DEFECTS. CM MAKES NO WARRANTY
OF MERCHANTABILITY OF THE GOODS OR OF THE FITNESS OF THE GOODS FOR ANY PARTICULAR PURPOSE.
GRANT OF LIMITED EXPRESS WARRANTY
CM warrants CM products purchased and shipped outside the United States and Canada to be free from defects in material and workmanship under normal use and maintenance as follows: (1) All complete air conditioning, heating
and/or heat pump units built or sold by CM for twelve (12) months from date of unit start-up or eighteen (18) months from date of shipment (from factory), whichever comes first; and, (2) Repair and replacement parts, which are not
supplied under warranty, for nintey (90) days from date of shipment (from factory). All parts must be returned to CM’s factory in Oklahoma City, Oklahoma, freight prepaid, no later than sixty (60) days after the date of the failure of
the part; if CM determines the part to be detective and within CM’s Limited Express Warranty, CM shall, when such part has been either replaced or repaired, return such to a factory recognized dealer, contractor or service
organization, EX-WORKS (Incoterms 1990), CM’s factory, Oklahoma City, Oklahoma, U.S.A. The warranty on any part repaired or replaced under warranty expires at the end of the original warranty period.
This warranty does not cover and does not apply to: (1) Air filters, fuses, refrigerant, fluids, oil; (2) Products relocated after initial installation; (3) Any portion or component of any system that is not supplied by CM, regardless of the
cause of the failure of such portion or component; (4) Products on which the unit identification tags or labels have been removed or defaced; (5) Products on which payment to CM is or has been in default; (6) Products which have
defects or damage which result from improper installation, wiring, electrical imbalance characteristics or maintenance; or are caused by accident, misuse or abuse, fire, flood, alteration or mis application of the product; (7) Products
which have defects or damage which result from a contaminated or corrosive air or liquid supply, operation at abnormal temperatures, or unauthorized opening of refrigerant circuit; (8) Mold, fungus or bacteria damages; (9) Products
subjected to corrosion or abrasion; (10) Products manufactured or supplied by others; (11) Products which have been subjected to misuse, negligence or accidents; (12) Products which have been operated in a manner contrary to CM’s
printed instructions; or (13) Products which have defects, damage or insufficient performance as a result of insufficient or incorrect system design or the improper application of CM’s products.
CM is not responsible for: (1) The costs of any fluids, refrigerant or other system components, or associated labor to repair or replace the same, which is incurred as a result of a defective part covered by CM's Limited Express
Warranty; (2) The costs of labor, refrigerant, materials or service incurred in removal of the defective part, or in obtaining and replacing the new or repaired part (except for the limited labor coverage set forth above); or, (3)
Transportation costs of the defective part from the installation site to ClimateMaster or of the return of any part not covered by CM’s Extended Limited Express Warranty.
Limitation : This Limi ted Express Warranty is g iven in li eu of all other warra nties. If, notwithsta nding the disclaime rs contain ed herein, it is determined th at other warranties exist, an y such expr ess warranty, including without
limitation any expre ss warrant ies or any implied wa rranties of fitness for partic ular purpo se and merc hantability, shall be li mited to t he duration of the Li mited Expr ess Warranty.
LIMITATION OF REMEDIES
In the eve nt of a br each of th e Limited E xpress Warranty, CM wil l only be obligated a t CM’s option to repair the faile d part or u nit or to furnish a new or rebu ilt part o r unit in e xchange for the par t or unit which has failed. If
after written notice to CM’s factory in Oklahoma City, Oklahoma of each defect, malfunction or other failure and a reasonable number of attempts by CM to correct the defect, malfunction or other failure and the remedy fails of its
essential purpose, CM shall refund the purchase price paid to CM in exchange for the return of the sold good(s). Said refund shall be the maximum liability of CM. THIS REMEDY IS THE SOLE AND EXCLUSIVE REMEDY OF
THE BUYER OR PURCHASER AGAINST CM FOR BREACH OF CONTRACT, FOR THE BREACH OF ANY WARRANTY OR FOR CM’S NEGLIGENCE OR IN STRICT LIABILITY.
LIMITATION OF LIABILITY
CM shall h ave no lia bility for any damage s if CM's performance is delayed for any reason or is prevent ed to any extent by any event such as, but not lim ited to: a ny war, civil u nrest, government r estriction s or restra ints, strikes,
or work st oppages, f ire, flood, accident, shortages of transpo rtation, fu el, material, or la bor, acts of G od or any other rea son beyond the sole c ontrol of C M. CM EXPRE SSLY DISCLAIMS AND EXCLU DES ANY
LIABILITY FOR CONSEQUEN TIAL OR INCIDEN TAL DAMAGE IN CO NTRACT, FOR BREA CH OF ANY EXPRESS OR IMPLIED WARRANTY, OR IN TORT, WHETHER F OR CM’s NEGLI GENCE OR
AS STRICT L IABILITY.
OBTAINING WARRANTY PERFORMANCE
Normally, the contractor or service organization who installed the products will provide warranty performance for the owner. Should the installer be unavailable, contact any CM recognized dealer, contractor or service organization. If
assistance is required in obtaining warranty performance, write or call:
Climate Master, Inc. • Customer Service • 7300 S.W. 44th Street • Oklahoma City, Oklahoma, U.S.A. 73179 • (405) 745-6000 • FAX (405) 745-6068
NOTE: Some countries do not allow limitations on how long an implied warranty lasts, or the limitation or exclusions of consequential or incidental damages, so the foregoing exclusions and limitations may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state and country to country.
Please refer to the CM Installation, Operation and Maintenance Manual for operating and maintenance instructions.
*LC079*
LC079
Rev.: 3/03
Consoles
Rev.: 30 June, 2008B
Warranty (international)
54
ClimateMaster Water-Source Heating and Cooling Systems
Page 55
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Consoles
Rev.: 30 June, 2008B
Notes
www.climatemaster.com
55
Page 56
Console s
ISO 9001:2000
Certied
Quality: First & Always
R
M
A
N
U
F
A
C
T
U
R
E
R
C
E
R
T
I
F
I
E
D
T
O
A
R
I
A
S
C
O
M
P
L
Y
I
N
G
W
I
T
H
I
S
O
S
T
A
N
D
A
R
D
1
3
2
5
6
-
1
H
E
A
T
P
U
M
P
S
W
A
T
E
R
T
O
A
I
R
B
R
I
N
E
T
O
A
I
R
R ev .: 30 June, 2008B
Section Change Log
Date: Item: Action:
06/30/08 Shut-Off Valve Note Added to Page 13
05/21/08 Unit and System Checkout Added Pressure testing language
05/20/08 All Updated
01/01/07 All Added TRC
01/01/07 Controls Added CCE Rev B controls
01/01/07 Piping Added warnings on pressure switches when using water solenoid valves
01/01/07 Applications Added Notice on ground-water applications
01/01/06 First Published
*97B0035N01*
97B0035N01
ClimateMaster works continually to improve its products. As a result, the design and specifications of each product at the time for order may be
changed without notice and may not be as described herein. Please contact ClimateMaster’s Customer Service Department at 1-405-745-6000 for
specific information on the current design and specifications. Statements and other information contained herein are not express warranties and do
not form the basis of any bargain between the parties, but are merely ClimateMaster’s opinion or commendation of its products.
The management system governing the manufacture of ClimateMaster’s products is ISO 9001:2000 certified.
© ClimateMaster, Inc. 2006
56
TM
Loading...
