NextBase SDV77-B User Manual

Specifications and Main Features

  • Name of the product: Car Power Portable DVD player.
  • Power Supply: DC 12V.
  • Power Dissipation: < 10 W.
  • Audio Output: R/L 2ch, Coaxial.
  • Video Output: Composite.
  • Body Size: 206 x 173 x 36.7 mm.
  • Weight: 731 g weight without battery.
  • Supports different kinds of playable discs: DVD discs containing video (MPEG 2 form), Digital Audio CD among others.

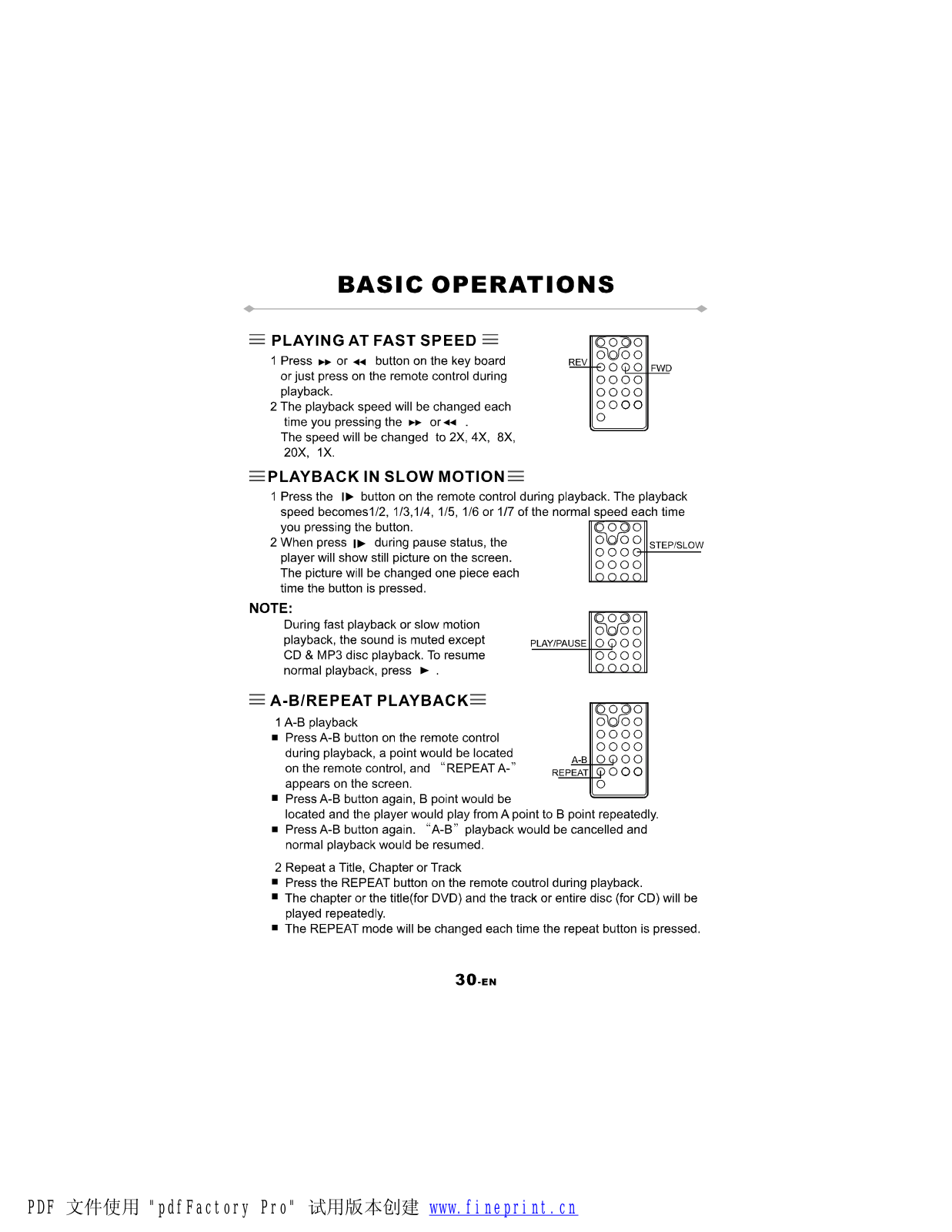

  • Playback capabilities: A-B Repeat Playback, Zoom Function, Fast Playback, Slow Motion, Program Playback, Subtitle and Audio Language selection.
  • Characteristic Sort: TFT Screen Display.
  • Polymeric battery pack: All related models (PS330N-X,PS330P-X,PS3XX-X) can use this type of battery.
  • Type of laser: Semiconductor laser GaAlAs.
  • Wavelength of laser: 650 nm / 780 nm.
  • Output power of laser: 5 mW.

Frequently Asked Questions

Q: What kind of discs can be operated in the DVD player?

A: This player supports these formats, single sided DVD-video (in MPEG 2 format) , CD Digital Audio and many more formats including double sided discs.

Q: How long does the charger last?

A: The charger lasts more than 3 hours when fully charged and installed on the player.

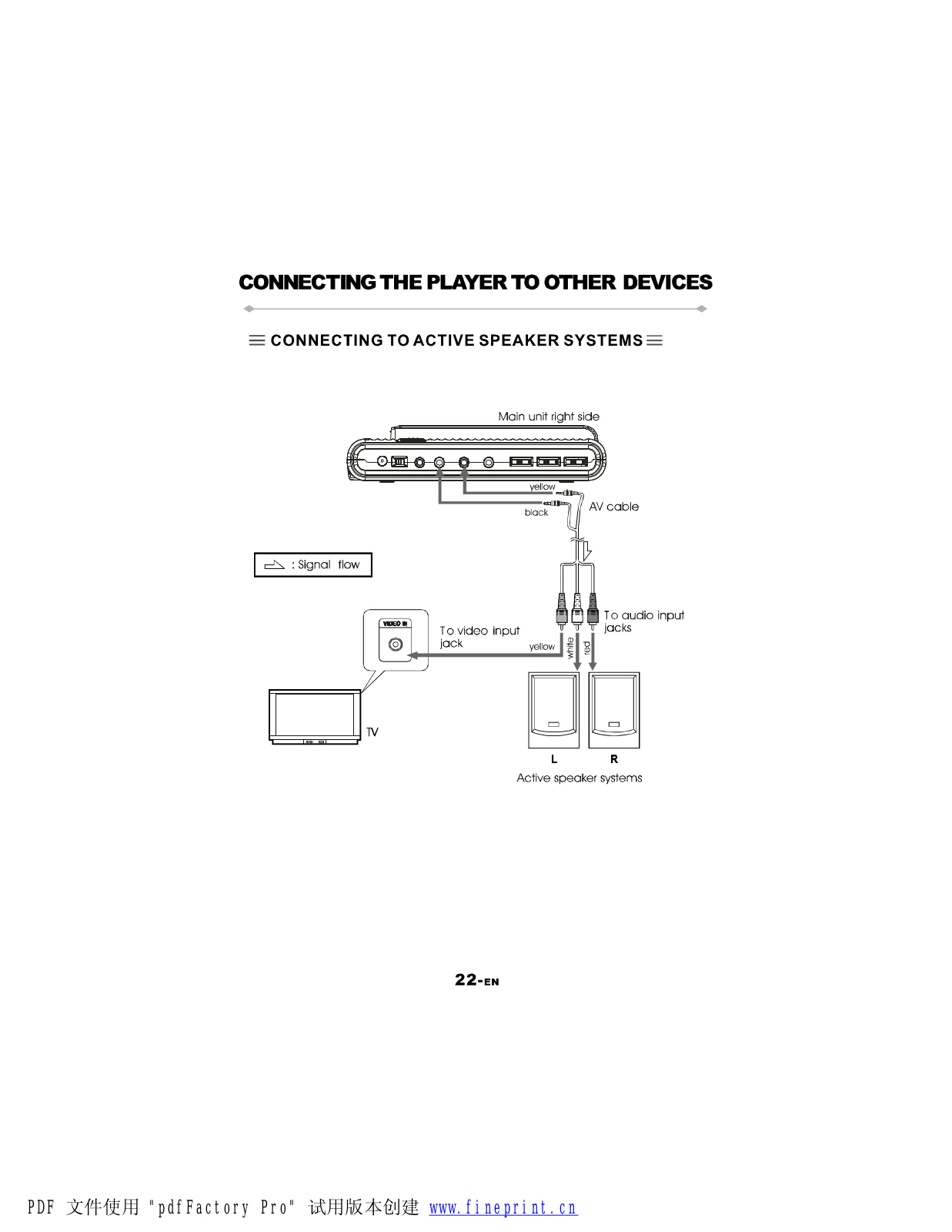

Q: DVD player, connect to a television?

A: To connect a DVD player to the television, use appropriate cables to connect the audio and video output jacks of the player to the related inputs of the TV.

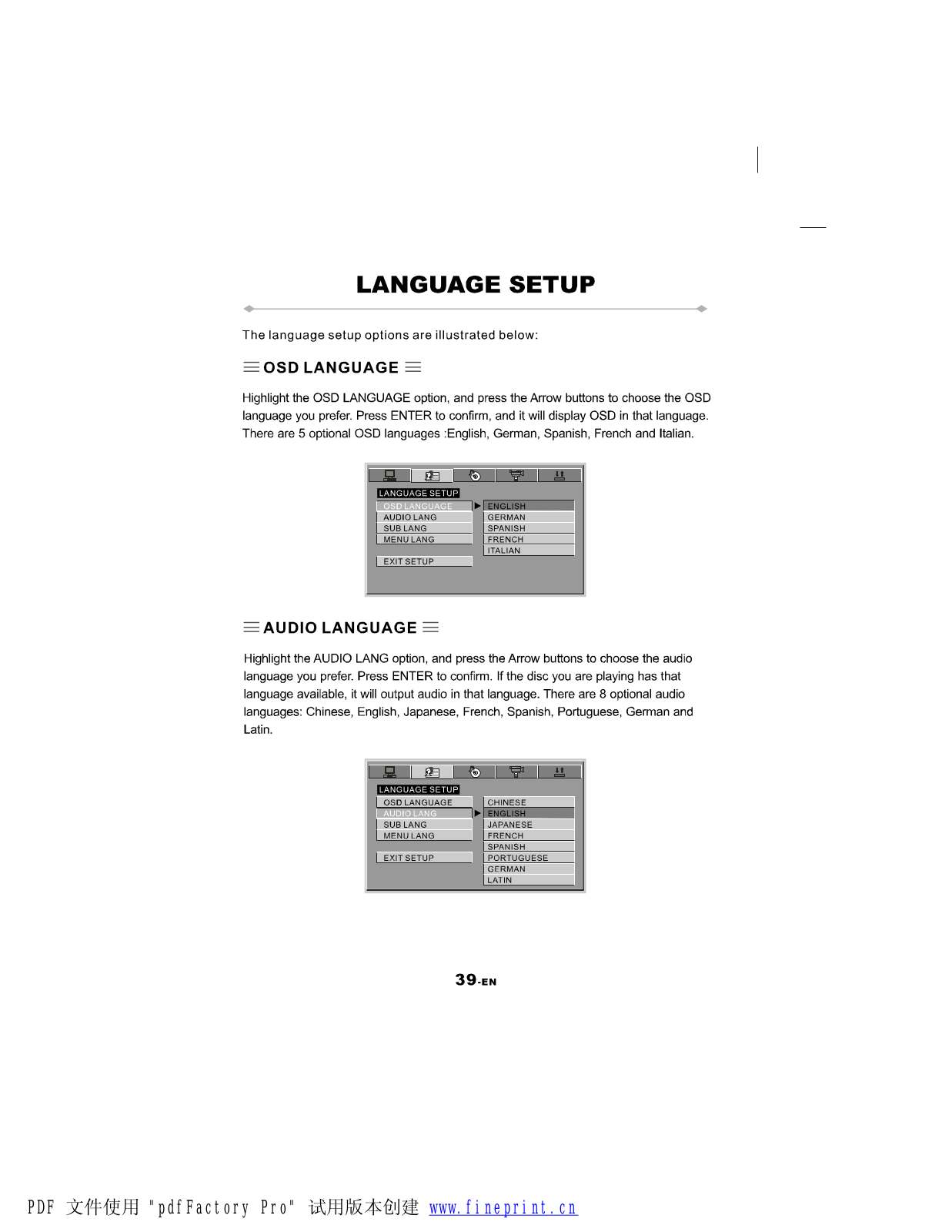

Q: During a movie for example, can the player show the subtitles?

A: Yes, the language of the subtitles can be changed by using the SUBTITLE button located on the remote even during the session.

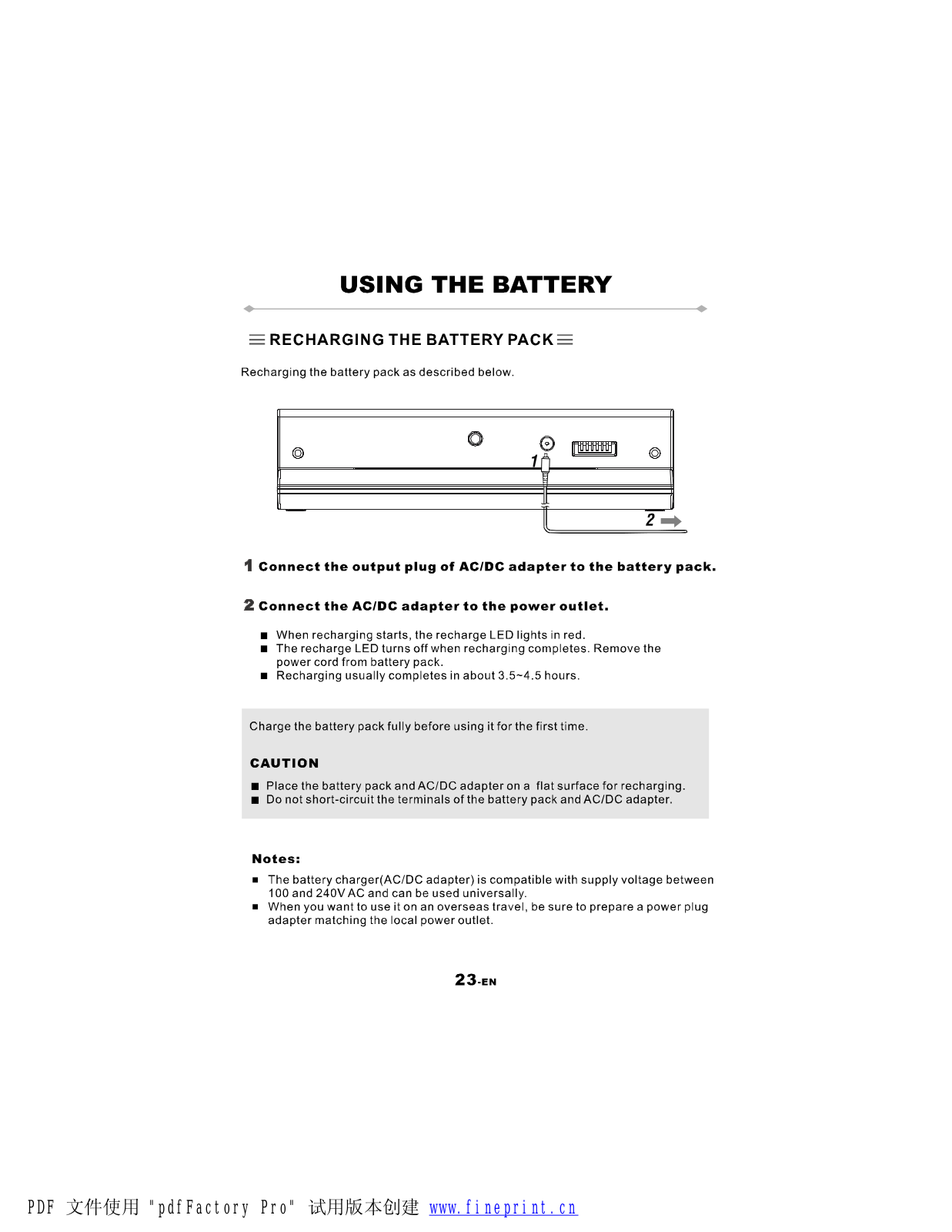

Q: Please explain how the battery pack gets charged?

A: First, insert the output plug of the AC/DC adapter into the battery pack and then place the adaptor in a power socket. The LED indicator of charging will be on in red color.

Q: When the player will not work, what should I do?

A: In the second case, check if the power is connected and working, and that the battery pack and all wiring are in place and functional.

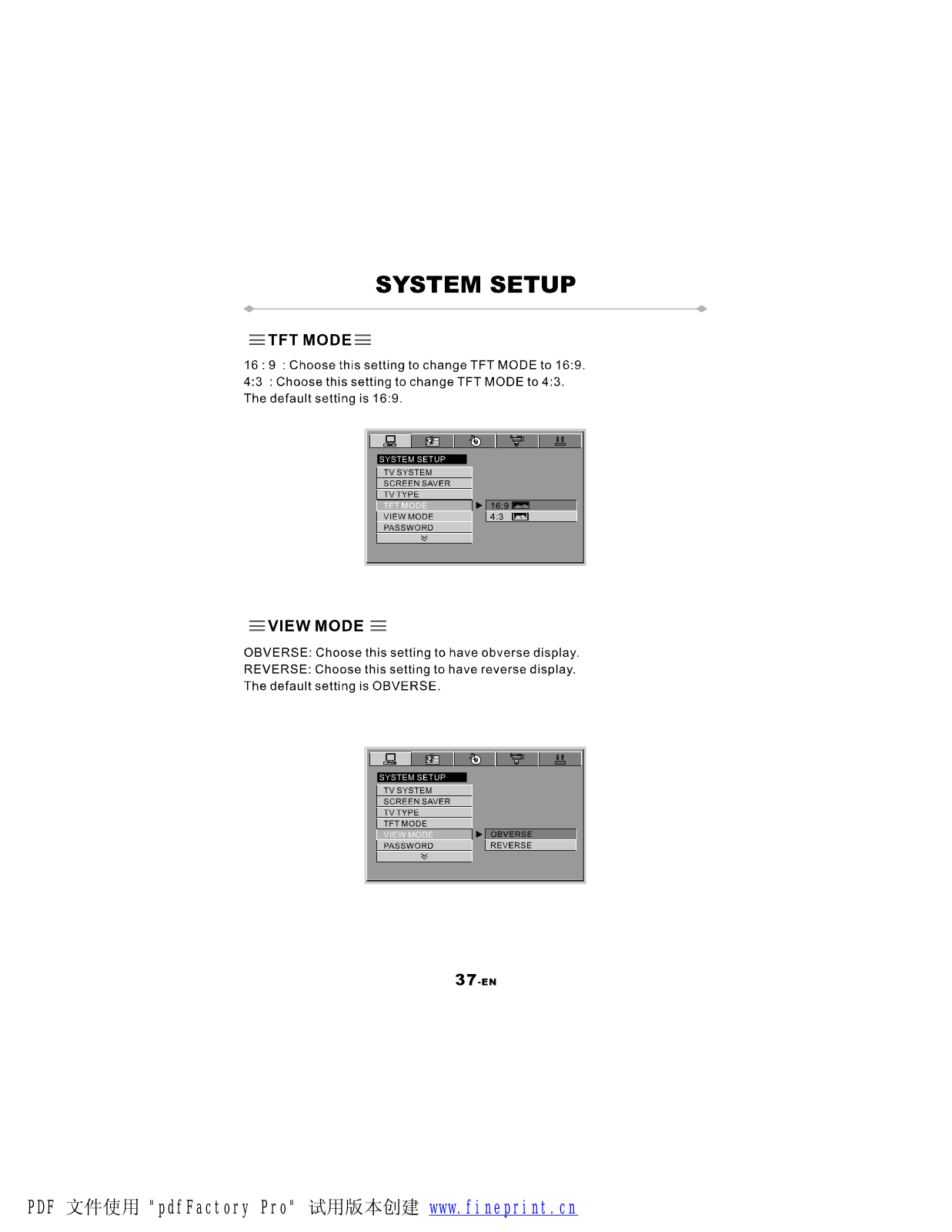

Q: Is it possible to make any changes in video quality?

A: Yes, video quality such as brightness, contrast, hue, and saturation can all be altered on the settings options available.
