INTRODUCTION TO USING AN IN-CAR CAM

The iN-CAR CAM range of dash cams have been designed speciﬁcally with ease of use in mind, it is recommended NOT to change the default settings, which have been carefully selected to give the best performance for day to day use.

Basic operation. The iN-CAR CAM is set to record video, in ﬁles of just 3 minutes in length. This means that each video ﬁle is a manageable size should you need to download and send to your insurance company. Eventually your MicroSD card will ﬁll up with video ﬁles but don't worry, the camera automatically deletes the oldest ﬁle to make space for new recordings. This way you never run out of space and have plenty of driving historical evidence saved. Typically a 16Gb card will store the last 1.5 hours of driving footage.

For summer months where the clocks are brought forward or for driving in other countries, adjust the time in the Setup Menu (Time & Date) to account for the time diﬀerence from GMT by adding or subtracting 1 hour etc, if required.

There are 3 modes of camera operation - Video, Photo and Playback. Video Mode: The default mode when the camera is turned on, for video recording. Photo Mode: Allows you to take still photographs. Playback mode: Allows you to view recorded video or photographs upon the dash cam LCD screen. Press the MODE button on the iN-CAR CAM to select required mode.

Automatic Start / Stop Technology. The iN-CAR CAM senses power supplied to the cigarette lighter socket as soon as the vehicle ignition is turned on and will start to record automatically. When the ignition is turned oﬀ, the iN-CAR CAM will perform an automatic shutdown process.

1. Tips for capturing best video footage:

1.1 Position the iN-CAR CAM in the centre of the windscreen and ideally behind the rear view mirror so it is not a distraction to the driver.

1.2 Reduce the amount of sky in the picture, by angling the view of the camera towards the road. Too much sky will make the road appear darker due to the automatic exposure compensation.

1.3 Remove unnecessary items from your dashboard. If objects are placed on your dashboard these can cause reﬂections to be seen on the windscreen and these reﬂections may be captured during recording.

2. Tips for stable memory card performance:

2.1 Periodically reformat the memory card. Every 2-3 weeks we recommend that you reformat the memory card. This will wipe any ﬁles from the card and set it up afresh for continued use with your iN-CAR CAM. Of course, you should only do this AFTER you've downloaded any ﬁles from the card that you may want to keep, as formatting the card will remove all content.

2.1 Format your memory card using the iN-CAR CAM. This will make sure that the card is structured speciﬁcally for your camera. Press MENU twice and choose the Format Card option. Follow the on-screen instructions accordingly.

2.2 Switch oﬀ the iN-CAR CAM before removing the SD memory card, to prevent the chance of damage being caused to the memory card or the ﬁles stored upon it, turn OFF the iN-CAR CAM before removing or inserting the memory card.

TABLE OF CONTENTS

INTRODUCTION TO USING AN IN-CAR CAM

TABLE OF CONTENTS

PRECAUTIONS

CAUTIONS ON USING THIS PRODUCT

PRODUCT SPECIFICATION

PACKAGE CONTENTS

PRODUCT FEATURES

POWERED MOUNT

CAMERA - PARTS & CONTROLS

IN VEHICLE INSTALLATION

VIDEO MODE

PHOTO MODE

PLAYBACK MODE

SETUP MENU

PC CONNECTION

.............................................................................................................

................................................................................................................

..............................................................................................................

................................................................................................................

.................................................................................................

......................................................................

.........................................................................................

.................................................................................................

.......................................................................................................

.................................................................................

.........................................................................................

........................................................................................................

.........................................................................................................

.............................................................

VIDEO & AUDIO OUTPUT

TROUBLE SHOOTING

.............................................................................................

..................................................................................................

PRECAUTIONS

Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problem.

WARNING:

CAUTION:

Do not expose this product to rain, moisture or water under any circumstances, doing so may result in the risk of electric shock or fire.

To reduce the risk of electric shock, do not perform any servicing other than that contained in the instruction manual unless you are qualified to do so. Have the unit serviced by a qualified service technician if; The Unit has been exposed to rain or water. The unit does not seem to operate normally. The unit exhibits a marked change in performance.

A Liquid Crystal Display (LCD) screen is a multilayer complex component, containing

LCD:

345,600 pixels. Pixels can however fail during normal product life. 1 pixel = 0.0003% failure rate, and one pixel failure per year of operation is considered normal and not a cause for concern.

WEEE:

Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union.

This symbol on the product or on the packaging indicates that this cannot be disposed of as household waste. You must dispose of your waste equipment and/or battery by handing it over to the applicable take-back scheme for the recycling of electronic equipment and/or batteries. For more information please contact your local household waste disposal office.

CAUTIONS ON USING THIS PRODUCT

1. Ensure that the windscreen is free of dirt or grease before placing mount upon it. Do not obscure the view of the road ahead or impede the deployment of any airbags in the event 2.

of an accident.

When not in use, please disconnect the car adaptor from both the 12/24Vdc outlet in your vehicle 3.

and the device itself.

4. Only clean the device with a soft dry cloth, for tough dirt, apply some neutral detergent diluted in

5 to 6 parts water to a soft cloth.

Note that alcohol, thinner, benzene etc could cause damage to the paint or coatings. Avoid making contact with the len s as damage be caused. 5. se may If required clean the glass lens carefully using spectacle lens cleaning fluid on a soft cloth only. 6. The video recordings made by this Digital Video Recorder are intended for personal use only. 7. Publication of the recordings on Youtube, the internet or other methods are subject to the 8.

Data Protection Act and the requirements thereof must be adhered to.

If the Digital Video Recorder is to be used within a commercial environment, i.e. truck use, then

the CCTV regulation apply also, in addition to the Data Protection Act regulations. This includes olabelling to identify the use f CCTV is taking place, the omission of Audio recording and he relevant informing t authorities of who controls the data.

Video playback upon the device which is visible to the driver is prohibited or restricted in some 9.

countries or States. Please adhere to these laws.

Whilst driving, do not adjust the controls of your device as this is a distraction to driving. 10.

PRODUCT SPECIFICATION

Model Number / Name

Power Requirements

Power Supply

Sensor Resolution

Lens Type / Angle / Aperture

Recording Resolution

Screen Size

Screen Resolution

Screen Ratio

Card Reader

SD Card (Recommended Type)

SD Card Recorded File Capacity (based on default settings)

Recording Format

Video / Audio Out

Internal Battery

Unit Dimensions

Unit Weight

NBDVR112 / NEXTBASE iN-CAR CAM GO

5V / 1.5A

12-24Vdc Car Power Cable (supplied) Fuse Type: 20mm / 2A Output: 5Vdc

1M Pixel (1,000,000 Pixel)

5G / 120° / F2.0

1280 x 720 @ 30fps (default)

2.0"

480 (W) X 240 (H) pixels x RGB

4:3

MicroSD, Class 6-10, up to 32GB

8-32GB SDHC, Class 10 (48mb/s), for best results use a recognized brand

8GB Micro SD = 45mins of recording (15 x 3minute recordings) 16GB Micro SD = 90mins of recording (30 x 3minute recordings) 32GB Micro SD = 180mins of recording (60 x 3minute recordings)

AVI

2.5mm Jack (Video / Audio)

Lithium-ion 3.7V / 230mAh (approx. 30mins recording time) Battery design allows the 'Auto Power Off' feature to function in event of power loss within the vehicle. It is not intended as an alternative power source to replace the supplied car adaptor.

60 x 67 x 39mm

66g

PACKAGE CONTENTS

Please check the contents of your iN-CAR CAM product.

iN-CAR CAM

Powered Mount

Car Power Cable USB Cable

Window

Sticker

Product appearance may differ slightly to that shown above.

Quick Start

Guide

Instruction Manual

& Software Disk

PRODUCT FEATURES

Thank you for purchasing this NEXTBASE iN-CAR CAM product, in this section we will outline some of the features available with this dash cam.

2.0" LCD Colour Screen

LCD screen for ease of use and viewing the playback of recorded videos and photos.

Powered Mount

Supplied with an Easy-Fit powered mount, which allows the iN-CAR CAM to be fitted and removed quickly and easily. The car power cable can remain in place, connected to the mount.

G Sensor / File Protection

In the event of an impact the device will automatically 'protect' the recording, stopping the file from being over-written. This can also be performed manually, by pressing the ‘protect’ button. Individual files can also be 'protected' when viewed within playback mode.

Automatic Start / Stop Technology

The iN-CAR CAM senses power supplied to the cigarette lighter socket, as soon as the vehicle ignition is turned on and will start to record automatically. When the ignition is turned off, the iN-CAR CAM will perform an automatic shutdown process.

Parking Mode

The iN-CAR CAM turns on automatically to record 30 seconds of video, when physical movement of your vehicle is detected.

Built-in Microphone & Speaker

Record audio to compliment the video recordings.

POWERED MOUNT

Please see below to identify the parts of the supplied powered mount.

1. Locking lever

The locking lever is used to attach and release the window mount to your vehicles windscreen. Pull the lever down to prepare the window mount for use. Once the mount is firmly upon the windscreen (in a suitable location) push the lever to lock the mount in place.

2. Locking ring

Loosen the locking ring to adjust the iN-CAR CAM position if required, remembering to re-tighten before use.

3. DC-IN socket

Connect the supplied car power cable here.

4. Suction cup

This is used to attach and release the window mount to your vehicles windscreen. Affix to a clear piece of windscreen where there is no paint effect applied.

5. Suction release tab

Once the locking lever has been opened use this release tab to break the seal between the mount and windscreen.

CAMERA - PARTS & CONTROLS

Please see below to identify the parts and controls of your iN-CAR CAM.

Front:

1. Mounting point (located under dust cover)

After removing the dust cover, attach the supplied powered mount here.

2 3

2. Speaker

Integral speaker for audio playback directly from the iN-CAR CAM.

3. Camera lens

Wide Angle 120°, 5 Element glass lens for optimum picture quality.

CAMERA - PARTS & CONTROLS (CONTD.)

Back:

4. Dual colour LED indicator Red = power on

Red flashing = recording Blue = battery charging

5. Menu button

Press to open the menu within current mode, press twice to open the general settings

6. Down / Microphone Off button

Down: Press to navigate down within menus and to move to the previous file when in playback mode.

Microphone Off: Press to turn off / on the microphone (audio recording), only available whilst in video mode.

7. Record / OK button Record:

Press to start or stop a recording when in video mode, or take a photo when in photo mode.

OK: Press to confirm selection when in menus.

96 7 8

CAMERA - PARTS & CONTROLS (CONTD.)

Back continued:

8. Up / Screen Off button

Up: Press to navigate up within menus and to move to the next file when in playback mode.

Screen Off: Press to turn off / on the screen, only available whilst recording.

9. Protect File

Press whilst recording to protect the current file in event of an emergency situation.

Note:

- When the 'Protect' function is activated within the first third of a recording, the previous recording will also be protected.

- When the 'Protect' function is activated within the final third of a recording, the next recording (if recording continues) will also be protected.

96 7 8

CAMERA - PARTS & CONTROLS (CONTD.)

Top:

10. Dust Cover

To remove the dust cover slide it forwards away from the dash cam.

Note: Replace the dust cover when not using the dash cam for a prolonged period of time.

Bottom:

11 12 13

11. Microphone

Integral microphone for audio recording.

12. Serial Number sticker

Please keep a record of your dash cam’s serial number, this may be required should you seek technical support.

13. Reset button

In the unlikely event the iN-CAR CAM becomes unresponsive, press the RESET button to restart the iN-CAR CAM.

Note:

- This does not return the dash cam to default settings, i.e. losing the time and date settings.

CAMERA - PARTS & CONTROLS (CONTD.)

Sides:

14. DC-IN & USB socket

Connect the supplied car power cable or USB data cable here.

Note:

- Normally the car power cable is connected to the mount when in use, not directly to this socket.

15. AV Out socket

Used to connect your iN-CAR CAM to a television using an AV Cable (sold separately).

16. Power On / Off button Press and hold for 2 seconds to turn on / off the dash cam.

17. MicroSD Card slot

Insert the MicroSD card here, taking care that the gold contacts are facing towards the back of the iN-CAR CAM.

18. Mode button

Press to change between video, photo or playback modes.

IN VEHICLE INSTALLATION

Please follow the instructions below for first-time installation of the iN-CAR CAM. For day to day use simply remove the camera from the mount as required.

1. Insert MicroSD Card

Insert a suitable MicroSD card (Class 10, minimum 48/Mbps) in to the iN-CAR CAM, taking care that the gold contacts are facing towards the LCD screen side of the iN-CAR CAM. Push the memory card until it clicks into place.

Note:

- Use the edge of a small coin (or similar object) to push the memory card in place if required. Take care that card has 'clicked' into place, a second push inwards will release the memory card.

- Do not remove or insert the memory card when the iN-CAR CAM is turned on. This may damage the memory card.

2. Remove dust cover from iN-CAR CAM

Remove the dust cover that is located on the top of the iN-CAR CAM to gain access to the mounting point.

To remove the dust cover, slide it forwards away from the LCD screen of the iN-CAR CAM.

Note:

- If the iN-CAR CAM is not to be used for a period of time please replace the dust cover to help keep the metal contacts free of dust or other contaminants.

IN VEHICLE INSTALLATION (CONTD.)

3. Attach the mount to the iN-CAR CAM

Slide the iN-CAR CAM onto the mount. Once attached, magnets within the mount and camera will hold the two parts together.

4. Attach the mount to the windscreen

Remove the protective plastic film from the suction cup of the mount.

Select a suitable position for the mount and clean the windscreen with a dry / clean cloth to achieve a good contact between the glass and suction cup.

Release the locking lever of the mount by pulling down and then whilst holding the suction cup onto the glass push the lever up to secure the mount to the windscreen.

Note:

- Choose a smooth glass area without painted effect.

- Please ensure that once mounted the iN-CAR CAM will be located within the area of the vehicles windscreen wipers to maintain a clear view during rainfall.

IN VEHICLE INSTALLATION (CONTD.)

5. Connect car power cable

Connect the supplied car power cable to DC-IN socket of the mount.

Plug the power cable into the 12-24Vdc outlet of your vehicle.

12-24V DC

The iN-CAR CAM will automatically power on and start recording once power is available. In some vehicles this will be when connections are made, for others the iN-CAR CAM will power on once the ignition has been turned on.

Should your vehicle not have a 12-24Vdc outlet, but does have a 5Vdc USB Outlet, this can be used instead. Connect the USB cable supplied with your iN-CAR CAM in place of the car power cable. Ensure you connect the USB cable to the Powered Mount only, NOT directly to the camera during in-car use.

Note:

- Do NOT wire the iN-CAR CAM directly to a 12V supply by cutting the cigarette plug off the end of the cable, or permanment damage will result.

- A Nextbase hardwire kit is available from your retailer. This connects directly to the vehicle fusebox and hence leaves your cigarette socket available for Phone / Sat Nav charging. The Nextbase hardwire kit includes the necessary 12-24VDC to 5Vdc convertor and battery protection circuitry.

The above diagram is for illustration purposes only.

IN VEHICLE INSTALLATION (CONTD.)

Please read and follow the notes below for the safe operation of your iN-CAR CAM within your vehicle.

As per the installation instructions, you must install the iN-CAR CAM so it does NOT obstruct the drivers view of the road, preferably on the passenger side of the vehicle and behind the rear view mirror. Whilst the iN-CAR CAM clearly needs to view through the windscreen in an area swept by the windscreen wipers, the iN-CAR CAM should be installed so as not to intrude significantly within the wiped area. A 40mm intrusion into the green wiped area is the maximum permitted by law.

Do NOT mount the iN-CAR CAM in front of the driver, as depicted by the red area in the above illustration.

When installing the iN-CAR CAM in a vehicle, always place the device securely against the windscreen and where possible conceal the power cable under trim. Make sure that the iN-CAR CAM power cable does not interfere with the drivers operating controls, such as the steering wheel, pedals or gear levers.

Do NOT mount the iN-CAR CAM in front of an airbag field of deployment or in a position to obscure any mirrors.

Clean the windscreen at the point of location, prior to fitting the iN-CAR CAM, also, applying some moisture to the suction cup may be beneficial, to ensure absolute adhesion.

It is recommended NOT to operate the iN-CAR CAM whilst driving. The automatic Start-Stop technology incorporated within the device negates any need to operate the controls whilst driving.

Adjust any settings or review recordings whilst stationery, not whilst driving.

Only use your mobile device whilst stationery, not whilst driving.

After the preliminary SETUP has been carried out upon the iN-CAR CAM, adjust the Screen Saver setting to 30 seconds, this will blank the screen automatically shortly after starting the vehicle and therefore the screen will NOT be a distraction in any way to the driver.

VIDEO MODE

The key below explains the various information displayed on the screen when your iN-CAR CAM is in Video mode, some icons will only be displayed once the relevant function has been selected within the Video menu, as described below.

1 2 3

16:04:37 14/10/2015

12 9

1. Mode: indicates the iN-CAR CAM is in Video mode.

2. Recording: appears on screen when recording is in progress.

3. Resolution: displays the current resolution.

4. Exposure: displays current Exposure level setting.

5. Video Length: displays the length of the individual recordings in minutes.

6. Parking Mode: appears on screen when Parking Mode has been turned on.

7. Microphone: displayed on screen when Audio Recording is active.

8. Screen Capture: appears on screen during screen capture.

9. Date: current date.

10. Time: current time.

11. Memory Card: indicates whether a memory card is present.

12. Battery: indicates whether iN-CAR CAM is running on battery or external power.

13. Protected: shown on screen when a video file has been protected by activation of the G Sensor or by the pressing of the file protect button.

1011

The default settings within the iN-CAR CAM have been set to allow you to use the iN-CAR CAM without the need to change any settings.

See the next page for video menu settings, should you want to make any adjustments however.

VIDEO MODE (CONTD.)

Video Menu

The Video Menu is accessed by pressing the MENU button whilst in video mode.

Video Menu

Resolution

Exposure

Audio Recording

Number Plate

The default settings have been carefully selected to allow you to use the iN-CAR CAM without the need to change any settings. However, should you wish to change a setting then please see below.

Use the up and down buttons to highlight the function that you'd like to change and press the OK button to enter the settings sub-menu.

Once in the submenu, use the up and down buttons to highlight the required setting and then press OK to confirm your selection and return to the Video Menu.

Press the MENU button twice to return to video mode.

Note:

- Menus are not accessible whilst the iN-CAR CAM is recording.

1. Resolution

Select recording resolution, this will increase or decrease the quality of the recorded video.

Options: 720P and 480P Default Setting: 720P

2. Exposure

Adjust exposure level for different light conditions.

Options: +2, +1, 0, -1 and -2 Default Setting: 0

3. Audio Recording

Turn On / Off the microphone.

Options: On and Off Default Setting: On

Back

Enter

4. Number Plate

Enter the registration number for your vehicle, this will then be shown on the video file.

VIDEO MODE (CONTD.)

Continued from previous page.

Video Length

Video Menu

Parking Mode

Rotate Display

Time & Date Stamp

5. Video Length

Select the duration of the individual recorded video files. The iN-CAR CAM will continue recording, filling the memory card. When the memory card becomes full, the oldest file will be automatically deleted to make space for the new recording.

Note:

- Protected files will never be deleted.

Options: 2 Minutes, 3 Minutes and 5 Minutes Default Setting: 3 Minutes

6. Parking Mode

When Parking Mode has been turned ON, the iN-CAR CAM remains in standby mode, when the 12Vdc supply has been turned OFF (typically removing your ignition key). Should physical movement of the vehicle be detected the iN-CAR CAM will power on and start recording a 30 second video and then return to standby mode.

The recorded file will automatically be protected.

Options: On and Off Default Setting: Off

Note:

- Remember to turn off Parking Mode from within the Setup Menu during normal driving use, to turn off Parking Mode stop the recording and then change setting to Off

7. Rotate Display

Rotate the display 180°, particularly useful should the iN-CAR CAM be mounted on the dashboard, the iN-CAR CAM control button functions do not rotate.

Back

Enter

8. Time & Date Stamp

Turn On / Off the time and date stamp shown on recorded files.

Options: Off and On Default Setting: On

VIDEO MODE (CONTD.)

Continued from previous page.

G Sensor

Video Menu

9. G Sensor

Turn Off or adjust the sensitivity of the built in G Sensor. The G Sensor detects forces which will automatically protect the current recording in event of a collision.

Options: High, Medium, Low and Off Default Setting: Medium

Note:

- When the 'Protect' function is activated within the first third of a recording, the previous recording will also be protected.

- When the 'Protect' function is activated within the final third of a recording, the next recording (if recording continues) will also be protected.

Note:

- Within the Setup Menu which is accessed by pressing the MENU button twice, there is a ‘Default Settings’ option to allow you to reset the iN-CAR CAM to the factory defaults, if required.

Back

Enter

PHOTO MODE

Press the MODE button to select Photo mode.

The key below explains the information displayed on the screen when your iN-CAR CAM is in Photo mode.

16:04:37 14/10/2015

1. Mode: indicates the iN-CAR CAM is in Photo mode.

2. Exposure: displays current exposure level setting.

3. Date: current date.

4. Time: current time.

5. Memory Card: indicates whether a memory card is present.

6. Battery: indicates whether iN-CAR CAM is running on battery or external power.

See the next page for photo menu settings.

PHOTO MODE (CONTD.)

Photo Menu

The Photo Menu is accessed by pressing the MENU button whilst in photo mode.

Photo Menu

Exposure

Time & Date Stamp

The default settings have been carefully selected to allow you to use the iN-CAR CAM without the need to change any settings. However, should you wish to change a setting then please see below.

Use the up and down buttons to highlight the function that you'd like to change and press the OK button to enter the settings sub-menu.

Once in the submenu, use the up and down buttons to highlight the required setting and then press OK to confirm your selection and return to the Photo Menu.

Press the MENU button twice to return to photo mode.

1. Exposure

Adjust exposure level for different light conditions.

Options: +2, +1, 0, -1 and -2 Default Setting: 0

2. Time & Date Stamp

Turn On / Off the time and date stamp shown on images.

Options: On and Off Default Setting: On

Note:

- Within the Setup Menu which is accessed by pressing the MENU button twice, there is a ‘Default Settings’ option to allow you to reset the iN-CAR CAM to the factory defaults, if required.

Back

Enter

PLAYBACK MODE

Press the MODE button to select Playback mode, the iN-CAR CAM will display the last recorded file.

Dependent on the type of file, the on-screen information and playback functions differ.

Video Files:

2 3

19320001.AVI 1:39

HH:MM:SS

DD/MM/YYYY

5 6

1. Mode: indicates the iN-CAR CAM is in Playback mode.

2. File type: indicates whether a video or photo file is being viewed.

3. File number: displays current file number.

4. Elapsed time: Displays the elapsed time for the video being watched.

5. Time: displays the start time that the current file was recorded.

6. Date: displays date that the current file was recorded.

7. Playback controls: use the iN-CAR CAM buttons as described below.

8. Battery: indicates whether iN-CAR CAM is running on battery or external power.

9. Protected file: indicates that the video file is protected.

Playback Controls:

Press the OK button to play / pause playback.

Press the MENU button to stop playback.

Use the UP button to select the previous file, this is only available once playback has been stopped. During playback press the UP button to rewind, press the DOWN button to cancel.

Use the DOWN button to select the next file, this is only available once playback has been stopped. During playback press the DOWN button to fast forward, press the UP button to cancel.

PLAYBACK MODE

Photo Files:

1. Mode: indicates the iN-CAR CAM is in Playback mode.

2. File type: indicates whether a video or photo file is being viewed.

3. File number: displays current file number.

4. Time: displays the time that the current image was taken.

5. Date: displays the date that the current image was taken.

6. Next: press the down button to move to previous file.

7. Previous: press the up button to move to previous file.

8. Battery: indicates whether iN-CAR CAM is running on battery or external power.

9. Protected file: indicates that the video file is protected.

Within Playback mode there are options available to Delete and Protect files, press the MENU button to access the Playback Menu.

2015_1209_184030_003A

MODE

23:55:54

06/01/2015

See following pages for details.

PLAYBACK MODE (CONTD.)

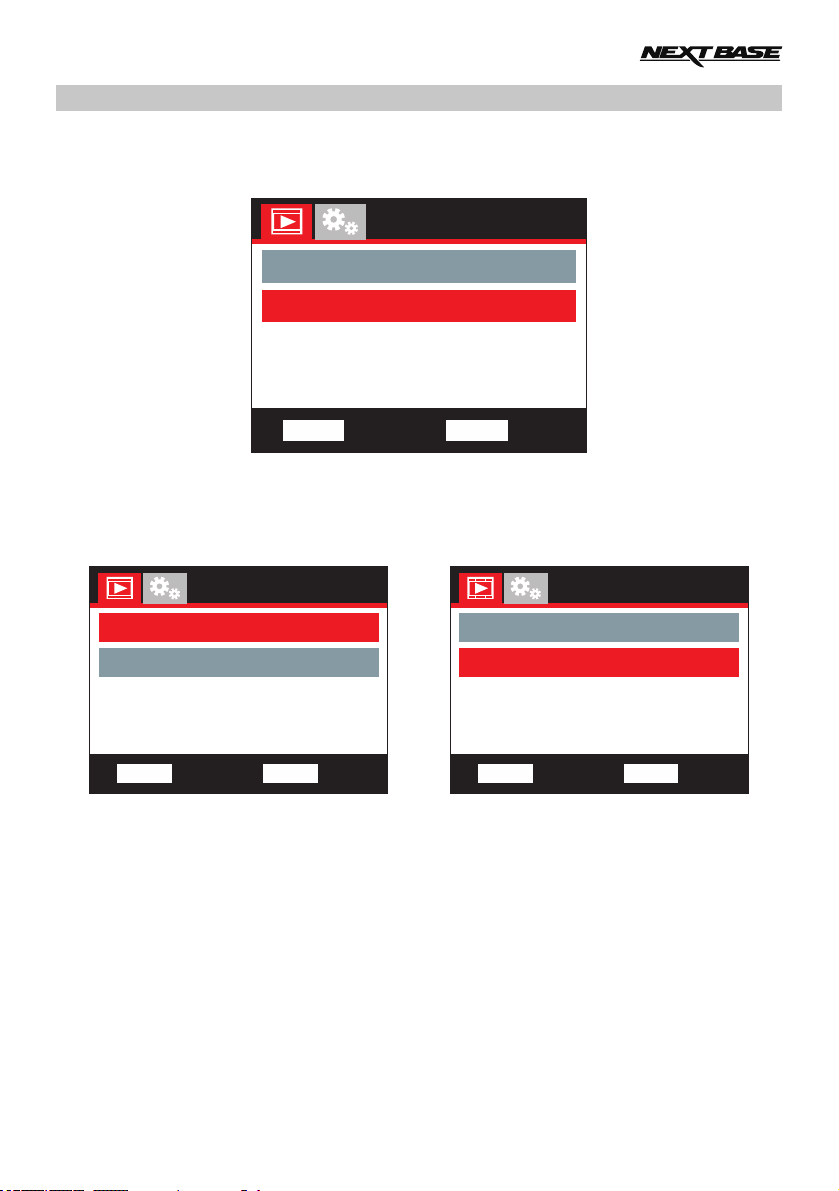

Deleting files:

Highlight the Delete Files option and press the OK button.

Playback Menu

Delete Files

Protect Files

This will then give you two options:

Delete File

Delete Files

Delete File

Delete ALL Files

Back

Once selected, follow the on screen

instructions to delete the current file.

Note:

- Protected files cannot be deleted.

Enter

Back

Enter

Delete All Files

Delete Files

Delete File

Delete ALL Files

Back

Once selected, follow the on screen

instructions to delete all files.

Enter

PLAYBACK MODE (CONTD.)

Protecting files:

Highlight the Protect Files option and press the OK button.

Playback Menu

Delete Files

Protect Files

This will then give you two options:

Protect File

Back

Enter

Unprotect File

Protect Files

Protect File

Unprotect File

Back

Once selected, follow the on screen

instructions to Protect the current file.

Note:

- The ‘Protect’ button can also be used to protect files when in Playback Mode.

Enter

Once selected, follow the on screen

instructions to Unprotect the current file.

Protect File

Unprotect File

Back

Protect Files

Enter

SETUP MENU

Setup Menu

The Setup Menu is accessed by pressing the MENU button twice.

Setup Menu

Format SD Card

Time & Date

Language

Screen Saver

The default settings have been carefully selected to allow you to use the iN-CAR CAM without the need to change any settings. However, should you wish to change a setting then please see below.

Use the up and down buttons to highlight the function that you'd like to change and press the OK button to enter the settings sub-menu.

Once in the submenu, use the up and down buttons to highlight the required setting and then press OK to confirm your selection and return to the Photo Menu.

Press the MENU button twice to return to video mode.

1. Format SD Card

Format the memory card, this will delete all content.

Note:

- For stable performance, it is recommended that you format the memory card every 2-3 weeks. Of course, you should only do this AFTER you've downloaded any files from the card that you may want to keep.

2. Time & Date

Adjust the time / date as required using the OK button to toggle through the fields and use the up & down buttons to set variables. Press MENU to exit and return to the Setup Menu.

3. Language

Select preferred language.

Options: English, Danish, German, Spanish, French, Italian, Dutch, Norwegian, Finnish and Swedish Default Setting: English

Back

Enter

4. Screen Saver

Turn on the Screen Saver function to shut down the screen after a chosen period of inactivity, press any button to re-activate the display.

Options: Off, 10 Seconds, 30 Seconds and 2 Minutes Default Setting: Off

SETUP MENU (CONTD.)

Continued from previous page.

Device Sounds

Auto Power Oﬀ

System Info

Default Settings

Setup Menu

5. Device Sounds

Turn Off / On the beep sound which is heard when a button is pressed and also mute the startup and shutdown chimes.

Options: On and Off Default Setting: On

6. Auto Power Off

Adjust the timing of the Auto Power Off function, this can be used to continue recording in event of loss of power within the vehicle.

Options: 10 Seconds, 1 Minute and 2 Minutes Default Setting: 10 Seconds

7. System Info The installed software version of your iN-CAR CAM is displayed here.

8. Default Settings

Reset the iN-CAR CAM to the default settings.

Back

Enter

PC CONNECTION

Use the supplied USB cable to connect the iN-CAR CAM directly to your PC via the socket, do NOT connect the USB cable to the Powered Mount.

Once connected the iN-CAR CAM will turn on with two options available, as described below.

Use the UP and DOWN buttons to select required function and press OK to confirm selection.

- Mass Storage

- Power On

Mass Storage (Windows)

When this option is selected, the iN-CAR CAM will function as a card reader for your PC. An extra drive will appear, e.g. NEXTBASE (D:) and you will be able to view / manage the stored files upon the MicroSD card within the iN-CAR CAM.

Note:

- The iN-CAR CAM is a ‘read-only’ device, therefore uploading files to the SD card when in Mass Storage mode is not possible.

Turn off the camera before disconnecting from your computer.

Mass Storage (Mac)

When this option is selected, the iN-CAR CAM will function as a card reader for your MAC. The 'NEXTBASE' external USB disk icon will appear on your MAC and you will be able to view and/or manage stored files.

Note:

- The iN-CAR CAM is a ‘read-only’ device, therefore uploading files to the SD card when in Mass Storage mode is not possible.

Turn off the camera before disconnecting from your computer.

Power On (Windows & Mac)

When this option is selected, the iN-CAR CAM will power on with all functions available. This includes charging of the internal battery, a full charge will take approximately 2 hours.

Note:

- ALWAYS turn Off the iN-CAR CAM before disconnecting from your computer.

VIDEO & AUDIO OUTPUT

The iN-CAR CAM can be connected to external video equipment, such as a television or a monitor within your vehicle that uses standard RCA inputs.

Connect the AV cable (sold separately) between the iN-CAR CAM and your external device, then turn on the iN-CAR CAM. The screen on the iN-CAR CAM will be blank as the video image is now being sent to the external device, the red power LED on the iN-CAR CAM will be lit indicating the unit is turned on.

Make sure that the iN-CAR CAM battery is charged prior to use, as power is not supplied to the iN-CAR CAM via the AV cable.

For prolonged use an external power supply may be required, use the supplied USB cable with a 5Vdc/USB adaptor, of the type typically supplied with mobile phones.

Note:

- ENSURE that any external power sources are of the correct 5Vdc output, otherwise damage will be caused that is not covered under the manufacturers warranty.

Please visit: nextbaseshop.co.uk to purchase the correct AV Cable (PN: NBDVR312GW-AVC).

TROUBLE SHOOTING

PROBLEM SOLUTION

Video Image is blurred.

I cannot insert the Micro SD card.

I cannot remove the Micro SD card.

Video files cannot be played.

Video file playback is jumpy.

The sound is not synchronised with video during playback.

Video has no sound.

Photograph is blurred.

I can only record a few minutes of video on my Micro SD card.

Mass Storage or PC Camera function does not work.

I cannot save files to the memory card when the iN-CAR CAM is connected to my computer under Mass Storage mode.

The sucker will not stay in place upon my windscreen.

Remove the protective lens cover, clean the lens, clean the windscreen!

Micro SD card are very small and require delicate use. Align the card with the diagram shown upon the iN-CAR CAM and insert the card until you feel a slight spring resistance. You now need to push the card, using your finger nail, until you hear and feel a small latch. Release pressure and the card will stay retained within the device. Use the edge of a small coin if you have difficulty.

With the card previously installed, you now need to push the card further inwards slightly, using your finger nail, until you hear and feel a small latch. Use the edge of a small coin if you have difficulty. Release pressure and the card will spring out sufficiently for you to take hold of it.

The video files from the iN CAR CAM are in MOV format and may not be compatible with your PC if suitable playback software is not installed.

Remove the SD card and reformat to remove non-contiguous files. For best recording use a branded class 10 type (30MB/s) or UHS type 1 micro SD card of 8 to 32GB recommended size. PC may not be sufficient for the playback task, try a different PC. Copy the recorded video files onto the PC / Mac for playback directly rather than use the iN-CAR CAM as a card reader, as the USB system on your PC may be too slow for HD video playback..

The Codecs upon your PC may not be compatible or the latest standard. Download the latest Codecs from: www.nextbase.co.uk

Ensure that “Record Audio” setting is turned ON within the Video Menu.

Hold the camera still whilst taking the photo. Please be aware the photo is taken around 1 second after the shutter noise is heard.

Change the recording size (Video Length function) to a smaller size. Increase the size of the MicroSD card. Max 32GB.

The Mass storage function will work on both Windows and Mac. Restart the PC, as this may be required for the necessary driver to be loaded correctly. Disconnect and reconnect the In-CAR CAM. Contact NEXTBASE for the required driver.

Correct, the iN-CAR CAM is a ‘read-only’ device. It is not recommenced to save files from other sources to the same memory that you will use for recording within the iN-CAR CAM, as these may have a negative effect on the performance of the iN-CAR CAM.

Ensure that the protective cover (plastic film) has been removed from the suction pad. Moisten the sucker slightly before affixing upon the windscreen. Ensure that the locking lever is fully closed. Make sure that the glass is smooth and clean. Do not stick to glass that has any non-smooth effect or paint whatsoever. Affix to the glass firmly and then close the locking lever fully.

TROUBLE SHOOTING (CONTD.)

PROBLEM SOLUTION

My iN-CAR CAM shuts down by itself after a while.

No power to my iN-CAR CAM, but it works upon my PC.

The SD card in my iN-CAR CAM cannot be read.

I can't delete files on my SD card within the iN-CAR CAM.

The screen blanks after a few minutes upon my iN-CAR CAM.

I get the message “Cluster size wrong. Please format SD card” on screen.

The battery will not charge.

The battery only last 30 seconds.

The battery only lasts 20 minutes.

I get the message “Card Error” on screen.

I get the message “Card Full” on screen.

The AV Out from my iN-CAR CAM just buzzes on my TV.

When I press the MENU button nothing happens.

Either the battery has gone flat, or there is no power to the iN-CAR CAM and the AutoPower Off period has been triggered.

The cigarette power cable is not working. Inspect the fuse in the Car Power plug. Replacement fuse = 2A 20mm type. If the fuse is found to be blown, inspect the power cable for damage which may have caused the fuse blow.

Use a good quality branded SD card between 8GB and 32GB (Class 10 or UHS type 1) and format the card from within the Setup menu.

Check to see if these files are 'protected', if so please follow instructions to 'un-protect'.

The Screen Saver function is set to ON. Change settings to OFF if required. Default setting is off.

The SD card has been formatted in another device and the Cluster Size is not compatible. Use the Setup option to re-format the SD card from within the iN-CAR CAM.

Ensure the iN-CAR CAM is connected to a reliable power source and that the supplied Car Power Cable is being used, with the Green LED lit.

The battery will only receive charge when the iN-CAR CAM is connected to power, please reconnect the car adaptor and leave the iN-CAR CAM turned on. Charging takes approximately 90 minutes and a full charge is indicated when the BLUE (charging) LED goes out.

This is normal, the battery design allows the 'Auto Power Off' feature to function in event of power loss within the vehicle. It is not intended as an alternative power source to replace the supplied car adaptor.

The SD card has become unusable by the iN-CAR CAM. Remove useful files using your PC and then perform a “FORMAT” upon the SD card from within iN-CAR CAM the Setup Menu.

The SD card has become full as there may be too many protected files which will not be deleted to allow for further recording to take place. Delete unnecessary files or perform a full FORMAT upon the SD card from within the iN-CAR CAM Setup Menu.

Ensure that the AV cable is correct. Use a stereo 2.5mm jack plug where the tip is the video and the ring is the audio signal. Please visit: nextbaseshop.co.uk to purchase the correct AV Cable.

This is normal during recording. Stop the recording before pressing the MENU button. If recording re-starts before you can press MENU, then see the Parking Mode section above.

TROUBLE SHOOTING (CONTD.)

PROBLEM SOLUTION

Downloading files from www.nextbase.co.uk using Google Chrome results in a Malicious Software message.

The date & time on my iN-CAR CAM do not adjust for Daylight Savings time (Summer time).

Unresolved issues.

This is not a cause for concern, simply go to the settings within Google Chrome and turn off the malicious software protection temporarily to download and install the playback software. Reinstate previous Google Chrome settings thereafter.

Correct. Adjust the time manually from within the SETUP Menu. Go to Time & Date and adjust the time using the Up and Down buttons as required

Reset the iN-CAR CAM to the default settings within the Setup Menu and try again. Should the problem persist call the helpline (02920) 866429 or email: support@nextbase.co.uk

www.nextbase.co.uk

NBDVR112-IM-ENG-R3

Nextbase NBDVR112 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
