Nextar W3-01, W3 - 3.5 Inch Color Touch Navigation System User Manual

1

Important Safety

Instructions

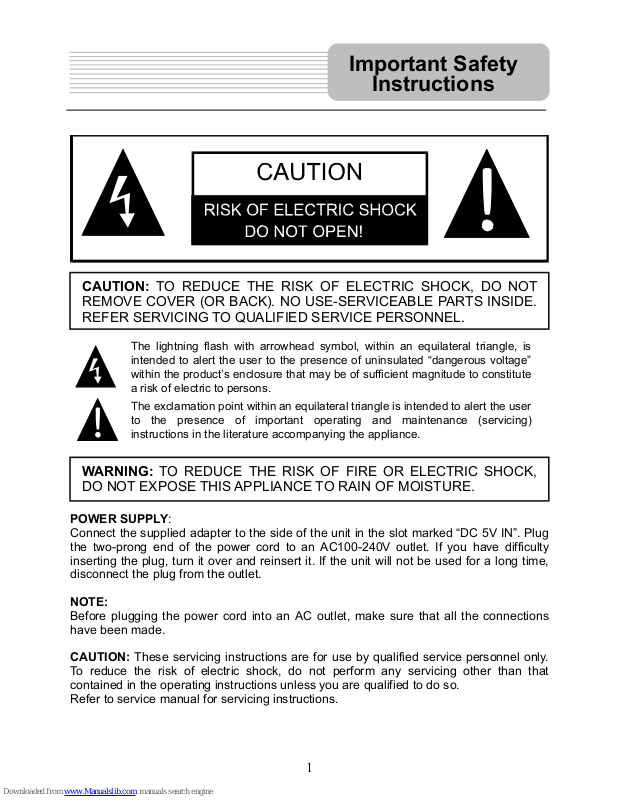

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute
a risk of electric to persons.

The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompan

ying

the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.

POWER SUPPLY:
Connect the supplied adapter to the side of the unit in the slot marked “DC 5V IN”. Plug
the two-prong end of the power cord to an AC100-240V outlet. If you have difficulty
inserting the plug, turn it over and reinsert it. If the unit will not be used for a long time,
disconnect the plug from the outlet.

NOTE:

Before plugging the power cord into an AC outlet, make sure that all the connections
have been made.

CAUTION: These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
Refer to service manual for servicing instructions.

2

Important Safety

Instructions

NOTES

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a damp cloth.

7) Do not block any of the ventilation openings. Install in accordance with the
manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong is provided for your safety.
When the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with a cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.

15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,

such as vases, shall be placed on the apparatus.

Warning

Failure to avoid the following potentially hazardous situations may result in injury or
property damage.
The unit is designed to provide you with route suggestions. It does not reflect road
closures or road conditions, traffic congestion, weather conditions, or other factors that
may affect safety or timing while driving.
Use the unit only as a navigational aid. Do not attempt to use the unit for any purpose
requiring precise measurement of direction, distance, location, or topography. This
product should not be used to determine ground proximity for aircraft navigation.

3

Features

Navigation Function

Navigation Function: The unit is designed to provide you with route suggestions. It supports voice
navi

g

ation.

Other Special Functions

Power Adapter Switch: Automatically
adapts to voltage requirements in U.S and
other countries.

SD Card and USB Input: The unit is
designed with SD card and USB ports and
can be connected to SD card or other USB
device for file loading.

1 GB Flash Storage: Built in 1G Flash
Storage can store map data.

Support file formats: Supports MP3 and
WMA Format files playback.

4

Accessories

Accessories List

ITEM NAME QTY

Owner’s Manual 1

Car Adaptor 1

USB Cable 1

Windshield mount bracket 1

Mount cradle 1

Dashboard mount disk 1

Pouch 1

NOTE

Accessories and their part number are subject to modification without prior notice due to
improvements.

5

Contents

……………………………………….……..1

Important Safety Instructions

Features

System Connections

Power Supply Preparation

Troubleshooting

General Setup

Specifications

Accessories

View of Main Unit

……………………………………………...3

……………………………………………...4

……………………………………………...6

……………………………………….……..8

………………………………………..…..10

………………………………………..…..11

………………………………………..…..15

Playing Music

Use of the Mount Accessories

………………………………………....…18

………………………………………..…..19

………………………………………..…..20

6

V

iew of Main Unit

Front View

1. MENU button

Press to enter the main menu.

2. Speakers

3. POWER button

Press to enter or exit the standby mode.

4. Charge Indicator

When charging the battery, it is red; when the battery is fully charged, it turns green.

5. LCD Screen
