Nextar Q3-12 Important Safety Instructions Manual

1

，

POWER SUPPLY:

Connect the supplied adapter to the side of the unit in the slot marked “Power In.” Plug
the two-prong end of the power cord to an AC100-240V outlet. If you have difficulty
inserting the plug, turn it over and reinsert it. If the unit will not the used for a long ti me,
disconnect the plug from the outlet.

NOTE:

Before plugging the power cord into an AC outlet, make sure that all the connections
have been made.

CAUTION: These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
Refer to service manual for servicing instructions.

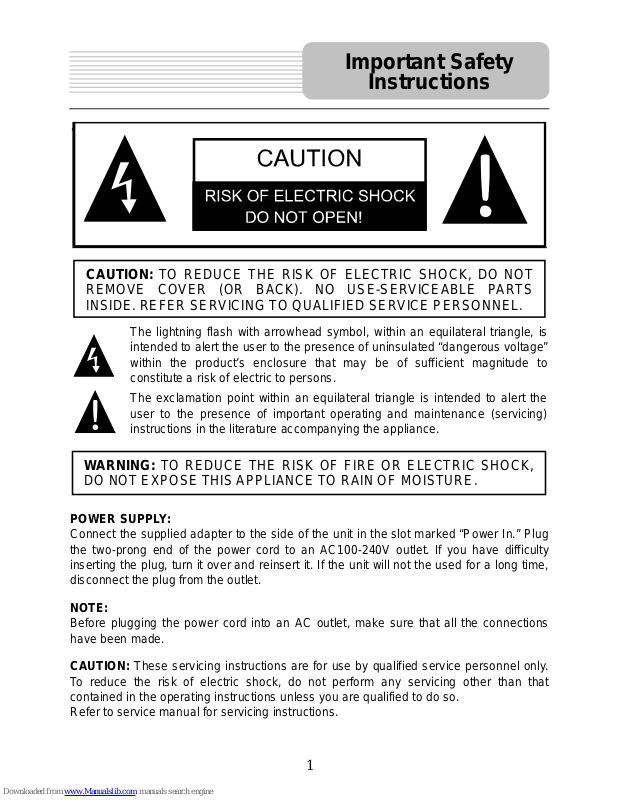

Important Safety

Instructions

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric to persons.

The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.

2

NOTES

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a damp cloth.

7) Do not block any of the ventilation openings. Install in accordance with the
manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong is provided for your safety.
When the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been dam ag ed i n an y w ay, such as po w er-supply co rd or p lug i s dam aged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.

15) Apparatus shall not be exposed to drippi ng or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.

Important Safety

Instructions

3

Warning

Failure to avoid the following potentially hazardous situations may result in injury or
property damage.
The unit is designed to provide you with route suggestions. It does not reflect road
closures or road conditions, traffic congestion, weather conditions, or other factors that
may affect safety or timing while driving.
Use the unit only as a navigational aid. Do not attempt to use the unit for any purpose
requiring precise measurement of direction, distance, location, or topography. This
product should not be used to determine ground proximity for aircraft navigation.

This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may

cause undesired operation.

Important Safety

Instructions

4

Navigation Function

Other Special Functions

Navigation Fu ncti on: The unit is designed to provide you with route suggestions.
It supports voice navigation.

1 GB Flash Storage: Built-in 1G
Flash Storage can store map data.

Support file formats: Supports
MP3 and WMA .

Power Adapter Switch: Automatically adapts to voltage requirements in U.S and
other countries.

Features

5

Accessories List

ITEM NAME QTY

Remote Control (with battery) 1

Owner’s Manual 1

Power Adaptor 1

Car Adaptor 1

Mounting Bracket 1

USB Cable 1

Mounting cradle 1

Dashboard mount disk 1

Pouch 1

NOTE

Accessories and their parts numbers are subject to modification without prior notice due
to improvements.

Accessories

6

…………………………………..………..1

……………………………….…………...4

……………………………….…………...5

……………………………….…………...7

……………………………….……….…..9

…………………………….……….…….10

……………………………….…………..12

…………………………….……………..14

……………………………….…………..18

…………………………….……………..19

……………………………………………22

………………………………………..….23

Important Safety Instructions

Features

System Connections

Power Supply Preparation

Troubleshooting

General Setup

Specifications

Accessories

V

iew of Main Uni

t

Contents

Remote Control

Playing Music

Use of the Mount Accessories

7

Front View

1. MENU button

Press to enter the main menu.

2. Speaker

3. Charge Indicator

When charging the battery, it is red. When the battery is fully charged, it turns
green.

4. POWER button

Press the power button to enter or exit the standby mode.

5. LCD Screen

6. Remote Sensor

Receive signal from remote control for operation.

V

iew of Main Unit

8

Side View

Rear View

1. Build-in GPS Antenna

Receiving GPS signals.

2. External GPS Antenna Jack

Connected to the external
antenna (optional).

3. ON/OFF Switch

Used to switch power on or off.

1. Card Port

Insert the SD card into the port.

2. USB Port

1. Volume Control

Used to adjust the volume of the headphone
and speaker.

2. Headphone Jack

Used to connect headphones for private
listening. When the headphones are
connected to this jack, the speaker will be
turned off automatically.

3. DC 5V Input Jack

Used to connect to the supplied powe

r

adaptor or car adapter.

View of Main Unit
