Contents
Precautions..............................................................................2
Notes on Installation.................................................................3
Before You Install.....................................................................4
Installation (DIN Front Mount)...................................................5
Installation (Vehicle's Brackets)................................................6
Wiring Connections..................................................................7
Front Panel Conotrols..............................................................8
Basic Operation.........................................................................9
Radio Operation......................................................................10
CD Operation.....................................................................10-11
MP3 (CD)............................................................................11-12
AUX IN, RCA, & Subwoofer Control.........................................13
Maintenance...........................................................................1

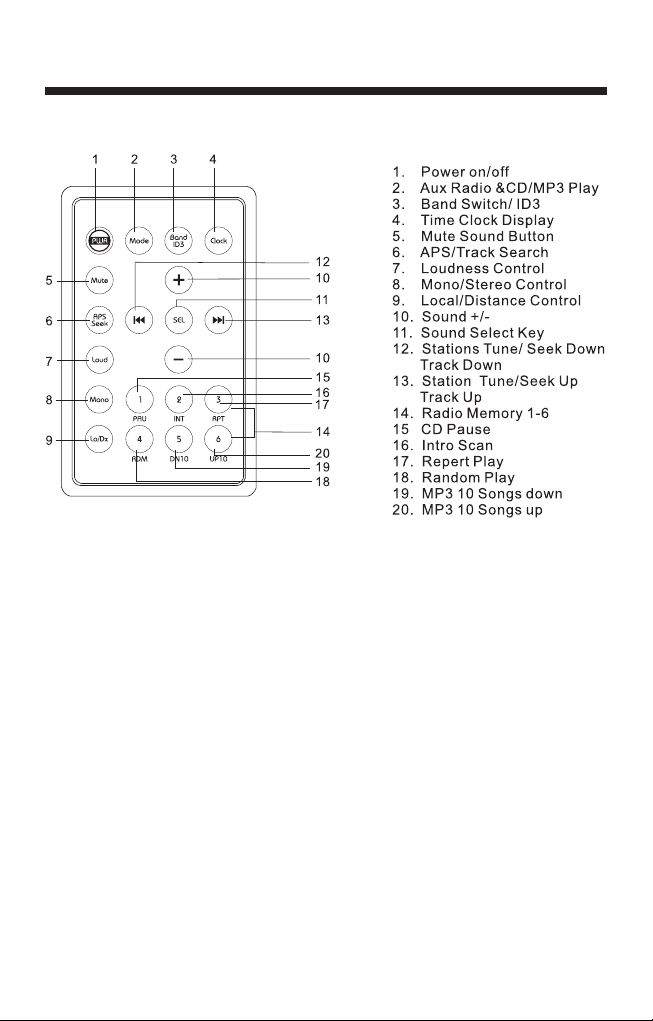

Infra Red Remote Control
Simple Troubleshooting Guide.................................................1
Specifications..........................................................................1
......................................................14
3
5
5
Precautions
• This unit will only play the following discs.
Type of disc
CD, MP3, WMA
Label on the disc Recorded material
Care of Discs
• Handle the disc by its edge to keep
the disc clean. Do not touch the
disc’s surface.
• Do not use a CD with paste or ink
residue on it.
Size of disc
Audio only
• Do not use CDs with labels or stick
ers attached. The label may leave
a sticky residue when it begins to
peel.
• Clean the discs with an optional
cleaning cloth. Wipe each disc from
the center out.
12 cm
-
2
2
Notes on Installation
• Disconnect negative battery terminal before starting installation.
Consult the vehicle’s owner’s manual for proper instruction.
• The unit is designed for a 12Volt DC negative ground operation
system only. Before installing the unit, make sure your vehicle is a
12Volt DC negative ground system.
• Be sure to connect the color coded leads according to the diagram.
Incorrect connections may cause the unit to malfunction or damage
the vehicle's electrical system.
• Be sure to connect the negative (-) speaker leads to the negative
(-) speaker terminal. Never connect negative (-) speaker leads to
chassis ground.
•
The unit is only designed for use with 4 speakers. Do not combine
output for use with 2 speakers. Do not ground negative speaker leads
to the chassis ground.
•
Make sure all the connections are completely correct before turning on
your unit.
• When replacing the fuse(s), the replacement must be of the same
amperage as shown on the fuse holder.
• Do not block vents or heater panels. Blocking them will cause heat
to build up inside and may result in fire.
• After completing the installation and before operating the unit, reconnect the battery. Then press the (RES) button with a pointed object,
such as a ball-point pen to set the unit to its initial status.
Tools for Installation
• 2 removel wrenches are supplied for taking out the old unit and place
with this brand name car radio. The following tools and supplies may
also be needed for the installation:
Tools for Installation:
- Philips Screw-drivers
- Wire Stripper
- Wire Cutter
- Hammer
- Pencil
- Electrical Tape
- Electric Drill
Supplies for Installation:
- Machine Screws
- Crimp Connectors
- 14 Gauge Wire for Power
Connections
- 14-16 Gauge Speaker Wires
* The above are not supplied.
3
3
Before You Install
Automotive audio equipment installations can be troublesome at
times, even to the most experienced of installation technicians.
If you are not confident working with electrical wiring, removing
and reinstalling interior panels, carpeting, dashboards or other
components of your vehicle, please call your dealer in order to
have the unit professionally installed.
IMPORTANT:
Remove the two transport screws from the top of
the unit before installing.
1. Remove the Old Unit from the Dashboard
1. Remove the outer trim frame.
DIN Front Mount
2. Insert the keys supplied with the
old unit into both sides of the unit
as shown in figure below until
they click. Pull to remove the old
unit from the dashboard.
DO NOT DISCONNECT WIRES
AT THIS TIME!
2. Mark Polarity of the Speaker Wires
Marking the polarity of the speaker wires will make it easier to
connect the existing speakers to your car radio.Consult wiring
diagram of existing head unit before disconnecting any wires.
If you are not positive of the polarity of the existing wires
from the speakers to the head unit, install new wires.
1.
While the old unit is play-
ing, disconnect the wires
from one speaker
2. Take a length of masking
tape and fold it around the
wire so it forms a flag.
3. On the masking tape mark
the polarity of the speaker
wires (+ & - ), as well as
4. Double check that you
marked the first speaker
correctly by checking that
the speaker wires are the
same at the head unit.
5. Repeat this procedure for
all of the speakers.
6. Mark the power, ground,
and any other wires also
.
left or right, and front or
rear.
4
Installation
WARNING!
Disconnect negative battery terminal from battery
before starting installation
owner’s manual for proper instructions.
. Consult the vehicle’s
NOTE:
NOTE: Remove the two transport screws from the top of the
Mark the polarity of the existing speaker wires before
disconnecting battery.
unit before installing.

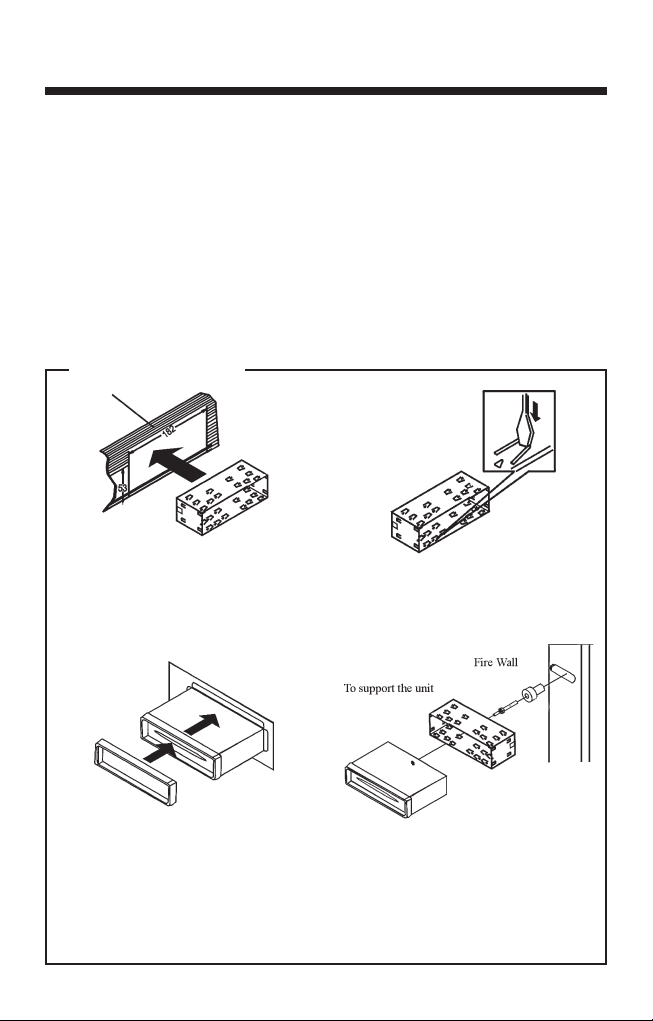

DIN Front Mount
1. After removing the old
radio and mounting sleeve,
insert supplied mounting sleeve into opening.
3. Attach wires from the unit to
existing wires. See wiring connections diagram. Insert radio
into dashboard. Then apply the
trim frame to outside of radio.
2. Bend the tabs on the mounting sleeve to keep the mounting sleeve firmly in place.
4. Support radio using supplied rear mounting bolt
and steel bar. See parts list.
5

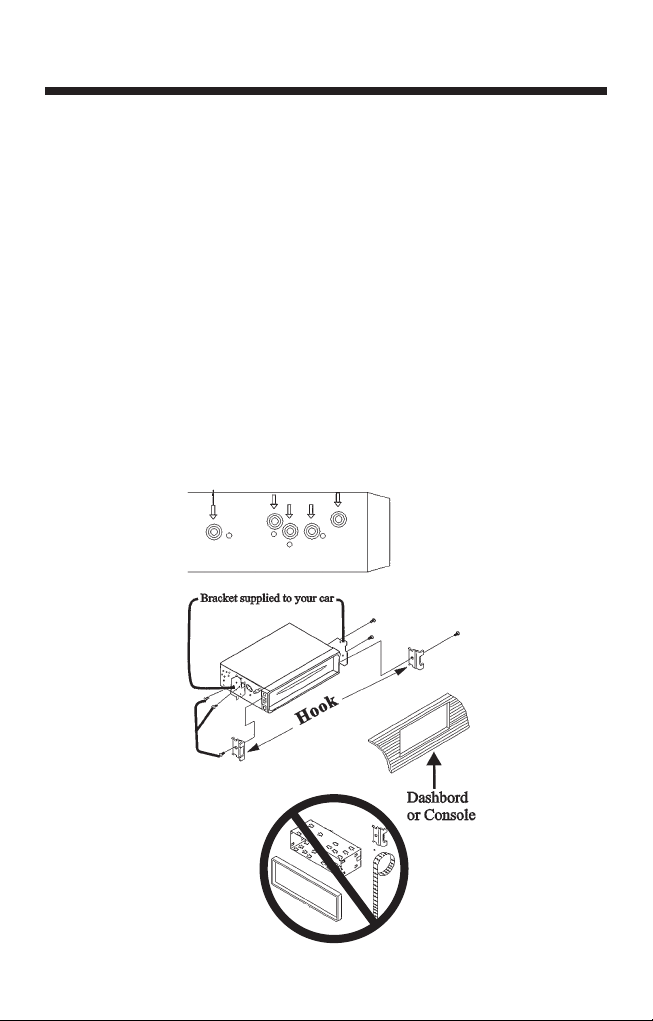

Installation
NOTE: Outer trim frame, hook, and mounting sleeve are not
used for this installation.
This is only intended as a general guide; contact the vehicle's
manufacturer for specific instructions.
This method of installation uses the screw holes at the sides
of the unit and the holes of the existing vehicle mounting
bracket.
1. Remove the hooks on both sides.
2. Align the screw holes of the mounting bracket supplied with
the car and the screw holes of the main unit. Tighten the 2
screws on each side of the unit. Then fasten the brackets to
the car.
3. Attach wires of the unit to existing speaker wires. See wiring diagram.
6
Wiring Connections
Make sure that you have a good chassis ground. Good
ground connections will eliminate most electrical noise
problems. A good chassis ground requires a tight connection to the vehicle's metal chassis. The area around the
ground connection should be clean, bare metal without rust,
paint, plastic, dust, or dirt for a good electrical connection.
Speaker Wiring Notes
Follow the above wiring diagram to install the head unit
with new or existing speakers.
• This unit is designed for use
with four (4) speakers with an
impedance between 4 Ohms
to 8 Ohms.
• An impedance load of less
than 4 Ohms could damage
the unit.
• Never bridge or combine the
speaker wire outputs. When
not using four speakers, use
electrical tape to tape the
ends of the unused speaker
outputs to prevent a short
circuit.
• Never ground the negative
speaker terminals to chassis
ground.
7
Front Panel Controls
8
Basic Operation
Tuning the unit On / Off
Press any Button to turn the unit
on, the display will show a message
WELCOME to indicate it is ready for
use. Press the POWER button for 2
seconds to turn the unit off.
Mode Selection
Press the BAND Button to select Radio Mode. Press the MODE Button to
cycle the Play Mode between AUX,
RADIO and CD PLAY.
Loudness Control
Press the LUD Button to emphasize
the Bass output, the word “LOUD ON”
shown on the display indicates that
the loudness function is on. Press
again to cancel.
Mute Control
Press the MUT Button to activate the
Mute function. Press MUT Button
again or use the VOL +/ - Button to
cancel.
Volume
Use the VOL +/- Button to adjust the
volume level. The display shows VOL
00 to VOL 47. The larger the number,
the higher the volume level.
Bass
Press the SEL Button until the display
shows "BAS". Use the VOL +/- Button to adjust. When DSP is ON, bass
control is not available.
Treble
Press SEL Button until the display
shows "TRE". Use the VOL +/- Button to adjust. When DSP is ON, treble
control is not available.
Balance
Press SEL Button four times and the
display shows "BAL", then use the
VOL +/- Button to adjust the balance
between the left & right speakers.
Fader
Press SEL Button five times and the
display shows "FAD", then use the
VOL +/- Button to adjust the balance
between the front & rear speakers.
Clock
The time clock can be set anytime
when the power is on. Press the CLK
Button and then press and hold CLK
Button for 3 seconds, the time will
blink on the display.
1. Press the VOL + Button to adjust
the hour.
2. Press the VOL - Button to adjust
the minute.
3. Press the CLK Button again or
leave the unit idle for new setting to
effect. Press the CLK Button anytime
to view the time clock display.
Preset Beep Sound Off
Press the SEL Button for 2 Seconds.
The display will show "DSP OFF", then
press the SEL Button repeatedly until
the display shows "BEEP OFF". Use
the VOL +/- Button to select "BEEP
OFF" or "BEEP ON", then leave the
unit idle for setting to take effect.
Preset Equalizer Function
Press and hold the SEL Button for 2
seconds, the display will show "DSP
OFF". Press the VOL +/- Button to
choose the EQ sound effects.
9
Radio Operation
Choose Radio Band
Press the BND•ID3 Button anytime to
access the radio function.
The unit comes with five bands- three
FM Bands (FM1, FM2, and FM3)
and two AM Bands (AM1, and AM2)
selects. Each of the five bands can
store up to six preset stations, for a
total of 30 preset memory stations.
NOTE: To change the receiving range
from USA to Europe, remove the faceplate and then move switch marked
"A-E" to the appriate region.
Radio Tune / Seek Function
In Radio Mode, press Seek +/- Button to manually adjust the radio frequency.
SEEK 1 & SEEK 2
Press and hold the SEL Button until
"DSP OFF" is shown on the LCD, then
press the SEL Button to cycle through
the menu selections until "SEEK 1" is
shown. Use the VOL +/- Button to select either "SEEK 1" or "SEEK 2".
A. Seek 1
Press and hold the SEEK |<< or >>|
Button for more than 1 second. The
radio will seek the next strong and
clear frequency station. Repeat to
seek more stations in your listening
area with a strong signal.
B. Seek 2 Press and hold the SEEK
|<< or >>| Button for station search.
The search will not cease until you release the button.
Mono/Stereo Reception Control
In FM radio mode, press MONO button on the remote control to toggle
between mono reception or stereo reception. The display will show
"MONO" or "STEREO". Improvement
of reception of distant stations can be
done by selecting “MONO” operation
which may cut down some reception
noise.
Save Your Preset Stations
There are six numbered preset buttons which can store and recall stations for each band. While listening to
a radio station you would like to save
as a pre-set, press and hold one of the
buttons numbered 1-6 until you hear a
beep. The button you pressed is now
the pre-set button for that station.
Automatic Store/Preset Scan
A. Automatic Scan & Store
While listening to the FM Radio, press
and hold the F/PS Button for more
than 3 seconds. The receiver will automatically scan the saved stations of
that FM Band.
While listening to the AM Radio, press
and hold the F/PS Button for more
than 3 seconds. The receiver will automatically scan and save stations for
that AM Bands.
B. Scan Saved Stations
Press the F/PS button once to perform
the scanning functions. In FM mode,
press the F/PS button and the stations in that FM band will be scanned;
press this button in AM mode and
scan that AM Band Stations.
CD Operation
Electronic Skip Protection - 12 or 45
seconds
Electronic Skip Protection is ideal for driving on rough roads. Press the SEL Button
for 2 seconds. The display will show
“DSP OFF”. Press the SEL Button again,
“ESP12” will be displayed indicating that
Electric Skip Protection will be activated
for 12 seconds. With “ESP 12” on the
display, use the VOL +/- Button to change
the setting to “ESP 45”, indicating that
Electronic Skip Protection for 45 seconds
is activated. Leave the unit idle for the
new setting to take effect.
10
CD Operation(Cont)
Insert/Eject CD
Insert a disc into CD slot with label
side up. The disc will be automatically loaded into the unit, even when
it is off or at radio mode. The word
“LOAD” will blink on the display and
the CD will play automatically. Press
the EJECT Button to eject the disc
from the slot. If the disc is not removed
from the slot within 5 seconds, it will
automatically be loaded into the slot
again. When the disc is ejected and
removed, the unit will automatically
switch to radio mode.
Multi-Session CD Reading
This unit can read multi-session CDs.
The multi-session reading will be
activated automatically if the player
detects a file that is written in multisession format. Press and hold the
SEL Button until "DSP OFF" is shown
on the LCD, then press the SEL Button
to cycle through the menu selections
until "MULT OFF" is shown. Use the
VOL +/ - Button to choose "MULT
ON" or "MULT OFF". The default is
MULT OFF .
Selecting Tracks
On the Head Unit, press the SEEK
>>| Button to advance CD to the next
track. Track numbers will be shown
on the display. Press and hold SEEK
>>| to fast forward.
Press the SEEK |<< Button to go
to a previous track. Track numbers
will be shown on the display. Press
and hold the SEEK |<< Button to fast
reverse. Disc will play normally when
the SEEK >>| or SEEK |<< Button is
released. On the Remote Control, use
the |<< or >>| Buttons.
Play/ Pause CD
On the Remote or Head Unit, press
the No.1
Press this button again to resume
playback.
Scanning Tracks
On the Remote or Head Unit, press
the No.2/INT Button to play the first
Button to pause the CD.
10 seconds of each track. Press this
button again to resume playback.
Repeat
On the Remote or Head Unit, press
the No.3/RPT Button to repeat the
same track continuously. “RPT ON"
will appear on the display. Press this
button again to stop repeating.
Random
On the Remote or Head Unit, press
the No.4/RDM Button to play all the
tracks in random order. “RDM ON” will
appear on the display. Press this button again to stop random play.
MP3/WMA Operation
Insert/Eject CD
Insert a disc with MP3/WMA into the
CD slot with label side up. The disc
will be automatically loaded into the
unit, even when it is off or in radio
mode. The word “MP3 DISC” will
be displayed as the CD is loaded.
The first file in the root folder will be
played. As the file is playing "ROOT"
will be displayed first, then the if there
is any ID3 information that will be displayed as the file is playing. Press the
EJECT Button to eject the disc from
the slot. If the disc is not removed
from the slot within 5 seconds, it will
automatically be loaded into the slot
again. When the disc is ejected and
removed, the unit will automatically
switch to radio mode.
Multi-Session CD Reading
This unit can read multi-session CDs.
The multi-session reading will be
activated automatically if the player
detects a file that is written in multisession format. Press and hold the
SEL Button until "DSP OFF" is shown
on the LCD, then press the SEL Button
to cycle through the menu selections
until "MULT OFF" is shown. Use the
VOL +/ - Button to choose "MULT
ON" or "MULT OFF". The default is
MULT OFF.
11
Selecting Tracks
On the Head Unit, press the SEEK
>>| Button to advance CD to the next
track. Track numbers will be shown
on the display. Press and hold SEEK
>>| to fast forward.
Press the SEEK |<< Button to go
to a previous track. Track numbers
will be shown on the display. Press
and hold the SEEK |<< Button to fast
reverse. Disc will play normally when
the SEEK >>| or SEEK |<< Button is
released. On the Remote Control, use
the |<< or >>| Buttons.
Play/ Pause CD
On the Remote or Head Unit, press
the No.1
Press this button again to resume
playback.
Scanning Tracks
On the Remote or Head Unit, press
the No.2/INT Button to play the first
10 seconds of each track. Press this
button again to resume playback.
Repeat
On the Remote or Head Unit, press
the No.3/RPT Button to repeat the
same track continuously. “RPT ON"
will appear on the display. Press this
button again to stop repeating.
Random
On the Remote or Head Unit, press
the No.4/RDM Button to play all the
tracks in random order. “RDM ON” will
appear on the display. Press this button again to stop random play.
UP 10
Press the No.6/UP10 Button to advance 10 track at a time.
DN 10
Press the No.5/DN10 Button to go
back 10 track at a time.
Search Modes
There are 4 search modes to help find
your favorite MP3 tracks. The search
modes only works with MP3 CDs, and
do not work with any other CDs.
Simple Track Search
Press the SEEK |<< or >>| Button
to go to the next track or previous
Button to pause the CD.
track. Press the Number 5 button to
go back 10 tracks at once or press
the Number 6 button to advance 10
tracks at once.
Track Search
Press the F/PS Button and the display
will show “TRK SCH”. Press the SEL
Button so that “TRK" will blink on the
display.
Then use the VOL +/- Button to
choose your desired track and press
the SEL Button again to confirm the
selection. The selected track will be
searched for and then played.
File Search
Press the F/PS Button twice and the
display will show “FILE SCH”. Press
the SEL Button to enter the root folder
of the disc. Use the VOL +/- Button to
choose a folder in the root folder, then
press the SEL Button to confirm. The
selected folder will be opened.
Character Search
Press the F/PS Button three times
and the display will show “CHAR
SCH”. This is for files by file names.
Press the SEL Button and the first
character will blink on the display.
Use the VOL +/- Button to change the
character. Press the SEL button once
to confirm the character entered and
advance to the next character. After
you have input the name, press and
hold the SEL Button to confirm. The
song nearest alphabetically to the
name input will be found and then
begin to play.
Random
While playing MP3 and or WMA files
on a CD, press the No.4/RDM Button,
“RDM” will appear in the LCD and the
unit will play the tracks on the CD at
random.
Electronic Skip Protection - 120
Seconds - Electronic Skip Protection is
ideal for driving on rough roads. Electronic
Skip Protection for MP3/WMA CDs is a
default feature. Please note that this feature supports the CD with Songs encoded by 96Kb/s and 32000Hz. For songs
encoded in higher quality, the anti-shock
duration will decrease proportionally to
the file size.
12
Auxilliary in,
(FILE)
(FOLDER)
MUSIC
ALBUM ARTIST
RCA out &
Subwoofer out
Auxiliary Input
The Auxiliary Input Jack is on the panel of the unit. Insert the AUX IN cable's
stereo plug into the AUX IN jack on the
panel of the unit. Route the other end
of the stereo plug to the headphone
jack of any external audio device such
as walkman and discman. Press the
Mode button to choose AUX. Connect
any portable audio device such as a
DVD player or VCD player to the AUX
IN cable. Use the volume control to
adjust volume.
RCA Output
The RCA Output Jack is on the back
of the unit. (Refer to Wiring Diagram)
This output is for connecting amplifier,
equalizer, or other audio componement that requires a pre-amp out connection. (Red = Right, White = Left)
Follow the manufacturers instructions
for the audio component that you are
connecting.
Subwoofer Output
The Subwoofer Output Jack is on the
back of the unit. (Refer to Wiring Diagram) This output is for connecting a
subwoofer amplifier. You must connect
an amplifier to the Subwoofer Output
Jack to drive a subwoofer. Follow the
amplifier's installation instructions. To
activate subwoofer control, press and
hold the SEL button, then press SEL
to cycle to “WOOF OFF”. Then rotate
the volume knob to choose WOOF
ON” so that the subwoofer function
will be turned on.
LCD. If there is no ID3 Tag informa
tion, nothing will shown on LCD. The
sequence of ID3 Tag information will
be shown as follows:
You can also press the BND/ID3 button on the remote control to view the
ID3 information anytime.
MAINTENANCE
Cleaning the Unit
Do not use any liquids to clean this
unit.
Do not use petroleum distillates to
clean this unit.
Use a clean, dry cloth to clean this
unit.
Replacing the Fuse
Make sure the amperage matches
the specified value when replacing
the fuse(s). If the fuse is bad, check
the power connection and replace
the fuse with a new one. If the same
problem occurs, this might indicate a
malfunction within the unit.
Warning
When replacing a fuse, do
not use a fuse with a higher
amperage rating than the
fuse originally supplied to
your unit, otherwise damage will result to your unit.
-
ID3 Tag
If an MP3/WMA file has ID3 Tag information, it will be displayed on the
13
Infra Red Remote Control
This unit comes with a full remote control system. The CR-2025
Lithium battery is an included item with the remote control.
In case you have to replace the batteries
(1) remove the cover from the back of the remote control.
(2) insert a CR-2025 Lithium battery.
(3) Fix the cover to the back of the remote control.
Operating the remote control
Aim at the face panel of the CD Receiver, the maximum distance at which signals can be received is about 6M. Make sure
that the signal path is not obstructed. Do not drop or throw the
remote control. Do not place the remote control in a location
that is exposed to direct sunlight or next to a heating unit or
other heat source.
14
Simple Troubleshooting Guide
PROBLEM
No Power
Some errors occur in the LCD or
nothing functions when buttons
are pressed.
Unable to receive stations
Poor radio reception
CD’s cannot be loaded
File information shows in LCD but
will not play.
CAUSE/SOLUTION
Check wiring connections.
Check and make sure the fuse is not
blown.
Replace with the proper rating/size
fuse.
Press the RESET Button (21).
Check and make sure the antenna
is connected properly.
Check and make sure the antenna
is the correct length. Make sure the
antenna is not broken. If the antenna
is broken, replace it. The antenna is
poorly grounded. Check and make sure
the antenna is grounded at mounting
location.
A CD is already loaded in the player.
Eject CD.
The CD is dirty or damaged.Songs keep skipping
Your file may be corrupt.
Specifications
GENERAL
Operating Power..................................................12 Volts DC, Negative Ground
Output Wiring...........................................Designed for using four speakers only
RCA line out..............................................................low-level outputs - 1000MV
Output Impedance..........................................Compatible 4 to 8 Ohm Speakers
Fuses.....................................................................................1 amp and 10 amp
Dimensions................................................178mm(W) x 178mm(D) x 51mm (H)
Weight.......................................................................................................2.3 Kg
CD PLAYER
Signal / Noise Ratio...................................................................................>80dB
Frequency Response.....................................................................20 Hz~20KHz
Channel Separation...................................................................................>50dB
D / A Converter..............................................................................................1 Bit
FM TUNER
Tuning Range...................(USA) - 87.5 - 107.9MHz, (Europe) - 87.5 - 108 MHz
FM Sensitivity.............................................................................................12dBu
Stereo Separation @ 1 Khz.........................................................................35dB
AM TUNER
Tuning Range......................(USA) -- 530-1710 KHz, (Europe) -- 522-1620 KHz
Am Sensitivity............................................................................................30dBu
15
Loading...
