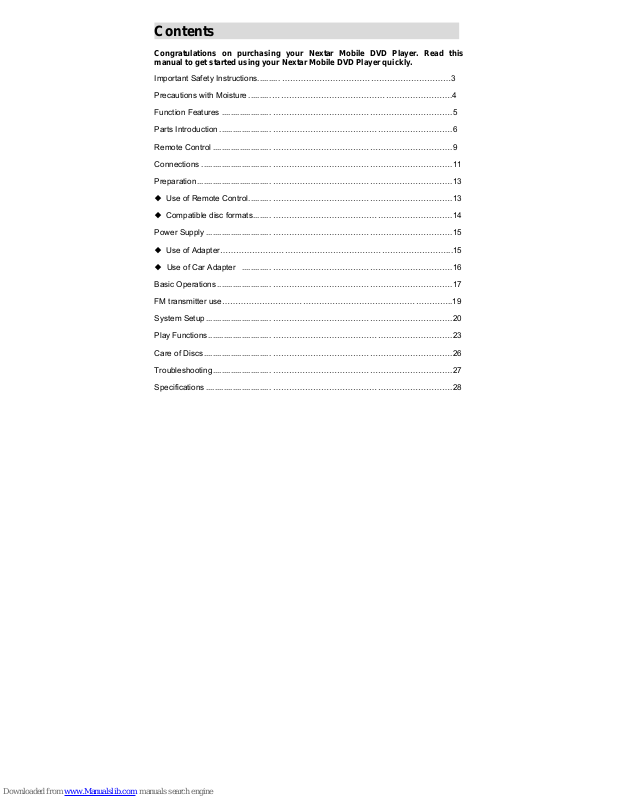

Contents
Congratulations on purchasing your Nextar Mobile DVD Player. Read this
manual to get started using your Nextar Mobile DVD Player quickly.
Important Safety Instructions.......... ………………………………………………………3
Precautions with Moisture .......... ………………………………………………………….4
Function Features ...................... ………………………………………………………….5
Parts Introduction ....................... ………………………………………………………….6
Remote Control .......................... ………………………………………………………….9
Connections ............................... ………………………………………………………….11
Preparation................................. ………………………………………………………….13
◆ Use of Remote Control.......... ………………………………………………………….13
◆ Compatible disc formats........ ………………………………………………………….14
Power Supply ............................. ………………………………………………………….15
◆ Use of Adapter…………………………………………………………………………...15
◆ Use of Car Adapter ............. ………………………………………………………….16
Basic Operations ........................ ………………………………………………………….17
FM transmitter use…………………………………………………………………………..19
System Setup ............................. ………………………………………………………….20
Play Functions............................ ………………………………………………………….23
Care of Discs.............................. ………………………………………………………….26
Troubleshooting.......................... ………………………………………………………….27
Specifications ............................. ………………………………………………………….28
Important Safety Instructions
p
The lighting flash with arrowhead symbol within a triangle alerts the user
to “dangerous voltage” which could cause electric shock.
WARNING: To reduce the risk of fire
or electric shock, DO NOT expose
this product to rain or moisture.
The exclamation point within a triangle alters user to read important
operation and maintenance instructions in the manual.
NOTES
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use near water.
6) Clean only with dry cloth.
7)
Do not block any ventilation openings. Maintain well ventilated conditions around
the product. Do not put product on bed, sofa or anything that blocks ventilation.
Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of
time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15) Apparatus should not be exposed to dripping or splashing. Nothing filled with
liquids, such as vases, should be placed on the apparatus.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when
open and interlock failed or defeated.
Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover.
There are no user serviceable parts inside
the unit. Leave all servicing to qualified
service
ersonnel.
- 2 -
Precautions with Moisture
◆Under the following circumstances, moisture may appear on the lens of the product,
which is the most sensitive part of the DVD player.
- The DVD player is suddenly moved from a cold place to a warm place.
- A room is heated while the DVD player starts operating, or the DVD is placed by an
air-conditioner.
- In the hot summer season, the DVD player is moved from an air-conditioned room to
a hot, damp place to be used.
- The DVD player is being operated in a damp place.
◆ If moisture appears on the player, discontinue use.
If the player is operated under said conditions, or the disc is loaded, certain interior
components could be damaged. Take disc out, plug power in, switch power of the
DVD player on for two to three hours to dry.
- 3 -
Function Features
1. EXCELLENT SOUND
Dolby Digital delivers great sound.
2. HIGH RESOLUTION
MPEG2 decoding format achieves
more than 500 lines of horizontal
resolution.
3. SPECIAL FUNCTIONS
Supports language caption and
parental-lock.
4. COMPATIBILITY
Compatible with DVD, CD, CD-R/RW,
and PICTURE CD discs.
5. PARTICULAR PERFORMANCE
Multi-speed, fast forward, fast
backward and repeat playback.
6. SEARCH BY TIME
Search for a certain track of a disc by
selected time.
DVD players and discs are coded by region. So, the region code of unit should
match with the code of disc. The region code of this unit is 1.
This product incorporates copyright protection technology that is protected by
U.S. patents and other intellectual property rights. Use of this copyright
protection technology must be authorized by Macrovision, and is intended for
home and other limited viewing uses only unless otherwise authorized by
Macrovision. Reverse engineering or disassembly is prohibited.
7. LAST MEMORY PLAYBACK
Store the stopped playback track in
memory and continue playing disc
from this spot.
8. ON-SCREEN DISPLAY
You can choose English, Spanish, or
French for ON-SCREEN display
language.
9. AUDIO OUT
Analog audio output.
10. POWER ADAPTER SWITCH
Automatically adapts to voltage
requirements in U.S. and other
countries.
11. Wireless transmitter function
Transform the audio signal to FM
signal first and then output 2 FM
channels.
- 4 -
Parts Introduction
DVD Player
1. TFT Liquid Crystal Display
+/- buttons
2.
3. MODE button
4. NEXT SKIP button
PREV SKIP button
5. ■STOP/ OFF button
PLAY / ON button
6.
7. Speaker
8. Remote sensor
9. Indicator light
10. Headphone jack
11. VIDEO jack
12. Stand fixing hole
13. DC 9.5V input jack
14. OPEN button
15. Disc cover
- 5 -
Parts Introduction
Front View
1. Latch hook
Left View
1. Stand fixing hole
- 6 -
Parts Introduction
Bottom View
1. Battery contacting point
2. VIDEO input/output jack
3. AUDIO input/output jack
4. AV IN/OUT switch

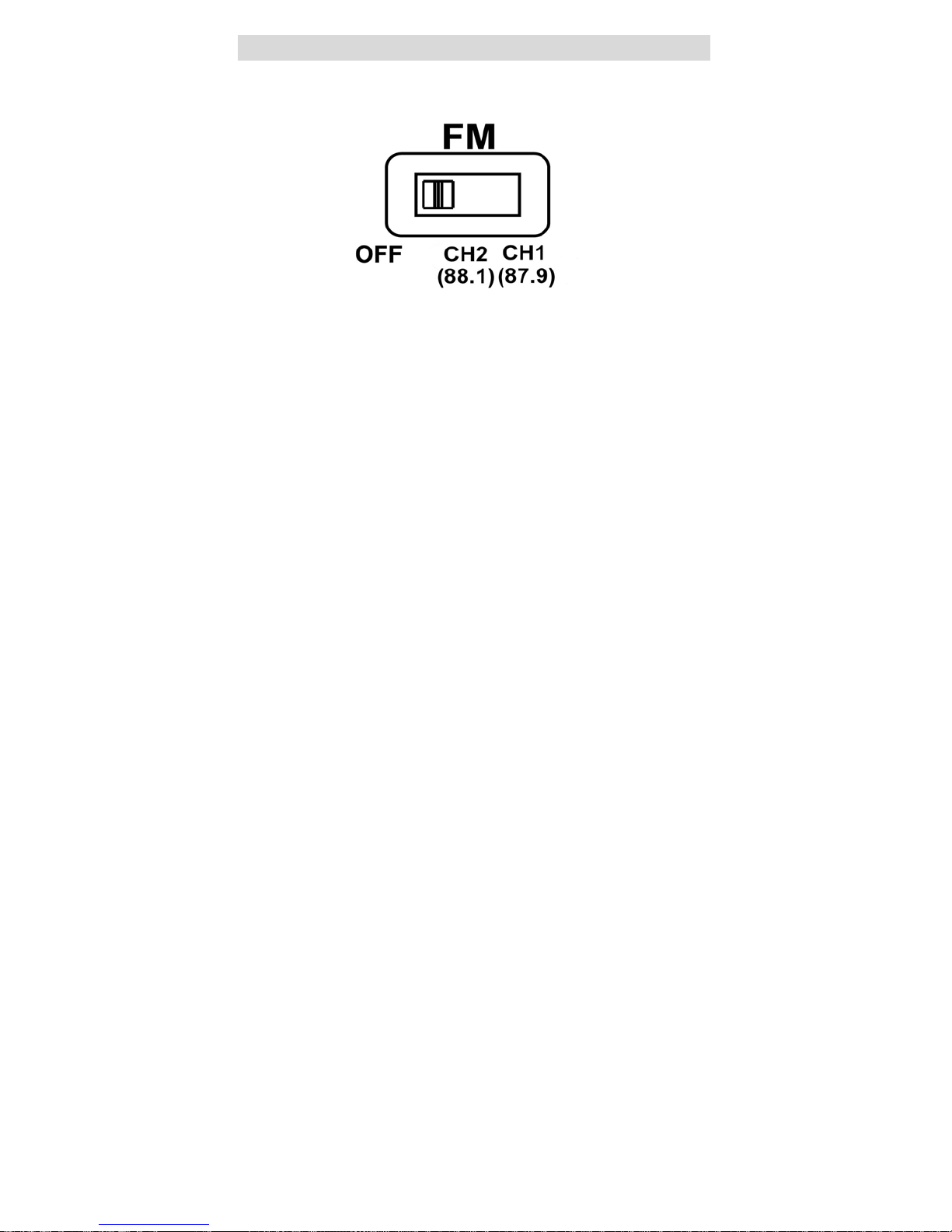

5. FM CH1 (fixed frequency 87.9)
FM CH2 (fixed frequency 88.1)
FM OFF switch
6. DC 9.5V IN
Attention: Noise may occur in speakers when input externa l audio signal while
playing a DVD disc. Please unplug the audio cord to avoid the noise.
- 7 -
Remote Control
- 8 -
Remote Control
1. PWR button
-Press to turn the player on or off.
2. INFO button
-Press for detailed information on
the disc playing.
-Keep pressing to remove
information from screen.
3. TITLE button
-Press to display titles if present on
the disc.
4.
Direction buttons
-Press to select menu items.
5. Enter button
-Press to confirm the settings.
6. SETUP button
-Press to access the DVD player’s
setup menu.
7. 0-9 number buttons
-Select numbers by pressing these
buttons.
8.
PREV SKIP button
-Press to go to beginning of current
track. Press again quickly to go to
beginning of previous track.
9.
NEXT SKIP button
-Press to go to next track.
10. SUBT button
-When a DVD is playing, press to
select a subtitle language or to turn
subtitles off.
11. AUDIO button
-Press to access various audio
languages (if the disc contains
multiple audio languages).
12. MUTE button
-Press to turn speakers sound on
or off during play.
13. LCD ON/OFF
-Press to close LCD screen when
loading a disc in normal mode.
- Press this button again to open LCD
screen.
14. REP button
-Press to repeat a chapter, track,
title, or all content.
15. MENU button
-Press to select the disc menu.
16. ROTATE button
-Press to inverse the image.
17. ■ button
-Press once to stop play and then
press
play.
-Press the button twice to stop
playback completely.
18.
-Press to play after loading a disc.
-Press once to pause play.
-Press this button again to resume
normal play.
19. GOTO button
-Press to select the desired disc
starting time, track or title.
20. +10 button
-Select numbers greater than 9 by
pressing the (+10) button first, and
then an additional number button.
21.
FWD SCAN button
-Press to search forward.
22.
REV SCAN button
-Press to search backward.
23. VOL +
- Press to increase the volume.
24. VOL-
- Press to lower the volume.
button to resume normal
button
- 9 -
