X SERIES
USER GUIDE
X10, X12, X212, Xs15, Xs18 and XH18
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
1
Contents Page
1. Introduction 2
2. Safety first 2
3. Unpacking 4
4. General Overview 4
4.1 X10 Full-range system 5
4.2 X12 Full-range system 6
4.3 X212 Full-range system 7
4.4 Xs15 Sub-bass system 8
4.5 Xs18 Sub-bass System 9
4.6 Mounting configurations 10
5. Amplification 11
6. Connections 12

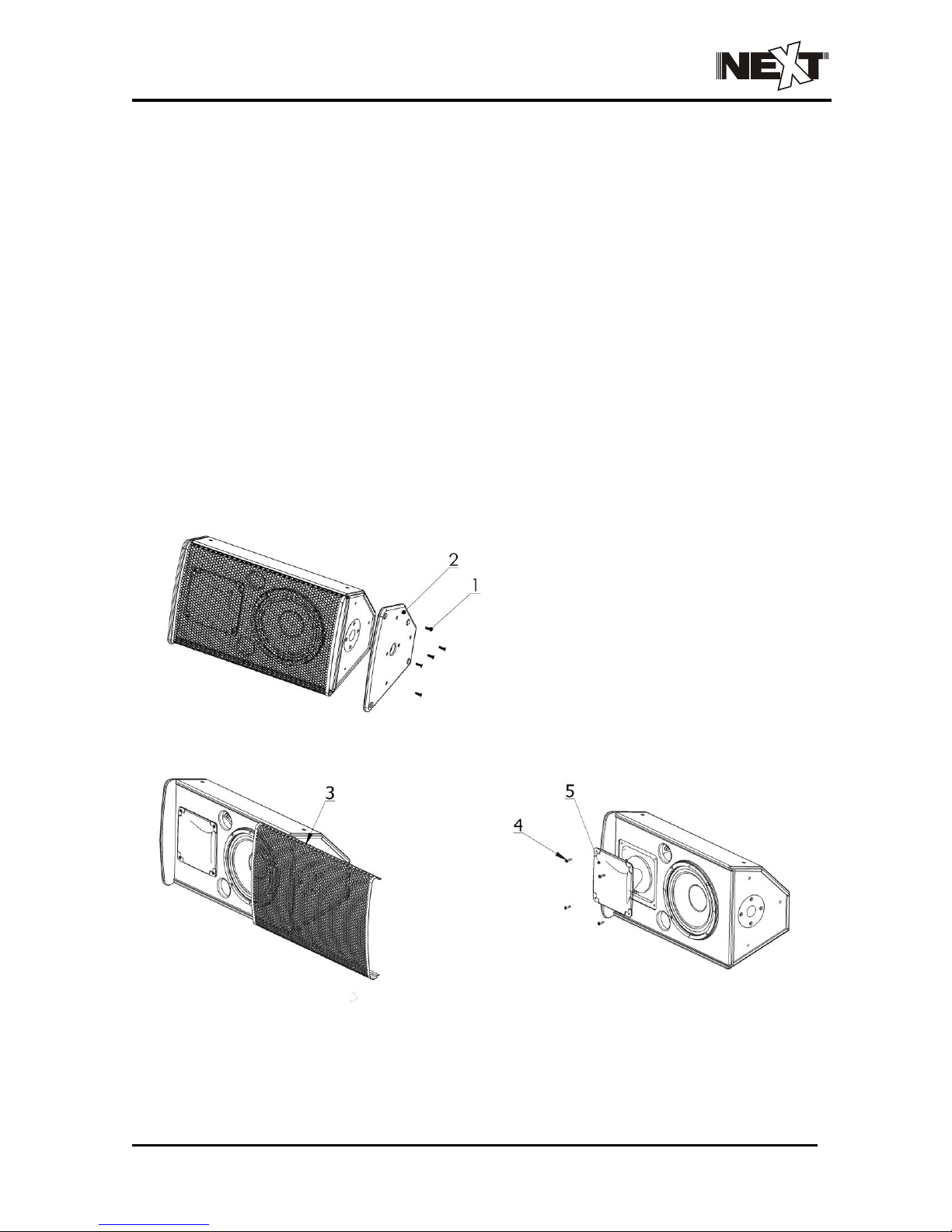

7. X10 and X12 grille removal 13

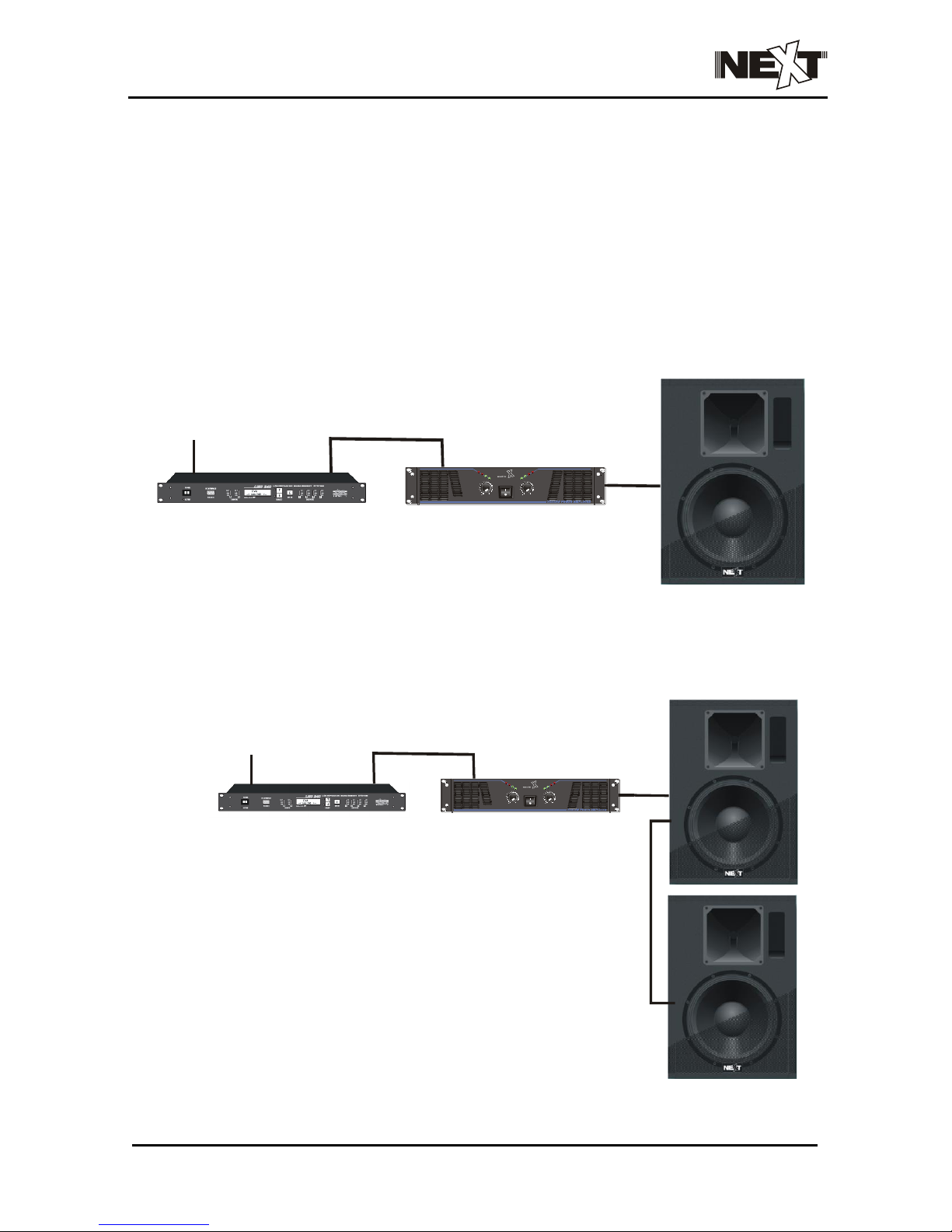

8. System configurations 14
9. Technical Specifications 16
10. Warranty Information 17
11. Contacts 17
MARTIN AUDIO
L O N D O N
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
2
1. INTRODUCTION
Thank you for purchasing a NEXT X-line Speaker system. The X-line is a range of
portable loudspeaker enclosures designed for a wide variety of portable sound
reinforcement and club applications. This manual is intended to provide necessary
information about the X-line products covered, which include the X10, X12 and
X212 full-range enclosures, as well as the Xs15 and Xs18 sub-woofer enclosures.
For optimum performance, it is recommended that X-line systems to be
used with the NEXT LMS-242 digital signal processor. The controller provides
crossover, delay, EQ and limiter functions for every possible X-line configuration.
Please refer to NEXT LMS242 user’s guide for further information.
2. SAFETY FIRST
General considerations
It is important that loudspeaker systems are used in a safe manner. All
systems are meant to be installed and operated by qualified personnel. Please take
some time to read this manual concerning safe and proper use of X-line Series
loudspeakers. Always use protection gear to prevent injuries or death, and do not
allow general public presence too close to the work area during equipment
installation.
Professional loudspeakers are capable of producing extremely high sound
level pressures and should be used with care. Hearing loss is cumulative and
can result from prolonged exposure to sound pressure levels above
90dB. Never stand too close to driven loudspeakers, and use protection
equipment during equipment operation.
Tripod Mounting
The X10, X12 and loudspeakers incorporate a pole mounting socket to make
mounting on tripod stands possible. When using stands, the following precautions
are should be taken:
- Ensure that the stand will support the weight of the speaker by checking
the stand manufacturers rating.
- Make sure that the stand is placed on even and solid surface that can
withstand the weight and that its’ legs are fully extended.
- Never, ever, try to place more than one speaker on a single stand.
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
3
- Place cables so that they do not present a trip hazard which could pull
the system over and cause injuries.
- When used outdoors, take preventive measures because of dynamic
forces like wind. (i.e. add some weight to the base of the stand).
- Do not attempt to move the stand while mounted with the enclosures
- Do not attempt to move the enclosures while connected
- Do not operate the systems under rain or moisture.
- Do not expose the systems to extreme heat or cold conditions to prevent
component damage.
- Isolate the immediate area to the stand to prevent injuries from a
possible fall.
- When using a pole mount with a sub-woofer enclosure, observe similar
Stacking
- Always ensure that the floor or structure is leveled and can withstand
- Do not stack speakers too high, especially outdoors where winds could
- Be aware that speakers working at very high power levels generate
- Place cables in a way that they do not present a trip hazard.
- Do not attempt to move the enclosures while connected
- Do not operate the systems under rain or moisture.
precautions.
the weight of the complete stack.
topple the stack.
vibrations that can drag the systems. Take additional measures to
prevent this.
- Do not expose the systems to extreme heat or cold conditions to prevent
component damage.
- Isolate the immediate area to the stack to prevent injuries from a
possible fall.
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
4
Rigging and Suspension
WARNING: Suspending the system should only be carried by qualified personnel
following safe rigging practices. Secure fixings to the building structure are vital.
Seek help from architects, structural engineers or other specialists if you have
doubts.
X-line Series enclosures are designed for portable applications, but can
be suspended by means of the threaded inserts provided or using compatible
NEXT-PROAUDIO wall Brackets. The X10, X12 and X212 enclosures are fitted
internally with steel corner reinforcement brackets to ensure that each cabinet is
strong enough to be hung from its top.
The common practice of using commercially available eye bolts for
suspension should only be undertaken with great caution. Eye bolts are strongest
along the thread axis. Angling the enclosure will result in an angle pull and it is
important to use eye bolts that are safe in these circumstances. Only forged
shoulder eye bolts should be considered and it is important that the thread length
is at least 30mm. A flat washer should be inserted between the eyebolt and the
enclosure. Formed eye bolts (i.e. those which are formed from a steel rod
bent into an eye) should be avoided. In case of portable suspended use
always perform a visual inspection for component damage and/or deformation,
including the cabinets. If you find any signs of damage or deformation DO NOT
USE THE AFFECTED COMPONENT. REPLACE IT IMMEDIATELY.
3. UNPACKING
Every Next X-line Series loudspeaker is built to the highest standard and is
thoroughly inspected before it leaves the factory. After unpacking the system,
examine it carefully for any signs of transport damage and inform your dealer if
any such damage is found. It is suggested that you retain the original packaging
so that the system can be repacked for transport if necessary. Please note that
Next-proaudio and its distributors cannot accept any responsibility for damage that
occurs to any returned product using non-approved packaging.
4. GENERAL OVERVIEW
The X-line X10, X12, Xs15, Xs18 and XH18 are ideally suited for applications that
require very compact size, high output and ease of transportation. They also make
ideal fill-in speakers for use with larger X-line systems and their very small size is
particularly useful in situations that require visually discrete solutions.
The X212 is the most powerful X-line solution, intended for more
demanding situations, where higher power is needed, like (but not limited to) small
to medium live venues.
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
5
4.1 X10 Full-range system
The X10 is a 2-way passive system, designed to provide exceptional club sound
reinforcement and stage monitoring from a very compact enclosure. It features a
powerful 10” low frequency driver and a 1" HF compression driver mounted on a
constant directivity 50º-100º H x 50° V asymmetric horn. Depending on the
application, the HF horn can be rotated to allow the multi-angle enclosure to be
used in either its vertical or horizontal orientation. To rotate the horn for horizontal
use, remove the grille (see below), unscrew the horn and rotate it 90 degrees.
The enclosure also contains 14 M6 threaded inserts for a variety of
mounting configurations. It is also provided with a top hat fitting underneath for
use with a tripod or as a pole socket for mounting above an X-line subwoofer.
The use of a NEXT LMS242 digital signal processor with every X-line
systems is recommended but optional. Please take into consideration that using
them without a proper signal processing unit may result in poor sound quality
and/or damage to the components.
Applications:
- Theatres and houses of worship;
- Night clubs;
- Compact voice reinforcement;
- Front and under balcony systems;
- Portable or installed audio-visual reproduction.
- General applications requiring high quality sound reproduction with a
compact enclosure;
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
6
4.2 X12 Full-range system
The X12 is a 2-way passive system, designed to provide exceptional club sound
reinforcement and stage monitoring from a very compact enclosure. It features a
powerful Neodymium 12” low frequency driver and a 1" HF compression driver
mounted on a constant directivity 50º-100º H x 50° V asymmetric horn.
Depending on the application, the HF horn can be rotated to allow the multi-angle
enclosure to be used in either its vertical or horizontal orientation. To rotate the
horn for horizontal use, remove the grille (see below), unscrew the horn and rotate
it 90 degrees.
The enclosure also contains 14 M6 threaded inserts for a variety of
mounting configurations. It is also provided with a top hat fitting underneath for
use with a tripod or as a pole socket for mounting above an X-line subwoofer.
The use of a NEXT LMS242 digital signal processor with every X-line
systems is recommended but optional. Please take into consideration that using
them without a proper signal processing unit may result in poor sound quality
and/or damage to the components.
Applications:
- Theatres and houses of worship;
- Night clubs;
- Live club performance;
- Floor monitor.
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
7

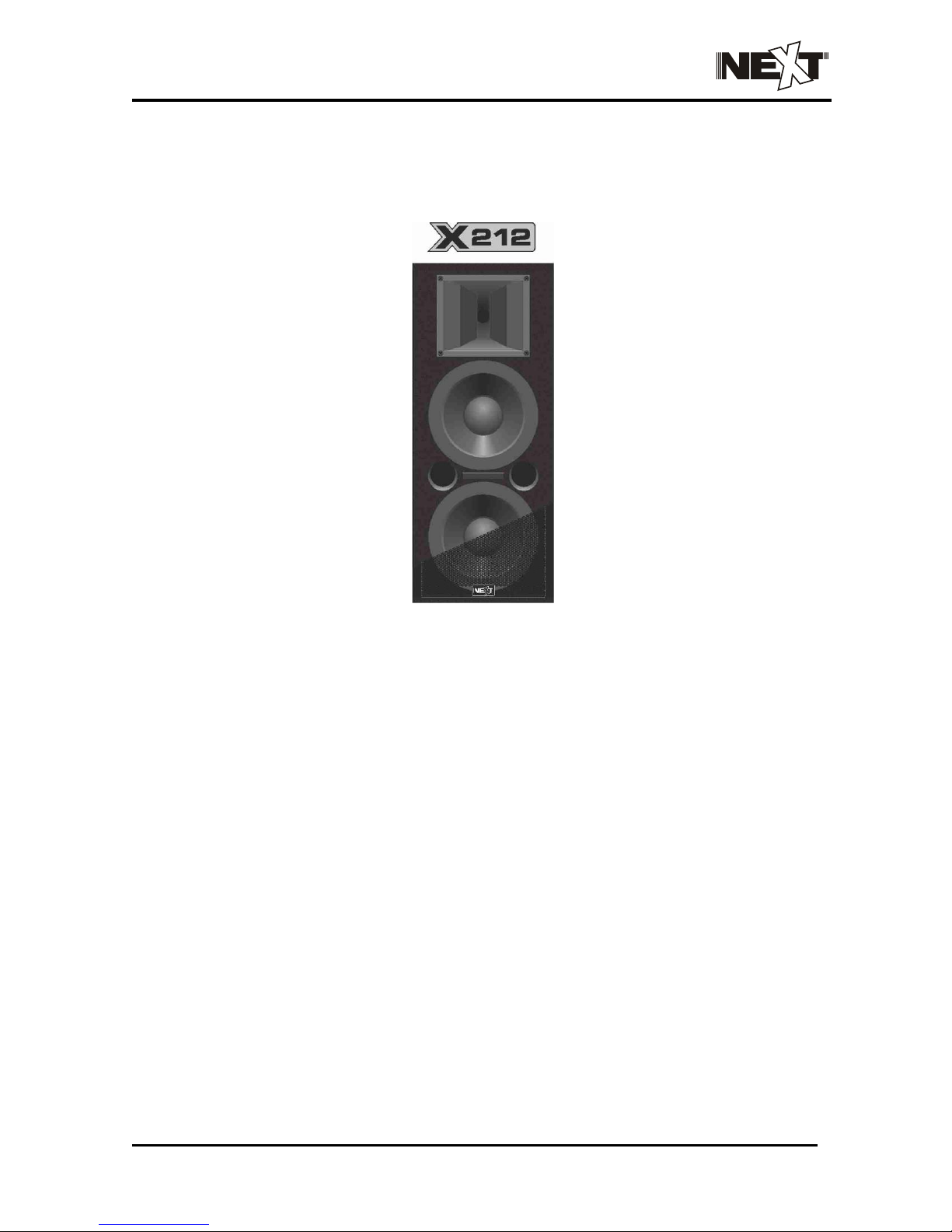

4.3 X212 Full-range system
The X212 is a 2-way passive system, designed for all kinds of applications, from
club sound reinforcement to outdoor live applications like small to medium venues.
It features 2 powerful neodymium 12” low frequency drivers and a 2" HF
compression driver. The enclosure also contains 14 M6 threaded inserts for a
variety of mounting configurations.
The use of a NEXT LMS242 digital signal processor with every X-line
systems is recommended but optional. Please take into consideration that using
them without a proper signal processing unit may result in poor sound quality
and/or damage to the components.
Applications:
- Theatres;
- Night clubs;
- Live club performance;
- Small to medium live outdoor performances
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
8

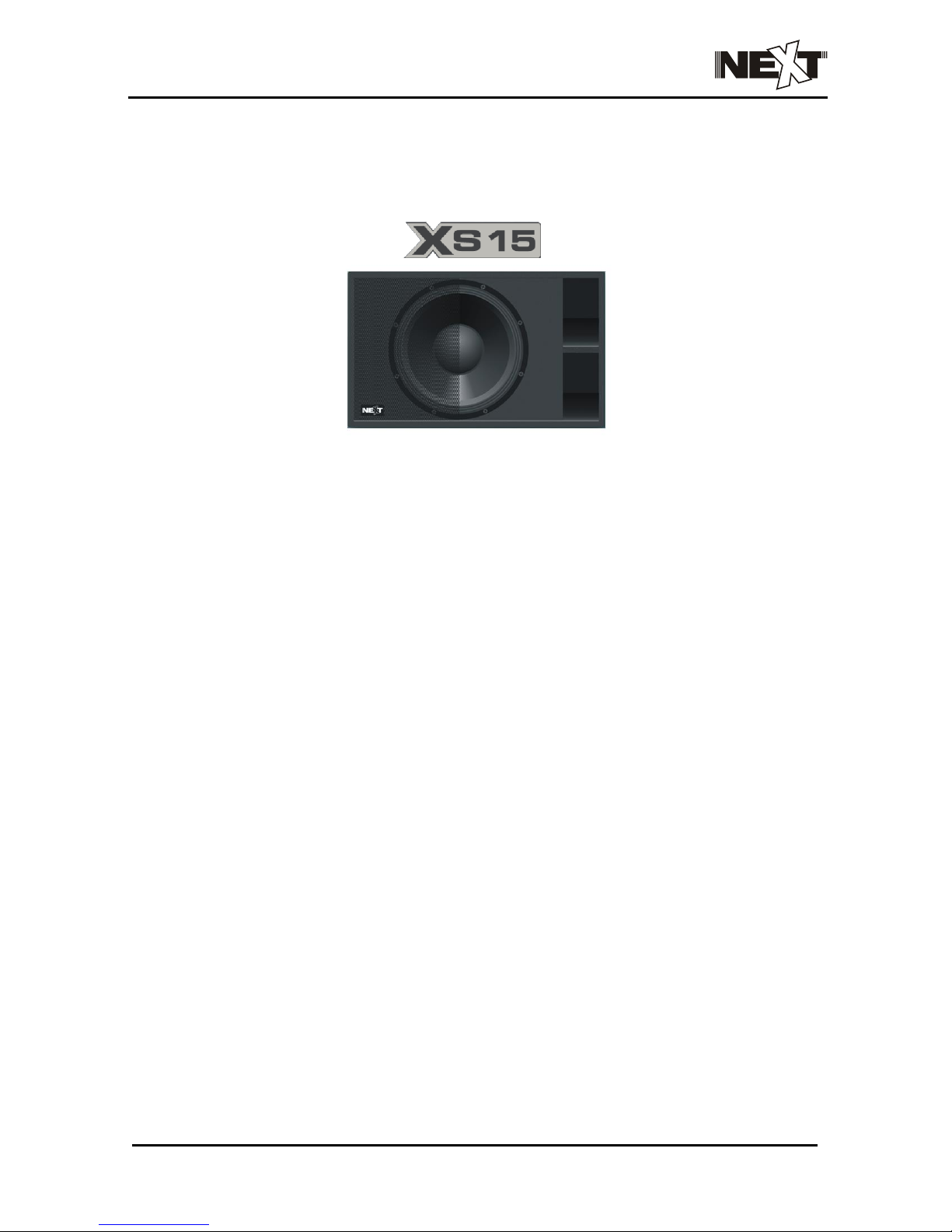

4.4 Xs15 Sub-bass system
The Xs15 sub-bass system can be used with the X08, X10 and X12 in order
to extend and increase the total low frequency output power. The Xs15 is a BandPass sub-woofer and provides a powerful bass from a long excursion neodymium
15” driver with 100mm voice coil and it will extend the frequency response of the
complete system to below 40Hz. This cabinet is made with 18mm birch plywood.
Depending on the type of Mid/High speaker, using an active crossover, this
sub-woofer system can reproduce sound signal frequencies between 20Hz to 80Hz
(24 dB/octave). The Xs15 is also provided with a top hat fitting to be used as a
pole socket to mount an X08, X10 and X12 above the enclosure.
The use of a NEXT LMS242 digital signal processor with every X-line
systems is recommended but optional. Please take into consideration that using
them without a proper signal processing unit may result in poor sound quality
and/or damage to the components.
Applications:
- Theatres;
- Night-Clubs;
- Live club performance;
- Portable or installed audio-visual reproduction.
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
9
4.5 Xs18 / XH18 Sub-bass system
The Xs18 and XH18 sub-woofer systems can be used with the X10, X12 and X212
in order to extend and increase the total low frequency output power. The Xs18 is
a Band-Pass sub-woofer enclosure while the XH18 is a horn loaded sub-woofer
enclosure and both provide a powerful bass from a long excursion 18” driver with
100mm voice coil and they will extend the response of the complete system to
below 30Hz. Both cabinets are made with 18mm birch plywood. Both the Xs18 and
the XH18 are provided with a top hat fitting to be used as a pole socket to mount
a X10 or X12 above the enclosure.
The use of a NEXT LMS242 digital signal processor with every X-line
systems is recommended but optional. Please take into consideration that using
them without a proper signal processing unit may result in poor sound quality
and/or damage to the components.
Applications:
- Theatres;
- Night clubs;
- Live club performance;
- Portable or installed audio-visual reproduction.
- Live outdoor performances
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
10
4.6 Mounting Configurations
Vertical alone Vertical (more than one)
Horizontal Alone Horizontal (more than one)
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
11
5. Amplification
All the systems are designed to be used with professional power amplifiers and
NEXT-PROAUDIO recommends the following Next Amplifiers:
X10 - Next MA1700 (stereo, 400W at 8 ohm*)
X12 - Next MA2300 (stereo, 600W at 8 ohm*)
X212 - Next MA2300 (stereo, 875W at 4 ohm*)
Xs15 - Next MA1700 (bridge, 1250W at 8 ohm*, one unit)
Next MA4200 (stereo, 1200W at 8 ohm*, one unit per
channel)
Xs18 - Next MA1700 (bridge, 1250W at 8 ohm*, one unit)
Next MA4200 (stereo, 1200W at 8 ohm*, one unit per
channel)
Important advice:
Care should be taken to avoid amplifier clipping. It is important to
understand that a low power amplifier driven into clipping is more likely to damage
a loudspeaker than a higher power amplifier used within its ratings. This is
because music signals have a high peak-to-average "crest" factor. When an
amplifier is severely overdriven, its output waveform is “clipped” (its peaks are
squared off) – reducing the crest factor. In extreme cases, the waveform can
approach that of a square wave, causing extreme distortion. An amplifier is
normally capable of producing far more power under these conditions than its
undistorted rated power output. On the other hand, use of very high power
amplifiers with outputs greater than those recommended is discouraged.
Care should be taken to avoid switch-on surges, which can result in
momentary power peaks in excess of specified ratings. When powering up a sound
system it is important to switch on the amplifiers last, after the mixer and control
electronics have stabilised. When powering down the system, reverse the
sequence and switch off the amplifiers first.
*Specified power ratings are given considering the specific load conditions. For more detailed information about MA series
amplifiers’ characteristics, please refer to the amplifiers’ user manuals or specsheets, or visit www.next-proaudio.com.
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
12
6. CONNECTIONS
Each connector panel has two Neutrik Speakon connectors wired in parallel. The
second connector allows use of a short link lead to power another parallel
loudspeaker if required. The connectors are wired as follows:
X10, X12 and X212
4 pole Connector 2+ (live) and 2- (Ground)
Xs15, Xs18 and XH18
4 pole connector 1+ (live) and 1- (Ground)
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
13
7. X10 and X12 Grille removal
The X-line models X10 and X12 use an asymmetric horn in the horizontal
plane varying from 50º to 100º. This means that its’ assembly position must be
configured according to its’ pretended usage. To achieve this, we have to
disassemble the grille in order to reach the horn. Follow the instructions below to
achieve this.
1 – Remove the screws on the bottom.
2 – Gently remove the bottom.
3 – Slide the grille out.
4 – Remove the screws retaining the
horn
5 – Carefully remove the horn, place it
on the desired position and
reverse the process.
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
14
MA1700
0 dB 0 dB
-1 -1
-3 -3
-15 -15
-20 -20
-40 -40
CHANNEL 1
ACTIVE ACTIVE
SIGNAL SIGNAL
LIMIT
PROTECT
LIMIT
PROTECT
CHANNEL 2
-6 -6
-12 -12
POWER
-9 -9
0
0
0
0
NET
IN
OUT
Power Out
MA1700
0 dB 0 dB
-1 -1
-3 -3
-15 -15
-20 -20
-40 -40
CHANNEL 1
ACTIVE ACTIVE
SIGNAL SIGNAL
LIMIT
PROTECT
LIMIT
PROTECT
CHANNEL 2
-6 -6
-12 -12
POWER
-9 -9
0
0
0
0
NET
IN
OUT
Power Out
8. System Configurations
There are many different system combinations possible with the X-Line system
series. Below are some typical configurations.
X10, X12 or X212 Stand-alone Full-range speaker
Depending on the amplifier, 2 units can be linked in parallel, this is possible
with any of the NEXT MA Series power amplifiers.
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
15
MA1700
0 dB 0 dB
-1 -1
-3 -3
-15 -15
-20 -20
-40 -40
CHANNEL 1
ACTIVE ACTIVE
SIGNAL SIGNAL
LIMIT
PROTECT
LIMIT
PROTECT
CHANNEL 2
-6 -6
-12 -12POWER
-9 -9
0
000
NET
MA1700
0 dB 0 dB
-1 -1
-3 -3
-15 -15
-20 -20
-40 -40
CHANNEL 1
ACTIVE ACTIVE
SIGNAL SIGNAL
LIMIT
PROTECT
LIMIT
PROTECT
CHANNEL 2
-6 -6
-12 -12
POWER
-9 -9
000
0
NET
OUT 1
Xs15
IN L
IN R
OUT 3
OUT 2
Xs15
MA1700(bridge)
MA1700 (Stereo)
X10
X10
MA1700
0 dB 0 dB
-1 -1
-3 -3
-15 -15
-20 -20
-40 -40
CHANNEL 1
ACTIVE ACTIVE
SIGNAL SIGNAL
LIMIT
PROTECT
LIMIT
PROTECT
CHANNEL 2
-6 -6
-12 -12
POWER
-9 -9
000
0
NE T
MA1700
0 dB 0 dB
-1 -1
-3 -3
-15 -15
-20 -20
-40 -40
CHANNEL 1
ACTIVE ACTIVE
SIGNAL SIGNAL
LIMIT
PROTECT
LIMIT
PROTECT
CHANNEL 2
-6 -6
-12 -12
POWER
-9 -9
000
0
NE T
MA3200 (stereo)
OUT 1
OUT 2
OUT 4
X12
X12
Xs18
Xs18
IN L
IN R
Xs18
Xs18
OUT 3
X10 with Xs15
X12 with Xs18
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
16
SPECIFICATIONS
X10
X12
X212
Frequency Range ( -6dB )
70Hz-20kHz
57Hz-20kHz
50Hz-18kHz
Sensitivity 1w/1m half space
97dB
99dB
102dB
Maximum SPL ( calculated )
124dB
127dB
133dB
Power ( AES )
500W
700W
1400W
Impedance
8Ω
8Ω
4Ω
Dispersion ( HxV )
50º-100º x 50º
50º-100º x 50º
60º x 40º
Drivers ( LF/HF )
10"/1"
12"/1"
2x12’’/2’’
Connectors
2xNL4
2xNL4
2xNL4
Dimensions ( WxHxD )cm
35x24.8x33.5
40.8x55.9x36
42.5x100x36.3
Weight
17Kg
22Kg
39Kg
SPECIFICATIONS
XS15
XS18
XH18
Frequency Range ( -6dB )
35Hz-250Hz
34Hz-200Hz
38Hz-160Hz
Sensitivity 1w/1m half space
99dB
102dB
105dB
Maximum SPL ( calculated )
130dB
133dB
136dB
Power ( AES )
1400W
1400W
1400W
Impedance
4 Ohms
8 Ohms
8 Ohms
Drivers
15"
18"
18"
Connectors
2xNL4
2xNL4
2xNL4
Dimensions ( WxHxD )cm
78.6x43.6x50.6
67.7x56x78.6
79.5x62.2x63
Weight
47kg
54kg
55.5kg
10. Technical specifications summary
X10, X12 and X212
Xs15 and Xs18
www.next-proaudio.com
X10, X12, X212, Xs15, Xs18 and XH18 User Guide
17
9. WARRANTY INFORMATION
NEXT-PROAUDIO X-line Series products are warranted against manufacturing
defects in materials or craftsmanship over a period of 2 years from the date of
original purchase. During the warranty period NEXT-PROAUDIO will, at its’ own
discretion, either repair or replace products which prove to be defective provided
that the product is returned in its original package, shipping prepaid, to an
authorized NEXT-PROAUDIO service agent or distributor.
NEXT-PROAUDIO cannot be held responsible for damage caused by
unauthorized modifications, improper use, negligence, exposure to harsh weather
conditions, act of God or accident, or any use of this product that is not in
accordance with the instructions provided by NEXT-PROAUDIO and this manual.
NEXT-PROAUDIO is not liable for any consequential damages. This warranty is
exclusive and no other warranty is expressed or implied. This warranty does not
affect your statutory rights.
10. Contacts
In case you need any information or have any doubts just:
Write us:
NEXT-PROAUDIO
Rua da Venda Nova, 295
4435-469 Rio-Tinto
Portugal
Contact us:
Tel. +351 22 489 00 75
Fax. +351 22 480 50 97
Send an e-mail:
info@cva.pt
info@next-proaudio.com
Search our websites:
www.next-proaudio.com
www.cva.pt
www.next-proaudio.com
Loading...
