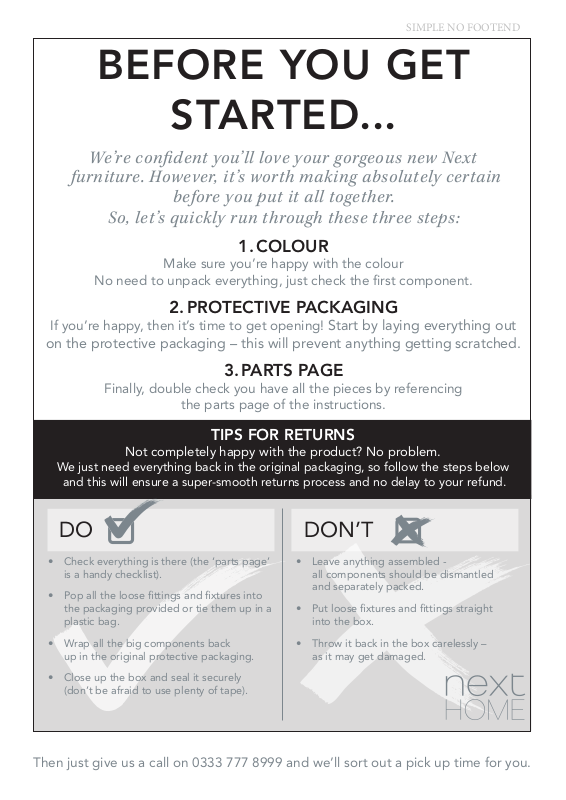

BEFORE YOU GET
SIMPLE NO FOOTEND
STARTED...
We’re confident you’ll love your gorgeous new Next
furniture. However, it’s worth making absolutely certain
before you put it all together.
So, let’s quickly run through these three steps:
1. COLOUR
Make sure you’re happy with the colour
No need to unpack everything, just check the first component.
2. PROTECTIVE PACKAGING
If you’re happy, then it’s time to get opening! Start by laying everything out
on the protective packaging – this will prevent anything getting scratched.
3. PARTS PAGE
Finally, double check you have all the pieces by referencing
the parts page of the instructions.
TIPS FOR RETURNS
Not completely happy with the product? No problem.
We just need everything back in the original packaging, so follow the steps below
and this will ensure a super-smooth returns process and no delay to your refund.
DO DON’T
• Check everything is there (the ‘parts page’
is a handy checklist).
• Pop all the loose fittings and fixtures into
the packaging provided or tie them up in a
plastic bag.
• Wrap all the big components back
up in the original protective packaging.
• Leave anything assembled -
all components should be dismantled
and separately packed.
• Put loose fixtures and fittings straight
into the box.
• Throw it back in the box carelessly –
as it may get damaged.
• Close up the box and seal it securely
(don’t be afraid to use plenty of tape).
Then just give us a call on 0333 777 8999 and we’ll sort out a pick up time for you.
Page 2
Page 3
WESTCOTT BED NO FOOTEND
715386, 434555, 712901
Assembly instructions
Actual product size
H117 x W146 x D235 (Double)
H117 x W161 x D245 (King)
H117 x W191 x D245 (Super King)
IMPORTANT - RETAIN FOR FUTURE REFERENCE
Produced in Poland for Next Retail Ltd
673886-2016-V2
Need Help ?
With: Assembly instructions
Missing or damaged parts
CALL: 0333 777 8999
1
Page 4
WESTCOTT BED NO FOOTEND
715386, 434555, 712901
Assembly instructions
BEFORE YOU START
Fabric content
715386- 100% Polyester;
434555- 100% Polyester;
712901- 100% Polyester
Warnings
We suggest you retain these instructions for future reference.
Keep fittings out of children's reach and keep children well
away from the construction area.
This product should only be used on firm, level ground.
Please periodically check all fittings and re-tighten as
necessary.
Please do not stand on your furniture.
Avoid exposing the furniture to excessive heat or direct
sunlight as this can cause deterioration of the colour.
Unwrap all packaging materials and place the components
on top of the carton box or on a clean floor to protect it from
damage.
Do's
We suggest you spend a short time reading through this leaflet
before you start.
When you are ready to start, make sure that you have the
right tools and plenty of space.
Unwrap all packaging materials and place the components
on a clean surface to protect it from damage.
We recommend that the packaging is used to protect the
surfaces during assembly.
Carefully check that you have all the parts before beginning
assembly
Due to the size of the product we recommend that it is
assembled in the room intended for use.
Ensure the product is fully assembled as illustrated and all
fixings are fully tightened before use.
Wipe occasionally with a soft cloth slightly dampened with
water. Then buff with a dry clean soft cloth.
Wood will mellow and change colour over time, we recommend
that ornaments and items placed on the surface are moved
regularly for the first few months to prevent uneven mellowing.
Don'ts
Do not drag or pull your furniture.
Do not use silicone based furniture polish. Silicone in furniture
polishes can break down the finish.
Never allow any kind of liquid to remain on your furniture.
Absorption can cause wood to warp or finishes to de-laminate.
Do not place hot items (e.g. hot drinks) directly on to the wood
surface. Please make sure you use a placement or coaster.
Number of people required to assemble
Two persons are required to assemble this item.
Time to assemble
30 minutes
Tools required
not supplied
Missing parts
If you are missing any fixtures and fittings for your product
please contact our customer service team on 0333 777 8999
and they will be happy to arrange for a replacement to be sent
to you free of charge.
Home service technicians
If you have a fault with your product please contact our
customer service team on 0333 777 8999. If you have had the
product for 28 days or less you may be offered a replacement,
refund or for a fully trained home service technician to visit your
home to assess the fault and repair the product where possible.
If you have had the product for more than 28 days we will send
an independant home service technician to review and repair
the product where possible and recommend further action.
You can write to us at
Home Customer Services
Next Retail Ltd,
Desford Road,
Leicester,
LE19 4AT
To View our full furniture range please visit www.next.co.uk
Produced in Poland for Next Retail Ltd
673886-2016-V2
2
Page 5
WESTCOTT BED NO FOOTEND
715386, 434555, 712901
Assembly instructions
GETTING TO KNOW YOUR PRODUCT
J2
1

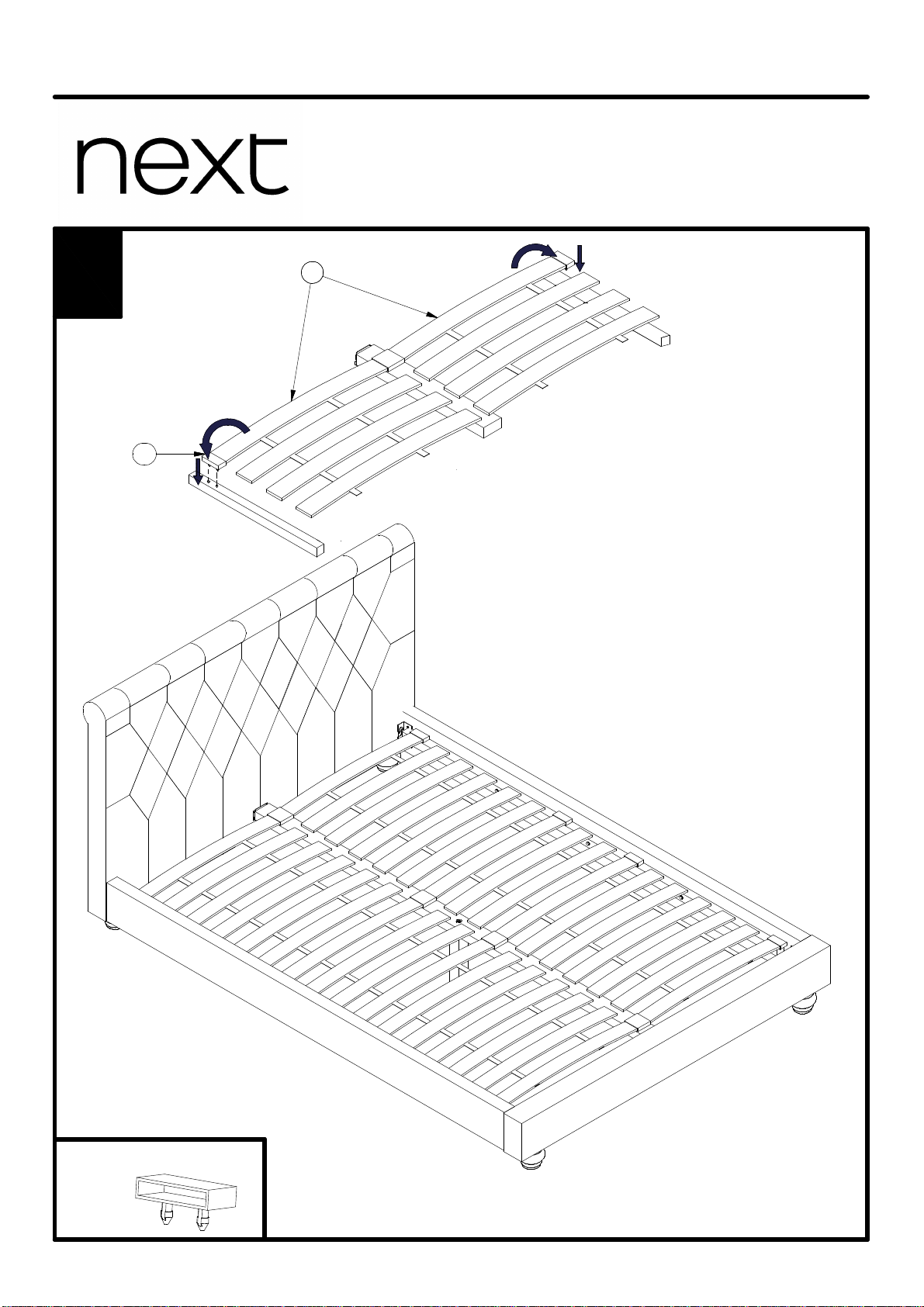

7
J1
3
4
MM
66
5
3

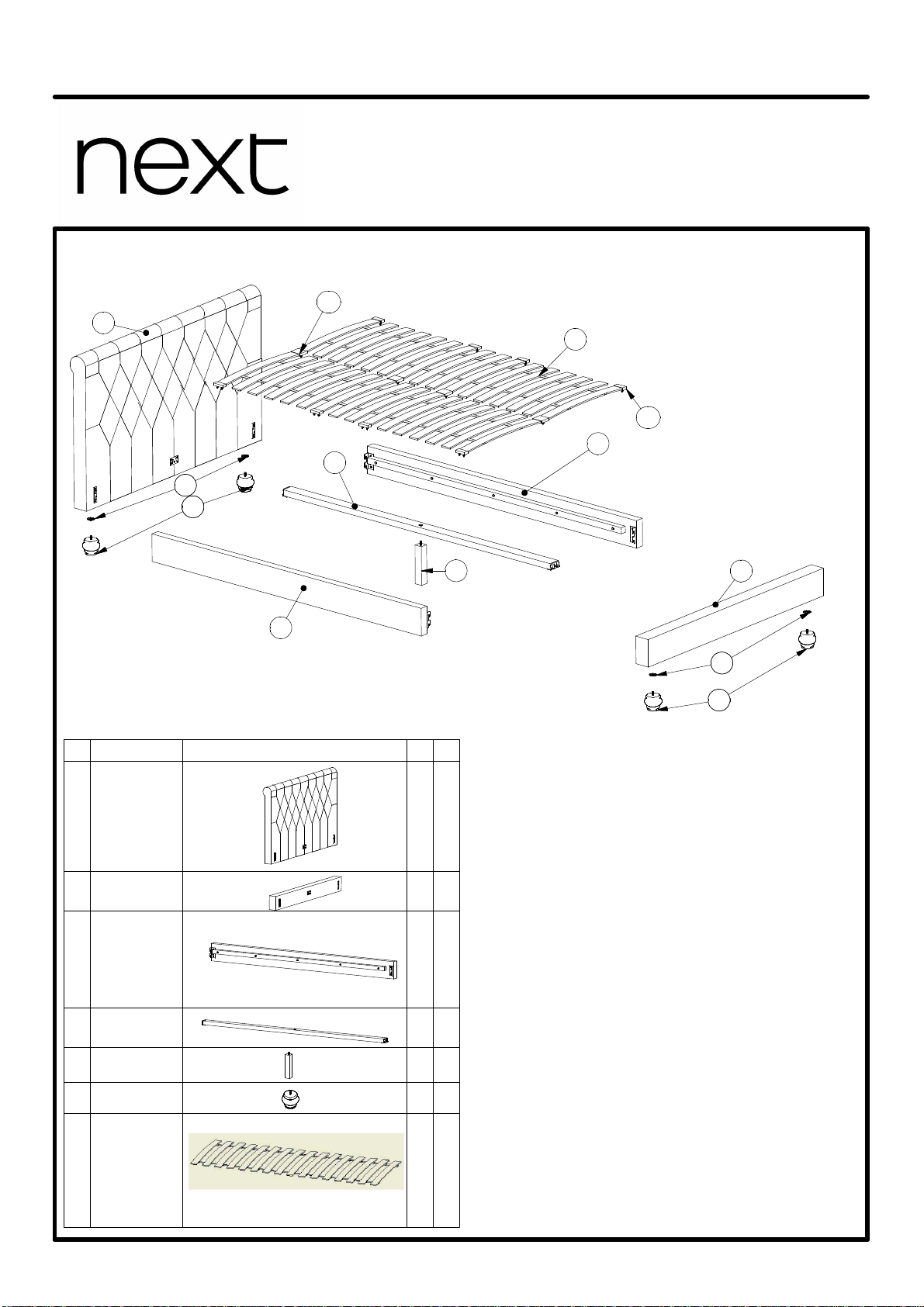

Components supplied. Please use this guide if you require replacement parts.
Dimensions Visual
Ref
Headboard
1
Footboard
2
3
Sideboard
QtyCtn

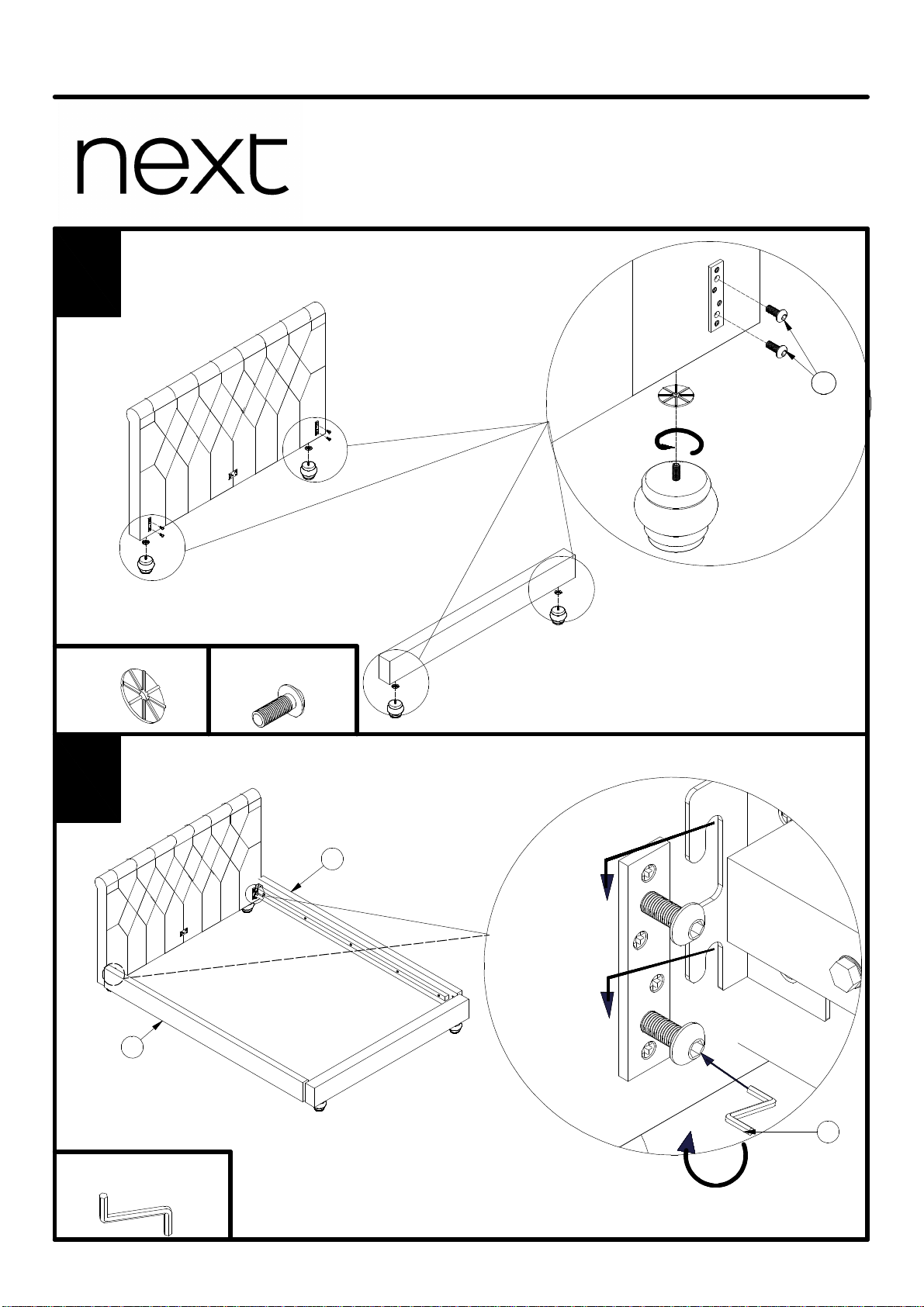

1
1
1
1
2
2
2
MM
66
4
Central rail
5
Support leg
6
7
Leg
Slat
Produced in Poland for Next Retail Ltd
673886-2016-V2
1
2
1
2
4
2
2
3
3
Page 6
Fixtures and fittings supplied
(actual size)
Dimensions
Ref
J1
J2
65 x 30mm48
65 x 60mm
Qty
WESTCOTT BED NO FOOTEND
715386, 434555, 712901
Assembly instructions

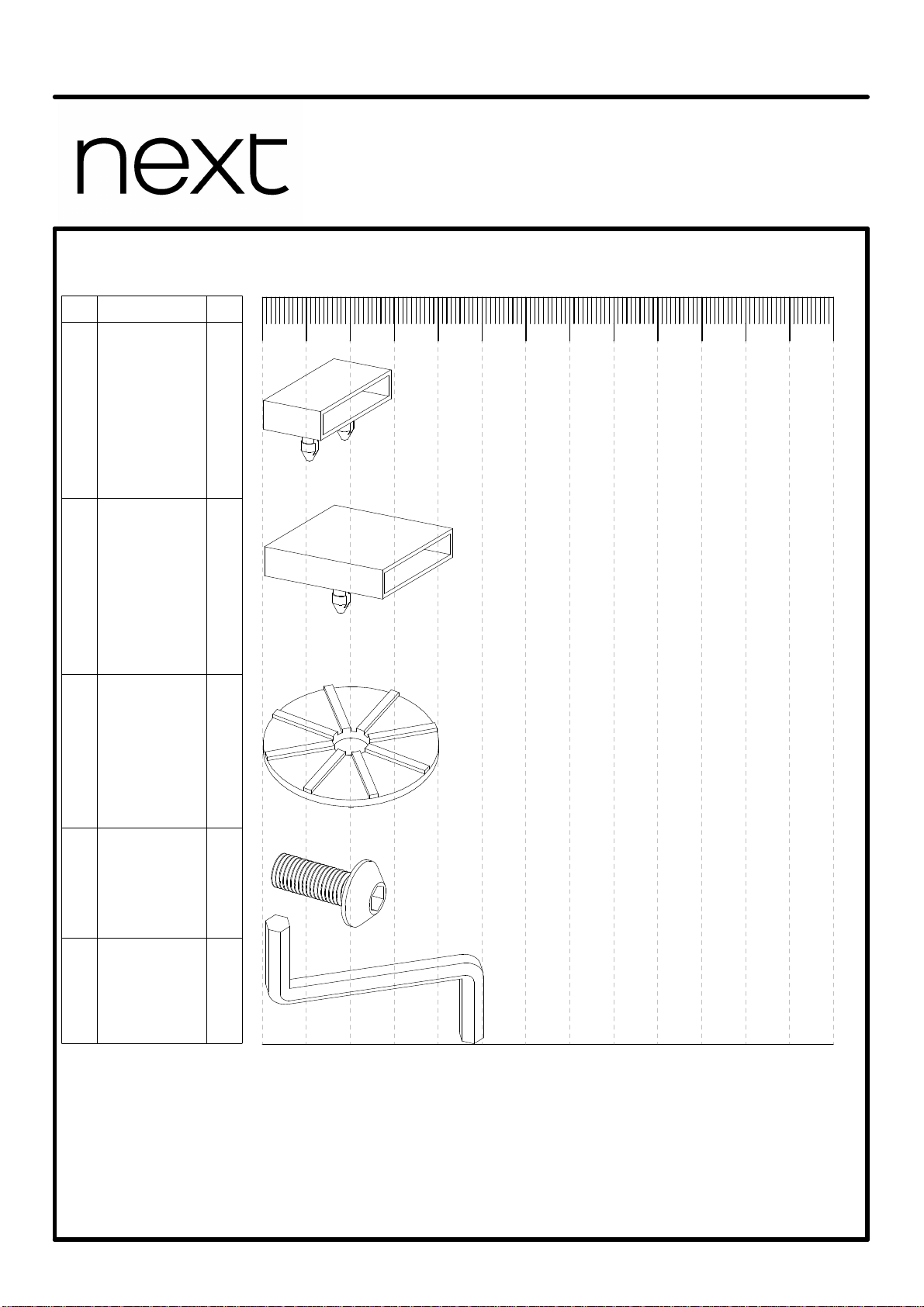

mm 10 20 30 40 50 60 70 80 90 100 110 120 130
M
L1 M8 x 20mm 8
N M8 2
M40
4
Produced in Poland for Next Retail Ltd
673886-2016-V2
4
Page 7

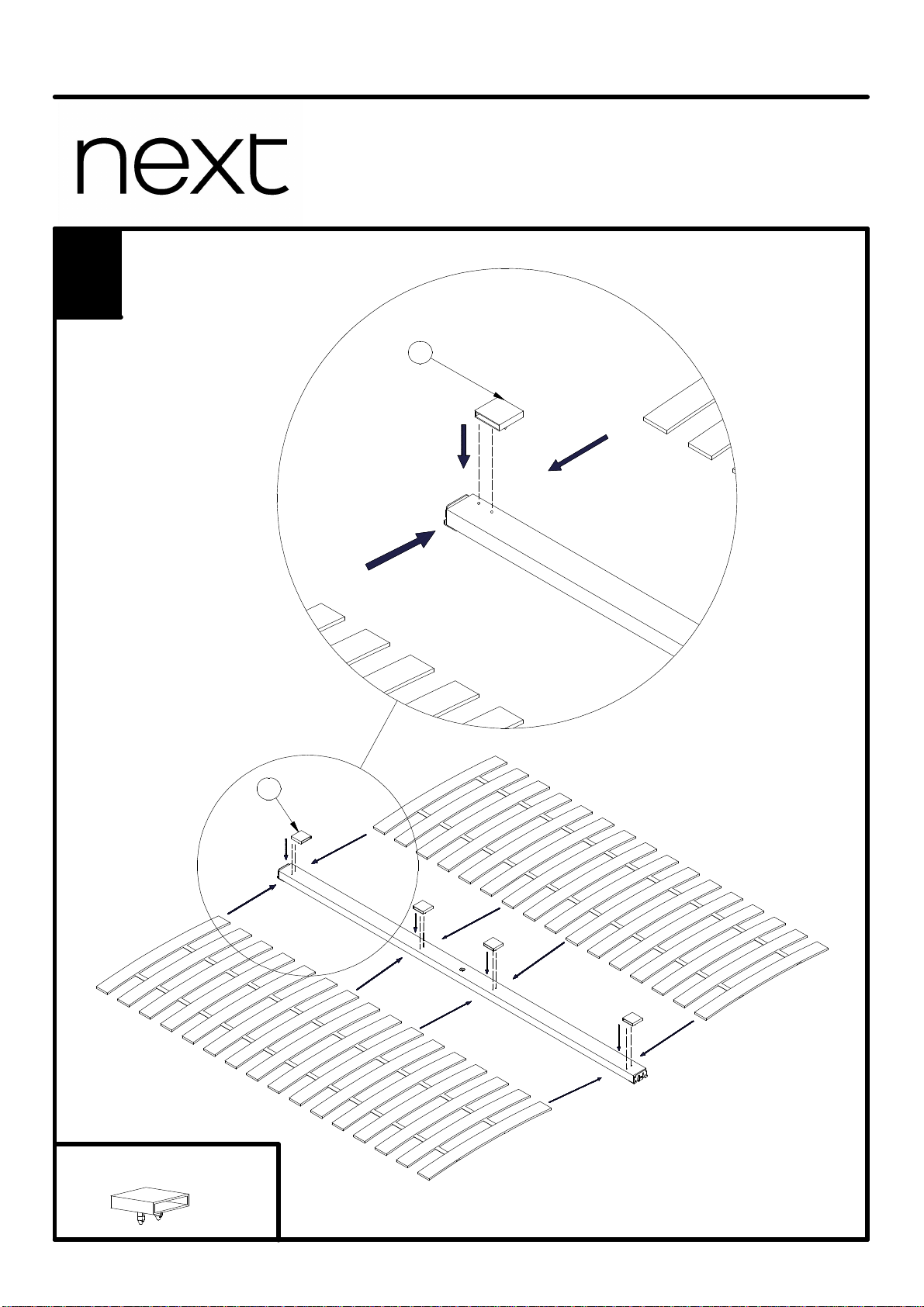

1
WESTCOTT BED NO FOOTEND
715386, 434555, 712901
Assembly instructions
L1L1
M x4
2
3
M40
L1 x8
M8
1
3
1
2
N x2
Produced in Poland for Next Retail Ltd
673886-2016-V2
M8
N
3
5

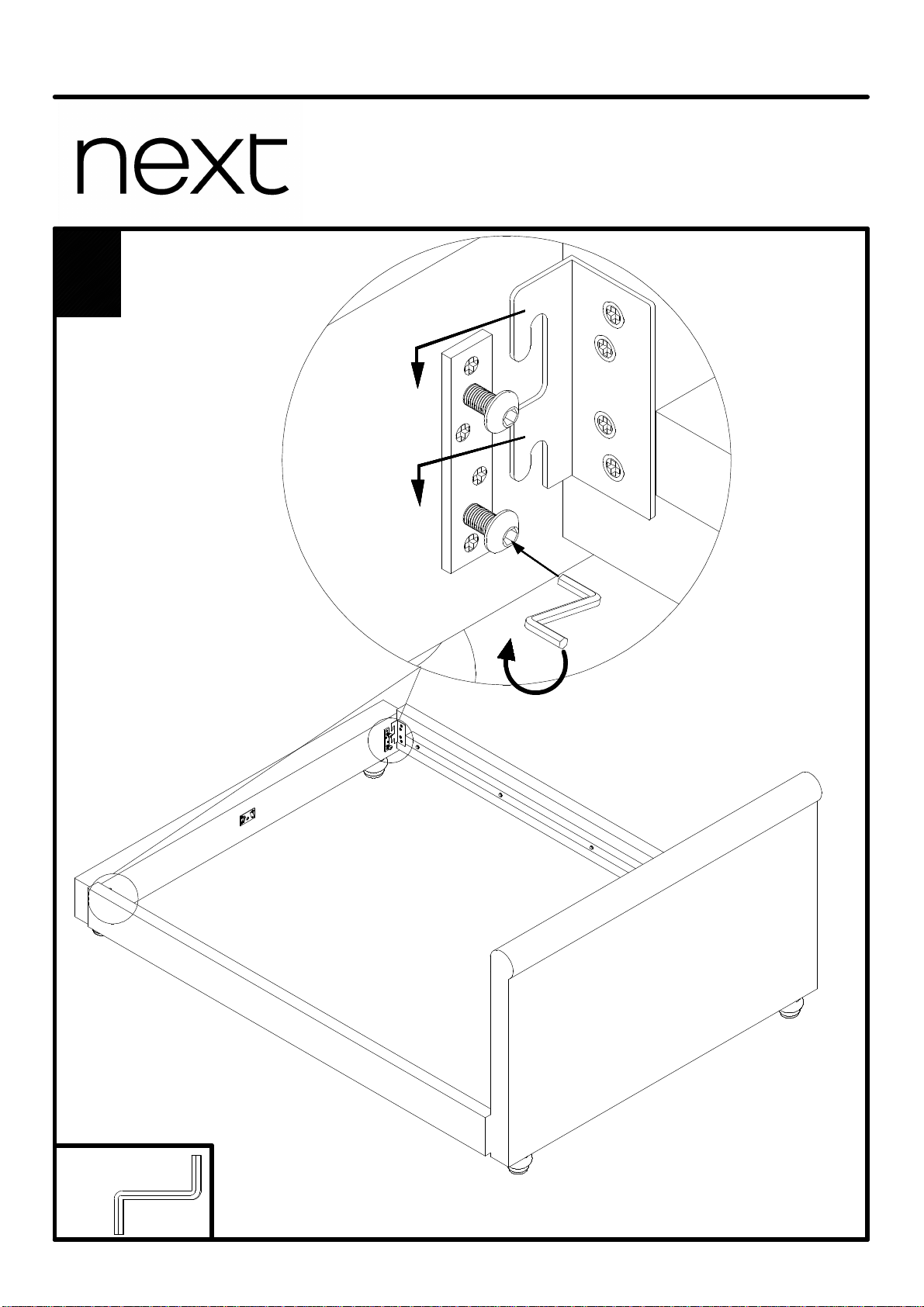

Page 8
3
WESTCOTT BED NO FOOTEND
715386, 434555, 712901
Assembly instructions
1
1
2
3
N x2
Produced in Poland for Next Retail Ltd
673886-2016-V2
M8
6

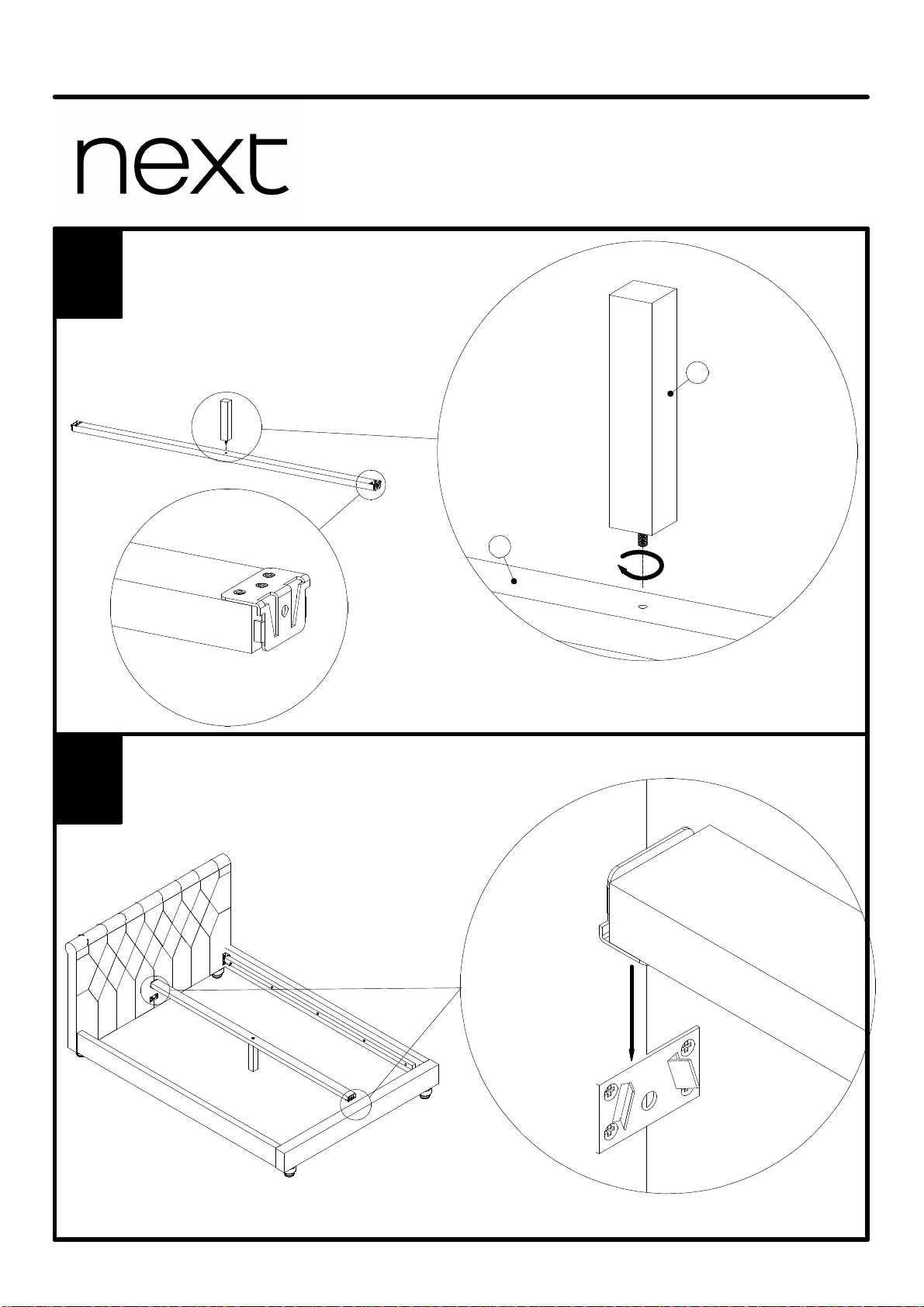

Page 9
4
WESTCOTT BED NO FOOTEND
715386, 434555, 712901
Assembly instructions
5
4
5
Produced in Poland for Next Retail Ltd
673886-2016-V2
7
Page 10
6
WESTCOTT BED NO FOOTEND
715386, 434555, 712901
Assembly instructions
J2
1-st
step
2-nd
step
3-rd
step
J2 x4
J2
65x60
Produced in Poland for Next Retail Ltd
673886-2016-V2
8
Page 11
WESTCOTT BED NO FOOTEND
715386, 434555, 712901
Assembly instructions
7
J1
5-th
step
4-th step
7
7
4-th step
5-th
step
J1 x8
Produced in Poland for Next Retail Ltd
673886-2016-V2
65x30
9
Page 12
WESTCOTT BED NO FOOTEND
715386, 434555, 712901
Assembly instructions

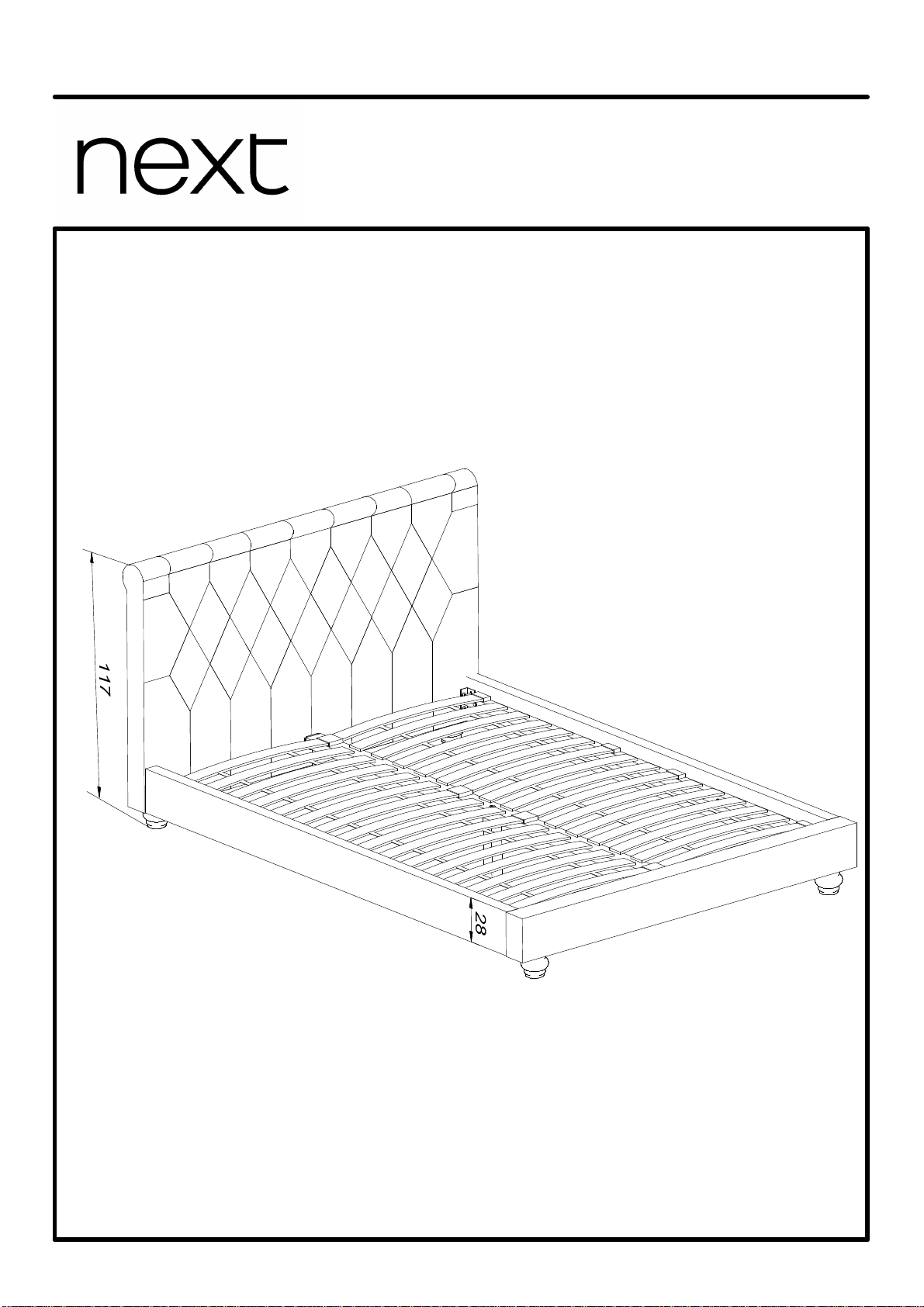

Actual product size
