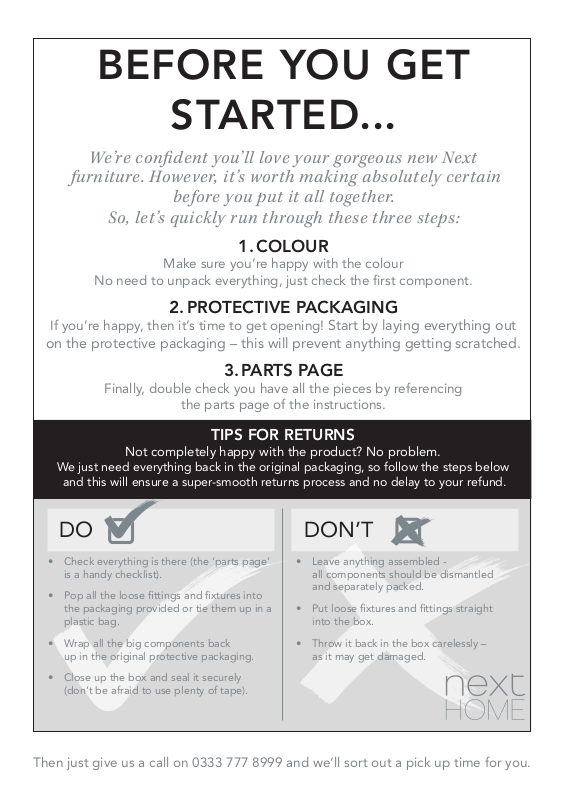

Page 1
BEFORE YOU GET
STARTED...
We’re confident you’ll love your gorgeous new Next
furniture. However, it’s worth making absolutely certain
before you put it all together.
So, let’s quickly run through these three steps:
1. COLOUR
Make sure you’re happy with the colour
No need to unpack everything, just check the first component.
2. PROTECTIVE PACKAGING
If you’re happy, then it’s time to get opening! Start by laying everything out
on the protective packaging – this will prevent anything getting scratched.
3. PARTS PAGE
Finally, double check you have all the pieces by referencing
the parts page of the instructions.
TIPS FOR RETURNS
Not completely happy with the product? No problem.
We just need everything back in the original packaging, so follow the steps below
and this will ensure a super-smooth returns process and no delay to your refund.
DO DON’T
• Check everything is there (the ‘parts page’
is a handy checklist).
• Pop all the loose fittings and fixtures into
the packaging provided or tie them up in a
plastic bag.
• Wrap all the big components back
up in the original protective packaging.
• Leave anything assembled -
all components should be dismantled
and separately packed.
• Put loose fixtures and fittings straight
into the box.
• Throw it back in the box carelessly –
as it may get damaged.
• Close up the box and seal it securely
(don’t be afraid to use plenty of tape).
Then just give us a call on 0333 777 8999 and we’ll sort out a pick up time for you.
Page 2

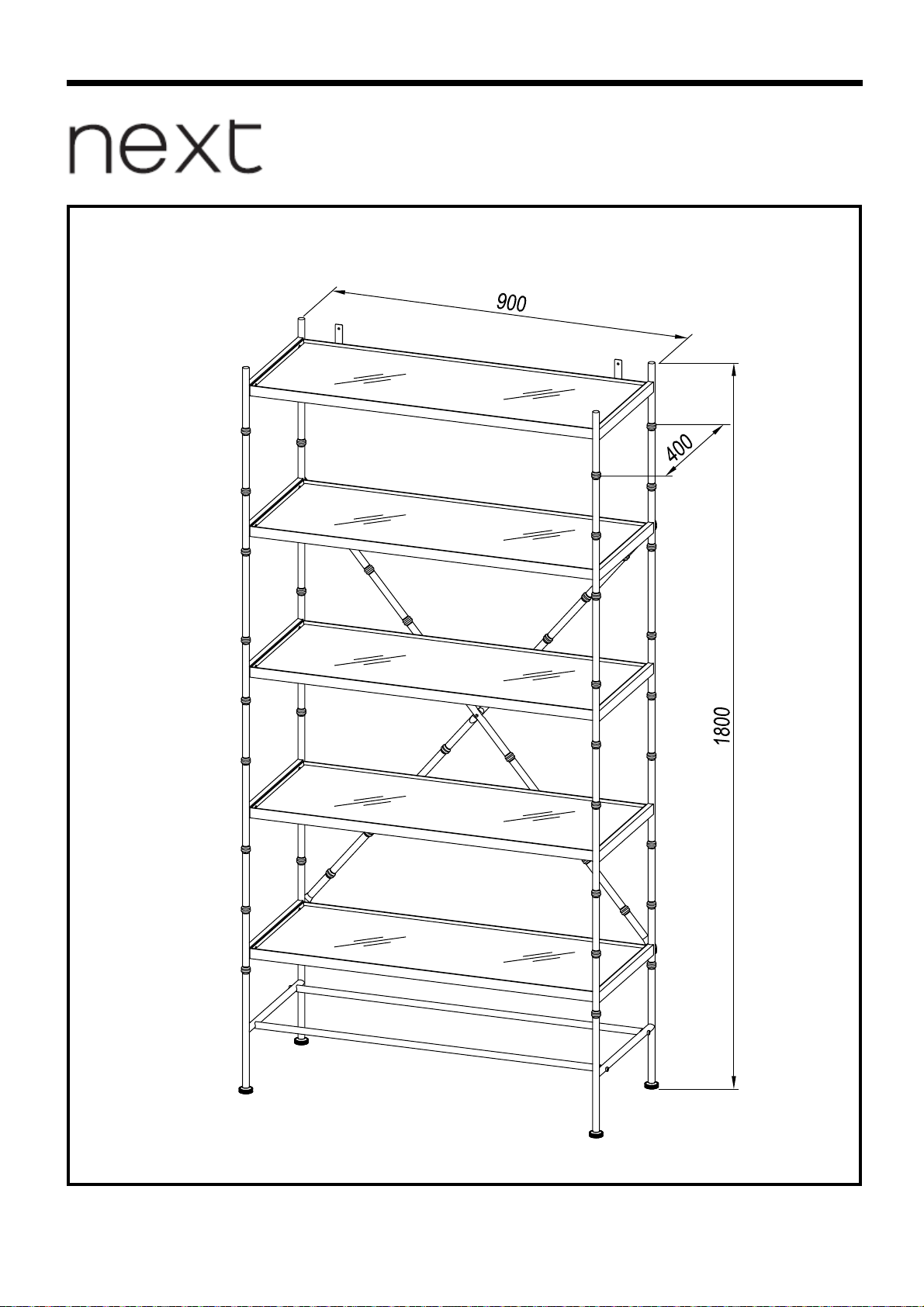

Actual product size
H180x W40x L90 cm
HARDWICK GLASS SHELF
394949
Assembly instructions
IMPORTANT - RETAIN FOR FUTURE REFERENCE
Produced in China for Next Retail Ltd.
394949-2016-V1
NEED HELP?
With: Assembly instructions
Missing or damaged parts
CALL: 0333 777 8999
1
Page 3
HARDWICK GLASS SHELF
394949
Assembly instructions
BEFORE YOU START
We suggest you retain these instructions for future reference
Keep fittings out of children’s reach and keep children well
away from construction area.
This product should only be used on firm, level ground
Please periodically check all fittings and re-tighten as
necessary.
Please do not sit or stand on your table.
Avoid exposing the furniture to excessive heat or direct
sunlight as this can cause cracking of the wood and
deterioration of the colour.
Unwrap all packaging materials and place the components
on top of the carton box or on a clean floor to protect it
from damage.
Do’s
We suggest you spend a short time reading through this
leaflet before you start
When you are ready to start, make sure that you have the
right tools and plenty of space.
Unwrap all packaging materials and place the components
on a clean surface to protect it from damage,
We recommend that the packaging is used to protect the
surfaces during assembly.
Carefully check that you have all the parts before beginning
assembly.
Due to the size of the product we recommend that it is
assembled in the room intended for use.
Ensure the product is fully assembled as illustrated and all
fixings fully tightened before use. Check fixings regularly to
ensure they remain tight.
When cleaning glass panels use a damp cloth with washing
up liquid or soft soap if necessary. Do not
powders or any other substances containing abrasives since
these substances can scratch
The glass used in this product is toughened and complies
with BS EN 12150-1:2009.
.
use washing
the glass.
Don’ts
When moving furniture never drag the pieces across the
floor, as this will cause damage to the joints.
Apply Adhesive substrates for example, sticky tape to the
product.
Do not use silicone based furniture polish. Silicone in
furniture polishes can break down the lacquer finish.
If the glass is chipped or broken, stop using the product and
consult Next.
Do not place very hot or very cold items on the glass
surface, unless adequately thick table mats are used
to prevent such items from coming into contact with
the glass.
Do not use glass as a chopping surface. Do not strike
the glass with hard or pointed items.
T
ime to assemble
30Minutes
Tools required
supplied
not supplied
not suppliedsupplied
Missing parts
If you are missing any fixtures and fittings for your
product please contact our customer service team on
0333 777 8999 and they will be happy to arrange for a
replacement to be sent to you free of charge.
Home service technicians
If you have a fault with your product please contact our
customer service team on 0333 777 8999. If you have
had the product for 28 days or less you may be offered a
replacement, refund or for a fully trained home service
technician to visit your home
repair the product where possible. If you have had the
product for more than 28 days we will send an
independent home service technician to review and
repair the product where possible and recommend
further action.
to assess the fault and
You can write to us at
Home Customer Services
Next Retail Ltd,
Desford Road,
Leicester,
LE19 4AT
Produced in China for Next Retail Ltd.
394949-2016-V1
To View our full furniture range please vi si t w ww .next.co.uk
2
Page 4
HARDWICK GLASS SHELF
394949
Assembly instructions

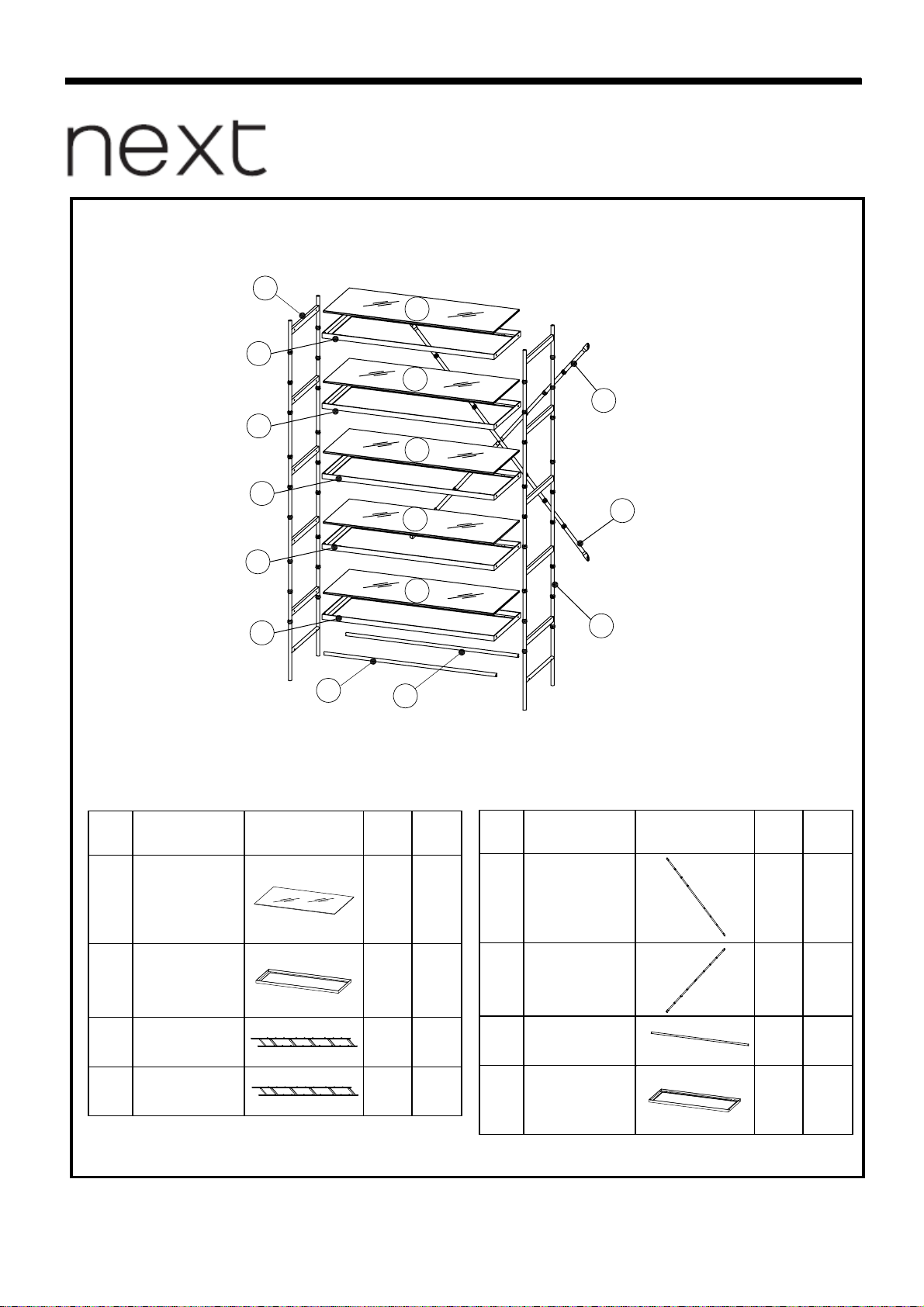

GETTING TO KNOW YOUR PRODUCT
3
1
8
1
5
2
1
2
1
2
6
1
2
7
Components supplied. Please use this guide if you require a replacement parts.
Ref Dimensions Visual Qty Ctn
1
2 86.2 x
3
x 34.4 c m 5 2
85.4
cm 4 1
35.2
179 x 40
cm 1 1
7
Ref Dimensions Visual Qty Ctn
5
140
140
6 1 1
7
86.6x1.6 cm
4
x 1.6 cm 1 1
x 1.6 cm
2 1
179 x 40
4 1 1
Produced in China for Next Retail Ltd.
394949-2016-V1
cm
8 86.2 x
cm 1 1
35.2
3
Page 5
HARDWICK GLASS SHELF
394949
Assembly instructions

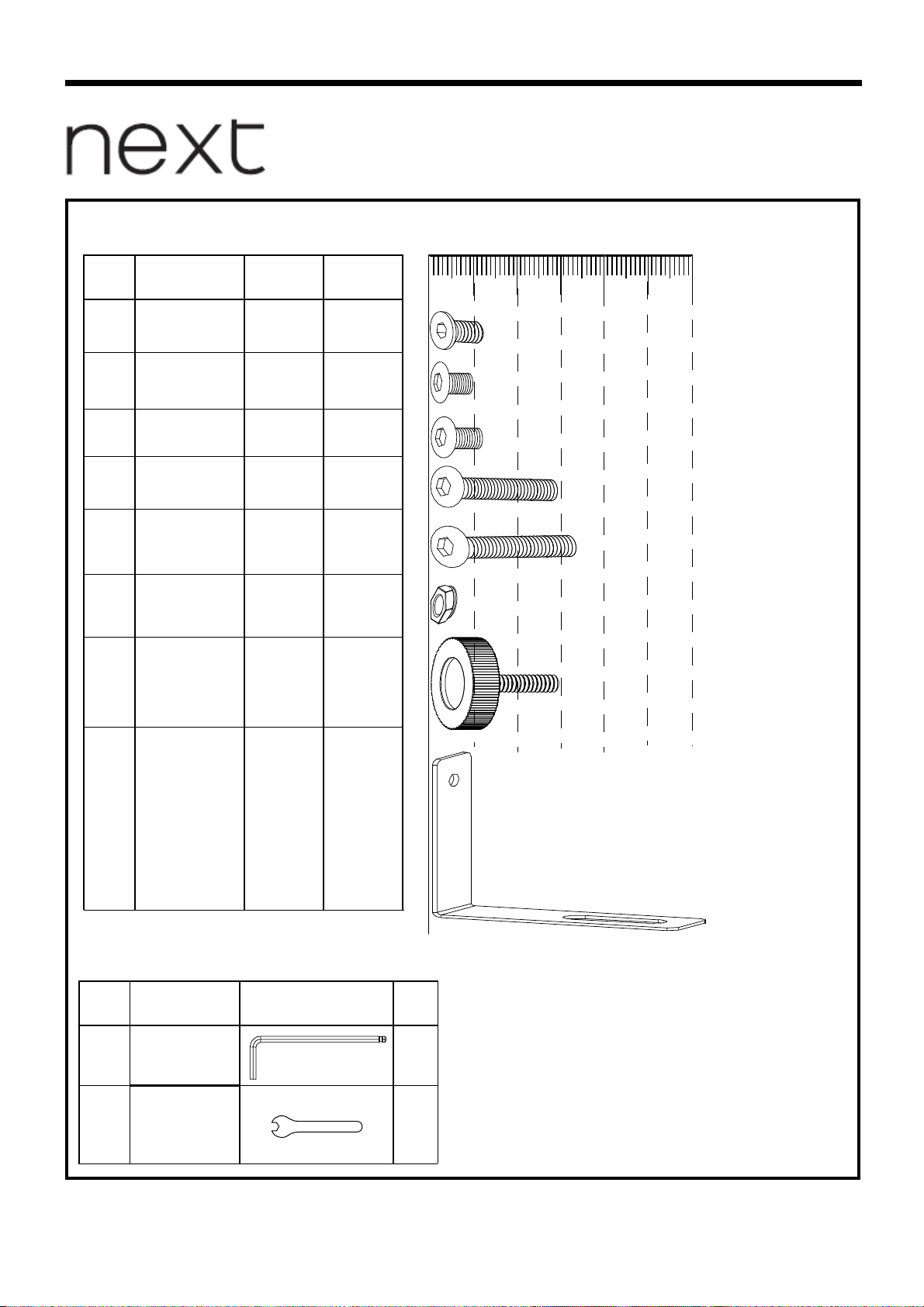

Fixtures and fittings supplied (actual size)
Ref
Dimensions
A
B 6 x 10 mm
C
D
E
F
G 38 x 30 mm 4
6 x 12 mm
6 x 16 mm
6 x 29 mm
6 x 34 mm
10 x 6 mm
Qty
20
2 1
4
1
4
1
Spare
fitting
2
1
1
1
1
1
mm 10 20 30 40 50 60
H 60 x 65 mm 2
Fixtures and fittings supplied (not to scale)
Ref Dimensions Visual Qty
L 4mm 2
K 10mm 1
Produced in China for Next Retail Ltd.
394949-2016-V1
4
Page 6
HARDWICK GLASS SHELF
394949
Assembly instructions

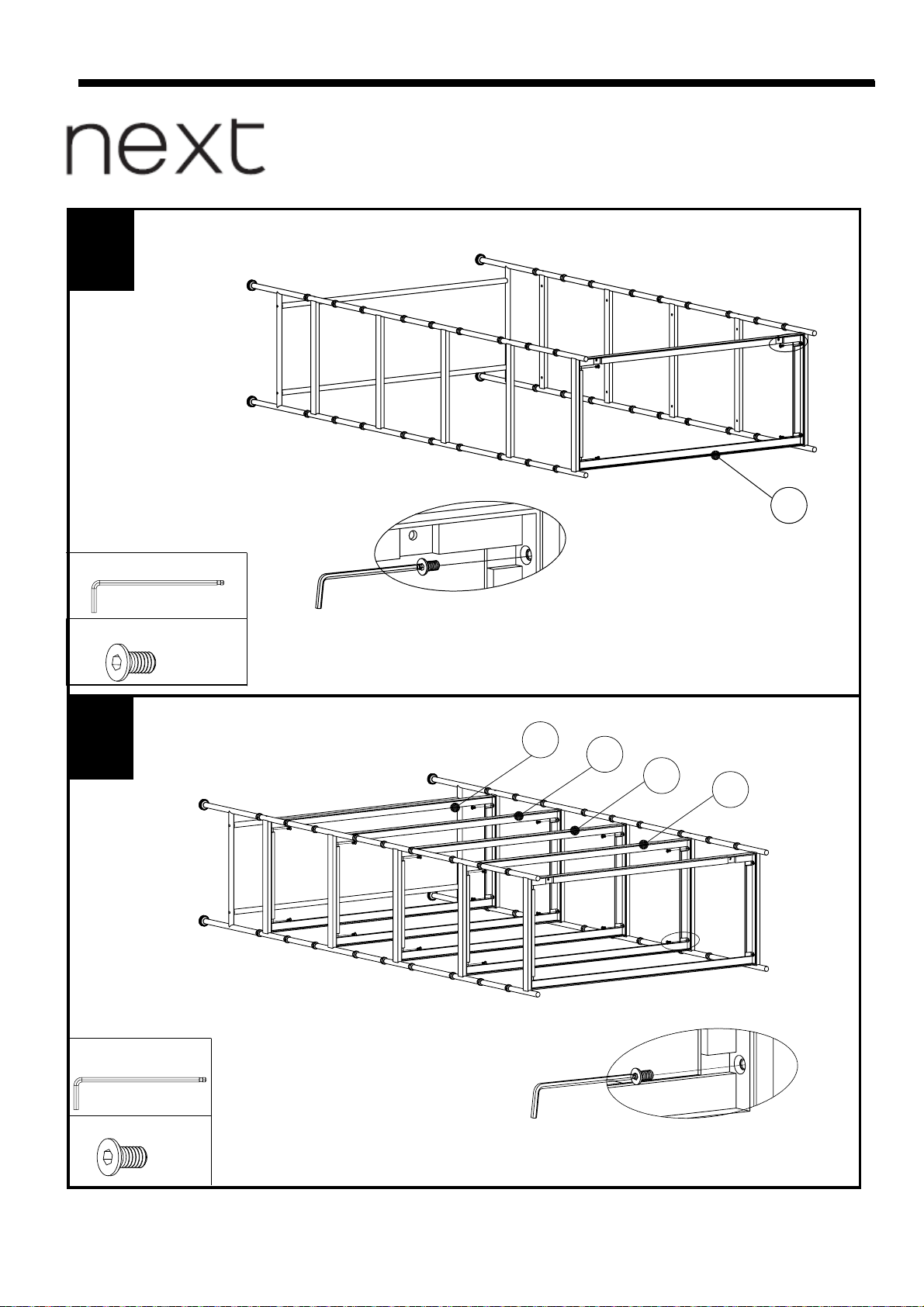

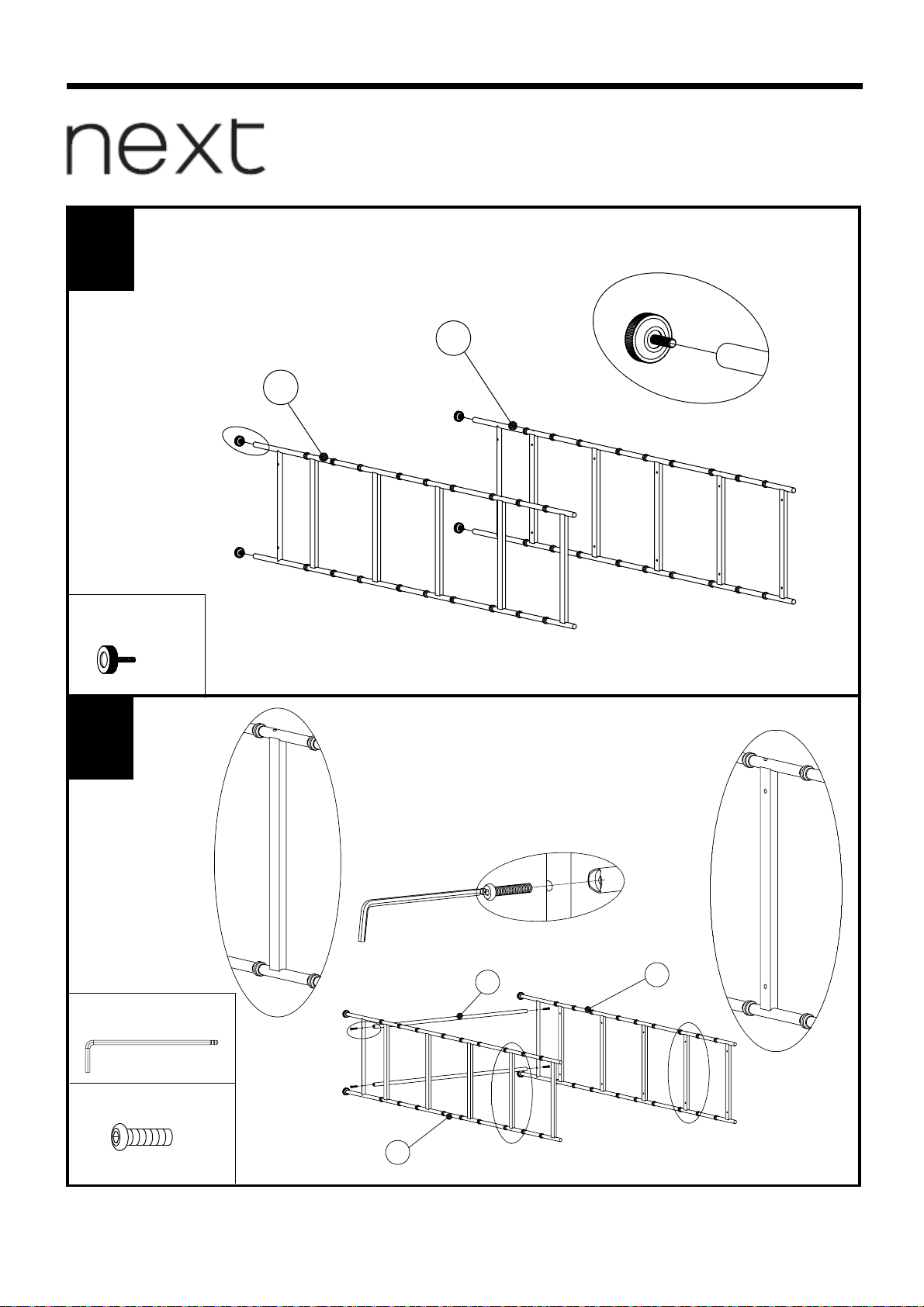

G
1
x 4
Don’t tighten screws until fully assembled.
G
4
3
38 x 30 mm
2
L x 2 4 mm
x 4
E
6 x 34 mm
Don’t tighten screws until fully assembled.
L
3
E
7
4
Produced in China for Next Retail Ltd.
394949-2016-V1
5
Page 7
HARDWICK GLASS SHELF
394949
Assembly instructions
3
L x 2
A x 4
Don’t tighten screws until fully assembled.
8
4 mm
A
L
6 x 12 mm
4
L x 2 4 mm
A x 16
6 x 12 mm
2
2
2
L
A
Don’t tighten screws until fully assembled.
2
Produced in China for Next Retail Ltd.
394949-2016-V1
6
Page 8

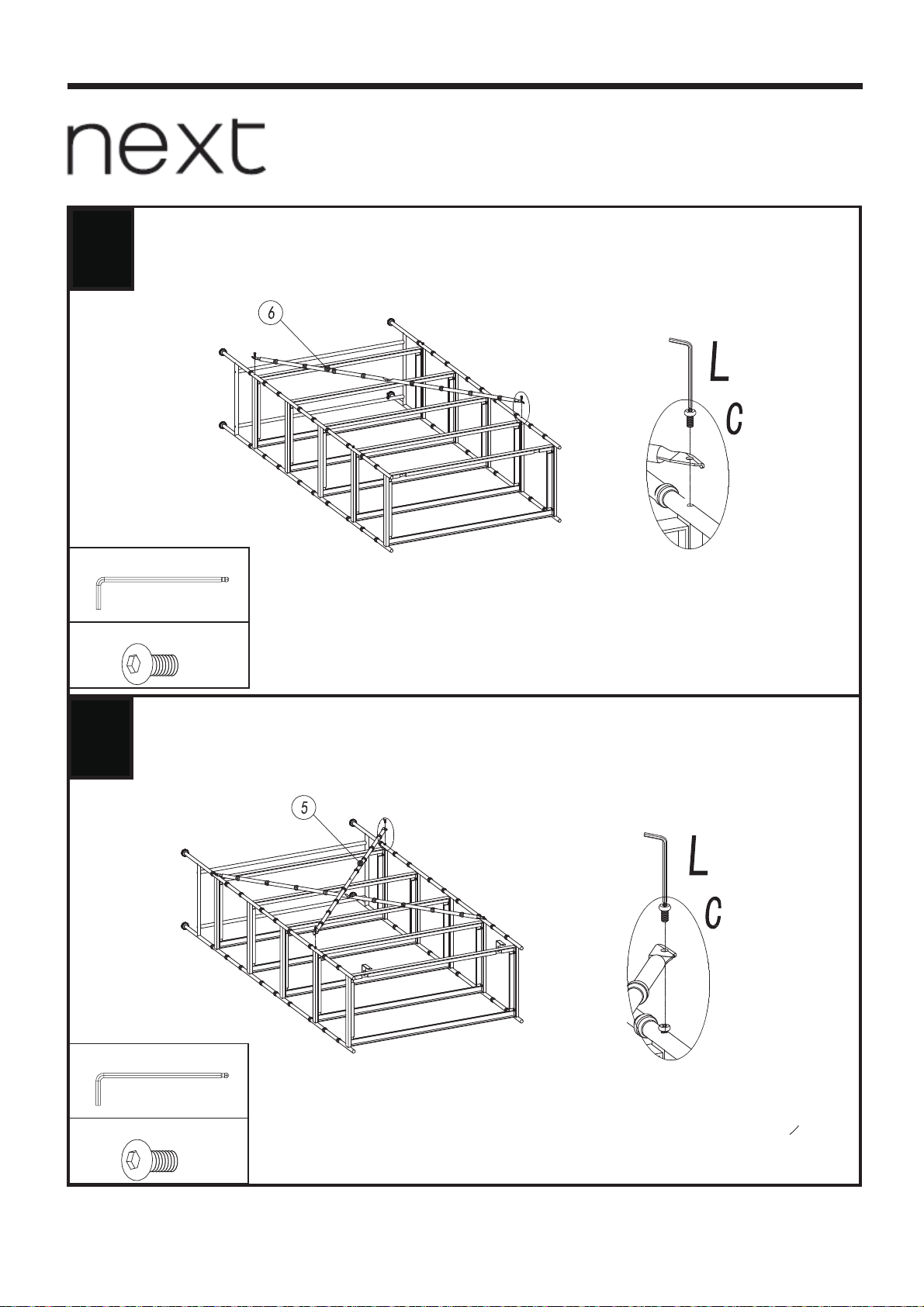

5
L x 2 4 mm
HARDWICK GLASS SHELF
394949
Assembly instructions
Don’t tighten screws until fully assembled.
C
6
L x 2 4 mm
x 2
6 x 16 mm
Don’t tighten screws until fully assembled.
6 x 16 mm
x 2
C
Produced in China for Next Retail Ltd.
394949-2016-V1
7
Page 9

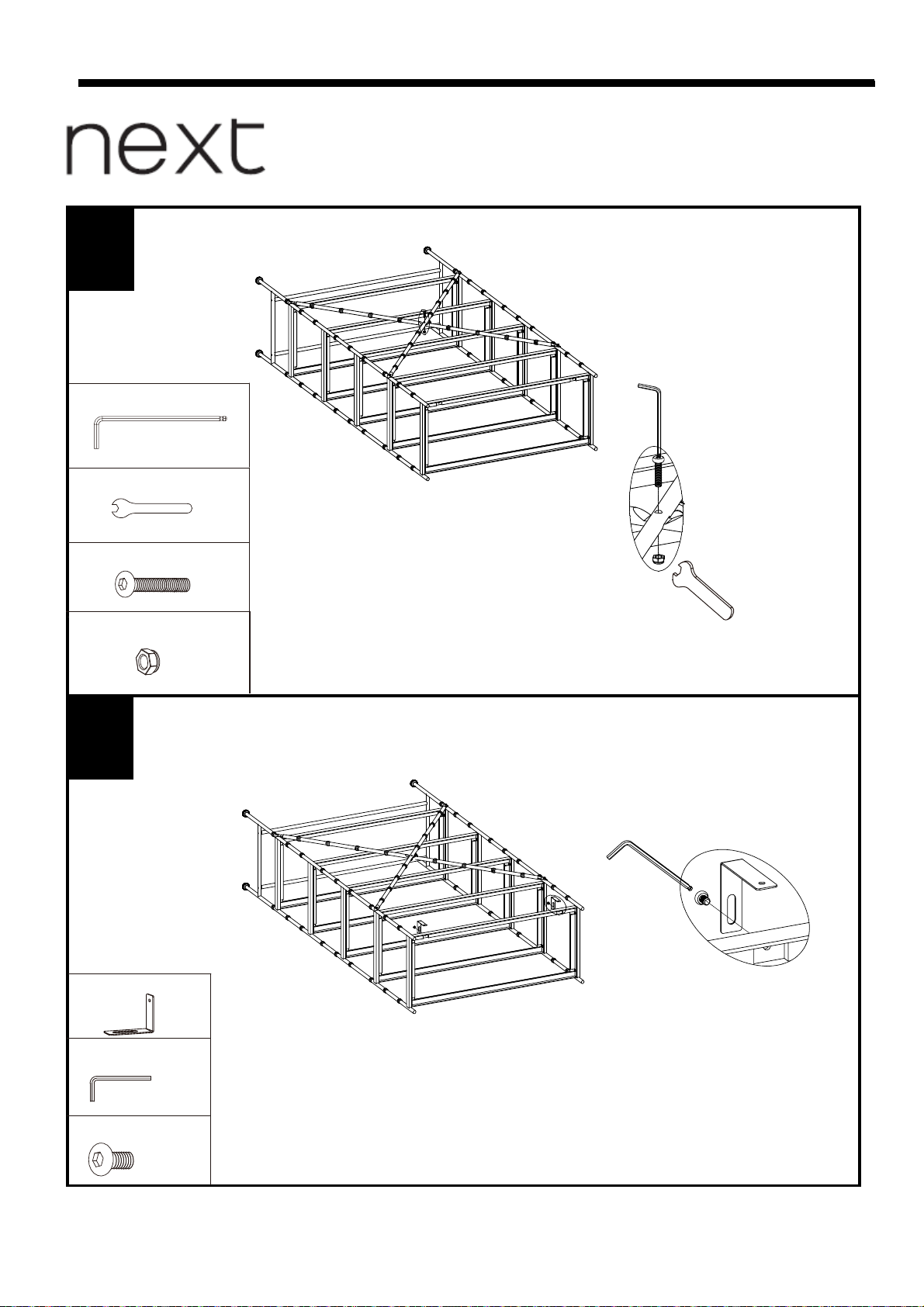

7
L x 1 4 mm
HARDWICK GLASS SHELF
394949
Assembly instructions
L
8
K x 1
D x 1
x 1
F
10 mm
6x29
10 x 6 mm
mm
D
F
K
Don’t tighten screws until fully assembled.
L
H
H x 2
L x 1 4 mm
B x 2
mm
60x65
6 x 10 mm
Don’t tighten screws until fully assembled.
Produced in China for Next Retail Ltd.
394949-2016-V1
B
8
Page 10
HARDWICK GLASS SHELF
394949
Assembly instructions

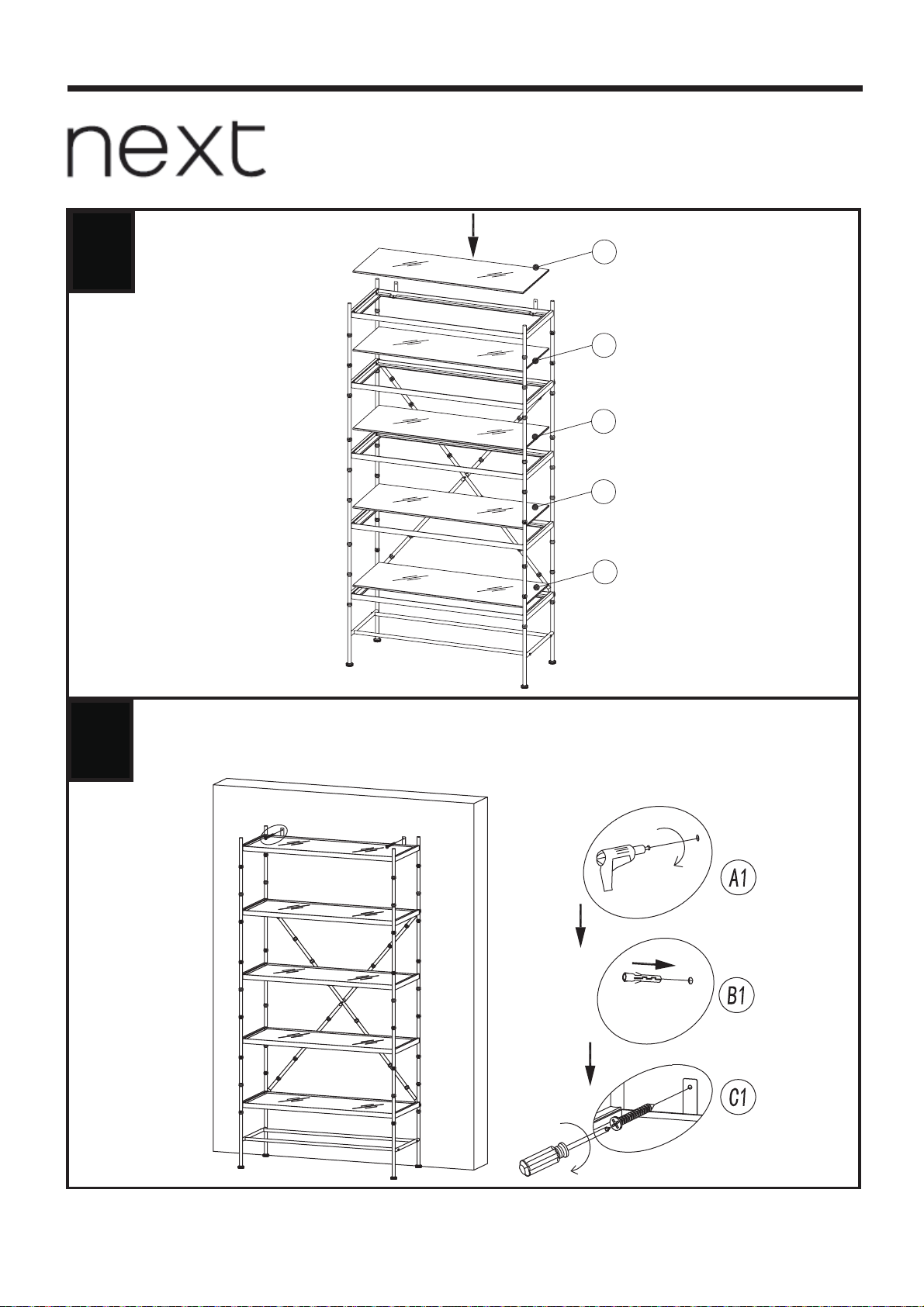

9
1
1
1
1
1
10
We recommend the use of the L bracket provided for safety reasons.Wall fixing are not included
please source suitable fixing for your wall type.If in doubt, please consult a qualified tradesperson.
WARNING:Always ensure the wall to be drilled is free from hidden electrical wires,water and gas pipes.
Produced in China for Next Retail Ltd.
394949-2016-V1
9
Page 11

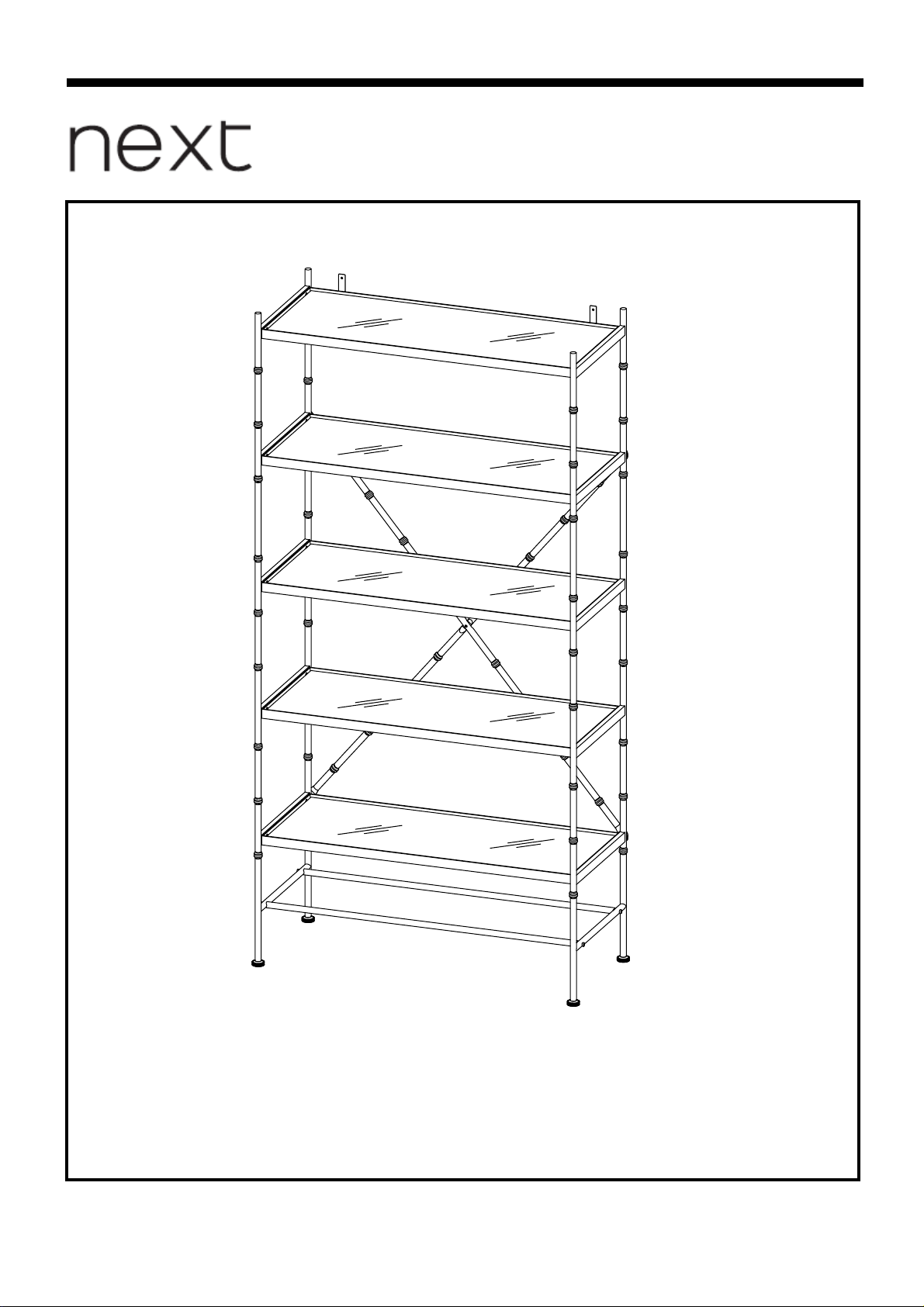

Actual product size
H180 x W40 x L90 cm
HARDWICK GLASS SHELF
394949
Assembly instructions
Produced in China for Next Retail Ltd.
394949-2016-V1
