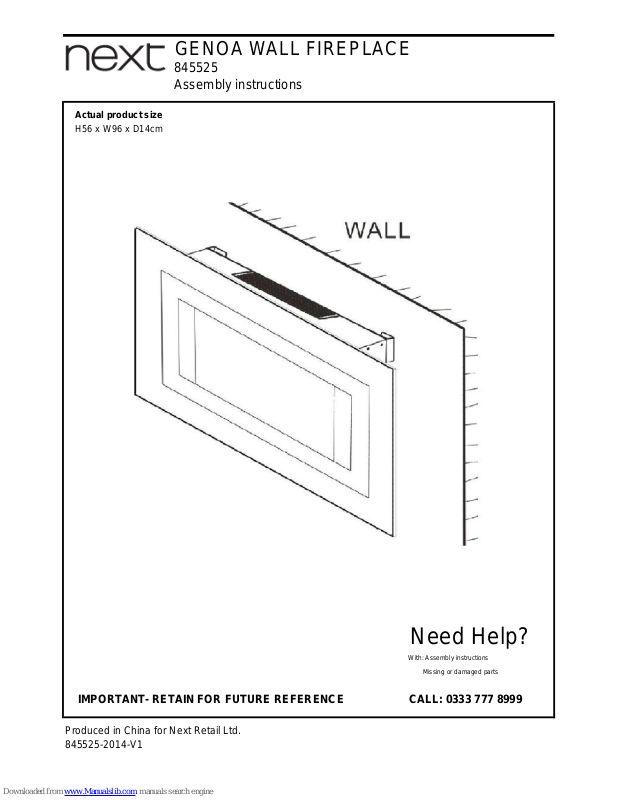

Next Genoa Assembly Manual

GENOA WALL FIREPLACE

845525

Assembly instructions

Actual product size

H56 x W96 x D14cm

With: Assembly instructions
Missing or damaged parts

IMPORTANT- RETAIN FOR FUTURE REFERENCE CALL: 0333 777 8999

Produced in China for Next Retail Ltd.
845525-2014-V1

Need Help?

GENOA WALL FIREPLACE

845525
Assembly instructions

Warnings

The appliance must be positioned so that the plug is

We suggest you retain these instructions for future reference. accessible. If you choose to chase the wire into the wall or

cosmetic reasons and or to install the fire using a fuse spur
Wall fixings must be used for stability on this item and for connection then the manufacturer cannot be held liable for any
safety reason the Glass Wall Fireplace should not be left charges arising from future decorative or re-installation costs
freestanding. should the fire require to be exchanged at a future date.

This item contains glass. Please handle with extreme care. This heater should not be used in a dusty environment.

Keep small parts out of reach of children.

Safety Instruction

Incorrect operation and improper use can damage the

Glass Wall Fireplace are heavy objects and your safety is

appliance and cause injury to the user.

dependant on the construction/strength of the wall to which it
is attached. The appliance may be used only for its intended purpose.

No responsibility can be taken for any damage caused
Read all instructions before using this heater. When using through incorrect use or improper handling.
an electrical heating appliance basic precautions should
always be followed to reduce the risk of fire, electric shock, Before connecting the appliance to the electrical source,
and injury to persons, including the following: check that the current and power match those given on the

rating plate.
This heater is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces. Keep combustible materials such as Do not put the appliance in water or any other liquid. However
furniture, pillows, bedding, papers, clothes, and curtains at should the appliance accidentally fall into water or have water
least 1 metre from the front of the heater and keep them or any other liquid spilt over it isolate and unplug the appliance
away from the sides and rear. immediately and have it checked by a qualified person before

using it again. Non-observance could cause a fatal electric
Extreme caution is necessary when any heater is used by or shock!
near children or invalids and whenever the heater is left
operating and unattended. The guard is to reduce the risk of Never attempt to open the fire chassis by yourself.
fire or injury from burns and no part of it should be
permanently removed. It does not give full protection for Do not place any kind of object into the inside of the housing.
children or the infirm.

Do not use the appliance with wet hands, on a damp floor or
Always unplug the heater when not in use. To disconnect when the appliance itself is wet.
heater, turn controls to off, then remove the plug from the
socket. Do not touch the plug with wet or damp hands.

Connect to properly earthed sockets only. The earth should Check the cord and the plug regularly for any possible
comply with current IEE regulations. damage. If the cord or plug is damaged, it must be replaced

by the manufacturer or a qualified person in order to avoid a
Use this heater only as described in this manual. Any other hazard.
use not recommended by the manufacturer may cause fire,
electric shock, or injury to persons. Do not use the appliance if it is dropped or otherwise

damaged or if the cord or plug are damaged. In the case of
Avoid the use of an extension power cord because this may damage repair must be undertaken by a competent person.
overheat and become a fire hazard. If an extension cord must
be used it should be a 13A extension cord. Never attempt to repair the appliance yourself. This could

Produced in China for Next Retail Ltd.
845525-2014-V1

BEFORE YOU START

GENOA WALL FIREPLACE

845525
Assembly instructions

cause an electric shock. other flammable materials. Do not place the appliance

underneath a power socket.
Do not allow the cord to hang over sharp edges and keep it
well away from hot objects and naked flames. Remove the Do not use the appliance in rooms in which highly flammable
plug from the socket by pulling the plug, not the lead. materials such as gas, paints, gasoline, solvents, etc. are

stored.
For extra protection it is possible to fit the electric household
installation with a fault current breaker with a rated breaking Do not use the appliance in bathrooms, laundry rooms or
current of not more than 30mA. Ask your electrician for advice. other equally moist places.

Make sure that there is no danger that the cord or extension Do not place the power cord underneath carpets etc.
cord may inadvertently be pulled or cause anyone to trip when
in use . The warm air vent becomes very hot during operation. During

operation, only touch the appliance’s switches and handles.

If an extension cord is used it must be suited to the power

consumption of the appliance, otherwise overheating of the The appliance must not be moved when hot. Never touch the
extension cord and /or plug may occur. hot parts with your bare skin.

This appliance is not suitable for commercial use nor for use This appliance is not intended for use by persons (including
in the open air. children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they
Never leave the appliance unattended while it is in use. have been given supervision or instruction concerning use of

the appliance by a person responsible for their safety.
Children cannot recognize the dangers involved in the
incorrect use of electrical appliances. Therefore never allow Children should be supervised to ensure that they do not play
children to use household appliances without supervision. with the appliance.

Always remove the plug from the socket when the appliance

Warning: in order to avoid over heating do not cover the heater.

is not in use and each time before it is cleaned.

The appliance MUST be earthed.
Danger! Nominal voltage is still present in the appliance as
long as the appliance is connected to the electrical source. The appliance MUST NOT be situated directly below a fixed
Always unplug when not in use. socket outlet.

Switch the appliance off before disconnecting from the Check the voltage requirement of the fire accords with the
electrical source. local supply voltage.

Never use the cord to carry the appliance. If the moulded plug is removed it should be disposed of with

the fuse removed, as there is a risk of electrical shock if
When the product is not in use or is to be clean or inserted into another socket outlet.
maintained, it must be turned off at the main power switch
and the plug should be removed. If the power cord needs to be changed, it can be accessed

through the mains access cover. This work should only be
The unit should not be mounted underneath a shelf. done by a qualified electrician.

Special Security Advice

Maintain a minimum distance of 1m to furniture, curtains and

Produced in China for Next Retail Ltd.
845525-2014-V1

GENOA WALL FIREPLACE

845525
Assembly instructions

Do's

Do not use this heater outdoors.
We suggest you spend a short time reading through this
leaflet before you start. Do not operate a heater with a damaged power cord or plug

or after a heater malfunctions, has been dropped or damaged
When you are ready to start make sure that you have the in any manner. Return heater to authorised service facility for
right tools, plenty of space and a clean, dry area for assembly. examination, electrical or mechanical adjustment, or repair.

Check the pack and make sure you have all the parts listed. Do not leave babies and young children unsupervised near

this fire (even when switched off). Because of the size of the
During assembly children should be kept away from the coals/pebbles there is a risk of choking if a piece is
product due to possible risk of injury. swallowed.

Due to the size of this product we recommend that it is Never use scourers, abrasives or chemical cleaners.
assembled in the room intended for use.

Do not use the heater in areas where gasoline, paint, or
Ensure that this product is fully assembled as illustrated flammable liquids are used or stored.
before use.

Do not use this heater in series with any device which would
Check all screws or bolts are tightened and inspect regularly. switch the heater on automatically, since a fire risk exists

when the heater is accidentally covered or displaced.
To clean wipe with a sponge or soft cloth. Do not use solvent
based cleaners or detergents as they can bleach or damage To prevent a possible fire, do not block air intakes or exhaust
the product. in any manner. Do not use above soft surfaces,like a bed,

where openings may become blocked.

Dont's

Do not strike the glass with hard or pointed items. Do not insert or allow foreign objects to enter any ventilation

or exhaust opening as this may cause an electric shock or
Do not tighten screws unit fully assembled. fire,or damage the heater.

Do not overtighten screws or bolts.

Glass Information

This product contains toughened glass of a nominal
Do not sit or stand on the product. thickness of 5 mm conforming to class A of BS 6206:1981

AMD 8693:1995
Do not use this product if parts are missing, damaged or
worn. If a glass component is chipped or broken replace with glass

of the type described on this label. Consult the Manufacturer,
Do not use this heater in bathrooms, laundry areas and Retailer or Agent with regard to obtaining a manufacturing

similar indoor locations (e.g. shower or a swimming pool).

specification and shape for replacement glass quoting the
Never locate heater where it may fall into a bathtub or other model number and batch number or date of manufacture.
water container.

If you need to return this Glass Wall Fireplace, please use the
Do not run the power cord under carpeting. Do not cover the packaging provided. Please see repack guide.
power cord with throw rugs, runners, or other like. Arrange
the power cord away from traffic area and where it will not be

Number of people required to assemble

tripped over. Two people are required to assemble this item.

Produced in China for Next Retail Ltd.
845525-2014-V1

GENOA WALL FIREPLACE

845525
Assembly instructions

Times to assemble

1 hour

Tools required

Missing parts

If you are missing any fixtures and fittings for your product
please contact our customer service team on 0333 777 8999
and they will be happy to arrange for a replacement to be sent
to you free of charge.

Home service technicians

If you have a fault with your product please contact our
customer service team on 0333 777 8999. If you have had the
product for 28 days or less you may be offered a replacement.
refund or for a fully trained home sevice technician to visit your
home to assess the fault and repair the product where
possible. If you have had the product for more than 28 days we
will send an independant home service technician to review
and repair the product where possible and recommend
further action.

You can write to us at

Home Customer services
Next Retail Ltd
Desford Road
Leicester
LE19 4AT

To view our full furniture range please visit www.next.co.uk

Produced in China for Next Retail Ltd.
845525-2014-V1

GENOA WALL FIREPLACE

845525
Assembly instructions

GETTING TO KNOW YOUR PRODUCT

Components supplied. Please use this guide if you require replacement parts.

Ref

Dimensions

Visual Qty Ctn

Produced in China for Next Retail Ltd.
845525-2014-V1

1

2

3

4

75 x 12cm

3 x 5cm

96 x 56cm

10 x 4cm

1

1111111

GENOA WALL FIREPLACE

845525
Assembly instructions

Fixtures and fittings

supplied (actual size)

Ref

Qty

Fixtures and fittings supplied (not to scale)

Ref

Visual Qty

Produced in China for Next Retail Ltd.
845525-2014-V1

AB5 x 4CM

57 x 40CM

1

1

mm

10

20 30 40 50 60 70 90 100 110 120 13080

GENOA WALL FIREPLACE

845525
Assembly instructions

Produced in China for Next Retail Ltd.
845525-2014-V1

123

4

NOTE

Wall fixings are not included. Please
source suitable wall fixings for your
wall type.

Ensure the area to be drilled is free
from hidden electrical wires and
water or gas pipes !

NOTE

You can adjust how the light filters through
by slightly adjusting the positions of the
pebbles on the tray once the unit is

switched on.

GENOA WALL FIREPLACE

845525
Assembly instructions

Produced in China for Next Retail Ltd.
845525-2014-V1

564

NOTE

You can switch ON/OFF the backlight through the

switch designed at bottom of engine as shown.

WARNING

Only hang the glass front to the fire after fire has
been securely fitted to the wall. Check the product
periodically to ensure that no fitting has loosened

and needs attention.

GENOA WALL FIREPLACE

845525
Assembly instructions

Press
1 time

2 times

3 times

1 time
1 time
2 times

Produced in China for Next Retail Ltd.
845525-2014-V1

7

Flame Settings

Switches

Settings

Flame effect level 1

Flame effect level 2

Flame off

Heating settings

"I" or

1000W

"II" or

2000W

"I" or

heatting off

NOTE:

1. The switches are hidden behind the glass panel as shown.

2. The main POWER switch must be switch ON prior to remote control or
manual control.

3. The remote control unit uses two AAA batteries.

4. If you do not use the remote for a long period of time. remove the
battery to avoid possible damage from battery corrosion.

5. If the remote does not function correctly or if the operating becomes
reduced, try to replace the battery with new one.

GENOA WALL FIREPLACE

845525
Troubleshooting

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle
Where facilities exist. Check with your Local Authority or retailer for recycling advice.

YOUR APPLIANCE IS GUARANTEED FOR ONE YEAR FROM THE DATE OF PURCHASE AGAINST ANY
MANUFACTURING DEFECT (BULBS HAVE A LIMITED LIFE-SPAN AND WILL REQUIRE REPLACEMENT
EVENTUALLY. THIS IS NOT REGARDED AS A DEFECT). IF YOU ENCOUNTER A PROBLEM, PLEASE CONTACT
CUSTOMER SERVICES.

RATING INFORMATION

Voltage: ~220V-240V / 50Hz
Heating Elements: 2000W

Lamp: 5W / LED

IMPORTANT:

The wiring in this mains lead is coloured in accordance with the following code:

European Fires (CE approved)

EARTH: GREEN and YELLOW
NEUTRAL: BLUE
LIVE: BROWN
Replacement fuse must conform to British Standards and be rated at 13A.

Produced in China for Next Retail Ltd.
845525-2014-V1

Fan heater and flame
effect have stopped
whilst in operation

Suggests the action of the
thermostatic cut out

Ensure the air supply and venting are not restricted.
The cut out will automatically reset after being
switched off and on at the mains. Allow 15 minutes to
cool.

Problem

Diagnosis

Correction

Suggests an electrical supply
problem

● Is the appliance plugged in and switched on at the
mains? Are the switches on the fire correctly set?

● Check the fuse in the plug. Replace as necessary.

● Check that the socket functions correctly with other

appliances.

No flame effect or fan
operation
