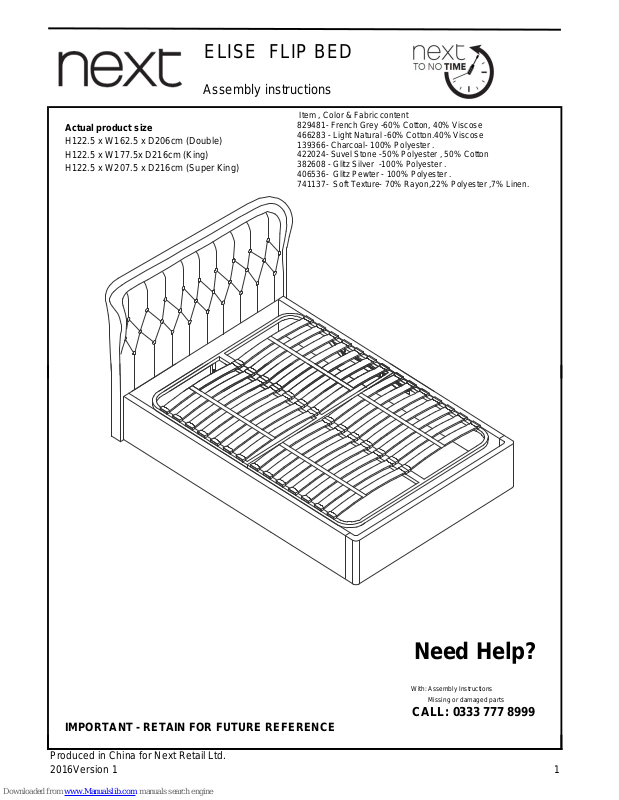

ELISE FLIP BED
Assembly instructions
Actual product size
H122.5 x W162.5 x D206cm (Double)
H122.5 x W177.5x D216cm (King)
H122.5 x W207.5 x D216cm (Super King)
Item , Color & Fabric content
829481- French Grey -60% Cotton, 40% Viscose
466283 - Light Natural -60% Cotton.40% Viscose
139366- Charcoal- 100% Polyester .
422024- Suvel Stone -50% Polyester , 50% Cotton
382608 - Glitz Silver -100% Polyester .
406536- Glitz Pewter - 100% Polyester .
741137- Soft Texture- 70% Rayon,22% Polyester ,7% Linen.
Need Help?
With: Assembly Instructions
Missing or damaged parts
CALL: 0333 777 8999
IMPORTANT - RETAIN FOR FUTURE REFERENCE
Produced in China for Next Retail Ltd.
2016Version 1 1
Page 2
ELISE FLIP BED
Assembly instructions
Warnings Number of
peop
le required to assemble
Important: Retain these instructions for future reference.
Two persons are required to assemble this product.
Unwrap all packaging materials and place the components on
Time to assemble
top of the carton box or on a clean floor to prevent it from
scratching.
This product should only be used on firm, level ground.
Keep small parts out of reach of children.
Do's
We suggest you spend a short time reading through this
Tools required
leaflet before you start.
When you are ready to start, make sure that you have the
right tools, plenty of space and a clean, dry area for assembly.
Check the pack and make sure you have all the parts listed.
BEFORE YOU START
30 minutes
Duri
ng assembly c
hild
ren should be kept away from the
product due to possible risk of injury.
Tools not included.
Missing parts
Due to the size of this product we recommend that it is If you are missing any fixtures and fittings for your product
assembled in the room intended for use.
please contact our customer service team on 0333 777 8999
and they will be happy to arrange for a replacement to be sent
Ensure that this product is fully assembled as illustrated to you free of charge.
before use.
Home service technicians
Check all screws or bolts are tightened and inspect regularly.
If you have a fault with your product please contact our
To clean, wipe with a sponge and warm soapy water. Do not
customer service team on 0333 777 8999. If you have had the
use solvent based cleaners or detergents as they can bleach product for 28 days or less you may be offered a replacement,
or damage the product. refund or for a fully trained home service technician to visit your
home to assess the fault and repair the product where possible.
Don'ts
If you have had the product for more than 28 days we will send
an independent home service technician to review and repair
Do not use power tools to construct this product. the product where possible and recommend further action.
Do not tighten screws until fully assembled.
You can write to us at
Do not over tighten screws or bolts. Next Retail Ltd,
Desford Road,
Do not stand on the product. Leicester,
LE19 4AT
,
Do not use this product if parts are missing, damaged or
worn. To view our full furniture ran
ge p
lease visit www.next.co.uk
Never use scourers, abrasives or chemical cleaners.
Never drag pieces of furniture across the floor as this will
cause damage to the joints.
Produced in China for Next Retail Ltd.
2016Version 1 2
Page 3
ELISE FLIP BED
Assembly instructions
GETTING TO KNOW YOUR PRODUCT

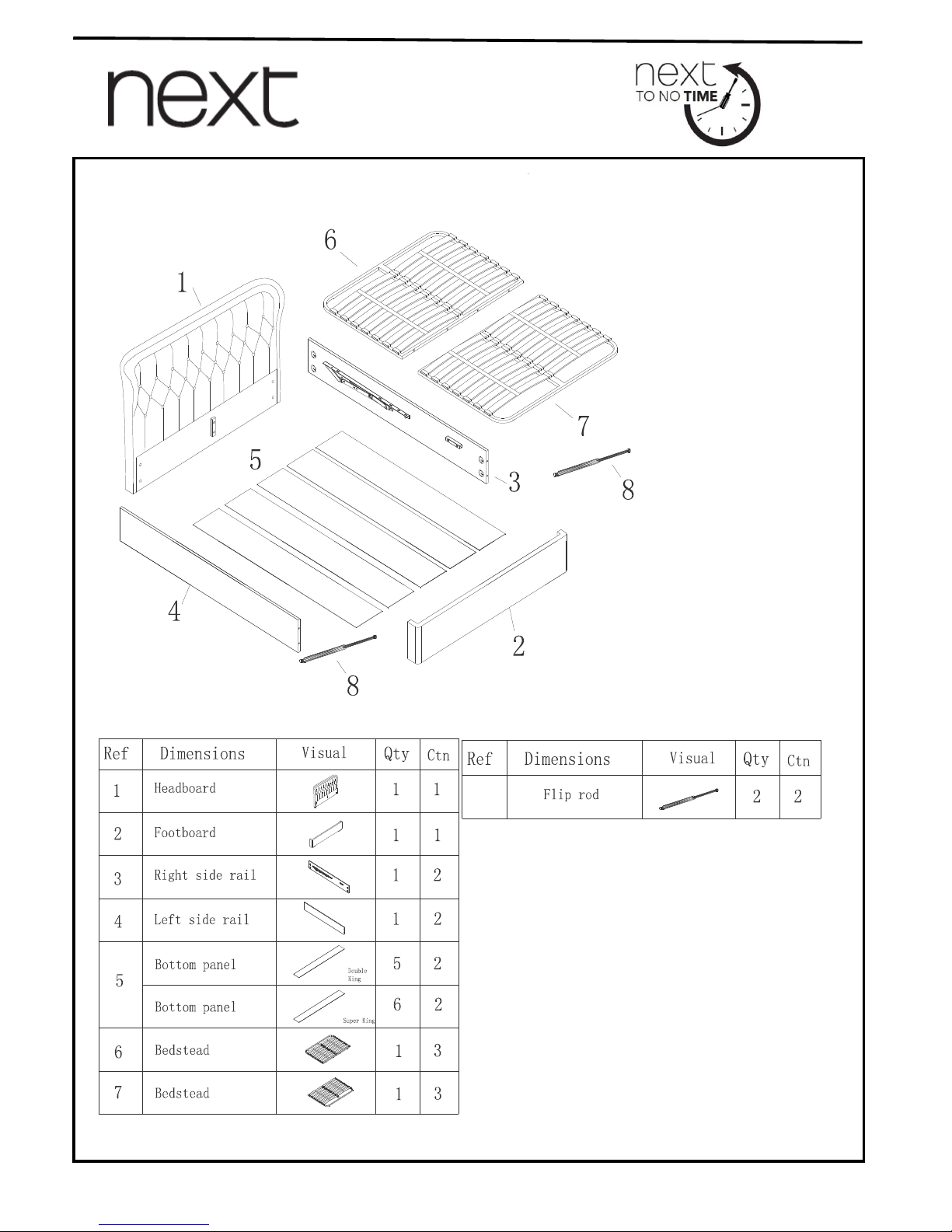

Components supplied. Please use this guide if you require replacement parts.
8
Produced in China for Next Retail Ltd.
2016Version 1 3
Page 4
ELISE FLIP BED
Assembly instructions

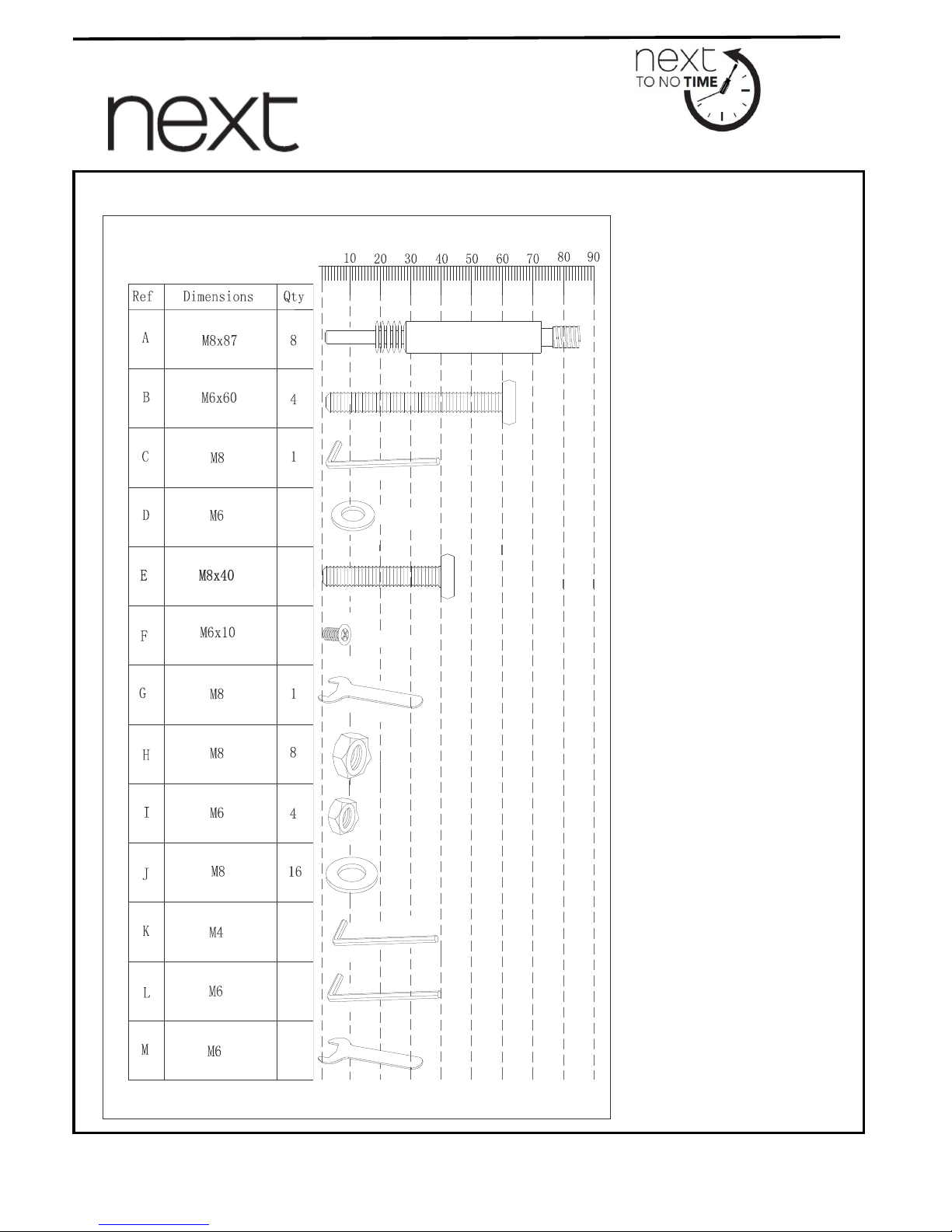

Fixtures and fittings supplied
8
8
1
8
4
1
1
Produced in China for Next Retail Ltd.
2016Version 1 4
Page 5
ELISE FLIP BED
Assembly instructions
1
Ax8
M8 x 87mm
11
A
A
22
Produced in China for Next Retail Ltd.
2016Version 1 5
Page 6
ELISE FLIP BED
Assembly instructions
Cx1
M８
3
4
3
C
A
A
4
3
C
A
A
Produced in China for Next Retail Ltd.
2016Version 1 6
Page 7
ELISE FLIP BED
Assembly instructions
F x4
M6 x 10mm
11
2
4
3
４
Bx4
M6x6０mm
D x8
M6
Ix4
M6
M x1
M6
K x1
M4
５
Produced in China for Next Retail Ltd.
2016Version 1 7
Page 8
ELISE FLIP BED
Assembly instructions
E x8
M8 x 40mm
J x16
M8
H x8
M8
L x1
M6
G x1
M8
６
4
3
E
J
J
H
７
4
3
5
4
3
6
Produced in China for Next Retail Ltd.
2016Version 1 8
Page 9
ELISE FLIP BED
Assembly instructions
Actual product size Mattress size
H122.5 x W162.5 x D206cm (Double) W135 x L190cm (Double)
H122.5 x W177.5x D216cm (King) W150 x L200cm (King)
H122.5 x W207.5 x D216cm (Super King) W180 x L200cm (Super King)
25
2
4
920
1
6
8
0
1325
310
310
1
9
2
0
2
4
0
9
2
0
6
0
1
3
9
5
