N
ext

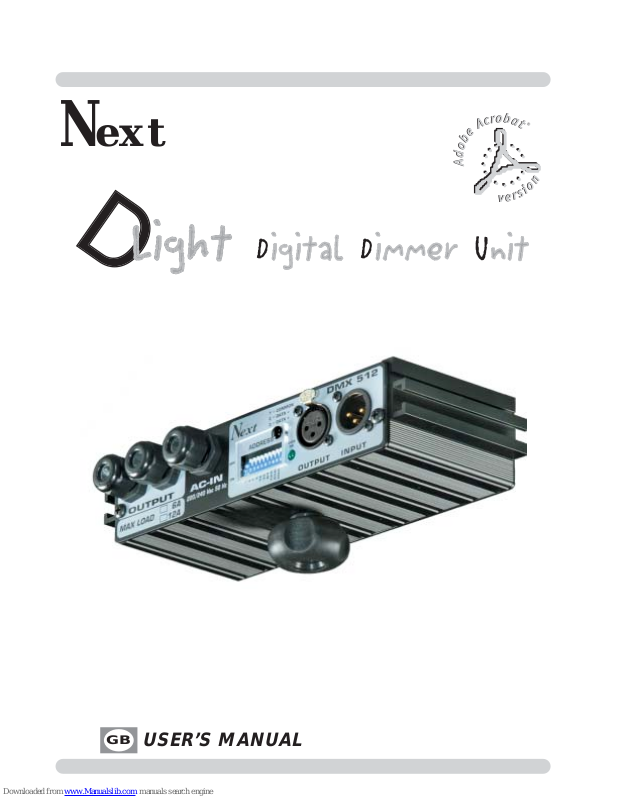

USER’S MANUAL
GB
We congratulate you on your purchase of Dlight
Before proceeding of the use of this product it should be necessary to
read carefully the following user’s manual to install it correctly and to
make the most of its potentialities.
GB
Panel for connections
Passage of the cable
Profile in aluminum
Screw
Screw
Handle grip for fixing
Par-can on DLight
Bolt for fixing Par-can
become Active
Estraibile frontal panel
Screw
Screw
Sets of the equipment
1.1
Unpacking of the equipment
1.2
Acessories issued with the equipment and relative documentation
Description of the rear panel and installation
2.1
Description of the rear panel
2.2
DMX 512 output connection
Description of the Electronic circuit and relative connection
3.1
Description of the Electronic circuit and relative connection
Protections
4.1
Over-heating protection
4.2
Overload protection
4.3
Protection against short-circuiting
4.4
Protection again incorrect connections
Error messages
4.5 - Error messages
Technical features
GB
USER’S MANUAL
Verify the contens of the packing.
If one of the following parts of the packing is missing or damaged, please,
contact your dealer immediately.
A) User’s manual.
B) Handle grip for fixing Par-can on DLight
C) Bolt for fixing Par-can become Active .
Open the box; take the documentation out.
Take the equipment out of the box as shown in the picture below.
1.2 Acessories issued with the equipment and relative documentation
A
1.1 Unpacking of the equipment
GB
B C
Pannello per collegamenti
Panel for connections
Pressacavi
Passage of the cable
Profilo in alluminio
Profile in aluminum
Vite / Screw
Vite / Screw
AC-IN
220/240 Vac 50 Hz
INPUTOUTPUT
DMX 512
1
OFF
ON
2
4
8
16
32
64
128
256
PHEAT
DMX
OK
OUTPUT
N
ext
ADDRESS
1 = COMMON
2 =DATA
-
3 =DATA +
12A
6A
MAX LOAD
4
Standard DMX 512 signal IN/OUT with a 3-pin cannon connector.
3
Dip-switch for signal Dmx Addess
2
AC-IN 220/240Vac 50 Hz with PG9
1
Outputs for Par-can with PG9
Make sure you are using a shielded twisted cables suitable for the transmission of the DMX 512 signal with connectors of good quality and connection as shown on the side of the connector.
Plug the 3-pin cannon connector coming from the mixer completly in the
DMX 512 input
Use the “push” safety hook to disconnect it and than extract it gently.
ATTENTION: the shielded part of the cable must never be connected to
the ground of the electrical system as this could cause faults during the
working of the controller.
4
1 2 3
4
2.1 Description of the rear panel and installation
GB
2.2 DMX 512 OUTPUT CONNECTION
Manopola per fissaggio
Faro su DLight
Handle grip for fixing
Par-can on DLight
Bullone per fissaggio
Faro diventato Attivo
Bolt for fixing Par-can
become Active
Pannello
frontale estraibile
Estraibile frontal panel
Vite / Screw
Vite / Screw
Connect main supply cable in the terminal
MMAAIINN--SSUUPPPPLLYY
Connect first Par-can cable in the terminal with symbol
Connect second Par-can cable in the terminal with symbol
N.B. Connect always the ground cable (yellow/green) to the ground termianl.
Use always a suitable section cable to connect power supply and lamps.
Be sure that current socket is capable to delivery required curr ent.
Unscrew the two screw of the frontal panel and extract the same one.
Go through the cables in the correspondents PG9 (main supply and Par-can)
3.1 Description of the Electronic circuit
and relative connection
GB
1
2
3
1
2
3
Technical features
Technical features:
• Digital Dimmer Unit 1 channel DMX
• Input Signal DMX 512/1990 STANDARD.
• Version 6A / 12A
• Single phase operation 220/240 Vac 50 Hz.
• Dip-switch for digital address. (1/512).
• Digital lamps pre-heat control through Dip-switch.
• LC interference filter.
• Digital Protection from high temperature.
• Digital Protection from shor t circuit and overload.
• DMX-512 with 3 pin XLR male and female input/output.
Climatic condition for the use
•
Humidity: 35% ÷80%
•
Temperature: 5 ÷50 °C
Dimensions and weight
•
Dimension (W x L x H) / Weight: 180 x 42 x 80 mm / 1 Kg.
Protections
GB
The DLIGHT is endowed with efficient protections for avoid that any malfunction could
damage it, the protections are:
4.1 - OVER-HEATING PROTECTION:
The maximum temperature of work is 90º C. and it is measured inside of the DLIGHT.
When exceeded this temperature, the output come disable up to when the temperature doesn't return within normal values.
4.2 - OVERLOAD PROTECTION:
The output channel of the
DLIGHT
has set for delivery not more than 6/12 A conti-
nuous, up this threshold the output is electronically limited.
4.3 - PROTECTION AGAINST SHORT-CIRCUITING:
When a Short circuit occurs, the DLIGHT disable the channel immediately, for
afterward tr y to be switched on it again.
After 3 attempts, if the Shor t Circuit persists, the DLIGHT switches off the channel
definitely for protect the installation.
4.4 - PROTECTION AGAIN INCORRECT CONNECTIONS:
In the eventuality that the dimmer is wired incorrect, the electronic inside circuit is protected from fuse of appropriate value, the fuse in normal conditions of use don't operate.
4.5 - ERROR MESSAGES
Error messages are indicated by the led giving a long flash. Should a message indicating an irregularity appear, switch off the DLight immediately, find the cause and
eliminate it.
Note
GB
All rights reserved. No parts of this document can be copied, photocopied or reproduced without
the prior written permission of the
CCOODDEEMM MMUUSSIICC ss..rr..ll..
No responibility is taken for possible inaccuracies or mistakes.
The
CCOODDEEMM MMUUSSIICC ss..rr..ll..
reserves the right to make any alterations or aesthetics changes of this
product that seem necessary at any time and for whatever reason.
The
CCOODDEEMM MMUUSSIICC ss..rr..ll..
takes no responsibility for the use or for the application of this product.
