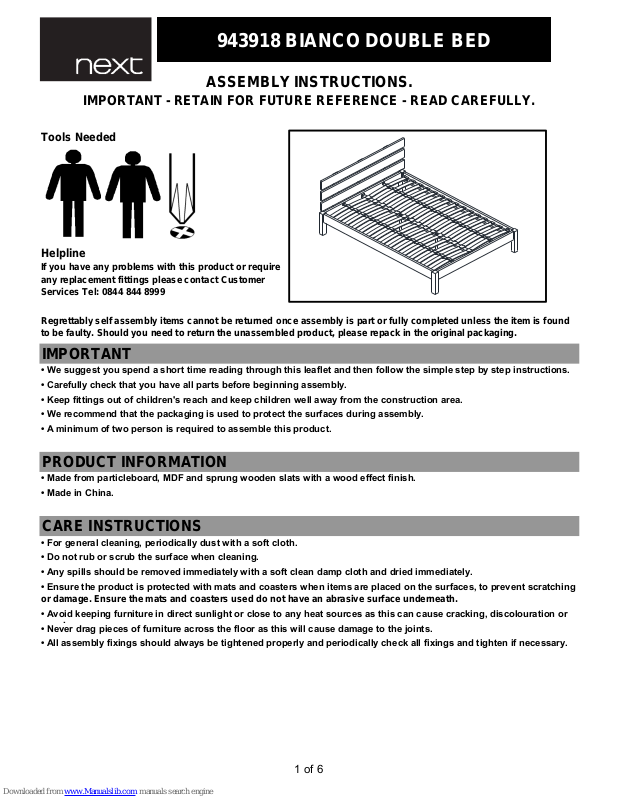

Next 943918 Assembly Manual

Tools Needed

Helpline

If you have any problems with this product or require
any replacement fittings please contact Customer
Services Tel: [phone]

• Never drag pieces of furniture across the floor as this will cause damage to the joints.

• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.

• Do not rub or scrub the surface when cleaning.

• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.

• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent scratching

or damage. Ensure the mats and coasters used do not have an abrasive surface underneath.

• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or

• Made in China.

CARE INSTRUCTIONS

• For general cleaning, periodically dust with a soft cloth.

PRODUCT INFORMATION

• Made from particleboard, MDF and sprung wooden slats with a wood effect finish.

• We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions.

• Carefully check that you have all parts before beginning assembly.

• Keep fittings out of children's reach and keep children well away from the construction area.

• We recommend that the packaging is used to protect the surfaces during assembly.

ASSEMBLY INSTRUCTIONS.

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.

Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found
to be faulty. Should you need to return the unassembled product, please repack in the original packaging.

IMPORTANT

• A minimum of two person is required to assemble this product.

943918 BIANCO DOUBLE BED

1 of 6

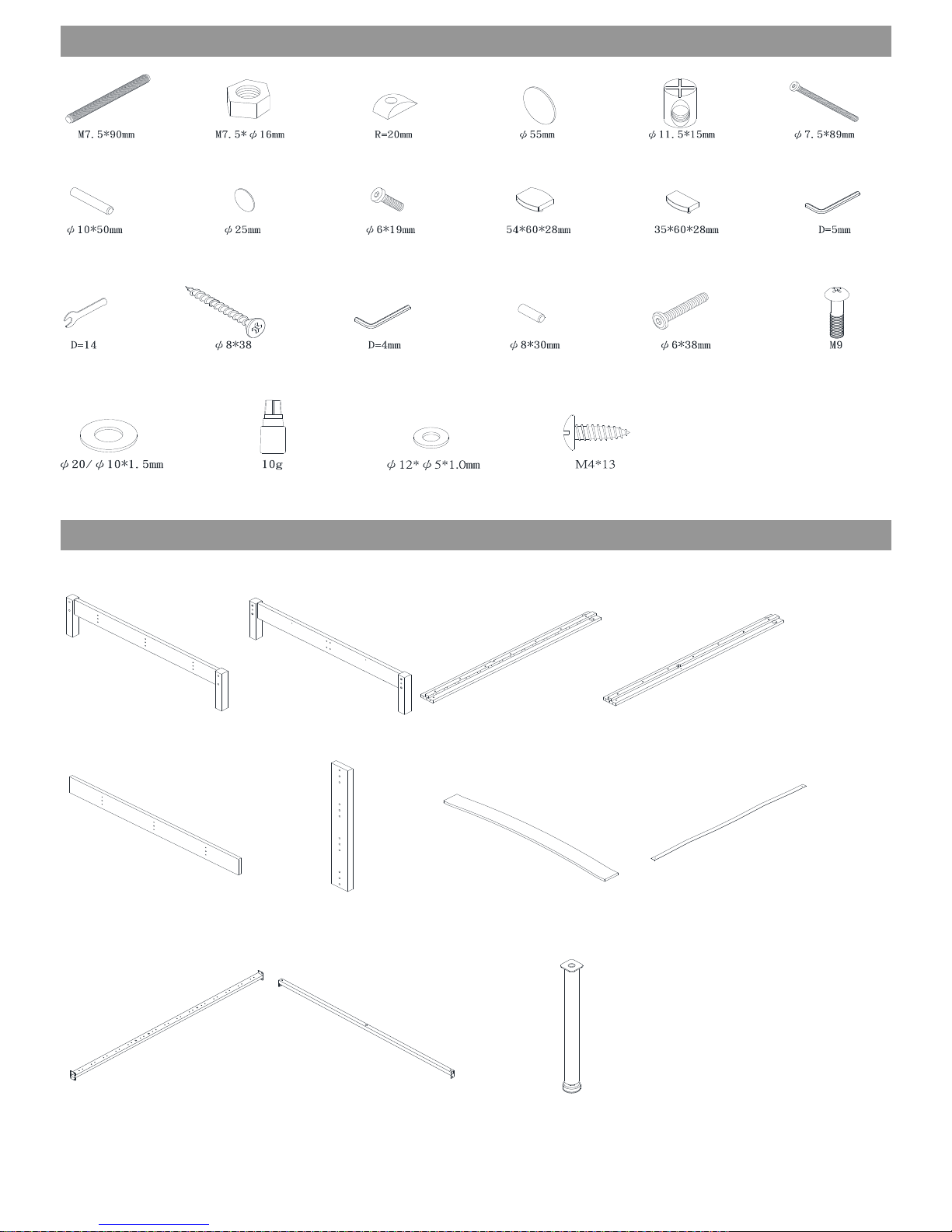

PARTS

FITTINGS

6x35x3 7x30 8x2

1x1 2x1 3x1 4x1

10x19x1 11x2

Ax4 Bx4 Cx4 Dx4 Ex4 Fx4

Lx1

I x10Hx4Gx4 Jx15 Kx30

Rx3

Nx2

Ox1

Px12 Qx24

Mx1

Tx2Sx3 Ux4 Vx4

2 of 6

1. Insert 4 x bolts (A) into panel 2 and tighten by hand.

1. Glue and insert 2 x wooden dowels (G) into the
ends of panels 3 & 4.

2. Attach panels 3 & 4 to panel 2.

3. Place 4 x half moon nuts (C) onto bolts (A) and then
tighten with 4 x metal nuts (B), tighten with spanner
(M).

4. Use 4 x stickers (D) to cover the holes.

1. Insert 4 x barrel nuts (E) into panels 3 & 4. Ensure
the screw thread holes are pointing towards the panel
edges.

2. Glue and insert 2 x wooden dowels (G) into the
ends of panels 3 & 4.

3. Attach panel 1 to panels 3 & 4.

4. Insert 4 x bolts (F) into panel 1 and tighten with
Allen key (L).

5. Use 4 x stickers (H) to cover the holes.

STEP THREE

STEP ONE

STEP TWO

A

G

T

G

T

E

3 of 6

1. Attach metal rail 9 to panels 1 & 2 with 8 x screws (I)
and tighten with Allen key (O).

1. Attach metal rail 10 to panels 3 & 4 with 2 x screws
(N) and tighten with a screwdriver.

2. Insert 2 x bolts (I) to panels 3 & 4, tighten with Allen
key (O).

1. Carefally turn the assembled unit over.

2. Attach 2 x feet 11 to metal rail 9 with 2 x screws (R)
and 2 x washers (S), tighten with a screwdriver.

3. Attach metal rail 9 to metal rail 10 with 1 x screw (R)
and 1 x washer (S), tighten with a screwdriver.

STEP FOUR

STEP FIVE

STEP SIX

N

O

I

R
S

4 of 6

1. Glue and insert 9 x wooden dowels (P) into 3 x
panels 6.

2. Attach 3 x panels 6 to 3 x panels 5 with 18 x screws
(Q) and tighten with Allen key (O).

1. Glue and insert 3 x wooden dowels (P) into panel 1.

2. Attach 3 x panels 6 of the assembled headboard to
the assembled bed frame with 6 x screws (Q) and
tighten with Allen key (O).

STEP NINE

1. Use 2 x screws (V) and 2 x washers (U) to secure
one end of each nylon straps 8 (x2) to panel 1.

STEP SEVEN

STEP EIGHT

O

Q

P

T

U

V

5 of 6

1. Slide 1 x slat 7 into the first gap of strap 8 on the
right hand side of the bed.

2. Attach 1 x cap (J) to the end of the slat which is
over the centre rail of the bed. Attach 1 x cap (K) to
the other end of the slat. Firmly push the caps into the
holes in metal rail 9 and panel 4.

3. Repeat above steps 1 & 2 for the remaining slats 7
running down the same side of the bed as the slat
fitted in steps 1 & 2.

4. Slide 1 x slat 7 into the first gap of strap 8 in the left
hand side of the bed.

5. Insert the end of the slat over the centre rail of the
bed into the cap (J). Insert the other end of the slat
into 1 x cap (K) and firmly push into the holes of panel

3.

6. Repeat step 4 and 5 for all remaining slats 7 and
cover caps (K).

NOTE: The curve of the slats should be facing
upwards.

Next Retail Ltd, Desford Road, Leicester, LE19 4AT

STEP TEN

STEP ELEVEN

1. Use 2 x screws (V) and 2 x washers (U) to secure
the other ends of the nylon straps 8 to panel 2.

7

K

7

8

J

K

6 of 6
