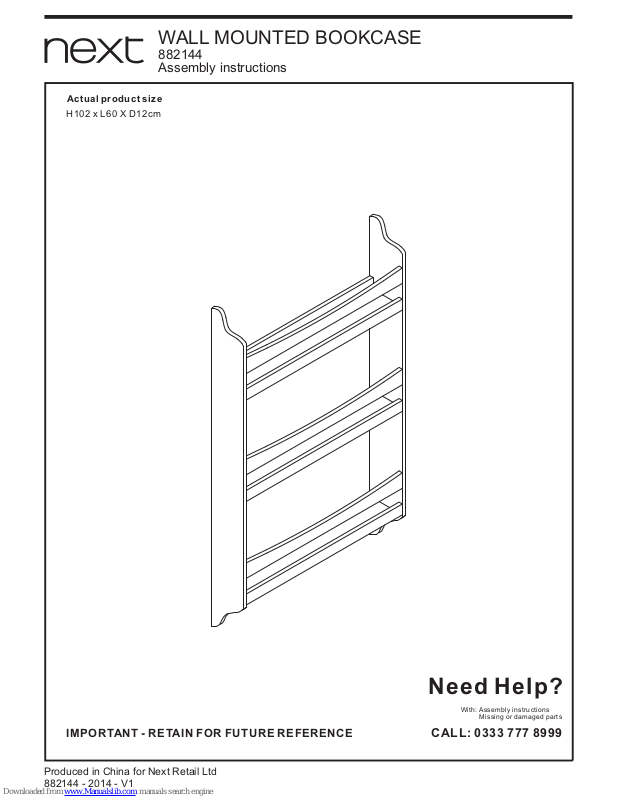

Page 1
H102 x L60 X D12cm
Actual product size
IMPORTANT - RETAIN FOR FUTURE REFERENCE
WALL MOUNTED BOOKCASE
882144
Assembly instructions
Produced in China for Next Retail Ltd
882144 - 2014 - V1
Need Help?
With: As sem bly i nst ruc tio ns
Missing or d ama ged p art s
CALL: 0333 777 8999
Page 2
BEFORE YOU START
Produced in China for Next Retail Ltd
1
Keep fittin gs out of child re n’s rea ch a nd keep child ren
well away fro m construct io n area.
Please peri odically chec k all fitting s and re-tigh te n as
necessary.
Avoid exp osing the fur niture to exc es sive heat or di rect
sunlight as t his can cause c ra cking of the wo od and
deteriora tion of the col ou r.
Warnings
Important: Retain these instructions for future reference.
Unwrap all packaging materials and place the components on
top of the carton box or on a clean floor to prevent it from
damage.
Do’s
We suggest you spend a short time reading through this
leaflet before you start.
When you are ready to start, make sure that you have the
right tools, plenty of space and a clean, dry area for assembly.
During assembly children should be kept away from the
product due to possible risk of injury.
Tools not included.
Due to the size of this product we recommend that it is
assembled in the room intended for use.
Ensure that this product is fully assembled as illustrated
before use and all fixings are fully tightened before use .
Check all screws or bolts are tightened and inspect regularly.
Don’ts
Do not use power tools to construct this product.
Do not tighten screws until fully assembled.
Do not overtighten screws or bolts.
Do not use this product if parts are missing, damaged or worn.
Never use scourers, abrasives or chemical cleaners.
Number of people required to assemble
Two people are required to assemble this product.
Time to assemble
Tools required
Missing parts
If you are missing any fixtures and fittings for your product
please contact our customer service team on 0333 777 8999
and they will be happy to arrange for a replacement to be sent
to you free of charge.
Home service technicians
you your product please If have a fault with contact our
customer service team on 0333 777 8999. If you have had the
product for 28 days or less you may be o
ffered a replacement,
refund or for a fully trained home service technician to visit your
home to assess the fault and repair the product where possible.
If you have had the product for more than 28 days we will send
an independant home service technician to review and repair
the product where possible and recommend further action.
You can write to us at
Home Customer Services
Next Retail Ltd,
Desford Road,
Leiceste
r,
LE19 4AT
To view our full furniture range please visit www.next.co.uk
1 hour
not supplied not supplied not supplied
PH2 7mm
Unwrap all pa ckaging mater ials and plac e the compone nt s
on a clean surf ace to protec t it f rom damage.
We recomm end that the pa ckaging is us ed t o protect the
surface dur ing assembly.
To clean your ite m, wipe with soft c loth slight ly dampened
with water. Then buff w ith a dry clean c loth.
Wood will m ellow and cha nge colour over t ime, we
recommend t hat ornamen ts a nd items plac ed on the surfa ce
are moved reg ularly for th e fi rst few month s to prevent
uneven mell owing.
Do not use sili cone based furn iture polis h. Silicone i n
furniture p olishes can bre ak down the lac quer finish .
Carefully c heck that you h av e all the parts b efore begin ni ng
assembly.
882144
Assembly instructions
882144 - 2014 - V1
WALL MOUNTED BOOKCASE
Page 3
GETTING TO KNOW YOUR PRODUCT
Produced in China for Next Retail Ltd
2
3
2L
1
2R
1
4
5
6
6
6
882144
Assembly instructions
882144 - 2014 - V1
WALL MOUNTED BOOKCASE
Page 4
Components supplied-Use this guide if you require a replacement part.
Ref Dimensions Visual Qty
1
2L
57 x 8cm
2
102 x 12cm
1
Produced in China for Next Retail Ltd
3
3
57 x 12cm
1
Fixtures and fittings
supplied (actual size)
B
14
14
6 x 35mm
15 x 9.5mm
A
Ref QtyDimensions
4 x 30mm
4
D
6 x 30mm
18
C
Ref Dimensions Visual Qty
5
6
57 x 12cm
57 x 5cm
1
3
4 57 x 12cm
1
2R
102 x 12cm
1
882144
Assembly instructions
882144 - 2014 - V1
1 20 30 40
10mm20 30 40 50 60 70 80 90 100 110 120 130
WALL MOUNTED BOOKCASE
Page 5

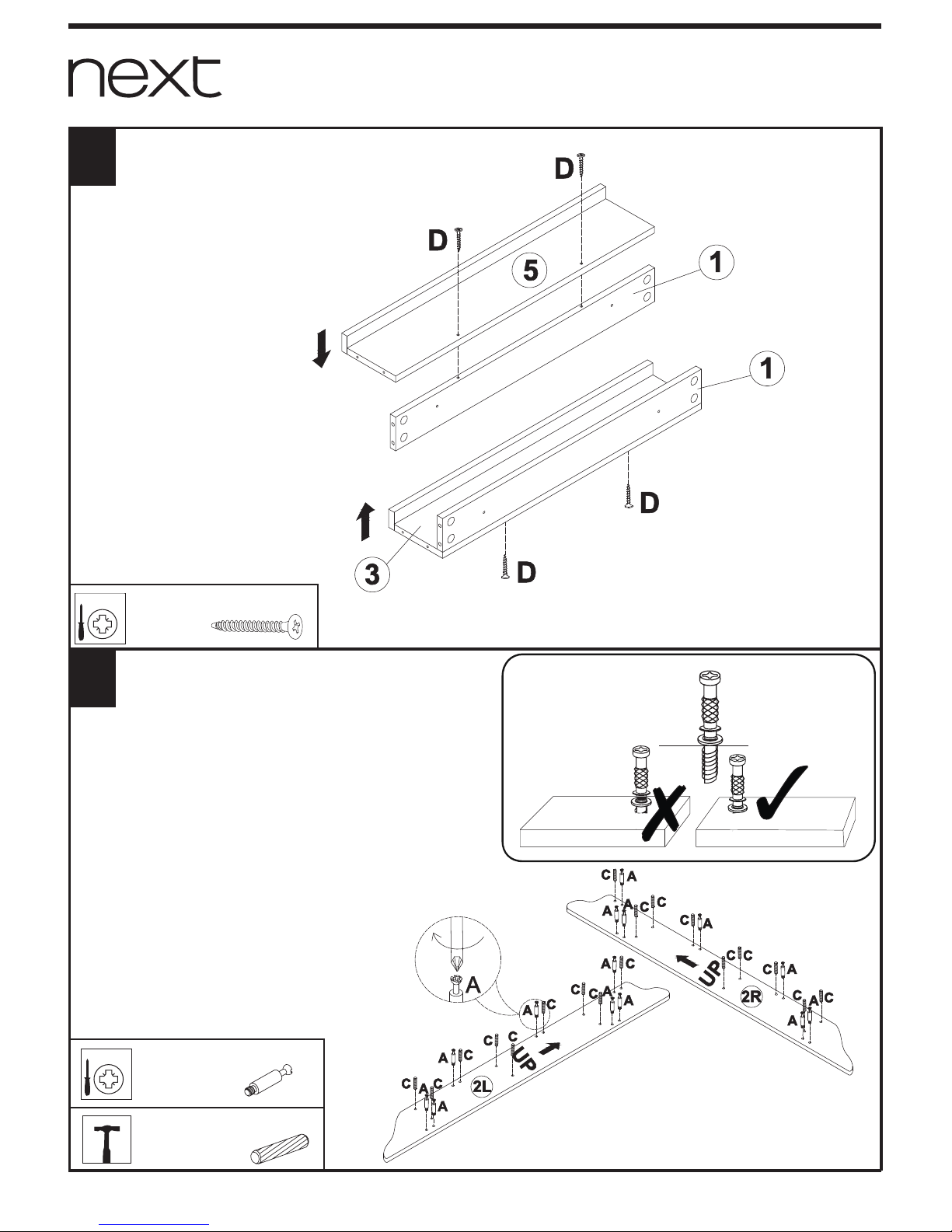

1
Produced in China for Next Retail Ltd
4
2
CAM-PILLAR
Tig hte n unti l shoul der is fl ush
wit h panel . Do not ov ertig hten
or un derti ghten ( see exa mple be low)
Sho ulder
Panel
Panel
6 x 35mm
A x 14
4 x 30mm
D x 4
6 x 30mm
C x 18
882144
Assembly instructions
882144 - 2014 - V1
WALL MOUNTED BOOKCASE
Page 6

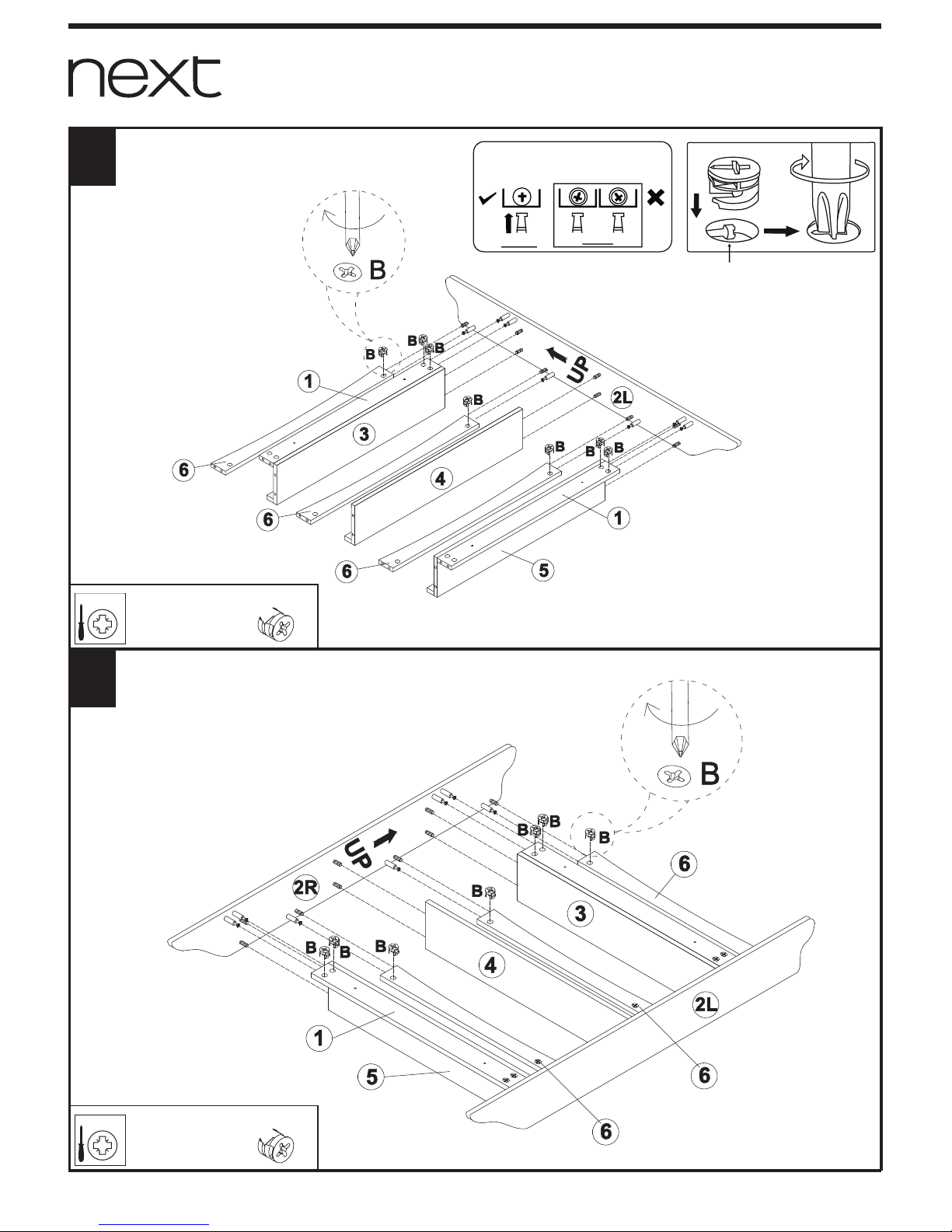

3
Produced in China for Next Retail Ltd
5
4
15 x 9.5mm
B x 7
Align wi th lo ng po int o f cro ss
Pillar h ead n eed s to be i n cen tre
WHE N FITTI NG CAMS
ENS URE START ING POS ITION C ORREC T
BEF ORE YOU I NSERT CO NNECT ING CAM -PILL AR
TUR N CLOCK WISE UN TIL SECU RE
COR RECT
WRO NG
882144
Assembly instructions
882144 - 2014 - V1
15 x 9.5mm
B x 7
WALL MOUNTED BOOKCASE
Page 7
5
Produced in China for Next Retail Ltd
6
6
Pen cil
Pen cil
Pen cil
Pen cil
Pen cil
882144
Assembly instructions
882144 - 2014 - V1
WALL MOUNTED BOOKCASE
Page 8

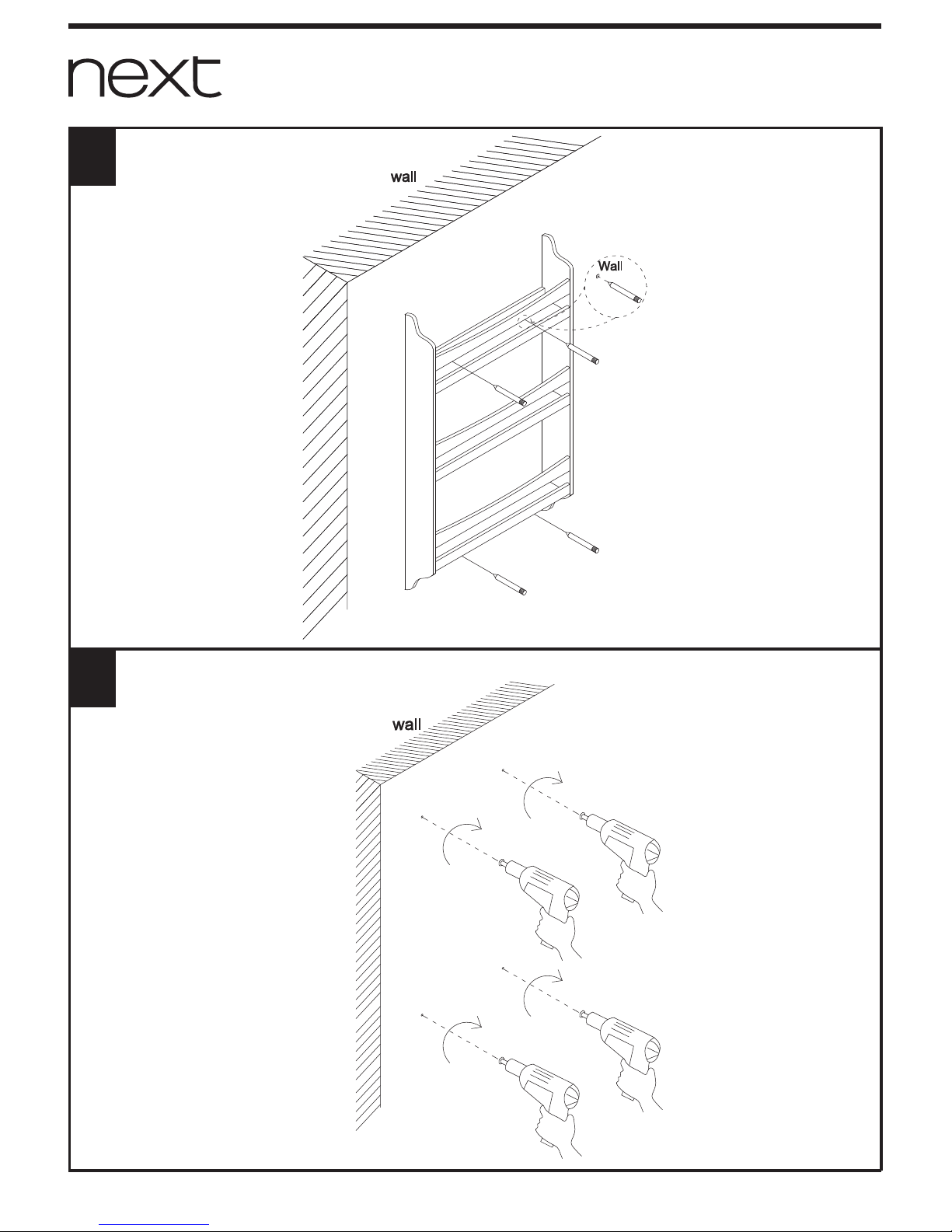

7
Produced in China for Next Retail Ltd
7

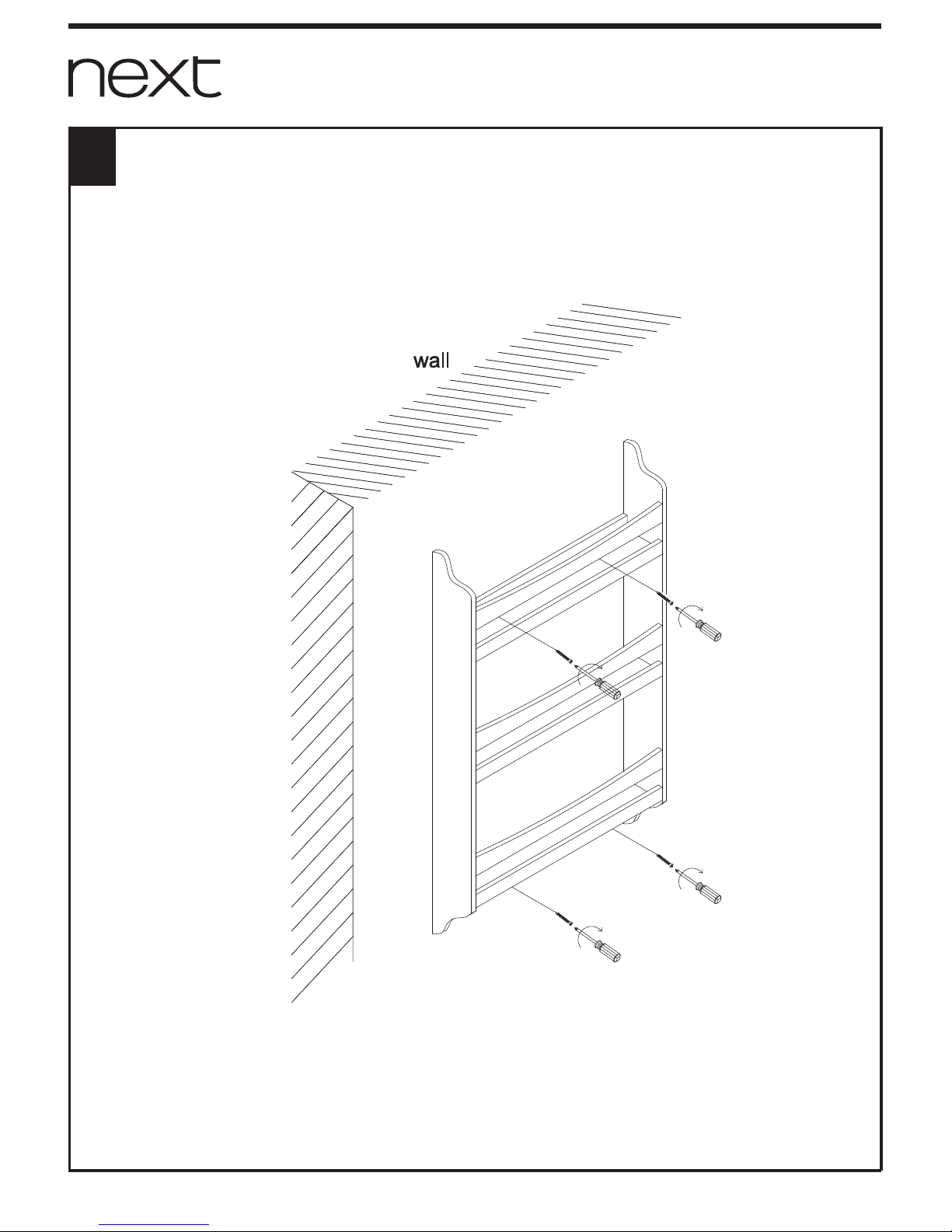

Wall fixings are not included p lease source suitable fixings for your wall type. If in doubt,
please consult a qualified trades person. WARNING: Always ensure the wall to be drilled
is free from hidden electrical wir es, water and gas pipes.
882144
Assembly instructions
882144 - 2014 - V1
WALL MOUNTED BOOKCASE
Page 9
Produced in China for Next Retail Ltd
8
Actual product size
H102 x L60 X D12cm
882144
882144 - 2014 - V1
570
m
m
305 mm
300 mm
D 88mm
D 106mm
D 106mm
WALL MOUNTED BOOKCASE
