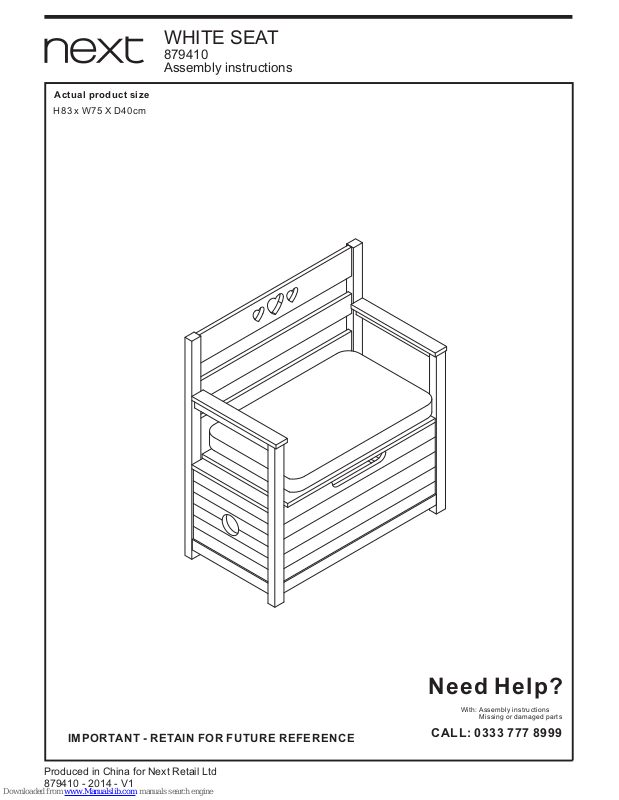

H83 x W75 X D40cm
Actual product size
IMPORTANT - RETAIN FOR FUTURE REFERENCE
WHITE SEAT
879410
Assembly instructions
Produced in China for Next Retail Ltd
879410 - 2014 - V1
Need Help?
With: As sem bly i nst ruc tio ns
Missing or d ama ged p art s
CALL: 0333 777 8999
Produced in China for Next Retail Ltd
1
BEFORE YOU START
Keep fittin gs out of child re n’s rea ch a nd keep child ren
well away fro m construct io n area.
Please peri odically chec k all fitting s and re-tigh te n as
necessary.
Avoid exp osing the fur niture to exc es sive heat or di rect
sunlight as t his can cause c ra cking of the wo od and
deteriora tion of the col ou r.
Warnings
Important: Retain these instructions for future reference.
Unwrap all packaging materials and place the components on
top of the carton box or on a clean floor to prevent it from
scratching.
This product should only be used on firm, level ground.
Do’s
We suggest you spend a short time reading through this
leaflet before you start.
When you are ready to start, make sure that you have the
right tools, plenty of space and a clean, dry area for assembly
.
Check the pack and make sure you have all the parts listed.
During assembly children should be kept away from the
product due to possible risk of injury.
Tools not included.
Due to the size of this product we recommend that it is
assembled in the room intended for use.
Ensure that this product is fully assembled as illustrated
before use.
Don’ts
Do not use power tools to construct this product.
Do not tighten screws until fully assembled.
Do not overtighten screws or bolts.
Do not use this product if parts are missing, damaged or worn.
Never use scourers, abrasives or chemical cleaners.
Number of people required to assemble
Two people are required to assemble this product.
Time to assemble
Tools required
Missing parts
If you are missing any fixtures and fittings for your product
please contact our customer service team on 0333 777 8999
and they will be happy to arrange for a replacement to be sent
to you free of charge.
Home service technicians
If you have a fault with your product please contact our
customer service team on 0333 777 8999. If you have had the
product for 28 days or less you may be o
ffered a replacement,
refund or for a fully trained home service technician to visit your
home to assess the fault and repair the product where possible.
If you have had the product for more than 28 days we will send
an independant home service technician to review and repair
the product where possible and recommend further action.
You can write to us at
Home Customer Services
Next Retail Ltd,
Desford Road,
Leiceste
r,
LE19 4AT
To view our full furniture range please visit www.next.co.uk
0.5 hour
not supplied not supplied not supplied
PH2 7mm
To clean your item, wipe with soft cloth slightly dampened
with water. Then buff with a dry clean cloth.
Routinely check that the fittings are secure and tighten any
fittings using the appropriate tools.
If any parts are missing please contact Next to obtain
replacements. Under no circumstances should missing
parts or hardware be substituted unless obtained from Next.
Do not drag or pull your furniture.
Do not use silicone based furniture polish. Silicone in
furniture polishes can break down the lacquer finish.
WHITE SEAT
879410
Assembly instructions
879410 - 2014 - V1
GETTING TO KNOW YOUR PRODUCT
Produced in China for Next Retail Ltd
2
6
8
2L
2R
1
4
7
3
5
WHITE SEAT
879410
Assembly instructions
879410 - 2014 - V1
Components supplied-Use this guide if you require a replacement part.
Ref Dimensions Visual Qty
1
2L
Ctn
2R
66.5 x 37cm
1 1
83 x 39.5cm
83 x 39.5cm
1 1
1 1
Produced in China for Next Retail Ltd
3
Ref Dimensions Visual Qty
4
5
Ctn
7
68.5 x 37cm
1 1
67 x 38cm
67 x 7.5cm
1 1
1 1
Fixtures and fittings
supplied (actual size)
6 x 35mm 16
A
Ref QtyDimensions
6 x 30mm
8
C
3 x 12mm
16
D
15 x 12mm 16
B
Ref Dimensions Visual Qty
E
40 x 15 x 15mm
2
Fixtures and fittings supplied (not to scale)
F
180 x 50 x 18mm
2
1 20 30 40
10mm20 30 40 50 60 70 80 90 100 110 120 130
8
67 x 31.5cm
1 1
6
67 x 11cm
1 1
3
67 x 47.5cm
1 1
WHITE SEAT
879410
Assembly instructions
879410 - 2014 - V1
Produced in China for Next Retail Ltd
4

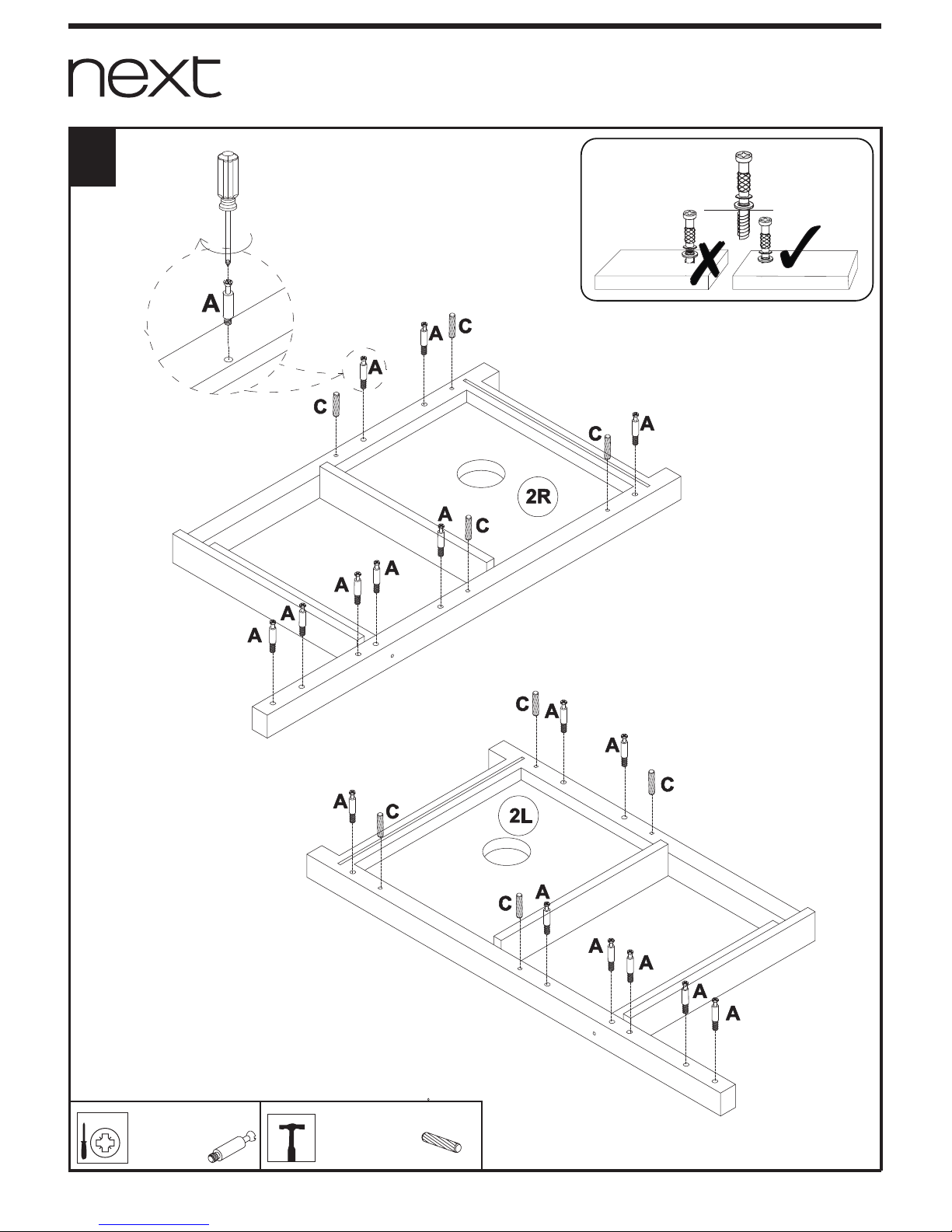

1
CAM-P ILLAR
Tigh ten unt il shou lder is f lush
wit h panel . Do not ov ertig hten
or un derti ghten ( see exa mple be low)
Sho ulder
Panel
Panel
C x 8
6 x 30mm
6 x 35mm
A x 16
WHITE SEAT
879410
Assembly instructions
879410 - 2014 - V1

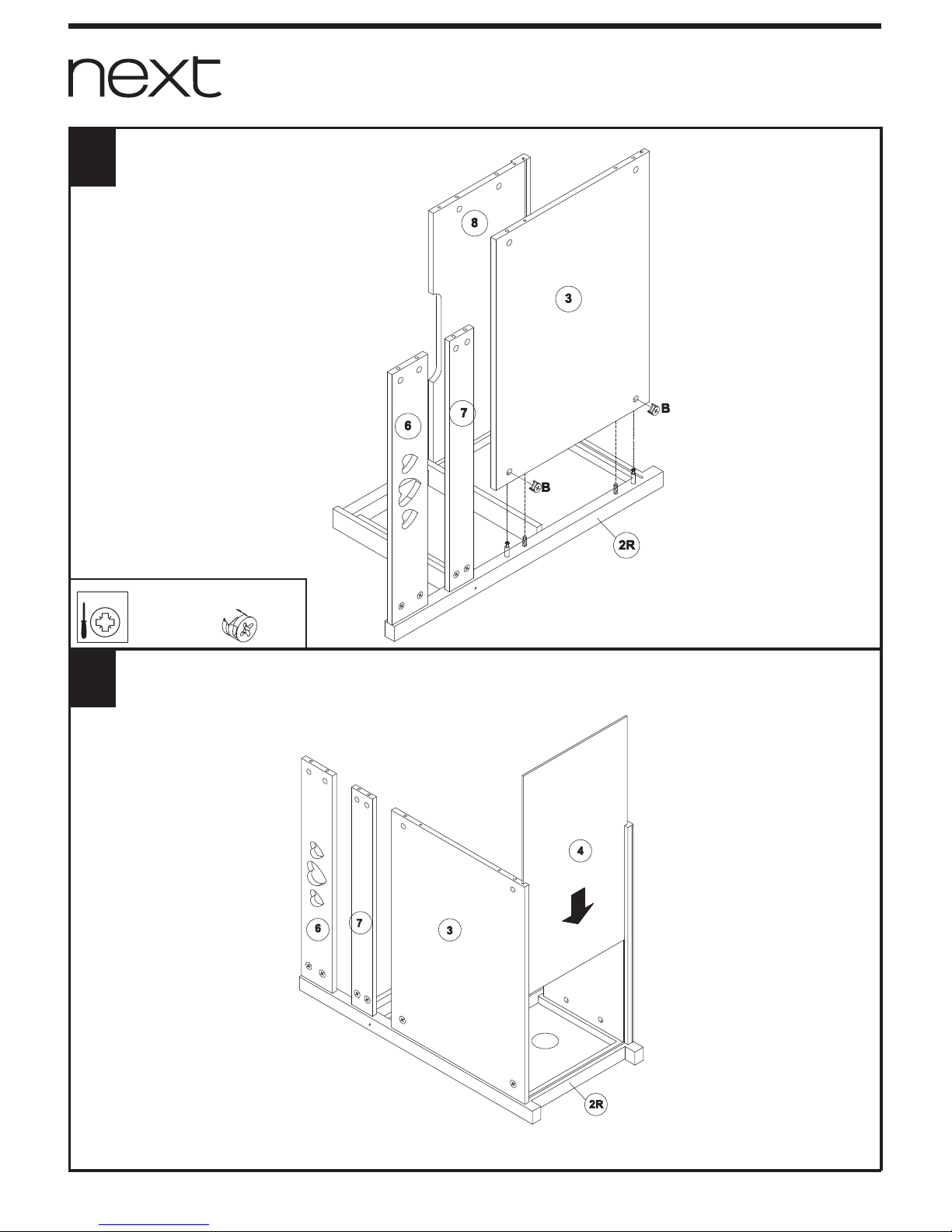

2
2
Produced in China for Next Retail Ltd
5
3
15 x 12mm
B x 2
WHITE SEAT
879410
Assembly instructions
879410 - 2014 - V1
15 x 12mm
B x 4

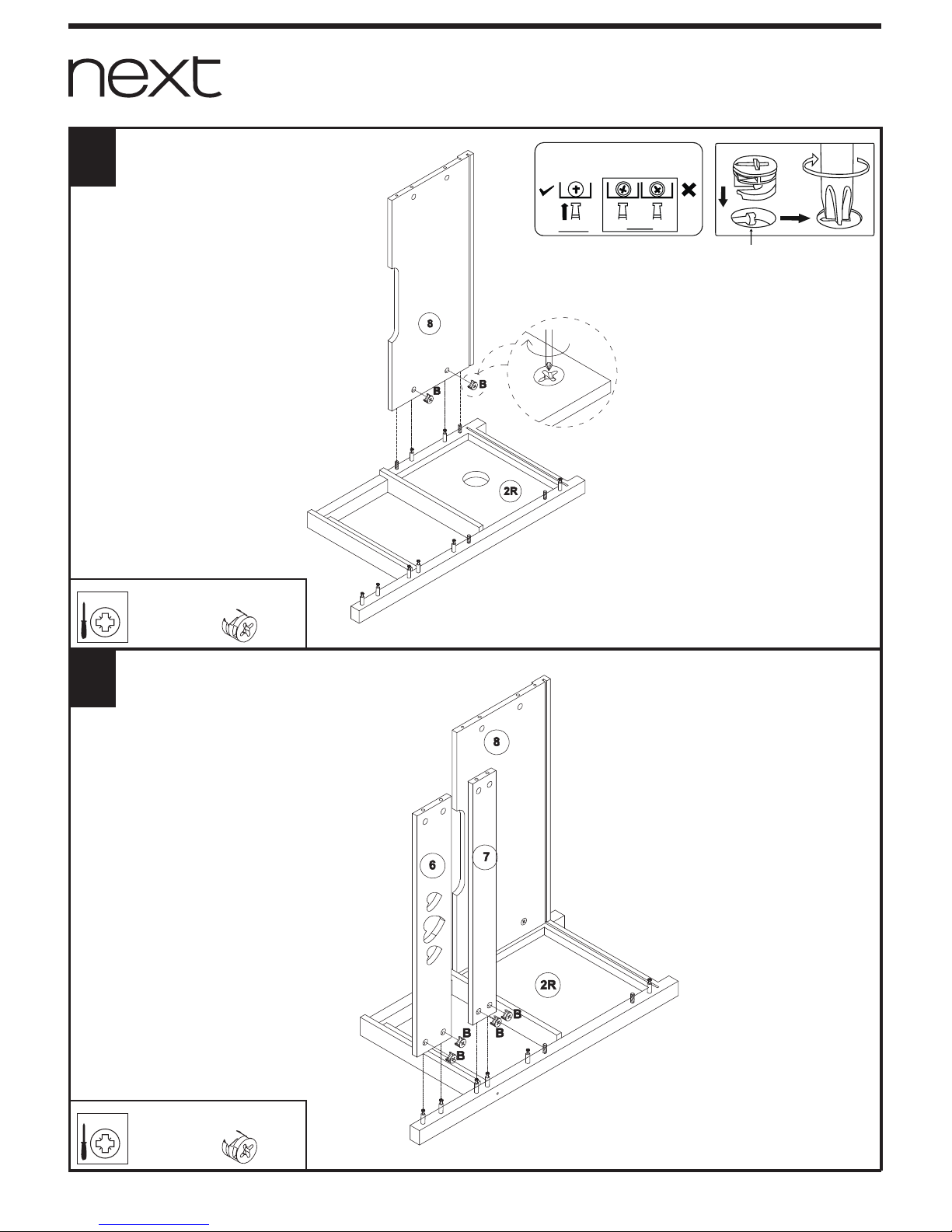

Ali gn with l ong poi nt of cro ss
Pil lar hea d needs t o be in cen tre
WHEN F ITTIN G CAMS
ENSU RE START ING POS ITION C ORREC T
BEFO RE YOU IN SERT CON NECTI NG CAM- PILLA R
TURN C LOCKW ISE UNT IL SECU RE
CORR ECT
WRON G
4
2
Produced in China for Next Retail Ltd
6
5
WHITE SEAT
879410
Assembly instructions
879410 - 2014 - V1
15 x 12mm
B x 2
6
7
Produced in China for Next Retail Ltd

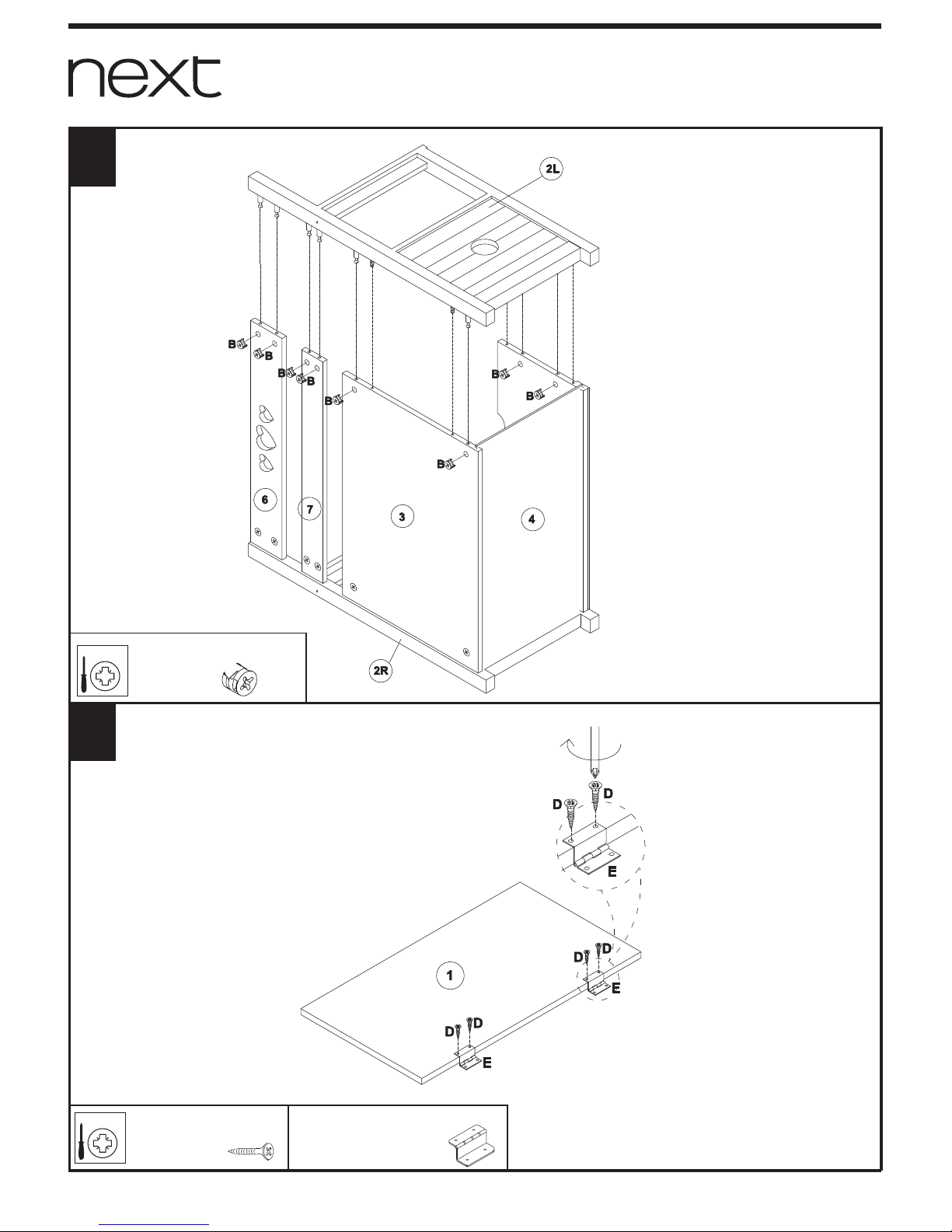

7
15 x 12mm
B x 8
3 x 12mm
D x 4
40 x 15 x 15mm
E x 2
WHITE SEAT
879410
Assembly instructions
879410 - 2014 - V1
8
9
Produced in China for Next Retail Ltd

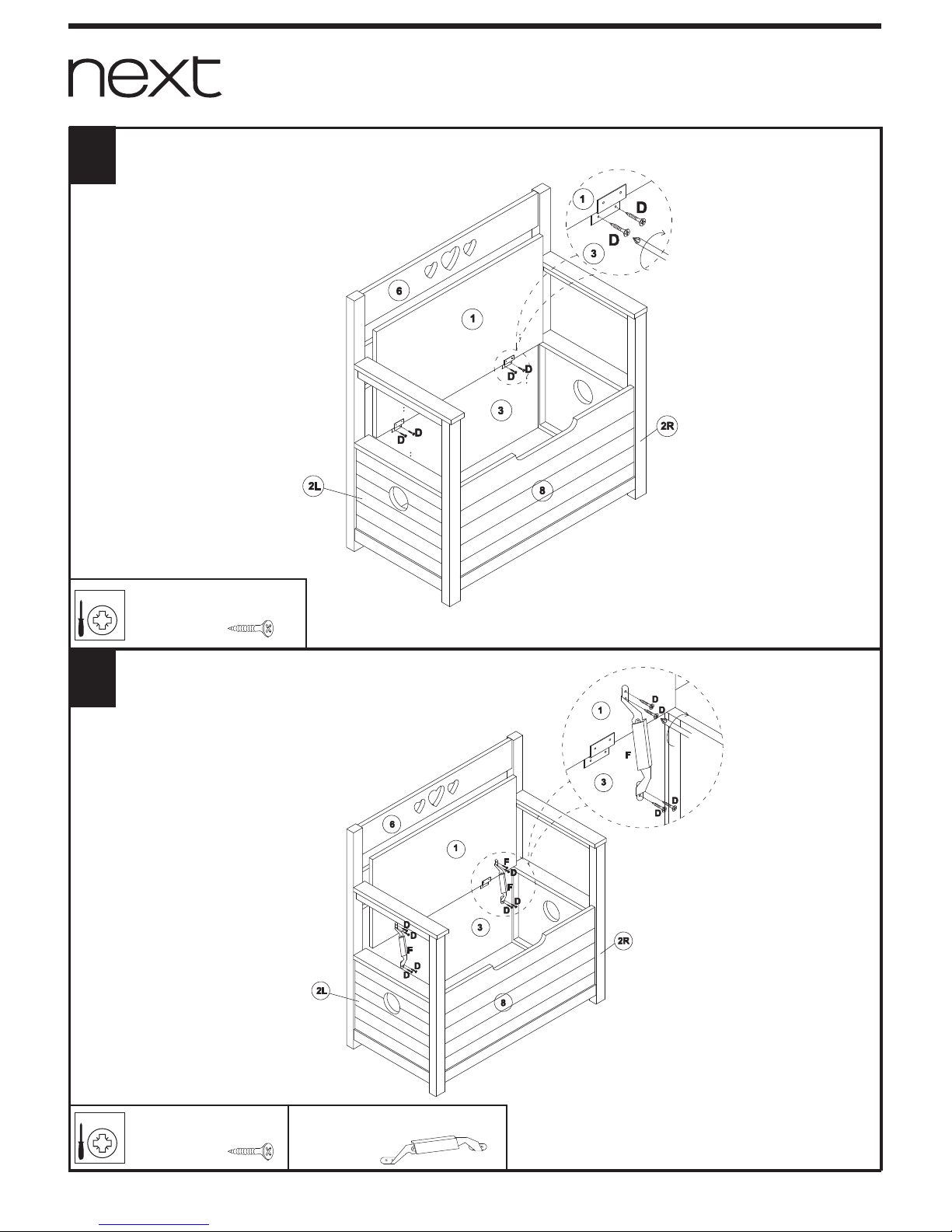

8
3 x 12mm
D x 8
180 x 50 x 18mm
F x 2
3 x 12mm
D x 4
WHITE SEAT
879410
Assembly instructions
879410 - 2014 - V1
10
Produced in China for Next Retail Ltd
9
WHITE SEAT
879410
Assembly instructions
879410 - 2014 - V1

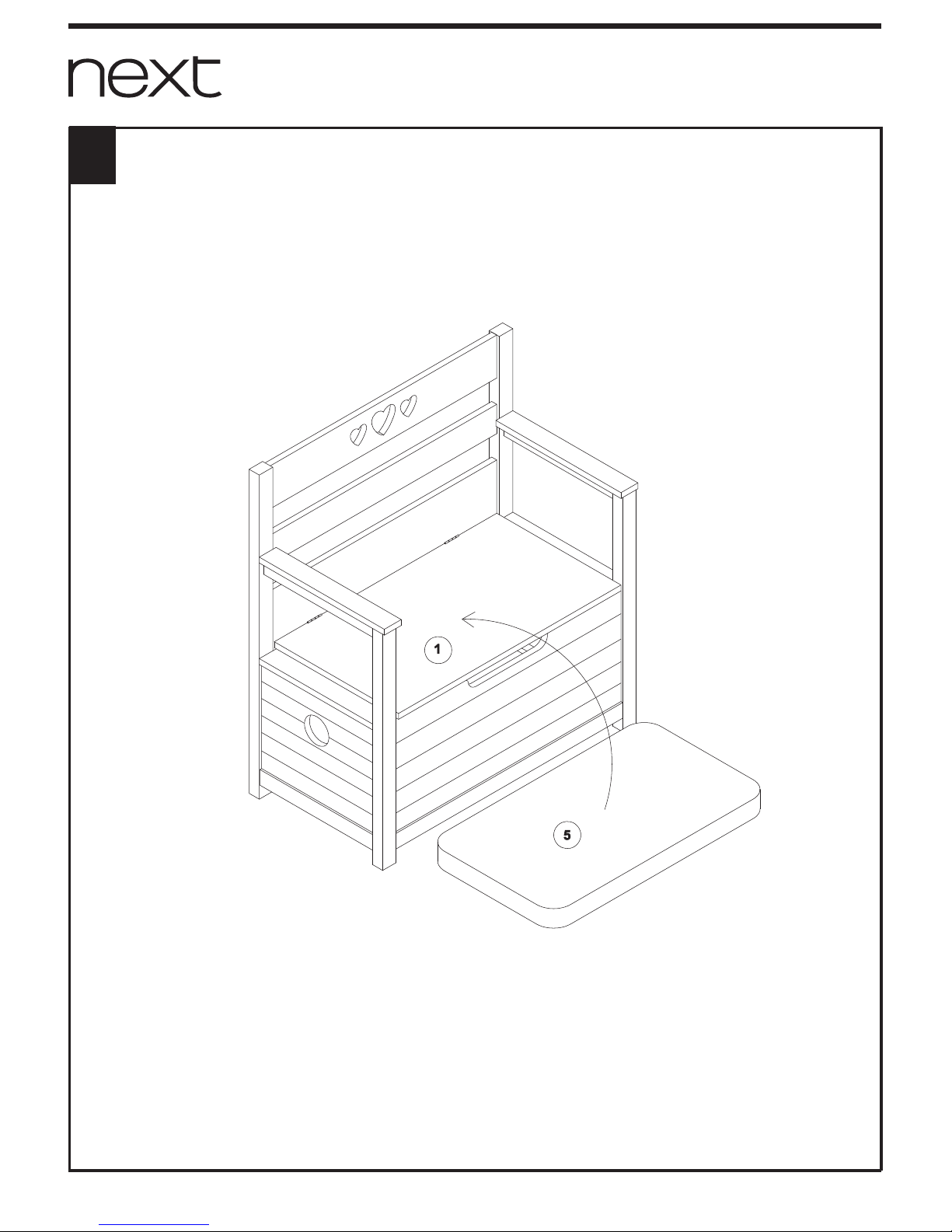

Produced in China for Next Retail Ltd
10
Actual product size
WHITE SEAT
879410
879410 - 2014 - V1
H83 x W75 X D40cm
25 mm
3
6
0 mm
6
4
0 m
m
290 mm
225 mm
625 mm
