Need Help?
With:
Assembly instructions
Missing or damaged parts
CALL: 0333 777 8999
IMPORTANT - RETAIN FOR FUTURE REFERENCE

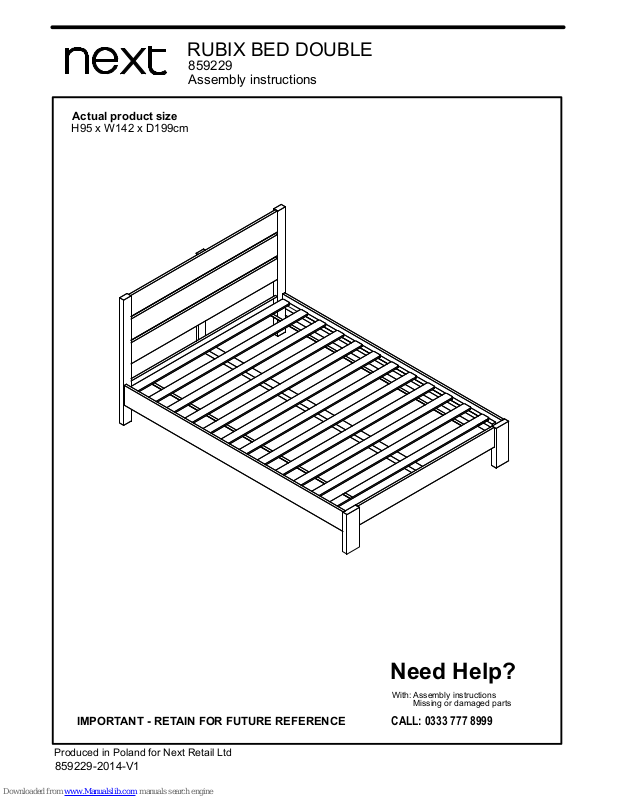

RUBIX BED DOUBLE
859229
Assembly instructions
Produced in Poland for Next Retail Ltd
859229-2014-V1
Actual product size
H95 x W142 x D199cm
1
Produced in Poland for Next Retail Ltd
859229-2014-V1
RUBIX BED DOUBLE
859229
Assembly instructions
BEFORE YOU START
Warnings
We suggest you retain these instructions for future reference.
Keep fittings out of children’s reach and keep children well
away from the construction area.
This product should only be used on firm, level ground.
Please periodically check all fittings and re-tighten as
necessary.
Please do not jump or stand on your bed.
Avoid exposing the furniture to excessive heat or direct
sunlight as this can cause damage to the materials and
deterioration of the colour
Do’s
We suggest you spend a short time reading through this
leaflet before you start.
When you are ready to start, make sure that you have the
right tools and plenty of space.
Due to the size of the product we recommend that it is
assembled in the room intended for use
Unwrap all packaging materials and place the components
on a clean surface to protect them from damage,
We recommend that the packaging is used to protect the
surfaces during assembly
Carefully check that you have all the parts before beginning
assembly
Ensure the product is fully assembled as illustrated and all
fixings fully tightened before use.
Check fixings regularly to ensure they remain tight
When moving your assembled bed. It is best to lift the bed and
never to drag it. Please check that the centre support rail is
securely fixed in place
When adjusting the support legs ensure that the foot is set
5-10mm from the floor surface without the mattress in place.
When in use the legs will create the required support for the
product
Wipe occasionally with a soft cloth dampened with water.
Then buff with a dry clean soft cloth
Don’ts
Do not drag or pull your furniture.
Do not use silicone based furniture polish. Silicone in furniture
polishes can break down the finish.
Never allow any kind of liquid to remain on your furniture.
Absorption can cause wood to warp or finishes to de-laminate.
Do not place hot items (e.g. hot drinks) directly on to the wood
surface. Please make sure you use a placement or coaster
Missing parts
If you are missing any fixtures and fittings for your product
please contact our customer service team on 0333 777 8999
and they will be happy to arrange for a replacement to be sent
to you free of charge.
Home service technicians
If you have a fault with your product please contact our
customer service team on 0333 777 8999. If you have had the
product for 28 days or less you may be offered a replacement,
refund or for a fully trained home service technician to visit your
home to assess the fault and repair the product where possible.
If you have had the product for more than 28 days we will send
an independant home service technician to review and repair
the product where possible and recommend further action.
You can write to us at
Home Customer Services
Next Retail Ltd,
Desford Road,
Leicester,
LE19 4AT
To View our full furniture range please visit www.next.co.uk
PH2
Number of people required to assemble
Two persons are required to assemble this item.
Time to assemble
1.5 hours
Tools required
not supplied not supplied
GETTING TO KNOW YOUR PRODUCT
Produced in Poland for Next Retail Ltd
859229-2014-V1
RUBIX BED DOUBLE
859229
Assembly instructions
Components supplied. Please use this guide if you require replacement parts.
Ref
Dimensions
Visual
QtyCtn
RS-120
192 x 15cm 1 1
192 x 15cm 1 1
112 x 15cm 1 1
30 x 11cm 1 1
RS-121
RS-125
RS-961
Ref
Dimensions Visual
QtyCtn
142 x 95cm 2
181 x 30cm 2 1
RS-910
RS-891
1
RS-891
RS-120
RS-910
RS-121
RS-891
RS-893
RS-125
RS-961
RS-960
30 x 11cm 1 1
RS-960
181 x 136cm 1 1
RS-893
RS-892
191 x 60cm 1 1
RS-892
2
Produced in Poland for Next Retail Ltd
859229-2014-V1
RUBIX BED DOUBLE
859229
Assembly instructions
Fixtures and fittings
supplied (actual size)
Ref
Dimensions
Qty
A
D
6 x 43 mm
4
8 x 30 mm 6
mm.
0.
10 10020 30 40 50 60 70 80 90 110 120 130
Fixtures and fittings supplied (not to scale)
Ref
Dimensions Visual
Qty
R1
N/A
1
B1 15 x 15 mm 12
D1 10 x 35 mm 8
C1
10 x 17 mm
4
H1
4 x 25 mm 10
O1
4 x 45 mm
10
N1
6 x 70 mm
4
R
7 x 82 mm
4
G1
N/A
2
F
6.3 x 13 mm 8
Ref
Dimensions Visual
Qty
Ref
Dimensions Visual
Qty
W1
N/A
2
3
4
Produced in Poland for Next Retail Ltd
859229-2014-V1
RUBIX BED DOUBLE
859229
Assembly instructions
Panel Panel
CAM-LOCK
Tighten until shoulder is flush
with panel. Do not overtighten
or undertighten (see example below)
Shoulder
NO GAP
Ax4
PH2
A
A
RS-961
RS-960
D
D
RS-125
Dx2
8x30mm
A
1
2
5
Produced in Poland for Next Retail Ltd
859229-2014-V1
RUBIX BED DOUBLE
859229
Assembly instructions
3
1
2
H1=H2
H1
H2
3
4
90°
90°
5
RS-125
RS-961
RS-960
R
R
R
R
CORRECT
WRONG
WHEN FITTING CAMS
ENSURE STARTING POSITION IS CORRECT
BEFORE YOU INSERT CONNECTING CAM-PILLAR
TURN CLOCKWISE UNTIL SECURE
R
R
B1
B1
B1x8
PH2
Rx4
7x82mm
6
Produced in Poland for Next Retail Ltd
859229-2014-V1
RUBIX BED DOUBLE
859229
Assembly instructions
4
D1x4
10x35mm
D1x4
10x35mm
O1
D
D
D
D
D1
D1
D1
D1
O1
D1
D1
D1
D1
RS-121
RS-120
RS-891
RS-891
O1x5
4x45mm
PH2
O1x5
4x45mm
PH2
Dx2
8x30mm
Dx2
8x30mm
5
7
Produced in Poland for Next Retail Ltd
859229-2014-V1
RUBIX BED DOUBLE
859229
Assembly instructions
6
RS-121
RS-910
RS-120
RS-960
RS-125
RS-961
R1
N1
C1
C1
N1x4
C1x4
R1x1
B1
B1
B1x4
PH2
6x70mm
RS-910
8
Produced in Poland for Next Retail Ltd
859229-2014-V1
RUBIX BED DOUBLE
859229
Assembly instructions
7
1
2
RS-125
RS-961
RS-960
RS-910
RS-121
RS-892
RS-120
H1x2
4x25mm
PH2
G1x2
W1x2Fx8
6.3x13mm
PH2
G1
F
H1
W1
W1
9
Produced in Poland for Next Retail Ltd
859229-2014-V1
RUBIX BED DOUBLE
859229
Assembly instructions
8
H1x8
4x25mm
PH2
H1
10
Produced in Poland for Next Retail Ltd
859229-2014-V1
RUBIX BED DOUBLE
859229
Assembly instructions
1350 mm
1900 mm
40 mm
245 mm
215 mm
150 mm
Actual product size
H95 x W142 x D199cm
