Next 807135 Assembly Manual

Need Help?

With:

Assembly instructions

Missing or damaged parts

CALL: 0333 777 8999

IMPORTANT - RETAIN FOR FUTURE REFERENCE

Produced in Poland for Next Retail Ltd

807135-2014-V1

Actual product size

H213x W150x D58cm

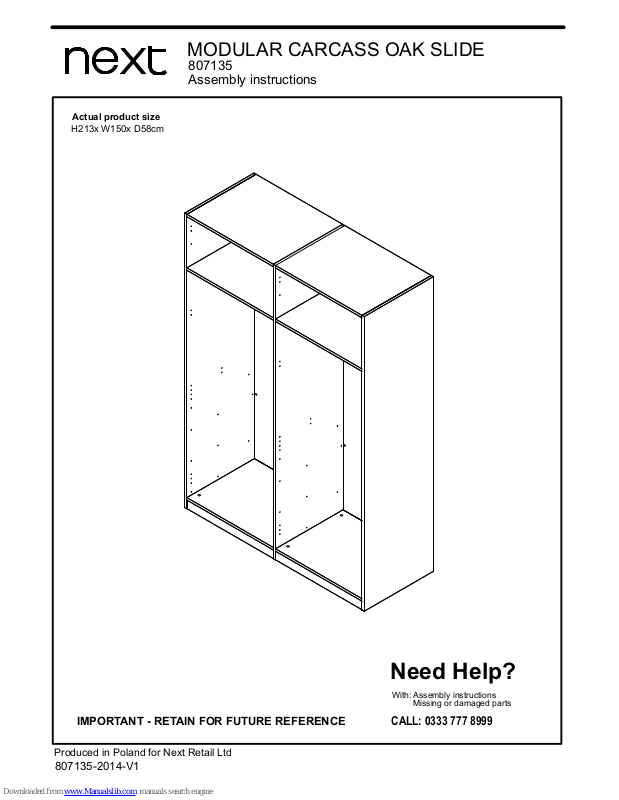

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

1

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

BEFORE YOU START

Don’ts

Do not drag or pull your furniture.

Do not use silicone based furniture polish. Silicone in furniture polishes can break down the finish.

Never allow any kind of liquid to remain on your furniture.

Absorption can cause wood to warp or finishes to de-laminate.

Do not place hot items (e.g. hot drinks) directly on to the wood surface. Please make sure you use a placement or coaster

Number of people required to assemble

Two persons are required to assemble this item.

Time to assemble

Tools required

not supplied

Missing parts

If you are missing any fixtures and fittings for your product please contact our customer service team on 0333 777 8999 and they will be happy to arrange for a replacement to be sent to you free of charge.

Home service technicians

If you have a fault with your product please contact our customer service team on 0333 777 8999. If you have had the product for 28 days or less you may be offered a replacement, refund or for a fully trained home service technician to visit your home to assess the fault and repair the product where possible. If you have had the product for more than 28 days we will send an independant home service technician to review and repair the product where possible and recommend further action.

You can write to us at

Home Customer Services Next Retail Ltd, Desford Road, Leicester, LE19 4AT

To View our full furniture range please visit www.next.co.uk

PH2

not supplied

2 hours

Do’s

We suggest you spend a short time reading through this leaflet

before you start.

right tools and plenty of space.

Unwrap all packaging materials and place the components on a clean surface to protect them from damage.

We recommend that the packaging is used to protect the

surfaces during assembly.

Carefully check that you have all the parts before beginning

assembly.

Due to the size of the product we recommend that it is assembled in the room intended for use.

Ensure the product is fully assembled as illustrated and all fixings are fully tightened before use.

Wipe occasionally with a soft cloth slightly dampened with water. Then buff with a dry clean soft cloth.

Wood will mellow and change colour over time, we recommend that ornaments and items placed on the surface are moved regularly for the first few months to prevent uneven mellowing.

When you are ready to start, make sure that you have the

Warnings

We suggest you retain these instructions for future reference.

Keep fittings out of children’s reach and keep children well away from the construction area.

This product should only be used on firm, level ground.

Please periodically check all fittings and re-tighten as

necessary.

Please do not sit or stand on your furniture.

Avoid exposing the furniture to excessive heat or direct sunlight as this can cause deterioration of the colour.

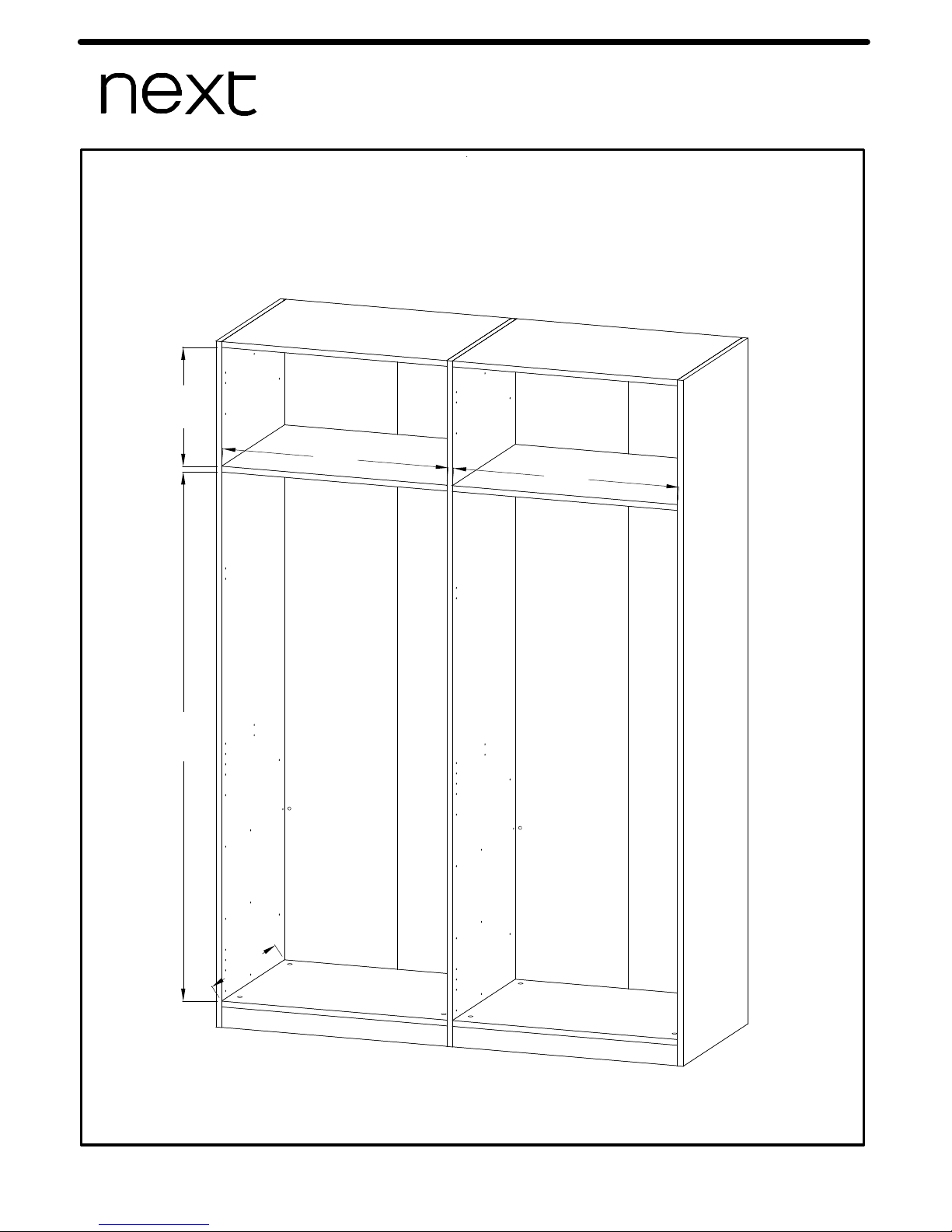

GETTING TO KNOW YOUR PRODUCT

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

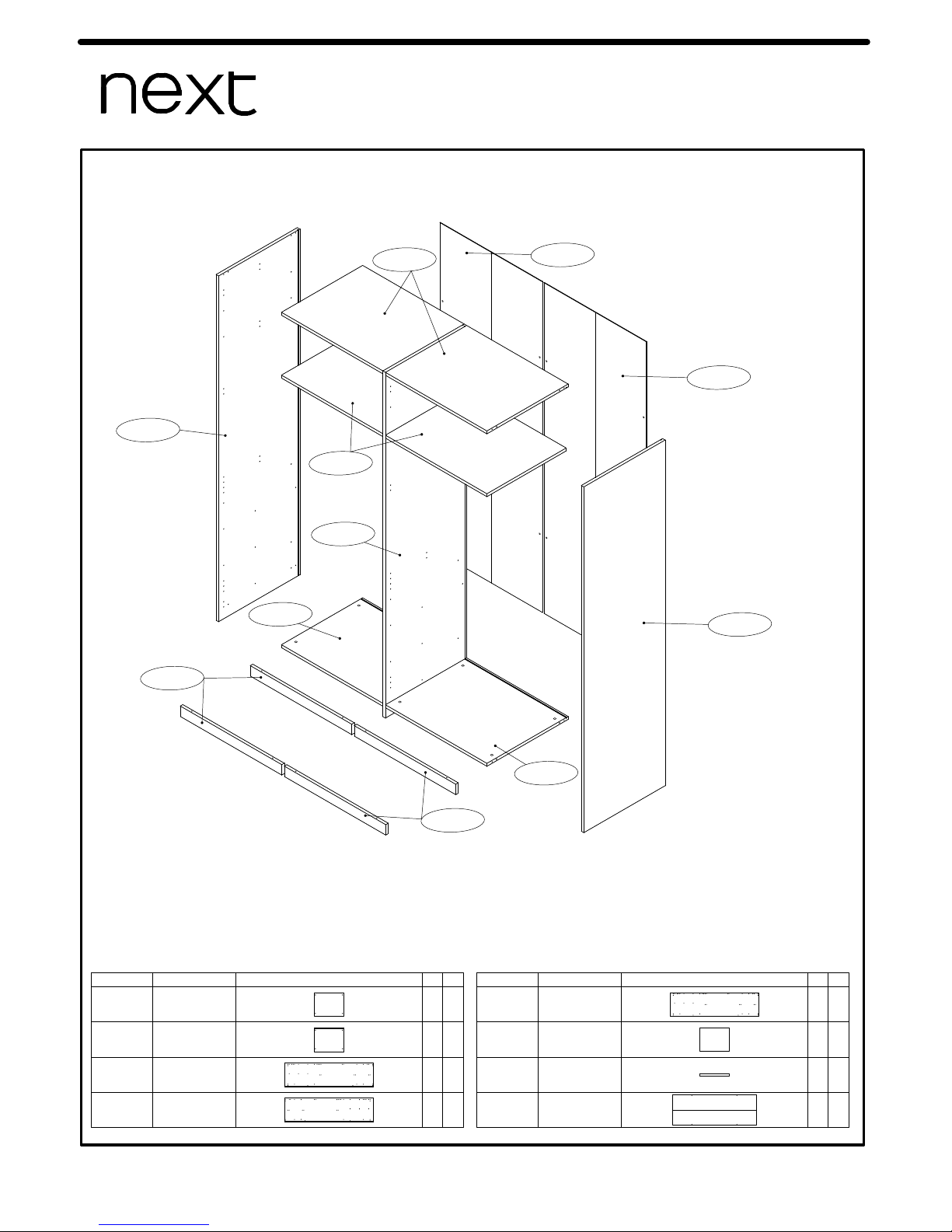

Components supplied. Please use this guide if you require replacement parts.

Ref

Dimensions Visual

QtyCtn

M70-405 72 x 58cm 2 1

72 x 58cm 2 1

213 x 58cm 1 2

72 x 56cm

1 2

M70-406

M70-101

M70-102

M70-452

Ref

Dimensions Visual

QtyCtn

2 1

72 x 6cmM70-803

4

1

204 x 73cmM70-003

2 2

213 x 58cmM70-201

M70-003

M70-102

M70-406

M70-803

M70-406

M70-201

M70-452

M70-101

M70-405

2

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

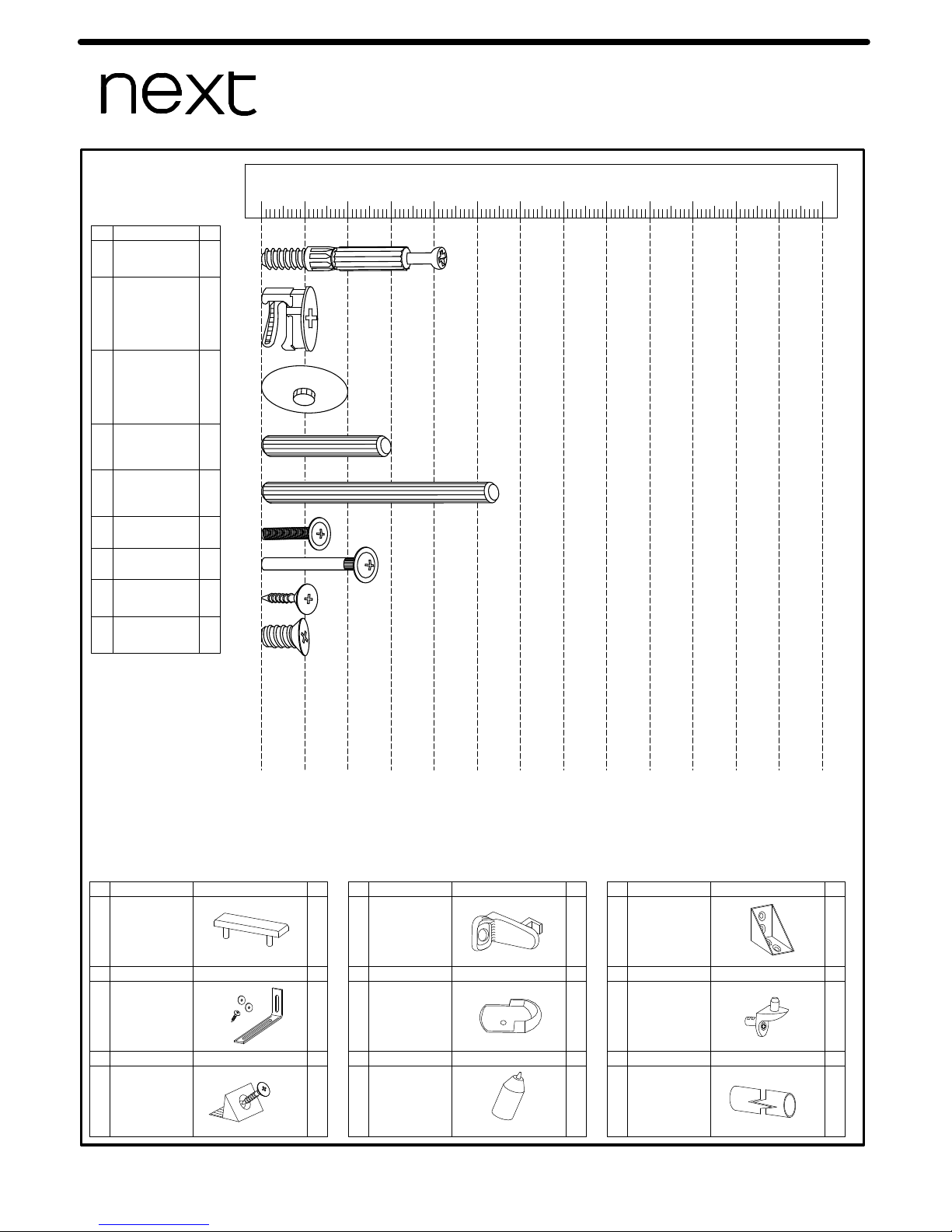

Fixtures and fittings

supplied (actual size)

Ref

Dimensions

Qty

A

B

C

D

6 x 43 mm 16

15 x 13 mm 16

5 x 20 mm 16

5 x 30 mm 16

W

86.3 x 11 mm

mm.

0.

10 10020 30 40 50 60 70 80 90 110 120 130

Fixtures and fittings supplied (not to scale)

Ref

Dimensions Visual

Qty

N/A

Ref

Dimensions Visual

Qty

I1

N/A

2

Ref

Dimensions Visual

Qty

J

N/A

16

Ref

Dimensions Visual

Qty

N/A

Ref

Dimensions Visual

Qty

U2

N/A

8

Ref

Dimensions Visual

Qty

N/A

8

Ref

Dimensions Visual

Qty

P

N/A

8

Ref

Dimensions Visual

Qty

N/A

2

K

8

E6

14

T1

R5

Ref

Dimensions Visual

Qty

N/A

4

Z1

F 4

4 x 16 mm

F145 x 27 mm

V

3.5 x 13 mm 40

D1

5 x 55 mm 4

3

4

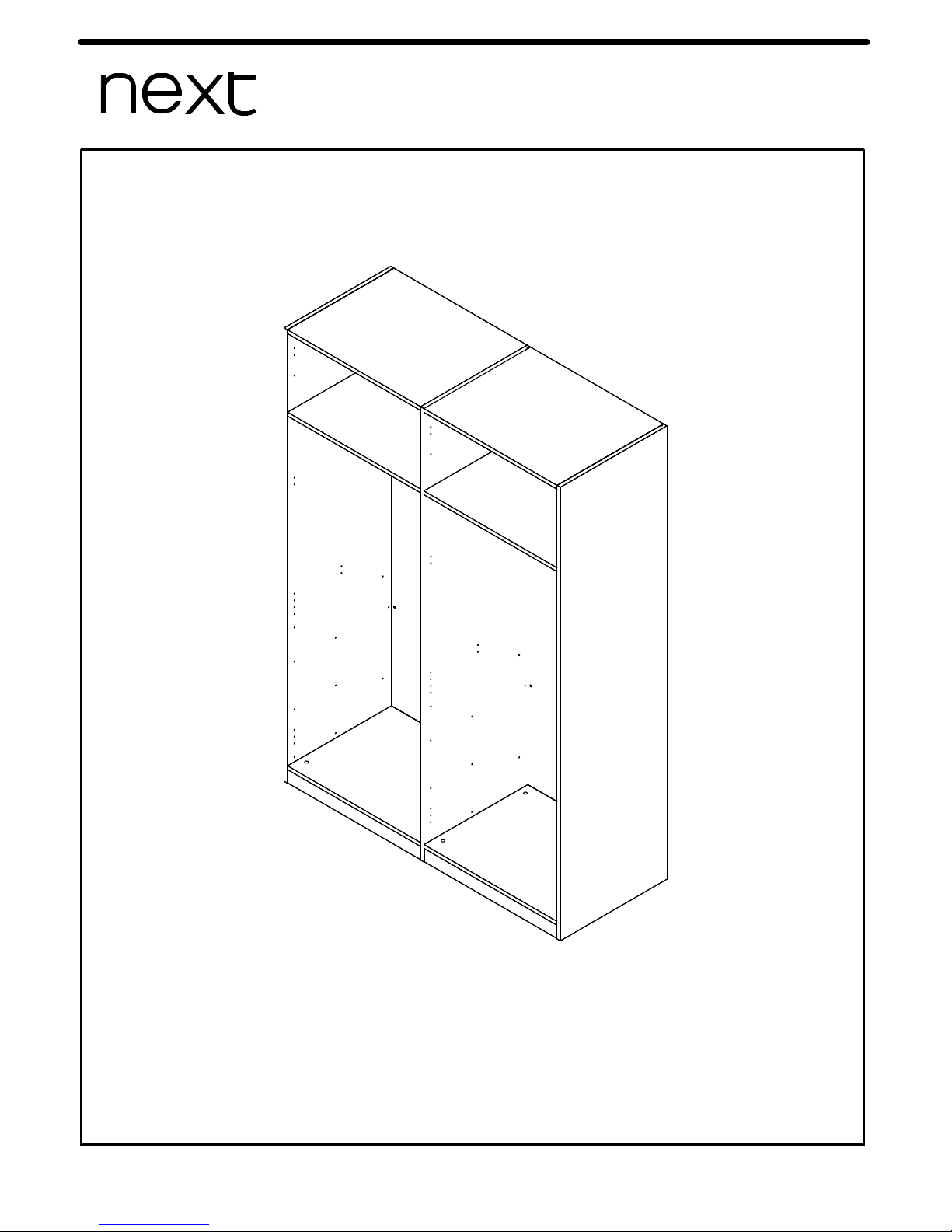

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

1

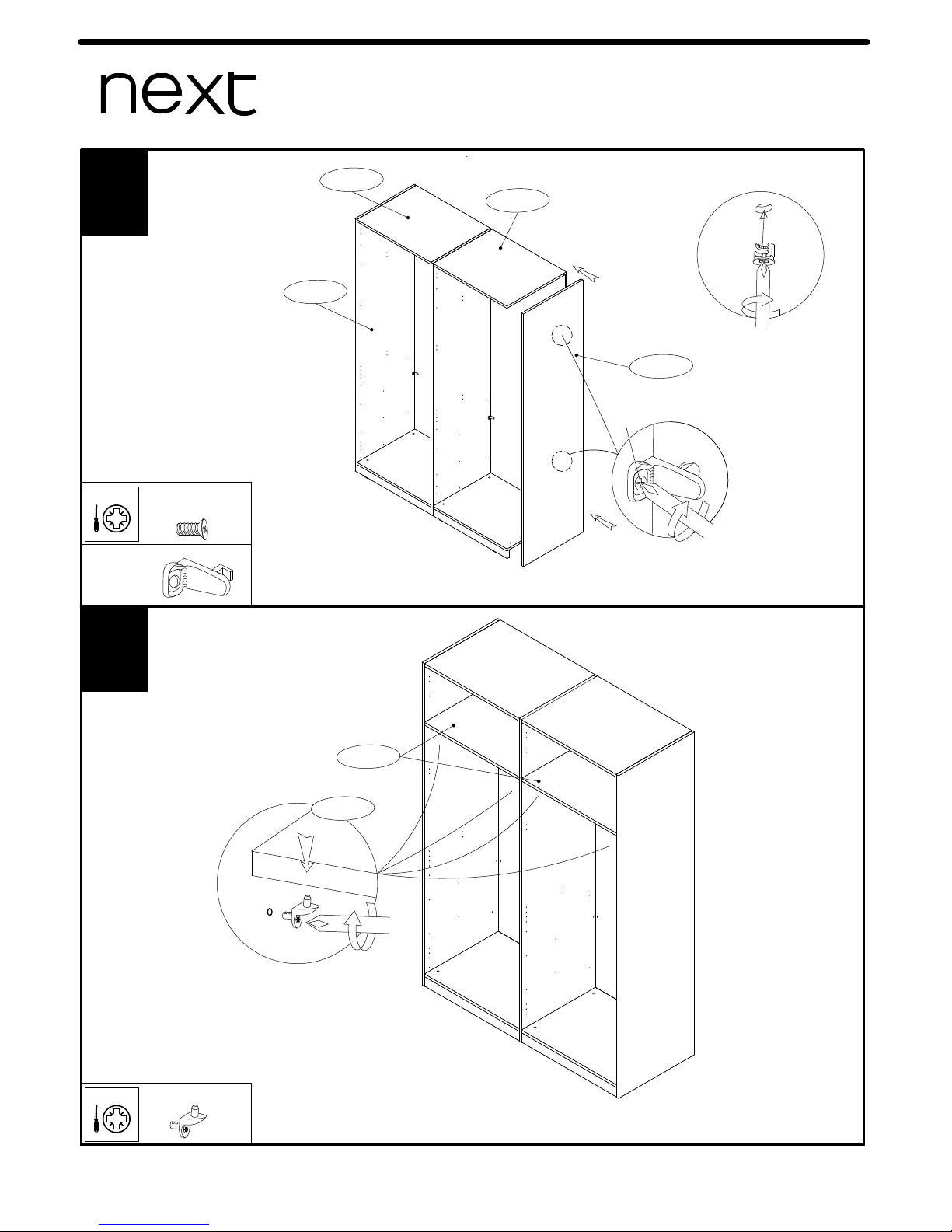

A

Panel Panel

CAM-LOCK

Tighten until shoulder is flush with panel. Do not overtighten or undertighten (see example below)

Shoulder

NO GAP

A

Ax8

PH2

A

M70-101 M70-102

E6x4

E6

5

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

2

A

Ax8

PH2

A

M70-201 M70-201

E6x2

E6

6

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

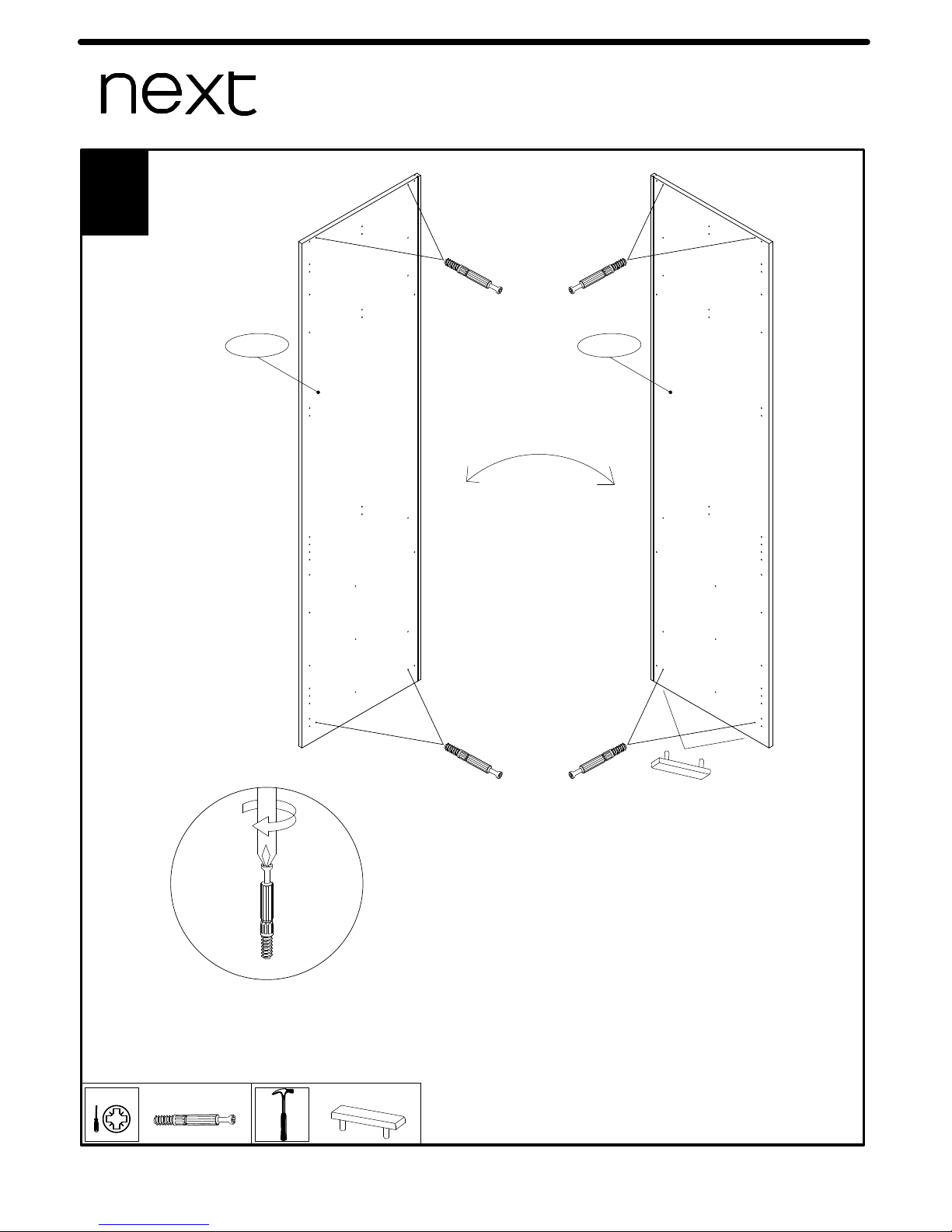

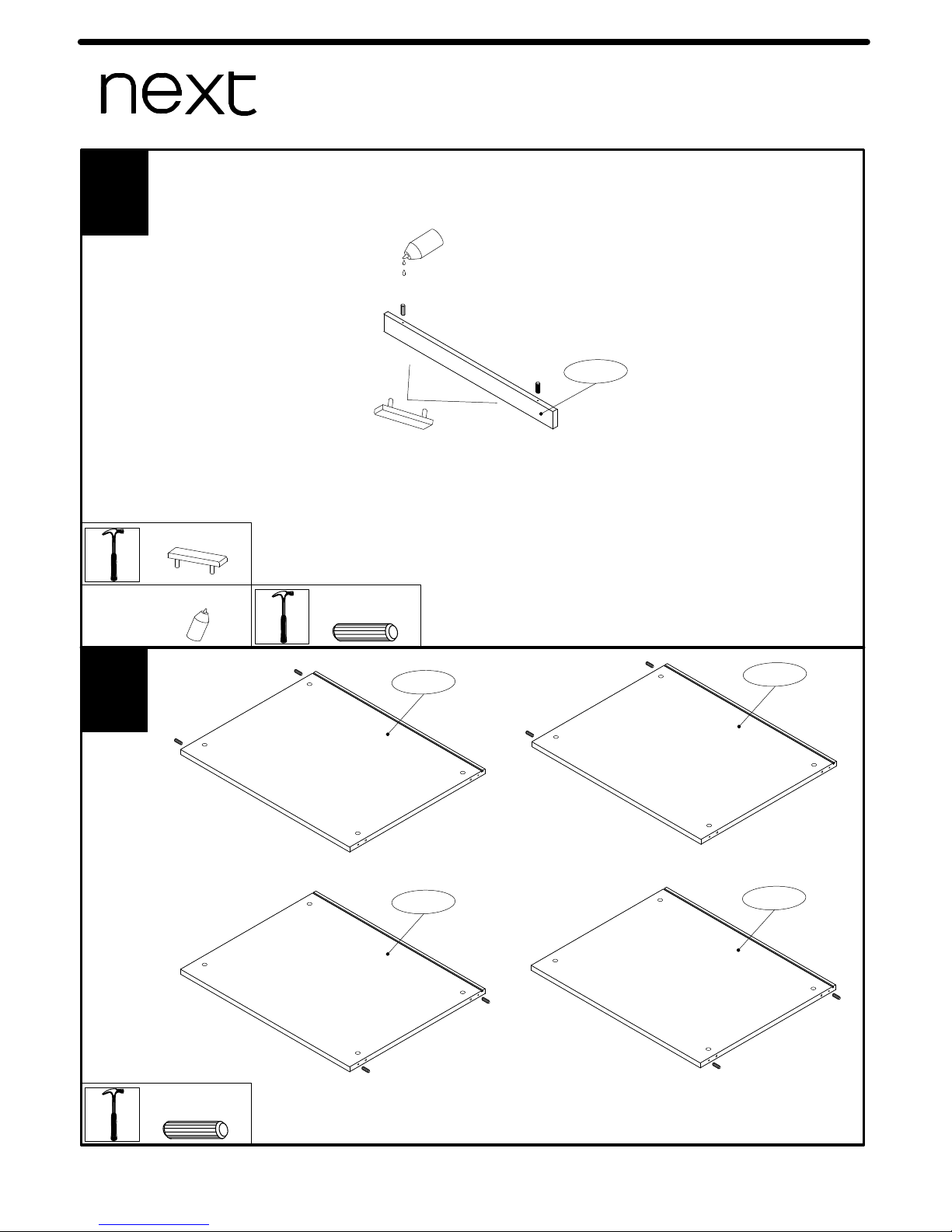

3

Dx8

5x30mm

R5x2

E6x8

Dx8

5x30mm

M70-803

D

R5

D

M70-405

D

M70-406

D

x4

M70-406

D

M70-405

D

E6

4

7

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

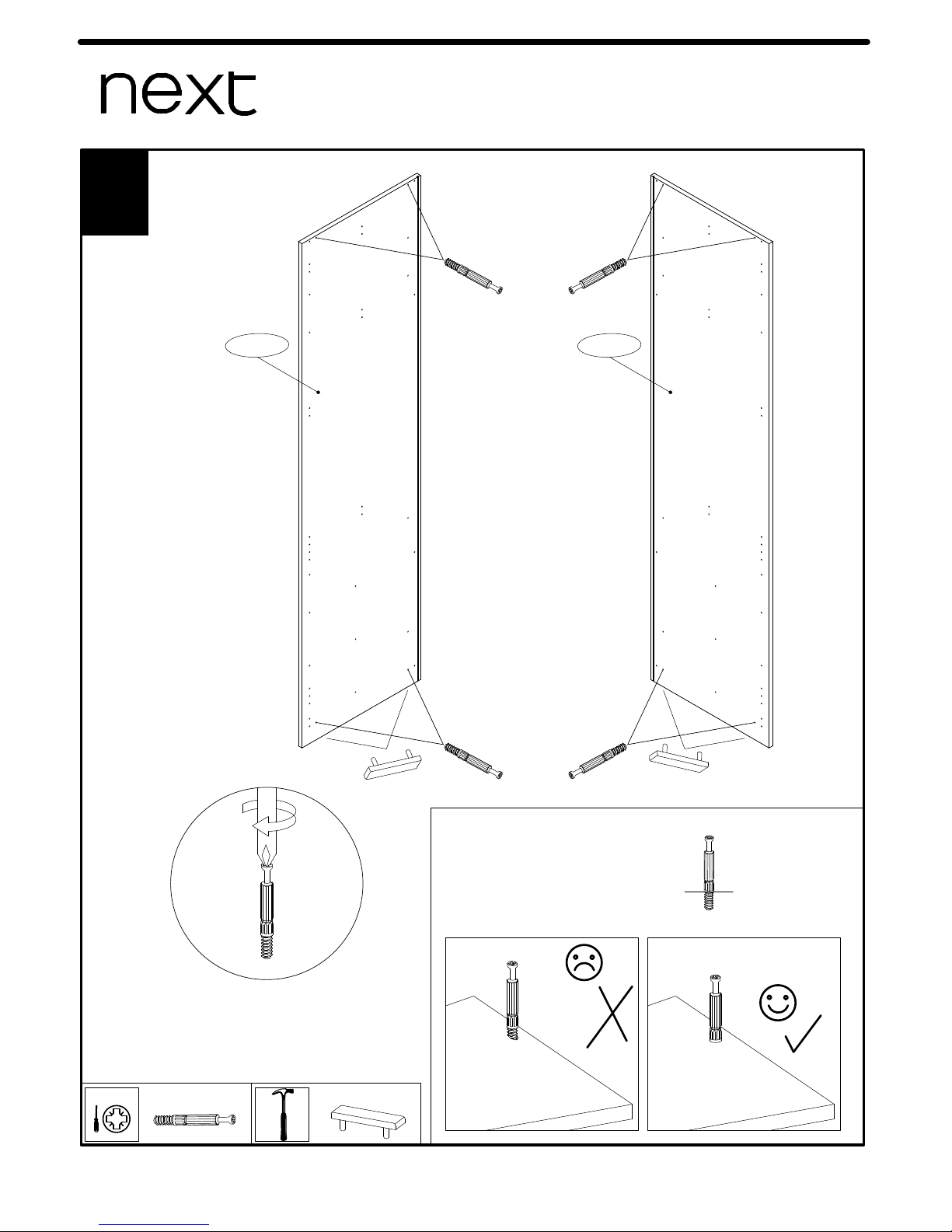

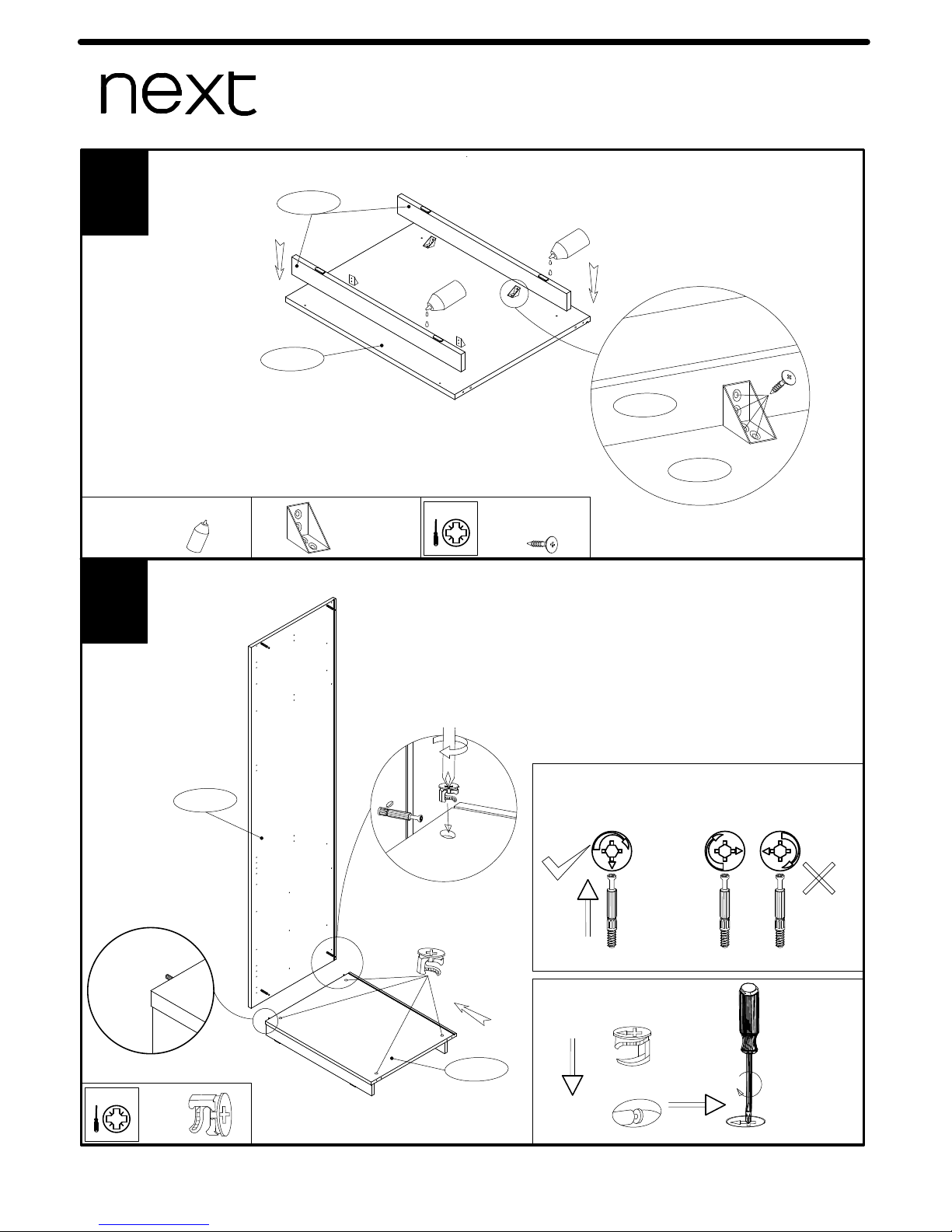

5

CORRECT

WRONG

WHEN FITTING CAMS

ENSURE STARTING POSITION IS CORRECT

BEFORE YOU INSERT CONNECTING CAM-PILLAR

TURN CLOCKWISE UNTIL SECURE

Bx4

PH2

M70-101

M70-406

B

V

T1

M70-803

R5x1

T1x8

PH2

M70-406

M70-803

Vx32

3.5x13mm

R5

M70-406

x2

6

8

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

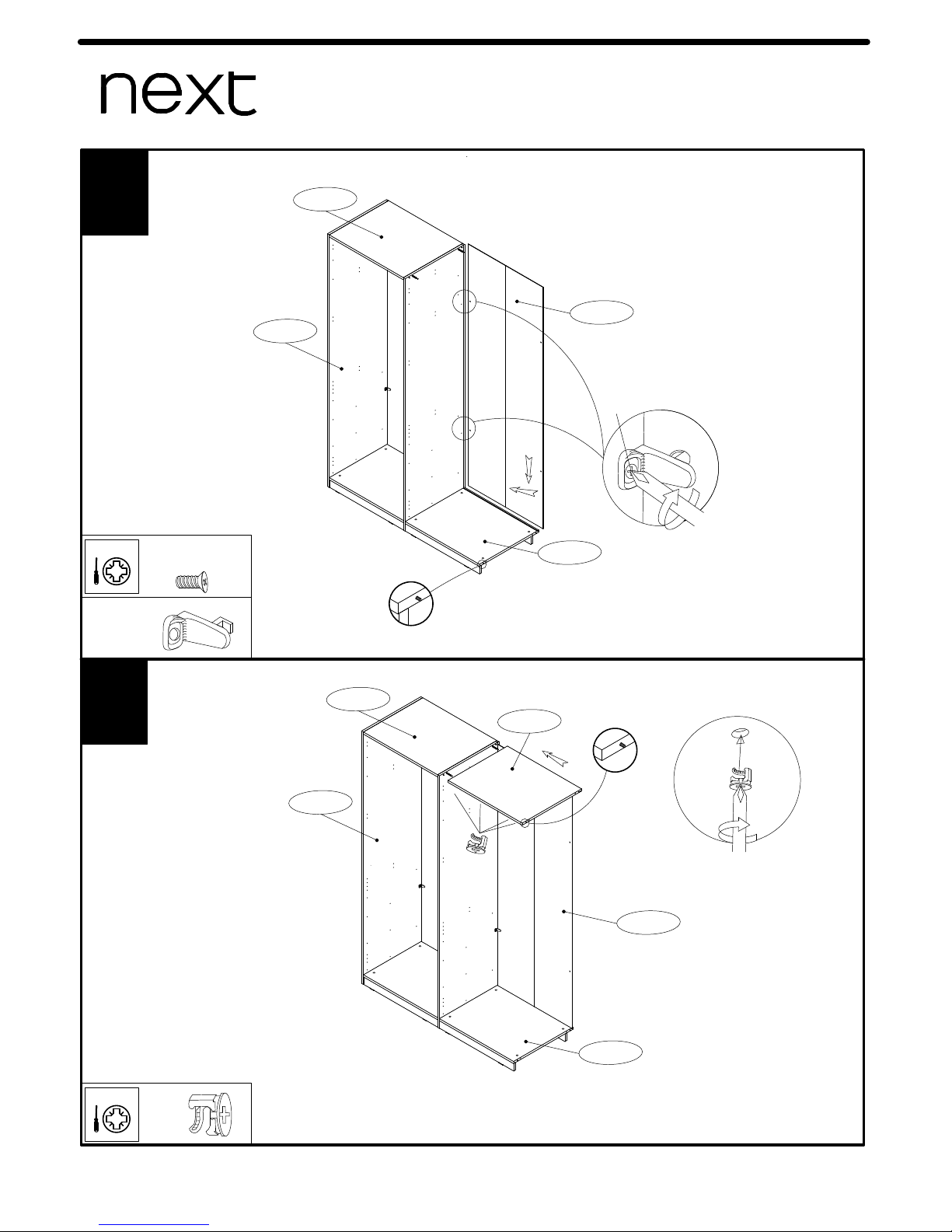

7

8

PH2

Kx2

Wx2

6.3x11mm

K

W

M70-003

B

Bx4

PH2

M70-405

M70-101

M70-406

M70-003

M70-101

M70-406

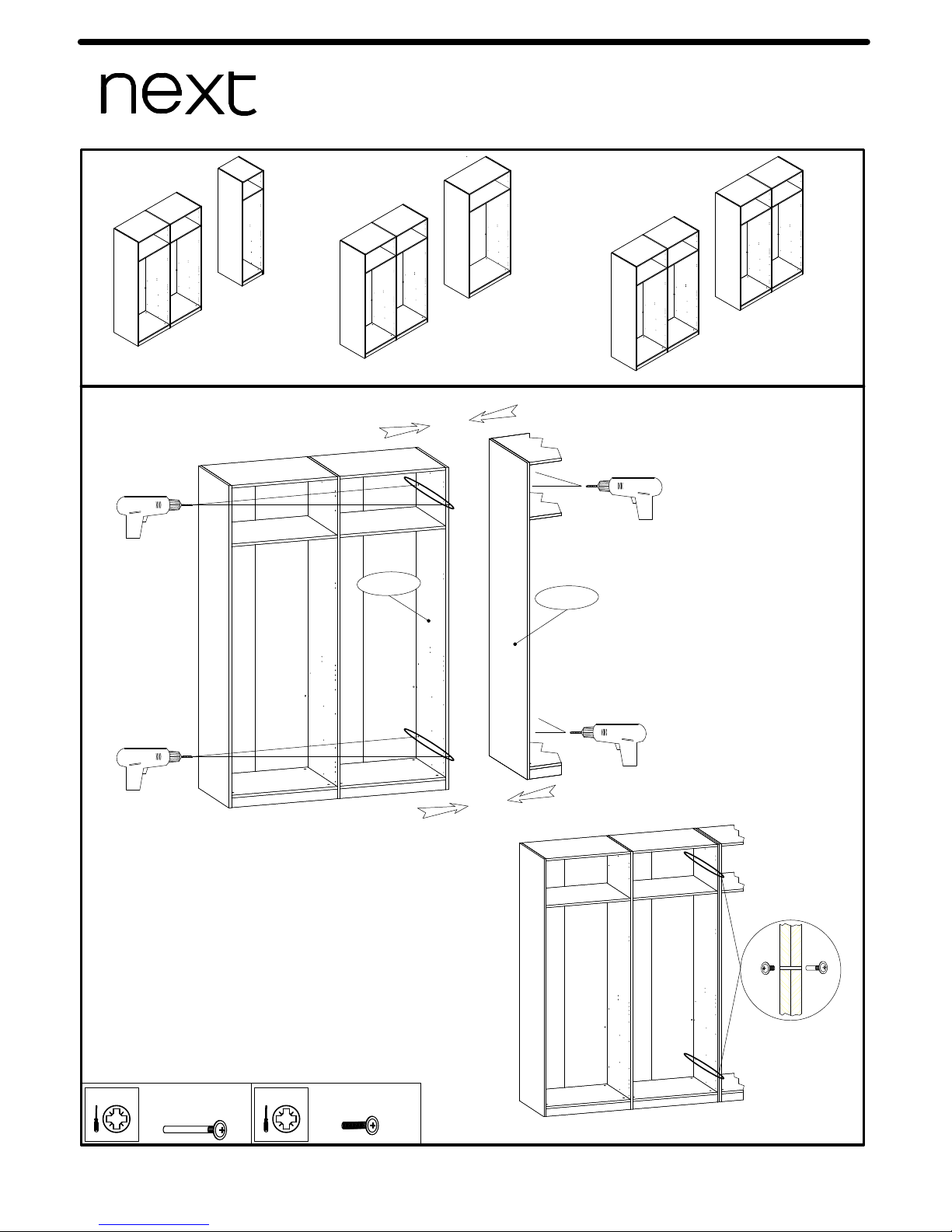

9

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

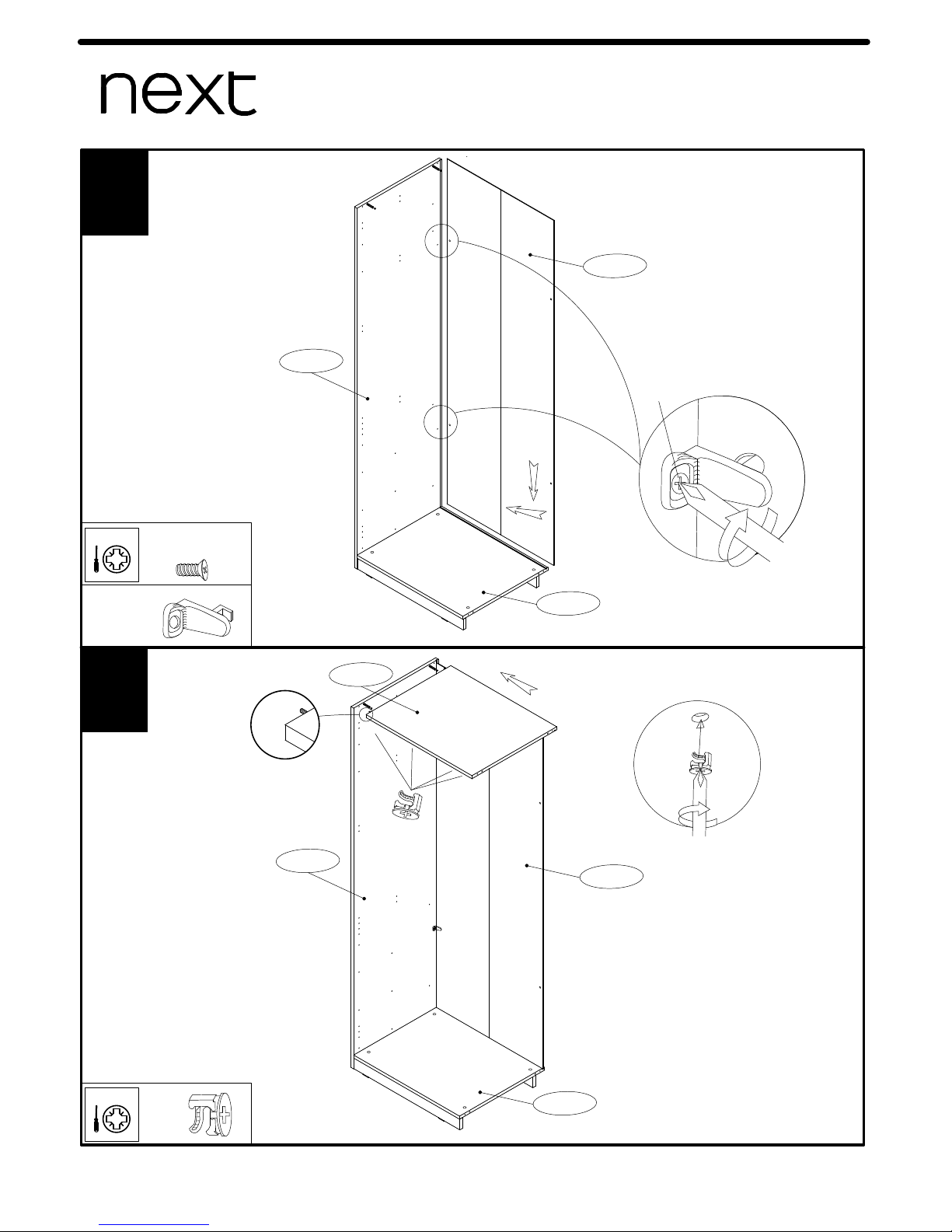

9

10

K

W

PH2

Kx2

Wx2

6.3x11mm

M70-201

M70-405

M70-101

D1x4

5x55mm

D1

M70-201

M70-405

M70-101

Bx4

PH2

M70-406

B

10

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

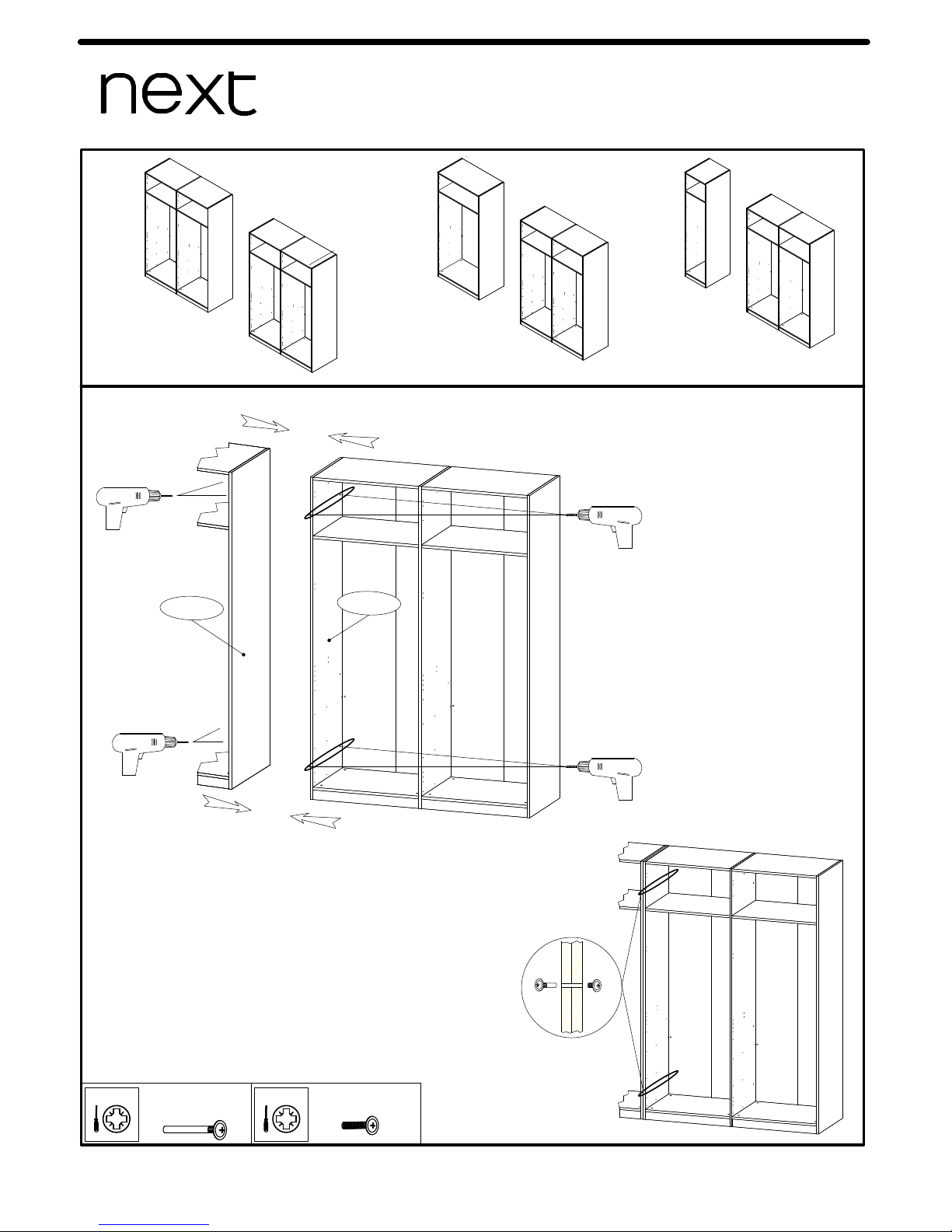

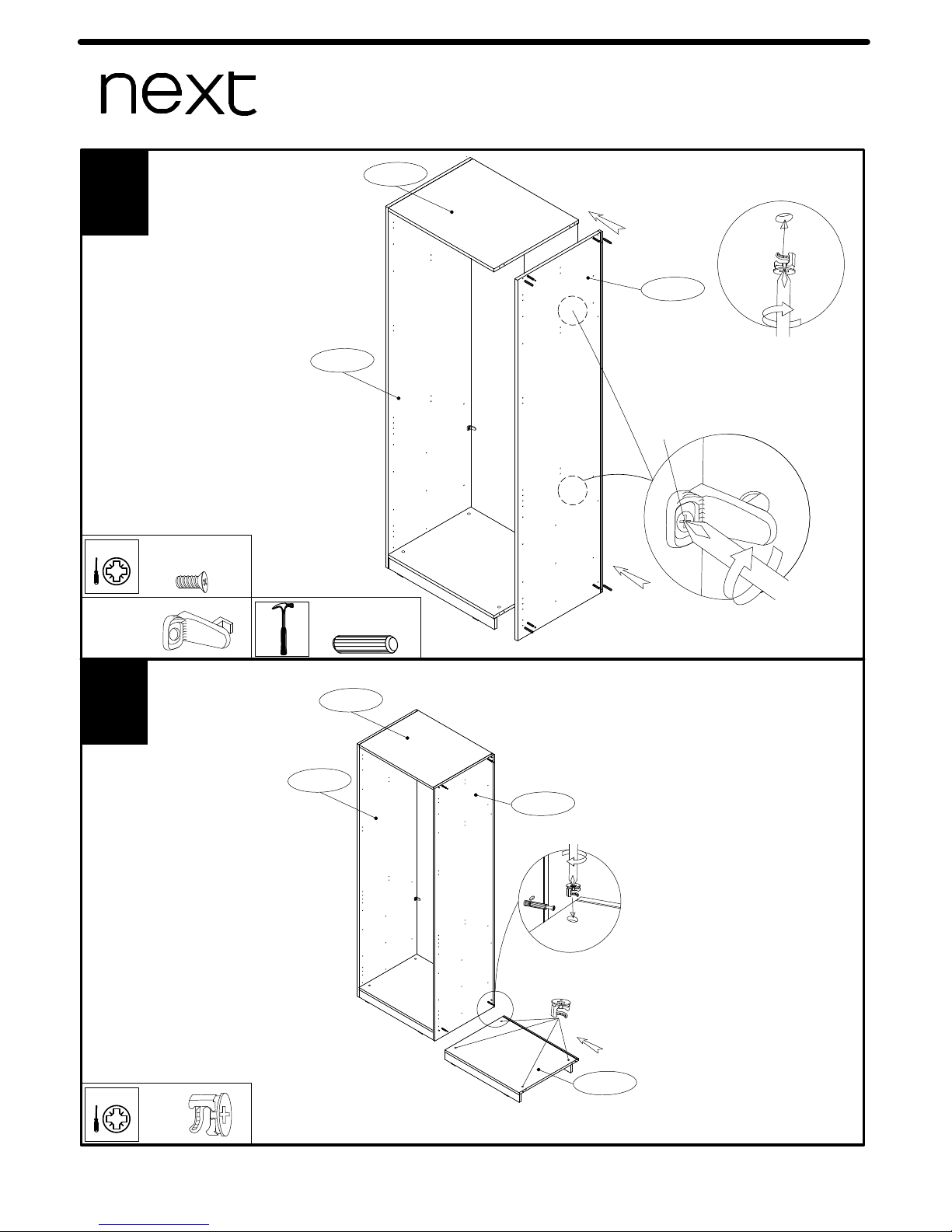

11

12

M70-405

M70-101

K

W

M70-003

M70-406

M70-405

M70-101

B

M70-405

M70-003

M70-406

PH2

Kx2

Wx2

6.3x11mm

Bx4

PH2

11

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

13

M70-405

M70-101

M70-405

K

W

M70-102

PH2

Kx2

Wx2

6.3x11mm

M70-452

U2

U2x8

PH2

14

12

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

15

PH2

Px8

Vx8

3.5x13mm

Z1x4

Cx16

Jx16

PH2

B

C

o

90

P

Z1

P

V

J

P

V

I

II

III

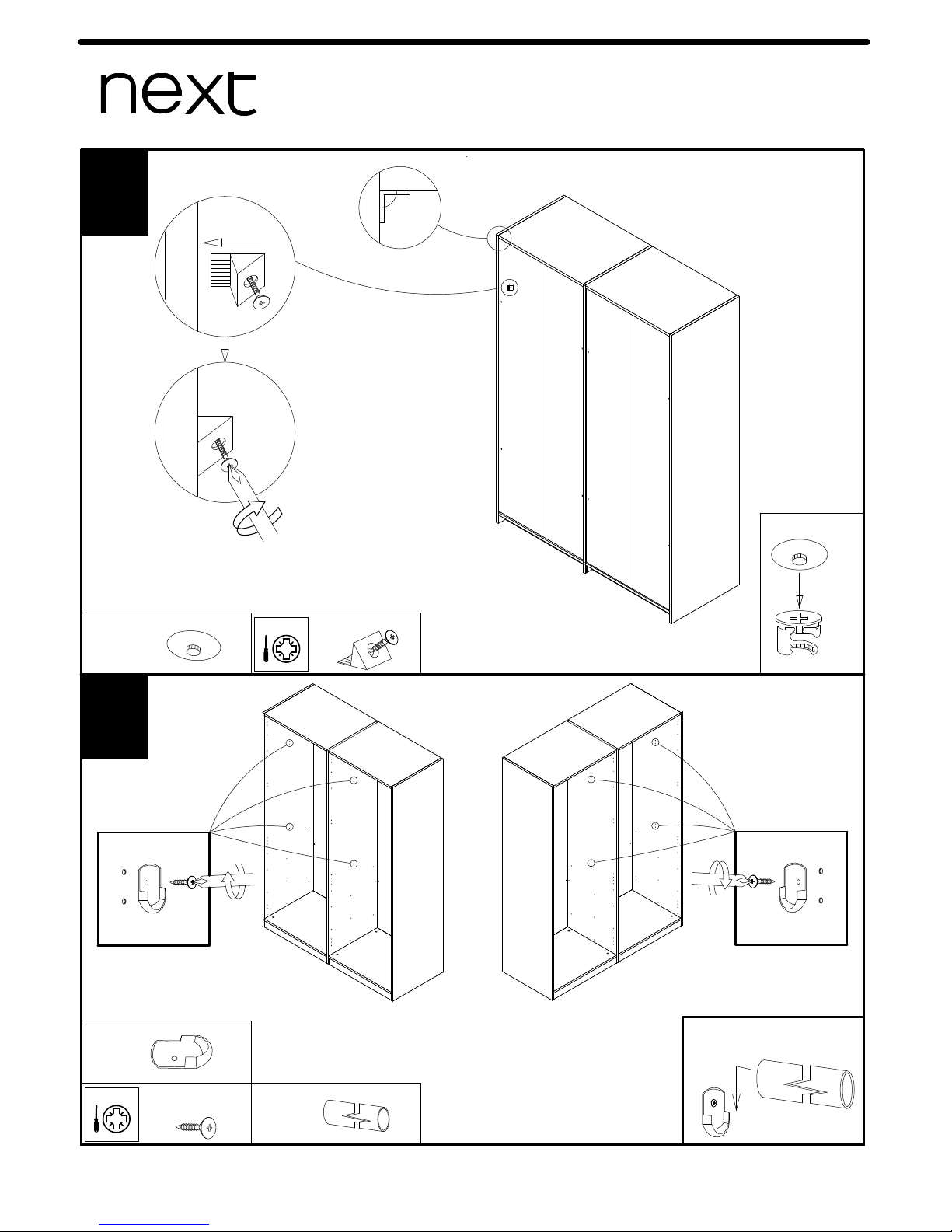

16

13

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

17

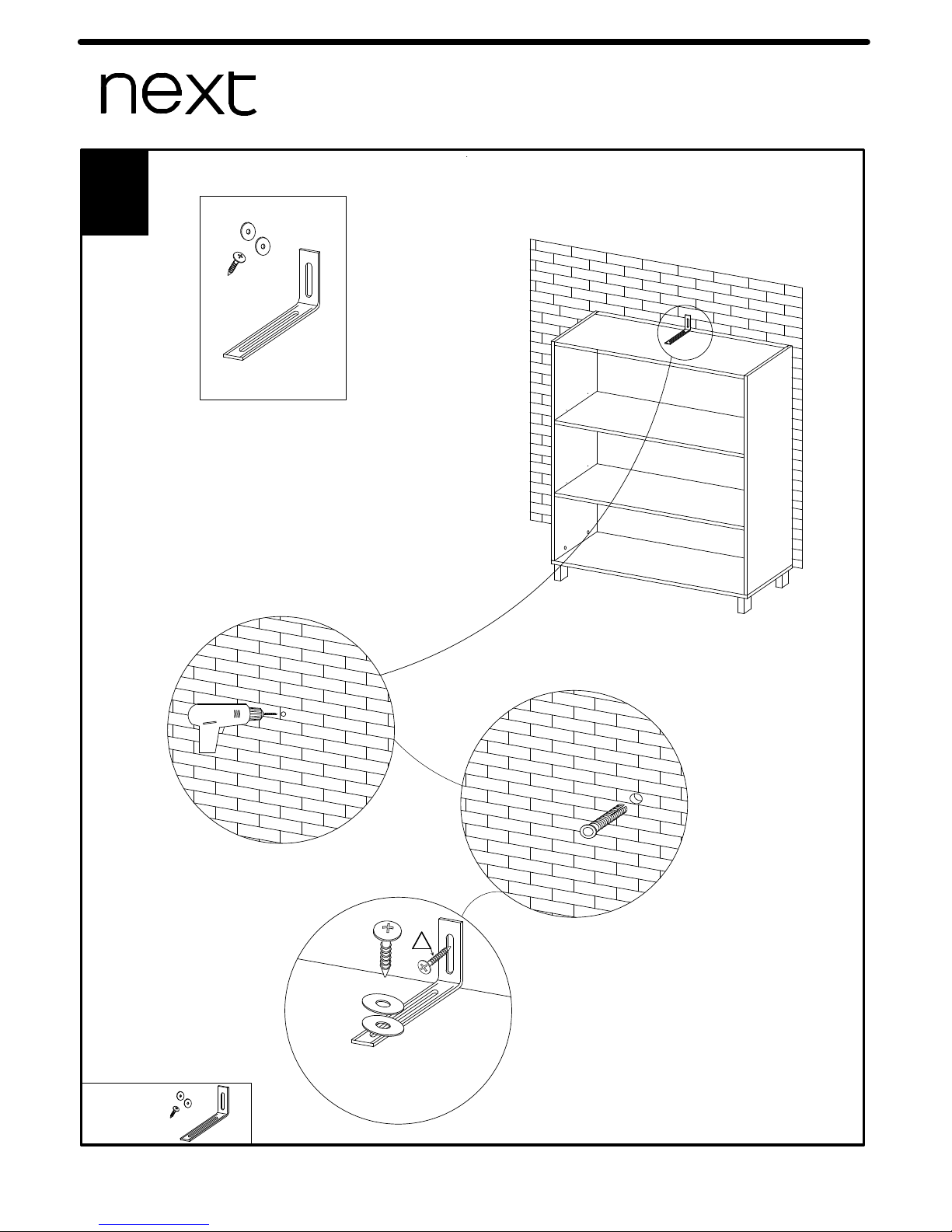

The wall fastening serves to prevent tipping - be absolutely sure to mount it! For certain wall types, a special wall plug may be necessary!

I1x2

!

14

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

1661mm 351mm

564mm

722

mm

722

mm

Actual product size

H213x W150x D58cm

15

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

F

F1

PH2

Fx4

4x16mm

PH2

F1x4

5x27mm

+

Ø5.0

M70-102

M70-101

16

Produced in Poland for Next Retail Ltd

807135-2014-V1

MODULAR CARCASS OAK SLIDE

807135 Assembly instructions

PH2

Fx4

4x16mm

PH2

F1x4

5x27mm

+

M70-102

M70-101

F

F1

Ø5.0
