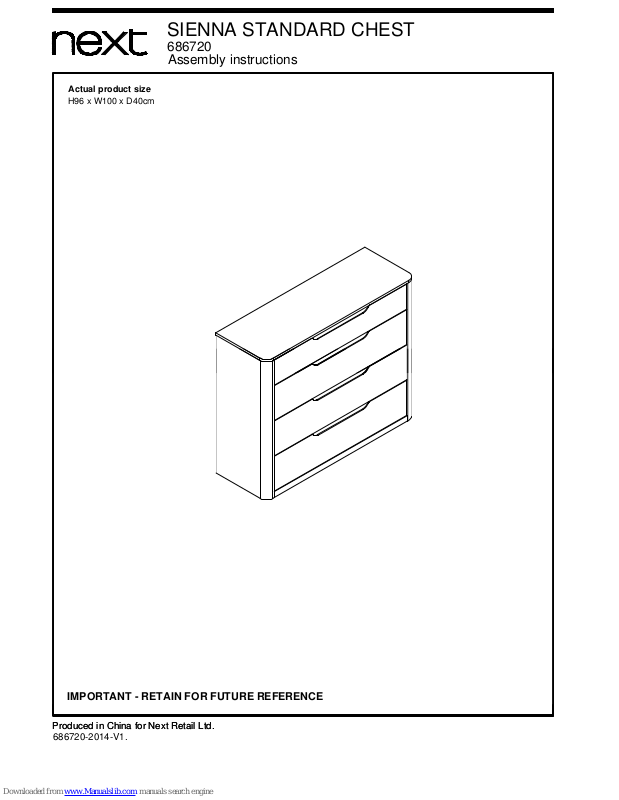

SIENNA STANDARD CHEST
686720
Assembly instructions
Actual product size
H96 x W100 x D40cm
IMPORTANT - RETAIN FOR FUTURE REFERENCE
Produced in China for Next Retail Ltd.
Produced in China for Next Retail Ltd.
686720-2014-V1.
SIENNA STANDARD CHEST
686720
Assembly instruction
Warnings Number of people required to assemble
Important:
Retain these instructions for future reference
Time to assemble
This product should only be used on firm level ground.
Please periodically check all fittings and re-tighten as necessary
Please do not sit or stand on your furniture
Do's Tools required
Missing parts
Unwrap all packaging materials and place the components on top of the
carton box or on a clean floor to protect it from damage
When you are ready to start. Make sure that you have the right tools.
BEFORE YOU START
Look out for the symbol througout this manual. Wherever you see it we will
have a handy tip to help you with the assembly of your product.
Two persons are required to assemble this item
We suggest you spend a short time reading through the leaflet before you
start
Keep fittings out of children’s reach and keep children well away from
construction area.
Avoid exposing the furniture to excessive heat or direct sunlight as this can
cause deterioration of the colour
not supplied not supplied
PH2
Tips
2 hour
Missing parts
Home service technicians
You can write to us at
Plenty of space and a clean, dry area for assembly
Unwrap all packaging materials and place the components on a clean
surface to protect it from damage, We recommend that the packaging is
used to protect the surfaces during assembly.
Carefully check that you have all the parts before beginning assembly
Due to the size of the product we recommend that it is assembled in the
room intended for use
Next Retail Ltd.
Desford Road,
Leicester,
LE19 4AT
To view our full furniture range please visit www.next.co.uk
Never allow any kind of liquid to remain on your furniture. Absorption can
cause wood to warp or finishes to de-laminate.
Do not place hot items (e.g. hot drinks) directly on to the wood surface.
Please make sure you use a placement or coaster
Do not use silicone based furniture polish. Silicone in furniture polishes can
break down the finish
Ensure the product is fully assembled as illustrated and all fixings fully
tightened before use.
Wipe occasionally with a soft cloth slightly dampened with water. Then buff
with a dry clean soft cloth
Do not drag or pull your furniture
Wood will mellow and change colour over time, we recommend that
ornaments and items placed on the surface are moved regularly for the first
few months to prevent uneven mellowing.
Don'ts
If you are missing any fixtures and fittings for your product. Please contact our
customer service team on 0333 777 8999 and they will be happy to arrange for
a replacement to be sent to you free of charge
If you have a fault with your product. Please contact our customer service team
on 0333 777 8999. If you have had the product for 28 days or less you may be
offered a replacement,refund or for a fully trained home service technician to
visit your home to assess the fault and repair the product where possible. If
you have had the product for more than 28 days we will send an independant
home service technician to review and repair the product where possible and
recommend further action.
Produced in China for NEXT retail Ltd.
1111
686720-2014-V1.
SIENNA STANDARD CHEST
686720
Assembly instructions
GETTING TO KNOW YOUR PRODUCT
1
2
3
7
8
8
9
20
2
Produced in China for Next Retail Ltd.
2
6
2
Produced in China for Next Retail Ltd.
686720-2014-V1.
SIENNA STANDARD CHEST
686720
Assembly instructions
CUSTOMER HELPLINE
Components supplied
If you have any problem with this product or require any replacement fittings please contact customer services 0333 777 8999
Ref
Dimensions Visual
Qty
1
2
3
4
5
6
7
1
40 x 100cm
1
1
1
1
1
1
40 x 95cm
40 x 95cm
4 x 87cm
6 x 87cm
8 x 87cm
8 x 87cm
17
3
20 x 34cm
18
3
20 x 34cm
19
3
20 x 83cm
20
1
6 x 87cm
7
8
9
10
11
12
13
14
15
16
1
2
1
1
1
1
1
4
4
3
8 x 87cm
40 x 88cm
24 x 87cm
17 x 87cm
13x 34cm
13x 34cm
13 x 83cm
34 x 84cm
6 x 33cm
24 x 87cm
Produced in China for Next Retail Ltd.
686720-2014-V1.
3
24
SIENNA STANDARD CHEST
686720
Assembly instructions
CUSTOMER HELPLINE
If you have any problem with this product or require any replacement fittings please contact customer services 0333 777 8999
Fixtures and fittings
supplied (actual size)
Ref
Dimensions
Qty
A
16
8 x 30mm
4 x 14mm
18
6 x 30mm
10 x 15mm
7 x 35mm
27
24
27
I
B
D
E
F
4 x 38mm
10
20
30
40
50
60
70
80
90
100
4
G
24
Ref
Dimensions Visual
Qty
Fixtures and fittings supplied
4 x 14mm
N/A
4mm
3 x 14mm
3x12mm
3
1
12
2
I
C
M
J
L
N/A
6 x 25mm
K 6
8 x 20mm
N 4
4
H
N/A
Produced in China for Next Retail Ltd.
686720-2014-V1.
4
SIENNA STANDARD CHEST
686720
Assembly instructions
1
3
CAM-PILLAR
Tighten until shou lder is flush
with panel.Do not overtighten
or undertighten (see ex ample below)
Shoulder
NO GAP
Panel
Panel
not supplied
PH2
F x6
4 x 38mm
2
1
not supplied
A x3
6 x 30mm
Align with long point of cross
Pillar head needs to be in centre
WHEN FITTING CAMS
ENSURE STARTING POSITION CORRECT
BEFORE YOU INSERT CONNECTING CAM-PILLAR
TURN CLOCKWISE UNTIL SECURE
CORRECT
WRONG
not supplied
PH2
D x3
10 x 15mm
Panel
Panel
4
not supplied
PH2
E x3
7 x 35mm
not supplied
5
Produced in China for Next Retail Ltd.
686720-2014-V1.
x3 UNITS
SIENNA STANDARD CHEST
686720
Assembly instructions
not supplied
PH2
F x18
4 x 38mm
5
6
7
x3 UNITS
x3 UNITS
8
not supplied
PH2
E x9
7 x 35mm
not supplied
PH2
D x9
10 x 15mm
not supplied
A x15
6 x 30mm
x3 UNITS
x3 UNITS
6
not supplied
Produced in China for Next Retail Ltd.
686720-2014-V1.
not supplied
PH2
I x24
4 x 14mm
H x4
N/A
G x4
N/A
SIENNA STANDARD CHEST
686720
Assembly instructions
9
PH2
7 x 35mm
Produced in China for Next Retail Ltd.
not supplied
PH2
D x3
10 x 15mm
11
not supplied
B x5
8 x 30mm
not supplied
PH2
D x4
10 x 15mm
7
10
not supplied
B x2
8 x 30mm
not supplied
PH2
E x11
7 x 35mm
Produced in China for Next Retail Ltd.
686720-2014-V1.
7
13
not supplied
B x5
8 x 30mm
PH2
D x4
10 x 15mm
SIENNA STANDARD CHEST
686720
Assembly instructions
12
15
not supplied
N x4
8 x 20mm
K x6
6 x 25mm
not supplied
PH2
D x4
M x1
4mm
not supplied
PH2
E x4
7 x 35mm
Produced in China for Next Retail Ltd.
8
14
not supplied
Produced in China for Next Retail Ltd.
686720-2014-V1.
8
SIENNA STANDARD CHEST
686720
Assembly instructions
16
not supplied
B x4
8 x 30mm
PH2
D x4
10 x 15mm
17
not supplied
PH2
D x4
9
Produced in China for Next Retail Ltd.
686720-2014-V1.
PH2
J x12
3 x 14mm
SIENNA STANDARD CHEST
686720
Assembly instructions
18
TOP
WALL
STRAP
SCREW
WASHER
We recommend the use of the wall attachment bracket/strap provided for safety reasons.
Using screw and washer secure the 2 x nylon straps (L) to the back of top panel.
Secure the other end of the strap to the wall with an appropriate screw and wall plug
for your wall type (not provided).
To hide the strap behind the unit ,drill the hole lower than the top of unit.
Warning: Always ensure intended wall area to be drilled is free from hidden electrical
wires,water and gas pipes.
NB:Wall fixings are not included-Please source suitable fixings for your wall type.
If in doubt please consult a qualified trades person.
not supplied
PH2
J x12
not supplied
PH2
L x2
3 x 12mm
19
not supplied
Produced in China for Next Retail Ltd.
686720-2014-V1.
10
SIENNA STANDARD CHEST
686720
Assembly instructions
8
3
2
m
m
3
2
9
m
m
1
4
8
m
m
1
0
0
0
m
m
4
0
0
m
m
8
3
2
m
m
3
2
9
m
m
2
