Need Help?
With: Assembly instructions
Missing or damaged parts
CALL: 0333 777 8999

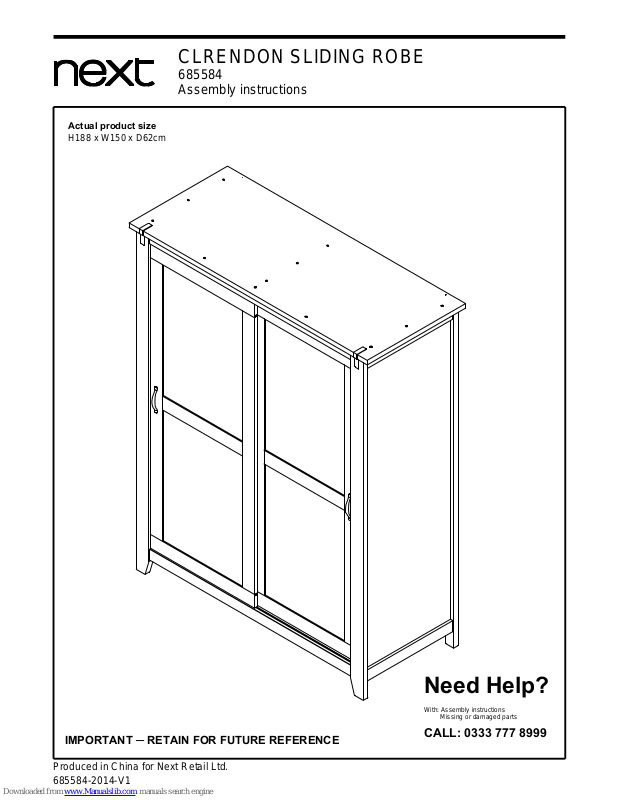

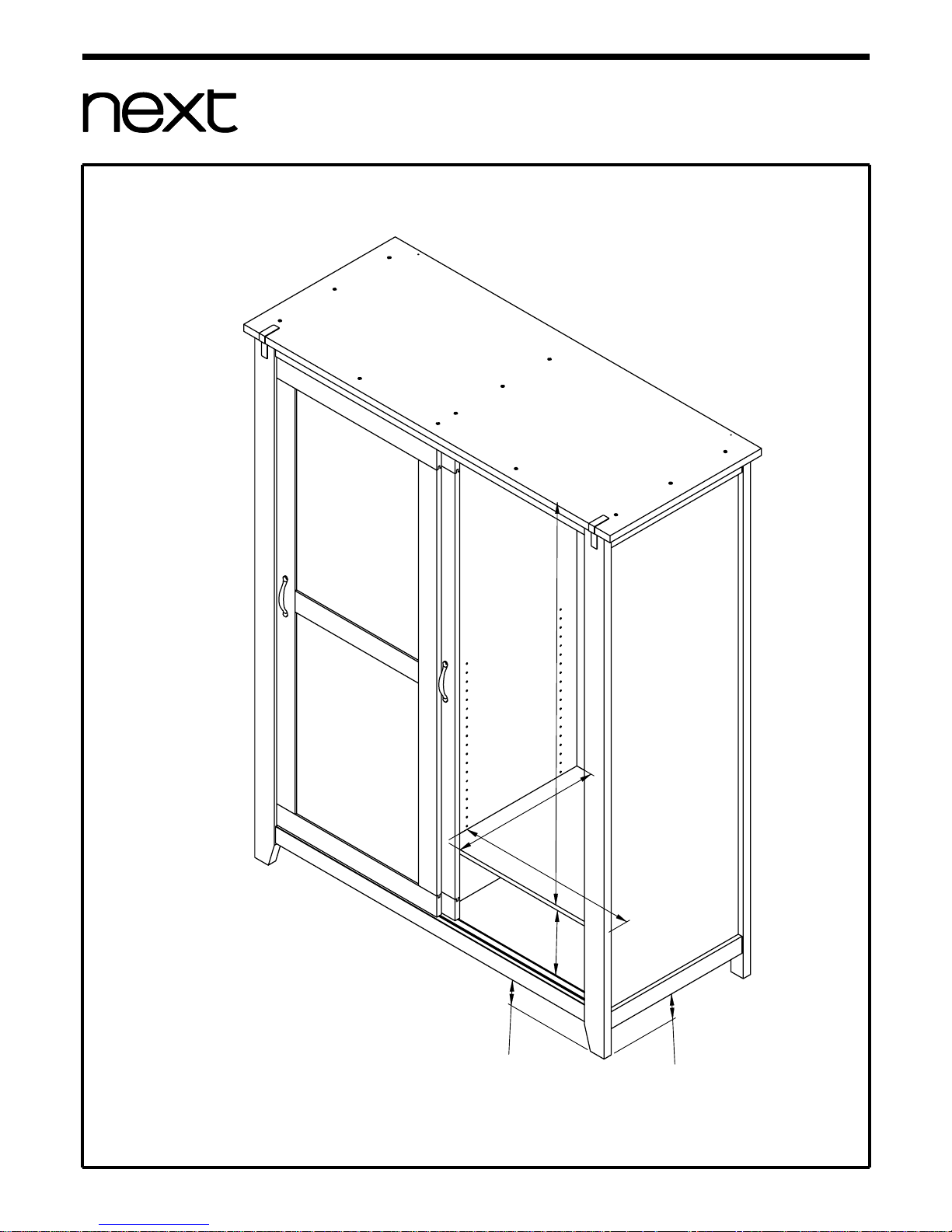

CLRENDON SLIDING ROBE
685584-2014-V1
Produced in China for Next Retail Ltd.
H188 x W150 x D62cm
IMPORTANT ─ RETAIN FOR FUTURE REFERENCE
Assembly instructions
685584
Actual product size
Page 2
not supplied
2 hours
not supplied
PH
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
To View our full furniture range please visit www.next.co.uk
You can write to us at
Home Customer Services
Next Retail Ltd,
Desford Road,
Leicester,
LE19 4AT
Home service technicians
If you have a fault with your product please contact our
customer service team on
0333 777 8999.
If you have had the
product for 28 days or less you may be offered a replacement,
refund or for a fully trained home service technician to visit your
home to assess the fault and repair the product where possible.
If you have had the product for more than 28 days we will send
an independant home service technician to review and repair
the product where possible and recommend further action.
Missing parts
If you are missing any fixtures and fittings for your product
please contact our customer service team on
0333 777 8999
and they will be happy to arrange for a replacement to be sent
to you free of charge.
Tools required
Time to assemble
Number of people required to assemble
Two persons are required to assemble this item.
Don’ts
Do not drag or pull your furniture.
Do not use silicone based furniture polish. Silicone in furniture
polishes can break down the finish.
Never allow any kind of liquid to remain on your furniture.
Absorption can cause wood to warp or finishes to de-laminate.
Do not place hot items (e.g. hot drinks) directly on to the wood
surface. Please make sure you use a placement or coaster.
BEFORE YOU START
Assembly instructions
Warnings
We suggest you retain these instructions for future reference.
Keep fittings out of children’s reach and keep children well
away from the construction area.
This product should only be used on firm, level ground.
Please periodically check all fittings and re-tighten as
necessary.
Please do not sit or stand on your furniture.
Avoid exposing the furniture to excessive heat or direct
sunlight as this can cause deterioration of the colour.
Unwrap all packaging materials and place the components
on top of the carton box or on a clean floor to protect it from
damage.
Do’s
We suggest you spend a short time reading through this leaflet
before you start.
When you are ready to start, make sure that you have the
right tools and plenty of space.
Unwrap all packaging materials and place the components
on a clean surface to protect it from damage.
We recommend that the packaging is used to protect the
surfaces during assembly.
Carefully check that you have all the parts before beginning
assembly
Due to the size of the product we recommend that it is
assembled in the room intended for use.
Ensure the product is fully assembled as illustrated and all
fixings are fully tightened before use.
Wipe occasionally with a soft cloth slightly dampened with
water. Then buff with a dry clean soft cloth.
Wood will mellow and change colour over time, we recommend
that ornaments and items placed on the surface are moved
regularly for the first few months to prevent uneven mellowing.
PRODUCT SUPPLIED WITH WALL FIXING STRAPS
1
Page 3

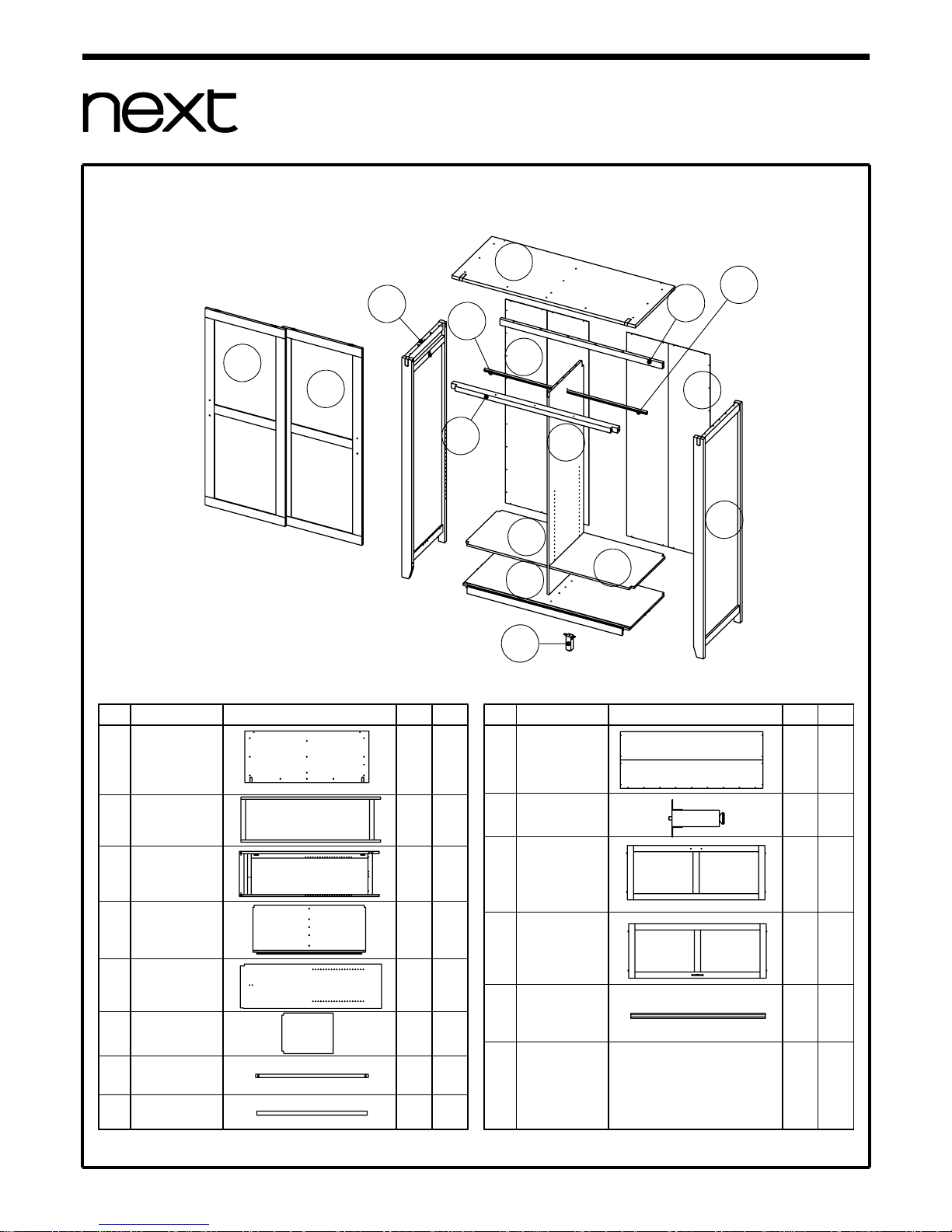

Components supplied. Please use this guide if you require replacement parts.
QtyVisualDimensionsRef Ctn CtnRef Dimensions Visual Qty
111
3
2
21
12
4
11
1
5
7
6
244
13
8
11
24
10
11
12
13
2
11
13
13
22
62 x 150cm
60 x 186cm
60 x 186cm
57 x 127cm
54 x 171cm
54 x 68cm
6 x 136cm
5 x 133cm
68 x 172cm9
4 x 12cm
66 x 166cm
66 x 166cm
65cm
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Assembly instructions
GETTING TO KNOW YOUR PRODUCT
1
2
3
5
7
8
9
9
10
11
13
13
4
6
6
12
Page 4
130
120110100908070605040302010
mm
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Assembly instructions
3

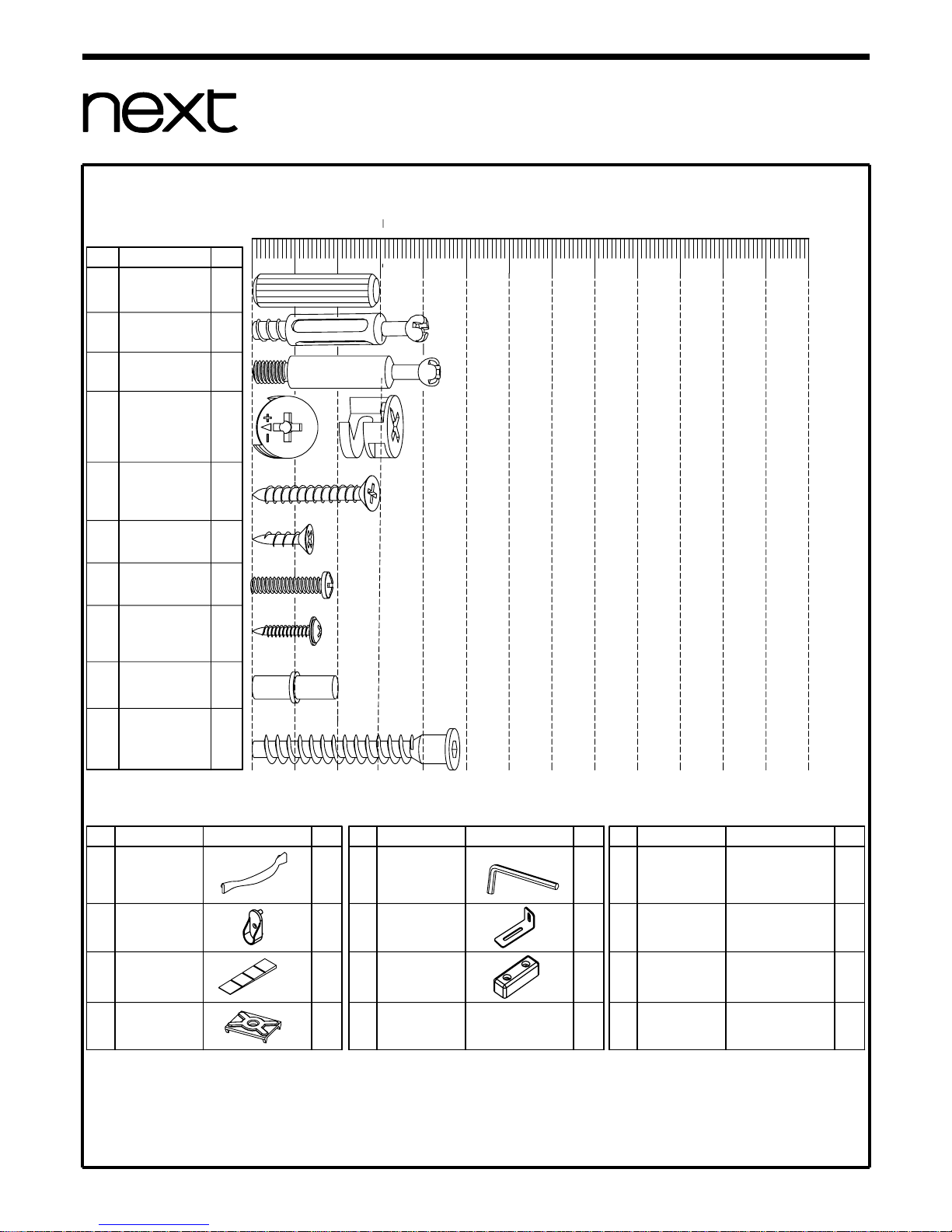

Fixtures and fittings
supplied (actual size)
DimensionsRef Qty
8
18
12
18
3.5 x 14mmAG
4 x 18mm
15 x 12mmAD
6 x 44mmAC
8 x 30mmAA
AB 6
Fixtures and fittings supplied(not to scale)
6 x 41mm
4
2
Ref Dimensions QtyVisual
4AH
3 x 16mm 39AK
4 x 30mm 4AJ
2
5
Visual QtyRef Dimensions
1AV
VisualRef QtyDimensions
AP 5 x 20mm 8
AU
2
2
AX
BZ
BB
7 x 50mmAL 15
BE
4mm
30 x 60mmCB
20 x 60mm
Page 5
not supplied
PH
not supplied
not supplied
AG
AX
4
8 x 30mm
AA x 4
3.5 x 14mm
AG x 2
8 x 30mm
AA x 8

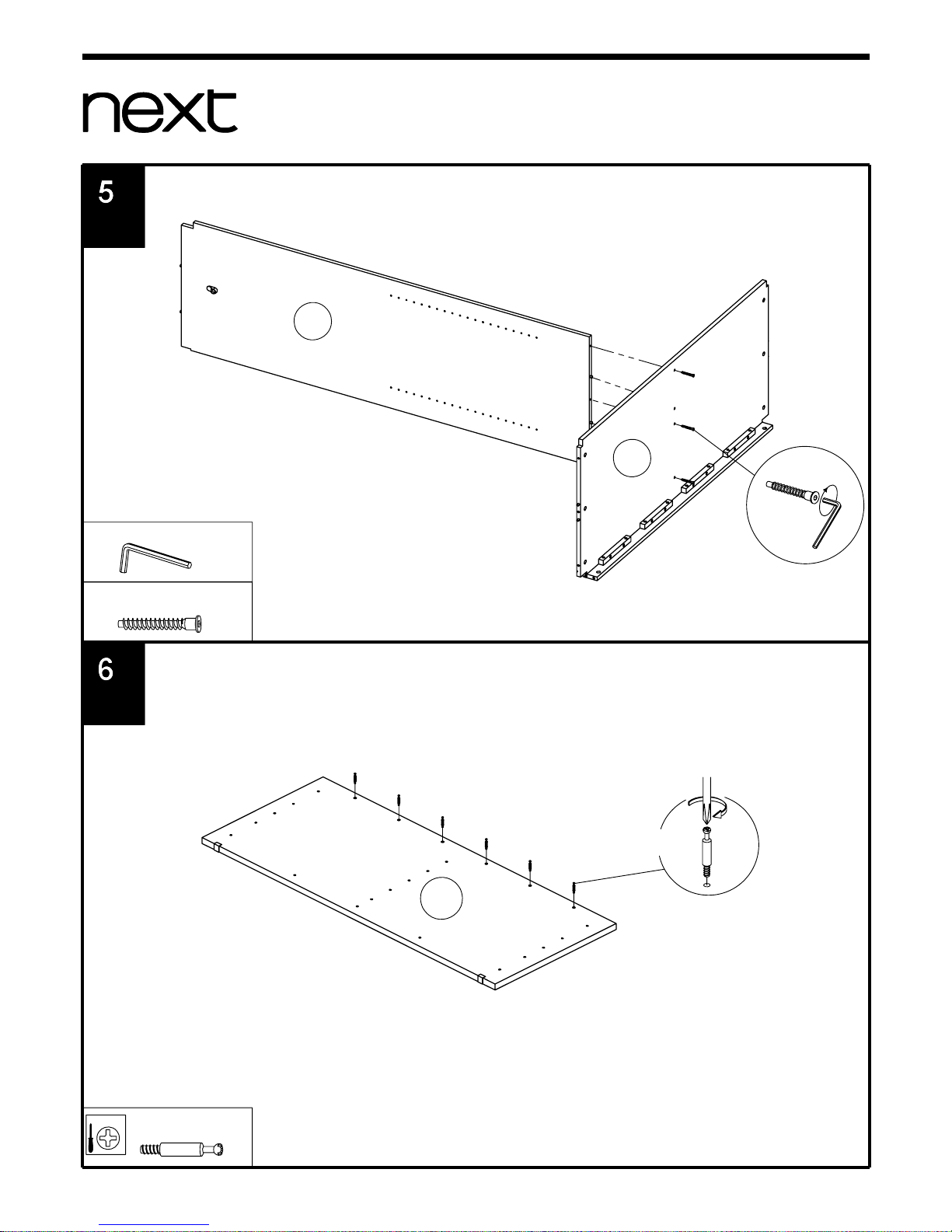

5
AG
AX
4
AA
AA
AA
AA
AA
AA
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Assembly instructions
AX x 2
7
AA
AA
5
AA
AA
AA
AA
Page 6
Shoulder
NO GAP
Panel Panel
Tighten until shoulder is flush
with panel. Do not overtighten
or undertighten (see example below)
CAM-LOCK
not supplied not supplied
PH
not supplied
not supplied
PH
not supplied
PH
not supplied
PH
AX x 1

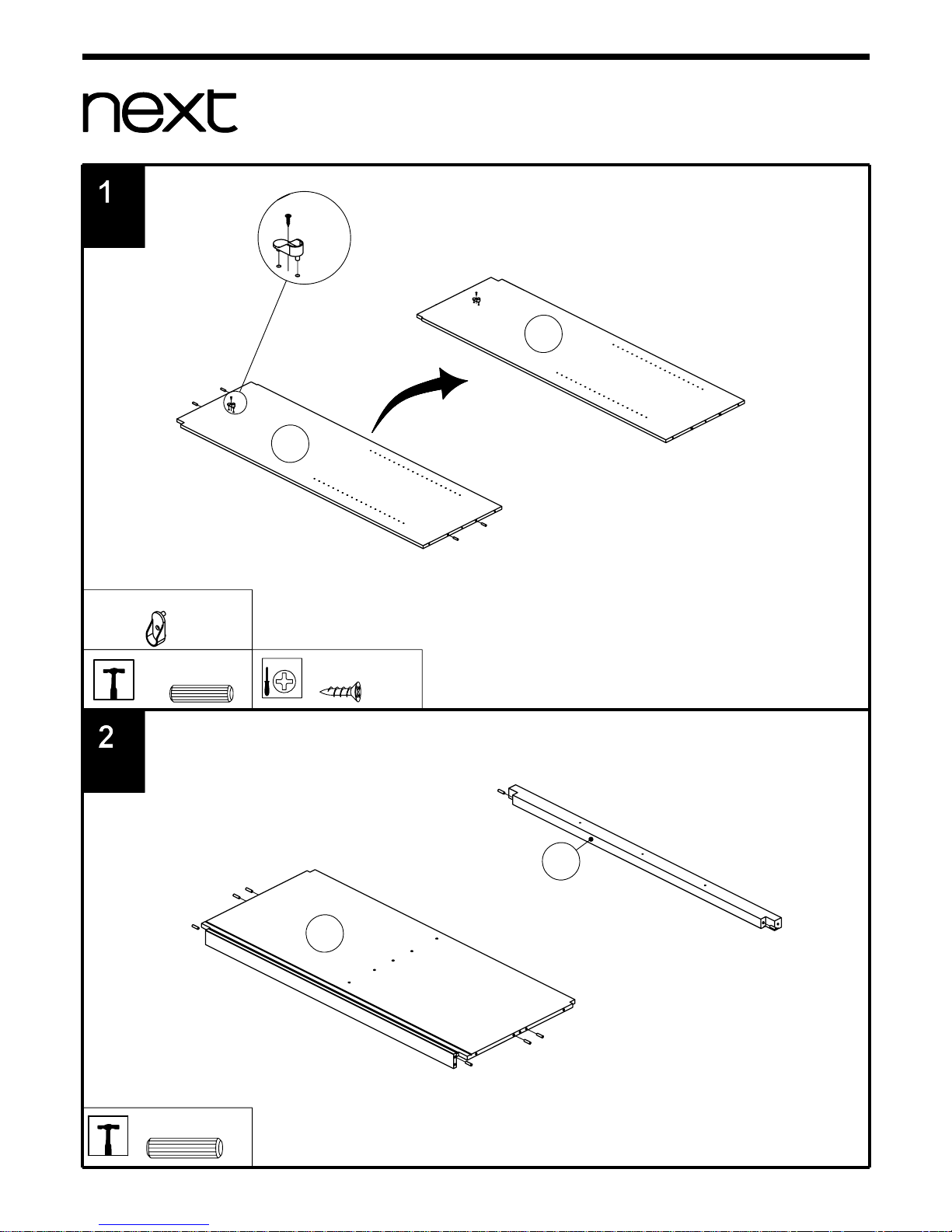

2
AA
AA
AC
AC
AC
AX
AG
AC
AC
AC
AC
8
AA
AA
5
AC x 6
6 x 41mm
AA x 2
8 x 30mm
AG x 1
3.5 x 14mm
3.5 x 14mm
AG x 1
8 x 30mm
AA x 4
6 x 41mm
AC x 6
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Assembly instructions
AX x 1
3
AA
AA
AC
AC
AX
AG
AC
AC
AC
AC
AC
Page 7
not supplied
PH
5
4
AL
AL
AL
AL
AV
AV x 1
4mm
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Assembly instructions

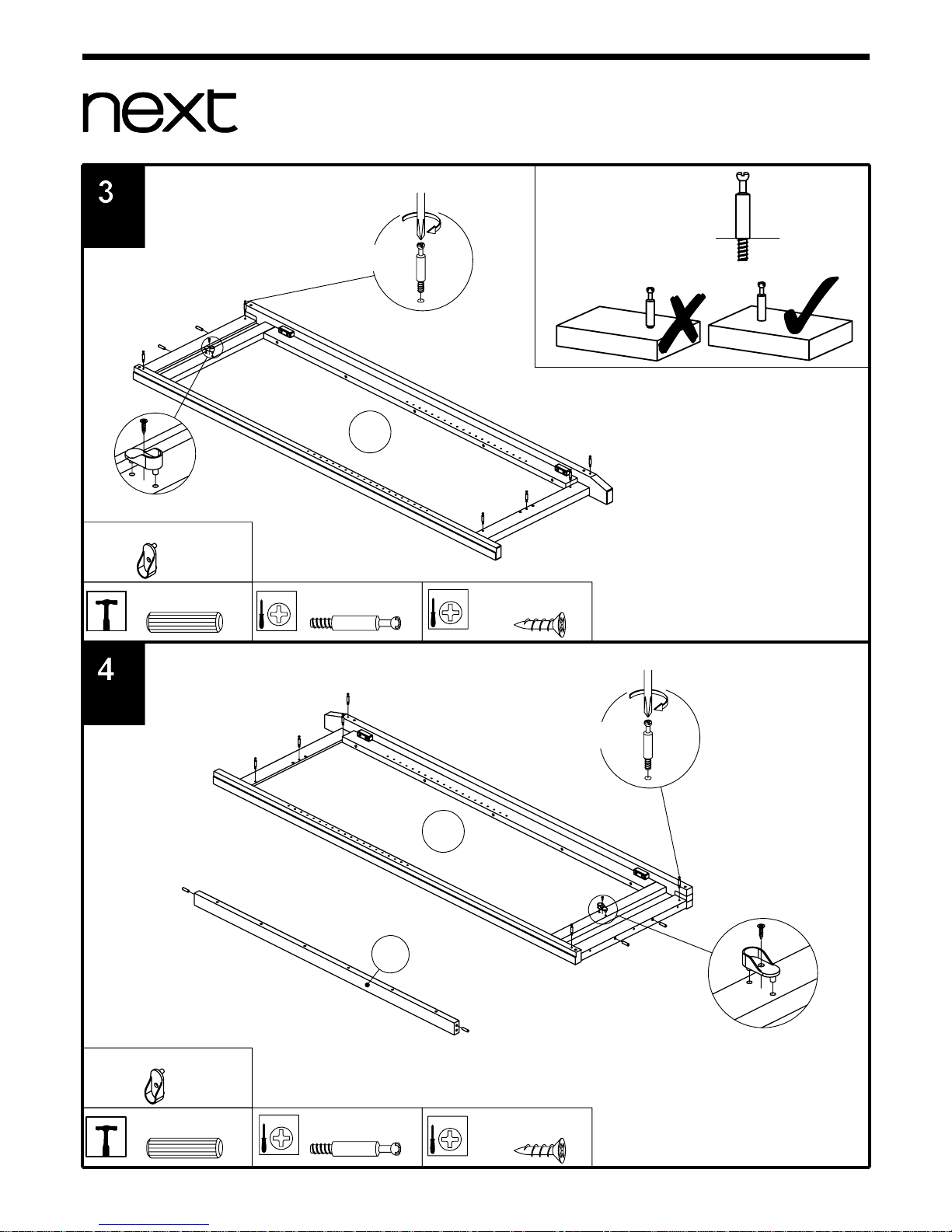

6
AC x 6
6 x 41mm
AL x 3
7 x 50mm
1
AC
AC
AC
AC
AC
AC
AC
Page 8
WHEN FITTING CAMS
ENSURE STARTING POSITION IS CORRECT
BEFORE YOU INSERT CONNECTING CAM-PILLAR
TURN CLOCKWISE UNTIL SECURE
CORRECT WRONG
not supplied
PH
not supplied
PH

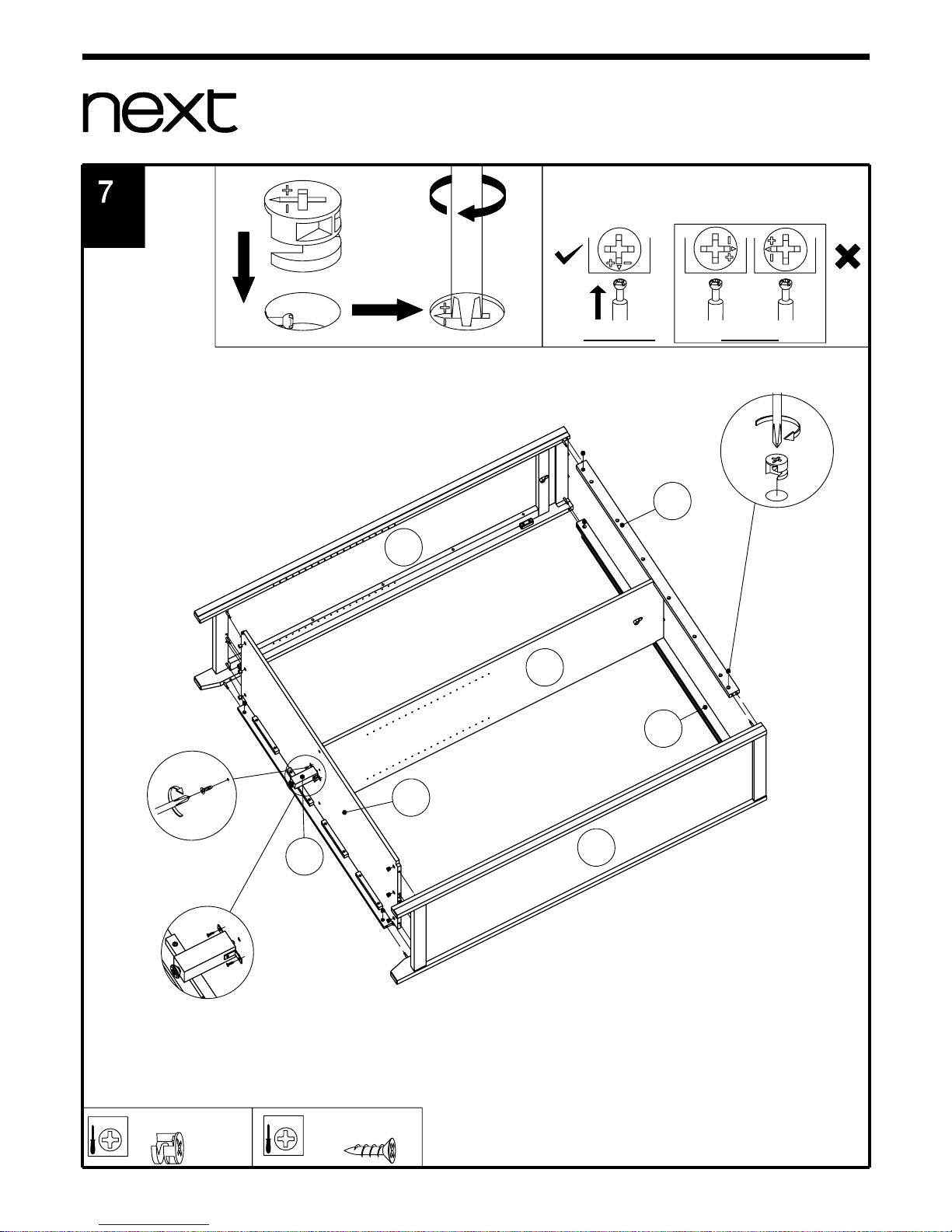

7
AD x 12
15 x 12mm
3.5 x 14mm
AG x 2
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Assembly instructions
2
3
5
7
8
10
4
AG
AG
AD
AD
AD
AD
AD
AD
AD
AG
AD
AD
AD
AD
AD
Page 9
not supplied
PH
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Assembly instructions
AV x 1
AL x 12
7 x 50mm
AD x 6
15 x 12mm

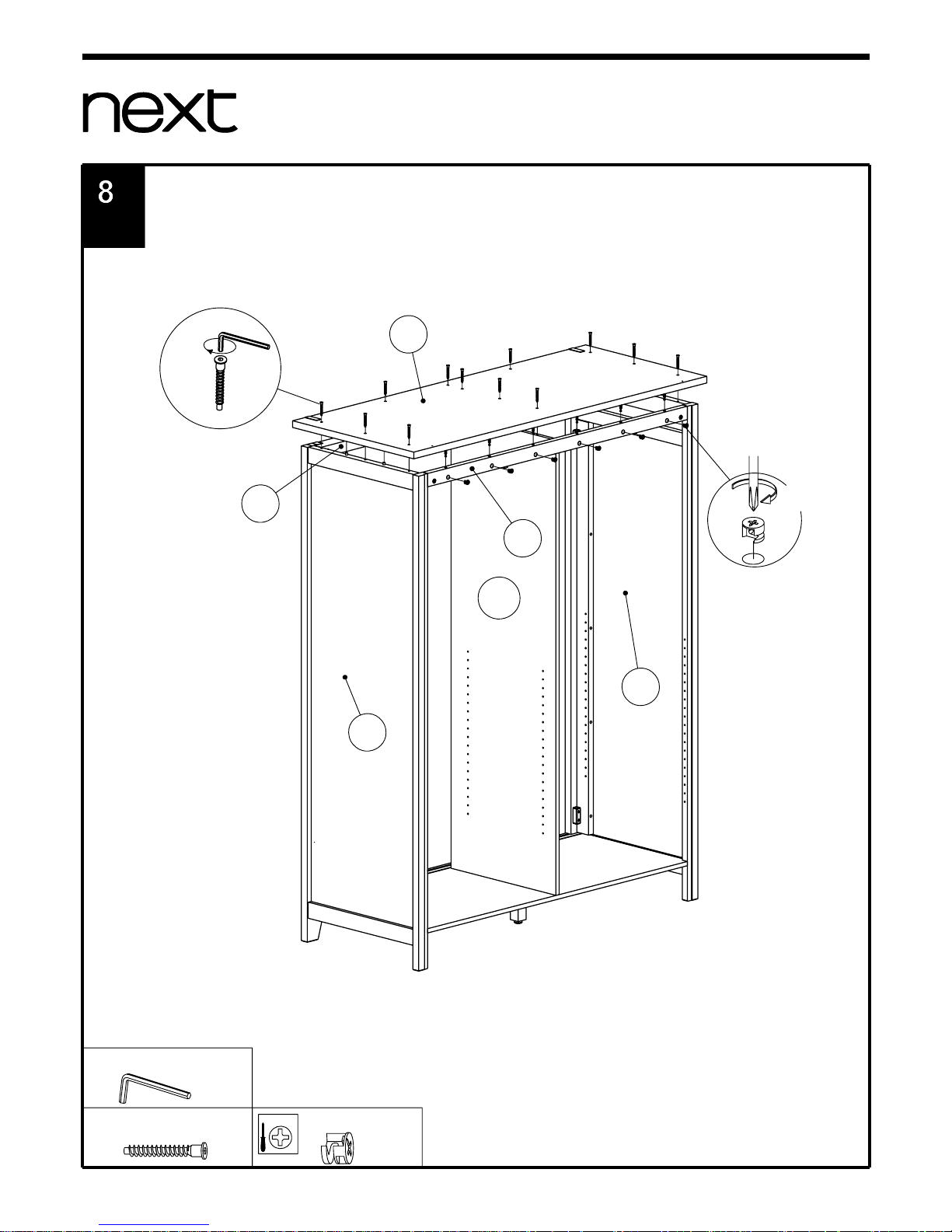

8
1
2
3
7
8
5
AD
AD
AD
AD
AD
AD
AL
AL
AL
AL
AL
AL
AL
AL
AL
AL
AL
AL
AL
AV
AD
Page 10

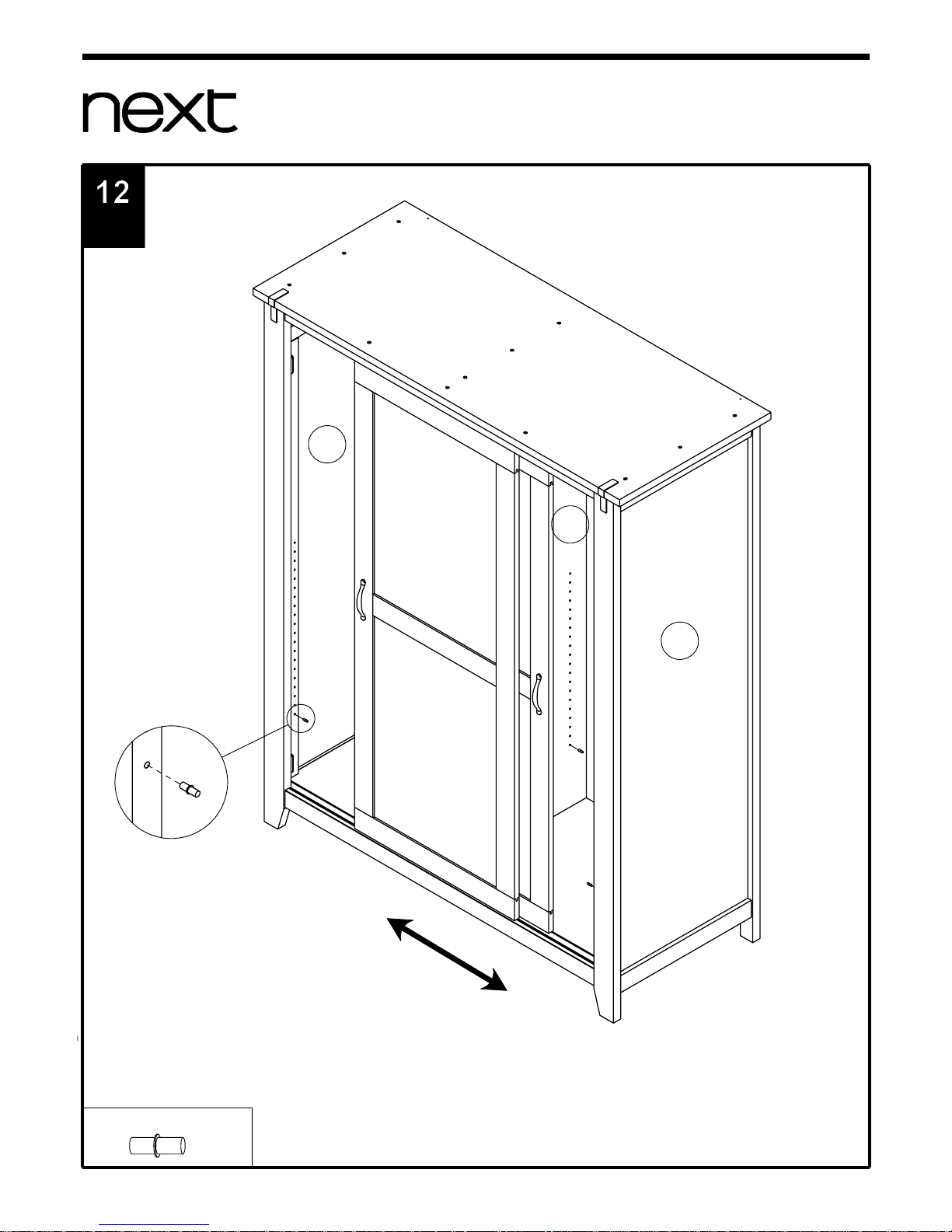

press the dot release wheel

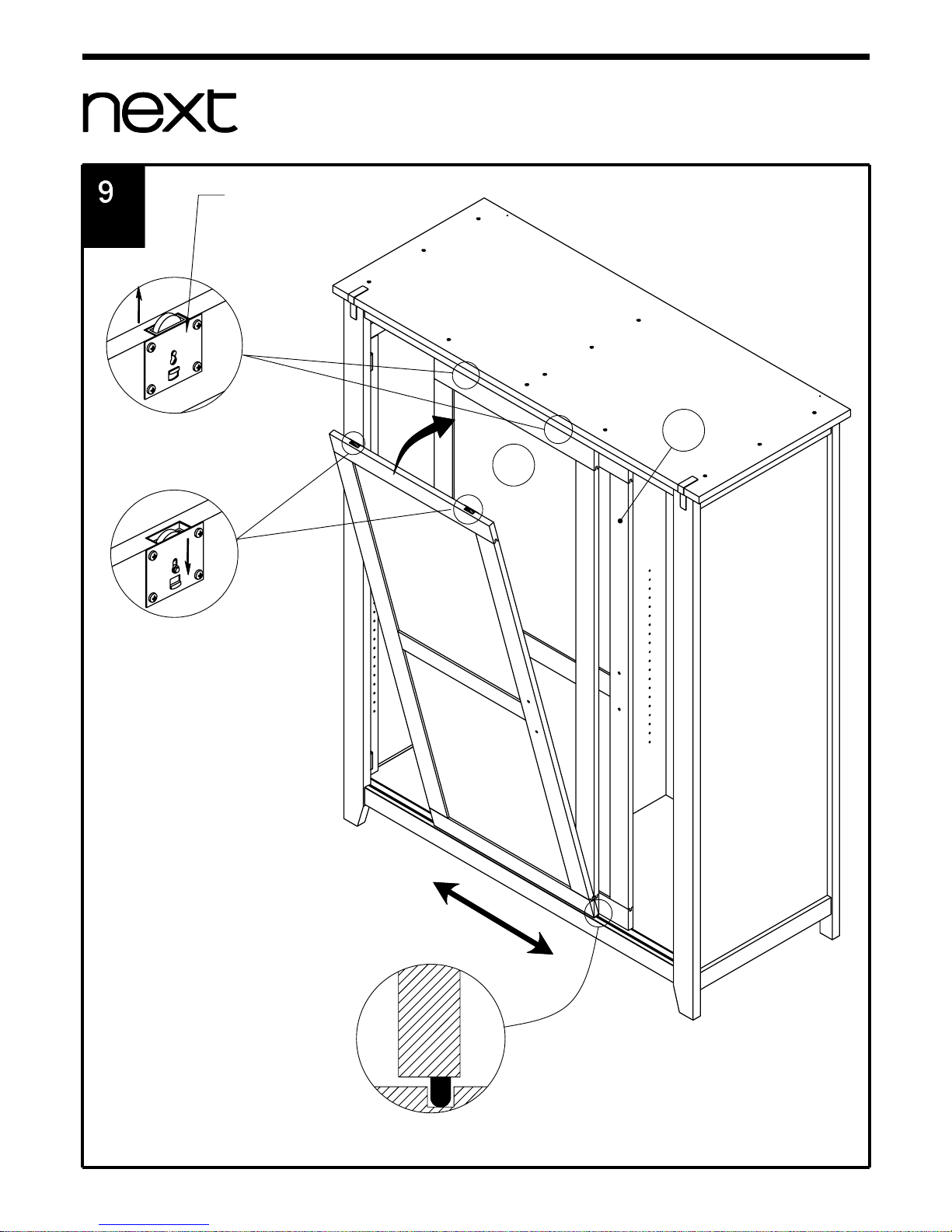

9
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Assembly instructions

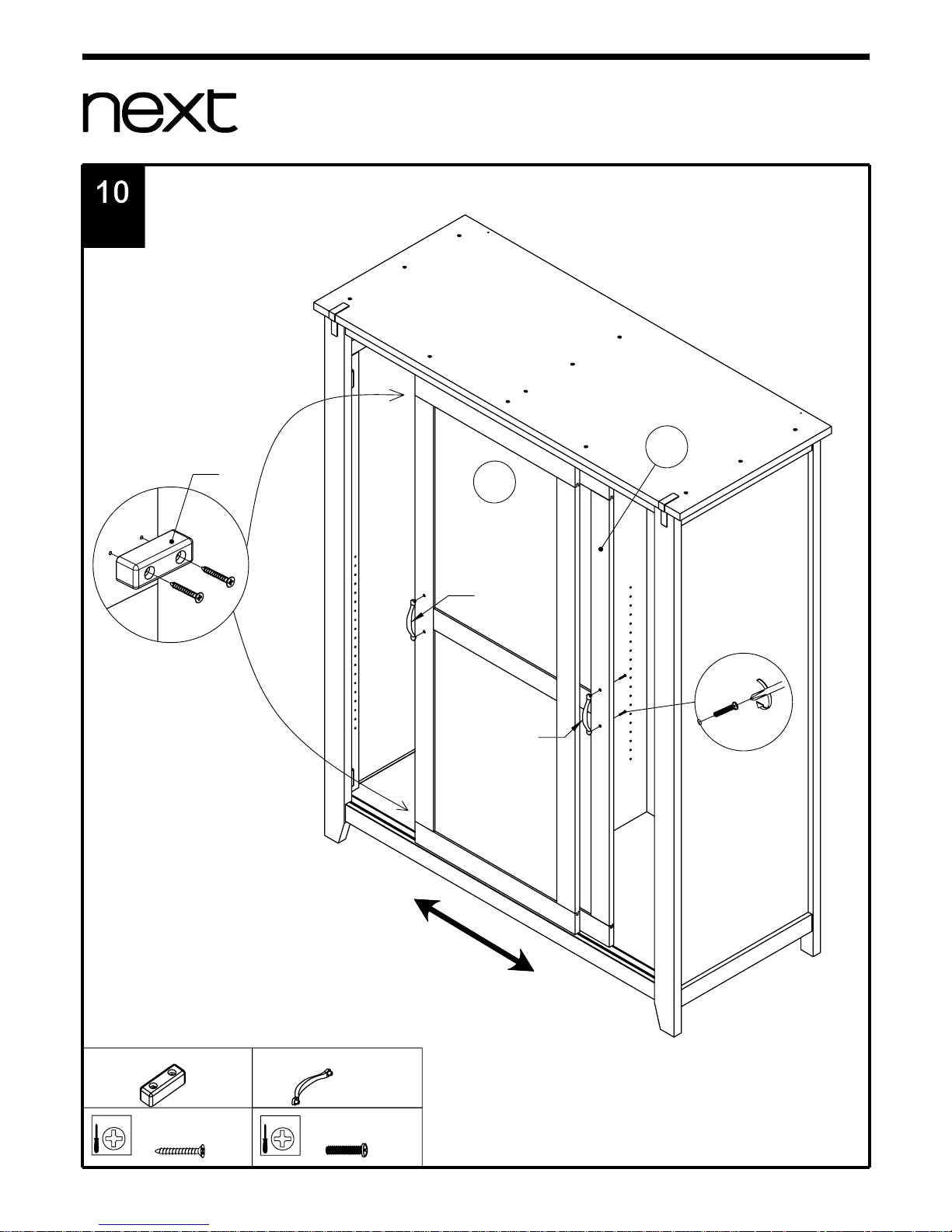

11
12
Page 11
not supplied
PH
not supplied
PH
BZ
AJ
AJ
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Assembly instructions
BZ x 2
AH x 4
4 x 18mm
4 x 30mm
AJ x 4
20 x 60mm
10
AU x 2
11
12
AU
AU
AH
AH
AH
Page 12
not supplied
PH
9
9
AK
BE
BE
BE
BE
BE
AK
AK
AK
AK
AK
AK
AK
AK
AK
AK
AK
AK
AK
AK
AK
AKAKAK
AK
AK
AK
AK
AK
AK
AK
AK
AK
AK
AK
AK
AK
AK
AK
AK
AK
BE x 5
3 x 16mm
AK x 39

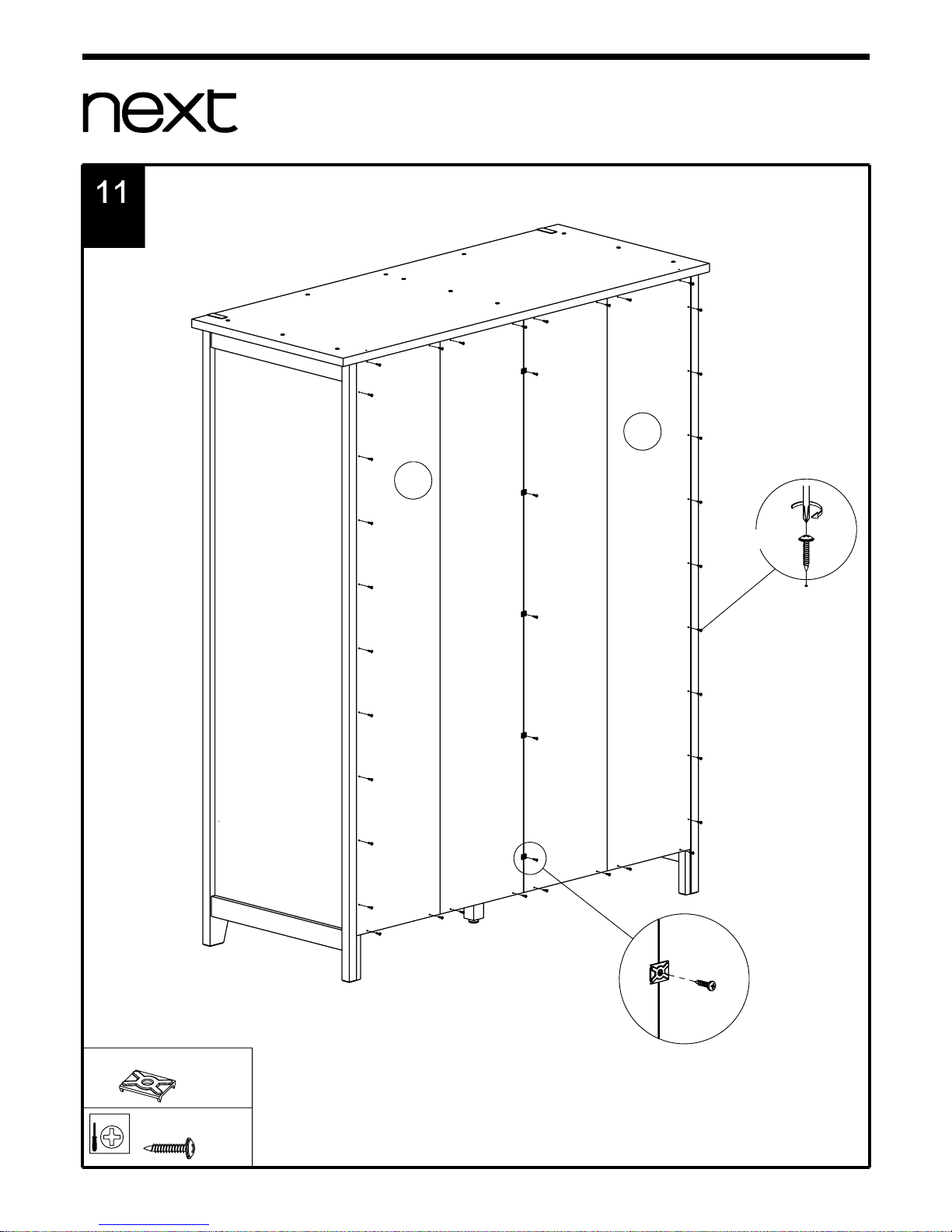

11
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Assembly instructions
BE
AK
AK
Page 13
3
2
5
J
J
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Assembly instructions
AP x 8
5 x 20mm
12
AP
Page 14

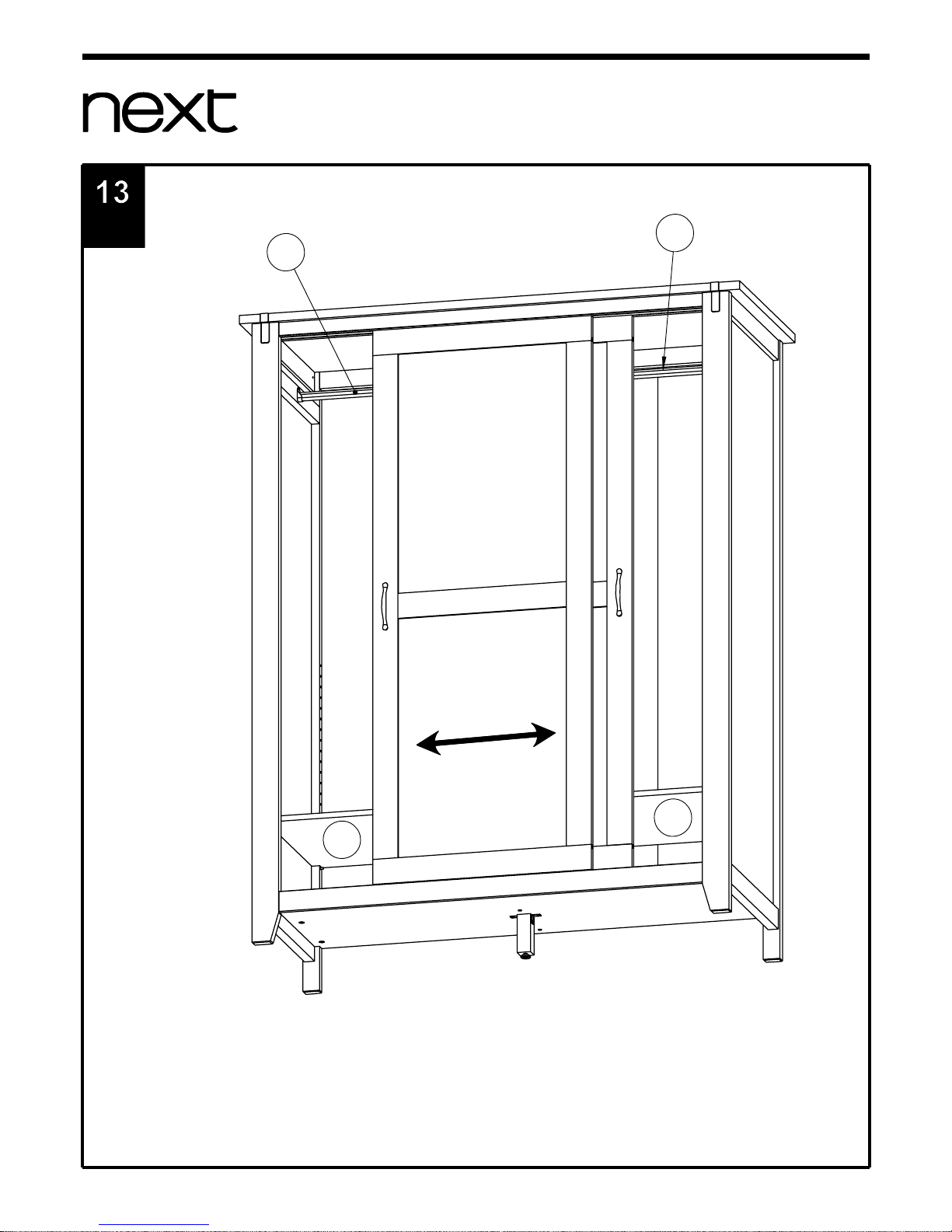

13
13
6
6
13
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Assembly instructions
Page 15
not supplied
PH
CB
AG
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Assembly instructions

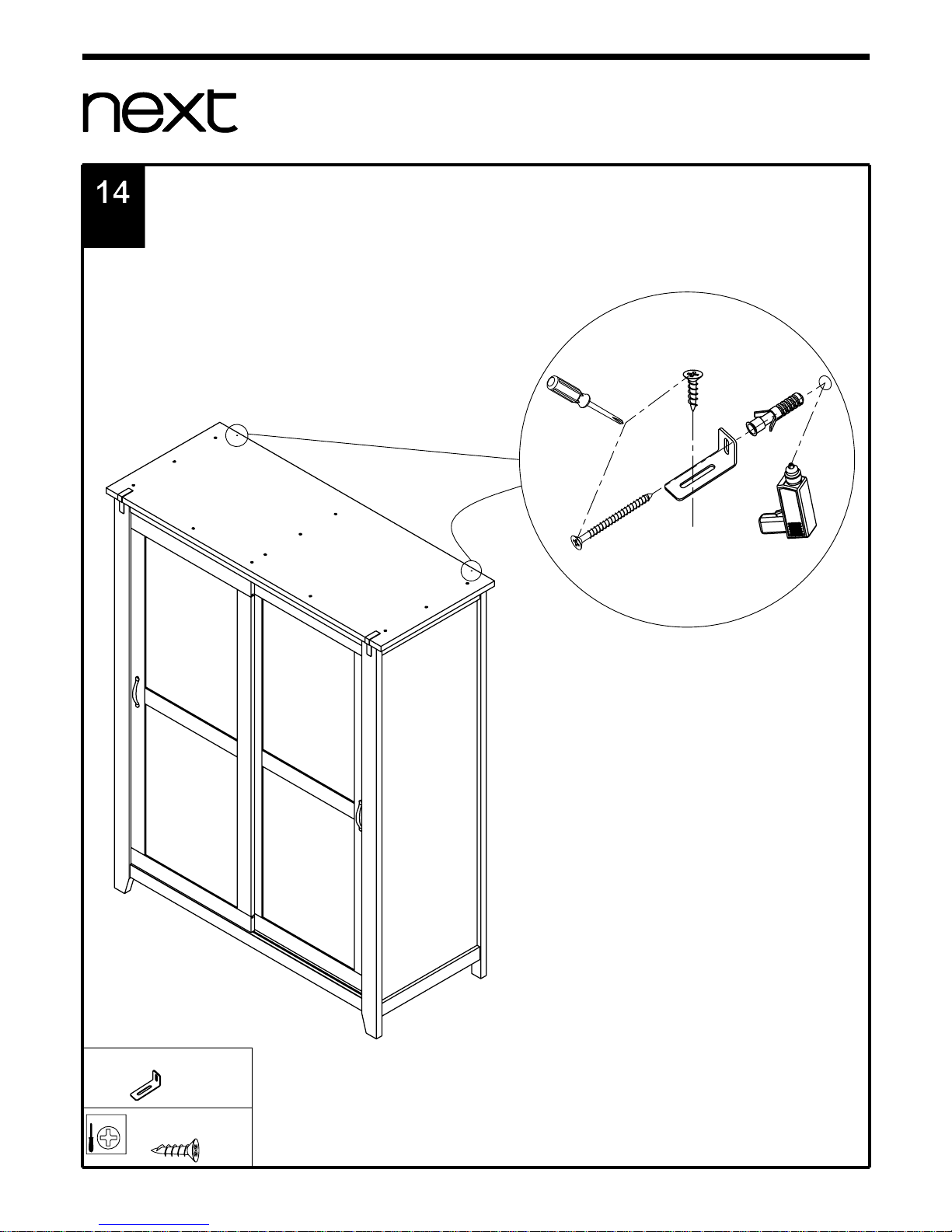

We recommend the use of the wall strap provided for safety reasons. Wall
fixings are not included please source suitable fixings for your wall type. If in
doubt, please consult a qualified tradesperson. WARNING: Always ensure the
wall to be drilled is free from hidden electrical wires, water and gas pipes.
14
AK x 2
3.5 x 14mm
CB x 2
25 x 60mm
Page 16

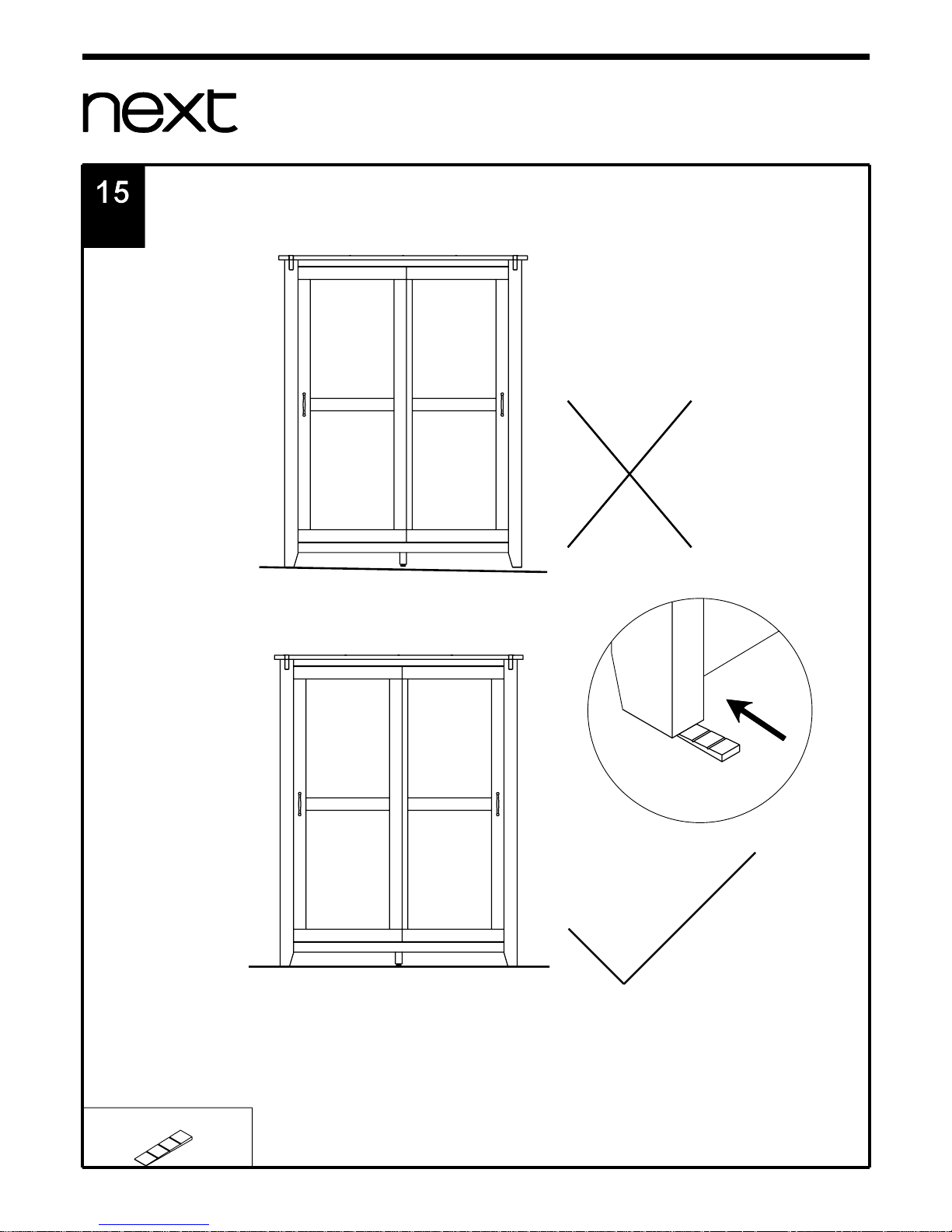

To help level the frame and doors on uneven floors please use the levelling
wedges provided as shown below.
15
BB x 2
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Assembly instructions
Page 17
9
0
m
m
9
0
m
m
6
5
5
m
m
5
3
6
m
m
2
2
5
m
m
1
4
2
4
m
m
685584-2014-V1
Produced in China for Next Retail Ltd.
685584
CLRENDON SLIDING ROBE
Actual product size
H188 x W150 x D62cm
