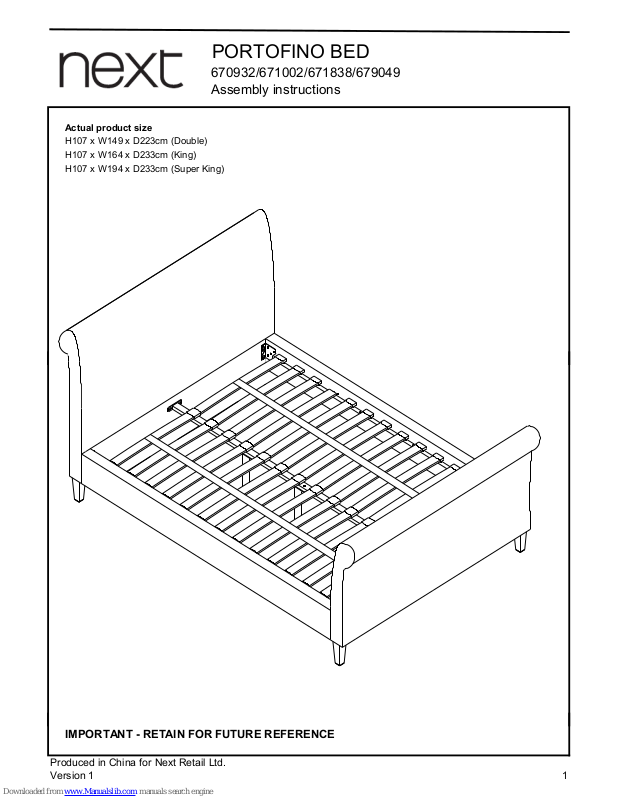

PORTOFINO BED
670932/671002/671838/679049
Assembly instructions
Actual product size
H107 x W149 x D223cm (Double)
H107 x W164 x D233cm (King)
H107 x W194 x D233cm (Super King)
IMPORTANT - RETAIN FOR FUTURE REFERENCE
Produced in China for Next Retail Ltd.
Version 1 1
PORTOFINO BED
670932/671002/671838/679049
Assembly instructions
Warnings
Number of people required to assemble
Important: Retain these instructions for future reference.
Two persons are required to assemble this product.
Unwrap all packaging materials and place the components on
Time to assemble
top of the carton box or on a clean floor to prevent it from
scratching.
This product should only be used on firm, level ground.
Keep small parts out of reach of children.
Do's
We suggest you spend a short time reading through this
Tools required
leaflet before you start.
When you are ready to start, make sure that you have the
right tools, plenty of space and a clean, dry area for assembly.
BEFORE YOU START
Fabri c content
670932 - 50% Cotton, 50% Polyester.
671002 - 50% Cotton, 50% Polyester.
671838 - 90% Polyester,10% Nylon.
679049 - 71% rayon, 22% polyester, 7% linen.
Check the pack and make sure you have all the parts listed.
During assembly children should be kept away from the
product due to possible risk of injury.
Tools not included.
Missing parts
Due to the size of this product we recommend that it is If you are missing any fixtures and fittings for your product
assembled in the room intended for use.
please contact our customer service team on 0333 777 8999
and they will be happy to arrange for a replacement to be sent
Ensure that this product is fully assembled as illustrated to you free of charge.
before use.
Home service technicians
Check all screws or bolts are tightened and inspect regularly.
If you have a fault with your product please contact our
To clean, wipe with a sponge and warm soapy water. Do not
customer service team on 0333 777 8999. If you have had the
use solvent based cleaners or detergents as they can bleach product for 28 days or less you may be offered a replacement,
or damage the product. refund or for a fully trained home service technician to visit your
home to assess the fault and repair the product where possible.
Don'ts
If you have had the product for more than 28 days we will send
an independent home service technician to review and repair
Do not use power tools to construct this product. the product where possible and recommend further action.
Do not tighten screws until fully assembled.
You can write to us at
Do not over tighten screws or bolts.
Next Retail Ltd,
Do not stand on the product. Desford Road,
Leicester,
Do not use this product if parts are missing, damaged or LE19 4AT,
worn.
Never use scourers, abrasives or chemical cleaners.
To view our full furniture range please visit www.next.co.uk
Produced in China for Next Retail Ltd.
Version 1 2
PORTOFINO BED
670932/671002/671838/679049
Assembly instructions
GETTING TO KNOW YOUR PRODUCT
Produced in China for Next Retail Ltd.
Version 1 3
PORTOFINO BED
670932/671002/671838/679049
Assembly instructions
CUSTOMER HELPLINE
If you have any problem with this product or require any replacement fittings please contact customer services 0333 777 8999
Components supplied Fixtures and fittings supplied
Ref
Dimensions Visual
Qty
A
B
C
M8x160
Ref
Dimensions
Visual
Qty
1
2
3
1
1
2
Head board
Left and Right side rail
Footboard
D
E
F
G
H
I
J
K
L
M
4
5
6
7
1
2
4
Centre rail
Support leg
Leg
32
Slats
Produced in China for Next Retail Ltd.
Version 1 4
PORTOFINO BED
670932/671002/671838/679049
Assembly instructions
1
1
B x4
M8 x 160mm
E x4
M8
G x4
M8
L x1
M8
A x8
M6 x 25mm
D x8
M6
F x8
M6
K x1
M8
2
Produced in China for Next Retail Ltd.
Version 1 5
PORTOFINO BED
670932/671002/671838/679049
Assembly instructions
33
A x4
M6 x 25mm
D x4
M6
F x4
M6
K x1
M8
C x4
M8 x 35mm
Ex8
M8
H x4
M8
M x1
M8
54
C
E
E
H
Produced in China for Next Retail Ltd.
Version 1 6
PORTOFINO BED
670932/671002/671838/679049
Assembly instructions
5755
I x16
65 x 30mm
J x32
65 x 60mm
1
6
Produced in China for Next Retail Ltd.
Version 1 7
