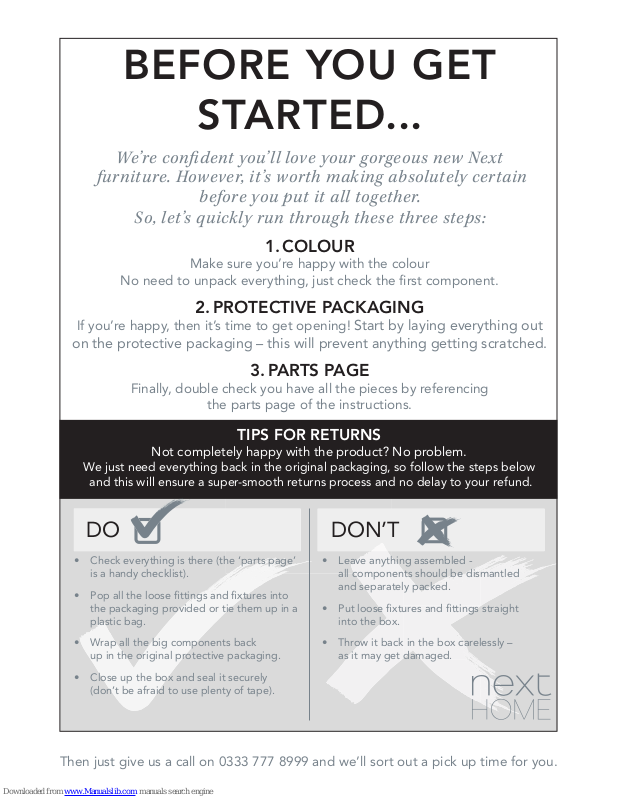

Page 1
We’re conÎdent you’ll love your gorgeous new Next
furniture. However, it’s worth making absolutely certain
before you put it all together.
So, let’s quickly run through these three steps:
TIPS FOR RETURNS
Not completely happy with the product? No problem.
We just need everything back in the original packaging, so follow the steps below
and this will ensure a super-smooth returns process and no delay to your refund.
1. COLOUR
Make sure you’re happy with the colour
No need to unpack everything, just check the first component.
2. PROTECTIVE PACKAGING
If you’re happy, then it’s time to get opening! Start by laying everything out
on the protective packaging – this will prevent anything getting scratched.
3. PARTS PAGE
Finally, double check you have all the pieces by referencing
the parts page of the instructions.
t Check everything is there (the ‘parts page’
is a handy checklist).
t Pop all the loose fittings and fixtures into
the packaging provided or tie them up in a
plastic bag.
t Wrap all the big components back
up in the original protective packaging.
t Close up the box and seal it securely
(don’t be afraid to use plenty of tape).
DO DON’T
t Leave anything assembled -
all components should be dismantled
and separately packed.
t Put loose fixtures and fittings straight
into the box.
t Throw it back in the box carelessly –
as it may get damaged.
Then just give us a call on 0333 777 8999 and we’ll sort out a pick up time for you.
BEFORE YOU GET
STARTED...
Page 2
Page 3
Need Help?
With:
Assembly instructions
Missing or damaged parts
CALL: 0333 777 8999
IMPORTANT - RETAIN FOR FUTURE REFERENCE
Actual product size
H185x W95x D58cm
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions
Page 4
1
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions
BEFORE YOU START
Don’ts
Do not drag or pull your furniture.
Do not use silicone based furniture polish. Silicone in furniture
polishes can break down the finish.
Never allow any kind of liquid to remain on your furniture.
Absorption can cause wood to warp or finishes to de-laminate.
Do not place hot items (e.g. hot drinks) directly on to the wood
surface. Please make sure you use a placement or coaster
Do’s
We suggest you spend a short time reading through this leaflet
before you start.
right tools and plenty of space.
Unwrap all packaging materials and place the components
on a clean surface to protect them from damage.
We recommend that the packaging is used to protect the
surfaces during assembly.
Carefully check that you have all the parts before beginning
assembly.
Due to the size of the product we recommend that it is
assembled in the room intended for use.
Ensure the product is fully assembled as illustrated and all
fixings are fully tightened before use.
Wipe occasionally with a soft cloth slightly dampened with
water. Then buff with a dry clean soft cloth.
Wood will mellow and change colour over time, we recommend
that ornaments and items placed on the surface are moved
regularly for the first few months to prevent uneven mellowing.
When you are ready to start, make sure that you have the
Warnings
We suggest you retain these instructions for future reference.
Keep fittings out of children’s reach and keep children well
away from the construction area.
This product should only be used on firm, level ground.
Please periodically check all fittings and re-tighten as
necessary.
Please do not sit or stand on your furniture.
Avoid exposing the furniture to excessive heat or direct
sunlight as this can cause deterioration of the colour.
Number of people required to assemble
Two persons are required to assemble this item.
Time to assemble
Tools required
Missing parts
If you are missing any fixtures and fittings for your product
please contact our customer service team on 0333 777 8999
and they will be happy to arrange for a replacement to be sent
to you free of charge.
Home service technicians
If you have a fault with your product please contact our
customer service team on 0333 777 8999. If you have had the
product for 28 days or less you may be offered a replacement,
refund or for a fully trained home service technician to visit your
home to assess the fault and repair the product where possible.
If you have had the product for more than 28 days we will send
an independant home service technician to review and repair
the product where possible and recommend further action.
You can write to us at
Home Customer Services
Next Retail Ltd,
Desford Road,
Leicester,
LE19 4AT
To View our full furniture range please visit www.next.co.uk
PRODUCT SUPPLIED WITH WALL FIXINGS
PH2
not supplied
PH3
not supplied
PH1
not supplied
30 min
Page 5

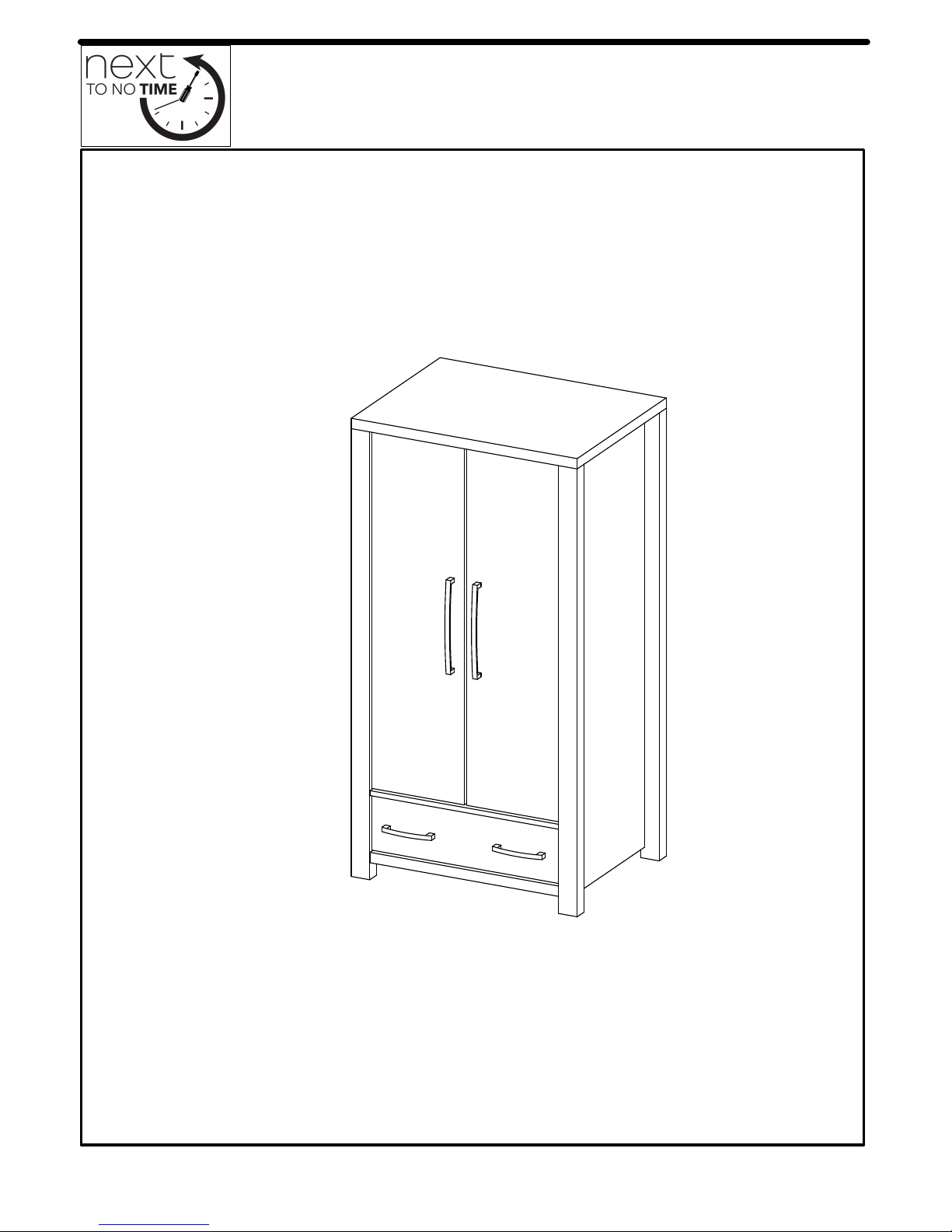

GETTING TO KNOW YOUR PRODUCT
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions
C36-709
C36-602
C36-602
C36-058
C36-941
C36-968
C36-940
C36-816
C36-452
C36-104
C36-006
C36-401
C36-103
C36-353
2
Page 6

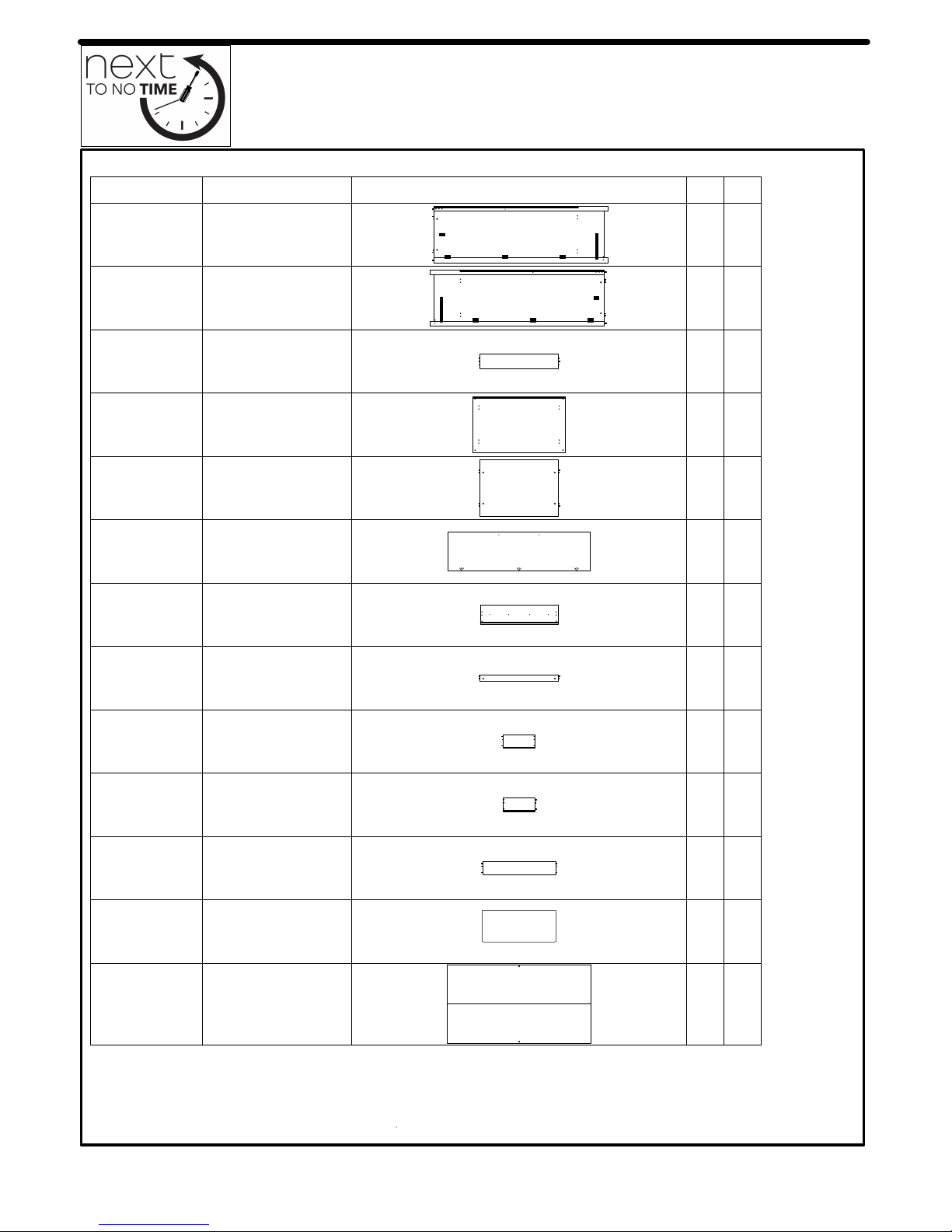

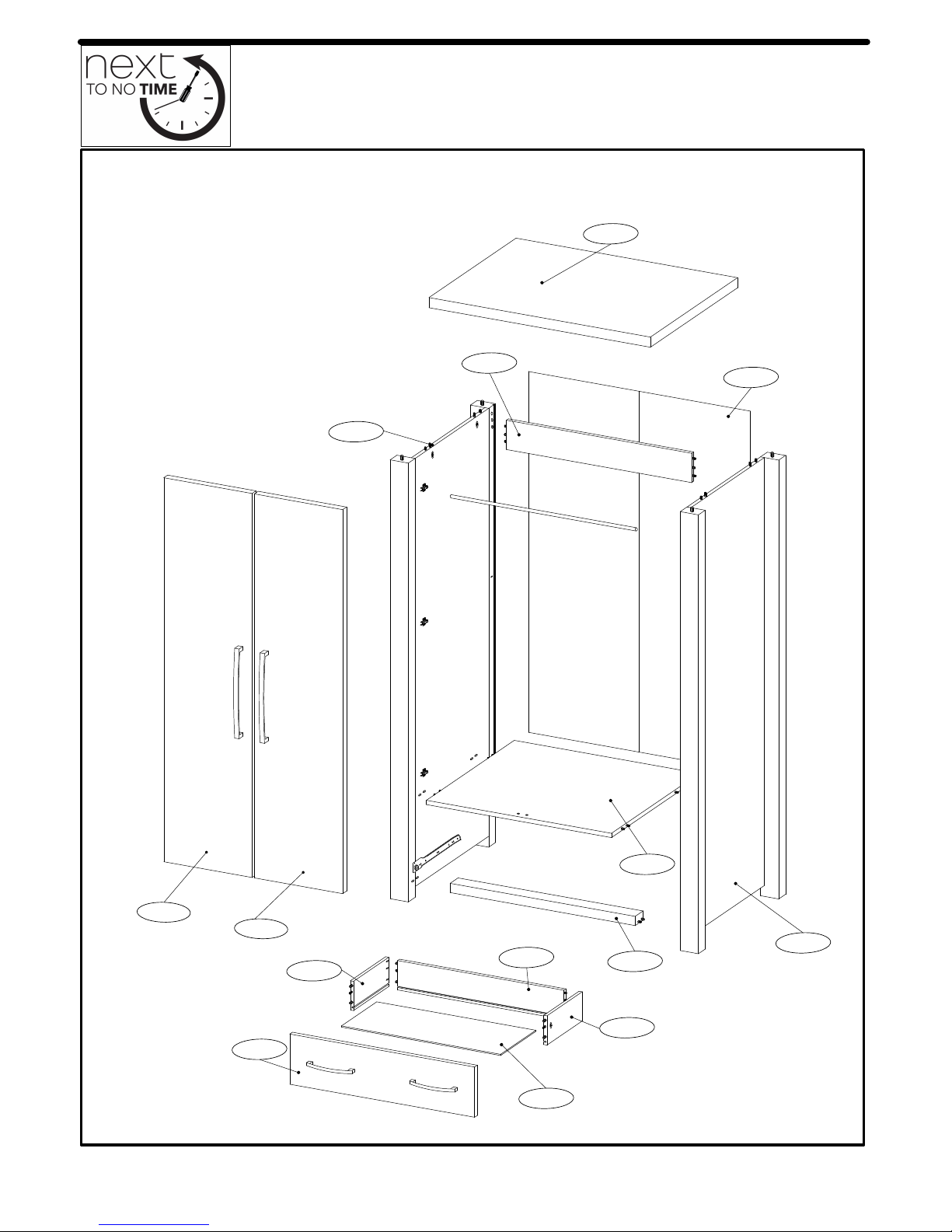

Components supplied. Please use this guide if you require replacement parts.
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions
Ref
Dimensions Visual
QtyCtn
C36-103
180 x 58cm 1 2
180 x 58cm 1 2
95 x 58cm 1 1
81 x 58cm 1 1
80 x 21cm 1 1
81 x 7cm 1 1
C36-104
C36-401
C36-452
C36-709
C36-816
1 133 x 14cm
C36-940
1 133 x 14cm
C36-941
1 175 x 14cm
C36-968
1 176 x 32cm
C36-058
147 x 40cm 2 1
C36-602
148 x 81cm 1 2
C36-006
81 x 15cm 1 1
C36-353
3
Page 7
4
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions

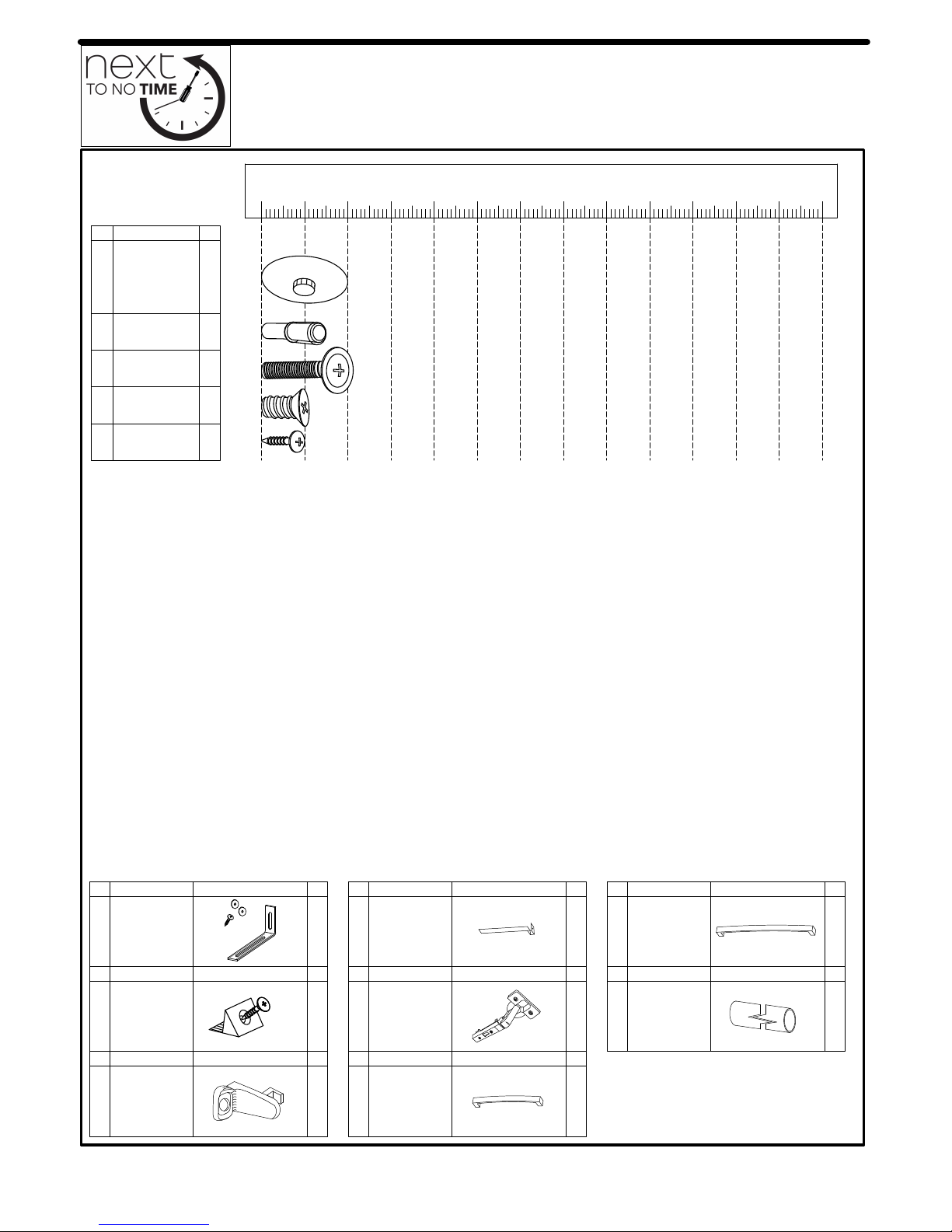

Fixtures and fittings
supplied (actual size)
Ref
Dimensions
Qty
C
5 x 20 mm
mm.
0.
10 10020 30 40 50 60 70 80 90 110 120 130
Fixtures and fittings supplied (not to scale)
Ref
Dimensions Visual
Qty
I2
N/A
1
J
N/A
8
Ref
Dimensions Visual
Qty
U1
N/A
2
Ref
Dimensions Visual
Qty
J2
N/A
1
Ref
Dimensions Visual
Qty
U
N/A
2
Ref
Dimensions Visual
Qty
N/A
N/A
6
K
2
O
Ref
Dimensions Visual
Qty
N/A
1
Z1
Ref
Dimensions Visual
Qty
G
4 x 22 mm
Z
3 x 10 mm 8 1
W
26.3 x 11 mm
E
7 x 15 mm 2
Ref
Dimensions Visual
Qty
8
Page 8
5
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions
1
2
PH3
C36-940
C36-941
C36-968
Page 9
6
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions
2

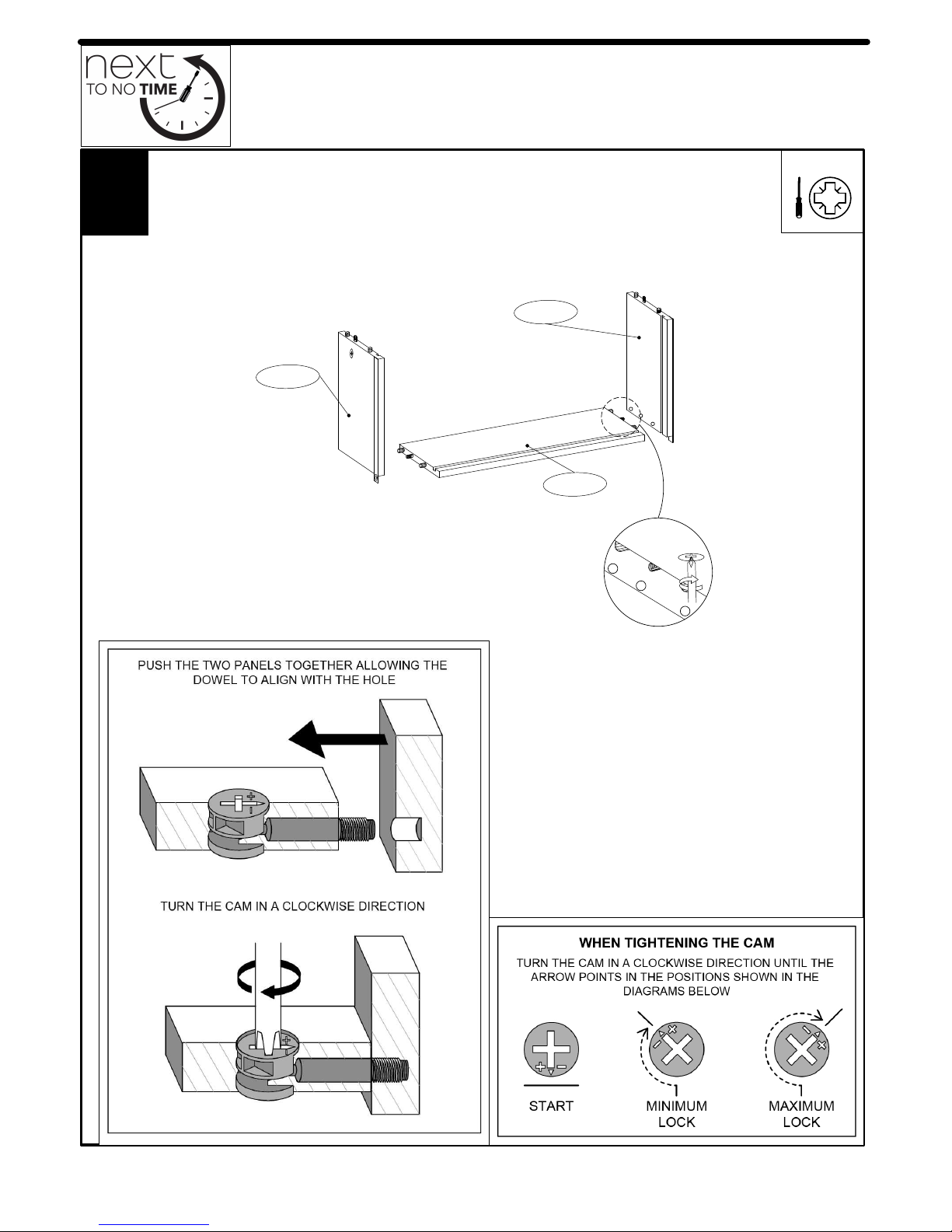

Cx4 Gx4
U1x2
4x22mm
C36-709
C36-058
C36-968
U1
G
C
PH2
G
C36-709
PH3
Page 10
7
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions

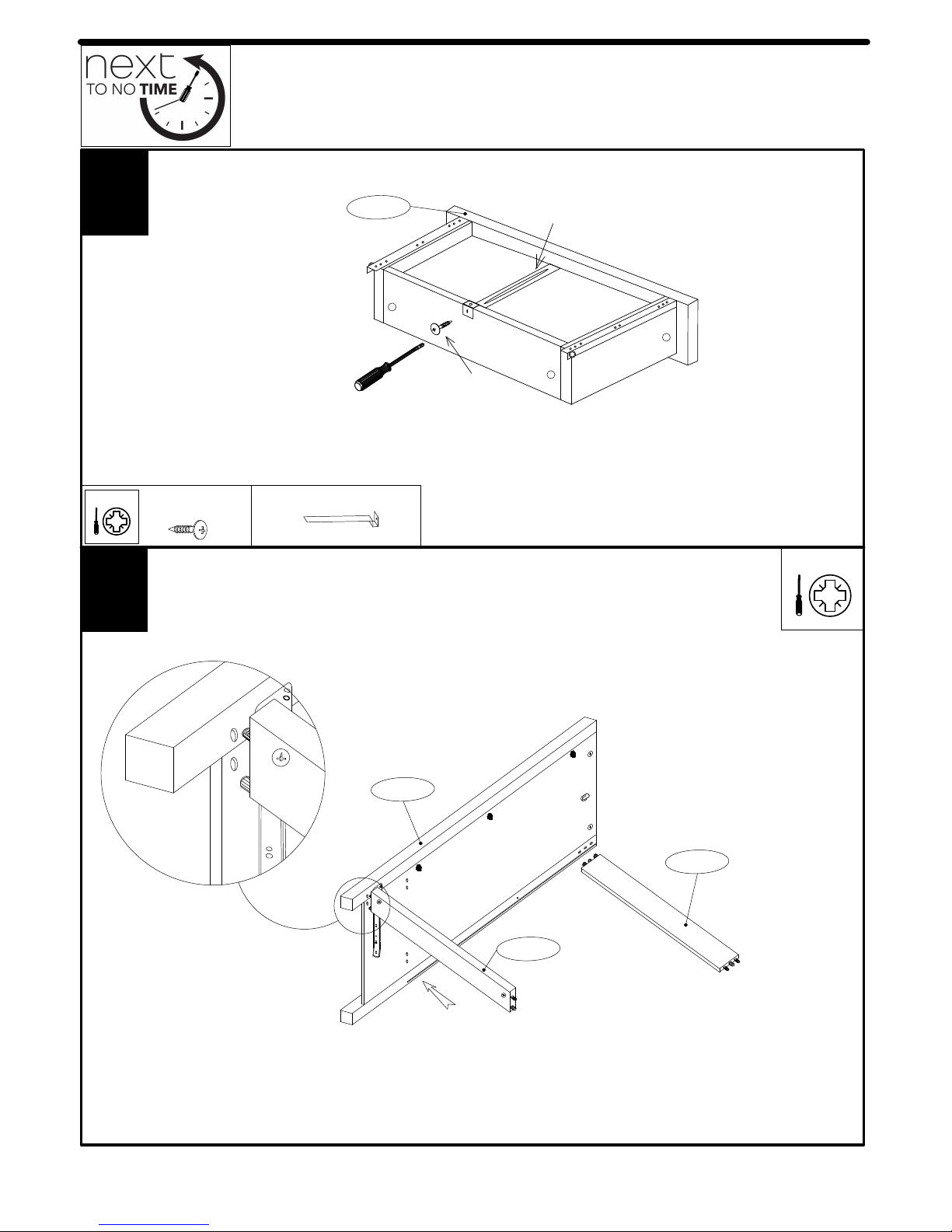

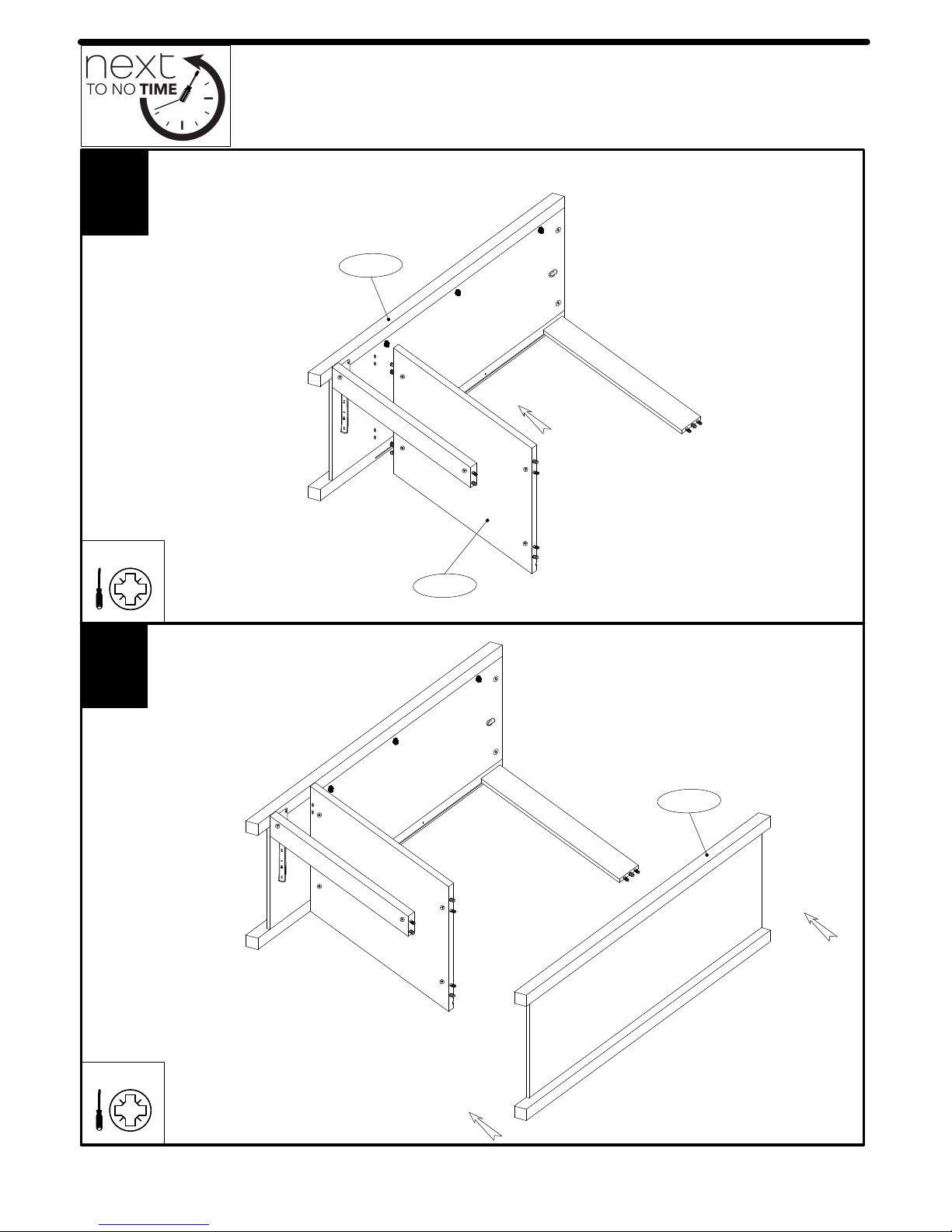

3
4
3.0x10mm
J2x1
Zx1
PH1
PH3
C36-709
J2
Z
C24-816
C36-103
C36-353
Page 11
8
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions
5
6
PH3
C36-452
C36-104
PH3
C36-103
Page 12
9
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions

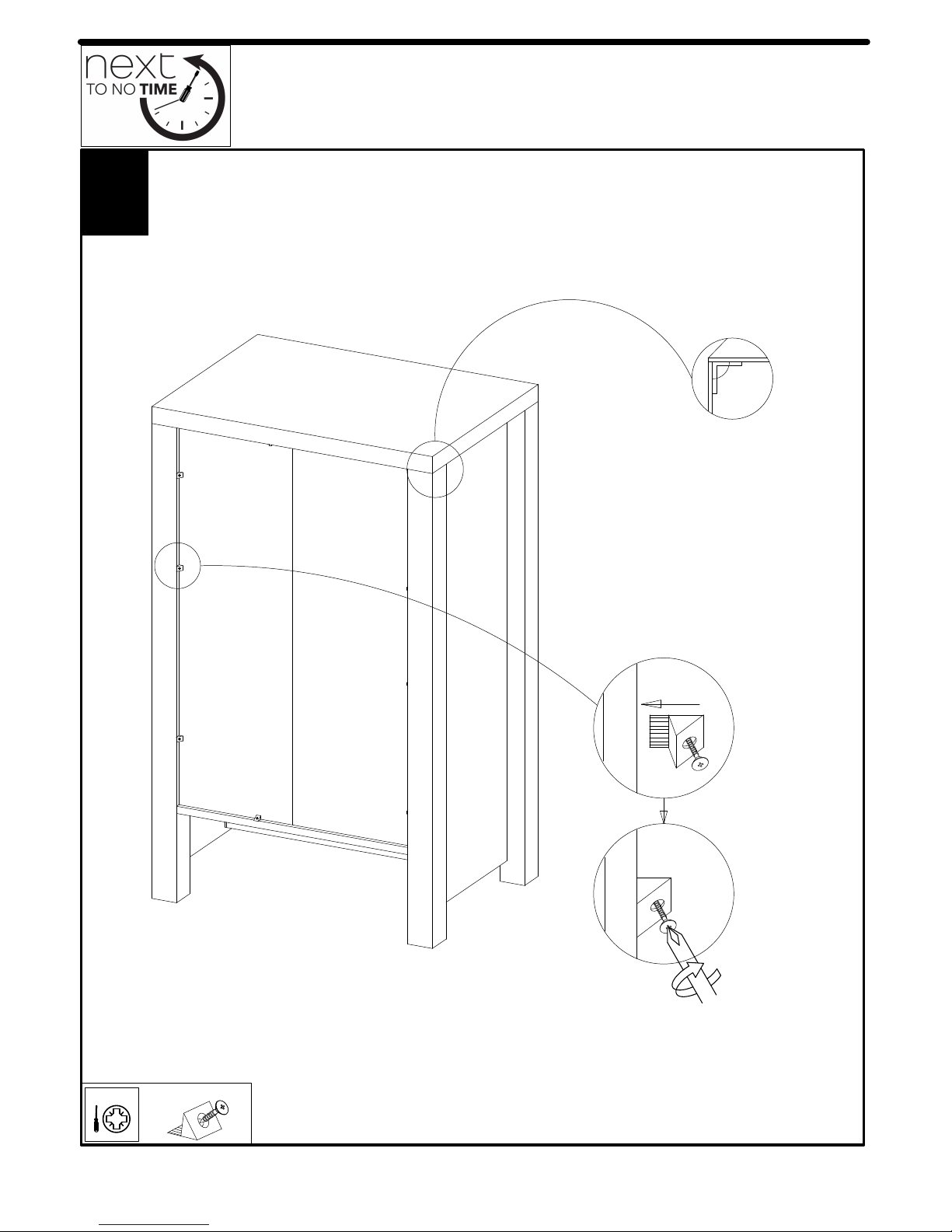

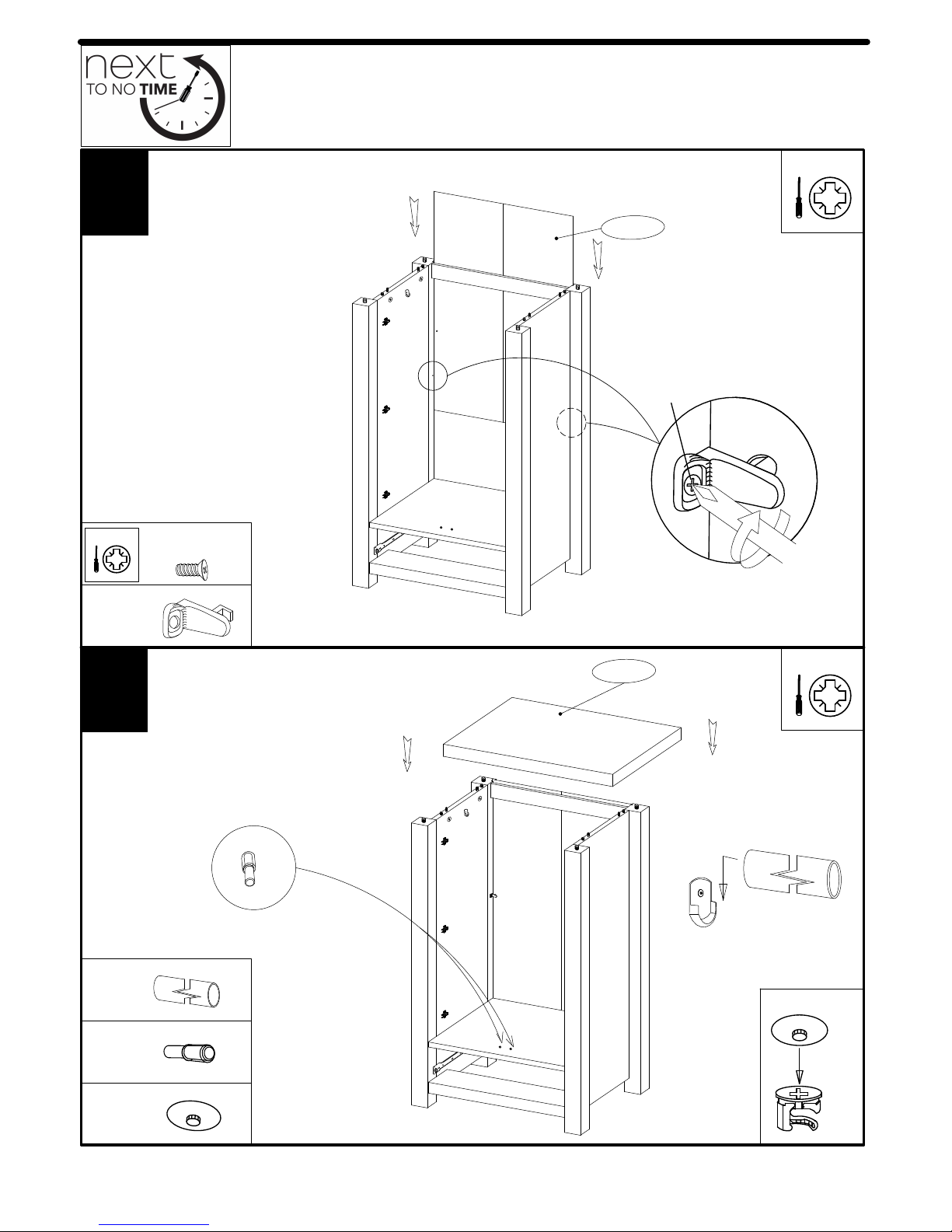

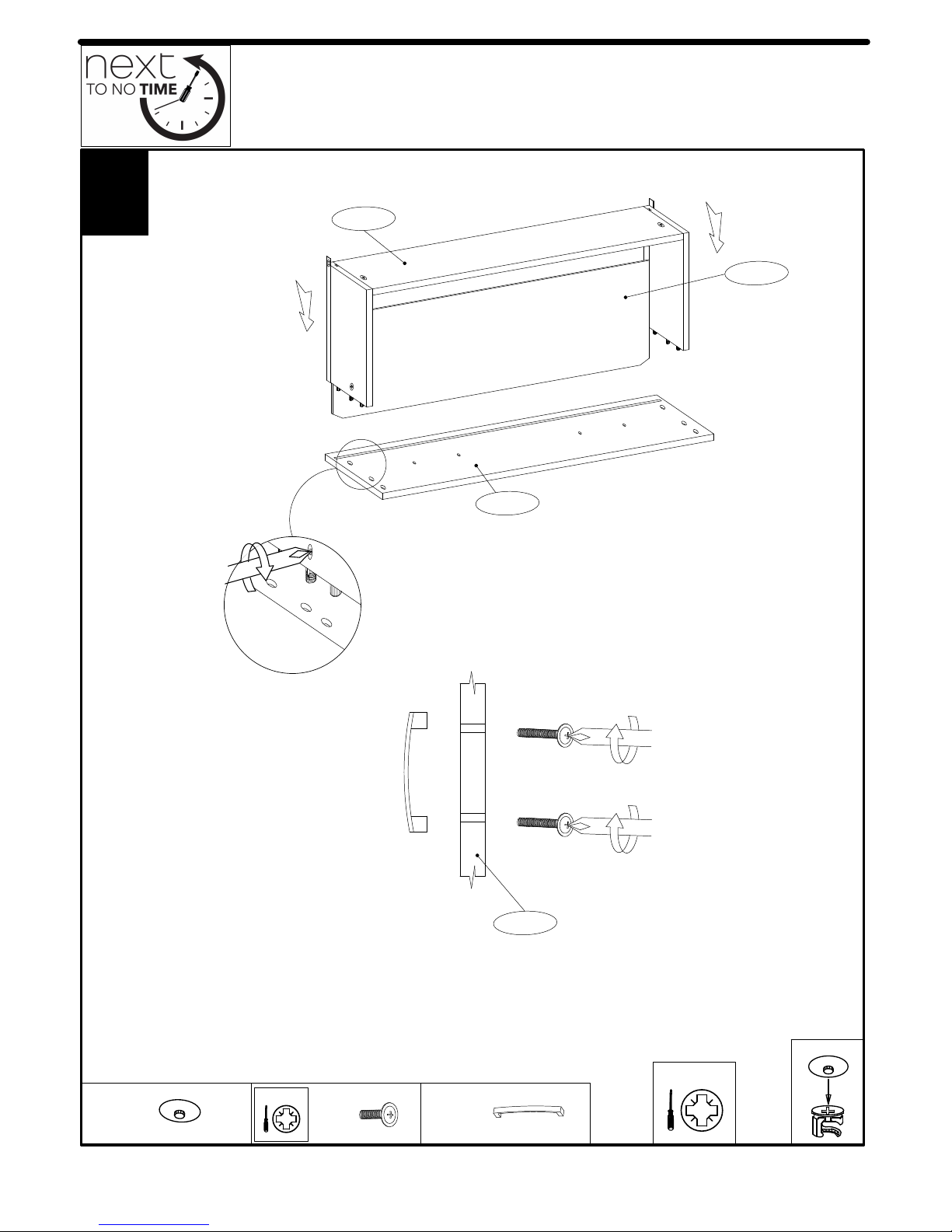

7
8
C36-401
Cx4
C
PH3
PH2
Kx2
Wx2
6.3x11mm
C36-006
K
W
PH3
E
Ex2
Z1x1
Z1
Page 13
10
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions
9
9
Jx8
PH2
o
90
J
Page 14
11
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions

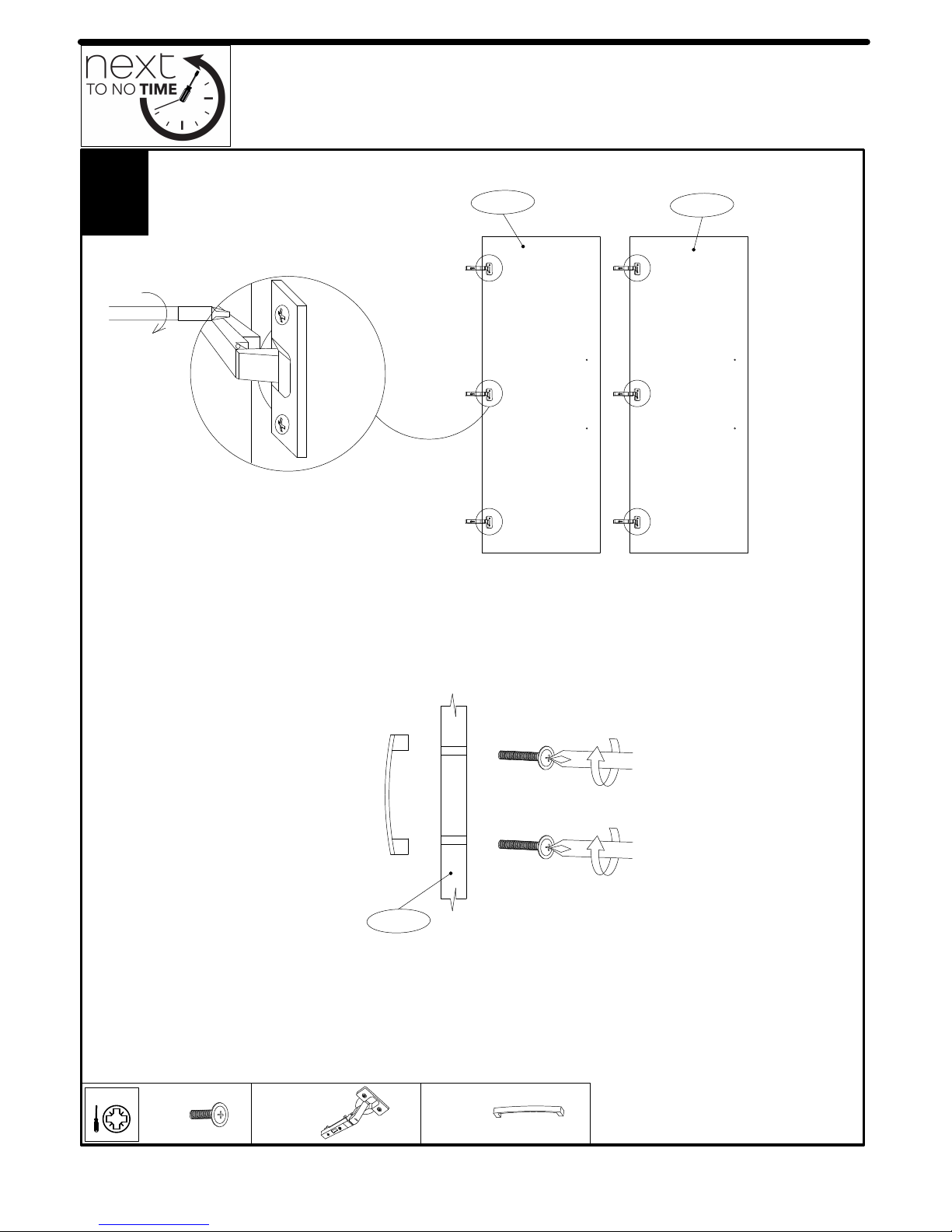

10
U
G
C36-602
G
x2
C36-602
C36-602
Ox6
Ux2
Gx4
4x22mm
PH2
90
O
Page 15
12
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions
11
C36-602
C36-602
PH2

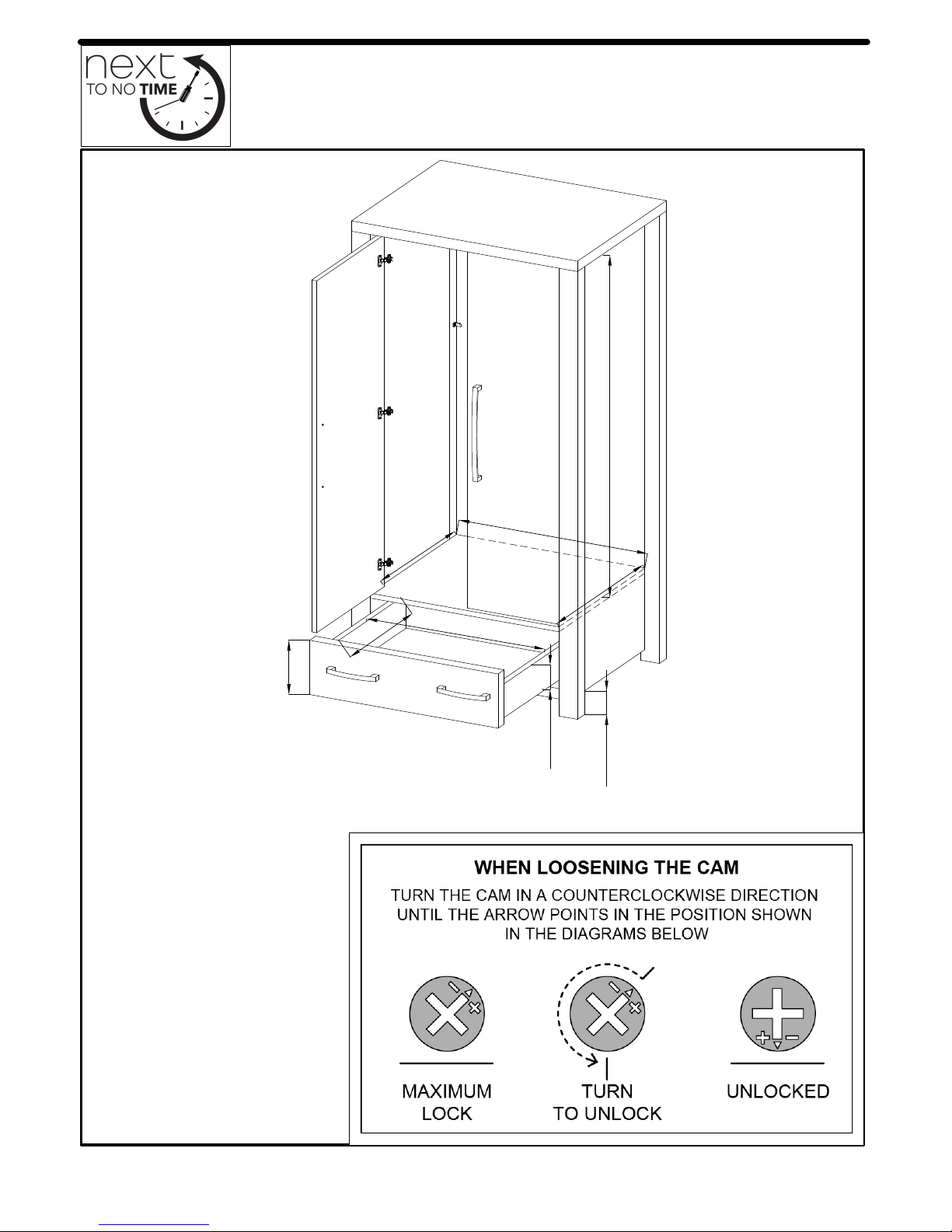

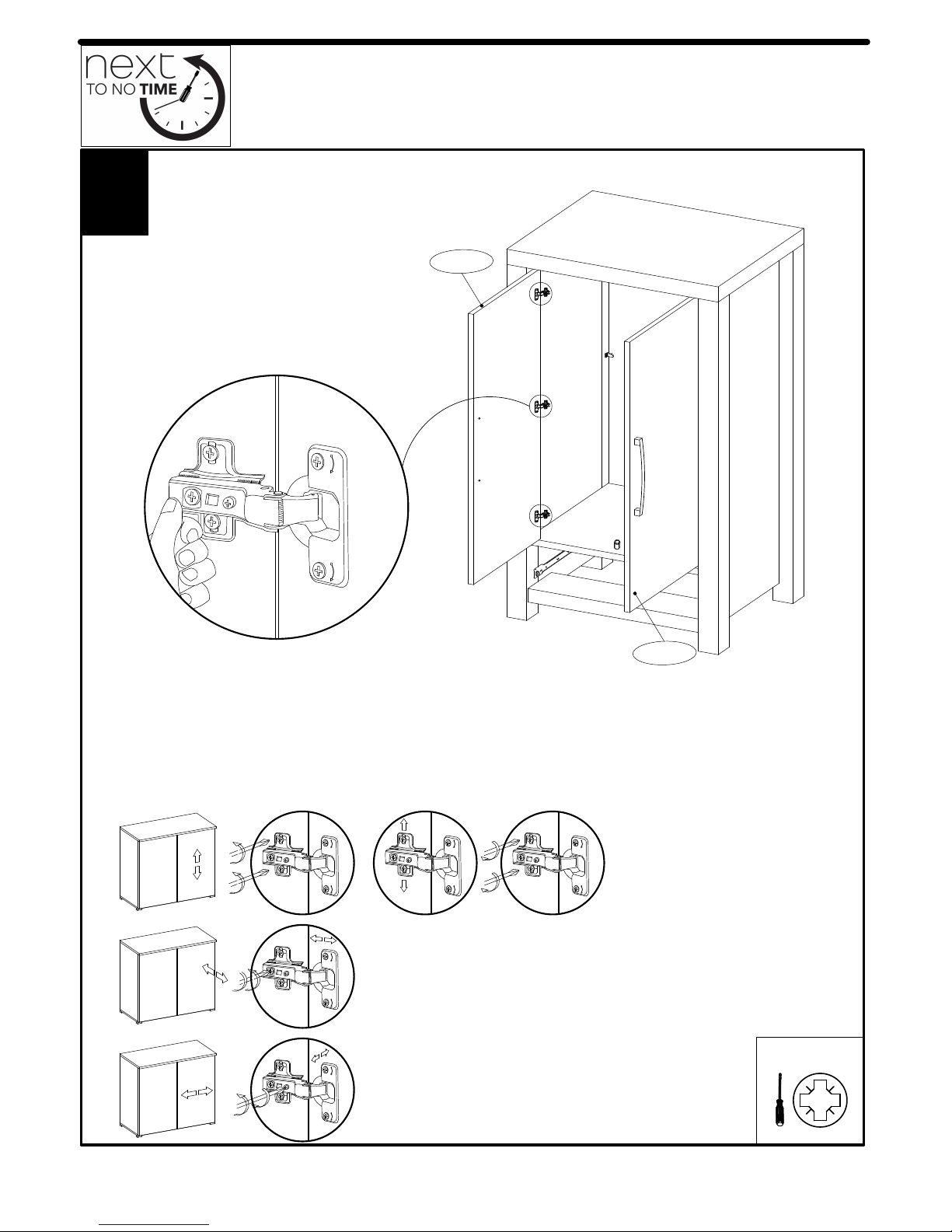

Adjusting the doors (adjusting the hinges)

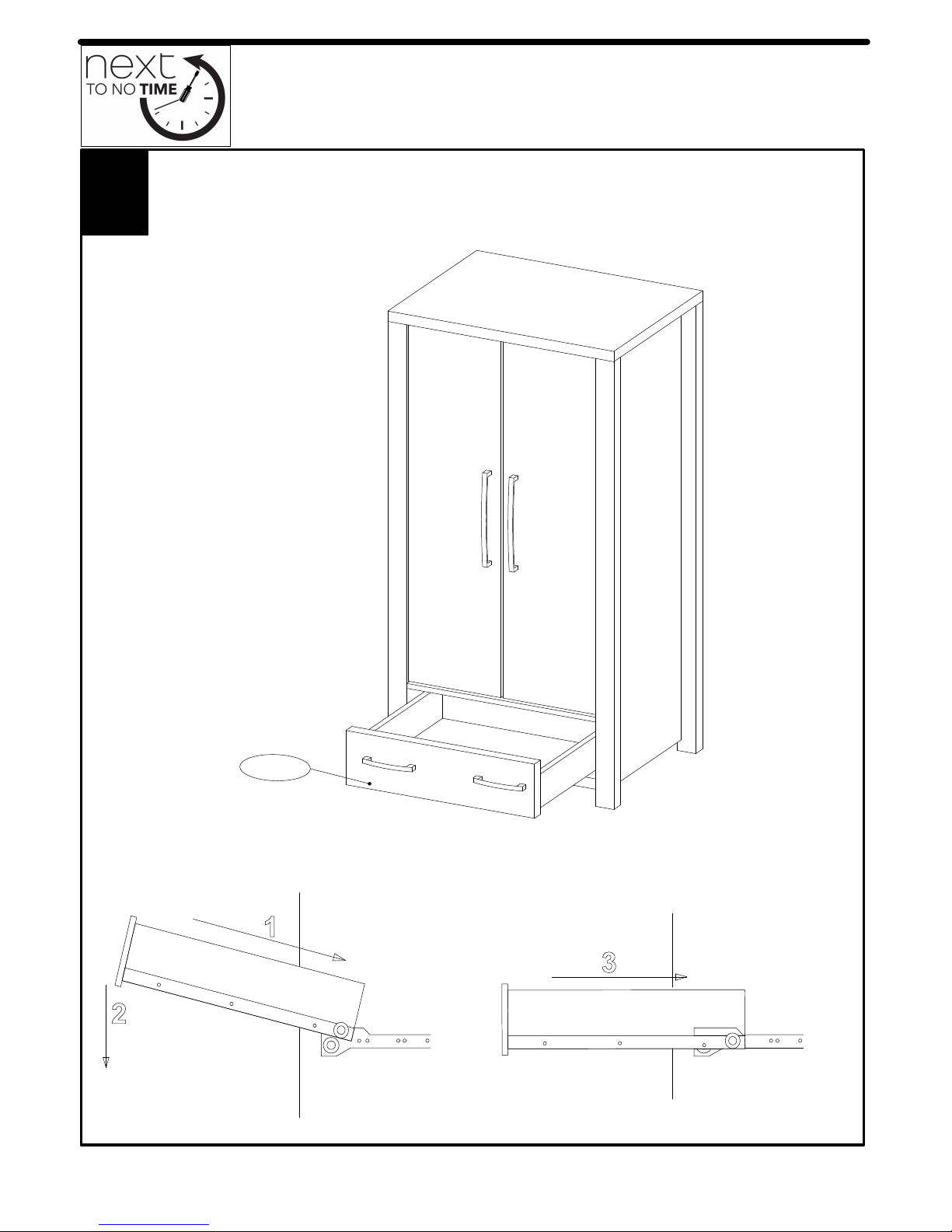

Page 16
13
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions
12
C36-709
Page 17
14
13

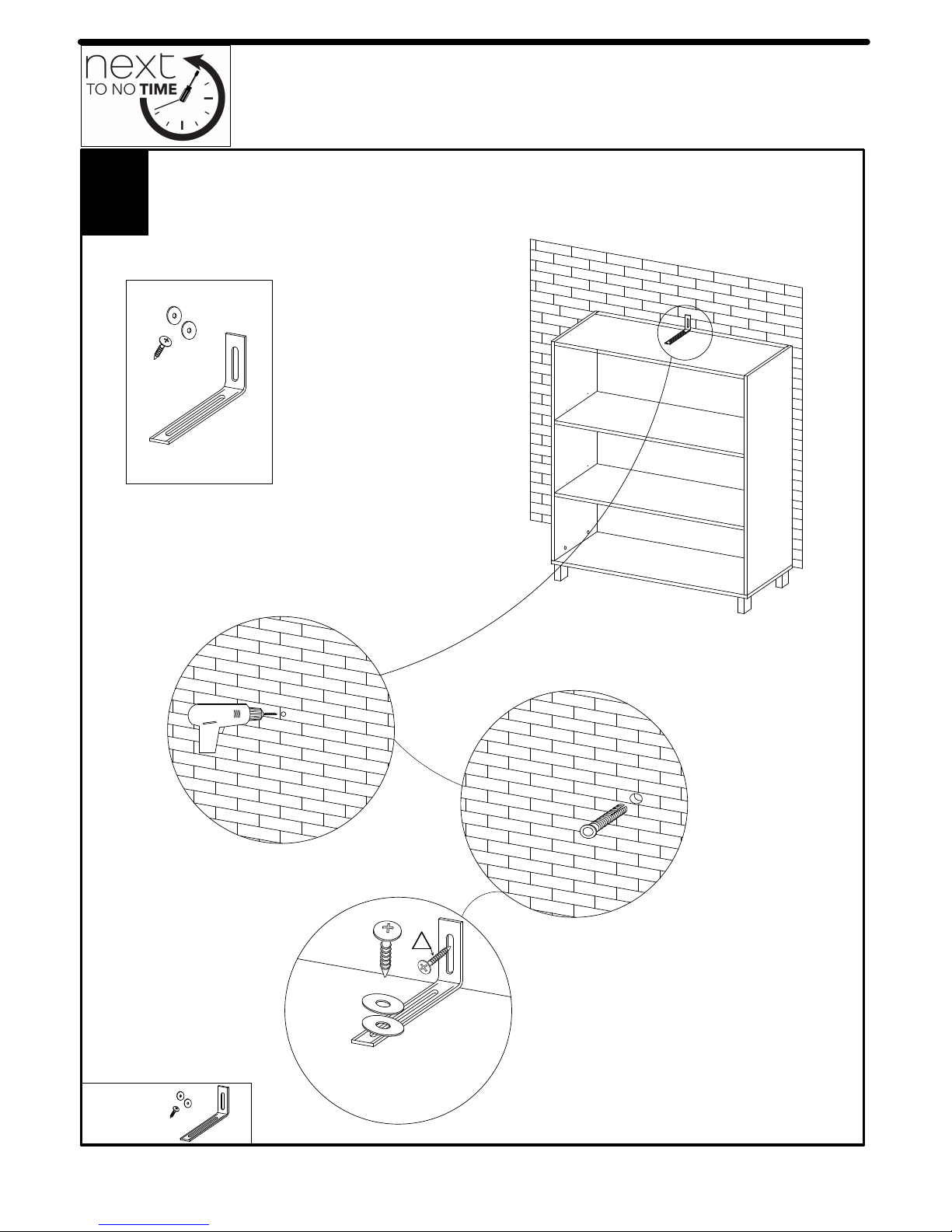

We recommend the use of the wall strap provided for safety reasons. Please follow the instructions included with the
strap. N.B. Wall fixings are not included please source suitable fixings for your wall type. If in doubt, please consult a
qualified tradesperson. WARNING: Always ensure the wall to be drilled is free from hidden electrical wires, water and gas
pipes. Please read separate instructions contained with this part (Y) on the correct way of securing this strap.
I2x1
!
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Assembly instructions
Page 18
Actual product size
H185x W95x D58cm
313mm
753m
m
808mm
563mm
538mm
126mm
1473mm
40mm
207mm
Produced in Poland for Next Retail Ltd
659442-2015-V6
CUBA OAK DOUBLE ROBE
659442
Loading...
