Page 1
3.5” S ATA to USB 3.0 & eSATA
Exte rnal Hard Dri ve Enclo su re w/ Fan
USER ’S MANU A L
Page 2
Package Contents:
3.5” SATA to USB 3.0 & eSATA
External Hard Drive Enclosure w/ Fan
1
NexStar HX Enclosure
2
USB 3.0 Cable
3
eSATA Cable
4
Power Adapter
5
User’s Manual
1 2
3
5
3.5” SATA to USB 3.0 & e SATA
External Har d Dr ive Enclo sur e w/ Fan
USER’ S MANU AL
4
TRADEMARKS
MS-DOS, Microsoft, Windows NT/2000/XP/Vista/7 are trademarks of Microsoft Corporation.
Apple, Macintosh and Mac are trademarks of Apple Computer.
NexStar is a registered trademark of Vantec Thermal Technologies.
*All other third-party brands and names are the property of their respective owners.
Page 3
Table of Contents:
1. Introduction ...............................................................................................................02
2. Specifications/Features 03
...................................................................................
3. System Requirements ..........................................................................................04
4. Parts Layout 05
.................................................................................................................
5. Installation ...................................................................................................................06
6. Disconnecting the NexStar HX .................................................................. 09
7. Hard Drive Formatting Guide
.....................................................................10
8. Warranty ...........................................................................................................................13
9. Contact ...............................................................................................................................13
Table of Contents
1
Page 4
1. Introduction:
Introducing the NexStar HX – a sleek 3.5” SATA
to USB 3.0 & eSATA External Hard Drive
Enclosure designed to keep your hard drive safe
and cool. This enclosure features a hard
aluminum case shell that effectively draws away
the heat while an active controlled 80mm fan
pushes cool air into the enclosure ensuring your
hard drive is protected and cooled. Integrated
with USB 3.0 & eSATA technology; transfer files
to and from your computer at blazing fast
speeds. Backup, transfer, copy your data quick
and easily with the Vantec NexStar HX enclosure.
Introduction
2
Page 5
2. Specifications/Features:
3.5” SATA to USB 3.0 & eSATA External Hard Drive Enclosure w/ Fan
Features:
• Aluminum Casing Cools Down Your Hard Drive
• Vents To Exhaust Hot Air To Let In Cool Air
• Large 80mm Fan w/ On & Off Switch
• Hot-Swappable: Plug & Play Without Rebooting
• Attractive Blue LED Indicates Power & HDD Activity
Specifications:
• Model: NST-330SU3
• Device Support: SATA I/II Hard Drive
• Device Size: 3.5”
• Internal Interface: SATA
• External Interface: USB 3.0 (Backwards Compatible With USB 2.0 & 1.1)
• HD Capacity: Up to 3 TB*
• Power Supply: AC Adapter
• Fan: 80mm
• Material:
• Dimension:
Aluminum & Plastic
180 x 142 x 55mm
Power
*For the most updated Storage Capacity, please check our website: www.vantecusa.com
Specifications/Features
3
Page 6
3. System Requirements:
Micro soft Win dows XP/Vista/7
1. For USB 2.0 speeds, the system must
support USB 2.0 specifications
23.. For USB 3.0 speeds, the system must
support USB 3.0 specifications
For eSATA Speeds, the System Must
Support eSATA Specifications
Mac OS 10.4 & greater
1. For USB 2.0 speeds, the system must
support USB 2.0 specifications
2. For USB 3.0 speeds, the system must
support USB 3.0 specifications
3. For eSATA Speeds, the System Must
Support eSATA Specifications
System Requirements
4
Page 7

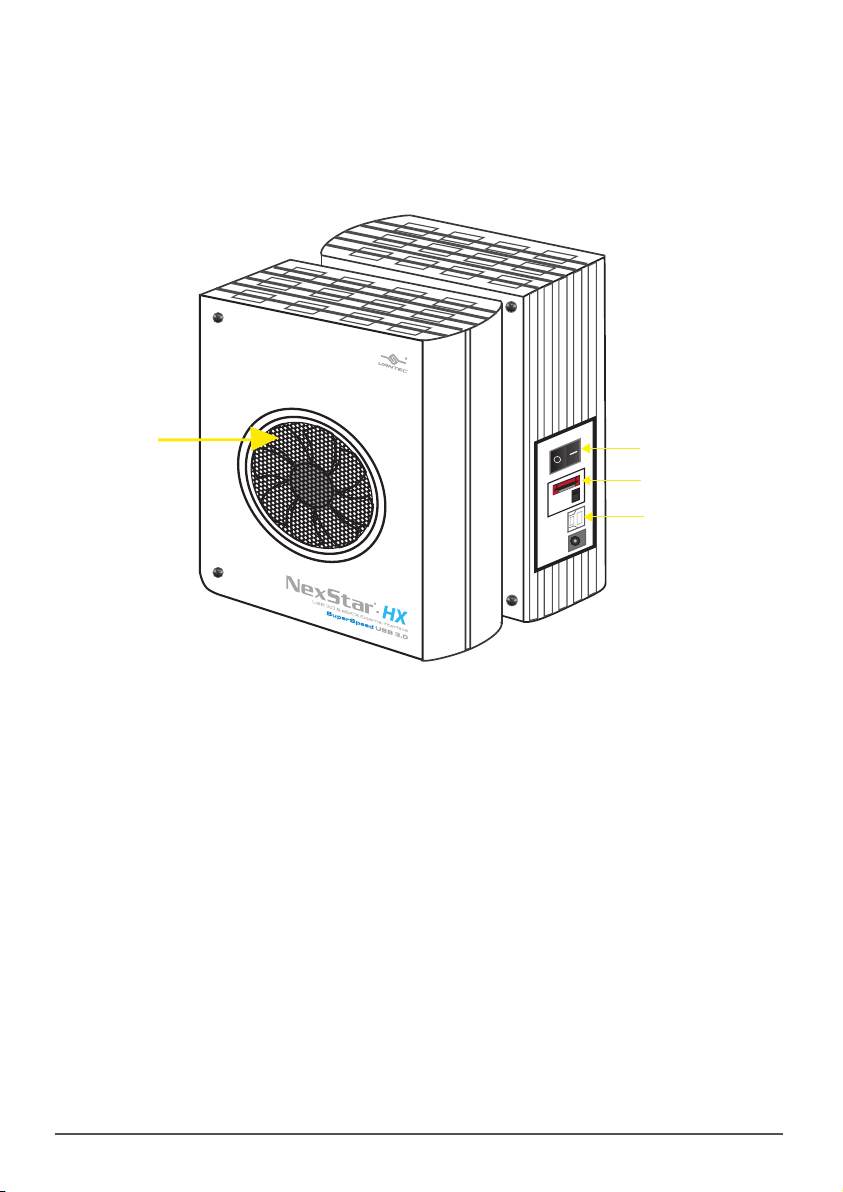

4. Parts Layout:
3.5” SATA to USB 3.0 & eSATA External Hard Drive Enclosure w/ Fan
80mm Fan
Power
Power
eSATA
USB 3.0
Parts Layout
5
Page 8
5. Installation:
3.5” SATA to USB 3.0 & eSATA External Hard Drive Enclosure w/ Fan

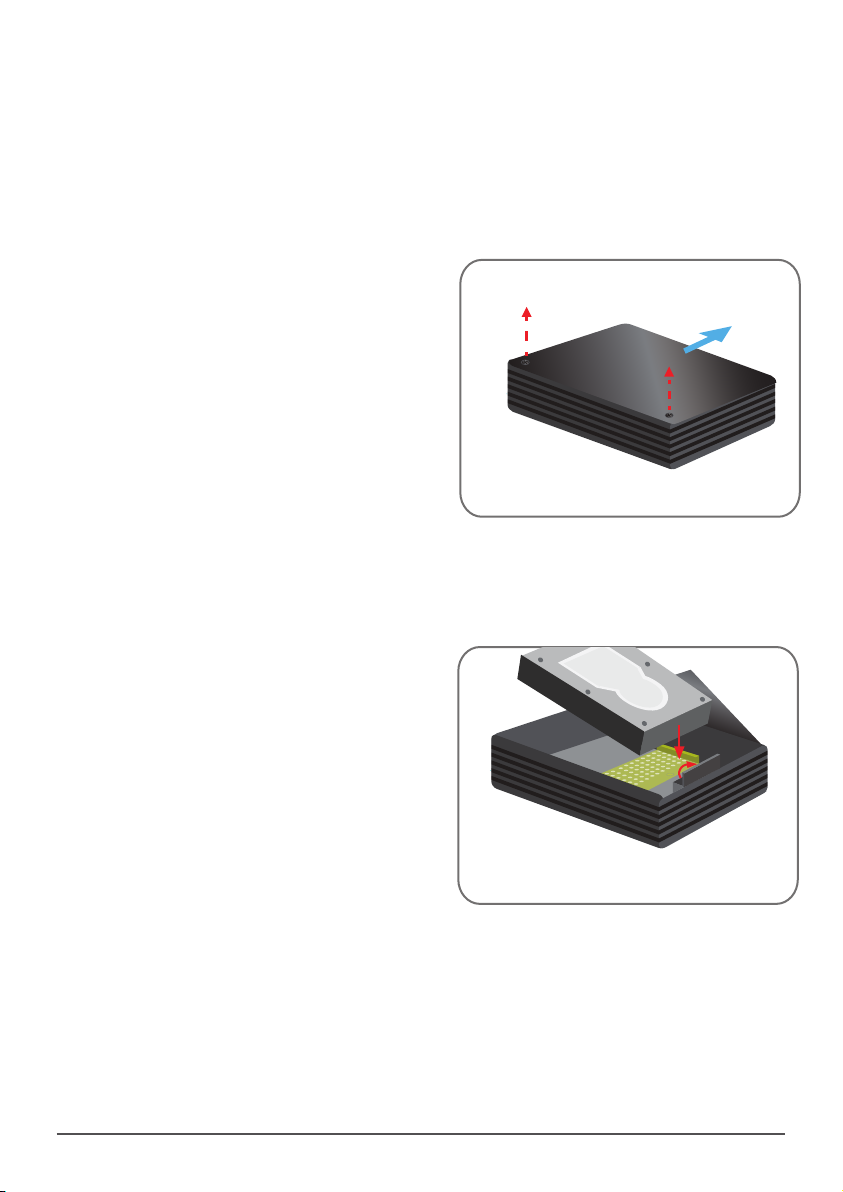

5.1. Hardware Installation:
Installing the hard drive:
(1)
Carefully unscrew the two screws and
slide the aluminum cover outward to open
(figure 5.1-A)
( figure 5.1-A )
(2)
Flip the protection cover upward and
carefully install the 3.5” SATA hard drive
into the enclosure.
(figure 5.1-B)
( figure 5.1-B )
Installation
6
Page 9

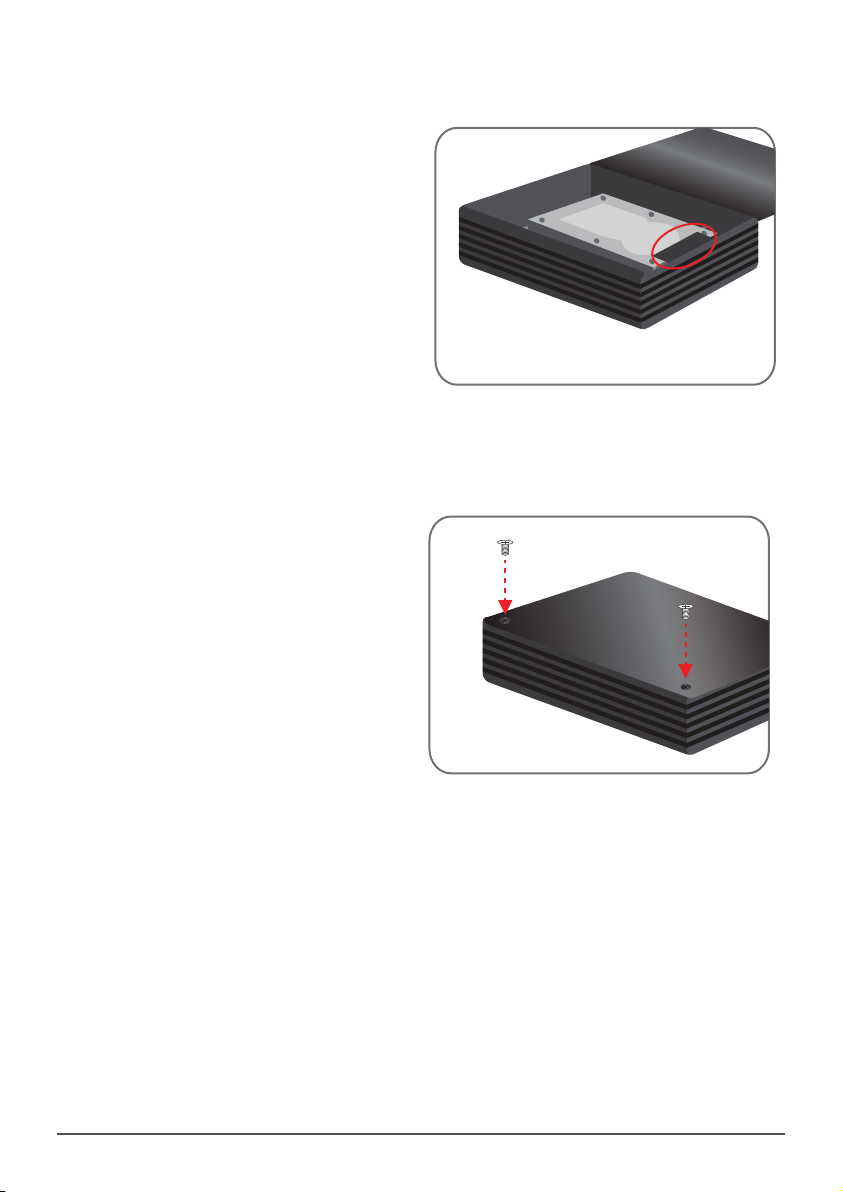

(3)
Once the hard drive has been installed,
flip the protection cover downward to
lock the hard drive in place.
(figure 5.1-C)
(4)
Slide the aluminum cover back on and
fasten the two screws.
(figure 5.1-D)
( figure 5.1-C )
( figure 5.1-D)
Installation
7
Page 10
Connecting the NexStar to your computer:
P
o
wer
USB 3.0
Connect the type (B) USB connector to the
(1)
NexStar and the type (A) USB connector
to an available USB port on your system.
Connect the power cable to the NexStar
(2)
and plug the cable into an available
outlet.
( figure 5.1-E )
Turn on the NexStar via the power switch.
(3)
( figure 5.1-E )
Your operating system should detect the
(4)
NexStar and automatically install the
necessary drivers. Once your operating
system finishes setting up the NexStar , it will
mount your hard drive. On Mac OS systems, the
new volume should appear on desktop. On a
Windows PC, the new volume will appear
under My Computer.
Your NexStar External Hard Drive is now
(5)
ready for use.
eSATA
(1)
Connect the eSATA to the NexStar and to an
available eSATA port on your system.
(2)
Connect the power cable to the NexStar
and plug the cable into an available
outlet. ( figure 5.1-E )
(3)
Turn on the NexStar via the power switch.
( figure 5.1-E )
(4)
Your operating system should detect the
NexStar and automatically install the
necessary drivers. Once your operating
system finishes setting up the NexStar,
it will mount your hard drive. On
Mac OS systems, the new volume should
appear on desktop. On a Windows PC, the new
volume will appear under My Computer.
(5)
Your NexStar External Hard Drive is
now ready for use.
NO T E :
For new hard drives, you will need to initialize and
partition your hard drive before it will appear in
Windows Explorer or on your Mac desktop. Please
refer to your hard drive manufacturer's documentation or read the"Creating a New Partition" section
of this manual.
(8)
eSATA Cable
or
(7)
(6)
( figure 5.1-E )
NO T E :
If you can see the USB icon in the system tray ,
but there is no any disk appear in your computer,
please confirm your hard disk is partitioned.
Installation
8
Page 11

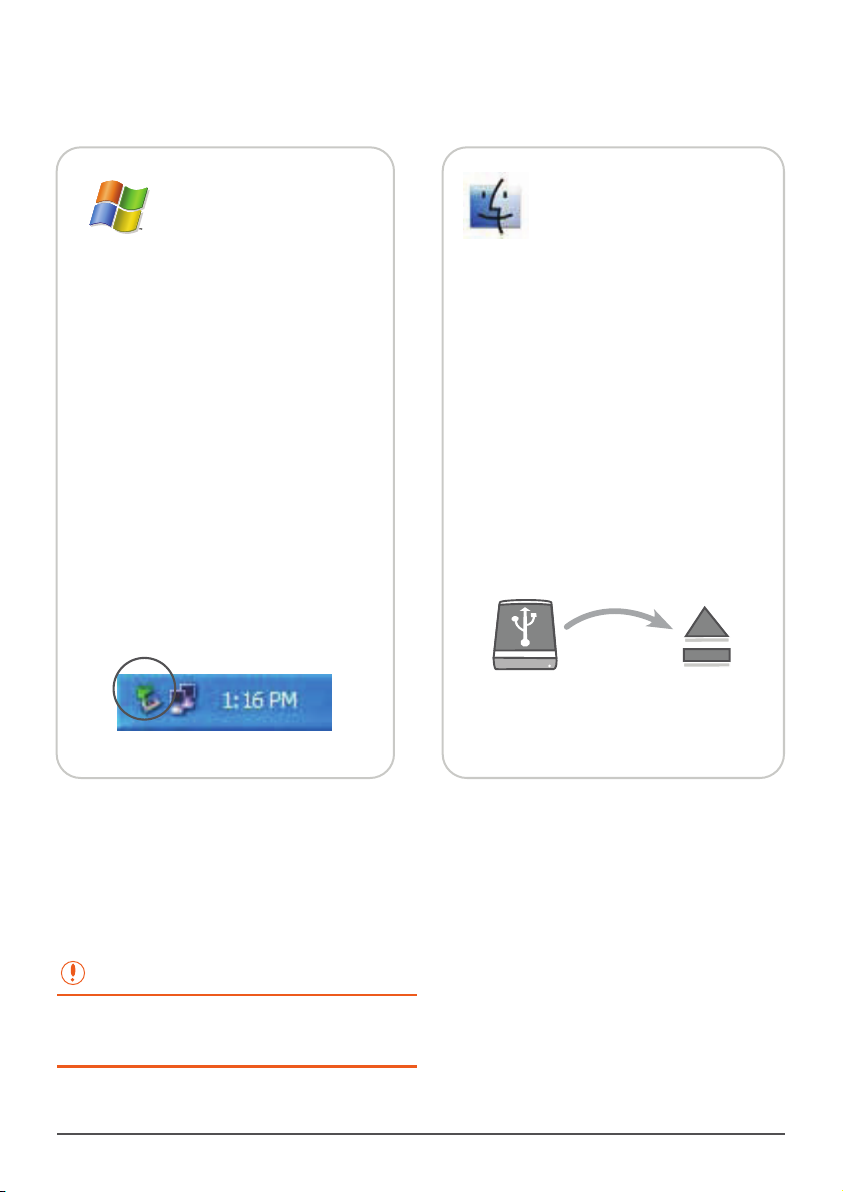

6. Disconnecting the NexStar HX :
NexStar HX SuperSpeed USB 3.0 External 3.5" HDD Enclosure:
Win dows XP/Vista/7 :
Make sure all operations using the hard
drive within the NexStar has ceased.
Close any windows and programs
pertaining to the NexStar
Double click the green “Safely Remove
Hardware” icon in the system tray and
select [Safely Remove USB Mass
Storage Device]. Select the device you
wish to remove and click on [Stop]. The
system should prompt, “It is now safe
to remove the USB device.” If not, wait
for any programs still using the device
to finish and try again.
You may now safely turn off and
disconnect the NexStar.
Mac OS:
Make sure all operations using the hard
drive within the NexStar
has ceased.
Close any windows and programs
pertaining to the NexStar
From the Desktop, drag the NexStar
hard drive to the trash.
You may now safely turn off and
disconnect the NexStar.
WARNING :
NEVER remove the NexStar while the hard drive is in
use. Doing so may corrupt the data on the hard drive
or damage the hard drive, NexStar and the computer.
Disconnecting the NexStar HX
9
Page 12
7. Hard Drive Formatting Guide
3.5” SATA to USB 3.0 & eSATA External Hard Drive Enclosure w/ Fan
You may format your Hard Drive by using the USB connection.
Please make sure your External Enclosure is turned on and connected to the
PC before formatting the Hard Drive.
In order to use a disk volume larger than 2 TB's, you will need an operating system that
supports GUID Partitioning Table. Windows 7, Windows Vista, Windows XP 64bit, Mac
10.4, and Mac 10.5 all have this capability through the GPT. The GUID partitioning scheme
has the ability to partition both internal and external drives far beyond 2 TB's in size.

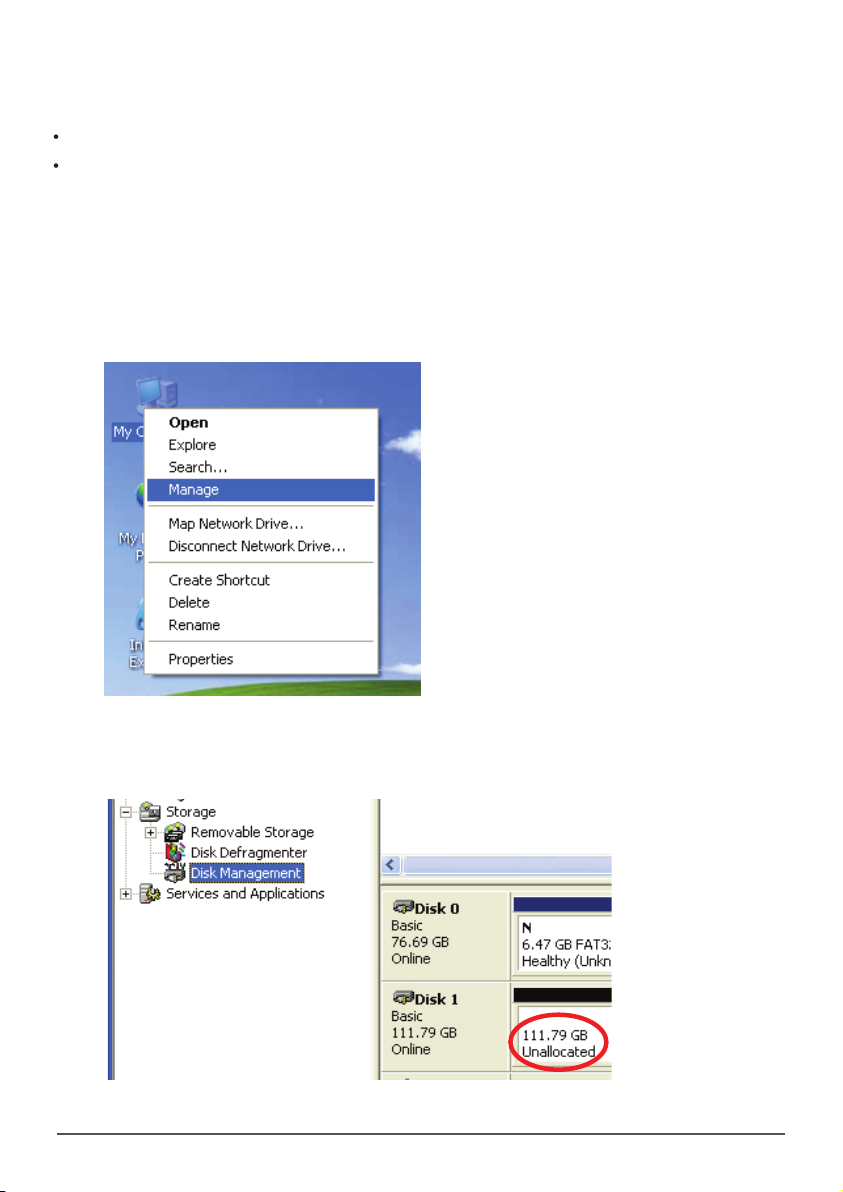

STEP1:
STEP2:
Right-click “My Computer” and select “Manage”.
Select “Disk Management” and you will see your Hard Drive shown as “Unallocated”
(Disk number may vary)
Hard Drive Formatting Guide
10
Page 13

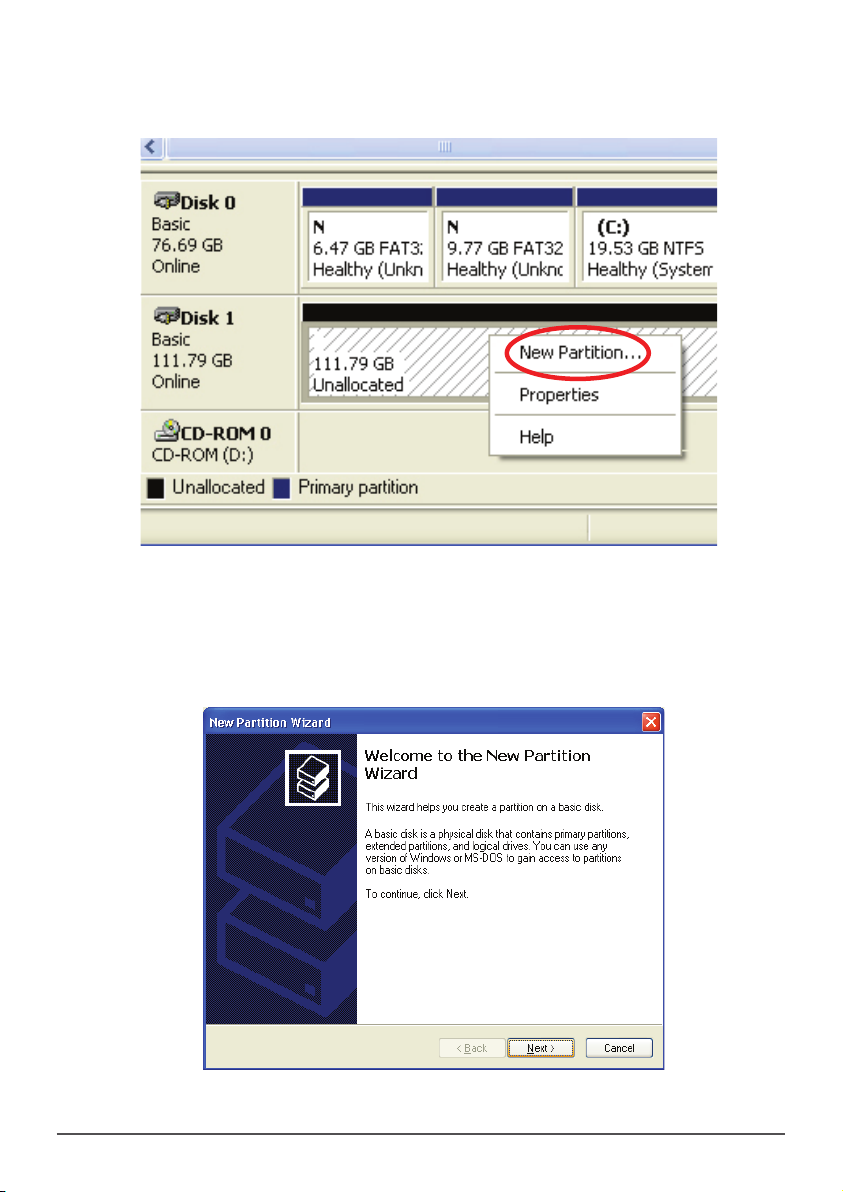

STEP3:
Right-click on the “Unallocated” box and select “New Partition”.
(Disk number may vary)
STEP4:
The “New Partition Wizard” will appear. Please follow the "New
Partition Wizard" step by step instructions to complete the Hard Drive
formatting procedure.
Hard Drive Formatting Guide
11
Page 14

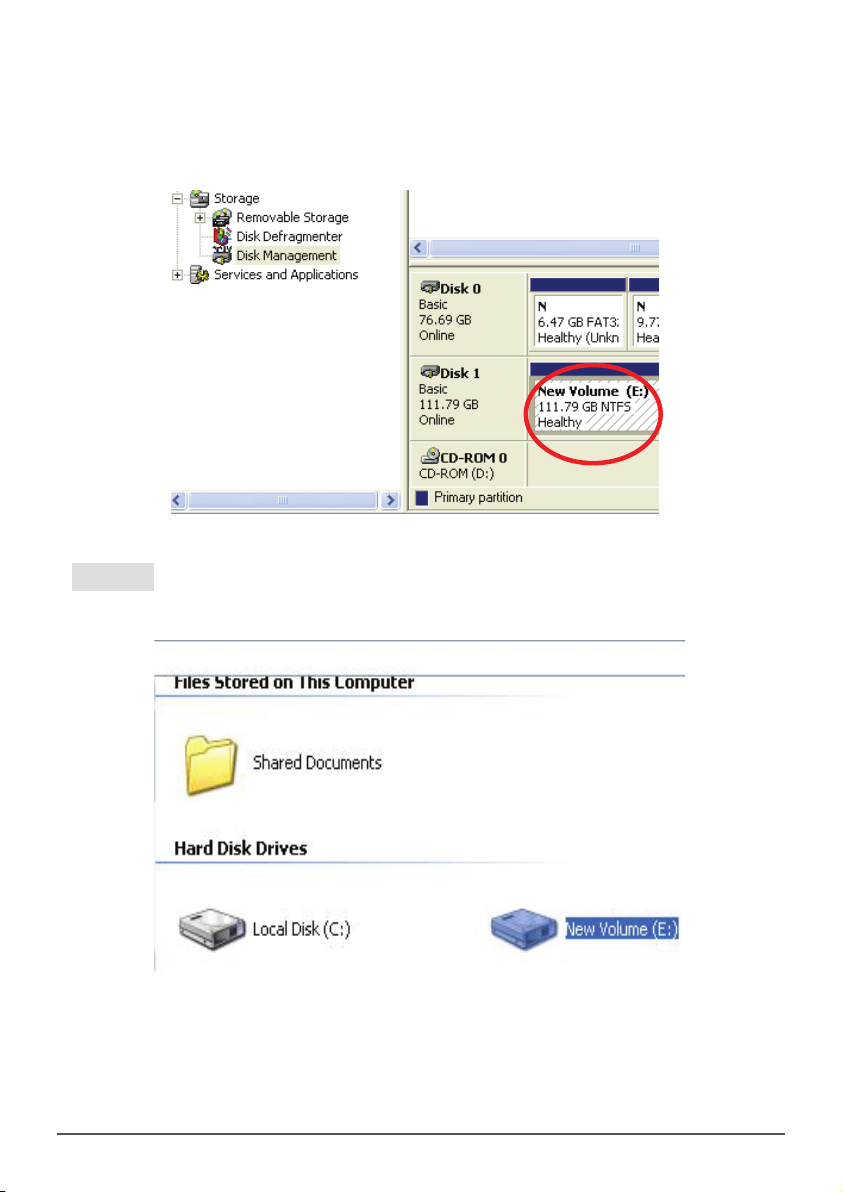

STEP5: Once the Hard Drive formatting procedure is completed, the Hard
Drive will be recognized as a “New Volume” (New Volume drive letter may
vary i.e. “New Volume (Z:)” )
STEP6: Double-click “My Computer”. You will see “New Volume” appear
on your PC (Drive letter may vary i.e. “New Volume (Z:)”)
This will conclude the Hard Drive Formatting guide.
Hard Drive Formatting Guide
12
Page 15
8. Warranty:
The NexStar HX comes with a 1 year limited
warranty ( 90 day parts ) . If your unit should
become defective within that time frame, please
go to www.vantecusa.com for information on
how to receive warranty exchange or repair.
Cosmetic defects and missing parts are not
covered under this warranty. Please check
the contents of the unit to make sure
you received all parts. Also, check for any
cosmetic flaws. If any parts are missing or
if there are cosmetic defects, please contact
the retailer from which you purchased the unit
immediately and ask for a replacement.
9. Contact :
Vantec Thermal Technologies
www.vantecusa.com
Copyright © 2011 Vantec Thermal Technologies. All Right Reserved.
All Registered Trademarks Belong To Their Respective Companies.
Warranty/ Contact
13
