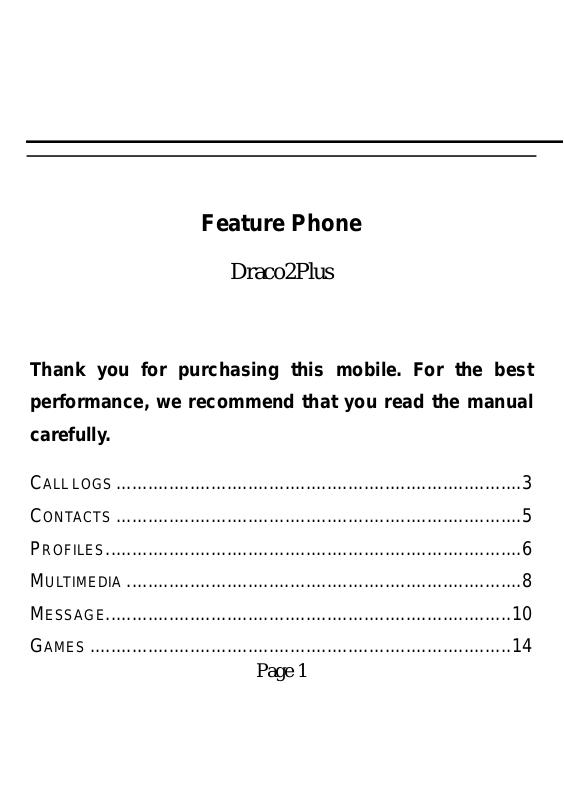

Feature Phone
Draco2Plus
Thank you for purchasing this mobile. For the best
performance, we recommend that you read the manual
carefully.
CALL LOGS ............................................................................. 3
CONTACTS ............................................................................. 5
PROFILES ............................................................................... 6
MULTIMEDIA ........................................................................... 8
MESSAGE............................................................................. 10
GAMES ................................................................................ 14
Page 1
APPLICATION ........................................................................ 14
INTERNET ............................................................................. 18
SETTINGS ............................................................................ 18
Page 2
Call logs
You can view your recent call situation.
[Missed calls]:
a missed call occurred the date and time, phone number and
times.
[Dialed calls]:
dialed calls occurred in the date and time, phone number
and times.
[Received calls]:
view after a phone that has the date and time of occurrence,
telephone number, frequency,
[Rejected calls]:
select a view after a missed call occurred the date and time,
phone number and times.
Press the OK softkey to enter the options menu can be more
than the number of call records in the following:
Page 3
Show all missed calls list, select a view after
Show all dialed calls list, select a view after a
Show all answered the phone list, select a
Show all refused to answer the phone list,
Details: View the current record date, time, type.
◆
Call: Call the current number.
◆
Save: You can save the current record to the phone or SIM
◆
card
Write message: send the current record of SMS.
◆
Add to contacts: the number of the record the name added
◆
to the existing record which
Add to blacklist: the current record to reject a call which
◆
Delete: Delete the currently selected record
◆
Delete all: Delete all call records
◆
Page 4
Mark：Mark to operation
◆
[Delete all]:
[Call times]:
statistics, a total of dialed calls, received calls, all calls total,
all the time can also be zero.
[GPRS counter]:
You have 2 phonebooks in this mobile phone: SIM card and
the mobile. The mobile can store 300 phone numbers and
the SIM card‟s capacity depends on its type.
I In standby mode, enter a number, press the call key pieces
to make a call, press the OK key to save
◆ If „To SIM 1/2‟ is selected, users can edit name and
number.
◆ If „To phone‟ is selected, the user can edit the name,
mobile number, image, ringtone, caller groups
Page 5
Delete all call records
Last time zero starting time for last call
Display the SIM card GPRS data.
Contacts
Into the phone book list, the list on the left displays a small
icon indicates that the record exists SIM card or mobile
phone, the right is the record of the name and number
information.
Standby mode, press the right soft key to enter into the
address book or from the menu
Into the address book, do the following:
[New]:
[Delete multiple]:
[Import/Export]:
phone
[Others]
[Memory status]: Query the current SIM card and mobile
phone storage capacity.
[Add]: Add the new profile
[Delete]: Delete the profile
[Settings]: set the selected mode
Create a record to phone or SIM
Choose one or more records to delete
Copy/Import/Export records to T-Card or
Profiles
Page 6
[Rename]: Rename the profile
[Ring settings]
SIM call ring: set the SIM card of the ringing tone
SIM message ring: set the SIM card message tone
[Adjust volume]
Caller ringtone: set the ringing tone volume
Message ringtone: ring volume settings information
Alarm & calendar volume; set the alarm tone
Call volume: Set the volume of calls
Power ringtone: the voice of setting switch
[Ring type]
Call alert: a ring, vibration, silent, vibration and ringing
◆
and ringing after the first five vibration incoming call
alert for you to choose
Message alert: a ring, vibration, silent, ringing and
◆
message alert vibration four ways for you to choose
Alarm & calendar remind: a ring, vibration, silent,
◆
ringing and message alert vibration four ways for you to
choose
Page 7
[Other alert rings]
Key tone: set the key tone of voice
◆
Battery low alert: Choose open the alert of battery low
◆
Power ringtone: Set the sound is turned Off
◆
Dial tone: Activate dial tone
◆
Multimedia
[Camera]
The phone supports photo, so you can capture your
favorite scenes anywhere. Photos will be saved in the phone
comes with a file system, photographs as JPG format, you
can phone provides photographs sent to a computer via USB
connection to view, can also be set Image for the standby
Note：This function can work without driver under Windows
XP by directly connecting your mobile to the computer
[Video recorder]
Set the parameter of DV and then use the function
[Image browser]
Page 8
View the image which in phone memory or T-card
[Audio player]
Play audio files, MP3 songs; to play audio files, MP3 songs,
press the Up and Down keys to adjust the volume, press the
left and right keys to select the present, the next song, press
the OK button for the on / off Music
[Music list]: Into playlist interface. Can be added to the play
list editing and other operations
[Add]: Add songs or music playlist bookmark
[Set as ringtone]: The song is set to call or alarm tone
[Repeat]: Choose one/all repeat
[Shuffle]: Choose shuffle to play the music
[Settings]:
◆ Equalizer: Choose a variety of equalizer effects
◆ BT stereo output: Set the BT output
◆ BT stereo headset: Set the BT headset
[Open review]: Open the function of review
[Exit]: Exit menu audio player
[Video player]
Page 9
Use the function of video player
[FM radio]
[Auto search and save]: Channel auto search and save
[Channel list]: View channel list
[Save]: Save the channel to the channel list
[Manual search]: Manually enter the channel and find
[Open speaker]: Choose whether to open the microphone
[Background play]: Choose whether to open the Background
Play
[Record]: Record the FM
[Timing record]: Set the time to record
[Record file list]: The list of FM record file
[Storage]: Set the location of storage
[Help]: FM Help
Message
The Messaging function is a network service. Sending and
receiving Text/MMS can only be used if the service is
proposed by your network operator.
Page 10
You can send ordinary Text messages, enhanced Text
messages (Text messages containing pictures, ring tones
and animation as attachments, EMS for short). The SMS is
sent to the Text messages center in the network firstly, and
then to the target user. If the receiver‟s mobile is power off or
cannot receive messages, the network will store the message
temporarily and the store duration is determined by the user
configuration and the service provider. I
The message will be directly stored in the SIM card if
the capacity is not full. A blinking icon at the head row of the
main screen will be displayed if the capacity is full.
Messages unread
If the Text message has been sent to the receiver, a
beep will sound. (If the tone for Text messages and message
report are activated).
[Write message]
[New SMS]
◆ Send: Enter the appropriate number of the recipient or
from the phonebook add
Page 11
◆ Insert template: to the content of the message
currently being edited into the common language
◆ Add contact info: Insert the contact person
◆ Add phiz: emoticons into the meaning of the
representative
◆ Save as draft: will save the information to Drafts
◆ Exit: Exit message
◆ [New MMS]:
◆ Send: send MMS to the receiver
◆ Add new recipients: Enter the recipient's phone
number or e-mail or group
◆ Preview: Preview edited MMS content.
◆ Add: add video/audio/picture to MMS
◆ Set slide time(1s—600s): set the slide time of MMS
◆ Delete: Delete the message
◆ Save as draft: save as draft
◆ Text layout: move the text above or down
[Inbox]:：
Page 12
◆ Reply: reply to SMS to each other.
◆ Delete: Delete short message
◆ Call: choose a voice call or a call to the sender IP calls
◆ Lock: lock cannot be deleted
◆ Move: Move the message to SIM or phone
◆ Copy: Copy the message to SIM or phone
◆ Mark: single marker or markers in whole or in text
messages stored in SIM1/SIM2, mark or unmark after
delete records
◆ Sort: In accordance with time / contact / theme /
message type sort
◆ Delete repeated number: choose to delete the same
number of records.
◆ Add to blacklist: Add the sender to blacklist
[Outbox]: Reading or processing stored in the Outbox of the
SIM card message.
[Drafts]: Reading or processing stored in the Drafts of the SIM
card message
[Sentbox]: read and process the mail stored in the SIM card
Page 13
has been sent information
[Security inbox]: View the message which is locked
[Templates]: Use the function of templates
[Broadcast message]: Use the function of broadcast
message
[Voice mail server]: use the function of voice mail server
Games
[Snake]
Provide the snake game
[FaceBook]
Connect to facebook
Application
[Whatsapp]
Use the function of the whatsapp
[Alarm]
This machine has three alarm times available for your
settings. Access any time, you can set its status to on / off,
Page 14
ring time, repeat mode, ring tones, alarm clock name, etc.
[My Files]
[MemoryCard]: SD card needs to support T card
[New folder]: Create a new folder.
[Delete]: delete the specified folder.
[Details]: View the folder or file for more information
[Edit]: the selected folder or rename the file or copy
[Search]: Enter the folder name to find out.
[Sort]: By the way you choose to sort the files.
[Mark]: Select Mark / Unmark single / all
[More]
◆ Memory Card capacity: View the memory card
capacity
◆ Format MemoryCard: Format memory card
[Calculator]
Can be continuously mixed arithmetic, the operation is
simple, practical, convenient
[Calendar]
Press the left soft key to access the calendar display
Page 15
interface, the first line shows the year, month, and the third
line shows the week, the middle section shows the specific
date of a month, the last line shows the right and left soft key
in the message. Interface in the calendar, press the arrow
keys on the date forward one week, press the arrow keys to
move one week after the date, press the left arrow key date
forward one day, press the right arrow keys to move the day
after the date, select the date to a dark display
[Add new schedule]: a new agenda
[View schedule]: View the schedule one day save
[All schedule]: View the schedule all day
[Clear tasks today]: Clear the calendar day
[Clear all]: Empty all the schedules
[Go to date]: Enter the dates you want to find, the cursor will
jump to that date quickly
[Weekly]: the week / month display calendar.
[World clock]
View the time of countries
[Recorder]
Page 16
[Start recording]: Start recording
[Record file list]: The memory card inside the recording file
list
[Storage]: Set the locate of storage
[File format]: Set the format of record file
[Ebook]
View the “txt” document
[Bluetooth]
[Open Bluetooth]: Choose to activate the Bluetooth
[Bluetooth visibility]: Bluetooth visibility set
[Paired device]: Search and paired Bluetooth devices
[Device name]: Local Bluetooth name
[Bluetooth file storage]: Storage location
[Help]:：Help Documentation
[STK]
Full name of the SIM card application toolkit (SIM
Application Toolkit). It can provide you with flexible
information functions, such as stock information, traffic
Page 17
information, weather and so on. STK functionality provided
by the network operator decision. The business needs the
support of SIM cards and network
Internet
Use the function of internet
[Bookmark]:
bookmarks and the bookmarks can be edited or direct them
to surf.
[History]:
you can directly select the records inside the surf
[Offline pages]:
save the snapshot shown here
[Homepage]:
[Settings]:
[Exit]:
[Call setting]
[Dual-SIM]:
Page 18
Website of interest can be saved in the
Mobile recently logged in the menu page is saved,
Throughout the course of mobile browsing,
Open the home page
Set account/homepage/content/restore default
Exit browser
Settings
[Standby mode]: Dual SIM standby or standby only SIM1 or
SIM2 only
[Reply by original SIM]: Reply the call/SMS by original SIM
[Set SIM name]: SIM1 and SIM2 in the card slot to set the
display name
[Call divert]: transfer a call, respectively SIM1/SIM2
◆ Call forwarding unconditional: Set a forwarding
number, for forwarding all calls are
◆ Call forwarding on busy: set the forwarding number,
transfer calls when in busy
◆ Call forwarding on no reply: Set a forwarding
number, in case of no response transfer
◆ Diver if unreachable: to set the forwarding number
in the phone unable to connect the case of transfer
◆ Cancel all diverts: cancel all of the transfer
[Call waiting]: open call waiting, respectively SIM1/SIM2
[Call barred respectively SIM1/SIM2 call for restrictions
[Hide ID]: respectively SIM1/SIM2 to hide the machine when
the power numbers.
Page 19
* SIM card, operators need to support
[Others]:
[IP prefix] select IP prefix
[Call time minute reminder]: Select the open or closed during
a voice call has prompted
[Auto redial]: Select whether to open automatically redial
function
[Vibration when connected]: Select the phone is turned on or
off the tone when
[Reply SMS after reject]: Select whether to reject messages
or return after any key answer
[Auto record voice call]: Auto record the voice call
[Phone settings]
[Date & time]
◆ Set time: set the phone to display the time
◆ Set date: set the phone to display the date
◆ Time format: Set the display time format
◆ Date format: Set the date display format
[Language settings]: Select phone display language.
Page 20
[Shortcut settings]: Set the function of shortcut
[Auto power on/off]: Set the time and frequency of Automatic
Turning
[Restore factory settings]: restore the factory settings
[Display]
[Wallpaper settings]: Set wallpaper
[Idle display setting]: Set the idle
[Contrast]: adjust the screen's backlight brightness
[Keypad backlight time]: Set the backlight time key
[Auto keypad lock]: Set the auto keypad lock
[Security]
[PIN]: Select open or modify the phone's PIN code
[Modify PIN2]: PIN2 choose to modify the phone code
[Phone locked]: Set the phone locked
[Modify the cellphone password]: Modify the password of
phone
[Privacy]: set access to enter the password to view
functionality. (Including: call logs / message / camera /
phonebook / my files / ebook / calendar / U disk/audio
Page 21
player/video player)
[Lock screen by end-key]: press the end key to select
whether the off-screen function
[Guardlock]:
to set the security password and open the feature, open the
opportunity for the card and then prompts for security
password, if the wrong password is entered three times, the
phone can receive within 24 hours of alarm information
[Fixed dialing]: Set the fixed dialing function
[Blacklist]: Set the blacklist with call or message
[Connections]
[Network account]: Create or edit the network account
[New connection]: Create a new Internet account
[Add from list]: from the system built-in Internet account to
add a new account
[Search]: from the current logged on to Internet search to the
card account information, which added to the list after the
selected
[Delete]: delete the selected account
Page 22
[Edit]: edit the currently selected account
[GPRS service]: Choose open or close GPRS service
[Data connection settings]: The type of data connection
[Network selection]: Choose auto or manual select network
Use the effect for menu list
1.FCC Statement
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
Page 23
provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
Page 24
technician for help.
SAR Information Statement
Your wireless phone is a radio transmitter and receiver.
It is designed and manufactured not to exceed the
emission limits for exposure to radiofrequency (RF)
energy set by the Federal Communications
Commission of the U.S. Government. These limits are
part of comprehensive guidelines and establish
permitted levels of RF energy for the general
population. The guidelines are based on standards
that were developed by independent scientific
organizations through periodic and thorough
evaluation of scientific studies. The standards include
a substantial safety margin designed to assure the
safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones
employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC
Page 25
is 1.6 W/kg. * Tests for SAR are conducted with the
phone transmitting at its highest certified power level
in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the
actual SAR level of the phone while operating can be
well below the maximum value. This is because the
phone is designed to operate at multiple power levels
so as to use only the power required to reach the
network. In general, the closer you are to a wireless
base station antenna, the lower the power output.
Before a phone model is available for sale to the public,
it must be tested and certified to the FCC that it does
not exceed the limit established by the government
adopted requirement for safe exposure. The tests are
performed in positions and locations (e.g., at the ear
and worn on the body) as required by the FCC for each
model. The highest SAR value for this model phone
when tested for use at the ear is 0.467W/Kg and when
worn on the body, as described in this user guide, is
Page 26
0.562W/Kg(Body-worn measurements differ among
phone models, depending upon available accessories
and FCC requirements). While there may be
differences between the SAR levels of various phones
and at various positions, they all meet the
government requirement for safe exposure. The FCC
has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as
in compliance with the FCC RF exposure guidelines.
SAR information on this model phone is on file with
the FCC and can be found under the Display Grant
section of http://www.fcc.gov/ oet/fccid after
searching on
FCC ID: ZYPDRACO2PLUS Additional information
on Specific Absorption Rates (SAR) can be found on
the Cellular Telecommunications Industry
Asso-ciation (CTIA) web-site at
http://www.wow-com.com. * In the United States
and Canada, the SAR limit for mobile phones used by
Page 27
the public is 1.6 watts/kg (W/kg) averaged over one
gram of tissue. The standard incorporates a
sub-stantial margin of safety to give additional
protection for the public and to account for any
variations in measurements.
Body-worn Operation
This device was tested for typical body-worn
operations. To comply with RF exposure requirements,
a minimum separation distance of 15mm must be
maintained between the user’s body and the handset,
including the antenna. Third-party belt-clips, holsters,
and similar accessories used by this device should not
contain any metallic components. Body-worn
accessories that do not meet these requirements may
not comply with RF exposure requirements and
should be avoided. Use only the supplied or an
approved antenna.
Page 28
Loading...
