Nexpro Limitada DRACO Users Manual

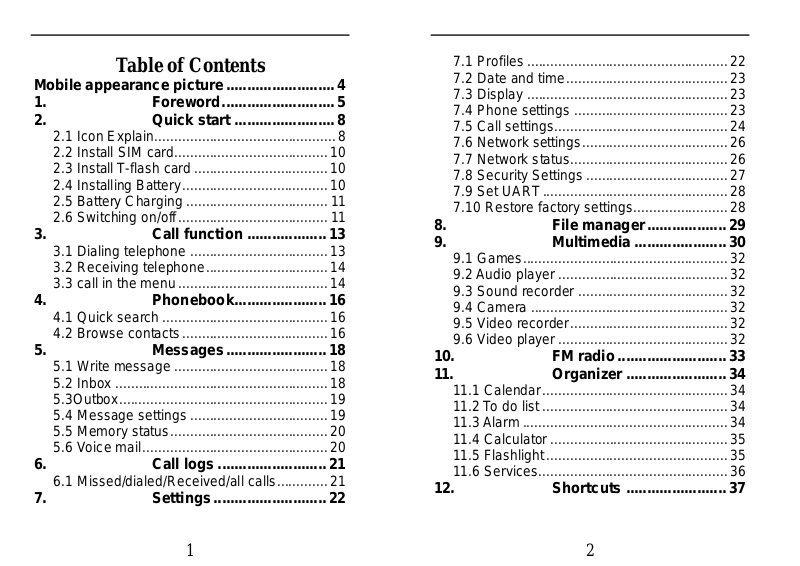

Table of Contents

Mobile appearance picture .......................... 4

1. Foreword ........................... 5

2. Quick start ........................ 8

2.1 Icon Explain .............................................. 8

2.2 Install SIM card....................................... 10

2.3 Install T-flash card .................................. 10

2.4 Installing Battery ..................................... 10

2.5 Battery Charging .................................... 1 1

2.6 Switching on/off ...................................... 1 1

3. Call function ................... 13

3.1 Dialing telephone ................................... 13

3.2 Receiving telephone ............................... 14

3.3 call in the menu ...................................... 14

4. Phonebook...................... 16

4.1 Quick search .......................................... 16

4.2 Browse contacts ..................................... 16

5. Messages ........................ 18

5.1 Write message ....................................... 18

5.2 Inbox ...................................................... 18

5.3Outbox ..................................................... 19

5.4 Message settings ................................... 19

5.5 Memory status ........................................ 20

5.6 Voice mail ............................................... 20

6. Call logs .......................... 21

6.1 Missed/dialed/Received/all calls ............. 21

7. Settings ........................... 22

7.1 Profiles ................................................... 22

7.2 Date and time ......................................... 23

7.3 Display ................................................... 23

7.4 Phone settings ....................................... 23

7.5 Call settings ............................................ 24

7.6 Network settings ..................................... 26

7.7 Network status ........................................ 26

7.8 Security Settings .................................... 27

7.9 Set UART ............................................... 28

7.10 Restore factory settings ........................ 28

8. File manager ................... 29

9. Multimedia ...................... 30

9.1 Games .................................................... 32

9.2 Audio player ........................................... 32

9.3 Sound recorder ...................................... 32

9.4 Camera .................................................. 32

9.5 Video recorder ........................................ 32

9.6 Video player ........................................... 32

10. FM radio .......................... 33

11. Organizer ........................ 34

11.1 Calendar ............................................... 34

11.2 To do list ............................................... 34

1 1.3 A larm .................................................... 34

11.4 Calculator ............................................. 35

11.5 Flashlight .............................................. 35

11.6 Services ................................................ 36

12. Shortcuts ........................ 37

13. Input methods ................ 38

14. Phone maintenance ....... 39

15. Accessories .................... 41

16. Environment ................... 42

17. Tech nical Specifications 43

Mobile appearance picture

1.Left soft key 7. Numberic key

2.Right soft key

3.Green key

4.Red key

5.Navigation key

6.OK key

1. Foreword

Honorific mobile phones user, thank you for choosing our mobile phone! Our cellular phones is according with the communication industry standards of PRC, and also according with the standards of European, and are approved for GSM networks. Your phone may be used internationally with various networks depending on your roaming arrangements with your service provider. To use this phone y ou must subscribe to a GSM service from a provider. We have included many features in this device but their function depends on the features available with your subscribed wireless network. Please contact your service provider for more information. We strongly recommend you carefully read and understand this manual before using your phone in order to keep it under best conditions for your effective usage and utmost satisfaction.

Safety

Never attempt to disassemble your phone. You alone are responsible for how you use your phone and any consequences of its use. As a general rule, always switch off your phone wherever the use of a phone is prohibited. Use of your phone is subject to safety measures designed to protect users and their environment. Do not use your phone in damp areas (bathroom, swimming pool…). Protect it from liquids and other moisture. Do not expose your phone to extreme temperatures lower

than - 10°C and higher than + 55°C. The physicochemical processes created by chargers impose temperature limits when charging the battery. Your phone automatically protects the batteries in extreme temperatures. Do not leave your phone within the reach of small children (certain removable parts may be accidentally ingested). Electrical safety Only use the chargers listed in the manufacturer’s catalogue. Using any other charger may be dang erous; it would also invalidate your warranty. Line voltage must be exactly the one indicated on the charger’s serial plate. Aircraft safety When traveling by plane, you will need to switch your phone off when so instructed by the cabin crew or the warning signs. Using a mobile phone may be dangerous to the operation of the aircraft and may disrupt the p hone network. Its use is illegal and you could be prosecuted or ba nned from using cellular networks in the future if you do not abide by these regulations. Explosive materials Please comply with warning signs at pe trol station when personnel asking you to switch your phone off. You will need to comply with radio equipment usa ge restrictions in places such as chemical plants, fuel depots and at any location where blasting operations are under way. Electronic equipment To avoid the risk of demagnetization, d o not let electronic devices close to your phone for a long time. Electronic medical equipment Your phone is a radi o transmitter which may int erfere with

electronic medical equipment or implants, such as hearing aids, pacemakers, insulin pumps, etc. It is recommended that a minimum separation of 15cm be maintained between the phone and an implant. Your doctor or the manufacturers of s uch equipment will be able to give you any advice you may need in this area. Hospitals Always make sure that your phone is switched off in hospitals when so instructed by warning signs or by medical staff. Road safety Do not use your phone when drivin g. I n order t o gi ve your full attention to driving, stop and park safely before making a call. You must comply with any current legislation. Distance of operation This phone model has been tested and meets radiofrequency exposure guidelines when used As follows:

·Against the ear: place or receive a phone call and hold the phone as you would a wire line telephone.

·Body worn: when transmitting, place the phone in a carry accessory that contains no metal and positions t he phone a minimum of 2.5cm form your body. Use of other accessories may not ensure compliance with radiofrequency exposure guidelines. If you do not use a body worn accessory and are not holding the phone at the ear, position the phone a minimum of 2.5 cm from your body,

·Data operation: when using a data feature, position the phone a minimum of 2.5c m from your body for th e whole duration of the data transmission.

2. Quick start

2.1 Icon Explain Icon Function description

Network signal strength:

number of the more stronger the signal;

Battery capacity

number of the more power the more full;

SMS

SIM1/SIM2 have unread SMS Missed call SIM1/SIM2 have missed calls

Used profiles

Different icons show different icon: General, Meeting, Outdoor, Indoor

Headset

Plug in headset

Alarm

Alarm function opened

Key lock

Show key and screen lock

Knowing the Keys

1. Left soft key/Right soft key: Implement the functions shown in the lower left/right hand corner.

2.Green key: Press after dialing to connect by SIM Card. Press if there is an incoming call to answer. Press from standby to go to call records list.

3. Red key: Long press to switch phone o n/off; Press to end, reject call; or to exit a menu.

4. OK key: Confirm or accept selection in menu access. Press from standby to enter the selected shortcuts list function.

5. Navigation Keys: Press the up/down/left/right direction in menu to scroll, browse or in edit page to move cursor. In idle mode, press the up/down/left/right direction keys to select the shortcut function showed on the bottom of the screen, and then press the OK key to confirm.

6. 0-9 alphanumeric keys: Press corresponding keys to input numbers when dialing or numbers and characters when editing. Press the alphanumeric key [W] to input “+” symbol for international access in the dialing interface. Press the alphanumeric key [P] to input “p” symbol for the fixed extension number.

7.＊(Star) Key: Press in standby to input “*” character; long press from standby to activate or deactivate silent mode.

8. # Key: Press in standby to input “#” character; long press from standby to lock or unlock keypad.

2.2 Install SIM card

This phone supports two GSM SIM cards. Find SIM card’s groove in the back of the phone and slide it completely there. During installation, please make sure the chip is facing downwards and pay attention to slot direction.

Note：

1. Keep SIM card out of children’s touch.

2. Any abrasion or folding could easily damage SIM card, so please be extremely careful when you insert, Remove and preserve it.

3. Please make sure that you have cut off the power supply and have taken out battery before you remove SIM card.

2.3 Install T-flash card

1. First switch off the phone and remove the battery.

2. Push the metal card holder toward the bottom of the phone and lift the released end of the holder.

3. Place the memory card into the holder with the metal contacts face down and push the holder until it locks into place.

Note:

1.To avoid damaging memory card, please do not plug memory card fast or frequently.

2. Please regularly backup information in the cards on other equipment when you use Cards like T-flash! Improper use or other uncertain factors may cause the damage or loss to the content in the cards.

2.4 Installing Battery

Align the battery chip with the metallic salient point in battery jar, insert the battery until it is inserted into the

battery jar. Slide battery cover into back of the phone until it is locked.

2.5 Battery Charging

Unclose dustproof soft gum of attachment mode on the bottom of the phone, insert one end of the charger, i.e., the charging plug into attachment mode and the other end into electrical outlet, Screen will displa y the charging sign. After charging is finished, just pull out the plug.

Note:

1. Please use the standard battery and charger, or may explode.

2. If the battery is completely discharged, the battery icon should be in charge after 2 to 3 minutes to appear. Generally based on the current state of the phone (if boot, call, etc.) of different charging time for 2 to 5 hours.

3. Please use the charger, charging as much as possible to avoid using USB cable.

4. To ensure optimal battery performance, the completion of two to three times the battery charge and discharge cycles. Se veral new battery initial charge, please charge more than 10 hours straight.

2.6 Switching on/off

Long press the Red key to switch your phone on or off.

1. If there is no SIM card, SIM card is defective, or SIM card contact is loose, you will be prompt with a warning after powering on, shut down and check your SIM and its installation.

2. If inserted one GSM SIM card only into the phone, meanwhile phone code and PIN code is turn on. When switched on, after entering the PIN code and phone code,

the phone enter the standby mode by the current SIM.

3. If inserted two GSM SIM cards, meanwhile phone code, PIN1 code and PIN2 code are all turned on. When switched on, you will be prom pted to enter the code one by one. After switched on, the phone will automatically search the network.

4. If the phone detected authorized network, the screen will display network name an d signal strength；If there is no authorized network is found，the phone can only make emergency calls or use non-communications features.

3. Call function

3.1 Dialing telephone

1. Direct dial In standby mode, press the corresponding numeric

keys to enter the phone number that you want to dial, including necessary area codes. Short Press the Right soft key [Clear] to delete one character, and Long Press delete all inputs, if inserted only one SIM card, press the Green key can directly to dial, if inserted two SIM card, press the Green key into the SIM select screen.

2. Making an International Call:

To make an international call, long press [0] key until the prefix symbol "＋" of international call displays in screen.

3. Dialing from Phonebook

Enter the Phonebook via the menu, use the Up/Down Navigator keys to scroll to the desired contact, or press the first letter of the name of the desired contact as saved in your phonebook for quick access to names beginning with the letter then scroll to the desired, press the green key to dial.

4. Dialing from Call history

Enter the Call center (press the Green k ey from standby or via the menu), use the Up/ Down navigator keys to scroll to the desired contact, press the green key can direct dial.

5. Dial emergency service

You can directly dial the emergency service number without SIM card. Different networks use different urgency service numbers, so for de tails please inq uire t he netwo rk operation company.

3.2 Receiving telephone

When there is an incoming call, the phone will give corresponding alert, if your network supports caller ID, the screen will display caller’s name or number (depending on whether there is information of the caller in your phonebook).

1. Press the green key or press the Left soft key and confirm [Answer] to answer the incoming call.

2. If function of [call center/call setting/Advanced s etting/ Answer mode] is selected as [Any-key], press the any key to answer the incoming call except the Right soft key or the Red key.

3. If you do not want to answer an incoming call, press the Red key or the Right soft key [Reject] to reject it.

You can also press the Red key to end a call.

4. During a call, you can press the Up/Down navigator key to adjust receiver volume.

3.3 call in the menu

During a call, press the right soft key can also open / close the hands-free function, press the left soft-key into the options:

- Swap*: Is maintained in the current call and switch between calls

- Conference*:Into the multi-party conference call, you can follow the prompts to answer the waiting ca ll, to add multi-session conference call will be maintained; and the party conference in private conversation, the call to keep all other parties; the parties to keep the party; the end of the current Calls and all calls remain.

- End single call*: end off the current call.

- End all calls*:end off the current call and the hold call

- T ransfer*: the function need network support.
