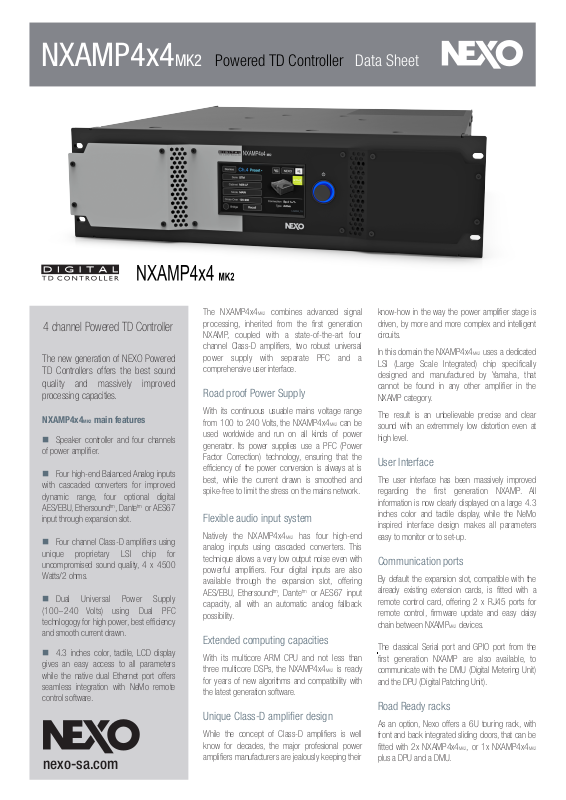

Nexo NXAMP-4X4-MK2 Specifications

NXAMP4x4MK2

Powered TD Controller Data Sheet

4 channel Powered TD Controller

The new generation of NEXO Powered
TD Controllers offers the best sound
quality and massively improved
processing capacities.

NXAMP4x4MK2 main features

 Speaker controller and four channels

of power amplifier.

 Four high-end Balanced Analog inputs

with cascaded converters for improved
dynamic range, four optional digital
AES/EBU, Ethersoundtm, Dantetm or AES67
input through expansion slot.

 Four channel Class-D amplifiers using

unique proprietary LSI chip for
uncompromised sound quality, 4 x 4500
Watts/2 ohms.

 Dual Universal Power Supply

(100~240 Volts) using Dual PFC
technlogogy for high power, best efficiency
and smooth current drawn.

 4.3 inches color, tactile, LCD display

gives an easy access to all parameters
while the native dual Ethernet port offers
seamless integration with NeMo remote
control software.

nexo-sa.com

The NXAMP4x4
processing, inherited from the first generation
NXAMP, coupled with a state-of-the-art four
channel Class-D amplifiers, two robust universal
power supply with separate PFC and a
comprehensive user interface.

MK2 combines advanced signal

Road proof Power Supply

With its continuous usuable mains voltage range
from 100 to 240 Volts, the NXAMP4x4MK2 can be
used worldwide and run on all kinds of power
generator. Its power supplies use a PFC (Power
Factor Correction) technology, ensuring that the
efficiency of the power conversion is always at is
best, while the current drawn is smoothed and
spike-free to limit the stress on the mains network.

Flexible audio input system

Natively the NXAMP4x4MK2 has four high-end
analog inputs using cascaded converters. This
technique allows a very low output noise even with
powerful amplifiers. Four digital inputs are also
available through the expansion slot, offering
AES/EBU, Ethersoundtm, Dantetm or AES67 input
capacity, all with an automatic analog fallback
possibility.

Extended computing capacities

With its multicore ARM CPU and not less than
three multicore DSPs, the NXAMP4x4MK2 is ready
for years of new algorithms and compatibility with
the latest generation software.

Unique Class-D amplifier design

While the concept of Class-D amplifiers is well
know for decades, the major profesional power
amplifiers manufacturers are jealously keeping their

know-how in the way the power amplifier stage is
driven, by more and more complex and intelligent
circuits.

In this domain the NXAMP4x4
LSI (Large Scale Integrated) chip specifically
designed and manufactured by Yamaha, that
cannot be found in any other amplifier in the
NXAMP category.

The result is an unbelievable precise and clear
sound with an extremmely low distortion even at
high level.

MK2 uses a dedicated

User Interface

The user interface has been massively improved
regarding the first generation NXAMP. All
information is now clearly displayed on a large 4.3
inches color and tactile display, while the NeMo
inspired interface design makes all parameters
easy to monitor or to set-up.

Communication ports

By default the expansion slot, compatible with the
already existing extension cards, is fitted with a
remote control card, offering 2 x RJ45 ports for
remote control, firmware update and easy daisy
chain between NXAMPMK2 devices.

The classical Serial port and GPIO port from the
first generation NXAMP are also available, to
communicate with the DMU (Digital Metering Unit)
and the DPU (Digital Patching Unit).

Road Ready racks

As an option, Nexo offers a 6U touring rack, with
front and back integrated sliding doors, that can be
fitted with 2x NXAMP4x4MK2, or 1x NXAMP4x4MK2
plus a DPU and a DMU.

Power consumption (Idle) 270 Watts

Green Status ROHS and REACH

NXAMP4x4MK2

NEXO is one of the world's
leading sound reinforcement
loudspeaker manufacturers.
Founded in 1979, the company
is dedicated to crafting practical
solutions with solid engineering.
Each new design begins with a
proprietary sophisticated
computer simulation process
that allows every parameter to
be extensively modeled and
simulated, leading to
breakthrough cost and
performance gains. NEXO's
comprehensive product line
includes loudspeakers, analogue
and digital control electronics
and amplification; all designed
to deliver consistent sound
quality and long term reliability
for a broad range of
applications.

NEXO S.A.
Parc d’Activité
du Pré de la Dame Jeanne
B.P. 5
60128 PLAILLY
Tel: [phone]
Fax: [phone]
e-mail: [e-mail]

Powered TD Controller Data Sheet

POWER SPECIFICATIONS FOR NXAMP4x4MK2

Number of channels 4x amplifier channels, bridgeable by pairs
Max. output voltage (no load) 4x 180 Volts
Max. output power (4 channels mode /8 Ohms load per channel) 4x 1900 Watts
Max. output power (4 channels mode /4 Ohms load per channel) 4x 3300 Watts
Max. output power (4 channels mode /2 Ohms load per channel) 4x 4500 Watts
Max. output power (2 channels mode /8 Ohms load per channel) 2x 6600 Watts
Max. output power (2 channels mode /4 Ohms load per channel) 2x 9000 Watts
Power consumption (Standby) 20 Watts

INPUT TO POWER OUT SPECIFICATIONS

Frequency response +/-1 dB from 20 Hz to 20 kHz
Input impedance / Input Sensitivity 22 kΩ / +18 dBU
Dynamic range / TDH + N 110 dB unweighted / Typical 0.01% on a flat setup
Latency 550 us on a flat setup
Audio AD and DA Converters 32 bits @ 96 kHz
Processing 3 x multicore 64 bits processing DSPs

BACK PANEL FEATURES

Analog audio inputs 4x balanced analogue inputs on XLR3
Power outputs 4x Neutrik Speakon NL-4 outputs
RS232 port 1x DB-9 connector dedicated for DPU connection
GPIO port 1x DB-25 connector with 5x Inputs and 8x Outputs or for DMU connection
Expansion slot For networking and digital audio cards, 4x digital audio inputs and remote control
Mains sockets 2x Neutrik Powercon NAC3 (2x 20 A)

USER INTERFACE AND CONTROLS

Front panel buttons and knobs Rotary Encoder with push and backlight, tactile screen.
Display 4.3 inches diagonal color display, WQVGA, resolution 480 x 272.

MAINS REQUIREMENTS

Mains voltage Dual Universal Power Supply with Active PFC 100 - 240 Volts (50/60 Hz)
Power consumption 1/4 max. 2 Ohms 6350 Watts (Total from both Mains input)

DIMENSIONS AND CERTIFICATIONS

Dimensions 3U 19" Rack, 502 mm (20”) depth, 24.9 kg (54.9 lbs)
Electrical safety certification cULus, CB (CE), CCC, PSE, KC
EMC certification CE, FCC

Green status Compliant with ROHS directive

EXTENSION CARDS SPECIFICATIONS NXES104 NXDT104mk2(*) NXAE104

Audio format Ethersound
Remote control Ethersoundtm based IP based IP based
Number of input channels 4 4 4

Resolution / Sample rate 24 bits / 48 KHz 24 bits / 44.1~96 KHz 24 bits / 44.1~96 KHz
Audio Connectors 2 x Ethercontm 2 x Ethercontm 3 x XLR
Additional port 1 x RJ45 1 x RJ45 2 x RJ45
Power supply 2 W from NXAMP 3 W from NXAMP 2 W from NXAMP

Dimensions & weight 120 x 160 x 40 mm (NXAMP slot) - 200 g
EMC certification CE, FCC, ICES CE, FCC CE, FCC

*NXDT104 can be used as well, except that it is not possible to upgrade the NXAMPmk2 firmware. Default NXRM104 card should be put back for firmware update.

tm

Dantetm AES/EBU

nexo-sa.com
