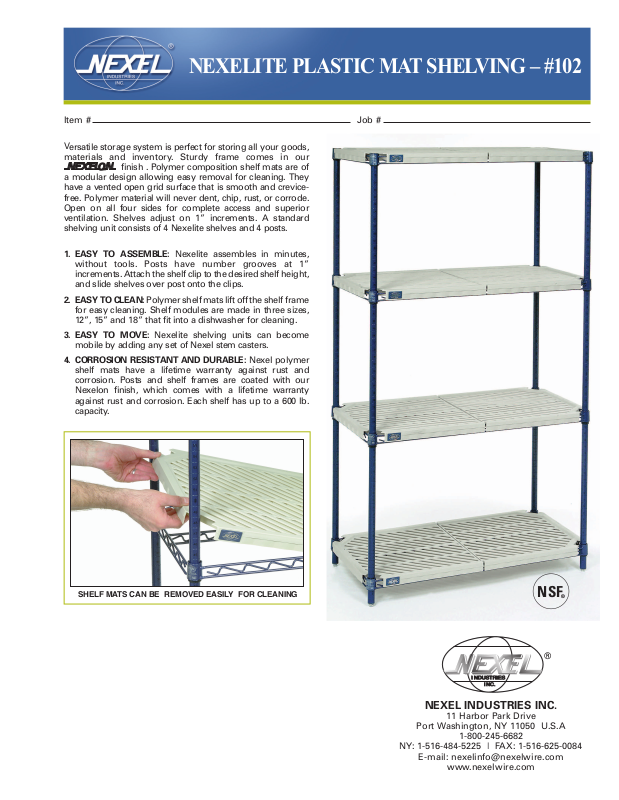

Page 1
V
ersatile storage system is perfect for storing all your goods,
materials and inventory. Sturdy frame comes in our
KDJFLA;SKDJfinish . Polymer composition shelf mats are of
a modular design allowing easy removal for cleaning. They
have a vented open grid surface that is smooth and crevicefree. Polymer material will never dent, chip, rust, or corrode.
Open on all four sides for complete access and superior
ventilation. Shelves adjust on 1” increments. A standard
shelving unit consists of 4 Nexelite shelves and 4 posts.
1. EASY TO ASSEMBLE: Nexelite assembles in minutes,
without tools. Posts have number grooves at 1”
increments. Attach the shelf clip to the desired shelf height,
and slide shelves over post onto the clips.
2. EASY TO CLEAN: Polymer shelf mats lift off the shelf frame
for easy cleaning. Shelf modules are made in three sizes,
12”, 15” and 18” that fit into a dishwasher for cleaning.
3. EASY TO MOVE: Nexelite shelving units can become
mobile by adding any set of Nexel stem casters.
4. CORROSION RESISTANT AND DURABLE: Nexel polymer
shelf mats have a lifetime warranty against rust and
corrosion. Posts and shelf frames are coated with our
Nexelon finish, which comes with a lifetime warranty
against rust and corrosion. Each shelf has up to a 600 lb.
capacity.
NEXEL INDUSTRIES INC.
11 Harbor Park Drive
Port Washington, NY 11050 U.S.A
1-800-245-6682
NY: 1-516-484-5225 | FAX: 1-516-625-0084
E-mail: [email protected]
www.nexelwire.com
®
IINDUSTRIESNDUSTRIES
IINC.NC.
NSF
®
Item #
Job #
NEXELITE PLASTIC MAT SHELVING – #102
SHELF MATS CAN BE REMOVED EASILY FOR CLEANING
Page 2
NEXEL INDUSTRIES INC. 11 Harbor Park Drive, Port Washington, NY 11050 USA
1-800-245-6682 | NY: 1-516-484-5225 | FAX: 1-516-625-0084 | E-mail: [email protected] | www.nexelwire.com
OPTIONAL CASTER SETS
Type Model No. Weight(Lbs.) Weight(kg.)
Swivel (Set of 4) CA5S4R 13 5.9
Swivel w/Brake (Set of 4) CA5BR4 11 5
Swivel 2 w/Brake (Set of 4) CA5SBR 10 4.5
Description: Polyurethane Wheel, 11/4” x 5”,
300 lb. capacity.
Type Model No. Weight(Lbs.) Weight(kg.)
Swivel (Set of 4) CA5S4 13 5.9
Swivel w/Brake (Set of 4) CA5BP4 10 4.5
Swivel, 2 w/Brake (Set of 4) CA5SB
Swivel, 2 w/Brake, CA5RSB* 10 4.5
2 Rigid (Set of 4)
Stainless Steel, CA5SBS 15 6.8
Swivel, 2 w/Brake (Set of 4)
Description: Pneumatic Wheel, 2.5” x 8”,
300 lb. capacity.
Description: Resilient Rubber Wheel, 11/4” x 5”,
200 lb. capacity.
Type Model No. Weight(Lbs.) Weight(kg.)
2 Swivel, 2 Rigid (Set of 4) CA85RN* 14 6.4
SHELF FRAME AND POSTS:
Blue metallic epoxy powder coat electrostatically applied over zinc
chromate electro plating and chemical conversion undercoat. Lifetime
warranty against rust and corrosion in wet or dry applications.
Protected with NexGard, an anti-microbial agent that protects the
epoxy coating from bacteria, mold and mildew, that causes stains,
odors and and product degradation.
SHELF MATS:
Polymer composition, vented open grid surface.
SHELF CLIPS:
2 part tapered plastic sleeve.
TEMPERATURE RANGE:
-20°F(-29°C) to 125°F(52C) continuous use, with intermittent exposure
to 200F(93C)
Model Shelf Size W x L Weight Weight.
(in.) (mm.) (Lbs.) (Kg.)
PM1830N 18 x 30 457 x 760 5 2.3
PM1836N 18 x 36 457 x 914 6 2.7
PM1842N 18 x 42 457 x 1066 7 3.2
PM1848N 18 x 48 457 x 1219 8 3.6
PM1854N 18 x 54 457 x 1370 9 4.1
PM1860N 18 x 60 457 x 1524 10 4.5
PM1872N 18 x 72 457 x 1825 12 5.4
PM2130N 21 x 30 533 x 760 6 2.7
PM2136N 21 x 36 533 x 914 7 3.2
PM2142N 21 x 42 533 x 1066 8.5 3.9
PM2154N 21 x 54 533 x 1370 10.5 4.8
PM2160N 21 x 60 533 x 1524 11.5 5.2
PM2172N 21 x 72 533 x 1825 14 6.4
PM2430N 24 x 30 610 x 760 7 3.2
PM2436N 24 x 36 610 x 914 8 3.6
PM2442N 24 x 42 610 x 1066 9.5 4.3
PM2448N 24 x 48 610 x 1219 10.5 4.8
PM2454N 24 x 54 610 x 1370 12 5.4
PM2460N 24 x 60 610 x 1524 13 5.9
PM2472N 24 x 72 610 x 1825 16 7.3
Model Ht. Ht. Weight. Weight.
(in.) (mm.) (Lbs.) (Kg.)
P6N 6 152 .5 .23
P14N 14 356 1 .45
P34N 34 864 2 .91
P54N 54 1372 3 1.4
P63N 63 1600 3.5 1.6
P74N 74 1880 4 1.8
P86N 86 2184 5 2.3
*Tie Bar required
POSTS (with levelers)
NEXELITE SHELVES
(complete with frame, mat and shelf clips)
Shelves adjust on 1” increments. Numbered posts for
quick assembly.
Simply snap together and slide shelf over sleeve for
positive locking.
NEXELITE PLASTIC MAT SHELVING – #102
