Nexcom PEAK 888 User Manual

NEXCOM International Co., Ltd.

Published January 2018

www.nexcom.com

Intelligent Platform & Services Business Unit

PICMG Single Board Computer (PICMG 1.3) PEAK 888

User Manual

ii

PEAK 888 User Manual

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents .................................................................................xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Hardware Specifications ..........................................................................2

Knowing Your PEAK 888 ........................................................................4

Knowing Your PEAK 888VL2-H ............................................................... 5

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................6

Precautions ............................................................................................6

Jumper Settings ......................................................................................7

Locations of the Jumpers and Connectors ...............................................8

Jumpers ..................................................................................................9

CMOS Clear Select ..............................................................................9

AT/ATX Select ......................................................................................9

PCIe x16 Select ..................................................................................10

RI Select ............................................................................................11

Connector Pin Definitions .....................................................................12

External Connectors ..........................................................................12

VGA Port .......................................................................................12

LAN1 Port ......................................................................................12

LAN2 Port ......................................................................................13

USB 3.0 Ports .................................................................................13

Internal Connectors ........................................................................... 14

Power Input Connector ..................................................................14

CPU Fan Connector ........................................................................14

System Fan Connector ...................................................................15

Power On/Off/Reset & PWR/HDD LED Pin Header ...........................15

Debug Port ....................................................................................16

COM1 RS232 Box Header Connector .............................................16

COM2 RS232/422/485 Box Header Connector ...............................17

COM3 RS232 Box Header Connector .............................................17

COM4 RS232 Box Header Connector .............................................18

USB 2.0 Connector ........................................................................18

USB 2.0 Connector ........................................................................19

iii

PEAK 888 User Manual

Content

USB 3.0 Box Header .......................................................................19

HDA Pin Header .............................................................................20

SATA1 Connector ...........................................................................20

SATA Power Connector ..................................................................21

SATA2 Connector ...........................................................................21

SATA3 Connector ...........................................................................22

SATA4 Connector ...........................................................................22

SATA5 Connector ...........................................................................23

Keyboard and Mouse Pin Header ...................................................23

DVI/HDMI Pin Header .....................................................................24

Printer Port .....................................................................................24

Switch 1 .........................................................................................25

DisplayPort Connector ....................................................................25

M.2 Connector ..............................................................................26

Block Diagram ......................................................................................27

Chapter 3: BIOS Setup

About BIOS Setup .................................................................................28

When to Configure the BIOS .................................................................28

Default Configuration ...........................................................................29

Entering Setup ......................................................................................29

Legends ................................................................................................29

BIOS Setup Utility ..................................................................................31

Main .................................................................................................31

Advanced ..........................................................................................32

Chipset ..............................................................................................41

Security .............................................................................................46

Boot ..................................................................................................47

Save & Exit ........................................................................................48

iv

PEAK 888 User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

PEAK 888 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

v

PEAK 888 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

vi

PEAK 888 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vii

PEAK 888 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

viii

PEAK 888 User Manual

Preface

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

ix

PEAK 888 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

x

PEAK 888 User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

xi

PEAK 888 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

9F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

China

NEXCOM China

Floor 5, No.4, No.7 fengxian middle Rd., (Beike Industrial Park), Haidian District, Beijing, 100094, China Tel: +86-10-5704-2680 Fax: +86-10-5704-2681 Email: [email protected] www.nexcom.cn

xii

PEAK 888 User Manual

Preface

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Lanino 42, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625 570 Email: [email protected] www.nexcomitalia.it

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXCOM Surveillance Technology Corp.

Room202, Building B, the GuangMing Industrial Zone Zhonghua Rd., Minzhi Street, Longhua District, Shenzhen 518131, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: [email protected] www.nexcom.cn

NEXCOM United System Service

Hui Yin Ming Zun Building Room 1108, Building No. 11, 599 Yunling Road, Putuo District, Shanghai, 200062, China Tel: +86-21-6125-8282 Fax: +86-21-6125-8281 Email: [email protected] www.nexcom.cn

xiii

PEAK 888 User Manual

Preface

Package Contents

Before continuing, verify that the PEAK 888 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 60233SIO03X00 USB Cable CONNTEK:A02-B001-V01 USB CONx2 + Bracket to JST 6-pin 2.5mm 1 2 60233PRT15X00 Cable CONNTEK:A02-C016-V01 Print 25 to 2.0mm 26-pin PIT:1.0mm L:260mm w/Bracket 1 3 60233ATA73X00 SATA Cable ACMELUX:19922413 Standard L:300mm 1 4 603PS20001X00 PS2 Y Cable CONNTEK:A02-A052-V01 PS2 to JST 6P PH:2.0 L=250mm 1 5 60177A0523X00 PEAK 888 Quick Reference Guide VER:A 1 6 602DCD1179X00 PEAK 888 DVD Driver VER:1.0 1

Optional Accessories

Item Part Number Name Description

1 60233DVI32X00 DVI Cable ST:MD-6301035 DVI 24+5P/F + Bracket to DF13 2x15P PH:1.25 L:250mm 2 60233HDM01X00 HDMI Cable CONNTEK:A02-A039_V24 HDMI 19P/F + Bracket to DF13 2x15P PH:1.25 L:250mm 3 603USB0006X00 USB 3.0 Cable ST:13-450-E007 USB A/Fx2 to 2x10P L=380mm 4 10E000TPM00X0 EBK-TPM-1.2 TPM SLB9660TT1.2 FW 4.40 5 10E000TPM01X0 EBK-TPM-2.0 TPM SLB9665TT2.0 FW 5.51 6 5010120002X00 SATA M2 Transfer Bracket for PEAK 888 33x22x1mm SPCC T=1.0mm NI 7 5050200022X00 LGA115X CPU Cooler COOLJAG 128.96×128.96×61.4mm AL6063+Copper 1100 FAN 4500RPM L:200mm 8 6030000197X00 DP Cable PIT:1.25mm L=200mm w/Bracket x1

xiv

PEAK 888 User Manual

Preface

Ordering Information

The following information below provides ordering information for PEAK 888.

PEAK 888VL2-Q (P/N: 10P00088801X0)

PICMG 1.3 Full-size SBC, Q170, Intel® LGA1151, DDR4 DIMM, VGA x1, LAN x2, USB 3.0 x4, SATA 3.0 x5

PEAK 888VL2-H (P/N: 10P00088800X0)

PICMG 1.3 Full-size SBC, H110, Intel® LGA1151, DDR4 DIMM, VGA x1, LAN x2, USB 3.0 x4, SATA 3.0 x3

1

PEAK 888 User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

Key Features

▪ Support 6th generation Intel® Core™ i7/i5/i3 processor

▪ Support Intel

®

Q170/H110 PCH chipset PICMG 1.3 specification

▪ Support dual channel DDR4 with non-ECC DIMMs 1866/2133MHz up

to 32GB

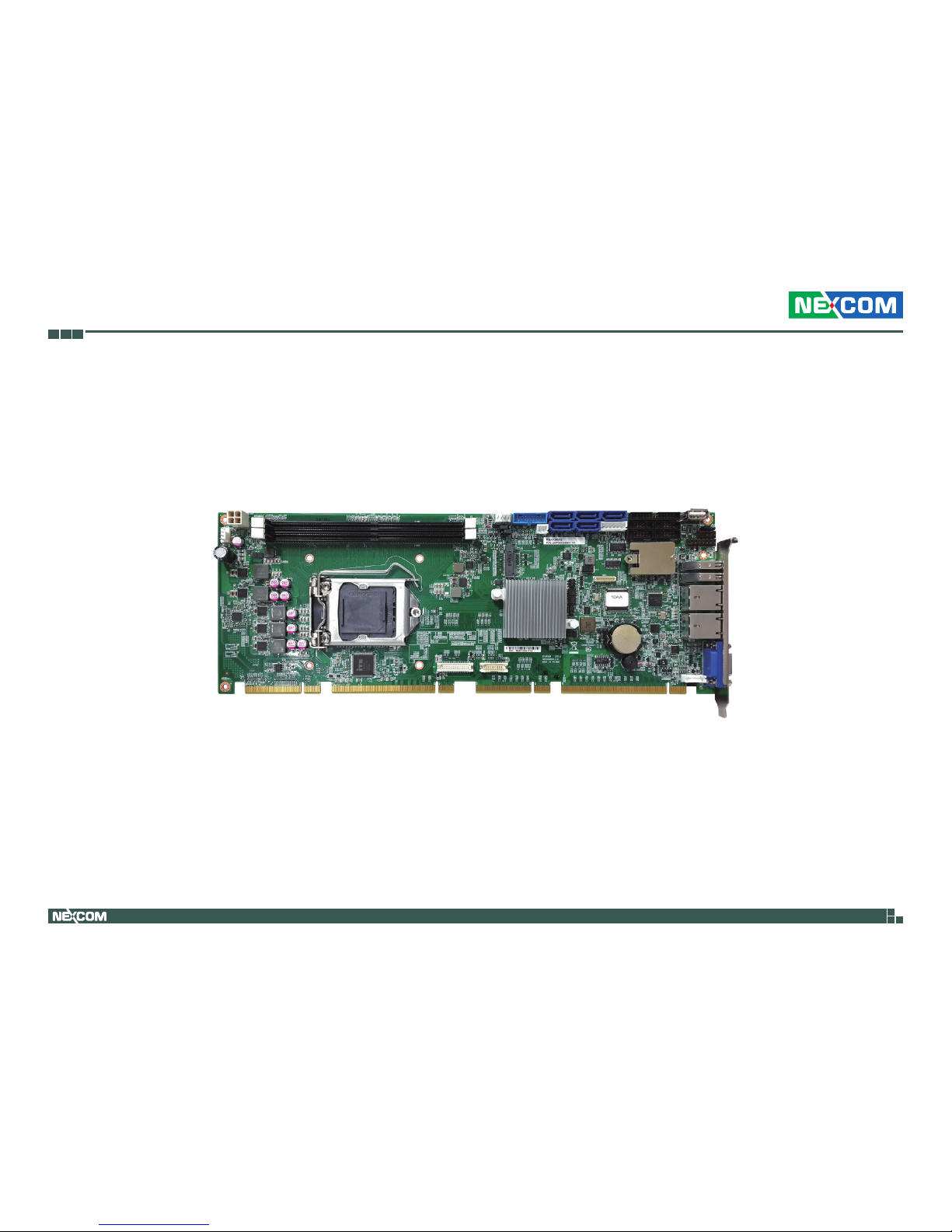

Overview

▪ Support PCIe 3.0 SATA 3.0 w/RAID 0, 1, 5, 10, M.2 NVMe

▪ Support display for VGA, DVI/HDMI, DP

▪ Support Intel

®

AMT 11 & TPM 1.2/2.0 (optional)

2

PEAK 888 User Manual

Chapter 1: Product Introduction

Hardware Specifications

CPU Support

▪ 6th generation Intel® Core™ i7/i5/i3 processor (65W/35W) TDPs, socket

LGA1151

Main Memory

▪ 2x DIMM, support dual channel DDR4 non-ECC DIMM 1866/2133 MT/S

(Maximum 32GB)

Platform Control Hub

▪ Intel® H110 Express Chipset PCH ▪ Intel

®

Q170 Express Chipset PCH

BIOS

▪ AMI system BIOS ▪ 16MBit SPI depended on AMT function ▪ Dual BIOS for four PCIe x1 and one PCIe x4

Display

▪ The Processor Graphics contains a refresh of the ninth generation graphics ▪ Intel

®

HD Graphics 530 ▪ Support independent triple display ▪ VGA: Resolution up to 1920*1200 pixels @60MHz ▪ DVI: Resolution up to 1920*1200 pixels @60MHz ▪ HDMI: Resolution up to 4096*2304 pixels @60MHz ▪ DP: Resolution up to 4096*2304 pixels @60MHz

* Supporting 4K display requires two DDR channels of same size

Audio

▪ High definition audio interface (Compatible with NEXCOM audio

daughter board P/N: 10E000HDA00X0 EBK-HAD)

Onboard LAN

▪ 1x Intel® WG1219LM GbE PHY (PEAK 888Q supports Intel® AMT 11) ▪ 1x Intel

®

I211 Gigabit Ethernet Controller ▪ RJ45 with LED connecter x 2 ▪ Support Boot from LAN (PXE) ▪ Support Wake on LAN

I/O Interface

▪ 1x PCI Express x16 and 1 PCI Express x4 to backplane ▪ 4x PCI to backplane ▪ SATA port

PEAK 888VL2-H

– 3x SATA 3.0 Port (2x SATA 3.0 to BP through BIOS setting) – 1x M.2 2280/22110 M Key (SATA 3.0)

PEAK 888VL2-Q

– 5x SATA 3.0 port (2x SATA 3.0 to BP through BIOS setting) – 1x M.2 2280/22110 M Key (NVMe Gen 3 PCIe x4) – Support RAID 0/1/5/10 – SIO: ITE8786, COM 1, 3, 4 support RS232, COM2 supports

RS232/422/485 and can be selected RI/5V/12V through jumper – PS2 KB/MS *1 JST connector – Parallel Port: 26-pin box header x 1

3

PEAK 888 User Manual

Chapter 1: Product Introduction

– 6 ports USB 2.0 and 4 ports USB 3.0 2 port USB 2.0 header/2 port USB 3.0 header 1 port USB 2.0 Type A (PEAK 888VL2-Q only) 4 ports USB 2.0 through backplane 2 ports USB 3.0 through I/O bracket

– 2*10 pin header to support TPM module

– 2x Smart FAN connector (for CPU, system)

– Onboard buzzer

– Watchdog time out can be programmed by software from 1 second

to 255 seconds

Power Requirements

▪ Power source from backplane through golden finger and AUX +12V ▪ Support ATX/AT function by jumper setting ▪ BIOS default is (ATX MODE)

Dimensions

▪ 338.58mm x 126.39mm, 8 layers (single side)

Environment

▪ Board level operating temperatures: -20°C to 60°C ▪ Storage temperatures: -20°C to 85°C

▪ Relative humidity: 0% to 90% (operating, non-condensing) 0% to 95% (non-operating, non-condensing)

Certifications

▪ CE approval

▪ FCC Class A

▪ CB/CCC certification

4

PEAK 888 User Manual

Chapter 1: Product Introduction

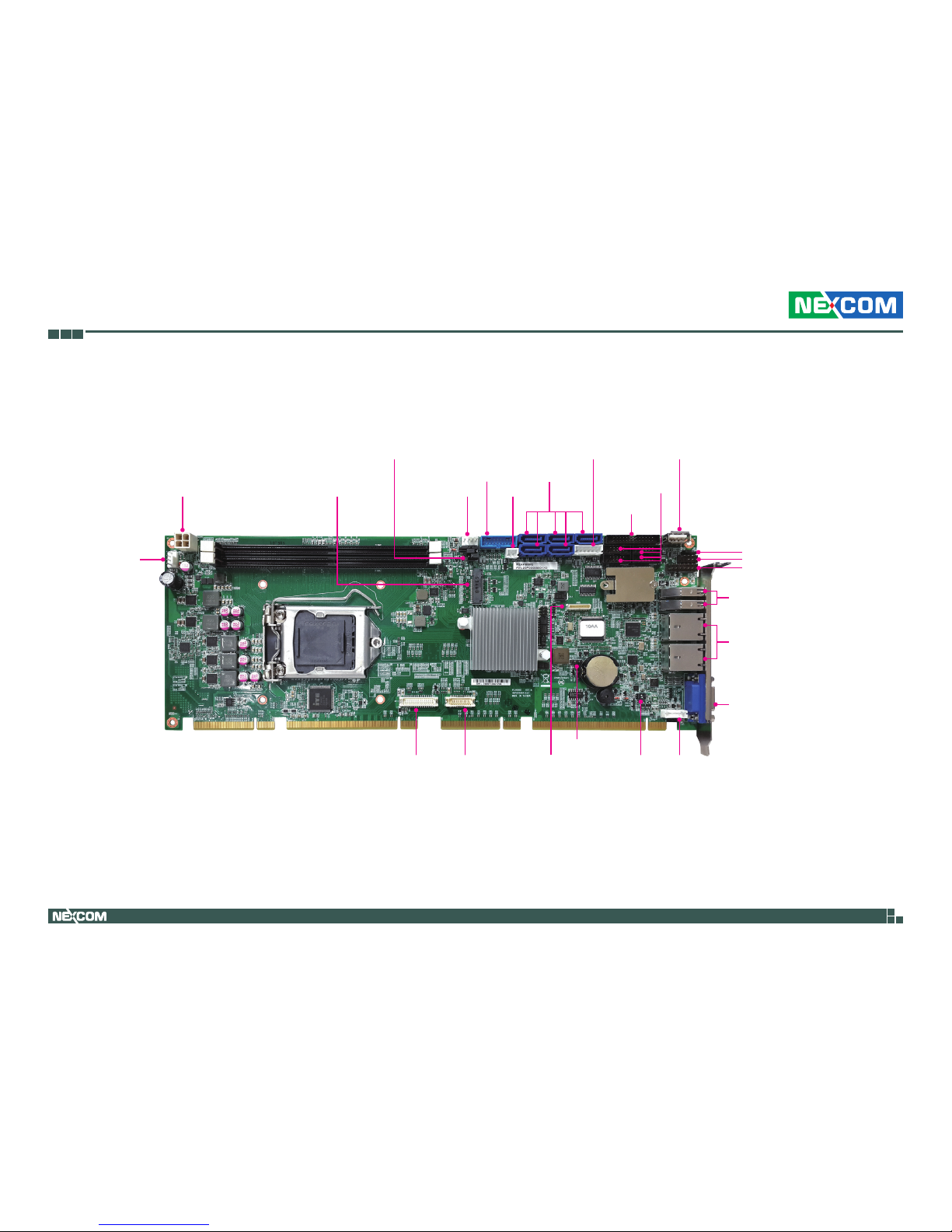

Knowing Your PEAK 888

PWR/Reset/HDD LED

LPT

USB 2.0 Connector

COM Box

Header x 4

USB 3.0

RI Select HDA

LAN

VGA

DIP SwitchDebug Port

CMOS Clear

K/B & MS

SATA x 5

SATA PWRATX-4P

CPU Fan

SYS Fan

USB 3.0 Box Header

M.2 Socket

USB 2.0 Header

DVI/HDMI DisplayPort

ATX/AT Select

5

PEAK 888 User Manual

Chapter 1: Product Introduction

Knowing Your PEAK 888VL2-H

PWR/Reset/HDD LED

LPT

COM Box

Header x 4

USB 3.0

RI Select HDA

LAN

VGA

DIP SwitchDebug Port

CMOS Clear

K/B & MS

SATA x 3

SATA PWRATX-4P

CPU Fan

SYS Fan

USB 3.0 Box Header

M.2 Socket

USB 2.0 Header

DVI/HDMI DisplayPort

ATX/AT Select

6

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers and connectors on the PEAK 888 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

7

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

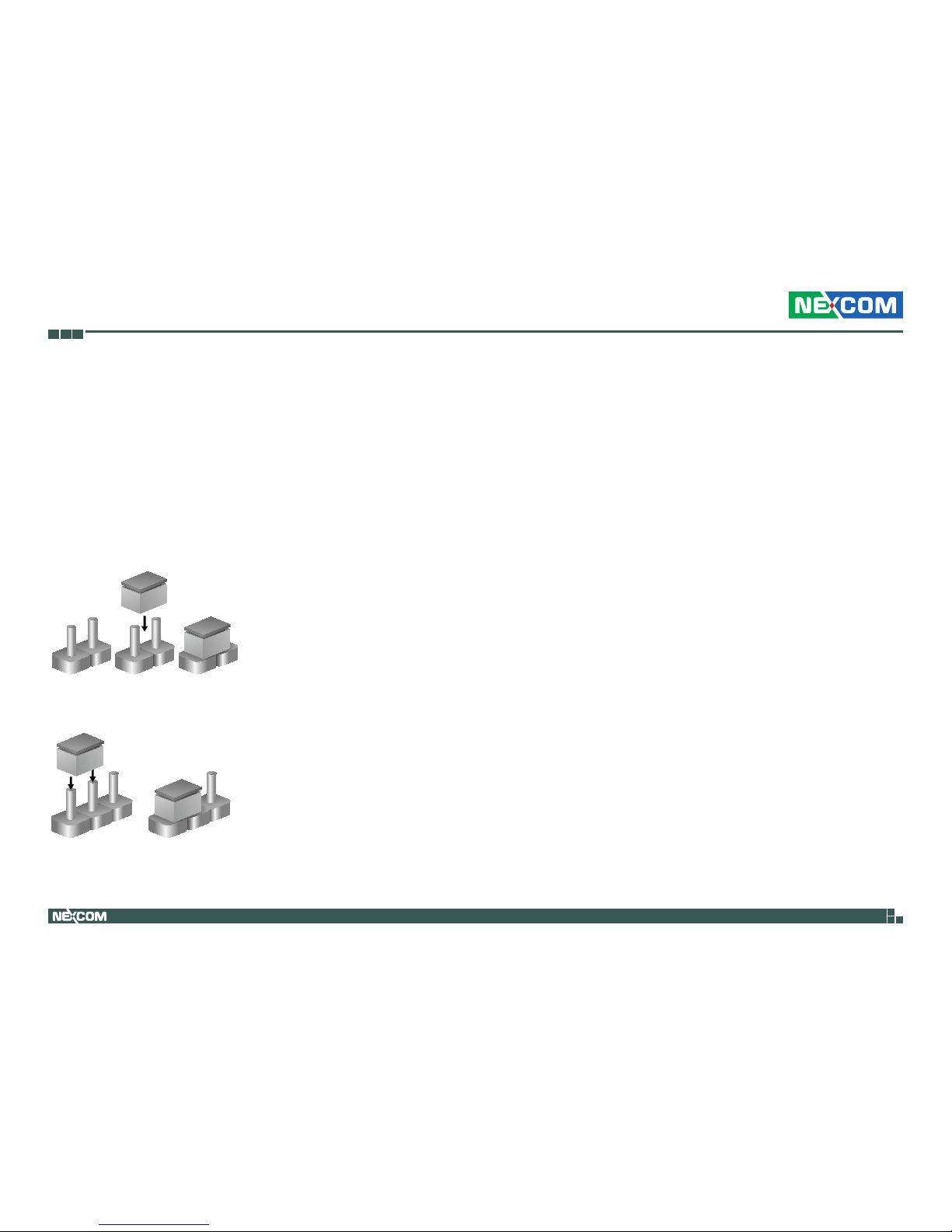

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

1

2

3

1

2

3

8

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

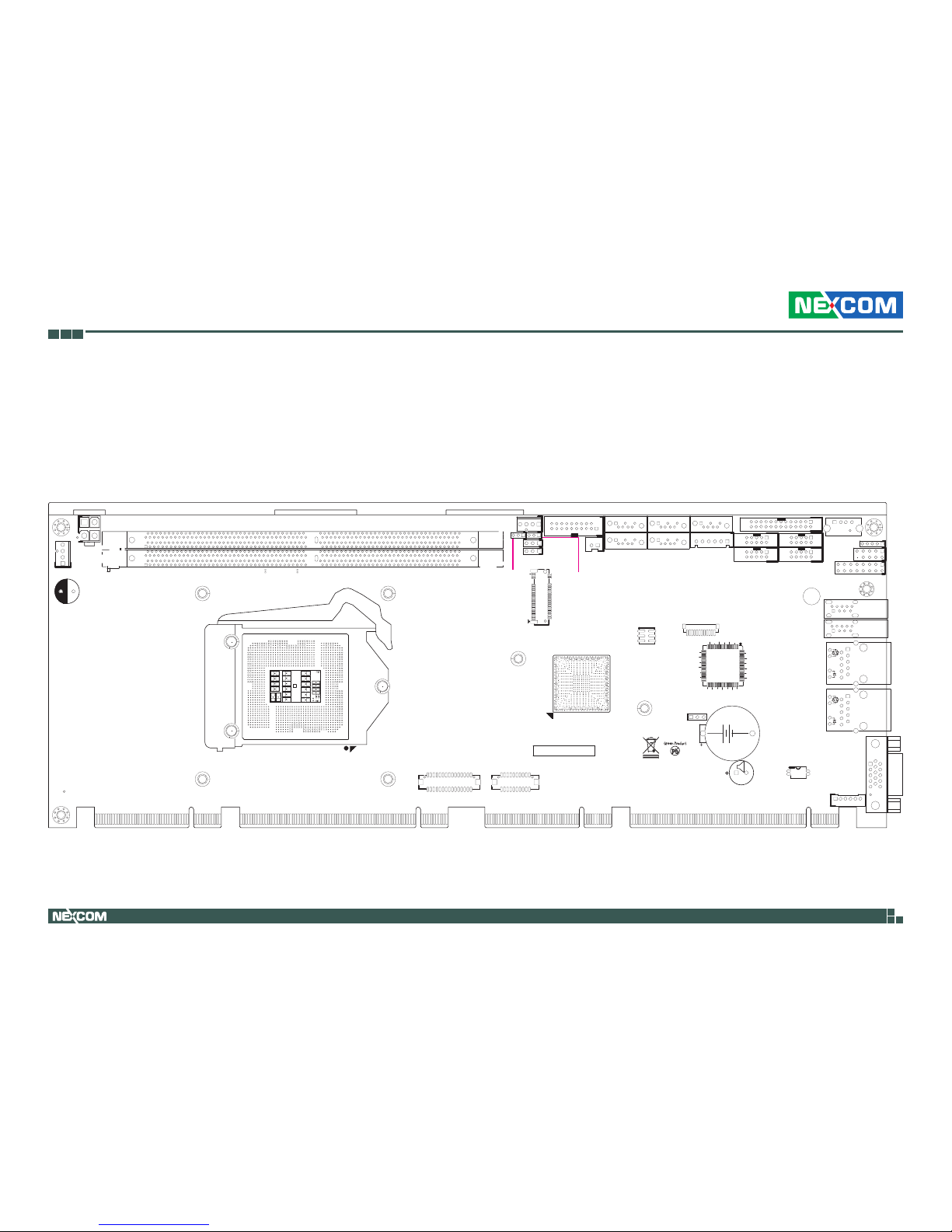

Locations of the Jumpers and Connectors

The figure below shows the location of the jumpers and connectors for PEAK 888.

DPN5

KGQ2

K7

VTC2

WHB2

MBO3

MBO2

VTC4

VTC3

KSJ2

KIEB2

I7

TQJ2 TQJ3

KGX2

TBUB2 TBUB3

TBUB4 TBUB5

N25

KCBU2

KEC2

K6

C[2

MQU2

TBUB6

CBU2

DPN2 DPN3

I5

DPN4

TGBO2

KDGH2

K4

KTX2 BUY2

KDGH3

EQ2

OHGG2

M: M21

QDI2

K5

KVTC2

I2

DGBO2

I3

DPO2

K2

DQV2

D234

D259

K3

EJNN3

EJNN2

EWJ2

Q

T

2

:

27

2

B2

2

21

3

21

3

26

7

:

2

:

2

6

5

6

21

:

5

6

2

6

26

22

3

2

B22

3

2

25

2

25

23

24

22

24 25

22 23

2

:

3

2

21

:

B23

23

8

2

7

4

76

75

44

43

2

8

:7

2

37

24

:8

239

21

:

6

2

8

7

3

2

85

21

22

B

B23

B22

2

2:

B2

2

B93

B5:

3

2

24

5

31

2:

2

86

2

24

2

56

3

8:

3

B

42

E

F

G

H

C

D

K

L

M

N

I

V

W

O

Q

S

U

BB

BC

BD

X

Z

BK

BF

BG

BH

BI

BE

BO

BQ

BL

BM

BN

BV

BW

BX

BZ

BS

BU

B23

B22

3

2

B2

254

255

398

254

255

399

398

399

41

3:

B22

B2

B93

1594

:484

454347

64 44

149373

24 :383

5333

4363 23

137292

:282

88

331

523212

22

6242

957

6

3

2

256

3

2

257

256

B23

2

5

,

2

B5:

5

3

DVI1

CON1

CFAN1

NGFF1

SFAN1

JUSB1J7SATA1

SATA2SATA4

SATA3SATA5 LPT1

JUSB2

COM1 COM2

COM4

JRI1

JHDA1

JFP1

USB2

USB3

LAN1

JDB1

JBAT1

LAN2

J6

VGA1

SW1

USB1

COM3

JCFG1

JCFG2

ATX1

DP1

9

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

Jumpers

CMOS Clear Select

Connector type: 1x3 3-pin header Connector location: JBAT1

Pin Settings

1-2 On Normal 2-3 On Clear BIOS Setting

1-2 On: default

1 3

AT/ATX Select

Connector type: 1x3 3-pin header Connector location: ATX1

Pin Settings

1-2 On ATX Mode 2-3 On AT Mode

1-2 On: default

1 3

10

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

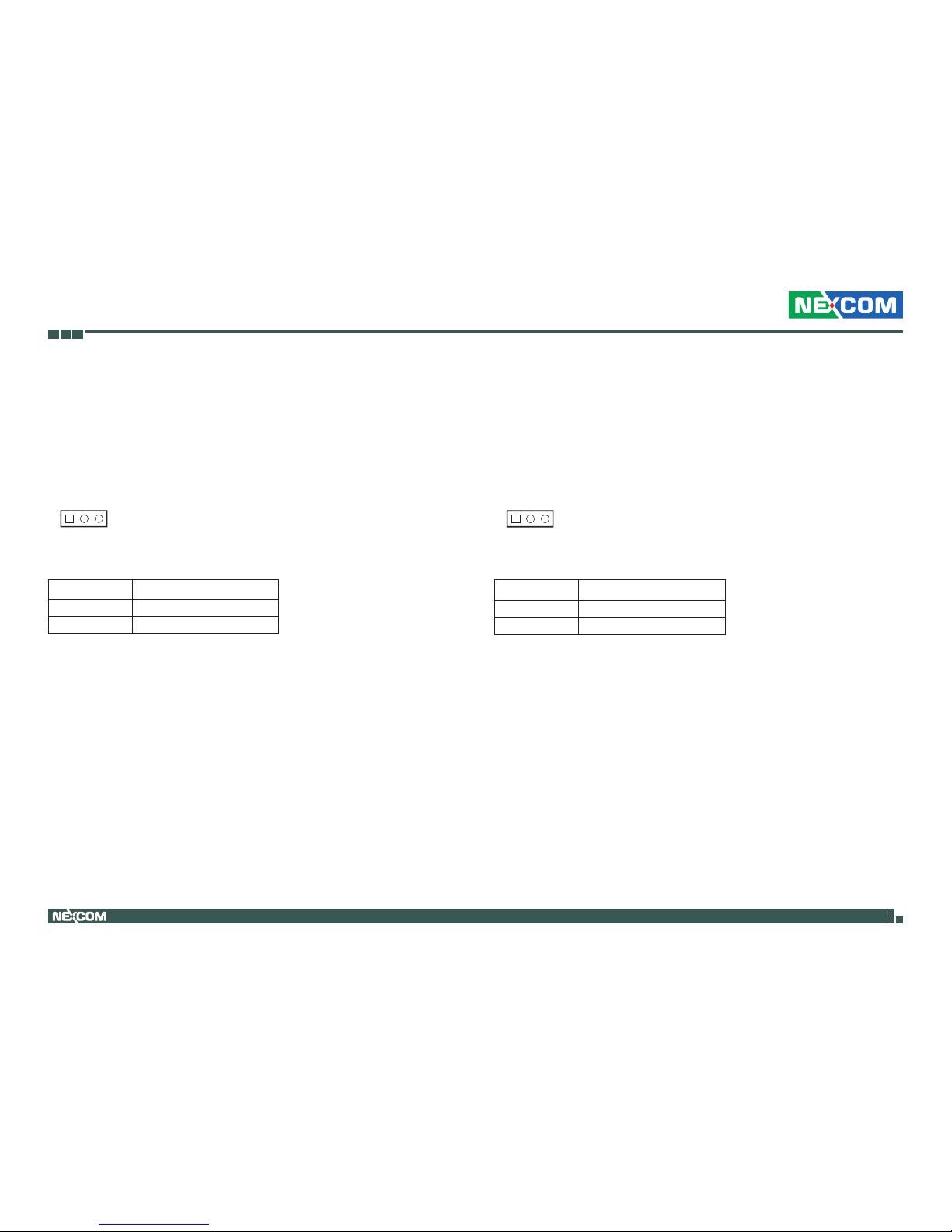

PCIe x16 Select

Connector type: 1x3 3-pin header Connector location: JCFG1

PCIe x16 Select

Connector type: 1x3 3-pin header Connector location: JCFG2

Pin Settings

1-2 On 1(CFG1) 2-3 On 0

1-2 On: default

Pin Definition

1 VCCIO 2 CPU_CFG6_C 3 GND

Pin Settings

1-2 On 1(CFG5) 2-3 On 0

1-2 On: default

Pin Definition

1 VCCIO 2 CPU_CFG5_C 3 GND

1 3 1 3

11

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

RI Select

Connector type: 1x5 5-pin header Connector location: JRI1

15

Pin Settings

1-2 On VCC5 2-3 On +12V 2-3 On +12V 4-5 On RI

4-5 On: default

Pin Definition

1 VCC5 2 COM1_RI#_T 3 VCC12 4 COM1_RI#_T 5 COM1_RI#

12

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

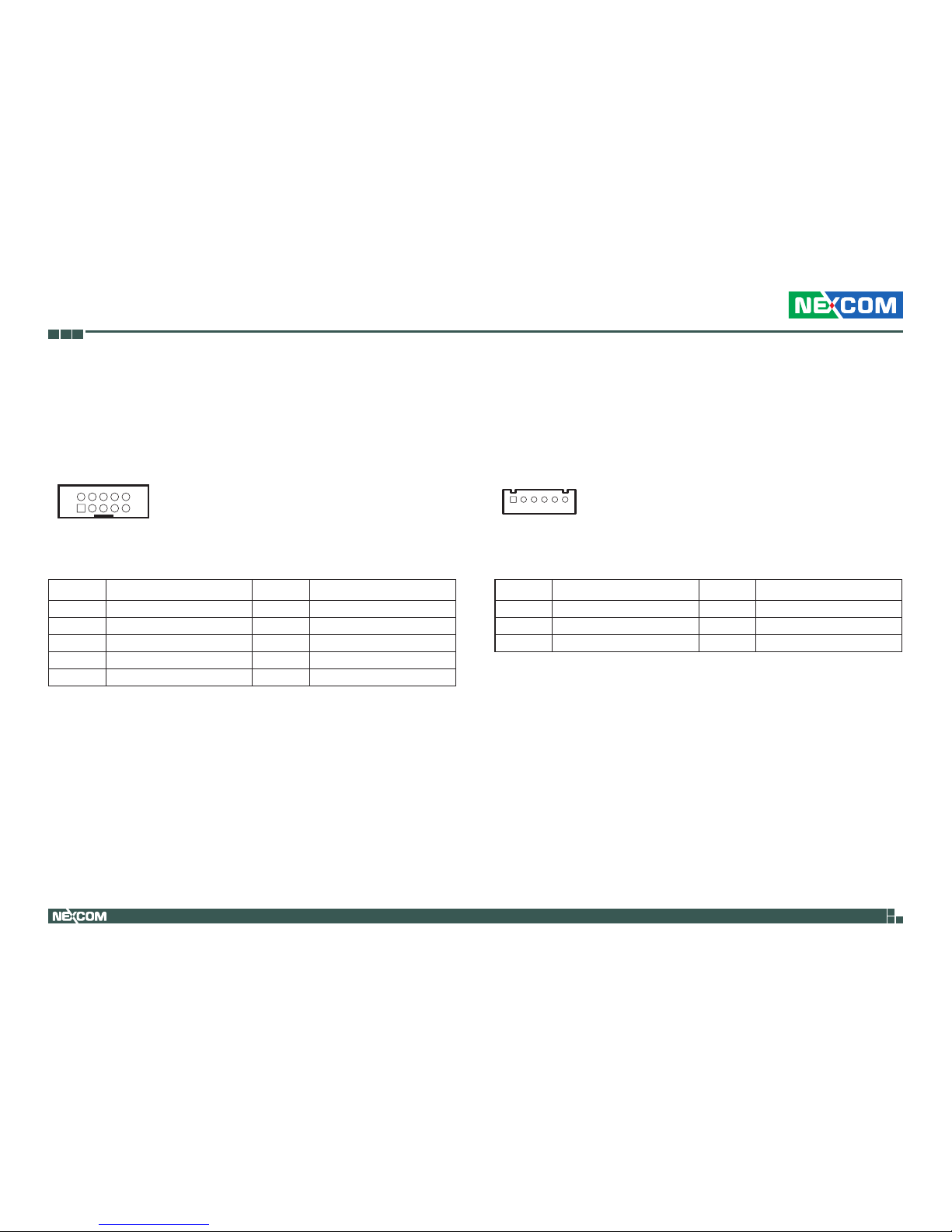

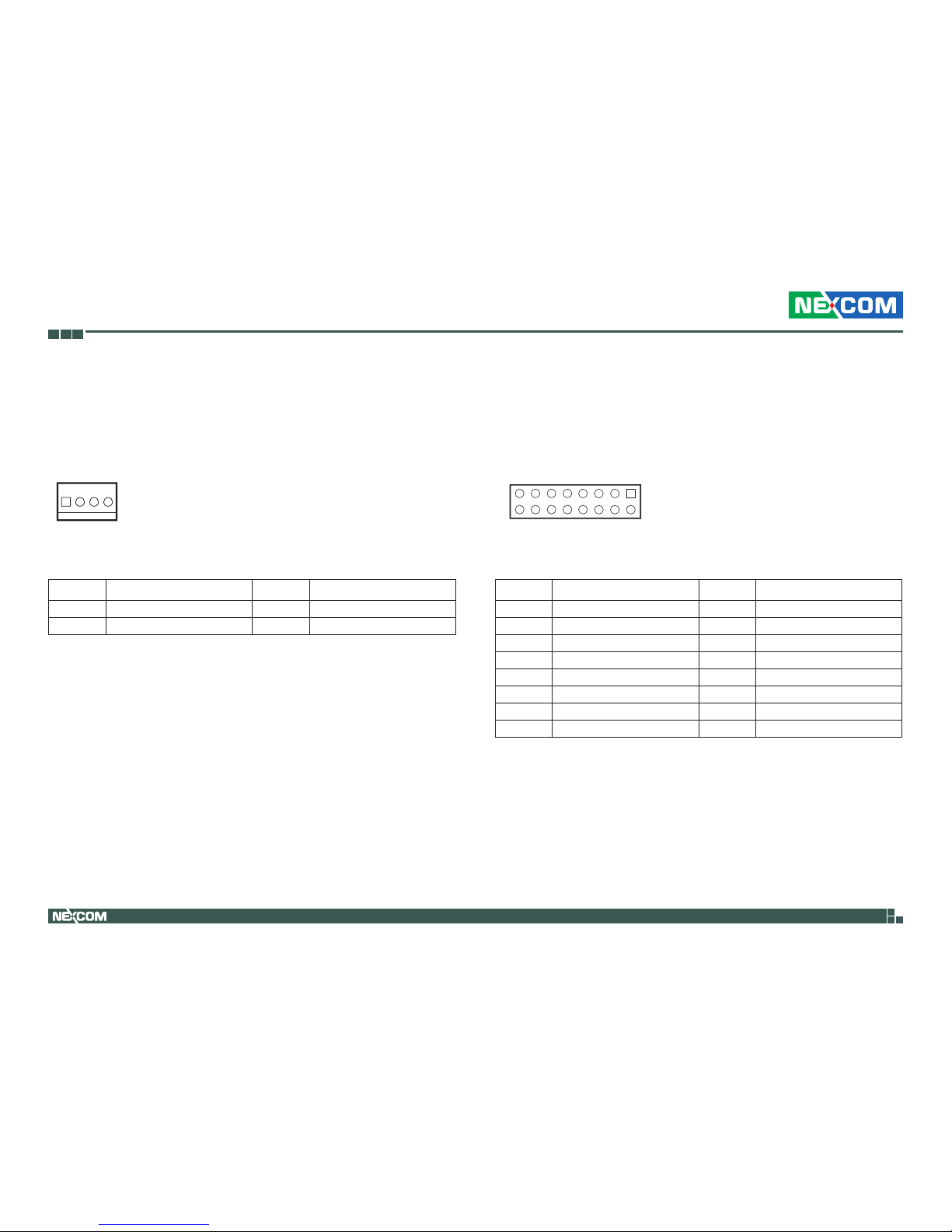

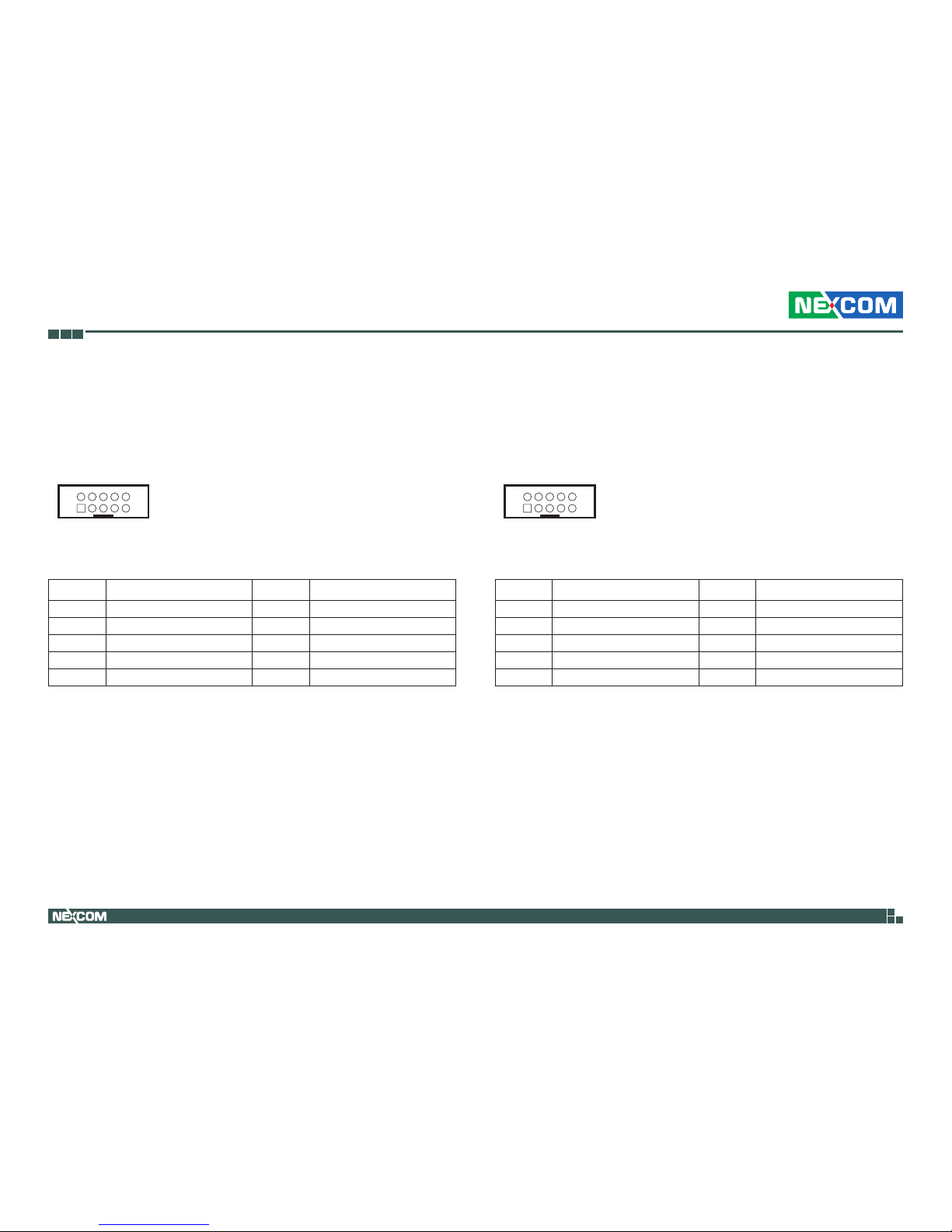

Connector Pin Definitions

External Connectors

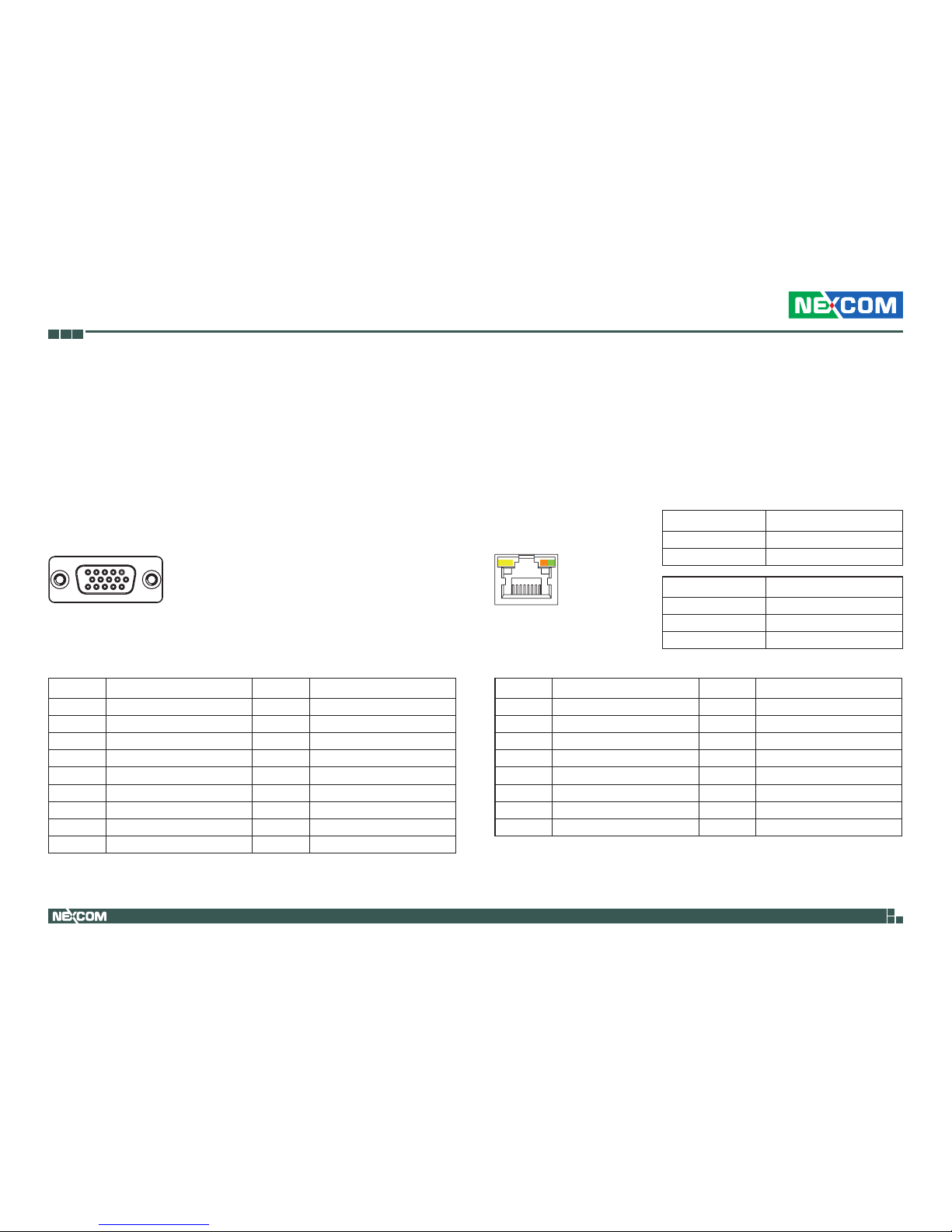

VGA Port

Connector type: DB-15 port, 15-pin D-Sub Connector location: VGA1

Pin Definition Pin Definition

1 RED_VGA 2 GREEN_VGA 3 BLUE_VGA 4 NC 5 GND 6 GND 7 GND 8 GND

9 VGA_+5V 10 GND 11 NC 12 DDC_DATA_VGA 13 HSYNC_VGA 14 VSYNC_VGA 15 DDC_CLK_VGA MH1 CHASSIS_GND

MH2 CHASSIS_GND

1

1115

5

LAN1 Port

Connector type: RJ45 port with LEDs Connector location: LAN1

Pin Definition Pin Definition

1 LAN2_MDI0P 2 LAN2_MDI0N 3 LAN2_MDI1P 4 LAN2_MDI1N 5 AVDD12_PHY2 6 LAN2TCTG 7 LAN2_MDI2P 8 LAN2_MDI2N

9 LAN2_MDI3P 10 LAN2_MDI3N 11 LAN2_LINK1G# 12 LAN2_LINK100# 13 LAN2_LED_ACT# 14 V_3P3_LAN

MH1 CHASSIS_GND MH2 CHASSIS_GND

ACT LINK

18

Act Status

Flashing Yellow Data activity

Off No activity

Link Status

Steady Green 1G network link

Steady Orange 100Mbps network link

Off 10Mbps or no link

13

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

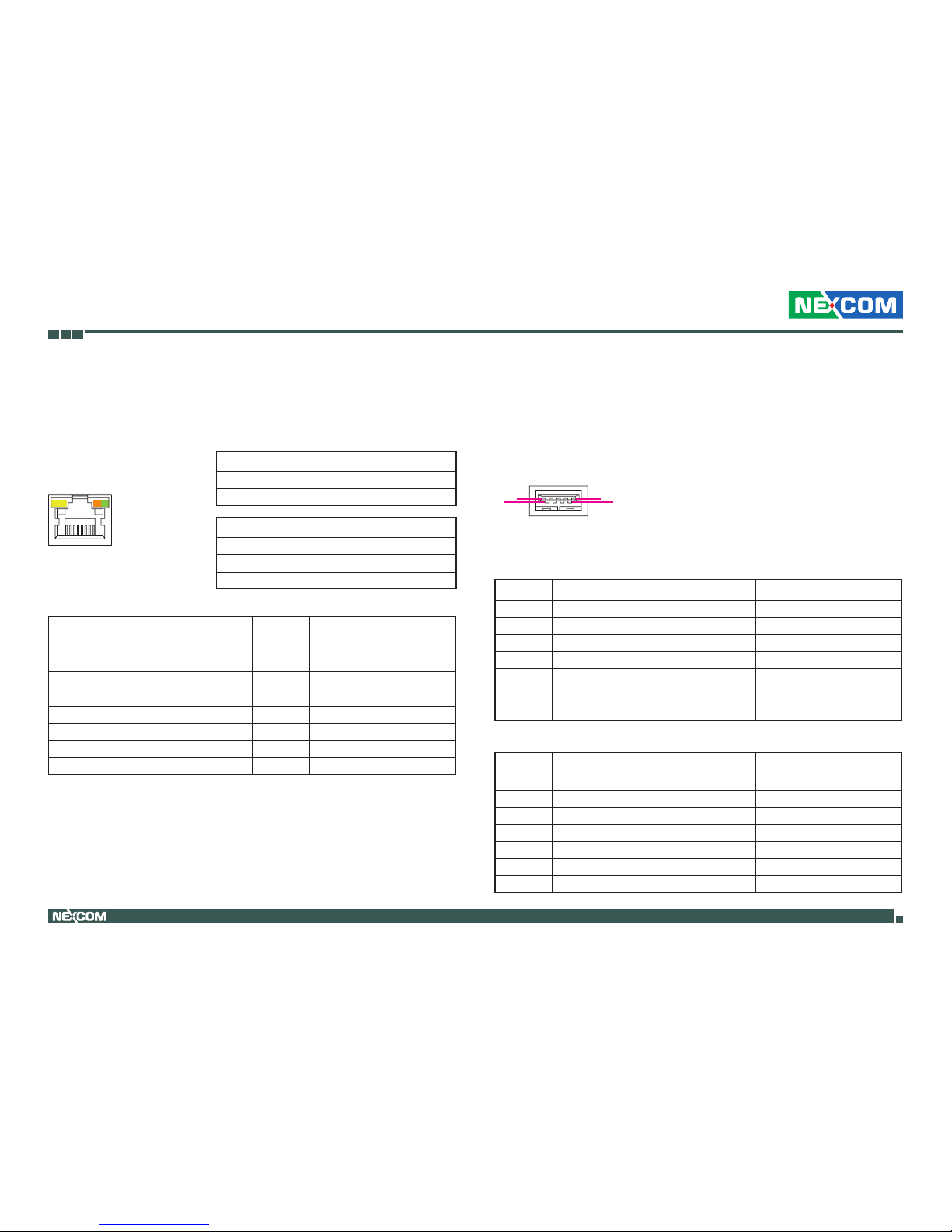

LAN2 Port

Connector type: RJ45 port with LEDs Connector location: LAN2

Pin Definition Pin Definition

1 MDI_PLUS0_C_0 2 MDI_MINUS0_C_0 3 MDI_PLUS1_C_0 4 MDI_MINUS1_C_0 5 TCT_0 6 TCTG_0 7 MDI_PLUS2_C_0 8 MDI_MINUS2_C_0

9 MDI_PLUS3_C_0 10 MDI_MINUS3_C_0 11 LAN0_LED2+ 12 LED2_100#_C_0 13 LED0_ACT_C_0 14 LAN0_LED1+

MH1 CHASSIS_GND MH2 CHASSIS_GND

USB 3.0 Ports

Connector type: USB 3.0 port, Type A Connector location: USB2 and USB3

USB2

Pin Definition Pin Definition

1 P5V_OC01_C 2 USB_1N_C 3 USB_1P_C 4 GND 5 USB3_RX2_N_C 6 USB3_RX2_P_C 7 GND 8 USB3_TX2_N_C

9 USB3_TX2_P_C MH1 CHASSIS_GND MH2 CHASSIS_GND MH3 CHASSIS_GND MH4 CHASSIS_GND

USB3

Pin Definition Pin Definition

1 P5V_OC01_C 2 USB_0N_C

3 USB_0P_C 4 GND

5 USB3_RX1_N_C 6 USB3_RX1_P_C

7 GND 8 USB3_TX1_N_C

9 USB3_TX1_P_C MH1 CHASIS_GND MH2 CHASIS_GND MH3 CHASIS_GND MH4 CHASIS_GND

9

1

5

4

Act Status

Flashing Yellow Data activity

Off No activity

Link Status

Steady Green 1G network link

Steady Orange 100Mbps network link

Off 10Mbps or no link

ACT LINK

18

14

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

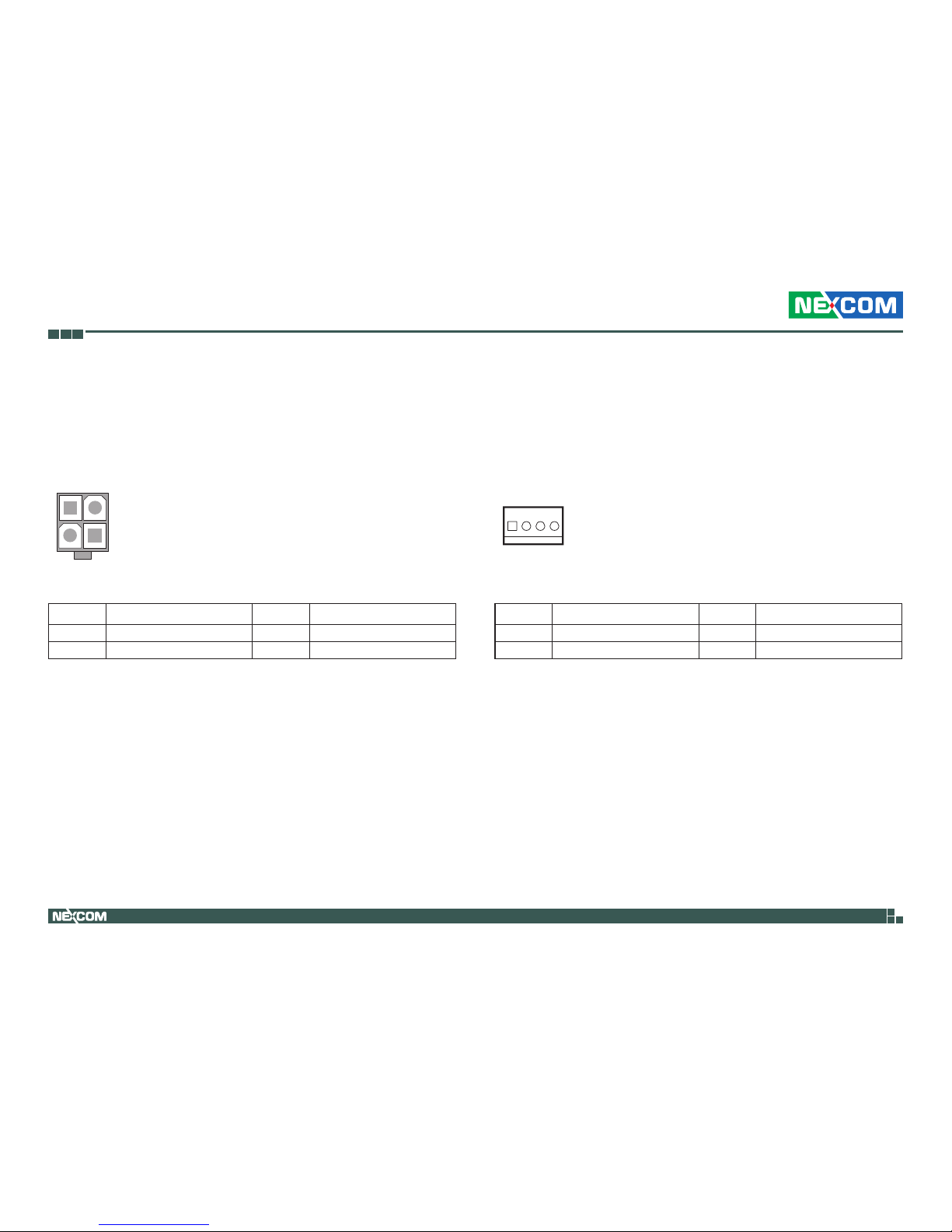

Power Input Connector

Connector type: 2x2 4-pin header, 4.2mm pitch Connector location: CON1

CPU Fan Connector

Connector type: 1x4 4-pin header, 2.54mm pitch Connector location: CFAN1

12

34

Pin Definition Pin Definition

1 GND 2 +12V

3 FAN TAC 4 FAN CTL

Pin Definition Pin Definition

1 GND 2 GND 3 +12V 4 +12V

14

15

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

System Fan Connector

Connector type: 1x4 4-pin header, 2.54mm pitch Connector location: SFAN1

Pin Definition Pin Definition

1 GND 2 +12V 3 FAN TAC 4 FAN CTL

14

Power On/Off/Reset & PWR/HDD LED Pin Header

Connector type: 2x8 16-pin header, 2.54mm pitch Connector location: JFP1

Pin Definition Pin Definition

1 SATA_LED_P 2 PWR_LED_P

3 SATA_LED# 4 GND

5 GND 6 PWRBT_N

7 RST_BTN# 8 GND

9 SPKR_OUT 10 SMB_CLK_MAIN

11 NC 12 SMB_DATA_MAIN 13 NC 14 S1_SYSTIN 15 SPKR_IN 16 HW_AGND

16 2

15 1

16

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

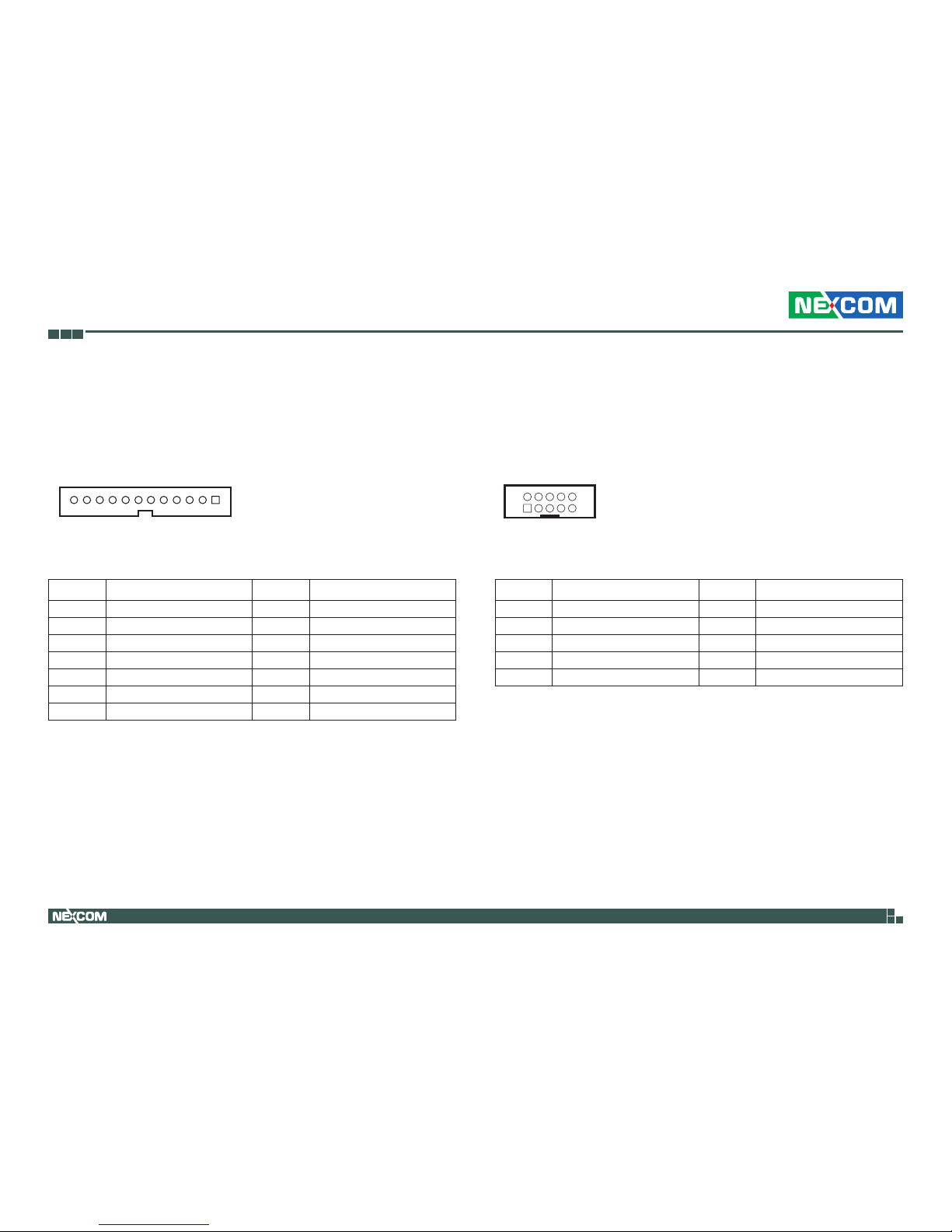

Debug Port

Connector type: 1x12 12-pin header, 1.0mm pitch Connector location: JDB1

Pin Definition Pin Definition

1 LPC_SERIRQ 2 NC 3 GND 4 RST_SIO_N 5 CLK_PCI_P80 6 LPC_FRAME# 7 LPC_AD3 8 LPC_AD2 9 LPC_AD1 10 LPC_AD0

11 VCC3 12 VCC3

MH1 GND MH2 GND

12 1

COM1 RS232 Box Header Connector

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: COM1

2 1

10

9

Pin Definition Pin Definition

1 COM_DCD#1 2 COM_RXD1

3 COM_TXD1 4 COM_DTR#1

5 GND 6 COM_DSR#1

7 COM_RTS#1 8 COM_CTS#1

9 COM_RI#1 10 GND

17

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

COM2 RS232/422/485 Box Header Connector

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: COM2

COM3 RS232 Box Header Connector

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: COM3

2 1

10 9

2 1

10

9

Pin Definition Pin Definition

1 COM_DCD#2 2 COM_RXD2 3 COM_TXD2 4 COM_DTR#2 5 GND 6 COM_DSR#2 7 COM_RTS#2 8 COM_CTS#2 9 COM_RI#2_con 10 GND

Pin Definition Pin Definition

1 COM_DCD#3 2 COM_RXD3

3 COM_TXD3 4 COM_DTR#3

5 GND 6 COM_DSR#3

7 COM_RTS#3 8 COM_CTS#3

9 COM_RI#3 10 GND

18

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

COM4 RS232 Box Header Connector

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: COM4

2 1

10 9

Pin Definition Pin Definition

1 COM_DCD#4 2 COM_RXD4 3 COM_TXD4 4 COM_DTR#4 5 GND 6 COM_DSR#4 7 COM_RTS#4 8 COM_CTS#4 9 COM_RI#4 10 GND

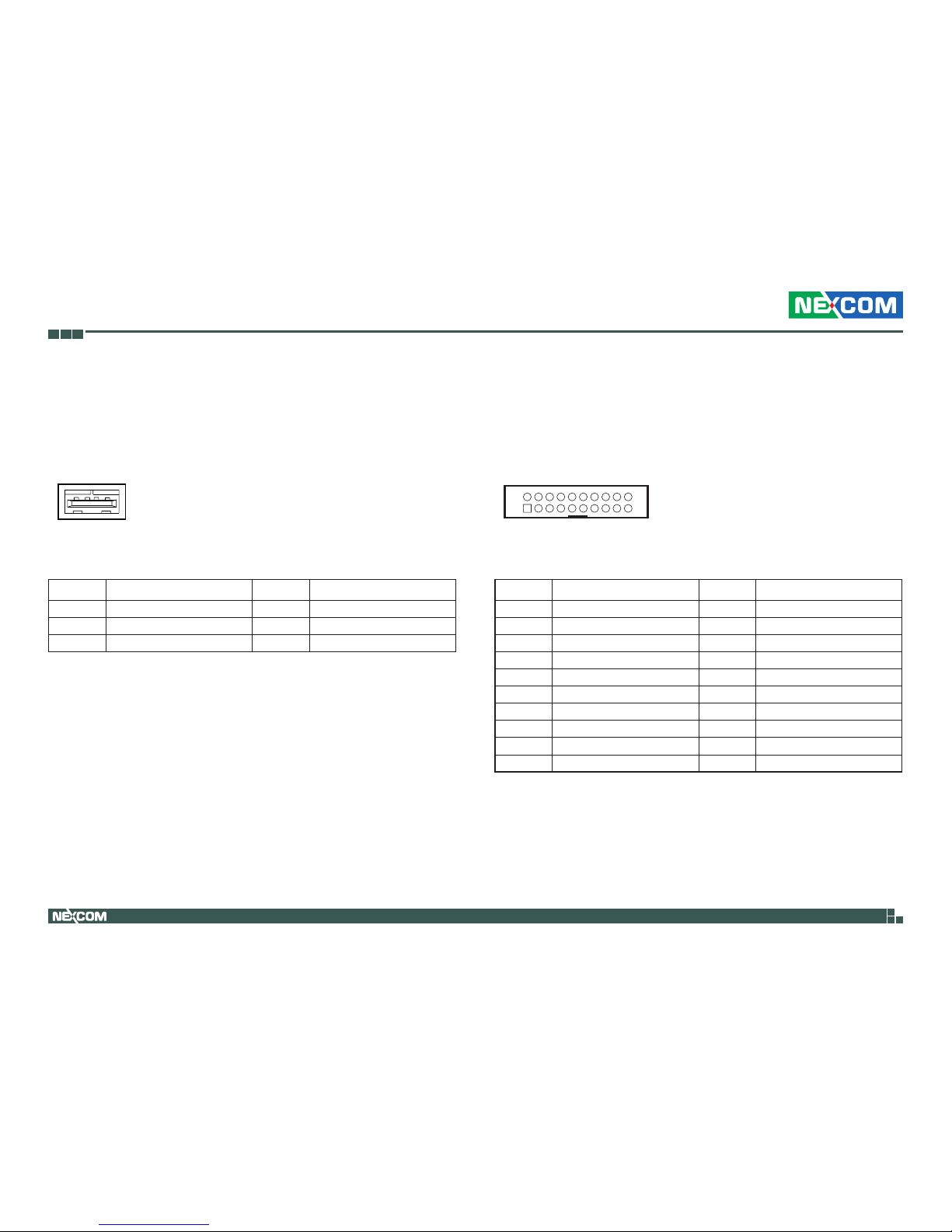

USB 2.0 Connector

Connector type: 1x6 6-pin header, 2.5mm pitch Connector location: JUSB2

16

Pin Definition Pin Definition

1 P5V_OC45_C 2 USB4-

3 USB4+ 4 USB5-

5 USB5+ 6 GND

19

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

USB 2.0 Connector

Connector type: 1x4 4-pin header Connector location: USB1

Pin Definition Pin Definition

1 P5V_OC10_C 2 USB103 USB10+ 4 GND

MH1 CHASIS_GND MH2 CHASIS_GND

USB 3.0 Box Header

Connector type: 2x10 20-pin header, 2.0mm pitch Connector location: JUSB1

2 1

20 19

Pin Definition Pin Definition

1 P5V_OC23_C 2 USB3_RX4_N_C

3 USB3_RX4_P_C 4 GND

5 USB3_TX4_N_C 6 USB3_TX4_P_C

7 GND 8 USB_3N_R

9 USB_3P_R 10 NC

11 USB_2P_R 12 USB_2N_R 13 GND 14 USB3_TX3_P_C 15 USB3_TX3_N_C 16 GND 17 USB3_RX3_P_C 18 USB3_RX3_N_C 19 P5V_OC23_C

1 4

20

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

HDA Pin Header

Connector type: 2x5 10-pin header, 2.54mm pitch Connector location: JHDA1

19

21

0

Pin Definition Pin Definition

1 S_HDA_SDO 2 VCC5 3 S_HDA_RST# 4 GND 5 S_HDA_SYNC 6 +12V 7 S_HDA_SDI0 8 S_HDA_SDI1 9 S_HDA_BCLK 10 NC

SATA1 Connector

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: SATA1

Pin Definition Pin Definition

1 SATA2_SEL 2 R_SATA_TXP2

3 R_SATA_TXN2 4 GND

5 B_SATA_RXN2 6 B_SATA_RXP2

7 GND

1 7

21

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

SATA Power Connector

Connector type: 1x2 2-pin header, 2.5mm pitch Connector location: J7

Pin Definition

1 VCC5 2 GND

12

SATA2 Connector

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: SATA2

Pin Definition Pin Definition

1 SATA3_SEL 2 R_SATA_TXP0

3 R_SATA_TXN0 4 GND

5 B_SATA_RXN0 6 B_SATA_RXP0

7 GND

1 7

22

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

SATA3 Connector

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: SATA3

SATA4 Connector

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: SATA4

Pin Definition Pin Definition

1 GND 2 R_SATA_TXP0 3 R_SATA_TXN0 4 GND 5 B_SATA_RXN0 6 B_SATA_RXP0 7 GND

Pin Definition Pin Definition

1 GND 2 R_SATA_TXP4

3 R_SATA_TXN4 4 GND

5 B_SATA_RXN4 6 B_SATA_RXP4

7 GND

1 7 1 7

23

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

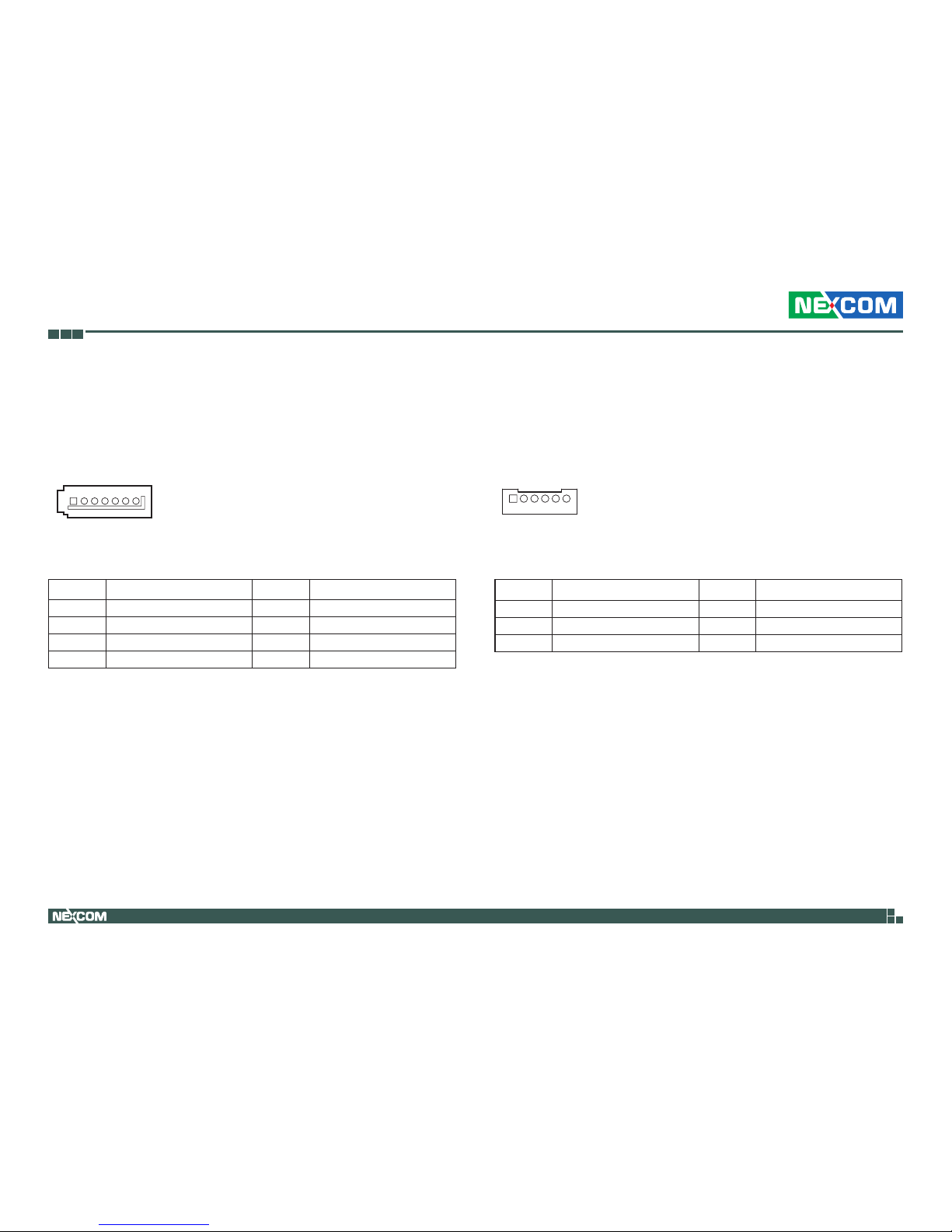

SATA5 Connector

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: SATA5

Pin Definition Pin Definition

1 GND 2 R_SATA_TXP5 3 R_SATA_TXN5 4 GND 5 B_SATA_RXN5 6 B_SATA_RXP5 7 GND

1 7

Keyboard and Mouse Pin Header

Connector type: 1x6 6-pin header, 2.0mm pitch Connector location: J6

16

Pin Definition Pin Definition

1 K/M_VCC 2 LKBDAT

3 LKBCLK 4 LMDAT

5 LMCLK 6 GND_BLK

24

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

DVI/HDMI Pin Header

Connector type: 2x15 30-pin header, 1.25mm pitch Connector location: DVI1

129

23

0

Pin Definition Pin Definition

1 DPC_L0_P_R 2 HDMIC_PWR_R 3 DPC_L0_N_R 4 HDMIC_PWR_R 5 GND 6 NC 7 DPC_L1_P_R 8 NC

9 DPC_L1_N_R 10 HDMI_DIS 11 GND 12 HDMI_CTRL_CLK 13 DPC_L2_P_R 14 GND 15 DPC_L2_N_R 16 HDMI_CTRL_DATA 17 GND 18 GND 19 DPC_L3_P_R 20 GND 21 DPC_L3_N_R 22 GND 23 GND 24 HDMI_HPD 25 NC 26 GND 27 NC 28 NC 29 DVI_GND 30 DVI_GND

MH1 DVI_GND MH2 DVI_GND

Printer Port

Connector type: 2x13 26-pin header, 2.0mm pitch Connector location: LPT1

Pin Definition Pin Definition

1 RPSTB 2 RPSTB0 3 RPSTB1 4 RPSTB2 5 RPSTB3 6 RPSTB4 7 RPSTB5 8 RPSTB6

9 RPSTB7 10 S1_LPTACK# 11 S1_LPTBUSY 12 S1_LPTPE 13 S1_LPTSLCT 14 S1_LPTAFD# 15 S1_LPTERR# 16 S1_LPTINIT# 17 S1_LPTSLIN# 18 GND_P1 19 GND_P1 20 GND_P1 21 GND_P1 22 GND_P1 23 GND_P1 24 GND_P1 25 GND_P1 26 NC

1

14

13

26

25

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

Switch 1

Connector type: 1x2 2-pin DIP switch Connector location: SW1

Switch Status Description

SW1.1 OFF Control by SW1.2 SW1.2 ON PCIe x1 SW1.2 OFF PCIe x4

Default setting: PCIe x4

SW1.1: OFF

SW1.2: OFF

Pin Definition Pin Definition

1 CB_CFG3 2 CB_CFG3 3 GND 4 CBCFG3

1

O

N

2

DisplayPort Connector

Connector type: 2x10 20-pin header, 1.25mm pitch Connector location: DP1

119

22

0

Pin Definition Pin Definition

1 DPD_PWR_R 2 DPD_PWR_R

3 GND 4 GND

5 DDI3_TXN_R1 6 DDI3_TXN_R3

7 DDI3_TXP_R1 8 DDI3_TXP_R3

9 GND 10 GND 11 DDI3_TXN_R0 12 DDI3_TXN_R2 13 DDI3_TXP_R0 14 DDI3_TXP_R2 15 GND 16 GND 17 DPD_AUX_P_R 18 DPD_HPD_R 19 DPD_AUX_N_R 20 DP_GND

MH1 DP_GND MH2 DP_GND

26

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

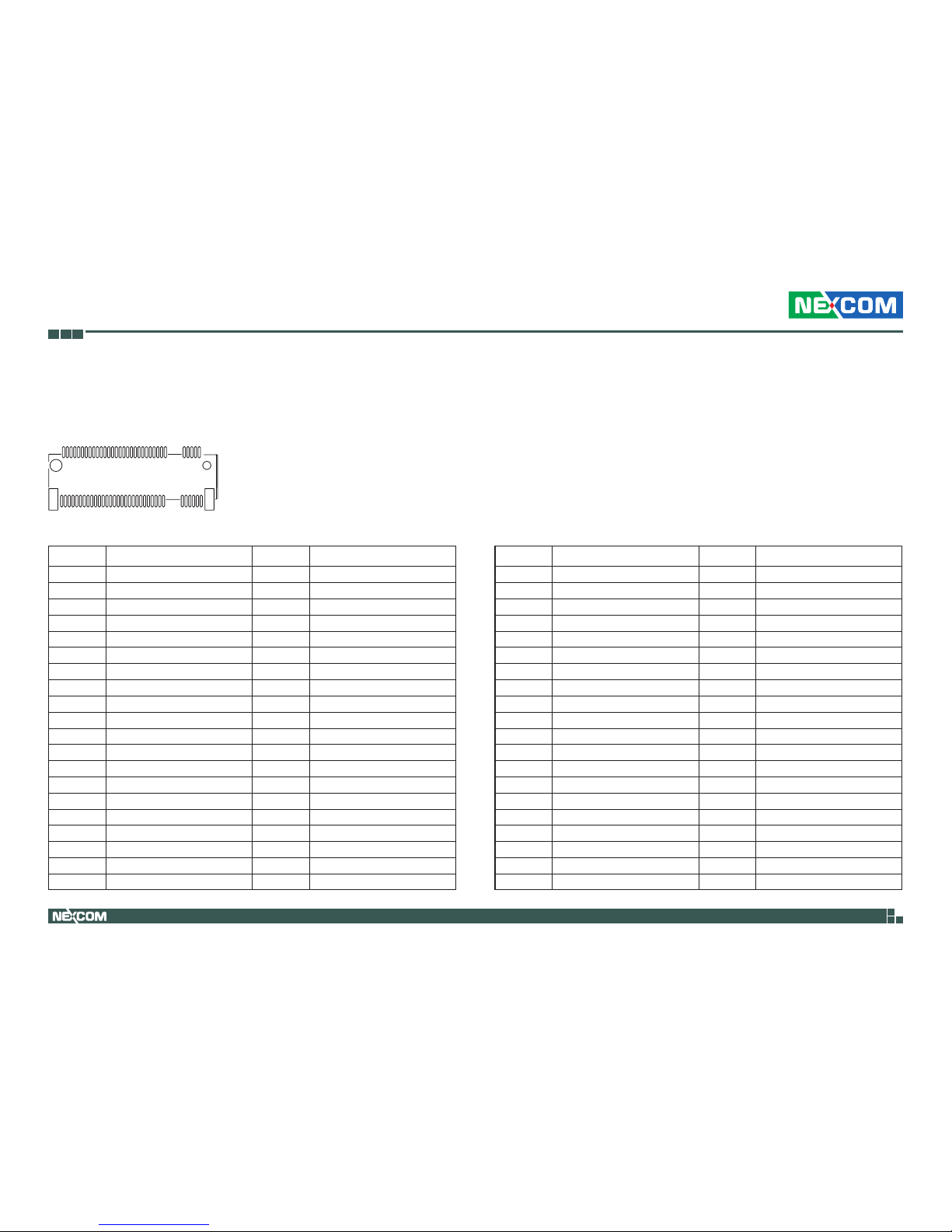

M.2 Connector

Connector location: NGFF1

175

74 2

Pin Definition Pin Definition

1 GND 2 NGFF1_3V3 3 GND 4 NGFF1_3V3 5 PERN3 6 NC 7 PERP3 8 NC

9 GND 10 NC 11 PETN3 12 NGFF1_3V3 13 PETP3 14 NGFF1_3V3 15 GND 16 NGFF1_3V3 17 PERN2 18 NGFF1_3V3 19 PERP2 20 NC 21 GND 22 NC 23 PETN2 24 NC 25 PETP2 26 NC 27 GND 28 NC 29 PERN1 30 NC 31 PERP1 32 NC 33 GND 34 NC 35 PETN1 36 NC 37 PETP1 38 NC 39 GND 40 NC

Pin Definition Pin Definition

41 PERN0 42 NC 43 PERP0 44 NC 45 GND 46 NC 47 PETN0 48 NC 49 PETP0 50 RST_M2M_N 51 GND 52 PCIEREQ#1_NGFF_R 53 REFCLKN 54 NC 55 REFCLKP 56 NC 57 GND 58 NC 59 NC 60 NC 61 NC 62 NC 63 NC 64 NC 65 NC 66 NC 67 NC 68 NC 69 SATA_PCIE_SEL 70 NGFF1_3V3 71 GND 72 NGFF1_3V3 73 GND 74 NGFF1_3V3 75 GND

MH1 GND MH2 GND

NH1 NC NH2 NC

27

PEAK 888 User Manual

Chapter 2: Jumpers and Connectors

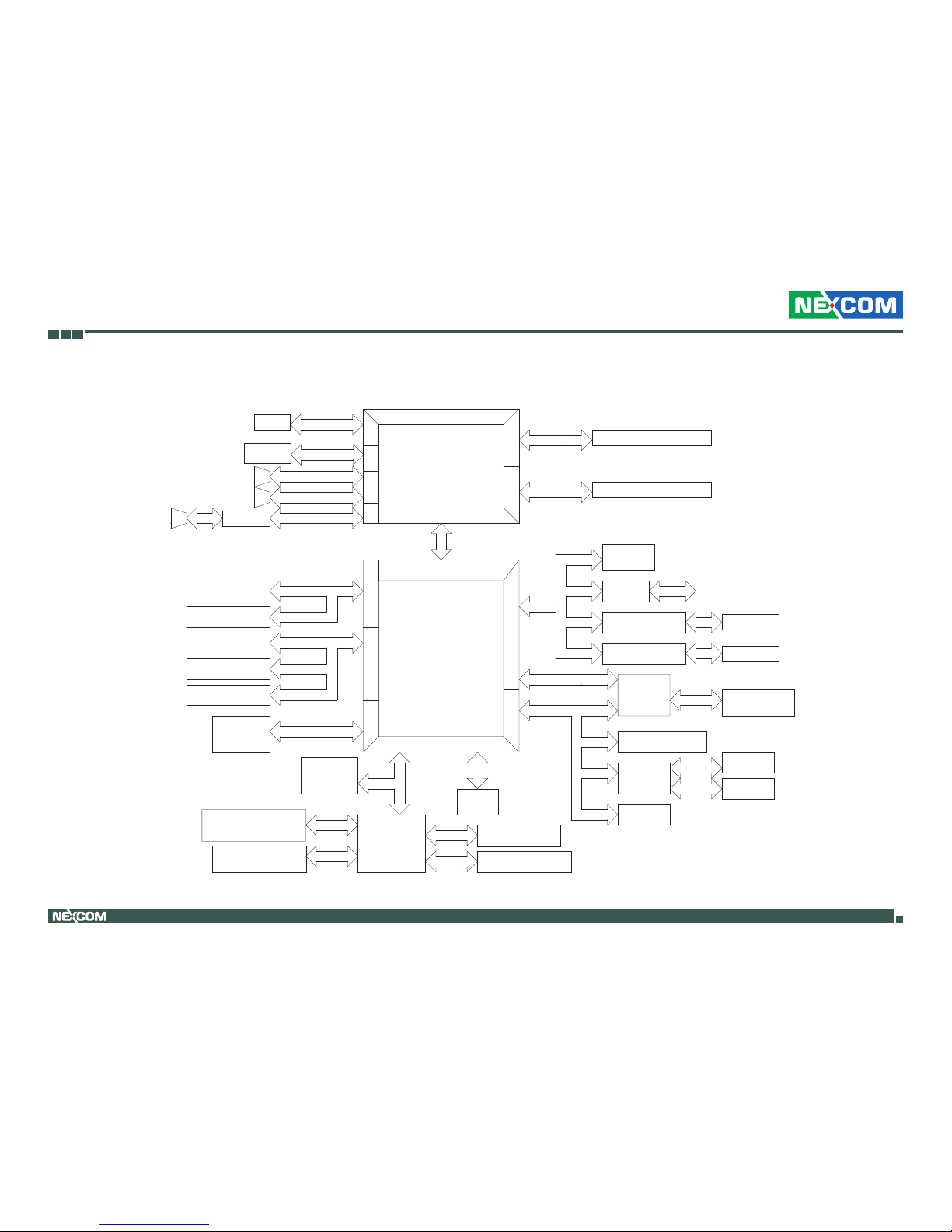

Block Diagram

DP BUSB 3.0(4)

IMVP8

DDR4 CH ADDR4 CH B

SKYLAKE-S Socket:1151 pin

DMI x4

DMI

VCCIN

Maximum support 16GB

DDR4 CHB

DDR4 1866/2133 MT/s U-DIMM

DDR4 CHA

DDR4 1866/2133 MT/s U-DIMM

PEG

LPC SPI

BIOS/ME SPI ROM

PCI-E *1 (11)

USB 2.0(14)

H110/Q170

DP C

SUPER I/O IT8786E/AX-L

DP D

DMI

SATA 3.0(5)

HDA

PEG[0:15]

PCIEx 16 GFA

DP C

HDMI/DVI HEADER

DP B

VGA

CH7517

USB3 Connector (USB3.0 x 2)

PORT(1~2)

PORT(3~4)

BOX Header (USB3.0 x 2)

TYPE A Connector (USB2.0 x 1)

PORT7~PORT10

Q170 only

backplane (USB2.0 x 4)

PORT4~PORT5

PORT6

JST Connector (USB2.0 x 2)

PIN HEADER (2.54mm 2x5)

BUS(6)

BUS(1~4)

BUS(5)

RJ45 Connector

PCIe x 4 SHB GFA

BUS(7)

GbE Controller

INTEL I211

INTEL I219LM GbE PHY

IT 8892

PCI GF

PCI BUS

COM1,2,3,4 BOX HEADER COM2 RS232/RS422/RS485

H/W Monitor +3.3V, +5V, +12V, Vcore

PS2 KB/MS JST Connector

Parallel Port 26-pin Header x 1 (2.0mm)

Debug/TPM HEADER (2.00mm 1x12)

SATA 1~2

SATA 3~4

Q170 only

SATA 0

FP Connector (SATA3.0 x 1)

FP Connector (SATA3.0 x 2)

backplane (SATA3.0 x 2)

CBTL02042ABQ (Switch)

FP Connector (SATA3.0 x 2)

SATA 5

M.2 Key M Connector

PCIE x4 Q170 only

BUS(8~11)

CBTL02042ABQ (Switch)

DP D

DP HEADER

28

PEAK 888 User Manual

Chapter 3: BIOS Setup

ChaPter 3: BIos setuP

This chapter describes how to use the BIOS setup program for the PEAK 888. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

29

PEAK 888 User Manual

Chapter 3: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup.

Press the

key to enter Setup:

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menus or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

30

PEAK 888 User Manual

Chapter 3: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

31

PEAK 888 User Manual

Chapter 3: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set the Date. Use Tab to switch between Date elements.

BIOS Information BIOS Vendor Core Version Compliancy Project Name Project Version Build Date and Time Access Level

Processor Information Name Brand String

Frequency Processor ID Stepping Number of Processors Microcode Revision GT Info

IGFX VBIOS Version Memory RC Version Total Memory Memory Frequency

American Megatrends

5.11 UEFI 2.4; PI 1.3 PEAK888 P888-007 x64 06/23/2016 23:04:25 Administrator

SkyLake DT Intel(R) Core(TM) i5-6500 CPU @ 3.20GHz 3200 MHz 506E3 R0/S0/N0 4Core(s) / 4Thread(s) 6A GT2

1036

1.8.0.1 8192 MB 2133 MHz

System Language

Selects the language of the system.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

▲

▼

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set the Date. Use Tab to switch between Date elements.

Frequency Processor ID Stepping Number of Processors Microcode Revision GT Info

IGFX VBIOS Version Memory RC Version Total Memory Memory Frequency

PCH Information Name PCH SKU Stepping LAN PHY Revision

ME FW Version ME Firmware SKU

System Language

System Date

System Time

3200 MHz 506E3 R0/S0/N0 4Core(s) / 4Thread(s) 6A GT2

1036

1.8.0.1 8192 MB 2133 MHz

SKL PCH-H PCH-H Desktop Q170 SKU 31/D1 B2

11.0.0.1194 Corporate SKU

[English]

[Thu 07/21/2016] [16:01:23]

▲

▼

32

PEAK 888 User Manual

Chapter 3: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Save & Exit

Advanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Trusted Computing Settings

Trusted Computing

ACPI Settings

IT8786 Super IO Conguration

Hardware Monitor

CPU Conguration SATA Conguration USB Conguration

Trusted Computing

This section is used to configure Trusted Platform Module (TPM) settings.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

Conguration

Security Device Support

NO Security Device Found

[Enable]

Security Device Support

Enables or disables BIOS support for security device. O.S will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

33

PEAK 888 User Manual

Chapter 3: BIOS Setup

ACPI Settings

This section is used to configure ACPI settings.

Enable Hibernation

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Sleep State

Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are Suspend Disabled and S3 (Suspend to RAM).

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Settings

Enable Hibernation

ACPI Sleep State

[Enabled]

[S3 (Suspend to RAM)]

IT8786 Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Super IO Chip

Displays the Super I/O chip used on the board.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set Parameters of Serial Port 1 (COMA)

IT8786 Super IO Conguration

Super IO Chip

Serial Port 1 Conguration

Serial Port 2 Conguration Serial Port 3 Conguration Serial Port 4 Conguration Parallel Port Conguration

IT8786



34

PEAK 888 User Manual

Chapter 3: BIOS Setup

Serial Port 1 Configuration

This section is used to configure serial port 1.

Serial Port 2 Configuration

This section is used to configure serial port 2.

Serial Port

Enables or disables the serial port.

Serial Port

Enables or disables the serial port.

Onboard Serial Port Mode

Configures the serial port mode to RS232, RS422, RS485 or RS485 Auto.

Terminal 120 Ohm

Enables or disables serial port terminal resistance.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

Serial Port 1 Conguration

Serial Port

Device Settings

[Enabled]

IO=3F8h; IRQ=4;

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

Serial Port 2 Conguration

Serial Port

Device Settings

Onboard Serial Port Mode Terminal 120 Ohm

[Enabled]

IO=2F8h; IRQ=3;

[RS232] [Disabled]

35

PEAK 888 User Manual

Chapter 3: BIOS Setup

Serial Port 3 Configuration

This section is used to configure serial port 3.

Serial Port 4 Configuration

This section is used to configure serial port 4.

Serial Port

Enables or disables the serial port.

Serial Port

Enables or disables the serial port.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

Serial Port 3 Conguration

Serial Port

Device Settings

[Enabled]

IO=3E8h; IRQ=6;

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

Serial Port 4 Conguration

Serial Port

Device Settings

[Enabled]

IO=2E8h; IRQ=10;

36

PEAK 888 User Manual

Chapter 3: BIOS Setup

Parallel Port Configuration

This section is used to configure the parallel port.

Parallel Port

Enables or disables the parallel port.

Change Settings

Selects an optimal setting for the Super IO device.

Device Mode

Configures the operating mode of the parallel port. The options are Standard Parallel Port Mode, EPP Mode, ECP Mode, EPP Mode & ECP Mode.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Parallel Port (LPT/LPTE)

Parallel Port Conguration

Parallel Port

Device Settings

Change Settings Device Mode

[Enabled]

IO=378h; IRQ=5; DMA=3;

[Auto] [EPP mode & ECP mode]

37

PEAK 888 User Manual

Chapter 3: BIOS Setup

Hardware Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

System Temperature

Detects and displays the current system temperature.

CPU Temperature

Detects and displays the current CPU temperature.

CPU Fan Speed

Detects and displays the current CPU fan speed.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Pc Health Status

System Temperature CPU Temperature CPU Fan Speed SYS Fan Speed CPU:Vcore +3V +12V +5V

: +31 C : +38 C : N/A : 4299 RPM : +1.080 : +3.363 V : +11.880 V : +5.070 V

SYS Fan Speed

Detects and displays the current system fan speed.

CPU:Vcore

Detects and displays the Vcore CPU voltage.

+3V

Detects and displays 3.3V voltage.

+12V

Detects and displays 12V voltage.

+5V

Detects and displays 5V voltage.

38

PEAK 888 User Manual

Chapter 3: BIOS Setup

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Select the number of cores to enable in each processor package.

Processor Cores Hyper Threading Technology Intel VT-x Technology Intel SMX Technology 64-bit EIST Technology CPU C3 state CPU C6 state CPU C7 state CPU C8 state CPU C9 state CPU C10 state

L1 Data Cache L1 Code Cache L2 Cache L3 Cache L4 Cache

Active Processor Cores

Intel Virtualization Technology Intel(R) SpeedStep(tm) CPU C states

4

Not Supported Supported Supported Supported Supported Supported Supported Supported Supported Not Supported Not Supported

32 kB x 4 32 kB x 4 256 kB x 4 6 MB Not Present

[All]

[Enabled] [Disabled] [Disabled]

▲

▼

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Intel(R) Core(TM) i5-6500 CPU @ 3.20GHz

CPU Signature Microcode Patch Max CPU Speed Min CPU Speed CPU Speed Processor Cores Hyper Threading Technology Intel VT-x Technology Intel SMX Technology 64-bit EIST Technology CPU C3 state CPU C6 state CPU C7 state CPU C8 state CPU C9 state CPU C10 state

L1 Data Cache L1 Code Cache

506E3 6A 3200 MHz 800 MHz 3200 MHz 4

Not Supported Supported Supported Supported Supported Supported Supported Supported Supported Not Supported Not Supported

32 kB x 4 32 kB x 4

CPU Configuration

This section is used to configure the CPU.

▲

▼

EIST

Enables or disables Intel® SpeedStep.

CPU C States

Enable CPU C States Support for power saving.

Active Processor Cores

Select the number of cores to enable in each processor package.

Intel® Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

39

PEAK 888 User Manual

Chapter 3: BIOS Setup

SATA Configuration

This section is used to configure the SATA drives.

SATA Controller(s)

Enables or disables the SATA controller.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or disable SATA Device.

SATA Controller(s)

SATA Mode Selection

Software Feature Mask Conguration

Serial ATA Port 0 Software Preserve

Port 0

Serial ATA Port 1 Software Preserve

Port 1

Serial ATA Port 2 Software Preserve

Port 2

Serial ATA Port 3 Software Preserve

Port 3

Serial ATA Port 4 Software Preserve

Port 4

Serial ATA Port 5 Software Preserve

Port 5

[Enabled]

[AHCI]

Empty Unknown

[Enabled]

Empty Unknown

[Enabled]

Empty Unknown

[Enabled]

Empty Unknown

[Enabled]

Empty Unknown

[Enabled]

Empty Unknown

[Enabled]



SATA Mode Selection

Configures the SATA mode.

RAID This option allows you to create RAID or Intel Matrix Storage configuration on Serial ATA devices AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

Port 0 to Port 5

Enables or disables SATA port 0 to port 5.

40

PEAK 888 User Manual

Chapter 3: BIOS Setup

Software Feature Mask Configuration

RAID0, RAID1, RAID10 and RAID5

Enables or disables RAID0, RAID1, RAID10 or RAID5 feature.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

RAID0

RAID1 RAID10 RAID5

[Enabled]

[Enabled] [Enabled] [Enabled]

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

USB Conguration

USB Module Version

USB Controllers: 1 XHCI USB Devices: 1 Drive, 2 Keyboards

Legacy USB Support

XHCI Hand-off USB Mass Storage Driver Support

Mass Storage Devices:

JetFlashTranscend 16GB 1100

13

[Enabled]

[Enabled] [Enabled]

[Auto]

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

XHCI Hand-off

This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

USB Mass Storage Driver Support

Enables or disables USB mass storage driver support.

USB Configuration

This section is used to configure the USB.

41

PEAK 888 User Manual

Chapter 3: BIOS Setup

Chipset

This section is used to configure the system based on the specific features of the chipset.

Setting incorrect field values may cause the system to malfunction.

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Agent (SA) Conguration

PCH-IO Conguration

System Agent (SA) Configuration

VT-d

Enables or disables VT-d function on MCH.

Save & Exit

Advanced

Chipset Boot SecurityMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Agent Bridge Name SA PCIe Code Version VT-d

VT-d

Graphics Conguration PEG Port Conguration Memory Conguration

Skylake

1.8.0.0 Supported

[Enabled]

42

PEAK 888 User Manual

Chapter 3: BIOS Setup

Graphics Configuration

Primary Display

Select which of IGFX/PEG/PCI graphics device should be primary display or select SG for switchable GFx.

Primary PEG

Select which PEG device should be the primary PEG.

Primary PCIE

Select which PCIE device should be the primary PCIE.

Save & Exit

Advanced

Chipset Boot SecurityMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Graphics Conguration

IGFX VBIOS Version

Primary Display

Primary PEG Primary PCIE Internal Graphics DVMT Total Gfx Mem LCD Control

1036

[Auto]

[Auto] [Auto] [Auto] [256M]

Select which of IGFX/PEG/PCI Graphics device should be Primary Display Or select SG for Switchable Gfx.

Internal Graphics

Keep IGD enabled based on the setup options.

DVMT Total Gfx Mem

Select DVMT 5.0 Total Graphic Memory size used by the Internal Graphics Device.

43

PEAK 888 User Manual

Chapter 3: BIOS Setup

Primary IGFX Boot Display

Selects the video device which will be activated during POST. This has no effect if external graphics is present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display

LCD Control

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Select the Video Device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display

LCD Control

Primary IGFX Boot Display

[VBIOS Default]

Enable Root Port

Enables or disables the root port.

Max Link Speed

Select the maximum link speed of the PEG device.

PEG Port Configuration

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PEG Port Configuration

PEG 0:1:0

Enable Root Port

Max Link Speed

Not Present

[Enable]

[Auto]

44

PEAK 888 User Manual

Chapter 3: BIOS Setup

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Memory Conguration

Memory RC Version Memory Frequency Total Memory VDD DIMM#0 DIMM#2 Memory Timings (tCL-tRCD-tRP-tRAS)

1.8.0.1 2133 Mhz 8192 MB 1200 Not Present 8192 MB 15-36

Memory Configuration

Detects and displays information on the memory installed in the system.

PCH-IO Configuration

PCH LAN Controller

Enables or disables onboard NIC.

Restore on AC Power Loss

Select AC power state when power is re-applied after a power failure.

Save & Exit

Advanced

Chipset Boot SecurityMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Security Conguration

settings.

Intel PCH RC Version Intel PCH SKU Name Intel PCH Rev ID

BIOS Security Conguration

HD Audio Conguration

PCH LAN Controller Restore on AC power loss

1.8.0.0 PCH-H Desktop Q170 SKU 31/D1

[Enabled] [Last State]

45

PEAK 888 User Manual

Chapter 3: BIOS Setup

BIOS Security Configuration HD Audio Configuration

RTC Lock

Enables or disables bytes 38h-3Fh in the upper and lower 128-byte bank of RTC RAM lockdown.

HD Audio

Control detection of the HD audio device.

Disabled HD audio will be unconditionally disabled. Enabled HD audio will be unconditionally enabled. Auto HD audio will be enabled if present, disabled otherwise.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or disable bytes 38h-3Fh in the upper and lower 128-byte bank of RTC RAM lockdown.

BIOS Security Conguration

RTC Lock

[Disabled]

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Control Detection of the HD audio device. Disabled = Azalia will be unconditionally disabled Enabled = Azalia will be unconditionally Enabled Auto = Azalia will be enabled if present, disabled otherwise.

HD Audio Conguration

HD Audio

[Auto]

46

PEAK 888 User Manual

Chapter 3: BIOS Setup

Security

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set Administrator Password

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User Will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

User Password

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

47

PEAK 888 User Manual

Chapter 3: BIOS Setup

Boot

This section is used to configure the boot features.

Setup Prompt Timeout

Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite waiting.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys

Save & Exit

Advanced Chipset

Security

BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Number of seconds to wait for setup activation key.

65535(0xFFFF) means indenite

waiting.

Boot Conguration

Setup Prompt Timeout

Bootup NumLock State Quiet Boot

Boot Option Priorities

Boot Option #1

Boot Option #2

Boot Option #3

Fast Boot

Launch PXE OpROM Onboard LAN PXE

Hard Drive BBS Priorities

[On] [Disabled]

[UEFI: JetFlashTranscend 16GB 1100, Partition 1] [JetFlashTranscend 16GB 1100] [UEFI: Built-in EFI Shell] [Disabled]

[Enabled] [Disabled]

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

Boot Option Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

Fast Boot

Enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.

Launch PXE OpROM Policy

Controls the execution of UEFI and legacy PXE OpROM.

Onboard LAN PXE

Enables or disables onboard LAN PXE ROM.

Hard Drive BBS Priorities

Use the Hard Disk Drive BBS priorities options to set the order of the devices in this group.

1

48

PEAK 888 User Manual

Chapter 3: BIOS Setup

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Reset the system after saving the changes.

Save Changes and Reset Discard Changes and Reset

Restore Defaults

Boot Override

UEFI: Built-in EFI Shell UEFI: JetFlashTranscend 16GB 1100, Partition 1 JetFlashTranscend 16GB 1100

Launch EFI Shell from lesystem device

Save & Exit

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes and Reset

To exit the Setup utility and reboot the system without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.
