Nexcom NViS 5604 User Manual

NEXCOM International Co., Ltd.

Published May 2015

www.nexcom.com

Intelligent Digital Security

Video Intelligent Surveillance NViS 5604-SERIES

User Manual

ii

NViS 5604 Series User Manual

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents .................................................................................xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ........................................................................................1

Hardware Specifications ..........................................................................2

Knowing Your NViS 5604 .......................................................................3

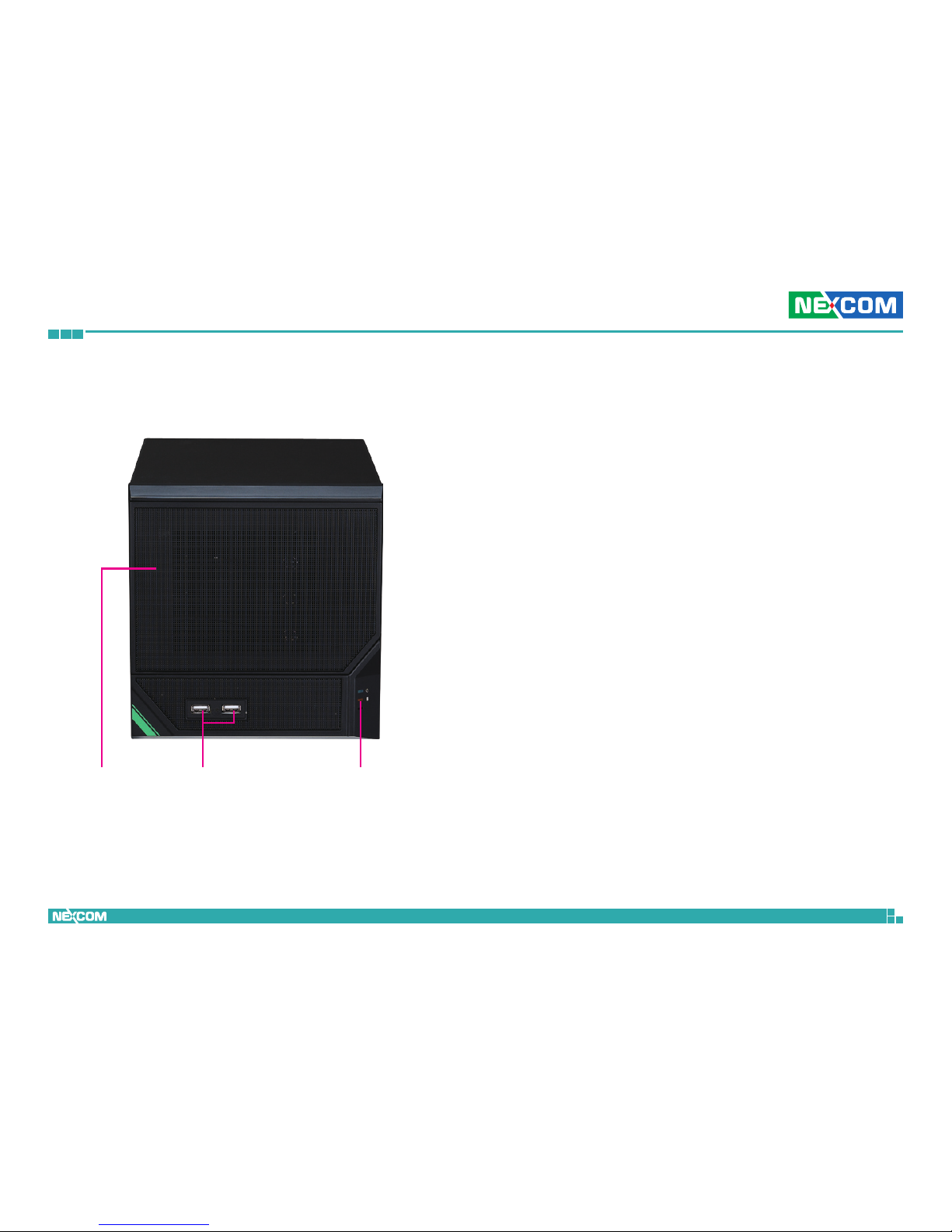

Front Panel ..........................................................................................3

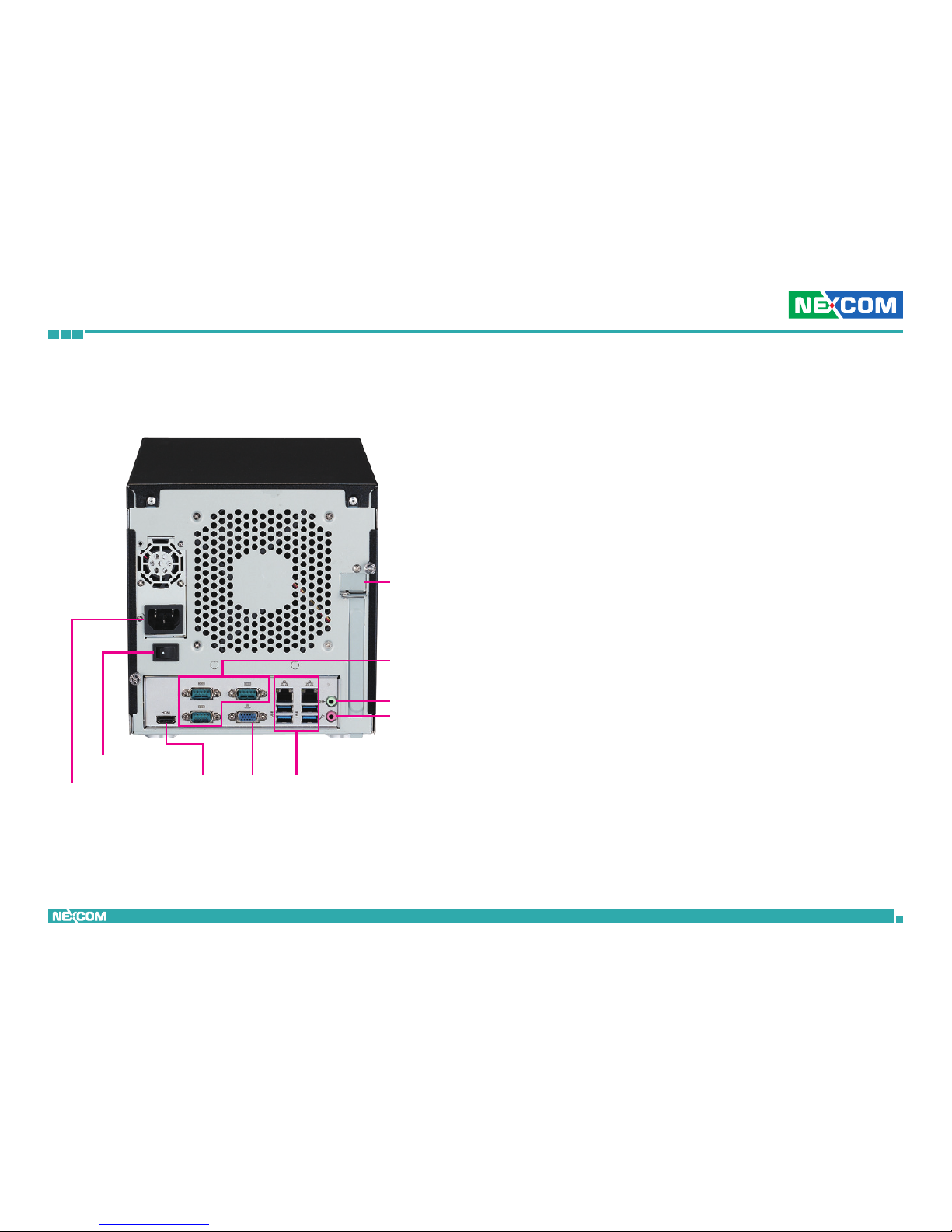

Rear Panel ...........................................................................................4

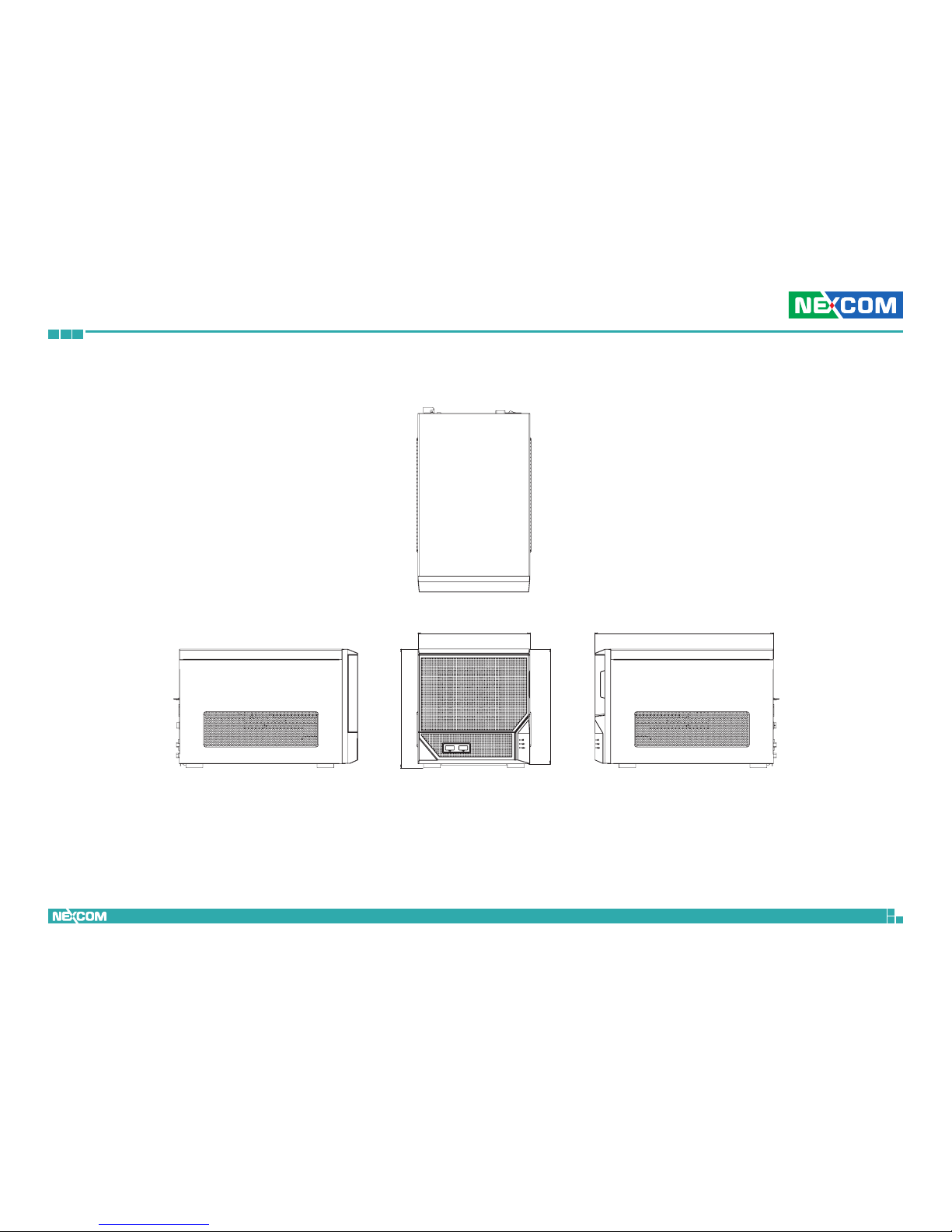

Mechanical Dimensions ...........................................................................5

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................6

Precautions ............................................................................................6

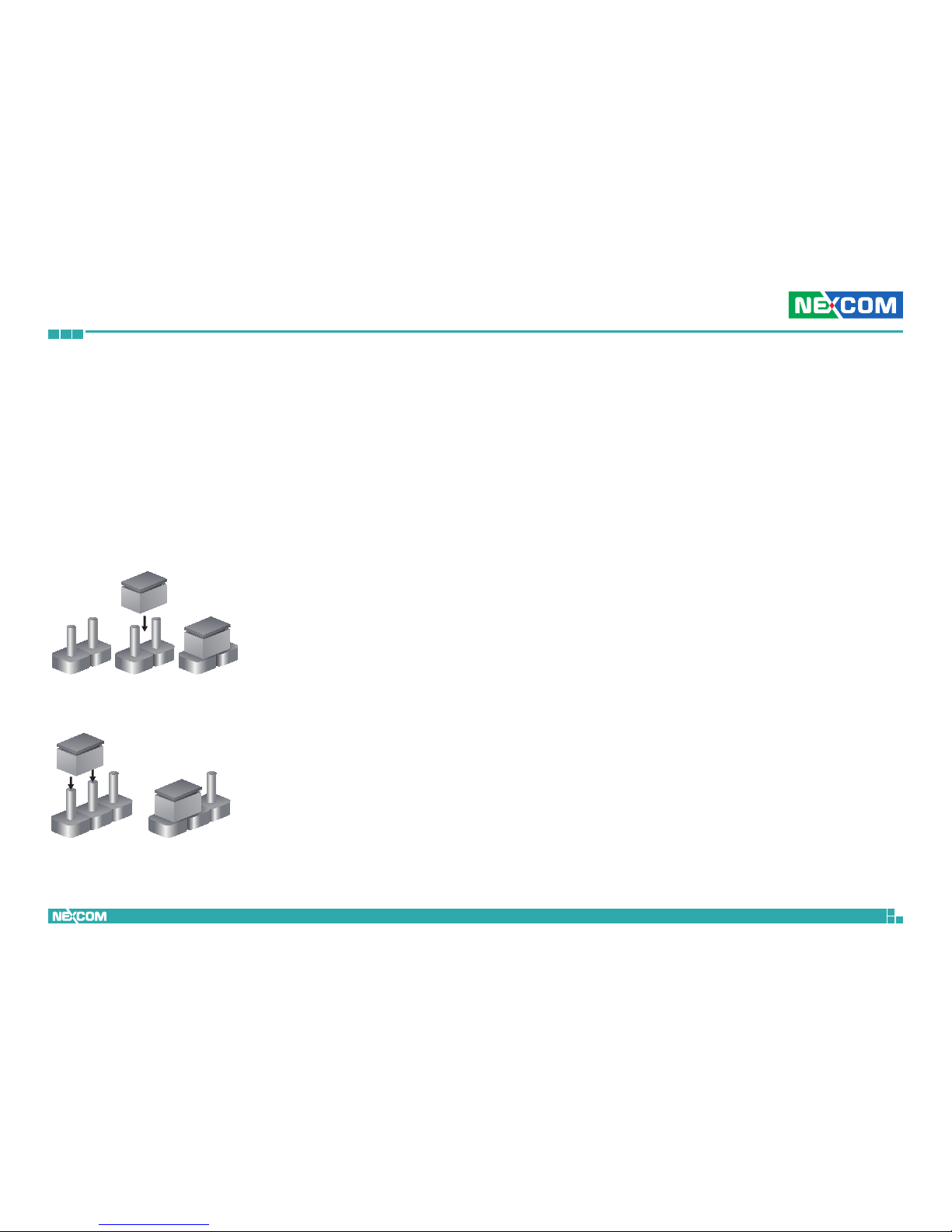

Jumper Settings ......................................................................................7

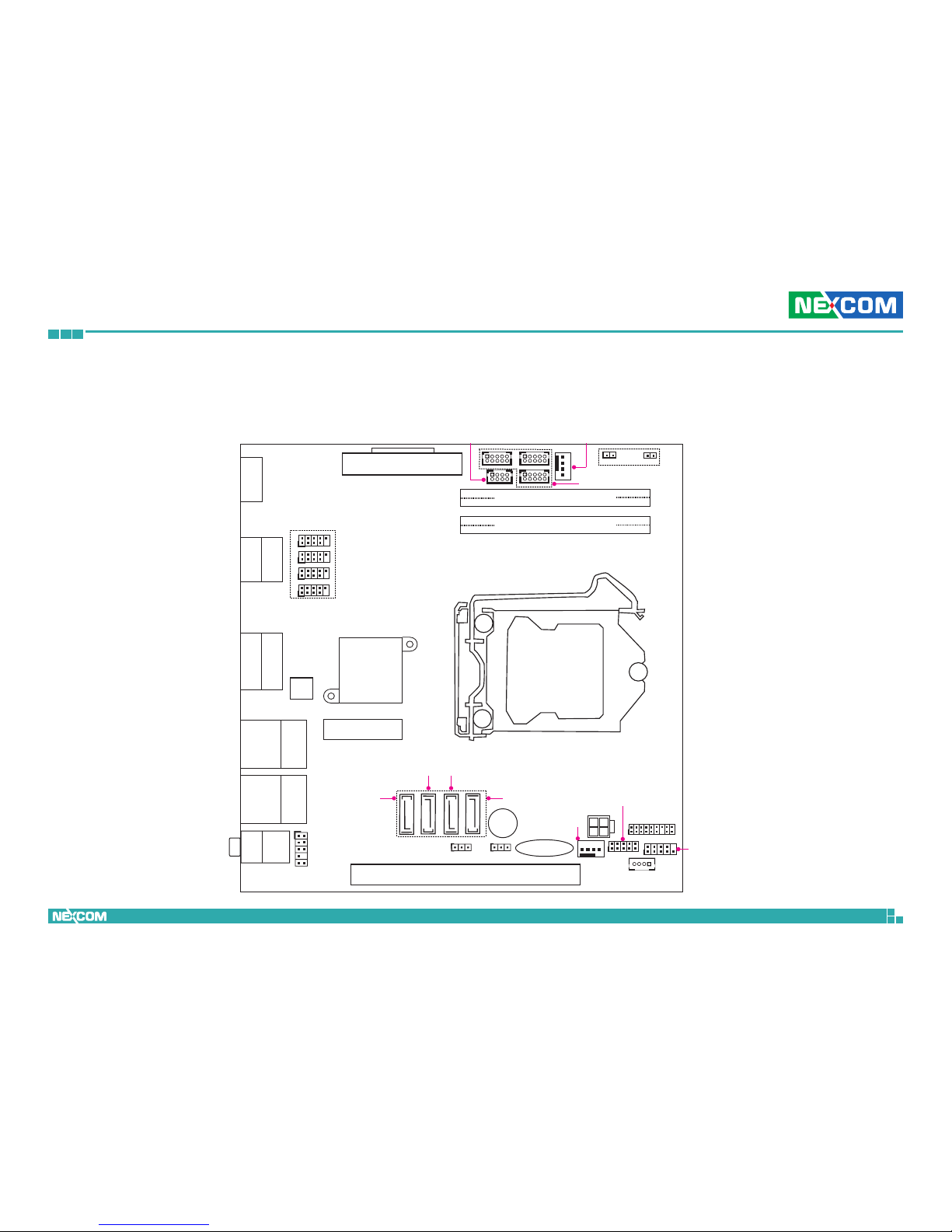

Locations of the Jumpers and Connectors ...............................................8

Jumpers ..................................................................................................9

CMOS Clear Select ..............................................................................9

ATX/AT Mode Jumper ..........................................................................9

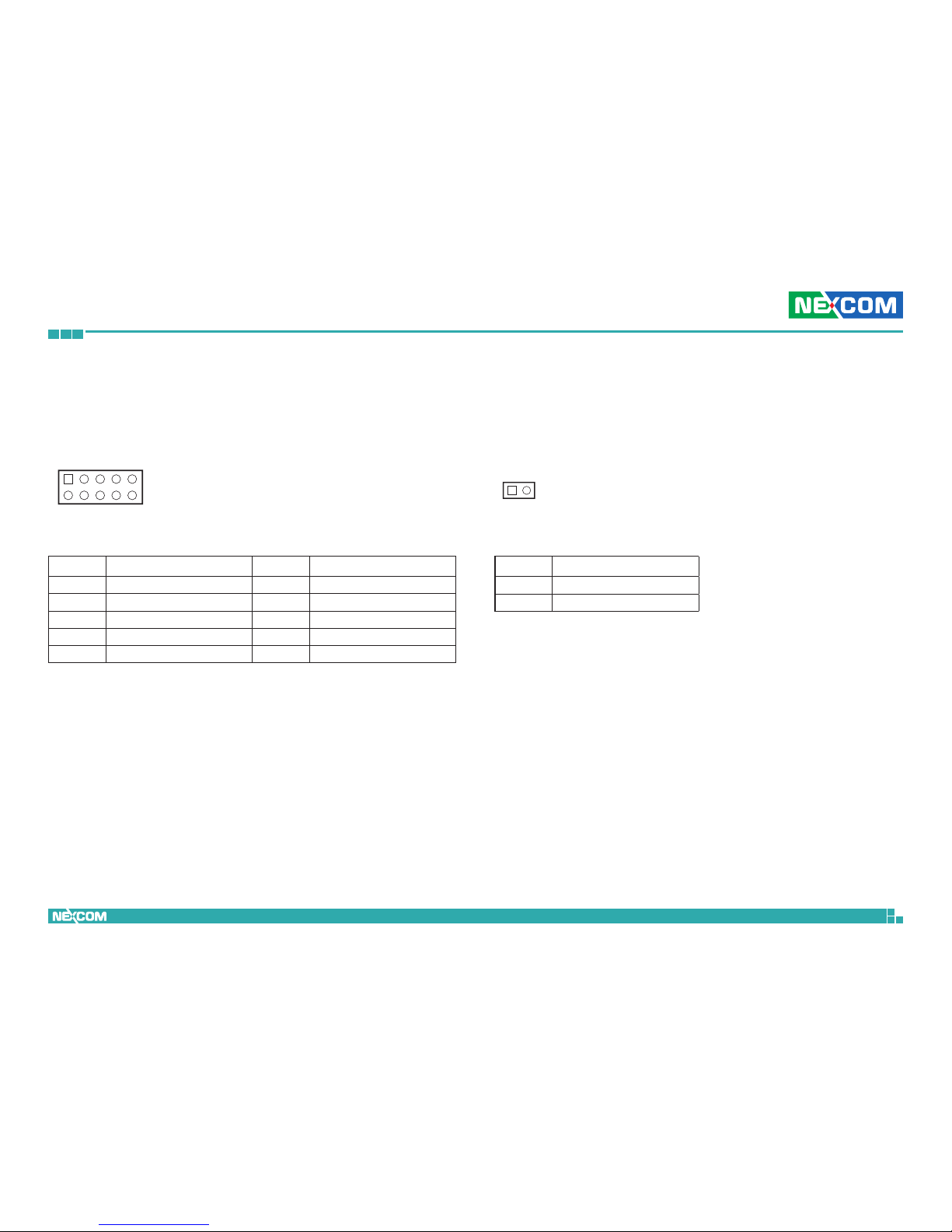

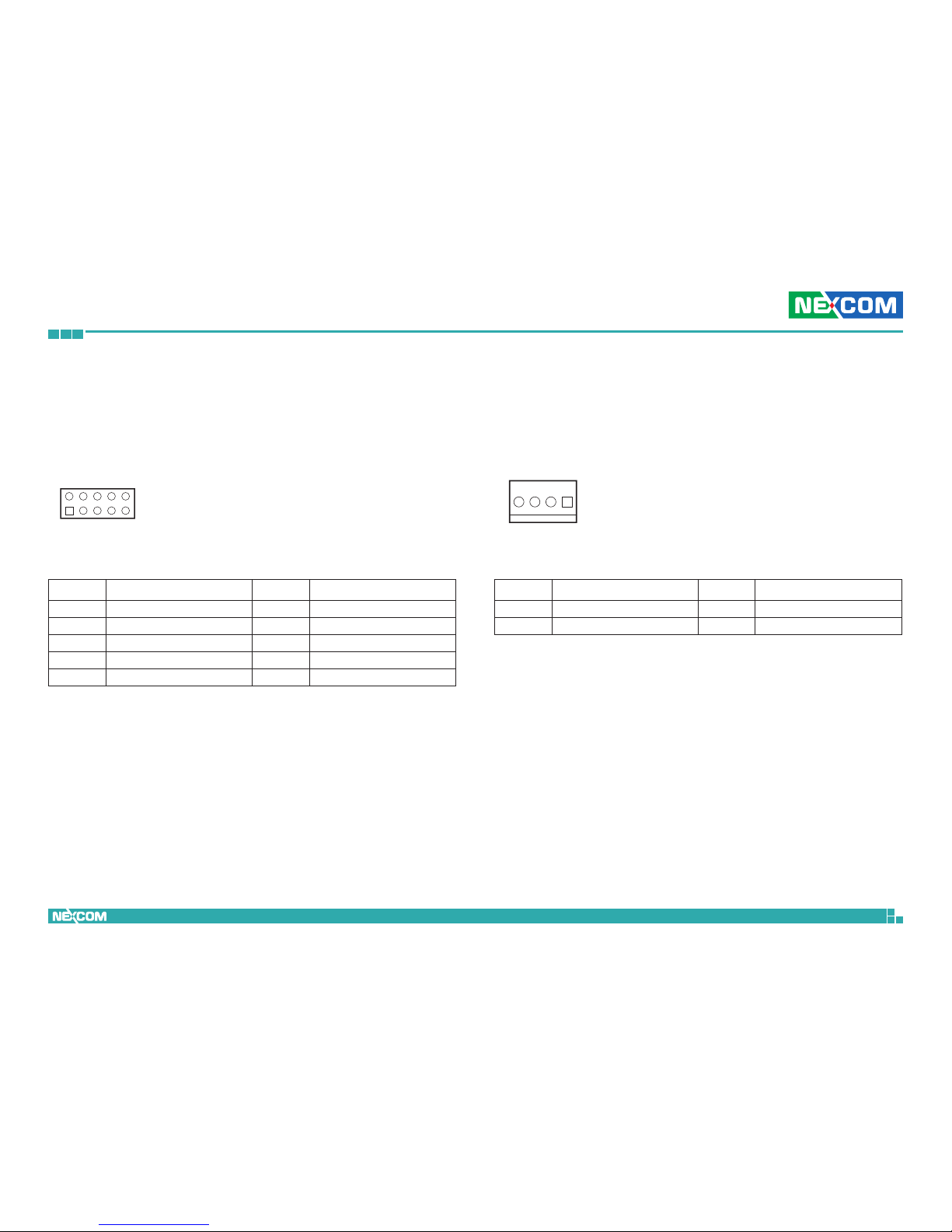

Connector Pin Definitions .....................................................................10

Internal Connectors ........................................................................... 10

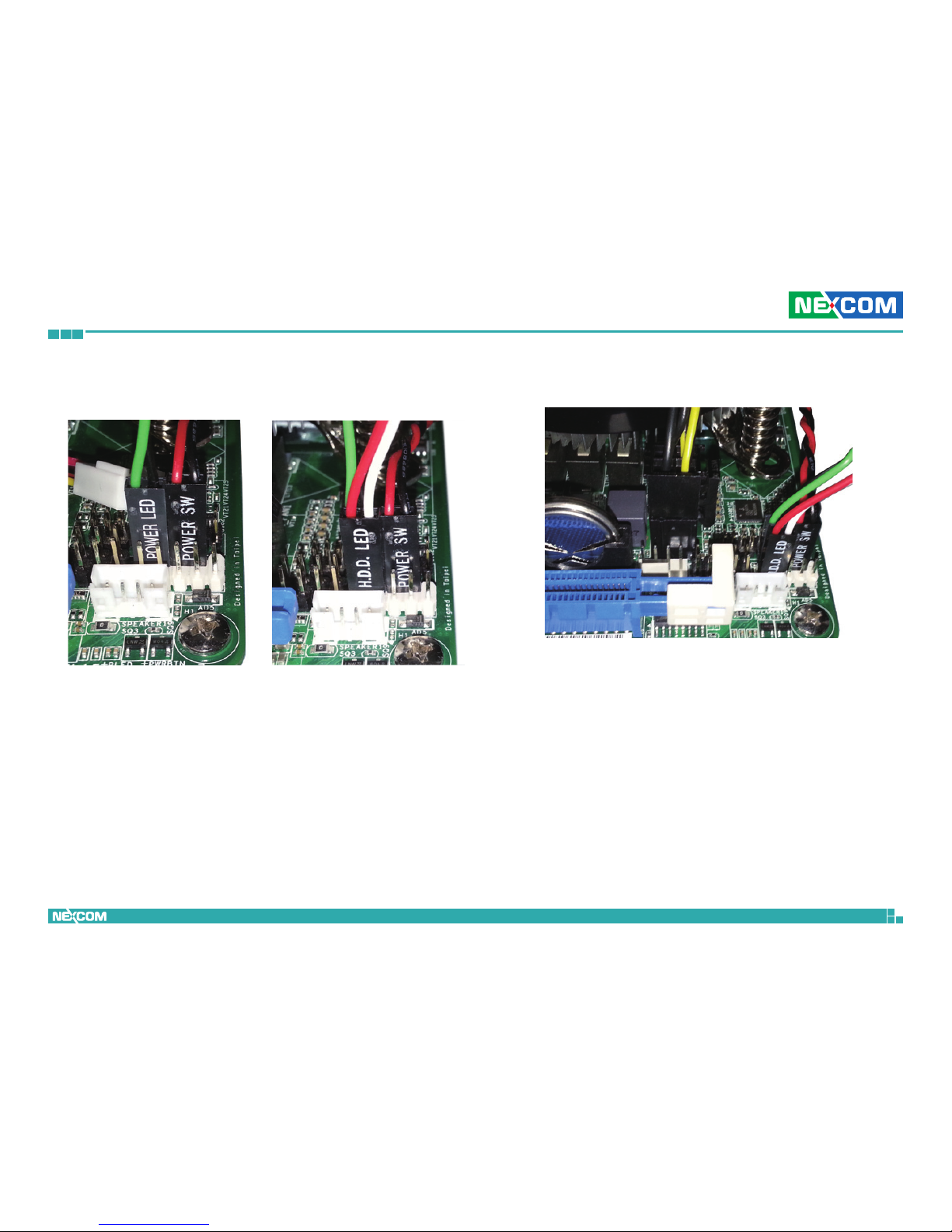

System Panel Header ......................................................................10

PS2 Keyboard and Mouse Pin Header .............................................10

COM4/COM5/COM6: RS-232 Port 4 Pin Headers ...........................11

Chassis Intrusion Pin Headers .........................................................11

Digital Input/Output Pin Headers ....................................................12

4-Pin Chassis Fan Connector ..........................................................12

USB2.0 Connectors ........................................................................13

Front Panel Audio Header ..............................................................13

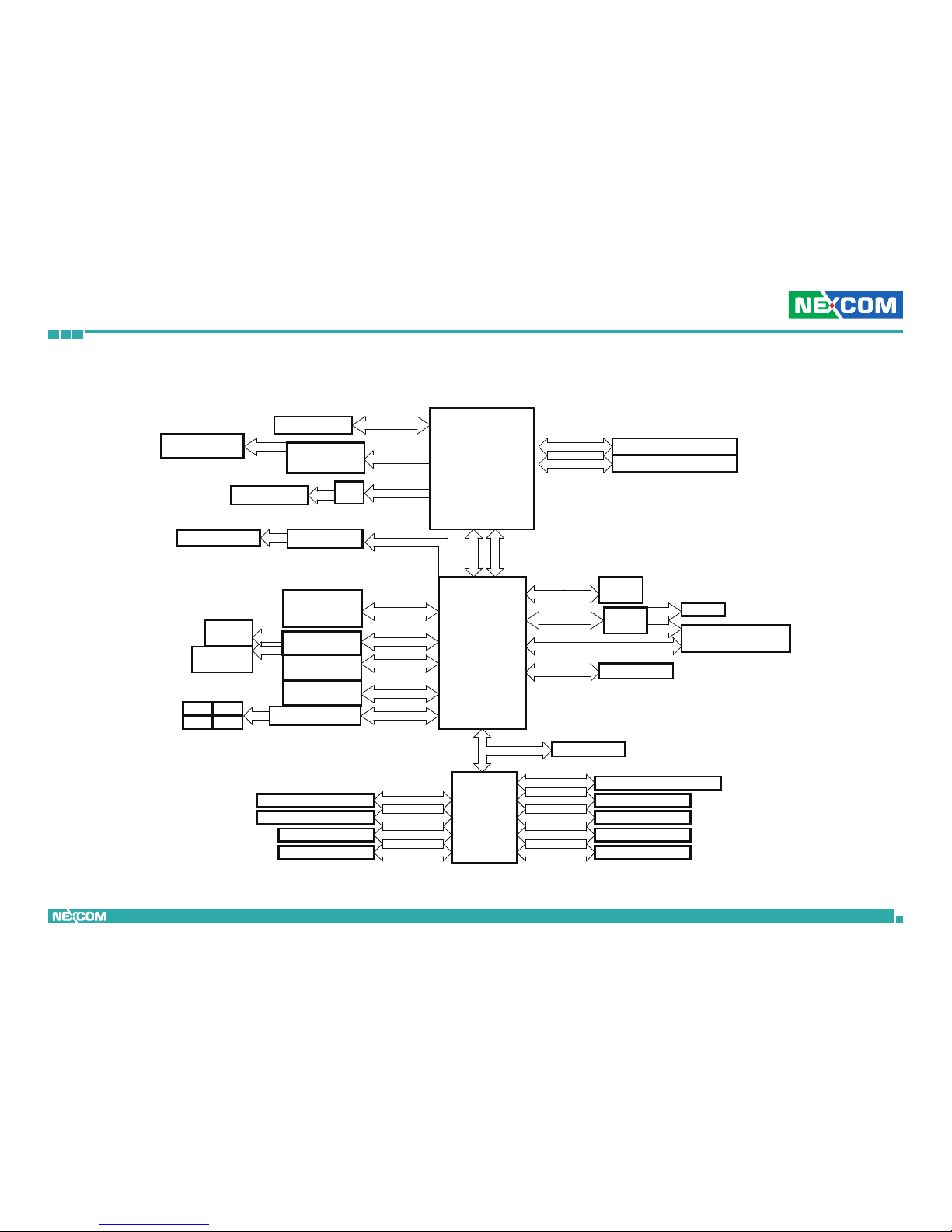

Block Diagram

.................................................................................14

Chapter 3: System Setup

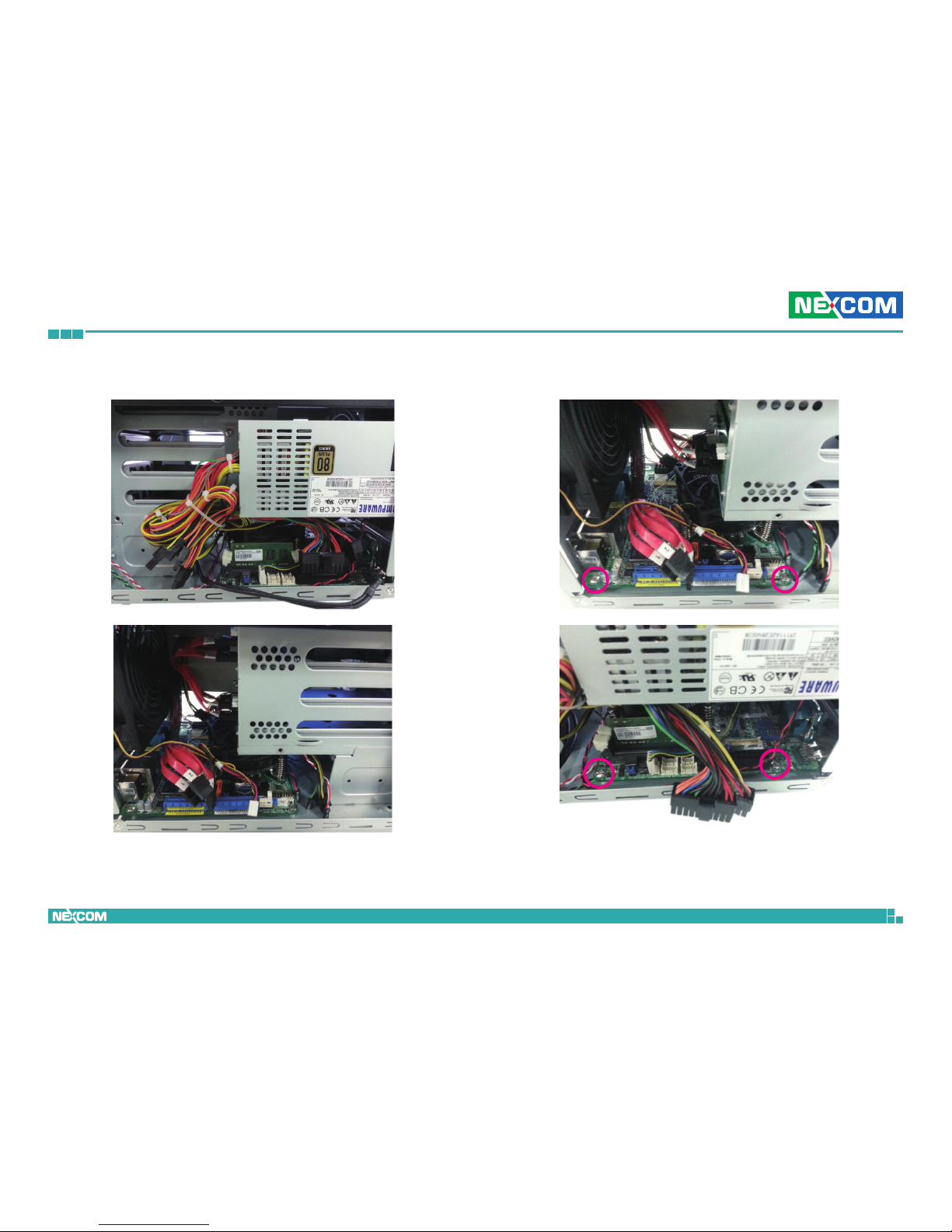

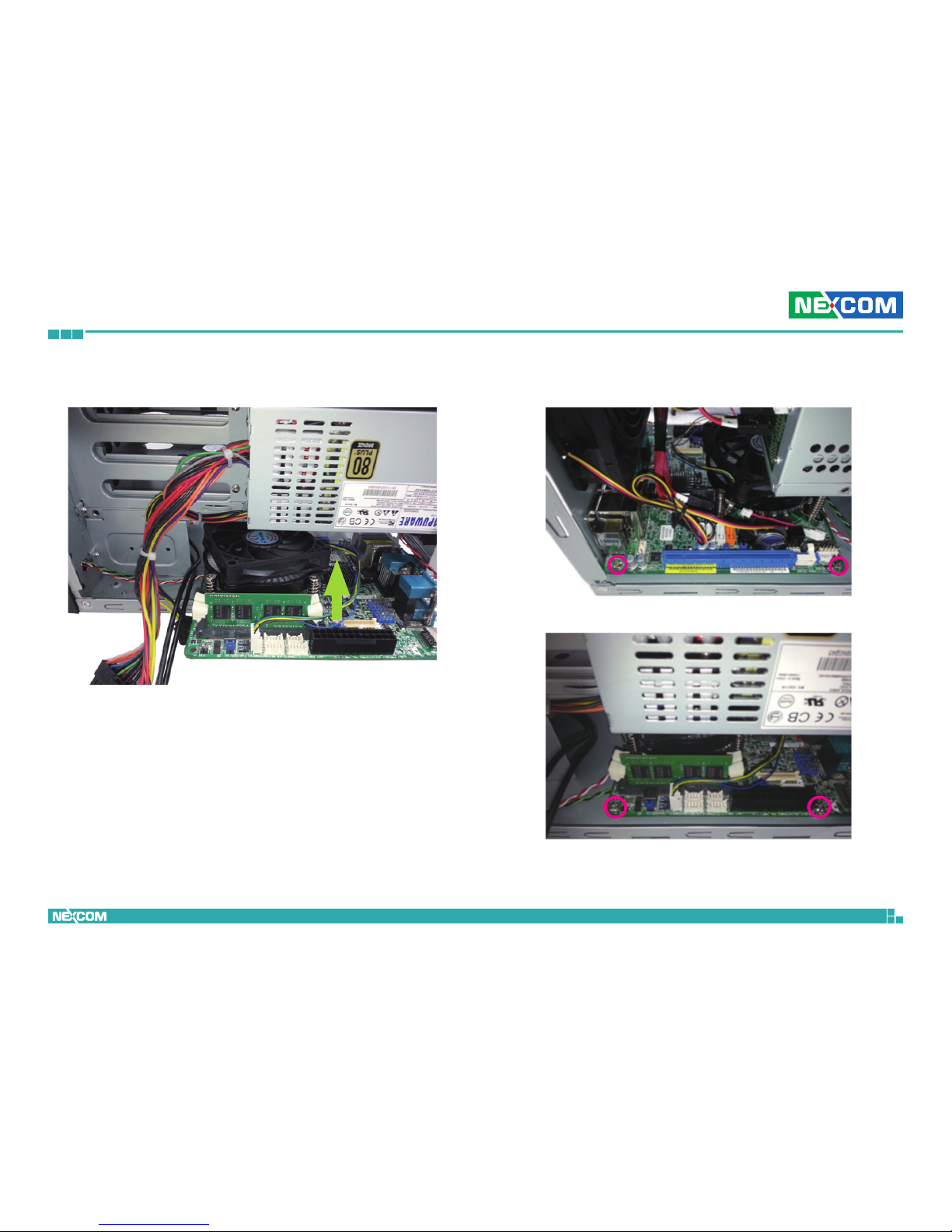

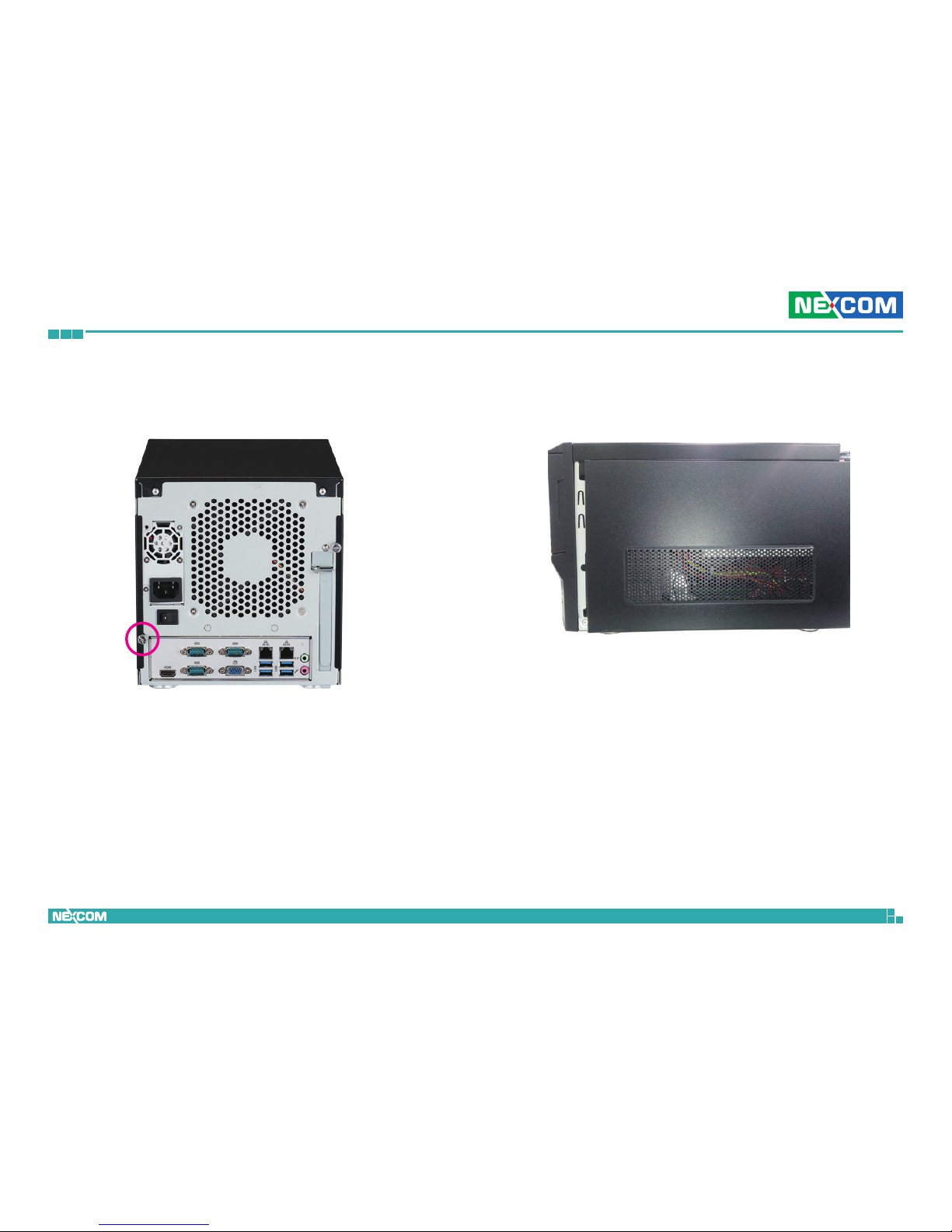

Removing the Motherboard ..................................................................15

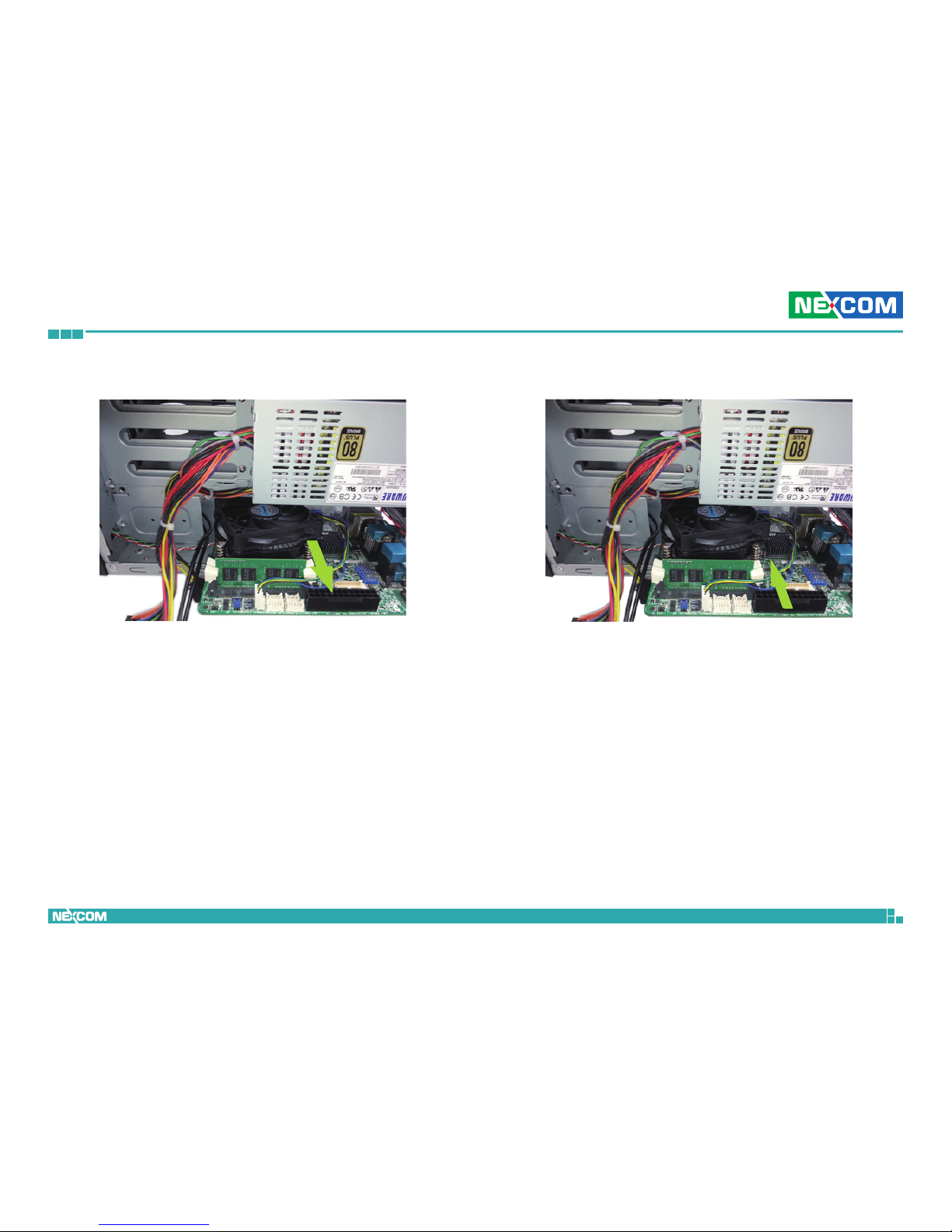

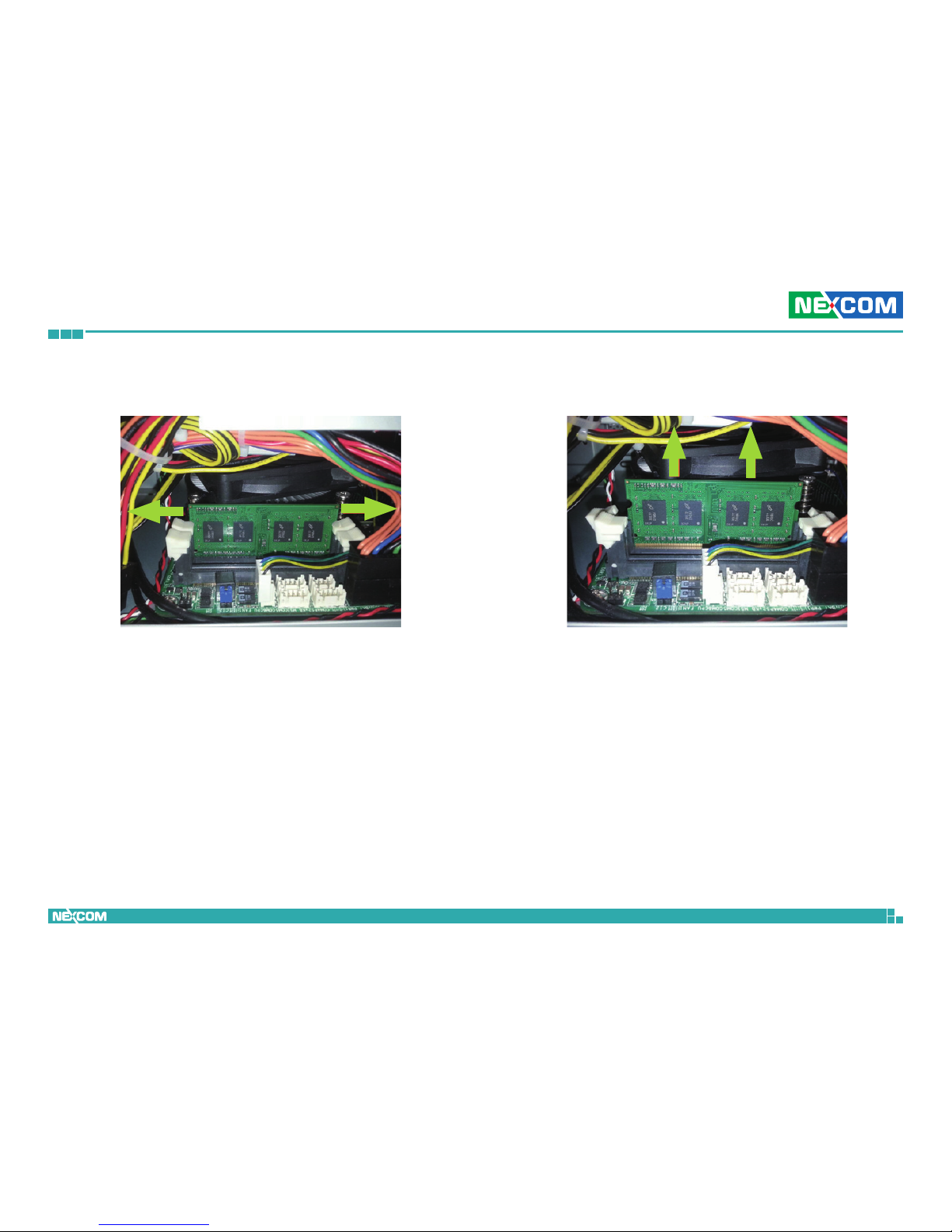

Installing Memory Modules ...................................................................19

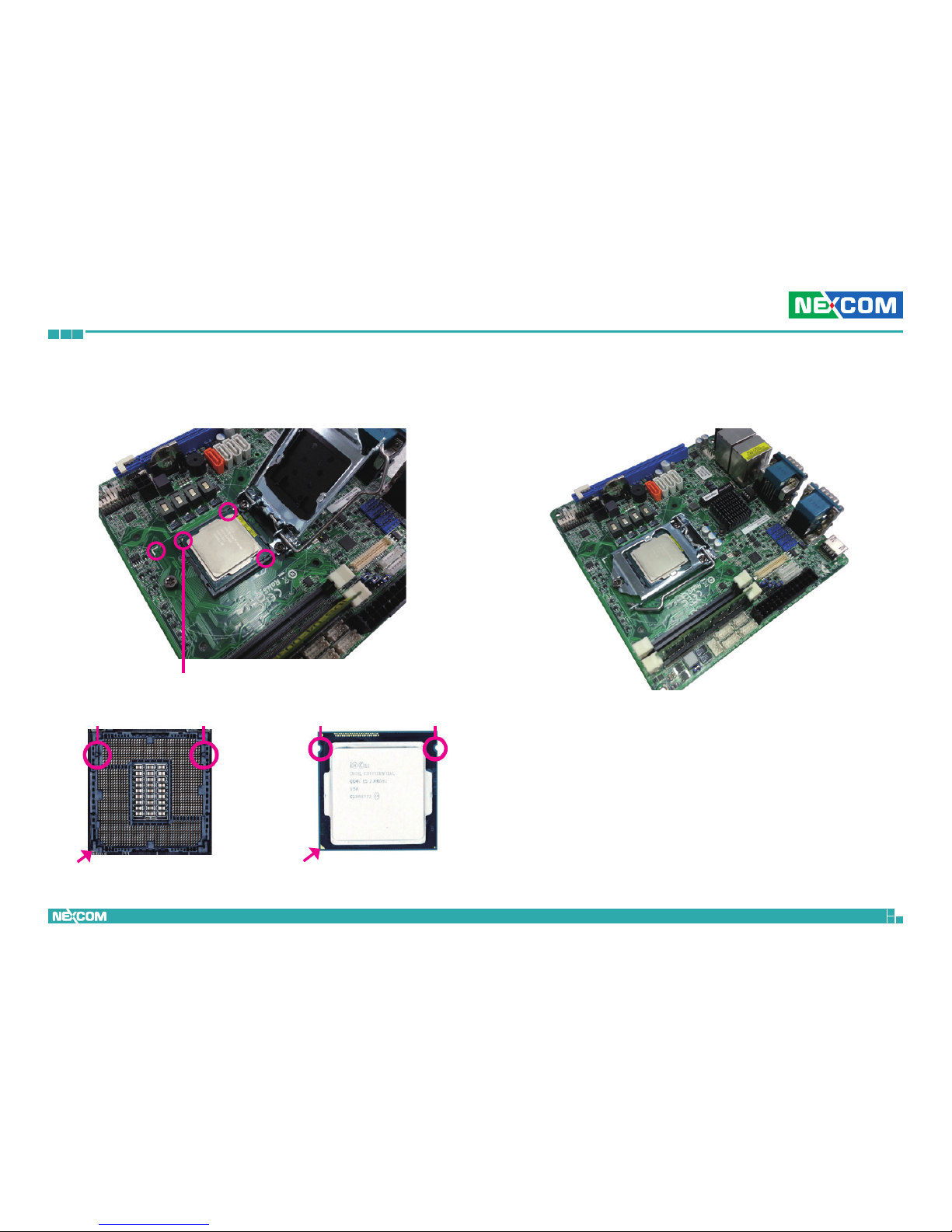

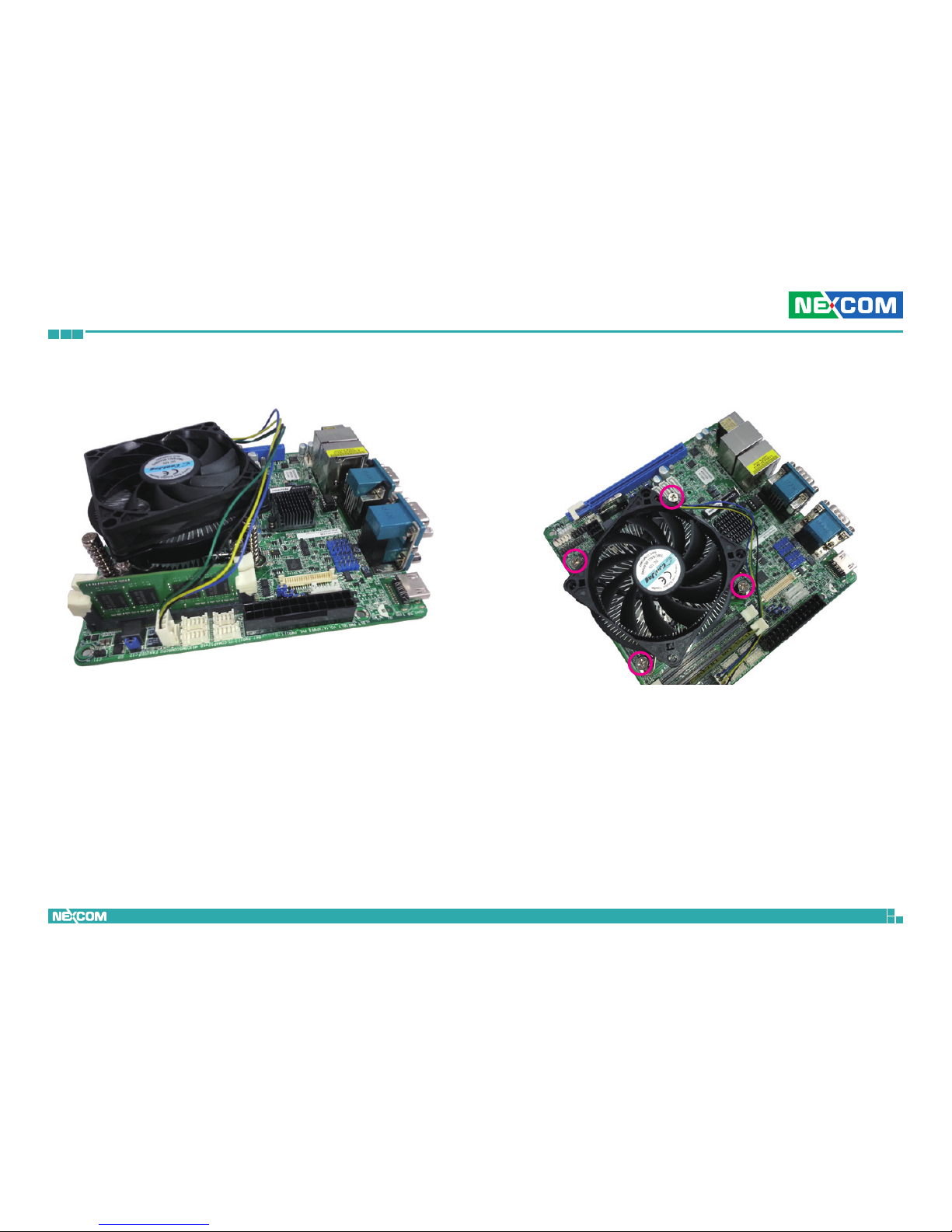

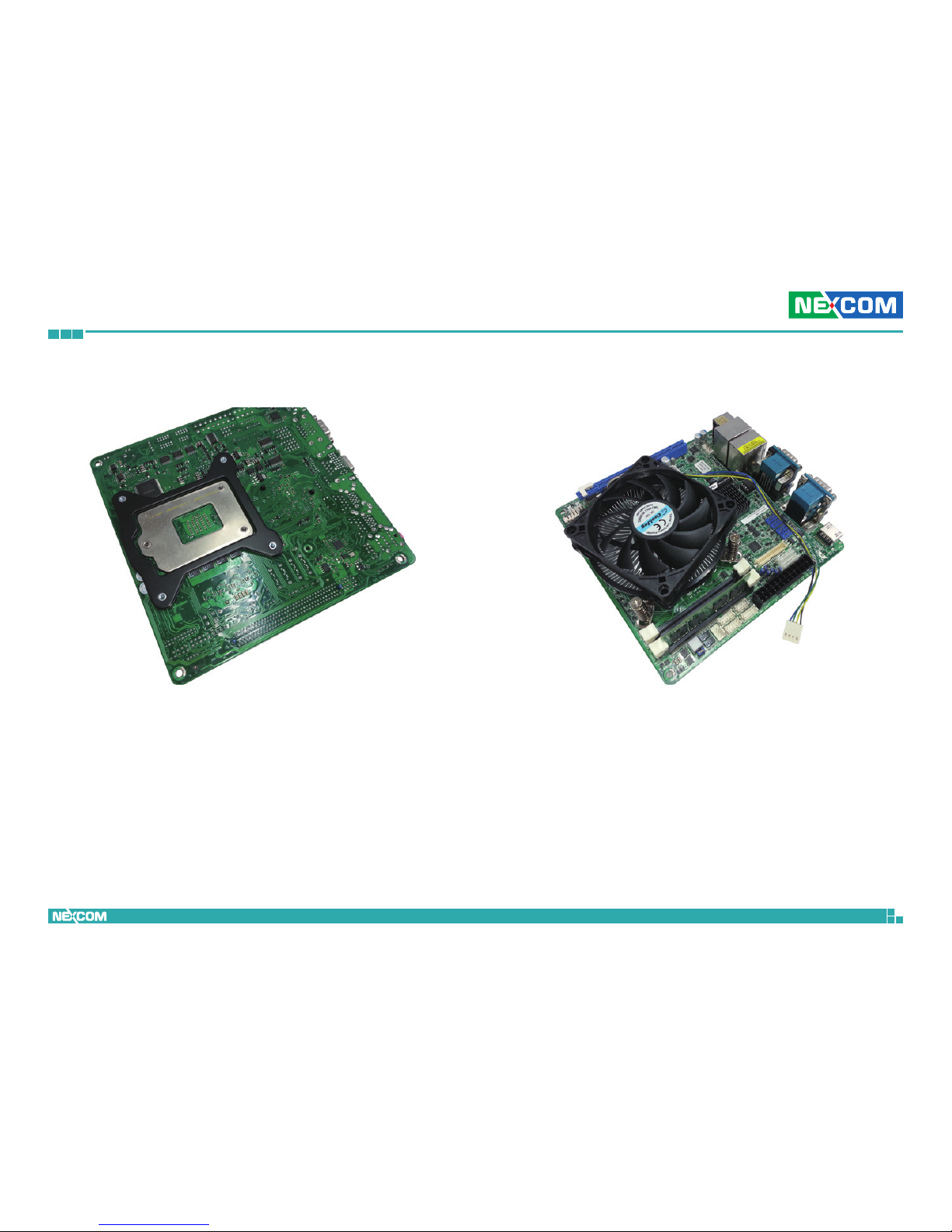

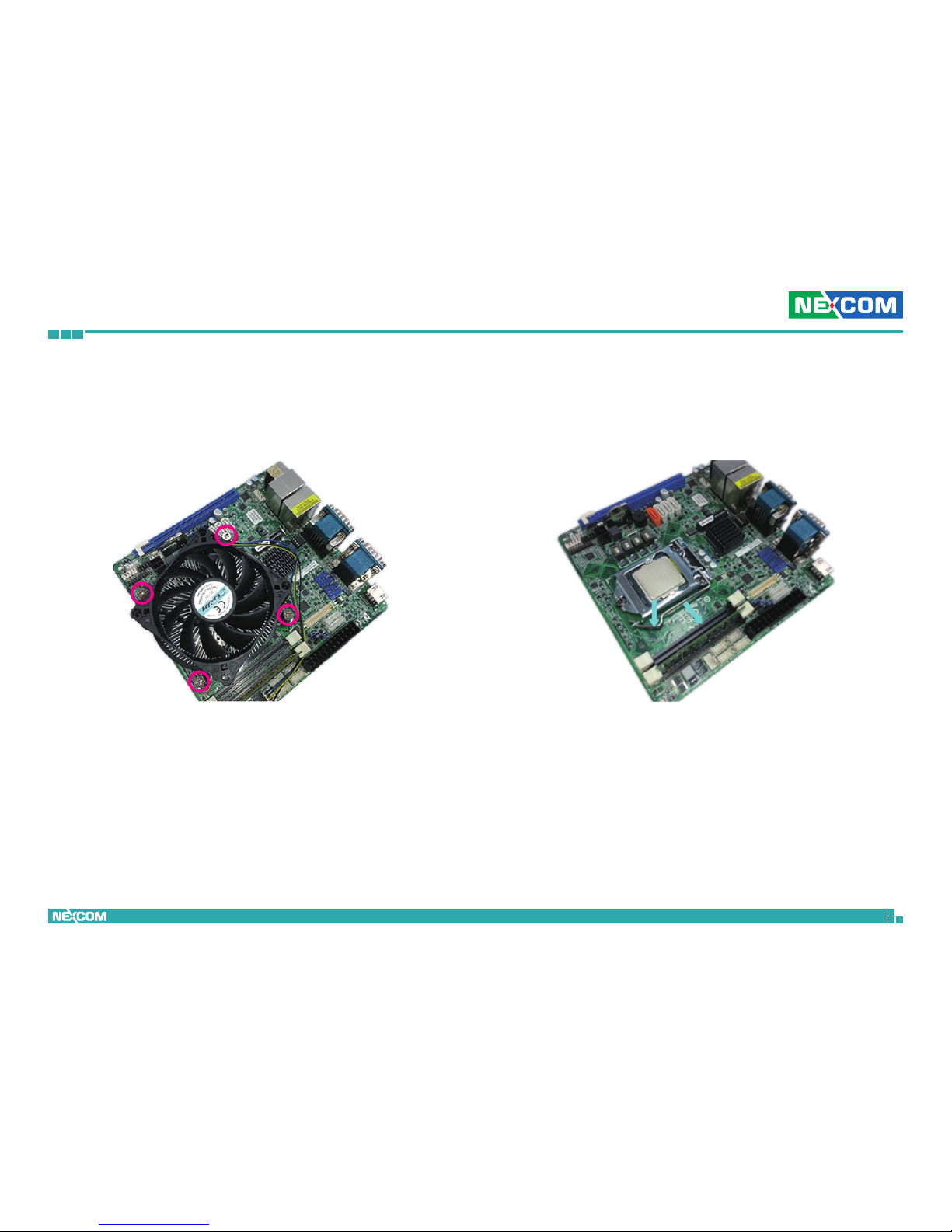

Installing the CPU .................................................................................23

Installing a Mini-PCIe DOM ...................................................................31

iii

NViS 5604 Series User Manual

Content

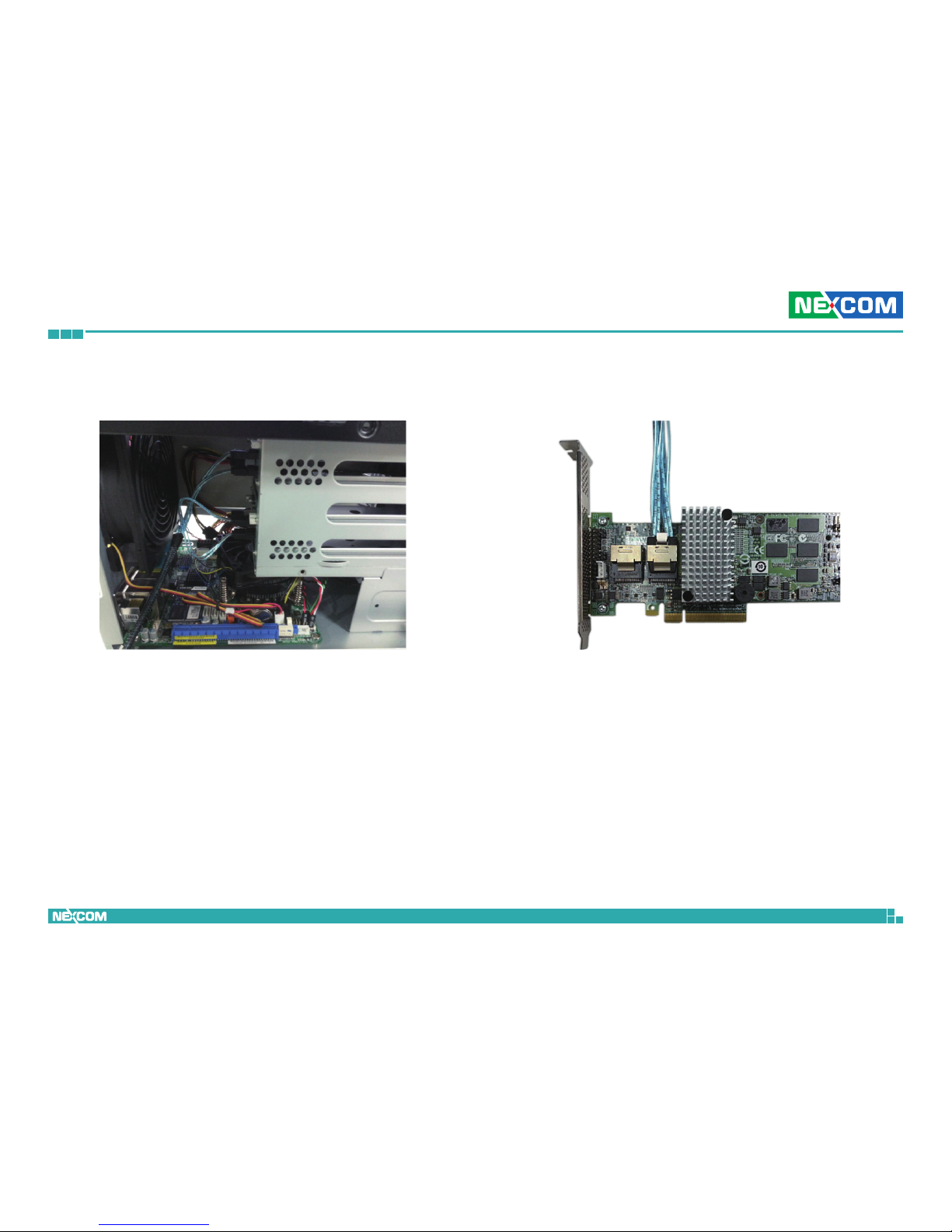

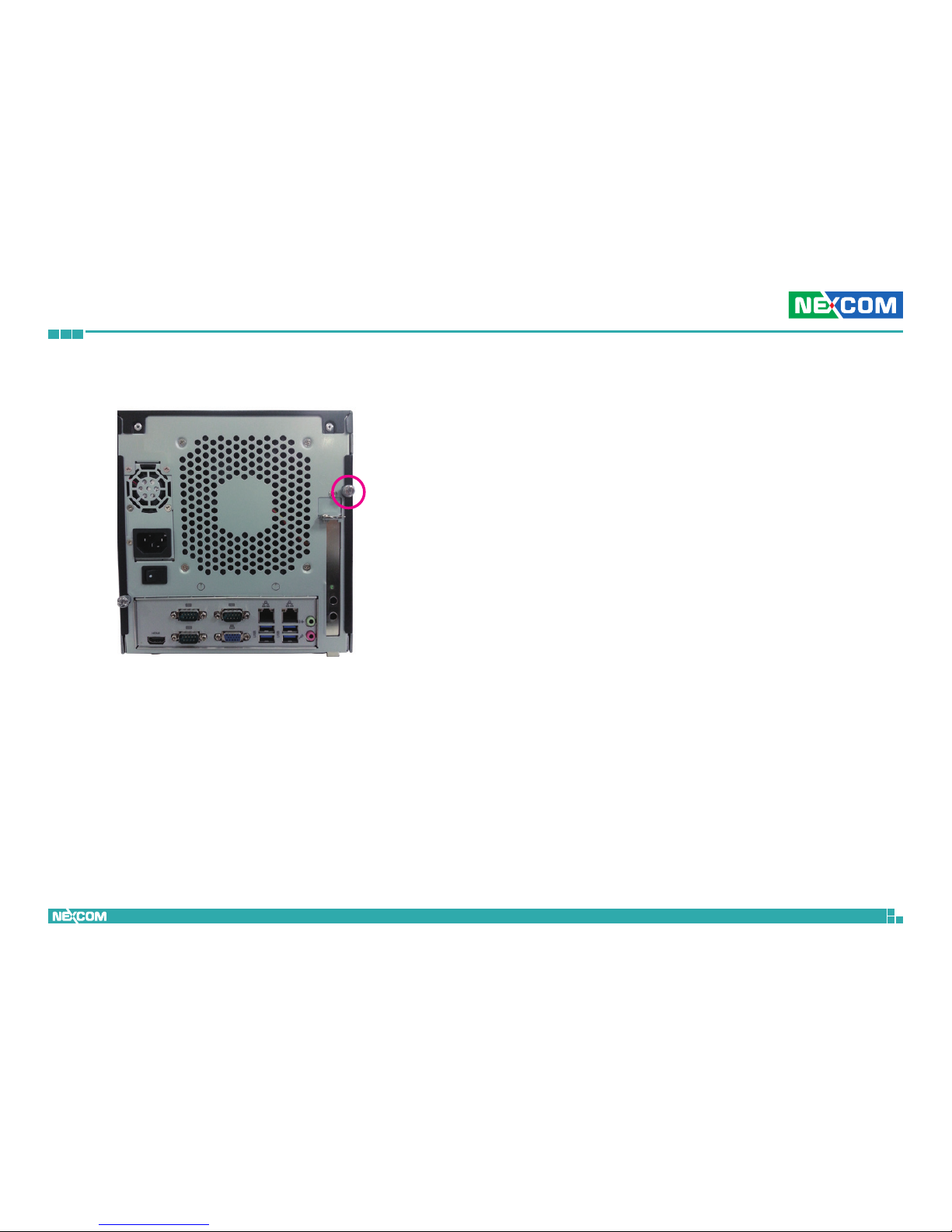

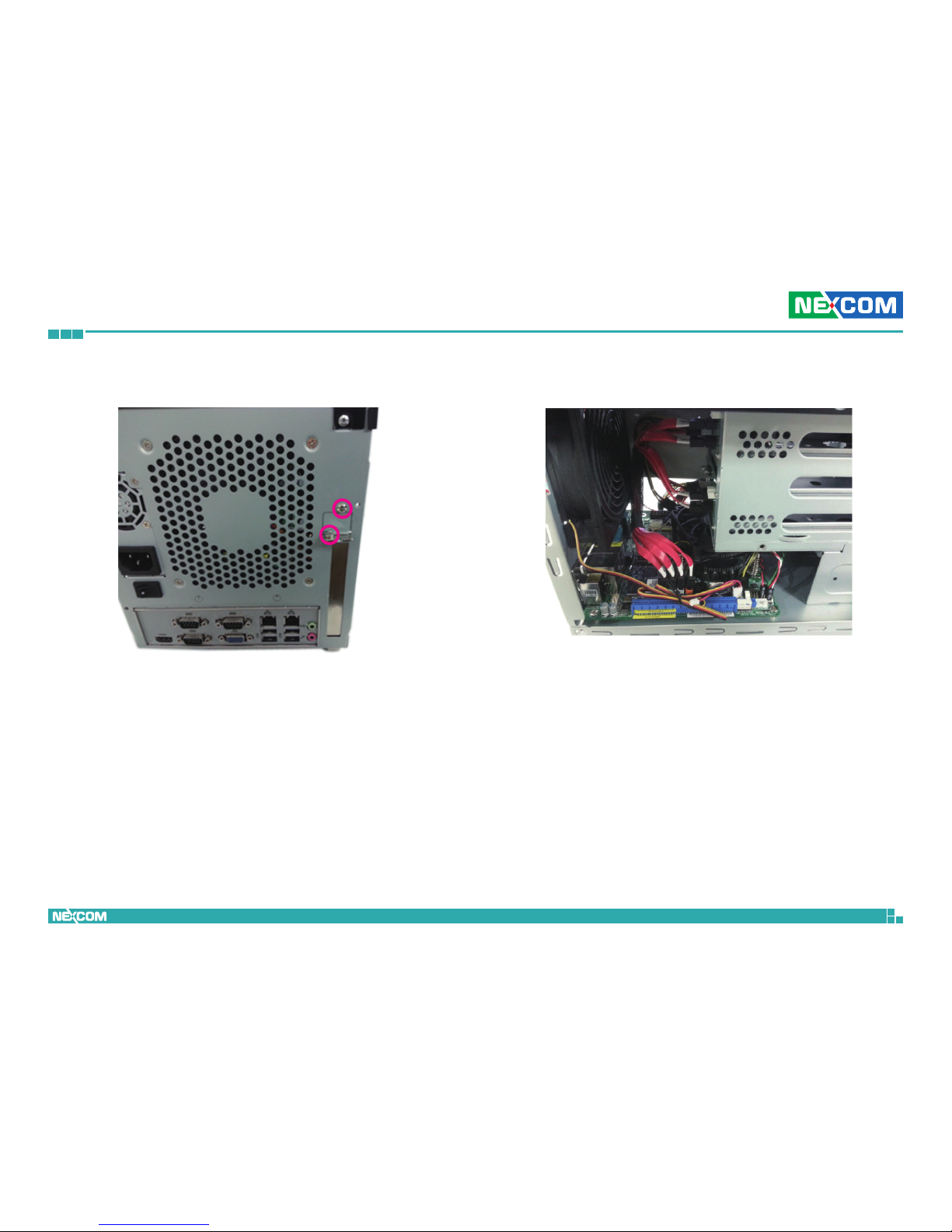

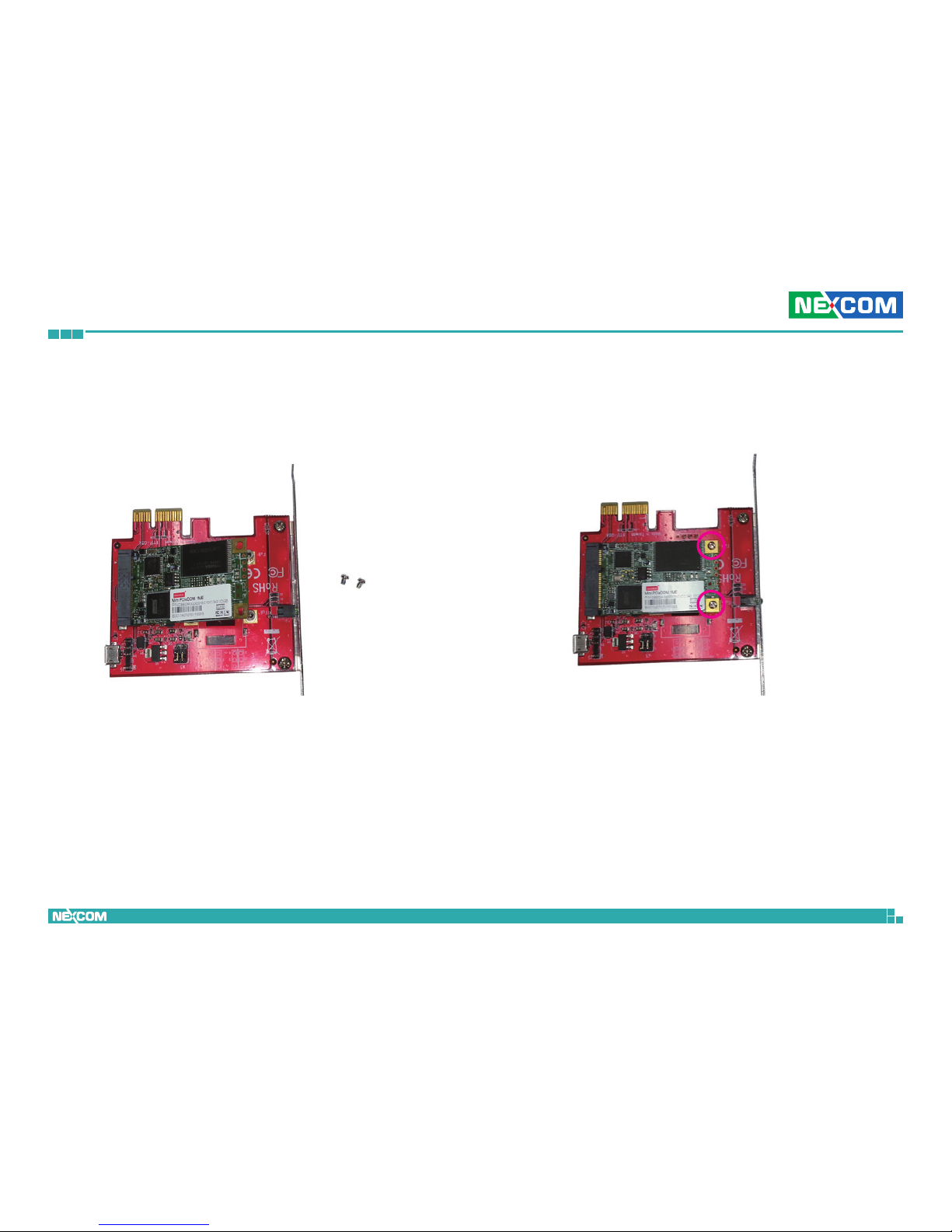

Installing the LSI RAID Card ...................................................................36

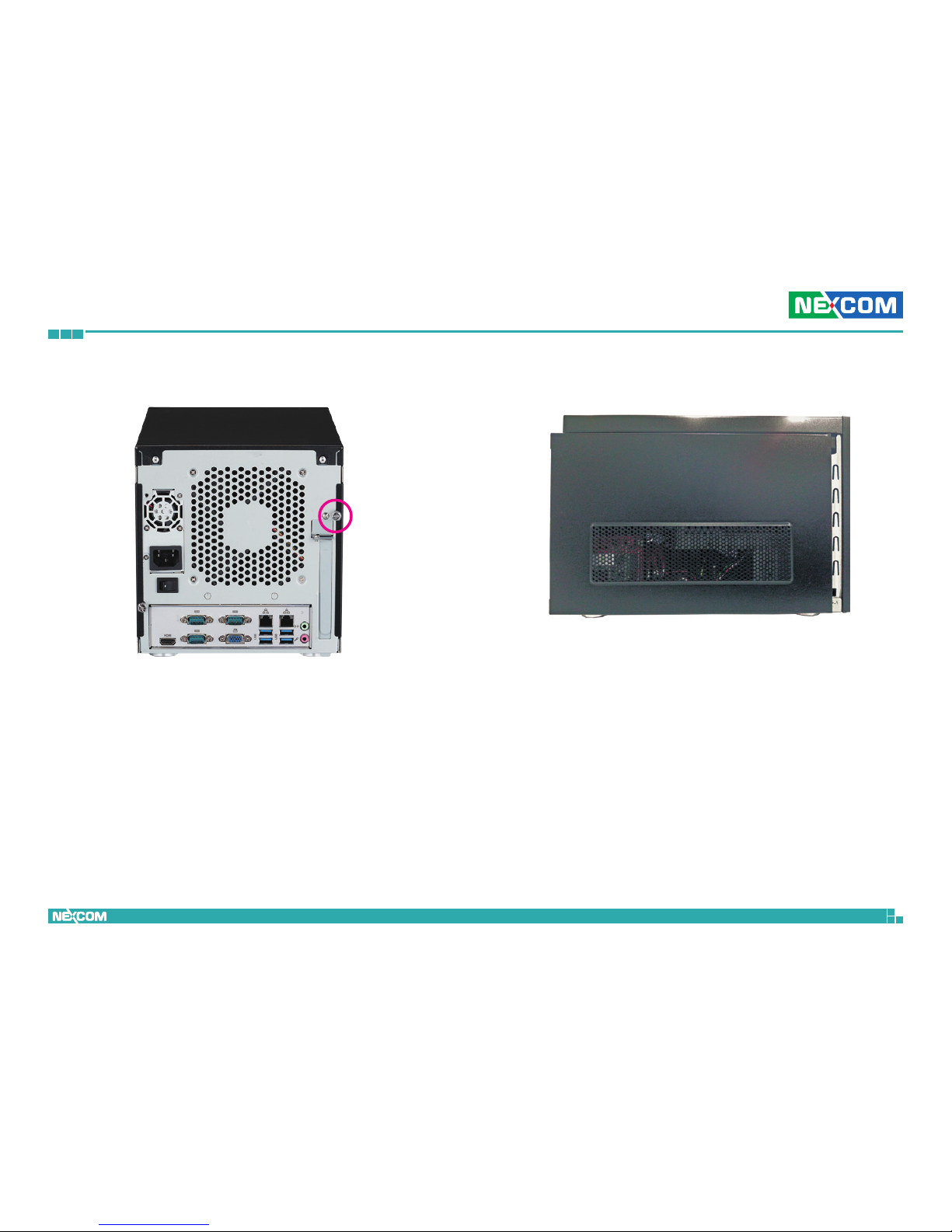

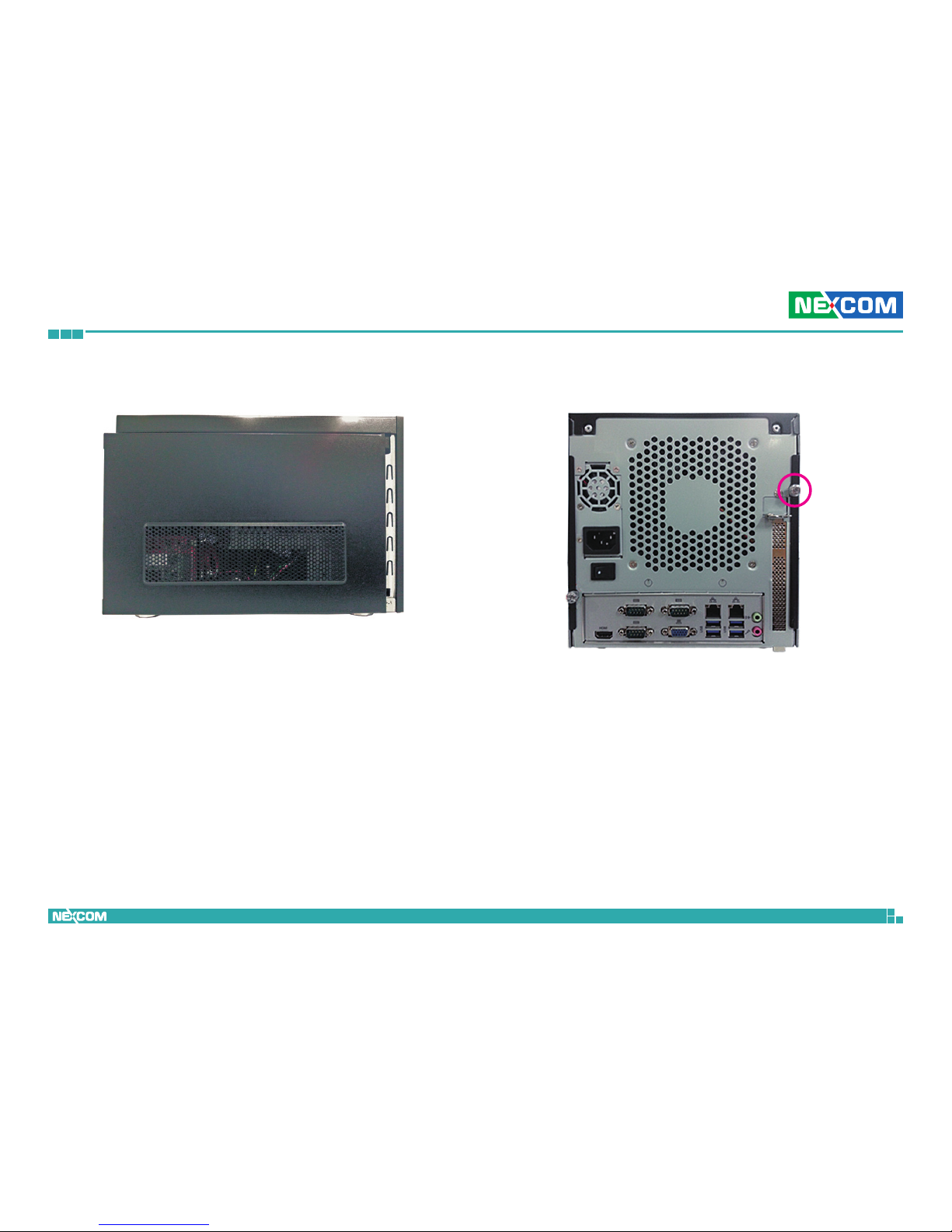

Installing a 3.5” Hard Drive (External) ....................................................41

Chapter 4: BIOS Setup

About BIOS Setup .................................................................................43

When to Configure the BIOS .................................................................43

Default Configuration ...........................................................................44

Entering Setup ......................................................................................44

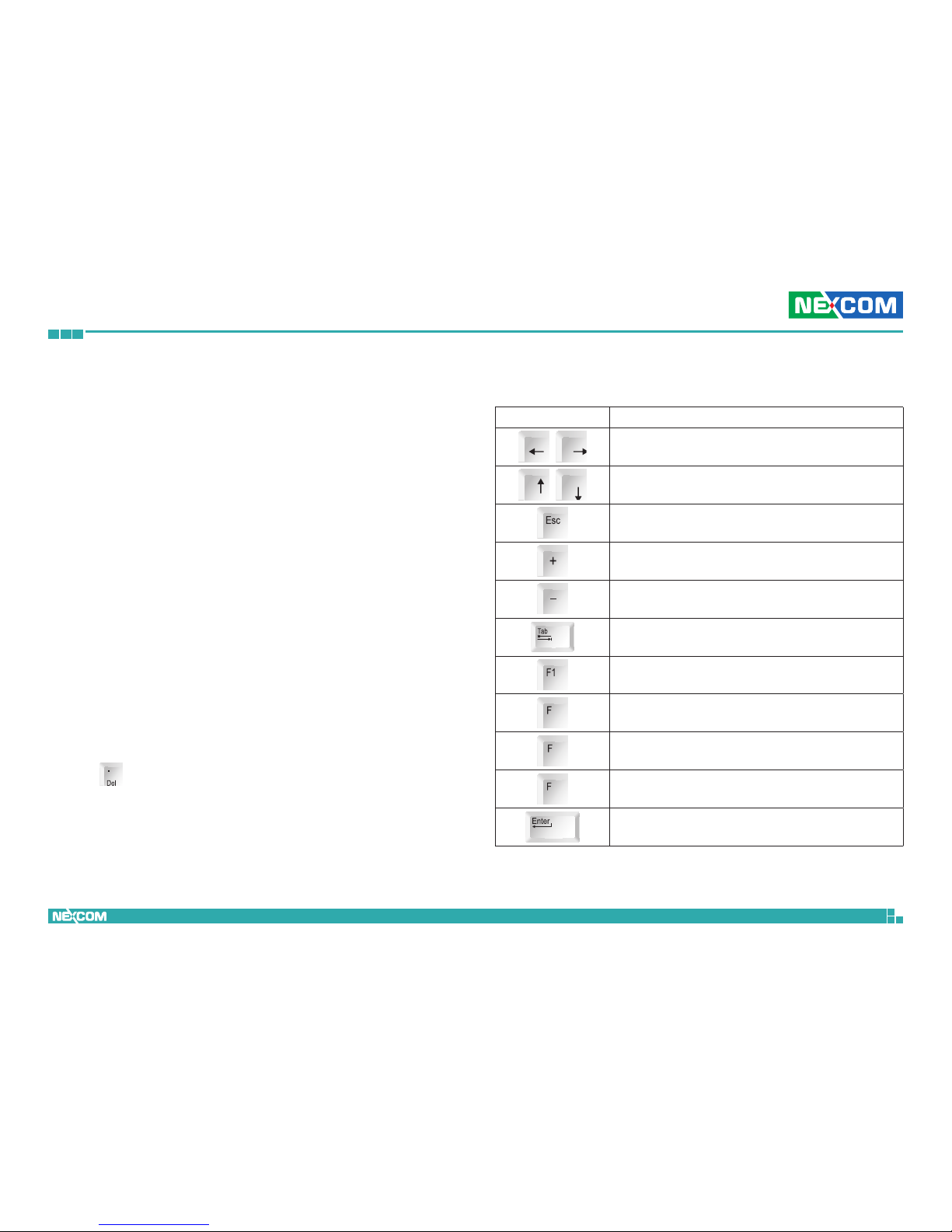

Legends ................................................................................................44

BIOS Setup Utility ..................................................................................46

Main .................................................................................................46

Advanced .........................................................................................47

H/W Monitor ....................................................................................56

Boot ..................................................................................................57

Security .............................................................................................59

Exit ....................................................................................................59

iv

NViS 5604 Series User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NViS 5604 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

v

NViS 5604 Series User Manual

Preface

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

vi

NViS 5604 Series User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vii

NViS 5604 Series User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

viii

NViS 5604 Series User Manual

Preface

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

ix

NViS 5604 Series User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

x

NViS 5604 Series User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

xi

NViS 5604 Series User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

China

NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-010-5704-2680 Fax: +86-010-5704-2681 Email: [email protected] www.nexcom.cn

xii

NViS 5604 Series User Manual

Preface

Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: [email protected] www.nexcom.cn

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Lanino 42, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625570 Email: [email protected] www.nexcomitalia.it

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: [email protected] www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: [email protected] www.nexcom.cn

xiii

NViS 5604 Series User Manual

Preface

Package Contents

Before continuing, verify that the NViS 5604-series package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 602DCD0944X00 (N)NViB 5604 DVD Driver VER:1.0 1

2

19C00560406X0/ or 19C00560405X0

NViS 5604-i7 ASSY / OR NViS 5604-i5 ASSY 1

3 60110A0055X00 (N)Inner Box for NViS 5604 VER:A YI GIA 174x153x58mm 1 4 60111A0126X00 (N)Outside Carton for NViS 5604 VER:A YI GIA 415x352x336mm 1 5 6013300622X00 (N)Top EPE for NViS 5604 VER:A SENTENEL 405(L)x340(W)x134(H)mm 1 6 6013300623X00 (N)Bottom EPE for NViS 5604 VER:A SE 405(L)x340(W)x105(H) 1 7 Power cord (optional) 8 3.5" Hard Drive Disk (optional)

xiv

NViS 5604 Series User Manual

Preface

Ordering Information

The following information below provides ordering information for NViS 5604 series.

NViS 5604-i7 (P/N: 10C00560406X0) RoHS Compliant

4 bay, Tower NVR with Intel® LGA1150 Socket 4th Generation Intel® Core™ Processor

NViS 5604-i5 (P/N: 10C00560405X0) RoHS Compliant

4 bay, Tower NVR with Intel® LGA1150 Socket 4th Generation Intel® Core™ Processor

1

NViS 5604 Series User Manual

Chapter 1: Product Introduction

Key Features

▪ Support LGA1150 socket 4th Generation Intel® Core Processor

▪ Multiple Display (HDMI, VGA)

Overview

▪ 4x 3.5” SATA drive bay for 16 TB video data with RAID.

▪ 2x Intel

®

Gigabit Ethernet

2

NViS 5604 Series User Manual

Chapter 1: Product Introduction

Hardware Specifications

CPU Support

▪ LGA1150 socket for Intel® 4th Generation Core processor

Main Memory

▪ Dual channel of DDR3 1066/1333/1600MHz SDRAM, max. 16 GB

Platform Control Hub

▪ Intel® Q87

I/O Interface-Front

▪ Power & HDD status LED ▪ 2x USB 2.0 ports

I/O Interface-Rear

▪ 2x RJ45 ▪ 4x USB 3.0 ports ▪ 1x HDMI (supports max. resolution 1920x1200) ▪ 1x VGA (supports max. resolution 2048x1536) ▪ 3x Serial Ports (RS-232/ 422/ 485) ▪ 1x Mic-in & 1x Line-out ▪ Power on/ off switch

Expansions

▪ 1x mini-PCIe for mini-PCIe DOM (with adapter) or 1x PCIe (x16) for RAID

controller

Storage

▪ 4x 3.5” SATA removable drive bay, supports SATA2/3 and SW RAID 0/1/5/10

(HW RAID optional)

Power Input

▪ 250W ATX power supply, AC 100V to 240V

Dimensions

▪ 200mm(W) x 250mm(H) x 303mm(D)

Environment

▪ Operating Temperature:

Ambient with air flow: 0°C to 40°C

▪ Storage temperature: -20°C to 70°C ▪ Relative humidity: 10% to 90% (non-condensing)

Certifications

▪ CE approval ▪ FCC Class A

3

NViS 5604 Series User Manual

Chapter 1: Product Introduction

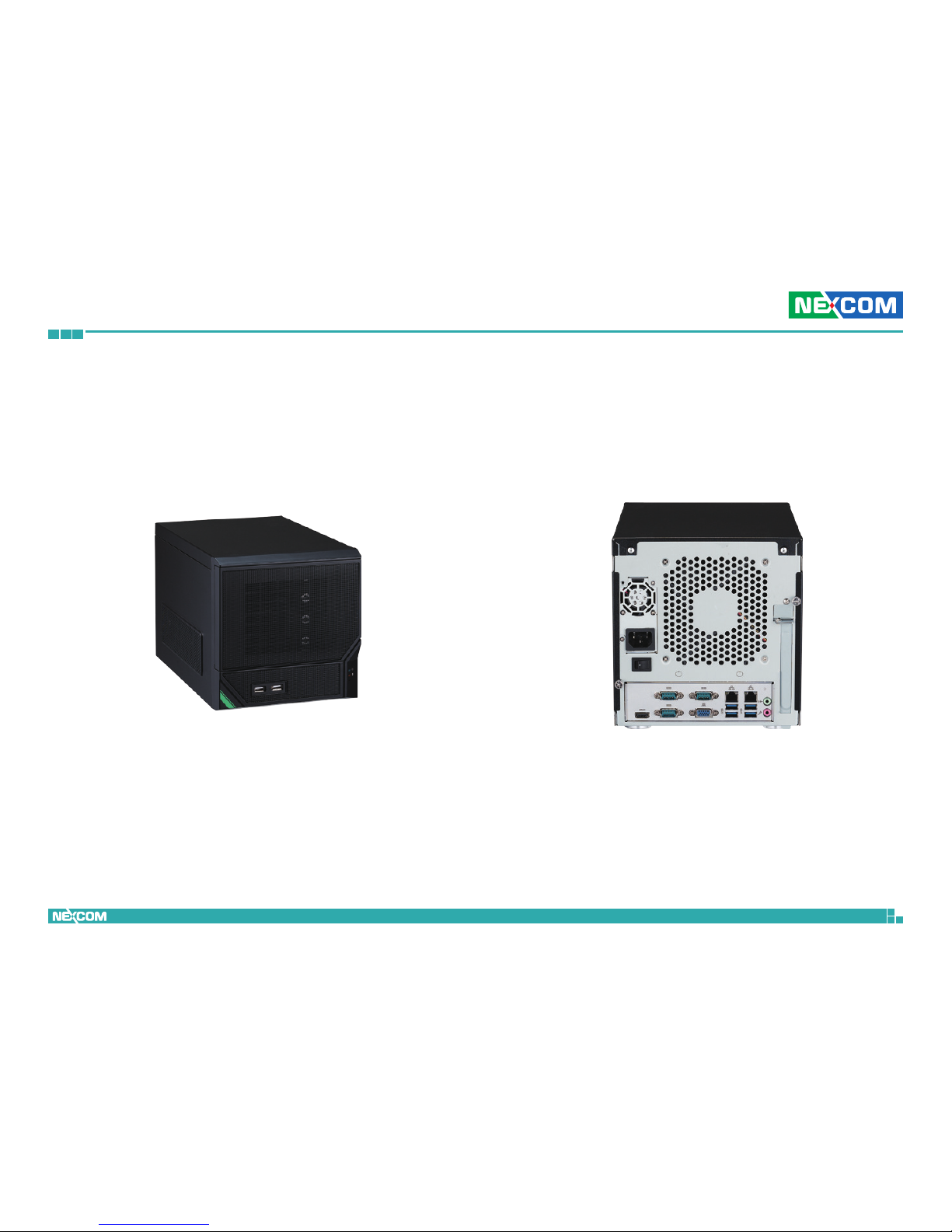

Knowing Your NViS 5604

Dual USB Port4x 3.5” Removable

Drive Bays

LED Indicators

Front Panel

Dual USB Ports

Two USB ports used to connect USB 2.0/1.1 devices.

LED Indicators

LEDs indicating the system’s power status and hard drive activity.

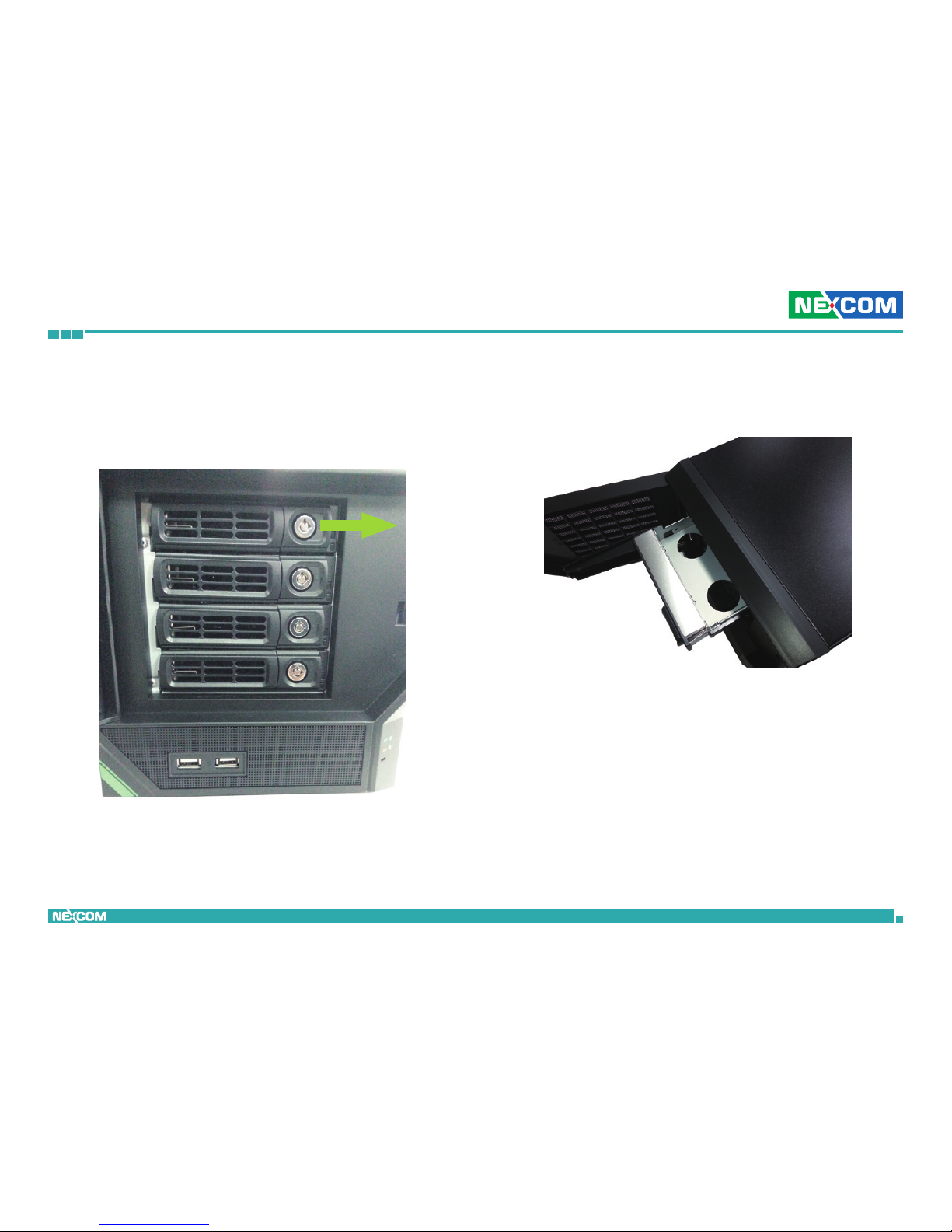

4x 3.5” Removable Drive Bays

Four 3.5” SATA removable drive bays are located behind the front cover. The removable drive bays support SATA 2/3 and SW RAID 0/1/5/10 (HW RAID optional).

4

NViS 5604 Series User Manual

Chapter 1: Product Introduction

Rear Panel

AC Power Socket

HDMI VGA Gigabit LAN and USB Ports

Speaker-out

COM

PCIe

Mic-in

Power and Reset Button

AC Power Socket

Plug AC power cord here before turning on the system.

Power and Reset Button

Press to power on or restart the device.

HDMI

Used to connect a high-definition display.

COM Port

Three serial COM ports used to connect RS232/422/485 compatible devices.

VGA

Used to connect an analog VGA monitor.

Gigabit LAN and USB Ports

Dual Gigabit LAN ports to connect the system to a local area network, and four USB ports to connect the system with USB 3.0/2.0 devices.

Speaker-out

Speaker-out jack to connect speakers or headphones.

Mic-in

Mic-in jack to connect microphones.

PCIe Slot

Reserved opening used to install PCIe cards.

5

NViS 5604 Series User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

200

205.1

212

318.9

6

NViS 5604 Series User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers and connectors on the NViS 5604 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

7

NViS 5604 Series User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

1

2

3

1

2

3

8

NViS 5604 Series User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

The figure below shows the location of the jumpers and connectors.

LAN1

LAN2

USB3.0 T: USB0 B: USB1

T :po

eniL

uO t

:mottoB

iM Ic n

DDR3_B1

DDR3_A1

PCIE 1

BUZZ1

CMOS

Battery

CPU_FAN1

CLRCOMOS1

1

BIOS Chip

P

PANEL1

HDLED RESET

PLED PWRBTN

1

SPEAKER1

1

USB10_11

1

HD_ AU DIO 1

1

mini-PCIe/mini-SATA

1

JGP101

1

USB8_9

1

USB6_7

1

USB4_5

CON1

PS2_KB_MS1

1

CI2CI1

HDMI1

ATXPWR1

COM41COM6

1

COM5

1

SAT A_ 0

SAT A_ 1 S AT A_4

SAT A_ 5

PWR_JP1

1

CHA_FAN1

COM1

COM2

COM3

VGA

USB3.0 T: USB2 B: USB3

9

NViS 5604 Series User Manual

Chapter 2: Jumpers and Connectors

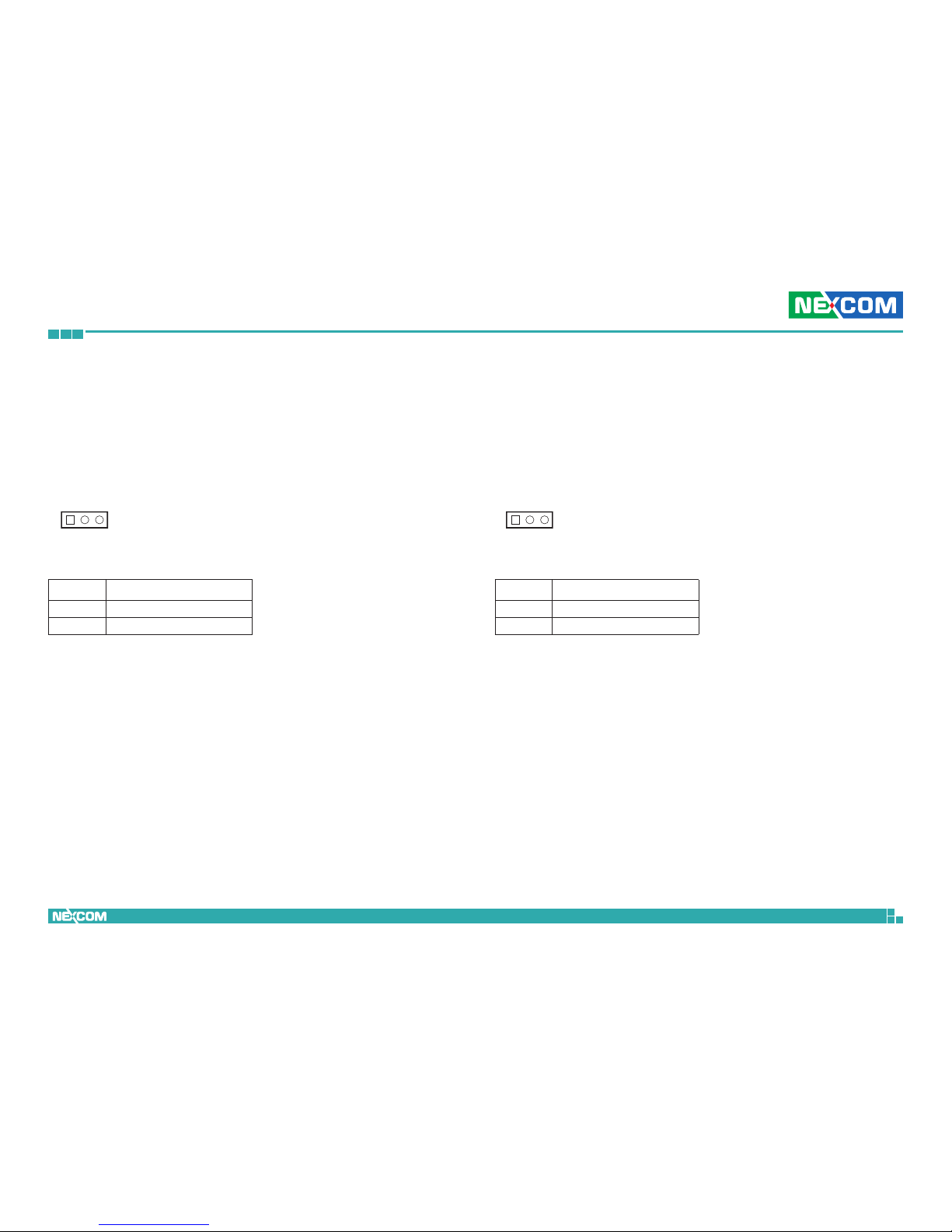

Jumpers

CMOS Clear Select

Connector type: 1x3 3-pin header Connector location: CLRCOMOS1

Pin Settings

1-2 Normal 2-3 Clear CMOS

ATX/AT Mode Jumper

Connector type: 1x3 3-pin header Connector location: PWR_JP1

Pin Settings

1-2 AT Mode 2-3 ATX Mode

1 3 1 3

10

NViS 5604 Series User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

Internal Connectors

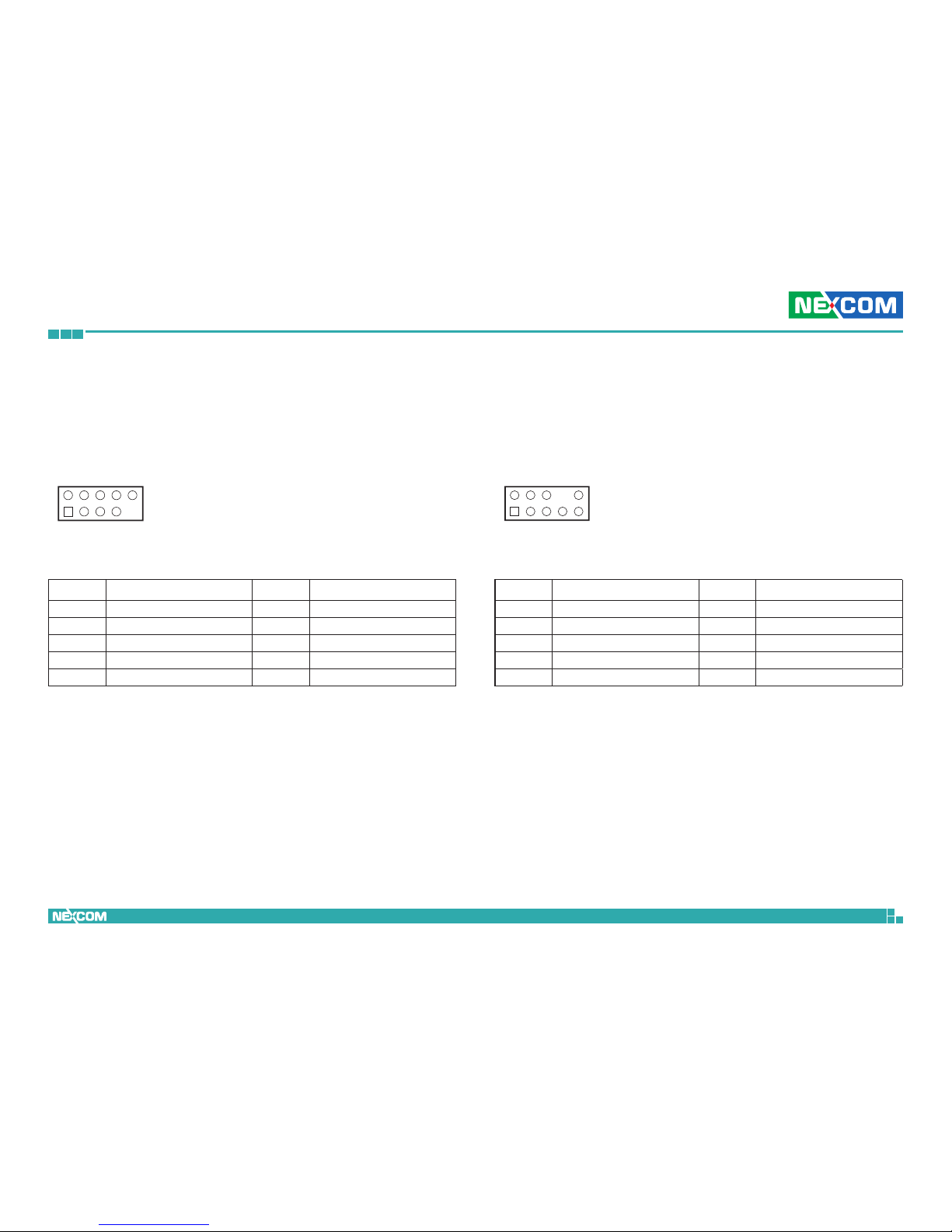

System Panel Header

Connector type: 2x5 10-pin header Connector location: ANEL11

15

61

0

Pin Definition Pin Definition

1 HDLED+ 2 HDLED3 GND 4 RESET# 5 GND 6 PLED+ 7 PLED- 8 PWRBTN# 9 GND 10

Pin Definition Pin Definition

1 KBCLK 2 +5V 3 KBDATA 4 +5V 5 MSDATA 6 GND 7 MSCLK 8 GND

1

PS2 Keyboard and Mouse Pin Header

Connector type: 2x4 8-pin header Connector location: PS2_KB_MS1

11

NViS 5604 Series User Manual

Chapter 2: Jumpers and Connectors

COM4/COM5/COM6: RS-232 Port 4 Pin Headers

Connector type: 2x5 10-pin header Connector location: COM4, COM5 and COM6

Pin Definition Pin Definition

1 DDCD#1 2 RRXD1 3 TTXD1 4 DDTR#1 5 GND 6 DDSR#1 7 RRTS#1 8 CCTS#1 9 COM PWR 10 NC

21

0

19

Chassis Intrusion Pin Headers

Connector type: 1x2 2-pin header Connector location: CI1 and CI2

Pin Definition

1 Signal 2 GND

12

NViS 5604 Series User Manual

Chapter 2: Jumpers and Connectors

Digital Input/Output Pin Headers

Connector type: 2x5 10-pin header Connector location: JGP101

Pin Definition Pin Definition

1 Digital Output 0 2 Digital Input 0 3 Digital Output 1 4 Digital Input 1 5 Digital Output 2 6 Digital Input 2 7 Digital Output 3 8 Digital Input 3 9 JGPIO_PWR1 10 GND

1 9

2 10

4-Pin Chassis Fan Connector

Connector type: 1x4 4-pin header Connector location: CPU_FAN1 and CHA_FAN1

Pin Definition Pin Definition

1 GND 2 +12V 3 CPU_FAN_SPEED 4 FAN_SPEED_CONTROL

4 1

13

NViS 5604 Series User Manual

Chapter 2: Jumpers and Connectors

USB2.0 Connectors

Connector type: 2x5 10-pin header Connector location: USB4_5, USB6_7, USB8_9 and USB10_11

Pin Definition Pin Definition

1 PWR 2 3 + 4 GND 5 6 PWR 7 - 8 + 9 GND 10 NC

15

106

Front Panel Audio Header

Connector type: 2x5 10-pin header Connector location: HD_AUDIO1

Pin Definition Pin Definition

1 MIC2_L 2 MIC2_R 3 OUT2_R 4 J_SENSE 5 OUT2_L 6 GND 7 PRESENCE# 8 MIC_RET 9 10 OUT_RET

15

106

14

NViS 5604 Series User Manual

Chapter 2: Jumpers and Connectors

Block Diagram

DDR3 1333/1600

Intel Processor

DMI

INTEL LGA1150 Pin Socket

Channel B

PCI-E X16 SLOT

128-bit Dual-Channel Memory x 2 Slots (SO-DIMM)

DDR3 1333/1600

Channel A

PCI_E BUS

100MHz

FDI LINK

HASWELL

DIGITAL PORT D

HDMI Connector

DIGITAL PORT C

CH7511B

33MHz

SIO

Nuvoton NCT6627UD

COM port (RS232/422/485)

Port A (Rear I/O)

Port B (Rear I/O)

COM port (RS232/422/485)

COM port(RS232)

Port C (Rear I/O)

Port D (Internal)

Port E (Internal)

Port F (Internal)

KB/MS

GPIO x 8

DGIO Header

PS2 KB/MS Header

FAN

CPU FAN/ CHA FAN

TPM Header

LPC BUS

COM port (RS232/422/485)

SPI FLASH

64Mb

SPI

SATA3_3

SATA3 BUS

High-Speed USB

8 ports

INTEL

480Mb/s

Lynx Point

PCH

USB3_2USB3_1

(Onboard USB 3.0)

USB3_4USB3_3

SATA3_1

SATA3_2

Q87

Intel I210

10/100/1000

Intel I217LM

10/100/1000

24MHz

PCIE x1

100MHz

Realtek ALC 662

PCIE x1

100MHz

Internal Header

mini-PCIe/m-SATA X1

Flexible PCIe x1

LVDS Con (2-ch/24bits)

Level Shifter

ANALOG PORT

D-SUB SignalVGA Connector

Audio Amplifier ALC109(3W/3W)

Line_Out MIC_In

USB2.0

PI2DBS6212ZHE

(SATA Switch)

(Full Size)

SATA3_4

15

NViS 5604 Series User Manual

Chapter 3: System Setup

Removing the Motherboard

CAUTION!

CAUTION!CAUTION!

Prior to removing the motherboard, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

To install a CPU, the motherboard must be removed first. Please follow the instructions below to remove the motherboard.

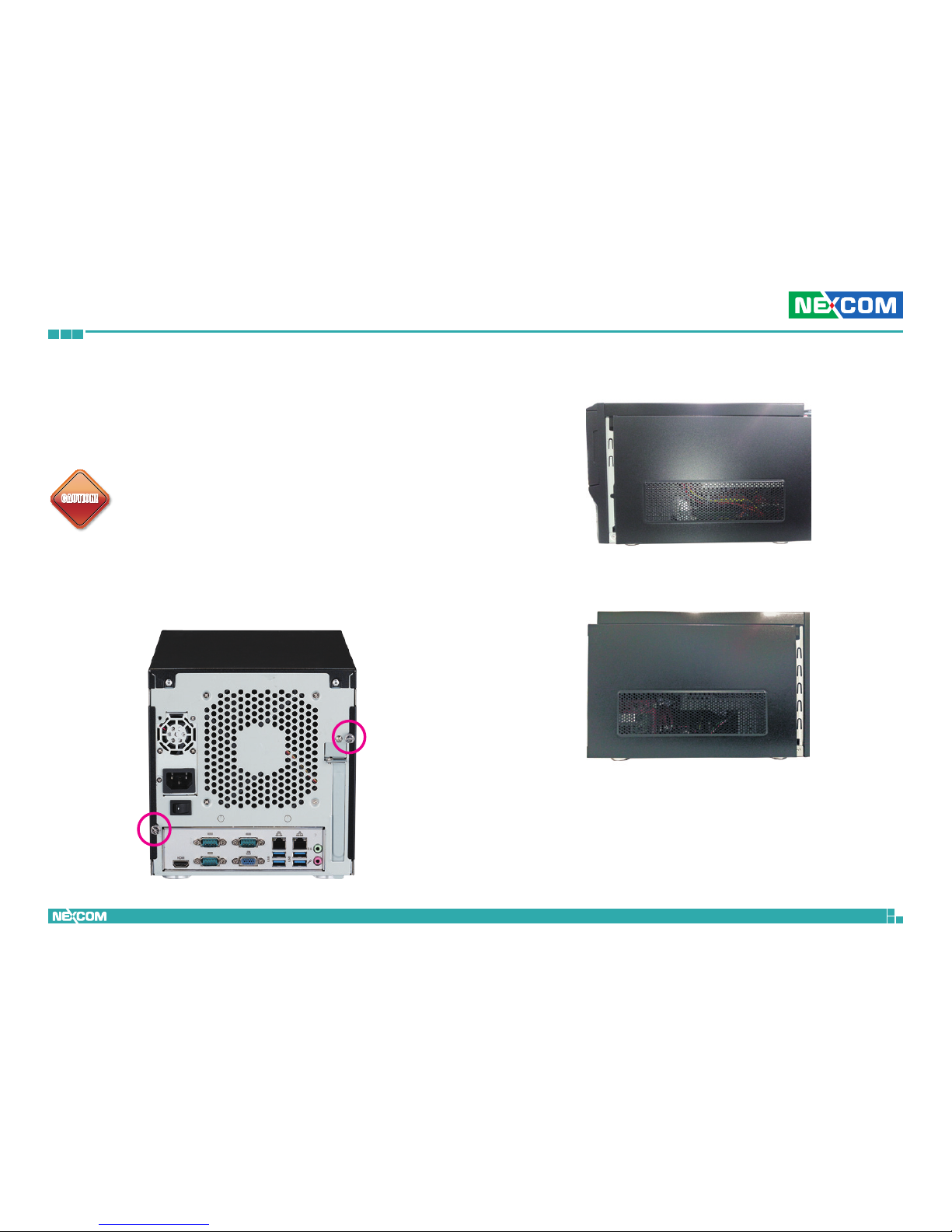

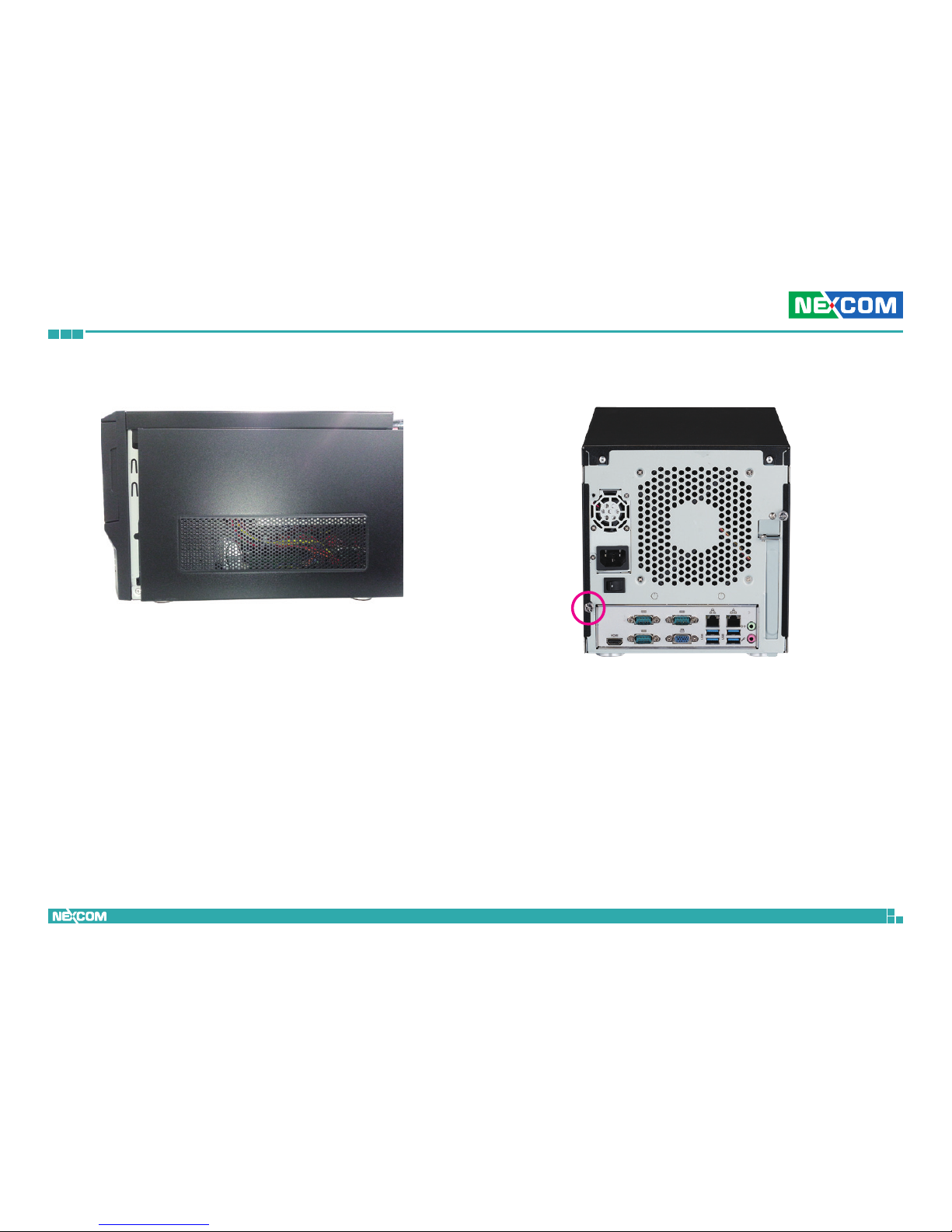

1. Remove the two thumb screws on the back of the system.

2. Gently slide the side panels on each side outwards and remove them.

Right side

Left side

16

NViS 5604 Series User Manual

Chapter 3: System Setup

3. Remove all the cables and wires attached to the motherboard. 4. Remove the four screws on each corner of the motherboard.

17

NViS 5604 Series User Manual

Chapter 3: System Setup

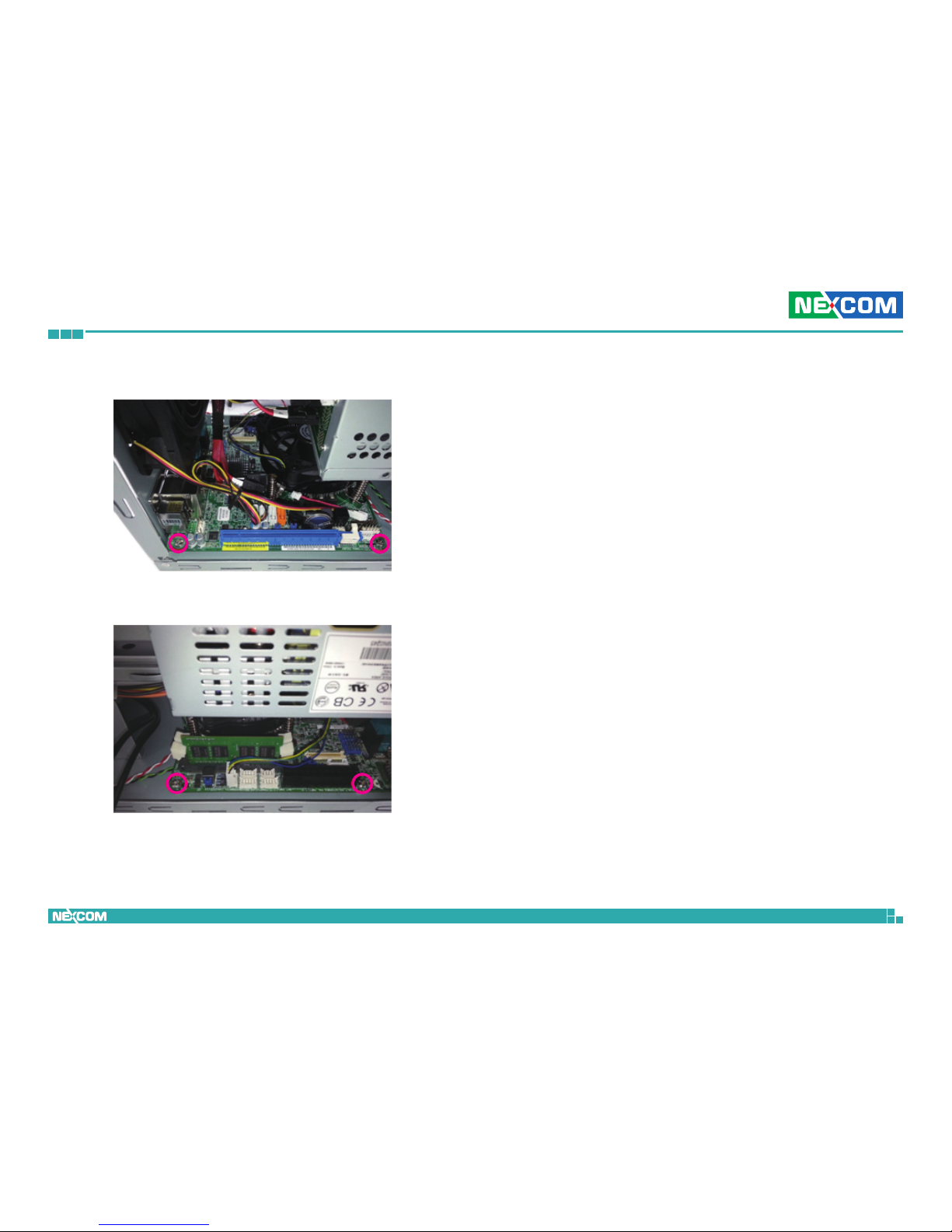

5. Gently slide the motherboard out. 6. Place the new motherboard into the case.

18

NViS 5604 Series User Manual

Chapter 3: System Setup

7. Refasten the four screws back into the motherboard.

19

NViS 5604 Series User Manual

Chapter 3: System Setup

1. Remove the thumb screw securing the right side panel.

2. Gently slide the right side panel outwards and remove it.

Installing Memory Modules

20

NViS 5604 Series User Manual

Chapter 3: System Setup

3. Locate the memory socket and push the ejector tabs which are at the

ends of the socket outward.

4. Remove the exisiting memory module to be replaced.

21

NViS 5604 Series User Manual

Chapter 3: System Setup

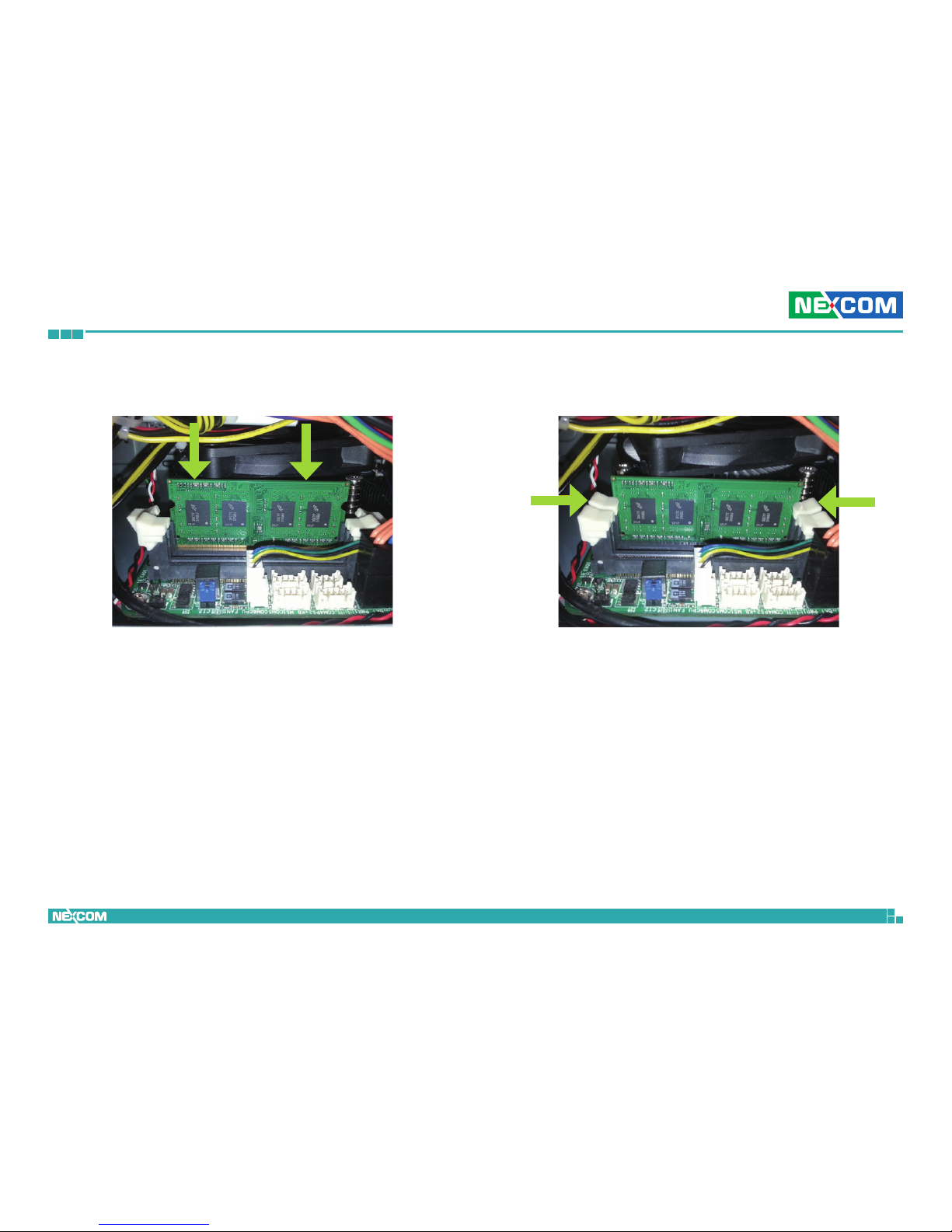

5. Seat the new module vertically, pressing it down firmly until it is

completely seated in the socket.

6. The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.

22

NViS 5604 Series User Manual

Chapter 3: System Setup

8. Reinstall the thumb screw for the side panel.7. Place the side panel back to the case.

23

NViS 5604 Series User Manual

Chapter 3: System Setup

Installing the CPU

1. Remove the four screws on the heatsink. 2. Unlock the socket by pushing the load lever down, moving it sideways until it is released from the retention tab; then lift the load lever up.

24

NViS 5604 Series User Manual

Chapter 3: System Setup

3. Lift the load lever up then insert the CPU into the socket. The gold

triangular mark on the CPU must align with the corner of the CPU socket shown on the photo.

Gold triangular mark (Pin 1)

Diagonal corner (Pin 1)

Alignment key Alignment key Notch Notch

4. Close the load plate then gently push the load lever down and hook it under the retention tab.

25

NViS 5604 Series User Manual

Chapter 3: System Setup

5. Install the CPU fan bracket on the back of the motherboard. 6. Place the heatsink fan on top of the CPU.

26

NViS 5604 Series User Manual

Chapter 3: System Setup

7. Plug the CPU fan cable to the fan connector on the motherboard. 8. Secure the CPU heatsink fan with the four screws.

27

NViS 5604 Series User Manual

Chapter 3: System Setup

9. Place the motherboard back into the enclosure. 10. Secure the motherboard with the four screws.

28

NViS 5604 Series User Manual

Chapter 3: System Setup

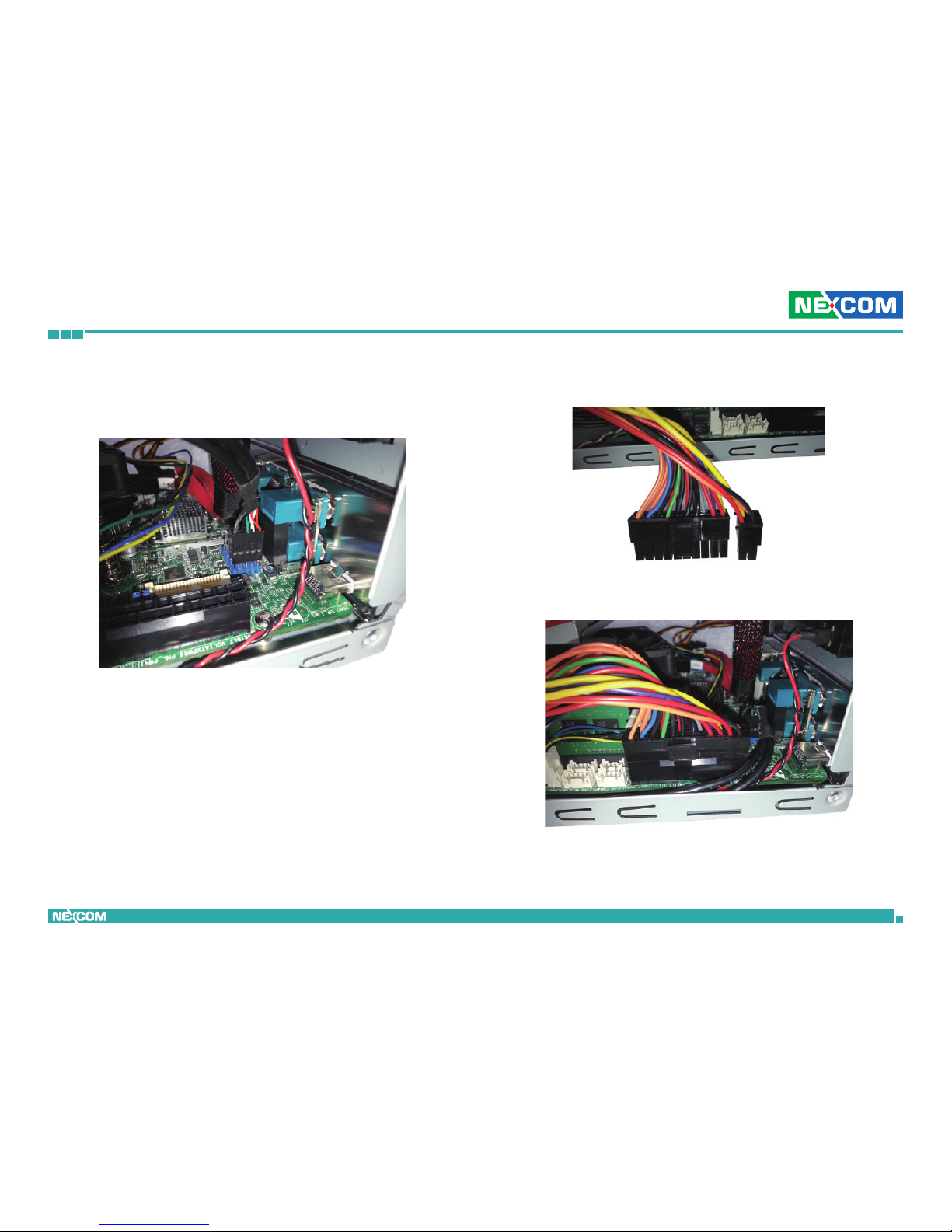

11. Connect the USB front panel connector to the USB connector on the motherboard. Make sure the connector pin number matches the pin assignments of the USB connector.

12. Plug the ATX power cable to the motherboard.

29

NViS 5604 Series User Manual

Chapter 3: System Setup

13. Plug the POWER SW, POWER LED and HDD LED to the corresponding connectors on the motherboard.

14. Plug the 4-pin ATX 12V cable to the motherboard.

30

NViS 5604 Series User Manual

Chapter 3: System Setup

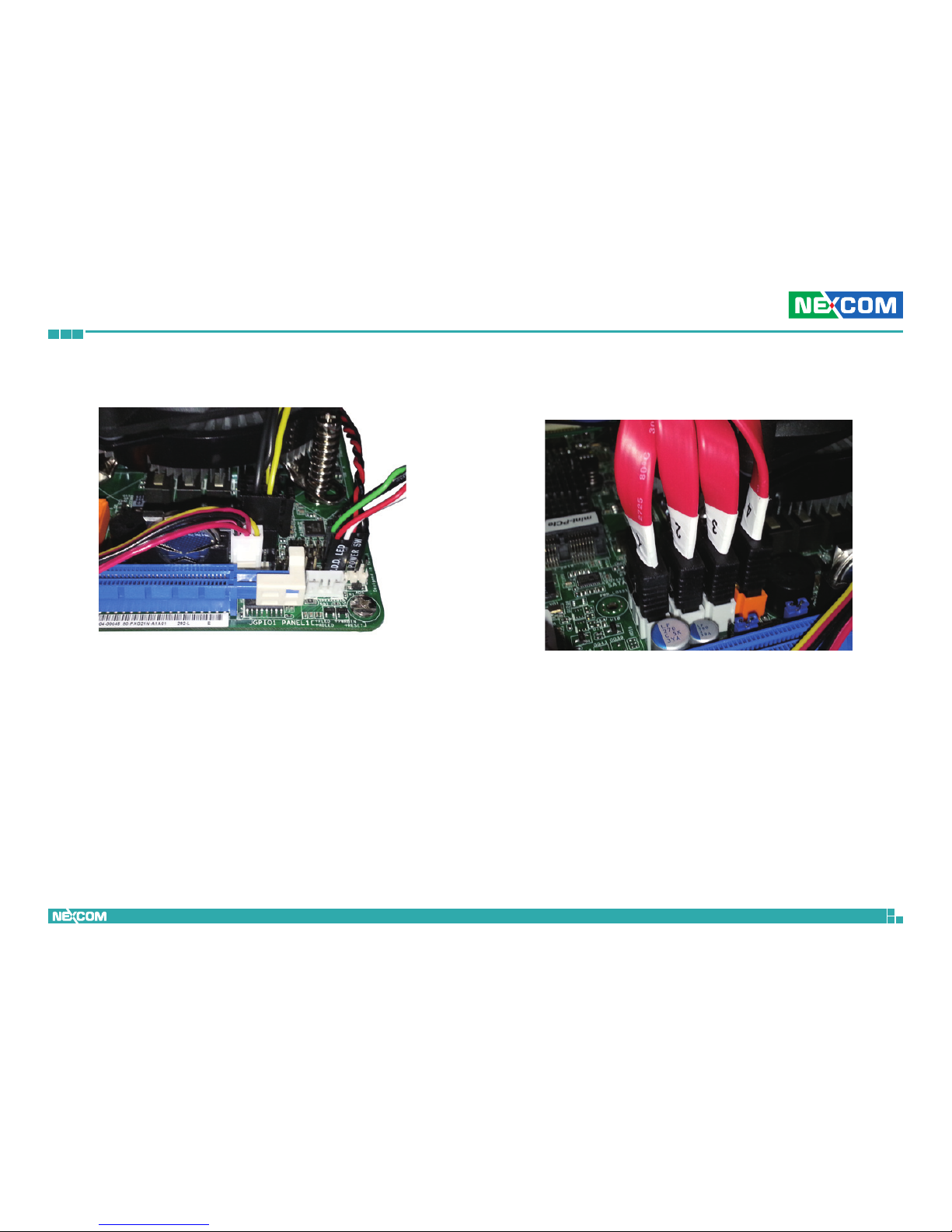

15. Connect the system fan power cable to the motherboard. 16. Connect the SATA cables to the SATA connectors in the correct number

order.

31

NViS 5604 Series User Manual

Chapter 3: System Setup

Installing a Mini-PCIe DOM

1. Plug the Mini-PCIe DOM module into the Mini-PCIe slot on the PCIe card at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

2. Secure the module with mounting screws.

32

NViS 5604 Series User Manual

Chapter 3: System Setup

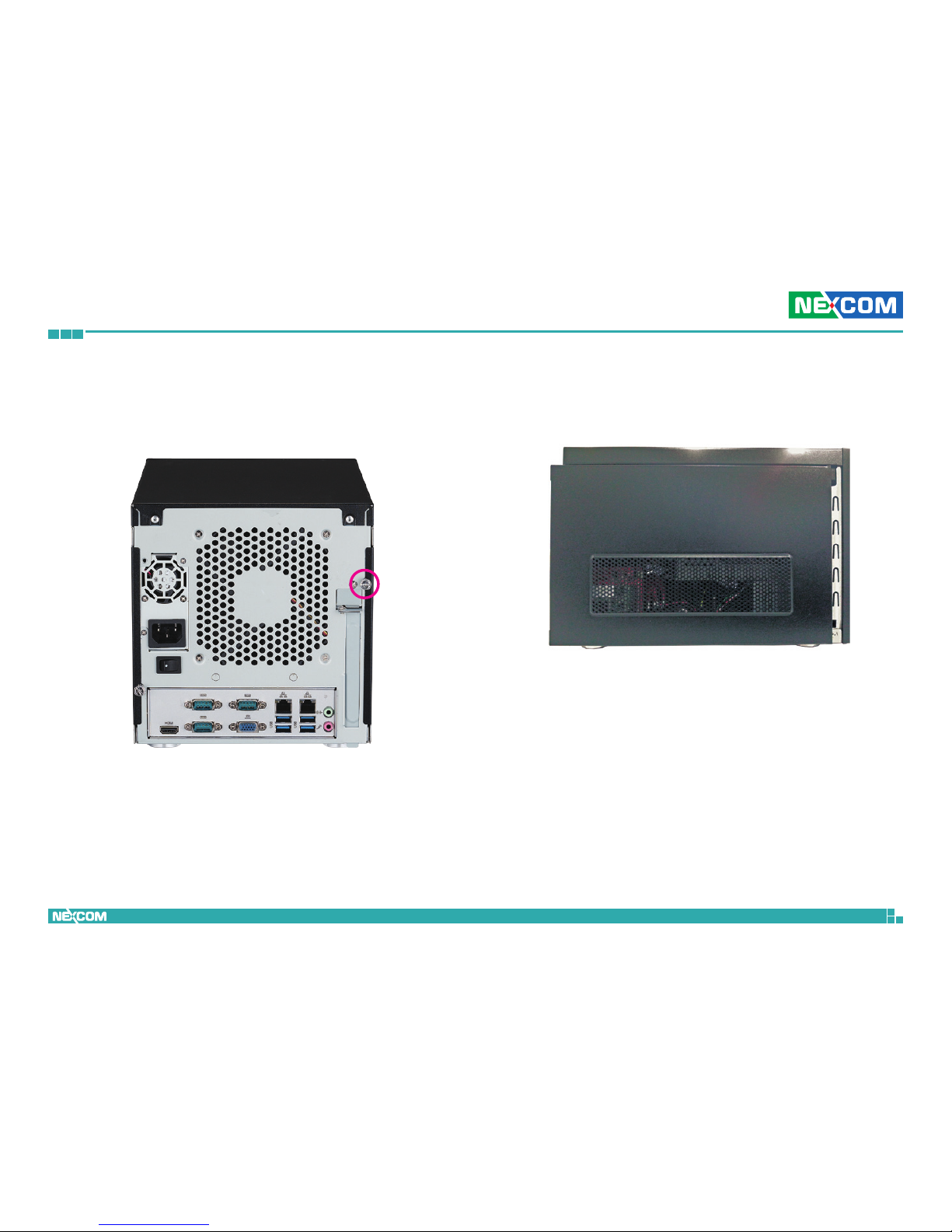

3. Remove the thumb screw securing the left side panel. 4. Gently slide the left side panel outwards and remove it.

33

NViS 5604 Series User Manual

Chapter 3: System Setup

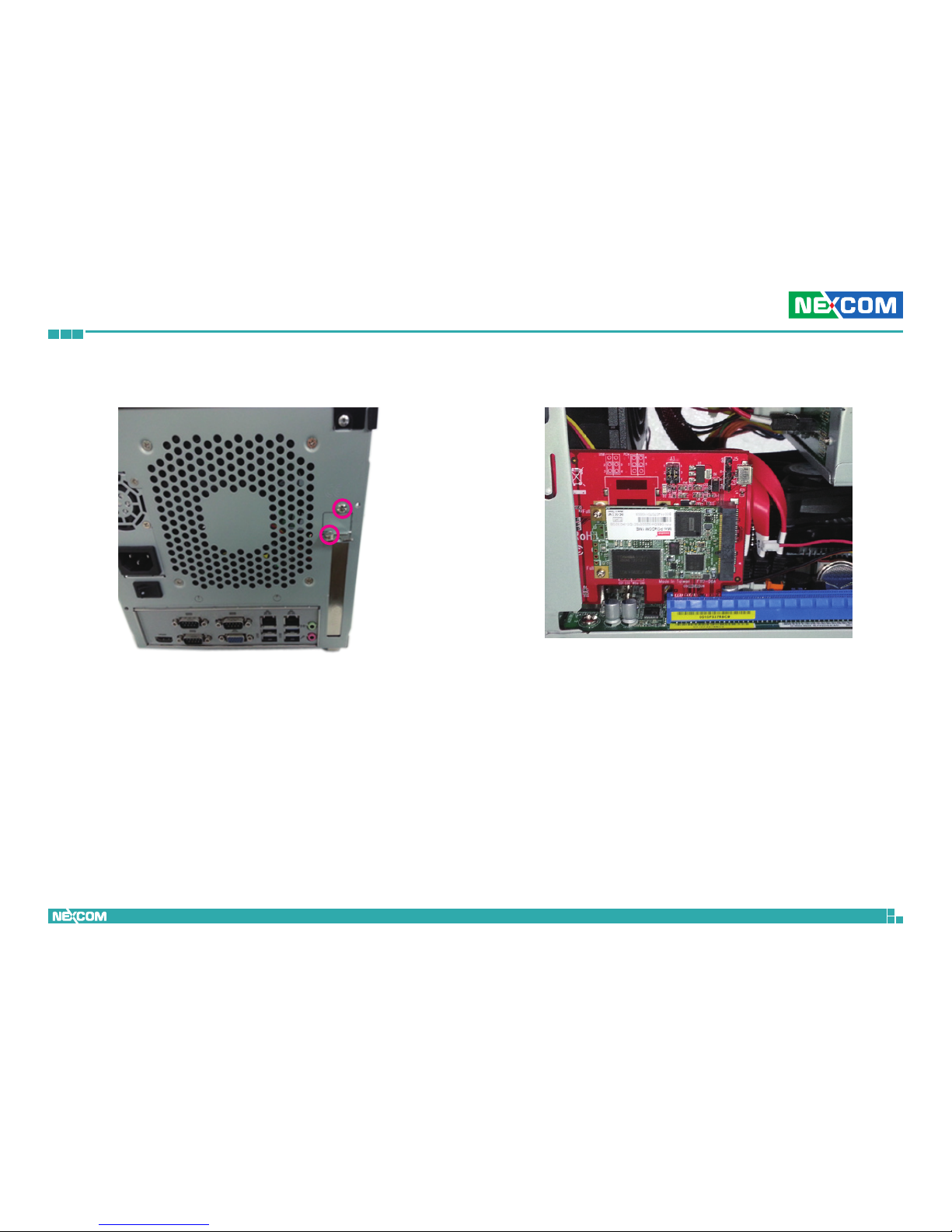

5. Remove the two screws on the PCIe expansion slot. 6. Insert the PCIe card into the PCIe slot on the motherboard.

34

NViS 5604 Series User Manual

Chapter 3: System Setup

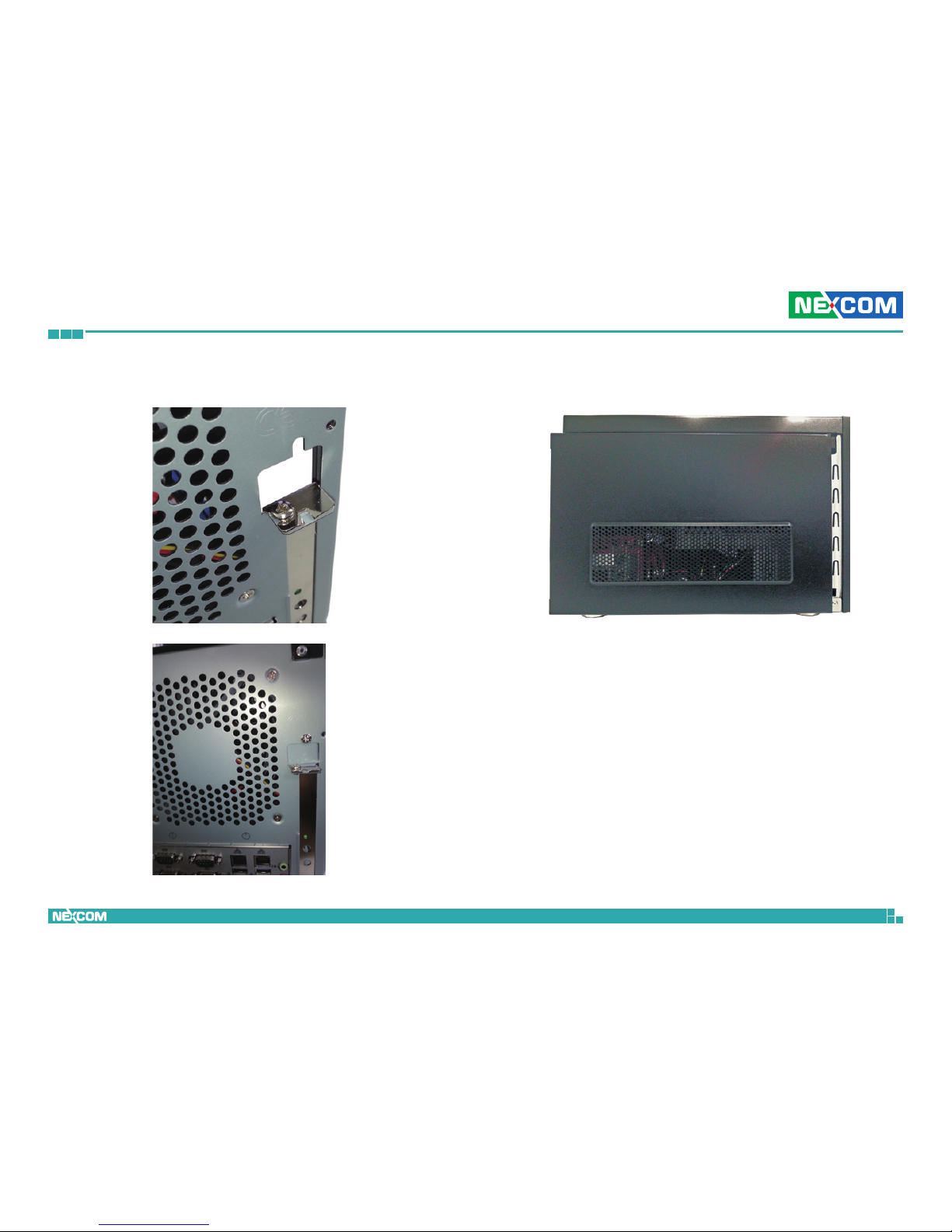

7. Secure the PCIe card and the backplate to the chassis with screws. 8. Place the side panel back to the case.

35

NViS 5604 Series User Manual

Chapter 3: System Setup

9. Reinstall the thumb screw for the side panel.

36

NViS 5604 Series User Manual

Chapter 3: System Setup

Installing the LSI RAID Card

1. Remove the thumb screw securing the left side panel.

2. Gently slide the left side panel outwards and remove it.

37

NViS 5604 Series User Manual

Chapter 3: System Setup

3. Remove the two screws on the PCIe expansion slot. 4. Remove the SATA cables.

38

NViS 5604 Series User Manual

Chapter 3: System Setup

5. Replace the removed SATA cables with the cables for the LSI RAID card, and connect the ends of the cables to the hard drive connectors.

6. Connect the other end of the LSI RAID cables to the connector on the RAID card.

39

NViS 5604 Series User Manual

Chapter 3: System Setup

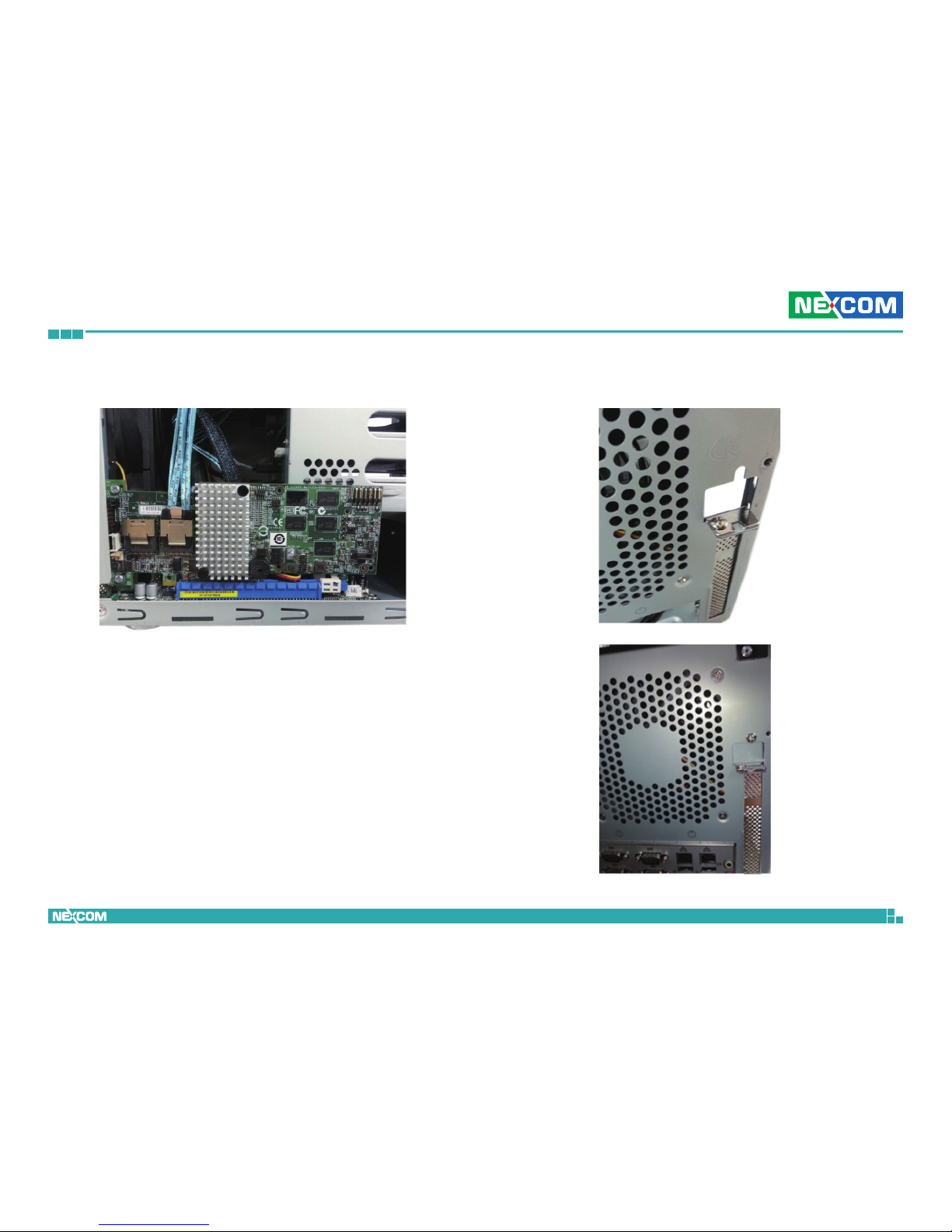

7. Insert the RAID card into the PCIe slot. 8. Secure the PCIe card and the backplate to the chassis with screws.

40

NViS 5604 Series User Manual

Chapter 3: System Setup

9. Place the side panel back to the case. 10. Reinstall the thumb screw for the side panel.

41

NViS 5604 Series User Manual

Chapter 3: System Setup

Installing a 3.5” Hard Drive (External)

1. Open the front panel cover and locate the hard drive bay. Unlock the drive bay by turning the screw lock towards the arrow direction depicted in the diagram.

2. Gently slide out the hard drive bay.

42

NViS 5604 Series User Manual

Chapter 3: System Setup

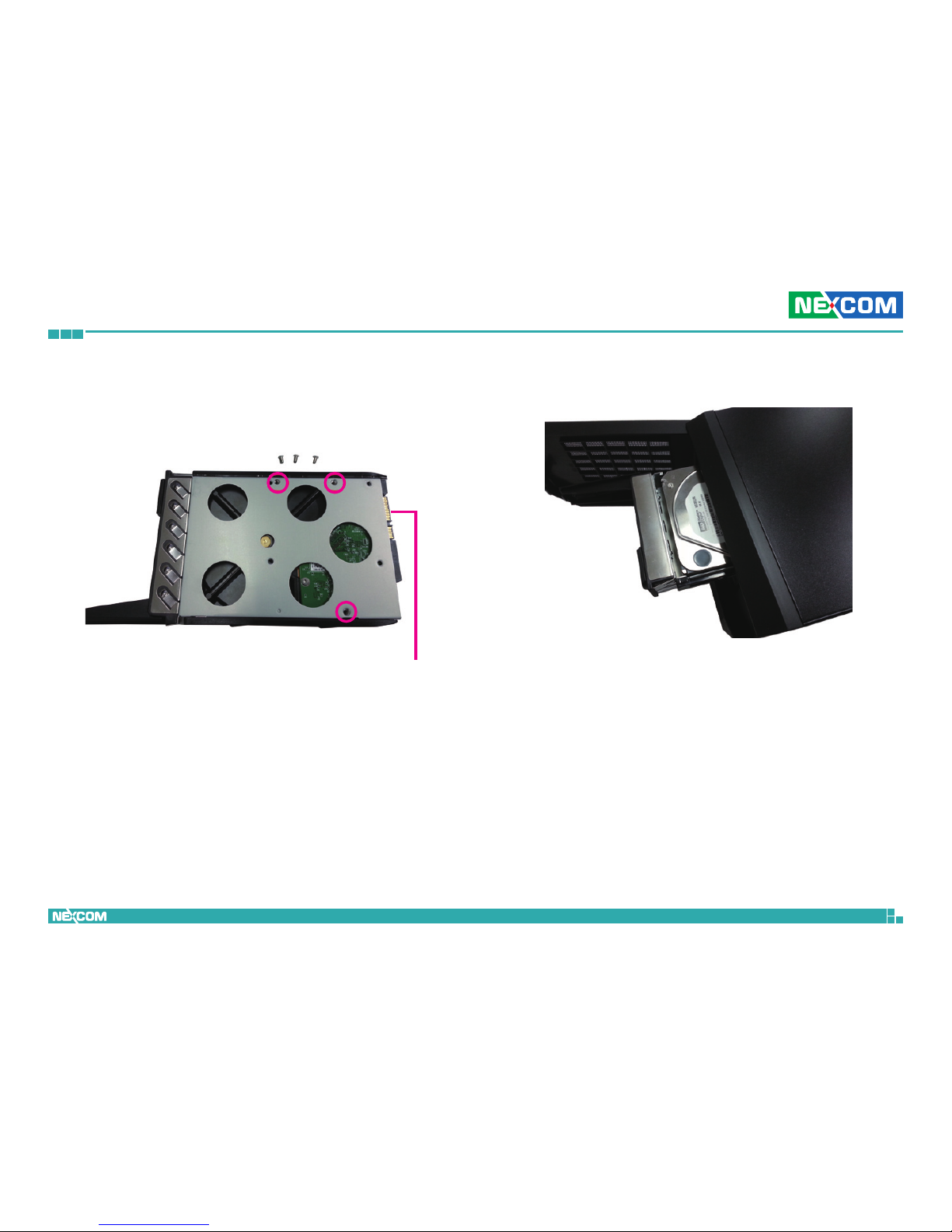

3. Place the hard drive into the drive bay with the connector side facing outwards and mounting holes aligned. Once aligned, secure the HDD with the three screws provided.

Connector side

4. Insert the drive bay back to the slot to complete.

43

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

This chapter describes how to use the BIOS setup program for the NViS 5604. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

44

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup.

Press the

key to enter Setup:

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menu or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

7

Load previous values.

9

Load optimized default values.

10

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

45

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

46

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Exit

Advanced

H/W Monitor

Boot

Security

Main

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Previous Values F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

Set the Date. Use Tab to switch between Date elements.

UEFI Version Processor Type Processor Speed Cache Size

Total Memory

DDR3_A1 DDR3_B1

System Date

System Time

: NViS 5604 P1.00 : Intel(R) Core(TM) i7-4770S CPU @ 3.10GHz : 3100MHz : 8192KB

: 4096 MB with 256MB Shared Memory and 2MB GTT memory Single-Channel Memory Mode

: None : 4096MB(DDR3-1600)

[Tue 08/19/2014]

[13:46:05]

47

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Exit

Advanced

H/W Monitor

Boot

SecurityMain

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Previous Values F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

CPU Conguration Parameters

 CPU Conguration

 Chipset Conguration  Storage Conguration  Intel(R) Rapid Start Technology  Intel(R) Smart Connect Technology  AMT Conguration  Super IO Conguration  ACPI Conguration  USB Conguration  Voltage Conguration

UEFI Update Utility

 Instant Flash

CPU Configuration

This section is used to configure the CPU.

Advanced

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved.

Intel(R) Core(TM) i7-4770S CPU @ 3.10GHz Max CPU Speed Min CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology Intel SMX Technology 64-bit

Intel Hyper Threading Technology

Active Processor Cores CPU C States Support Enhanced Halt State(C1E) CPU C3 State Support CPU C6 State Support CPU C7 State Support Package C State Support

Intel SpeedStep Technology Intel Turbo Boost Technology CPU Thermal Throttling No-Execute Memory Protection Intel Virtualization Technology Hardware Prefetcher Adjacent Cache Line Prefetch

3100 MHz 800 MHz 4 Supported Supported Supported Supported

[Enabled]

[All] [Auto] [Auto] [Auto] [Auto] [Auto] [Auto]

[Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled]

Intel® Hyper Threading Technology

Enable this field for OSes optimized for Hyper-Threading technology. Select disabled for OSes not optimized for Hyper-Threading technology. When disabled, only one thread per enabled core is enabled.

Active Processors Cores

Select the number of cores to enable in each processor package.

CPU C States Support

Enable CPU C States Support for power saving. It is recommended to keep C3, C6 and C7 all enabled for better power saving.

48

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

Enhanced Halt State (C1E)

Enable Enhanced Halt State (C1E) for lower power consumption.

CPU C3 State Support

Used to enable or disable CPU C3 (ACPI C2) report to OS.

CPU C6 State Support

Used to enable or disable CPU C6 (ACPI C6) report to OS.

CPU C7 State Support

Used to enable or disable CPU C7 (ACPI C7) report to OS.

Package C State Support

Selected option will program into C State package limit register.

Intel® SpeedStep Technology

Enables or disables Intel® SpeedStep.

Intel® Turbo Boost Technology

Enables or disables Intel® Turbo Boost.

CPU Thermal Throttling

Enables or disables internal thermal control of the CPU to prevent overheating.

No-Execute Memory Protection

Enables or disables No-Execute Memory Protection, enabling it will prevent data pages from being used by malicious software.

Intel® Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Hardware Prefetcher

Turns on or off the MLC streamer prefetcher.

Adjacent Cache Line Prefetch

Enables or disables the adjacent cache line prefetch.

49

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

DRAM Frequency

Select Auto to automatically set DRAM frequency.

Primary Graphics Adapter

Selects which primary graphics adapter to boot the system.

VT-d

Enables or disables Intel® VT-d technology.

PCIE1 Link Speed

Configures the PCIE1 link speed.

Share Memory

Configures the amount of memory shared to the onboard graphics.

IGPU Multi-Monitor

Enables or disables the onboard graphics.

Render Standby

Enables or disables render standby of onboard graphics.

Onboard HD Audio

Enables or disables the onboard HD audio, setting auto will automatically disable the onboard HD audio when an external sound card is installed.

Front Panel

Enables or disables the onboard HD audio front panel.

Onboard HDMI HD Audio

Enables or disables the onboard HDMI HD audio.

Onboard LAN1 to LAN2

Enables or disables onboard LAN1 and LAN2.

Restore on AC/Power Loss

Power Off When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system. Power On When power returns after an AC power failure, the system will automatically power-on.

SLP_SUS# Minimum Assertion Width

Selects a minimum assertion width of the SLP_SUS# signal.

Primary IGFX Boot Display

Select the video device which will be activated during POST. Has no effect if external graphics is present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display.

Chipset Configuration

This section is used to configure the chipset features.

Advanced

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assign the appropriate frequency automatically.

VT-d Capability

DRAM Frequency

Primary Graphics Adapter VT-d PCIE1 Link Speed

Share Memory IGPU Multi-Monitor Render Standby

Onboard HD Audio Front Panel Onboard HDMI HD Audio Onboard LAN1 Onboard LAN2

Restore on AC/Power Loss SLP_SUS# Minimum Assertion Width

Primary IGFX Boot Display

Supported

[Auto]

[Onboard] [Disabled] [Auto]

[Auto] [Enabled] [Enabled]

[Enabled] [Auto] [Enabled] [Enabled] [Enabled]

[Power Off] [Disabled]

[VBIOS Default]

50

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

SATA Controller(s)

Enables or disables the SATA controller.

SATA Mode Selection

Configures the SATA as IDE, AHCI or RAID mode.

IDE This option configures the Serial ATA drives as Parallel ATA physical storage device. RAID This option allows you to create RAID or Intel Matrix Storage configuration on Serial ATA devices. AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

SATA Aggressive Link Power Management

Enables or disables the SATA aggressive link power management.

Dynamic Storage Accelerator

Enables or disables dynamic storage accelerator, enabling it will increase HDD and SSD I/O performance.

Hard Disk S.M.A.R.T

Enables or disables hard disk S.M.A.R.T feature.

Storage Configuration

This section is used to configure the storage features.

Advanced

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

Enable/disable the SATA controllers.

SATA Controller(s)

SATA Mode Selection SATA Aggressive Link Power Mgmt Dynamic Storage Accelerator Hard Disk S.M.A.R.T

SATA_0 : Not Detected SATA_1 : WDC WD30EURX-63T0FY0 SATA_4 : Not Detected SATA_5 : Not Detected

[Enabled]

[AHCI] [Disabled] [Enabled] [Disabled]



51

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

Intel® Rapid Start Technology

Enables or disables Intel® Rapid Start Technology. Intel® Rapid Start Technology is a new zero power hibernation mode which allows users to resume in just 5-6 seconds.

Intel® Smart Connect Technology

Enables or disables Intel® Smart Connect Technology. Intel® Smart Connect Technology keeps your e-mail and social networks, such as Twitter, Facebook, etc. updated automatically while the computer is in sleep mode.

Intel® Rapid Start Technology Intel® Smart Connect Technology

Advanced

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

Intel(R) Rapid Start Technology is a new zero power hibernation mode which allows users to resume in just 5-6 seconds.

Intel(R) Rapid Start Technology

[Disabled]

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

Intel(R) Smart Connect Technology automatically updates your email and social networks, such as Twitter, Facebook, etc. while the computer is in sleep mode.

Intel(R) Smart Connect Technology

[Enabled]

52

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

Intel® AMT

Enables or disables Intel® Active Management Technology.

BIOS Hotkey Pressed

Enables or disables BIOS hotkey pressed.

MEBx Selection Screen

Enables or disables MEBx selection screen.

Hide Un-Configure ME Confirm Prompt

Hide Un-Configure ME without password confirmation prompt.

MEBx Debug Message Output

Enables or disables MEBx debug message output.

Un-Configure ME

Enables or disables Un-configure ME without password.

AMT Wait Timer

Set timer to wait before sending ASF_GET_BOOT_OPTIONS.

ASF

Enables or disables alert specification format.

Activate Remote Assistance Process

Enables or disables Trigger CIRA boot.

USB Configure

Enables or disables USB configure function.

PET Progress

Enables or disables PET Events progress to receive PET event.

Intel® AMT Technology

This section is used to configure the AMT function.

Advanced

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note : iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires

additional rmware in the SPI

device

Intel AMT

BIOS Hotkey Pressed MEBx Selection Screen

Hide Un-Cong ME Conrm Prompt

MEBx Debug Message Output

Un-Congure ME

Amt Wait Timer ASF Activate Remote Assistance Process

USB Congure

PET Progress AMT CIRA Timeout

[Disabled]

[Disabled] [Disabled] [Disabled] [Disabled] [Disabled] 0 [Enabled] [Disabled] [Enabled] [Enabled] 0

53

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

ACPI Settings

This section is used to configure ACPI settings.

Advanced

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

It is recommended to select auto for ACPI S3 power saving.

Suspend to RAM

Check Ready Bit ACPI HPET Table

PS/2 Keyboard Power On PCI Devices Power On Wake From Onboard LAN 2 RTC Alarm Power On USB Keyboard/Remote Power On USB Mouse Power On

[Auto]

[Enabled] [Enabled]

[Disabled] [Disabled] [Disabled] [By OS] [Disabled] [Disabled]

Suspend to RAM

Select disable for ACPI suspend type S1. It is recommended to select auto for ACPI S3 power saving.

Check Ready Bit

Enables or disables Check Ready Bit.

ACPI HPET Table

Enables or disables ACPI HPET Table.

COM1 to COM6 Configuration

Configures the parameters of COM1 to COM6.

WDT Timeout Reset

Enables or disables the Watchdog Timer timeout to reset the system.

Advanced

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

Set Parameters of COM1

Super IO Conguration

COM1 Conguration

COM2 Conguration COM3 Conguration COM4 Conguration COM5 Conguration COM6 Conguration

WDT Timeout Reset

[Disabled]

Super IO Configuration

This section is used to configure the serial ports.



54

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

PS/2 Keyboard Power On

Enables or disables PS/2 keyboard to turn on the system from the powersoft-off mode.

PCI Devices Power On

Enables or disables PCI devices to turn on the system from the power-softoff mode.

Wake From Onboard LAN 2

Enables or disables wake up from onboard LAN 2.

RTC Alarm Power On

Enables or disables real time clock (RTC) to power on the system.

USB Keyboard/Remote Power On

Enables or disables USB Keyboard/Remote to power on the system.

USB Mouse Power On

Enables or disables USB mouse to power on the system.

USB Controller

Enables or disables all the USB ports.

Intel® USB3.0 Mode

Enables or disables USB 3.0 mode.

Legacy USB Support

Enabled Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disabled Keeps USB devices available only for EFI applications.

Legacy USB 3.0 Support

Enables or disables legacy support for USB 3.0 devices.

USB Configuration

This section is used to configure the USB.

Advanced

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

Enable or disable all the USB ports.

USB Controller

Intel USB3.0 Mode Legacy USB Support Legacy USB 3.0 Support

[Enabled]

[Smart Auto] [Enabled] [Enabled]

55

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

DRAM Voltage

Selects the DRAM voltage value.

Voltage Configuration

This section is used to configure the DRAM voltage.

Advanced

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

1.35V/1.50V

DRAM Voltage

[1.50V]

56

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

CHA_FAN1 Speed

Detects and displays CHA_FAN1 speed.

CPU Input Voltage

Detects and displays the CPU input voltage.

Vcore

Detects and displays the Vcore CPU voltage.

+ 3.30V

Detects and displays 3.3V voltage.

+ 5.00V

Detects and displays 5V voltage.

+ 12.00V

Detects and displays 12V voltage.

CPU_FAN1 Setting

Configures the speed of the CPU fan.

Target CPU Temperature & Target Fan Speed

Options to adjust the cpu fan speed. Target Fan Speed configures the speed of the fan when the CPU temperature is below the target temperature.

CHA_FAN1 Setting

Configures the speed of the chassis fan.

Over Temperature Protection

Enables or disables Over Temperature Protection.

Case Open Feature

Enables or disables the case open detection feature.

H/W Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

Exit

Advanced

H/W Monitor

Boot

SecurityMain

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Previous Values F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

Quiet Fan Function Control

Hardware Health Event Monitoring

CPU Temperature M/B Temperature

CPU_FAN1 Speed CHA_FAN1 Speed

CPU Input Voltage Vcore + 3.30V + 5.00V + 12.00V

CPU_FAN1 Setting

Target CPU Temperature Target Fan Speed CHA_FAN1 Setting Over Temperature Protection Case Open Feature

: 59 °C : 38 °C

: 2556 RPM : 1360 RPM

: +1.744 V : +0.935 V : +3.328 V : +5.064 V : +12.091 V

[Automatic mode]

[60 °C/140 °F] [Level 3] [Full On] [Disabled] [Disabled]

CPU Temperature

Detects and displays the current CPU temperature.

M/B Temperature

Detects and displays the current motherboard temperature.

CPU_FAN1 Speed

Detects and displays CPU_FAN1 speed.

57

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

Exit

Advanced

H/W Monitor

Boot

SecurityMain

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Previous Values F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

Sets the system boot order

Boot Option Priorities

Boot Option #1

Hard Drive BBS Priorities

Boot From Onboard LAN

Setup Prompt Timeout Bootup Num-Lock Boot Beep Full Screen Logo CSM(Compatibility Support Module)

[AHCI: Mini PCIeDOM 1ME]

[Disabled]

1 [On] [Disabled] [Disabled]

Hard Drive BBS Priorities

Sets the order of the legacy devices in this group.

Boot From Onboard LAN

Enables or disables Boot From Onboard LAN.

Setup Prompt Timeout

Number of seconds to wait for setup activation key. 65535(0XFFFF) means indefinite waiting.

Bootup Num-Lock

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Boot Beep

Enables or disables beep sound during system boot, a buzzer is needed.

Full Screen Logo

Enables or disables the display of OEM logo.

CSM (Compatibility Support Module)

Configuration for CSM, please disable CSM when Fast Boot is enabled.

Boot

This section is used to configure the boot features.



58

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

Exit

Advanced

H/W Monitor

Boot

SecurityMain

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Previous Values F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

Sets the system boot order

Boot Option #1

Boot Option #2

[AHCI: Mini PCIeDOM 1ME]

[AHCI P1: WDC WD30EU...]

Boot Option

Boot Option #1 & Boot Option #2

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be Boot Option #2 and so forth.

CSM

Enables or disables CSM. Enabled to launch the Compatibility Support Module. Please do not disable unless a WHCK test is running. If Windows 8 64-bit is used and all the devices support UEFI, CSM may be disabled for faster boot speed.

Launch PXE OpROM Policy

Enables or disables the boot option for legacy network devices.

Launch Storage OpROM Policy

Enables or disables the boot option for legacy storage devices.

Launch Video OpROM Policy

Enables or disables the boot option for legacy video devices.

Compatibility Support Module (CSM) Configuration

This section is used to configure the compatibility support module features.

Boot

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

Enable to launch the Compatibility Support Module. Please do not disable unless you’re running a WHCK test. If you are using Windows 8 64-bit and all of your devices support UEFI, you may also disable CSM for faster boot speed.

CSM

Launch PXE OpROM policy Launch Storage OpROM policy Launch Video OpROM policy

[Enabled]

[Legacy only] [Legacy only] [Legacy only]

59

NViS 5604 Series User Manual

Chapter 4: BIOS Setup

Exit

Advanced

H/W Monitor

Boot

SecurityMain

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Previous Values F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.

Supervisor Password User Password

Supervisor Password

User Password

System Mode state Secure Boot state

Secure Boot

Not Installed Not Installed

Setup Disabled

[Disabled]

Security

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

Secure Boot

Enables or disables Secure Boot.

Save Changes and Exit

To save the changes and exit, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes and Exit

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Discard Changes

To discard all the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Load UEFI Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Exit

Advanced

H/W Monitor

Boot

SecurityMain

←→: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Previous Values F9: Load UEFI Defaults F10: Save and Exit ESC: Exit

Exit system setup after saving the changes.

F10 key can be used for this operation.

Save Changes and Exit

Discard Changes and Exit Discard Changes Load UEFI Defaults

Launch EFI Shell from lesystem device

Exit
