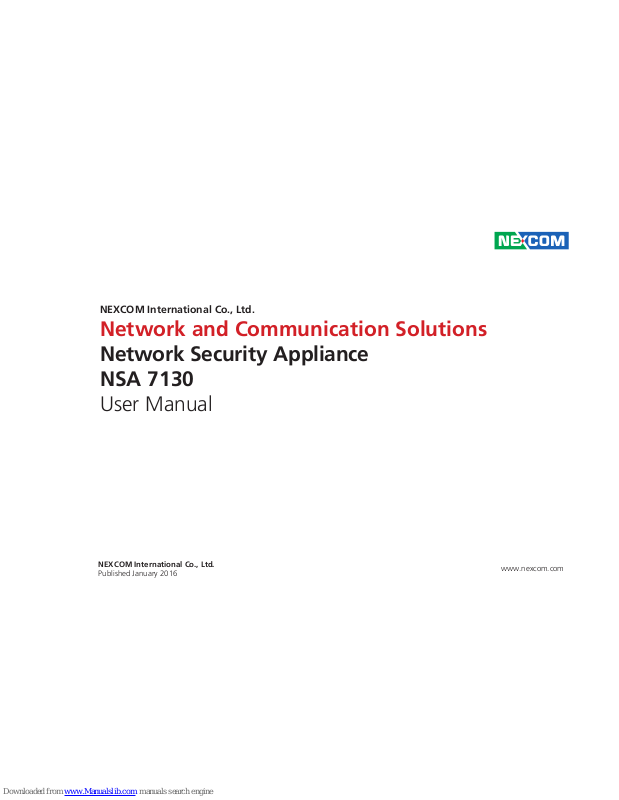

Nexcom NSA 7130 User Manual

NEXCOM International Co., Ltd.

Published January 2016

www.nexcom.com

Network and Communication Solutions

Network Security Appliance NSA 7130

User Manual

ii

NSA 7130 User Manual

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents .................................................................................xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Hardware Specifications ..........................................................................2

Knowing Your NSA 7130 ........................................................................ 3

Front Panel ..........................................................................................3

Rear Panel ...........................................................................................4

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................5

Precautions ............................................................................................5

Jumper Settings ......................................................................................6

Locations of the Jumpers and Connectors ...............................................7

Jumpers ..................................................................................................8

Console CTS Strap ...............................................................................8

TPM Select ..........................................................................................8

RTC Clear ........................................................................................... 9

Password Clear ...................................................................................9

ME Firmware Update ........................................................................10

PERST Strap ....................................................................................10

BMC Strap .....................................................................................11

Console UART Controller Strap ......................................................11

FM_PLD_DEBUG ............................................................................12

Connector Pin Definitions .....................................................................13

External Connectors ..........................................................................13

System Reset Button ......................................................................13

RJ45 Console Port ..........................................................................13

Internal Connectors ........................................................................... 14

COM 2 Connector .........................................................................14

CPLD JTAG Pin Header ..................................................................14

USB 2.0 JST Connector ...................................................................15

CF Module Power ..........................................................................15

SATA HDD Power Connector ..........................................................16

SATA DOM Power Connector .........................................................16

iii

NSA 7130 User Manual

Content

System Fan Connectors ..................................................................17

CPU Fan Connectors ......................................................................17

VGA Connector .............................................................................18

I2C Debug Header .........................................................................18

PDB Connector ..............................................................................19

Internal Power Connectors ............................................................. 19

Riser Card Power Connector ..........................................................20

Riser Card Signals Connector .........................................................21

Riser Card Signals Connector .........................................................22

Block Diagram ......................................................................................23

Chapter 3: System Setup

Removing the Chassis Cover .................................................................24

Installing an External SATA Hard Drive ...................................................25

Installing a LAN Module ........................................................................27

Installing the Rackmount Rails ...............................................................29

Chapter 4: BIOS Setup

About BIOS Setup .................................................................................31

When to Configure the BIOS .................................................................31

Default Configuration ...........................................................................32

Entering Setup ......................................................................................32

Legends ................................................................................................32

BIOS Setup Utility ..................................................................................34

Main .................................................................................................34

Advanced .........................................................................................35

Intel RC Setup ..................................................................................43

Server Mgmt .....................................................................................62

Security .............................................................................................64

Boot ..................................................................................................65

Save & Exit ........................................................................................66

iv

NSA 7130 User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NSA 7130 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

v

NSA 7130 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

vi

NSA 7130 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vii

NSA 7130 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

viii

NSA 7130 User Manual

Preface

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

ix

NSA 7130 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

x

NSA 7130 User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

xi

NSA 7130 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

9F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

China

NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-10-5704-2680 Fax: +86-10-5704-2681 Email: [email protected] www.nexcom.cn

xii

NSA 7130 User Manual

Preface

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Lanino 42, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625570 Email: [email protected] www.nexcomitalia.it

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXCOM Surveillance Technology

Room202, Building B, the GuangMing Industrial Zone Zhonghua Rd., Minzhi Street, Longhua District, Shenzhen, 518000, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: [email protected] www.nexcom.cn

NEXCOM United System Service

Hui Yin Ming Zun Building Room 1108, Building No. 11, 599 Yunling Road, Putuo District, Shanghai, 200062, China Tel: +86-21-6125-8282 Fax: +86-21-6125-8281 Email: [email protected] www.nexcom.cn

xiii

NSA 7130 User Manual

Preface

Package Contents

Before continuing, verify that the NSA 7130 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 19S00713002X0 NSA 7130A ASSY 1 2 50311F0095X00 (H)Flat Head Screw Long Fei:F6#32Tx5 NYLOK NIGP F6#32Tx5 NI NYLOK 8

3 50311F0100X00

(H)Round Head Screw w/Spring+Flat Washer Long Fei:P3x6L

P3x6 iso/SW6x0.5 NI 1

4 50311F0162X00 (H)Round Head Screw GW/Washer Long Fei P4x8 iso/w NI 1 5 5041110028X00 AL-Handle for UTM625 VER:A TENG-JYE 105x64x10.5mm Color: Sophos White 1 6 5044440031X00 Rubber Foot Kang Yang:RF20-5-4P 19.8x18x5.0mm 4

7 6012200052X00 PE Zipper Bag #8 170x240mm, w/China RoHS Symbol 1 8 6012200053X00 PE Zipper Bag #3 100x70mm, w/China RoHS Symbol 1 9 6023309081X00 Cable EDI:232091081804-RS COM Port. DB9 Female to RJ45 8P8C L:1800mm 1

xiv

NSA 7130 User Manual

Preface

Ordering Information

The following information below provides ordering information for NSA 7130.

Barebone NSA 7130 (P/N: 10S00713002X0)

Support Intel® Xeon® E5 series processors V3, 16 DDR4 memory slots, On board 16G LAN + 4 x 10G LAN ports, two LAN module slots, CFast Socket, VGA, USB port, with LCM

P/N Interface Interface Port number Bypass/segment Expansion Slot Location Slot

NSK 5150R-F8 10SK0515002X0 Intel

®

i350 PCIe x8 8 SFP None None All Slot

NSK 5199R-F2 10SK0519909X0 Intel

®

82599 PCIe x8 2 SFP+ None None All Slot

NSK-CVCK 10SK0CVCK00X0 DH8920CC PCIe x8 4 Copper Dual Latch/2 None All Slot

NSK-CTCK 10SK0CTCK03X0 DH8925CL PCIe x8 None None None All Slot

NSK 5199R-F2

PCIe 10GbE module with 2 SFP+ ports based on Intel® 82599EB chipset

NSK-CVCK

PCIe 1GbE module with 4 Copper ports based on Intel® CAVE CREEK SKU4 DH8920CC

NSK-CTCK

PCIe 1GbE module based on Intel® chipset Coleto Creek: DH8925CL

NSK 5150R-F8

PCIe 1GbE module with 8 SFP ports based on Intel® i350 chipset

1

NSA 7130 User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

Key Features

▪ Dual Intel® Xeon® E5-2600 V3 Processors

▪ Support DDR4 1866/2133 ECC & REG, up to 512GB

▪ On-board 16G LAN Copper/Fibre + 4x 10G SFP+

▪ Two LAN Module Slots

Overview

▪ Support Two Swappable 3.5” SATA/SAS HDDs

▪ Support CRPS (1 + 1) Redundant Power Supply

▪ 2U, 450mm depth chassis design

2

NSA 7130 User Manual

Chapter 1: Product Introduction

Hardware Specifications

Main Board

▪ NSB 7130 ▪ Dual Intel

®

Xeon® Processors E5-2600 V3 ▪ Support 9.6 GT/s QPI Speed ▪ Intel

®

C612

▪ Support IPMI 2.0

Main Memory

▪ 16x 284-pin DDR4 1866/2133 DIMM Sockets, up to 512GB ECC & REG

SDRAM

LAN Features

▪ Onboard 16x 1G LAN, Intel® i350, support Copper/Fibre ports ▪ Onboard 4x 10G SFP + Intel

®

XL710 ▪ Support 10/100/1000/10G link speed ▪ LAN Bypass: 4 pairs bypass support ▪ Two LAN Module slots

I/O Interface-Front

▪ 8x RJ45, 8x SFP port, 4x SFP + ports ▪ Support 2x 20 Characters LCD module, SIO interface ▪ Power status/HDD status/LAN status/Bypass status LEDs ▪ 2x 3.5” HDD Swappable bays ▪ 2x LAN Module bays ▪ 2x USB 2.0 ports ▪ 1x RJ45 type Console port ▪ 1x Software button ▪ 2x Management LAN ports

I/O Interface-Rear

▪ 3x Swappable System FANs ▪ 1x VGA Port ▪ 2x USB 2.0 ports

Devices

▪ 1x onboard CFast socket

Power Input

▪ 700W 1+1 CRPS Redundant Power Supply

Chassis Dimensions

▪ Chassis Dimension: 430mm x 450mm x 88mm ▪ Carton Dimension: 640mm x 640mm x 310mm

Weight

▪ Without packing: 19kg ▪ With packing: 25kg

Environment

▪ Operating temperatures : 0°C~40°C ▪ Storage temperature : -20°C~75°C ▪ Relative humidity : 10%~90% non-condensing

Certifications

▪ CE approval ▪ FCC Class A ▪ UL

3

NSA 7130 User Manual

Chapter 1: Product Introduction

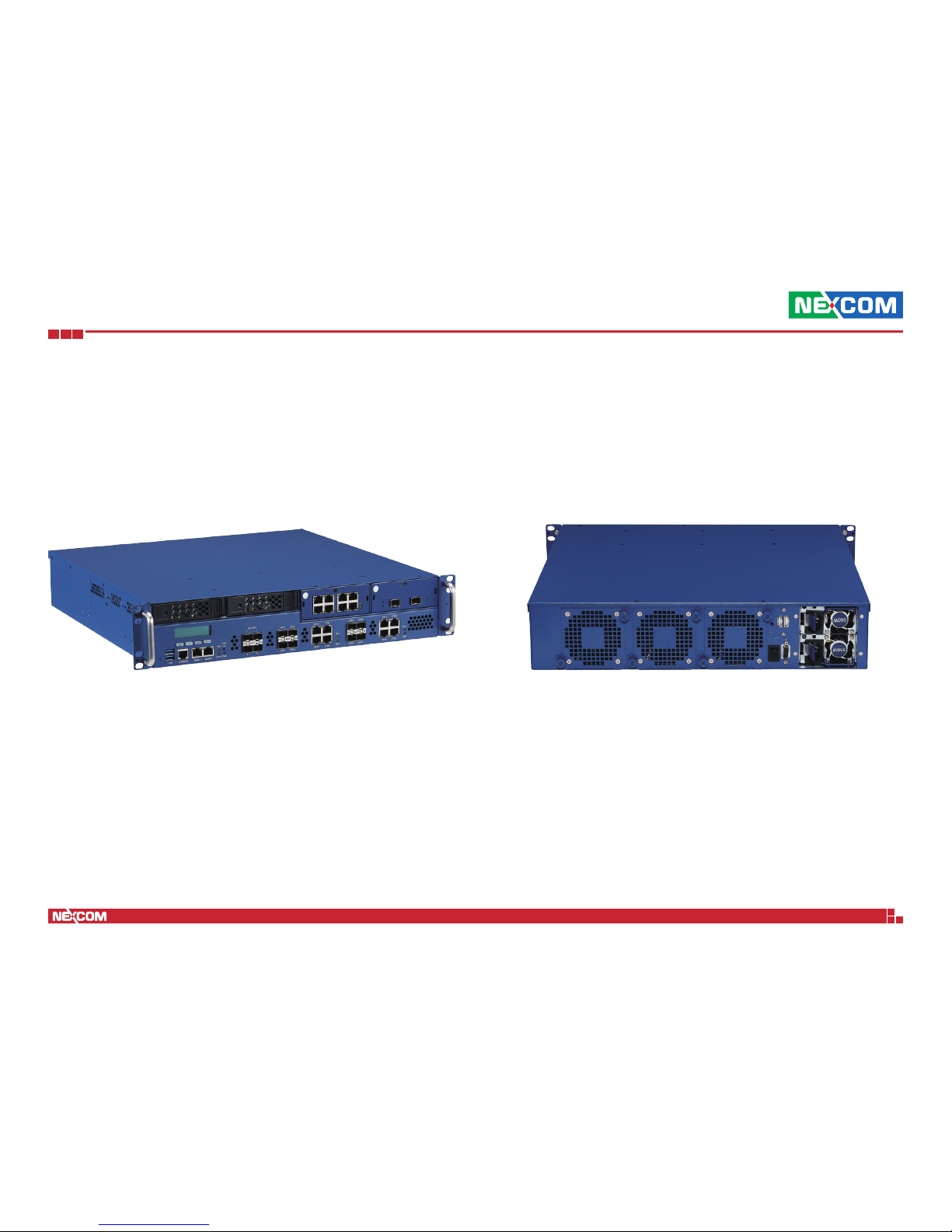

Knowing Your NSA 7130

LCD

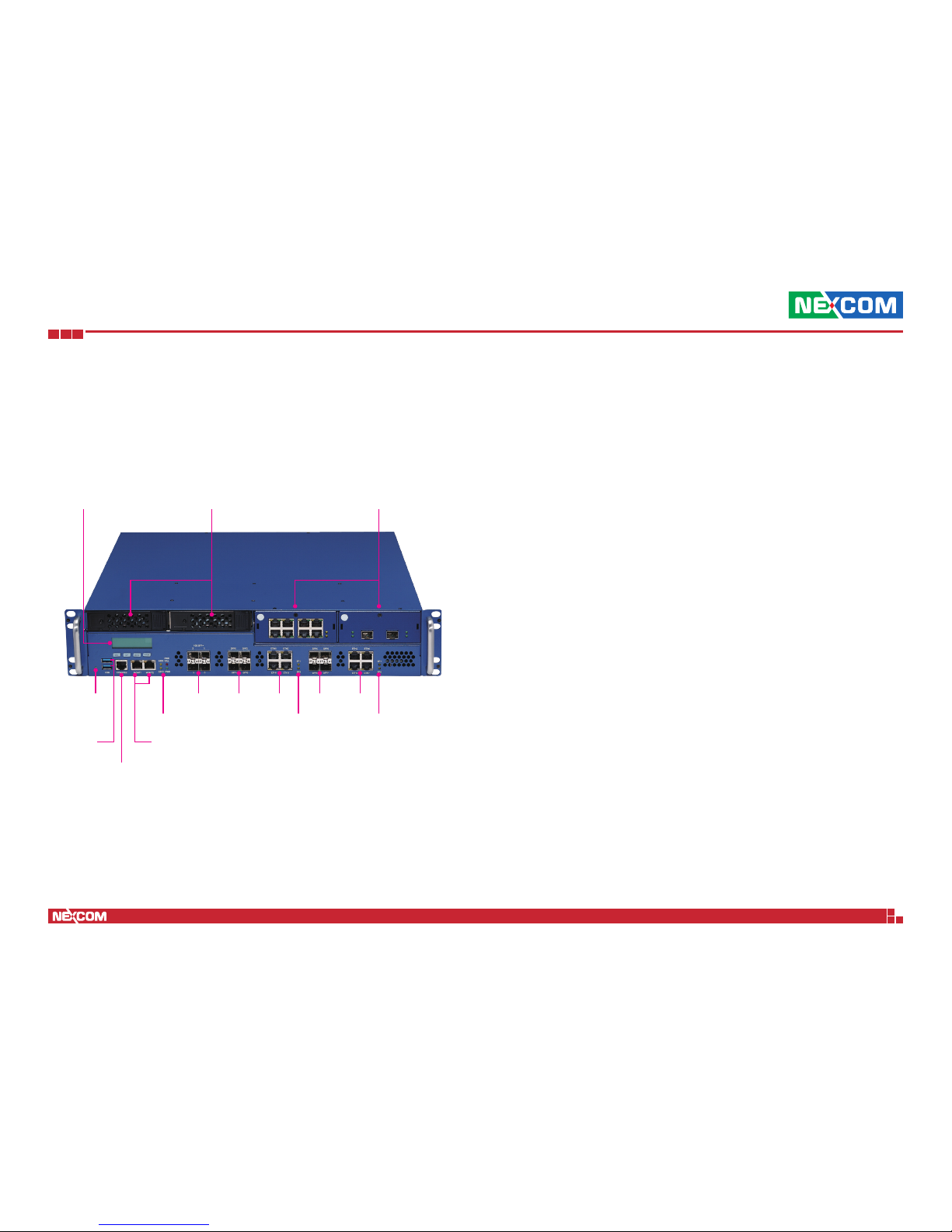

Front Panel

Reset

button

USB

ports

RJ45 type

console port

Management LAN

LAN

LAN10G SFP+

SFP SFP

HDD bays

LAN modules

LCD

2x20 characters LCD module, SIO interface.

HDD Bays

2x 3.5” HDD swappable bays.

LAN Modules

2 LAN module bays.

Reset Button

Press to restart the system.

USB Ports

Used to connect USB 2.0/1.1 devices.

Console Port

Used to connect RJ45 type console port.

Management LAN Ports

2 LAN ports used for managing the system.

10G SFP+ and SFP Ports

Used to connect SFP+ and SFP modules for connecting fiber optic network devices.

Copper LAN Ports

Used to connect LAN network devices.

LED Indicators

Indicates the power, hard drive, and GPIO activity of the system.

Bypass LEDs

Indicates the status of the LAN bypass.

LED indicators Bypass

LED

Bypass

LED

4

NSA 7130 User Manual

Chapter 1: Product Introduction

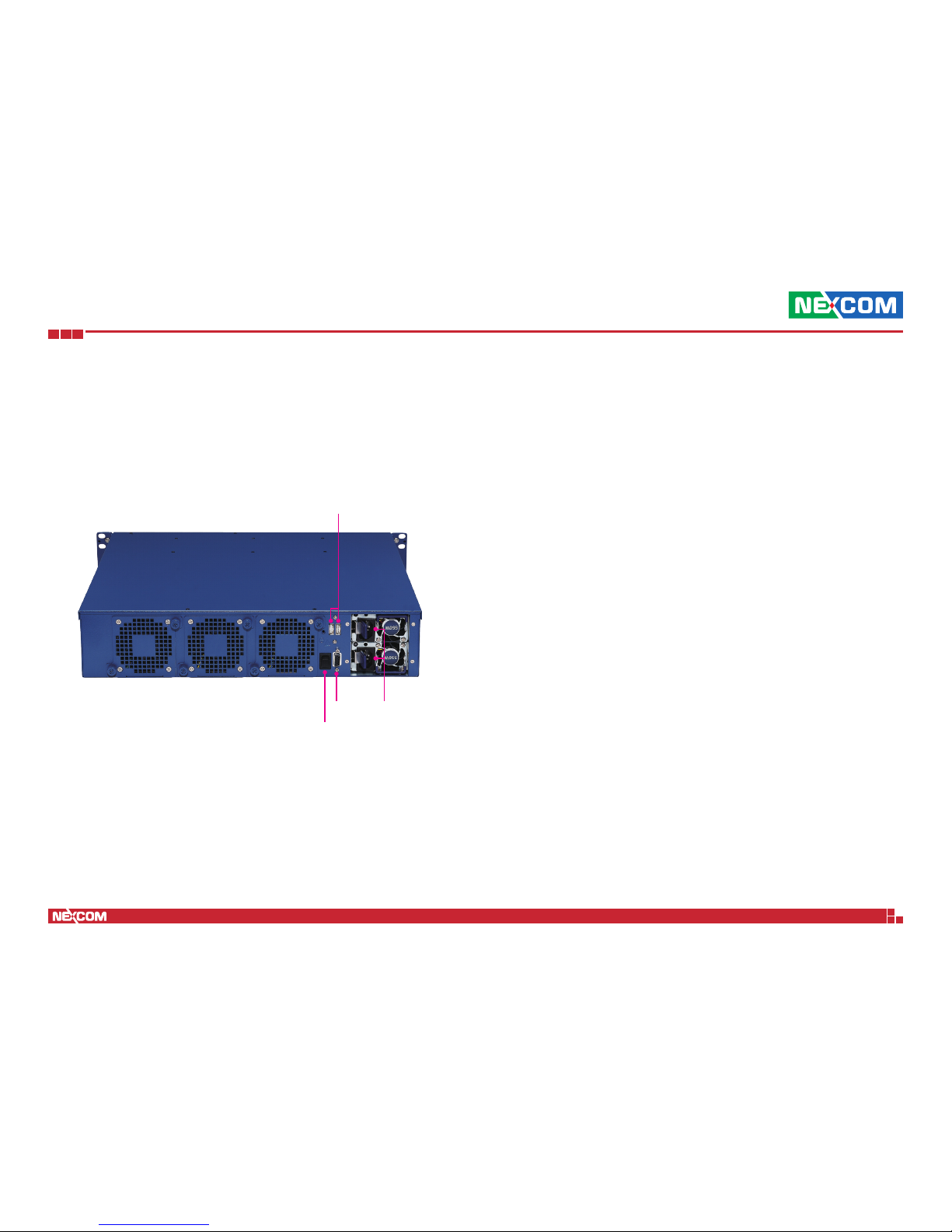

Rear Panel

VGA

Power switch

AC Power Sockets

USB Ports

Used to connect USB 2.0/1.1 devices.

Power Switch

Press to power-on or power-off the system.

VGA

Used to connect an analog VGA monitor.

AC Power Sockets

Dual redundant power supply sockets, plug an AC power cord here before turning on the system.

5

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers and connectors on the NSA 7130 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

6

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

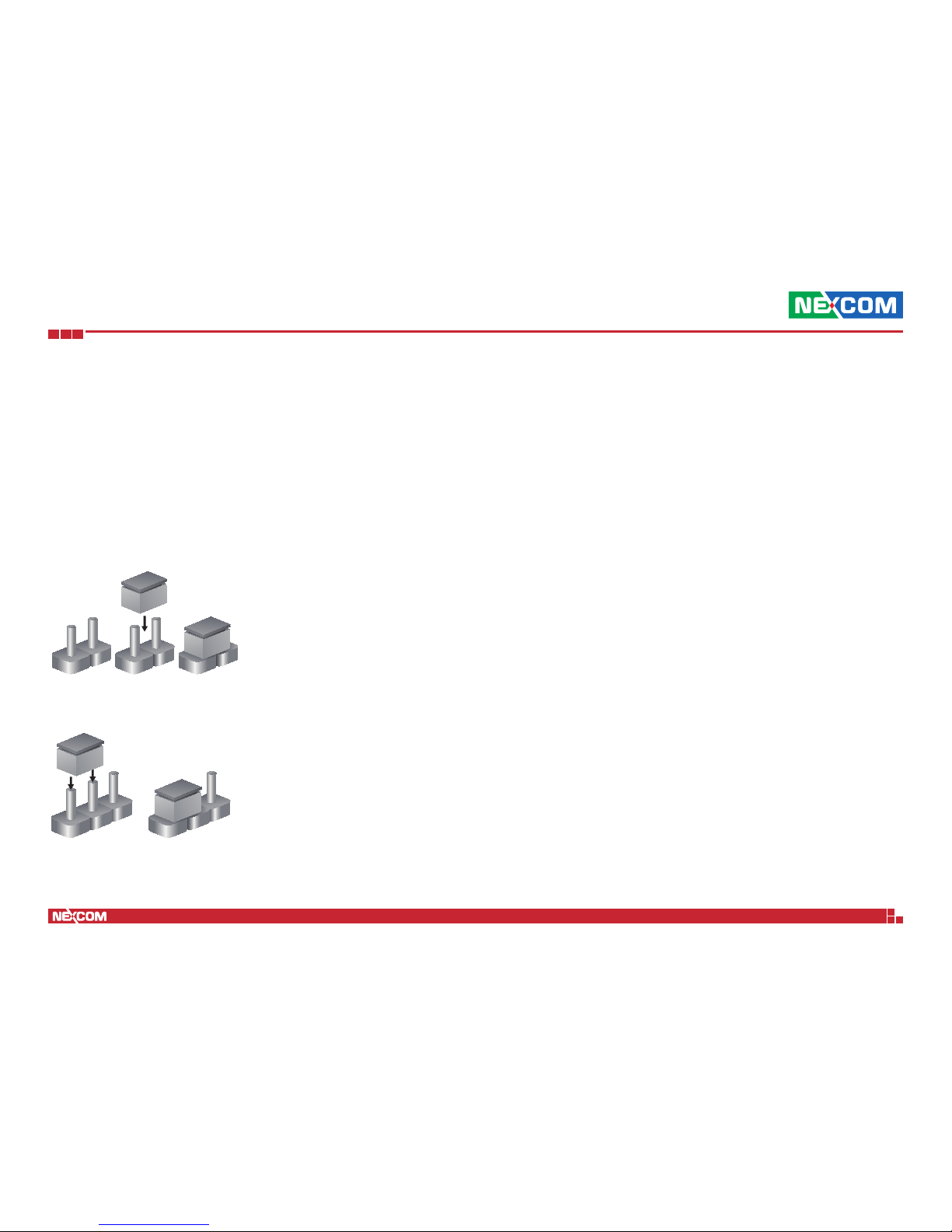

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

1

2

3

1

2

3

7

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

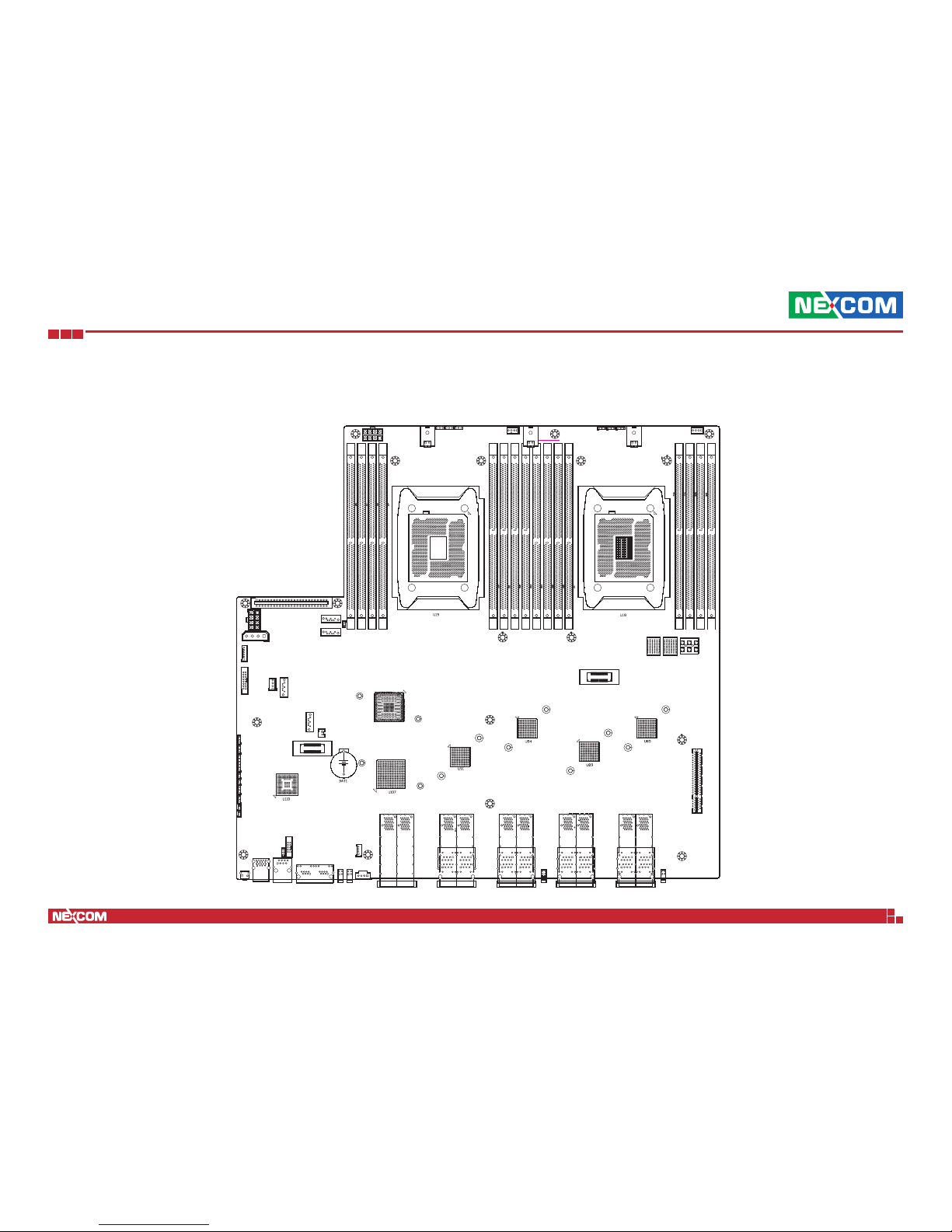

Locations of the Jumpers and Connectors

The figure below shows the location of the jumpers and connectors.

CON1

FAN3

CN3

CON2

J7

J10

VGACONN1

J11

JP11

JTPMSEL1 JCLRM1

JP2 JP6

JP8 JMEUP1 JMEUP2 JP10

CN4

CN5

J8 J9

CON3

SW3

LAN1

CN6

JP12

CN2

FAN2

FAN1 CN1

8

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

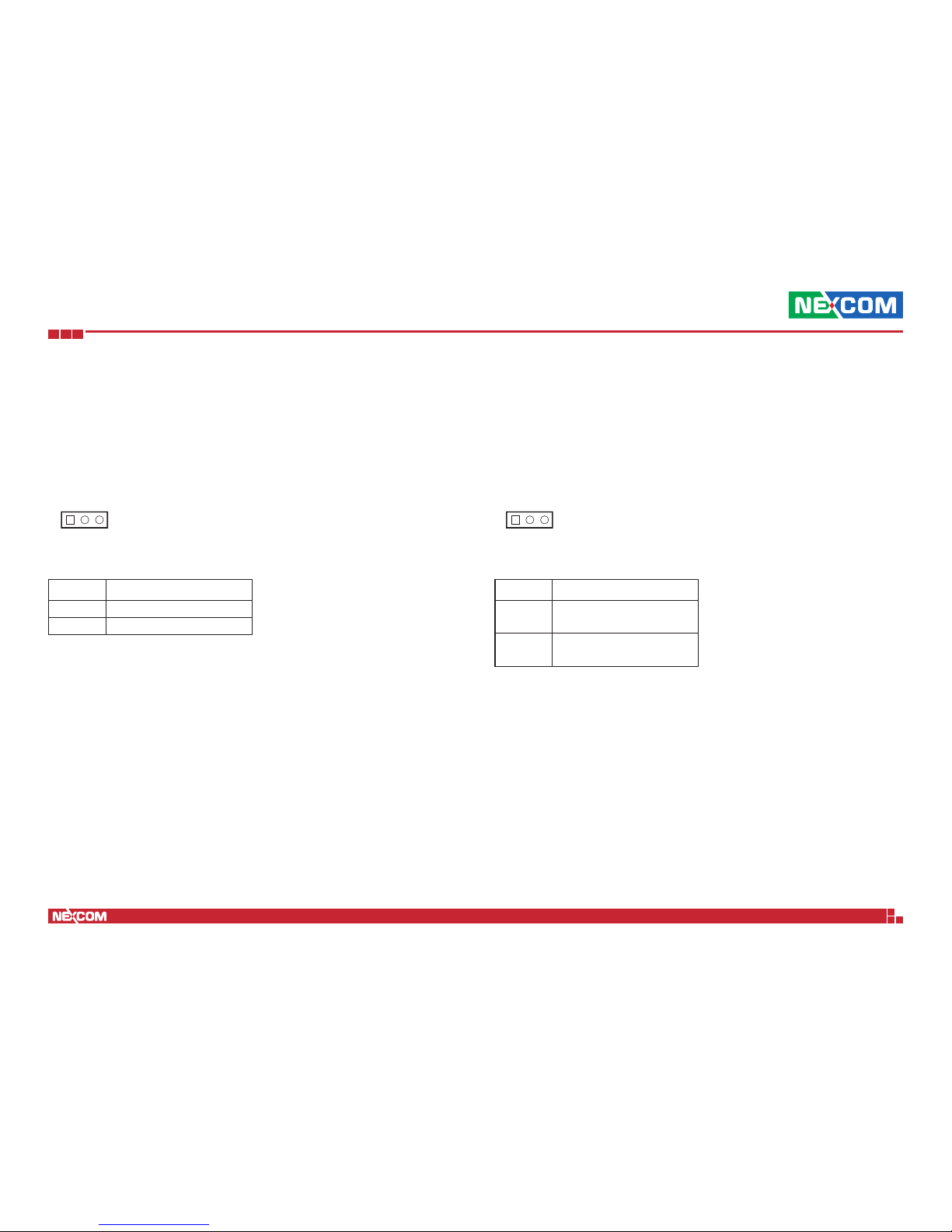

Jumpers

Console CTS Strap

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP12

TPM Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JTPMSEL1

1 3 1 3

Pin Function

1-2 RTS to CTS

2-3* CTS

2-3 On: default

Pin Function

1-2

Enable some special

commands

2-3*

Disable some special

commands

2-3 On: default

9

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

RTC Clear

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JCLRM1

1 3

Password Clear

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JMEUP1

1 3

Pin Function

1-2* No Clear CMOS

2-3 Clear CMOS

1-2 On: default

Pin Function

1-2* No Clear Password

2-3 Clear Password

1-2 On: default

10

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

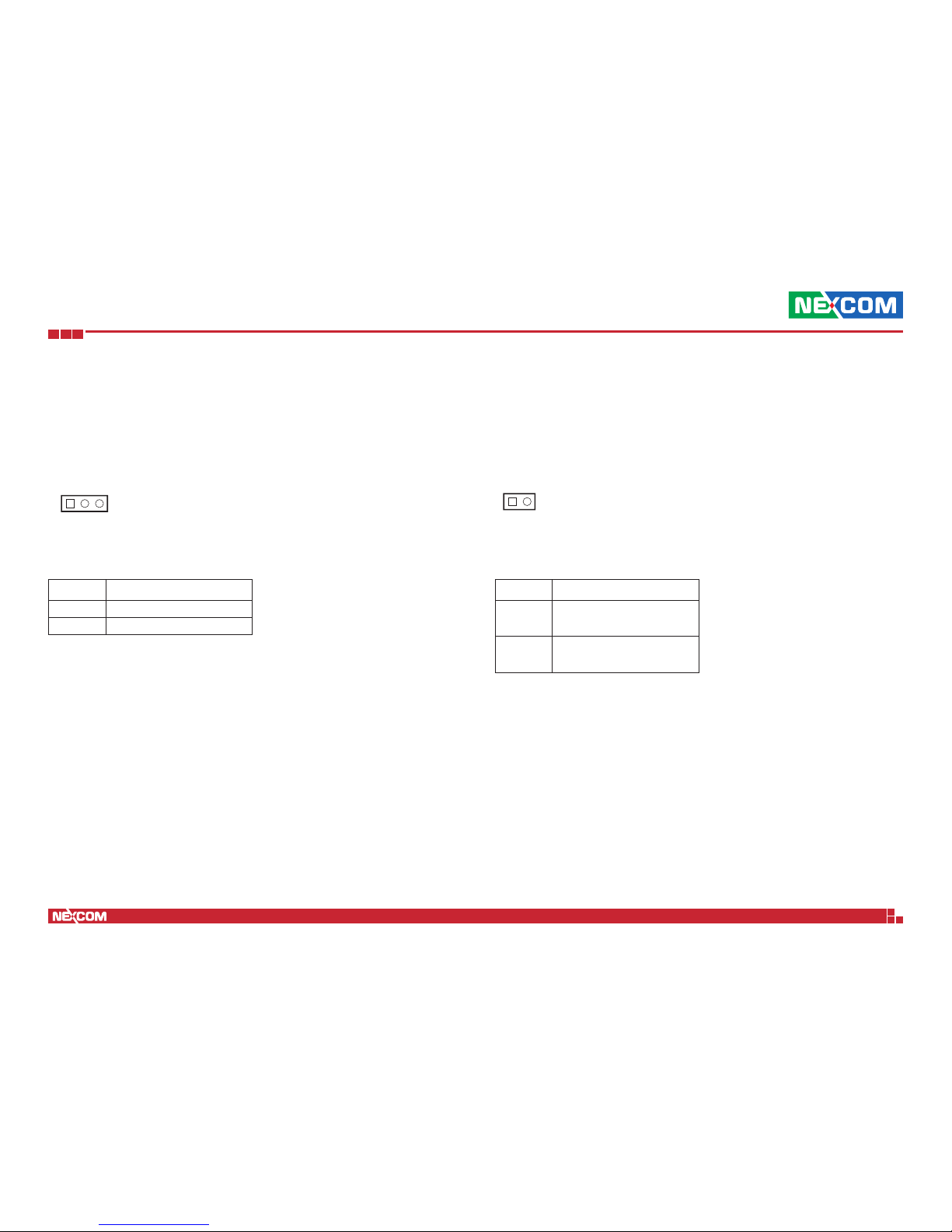

ME Firmware Update

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JMEUP2

1 3

Pin Function

1-2* Disable ME Force Update

2-3 ME Force Update

1-2 On: default

PERST Strap

Connector type: 1x2 2-pin header, 2.54mm Connector location: JP6

Pin Function

NC*

PCIE Device RST signal

refer PCH PLTRST

1-2

PCIE Device RST signal

refer PCH PROCPWRGD

NC: default

12

11

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

BMC Strap

Connector type: 1x2 2-pin header, 2.54mm Connector location: JP10

Console UART Controller Strap

Connector type: 1x2 2-pin header, 2.54mm Connector location: JP11

Pin Function

NC* Enable BMC

1-2 Disable BMC

NC: default

Pin Function

NC* System UART Controller

1-2

BMC Debug UART

Controller

NC: default

12

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

FM_PLD_DEBUG

Connector type: 1x2 2-pin header, 2.54mm Connector location: JP8

Pin Function

NC*

Disable CPLD Debug

Mode

1-2

Enable CPLD Debug

Mode

NC: default

12

13

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External Connectors

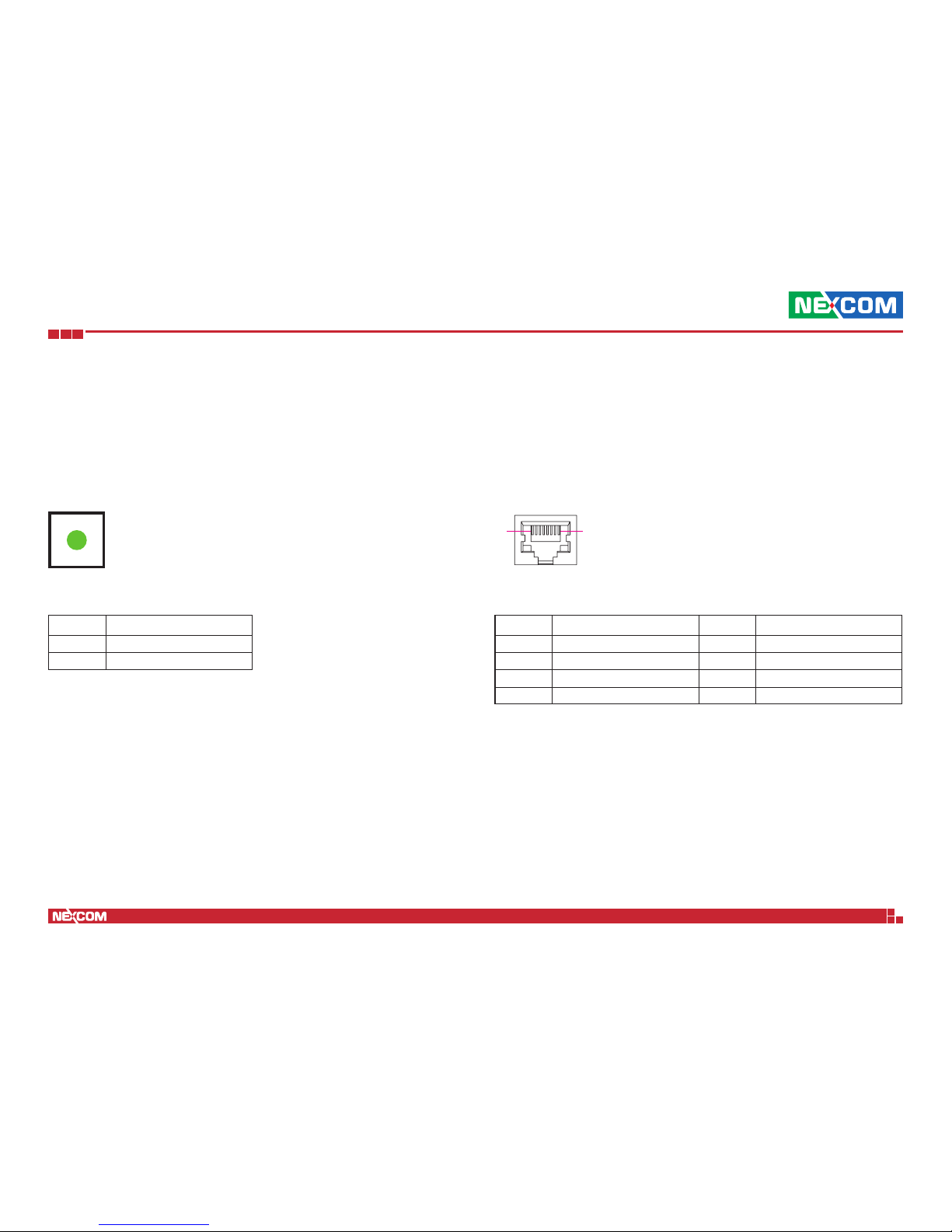

System Reset Button

Connector location: SW3

Pin Definition

1 GND 2 RST_BTN_N

RJ45 Console Port

Connector location: LAN1

81

Pin Definition Pin Definition

1 SP_RTS1_R 2 SP_DTR1_R 3 SP_TXD1_R 4 GND 5 SP_DCD1_R 6 SP_RXD1_R 7 SP_DSR1_R 8 SP_CTS1_CON

14

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

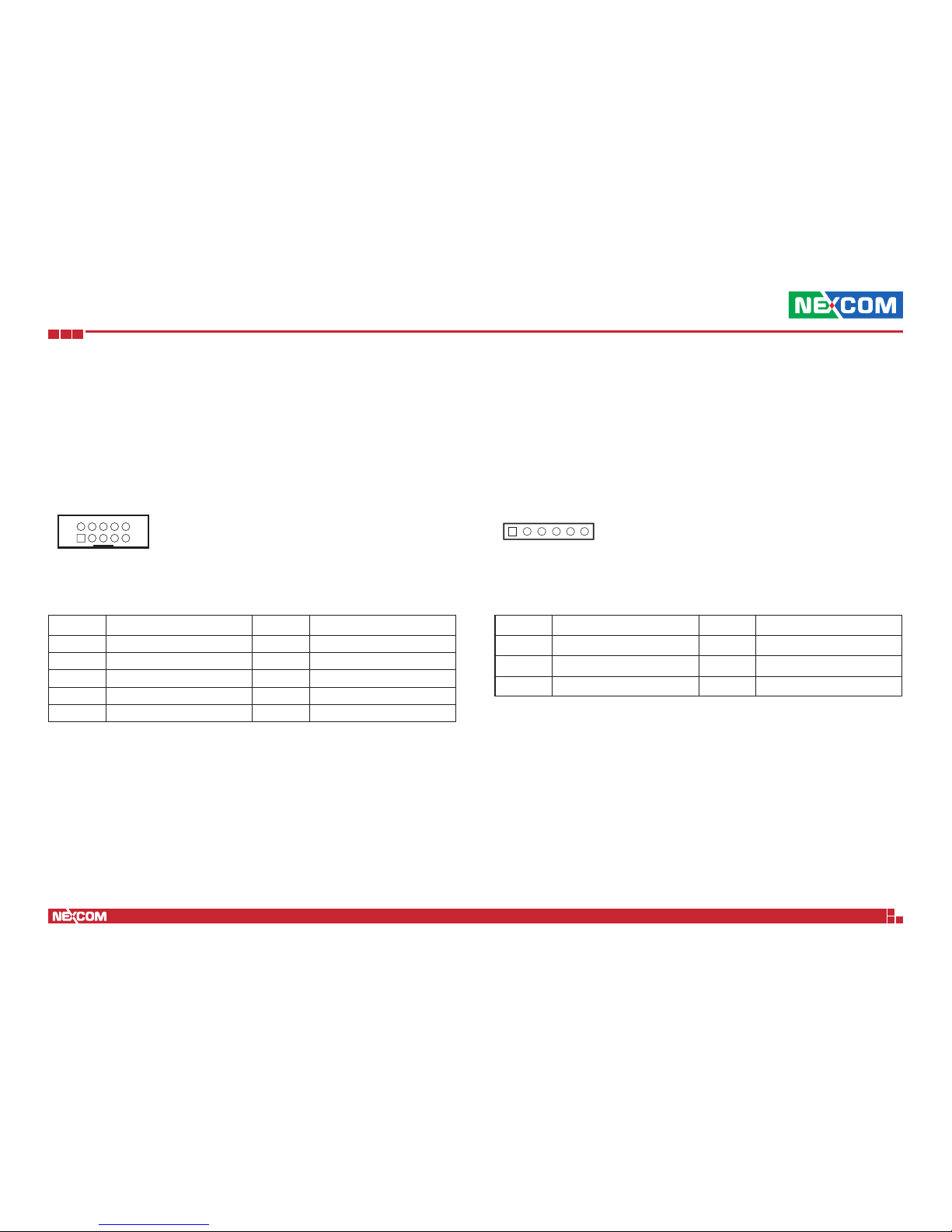

COM 2 Connector

Connector type: 2x5 10-pin header Connector location: CN5

2 1

10 9

Pin Definition Pin Definition

1 SP_DCD2 2 SP_RXD2 3 SP_TXD2 4 SP_DTR2 5 GND 6 SP_DSR2 7 SP_RTS2 8 SP_CTS2 9 SP_RI2 10 GND

CPLD JTAG Pin Header

Connector type: 1x6 6-pin header, 2.54mm Connector location: JP2

Pin Definition Pin Definition

1 P3V3_AUX 2 GND

3 JTAG_ TCK 4 JTAG_TDO

5 JTAG_TDI 6 JTAG_TMS

16

15

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

USB 2.0 JST Connector

Connector type: 1x6 6-pin header, 2.0mm Connector location: J10

16

Pin Definition Pin Definition

1 P5V 2 USB2_L_DN23 USB2_L_DP2 4 USB2_L_DN25 USB2_L_DP2 6 GND

Pin Definition Pin Definition

1 P12V 2 GND 3 GND 4 P5V

CF Module Power

Connector type: 1x4 4-pin Wafer Connector location: CN4

1 4

16

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

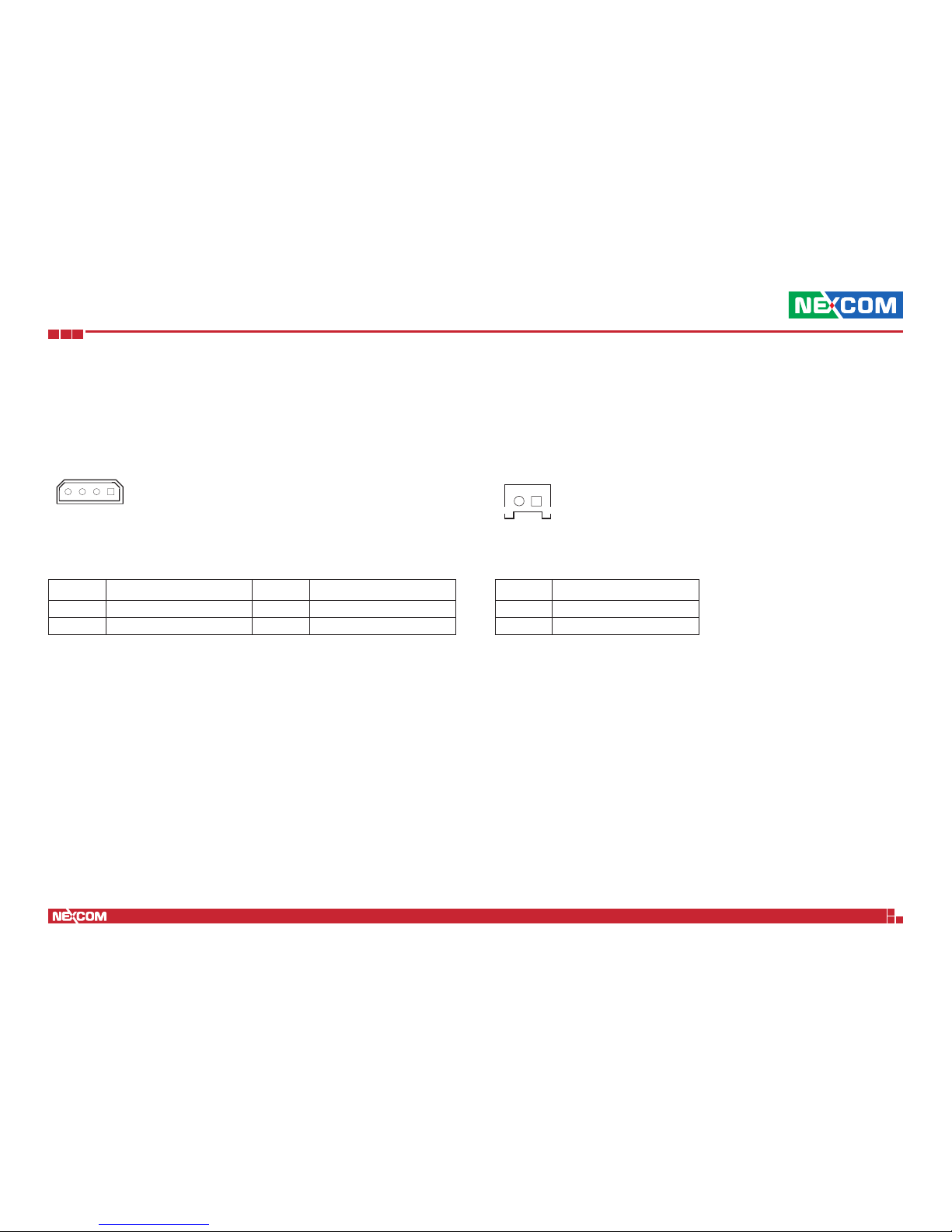

SATA HDD Power Connector

Connector type: 1x4 4-pin header Connector location: J7

14

Pin Definition Pin Definition

1 P12V 2 GND 3 GND 4 P5V

SATA DOM Power Connector

Connector type: 1x2 JST, 2-pin header Connector location: J11

Pin Definition

1 P5V 2 GND

2 1

17

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

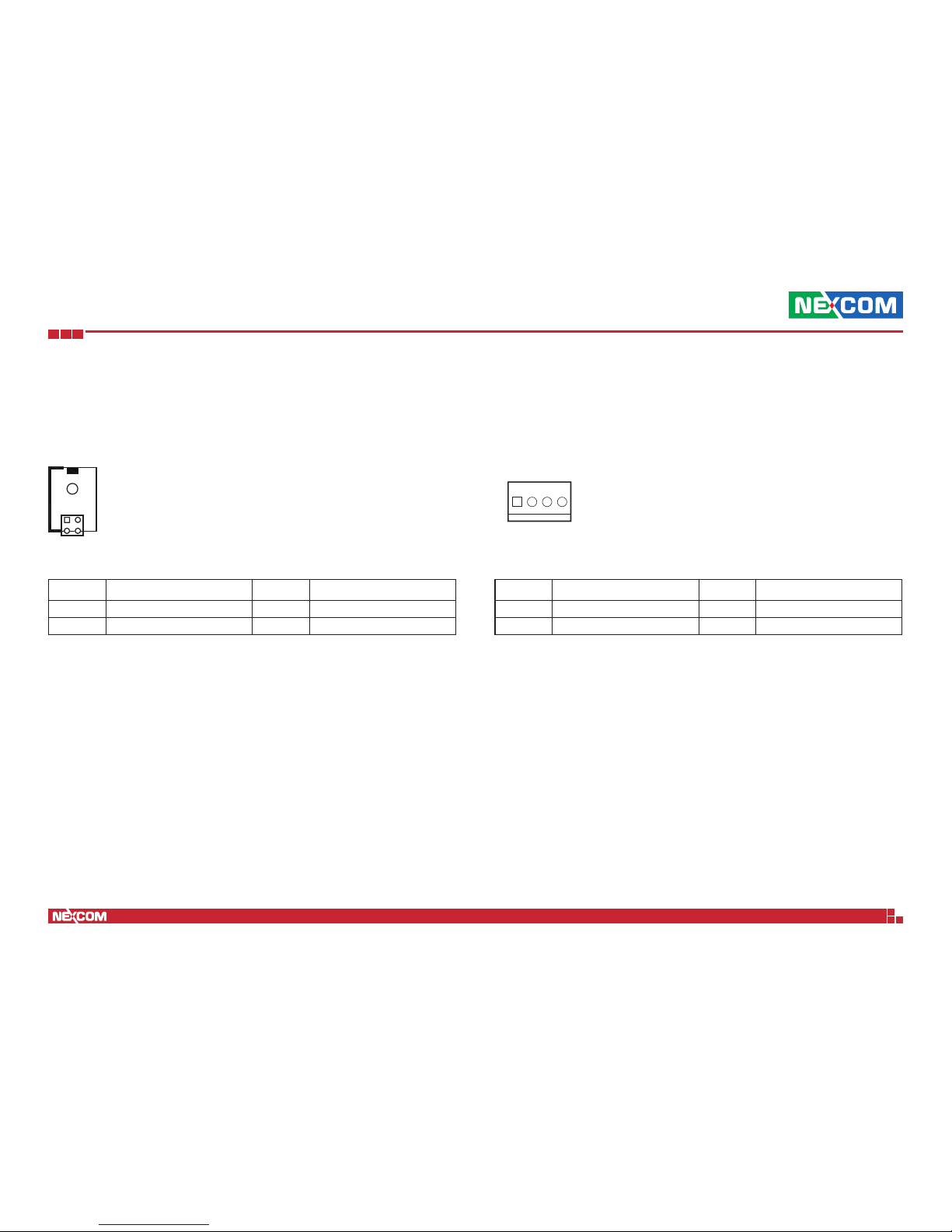

System Fan Connectors

Connector type: 2x2 4-pin header Connector location: CN1, CN2 and FAN3

Pin Definition Pin Definition

1 GND 2 P12V 3 TACH 4 PWM

1

2 4

3

Pin Definition Pin Definition

1 GND 2 P12V 3 TACH 4 PWM

CPU Fan Connectors

Connector type: 1x4 4-pin Wafer Connector location: FAN1 and FAN2

1 4

18

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

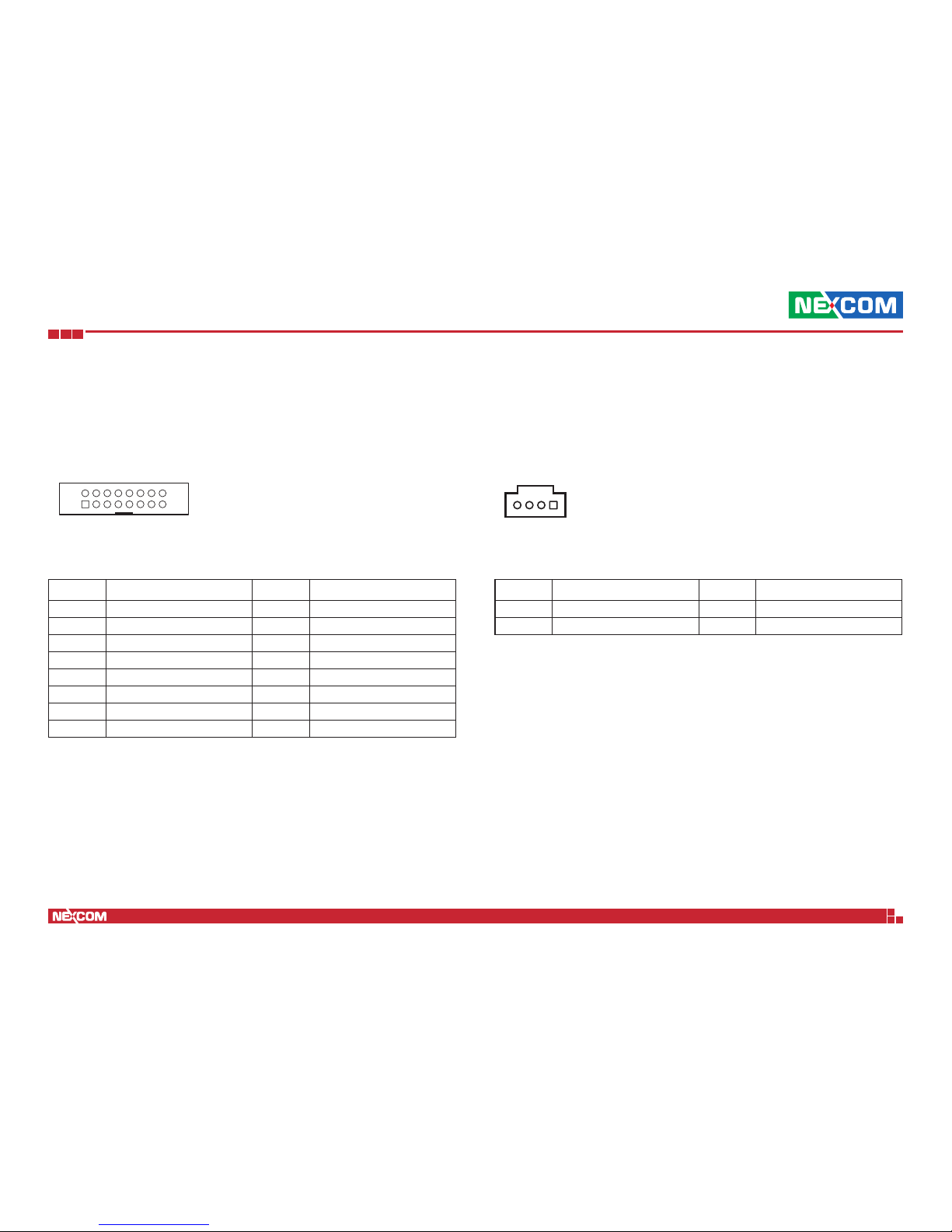

VGA Connector

Connector type: 2x8 16-pin header Connector location: VGACONN1

I2C Debug Header

Connector type: 1x4 4-pin header Connector location: CN6

Pin Definition Pin Definition

1 DACROA_B 2 DACGOA_B 3 DACBOA_B 4 NC 5 GND 6 GND 7 GND 8 GND

9 VGA_VCC 10 GND 11 NC 12 AVSYNCO_B 13 AHSYNCO_B 14 AVSYNCO_B 15 DDC_CLKO_B 16 NC

Pin Definition Pin Definition

1 SMB_IPMB_STBY_C_DATA 2 GND 3 SMB_IPMB_STBY_C_CLK 4 P5V_AUX

1

2

15

16

14

19

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

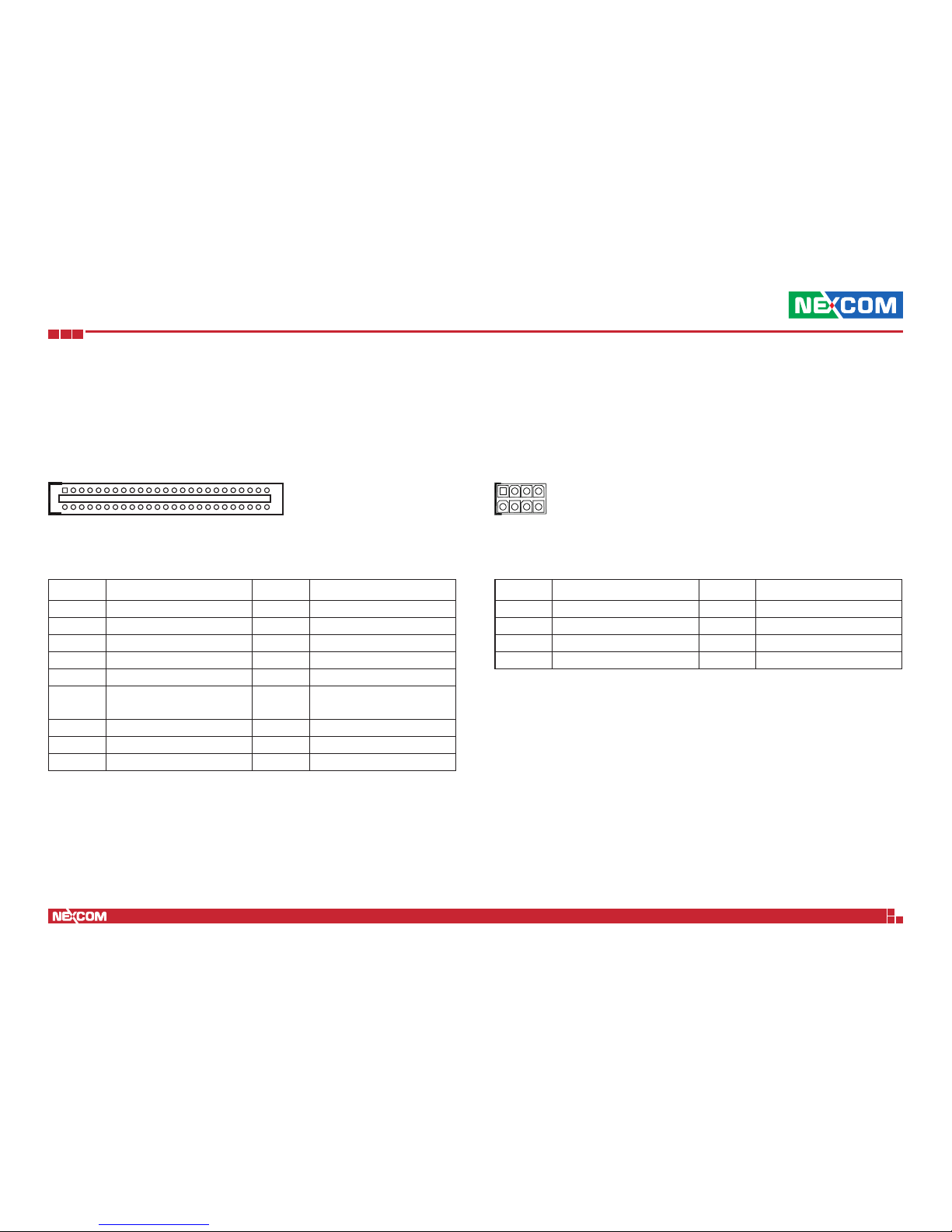

PDB Connector

Connector type: 2x25 50-pin header Connector location: CN3

Internal Power Connectors

Connector type: 2x4 8-pin header Connector location: CON1 and CON2

Pin Definition Pin Definition

A1-A9 GND B1-B9 GND

A10-A18 P12V B10-B18 P12V

A19 PSU_SMB_DATA B19 GND A20 PSU_SMB_CLK B20 PS_EN_PSU_N A21 GND B21 P12V_STBY

A22

IRQ_SML1_PMBUS_

ALERT_N

B22 RETURN_SENSE

A23 PWRGD_PS_PWROK B23 PRESEND1 A24 AC_FAIL_PSU B24 12V_REMOTE_SENSE A25 P3V3_AUX B25 PRESEND2

Pin Definition Pin Definition

1 GND 2 GND 3 GND 4 GND 5 P12V 6 P12V 7 P12V 8 P12V

A1 A25 1 4

5 8

B25B1

20

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

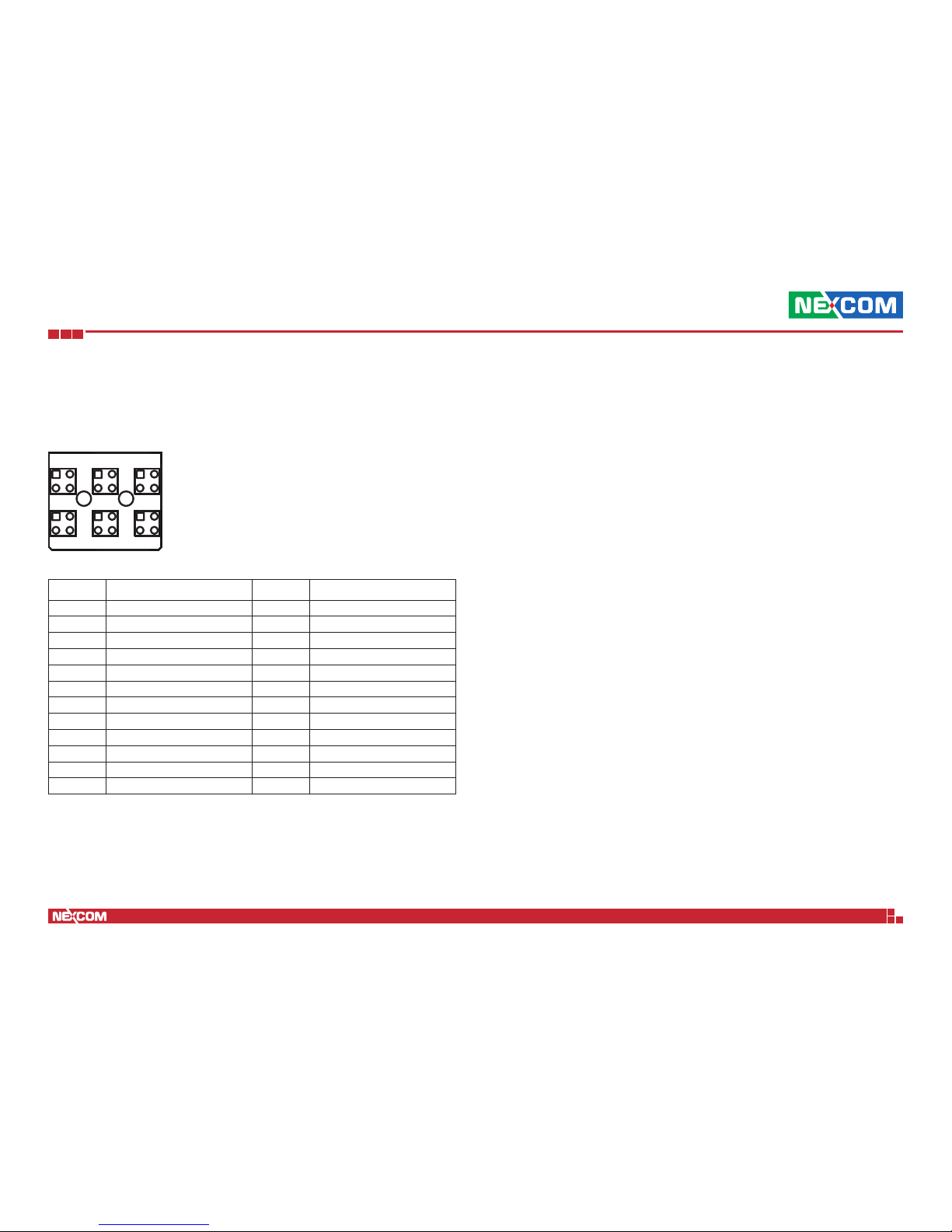

Riser Card Power Connector

Connector type: 2x3 6-pin header Connector location: CON3

Pin Definition Pin Definition

A1 P3V3 D1 P3V3_AUX A2 P3V3 D2 P3V3_AUX A3 P3V3 D3 P3V3_AUX A4 P3V3 D4 P3V3_AUX B1 P5V E1 GND B2 P5V E2 GND B3 P5V E3 GND B4 P5V E4 GND C1 P12V F1 GND C2 P12V F2 GND C3 P12V F3 GND C4 P12V F4 GND

A1 A2

A3 A4

B1 B2

B3 B4

C1 C2

C3 C4

D1 D2

D3 D4

E1 E2

E3 E4

F1 F2

F3 F4

21

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

Riser Card Signals Connector

Connector type: 6x9 54-pin header Connector location: J9

A

B

C

D

E

F

G

H

I

A

B

C

D

E

F

G

H

I

16

Pin Definition Pin Definition

F1 CON2_TX_DP0 F2 CON2_RX_DP0 F3 CON2_RX_DP1 F4 CON2_RX_DP2

F5 CON2_RX_DP3 F6 CON2_TX_DP6 G1 GND G2 GND G3 GND G4 GND G5 GND G6 GND

H1 CON2_TX_DN1 H2 CON2_TX_DN2

H3 CON2_TX_DN3 H4 CON2_TX_DN4

H5 CON2_TX_DN5 H6 CON2_TX_DP7

I1 CON2_TX_DP1 I2 CON2_TX_DP2 I3 CON2_TX_DP3 I4 CON2_TX_DP4 I5 CON2_TX_DP5 I6 CON2_TX_DN7

Pin Definition Pin Definition

A1 LPC_LAD0 A2 LPC_LAD1 A3 LPC_LAD2 A4 LPC_LAD3 A5 LPC_FRAME_N A6 CK_33M_PCIE3 B1 GND B2 CON2_RX_DN7 B3 CON2_RX_DN6 B4 CON2_RX_DN5 B5 CON2_RX_DN4 B6 GND C1 PWRGD_PCH_PWROK C2 CON2_RX_DP7 C3 CON2_RX_DP6 C4 CON2_RX_DP5 C5 CON2_RX_DP4 C6 RST_PERST1_N D1 GND D2 GND D3 GND D4 GND D5 GND D6 GND E1 CON2_TX_DN0 E2 CON2_RX_DN0 E3 CON2_RX_DN1 E4 CON2_RX_DN2 E5 CON2_RX_DN3 E6 CON2_TX_DN6

22

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

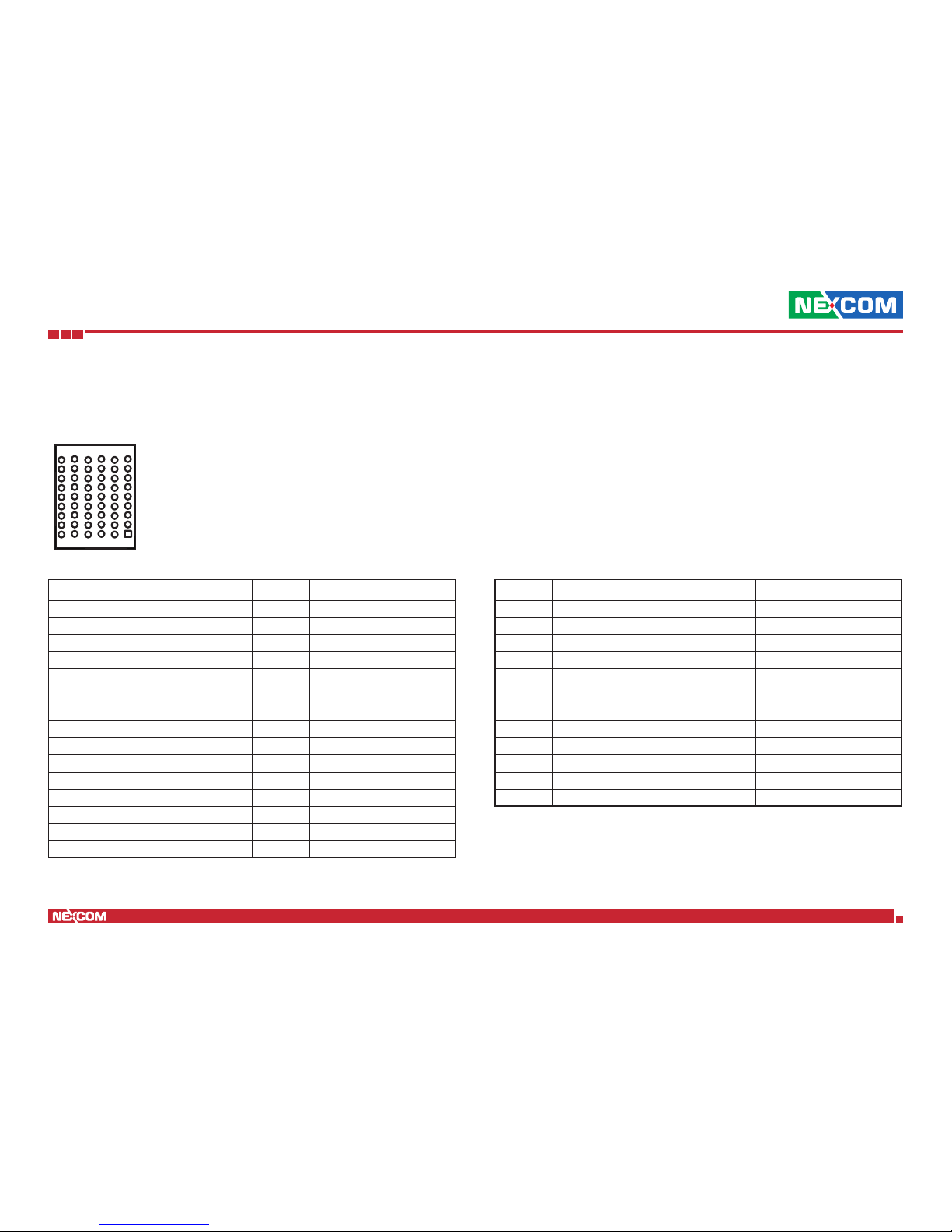

Riser Card Signals Connector

Connector type: 6x9 54-pin header Connector location: J8

A

B

C

D

E

F

G

H

I

A

B

C

D

E

F

G

H

I

16

Pin Definition Pin Definition

F1 CON1_TX_DP0 F2 CON1_RX_DP0

F3 CON1_RX_DP1 F4 CON1_RX_DP2

F5 CON1_RX_DP3 F6 CON1_TX_DP6 G1 GND G2 GND G3 GND G4 GND G5 GND G6 GND H1 CON1_TX_DN1 H2 CON1_TX_DN2 H3 CON1_TX_DN3 H4 CON1_TX_DN4 H5 CON1_TX_DN5 H6 CON1_TX_DP7

I1 CON1_TX_DP1 I2 CON1_TX_DP2 I3 CON1_TX_DP3 I4 CON1_TX_DP4 I5 CON1_TX_DP5 I6 CON1_TX_DN7

Pin Definition Pin Definition

A1 CLK_33K_SUSCLK A2 SMB _CLK A3 SMB _DATA A4 NC A5 GND A6 GND

B1 RISER_FAN_TAC B2 CON1_RX_DN7 B3 CON1_RX_DN6 B4 CON1_RX_DN5

B5 CON1_RX_DN4 B6 CLK_100M _DN C1 PWRGD C2 CON1_RX_DP7 C3 CON1_RX_DP6 C4 CON1_RX_DP5 C5 CON1_RX_DP4 C6 CLK_100M _DP D1 GND D2 GND D3 GND D4 GND D5 GND D6 GND

E1 CON1_TX_DN0 E2 CON1_RX_DN0

E3 CON1_RX_DN1 E4 CON1_RX_DN2

E5 CON1_RX_DN3 E6 CON1_TX_DN6

23

NSA 7130 User Manual

Chapter 2: Jumpers and Connectors

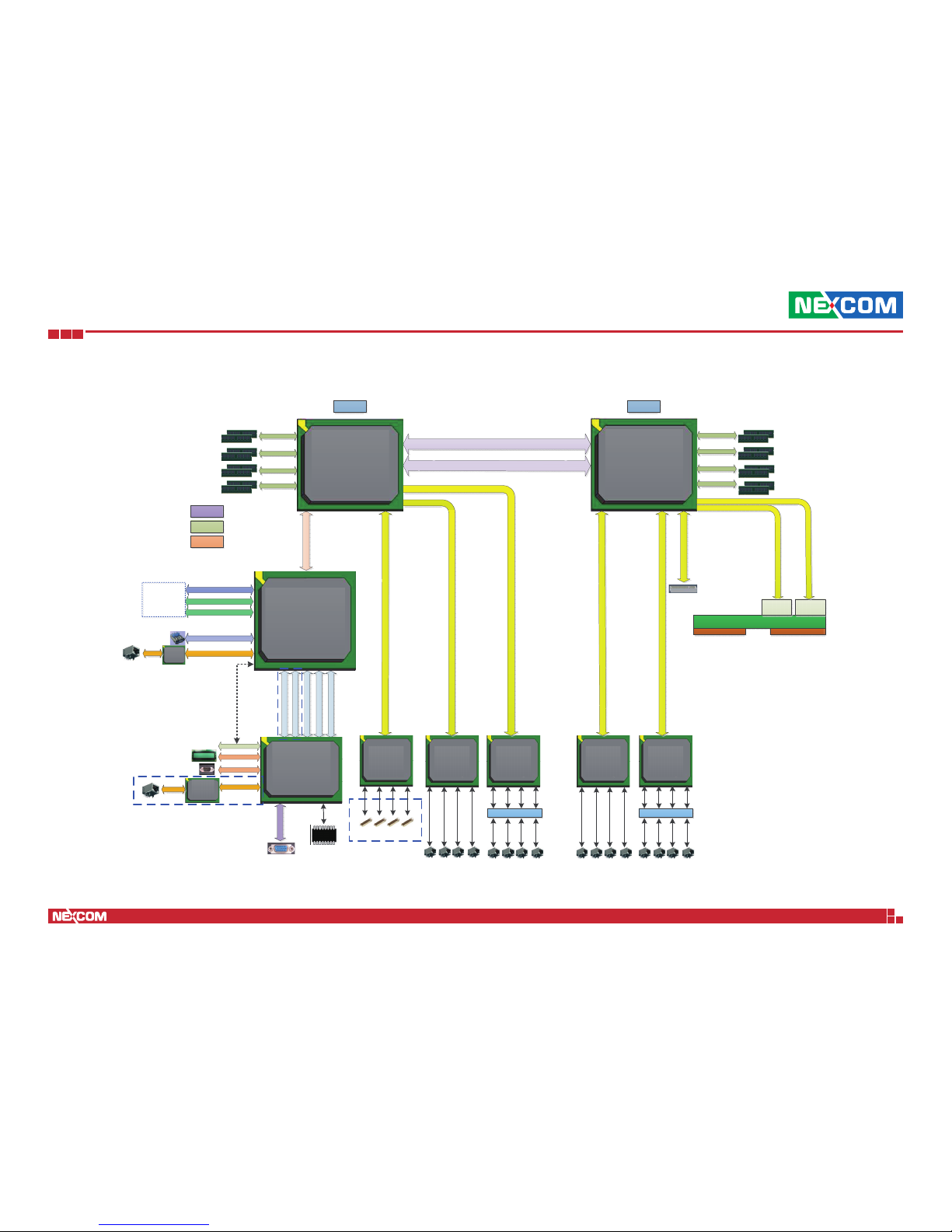

Block Diagram

CPLD

CK420

DB1900

Channel 1

Channel 3

Channel 4

Channel 2

8x DDR4

(4 Channel / 2DPC)

8x DDR4

(4 Channel / 2DPC)

DMI2 x4 (4 GB/s)

PCIe Gen1 x1

SMBus

USB1.1

USB2.0

LPC (33MHz)

3x SATA3 Port

USB2.0

SATA3

2x USB2.0 Por t

1x SATA DOM

VR 12.5 VR 12.5

Channel 2

Channel 3

Channel 4

Internal Connector

PCH

Wellsburg

CPU0

Haswell EP

2x

UART

SPI

8MB SPI Flash

RGMII

PHY

RTL8211D

BMC

AST2300/

1300

VIDEO RGB

(Rear)

128MB

DDR-3

AST2300 support only

AST2300

support only

Intel I211 MAC/PHY

QPI (9.6GT/s)

CPU1

Haswell EP

USB3.0

PCIe Gen2 x1

UART

Intel I350

P

C

I

e

G

e

n

3

x

8

4x 10GbE SFP+

8x GbE RJ45/SFP

PCIe Gen3 x4

Mid-Plane

P

C

I

e

G

e

n

3

x

4

PCIe x16 Connector PCIe x16 Connector

PCIe Gen3 x8

PCIe Gen3 x4

Connector

Intel

XL710

PCIe Gen3 x8

8x GbE RJ45/SFP

By-Pass By-Pass

PCIe Gen3 x8

Connector

24

NSA 7130 User Manual

Chapter 3: System Setup

2. Gently slide the cover outwards, then lift up the cover to remove it.

ChaPter 3: system setuP

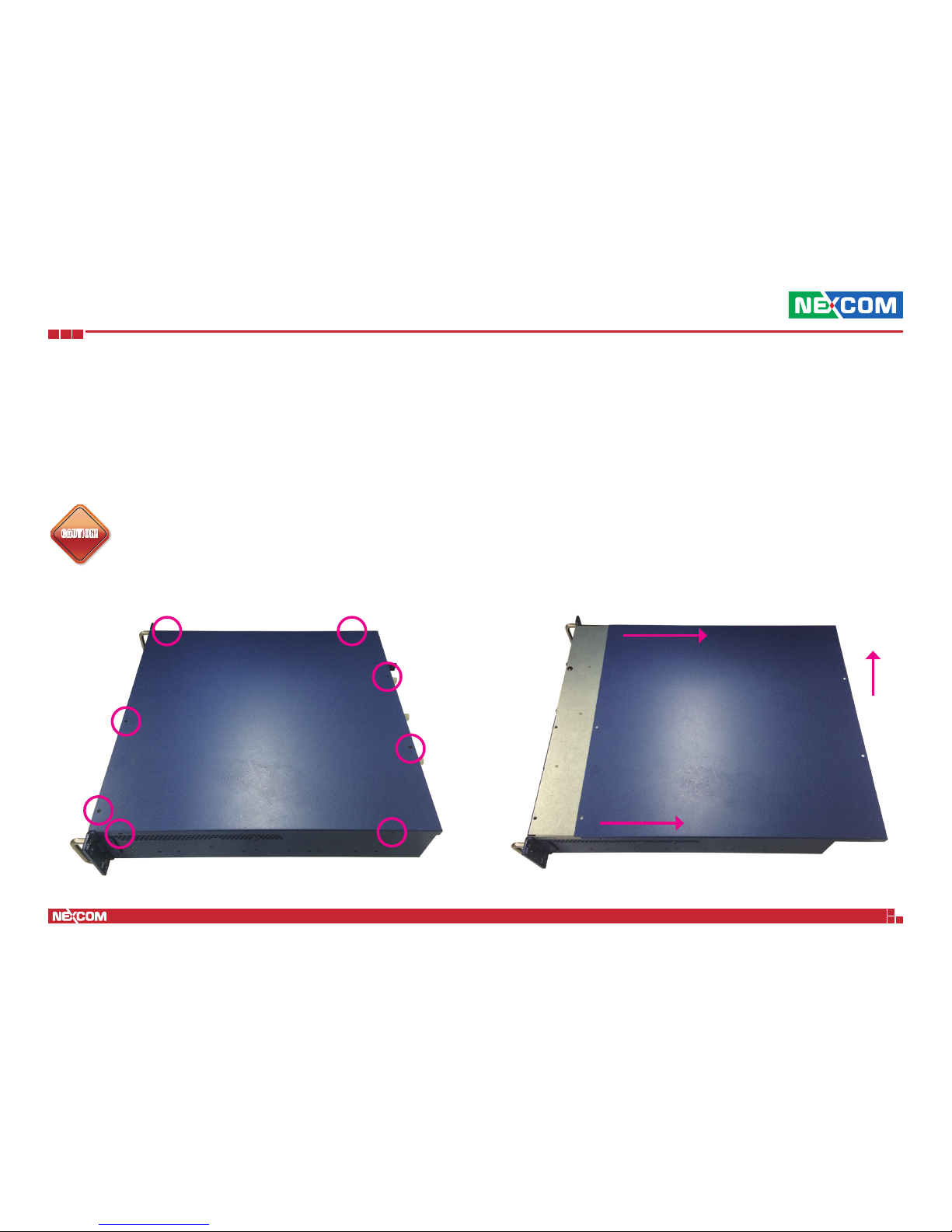

Removing the Chassis Cover

1. Remove the screws on the chassis cover then put them in a safe place for later use.

CAUTION!

CAUTION!CAUTION!

Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

Lift here

25

NSA 7130 User Manual

Chapter 3: System Setup

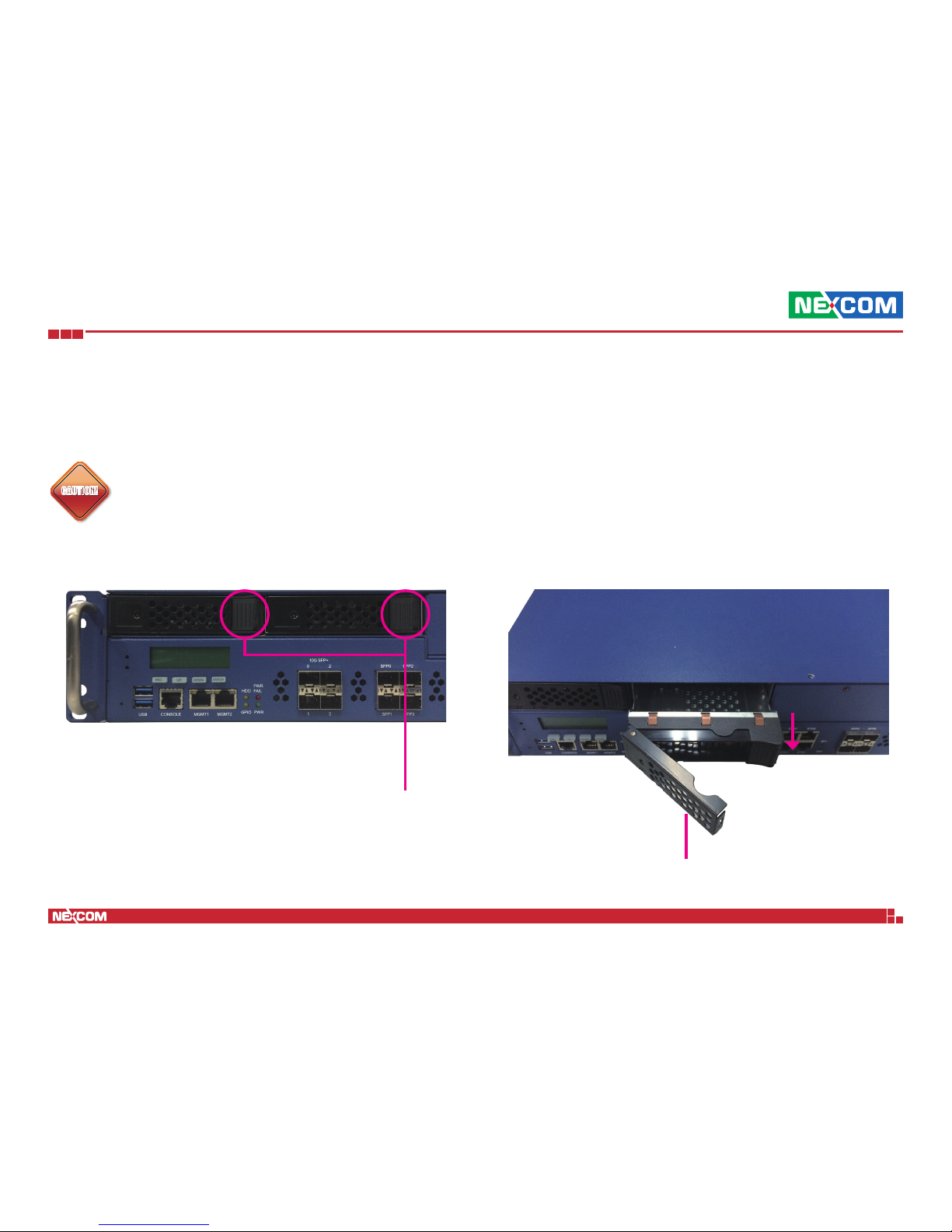

Installing an External SATA Hard Drive

The system is equipped with 2 external SATA 3.5” HDD drive bays. To install a SATA HDD, please follow the instructions below.

1. Push the eject button on the desired HDD drive bay to release the latch.

Please correctly follow the below instructions and noted items to avoid making unnecessary damages.

2. Grab on the latch and pull the drive tray out gently.

Eject button

CAUTION!

CAUTION!CAUTION!

Latch

26

NSA 7130 User Manual

Chapter 3: System Setup

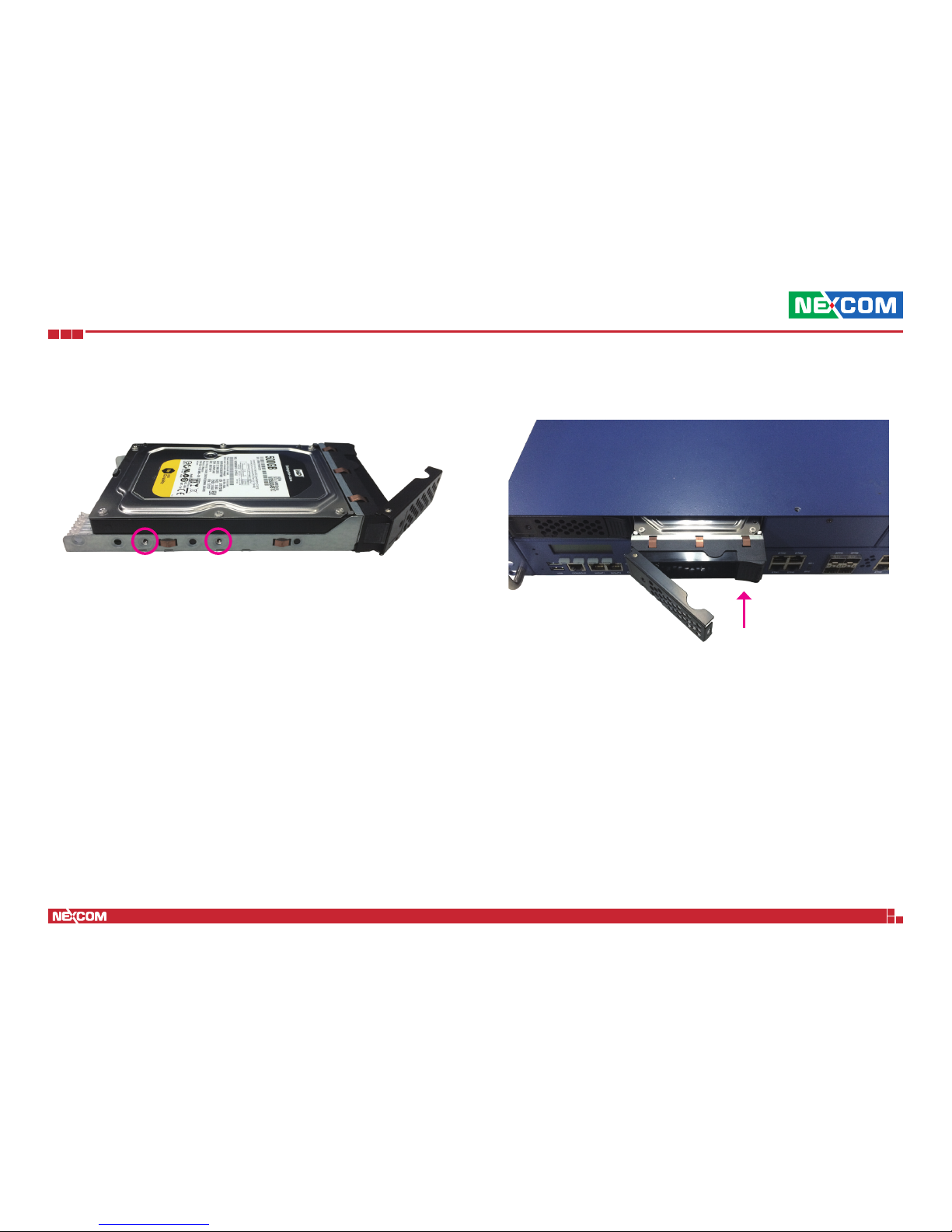

3. Place the SATA drive onto the tray and align the mounting holes on the drive with the mounting holes on the tray, then use the provided mounting screws to secure the drive in place.

5. Slide the tray back into the drive bay, and push firmly until you hear a distinctive click sound.

4. Repeat step 3 for securing the screws on the other side of the HDD tray.

27

NSA 7130 User Manual

Chapter 3: System Setup

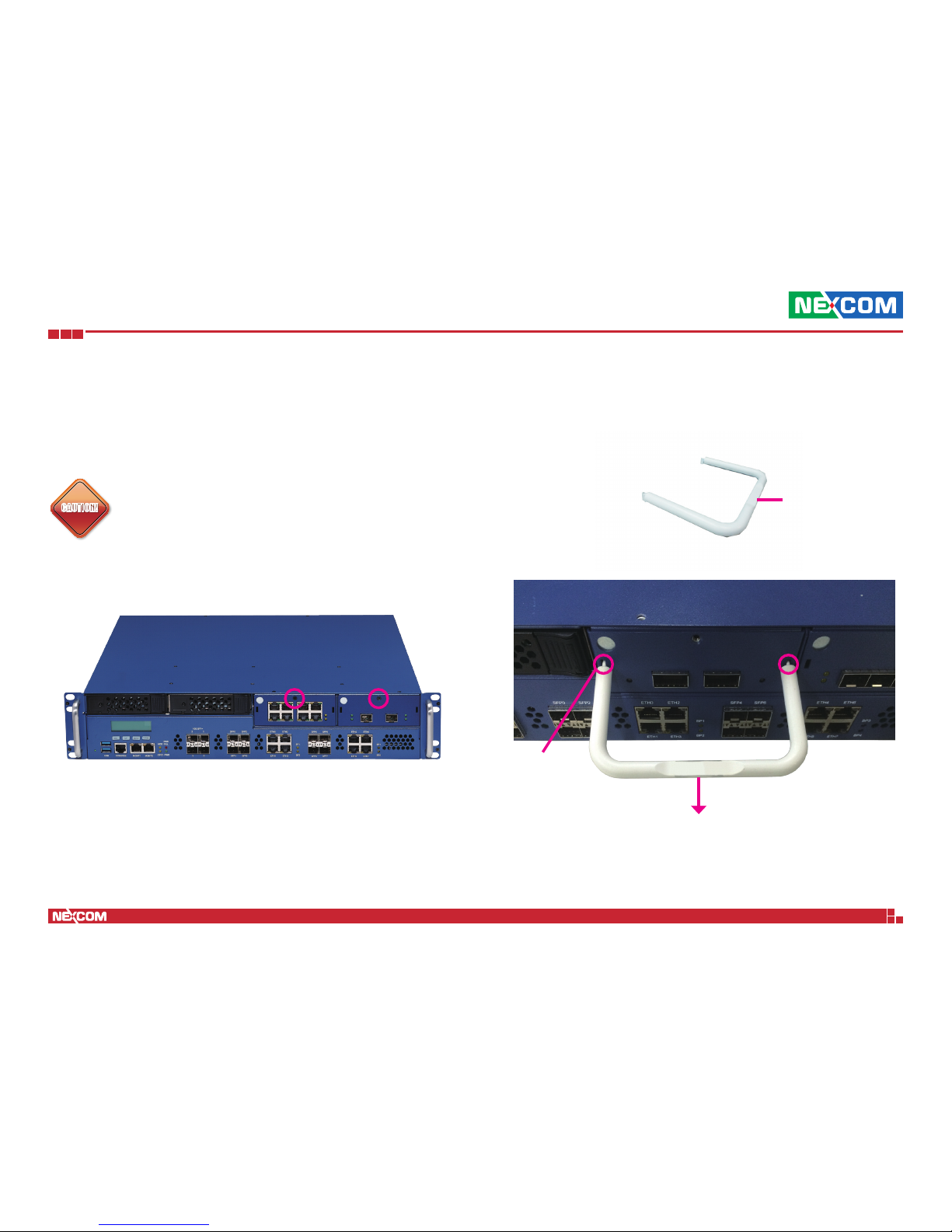

Installing a LAN Module

The system is equipped with 2 LAN module bays. To install a LAN module, please follow the instructions below.

1. Remove the screw on the LAN module then put them in a safe place for later use.

Please correctly follow the below instructions and noted items to avoid making unnecessary damages. Make sure the power supply is switched off and disconnected from the power sources before replacing or adding LAN modules to prevent electric shock or system damage.

CAUTION!

CAUTION!CAUTION!

2. Use the handle provided, and insert the handle into the two holes on the LAN module.

Handle

Insert here

3. Once the handle is firmly secured in position, pull the handle outwards to remove the LAN module bay.

28

NSA 7130 User Manual

Chapter 3: System Setup

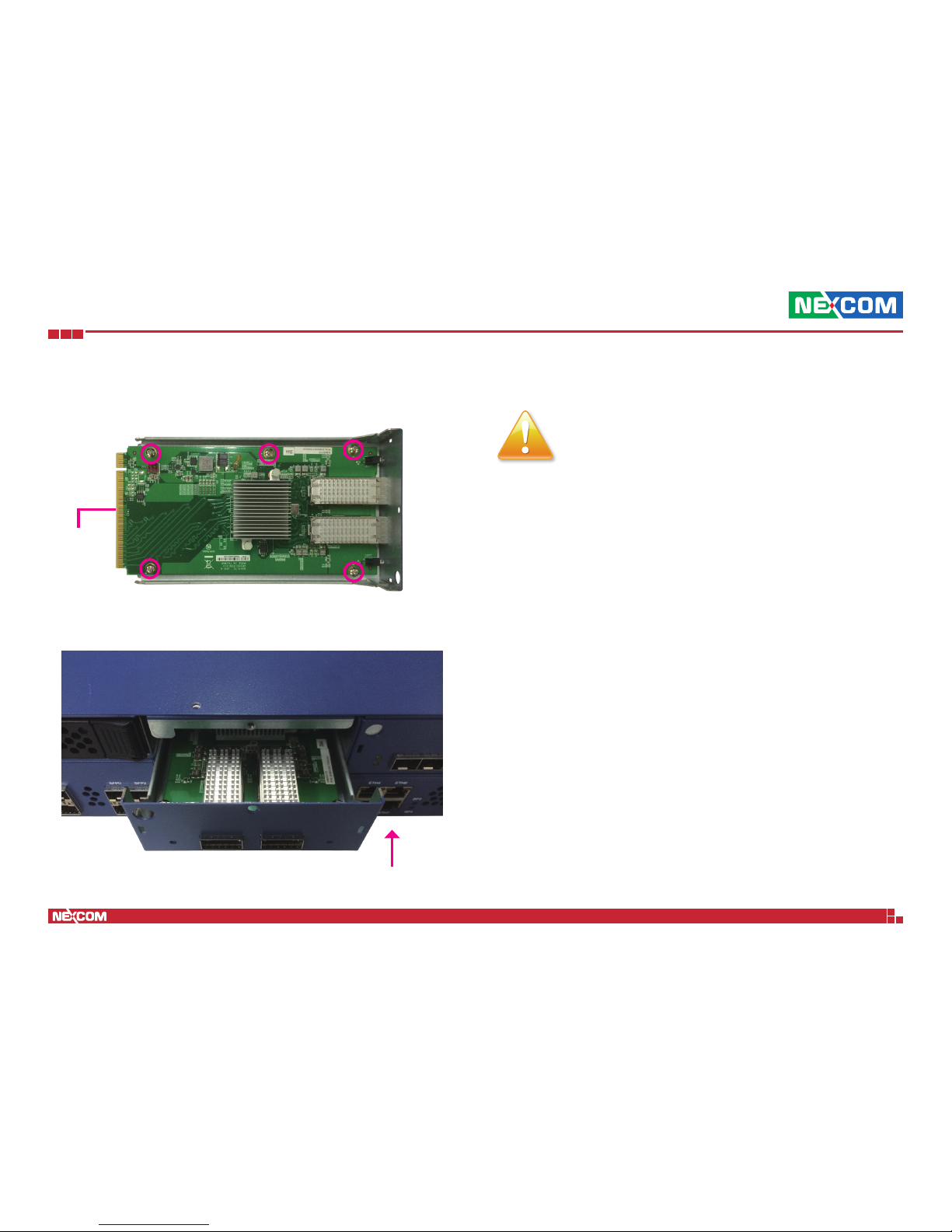

4. Place the LAN module into the tray making sure the connector side of the module is at the rear side of the tray.

Important:

Before using Optical fiber for transferring data, make sure you have connected an approved Optical Transceiver Module. User needs to install appropriate and UL approved Laser Class I Transceivers, rated 3.3Vdc, max. 1W.

5. Secure the module in place with screws, and slide the tray back into the bay.

Connector

side

29

NSA 7130 User Manual

Chapter 3: System Setup

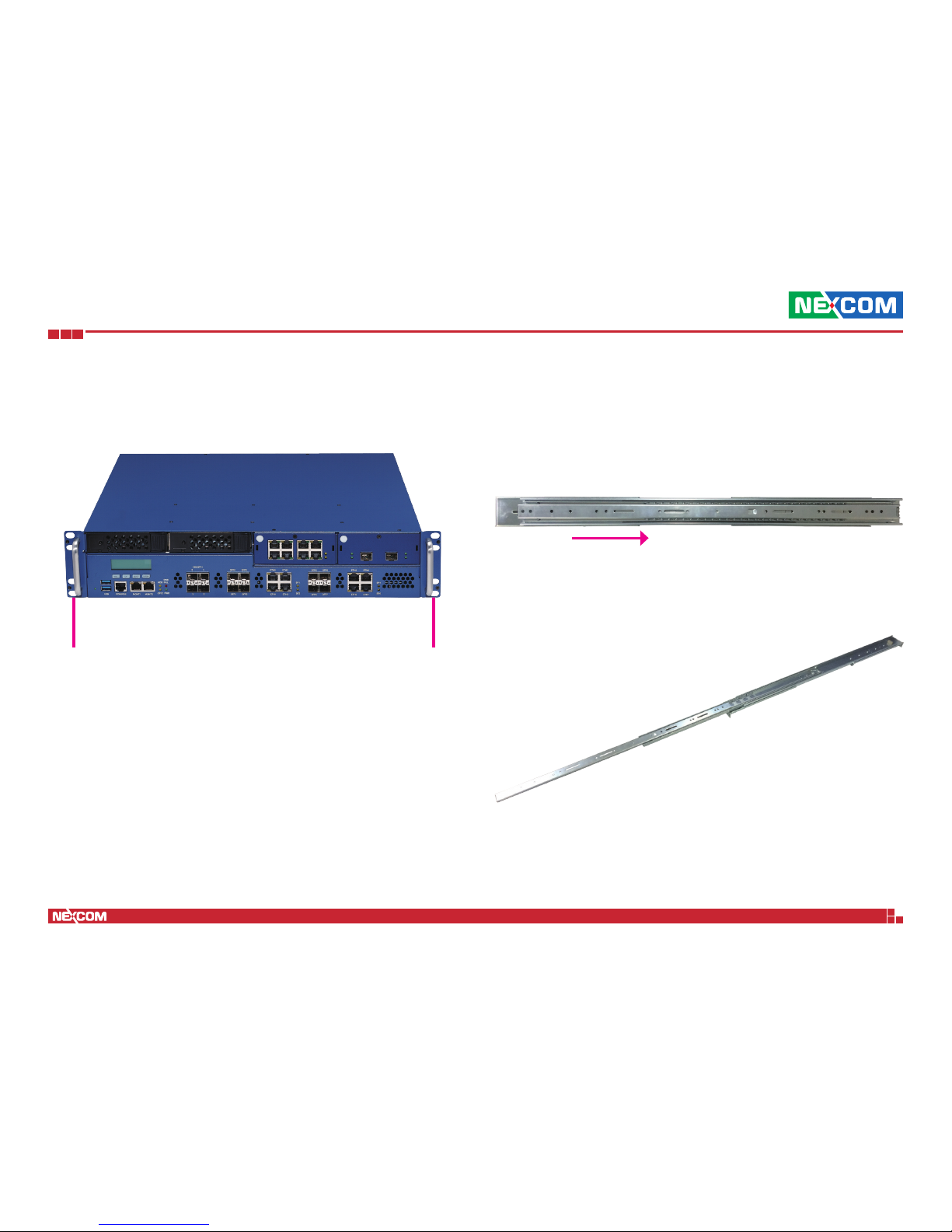

Installing the Rackmount Rails

The system comes with rack ears installed on the front panel. The rack ears are used to support the system in a rack cabinet.

1. Extend the rackmount rail to its maximum length.

Rack ear Rack ear

Slide here

Fully extended rail

30

NSA 7130 User Manual

Chapter 3: System Setup

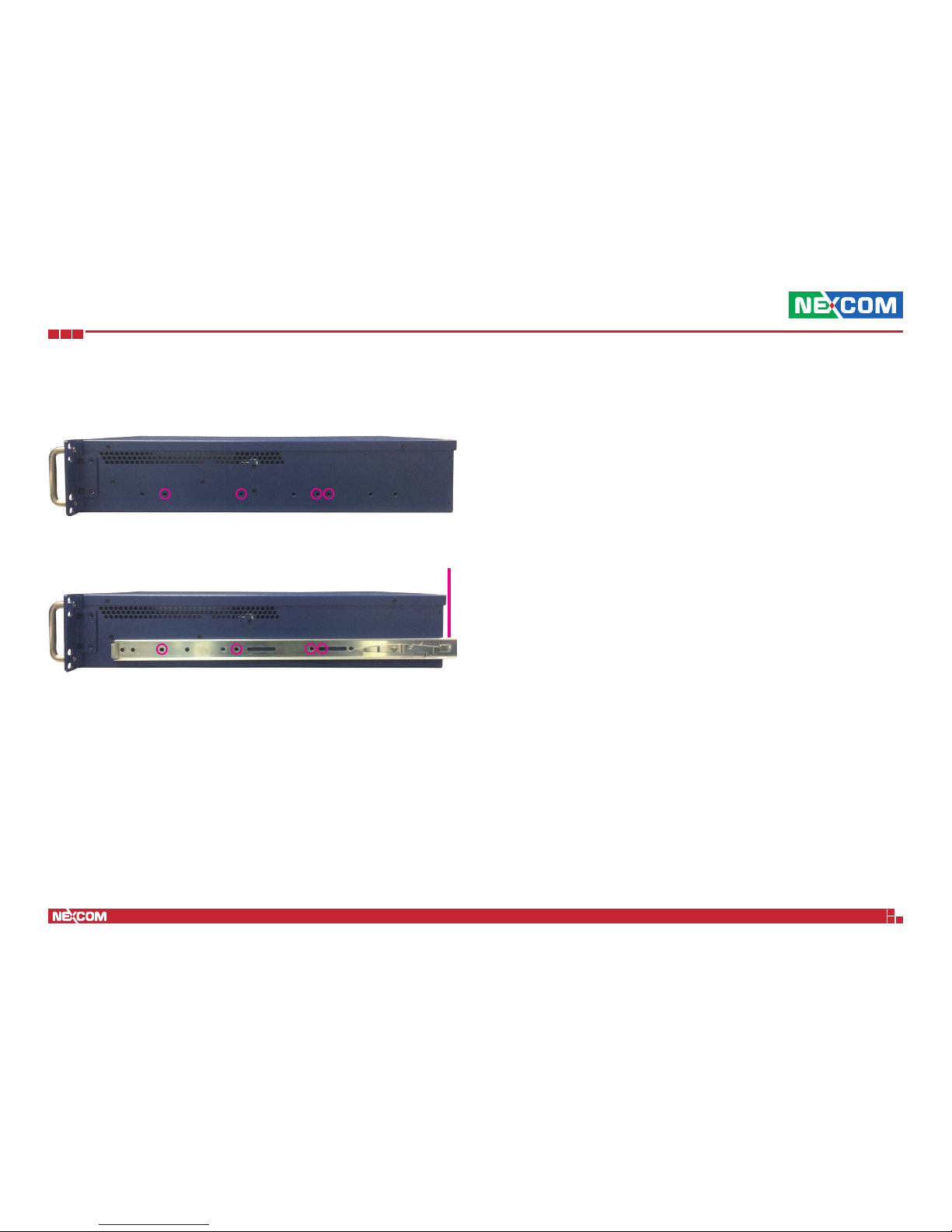

2. Align the mounting holes on the rackmount rail with the mounting holes on one side of the system then secure the rackmount rail with mounting screws.

3. Repeat steps 1 and 2 to secure the other rackmount rail to the other side.

Rackmount rail

Rackmount Instructions

1. Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.

2. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.

3. Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.

4. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

5. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).”

31

NSA 7130 User Manual

Chapter 4: BIOS Setup

ChaPter 4: BIos setuP

This chapter describes how to use the BIOS setup program for the NSA 7130. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM website at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

32

NSA 7130 User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing allows you to enter Setup.

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menu or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

Saves and resets the system.

Press <Enter> to enter the highlighted sub-menu

33

NSA 7130 User Manual

Chapter 4: BIOS Setup

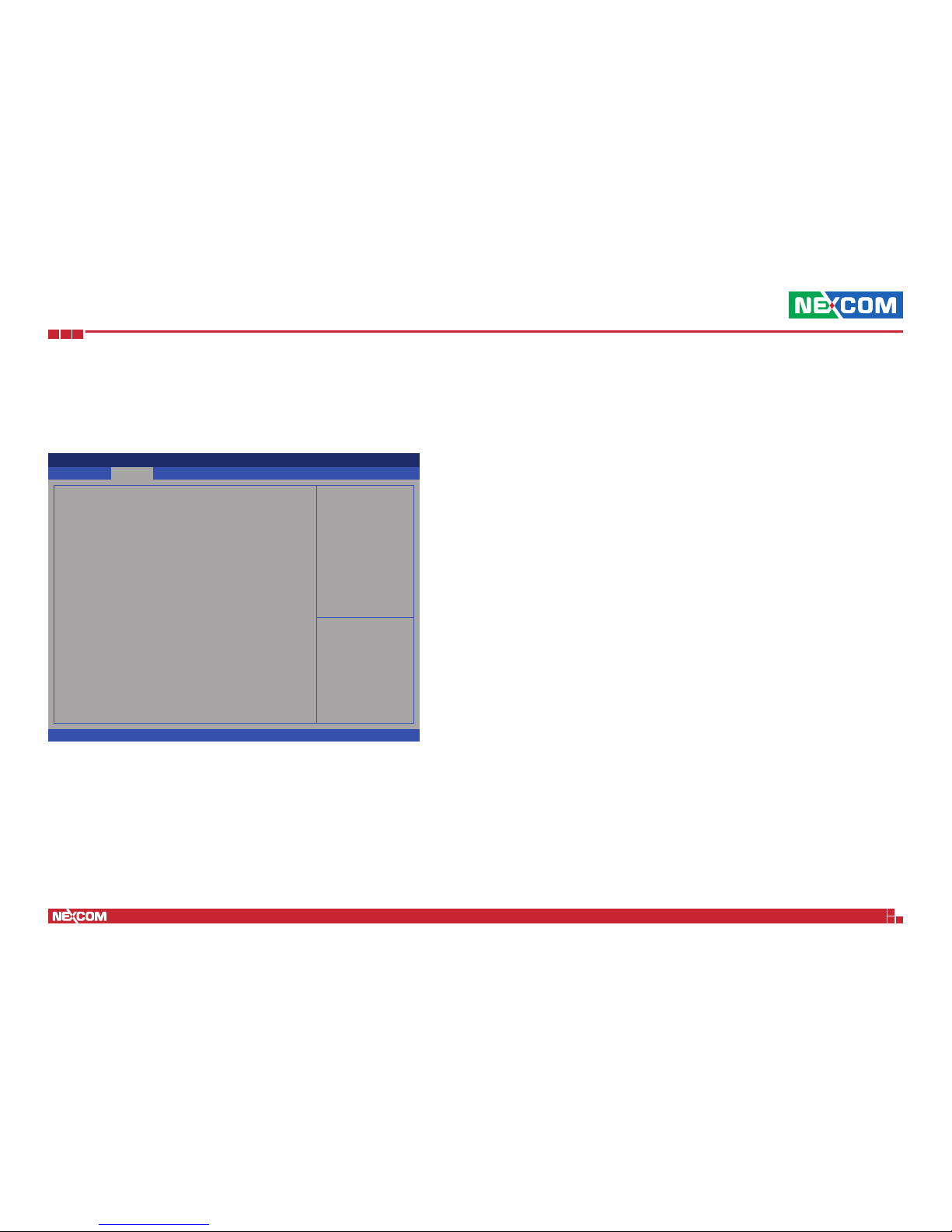

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

34

NSA 7130 User Manual

Chapter 4: BIOS Setup

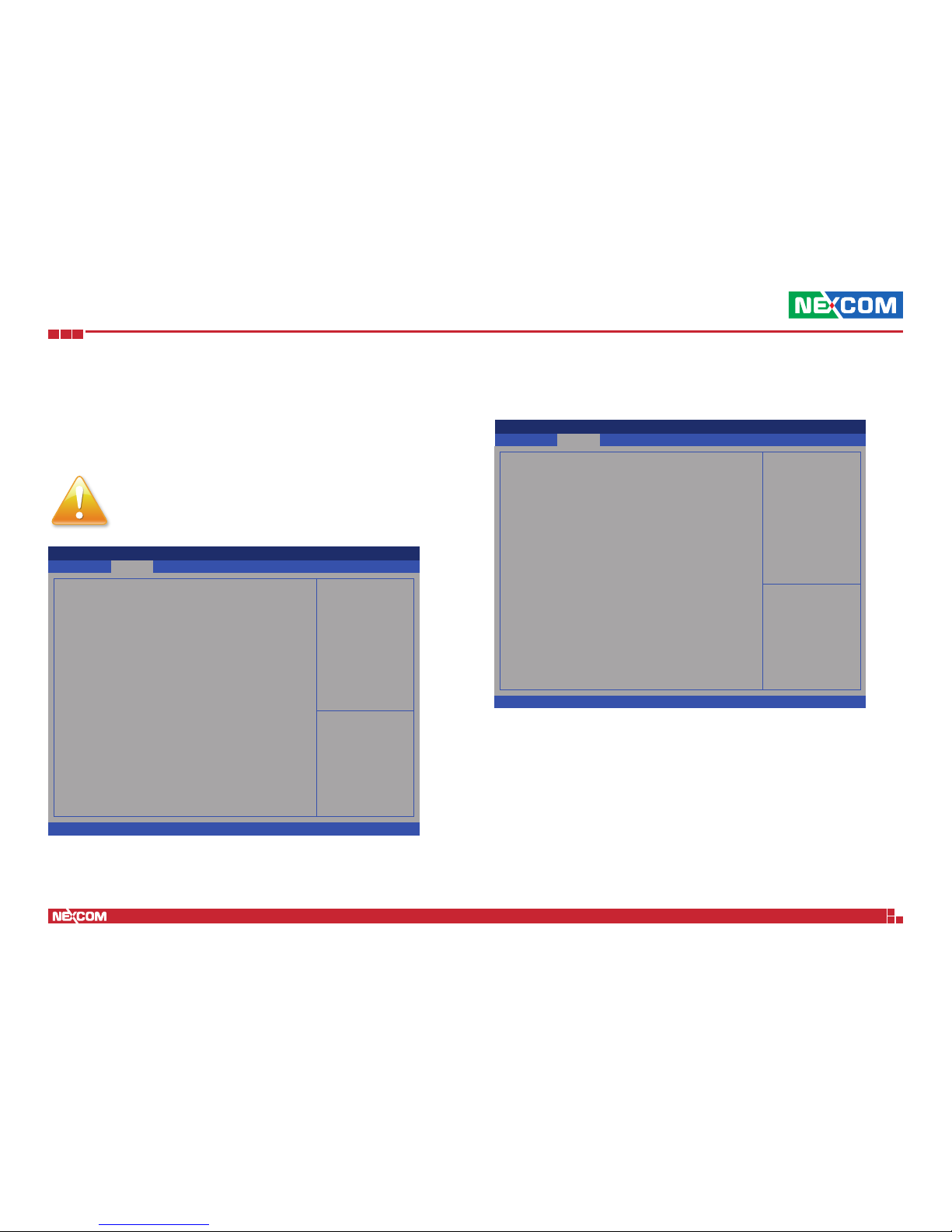

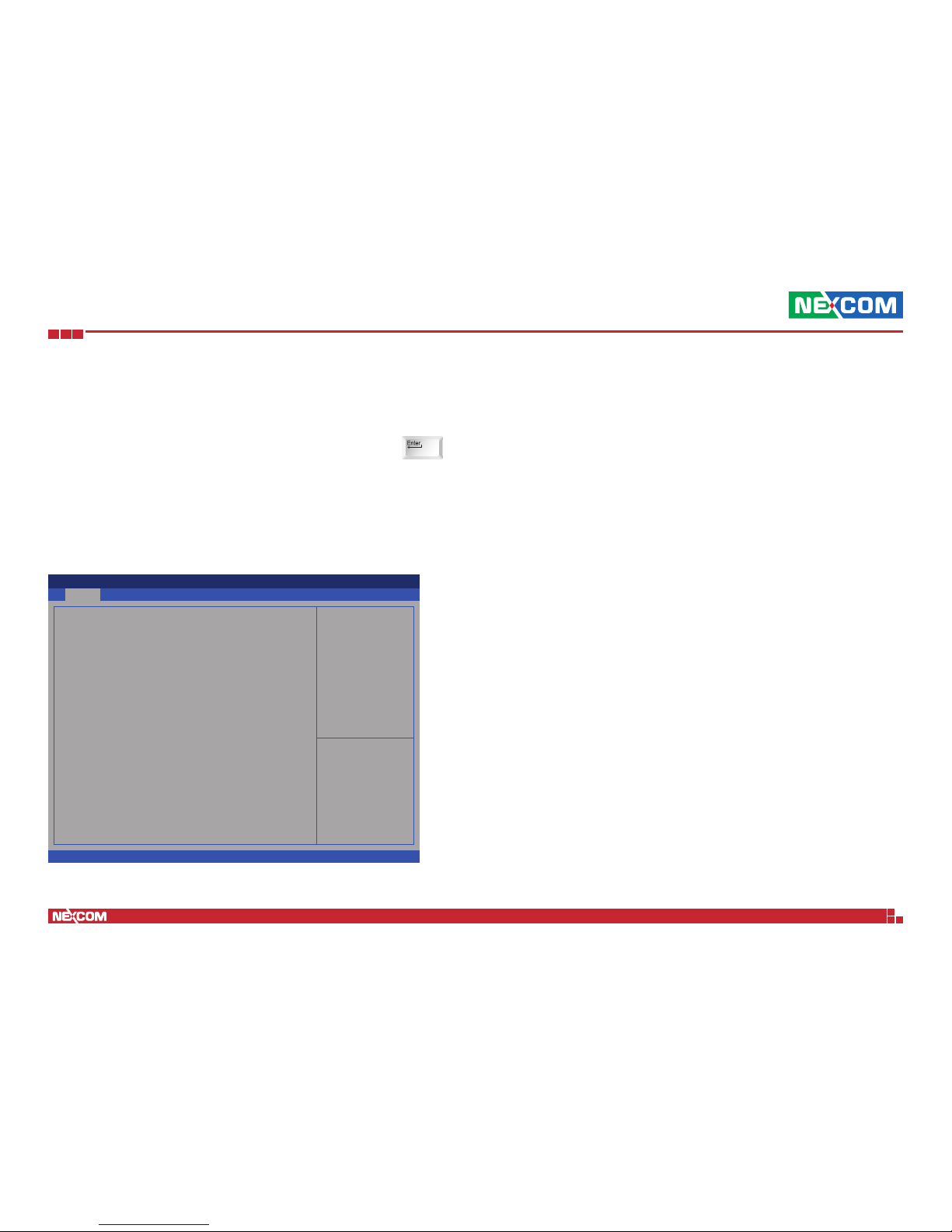

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Save & ExitAdvanced IntelRCSetup Server Mgmt

Security Boot

Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Set the Date. Use Tab to switch between Date elements.

BIOS Information

BIOS Vendor Core Version Compliancy Project Version Build Date and Time

Memory Information

Total Memory

System Date

System Time

Access Level

American Megatrends

5.009 UEFI 2.3; PI 1.2 G715- 0.06 x64 04/14/2015 14:54:45

4096 MB

[Mon 05/12/2014] [07:12:16]

Administrator

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Access Level

Displays the access level of the current user in the BIOS.

35

NSA 7130 User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Save & ExitAdvanced IntelRCSetup Server Mgmt

Security Boot

Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

System ACPI Parameters

ACPI Settings

AST2300 Super IO Conguration

Serial Port Console Redirection PCI Subsystem Settings

Network Stack Conguration CSM Conguration

Trusted Computing

USB Conguration



ACPI Settings

This section is used to configure ACPI settings.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enables or Disables Lock of Legacy Resources.

ACPI Settings

Lock Legacy Resources

[Disabled]

Lock Legacy Resources

Enables or disables lock of legacy resources.

36

NSA 7130 User Manual

Chapter 4: BIOS Setup

AST2300 Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Super IO Chip

Displays the Super I/O chip used on the board.

Serial Port 1 Configuration

Configuration settings for serial port 1.

Serial Port 2 Configuration

Configuration settings for serial port 2.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Set Parameters of Serial Port 1 (COMA)

AST2300 Super IO Conguration

Super IO Chip

Serial Port 1 Conguration

Serial Port 2 Conguration

AST2300



Serial Port 1 Configuration

This section is used to configure serial port 1.

Serial PortGSIO200

Enables or disables the serial port.

Change SettingsGSIO60

Selects an optimal setting for the Super IO device.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enable or Disable Serial Port (COM)

Serial Port 1 Conguration

Serial PortGSIO200

Device Settings

Change SettingsGSIO60

[Enabled]

IO=3F8h; IRQ=4;

[Auto]

37

NSA 7130 User Manual

Chapter 4: BIOS Setup

Serial Port 2 Configuration

This section is used to configure serial port 2.

Serial PortGSIO200

Enables or disables the serial port.

Change SettingsGSIO60

Selects an optimal setting for the Super IO device.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enable or Disable Serial Port (COM)

Serial Port 2 Conguration

Serial PortGSIO200

Device Settings

Change SettingsGSIO60

[Enabled]

IO=2F8h; IRQ=3;

[Auto]

Serial Port Console Redirection

This section is used to configure the serial port that will be used for console redirection.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Console Redirection Enable or Disable

COM0

Console Redirection

Console Redirection Settings

Legacy Console Redirection

Legacy Console Redirection Settings

Serial Port for Out-of-Band Management / Windows Emergency Management Services (EMS)

Console Redirection Console Redirection Settings

[Enabled]

Console Redirection

Enables or disables the console redirection.

►

38

NSA 7130 User Manual

Chapter 4: BIOS Setup

Console Redirection Settings

Specifies how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100 to support color, function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more

COM0

Console Redirection Settings

Terminal Type

Bits per second Data Bits Parity Stop Bits Flow Control VT-UTF8 Combo Key Sup Recorder Mode Resolution 100x31 Legacy OS Redirection Putty KeyPad Redirection After BIOS

[VT100+]

[115200] [8] [None] [1] [None] [Enabled] [Disabled] [Disabled] [80x24] [VT100] [Always Enable]

Terminal Type

ANSI Extended ASCII character set. VT100 ASCII character set. VT100+ Extends VT100 to support color, function keys, etc. VT-UTF8 Uses UTF8 encoding to map Unicode characters onto 1 or more bytes.

Data Bits

The options are 7 and 8.

Bits Per Second

Selects the serial port transmission speed. The speed must match the other side. Long or noisy lines may require a lower speed.

Parity

A parity bit can be sent with the data bits to detect some transmission errors.

Even Parity bit is 0 if the number of 1’s in the data bits is even. Odd Parity bit is 0 if number of 1’s in the data bits is odd.

Stop Bits

Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit.

Flow Control

Flow control can prevent data loss from buffer overflow. When sending data and the receiving buffers are full, a “stop” signal can be sent to stop the data flow.

VT-UTF8 Combo Key Support

Enables or disables VT-UTF8 combination key support for ANSI/VT100 terminals.

Recorder Mode

When this field is enabled, only text will be sent. This is to capture the terminal data.

Resolution 100x31

Enables or disables extended terminal resolution.

Legacy OS Redirection

Selects the number of rows and columns that support redirection.

Putty Keypad

Selects the Putty keyboard emulation type.

Redirection After BIOS

The settings specify if BootLoader is selected, then Legacy console redirection is disabled before booting to Legacy OS. Default value is Always Enable which means Legacy Console Redirection is enabled for Legacy OS.

39

NSA 7130 User Manual

Chapter 4: BIOS Setup

PCI Subsystem Settings

This section is used to configure the PCI.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enables or Disables PCI Device to Generate PERR#.

PCI Bus Driver Versio

PCI Devices Common Settings:

PERR# Generation

SERR# Generation Above 4G Decoding SR-IOV Support

PCI Express Settings

A5.01.05

[Disabled]

[Disabled] [Disabled] [Disabled]

PERR# Generation

Enables or disables the PCI device to generate PERR#.

SERR# Generation

Enables or disables the PCI device to generate SERR#.

Above 4G Decoding

Enables or disables decoding of 64bit devices in 4G address space.

SR-IOV Support

Enables or disables SR-IOV support.

►

PCI Express Settings

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enables or Disables PCI Express Device Relaxed Ordering.

PCI Express Device Register Settings

Relaxed Ordering

Extended Tag No Snoop Maximum Payload

PCI Express Link Register Settings WARNING: Enabling ASPM may cause some PCI-E devices to fail

Extended Synch

[Disabled]

[Disabled] [Enabled] [256 Bytes]

[Disabled]

Relaxed Ordering

Enables or disables the PCI Express device’s relaxed ordering.

Extended Tag

When this function is enabled, it allows a device to use 8-bit tag field as a request.

No Snoop

Enables or disables the PCI Express device’s no snoop option.

Maximum Payload

Selects the maximum TLP payload size of the PCI Express devices.

Extended Synch

When this function is enabled, it allows generation of extended synchronization patterns.

40

NSA 7130 User Manual

Chapter 4: BIOS Setup

Network Stack

This section is used to configure the network stack.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enable/Disable UEFI Network Stack

Network stack

[Disabled]

Network Stack

Enables or disables UEFI network stack.

CSM Configuration

This section is used to configure the compatibility support module features.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enable/Disable CSM Support.

Compatibility Support Module Conguration

CSM Support

CSM16 Module Version

GateA20 Active Option ROM Messages

Boot option lter

Option ROM execution

Network Storage Video Other PCI devices

[Enabled]

07.75

[Upon Request] [Force BIOS]

[UEFI and Legacy]

[Legacy] [UEFI] [Legacy] [UEFI]

CSM Support

This field is used to enable or disable CSM support, if Auto option is selected, based on OS, CSM will be enabled or disabled automatically.

GateA20 Active

Upon Request GA20 can be disabled using BIOS services. Always Do not allow disabling GA20; this option is useful when any RT code is executed above 1MB.

41

NSA 7130 User Manual

Chapter 4: BIOS Setup

Option ROM Messages

This field is used to set display mode for Option ROM. The options are Force BIOS and Keep Current.

Boot Option Filter

Configures which drives the system can boot from.

Network

Enables or disables the boot option for legacy network devices.

Storage

Enables or disables the boot option for legacy storage devices.

Video

Enables or disables the boot option for legacy video devices.

Other PCI Devices

Enables or disables the boot option for legacy PCI devices.

Trusted Computing

This section is used to configure trusted computing settings.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

Conguration

Security Device Support

Current Status Information

SUPPORT TURNED OFF

[Disabled]

Security Device Support

Enables or disables BIOS support for security device. O.S. will not show security device. TCG EFI protocol and INT1A interface will not be available.

42

NSA 7130 User Manual

Chapter 4: BIOS Setup

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

USB Conguration

USB Module Version

USB Devices:

4 Drives, 2 Keyboards, 1 Mouse, 3 Hubs

Legacy USB Support

XHCI Hand-off EHCI Hand-off USB Mass Storage Driver

USB hardware delays a

USB transfer time-out Device reset time-out Device power-up delay

Mass Storage Devices:

AMI Virtual CDROM 1.

8.11.02

[Enabled]

[Enabled] [Enabled] [Disabled]

[20 sec] [20 sec] [Auto]

[Auto]

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

XHCI Hand-off

This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

USB Configuration

This section is used to configure the USB.

EHCI Hand-Off

This is a workaround for OSs that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

USB Mass Storage Driver

Enables or disables USB mass storage device driver support.

USB Transfer Time-out

The time-out value for control, bulk, and Interrupt transfers.

Device Reset Time-out

Selects the USB mass storage device’s start unit command timeout.

Device Power-up Delay

Maximum time the value will take before it properly reports it self to the Host Controller. “Auto” uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor.

Mass Storage Devices:

Selects the mass storage device emulation type.

43

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & ExitAdvanced IntelRCSetup Server Mgmt

Security Boot

Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Set the Date. Use Tab to switch between Date elements.

RC Revision 1.0.6

Processor Conguration

Advanced Power Management Conguration QPI Conguration Memory Conguration IIO Conguration PCH Conguration Network Conguration

------------------------------------------------------------------------------------Setup Warning: Setting items on this Screen to incorrect may cause system to malfunction!

Intel RC Setup

This section is used to configure the processor and chipset settings.

►

► ► ► ► ►

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Change Per-Socket Settings

Processor Conguration

-----------------------------------------------------------------------------------

Per-Socket Conguration

-2690 v3 @ 2.60GHz Processor 1 Version Intel (R) Xeon (R) CPU E5

-2690 v3 @ 2.60GHz

Hyper-Threading [ALL] [Enable] Enable Intel TXT Supp [Disabled] VMX [Enable] Enable SMX [Disable] MSR Lock Control [Enable] Lock Chipset [Enable]

Processor Configuration

Hyper-Threading [ALL]

Enables or disables hyper-threading technology.

Enable Intel® TXT Support

Enables or disables Intel TXT support.

VMX

Enables or disables Virtual Machine Extensions.

Enable SMX

Enables or disables Secure Mode Extensions.

MSR Lock Control

Enables or disables locked MSR.

Lock Chipset

Locks or unlocks the chipet.

IntelRCSetup

►

44

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit Save & Exit

Advanced AdvancedSecurity SecurityBoot BootMain Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Number of Cores to Enable. 0 means all cores. 12 Cores available.

CPU Socket 0 Conguration

CPU Socket 1 Conguration

CPU Socket 0 Conguration

------------------------------------------------------------------------------------

Cores Enabled

IOT Cfg Cbo Bitmap 0

Processor Configuration CPU Socket 0 Configuration

CPU Socket 0 Configuration

Processor settings for the CPU on socket 0.

CPU Socket 1 Configuration

Processor settings for the CPU on socket 1.

Cores Enabled

Configures the number of cores to enable. 0 means all cores.

IoT Cfg Cbo Bitmap

Configures the bit to enable IOT/OCLA.

IntelRCSetup IntelRCSetup

►

0

45

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit Save & Exit

Advanced AdvancedSecurity SecurityBoot BootMain Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Number of Cores to Enable. 0 means all cores. 12 Cores available.

Enable the power management features.

CPU Socket 1 Conguration

------------------------------------------------------------------------------------

Cores Enabled

IOT Cfg Cbo Bitmap 0

Advanced Power Management Conguration

------------------------------------------------------------------------------------

Power Technology

CPU P State Control CPU C State Control CPU T State Control

CPU Advanced PM Tuning

SOCKET RAPL Cong

DRAM RAPL Conguration

CPU Socket 1 Configuration Advanced Power Management Configuration

Cores Enabled

Configures the number of cores to enable. 0 means all cores.

IOT Cfg Cbo Bitmap

Configures the bit to enable IOT/OCLA.

Power Technology

Enables or disables power management features.

IntelRCSetup IntelRCSetup

0

[Disable]

► ► ►

►

46

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit Save & Exit

Advanced AdvancedSecurity SecurityBoot BootMain Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Provides hint to CPU for better performance or power savings.

Selects whether BIOS or Operating System chooses energy performance bias tunning.

CPU Advanced PM Tuning

Energy Perf BIAS

Energy Performance Tuning

Energy Performance BIAS setting Power/Performance Switch

Workload Conguration

Averaging Time Window P0 TotalTimeThreshold P0 TotalTimeThreshold

CPU Advanced PM Tuning Energy Perf BIAS

Energy Perf BIAS

CPU performance and power saving settings.

Energy Performance Tuning

Selects whether the BIOS or the operating system will enable energy performance BIAS tuning.

Energy Performance BIAS Setting

Configures the energy performance mode.

Power/Performance Switch

Enables or disables automatic switching between power and performance mode.

IntelRCSetup IntelRCSetup

[Disable]

[Balanced Performance] [Enabled] [Balanced] 23 55 58

►

47

NSA 7130 User Manual

Chapter 4: BIOS Setup

Workload Configuration

Selects the workload optimization mode.

Averaging Time Window

Configures the average time for C0 and P0.

P0 TotalTimeThreshold (Minimum)

Configures the minimum threshold time for P0 to disable hardware switching.

P0 TotalTimeThreshold (Maximum)

Configures the maximum threshold time for P0 to disable hardware switching.

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

DRAM RAPL Baseline enabled and baseline mode

DRAM RAPL Conguration

DRAM RAPL Baseline

Override BW_LIMIT_TF DRAM RAPL Extended

DRAM RAPL Configuration

DRAM RAPL Baseline

Configures the DRAM running average power limit mode.

Override BW_LIMIT_TF

Enables or disables Override BW_LIMIT_TF.

DRAM RAPL Extended

Enables or disables extended range for the DRAM RAPL.

IntelRCSetup

[DRAM RAPL Mode 1]

1 [Enable]

48

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Displays and provides option to change the QPI General Settings

QPI Conguration

------------------------------------------------------------------------------------

QPI General Conguration

QPI Per Socket Conguration

QPI Configuration

IntelRCSetup

►

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

QPI Status Help

QPI General Conguration

------------------------------------------------------------------------------------

QPI Status

Degrade Precedence Link Speed Mode Link Frequency Select Link L0p Enable Link L1 Enable Legacy VGA Socket MMIO P2P Disable E2E Parity Enable COD Enable Early Snoop QPI Debug Print Level

QPI General Configuration

Degrade Precedence

If system options are in conflict, choose Topology Precedence to degrade features, or Feature Precedence to degrade topology.

Link Speed Mode

Configures the link speed mode.

Link Frequency Select

Configures the QPI frequency.

IntelRCSetup

[Topology Precedence] [Fast] [Auto] [Enable] [Enable] 0 [no] [Disable] [Auto] [Auto] [All]

►

49

NSA 7130 User Manual

Chapter 4: BIOS Setup

Link L0p Enable

Enables or disables QPI Link0p.

Link L1 Enable

Enables or disables QPI Link1.

Legacy VGA Socket

Configures which CPU socket (0 or 1) the legacy VGA socket is set to use.

MMIO P2P Disable

Enables or disables MMIO P2P.

E2E Parity Enable

Enables or disables E2E parity check.

COD Enable

Enables or disables cluster-on-die technology.

Early Snoop

Enables or disables Early Snoop support.

QPI Debug Print Level

Configures the QPI debug print level.

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

QPI Status

------------------------------------------------------------------------------------

Number of CPU Number of IIO Current QPI Link Speed Current QPI Link Frequency QPI Global MMIO Low B QPI Global MMIO High

QPI Pci-e Conguration

QPI Status

Displays information on the current QPI configuration.

IntelRCSetup

2 2 Fast

9.6 GT/s 90000000 / FBFFFFFF 00000000000 / 000FFFFFFF 80000000 / 10000000

50

NSA 7130 User Manual

Chapter 4: BIOS Setup

QPI Per Socket Configuration

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

CPU 0 Conguration Silk Screen

Equivalent->CPU1

QPI Per Socket Conguration

------------------------------------------------------------------------------------

CPU 0

CPU 1

IntelRCSetup

►

CPU 0

QPI configuration for CPU socket 0.

CPU 1

QPI configuration for CPU socket 1.

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Bus resources allocation ratio, range 0 to 8

CPU 0

------------------------------------------------------------------------------------

Bus Resources Allocation

IO Resources Allocation MMIOL Resources Allocation IIO Disable

CPU 0

Bus Resources Allocation

Configures the bus resource allocation ratio.

IO Resources Allocation

Configures the IO resource allocation ratio.

MMIOL Resources Allocation

Configures the MMIOL resource allocation ratio.

IIO Disable

Enables or disables IIO.

IntelRCSetup

1 1 [no]

1

51

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Bus resources allocation ratio, range 0 to 8

CPU 1

------------------------------------------------------------------------------------

Bus Resources Allocation

IO Resources Allocation MMIOL Resources Allocation IIO Disable

CPU 1

Bus Resources Allocation

Configures the bus resource allocation ratio.

IO Resources Allocation

Configures the IO resource allocation ratio.

MMIOL Resources Allocation

Configures the MMIOL resource allocation ratio.

IIO Disable

Enables or disables IIO.

IntelRCSetup

1 1 [no]

1

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Maximum Memory Frequency Selections in Mhz. Do not select Reserved

-----------------------------------------------------------------------------------Integrated Memory Controller (iMC)

------------------------------------------------------------------------------------

Memory Frequency

ECC Support Dram Maintenance Test Direction Dram Maintenance Test Invertion Dram Maintenance Test Repetitions Dram Maintenance Test Interation Dram Maintenance Swizzle Enabling Dram Maintenance Refresh Enabling Attempt Fast Boot Memory Topology Memory Thermal

Memory Configuration

Memory Frequency

Configures the maximum frequency of the memory. Do not select Reserved.

ECC Support

Enables or disables ECC RAM support.

DRAM Maintenance Test Direction

Configures the DRAM maintenance test direction.

DRAM Maintenance Test Invertion

Configures the DRAM maintenance test invertion.

IntelRCSetup

[Auto]

[Auto] [UP Direction] [Disabled] 3 1 [Auto] [Enabled] [Disable]

► ►

52

NSA 7130 User Manual

Chapter 4: BIOS Setup

DRAM Maintenance Test Repetitions

Configures the DRAM maintenance test repetitions.

DRAM Maintenance Test Interation on Row

Configures the DRAM maintenance test interation on row.

DRAM Maintenance Swizzle Enabling

Enables or disables DRAM maintenance swizzle.

DRAM Maintenance Refresh Enabling

Enables or disables DRAM maintenance refresh.

Attempt Fast Boot

Enables or disables fast boot to speed up the system boot time.

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

-----------------------------------------------------------------------------------Socket0.Ch0.Dimm0: 2133MT/s UNKNOWN SRx8 4GB RDIMM

Memory Topology

Detects and displays the information on the memory installed.

IntelRCSetup

53

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Congure Thermal Throttling

Mode. Select OLTT or CLTT mode.

Set Throttling Mode

OLTT Peak BW % DIMM Temp Stat Phase Shedding Memory Power Savings Memory Power Savings Advanced Options MDLL Off MEMHOT Throttling Mode Mem Electrical Throttling

Memory Thermal

Set Throttling Mode

Configures the thermal throttling mode. The options are OLTT or CLTT mode.

OLTT Peak BW %

Configures the peak bandwidth for OLTT.

DIMM Temp Stat

Configures the DIMM temp stat.

Phase Shedding

Enables or disables Phase Shedding.

IntelRCSetup

[Disabled]

50 92 [Auto] [Disabled]

[Auto] [Input-only] [Disabled]

►

Memory Power Savings

Configures the memory power saving settings.

MDLL Off

Enables or disables MDLL Off.

MEMHOT Throttling Mode

Configures the MEMHOT throttling mode.

Mem Electrical Throttling

Configures the memory electrical throttling.

54

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

IIO Conguration

------------------------------------------------------------------------------------

IIO0 Conguration

IIO1 Conguration IOAT Conguration

Intel VT for Directed I/O (VT-d)

IIO Configuration

IntelRCSetup

►

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Selects PCIe port Bifurcation for selected slot(s)

IOU1 (IIO PCIe Port 3

No PCIe port active Socket 0 PcieD00F0 - Port 0/DMI Socket 0 PcieD03F0 - Port 3A Socket 0 PcieD03F1 - Port 3B Socket 0 PcieD03F2 - Port 3C

IIO0 Configuration

IntelRCSetup

[x8x4x4]

[PCU Squelch exit ig. . .]

►

IOU1 (IIO PCIe Port 3)

Port Bifurcation settings for IOU 1.

No PCIe Port Active

Configures the workaround solution for ECO when the PCIe ports are not active.

55

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Selects PCIe port Bifurcation for selected slot(s)

IOU0 (IIO PCIe Port 2

IOU1 (IIO PCIe Port 3 No PCIe port active Socket 1 PcieD02F0 - Port 2A Socket 1 PcieD02F2 - Port 2C Socket 1 PcieD03F0 - Port 3A Socket 1 PcieD03F1 - Port 3B Socket 1 PcieD03F2 - Port 3C

IIO1 Configuration

IntelRCSetup

[x8x8]

[x8x4x4] [PCU Squelch exit ig. . .]

► ►

►

IOU0 (IIO PCIe Port 2)

Port Bifurcation settings for IOU 0.

IOU1 (IIO PCIe Port 3)

Port Bifurcation settings for IOU 1.

No PCIe Port Active

Configures the workaround solution for ECO when the PCIe ports are not active.

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Control to enable/disable IOAT devices

Enable IOAT

IOAT Configuration

IntelRCSetup

[Disable]

Enable IOAT

Enables or disables the Intel® I/O Acceleration Technology.

56

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enable/Disable Intel Virtualization Technology for Directed I/O (VT-d) by reporting the I/O device assignment to VMM through DMAR ACPI Tables.

Intel VT for Directed I/O (VT-d)

------------------------------------------------------------------------------------

Intel VT for Directed I/O

Intel VT for Directed I/O (VT-d)

IntelRCSetup

[Enable]

Intel VT for Directed I/O

Enables or disables Intel® Virtualization Technology for Directed I/O (VT-d) by reporting the I/O device assignment to VMM through DMAR ACPI tables.

57

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enable/Disable Intel (R) IO Controller Hub devices

PCH Conguration

------------------------------------------------------------------------------------

PCH Devices

PCI Express Conguration PCH SATA Conguration USB Conguration Security Conguration Platform Thermal Conguration

PCH Configuration

IntelRCSetup

►

► ► ► ► ►

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Board Capability SUS_PWR_DN_ACK -> Send Disabled to PCH, DeepSx -> Show DeepSx Policies

Board Capability

DeepSx Power Policies GP27 Wake From DeepSx SMBUS Device PCH Server Error Repo PCH Display Serial IRQ Mode External SSC Enable Restore AC Power Loss PCH CRID

PCH Devices

IntelRCSetup

[DeepSx]

[Disabled] [Disabled] [Enabled] [Disabled] [Enabled] [Continuous] [Disabled] [Power On] [Disabled]

Board Capability

Board Capability - SUS_PWR_DN_ACK -> Send Disabled to PCH, DeepSx -> Show DeepSx Policies.

DeepSx Power Policies

Configures DeepSx power policies.

GP27 Wake From DeepSx

Enables or disables GP27 to wake from DeepSX.

SMBUS Device

Enables or disables SMBUS device.

58

NSA 7130 User Manual

Chapter 4: BIOS Setup

PCH Server Error Repo

Enables or disables whether MCH is the final target of all errors. When disabled, SPCH is the final target of all errors.

PCH Display

Enables or disables the PCH Display.

Serial IRQ Mode

Configures the Serial IRQ mode.

External SSC Enable

Enables or disables External SSC.

Restore AC Power Loss

Select AC power state when power is re-applied after a power failure.

PCH CRID

Enables or disables Compatibility Revision ID (CRID) function.

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

This option enables / disables the ASPM support for all downstream devices.

PCI-E ASPM Support

PCIE Clock Gating PCH DMI ASPM DMI Link Extended Synch Stop and Scream Expanded SPI TPM Tran

Subtractive Decode

LAN PCI Port used

PCI Express Root Port 1 PCI Express Root Port 2 PCI Express Root Port 3 PCI Express Root Port 4 PCI Express Root Port 5 PCI Express Root Port 6 PCI Express Root Port 7 PCI Express Root Port 8

PCI Express Configuration

IntelRCSetup

[Disable]

[Disabled] [Disabled] [Disabled] [Disabled] [Enabled]

[Disabled]

None

PCI-E ASPM Support

This option enables or disables ASPM support for all downstream devices.

PCIE Clock Gating

Enables or disables PCIe clock gating for each root port.

PCH DMI ASPM

Enables or disables ASPM for PCH DMI.

DMI Link Extended Synch

Enables or disables DMI Link Extended Synch.

Stop and Scream

Enables or disables Intel® Stop and Scream function.

Expanded SPI TPM Tran

Enables or disables SPI TPM transactions of up to 64 bytes.

► ► ► ► ► ► ► ►

59

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit Save & Exit

Advanced AdvancedSecurity SecurityBoot BootMain Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enable or Disable SATA Controller

Identify the SATA port is connected to Solid State Drive or Hard Disk Drive

PCH SATA Conguration

------------------------------------------------------------------------------------

SATA Controller

Congure SATA as

SATA Mode options Support Aggressive Link

SATA Port 1 Software Preserve

Port 1 Hot Plug

Congured as eSATA

Spin Up Device SATA Device Type

SATA Port 2 Software Preserve

Port 2 SATA Port 2 DevS1p Hot Plug

Congured as eSATA

Spin Up Device SATA Device Type

SATA Port 2 DevS1p Hot Plug

Congured as eSATA

Spin Up Device SATA Device Type

SATA Port 3 Software Preserve

Port 3 Hot Plug

Congured as eSATA

Spin Up Device SATA Device Type

SATA Port 5 Software Preserve

Port 5 Hot Plug

Congured as eSATA

Spin Up Device

SATA Device Type

PCH SATA Configuration

IntelRCSetup IntelRCSetup

[Enabled]

[AHCI]

[Enabled]

[Not Installed] Unknown

[Enabled] [Disabled]

Hot Plug supported

[Disabled] [Hard Disk Drive]

[Not Installed] Unknown

[Enabled] [Disabled] [Disabled]

Hot Plug supported

[Disabled] [Hard Disk Drive]

[Disabled] [Disabled]

Hot Plug supported

[Disabled] [Hard Disk Drive]

[Not Installed] Unknown

[Enabled] [Disabled]

Hot Plug supported

[Disabled] [Hard Disk Drive]

[Not Installed] Unknown

[Enabled] [Disabled]

Hot Plug supported

[Disabled]

[Hard Disk Drive]

SATA Controller

Enables or disables the SATA controller.

Configure SATA as

Configures the SATA as IDE or AHCI. IDE This option configures the Serial ATA drives as Parallel ATA physical storage device.

AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

Support Aggressive Link

Enables or disables Aggressive Link Power Management.

▼ ▼

▲ ▲

Port 1 to Port 3 and Port 5

Enables or disables Serial ATA port 0 to port 3, and Port 5.

Hot Plug

Enables or disables hot plugging feature on Serial ATA port 1 to port 3, and Port 5.

Spin Up Device

Enables or disables staggered spin up on devices connected to Serial ATA port 1 to port 3, and port 5.

SATA Device Type

Identifies what type of SATA device is connected.

►

60

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Precondition work on USB host controller and root ports for faster enumeration.

USB Precondition

xHCI Mode Trunk Clock Gating USB Ports Per-Port XHCI Idle L1 USB XHCI s755 WA USB XHCI Interrupt

USB Configuration

IntelRCSetup

[Disabled]

[Auto] [Enabled] [Disabled] [Enabled] [Enabled] [Enabled]

USB Precondition

Enables or disables USB precondition on USB host controller and root ports for faster enumeration.

xHCI Mode

Configures the XHCI mode.

Trunk Clock Gating

Enables or disables Trunk Clock Gating.

USB Ports Per-Port

Enables or disables control of each USB port.

XHCI Idle L1

Enables or disables XHCI Idle L1.

USB XHCI s755

Only for WBG < B1! Enable or disable USB XHCI s755 WA to avoid CATERRs.

USB XHCI Interrupt Remap WA

Enables or disables USB XHCI s116 WA. When enabled, MSI capability will be hidden on XHCI.

61

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enable/Disable the PCH GPIO Lockdown feature.

Security Conguration

GPIO Lockdown

RTC Lock BIOS Lock Host Flash Lock-Down Gbe Flash Lock-Down

Security Configuration

IntelRCSetup

[Enabled]

[Enabled] [Enabled] [Enabled] [Enabled]

GPIO Lockdown

Enables or disables the PCH GPIO lockdown feature.

RTC Lock

Enables or disables bytes 38h-3Fh in the upper and lower 128-byte bank of RTC RAM lockdown.

BIOS Lock

Enables or disables the PCH BIOS lock feature.

Host Flash Lock-Down

Enable or disables Host Flash Lock-Down.

GbE Flash Lock-Down

Enable or disables GbE Flash Lock-Down.

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enable/Disable PCH Thermal Device(D31:F6)

PCH Thermal Device

Alert Enable Lock

Platform Thermal Configuration

IntelRCSetup

[Disabled]

PCH Thermal Device

Enables or disables PCH thermal device (D31:F6).

Alert Enable Lock

Enables or disables locking of alert related functions.

62

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit

Advanced Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Switch all ByPass Mode to Enable/Disable after power on

Network Conguration

------------------------------------------------------------------------------------

Power_ON ByPass Mode

Power_OFF ByPass Mode

Network Configuration

IntelRCSetup

[ALL Disabled]

Power_ON ByPass Mode

Enables or disables the LAN module bypass mode after the system powers on.

Power_OFF ByPass Mode

Enables or disables the LAN module bypass mode after the system powers off.

63

NSA 7130 User Manual

Chapter 4: BIOS Setup

Server Mgmt

BMC Support

Enables or disables interfaces to communicate with BMC.

Wait for BMC

Enables or disables waiting for BMC.

Serial MUX

Enables or disables MUX on the serial connection.

BMC Warm Reset

To perform a BMC warm reset, select this field then press <Enter>.

Save & ExitAdvanced IntelRCSetup Server Mgmt

Security Boot

Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enable/Disable interfaces to communicate with BMC

BMC Self Test Status BMC Device ID BMC Device Revision BMC Firmware Revision IPMI Version

BMC Support

Wait For BMC Serial Mux System Event Log

BMC network conguration

View System Event Log BMC User Settings BMC Warm Reset

PASSED 32 1

0.77

2.0

[Enabled]

[Disabled] [Disabled]



Save & ExitAdvanced IntelRCSetup Server Mgmt

Security Boot

Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Change this to enable or disable all features of System Event Logging during boot.

Enabling/Disabling Options

SEL Components

Erasing Settings

Erase SEL When SEL is Full

Custom EFI Logging Options

Log EFI Status Codes

NOTE: All values changed here do not take until computer is restarted.

[Enabled]

[No] [Do Nothing]

[Error code]

System Event Log

SEL Components

Enables or disables all the features of system event logging during boot.

Erase SEL

Configures the options for erasing SEL.

When SEL is Full

Configures the action to perform when SEL is full.

Log EFI Status Codes

Configures the options for logging EFI status codes.

64

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit Save & ExitAdvanced AdvancedIntelRCSetup IntelRCSetupServer Mgmt Server Mgmt

Security SecurityBoot Boot

Main Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Select to congure LAN

channel parameters statically or dynamically(by BIOS or

BMC). Unspecied option will

not modify any BMC network parameters during BIOS phase

HEX: 01 00 C0 5F 7D 70 53 20 00 04 C0 45 70 0A 00 00 Generator ID: BMC - LUN #0 (Channel #0) Sensor Number: 0x45 Reserved or Unknown Event Description:

BMC network conguration

Lan channel 1

Conguration Address

Current Conguration

Station IP address Subnet mask Station MAC address

No. of log entries in SEL : 1

DATE TIME

05/12/14 07:50:55

[Unspecied]

DynamicAddressBmcDhcp

0.0.0.0

0.0.0.0 00-00-00-00-00-00

SENSOR TYPE

OEM (Unknown)

BMC Network Configuration View System Event Log

Configuration Address

Select to configure LAN channel parameters statically or dynamically (by BIOS or BMC). Unspecified option will not modify any BMC network parameters during BIOS phase.

Displays system event log information including date, time and sensor type.

65

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & ExitAdvanced IntelRCSetup Server Mgmt

Security Boot

Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Press <Enter> to Add a User.

BMC User Settings

Add User

Delete User

Change User Settings

BMC User Settings

Add User

Option to add a user.

Delete User

Option to delete a user.

Change User Settings

Option to change user settings.



Security

Administrator Password

Select this to reconfigure the administrator’s password.

Save & ExitAdvanced IntelRCSetup Server Mgmt

Security Boot

Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Set Administrator Password

Password Description

The password length must be in the following range:

Minimum length 3 Maximum length 20

Administrator Password

66

NSA 7130 User Manual

Chapter 4: BIOS Setup

Boot

Setup Prompt Timeout

Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite waiting.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

AMI Virtual Device

Enables or disables AMI virtual device.

Boot Mode Select

Configures the boot mode option.

Fixed Boot Order Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be Boot Option #2 and so forth.

Save & ExitAdvanced IntelRCSetup Server Mgmt

Security

Boot

Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Number of seconds to wait for setup activation key.

65535(0xFFFF) means indenite

waiting.

Boot Conguration

Setup Prompt Timeout

Bootup NumLock State

Quiet Boot

AMI Virtual Device

Boot mode select

FIXED BOOT ORDER Priorities

Boot Option #1 Boot Option #2 Boot Option #3 Boot Option #4 Boot Option #5 Boot Option #6 Boot Option #7 Boot Option #8

[On]

[Disabled]

[Disable]

[LEGACY]

[USB CD/DVD] [USB Key] [Hard Disk] [USB Hard Disk] [CD/DVD] [USB Floppy] [USB Lan] [Network:IBA GE Slot...]

1

67

NSA 7130 User Manual

Chapter 4: BIOS Setup

Save & Exit

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes and Reset

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Save & ExitAdvanced IntelRCSetup Server Mgmt

Security Boot

Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Reset the system after saving the changes.

Save Changes and Reset

Discard Changes and Reset

Restore Defaults

Boot Override

Disabled in BBS Order Disabled in BBS Order Disabled in BBS Order IBA GE Slot 0500 v1556

Boot Override

To bypass the boot sequence from the Boot Option List and boot from a particular device, select the desired device and press <Enter>.
