Nexcom NSA 3111, NSA 3111-C6, NSA 3111-C4 User Manual

NEXCOM International Co., Ltd.

Network and Communication Solutions

Network Security Appliance NSA 3111

User Manual

NEXCOM International Co., Ltd.

Published August 2010

www.nexcom.com

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer Acknowledgements Regulatory Compliance Statements Declaration of Conformity RoHS Compliance Warranty and RMA Safety Information Installation Recommendations Safety Precautions Technical Support and Assistance Conventions Used in this Manual Global Service Contact Information Package Contents Ordering Information

............................................................................................. iv

.............................................................................. iv

....................................................... iv

...................................................................... iv

................................................................................... v

................................................................................ vi

................................................................................vii

................................................................vii

.................................................................................viii

........................................................... ix

......................................................... x

..................................................................................xii

............................................................................xiii

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features

Hardware Specifications

NSA 3111 System Main Board (NSB 3111)

.........................................................................................1

..........................................................................2

.................................................................................2

........................................................................4

Getting to Know NSA 3111

Front Panel Rear Panel

........................................................................................... 7

............................................................................................8

.................................................................... 7

Chapter 2: Jumpers And Connectors

Before You Begin ....................................................................................9

Precautions Jumper Settings Jumpers

RTC Clear Power Type Select Console Type Select CF Card Master/Slave Select

Connectors Pin Definitions

External I/O Interface - Front

Internal Connectors

.............................................................................................9

.................................................................................... 10

................................................................................................11

...........................................................................................11

...............................................................................11

............................................................................12

................................................................12

....................................................................13

.............................................................13

GPIO Software Button RJ45 Type Console Port USB Ports Status Indicators Copper LAN Ports

Reset Button Power Button VGA Connector PS/2 Keyboard/Mouse Connector

.......................................................................................14

.................................................................................. 16

................................................................................. 16

.................................................................... 13

.................................................................. 13

.............................................................................14

..........................................................................15

.......................................................................... 16

.............................................................................17

...................................................17

ii

NSA 3111 User Manual

Contents

COM2 Connector ..........................................................................18

SATAII Ports GPIO Connector USB Connector Chip Fan System Fans DIMM Sockets CompactFlash

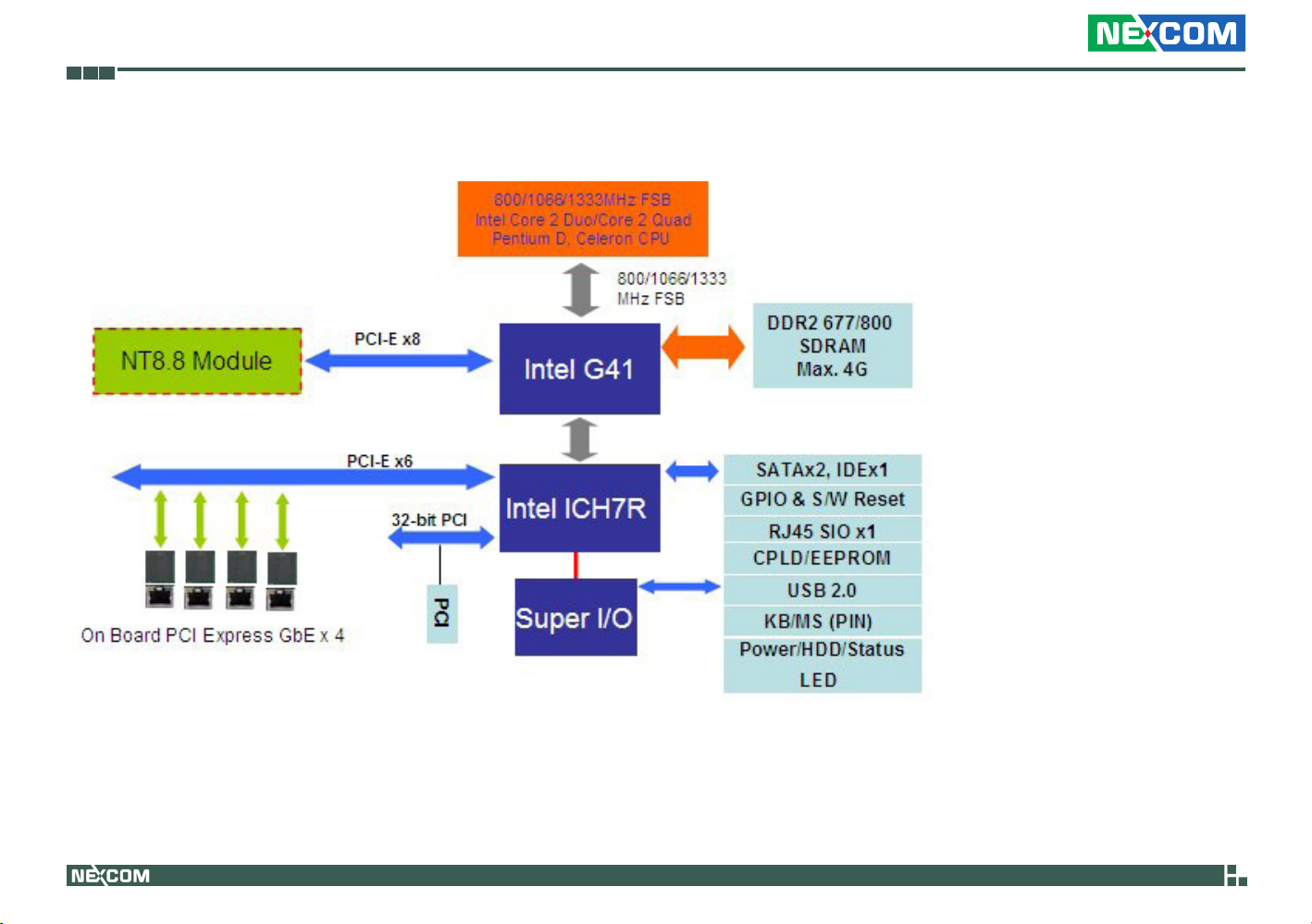

Block Diagram of the Main Board

....................................................................................18

............................................................................. 19

..............................................................................19

........................................................................................ 20

................................................................................... 20

................................................................................21

................................................................................ 22

.........................................................23

Chapter 3: System Setup

Removing the Chassis Cover ................................................................ 24

Installing a DIMM Installing the CPU Installing a CompactFlash Card Installing a SATA Hard Drive Installing a PCI Card

..................................................................................25

.................................................................................27

.............................................................32

.................................................................. 34

.............................................................................. 37

Chapter 4: BIOS Setup

About BIOS Setup .................................................................................40

When to Configure the BIOS Entering Setup BIOS Main Menu Getting Help Using the Control Keys BIOS Setup Utility

Standard CMOS Features Advanced BIOS Features Integrated Peripherals Power Management Setup PnP/PCI Configurations

......................................................................................41

...................................................................................41

.........................................................................................42

.................................................................................. 44

.................................................................40

.........................................................................43

.................................................................... 44

..................................................................... 47

.........................................................................49

.................................................................53

.......................................................................55

PC Health Status

Load Optimized Defaults.....................................................................56

Set Password Save & Exit Setup Exit Without Saving

.................................................................................56

...................................................................................... 57

................................................................................57

............................................................................ 58

Appendix A: Watchdog Timer

Watchdog Timer Setting ....................................................................... 59

CRFC6 (Default 0x00)

...........................................................................59

Appendix B: GPI/O Programming Guide

GPIO (J7) ...............................................................................................61

Appendix C: Bypass Speciﬁcations

BTCR - Bypass Timer Configuration Register = 0XF2 .............................. 64

Bypass Control Function

........................................................................64

Appendix D: Power Consumption

Power Consumption ............................................................................. 66

Total Power Requirements

..................................................................... 67

iii

NSA 3111 User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NSA 3111 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

NSA 3111 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green products

and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

NSA 3111 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

? Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

? Customers must collect all the information about the problems encoun-

tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

? Customers can send back the faulty products with or without acces-

sories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

? Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

? Any products returned by NEXCOM to other locations besides the cus-

tomers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

? Component fee: NEXCOM will only charge for main components such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

? Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

? Replace with 3rd party products if needed.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

Board Level

? Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

vi

NSA 3111 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur-

er. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

vii

NSA 3111 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near

the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping

it or letting it fall may cause damage.

7. Do not leave this equipment in either an unconditioned environment

or in a above 40oC storage temperature as this may damage the equipment.

8. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source is correct before connect-

ing the equipment to the power outlet.

10. Place the power cord in a way so that people will not step on it. Do

not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

13. Never pour any liquid into an opening. This may cause fire or electrical shock.

14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

15. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work

according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

16. Do not place heavy objects on the equipment.

17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

19. The computer is provided with CD drives that comply with the appropriate safety standards including IEC 60825.

viii

NSA 3111 User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

ix

NSA 3111 User Manual

Preface

Global Service Contact Information

Headquarters Taiwan

18F, No. 716, Chung-Cheng Rd. Chung-Ho City, Taipei County 235, Taiwan, R.O.C. Tel: +886-2-8228-0606 Fax: +886-2-8228-0501 http://www.nexcom.com.tw

USA

3758 Spinnaker Court, Fremont, CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 http://www.nexcom.com

France

Z.I. des Amandiers, 17, Rue des entrepreneurs 78420 Carrières sur Seine, France Tel: +33 (0)1 71 51 10 20 Fax: +33 (0)1 71 51 10 21 http://www.nexcom.eu

Germany

Leopoldstrase Business Centre, Leopoldstrase 244 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 http://www.nexcom.eu

Italy

Via Gaudenzio Ferrari 29, 21047 Saronno (VA) Italia Tel: +39 02 9628 0333 Fax: +39 02 9619 8846 http://www.nexcom.eu

United Kingdom

10 Vincent Avenue, Crownhill Business Centre Milton Keynes, Buckinghamshire, MK8 0AB United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 http://www.nexcom.eu

x

NSA 3111 User Manual

Preface

China-Beijing

Room 301, Block E, Power Creative Building, No. 1 Shangdi East Rd. Haidian Dist., Beijing, 100085, China Tel: +86-10-5885-6655 Fax: +86-10-5885-1066 http://www.nexcom.cn

China-Shanghai Ofﬁce

Room 1505, Greenland He Chuang Building, No. 450 Caoyang Rd. Shanghai, 200063, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 http://www.nexcom.cn

China-Nanjing Ofﬁce

Room 1206, Hongde Building, No. 20 Yunnan Rd. Nanjing, 210018, China Tel: +86-25-8324-9606 Fax: +86-25-8324-9685 http://www.nexcom.cn

China-Shenzhen Ofﬁce

Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, China 518040 TEL: +86-755-833 27203 FAX: +86-755-833 27213 http://www.nexcom.cn

Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku Tokyo, Japan 108-0014 Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 http://www.nexcom-jp.com

xi

NSA 3111 User Manual

Preface

Package contents

Before continuing, verify that the NSA 3111 package that you received is complete. Your package should have all the items listed in the following table.

Item P/N Name Description Qty

1 19S00311100X0 NSA3111-C4 ASSY 1

2 5044440031X00 RUBBER FOOT KANG YANG:RF20-5-4P 19.8x18x5.0mm 4

3 5060900075X00 NSA1086N7 EAR SETS CHYUAN-JYH:L102007-3 79.5x43.5x28mm AL PANTONE 295U 1

4 6012200052X00 PE ZIPPER BAG #8 170x240mm,W/China RoHS SYMBOL 1

5 6012200053X00 PE ZIPPER BAG #3 100x70mm,W/China RoHS SYMBOL 1

6 6023309081X00 CABLE EDI:232091081804-RS COM PORT. DB9 FEMALE TO RJ45 8P8C L:1800mm 1

7 60233PS203X00 EBC563IO PS2 KB/MS CABLE EDI:201061080201-RS PS2 TO JST 8PIN 2.54mm L:200mm+-10mm 1

8 6029900037X00 DOW CORNING 340 Silcone Heat Sink Compound(3g) 1

9 60233VGA25X00 VGA CABLE CONNTEK:A02-C018-V01 VGA PORT TO HOUSING 2x8 PIT:2.0mm L=250+-

10mm

10 50311F0100X00 (H)ROUND HEAD SCREW W/SPRING+FLAT WASHER

LONG FEI:P3x6L

11 5043330272X00 TP10 CF BRACKET CHYUAN-JYH:L10Z361 46.4x49.2x8.8mm 301 STAINLESS STELL T:0.5mm 1

12 60233ATA16X00 SATA CABLE BEST:109-0707-100R SATA FEMAIL 7PIN CONNECTROR(PH1.27) L:100mm 2

13 19S00311101X0 NSA3111-C6 ASSY 1

P3x6 iso/SW6x0.5 NI 8

1

xii

NSA 3111 User Manual

Preface

ordering information

The following provides ordering information for NSA 3111.

• Barebone

 NSA3111-C6(P/N: 10S00311101X0)

- Supports Intel® Core™ 2 Duo/Pentium® Dual-Core/Celeron®, 2 DDR2

memory slots, 6 Gigabit LAN ports, Compactflash socket, VGA, USB port, One PCI Expansion slot, One LAN Modular support (optional)

NSA3111-C4(P/N: 10S00311100X0)

- Supports Intel® Core™ 2 Duo/Pentium® Dual-Core/Celeron®, 2 DDR2

memory slots, 4 Gigabit LAN ports, Compactflash socket, VGA, USB port, One PCI Expansion slot, One LAN Modular support (optional)

xiii

NSA 3111 User Manual

Chapter 1: Product Introduction

Chapter 1: produCt IntroduCtIon

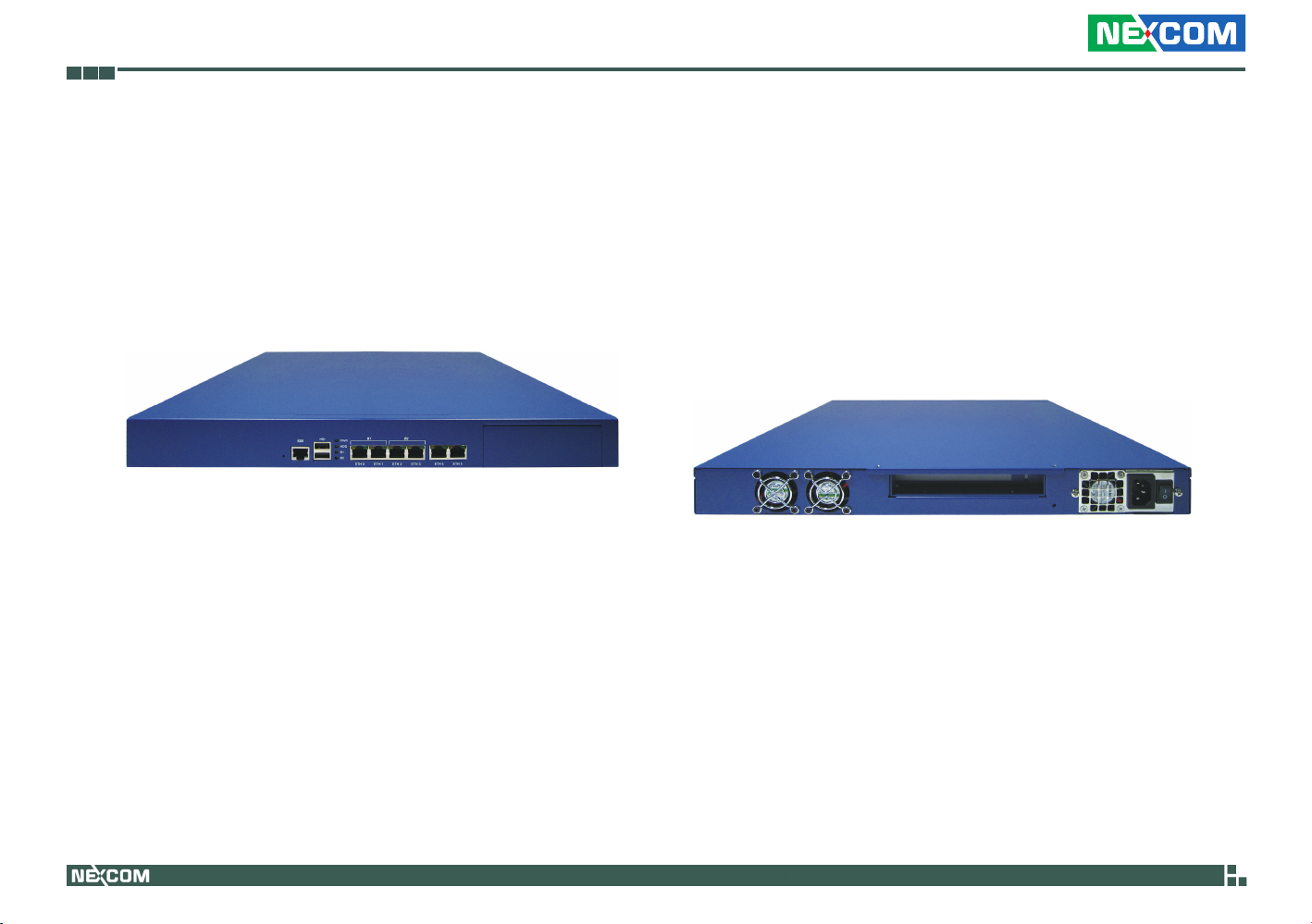

Overview

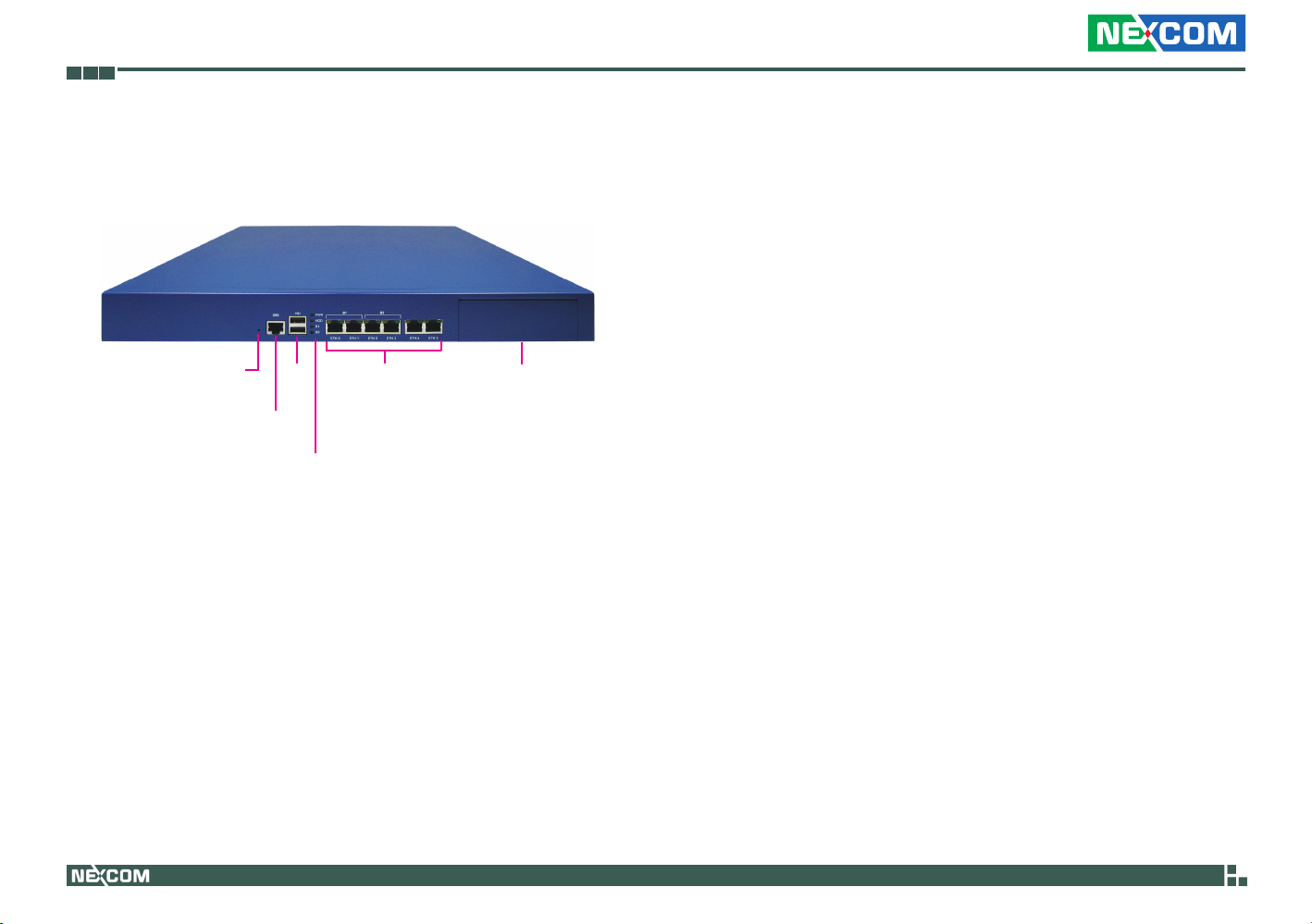

Front

Key Features (NSA 3111-C6)

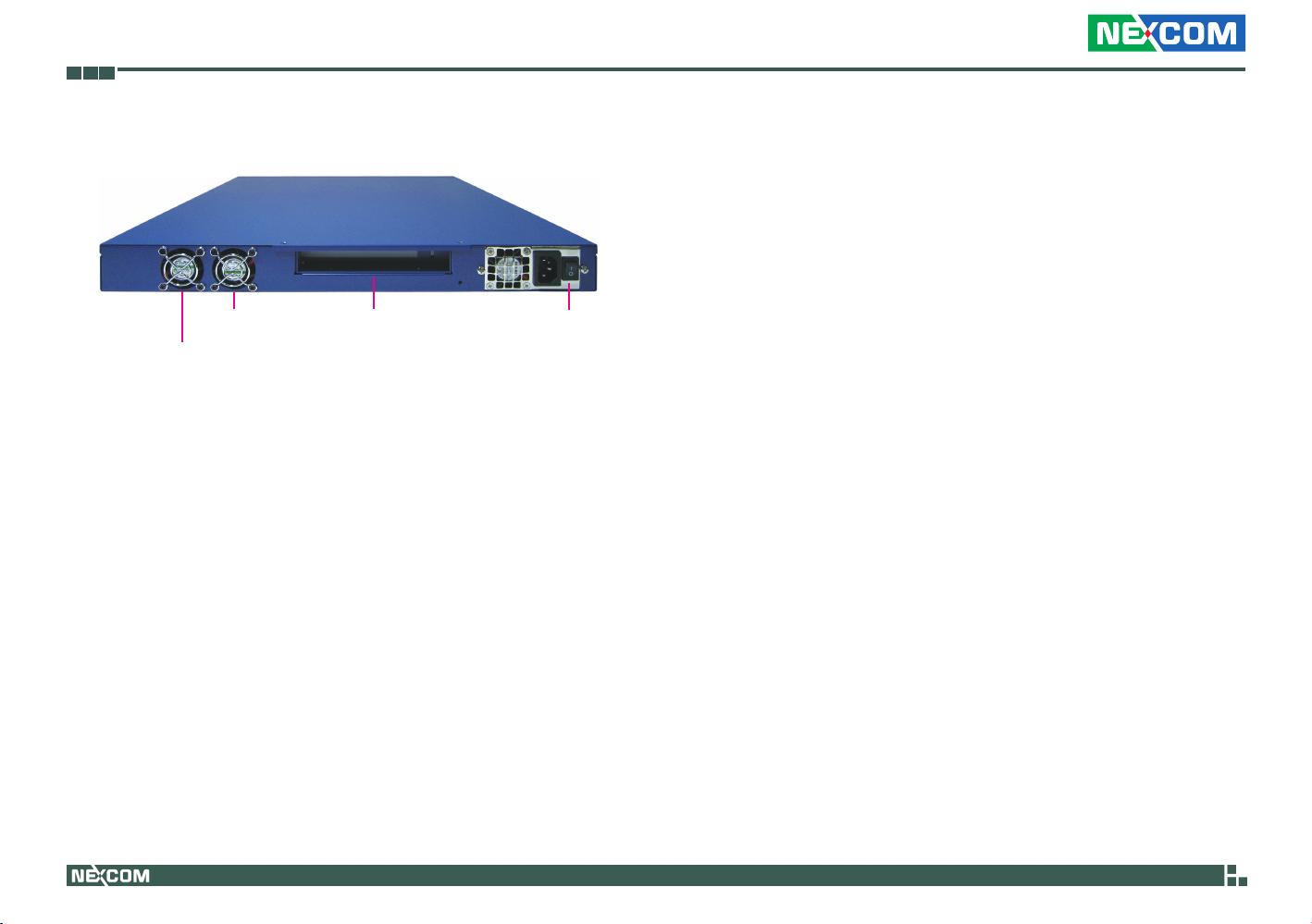

Rear

• 1U Rackmount Network Platform

• Intel® Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual

Core / Celeron® with 800/1066/1333 MHz FSB and 1MB/2MB cache

• Two DIMM sockets support DDR2 800 Dual Channel with Non-ECC memory, maximum of 4GB

• Six 10/100/1000 Copper LAN ports and 1 LAN module bay

• Intel® G41 chipset

• One PCI expansion slot

• One Mini PCI expansion slot

• Two internal 2.5” HDD bays (optional)

1

NSA 3111 User Manual

Chapter 1: Product Introduction

Hardware Speciﬁcations

NSA 3111 System

Physical Characteristics

• Form Factor

- 19” 1U

• Construction

- SECC steel plate, 1.0 mm thick

• Color

- Nexcom 295U

• Dimensions (W x D x H)

- 426.2mm (W) x 450mm (D) x 44mm (H)

• Mounting

- Mounting ear

• System chassis

- NSC3111

System Cooling

• Cooling Method

- Fixed 2 system fans at the rear of the chassis

• Ventilation

- Suction from the side and discharged to the back

I/O Interface - Front

• Console port

- One RJ45 type

• USB port

- Two USB ports

• LAN module bay

• LAN port

- 6x RJ45 copper LAN ports

• Button

- 1x GPIO software button

I/O Interface - Rear

• VGA port

- One 2x8 2.0 mm box header connected to the VGA port located at the rear panel of the chassis

• Expansion

- 1 PCI slot

- 1 Mini PCI slot

• Fan

- 2 system fans

Storage

• 2.5” HDD (IDE and SATA)

- SATAII 2.5” space for SSD

• CF

- CF socket

2

NSA 3111 User Manual

Chapter 1: Product Introduction

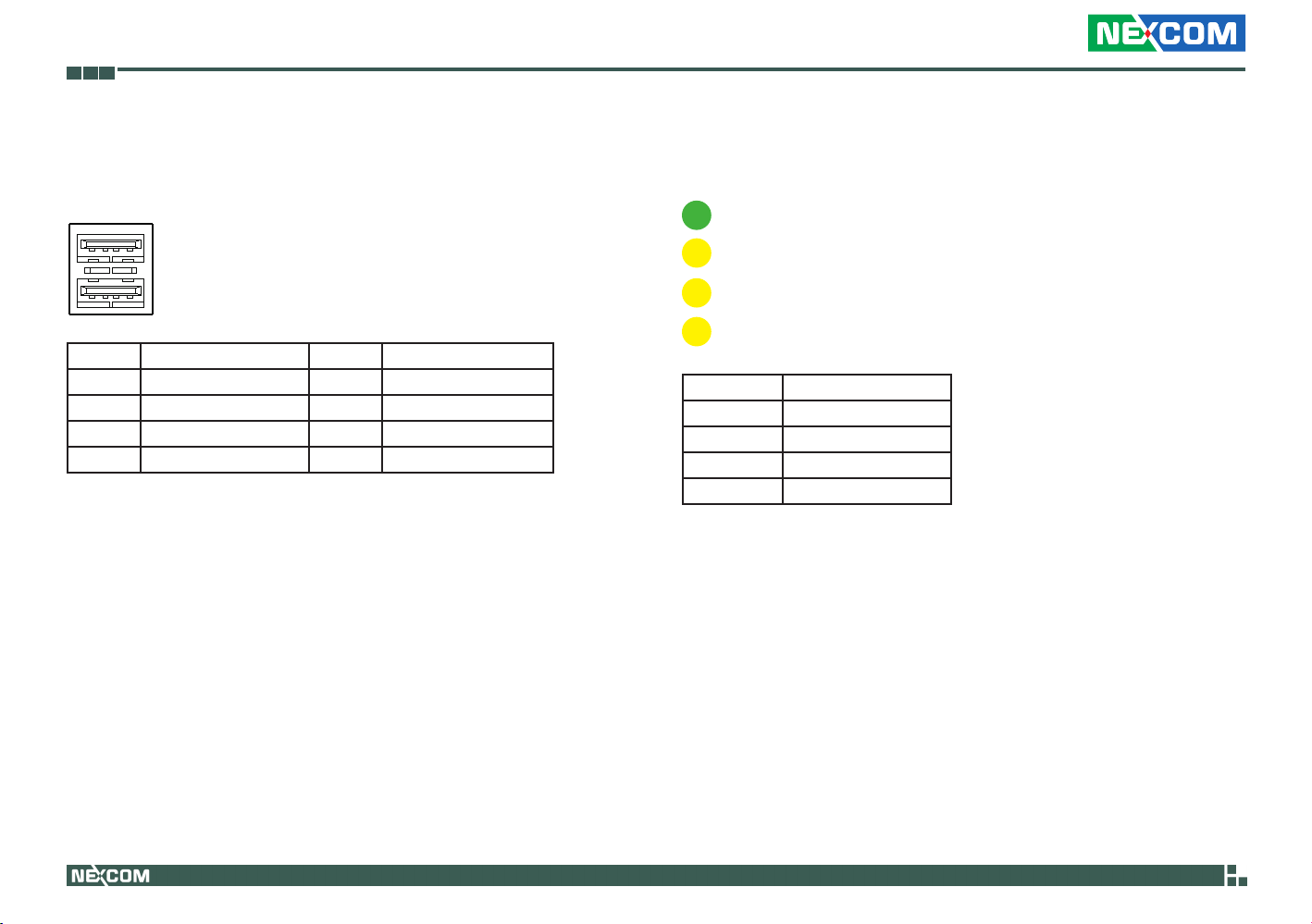

Status Indicators

• Power LED

- Lights green when the system’s power is on

• HDD LED

- Lights yellow when the HDD is being accessed

• Bypass LED

- Lights yellow

Standard Power Supply

• Power type

- Standard ATX power supply

• Input voltage

- AC 100V - 240V

• Output voltage

- DC +5V, -5V, +12V, -12V, +3.3V, +5VSB

• Maximum output power

- Up to 200W

Environment

• Operating temperature

- 0oC ~ 40oC

• Storage temperature

- -20oC ~ 75oC

• Relative humidity

- 10%~90% non-condensing

Vibration

• Sine wave vibration test (non-operating)

- Frequency: 5 - 500 Hz

- Acceleration: 2g

• Random vibration test (operating)

- Frequency: 5 - 500 Hz

- Acceleration: 0.3g

• Random vibration test (packing)

- Frequency: 1 - 200 Hz

- Acceleration: 1.15g

Shock

• Non-OP shock

Acoustic Noise

• ISO 11201:1995(E)/ISO 7779:1999/ Amd.1:2003(E)

Certiﬁcate

• CE

• FCC Class A

ESD

• 2/4KV contact discharge

• 2/4/8KV air discharge

• Criteria A

Safety

• UL

• LVD

3

NSA 3111 User Manual

Chapter 1: Product Introduction

Main Board (NSB 3111-C6)

Processor

• CPU

- Intel® Core™ 2 Quad Q9400

- Intel® Core™ 2 Duo E8400

- Intel® Core™ 2 Duo E7400

- Intel® Core™ 2 Duo E6400

- Intel® Pentium™ Dual Core E5300

- Intel® Pentium™ Dual Core E2180

- Intel® Celeron™ Dual Core E1500

- Intel® Celeron™ 440

• FSB

- 800/1066/1333MHz

Chipset

• Northbridge: Intel® G41

• Southbridge: Intel® ICH7R

Memory

• Technology

- DDR2 800MHz Non-ECC memory

• Sockets

- Two 240-pin DDR2 DIMM sockets

• Capacity

- 4GB maximum memory

Graphics

• Controller

- G41 integrated VGA controller

• Interface

- CRT port resolution up to 1024x768 60Hz, box header 2x8 2.0mm

Network

• Controller

- Intel 82574L x6

6 ports connected from ICH7R via PCI-E x1

• Link speed

- 10/100/1000

• Media type

- Intel 82574 ports are copper RJ45 x6 ports

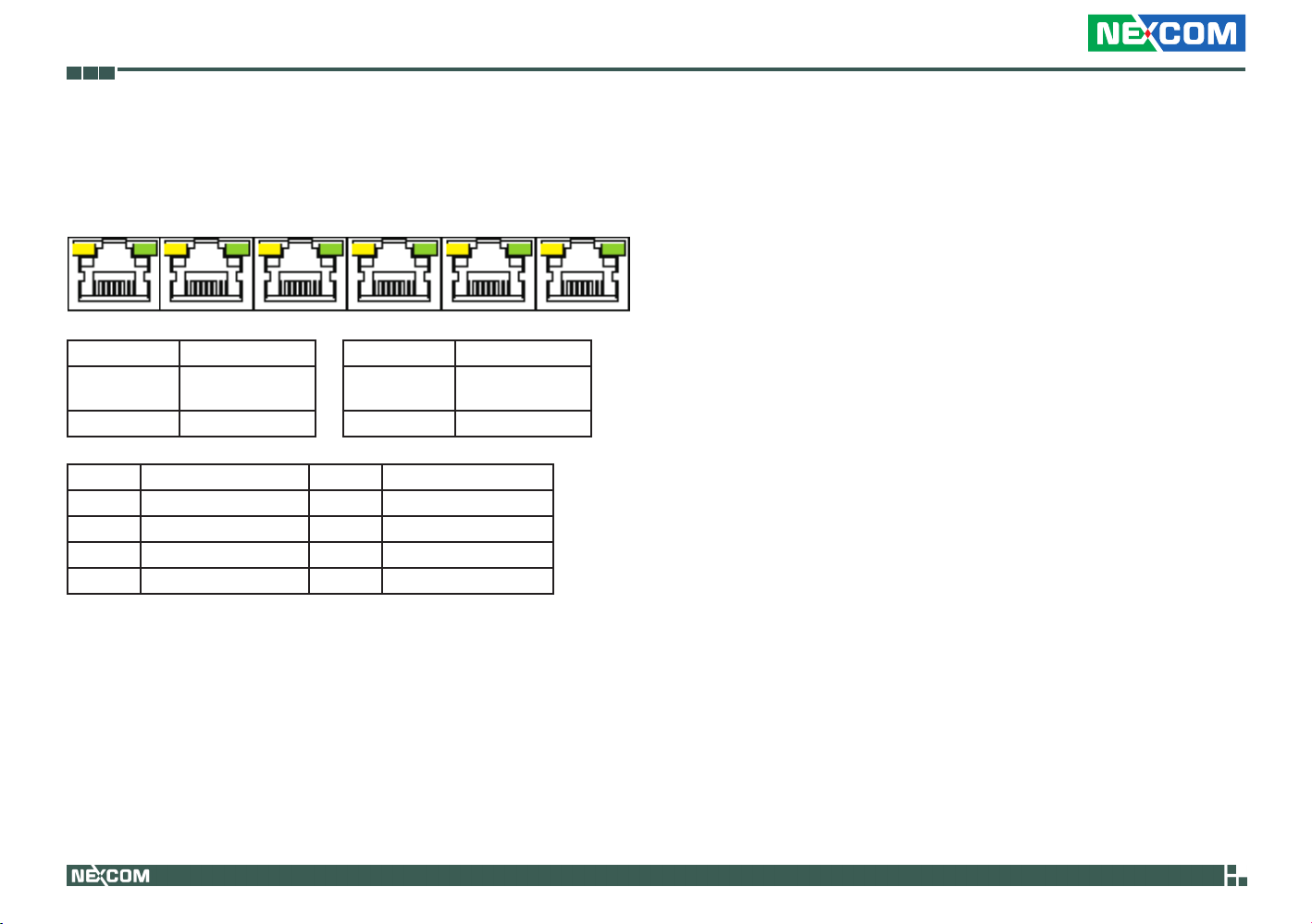

Left: Activity LED blinks Yellow Right: Link LED lights Green for 1G and 10/100MB

• Bypass

- Two segments (dual latch bypass)

• PXE boot

- The left side of 82574L port

Storage

• SATA

- Two SATA connectors with power connector for two 2.5” HDD

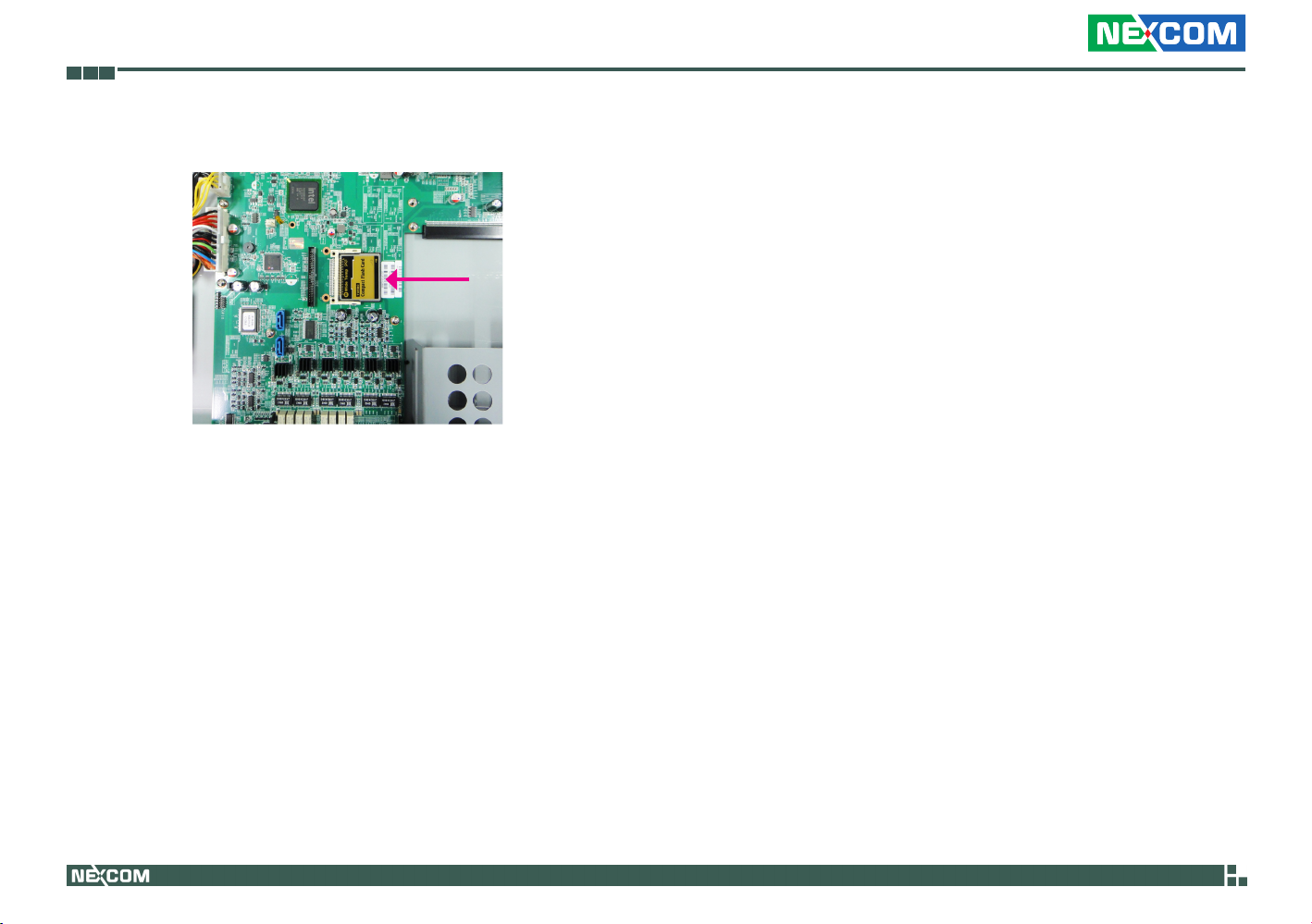

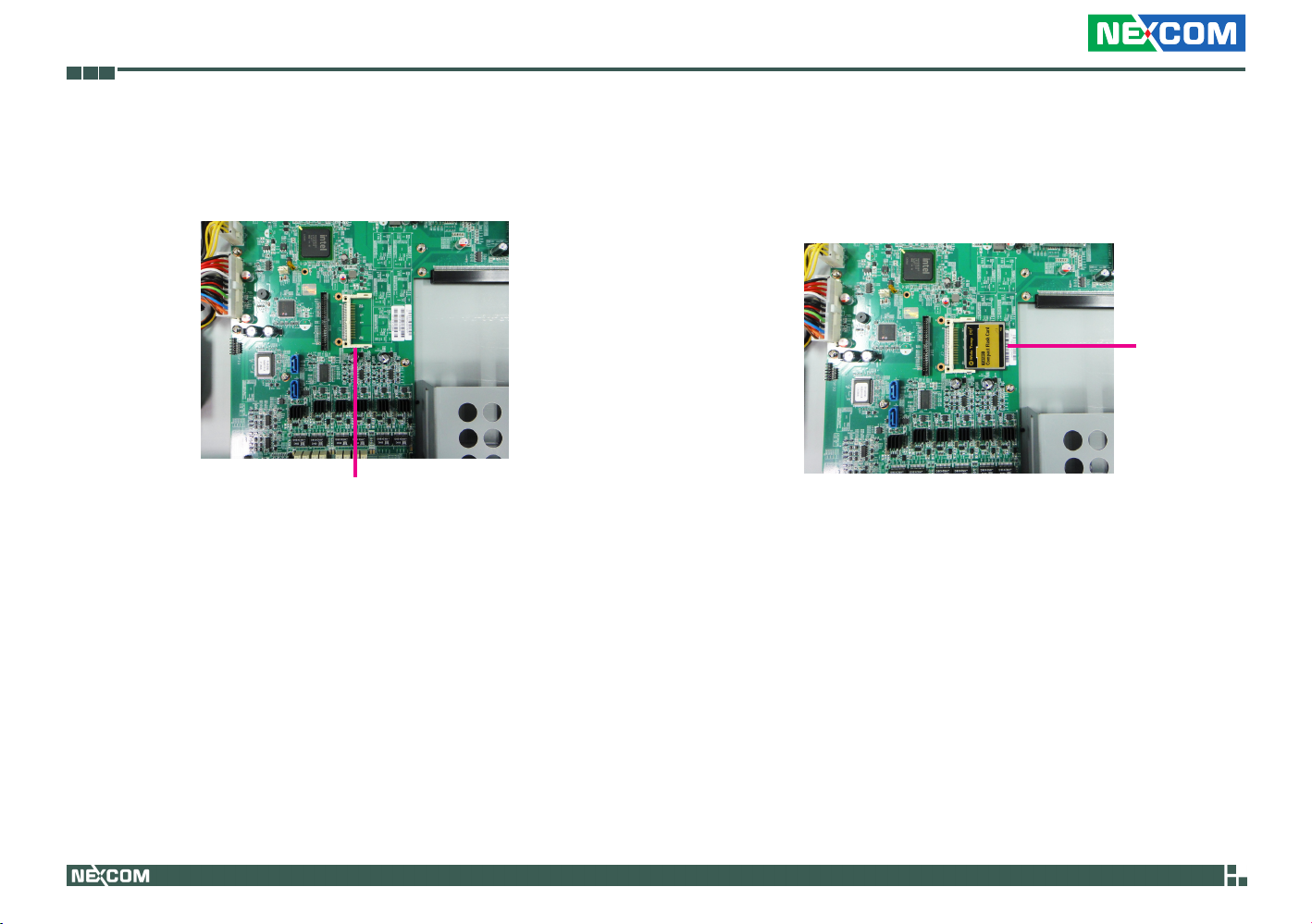

• CompactFlash

- One internal CompactFlash socket

4

NSA 3111 User Manual

Chapter 1: Product Introduction

RTC

• Controller

- Built-in controller

• Backup battery

- Lithium battery

System Management

• Watchdog

- Watchdog timeout is programmable by software from 1 second/min. to 256 sec. (from Winbond W83627 Super I/O)

• System Monitor

- Monitors voltages (system temperature sensor, monitors system voltage, monitors battery voltage, monitors fan speed of system

- 2Kbit serial EEPROM connected to SMBUS to store system information such as serial number, MAC address certificates, etc.

I/O Port

• Internal I/O

- PS/2 keyboard/mouse: one 2x4 2.54mm pin header

- Serial port: one reserved 2x5 2.0mm box header (COM2)

- USB port: two USB connectors

- Digital I/O: GPIO from Super IO, 2x5 GND and +5V 2.0mm 4-in 4-out pin header

• Rear I/O

- One PCI expansion

• Front I/O

- Two USB ports

- One RJ45 type console port

- One GPIO software button

- Six RJ45 copper LAN ports

- One LAN module bay (optional)

Expansion

• PCI Express

- One PCI slot

• Mini PCI

- One Mini PCI socket

Power

• Supplied voltages

- AC 100V – 240V

- Maximum of 200W

- ATX power supply: 3.3V/5V/12V/5Vstdby

• Power mode

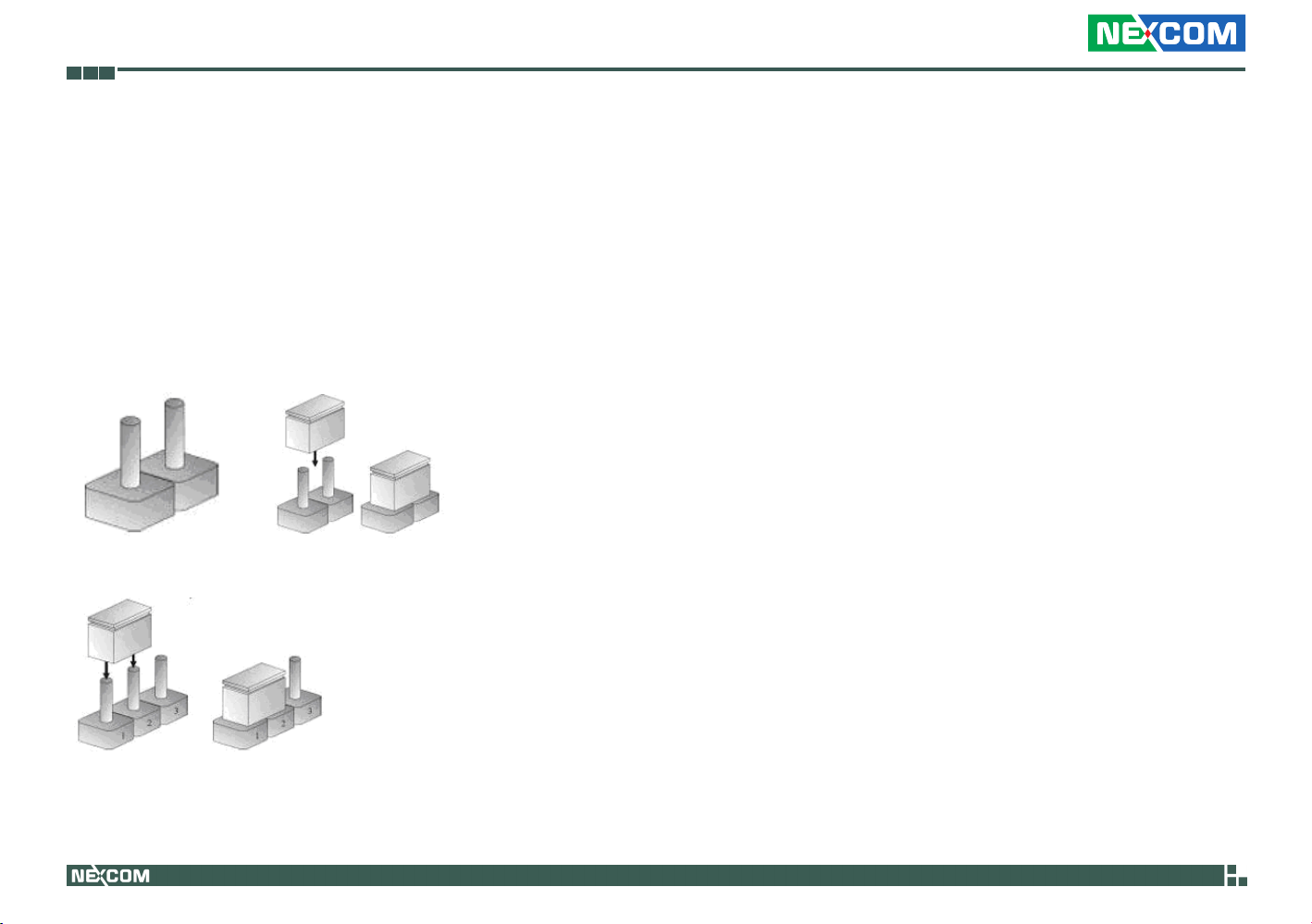

- AT mode (default), ATX mode Use a jumper to change the setting. The BIOS can auto detect the

power mode status.

BIOS

• Type

- Award BIOS

• Flash ROM

- 8Mbit (SPI)

• Power Management

- Power voltage monitoring

• PXE

- 82574L

5

NSA 3111 User Manual

Chapter 1: Product Introduction

Software

• Standard OS

- Windows 2003, Linux Kernel 2.6 (Fedora Core, SUSE)

• Drivers

- VGA, LAN, WDT, GPIO, Hardware Monitor, Bypass

• Sample code

- LCM sample string display, LCM testing program, GPIO, WTD, Bypass, Hardware Monitor

Environment

• Operating temperature

- 0oC ~ 40oC

• Storage temperature

- -20oC ~ 75oC

• Relative humidity

- 10%~90% non-condensing

• EMI/EMC

- CE

- FCC Class A

• ESD

- 2/4KV contact discharge

- 2/4/8KV air discharge

- Criteria B

6

NSA 3111 User Manual

Chapter 1: Product Introduction

Getting to Know NSA 3111-C6

Front Panel

Software

button

USB ports

Console

port

Power LED HDD LED Bypass LEDs

Copper

LAN ports

Software Button

This is a GPIO software button.

Console Port

Used to connect RJ45 type Console device.

USB Ports

Used to connect USB 2.0/1.1 devices.

Power LED

Indicates the power status of the system.

HDD LED

Indicates the status of the hard drive.

LAN module bay

LAN/Bypass Status LEDs

Indicates the status of the LAN/Bypass.

Copper LAN Ports

Used to connect LAN network devices.

LAN Module Bay

Used for installing a LAN module.

7

NSA 3111 User Manual

Chapter 1: Product Introduction

Rear Panel

System fan

Expansion slot

Power On/Off Switch

Press to power-on or power-off the system.

Expansion Slot

Used to install expansion cards.

System Fans

Cooling fans to dissipate heat from the system.

Power switch

8

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

Chapter 2: Jumpers and ConneCtors

This chapter describes the jumpers and connectors that are on NSA 3111.

Before You Begin

• Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

• Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A set of jewelers Screwdrivers

• A grounding strap

• An anti-static pad

• Using your fingers can disconnect most of the connections. It is recom-

mended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

• Before working on internal components, make sure that the power

is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environment tend to have less static electric-

ity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

• Always disconnect the unit from the power outlet whenever you are

working inside the case.

• If possible, wear a grounded wrist strap when you are working inside

the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

• Hold electronic circuit boards by the edges only. Do not touch the com-com-

ponents on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

• Leave all components inside the static-proof packaging that they

shipped with until they are ready for installation.

• Use correct screws and do not over tighten screws.

9

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

10

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

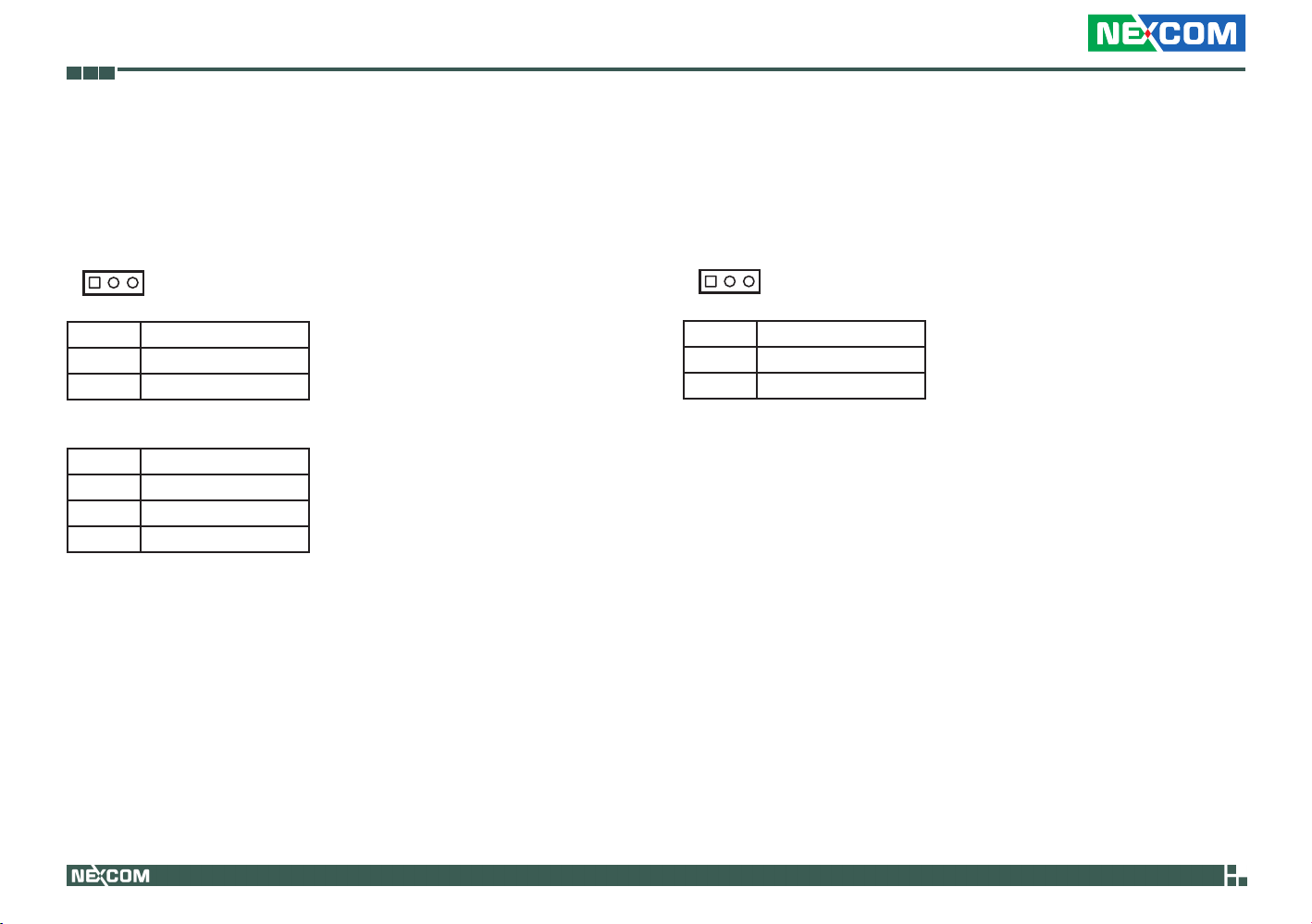

Jumpers

RTC Clear

Connector size: 1x3 3-pin header, 2.54 mm pitch Connector location: JP1

1

Pin Settings

1-2 On Normal

2-3 On CMOS Clear

1-2 On: default

Pin Deﬁnition

3

1 Battery 3.3V

2 RTCRST#

3 GND

Power Type Select

Connector size: 1x3 3-pin header, 2.54 mm pitch Connector location: JP2

1

Pin Deﬁnition

1-2 On ATX

2-3 On AT

2-3 On: default

3

11

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

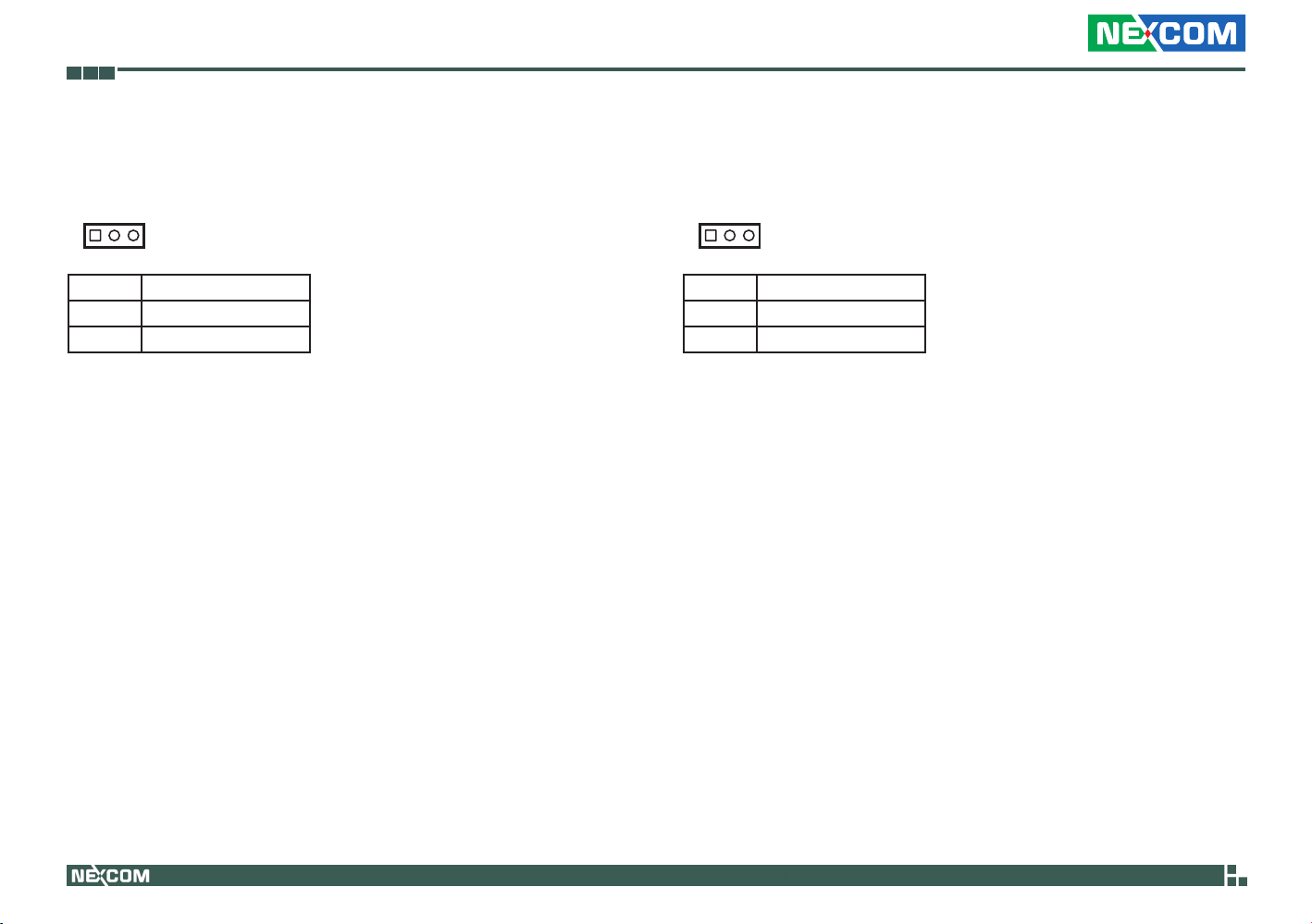

Console Type Select

Connector size: 1x3 3-pin header, 2.54 mm pitch Connector location: JP3

1

Pin Deﬁnition

1-2 On RTS to CTS

2-3 On Normal

2-3 On: default

3

CF Card Master/Slave Select

Connector size: 1x3 3-pin header, 2.54 mm pitch Connector location: JP3

1

Pin Deﬁnition

1-2 On Master

2-3 On Slave

1-2 On: default

3

12

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Deﬁnitions

External I/O Interface - Front

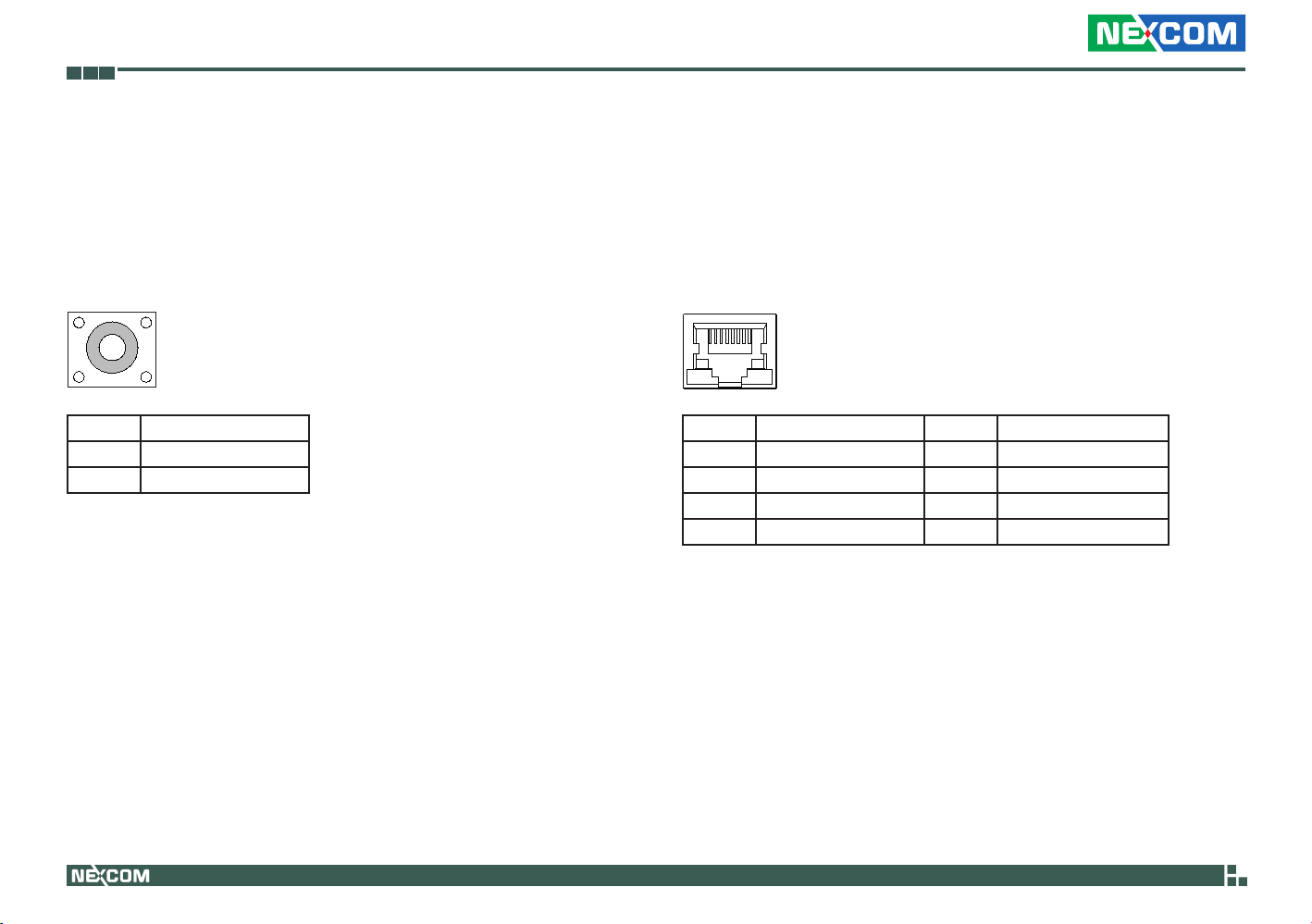

GPIO Software Button

Connector type: 2-pin jack Connector location: SW1

Pin Deﬁnition

1 GND

2 GPI12

RJ45 Type Console Port

Connector type: RJ45 port Connector location: LAN1

Pin Deﬁnition Pin Deﬁnition

1 RTS / CTS 2 DTR

3 TXD 4 GND

5 DCD 6 RXD

7 DSR 8 CTS

13

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

USB Ports

Connector type: Dual USB port Connector location: USB1

Pin Deﬁnition Pin Deﬁnition

1 P5V 5 P5V

2 USB1_N 6 USB2_N

3 USB1_P 7 USB2_P

4 GND 8 GND

Status Indicators

Connector location: LED1

PWR

HDD

Bypass B1

Bypass B2

Status LED Color

PWR Green

HDD Yellow

Bypass B1 Yellow

Bypass B2 Yellow

14

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

Copper LAN Ports

Connector type: RJ45 port with LEDs Connector location: CON1

Act Link

Act Status

Yellow Blinking

Off No Acitivity

Pin Deﬁnition Pin Deﬁnition

1 TX+0 2 TX-0

3 TX+1 4 TX+2

5 TX-2 6 TX-1

7 TX+3 8 TX-3

Data Activity

Link Status

Green Always Lighted

Off No link

1G and 10/100MB

15

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

Reset Button

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: J3

1

2

Pin Deﬁnition

1 GND

2 RESET

Power Button

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: J4

1

2

Pin Deﬁnition

1 GND

2 FP_SW_ON_N

16

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

VGA Connector

Connector type: 2x8 16-pin box header, 2.0 mm pitch Connector location: CN1

2

1

Pin Deﬁnition Pin Deﬁnition

1 RED 2 GREEN

3 BLUE 4 NC

5 GND 6 GND

7 GND 8 GND

9 P5V 10 GND

11 NC 12 VGADATA

13 HSYNC 14 VSYNC

15 VGACLK 16 NC

16 15

PS/2 Keyboard/Mouse Connector

Connector type: 2x4 8-pin header, 2.54 mm Connector location: J2

2 1

8 7

Pin Deﬁnition Pin Deﬁnition

1 P5V 2 P5V

3 KDAT 4 MDAT

5 KCLK 6 MCLK

7 GND 8 GND

17

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

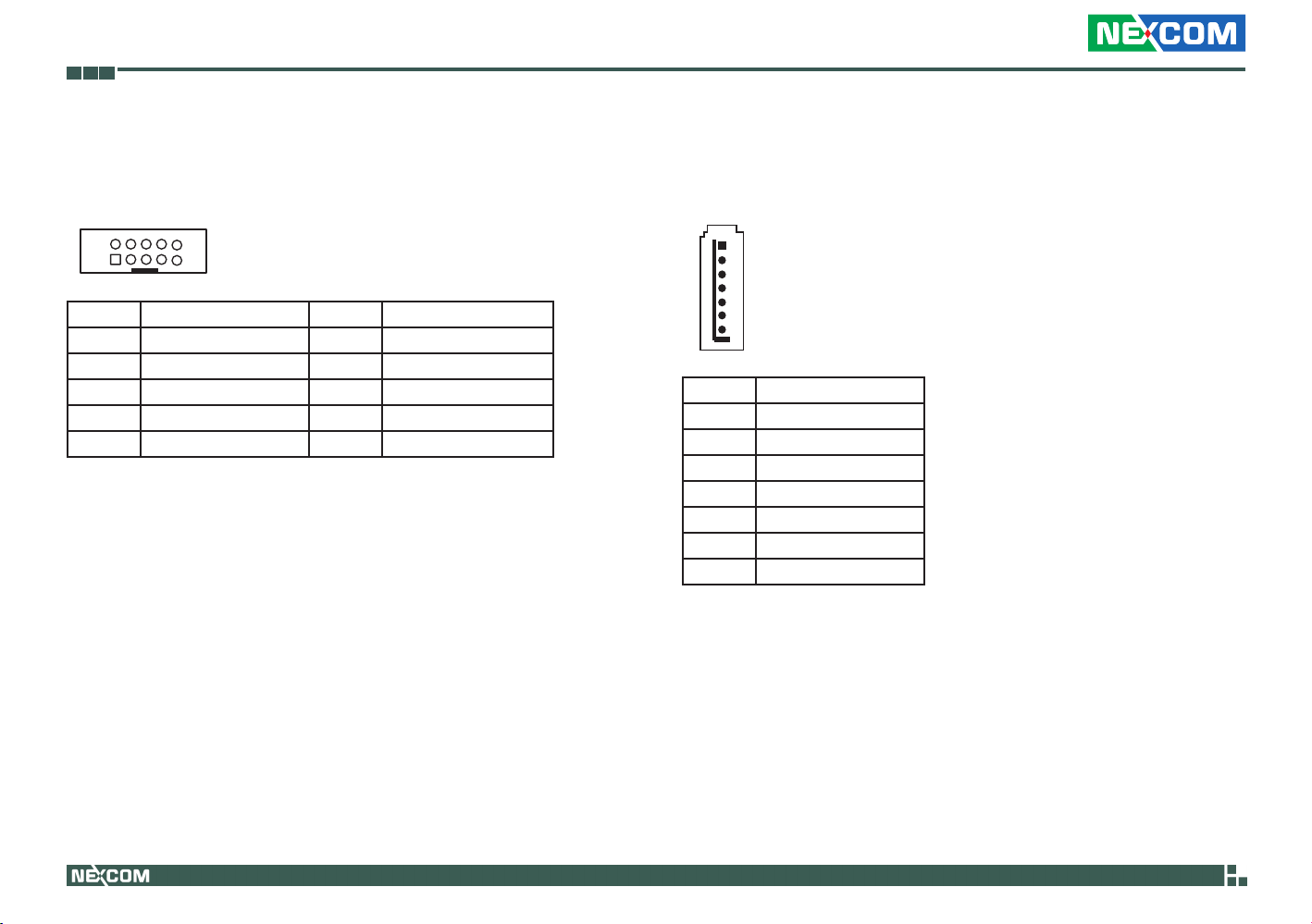

COM2 Connector

Connector type: 2x5 10-pin boxed header, 2.0 mm Connector location: CN2

2 1

Pin Deﬁnition Pin Deﬁnition

1 DCD2 2 RXD2

3 TXD2 4 DTR2

5 GND 6 DSR2

7 RTS2 8 CTS2

9 RI2 10 GND

10

9

SATAII Ports

Connector type: Standard Serial ATAII, 1.27mm Connector location: J8 and J9

1

7

Pin Deﬁnition

1 GND

2 TXP0

3 TXN0

4 GND

5 RXN0

6 RXP0

7 GND

18

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

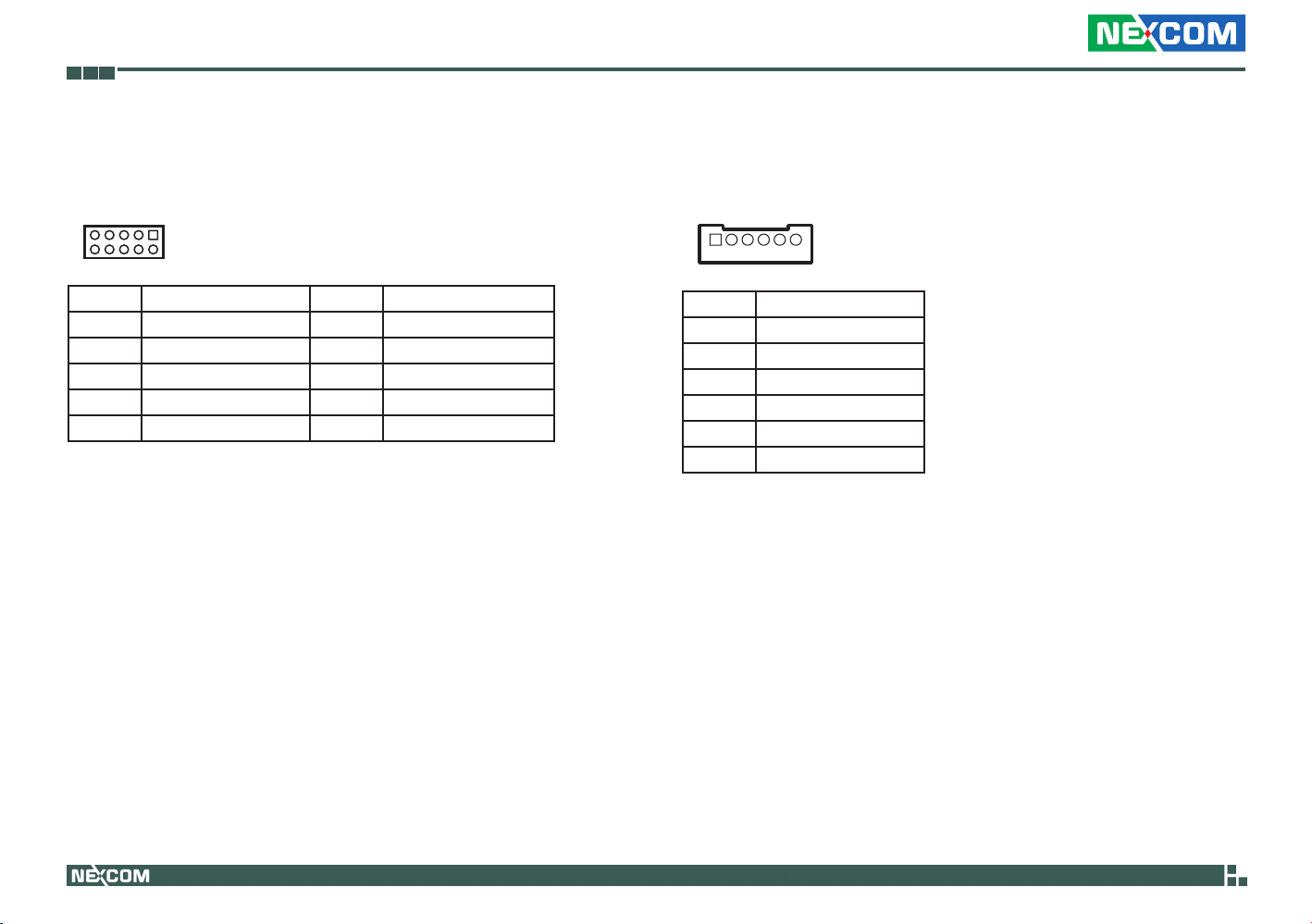

GPIO Connector

Connector type: 2x5 10-pin header, 2.0 mm Connector location: J7

9

10

Pin Deﬁnition Pin Deﬁnition

1 P5V 2 GND

3 GPI20 4 GPO24

5 GPI21 6 GPO25

7 GPI22 8 GPO26

9 GPI23 10 GPO27

1

2

USB Connector

Connector type: 1x6 6-pin boxed header, 2.0 mm JST Connector location: J1

1

Pin Deﬁnition

1 P5V

2 USB2-

3 USB2+

4 USB3-

5 USB3+

6 GND

6

19

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

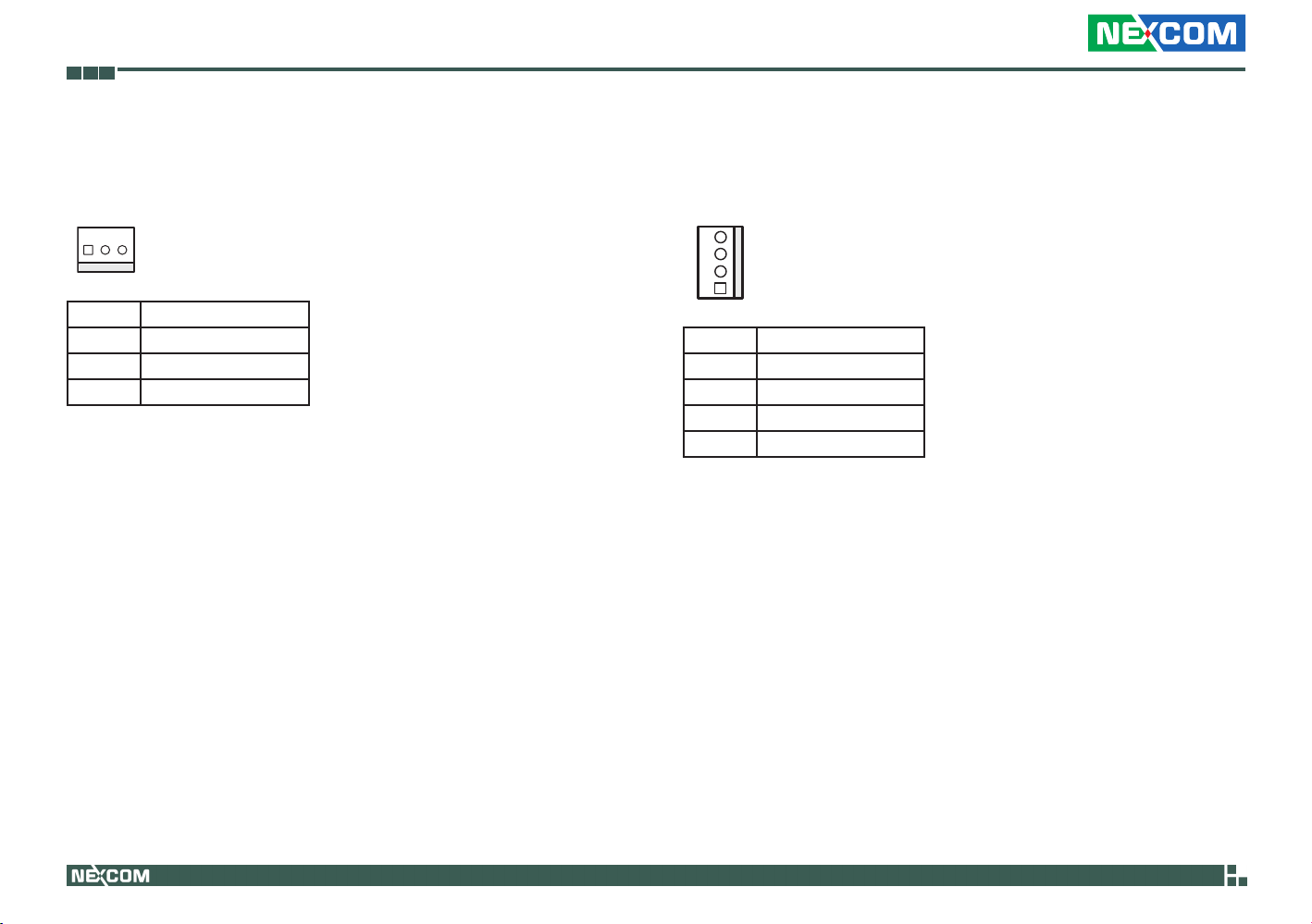

Chip Fan

Connector type: 3-pin Wafer, 2.54 mm pitch Connector location: FAN1

1 3

Pin Deﬁnition

1 GND

2 +12V

3 FAN_TAC

System Fans

Connector size: 4-pin Wafer, 2.54 mm pitch Connector location: CN3 and CN4

4

1

Pin Deﬁnition

1 GND

2 +12V

3 FAN_TAC

4 PWM

20

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

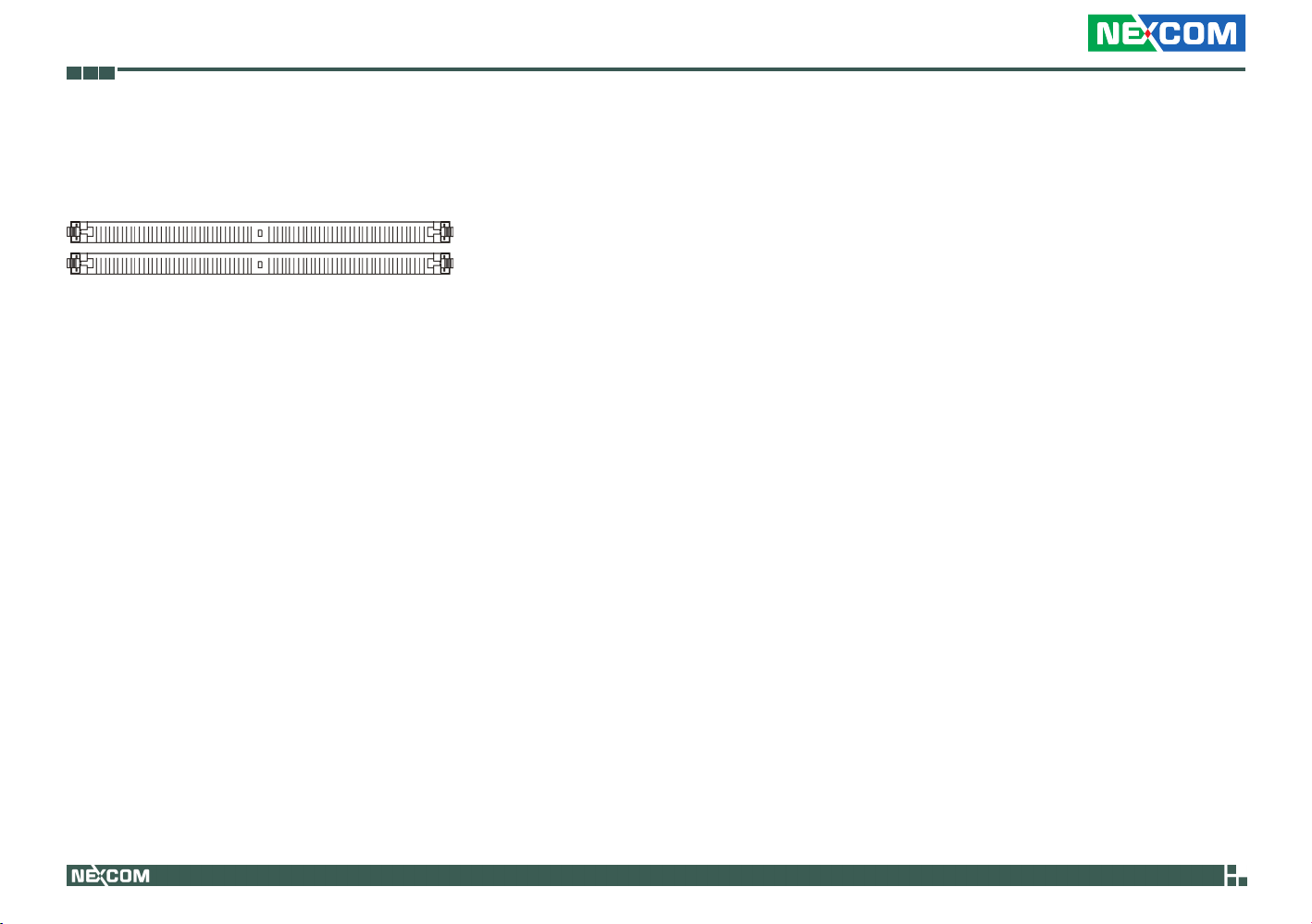

DIMM Sockets

Connector type: 240-pin DDR2 Connector location: DIMM1, DIMM2

DIMM 2

DIMM 1

• DIMM 2 = Channel B DIMM 1 = Channel A

• Always populate DIMM1 first. The system will not boot when the first module is installed in DIMM2.

21

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

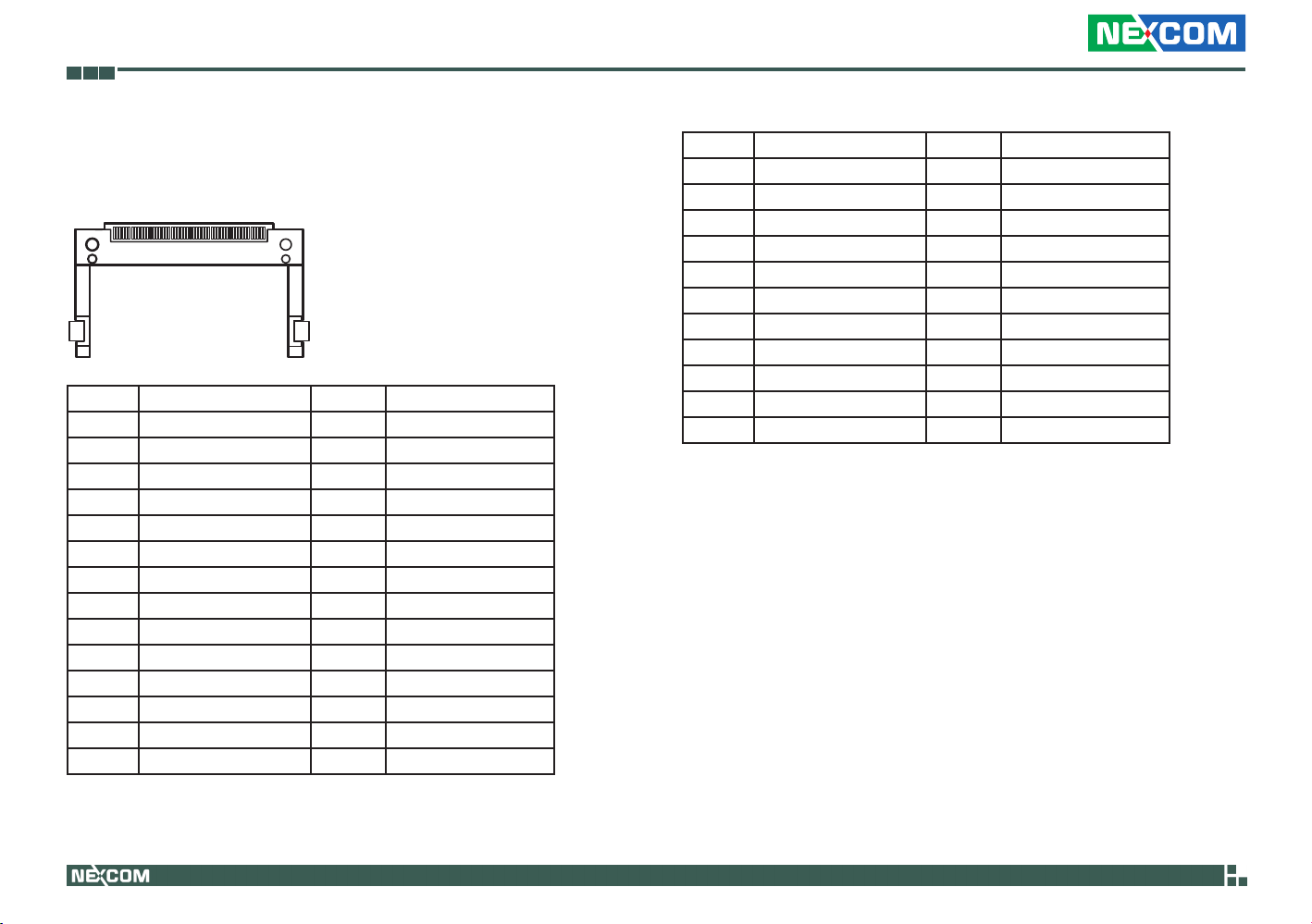

CompactFlash

Connector type: CompactFlash Type 2 Connector location: CN10

Pin Description Pin Description

1 GND 2 SDD3A

3 SDD4A 4 SDD5A

5 SDD6A 6 SDD7A

7 SDCS#1 8 GND

9 GND 10 GND

11 GND 12 GND

13 P5V 14 GND

15 GND 16 GND

17 GND 18 SDA2A

19 SDA1A 20 SDA0A

21 SDD0A 22 SDD1A

23 SDD2A 24 NC

25 CF_CD2# 26 CF_CD1#

27 SDD11A 28 SDD12A

Pin Description Pin Description

29 SDD13A 30 SDD14A

31 SDD15A 32 SDCS#3

33 NC 34 SDIOR#

35 SDIOW# 36 P5V

37 HDIRQ14 38 P5V

39 CF_SEL# 40 NC

41 IDERST# 42 SIORDY

43 SDREQ 44 SDDACK#

45 IDEACTP# 46 DIAG#

47 SDD8A 48 SDD9A

49 SDD10A 50 GND

22

NSA 3111 User Manual

Chapter 2: Jumpers and Connectors

Block Diagram of the Main Board

23

NSA 3111 User Manual

Chapter 3: System Setup

Chapter 3: SyStem Setup

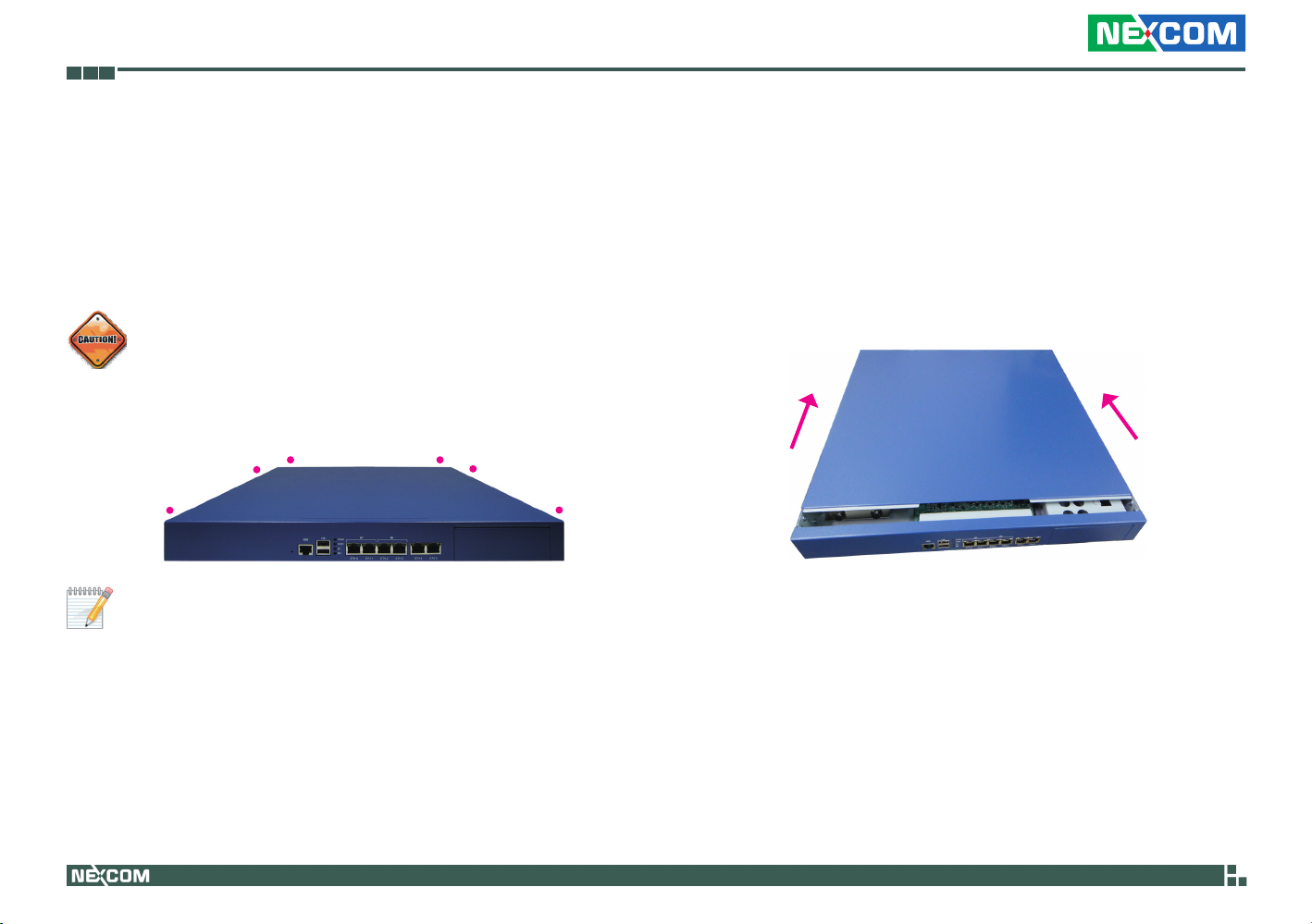

Removing the Chassis Cover

off and disconnected from the power sources to prevent electric shock or system damage.

1. The screws around the cover are used to secure the cover to the chassis. Remove these screws and put them in a safe place for later use.

2. Slide the cover backward then remove it from the chassis.Prior to removing the chassis cover, make sure the unit’s power is

The dots denote the locations of the screws.

24

NSA 3111 User Manual

Chapter 3: System Setup

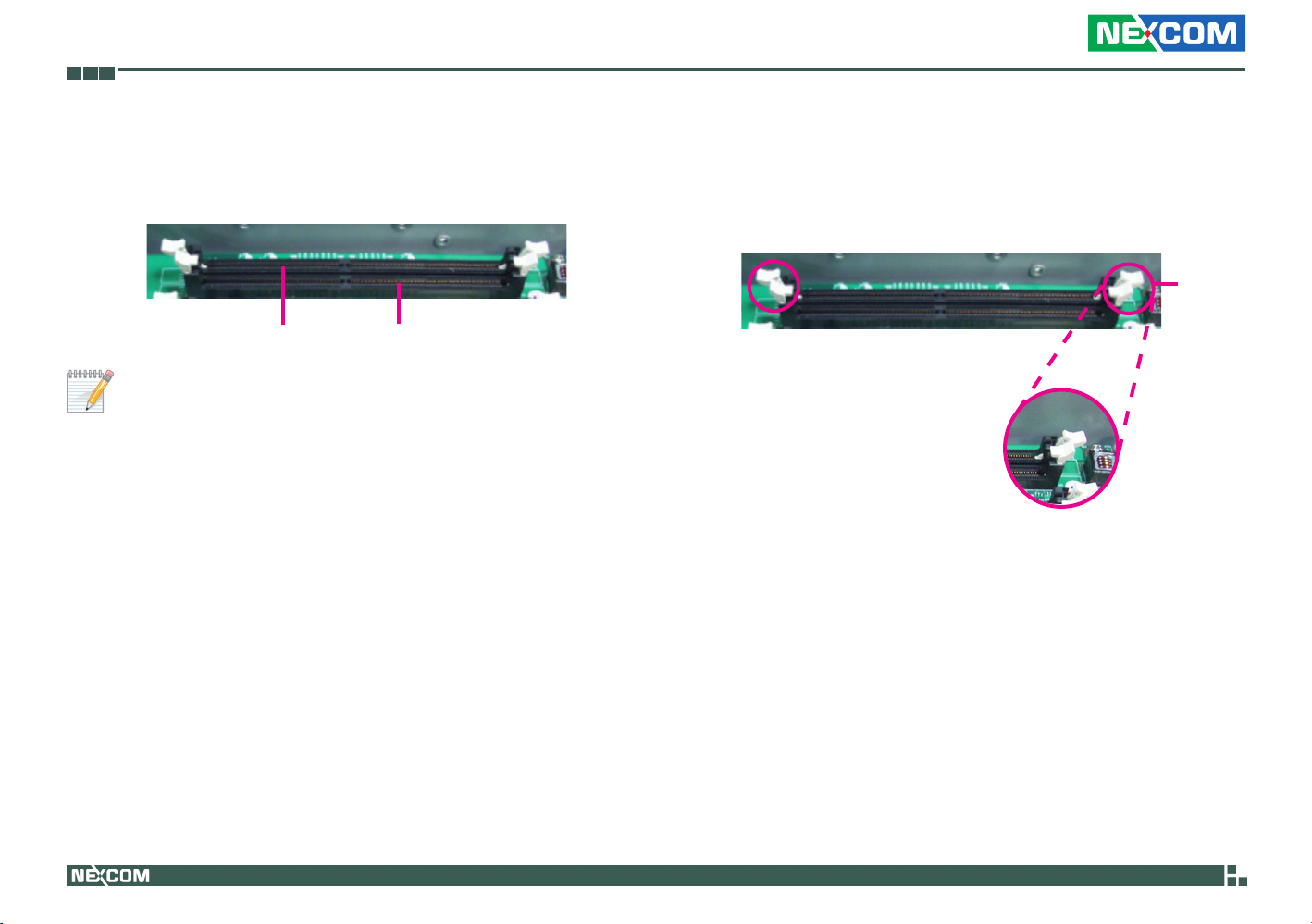

Installing a DIMM

1. The 2 DDR2 sockets are divided into 2 channels.

DIMM2 DIMM1

• DIMM1 = Channel A DIMM2 = Channel B

• Always populate DIMM1 first. The system will not boot when the first module is installed in DIMM2.

2. Push the ejector tabs which are at the ends of the socket outward. This indicates that the socket is unlocked.

Ejector tab

25

NSA 3111 User Manual

Chapter 3: System Setup

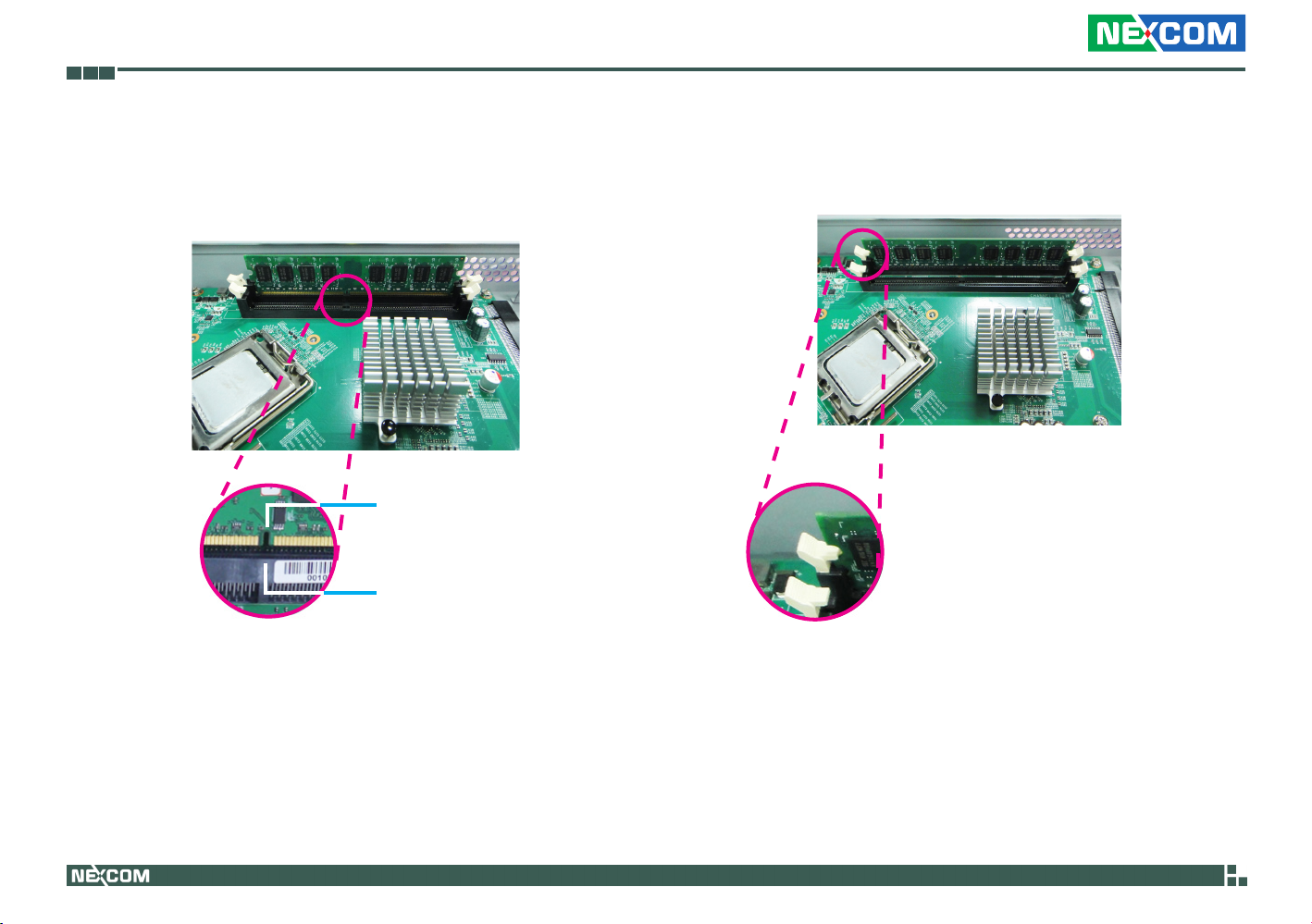

3. Note how the module is keyed to the socket. Grasping the module by its edges, align the module with the socket so that the “notch” on the module is aligned with the “key” on the socket. The key ensures the module can be plugged into the socket in only one direction.

Notch on the module

Key on the socket

4. Seat the module vertically, pressing it down firmly until it is completely seated in the socket. The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.

26

NSA 3111 User Manual

Chapter 3: System Setup

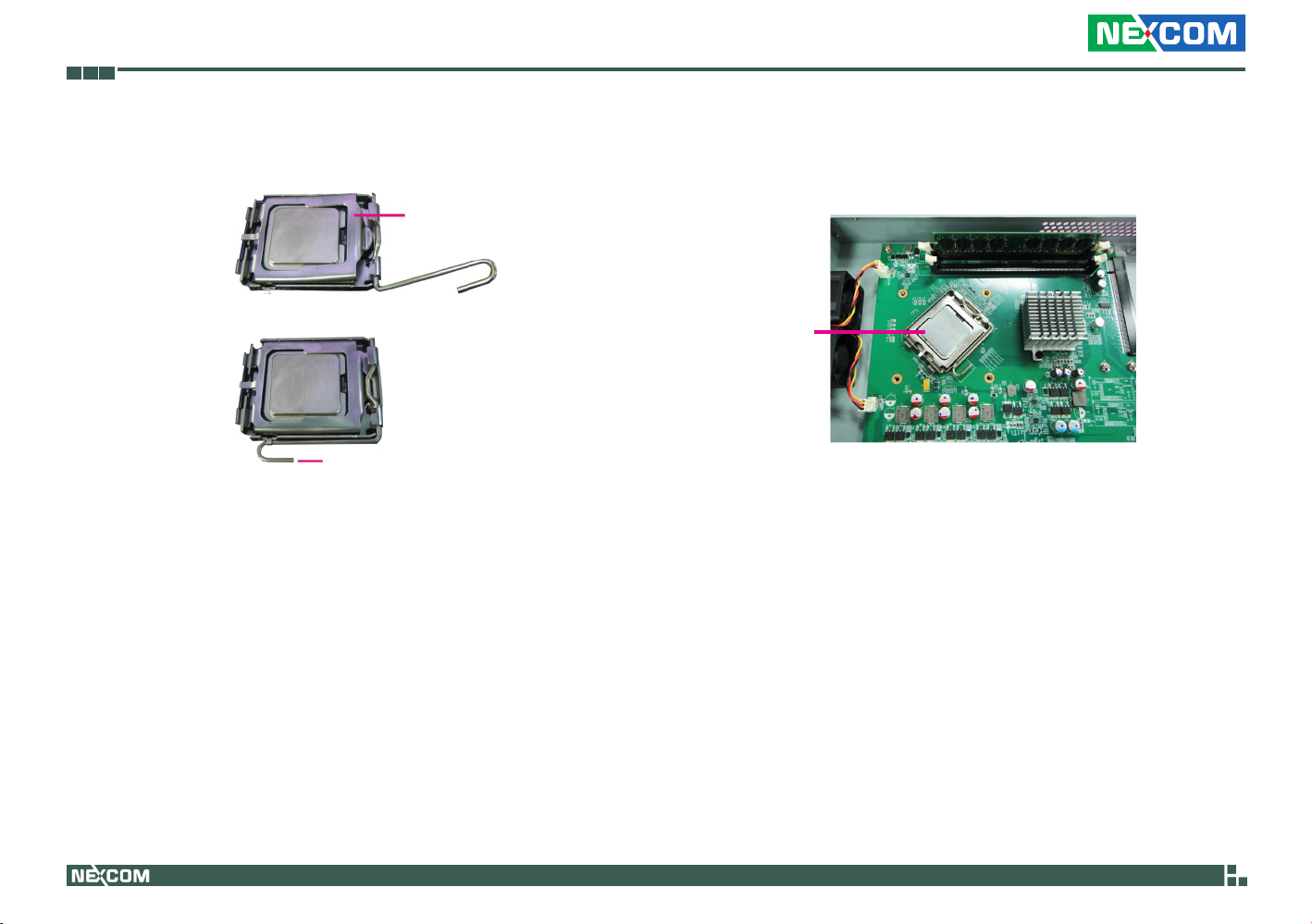

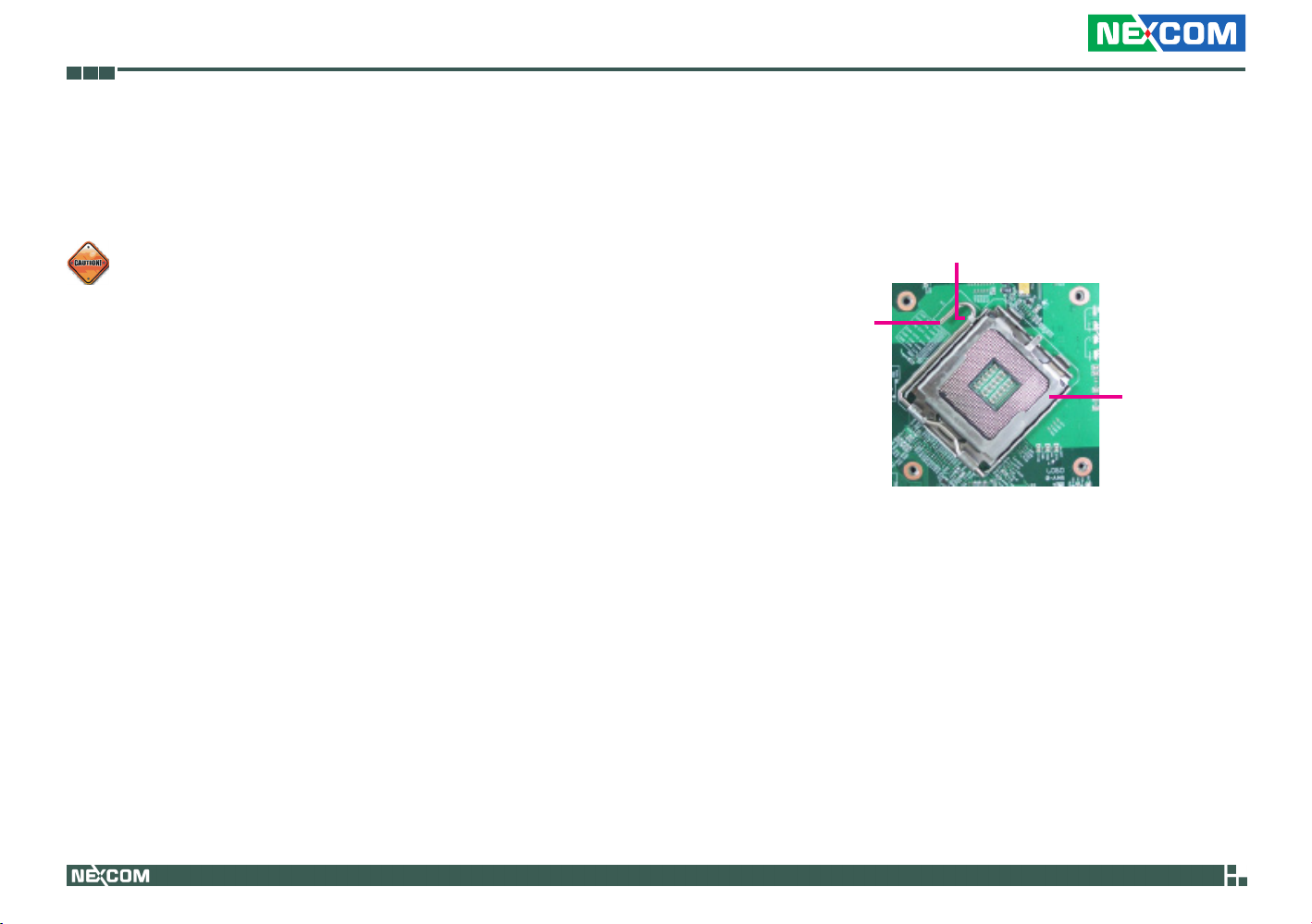

Installing the CPU

1. If the system came with the heat sink already installed, loosen the mounting screws that secure the heat sink to the board.

• Before you proceed, make sure (1) the CPU socket comes with a protective cap, (2) the cap is not damaged and (3) the socket’s contact pins are not bent.

• Make sure all power cables are unplugged before you install the CPU.

• The CPU socket must not come in contact with anything other than the CPU. Avoid unnecessary exposure. Remove the protective cap only when you are about to install the CPU.

2. Unlock the socket by pushing the load lever down, moving it sideways until it is released from the retention tab.

Retention tab

Load lever

CPU socket

27

NSA 3111 User Manual

Chapter 3: System Setup

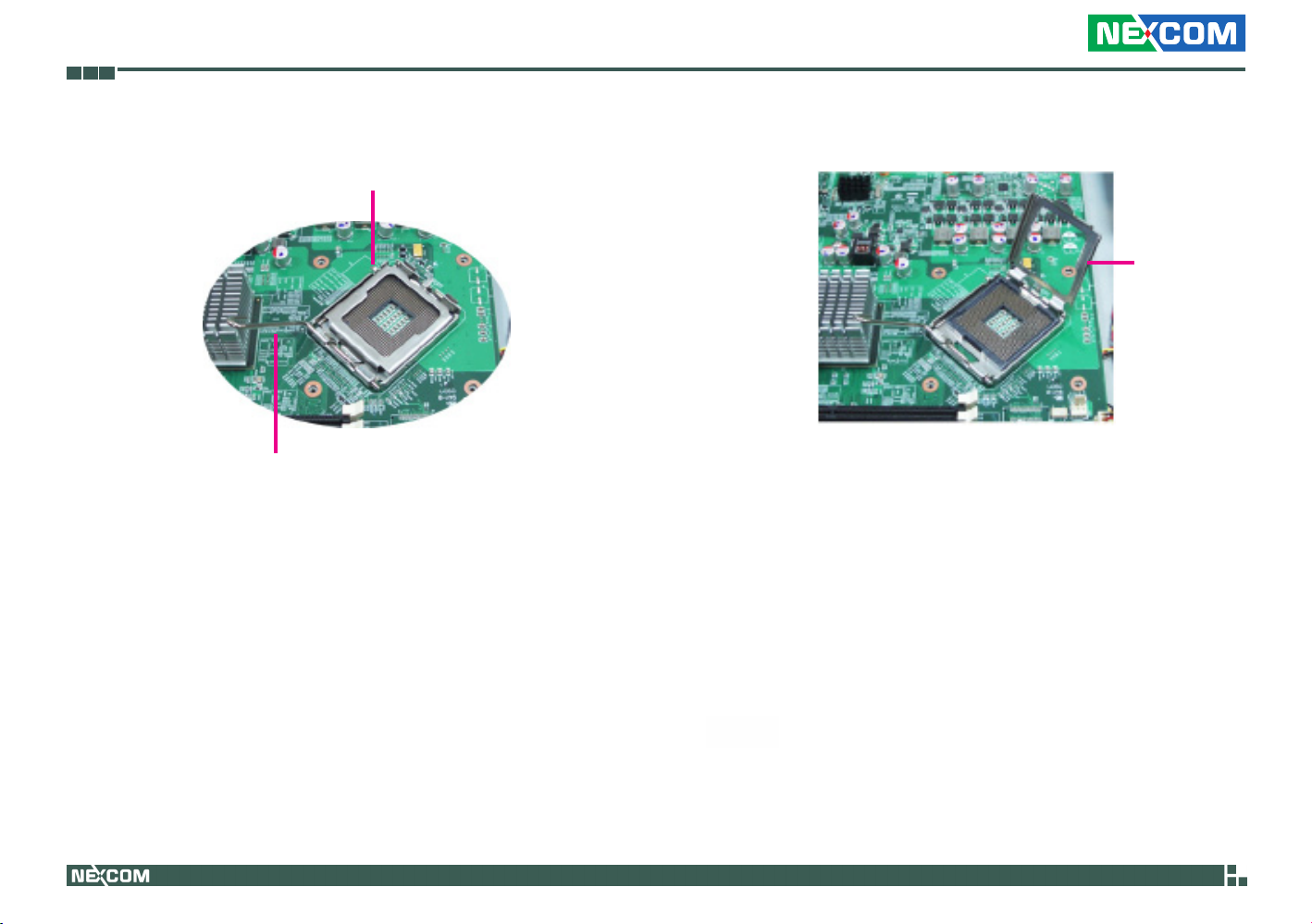

3. Lift the load lever.

4. Lift the load plate.

Retention tab

Load plate

Load lever

lifted

28

NSA 3111 User Manual

Chapter 3: System Setup

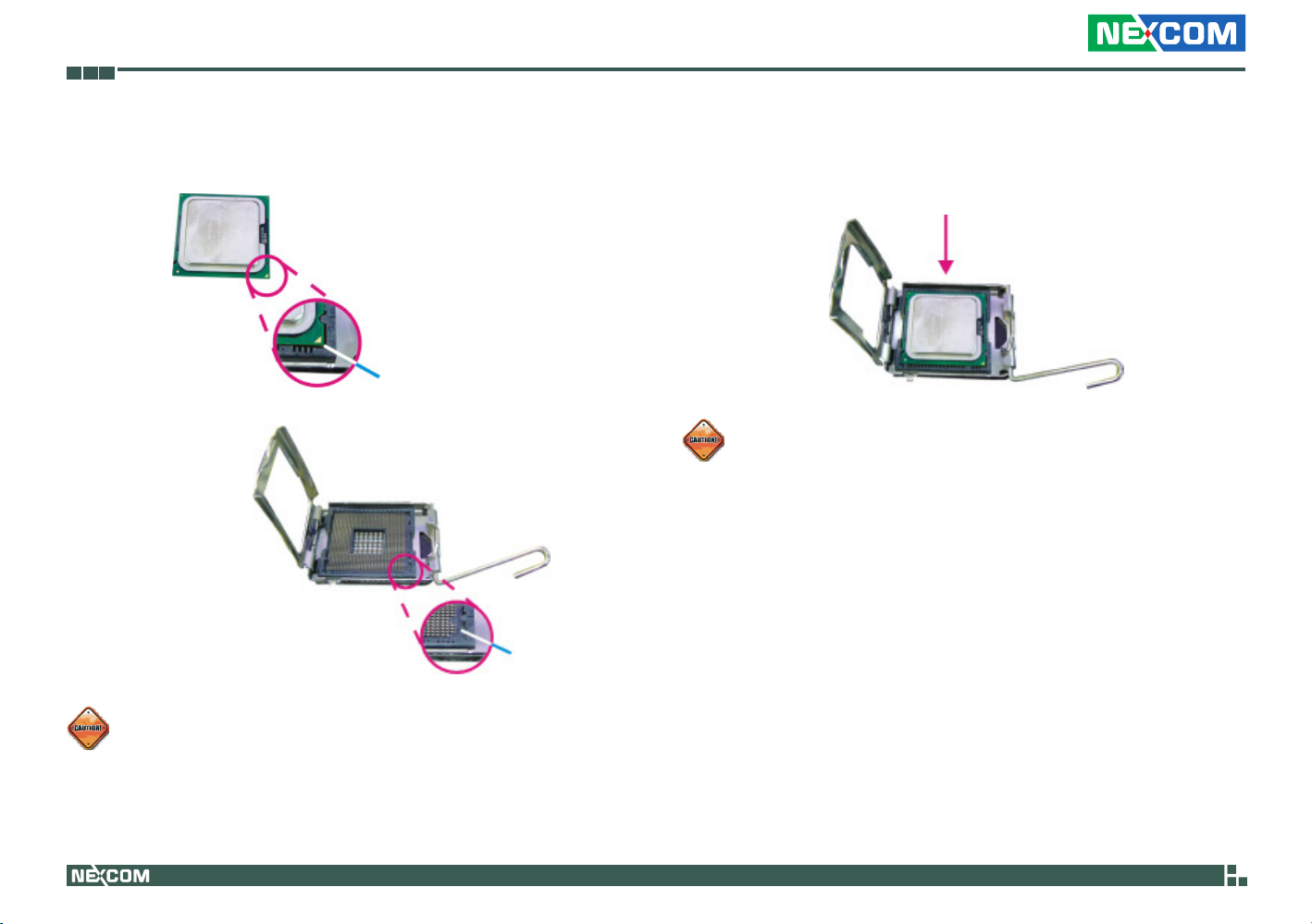

5. Position the CPU above the socket. The gold mark on the CPU must align with pin 1 of the CPU socket.

Gold mark on the CPU

Pin 1 of the socket

6. Insert the CPU into the socket until it is seated in place. The CPU will fit in only one orientation and can easily be inserted without exerting any force.

Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.

Handle the CPU by its edges and avoid touching the pins.

29

NSA 3111 User Manual

Chapter 3: System Setup

7. Once the CPU is in place, close the load plate then push the lever down until it snaps into the retention tab.

Load plate

Load lever

8. Apply thermal paste on top of the CPU. Do not spread the paste all over the surface. When you later place the heat sink on top of the CPU, the compound will disperse evenly.

Thermal paste

on the CPU

30

NSA 3111 User Manual

Chapter 3: System Setup

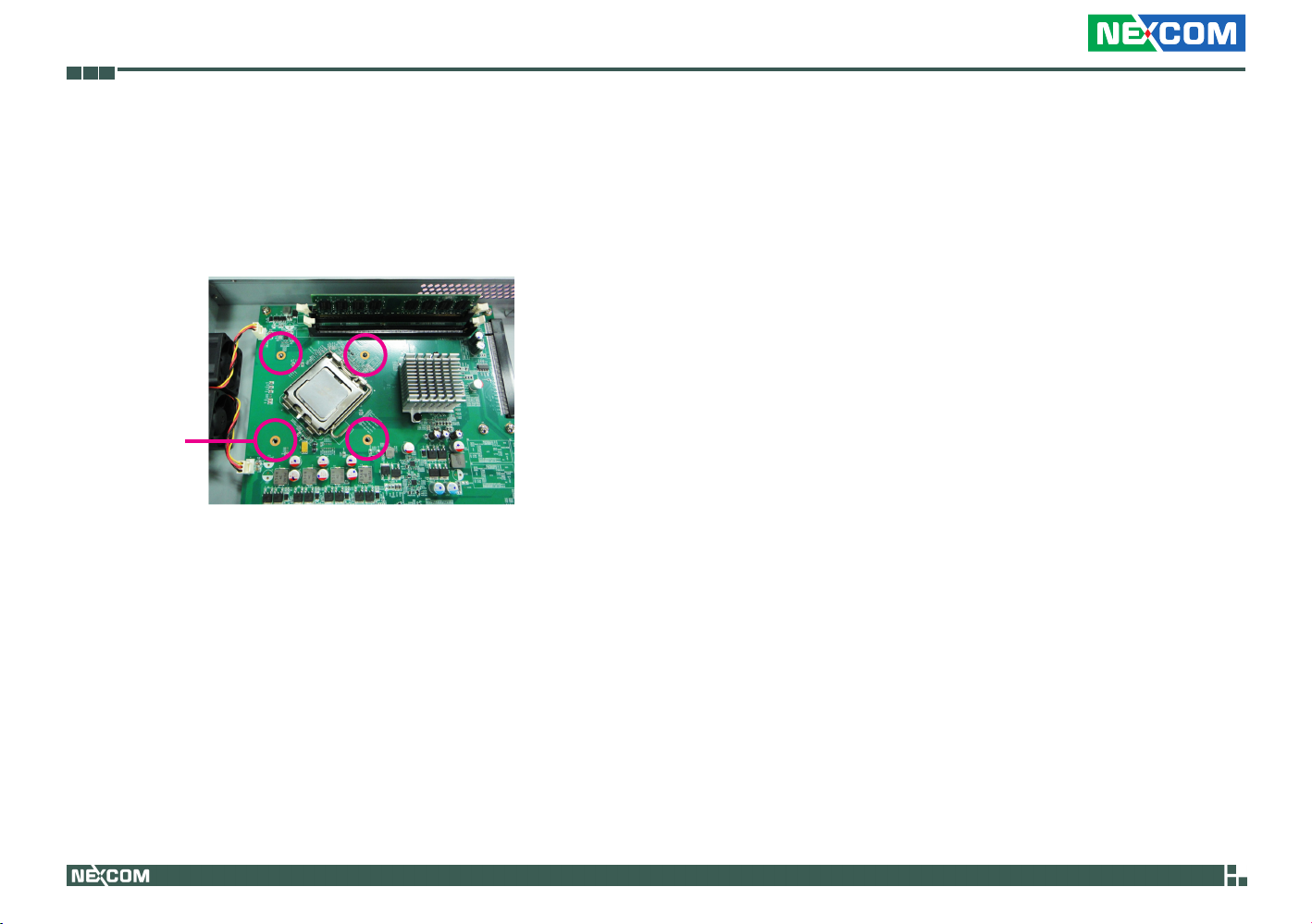

9. The mounting holes around the CPU socket are used to mount the heat sink.

Align the mounting screws of the heat sink with the mounting holes

around the CPU socket. Tighten the screws to secure the heat sink in place.

Mounting

hole

31

NSA 3111 User Manual

Chapter 3: System Setup

Installing a CompactFlash Card

1. Locate for the CompactFlash socket on the board.

CompactFlash

socket

2. With the CompactFlash card’s label facing up, position the card to the socket.

CompactFlash card

32

NSA 3111 User Manual

Chapter 3: System Setup

3. Insert the card until it is completely seated in the socket.

33

NSA 3111 User Manual

Chapter 3: System Setup

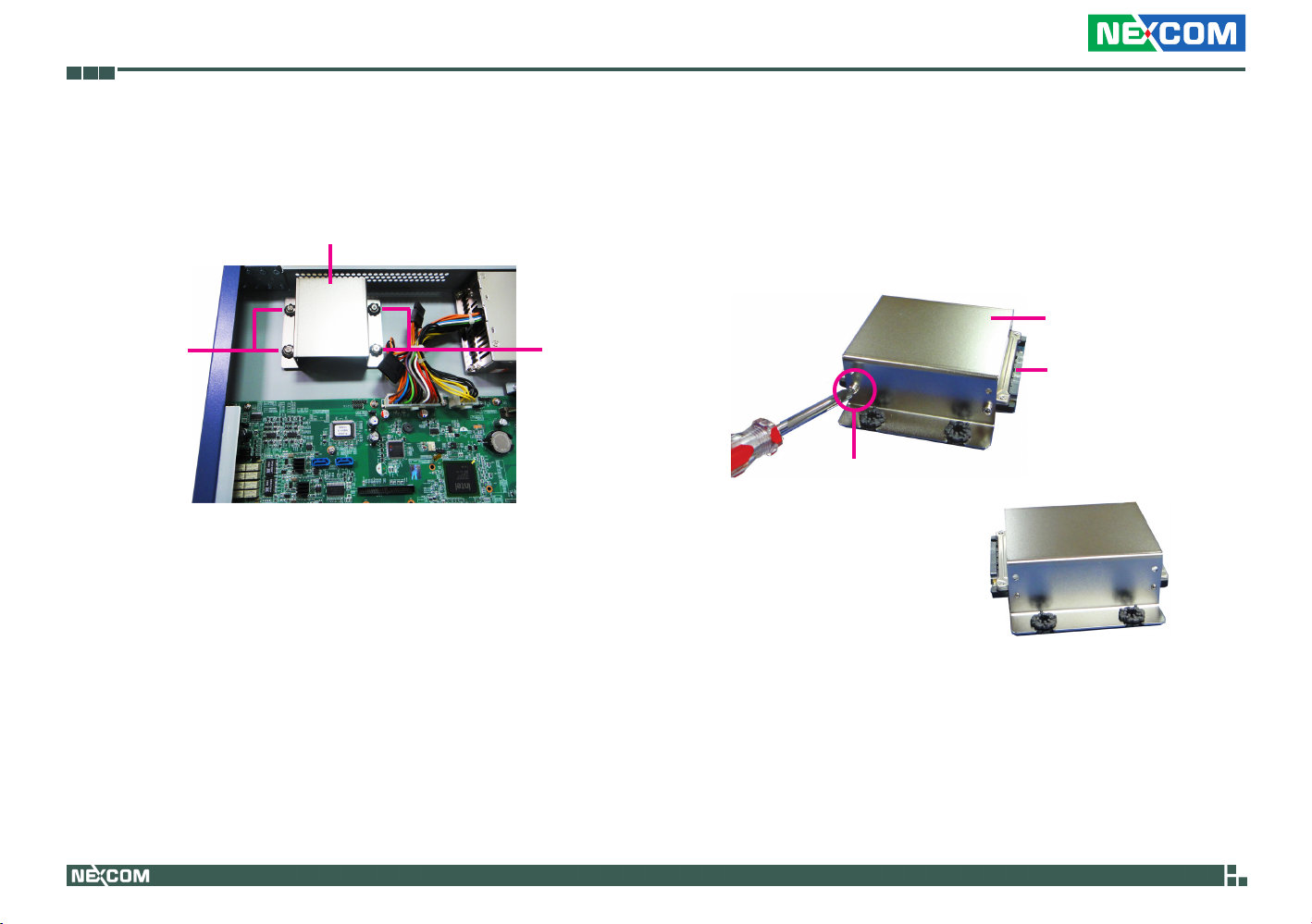

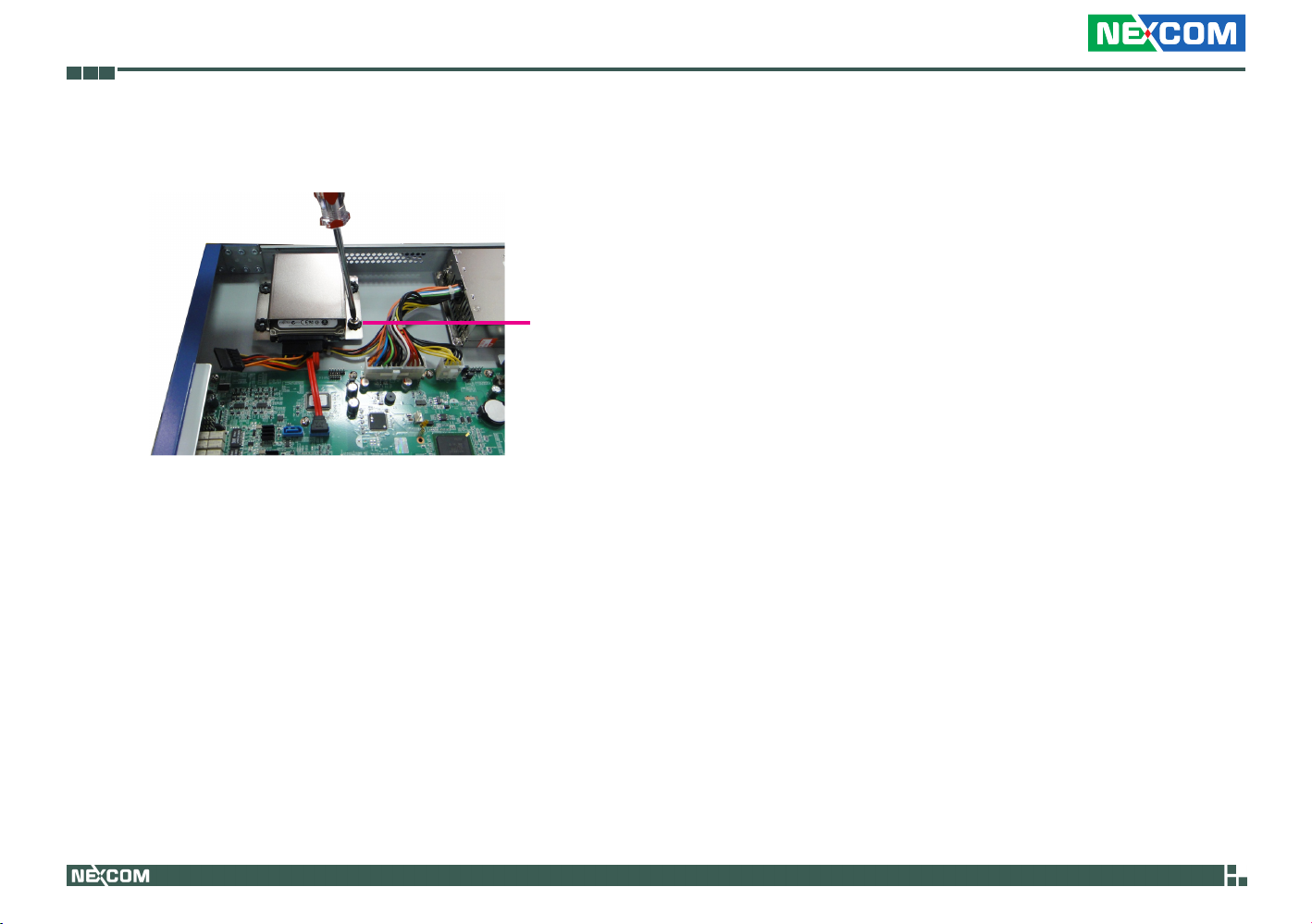

Installing a SATA Hard Drive

1. Remove the mounting screws that secure the drive bay to the chassis.

Drive bay

Mounting

screw

Mounting screw

2. Place the SATA hard drive onto the drive bay. Align the mounting holes that are on the sides of the SATA drive with the mounting holes on the drive bay. Use the provided mounting screws to secure the SATA drive in place.

Drive bay

Connector side of SATA drive

Mounting screw

34

NSA 3111 User Manual

Chapter 3: System Setup

3. Align the mounting holes of the drive bay with the mounting studs on the chassis.

4. Connect the SATA power cable and the SATA data cable to the SATA drive.

SATA power

cable

SATA data cable

35

NSA 3111 User Manual

Chapter 3: System Setup

5. Use the mounting screws you removed in step 1 to secure the drive bay in place.

Mounting screw

36

NSA 3111 User Manual

Chapter 3: System Setup

Installing a PCI Card

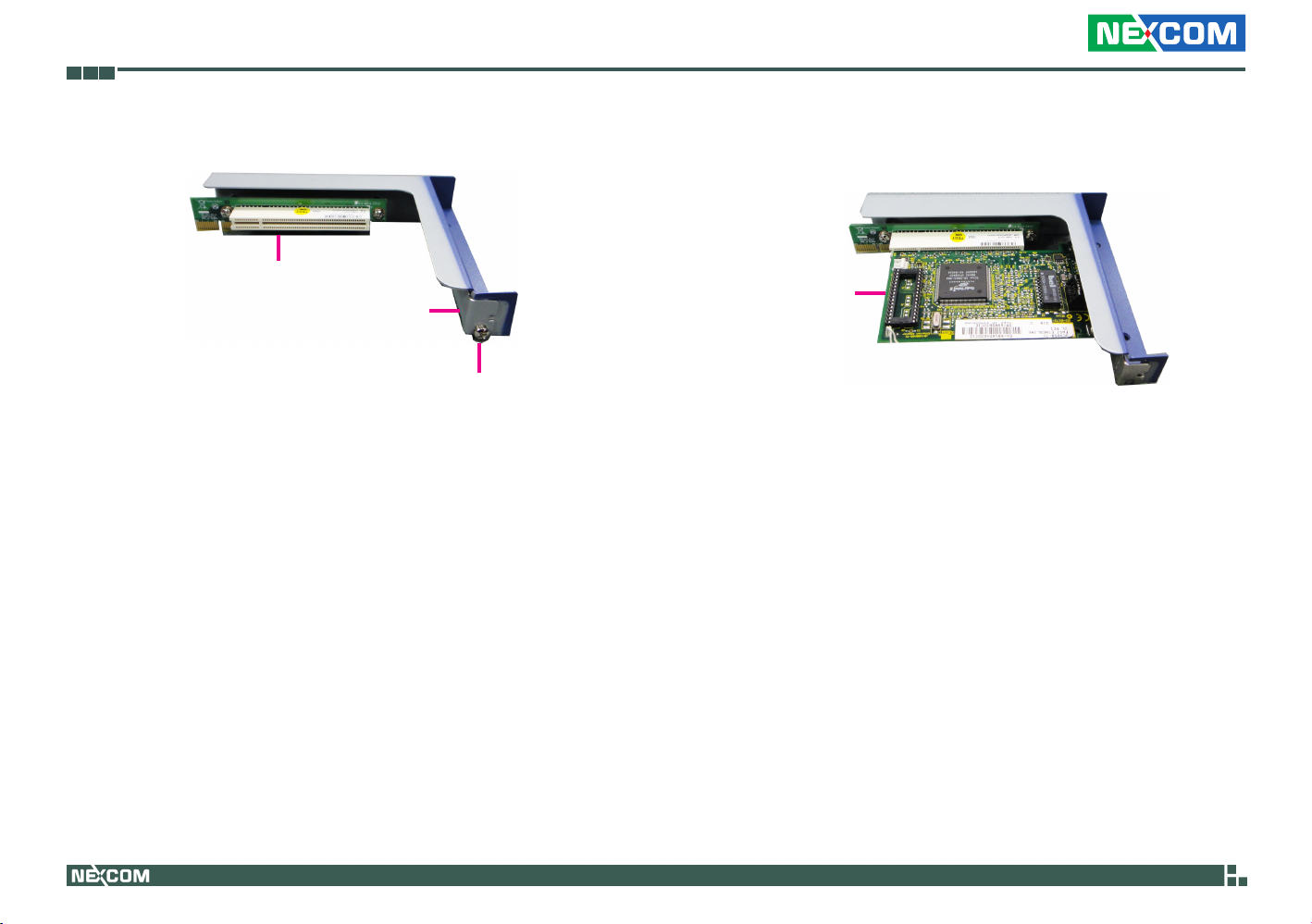

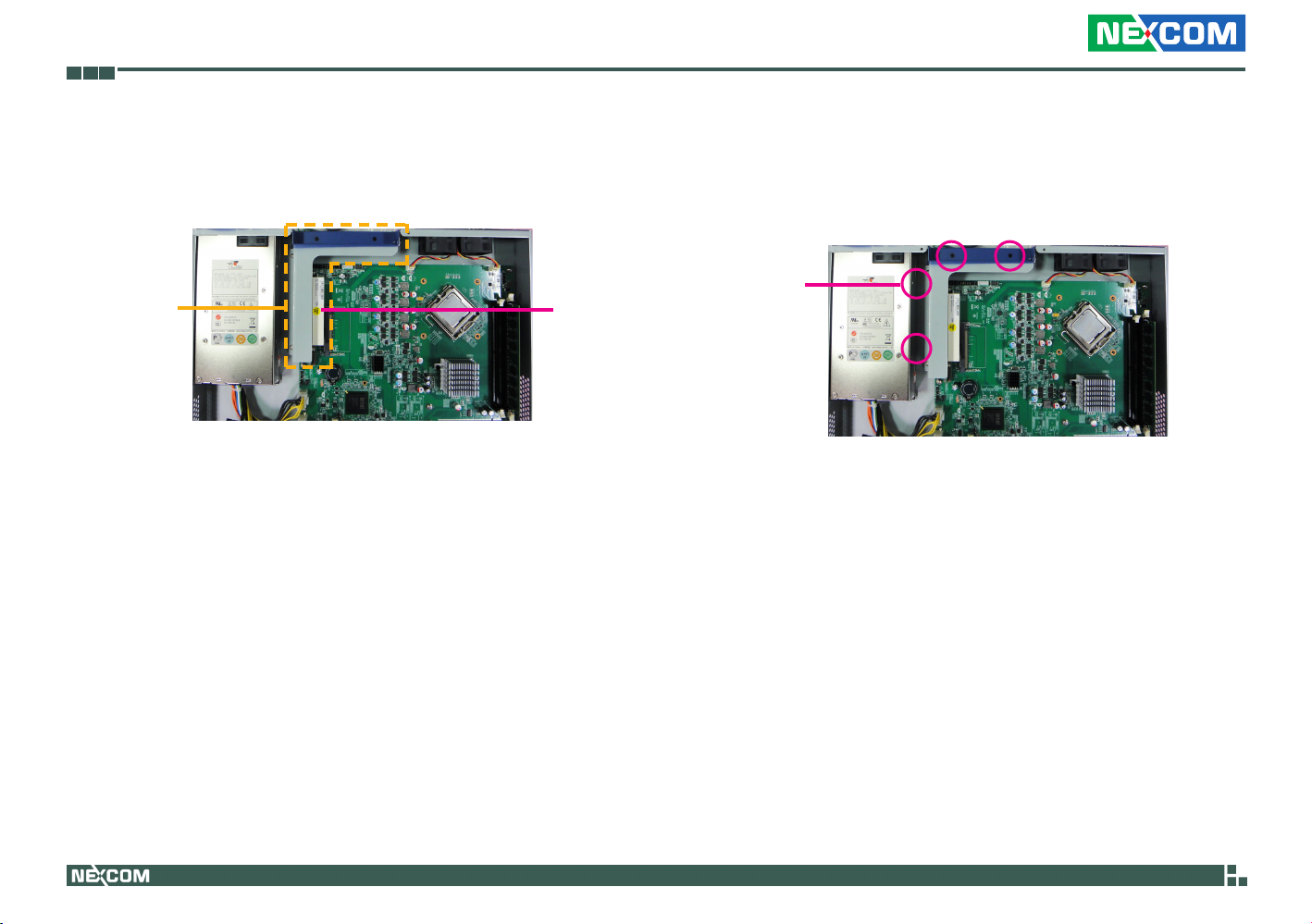

1. The PCI slot is attached on an L-shaped bracket.

L-shaped

bracket

PCI slot

2. Remove the mounting screws that secure the L-shaped bracket to the chassis.

Mounting

screw

37

NSA 3111 User Manual

Chapter 3: System Setup

3. Remove the slot cover’s mounting screw.

PCI slot

Slot cover

4. Align the PCI card with the PCI slot then push it firmly until it is completely seated in the slot.

PCI card

Mounting screw

38

NSA 3111 User Manual

Chapter 3: System Setup

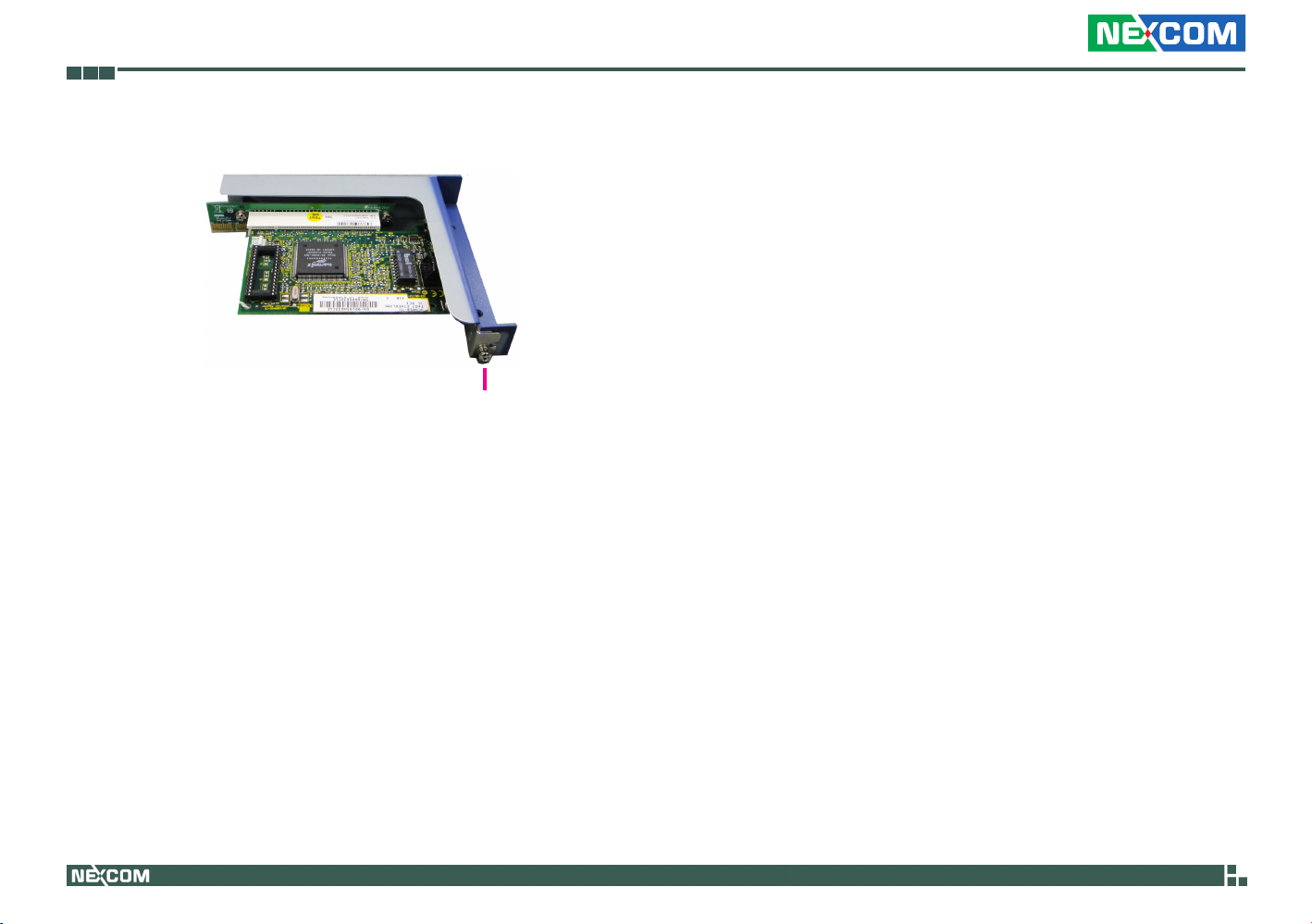

5. Secure the card with the screw you removed in step 3.

Mounting screw

6. Install the bracket back into the chassis then secure the bracket with the mounting screws you removed in step 2.

39

NSA 3111 User Manual

Chapter 4: BIOS Setup

This chapter describes how to use the BIOS setup program for NSA 3111. The BIOS screens in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROMbased configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

• Hard drives, diskette drives, and peripherals

• Video display type and display options

• Password protection from unauthorized use

• Power management features

The settings made in the setup program intimately affect how the computer performs. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.

When to Conﬁgure the BIOS

This program should be executed under the following conditions:

• When changing the system configuration

• When a configuration error is detected by the system and you are

prompted to make changes to the Setup program

• When resetting the system clock

• When redefining the communication ports to prevent any conflicts

• When making changes to the Power Management configuration

• When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

40

NSA 3111 User Manual

Chapter 4: BIOS Setup

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

• If the error occurs before the display device is initialized, a series of

beeps will be transmitted.

• If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> Press the <Del> key to enter Setup:

BIOS Main Menu

Once you enter Award BIOS CMOS Setup Utility, the Main Menu will appear on screen. The main menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.

Phoenix - AwardBIOS CMOS Setup Utility

 Standard CMOS Features

 Advanced BIOS Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Congurations

Esc : Quit F10 : Save & Exit Setup

Time, Date, Hard Disk Type...

 PC Health Status

Load Optimized Defaults

Set Password

Save & Exit Setup

Exit Without Saving

↑ ↓ → ← : Select Item

41

NSA 3111 User Manual

Chapter 4: BIOS Setup

The following table lists the available options on the main menu.

Menu Description

Standard CMOS

Use this menu for basic system configuration.

Features

Advanced BIOS Features

Advanced Chipset Features

Integrated Peripherals

Power Management Setup

PnP/PCI Configurations

Use this menu to set the advanced features available on the system.

Use this menu to set the chipset features available on the system.

Use this menu to specify your settings for integrated peripherals.

Use this menu to specify your settings for power management.

Appears if your system supports Plug and Play and PCI Configuration.

PC Health Status Displays CPU, System Temperature, Fan Speed,

and System Voltages Value.

Load Optimized Defaults

Use this menu to load the BIOS default values, that is, factory settings for optimum system performance. While Award has designed the custom BIOS to maximize performance, the factory has the option to change these defaults to meet their needs.

Set Password Enables you to change, set, or disable the supervi-

sor or user password.

Save & Exit Setup Saves CMOS value changes to CMOS and exits

setup

Exit Without Saving Ignores all CMOS value changes and exits setup.

Getting Help

The BIOS Setup program provides descriptions of the options available on the menu.

• If you are on the main menu, a description of the highlighted option can be found at the bottom of the screen.

• If you are on the Status Page or Option Page setup menu, a description of the highlighted option can be found on the right side of the screen under the heading Item Help.

42

NSA 3111 User Manual

Chapter 4: BIOS Setup

Using the Control Keys

The table below lists the keys that help you navigate the setup program.

Use This Key To Do This

Up arrow Move to previous item

Down arrow Move to next item

Left arrow Move to the item to the left

Right arrow Move to the item to the right

Esc key Main Menu: Quit without saving changes to CMOS

Status Option Page Setup Menus: Exit current page and return to Main Menu.

Enter Key Select or Accept an Item

PgUp/plus key Increase the numeric value or make changes

PgDn/minus key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and

Option Page Setup Menu

Use This Key To Do This

F2/Shift + F2 key Change color from total 16 colors. F2 to select color

forward, (Shift) F2 to select color backward

F5 key Restore the previous CMOS value from CMOS (only

for Option Page Setup Menu)

F6 key Load the default CMOS value from BIOS default

table (only for Option Page Setup Menu)

F7 key Load the Setup default value (only for Option Page

Setup Menu)

F9 Key Menu in BIOS

F10 key Save all the CMOS changes (only for Main Menu)

43

NSA 3111 User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Standard CMOS Features

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features

Date (mm:dd:yy)

Time (hh:mm:ss)

 IDE Channel 0 Master  IDE Channel 0 Slave  IDE Channel 1 Master  IDE Channel 1 Slave

Video Halt On

Base Memory Extended Memory Total Memory

Model Name BIOS Version

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F7: Optimized Defaults

Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Mon, Jun 28 2010 14 : 44 : 30

[None] [None] [None] [None]

[EGA/VGA] [No Errors]

640K 2086912K 2087936K

NSB3111 R1.0a

Item Help

Menu Level 

Change the day, month, year and century

IDE Channel 0 Master and IDE Channel 1 Slave

To configure the IDE drives, move the cursor to a field then press <Enter>. The following screen will appear.

Phoenix - AwardBIOS CMOS Setup Utility

IDE Channel 0 Master

IDE HDD Auto-Detection

IDE Channel 0 Master Access Mode

Capacity

Cylinder Head Precomp Landing Zone Sector

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values

[Press Enter]

Auto Auto

0 MB

0 0 0 0 0

F7: Optimized Defaults

Item Help

Menu Level 

To auto-detect the HDD’s size, head... on this channel

IDE HDD Auto-Detection

Detects the parameters of the drive. The parameters will automatically be shown on the screen.

IDE Channel 0 Master to IDE Channel 1 Slave

If you select ”Auto”, the BIOS will auto-detect the HDD & CD-ROM drive at the POST stage and show the IDE for the HDD & CD-ROM drive. If a hard disk has not been installed, select “None”.

44

NSA 3111 User Manual

Chapter 4: BIOS Setup

Access Mode

For hard drives larger than 528MB, you would typically select the LBA type. Certain operating systems require that you select CHS or Large. Please check your operating system’s manual or Help desk on which one to select.

Capacity

Displays the approximate capacity of the disk drive. Usually the size is slightly greater than the size of a formatted disk given by a disk checking program.

Cylinder

This field displays the number of cylinders.

Head

This field displays the number of read/write heads.

Precomp

This field displays the number of cylinders at which to change the write timing.

Landing Zone

This field displays the number of cylinders specified as the landing zone for the read/write heads.

Sector

This field displays the number sectors per track.

Video

This field selects the type of video adapter used for the primary system monitor. Although secondary monitors are supported, you do not have to select the type. The default setting is EGA/VGA.

EGA/VGA

Enhanced Graphics Adapter/Video Graphics Array. For EGA, VGA, SVGA and PGA monitor adapters.

CGA 40

Color Graphics Adapter. Power up in 40-column mode.

CGA 80

Color Graphics Adapter. Power up in 80-column mode.

Mono

Monochrome adapter. Includes high resolution monochrome adapters.

Halt On

This field determines whether the system will stop if an error is detected during power up. The default setting is All Errors.

No Errors

The system boot will not stop for any errors detected.

All Errors

The system boot will stop whenever the BIOS detects a non-fatal error.

All, But Keyboard

The system boot will not stop for a keyboard error; it will stop for all other errors.

45

NSA 3111 User Manual

Chapter 4: BIOS Setup

Base Memory

Displays the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the motherboard or 640K for systems with 640K or more memory installed on the motherboard.

Extended Memory

Displays the amount of extended memory detected during boot-up.

Total Memory

Displays the total memory available in the system.

Model Name

Displays the model name of the main board.

BIOS Version

Displays the current BIOS version used.

46

NSA 3111 User Manual

Chapter 4: BIOS Setup

Advanced BIOS Features

Phoenix - AwardBIOS CMOS Setup Utility

Advanced BIOS Features

 Hard Disk Boot Priority

CPU L2 Cache First Boot Device Second Boot Device Third Boot Device Security Option Console Redirection Baud Rate

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values

Press Enter Enabled USB-CDROM CDROM Hard Disk Setup Enabled 115200

F7: Optimized Defaults

Item Help

Menu Level 

Select Hard Disk Device Priority

Hard Disk Boot Priority

This field is used to select the boot sequence of the hard drives. Move the cursor to this field then press <Enter>. Use the Up or Down arrow keys to select a device then press <+> to move it up or <-> to move it down the list.

Phoenix - AwardBIOS CMOS Setup Utility

Hard Disk Boot Priority

1. Bootable Add-in Cards

↑↓: Move

F5: Previous Values

PU/PD/+/-: Change Priority

F6: Fail-Safe Defaults

F10: Save ESC: Exit

Item Help

Menu Level 

Use <↑> or <↓> to select a device, then press <+> to move it up, or <-> to move it down the list. Press <ESC> to exit this menu.

F7: Optimized Defaults

47

NSA 3111 User Manual

Chapter 4: BIOS Setup

CPU L2 Cache

This field is used to enable or disable the CPU’s L3 cache.

First Boot Device, Second Boot Device and Third Boot Device

Select the drive to boot first, second and third in the “First Boot Device” “Second Boot Device” and “Third Boot Device” fields respectively. The BIOS will boot the operating system according to the sequence of the drive selected.

The options are:

Hard Disk CDROM USB-FDD USB-ZIP USB-CDROM LAN Disabled

Security Option

This field determines when the system will prompt for the password everytime the system boots or only when you enter the BIOS setup. Set the password in the Set Supervisor/User Password submenu.

System

The system will not boot and access to Setup will be denied unless the correct password is entered at the prompt.

Setup

The system will boot, but access to Setup will be denied unless the correct password is entered at the prompt.

Console Redirection

Enabled

Attempts to redirect the console via COM port.

Disabled

Console redirection is not allowed. Attempts to redirect the console when a keyboard is not available.

Baud Rate

If BIOS serial console redirection is enabled, this option allows you to change the console speed. Available baud rate options include 9600 (default), 19200, 38400, 57600, and 115200.

48

NSA 3111 User Manual

Chapter 4: BIOS Setup

Integrated Peripherals

Phoenix - AwardBIOS CMOS Setup Utility

Integrated Peripherals

 OnChip IDE Device

Onboard Serial Port 1 Onboard Serial Port 2 USB 1.0 Controller USB 2.0 Controller USB Keyboard Function

** LAN ByPass Function ** ByPass mode after PWR-ON x LAN Segment 1 x LAN Segment 2 x LAN Segment 3 x LAN Segment 4 ByPass mode after PWR-OFF x LAN Segment 1 x LAN Segment 2 x LAN Segment 3 x LAN Segment 4

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values

Press Enter 3F8/IRQ4 2F8/IRQ3 Enabled Enabled Enabled

All Disable Disabled Disabled Disabled Disabled All Disable Disabled Disabled Disabled Disabled

Menu Level 

F7: Optimized Defaults

Item Help

OnChip IDE Device

Move the cursor to this field and press <Enter>. The following screen will appear.

Phoenix - AwardBIOS CMOS Setup Utility

OnChip IDE Device

IDE HDD Block Mode On-Chip Primary PCI IDE IDE Primary Master PIO IDE Primary Slave PIO IDE Primary Master UDMA IDE Primary Slave UDMA On-Chip Secondary PCI IDE IDE Secondary Master PIO IDE Secondary Slave PIO IDE Secondary Master UDMA IDE Secondary Slave UDMA

*** On-Chip Serial ATA Setting *** On-Chip Serial ATA x PATA IDE Mode SATA Port

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F7: Optimized Defaults

Enabled Enabled Auto Auto Auto Auto Enabled Auto Auto Auto Auto

Combined Mode Primary P1, P3 is Secondary

Item Help

Menu Level 

If your IDE hard drive supports block mode select Enabled for automatic direction of the optimal number of block read/writes per sector the drive can support

IDE HDD Block Mode

Enabled

The IDE HDD uses the block mode. The system BIOS will check the hard disk drive for the maximum block size the system can transfer. The block size will depend on the type of hard disk drive.

Disabled

The IDE HDD uses the standard mode.

49

NSA 3111 User Manual

Chapter 4: BIOS Setup

On-Chip Primary PCI IDE and On-Chip Secondary PCI IDE

Enables or disables the primary/secondary IDE. The default is Enabled. Select Disabled if you want to add a different hard drive controller.

IDE Primary/Secondary Master PIO and IDE Primary/Secondary Slave PIO

PIO means Programmed Input/Output. Rather than have the BIOS issue a series of commands to effect a transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by themselves. Your system supports five modes, 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode after checking your drive.

Auto

The BIOS will automatically set the system according to your hard disk drive’s timing.

Mode 0-4

You can select a mode that matches your hard disk drive’s timing. Caution: Do not use the wrong setting or you will have drive errors.

IDE Primary/Secondary Master UDMA and IDE Primary/Secondary Slave UDMA

These fields allow you to set the Ultra DMA in use. When Auto is selected, the BIOS will select the best available option after checking your hard drive or CD-ROM.

Auto

The BIOS will automatically detect the settings for you.

Disabled

The BIOS will not detect these categories.

On-Chip Serial ATA

Disabled

Disables the onboard SATA.

Auto

The system will detect the existing SATA and IDE drives then automatically set them to the available master/slave mode.

Combined Mode PATA and SATA are combined. Maximum of 2 IDE drives in each channel.

Enhanced Mode Enables both SATA and PATA. Supports maximum of 5 IDE drives.

SATA Only

This option automatically sets the SATA drives to Primary Master mode. Since the SATA drives are in Master mode, you cannot set the IDE drive to Master mode.

50

NSA 3111 User Manual

Chapter 4: BIOS Setup

PATA IDE Mode

This field is used to select the function mode of the IDE 1 connector and its relation to the SATA ports.

Primary

IDE 1 serves as Primary Master and Primary Slave channel. SATA 2 and SATA 4 serve as Secondary Master and Secondary Slave channel. SATA 1 and SATA 3 are disabled.

Secondary

IDE 1 serves as Secondary Master and Secondary Slave channel. SATA 1 and SATA 3 serve as Primary Master and Primary Slave channel. SATA 2 and SATA 4 are disabled.

SATA Port

If the “PATA IDE Mode” field is set to Primary, this field will show “P1, P3 is Secondary”; meaning SATA 2 and SATA 4 are Secondary.

If the “PATA IDE Mode” field is set to Secondary, this field will show “P0, P2 is Primary”; meaning SATA 1 and SATA 3 are Primary.

Onboard Serial Port 1 and Onboard Serial Port 2

3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, 2E0/IRQ4 Allows you to manually select an I/O address for the serial port.

Disabled Disables the serial port.

USB 1.0 Controller

This field is used to enable or disable the Universal Host Controller Interface (USB 1.0).

USB 2.0 Controller

This field is used to enable or disable the Enhanced Host Controller Interface (USB 2.0).

USB Keyboard Function

Due to the limited space of the BIOS ROM, the support for legacy USB keyboard (in DOS mode) is by default set to Disabled. With more BIOS ROM space available, it will be able to support more advanced features as well as provide compatibility to a wide variety of peripheral devices.

If a PS/2 keyboard is not available and you need to use a USB keyboard to install Windows (installation is performed in DOS mode) or run any program under DOS, set this field to Enabled.

51

NSA 3111 User Manual

Chapter 4: BIOS Setup

ByPass Mode After PWR-ON

The options are All Enable, All Disable and By Segment.

ByPass Mode After PWR-OFF

The options are All Enable, All Disable and By Segment.

52

NSA 3111 User Manual

Chapter 4: BIOS Setup

Power Management Setup

Power Management Setup lets you control the system power. The system has various power-saving modes — including powering down the hard disk, turning off the video, suspending to RAM, and software power down — that allows the system to automatically resume by certain events.

The power-saving modes can be controlled by timeouts. If the system is inactive for a time, the timeouts begin counting. If inactivity continues and reaches the defined timeout period, the system enters a power saving mode. If any item in the list of Reload Global Timer Events is enabled, then any activity on that item will reset the timeout counters to zero.

If the system is suspended or has been powered down by software, it can be resumed by a wake up call that is generated by incoming traffic to a modem, a LAN card, a PCI card, or a fixed alarm on the system real-time clock.

Phoenix - AwardBIOS CMOS Setup Utility

Power Management Setup

Power-Supply Type

PWRON After PWR-Fail

ACPI Function Soft-Off by PWR-BTTN

AT On Enabled Instant-Off

Item Help

Menu Level 

Power Supply Type

This field is used to select the type of power supply used.

PWRON After PWR-Fail

Off

When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system.

On

When power returns after an AC power failure, the system will automatically power-on.

Former-Sts

When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

ACPI Function

By default, the ACPI function is enabled. This function should be enabled only in operating systems that support ACPI.

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F7: Optimized Defaults

53

NSA 3111 User Manual

Chapter 4: BIOS Setup

Soft-Off by PWR-BTTN

This field allows you to select the method of powering off your system.

Delay 4 Sec.

Regardless of whether the Power Management function is enabled or disabled, if the power button is pushed and released in less than 4 sec, the system enters the Suspend mode. The purpose of this function is to prevent the system from powering off in case you accidentally “hit” or pushed the power button. Push and release again in less than 4 sec to restore. Pushing the power button for more than 4 seconds will power off the system.

Instant-Off

Pressing and then releasing the power button at once will immediately power off your system.

54

NSA 3111 User Manual

Chapter 4: BIOS Setup

PnP/PCI Conﬁgurations

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Congurations

Reset Conguration Data

Resources Controlled By x IRQ Resources

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F7: Optimized Defaults

Reset Conﬁguration Data

Enabled The BIOS will automatically reset the Extended System Configuration Data (ESCD) once. It will then recreate a new set of configuration data.

Disabled

The BIOS will not reset the configuration data.

Disabled

Auto(ESCD) Press Enter

Item Help

Menu Level 

Resources Controlled By

The Award Plug and Play BIOS has the capability to automatically configure all of the boot and Plug and Play compatible devices.

Auto(ESCD)

The system will automatically detect the settings for you.

Manual

Choose the specific IRQ resources in the “IRQ Resources” field.

IRQ Resources

Set each system interrupt to either PCI Device or Reserved.

Phoenix - AwardBIOS CMOS Setup Utility

IRQ-3 assigned to IRQ-4 assigned to IRQ-5 assigned to IRQ-7 assigned to

IRQ-9 assigned to

IRQ-10 assigned to IRQ-11 assigned to IRQ-12 assigned to IRQ-14 assigned to IRQ-15 assigned to

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F7: Optimized Defaults

IRQ Resources

PCI Device PCI Device PCI Device PCI Device PCI Device PCI Device PCI Device PCI Device PCI Device PCI Device

Item Help

Menu Level 

Legacy ISA for devices compliant with the original PC AT bus

specication. PCI/ISA

PnP for devices compliant with the Plug and Play standard whether designed for PCI or ISA bus architecture.

55

NSA 3111 User Manual

Chapter 4: BIOS Setup

PC Health Status

Phoenix - AwardBIOS CMOS Setup Utility

Current CPU Temp. Current SYS Temp. PCIe Module Temp. Vcore +1.1V +3.3V +5V +12V +1.8V CPU FAN1 Speed CPU FAN2 Speed SB FAN Speed

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Current CPU Temp. to SB Fan Speed

These fields will show the temperature, fan speed and output voltages of the monitored devices or components.

PC Health Status

51OC/123OC 26OC/78OC 0OC/32OC

1.24V

1.13V

3.42V

5.26V

11.49V

1.85V 16875 RPM 18750RPM 0 RPM

Item Help

Menu Level 

Load Optimized Defaults

Phoenix - AwardBIOS CMOS Setup Utility

 Standard CMOS Features

 Advanced BIOS Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Congurations

Esc : Quit F10 : Save & Exit Setup

Load Optimized Defaults (Y/N)? N

Time, Date, Hard Disk Type...

This option opens a dialog box that lets you install optimized defaults for all appropriate items in the whole setup utility. Press the <Y> key and then <Enter> to install the defaults. Press the <N> key and then <Enter> if you do not want to install the defaults. The optimized defaults place demands on the system that may be greater than the performance level of the components, such as the CPU and the memory.

Fatal errors or instability may occur if you install the optimized defaults when your hardware does not support them. If you only want to install setup defaults for a specific option, select and display that option, and then press the <F7> key.

 PC Health Status

Load Optimized Defaults

Set Password

Save & Exit Setup

Exit Without Saving

↑ ↓ → ← : Select Item

56

NSA 3111 User Manual

Chapter 4: BIOS Setup

Set Password

Phoenix - AwardBIOS CMOS Setup Utility

 Standard CMOS Features

 Advanced BIOS Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Congurations

Esc : Quit F10 : Save & Exit Setup

Enter Password:

Time, Date, Hard Disk Type...

The User Password utility sets the password. The main board is shipped with the password disabled. If you want to change the password, you must first enter the current password, then at the prompt enter your new password. The password is case sensitive. You can use up to eight alphanumeric characters. Press <Enter> after entering the password. At the next prompt, confirm the new password by retyping it and pressing <Enter> again.

To disable the password function, highlight “Set Password” then press <Enter>, instead of typing in a new password. A message appears confirming that the password has been disabled. If you have set supervisor and user Password, only the supervisor password allows you to enter the BIOS setup program.

Note: If you forgot your password, the only way to solve this problem is to discharge the CMOS memory by turning power off and placing a shunt (jumper cap) on the RTC Clear jumper to short pin 2 and pin 3 for five seconds, then putting the shunt back to pin 1 and pin 2.

 PC Health Status

Load Optimized Defaults

Set Password

Save & Exit Setup

Exit Without Saving

↑ ↓ → ← : Select Item

Save & Exit Setup

Phoenix - AwardBIOS CMOS Setup Utility

 Standard CMOS Features

 Advanced BIOS Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Congurations

Esc : Quit F10 : Save & Exit Setup

SAVE to CMOS and EXIT (Y/N)? Y:

Time, Date, Hard Disk Type...

Selecting this option and pressing <Enter> will save the new setting information in the CMOS memory and continue with the bootup process.

 PC Health Status

Load Optimized Defaults

Set Password

Save & Exit Setup

Exit Without Saving

↑ ↓ → ← : Select Item

57

NSA 3111 User Manual

Chapter 4: BIOS Setup

Exit Without Saving

Phoenix - AwardBIOS CMOS Setup Utility

 Standard CMOS Features

 Advanced BIOS Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Congurations

Esc : Quit F10 : Save & Exit Setup

Quit Without Saving (Y/N)? N:

 PC Health Status

Load Optimized Defaults

Set Password

Save & Exit Setup

Exit Without Saving

↑ ↓ → ← : Select Item

Time, Date, Hard Disk Type...

Selecting this option and pressing <Enter> will exit the Setup utility without recording any new values or changing old ones.

58

NSA 3111 User Manual

Appendix A: Watchdog Timer

Appendix A: WAtchdog timer

Watchdog Timer Setting

NSA 3111 features a watchdog timer that resets the CPU or generates an interrupt if the processor stops operating for any reason. This feature ensures system reliability in industrial standalone or unmanned environments.

Set pin 89 as a WDTO output. Write ‘0’ to CR2B[4].

1. Select timer type (Sec/Min). LD8 CRF5[3] (0: sec, 1: min)

2. Clear timeout status. Write ‘0’ to LD8 CRF7[4].

3. Set the timeout value. Meanwhile the timer will start to count down.

4. Write a value to LD8 CRF6. When a timeout occurs, pin 89 will become active (high level).

5. CRF6 must be 0x0. Write another 0x00 to CRF6 (timeout disable) even though it is already 0x00. Clear the timeout status. Write ‘0’ to LD8 CRF7[4]. pin 89 will fall at the same time.

CRFC6 (Default 0x00)

Watchdog Timer Time-out Value

Writing a non-zero value to this register causes the counter to load the value to Watchdog Counter and start counting down. If Bit 7 and Bit 6 are set, any Mouse Interrupt or Keyboard Interrupt event will also cause the reload of previously-loaded non-zero value to Watchdog Counter and start counting down. Reading this register returns current value in Watchdog Counter.

Dog Timer Time-out Value

BIT Deﬁnition

7-0 0x00 time-out disabled

0x01 time-out occurs after 1sec./min. 0x02 time-out occurs after 2 sec./min. 0x03 time-out occurs after 3 sec./min. 0xFF time-out occurs after 255 sec./min.

59

NSA 3111 User Manual

Appendix A: Watchdog Timer

Watch Dog Sample Code

;######################################################### ;ENTER THE SIO CONFIGURATION MODE ;######################################################### MOV DX, 2EH MOV AL, 87H OUT DX, AL OUT DX, AL

MOV AL, 07H ;POINT TO LOGICAL DEVICE NUMBER REG OUT DX, AL INC DX MOV AL, 08H OUT DX, AL

;######################################################### ;SET UNITS ;######################################################### MOV DX, 2EH MOV AL, 0F5H OUT DX, AL INC DX IN AL, DX AND AL, NOT 8 ;SECEND MODE. OUT DX, AL

MOV AL, 0F6H OUT DX, AL MOV AL, NUMBER OF TIME OUT VALUE IN SECENDS (0-255) INC DX OUT DX, AL

;######################################################### ;EXIT THE SIO CONFIGURATION MODE ;#########################################################

MOV DX, 2EH MOV AL, 0AAH OUT DX, AL

;######################################################### ;SET TIME OUT VALUE ;######################################################### MOV DX, 2EH

60

NSA 3111 User Manual

Appendix B: GPI/O Programming Guide

Appendix B: Gpi/O prOGrAmminG Guide

This appendix provides definitions for the four GPI/O pins on NSA 3111. GPI/O (General Purpose Input/Output) pins are provided for custom system design. The pin programmed as input mode (GPI) or output mode (GPO) depends on the configuration.

GPIO (J7)

Pin 3 Pin 5 Pin 7 Pin 9 Pin 4 Pin 6 Pin 8 Pin 10

GPIN10 GPIN11 GPIN12 GPIN13 GPOUT14 GPOUT15 GPOUT16 GPOUT17

61

NSA 3111 User Manual

Appendix B: GPI/O Programming Guide

GPIO Sample Code

;#########################################################

;MSB LSB

GPIO17 GPIO16 GPIO15 GPIO14 GPIO13 GPIO12 GPIO11 GPIO10

;#########################################################

;Enable Configuration mode.

;#########################################################

out 2eh, 87h

;#########################################################

;Select logical device (GPIO1).

;#########################################################

out 2eh, 07h

out 2fh, 07h

;#########################################################

;Activate GPIO Function.

;CRF0 (GP10-GP17 I/O selection register. Default 0xFF)

;When set to a ‘1’, respective GPIO port is programmed as an input port.

;When set to a ‘0’, respective GPIO port is programmed as an output port.

;#########################################################

out 2eh, 0f0h

out 2fh, f0h ;GPIO10-13 as output pin , GPIO14-17 as input pin

;#########################################################

;CRF1 (GP10-GP17 data register. Default 0x00)

;If a port is programmed to be an output port, then its respective bit can be read/written.

;If a port is programmed to be an input port, then its respective bit can only be read.

;#########################################################

out 2eh, 0f1h

in 2fh

;#########################################################

out 2eh, 30h

out 2fh, 01h

;#########################################################

62

NSA 3111 User Manual

Appendix B: GPI/O Programming Guide

SW1

Read GPI12 Sample Code

mov dx,48Dh

in al,dx

and al,10h ;now al (bit4) is GPIO12 value.

63

NSA 3111 User Manual

Appendix C: Bypass Specifications

Appendix C: BypAss speCifiCAtions

NSA 3111 provides LAN bypass functionality to ensure that data can still pass through the device, even when it is powered off. This feature helps ensure the continuous flow of data through the device in the event of a hardware failure. For network security appliances deployed at the gateway, for example, it is crucial that they provide LAN bypass functionality to ensure that hardware failure on these appliances will not bring down the entire network.

BTCR - Bypass Timer Conﬁguration Register = 0XF2

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

R X X X X W W W

Bit 7: Timer Expired 0 - Timer has not expired 1 - Timer has expired

Bit [2:0]: Timer Value 000 - 0 second 001 - 1 second 010 - 2 second 011 - 4 second 100 - 8 second 101 - 16 second 110 - 32 second 111 - 64 second

Bypass Control Function

BCSR - Bypass Control Status Register = 0XF3

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

W W R/W R/W R/W R/W R/W R/W

Bit [7:6]: Bypass Mode 00 - Ignore, no action taken 01 - Force enable 10 - Force disable 11 - Timer enable

Bit [5:0]: Segment Control Bit

Bit 0: Segment 1 (facing the front panel, the leftmost is the 1st Bypass)

Bit 1: Segment 2 (facing the front panel, the second from the left is the 2nd Bypass)

Bit 2: Segment 3 (facing the front panel, the third from the left is the 3rd Bypass)

Bit 3: Segment 4 (facing the front panel, the fourth from the left is the 4th Bypass)

64

NSA 3111 User Manual

Appendix C: Bypass Specifications

Power OFF State Bypass Control Function

Power Off State Bypass Conﬁguration Register = 0XF7

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

X X W W W W W W

Bit 0: Segment 1 (facing the front panel, the leftmost is the 1st Bypass)

Bit 1: Segment 2 (facing the front panel, the second from the left is the 2nd Bypass)

Bit 2: Segment 3 (facing the front panel, the third from the left is the 3rd Bypass)

Bit 3: Segment 4 (facing the front panel, the fourth from the left is the 4th Bypass)

0 - Set segment bypass Disable when power off 1 - Set segment bypass Enable when power off

65

NSA 3111 User Manual

Appendix D: Power Consumption

Appendix d: power Consumption

Power Consumption

Voltage 12V -12V 5VSB 3VSB 5V 3.3V VCORE

Net Name P12V N12V P5VSB P3V3SB P5V P3V3 VCORE P1V1_CORE FSB_VTT P1V8_SM P0V75_SM-

CPU 70 5.8

G41 0.1 22 1.6

ICH7-R 0.02 0.7 0.01 0.58 1.4 2

DDR2 6 1.2

CK505 0.55

Clock Buffer 0.5

82574L x 6 1.62

Relay x 16 1.6

PS2 KB/MS 0.5

FAN x 4 1.5

USB x 4 2

Mini PCI Slot* 0.02 0.4 0.6

PCI Slot* 0.5 0.1 0.02 5 7.6

Total Current 2 0.1 0.02 0.74 9.51 11.6 70 22 5.8 7.6 1.2 1.4 2

A Mini PCI Add-in card must limit its total power consumption to 2 Watts from all power rail. A PCI Add-in card must limit its total power consumption to 25 Watts from all power rail.

1.15V-1.5V

1.1V 1.2V 1.8V 0.9V 1.05V 1.5V

VTT

P1V05_ICH P1V5

66

NSA 3111 User Manual

Appendix D: Power Consumption

Total Power Requirements

Power Type +12V +5V +3.3V Total

Consumed watts (Item W) 148.8 94.5 44.8 288.18

Consumed currents (Item A ) 12.4 18.9 13.6

Actually required currents (Item A / 0.8) 15.5 23.6 17

Maximum BTU (Power Supply Watt * 3.412) 984 BTU/hr

67

NSA 3111 User Manual
