Nexcom NISE 50C-H, NISE 50C User Manual

NEXCOM International Co., Ltd.

Published November 2015

www.nexcom.com

IoT Automation Solutions Business Group

Fan-less Computer NISE 50C and NISE 50C-H

User Manual

ii

NISE 50C/50C-H User Manual

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents .................................................................................xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Hardware Specifications ..........................................................................2

Knowing Your NISE 50C and NISE 50C-H ................................................ 4

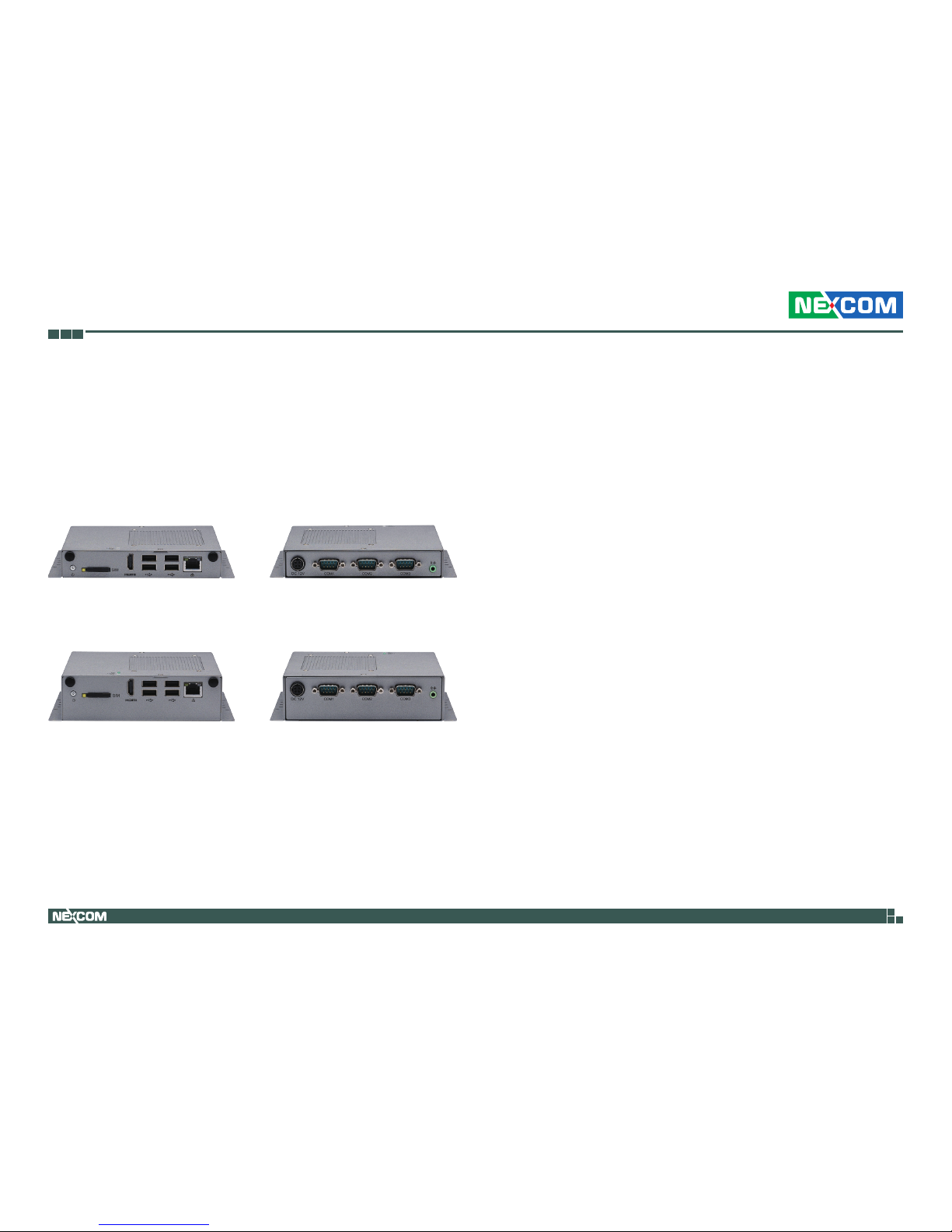

NISE 50C Front Panel ...........................................................................4

NISE 50C-H Front Panel .......................................................................4

NISE 50C Rear Panel ............................................................................5

NISE 50C-H Rear Panel ........................................................................5

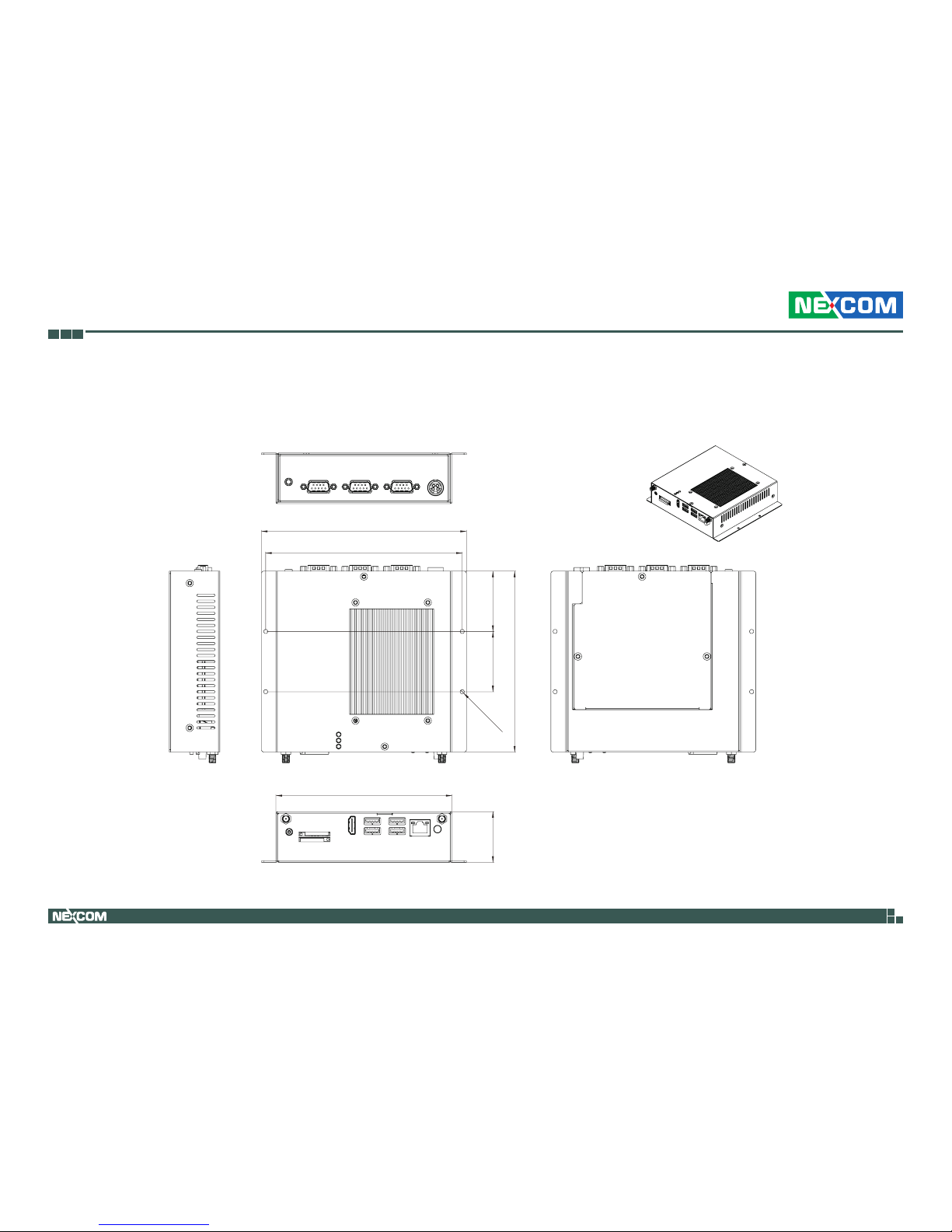

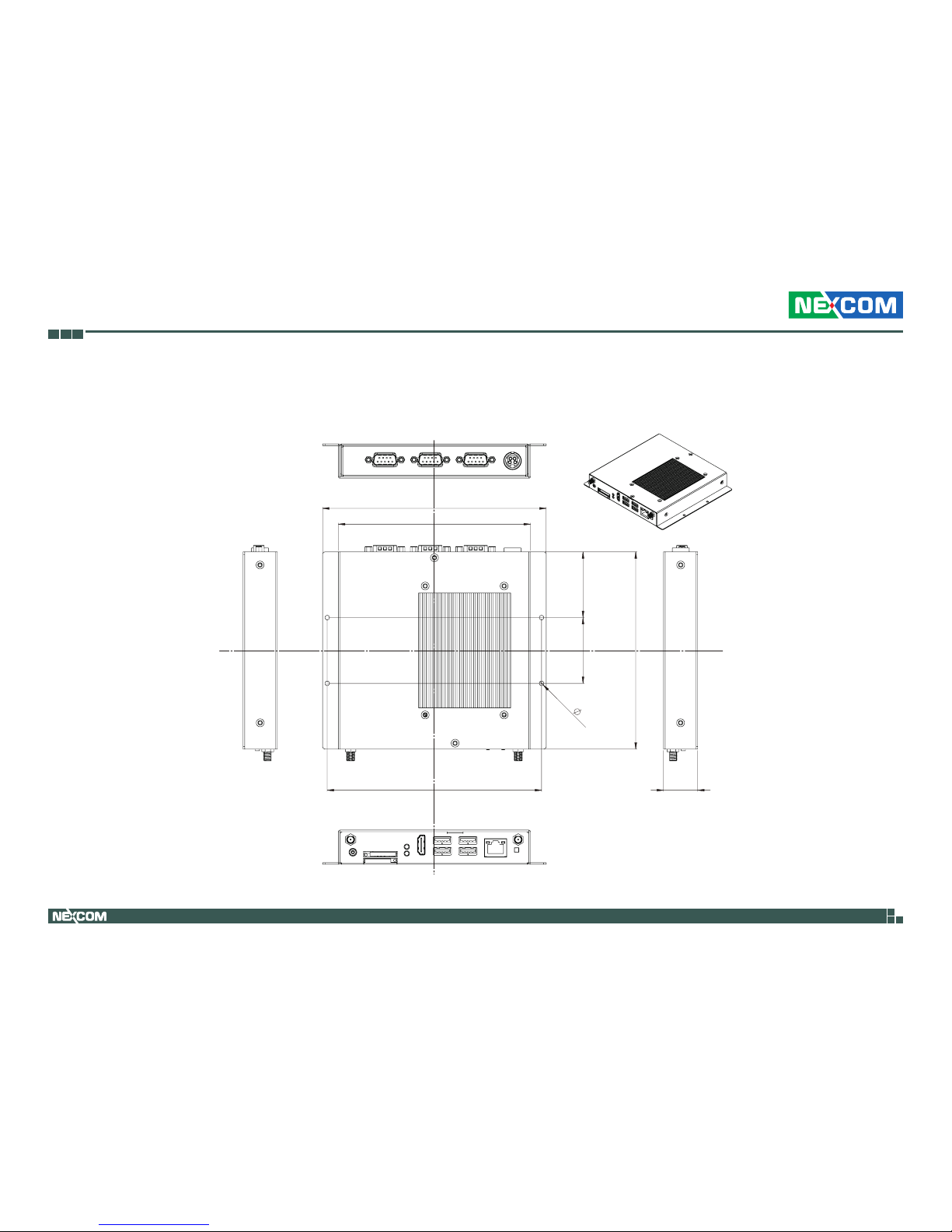

Mechanical Dimensions ...........................................................................6

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................8

Precautions ............................................................................................8

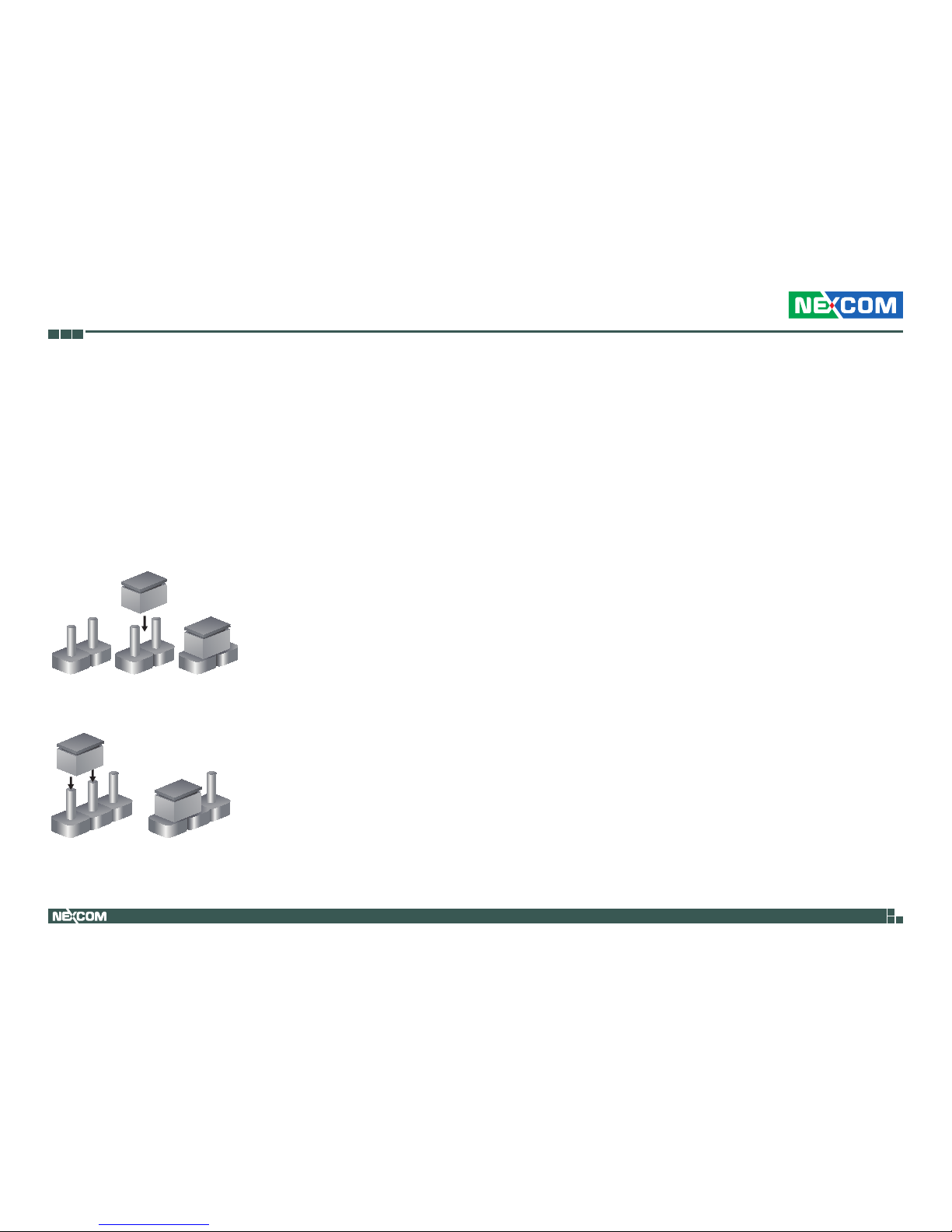

Jumper Settings ......................................................................................9

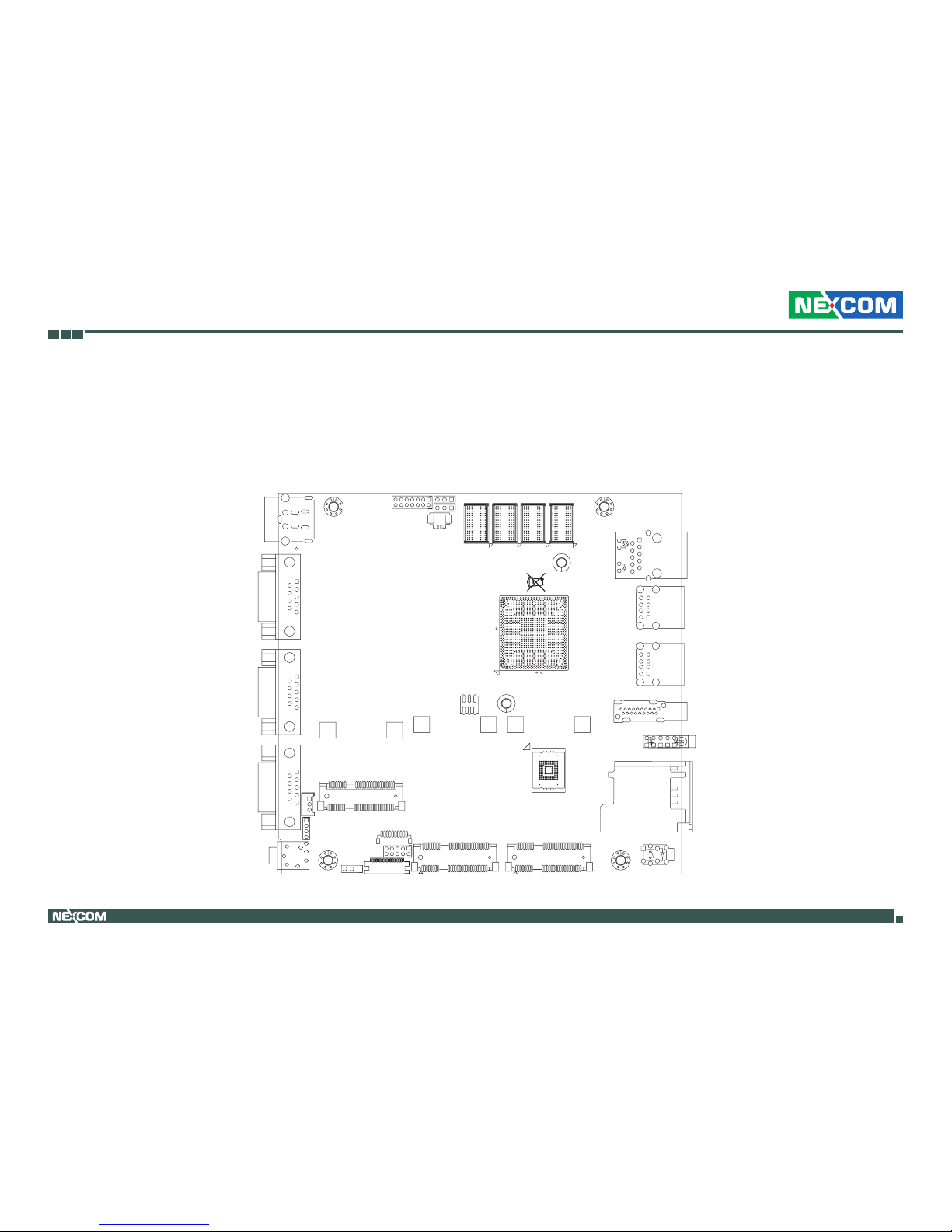

Locations of the Jumpers and Connectors for NISB 50C ........................10

NISB 50C ...........................................................................................10

Jumpers ................................................................................................12

AT/ATX Power Select .........................................................................12

CMOS Clear Select ............................................................................12

ME Clear Select .................................................................................13

Connector Pin Definitions .....................................................................14

External I/O Interfaces - Front Panel ...................................................14

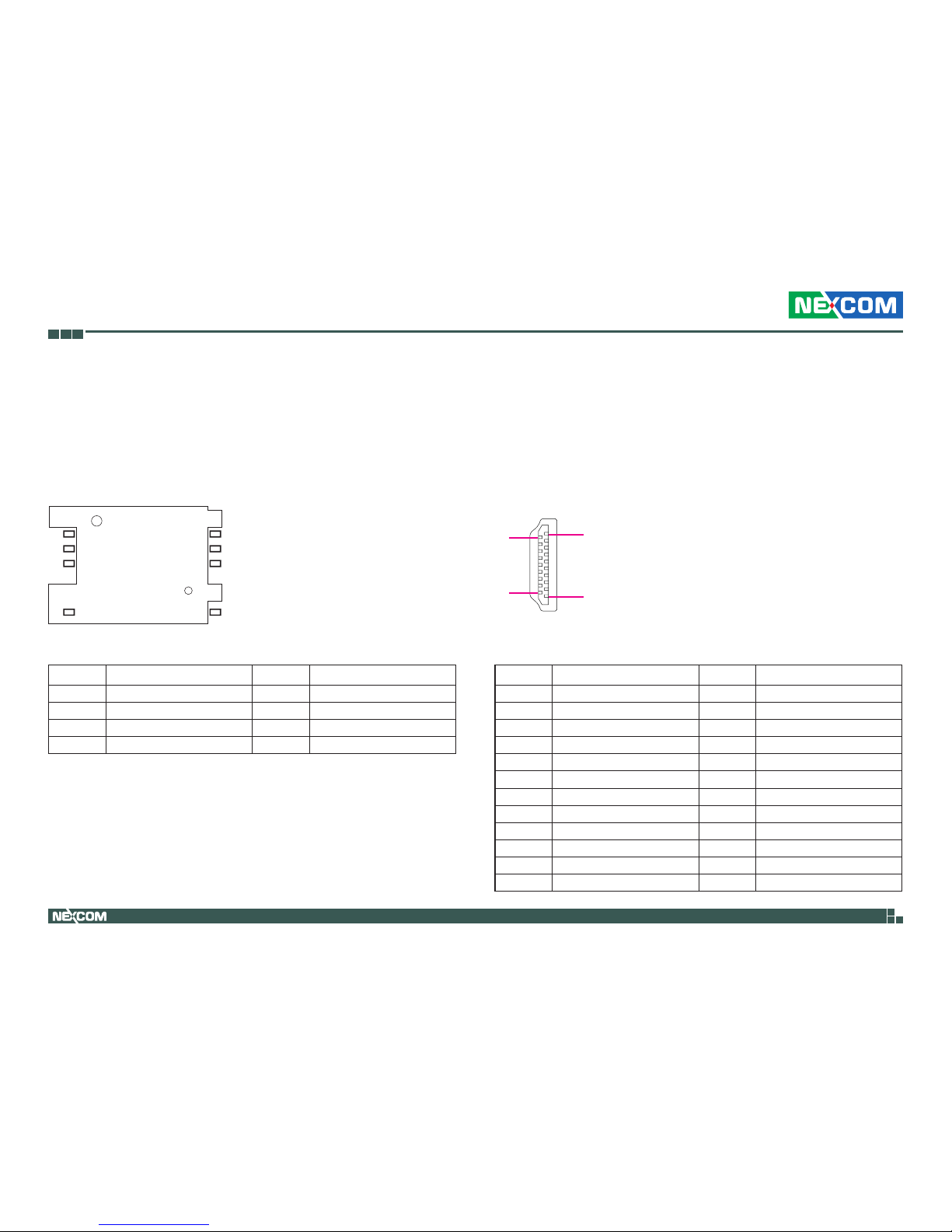

SIM Card Slot .................................................................................14

HDMI .............................................................................................14

USB 3.0 Ports .................................................................................15

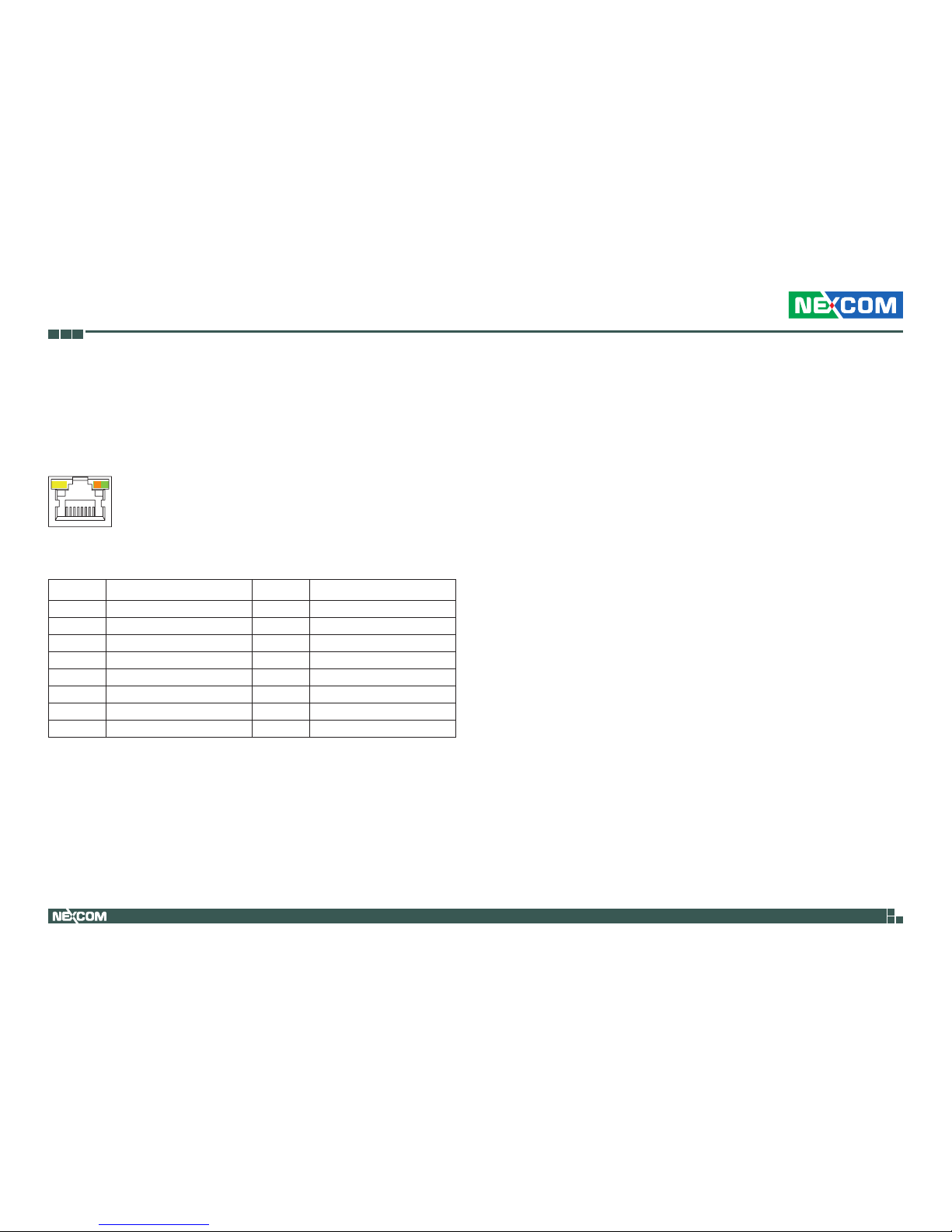

RJ45 LAN Port ................................................................................16

External I/O Interfaces - Rear Panel.....................................................17

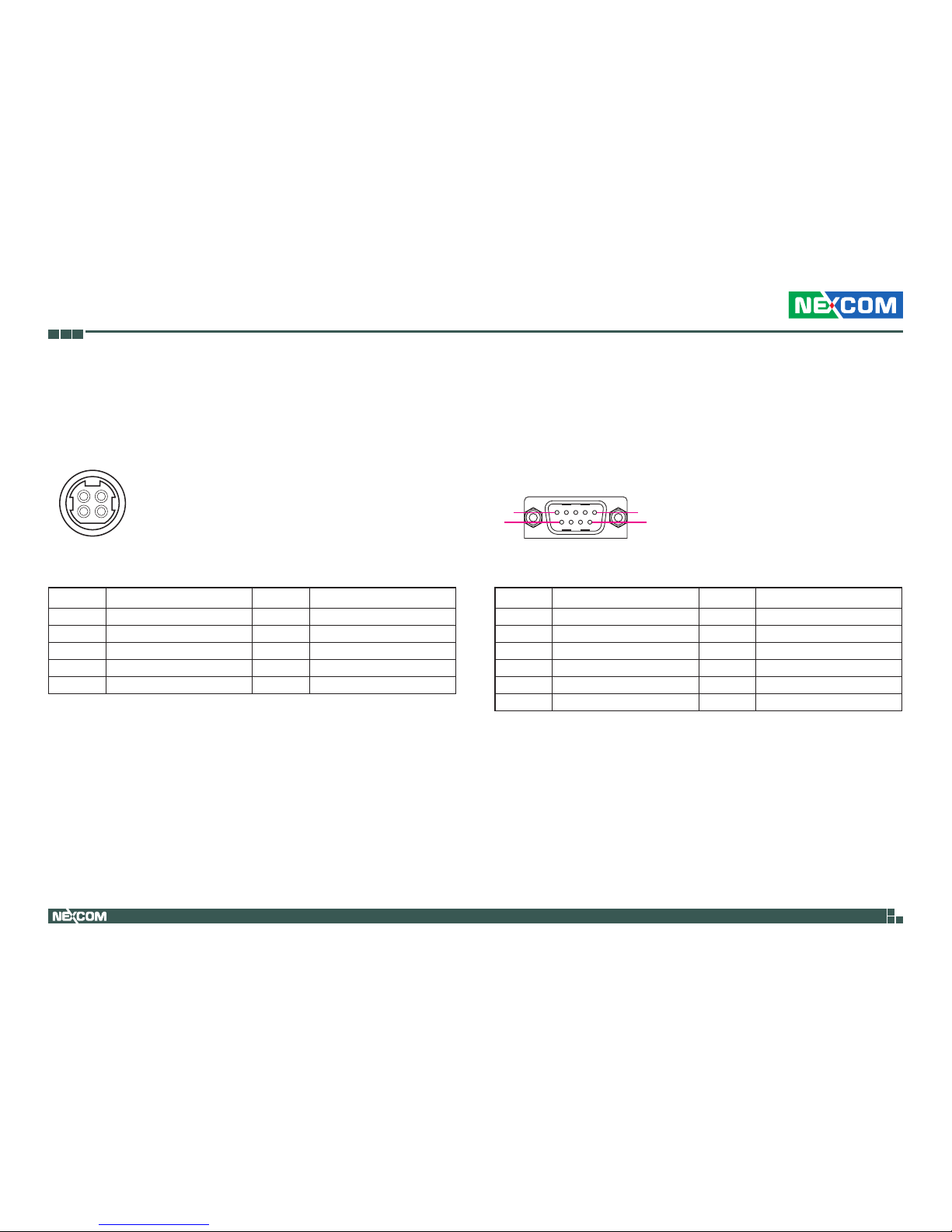

12V DC Power Input ......................................................................17

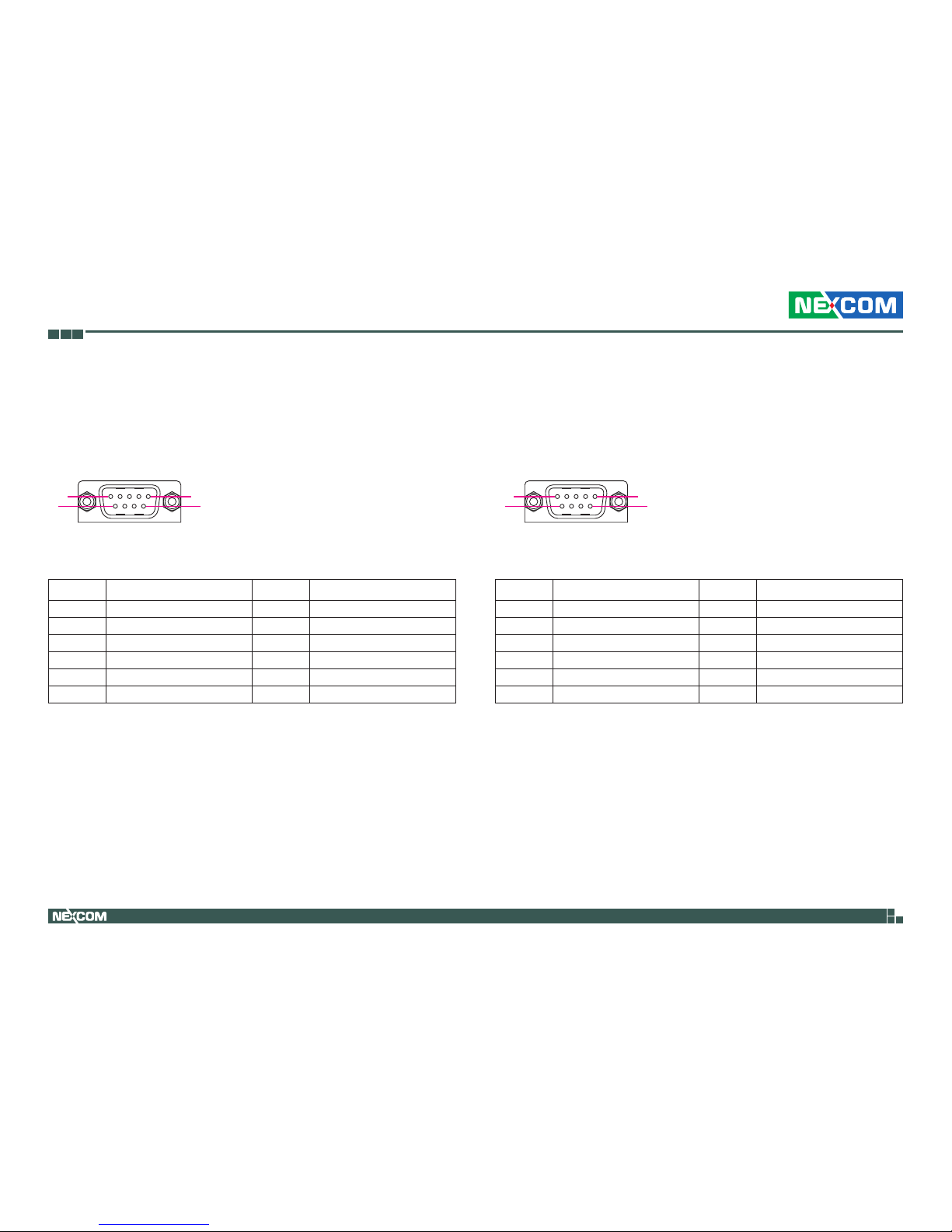

COM 1 Port (RS232) .......................................................................17

COM 2 Port (RS232) .......................................................................18

COM 3 Port (RS232) .......................................................................18

Line-out Connector ........................................................................19

Internal Connectors ........................................................................... 20

BIOS Pin Header .............................................................................20

SATA Connector .............................................................................20

SATA Power Connector ..................................................................21

iii

NISE 50C/50C-H User Manual

Contents

GPIO Pin Header ............................................................................21

Mic-in Pin Header ...........................................................................22

Port 80 Connector .........................................................................22

COM 4 Pin Header (RS232) ............................................................23

PWR_LED/HDD_LED/SMB_BUS/S3/SW_ON/RESET ...........................23

RTC Connector ..............................................................................24

EC Programmable Connector .........................................................24

Mini-PCIe Connector (3G/SIM) .......................................................25

Mini-PCIe Connector (3G) ..............................................................26

Mini-PCIe Connector (Wi-Fi) ........................................................... 27

Chapter 3: System Setup

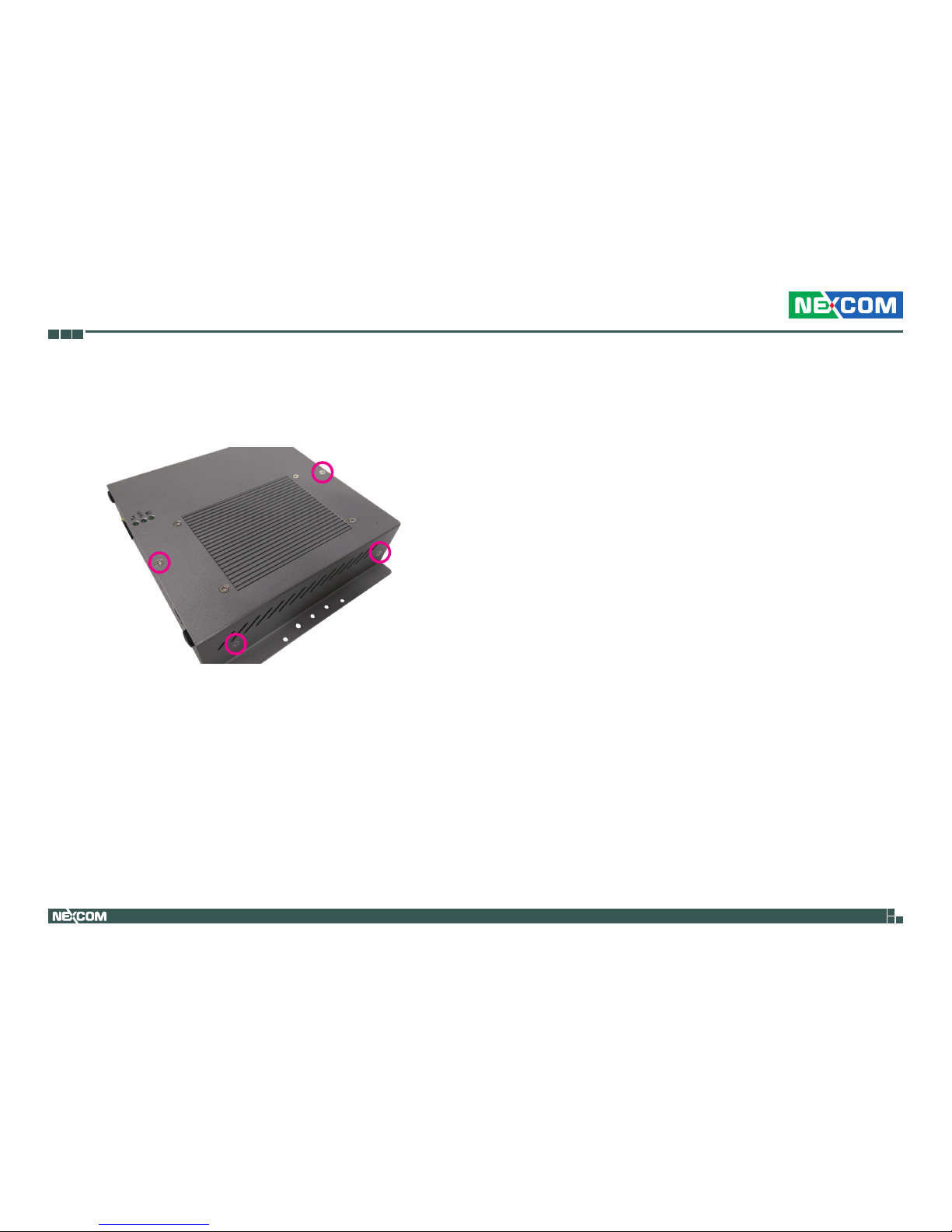

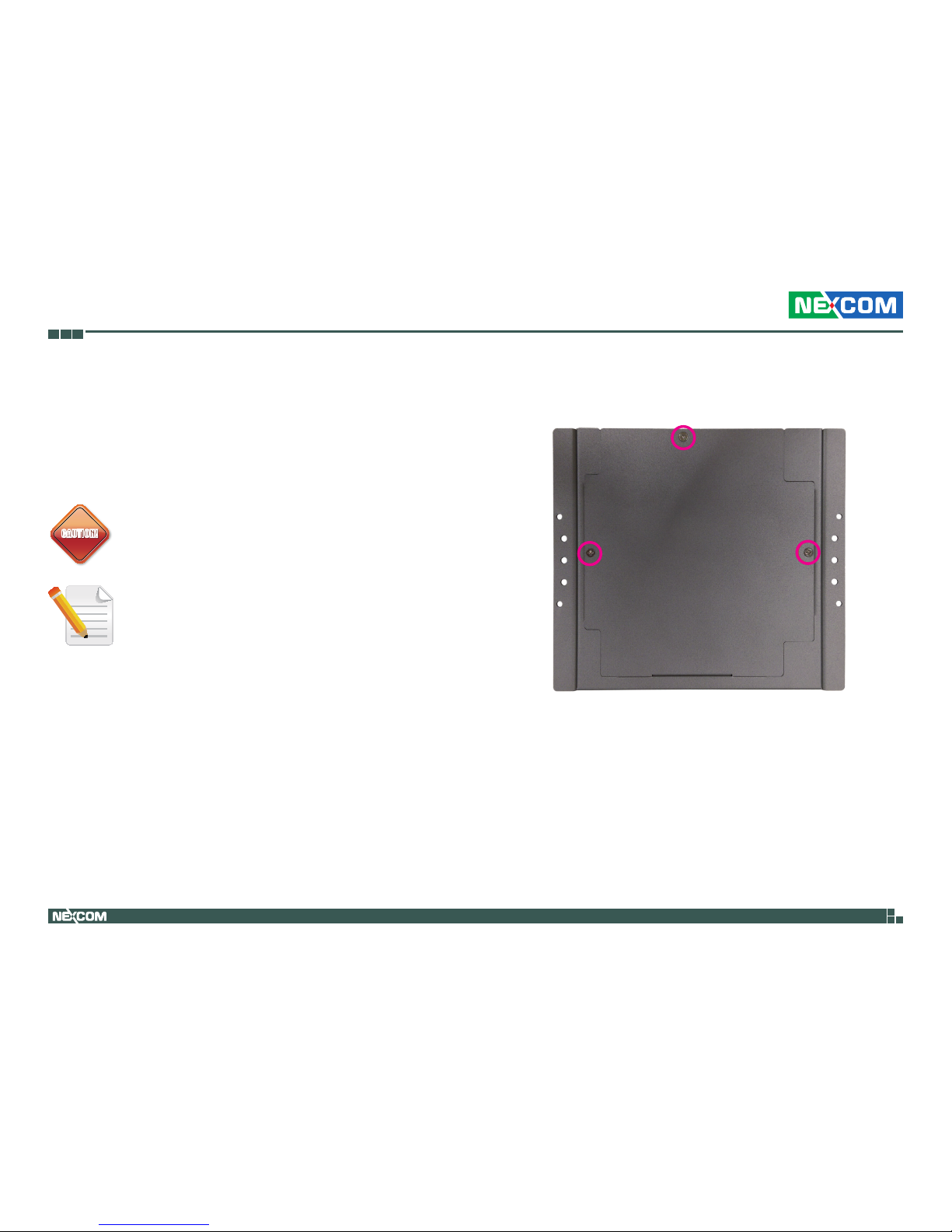

Removing the Bottom Cover ................................................................28

Removing the Top Cover .......................................................................29

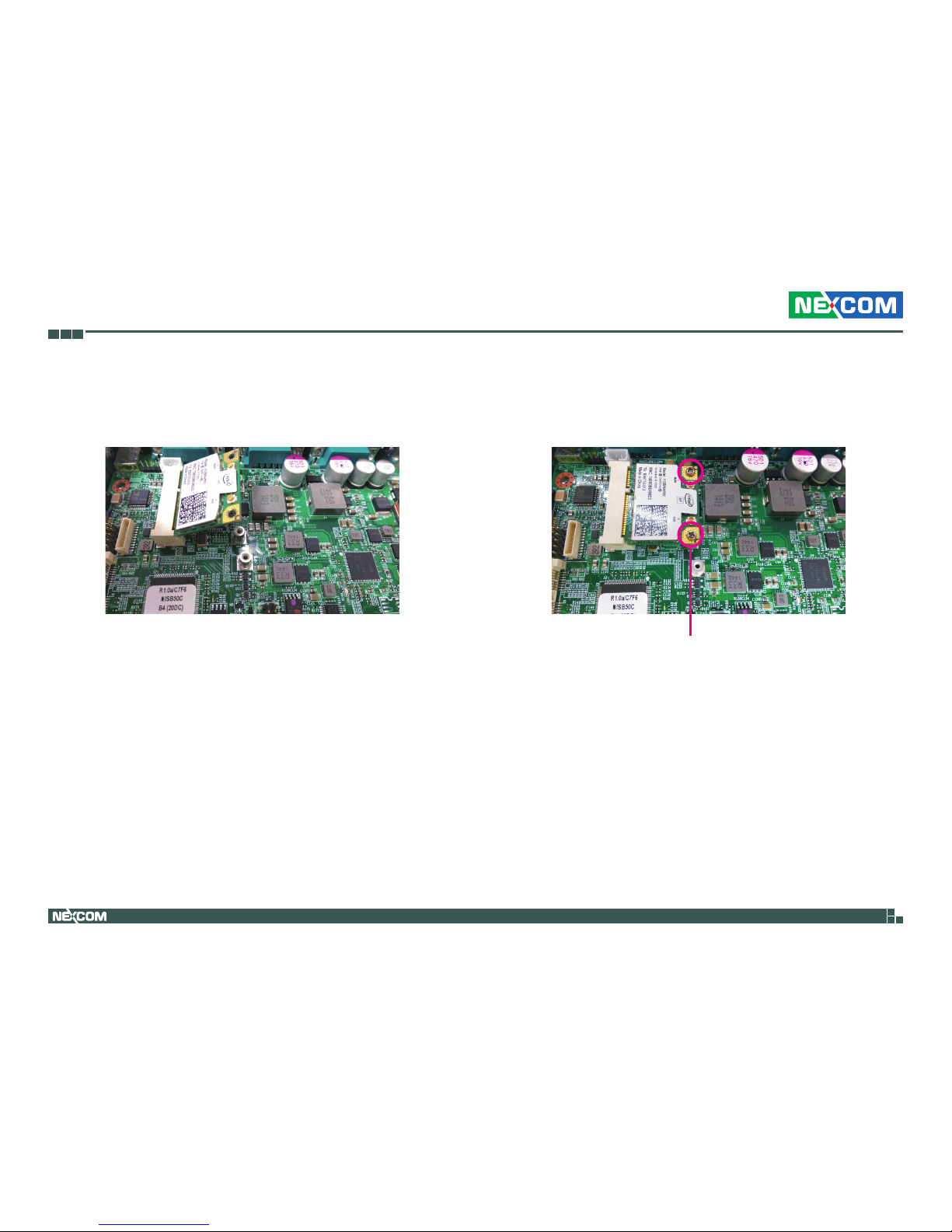

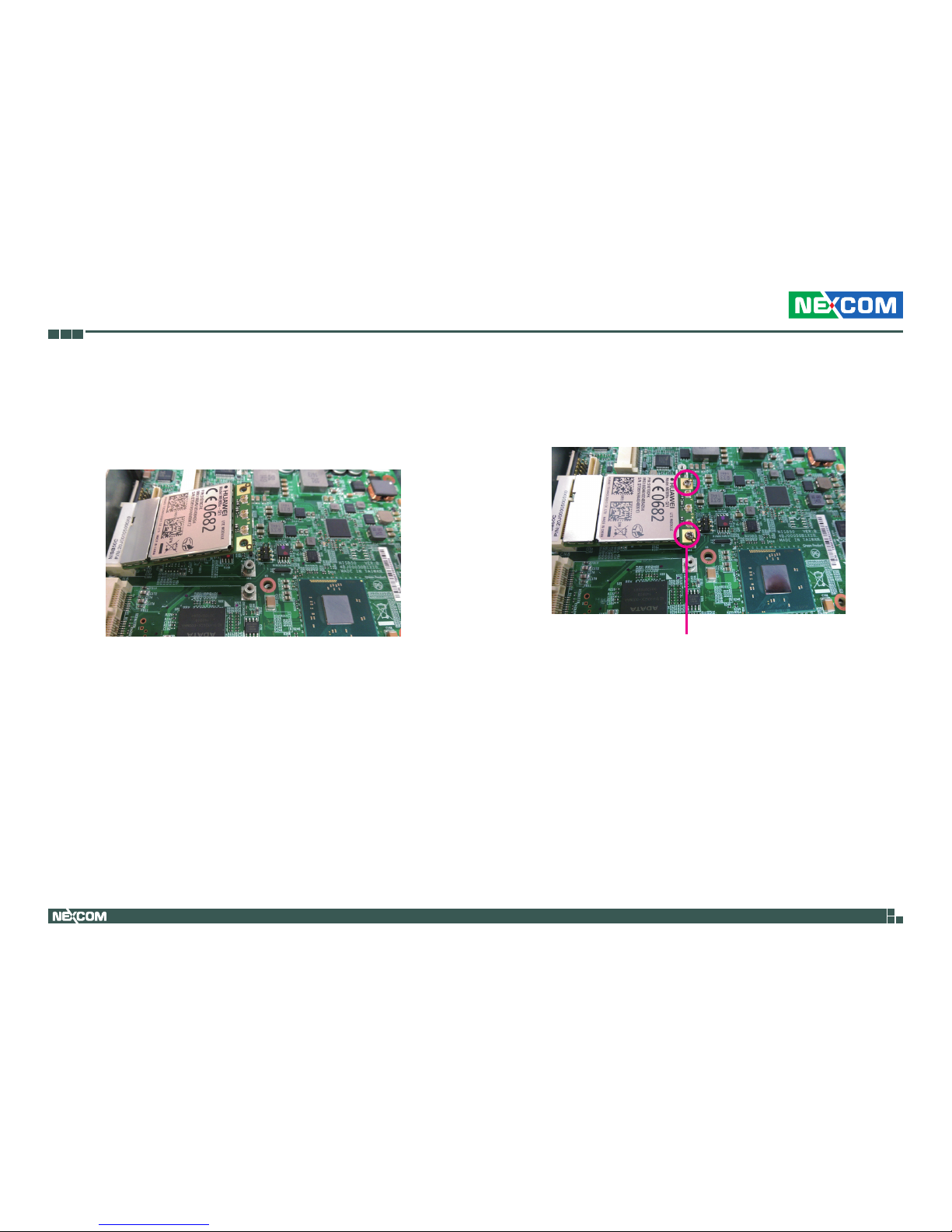

Installing a Mini-PCIe Module (Half-size) ................................................30

Installing a Mini-PCIe Module (Full-size) .................................................31

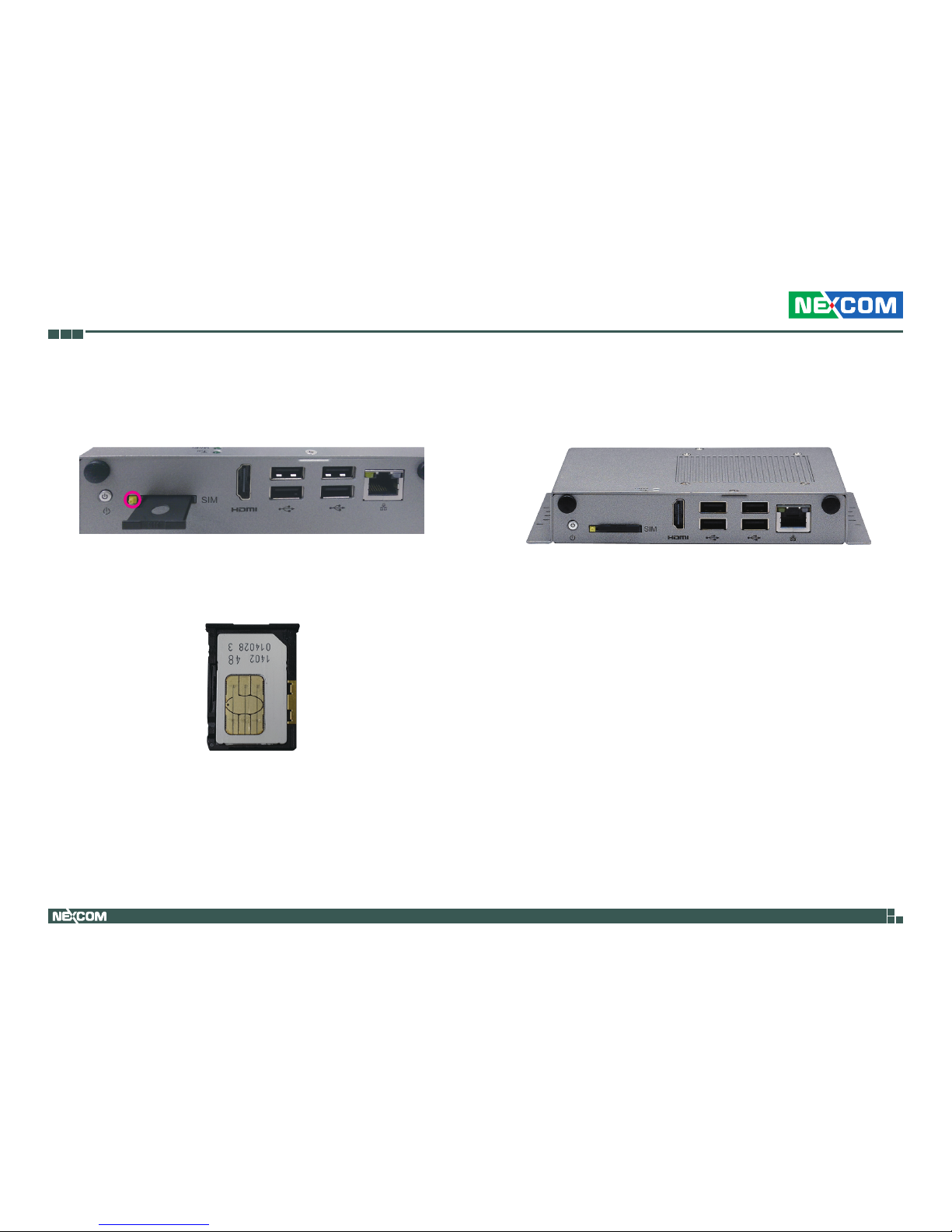

Installing a SIM Card .............................................................................32

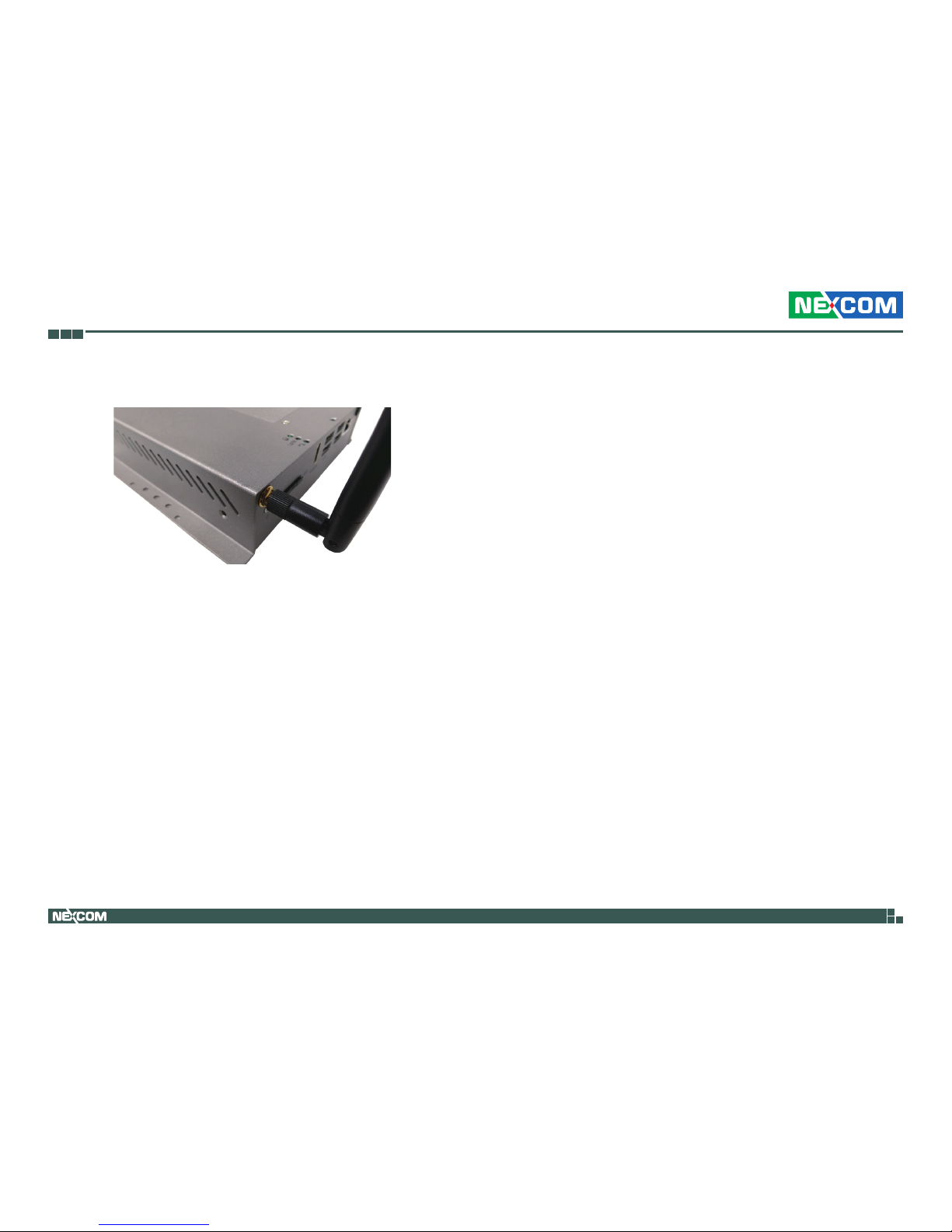

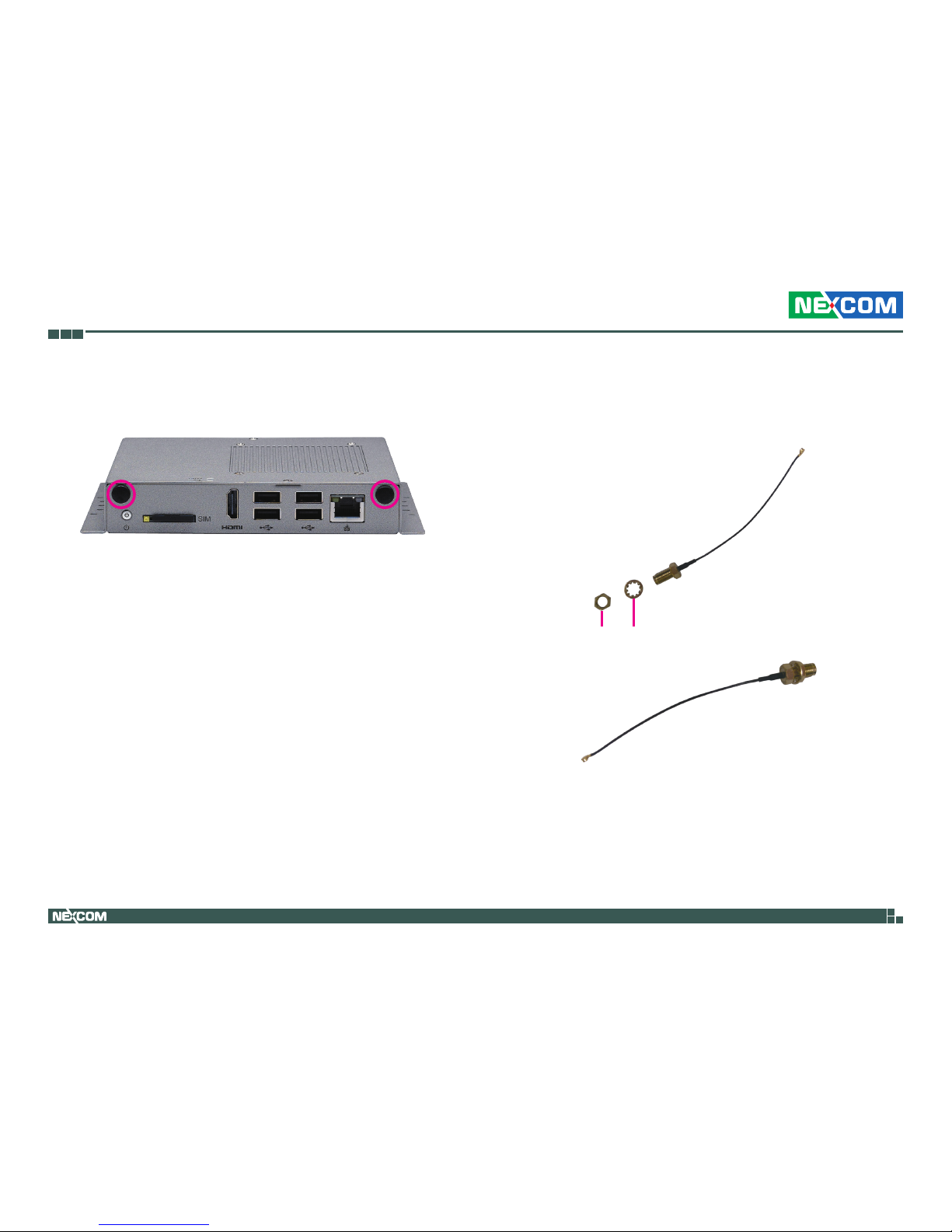

Installing an Antenna ............................................................................33

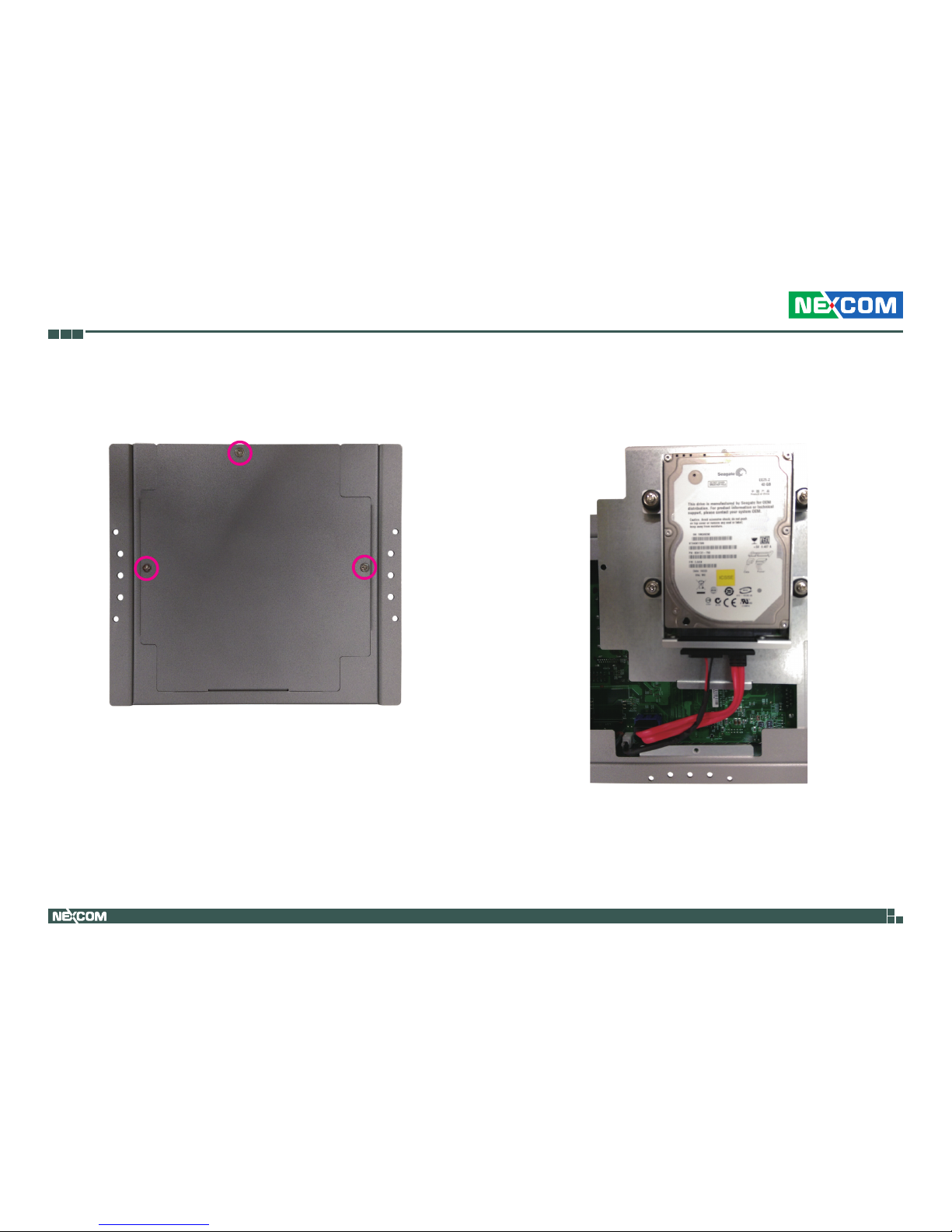

Installing a SATA Hard Drive for NISE 50C-H ..........................................35

Chapter 4: BIOS Setup

About BIOS Setup .................................................................................36

When to Configure the BIOS .................................................................36

Default Configuration ...........................................................................37

Entering Setup ......................................................................................37

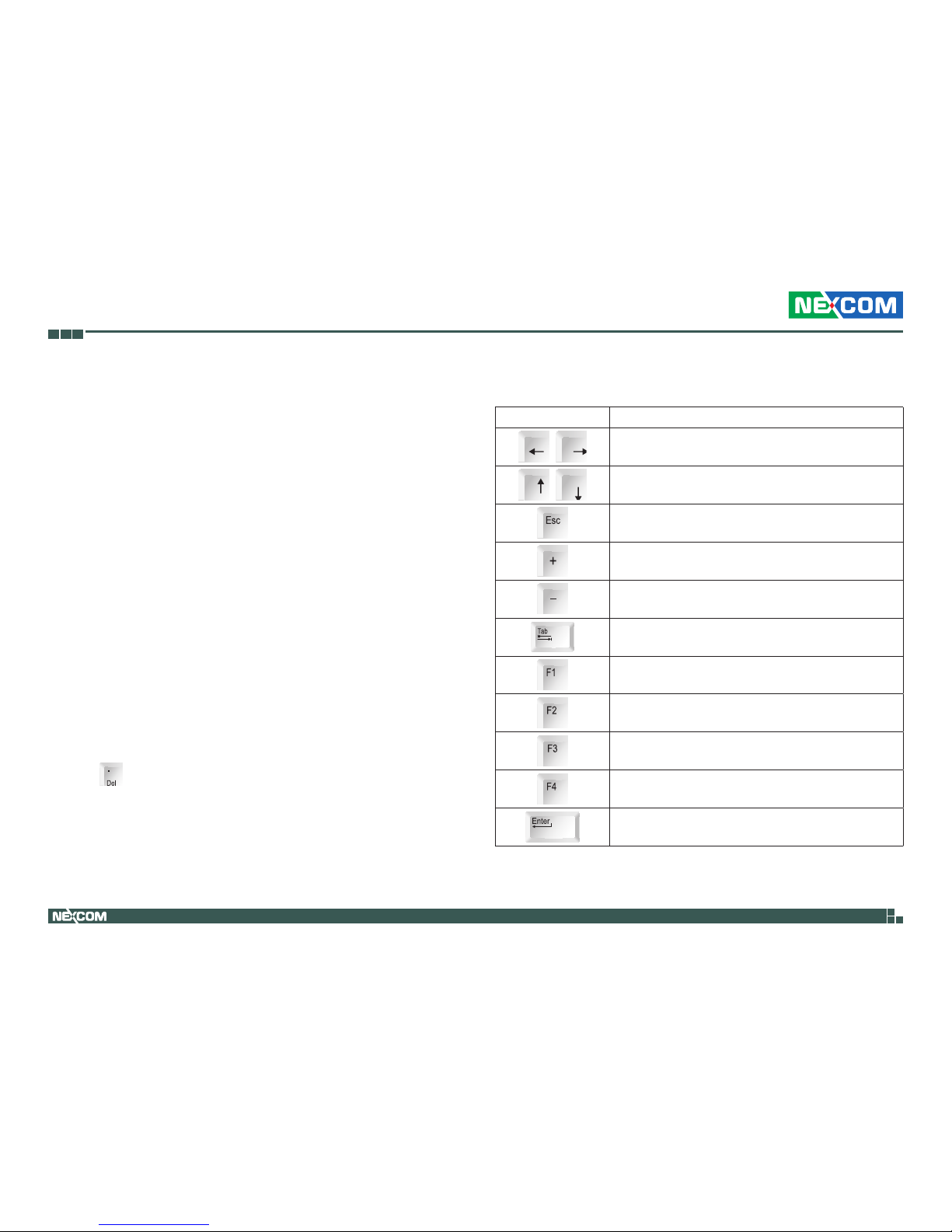

Legends ................................................................................................37

BIOS Setup Utility ..................................................................................39

Main .................................................................................................39

Advanced .........................................................................................40

Chipset ..............................................................................................51

Security .............................................................................................53

Boot ..................................................................................................54

Save & Exit ........................................................................................55

Appendix A: Power Consumption......................... 56

Appendix B: Watchdog...........................................57

Appendix C: GPI/O Control.....................................59

Appendix D: Wi-Fi & 3G LED...................................61

iv

NISE 50C/50C-H User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NISE 50C and NISE 50C-H are trademarks of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

v

NISE 50C/50C-H User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

vi

NISE 50C/50C-H User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vii

NISE 50C/50C-H User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

viii

NISE 50C/50C-H User Manual

Preface

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

CAUTION!

CAUTION!CAUTION!

Danger of explosion if battery is incorrectly replaced. Replace with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

ix

NISE 50C/50C-H User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

x

NISE 50C/50C-H User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

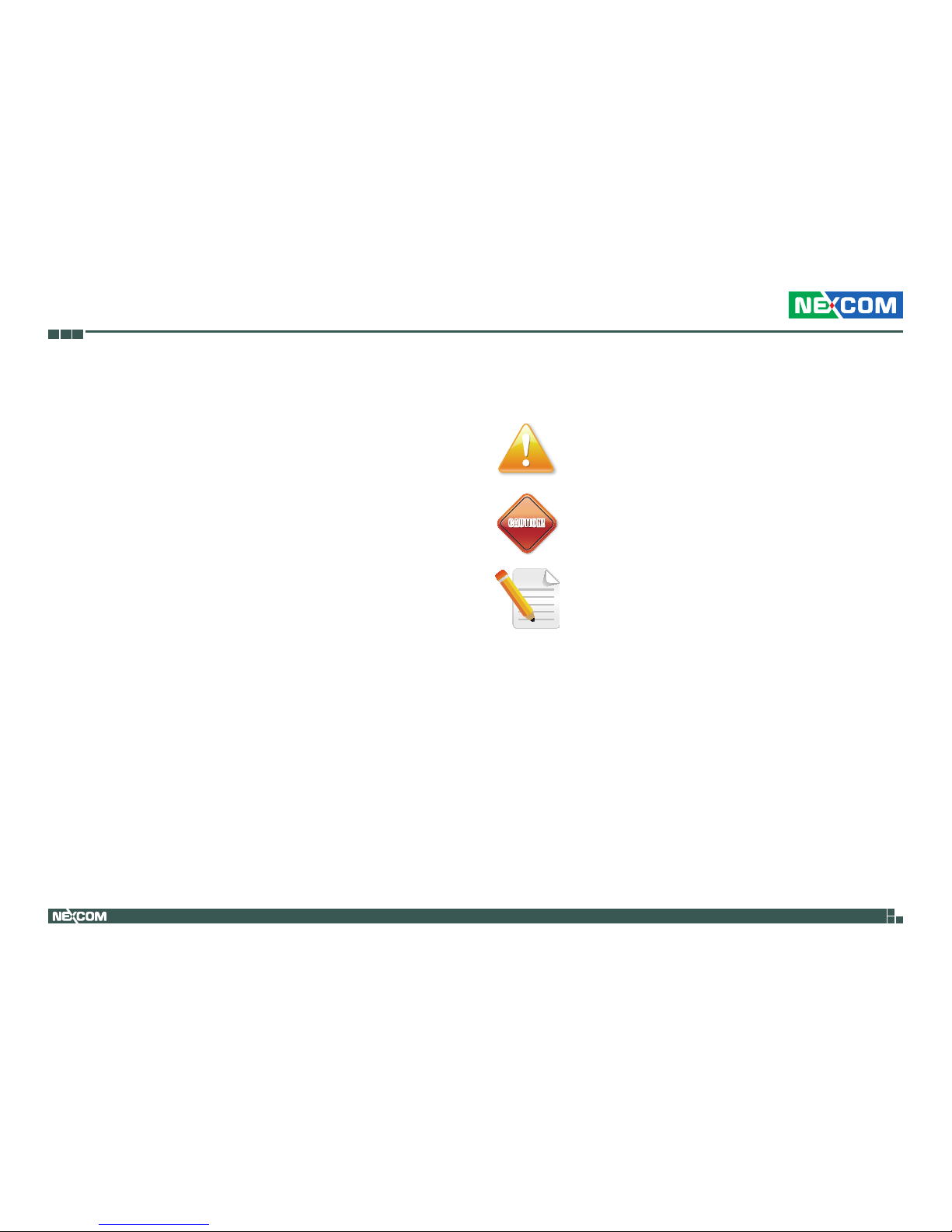

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

xi

NISE 50C/50C-H User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

China

NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-010-5704-2680 Fax: +86-010-5704-2681 Email: [email protected] www.nexcom.cn

xii

NISE 50C/50C-H User Manual

Preface

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: [email protected] www.nexcom.cn

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: [email protected] www.nexcom.cn

Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: [email protected] www.nexcom.cn

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Lanino 42, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625570 Email: [email protected] www.nexcomitalia.it

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXCOM Surveillance Technology

Room202, Building B, the GuangMing Industrial Zone Zhonghua Rd., Minzhi Street, Longhua District, Shenzhen, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: [email protected] www.nexcom.cn

NEXCOM United System Service

Hui Yin Ming Zun Building Room 1108, Building 11, 599 Yunling Road, Putuo District, Shanghai, 200062, China Tel: +86-21-6125-8282 Fax: +86-21-6125-8281 Email: [email protected] www.nexcom.cn

xiii

NISE 50C/50C-H User Manual

Preface

Package Contents

Before continuing, verify that the NISE 50C/50C-H package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Description Qty

1 6012200052X00 PE Zipper Bag #8 1 2 6012200053X00 PE Zipper Bag #3 1 3 50311F0330X00 Round Head Screw Long Fei:P2x3 ISO+Nylon 6 4 60233POW33X00 DC Cord EDI:281040051051-RS 1 5 602DCD1053X00 (E)NISE 50C DVD Driver VER:1.0 1

6 60177A0467X00 (E)NISE 50C Quick Reference Guide VER:A SIZE:A4 1 7 5060900226X00 Mini PCIe Bracket CHYUAN-JYH 1 8 50311F0295X00 Flat Head Screw Long Fei:F2x4 NYLOK NIGP 2

xiv

NISE 50C/50C-H User Manual

Preface

Ordering Information

The following information below provides ordering information for NISE 50C and NISE 50C-H.

• Barebone

NISE 50C (P/N: 10J00005001X0)

- Intel

®

Atom™ Processor E3826 Dual Core Fanless System

NISE 50C-H (P/N: 10J00005003X0)

- Intel

®

Atom™ Processor E3826 Dual Core Fanless System

• 12V, 60W AC/DC power adapter w/o power cord (P/N: 7400060017X00)

1

NISE 50C/50C-H User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

Key Features

▪ Onboard Intel® Atom™ processor E3826 dual core, 1.46GHz

▪ 1x HDMI Display

▪ 1x Intel I120AT LAN port supports WoL, Teaming and PXE

▪ 4x USB 2.0

▪ 3x COM ports with RS232, each port only have Tx/Rx/GND

▪ 3x Optional Interface for optional Wi-Fi/3.5G/LTE modules

▪ Support -5 ~ 55 degrees C extended operating temperature

▪ Support 12V DC input

Overview

NISE 50C Front View

NISE 50C-H Front View

NISE 50C Rear View

NISE 50C-H Rear View

2

NISE 50C/50C-H User Manual

Chapter 1: Product Introduction

Hardware Specifications

CPU Support

▪ Onboard Intel® Atom™ processor E3826 Dual Core, 1.46GHz ▪ Support Intel

®

Atom™ E3800 processor family from Single Core E3815, Dual Core E3825/E3826/E3827 and Quad Core E3845 with different SKUs.

Main Memory

▪ Onboard DDR3L 1066/1333 2GB RAM, un-buffered and non-ECC, max

up to 2GB

Display Option

▪ 1x HDMI display

Front I/O Interface

▪ ATX power on/off switch ▪ 1x Wi-Fi/1x GSM LEDs (NISE 50C) ▪ 1x Storage Access/1x Wi-Fi/1x GSM LEDs (NISE 50C-H) ▪ 1x SIM Card holder ▪ 1x Intel I210AT GbE LAN port, supports Wake on LAN, Teaming and PXE ▪ 1x HDMI Display Output ▪ 4x USB 2.0 (500mA per each) ▪ 2x Antenna Holes for optional Wi-Fi/3.5G antenna

Rear I/O Interface

▪ 3x DB9, only support RS232 Tx/Rx/GND signal ▪ 1x Line-out ▪ Support 12V DC input

I/O Interface - Internal

▪ 4x GPI and 4x GPO (5V, TTL Type) ▪ 1x DB9, only supports RS232, Tx/Rx/GND signal

Storage Device

▪ Onboard 16GB EMMC ▪ 1x 2.5” HDD (SATA 2.0) only for NISE 50C-H

Expansion Slot

▪ 3x Mini PCIe sockets for optional Wi-Fi/3.5G modules

Power Requirements

▪ Power input: 12Vdc ▪ 1x optional 12V, 60W power adapter

Support OS

▪ Windows 7 (NISE 50C-H) ▪ Windows Embedded Standard 7 (NISE 50C-H) ▪ Windows 8.1 ▪ Windows Embedded Standard 8 ▪ Android 4.4

Dimensions

▪ 146mm(W) x 26mm(H) x 150mm(D) (NISE 50C) ▪ 146mm(W) x 42mm(H) x 150mm(D) (NISE 50C-H)

Construction

▪ Aluminum and metal chassis with fanless design

3

NISE 50C/50C-H User Manual

Chapter 1: Product Introduction

Environment

▪ Operating Temperature: Ambient with air flow: -5°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

▪ Storage temperature: -30°C to 85°C

▪ Relative humidity: 10% to 95% (non-condensing)

▪ NISE 50C:

▪ Shock Protection:

– EMMC: 50G, half sine, 11ms, IEC60068-27

▪ NISE 50C:

▪ Vibration Protection w/ EMMC Condition:

– Random: 2Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

▪ NISE 50C-H:

▪ Shock Protection:

– HDD: 20G, half sine, 11ms, IEC60068-27 – SDD: 50G, half sine, 11ms, IEC60068-27

▪ NISE 50C-H:

▪ Vibration Protection w/HDD Condition:

– Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

▪ NISE 50C-H:

▪ Vibration Protection SSD Condition:

– Random: 2Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

Certifications

▪ CE

▪ FCC Class A

4

NISE 50C/50C-H User Manual

Chapter 1: Product Introduction

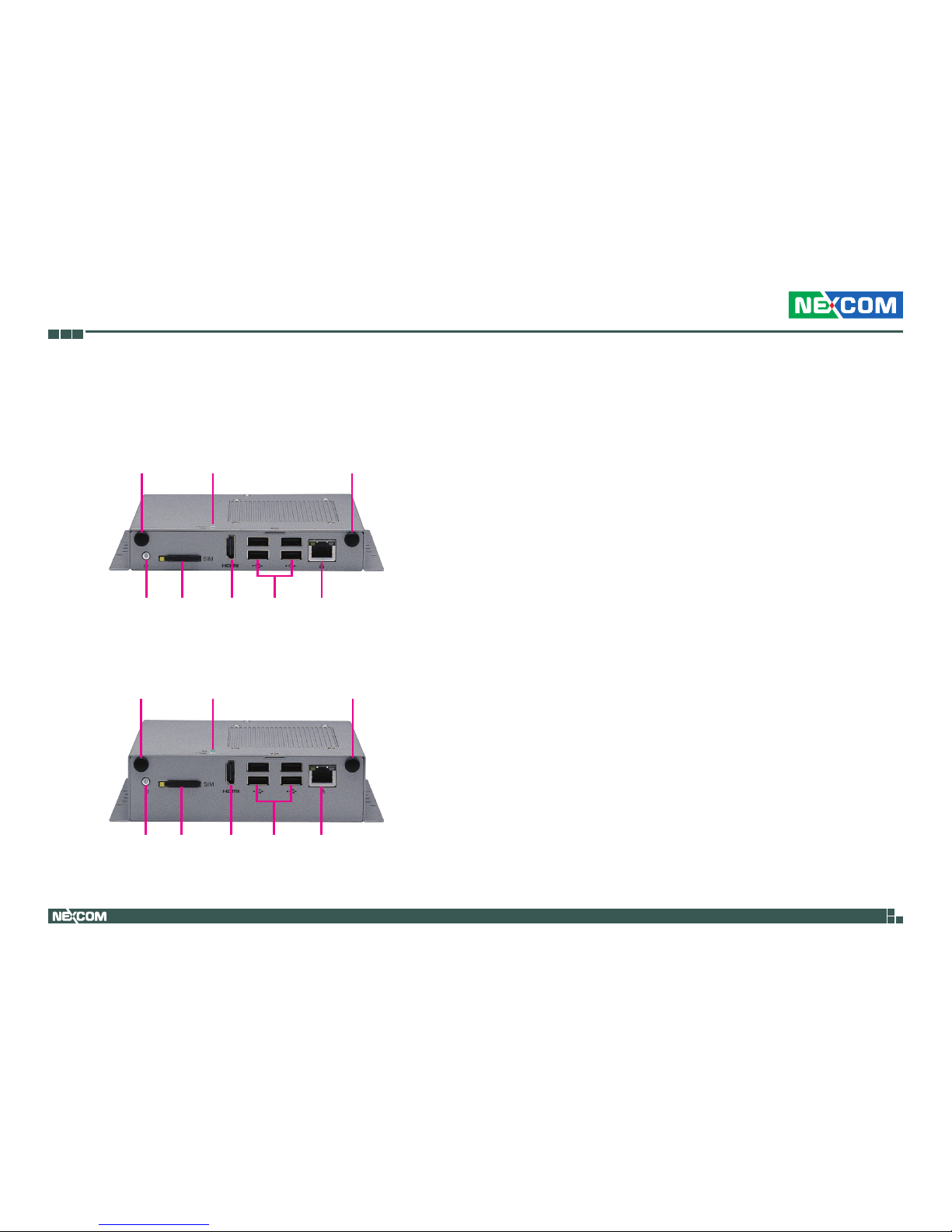

Knowing Your NISE 50C and NISE 50C-H

NISE 50C Front Panel

USB 2.0

SIM

HDMI

LAN

Antenna Hole LEDs

LEDsAntenna Hole

Antenna Hole

Power Switch

Antenna Hole

Used to install external antennas.

Power Switch

Press to power-on or power-off the system.

SIM

Used to insert a SIM card.

HDMI

Used to connect a high-definition display.

USB 2.0

USB 2.0 ports to connect the system with USB 2.0/1.1 devices.

LAN

Used to connect the system to a local area network.

LED Indicators

Indicates the hard drive (NISE 50C-H only), Wi-Fi and GSM activity of the system.

NISE 50C-H Front Panel

5

NISE 50C/50C-H User Manual

Chapter 1: Product Introduction

NISE 50C Rear Panel

COM1/2/3

Line-out

Line-outDC Input

DC Input

NISE 50C-H Rear Panel

DC Input

Used to plug a DC power cord.

COM1 to COM3

Three DB9 ports used to connect RS232 Tx/Rx/GND signals.

Line-out

Used to connect a headphone or a speaker.

6

NISE 50C/50C-H User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

NISE 50C

170

146

150

163

5050

4-

3.4

26

7

NISE 50C/50C-H User Manual

Chapter 1: Product Introduction

170

150

163

5050

4- Ø3.4

146

42

NISE 50C-H

8

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers and connectors on the NISE 50C and NISE 50C-H motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

9

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

1

2

3

1

2

3

10

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

NISB 50C

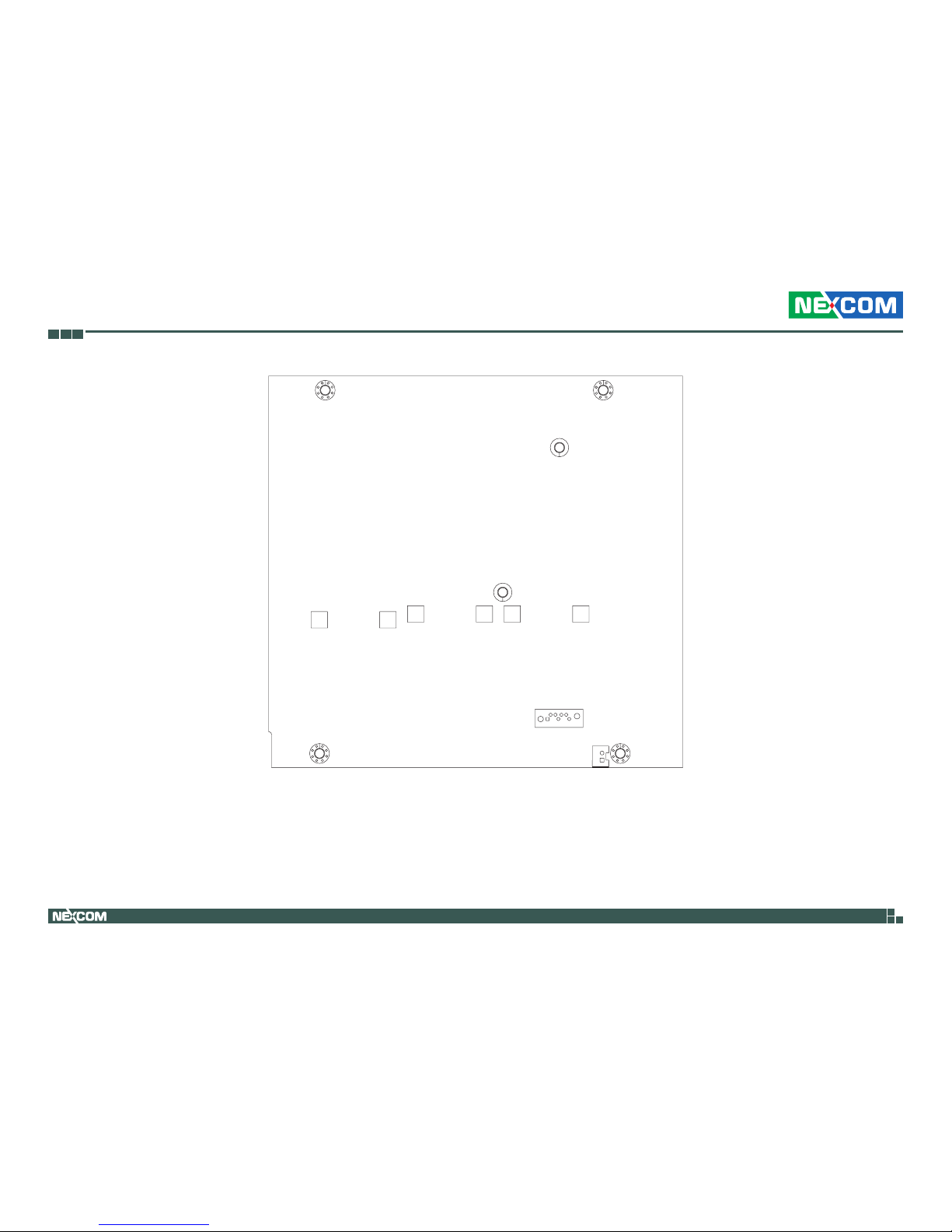

The figure below is the top view of the NISB 50C main board which is the main board used in NISE 50C and NISE 50C-H. It shows the locations of the jumpers and connectors.

LED2

A1

C1 C2 C3

A2 A3

1

AH

AG

AE

C

A

LED4

C

A

LED5

LED3

U24

123 9

A

B

C

D

E

F

G

H

J

K

L

N

M

P

R

8T7

U19

123 9

A

B

C

D

E

F

G

H

J

K

L

N

M

P

R

8T7

U18

A

B

C

D

E

F

G

H

J

K

L

N

M

P

R

T

123987123987

U17

A

B

C

D

E

F

G

H

J

K

L

N

M

P

R

T

53

51

49

47

45

43

41

39

37

35

33

31

29

27

25

17

15

13

23

21

1911

9

7

5

EA

C

3

1

NGJLRAE AAACU

WAGALANAR

AJBEBCAU

AWBGBABJ

BH

1

24

11

2

1

1213

9

14

10

4

85

14

85

1

110

6

1

9

5

6

1

9

5

6

1

9

5

3

1

5

4

2

H2

H5

H6

H1

3

6

2

5

4

31

2

6

1

5

1

4

3

1

3

1

3

1

3

H3

H4

MH3

MH4

2

16

18

52

1

15

17

51

MH5

MH6

2

16

18

1

15

17

51

MH5

MH6

2

18

16

52

1

15

17

51

C82

14

K

J

H

G

F

E

D

C

B

A

P

N

M

L

13

1

14

2

1

9 10

2

1

AA

W

Y

V

N

P

U

R

T

G

H

J

K

L

M

B

D

E

F

A

CN7

CN10

U34

JFW1

LAN1

CN11

CN12

J2

CN2

CN1

CN3

CN5

SW2

POWER

SWITCH

SIM CARD

HDMI

USB2.0

LAN1

CN4

JP1

JP2

JP6

JP5

J1

CN6

CN9

CN8

JP4

J3

JP3

LINE OUT

COM3

COM2

COM1

12V DC

INPUT

Locations of the Jumpers and Connectors for NISB 50C

Top View

11

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

1

7

CN13

J4

C262

Bottom View

12

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

Jumpers

AT/ATX Power Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP2

Pin Settings

1-2 On AT Mode 2-3 On ATX Mode

Pin Definition

1 3VSB 2 AT_ATX_SELECT 3 GND

1 3

CMOS Clear Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP6

Pin Settings

1-2 On Normal 2-3 On Clear CMOS

1-2 On: default

Pin Definition

1 NC 2 RTC_TEST# 3 GND

1 3

13

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

ME Clear Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP5

Pin Settings

1-2 On Normal 2-3 On Clear ME

1-2 On: default

Pin Definition

1 NC 2 SRTC_TEST# 3 GND

1 3

14

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces - Front Panel

SIM Card Slot

Connector location: U34

C5 C6 C7

C1 C2 C3

SW2 SW1

Pin Definition Pin Definition

C1 UIM_PWR C2 UIM_RESET C3 UIM_CLK C5 GND C6 UIM_VPP C7 UIM_DATA

SW1 GND SW2 GND

HDMI

Connector type: HDMI port Connector location: CN10

Pin Definition Pin Definition

1 HDMI_DATA2_P_C 2 GND 3 HDMI_DATA2_N_C 4 HDMI_DATA1_P_C 5 GND 6 HDMI_DATA1_N_C 7 HDMI_DATA0_P_C 8 GND

9 HDMI_DATA0_N_C 10 HDMI_CLK_P_C 11 GND 12 HDMI_CLK_N_C 13 NC 14 NC 15 HDMI_CTRL_CLK_C 16 HDMI_CTRL_DAT_C 17 GND 18 HDMI_PWR 19 HDMI_HPD_R

MH1 CHASSIS_GND MH2 CHASSIS_GND MH3 CHASSIS_GND MH4 CHASSIS_GND

19

18

2

1

15

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

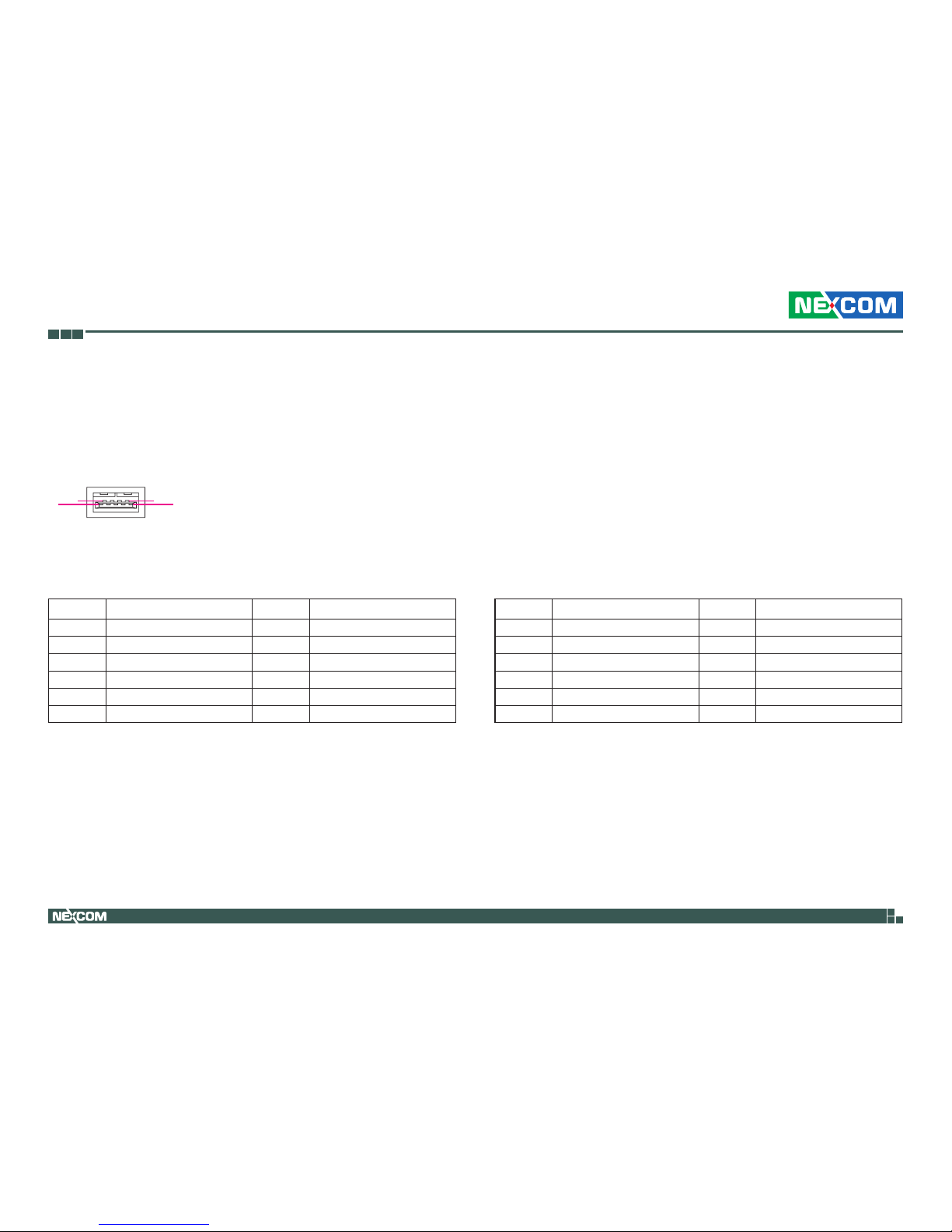

USB 3.0 Ports

Connector type: USB 3.0 port Connector location: CN11 and CN12

CN11

Pin Definition Pin Definition

1 4USBV1 2 DN1_C 3 DP1_C 4 GND 5 4USBV1 6 DN2_C

7 DP2_C 8 GND MH1 CHASSIS_GND MH2 CHASSIS_GND MH3 CHASSIS_GND MH4 CHASSIS_GND

CN12

Pin Definition Pin Definition

1 4USBV2 2 DN3_C 3 DP3_C 4 GND 5 4USBV2 6 DN4_C

7 DP4_C 8 GND MH1 CHASSIS_GND MH2 CHASSIS_GND MH3 CHASSIS_GND MH4 CHASSIS_GND

4

5

1

9

16

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

ACT LINK

18

RJ45 LAN Port

Connector type: RJ45 with LEDs Connector location: LAN1

Pin Definition Pin Definition

1 LAN_MDI0P_1 2 LAN_MDI0N_1 3 LAN_MDI1P_1 4 LAN_MDI1N_1 5 LAN1TCT 6 GND 7 LAN_MDI2P_1 8 LAN_MDI2N_1

9 LAN_MDI3P_1 10 LAN_MDI3N_1 11 LAN_LED_ACT# 12 LAN1_ACTPW 13 LAN_LED_LINK1G# 14 LAN1_LINK

MH1 CHASSIS_GND MH2 CHASSIS_GND

17

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

External I/O Interfaces - Rear Panel

12V DC Power Input

Connector location: CN5

Pin Definition Pin Definition

1 VIN_1 2 VIN_1

3 VIN_VSS 4 VIN_VSS

5 R_GND

MH1 N/A MH2 N/A MH3 N/A MH4 N/A

1 2 3 4

COM 1 Port (RS232)

Connector type: DB-9 port, 9-pin D-Sub Connector location: CN3

Pin Definition Pin Definition

1 N/A 2 SP1_RXD_R 3 SP1_TXD_R 4 N/A 5 N/A 6 N/A 7 N/A 8 N/A 9 N/A

MH1 CHASIS_GNDR MH2 CHASIS_GNDR

1

6

5

9

18

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

COM 2 Port (RS232)

Connector type: DB-9 port, 9-pin D-Sub Connector location: CN2

COM 3 Port (RS232)

Connector type: DB-9 port, 9-pin D-Sub Connector location: CN1

Pin Definition Pin Definition

1 N/A 2 SP2_RXD_R

3 SP2_TXD_R 4 N/A

5 N/A 6 N/A

7 N/A 8 N/A

9 N/A

MH1 CHASIS_GNDR MH2 CHASIS_GNDR

Pin Definition Pin Definition

1 N/A 2 SP3_RXD_R 3 SP3_TXD_R 4 N/A 5 N/A 6 N/A 7 N/A 8 N/A 9 N/A

MH1 CHASIS_GNDR MH2 CHASIS_GNDR

1

6

5

9

1

6

5

9

19

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

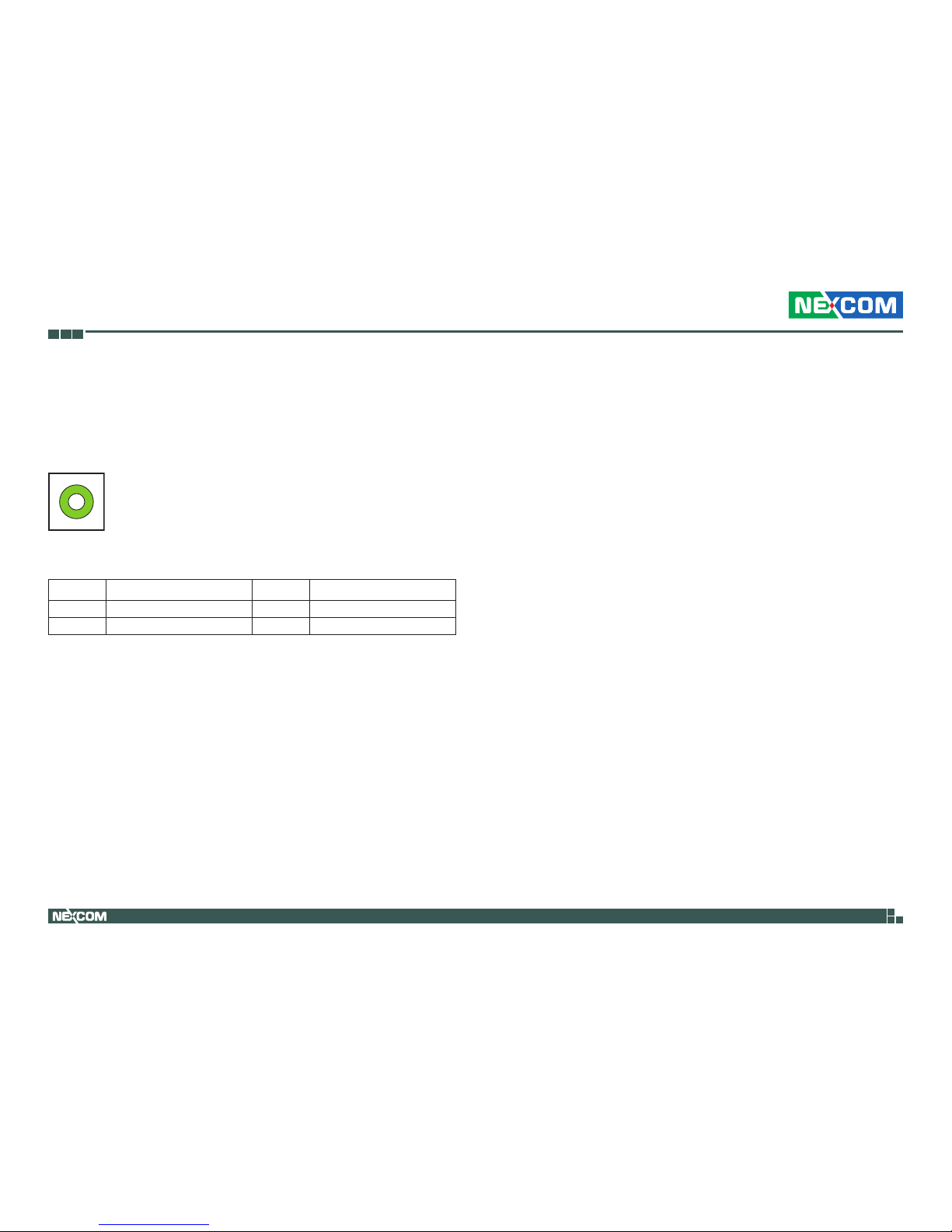

Line-out Connector

Connector type: 1x 3.5mm TRS Connector location: CN4

Pin Definition Pin Definition

1 LOUT_L3 2 LINE_OUT_JD

3 AGND 4 LOUT_R3

20

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

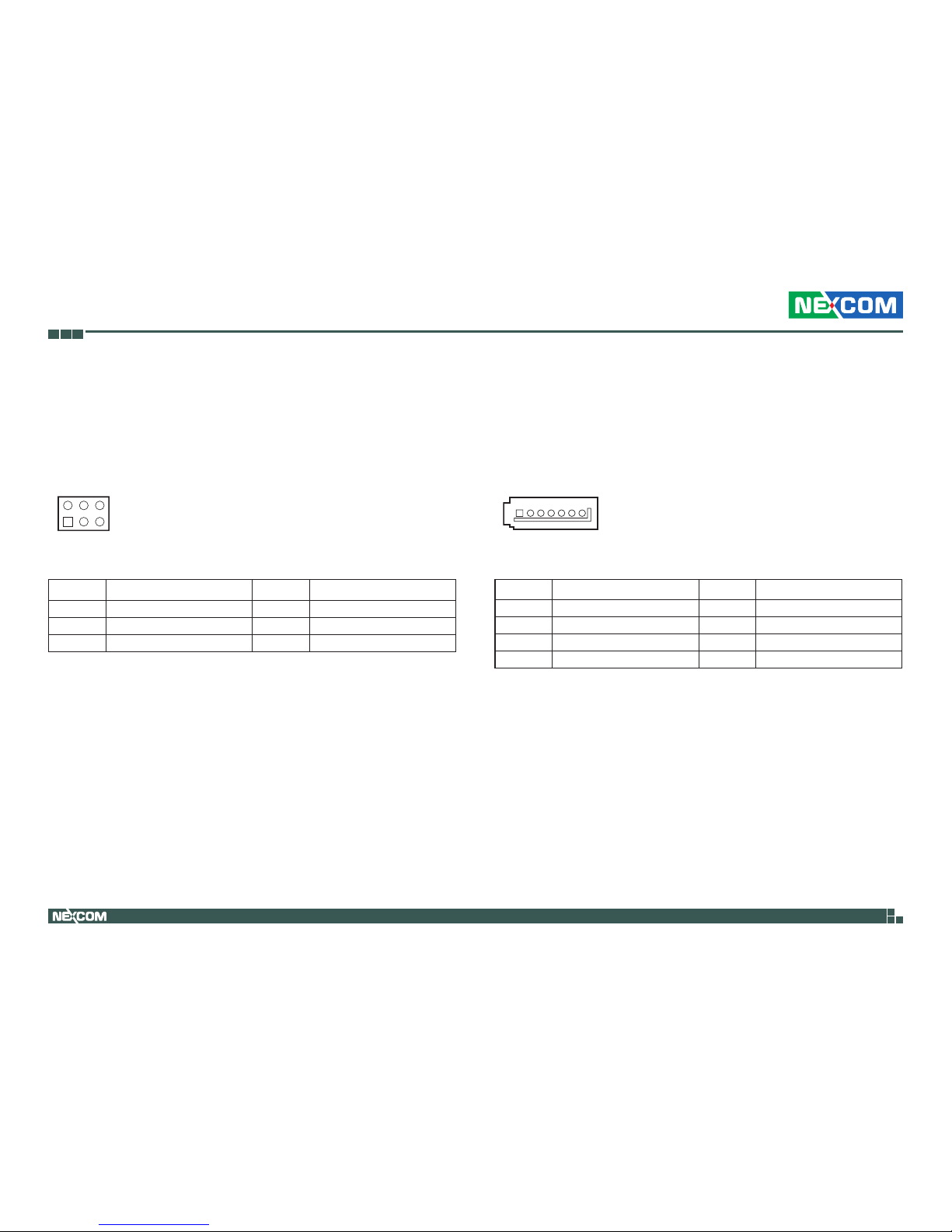

BIOS Pin Header

Connector type: 2x3 6-pin Wafer, 2.0mm pitch Connector location: JFW1

15

26

Pin Definition Pin Definition

1 VCC 2 GND

3 CS#0 4 CLK

5 SO 6 SI

SATA Connector

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: CN13

Pin Definition Pin Definition

1 GND 2 SATA_TXP0_C 3 SATA_TXN0_C 4 GND 5 SATA_RXN0_C 6 SATA_RXP0_C 7 GND

1 7

21

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

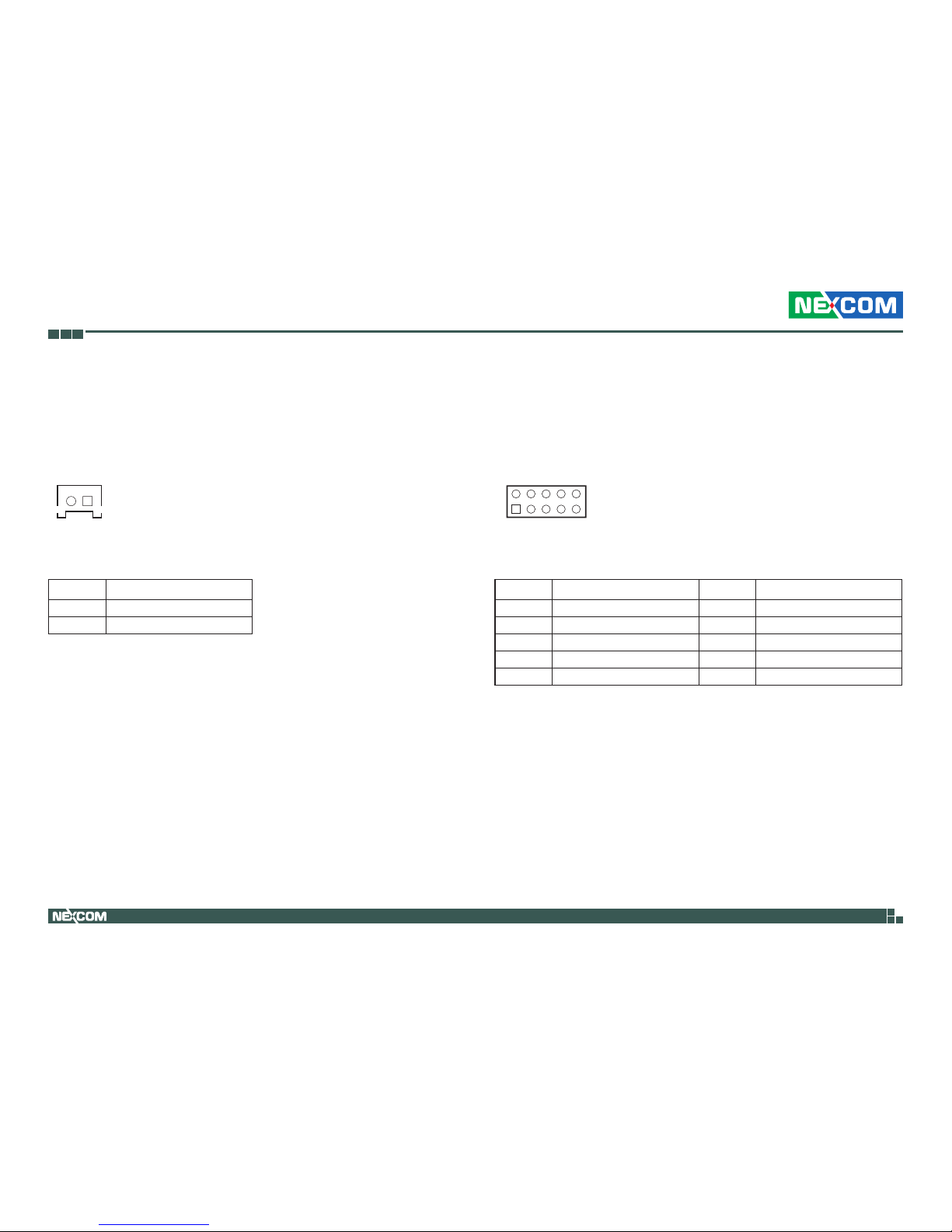

SATA Power Connector

Connector type: 1x2 2-pin header, 2.0mm pitch Connector location: J4

Pin Definition

1 VCC5

2 GND

12

GPIO Pin Header

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: JP3

19

21

0

Pin Definition Pin Definition

1 VCC5 2 GND 3 ICH_GPO0_OUT 4 ICH_GPI0_IN 5 ICH_GPO1_OUT 6 ICH_GPI1_IN 7 ICH_GPO2_OUT 8 ICH_GPI2_IN 9 ICH_GPO3_OUT 10 ICH_GPI3_IN

22

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

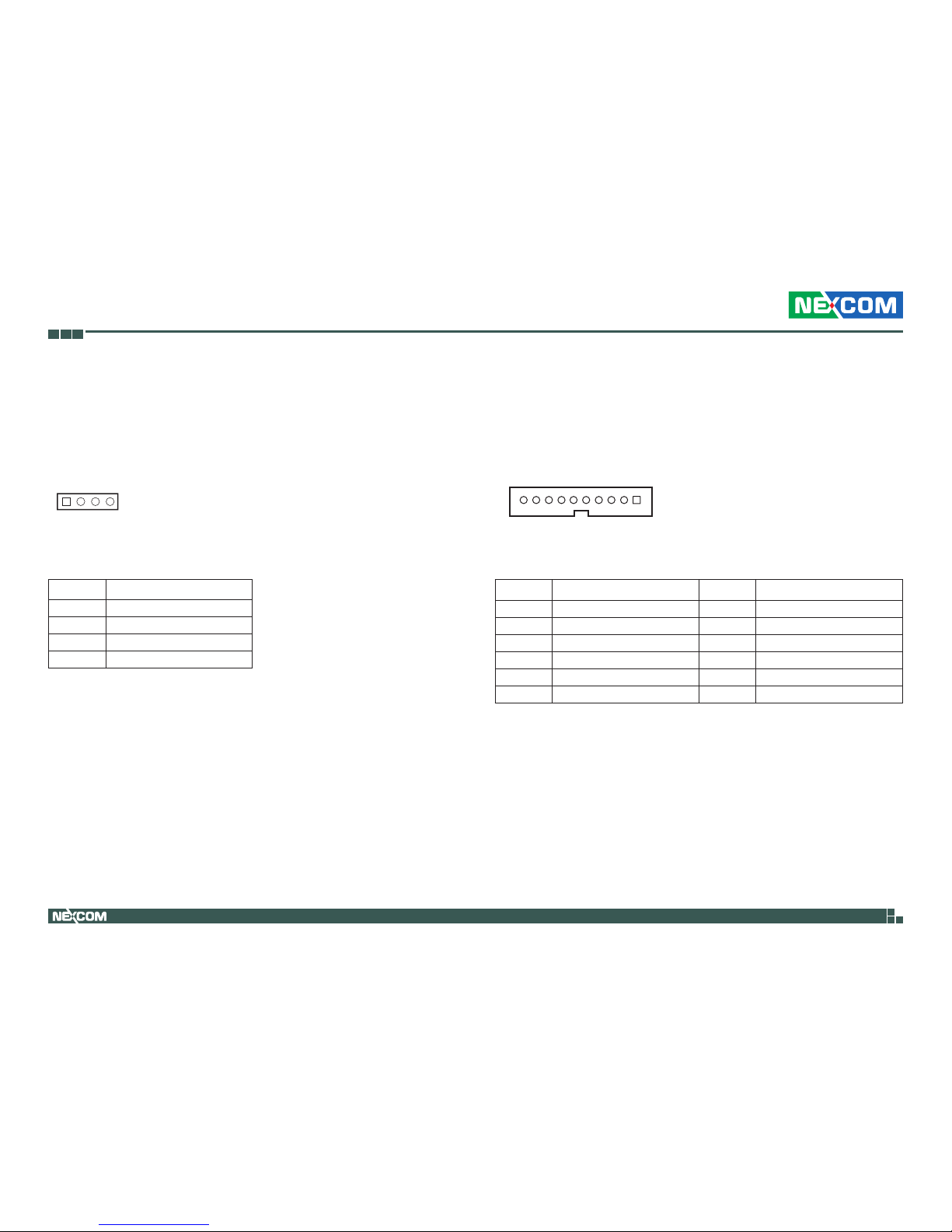

Port 80 Connector

Connector type: 1x10 10-pin header, 1.0mm pitch Connector location: J2

Pin Definition Pin Definition

1 GND 2 EC_PLTRST# 3 DEBUG_LPC33MHZ 4 LPC_FRAME# 5 LPC_AD3 6 LPC_AD2 7 LPC_AD1 8 LPC_AD0 9 VCC3/LPC_SERIRQ 10 VCC3

MH1 GND MH2 GND

10 1

14

Mic-in Pin Header

Connector type: 1x4 4-pin header, 2.0mm pitch Connector location: JP1

Pin Definition

1 MIC1_L3

2 MIC_JD

3 MIC_JD

4 MIC1_R3

23

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

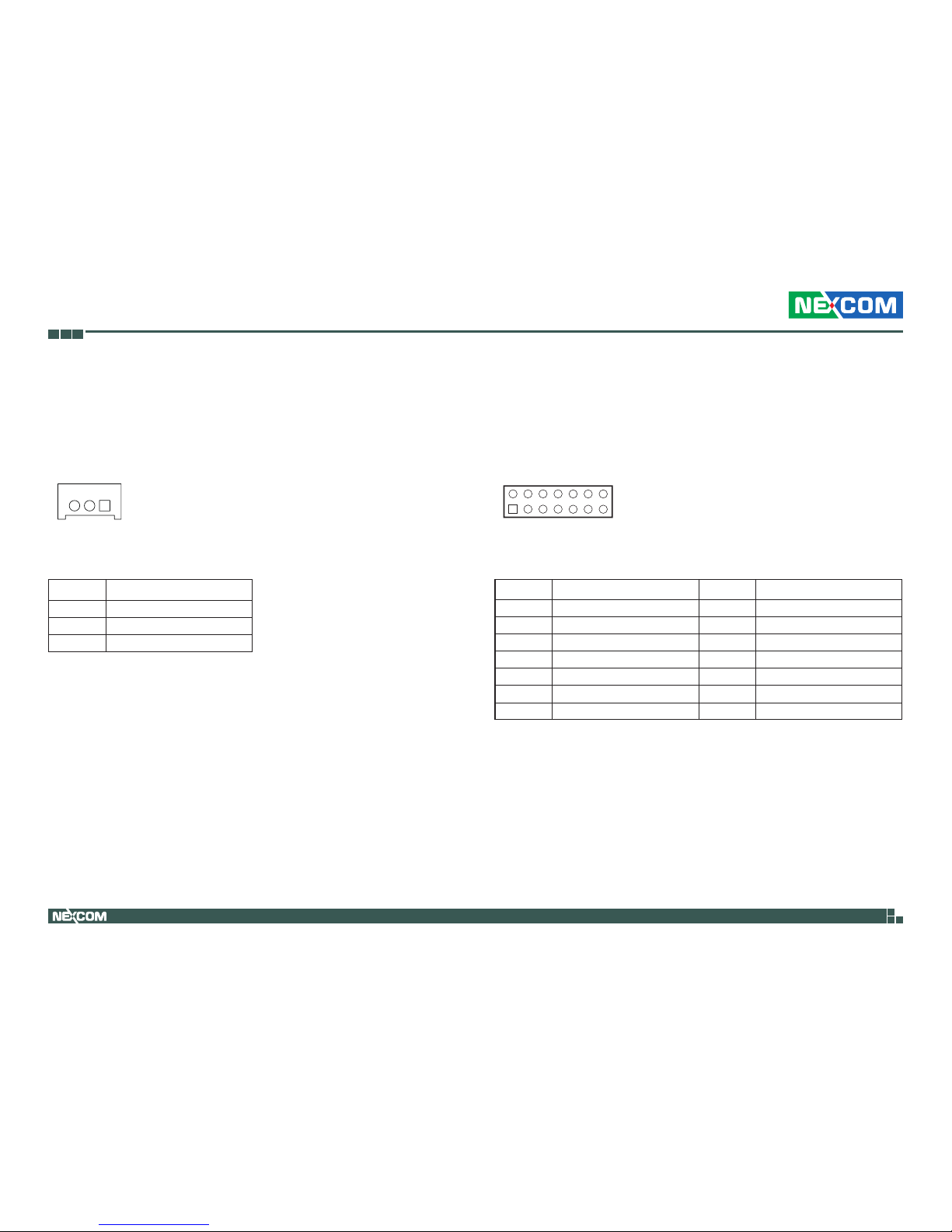

COM 4 Pin Header (RS232)

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: J1

Pin Definition

1 GND

2 SP4_RXD_R

3 SP4_TXD_R

3 1

PWR_LED/HDD_LED/SMB_BUS/S3/SW_ON/RESET

Connector type: 2x7 14-pin header, 2.0mm pitch Connector location: JP4

17

21

4

Pin Definition Pin Definition

1 GND 2 VCC3 3 SATA_LED# 4 VCC3 5 I2C_C 6 I2C_D 7 3VSB 8 GND

9 SLP_S3# 10 PS_ON# 11 EC_PWRBT# 12 GND 13 PM_RESET#_J 14 GND

24

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

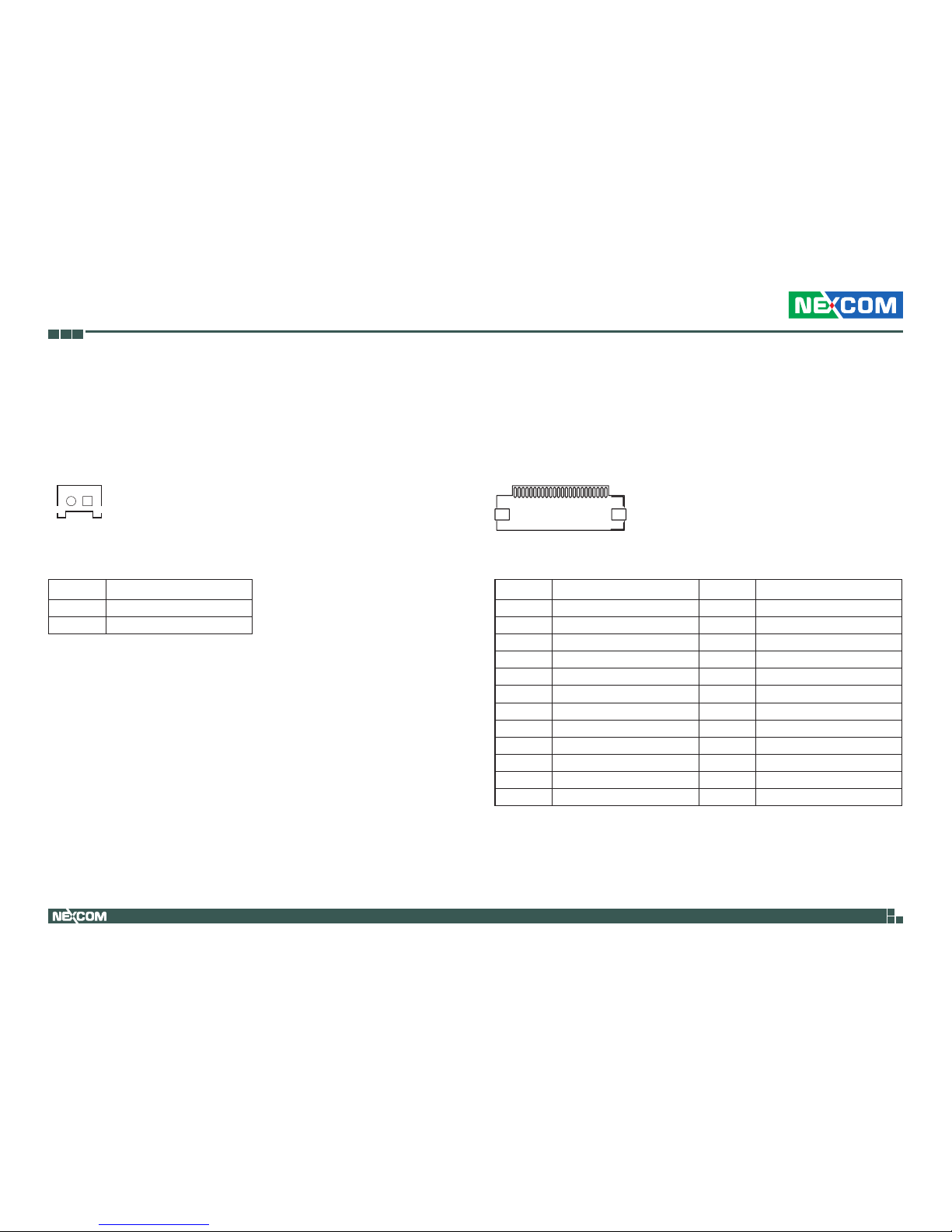

RTC Connector

Connector type: 1x2 2-pin header, 1.25mm pitch Connector location: J3

Pin Definition

1 GND 2 VBAT_L

12

EC Programmable Connector

Connector type: 1x24 24-pin header, 0.5mm pitch Connector location: CN7

Pin Definition Pin Definition

1 EC_KSO0 2 EC_KSO1

3 EC_KSO2 4 EC_KSO3

5 EC_KSO4 6 EC_KSO5

7 EC_KSO6 8 EC_KSO7

9 EC_KSO8 10 EC_KSO9 11 EC_KSO10 12 GND 13 GND 14 GND 15 GND 16 GND 17 EC_KSI0 18 EC_KSI1 19 EC_KSI2 20 EC_KSI3 21 EC_KSI4 22 EC_KSI5 23 GND 24 GND

1 24

25

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

12

51 52

Pin Definition Pin Definition

1 PCIEWAKE# 2 3VSB_MINI1 3 N/A 4 GND 5 N/A 6 N/A 7 N/A 8 UIM_PWR

9 GND 10 UIM_DATA 11 MC9090_1V8_OUT 12 UIM_CLK 13 N/A 14 UIM_RESET 15 GND 16 UIM_VPP 17 N/A 18 GND 19 N/A 20 EC_MC609_DISABLE 21 GND 22 EC_MC609_RESET 23 N/A 24 3VSB_MINI1 25 N/A 26 GND

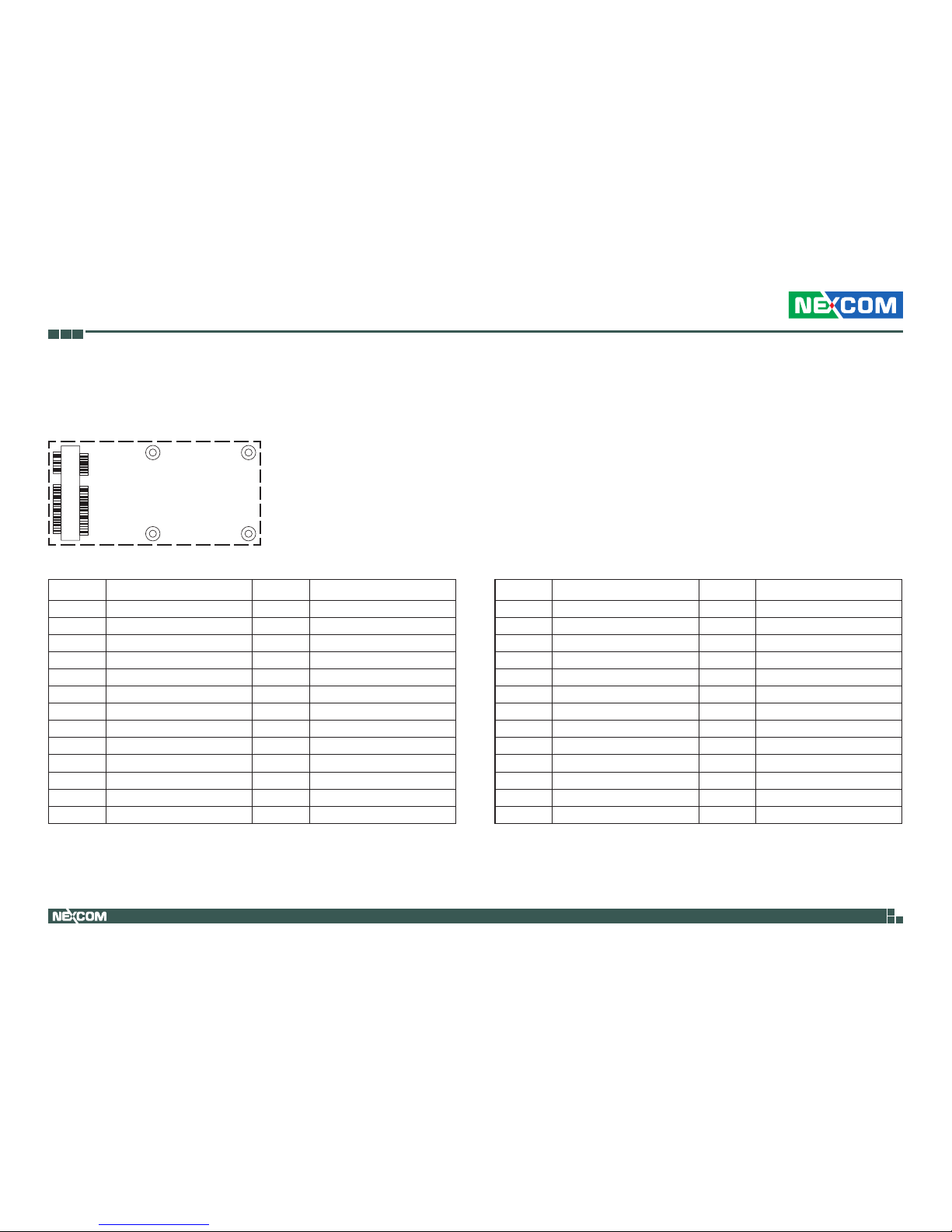

Mini-PCIe Connector (3G/SIM)

Connector location: CN8

Pin Definition Pin Definition

27 GND 28 N/A 29 GND 30 EC_I2CCLK 31 GND 32 EC_I2CDATA 33 EC_MC9090_RESET 34 GND 35 GND 36 MINI1USBN 37 GND 38 MINI1USBP 39 3VSB_MINI1 40 GND 41 3VSB_MINI1 42 N/A 43 GND 44 N/A 45 N/A 46 N/A 47 N/A 48 N/A 49 N/A 50 GND 51 N/A 52 3VSB_MINI1

26

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

12

51 52

Pin Definition Pin Definition

1 PCIEWAKE# 2 3VSB_MINI2

3 N/A 4 GND

5 N/A 6 V1P5S_2

7 MINICARD2CLKREQ# 8 UIM2_PWR

9 GND 10 UIM2_DATA 11 PCIE_CLKN0 12 UIM2_CLK 13 PCIE_CLKP0 14 UIM2_RESET 15 GND 16 UIM2_VPP 17 N/A 18 GND 19 N/A 20 EC_MC509_DISABLE 21 GND 22 EC_MC509_RESET 23 I_PERXN0_C 24 3VSB_MINI2 25 I_PERXP0_C 26 GND

Mini-PCIe Connector (3G)

Connector location: CN9

Pin Definition Pin Definition

27 GND 28 V1P5S_2 29 GND 30 EC_SMBCLK 31 PCIE_TXN0 32 EC_SMBDATA 33 PCIE_TXP0 34 GND 35 GND 36 MINI2USBN 37 GND 38 MINI2USBP 39 3VSB_MINI2 40 N/A 41 3VSB_MINI2 42 N/A 43 N/A 44 N/A 45 N/A 46 N/A 47 N/A 48 V1P5S_2 49 N/A 50 GND 51 N/A 52 3VSB_MINI2

27

NISE 50C/50C-H User Manual

Chapter 2: Jumpers and Connectors

12

51 52

Pin Definition Pin Definition

1 PCIE_WAKE# 2 3VSB_MINI3

3 N/A 4 GND

5 N/A 6 V1P5S_3

7 MINICARD1CLKREQ# 8 N/A

9 GND 10 N/A 11 PCIE_CLKN2 12 N/A 13 PCIE_CLKP2 14 N/A 15 GND 16 N/A 17 N/A 18 GND 19 N/A 20 EC_WIFI_DISABLE 21 GND 22 EC_PLTRST# 23 I_PERXN2_C 24 3VSB_MINI3 25 I_PERXP2_C 26 GND

Mini-PCIe Connector (Wi-Fi)

Connector location: CN6

Pin Definition Pin Definition

27 GND 28 V1P5S_3 29 GND 30 EC_SMBCLK 31 PCIE_TXN2 32 EC_SMBDATA 33 PCIE_TXP2 34 GND 35 GND 36 MINI3USBN 37 GND 38 MINI3USBP 39 3VSB_MINI3 40 GND 41 3VSB_MINI3 42 N/A 43 GND 44 N/A 45 N/A 46 N/A 47 N/A 48 V1P5S_3 49 N/A 50 GND 51 N/A 52 3VSB_MINI3

28

NISE 50C/50C-H User Manual

Chapter 3: System Setup

ChaPter 3: system setuP

Removing the Bottom Cover

1. With the bottom side of the chassis facing up, remove the mounting screws on the bottom cover and then put them in a safe place for later use.

2. Lift up the cover and remove it from the chassis.

CAUTION!

CAUTION!CAUTION!

Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

Note: Installation for SATA Hard Drive

29

NISE 50C/50C-H User Manual

Chapter 3: System Setup

1. Remove the mounting screws on the top cover and then put them in a safe place for later use.

Removing the Top Cover

2. Lift up the cover and remove it from the chassis.

30

NISE 50C/50C-H User Manual

Chapter 3: System Setup

1. Locate the mini-PCI Express slot on the board. 3. Push the module down and then secure it with mounting screws.

2. Insert the Wi-Fi module into the mini-PCI Express slot at a 45 degree angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

Installing a Mini-PCIe Module (Half-size)

Mounting

screw

31

NISE 50C/50C-H User Manual

Chapter 3: System Setup

1. Insert the wireless LAN module into the mini-PCI Express slot at a 45 degree angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

Installing a Mini-PCIe Module (Full-size)

2. Push the module down and then secure it with mounting screws.

Mounting

screw

32

NISE 50C/50C-H User Manual

Chapter 3: System Setup

1. Locate the SIM card holder on the front panel and release it by pushing the yellow button.

3. Insert the SIM card holder back to its original position.

Installing a SIM Card

2. Place the SIM card into the holder.

33

NISE 50C/50C-H User Manual

Chapter 3: System Setup

1. Remove the antenna hole covers located on the front panel. 3. Insert the 2 rings (ring 1 and ring 2) onto the antenna jack end of the

cable.

Installing an Antenna

2. Insert the antenna jack end of the cable through the antenna hole.

Ring 1Ring 2

4. Attach the other end of the antenna cable onto the module.

34

NISE 50C/50C-H User Manual

Chapter 3: System Setup

5. Connect the external antenna to the antenna jack.

35

NISE 50C/50C-H User Manual

Chapter 3: System Setup

1. Remove the bottom cover before installing a SATA HDD.

Installing a SATA Hard Drive for NISE 50C-H

2. Use the screws to secure the 2.5” HDD drive in place.

3. Secure the HDD bracket to its original place.

36

NISE 50C User Manual

Chapter 4: BIOS Setup

ChaPter 4: BIos setuP

This chapter describes how to use the BIOS setup program for NISE 50C and NISE 50C-H. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM website at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

37

NISE 50C User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup.

Press the

key to enter Setup:

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menus or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

38

NISE 50C User Manual

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

39

NISE 50C User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set the Date. Use Tab to switch between Date elements.

BIOS Information BIOS Vendor Core Version Compliancy Project Version Build Date and Time EC Version

CPU Conguration

Microcode Patch

Memory Information Total Memory

GDP Information Intel(R) GOP Driver

System Date

System Time

American Megatrends

5.009 UEFI 2.3; PI 1.2 N050-006 x64 07/08/2015 10:01:28 B 00 17

901

2048 MB

[N/A]

[Fri 10/23/2015] [17:50:09]

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

40

NISE 50C User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Exit

Advanced Chipset PCIPnP Security

Main

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Settings

Enable Hibernation

ACPI Sleep State

Enable Hibernation

Disabled

[Enabled]

[S3 (Suspend to RAM)]

ACPI Settings

This section is used to configure ACPI Settings.

Enable Hibernation

Enables or disables system ability to hibernate (OS/S4 Sleep State). This option may not be effective with some OS.

Enabled

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save & ExitAdvanced Chipset Security Boot

Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System ACPI Parameters.

ACPI Settings

F81216SEC Super IO Conguration IT8528 Super IO Conguration

IT8528 H/W Monitor Serial Port Console Redirection

CPU Conguration PPM Conguration IDE Conguration Miscellaneous Conguration LPSS & SCC Conguration CSM Conguration USB Conguration

►

► ► ► ► ► ► ►

►

► ► ►

41

NISE 50C User Manual

Chapter 4: BIOS Setup

Exit

Advanced Chipset PCIPnP Security

Main

Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

ACPI Settings

Enable Hibernation

ACPI Sleep State

[Enabled]

[S3 (Suspend to RAM)]

Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are Suspend Disabled and S3 (Suspend to RAM).

ACPI Sleep State

S3 (Suspend to RAM)

ACPI Sleep State

Suspend Disabled

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

F81216SEC Super IO Configuration

This section is used to configure the serial ports of the F81216SEC Super IO.

Super IO Chip

Displays the Super I/O chip used on the board.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set Parameters of Serial Port 1 (COMA)

F81216SEC Super IO Conguration

Super IO Chip

Serial Port 1 Conguration

Serial Port 2 Conguration

F81216SEC



42

NISE 50C User Manual

Chapter 4: BIOS Setup

Serial Port 1 Configuration

This section is used to configure serial port 1.

Serial Port

Enables or disables the serial port.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

Serial Port 1 Conguration

Serial Port

Device Settings

[Enabled]

IO=3E8h; IRQ=11;

Serial Port 2 Configuration

This section is used to configure serial port 2.

Serial Port

Enables or disables the serial port.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

Serial Port 2 Conguration

Serial Port

Device Settings

[Enabled]

IO=2E8h; IRQ=10;

43

NISE 50C User Manual

Chapter 4: BIOS Setup

IT8528 Super IO Configuration

This section is used to configure the serial ports of the IT8528 Super IO.

Super IO Chip

Displays the Super I/O chip used on the board.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set Parameters of Serial Port 1 (COMA)

IT8528 Super IO Conguration

Super IO Chip

Serial Port 1 Conguration

Serial Port 2 Conguration

IT8528



Serial Port 1 Configuration

This section is used to configure serial port 1.

Serial Port

Enables or disables the serial port.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

Serial Port 1 Conguration

Serial Port

Device Settings

[Enabled]

IO=3F8h; IRQ=4;

44

NISE 50C User Manual

Chapter 4: BIOS Setup

Serial Port 2 Configuration

This section is used to configure serial port 2.

Serial Port

Enables or disables the serial port.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

Serial Port 2 Conguration

Serial Port

Device Settings

[Enabled]

IO=2F8h; IRQ=3;

IT8528 H/W Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

CPU Temperature (DTS)

Detects and displays the current CPU temperature.

System Temperature

Detects and displays the current system temperature.

VCore to VCC5

Detects and displays the output voltages.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PC Health Status

CPU temperature(DTS) System temperature VCore VSM VCC3 VCC5

: +51 C : +29 C : +0.76 V : +1.33 V : +3.41 V : +5.07 V

45

NISE 50C User Manual

Chapter 4: BIOS Setup

Serial Port Console Redirection

This section is used to configure serial port console redirection settings.

Console Redirection

Enables or disables the console redirection. When enabled, Console Redirection Settings will be available.

Console Redirection (Serial Port for Out-of-Band Management)

Enables or disables the console redirection. When enabled, Console Redirection Settings will be available.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Console Redirection Enable or Disable.

COM0

Console Redirection

Console Redirection Settings

Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS)

Console Redirection

Console Redirection Settings

[Disabled]

►

CPU Configuration

This section is used to configure the CPU.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Socket specic CPU Information

CPU Conguration

Socket 0 CPU Information

CPU Speed 64-bit

Active Processor Cores Limit CPUID Maximum Execute Disable Bit Intel Virtualization Technology

1467 MHz Supported

[All] [Disabled] [Enabled] [Enabled]



Active Processors Cores

Select the number of cores to enable in each processor package.

Limit CPUID Maximum

The CPUID instruction of some newer CPUs will return a value greater than 3. The default is Disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur. To avoid this problem, enable this field to limit the return value to 3 or lesser than 3.

46

NISE 50C User Manual

Chapter 4: BIOS Setup

Execute Disable Bit

When this field is set to Disabled, it will force the XD feature flag to always return to 0. XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3).

Intel® Virtualization Technology

Enables or disables Intel Virtualization technology.

Socket 0 CPU Information

Display information on the CPU installed on socket 0.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Socket 0 CPU Information

Intel(R) Atom(TM) CPU E3826 @ 1.46GHz CPU Signature Microcode Patch Max CPU Speed Min CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology

L1 Data Cache L1 Code Cache L2 Cache L3 Cache

30679 901 1460 MHz 533 MHz 2 Not Supported Supported

24 kB x 2 32 kB x 2 1024 kB x 1 Not Present

PPM Configuration

This section is used to configure the Processor Power Management (PPM) configuration.

EIST

Enables or disables Intel® SpeedStep.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable/Disable Intel SpeedStep

PPM Conguration

EIST

[Disabled]

47

NISE 50C User Manual

Chapter 4: BIOS Setup

Serial-ATA Port 0

Enables or disables SATA port 0.

SATA Port0 HotPlug

Enables or disables hot pluggable support on SATA port 0.

IDE Configuration

This section is used to configure the SATA drives.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable / Disable Serial ATA

IDE Conguration

Serial-ATA (SATA)

SATA Mode

Serial-ATA Port 0 SATA Port0 HotPlug

SATA Port0 Not Present

[Enabled]

[AHCI Mode]

[Enabled] [Disabled]

Serial-ATA (SATA)

Enables or disables the SATA controller.

SATA Mode

Configures the SATA as IDE or AHCI mode.

IDE This option configures the Serial ATA drives as Parallel ATA physical storage device.

AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

48

NISE 50C User Manual

Chapter 4: BIOS Setup

Advanced Boot Security Save & ExitMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

OS Selection

Miscellaneous Conguration

OS Selection

[Windows]

Miscellaneous Configuration

This section is used to configure other miscellaneous settings.

OS Selection

Selects the operating system as Windows or Android.

Advanced Boot Security Save & ExitMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

LPSS & SCC Devices Mode Settings

LPSS & SCC Devices Mode

SCC Conguration

SCC eMMC Support SCC eMMC 4.5 DDR50 Support SCC eMMC 4.5 HS200 Support

[PCI mode]

[eMMC AUTO MODE] [Enabled] [Disabled]

LPSS & SCC Configuration

This section is used to configure LPSS and SCC settings.

LPSS & SCC Devices Mode

Selects the LPSS and SCC device mode as ACPI mode or PCI mode.

SCC eMMC Support

Enables or disables SCC eMMC support.

SCC eMMC 4.5 DDR50 Support

Enables or disables SCC eMMC 4.5 DDR50 support.

SCC eMMC 4.5 HS200 Support

Enables or disables SCC eMMC 4.5 HS200 support.

49

NISE 50C User Manual

Chapter 4: BIOS Setup

Storage

Controls the execution of UEFI and legacy storage OpROM.

Video

Controls the execution of UEFI and legacy video OpROM.

Other PCI Devices

Determines OpROM execution policy for devices other than network, storage or video.

Advanced Boot Security Save & ExitMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable/Disable CSM Support.

Compatibility Support Module Conguration

CSM Support

CSM16 Module Version

Option ROM execution

Network Onboard LAN PXE Storage Video Other PCI devices

[Enabled]

07.74

[Enabled] [Disabled] [Legacy] [Legacy] [Legacy]

CSM Configuration

This section is used to configure the compatibility support module features.

CSM Support

Enables or disables CSM support.

Network

Controls the execution of UEFI and legacy PXE OpROM.

Onboard LAN PXE

Enables or disables onboard LAN PXE ROM.

50

NISE 50C User Manual

Chapter 4: BIOS Setup

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

USB Conguration

USB Module Version

USB Devices: 1 Keyboard, 2 Hubs

Legacy USB Support

XHCI Legacy Support XHCI Hand-off EHCI Hand-off USB Mass Storage Driver Support

USB hardware delays and time-out

USB transfer time-out Device reset time-out Device power-up delay

8.11.01

[Enabled]

[Enabled] [Enabled] [Enabled] [Enabled]

[20 sec] [20 sec] [Auto]

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

XHCI Legacy Support

Enables or disables XHCI controller legacy support.

XHCI Hand-off

This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

USB Configuration

This section is used to configure the USB.

EHCI Hand-off

This is a workaround for OSs that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

USB Mass Storage Driver Support

Enables or disables USB mass storage driver support.

USB Transfer Time-out

The time-out value for control, bulk, and Interrupt transfers.

Device Reset Time-out

Selects the USB mass storage device’s start unit command timeout.

Device Power-up Delay

Maximum time the value will take before it properly reports it self to the Host Controller. “Auto” uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor.

51

NISE 50C User Manual

Chapter 4: BIOS Setup

Chipset

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.

South Bridge

High Precision Timer

Enables or disables high precision event timer.

Restore AC Power Loss

Select the AC power state when power is re-applied after a power failure.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Azalia HD Audio Options

Azalia HD Audio

USB Conguration PCI Express Conguration

High Precision Timer Restore AC Power Loss

[Enabled] [Power On]

Save & Exit

Advanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

South Bridge Parameters

South Bridge

Enters the South Bridge submenu.

►

► ►

52

NISE 50C User Manual

Chapter 4: BIOS Setup

USB Configuration

USB 2.0(EHCI) Support

Enables or disables the Enhanced Host Controller Interface (USB 2.0), one EHCI controller must always be enabled.

USB RMH Mode

Enables or disables PCH USB rate matching hubs mode.

USB EHCI Debug

Enables or disables PCH EHCI debug capability.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Control the USB EHCI (USB 2.0) functions. One EHCI controller must always be enabled.

USB Conguration

XHCI Mode

USB 2.0(EHCI) Support

USB RMH Mode USB EHCI debug

[Disabled]

[Enabled]

[Enabled] [Disabled]

PCH Azalia Configuration

Azalia

Control detection of the Azalia device.

Disabled Azalia will be unconditionally disabled. Enabled Azalia will be unconditionally enabled.

Azalia HDMI Codec

Enables or disables internal HDMI codec for Azalia.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Control Detection of the Azalia device. Disabled = Azalia will be unconditionally disabled Enabled = Azalia will be unconditionally Enabled Auto = Azalia will be enabled if present, disabled otherwise.

Audio Conguration

Audio Controller

Azalia HDMI Codec

[Enabled]

53

NISE 50C User Manual

Chapter 4: BIOS Setup

PCI Express Configuration

PCI Express Port 0 to PCI Express Port 2

Enables or disables the PCI Express ports 0 to 2 on the chipset.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable the PCI Express Port 0 in the Chipset.

PCI Express Conguration

PCI Express Port 0

PCI Express Port 1

PCI Express Port 2

[Enabled]

Security

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set Administrator Password

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User Will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

User Password

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

54

NISE 50C User Manual

Chapter 4: BIOS Setup

Boot

This section is used to configure the boot features.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Fast Boot

When enabled, the BIOS will shorten or skip some check items during POST. This will decrease the time needed to boot the system.

Save & Exit

Advanced Chipset

Security

BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Select the keyboard NumLock state

Boot Conguration

Bootup NumLock State

Fast Boot

Boot Option Priorities

Boot Option #1 Boot Option #2 Boot Option #3

Hard Drive BBS Priorities

[On]

[Disabled]

[UEFI: MMC - eMMC] [MMC - eMMC] [UEFI: Built-in EFI . . .]

Boot Option Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

Hard Drive BBS Priorities

Sets the order of the legacy devices in this group.

55

NISE 50C User Manual

Chapter 4: BIOS Setup

Save & Exit

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes and Reset

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Save & Exit

Advanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Reset the system after saving the changes.

Save Changes and Reset

Discard Changes and Reset

Restore Defaults

Hard Drive BBS Priorities

Boot Option #1

Sets the first legacy device to boot from.

Save & Exit

Advanced

Boot

SecurityMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Sets the system boot order

Boot Option #1

[MMC - eMMC]

56

NISE 50C/50C-H User Manual

Appendix A: Power Consumption

aPPendIx a: Power ConsumPtIon

Test Result

System Mode

12Vdc

Imax. Wmax.

CPU: Intel® Atom™ CPU E3826 @

1.46 GHz System model: NISB50C-H / Revision: B BIOS: American Megatrends Inc. / Revision: N050-001 X64 EC Revision: R 00 16 Operating System OS: Windows 8.1 (64-bit)

Standby mode. (S3)

0.09A 1.08W

BIOS mode 0.61A 7.32W

100% Full loading mode.

1.52A 18.2W

Power Consumption Management

Purpose

The purpose of the power consumption test is to verify the power dissipation of system, and the loading of power supply.

Test Equipment

1. 19” LCD Monitor.

2. DC power supply.

3. Operating System OS: Windows 8.1 (64-bit)

4. Burn In Test Ver7.1

5. Kpower Software.

6. Network test program.

7. USB 2.0 (5V, 0.5A (Cement Resistor)) *4.

Device Under Test

DUT: SYS#1

Test Procedure

1. Make sure mechanical structure and electrical functionality are normal before testing.

2. Install all I/O load devices and according as system input voltage specifications to setup DC power supply voltage.

3. Measure system maximum power consumption as below mode:

▪ Standby mode. ▪ BIOS mode. ▪ 100% Full loading mode (include USB load fixture)

4. Measure and record system maximum power consumption value.

57

NISE 50C/50C-H User Manual

Appendix B: Watchdog

aPPendIx B: watChdog

Command register and address description:

Command for light sensor:

Command Description

0x89 Reset watch dog time interval

0x28 Start watchdog

0x29 Stop watchdog

0x2A Reset watchdog

Address for watchdog: Watchdog is used to setup time interval and also keep event status. Unit time interval is 1ms. Time setting requires a word (8 bit) long length. You can setup watch dog event time from 0 to 0xFFFFFFFE. Write 0xFFFFFFFF to time interval setting means disable watchdog event. So the interval time range is from 0ms to 497 day (0~0x0xFFFFFFFE)

Address Description

0x50-0x53 0~0xFFFFFFFE,

Setup Watchdog time interval description:

Sequence to read light sensor::

Step Action Description

RW sample code command

0 Wait IBF clear x

1 Write 0x89 to 0x66 Send read command >o 0x66 0x89

2 Wait IBF clear x

3

Write RAM address to 0x62 port

Send Watchdog address 0x50~0x53.

>o 0x62 0x50

4 Wait OBF set x

5

Write watchdog time interval value to 0x62

Values from 0~0x0xFFFFFFFE, but two bit in each address, please refer to sample code explanation

>o 0x62 0x90

58

NISE 50C/50C-H User Manual

Appendix B: Watchdog

Sample explanation: To set up watchdog time interval to 4 sec, here is the vale should fill in in each address.

4sec = 400 ms (decimal) = 190 (hexadecimal)

Address 0x50 0x51 0x52 0x53

Data 0x00 0x00 0x01 0x90

Complete command set sequence:

Further description Command Address Data

Set watch dog interval, write to address 0x50~0x53 and Data“00000190”

>o 0x66 0x89 >o 0x62 0x50 >o 0x00

>o 0x66 0x89 >o 0x62 0x51 >o 0x00

>o 0x66 0x89 >o 0x62 0x52 >o 0x01

>o 0x66 0x89

>o 0x62 0x53 >o 0x90

Reset Watchdog time interval description:

This command is used to reset watchdog time.

Sequence to read light sensor:

Step Action Description

RW sample code command

0 Wait IBF clear x

1 Write 0x2A to 0x66

Send reset watchdog command

>o 0x66 0x2A

2 Wait OBF set x

3 Read 0x62 port

If setup successfully, EC will return 0x03.

x (check 0x03 output on display)

11 12

Start Watchdog description:

Step Action Description

RW sample code command

0 Wait IBF clear x

1 Write 0x28 to 0x66

Send start watchdog command

>o 0x66 0x28

2 Wait IBF clear x

3 Write 0x01 to 0x62

>o 0x62 0x01 (check 0x03 output on display)

4 Wait OBF set x

5 Read 0x62 port

If setup successfully, EC will return 0x01.

x (check 0x01 output on display)

Stop Watchdog description:

Step Action Description

RW sample code command

0 Wait IBF clear x

1 Write 0x29 to 0x66

Send stop watchdog command

>o 0x66 0x29

2 Wait OBF set x

3 Read 0x62 port

If setup successfully, EC will return 0x02.

x (check 0x02 output on display)

59

NISE 50C/50C-H User Manual

Appendix C: GPI/O Control

aPPendIx C: gPI/o Control

Command register and address description:

EC controls DIO status by following command:

Command Description

0x10 Write Pin number into index

0x11

According index, get GPIO pin status. 1-active, 0-unactive, 0xFF-fail

0x12

According index, change GPIO pin status. 1-active, 0-unactive

Status Address of DIO:

Command Description

0x00 DI

0x04 DO

Read DIO command description:

Sequence to Read DIO:

Step Action Description

RW sample code command

0 Wait IBF clear x

1 Write 0x10 to 0x66

Send GPIO index command

>o 0x66 0x10

2 Wait IBF clear x

3

Write PIN number to 0x62

Write pin number to index

>o 0x62 0x00

4 Wait OBF set x

5 Read 0x62 port

If index setup successfully, EC will return pin number. If fail, EC will return 0xFF

x

6 Wait IBF clear x

7 Write 0x11 to 0x66

Send read GPIO status command

>o 0x66 0x11

8 Wait OBF set x

9 Read 0x62 port

EC will return pin status according pin number which you set inindex. 1-GPIO is high. 0-GPIO is low. 0xFF-fail.

>i 0x62

60

NISE 50C/50C-H User Manual

Appendix C: GPI/O Control

Write DIO command description:

Sequence to Write DIO:

Step Action Description

RW sample code command

0 Wait IBF clear x

1 Write 0x10 to 0x66

Send GPIO index command

>o 0x66 0x10

2 Wait IBF clear x

3

Write PIN number to 0x62

Write pin number to index

>o 0x62 0x04

4 Wait OBF set x

5 Read 0x62 port

If index setup successfully, EC will return pin number. If fail, EC will return 0xFF

x

6 Wait IBF clear x

7 Write 0x12 to 0x66

Send write GPIO status command

>o 0x66 0x12

8 Wait IBF clear x

9

Write pin status to 0x62 port

Write 0x01, GPIO pin will be set high. Write 0x00, GPIO pin will be set low.

>o 0x62 0x01 (set to high)

61

NISE 50C/50C-H User Manual

Appendix D: Wi-Fi & 3G LED

aPPendIx d: wI-fI & 3g led

Command register and address description:

Command for light sensor:

Command Description

0xF0 Write

0xF1 Read

Data for Wi-Fi & 3G LED:

Command Description

Bit0 Wi-Fi LED Enable or disable; 0x01 to Enable, 0x00 to Disable

Bit1 3G LED Enable or disable; 0x01 to Enable, 0x00 to Disable

Read description:

Sequence to read light sensor:

Step Action Description

RW sample code command

0 Wait IBF clear x

1 Write 0x80 to 0x66 Send read command >o 0x66 0xF1

2 Wait OBF set x

3 Read 0x62 port data >i 0x62

Write description:

Step Action Description

RW sample code command

0 Wait IBF clear x

1 Write 0x81 to 0x66 Send write command >o 0x66 0xF0

2 Wait IBF clear x

3

Write ram address to 0x62 port

Send control Data 0x01 to Enable LED

>o 0x62 0x01
