Nexcom NISE 2100A, NISE 2110, NISE 2110A User Manual

NEXCOM International Co., Ltd.

Published January 2011

www.nexcom.com

Industrial Computing Solutions

Fan-less Computer NISE 2100, NISE 2100A, NISE 2110, NISE 2110A

User Manual

ii

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer ............................................................................................. iv

Acknowledgements .............................................................................. iv

Regulatory Compliance Statements ....................................................... iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................vii

Installation Recommendations ................................................................vii

Safety Precautions .................................................................................viii

Technical Support and Assistance ........................................................... ix

Conventions Used in this Manual ........................................................... ix

Global Service Contact Information ......................................................... x

Package Contents ..................................................................................xii

Ordering Information ............................................................................xiii

Chapter 1: Product Introduction

Overview ................................................................................................1

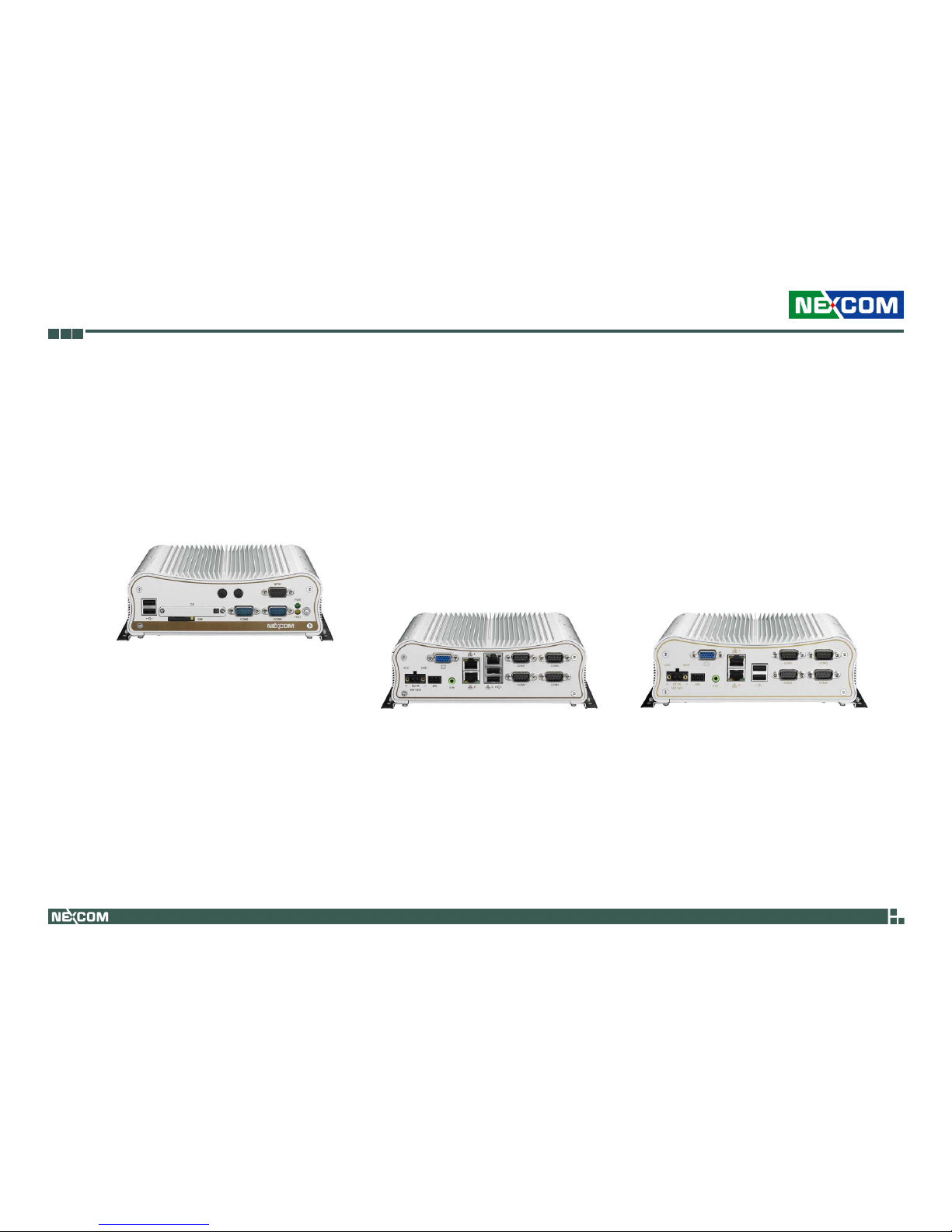

NISE 2100/2100A .................................................................................1

NISE 2110/2110A .................................................................................2

Hardware Specifications .......................................................................... 3

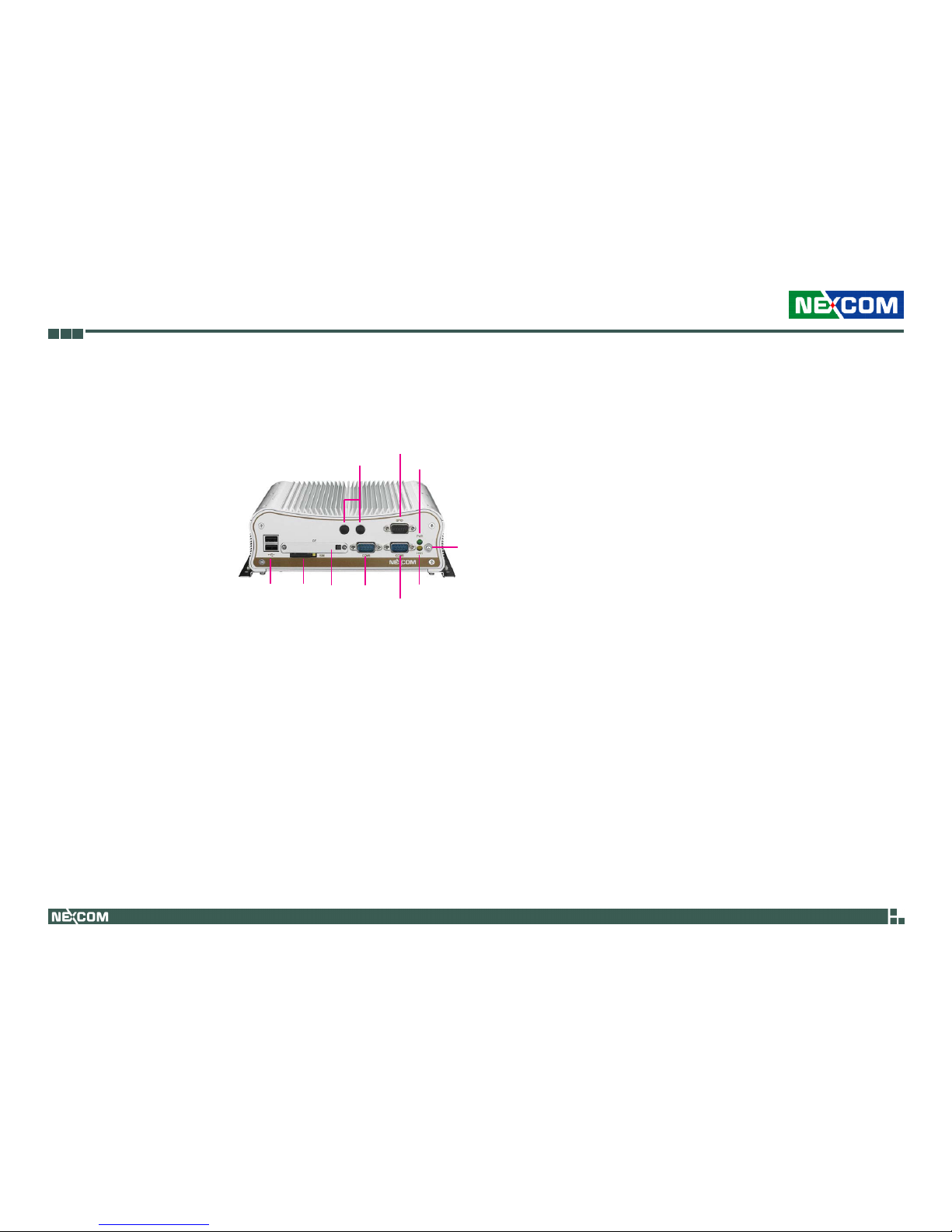

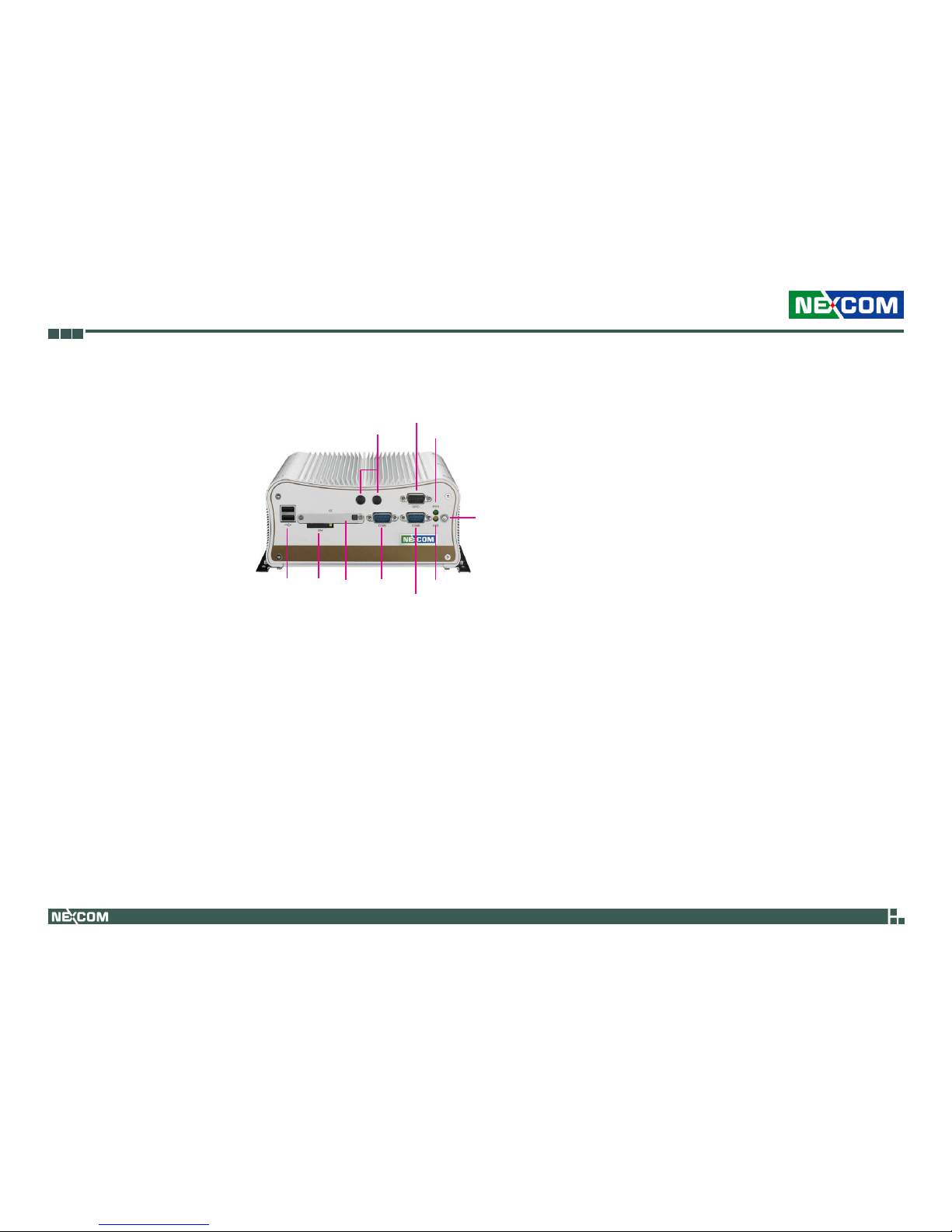

Getting to Know NISE 2100/2110 Series ................................................. 5

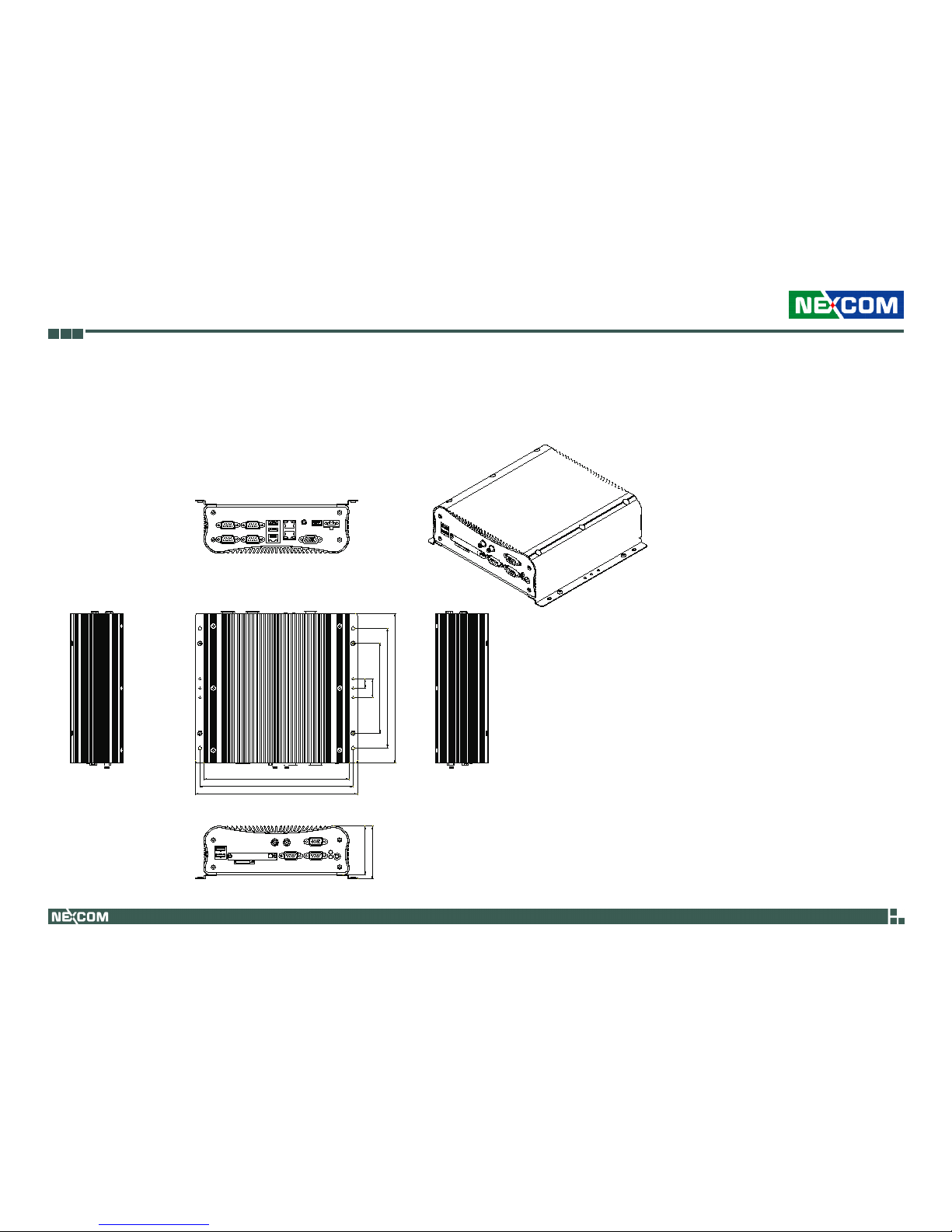

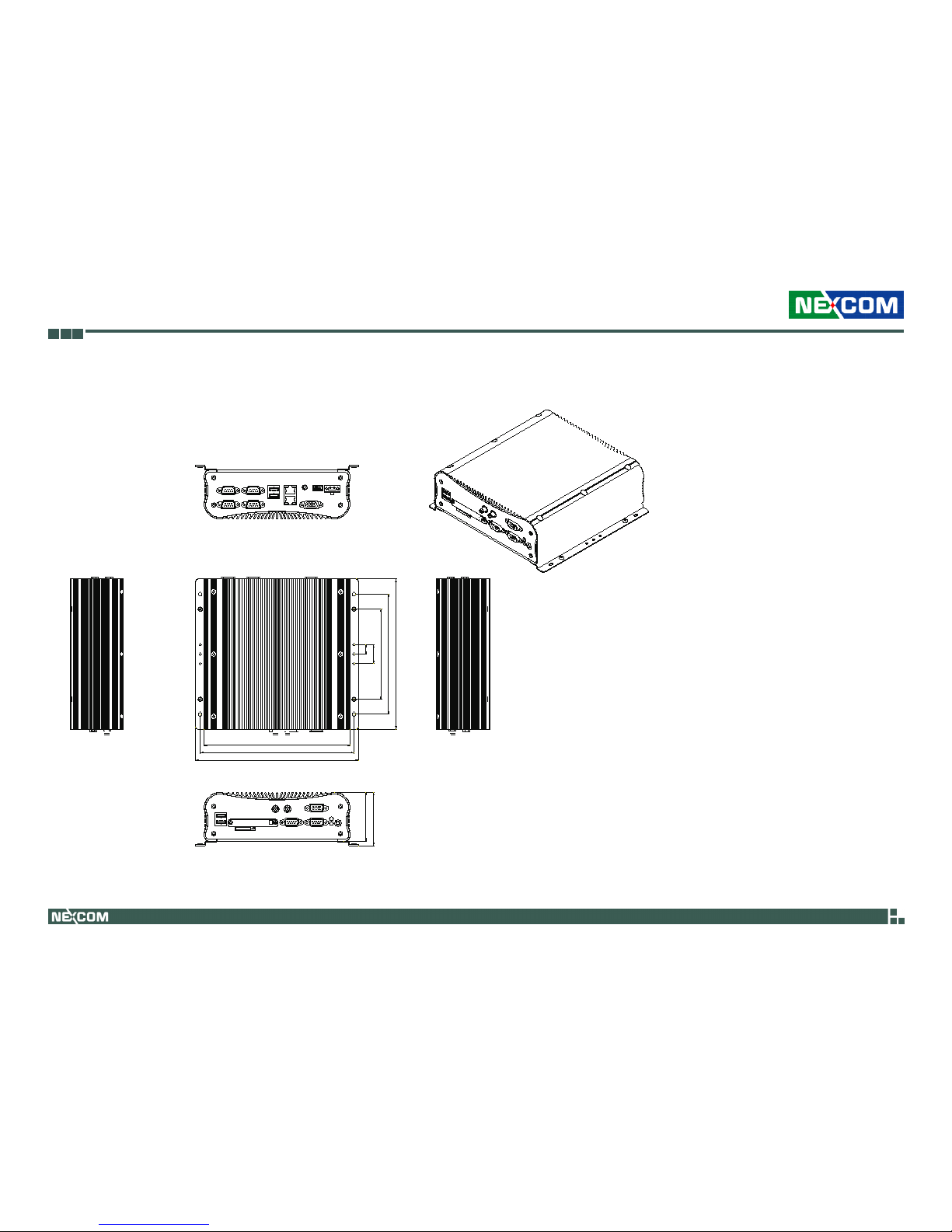

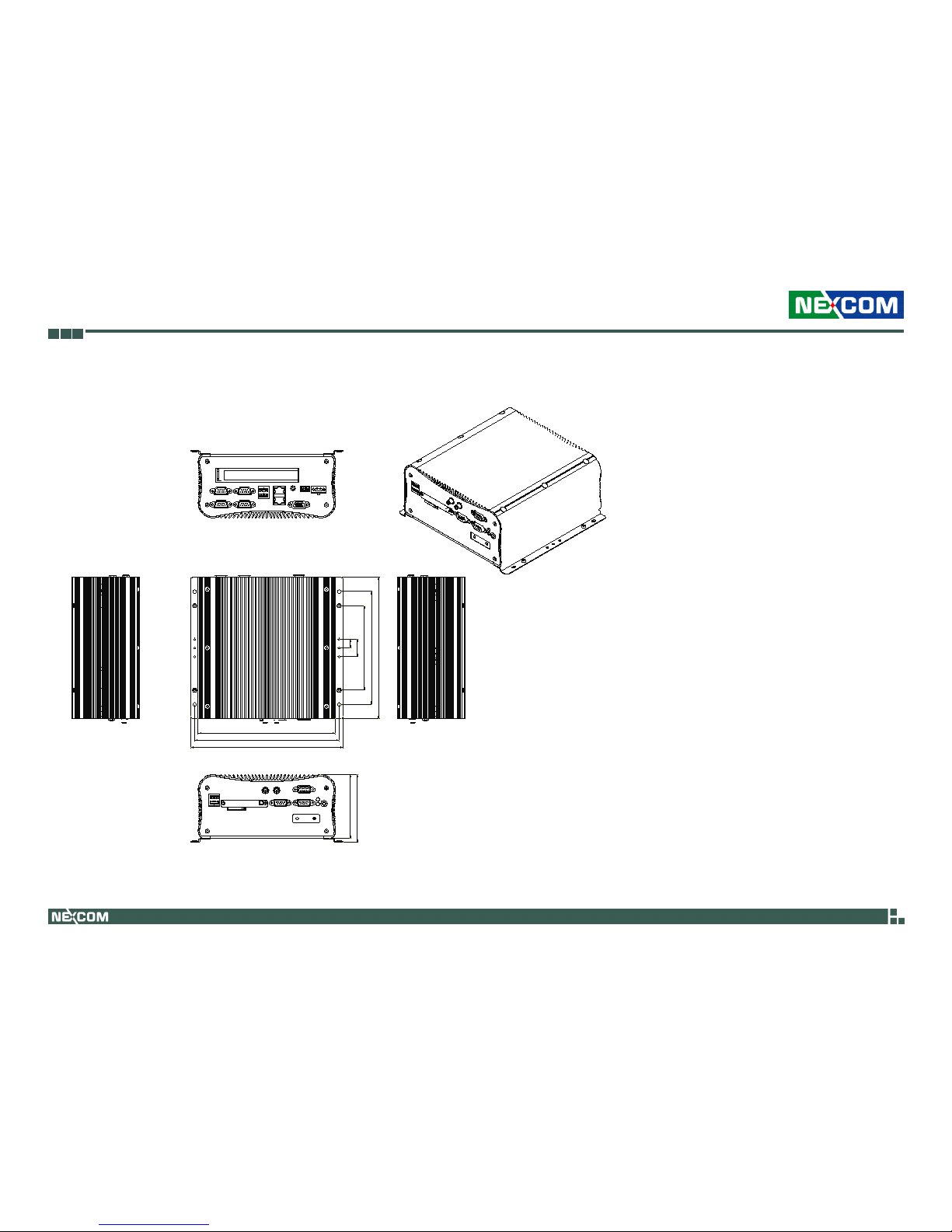

Mechanical Dimensions ...........................................................................9

Chapter 2: Jumpers And Connectors

Before You Begin ..................................................................................13

Precautions ...........................................................................................13

Jumper Settings .................................................................................... 14

Locations of the Jumpers and Connectors .............................................15

Jumpers ..............................................................................................17

Clear CMOS .....................................................................................17

COM3 RS232 RI Pin Power Select .....................................................17

Panel CCFL LVDS Backlight Power Select ........................................... 18

Connector Pin Definitions ...................................................................19

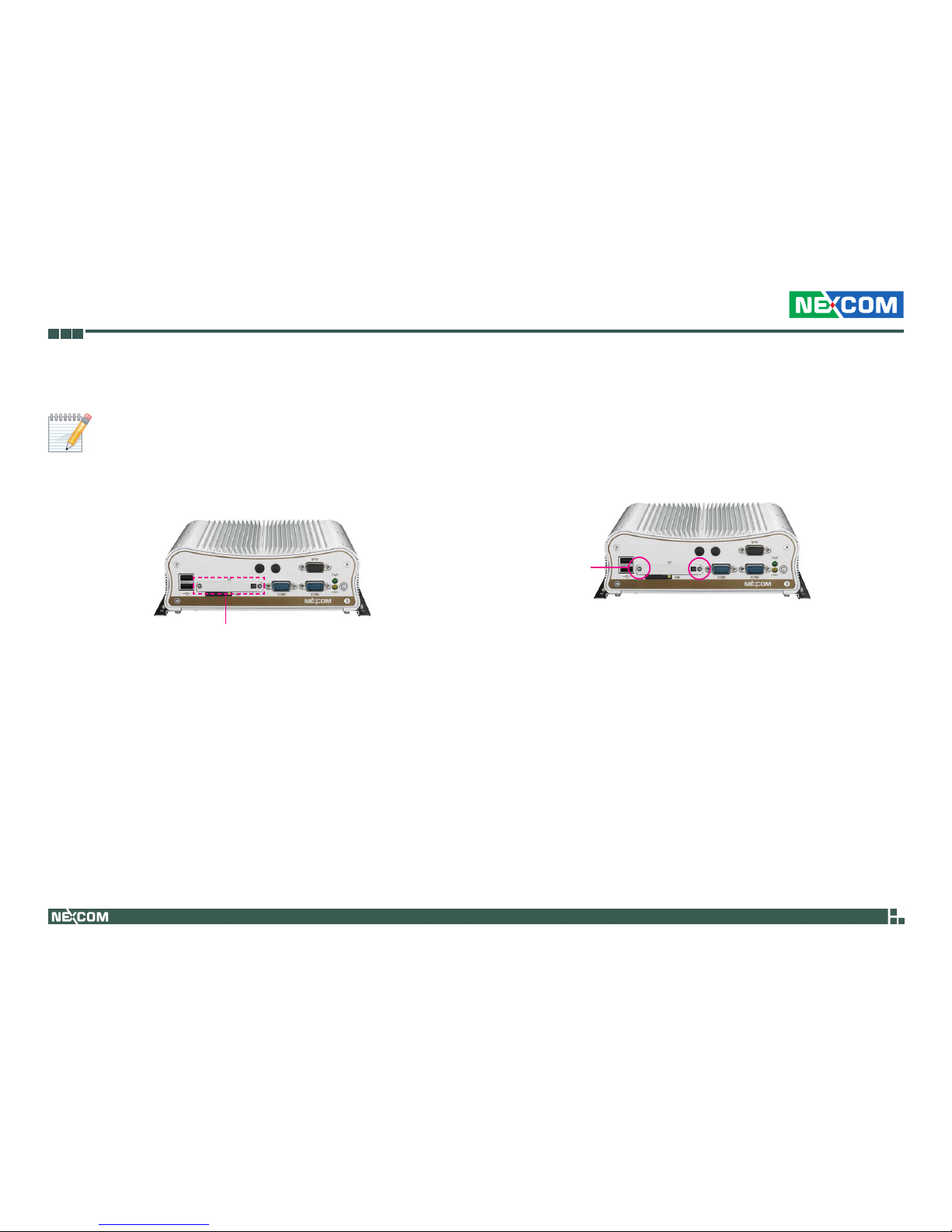

External I/O Interface - Front Panel ....................................................19

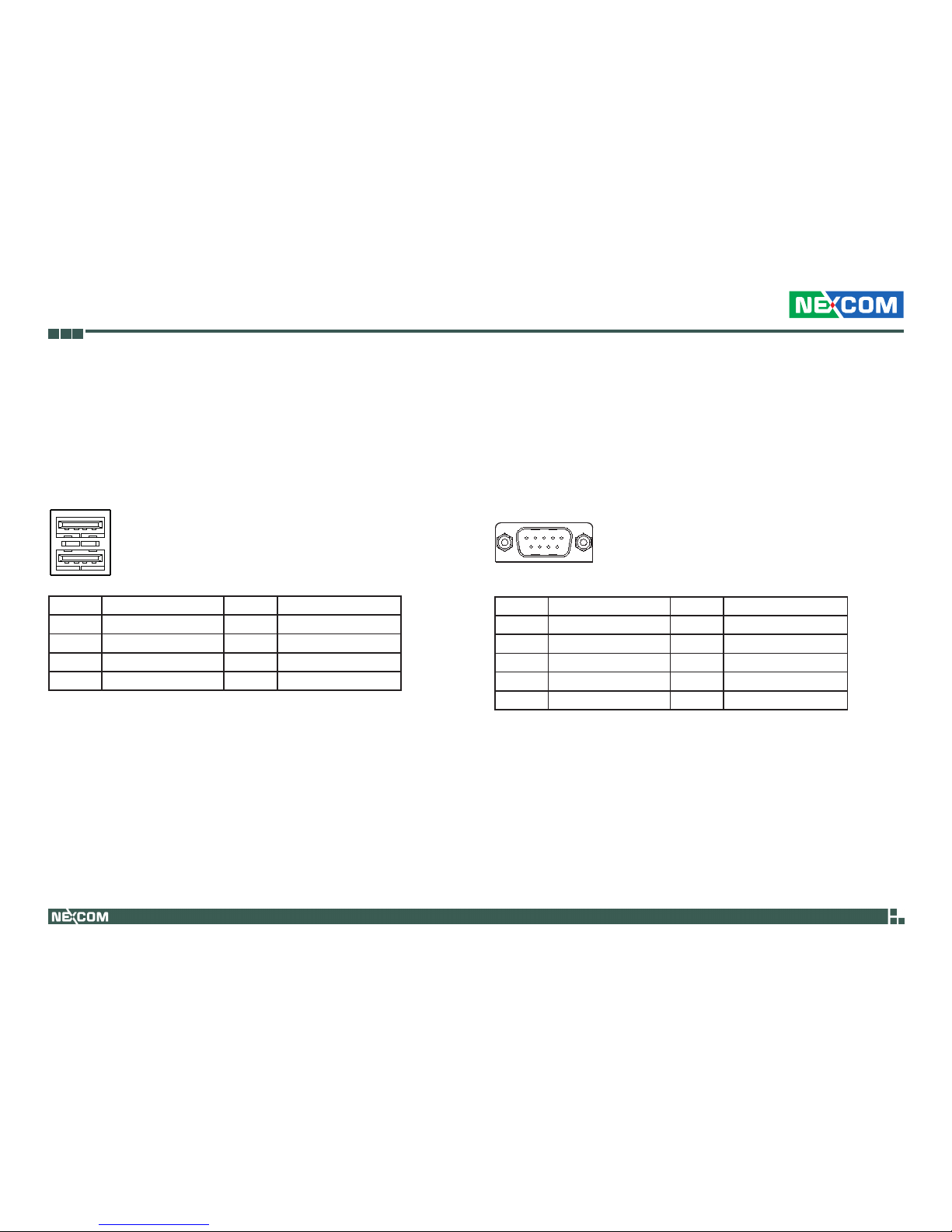

USB Ports .......................................................................................19

COM5 Serial Port ........................................................................... 19

COM6 Serial Port ........................................................................... 20

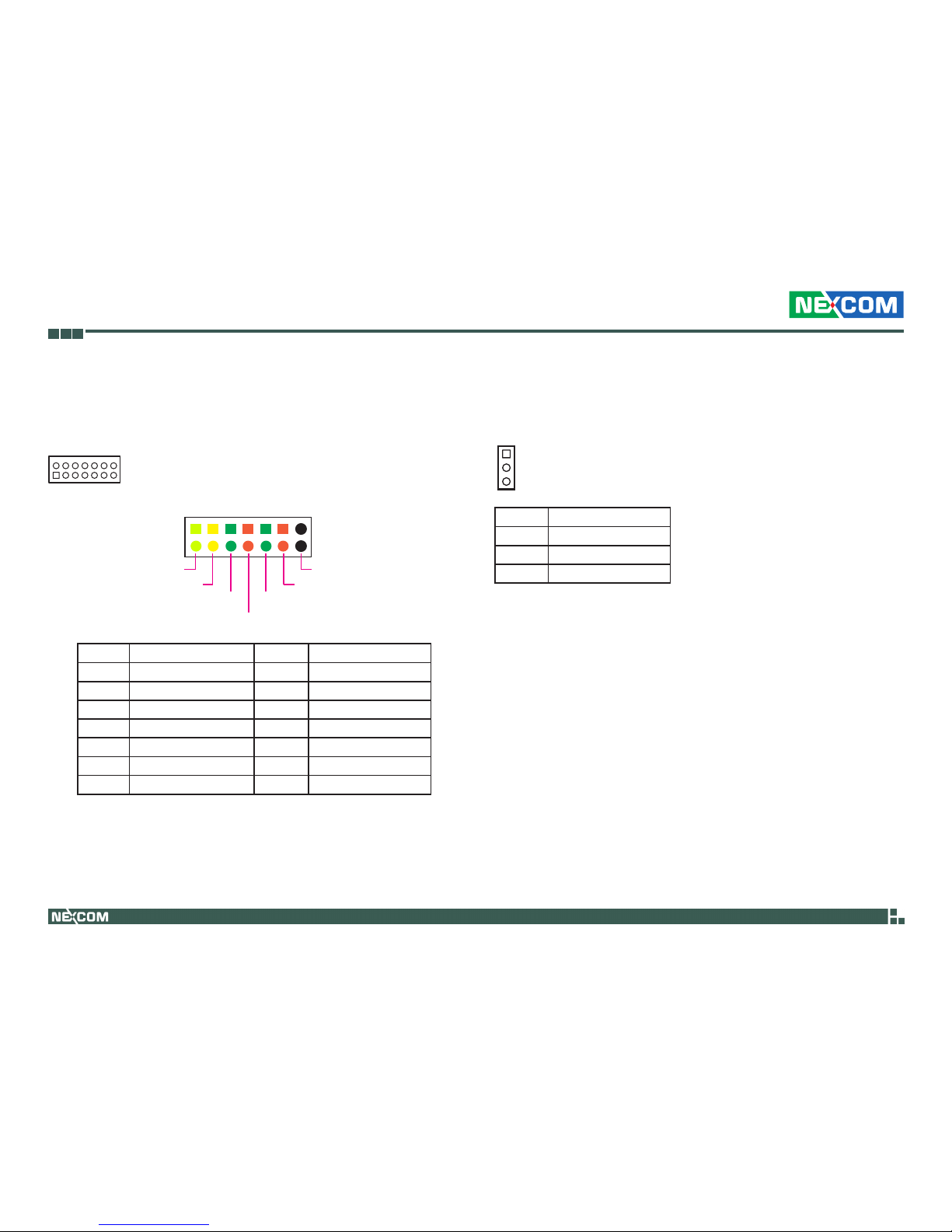

GPIO Connector ............................................................................. 20

Status Indicators .............................................................................21

ATX Power On/Off Switch ..............................................................21

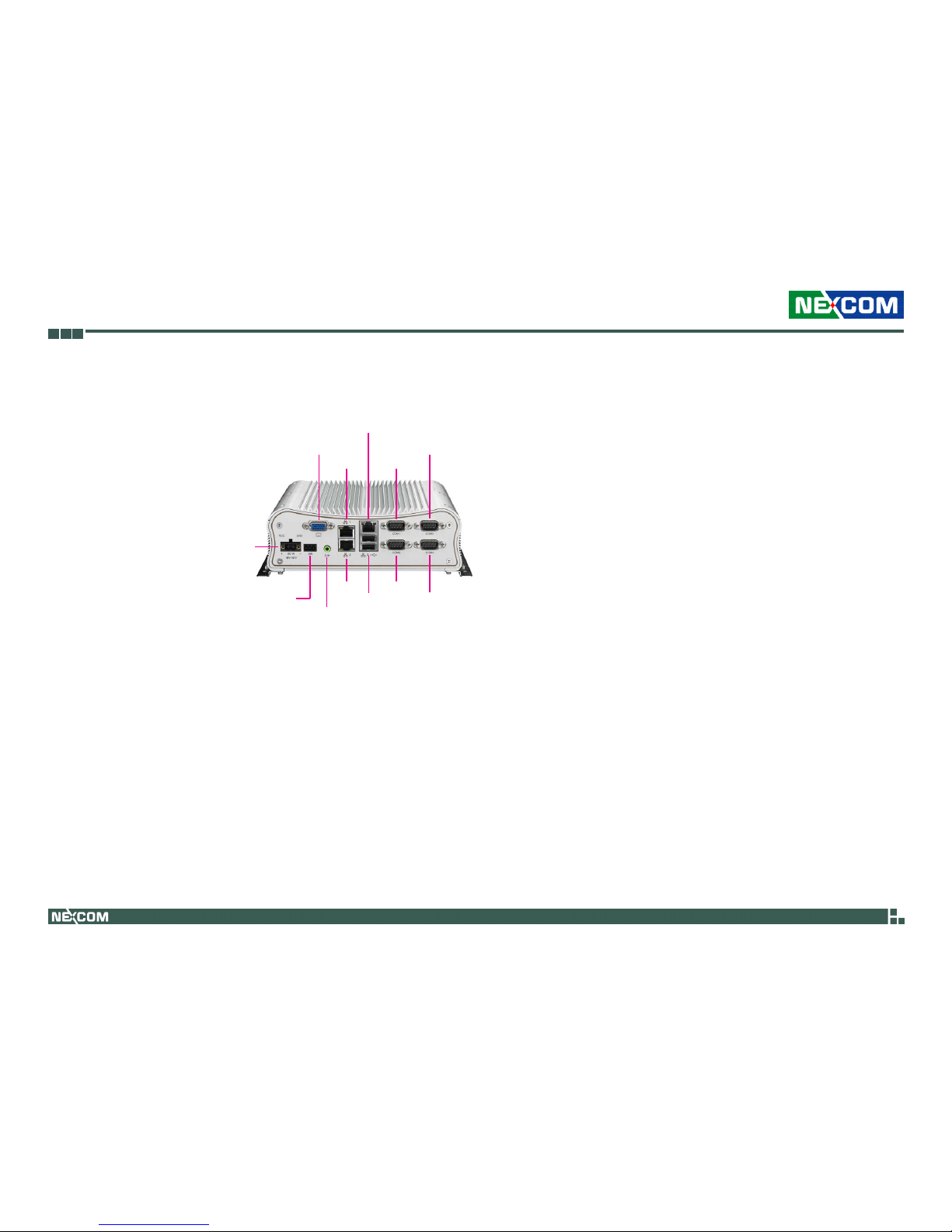

External I/O Interface - Rear Panel ..................................................... 22

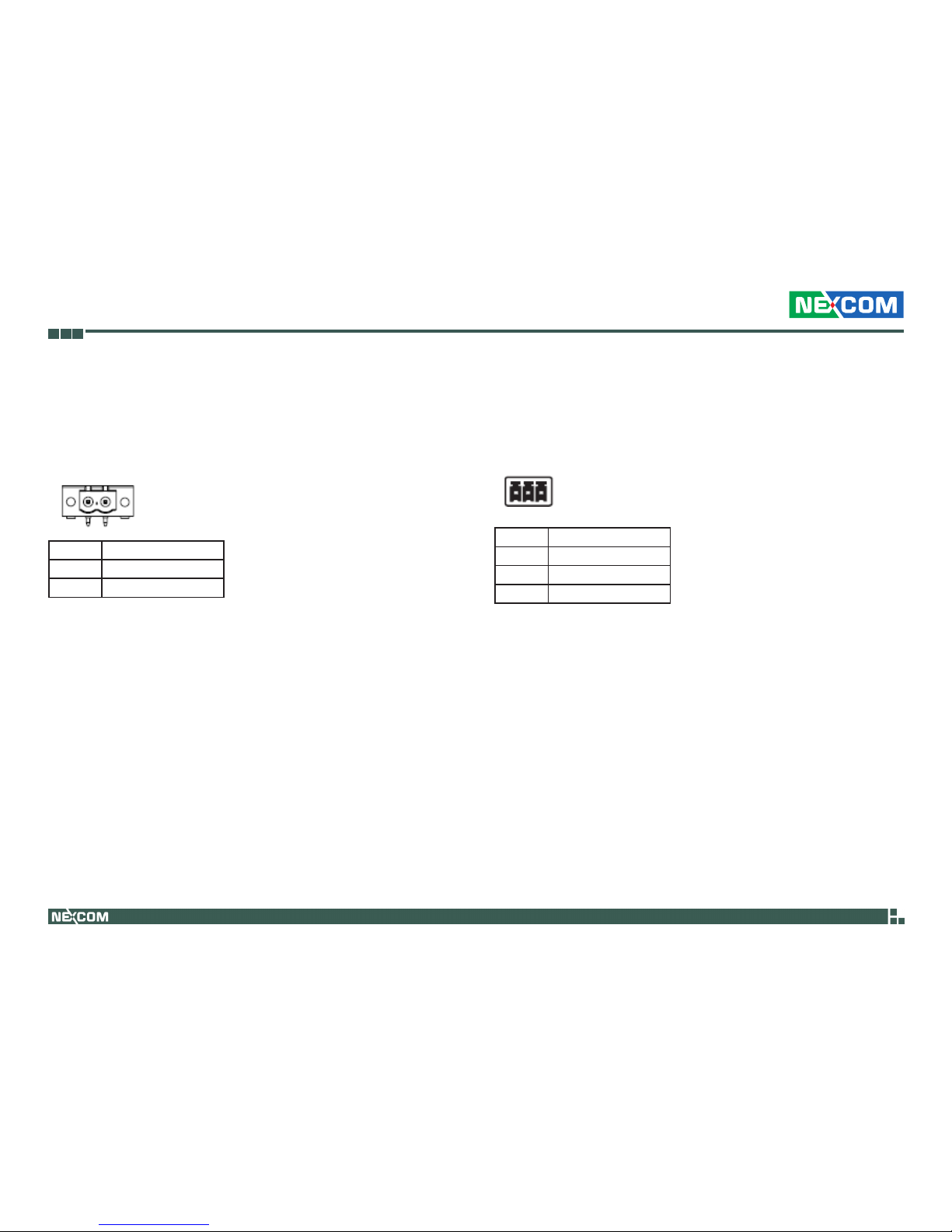

9-36V DC Input ..............................................................................22

Remote Power On/Off Switch .........................................................22

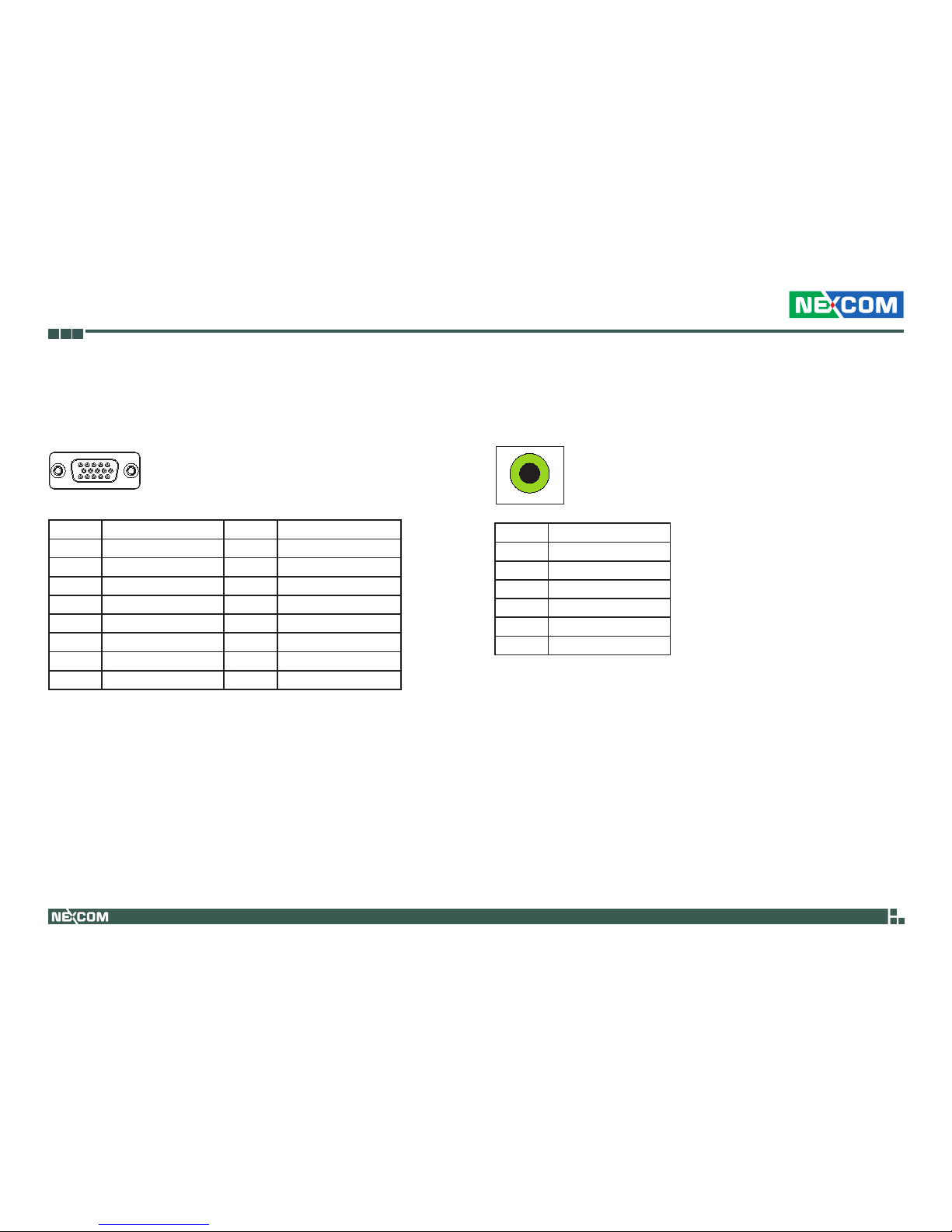

VGA Port .......................................................................................23

Speaker-out Jack ............................................................................ 23

LAN1 and LAN2 Ports .....................................................................24

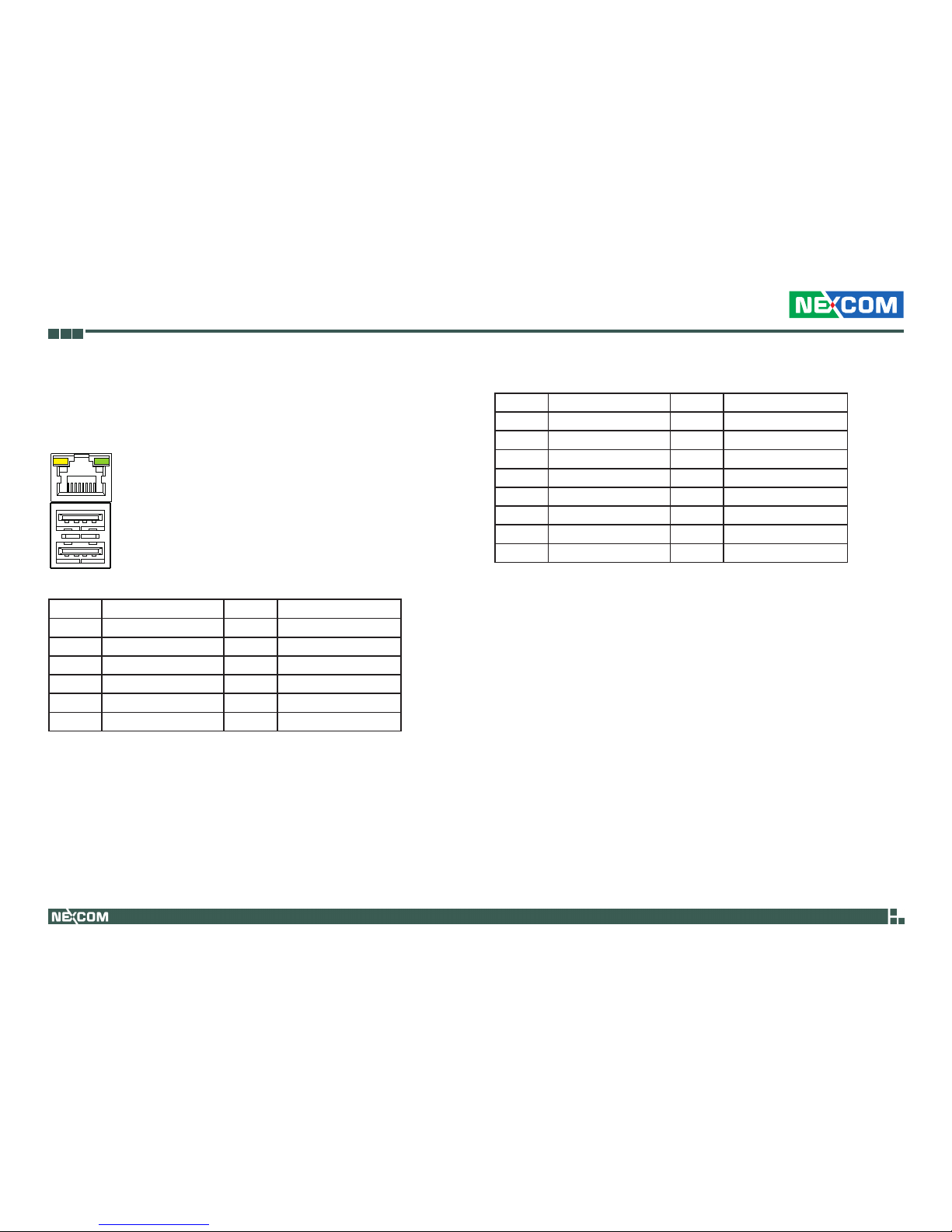

LAN3 (NISE 2100/2110 only) and Dual USB Ports ............................25

iii

Contents

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

COM1 and COM2 Ports .................................................................26

COM3 and COM4 Ports .................................................................27

USB 8-9 Connector ........................................................................ 27

Internal Connectors .......................................................................... 28

COM5 Connector ..........................................................................28

COM6 Connector ..........................................................................28

Remote Power On/Off Switch .........................................................29

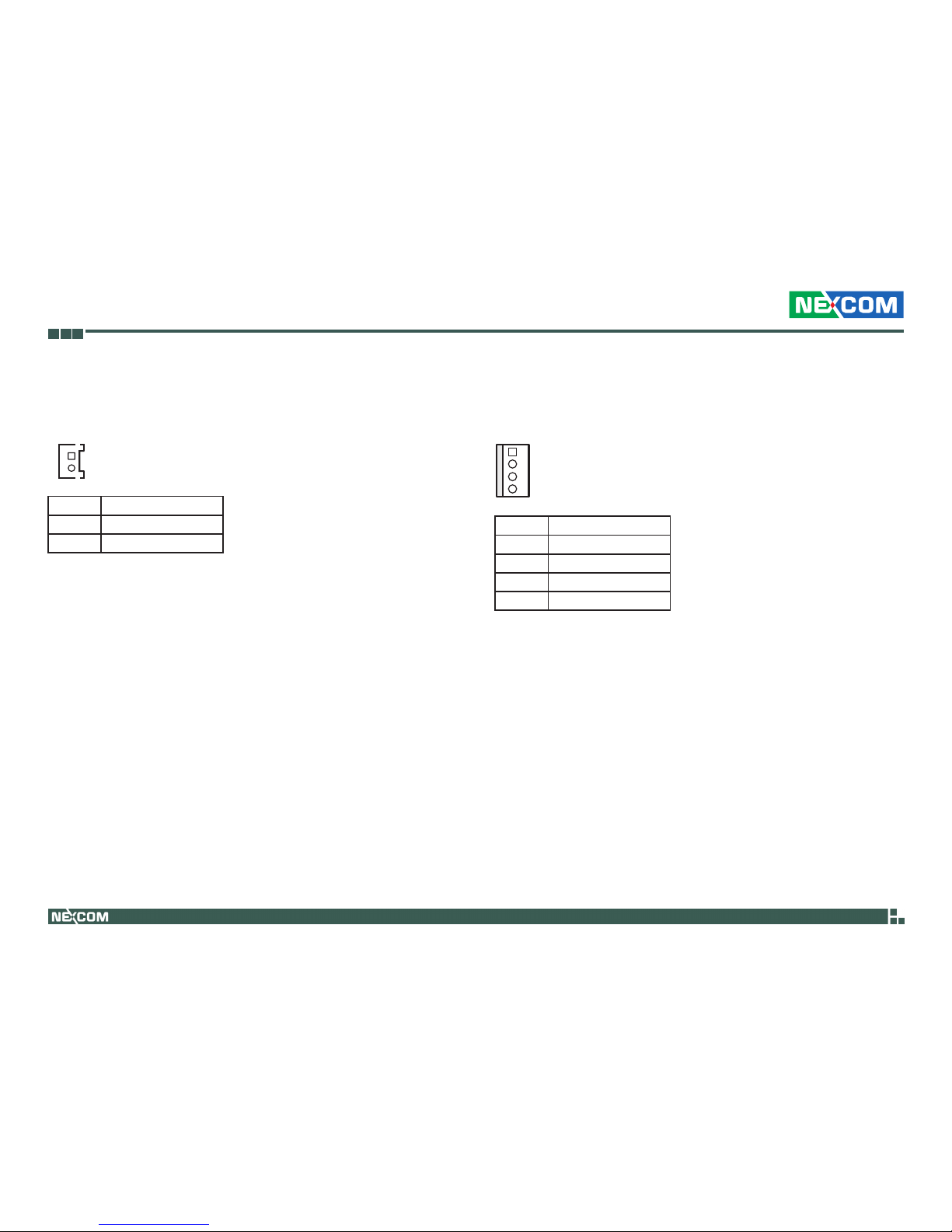

CPU Fan Connector ........................................................................29

Internal Power/HDD/LAN Power/LAN Active LED (RTC Connector) ..30

SMBus Pin Header .......................................................................... 30

Mic-in Connector ...........................................................................31

Power Output Connector ...............................................................31

LVDS Connector ............................................................................. 32

Panel CCFL Connector ...................................................................32

CompactFlash ................................................................................ 33

Mini-PCIe Slot ................................................................................ 34

PCI Slot (Low Profile) ......................................................................35

Chapter 3: System Setup

Removing the Chassis Cover ................................................................ 36

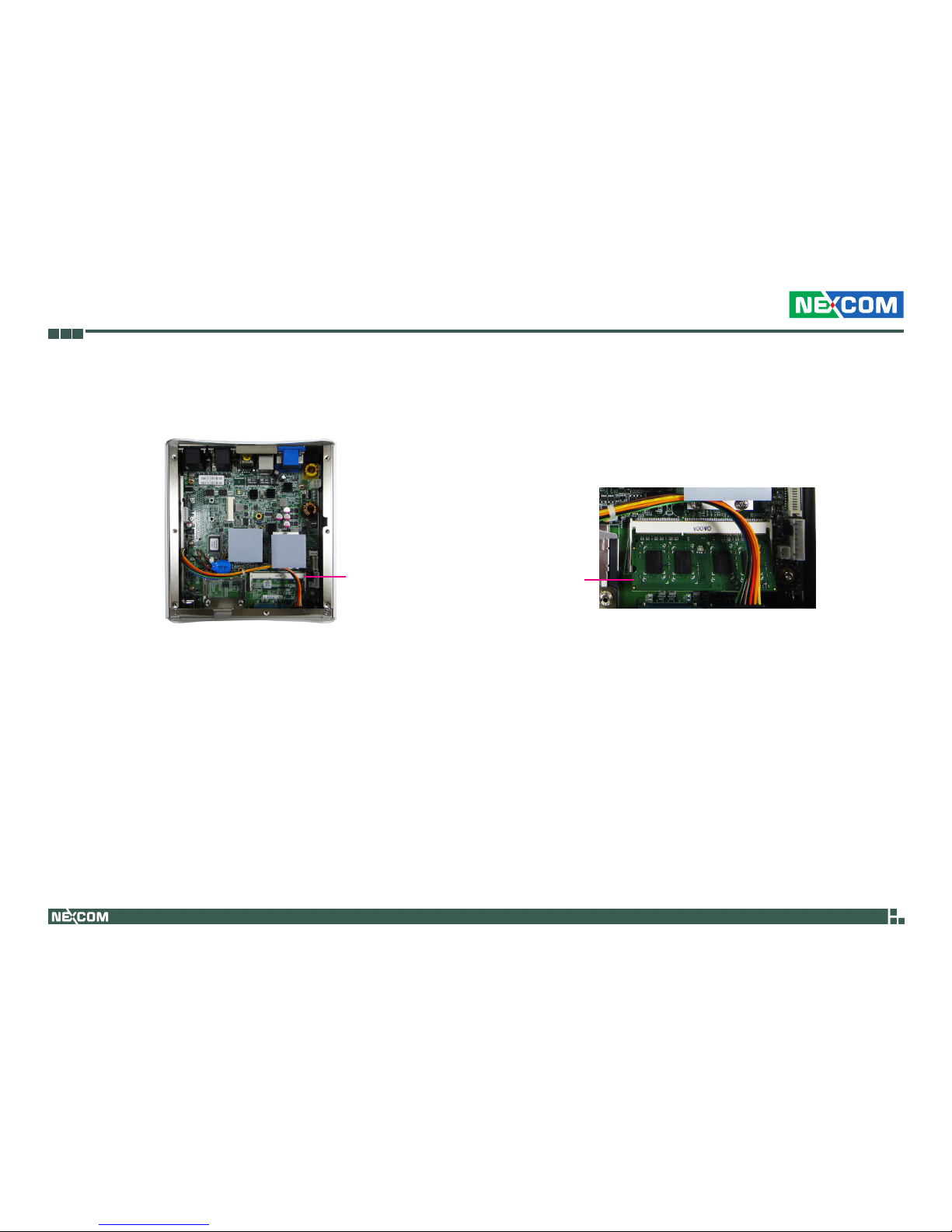

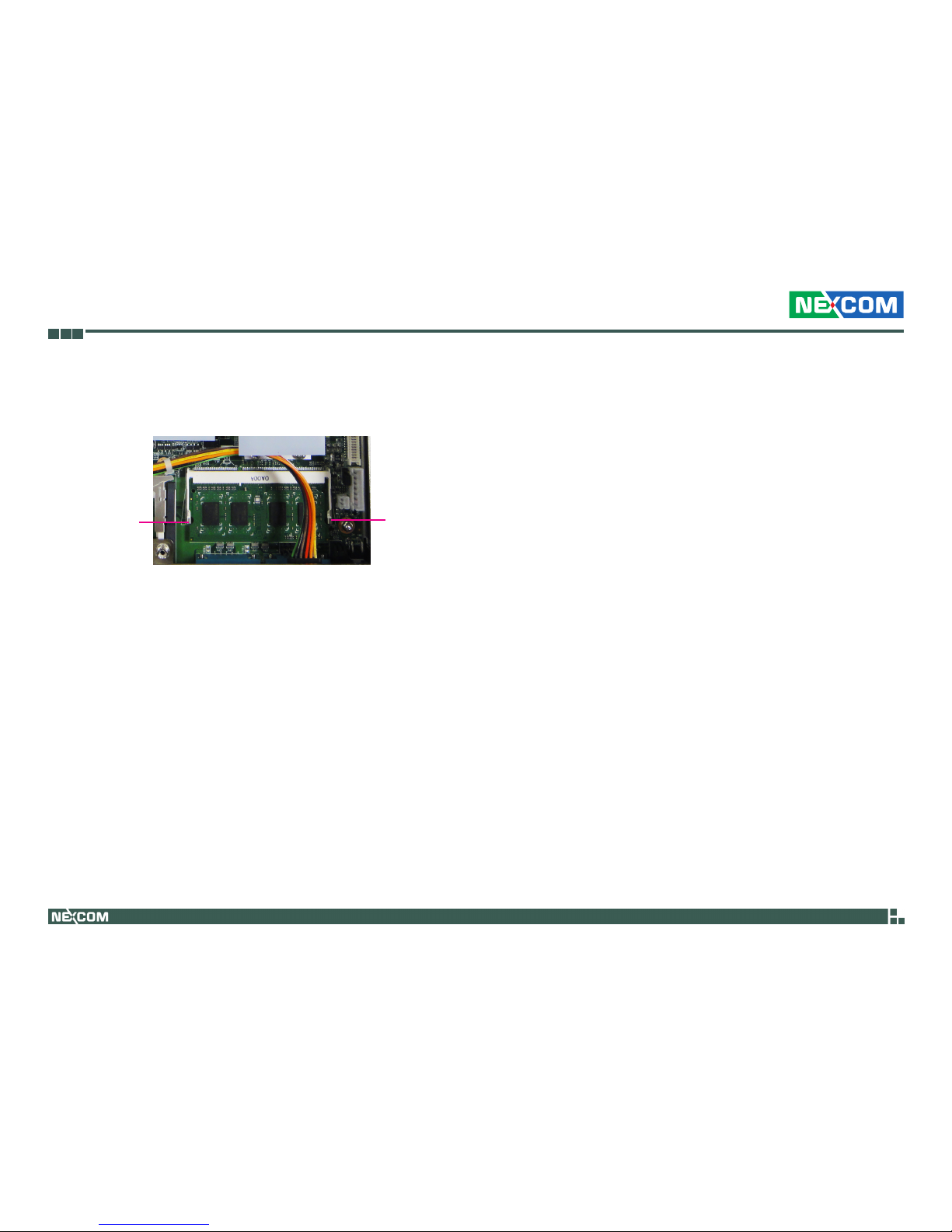

Installing a SODIMM ............................................................................. 37

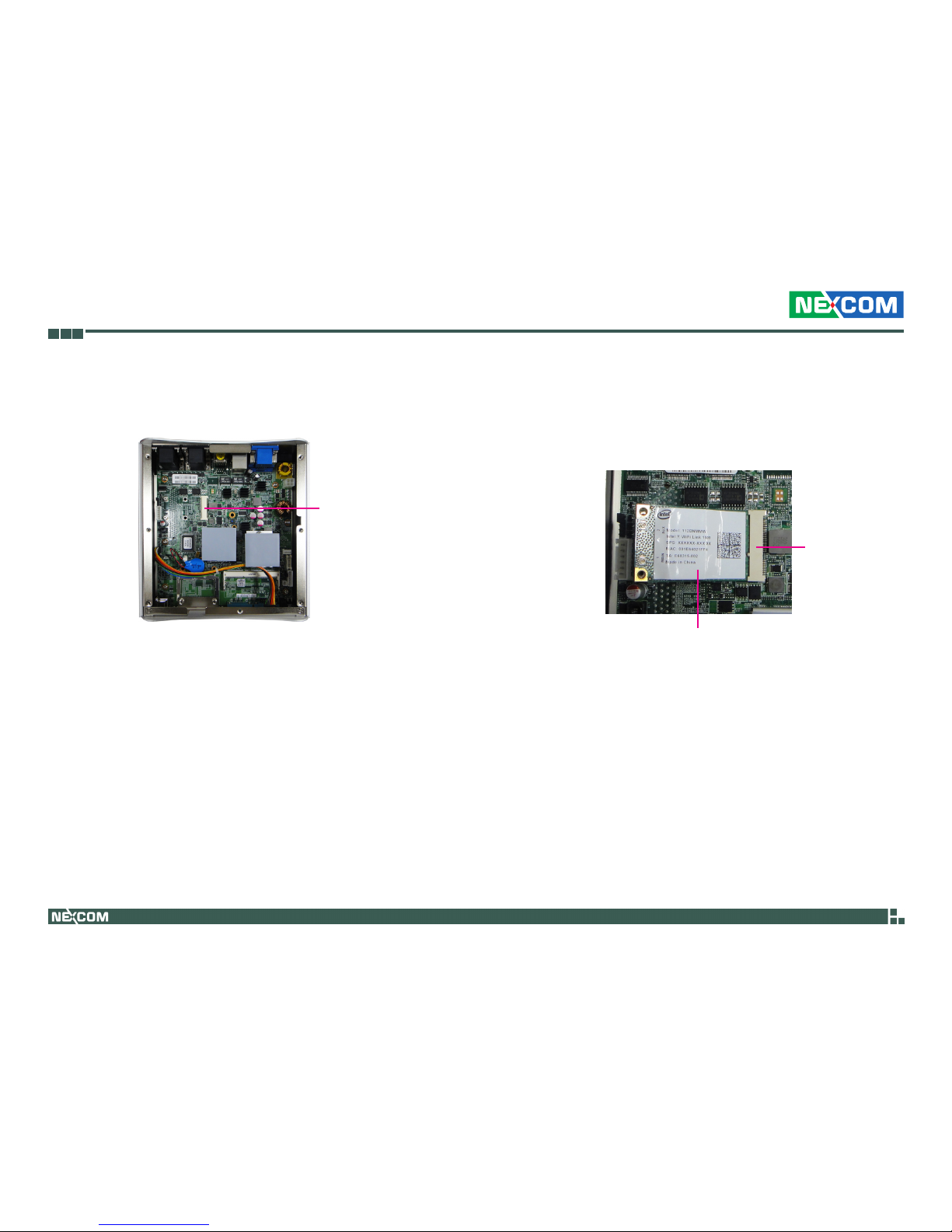

Installing a Wireless LAN Module ..........................................................39

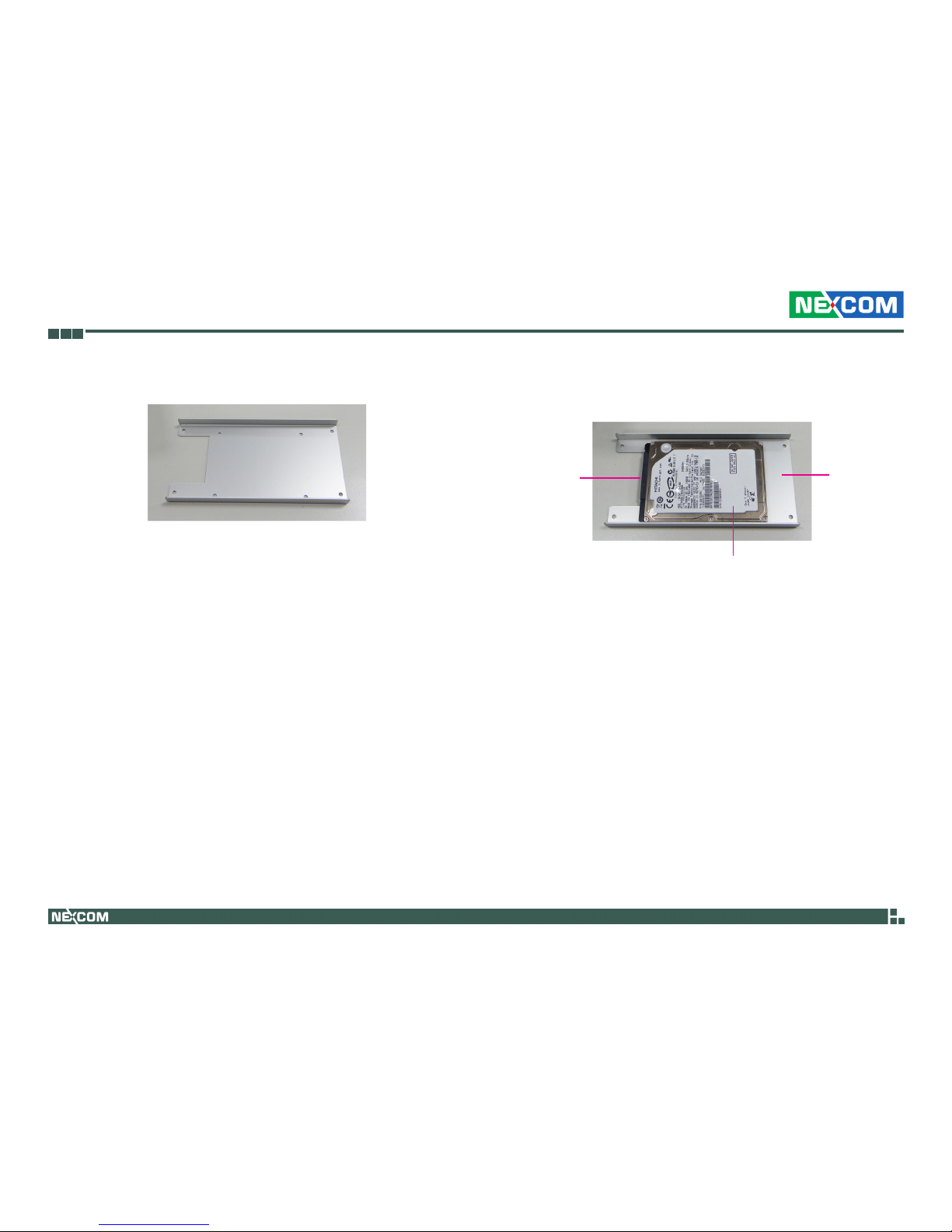

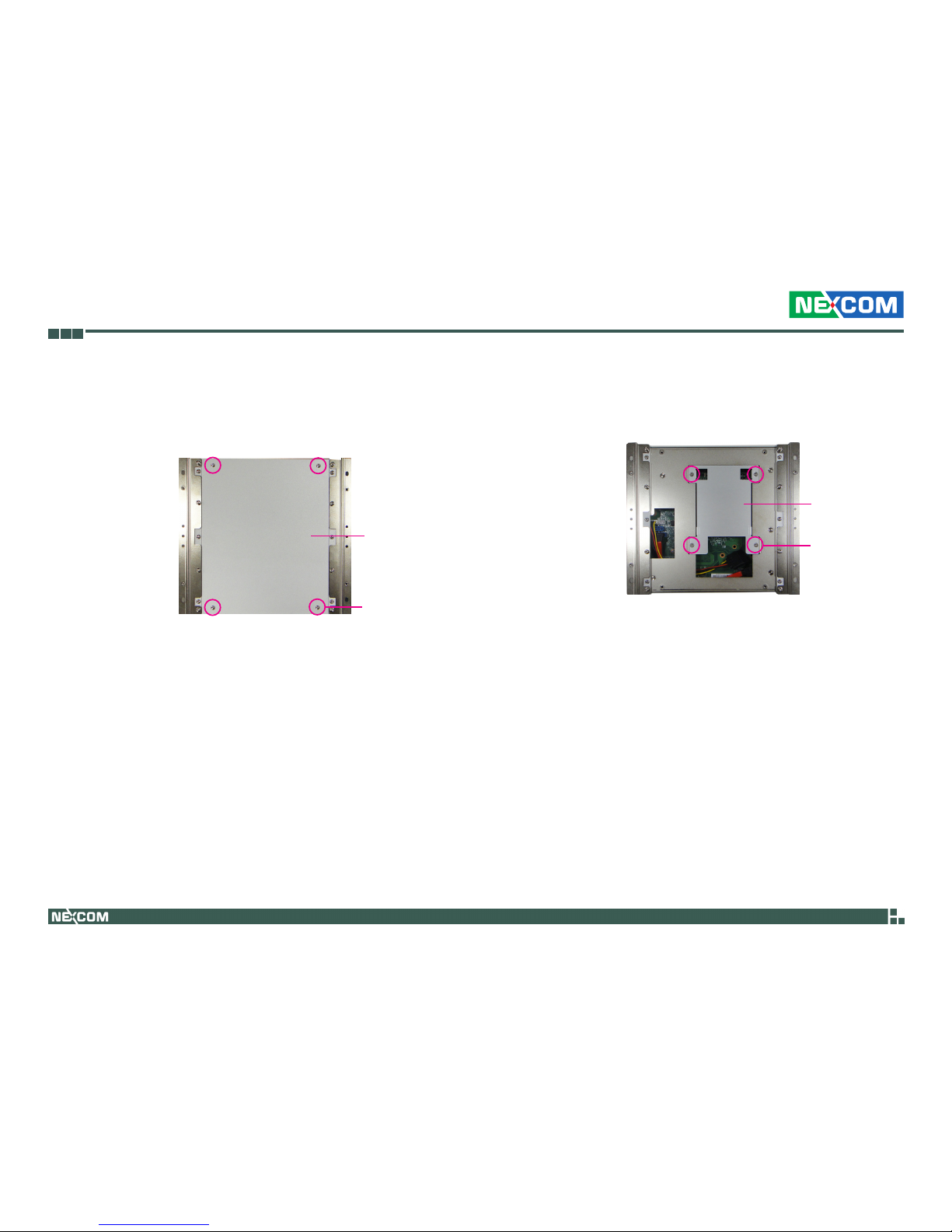

Installing a SATA Hard Drive (NISE 2100/2100A) ....................................41

Installing a SATA Hard Drive (NISE 2110/2110A) ....................................44

Installing a SATA DOM .......................................................................... 48

Installing a CompactFlash Card ............................................................. 49

Chapter 4: BIOS Setup

About BIOS Setup .................................................................................52

When to Configure the BIOS .................................................................52

Default Configuration ...........................................................................53

Entering Setup ......................................................................................53

Legends ................................................................................................53

BIOS Setup Utility .................................................................................. 54

Main ..................................................................................................54

Advanced ...........................................................................................55

Boot ...................................................................................................61

Chipset ...............................................................................................63

PCIPnP ................................................................................................66

Security ..............................................................................................67

Exit .....................................................................................................68

Appendix A: Power Consumption

Test Configuration ................................................................................69

Power Consumption Measurement .......................................................70

Appendix B: GPI/O Programming Guide

J8 - GPI/O Connector ............................................................................ 71

GPI/O Programming Sample Code .........................................................71

Appendix C: Watchdog Timer Setting

Watchdog Timer Setting ....................................................................... 73

ITE8783 WatchDog Programming Guide ............................................... 74

iv

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Preface

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NISE 2100/2110 Series is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

v

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green products

and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

vi

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

? Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

? Customers must collect all the information about the problems encoun-

tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

? Customers can send back the faulty products with or without acces-

sories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

? Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

? Any products returned by NEXCOM to other locations besides the cus-

tomers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

? Component fee: NEXCOM will only charge for main components such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

? Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

? Replace with 3rd party products if needed.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

Board Level

? Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

vii

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near

the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping

it or letting it fall may cause damage.

7. Do not leave this equipment in either an unconditioned environment

or in a above 40oC storage temperature as this may damage the equipment.

8. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source is correct before connect-

ing the equipment to the power outlet.

10. Place the power cord in a way so that people will not step on it. Do

not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

13. Never pour any liquid into an opening. This may cause fire or electrical shock.

14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

15. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work

according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

16. Do not place heavy objects on the equipment.

17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

19. The computer is provided with CD drives that comply with the appropriate safety standards including IEC 60825.

ix

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Preface

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

x

Preface

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Global Service Contact Information

Headquarters Taiwan

18F, No. 716, Chung-Cheng Rd. Chung-Ho City, Taipei County 235, Taiwan, R.O.C. Tel: +886-2-8228-0606 Fax: +886-2-8228-0501 http://www.nexcom.com.tw

USA

3758 Spinnaker Court, Fremont, CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 http://www.nexcom.com

France

Z.I. des Amandiers, 17, Rue des entrepreneurs 78420 Carrières sur Seine, France Tel: +33 (0)1 71 51 10 20 Fax: +33 (0)1 71 51 10 21 http://www.nexcom.eu

Germany

Leopoldstrase Business Centre, Leopoldstrase 244 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 http://www.nexcom.eu

Italy

Via Gaudenzio Ferrari 29, 21047 Saronno (VA) Italia Tel: +39 02 9628 0333 Fax: +39 02 9619 8846 http://www.nexcom.eu

United Kingdom

10 Vincent Avenue, Crownhill Business Centre Milton Keynes, Buckinghamshire, MK8 0AB United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 http://www.nexcom.eu

xi

Preface

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku Tokyo, Japan 108-0014 Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 http://www.nexcom-jp.com

China-Beijing

Room 301, Block E, Power Creative Building, No. 1 Shangdi East Rd. Haidian Dist., Beijing, 100085, China Tel: +86-10-5885-6655 Fax: +86-10-5885-1066 http://www.nexcom.cn

China-Shanghai Ofﬁce

Room 1505, Greenland He Chuang Building, No. 450 Caoyang Rd. Shanghai, 200063, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 http://www.nexcom.cn

China-Nanjing Ofﬁce

Room 1206, Hongde Building, No. 20 Yunnan Rd. Nanjing, 210018, China Tel: +86-25-8324-9606 Fax: +86-25-8324-9685 http://www.nexcom.cn

China-Shenzhen Ofﬁce

Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, China 518040 TEL: +86-755-833 27203 FAX: +86-755-833 27213 http://www.nexcom.cn

xii

Preface

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Package contents

Before continuing, verify that the NISE 2100/2110 Series package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Description Qty

1 50311F0110X00 (H)FLAT HEAD SCREW LONG FEI:F3x5ISO+NYLOK NIGP 4

2 602DCD0337X00 (N)NISE2100 CD DRIVER VER:2.0 1

3 60177A0223X00 (N)NISE2100 QUICK REFERENCE GUIDE VER:A 1

4 4NCPF00310X00 (N)TERMINAL BLOCKS 3P PHOENIX CONTACT:1803581 1

5 4NCPF00204X00 TERMINAL BLOCKS 2P PHOENIX CONTACT:1777989 1

xiii

Preface

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

ordering information

The following provides ordering information for NISE 2100/2110 Series.

• Barebone

NISE 2100 (P/N: 10J00210000X0)

- Intel® Atom™ D525 fanless barebone system with DDR3 SODIMM

socket and optional wireless module support (either WiFi or mobile wireless)

- 19V 65W AC/DC power adapter w/o power cord

(P/N: 7400065009X00)

• Barebone

NISE 2100A (P/N: 10J00210001X0)

- Intel® Atom™ D525 fanless barebone system with DDR3 SODIMM

socket and optional wireless module support (either WiFi or mobile wireless)

- 19V 65W AC/DC power adapter w/o power cord

(P/N: 7400065009X00)

• Barebone NISE 2110 (P/N: 10J00211000X0)

- Intel® Atom™ D525 fanless barebone system with DDR3 SODIMM socket, one PCI expansion, and optional wireless module support

(either WiFi or mobile wireless)

- 19V 65W AC/DC power adapter w/o power cord

(P/N: 7400065009X00)

• Barebone

NISE 2110A (P/N: 10J00211001X0)

- Intel® Atom™ D525 fanless barebone system with DDR3 SODIMM socket, one PCI expansion, and optional wireless module support

(either WiFi or mobile wireless)

- 19V 65W AC/DC power adapter w/o power cord

(P/N: 7400065009X00)

1

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Chapter 1: Product Introduction

Chapter 1: produCt IntroduCtIon

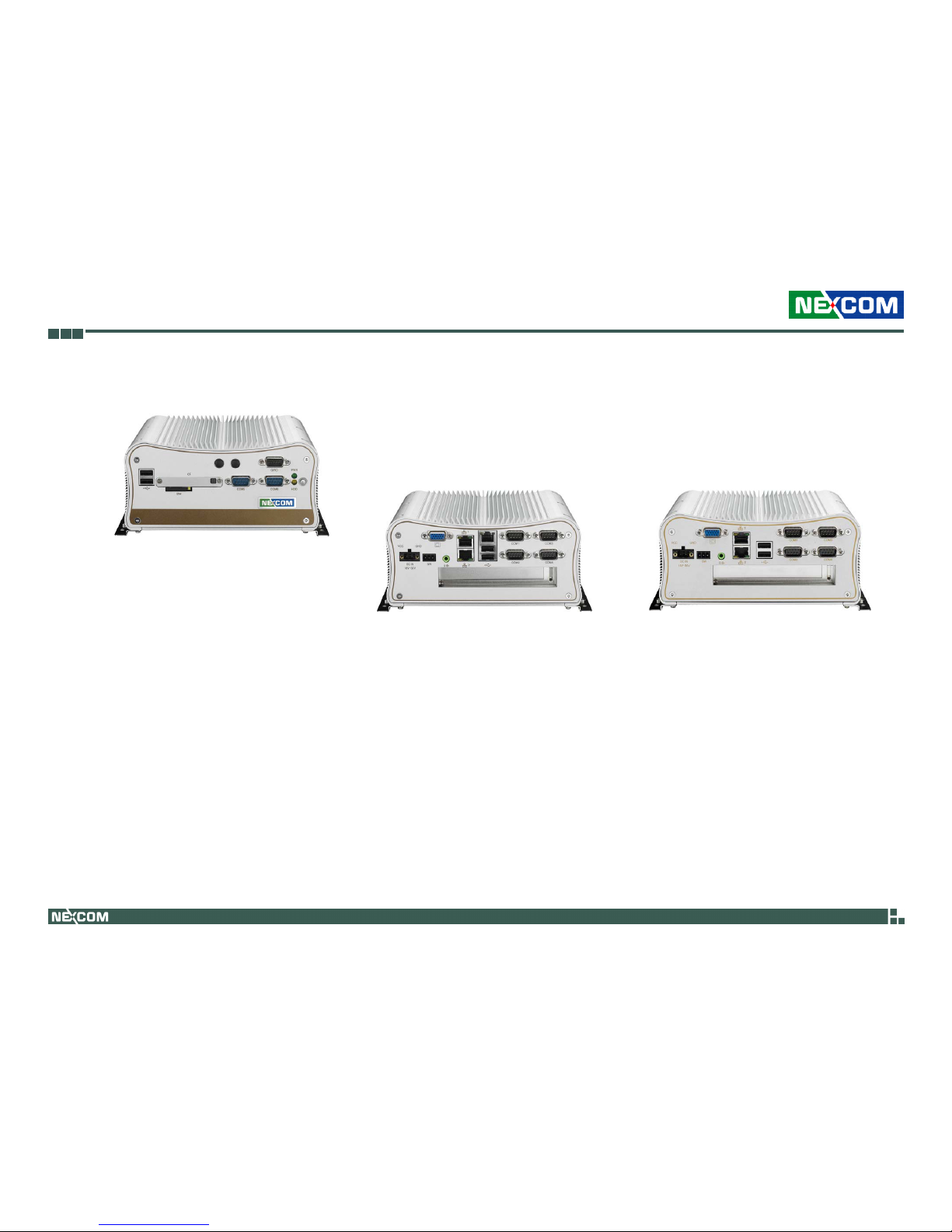

Overview

NISE 2100/2100A

Key Features

• Onboard Intel® Atom™ Dual Core D525 (1.8GHz, 1M cache) processor

• One DDR3 SODIMM socket, DDR3 800, maximum of 2GB memory module

• 3 x Intel® 1000/100/10 Mbps LAN ports (NISE 2100)

2 x Intel® 1000/100/10 Mbps LAN ports (NISE 2100A)

• 4 x USB 2.0

Rear: NISE 2100

Front

• 1 x VGA

• 1 x DB15 GPIO connector

• 4 x RS232 and 2 x RS232/422/485 with auto flow control

• One external CF socket

• One external SIM card holder

• 9 ~ 36V DC input

• ATX power mode

Rear: NISE 2100A

2

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Chapter 1: Product Introduction

NISE 2110/2110A

Front

Rear: NISE 2110

Key Features

• Onboard Intel® Atom™ Dual Core D525 (1.8GHz, 1M cache) processor

• One DDR3 SODIMM socket, DDR3 800, maximum of 2GB memory module

• 3 x Intel® 1000/100/10 Mbps LAN ports (NISE 2110)

2 x Intel® 1000/100/10 Mbps LAN ports (NISE 2110A)

• 4 x USB 2.0

• 1 x VGA

• 1 x DB15 GPIO connector

• 4 x RS232 and 2 x RS232/422/485 with auto flow control

• One external CF socket

• One external SIM card holder

• 9 ~ 36V DC input

• ATX power mode

• 1 x PCI Expansion Slot

Rear: NISE 2110A

3

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Chapter 1: Product Introduction

Hardware Speciﬁcations

Main Board

• NISB 2100 (NISE 2100/2110) NISB 2100A (NISE 2100A/2110A)

• Onboard Intel® Atom™ D525 dual core processor, 1.8GHz, 1M cache

• Intel® ICH8M PCH

Main Memory

• One DDR3 SODIMM socket

• Supports up to 2GB DDR3 800 SDRAM memory module, unbuffered,

non-ECC

Expansion

• NISE 2100/2100A

- One Mini-PCIe socket (for optional WiFi or mobile wireless module)

• NISE 2110/2110A

- 1 x PCI expansion

- One Mini-PCIe socket (for optional WiFi or mobile wireless module)

I/O Interface - Front

• ATX Power on/off switch

• HDD access / Power status LEDs

• 1 x DB15 GPIO connector

• 2 x Serial ports (RS232)

• 2 x USB 2.0 ports

• 1 x CompactFlash socket

• 1 x external SIM card holder

• 2 x antenna holes (for optional WiFi or mobile wireless module)

I/O Interface - Rear

• 9~36V DC input

• 1 x 3-pin connector for remote power on/off switch

• 1 x DB15 VGA port

• 1 x speaker-out jack

• 3 x Intel® GbE LAN ports (NISE 2100/2110)

2 x Intel® GbE LAN ports (NISE 2100A/2110A)

• 2 x USB 2.0 ports

• 4 x Serial ports (2x RS232 and 2x RS232/422/485 with auto-flow con-

trol: isolation protection on COM1 and COM2)

Storage

• 1 x 2.5” SATA HDD drive bay (NISE 2100/2100A) 1 x 2.5” SATA HDD drive bay or optional SATA DOM module - horizon-

tal type (NISE 2110/2110A)

• 1 x external CF socket

Power Requirements

• ATX Power mode

• DC to DC power design onboard, supports 9~36V DC

• Optional 19V, 65W power adapter

Dimensions

• NISE 2100/2100A 195mm (W) x 200mm (D) x 65mm (H) (7.7” x 7.9” x 2.6”)

• NISE 2110/2110A 195mm (W) x 200mm (D) x 90mm (H) (7.7” x 7.9” x 3.5”)

Construction

• Aluminum chassis with fanless design

4

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Chapter 1: Product Introduction

Environment

• Operating temperature - ambient with airflow:

-5°C to 55°C (NISE 2100/2110)

-20°C to 70°C with industrial grade devices (NISE 2100A/2110A) (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

• Storage temperature: -20°C to 80°C

• Relative humidity: 10% to 93% (Non-Condensing)

Certiﬁcations

• CE approval

• FCC Class A

5

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Chapter 1: Product Introduction

Getting to Know NISE 2100/2110 Series

NISE 2100/2100A - Front Panel

CF

Power on/off switch

HDD LED

Power LED

GPIO

COM5

COM6

Antenna hole for

optional WiFi

SIMUSB

USB

Used to connect USB 2.0/1.1 devices.

CF

Used to insert a CompactFlash card.

SIM

Used to insert a SIM card.

Antenna Hole for Optional WiFi

Used to connect an optional Mini-PCIe WiFi module.

COM5 and COM6

Used to connect RS232 compatible serial devices.

GPIO

The GPIO connector supports 4 digital input and 4 digital output.

Power LED

Indicates the power status of the system.

HDD LED

Indicates the status of the hard drive.

Power On/Off Switch

Press to power-on or power-off the system.

6

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Chapter 1: Product Introduction

Remote Power

on/off switch

USB

Speaker-out

COM2

COM4

9V-36V DC Input

Used to plug a DC power cord.

Output for Remote Power On/Off Switch

Used to connect a remote to power on/off the system.

VGA

Used to connect an analog VGA monitor.

Speaker-out

Used to connect a headphone or a speaker.

LAN

Used to connect the system to a local area network. NISE 2100: LAN1 to LAN3 NISE 2100A: LAN1 and LAN2 only.

COM1

COM3

LAN3

(NISE 2100 only)

LAN1

LAN2

9V-36V

DC Input

VGA

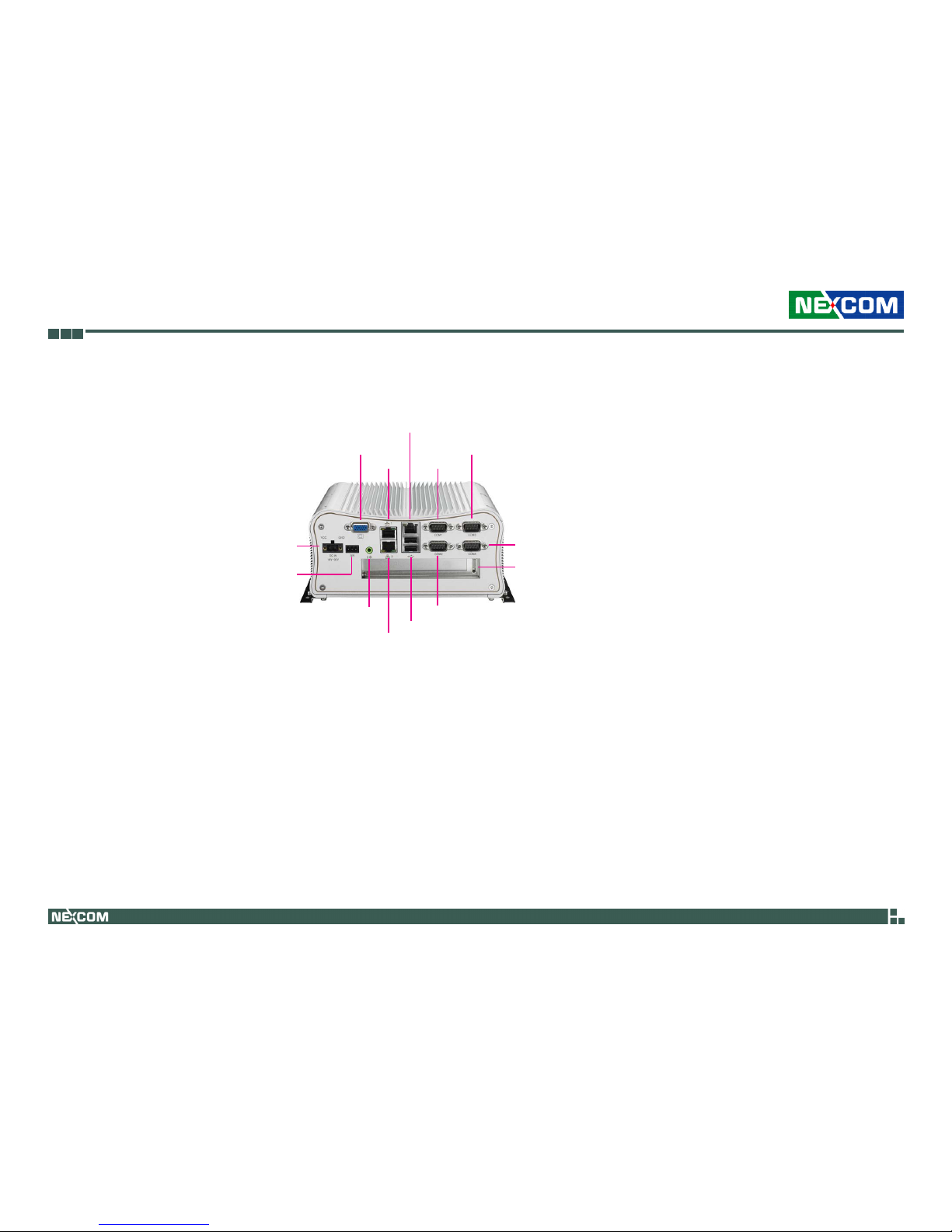

NISE 2100/2100A - Rear Panel

USB

Used to connect USB 2.0/1.1 devices.

COM1 and COM2

Used to connect RS232/422/485 compatible serial devices.

COM3 and COM4

Used to connect RS232 compatible serial devices.

7

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Chapter 1: Product Introduction

NISE 2110/2110A - Front Panel

CF

Power on/off switch

HDD LED

Power LED

GPIO

COM5

COM6

Antenna hole for

optional WiFi

SIMUSB

USB

Used to connect USB 2.0/1.1 devices.

CF

Used to insert a CompactFlash card.

SIM

Used to insert a SIM card.

Antenna Hole for Optional WiFi

Used to connect an optional Mini-PCIe WiFi module.

COM5 and COM6

Used to connect RS232 compatible serial devices.

GPIO

The GPIO connector supports 4 digital input and 4 digital output.

Power LED

Indicates the power status of the system.

HDD LED

Indicates the status of the hard drive.

Power On/Off Switch

Press to power-on or power-off the system.

8

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Chapter 1: Product Introduction

Remote Power

on/off switch

USB

Speaker-out

COM2

COM4

9V-36V DC Input

Used to plug a DC power cord.

Output for Remote Power On/Off Switch

Used to connect a remote to power on/off the system.

VGA

Used to connect an analog VGA monitor.

Speaker-out

Used to connect a headphone or a speaker.

USB

Used to connect USB 2.0/1.1 devices.

COM1

COM3

LAN3

(NISE 2110 only)

LAN1

LAN2

9V-36V

DC Input

VGA

NISE 2110/2110A - Rear Panel

LAN

Used to connect the system to a local area network. NISE 2110: LAN1 to LAN3 NISE 2110A: LAN1 and LAN2 only.

COM1 and COM2

Used to connect RS232/422/485 compatible serial devices.

COM3 and COM4

Used to connect RS232 compatible serial devices.

PCI Expansion

Used to connect a PCI expansion card.

PCI expansion

9

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Chapter 1: Product Introduction

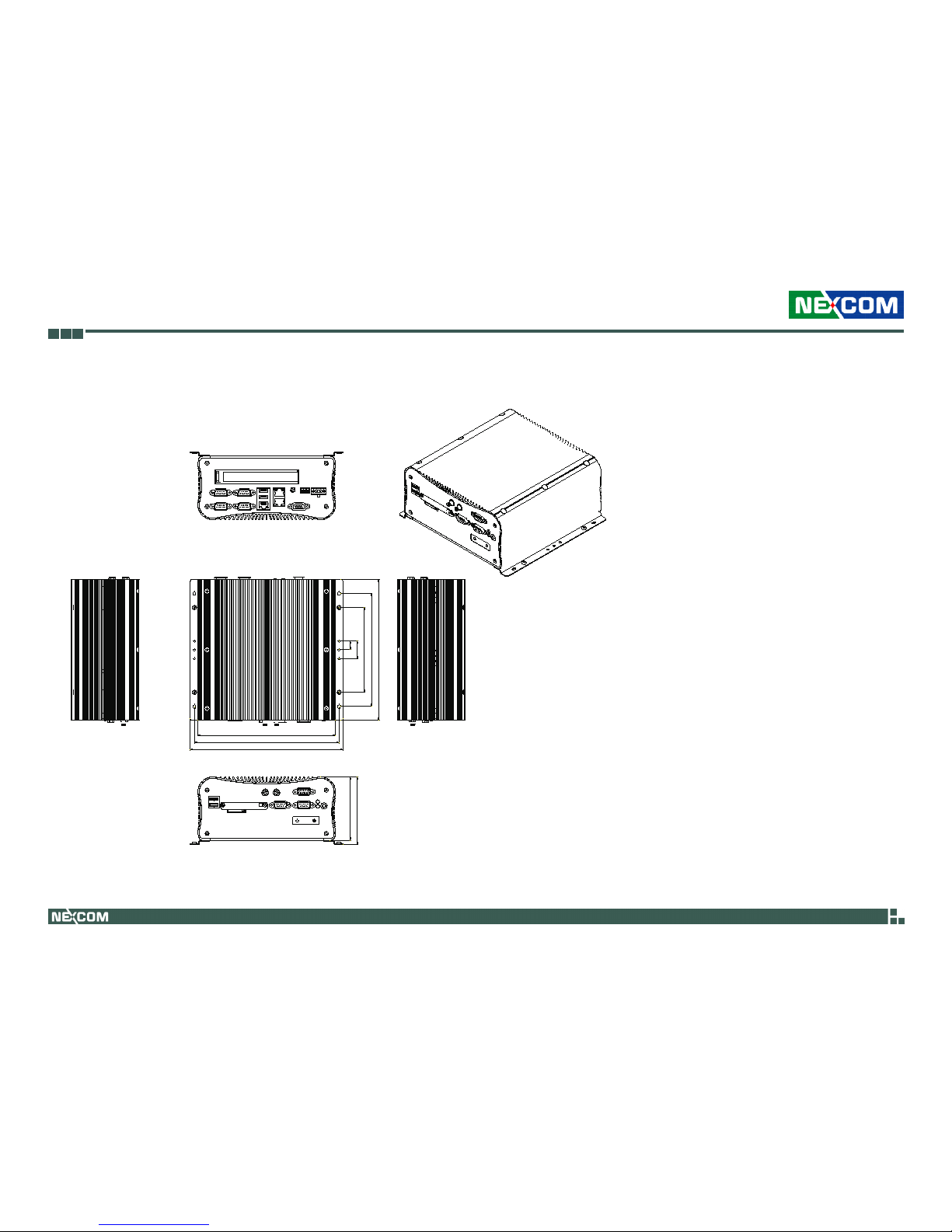

Mechanical Dimensions

NISE 2100

25

12.5

120

160

200

195.0

204.8

216.8

65

71

10

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Chapter 1: Product Introduction

NISE 2100A

25

12.5

120

160

200

195.0

204.8

216.8

65

71

11

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Chapter 1: Product Introduction

NISE 2110

90

96

195

204.8

216.8

12.5

25

120

160

200

12

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Chapter 1: Product Introduction

NISE 2110A

90

96

195

204.8

216.8

12.5

25

120

160

200

13

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

This chapter describes the jumpers and connectors on the motherboard. Note that the following procedures are generic for all NISE 2100/2110 series.

Before You Begin

• Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

• Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A set of jewelers Screwdrivers

• A grounding strap

• An anti-static pad

• Using your fingers can disconnect most of the connections. It is recom-

mended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

• Before working on internal components, make sure that the power

is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the elec-

tronic components. Humid environment tend to have less static electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

• Always disconnect the unit from the power outlet whenever you are

working inside the case.

• If possible, wear a grounded wrist strap when you are working inside

the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

• Hold electronic circuit boards by the edges only. Do not touch the com-com-

ponents on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

• Leave all components inside the static-proof packaging that they

shipped with until they are ready for installation.

• Use correct screws and do not over tighten screws.

Chapter 2: Jumpers and ConneCtors

14

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

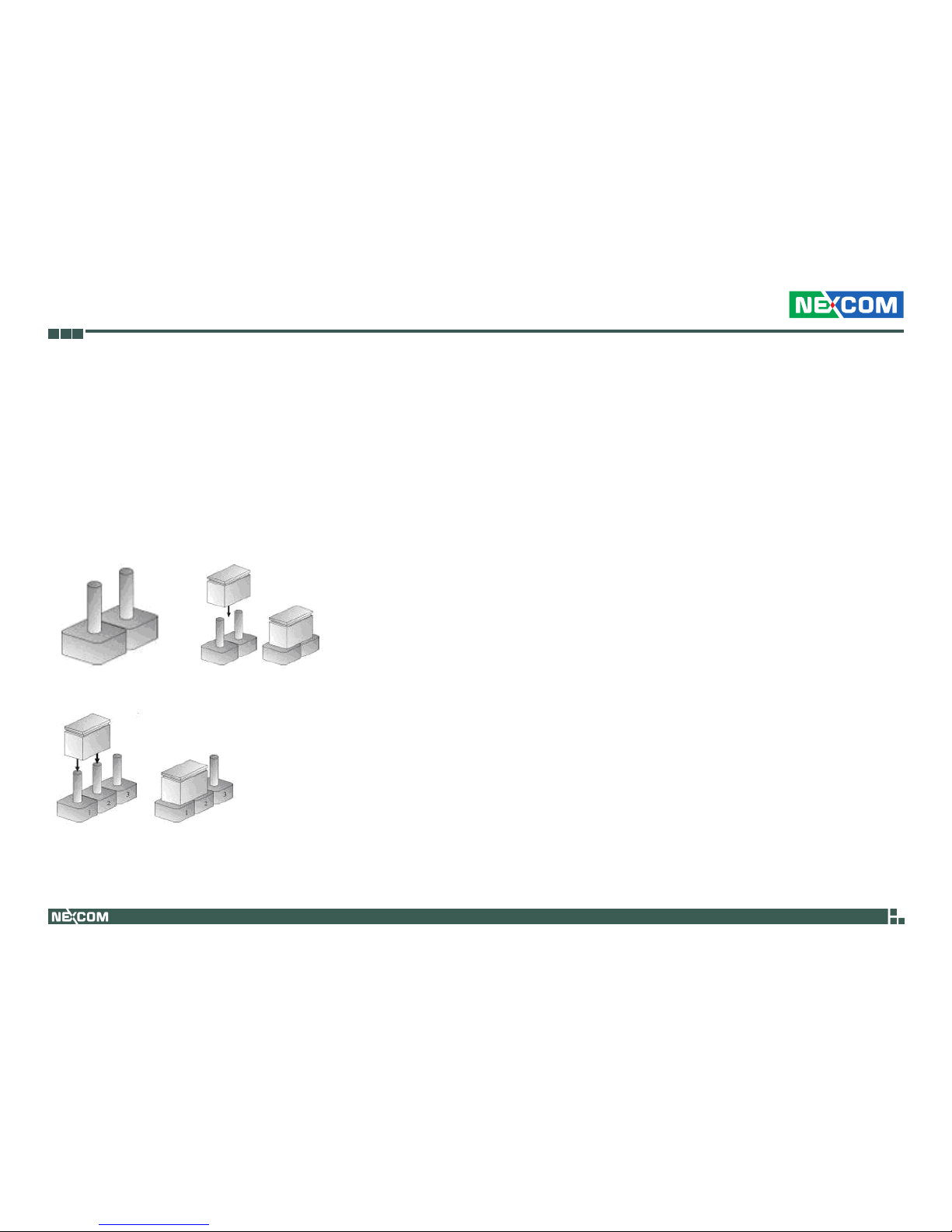

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

15

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Locations of the Jumpers and Connectors

NISB 2100

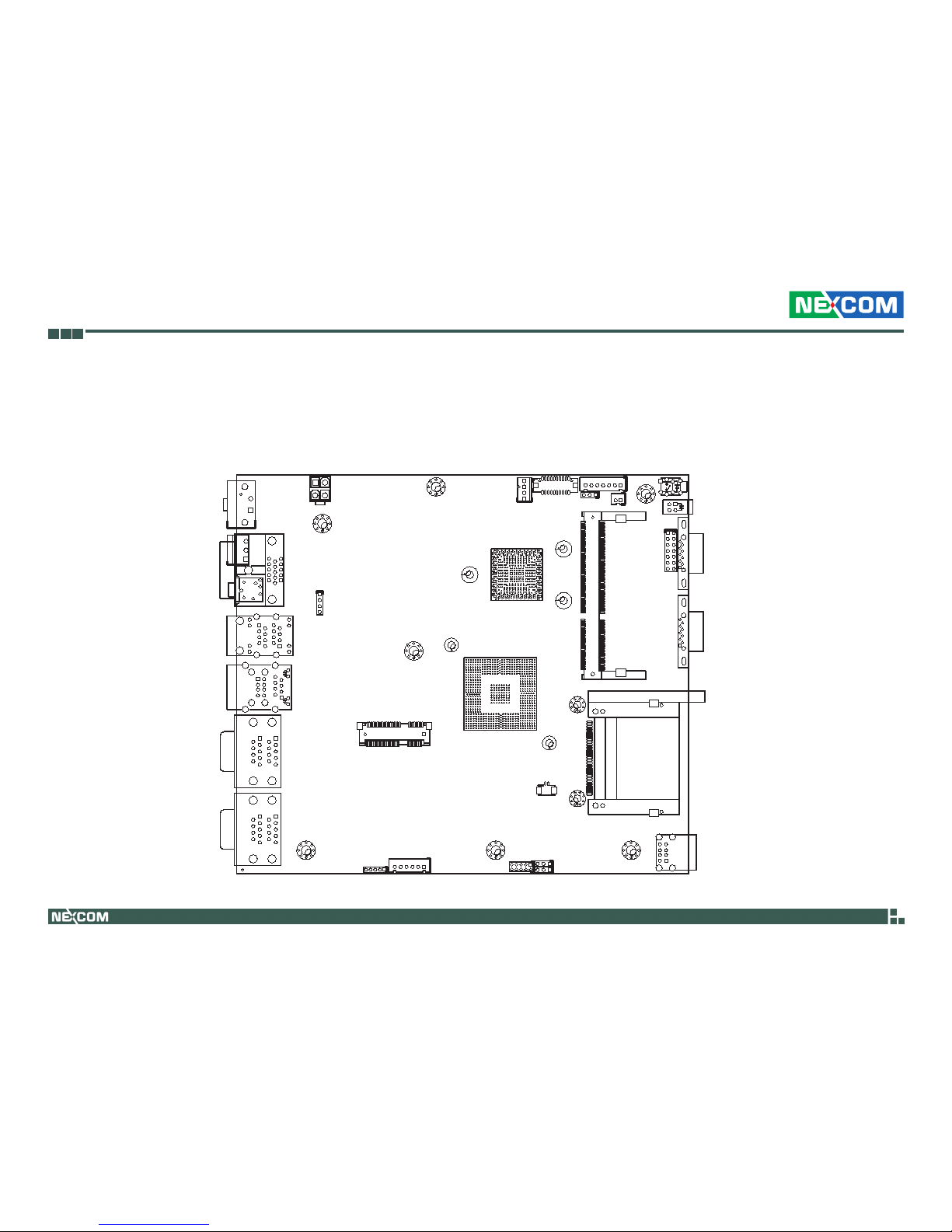

The figure below is the top view of the NISB 2100 main board which is the main board used in the NISE 2100 Series system. It shows the locations of the jumpers and connectors.

CON2

J5

CN3

VGA1

CON1

JP2

LAN1

CON3

COM3

COM4

J7

J9

CN5

J2

CN1

JP1

J10

J3

SW1

LED1

J4

COM1

COM2

IDE1

SODIMM

J6

J8

JP3

JP4

USB1

1

16

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

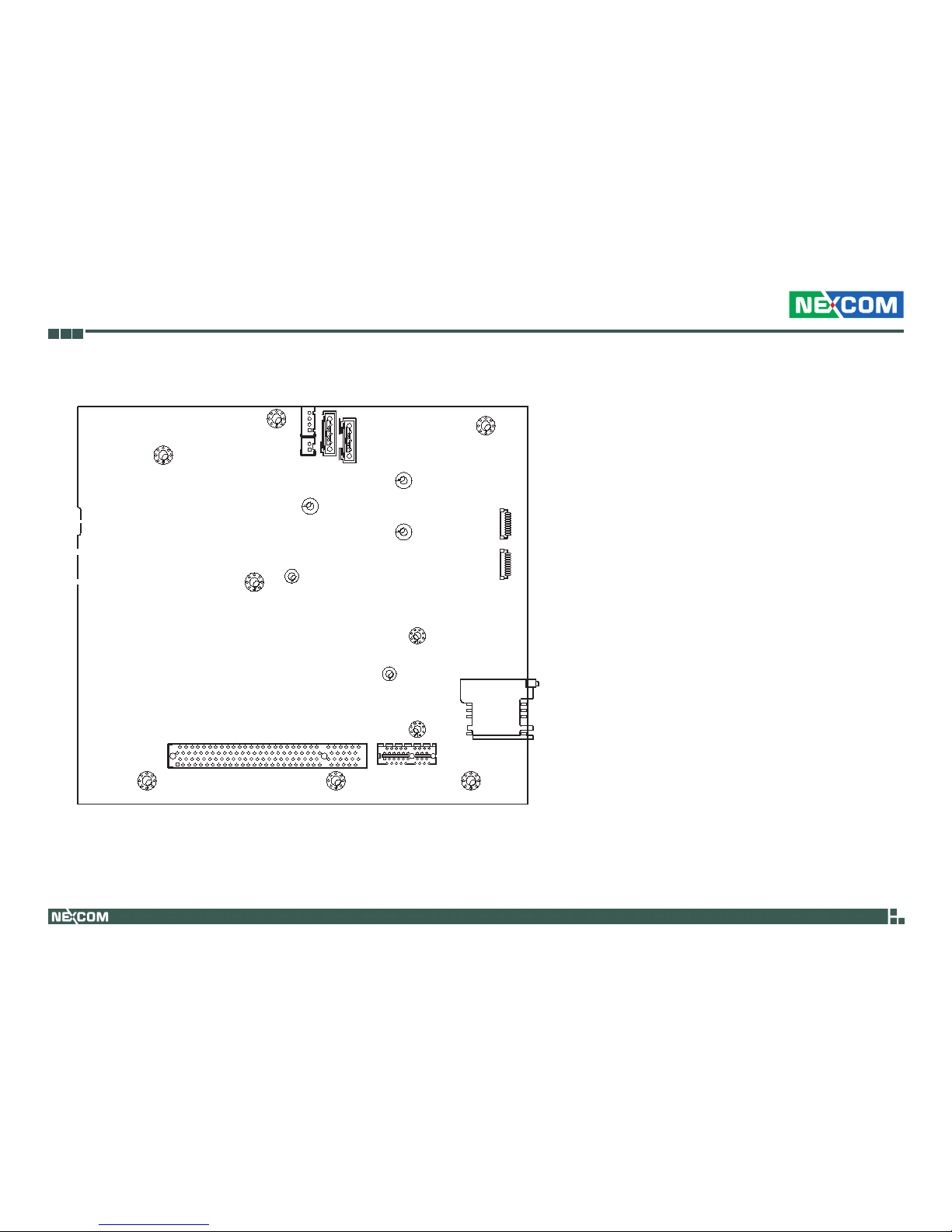

The figure below is the bottom view of the NISB 2100 main board.

J13

J10

J12

J11

J15

J14

IDE2

CON4

CN6

17

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

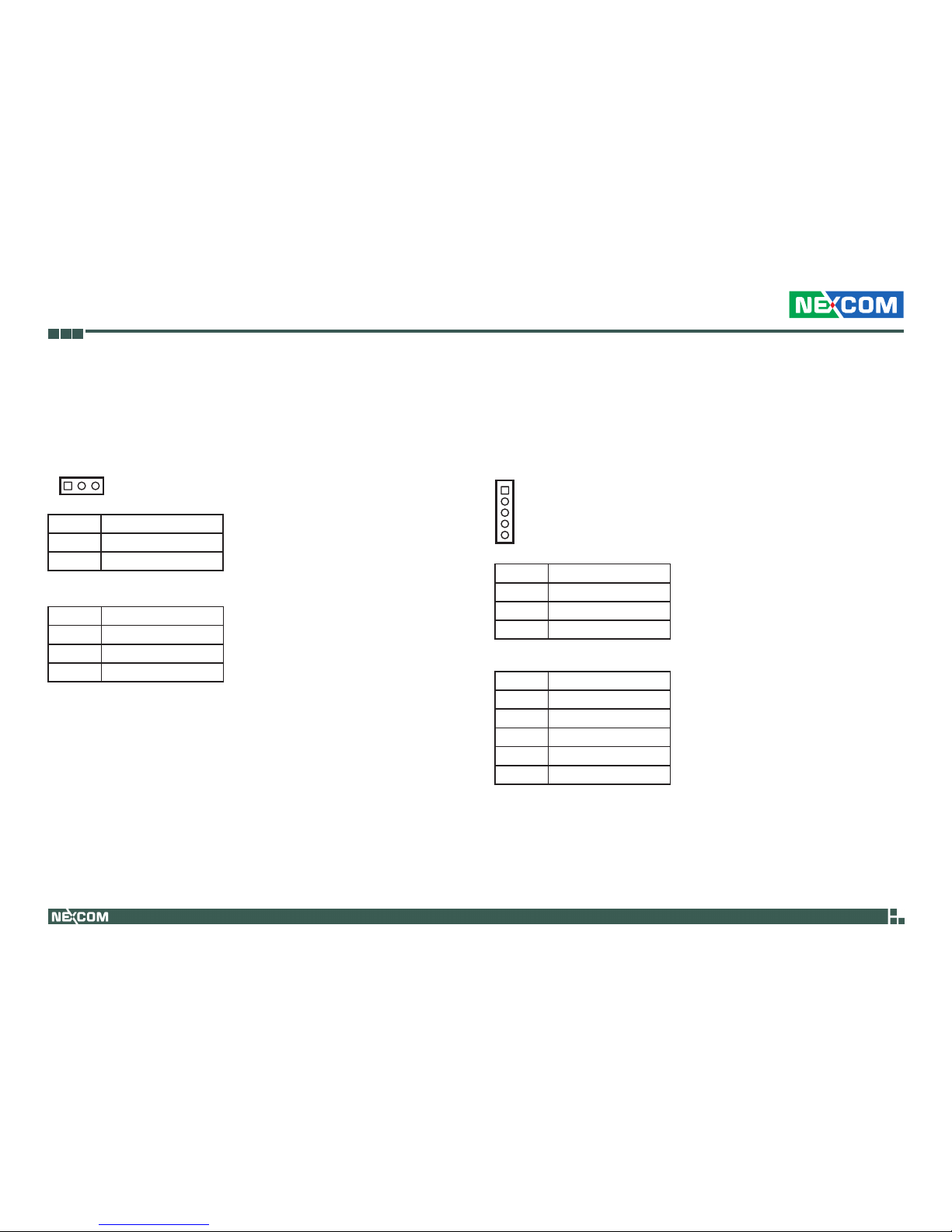

Jumpers

Clear CMOS

Connector size: 1x3 3-pin header, 2.54 mm pitch Connector location: JP3

1

3

Pin Settings

1-2 On Normal

2-3 On CMOS Clear

1-2 On: default

Pin Deﬁnition

1 NC

2 IRTCRST#

3 GND

COM3 RS232 RI Pin Power Select

Connector type: 1x5 5-pin header 2.54mm -M-180 Connector location: J9

1

5

Pin Deﬁnition

1 VCC5

2 RING_T

3 +12V

4 RING_T

5 RING

Pin Settings

1-2 +5V

2-3 +12V

4-5 RING

4-5 On: default

18

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Panel CCFL LVDS Backlight Power Select

Connector size: 1x3 3-pin header, 2.54 mm pitch Connector location: JP1

1

3

Pin Settings

1 VCC3 (3.3V)

2 VCC_LCD

3 VCC5(+5V)

1-2 On: default

19

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

External I/O Interface - Front Panel

Connector Pin Deﬁnitions

USB Ports

Connector type: Dual USB port Connector location: USB1

Pin Deﬁnition Pin Deﬁnition

1 USB_VCC(5V) 5 USB_VCC(5V)

2 DATA_N 6 DATA_N

3 DATA_P 7 DATA_P

4 GND 8 GND

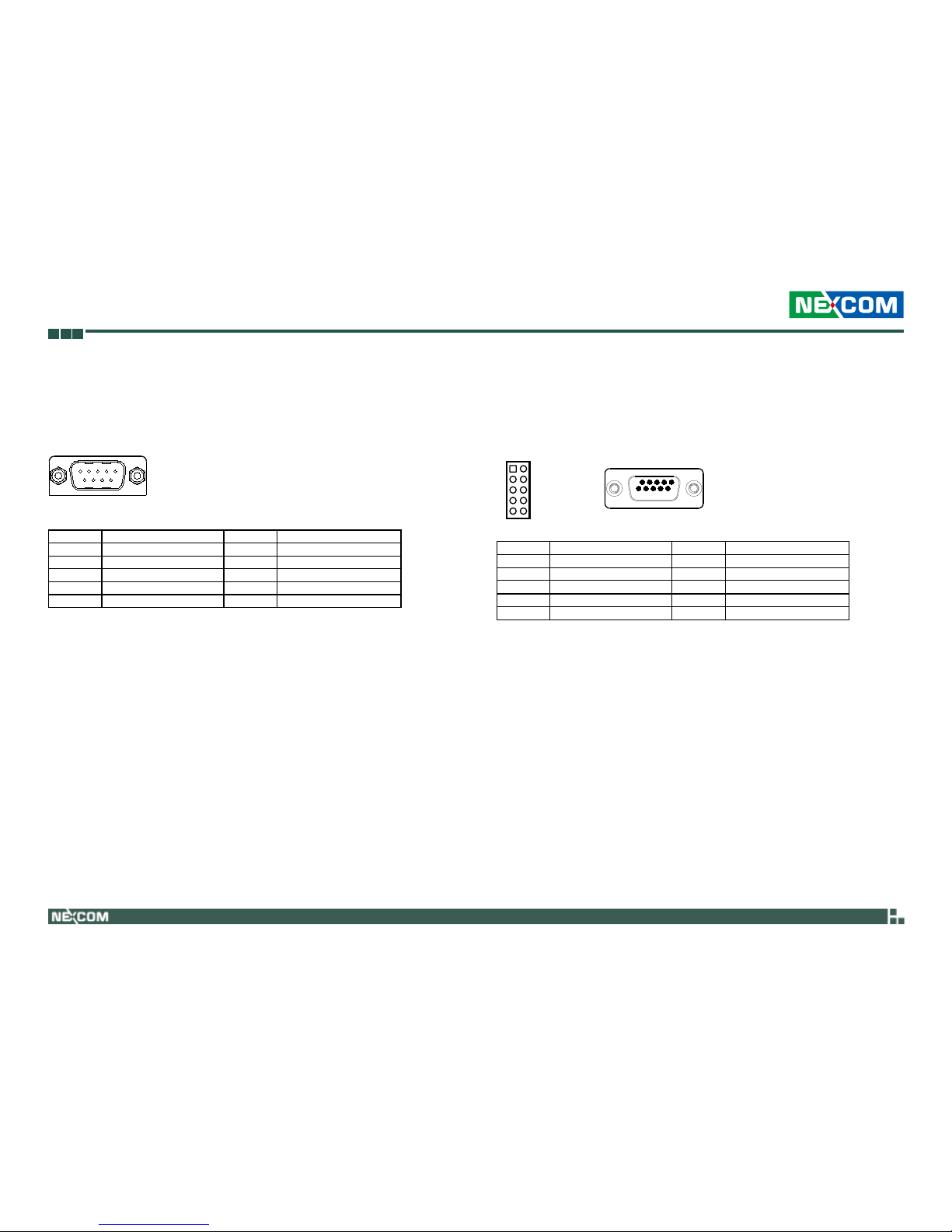

COM5 Serial Port

Connector type: DB-9 port Connector location: COM2

Pin Deﬁnition Pin Deﬁnition

1 COM5_DCD 6 COM5_DSR

2 COM5_RXD 7 COM5_RTS

3 COM5_TXD 8 COM5_CTS

4 COM5_DTR 9 COM5_RI

5 GND

5

6 9

1

20

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

COM6 Serial Port

Connector type: DB-9 port Connector location: COM1

Pin Definition Pin Definition

1 COM6_DCD 6 COM6_DSR 2 COM6_RXD 7 COM6_RTS 3 COM6_TXD 8 COM6_CTS 4 COM6_DTR 9 COM6_RI 5 GND

5

6 9

1

GPIO Connector

(4 digital input and 4 digital output)

Connector type: DB-15 port, 2x5 10-pin header, 2.0 mm-M-180 Connector location: J8

1

2

9

10

Pin Definition Pin Definition

1 +5V 2 GND 3 GPO 4 GPI 5 GPO 6 GPI 7 GPO 8 GPI 9 GPO 10 GPI

14 68 10

2 3 5 79

21

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Status Indicators

Status LED Color

PWR Green

HDD Yellow

PWR

HDD

ATX Power On/Off Switch

Connector location: SW1

Pin Deﬁnition

On Blue light

Off Red light

Pin Deﬁnition Pin Deﬁnition

1 GND 2 PBT_PU

3 PBT_PU 4 GND

A1 PWRLED_N C1 PWRLED_P

22

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

External I/O Interface - Rear Panel

9-36V DC Input

Connector type: 2P Phoenix Contact 5.08mm Power Connector Connector location: CON2

Pin Deﬁnition

1 GND

2 VIN(9~36V)

Remote Power On/Off Switch

Connector type: 3-pin switch Connector location: J5

Pin Deﬁnition

1 GND

2 PWR_ON

3 PS_ON

1 3

2

1

23

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

VGA Port

Connector type: DB-15 port, 15-pin D-Sub Connector location: VGA1

Pin Deﬁnition Pin Deﬁnition

1 RED_VGA 9 VGA_VCC(5V)

2 GREEN_VGA 10 GND

3 BLUE_VGA 11 NC

4 NC 12 DDCDATA_VGA

5 GND 13 HSYNC_VGA

6 VGADET 14 VSYNC_VGA

7 GND 15 DDCCLK_VGA

8 GND

15

1115

Speaker-out Jack

Connector type: 6-pin jack Connector location: CN3

Pin Deﬁnition

1 Speak Out - R

2 Speak Out - JD

3 NC

4 Speak Out - L

5 GND

6 GND

24

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

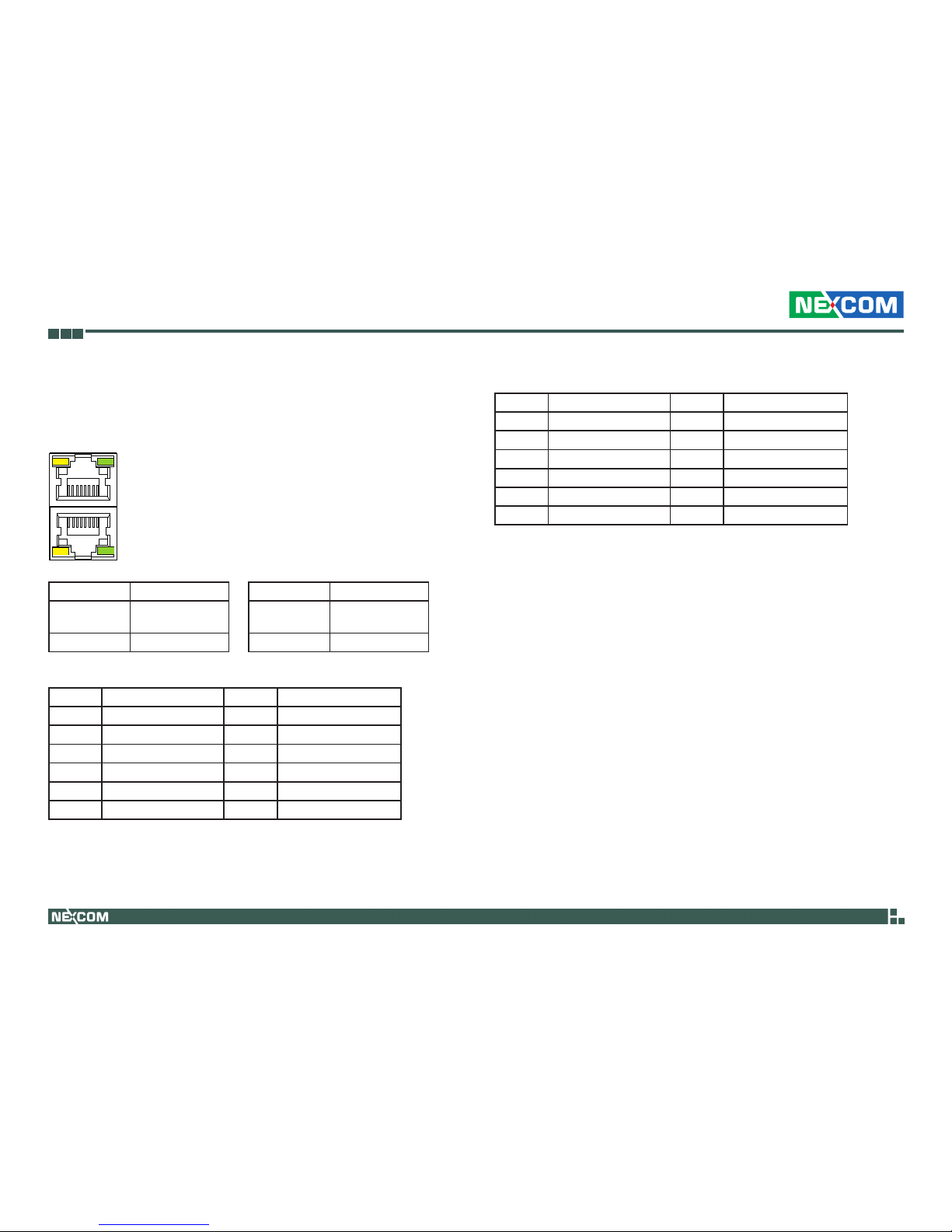

LAN1 and LAN2 Ports

Connector type: RJ45 port with LEDs Connector location: LAN1

Pin Deﬁnition Pin Deﬁnition

B1 LAN1M0P B7 LAN1M3P

B2 LAN1M0N B8 LAN1M3N

B3 LAN1M1P B9 LAN1LINK

B4 LAN1M2P B10 LAN1ACTP

B5 LAN1M2N B11 LAN1ACT#

B6 LAN1M1N B12 LAN1LINKP

Act Status

Yellow Blinking

Data Activity

Off No Acitivity

Link Status

Green Always Lighted

Linked

Off No Link

Act Link

LAN1

LAN2

LAN1

Pin Deﬁnition Pin Deﬁnition

A1 LAN2M0P A7 LAN2M3P

A2 LAN2M0N A8 LAN2M3N

A3 LAN2M1P A9 LAN2LINK

A4 LAN2M2P A10 LAN2ACTP

A5 LAN2M2N A11 LAN2ACT#

A6 LAN2M1N A12 LAN2LINKP

LAN2

25

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Pin Deﬁnition Pin Deﬁnition

1 USB_VCC(5V) 5 USB_VCC(5V)

2 DATA_N 6 DATA_N

3 DATA_P 7 DATA_P

4 GND 8 GND

23 GND 22 GND

27 GND 28 GND

LAN3 (NISE 2100/2110 only) and Dual USB Ports

Connector size: RJ45 and Dual USB Connector location: CON3

Act

Link

USB

Pin Deﬁnition Pin Deﬁnition

9 LAN3M0P 17 LAN3ACTP

10 LAN3M0N 18 LAN3_LEDACT#

11 LAN3M1P 19 LAN3LINKP

12 LAN3M2P 20 LAN3_LEDLINK

13 LAN3M2N 21 GND

14 LAN3M1N 24 GND

15 LAN3M3P 25 GND

16 LAN3M3N 28 GND

LAN3

26

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

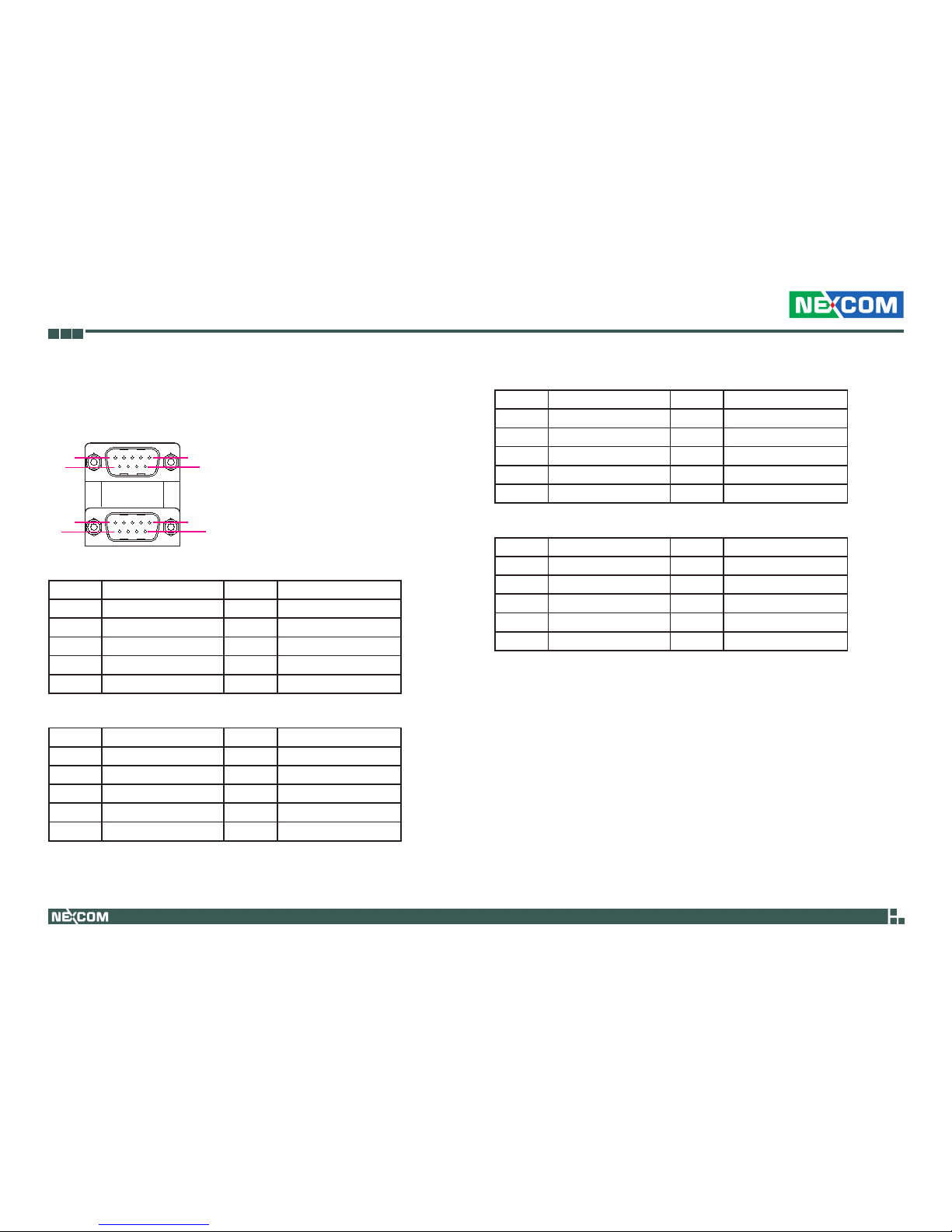

COM1 and COM2 Ports

Connector size: DB-9 port Connector location: COM3

6

1 5

9

6

1 5

9

B

A

Pin Deﬁnition Pin Deﬁnition

1 COM1_DCD 6 COM1_DSR

2 COM1_RXD 7 COM1_RTS

3 COM1_TXD 8 COM1_CTS

4 COM1_DTR 9 COM1_RI

5 GND

COM1A

Pin Deﬁnition Pin Deﬁnition

1 COM2_DCD 6 COM2_DSR

2 COM2_RXD 7 COM2_RTS

3 COM2_TXD 8 COM2_CTS

4 COM2_DTR 9 COM2_RI

5 GND

COM2B

Pin Deﬁnition Pin Deﬁnition

1 TXD- 6 Reserved

2 TXD+ 7 Reserved

3 Reserved 8 Reserved

4 Reserved 9 Reserved

5 Reserved

RS485

Pin Deﬁnition Pin Deﬁnition

1 TXD- 6 RTS-

2 TXD+ 7 RTS+

3 RXD+ 8 CTS+

4 RXD- 9 CTS-

5 GND

RS422

27

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

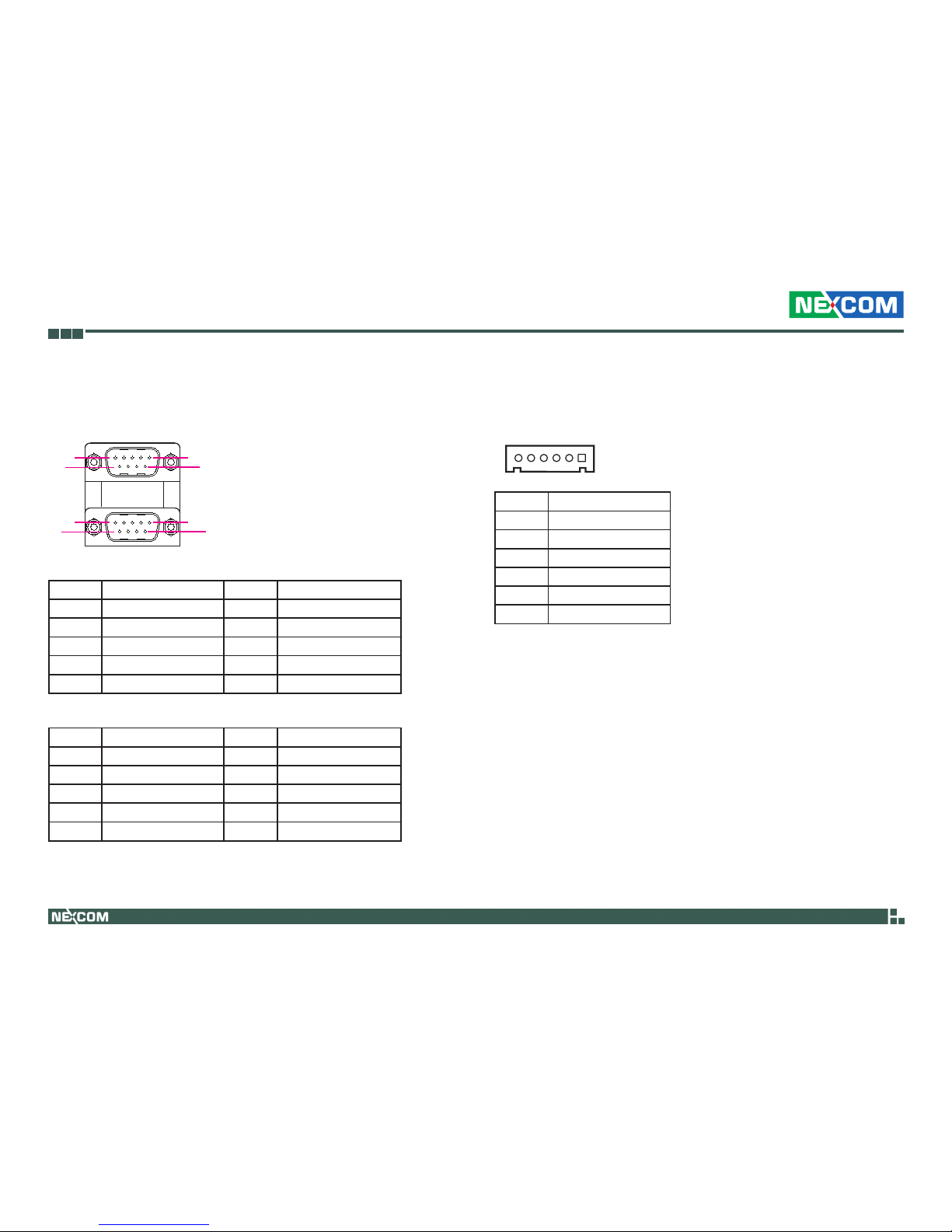

COM3 and COM4 Ports

Connector size: DB-9 port Connector location: COM4

6

1 5

9

6

1 5

9

B

A

Pin Deﬁnition Pin Deﬁnition

1 COM3_DCD 6 COM3_DSR

2 COM3_RXD 7 COM3_RTS

3 COM3_TXD 8 COM3_CTS

4 COM3_DTR 9 COM3_RI

5 GND

COM3A

Pin Deﬁnition Pin Deﬁnition

1 COM4_DCD 6 COM4_DSR

2 COM4_RXD 7 COM4_RTS

3 COM4_TXD 8 COM4_CTS

4 COM4_DTR 9 COM4_RI

5 GND

COM4B

USB 8-9 Connector

Connector size: 1x6 6-pin JST wafer, 2.5 mm pitch Connector location: J7

6

1

Pin Deﬁnition

1 USB_VCC45

2 USB_8N

3 USB_8P

4 USB_9N

5 USB_9P

6 USB_GND

28

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

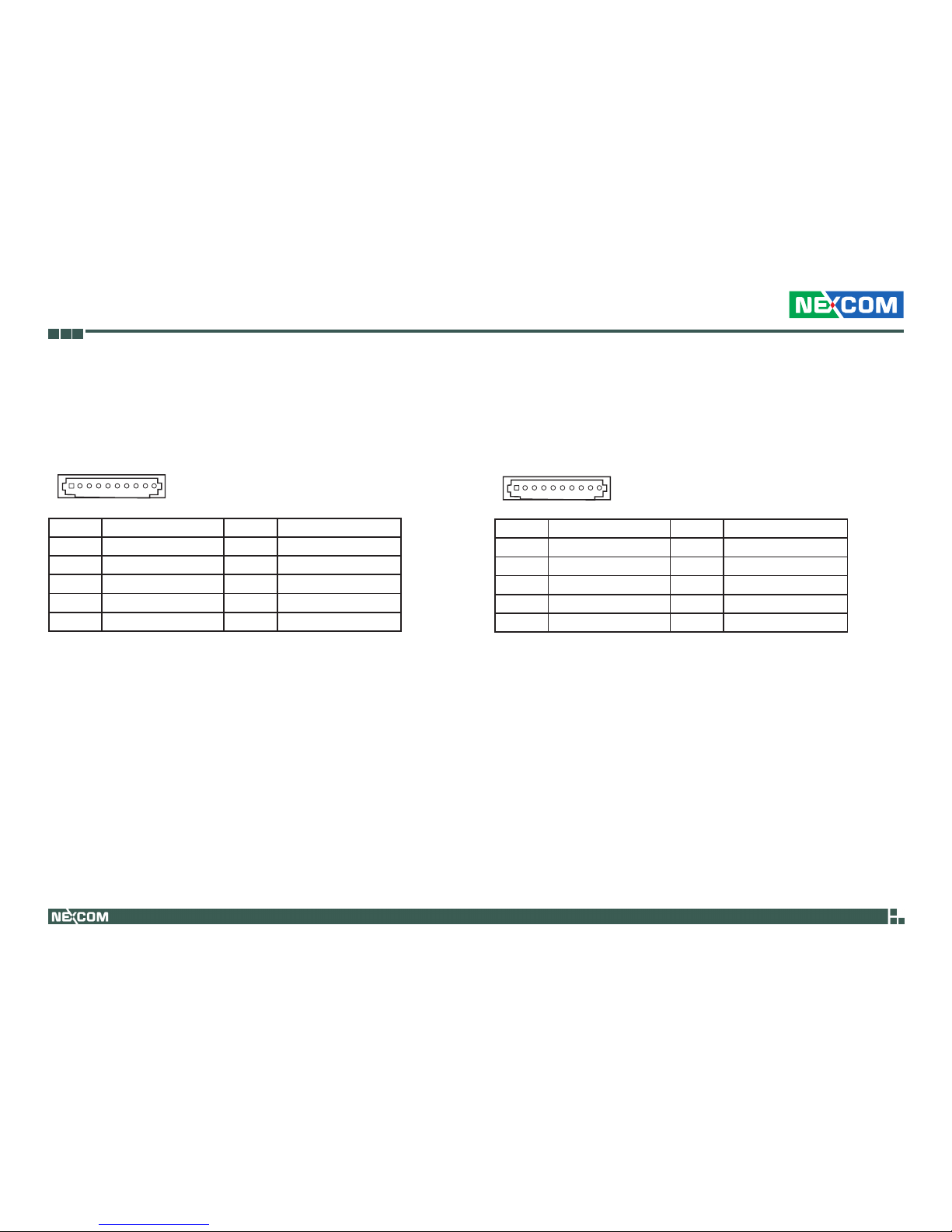

COM5 Connector

Connector type: 2x5 10-pin boxed header, 1.0mm Connector location: J14

1

10

Pin Deﬁnition Pin Deﬁnition

1 SIO_DCD#5 2 SIO_RXD5

3 SIO_TXD5 4 SIO_DTR#5

5 IO_GND 6 SIO_DSR#5

7 SIO_RTS#5 8 SIO_CTS#5

9 SIO_RI#5 10 IO_GND

COM6 Connector

Connector type: 2x5 10-pin boxed header, 1.0mm Connector location: J15

Pin Deﬁnition Pin Deﬁnition

1 SIO_DCD#6 2 SIO_RXD6

3 SIO_TXD6 4 SIO_DTR#6

5 IO_GND 6 SIO_DSR#6

7 SIO_RTS#6 8 SIO_CTS#6

9 SIO_RI#6 10 IO_GND

Internal Connectors

1

10

29

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Remote Power On/Off Switch

Connector type: 1x2 2-pin header, JST 2.0mm Connector location: J3

1 2

Pin Deﬁnition

1 PSON#

2 GND

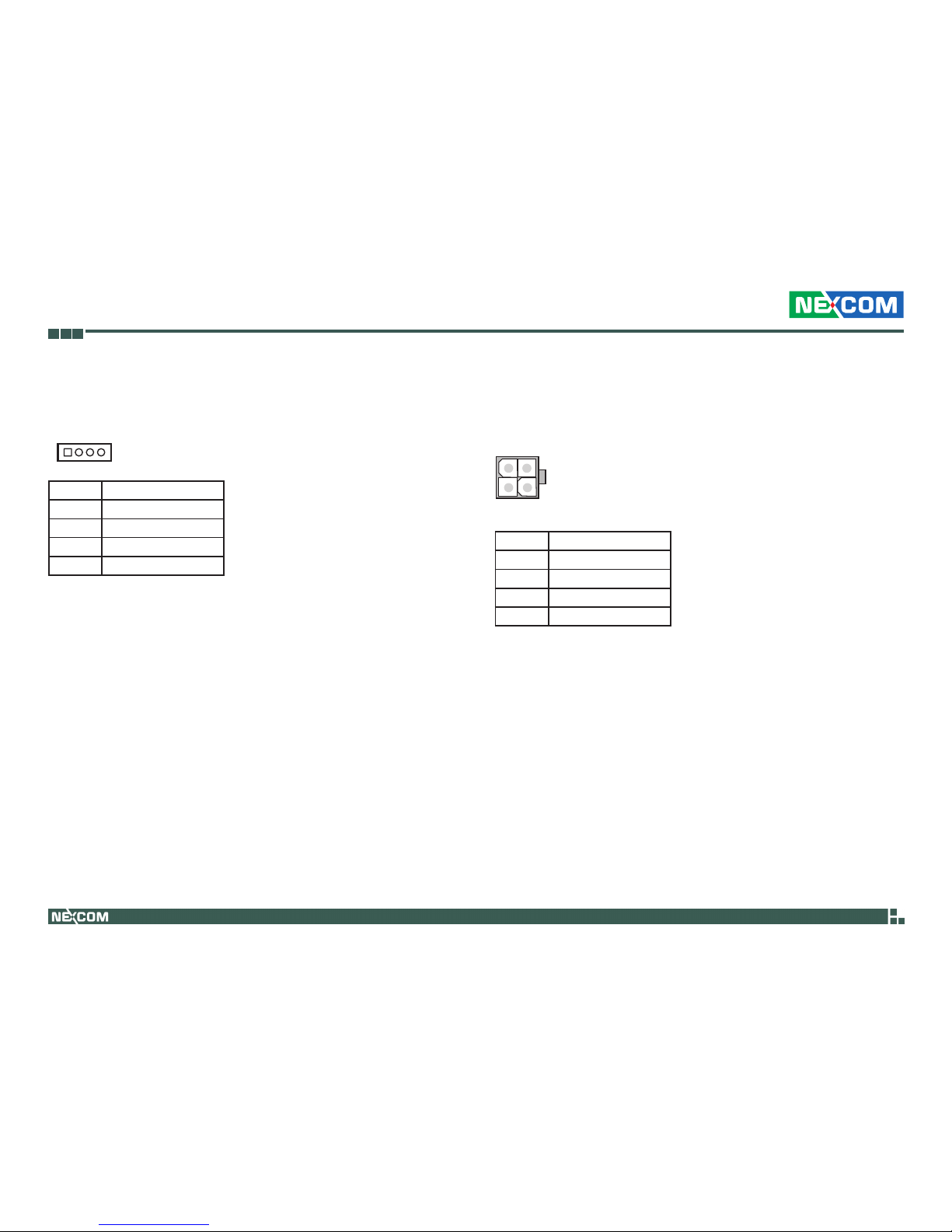

CPU Fan Connector

Connector type: 1x4, 4-pin Wafer, 2.54mm-M-180 Connector location: J2

1

4

Pin Deﬁnition

1 GND

2 VCC_12

3 CPU1_FAN_SPEED

4 CPU1_FANPWM

30

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Internal Power/HDD/LAN Power/LAN Active LED (RTC Connector)

Connector type: 2x7 14-pin header 2.54mm-M-180 Connector location: J4

2

1

13

14

Pin Description Pin Description

1 POWER_OK 2 VCC_LEDPOWER

3 HDD_LED# 4 HDD_LEDPOWER

5 LAN1_LINK# 6 LAN1LINK_LEDPOWER

7 LAN1_ACT# 8 LAN1ACT_LEDPOWER

9 LAN2_LINK# 10 LAN2LINK_LEDPOWER

11 LAN2_ACT# 12 LAN2ACT_LEDPOWER

13 H/W RESET 14 GND

Power LED

HDD LED

LAN1 LINK LED

H/W RESET

LAN2 ACT LED

LAN2 LINK LED

LAN1 ACT LED

SMBus Pin Header

Connector type: 1x3 3-pin header 2.54mm-M-180 Connector location: JP4

Pin Deﬁnition

1 SMbus_CLK

2 SMbus_data

3 GND

3

1

31

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Mic-in Connector

Connector type: 1x4 4-pin header 2.54mm-M-180 Connector location: JP2

1

4

Pin Deﬁnition

1 Mic-in L

2 Mic JD

3 GND

4 Mic-in R

Power Output Connector

Connector type: 2x2 4-pin AUX 3.5mm Connector location: CON1

123

4

Pin Deﬁnition

1 GND

2 GND

3 VIN Power

4 VIN Power

32

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

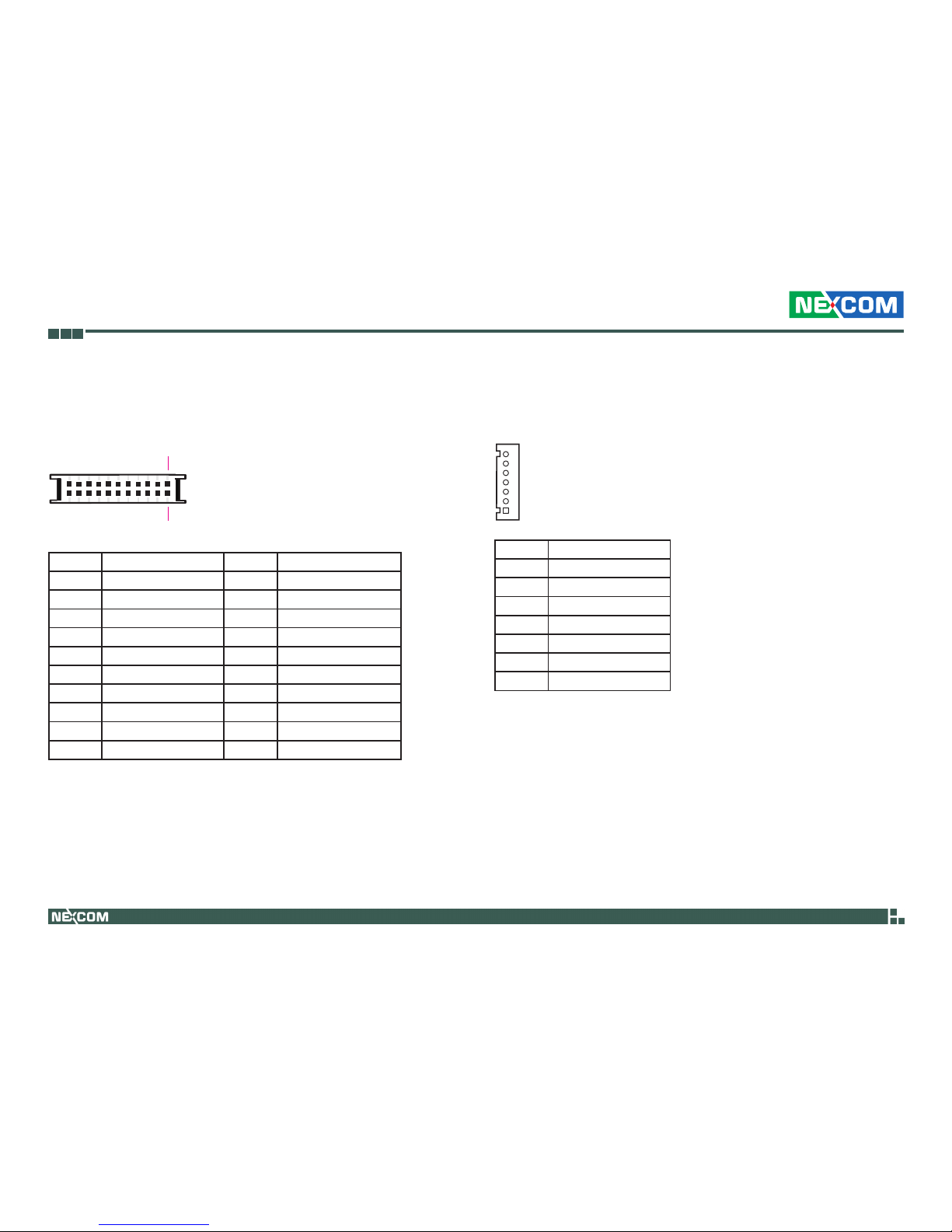

LVDS Connector

Connector type: 20-pin DF13-20DP 1.25mm Connector location: CN1

2

1

20

19

Pin Deﬁnition Pin Deﬁnition

1 LVDS_DDCCLK 2 LVDS_DDCDATA

3 VCC_LCD(5V Or3.3V) 4 LVDS_A0P

5 NC 6 LVDS_A0N

7 NC 8 VCC_LCD(5V Or3.3V)

9 GND 10 LVDS_A1P

11 LVDS_ACLKP 12 LVDS_A1N

13 LVDS_ACLKN 14 GND

15 GND 16 V_INV (12V)

17 LVDS_A2P 18 V_INV (12V)

19 LVDS_A2N 20 GND

MH1

MH2

7

1

Panel CCFL Connector

Connector type: 1x7 7-pin header JST-2.5mm-M-180 Connector location: J1

Pin Deﬁnition

1 Vcc5

2 V_INV (12V)

3 V_INV (12V)

4 CCFLBKLTCTRL

5 GND

6 GND

7 M_BKLTEN

33

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

CompactFlash

Connector type: CompactFlash Type I/II H:6.3mm SMD Connector location: IDE1

Pin Description Pin Description

1 GND 2 SDD3A

3 SDD4A 4 SDD5A

5 SDD6A 6 SDD7A

7 SDCS#1 8 GND

9 GND 10 GND

11 GND 12 GND

13 VCC 14 GND

15 GND 16 GND

17 GND 18 SDA2A

19 SDA1A 20 SDA0A

21 SDD0A 22 SDD1A

23 SDD2A 24 NC

25 CF_CD2# 26 CF_CD1#

27 SDD11A 28 SDD12A

Pin Description Pin Description

29 SDD13A 30 SDD14A

31 SDD15A 32 SDCS#3

33 NC 34 SDIOR#

35 SDIOW# 36 VCC

37 HDIRQ14 38 VCC

39 CF_SEL# 40 NC

41 IDERST# 42 SIORDY

43 SDREQ 44 SDDACK#

45 IDEACTP# 46 DIAG#

47 SDD8A 48 SDD9A

49 SDD10A 50 GND

34

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

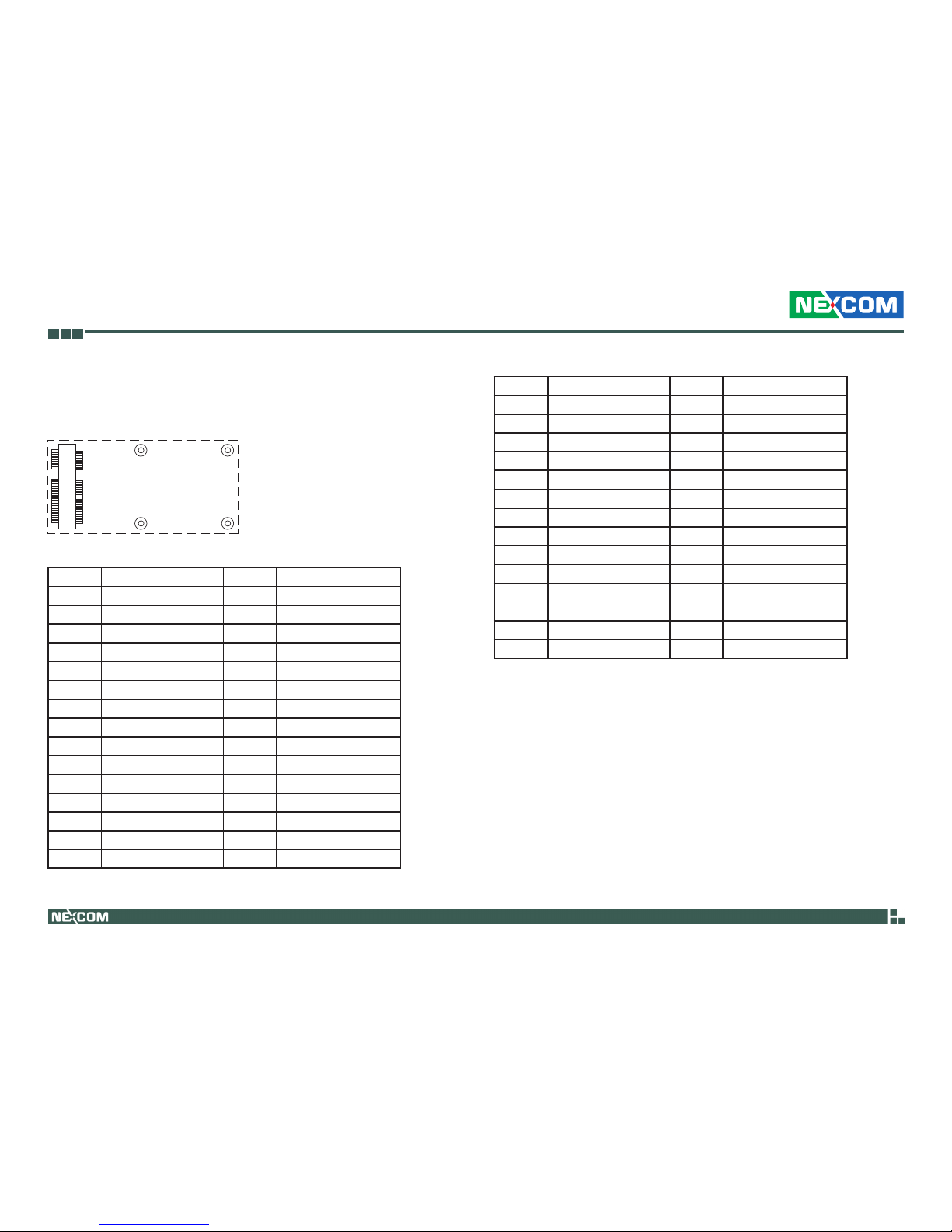

Mini-PCIe Slot

Connector location: CN5

51152

2

Pin Deﬁnition Pin Deﬁnition

1 PCIE_WAKE# 2 +V3.3A_MINI

3 NC 4 GND

5 NC 6 +V1.5S_MINI

7 PCIE_MINI_CLKREQ#1 8 SIM_PWER

9 GND 10 SIM_DATA

11 CLK_N 12 SIM_CLK

13 CLK_P 14 SIM_REST

15 GND 16 SIM_VCCP

17 NC 18 GND

19 NC 20 MINICARD1_DIS#

21 GND 22 PCI_RST

23 PCIeRX_N 24 +V3.3A_MINI

25 PCIeRX_P 26 GND

27 GND 28 +V1.5S_MINI

29 GND 30 SMB_CLK

Pin Deﬁnition Pin Deﬁnition

31 PCIeTX_N 32 SMB_DATA

33 PCIeTX_P 34 GND

35 GND 36 USB_DATA_N

37 GND 38 USB_DATA_P

39 +V3.3A_MINI 40 GND

41 +V3.3A_MINI 42 NC

43 GND 44 LED_WLAN_N

45 NC 46 NC

47 NC 48 +V1.5S_MINI

49 NC 50 GND

51 NC 52 +V3.3A_MINI

MH1 GND MH2 GND

MH3 GND MH4 GND

MH6 GND

35

Chapter 2: Jumpers and Connectors

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

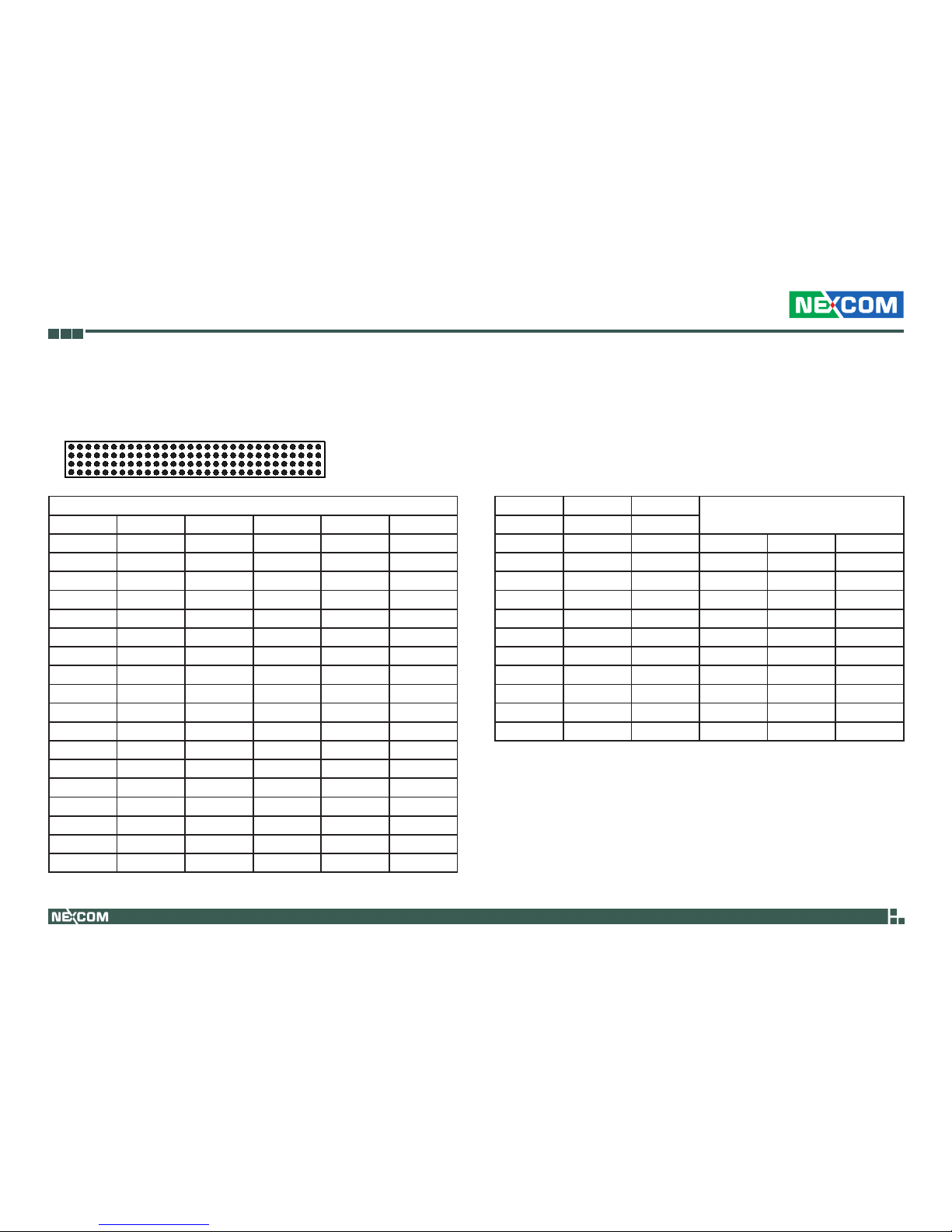

PCI Slot (Low Proﬁle)

Connector type: 120-pin H:9.6mm 180D GOLD FLASH DIP 5V Connector location: CN6

A30 B30 C30 D30

A1

B1 C1

D1

A30 B30 C30 D30

Deﬁnition

Pin A B Pin A B

1 TRST# -12V 32 AD16 AD17

2 +12V TCK 33 +3.3V C/BE2#

3 TMS GND 34 FRAME# GND

4 TDI TDO 35 GND IRDY#

5 +5V +5V 36 TRDY# +3.3V

6 INTA# +5V 37 GND DEVSEL#

7 INTC# INTB# 38 STOP# GND

8 +5V INTD# 39 +3.3V LOCK#

9 RSV1 PRSNT1# 40 SMBCLK PERR#

10 +5V RSV5 41 SMBDAT +3.3V

11 RSV2 PRSNT2# 42 GND SERR#

12 GND GND 43 PAR +3.3V

13 GND GND 44 AD15 C/BE1#

14 +3.3Vaux RSV6 45 +3.3V AD14

15 RST# GRPIMD 46 AD13 GND

16 +5V CLK 47 AD11 AD12

17 GNT# GND 48 GND AD10

18 GND REQ# 49 AD9 GND

19 PME# +5V

CONNECTOR KEY

20 AD30 AD31

21 +3.3V AD29 52 C/BE0# AD8

22 AD28 GND 53 +3.3V AD7

23 AD26 AD27 54 AD6 +3.3V

24 GND AD25 55 AD4 AD5

25 AD24 +3.3V 56 GND AD3

26 IDSEL C/BE3# 57 AD2 GND

27 +3.3V AD23 58 AD0 AD1

28 AD22 GND 59 +5V +5V

29 AD20 AD21 60 REQ64# ACK64#

30 GND AD19 61 +5V +5V

31 AD18 +3.3V 62 +5V +5V

36

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Chapter 3: SyStem Setup

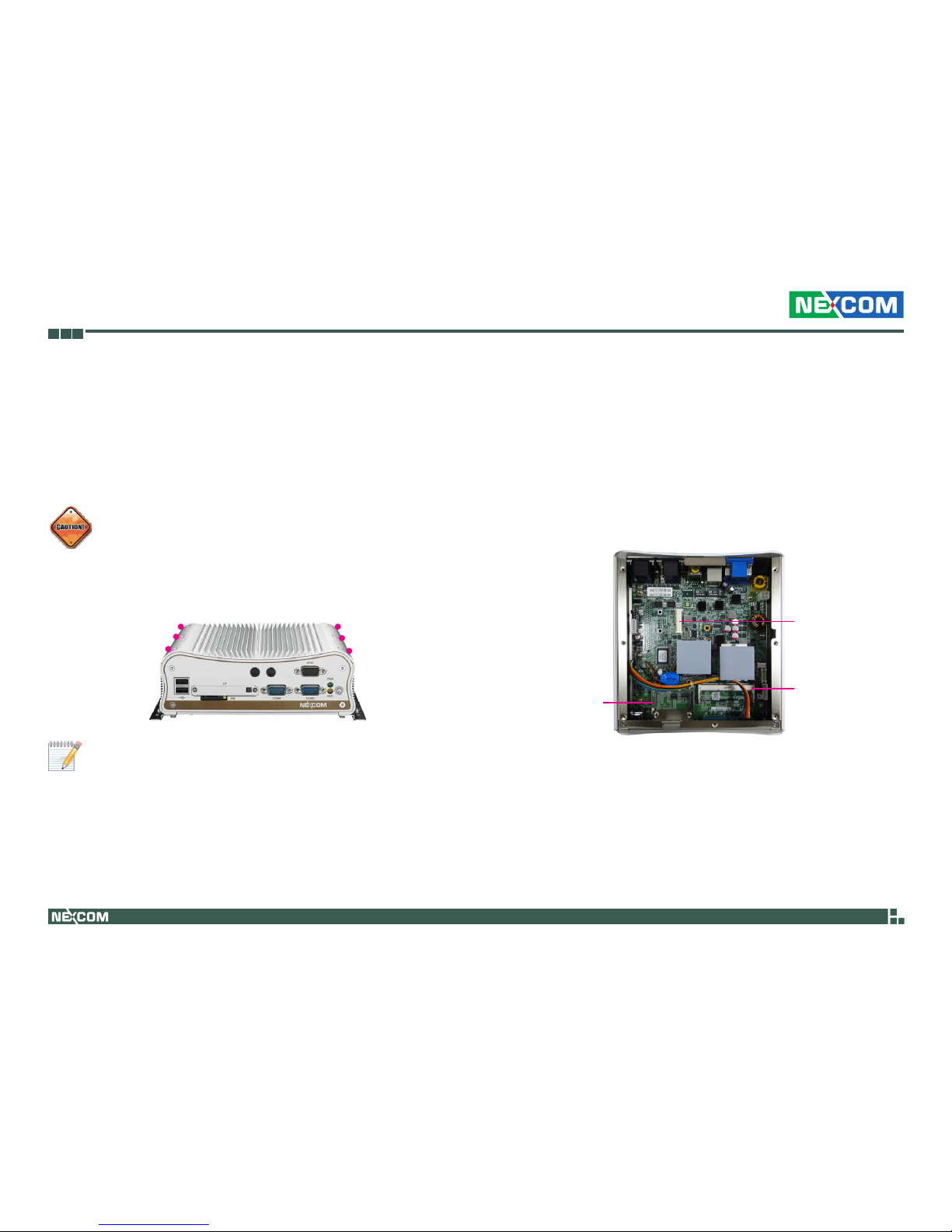

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

1. The screws on the top cover are used to secure the cover to the chassis.

2. Remove these screws and then put them in a safe place for later use.

3. The SODIMM, Mini-PCIe and CompactFlash sockets are readily accessible upon removing the cover.

The dots denote the locations of the screws.

SODIMM

CompactFlash

Mini-PCIe

37

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Installing a SODIMM

1. Locate the SODIMM socket on the board.

SODIMM socket

2. Insert the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips into the socket. The gold-plated connector on the edge of the module will almost completely disappear inside the socket.

SODIMM

38

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

3. Push the module down until the clips on both sides of the socket lock into position. You will hear a distinctive “click”, indicating the module is correctly locked into position.

Clip

39

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Installing a Wireless LAN Module

1. Locate the Mini PCI Express slot on the board.

Mini PCI Express slot

2. Insert the wireless LAN module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

Mini PCI Express slot

Wireless LAN

module

40

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

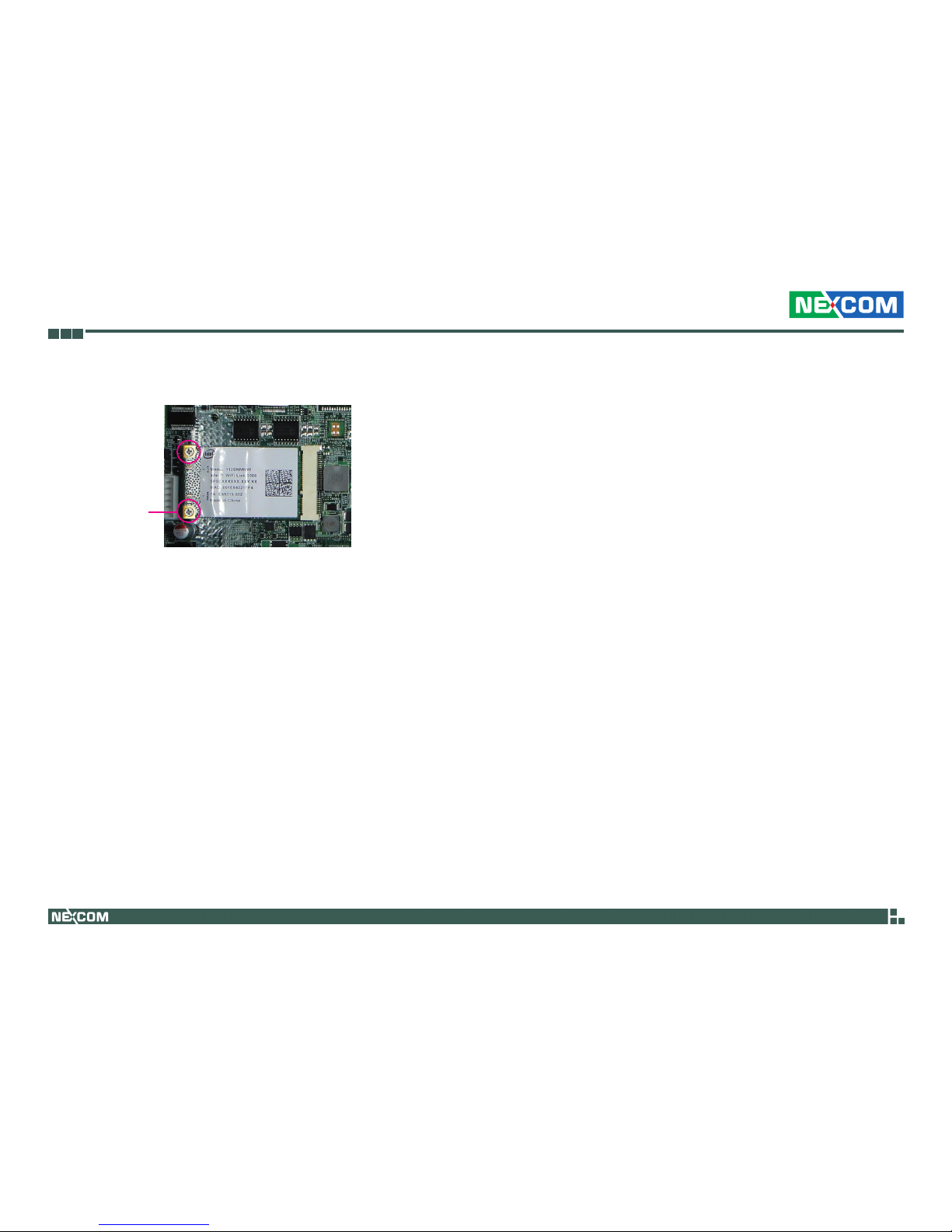

3. Push the module down and then secure it with mounting screws.

Mounting

screw

41

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

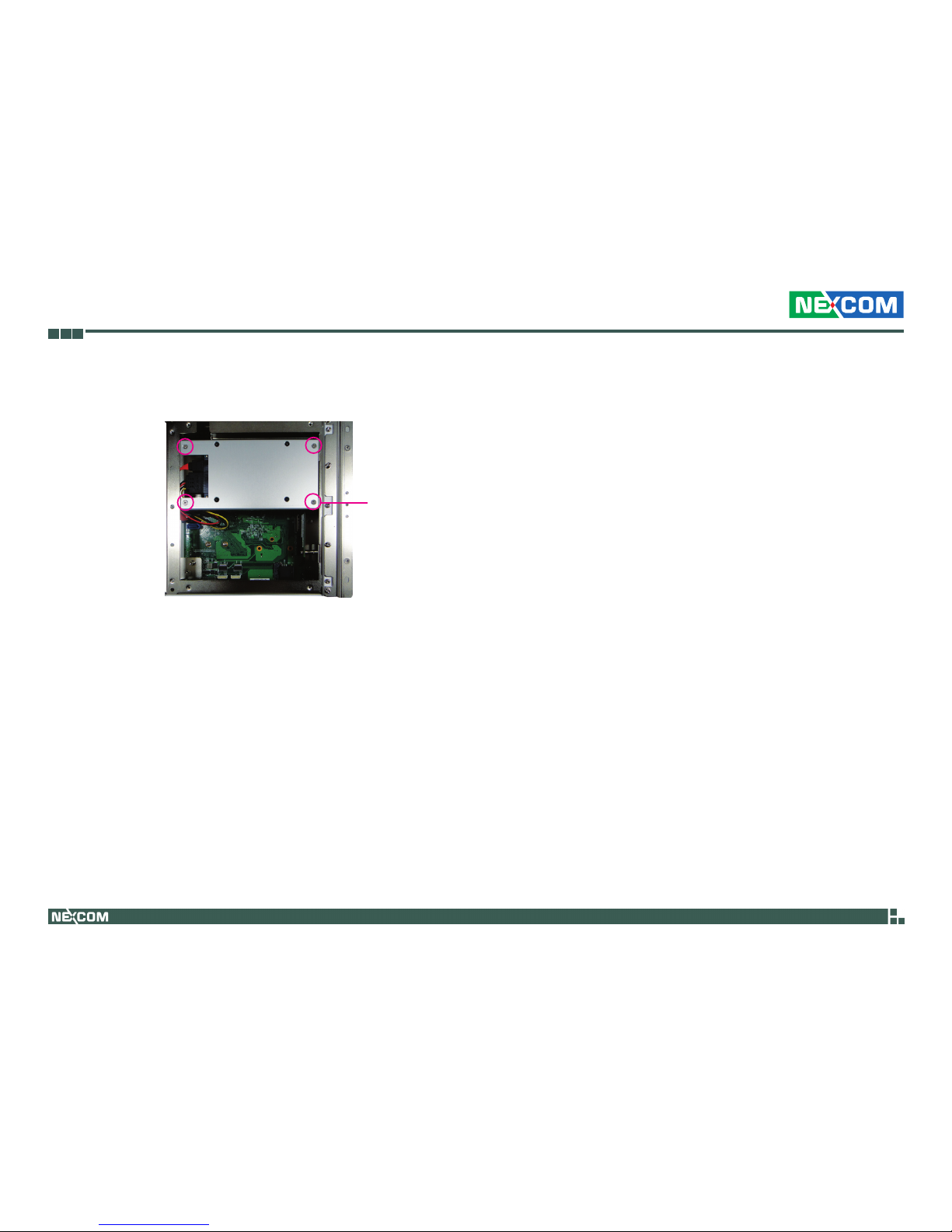

Installing a SATA Hard Drive (NISE 2100/2100A)

2. Remove the 4 mounting screws that secure the drive bay to the chassis.1. With the bottom side of the chassis facing up, remove the mounting

screws of the bottom cover and then remove the cover.

Drive bay

Mounting screw

Bottom cover

Mounting screw

42

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

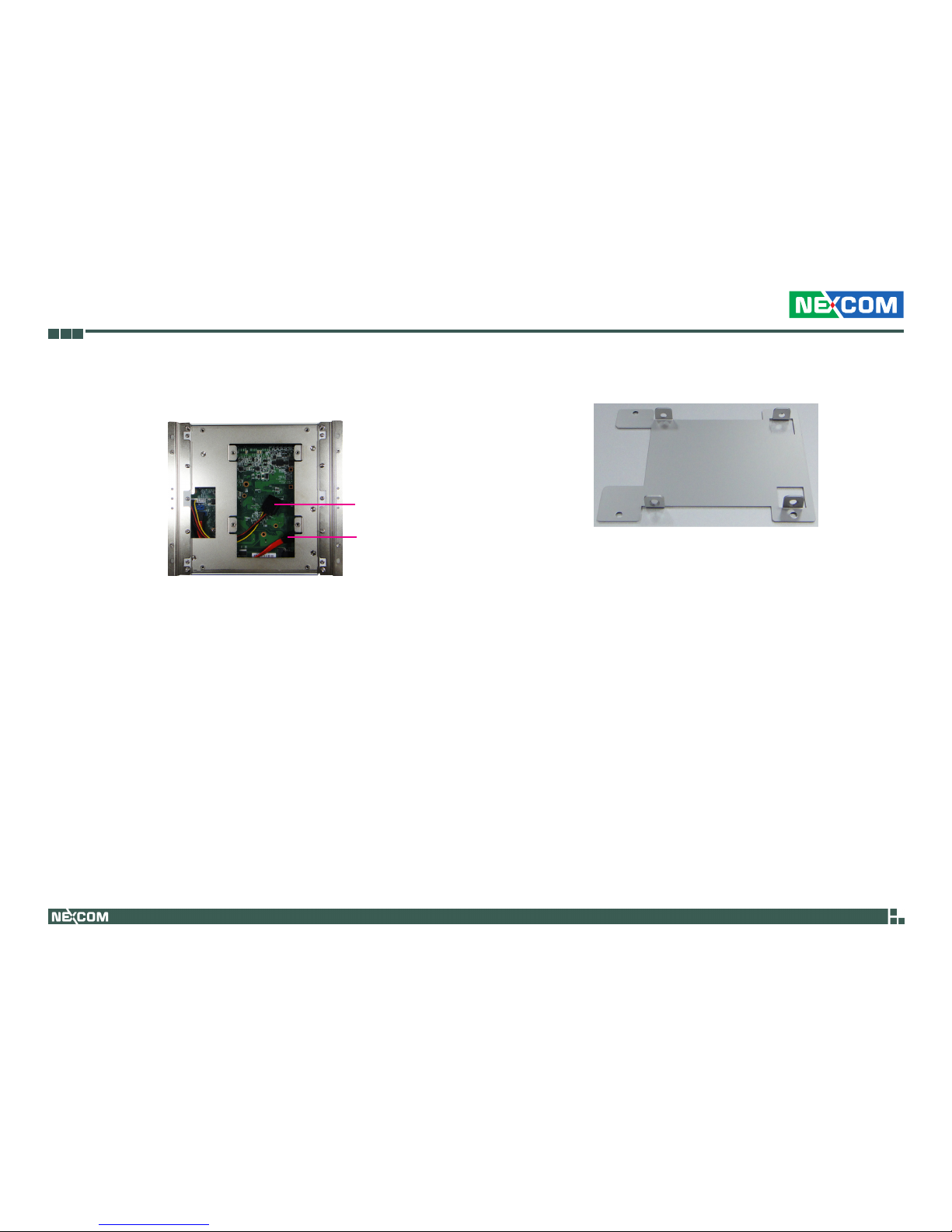

3. Noticeable are 2 cables upon removing the drive bay. These are the SATA data cable and the SATA power cable.

SATA power cable

SATA data cable

4. The drive bay is used to hold a SATA hard drive.

43

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

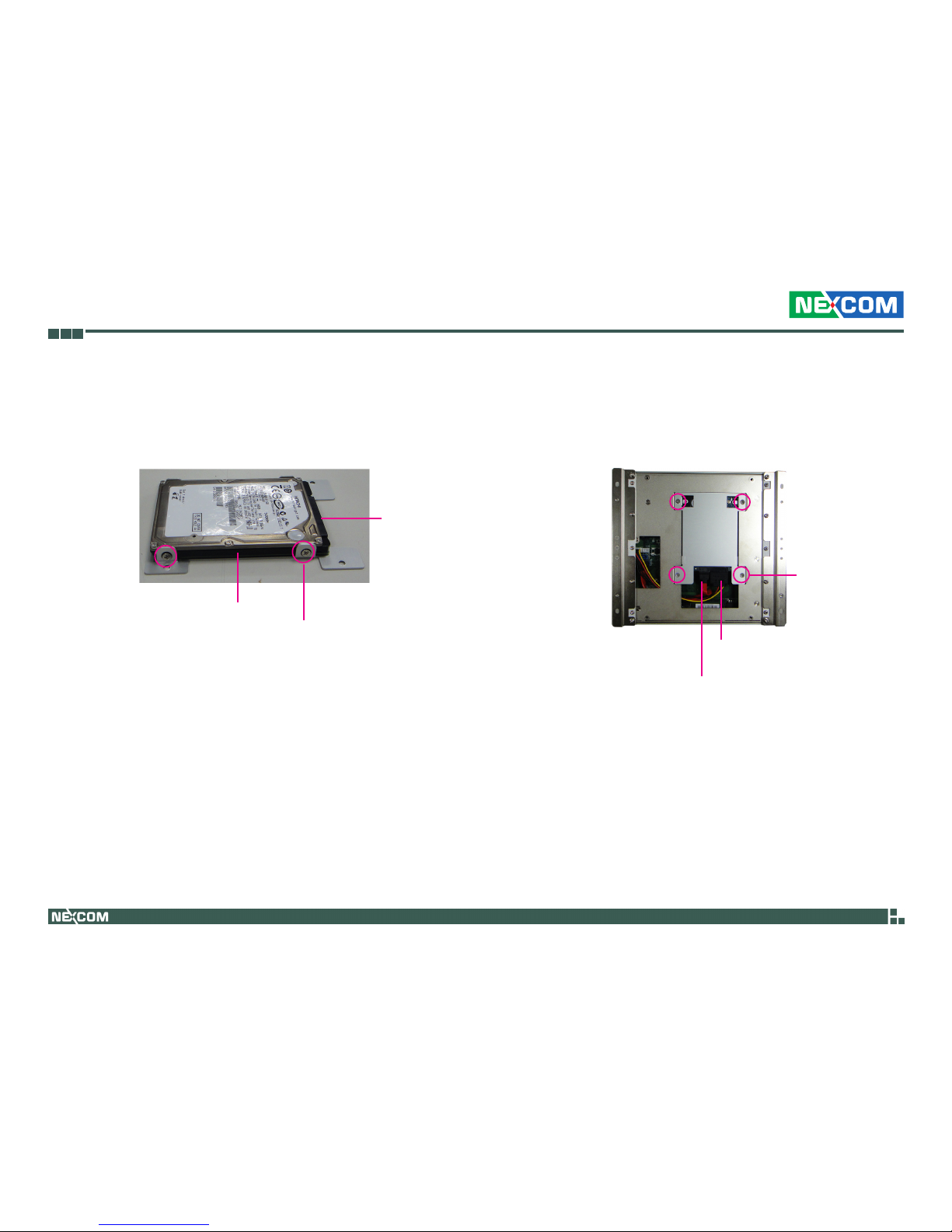

5. Place the SATA hard drive on the drive bay.

Align the mounting holes that are on the sides of the SATA drive with

the mounting holes on the drive bay and then use the provided mounting screws to secure the drive in place.

SATA drive

Connector side of the SATA drive

Mounting

screw

SATA power cable

SATA data

cable

6. Mount the drive bay back into the chassis and then secure it with mounting screws.

7. Connect the SATA data cable and SATA power cable to the connectors on the SATA drive.

Mounting screw

44

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Installing a SATA Hard Drive (NISE 2110/2110A)

1. With the bottom side of the chassis facing up, remove the mounting screws of the bottom cover and then remove the cover.

Bottom cover

Mounting screw

2. Remove the 4 mounting screws that secure the drive bay to the chassis and then remove the drive bay.

Drive bay

Mounting screw

45

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

3. The drive bay is used to hold a SATA hard drive. 4. Place the SATA hard drive on the drive bay. Align the mounting holes that are on the SATA drive with the mounting holes on the drive bay.

SATA drive

Drive bay

Connector side of the SATA drive

46

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

5. Turn to the other side of the bay and then use the provided mounting screws to secure the SATA drive to the drive bay.

Mounting screw

Connector side of the

SATA drive

6. Connect the SATA data cable and SATA power cable to the connectors on the SATA drive.

SATA power cable

SATA data cable

47

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

7. Mount the drive bay back into the chassis and then secure it with mounting screws.

Mounting screw

48

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

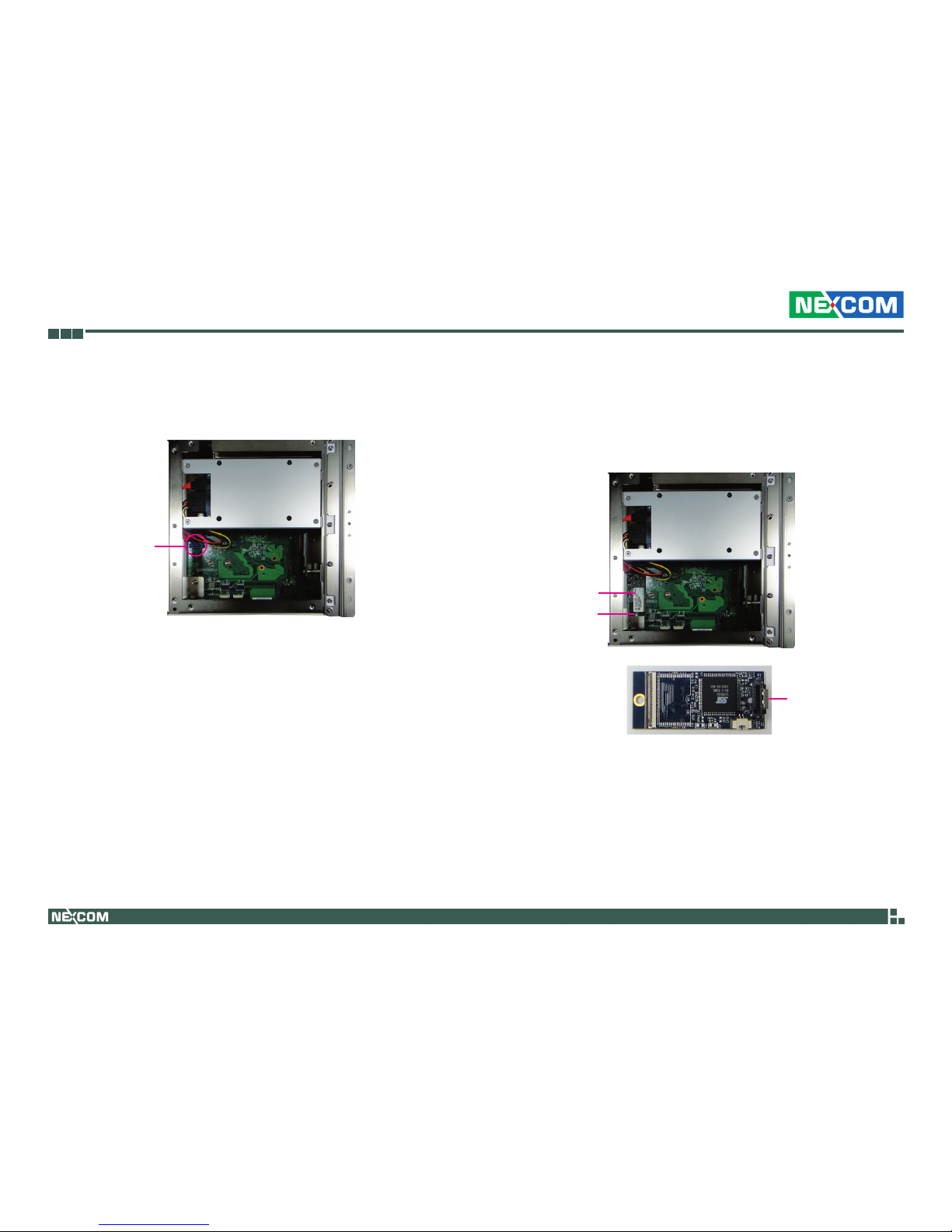

Installing a SATA DOM

1. Locate the SATA connector on the board.

SATA

connector

2. Align the SATA connector located on the solder side of the SATA DOM to the SATA connector that is on the board and then press it down firmly. Secure the SATA DOM with the provided mounting screw.

SATA DOM

Mounting screw

SATA connector

Solder side of

SATA DOM

49

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

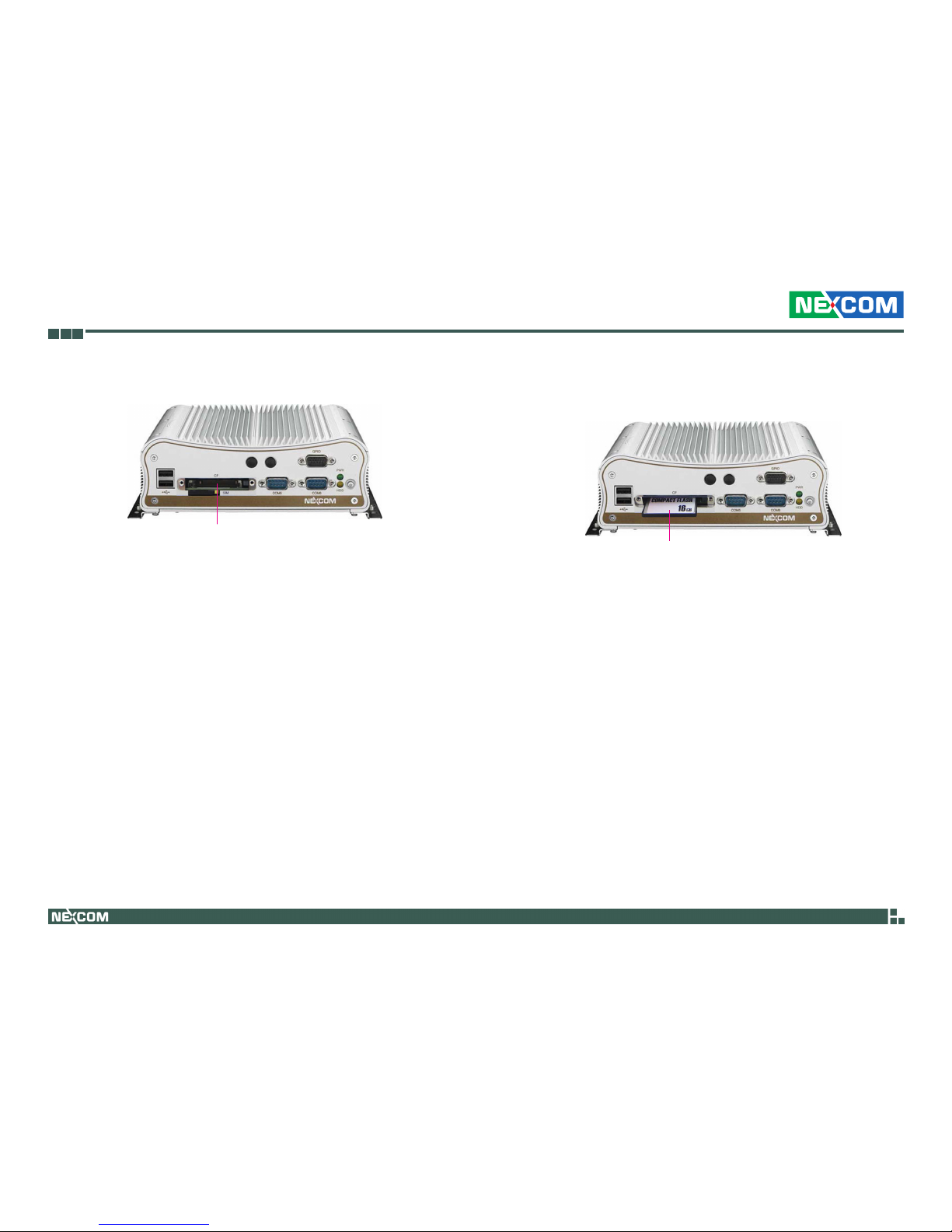

Installing a CompactFlash Card

1. The CompactFlash card must be inserted from the front side of the chassis.

The installation instructions in this section apply to both the NISE 2100/2100A and NISE 2110/2110A systems. Illustrations used are that of the NISE 2100/2100A.

CompactFlash

socket cover

2. Remove the mounting screws of the CompactFlash socket’s cover.

Mounting screw

50

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

3. Remove the socket’s cover to access the CompactFlash socket.

CompactFlash

socket

4. With the CompactFlash card’s label facing up, insert the card into the socket.

CompactFlash

card

51

Chapter 3: System Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

5. Push the eject button to take out the card.

Eject button

52

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

This chapter describes how to use the BIOS setup program for the NISE 2100/2110 Series. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals ▪ Video display type and display options ▪ Password protection from unauthorized use ▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

This program should be executed under the following conditions:

▪ When changing the system configuration ▪ When a configuration error is detected by the system and you are

prompted to make changes to the Setup program

▪ When resetting the system clock ▪ When redefining the communication ports to prevent any conflicts ▪ When making changes to the Power Management configuration ▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

Chapter 4: BIOS Setup

53

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of

beeps will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> Press the <Del> key to enter Setup:

Legends

Key Function

Right and Left arrows Moves the highlight left or right to select a

menu.

Up and Down arrows Moves the highlight up or down between sub-

menus or fields.

<Esc> Exits to the BIOS Setup Utility.

+ (plus key) Scrolls forward through the values or options of

the highlighted field.

- (minus key) Scrolls backward through the values or options of the highlighted field.

Tab Selects a field.

<F1> Displays General Help.

<F10> Saves and exits the Setup program.

<Enter> Press <Enter> to enter the highlighted sub-

menu.

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “u“ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

54

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from six setup functions and one exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

AMI BIOS

Displays the detected BIOS information.

Processor

Displays the detected processor information.

System Memory

Displays the detected system memory information.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

Use [ENTER], [TAB] or [SHIFT-TAB] to

select a eld.

Use [+] or [-] to

congure system Time.

BIOS SETUP UTILITY

ExitSecurity

← → Select Screen ↑↓ Select Item

+- Change Field

Tab Select Field F1 General Help F10 Save and Exit ESC Exit

System Overview

AMIBIOS

Version : 08.00.15 Build Date : 12/29/10 ID : N210A009

Processor

Intel(R) Atom(TM) CPU D525 Speed : 1800MHz

System Memory

Size : 2039MB

System Time

System Date

@ 1.80GHz

[14:06:01]

[Mon 02/07/2011]

Advanced Boot Chipset PCIPnPMain

55

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

IDE Conﬁguration

This section is used to configure the IDE drives.

USB Conﬁguration

This section is used to configure USB devices.

ACPI Conﬁguration

This section is used to configure the Advanced ACPI configuration.

Super IO Conﬁguration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Hardware Health Conﬁguration

This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.

Onboard LAN 1 and Onboard LAN 2

This section is used to enable or disable the onboard LAN.

Onboard LAN Boot ROM

Enable this field if you wish to use the boot ROM (instead of a disk drive) to boot-up the system and access the local area network directly.

If you wish to change the boot ROM’s settings, type the <Shift> and <F10> keys simultaneously when prompted during boot-up. Take note: you will be able to access the boot ROM’s program (by typing <Shift> + <F10>) only when this field is enabled.

Congure the IDE devices(s).

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Advanced Settings

WARNING: Setting wrong values in below sections

may cause system to malfunction.

u

IDE Conguration

u

USB Conguration

u

ACPI Conguration

u

SuperIO Conguration

u

Hardware Health Conguration

Onboard LAN 1 Onboard LAN 2 Onboard LAN Boot ROM

ExitSecurityAdvanced Boot Chipset PCIPnPMain

[Enabled] [Enabled] [Disabled]

56

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Disabled Compatible Enhanced

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

IDE Conguration

ATA/IDE Conguration [Enhanced]

Congure SATA as [IDE]

u

Primary IDE Master : [Not Detected]

u

Secondary IDE Master : [Not Detected]

u

Third IDE Master : [Not Detected]

IDE Detect Time Out (Sec) [35]

Advanced

IDE Conﬁguration

This section is used to configure the IDE drives.

ATA/IDE Conﬁguration

This field is used to configure the IDE drives. The options are Disabled, Compatible and Enhanced.

Conﬁgure SATA As

IDE This option configures the Serial ATA drives as Parallel ATA physi-

cal storage device.

AHCI This option configures the Serial ATA drives to use AHCI (Ad-

vanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

Primary IDE Master to Third IDE Master

When you enter the BIOS Setup Utility, the BIOS will auto detect the existing IDE devices then displays the status of the detected devices. To configure an IDE drive, move the cursor to a field then press <Enter>.

IDE Detect Time Out (Sec)

Selects the time out value for detecting ATA/ATAPI devices.

57

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

USB Conﬁguration

This section is used to configure USB devices.

Enables support for legacy USB. AUTO option disables legacy support if no USB devices are connected.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

USB Conguration

Module Version - 2.24.3-13.4

USB Devices Enabled:

1 Keyboard

Legacy USB Support [Enabled]

USB 2.0 Controller Mode [HiSpeed] BIOS EHCI Hand-Off [Enabled] Hotplug USB FDD Support [Auto]

u

USB Mass Storage Device Conguration

Advanced

Legacy USB Support

Due to the limited space of the BIOS ROM, the support for legacy USB keyboard (in DOS mode) is by default set to Disabled. With more BIOS ROM space available, it will be able to support more advanced features as well as provide compatibility to a wide variety of peripheral devices.

If a PS/2 keyboard is not available and you need to use a USB keyboard to install Windows (installation is performed in DOS mode) or run any program under DOS, set this field to Enabled.

USB 2.0 Controller Mode

Sets the USB 2.0 controller mode to HiSpeed (480 Mbps) or FullSpeed (12 Mbps).

BIOS EHCI Hand-Off

Enable this field when using operating systems without the EHCI handoff support.

Hotplug USB FDD Support

Enables support for USB FDD hot plug.

58

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Super IO Conﬁguration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Allows BIOS to select Serial Port1 Base Address.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Congure ITE8783 Super IO Chipset

Serial Port1 Address [3F8]

Serial Port1 IRQ [3] Serial Port1 Frequency Mode [RS232] Serial Port2 Address [2F8] Serial Port2 IRQ [4] Serial Port2 Frequency Mode [RS232] Serial Port3 Address [3E8] Serial Port3 IRQ [10] Serial Port4 Address [2E8] Serial Port4 IRQ [11] Serial Port5 Address [2F0] Serial Port5 IRQ [5] Serial Port6 Address [2E0] Serial Port6 IRQ [7]

Advanced

Serial Port1 Address to Serial Port6 Address

Auto The system will automatically select an I/O address for the on-

board serial port.

3F8, 2F8, 3E8, 2E8, 2F0, 2E0 Allows you to manually select an I/O ad-

dress for the onboard serial port.

Disabled Disables the onboard serial port.

Serial Port1 IRQ to Serial Port6 IRQ

These fields are used to select an IRQ for the onboard serial port 1, 2, 3, 4, 5 or 6.

Serial Port1 Frequency Mode

This field is used to select the frequency mode of serial port 1. The options are RS232, RS422 and RS485.

Allows BIOS to select Serial Port1 Base Address.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Congure ITE8783 Super IO Chipset

Serial Port1 Address [3F8] Serial Port1 IRQ [3]

Serial Port1 Frequency Mode [RS232]

Serial Port2 Address [2F8] Serial Port2 IRQ [4] Serial Port2 Frequency Mode [RS232] Serial Port3 Address [3E8] Serial Port3 IRQ [10] Serial Port4 Address [2E8] Serial Port4 IRQ [11] Serial Port5 Address [2F0] Serial Port5 IRQ [5] Serial Port6 Address [2E0] Serial Port6 IRQ [7]

Advanced

RS232

RS422 RS485

Options

59

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

If you selected RS422 or RS485 in the “Serial Port1 Frequency Mode” and/or “Serial Port2 Frequency Mode” field, the “Serial Port1 Frequency Select” and/or “Serial Port2 Frequency Select” field will appear prompting you to select the frequency setting. The options are 115200 bps and 921600 bps.

Serial Port2 Frequency Mode

This field is used to select the frequency mode of serial port 2. The options are RS232, RS422 and RS485.

Allows BIOS to select Serial Port1 Base Address.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Congure ITE8783 Super IO Chipset

Serial Port1 Address [3F8] Serial Port1 IRQ [3] Serial Port1 Frequency Mode [RS232] Serial Port2 Address [2F8] Serial Port2 IRQ [4]

Serial Port2 Frequency Mode [RS232]

Serial Port3 Address [3E8] Serial Port3 IRQ [10] Serial Port4 Address [2E8] Serial Port4 IRQ [11] Serial Port5 Address [2F0] Serial Port5 IRQ [5] Serial Port6 Address [2E0] Serial Port6 IRQ [7]

Advanced

RS232

RS422 RS485

Options

Allows BIOS to select Serial Port1 Base Address.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Congure ITE8783 Super IO Chipset

Serial Port1 Address [3F8] Serial Port1 IRQ [3] Serial Port1 Frequency Mode [RS232] Serial Port1 Frequency Select [115200 bps] Serial Port2 Address [2F8] Serial Port2 IRQ [4] Serial Port2 Frequency Mode [RS232]

Serial Port2 Frequency Select [

Serial Port3 Address Serial Port3 IRQ Serial Port4 Address Serial Port4 IRQ Serial Port5 Address Serial Port5 IRQ [5] Serial Port6 Address [2E0] Serial Port6 IRQ [7]

Advanced

115200 bps

921600 bps

Options

60

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

Hardware Health Conguration

H/W Health Function [Enabled]

FAN Mode Setting [Full On mode]

CPU Temperature : 40oC/104oF System Temperature : 27oC/80oF

Fan Speed : N/A

CPU Core : 1.152 V +3.30V : 3.344 V +12.0V : 11.827 V +5.00V : 5.068 V

Advanced

Hardware Health Conﬁguration

This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.

H/W Health Function

Enables or disables the hardware monitoring function.

CPU Temperature and System Temperature

Detects and displays the current temperature of the CPU and the internal temperature of the system.

Enables Hardware Health Monitoring Device.

CPU Core to +5.00V

Detects and displays the output voltages.

61

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Boot

Boot Settings Conﬁguration

This section is used to configure settings during system boot.

Boot Device Priority

This section is used to select the boot priority sequence of the devices.

Removable Drives

This section is used to select the boot priority sequence of the removable drives.

Congure settings during system boot.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Boot Settings

u

Boot Settings Conguration

u

Boot Device Priority

u

Removable Drives

ExitSecurityAdvanced Boot Chipset PCIPnPMain

Boot Settings Conﬁguration

This section is used to configure settings during system boot.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

Boot Settings Conguration

Quick Boot

Quiet Boot Bootup Num-Lock PS/2 Mouse Support System Keyboard Hit ‘DEL’ Message Display Interrupt 19 Capture

[Enabled]

[Disabled] [On] [Enabled]

[Present]

[Enabled] [Disabled]

Quick Boot

When Enabled, the BIOS will shorten or skip some check items during POST. This will decrease the time needed to boot the system.

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

Allows BIOS to skip certain tests while booting. This will decrease the time needed to boot the system.

Boot

62

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Bootup Num-Lock

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

PS/2 Mouse Support

The options are Auto, Enabled and Disabled.

System Keyboard

Detects the system keyboard.

Hit ‘DEL’ Message Display

When enabled, the system displays the “Press DEL to run Setup” message during POST.

Interrupt 19 Capture

When enabled, it allows the optional ROM to trap interrupt 19.

Boot Device Priority

This section is used to select the boot priority sequence of the devices.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

Boot Device Priority

1st Boot Device

2nd Boot Device 3rd Boot Device

[USB:JetFlash Trans]

Species the boot sequence from the available devices.

A device enclosed in parenthesis has been disabled in the corresponding type menu.

1st Boot Device to 3rd Boot Device

Selects the drive to boot rst, second and third in the “1st Boot Device”, “2nd Boot Device” and “3rd Boot Device” elds respectively. The BIOS will boot the operating system according to the sequence of the drive selected.

Boot

63

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Chipset

This section is used to configure the system based on the specific features of the chipset.

Setting incorrect field values may cause the system to malfunction.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Congure North Bridge features.

Advanced Chipset Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

u

North Bridge Conguration

u

South Bridge Conguration

North Bridge Conﬁguration

This section is used to configure the north bridge features.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

North Bridge Chipset Conguration

PCI MMIO Allocation: 4GB to 3072MB

Initiate Graphic Adapter [IGD]

Internal Graphics Mode Select [Enabled, 8MB]

DVMT Mode Select [DVMT Mode] DVMT/FIXED Memory [256MB]

Boot Display Device [CRT + LVDS] Flat Panel Type [1024x768 18bit]

Initiate Graphic Adapter

Selects the graphics controller to use as the primary boot device.

Internal Graphics Mode Select

Selects the amount of system memory used by the internal graphics device.

Select which graphics controller to use as the primary boot device.

Chipset

ExitSecurityAdvanced Boot Chipset PCIPnPMain

64

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

DVMT Mode Select

The options are Fixed mode and DVMT mode.

DVMT/Fixed Memory

This field is used to select the graphics memory size used by DVMT/Fixed mode.

Boot Display Device

This field is used to select the type of display to use when the system boots.

Flat Panel Type

South Bridge Conﬁguration

This section is used to configure the south bridge features.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

South Bridge Chipset Conguration

USB Functions [10 USB Ports]

USB 2.0 Controller [Enabled]

HDA Controller [Enabled] SMBUS Controller [Enabled]

Restore on AC Power Loss [Power On]

Power Type [ATX]

PCIE Ports Conguration

PCIE Port 0 [Auto] PCIE Port 1 [Auto]

USB Functions

Enables or disables USB devices.

USB 2.0 Controller

This field is used to enable or disable the Enhanced Host Controller Interface (USB 2.0).

HDA Controller

Enables or disables the onboard audio.

Disabled

2 USB Ports

4 USB Ports 6 USB Ports 8 USB Ports 10 USB Ports

Chipset

Selects the type of flat panel connected to the system. The supported LVDS are 640x480 18bit, 800x600 18bit, 1024x768 18bit and 1280x800 18bit.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

North Bridge Chipset Conguration

PCI MMIO Allocation: 4GB to 3072MB

Initiate Graphic Adapter [IGD] Internal Graphics Mode Select [Enabled, 8MB]

DVMT Mode Select DVMT/FIXED Memory

Boot Display Device

Flat Panel Type

Select which graphics controller to use as the primary boot device.

Chipset

640x480 18bit S 800x600 18bit S

1024x768 18bit S

1280x800 18bit S

Options

65

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

SMBUS Controller

Enables or disables the SMBUS.

Restore On AC Power Loss

Power Type

Selects the type of power used.

PCIE Port 0 and PCIE port 1

Configures the PCIE ports.

Power Off When power returns after an AC power failure, the system’s

power is off. You must press the Power button to power-on the system.

Power On When power returns after an AC power failure, the system

will automatically power-on.

Last State When power returns after an AC power failure, the system

will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

South Bridge Chipset Conguration

USB Functions [10 USB Ports]

USB 2.0 Controller [Enabled]

HDA Controller [Enabled] SMBUS Controller [Enabled]

Restore on AC Power Loss [Power On]

Power Type [ATX]

PCIE Ports Conguration

PCIE Port 0 [Auto] PCIE Port 1 [Auto]

Disabled

2 USB Ports

4 USB Ports 6 USB Ports 8 USB Ports 10 USB Ports

Chipset

Power Off

Power On

Last State

Options

66

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

PCIPnP

This section is used to configure settings for PCI/PnP devices.

Setting incorrect field values may cause the system to malfunction.

Plug & Play O/S

Yes Configures Plug and Play (PnP) devices that are not required to boot in

a Plug and Play supported operating system.

No The BIOS configures all the devices in the system.

NO: let the BIOS congure all the devices in the system. YES: lets the operating system congure Plug and Play (PnP) devices not required for boot if your system has a Plug and Play operating system.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Advanced PCI/PnP Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

Plug & Play O/S [No]

PCI Latency Timer [64]

IRQ3 [Available] IRQ4 [Available] IRQ5 [Available] IRQ7 [Available] IRQ9 [Available] IRQ10 [Available] IRQ11 [Available] IRQ14 [Available] IRQ15 [Available]

ExitSecurityAdvanced Boot Chipset PCIPnPMain

PCI Latency Timer

This feature is used to select the length of time each PCI device will control the bus before another takes over. The larger the value, the longer the PCI device can retain control of the bus. Since each access to the bus comes with an initial delay before any transaction can be made, low values for the PCI Latency Timer will reduce the effectiveness of the PCI bandwidth while higher values will improve it.

IRQ3 to IRQ15

Available The specified IRQ is available for PCI/PnP devices. Reserved The specified IRQ is reserved for Legacy ISA devices.

67

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Security

Change Supervisor Password

This field is used to set or change the supervisor password.

To set a new password:

1. Select the Change Supervisor Password field then press <Enter>.

2. Type your password in the dialog box then press <Enter>. You are limited to eight letters/numbers.

3. Press <Enter> to confirm the new password.

4. When the Password Installed dialog box appears, select OK.

To change the password, repeat the same steps above.

To clear the password, select Change Supervisor Password then press <Enter>. The Password Uninstalled dialog box will appear.

If you forgot the password, you can clear the password by erasing the CMOS RTC (Real Time Clock) RAM using the RTC Clear jumper. Refer to chapter 2 for more information.

Change User Password

This field is used to set or change the user password.

To set a new password:

1. Select the Change User Password field then press <Enter>.

2. Type your password in the dialog box then press <Enter>. You are limited to eight letters/numbers.

3. Press <Enter> to confirm the new password.

4. When the Password Installed dialog box appears, select OK.

To change the password, repeat the same steps above.

Install or Change the password.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

Enter Change F1 General Help F10 Save and Exit ESC Exit

Security Settings

Supervisor Password : Not Installed User Password : Not Installed

Change Supervisor Password

Change User Password

ExitSecurityAdvanced Boot Chipset PCIPnPMain

68

Chapter 4: BIOS Setup

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Exit

Save Changes and Exit

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F10> to save and exit Setup.

Discard Changes and Exit

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

Discard Changes

To discard the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes to discard all changes made and restore the previously saved settings.

Load Optimal Defaults

Loads the optimal default values from the BIOS ROM.

Load Failsafe Defaults

Loads the fail-safe default values from the BIOS ROM.

Exit system setup after saving the changes.

F10 key can be used for this operation.

BIOS SETUP UTILITY

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Exit Options

Save Changes and Exit

Discard Changes and Exit Discard Changes

Load Optimal Defaults Load Failsafe Defaults

ExitSecurityAdvanced Boot Chipset PCIPnPMain

69

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Appendix A: Power Consumption

Appendix A: power Consumption

Test Conﬁguration

System Conﬁguration Sys#1

Chassis CHASSIS NISE 2110 Ver. A

CPU Intel® Atom™ processor D525 (1M Cache, 1.80 GHz)

Memory Apacer 1GB SOD PC3-10600 (industrial)

HDD N/A

FDD N/A

CD-ROM N/A

CompactFlash device Apacer 8G (industrial)

Power Supply POWER ADAPTER SPI:G.P FSP65-AAB(N091)

Add-on Card N/A

CPU Cooler NISE 2100 HEATSINK

System Fan N/A

Keyboard LEMEL B-5201-P

Mouse GENIVS EASY MOUSE PS/2

70

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Appendix A: Power Consumption

Power Consumption Measurement

Purpose

The purpose of the power consumption test is to verify the power dissipation of the system and the load of the power supply.

Test Equipment

PROVA CM-07 AC/DC CLAMP METER

Device Under Test

DUT: Sys #1

Test Procedure

1. Power up the DUT and then boot Windows XP.

2. Enter the standby mode (HDD power down).

3. Measure the power consumption and record it.

4. Run the Burn-in test program to apply 100% full loading.

5. Run the Intel Kpower program.

5. Run the LAN Packet Counter and Receive program.

Test Data

Sys #1

+12V

Full-Loading Mode 2.18A

Total 26.16W

Standby Mode 0.9A

Total 10.8W

71

Appendix B: GPI/O Programming Guide

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Appendix B: Gpi/O prOGrAmminG Guide

GPIO Programming Sample Code

#define GPIO_PORT 0x284

#define GPO3 (0x01 << 4)

#define GPO5 (0x01 << 5)

#define GPO7 (0x01 << 6)

#define GPO9 (0x01 << 7)

#define GPO3_HI outportb(GPIO_PORT, 0x10)

#define GPO3_LO outportb(GPIO_PORT, 0x00)

#define GPO5_HI outportb(GPIO_PORT, 0x20)

#define GPO5_LO outportb(GPIO_PORT, 0x00)

#define GPO7_HI outportb(GPIO_PORT, 0x40)

#define GPO7_LO outportb(GPIO_PORT, 0x00)

#define GPO9_HI outportb(GPIO_PORT, 0x80)

#define GPO9_LO outportb(GPIO_PORT, 0x00)

void main(void)

GPI/O (General Purpose Input/Output) pins are provided for custom system design. This appendix provides definitions and its default setting for the ten GPI/O pins in the NISE 2100/2110 Series. The pin definition is shown in the following table:

Pin GPI/O

Mode

Power On

Default

Address Pin GPI/O

Mode

Power On

Default

Address

1 VCC - - 2 GND - -

3 GPO Low 284h (Bit4) 4 GPI High 284h (Bit0)

5 GPO Low 284h (Bit5) 6 GPI High 284h (Bit1)

7 GPO Low 284h (Bit6) 8 GPI High 284h (Bit2)

9 GPO Low 284h (Bit7) 10 GPI High 284h (Bit3)

J8 - GPI/O connector

Control the GPO pin (3/5/7/9) level from I/O port 284h bit (4/5/6/7). The bit Set/Clear indicated output High/Low.

72

Appendix B: GPI/O Programming Guide

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

{

GPO3_HI;

GPO5_LO;

GPO7_HI;

GPO9_LO;

}

73

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

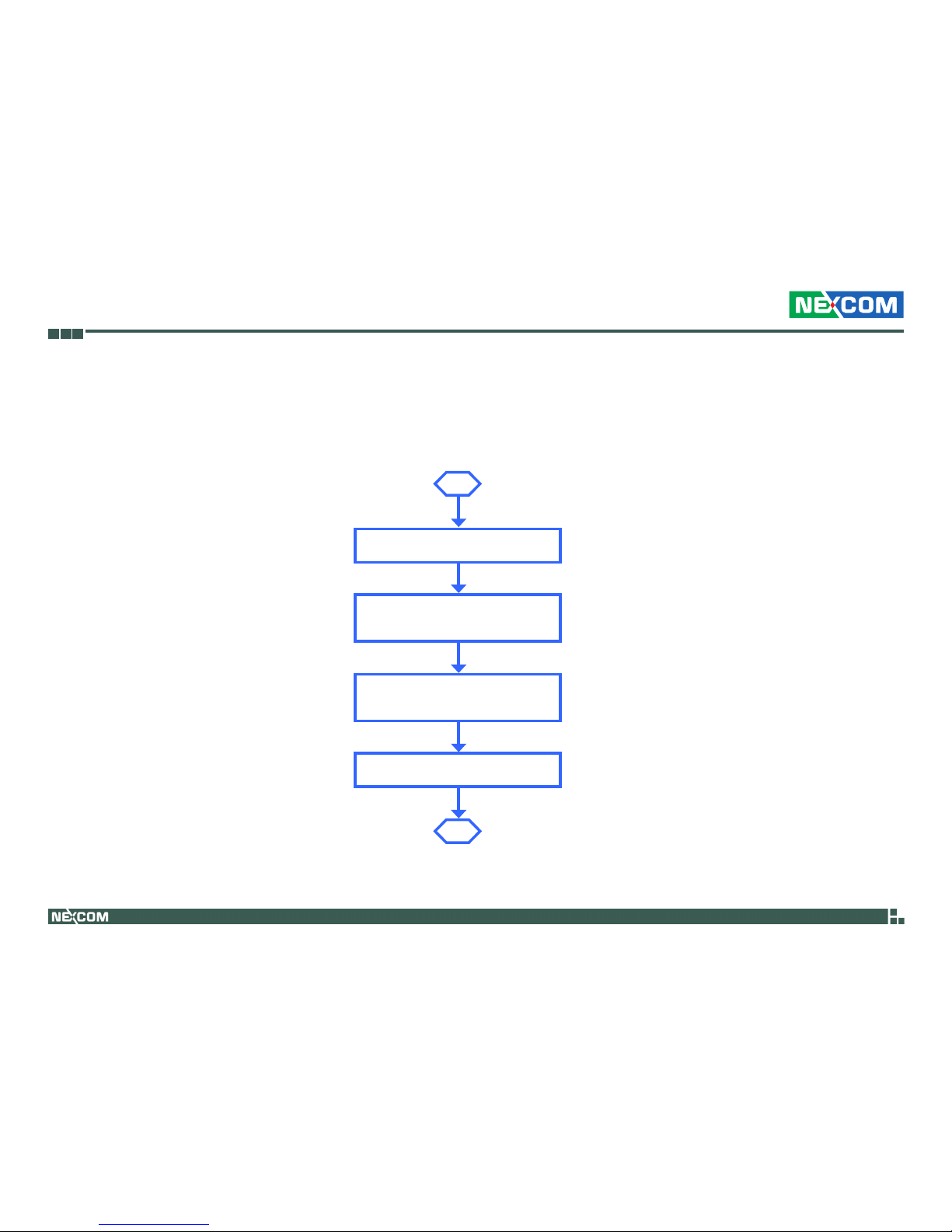

Appendix C: Watchdog Timer Setting

Appendix C: WAtChdog timer Setting

Start

See “SetupWDT” procedure #Setup Watchdog Timer Environment

Step 1

Step 2

See “TimeBaseWDT” procedure #Initial Watchdog Timer Users can select second or minute

Step 3

See “TimeCountWDT” procedure #Set Watchdog Timer Time-out Value Users can set time-out value

Step 4

See ExitSetup procedure #Exit Setup Environment

End

74

NISE 2100, NISE 2100A, NISE 2110, NISE 2110A User Manual

Appendix C: Watchdog Timer Setting

ITE8783 WatchDog Programming Guide

#define SUPERIO_PORT 0x2E #define WDT_SET 0x72 #define WDT_VALUE 0x73 void main(void) { #Enter SuperIO Configuration outportb(SUPERIO_PORT, 0x87); outportb(SUPERIO_PORT, 0x01); outportb(SUPERIO_PORT, 0x55); outportb(SUPERIO_PORT, 0x55); # Set LDN outportb(SUPERIO_PORT,0x07); outportb(SUPERIO_PORT+1 ,0x07); # Set WDT setting outportb(WDT_SET,0xC0); # Use the second to come down # If choose the Minute, change value to 0x40 # Set WDT sec/min outportb(WDT_VALUE,0x05); #Set 5 seconds }
