Nexcom NEX 885 User Manual

NEXCOM International Co., Ltd.

Published February 2016

www.nexcom.com

IoT Automation Solutions Business Group

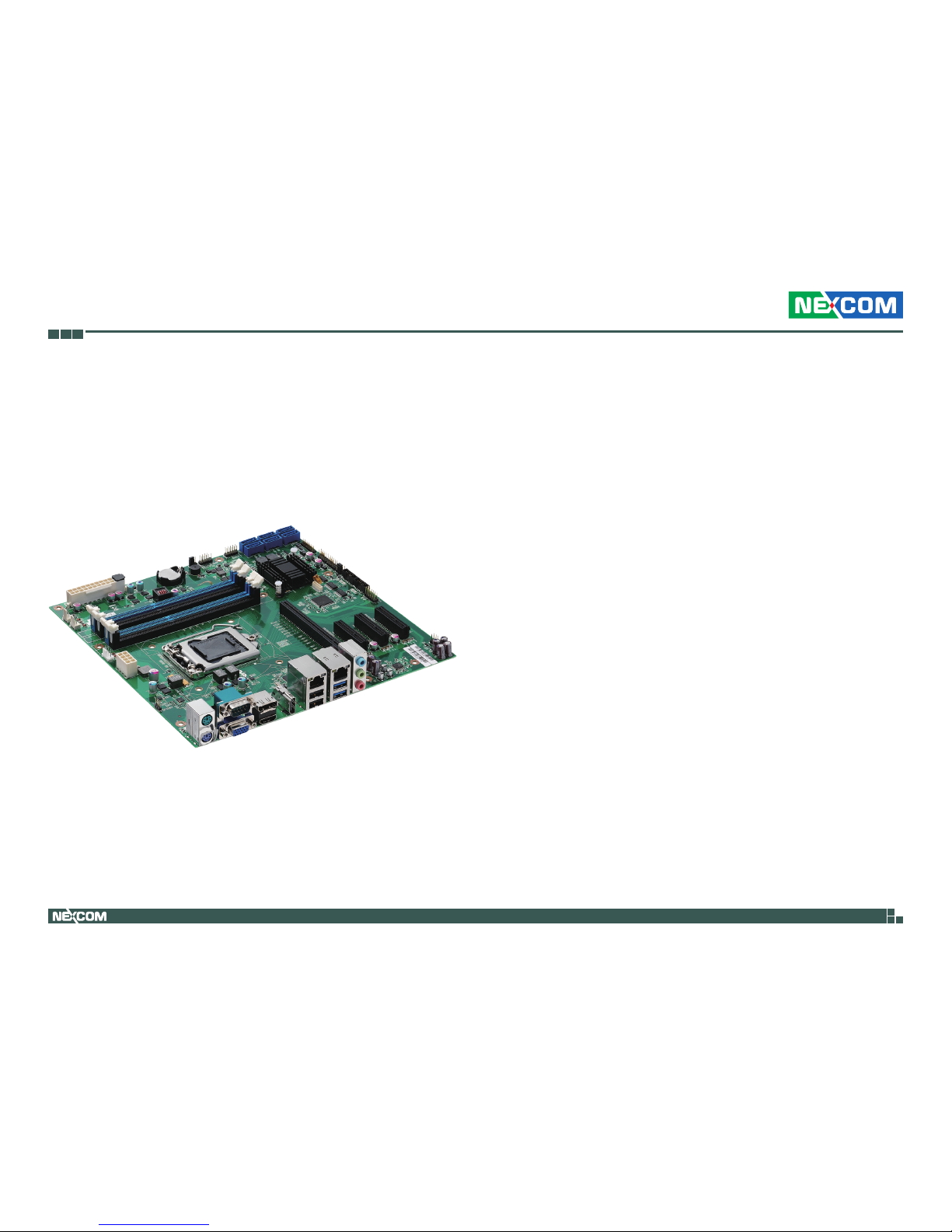

Embedded Computing (Industrial Motherboard) NEX 885

User Manual

ii

NEX 885 User Manual

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents .................................................................................xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Hardware Specifications ..........................................................................2

Knowing Your NEX 885 ..........................................................................4

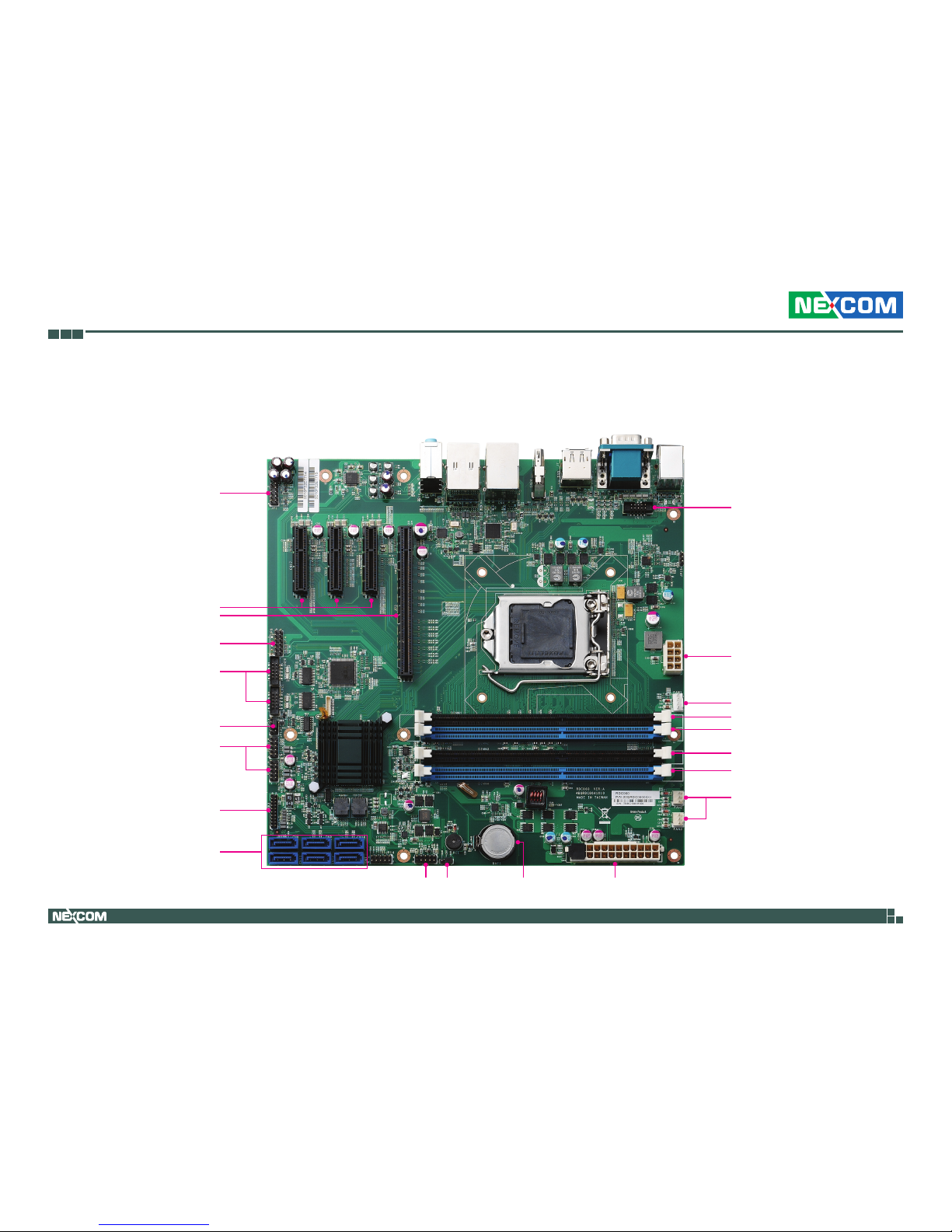

Top View ............................................................................................. 4

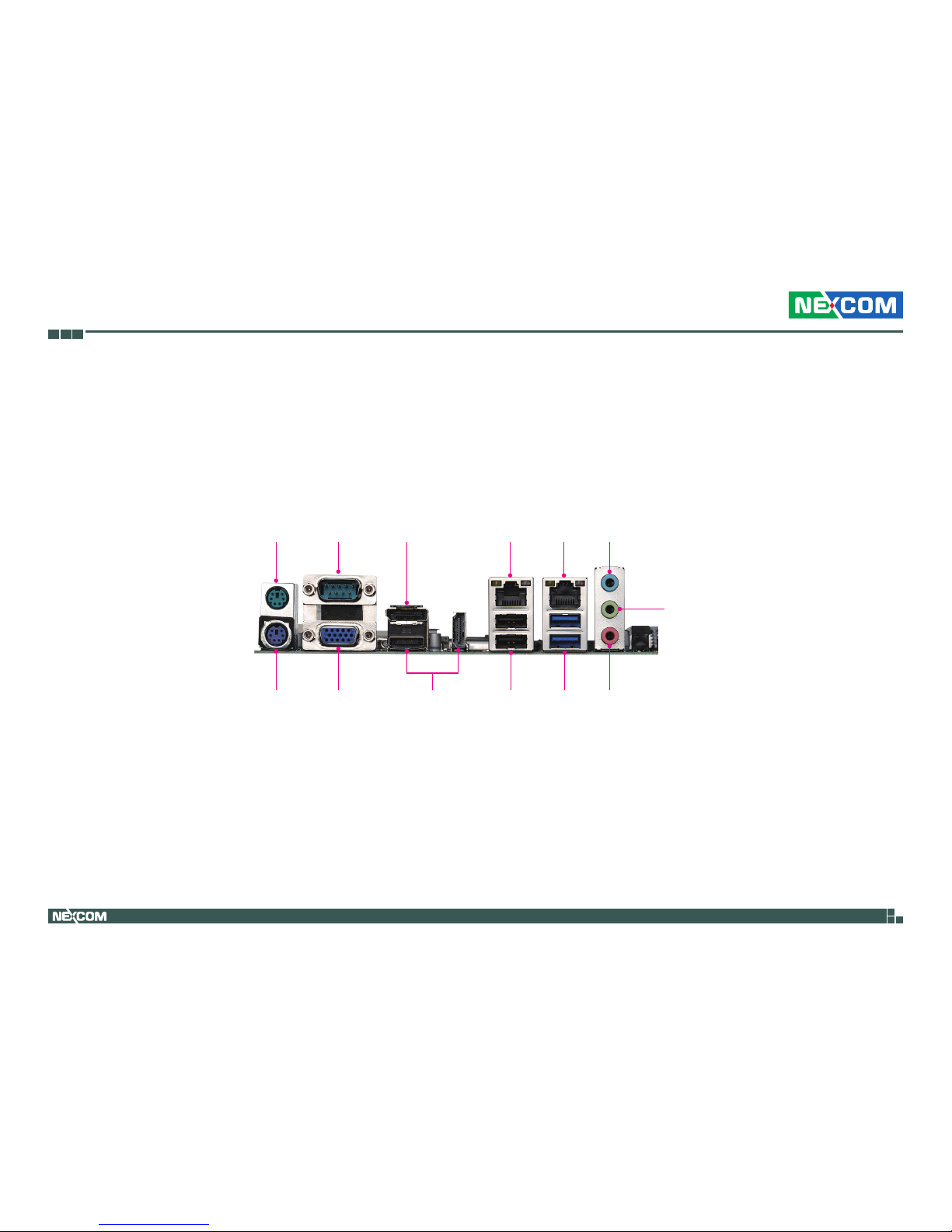

Edge I/O View......................................................................................5

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................6

Precautions ............................................................................................6

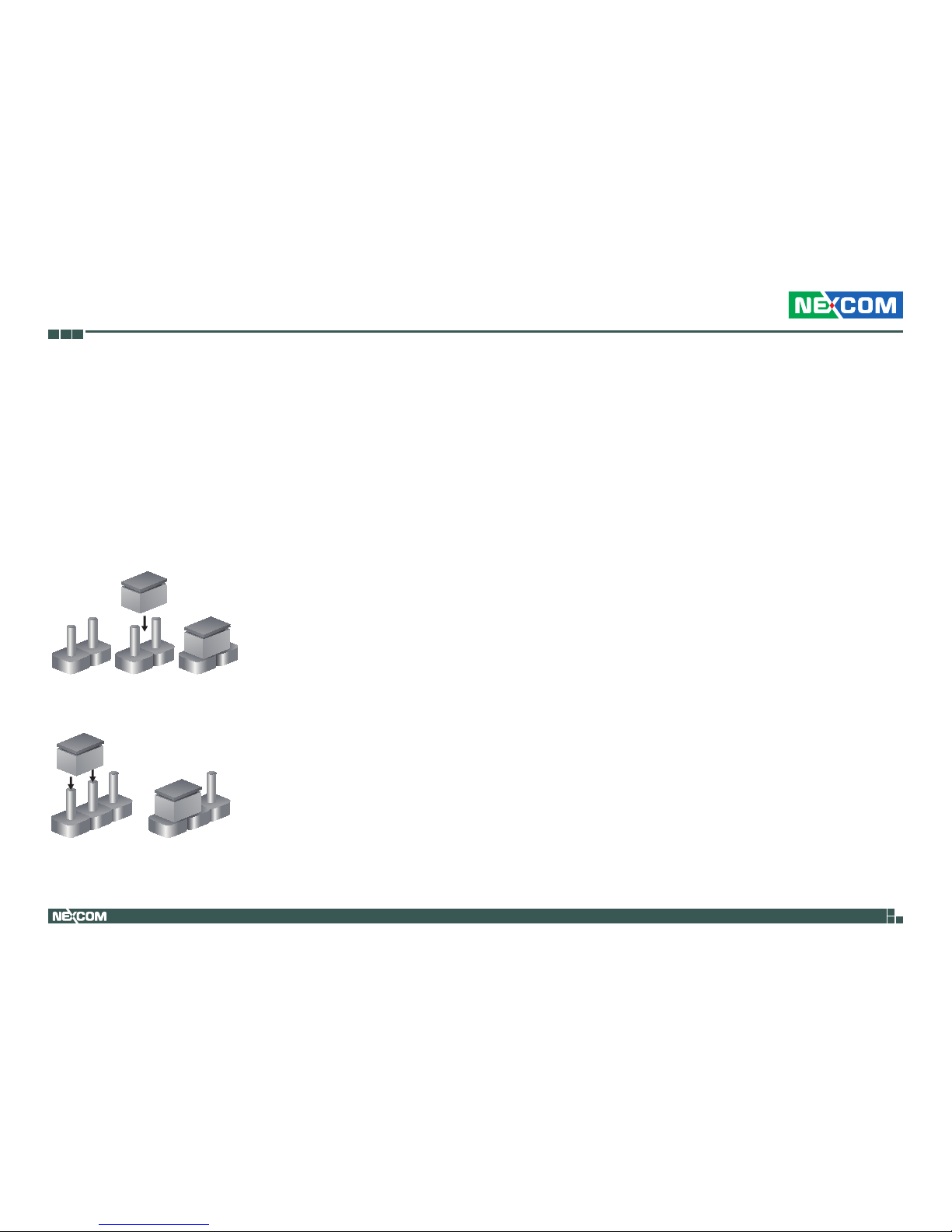

Jumper Settings ......................................................................................7

Locations of the Jumpers and Connectors ...............................................8

Jumpers ..................................................................................................9

CMOS Clear Select ..............................................................................9

AT/ATX Power Type Select ....................................................................9

Connector Pin Definitions .....................................................................10

External I/O Interfaces ........................................................................ 10

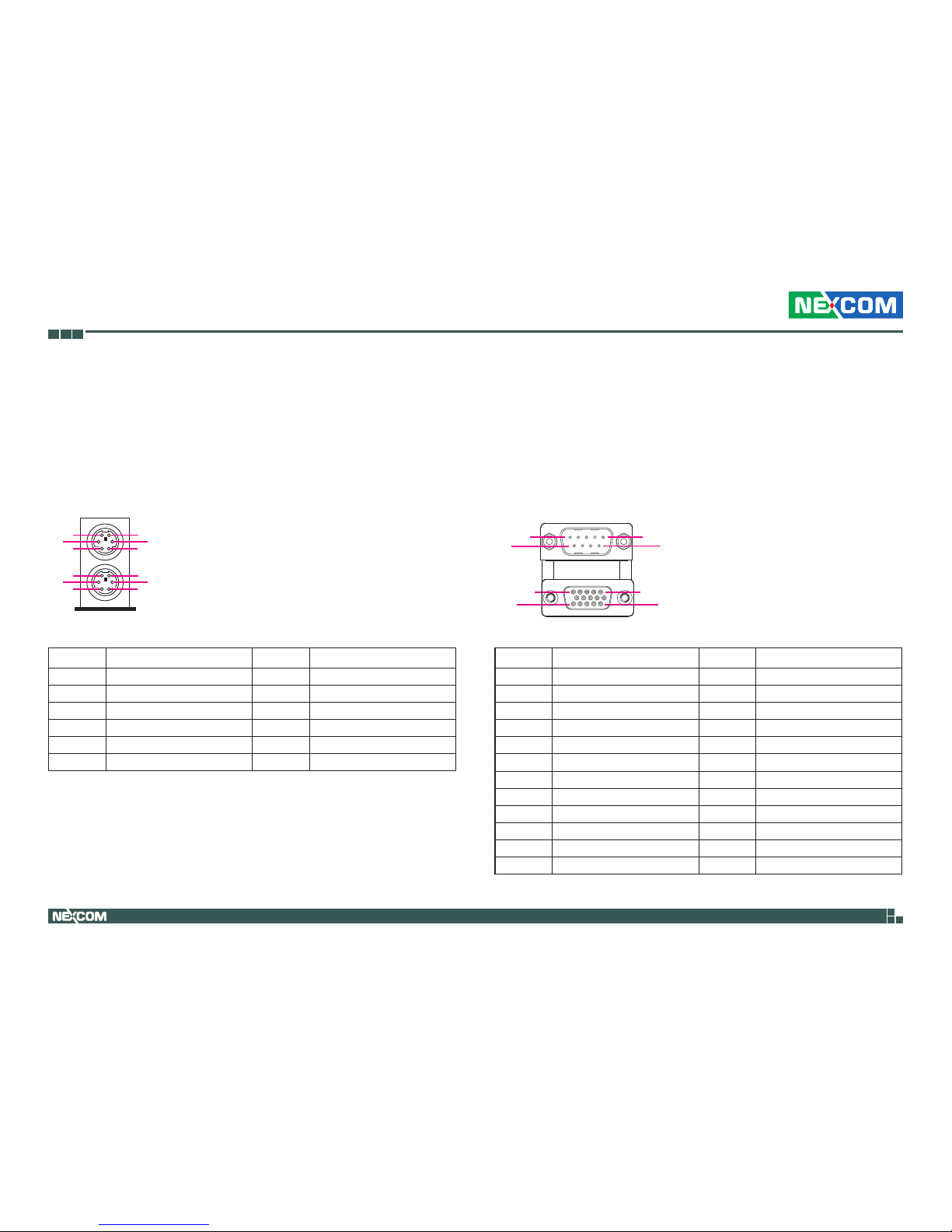

PS/2 Keyboard and Mouse .............................................................10

COM1 and VGA Ports ....................................................................10

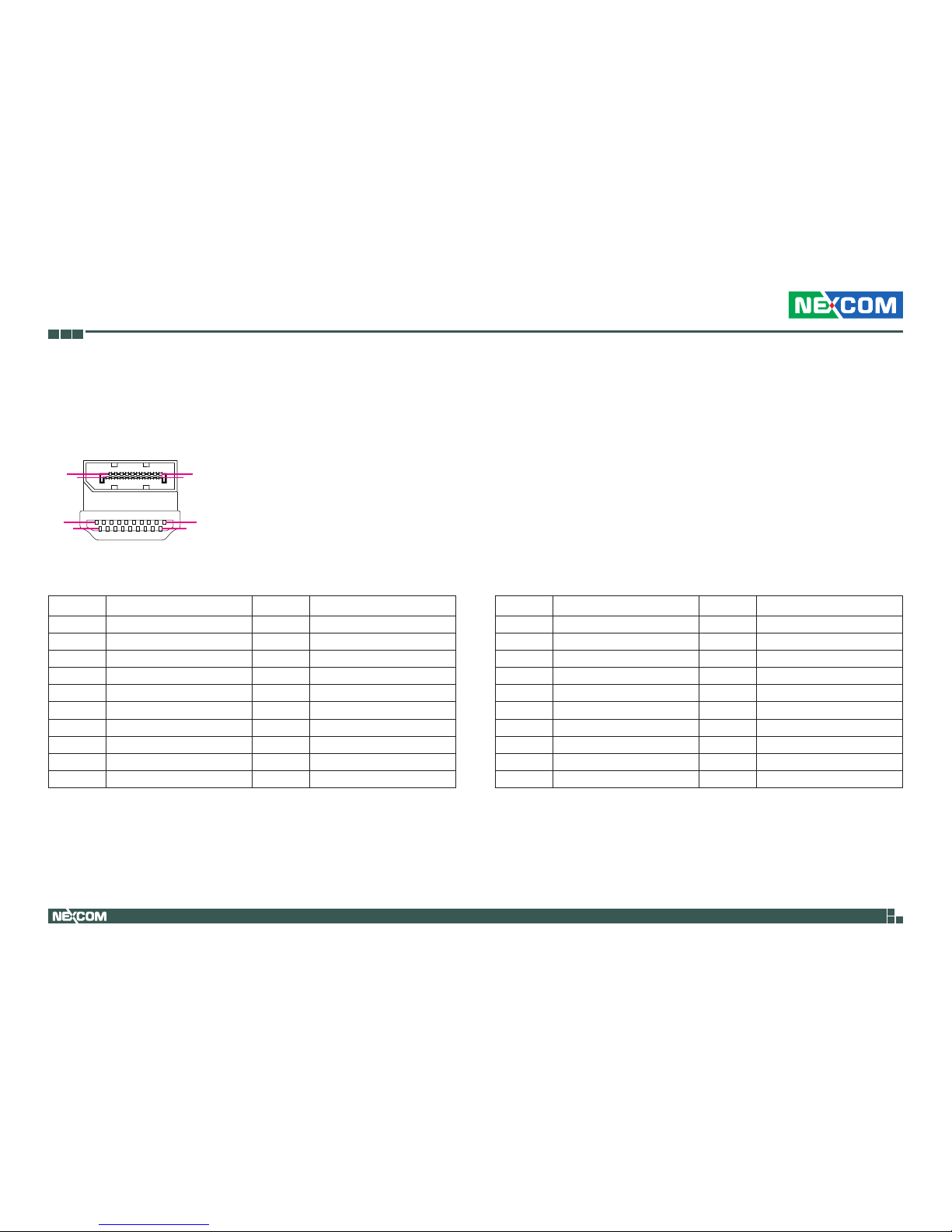

DisplayPort and HDMI ....................................................................11

HDMI .............................................................................................12

LAN and USB 2.0 Ports ...................................................................12

LAN and USB 3.0 Ports ...................................................................13

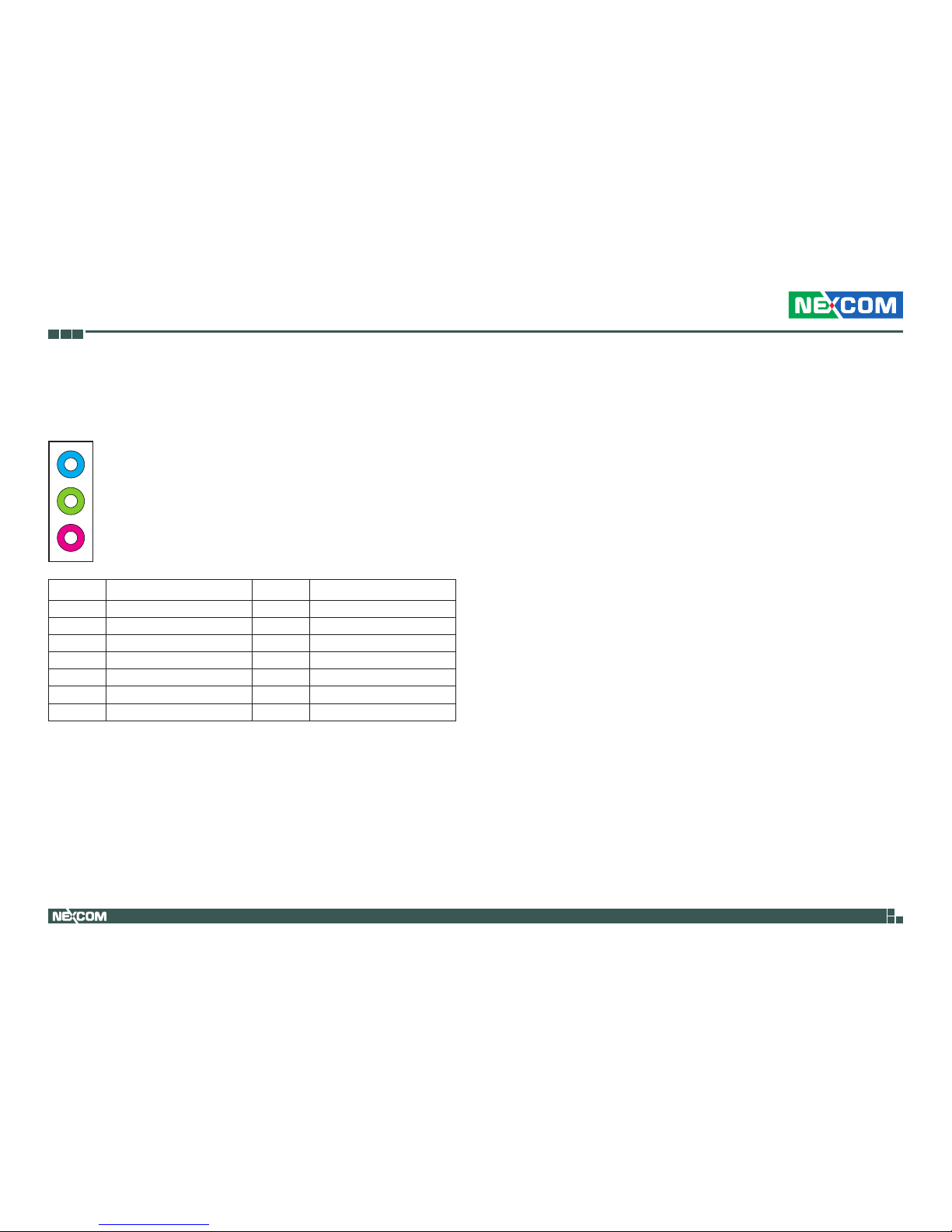

Audio Connectors ..........................................................................14

Internal Connectors ........................................................................... 15

SATA 3.0 Connectors .....................................................................15

USB Pin Headers .............................................................................15

FP Audio Connector .......................................................................16

FP Control Connector .....................................................................16

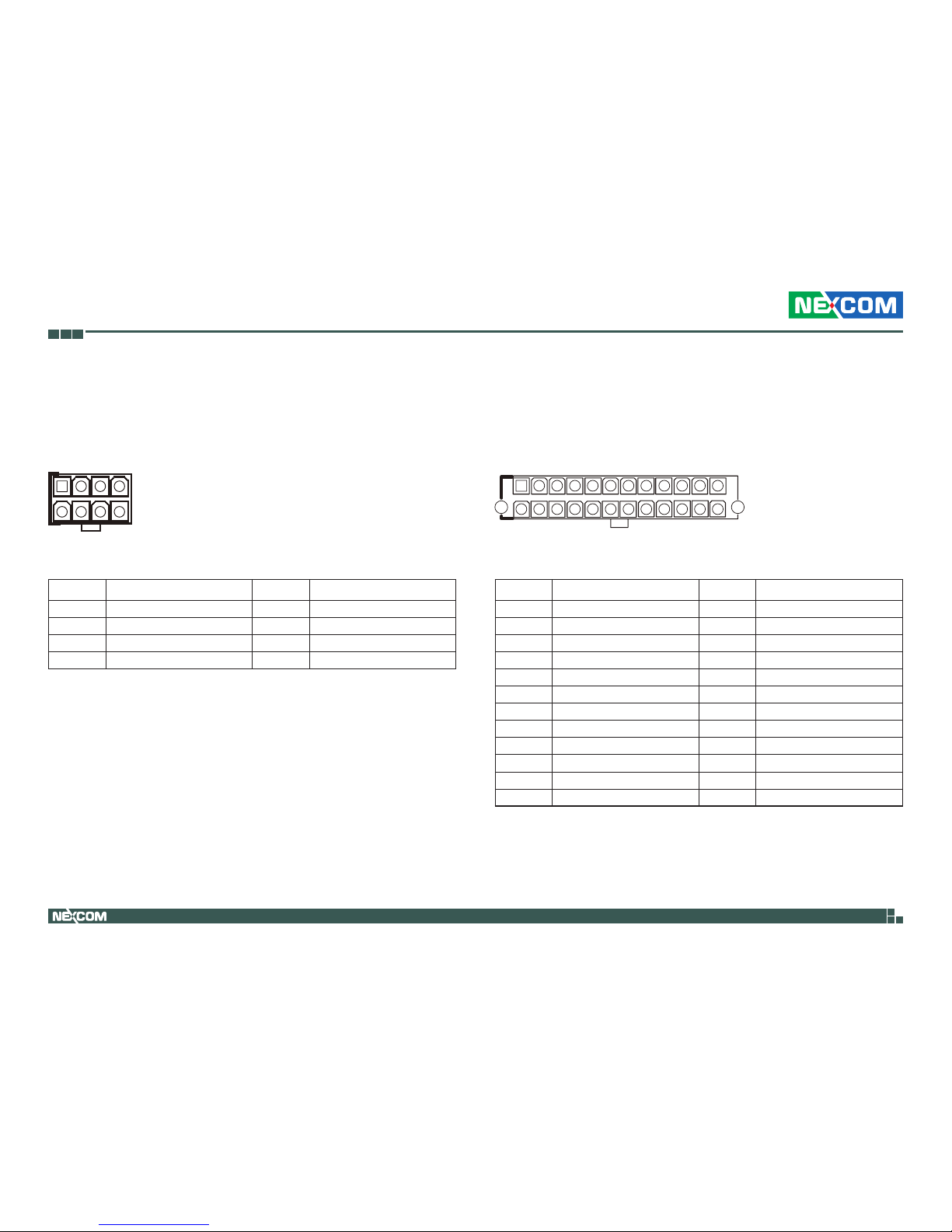

ATX Power Connector ....................................................................17

iii

NEX 885 User Manual

Content

SMBus Connector ..........................................................................18

GPIO Connector .............................................................................18

Port 80 Debug Connector ..............................................................19

CPU Fan Connector ........................................................................19

System Fan Connectors ..................................................................20

USB 3.0 Connector ........................................................................20

COM Port Box Headers ..................................................................21

PEG x16 Slot ..................................................................................22

PCIe x4 Slot ....................................................................................24

PCIe x4 Slot ....................................................................................25

PCIe x4 Slot ....................................................................................26

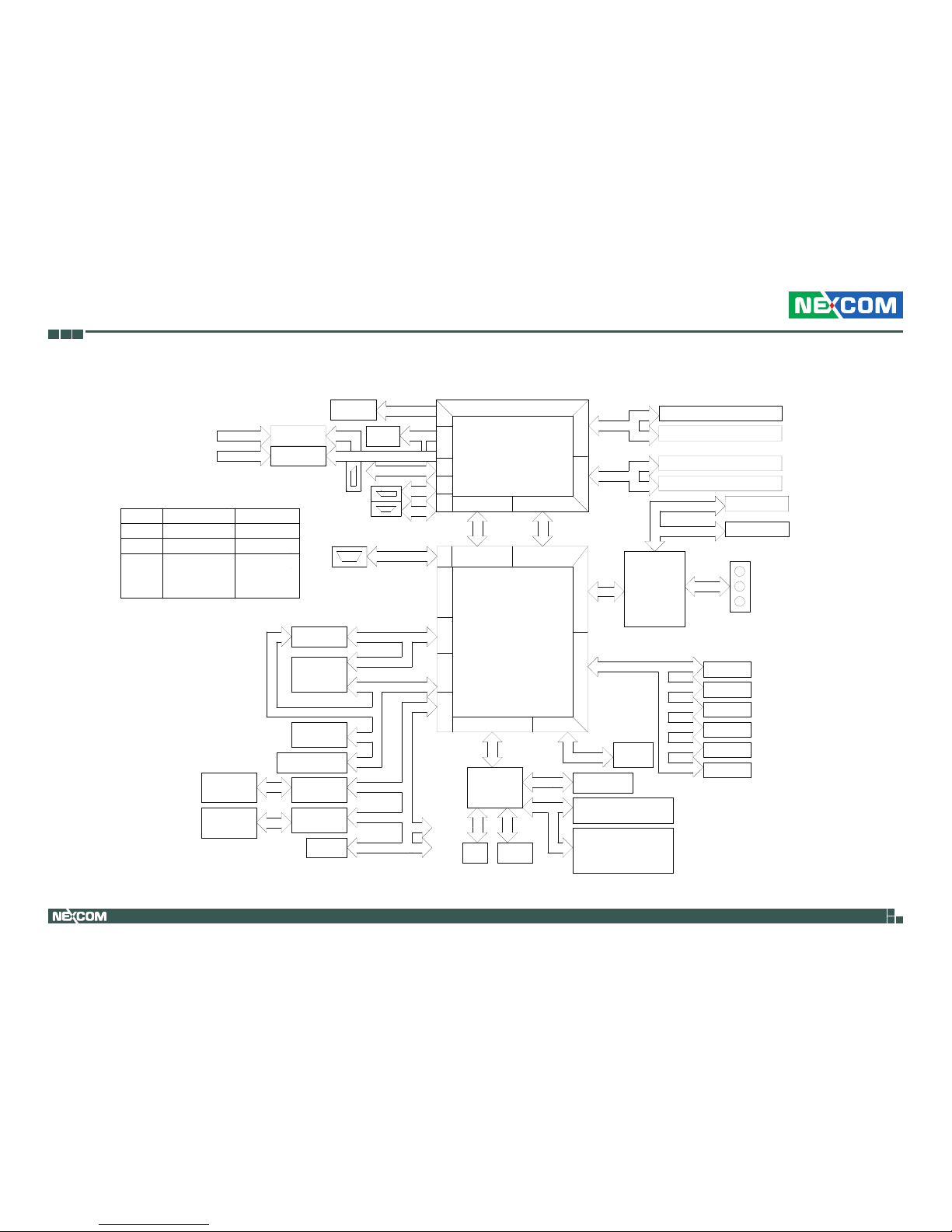

Block Diagram

.................................................................................27

Chapter 3: BIOS Setup

About BIOS Setup .................................................................................28

When to Configure the BIOS .................................................................28

Default Configuration ...........................................................................29

Entering Setup ......................................................................................29

Legends ................................................................................................29

BIOS Setup Utility ..................................................................................31

Main .................................................................................................31

Advanced .........................................................................................32

Chipset ..............................................................................................43

Boot ..................................................................................................49

Security .............................................................................................52

Save & Exit ........................................................................................53

Appendix A: Power Consumption.........................54

iv

NEX 885 User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NEX 885 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

v

NEX 885 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

vi

NEX 885 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vii

NEX 885 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

viii

NEX 885 User Manual

Preface

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

ix

NEX 885 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect the equipment from any AC outlet before cleaning or installing

a component inside the chassis. Use a damp cloth. Do not use liquid or spray detergents for cleaning.

4. To prevent electrostatic build-up, leave the board in its anti-static bag until you are ready to install it.

5. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

6. Keep the board away from humidity.

7. Put the board on a stable surface. Dropping it or letting it fall may cause

damage.

8. Wear anti-static wrist strap.

9. Do all preparation work on a static-free surface.

10. Make sure the voltage of the power source is correct before

connecting the equipment to the power outlet.

11. Hold the board only by its edges. Be careful not to touch any of the

components, contacts or connections.

12. All cautions and warnings on the board should be noted.

13. Use the correct mounting screws and do not over tighten the screws.

14. Keep the original packaging and the anti-static bag; in case the board has to be returned for repair or replacement.

x

NEX 885 User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s

website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or

sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

xi

NEX 885 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

9F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

China

NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-10-5704-2680 Fax: +86-10-5704-2681 Email: [email protected] www.nexcom.cn

xii

NEX 885 User Manual

Preface

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Lanino 42, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625570 Email: [email protected] www.nexcomitalia.it

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXCOM Surveillance Technology

Room202, Building B, the GuangMing Industrial Zone Zhonghua Rd., Minzhi Street, Longhua District, Shenzhen, 518000, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: [email protected] www.nexcom.cn

NEXCOM United System Service

Hui Yin Ming Zun Building Room 1108, Building No. 11, 599 Yunling Road, Putuo District, Shanghai, 200062, China Tel: +86-21-6125-8282 Fax: +86-21-6125-8281 Email: [email protected] www.nexcom.cn

xiii

NEX 885 User Manual

Preface

Package Contents

Before continuing, verify that the NEX 885 package that you received is complete. Your package should have all the items listed in the following table.

NEX 885 (P/N:10G00088500X0)

Item Part Number Name Qty

1 20G00088500X0 ASSY NEX 885 (10DC) 1 2 60177A0386X00 (N)NEX 885 Quick Reference Guide VER:A SIZE:A4 1 3 602DCD0867X00 (N)NEX 885 DVD Driver VER:1.0 1

xiv

NEX 885 User Manual

Preface

Ordering Information

The following information below provides ordering information for NEX 885.

NEX 885

Micro ATX, onboard Q87 to support Socket H3/LGA1150, 4th Generation Intel

®

Core™ i7/i5/i3 Processors 4DDR3/DIMM, 2HDMI/DP/VGA, PCIe x16/2PCIe x1/PCIe x4, 6x SATA 3.0, 3x USB 3.0/2.0, 7x USB 2.0, 2x GbE, 4x COM, ATX Power Input

1

NEX 885 User Manual

Chapter 1: Product Introduction

Key Features

▪ Intel® Q87 socket H3/LGA1150 for 4th Generation Intel® Core™ i7/i5/i3

processors

▪ 4x DDR3 DIMM socket up to 32 GB

▪ Support 2x HDMI/DisplayPort/VGA up to three independent displays

▪ 2x Intel

®

GbE, 6x SATA 3.0, 3x USB 3.0/2.0, 4x USB 2.0/4x COM, 8x GPIO

▪ 1x PCIe x16, 2x PCIe x1, 1x PCIe x4

▪ Support AT/ATX mode by ATX power input

Overview

2

NEX 885 User Manual

Chapter 1: Product Introduction

Hardware Specifications

CPU Support

▪ Socket H3/LGA1150, 4th Generation Intel® Core™ i7/i5/i3 processors

Main Memory

▪ 4 x 240-pin dual channel long DIMMs support DDR3 1066/1333/1600MHz

up to 32GB system memory

Chipset

▪ Intel® Q87 Platform Controller Hub

BIOS

▪ AMI BIOS UEFI ▪ Plug and play support

On-board LAN

▪ ETH 0: Intel® I217LM PHY for AMT 9.0 ▪ ETH 1: Intel

®

I211 PCI Express Gigabit Ethernet

▪ Both ETH0 and ETH1 Support boot from LAN (PXE) when +5Vsb power

available

▪ 2x GbE RJ45 with LEDs

Display

▪ 4th Generation Intel® Core™ socket H3/LGA1150 processors integrated

Gen. 7.5 HD graphics ▪ 2x HDMI ▪ 1x DisplayPort ▪ 1x VGA

Expansion

▪ 1x PCIe x16 (Gen. 3.0) ▪ 2x PCIe x1 ▪ 1x PCIe x4

Edge I/O Interfaces

▪ 1x Combo for PS2 KB/MS ▪ 1x stack DB9 for COM1, and 1x stack DB15 for VGA ▪ 1x HDMI, 1x stack combo of 2nd HDMI and 1x Display port ▪ 1x RJ45 (ETH 0) with dual stack USB 3.0 (blue)/USB 2.0 connectors ▪ 1x RJ45 (ETH 1) with dual stack USB 2.0 (black) connectors ▪ 1x Stack Line-In/Line-out/Mic-in phone jack

I/O Interfaces

▪ USB 3.0: 3 ports (2x USB 3.0 on edge I/O, 1x internal box-header) ▪ USB 2.0: 7 ports (4x USB 2.0 on edge I/O, 3x internal box-header) ▪ Serial: 4 ports (default COM1/RS-232, pre-selected 1x RS232/422/485, 2x

RS-232 by internal

▪ SATA HDD: 6 ports, SATA 3.0, Support Software RAID 0/1/5/10 and Intel

®

Matrix Storage

▪ GPIO: Supports 4x GPI and 4x GPO with TTL level (0- 5V), 2x 6 pin header,

2.54mm

Interfaces

▪ One on-board buzzer ▪ One 4-pin FAN connector for CPU, two 3-pin FAN connector x 2

(for System)

▪ One 2x 4/2.54mm pin header for: Power LED/Storage LED/Reset/Power

On-Off

3

NEX 885 User Manual

Chapter 1: Product Introduction

▪ One 2x 4/2.54mm pin header for: Mic-in/Line-out ▪ Front Panel I/O: HDD LED (1-3 pin); Power LED (2-4 pin) ▪ Reset (5-7 pin); Power Button (6-8 pin) ▪ Onboard pin header for IrDA Tx/Rx (optional) ▪ On-chip RTC with back-up battery/CR2032 holder onboard

System Monitor

▪ Derived from Super IO ITE IT8785E to support System Monitor ▪ Monitoring of voltages, 2 temperatures and 3 Fans Speed

4 Voltage for 3.3V, 5V, 12V, Vcore 2 Temperatures (CPU, one external Temperature Sensor) 3 Fans speed

▪ Watchdog timeout can be programmed by software from 1 second to

255 seconds/minutes

Power Input

▪ Support AT/ATX mode

Standard ATX 24-pin connector for +12V/+5V/+3.3V/+5Vsb/-12V ATX

8-pin connector for +12V power connector

Dimensions

▪ Micro-ATX/Dimension: Lx W, 244mm x 244mm; 9.6”x 9.6”

Environment

▪ Board level operating temperatures: -15°C to 60°C ▪ Storage temperature: -20°C to 85°C ▪ Relative humidity: Operating 10% to 90%, (non-condensing)

Certifications

▪ Meet CE ▪ FCC Class A

4

NEX 885 User Manual

Chapter 1: Product Introduction

Knowing Your NEX 885

Top View

DIMM1

COM

DIMM3

DIMM2

DIMM4

System Fan

CPU Fan

Power Input

Front Panel Connectors

CMOS Clear

Power InputBattery

PCIe x16

SATA 3.0 Connectors

PCIe x4

GPIO

Front Panel Audio

AT/ATX Select

USB 3.0

COM

USB 2.0

5

NEX 885 User Manual

Chapter 1: Product Introduction

Edge I/O View

COM DisplayPort LAN1

USB 3.0USB 2.0 Mic-in

LAN2

Line-in

Line-out

VGAPS/2 Keyboard

PS/2 Mouse

HDMI

6

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers and connectors on the NEX 885 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep

small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow

require only a few simple tools, including the following:

– A Philips screwdriver

– A flat-tipped screwdriver

– A set of jewelers screwdrivers

– A grounding strap

– An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect

connections as these can damage the soft metal or plastic parts of the

connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching

a metal object. Static electricity can damage many of the electronic

components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

7

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

1

2

3

1

2

3

8

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

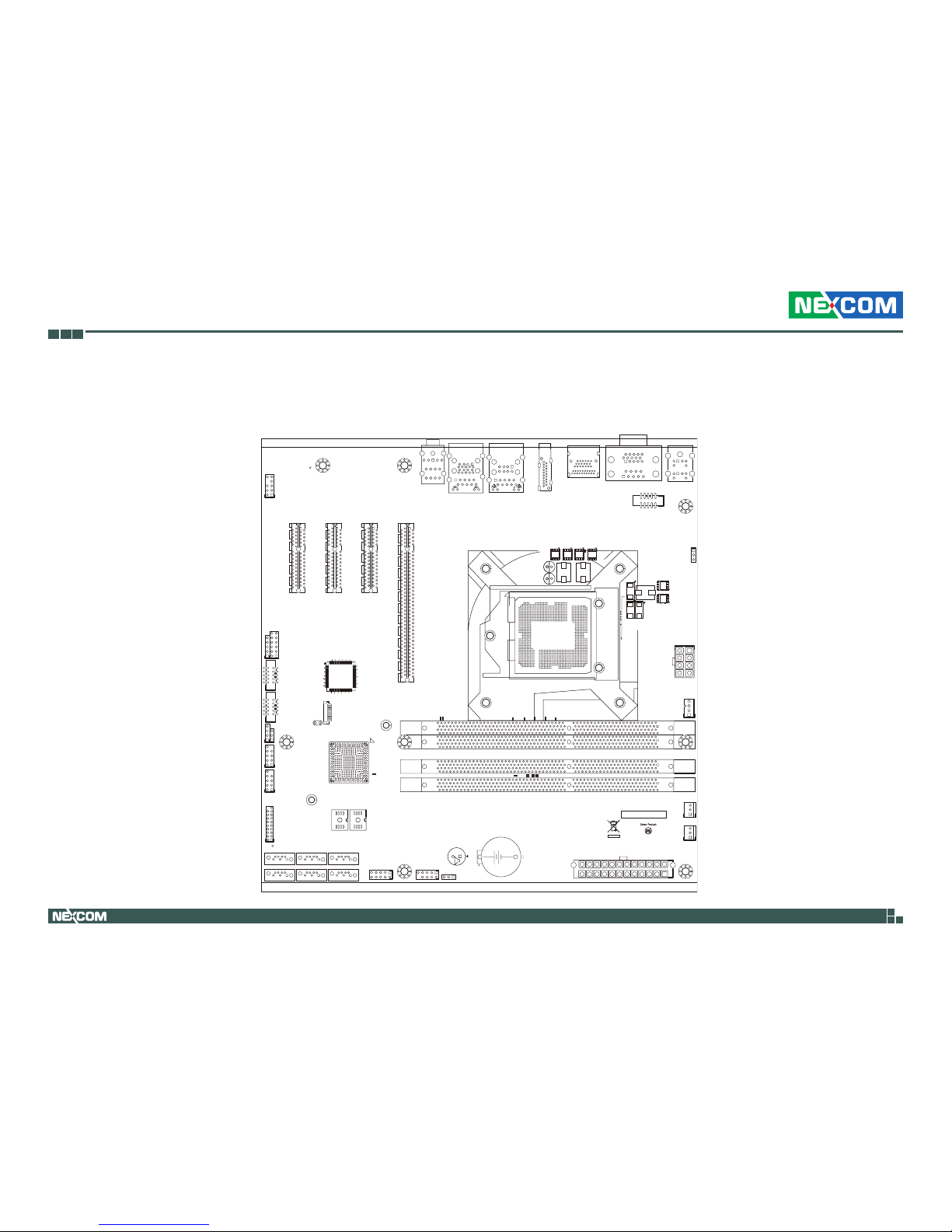

Locations of the Jumpers and Connectors

The figure below shows the location of the jumpers and connectors.

H3

H8

H7

H2

H6

H4

H1

U87

AW

AKWAA

K

41

30

20

110

A

240

120

1

121

240

120

1

121

1

121

1

121

1

10

1

2

10 9

1092

1

4

3

1

3

1

3

BAT1

2

1

R567

R441

R440

R539 R540

C407

C471C472

C431

C527

C406

C430

C473 C474

C405

U76

U75

3

32 33

1

128

U88

64

97

65

96

8

5

M3

1

4

5

8

1

M4

4

M2

14M11M61M541

L19

L16

L20

CT57

J3

BZ1

2

AW

AU

AR

AN

AL

AJ

AG

AE

AC

AA

W

U

R

N

L

J

G

E

C

1

A

864

753

1210

13119

14 16 18

191715

242220

2321

25

302826

31

27

29

363432

33

35

4038

3739

AV

AY

AM

AP

AT

AF

AH

AK

Y

AB

AD

P

T

V

H

K

M

D

B

F

NEX885 4BG00885A1X10 MADE IN TAIWAN

VER:A

J1

CN15

CON1

FAN1

FAN2

FAN3

CON2

JFP1

JP9

CN8 CN9

CN10

CN7CN12CN11

JP4

JP1

CN20

CN21

JP5

JP13

JUSB1

JUSB2

JUSB3

JP3

CN17 CN13 CN16

DIMM2

DIMM1

DIMM3

DIMM4

CN1

CN3 CN4

J7

CN14

KM1

CN24

9

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

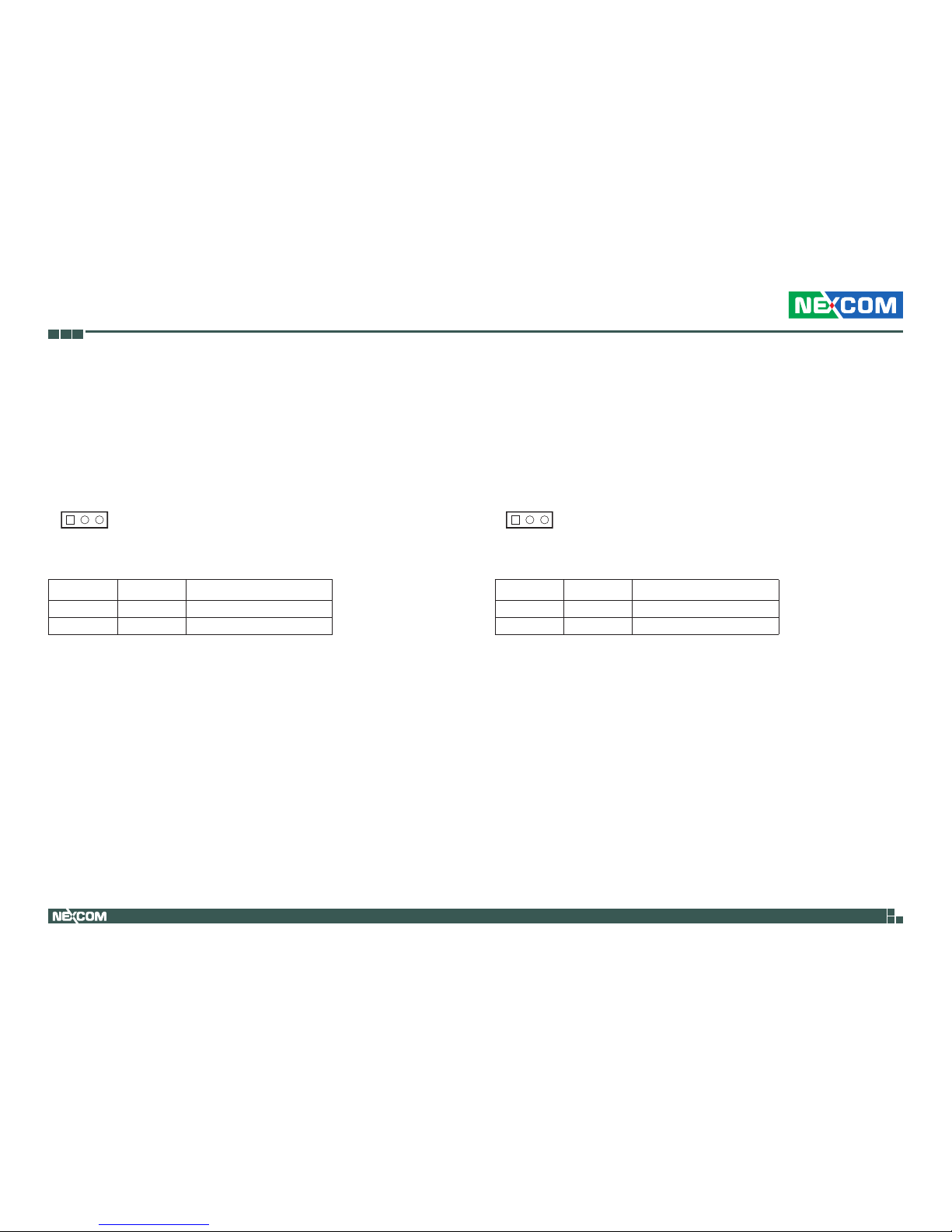

Jumpers

CMOS Clear Select

Connector type: 1x3 3-pin header Connector location: JP9

Pin Status Settings

1-2 (*) Short Normal (Default)

2-3 Short Clear BIOS

(*): default

AT/ATX Power Type Select

Connector type: 1x3 3-pin header Connector location: JP13

Pin Status Settings

1-2 (*) Short ATX mode (Default)

2-3 Short AT mode

1 3 1 3

10

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

PS/2 Keyboard and Mouse

Connector type: PS/2, Mini-DIN-6 Connector location: KM1

COM1 and VGA Ports

Connector type: DB-9 port, 9-pin D-Sub (COM1) DB-15 port, 15-pin D-Sub (VGA) Connector location: CN14

Pin Definition Pin Definition

1 KB DATA 2 NC 3 GND 4 5VDUAL 5 KB CLOCK 6 NC 7 MS DATA 8 NC 9 GND 10 5VDUAL

11 MSCLOCK 12 NC

Pin Definition Pin Definition

1 RED 2 GREEN 3 BLUE 4 NC 5 GND 6 GND 7 GND 8 GND

9 +5V 10 GND 11 NC 12 DDCDATA 13 HSYNC 14 VSYNC 15 DDCCLOCK 16 DCD 17 RXD 18 TXD 19 DTR 20 GND 21 DSR 22 RTS 23 CTS 24 RI

1

5

11

15

VGA

24

20 16

21

COM1

Mouse

Keyboard

7

9

8

10

11

12

1

5

3

2

4

6

11

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

DisplayPort and HDMI

Connector type: DisplayPort and HDMI Connector location: J7

2139

38 22

1

2

19

20

Pin Definition Pin Definition

1 LANE0_P 2 GND 3 LANE0_N 4 LANE1_P 5 GND 6 LANE1_N 7 LANE2_P 8 GND

9 LANE2_N 10 LANE3_P 11 GND 12 LANE3_N 13 CONFIG1 14 CONFIG2 15 AUX_CH_P 16 GND 17 AUX_CH_N 18 HPD 19 RETURN 20 DP_PWR

Pin Definition Pin Definition

21 D2+ 22 D2 SHIELD 23 D2- 24 D1+ 25 D1 SHIELD 26 D127 D0+ 28 D0 SHIELD 29 D0- 30 CK+ 31 CK SHIELD 32 CK33 CEC 34 NC 35 SCL 36 SDA 37 PGND 38 VCC5 39 HPD

DisplayPort

HDMI

DisplayPort

HDMI

12

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

HDMI

Connector type: HDMI Connector location: CN24

119

18 2

Pin Definition Pin Definition

1 LANE2_P 2 GND

3 LANE2_N 4 LANE1_P

5 GND 6 LANE1_N

7 LANE0_P 8 GND

9 LANE0_N 10 CLKP 11 GND 12 CLKN 13 NC 14 NC 15 CRTL_C 16 CTRL_D 17 GND 18 5V 19 HPD 20

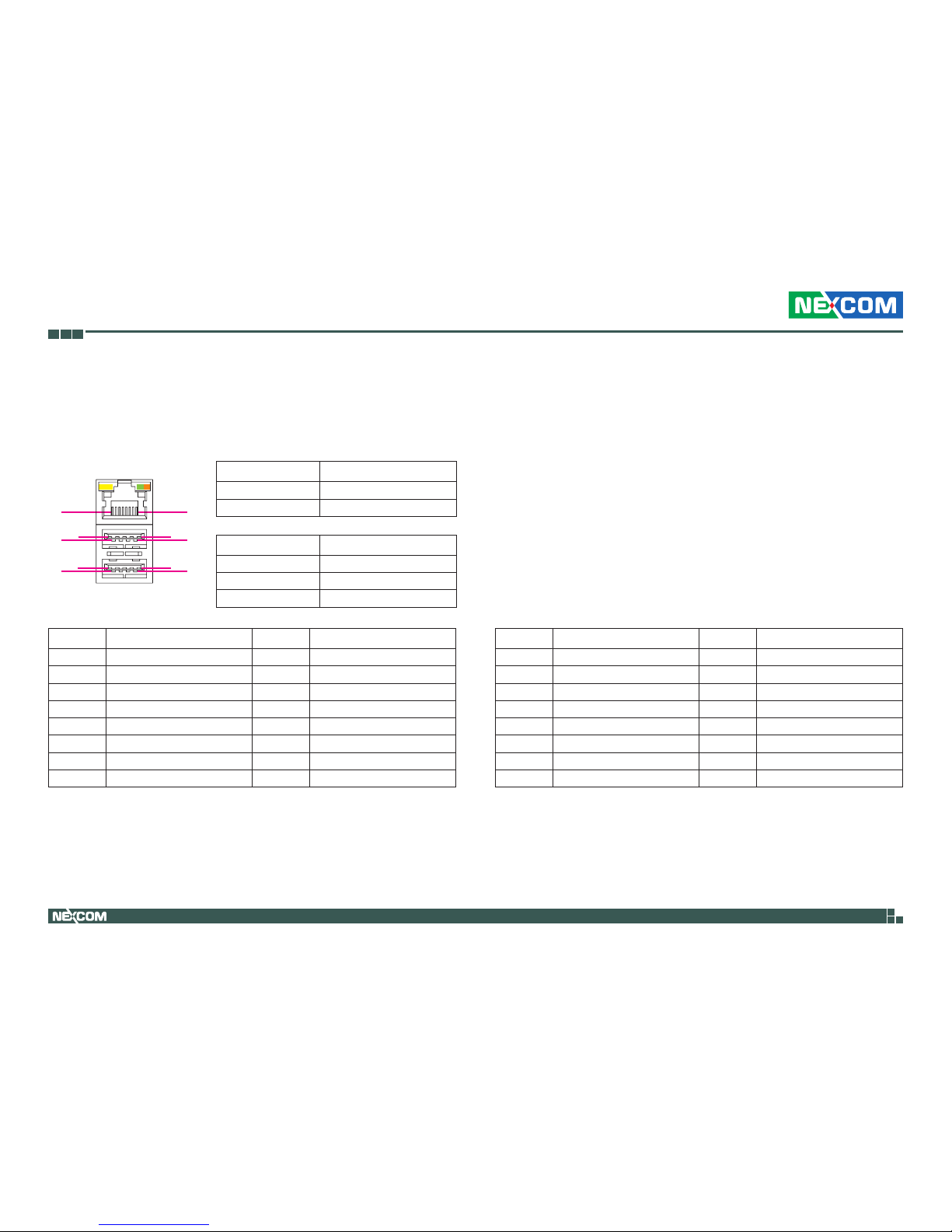

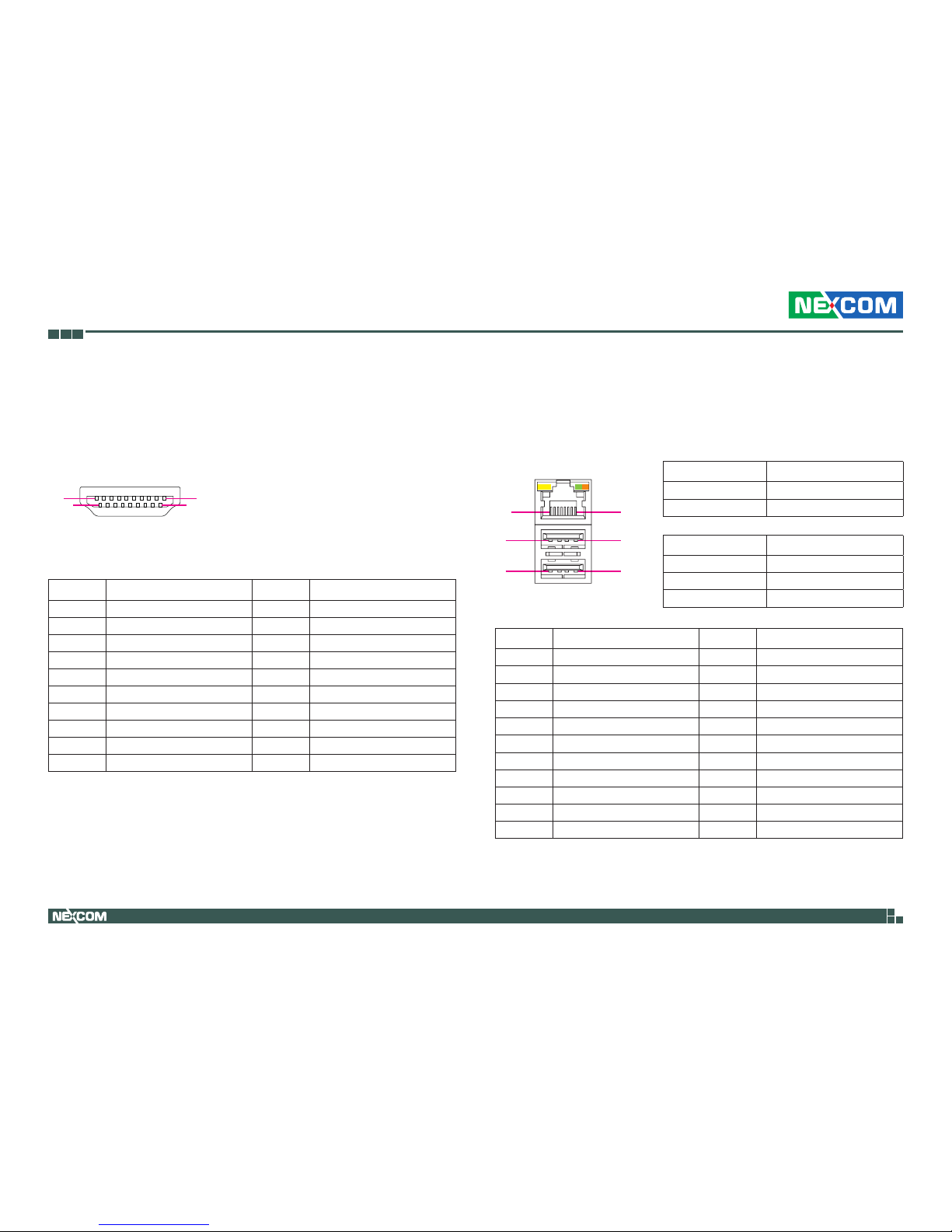

LAN and USB 2.0 Ports

Connector type: RJ45 port with LEDs Dual USB 2.0 ports, Type A Connector location: CN4

Pin Definition Pin Definition

1 5VDUAL 2 USB2_N 3 USB2_P 4 GND 5 5VDUAL 6 USB3_N 7 USB3_P 8 GND

9 TCT 10 LAN2_MDI0P 11 LAN2_MDI0N 12 LAN2_MDI1P 13 LAN2_MDI1N 14 LAN2_MDI2P 15 LAN2_MDI2N 16 LAN2_MDI3P 17 LAN2_MDI3N 18 GND 19 LAN2_100M# 20 LAN2_1G# 21 LAN2_ACTLED# 22 LAN2_ACTLED# POWER

17

1

5

10

4

8

ACT LINK

Act Status

Flashing Yellow Data activity

Off No activity

Link Status

Steady Green 100Mbps network link

Steady Orange 1G network link

Off No link

13

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

LAN and USB 3.0 Ports

Connector type: RJ45 port with LEDs Dual USB 3.0 ports, Type A Connector location: CN3

Pin Definition Pin Definition

1 5VDUAL 2 DATA03 DATA0+ 4 GND 5 StdA_SSRX- 6 StdA_SSRX+ 7 GND 8 StdA_SSTX-

9 StdA_SSTX+ 10 5VDUAL 11 DATA1- 12 DATA1+ 13 GND 14 StdB_SSRX15 StdB_SSRX+ 16 GND

Pin Definition Pin Definition

17 StdB_SSTX- 18 StdB_SSTX+ 19 TCT 20 MDX1+ 21 MDX1- 22 MDX2+ 23 MDX2- 24 MDX3+ 25 MDX3- 26 MDX4+ 27 MDX4- 28 GND 29 ACTLED_P 30 ACTLED_N 31 GREEN 32 ORANGE

27 20

ACT LINK

Act Status

Flashing Yellow Data activity

Off No activity

Link Status

Steady Green 100Mbps network link

Steady Orange 1G network link

Off No link

9

1

10

13

14

18

4

5

14

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

Audio Connectors

Connector type: 3.5mm Earphone Jack Connector location: CN1

Pin Definition Pin Definition

1 GND 2 MIC1_L

3 MIC1_JD 4 GND

5 MIC1_R 22 FRONT_L 23 FRONT_JD 24 GND 25 FRONT_R 32 LINEIN_L 33 LINEIN_JD 34 GND 35 LINEIN_R

Line-in

Line-out

Mic-in

15

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

1 7

Pin Definition Pin Definition

1 GND 2 SATA_TX_P

3 SATA_TX_N 4 GND

5 SATA_RX_P 6 SATA_RX_N

7 GND

Internal Connectors

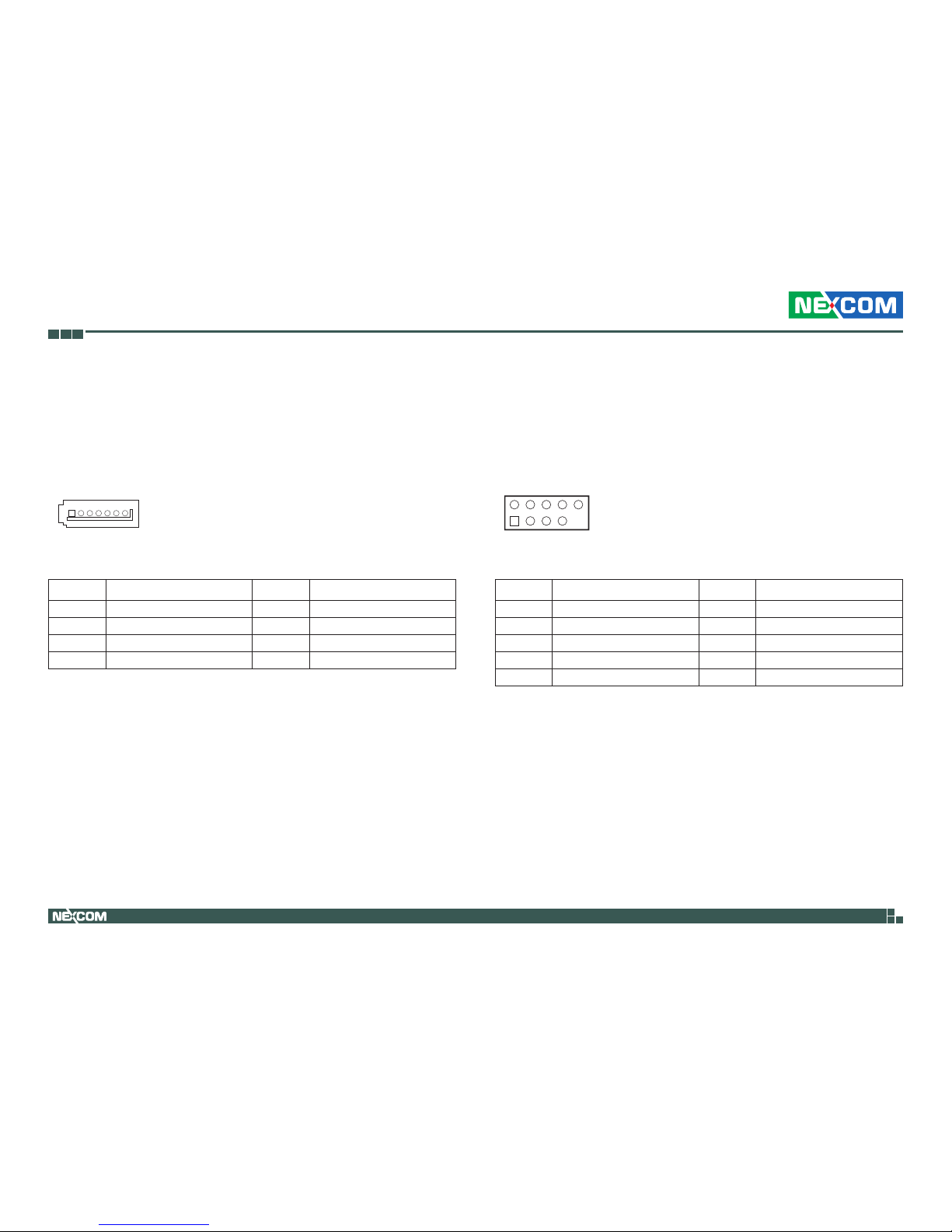

SATA 3.0 Connectors

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: CN7, CN8, CN9, CN10, CN11, CN12

USB Pin Headers

Connector type: 2x5 10-pin header Connector location: JUSB1 (USB10, USB11), JUSB2 (USB8, USB9)

1

21

0

Pin Definition Pin Definition

1 5VDUAL 2 5VDUAL 3 DATA10/8_N 4 DATA11/9_N 5 DATA10/8_P 6 DATA11/9_P 7 GND 8 GND

10 NC

16

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

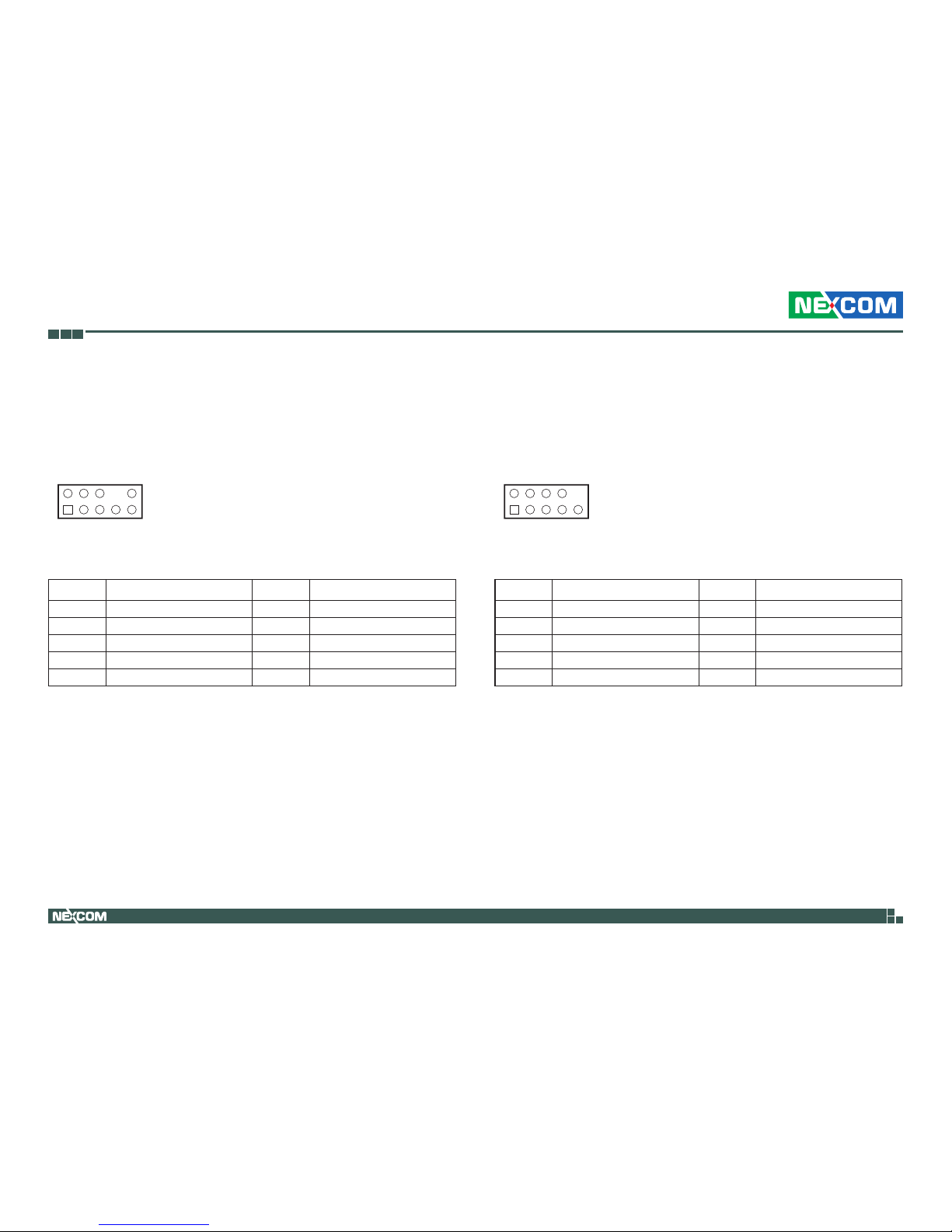

FP Audio Connector

Connector type: 2x5 10-pin header Connector location: JP1

FP Control Connector

Connector type: 2x5 10-pin header Connector location: JFP1

19

21

0

19

2

Pin Definition Pin Definition

1 MIC2_L 2 GND

3 MIC2_R 4 FP_AUD_DETECT

5 LINE2_R 6 MIC2_JD

7 GND

9 LINE2_L 10 LINE2_JD

Pin Definition Pin Definition

1 SATA_LED_P 2 PWR_LED_P 3 SATA_LED_N 4 GND 5 GND 6 PWRBT_N 7 RST_BTN_N 8 GND 9 NC

17

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

ATX Power Connector

Connector type: 2x4 8-pin boxed header Connector location: CON1

1 4

1 12

2413

5 8

Pin Definition Pin Definition

1 GND 2 GND

3 GND 4 GND

5 VCC12 6 VCC12

7 VCC12 8 VCC12

ATX Power Connector

Connector type: 2x12 24-pin boxed header Connector location: CON2

Pin Definition Pin Definition

1 VCC3 2 VCC3 3 GND 4 VCC5 5 GND 6 VCC5 7 GND 8 POWEROK

9 5VSB 10 VCC12 11 VCC12 12 VCC3 13 VCC3 14 NC 15 GND 16 PS-ON 17 GND 18 GND 19 GND 20 NC 21 VCC5 22 VCC5 23 VCC5 24 GND

18

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

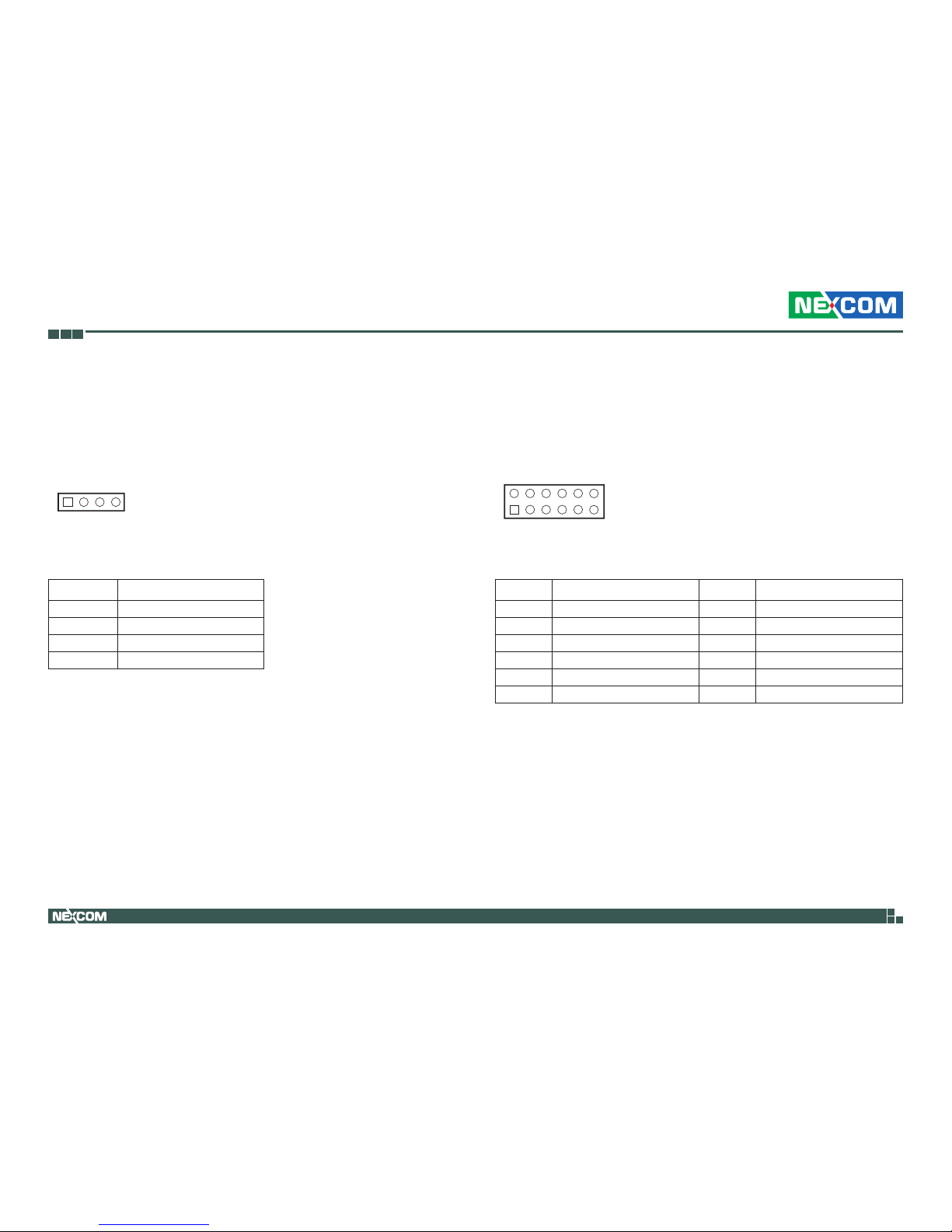

SMBus Connector

Connector type: 1x4 4-pin header Connector location: JP5

Pin Definition

1 3VSB 2 SMB_DATA 3 SMB_CLK 4 GND

14

GPIO Connector

Connector type: 2x6 12-pin header Connector location: JP4

11

1

21

2

Pin Definition Pin Definition

1 GPI1 2 GPO1

3 GPI2 4 GPO2

5 GPI3 6 GPO3

7 GPI4 8 GPO4

9 VCC3 10 VCC3 11 GND 12 GND

19

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

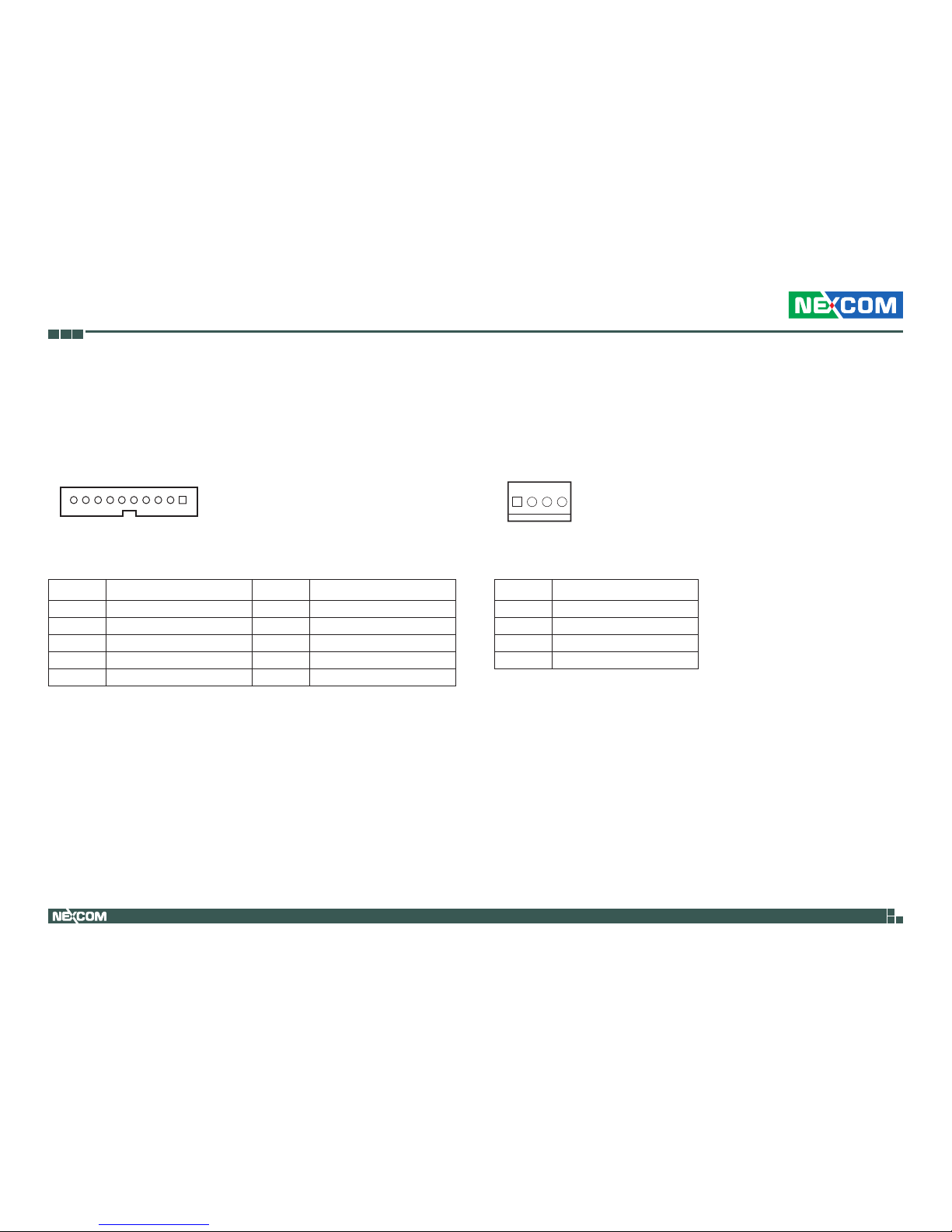

Port 80 Debug Connector

Connector type: 1x10 10-pin header Connector location: J1

Pin Definition Pin Definition

1 GND 2 LRST 3 LPC_CLK 4 LFRAME# 5 LAD3 6 LAD2 7 LAD1 8 LAD0 9 3VSB 10 3VSB

10 1

1 4

CPU Fan Connector

Connector type: 1x4 4-pin Wafer Connector location: FAN1

Pin Definition

1 GND

2 VCC12

3 FAN_TAC1

4 FAN_CTL1

20

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

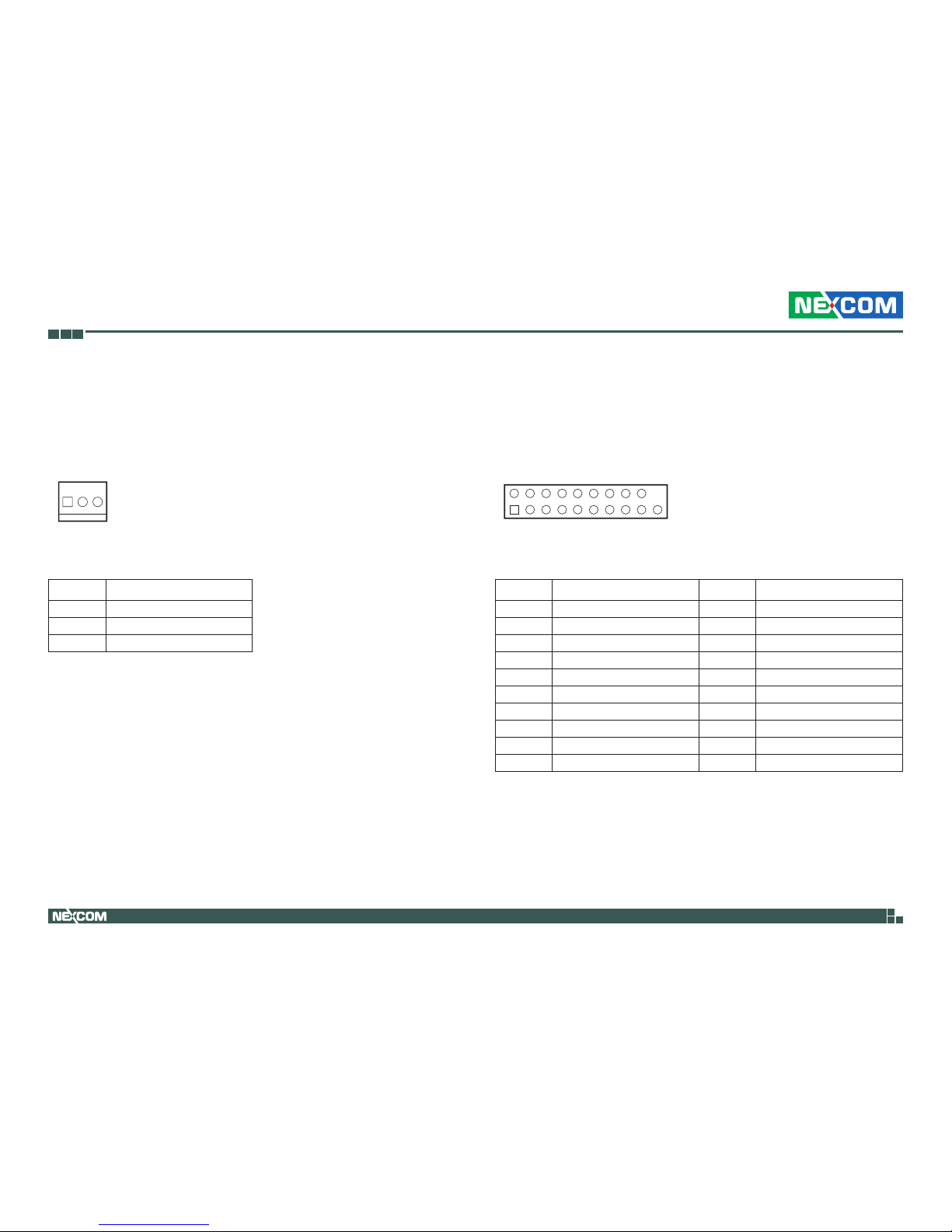

System Fan Connectors

Connector type: 1x3 3-pin Wafer Connector location: FAN2 and FAN3

Pin Definition

1 GND 2 VCC12 3 FAN_TAC

13

USB 3.0 Connector

Connector type: 2x10 20-pin header Connector location: JUSB3

1

19

2

Pin Definition Pin Definition

1 NC 2 DATA1+

3 DATA0+ 4 DATA1-

5 DATA0- 6 GND

7 GND 8 StdA_SSTX+

9 StdA_SSTX+ 10 StdA_SSTX11 StdA_SSTX- 12 GND 13 GND 14 StdA_SSRX+ 15 StdA_SSTX+ 16 StdA_SSRX17 StdA_SSTX- 18 5VDUAL 19 5VDUAL 20 NC

21

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

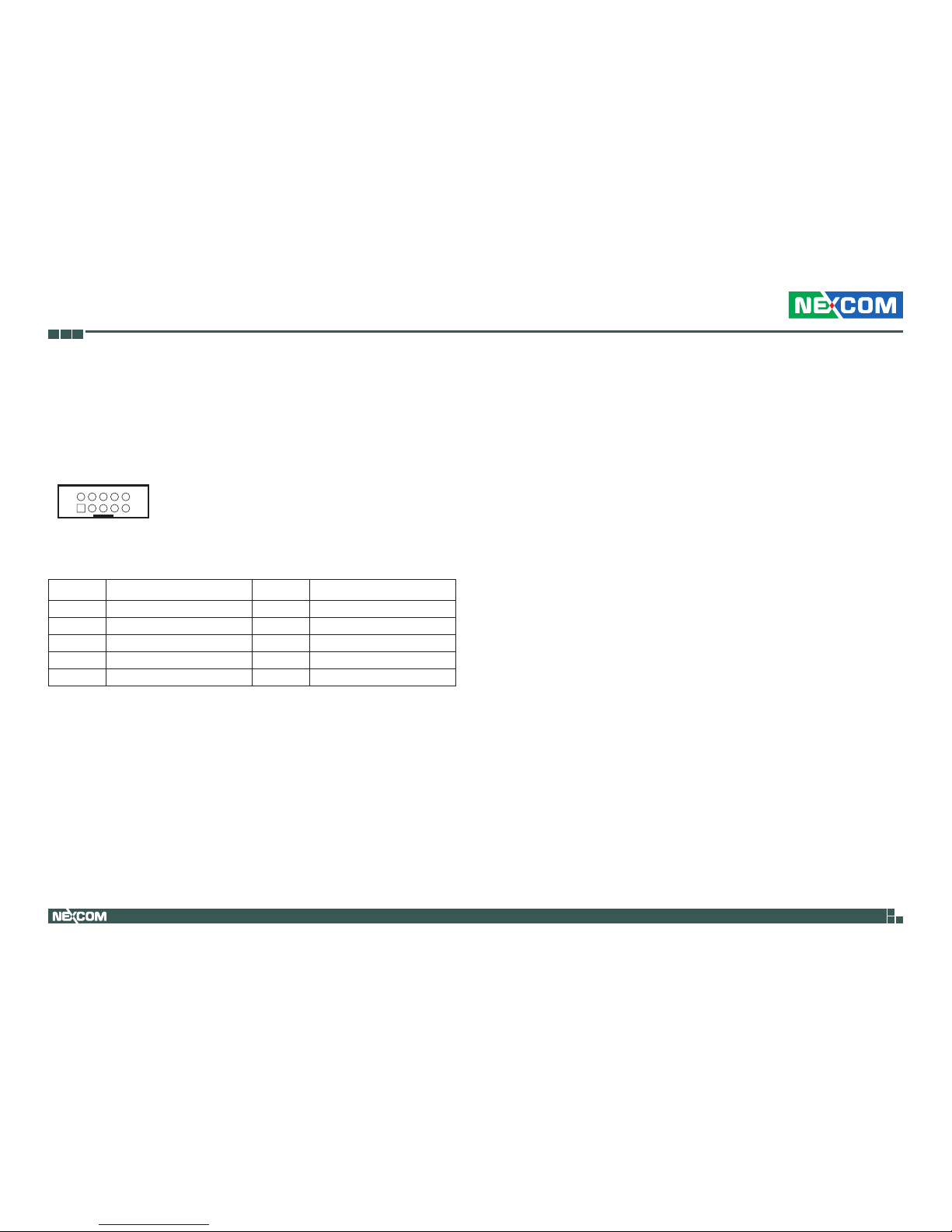

COM Port Box Headers

Connector type: 2x5 10-pin header Connector location: CN15, CN20 and CN21

Pin Definition Pin Definition

1 DCD 2 RXD 3 TXD 4 DTR 5 GND 6 DSR 7 RTS 8 CTS 9 RI 10 GND

2 1

10 9

22

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

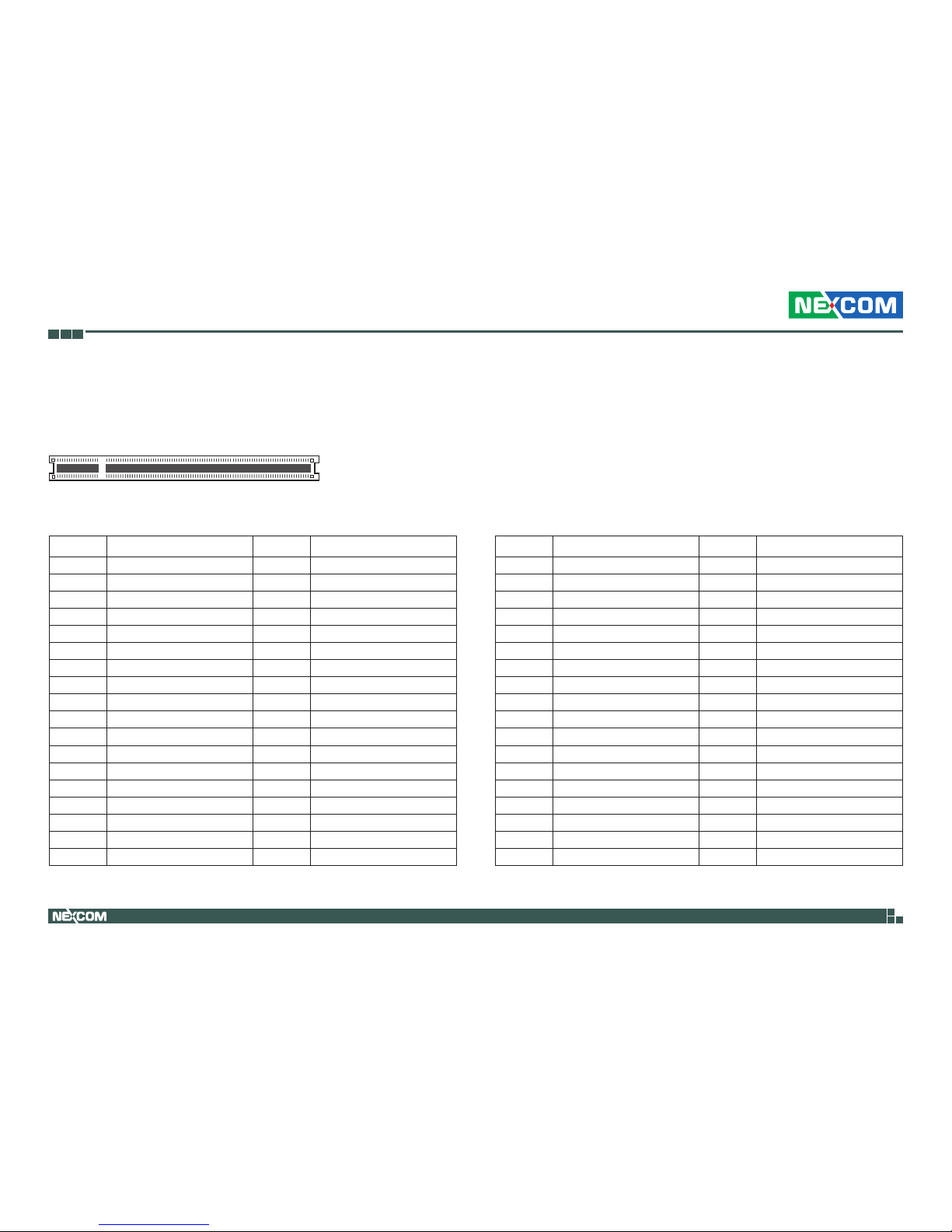

PEG x16 Slot

Connector location: JP3

Pin Definition Pin Definition

A1 NC B1 VCC12 A2 VCC12 B2 VCC12 A3 VCC12 B3 VCC12 A4 GND B4 GND A5 NC B5 SMB_CLK A6 NC B6 SMB_DATA A7 NC B7 GND A8 NC B8 VCC3

A9 VCC3 B9 TRST# A10 VCC3 B10 3VSB A11 PERST# B11 WAKE# A12 GND B12 RSV A13 REFCLK_P B13 GND A14 REFCLK_N B14 TXP0 A15 GND B15 TXN0 A16 RXP0 B16 GND A17 RXN0 B17 PRSNT2# A18 GND B18 GND

Pin Definition Pin Definition

A19 RSV B19 TXP1 A20 GND B20 TXN1 A21 RXP1 B21 GND A22 RXN1 B22 GND A23 GND B23 TXP2 A24 GND B24 TXN2 A25 RXP2 B25 GND A26 RXN2 B26 GND A27 GND B27 TXP3 A28 GND B28 TXN3 A29 RXP3 B29 GND A30 RXN3 B30 RSV A31 GND B31 PRSNT2# A32 RSV B32 GND A33 RSV B33 TXP4 A34 GND B34 TXN4 A35 RXP4 B35 GND A36 RXN4 B36 GND

B1A1B11

A11

B12

A12

B82

A82

23

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

A37 GND B37 TXP5 A38 GND B38 TXN5 A39 RXP5 B39 GND A40 RXN5 B40 GND A41 GND B41 TXP6 A42 GND B42 TXN6 A43 RXP6 B43 GND A44 RXN6 B44 GND A45 GND B45 TXP7 A46 GND B46 TXN7 A47 RXP7 B47 GND A48 RXN7 B48 PRSNT2# A49 GND B49 GND A50 RSV B50 TXP8 A51 GND B51 TXN8 A52 RXP8 B52 GND A53 RXN8 B53 GND A54 GND B54 TXP9 A55 GND B55 TXN9 A56 RXP9 B56 GND A57 RXN9 B57 GND A58 GND B58 TXP10 A59 GND B59 TXN10

Pin Definition Pin Definition

A60 RXP10 B60 GND A61 RXN10 B61 GND A62 GND B62 TXP11 A63 GND B63 TX11 A64 RXP11 B64 GND A65 RXN11 B65 GND A66 GND B66 TXP12 A67 GND B67 TXN12 A68 RXP12 B68 GND A69 RXN12 B69 GND A70 GND B70 TXP13 A71 GND B71 TXN13 A72 RXP13 B72 GND A73 RXN13 B73 GND A74 GND B74 TXP14 A75 GND B75 TXN14 A76 RXP14 B76 GND A77 RXN14 B77 GND A78 GND B78 TXP15 A79 GND B79 TXN15 A80 RXP15 B80 GND A81 RXN15 B81 PRSNT2# A82 GND B82 NC

24

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

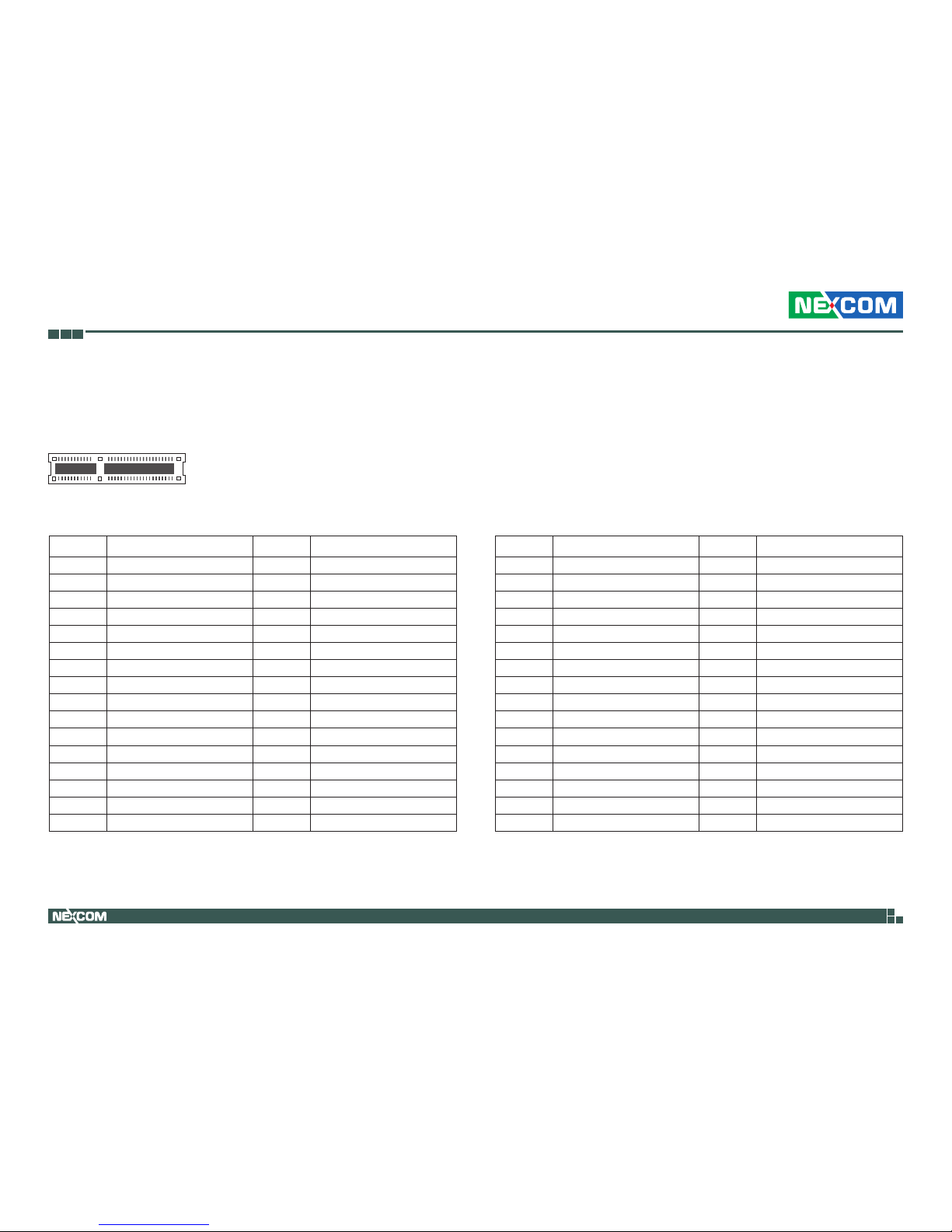

PCIe x4 Slot

Connector location: CN16

Pin Definition Pin Definition

A1 PRSNT1# B1 VCC12

A2 VCC12 B2 VCC12

A3 VCC12 B3 VCC12

A4 GND B4 GND

A5 TCK B5 SMB_CLK

A6 TDI B6 SMB_DATA

A7 TDO B7 GND

A8 TMS B8 VCC3

A9 VCC3 B9 TRST# A10 VCC3 B10 3VSB A11 PERST# B11 WAKE# A12 GND B12 RSV A13 REFCLK_P B13 GND A14 REFCLK_N B14 TXP8(PCH_TXP2) A15 GND B15 TXN8(PCH_TXN2) A16 RXP8(PCH_RXP2) B16 GND

Pin Definition Pin Definition

A17 RXN8(PCH_RXN2) B17 PRSNT2# A18 GND B18 GND A19 RSVD B19 TXP9 A20 GND B20 TXN9 A21 PXP9 B21 GND A22 PXN9 B22 GND A23 GND B23 TXP10 A24 GND B24 TXN10 A25 PXP10 B25 GND A26 PXN10 B26 GND A27 GND B27 TXP11 A28 GND B28 TXN11 A29 PXP11 B29 GND A30 PXN11 B30 RSVD A31 GND B31 PRSNT3# A32 RSVD B32 GND

A1B1A11

B11

A12

B12

A32

B32

25

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

PCIe x4 Slot

Connector location: CN13

Pin Definition Pin Definition

A1 PRSNT1# B1 VCC12

A2 VCC12 B2 VCC12

A3 VCC12 B3 VCC12

A4 GND B4 GND

A5 TCK B5 SMB_CLK

A6 TDI B6 SMB_DATA

A7 TDO B7 GND

A8 TMS B8 VCC3

A9 VCC3 B9 TRST# A10 VCC3 B10 3VSB A11 PERST# B11 WAKE# A12 GND B12 RSV A13 REFCLK_P B13 GND A14 REFCLK_N B14 PCH_TXP5 A15 GND B15 PCH_TXN5 A16 PCH_RXP5 B16 GND

Pin Definition Pin Definition

A17 PCH_RXN5 B17 PRSNT2# A18 GND B18 GND A19 RSVD B19 PCH_TXP6 A20 GND B20 PCH_TXN6 A21 PCH_PXP6 B21 GND A22 PCH_PXN6 B22 GND A23 GND B23 PCH_TXP7 A24 GND B24 PCH_TXN7 A25 PCH_PXP7 B25 GND A26 PCH_PXN7 B26 GND A27 GND B27 PCH_TXP8 A28 GND B28 PCH_TXN8 A29 PCH_PXP8 B29 GND A30 PCH_PXN8 B30 RSVD A31 GND B31 PRSNT3# A32 RSVD B32 GND

A1B1A11

B11

A12

B12

A32

B32

26

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

PCIe x4 Slot

Connector location: CN17

Pin Definition Pin Definition

A1 PRSNT1# B1 VCC12

A2 VCC12 B2 VCC12

A3 VCC12 B3 VCC12

A4 GND B4 GND

A5 TCK B5 SMB_CLK

A6 TDI B6 SMB_DATA

A7 TDO B7 GND

A8 TMS B8 VCC3

A9 VCC3 B9 TRST# A10 VCC3 B10 3VSB A11 PERST# B11 WAKE# A12 GND B12 RSV A13 REFCLK_P B13 GND A14 REFCLK_N B14 TXP12(PCH_TXP1) A15 GND B15 TXN12(PCH_TXN1) A16 RXP12(PCH_RXP1) B16 GND

Pin Definition Pin Definition

A17 RXN12(PCH_RXN1) B17 PRSNT2# A18 GND B18 GND A19 RSVD B19 TXP13 A20 GND B20 TXN13 A21 PXP13 B21 GND A22 PXN13 B22 GND A23 GND B23 TXP14 A24 GND B24 TXN14 A25 PXP14 B25 GND A26 PXN14 B26 GND A27 GND B27 TXP15 A28 GND B28 TXN15 A29 PXP15 B29 GND A30 PXN15 B30 RSVD A31 GND B31 PRSNT3# A32 RSVD B32 GND

A1B1A11

B11

A12

B12

A32

B32

27

NEX 885 User Manual

Chapter 2: Jumpers and Connectors

Block Diagram

VR12.5

Maximum support 32GB: WS support ECC

DDR3 CHB

DDR3 1066/1333/1600 MT/s DIMM1

DDR3 CHA

VCORE

VGA

LPC

SPI

PCI-E x 1 (8)

USB 2.0(14)

Lyxn Point (Q87/C226)

FDI

DMI

SATA (6)

HDA

LINEIN 1

ALC 886 AUDIO CODEC

HDA BUS

SATA BUS

SATA PORT 1

SATA PORT 2

SATA PORT 3

SATA PORT 4

MIC1

FRONT LINEOUT

P2, P3

INTEL I217 LM

GbE PHY

VGA

DDR3 1066/1333/1600 MT/s DIMM2

DDR3 1066/1333/1600 MT/s DIMM3

DDR3 1066/1333/1600 MT/s DIMM4

SATA PORT 6

SATA PORT 5

Port 1~ 6 support (6 Gb/S)

BUS(3)

BUS(4)

LINE2 (FB Header)

MIC2 (FB Header)

USB 3.0(4)

FP HEADER (USB3.0)(JUSB3)

BP CONNECTOR (USB3.0+LAN1) (CN3)

P1, P2

P3, P4

BP CONNECTOR (USB2.0+LAN2) (CN4)

FP HEADER (USB2.0)(JUSB1/2)

P0, P1

P8 - P11

BP CONNECTOR (USB3.0+LAN1) (CN3)

BP CONNECTOR (USB2.0+LAN2) (CN4)

P0, P1

P4, P5

BUS(5-8)

PEG(8-11)

PEG(12-15)

PCIEx 4 SLOT2(CN16)

PCIEx 4 SLOT3(CN17)

PEG[0:15]

PCIEx 16 SLOT1

PCI-Ex 1 BUS(1)

PCI-Ex 1 BUS(2)

GbE Controller

INTEL I211

BUS(1)

BUS(2)

DP B

DDR3 CH ADDR3 CH B

Haswell (DT/WS)

DMI x4

DMI

FDI

PEG

FDI x 2

DP C

PCIEx 4 SLOT2

DP B

DP C

HDMI

DP D

DP

GPIO

BIOS/ME SPI ROM

COM1 CONNECTOR (RS-232)

HW MONITOR

SUPER I/O

IT 8785E

KB/MS

COM2 HEADER (RS-232/422/485) COM3 HEADER(RS-232) COM4 HEADER(RS-232)

PCH

Mem Type

PCIE Slot

NEX 891

Q87(Desktop)

Non-ECC DDR3-1600

PCIex16

C226(workstation)

ECC DDR3-1600

PCIex 8 PCIex1 PCIex 4 PCIex4 PCIex 4 PCIex1 PCIex 4

=PCIE Optional=

NEX 885

HDMI

DP D

28

NEX 885 User Manual

Chapter 3: BIOS Setup

This chapter describes how to use the BIOS setup program for the NEX 885. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

29

NEX 885 User Manual

Chapter 3: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup.

Press the

key to enter Setup:

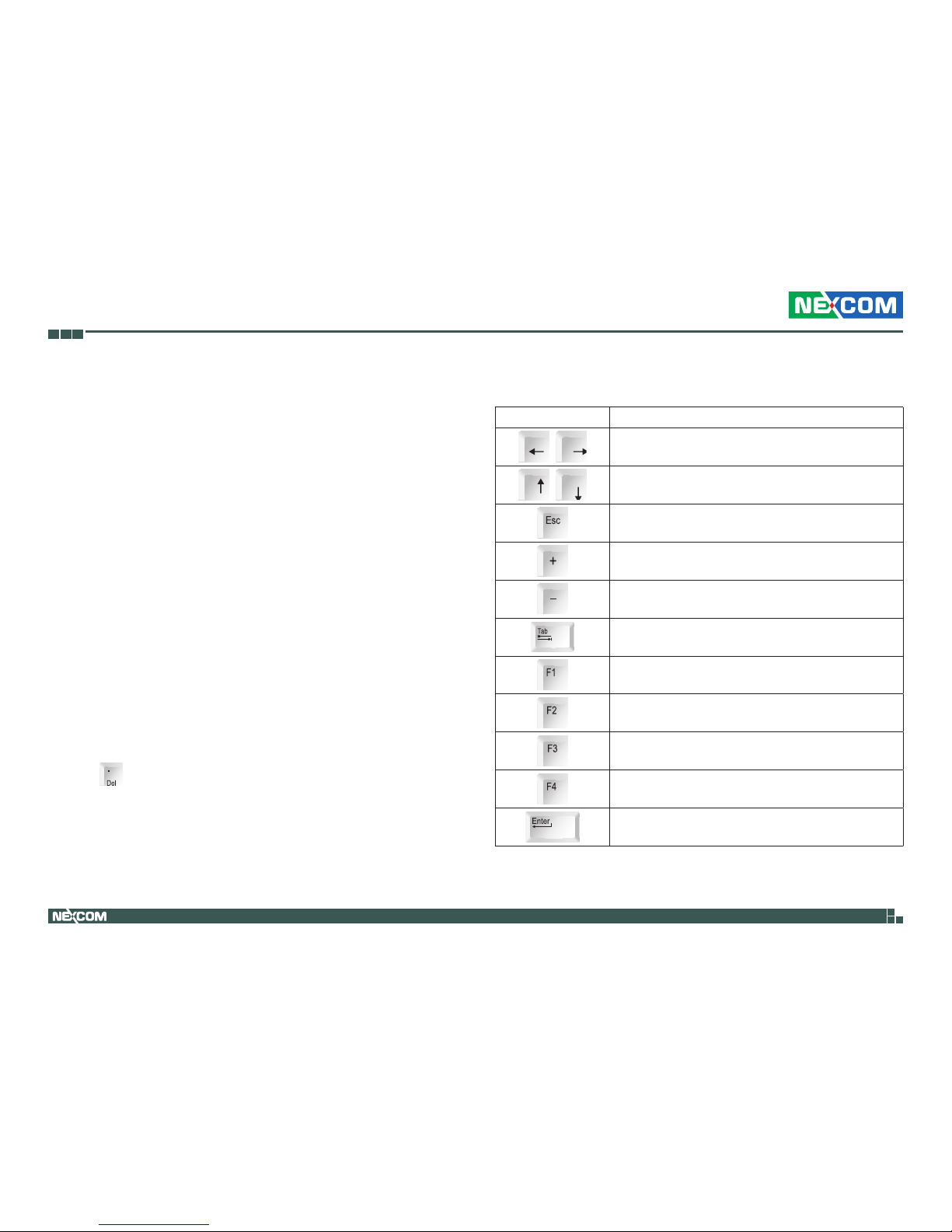

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menu or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

30

NEX 885 User Manual

Chapter 3: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

31

NEX 885 User Manual

Chapter 3: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Save & Exit

Advanced Chipset Boot SecurityMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set the Date. Use Tab to switch between Date elements.

BIOS Information BIOS Vendor Core Version Compliancy Project Version Build Date and Time

Processor Information Name Brand String Frequency Processor ID Stepping Number of Processors Microcode Revision

Total Memory Memory Frequency

System Date

System Time

American Megatrends

4.6.5.4 UEFI 2.3.1; PI 1.2 N885-001 02/12/2014 14:36:53

Haswell Intel(R) Core(TM) i5-467 3400 MHz 306c3 C0 4Core(s) / 4Thread(s) 9

2048 MB (DDR3) 1333 Mhz

[Fri 05/16/2014] [10:53:31]

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

32

NEX 885 User Manual

Chapter 3: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Save & Exit

Advanced Chipset Boot SecurityMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System ACPI parameters.

 ACPI Settings

 CPUConguration SATAConguration  Intel(R) Rapid Start Technology AMTConguration AcousticManagement Conguration USB Conguration IT8785E SuperIOConguration  IT8785E H/W Monitor  Intel(R) Smart Connect Technology  Network Stack

 Intel(R) Ethernet Network Connection i217-LM - 00:10:F3: . . .  Intel(R) I211 Gigabit Network Connection - 00:10:F3:2E: . . .

Setting incorrect field values may cause the system to malfunction.

ACPI Settings

This section is used to configure ACPI settings.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Settings

Enable Hibernation

ACPI Sleep State

[Enabled]

[S3 only (Suspend to . . .]

Enable Hibernation

Enables or disables system ability to hibernate (OS/S4 Sleep State). This option may not be effective with some OS.

ACPI Sleep State

Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are Suspend Disabled, S1 only (CPU Stop Clock) and S3 only (Suspend to RAM).

33

NEX 885 User Manual

Chapter 3: BIOS Setup

CPU Configuration

This section is used to configure the CPU.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Number of cores to enable in each processor package.

CPUConguration

Intel(R) Core(TM) i5-4670S CPU @ 3.10GHz CPU Signature Processor Family Microcode Patch FSB Speed Max CPU Speed Min CPU Speed CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology Intel SMX Technology 64-bit EIST Technology CPU C3 state CPU C6 state CPU C7 state

L1 Data Cache L1 Code Cache L2 Cache L3 Cache

306c3 6 9 100 MHz 3100 MHz 800 MHz 3400 MHz 4 Not Supported Supported Supported Supported Supported Supported Supported Supported

32 kB x 4 32 kB x 4 256 kB x 4 6144 kB

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Turbo Mode.

FSB Speed Max CPU Speed Min CPU Speed CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology Intel SMX Technology 64-bit EIST Technology CPU C3 state CPU C6 state CPU C7 state

L1 Data Cache L1 Code Cache L2 Cache L3 Cache

Hyper-threading Active Processor Cores Limit CPUID Maximum Intel Virtualization Technology EIST

Turbo Mode

100 MHz 3100 MHz 800 MHz 3400 MHz 4 Not Supported Supported Supported Supported Supported Supported Supported Supported

32 kB x 4 32 kB x 4 256 kB x 4 6144 kB

[Enabled] [All] [Disabled] [Enabled] [Enabled]

[Enabled]

Hyper-threading

This field is used to enable or disable hyper-threading.

Active Processors Cores

Select the number of cores to enable in each processor package.

Limit CPUID Maximum

The CPUID instruction of some newer CPUs will return a value greater than 3. The default is Disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur. To avoid this problem, enable this field to limit the return value to 3 or lesser than 3.

Intel® Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

EIST

Enables or disables Intel® SpeedStep.

Turbo Mode

Enables or disables turbo mode.

▲ ▲

▼ ▼

34

NEX 885 User Manual

Chapter 3: BIOS Setup

SATA Controller(s)

Enables or disables SATA device.

SATA Mode Selection

Configures the SATA as IDE or AHCI mode.

IDE This option configures the Serial ATA drives as Parallel ATA physical storage device. AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

SATA Configuration

This section is used to configure the SATA drives.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Determines how SATA controller(s) operate.

SATA Controller(s)

SATA Mode Selection

Serial ATA Port 0 Software Preserve Serial ATA Port 1 Software Preserve Serial ATA Port 2 Software Preserve Serial ATA Port 3 Software Preserve Serial ATA Port 4 Software Preserve Serial ATA Port 5 Software Preserve

[Enabled]

[IDE]

Empty Unknown Empty Unknown Empty Unknown Empty Unknown Empty Unknown Empty Unknown

Intel® Rapid Start Technology

This section is used to configure Intel Rapid Start Technology.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or disable Intel(R) Rapid Start Technology.

Intel(R) Rapid Start Technology

[Disabled]

Intel Rapid Start Technology

Enables or disables Intel Rapid Start Technology. When enabled, the system can wake from hibernation within a few seconds.

35

NEX 885 User Manual

Chapter 3: BIOS Setup

AMT Configuration

This section is used to configure Active Management Technology (AMT) options.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note : iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires

additionalrmwareinthe SPI

device

Intel AMT

BIOS Hotkey Pressed MEBx Selection Screen

Un-CongureME

Disable ME

[Enabled]

[Disabled] [Disabled] [Disabled] [Disabled]

Intel® AMT

Enables or disables Intel® Active Management Technology.

BIOS Hotkey Pressed

Enables or disables BIOS hotkey press.

MEBx Selection Screen

Enables or disables MEBx selection screen.

Un-Configure ME

Enables or disables Un-configure ME without password.

Disable ME

Set ME to Soft Temporary Disabled.

Acoustic Management Configuration

This section is used to configure the acoustic management option.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Option to Enable or Disable Automatic Acoustic Management

AcousticManagementConguration

Automatic Acoustic Management [Disabled]

Automatic Acoustic Management

Enables or disables the automatic acoustic management.

36

NEX 885 User Manual

Chapter 3: BIOS Setup

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables Legacy USB support. AUTO option disables legacy Support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

USBConguration

USB Module Version

USB Devices: 1 Keyboard, 2 Hubs

Legacy USB Support

USB3.0 Support XHCI Hand-off EHCI Hand-off USB Mass Storage Driver Support

USB hardware delays and time-outs:

USB transfer time-out Device reset time-out Device power-up delay

8.10.27

[Enabled]

[Enabled] [Enabled] [Disabled] [Enabled]

[20 sec] [20 sec] [Auto]

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

USB3.0 Support

Enables or disables USB 3.0 controller support.

XHCI Hand-off

This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

USB Configuration

This section is used to configure the USB.

EHCI Hand-off

This is a workaround for OSs that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

USB Mass Storage Driver Support

Enables or disables USB mass storage driver support.

USB Transfer Time-out

The time-out value for control, bulk, and Interrupt transfers.

Device Power-up Delay

Maximum time the value will take before it properly reports itself to the Host Controller. “Auto” uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor.

37

NEX 885 User Manual

Chapter 3: BIOS Setup

IT8785E Super IO Configuration

This section is used to configure the serial ports.

Super IO Chip

Displays the Super I/O chip used on the board.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set Parameters of Serial Port O (COMA)

IT8785ESuperIO Conguration

IT8785E Super IO Chip



SerialPort 0Conguration



SerialPort 1Conguration



SerialPort 2Conguration



SerialPort 3Conguration

IT8785E

Serial Port 0 Configuration

This section is used to configure serial port 0.

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

SerialPort0 Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=3F8h; IRQ=4;

[Auto]

38

NEX 885 User Manual

Chapter 3: BIOS Setup

Serial Port 1 Configuration

This section is used to configure serial port 1.

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Onboard Serial Port 2 Mode

Select this to change the serial port mode.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

SerialPort1 Conguration

Serial Port

Device Settings

Change Settings Onboard Serial Port 2 Mode

[Enabled]

IO=2F8h; IRQ=3;

[Auto] [RS232]

Serial Port 2 Configuration

This section is used to configure serial port 2.

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

SerialPort2 Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=3E8h; IRQ=11;

[Auto]

39

NEX 885 User Manual

Chapter 3: BIOS Setup

Serial Port 3 Configuration

This section is used to configure serial port 3.

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

SerialPort3 Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=2E8h; IRQ=7;

[IO=2E8h; IRQ=7;]

40

NEX 885 User Manual

Chapter 3: BIOS Setup

IT8785E H/W Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

System Temperature1 to System Temperature2

Detects and displays the internal temperature of the system.

CPU Temperature

Detects and displays the current CPU temperature.

Fan1 Speed to Fan3 Speed

Detects and displays the current speeds of fan1, fan2 and fan3.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Pc Health Status

System temperature1 System temperature2 CPU temperature Fan1 Speed Fan2 Speed Fan3 Speed VCORE VCC12 VCC5 VCC3 VBAT 3VSB

: +31 C : +29 C : +59 C : 2163 RPM : N/A : N/A : +1.776 V : +12.168 V : +5.060 V : +3.304 V : +3.216 V : +3.288 V

VCORE

Detects and displays the Vcore CPU voltage.

VCC12 to 3VSB

Detects and displays the output voltages.

41

NEX 885 User Manual

Chapter 3: BIOS Setup

Intel® Smart Connect Technology

This section is used to configure Intel Smart Connect Technology.

Network Stack

This section is used to configure the network stack.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable/Disable ISCT Support

ISCT Support

[Disabled]

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable/Disable UEFI network stack

Network stack

[Disabled]

ISCT Support

Enables or disables Intel Smart Connect Technology. When enabled, the system can wake up from standby mode to keep web applications updated.

Network Stack

Enables or disables UEFI network stack.

42

NEX 885 User Manual

Chapter 3: BIOS Setup

Intel® Ethernet Network Connection i217-LM

This section displays the network information of the LAN port.

Intel® I211 Gigabit Network Connection

This section displays the network information of the LAN port.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Clicktocongurethe network

device port.

PORT CONFIGURATION MENU

NICConguration

Blink LEDs (range 0-15 seconds)

PORT CONFIGURATION INFORMATION UEFI Driver: Adapter PBA: Chip Type: PCI Device ID PCI Bus:Device:Function:

Link Status

Factory MAC Address:

0

Intel(R) 1GbE DEV 5.1.00 FFFFFF-0FF Intel PCH LPT 153A 0:25:0

[Disconnected]

00:10:F3:32:91:D9

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Clicktocongurethe network

device port.

PORT CONFIGURATION MENU

NICConguration

Blink LEDs (range 0-15 seconds)

PORT CONFIGURATION INFORMATION UEFI Driver: Adapter PBA: Chip Type: PCI Device ID PCI Bus:Device:Function:

Link Status

Factory MAC Address:

0

Intel(R) 1GbE DEV 5.1.00 FFFFFF-0FF Intel i211 1539 2:0:0

[Disconnected]

00:10:F3:2E:77:FB

► ►

43

NEX 885 User Manual

Chapter 3: BIOS Setup

Chipset

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.

Save & Exit

Advanced Chipset Boot SecurityMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCH Parameters

►PCH-IOConguration

►SystemAgent(SA) Conguration

PCH-IO Configuration

PCH-IO parameters.

System Agent (SA) Configuration

System Agent (SA) parameters.

PCI Express Configuration

PCI Express Clock Gating

Enables or disables PCI Express clock gating for each root port.

DMI Link ASPM Control

Enables or disables Active State Power Management of the DMI link.

DMI Link Extended Synch Control

Enables or disables DMI extended synchronization.

PCIe-USB Glitch W/A

Enables or disables PCIe-USB glitch workaround.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or disable PCI Express Clock Gating for each root port.

PCIExpressConguration

PCI Express Clock Gating

DMI Link ASPM Control DMI Link Extended Synch Control PCIe-USB Glitch W/A PCIE Root Port Function Swapping Subtractive Decode

PCI Express Root Port 1 PCI Express Root Port 2

PCIE Port 3 is assigned to LAN

PCI Express Root Port 4 PCI Express Root Port 5 PCI Express Root Port 6 PCI Express Root Port 7 PCI Express Root Port 8

[Enabled]

[Enabled] [Disabled] [Disabled] [Disabled] [Disabled]

► ►

► ► ► ► ►

44

NEX 885 User Manual

Chapter 3: BIOS Setup

PCIE Root Port Function Swapping

Enables or disables PCI Express root port function swapping.

Subtractive Decode

Enables or disables PCI Express subtractive decode.

USB Configuration

USB Precondition

Enables or disables precondition on USB host controller and root ports for faster enumeration.

XHCI Mode

Enables or disables XHCI mode.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Precondition work on USB host controller and root ports for faster enumeration.

USBConguration

USB Precondition

XHCI Mode

[Disabled]

[Smart Auto]

45

NEX 885 User Manual

Chapter 3: BIOS Setup

PCH Azalia Configuration BIOS Security Configuration

Azalia

Control detection of the Azalia device. Disabled Azalia will be unconditionally disabled. Enabled Azalia will be unconditionally enabled.

Azalia Docking Support

Enables or disables Azalia docking support of audio controller.

Azalia PME

Enables or disables power management capability of audio controller.

RTC RAM Lock

Enables or disables bytes 38h-3Fh in the upper and lower 128-byte bank of RTC RAM lockdown.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Control Detection of the Azalia device. Disabled = Azalia will be unconditionally disabled Enabled = Azalia will be unconditionally Enabled Auto = Azalia will be enabled if present, disabled otherwise.

PCHAzaliaConguration

Azalia

Azalia Docking Support Azalia PME

[Auto]

[Enabled] [Disabled]

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or disable bytes 38h-3Fh in the upper and lower 128-byte bank of RTC RAM lockdown.

BIOSSecurityConguration

RTC RAM Lock

[Disabled]

46

NEX 885 User Manual

Chapter 3: BIOS Setup

Primary Display

Select which of IGFX/PEG/PCI graphics device should be primary display or select SG for switchable GFx.

Primary PEG

Select which PEG device should be the primary PEG.

Primary PCIE

Select which PCIE device should be the primary PCIE.

System Agent (SA) Configuration

This section is used to configure the System Agent (SA) configuration.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Check to enable VT-d function on MCH.

VT-d

►GraphicsConguration ►NBPCIe Conguration ►MemoryConguration

VT-d

Enables or disables VT-d function on MCH.

Graphics Configuration

Configures the graphic chip settings.

NB PCIe Configuration

Configures the NB PCI Express settings.

Memory Configuration

Configures the memory settings.

Graphics Configuration

This section is used to configure the Intel® IGFX configuration.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Select which of IGFX/PEG/ PCI Graphics device should be Primary Display Or select SG for Switchable Gfx.

Graphics Configuration

Primary Display

Primary PEG Primary PCIE Internal Graphics Aperture Size DVMT Pre-Allocated DVMT Total Gfx Mem

Primary IGFX Boot Display

[Auto]

[Auto] [Auto] [Auto] [256M] [32M] [256M]

[VBIOS Default]

47

NEX 885 User Manual

Chapter 3: BIOS Setup

Internal Graphics

Keep IGD enabled based on the setup options.

Aperture Size

Select the Aperture size.

DVMT Pre-Allocated

Select DVMT 5.0 pre-allocated (fixed) graphics memory size used by the internal graphics device.

DVMT Total Gfx Mem

Select DVMT 5.0 Total Graphic Memory size used by the Internal Graphics Device.

Primary IGFX Boot Display

Select the video device which will be activated during POST. Has no effect if external graphics is present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display.

PEG0 – Gen X

Configure PEG0 B0:D1:F0 Gen1-Gen3

NB PCIe Configuration

This section is used to configure Northbridge PCI Express settings.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CongurePEG0B0:D1:F0

Gen1-Gen3

NB PCIe Configuration PEG0

PEG0 - Gen X

Not Present

[Auto]

48

NEX 885 User Manual

Chapter 3: BIOS Setup

Memory Configuration

This section is used to configure the memory settings.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Maximum Memory Frequency Selections in Mhz.

Memory Information

Memory RC Version Memory Frequency Total Memory Memory Voltage DIMM#0 DIMM#1 DIMM#2 DIMM#3 CAS Latency (tCL) Minimum delay time CAS to RAS (tRCDmin) Row Precharge (tRPmin) Active to Precharge (tRASmin)

XMPProle1 XMPProle2

Memory Frequency Limiter

1.6.0.2 1333 Mhz 2048 MB (DDR3)

1.50v Not Present Not Present Not Present 2048 MB (DDR3) 9

9 9 24 Not supported Not supported

[Auto]

Memory Frequency Limiter

Configures the maximum frequency of the memory.

Chipset

49

NEX 885 User Manual

Chapter 3: BIOS Setup

Boot

This section is used to configure the boot features.

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

Fast Boot

When enabled, the BIOS will shorten or skip some check items during POST. This will decrease the time needed to boot the system.

Save & Exit

Advanced

Chipset

Boot

SecurityMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CSM16conguration:

Enable/Disable, Option ROM execution settings, etc.

Quiet Boot Fast Boot

Boot Option Priorities

CSM16 Parameters

CSM parameters

[Enabled] [Disabled]

►

Boot Option Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

50

NEX 885 User Manual

Chapter 3: BIOS Setup

CSM16 Parameters

GateA20 Active

Upon Request GA20 can be disabled using BIOS services. Always Do not allow disabling GA20; this option is useful when any RT code is executed above 1MB.

Option ROM Messages

This field is used to set display mode for Option ROM. The options are Force BIOS and Keep Current.

Save & Exit

Advanced

Chipset

Boot

SecurityMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

UPON REQUEST - GA20 can be disabled using BIOS services. ALWAYS - do not allow disabling GA20; this option is useful when any RT code is executed above 1MB.

CSM16 Parameters

CSM16 Module Version

GateA20 Active

Option ROM Messages INT19 Trap Response

07.70

[Upon Request]

[Force BIOS] [Immediate]

INT19 Trap Response

Allows Option ROMs to trap Interrupt 19 when enabled.

Immediate Execute the trap right away. Postponed Execute the trap during legacy boot.

51

NEX 885 User Manual

Chapter 3: BIOS Setup

CSM Parameters

Launch CSM

Enables or disables the launch of CSM.

Boot Option Filter

Configures which drives the system can boot from.

Launch PXE OpROM Policy

Enables or disables the boot option for legacy network devices.

Launch Storage OpROM Policy

Enables or disables the boot option for legacy storage devices.

Save & Exit

Advanced

Chipset

Boot

SecurityMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

This option controls if CSM will be launched

Launch CSM

Bootoptionlter

Launch PXE OpROM policy Launch Storage OpROM policy Launch Video OpROM policy

Other PCI device ROM priority

[Enabled]

[UEFI and Legacy] [Do not launch] [Legacy only] [Legacy only]

[UEFI OpROM]

Launch Video OpROM Policy

Enables or disables the boot option for legacy video devices.

Other PCI Device ROM Priority

Enables or disables the boot option for legacy PCI devices.

52

NEX 885 User Manual

Chapter 3: BIOS Setup

Security

Save & Exit

Advanced Chipset Boot SecurityMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set Administrator Password

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

User Password

Secure Boot menu

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

Secure Boot Control

Enables or disables secure boot flow control. Secure boot can be enabled only when:

1. Platform Key(PK) is enrolled and Platform is operating in User mode.

2. CSM function is disabled in Setup.

Secure Boot Mode

Configures the secure boot mode to enable configuration of execution policy and key management.

►

Secure Boot Menu

Save & Exit

Advanced Chipset Boot SecurityMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SecureBootowcontrol.

Secure Boot can be enabled only when 1.Platform Key(PK) is enrolled and Platform is operating in User mode and 2.CSM function is disabled in Setup

Platform Mode Secure Boot

Secure Boot Control

Secure Boot Mode

Image Execution Policy Key Management

Setup Disabled

[Enabled]

[Standard]

►

53

NEX 885 User Manual

Chapter 3: BIOS Setup

Save & Exit

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes and Reset

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Boot Override

To bypass the boot sequence from the Boot Option List and boot from a particular device, select the desired device and press <Enter>.

Launch EFI Shell From Filesystem Device

Launches the EFI shell.

Save & Exit

Advanced Chipset Boot SecurityMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Reset the system after saving the changes.

Save Changes and Reset

Discard Changes and Reset

Restore Defaults

Boot Override

LaunchEFIShell fromlesystemdevice

54

NEX 885 User Manual

Appendix A: Power Consumption

Power Consumption

Power Budget VCC12 VCC5 VCC3 5VDUAL 3VSB 5VSB

V_3P3_

LAN

V_1P05_MEV_1P05_

PCH

VCORE V_SM V_SM_VTT

TOTAL

WAT T

Haswell (DT)

VCCIN

95A 4.2A

Lynx Point

(PCH)

0.2A 0.26A 0.001A 0.02A 1.28A 5.23A

DDR3 DIMM *4 11A 1A

HD (ALC886) 0.5A 0.5A

SIO (IT8728F) 1A 0.5A

LAN1 (I217) 0.2A

LAN2 (I211) 0.2A

USB*10

(6*USB 2.0, 4*USB 3.0)

6.6A

PCIe x16 Slot (75W) 5.5A 3A 0.375A

PCIe x4 Slot (25W) 2.1A 3A 0.375A

VGA CON 0.5A

HDMI CON 0.5A

DP CONx 2 1A

FAN (PWM) *3 1.5A

Current (Maximum) 13.3A 1.501A 14.765A 6.6A 1.937A 0.001A 0.22A 1.31A 7.49A 95A 15.75A 1A

Watt (Maximum) 159.6 7.505 48.7254 33 6.4 0.005 0.726 1.3755 7.864 176.7 23.625 0.75 460
