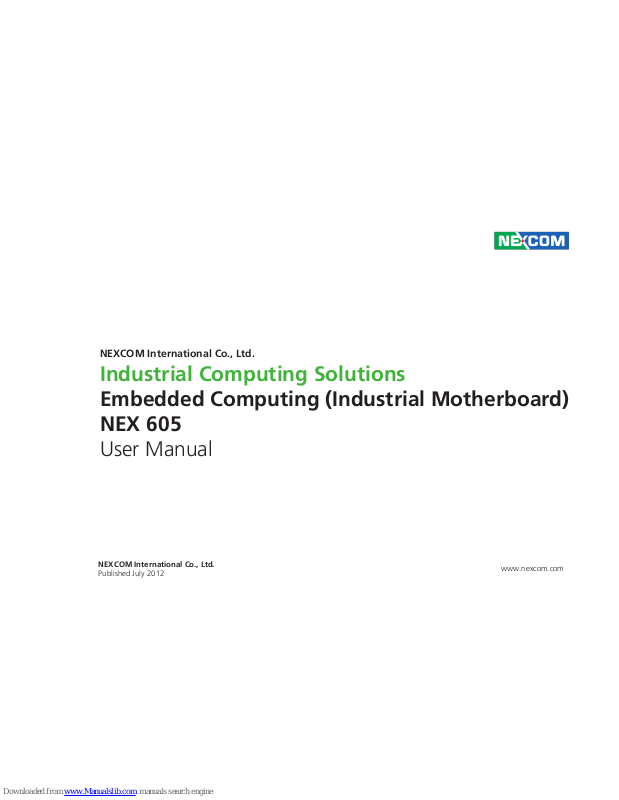

Nexcom NEX 605 User Manual

NEXCOM International Co., Ltd.

Published July 2012

www.nexcom.com

NEXCOM International Co., Ltd.

Industrial Computing Solutions

Embedded Computing (Industrial Motherboard) NEX 605

User Manual

ii

NEX 605 User Manual

Contents

Preface iv

Copyright ........................................................................................ iv

Disclaimer........................................................................................iv

Acknowledgements ......................................................................... iv

Regulatory Compliance Statements .................................................iv

Declaration of Conformity ............................................................... iv

RoHS Compliance .............................................................................v

Warranty and RMA ..........................................................................vi

Safety Information .......................................................................... vii

Installation Recommendations ........................................................ vii

Safety Precautions ......................................................................... viii

Technical Support and Assistance......................................................x

Conventions Used in this Manual......................................................x

Global Service Contact Information .................................................xi

Package Contents.......................................................................... xiv

Ordering Information ......................................................................xv

Chapter 1: Product Introduction 1

Overview ......................................................................................... 1

Key Features .................................................................................... 1

Hardware Specifications .................................................................. 2

Knowing Your NEX 605 ................................................................... 5

Chapter 2: Jumpers and Connectors ................................................ 6

Before You Begin ............................................................................. 6

Precautions ...................................................................................... 6

Jumper Settings ............................................................................... 7

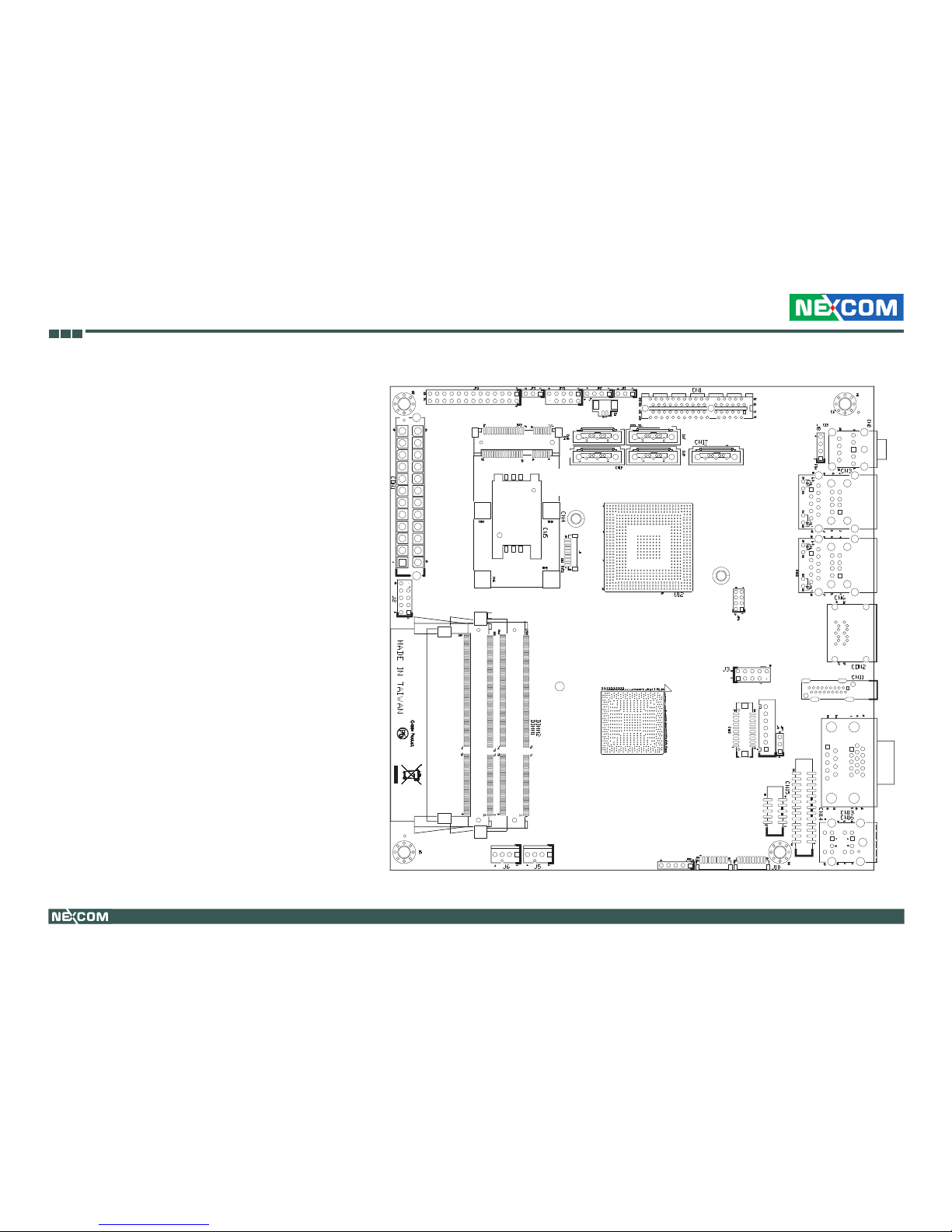

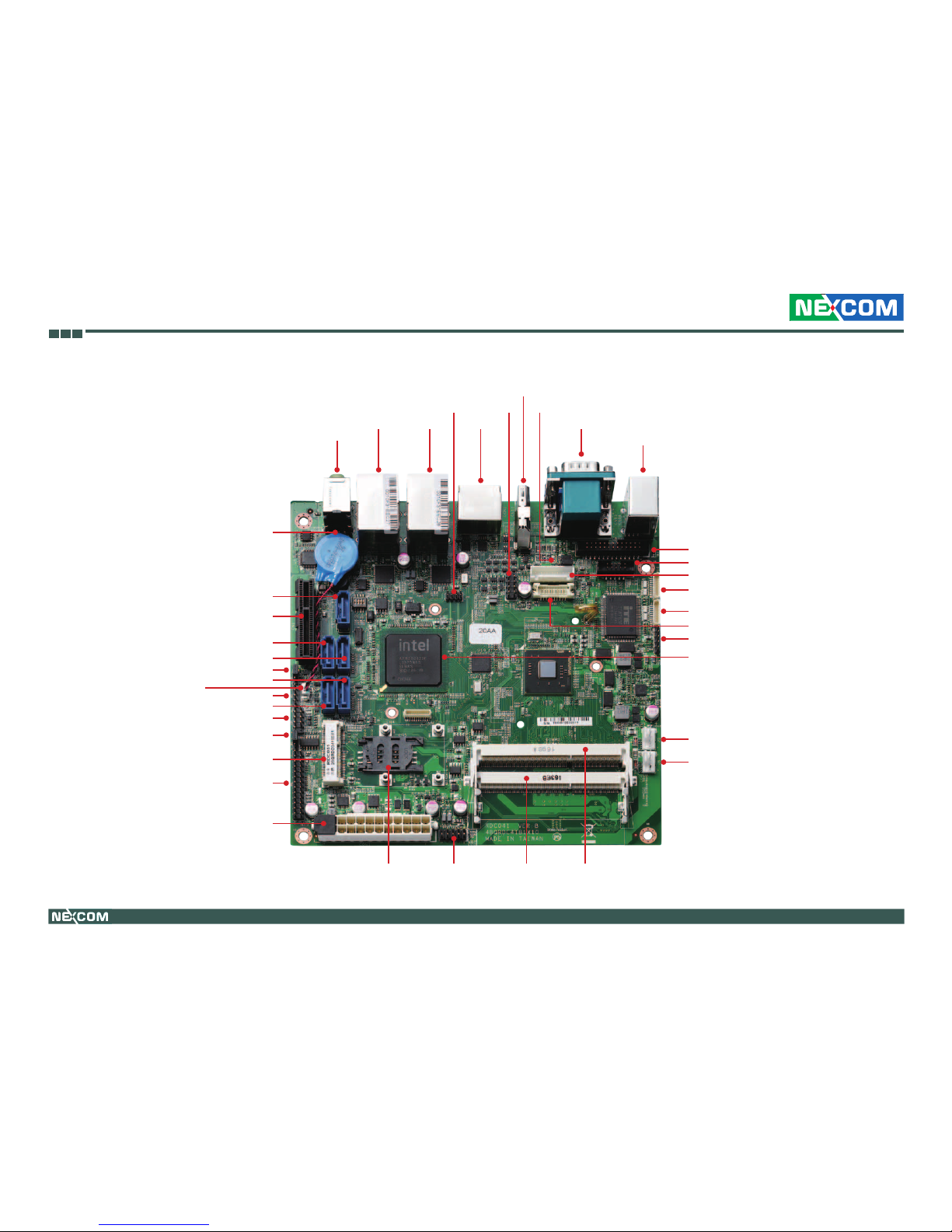

Locations of the Jumpers and Connectors........................................ 8

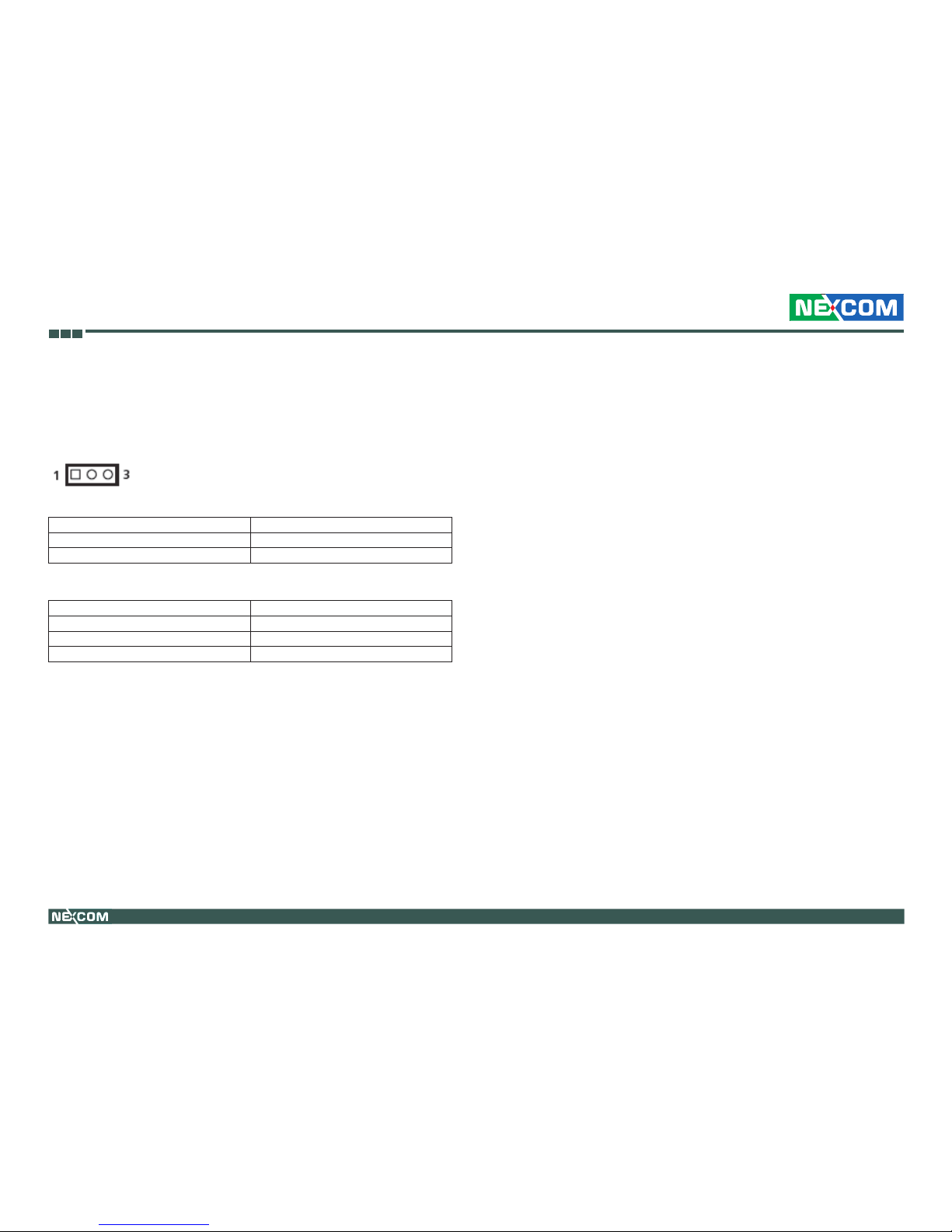

Jumpers........................................................................................... 9

CMOS Clear Select ................................................................ 9

Power Mode Select ................................................................ 9

LVDS Backlight Power Select ................................................ 10

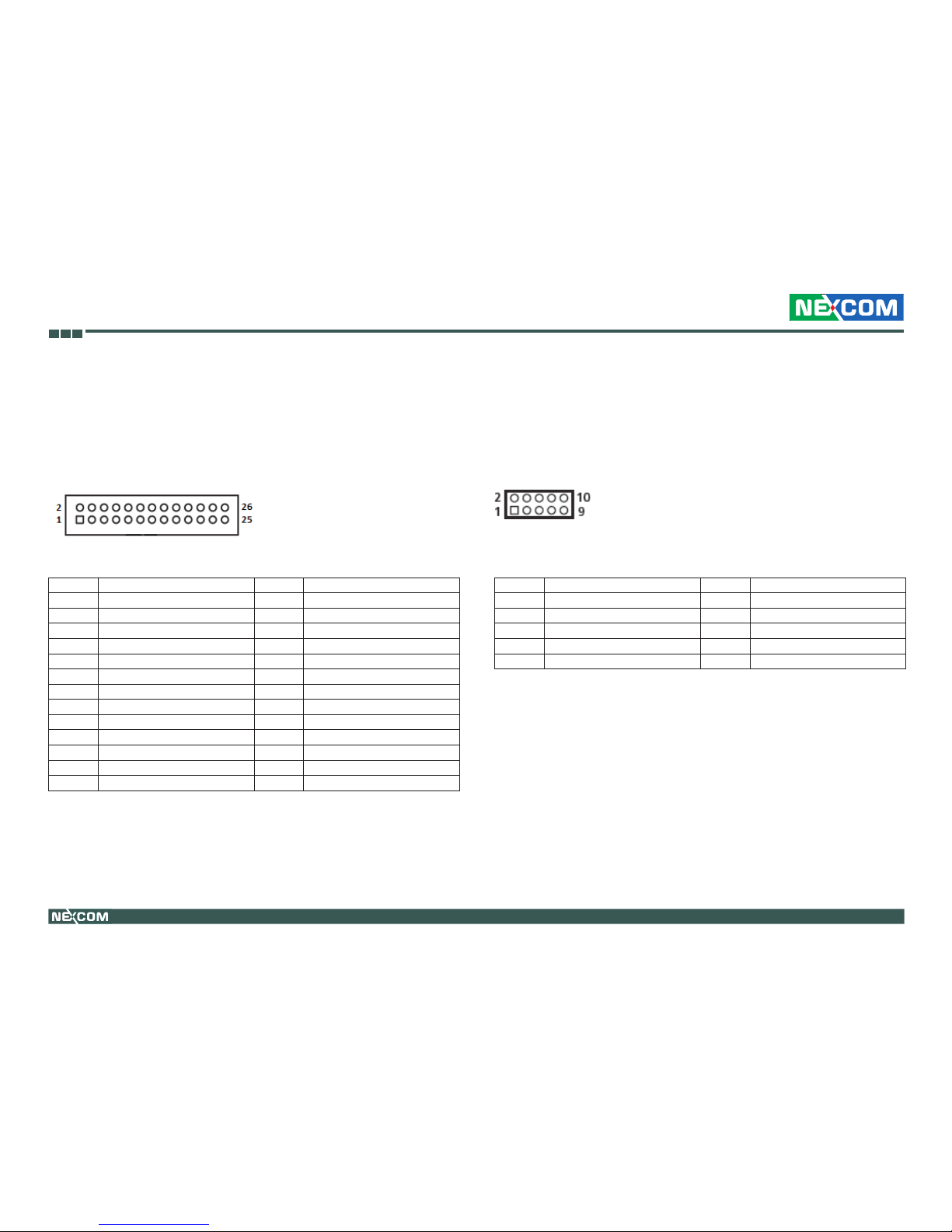

Connector Pin Definitions .............................................................. 11

External I/O Interfaces .......................................................... 11

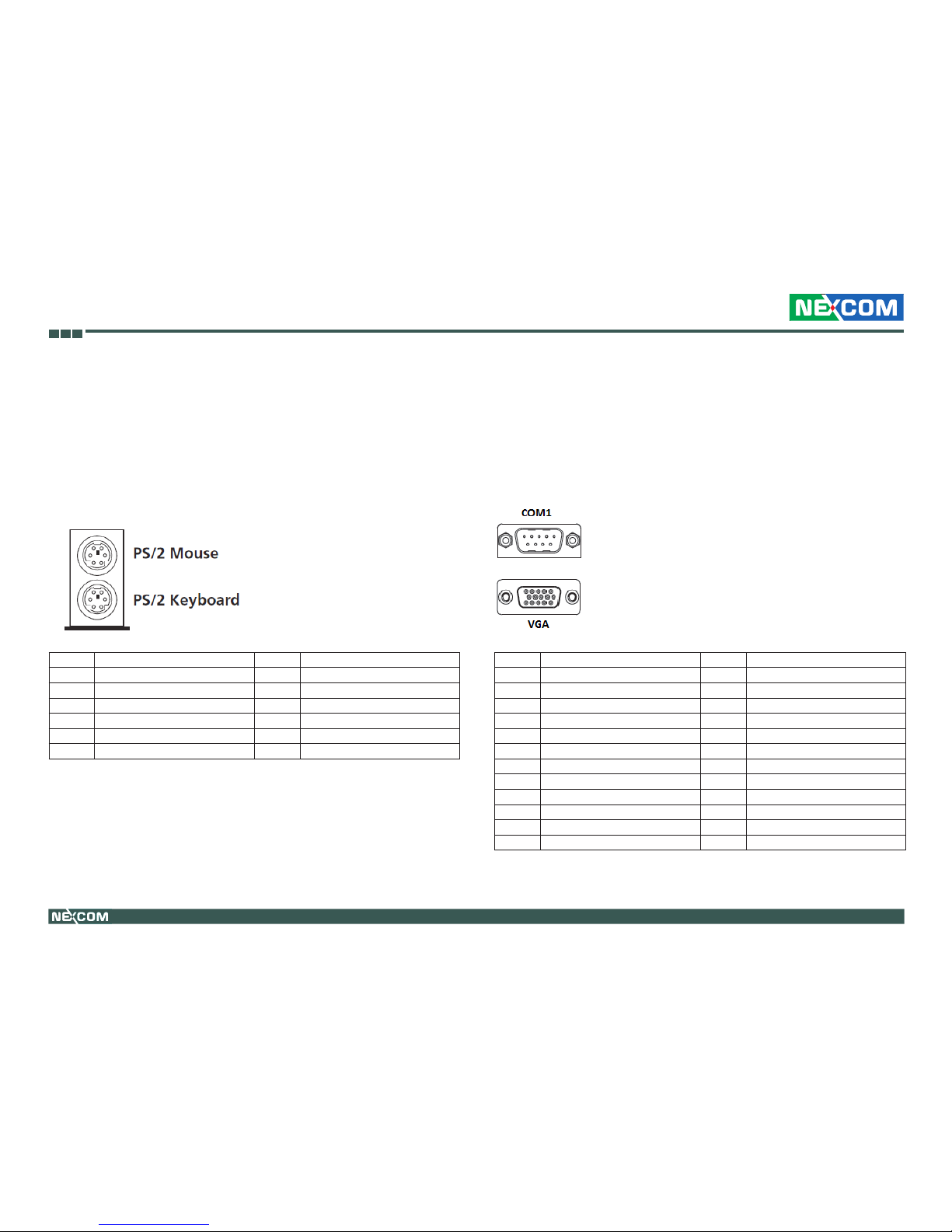

PS/2 Mouse and Keyboard Ports ................................ 11

COM1 and VGA Ports ............................................... 11

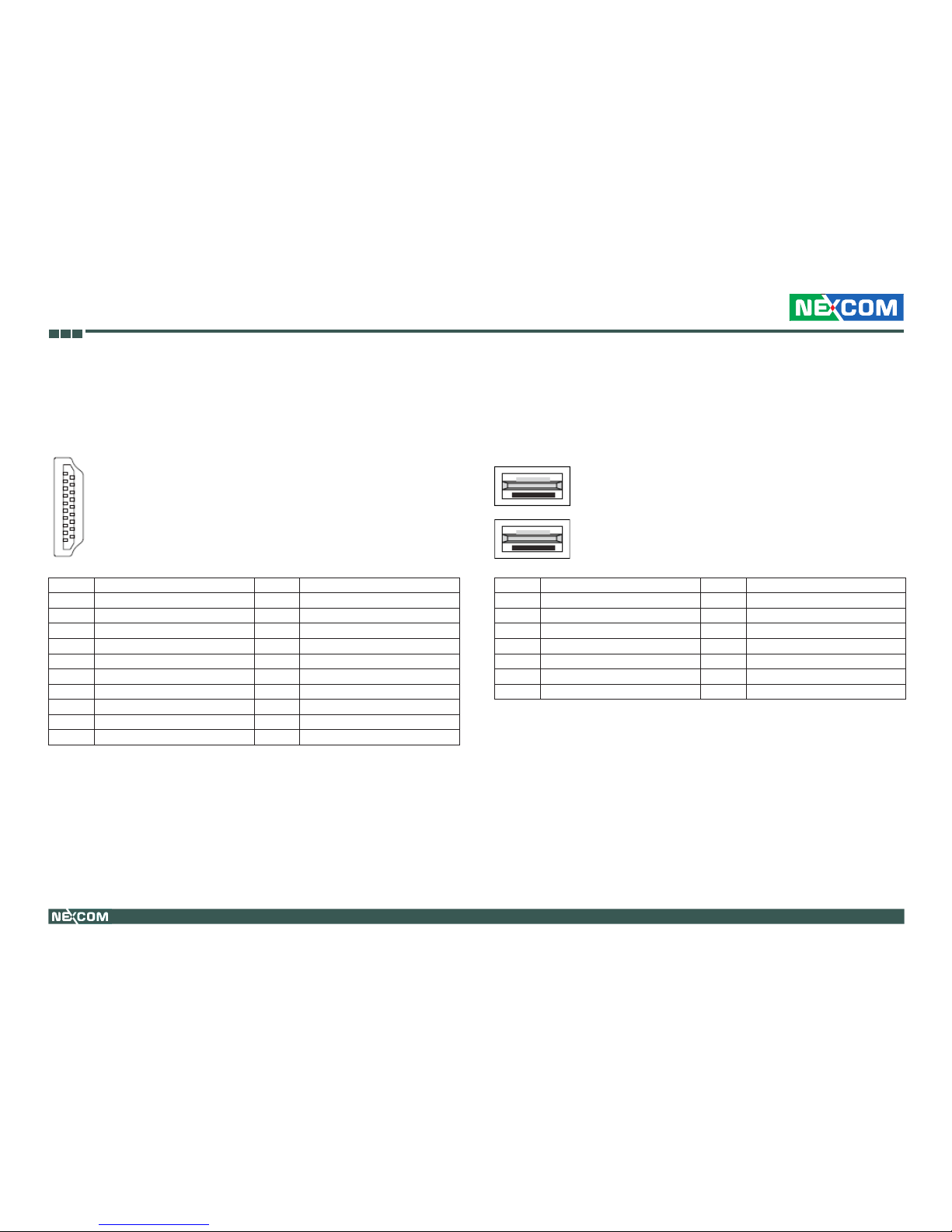

HDMI ........................................................................ 12

Dual eSata Ports ........................................................ 12

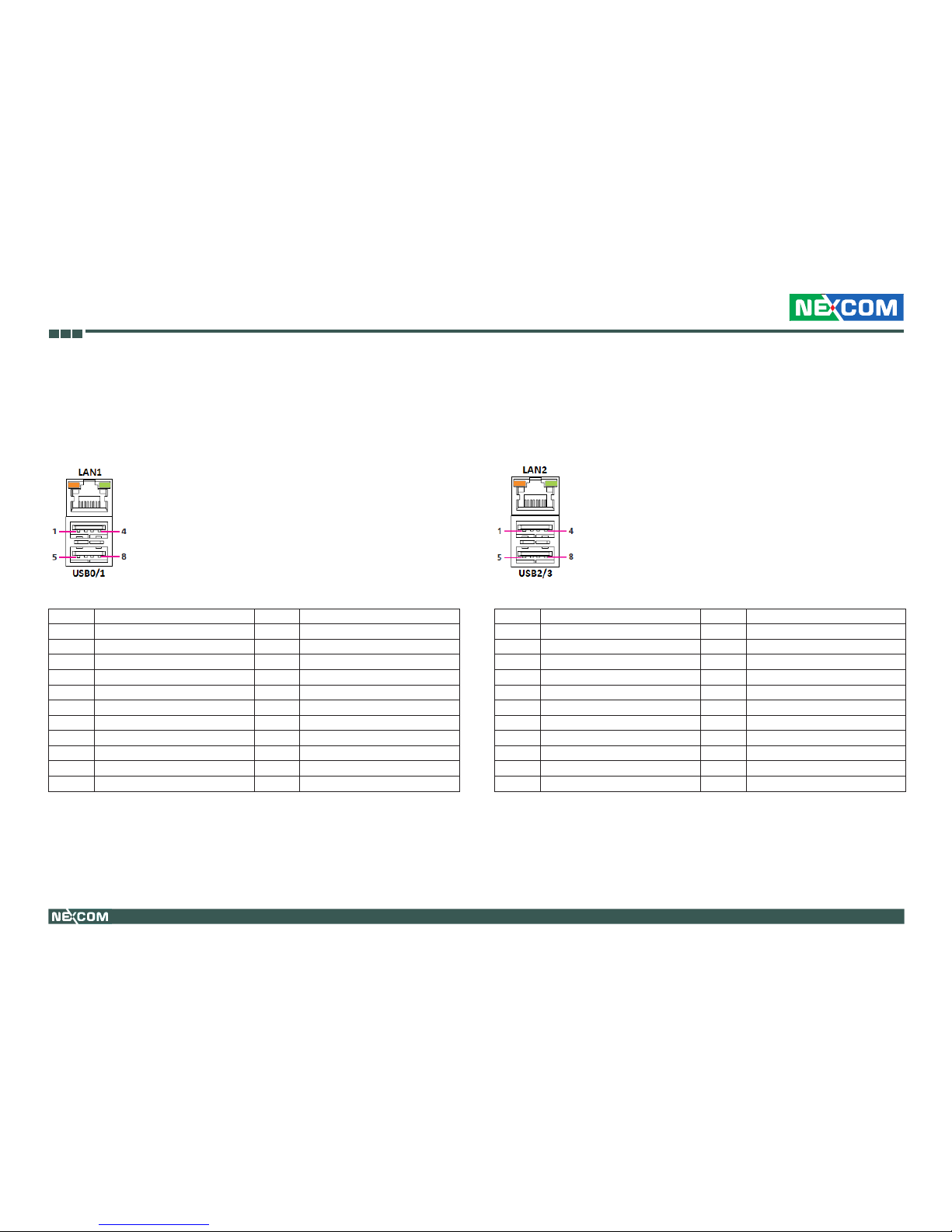

LAN1 and USB0/1 Ports ............................................. 13

LAN2 and USB2/3 Ports ............................................. 13

Audio Connectors ..................................................... 14

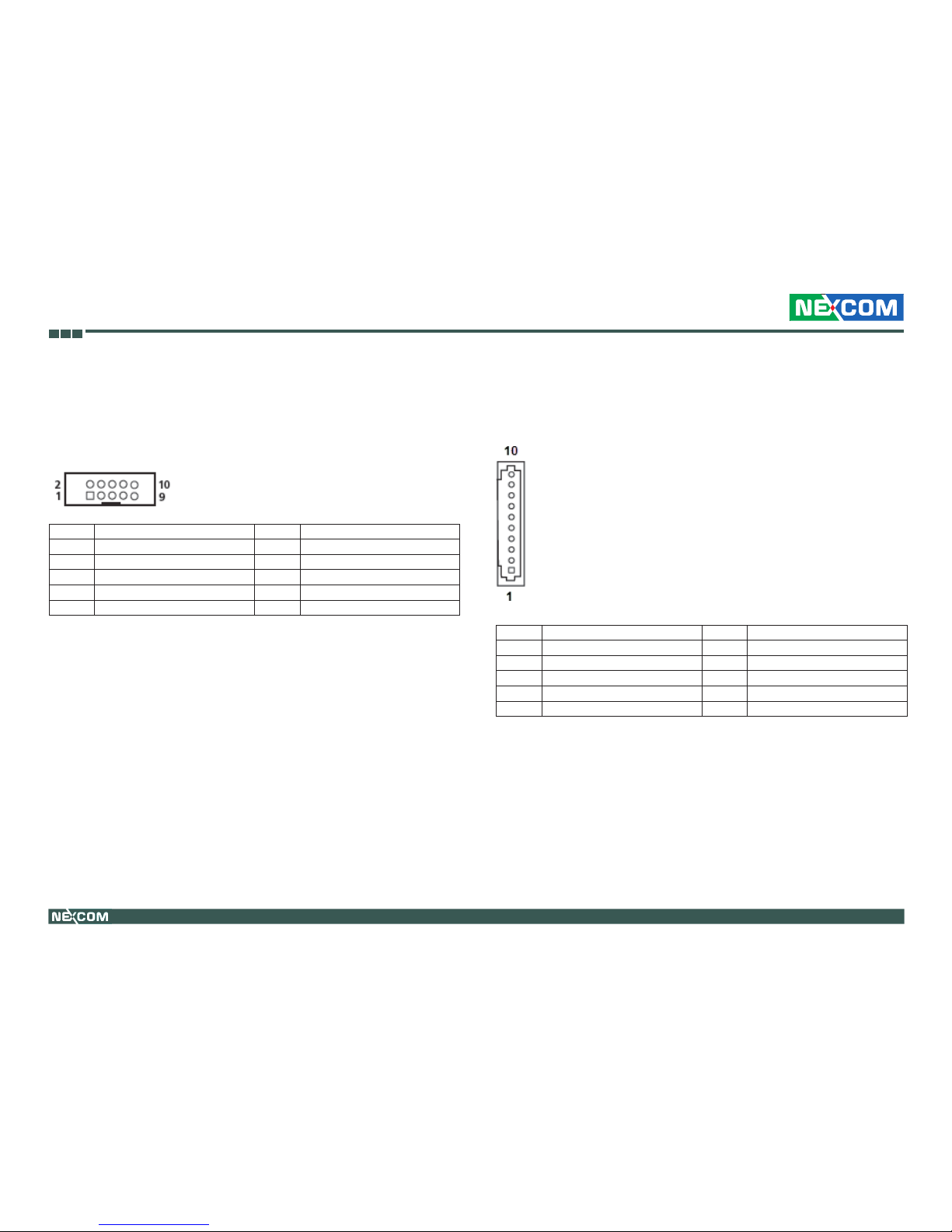

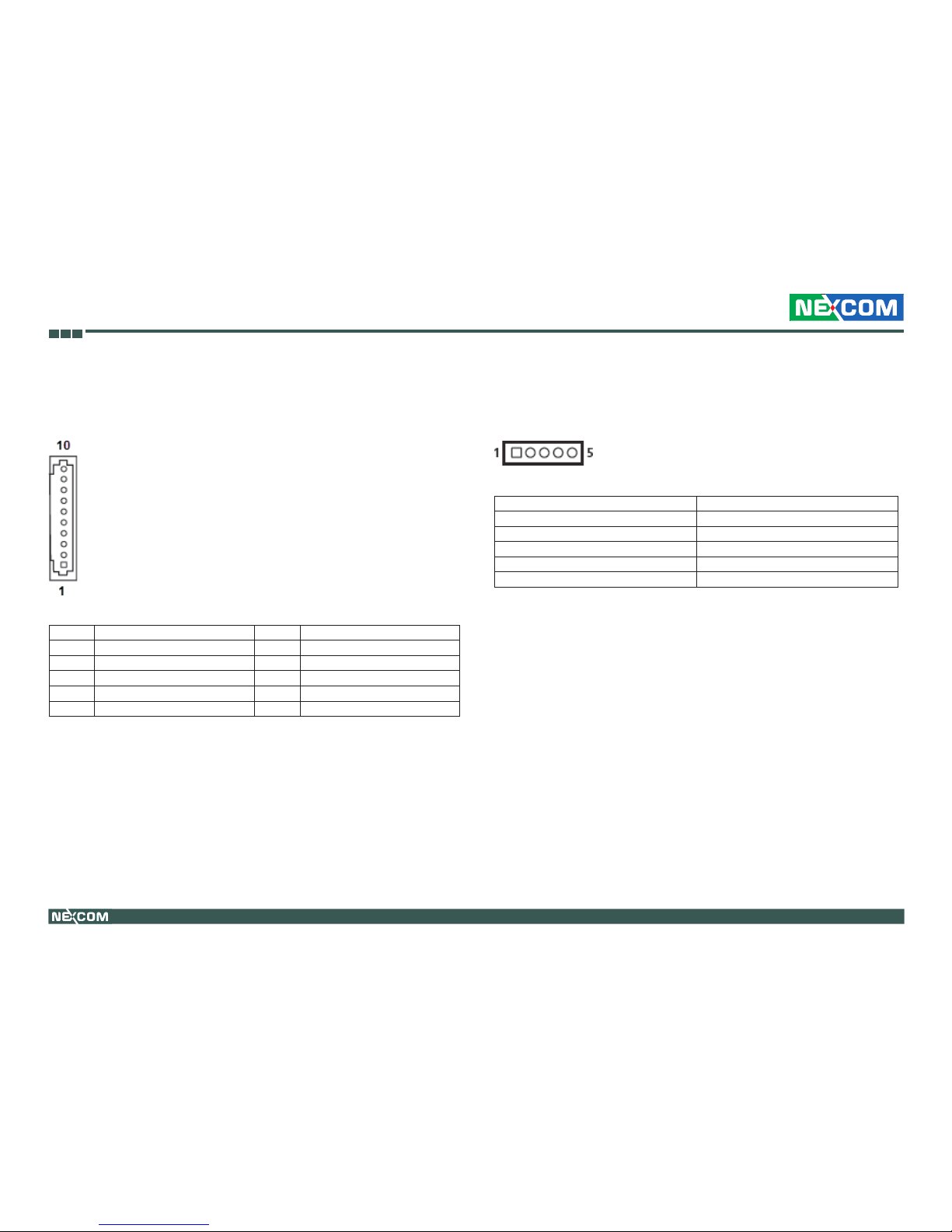

Internal Connectors ............................................................. 15

SATA and LAN LED Connectors ................................. 15

FP Control Connector ................................................ 15

SMBus Connector ..................................................... 16

Line-in Connector ..................................................... 16

SGPIO (SFF-8485) connector...................................... 17

USB6/7 Connector .................................................... 17

iii

NEX 605 User Manual

Contents

USB8/9 Connector .................................................... 18

LVDS Backlight Connector ......................................... 18

COM2 Connector (RS232)......................................... 19

COM3 Connector (RS232)......................................... 19

COM4 Connector (RS232)......................................... 20

IR Connector ............................................................. 20

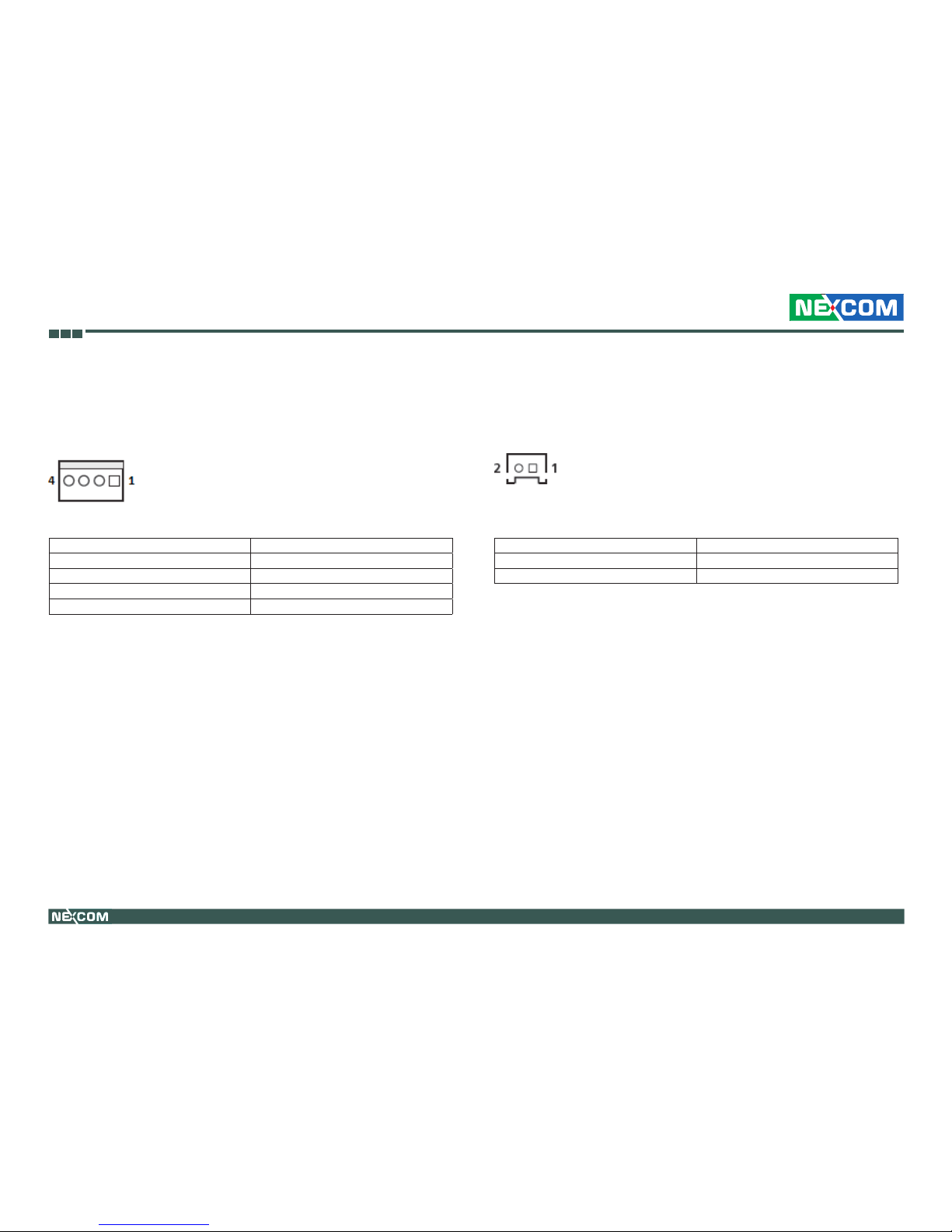

FAN Connectors ........................................................ 21

RTC Battery IN Connector ......................................... 21

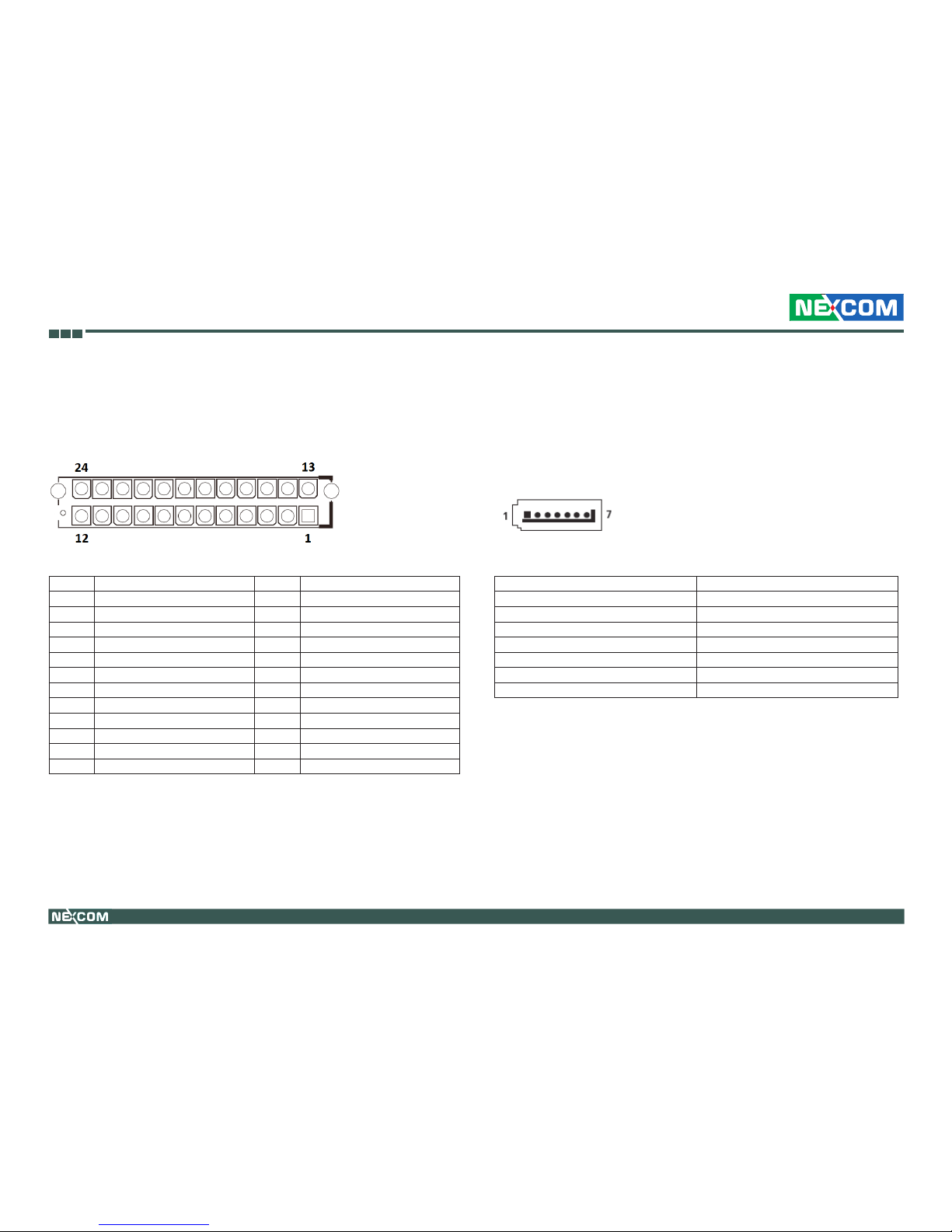

ATX Power Connector ............................................... 22

SATA 2.0 Connectors ................................................ 22

LVDS Connector ........................................................ 23

Sim Card Holder ........................................................ 23

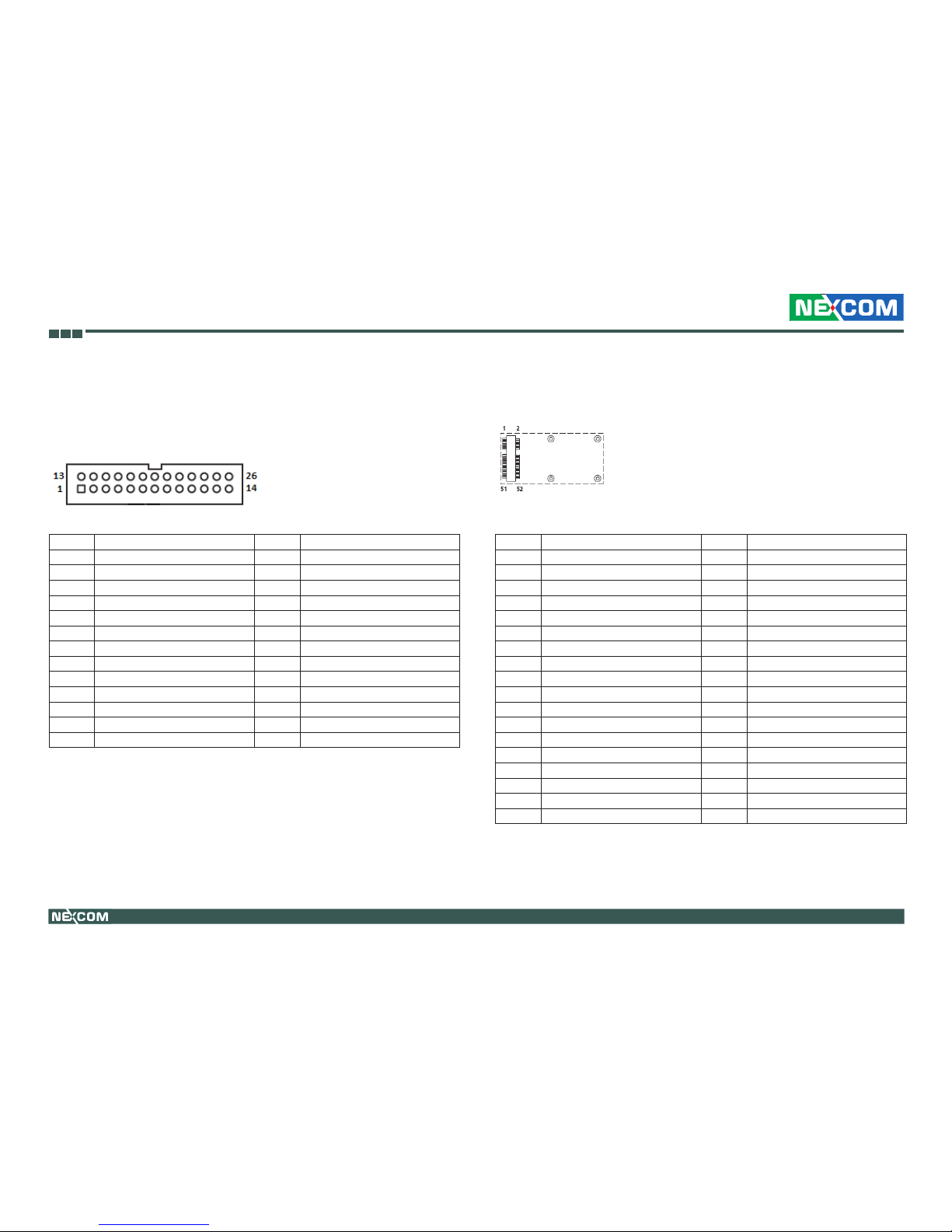

PIO Connector .......................................................... 24

Mini-PCIe Slot (3.5G)................................................. 24

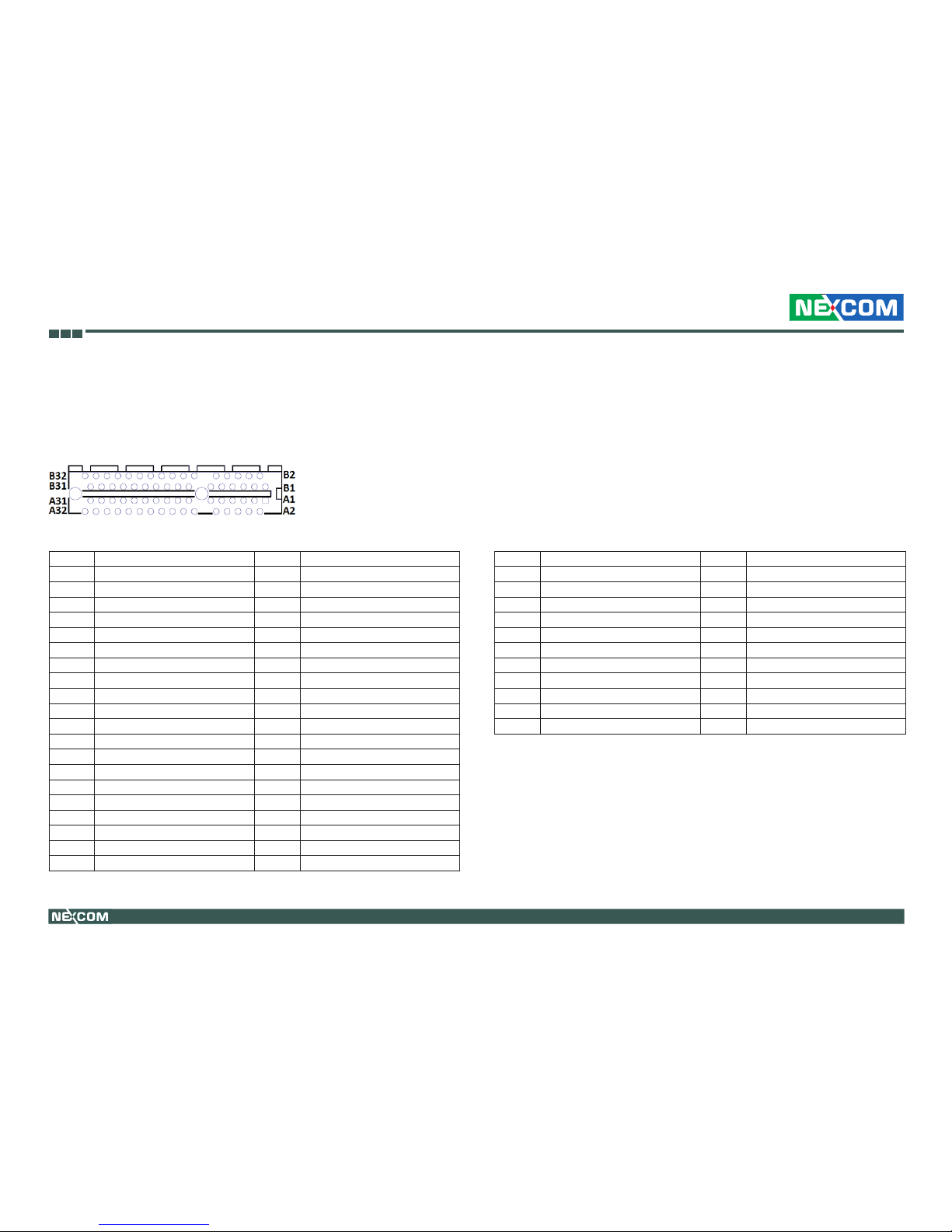

PCIe x4 ..................................................................... 26

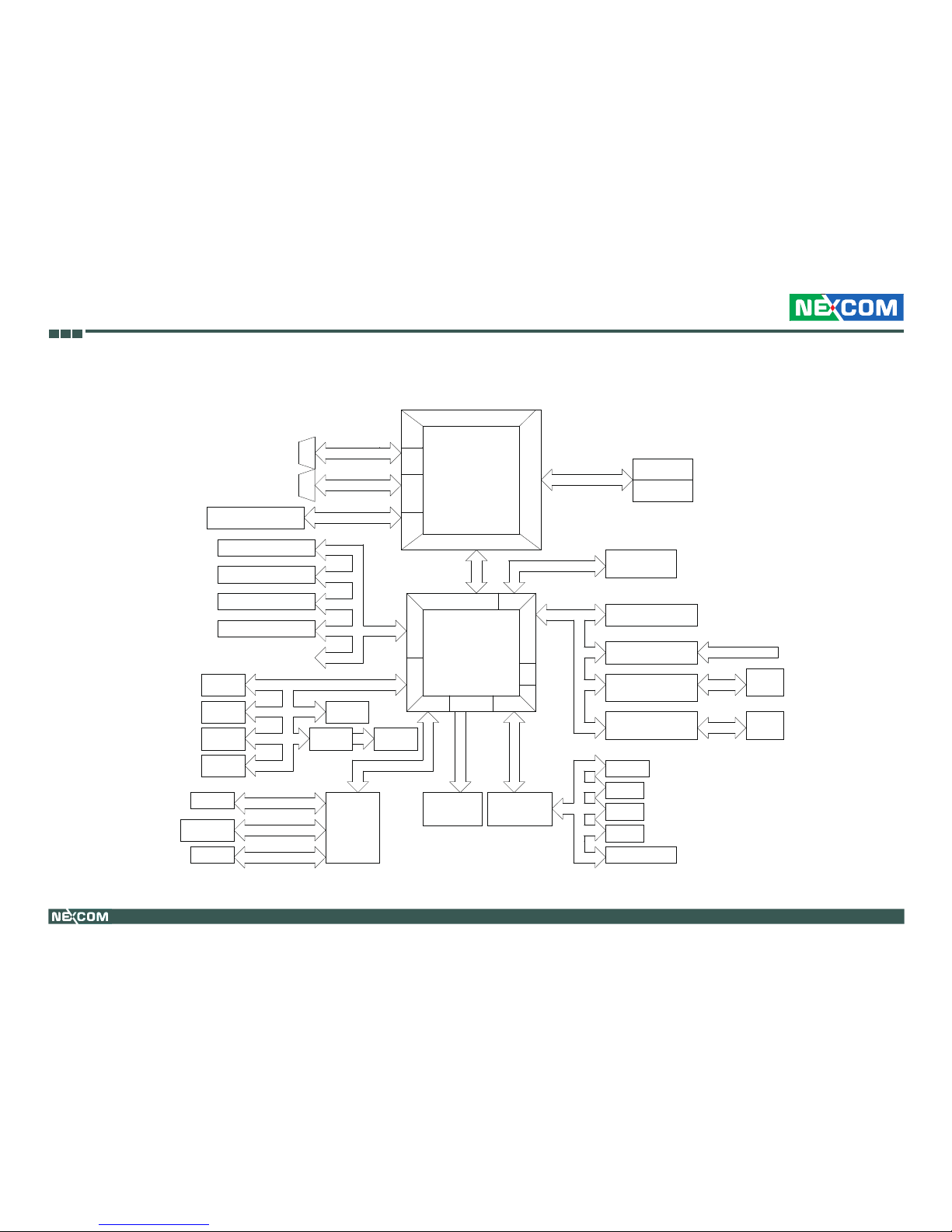

Block Diagram ............................................................................... 27

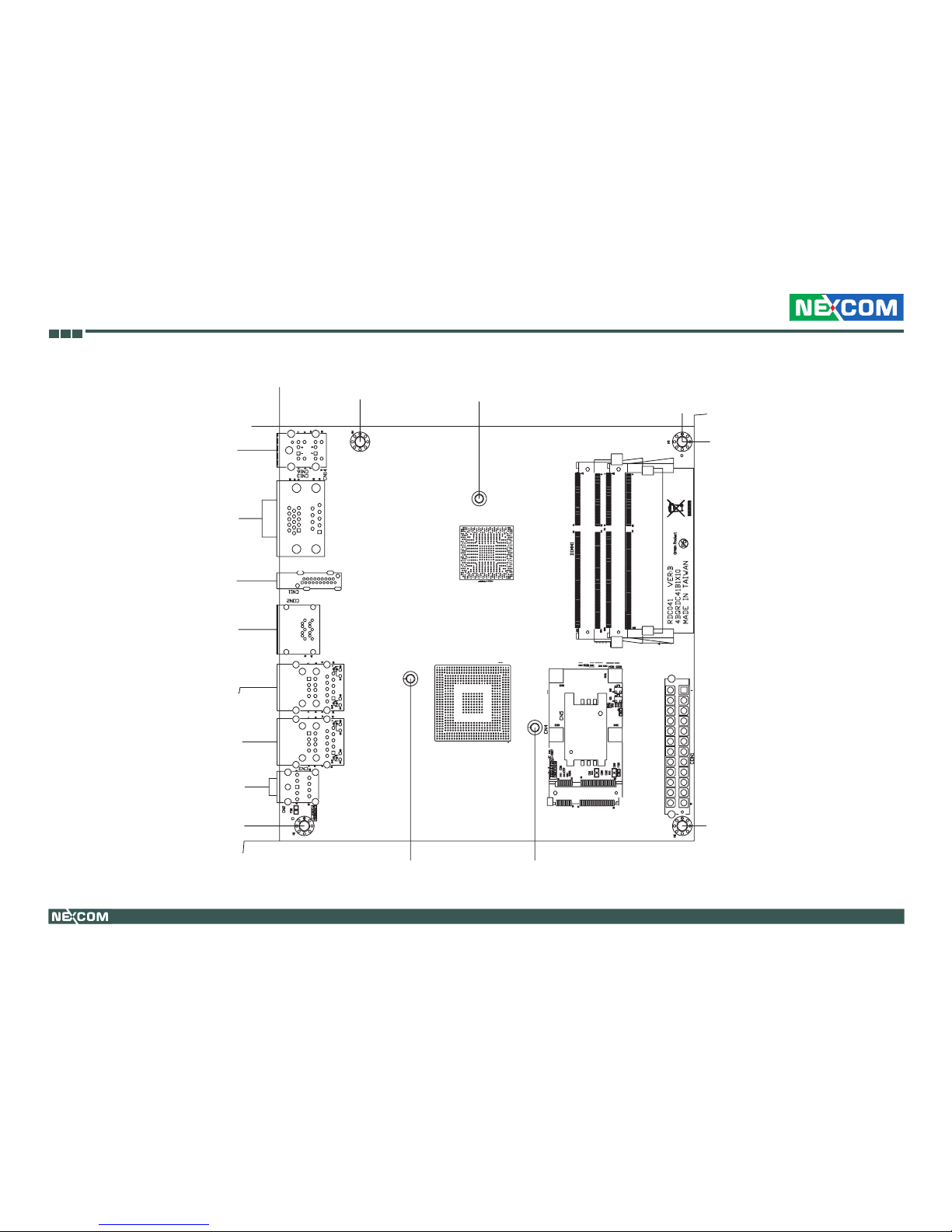

Board Dimensions .......................................................................... 28

Chapter 3: BIOS Setup 29

About BIOS Setup.......................................................................... 29

When to Configure the BIOS ......................................................... 29

Default Configuration.................................................................... 30

Entering Setup............................................................................... 30

Legends......................................................................................... 30

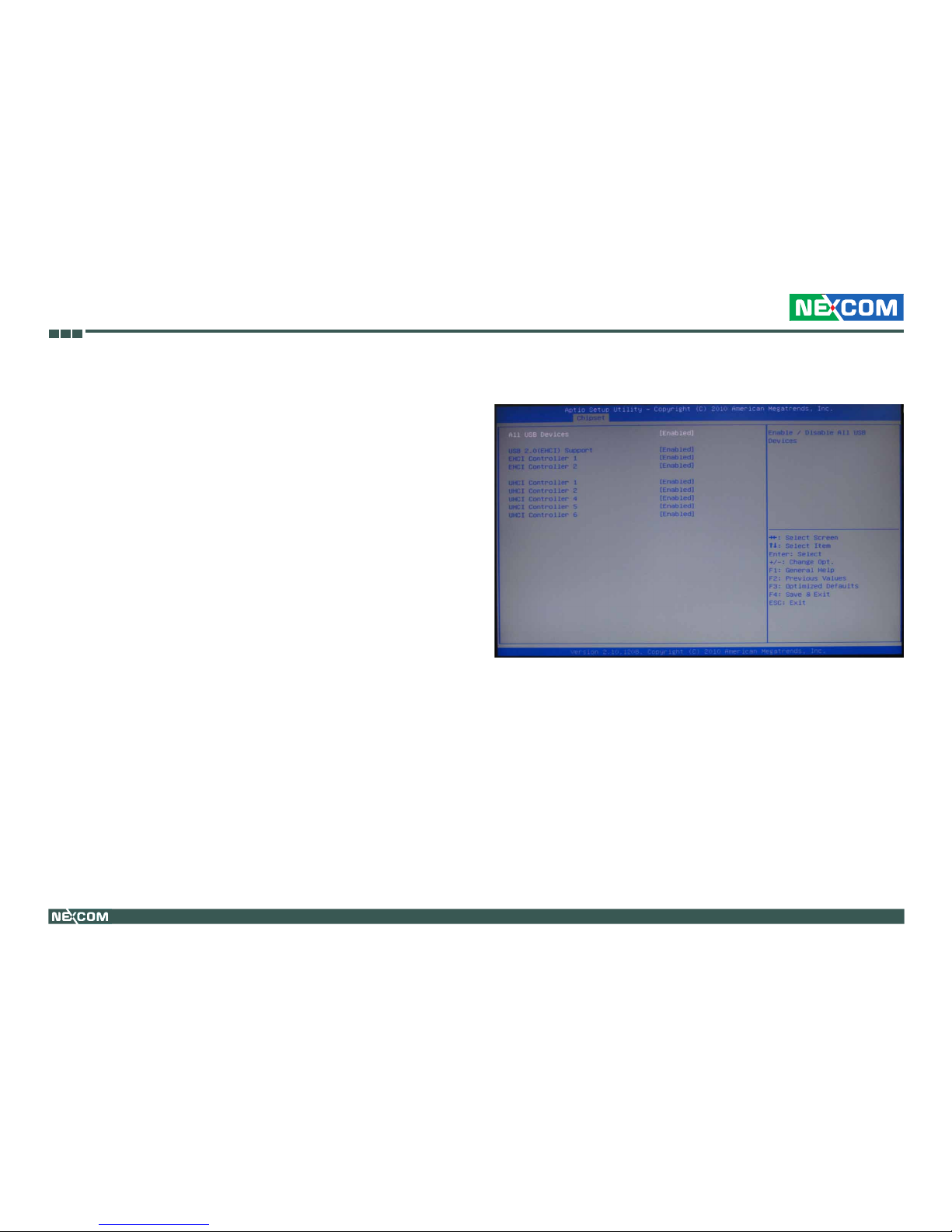

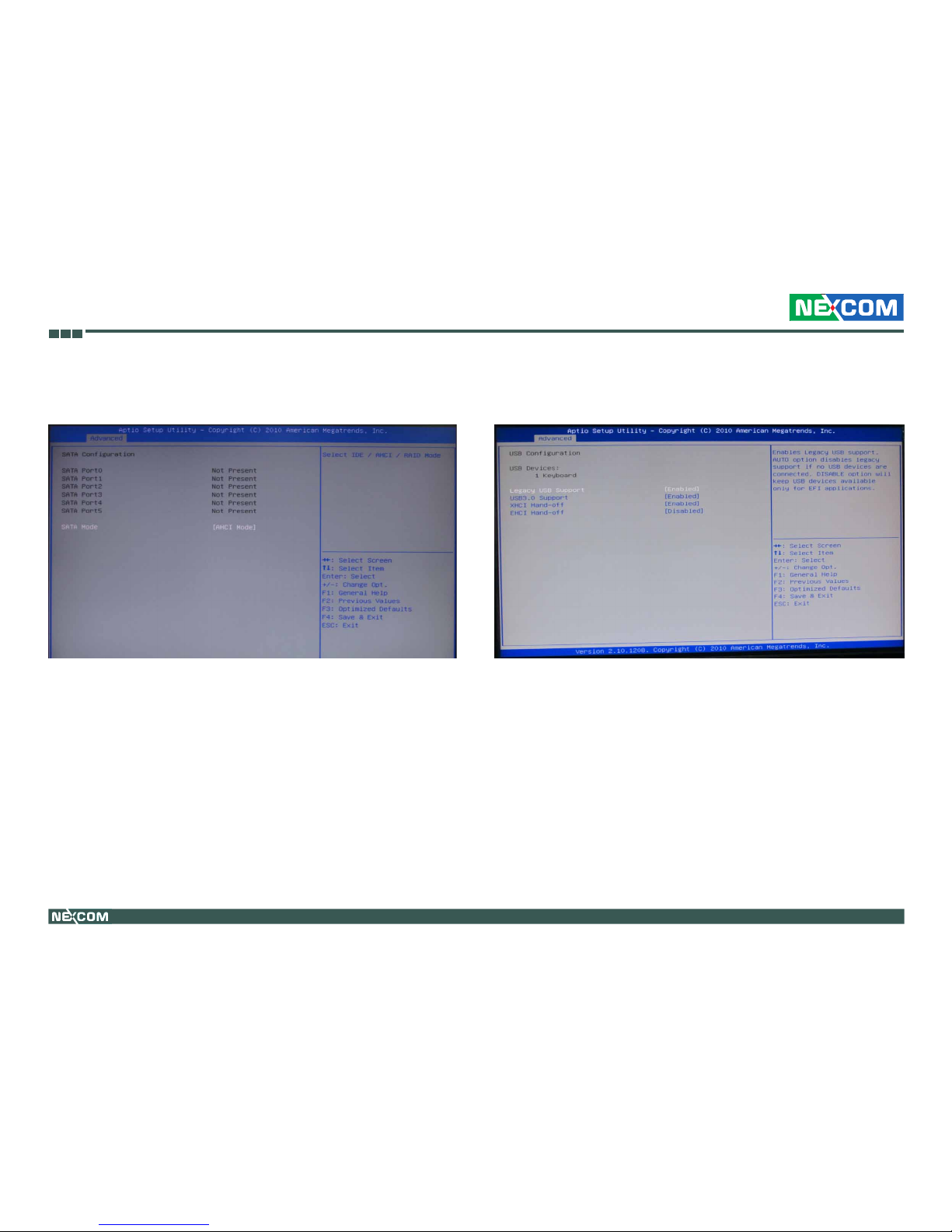

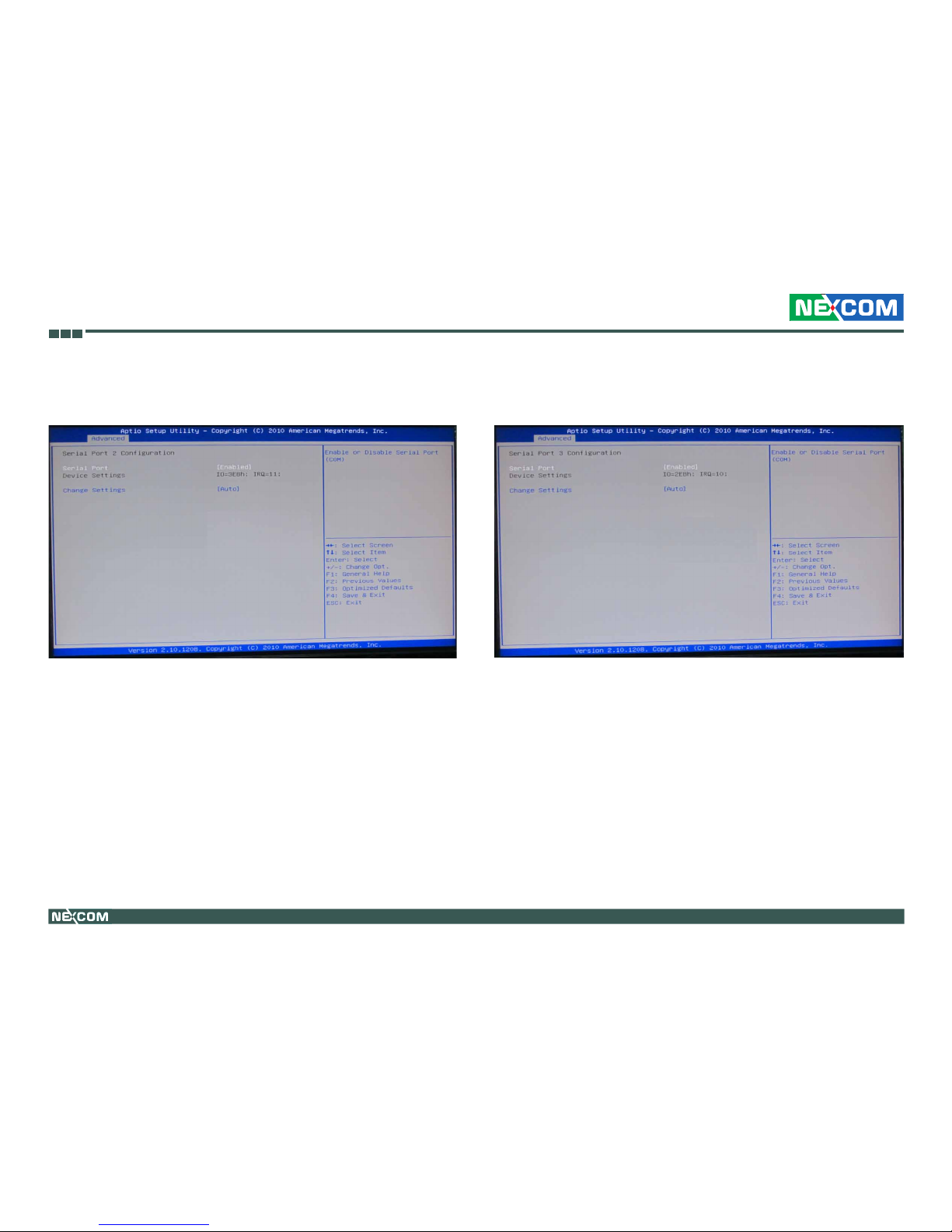

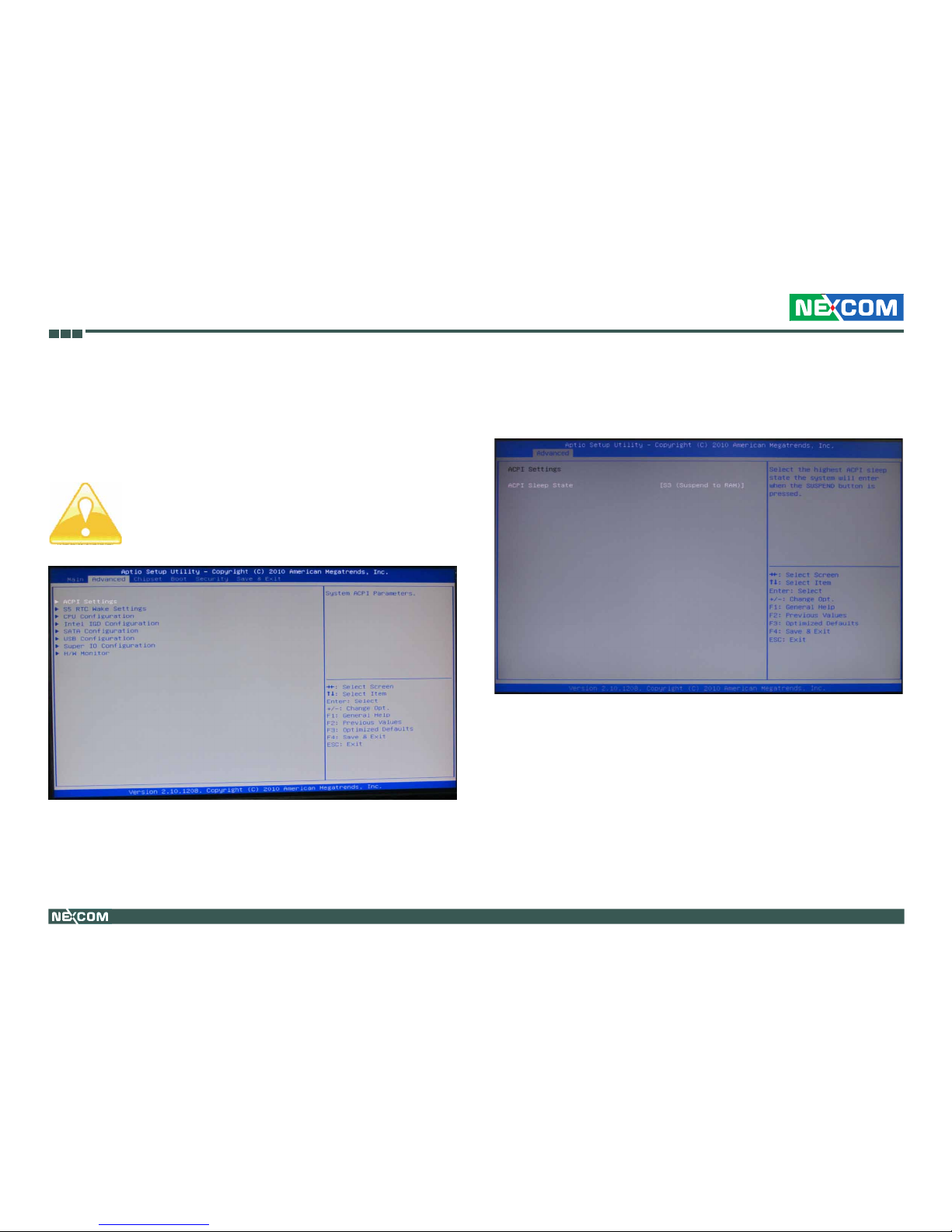

BIOS Setup Utility .......................................................................... 32

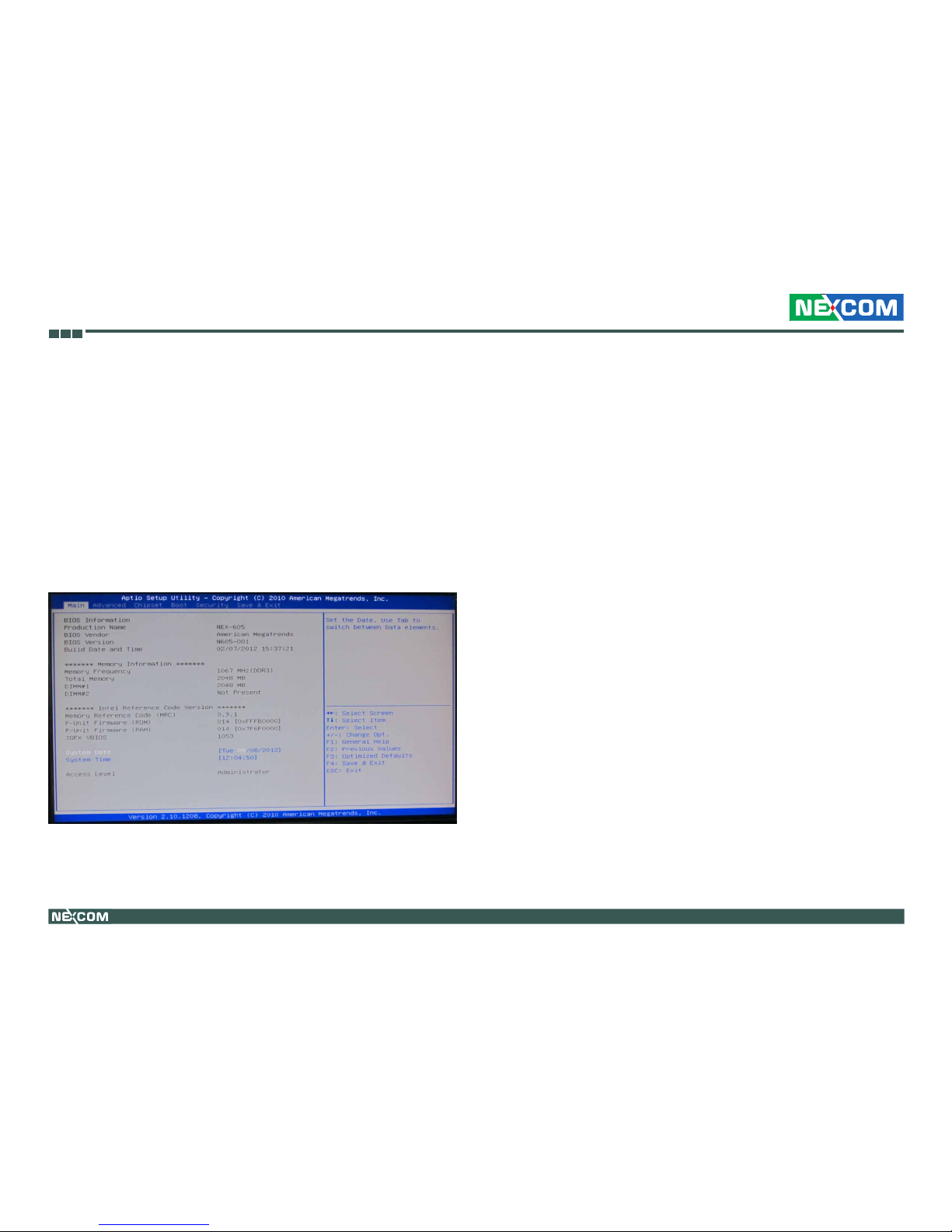

Main .................................................................................... 32

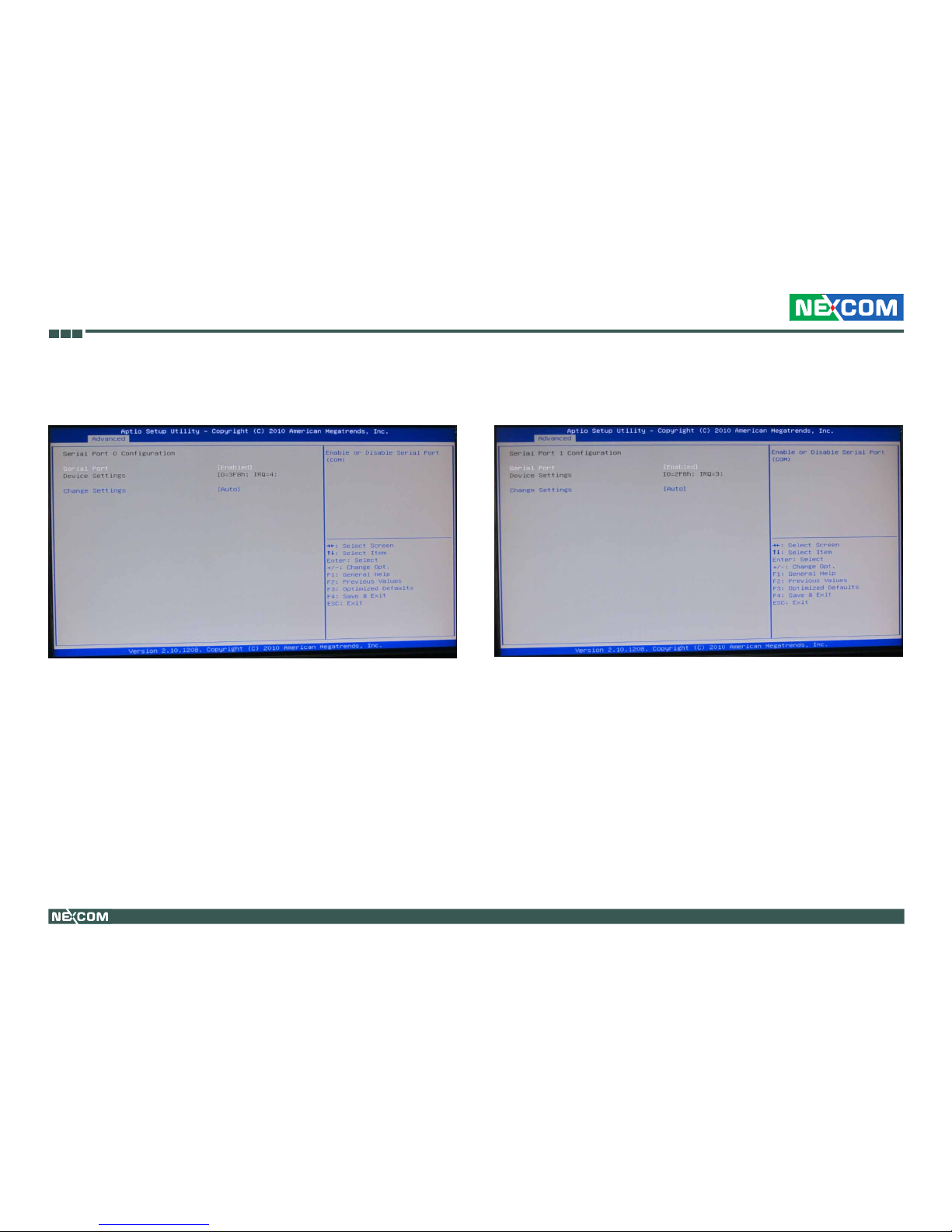

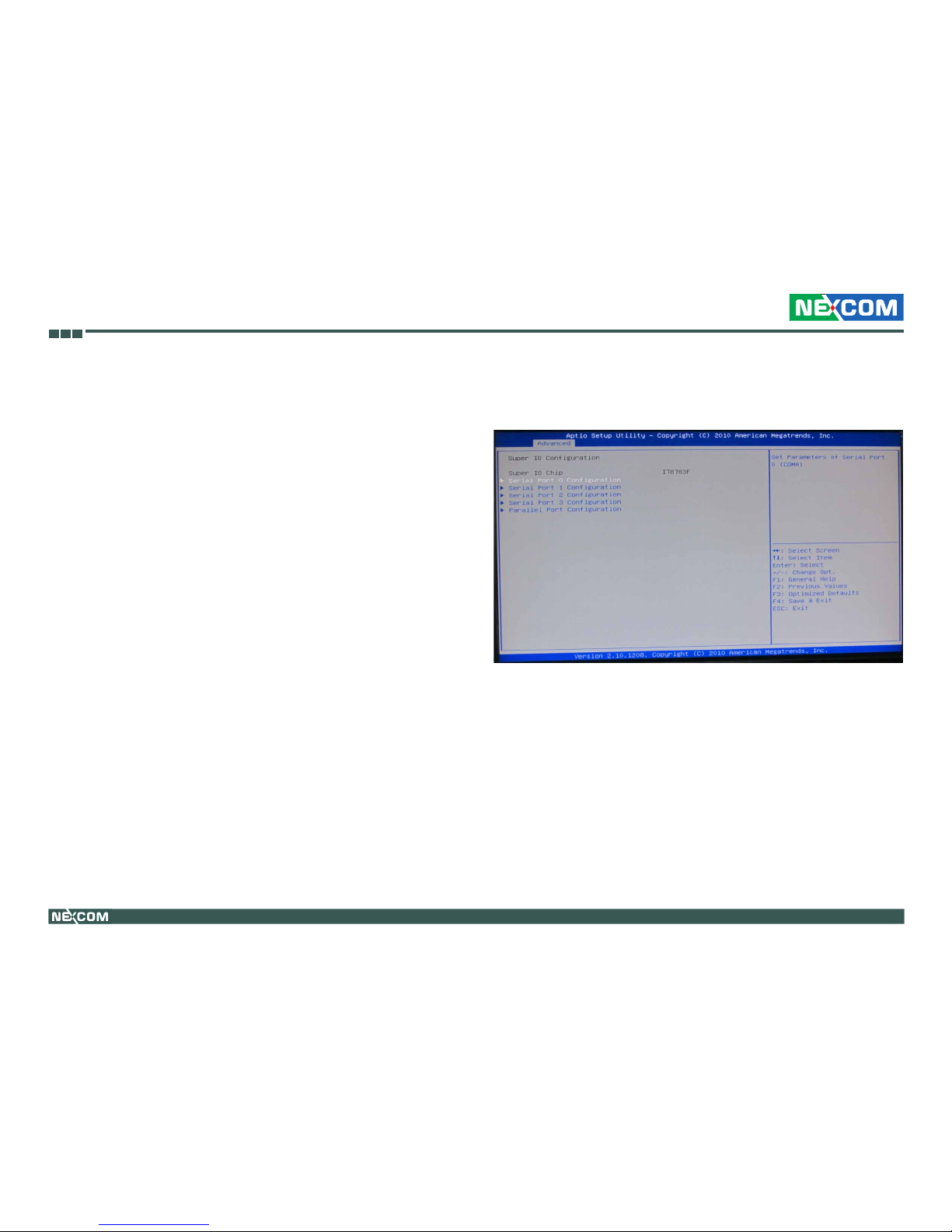

Advanced ............................................................................ 33

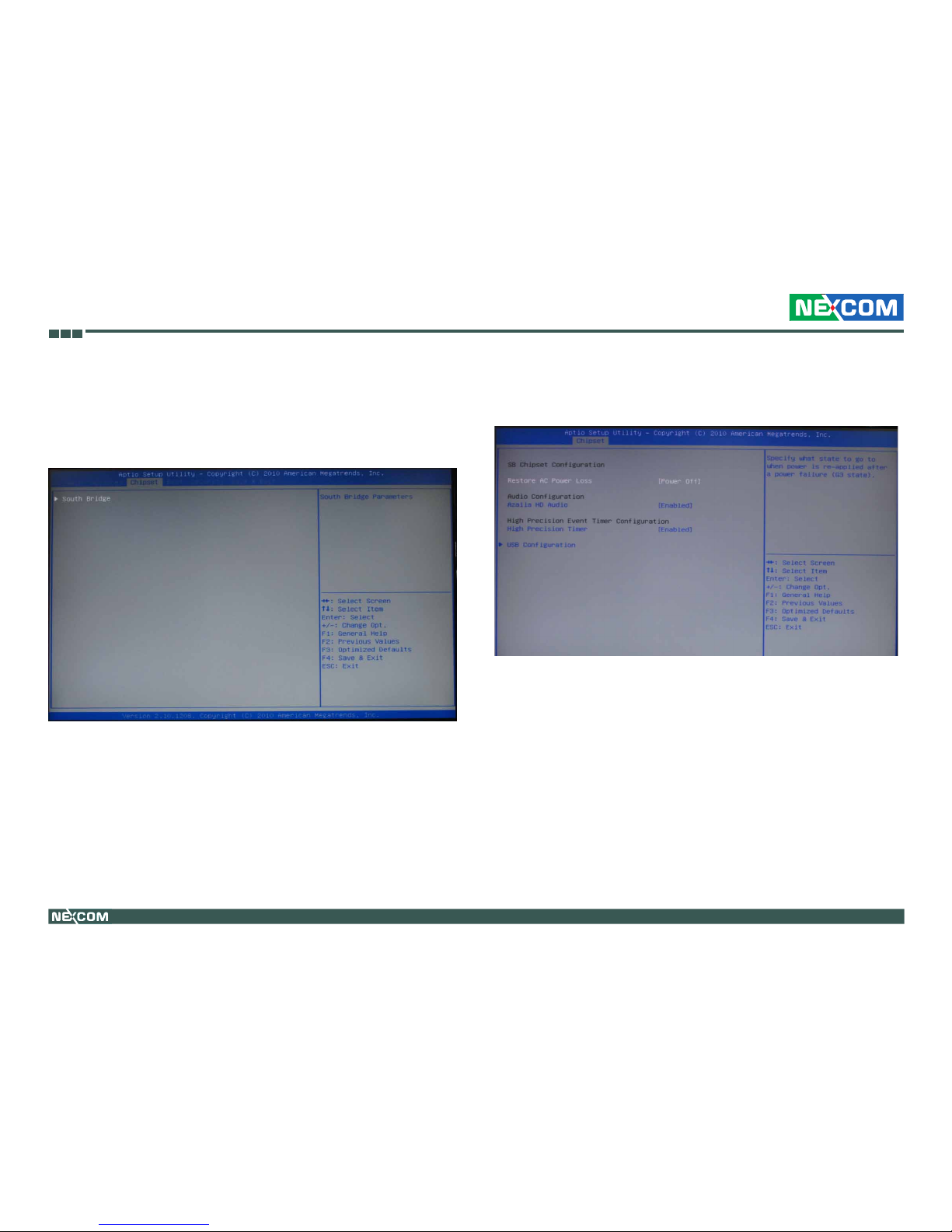

Chipset ................................................................................ 41

Boot .................................................................................... 43

Security ............................................................................... 44

Save & Exit ........................................................................... 44

Appendix A: Watchdog Timer 46

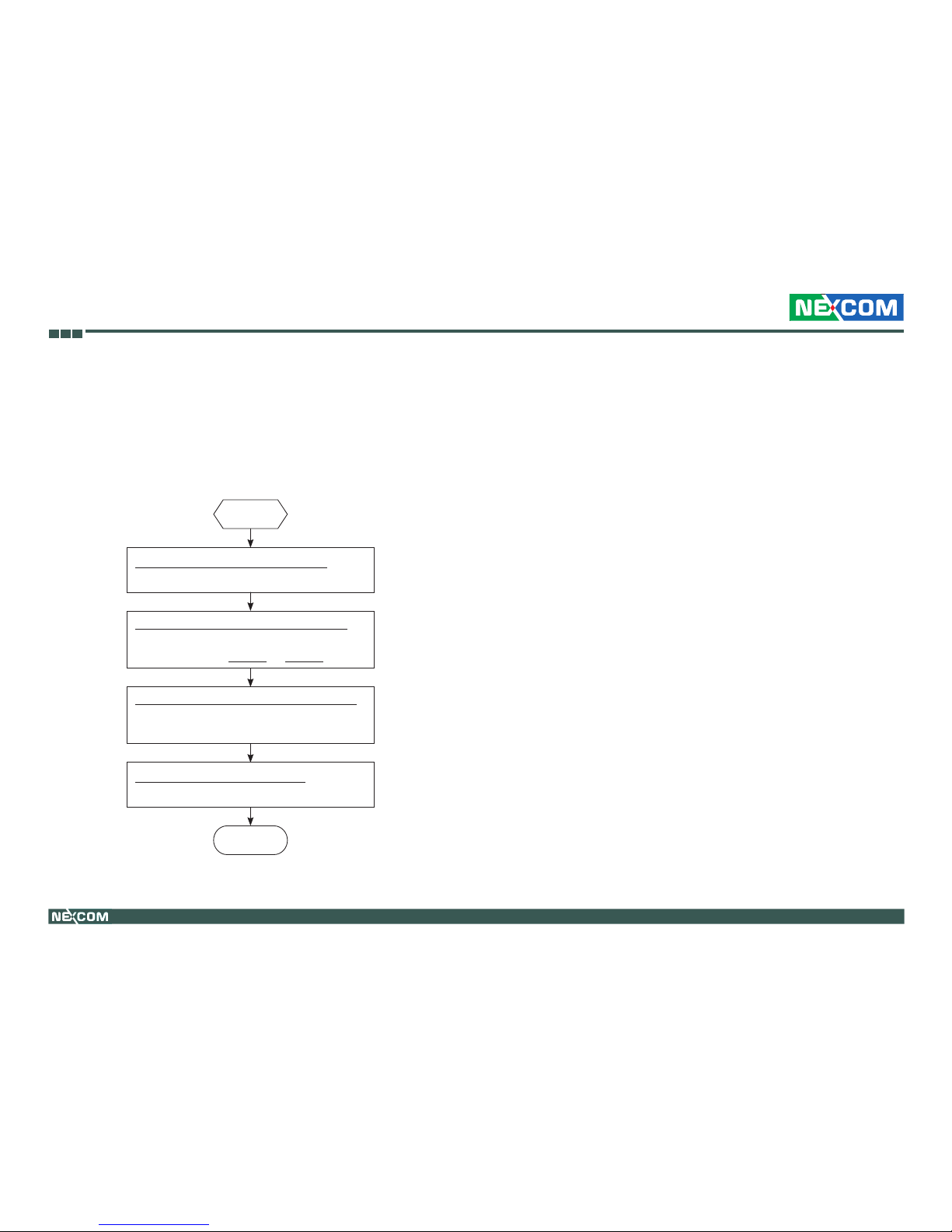

WDT Programming Guide .............................................................. 46

iv

NEX 605 User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www. nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NEX 605 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling

Preface

v

NEX 605 User Manual

Preface

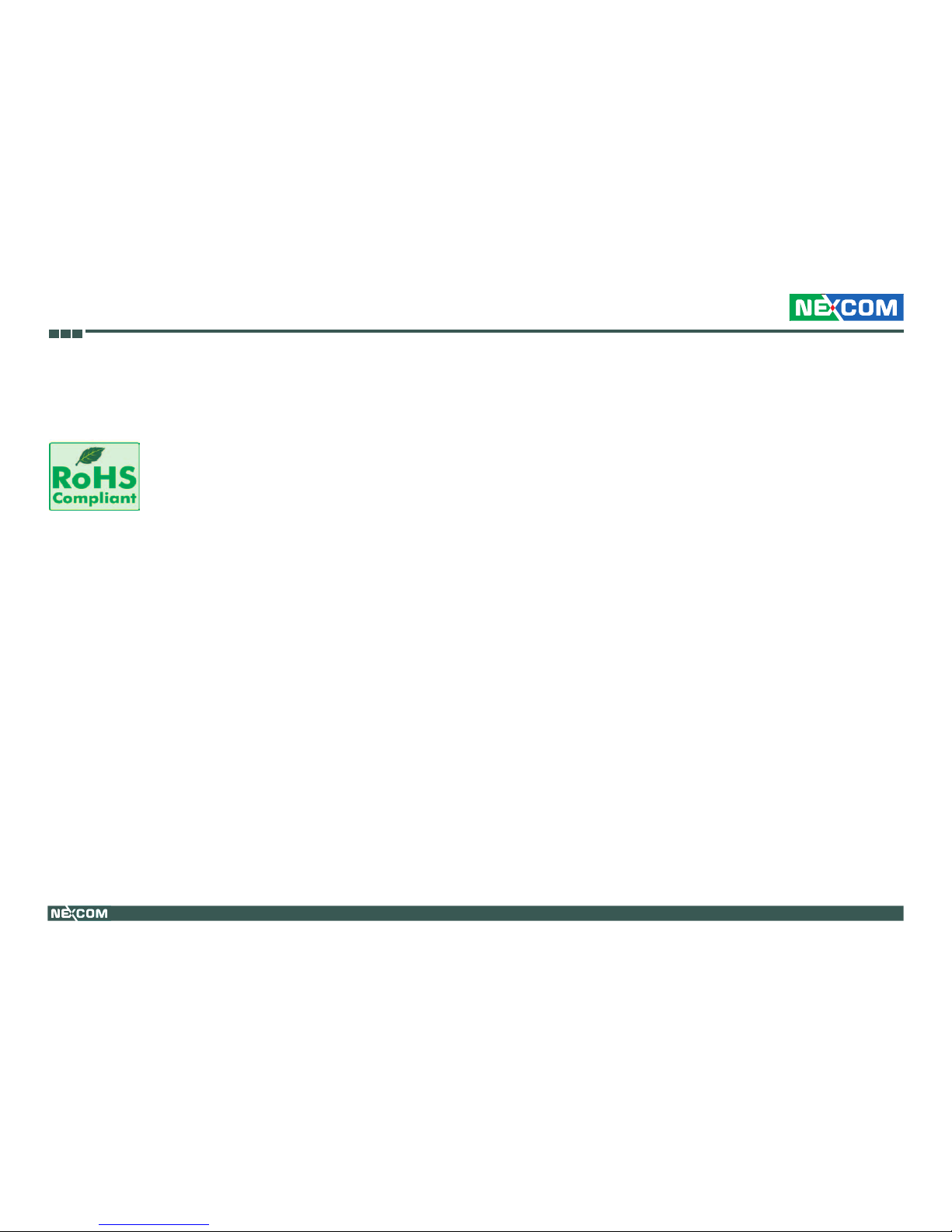

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/

EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products? For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

vi

Warranty and RMA

NEX 605 User Manual

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

• Customers shall enclose the “NEXCOM RMA Service Form” with the returned packages.

• Customers must collect all the information about the problems encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

• Customers can send back the faulty products with or without accessories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

• Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

• Any products returned by NEXCOM to other locations besides the customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

• NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

• Component fee: NEXCOM will only charge for main components such as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

• Items will be replaced with NEXCOM products if the original one cannot be repaired. Ex: motherboard, power supply, etc.

• Replace with 3rd party products if needed.

• If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

Board Level

• Component fee: NEXCOM will only charge for main components, such as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

vii

Warranty and RMA

NEX 605 User Manual

• If RMA goods can not be repaired, NEXCOM will return it to the customer without any charge

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are incon¬sistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the de-scribed procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

• Read all instructions carefully.

• Do not place the unit on an unstable surface, cart, or stand.

• Follow all warnings and cautions in this manual.

• When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

• Avoid using the system near water, in direct sunlight, or near a heating device.

• The load of the system unit does not solely rely for support from the rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

• The computer is provided with a battery-powered real-time clock circuit. There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is

viii

Warranty and RMA

NEX 605 User Manual

recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the

power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical

shock.

13. Never open the equipment. For safety reasons, the equipment should

be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by

service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual.

ix

Warranty and RMA

NEX 605 User Manual

e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTER¬IES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit

NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team

or sales representative, please have the following information ready before calling:

- Product name and serial number

- Detailed information of the peripheral devices

- Detailed information of the installed software (operating system, version, application software, etc.)

- A complete description of the problem

- The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

x

Global Service Contact Information

NEX 605 User Manual

Global Service Contact Information

Headquarters

Taiwan

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 http://www.nexcom.com.tw

USA

NEXCOM USA

3758 Spinnaker Court Fremont, CA, 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 http://www.nexcom.com

France

NEXCOM France

La Grande Arche-Paroi Nord 92044 Paris La Défense France Tel: +33 (0) 1 40 90 33 35 Fax: +33 (0) 1 40 90 31 01 http://www.nexcom.eu

Germany

NEXCOM GmbH

Leopoldstraße Business Centre, Leopoldstraße 244, 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 http://www.nexcom.eu

Italy

NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9619 8846 www.nexcomitalia.it

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 http://www.nexcom.eu

China

NEXCOM China

2F, Block 4, Venus Plaza, Building 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Road, Haidian District, Beijing, 100193, China Tel: +86-10-8282-5880 Fax: +86-10-8282-5955 http://www.nexcom.cn

China-Shanghai Office

Room 1505, Greenland He Chuang Building, No. 450 Caoyang Rd., Shanghai, 200062, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 http://www.nexcom.cn

xi

Global Service Contact Information

NEX 605 User Manual

China-Nanjing Office

Hall C, Block 17, Tian Xing Cui Lang Building, No. 49 Yunnan North Rd., Nanjing, 210018, China Tel: +86-25-8315-3486 Fax: +86-25-8315-3489 http://www.nexcom.cn

China-Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 http://www.nexcom.cn

China-Chengdu Office

9F, Shuxiangxie,Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061,China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 http://www.nexcom.cn

China-Shenzhen Office

Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, 518040, China TEL: +86-755-833 7203 FAX: +86-755-833 7213 http://www.nexcom.cn

Japan

NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 http://www.nexcom-jp.com

xii

Package Contents

NEX 605 User Manual

Package Contents

Item P/N Name Qty

1 5044440079X00 GASKET FOR VIA CPU KGS:C-4505(20X20x1)+G4000 1

2 5044440090X00 (H)THERMAL PAD APUS:3A2015001001500 1

3 5050300517X00 CPU HEATSINK FOR NEX605 SHYUNG SHUHN 1

xiii

Ordering Information

NEX 605 User Manual

Ordering Information

The following information below provides ordering information for NEX 605.

NEX 605-2550 (P/N: 10G00060500X0) RoHS Compliant

Mini ITX, Intel® Atom™ D2550 processor and based on Intel® integrated graphics engine w/ VGA/18-bit LVDS/HDMI /8x USB2.0/4x COMs/ 1x Mini-PCIe/2x Gigabit LAN/2x ESATA/6x SATA /1x LPT /1x PCIE by Four

1

Chapter 1: Product Introduction

NEX 605 User Manual

Chapter 1: Product Introduction

Overview

Key Features

• Main Features

• Onboard Intel

®

Atom™ processor D2550 1.86GHz CPU

• Intel

®

ICH10R to support Intel® Matrix Storage RAID 0/ 1/ 5/ 10

• Dual 204-pins DDR3 SO-DIMMs support max. 4GB SDRAM memory

• Support VGA/ HDMI, VGA/ LVDS or HDMI/ LVDS dual displays

• 8x USB, 4x COM, 2x GbE(Intel), 2x eSATA/ 6x SATA, 8x GPIO, 1x LPT

• Audio Mic-in/ Line-out, (internal Line-in)

• 1x Mini-PCIe (1x full-size/ SIM tray), 1x PCIe x4

• Standard ATX v.2.0 input by AT/ ATX power mode

2

Chapter 1: Product Introduction

NEX 605 User Manual

Hardware Specications

CPU Support

• Intel® Atom™ processor D2550 1.86GHz CPU

Main Memory

• Dual 204-pin SO-DIMM socket supports up to 4 GB DDR3 800/1066 MHz SDRAM

Chipset

• Intel® ICH10R support Intel® Matrix Storage technology of RAID 0/ 1/ 5/ 10 configuration

BIOS

• AMI BIOS

• Plug & Play support

• Advanced Power Management

• Advanced Configuration & Power Interface

• 8M bits SPI ROM

On-board LAN

• 2x Intel 82574L PCI Express Gigabit Ethernet

• Support Boot From LAN (PXE)

• 2x RJ45 with LEDs build-in 2x dual stackable USB type A connectors on

edge I/O

Display

• Intel® Atom™ processor D2550 integrated 3D graphics engine, which enhances Gfx & Video, support DX10.1, OpenGL 3.0, Full HD-Decode (MPEG2,VC1,AVC,H.264), delivers sophisticated graphics for large display applications, supports dual independent at graphics base frequency up to 640MHz, and provides a wealth of options for highresolution displays.

• Analog VGA interface

• Resolution up to 1920x1200 75Hz

• HDMI interface

• 1x HDMI Interface

• Resolution up to 1920x1200

• LVDS interface

• Single (24bit) LVDS panel, resolution up to 1440 x 900 DF13 20-pin LVDS

connector for internal connection

• CCFL interface

• 1x CCFL for LCD Panel Backlight Inverter

Audio

• Realtek ALC886 CODEC for High Definition

• 1x Mic-in/ 1x speaker-out by audio jack on edge I/O and 1x line-in by pin

header.

Expansion

• 1x Mini-PCIe (1x full-size/ SIM tray)

• 1x PCIE X4 slot

3

Chapter 1: Product Introduction

NEX 605 User Manual

I/O Interface

• Serial port: 4 ports

• COM1, RS232 by DB-9 male on edge I/O

• COM2, 3, 4 support 3x RS232 ports by 2x 5-pins box header and dual-

JST 10pins wafer

• 8x USB 2.0: used 9 of 14 ports (ICH10R)

• 4x ports by 2x dual stack USB2.0 on edge I/O (port 0~ 3)

• 4x ports by 2x 5-pins header pitch 2.54mm (port 6~ 9)

• 1x ports to mini-PCIe slots (port 10)

• Power LED and HDD Active LED/ Reset/ Power On-Off by 2x 5-pins

header

• 2x 4-pins fan connector (for CPU and system)

• On board Buzzer and SMBus 2.0 by 1x 4-pins, IrDA by 1x 5-pins header

• 2x 13-pins box header for legacy parallel port/ LPT

• 2x 13-pins header for 6SATA/ 2GbE LEDs connector

Edge I/O Interface

• 1x dual stack PS2 for Keyboard/ Mouse

• 1x dual stack DB9 male for COM1 + DB15 female VGA

• 1x HDMI connector

• 1x dual stack eSATA (port 1 is default by eSATA)

• 2x RJ45 LAN + dual stack USB connectors

• 1x Mic-in/ 1x Speaker-out Jack

Watchdog Timer

• Watchdog timeout can be programmed by software from 1 second to

255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C).

• Storage

• Default by 2x eSATA by external edge I/O and internal 4x SATA

connectors support RAID

• Optional by DIP-SW1 setting to 1x eSATA (on bottom edge I/O) and internal 5x SATA

• 2x 13-pins header for 6x SATA/ 2x LAN LEDs connector

System Monitor

• Monitoring of 4 voltages and 2 temperatures

• 4 Voltage (Vcore, +12V , +3.3V , 5V)

• 2 Temperatures (CPU, System)

• 2 Fans Speed detection

On-board RTC

• On-chip RTC with battery backup

• 1x External Li-Ion battery

Power Input

• Support AT and ATX mode

Power Requirements

• Power requirement: ATX Input, jumper AT/ ATX (default) mode

• Onboard 2x 12-pins standard ATX version 2.0 power connector

4

Chapter 1: Product Introduction

NEX 605 User Manual

Dimensions

• Mini-ITX form factor/170mm (L) x 170mm (W) (6.7”x6.7”)

Environment

• Operating temperatures: 0°C to 60°C

• Storage temperature: -20°C to 85°C

• Relative humidity: Operating 10% to 90%, non-condensing

Certifications

• CE approval

• FCC Class A

5

Chapter 1: Product Introduction

NEX 605 User Manual

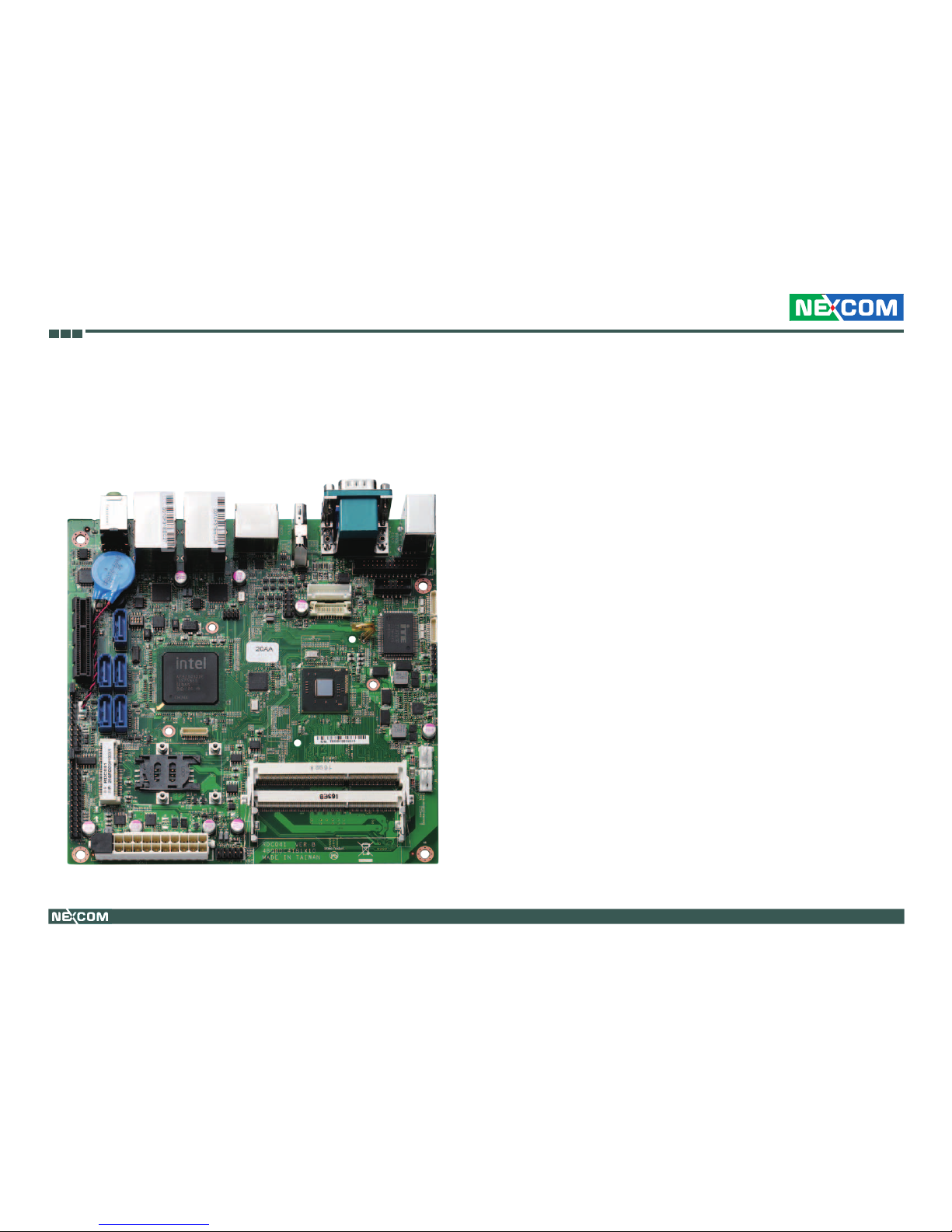

Knowing Your NEX 605

SIM Card Connector

Audio Connectors

LAN2/ USB LAN1/ USB

LAN1/ USB

eS ATA

USB 8/9

HDMI

LVDS Backlight Panel Power Select

COM & VGA

PS/2 KB/ MS

PS/2 KB/ MS COM2 LVDS Backlight Panel

COM3

COM4 LVDS IR Connector

Intel® ICH10R

FAN Connector

USB6/7 DIMM1 DIMM2

Line-in

SATA 1

PCIe x4

SATA 2

SATA 3 CMOS SATA 4

SM BUS

SATA 5

RTC Battery

FP Control

ATX/AT Select

Mini-PCIe

SATA & LAN LED

ATX Power Connector

6

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers and connectors on the NEX 605 motherboard.

Before You Begin

• Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

• Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

- A Philips screwdriver

- A flat-tipped screwdriver

- A set of jewelers screwdrivers

- A grounding strap

- An anti-static pad

• Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

• Before working on internal components, make sure that the power is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static

electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

• Always disconnect the unit from the power outlet whenever you are working inside the case.

• If possible, wear a grounded wrist strap when you are working inside the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

• Hold electronic circuit boards by the edges only. Do not touch the components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

• Leave all components inside the static-proof packaging that they shipped with until they are ready for installation.

• Use correct screws and do not over tighten screws.

7

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

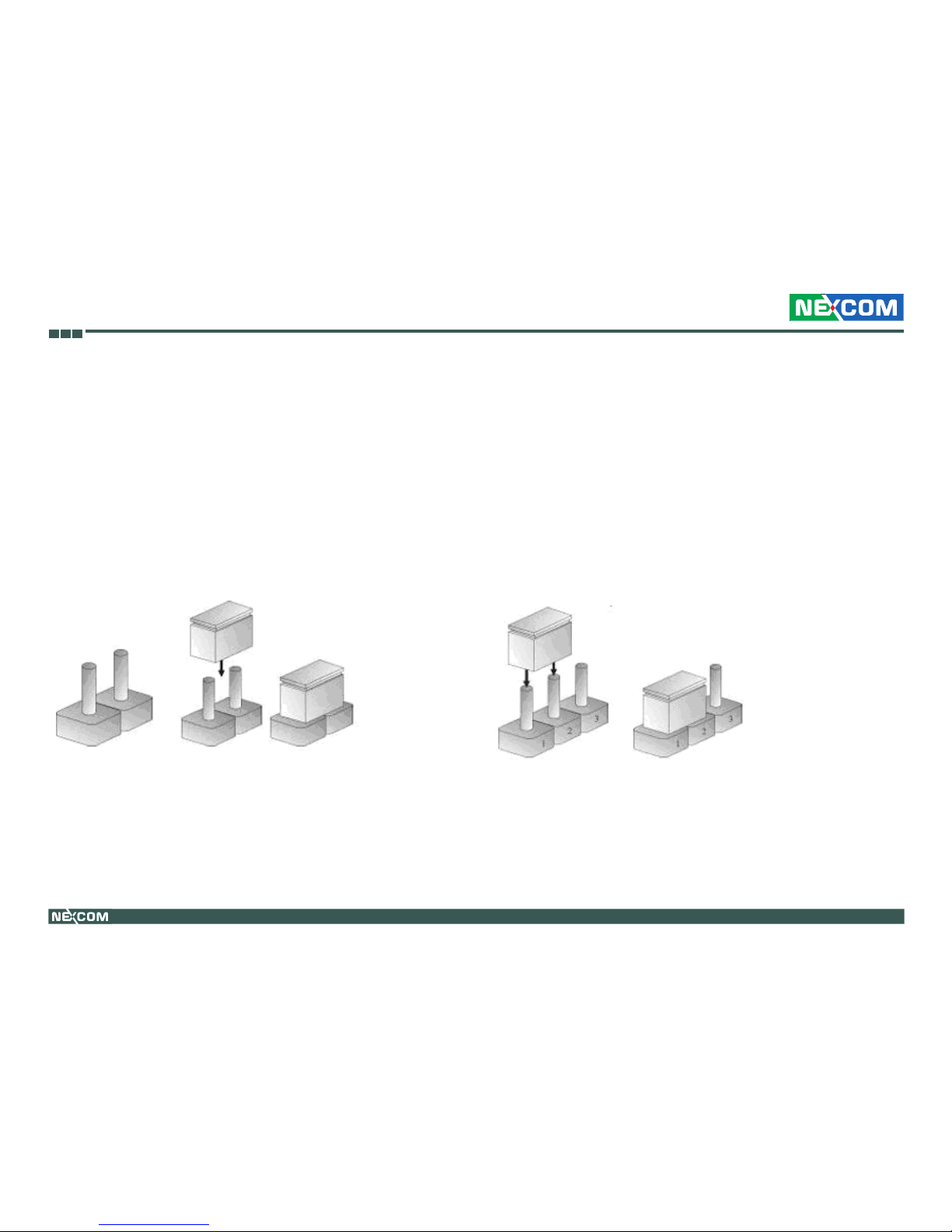

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

8

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

Locations of the Jumpers and Connectors

The gure below shows the locaon of the

jumpers and connectors.

JP4 JP3 JFP1 JP2 JP1

CN8 CN7

CN10 CN9 CN17

J8

CN4

CN5

J2

CON1

CN1

CN2

CN3

CN6

CON2

CN11

CN13

CN16

JP6

J3

J4

JP7

CN14

CN12

CN15

J10J9

JP8

J6 J5

CN7

9

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

Jumpers

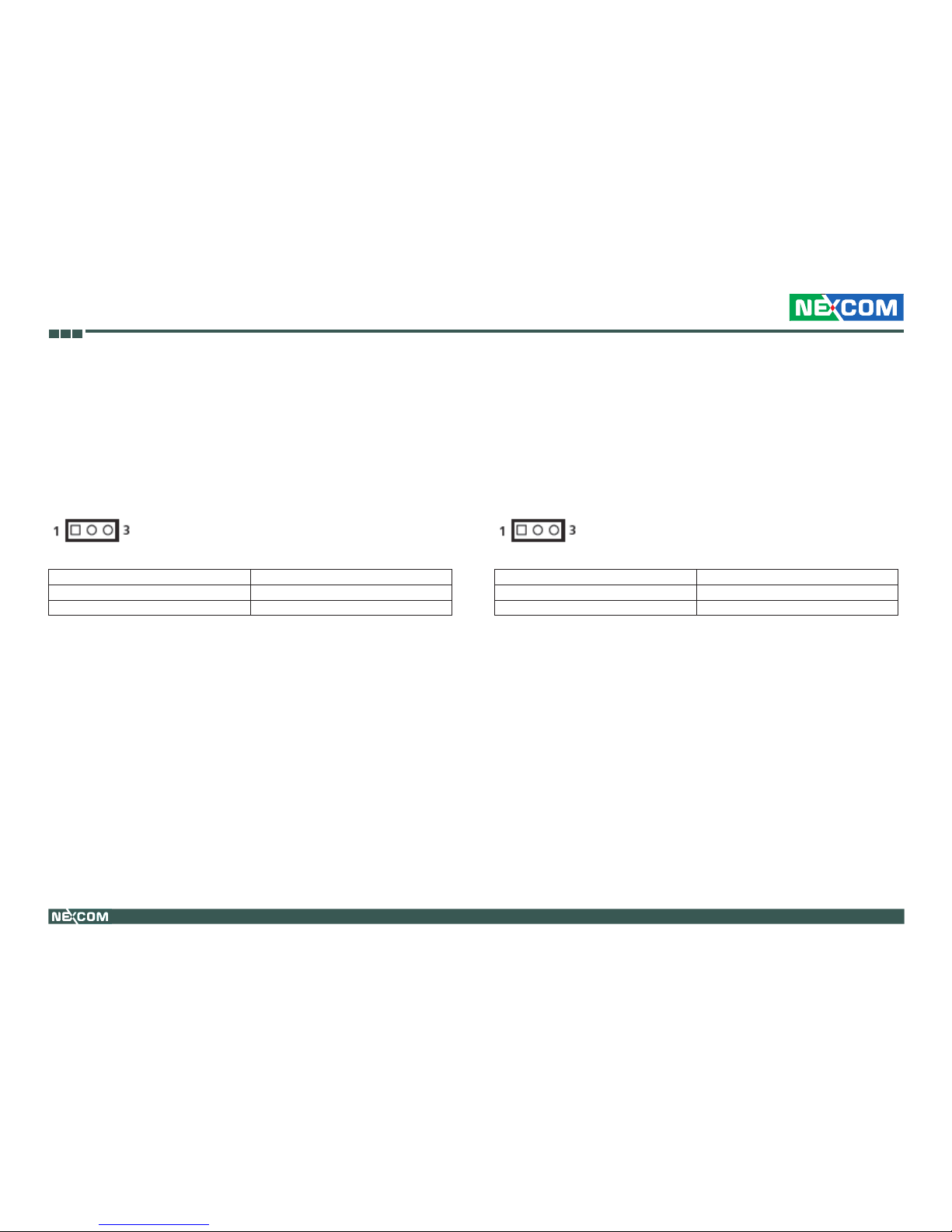

CMOS Clear Select

Connector type: 1x3 3-pin header Connector location: JP1

Pin Settings

1-2 On Normal 2-3 On Clear BIOS

1-2 On: default

Power Mode Select

Connector type: 1x3 3-pin header Connector location: JP3

Pin Settings

1-2 On ATX 2-3 On AT

2-3 On: default

10

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

LVDS Backlight Power Select

Connector type: 1x3 3-pin header Connector location: JP7

Pin Settings

1-2 3.3V 2-3 5V

1-2 On: default

Pin Definition

1 VCC3 2 VCC_SEL 3 VCC5

11

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

Connector Pin Denitions

External I/O Interfaces

PS/2 Mouse and Keyboard Ports

Connector type: PS/2, Mini-DIN6 Connector location: CN16

Pin Definition Pin Definition

1 KB DATA 2 NC 3 GND 4 5VDUAL 5 KB CLOCK 6 NC 7 MS DATA 8 NC 9 GND 10 5VDUAL

11 MS CLOCK 12 NC

COM1 and VGA Ports

Connector type: DB-9 port, 9-pin D-Sub (COM1) DB-15 port, 15-pin D-Sub (VGA) Connector location: CN13

Pin Definition Pin Definition

1 RED 2 GREEN 3 BLUE 4 NC 5 GND 6 GND 7 GND 8 GND

9 +5V 10 GND 11 NC 12 DDC DATA 13 HSYNC 14 VSYNC 15 DDC CLOCK 16 DCD 17 RXD 18 TXD 19 DTR 20 GND 21 DSR 22 RTS 23 CTS 24 RI

12

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

HDMI

Connector type: HDMI port Connector location: CN11

Dual eSata Ports

Connector type: eSATA port Connector location: CON2

Pin Definition Pin Definition

A1 GND B1 GND A2 SATA1_TXP B2 SATA0_TXP A3 SATA1_TXN B3 SATA0_TXN A4 GND B4 GND A5 SATA1_RXN B5 SATA0_RXN A6 SATA1_RXP B6 SATA0_RXP A7 GND B7 GND

Pin Definition Pin Definition

1 Data2+ 2 GND 3 Data2– 4 Data1+ 5 GND 6 Data1– 7 Data0+ 8 GND

9 Data0– 10 Clock+ 11 GND 12 Clock13 NC 14 NC 15 HDMI SCL 16 HDMI SDA 17 GND 18 +5V 19 HPD 20

13

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

LAN1 and USB0/1 Ports

Connector type: RJ45 port with LEDS (LAN1) Dual USB port, Type A (USB0/1) Connector location: CN6

Pin Definition Pin Definition

1 5VDUAL 2 USB0_N

3 USB0_P 4 GND

5 5VDUAL 6 USB1_N

7 USB1_P 8 GND

9 TCT 10 LAN1_MDI0P 11 LAN1_MDI0N 12 LAN1_MDI1P 13 LAN1_MDI1N 14 LAN1_MDI2P 15 LAN1_MDI2N 16 LAN1_MDI3P 17 LAN1_MDI3N 18 GND 19 LAN1_100M# 20 LAN1_1G# 21 LAN1_ACTLED# 22 LAN1_ACTLED# POWER

LAN2 and USB2/3 Ports

Connector type: RJ45 port with LEDS (LAN2) Dual USB port, Type A (USB2/3) Connector location: CN3

Pin Definition Pin Definition

1 5VDUAL 2 USB2_N 3 USB2_P 4 GND 5 5VDUAL 6 USB3_N 7 USB3_P 8 GND

9 TCT 10 LAN2_MDI0P 11 LAN2_MDI0N 12 LAN2_MDI1P 13 LAN2_MDI1N 14 LAN2_MDI2P 15 LAN2_MDI2N 16 LAN2_MDI3P 17 LAN2_MDI3N 18 GND 19 LAN2_100M# 20 LAN2_1G# 21 LAN2_ACTLED# 22 LAN2_ACTLED# POWER

14

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

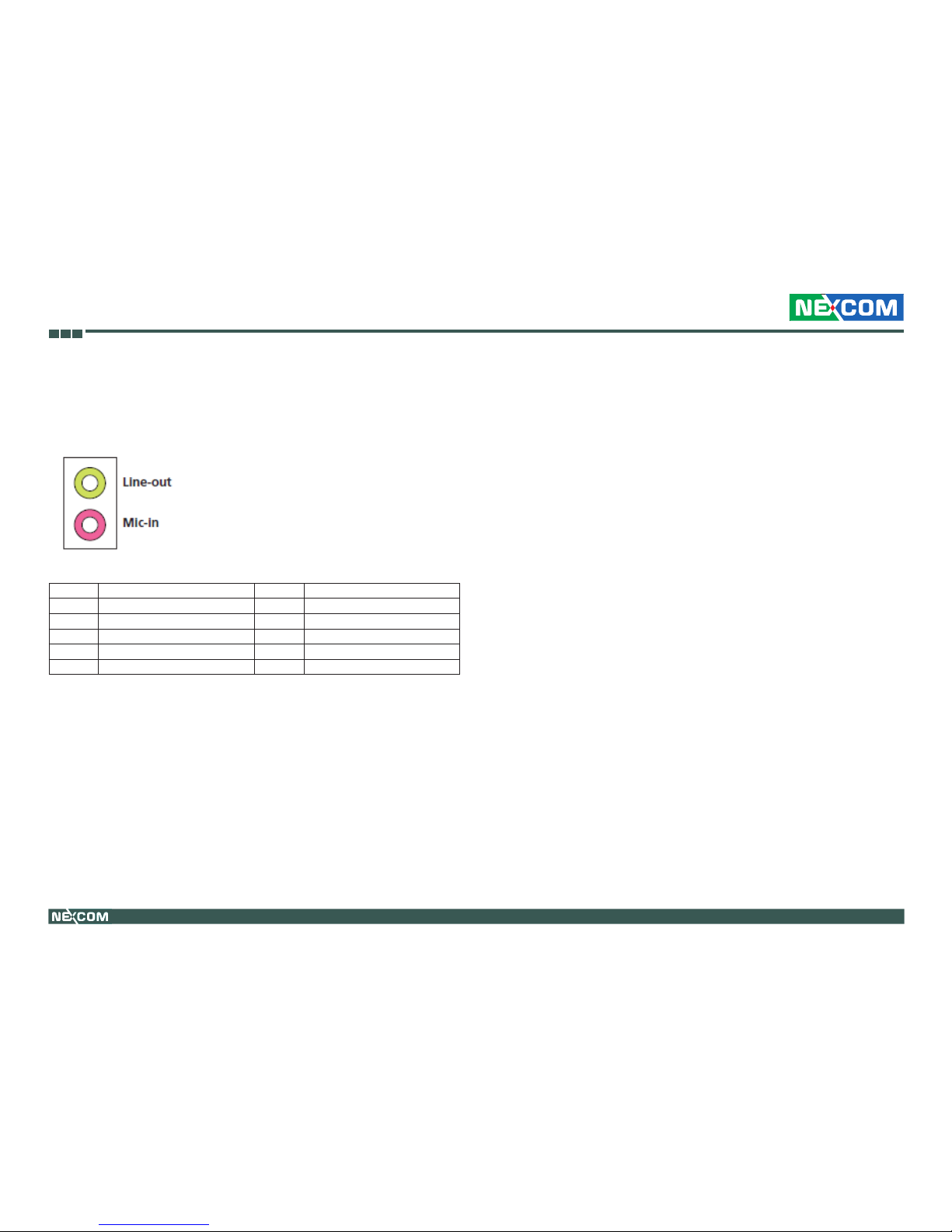

Audio Connectors

Connector type: 2x 3.5mm TRS Connector location: CN2

Pin Definition Pin Definition

1 GND 2 MIC1_L 3 MIC1_JD 4 GND

5 MIC1_R 22 FRONT_L 23 FRONT_JD 24 GND 25 FRONT_R

15

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

Internal Connectors

SATA and LAN LED Connectors

Connector type: 2x13 26-pin header Connector location: JP4

Pin Definition Pin Definition

1 +3.3V 2 GND

3 SATA0_P_LED 4 SATA0_S_LED

5 SATA1_P_LED 6 SATA1_S_LED

7 SATA2_P_LED 8 SATA2_S_LED

9 SATA3_P_LED 10 SATA3_S_LED 11 SATA4_P_LED 12 SATA4_S_LED 13 SATA5_P_LED 14 SATA5_S_LED 15 SYS_P_LED 16 SYS_S_LED 17 NC 18 GND 19 +3.3V 20 SATALED_N 21 3VSB 22 LAN1_ACT_N 23 3VSB 24 LAN2_ACT_N 25 PWRBTN+ 26 PWRBTN+

FP Control Connector

Connector type: 2x5 10-pin header Connector location: JFP1

Pin Definition Pin Definition

1 SATA_LED_P 2 PWR_LED_P 3 SATA_LED_N 4 GND 5 GND 6 PWRBT_N 7 RST_BTN_N 8 GND 9 NC

16

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

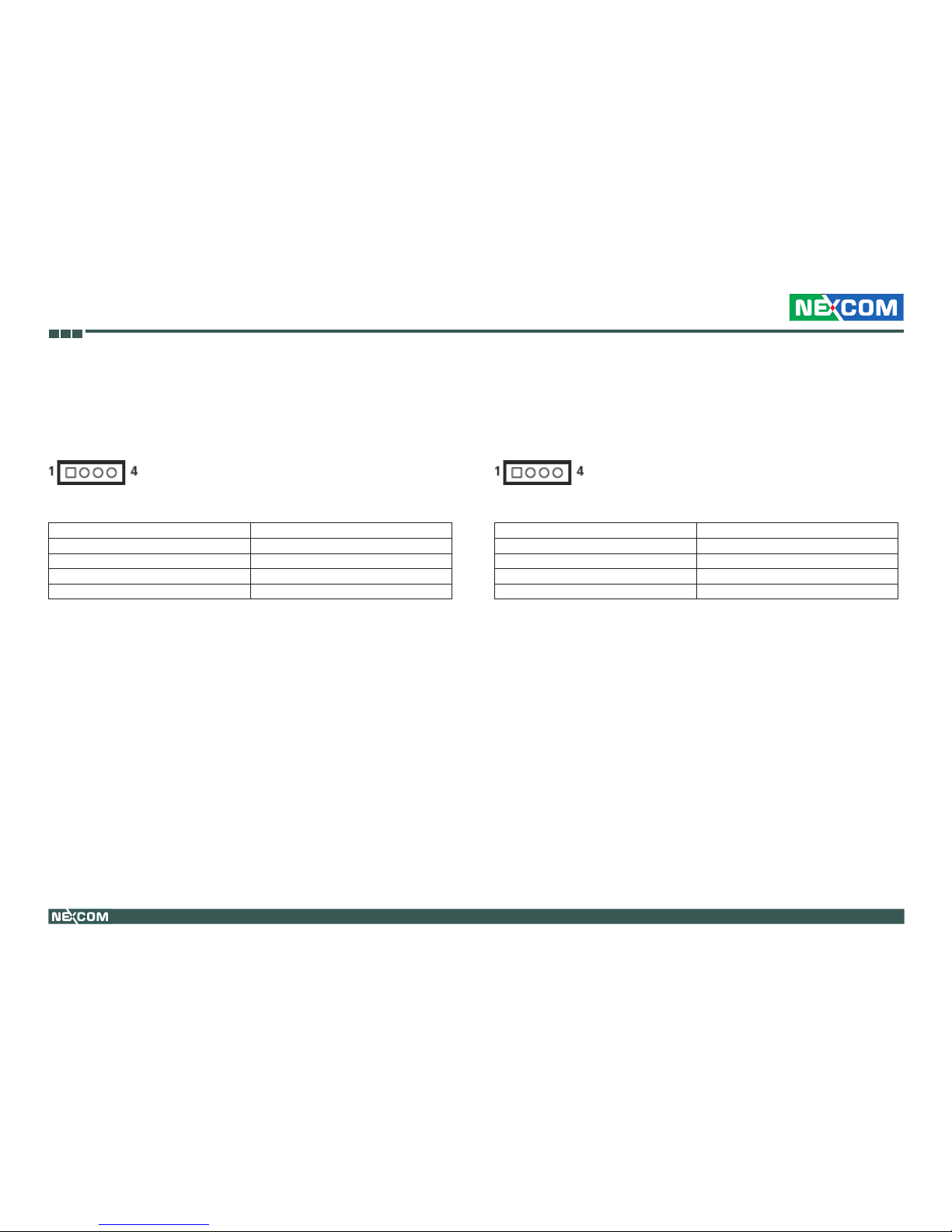

SMBus Connector

Connector type: 1x4 4-pin header Connector location: JP2

Line-in Connector

Connector type: 1x4 4-pin header Connector location: J8

Pin Definition

1 LINEIN_R 2 LINEIN_JD 3 GND 4 LINEIN_L

Pin Definition

1 3VSB 2 SMB_DATA 3 SMB_CLK 4 GND

17

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

SGPIO (SFF-8485) connector

Connector type: 2x4 8-pin header Connector location: JP6

USB6/7 Connector

Connector type: 2x5 10-pin header Connector location: J2

Pin Definition Pin Definition

1 5VDUAL 2 5VDUAL 3 DATA6_N 4 DATA7_N 5 DATA6_P 6 DATA7_P 7 GND 8 GND 9 NC 10 NC

Pin Definition Pin Definition

1 SCLOCK 2 SDATAOUT0 3 SLOAD 4 SDATAOUT1 5 +3.3V 6 GND 7 GND 8 NC

18

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

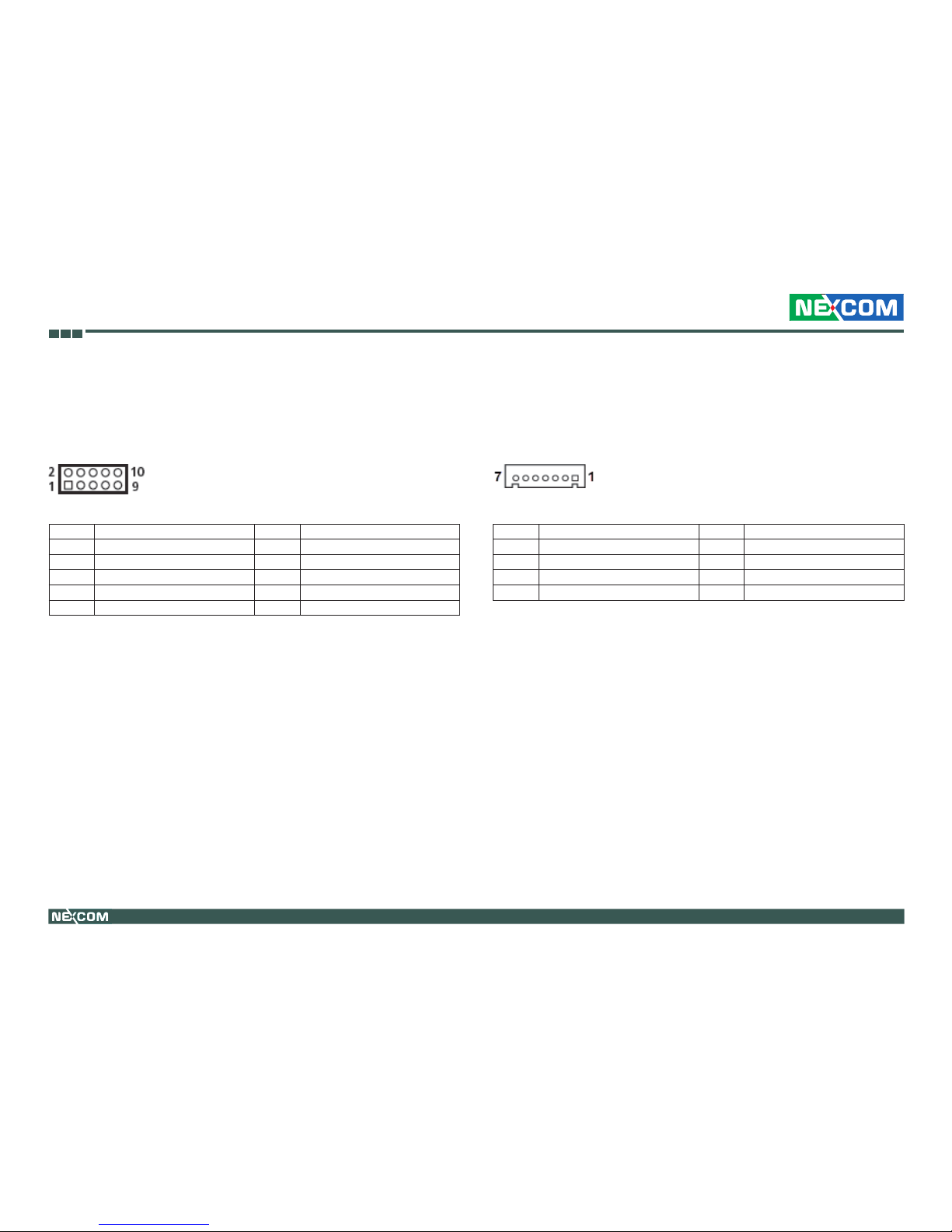

USB8/9 Connector

Connector type: 2x5 10-pin header Connector location: J3

LVDS Backlight Connector

Connector type: 1x7 JST, 7-pin header Connector location: J4

Pin Definition Pin Definition

1 +5V 2 Backlight power(+12V) 3 Backlight power(+12V) 4 Backlight brightness control 5 GND 6 GND 7 Backlight enable

Pin Definition Pin Definition

1 5VDUAL 2 5VDUAL 3 DATA8_N 4 DATA9_N 5 DATA8_P 6 DATA9_P 7 GND 8 GND 9 NC 10 NC

19

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

COM2 Connector (RS232)

Connector type: 2x5 10-pin header Connector location: CN15

COM3 Connector (RS232)

Connector type: 1x10 10-pin header Connector location: J10

Pin Definition Pin Definition

1 DCD3 2 RXD3 3 TXD3 4 DTR3 5 GND 6 DSR3 7 RTS3 8 CTS3 9 RI3 10 GND

Pin Definition Pin Definition

1 DCD2 2 RXD2 3 TXD2 4 DTR2 5 GND 6 DSR2 7 RTS2 8 CTS2 9 RI2 10 GND

20

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

COM4 Connector (RS232)

Connector type: 1x10 10-pin header Connector location: J9

IR Connector

Connector type: 1x5 5-pin header Connector location: JP8

Pin Definition Pin Definition

1 DCD4 2 RXD4 3 TXD4 4 DTR4 5 GND 6 DSR4 7 RTS4 8 CTS4 9 RI4 10 GND

Pin Definition

1 +5V 2 NC 3 IRRX 4 GND 5 IRTX

21

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

RTC Battery IN Connector

Connector type: 1x2 JST, 2-pin header Connector location: J7

Pin Definition

1 GND 2 RTC battery IN

FAN Connectors

Connector type: 1x4 4-pin Wafer Connector location: J5 and J6

Pin Definition

1 GND 2 +12V 3 FAN_TAC 4 FAN_CTL

22

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

ATX Power Connector

Connector type: 2x12 24-pin header Connector location: CON1

SATA 2.0 Connectors

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: CN17 (SATA1), CN7 (SATA2), CN9 (SATA3), CN10 (SATA4), CN8 (SATA5)

Pin Definition Pin Definition

1 +3.3V 2 +3.3V 3 GND 4 +5V 5 GND 6 +5V 7 GND 8 POWEROK

9 +5VSB 10 +12V 11 +12V 12 +3.3V 13 +3.3V 14 NC 15 GND 16 PS-ON 17 GND 18 GND 19 GND 20 NC 21 +5V 22 +5V 23 +5V 24 GND

Pin Definition

1 GND 2 SATA_TX_P 3 SATA_TX_N 4 GND 5 SATA_RX_P 6 SATA_RX_N 7 GND

23

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

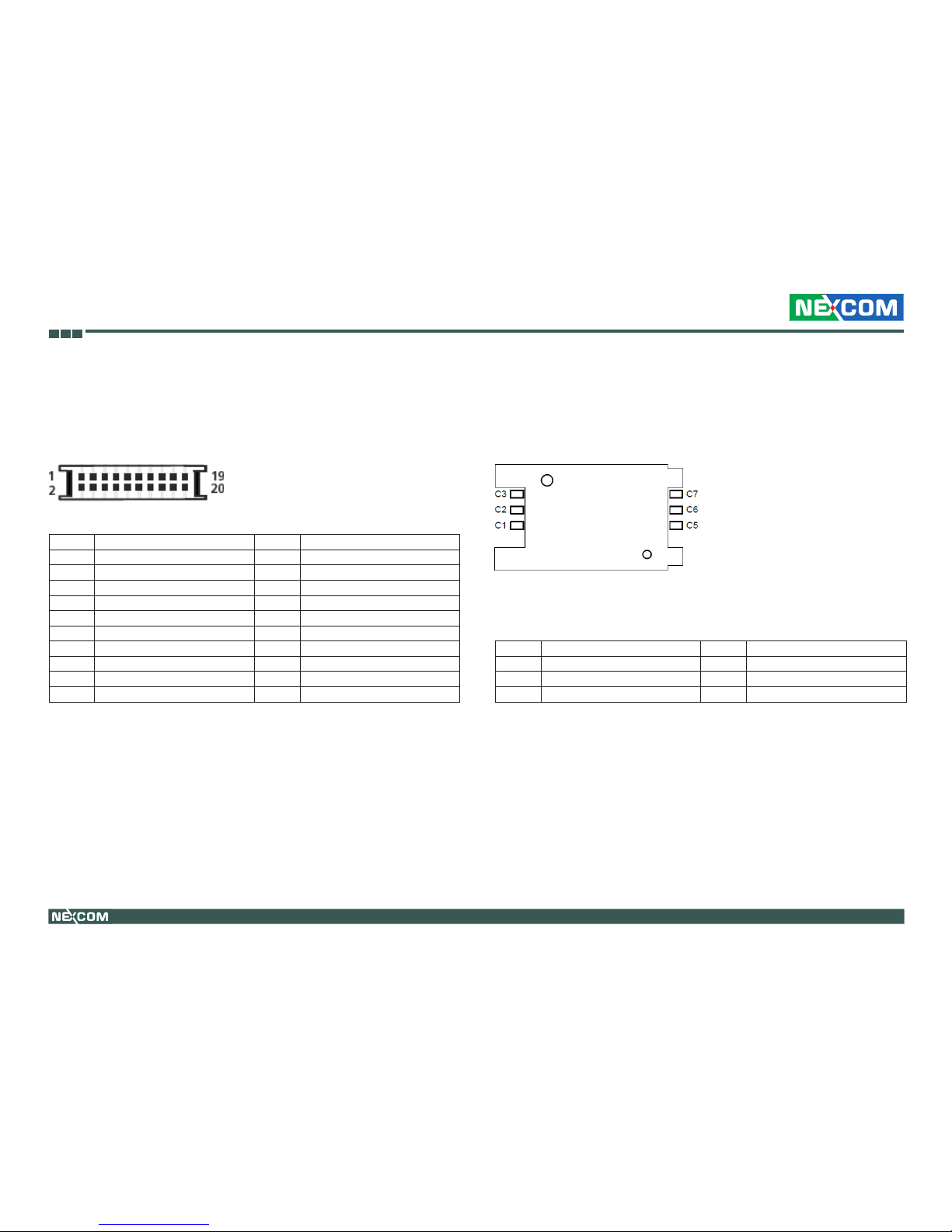

LVDS Connector

Connector type: 2x10 20-pin header Connector location: CN12

Pin Definition Pin Definition

1 NC 2 NC

3 VCC_LCD 4 TX0+

5 TX3+ 6 TX0--

7 TX3- 8 VCC_LCD

9 GND 10 TX1+ 11 TXCLK+ 12 TX113 TXCLK- 14 GND+ 15 GND 16 Backlight power(+12V) 17 TX2+ 18 Backlight power(+12V) 19 TX2- 20 GND

Sim Card Holder

Connector location: CN5

Pin Definition Pin Definition

C1 Power voltage C2 RESET C3 CLK C5 GND C6 Program voltage C7 DATA

24

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

PIO Connector

Connector type: 2x13 26-pin header Connector location: CN14

Pin Definition Pin Definition

1 STB# 2 D0

3 D1 4 D2

5 D3 6 D4

7 D5 8 D6

9 D7 10 ACK# 11 BUSY 12 PE 13 SLCT 14 AFD# 15 ERR# 16 INIT# 17 SLIN# 18 GND 19 GND 20 GND 21 GND 22 GND 23 GND 24 GND 25 GND 26 GND

Mini-PCIe Slot (3.5G)

Connector location: CN4

Pin Definition Pin Definition

1 WAKE# 2 3VSB 3 NC 4 GND 5 NC 6 1.5VSB 7 Pull high 100k to 3VSB 8 NC

9 GND 10 NC 11 REFCLK- 12 NC 13 REFCLK+ 14 NC 15 GND 16 NC 17 NC 18 GND 19 NC 20 Pull high 100k to 3VSB 21 GND 22 PERST# 23 PE_RX- 24 3VSB 25 PE_RX+ 26 GND 27 GND 28 1.5VSB 29 GND 30 NC 31 PE_TX- 32 NC 33 PE_TX+ 34 GND 35 GND 36 USB-

25

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

37 GND 38 USB+ 39 3VSB 40 GND 41 3VSB 42 NC 43 GND 44 NC 45 NC 46 NC 47 NC 48 1.5VSB 49 NC 50 GND 51 NC 52 3VSB

26

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

PCIe x4

Connector type: PCIe x4 Connector location: CN1

Pin Definition Pin Definition

A1 PRSNT1# B1 +12V A2 +12V B2 +12V A3 +12V B3 +12V A4 GND B4 GND A5 NC B5 SCL A6 NC B6 SDA A7 NC B7 GND A8 NC B8 +3.3V

A9 +3.3V B9 NC A10 +3.3V B10 3VSB A11 PERST# B11 WAKE# A12 GND B12 NC A13 PE_CLK_P B13 GND A14 PE_CLK_N B14 PE_TX1_P A15 GND B15 PE_TX1_N A16 PE_RX1_P B16 GND A17 PE_RX1_N B17 PRSNT2# A18 GND B18 GND A19 NC B19 PE_TX2_P A20 GND B20 PE_TX2_N

A21 PE_RX2_P B21 GND A22 PE_RX2_N B22 GND A23 GND B23 PE_TX3_P A24 GND B24 PE_TX3_N A25 PE_RX3_P B25 GND A26 PE_RX3_N B26 GND A27 GND B27 PE_TX4_P A28 GND B28 PE_TX4_N A29 PE_RX4_P B29 GND A30 PE_RX4_N B30 NC A31 GND B31 PRSNT3# A32 NC B32 GND

27

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

Block Diagram

DDR3-1066

SODIMM - A

SPI

HDA

SC LVDS 24 bpps

DMI

SPI

DDR3 Ch A

IT8783F/AX-L

DMI

2.5Gb/s

PCT25VF016B

PCI-E *1(6)

DMI x 4

S/GPIO

SPI

VGA

INTEL ICH10-R

USB 2.0 (14)

Cedarview-D Microprocessor DDR3 Memory Controller

SATA (6)

LPC

DMI

LCI

LVDS

LPC

SUPPER I/O

PCIe x1

USB

BACK I/O

PIN BASED

2,3

6,7

8,9

TO MINI CARD

COM1-4

LVDS CONNECTOR

DDI0

0,1

BACK I/O

MDI

RJ45

DDI1

MDI

RJ45LAN CONTROLLER

INTEL: 82574L

PCIe x 4

6

5

4

1-4

SODIMM - B

ALC886-GR

HD AUDIO

LINE-IN

MIC-IN

LINE-OUT

SATA 2

SATA 3

SATA 4

SATA 5

SATA

eSATA 0

eSATA 1

10

PIN BASED

VGA

HDMI

LPT

IR

KB/MS

H/W MONITOR

HDA

SATA

LED BLOCK

MINI CARD

USB PORT 10

LAN CONTROLLER INTEL: 82574L

PCI

SGPIO

SATA 1

28

Chapter 2: Jumpers and Connectors

NEX 605 User Manual

Board Dimensions

0.00

33.02 81.86

165.09 170.00

6.35

163.82

104.6953.70

0.00

9.83

37.83

63.33

83.29

107.06

129.39

147.86

163.83

170.00

29

Chapter 3: System Setup

NEX 605 User Manual

This chapter describes how to use the BIOS setup program for the NEX

605. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

• Hard drives, diskette drives, and peripherals

• Video display type and display options

Chapter 3: BIOS Setup

• Password protection from unauthorized use

• Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Congure the BIOS

This program should be executed under the following conditions:

• When changing the system configuration

• When a configuration error is detected by the system and you are

prompted to make changes to the setup program

• When resetting the system clock

• When redefining the communication ports to prevent any conflicts

• When making changes to the Power Management configuration

• When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

30

Chapter 3: System Setup

NEX 605 User Manual

Default Conguration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

If the error occurs before the display device is initialized, a series of beeps will be transmitted. If the error occurs after the display device is initialized, the screen will display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> Press the <Del> key to enter Setup:

Legends

Key Function

Right and Left arrows Moves the highlight left or right to

select a menu.

Up and Down arrows Moves the highlight up or down

between sub menus or fields.

<Esc> Exits the BIOS Setup Utility.

+ (plus key) Scrolls forward through the values or

options of the highlighted field.

- (minus key) Scrolls backward through the values or options of the highlighted field.

Tab Selects a field. <F1> Displays General Help. <F2> Load previous values <F3> Load optimized default values. <F4> Saves and exits the Setup program.

<Enter> Press <Enter> to enter the highlighted

sub menu

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

31

Chapter 3: System Setup

NEX 605 User Manual

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

32

Chapter 3: System Setup

NEX 605 User Manual

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press <Enter> to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Access Level

Displays the access level of the current user in the BIOS.

33

Chapter 3: System Setup

NEX 605 User Manual

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

ACPI Settings

This section is used to configure ACPI settings.

ACPI Sleep State

Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are Suspend Disabled, S1 (CPU Stop Clock) and S3 (Suspend to RAM).

34

Chapter 3: System Setup

NEX 605 User Manual

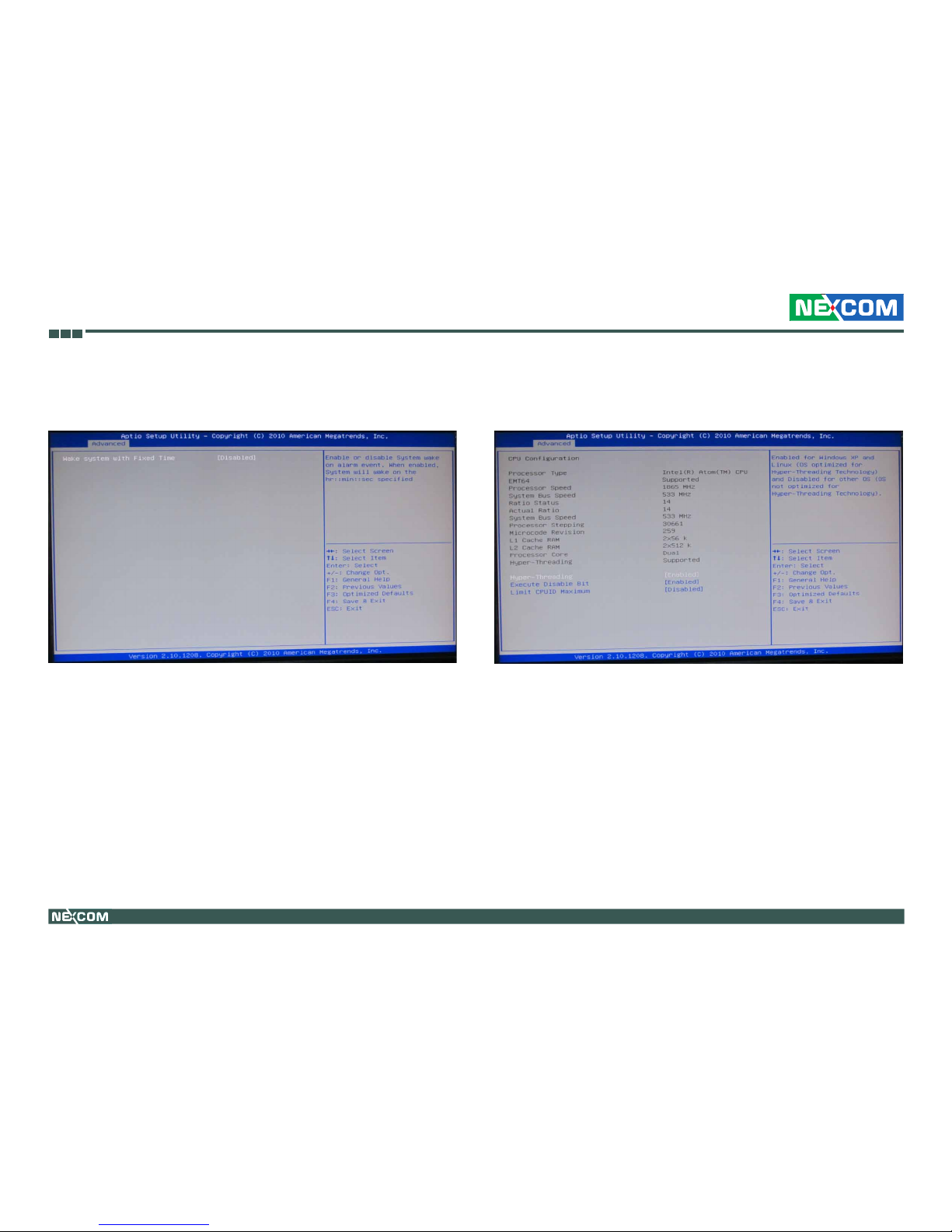

S5 RTC Wake Settings

This section is used to configure S5 RTC Wake Settings.

Wake system with Fixed Time

Enables or disables system wake on alarm event. When enabled, the system will wake on the hr::min::sec specified.

CPU Conguration

This section is used to configure the CPU.

Hyper-threading

Disable or Enable hyper-threading technology.

Execute Disable Bit

When this field is set to Disabled, it will force the XD feature flag to always return to 0. XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3).

35

Chapter 3: System Setup

NEX 605 User Manual

Limit CPUID Maximum

The CPUID instruction of some newer CPUs will return a value greater than 3. The default is Disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur. To avoid this problem, enable this field to limit the return value to 3 or lesser than 3.

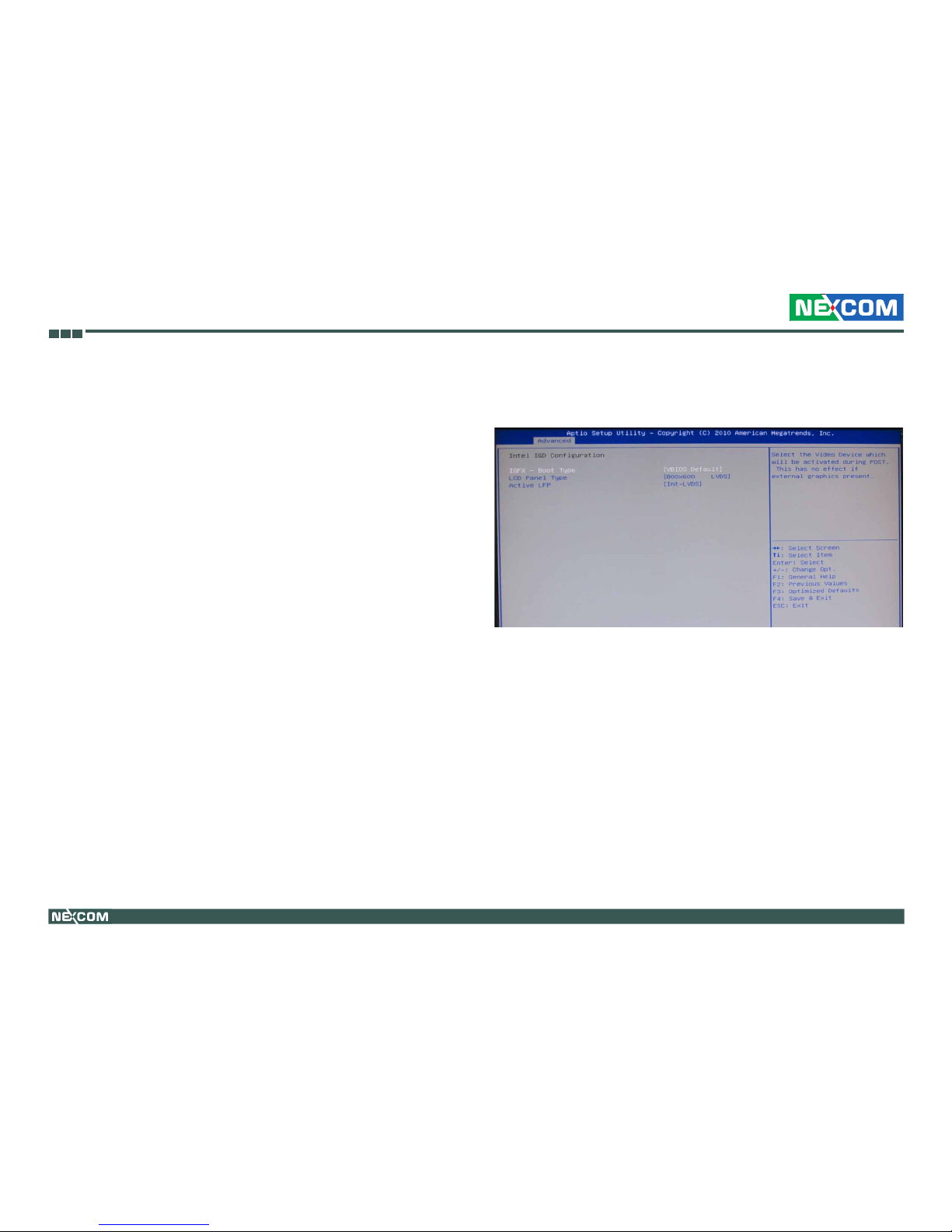

Intel® IGD Conguration

This section is used to configure Intel® IGD Configuration.

IGFX – Boot Type

Select the video device which will be activated during POST. Has no effect if external graphics is present. The options are VBIOS Default, CRT, LVDS, HDMI, CRT + LVDS, CRT + HDMI and LVDS + HDMI.

LCD Panel Type

Select the LCD panel used by the internal graphics device. The options are 640x480 LVDS, 800x600 LVDS, 1024x768 LVDS, 1280x1024 LVDS, 1366x768 LVDS, 1224x600 LVDS and 1280x800 LVDS.

Active LFP

Select the Active LFP configuration. The options are No LVDS and Int-LVDS

36

Chapter 3: System Setup

NEX 605 User Manual

SATA Conguration

This section is used to configure the SATA drives.

SATA Mode

Configures the SATA as IDE, AHCI or RAID mode.

IDE This option configures the Serial ATA drives as Parallel ATA

physical storage device.

RAID This option allows you to create RAID or Intel Matrix Stor-

age configuration on Serial ATA devices.

AHCI This option configures the Serial ATA drives to use AHCI

(Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

USB Conguration

This section is used to configure the USB.

Legacy USB Support

Enable Enables Legacy USB.

Auto

Disables support for Legacy when no USB devices are connected.

Disable Keeps USB devices available only for EFI applications.

USB3.0 Support

Enables or disables USB3.0 support.

XHCI Hand-off

This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

37

Chapter 3: System Setup

NEX 605 User Manual

EHCI Hand-Off

This is a workaround for OSs that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

Super IO Conguration

This section is used to configure the serial ports.

Super IO Chip

Displays the Super I/O chip used on the board.

38

Chapter 3: System Setup

NEX 605 User Manual

Serial Port 0 Conguration

This section is used to configure serial port 0.

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Serial Port 1 Conguration

This section is used to configure serial port 1.

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

39

Chapter 3: System Setup

NEX 605 User Manual

Serial Port 2 Conguration

This section is used to configure serial port 2.

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Serial Port 3 Conguration

This section is used to configure serial port 3.

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

40

Chapter 3: System Setup

NEX 605 User Manual

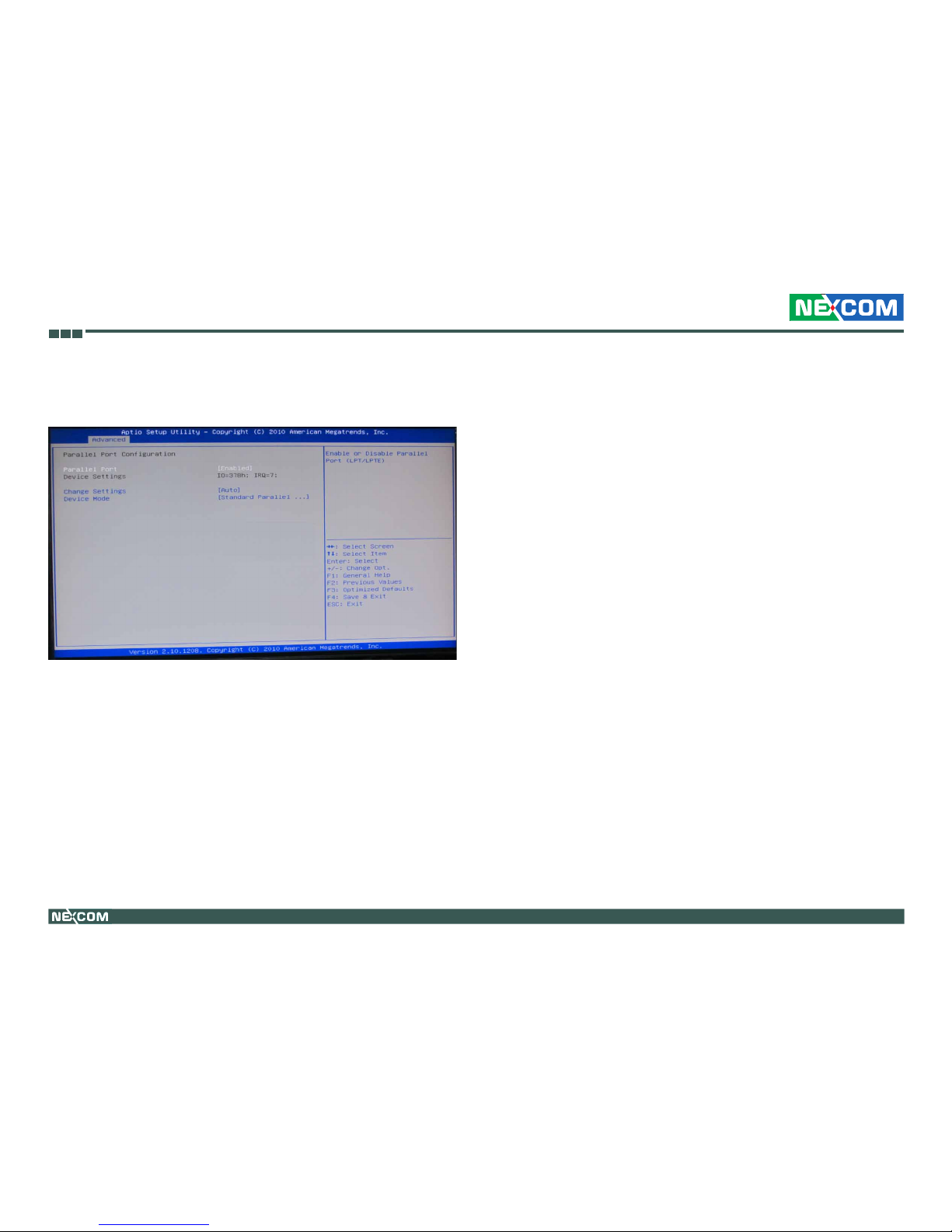

Parallel Port Conguration

This section is used to configure the parallel port.

Parallel Port

Enables or disables parallel port (LPT/LPTE).

Change Settings

Selects an optimal setting for the Super IO device.

Device Mode

Configures the device mode. The options are Standard Parallel Port Mode, EPP Mode, ECP Mode, EPP Mode & ECP Mode.

41

Chapter 3: System Setup

NEX 605 User Manual

Chipset

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.

South Bridge

This section is used to configure the south bridge features.

Restore AC Power Loss

Power Off When power returns after an AC power failure, the

system’s power is off. You must press the power button to power-on the system.

Power On When power returns after an AC power failure, the

system will automatically power-on.

Last State When power returns after an AC power failure, the

system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

42

Chapter 3: System Setup

NEX 605 User Manual

Azalia HD Audio

Enables or disables the Azalia HD audio.

High Precision Timer

Enables or disables the high precision event timer.

USB Conguration

All USB Devices

Enables or disables all USB devices.

USB 2.0(EHCI) Support

Enables or disables USB 2.0(EHCI) support.

EHCI Controller 1/2

Enables or disables EHCI controllers 1 to 2.

UHCI Controller 1/6

Enables or disables UHCI controllers 1 to 6.

43

Chapter 3: System Setup

NEX 605 User Manual

Boot

This section is used to configure the boot features.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Launch PXE OpROM

Enables or disables boot option for legacy network devices.

Boot Option Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

44

Chapter 3: System Setup

NEX 605 User Manual

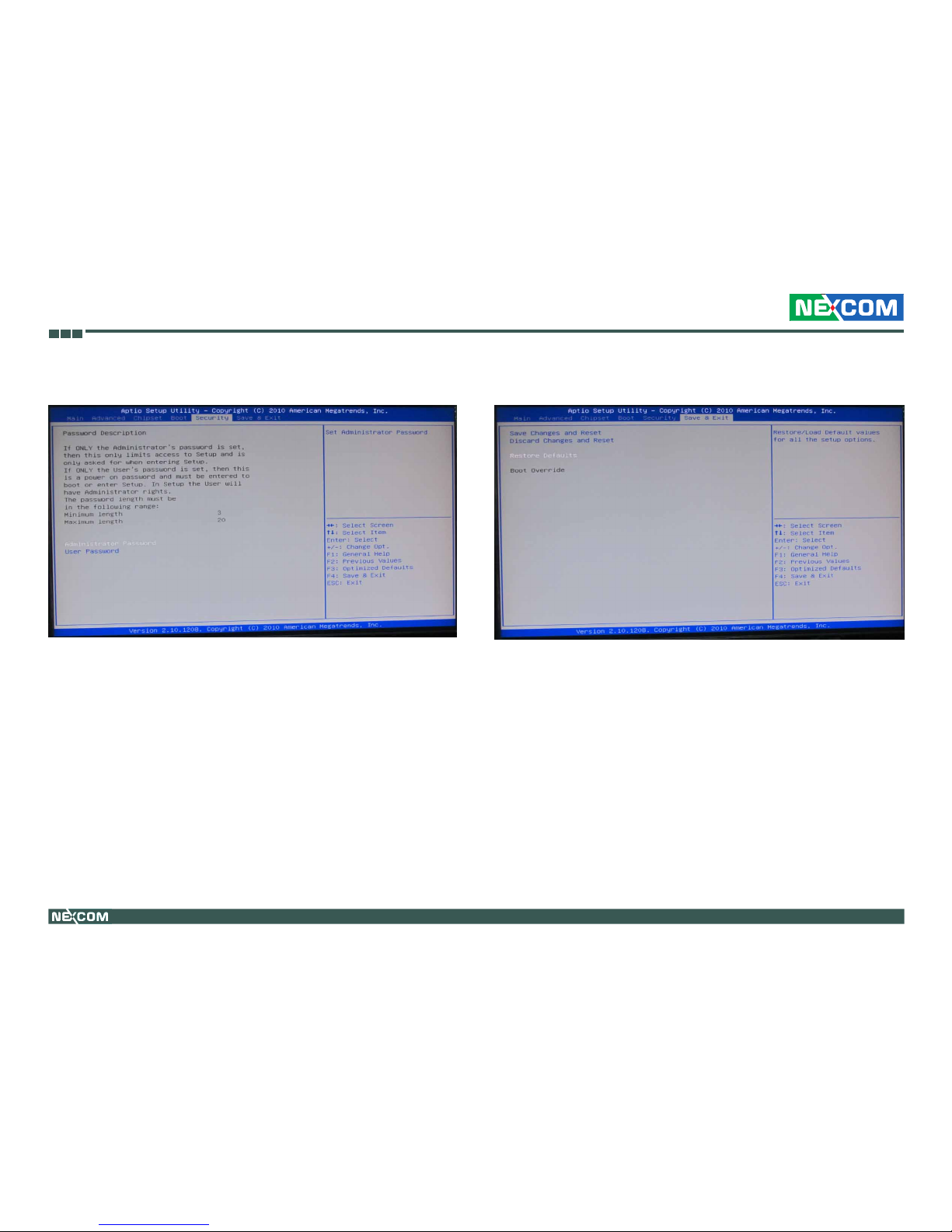

Security

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

Save & Exit

Save Changes and Reset

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F4> to save and exit Setup.

Discard Changes and Reset

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

45

Chapter 3: System Setup

NEX 605 User Manual

Boot Override

To bypass the boot sequence from the Boot Option List and boot from a particular device, select the desired device and press <Enter>.

46

Appendix A: Watchdog Timer

NEX 605 User Manual

WDT Programming Guide

NEX605 Watch Dog Function Configuration Sequence Description:

Appendix A: Watchdog Timer

Star

Step1. See “SetupWDT” procedure #Setup Watchdog Timer Environment

Step2. See “TimeBaseWDT” procedure #Initial Watchdog Timer. Users can select second or minute.

Step3. See “TimeCountWDT” procedure #Set Watchdog Timer Time-out Value. Users can set time-out value.

Step4: See ExitSetup procedure #Exit Setup Environment

End

=============================================== SetupWDT PROC mov dx, 2eh mov al, 087h out dx, al nop nop mov al, 01h out dx, al nop nop mov al, 55h out dx, al nop nop out dx, al ;Write operations to special address port (2E) for entering MB PnP Mode.

mov al, 07h out 2eh, al mov al, 07h ;Select logical device for Watch Dog. out 2fh, al ret SetupWDT ENDP

47

Appendix A: Watchdog Timer

NEX 605 User Manual

=============================================== TimeBaseWDT PROC mov al, 72h out 2eh, al mov al, 10h ;Set WDT reset upon PWROK or al, 80h ;Here!! set 80h for second, set 00h for minute out 2fh, al ret TimeBaseWDT ENDP

=============================================== TimeCountWDT PROC mov al, 73h ;WDT Time-out register. out 2eh, al mov al, 03h ;Here!! Set count 3. out 2fh, al ret TimeCountWDT ENDP

=============================================== ExitSetup PROC mov al, 02h out 2eh, al mov al, 02h out 2fh, al ret ExitSetup ENDP ===============================================
