Nexcom NDIS M537 User Manual

NEXCOM International Co., Ltd.

Published September 2018

www.nexcom.com

Intelligent Platform & Services Business Unit

Digital Signage Platform NDiS M537

User Manual

ii

NDiS M537 User Manual

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents .................................................................................xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

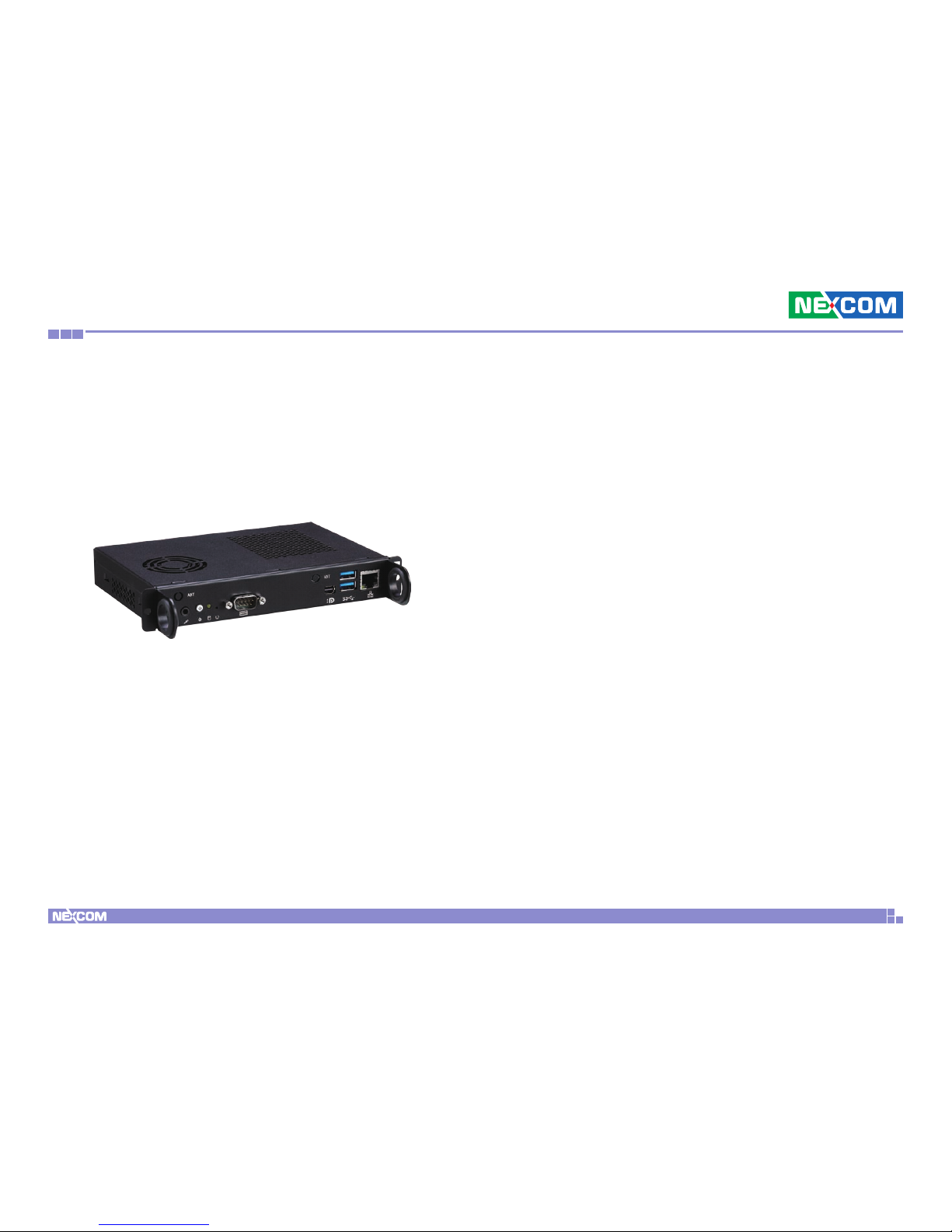

Overview ................................................................................................1

Key Features ...........................................................................................1

Physical Features .....................................................................................2

Front Panel ..........................................................................................2

Rear Panel ...........................................................................................2

Hardware Specifications ..........................................................................3

Mechanical Dimensions ...........................................................................4

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................5

Precautions ............................................................................................5

Locations of the Jumpers and Connectors for NDiB M537 .......................6

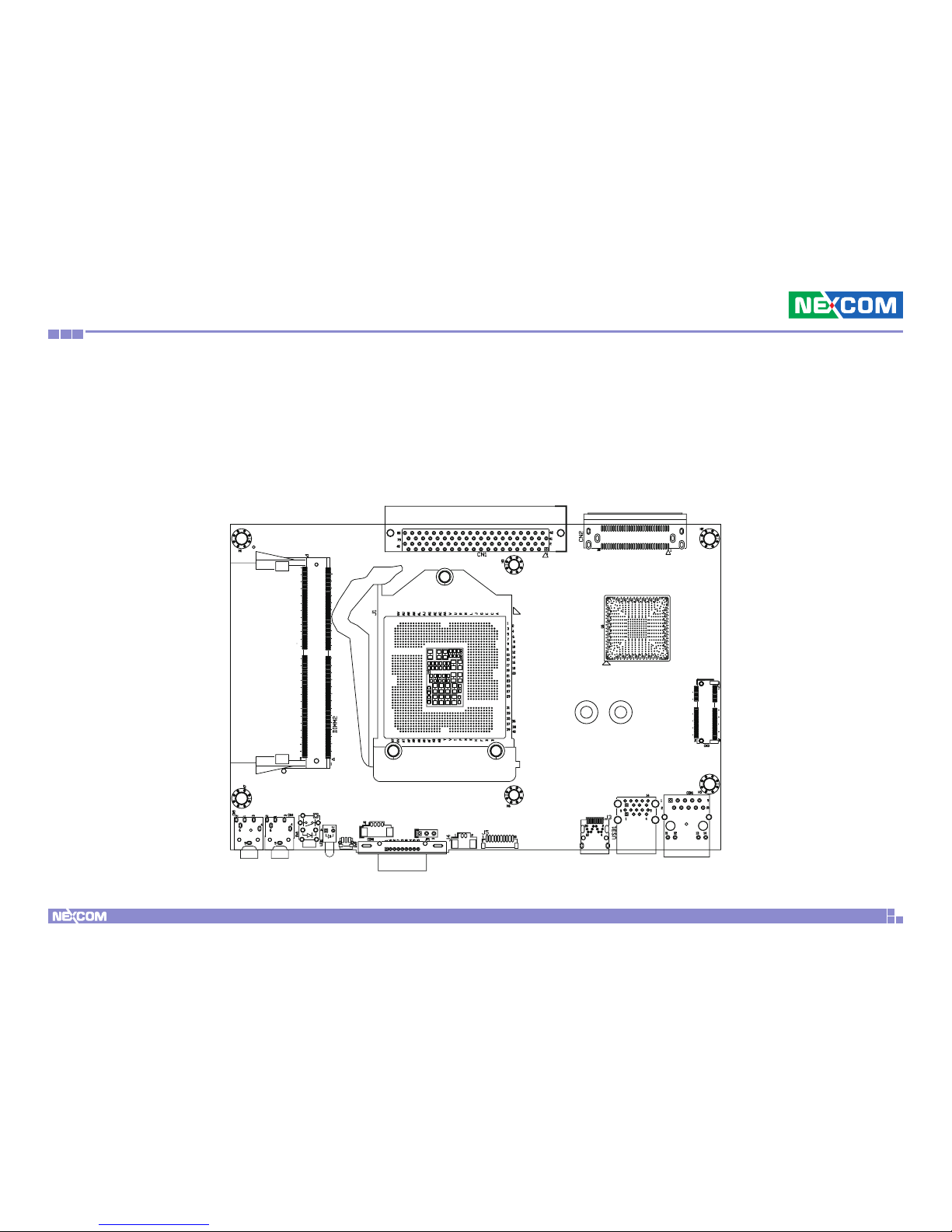

Top View .......................................................................................... 6

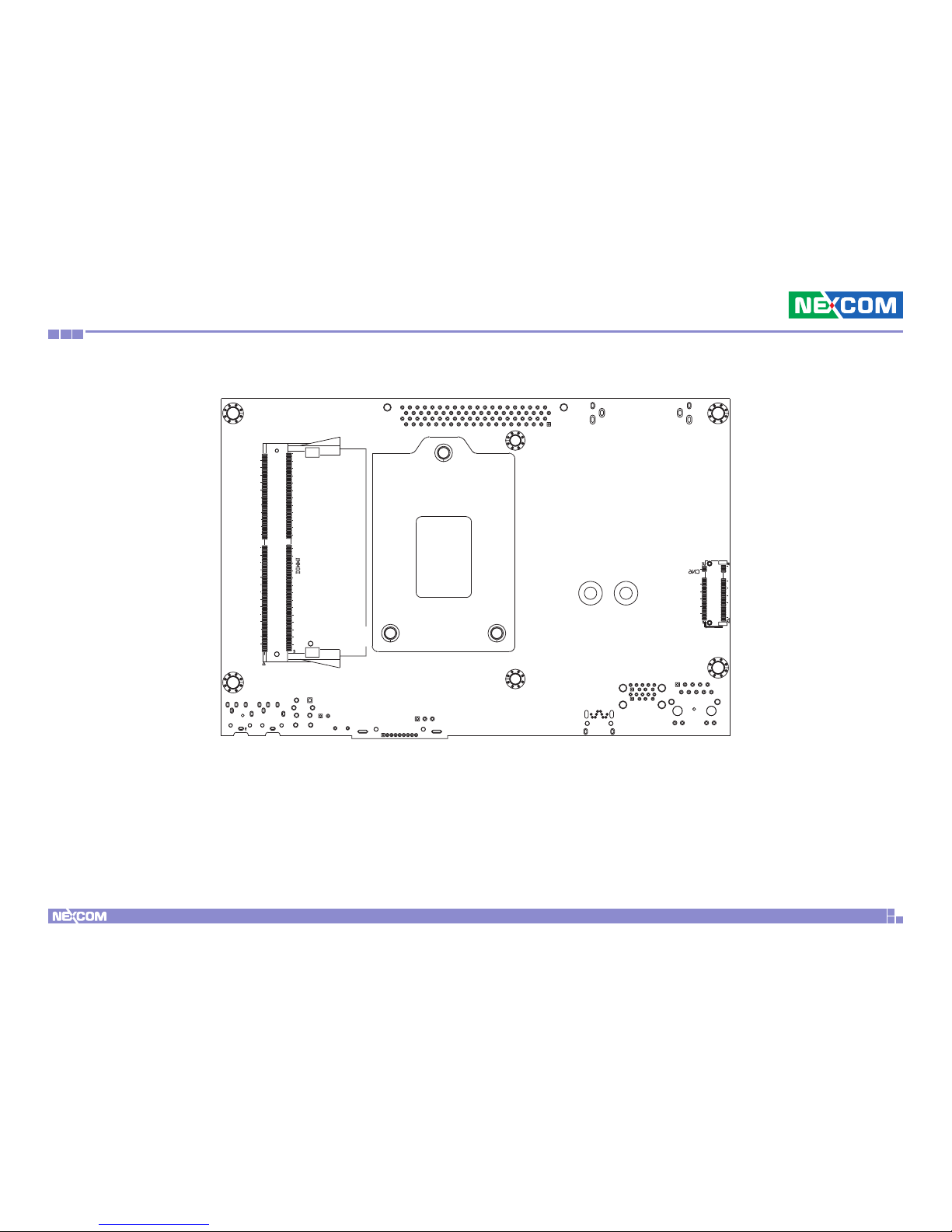

Bottom View .................................................................................... 7

Jumper Settings ......................................................................................8

Jumpers ..................................................................................................9

RTC Clear Jump ................................................................................... 9

Connector Pin Definitions .....................................................................10

External I/O Interfaces ........................................................................ 10

Power Switch .................................................................................10

System Reset Switch .......................................................................10

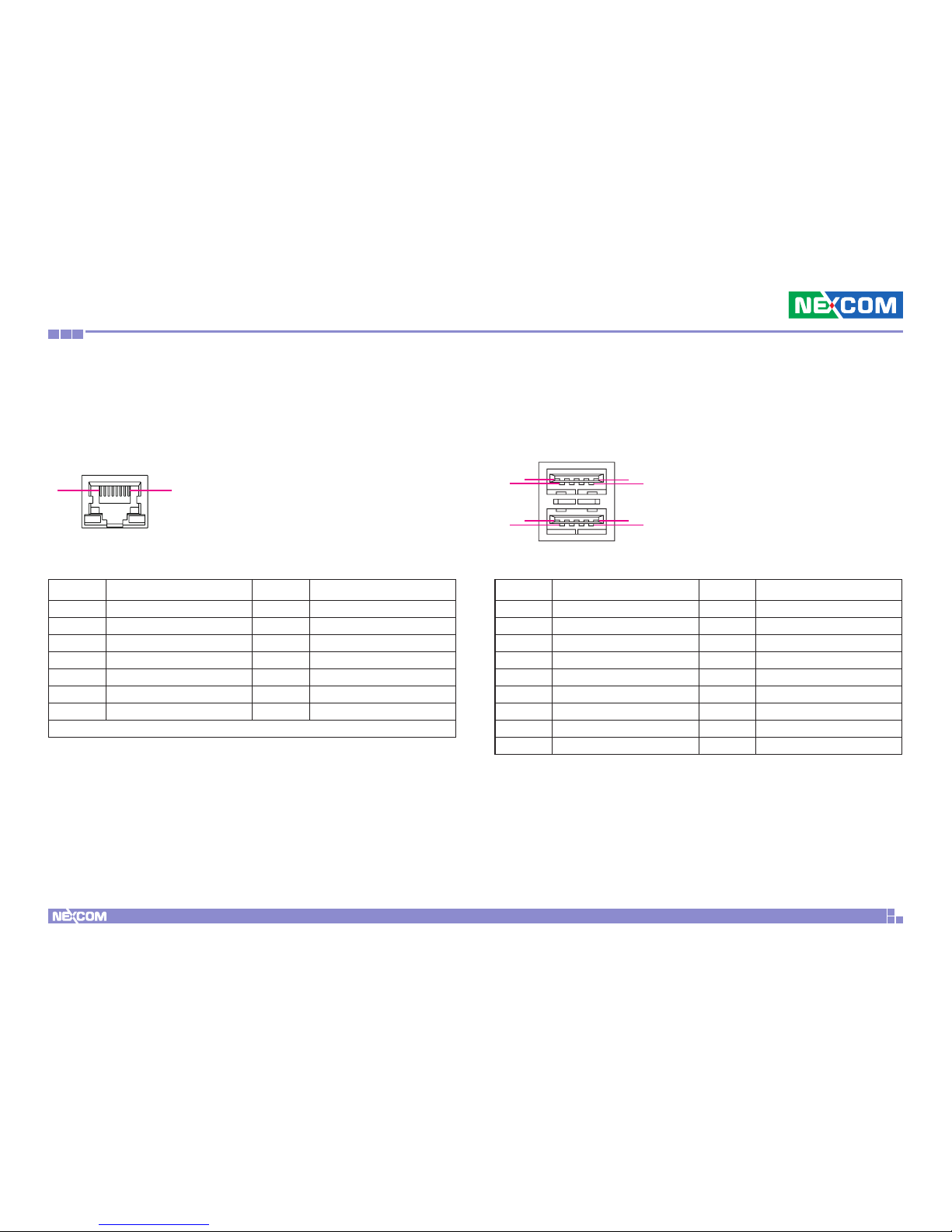

LAN Connector ..............................................................................11

USB 3.0 Connectors .......................................................................11

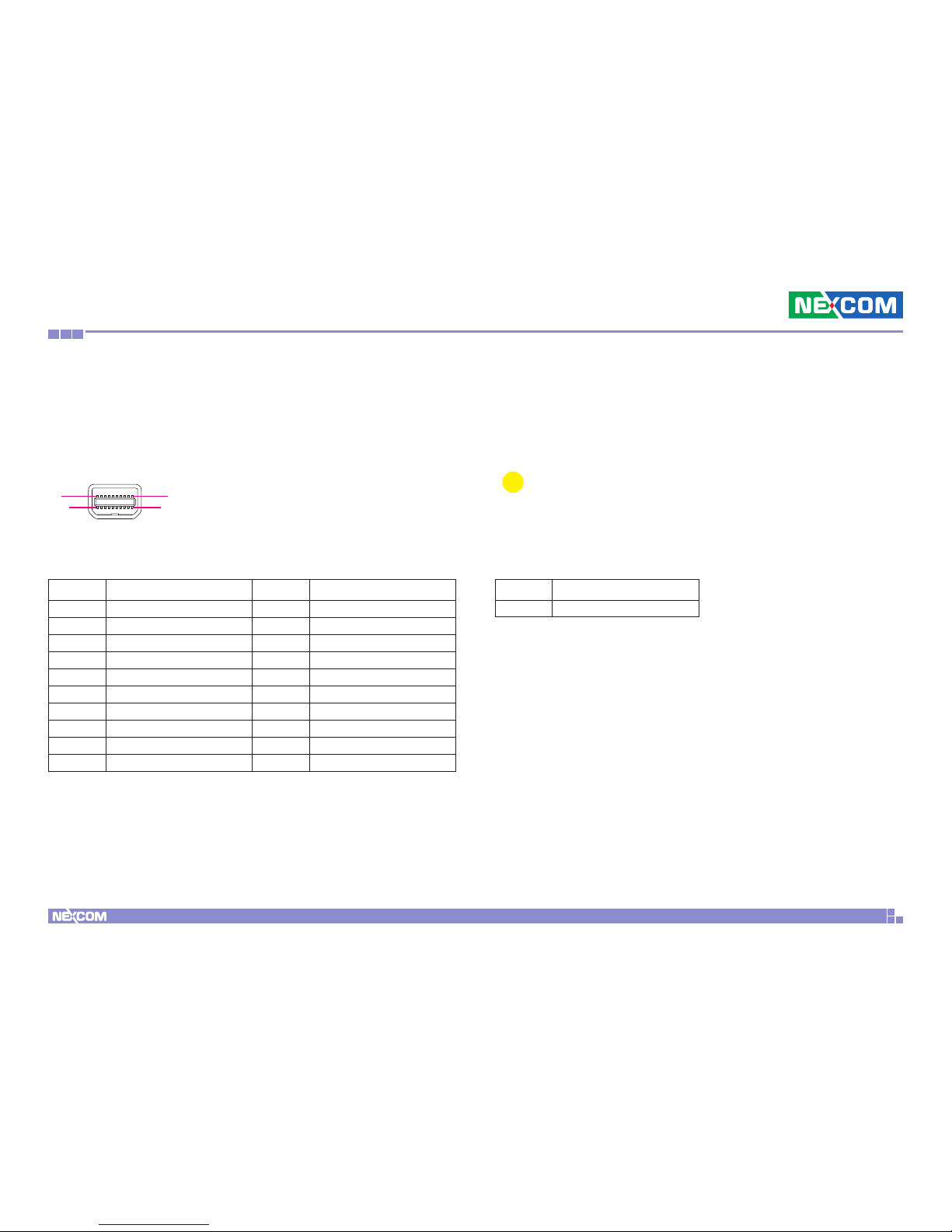

Mini DisplayPort Connector ............................................................12

LED ................................................................................................12

Mic-in Connector ...........................................................................13

Line-out Connector ........................................................................13

JAE-TX25 Connector ......................................................................14

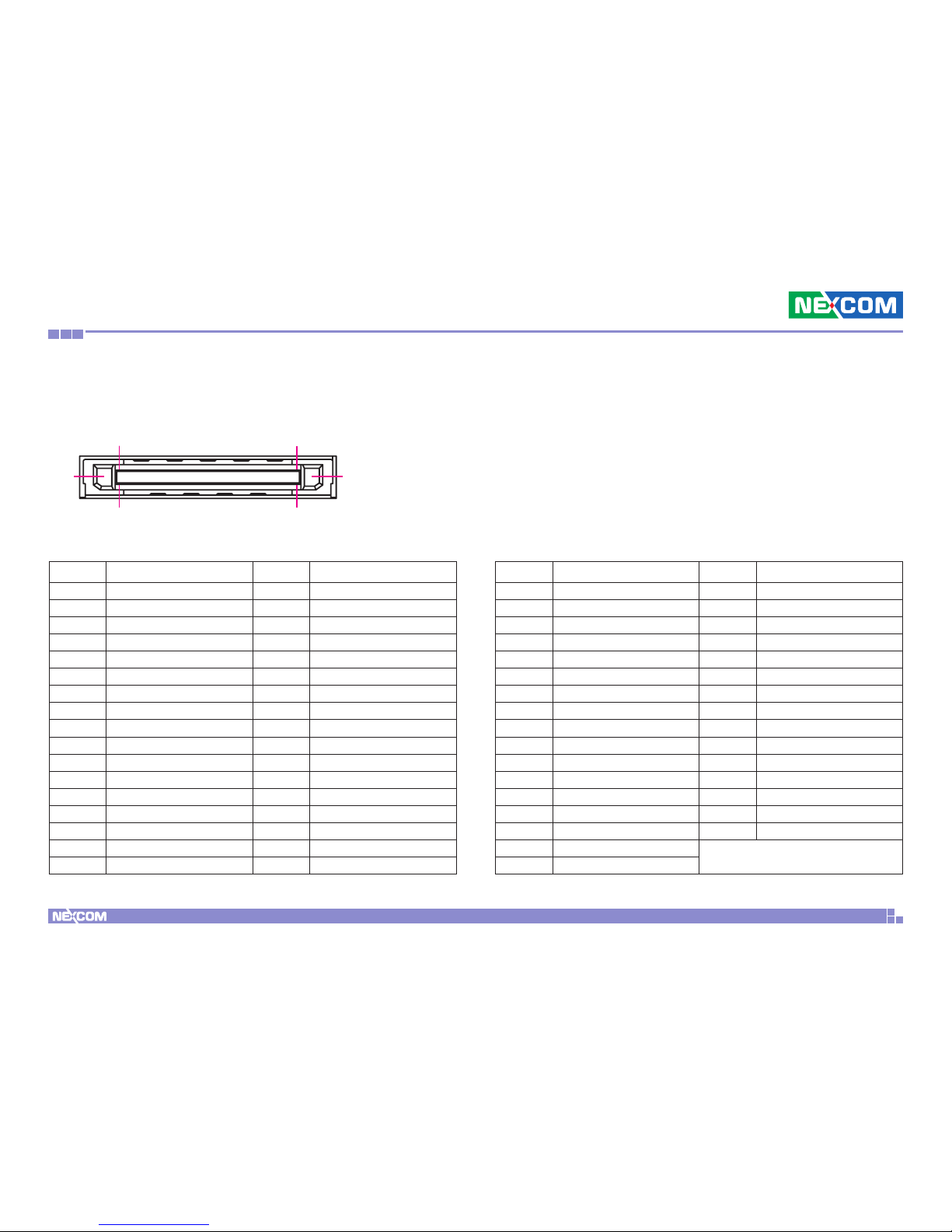

HRS-FX18-60S Connector ..............................................................15

Internal Connectors ........................................................................... 16

RTC Battery Connector ...................................................................16

Fan Connector ...............................................................................16

Debug 80 Port Connector ..............................................................17

M.2 E Key Connector .....................................................................18

M.2 M Key Connector ....................................................................19

iii

NDiS M537 User Manual

Content

Chapter 3: System Setup

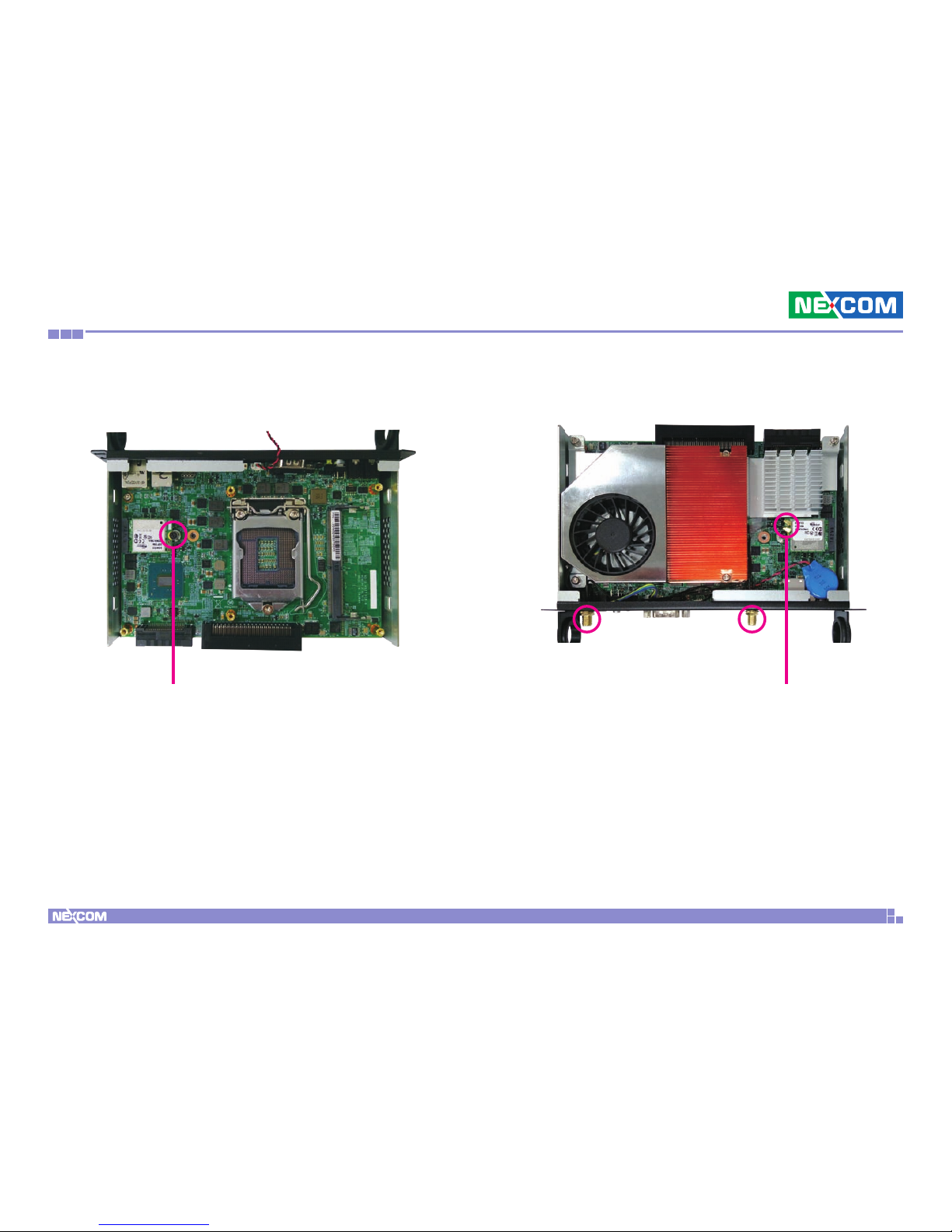

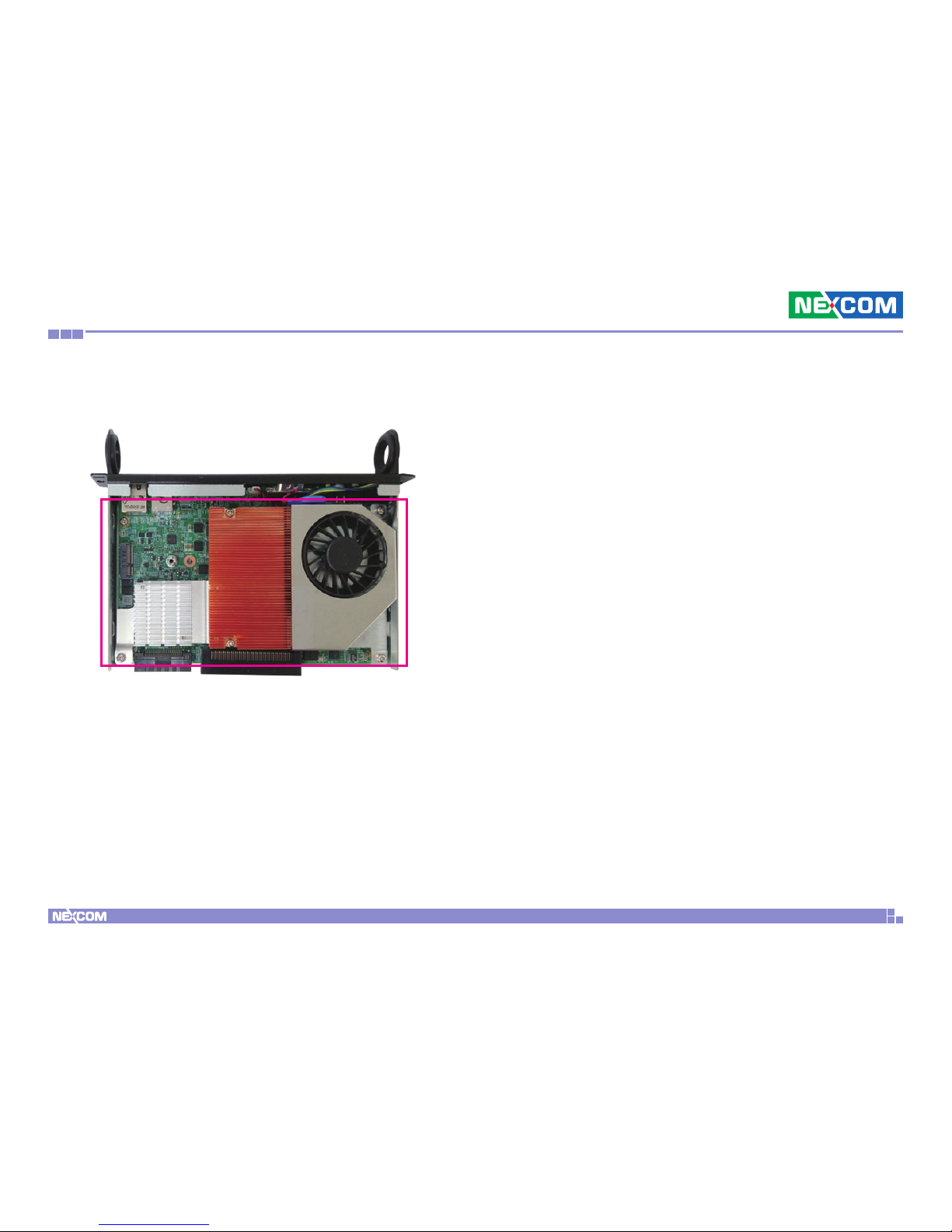

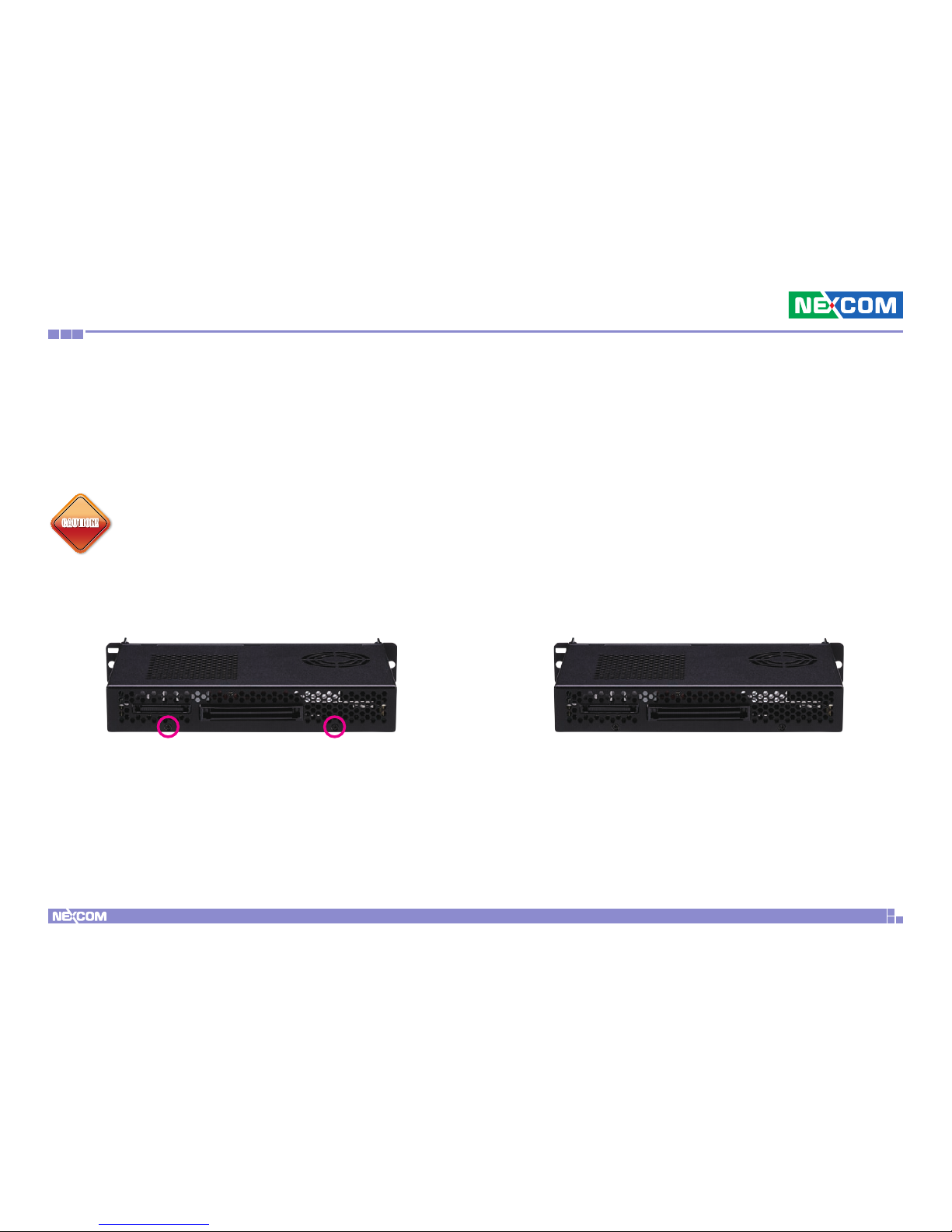

Removing the Chassis Cover ................................................................20

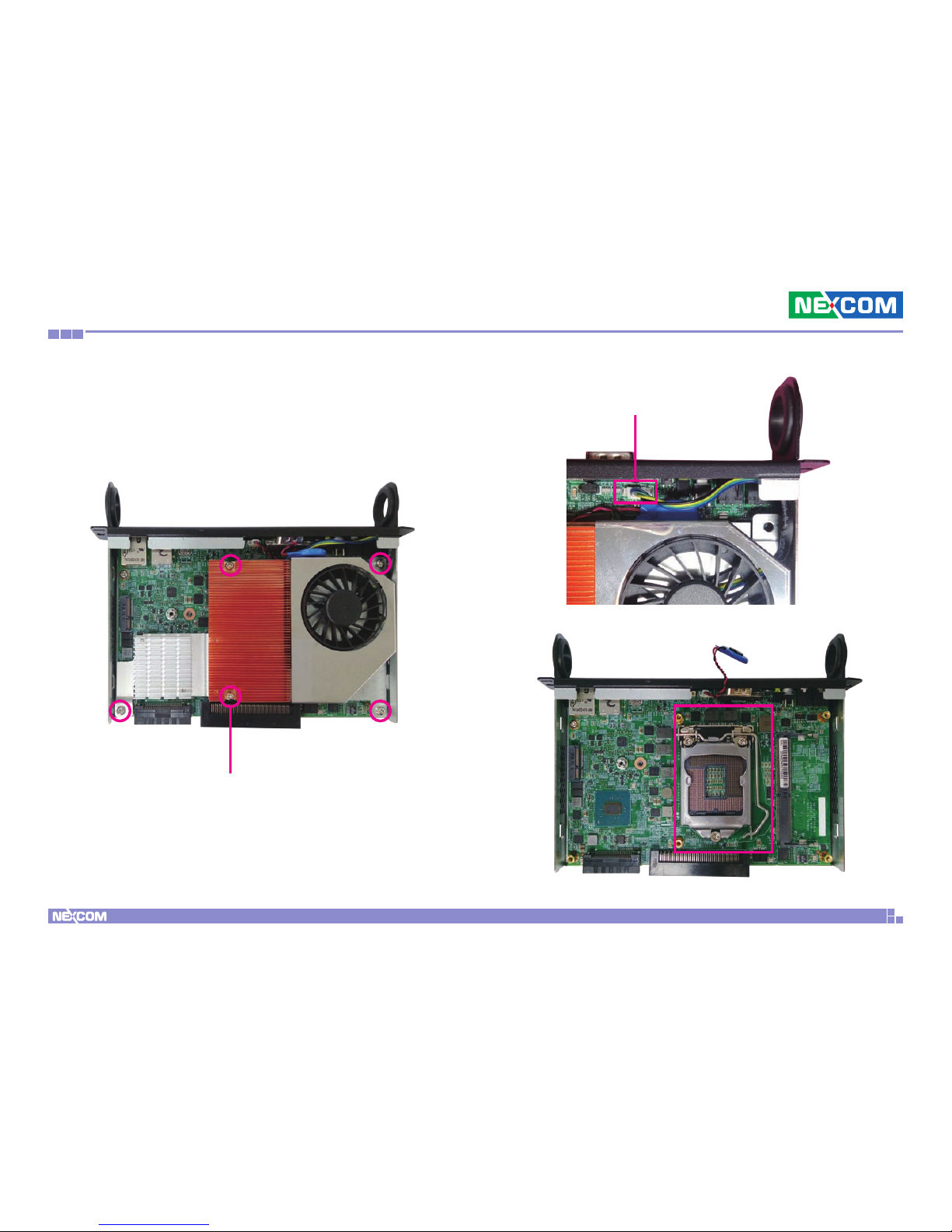

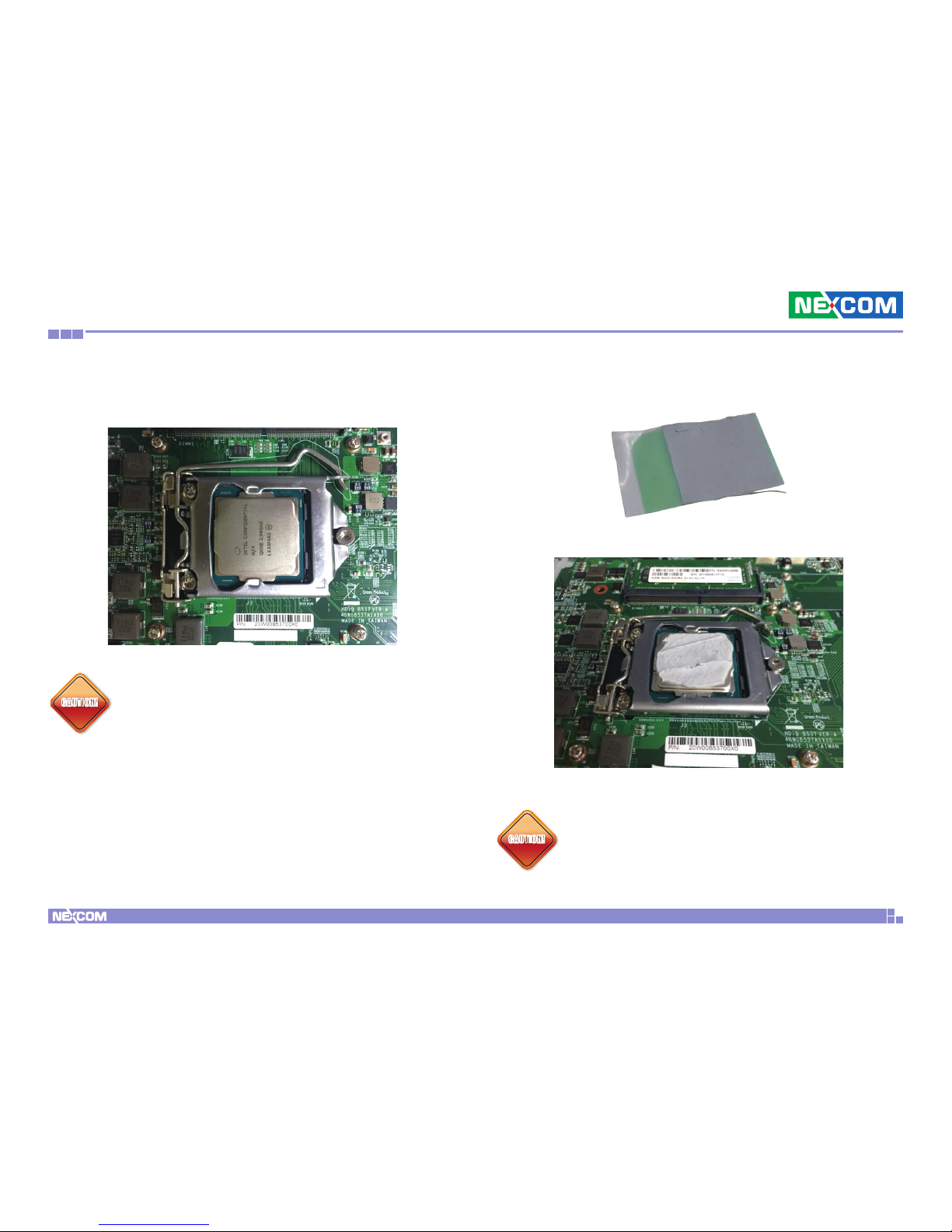

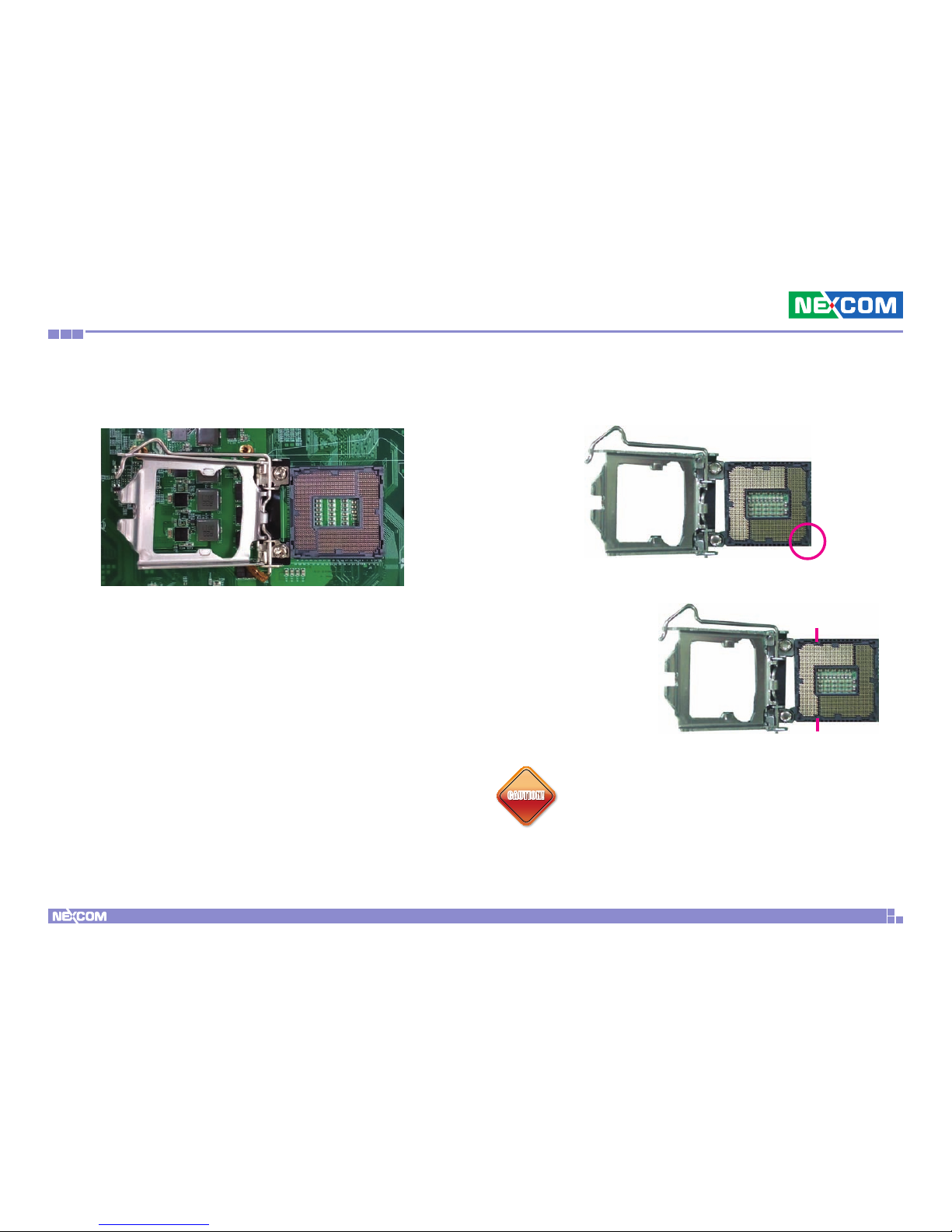

Installing the CPU (Socket Type) ............................................................21

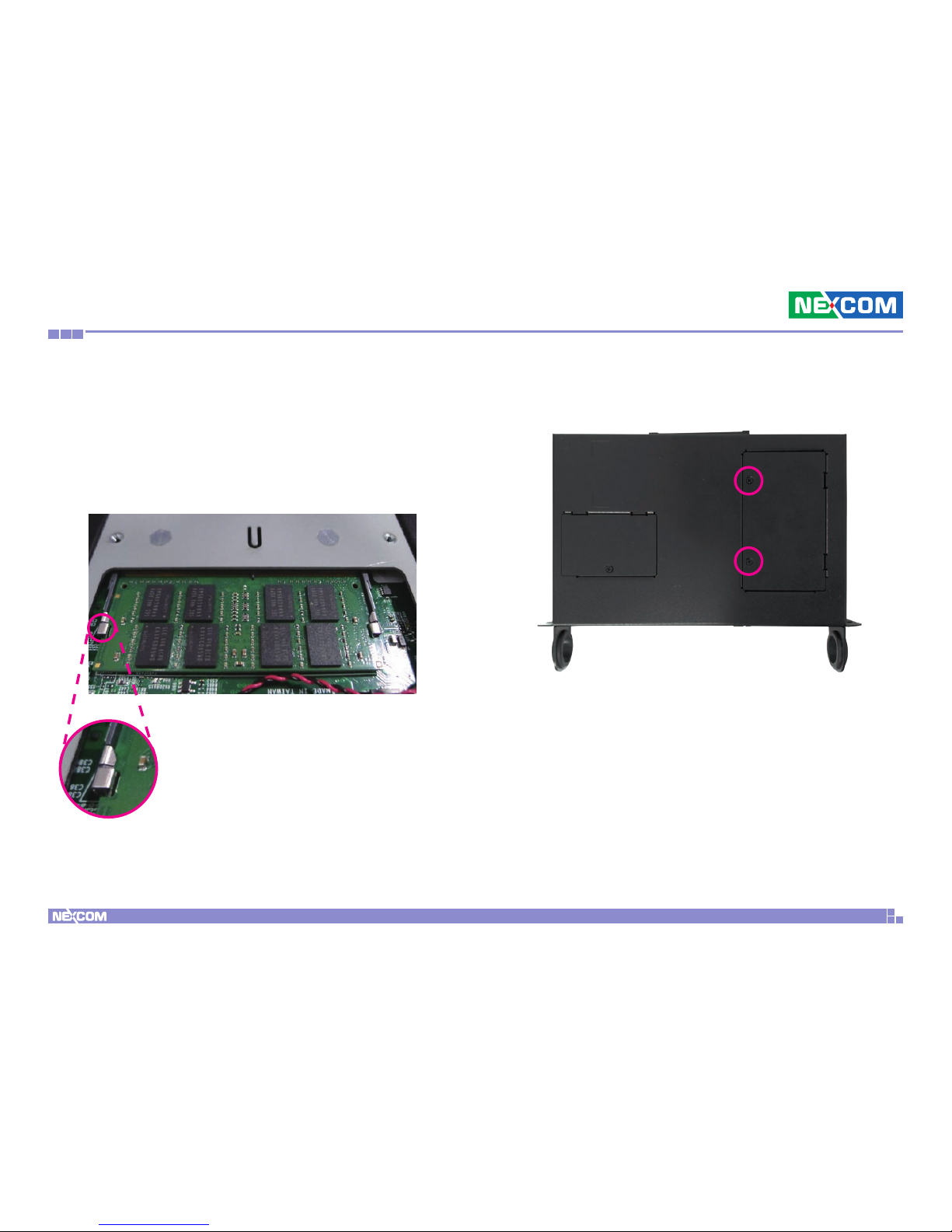

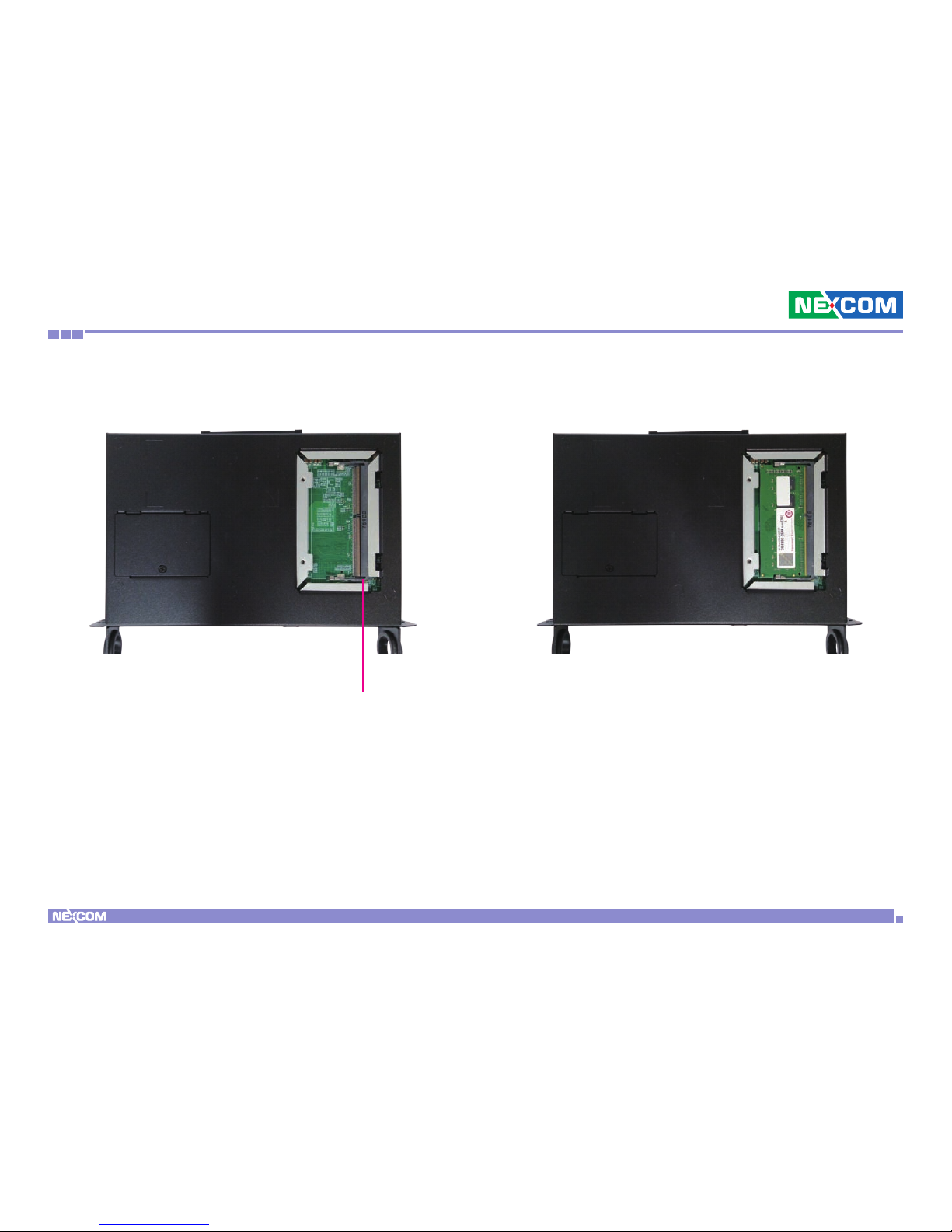

Installing a SO-DIMM Memory Module .................................................25

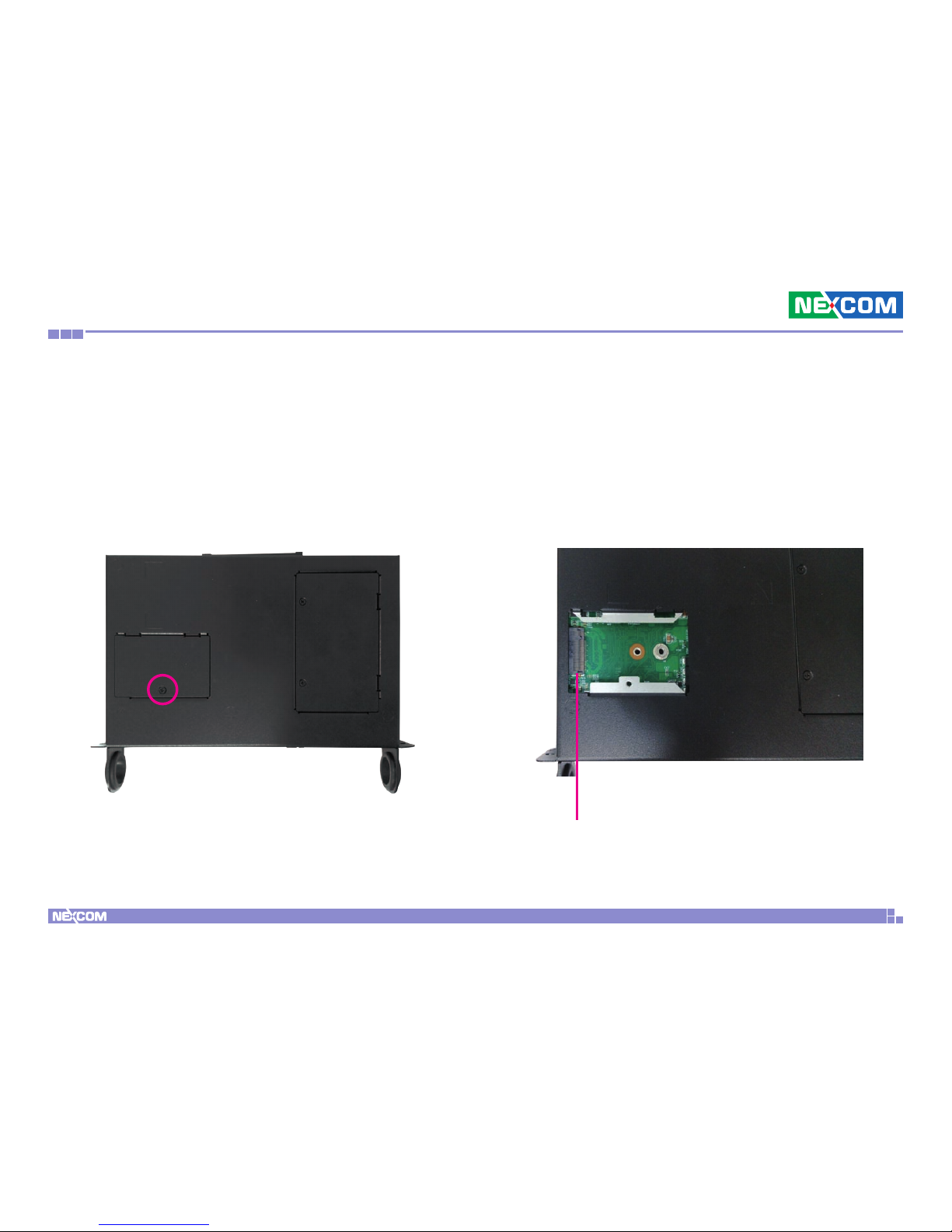

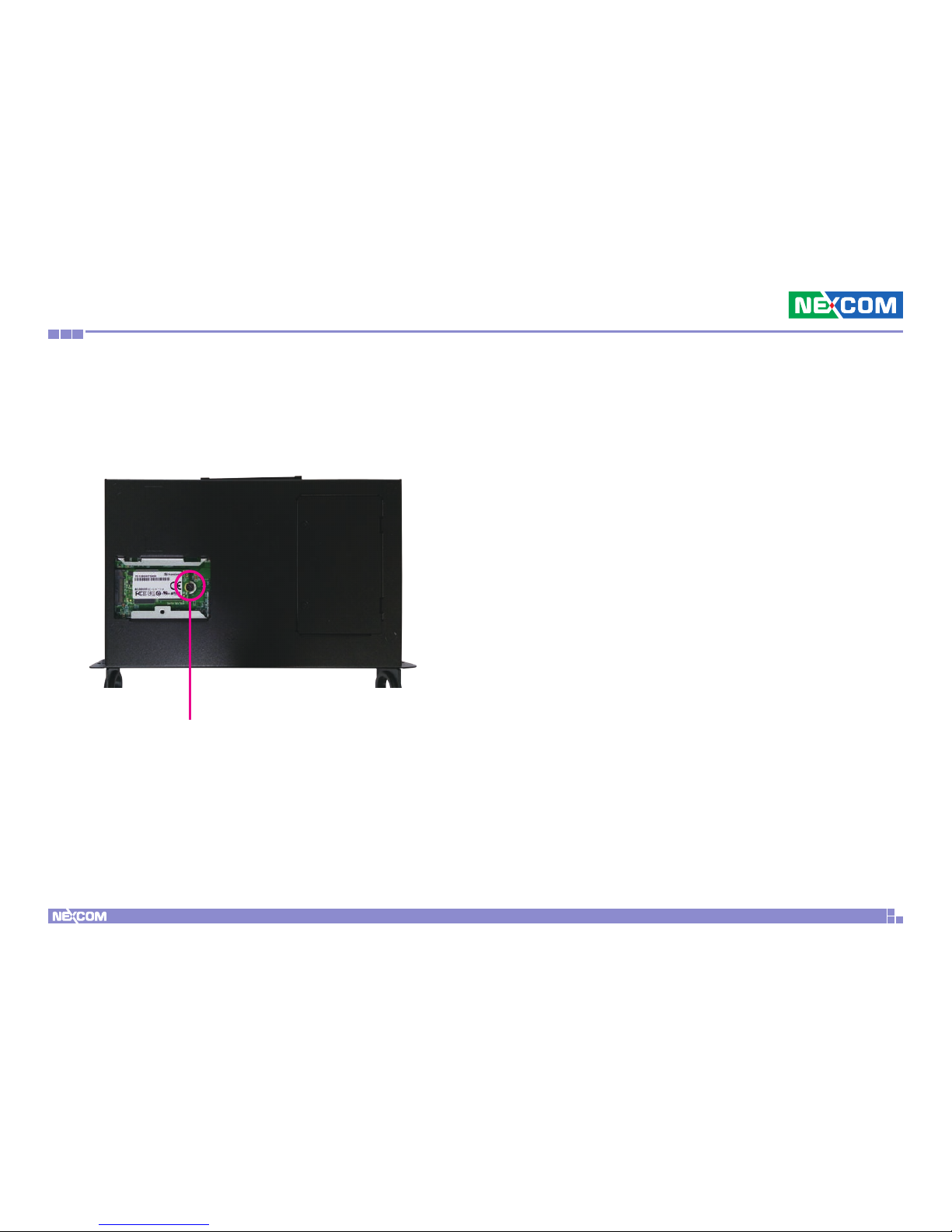

Installing an M.2 SSD Storage Module ..................................................28

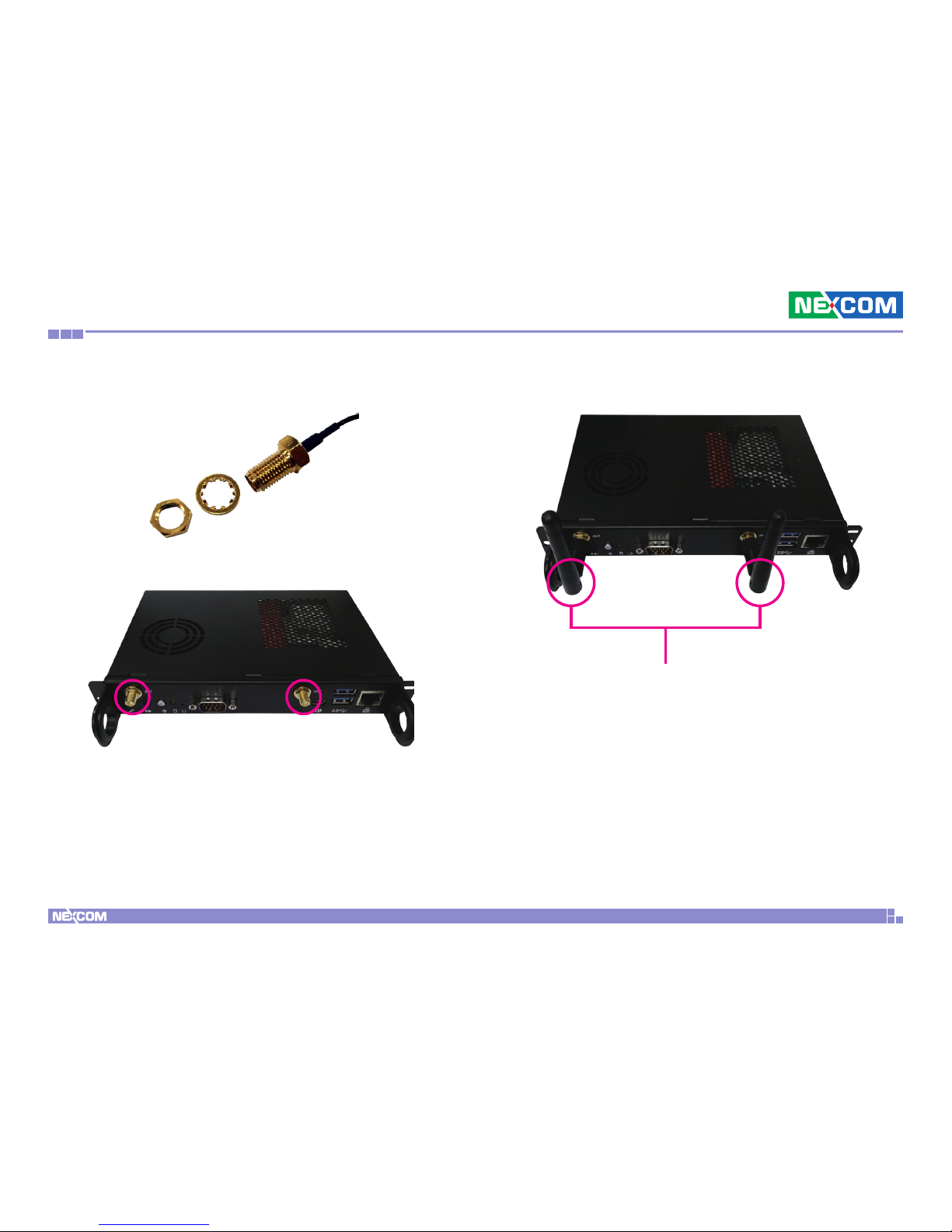

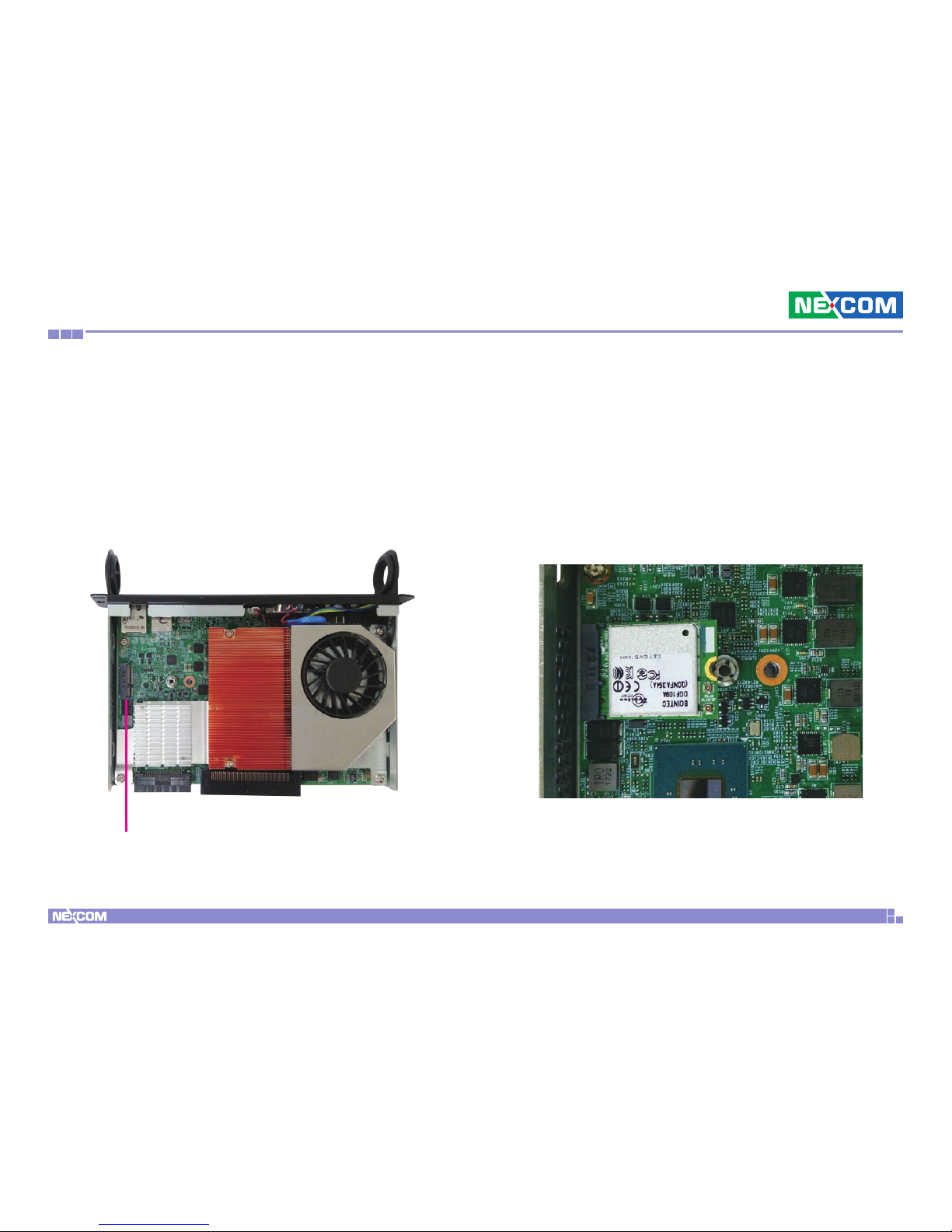

Installing a Wireless LAN Module ..........................................................30

Chapter 4: BIOS Setup

About BIOS Setup .................................................................................33

When to Configure the BIOS .................................................................33

Default Configuration ...........................................................................34

Entering Setup ......................................................................................34

Legends ................................................................................................34

BIOS Setup Utility ..................................................................................36

Main .................................................................................................36

Advanced ..........................................................................................37

Chipset ..............................................................................................45

Security .............................................................................................46

Boot ..................................................................................................46

Save & Exit ........................................................................................47

Appendix A: Watchdog Programming Guide ......48

iv

NDiS M537 User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NDiS M537 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

v

NDiS M537 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

vi

NDiS M537 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vii

NDiS M537 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

viii

NDiS M537 User Manual

Preface

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

ix

NDiS M537 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

x

NDiS M537 User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

xi

NDiS M537 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

9F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

China

NEXCOM China

Floor 5, No.4, No.7 fengxian middle Rd., (Beike Industrial Park), Haidian District, Beijing, 100094, China Tel: +86-10-5704-2680 Fax: +86-10-5704-2681 Email: [email protected] www.nexcom.cn

xii

NDiS M537 User Manual

Preface

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Lanino 42, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625 570 Email: [email protected] www.nexcomitalia.it

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXCOM Surveillance Technology Corp.

Room202, Building B, the GuangMing Industrial Zone Zhonghua Rd., Minzhi Street, Longhua District, Shenzhen 518131, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: [email protected] www.nexcom.cn

NEXCOM United System Service

Hui Yin Ming Zun Building Room 1108, Building No. 11, 599 Yunling Road, Putuo District, Shanghai, 200062, China Tel: +86-21-6125-8282 Fax: +86-21-6125-8281 Email: [email protected] www.nexcom.cn

xiii

NDiS M537 User Manual

Preface

Package Contents

Before continuing, verify that the NDiS M537 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 50311F0111X00 Flat Head Screw Long Fei:F3x5ISO+Nylok Black F3x5 Black Nylok 2 2 5060200082X00 Thermal Pad NDiS B533 VER:A EAPUS 25x25x0.2mm 2 3 5060200187X00 Thermal Pad for G100 VER:A S.W. 10x10x1mm K=3w/mk 2 4 6013300521X00 NDiS M533 Cable kit EPE VER:A SENTENEL 230x200x15mm 1 5 6013300709X00 EPE FOR NDiS M335 VER:A SENTENEL 227x200x75mm 1 6 602DCD1509X00 NDiS M537 DVD Driver Manual VER:A JCL 1

xiv

NDiS M537 User Manual

Preface

Ordering Information

The following below provides ordering information for NDiS M537.

NDiS M537 (P/N: 10W00M53700X0)

7th/6th generation Intel

®

Core™ LGA1151 type processor OPS PLUS, Intel

®

Q170 chipset

1

NDiS M537 User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

Key Features

▪ 7th/6th generation Intel® Core™ processor

▪ Intel

®

integrated HD 630 graphics engine

▪ Support 3 independent 4K2K video out

▪ Dual DDR4 SO-DIMM support

▪ Support Wi-Fi module

▪ DirectX

®

12 support

Overview

NDiS M537 is an OPS PLUS-compliant media player powered by 7th/6th generation Intel

®

Core™ processors. Following open pluggable standard, NDiS M537 can perfectly fit into a myriad of OPS PLUS-panels and is compact in size. Yet, NDiS M537 has high scalability, allowing for easy storage capacity expansion through pluggable M.2 storage unit and effortless functional extension through FX18-60P (PCIe x4, DP1.2) expansion modules. Changing system memory is also made simple. In addition, NDiS M537 leverages the future generation Intel

®

Core™ processors to deliver outstanding graphics support 3 independent 4K2K video output. The superb but power-efficient NDiS M537 can therefore maximize visual impacts for digital signage applications.

2

NDiS M537 User Manual

Chapter 1: Product Introduction

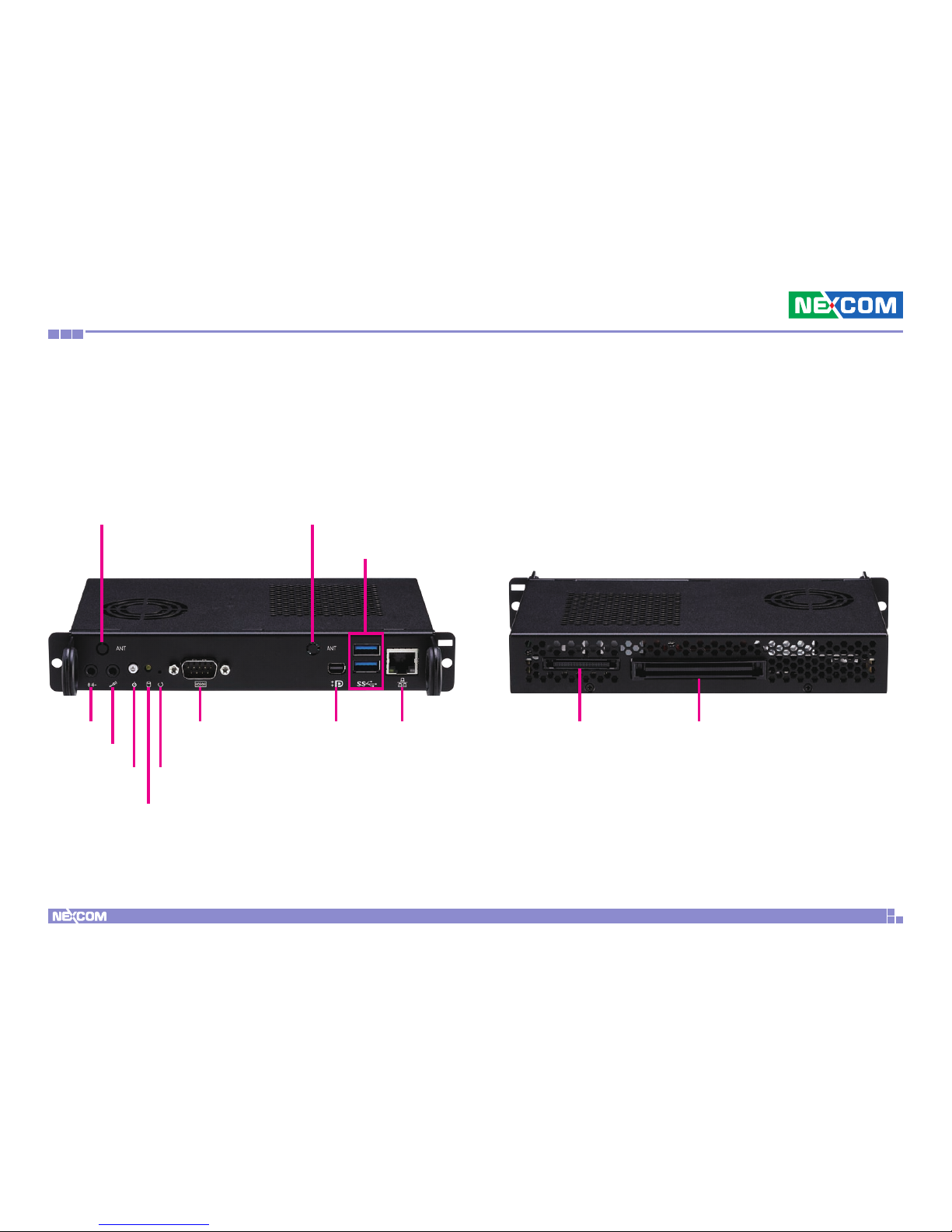

Physical Features

Front Panel Rear Panel

Antenna Hole Antenna Hole

Mic-in

Storage

LED

Power

Button

Reset Button

JAE TX25 80PinLine-out COM LANMini

DisplayPort

USB 3.0

HRS FX18 60Pin

3

NDiS M537 User Manual

Chapter 1: Product Introduction

Hardware Specifications

CPU Support

▪ 7th generation Intel® Core™ processor (LGA1151), 35W ▪ 6th generation Intel

®

Core™ processor (LGA1151), 35W

Chipset

▪ Intel® Q170 PCH

Graphics

▪ Integrated Intel® HD 630 graphics

Main Memory

▪ 2 x 260-pin SO-DIMM sockets, support DDR4 2133/2400 MHz non-ECC,

un-buffered memory up to 32G (single socket max. 16GB).

I/O Interface-Front

▪ 1 x Power button with LED ▪ 1 x Reset button ▪ 1 x RJ45 with LEDs for Gigabit LAN ▪ 1 x Mini DP connector for DisplayPort++ ▪ 2 x USB 3.0 ▪ 1 x Storage active LED ▪ 2 x Antenna holes ▪ 1 x Mic-in phone jack ▪ 1 x Line-out phone jack ▪ 1 x DB9 for RS232 (COM3)

I/O Interface-Rear (TX25)

▪ 1 x TMDS (HDMI 2.0) ▪ 1 x USB 3.0 ▪ 2 x USB 2.0 ▪ 1 x UART (3.3V TTL) (COM2) ▪ 1 x Audio out L/R

▪ DC input +12V~+19V ▪ Control signals (PWR_STATUS, PS_ON#, PB_DET, CEC, SYS_FAN)

I/O Interface-Rear (FX18)

▪ 1 x GPIO signal ▪ 2 x I2C signal ▪ LAN managements signals ▪ 1 x DP1.2 signal ▪ PCIe x4 signal

Storage Device

▪ 1 x M.2 2242, SATA signal

Expansion

▪ 1 x M.2 2230 for optional Wi-Fi module

Dimensions

▪ 200mm (W) x 119mm (D) x 30mm (H) (7.8” x 4.7” x 1.1”)

Power Supply

▪ DC power input +12V~+19V

Environment

▪ Operating temperature: ambient with air flow from 0°C to 45°C ▪ Storage temperature: -20°C to 80°C ▪ Humidity: 95% (non-condensing)

Certification

▪ CE/FCC Class A

Operating System

▪ 7th generation Intel® Core™: Windows 10 (64-bit) ▪ 6th generation Intel

®

Core™: Windows 7 (32/64-bit)/Windows 10 (64-bit)

4

NDiS M537 User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

30 ±0.40

200 ±0.40

4.5

5

23 3

192

118 ±0.40

1

1.27

4

180 ±0.40

149

8.6

13

25 68

5

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers and connectors on the NDiS M537 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

6

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

The figure below is the top and bottom view of the NDiB M537 mainboard which is the mainboard used in NDiS M537. It shows the locations of the jumpers and connectors.

J5

CN7

USB1

CON1

CN3

CN2

CN1

J4

JP1

J2

SW1

SW2

CN4CN5

LED1

Top View

Locations of the Jumpers and Connectors for NDiB M537

7

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

CN6

Bottom View

8

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

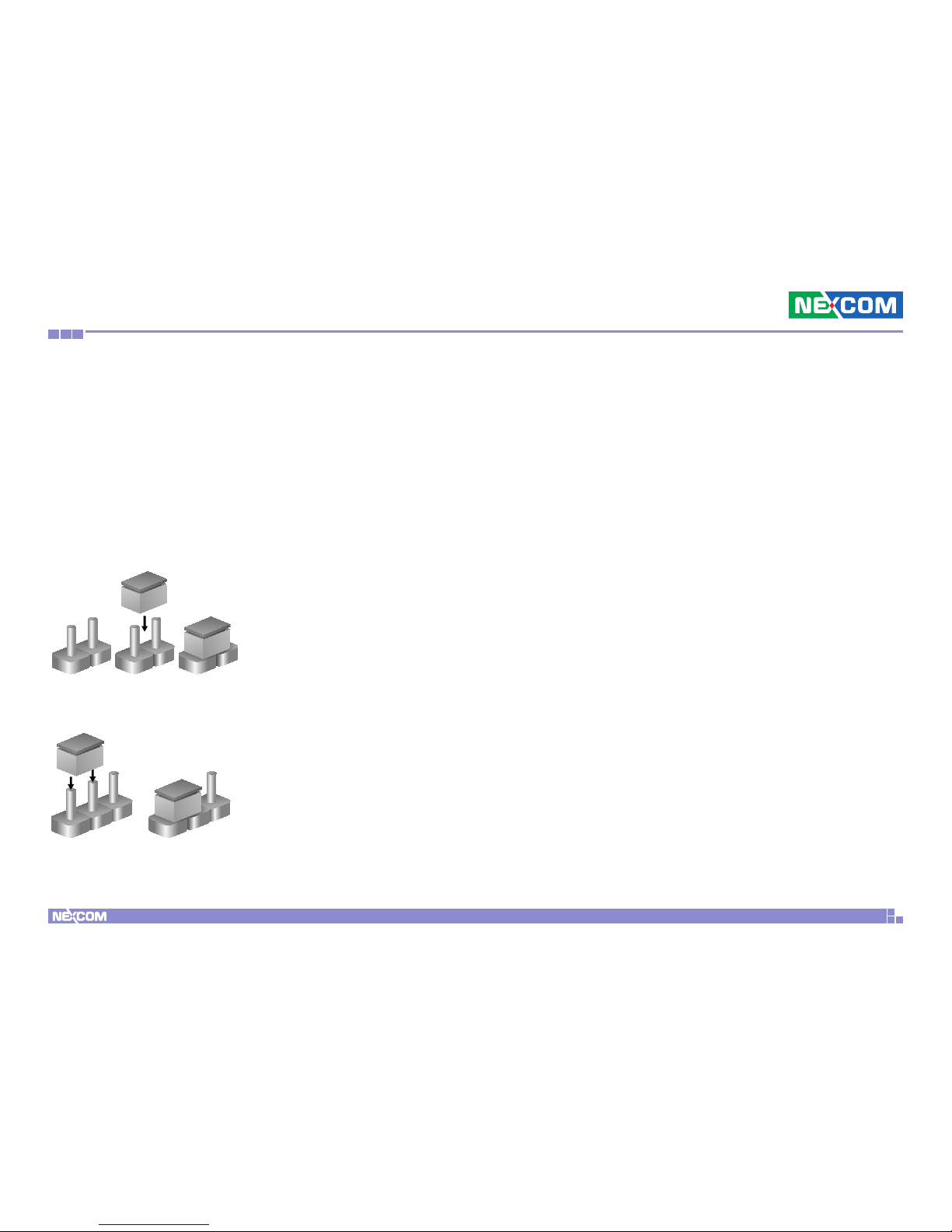

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

1

2

3

1

2

3

9

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

Jumpers

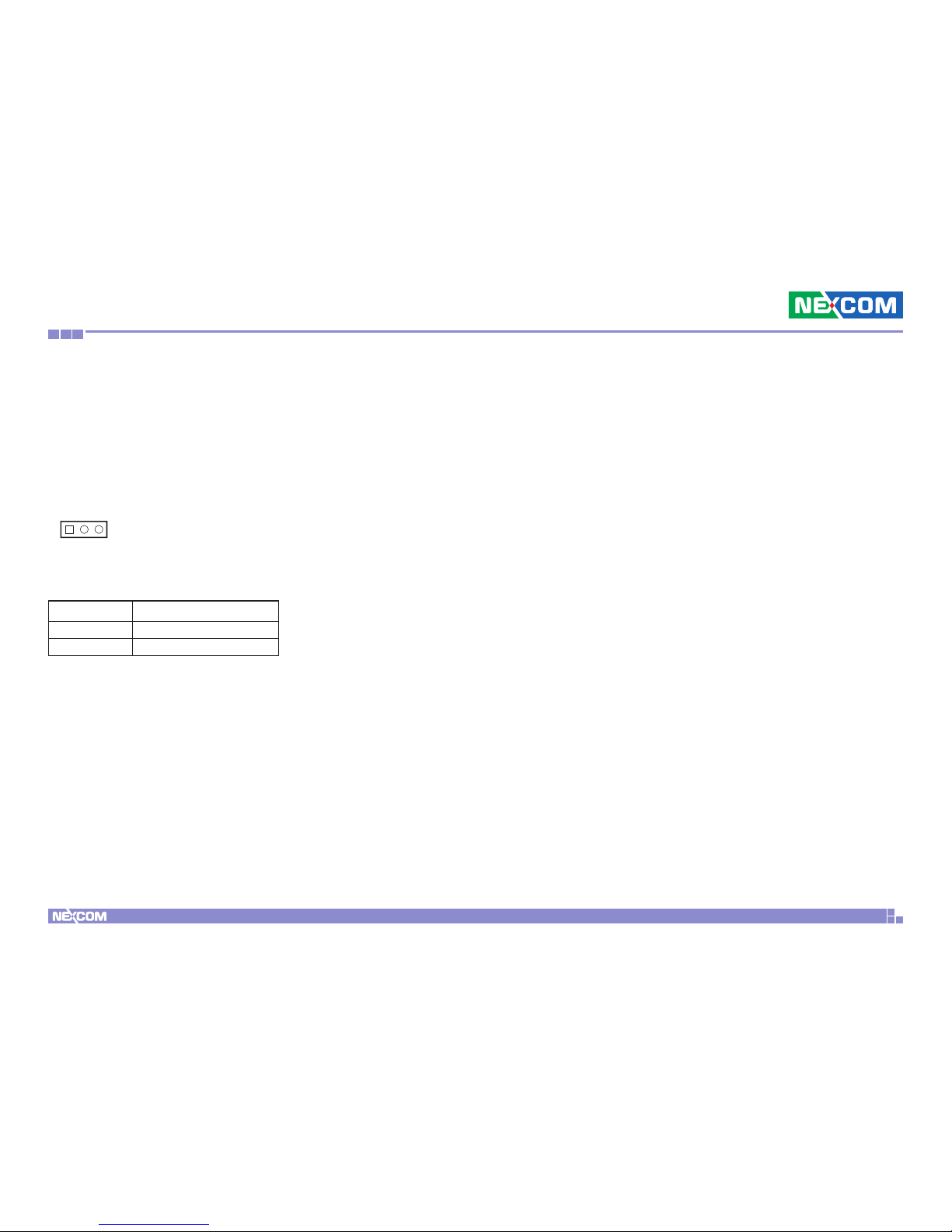

RTC Clear Jump

Connector type: 1x3 3-pin header, 2.54mm pitch, MALE 180D Connector location: JP1

Pin Settings

1-2 On Normal 2-3 On Clear CMOS

1-2 On: default

1 3

10

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

Power Switch

Connector location: SW1

Power LED Definition

ON Blue

OFF Red

System Reset Switch

Connector location: SW2

Pin Definition

1-2 System Reset

11

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

LAN Connector

Connector type: RJ45 port with LEDs Connector location: CON1

USB 3.0 Connectors

Connector type: USB 3.0 port, Type A Connector location: USB1

Pin Definition Pin Definition

1 TCT 2 TD43 TD4+ 4 TD35 TD3+ 6 TD27 TD2+ 8 TD1-

9 TD1+ 10 TCTG 11 Left_LED+ 12 Left_LED13 Right_LED+ 14 Right_LED-

Left-LED: Link/Active:Green Right-LED: 1G/100:Green/Orange

1 8

Pin Definition Pin Definition

1 VCC 2 USB0_N 3 USB0_P 4 GND 5 USB3_RX0_N 6 USB3_RX0_P 7 GND 8 USB3_TX0_N

9 USB3_TX0_P 10 VCC 11 USB1_N 12 USB1_P 13 GND 14 USB3_RX1_N 15 USB3_RX1_P 16 GND 17 USB3_TX1_N 18 USB3_TX1_P

9

1

10 13

1418

4

5

12

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

Mini DisplayPort Connector

Connector type: Mini DisplayPort Connector location: CN7

Pin Definition Pin Definition

1 PWR_IN 2 HPD_GND 3 TBT_HD2CA_0+ 4 TBT_CA2HD_0+ 5 TBT_HD2CA_0- 6 TBT_CA2HD_07 GND1 8 GND2

9 LSTX 10 RESERVED1 11 LSRX 12 RESERVED2 13 GND3 14 GND4 15 TBT_HD2CA_1+ 16 TBT_CA2HD_1+ 17 TBT_HD2CA_1- 18 TBT_CA2HD_119 RETURN 20 PWR_OUT

2

119

20

LED

Connector location: LED1

LED LED Definition

HDD Yellow

HDD

13

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

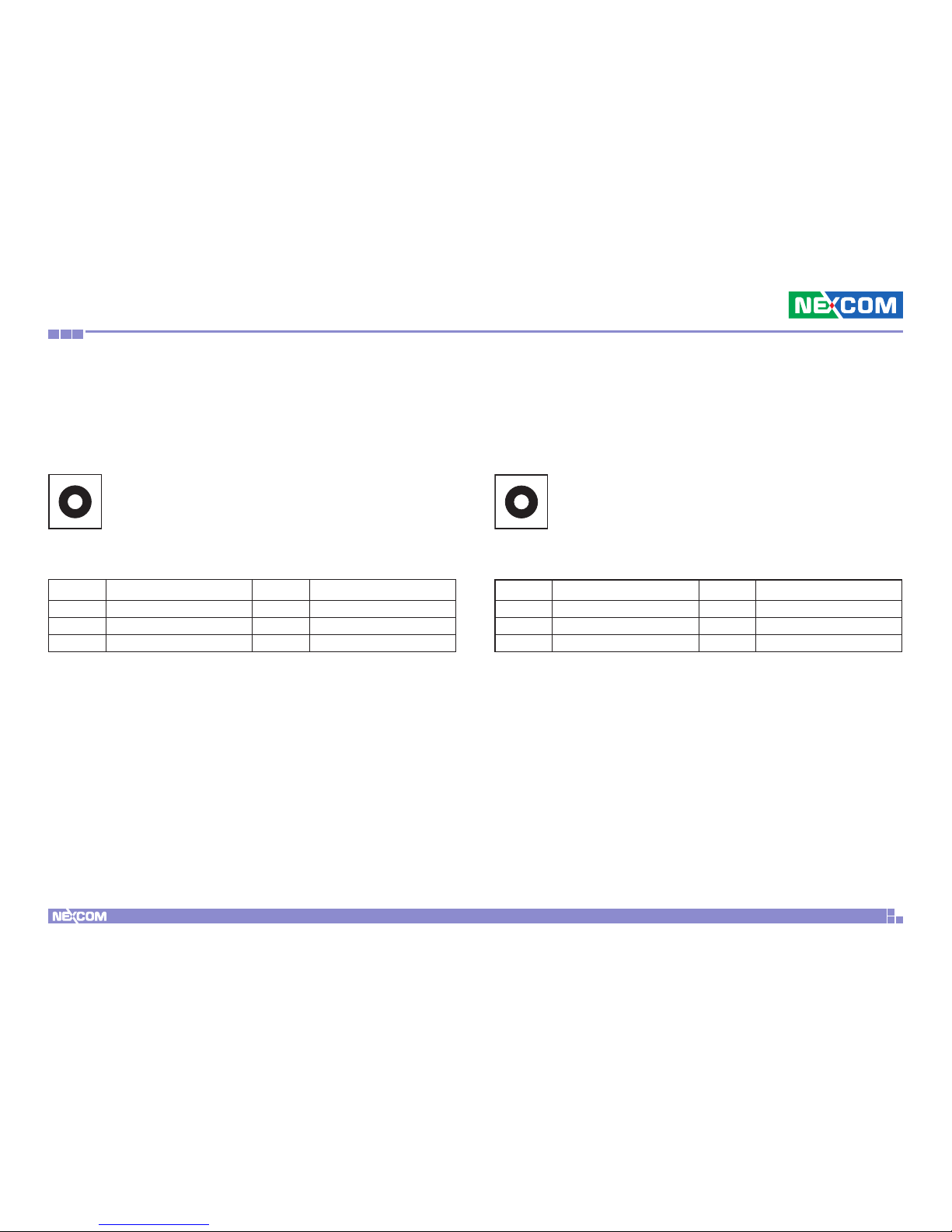

Mic-in Connector

Connector type: 3.5mm TRS Connector location: CN4

Pin Definition Pin Definition

1 IN/OUT_R 2 JD

3 GND 4 IN/OUT_L

5 GND 6 GND

Line-out Connector

Connector type: 3.5mm TRS Connector location: CN5

Pin Definition Pin Definition

1 IN/OUT_R 2 JD 3 GND 4 IN/OUT_L 5 GND 6 GND

14

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

JAE-TX25 Connector

Connector location: CN1

Pin Definition Pin Definition

1 DDP_3N 18 HDMI0_CLK_P

2 DDP_3P 19 GND

3 GND 20 HDMI0_TX0N

4 DDP_2N 21 HDMI0_TX0P

5 DDP_2P 22 GND

6 GND 23 HDMI0_TX1N

7 DDP_1N 24 HDMI0_TX1P

8 DDP_1P 25 GND

9 GND 26 HDMI0_TX2N 10 DDP_0N 27 HDMI0_TX2P 11 DDP_0P 28 GND 12 GND 29 HDMI0_SDA 13 DDP_AUXN 30 HDMI0_SCL 14 DDP_AUXP 31 HDMI0_HPD 15 DDP_HPD 32 GND 16 GND 33 VIN_M 17 HDMI0_CLK_N 34 VIN_M

Pin Definition Pin Definition

35 VIN_M 58 USB_TX2P 36 VIN_M 59 GND 37 VIN_M 60 USB_DN2 38 VIN_M 61 USB_DP2 39 VIN_M 62 GND 40 VIN_M 63 USB_DN7 41 NC 64 USB_DP7 42 NC 65 GND 43 NC 66 USB_DN6 44 NC 67 USB_DP6 45 NC 68 GND 46 NC 69 SKPR_LOUT 44 47 NC 70 SKPR_ROUT 44 48 NC 71 HDMI0_CEC 40 49 NC 72 GND 50 SYS_FAN_EN# 46 73 PS_ON# 19 51 COM1_RXD 46 74 PWR_STATUS 52 COM1_TXD 46 75 GND 53 GND 76 GND 54 USB_RX2N 77 GND 55 USB_RX2P 78 GND 56 GND 79 GND 57 USB_TX2N 80 GND

MH1 GND MH2 GND

1 40

41

80

15

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

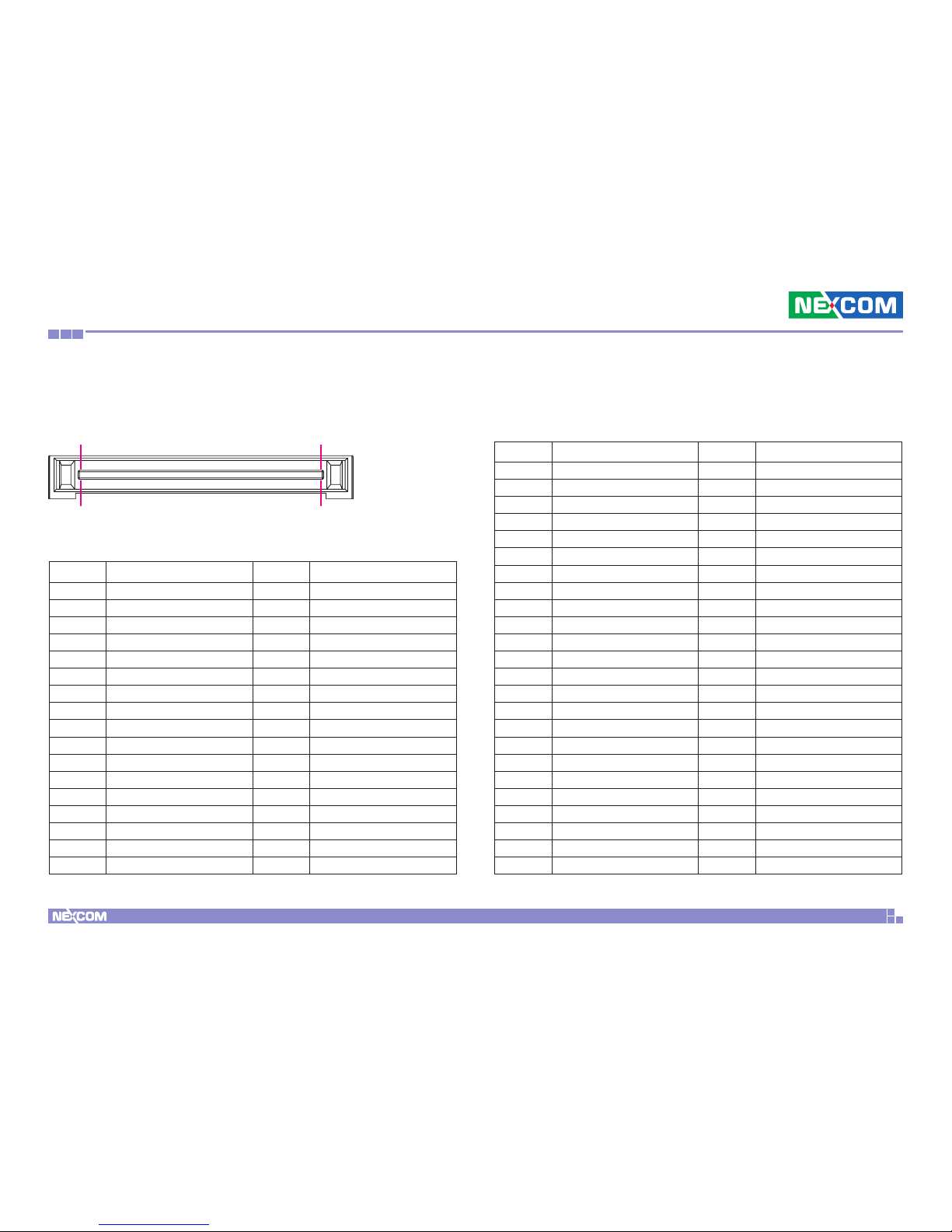

HRS-FX18-60S Connector

Connector location: CN2

Pin Definition Pin Definition

1 PCIE-RXN0 16 GND

2 PCIE-RXP0 17 PCIE_CLK_N

3 GND 18 PCIE_CLK_P

4 GND 19 GND

5 PCIE-RXN1 20 I2C1_CLK

6 PCIE-RXP1 21 I2C1_DATA1

7 GND 22 GND

8 GND 23 DDP1_AUNX

9 PCIE-RXN2 24 DDP1_AUNP 10 PCIE-RXP2 25 GND 11 GND 26 DDP1_1N 12 GND 27 DDP1_1P 13 PCIE-RXN3 28 GND 14 PCIE-RXP3 29 DDP1_0N 15 GND 30 DDP1_0P

MH1 GND MH3 NC MH2 GND MH4 NC

Pin Definition Pin Definition

31 PCIE_WAKE 46 PCIE-TXP3 32 GND 47 GND 33 PCIE-TXN0 48 I2C_CLK_LAN 34 PCIE-TXP0 49 I2C_DATA_LAN 35 GND 50 LAN_DISABLE 36 GND 51 SLEEP_S3 37 PCIE-TXN1 52 PICe_RST 38 PCIE-TXP1 53 GPIO 39 GND 54 GND 40 GND 55 DDP1_3N 41 PCIE-TXN2 56 DDP1_3P 42 PCIE-TXP2 57 GND 43 GND 58 DDP1_2N 44 GND 59 DDP1_2P

45 PCIE-TXN3 60 GND MH5 GND MH6 GND

1

31

MH3 MH4

30

40

16

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

Pin Definition

1 GND 2 3V

Internal Connectors

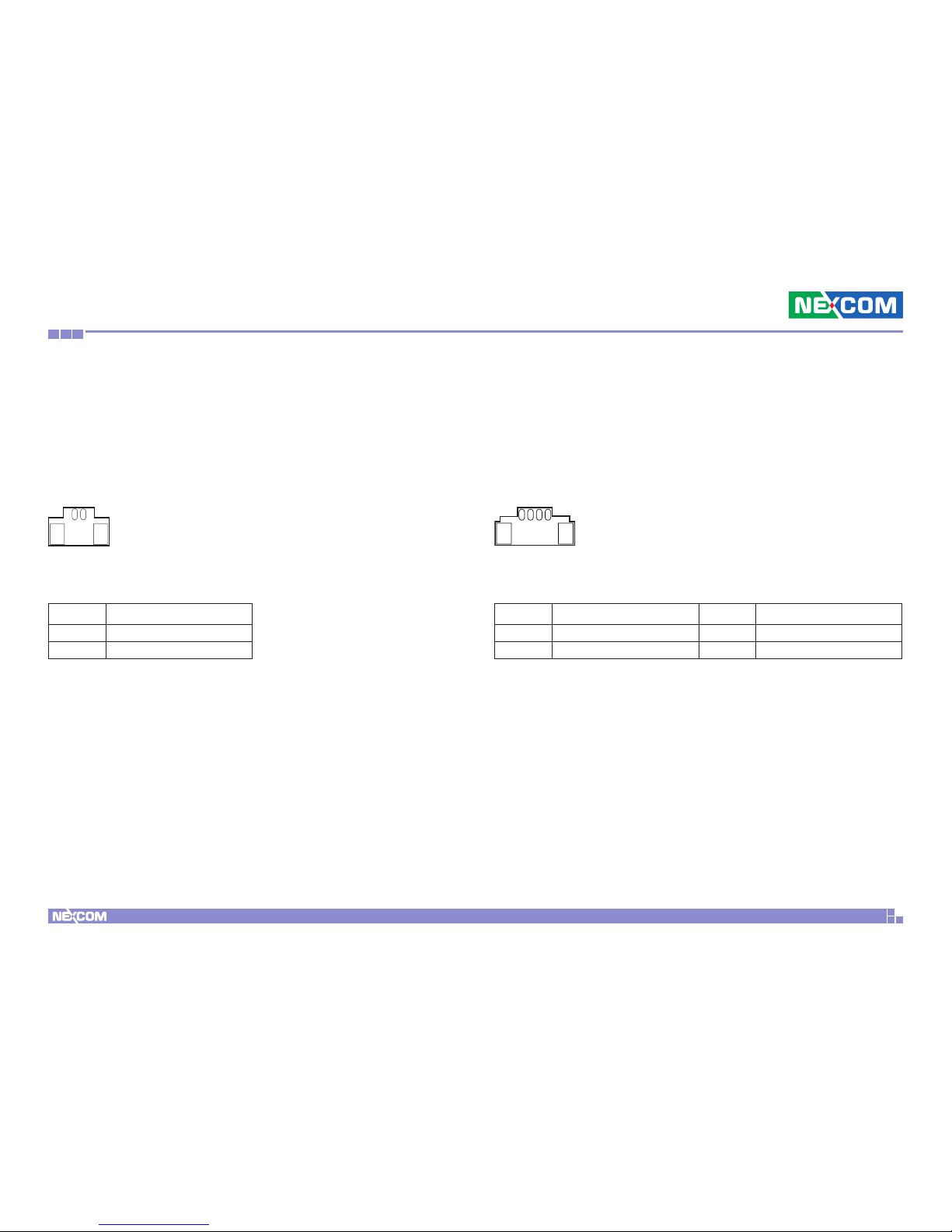

RTC Battery Connector

Connector type: 1x2 2-pin header Connector location: J4

Fan Connector

Connector type: 1x4 4-pin header Connector location: J2

Pin Definition Pin Definition

1 GND 2 VCC 3 SPEED 4 CONTROL

1 2 1 4

17

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

Debug 80 Port Connector

Connector type: 1x10 10-pin header Connector location: J5

Pin Definition Pin Definition

1 GND 2 PCIRST# 3 33M_CLK 4 LPC_FRAME# 5 LPC_AD3 6 LPC_AD2 7 LPC_AD1 8 LPC_AD0 9 3.3V 10 3.3V

1 10

18

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

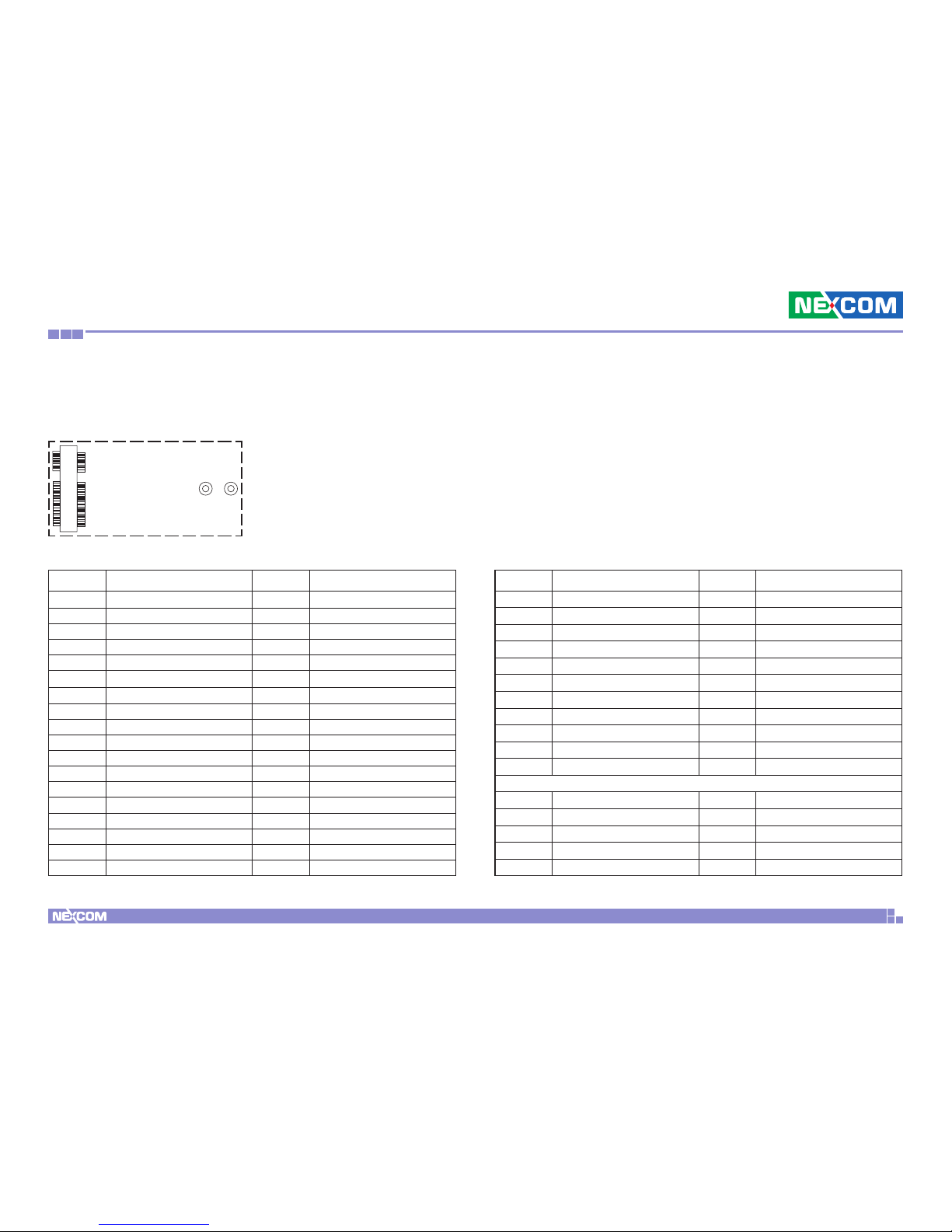

74 75

12

Pin Definition Pin Definition

1 GND MHx GND

3 USB_D+ 2 3.3V 5 USB_D- 4 3.3V 7 GND 6 LED 9 SOIO_CLK 8 PCM_CLK

11 SOIO_CMD 10 PCM_SYNC

13 SOIO_DATA 12 PCM_IN 15 SOIO_DATA 14 PCM_OUT 17 SOIO_DATA 16 LED 19 SOIO_DATA 18 GND 21 SOIO_WAKE# 20 WAKE 23 SOIO_RESET# 22 RXD

HW Latch 33 GND 32 TXD 35 PETp0 34 CRS

37 PETn0 36 RTS 39 GND 38 VENDOR 41 PERp0 40 VENDOR

Pin Definition Pin Definition

43 PERn0 42 VENDOR

45 GND 44 COEX

47 REFCLKp0 46 COEX

49 REFCLKn0 48 COEX

51 GND 50 SUSCLK

53 CLKREQ0 52 PERST

55 PEWAKE0 54 W_DISABLE

57 GND 56 W_DISABLE

59 PETp1 58 I2C_DATA

61 PETn1 60 I2C_CLK

63 GND 62 ALERT

65 PERp1 64 RESERVED

67 PERn1 66 PERST

69 GND 68 CLKREQ

71 REFCLKp1 70 PEWAKE

73 REFCLKn1 72 3.3V

75 GND 74 3.3V

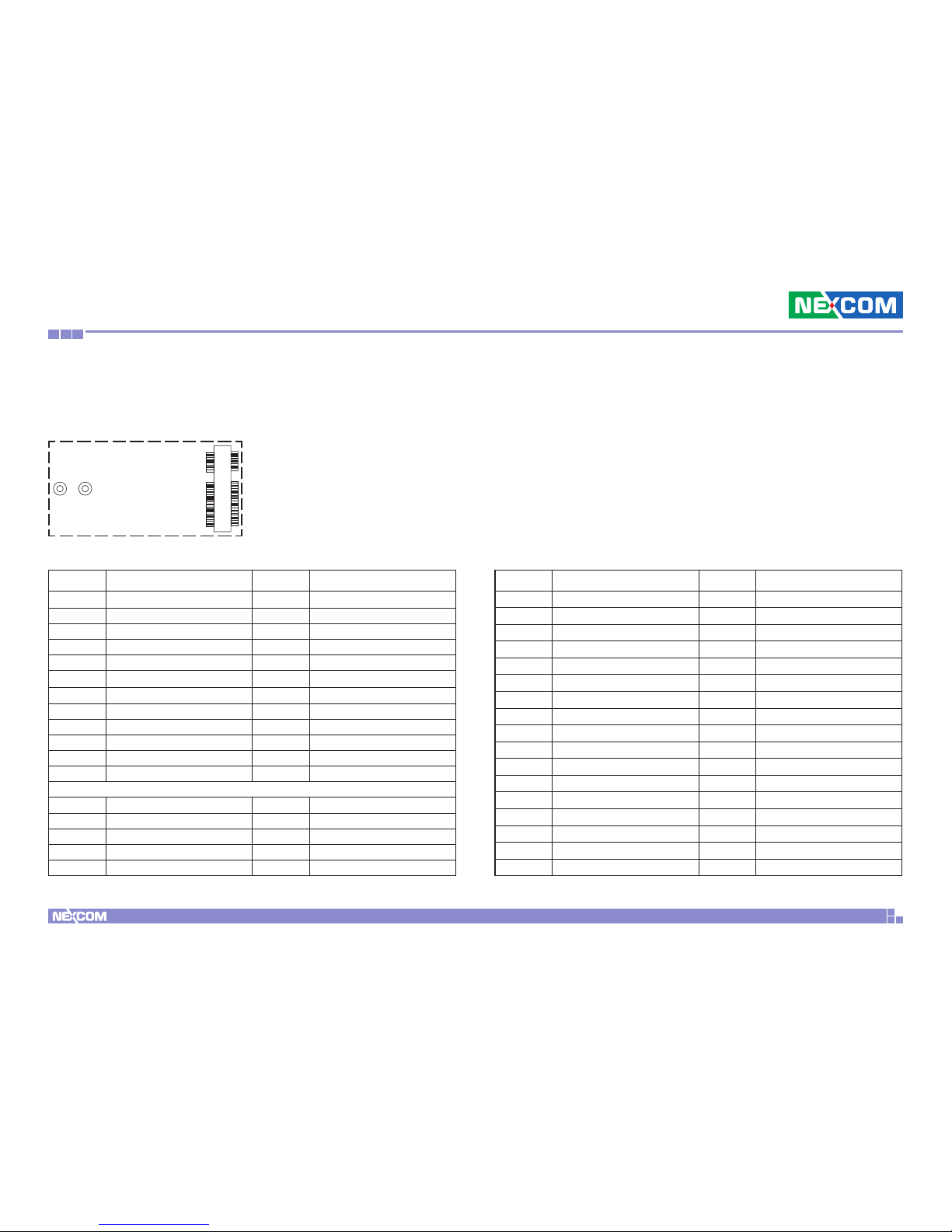

M.2 E Key Connector

Connector location: CN3

19

NDiS M537 User Manual

Chapter 2: Jumpers and Connectors

12

7475

M.2 M Key Connector

Connector location: CN6

Pin Definition Pin Definition

1 GND1 2 3.3V_1

3 GND2 4 3.3V_2 5 PERN3 6 NC 7 PERP3 8 NC1 9 GND3 10 DAS

11 PETN3 12 3.3V_6

13 PETP3 14 3.3V_7 15 GND4 16 3.3V_8 17 PERN2 18 3.3V_9 19 PERP2 20 NC2

21 GND5 22 NC3 23 PETN2 24 NC4 25 PETP2 26 NC5 27 GND6 28 NC6 29 PERN1 30 NC7 31 PERP1 32 NC8 33 GND7 34 NC9 35 PETN1 36 NC10

Pin Definition Pin Definition

37 PETP1 38 DEVSLP

39 GND8 40 NC11

41 PERN0 42 NC12

43 PERP0 44 NC13

45 GND9 46 NC14

47 PETN0 48 NC15

49 PETP0 50 PERST

51 GND10 52 CLKREQ

53 REFCLKN 54 PEWAKE

55 REFCLKP 56 NC16

57 GND11 58 NC17

HW Latch

67 NC26 68 SUSCLK

69 PEDET 70 3.3V_3

71 GND12 72 3.3V_4

73 GND13 74 3.3V_5

75 GND14

20

NDiS M537 User Manual

Chapter 3: System Setup

ChaPter 3: system setuP

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

CAUTION!

CAUTION!CAUTION!

1. The screws on the back are used to secure the cover to the chassis. Remove these screws and put them in a safe place for later use.

2. With the screws removed, push back the cover and remove it from the chassis.

Screws on the back



21

NDiS M537 User Manual

Chapter 3: System Setup

Installing the CPU (Socket Type)

1. Remove the chassis cover, then loosen all the five screws and unplug the fan power connector to remove the cooler and access the CPU socket.

Fan Power Connector

Screw

22

NDiS M537 User Manual

Chapter 3: System Setup

2. Unlock the socket by pushing the load lever down, moving it sideways until it is released from the retention tab; then lift the load lever up.

3. Insert the CPU into the socket. The triangular edge on the CPU must align with the corner of the CPU socket shown on the photo.

The CPU’s notch will at

the same time fit into the socket’s alignment key.

Alignment key

▪ Handle the CPU by its edges and avoid touching the pins. ▪ The CPU will fit in only one orientation and can easily be

inserted without exerting any force.

CAUTION!

CAUTION!CAUTION!

23

NDiS M537 User Manual

Chapter 3: System Setup

4. Close the load plate and then hook the load lever under the retention tab.

Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.

CAUTION!

CAUTION!CAUTION!

5. Remove the adhesive film on the thermal pad and place it onto the CPU.

CAUTION!

CAUTION!CAUTION!

Please install the thermal pad and make sure the adhesive film on the thermal pad is removed before placing it on the heat sink.

24

NDiS M537 User Manual

Chapter 3: System Setup

6. Put the cooler back to its original location and apply all the five screws and fan power connector to secure it in place.

25

NDiS M537 User Manual

Chapter 3: System Setup

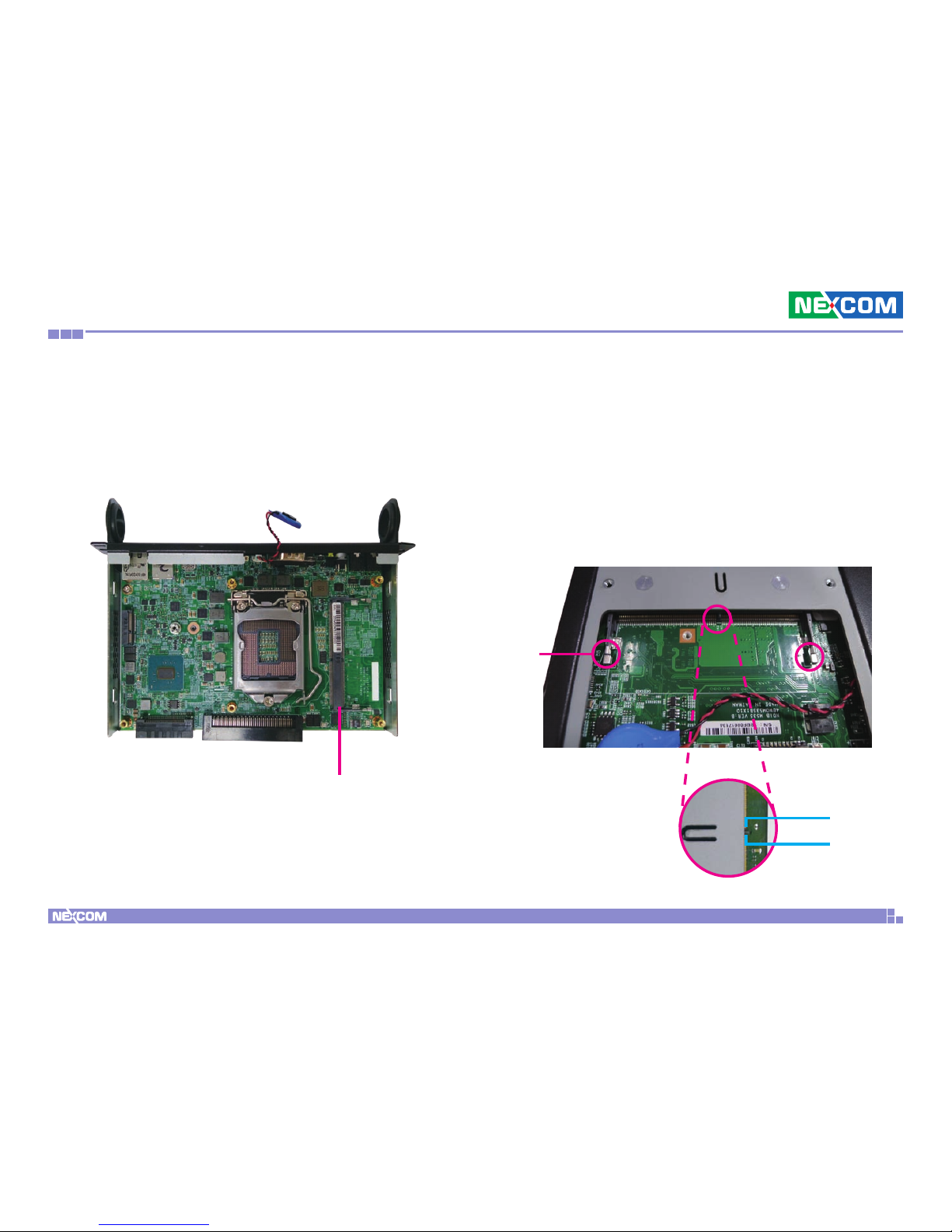

Installing a SO-DIMM Memory Module

1. There are two SO-DIMM sockets in NDiS M537. One is on the top side and the another is on the bottom. With the chassis cover and cooler removed, install a memory module in the SO-DIMM socket.

DIMM2

2. Push the ejector tabs which are at the ends of the socket outward. This indicates that the socket is unlocked.

Note how the module is keyed to the socket. Grasping the module by

its edges, align the module with the socket so that the “notch” on the module is aligned with the “key” on the socket. The key ensures the module can be plugged into the socket in only one direction.

Ejector

tab

Key

Notch

26

NDiS M537 User Manual

Chapter 3: System Setup

3. Insert the module into the socket at an approximately 30 degree angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.

The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.

4. At the bottom of the system, loosen the screws on the bottom cover, then remove the cover from the chassis to install another memory module.

27

NDiS M537 User Manual

Chapter 3: System Setup

5. Follow the instructions in step 2 and step 3 above to install the memory module.

DIMM1

28

NDiS M537 User Manual

Chapter 3: System Setup

Installing an M.2 SSD Storage Module

The system is equipped with an M.2 M Key connector. To install an M.2 SSD module, please follow the instructions below.

1. At the bottom of the system, loosen the screws on the bottom cover, then remove the cover from the chassis.

M.2 M Key Slot

29

NDiS M537 User Manual

Chapter 3: System Setup

2. Insert the M.2 SSD module into the M.2 slot at a 45 degree angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

3. With the module fully inserted, tighten a screw into the mounting hole on the module to secure it.

Screw

30

NDiS M537 User Manual

Chapter 3: System Setup

Installing a Wireless LAN Module

2. Insert the Wi-Fi module into the M.2 E key slot at a 45 degree angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

1. With the chassis cover removed, locate the M.2 E key slot on the mainboard.

M.2 E Key Slot

The system is equipped with an M.2 E Key connector. To install an M.2 Wireless LAN module, please follow the instructions below.

31

NDiS M537 User Manual

Chapter 3: System Setup

3. With the module fully inserted, tighten a screw into the mounting hole on the module to secure it.

RF CableScrew

4. Attach the RF cables onto the Wi-Fi module and insert the antenna jack end of the cable through the antenna hole.

32

NDiS M537 User Manual

Chapter 3: System Setup

Ring2

Ring1

5. Insert the 2 rings (ring 1 then ring 2) into the Wi-Fi antenna jacks. 6. Connect the external antennas to the Wi-Fi antenna jacks.

Antenna

33

NDiS M537 User Manual

Chapter 4: BIOS Setup

ChaPter 4: BIos setuP

This chapter describes how to use the BIOS setup program for NDiS M537. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM website at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

34

NDiS M537 User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup.

Press the

key to enter Setup:

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between submenus or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

35

NDiS M537 User Manual

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

36

NDiS M537 User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set the Time. Use Tab to switch between Time elements.

Speed ID Stepping Number of Processors Microcode Revision GT Info

IGFX GOP Version Memory RC Version Total Memory Memory Frequency

PCH Information Name PCH SKU Stepping TXT Capability of Platform/PCH Production Type

ME FW Version ME Firmware SKU

System Date

System Time

2700 MHz 0x906E9 B0/S0/M0 2Core(s) / 2Thread(s) 84 GT1 (0x5902)

N/A

1.2.0.0

18192 MB

2133 MHz

SKL PCH-H Q170 D1 Unsupported Production

11.6.0.1126 Corporate SKU

[Mon 10/01/2018] [08:43:48]

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

▲

▼

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set the Date. Use Tab to switch between Date elements.

BIOS Information BIOS Vendor Product Name BIOS Version Build Date and Time

Processor Information Name Type

Speed ID Stepping Number of Processors Microcode Revision GT Info

IGFX GOP Version Memory RC Version Total Memory Memory Frequency

PCH Information Name PCH SKU

American Megatrends NDiS-M537 D537A019 x64 08/20/2018 09:48:52

Kabylake DT Intel(R) Celeron(R) CPU G3930TE @ 2.70GHz 2700 MHz 0x906E9 B0/S0/M0 2Core(s) / 2Thread(s) 84 GT1 (0x5902)

N/A

1.2.0.0

18192 MB

2133 MHz

SKL PCH-H Q170

▲

▼

37

NDiS M537 User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Save & Exit

Advanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU Conguration Parameters

CPU Conguration

SATA And RST Conguration AMT Conguration

Trusted Computing ACPI Settings

NCT6106D Super IO Conguration

NCT6106D HW Monitor S5 RTC Wake Settings

CSM Conguration NVMe Conguration USB Conguration

State After G3 [S0 State]

CPU Configuration

This section is used to view CPU status and configure CPU parameters.

Intel® (VMX) Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Active Processor Cores

Select the number of cores to enable in each processor package.

Intel

®

SpeedStep

TM

Enables or disables Intel SpeedStep.

CPU C States

Enables or disables CPU C states.

Exit

Advanced Chipset PCIPnP Security

Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

CPU Conguration

Type

ID Speed L1 Data Cache L1 Instruction Cache L2 Cache L3 Cache L4 Cache VMX SMX/TXT

Intel (VMX) Virtualization Technology

Active Processor Cores Intel(R) SpeedStep(tm) C states

Intel(R) Celeron(R) CPU G3930TE @ 2.70GHz 0x906E9 2700 MHz 32 KB x 2 32 KB x 2 256 KB x 2 2 MB N/A Supported Not Supported

[Enabled]

[All] [Enabled] [Enabled]

State After G3

Configures the power state when power is re-applied after a power failure (G3 state).

38

NDiS M537 User Manual

Chapter 4: BIOS Setup

Advanced Boot Security Save & ExitMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Determines how SATA controller(s) operate.

SATA And RST Conguration

SATA Mode Selection

SATA Test Mode

Serial ATA Port 0 Software Preserve

Port 0 Hot Plug

[AHCI]

[Disabled]

Empty Unknown

[Enabled] [Disabled]

SATA and RST Configuration

This section is used to configure the SATA device option settings.

SATA Mode Selection

Configures the SATA as AHCI mode.

AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

SATA Test Mode

Enables or disables SATA test mode.

Port 0

Enables or disables SATA port 0.

Hot Plug

Enables or disables hot plugging feature on SATA port 0.

39

NDiS M537 User Manual

Chapter 4: BIOS Setup

Exit

Advanced Chipset PCIPnP Security

Main

OEMFLag Bit 1: Enable automatic MEBx hotkey press.

Intel AMT

MEBx hotkey Pressed

MEBx Selection Screen

[Enabled]

[Disabled]

AMT Configuration

This section is used to configure AMT settings.

MEBx hotkey Pressed

Enables or disables automatic MEBx hotkey press.

MEBx Selection Screen

Enables or disables MEBx selection screen.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Trusted Computing

This section is used to configure Trusted Platform Module (TPM) settings.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

Conguration

Security Device Support

NO Security Device Found

[Enable]

Security Device Support

Enables or disables BIOS support for security device. O.S will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

40

NDiS M537 User Manual

Chapter 4: BIOS Setup

ACPI Settings

This section is used to configure ACPI settings.

Exit

Advanced Chipset PCIPnP Security

Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may not be effective with some operating systems.

ACPI Settings

Enable Hibernation [Enabled]

ACPI Sleep State [S3 (Suspend to RAM)]

Enable Hibernation

Enables or disables system ability to hibernate (OS/S4 Sleep State). This option may not be effective with some operating systems.

ACPI Sleep State

Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are Suspend Disabled and S3 (Suspend to RAM).

NCT6106D Super IO Configuration

This section is used to configure the front and rear serial ports.

Super IO Chip

Displays the Super I/O chip used on the board.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set Parameters of Rear COM

NCT6106D Super IO Conguration

Super IO Chip

REAR COM Conguration

FRONT COM Conguration

NCT6106D

41

NDiS M537 User Manual

Chapter 4: BIOS Setup

REAR COM Configuration FRONT COM Configuration

Serial Port

Enables or disables the rear serial COM port.

Device Settings

Displays the IO address and IRQ of the rear serial COM port.

Change Settings

Selects an optimal setting for the Super IO device.

Serial Port

Enables or disables the front serial COM port.

Device Settings

Displays the IO address and IRQ of the front serial COM port.

Change Settings

Selects an optimal setting for the Super IO device.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

REAR COM Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=2F8h; IRQ=3;

[IO=2F8h; IRQ=3;]

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

FRONT COM Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=3E8h; IRQ=7;

[Auto]

42

NDiS M537 User Manual

Chapter 4: BIOS Setup

Hardware Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

Smart Fan Function

Enables or disables the smart fan function.

System Fan Mode

Configures the operating mode of the system fan.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Smart Fan

PC Health Status

Smart Fan Function

CPU temperature CPU FAN Speed

System Fan Mode

VCORE VCC5 VCC3

[Disabled]

: +62 ºc : 4115 RPM

[Enable]

: +0.872 V : +5.100 V : +3.312 V

S5 RTC Wake Settings

This section is used to configure system to wake from S5 using RTC alarm.

Exit

Advanced Chipset PCIPnP Security

Main

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or disable System wake on alarm event. Select FixedTime, system will wake on

the hr::min::sec specied.

Select DynamicTime , System will wake on the current time + Increase minute(s)

Wake system from S5 [Disabled]

Wake System from S5

Enables or disables system wake on alarm event. When FixedTime is selected, system will wake on the hr::min::sec specified. When DynamicTime is selected, system will wake on the current time + Increase minute(s).

43

NDiS M537 User Manual

Chapter 4: BIOS Setup

Advanced Boot Security Save & ExitMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable/Disable CSM Support.

Compatibility Support Module Conguration

CSM Support

CSM16 Module Version

Boot option lter

Option ROM execution

Network

Video

[Enabled]

07.80

[UEFI only]

[Do not launch]

[UEFI]

Advanced Boot Security Save & ExitMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

NVMe controller and Drive information

No NVME Device Found

CSM Configuration

This section is used to configure the compatibility support module features.

NVMe Configuration

This section is used to display information on the NVMe devices installed.

CSM Support

Enables or disables Compatibility Support Module (CSM).

Boot Option Filter

This option filters which devices the system can boot to.

Network

Enables or disables the boot option for legacy network devices.

44

NDiS M537 User Manual

Chapter 4: BIOS Setup

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

USB Conguration

USB Module Version

USB Controllers: 1 XHCI USB Devices: 1 Keyboard

Legacy USB Support

XHCI Hand-off

16

[Enabled]

[Disabled]

Legacy USB Support

Enabled Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disabled Keeps USB devices available only for EFI applications.

XHCI Hand-off

This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

USB Configuration

This section is used to configure USB parameters.

45

NDiS M537 User Manual

Chapter 4: BIOS Setup

Chipset

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.

System Agent (SA) Configuration

System Agent (SA) parameters.

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Agent (SA) Parameters

System Agent (SA) Conguration

►

System Agent (SA) Configuration

This section is used to configure the System Agent (SA) configuration.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Graphics Conguration

System Agent (SA) Configuration

SA PCIe Code Version VT-d

Graphics Conguration

1.2.0.0 Supported

Graphics Configuration

Enters the Graphics Configuration submenu.

►

46

NDiS M537 User Manual

Chapter 4: BIOS Setup

Security

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set Administrator Password

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

User Password

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

Boot

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Boot Option Priorities

This allows you to adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

Save & Exit

Advanced

Chipset

Security

BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Select the keyboard NumLock state

Boot Configuration

Bootup NumLock State

Boot Option Priorities

Boot Option #1

[On]

[Windows Boot Manager (P0: TS64GMTS400SD)]

47

NDiS M537 User Manual

Chapter 4: BIOS Setup

Save & Exit

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Reset the system after saving the changes.

Save Options

Save Changes and Reset

Discard Changes and Reset

Default Options

Restore Defaults

Boot Override

Save & Exit

Save Changes and Reset

To save the changes and restart the system, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F4> to save and exit Setup.

Discard Changes and Reset

To exit the Setup utility without saving the changes and restart the system, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

Save & ExitAdvanced Chipset Security BootMain

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Boot Override

To bypass the boot sequence from the Boot Option List and boot from a particular device, select the desired device and press <Enter>.

48

NDiS M537 User Manual

Appendix A: Watchdog Programming Guide

aPPendIx a: WatChdog ProgrammIng guIde

NDiS M537 features a watchdog timer that resets the CPU or generates an interrupt if the processor stops operating for any reason. This feature ensures system reliability in industrial standalone or unmanned environments.

#define SUPERIO_PORT 0x2E #define WDT_SET 0xF0 #define WDT_VALUE 0xF1

void main(void) { #Enter SuperIO Configuration outportb(SUPERIO_PORT, 0x87); outportb(SUPERIO_PORT, 0x87);

# Set LDN outportb(SUPERIO_PORT, 0x07); outportb(SUPERIO_PORT+1 ,0x08);

# Set WDT setting outportb(SUPERIO_PORT, WDT_SET); outportb(SUPERIO_PORT+1, 0x00) # Use the second # Use the minute, change value to 0x08 # Set WDT sec/min outportb(SUPERIO_PORT, WDT_VALUE); outportb(SUPERIO_PORT+1, 0x05); #Set 5 seconds }
