Nexcom NDiS 162 User Manual

NEXCOM International Co., Ltd.

Published November 2008

www.nexcom.com

NEXCOM International Co., Ltd.

Multi-Media Solutions

Digital Signage Platform NDiS 162

User Manual

ii

NDiS 162 User Manual

Contents

Co n t e n t s

Preface

Copyright ............................................................................................. iv

Disclaimer ............................................................................................. iv

Acknowledgements .............................................................................. iv

Regulatory Compliance Statements ....................................................... iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................vii

Installation Recommendations ................................................................vii

Safety Precautions .................................................................................viii

Technical Support and Assistance ........................................................... ix

Conventions Used in this Manual ........................................................... ix

Global Service Contact Information ......................................................... x

Package Contents ..................................................................................xii

Ordering Information ............................................................................xiii

Chapter 1: Product Introduction

Overview of NDiS 162 ............................................................................. 1

Key Features .........................................................................................1

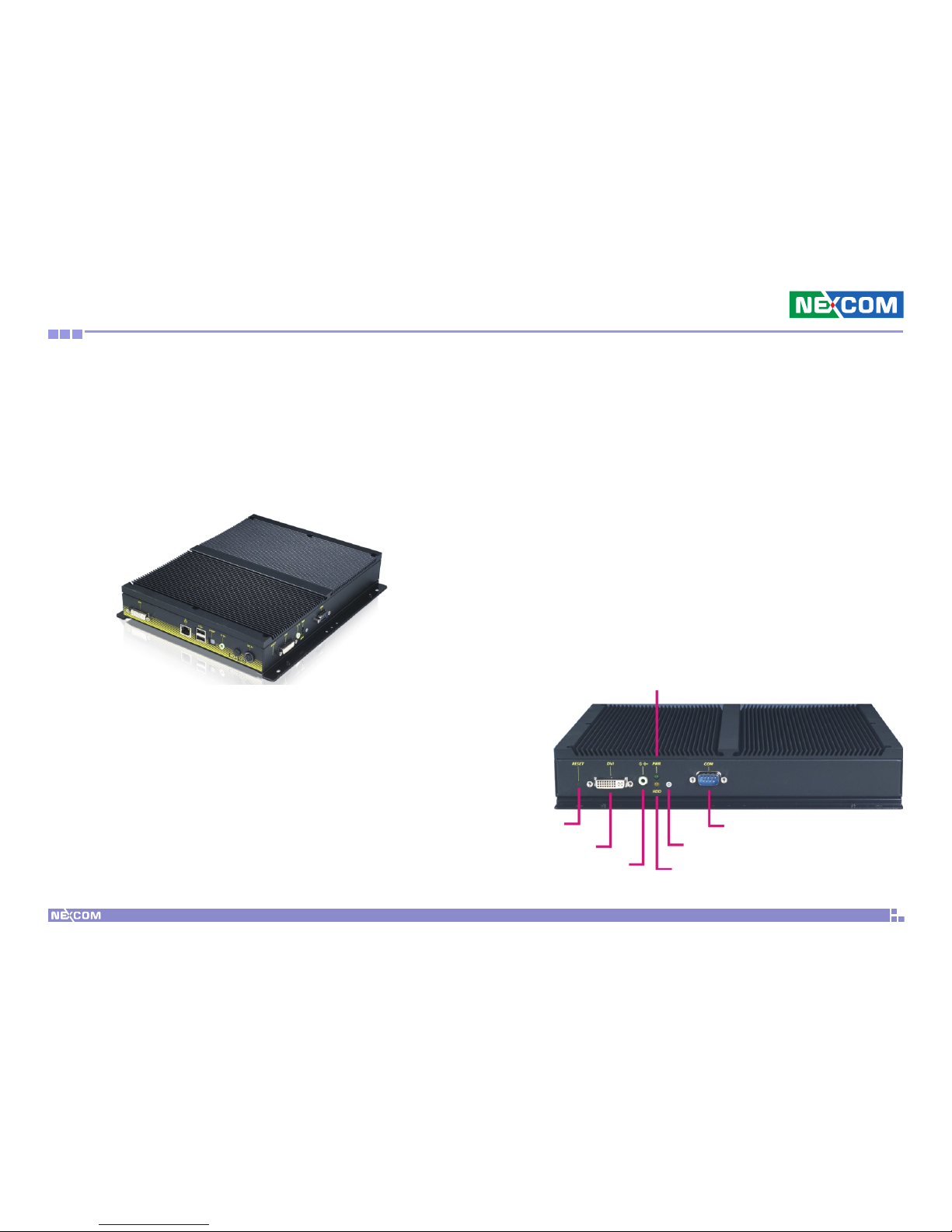

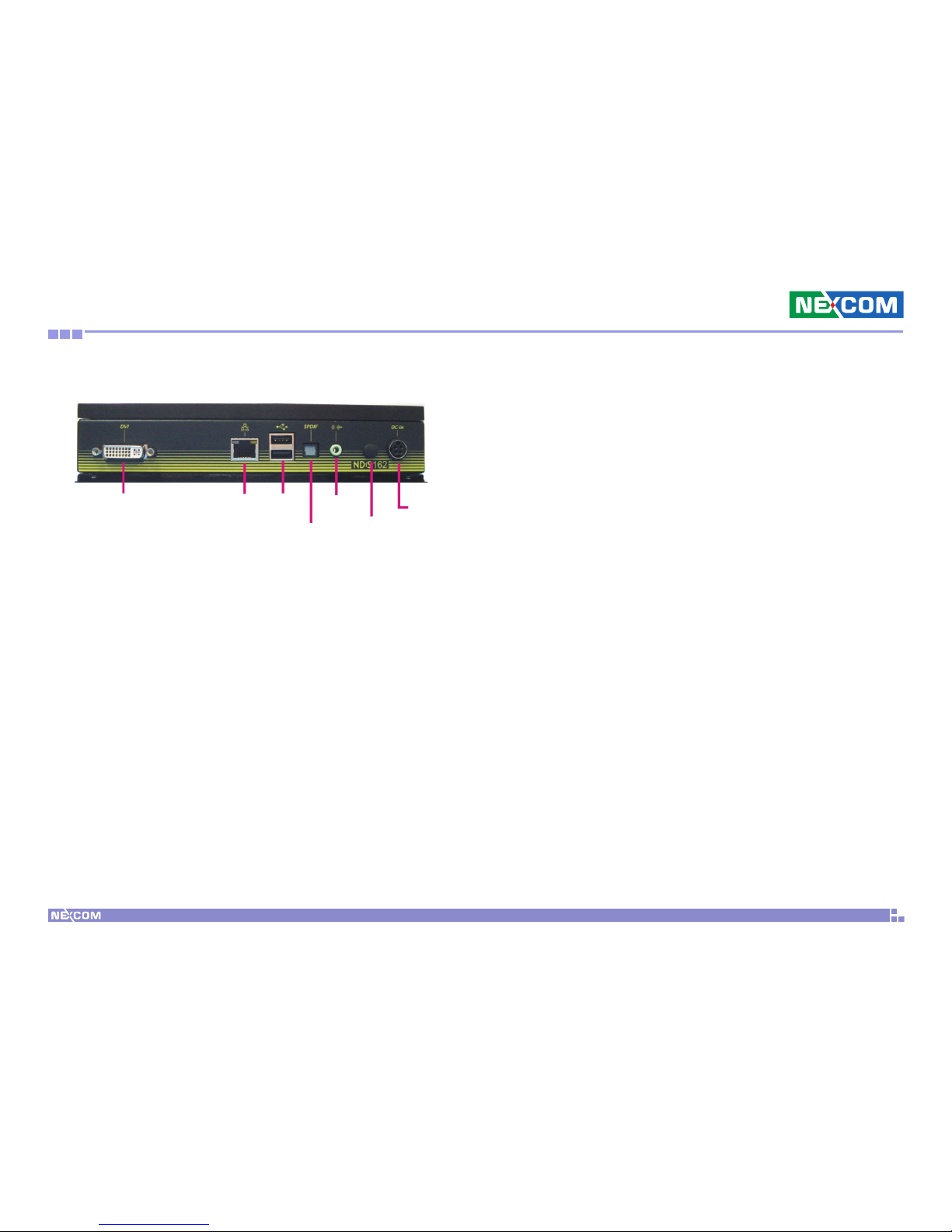

Physical Features ...................................................................................1

Hardware Specifications ........................................................................2

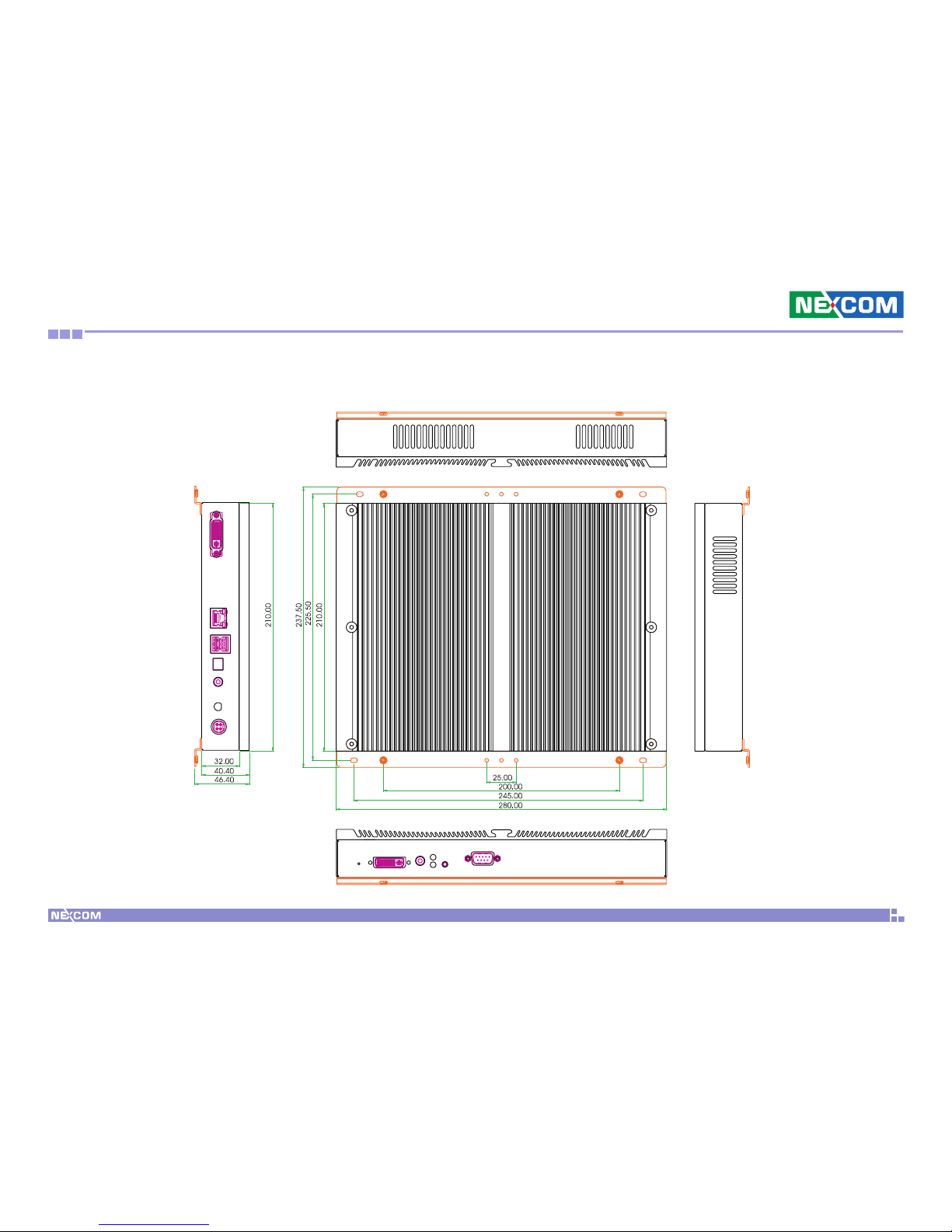

Mechanical Dimensions ...........................................................................4

Chapter 2: Jumpers And Connectors

Before You Begin ....................................................................................5

Precautions .............................................................................................5

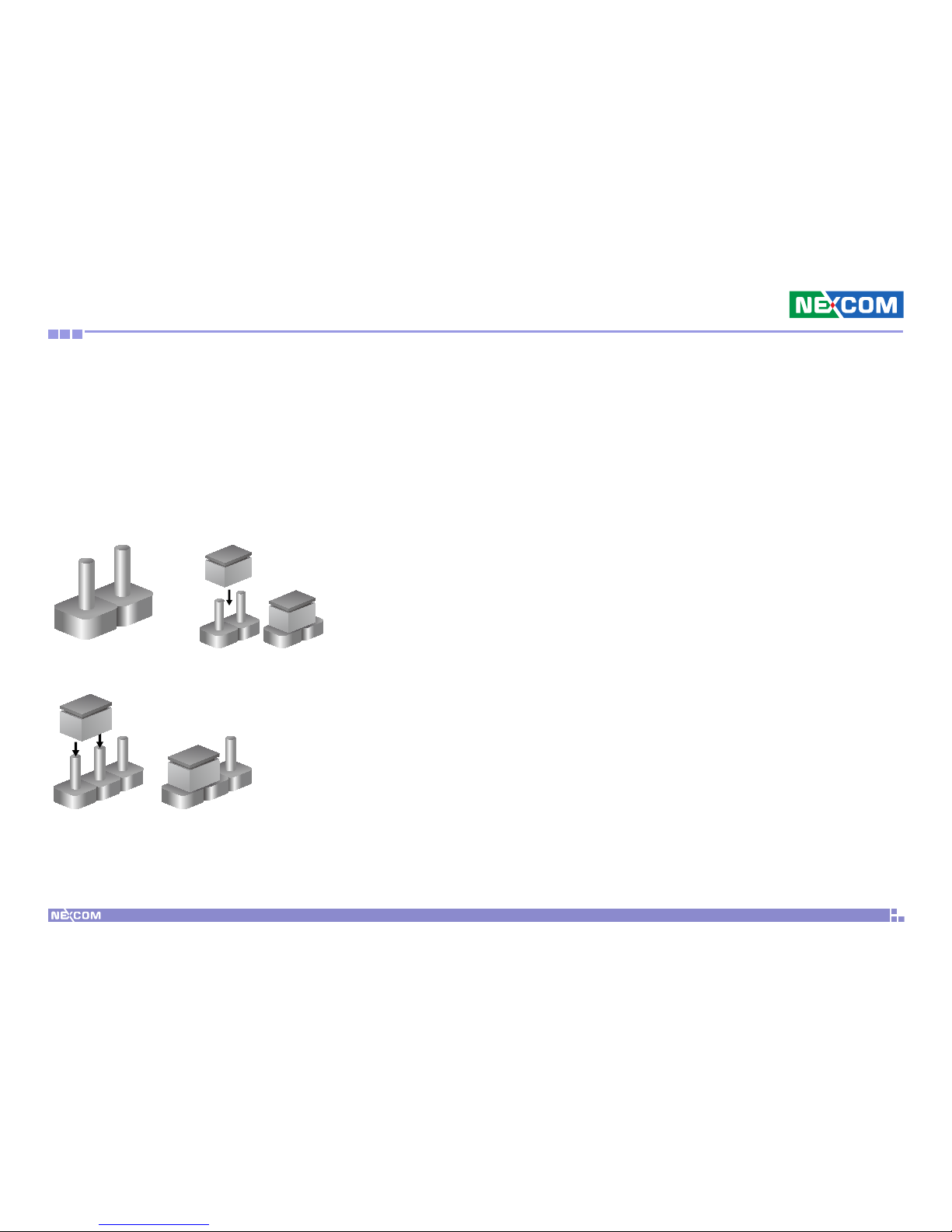

Jumper Settings ...................................................................................... 6

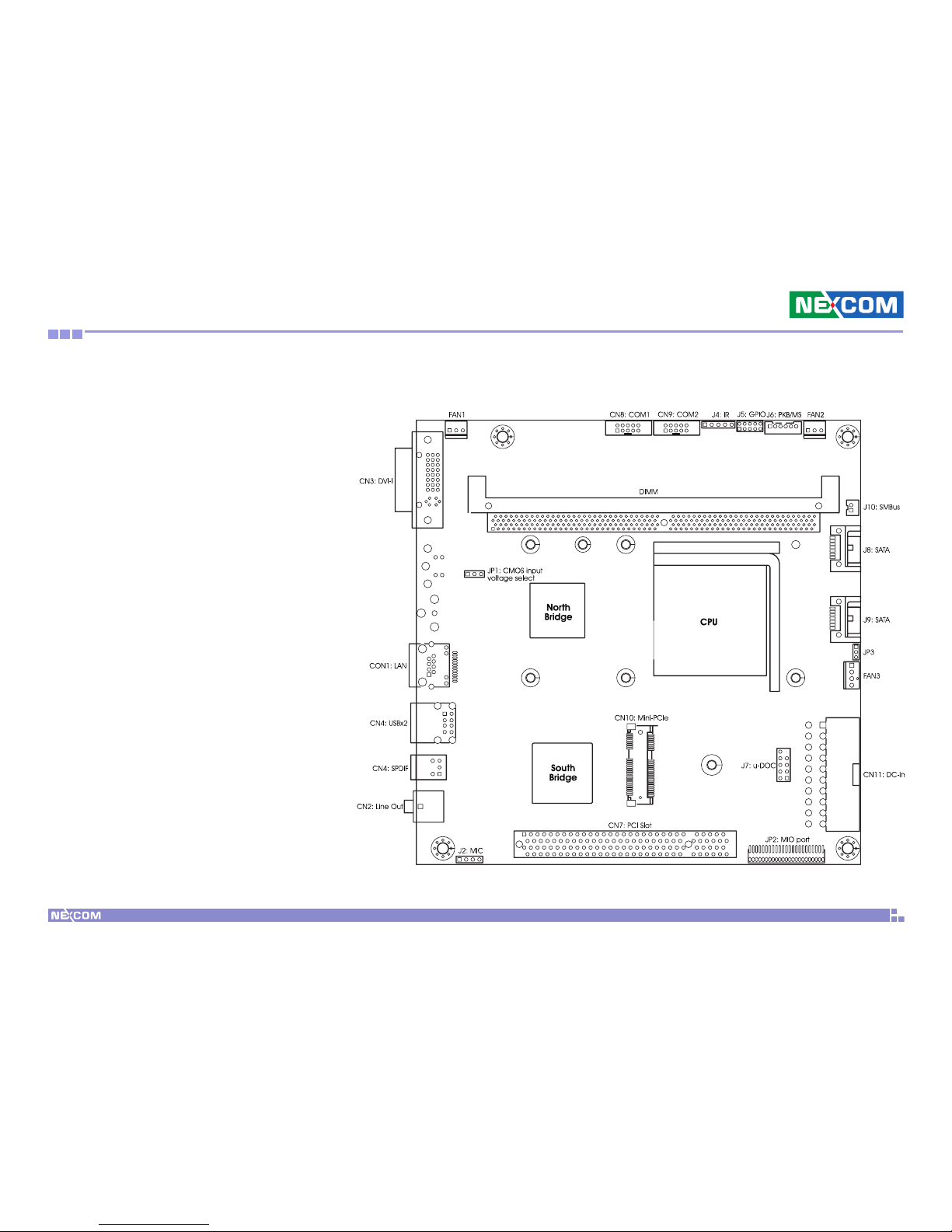

Locations of the Jumpers and Connectors ...............................................7

NEX 662 ............................................................................................... 7

Pin Definitions ....................................................................................8

DVI / VGA Port CN3 ......................................................................... 8

TV-Out Jack CN1 ..............................................................................8

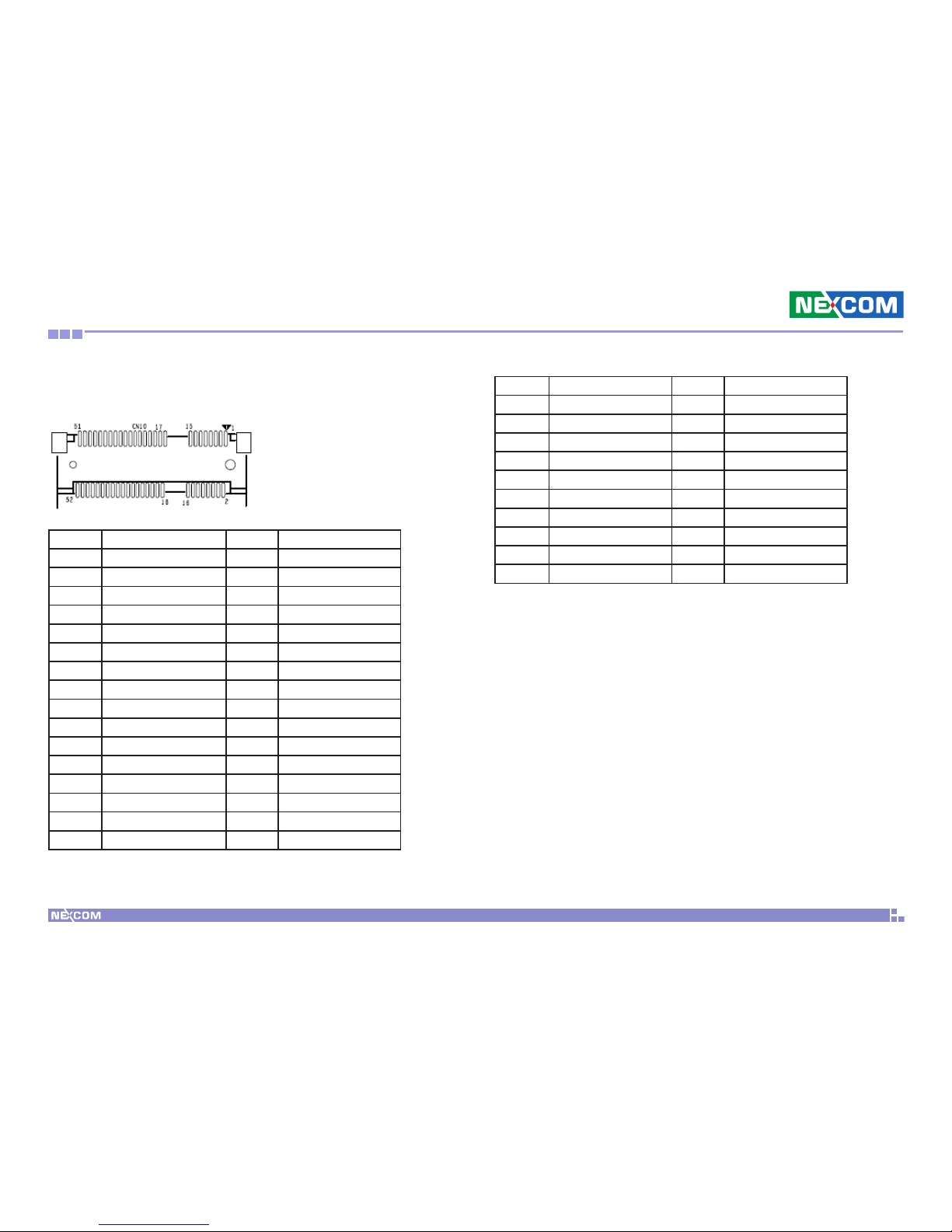

Mini PCI Slot CN10 ..........................................................................9

S-Video Port CN6 ...........................................................................10

S/PDIF Port CN4 .............................................................................10

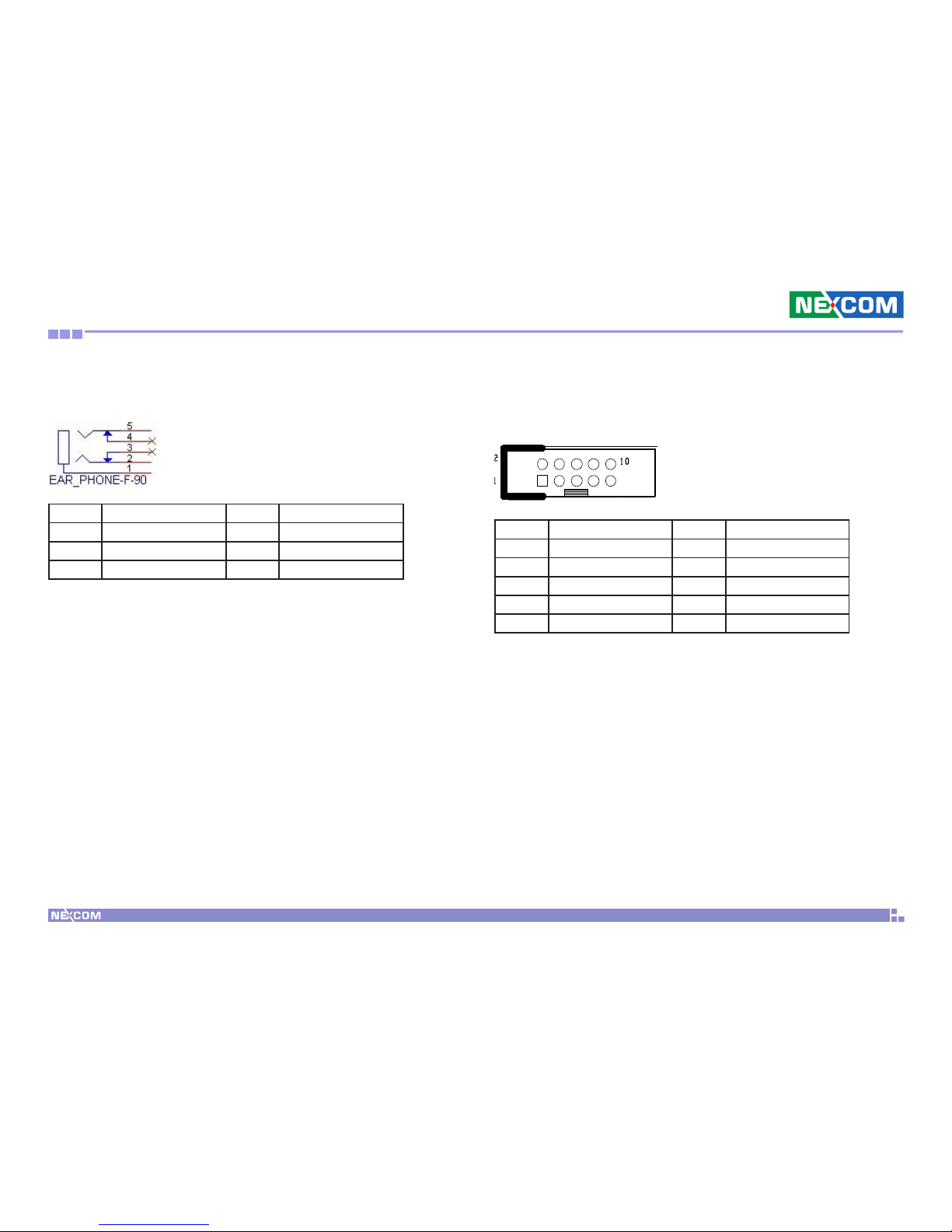

Audio-Out CN2 .............................................................................. 11

RS232 Connector: COM1 CN9, COM2 CN8 ................................... 11

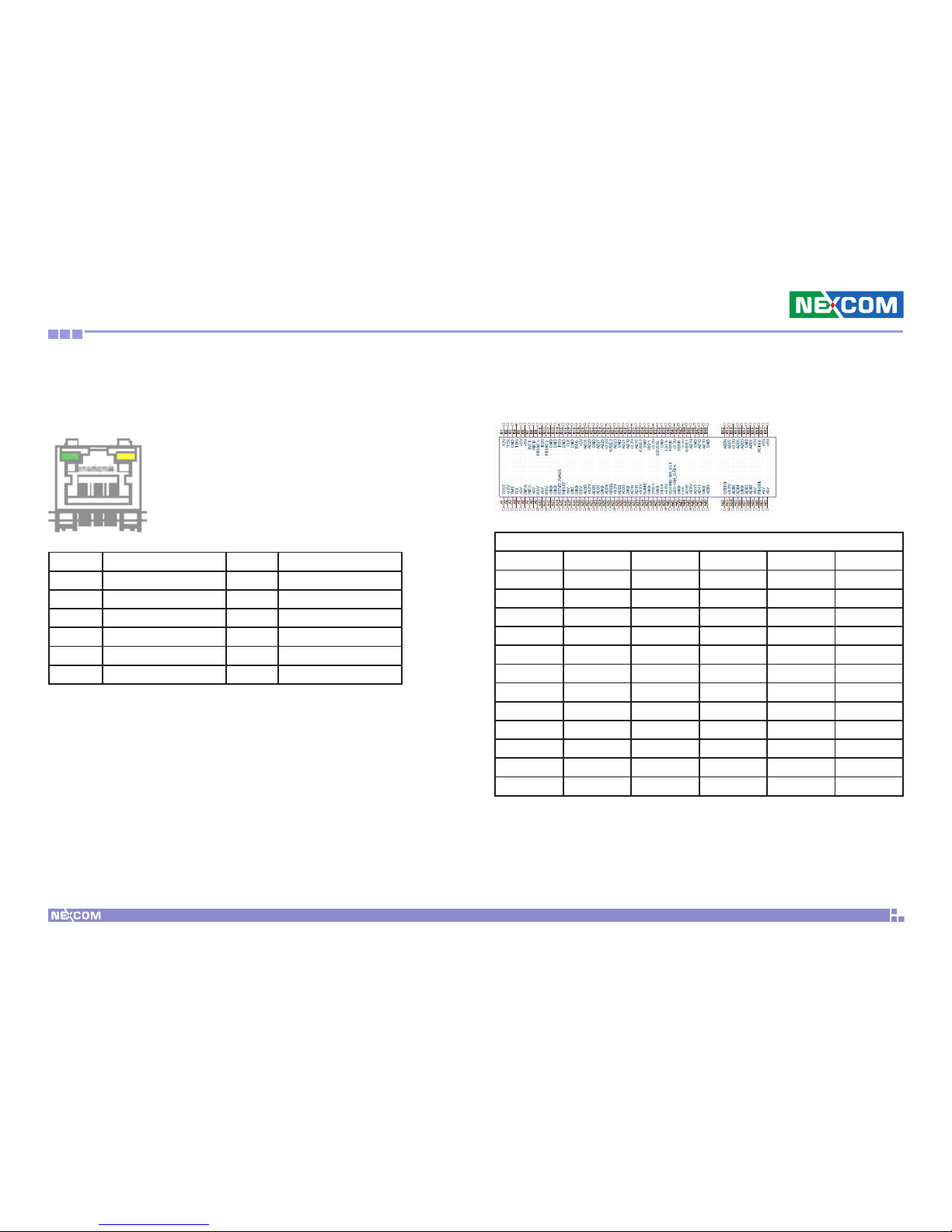

LAN CN5 ........................................................................................12

PCI Slot CN7 .................................................................................. 12

USB CON1 ..................................................................................... 13

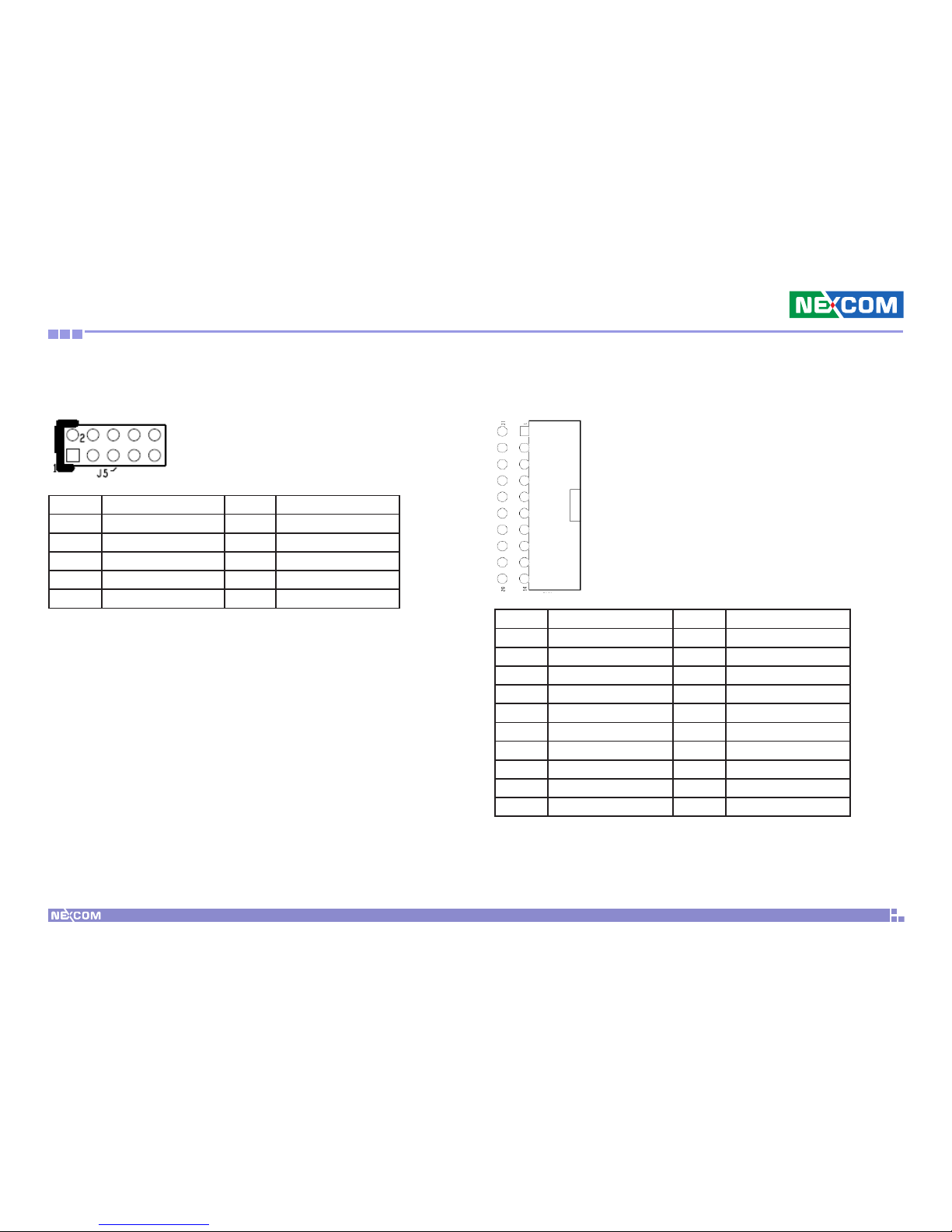

GPIO J5 .......................................................................................... 14

DC Power Input CN11 ....................................................................14

DC Power CON2 ............................................................................15

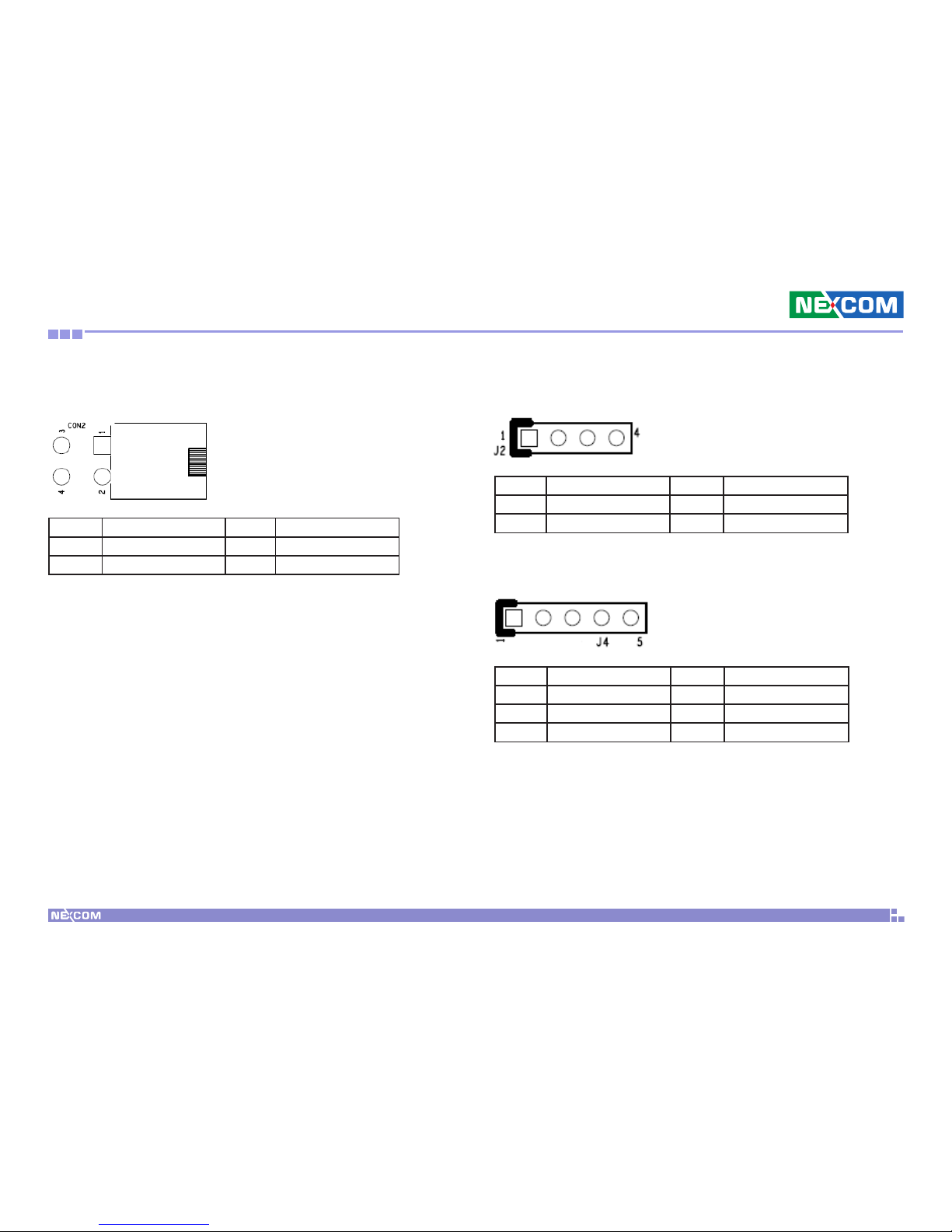

MIC J2 ........................................................................................... 15

IR J4 ............................................................................................... 15

Keyboard/Mouse J6 ........................................................................16

iii

Contents

NDiS 162 User Manual

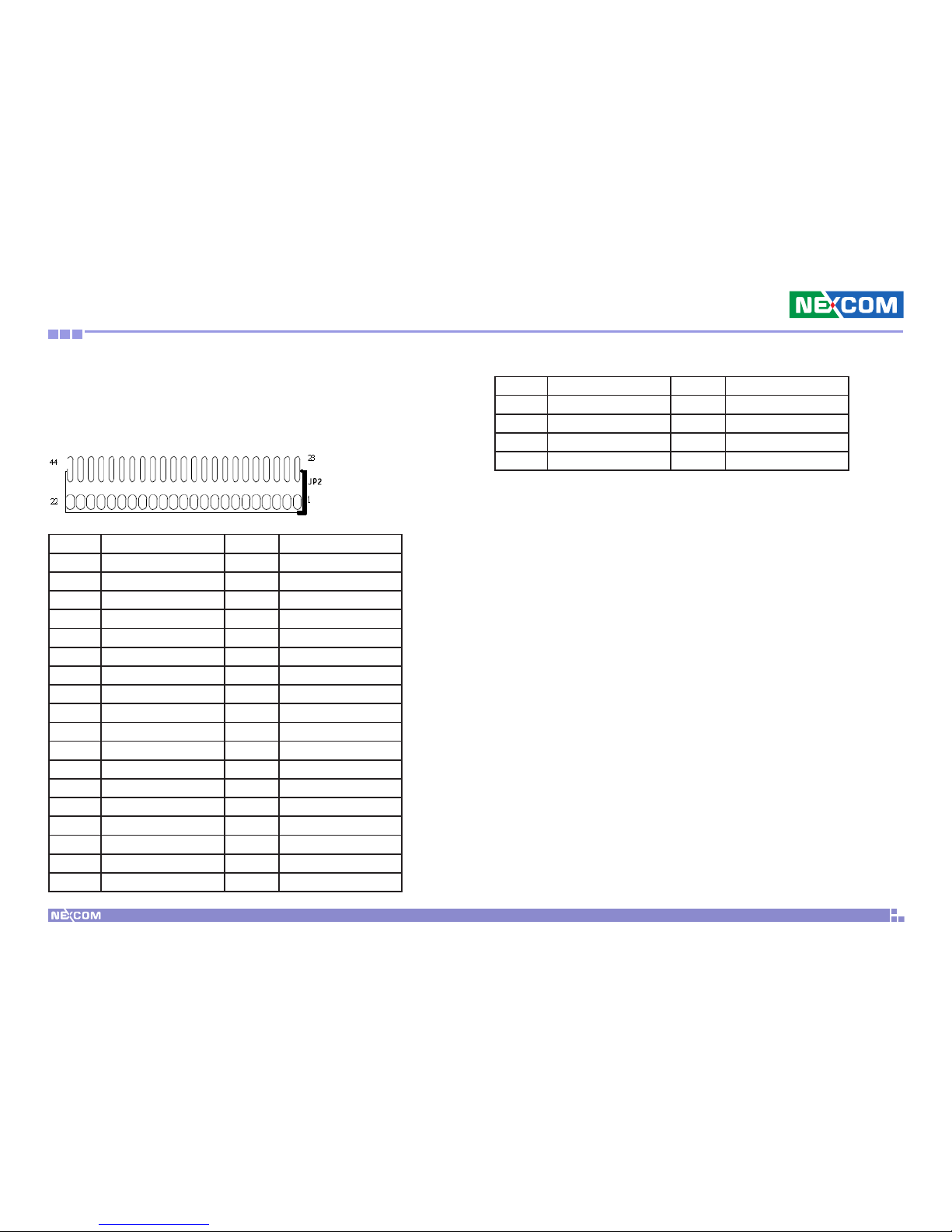

DVI-I Connector and Miscellaneous Signals JP2 ..............................16

SMB J1 ...........................................................................................17

SATA J8, J9 ....................................................................................17

Fan Connector FAN3 ...................................................................... 18

Fan Connector FAN2 ...................................................................... 18

Fan Connector FAN1 ...................................................................... 18

CMOS Input Voltage Select JP1 ......................................................18

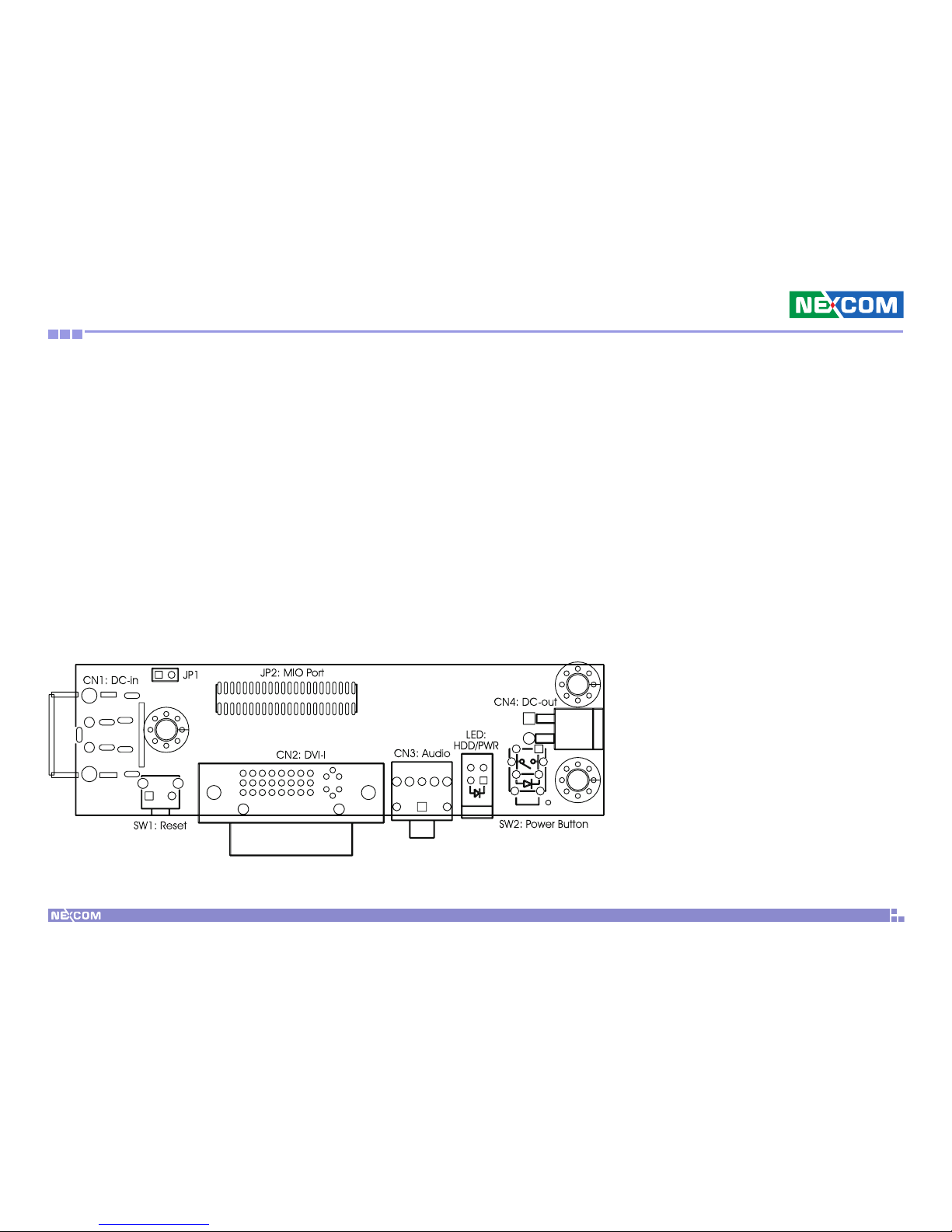

MIO02 Module ...................................................................................19

Specifications ................................................................................... 19

Connectors ......................................................................................19

Pin Definitions ..................................................................................20

DVI-I Connector and Miscellaneous Signals JP2 ..............................20

Audio Out CN3 ..............................................................................21

DC Power CON2 ............................................................................21

DVI CN2 .........................................................................................21

WLAN LED JP1 ............................................................................... 22

Power In 12V CN4 .........................................................................22

Chapter 3: System Setup

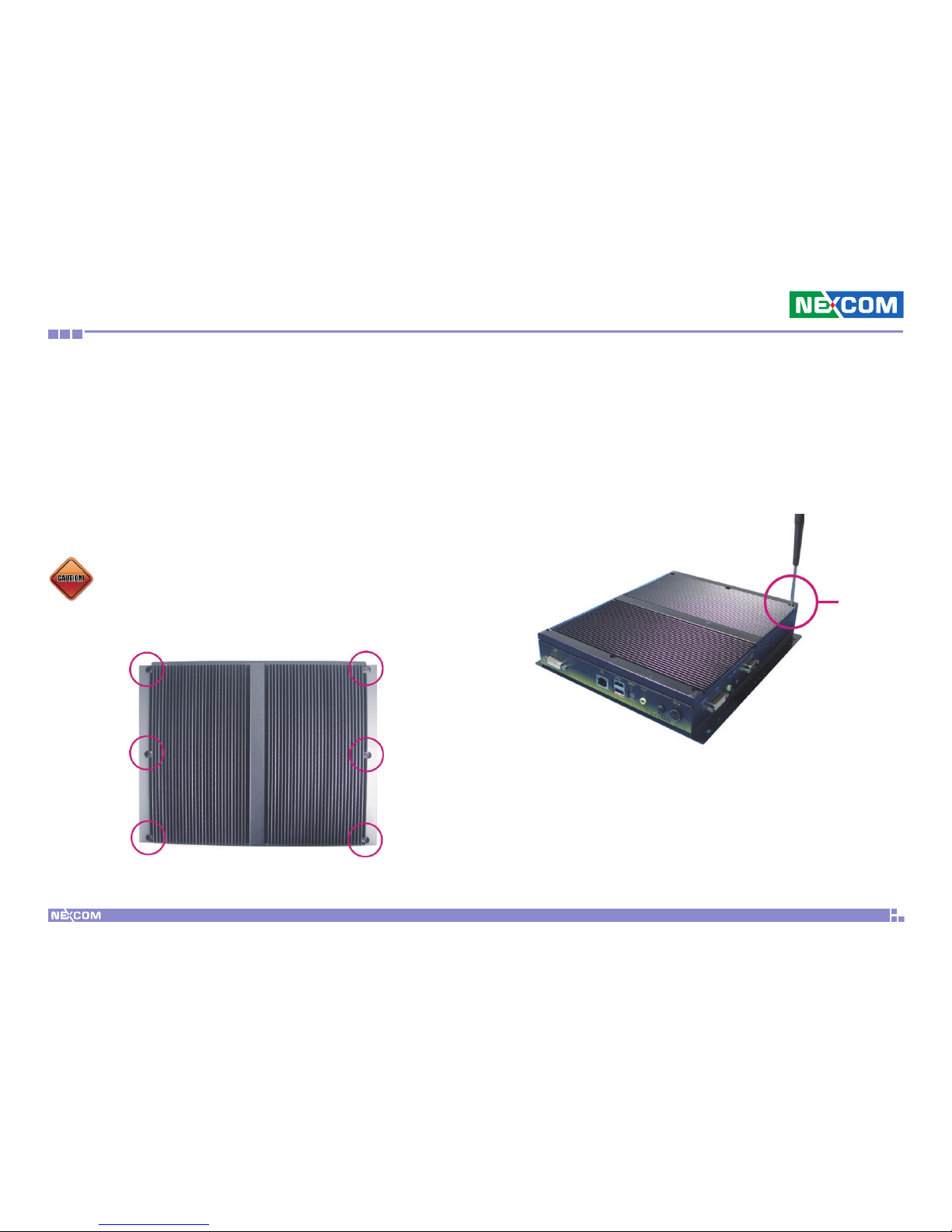

Removing the Chassis Cover ................................................................ 23

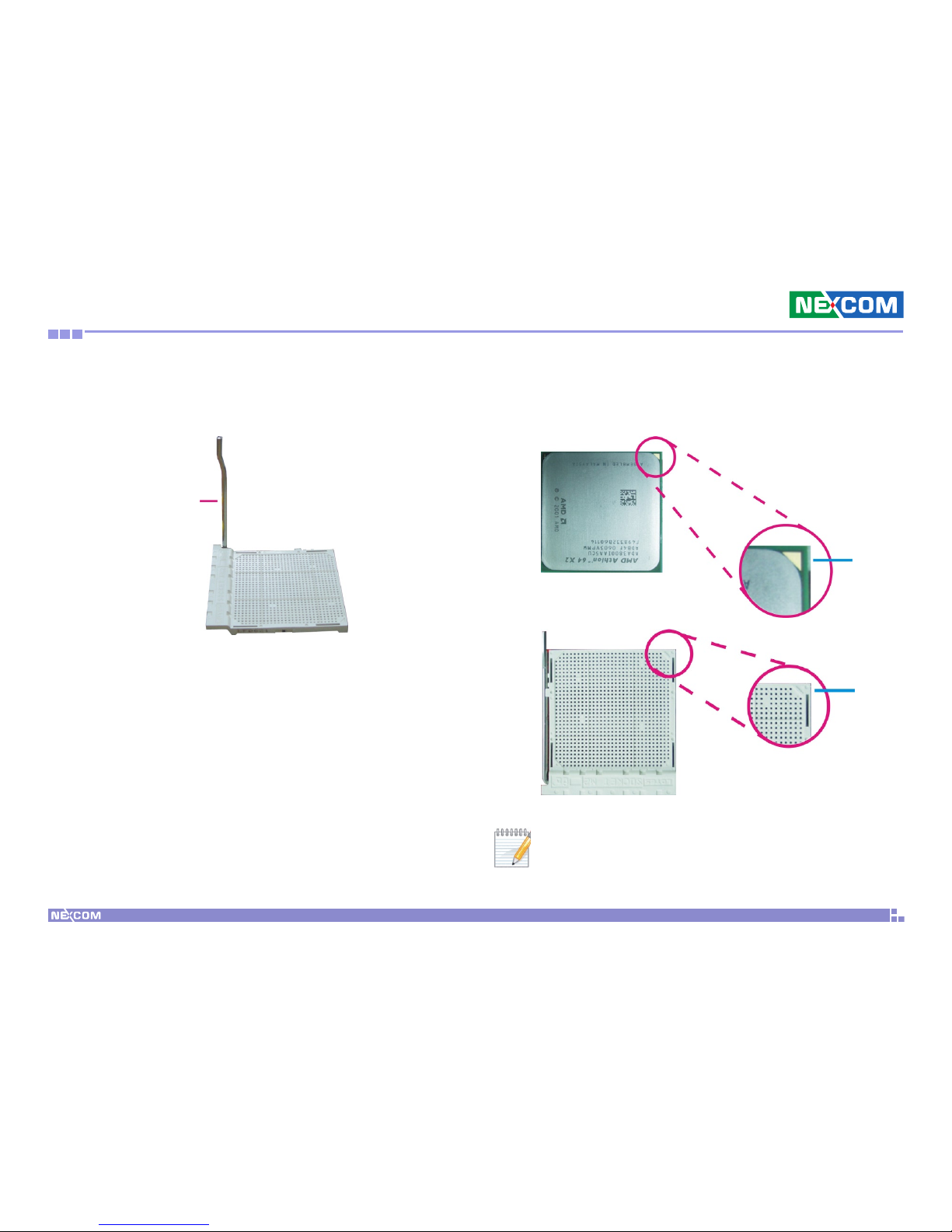

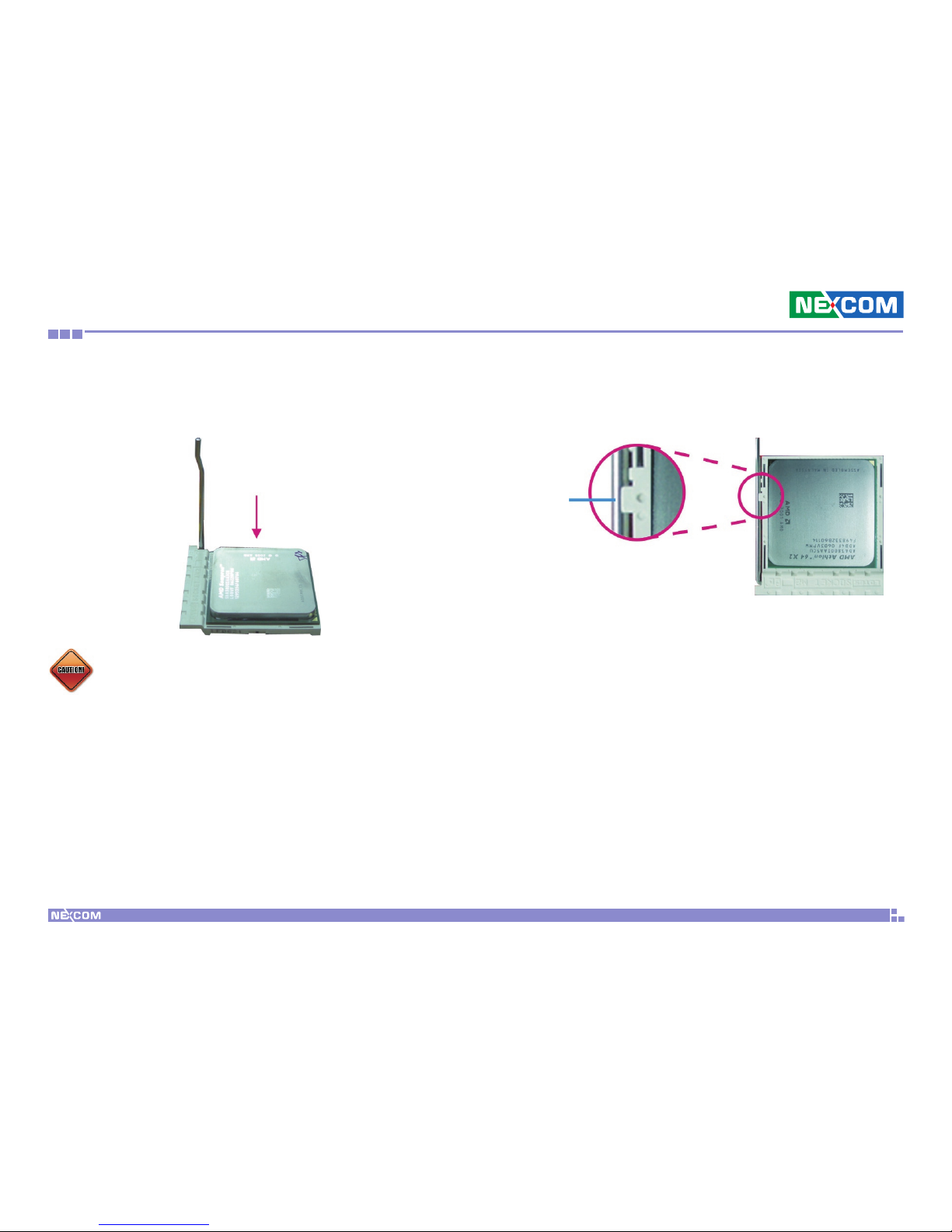

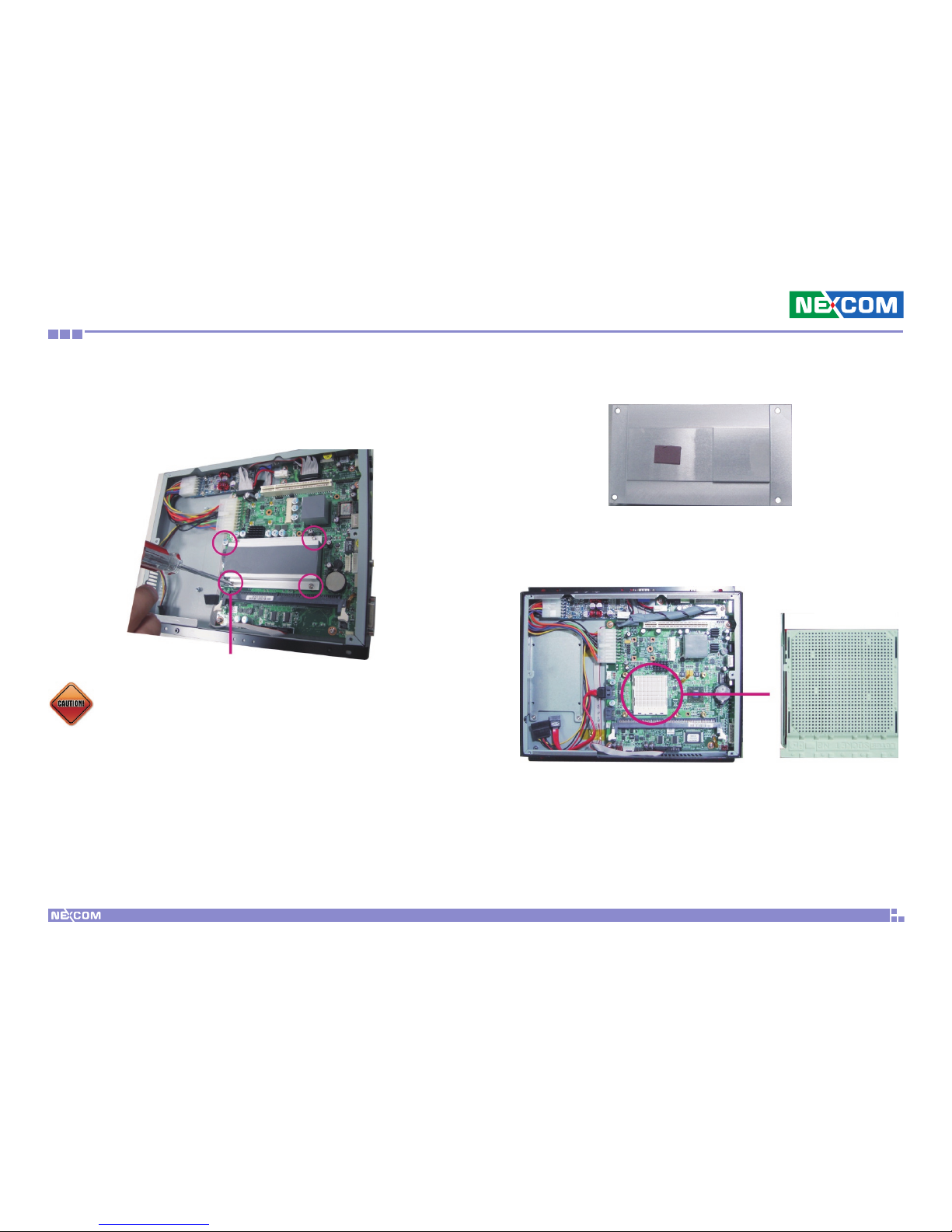

Installing the CPU .................................................................................24

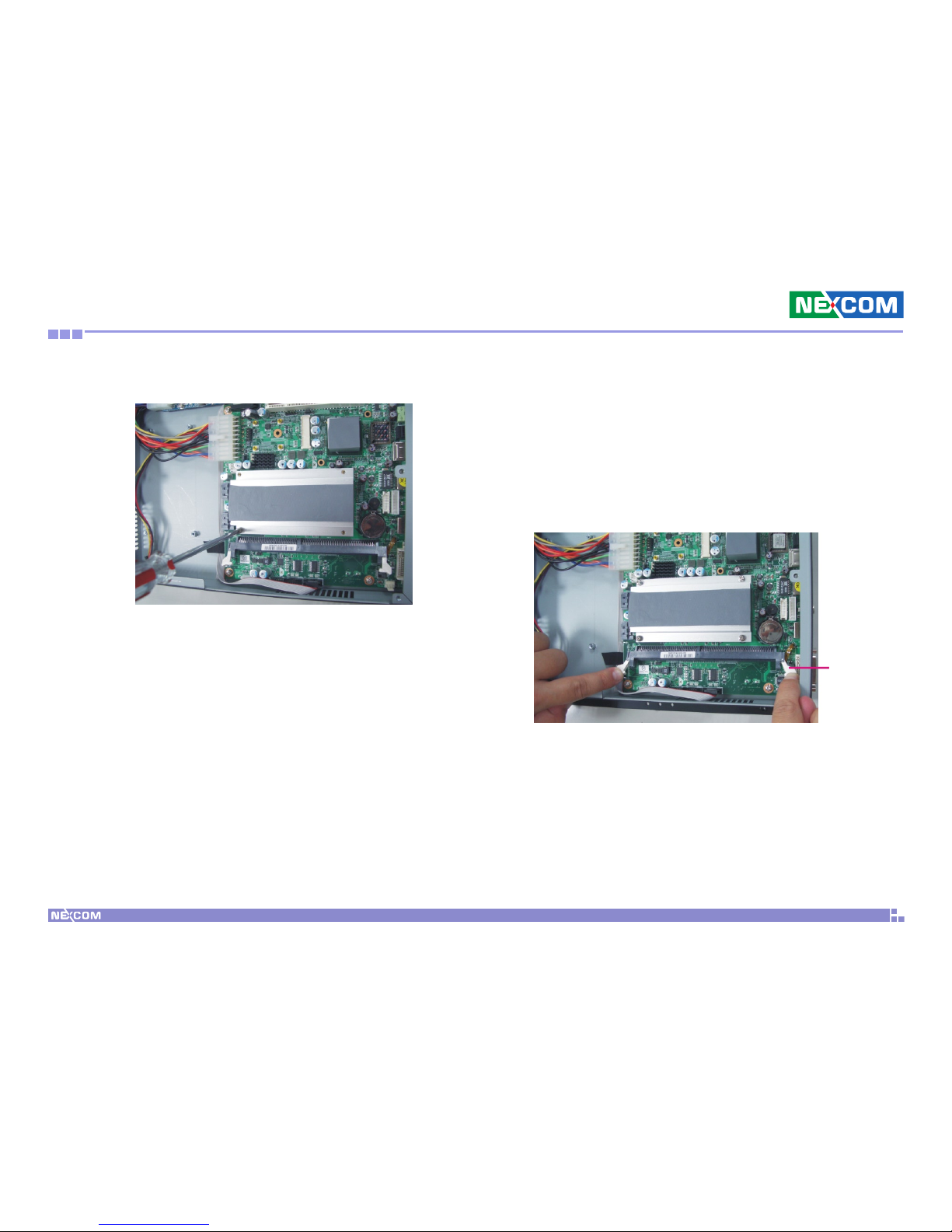

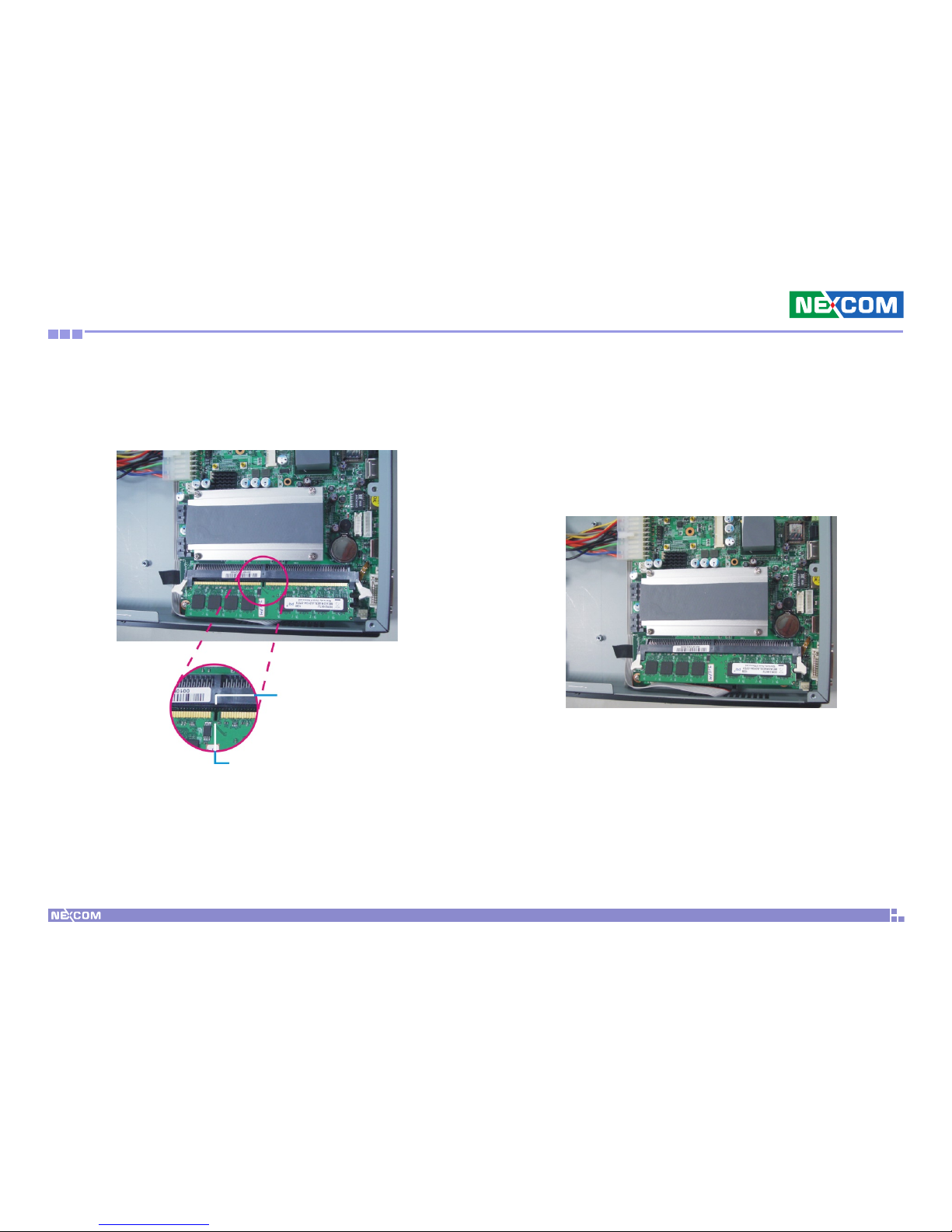

Installing a DIMM ..................................................................................27

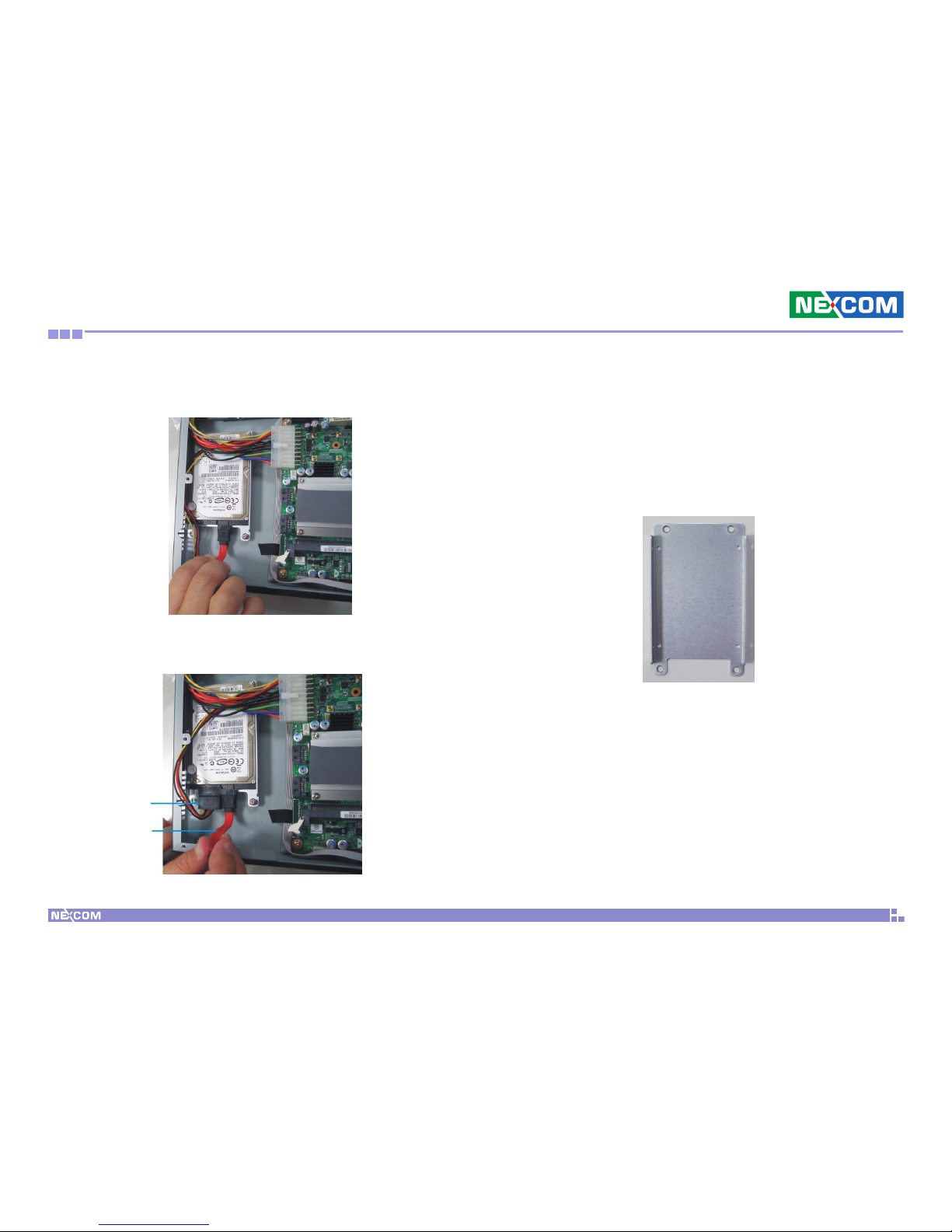

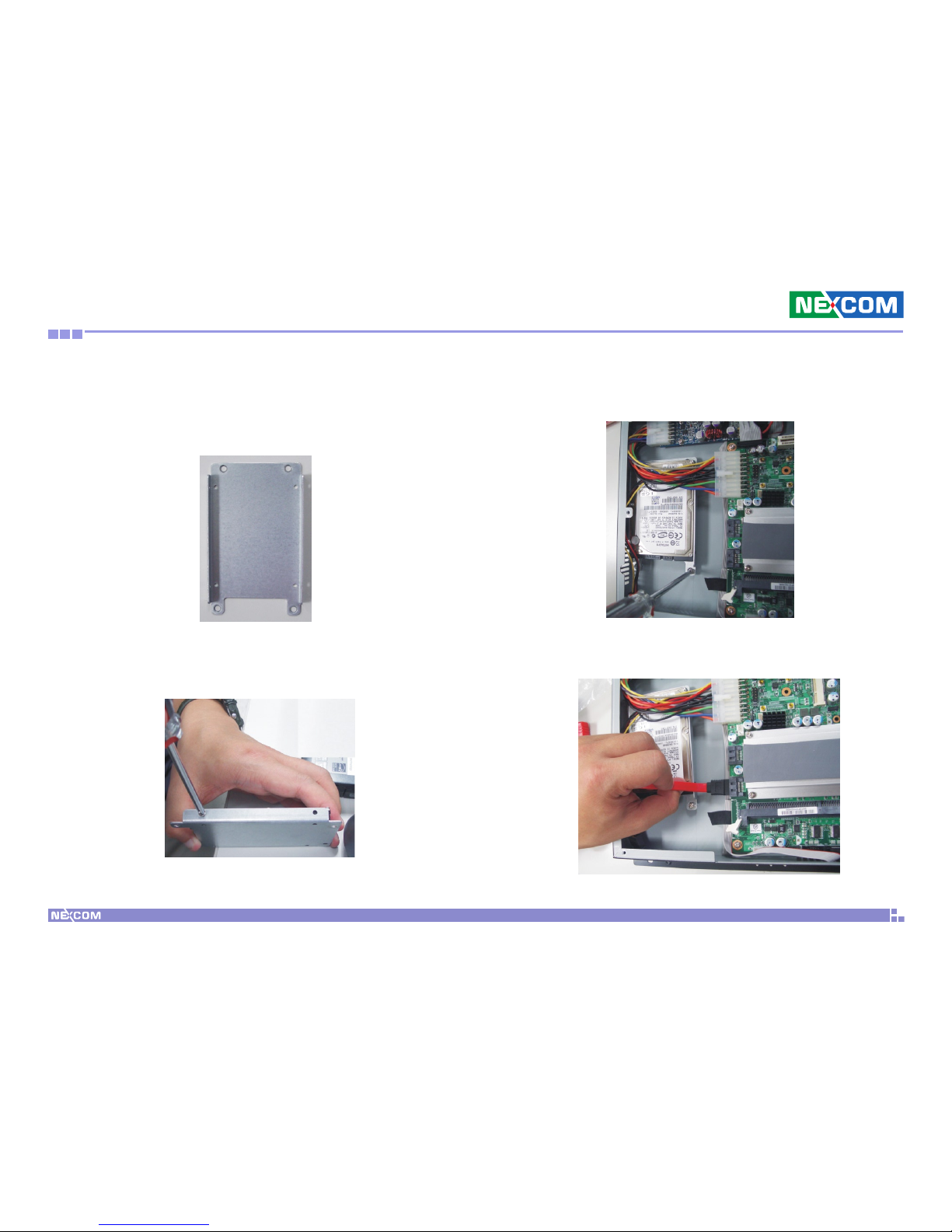

Installing a SATA Hard Drive .................................................................. 29

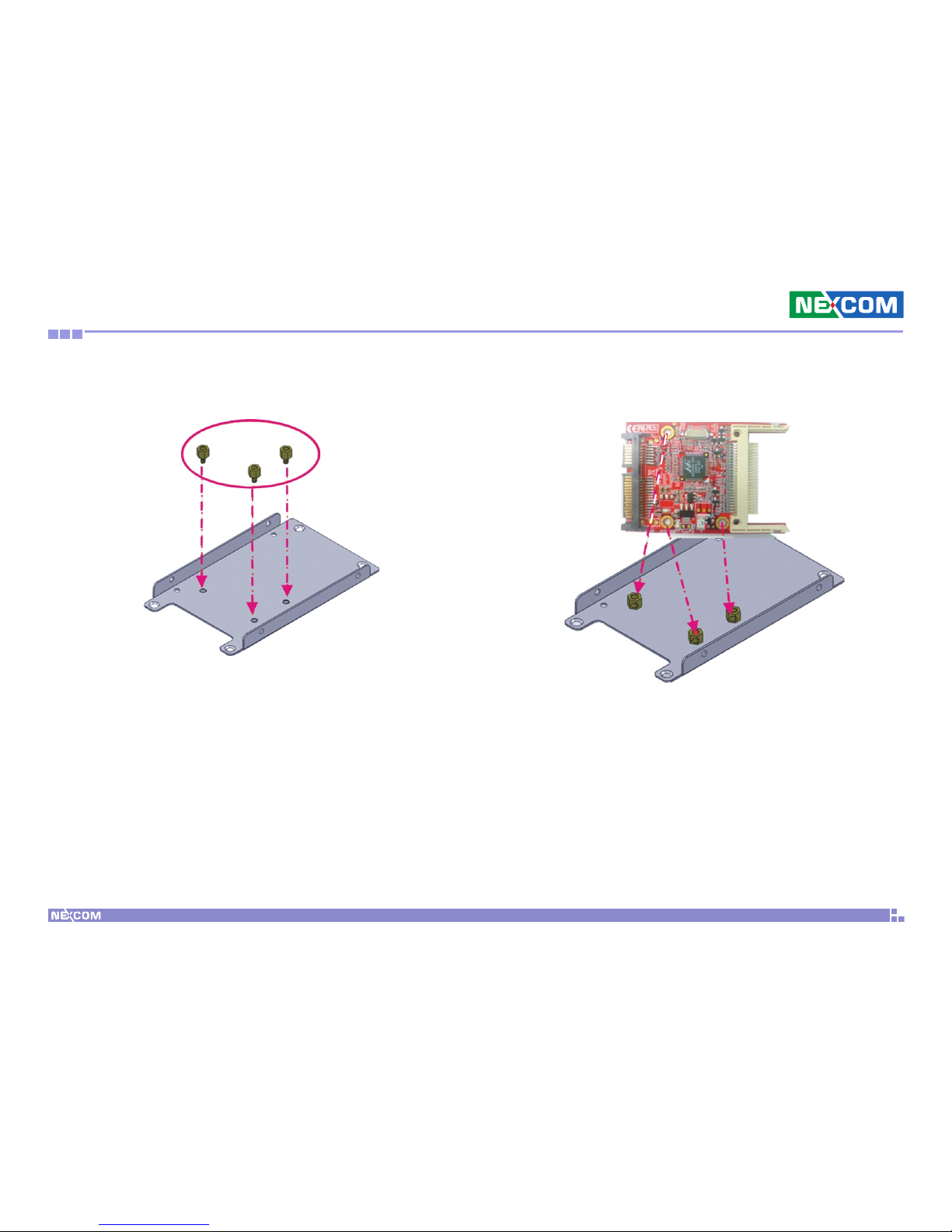

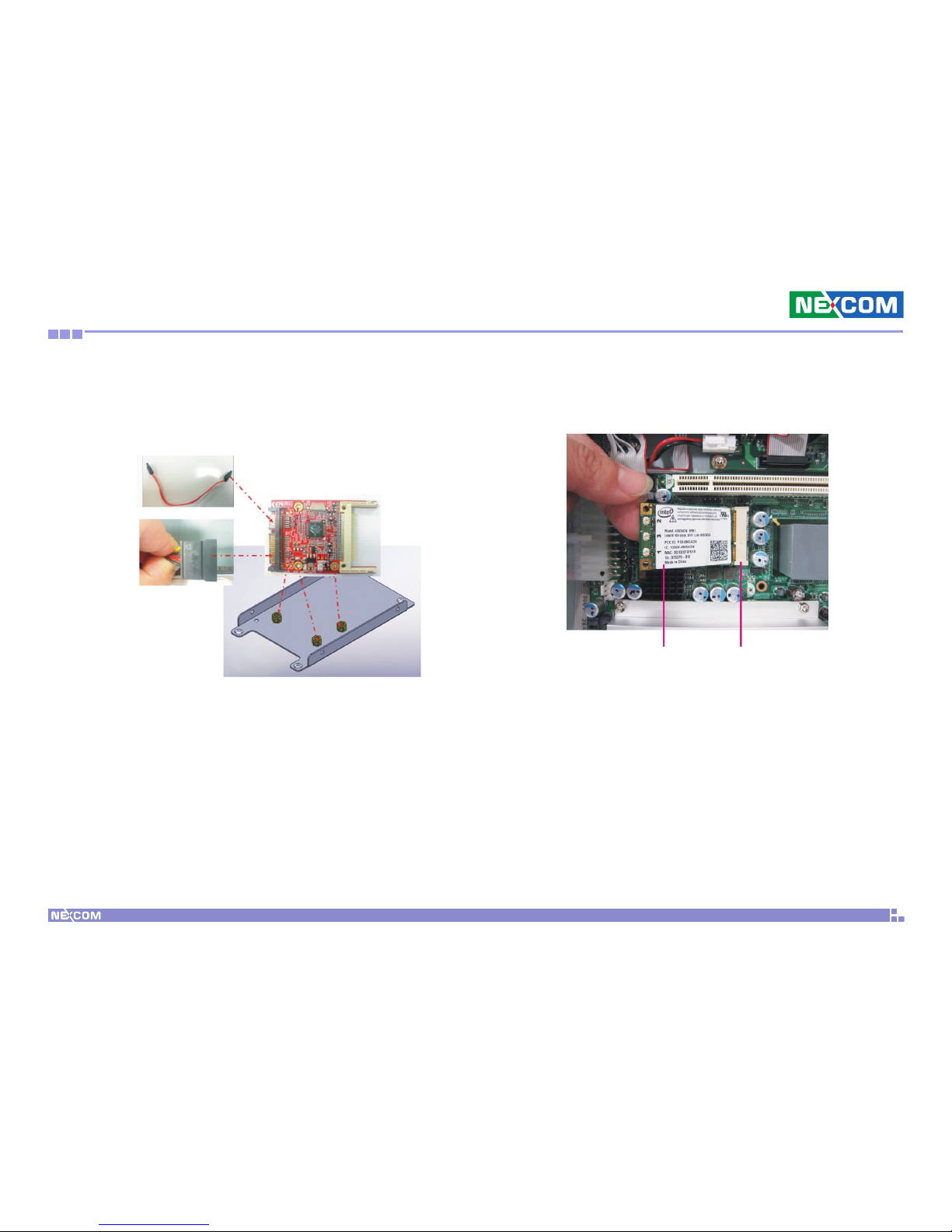

Installing a CompactFlash Card (optional) ..............................................30

Installing the WiFi Module ....................................................................32

Replacing the Chassis Cover ..................................................................35

Chapter 4: Driver Installation

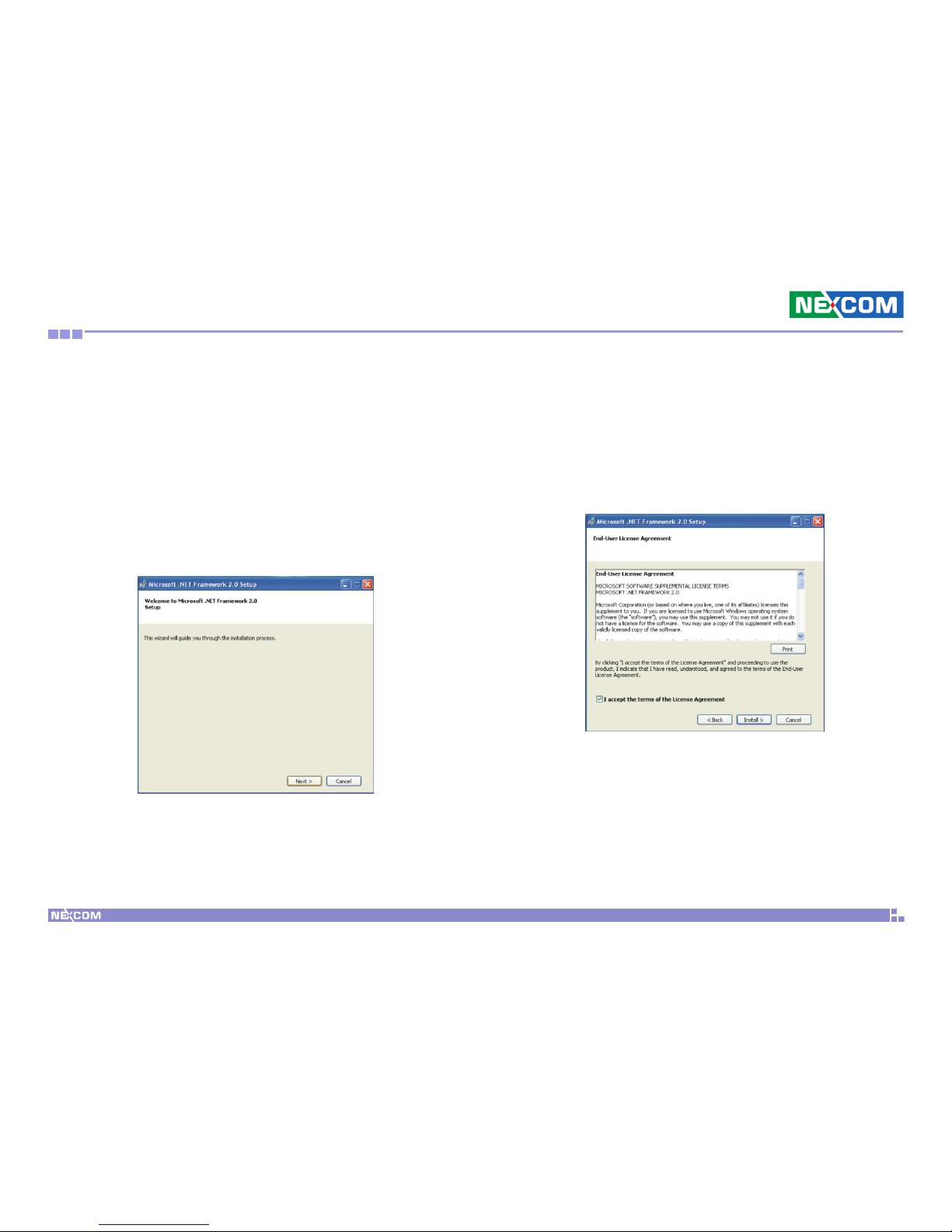

Microsoft .NET Framework 2.0 .............................................................. 36

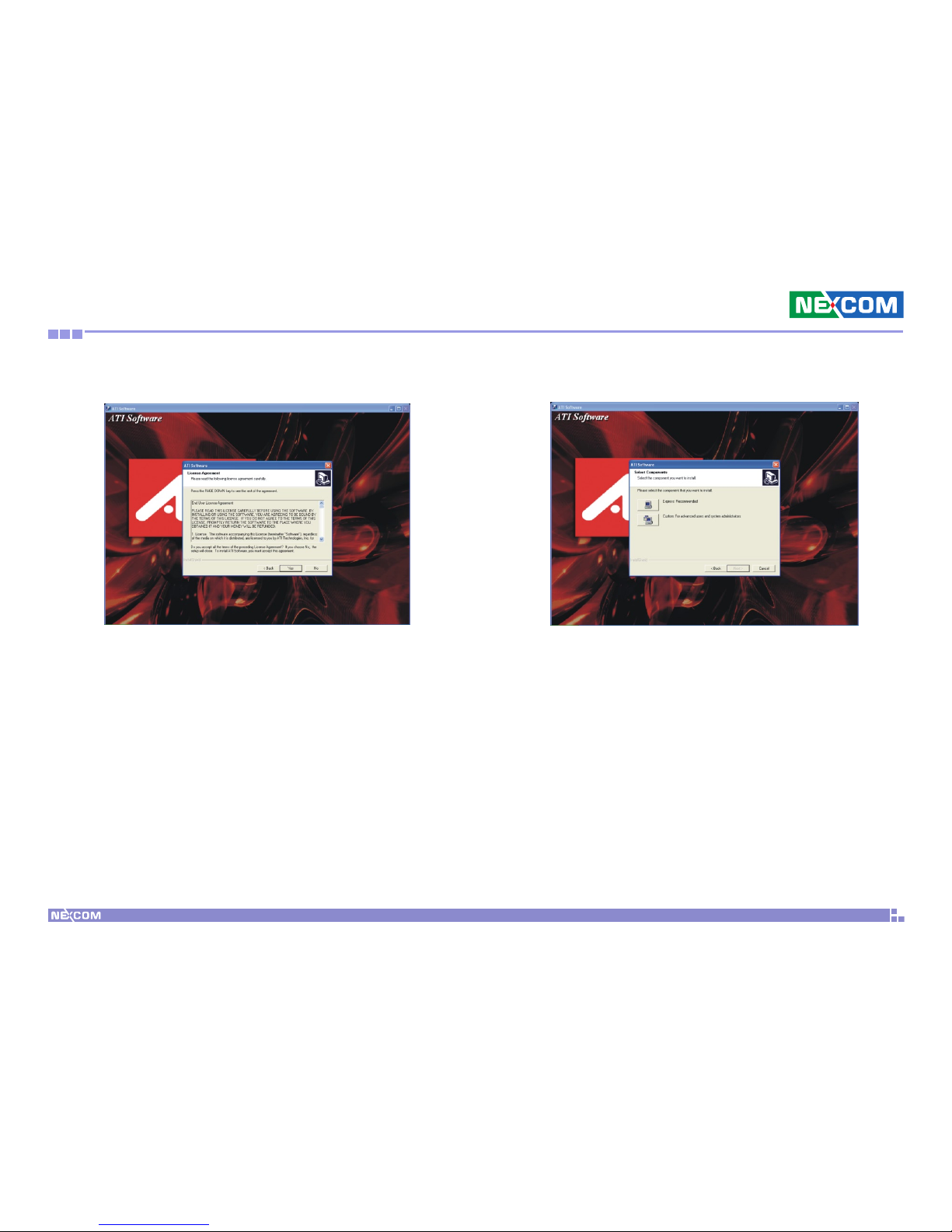

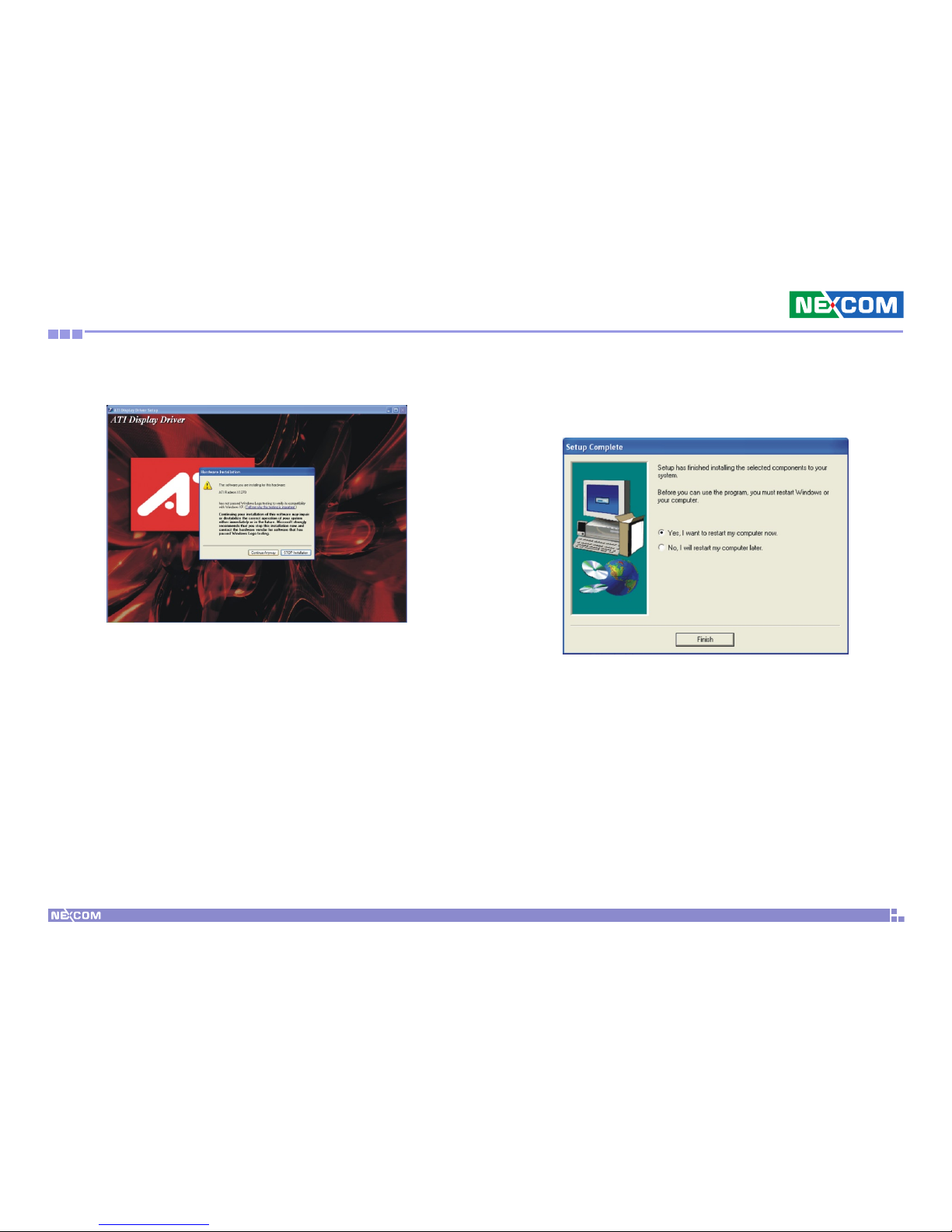

ATI Display Driver .................................................................................. 37

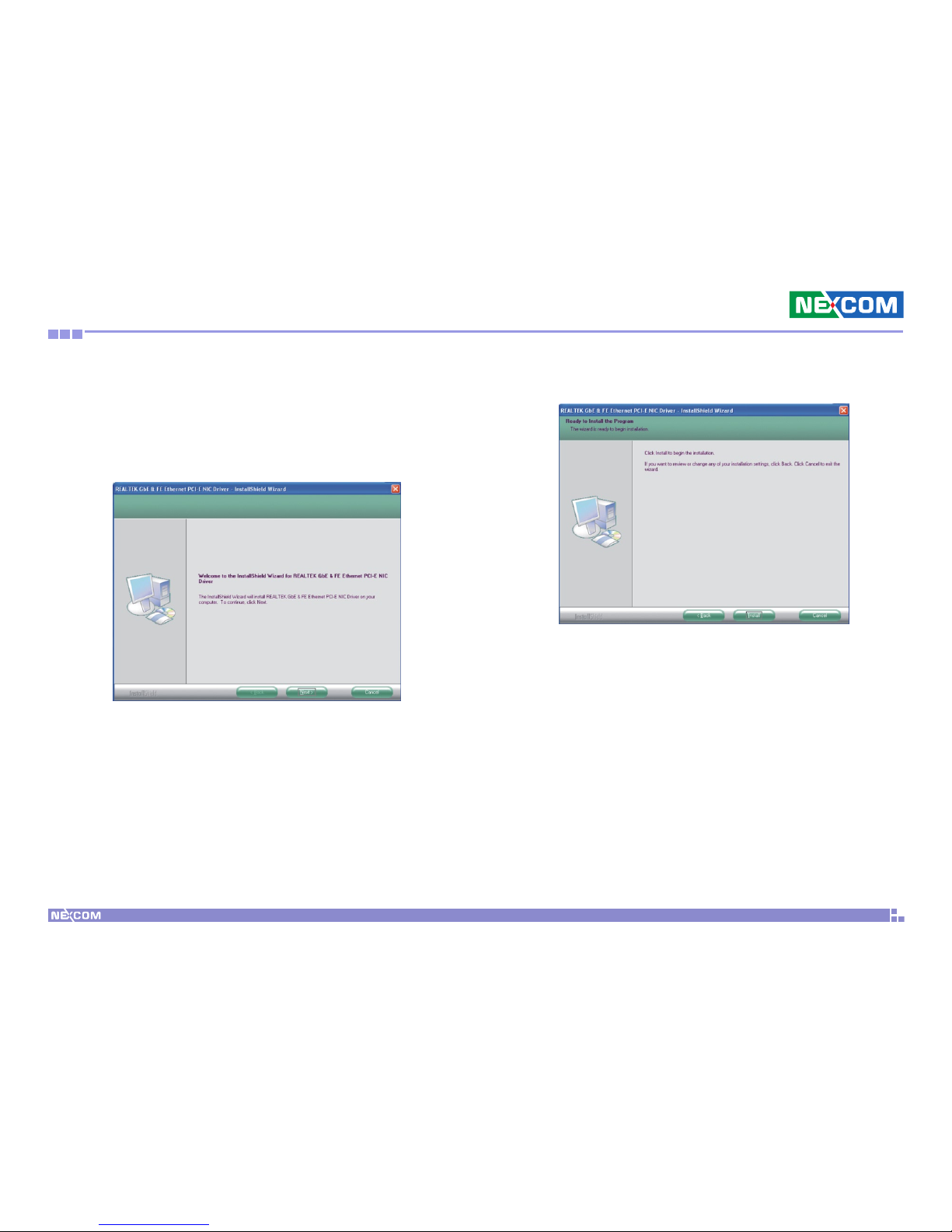

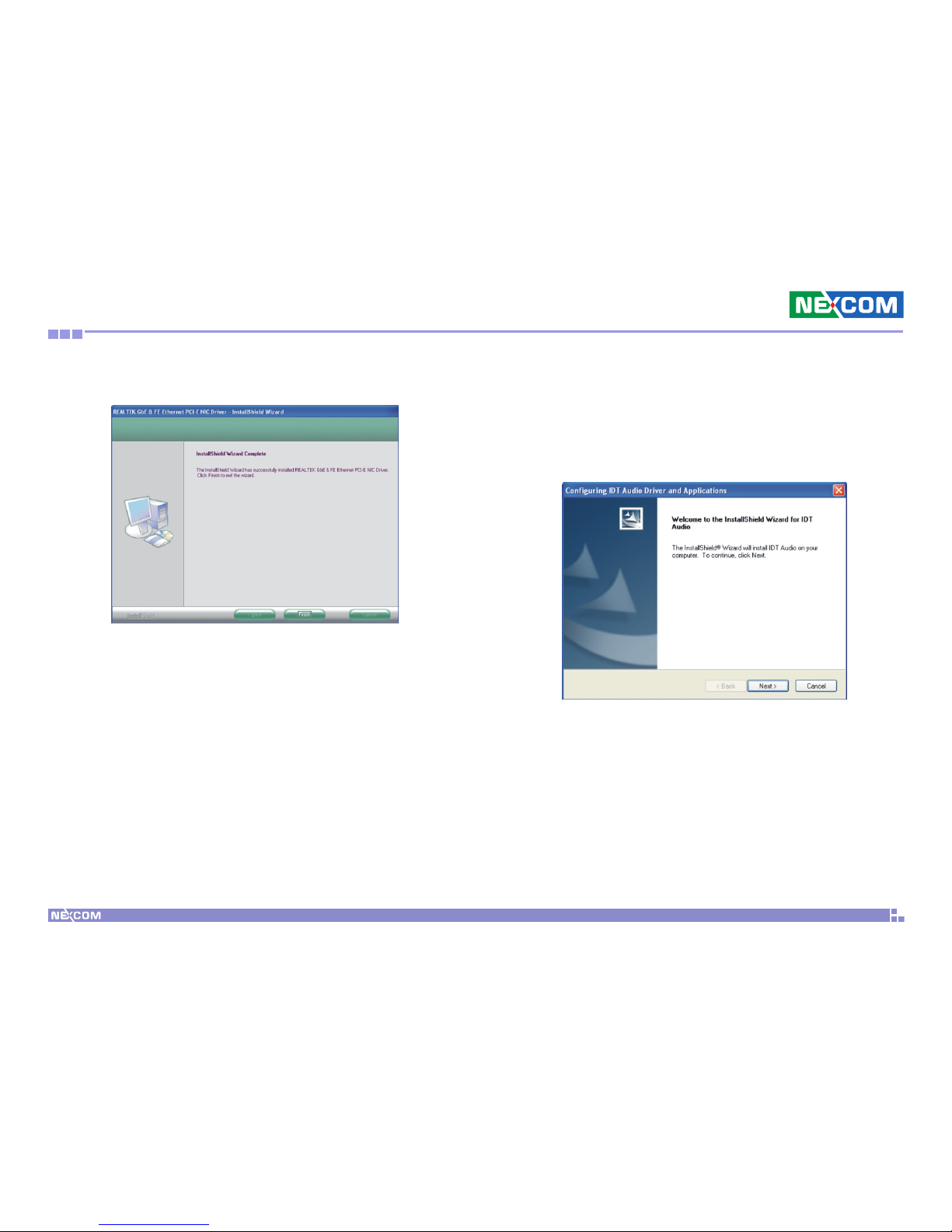

Realtek LAN Driver ................................................................................40

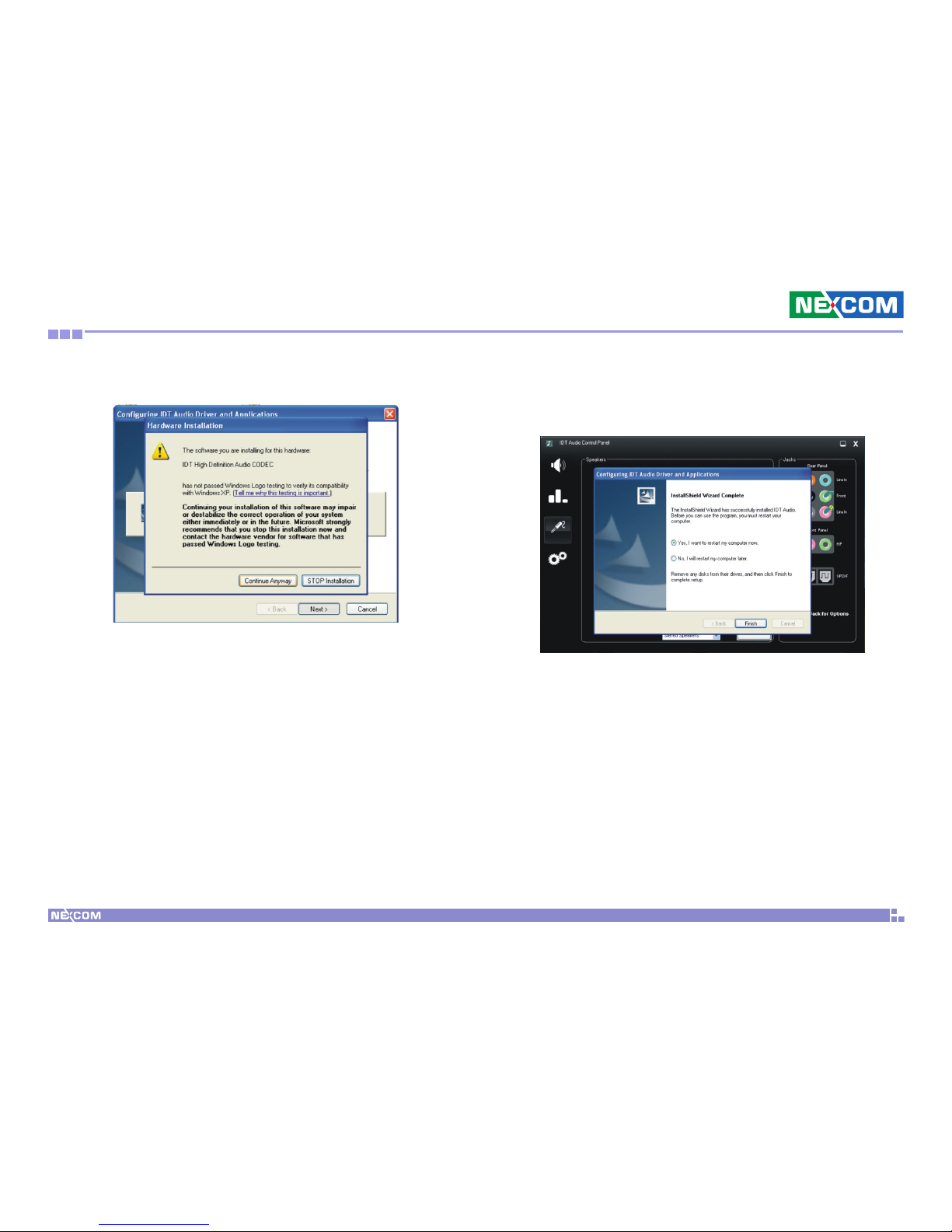

IDT Audio Driver ...................................................................................41

Appendix A: Power Consumption

Power Consumption ............................................................................. 43

iv

NDiS 162 User Manual

Preface

Pr e f a C e

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NDiS 162 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

v

NDiS 162 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

vi

NDiS 162 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

Customers shall enclose the “NEXCOM RMA Service Form” with the ? returned packages.

Customers must collect all the information about the problems encoun- ? tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

Customers can send back the faulty products with or without acces- ? sories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

Customers are responsible for the safe packaging of defective products, ? making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

Any products returned by NEXCOM to other locations besides the cus- ? tomers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

Component fee: NEXCOM will only charge for main components such ? as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

Items will be replaced with NEXCOM products if the original one cannot ? be repaired. Ex: motherboard, power supply, etc.

Replace with 3rd party products if needed. ?

If RMA goods can not be repaired, NEXCOM will return it to the cus- ? tomer without any charge.

Board Level

Component fee: NEXCOM will only charge for main components, such ? as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

If RMA goods can not be repaired, NEXCOM will return it to the cus- ? tomer without any charge.

vii

NDiS 162 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

Read all instructions carefully.

▪

Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts ▪

specified by the manufacturer. Avoid using the system near water, in direct sunlight, or near a heating

▪

device. The load of the system unit does not solely rely for support from the

▪

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

The computer is provided with a battery-powered real-time clock circuit.

▪

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

A Philips screwdriver• A flat-tipped screwdriver• A grounding strap• An anti-static pad•

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

NDiS 162 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near

the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping

it or letting it fall may cause damage.

7. Do not leave this equipment in either an unconditioned environment

or in a above 40

o

C storage temperature as this may damage the

equipment.

8. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source is correct before connect-

ing the equipment to the power outlet.

10. Place the power cord in a way so that people will not step on it. Do

not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

13. Never pour any liquid into an opening. This may cause fire or electrical shock.

14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

15. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work

according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

16. Do not place heavy objects on the equipment.

17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

19. The computer is provided with CD drives that comply with the appropriate safety standards including IEC 60825.

ix

NDiS 162 User Manual

Preface

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

CAUTION!

CAUTION!CAUTION!

x

Preface

NDiS 162 User Manual

Global Service Contact Information

Headquarters Taiwan

18F, No. 716, Chung-Cheng Rd. Chung-Ho City, Taipei County 235, Taiwan, R.O.C. Tel: +886-2-8228-0606 Fax: +886-2-8228-0501 http://www.nexcom.com.tw

USA

3758 Spinnaker Court, Fremont, CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 http://www.nexcom.com

France

Z.I. des Amandiers, 17, Rue des entrepreneurs 78420 Carrières sur Seine, France Tel: +33 (0)1 71 51 10 20 Fax: +33 (0)1 71 51 10 21 http://www.nexcom.eu

Germany

Leopoldstraße Business Centre, Leopoldstraße 244 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 http://www.nexcom.eu

Italy

Via Gaudenzio Ferrari 29, 21047 Saronno (VA) Italia Tel: +39 02 9628 0333 Fax: +39 02 9619 8846 http://www.nexcom.eu

United Kingdom

10 Vincent Avenue, Crownhill Business Centre Milton Keynes, Buckinghamshire, MK8 0AB United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 http://www.nexcom.eu

xi

Preface

NDiS 162 User Manual

Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku Tokyo, Japan 108-0014 Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 http://www.nexcom-jp.com

China-Beijing

Room 301, Block E, Power Creative Building, No. 1 Shangdi East Rd. Haidian Dist., Beijing, 100085, China Tel: +86-10-5885-6655 Fax: +86-10-5885-1066 http://www.nexcom.cn

China-Shanghai Office

Room 1505, Greenland He Chuang Building, No. 450 Caoyang Rd. Shanghai, 200063, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 http://www.nexcom.cn

China-Nanjing Office

Hall C, Block 17,TianXingCuiLang, No. 49 Yunnan North Rd. Nanjing, 210018, China Tel: +86-25-8315-3486 Fax: +86-25-8315-3489 http://www.nexcom.cn

China-Shenzhen Office

Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, China 518040 TEL: +86-755-833 27203 FAX: +86-755-833 27213 http://www.nexcom.cn

xii

Preface

NDiS 162 User Manual

Pa C k a g e Co n t e n t s

Before continuing, verify that the NDiS 162 package that you received is complete. Your NDiS 162 package should have all the items listed in the following table.

Item P/N Name Specification Qty

1 6012200053X00 PE ZIPPER BAG #3 100x70mm,W/China RoHS SYMBOL 1

2 6012200052X00 PE ZIPPER BAG #8 170x240mm,W/China RoHS SYMBOL 1

3 50311F0100X00 ROUND HEAD SCREW W/SPRING+FLAT WASHER LONG FEI:P3x6L P3x6 iso/SW6x0.5 NI 4

4 60177A0121X00 (N)NEX662 QUICK REFERENCE GUIDE VER:A KRAMER 1

5 602DCD0148X00 (N)NEX662 CD DRIVER VER:1.0 1

6 5060600049X00 2.5 HDD MYLAR NORMARK:DA-P3B01-569001 96.2x70x0.1mm 1

7 5043330226X00 NDiS162 HDD BRACKET CHYUAN JYH:L10Z334 119x72.05x9.8mm SPCC T=1.0mm NI 1

8 50311F0095X00 FLAT HEAD SCREW LONG FEI:F6#32Tx5 NYLOK NIGP F6#32Tx5 NI NYLOK 4

9 60233ATA12X00 (N)SATA CABLE FOR NISE 1000 BEST 26AWG L:150mm 1

10 7400060002X00 POWER ADAPTER FSP:FSP060-1AD101C(N09001) 60W MINI DIN 4PIN W/LOCK 12V/5A 1

11 50344C0034X00 COPPER POST LONG FEI:COPPER POSTS 6.5x5xM3 WITH MALE/FEMALE

(FEMALE)6.5mmx(MALE)5mmxM3

3

xiii

Preface

NDiS 162 User Manual

or d e r i n g in f o r m a t i o n

The following provides ordering information for NDiS 162.

NDiS 162 (P/N: 10W00016200X0)•

- AMD Athlon™ 64/64 X2 Fan-less Barebone System

- AMD 690E/SB600 with CRT/DVI x2

1

NDiS 162 User Manual

Chapter 1: Product Introduction

Ch a P t e r 1: Pr o d u C t in t r o d u C t i o n

Overview of NDiS 162

NDiS 162 is designed for Digital Signage application. It provides ease of mounting the system behind large-size display devices such as LCD TV or PDP.

NDiS 162 operates on AMD low power Athlon™ 64/64 X2 series processors. With its fan-less thermal design, it can reduce maintainance cost and thus guarantees stability on 24/7 nonstop operation.

NDiS 162 provides dual DVI display interface with dual independent audio output, one GbE Ethernet with optional wireless connectivity, USB 2.0 ports and a 2.5” drive bay for a storage device.

Reset button

DVI-D

HDD LED

Power button

COM

Power LED

Front panel

Key Features

Powerful Digital Signage Player with • AMD Athlon™ 64/64 X2 AM2 processor Fan-less thermal design• AMD 690E/SB600 solution• DVI / VGA / u-DOC / Audio / S/PDIF / GbE LAN / USB• +12V DC-in / ATX support• 1 x SATA 2.5” HDD / CF (optional)•

Physical Features

Line-out

2

NDiS 162 User Manual

Chapter 1: Product Introduction

12V

DC-in WiFi antenna hole

Line-out

S/PDIF

USBLAN

Side panel

DVI-I

Main Memory

One 25° angled DIMM socket • Supports DDR2 800MHz SDRAM with unbuffered and non-ECC memory • module Supports up to 2GB memory•

I/O Interface - Front

DB9 port x1 for RS232• Power-on LED x1• HDD LED x1• DVI-D x1• Phone jack x1 for line-out• ATX Power-on button x1• Reset button x1•

I/O Interface - Side

DVI-I x1 for CRT and DVI-D• RJ45 with LED x1 for 10/100/1000Mbps Ethernet• USB x2• S/PDIF x1• Phone jack x1 for line-out• +12V DC-in power x1• Antenna for WiFi x1 (optional)•

Storage

SATA 2.5” HDD storage x1• u-DOC x1• CF type I/II x1 (optional)•

Hardware Specifications

Main Board (NEX 662)

AMD AM2 socket • Supports Athlon™ 64/64 X2 series processor• AMD embedded processor list (AMD Longevity CPU)•

- Athlon™ 64 X2 3400E (FANLESS)

- Athlon™ 64 3100+ (FANLESS)

- Athlon™ 64 2600+ (FANLESS)

- Athlon™ 64 2000+ (FANLESS)

Chipset

AMD M690E/M690T, AMD SB600• Integrated ATI X1270 graphic controller•

3

NDiS 162 User Manual

Chapter 1: Product Introduction

Expansion Slot

1 mini PCIe slot for optional wireless module•

Dimensions

W: 280mm; D: 210mm; H: 40.4mm (without rackmount bracket)•

Construction

Top cover made of aluminum for heat dissipation• Chassis made of steel - in black•

Power Input

External 80W AC/DC adapter x1• AC-in: 100~240VAC• DC-out: DC +12V•

Environment

Operating temperature: Ambient with airflow from 0°C ~ 40°C (HDD • inside) Storage temperature: -20°C ~ 60°C, Humidity: 10% ~ 90% (non-con-• densing)

Certification

CE approval• FCC•

4

NDiS 162 User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

5

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

This chapter describes how to set the jumpers on the motherboard. Note that the following procedures are generic for all NDiS 162 series.

Before You Begin

Ensure you have a stable, clean working environment. Dust and dirt can • get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally

•

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

A Philips screwdriver

•

A flat-tipped screwdriver • A set of jewelers Screwdrivers • A grounding strap • An anti-static pad •

Using your fingers can disconnect most of the connections. It is recom-• mended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Before working on internal components, make sure that the power

•

is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the elec-

tronic components. Humid environment tend to have less static electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

Always disconnect the unit from the power outlet whenever you are

•

working inside the case.

If possible, wear a grounded wrist strap when you are working inside

•

the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

Hold electronic circuit boards by the edges only. Do not touch the com-

•

ponents on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

Leave all components inside the static-proof packaging that they

•

shipped with until they are ready for installation.

Use correct screws and do not over tighten screws.

•

Ch a P t e r 2: Ju m P e r s a n d Co n n e C t o r s

6

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

1

2

3

1

2

3

7

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

Locations of the Jumpers and Connectors

NEX 662

The figure on the right is the NEX 662 motherboard which is the motherboard used in the NDiS 162 system. It shows the locations of the jumpers and connectors.

8

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

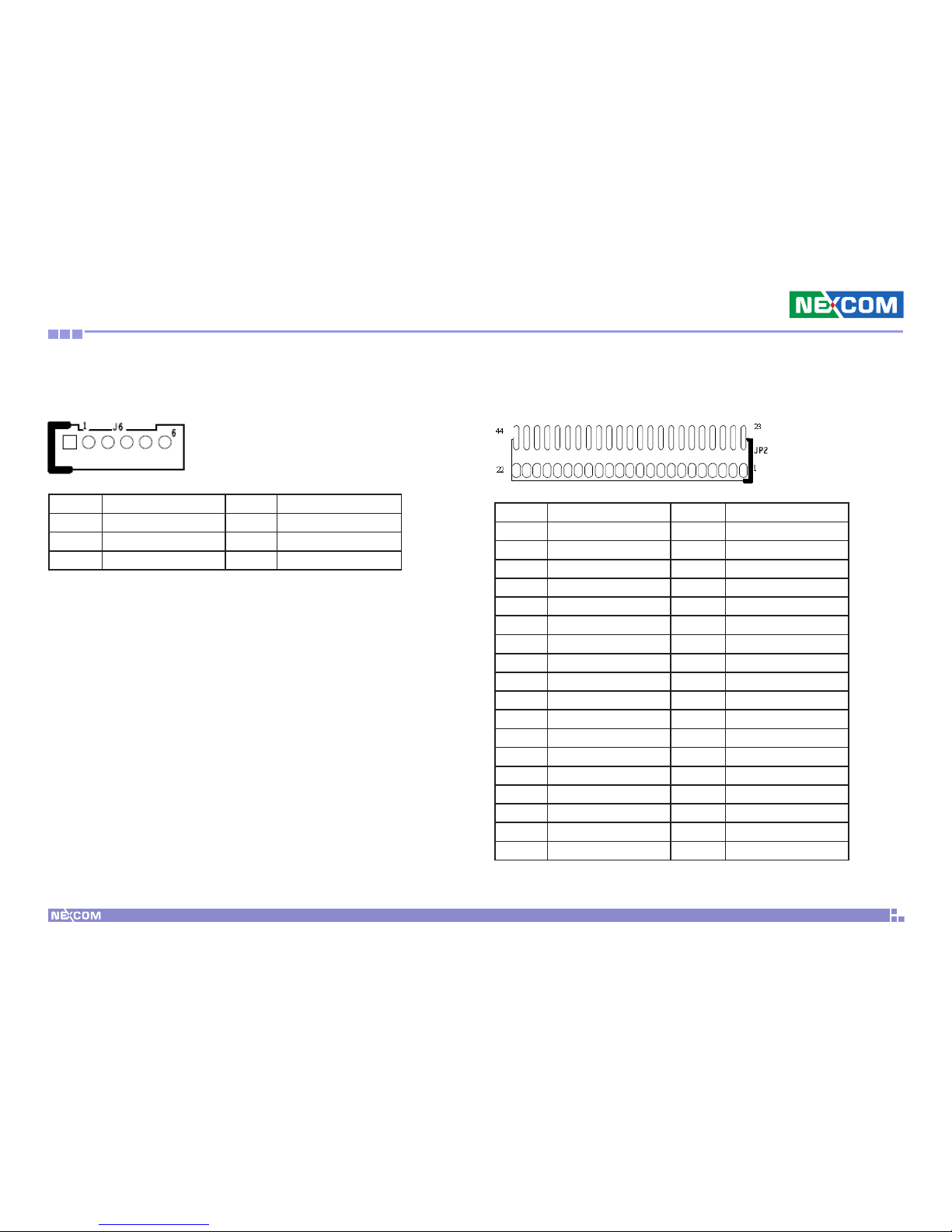

Pin Definitions

This section provides descriptions, illustrations and pin definitions of the jumpers and connectors.

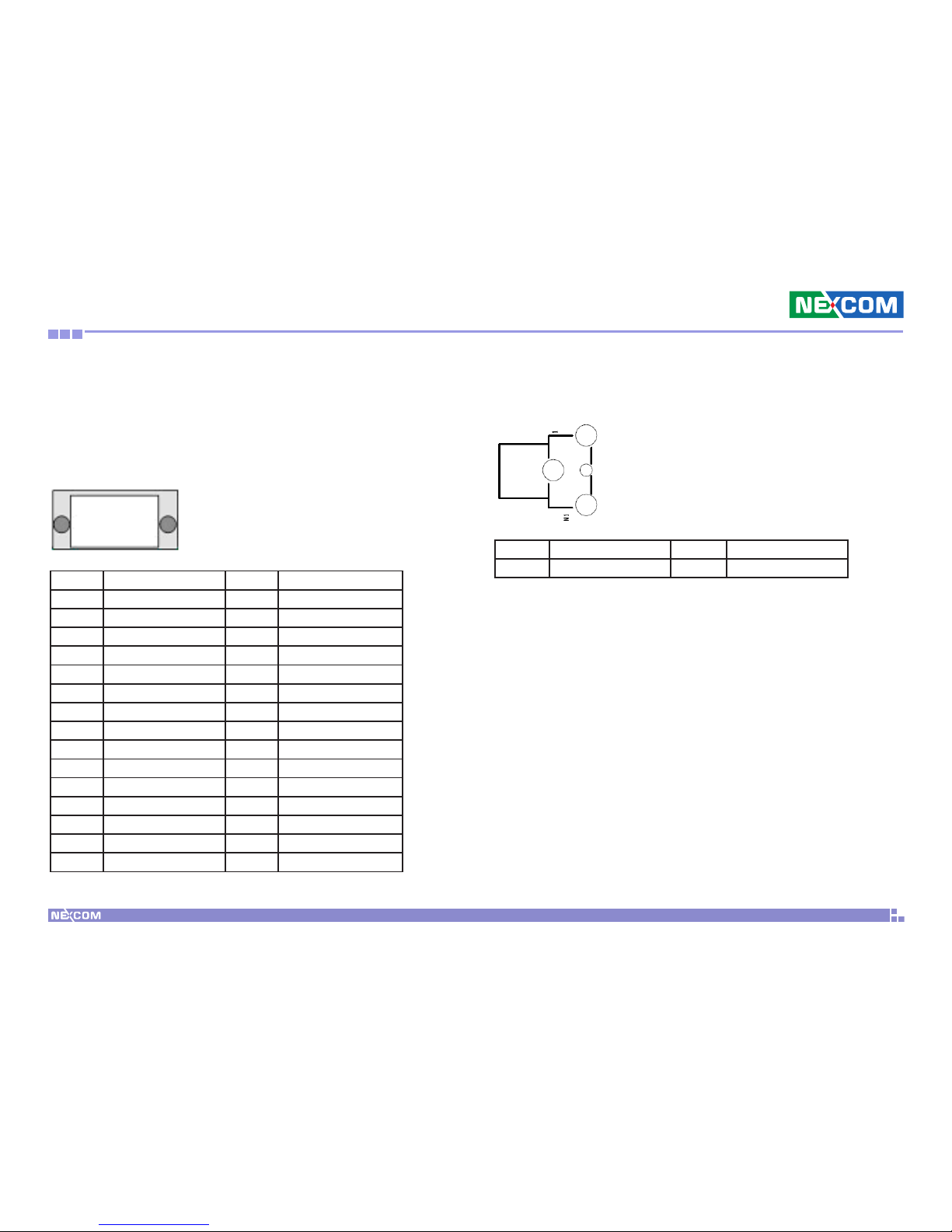

DVI / VGA Port

CN3

Pin Definition Pin Definition

1 DVI_TX2N 2 DVI_TX2P

3 DVI_GND 4 DVI_TX4N

5 DVI_TX4P 6 CRT_CLK

7 CRT_DATA 8 CRT_VSYNC

9 DVI_TX1N 10 DVI_TX1P

11 DVI_GND 12 DVI_TX3N

13 DVI_TX3P 14 DVI_5V

15 GND 16 DVI_HPD

17 DVI_TX0N 18 DVI_TX0P

19 DVI_GND 20 DVI_TX5N

21 DVI_TX5P 22 DVI_GND

23 DVI_CLKP 24 DVI_CLKN

C1 MRED C2 MGREEN

C3 MBLUE C4 CRT_HSYNC

C5A VGA_GND C5B VGA_GND

TV-Out Jack

CN1

Pin Definition Pin Definition

1 GND_TV_CAS 2 CP-Pb

9

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

Mini PCI Slot

CN10

Pin Definition Pin Definition

1 WAKE0# 2 +V3.3_MINI

3 NC 4 GND

5 NC 6 +1.5S_MINI

7 PCIE_MINI_CLKREQ#1 8 NC

9 GND 10 NC

11 GPP_CLK1_N 12 NC

13 GPP_CLK1_P 14 NC

15 GND 16 NC

17 NC 18 GND

19 NC 20 MINICARD1_DIS#

21 GND 22 PCIE_RST#

23 PCIE_RX1- 24 +V3.3A_MINI

25 PCIE_RX1+ 26 GND

27 GND 28 +V1.5S_MINI

29 GND 30 SMB1_CLK

31 PCIE_TX1- 32 SMB1_DAT

Pin Definition Pin Definition

33 PCIE_TX1+ 34 GND

35 GND 36 USB_6N_L

37 GND 38 USB_6P_L

39 +V3.3A_MINI 40 GND

41 +V3.3A_MINI 42 NC

43 GND 44 LED_WLAN_N

45 NC 46 NC

47 NC 48 +V1.5S_MINI

49 NC 50 GND

51 NC 52 +V3.3A_MINI

10

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

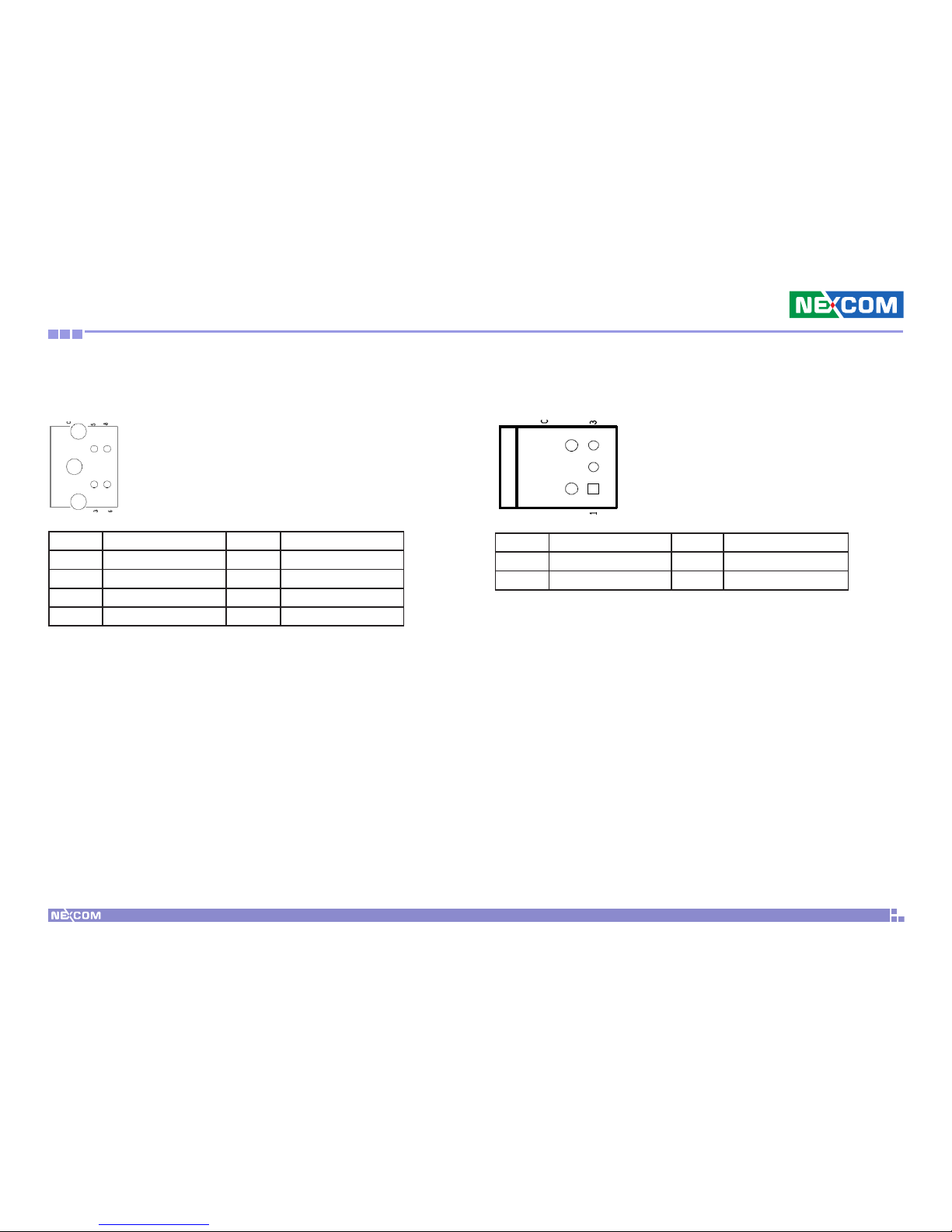

S-Video Port

CN6

Pin Definition Pin Definition

1 NA 2 NA

3 GND_TV 4 NA

5 GND_TV 6 CP-Pr

7 NA 8 CP-Y

S/PDIF Port

CN4

Pin Definition Pin Definition

1 GND 2 VCC

3 SPDIF_OUT_R

11

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

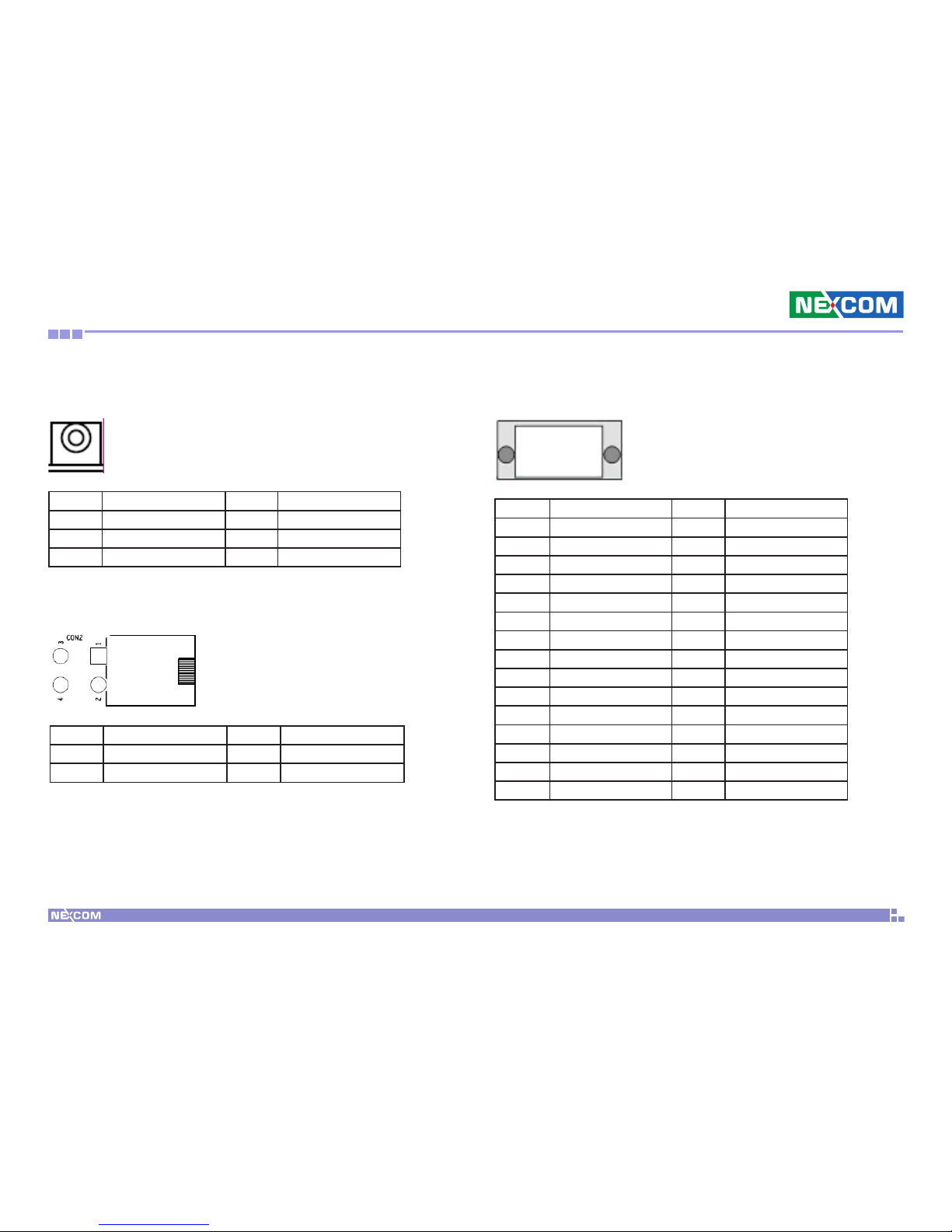

RS232 Connector: COM1, COM2

Connector size: 2 x 10 = 20 Pins Box Header, (2.0 mm Pitch) Connector location: COM1 (CN9), COM2 (CN8)

Pin Definition Pin Definition

1 SP_DCD_A 2 SP_RXD_A

3 SP_TXD_A 4 SP_DTR_A

5 GND 6 SP_DSR_A

7 SP_RTS_A 8 SP_CTS_A

9 SP_RI_A 10 CON_GND

Audio-Out

CN2

Pin Definition Pin Definition

1 GND 2 LOUT_R3

3 NC 4 NC

5 LOUT_L3

12

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

LAN

Connector size: RJ-45 Connector location: CN5

Pin Definition Pin Definition

1 LAN_TXD0P 2 LAN_TXD0N

3 LAN_TXD1P 4 LAN_TXD2P

5 LAN_TXD2N 6 LAN_TXD1N

7 LAN_TXD3P 8 LAN_TXD3N

9 LAN_ACTLED# 10 LAN_LED1+

11 LAN_LED2- 12 LAN_LED2+

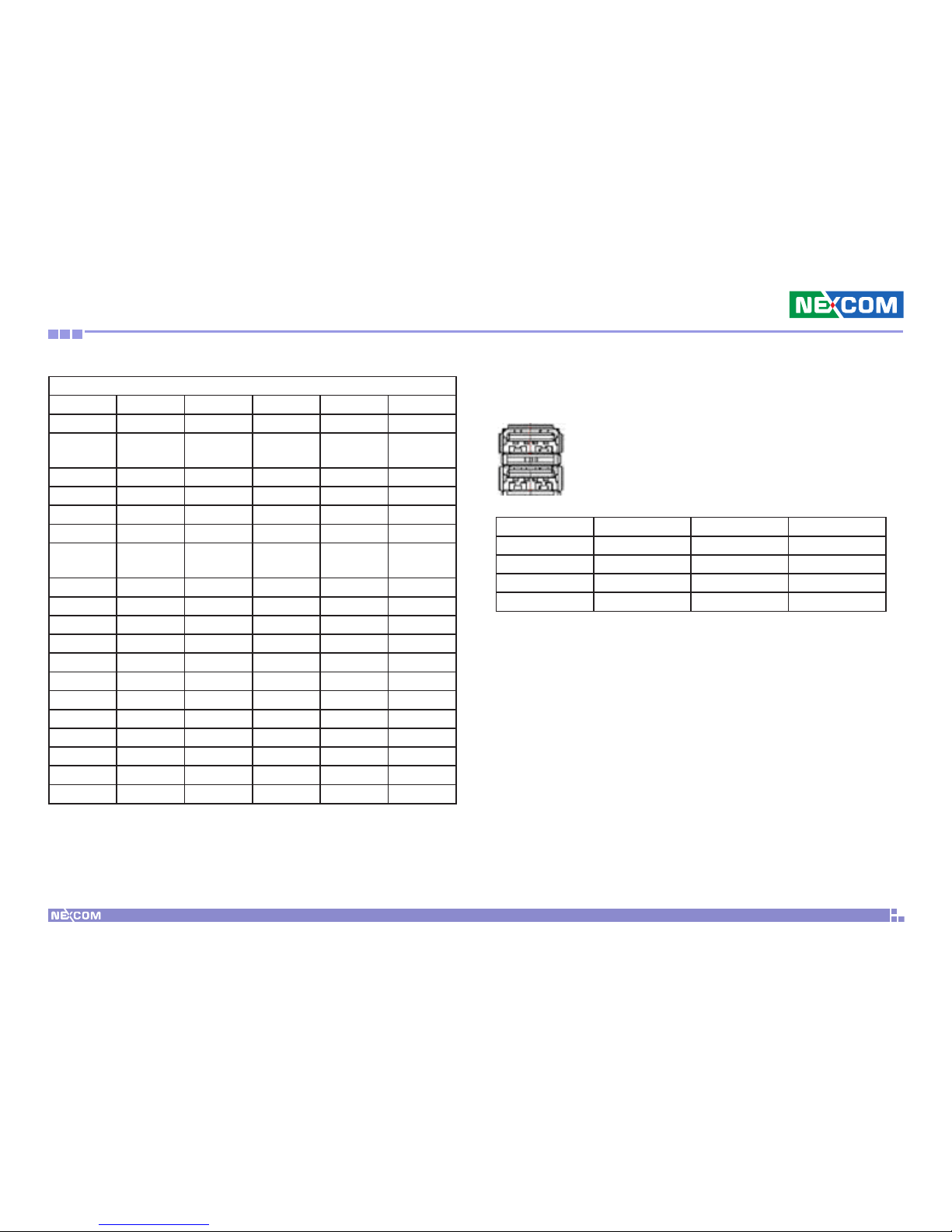

PCI Slot

CN7

Definition

PIN A B PIN A B

1 TRST# -12V_ATX 32 AD16 AD17

2 +12V_ATX TCK 33 +3.3V_ATX C/BE2#

3 TMS GND 34 FRAME# GND

4 TDI TDO 35 GND IRDY#

5 +5V_ATX +5V_ATX 36 TRDY# +3.3V_ATX

6 INTA# +5V_ATX 37 GND DEVSEL#

7 INTC# INTB# 38 STOP# GND

8 +5V_ATX INTD# 39 +3.3V_ATX LOCK#

9 RSV1 PRSNT1# 40 SMBCLK PERR#

10 +3.3V_ATX RSV5 41 SMBDAT +3.3V_ATX

11 RSV2 PRSNT2# 42 GND SERR#

12 GND GND 43 PAR +3.3V_ATX

13

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

Definition

PIN A B PIN A B

13 GND GND 44 AD15 C/BE1#

14 +VCC3P3V_

ALW

RSV6 45 +3.3V_ATX AD14

15 RST# GRPIMD 46 AD13 GND

16 +5V_ATX CLK 47 AD11 AD12

17 GNT# GND 48 GND AD10

18 GND REQ# 49 AD9 GND

19 PME# +5V_ATX CONNEC-

TOR KEY

20 AD30 AD31

21 +3.3V_ATX AD29 52 C/BE0# AD8

22 AD28 GND 53 +3.3V_ATX AD7

23 AD26 AD27 54 AD6 +3.3V

24 GND AD25 55 AD4 AD5

25 AD24 +3.3V_ATX 56 GND AD3

26 IDSEL C/BE2# 57 AD2 GND

27 +3.3V_ATX AD23 58 AD0 AD1

28 AD22 GND 59 +3.3V_ATX +5V_ATX

29 AD20 AD21 60 REQ64# ACK64#

30 GND AD19 61 +5V_ATX +5V_ATX

31 AD18 +3.3V_ATX 62 +5V_ATX +5V_ATX

USB

CON1

Pin Definition Pin Definition

1 USB0_VCC 2 USB_0#

3 USB_0 4 U1_GND

5 USB0_VCC 6 USB_1#

7 USB_1 8 U1_GND

14

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

GPIO

J5

Pin Definition Pin Definition

1 +5V_ATX 2 GND

3 GP23 4 GP32

5 GP22 6 GP31

7 GP21 8 GP30

9 GP20 10 GP24

DC Power Input

CN11

Pin Definition Pin Definition

1 +3.3V_ATX 2 +3.3V_ATX

3 GND 4 +5V_ATX

5 GND 6 +5V_ATX

7 GND 8 SYS_PWRGD

9 +5VALW_ATX 10 +12V_ATX

11 +3.3V_ATX 12 -12V_ATX

13 GND 14 ATX_PSON

15 GND 16 GND

17 GND 18 NC

19 +5V_ATX 20 +5V_ATX

15

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

DC Power

CON2

Pin Definition Pin Definition

1 GND 2 GND

3 +12V_ATX 4 +12V_ATX

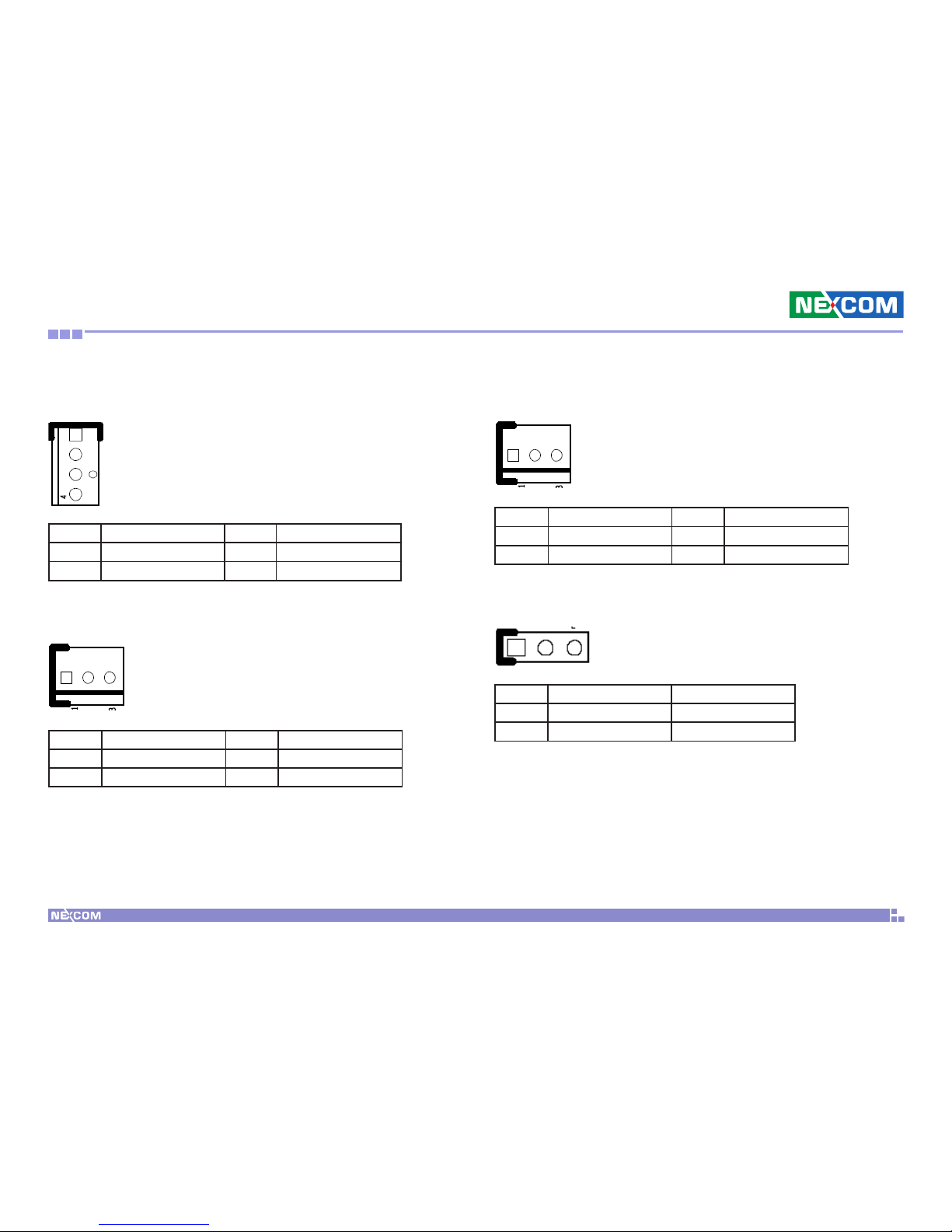

MIC

J2

Pin Definition Pin Definition

1 MIC1_L3 2 AGND

3 NC 4 MIC1_R3

IR

J4

Pin Definition Pin Definition

1 +5V_ATX 2 CIRRX

3 IR_RX 4 GND

5 IR_TX

16

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

Keyboard/Mouse

J6

Pin No. Description Pin No. Description

1 K/M_VCC 2 LKBDAT

3 LKBCLK 4 LMDAT

5 LMCLK 6 KBGND

DVI-I Connector and Miscellaneous Signals

JP2

Pin Definition Pin Definition

1 GFX_TX2N 2 GFX_TX2P

3 GND 4 GFX_TX1N

5 GFX_TX1P 6 GND

7 GFX_TX4N 8 GFX_TX4P

9 GND 10 GFX_TX6N

11 GFX_TX6P 12 DVI_5V

13 DVI2_HPD 14 MASTER_RST#

15 PWRBT_SW 16 PWR_LED_P

17 HD_LED_P 18 +5V_ATX

19 GND 20 LINE1_OUT_L

21 +5VALW_ATX 22 LED_WLAN_P

23 GFX_TX0N 24 GFX_TX0P

25 GND 26 GFX_TX5N

27 GFX_TX5P 28 GND

29 GFX_TX3N 30 GFX_TX3P

31 GND 32 DVI_CLK

33 DVI_DATA 34 GND

35 GND 36 GND

17

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

Pin Definition Pin Definition

37 GND 38 PWR_LED_N

39 HD_LED_N 40 +3.3V_ATX

41 GND 42 LINE1_OUT_R

43 +3.3V_ATX 44 LED_WLAN_N

SMB

J1

Pin Definition Pin Definition

1 SMB0_CLK 2 SMB0_DAT

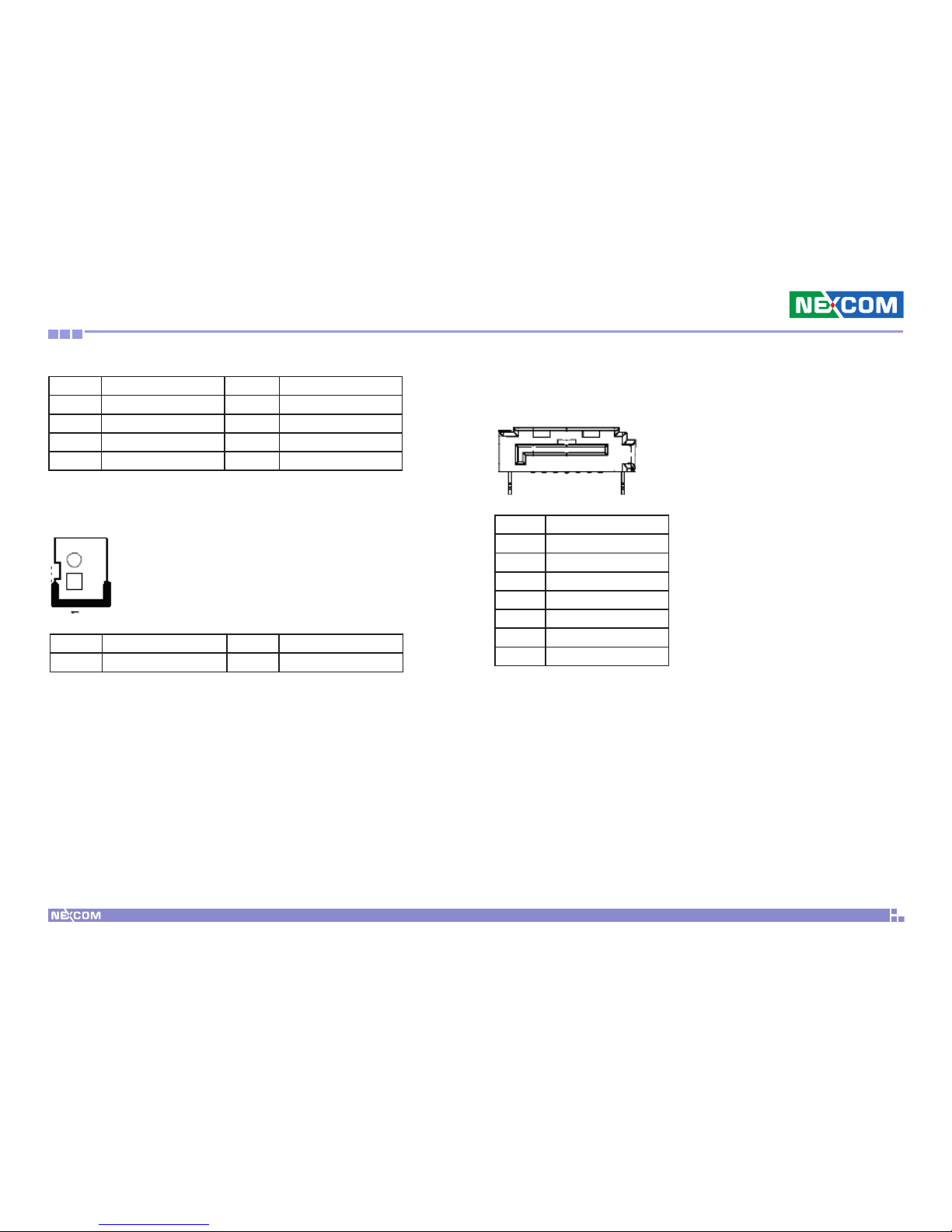

SATA

J8, J9

Pin Definition

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

18

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

Fan Connector

FAN3

Pin Definition Pin Definition

1 GND 2 +12V_ATX

3 SB600_FANTACH0 4 SB600_FANOUT_R

Fan Connector

FAN2

Pin Definition Pin Definition

1 GND 2 +12V_ATX

3 SB600_FANTACH2

Fan Connector

FAN1

Pin Definition Pin Definition

1 GND 2 +12V_ATX

3 SB600_FANTACH1

CMOS Input Voltage Select

JP1

Pin No. Status Function Description

1-2 Short* VBAT IN

2-3 Short Clear CMOS

19

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

MIO02 Module

Specifications

I/O Interface - External

4-pin Mini DIN +12V DC-in• Power-on / Storage LEDs• ATX power-on SW• DVI-I• Line-out phone-jack• Reset SW•

I/O Interface - External

Multi I/O port with pin-header for Audio output, Power-on / Storage • LEDs, Power-on SW and Reset SW DC out connector to DC/DC converter•

Connectors

20

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

Pin Definitions

DVI-I Connector and Miscellaneous Signals

JP2

Pin Definition Pin Definition

1 GFX_TX2N 2 GFX_TX2P

3 GND 4 GFX_TX1N

5 GFX_TX1P 6 GND

7 GFX_TX4N 8 GFX_TX4P

9 GND 10 GFX_TX6N

11 GFX_TX6P 12 DVI_5V

13 DVI2_HPD 14 MASTER_RST#

15 PWRBT_SW 16 PWR_LED_P

17 HD_LED_P 18 +5V_ATX

19 GND 20 LINE1_OUT_L

21 +5VALW_ATX 22 LED_WLAN_P

23 GFX_TX0N 24 GFX_TX0P

25 GND 26 GFX_TX5N

27 GFX_TX5P 28 GND

29 GFX_TX3N 30 GFX_TX3P

31 GND 32 DVI_CLK

33 DVI_DATA 34 GND

35 GND 36 GND

Pin Definition Pin Definition

37 GND 38 PWR_LED_N

39 HD_LED_N 40 +3.3V_ATX

41 GND 42 LINE1_OUT_R

43 +3.3V_ATX 44 LED_WLAN_N

21

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

Audio Out

CN3

Pin Definition Pin Definition

1 GND 2 LOUT_R3

3 NC 4 NC

5 LOUT_L3

DC Power

CON2

Pin Definition Pin Definition

1 +12V_ATX 2 +12V_ATX

3 GND 4 GND

DVI

CN2

Pin Definition Pin Definition

1 GFX_TX0N 2 GFX_TX0P

3 GND 4 GFX_TX5N

5 GFX_TX5P 6 CRT_CLK

7 CRT_DATA 8 NC

9 GFX _TX1N 10 GFX _TX1P

11 GND 12 GFX _TX6N

13 GFX _TX6P 14 DVI_5V

15 GND 16 DVI_HPD

17 GFX _TX2N 18 GFX _TX2P

19 GND 20 GFX _TX4N

21 GFX _TX4P 22 GND

23 GFX _TX3P 24 GFX_TX3N

C1 NC C2 NC

C3 NC C4 NC

C5A GND C5B GND

22

Chapter 2: Jumpers and Connectors

NDiS 162 User Manual

WLAN LED

JP1

Pin Definition Pin Definition

1 LED_WLAN_N 2 LED_WLAN_P

Power In 12V

CN4

Pin Definition Pin Definition

1 VCC12V 2 GND

23

Chapter 3: System Setup

NDiS 162 User Manual

Ch a P t e r 3: sY s t e m se t u P

This chapter provides information on how to install the DIMM, CPU and storage devices.

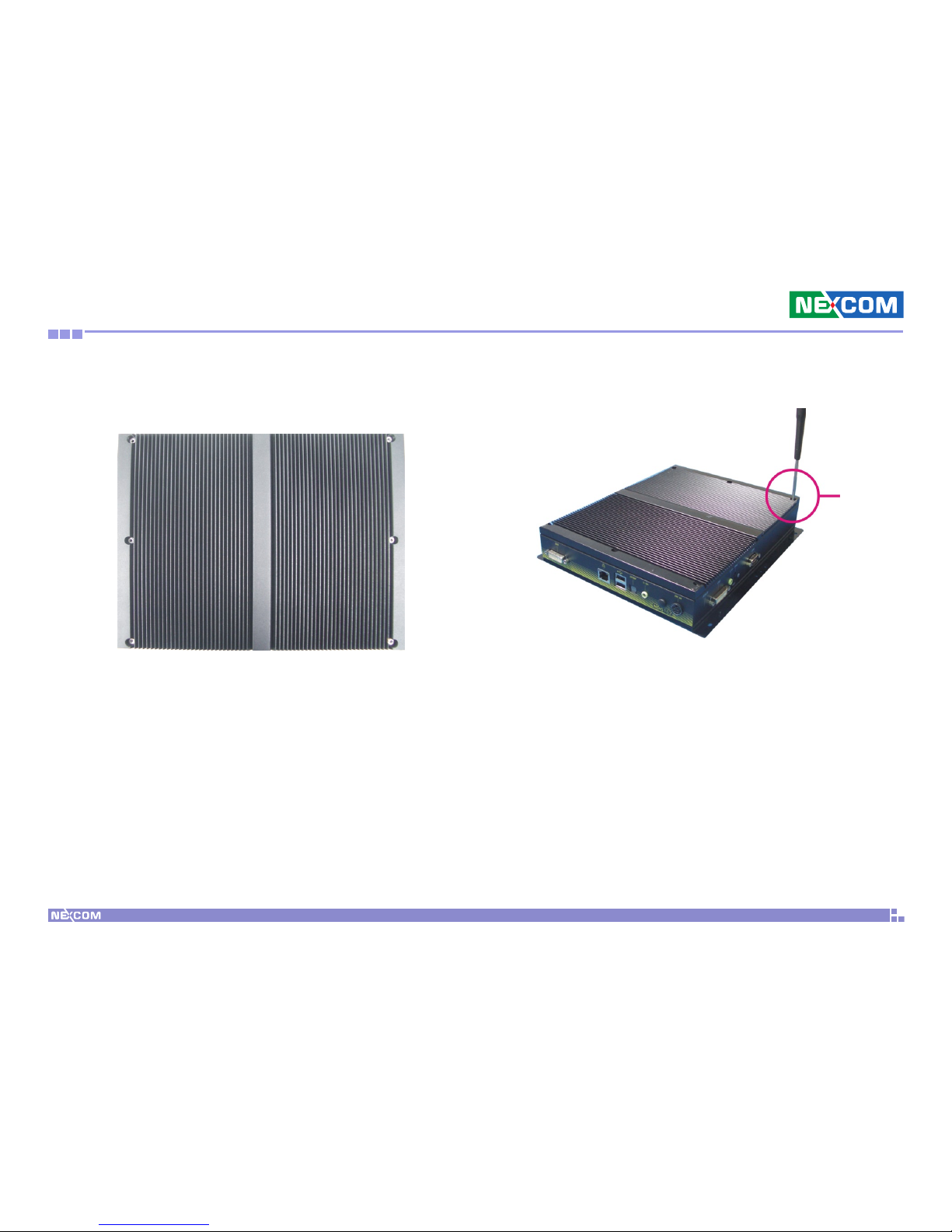

Removing the Chassis Cover

Top View of the System

2. Remove these screws and put them in a safe place for later use. Lift the cover upward then remove it from the chassis.

Remove screw

Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

1. The screws on the cover are used to secure the cover to the chassis.

CAUTION!CAUTION!

24

Chapter 3: System Setup

NDiS 162 User Manual

Installing the CPU

1. Remove the screws that secure the heat sink to the board. Save these screws for later use.

2. Now remove the heat sink to access the CPU socket.

Bottom Side of the Heat Sink

3. The CPU socket is readily accessible after you have removed the heat sink.

CPU Socket

Remove screw

Make sure all power cables are unplugged before you install • the CPU. The CPU socket must not come in contact with anything • other than the CPU. Avoid unnecessary exposure.

CAUTION!CAUTION!

25

Chapter 3: System Setup

NDiS 162 User Manual

4. Unlock the socket by pushing the lever sideways, away from the socket, then lifting it up to a 90

o

angle. Make sure the lever is lifted to

at least this angle otherwise the CPU will not fit in properly.

Lever

5. Position the CPU above the socket. The gold mark on the CPU must align with pin 1 of the CPU socket (refer to the enlarged image) shown below.

Pin 1

CPU

CPU Socket

Pin 1

Handle the CPU by its edges and avoid touching the pins.

26

Chapter 3: System Setup

NDiS 162 User Manual

6. Position the CPU above the socket then insert it into the socket until it is seated in place. The CPU will fit in only one orientation and can easily be inserted without exerting any force.

Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.

7. Once the CPU is in place, push down the lever to lock the socket. The lever should click on the side tab to indicate that the CPU is completely secured in the socket.

Side Tab

CAUTION!CAUTION!

27

Chapter 3: System Setup

NDiS 162 User Manual

8. Replace the heat sink using the screws you removed earlier.

Installing a DIMM

The system board supports DDR2 533/667 DIMMs. When installing DIMMs, NEXCOM recommends using the same brand and type of memory modules.

Locate the DIMM socket on the board.1.

Push the ejector tab which are at the ends of the socket outward. This 2. indicates that the socket is unlocked.

Ejector tab

28

Chapter 3: System Setup

NDiS 162 User Manual

3. Note how the module is keyed to the socket. Grasping the module by its edges, align the module with the socket so that the “notch” in the module aligned with the “key” on the socket. The key ensures the module can be plugged into the socket in only one direction.

Notch

Key

4. Insert the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.

Push the module down. The ejector tabs at the ends of the socket

will automatically snap into the locked position to hold the module in place.

29

Chapter 3: System Setup

NDiS 162 User Manual

Installing a SATA Hard Drive

The drive bay included in the package is used to hold a SATA hard 1. drive.

2. Place the SATA hard drive onto the drive bay. Align the mounting holes that are on the sides of the SATA drive with the mounting holes on the drive bay then use the provided screws to secure the drive in place.

3. Place the SATA drive into the chassis then use the provided screws to secure the drive bay to the chassis.

4. Connect one end of the SATA data cable to the SATA connector that is on the system board.

30

Chapter 3: System Setup

NDiS 162 User Manual

5. Connect the other end of the SATA data cable to the SATA connector at the rear of the SATA drive.

6. Connect the SATA power cable to the power connector at the rear of the SATA drive.

SATA power

cable

SATA data

cable

Installing a CompactFlash Card (optional)

Instead of using a SATA drive, the system provides the option of using a CompactFlash card by installing the optional SATA-to-CF converter board.

1. The drive bay included in the package is used to hold the SATA-to-CF converter board.

31

Chapter 3: System Setup

NDiS 162 User Manual

2. Attach the 3 copper studs (posts) on the drive bay as shown in the illustration below.

3. Place the SATA-to-CF converter board onto the drive bay then use the provided screws to secure the board to the bay.

32

Chapter 3: System Setup

NDiS 162 User Manual

5. With the CompactFlash card’s label facing up, insert the CF card into the slot until it is completely seated in the slot.

4. Connect one end of the SATA data cable to the SATA connector that is on the system board and the other end to the converter board.

Connect the SATA power cable to the power connector of the con-

verter board.

SATA power

cable

SATA data

cable

Installing the WiFi Module

1. Insert the PCIe WiFi module into the Mini PCIe slot.

PCIe WiFi

module

Mini PCIe

slot

33

Chapter 3: System Setup

NDiS 162 User Manual

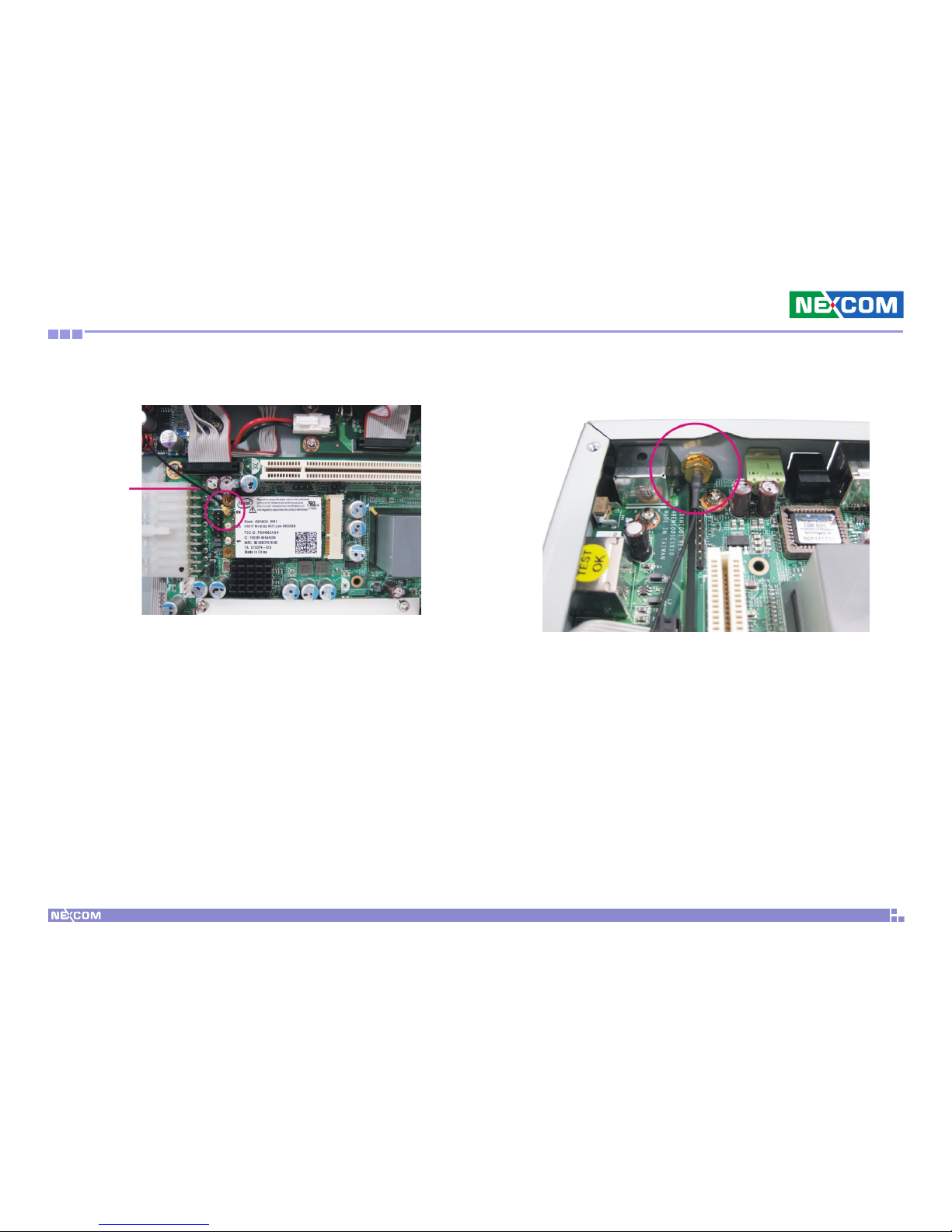

2. Attach one end of the RF cable onto the WiFi module.

RF cable

3. Attach the other end of the cable to the WiFi antenna hole located at the side panel of the chassis.

Internal view of the side panel

34

Chapter 3: System Setup

NDiS 162 User Manual

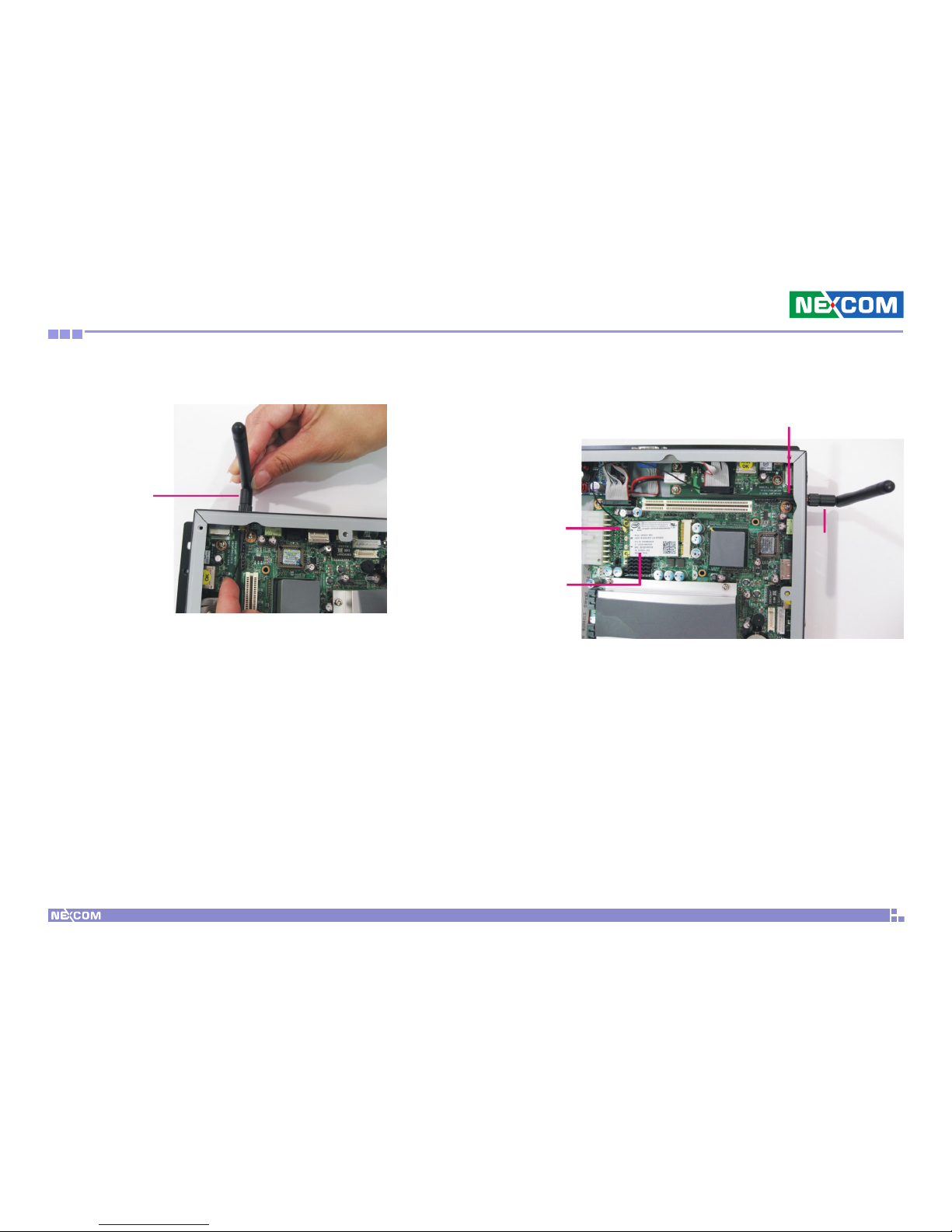

4. Now connect an external antenna to the WiFi antenna jack.

Antenna

5. The photo below shows the completed WiFi antenna setup.

RF cable attached to the WiFi antenna hole

RF cable

attached to

the WiFi

module

WiFi

module

Antenna

35

Chapter 3: System Setup

NDiS 162 User Manual

Replacing the Chassis Cover

1. Replace the chassis cover.

2. Secure the cover to the chassis using the screws you removed earlier.

Remove screw

36

Chapter 4: Driver Installation

NDiS 162 User Manual

Ch a P t e r 4: dr i v e r in s t a l l a t i o n

Microsoft .NET Framework 2.0

1. Insert the provided CD into a CD-ROM drive.

2. Double-click the Setup file to install the driver.

3. Setup is now ready to install the driver. Click Next.

4. Read the license agreement then click “I accept the terms of the License Agreement”. Click Install.

37

Chapter 4: Driver Installation

NDiS 162 User Manual

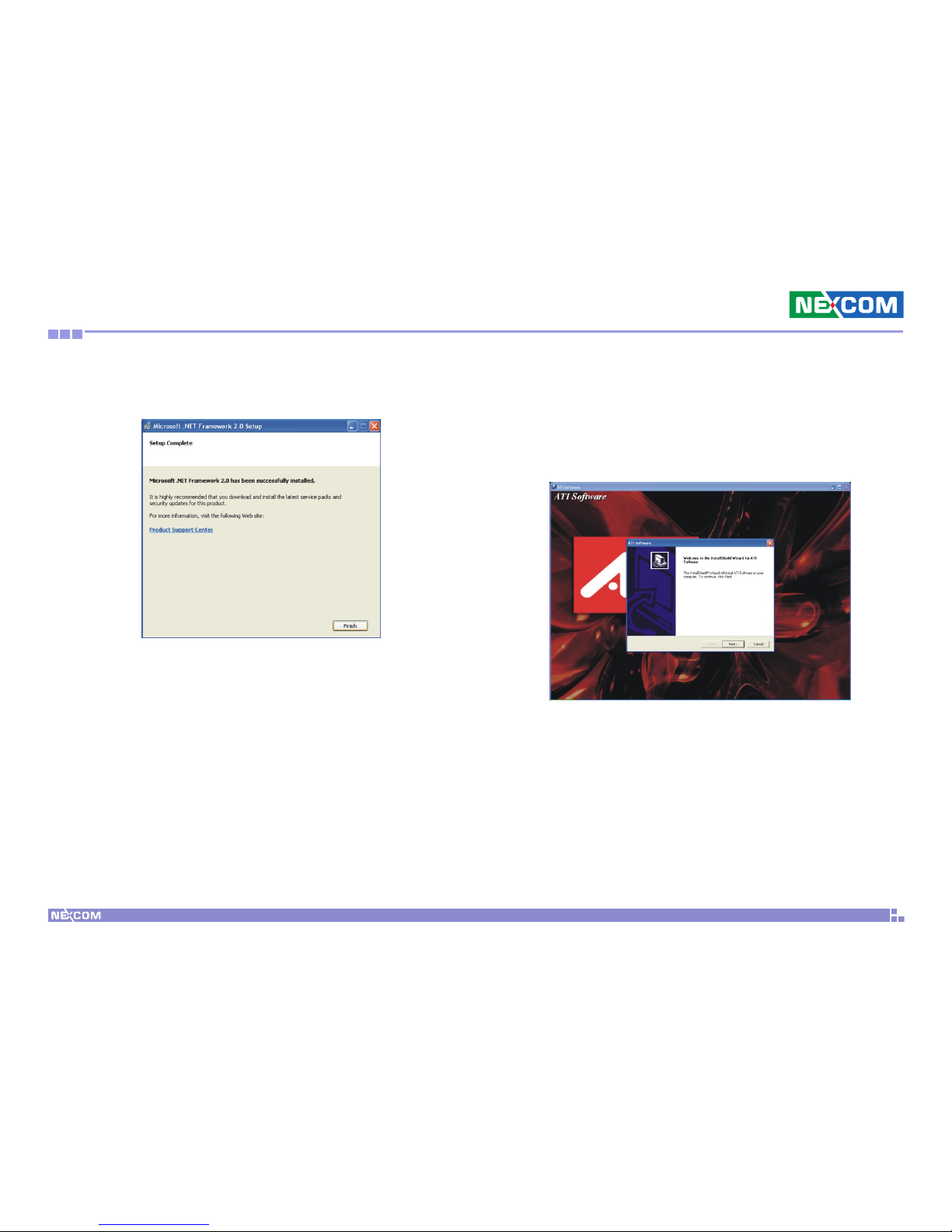

5. Follow the prompts on the screen to complete installation. After completing installation, click Finish.

ATI Display Driver

1. Insert the provided CD into a CD-ROM drive.

2. Double-click the Setup file to install the driver.

3. Setup is now ready to install the driver. Click Next.

38

Chapter 4: Driver Installation

NDiS 162 User Manual

4. Read the license agreement then click Yes. 5. Select the component you want to install then click Next.

39

Chapter 4: Driver Installation

NDiS 162 User Manual

6. The following dialog box will appear. Click “Continue Anyway”. 7. Setup has finished installing the selected components to your system.

Click “Yes, I want to restart my computer now” then click Finish. Restarting the system will allow the new driver installation to take effect.

40

Chapter 4: Driver Installation

NDiS 162 User Manual

Realtek LAN Driver

1. Insert the provided CD into a CD-ROM drive.

2. Double-click the Setup file to install the driver.

3. Setup is now ready to install the driver. Click Next.

4. Click Install to begin the installation.

41

Chapter 4: Driver Installation

NDiS 162 User Manual

5. After completing installation, click Finish to exit setup.

IDT Audio Driver

1. Insert the provided CD into a CD-ROM drive.

2. Double-click the Setup file to install the driver.

3. Setup is now ready to install the driver. Click Next.

42

Chapter 4: Driver Installation

NDiS 162 User Manual

4. The following dialog box will appear. Click “Continue Anyway”. 5. Setup has finished installing the driver. Click “Yes, I want to restart my

computer now” then click Finish. Restarting the system will allow the new driver installation to take effect.

43

NDiS 162 User Manual

Appendix A: Power Consumption

aP P e n d i x a: Po w e r Co n s u m P t i o n

Power Type +5V and 5VSB +3.3V +12V

Consumed watts 60.48 9.63 22.92

Consumed currents (Item A ) 12.1 1.96 1.91

Actually required currents (Item A/0.85 ) 14.24 2.31 2.24
