Nexcom (M)PPC-120T-BT-01, (M)PPC-080T-BT-01, (M)PPC-120T-BT-02 User Manual

NEXCOM International Co., Ltd.

Published June 2017

www.nexcom.com

Intelligent Platform & Services Business Unit

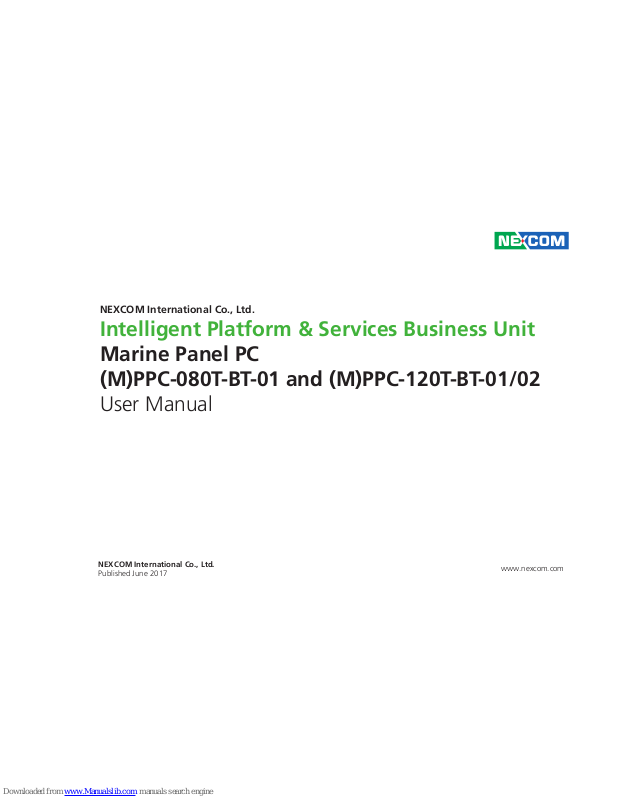

Marine Panel PC (M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02

User Manual

ii

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................. ix

Installation Recommendations ................................................................ ix

Safety Precautions ................................................................................... x

Technical Support and Assistance ........................................................... xi

Conventions Used in this Manual ........................................................... xi

Global Service Contact Information ........................................................xii

Package Contents .................................................................................xiv

Ordering Information .............................................................................xv

Chapter 1: Product Introduction

(M)PPC-080T-BT-01 .................................................................................1

(M)PPC-120T-BT-01/02 ............................................................................2

Specifications ..........................................................................................3

Knowing Your MPPC Series ..................................................................... 5

Rear ....................................................................................................5

Rear Bottom ........................................................................................6

Mechanical Dimensions ...........................................................................7

(M)PPC-080T-BT-01 ..............................................................................7

(M)PPC-120T-BT-01/02 .........................................................................8

Chapter 2: Jumpers and Connectors

Before You Begin .................................................................................... 9

Precautions ............................................................................................9

Jumper Settings ....................................................................................10

Locations of the Jumpers and Connectors .............................................11

Top View ........................................................................................... 11

Bottom View ..................................................................................... 12

Jumpers and DIP Switch Settings ...........................................................13

RTC Clear Select .............................................................................13

PWN Mode Power Select ................................................................13

AT/ATX Power Select ...................................................................... 14

Connector Pin Definitions .....................................................................15

External I/O Interfaces ........................................................................ 15

USB 2.0 Port ..................................................................................15

USB 3.0 Port ..................................................................................15

LAN1 to LAN2 Ports .......................................................................16

LAN3 to LAN4 Ports .......................................................................17

Mini DisplayPort .............................................................................18

Serial Console Port .........................................................................18

Internal Connectors ........................................................................... 19

EC Download Pin Header ...............................................................19

Debug Port ....................................................................................19

LVDS Connector ............................................................................. 20

iii

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Content

PWR/HDD LED Connector ..............................................................20

USB Connector ..............................................................................21

Light Sensor Connector ..................................................................22

Power In Connector .......................................................................22

PWRBT/RESET/Dimming Control Connector ....................................23

FAN Connector ..............................................................................23

SATA Connector .............................................................................24

SATA Power Connector .................................................................. 24

LVDS Inverter Connector ................................................................ 25

Battery Connector ..........................................................................25

PCIe M.2 Slot .................................................................................26

Block Diagram ......................................................................................27

Chapter 3: System Setup

Installing a SATA M.2 Module .............................................................. 28

Installing a SO-DIMM Memory Module .................................................31

Installing a SATA Hard Drive .................................................................. 34

Installing the Fan ...................................................................................38

Flush Mounting .....................................................................................41

VESA Mounting ....................................................................................42

Chapter 4: BIOS Setup

About BIOS Setup .................................................................................43

When to Configure the BIOS .................................................................43

Default Configuration ...........................................................................44

Entering Setup ......................................................................................44

Legends ................................................................................................44

BIOS Setup Utility ..................................................................................46

Main .................................................................................................46

Advanced .........................................................................................47

Chipset ..............................................................................................53

Security .............................................................................................55

Boot ..................................................................................................55

Save & Exit ........................................................................................56

Appendix A: Power Consumption ........................57

Appendix B: Watchdog

1.1 Command Register and Address Description: .................................58

1.2 Set up Watchdog Time Interval Description: ...................................58

1.3 Read Watchdog Time Interval Description: .....................................59

1.4 Reset Watchdog Time Interval Description: .....................................59

1.5 Start Watchdog Description: ..........................................................60

1.6 Stop Watchdog Description:...........................................................60

iv

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 are trademarks of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

v

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

vi

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

1. NEXCOM makes products in accordance with the Industry standard and,

NEXCOM warrants that all the Industry-grade IPC and System products will be free from defect in neither material nor workmanship for twentyfour (24) months from the day of invoice issued.

2. For NEXCOM Panel PC product lines (the APPC, MPPC series), they are

also guaranteed against defect in materials and workmanship for the period of twenty-four (24) months in their motherboard design. For 3rd party parts, it follows with original suppliers’ standard: 12 months for battery pack and LCD, 24 months for adaptor / add on modules (including GSM module, RFID module, and antenna).

3. If NEXCOM determines customer’s warranty claim is valid, NEXCOM

will repair or replace product(s) without additional charge for parts and labor. An extended Warranty Program will extend the warranty period of the product accordingly.

Warranty Coverage

The warranty applies only to products manufactured or distributed by NEXCOM and its subsidiaries. This warranty covers all the products/ shipments except for:

1. Any claimed defect, products that have been repaired or modified by

persons who have not been authorized by NEXCOM or, products which have been subjected to misuse, abuse, accident, improper installation, or usage not in accordance with the product instruction. NEXCOM assumes no liability as a consequence of such events under the term of this warranty.

One example is the replacement of Tablet’s or Hand-held’s LCD display

due to scratching stains or other degradation; these will not be covered under this warranty.

2. Damages caused by customers’ delivery/shipping of the product or, product failure resulted from electrical power/voltage shock, or, installation of parts/components which are not supplied/approved by NEXCOM in advance.

3. Third-party products:

a. Software, such as the device drivers,

b. External devices such as HDD, printer, scanner, mouse, LCD panel,

battery, and so on,

c. Accessory/parts that were not approved by NEXCOM and,

d. Accessory/parts were added to products after they were shipped

from NEXCOM.

Product will be treated as “Out of Warranty “ if:

a. It expires the warranted 24 months period from the day it was purchased.

b. It had been altered by persons other than an authorized NEXCOM

service person or, which have been subjected to misuse, abuse, accident, or improper installation.

c. It doesn’t have the original NEXCOM Serial Number labeling for

NEXCOM’s warranty period identification or, tracking.

vii

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Preface

RMA that NEXCOM has determined not to be covered by the warranty will be charged the NEXCOM Standard Repair Fee for the repairing. If a RMA is determined to be not repairable, customer will be notified and product(s) may be returned to customer at their request; a minimum service fee may be charged however.

NEXCOM Return Merchandise Authorization (RMA) Procedure

For the RMA (Return Merchandise Authorization) shipment, customer is responsible for packaging and shipping the product to the designated NEXCOM service sites, with shipping charges prepaid by the customer. The original NEXCOM shipping box should be used whenever possible. NEXCOM shall pay for the return of the product to the customer’s location. In case of expedited shipping request, an extra service charge shall be assessed and the customer is responsible for this extra return shipping charge.

1. Customers should enclose the “NEXCOM RMA Service Form” with the returned products.

2. Customers need to write down all the information related to the problem on the “ NEXCOM RMA Service Form “ when applying for the RMA service; information will help to understand the problem, including the fault description, on-screen messages, and pictures if possible.

3. Customers could send back the faulty product with or without the accessories and key parts such as the CPU and DIMM. If the key parts are included, please be noted clearly within the return form. NEXCOM takes no responsibility for the parts which are not listed in the return form.

4. Customers hold the responsibility to ensure that the packing of defective products is durable enough to be resistant against further damage due to the transportation; damage caused by transportation is treated as “ Out of Warranty “ under our Warranty specification.

5. RMA product(s) returned by NEXCOM to any location other than the

customer registered delivery address will incur an extra shipping charge, the customer is responsible for paying the extra shipping charges, duties, and taxes of this shipment.

Product Repairing

1. NEXCOM will repair defective products covered under this limited warranty that are returned to NEXCOM; if products do prove to be defective, they will be repaired during their warranty period unless other warranty terms have been specified.

2. NEXCOM owns all parts removed from repaired products.

3. NEXCOM will use parts made by various manufacturers in performing the repair.

4. The repaired products will be warranted subjected to the original warranty coverage and period only.

5. For products returned as defective but, proved to be no defect/fault after the RMA process, NEXCOM reserves the right to claim for a NDF (No Defect Found) Service Charge.

6. NEXCOM will issue RMA Report which included Repair Detailed Information to the customer when the defective products were repaired and returned.

7. In addition to the above, NEXCOM may authorize Independent/Thirdparty suppliers to repair the defective products for NEXCOM.

viii

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Preface

Out Of Warranty Service

There will be a service charge from NEXCOM for the “Out Of Warranty” product service; they are the Basic Diagnostic Service Fee and the Advanced Component Replacement Fee respectively. And, if the product can not be repaired, NEXCOM will either return the product to the customer or, just scrap it, followed by customer’s instruction.

1. Testing and Parts Replacement

NEXCOM will have the following Handling Charges for those OoW

products that returned:

a. Basic Labor Cost and Testing Fee: as Table listed.

b. Parts Fee: NEXCOM will charge for main IC chipsets such as the N.B.,

S.B., Super-IO, LAN, Sound, Memory, and so on.

c. 3rd-party Device Fee: products replacement for CPU, DIMM, HDD,

Chassis, and UPS.

2. Out of Warranty product will have a three months warranty for the fixed issues. If the product failed with different problem within 3 months, they will still incur the service charge of “Out of Warranty”.

3. Out of Warranty “products will not be repaired without a signed PI from the customer, the agreement of the repair process.

Add-on card, 3rd Party Device and board level repair cost higher than

new product prices, customer can abandon to sign PI to repair and, please contact with sales to buy new products.

ix

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Preface

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

x

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

xi

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

xii

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

9F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

China

NEXCOM China

Floor 5, No.4, No.7 fengxian middle Rd., (Beike Industrial Park), Haidian District, Beijing, 100094, China Tel: +86-10-5704-2680 Fax: +86-10-5704-2681 Email: [email protected] www.nexcom.cn

xiii

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Preface

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Lanino 42, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625 570 Email: [email protected] www.nexcomitalia.it

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXCOM Surveillance Technology Corp.

Room202, Building B, the GuangMing Industrial Zone Zhonghua Rd., Minzhi Street, Longhua District, Shenzhen 518131, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: [email protected] www.nexcom.cn

NEXCOM United System Service

Hui Yin Ming Zun Building Room 1108, Building No. 11, 599 Yunling Road, Putuo District, Shanghai, 200062, China Tel: +86-21-6125-8282 Fax: +86-21-6125-8281 Email: [email protected] www.nexcom.cn

xiv

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Preface

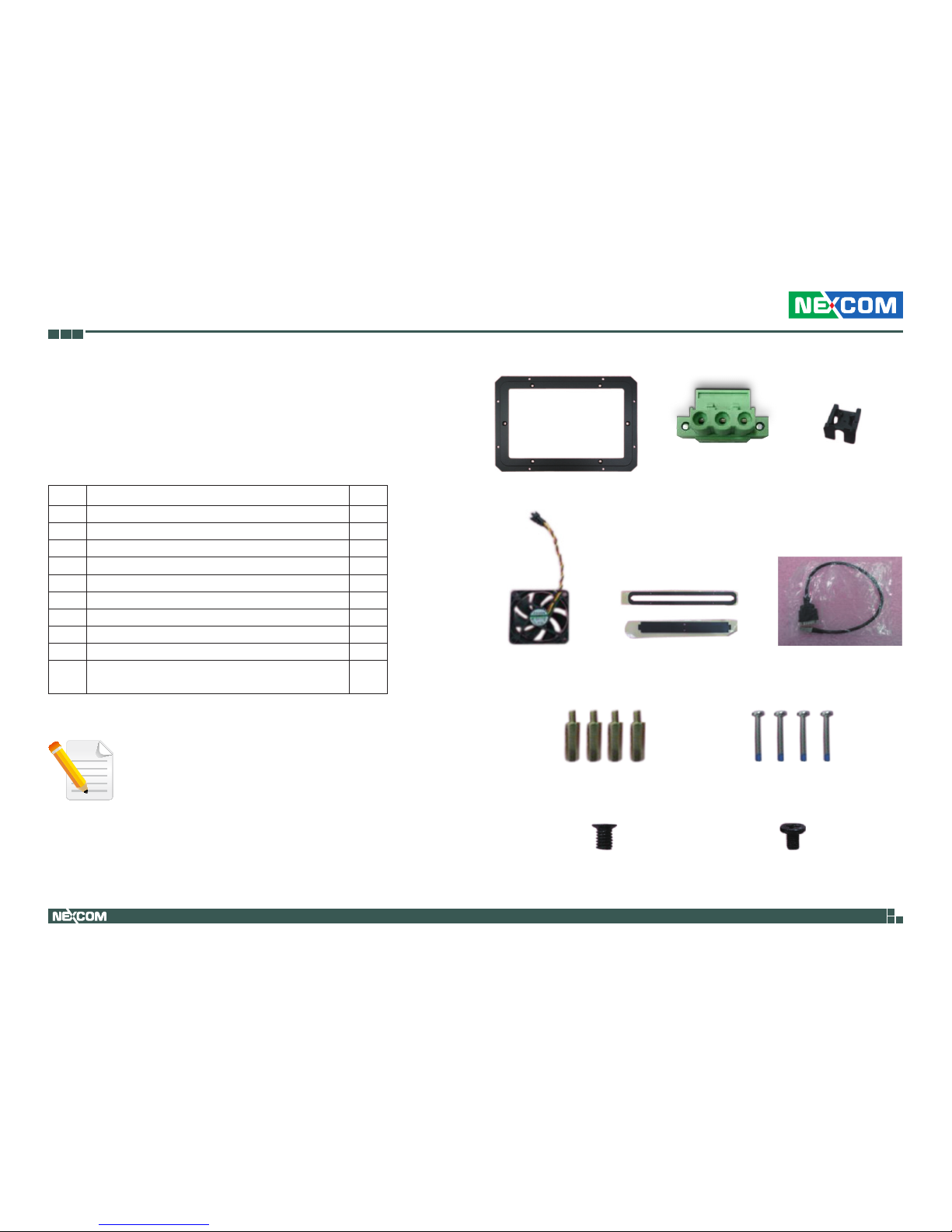

Package Contents

Before continuing, verify that the package you received is complete. Your package should have all the items listed in the table.

Item Description Qty

1 Flush Mount Bracket 1 2 Terminal Block 3-pin Phoenix Contact Plug 1 3 Cable Strain Relief 3 4 Fan 1 5 Sponge for Flush Mount Bracket 1 Set 6 COM Port Cable 1 7 Copper Pillar (Used for fan) 4 8 Flat Head Screw 6 9 Round Head Screw (Used for fan) 4

10

I Head Screw (Used for HDD) ***Only for (M)PPC-120T-BT-01/02***

4

(M)PPC-080T-BT-01 / (M)PPC-120T-BT-01 / (M)PPC-120T-BT-02

Note: Package contents may vary depending on your country region, some items may be optional. Please contact your local distributor for more information.

Flush Mount Bracket

Flat Head Screw

I Head Screw

[Only for (M)PPC-120T-BT-01/02]

Round Head ScrewCopper Pillar

Fan

Cable Strain Relief

Terminal Block

3-pin Phoenix

Contact Plug

Sponge for Flush

Mount Bracket/Set

COM Port Cable

xv

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Preface

Ordering Information

The following information below provides ordering information for the Marine Panel PC series.

Barebone

• PPC-080T-BT-01 (P/N: 10M20080T00X0)

8” WVGA LED backlight touch panel PC, Intel Atom

®

E3845 1.91GHz, touch screen, 4GB DDR3L, 128G M.2 SATA, 1x RJ45 output for RS232/422/485, brightness adjustment buttons

• PPC-120T-BT-01 (P/N: 10M20120T00X0)

12” WXGA LED backlight touch panel PC, Intel Atom

®

E3845 1.91GHz, touch screen, 4GB DDR3L, 128G M.2 SATA, 1x RJ45 output for RS232/422/485, brightness adjustment buttons

• PPC-120T-BT-02 (P/N: 10M20120T01X0)

12” WXGA LED backlight touch panel PC, Intel Atom

®

E3845 1.91GHz, touch screen, 2GB DDR3L, 32G M.2 SATA, 1x RJ45 output for RS232/422/485, brightness adjustment buttons

1

Chapter 1: Product Introduction

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

ChaPter 1: ProduCt IntroduCtIon

Key Features

▪ 16:9 8” WVGA marine panel computer

▪ Intel Atom

®

E3845, Quad Core, 1.91GHz

▪ 8” PCAP touch screen with AR coating

▪ 4 Gigabit EtherNet/mini DisplayPort for external monitor

▪ 1 USB 2.0, 1 USB 3.0

▪ 1 RJ45 output for RS232/422/485

▪ DDR3L 4GB/ M.2 SATA 128GB

▪ IP65 compliant front panel

▪ Built in 24VDC power input

▪ Mounting support: flush/VESA 75mm x 75mm

▪ IEC-60945 maritime standards compliance

(M)PPC-080T-BT-01

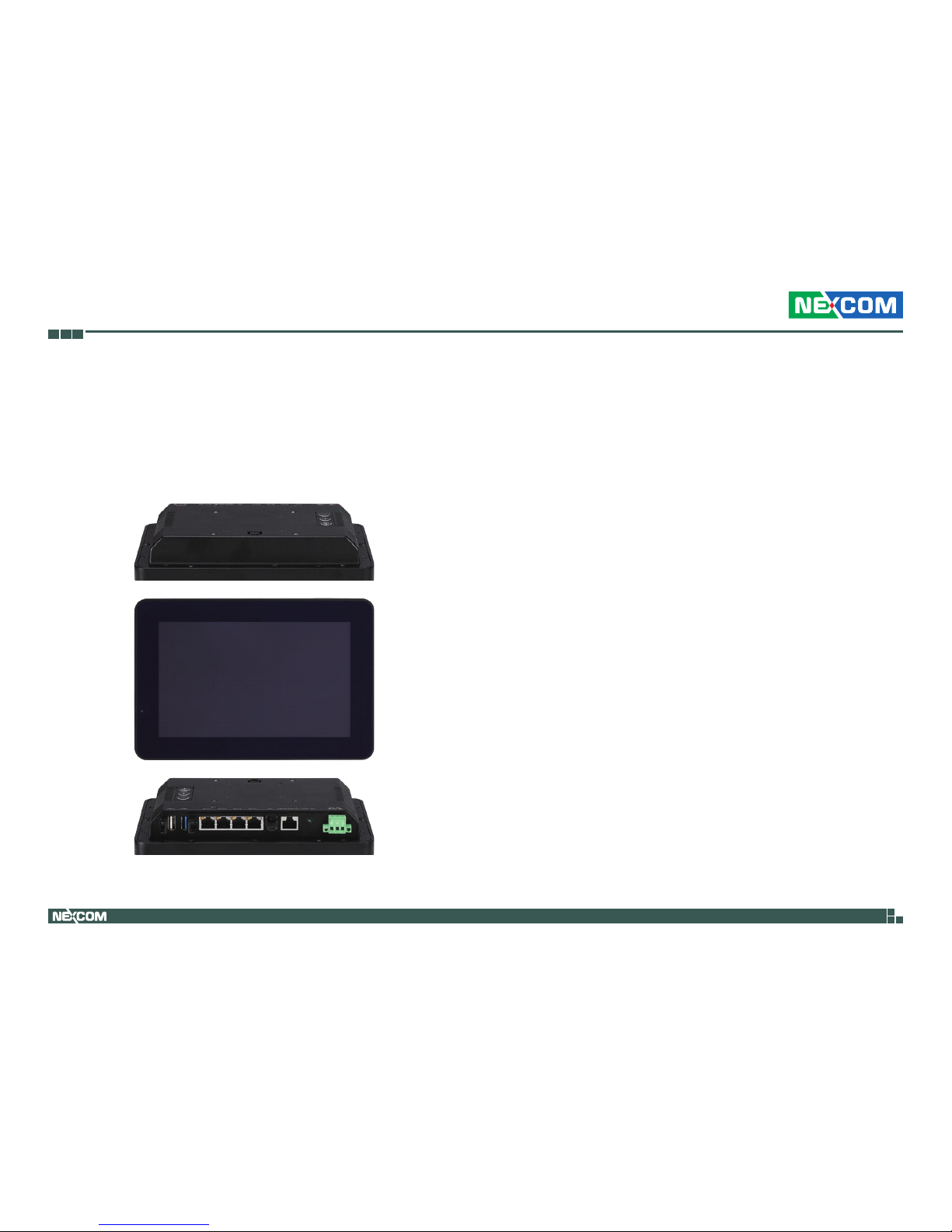

Overview

2

Chapter 1: Product Introduction

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Key Features

▪ 16:9 12” WXGA marine panel computer

▪ Intel Atom

®

E3845, Quad Core, 1.91GHz

▪ 12” PCAP touch screen with AR coating

▪ 4 Gigabit EtherNet/mini DisplayPort for external monitor

▪ 1 USB 2.0, 1 USB 3.0

▪ 1 RJ45 output for RS232/422/485

▪ DDR3L memory/M.2 SATA storage

▪ 1 swappable SSD Tray for 2.5” SSD

▪ IP65 compliant front panel

▪ Built-in 24VDC power input

▪ Mounting support: flush/VESA 75mm x 75mm

▪ IEC-60945 maritime standards compliance

(M)PPC-120T-BT-01/02

Overview

3

Chapter 1: Product Introduction

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Specifications

Panel

(M)PPC-080T-BT-01

▪ LED size: 8”, 16:9 ▪ Resolution: WVGA 800 x 480 ▪ Luminance: 600cd/m

2

▪ Contrast ratio: 600 ▪ LCD color: 16.2M ▪ Viewing angle: 60(U), 60(D), 70(L), 70(R) ▪ Backlight: LED

(M)PPC-120T-BT-01/02

▪ LED size: 12”, 16:9 ▪ Resolution: WXGA 1280 x 800 ▪ Luminance: 500cd/m

2

▪ Contrast ratio: 1000 ▪ LCD color: 16.2M ▪ Viewing angle: 88(U), 88(D), 88(L), 88(R) ▪ Backlight: LED

Touch Screen

▪ Projected capacitive (flush panel type) ▪ Light transmission: 89% ▪ Interface: USB ▪ With AR coating

System

▪ CPU: onboard Intel Atom® processor E3845, 1.91 GHz, 2M L2 Cache ▪ BIOS AMI BIOS

▪ System memory

– PPC-080T-BT-01: 1x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L

(default), support up to 4GB DDR3L-1067/1333, non-ECC and unbuffered

– PPC-120T-BT-01: 1x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L

(default), support up to 4GB DDR3L-1067/1333, non-ECC and unbuffered

– PPC-120T-BT-02: 1x 204-pin DDR3L SO-DIMM socket, 2GB DDR3L

(default), support up to 4GB DDR3L-1067/1333, non-ECC and unbuffered

▪ Storage Device:

– PPC-080T-BT-01: 1x SATA connector, support SATA 3Gb/s and SATA 6Gb/s 1x SATA M.2 connector, 128G M.2 SATA (default)

– PPC-120T-BT-01: 1x SATA M.2 connector, 128G M.2 SATA (default) 1x SATA connector, support SATA 3Gb/s and SATA 6Gb/s 1x swappable SSD tray for 2.5” SSD

– PPC-120T-BT-02: 1x SATA M.2 connector, 32G M.2 SATA (default) 1x SATA connector, support SATA 3Gb/s and SATA 6Gb/s 1x swappable SSD tray for 2.5” SSD

▪ Graphics: Intel

®

HD Graphics

▪ Watchdog timer: Watchdog timeout can be programmed by software

from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)

▪ H/W status monitor: monitoring system temperature, and voltage

4

Chapter 1: Product Introduction

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

▪ Backlight control

– Control button: increase brightness, decrease brightness, backlight

on/off – Auto dimming function can be adjusted by ambient light sensor – Panel backlight can be controlled by software with 45 steps, dimming

range from 0% to 100%

Rear I/O

▪ EtherNet: 4x RJ45 ▪ 2nd DisplayPort: 1x mini DisplayPort ▪ USB: 1x USB 2.0, 1x USB 3.0 ▪ COM #1: 1x RJ45 output for RS232/422/485 ▪ Power status LED ▪ DC power input connector: 3-pin Phoenix terminal blocks

Ethernet

▪ LAN chip: 4x Intel® I210-IT Gigabit LAN ▪ EtherNet interface: 10/100/1000 Mbps ▪ Support wake up on LAN

Power Requirements

▪ Input voltage: 24VDC ▪ Reverse polarity protection ▪ Galvanic isolated ▪ Power consumption:

– PPC-080T-BT-01: 13W to 25W – PPC-120T-BT-01/02: 22W to 30W

Mechanical & Environment

▪ Fanless system design

▪ Color

– Pantone black RAL9005, powder painting for aluminum front bezel – Pantone black RAL9005 for backlight button membrane

▪ IP protection

– IP65 front bezel

– IP20 back system ▪ Mounting: flush/VESA 75mm x 75mm ▪ Vibration

– 1.15Grms @ random condition, 1~200Hz, 1.5hr/axis (operating/non-

operating)

▪ Shock

– IEC 68 2-27

– 20G @ wall mount, half sine, 11ms ▪ Operating temperature: -25°C to 70°C ▪ Storage temperature: -25°C to 75°C ▪ Operating humidity: 10%~90% relative humidity, non-condensing ▪ Dimension:

– PPC-080T-BT-01: 218.5 x 147.5 x 39.5 mm – PPC-120T-BT-01/02: 307.5 x 209 x 39.9 mm

▪ Weight:

– PPC-080T-BT-01: 3KG – PPC-120T-BT-01/02: 5KG

Certifications

▪ CE approval ▪ FCC Class A ▪ IEC-60945 maritime standards compliance

5

Chapter 1: Product Introduction

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

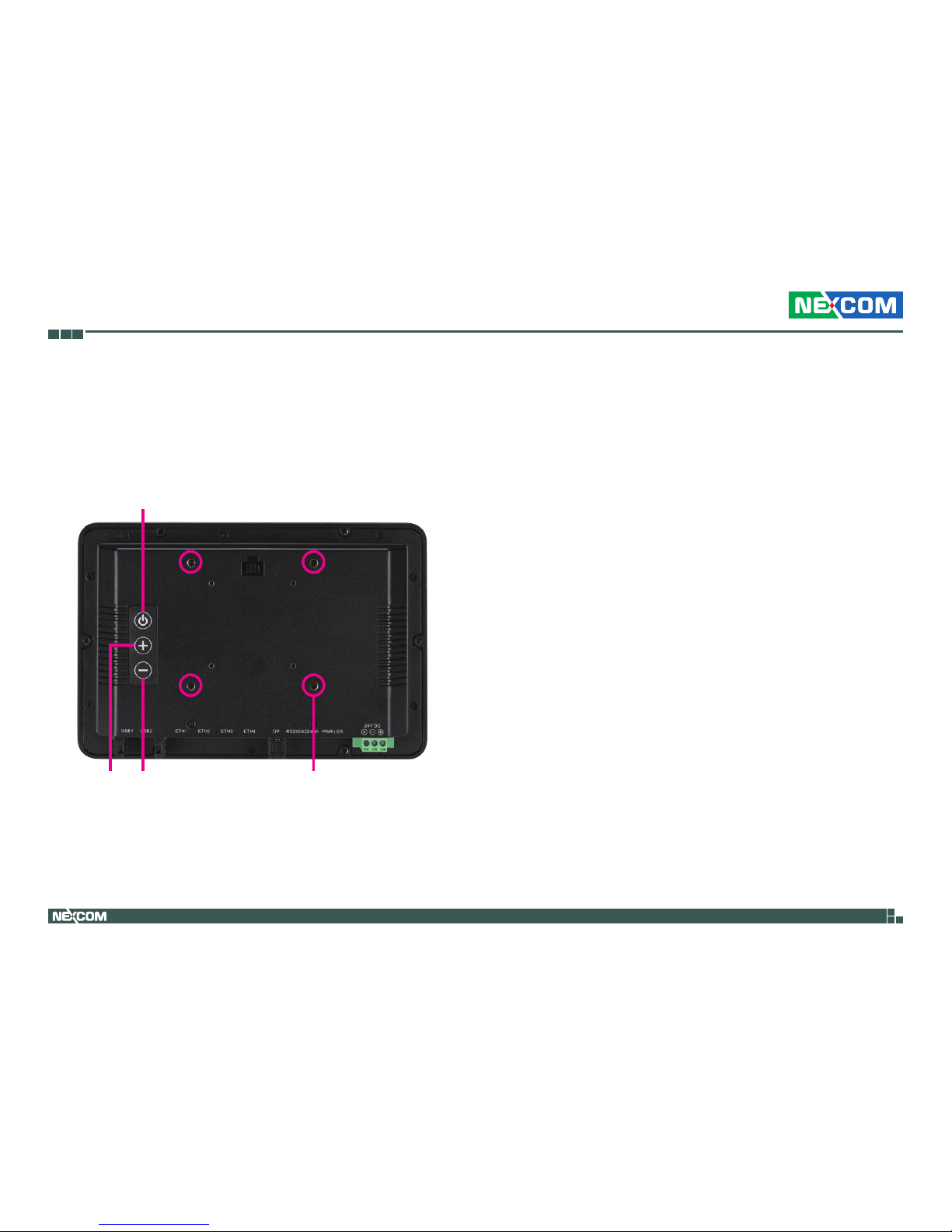

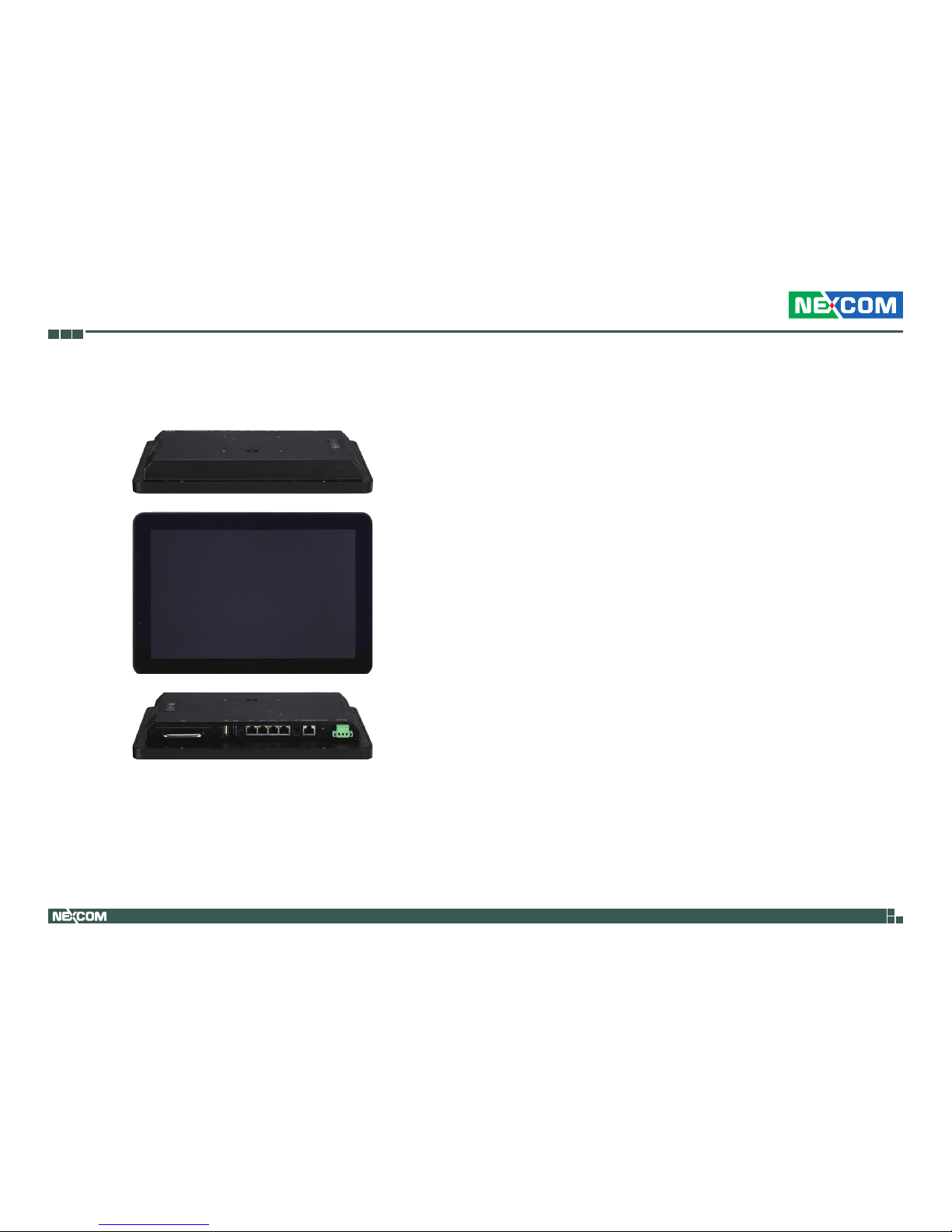

Knowing Your MPPC Series

Rear

Backlight On/Off

Press to turn-on or turn-off the display.

Increase Brightness

Press to increase brightness of the screen.

Decrease Brightness

Press to decrease brightness of the screen.

VESA Mounting Holes

Mounting holes used for VESA mount installation (75 x 75mm).

Decrease Brightness

Increase

Brightness

Backlight On/Off

VESA

Mounting Holes

6

Chapter 1: Product Introduction

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Rear Bottom

2.5” Storage Drive Tray

USB 2.0

USB 3.0

MiniDP

MiniDPUSB 3.0

LAN 1 to LAN 4

Ports

Power LED

LAN 1 to LAN 4

Ports

RJ45 Type Console

Serial Port

24V

DC Input

(M)PPC-080T-BT-01

(M)PPC-120T-BT-01/02

RJ45 Type Console

Serial Port

Power LED

24V

DC Input

2.5” Storage Drive Tray [For (M)PPC-120T-BT-01/02]

Removable storage drive tray used to install a 2.5” HDD/SSD.

USB 2.0

Used to connect the system with USB 2.0/1.1 devices.

USB 3.0

Used to connect the system with USB 3.0/2.0 devices.

LAN 1 to LAN 4 Ports

Used to connect the system to a local area network.

Mini DisplayPort

Used to connect a Mini DisplayPort interface monitor.

RJ45 Type Console Serial Port

Used to connect console devices with RJ45 type connection.

Power LED

Indicates the power status of the system.

24V DC Input

Used to plug a DC power cord.

7

Chapter 1: Product Introduction

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

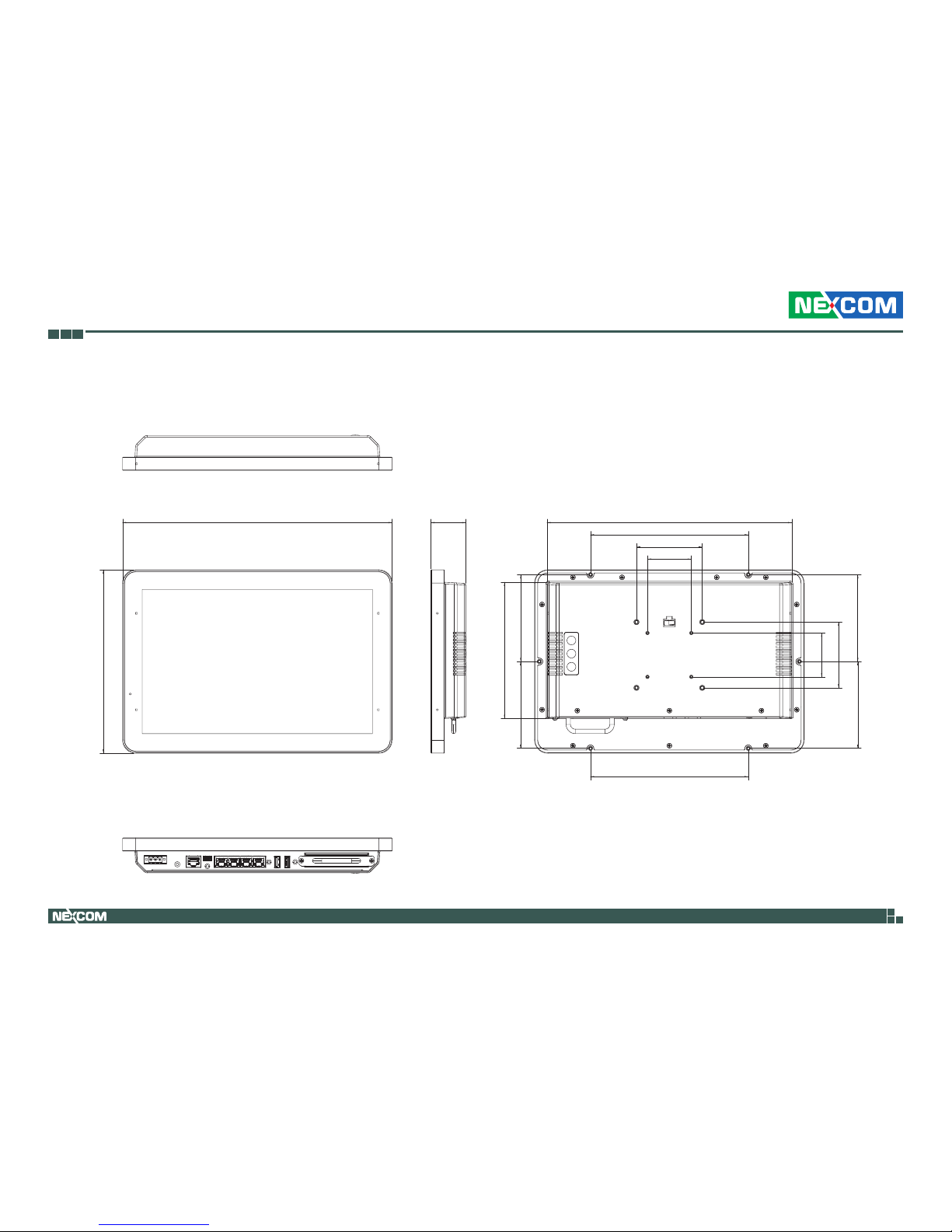

Mechanical Dimensions

147.50

218.50 39.50 191.35

68.25

75.00

50.00

68.25

115.00

75.00

50.00

68.25

117.53

(M)PPC-080T-BT-01

8

Chapter 1: Product Introduction

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

(M)PPC-120T-BT-01/02

209.00

307.50 39.90 279.14

99.00

75.00

50.00

99.00

155.32

180.00

75.00

50.00

99.00

9

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers and connectors on the motherboard. Note that information in this chapter applies to the (M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 series.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic

components. Humid environments tend to have less static electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation. Use correct screws and do not over tighten screws.

10

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

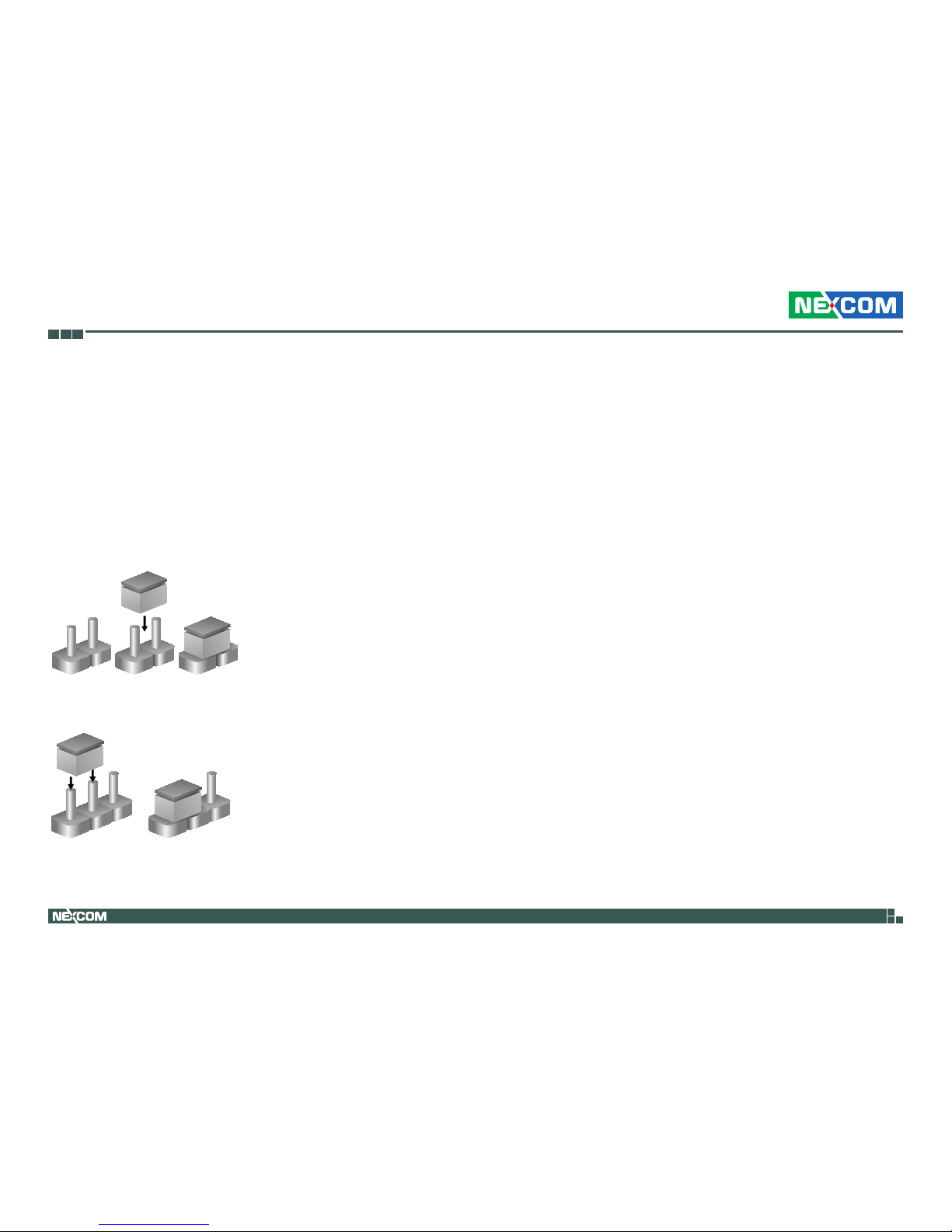

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

1

2

3

1

2

3

11

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

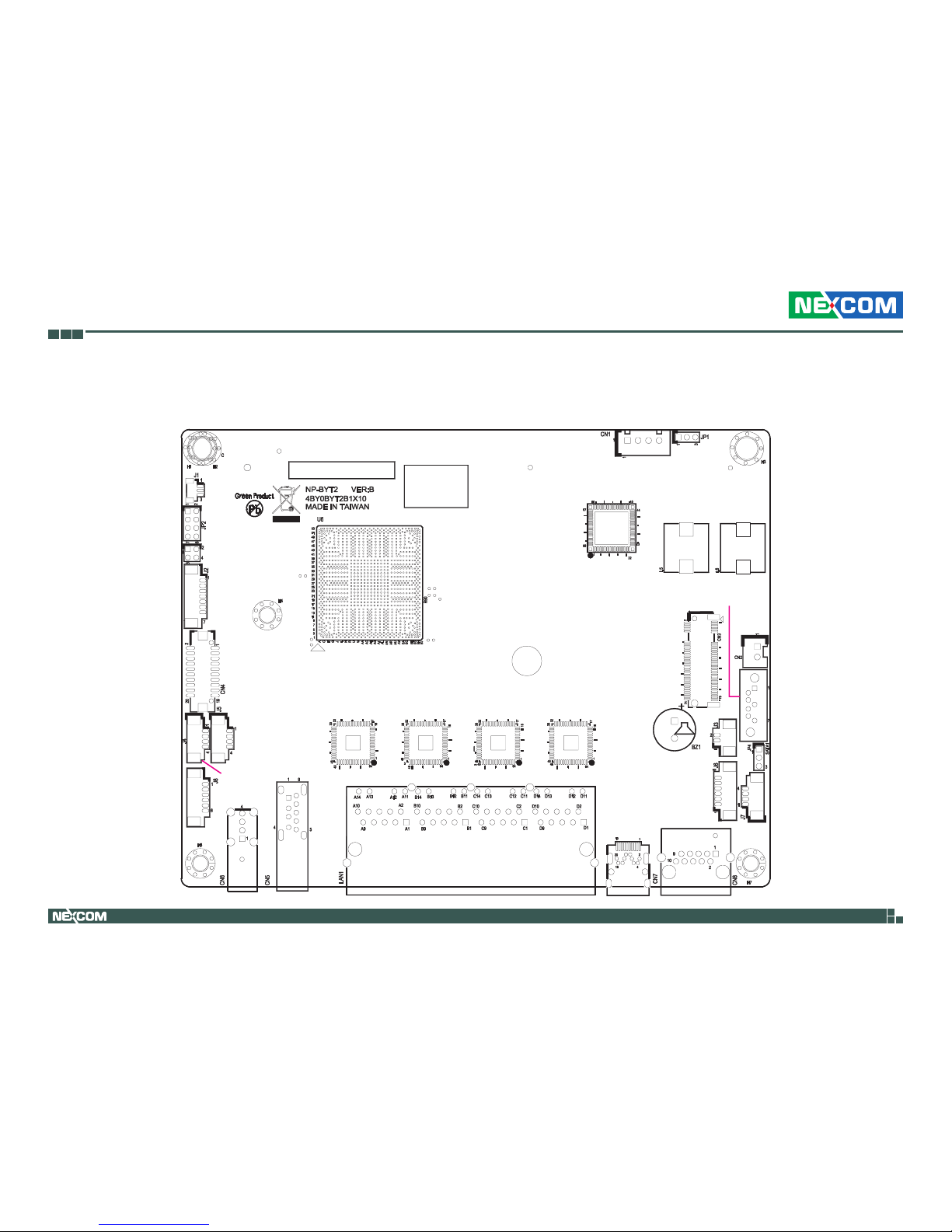

Locations of the Jumpers and Connectors

Top View

LAN1CN5CN6

J8

J5

CN4

J2

JP3

CN1

CN2

CN3

J6

CN7

CN8

J3

J7

JP4

SATA1

JP1

J1

J4

12

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

J9

J10

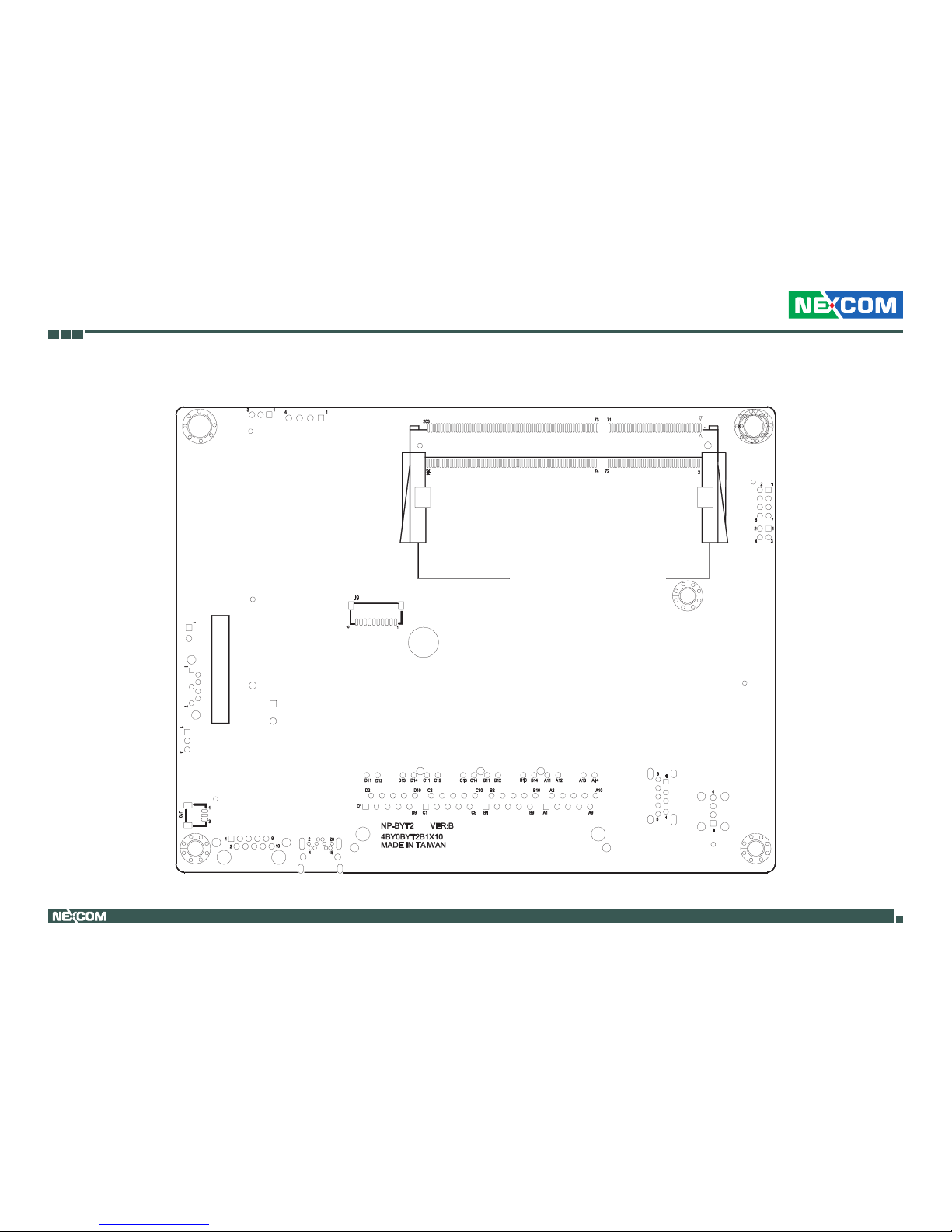

Bottom View

13

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

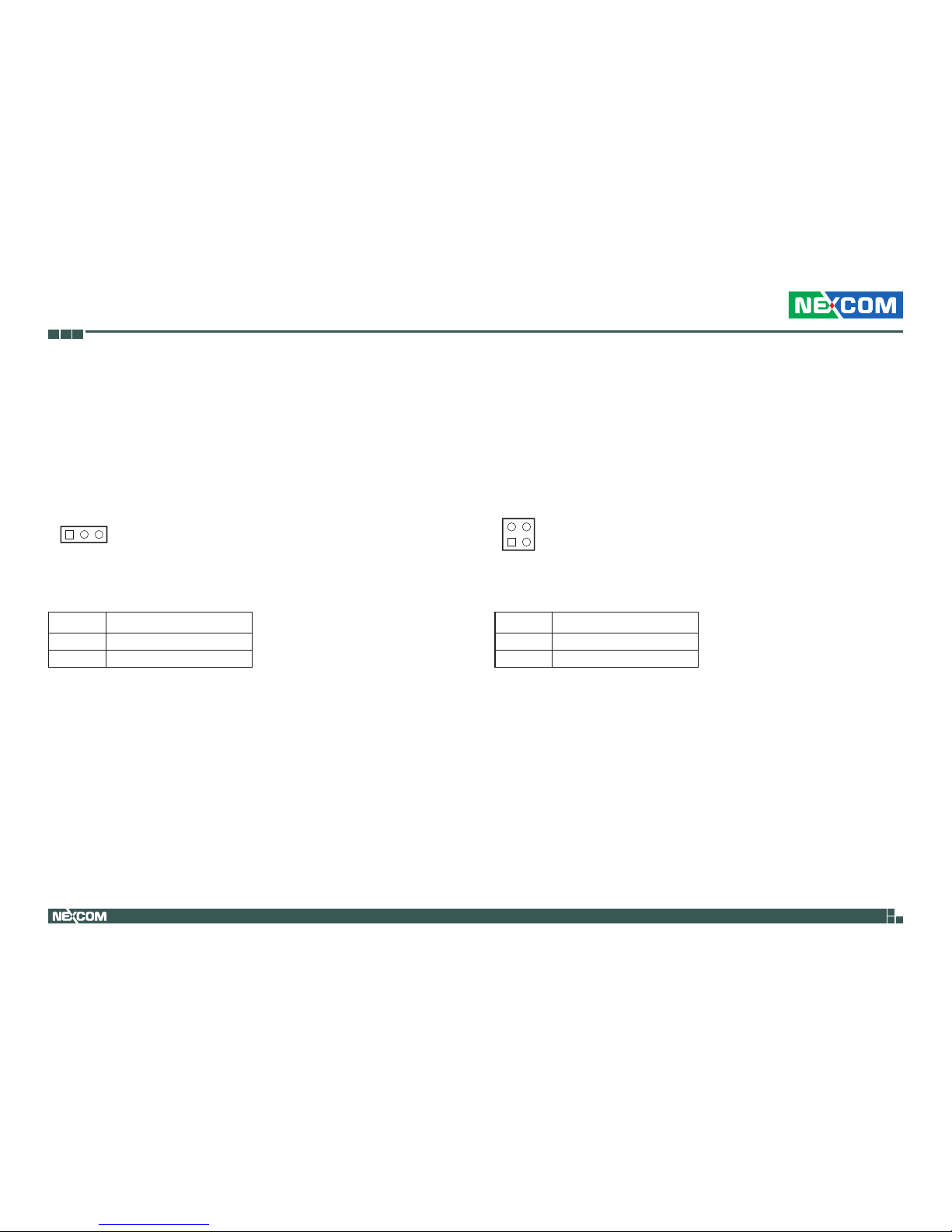

Jumpers and DIP Switch Settings

RTC Clear Select

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JP4

Pin Settings

1-2 On Normal 2-3 On RTC Clear

1-2 On: default

1 3

PWN Mode Power Select

Connector type: 2x2 4-pin header, 2.0mm pitch Connector location: JP3

Pin Settings

1-2 On VCC3 3-4 On VCC5

1-2 On: default

34

12

14

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

AT/ATX Power Select

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JP1

Pin Settings

1-2 On AT Mode 2-3 On ATX Mode

2-3 On: default

Pin Definition

1 AUTO (AT MODE) 2 PWRBT In 3 Manual (ATX MODE)

1 3

15

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

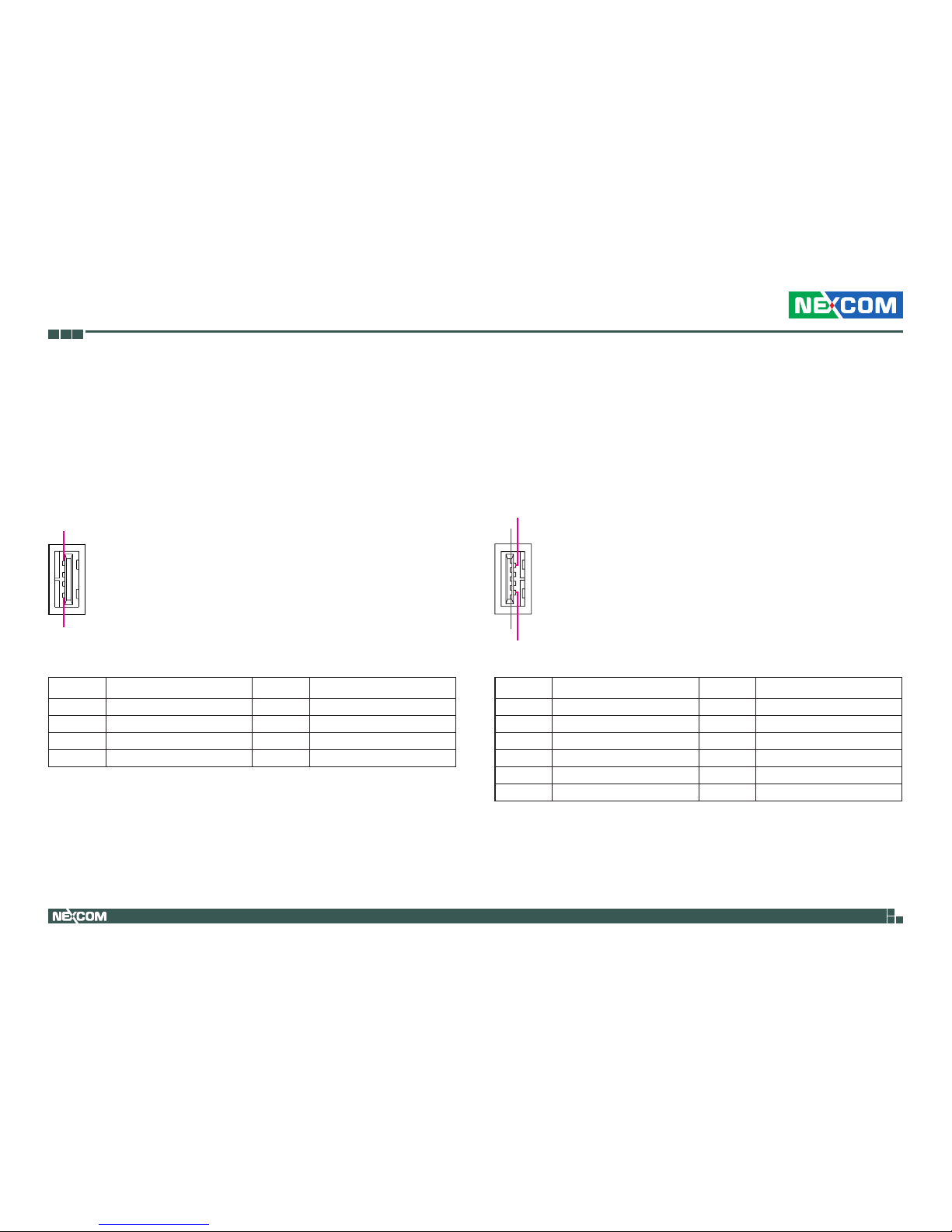

USB 2.0 Port

Connector type: USB 2.0 port, Type A Connector location: CN6

Pin Definition Pin Definition

1 5V 2 USB1N

3 USB1P 4 GND MH1 CHASSIS_GND MH2 CHASSIS_GND MH3 CHASSIS_GND

Pin Definition Pin Definition

1 5V 2 USB0N 3 USB0P 4 GND 5 USB3_RX0N 6 USB3_RX0P 7 GND 8 USB3_TX0N 9 USB3_TX0P MH1 CHASSIS_GND

MH2 CHASSIS_GND

USB 3.0 Port

Connector type: USB 3.0 port, Type A Connector location: CN5

4

1

4

1

9

5

16

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

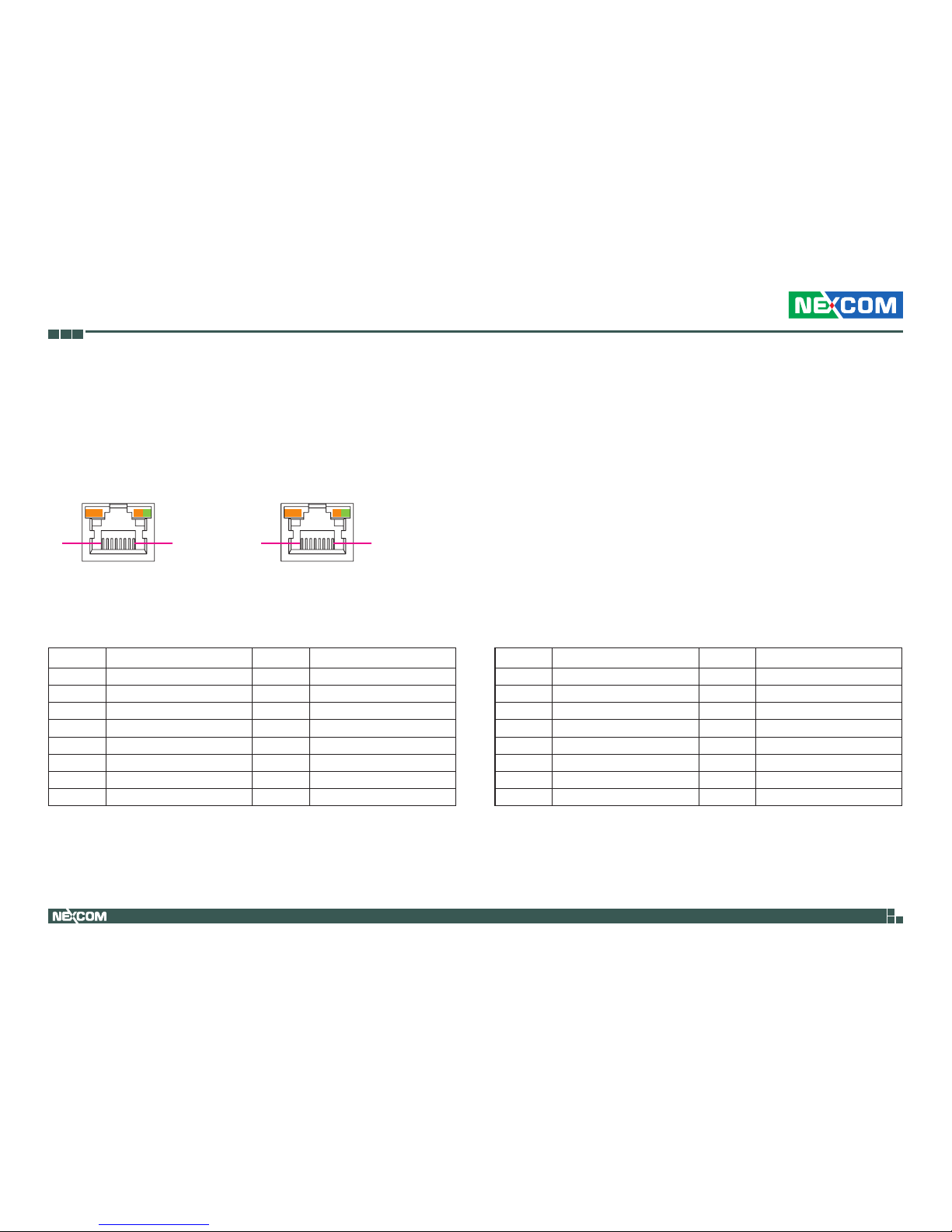

LAN1 to LAN2 Ports

Connector type: RJ45 port with LEDs Connector location: LAN1

ACT LINK

A8 A1

ACT LINK

B8 B1

LAN1

Pin Definition Pin Definition

A1 LAN1_MDI0P A2 LAN1_MDI0N A3 LAN1_MDI1P A4 LAN1_MDI1N A5 LAN1_TCTG A6 LAN1_TCT A7 LAN1_MDI2P A8 LAN1_MDI2N

A9 LAN1_MDI3P A10 LAN1_MDI3N A11 LAN1_LEDACT# A12 3VSB A13 LAN1_LINK1G# A14 LAN1_LINK100#

MH1 CHASSIS_GND NH1 CHASSIS_GND

LAN2

Pin Definition Pin Definition

B1 LAN2_MDI0P B2 LAN2_MDI0N B3 LAN2_MDI1P B4 LAN2_MDI1N B5 LAN2_TCTG B6 LAN2_TCT B7 LAN2_MDI2P B8 LAN2_MDI2N

B9 LAN2_MDI3P B10 LAN2_MDI3N B11 LAN2_LEDACT# B12 3VSB B13 LAN2_LINK1G# B14 LAN2_LINK100#

MH2 CHASSIS_GND NH2 CHASSIS_GND

LAN1

LAN2

17

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

LAN3 to LAN4 Ports

Connector type: RJ45 port with LEDs Connector location: LAN1

ACT LINK

C8 C1

ACT LINK

D8 D1

LAN3

Pin Definition Pin Definition

C1 LAN3_MDI0P C2 LAN3_MDI0N C3 LAN3_MDI1P C4 LAN3_MDI1N C5 LAN3_TCTG C6 LAN3_TCT C7 LAN3_MDI2P C8 LAN3_MDI2N

C9 LAN3_MDI3P C10 LAN3_MDI3N C11 LAN3_LEDACT# C12 3VSB C13 LAN3_LINK1G# C14 LAN3_LINK100#

MH3 CHASSIS_GND

LAN4

Pin Definition Pin Definition

D1 LAN4_MDI0P D2 LAN4_MDI0N D3 LAN4_MDI1P D4 LAN4_MDI1N D5 LAN4_TCTG D6 LAN4_TCT D7 LAN4_MDI2P D8 LAN4_MDI2N

D9 LAN4_MDI3P D10 LAN4_MDI3N D11 LAN4_LEDACT# D12 3VSB D13 LAN4_LINK1G# D14 LAN4_LINK100#

MH4 CHASSIS_GND MH5 CHASSIS_GND

LAN3

LAN4

18

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

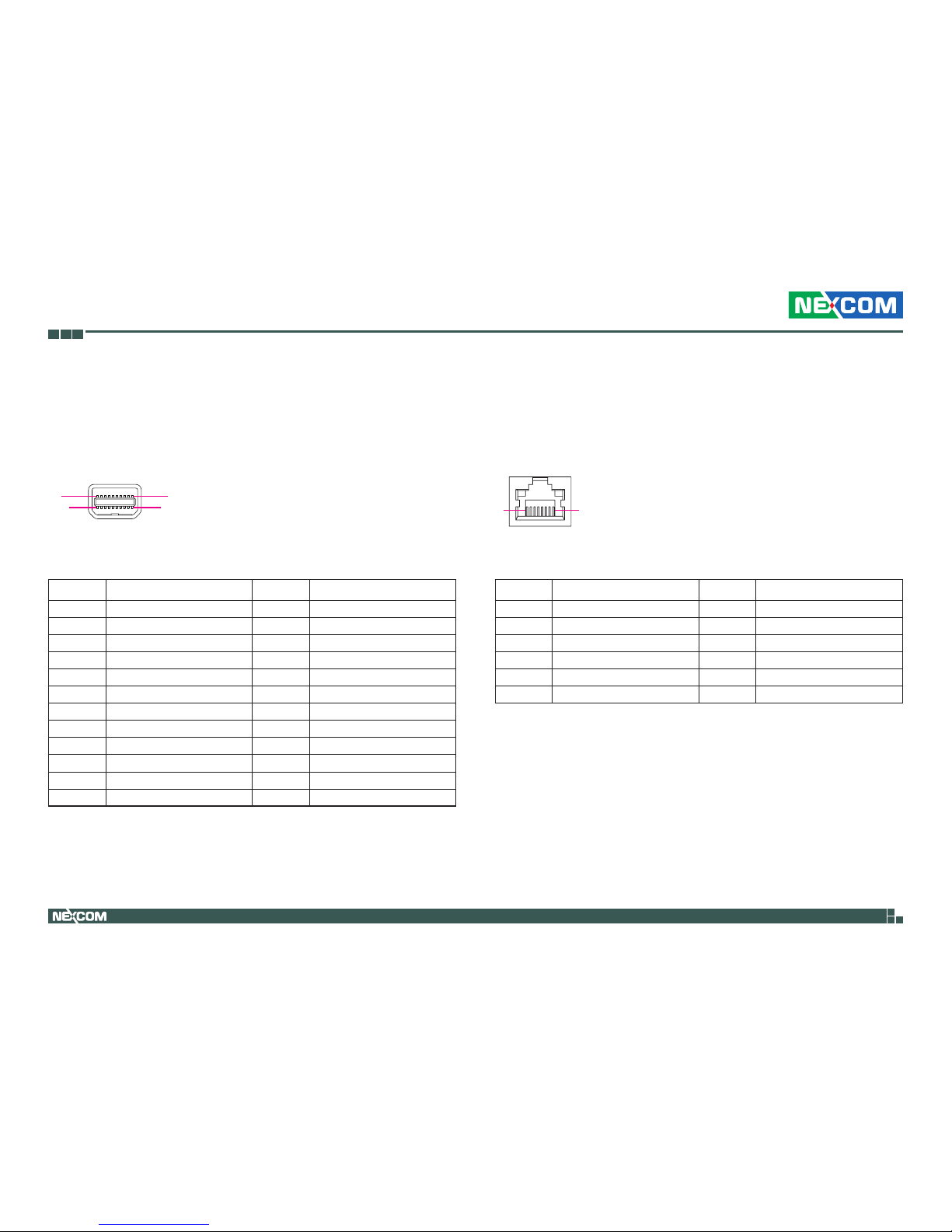

Mini DisplayPort

Connector type: Mini DisplayPort Connector location: CN7

Pin Definition Pin Definition

1 GND 2 DP_HPD 3 M_DDI1TX0P 4 DP_CONFIG1 5 M_DDI1TX0N 6 DP_CONFIG2 7 GND 8 GND

9 M_DDI1TX1P 10 M_DDI1TX3P 11 M_DDI1TX1N 12 M_DDI1TX3N 13 GND 14 GND 15 M_DDI1TX2P 16 AUX_SW_P 17 M_DDI1TX2N 18 AUX_SW_N 19 DP_RETURN 20 3.3V

MH1 CHASSIS_GND MH2 CHASSIS_GND MH3 CHASSIS_GND MH4 CHASSIS_GND

2

119

20

8 1

Serial Console Port

Connector type: RJ45 port Connector location: CN8

Pin Definition Pin Definition

1 NC 2 SP1_DCD 3 SP1_DSR 4 SP1_RXD 5 SP1_RTS 6 SP1_TXD 7 SP1_CTS 8 SP1_DTR 9 GND 10 SP1_RI

MH1 GND MH2 GND

19

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

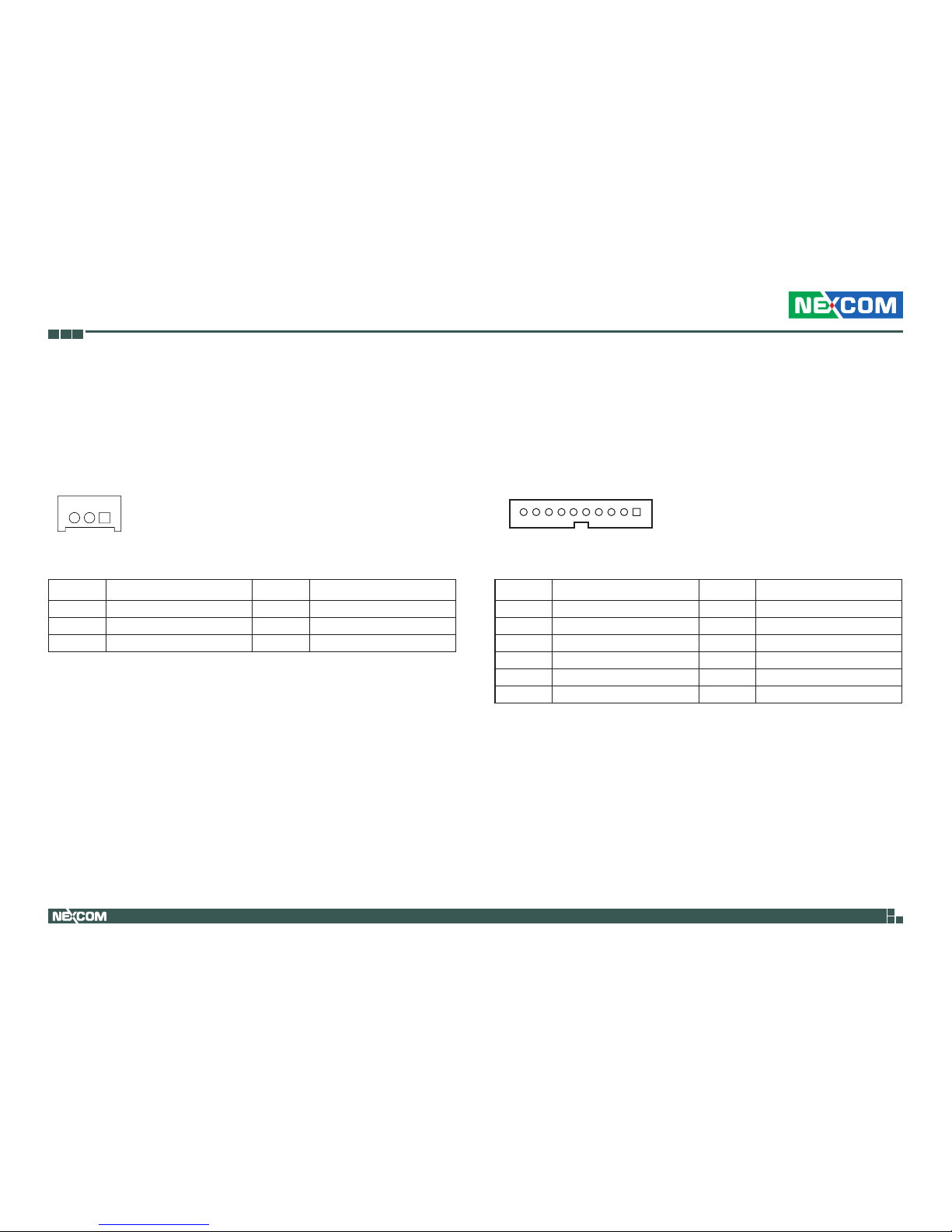

EC Download Pin Header

Connector type: 1x3 3-pin header, 1.0mm pitch Connector location: J10

Pin Definition Pin Definition

1 EC_SMB_CLK 2 EC_SMB_DATA

3 GND MH1 CHASSIS_GND

5 CHASSIS_GND

Debug Port

Connector type: 1x10 10-pin header, 1.0mm pitch Connector location: J9

Pin Definition Pin Definition

1 VCC3 2 VCC3 3 LPC_LAD0 4 LPC_LAD1 5 LPC_LAD2 6 LPC_LAD3 7 LPC_FRAME# 8 LPC_CLK1_DEBUG 9 PLTRST_3P3# 10 GND

MH1 GND MH2 GND

3 1

10 1

20

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

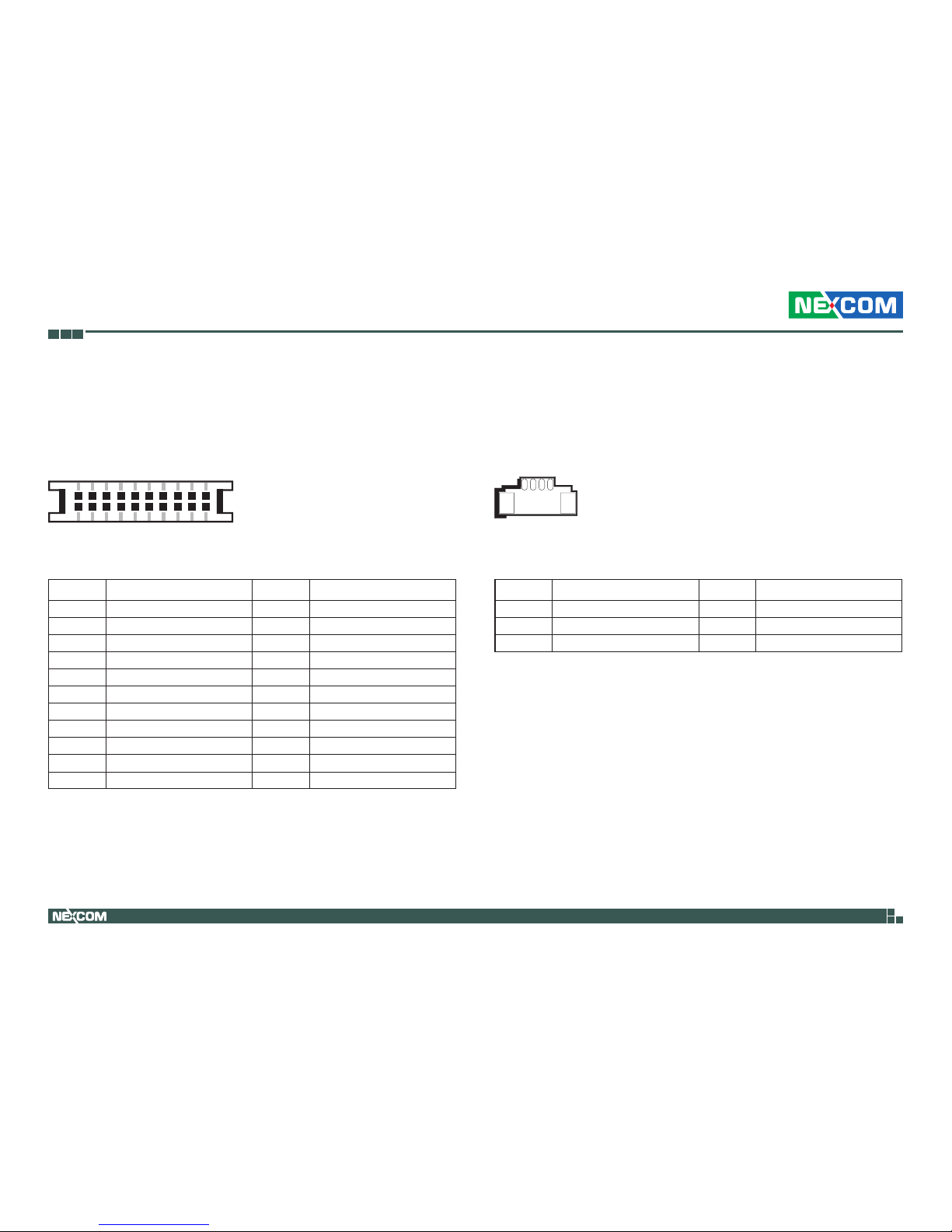

LVDS Connector

Connector type: 2x10 20-pin header, 1.25mm pitch Connector location: CN4

PWR/HDD LED Connector

Connector type: 1x4 4-pin header, 1.25mm pitch Connector location: J7

Pin Definition Pin Definition

1 VCC5_VDD 2 VCC5_VDD

3 VCC3_VDD 4 LVDS_DAT1N

5 LVDS_DAT0N 6 LVDS_DAT1P

7 LVDS_DAT0P 8 VCC3_VDD

9 GND 10 LVDS_CLK1N 11 LVDS_DAT2N 12 LVDS_CLK1P 13 LVDS_DAT2P 14 GND 15 GND 16 12V 17 LVDS_DAT3N 18 12V 19 LVDS_DAT3P 20 GND

MH1 GND MH2 GND

Pin Definition Pin Definition

1 PWRLED# 2 PWRLED 3 HDD_LED# 4 HDD_LED

MH1 GND MH2 GND

11

9

22

0

1 4

21

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

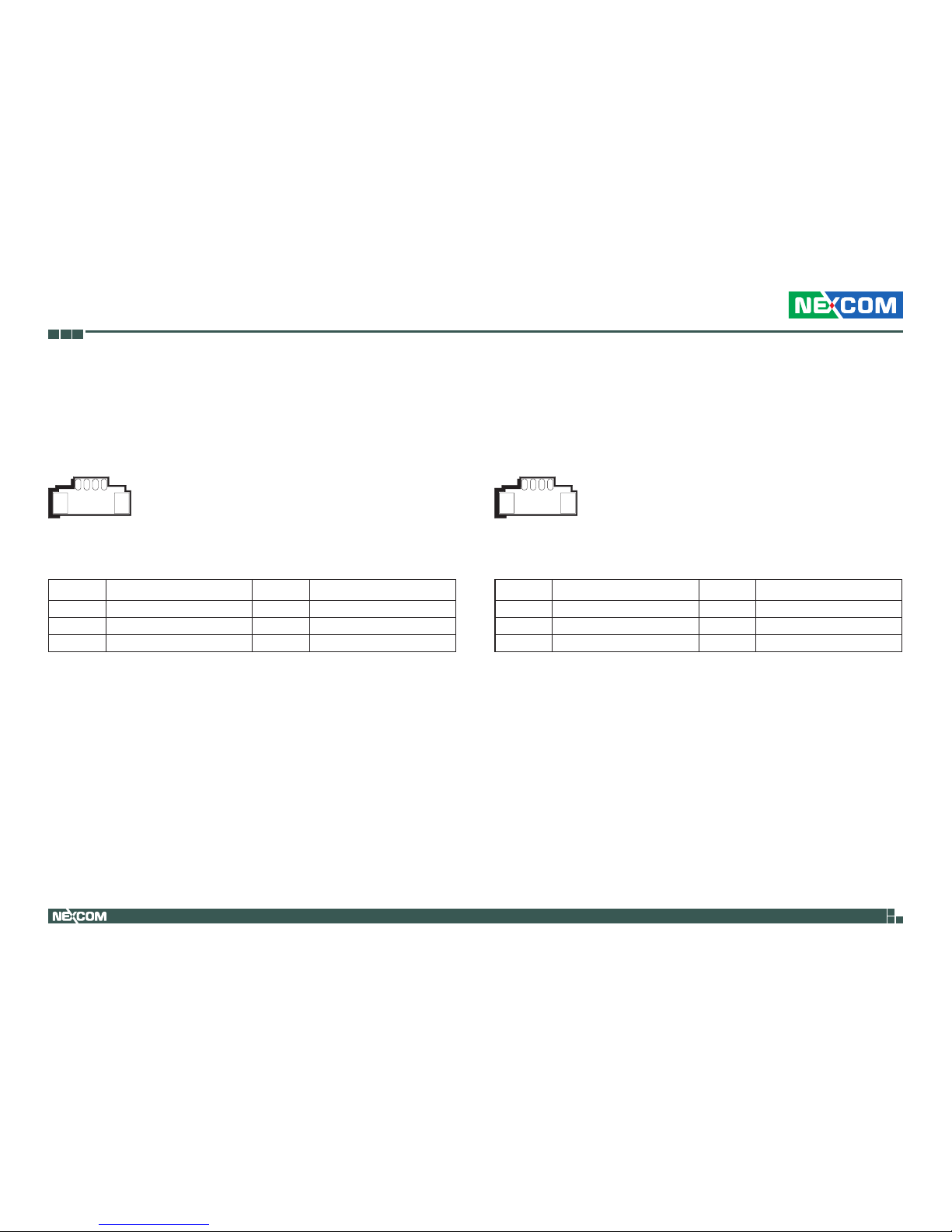

USB Connector

Connector type: 1x4 4-pin header, 1.25mm pitch Connector location: J5

USB Connector

Connector type: 1x4 4-pin header, 1.25mm pitch Connector location: J4

Pin Definition Pin Definition

1 5VSB 2 USB2N

3 USB2P 4 GND

MH1 GND MH2 GND

Pin Definition Pin Definition

1 5VSB 2 USB3N 3 USB3P 4 GND

MH1 GND MH2 GND

1 4 1 4

22

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

Light Sensor Connector

Connector type: 1x6 6-pin header, 1.25mm pitch Connector location: J6

Power In Connector

Connector type: 1x4 4-pin header, 2.5mm pitch Connector location: CN1

Pin Definition Pin Definition

1 NC 2 3VSB

3 GND 4 EC_I2C_DATA

5 EC_I2C_CLK 6 INT

MH1 GND MH2 GND

Pin Definition Pin Definition

1 GND 2 GND 3 12VSB 4 12VSB

1 6

1 4

23

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

PWRBT/RESET/Dimming Control Connector

Connector type: 1x6 6-pin header, 1.25mm pitch Connector location: J8

Pin Definition Pin Definition

1 ATXBT# 2 GND

3 EC_BLUP 4 EC_BLDN

5 RSTBTN# 6 GND

MH1 GND MH2 GND

1 6

FAN Connector

Connector type: 1x3 3-pin header, 1.0mm pitch Connector location: J1

Pin Definition Pin Definition

1 GND 2 FAN_12V 3 FAN_12V_FB

3 1

24

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

SATA Connector

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: SATA1

Pin Definition Pin Definition

1 GND 2 SATA_TXP1

3 SATA_TXN1 4 GND

5 SATA_RXN1 6 SATA_RXP1

7 GND

1 7

SATA Power Connector

Connector type: 1x2 2-pin header, JST 2.5mm pitch Connector location: CN2

Pin Definition

1 5V 2 GND

1 2

25

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

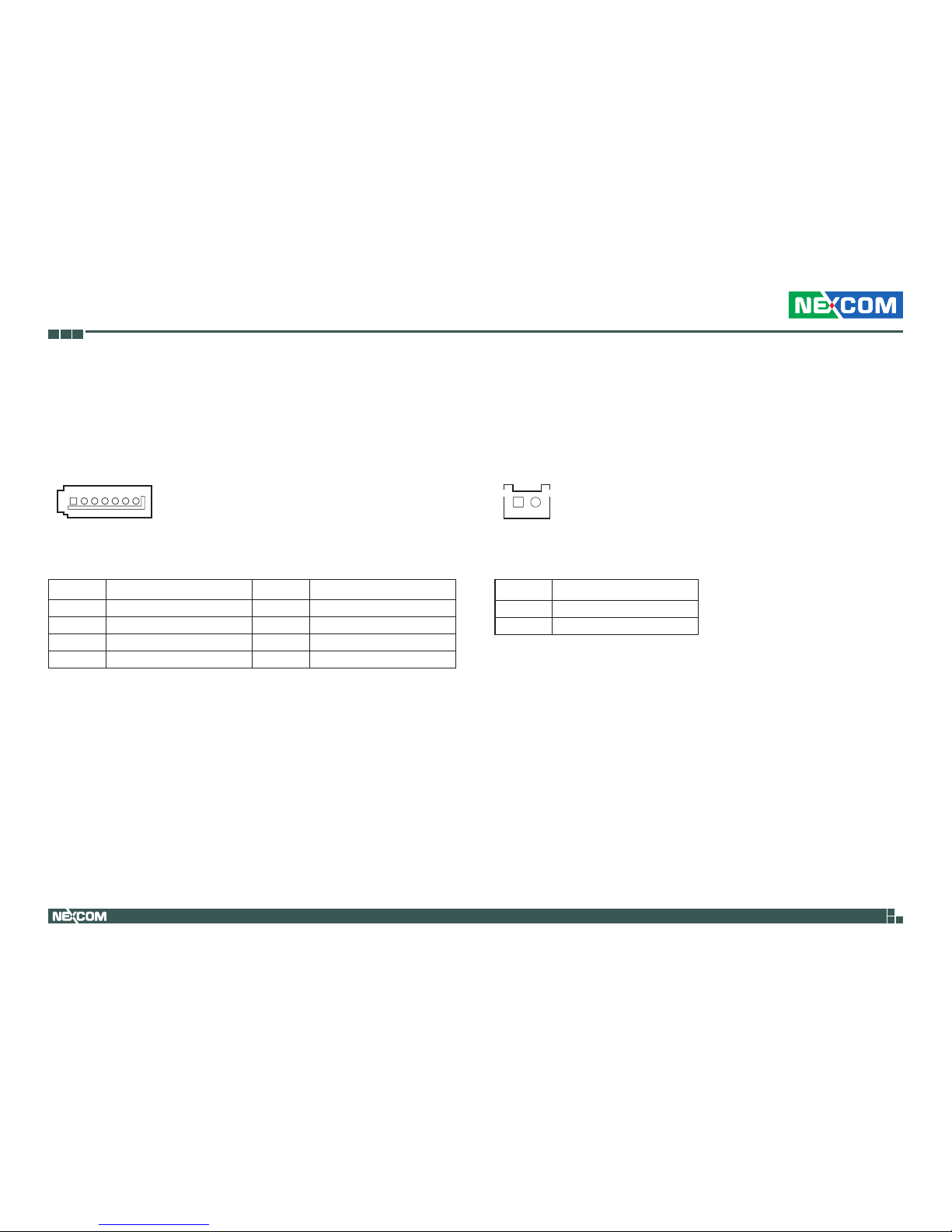

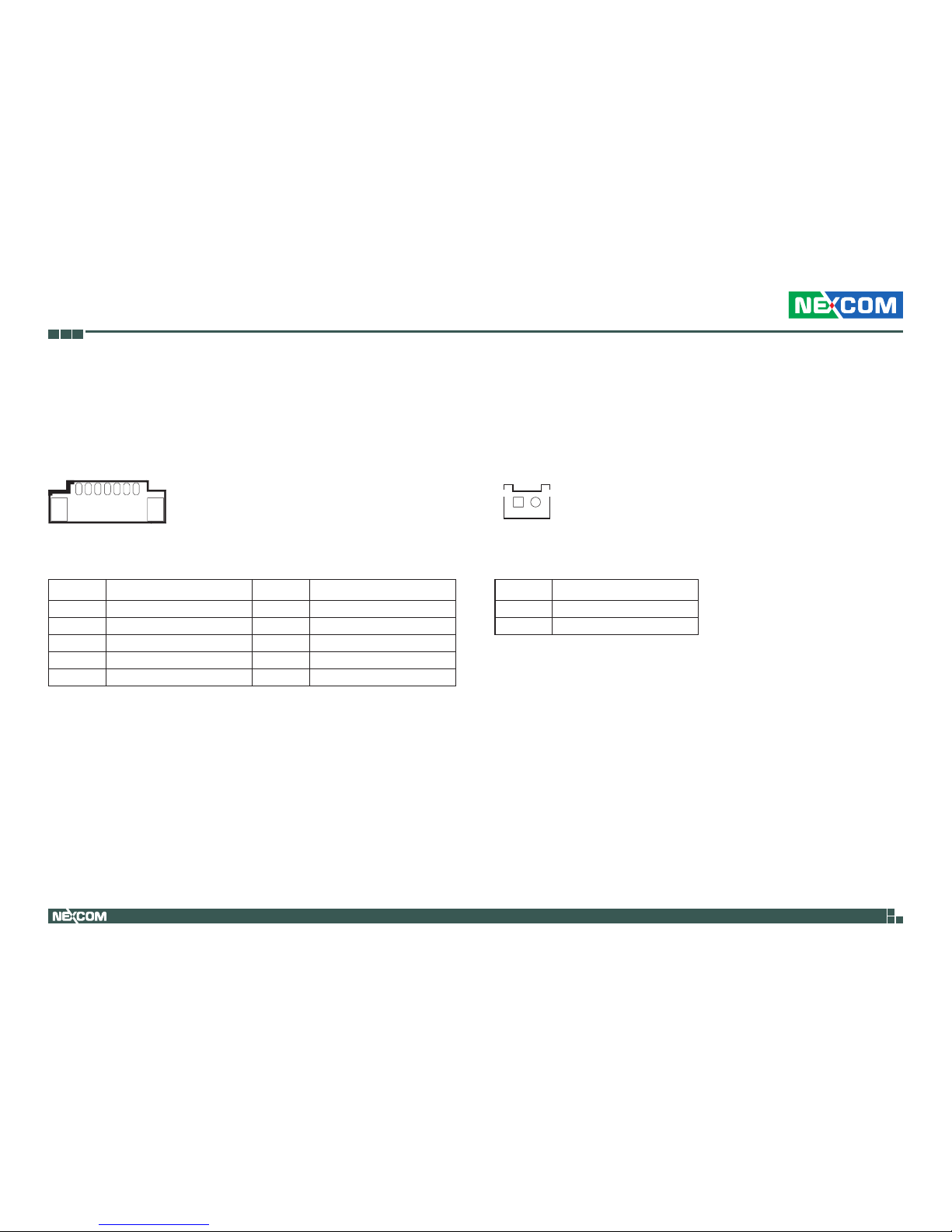

LVDS Inverter Connector

Connector type: 1x7 7-pin header, 1.25mm pitch Connector location: J2

Pin Definition Pin Definition

1 5V 2 12V

3 12V 4 BKLTCTRL

5 INV_GND 6 INV_GND

7 BKLTEN MH1 INV_GND

MH2 INV_GND

1 7

Battery Connector

Connector type: 1x2 2-pin header, JST 2.5mm pitch Connector location: J3

Pin Definition

1 5V 2 GND

1 2

26

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

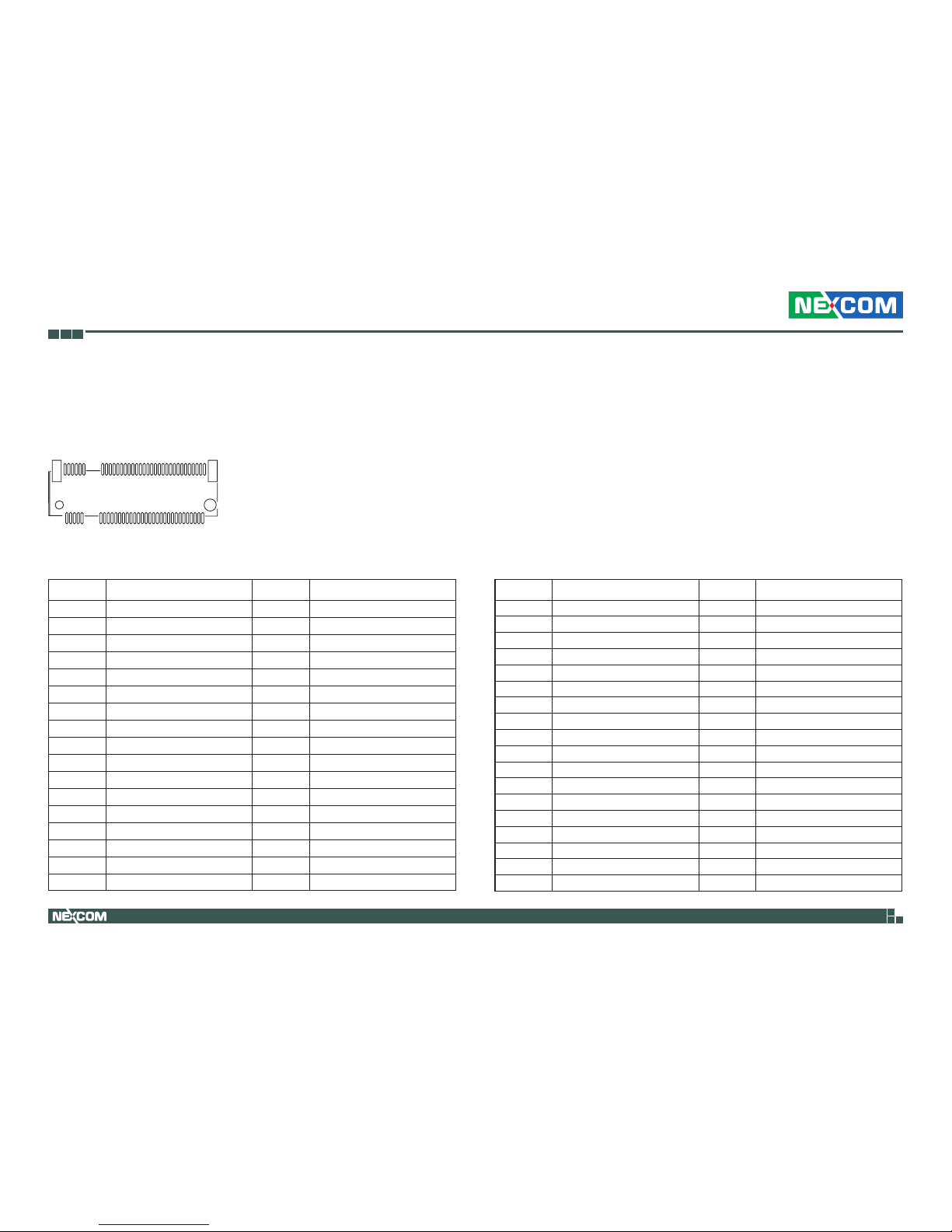

PCIe M.2 Slot

Connector location: CN3

Pin Definition Pin Definition

1 PCIE_M2_CONFIG3 2 VCC3

3 NC 4 VCC3

5 NC 6 NC

7 NC 8 NC

9 NC 10 PCIE_M2_DAS_DSS# 11 NC 20 NC 21 PCIE_M2_CONFIG0 22 NC

23 NC 24 NC 25 NC 26 NC 27 NC 28 NC 29 NC 30 NC 31 NC 32 NC 33 NC 34 NC 35 NC 36 NC 37 NC 38 PCIE_M2_DEVSLP 39 NC 40 NC 41 SATA_RXP0 42 NC

Pin Definition Pin Definition

43 SATA_RXN0 44 NC 45 NC 46 NC 47 SATA_TXN0 48 NC 49 SATA_TXP0 50 NC 51 NC 52 NC 53 NC 54 NC 55 NC 56 PCIE_M2_Z01 57 NC 58 PCIE_M2_Z02 59 NC 60 NC 61 NC 62 NC 63 NC 64 NC 65 NC 66 NC 67 NC 68 NC 69 PCIE_M2_CONFIG1 70 VCC3 71 NC 72 VCC3 73 NC 74 VCC3 75 PCIE_M2_CONFIG2 MH1 GND

MH2 GND MH3 NC

1 75

742

27

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 2: Jumpers and Connectors

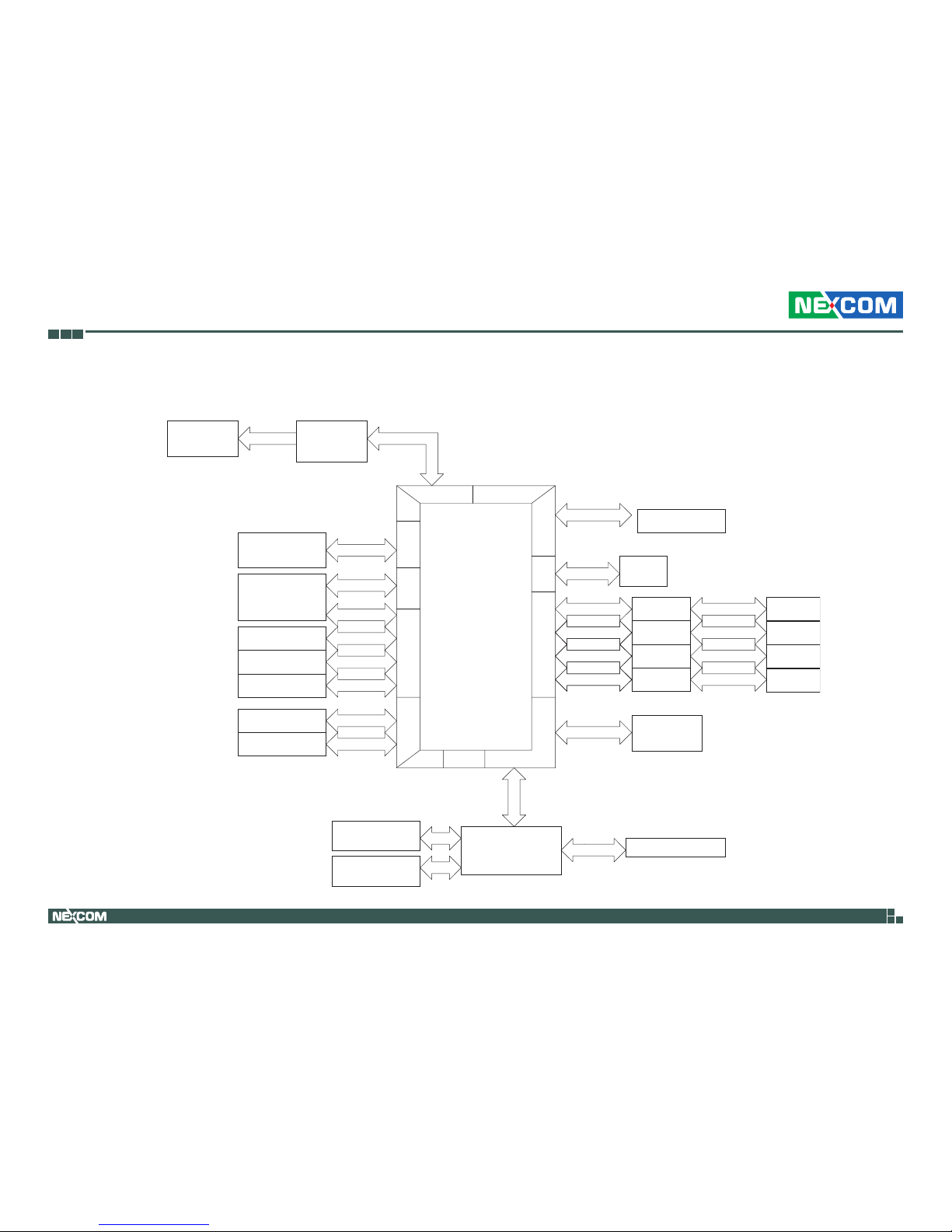

Block Diagram

SATA0 PCIe M2

SATA1 HDD

Thermal Sensor *1 Voltages *4

Light Sensor

80 port

DDR3L CH1

DisplayPort

USB 3.0

USB 2.0 x1

SATA Gen2

SPI 2MB

LAN i210-IT Giga LAN

LAN1 RJ45

WoL Support

LAN3 RJ45

WoL Support

LAN2 RJ45

LAN4 RJ45

Giga LAN

LAN i210-IT

Embedded Controller

ITE8528

COM1 RS-232/422/485

LVDS Signal 24-bit Support

DisplayPort

Connector

0 - Rear

1 - Rear

2 - Internal Connector

3 - Internal Connector

HDALCI LPC

LPC

CH7511 eDP to LVDS

@ Maximum Resolution: 1920 * 1080

@ Maximum 8GBytes

PCIe x1

DisplayPort

DDI PORT0

VGADDI PORT1

USB 3.0 (1)

DDR3L 1066

USB 2.0 (4)

SPIPCIe *1(4)

SATA (2)

LPC Bus

DDR3L SO-DIMM 1 Slot

Bay Trail-I

Quad Core CPU

E3845

DDR3L-1066

25 x 27 mm

28

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

ChaPter 3: system setuP

Installing a SATA M.2 Module

Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

CAUTION!

CAUTION!CAUTION!

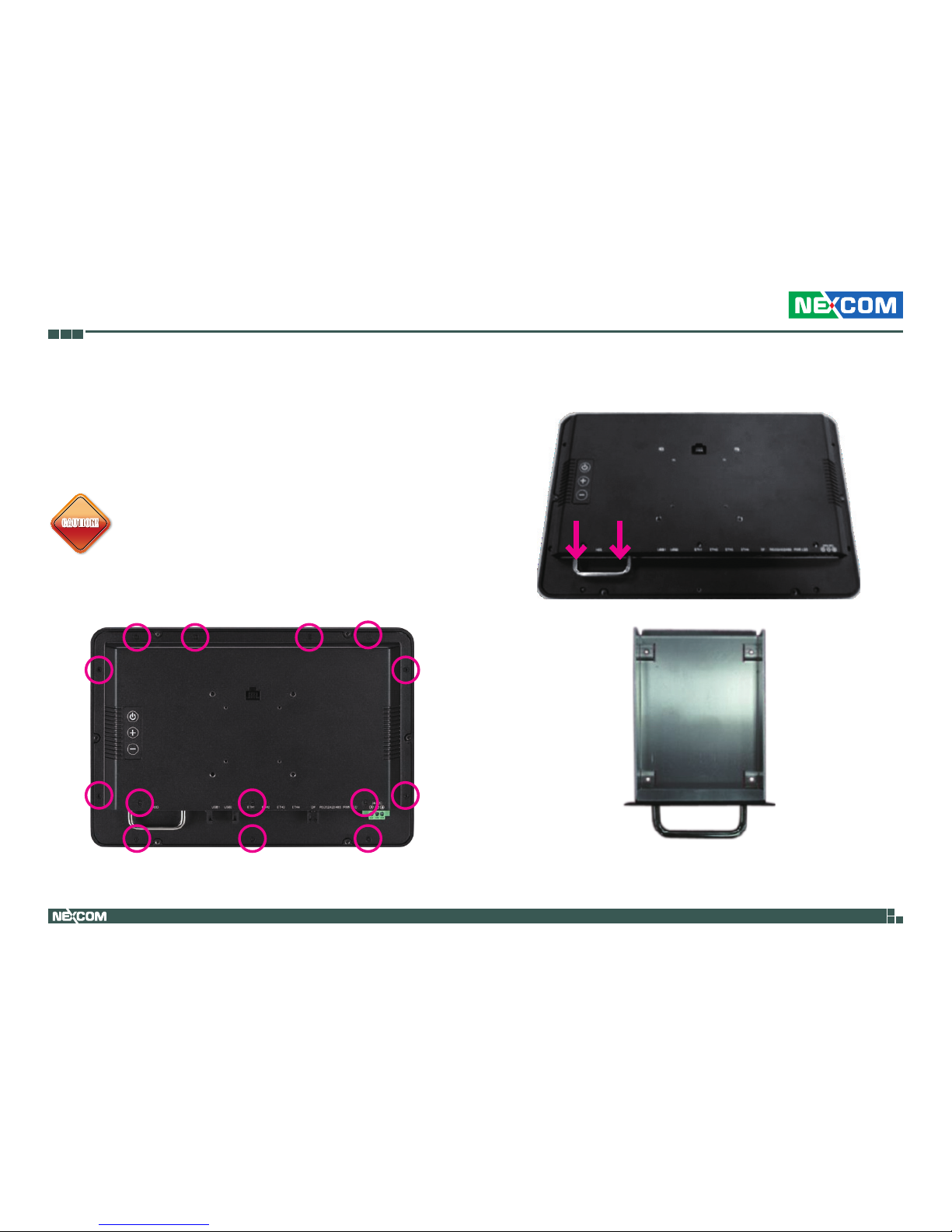

1. Remove the screws around the chassis cover.

2. Remove the HDD tray.

29

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

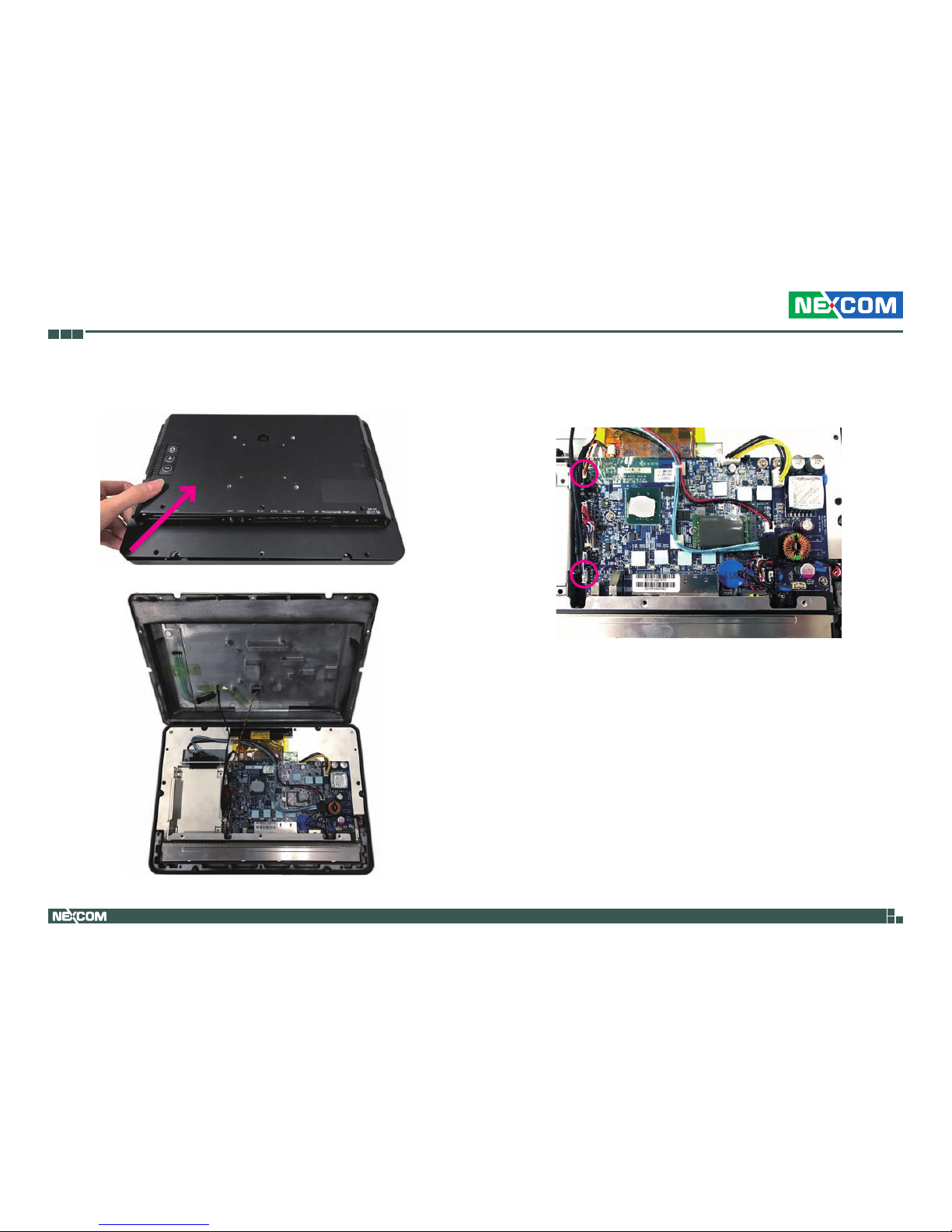

3. Lift up the back cover. 4. Remove the cable connectors that are circled below from the mainboard.

30

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

M.2 SlotSATA M.2

Module

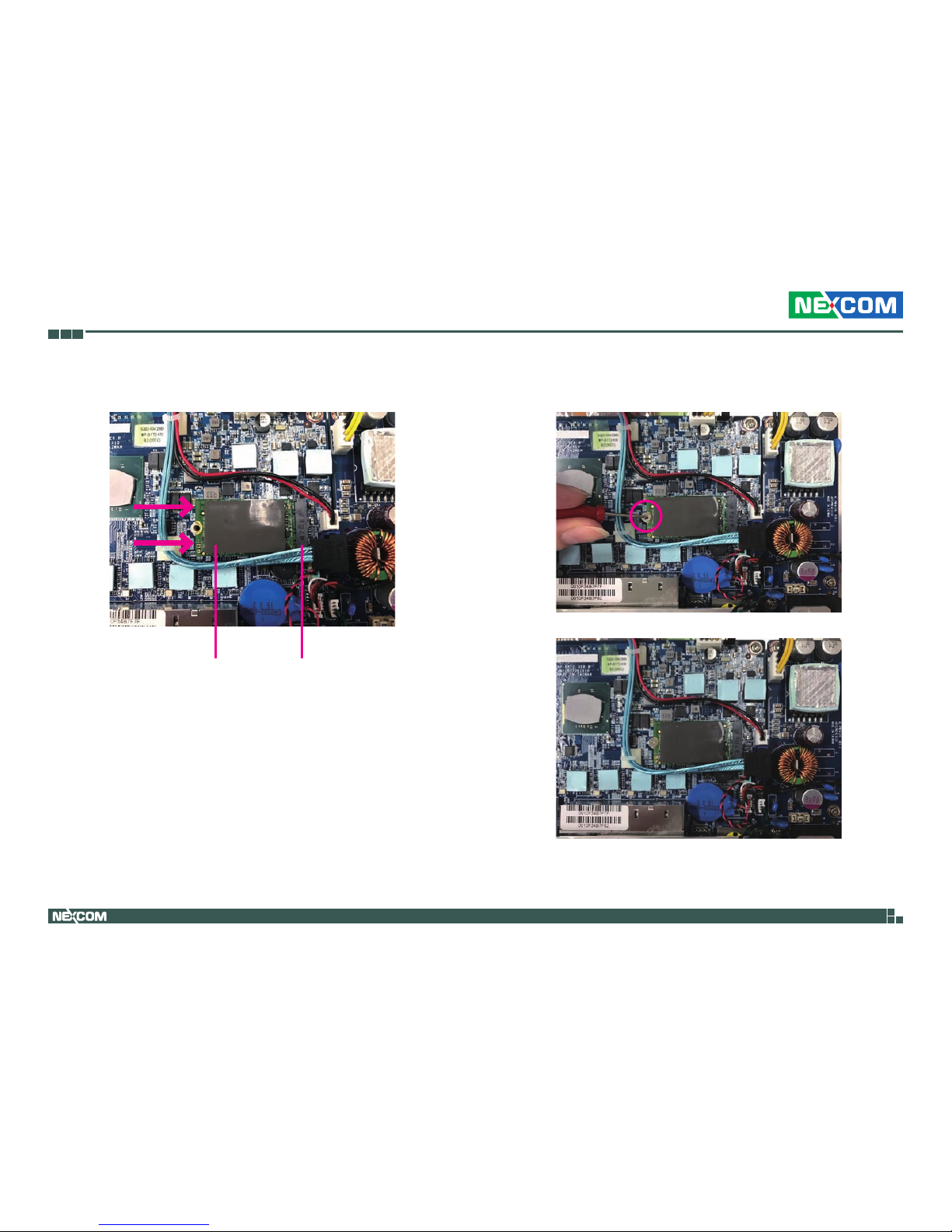

5. Install the SATA M.2 module into the M.2 slot. 6. Secure the module with mounting screws.

31

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

Installing a SO-DIMM Memory Module

1. Remove the screws around the chassis cover. 2. Remove the HDD tray.

32

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

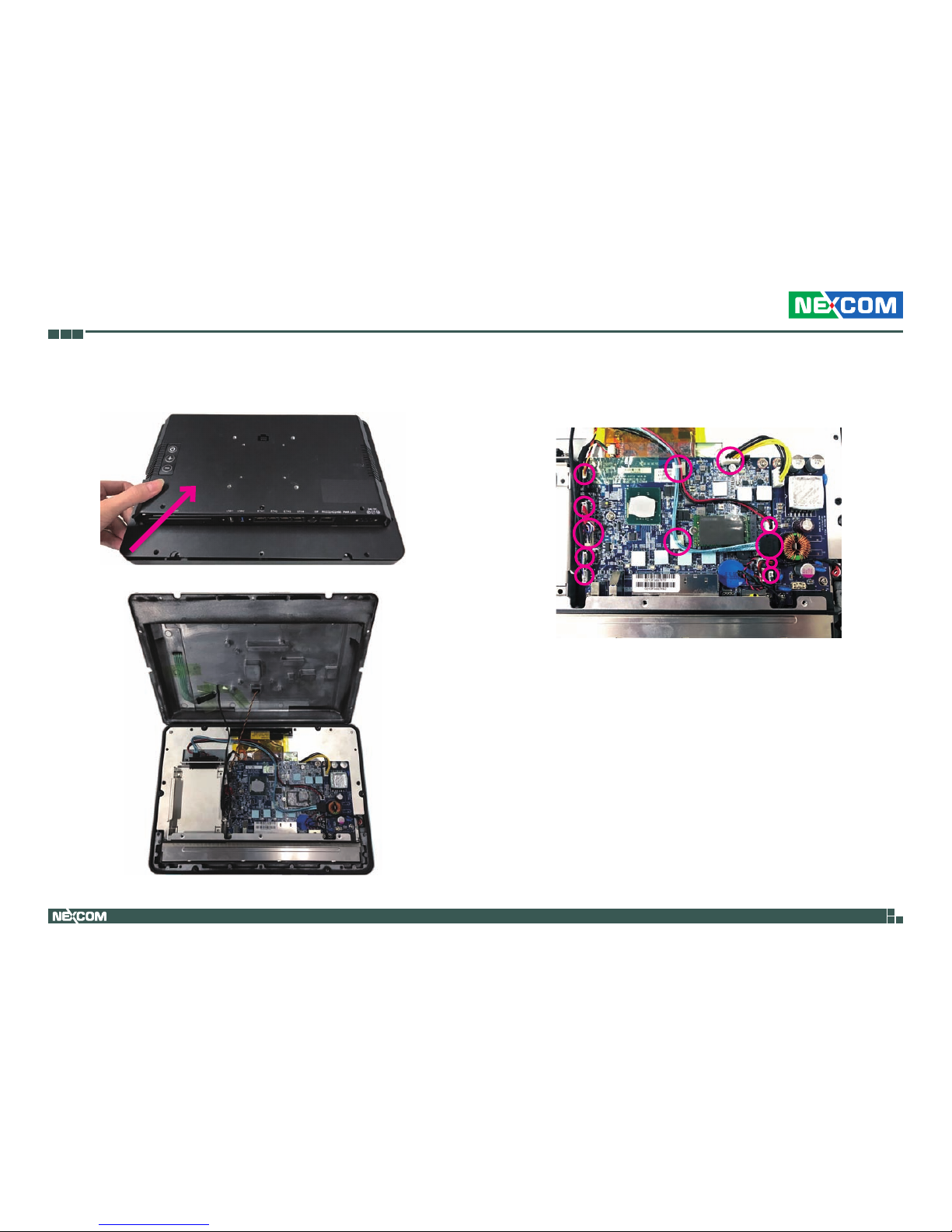

3. Lift up the back cover. 4. Remove the cable connectors that are circled below from the mainboard.

33

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

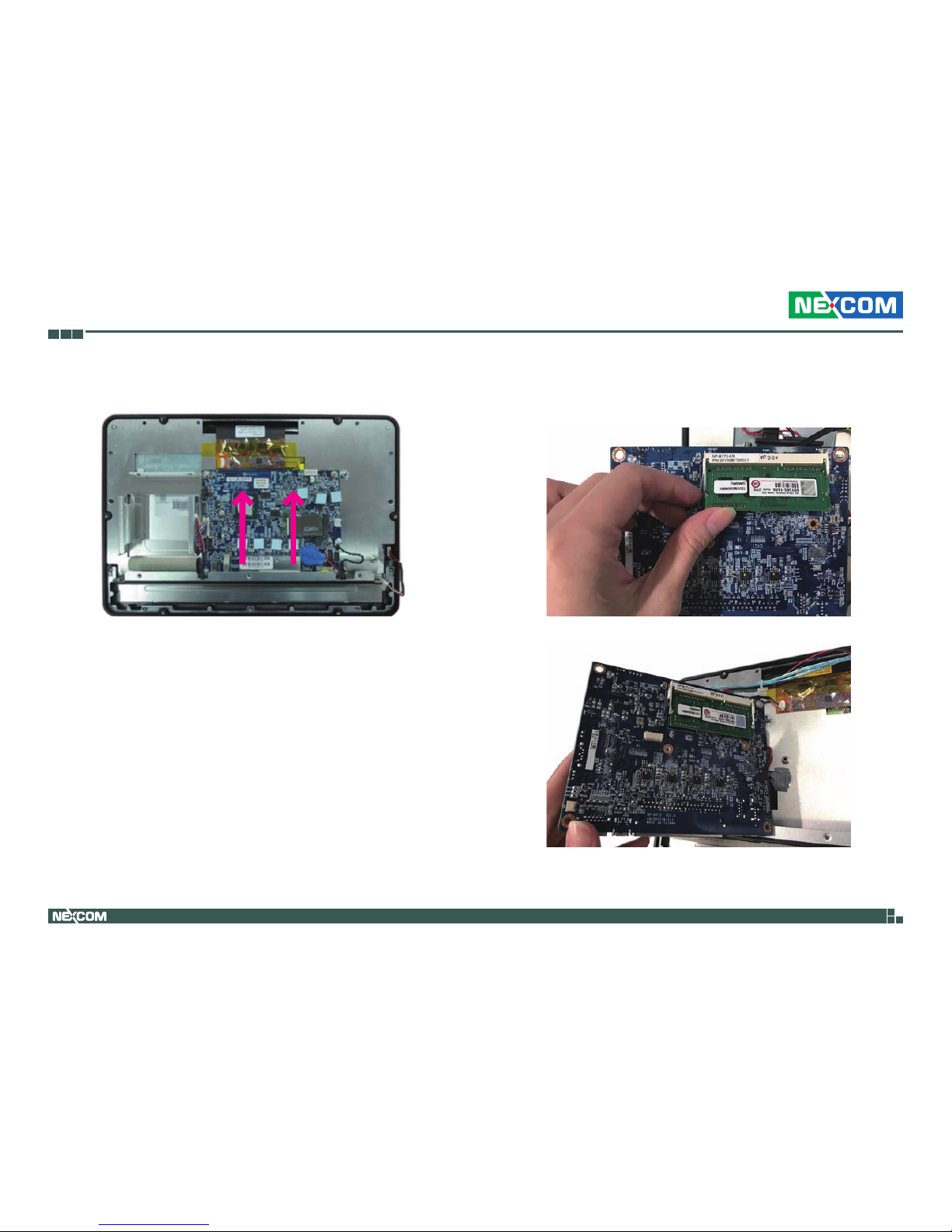

5. Remove the mainboard from the housing. 6. Locate the SO-DIMM slot on the back of the mainboard and install a SO-DIMM module into the slot.

34

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

Installing a SATA Hard Drive

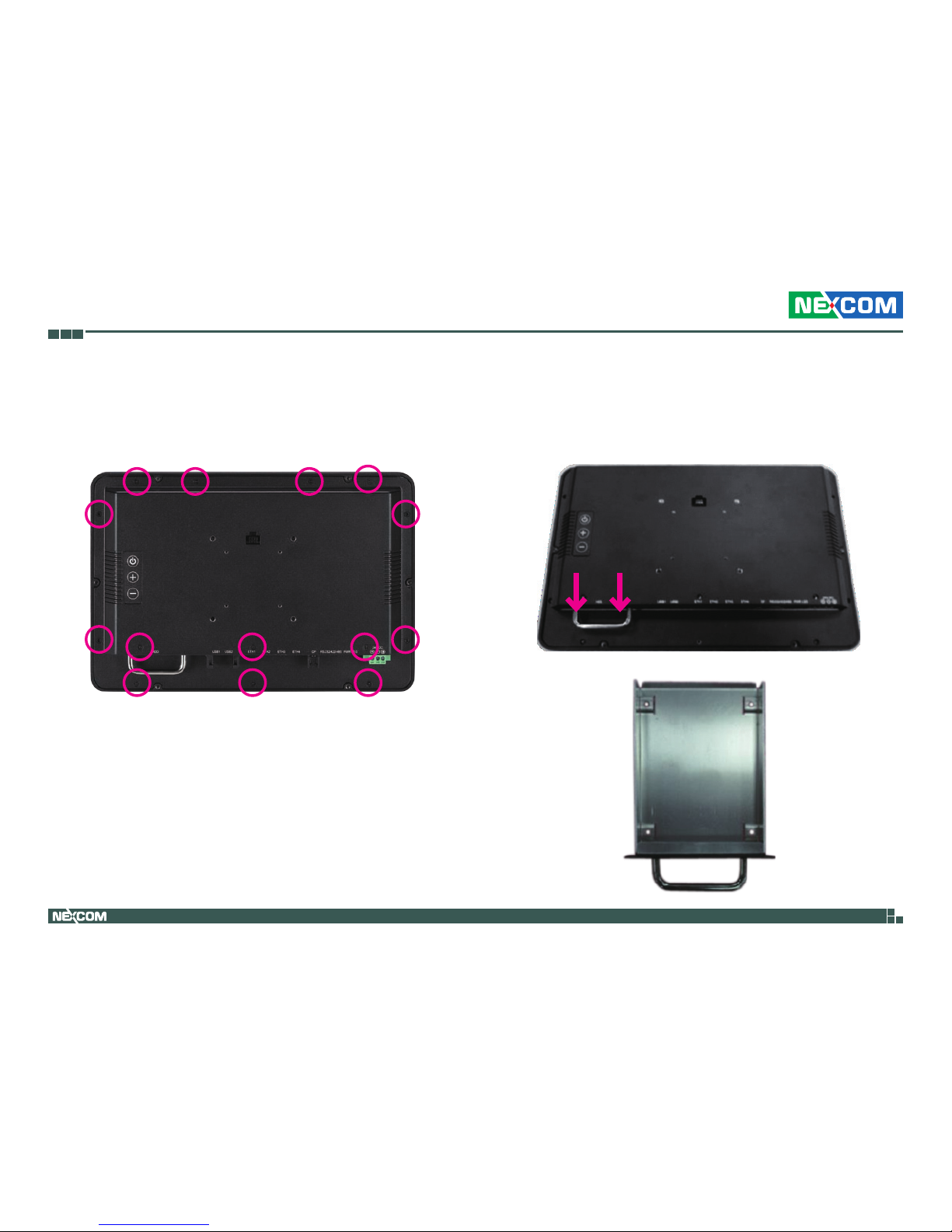

1. Remove the screws around the chassis cover. 2. Remove the HDD tray.

35

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

3. Lift up the back cover. 4. Place the SATA hard drive on the HDD tray.

36

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

5. Fix screws into the mounting holes on the bottom of the HDD tray to

secure the SATA drive in place.

6. Slide the HDD tray back into the system.

37

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

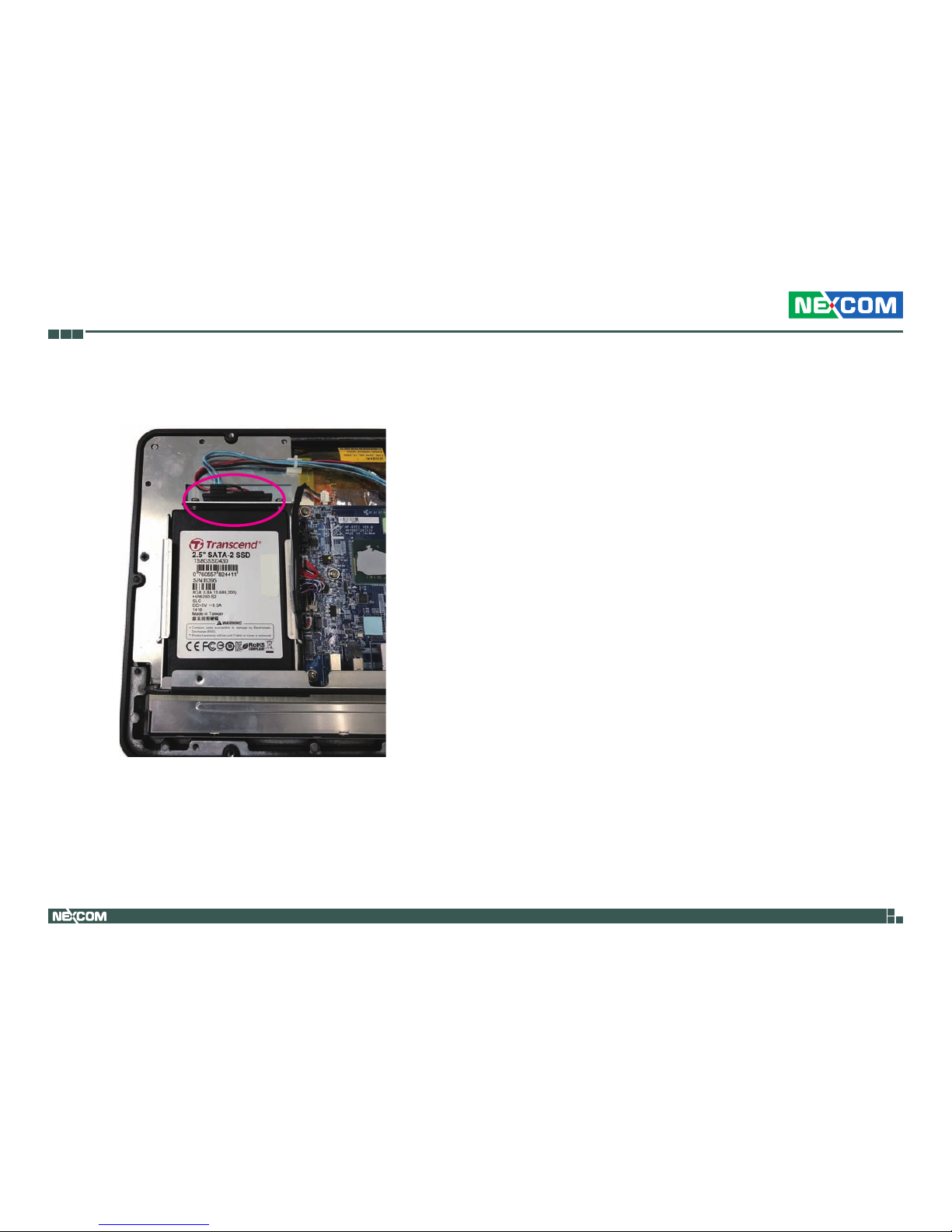

7. Make sure the rear connections on the SATA drive is firmly seated into

the SATA connectors circled below.

38

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

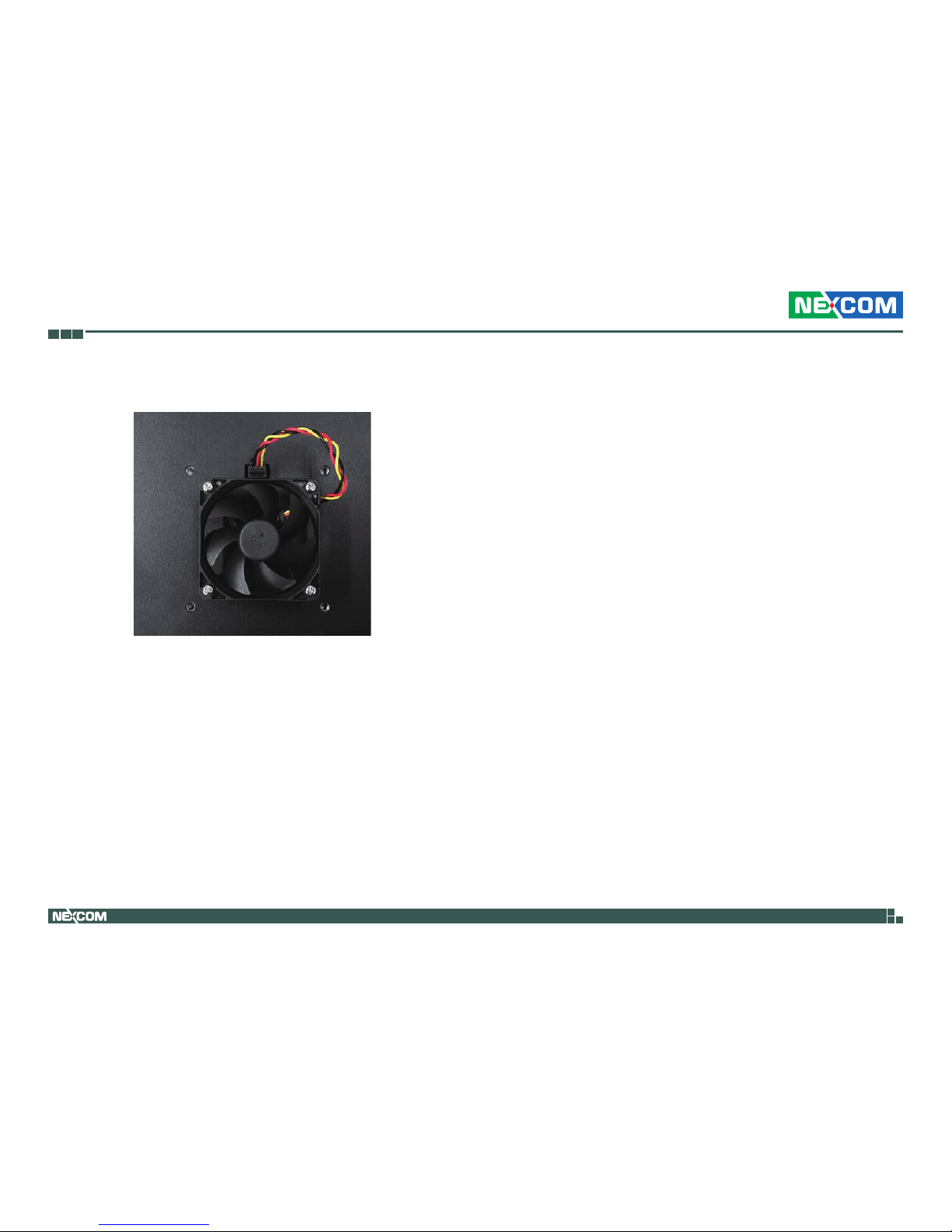

Installing the Fan

1. Fix the copper pillars on the mounting holes at the back of the system.

39

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

2. Install the fan. 3. Secure the fan with flat head screws.

40

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

4. Connect the fan cable to the fan connector.

41

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

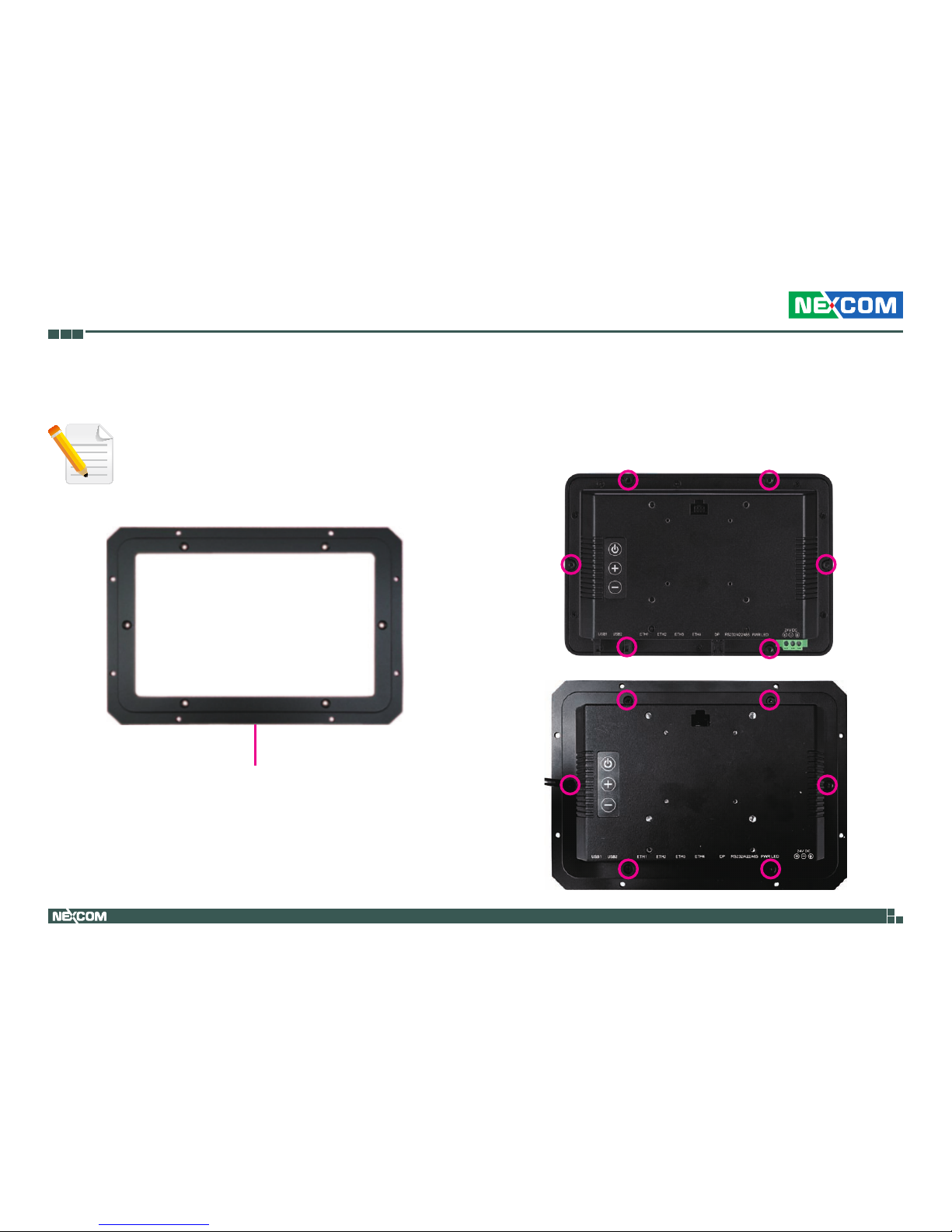

Flush Mounting

The flush mount bracket is used to mount the system on a desk or enclosure.

1. Align the mounting holes on the bracket to the flush mounting holes on the back of the system, then secure the bracket with screws.

Flush

Mount Bracket

42

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 3: System Setup

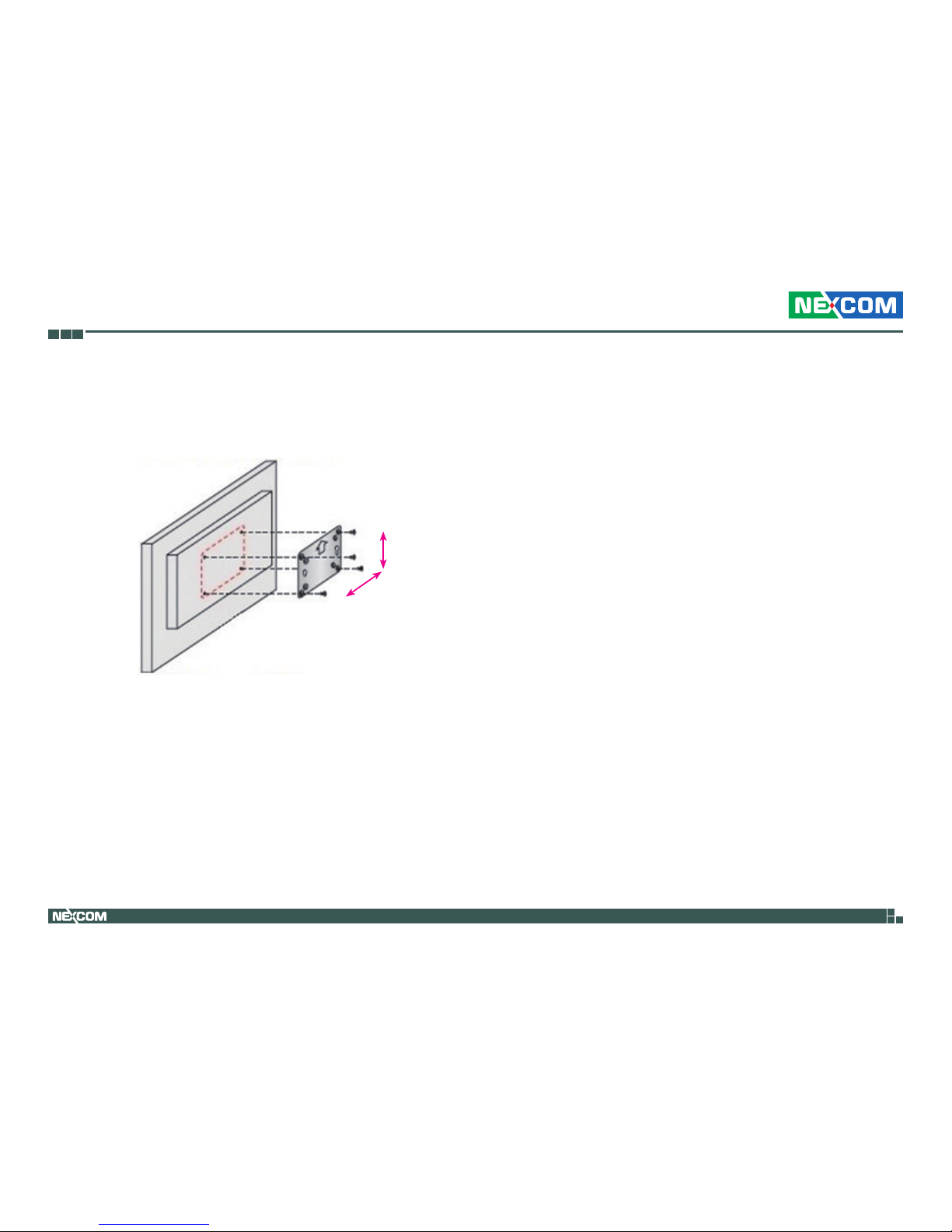

VESA Mounting

75mm

1. The VESA mounting measurements are shown as below.

(M)PPC-080T-BT-01: 75mm x 75mm (M)PPC-120T-BT-01/02: 75mm x 75mm

43

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 4: BIOS Setup

ChaPter 4: BIos setuP

This chapter describes how to use the BIOS setup program for the (M)PPC-080TBT-01 and (M)PPC-120T-BT-01/02. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM website at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure items such as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

44

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup.

Press the

key to enter Setup:

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menus or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

45

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

46

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set the Date. Use Tab to switch between Date elements.

BIOS Information

BIOS Vendor Core Version Compliancy Project Version Build Date and Time EC Version

CPU Conguration

Microcode Patch BayTrail SoC

Memory Information

Total Memory

System Date

System Time

American Megatrends

5.010 UEFI 2.4; PI 1.3 S202-007 x64 12/22/2015 18:09:00 C 00 6

901 D0 Stepping

4096 MB (DDR3L)

[Tue 05/09/2017] [15:56:03]

47

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System ACPI Parameters.

ACPI Settings

IT8528 Super IO Conguration

HW Monitor

CPU Conguration IDE Conguration

AMI Graphic Output Protocol Policy

USB Conguration

►

► ► ► ► ► ►

Exit

Advanced Chipset PCIPnP Security

Main

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Settings

Enable Hibernation

ACPI Sleep State

[Enabled]

[S3 (Suspend to RAM)]

ACPI Settings

This section is used to configure ACPI Settings.

Enable Hibernation

Enables or disables system ability to hibernate (OS/S4 Sleep State). This option may not be effective with some OS.

ACPI Sleep State

Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are Suspend Disabled and S3 (Suspend to RAM).

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

48

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 4: BIOS Setup

IT8528 Super IO Configuration

This section is used to configure the serial port.

Super IO Chip

Displays the Super I/O chip used on the board.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set Parameters of Serial Port 1 (COMA)

IT8528 Super IO Conguration

Super IO Chip

Serial Port 1 Conguration

IT8528



Serial Port 1 Configuration

This section is used to configure serial port 1.

Serial Port

Enables or disables the serial port.

Onboard Serial Port Mode

Select this to change the serial port mode to RS232, RS422 or RS485.

Terminal 120 Ohm

Enables or disables serial port terminal resistance.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

Serial Port 1 Conguration

Serial Port

Device Settings

Onboard Serial Port Mode Terminal 120 Ohm

[Enabled]

IO=2F0h; IRQ=4;

[RS232] [Disabled]

49

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 4: BIOS Setup

HW Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

Smart Fan Mode

Selects the mode of the fan, the options are Full on Mode and Automatic Mode.

FAN Speed 30% under Temp

Configures the temperature for the fan speed to operate at 30% efficiency.

CPU Temperature

Detects and displays the current CPU temperature.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PC Health Status

Smart Fan Mode

FAN Speed 30% under Temp:

FAN Speed 100% above Temp:

CPU Temperature System Temperature Fan1 Speed VCORE +12V 5V

3.3V

[Automatic Mode]

[35 C/ 95 F]

[75 C/167 F]

: +43 C : +41 C : N/A : +0.897 V : +12.978 V : +5.130 V : +3.346 V

System Temperature

Detects and displays the current system temperature.

Fan1 Speed

Detects and displays the current fan1 speed.

VCORE

Detects and displays the Vcore CPU voltage.

+12V

Detects and displays the 12V voltage.

5V

Detects and displays the 5V voltage.

3.3V

Detects and displays the 3.3V voltage.

50

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 4: BIOS Setup

CPU Configuration

This section is used to configure the CPU.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Socket specic CPU Information

CPU Conguration

Socket 0 CPU Information

CPU Speed 64-bit

Limit CPUID Maximum Execute Disable Bit Intel Virtualization Technology Power Technology

1910 MHz Supported

[Disabled] [Enabled] [Enabled]

[Energy Efcient]



Limit CPUID Maximum

The CPUID instruction of some newer CPUs will return a value greater than 3. The default is Disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur. To avoid this problem, enable this field to limit the return value to 3 or lesser than 3.

Execute Disable Bit

When this field is set to Disabled, it will force the XD feature flag to always return to 0. XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3).

Intel® Virtualization Technology

Enables or disables Intel Virtualization technology.

Power Technology

Configures the power management features.

Socket 0 CPU Information

Display information on the CPU installed on socket 0.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Socket 0 CPU Information

Intel(R) Atom(TM) CPU E3845 @ 1.91GHz

CPU Signature Microcode Patch Max CPU Speed Min CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology

L1 Data Cache L1 Code Cache L2 Cache L3 Cache

30679 901 1910 MHz 500 MHz 4 Not Supported Supported

24 kB x 4 32 kB x 4 1024 kB x 2 Not Present

51

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 4: BIOS Setup

IDE Configuration

This section is used to configure the SATA drives.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable / Disable Serial ATA

IDE Conguration

Serial-ATA (SATA)

SATA Speed Support

SATA ODD Port SATA Mode

Serial-ATA Port 0 SATA Port0 HotPlug

Serial-ATA Port 1 SATA Port1 HotPlug

SATA Port0 TS128GMTS400 (120.0GB)

SATA Port1 Not Present

[Enabled]

[Gen2]

[No ODD] [AHCI Mode]

[Enabled] [Disabled]

Serial-ATA (SATA)

Enables or disables the SATA controller.

SATA ODD Port

Configures SATA port 0 or port 1 as the SATA optical disc drive (ODD).

SATA Mode

Configures the SATA as IDE or AHCI mode.

IDE This option configures the Serial ATA drives as Parallel ATA physical storage device.

AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

Serial-ATA Port 0

Enables or disables SATA port 0.

SATA Port0 HotPlug

Enables or disables hot pluggable support on SATA port 0.

Serial-ATA Port 1

Enables or disables SATA port 1.

SATA Port1 HotPlug

Enables or disables hot pluggable support on SATA port 1.

52

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 4: BIOS Setup

AMI Graphic Output Protocol Policy

This section is used to configure the graphics controller settings.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Starts or stops the BIST on the integrated display panel.

Unknown Device AMI Console Splitter Driver

BIST Enable

[Disabled]

BIST Enable

Enables or disables the BIST (Built-in-Self-Test) on the integrated display panel.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

USB Conguration

USB Module Version

USB Devices:

1 Keyboard, 1 Mouse, 1 Point, 1 Hub

Legacy USB Support

XHCI Hand-off EHCI Hand-off

8.11.02

[Enabled]

[Enabled] [Disabled]

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

XHCI Hand-off and EHCI Hand-off

This is a workaround for OSs that does not support XHCI hand-off and EHCI Hand-off. The XHCI and EHCI ownership change should be claimed by the XHCI and EHCI driver respectively.

USB Configuration

This section is used to configure the USB.

53

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 4: BIOS Setup

Chipset

This section is used to configure the system based on the specific features of the chipset.

Setting incorrect field values may cause the system to malfunction.

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

South Bridge Parameters

South Bridge

High Precision Timer

Enables or disables high precision event timer.

Restore AC Power Loss

Select the AC power state when power is re-applied after a power failure.

Global SMI Lock

Enables or disables global SMI lock.

BIOS Read/Write Protection

Enables or disables BIOS SPI region read/write protect.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

USB Conguration Settings

USB Conguration

PCI Express Conguration

High Precision Timer Restore AC Power Loss

Global SMI Lock BIOS Read/Write Protection

[Enabled] [Power On]

[Disabled] [Disabled]

►

54

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 4: BIOS Setup

USB Configuration

USB 2.0(EHCI) Support

Enables or disables the Enhanced Host Controller Interface (USB 2.0), one EHCI controller must always be enabled.

USB EHCI Debug

Enables or disables PCH EHCI debug capability.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Control the USB EHCI (USB 2.0) functions. One EHCI controller must always be enabled.

USB Conguration

XHCI Mode

USB 2.0(EHCI) Support

USB EHCI debug

[Disabled]

[Enabled]

[Disabled]

PCI Express Configuration

PCI Express Port 0 to PCI Express Port 3

Enables or disables PCI Express ports 0 to 3 on the chipset.

Hot Plug

Enables or disables PCI Express hot-plug support for ports 0 to 3.

Chipset

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable the PCI Express Port 0 in the Chipset.

PCI Express Conguration

PCI Express Port 0

Hot Plug

PCI Express Port 1 Hot Plug

PCI Express Port 2 Hot Plug

PCI Express Port 3 Hot Plug

[Enabled]

[Enabled] [Enabled]

55

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 4: BIOS Setup

Security

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Set Administrator Password

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User Will have Administrator rights. The password length must be in the following range:

Minimum length 3 Maximum length 20

Administrator Password

User Password

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

Boot

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Fast Boot

When enabled, the BIOS will shorten or skip some check items during POST. This will decrease the time needed to boot the system.

Save & Exit

Advanced Chipset

Security

BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Select the keyboard NumLock state

Boot Conguration

Bootup NumLock State

Fast Boot

Network PXE

Boot Option Priorities

Boot Option #1 Boot Option #2

Hard Drive BBS Priorities

[On]

[Disabled]

[P0: TS128GMTS400 . . .] [UEFI: Built-in EFI . . .]

56

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Chapter 4: BIOS Setup

Network PXE

Controls the execution of UEFI and legacy PXE OpROM.

Boot Option Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

Save & Exit

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes and Reset

To exit the Setup utility and reset without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Save & ExitAdvanced Chipset Security BootMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Reset the system after saving the changes.

Save Changes and Reset

Discard Changes and Reset Restore Defaults

57

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Appendix A: Power Consumption

aPPendIx a: Power ConsumPtIon

Power Consumption Management

Purpose

The purpose of the power consumption test is to verify the power dissipation of the system and the load of the power supply.

Test Data

System

Sys#1

(M)PPC-080T-BT-01

Sys#2

(M)PPC-120T-BT-01/02

Modes +24V +24V

Sleep Mode 0.09A 0.07A

Total Watts 2.16W 1.68W

Idle Mode 0.63A 0.9A

Total Watts 15.12W 21.6W

Full-Loading Mode 0.75A 1.05A

Total Watts 18W 25.2W

58

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Appendix B: Watchdog

aPPendIx B: watChdog

1.1 Command Register and Address Description:

Command Description

0x88 Read watchdog time interval

0x89 Reset watchdog time interval

0x28 Start watchdog

0x29 Stop watchdog

0x2A Reset watchdog

Address for watchdog: Watchdog is used to set up time interval and also keep event status. Unit time interval is 1ms. Time setting requires a word (8 bit) long length. You can set up watchdog event time from 0 to 0xFFFFFFFE. Write 0xFFFFFFFF to time interval setting means disable watchdog event. The interval time range is from 0ms to 497 day (0~0x0xFFFFFFFE)

Address Description

0x50-0x53 0~0xFFFFFFFE

1.2 Set up Watchdog Time Interval Description:

Step Action Description

RW Sample Code Command

0 Wait IBF clear x

1

Write 0x89 to 0x66

Send read command >o 0x66 0x89

2 Wait IBF clear x

3

Write RAM address to 0x62 port

Send Watchdog address 0x50~0x53.

>o 0x62 0x50

4 Wait OBF set x

5

Write watchdog time interval value to 0x62

Values from 0~0x0xFFFFFFFE, but two bit in each address, please refer to sample code explanation.

>o 0x62 0x90

Sample explanation: To set up watchdog time interval to 4 seconds, here are the values that should be filled in each address.

4sec = 400ms (decimal) = 190 (hexadecimal)

Address 0x50 0x51 0x52 0x53

Data 0x00 0x00 0x01 0x90

59

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Appendix B: Watchdog

Complete command set sequence:

Further Description Command Address Data

Set watchdog interval, write to address 0x50~0x53 and Data “00000190”

>o 0x66 0x89

>o 0x62 0x50 >o 0x00

>o 0x66 0x89

>o 0x62 0x51 >o 0x00

>o 0x66 0x89

>o 0x62 0x52 >o 0x01

>o 0x66 0x89

>o 0x62 0x53 >o 0x90

1.3 Read Watchdog Time Interval Description:

Step Action Description

RW Sample Code Command

0 Wait IBF clear x

1

Write 0x88 to 0x66

Send read command >o 0x66 0x88

2 Wait IBF clear x

3

Write RAM address to 0x62 port

Send watchdog address 0x50~0x53

>o 0x62 0x50

4 Wait OBF set x

5 Read 0x62 port

Get Light sensor data in current address

>i 0x62

Please note different address cannot read continuously, you should run read command steps all over again till the last address location.

Further Description Command Address Read

Send cmd to read address 0x50

>o 0x66 0x88

>o 0x62 0x50 >i 0x62

Send cmd to read address 0x51

>o 0x66 0x88

>o 0x62 0x51 >i 0x62

Send cmd to read address 0x52

>o 0x66 0x88

>o 0x62 0x52 >i 0x62

Send cmd to read address 0x53

>o 0x66 0x88

>o 0x62 0x53 >i 0x62

To complete read 0x50 ~ 0x53 address, you have to complete the commands from 1~12.

1.4 Reset Watchdog Time Interval Description:

This command is used to reset watchdog time.

Step Action Description

RW Sample Code Command

0 Wait IBF clear x

1

Write 0x2A to 0x66

Send reset watchdog command

>o 0x66 0x2A

2 Wait OBF set x

3 Read 0x62 port

If setup successfully, EC will return 0x03.

x (check 0x03 output on display)

60

(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual

Appendix B: Watchdog

1.5 Start Watchdog Description:

Step Action Description

RW Sample Code Command

0 Wait IBF clear x

1

Write 0x28 to 0x66

Send start watchdog command

>o 0x66 0x28

2 Wait IBF clear x

3

Write 0x01 to 0x62

>o 0x62 0x01 (check 0x03 output on display)

4 Wait OBF set x

5 Read 0x62 port

If setup successfully, EC will return 0x01.

x (check 0x01 output on display)

1.6 Stop Watchdog Description:

Step Action Description

RW Sample Code Command

0 Wait IBF clear x

1

Write 0x29 to 0x66

Send stop watchdog command

>o 0x66 0x29

2 Wait OBF set x

3 Read 0x62 port

If setup successfully, EC will return 0x02.

x (check 0x02 output on display)
