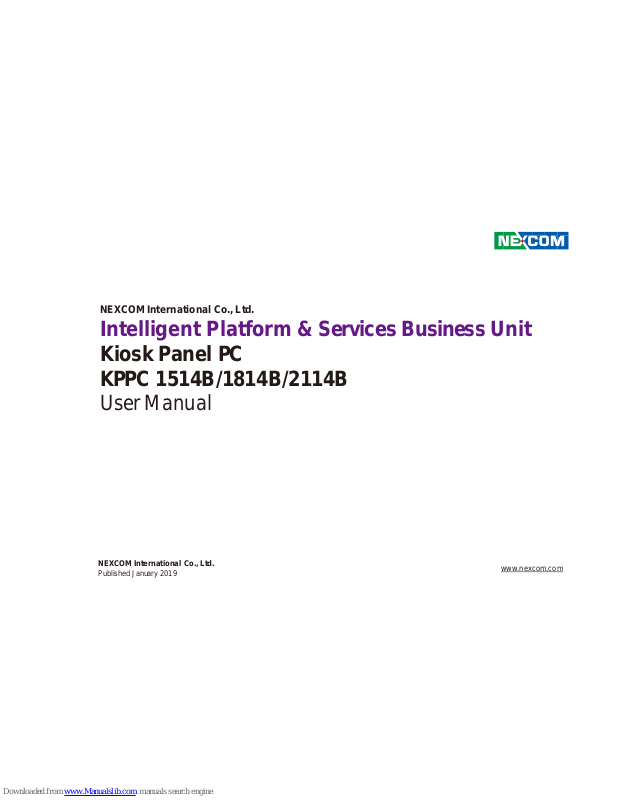

Nexcom KPPC 1514B, KPPC 1814B, KPPC 2114B User Manual

NEXCOM International Co., Ltd.

Published January 2019

www.nexcom.com

Intelligent Platform & Services Business Unit

Kiosk Panel PC

KPPC 1514B/1814B/2114B

User Manual

ii

KPPC 1514B/1814B/2114B User Manual

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements........................................................ iv

Declaration of Conformity...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................. ix

Installation Recommendations................................................................ ix

Safety Precautions................................................................................... x

Technical Support and Assistance ........................................................... xi

Conventions Used in this Manual ........................................................... xi

Global Service Contact Information........................................................xii

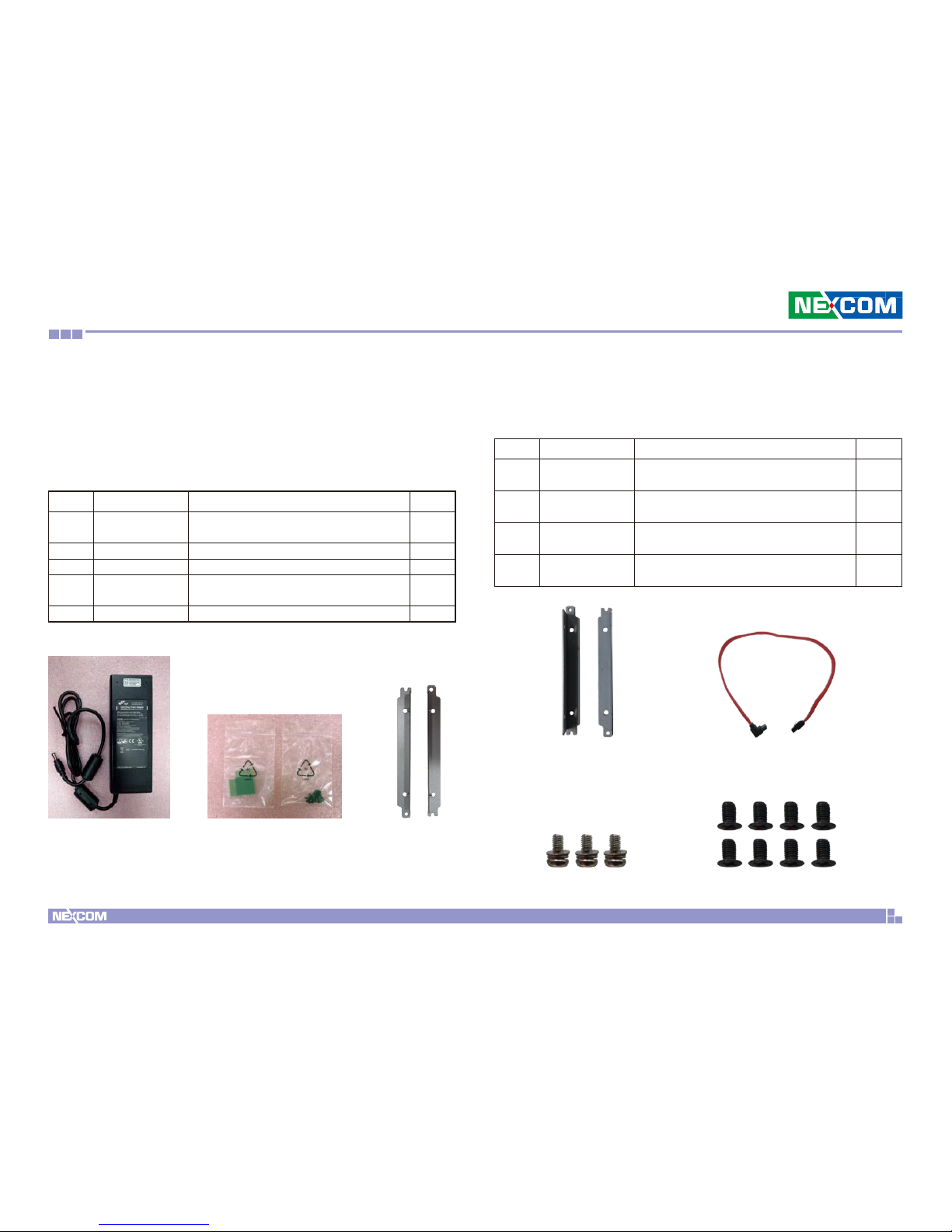

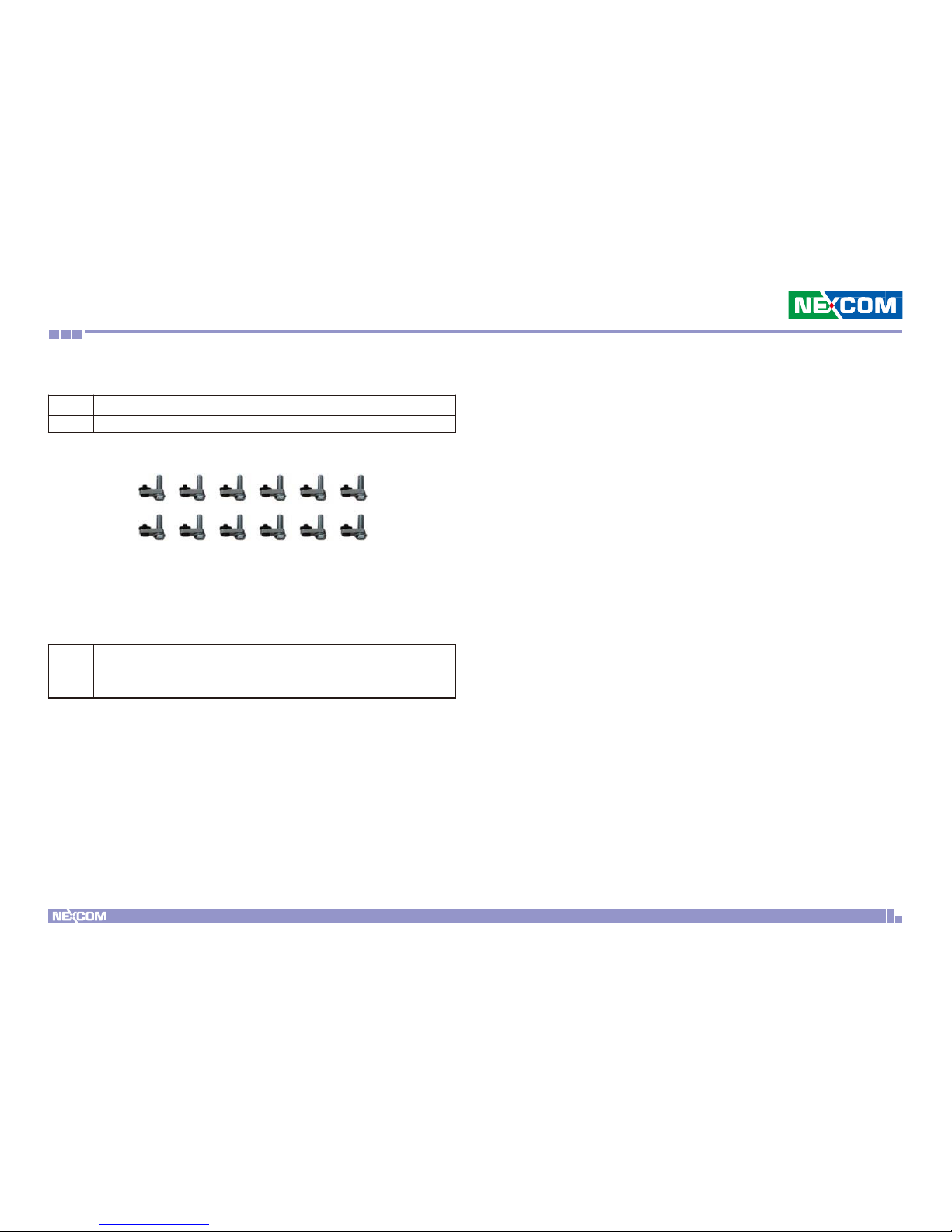

Package Contents .................................................................................xiv

Ordering Information ............................................................................xvi

Chapter 1: Product Introduction

KPPC 1514B/1814B/2114B Series............................................................1

Specifications..........................................................................................2

Knowing Your KPPC Series......................................................................4

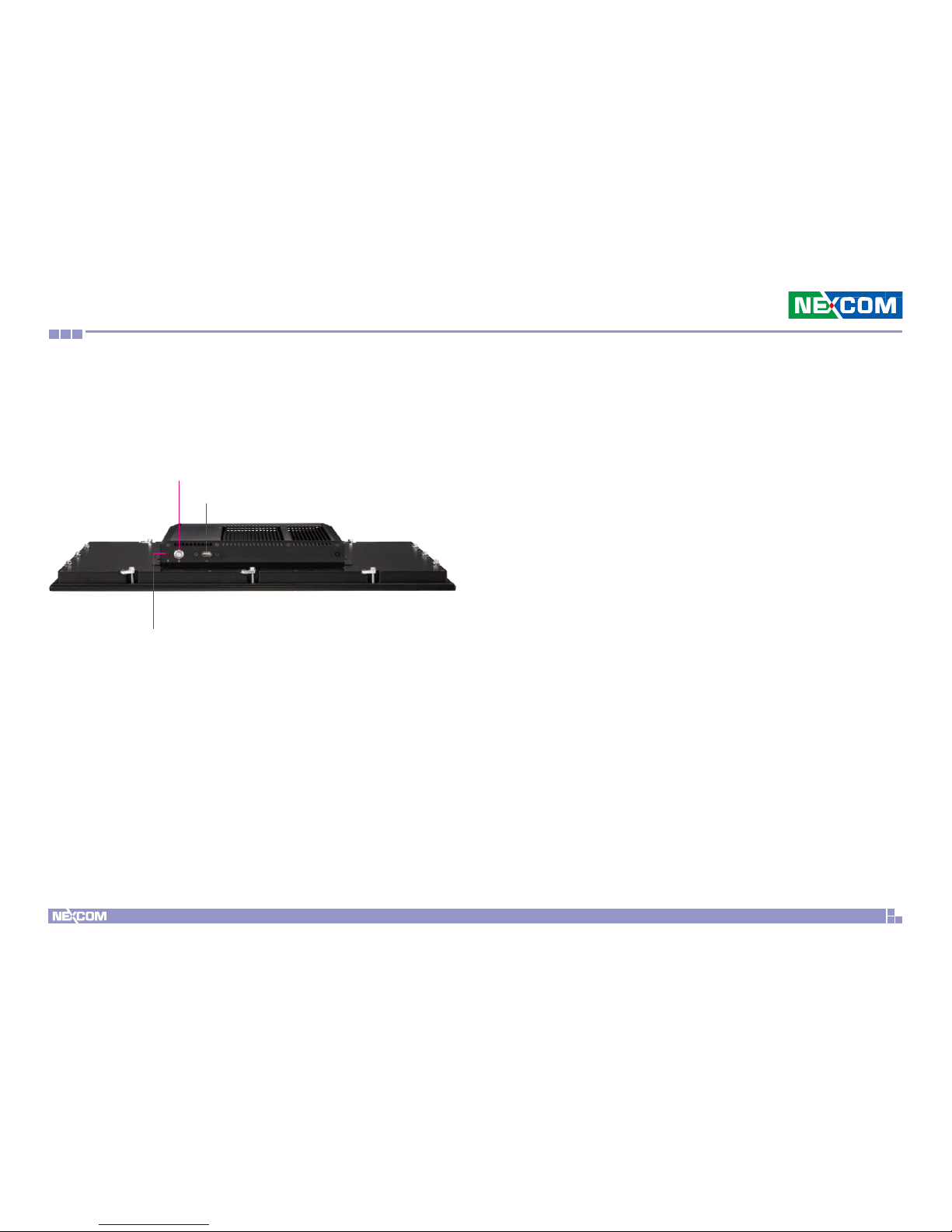

Rear Top ..............................................................................................4

Rear Bottom ........................................................................................5

Rear ....................................................................................................6

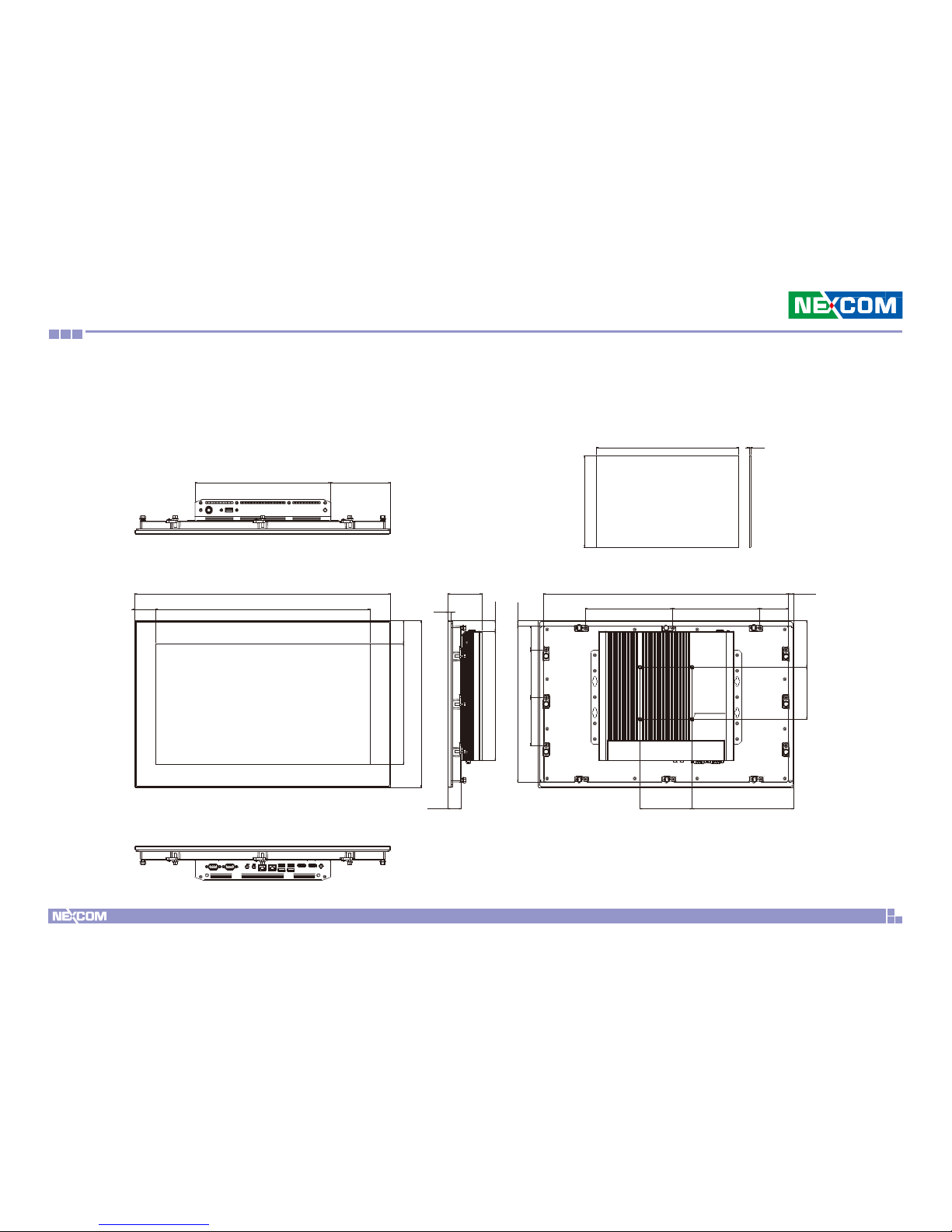

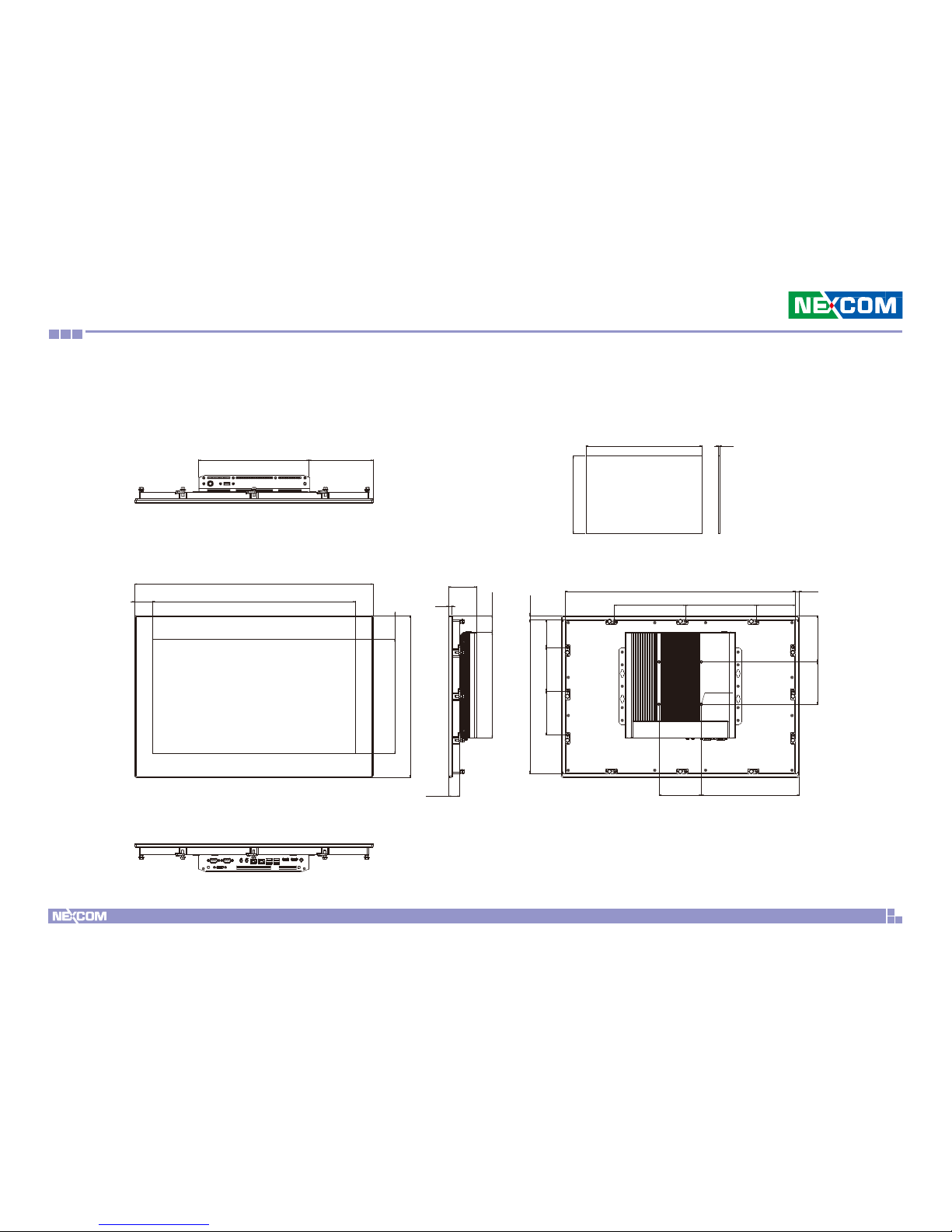

Mechanical Dimensions...........................................................................7

KPPC 1514B ........................................................................................7

KPPC 1814B ........................................................................................8

KPPC 2114B ........................................................................................9

Chapter 2: Jumpers and Connectors

Before You Begin ..................................................................................10

Precautions ..........................................................................................10

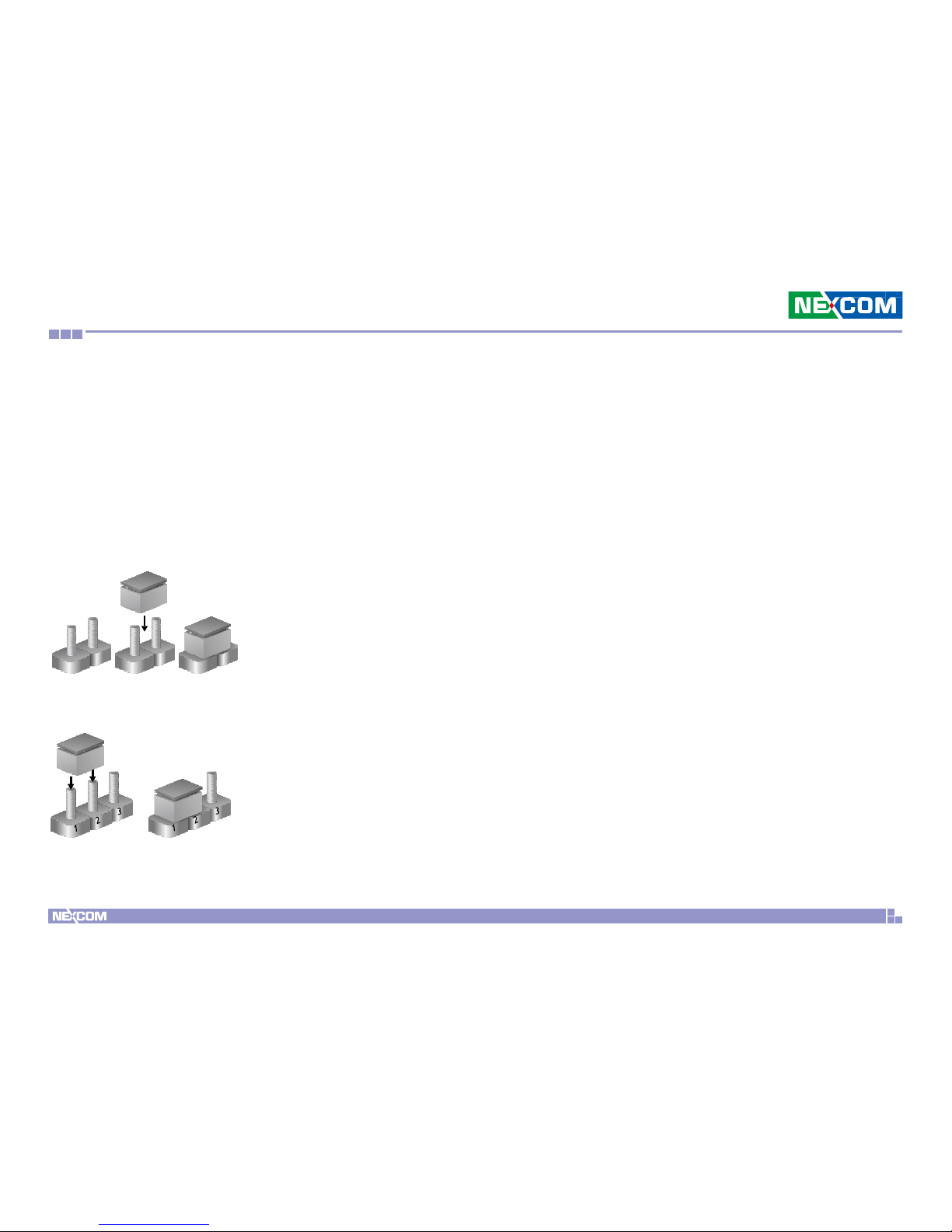

Jumper Settings ....................................................................................11

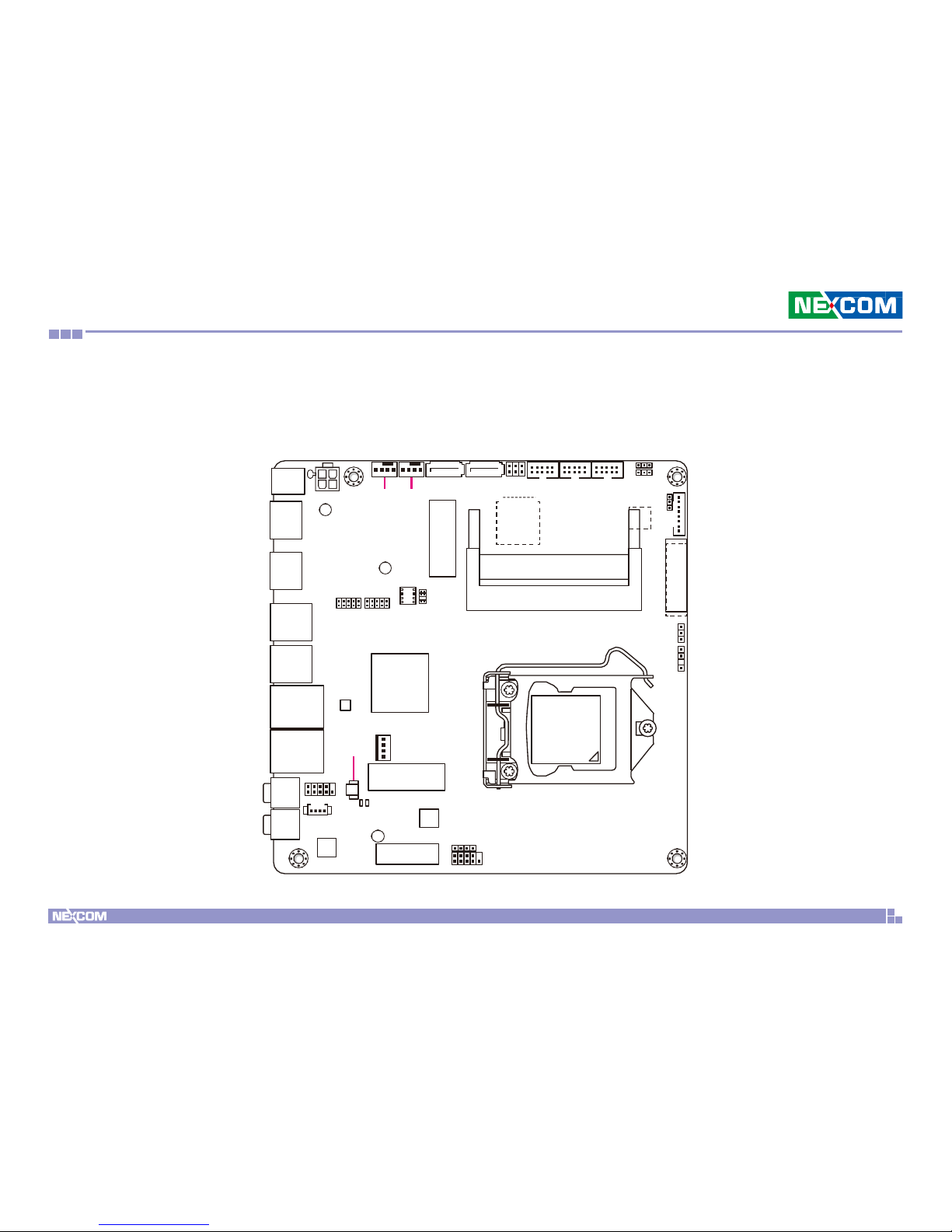

Locations of the Jumpers and Connectors .............................................12

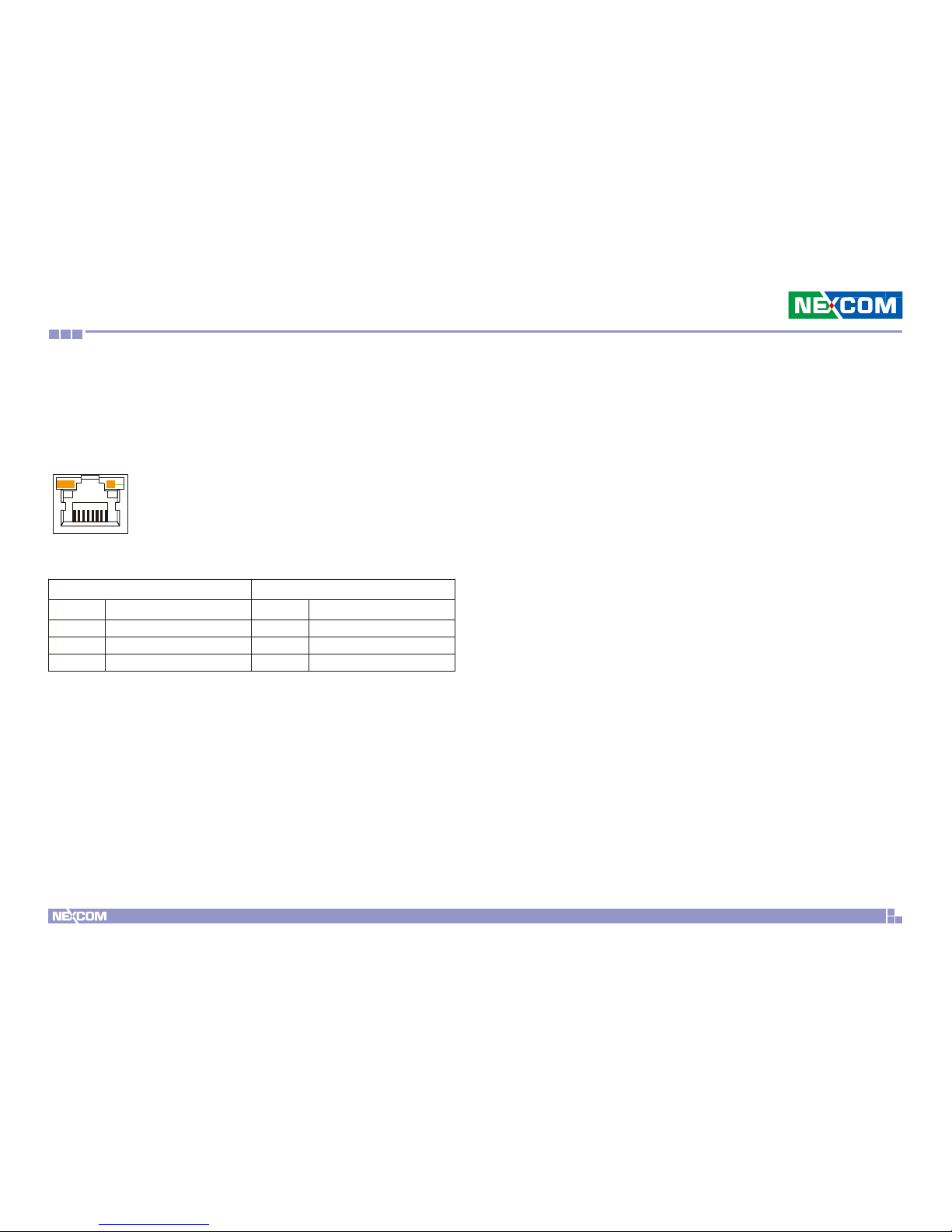

LAN Ports LED Description.....................................................................13

Jumpers ................................................................................................14

Clear RTC RAM .................................................................................14

COM1 Ring/+5V/+12V Selection........................................................14

LVDS Panel Voltage Select..................................................................15

Inverter Voltage Select .......................................................................15

Inverter Backlight Control Mode Select ..............................................16

Chassis Intrusion Jumper ...................................................................16

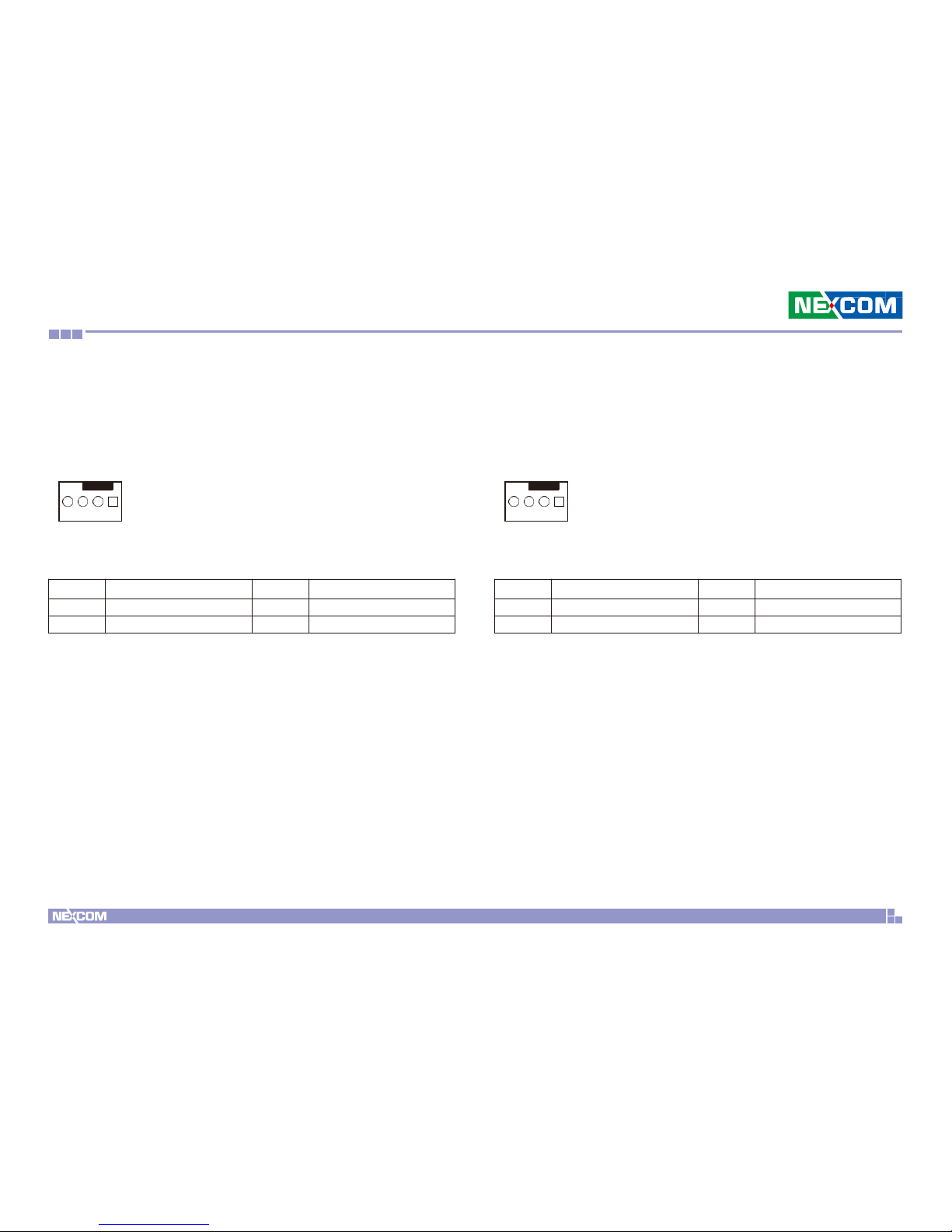

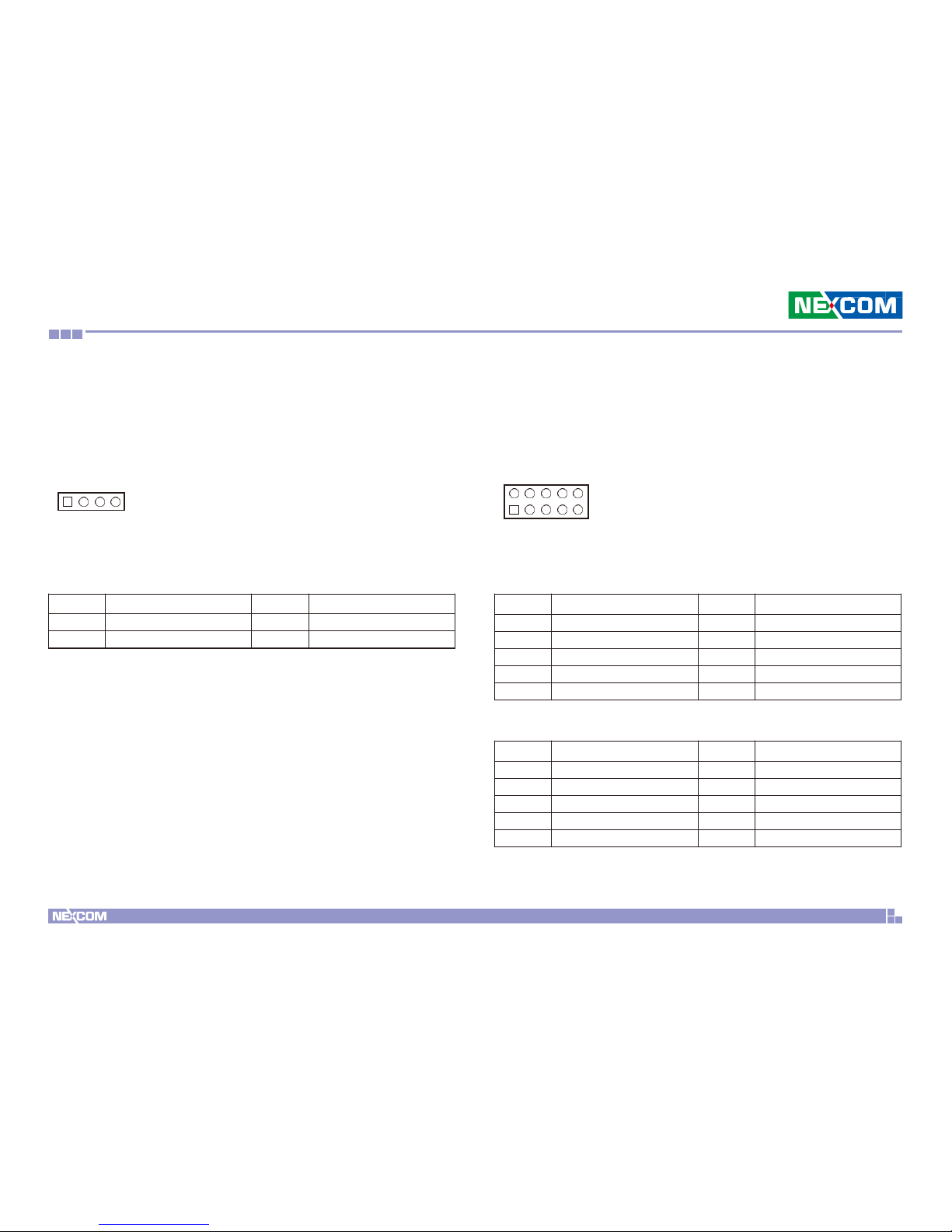

Connector Pin Definitions .....................................................................17

Internal Connectors ...........................................................................17

SATA Power Connector ..................................................................17

Audio Amplifier Connector ............................................................17

Chassis Fan Connector ...................................................................18

CPU Fan Connector........................................................................18

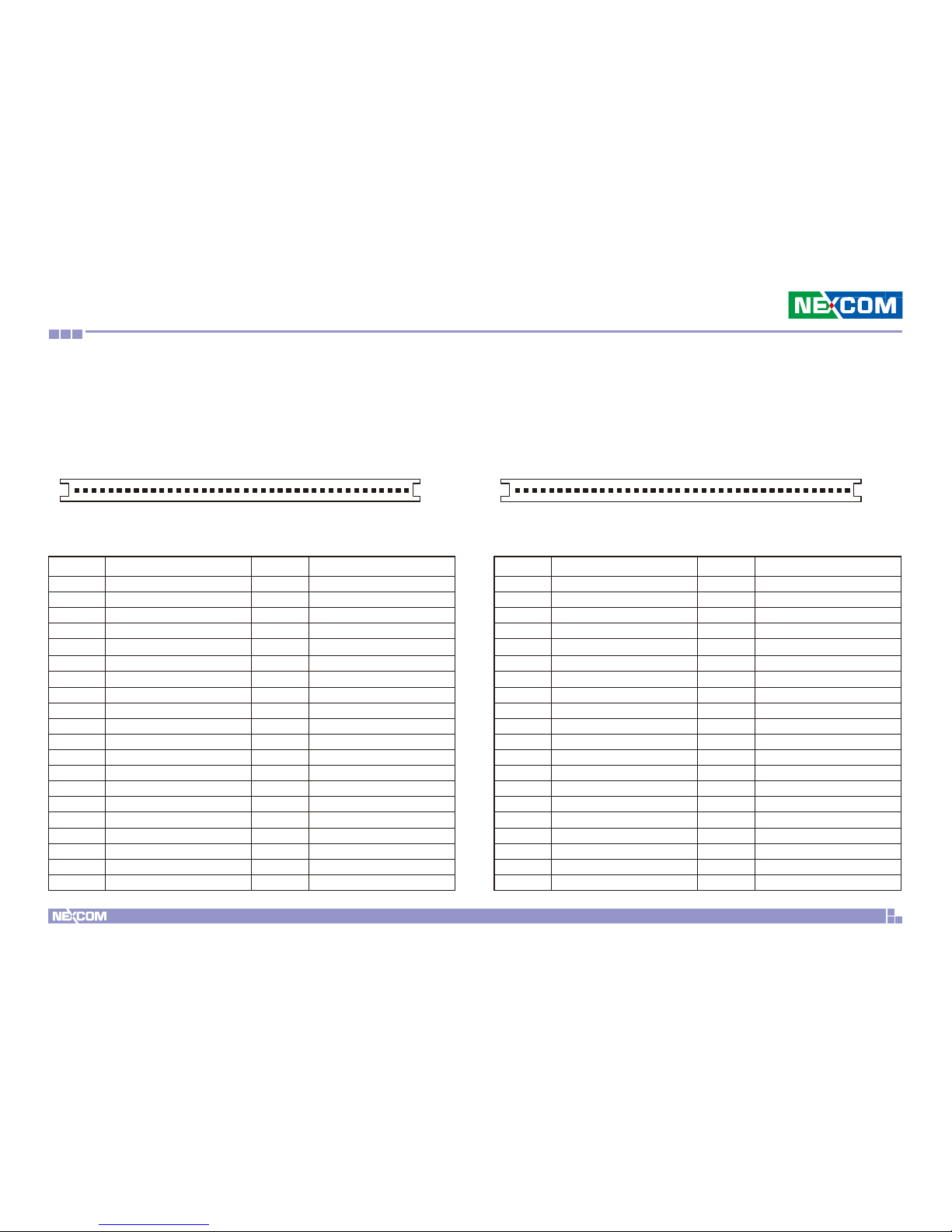

LVDS Connector .............................................................................19

Embedded DisplayPort ...................................................................19

Digital I/O Connector .....................................................................20

Content

System Panel Connector.................................................................20

Serial ATA 6.0Gb/s Connector 1 .....................................................21

Serial ATA 6.0Gb/s Connector 2 .....................................................21

Speaker Connector ........................................................................22

USB 2.0 Connectors .......................................................................22

SPI Flash Programmable Connector ................................................23

Battery Connector..........................................................................23

Backlight Inverter Power Connector ...............................................24

Serial Port Connector (COM1) ........................................................24

Serial Port Connector (COM2) ........................................................25

4-pin DC-In Power Connector ........................................................25

Front Panel Audio Connector .........................................................26

Chapter 3: System Setup

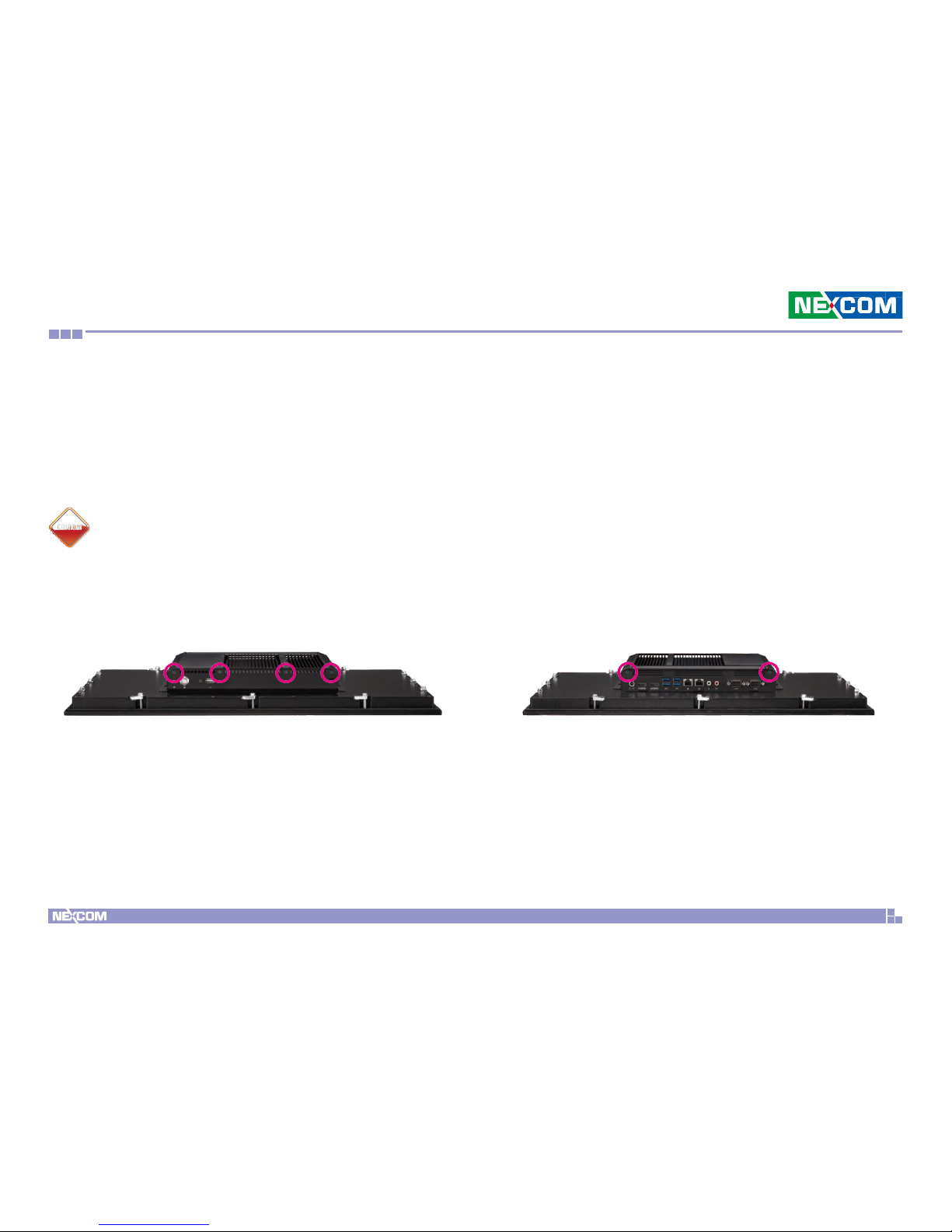

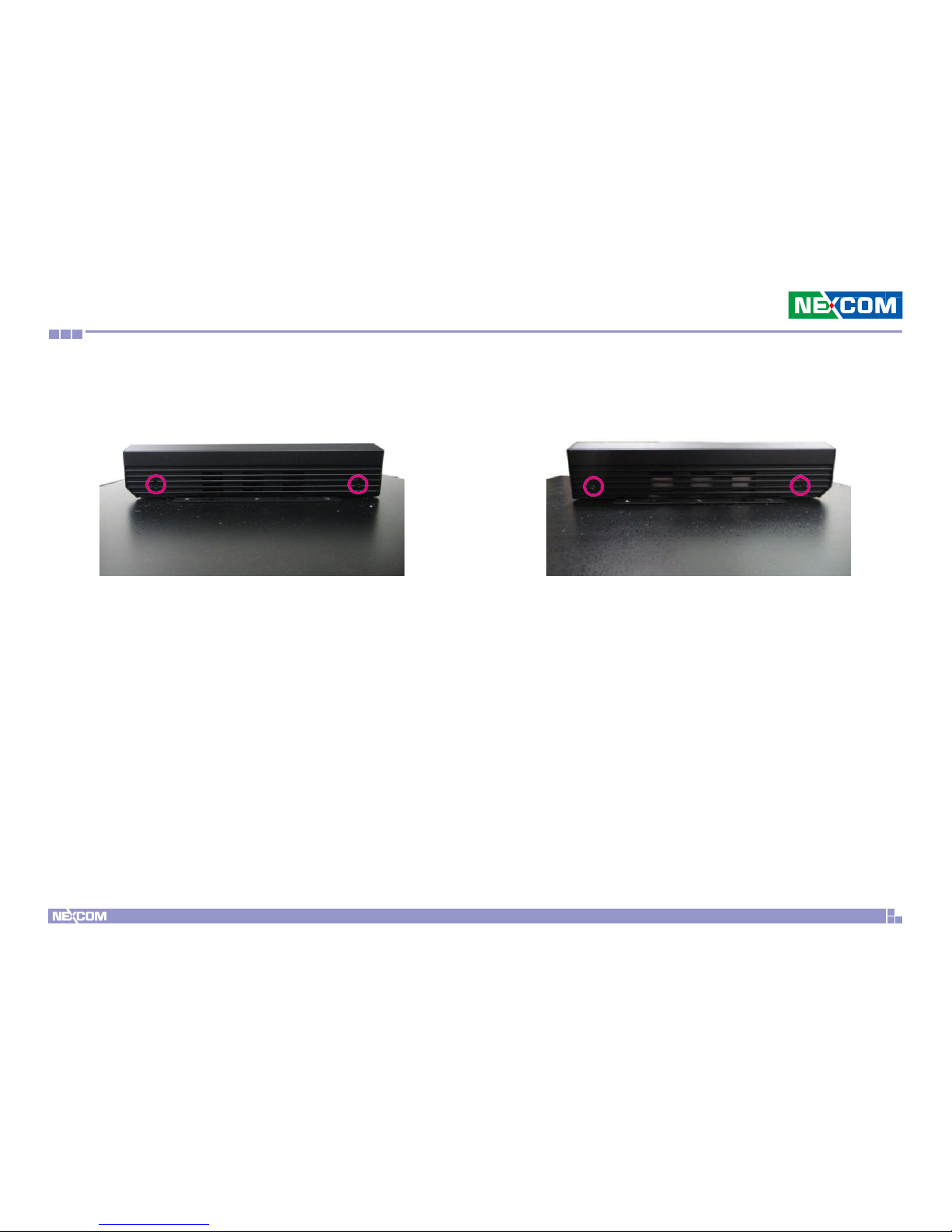

Removing the Top Cover .......................................................................27

Installing SO-DIMM Memory Modules...................................................29

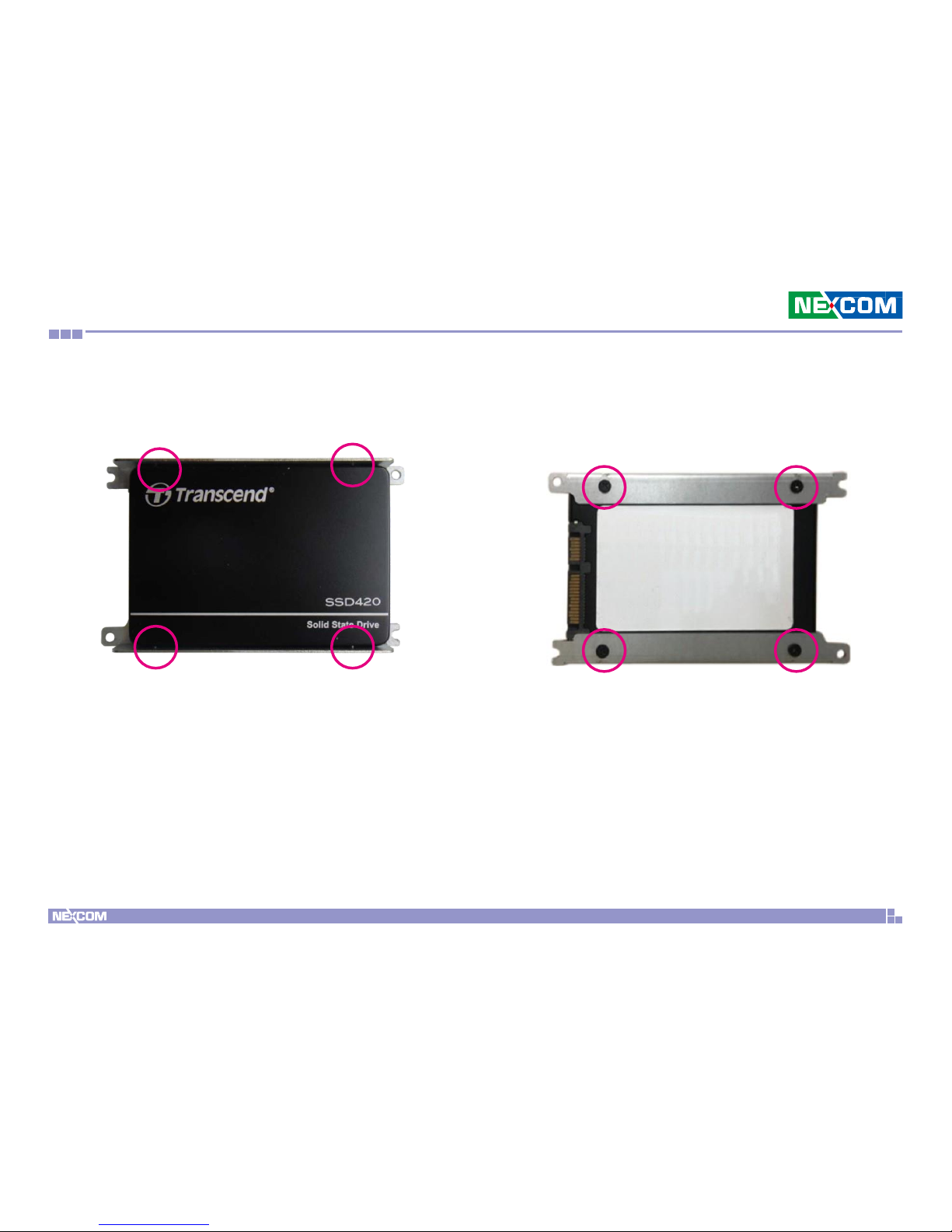

Installing a SATA Storage Drive..............................................................30

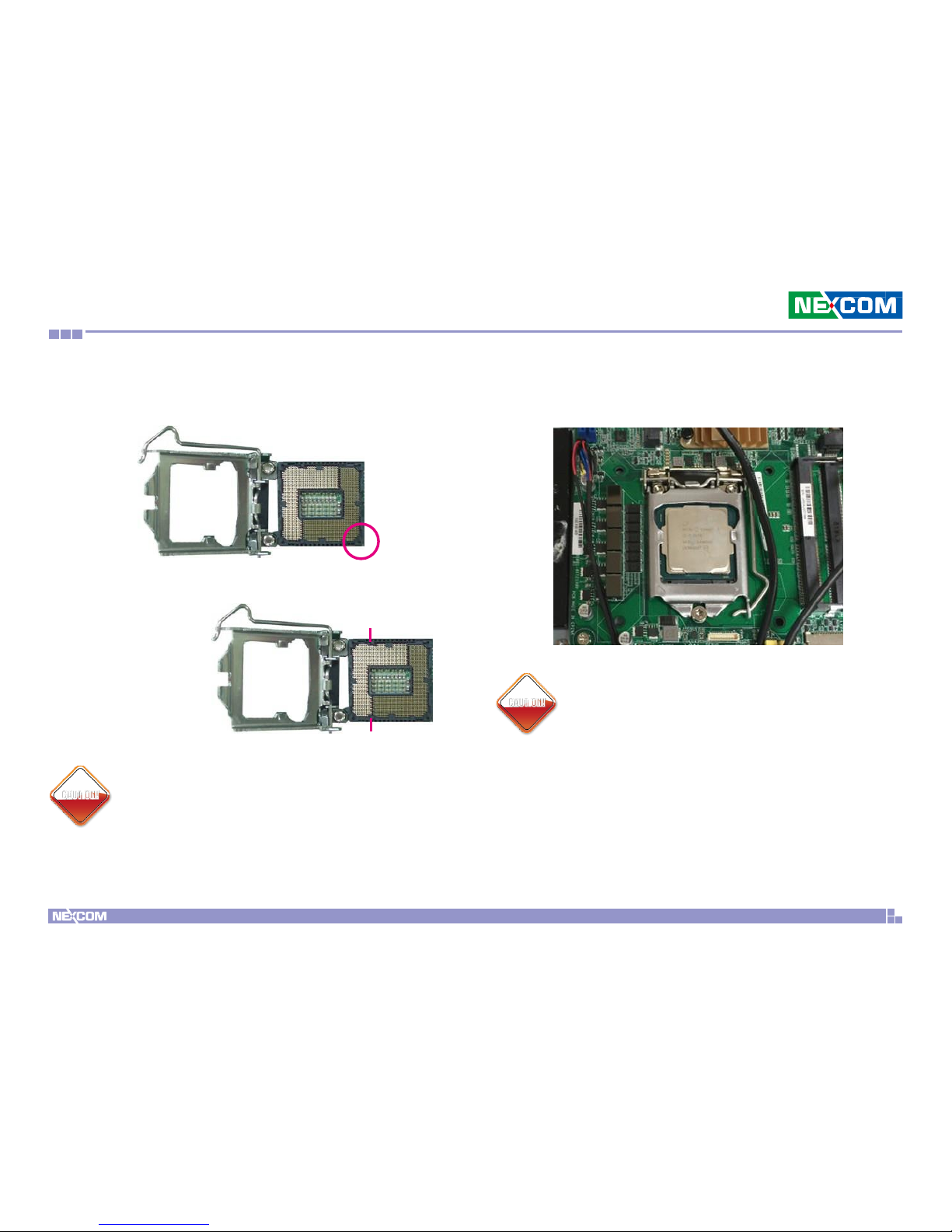

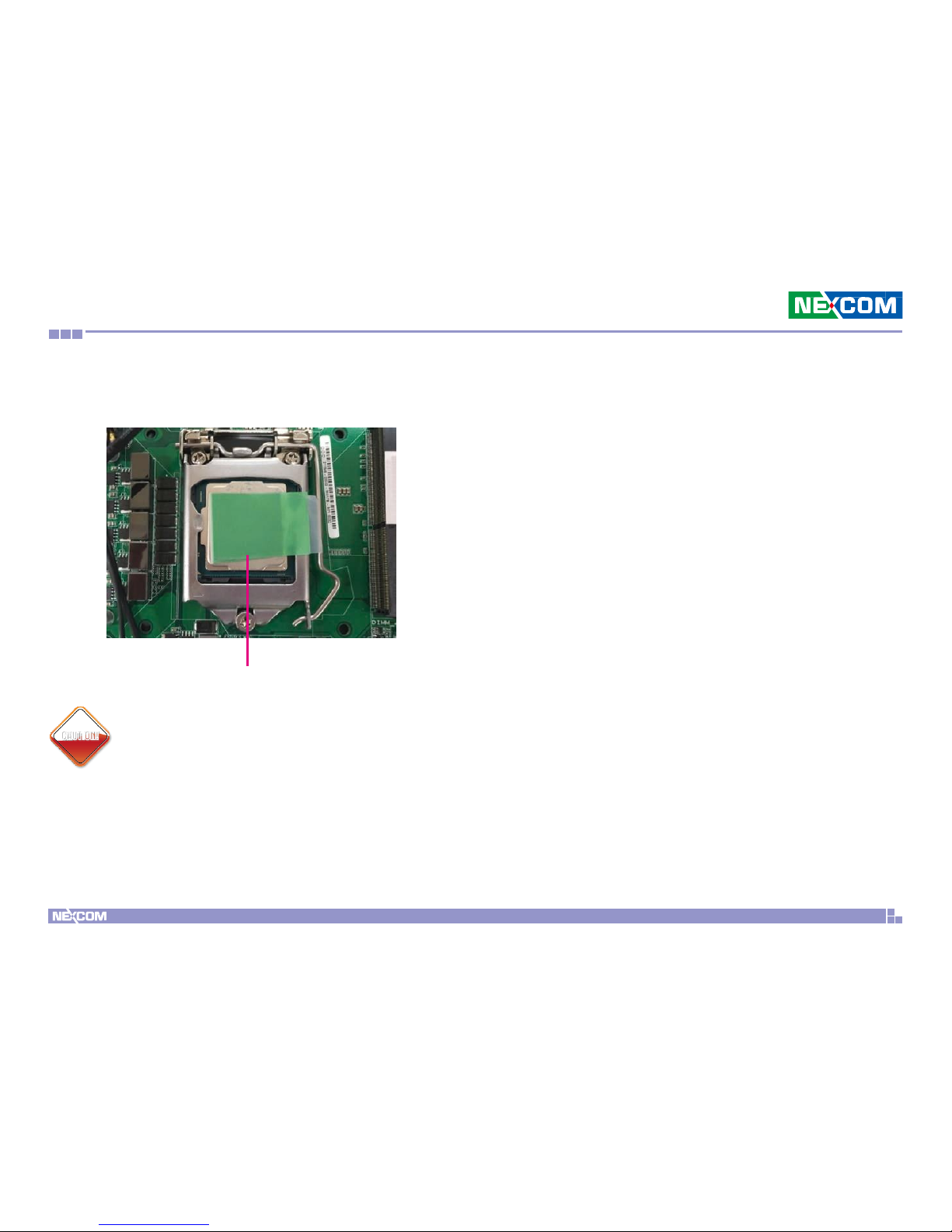

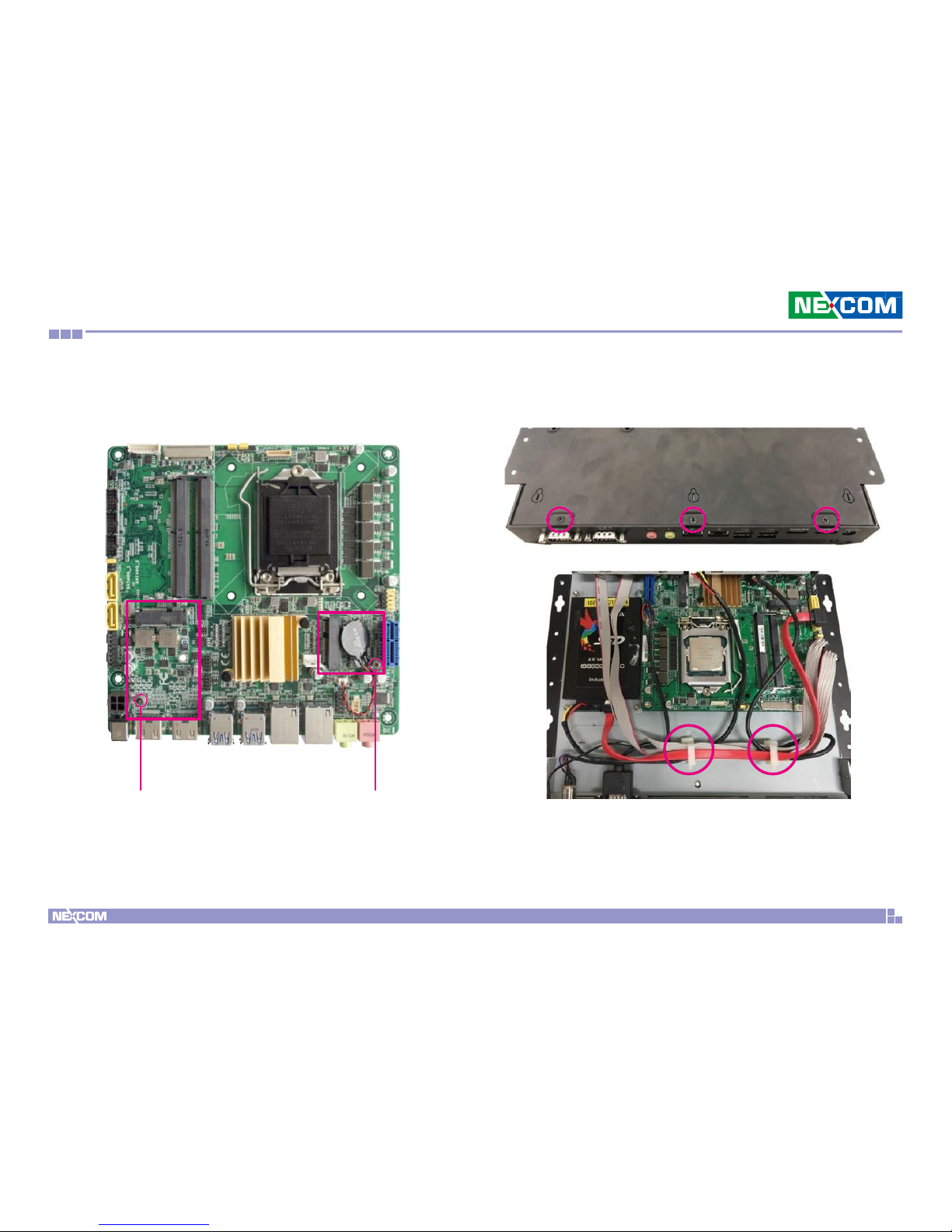

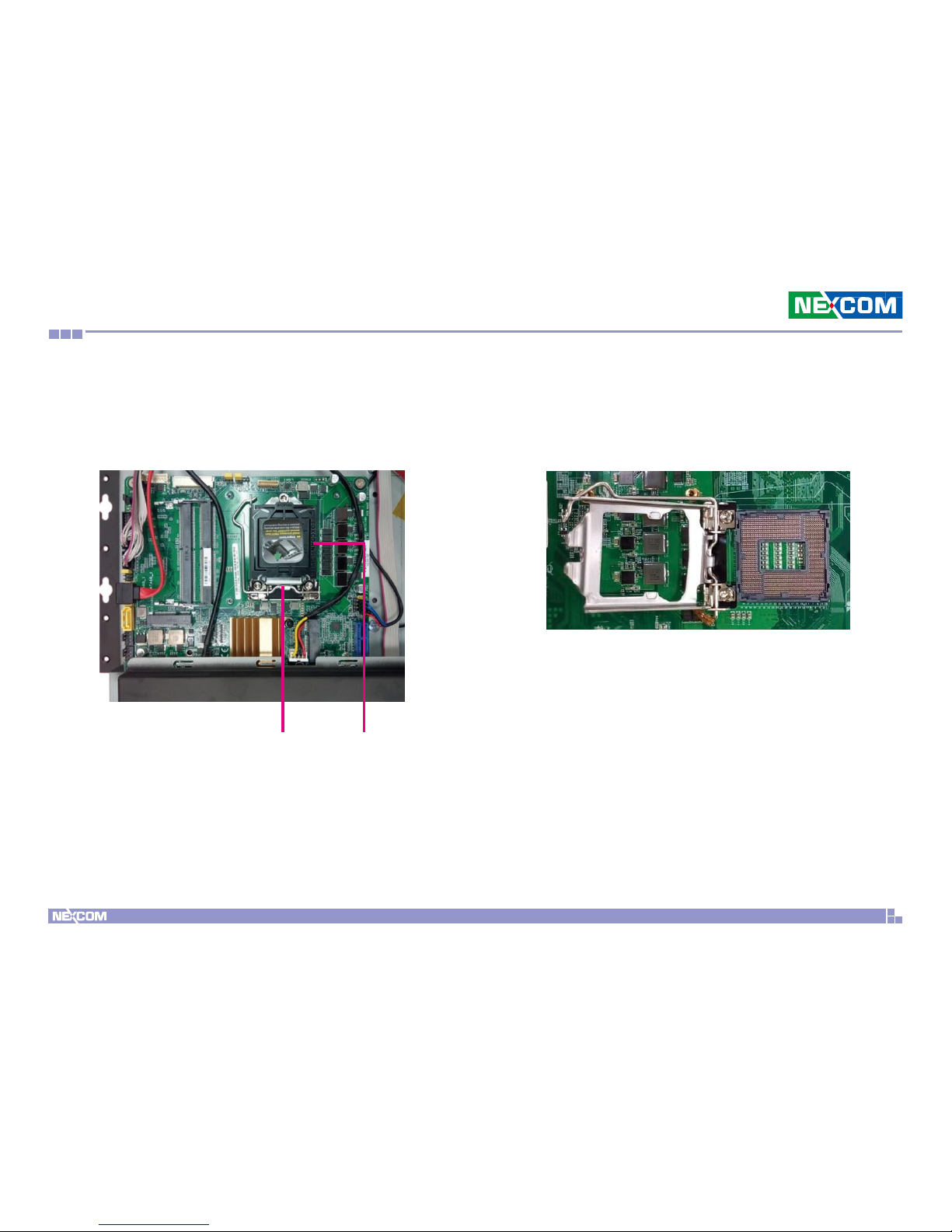

Installing LGA1151 35W CPU ...............................................................33

Installing Expansion Cards.....................................................................36

Chapter 4: BIOS Setup

About BIOS Setup .................................................................................38

When to Configure the BIOS.................................................................38

Default Configuration ...........................................................................39

Entering Setup ......................................................................................39

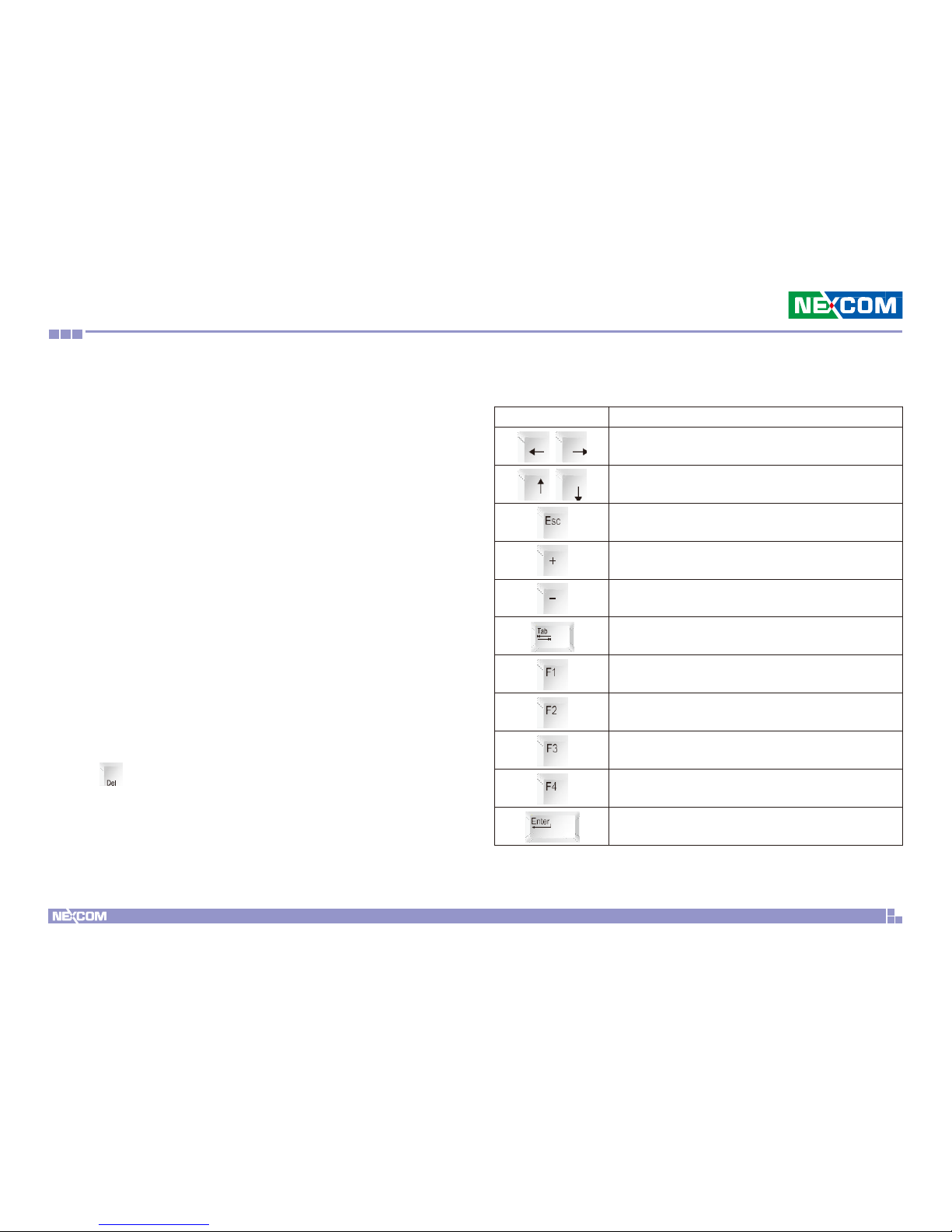

Legends ................................................................................................39

BIOS Setup Utility..................................................................................41

Main .................................................................................................41

Advanced ..........................................................................................42

Chipset..............................................................................................50

Security .............................................................................................52

Boot ..................................................................................................53

Save & Exit ........................................................................................53

3

Preface

Prefa Ce

4

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages

arising out of the use of any product, nor for any infringements upon the rights

of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

KPPC 1514B/1814B/2114B is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of

their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining

CE compliance also requires proper cable and cabling techniques.

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components

and new manufacturing processes maintain the highest industry quality

levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

5

vi

KPPC 1514B/1814B/2114B User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

1. NEXCOM makes products in accordance with the Industry standard and,

NEXCOM warrants that all the Industry-grade IPC and System products will be free from defect in neither material nor workmanship for twenty- four (24) months from the day of invoice issued.

2. For NEXCOM Panel PC product lines (the APPC, MPPC and KPPC series),

they are also guaranteed against defect in materials and workmanship for the period of twenty-four (24) months in their motherboard design. For 3rd party parts, it follows with original suppliers’ standard: 12 months for battery pack and LCD, 24 months for adaptor / add on modules (including GSM module, RFID module, and antenna).

3. If NEXCOM determines customer’s warranty claim is valid, NEXCOM will

repair or replace product(s) without additional charge for parts and

labor. An extended Warranty Program will extend the warranty period of

the product accordingly.

Warranty Coverage

The warranty applies only to products manufactured or distributed by NEXCOM and its subsidiaries. This warranty covers all the products/ shipments except for:

1. Any claimed defect, products that have been repaired or modified by

persons who have not been authorized by NEXCOM or, products which have been subjected to misuse, abuse, accident, improper installation, or usage not in accordance with the product instruction. NEXCOM assumes no liability as a consequence of such events under the term of this warranty.

One example is the replacement of Tablet’s or Hand-held’s LCD display due to scratching stains or other degradation; these will not be covered under this warranty.

2. Damages caused by customers’ delivery/shipping of the product or, product failure resulted from electrical power/voltage shock, or, installation of parts/components which are not supplied/approved by NEXCOM in advance.

3. Third-party products: a. Software, such as the device drivers, b. External devices such as HDD, printer, scanner, mouse, LCD panel,

battery, and so on, c. Accessory/parts that were not approved by NEXCOM and, d. Accessory/parts were added to products after they were shipped from

NEXCOM.

Product will be treated as “Out of Warranty “ if: a. It expires the warranted 24 months period from the day it was purchased. b. It had been altered by persons other than an authorized NEXCOM service

person or, which have been subjected to misuse, abuse, accident, or improper installation.

c. It doesn’t have the original NEXCOM Serial Number labeling for

NEXCOM’s warranty period identification or, tracking.

vii

KPPC 1514B/1814B/2114B User Manual

Preface

RMA that NEXCOM has determined not to be covered by the warranty will be charged the NEXCOM Standard Repair Fee for the repairing. If a RMA is determined to be not repairable, customer will be notified and product(s) may be returned to customer at their request; a minimum service fee may be charged however.

NEXCOM Return Merchandise Authorization (RMA) Procedure

For the RMA (Return Merchandise Authorization) shipment, customer is responsible for packaging and shipping the product to the designated NEXCOM service sites, with shipping charges prepaid by the customer. The original NEXCOM shipping box should be used whenever possible. NEXCOM shall pay for the return of the product to the customer’s location. In case of expedited shipping request, an extra service charge shall be assessed and the customer is responsible for this extra return shipping charge.

1. Customers should enclose the “NEXCOM RMA Service Form” with the returned products.

2. Customers need to write down all the information related to the problem

on the “ NEXCOM RMA Service Form “ when applying for the RMA service; information will help to understand the problem, including the fault description, on-screen messages, and pictures if possible.

3. Customers could send back the faulty product with or without the accessories and key parts such as the CPU and DIMM. If the key parts are included, please be noted clearly within the return form. NEXCOM takes no responsibility for the parts which are not listed in the return form.

4. Customers hold the responsibility to ensure that the packing of defective products is durable enough to be resistant against further damage due to the transportation; damage caused by transportation is treated as “

Out of Warranty “ under our Warranty specification.

5. RMA product(s) returned by NEXCOM to any location other than the

customer registered delivery address will incur an extra shipping charge, the customer is responsible for paying the extra shipping charges, duties, and taxes of this shipment.

Product Repairing

1. NEXCOM will repair defective products covered under this limited

warranty that are returned to NEXCOM; if products do prove to be

defective, they will be repaired during their warranty period unless other warranty terms have been specified.

2. NEXCOM owns all parts removed from repaired products.

3. NEXCOM will use parts made by various manufacturers in performing the repair.

4. The repaired products will be warranted subjected to the original

warranty coverage and period only.

5. For products returned as defective but, proved to be no defect/fault after the RMA process, NEXCOM reserves the right to claim for a NDF (No Defect Found) Service Charge.

6. NEXCOM will issue RMA Report which included Repair Detailed Information to the customer when the defective products were repaired and returned.

7. In addition to the above, NEXCOM may authorize Independent/Third-

party suppliers to repair the defective products for NEXCOM.

Preface

Out Of Warranty Service

There will be a service charge from NEXCOM for the “Out Of Warranty” product service; they are the Basic Diagnostic Service Fee and the Advanced Component Replacement Fee respectively. And, if the product can not be repaired, NEXCOM will either return the product to the customer or, just scrap it, followed by customer’s instruction.

1. Testing and Parts Replacement NEXCOM will have the following Handling Charges for those OoW

products that returned:

a. Basic Labor Cost and Testing Fee: as Table listed.

b. Parts Fee: NEXCOM will charge for main IC chipsets such as the N.B.,

S.B., Super-IO, LAN, Sound, Memory, and so on.

c. 3rd-party Device Fee: products replacement for CPU, DIMM, HDD,

Chassis, and UPS.

2. Out of Warranty product will have a three months warranty for the fixed issues. If the product failed with different problem within 3 months, they will still incur the service charge of “Out of Warranty”.

3. Out of Warranty “products will not be repaired without a signed PI from the customer, the agreement of the repair process.

Add-on card, 3rd Party Device and board level repair cost higher than new product prices, customer can abandon to sign PI to repair and, please contact with sales to buy new products.

8

Preface

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

9

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver ▪ A flat-tipped screwdriver ▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Preface

Safety Precautions

10

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14.If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b.Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

15.Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

xi

KPPC 1514B/1814B/2114B User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.)

– A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CCAAUUTTIIOON

N!!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

xii

KPPC 1514B/1814B/2114B User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

9F, No. 920, Chung-Cheng Rd.,

ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C.

Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

Asia

Taiwan NexAIoT Co., Ltd.

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

NexAIoT Co., Ltd. Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172

Email: [email protected] www.nexcom.com.tw

NexCOBOT Taiwan Co., Ltd.

13F, No.916, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

GreenBase Technology Corp.

13F, No.922,Chung-Cheng Rd., Zhonghe Dist., New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7900 Email:[email protected] www.nexcom.com.tw

China NEXSEC Incorporated

Floor 5, No.4, No.7 fengxian middle Rd., (Beike Industrial Park), Haidian District, Beijing, 100094, China Tel: +86-10-5704-2680 Fax: +86-10-5704-2681 Email: [email protected] www.nexcom.cn

Preface

NEXGOL

1st Floor, Building B4, Electronic 2nd Area, (Phoenix Lake Industrial Park), Yongchuan Dist., Chongqing City, 402160, China Tel: +86-23-4960-9080 Fax: +86-23-4966-5855 Email: [email protected] www.nexgol.com/NexGoL

13

Beijing NexGemo Technology Co.,Ltd.

5th Floor, Gemotech Building, No.1, Development Rd., Changping International Information Industry Base, Changping District,

Beijing,102206, China

Tel: +86-10-8190-9399 Fax:+86-10-8190-9456

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832

Email: [email protected] www.nexcom-jp.com

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No. 609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXCOM Surveillance Technology Corp.

Floor 5, Building C, ZhenHan Industrial Zone, GanKeng Community, Buji Street, LongGang District, ShenZhen, 518112, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: [email protected] www.nexcom.cn

NEXCOM United System Service

Room 603/604, Huiyinmingzun Plaza Bldg. 1,

No. 609, Yunlin East Rd.,

Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358

Email: [email protected] www.nexcom.cn

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

Preface

Package Contents

Before continuing, verify that the KPPC 1514B/1814B/2114B series package that you received is complete. Your package should have all the items listed

in the following table.

KPPC 1514B/1814B/2114B Series Standard Kit

Item

Part

Number

Description

Qty

1

7400084003X00

Power

Adapter FSP:FSP084-DHAN3 84W

12V/7A

for IEC/EN 62368

1

2

5060200082X00

Thermal

Pad VER:A EAPUS 2

3

50311F0111X00

Flat Head

Screw Long Fei:F3x5ISO+Nylok

Black

4

50311F0100X00

Round

Head Screw w/Spring+Flat Washer Long

Fei:P3x6L

3

5

5061700832X00

HDD

Bracket 2

HDD Bracket

Power Adapter

Thermal Pad & Screws

Dual HDD Bracket SATA Cable

Flat Head Screw Round Head Screw

KPPC 1514B/1814B/2114B Series Optional Assy HDD Kit

(P/N: 10IK0061404X0)

14

Item

Part

Number

Description

Qty

1

5061700985X00

Dual

HDD Bracket 106x18x11.7mm T=1mm

SECC

2

50311F0111X00

Flat Head

Screw Long Fei:F3*5ISO+Nylok

Black

F3x5

Black Nylok

8

3

50311F0100X00

Round

Head Screw w/Spring+Flat Washer Long

Fei:P3x6L, P3x6

iso/SW6x0.5 NI

3

4

603ATA0107X00

SATA

Cable Great Ideal: YXH18032901

SATA

CON 7P 180D to 90D L=350mm

1

Preface

KPPC 1514B/1814B/2114B Series Panel Mounting Clips (Optional)

15

Item

Description

Qty

1

Panel

Mounting Clips x12 (P/N: 88YK0212100X0) 12

Panel Mounting Clips x12

KPPC 1514B/1814B/2114B Series Optional HDD Kit Package

(P/N: 10IK0061404X0)

Item

Description

Qty

1

2x

2.5 HDD Bracket Kit for IKS 614B with SATA Cable

(A000)

(P/N: 10IK0061404X0)

10

Preface

Ordering Information

xvi

The following information below provides ordering information for the KPPC 1514B/1814B/2114B series.

Barebone

• KPPC 1514B (P/N: 10YK0151400X0)

15.6“ LED backlight touch panel PC with Intel

®

FCLGA1151 35W, w/ 2 x

HDMI, 2 x GbE LAN, 4 x USB 3.0, 2 x serial port, 1 x Line-out, 1 x Mic-in

• 12V, 84W power adapter w/ o power cord (P/N: 7400084003X00)

• KPPC 1814B (P/N: 10YK0181400X0)

18.5“ LED backlight touch panel PC with Intel

®

FCLGA1151 35W, w/ 2 x

HDMI, 2 x GbE LAN, 4 x USB 3.0, 2 x serial port, 1 x Line-out, 1 x Mic-in

• 12V, 84W power adapter w/ o power cord (P/N: 7400084003X00)

• KPPC 2114B (P/N: 10YK0211400X0)

21.5“ LED backlight touch panel PC with Intel

®

CPU FCLGA1151 35W, w/ 2 x HDMI, 2 x GbE LAN, 4 x USB 3.0, 2 x serial port, 1 x Line-out, 1 x Mic-in

• 12V, 84W power adapter w/ o power cord (P/N: 7400084003X00)

Optional

• Intel® Pentium® G4400TE (3M Cache, 2.4 GHz), 2C/2T, 35W

(P/N: 71IX02GTM4X00)

• Intel® Pentium® G4600TE (3M Cache, 2.4 GHz), 2C/4T, 35W

(P/N: TBD)

• Intel® Core™ i3-6100TE (4M Cache, 2.70 GHz), 2C/4T, 35W

(P/N: 71IX02GTM3X00)

• Intel® Core™ i5-6500TE (6M Cache, up to 3.30 GHz), 4C/4T, 35W

(P/N: 71IX02GTM1X00)

• Intel® Core™ i7-6700TE (8M Cache, up to 3.40 GHz), 4C/8T, 35W

(P/N: 71IX02GTM2X00)

• Intel® Core™ i3-7101TE (3M Cache, 3.40 GHz), 2C/4T, 35W

(P/N: 71IY03GTM3X00)

• Intel® Core™ i5-7500T (6M Cache, up to 3.30 GHz), 4C/4T, 35W

(P/N: 71IY03GTM2X00)

• Intel® Core™ i7-7700T (8M Cache, up to 3.80 GHz), 4C/8T, 35W

(P/N: 71IY03GTM1X00)

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

Key Features

▪ 6th generation Intel® Core™ i LGA1151 35W processors ▪ (1366x768), P-Cap multi-touch display (KPPC 1514B/1814B) ▪ FHD (1920x1080), P-Cap multi-touch display (KPPC 2114B) ▪ Support rich I/O, 2 x GbE LAN, 2 x COM, 5 x USB etc. ▪ Mounting support: Panel/Wall/Stand/VESA (KPPC 1514B/1814B/2114B)

▪ Metal housing with robust aluminum IP65 compliant front bezel for harsh

environment

▪ Fanless design

KPPC 1514B/1814B/2114B Series

Overview

1

Chapter 1: Product Introduction

Specifications

2

Panel

KPPC 1514B

▪ LCD size: 15.6”, 16:9

▪ Resolution: 1366 x 768

▪ Luminance: 400 cd/m² ▪ Contrast ratio: 500 ▪ LCD color: 16.7M ▪ Viewing angle: 80(U), 80(D), 85(L), 85(R) ▪ Backlight: LED

KPPC 1814B

▪ LCD size: 18.5”, 16:9 ▪ Resolution: 1366 x 768 ▪ Luminance: 250 cd/m² ▪ Contrast ratio: 1000 ▪ LCD color: 16.7M ▪ Viewing angle: 80(U), 80(D), 85(L), 85(R) ▪ Backlight: LED

KPPC 2114B

▪ LCD size: 21.5”, 16:9

▪ Resolution: FHD, 1920 x 1080

▪ Luminance: 250 cd/m² ▪ Contrast ratio: 3000 ▪ LCD color: 16.7M ▪ Viewing angle: 89(U), 89(D), 89(L), 89(R) ▪ Backlight: LED

Touchscreen

▪enTpoints P-Cap (projected capacitive touch)

▪ Light transmission: 86% ▪ Interface: USB ▪ Anti-scratch surface: 7H hardness

System

▪ CPU: 6th generation Intel® Core

TM

(formerly codenamed Skylake), with

socket supporting FCLGA1151 35W processors

▪ Memory: Dual DDR4 2133MHz SO-DIMM, up to 16GB for KPPC 1514B/

1814B/2114B, non-ECC, un-buffered

▪ Graphics: Intel® HD Graphics 630 ▪ BIOS: AMI BIOS ▪ Watchdog Timer 1~255sec./min programmable ▪ Expansion: 1 x half mini-PCIe, 1 x PCIe 2.0 (Gen2)

Storage Device

▪ 1 x 2.5” SATA SSD 6.0Gb/s ▪ 1 x Full mini-PCIe (mSATA)

Power Requirements

▪ Single power 12V DC input ▪ Power mode AT/ATX (jumper selection)

Front I/O

▪ Power on/off button ▪ 1 x USB 2.0

Rear I/O

▪ 2 x GbE LAN Realtek RTL8111G

Chapter 1: Product Introduction

▪ 4 x USB 3.0 ▪ 2 x HDMI (can only output either one of the HDMI ports) ▪ 1 x RS232 ▪ 1 x RS232/422/485 ▪ 1 x Line-out ▪ 1 x Mic-in ▪ 1 x 12V DC-in power jack

Mechanical & Environment

▪otIePcptiron: IP65 panel front side ▪ Mounting: panel/wall/VESA 100mm x 100mm ▪ Operating temperature: 32°F to 113°F (0°C to 45°C) ▪ Storage temperature: -4°F to 140°F (-20°C to 60°C) ▪ Operating humidity: 10%~90% relative humidity, non-condensing ▪ Dimension:

– 417.80 (W) x 312.80 (H) x 66.25 (D) mm (KPPC 1514B)

– 490.80 (W) x 320.60 (H) x 65.15 (D) mm (KPPC 1814B) – 562.40 (W) x 382.40 (H) x 65.35 (D) mm (KPPC 2114B)

▪ Weight:

– 7.44kg (KPPC 1514B) – 8.0kg (KPPC 1814B) – 9.9kg (KPPC 2114B)

OS Support List

▪indWows 10 IoT 64-bit

Certifications

▪ EMC & Safety ▪ CE/FCC Class A

3

Chapter 1: Product Introduction

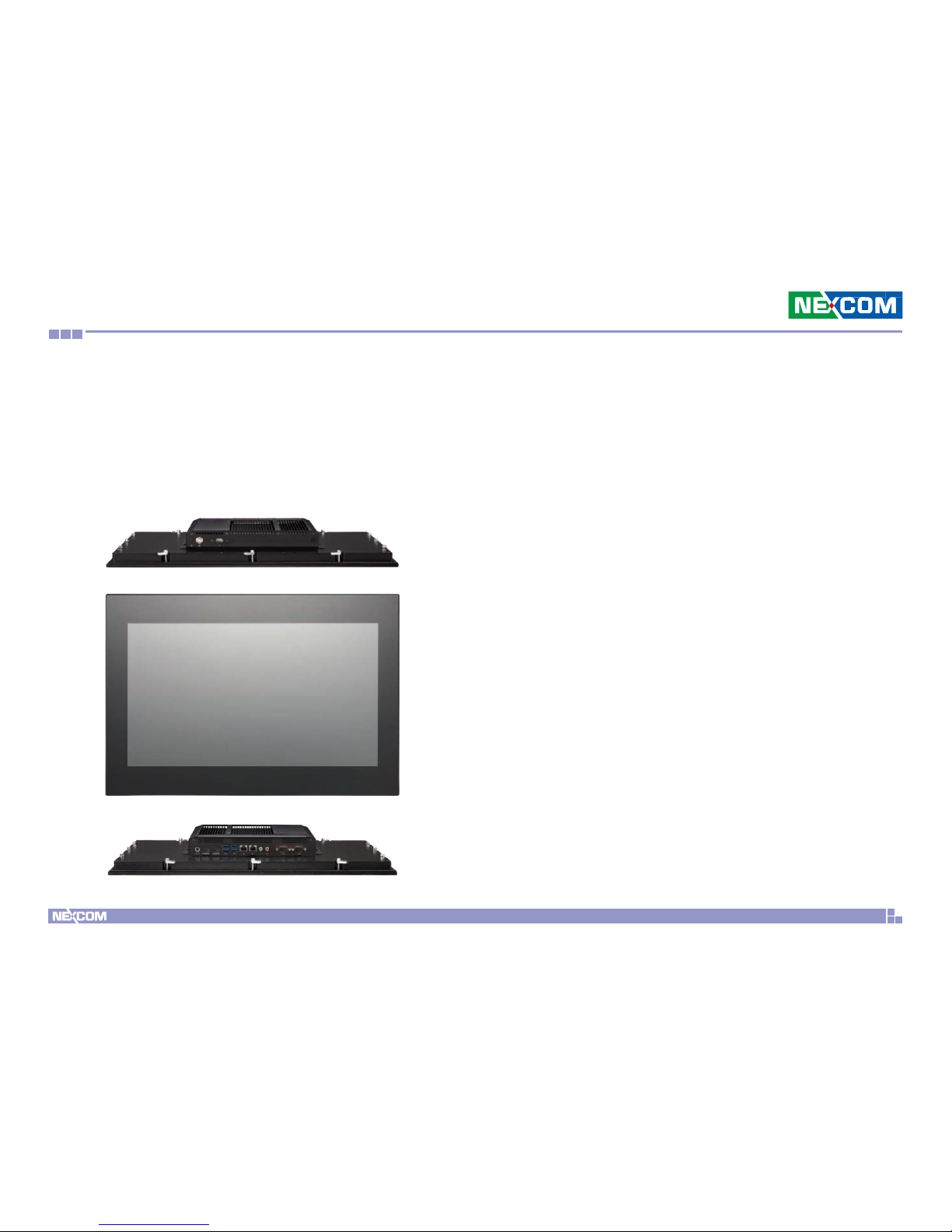

Knowing Your KPPC Series

Rear Top

Power Switch

Press to power-on or power-off the panel PC.

USB 2.0

Used to connect USB 2.0/1.1 devices.

HDD LED

Indicates the hard drive activity of the system.

Power Switch

USB 2.0

HDD LED

4

Chapter 1: Product Introduction

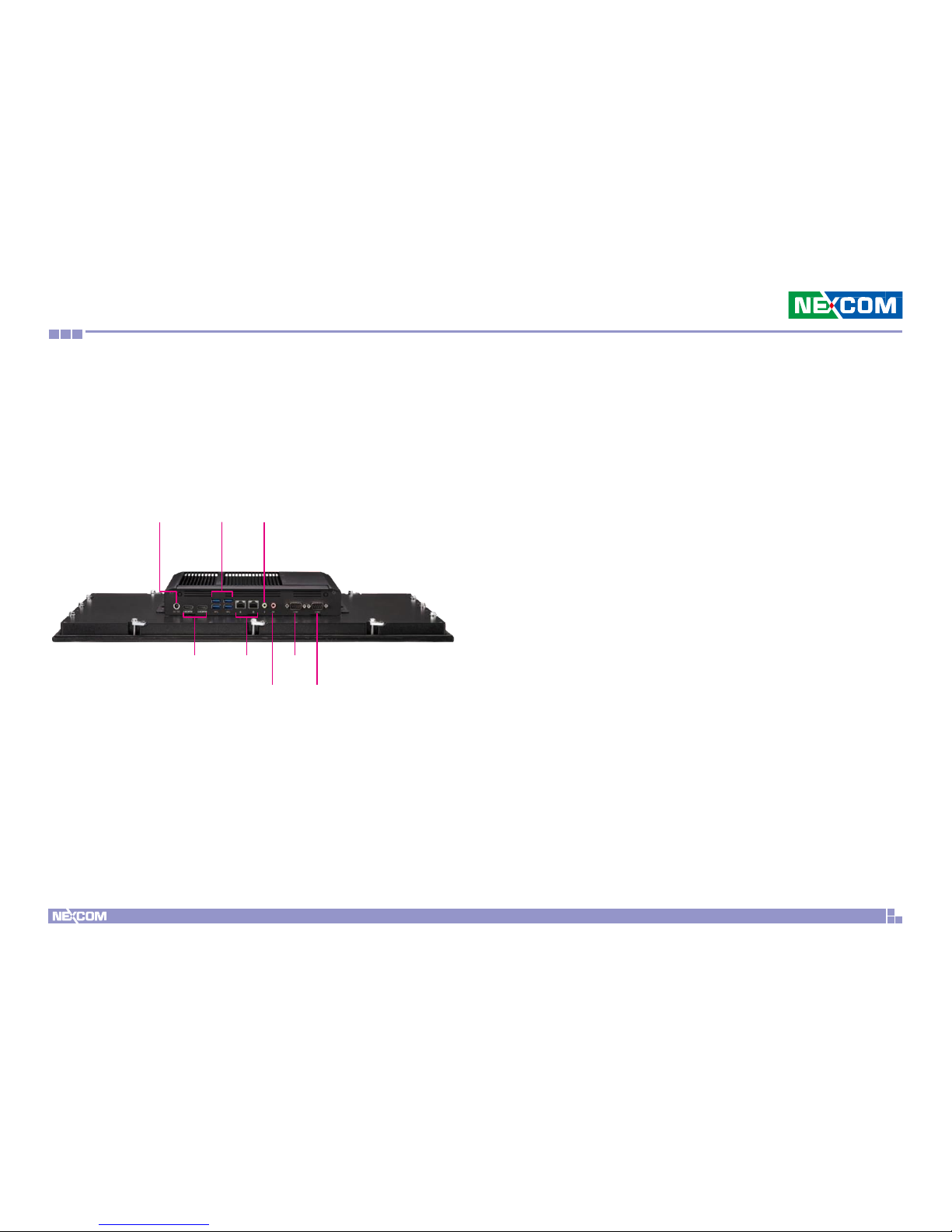

Rear Bottom

12V DC Input

Used to plug a DC power cord.

HDMI Ports

HDMI ports used to connect HDMI interface monitors.

USB 3.0 Ports

USB 3.0 ports to connect the system with USB 3.0/2.0 devices.

LAN Ports

Dual Gigabit LAN port to connect the system to a local area network.

Line-out

Used to connect a headphone or a speaker.

Mic-in

Used to connect an external microphone.

COM1 and COM2

Serial ports to connect with compatible serial devices.

12V

DC Input

COM 1 HDMI LAN

Mic-in COM 2

Line-out USB 3.0

5

Chapter 1: Product Introduction

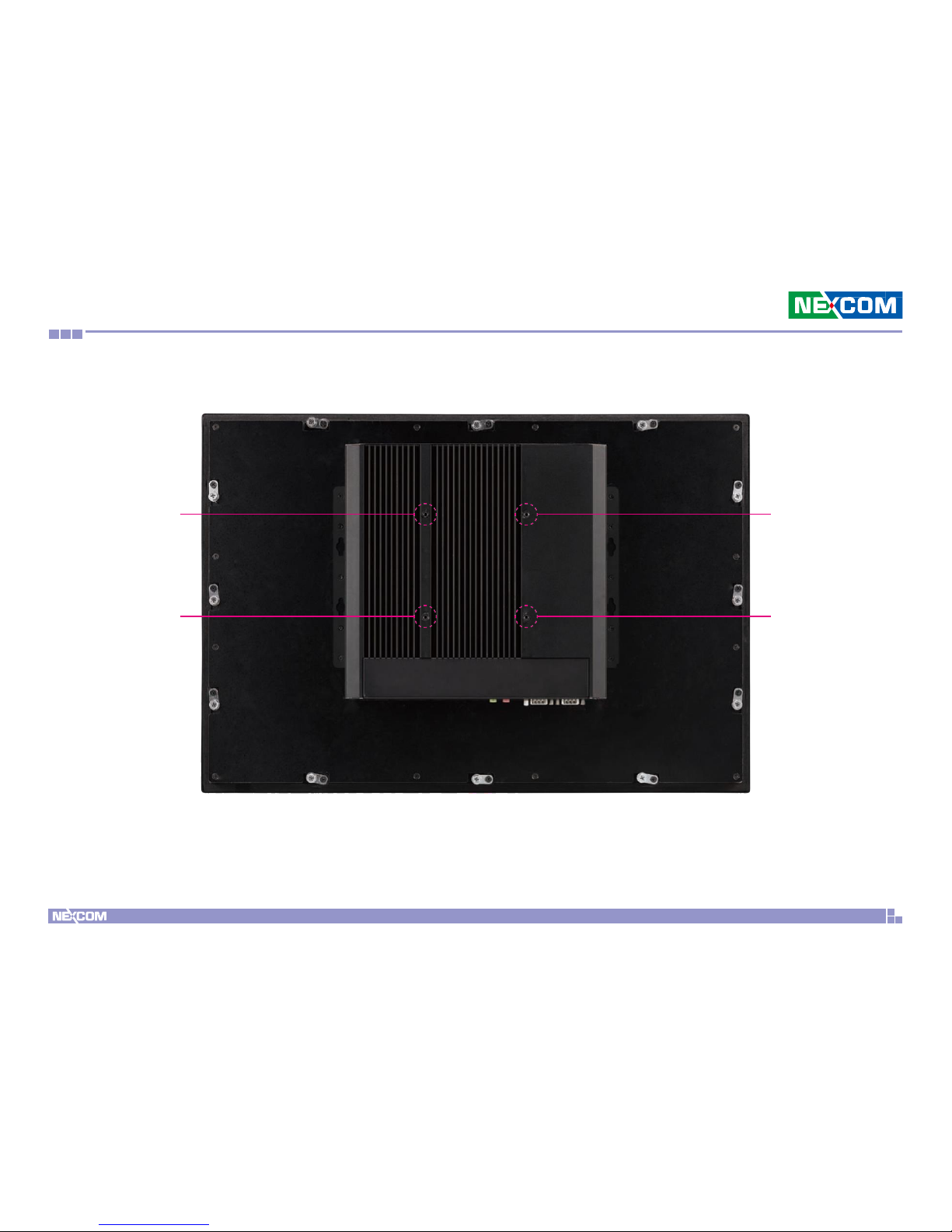

Rear

M4 VESA Mounting Hole

VESA Mounting Holes

These are the mounting holes for VESA mount (100x100mm).

6

Chapter 1: Product Introduction

Mechanical Dimensions

345.9 (VA)

417.8 (OUTLINE)

195.2 (VA)

312.8 (OUTLINE)

6.2

66.3

26.8

36

260 78.9

103.5

29.5

401

3

89.5

100

158.9

M4*0.7

10.9

35.5

395.9 (MOUNTING LINE) 150 150

100

296

20.1

10.9

249

290.9 (MOUNTING LINE)

59.5

CUT OUT SIZE T=3.0mm (MAX)

KPPC 1514B

7

Chapter 1: Product Introduction

411.6 (VA)

8

490.8 (OUTLINE)

232.2 (VA)

320.6 (OUTLINE)

6.5

65.2

25.7

39.6

260 115.4

475.4

2.5

89.

5

100

195.4

10.2

55.2

M4*0.7

470.4 (MOUNTING LINE)

167.5 167.5

100

305.2

20.

1

10.2

249

300.2 (MOUNTING LINE)

91.9 91.9

45.7

44.

5

CUT OUT SIZE T=2.5mm (MAX)

KPPC 1814B

Chapter 1: Product Introduction

KPPC 2114B

478.64 (VA)

562.4 (OUTLINE)

270.11 (VA)

382.4 (OUTLINE)

6.7

65.35

25.85

42.09

260

151.2

362 (MOUNTING LINE)

103.5 103.5

10.

2

65

547 2.5

109.4

7

100

231.2

10.2

91

542 (MOUNTING LINE)

167.5 167.5

100

367

40.1

5

249

56.1

5

CUT OUT SIZE T=2.5mm (MAX)

M4*0.7

9

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

10

This chapter describes how to set the jumpers and connectors on the KPPC 1514B/1814B/2114B motherboard.

Before You Begin

▪ e Eyonusuhrave a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow

require only a few simple tools, including the following:

– A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect

connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by

discharges of static electricity. Working on computers that are still connected

to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself: ▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

Chapter 2: Jumpers and Connectors

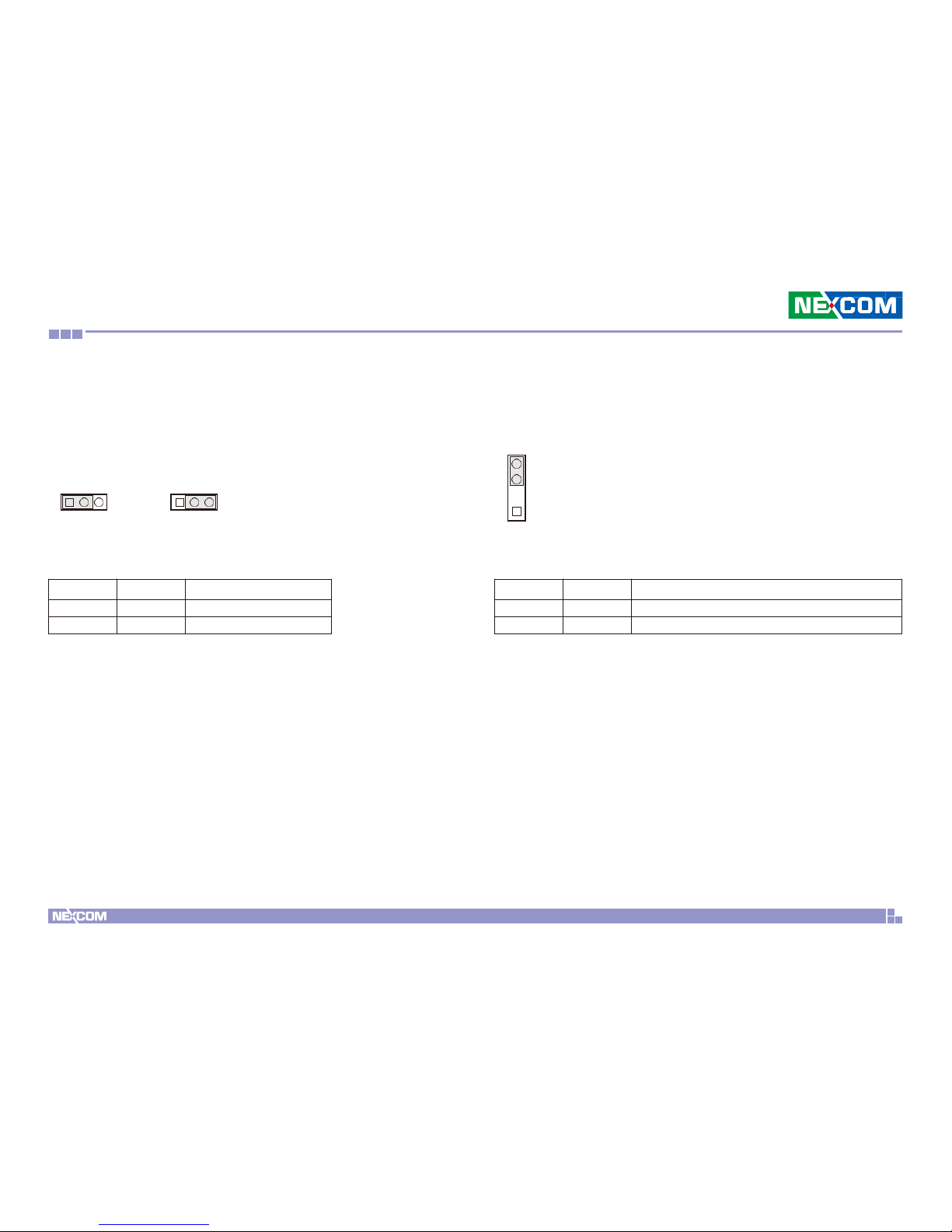

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are

placed on the correct pins. When the jumper cap is placed on both pins, the

jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

11

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

The figure below shows the location of the jumpers and connectors.

EATX_PWR1

USB3_34

LAN2

LAN1

CLRTC

RTL

8111G

SATA6G_1 SATA6G_2

F_PANEL

SPEAKER

CHASSIS

USB56 USB78

USB3_12

EATX_PWR2

CHA_FAN1 CPU_FAN1

DDR4 DIMM_A1 (64bit, 260-pin module)

DDR4 DIMM_B1 (64bit, 260-pin module)

INV

LJ2

LJ1

LJ3

COM2 DIO

COM1_VSET

COM1

BOTTOM:EDP

LVDS

DP1 or HDMI1

DP2 or HDMI2

SATA_PWR

ALC 887

RT3607CE

BIOS_P

Intel

®

H110

Super

I/O

PCIEX1_1

MINICARD1

MINICARD2

CH7511

LGA1151

LINE-OUT

MIC-IN

AMP_CON

AAFP

BATTERY_H

LED_+5V

LED_+5VSUS

128Mb

BIOS

12

Chapter 2: Jumpers and Connectors

ACT/LINK LED SPEED LED

Status

Description Status

Description

Off No link Off 10 Mbps network link

Orange

Linked Orange 100 Mbps network link

Flashing

Data activity Green 1 Gbps network link

ACT/LINK SPEED

LAN Ports LED Description

13

Connector type: RJ45 port with LEDs

Chapter 2: Jumpers and Connectors

Jumpers

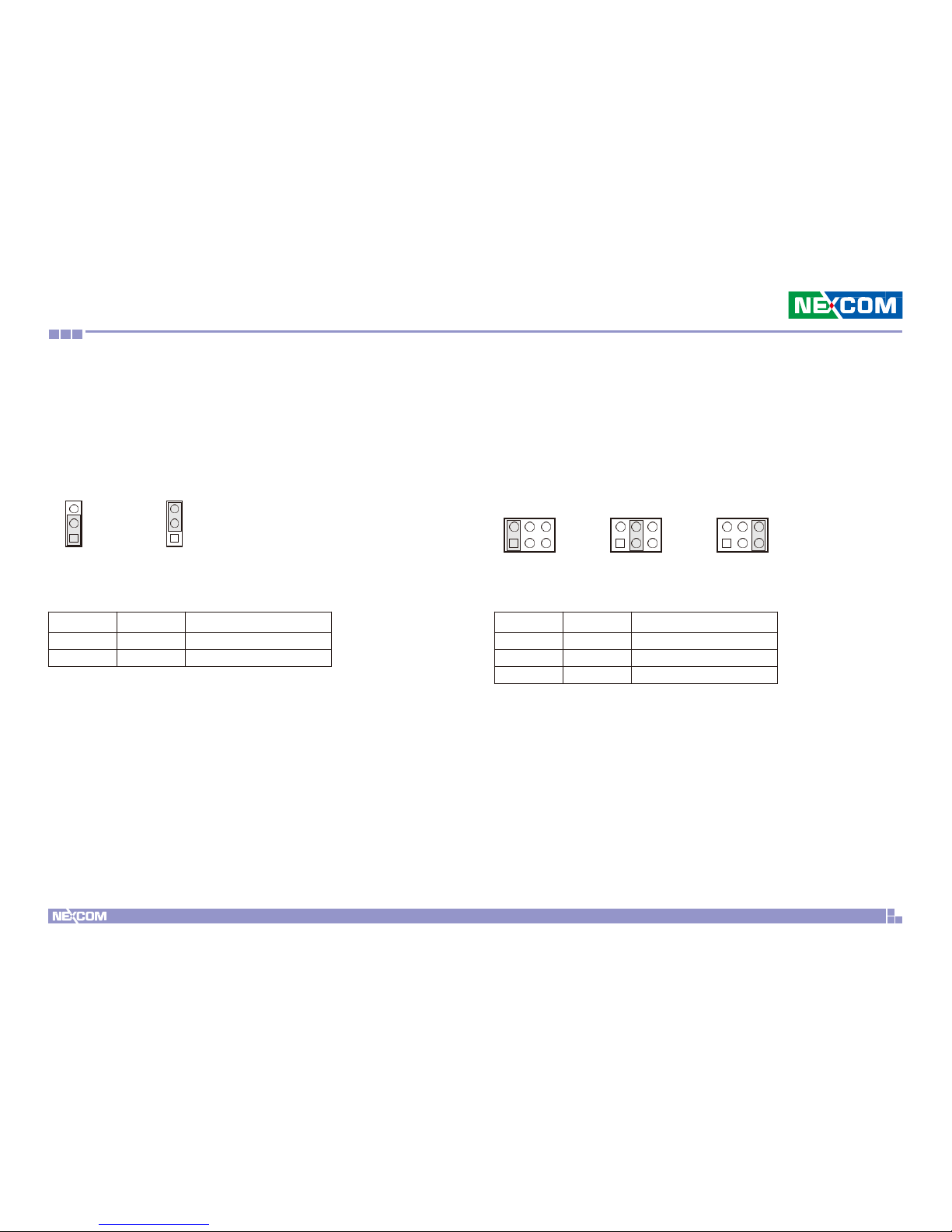

Clear RTC RAM

Connector type: 1x3 3-pin header Connector location: CLRTC

Pin Status Settings

1-2 Short Normal 2-3 Short Clear CMOS

Pin Status Settings

1-2 Short +12V 3-4 Short +5V 5-6 Short Ring

COM1 Ring/+5V/+12V Selection

Connector type: 2x3 6-pin header Connector location: COM1_VSET

3 3

1

1-2 Short (Default)

1

2-3 Short

1-2 Short 3-4 Short

5-6 Short (Default)

2

1

6

5

2

1

6

5

2

1

6

5

14

Chapter 2: Jumpers and Connectors

Pin Status Settings

1-2 Short +5V

2-3 Short +3.3V

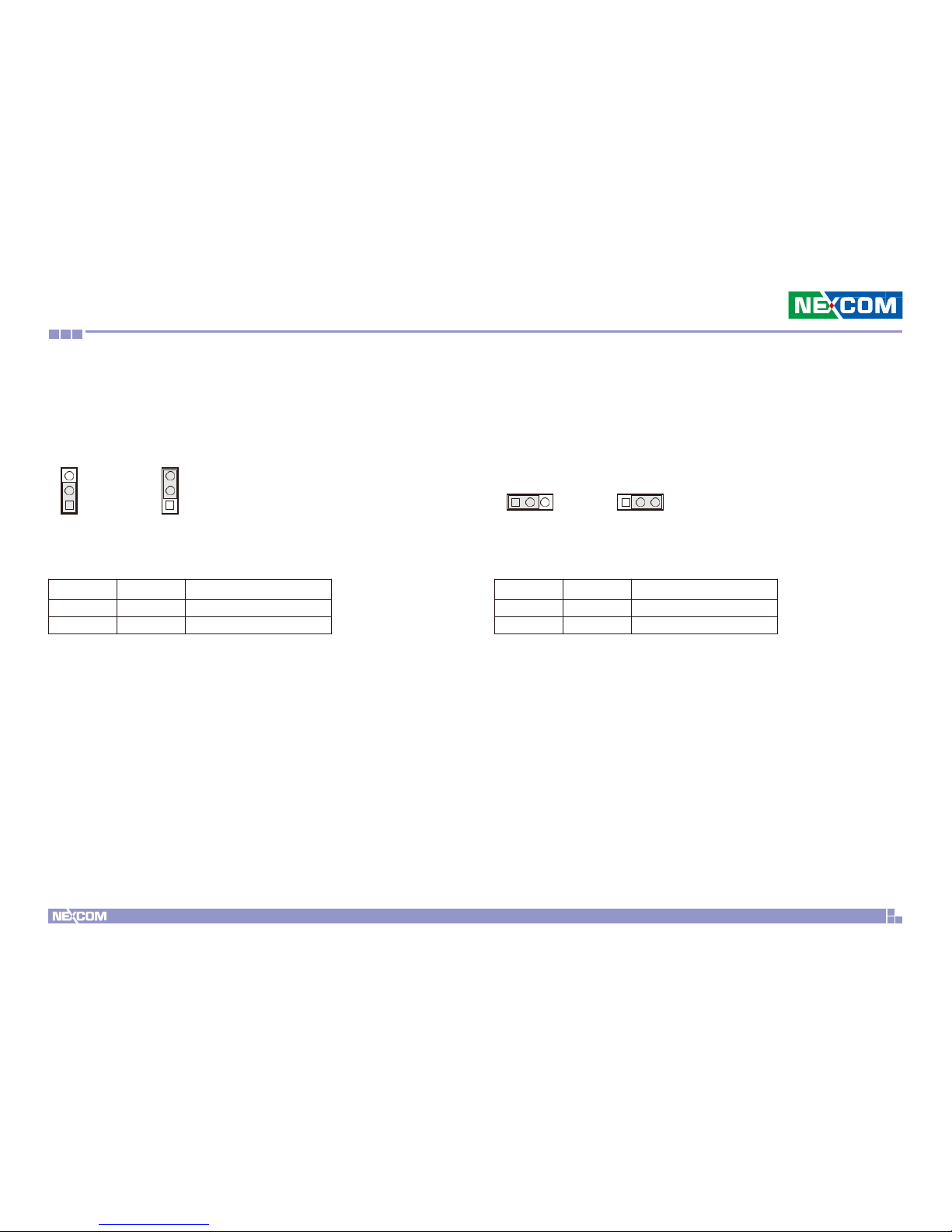

LVDS Panel Voltage Select

Connector type: 1x3 3-pin header Connector location: LJ1

3 3

1

1-2 Short

(Default)

1

2-3 Short (Default)

2-3 Short

1 3 1

15

3

Inverter Voltage Select

Connector type: 1x3 3-pin header Connector location: LJ2

Pin Status Settings

1-2 Short DC Voltage Control

2-3 Short PWM Control

Chapter 2: Jumpers and Connectors

1-2 Short

2-3 Short

(Default)

1 3 1 3

Inverter Backlight Control Mode Select

Connector type: 1x3 3-pin header Connector location: LJ3

Pin Status Settings

1-2 Short +12V

2-3 Short +5V

Chassis Intrusion Jumper

Connector type: 1x4 4-pin header Connector location: CHASSIS

Pin Status Settings

1-2 Open Enables the chassis intrusion detection feature

3-4 Short Disables the chassis intrusion detection feature

1

3-4 Short (Default)

16

4

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

Internal Connectors

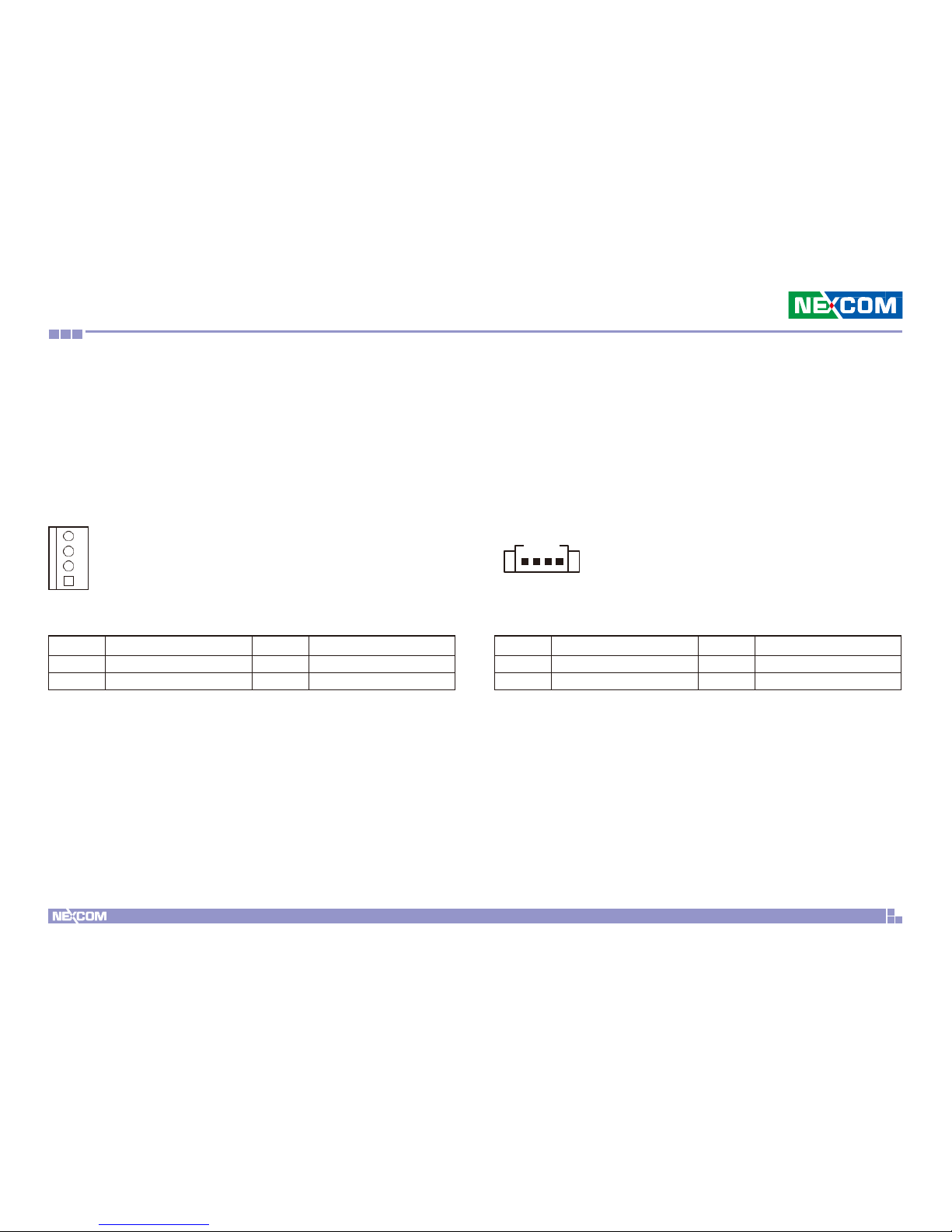

SATA Power Connector

Connector type: 1x4 4-pin header

Connector location: SATA_PWR

Pin Definition Pin Definition

1 +5V 2 GND 3 GND 4 +12V

Audio Amplifier Connector

Connector type: 1x4 4-pin header Connector location: AMP_CON

Pin Definition Pin Definition

1 ROUTP 2 ROUTN 3 LOUTN 4 LOUTP

4

1

17

4

Chapter 2: Jumpers and Connectors

Chassis Fan Connector

Connector type: 1x4 4-pin header Connector location: CHA_FAN1

CPU Fan Connector

Connector type: 1x4 4-pin header Connector location: CPU_FAN1

Pin Definition Pin Definition

1 PWM 2 SENSE 3 VCC 4 GND

Pin Definition Pin Definition

1 PWM 2 SENSE 3 VCC 4 GND

4 1 4 1

18

Chapter 2: Jumpers and Connectors

LVDS Connector

Connector type: 1x40 40-pin header Connector location: LVDS

Embedded DisplayPort

Connector type: 1x40 40-pin header Connector location: EDP

Pin Definition Pin Definition

1 LVDS0_D3+ 2 LVDS0_D3- 3 LVDS0_D2+ 4 LVDS0_D2- 5 LVDS0_D1+ 6 LVDS0_D1-

7 LVDS0_D0+ 8 LVDS0_D0-

9 LVDS1_D3+ 10 LVDS1_D3- 11 LVDS1_D2+ 12 LVDS1_D2- 13 LVDS1_D1+ 14 LVDS1_D1-

15 LVDS1_D0+ 16 LVDS1_D0-

17 GND 18 +V_PANEL 19 +V_PANEL 20 +V_PANEL 21 NC 22 +3V 23 GND 24 GND 25 GND 26 LVDS0_CLK+ 27 LVDS0_CLK- 28 GND 29 GND 30 GND 31 SPC1 32 INV_ENABKL 33 VCON 34 LVDS1_CLK+ 35 LVDS1_CLK- 36 +BLVCC 37 +BLVCC 38 +BLVCC 39 NC 40 SPD1

Pin Definition Pin Definition

1 NC 2 GND 3 eDP_TXN3_C 4 eDP_TXP3_C 5 GND 6 eDP_TXN2_C

7 eDP_TXP2_C 8 GND

9 eDP_TXN1_C 10 eDP_TXP1_C 11 GND 12 eDP_TXN0_C 13 eDP_TXP0_C 14 GND

15 eDP_AUXP_C 16 eDP_AUXN_C

17 GND 18 +V_PANEL 19 +V_PANEL 20 +V_PANEL 21 +V_PANEL 22 NC 23 GND 24 GND 25 GND 26 GND 27 eDP_HPD_RRR 28 GND 29 GND 30 GND 31 GND 32 BKLTEN_R 33 BKLTCTL_R 34 NC 35 NC 36 +BLVCC 37 +BLVCC 38 +BLVCC 39 +BLVCC 40 NC

1 40 40

19

1

Chapter 2: Jumpers and Connectors

Digital I/O Connector

Connector type: 2x5 10-pin header Connector location: DIO

2

1

10

9

Pin Definition Pin Definition

1 DIO_I#1 2 DIO_I#2

3 DIO_I#3 4 DIO_I#4

5 DIO_O#1 6 DIO_O#2 7 DIO_O#3 8 DIO_O#4 9 +5V 10 GND

System Panel Connector

Connector type: 2x5 10-pin header Connector location: F_PANEL

Pin Definition Pin Definition

1 HDD_LED+ 2 PWR_LED+

3 HDD_LED- 4 PWR_LED-

5 GND 6 PWRBTN#

7 RSTCON#_PANEL 8 GND

9 NC 10 NA

10

9

20

2

1

Chapter 2: Jumpers and Connectors

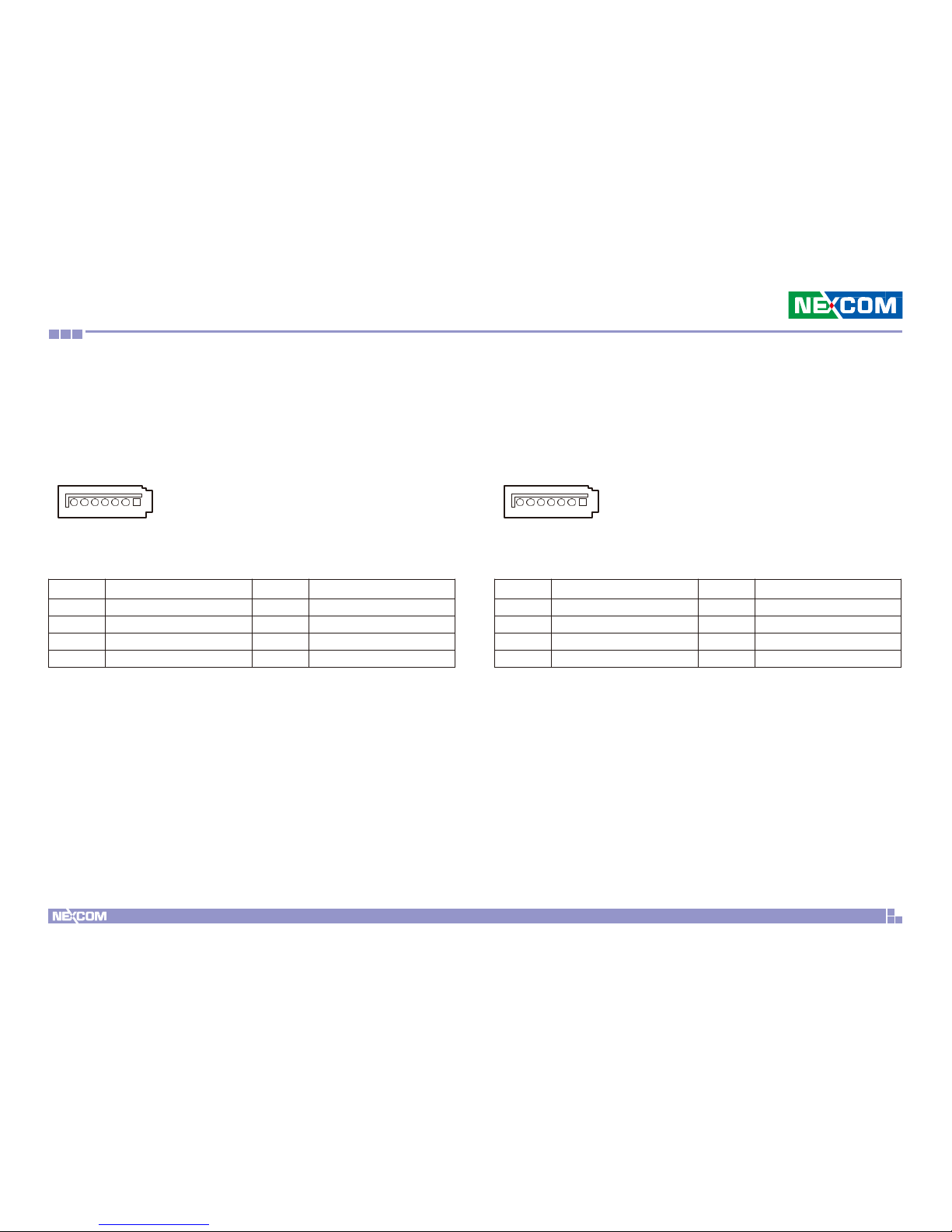

Serial ATA 6.0Gb/s Connector 1

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: SATA6G_1

Pin Definition Pin Definition

1 GND 2 RSATA_TXP1

3 RSATA_TXN1 4 GND 5 RSATA_RXN1 6 RSATA_RXP1 7 GND

7 1

Serial ATA 6.0Gb/s Connector 2

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: SATA6G_2

Pin Definition Pin Definition

1 GND 2 RSATA_TXP2

3 RSATA_TXN2 4 GND

5 RSATA_RXN2 6 RSATA_RXP2

7 GND

7

21

1

Chapter 2: Jumpers and Connectors

1 4

Speaker Connector

Connector type: 1x4 4-pin header Connector location: SPEAKER

Pin Definition Pin Definition

1 +5V 2 GND 3 GND 4 SPKO

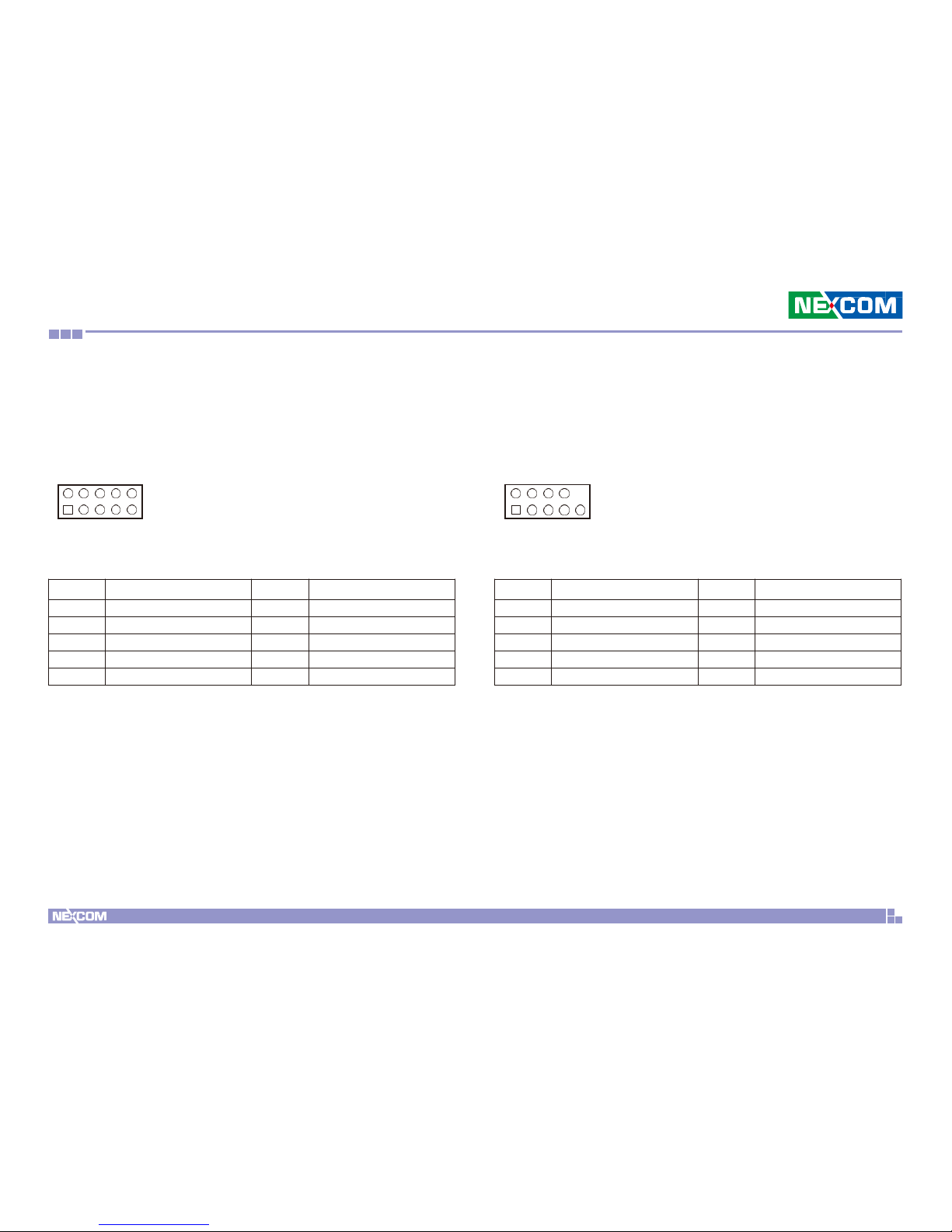

USB 2.0 Connectors

Connector type: 2x5 10-pin header Connector location: USB56 and USB78

2

1

22

10

9

USB56

Pin Definition Pin Definition

1 +5V 2 GND

3 S_USB_PN 4 GND

5 S_USB_PP 6 S_USB_PP

7 GND 8 S_USB_PN

9 GND 10 +5V

USB78

Pin Definition Pin Definition

1 +5V 2 GND

3 S_USB_PN 4 GND

5 S_USB_PP 6 S_USB_PP

7 GND 8 S_USB_PN

9 GND 10 +5V

Chapter 2: Jumpers and Connectors

7 8

1 2

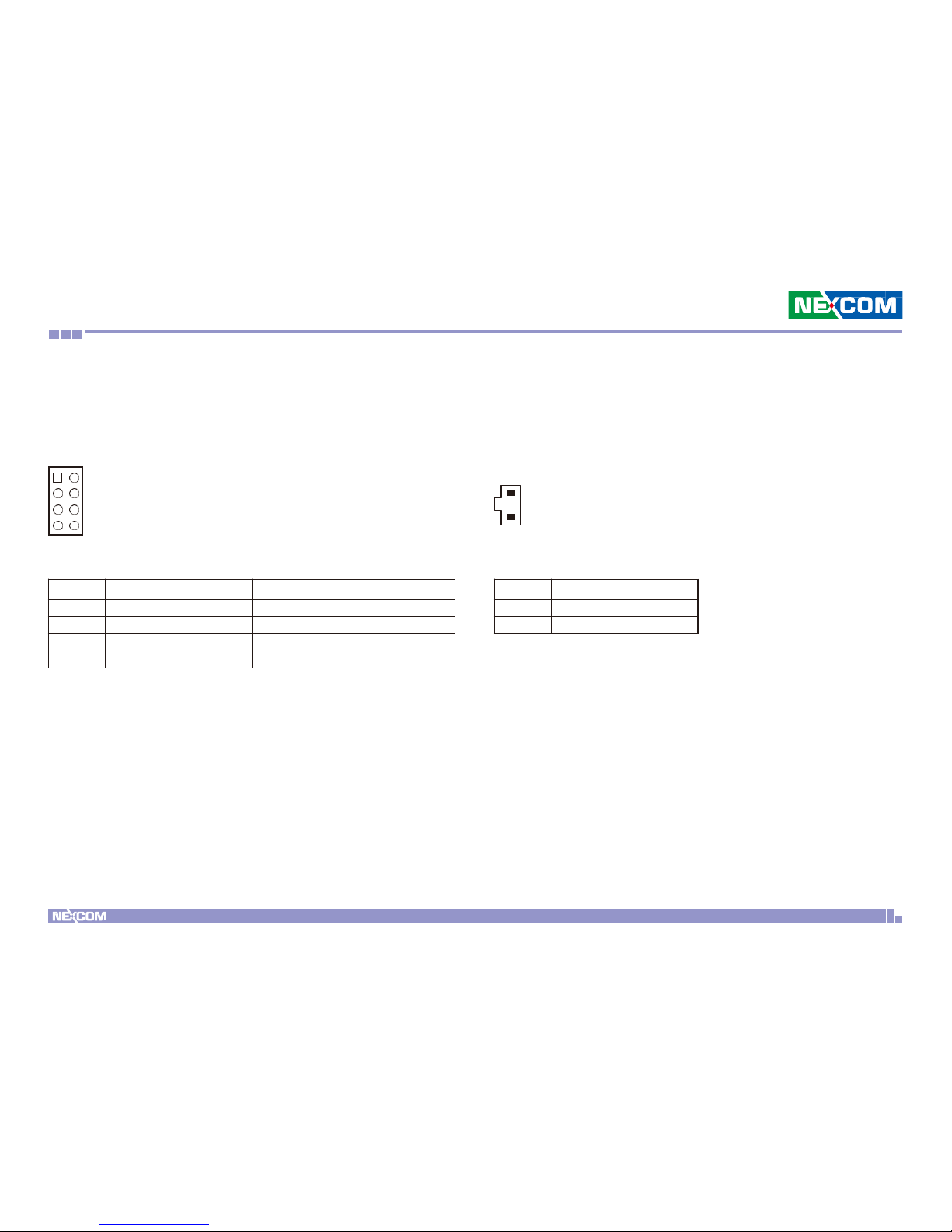

SPI Flash Programmable Connector

Connector type: 2x4 8-pin header Connector location: BIOS_P

Pin Definition Pin Definition

1 +3V_SPI 2 GND

3 S_SPI_CS1#Q 4 S_SPI_CLK_2Q

5 S_SPI_MISO_2Q 6 S_SPI_MOSI_2Q 7 NC 8 NC

Battery Connector

Connector type: 1x2 2-pin header Connector location: BATTERY_H

Pin Definition

1 +BAT

2 GND

1

23

2

Chapter 2: Jumpers and Connectors

1

8

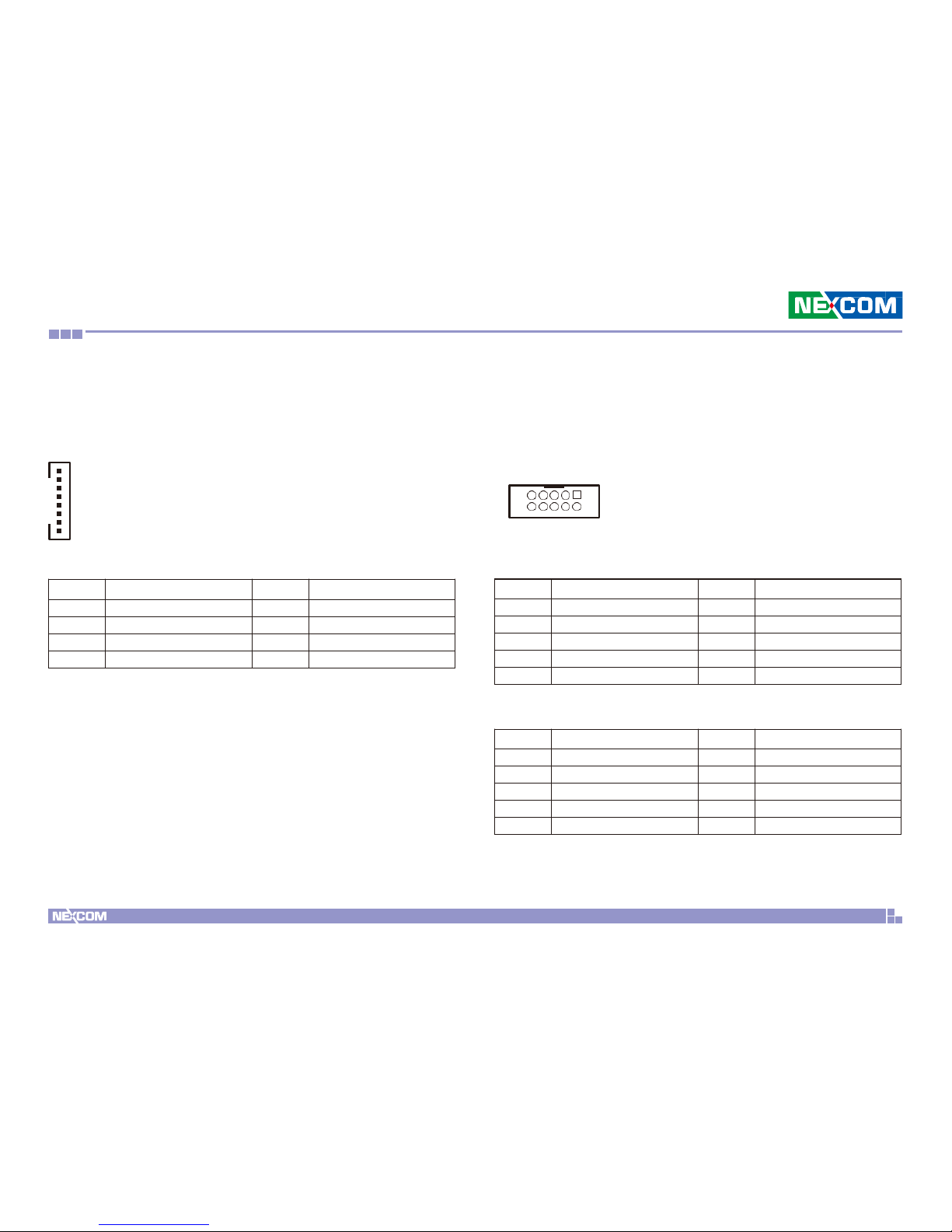

Backlight Inverter Power Connector

Connector type: 1x8 8-pin header Connector location: INV

Pin Definition Pin Definition

1 INV_ENABKL 2 VCON

3 +BLVCC 4 +BLVCC

5 GND 6 GND 7 BLUP#_R 8 BLDN#_R

1 2

24

9

10

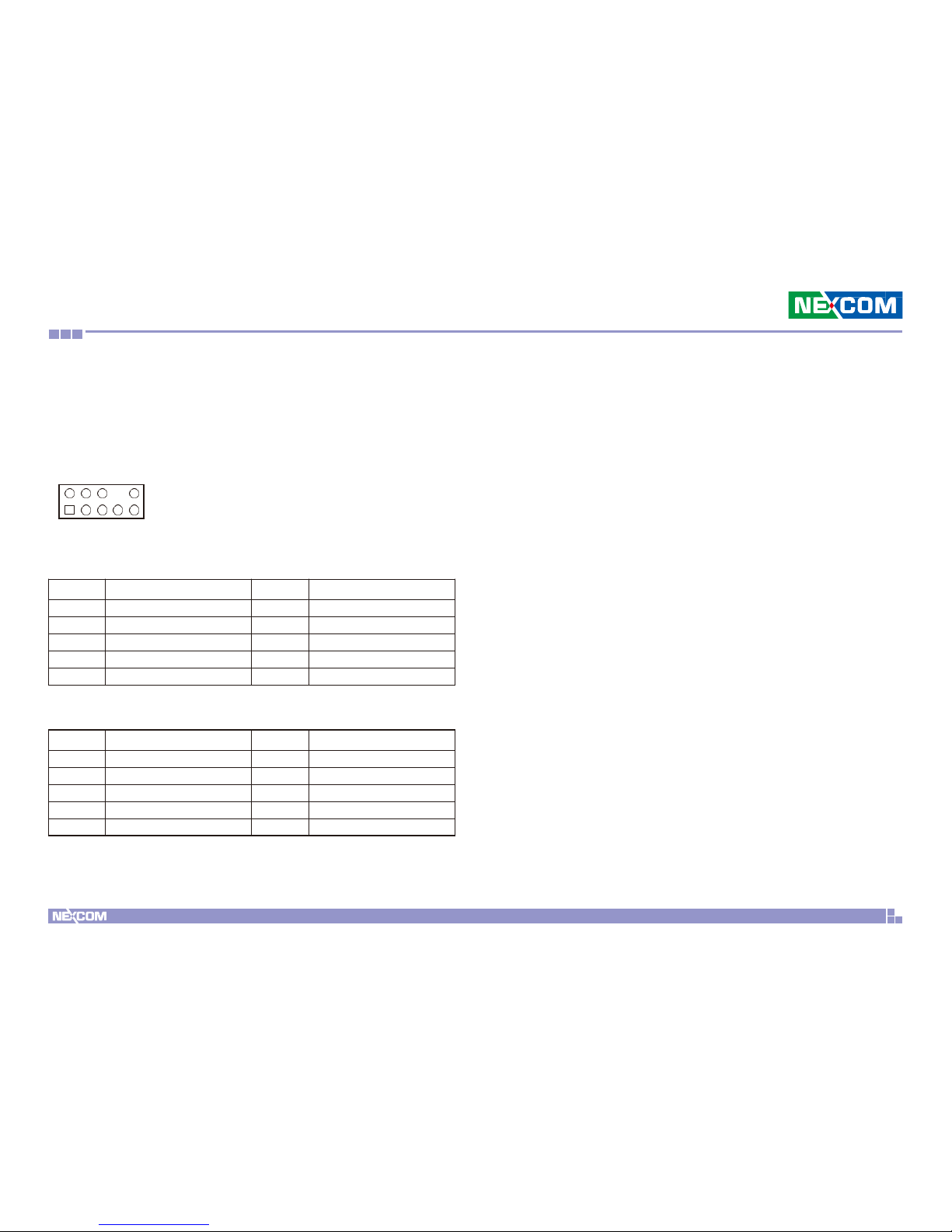

Serial Port Connector (COM1)

Connector type: 2x5 10-pin header Connector location: COM1

RS-232

Pin Definition Pin Definition

1 DCD 2 RXD1

3 TXD 4 DTR1

5 GND 6 DSR1

7 RTS1 8 CTS1

9 RI1_F_VCC 10 NC

RS-422 and RS-485 (Only COM1 supports RS-422 and RS-485)

Pin Definition Pin Definition

1 422TXD-/485DATA- 2 422RXD+

3 422TXD+/485DATA+ 4 422RXD-

5 GND 6 DSR

7 RTS 8 CTS

9 RI/+12V/+5V 10 NC

Chapter 2: Jumpers and Connectors

1 2

9

10

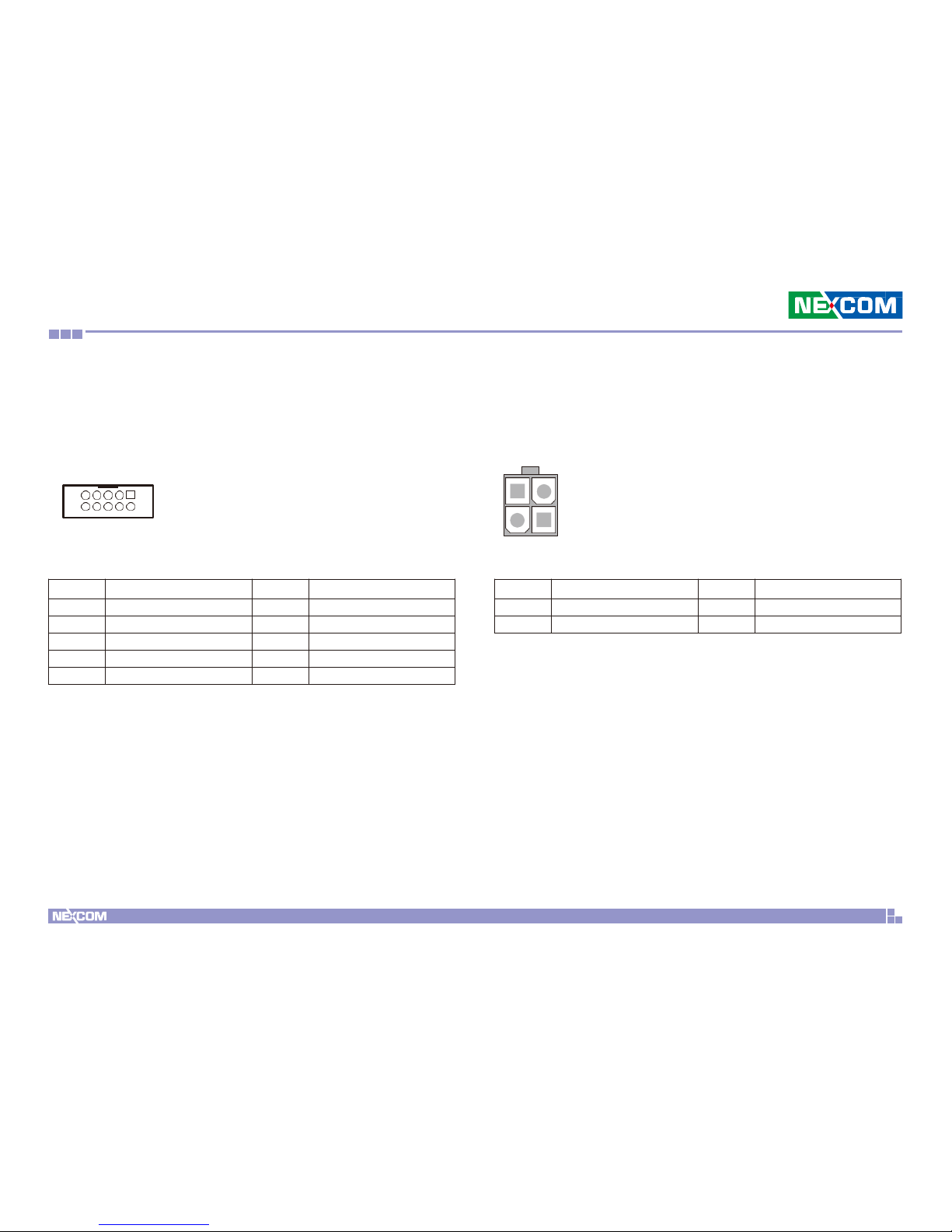

Serial Port Connector (COM2)

Connector type: 2x5 10-pin header Connector location: COM2

Pin Definition Pin Definition

1 DCD 2 RXD 3 TXD 4 DTR 5 GND 6 DSR 7 RTS 8 CTS 9 RI1_F_VCC 10 NC

4-pin DC-In Power Connector

Connector type: 2x2 4-pin header Connector location: EATX_PWR2

Pin Definition Pin Definition

1 GND 2 GND

3 DC_IN 4 DC_IN

1

25

2

3 4

Chapter 2: Jumpers and Connectors

Front Panel Audio Connector

Connector type: 2x5 10-pin header Connector location: AAFP

HD Audio Compliant Pin Definition

Pin Definition Pin Definition

1 PORT1 L 2 AGND 3 PORT1 R 4 NC

5 PORT2 R 6 SENSE1_RETUR

7 SENSE_SEND 8 9 PORT2 L 10 SENSE2_RETUR

Legacy AC’97 Compliant Pin Definition

Pin Definition Pin Definition

1 MIC2 2 AGND 3 MICPWR 4 NC 5 Line out_R 6 NC 7 NC 8 9 Line out_L 10 NC

10

9

26

2

1

Chapter 3: System Setup

ChaPter 3: system setuP

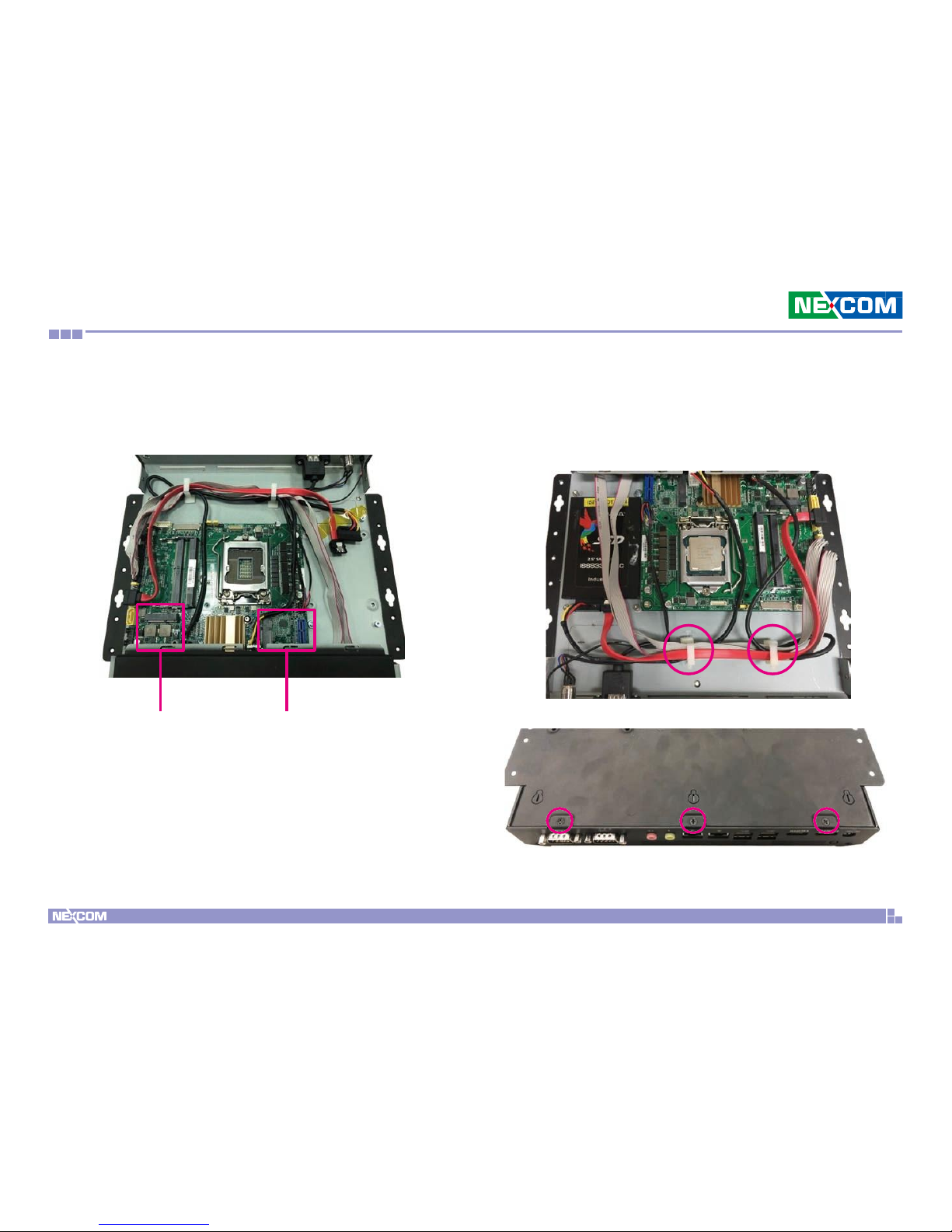

Removing the Top Cover

1. Remove the screws on the top and bottom of the system chassis.

UTIO

27

UTIO

CCAAUTIONN!

!

Prior to removing the top cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

Chapter 3: System Setup

2th.eRsecmreowves on the left and right sides of the system chassis then

remove the chassis cover.

28

Chapter 3: System Setup

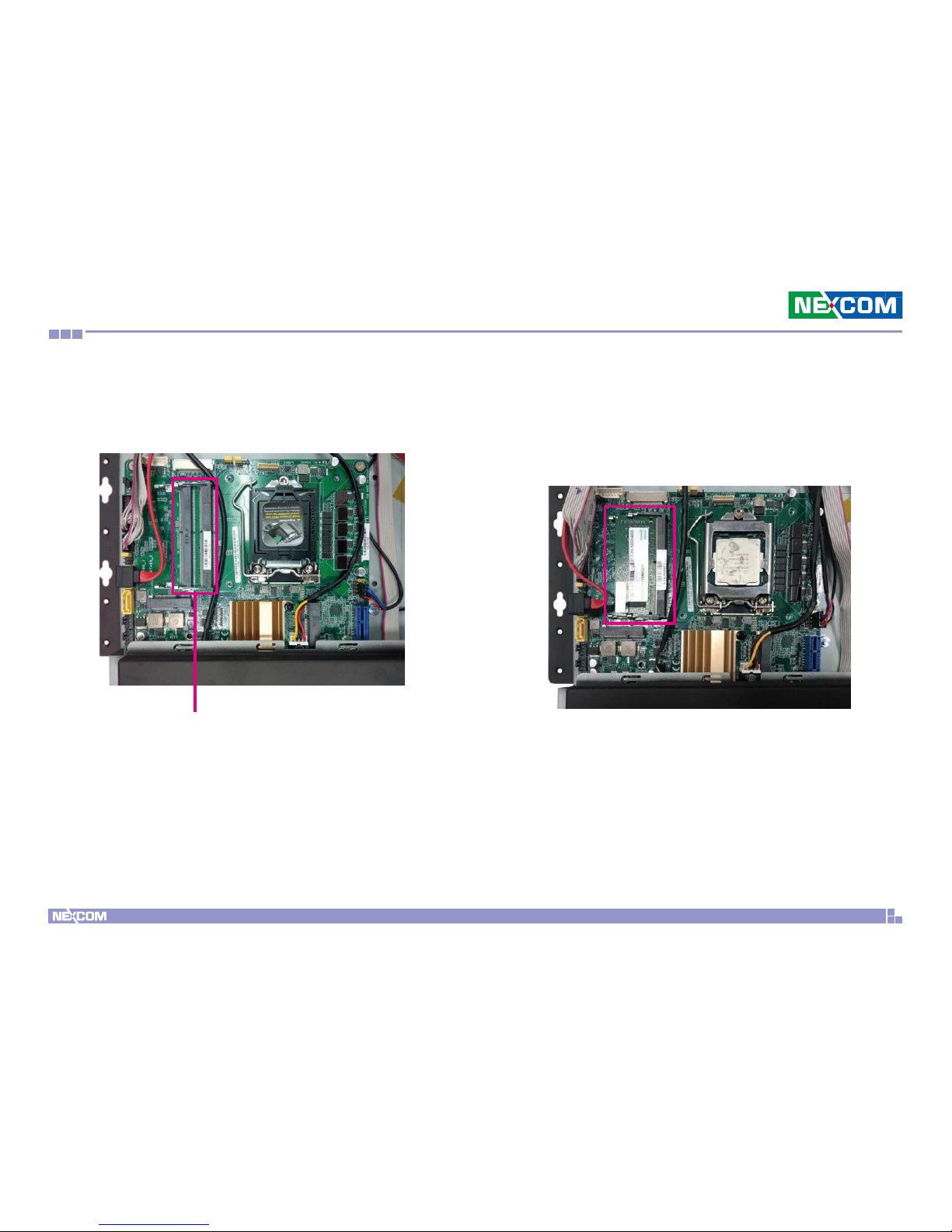

Installing SO-DIMM Memory Modules

1. Locate the DIMM1 slot on the board.

SO-DIMM Slots

29

t2h.eInmseortdule into the slot at an approximately 30 degree angle.

Push the module down until the clips on both sides of the slot lock into

position.

Chapter 3: System Setup

Installing a SATA Storage Drive

1. Fix the brackets to the screw holes on the sides of the storage drive. u2r.nTto the back of the drive and secure it with screws (50311F0111X00 x 4).

30

Chapter 3: System Setup

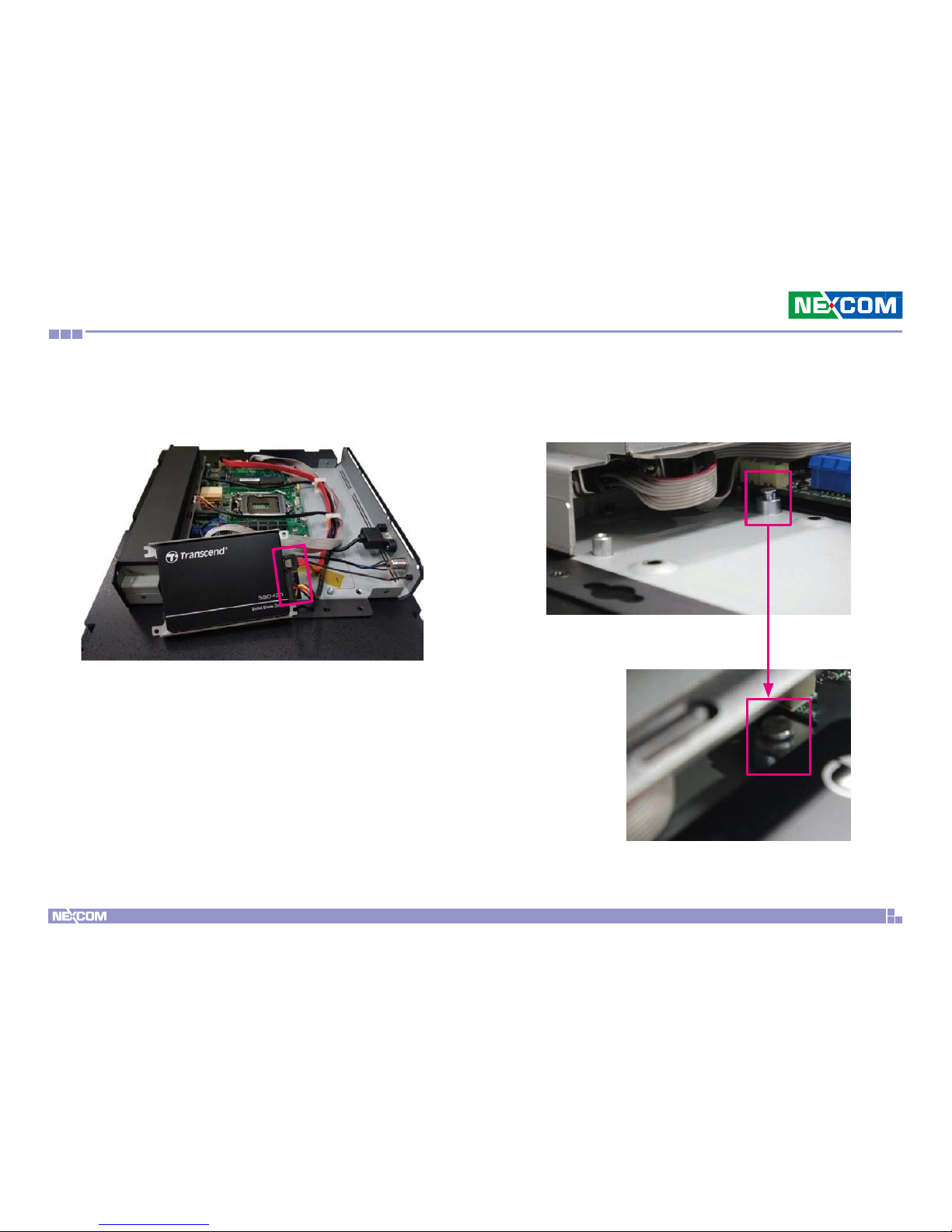

3. Connect the SATA data and power cables to the respective connectors

on the board and the other ends of the cables to the connectors on the storage drive.

4. The image below marks the location of the mounting post used to position the storage drive bracket to the system. Fix the bracket to this mounting post.

31

Chapter 3: System Setup

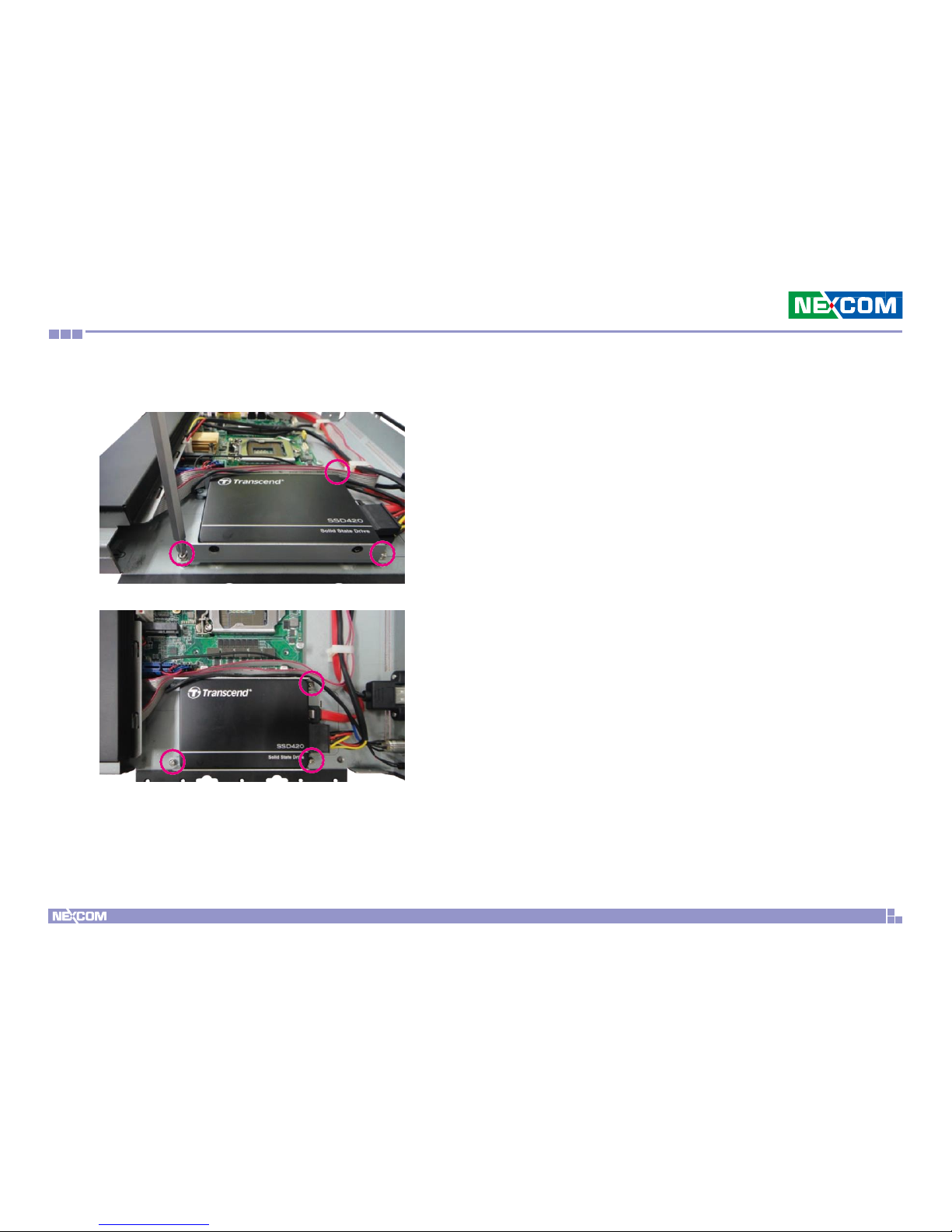

5e.thSecburracket with screws.

32

Chapter 3: System Setup

Installing LGA1151 35W CPU

1ith. Wthe chassis removed, locate the CPU socket and remove the protective

cap.

CPU Socket Protective Cap

2. Unlock the socket by pushing the load lever down, moving it sideways until it is released from the retention tab; then lift the load lever up.

33

Chapter 3: System Setup

3. Insert the CPU into the socket. The triangular edge on the CPU must align with the corner of the CPU socket shown on the photo.

The CPU’s notch will at the same time fit into the socket’s alignment key.

Alignment key

▪ Handle the CPU by its edges and avoid touching the pins. ▪ The CPU will fit in only one orientation and can easily be

inserted without exerting any force.

CCAAUUTTIIOON

N!!

4. Close the load plate and then hook the load lever under the retention tab.

Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.

CCAAUUTTIIOON

N!!

34

Chapter 3: System Setup

5. After the CPU has been installed, a thermal pad must be placed on the CPU.

CCAAUUTTIIOON

N!!

Please install the thermal pad and make sure the adhesive film on the thermal pad is removed before placing it on the heat sink.

Thermal Pad

35

Chapter 3: System Setup

Installing Expansion Cards

The mini PCIe connector supports full size and half size mini PCIe modules. 1. Before installing the modules, remove the I/O cover by opening the cable

ties and loosening the 3 screws on the bottom of the system.

Half Size Mini PCIe Full Size Mini PCIe

36

Chapter 3: System Setup

2. Insert the mini PCIe module into the mini PCIe slot (full size or half size)

at a 45 degree angle then push the module down and secure it with mounting screw.

Full Size Mini PCIe

Mounting Point

Half Size Mini PCIe

Mounting Point

i3n.stAafltlienrg the modules, place the I/O cover back to its original location and

tighten the 3 screws to secure it, then close the cable ties.

37

Chapter 4: BIOS Setup

ChaPter 4: BIos setuP

38

This chapter describes how to use the BIOS setup program for KPPC 1514B/1814B/2114B. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM website at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that

saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals ▪ Video display type and display options ▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

This program should be executed under the following conditions:

▪ When changing the system configuration ▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock ▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are

automatically detected and configured without requiring any actions. There

are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to

enter Setup.

Press the key to enter Setup:

Legends

Key Function

Moves

the highlight left or right to select a menu.

Moves

the highlight up or down between sub-

menu

or

fields.

Exits

the BIOS Setup Utility.

Scrolls

forward through the values or options of

the

highlighted field.

Scrolls

backward through the values or options of

the highlighted

field.

Selects a

field.

Displays

General Help.

Load

previous values.

Load

optimized default values.

Saves

and exits the Setup program.

Press

<Enter> to enter the highlighted sub-menu

39

Chapter 4: BIOS Setup

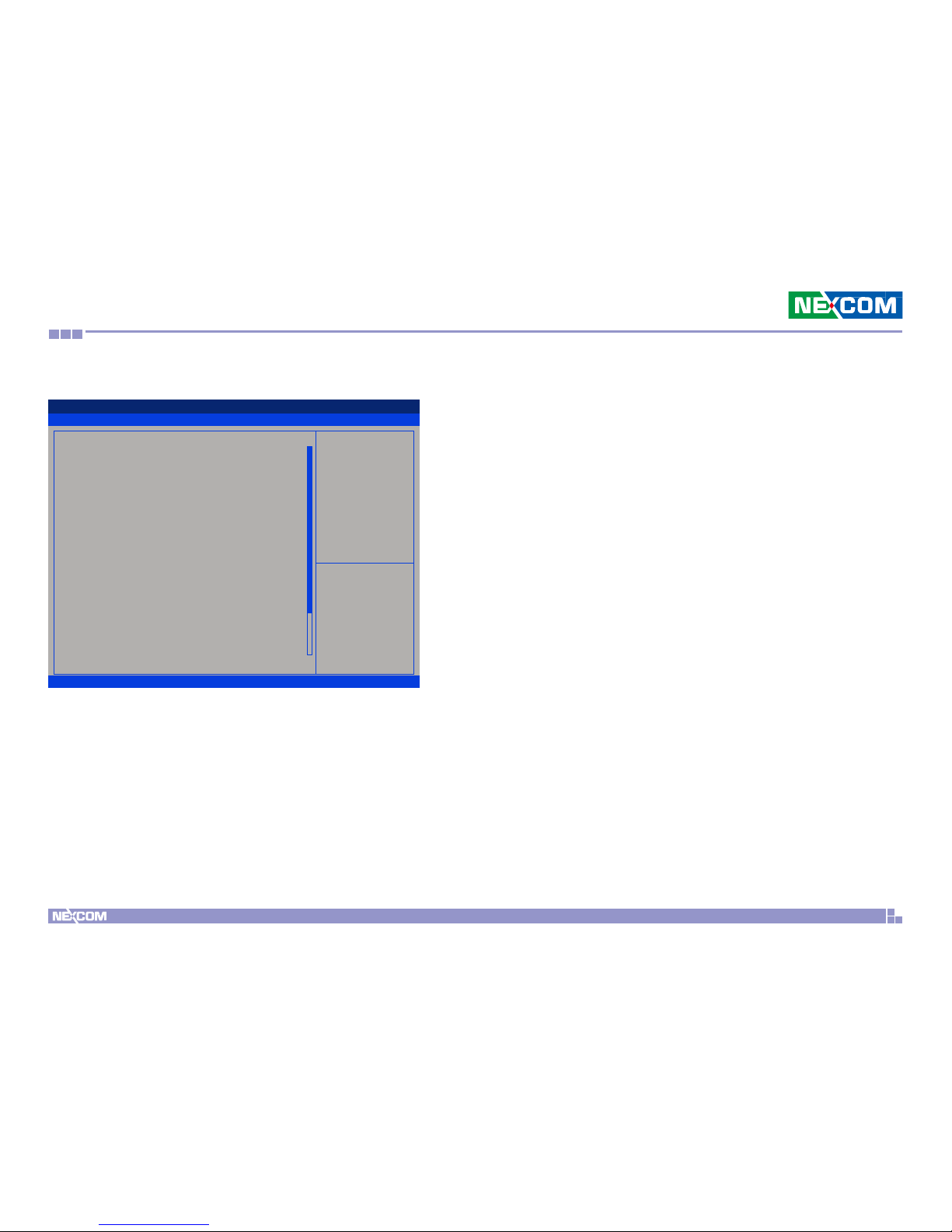

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “ ” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

40

Chapter 4: BIOS Setup

BIOS Setup Utility

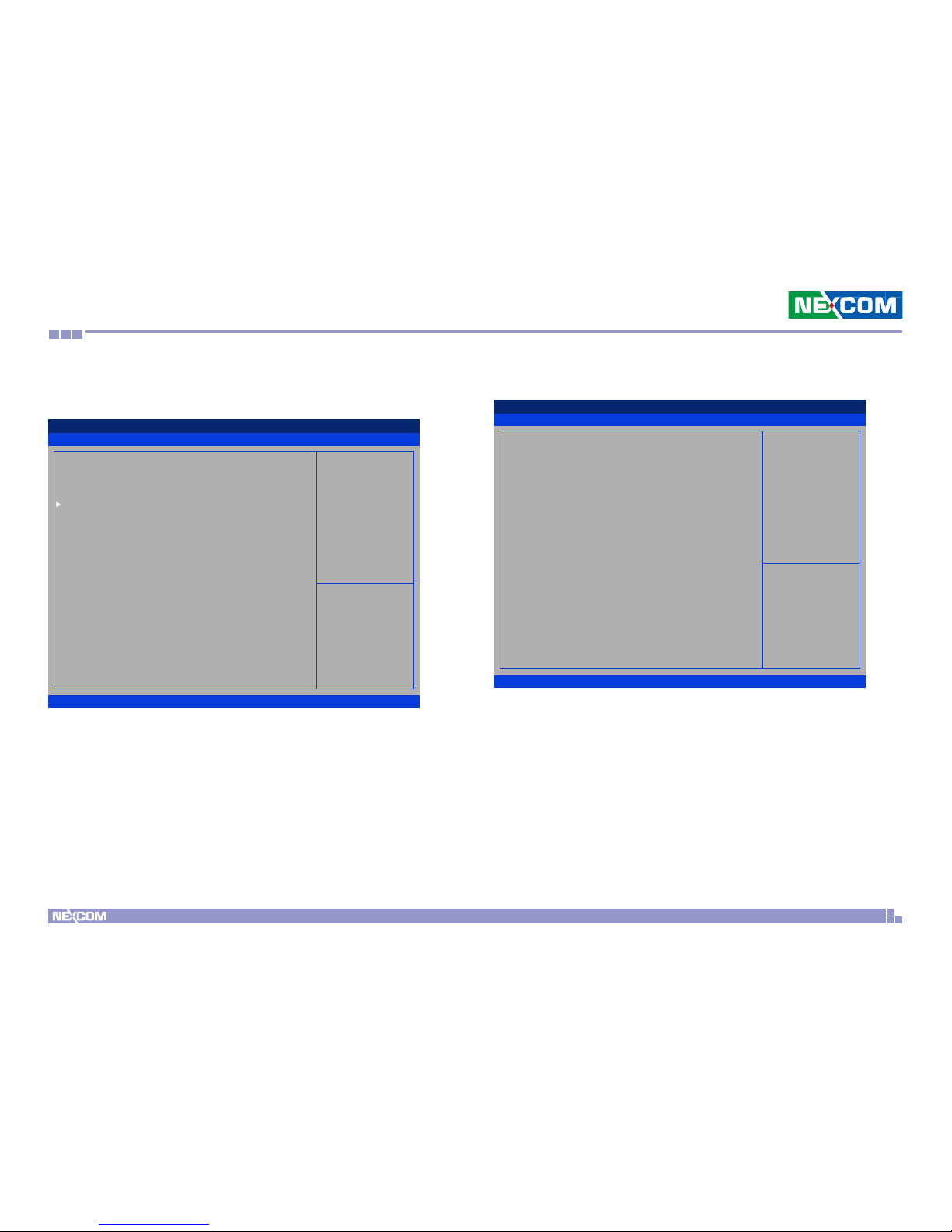

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions

and one exit. Use arrow keys to select among the items and press to

accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Main Advanced Chipset Security Boot Save & Exit

41

BIOS Information

R1.6 (EHB0AM16) (03/31/2017)

Set the Date. Use Tab to switch between Date elements.

BIOS Vendor American Megatrends Compliancy UEFI 2.4; PI 1.3

System Date [Sat 01/28/2017]

System Time [00:10:20]

Access Level Administrator

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Case Open Warning

Enables or disables case open warning detection function.

Main Advanced Chipset Security Boot Save & Exit

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Case Open detecting function

Case Open Warning

Chassis Opened

CPU Configuration SATA Configuration USB Configuration PCH-FW Configuration SIO Configuration Hardware Monitor

Power Management Digital IO Port Configuration

[Disabled]

[No]

CPU Configuration

This section is used to configure the CPU settings.

Advanced

42

CPU Configuration

Enabled for Windows XP and Linux (OS optimized for

Intel(R) Core(TM) i7-6700 CPU @ 3.40GHz CPU Signature 506E3 Microcode Patch A6 Max CPU Speed 3400 MHz Min CPU Speed 800 MHz Processor Cores 4 64-bit Supported Hyper Threading Technology Supported Intel VT-x Technology Supported

Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.

L1 Data Cache 32 kB x 4 L1 Code Cache 32 kB x 4 L2 Cache 256 kB x 4 L3 Cache 8 MB

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help

Hyper-threading [Enabled]

Intel Virtualization Technology [Enabled]

F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Hyper-threading

Enables or disables hyper-threading technology.

Intel® Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Chapter 4: BIOS Setup

SATA Configuration

This section is used to configure the SATA device option settings.

Port 0, Port 1 and Port 3

Enables or disables SATA port 0, port 1 and port 3.

Hot Plug

Enables or disables hot plugging feature on SATA port 0, port 1 and port 3.

Advanced

SATA Configuration

Enable or Disable SATA Port

Serial ATA Port 0

Software Preserve

Port 0

Hot Plug

Serial ATA Port 1

Software Preserve

Port 1 Hot Plug

Serial ATA Port 3

Software Preserve

Port 3 Hot Plug

Empty Unknown

[Enabled]

[Disabled]

Empty Unknown

[Enabled] [Disabled]

Empty Unknown

[Enabled] [Disabled]

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Advanced

43

USB Configuration

Enables Legacy USB support. AUTO option disables legacy

1 Keyboard

support if no USB devices are connected. DISABLE option will keep USB devices available

Legacy USB Support

XHCI Hand-off

[Enabled]

only for EFI applications.

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

XHCI Hand-off

This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

USB Configuration

This section is used to configure the USB.

Chapter 4: BIOS Setup

PCH-FW Configuration

This section is used to configure the firmware update settings.

Firmware Update Configuration

Advanced

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Configure Management Engine Technology Parameters

ME FW Version ME Firmware Mode ME Firmware Type ME Firmware SKU

Firmware Update Configuration

11.0.0.1194 Normal Mode Full Sku Firmware Consumer SKU

Advanced

Me FW Image Re-Flash [Disabled]

Local FW Update [Enabled]

Enable/Disable Me FW Image Re-Flash function.

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Firmware Update Configuration

Enters the Firmware Update Configuration submenu.

44

Me FW Image Re-Flash

Enables or disables the ME firmware image re-flash function.

Local FW Update

Enables or disables the local firmware update function.

Chapter 4: BIOS Setup

SIO Configuration

This section is used to configure the serial ports.

[*Active*] Serial Port 1 and [*Active*] Serial Port 2

Enters the submenu of [*Active*] Serial Port 1 and [*Active*] Serial Port 2.

Advanced

AMI SIO Driver Version: A5.05.03

View and Set Basic properties of the SIO Logical device.

Super IO Chip Logical Device(s) Configuration

[*Active*] Serial Port 1

[*Active*] Serial Port 2

Like IO Base, IRQ Range, DMA Channel and Device Mode.

WARNING: Logical Devices state on the left side of the control, reflects the current Logical Device state. Changes made during Setup Session will be shown after you restart the system.

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

[*Active*] Serial Port 1

Use This Device

Enables or disables the serial port.

Possible:

Configures the base address for the serial port.

Mode

Configures the serial port mode to RS232, RS422 or RS485.

Advanced

45

Serial Port 1 Configuration

Enable or Disable this Logical Device.

Use This Device [Enabled]

Logical Device Settings: Current: IO=3F8h; IRQ=4;

Possible: [Use Automatic Settings]

Mode : [RS232]

WARNING: Disabling SIO Logical Devices may have unwanted side effects. PROCEED WITH CAUTION.

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Chapter 4: BIOS Setup

[*Active*] Serial Port 2

Use This Device

Enables or disables the serial port.

Possible:

Configures the base address for the serial port.

Advanced

46

Serial Port 2 Configuration

Enable or Disable this Logical Device.

Use This Device [Enabled]

Logical Device Settings: Current: IO=2F8h; IRQ=3;

Possible: [Use Automatic Settings]

WARNING: Disabling SIO Logical Devices may have unwanted side effects. PROCEED WITH CAUTION.

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Chapter 4: BIOS Setup

Hardware Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

System Temperature

Detects and displays the current system temperature.

CPU Temperature (PECI)

Detects and displays the current CPU temperature.

Chassis Fan1 Speed

Detects and displays the current chassis fan speed.

Advanced

47

Smart Fan Configuration

System Temperature CPU Temperature (PECI)

: +40 °c : +100 °c

Chassis Fan 1 Speed CPU Fan Speed

: N/A : N/A

VCORE +12V +5V 3VSB +3.3V VBAT

: +0.992 V : +11.904 V : +5.100 V : +3.392 V : +3.392 V : +3.120 V

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU Fan Speed

Detects and displays the current CPU fan speed.

VCORE to VBAT

Detects and displays the output voltages.

Chapter 4: BIOS Setup

CPU Smart Fan Control

Enables or disables CPU smart fan function.

Fan Control Mode (For CPU Fan)

Configures the fan mode of the CPU fan. The options are Manual Mode,

Thermal Cruise Mode (automatic fan mode), Speed Cruise Mode and SMART FAN IV Mode.

Temperature Source (For CPU Fan)

Selects the temperature source.

Temperature 1 to Temperature 4 (For CPU Fan)

Configures the temperature setting.

Fan PWM 1 to Fan PWM 4 (For CPU Fan)

Configures the amount of fan PWN for Smart Fan IV Mode.

Tolerance of Temperature (For CPU Fan)

Configures the tolerance of target temperature.

Critical Temperature (For CPU Fan)

Configures the time that Fan Out requires for reducing its value by one step.

Critical Temp Tolerance (For CPU Fan)

Configures the tolerance of critical temperature.

Chassis 1 Smart Fan Control

Enables or disables chassis 1 smart fan function.

Temperature Source (For Chassis 1 Fan)

Selects the temperature source.

Fan Control Mode (For Chassis 1 Fan)

Configures the fan mode of the CPU fan. The options are Manual Mode, Thermal Cruise Mode (automatic fan mode), Speed Cruise Mode and SMART FAN IV Mode.

Temperature 1 to Temperature 4 (For Chassis 1 Fan)

Configures the temperature setting.

Fan PWM 1 to Fan PWM 4 (For Chassis 1 Fan)

Configures the amount of fan PWN for Smart Fan IV Mode.

Tolerance of Temperature (For Chassis 1 Fan)

Configures the tolerance of target temperature.

Critical Temperature (For Chassis 1 Fan)

Configures the time that Fan Out requires for reducing its value by one step.

Critical Temp Tolerance (For Chassis 1 Fan)

Configures the tolerance of critical temperature.

Smart Fan Configuration

Advanced

Smart Fan Configuration

▲

Enable/Disable CPU Smart Fan Function

CPU Smart Fan Control

Fan Control Mode Temperature Source Temperature 1 Temperature 2 Temperature 3 Temperature 4 Fan PWM 1 Fan PWM 2 Fan PWM 3 Fan PWM 4 Tolerance of Temperature Critical Temperature Critical Temp Tolerance

[Enabled]

[SMART FAN IV

Mode]

[PECI Agent 0] 1 50 60 70 150 170 200 220 0 75 0

→←: Select Screen ↑↓: Select Item

Enter: Select

Chassis 1 Smart Fan Control

Temperature Source Fan Control Mode Temperature Source Temperature 1 Temperature 2 Temperature 3 Temperature 4

[Enabled] [PWM Mode] [SMART FAN IV

Mode]

[SYSTIN] 40 50 60 70

▼

+/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit

ESC: Exit

48

Chapter 4: BIOS Setup

Power Management

This section is used to configure the power management features.

Power Mode

Configures the power supply mode.

Power Saving(ERP) Control

Enables or disables power saving mode function.

Restore AC Power Loss

Select the AC power state when power is re-applied after a power failure.

Advanced

Power Management

Select system power mode.

Power Mode

Power Saving(ERP) Control Restore AC Power Loss

[ATX Type]

[Disabled] [Last State]

Wake Events

RTC wake system from S5

Wake up day Wake up hour Wake up minute

Wake up second Resume from PME# Resume from PCIE/RI

[Fixed Time] 0 0 0 0 [Enabled] [Enabled]

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

RTC wake system from S5

Enables or disables system wake up from S5. Fixed Time:

Dynamic Time:

System will wake on the hr:min:sec specified. System will wake on the current time + increase minute(s).

Advanced

Power Management

Fixed Time: System will wake on the hr:min:sec

Power Mode Power Saving(ERP) Control Restore AC Power Loss

[ATX Type] [Disabled] [Last State]

specified./n Dynamic Time: System will wake on the current time + Increase minute(s)

Wake Events

RTC wake system from S5

Wake up minute increase Resume from PME# Resume from PCIE/RI

[Dynamic Time]

1 [Enabled] [Enabled]

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Resume from PME#

Enables or disables resume from PME# function.

Resume from PCIE/RI

Enables or disables resume from PCIE/RI function.

Note: USB does not support S3, S4 and S5 wake.

49

Chapter 4: BIOS Setup

Digital IO Port Configuration

This section is used to configure digital I/O port settings.

DIO Port1 to DIO Port8

Configures DIO port1 to port8 as input or output.

Output Level

Configures the output level as high or low.

Advanced

Digital IO Port Configuration

Set DIO as Input or Output

DIO Port1

Output Level

DIO Port2

Output Level

DIO Port3

Output Level

DIO Port4

Output Level DIO Port5 DIO Port6 DIO Port7 DIO Port8

[Output]

[High ] [Output] [High ] [Output] [High ] [Output] [High ] [Input ] [Input ] [Input ] [Input ]

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Agent (SA) Configuration

Enters the System Agent (SA) Configuration submenu.

PCH-IO Configuration

Enters the PCH-IO Configuration submenu.

Chipset

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.

Main Advanced Chipset Security Boot Save & Exit

50

►

System Agent (SA) Configuration

►

PCH-IO Configuration

System Agent (SA) Parameters

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Chapter 4: BIOS Setup

Max TOLUD

Configures the maximum value of TOLUD.

Max Link Speed

Configures the maximum link speed of the PEG device.

System Agent (SA) Configuration Graphics Configuration

Chipset

51

Graphics Configuration

Select which of IGFX/PEG/PCI Graphics device should be

Primary Display

Primary IGFX Boot Display

[Auto]

[VBIOS Default]

Primary Display Or select SG for Switchable Gfx.

LVDS LVDS Panel Type

[Enabled] [1024x768,18bit,60Hz]

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Agent Bridge Name

Skylake

Maximum Value of TOLUD. Dynamic assignment would

Memory Configuration Memory Frequency Total Memory DIMM#0 DIMM#1

2133 MHz 16384 MB 16384 MB Not Present

adjust TOLUD automatically based on largest MMIO length of installed graphic controller

Max TOLUD

Max Link Speed

[Dynamic]

[Auto]

Graphics Configuration

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Primary Display

Select which IGFX/PEG/PCI graphics device should be the primary display or select SG for Switchable Gfx.

Primary IGFX Boot Display

Select the video device which will be activated during POST. Has no effect if external graphics is present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display.

LVDS

Enables or disables LVDS.

LVDS Panel Type

Configures the LVDS panel resolution.

Chapter 4: BIOS Setup

HD Audio

Control detection of the HD Audio device. Disabled

Enabled Auto

HD Audio will be unconditionally disabled. HD Audio will be unconditionally enabled. HD Audio will be enabled if present, disabled otherwise.

PCH-IO Configuration

Chipset

PCH-IO Configuration

HD Audio

[Enabled]

Control Detection of the HD-Audio device. Disabled = HDA will be unconditionally disabled Enabled = HDA will be unconditionally enabled Auto = HDA will be enabled if present, disabled otherwise.

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Security

Main Advanced Chipset Security Boot Save & Exit

52

Password Description

Set Administrator Password

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User Will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

→←: Select Screen ↑↓: Select Item

Enter: Select

Administrator Password

User Password

+/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

Chapter 4: BIOS Setup

Boot

Quiet Boot

Enabled Disabled

Displays OEM logo instead of the POST messages.

Displays normal POST messages.

Launch PXE ROM

Controls the execution of UEFI and legacy PXE OpROM.

Boot Option Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

Save & Exit

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes and Reset

To exit the Setup utility and reset without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Main Advanced Chipset Security Boot Save & Exit

Save Changes and Reset

Discard Changes and Reset Restore Defaults

Reset the system after saving the changes.

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Main Advanced Chipset Security Boot Save & Exit

53

Boot Configuration

Enables or disables Quiet Boot option

Quiet Boot

Launch PXE ROM

[Enabled]

[Disabled]

Boot Option Priorities

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
