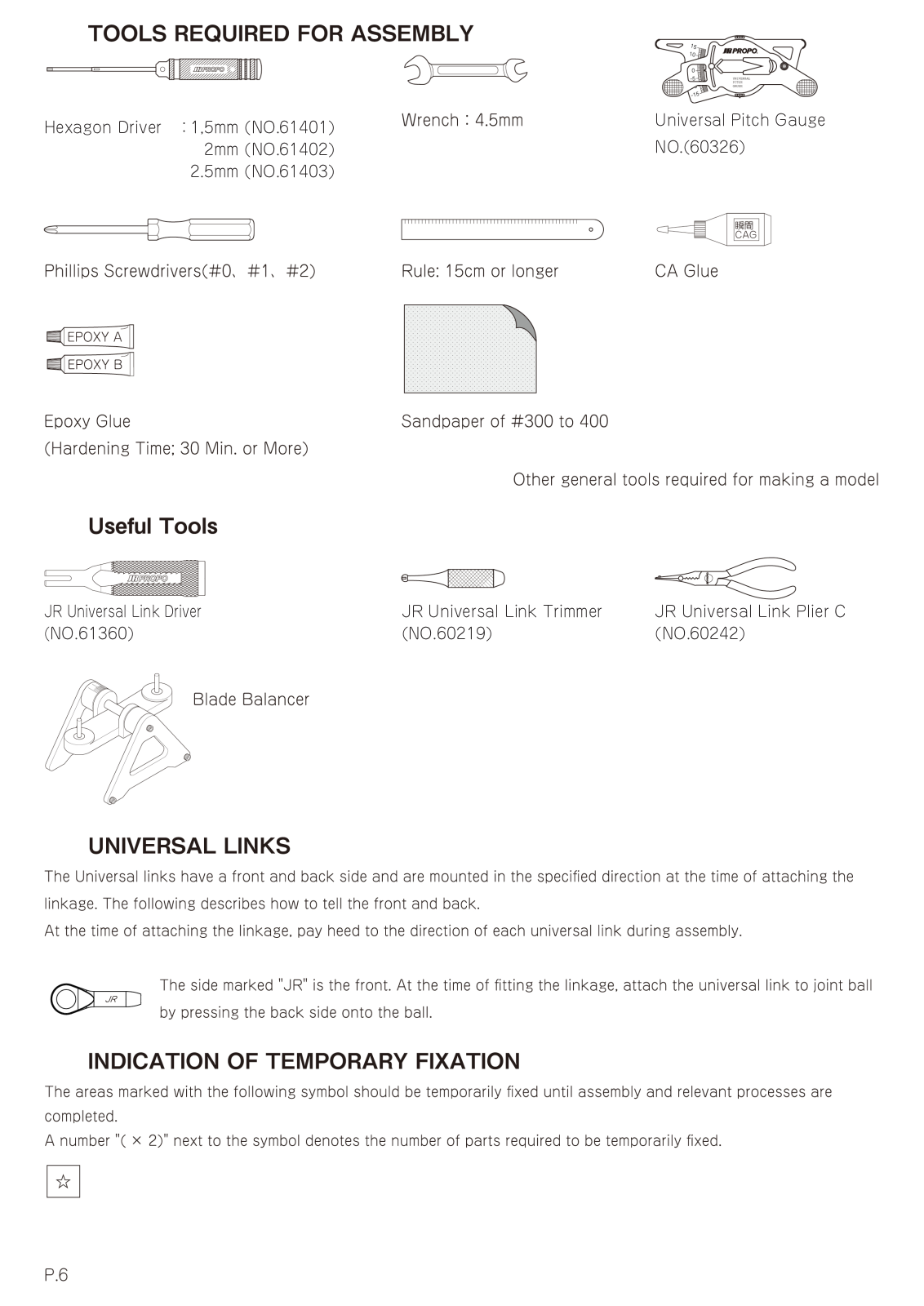

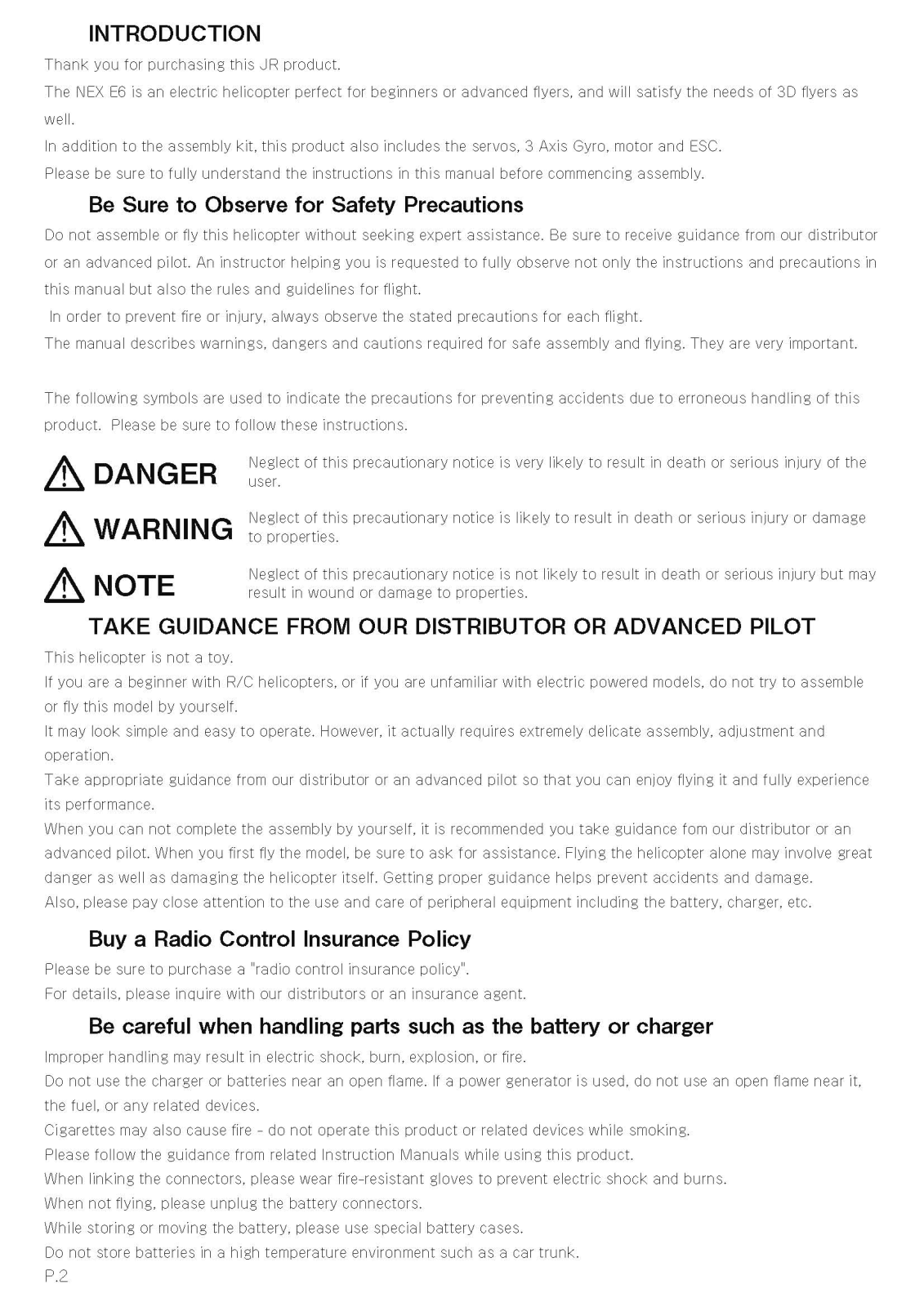

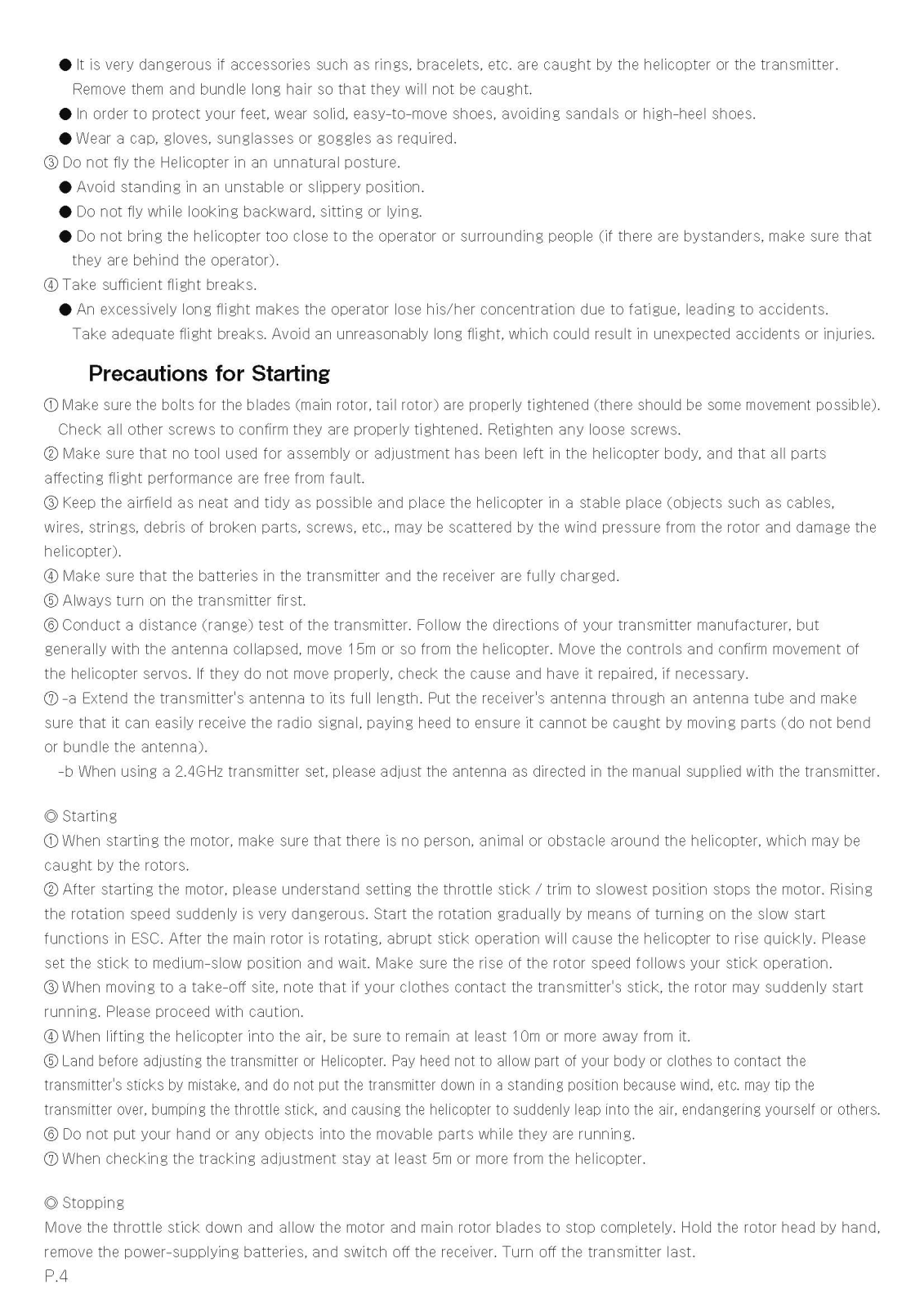

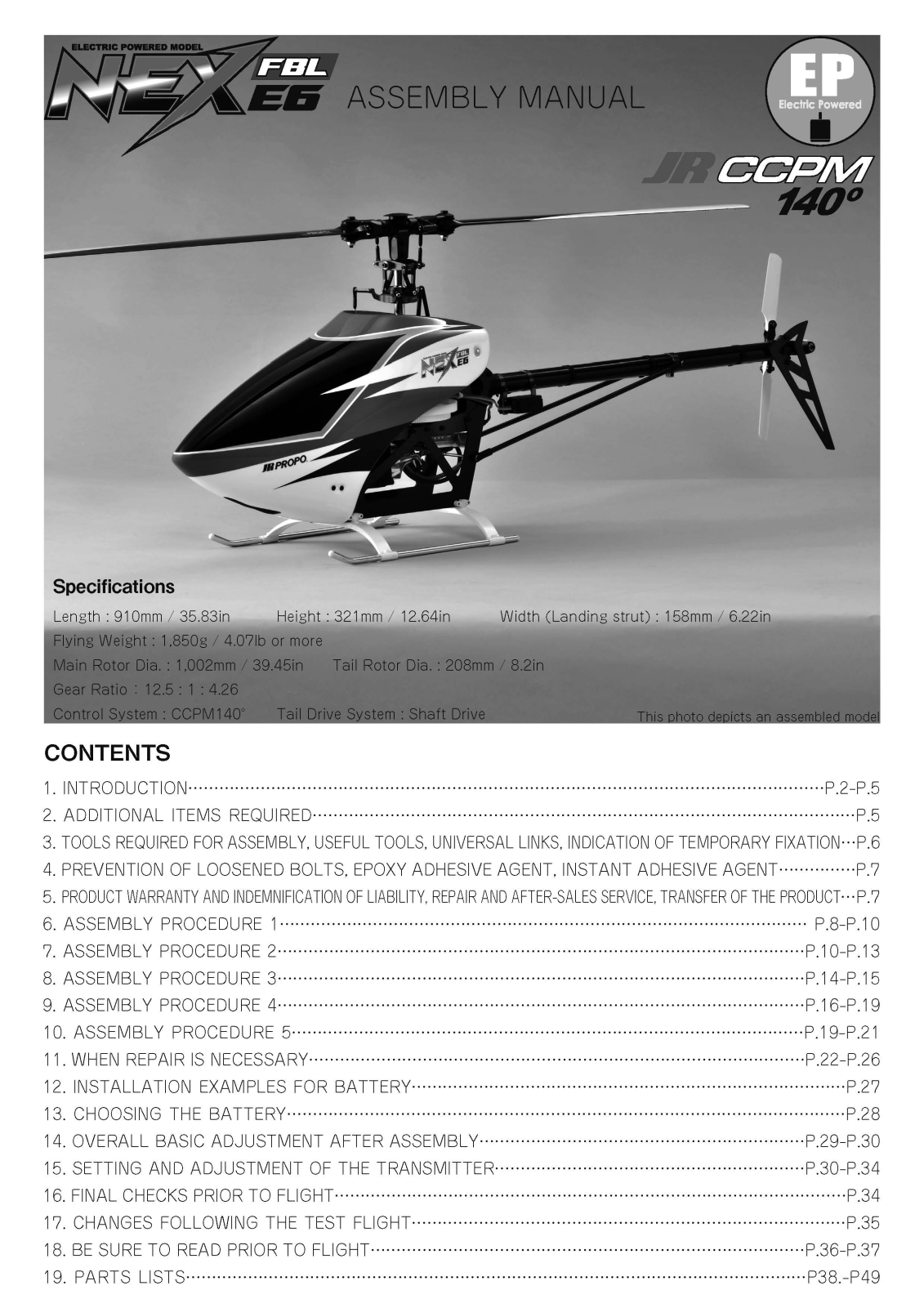

Nex FBL E6 Assembly Manual

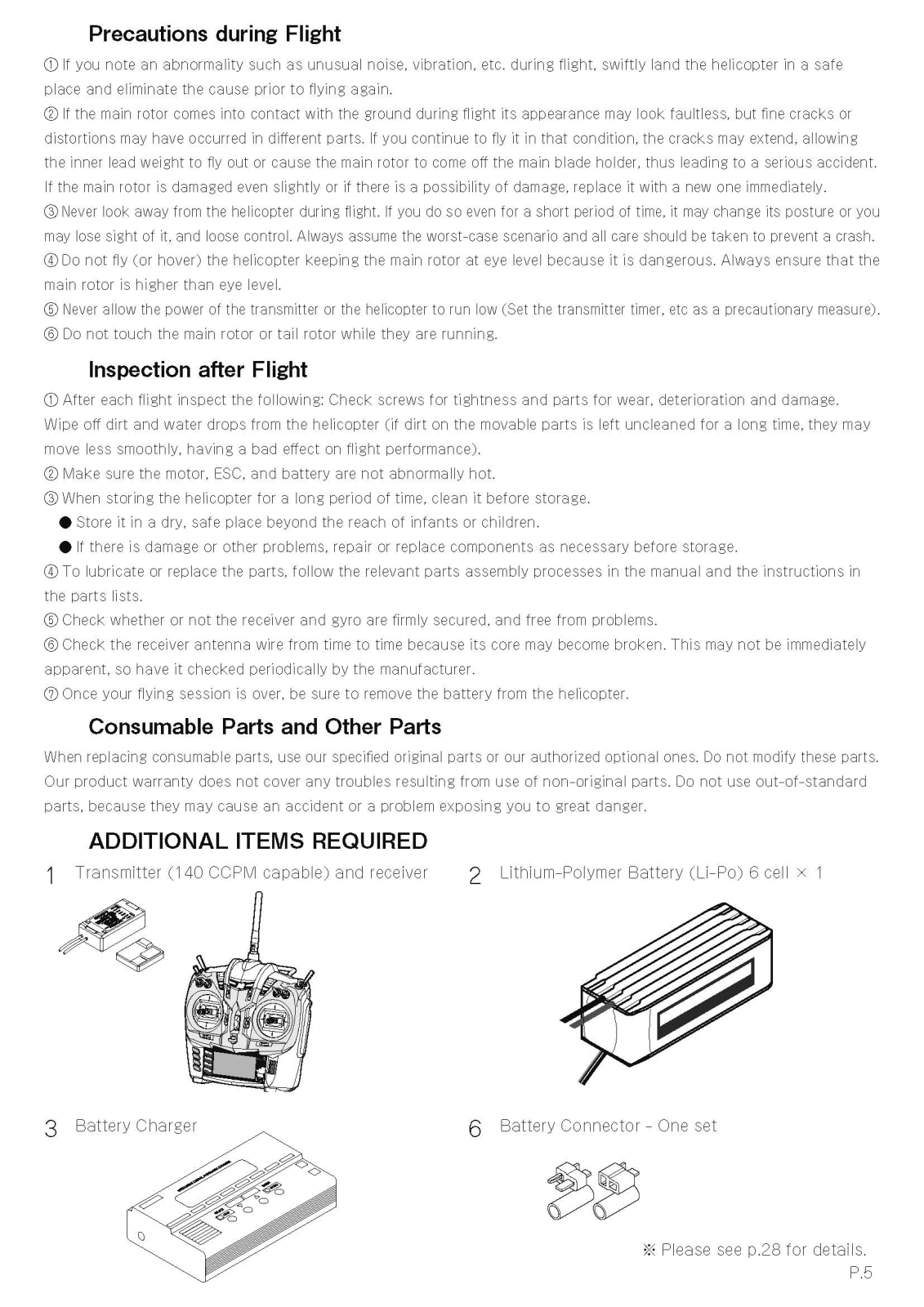

P.6

Hexagon Driver　：1,5mm (NO.61401)
2mm (NO.61402)

2.5mm (NO.61403)

Universal Pitch Gauge
NO.(60326)

JR Universal Link Driver
(

NO.61360)

JR Universal Link Trimmer
(NO.60219)

JR Universal Link Plier C
(NO.60242)

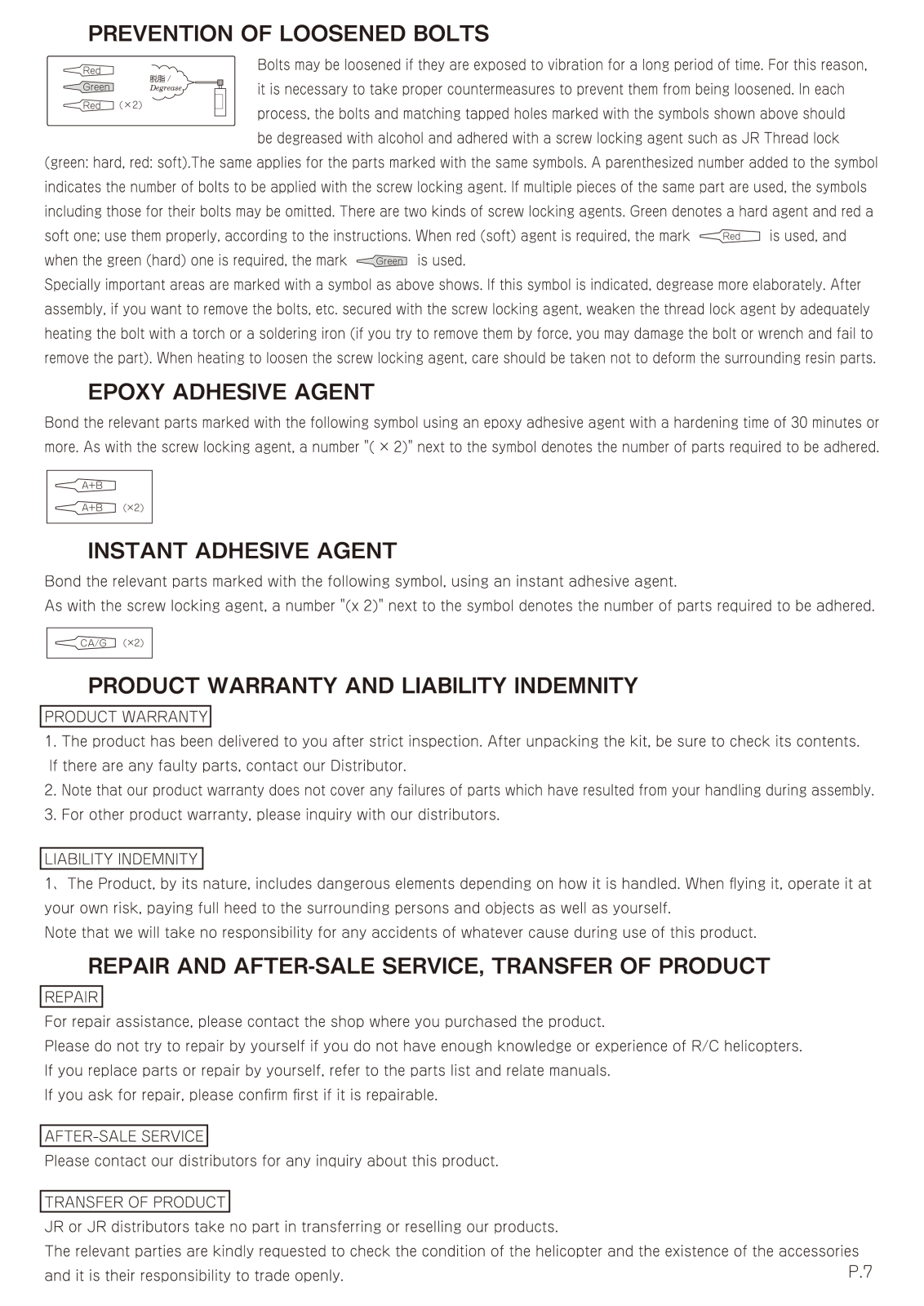

P.7

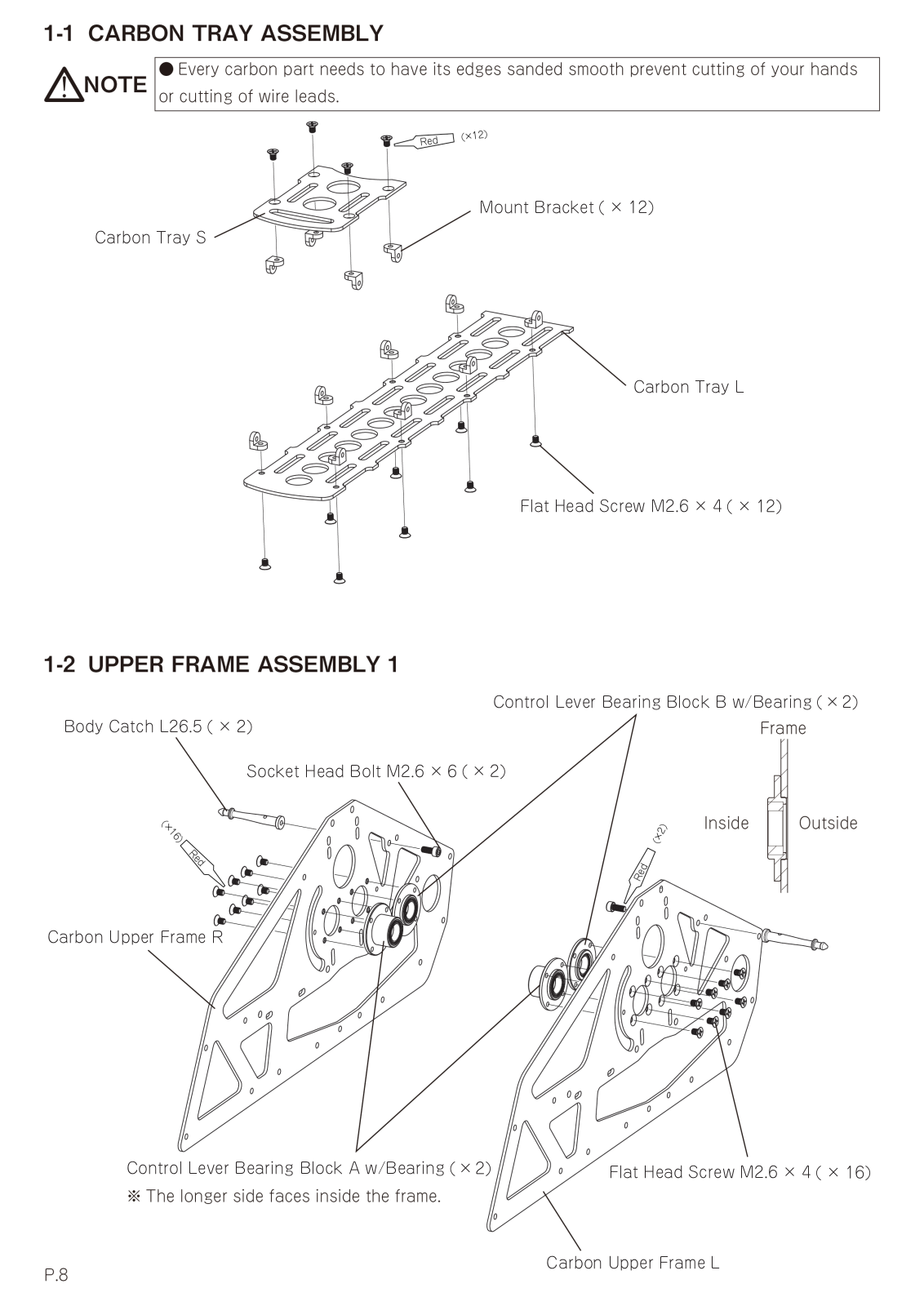

Carbon Tray S

Mount Bracket

Carbon Tray L

Flat Head Screw M2.6 × 4

Body Catch L26.5

Carbon Upper Frame R

Control Lever Bearing Block B w/Bearing

Socket Head Bolt M2.6 × 6

Control Lever Bearing Block A w/Bearing

Flat Head Screw M2.6 × 4

Carbon Upper Frame L

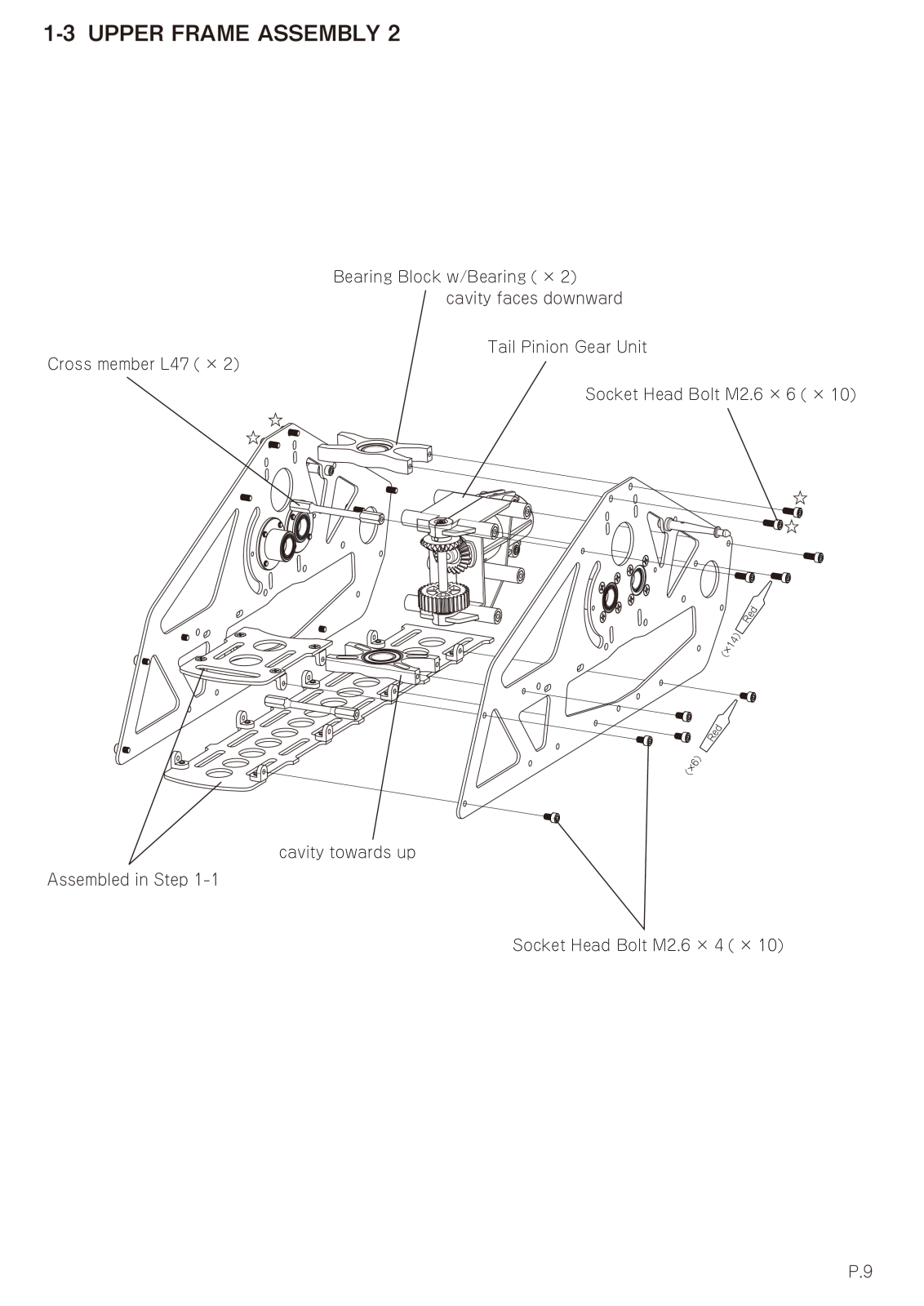

Cross member L47

Bearing Block w/Bearing

Tail Pinion Gear Unit

Socket Head Bolt M2.6 × 6

Socket Head Bolt M2.6 × 4

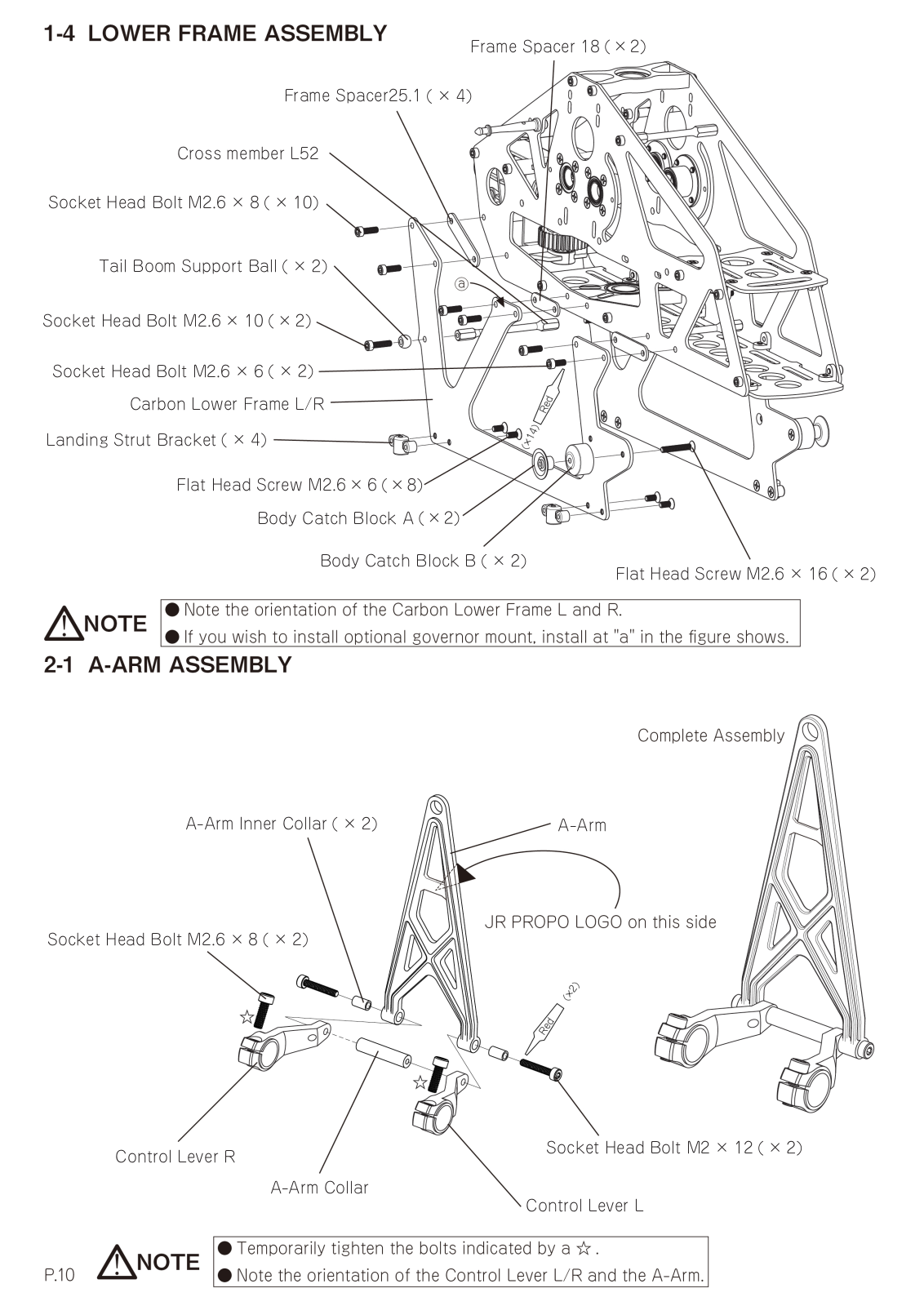

Cross member L52

Socket Head Bolt M2.6 × 8

Tail Boom Support Ball

Socket Head Bolt M2.6 × 10

Socket Head Bolt M2.6 × 6

Carbon Lower Frame L/R

Landing Strut Bracket

Flat Head Screw M2.6 × 6

Frame Spacer 18

Frame Spacer25.1

A-Arm Inner Collar

Socket Head Bolt M2.6 × 8

Body Catch Block A

Body Catch Block B

Flat Head Screw M2.6 × 16

A-Arm

Control Lever R

Socket Head Bolt M2 × 12

A-Arm Collar

Control Lever L

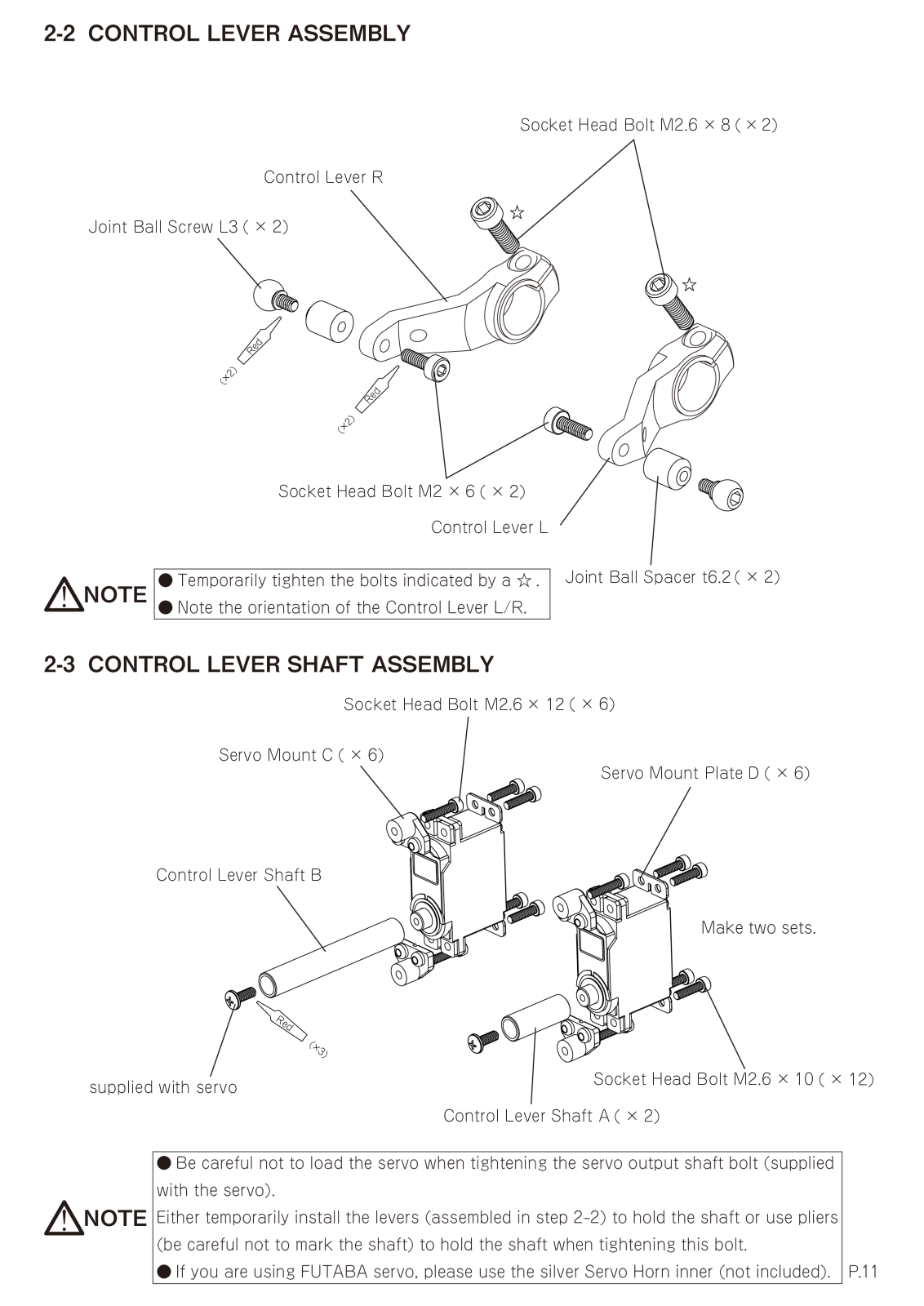

Joint Ball Screw L3

Socket Head Bolt M2.6 × 8

Control Lever R

Socket Head Bolt M2 × 6

Control Lever L

Servo Mount C

Control Lever Shaft B

Joint Ball Spacer t6.2

Socket Head Bolt M2.6 × 12

Servo Mount Plate D

supplied with servo

Socket Head Bolt M2.6 × 10

Control Lever Shaft A

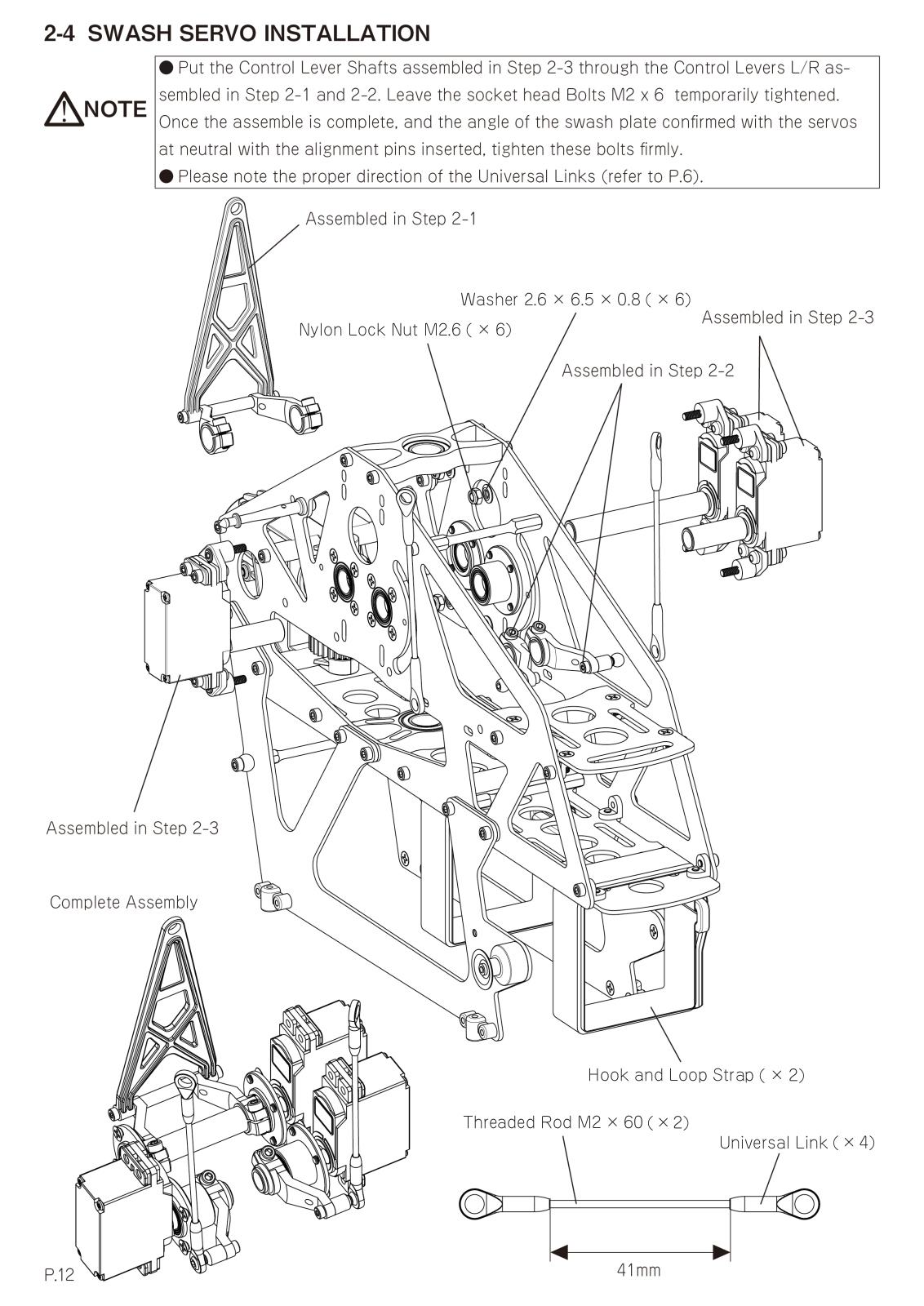

Nylon Lock Nut M2.6

Washer 2.6 × 6.5 × 0.8

Hook and Loop Strap

Threaded Rod M2 × 60

Universal Link

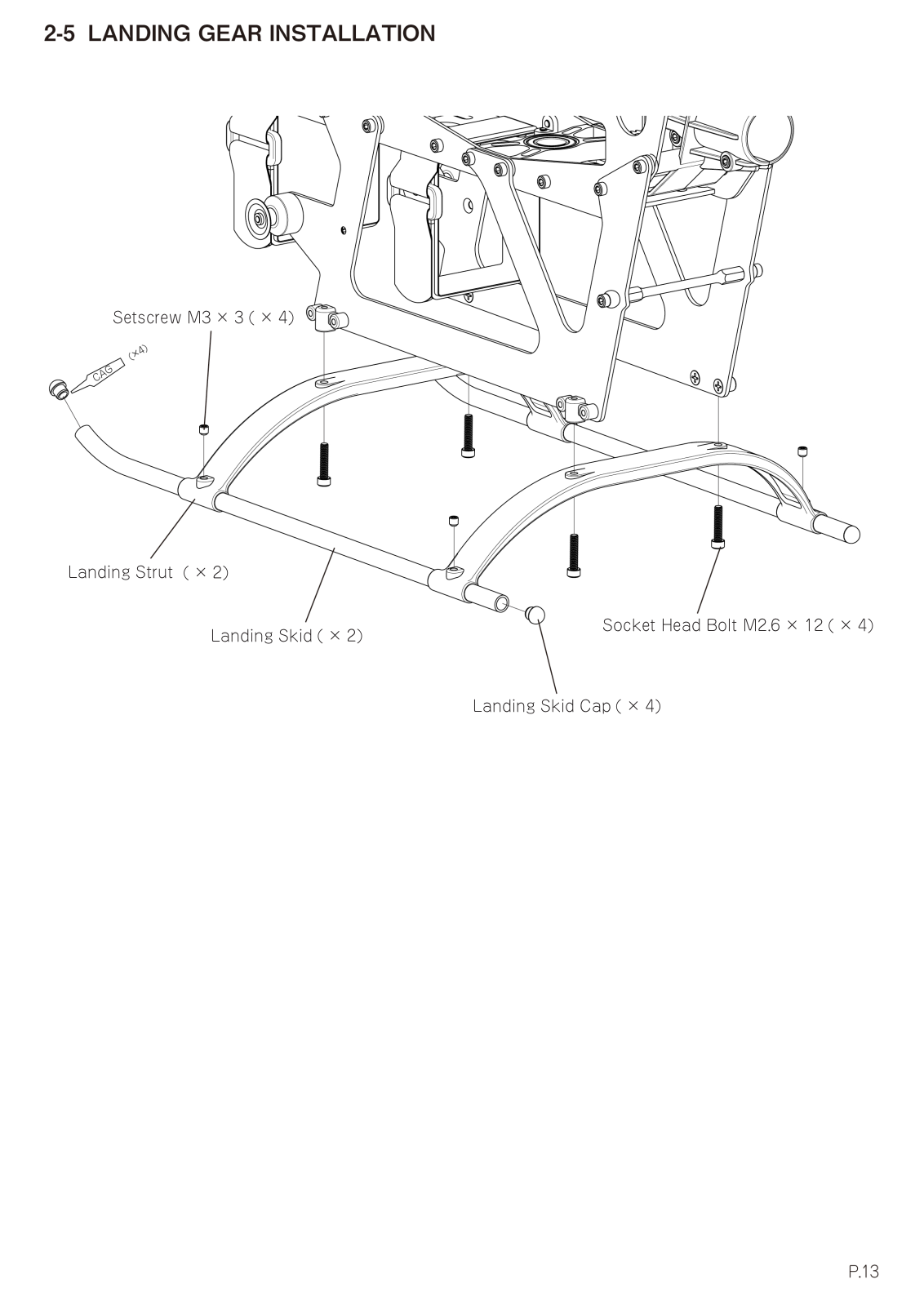

Setscrew M3 × 3

Landing Strut

Landing Skid

Socket Head Bolt M2.6 × 12

Landing Skid Cap

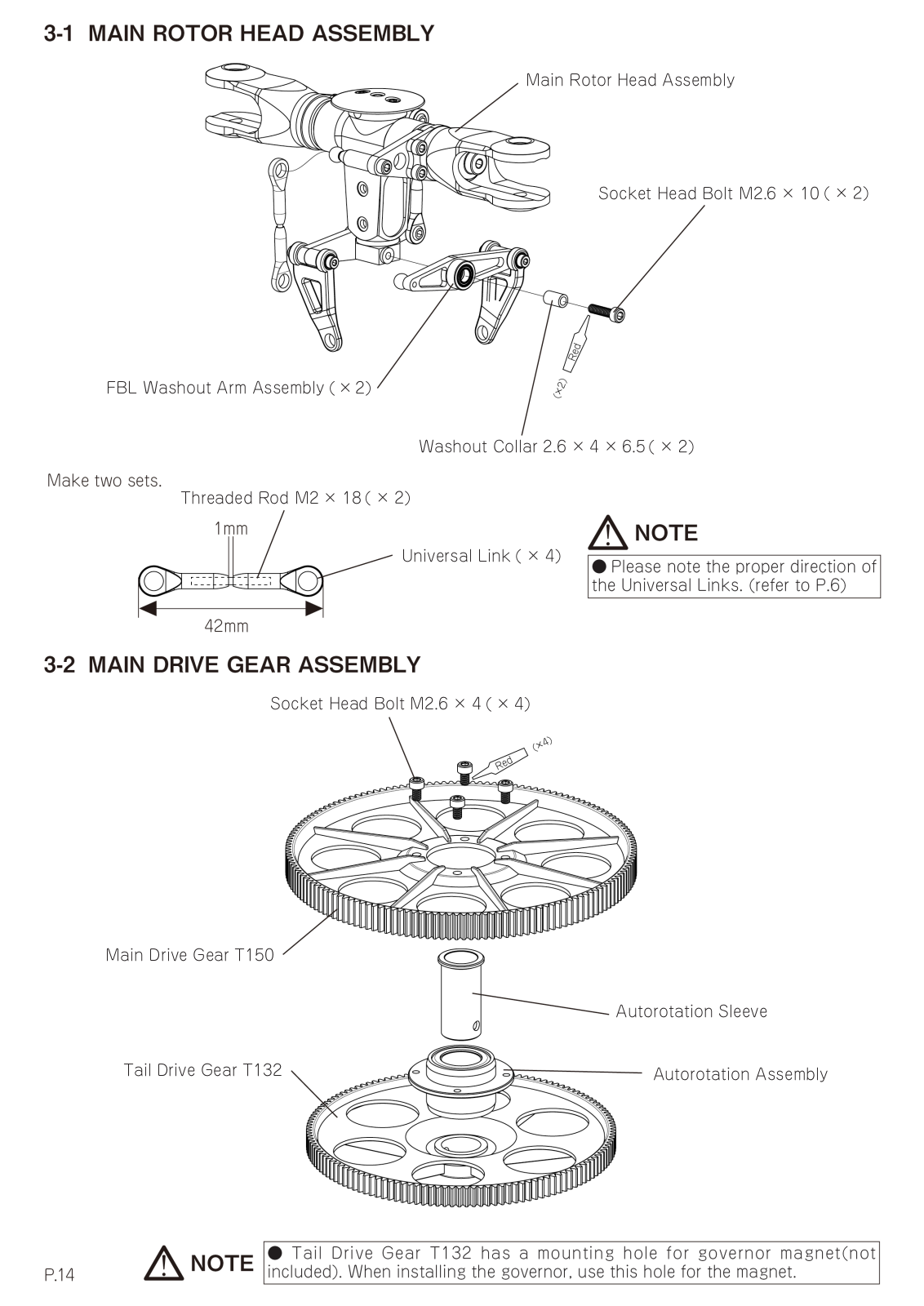

FBL Washout Arm Assembly

Threaded Rod M2 × 18

Main Rotor Head Assembly

Socket Head Bolt M2.6 × 10

Washout Collar 2.6 × 4 × 6.5

Main Drive Gear T150

Universal Link

Socket Head Bolt M2.6 × 4

Tail Drive Gear T132

Autorotation Sleeve

Autorotation Assembly

Socket Head Bolt M2.6 × 6

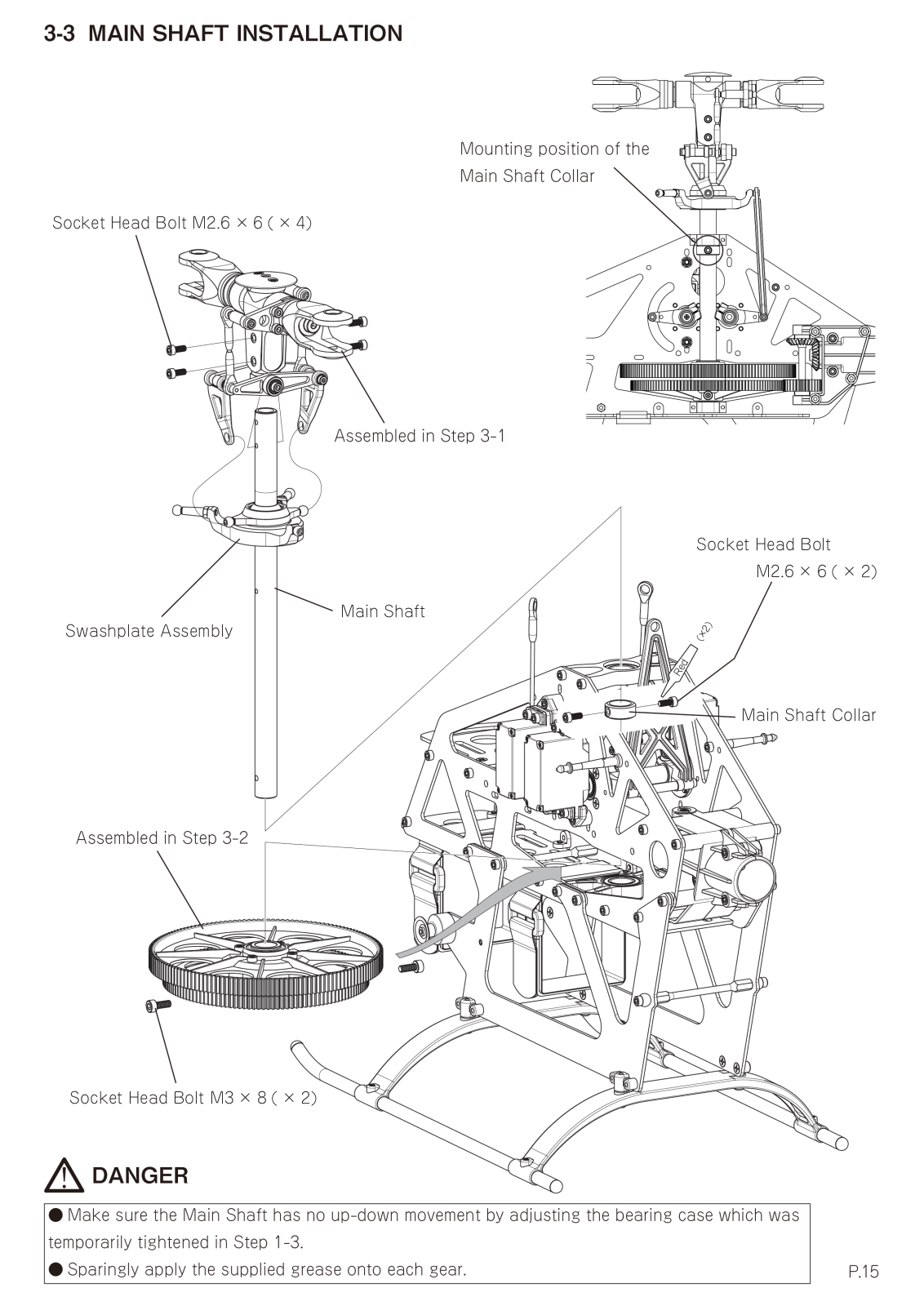

Swashplate Assembly

Socket Head Bolt

M2.6 × 6

Main Shaft

Socket Head Bolt M3 × 8

Main Shaft Collar

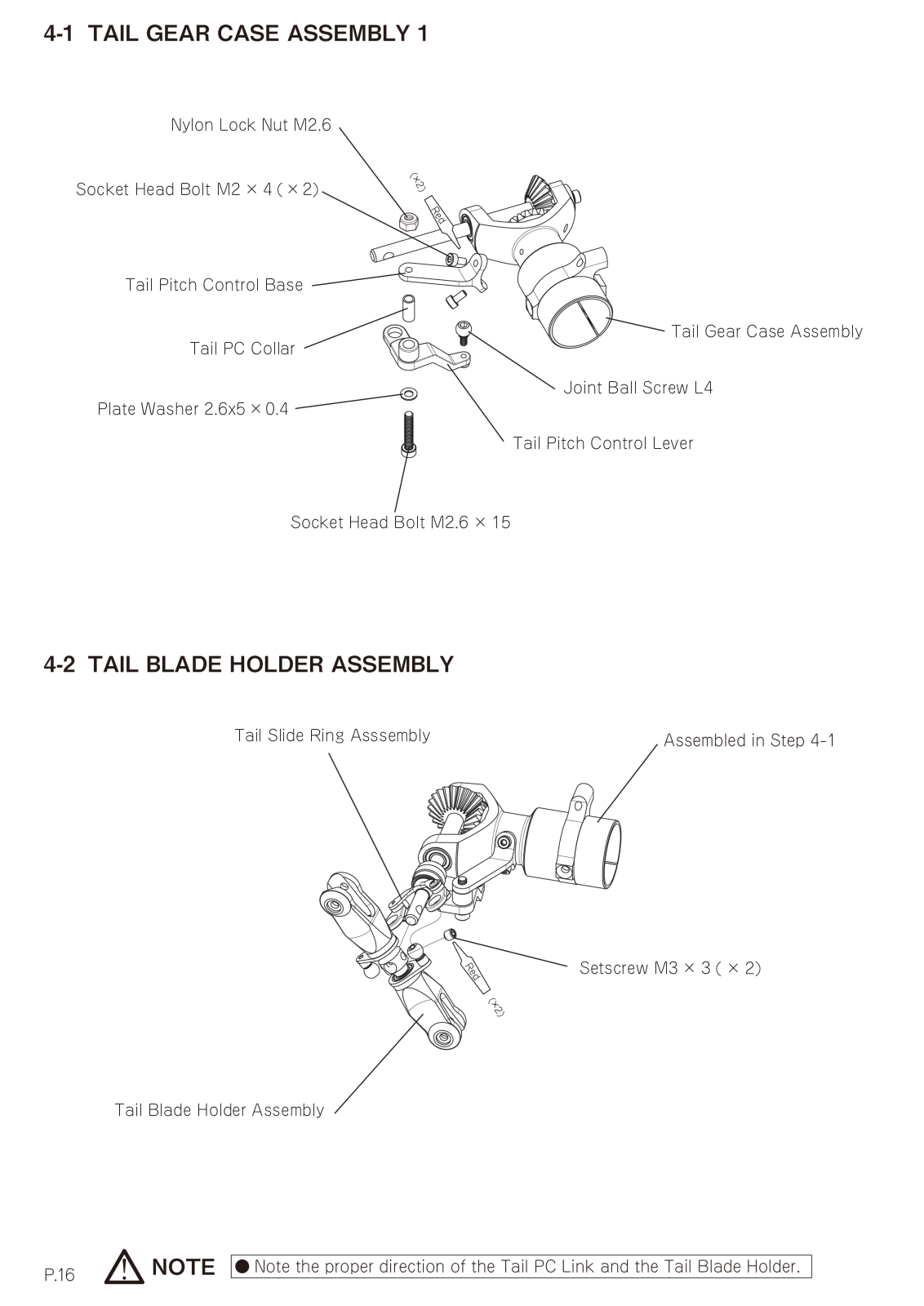

Nylon Lock Nut M2.6

Socket Head Bolt M2 × 4

Tail Pitch Control Base

Tail PC Collar

Plate Washer 2.6x5 × 0.4

Tail Gear Case Assembly

Joint Ball Screw L4

Tail Pitch Control Lever

Socket Head Bolt M2.6 × 15

Tail Slide Ring Asssembly

Tail Blade Holder Assembly

Setscrew M3 × 3

P.18

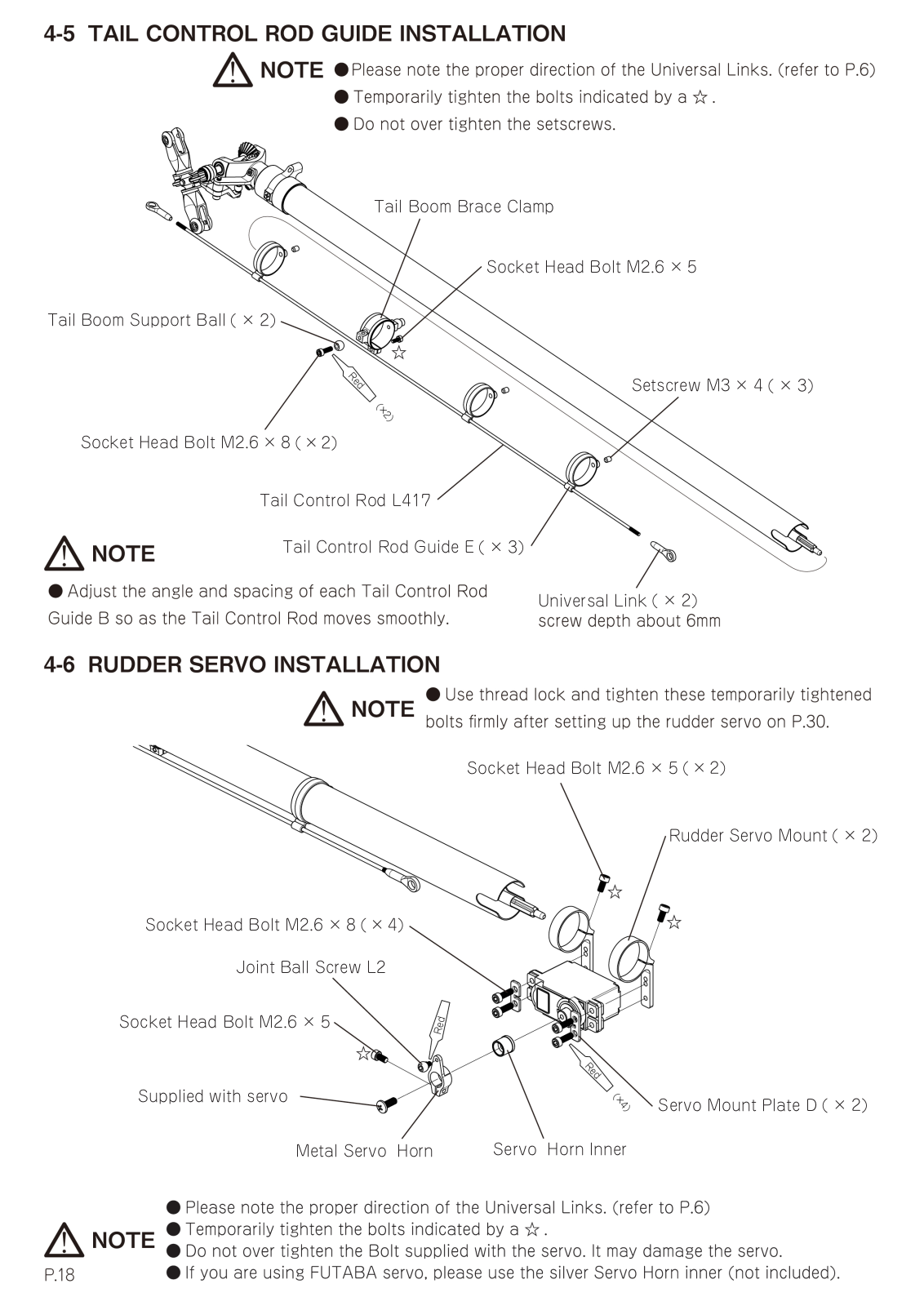

Tail Boom Support Ball

Socket Head Bolt M2.6 × 8

Tail Boom Brace Clamp

Socket Head Bolt M2.6 × 5

Setscrew M3 × 4

Tail Control Rod L417

Tail Control Rod Guide E

Universal Link

Socket Head Bolt M2.6 × 8

Joint Ball Screw L2

Socket Head Bolt M2.6 × 5

Supplied with servo

Metal Servo Horn

Socket Head Bolt M2.6 × 5

Servo Mount Plate D

Servo Horn Inner

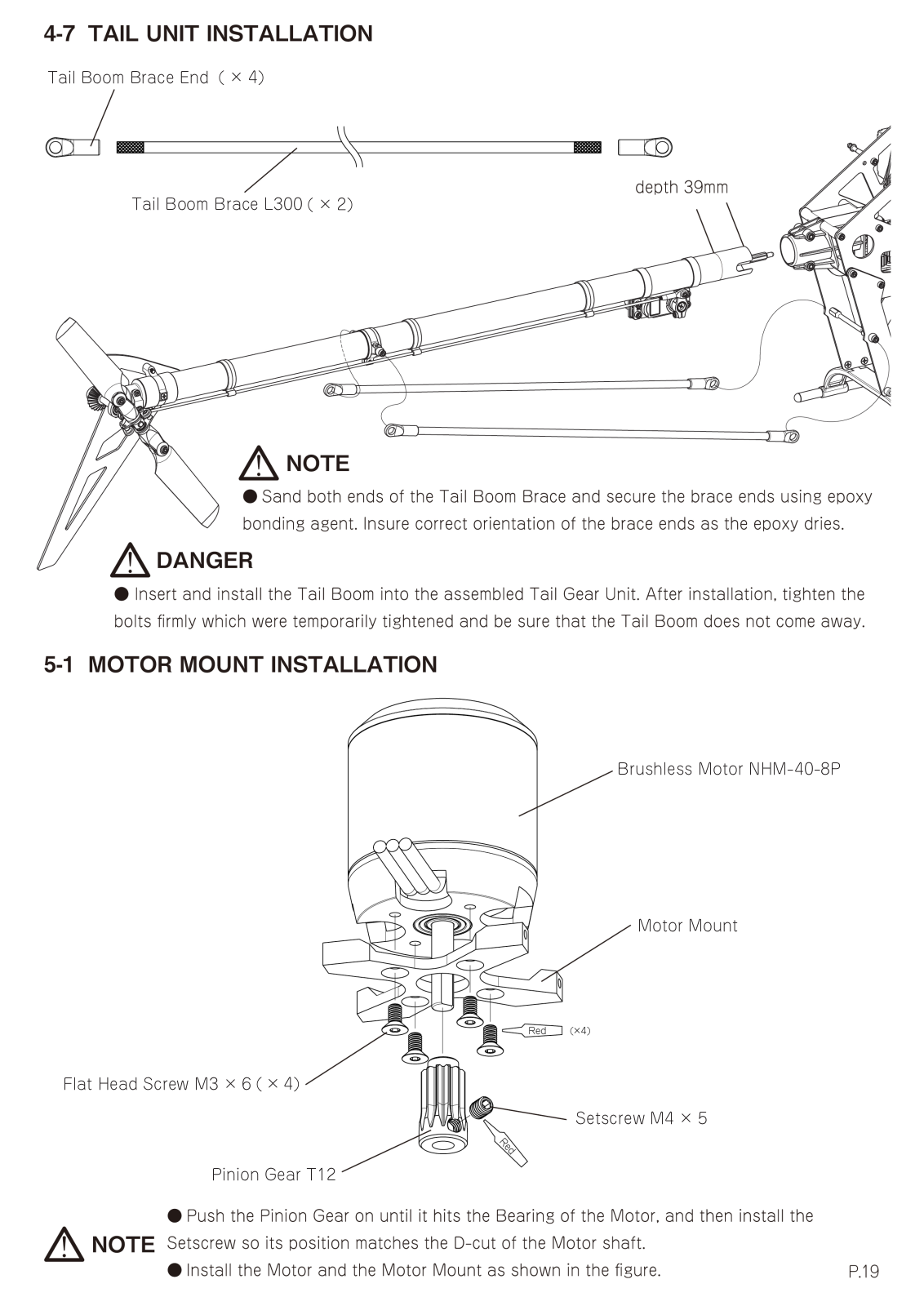

P.19

Tail Boom Brace End

Tail Boom Brace L300

Flat Head Screw M3 × 6

Pinion Gear T12

Brushless Motor NHM-40-8P

Motor Mount

Setscrew M4 × 5

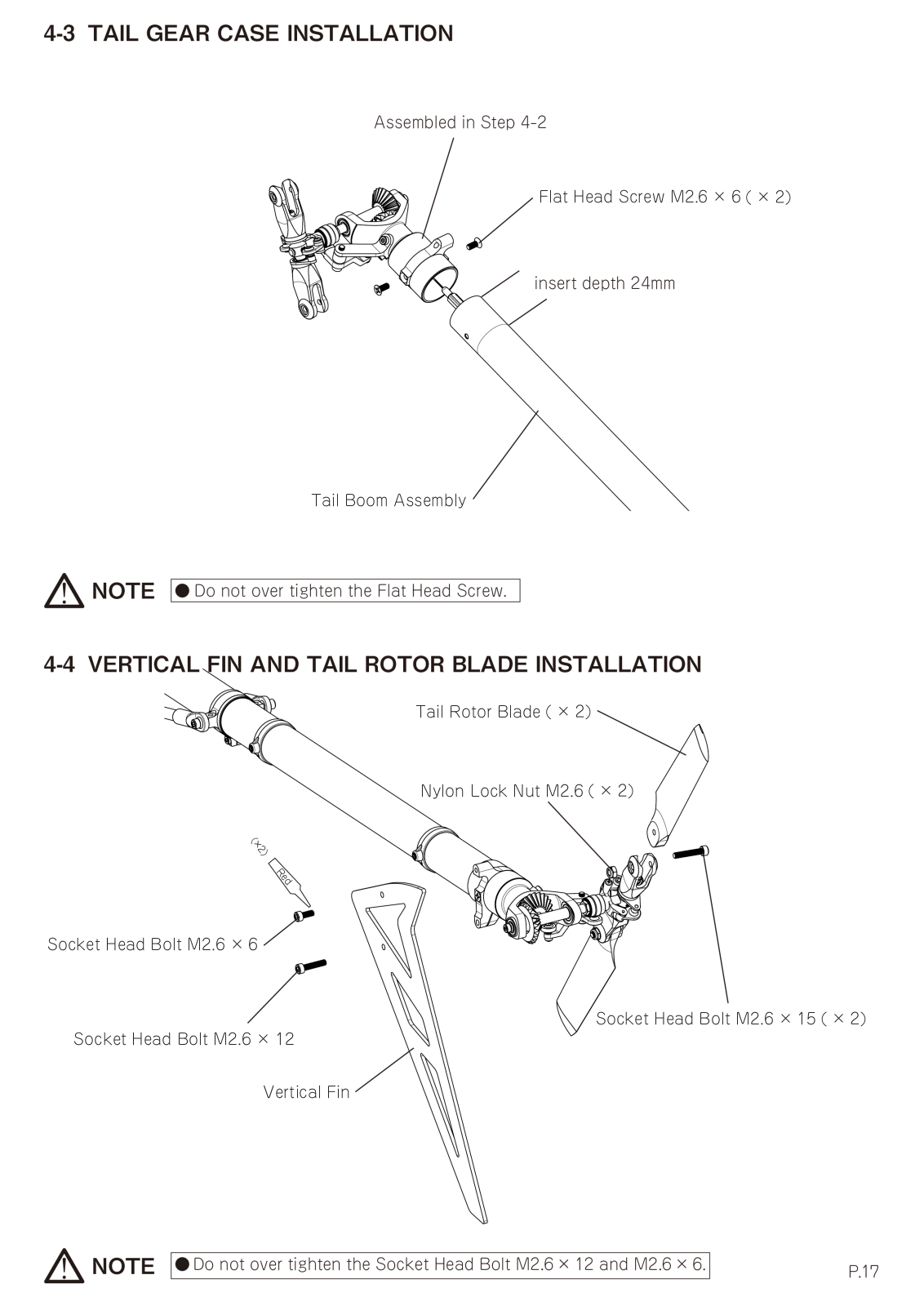

Tail Boom Assembly

Flat Head Screw M2.6 × 6

Socket Head Bolt M2.6 × 6

Socket Head Bolt M2.6 × 12

Tail Rotor Blade

Nylon Lock Nut M2.6

Socket Head Bolt M2.6 × 15

Vertical Fin

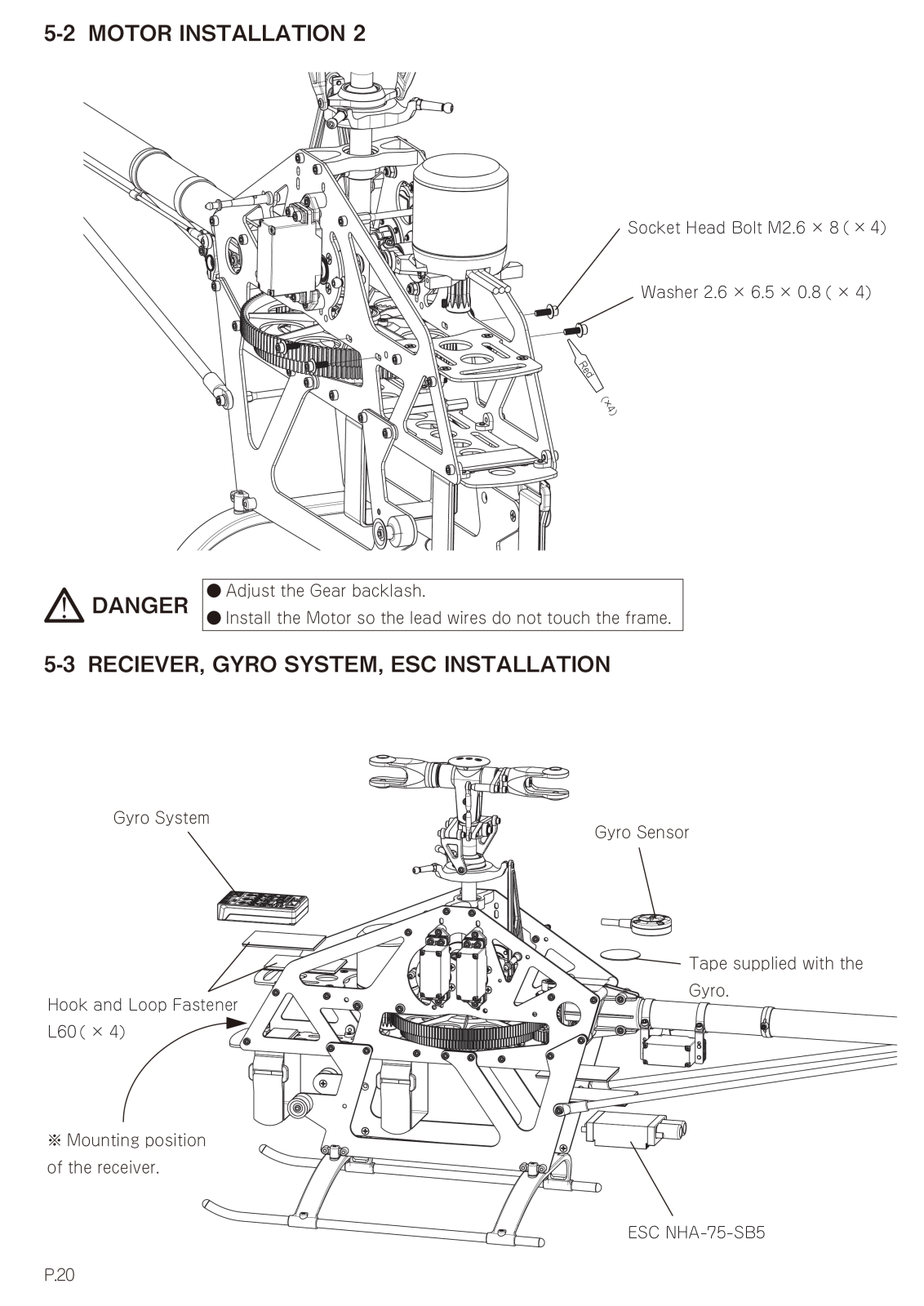

Socket Head Bolt M2.6 × 8

Washer 2.6 × 6.5 × 0.8

Hook and Loop Fastener
L60

ESC NHA-75-SB5

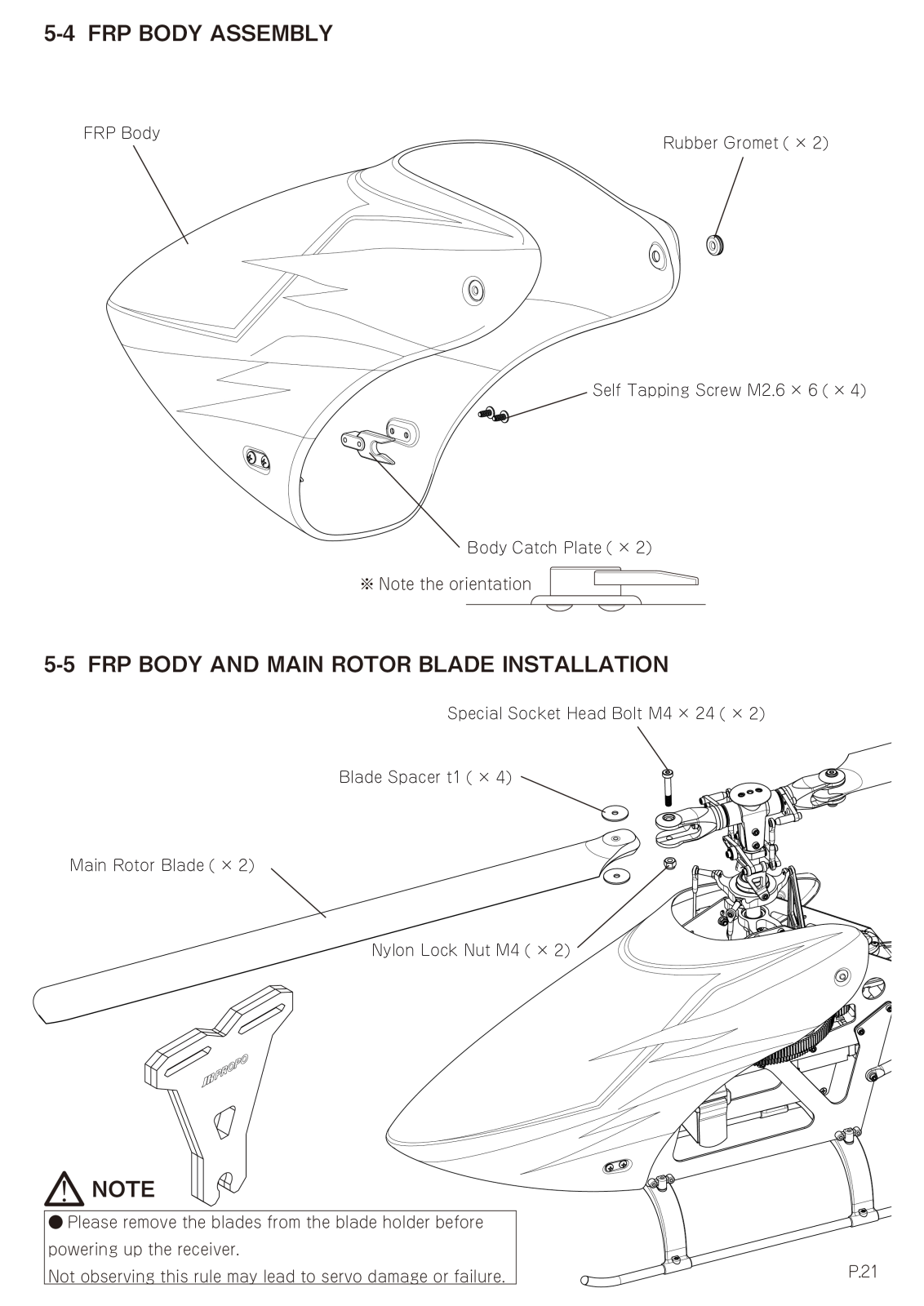

FRP Body

Rubber Gromet

Self Tapping Screw M2.6 × 6

Body Catch Plate

Main Rotor Blade

Special Socket Head Bolt M4 × 24

Blade Spacer t1

Nylon Lock Nut M4

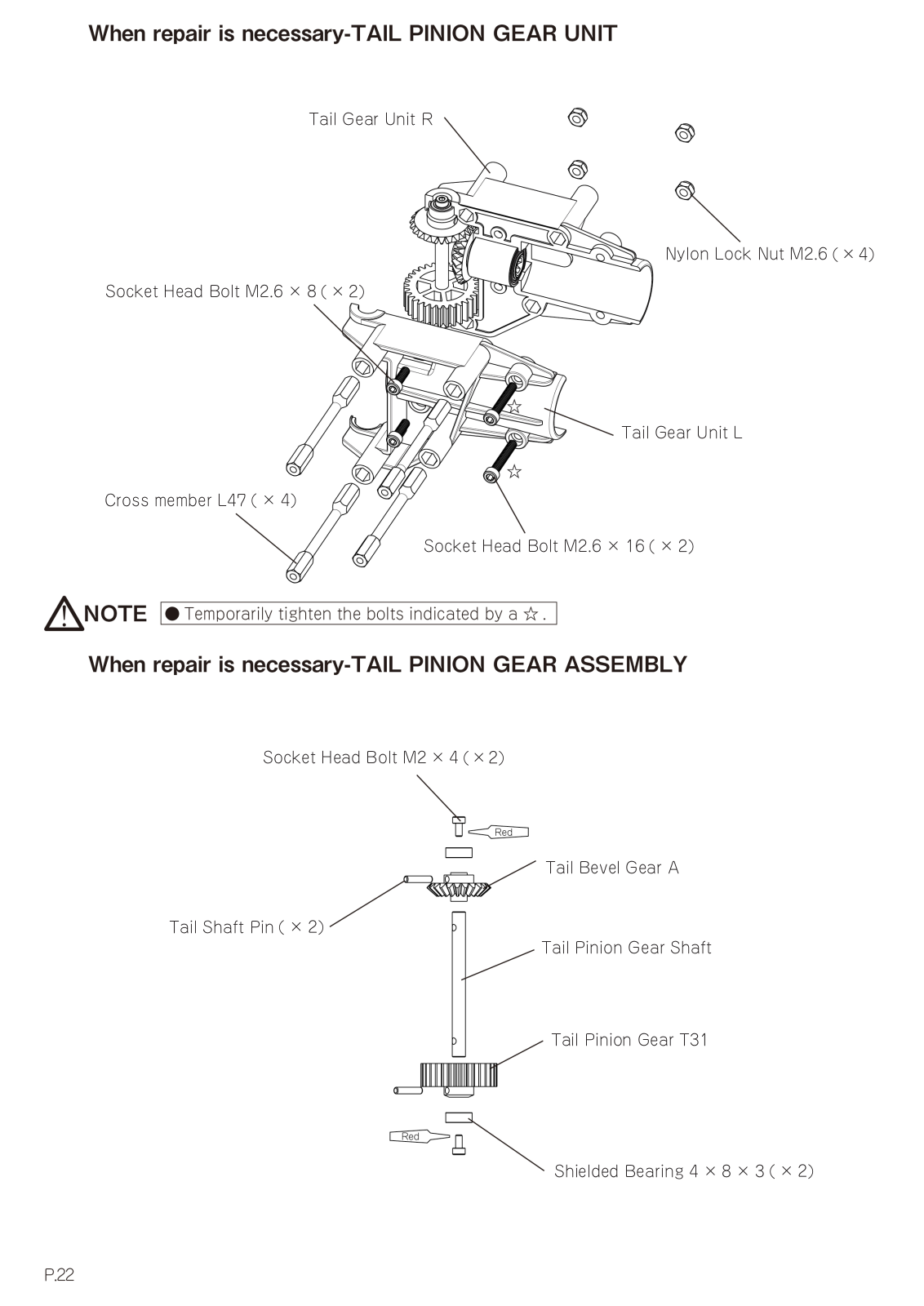

Socket Head Bolt M2.6 × 8

Cross member L47

Tail Gear Unit R

Nylon Lock Nut M2.6

Tail Gear Unit L

Socket Head Bolt M2.6 × 16

Socket Head Bolt M2 × 4

Tail Shaft Pin

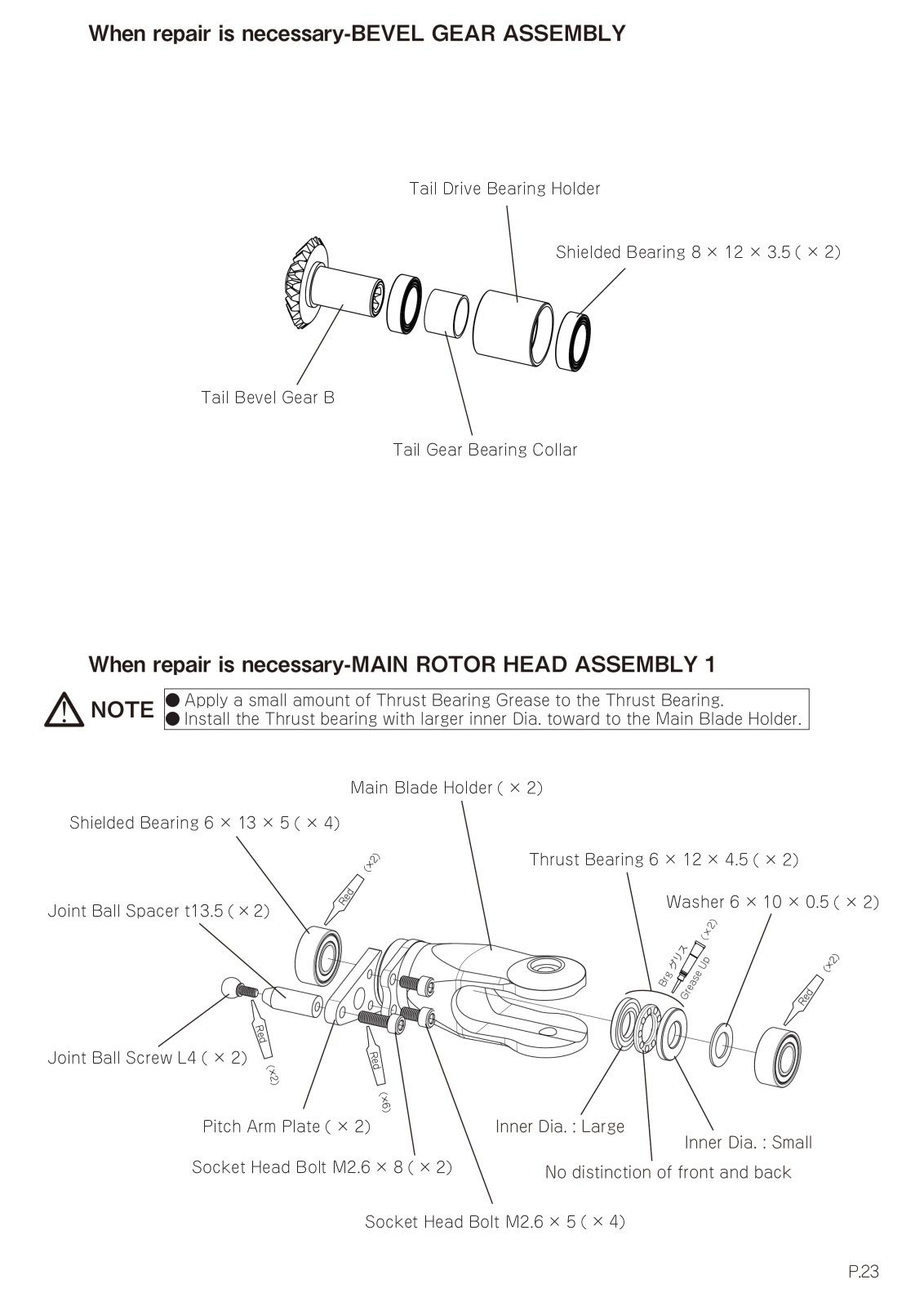

Tail Bevel Gear A

Tail Pinion Gear Shaft

Tail Pinion Gear T31

Shielded Bearing 4 × 8 × 3

Tail Bevel Gear B

Tail Drive Bearing Holder

Shielded Bearing 8 × 12 × 3.5

Tail Gear Bearing Collar

Shielded Bearing 6 × 13 × 5

Joint Ball Spacer t13.5

Joint Ball Screw L4

Pitch Arm Plate

Socket Head Bolt M2.6 × 8

Main Blade Holder

Thrust Bearing 6 × 12 × 4.5

Washer 6 × 10 × 0.5

Socket Head Bolt M2.6 × 5

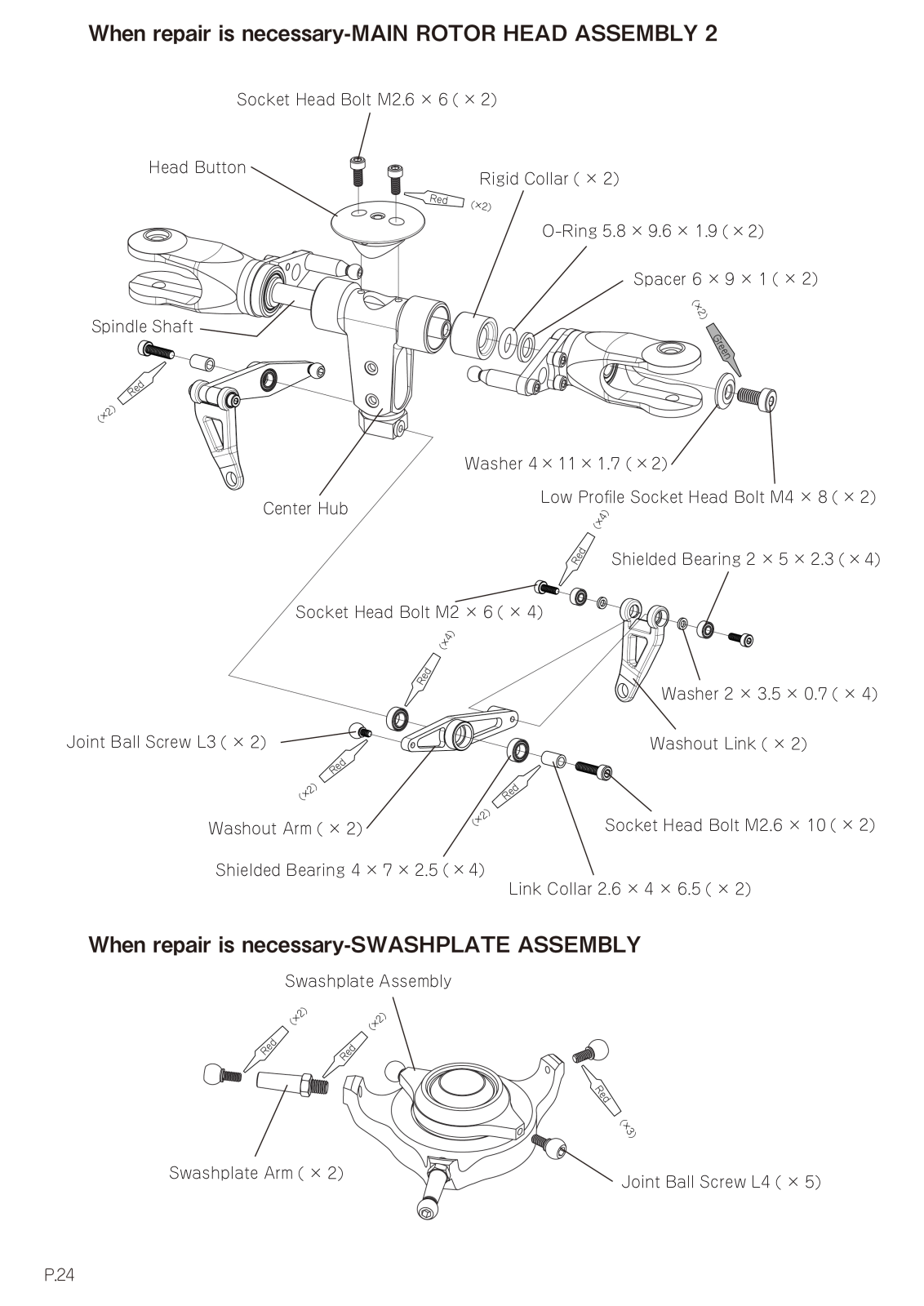

Socket Head Bolt M2.6 × 6

Head Button

Spindle Shaft

Center Hub

Socket Head Bolt M2 × 6

Rigid Collar

O-Ring 5.8 × 9.6 × 1.9

Spacer 6 × 9 × 1

Washer 4 ×11×1.7 (×2)

Low Prole Socket Head Bolt M4 × 8

Shielded Bearing 2 × 5 × 2.3

Joint Ball Screw L3

Washout Arm

Washer 2 × 3.5 × 0.7

Washout Link

Socket Head Bolt M2.6 × 10

Shielded Bearing 4 × 7 × 2.5

Link Collar 2.6 × 4 × 6.5

Swashplate Assembly

Swashplate Arm

Joint Ball Screw L4

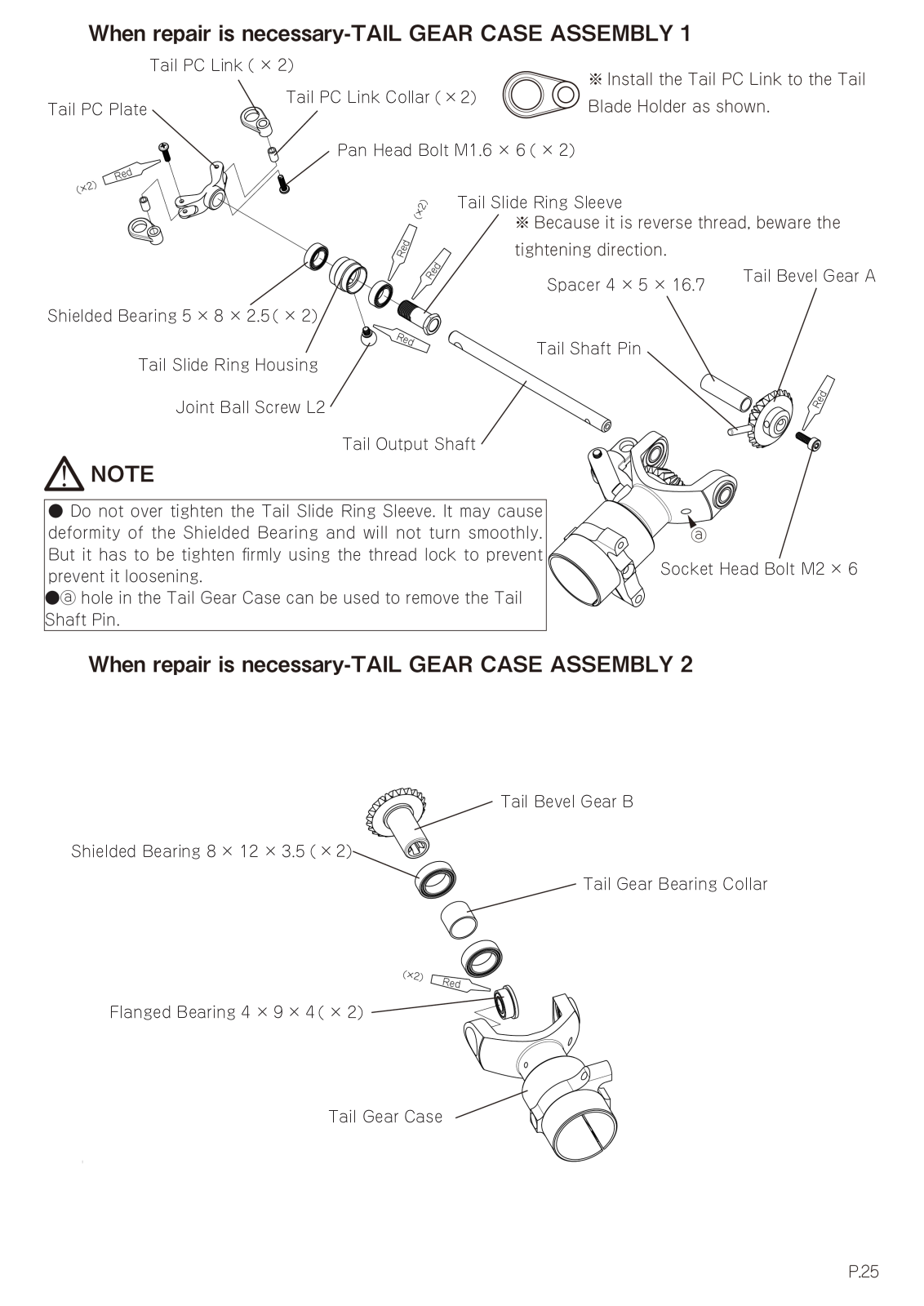

Tail PC Link

Tail PC Plate

Shielded Bearing 5 × 8 × 2.5

Tail Slide Ring Housing

Joint Ball Screw L2

Tail PC Link Collar

Pan Head Bolt M1.6 × 6

Tail Output Shaft

Tail Slide Ring Sleeve

Spacer 4 × 5 × 16.7

Tail Shaft Pin

Tail Bevel Gear A

Shielded Bearing 8 × 12 × 3.5

Flanged Bearing 4 × 9 × 4

Socket Head Bolt M2 × 6

Tail Bevel Gear B

Tail Gear Bearing Collar

Tail Gear Case

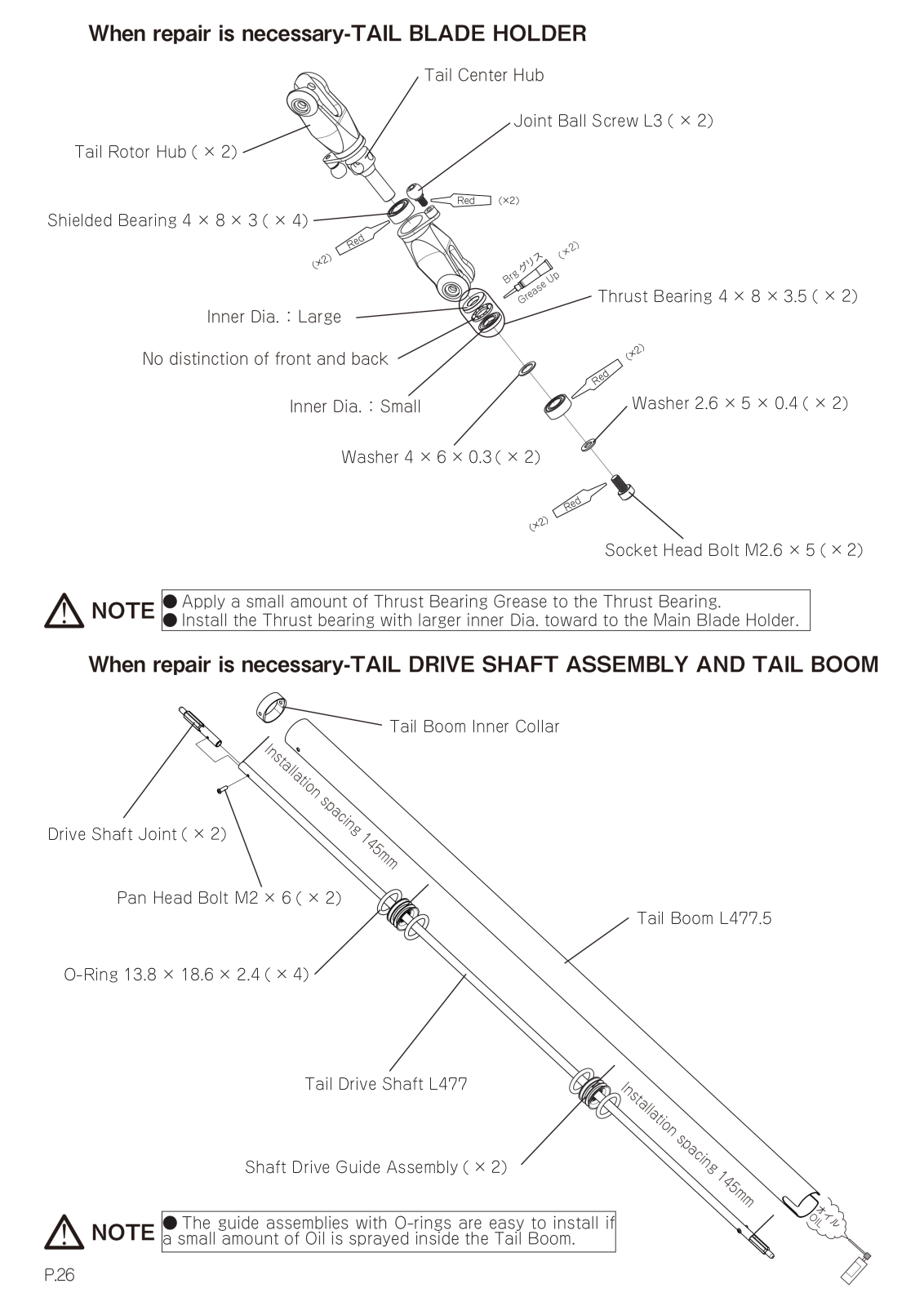

Tail Rotor Hub

Shielded Bearing 4 × 8 × 3

Joint Ball Screw L3

Thrust Bearing 4 × 8 × 3.5

Washer 2.6 × 5 × 0.4

Washer 4 × 6 × 0.3

Socket Head Bolt M2.6 × 5

Drive Shaft Joint

Pan Head Bolt M2 × 6

O-Ring 13.8 × 18.6 × 2.4

Tail Boom Inner Collar

Tail Boom L477.5

Tail Drive Shaft L477

Shaft Drive Guide Assembly

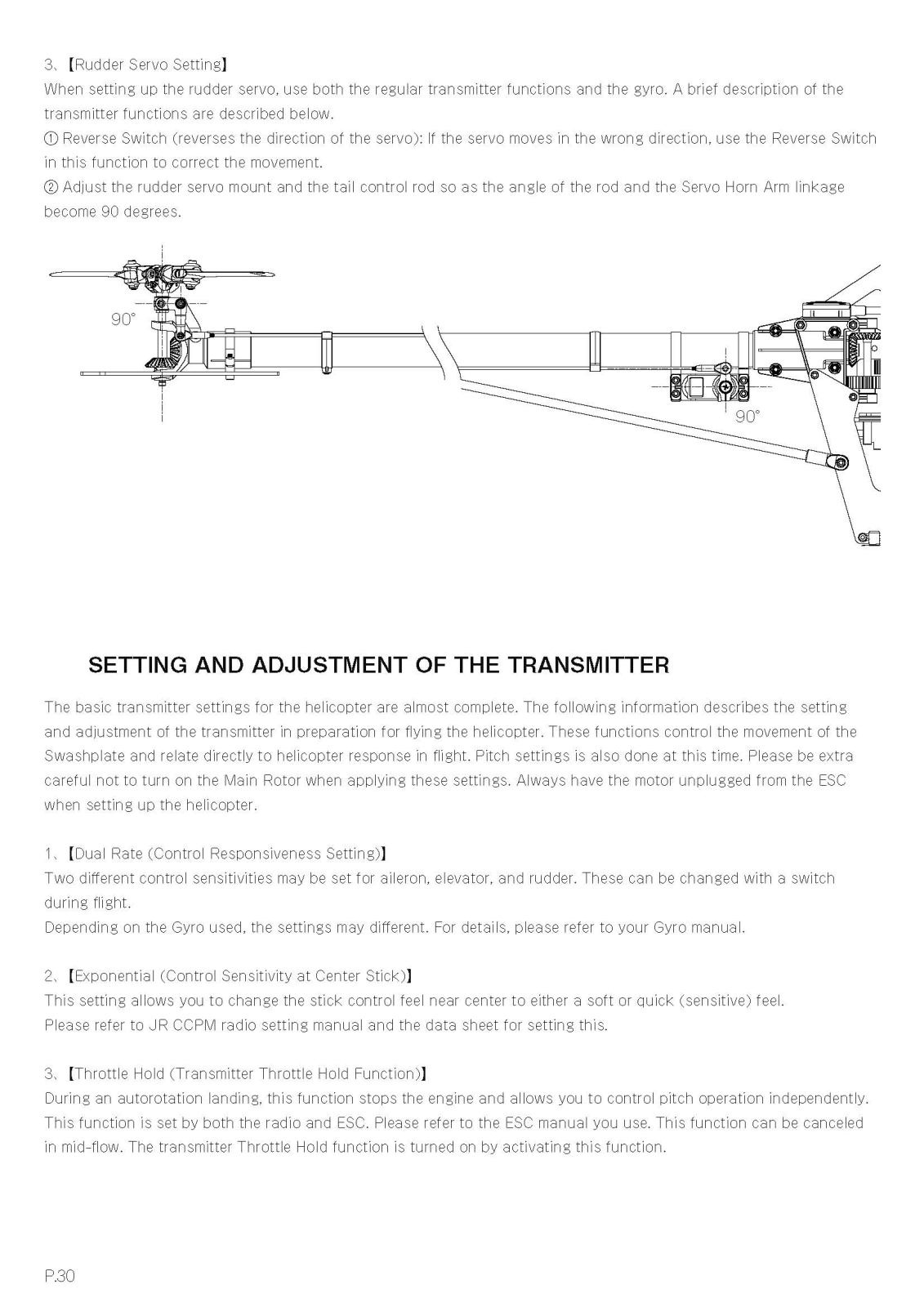

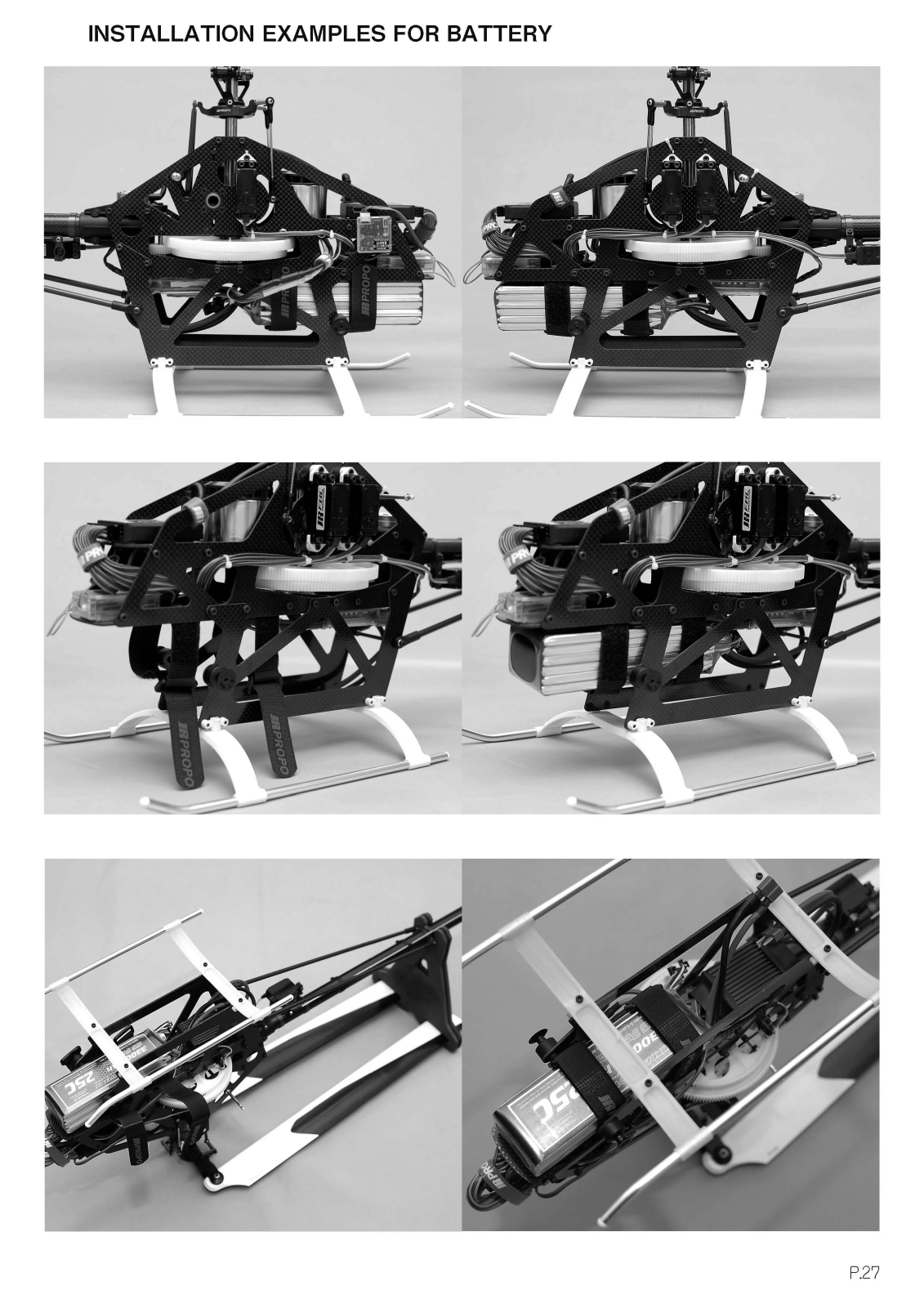

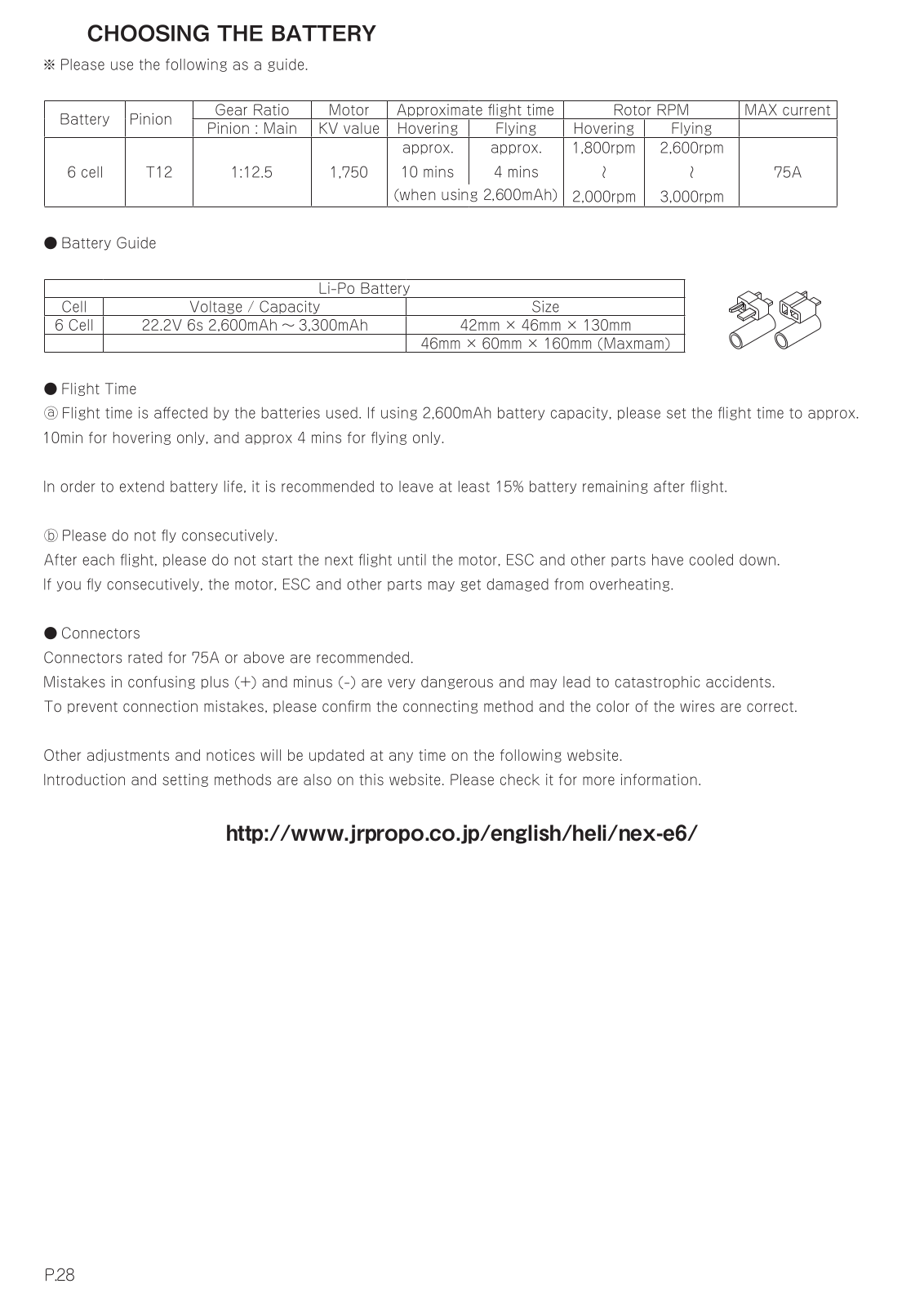

P.28

(when using 2,600mAh)

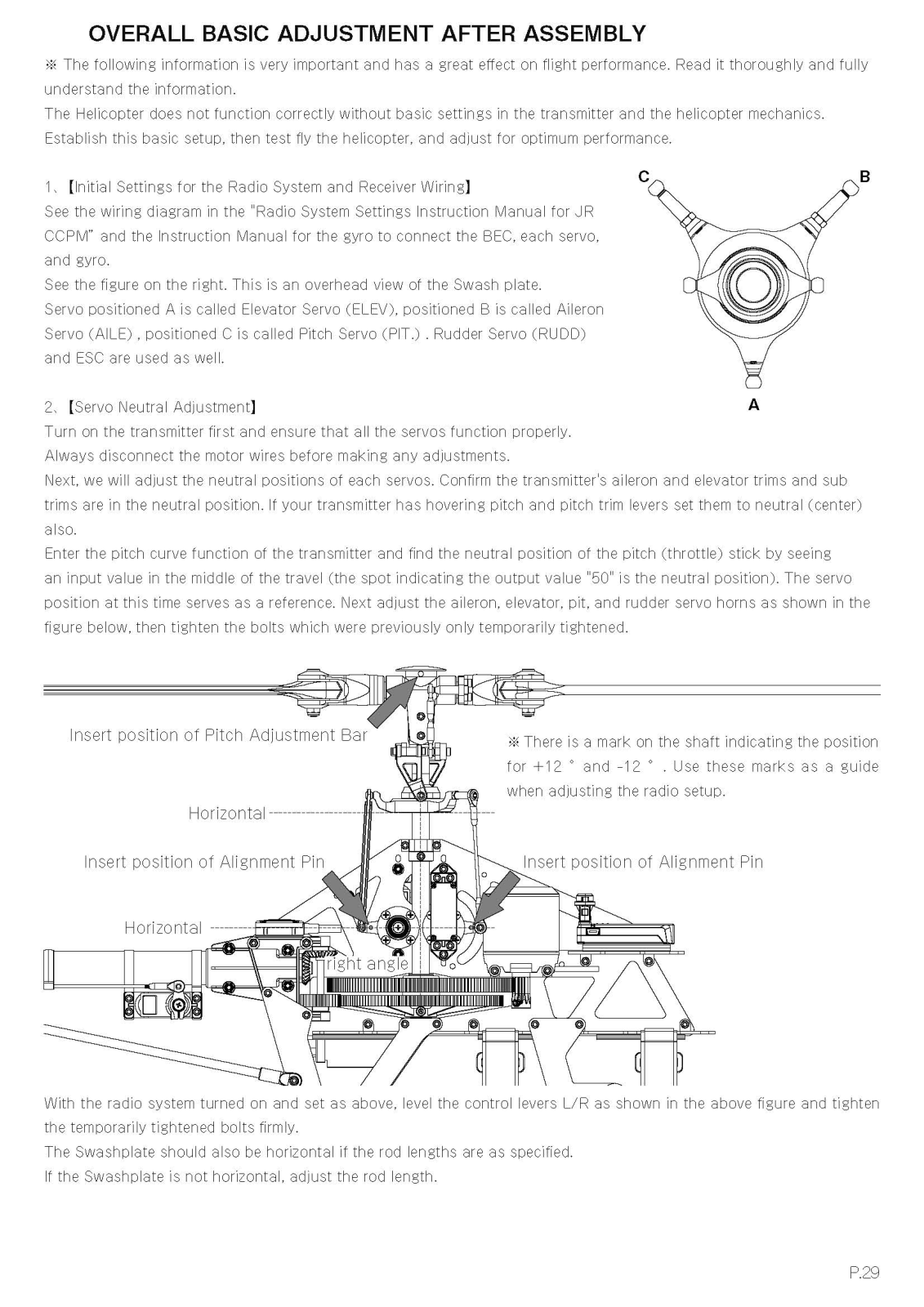

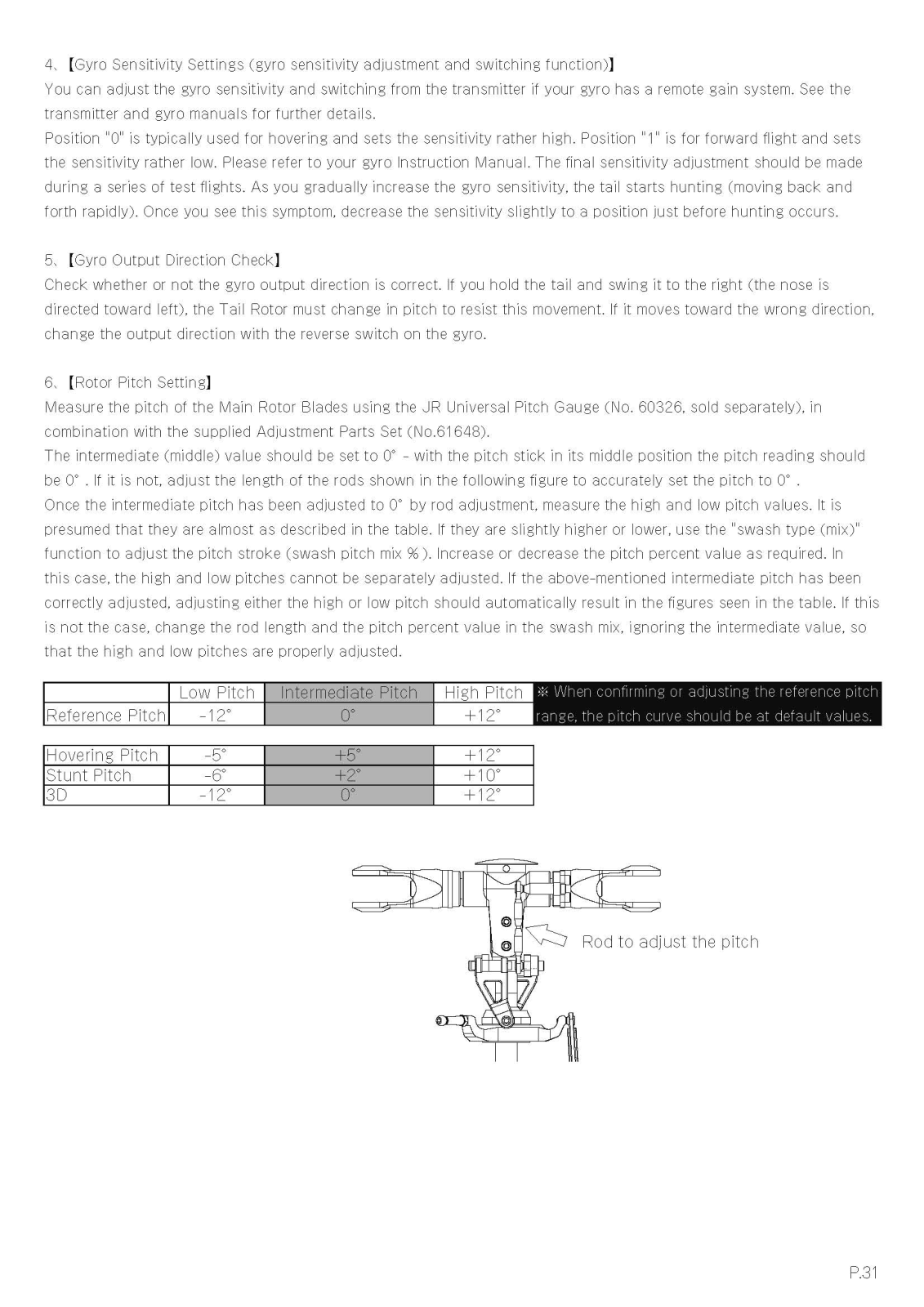

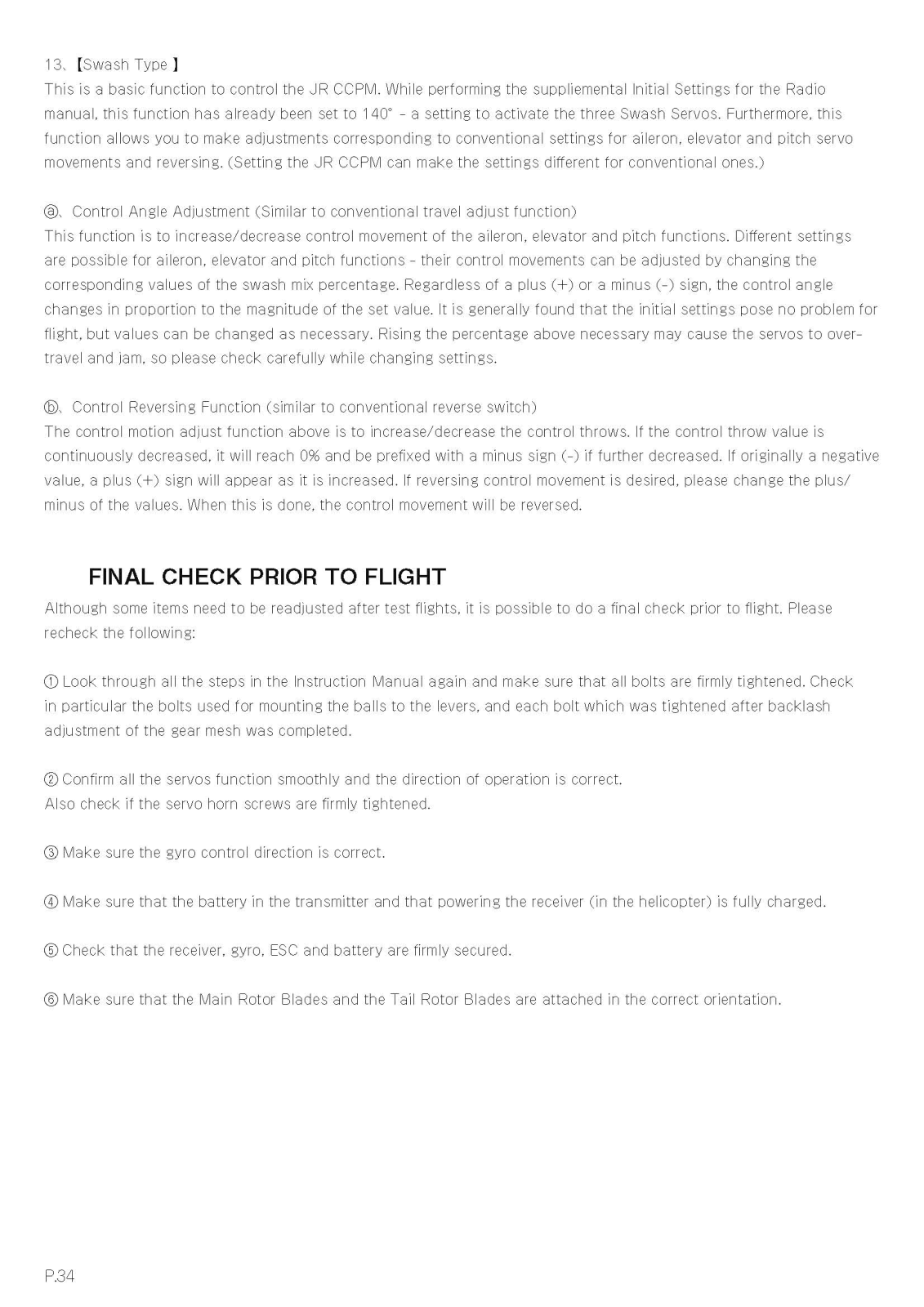

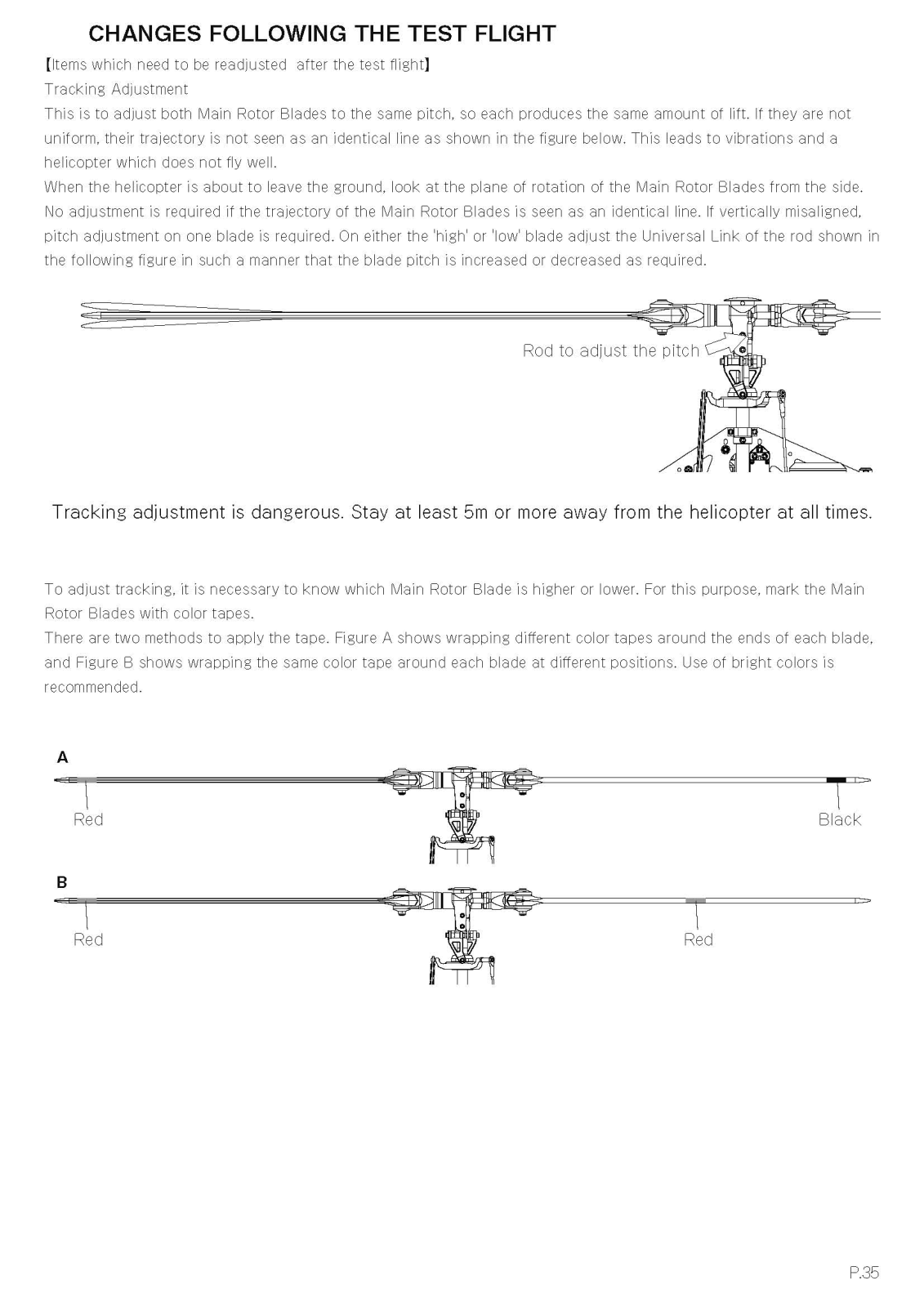

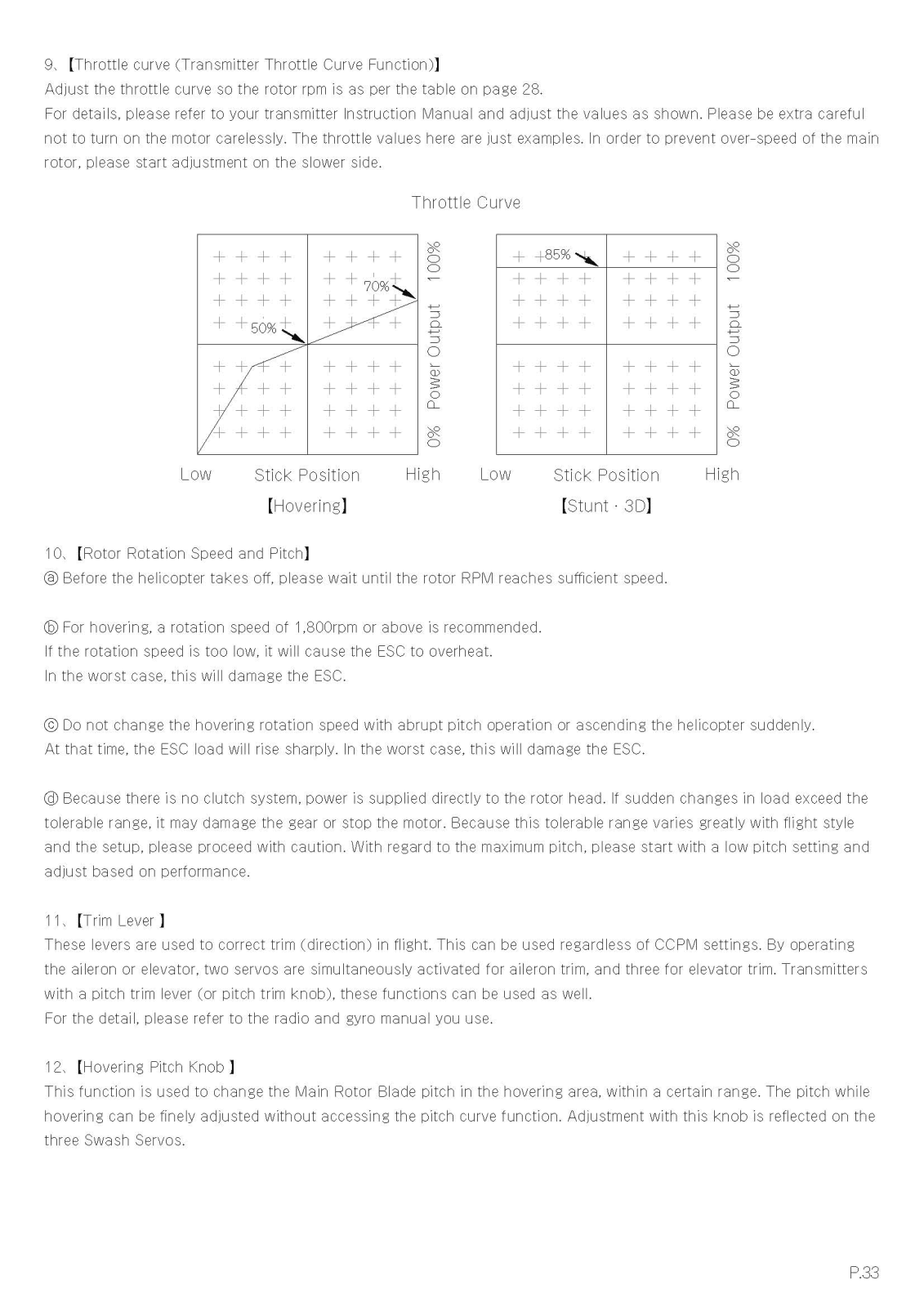

http://www.jrpropo.co.jp/english/heli/nex-e6/

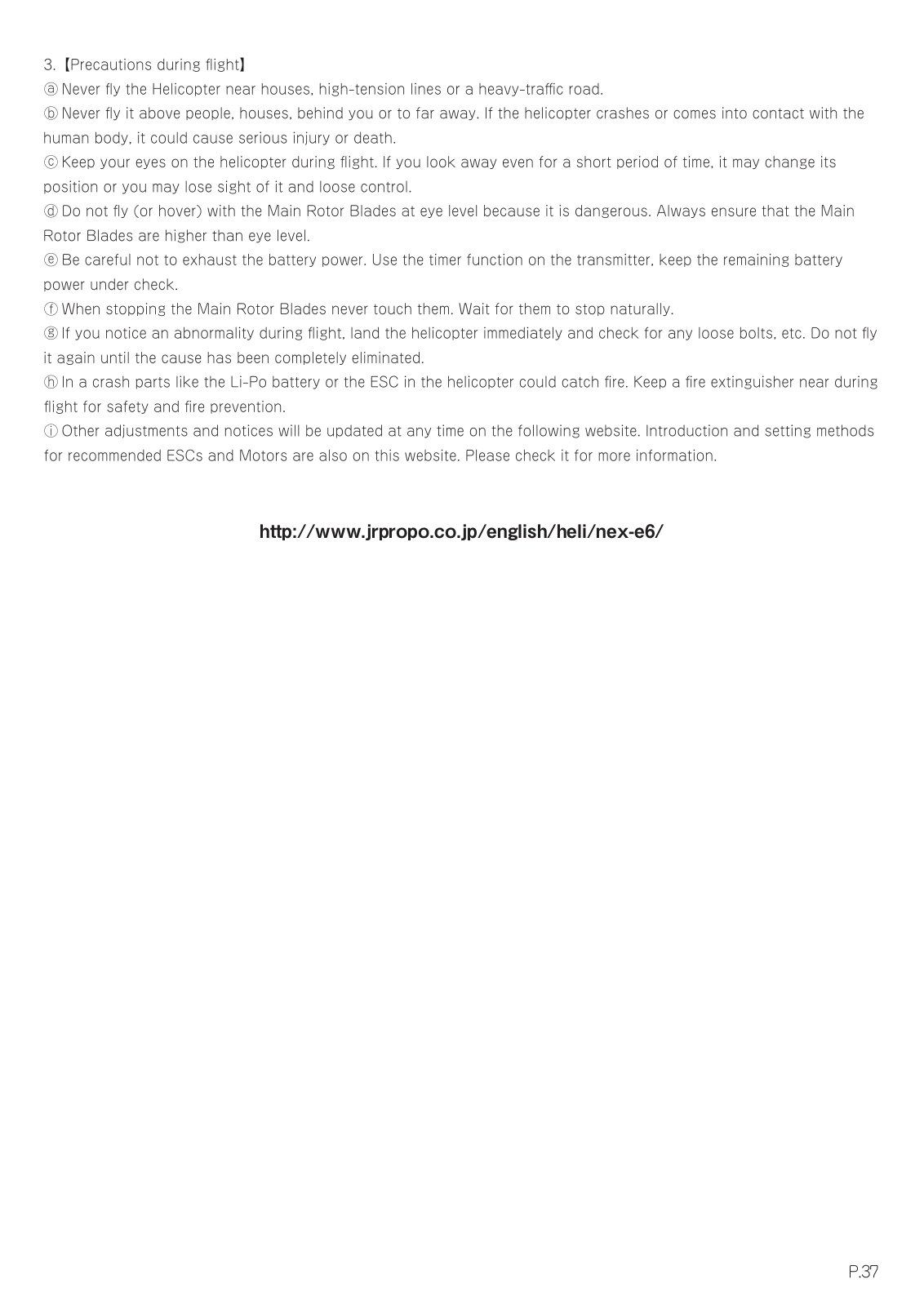

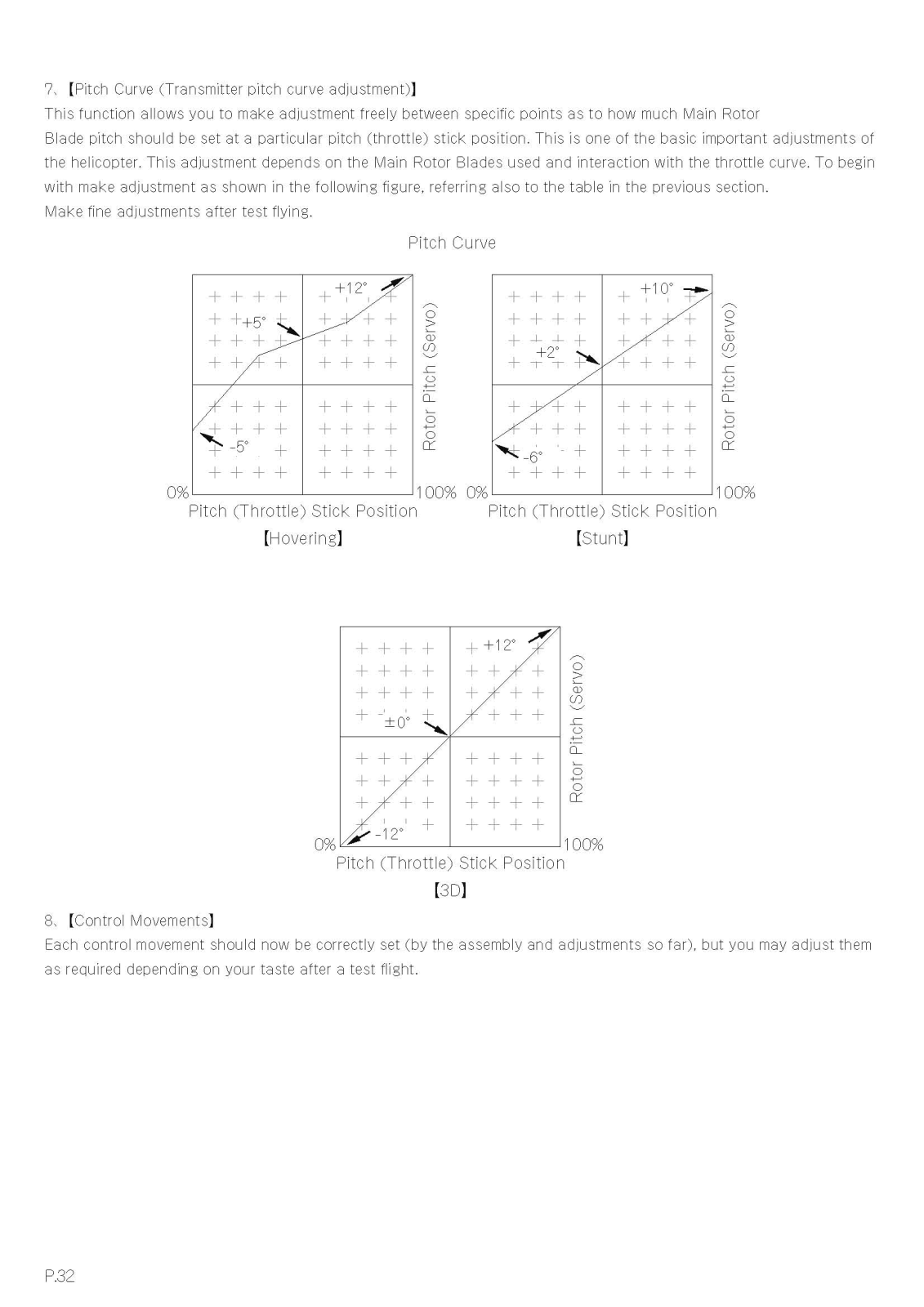

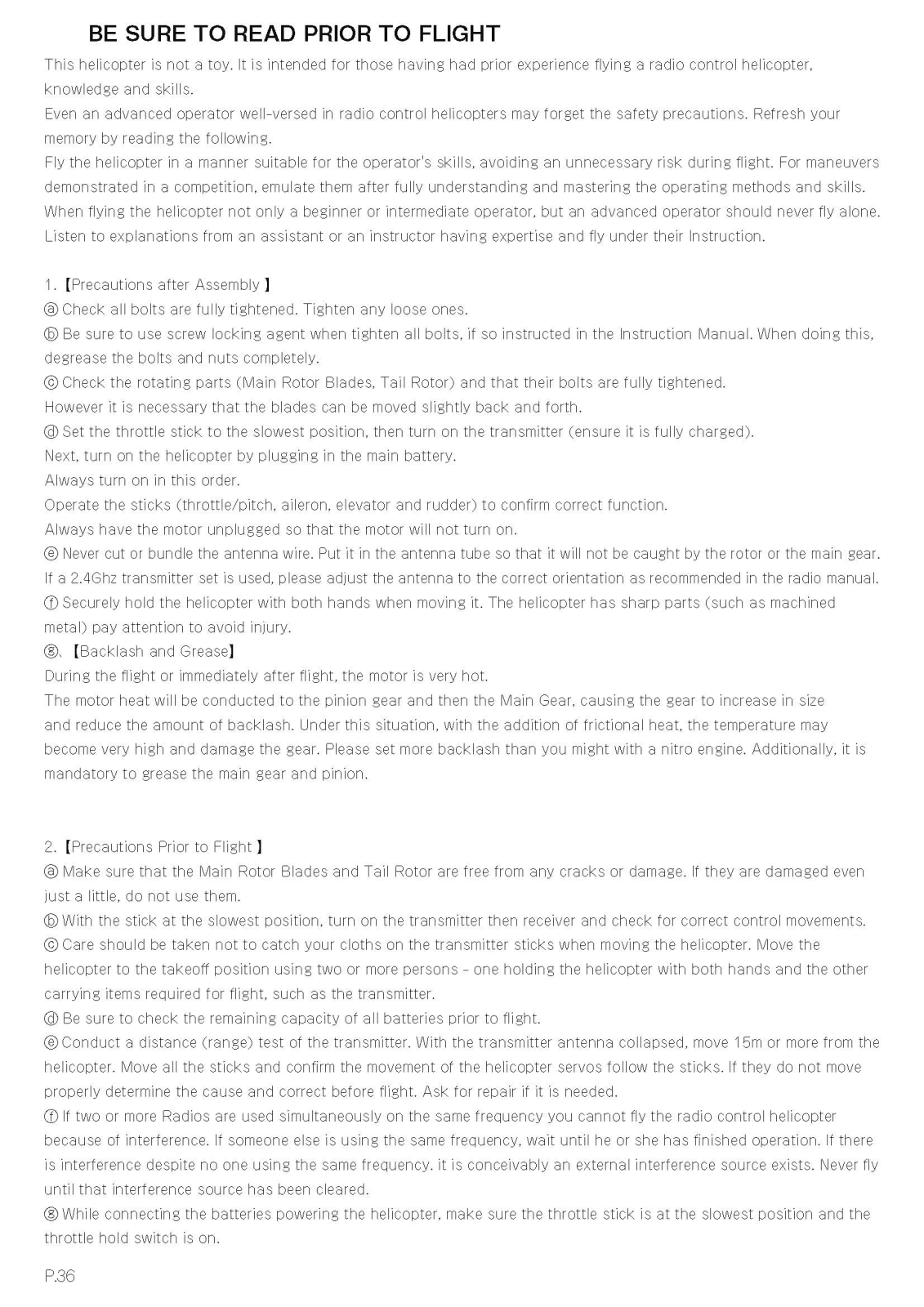

P.37

http://www.jrpropo.co.jp/english/heli/nex-e6/



P.38

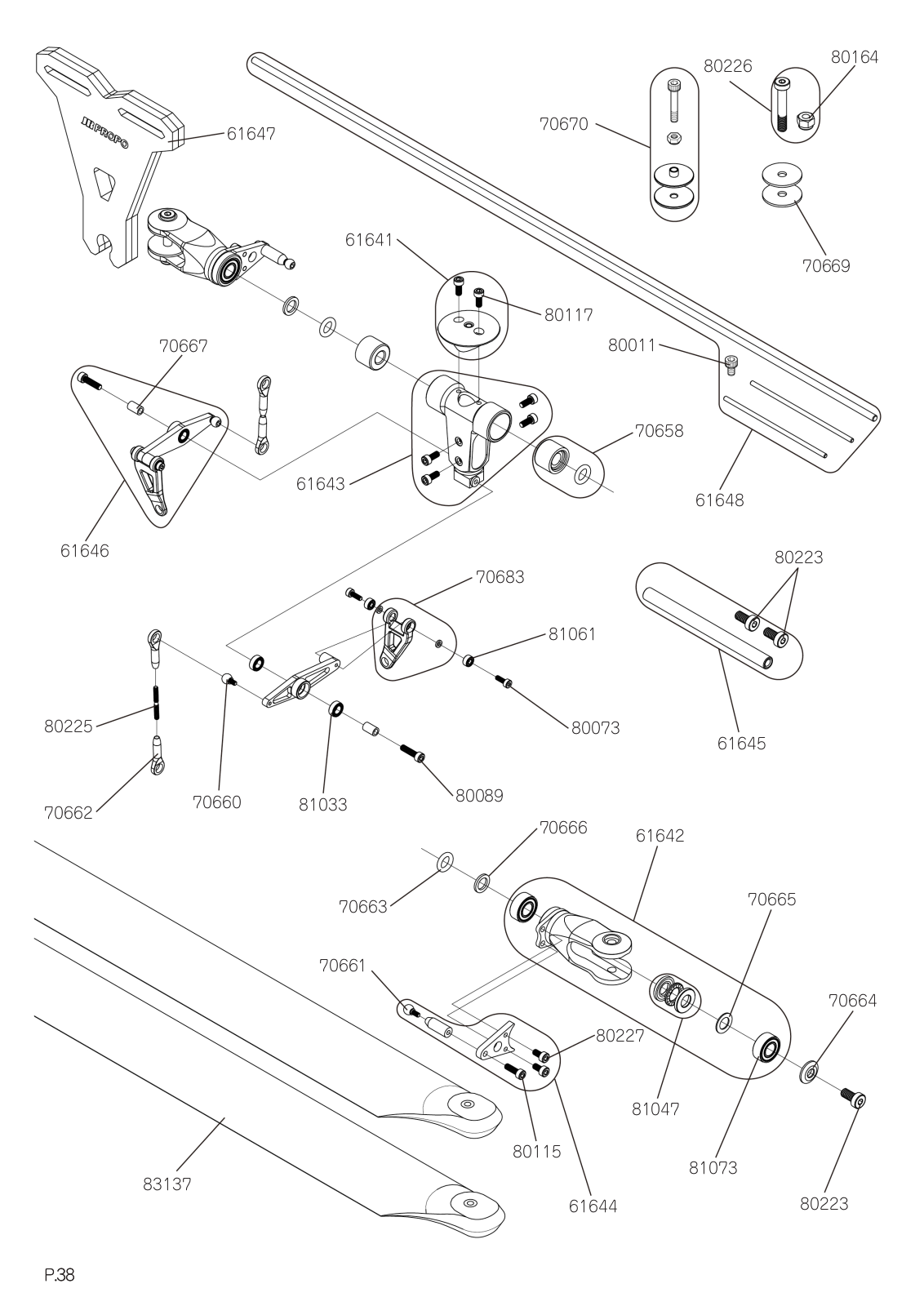

80226

80164

61646

70667

61647

70670

61641

70669

80117

80011

70658

61643

61648

80223

70683

80225

70662

70660

81033

70661

70663

80089

81061

80073

70666

61645

61642

70665

70664

80227

83137

80115

61644

81047

81073

80223

P.39

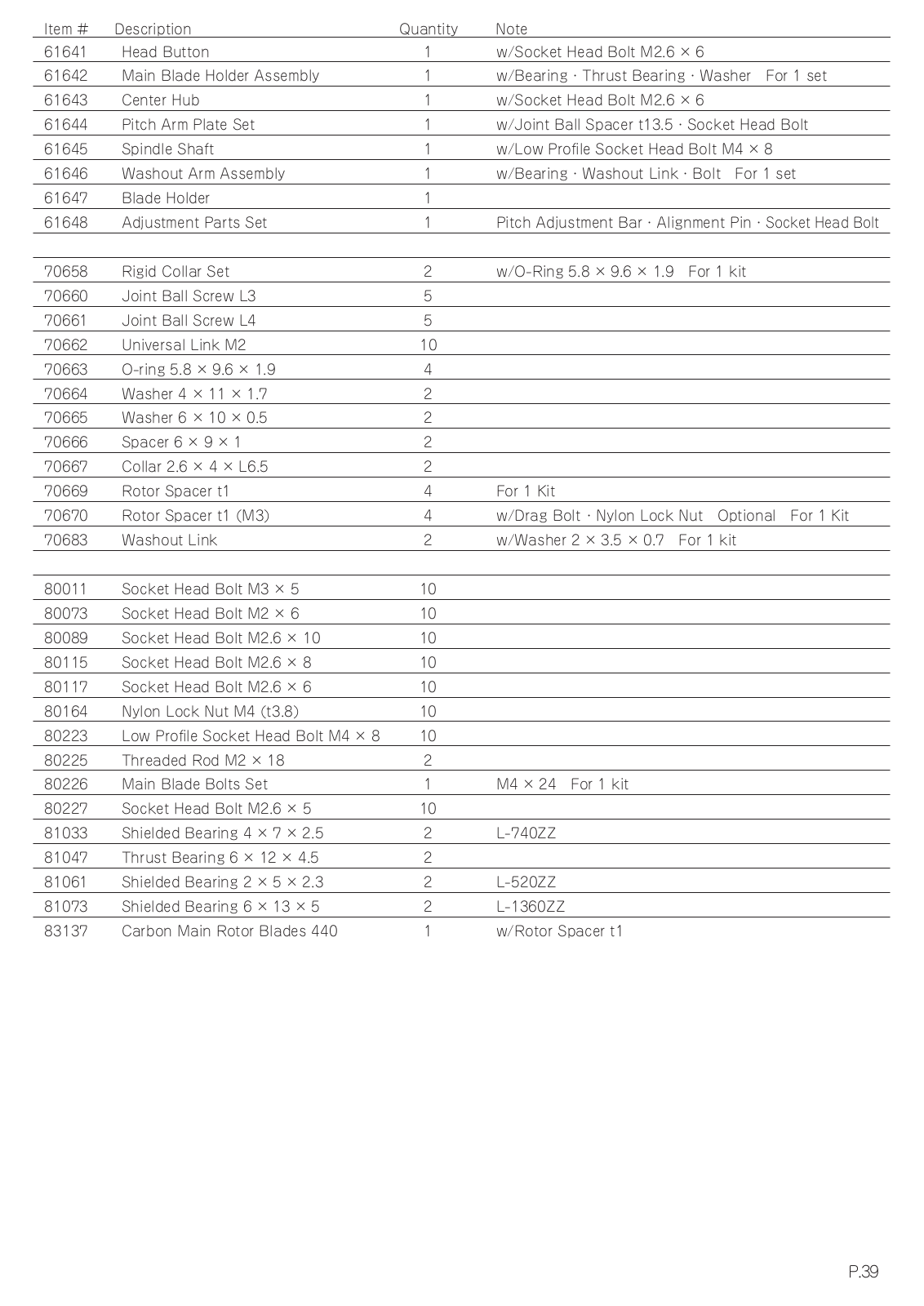

Item # Description Quantity Note
61641 Head Button 1 w/Socket Head Bolt M2.6 × 6

61642 Main Blade Holder Assembly 1 w/Bearing・Thrust Bearing・Washer　For 1 set
61643 Center Hub 1 w/Socket Head Bolt M2.6 × 6
61644 Pitch Arm Plate Set 1 w/Joint Ball Spacer t13.5・Socket Head Bolt
61645 Spindle Shaft 1 w/Low Prole Socket Head Bolt M4 × 8
61646 Washout Arm Assembly 1 w/Bearing・Washout Link・Bolt　For 1 set
61647 Blade Holder 1
61648 Adjustment Parts Set 1 Pitch Adjustment Bar・Alignment Pin・

70658 Rigid Collar Set 2 w/O-Ring 5.8 × 9.6 × 1.9　For 1 kit
70660 Joint Ball Screw L3 5
70661 Joint Ball Screw L4 5
70662 Universal Link M2 10
70663 O-ring 5.8 × 9.6 × 1.9 4
70664 Washer 4 × 11 × 1.7 2
70665 Washer 6 × 10 × 0.5 2
70666 Spacer 6 × 9 × 1 2
70667 Collar 2.6 × 4 × L6.5 2
70669 Rotor Spacer t1 4 For 1 Kit
70670 Rotor Spacer t1 (M3) 4 w/Drag Bolt ・Nylon Lock Nut　Optional　For 1 Kit
70683 Washout Link 2 w/Washer 2 × 3.5 × 0.7　For 1 kit

Socket Head Bolt

80011 Socket Head Bolt M3 × 5 10
80073 Socket Head Bolt M2 × 6 10
80089 Socket Head Bolt M2.6 × 10 10
80115 Socket Head Bolt M2.6 × 8 10
80117 Socket Head Bolt M2.6 × 6 10
80164 Nylon Lock Nut M4 (t3.8) 10
80223 Low Prole Socket Head Bolt M4 × 8 10
80225 Threaded Rod M2 × 18 2
80226 Main Blade Bolts Set 1 M4 × 24　For 1 kit
80227 Socket Head Bolt M2.6 × 5 10
81033 Shielded Bearing 4 × 7 × 2.5 2 L-740ZZ
81047 Thrust Bearing 6 × 12 × 4.5 2
81061 Shielded Bearing 2 × 5 × 2.3 2 L-520ZZ
81073 Shielded Bearing 6 × 13 × 5 2 L-1360ZZ
83137 Carbon Main Rotor Blades 440 1 w/Rotor Spacer t1

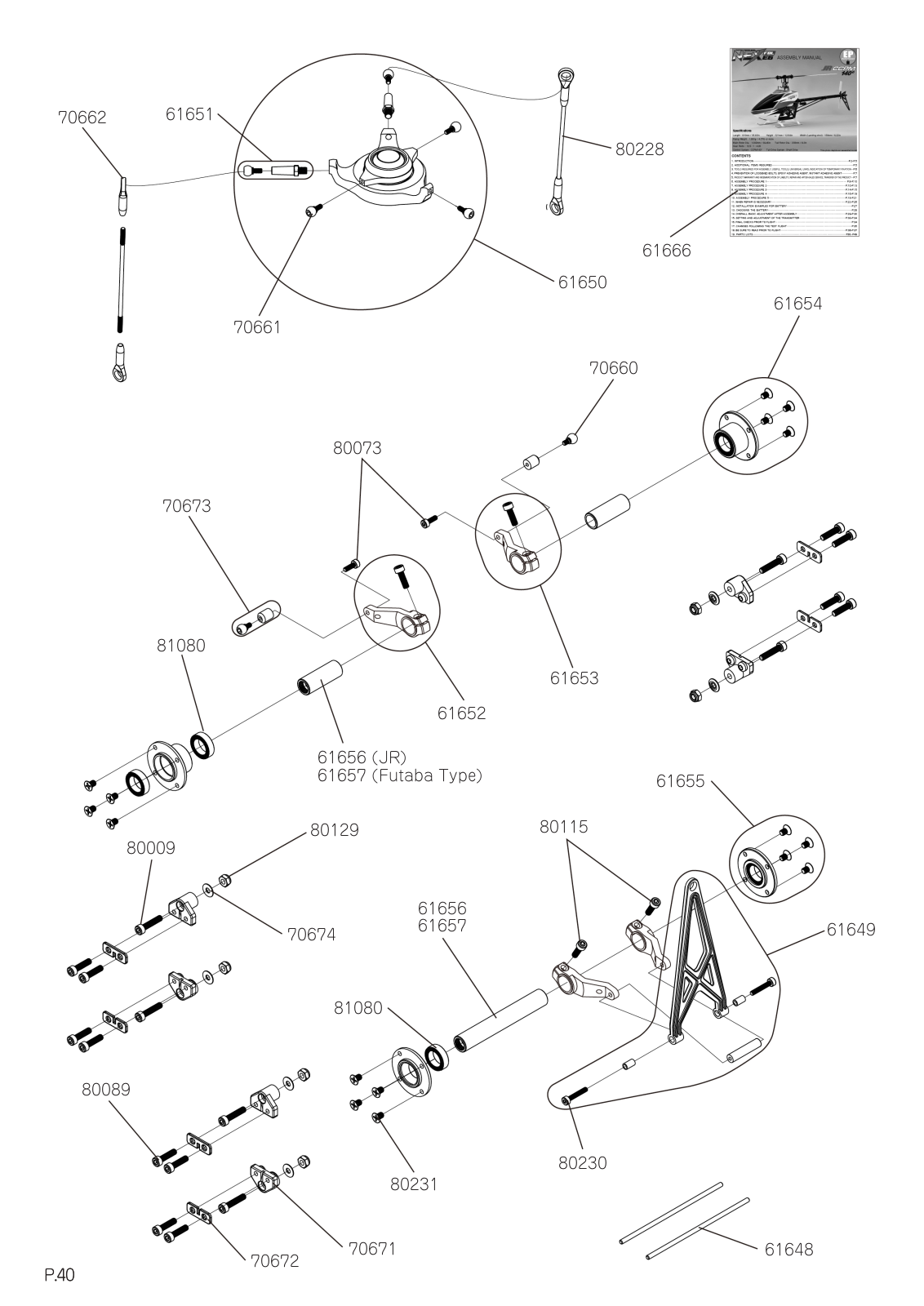

P.40

70662

61651

80228

61666

61650

61654

70661

70660

80073

70673

80089

81080

80009

61656 (JR)
61657 (Futaba Type)

80129

70674

81080

61652

61656
61657

61653

61655

80115

61649

70672

70671

80230

80231

61648

P.41

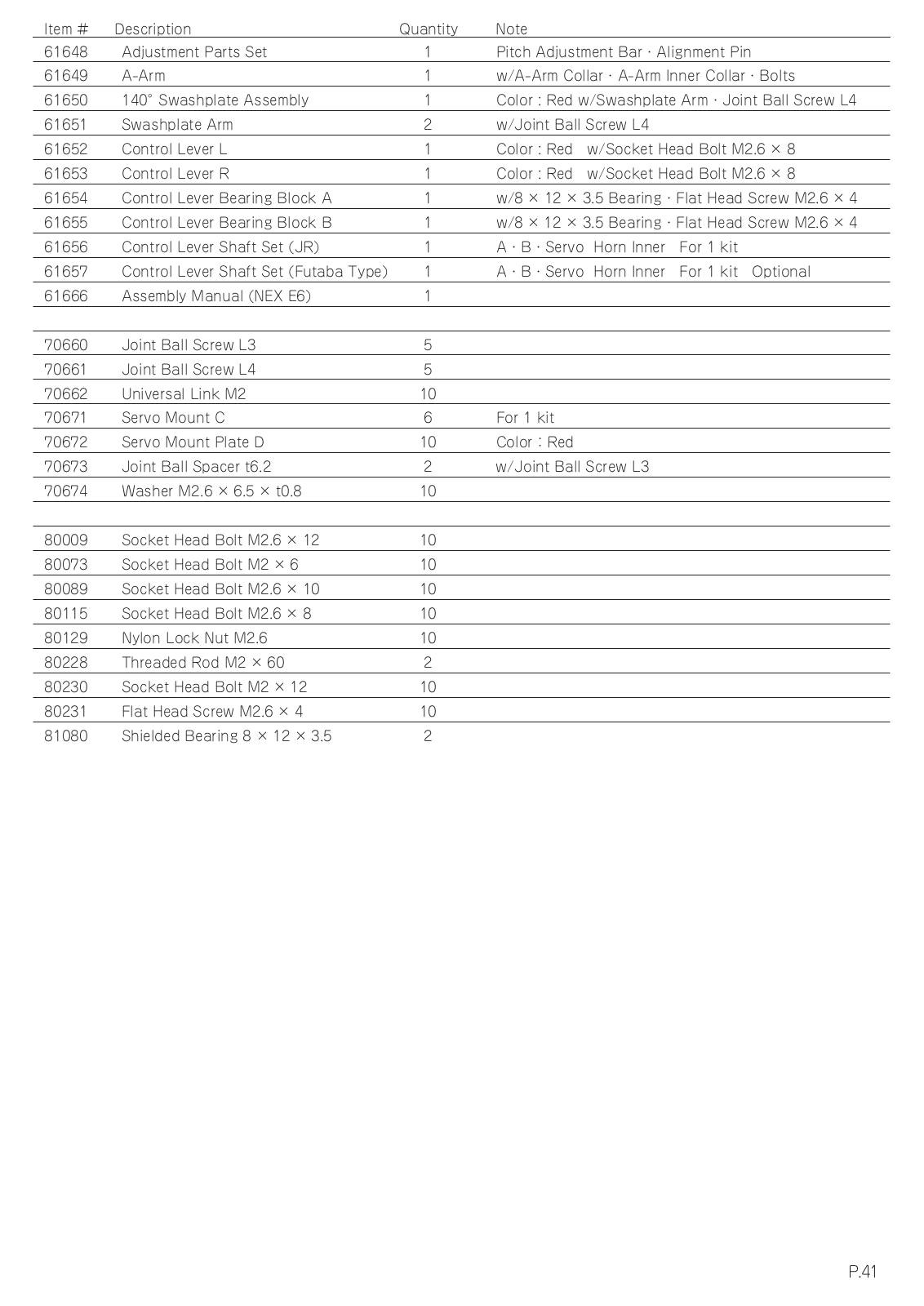

Item # Description Quantity Note
61648 Adjustment Parts Set 1 Pitch Adjustment Bar・Alignment Pin

61649 A-Arm 1 w/A-Arm Collar・A-Arm Inner Collar・Bolts
61650 140°Swashplate Assembly 1 Color : Red w/Swashplate Arm・Joint Ball Screw L4
61651 Swashplate Arm 2 w/Joint Ball Screw L4
61652 Control Lever L 1 Color : Red　w/Socket Head Bolt M2.6 × 8
61653 Control Lever R 1 Color : Red　w/Socket Head Bolt M2.6 × 8
61654 Control Lever Bearing Block A 1 w/8 × 12 × 3.5 Bearing・Flat Head Screw M2.6 × 4
61655 Control Lever Bearing Block B 1 w/8 × 12 × 3.5 Bearing・Flat Head Screw M2.6 × 4
61656 Control Lever Shaft Set (JR) 1 A・B・Servo Horn Inner　For 1 kit
61657 Control Lever Shaft Set (Futaba Type) 1 A・B・Servo Horn Inner　For 1 kit　Optional
61666 Assembly Manual (NEX E6) 1

70660 Joint Ball Screw L3 5
70661 Joint Ball Screw L4 5
70662 Universal Link M2 10
70671 Servo Mount C 6 For 1 kit
70672 Servo Mount Plate D 10 Color：Red
70673 Joint Ball Spacer t6.2 2 w/Joint Ball Screw L3
70674 Washer M2.6 × 6.5 × t0.8 10

80009 Socket Head Bolt M2.6 × 12 10
80073 Socket Head Bolt M2 × 6 10
80089 Socket Head Bolt M2.6 × 10 10
80115 Socket Head Bolt M2.6 × 8 10
80129 Nylon Lock Nut M2.6 10
80228 Threaded Rod M2 × 60 2
80230 Socket Head Bolt M2 × 12 10
80231 Flat Head Screw M2.6 × 4 10
81080 Shielded Bearing 8 × 12 × 3.5 2

P.42

70674

61672

80108

61658

80115

80065

80232

61665

61664

80013

61662

81021

61663

80005

61660

81081

61659

61671

61661

87026

80117

80115

80233

70675

61669

61667

80129

61688

61673

61667

61668

70676

81080

61670

61674

P.43

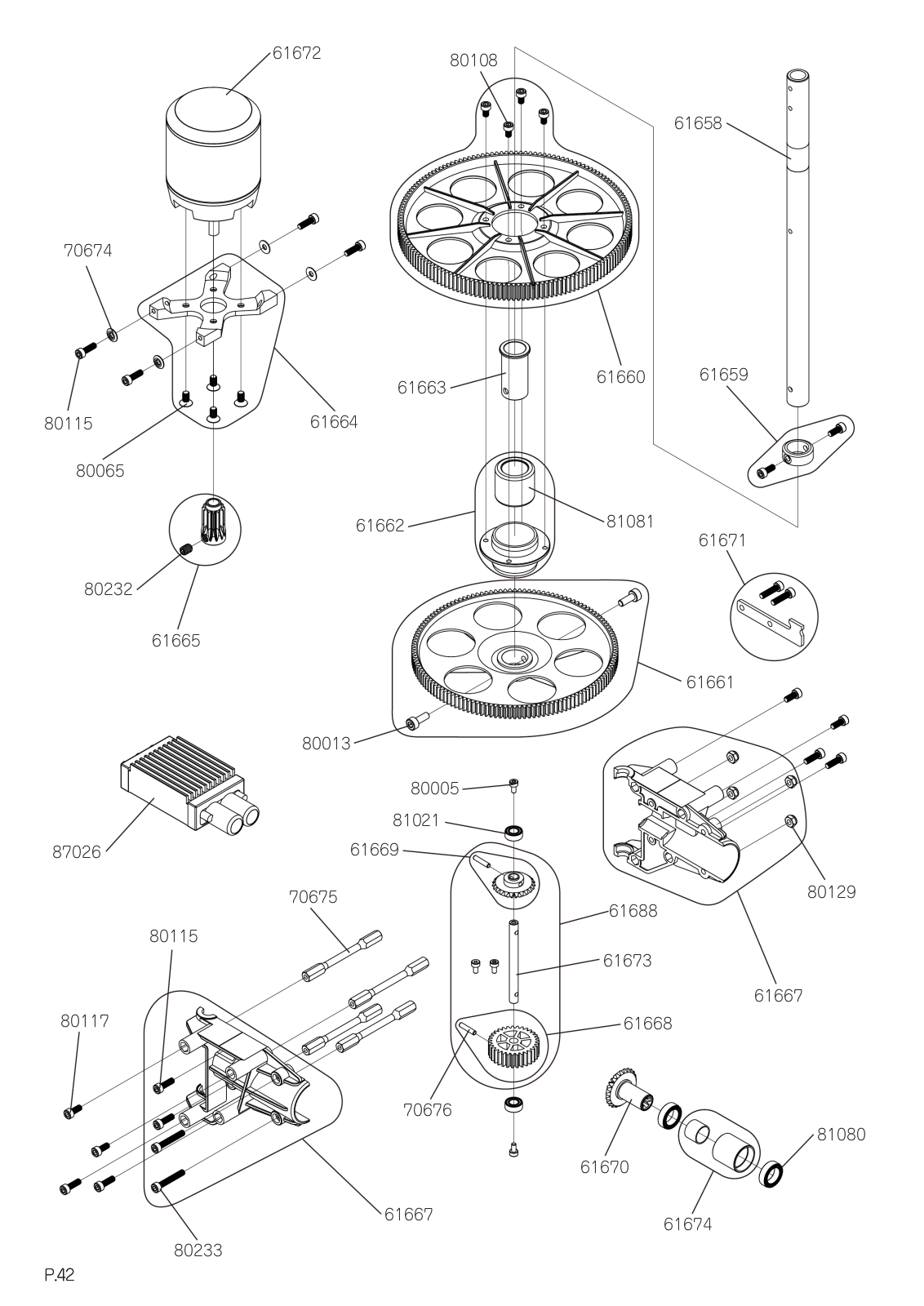

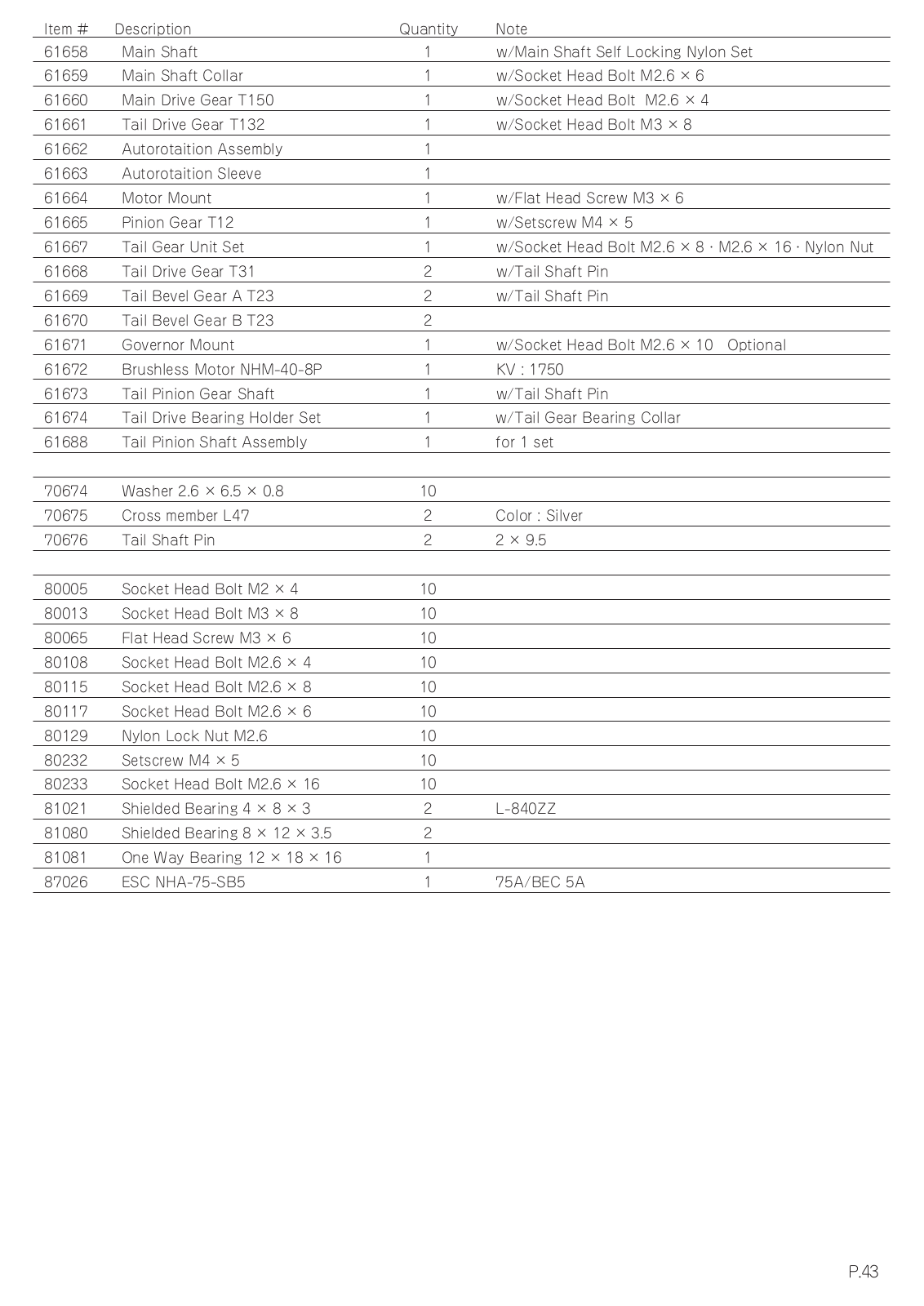

Item # Description Quantity Note
61658 Main Shaft 1 w/Main Shaft Self Locking Nylon Set

61659 Main Shaft Collar 1 w/Socket Head Bolt M2.6 × 6
61660 Main Drive Gear T150 1 w/Socket Head Bolt M2.6 × 4
61661 Tail Drive Gear T132 1 w/Socket Head Bolt M3 × 8
61662 Autorotaition Assembly 1
61663 Autorotaition Sleeve 1
61664 Motor Mount 1 w/Flat Head Screw M3 × 6
61665 Pinion Gear T12 1 w/Setscrew M4 × 5
61667 Tail Gear Unit Set 1 w/Socket Head Bolt M2.6 × 8・M2.6 × 16・Nylon Nut
61668 Tail Drive Gear T31 2 w/Tail Shaft Pin
61669 Tail Bevel Gear A T23 2 w/Tail Shaft Pin
61670 Tail Bevel Gear B T23 2
61671 Governor Mount 1 w/Socket Head Bolt M2.6 × 10　Optional
61672 Brushless Motor NHM-40-8P 1 KV : 1750
61673 Tail Pinion Gear Shaft 1 w/Tail Shaft Pin
61674 Tail Drive Bearing Holder Set 1 w/Tail Gear Bearing Collar
61688 Tail Pinion Shaft Assembly 1 for 1 set

70674 Washer 2.6 × 6.5 × 0.8 10
70675 Cross member L47 2 Color : Silver
70676 Tail Shaft Pin 2 2 × 9.5

80005 Socket Head Bolt M2 × 4 10
80013 Socket Head Bolt M3 × 8 10
80065 Flat Head Screw M3 × 6 10
80108 Socket Head Bolt M2.6 × 4 10
80115 Socket Head Bolt M2.6 × 8 10
80117 Socket Head Bolt M2.6 × 6 10
80129 Nylon Lock Nut M2.6 10
80232 Setscrew M4 × 5 10
80233 Socket Head Bolt M2.6 × 16 10
81021 Shielded Bearing 4 × 8 × 3 2 L-840ZZ
81080 Shielded Bearing 8 × 12 × 3.5 2
81081 One Way Bearing 12 × 18 × 16 1
87026 ESC NHA-75-SB5 1 75A/BEC 5A

P.44

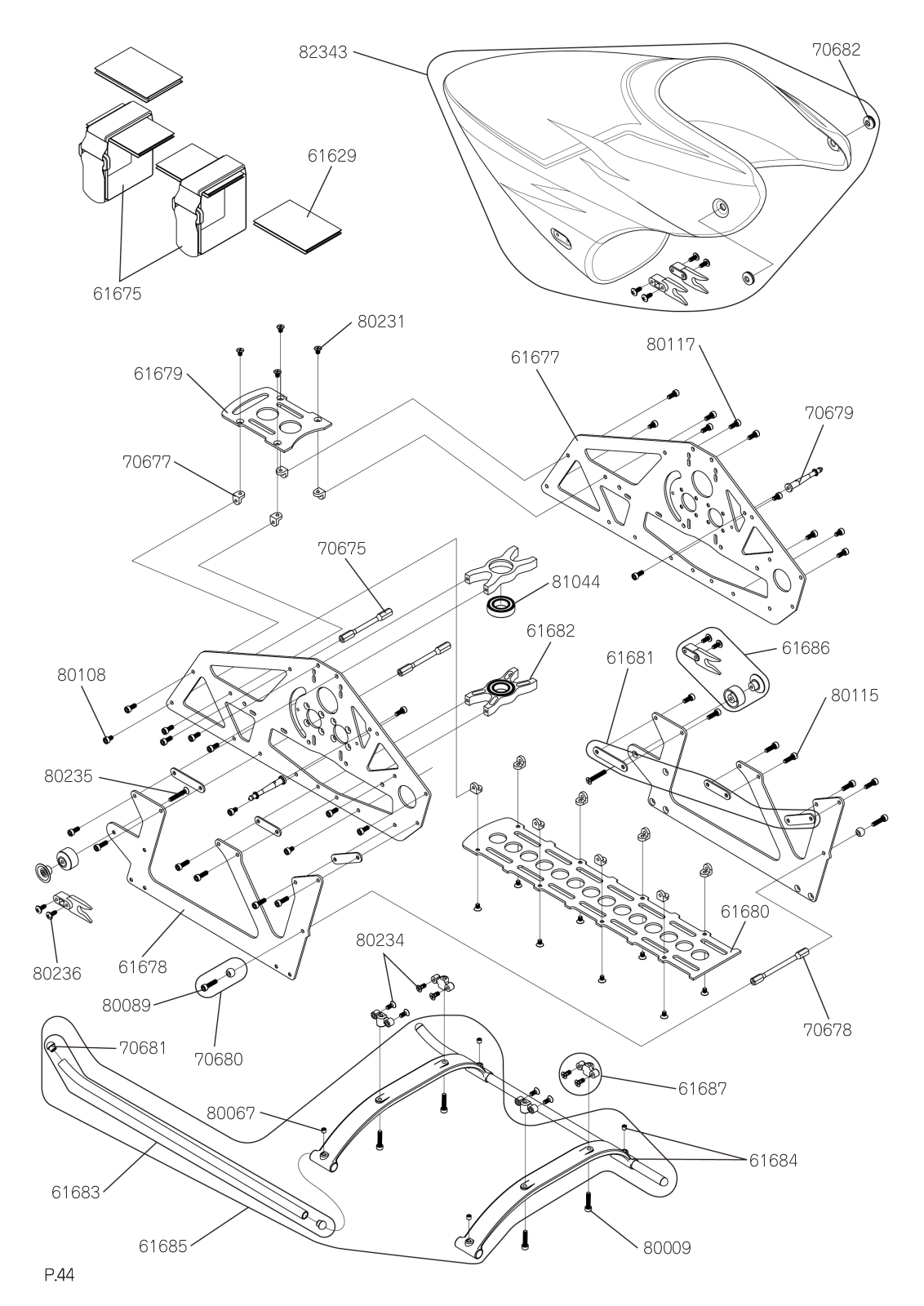

61675

70677

61679

82343

61629

70682

80231

80117

61677

70679

80108

80235

80236

61678

70675

80234

81044

61682

61681

61686

80115

61680

61683

80089

70681

61685

70678

70680

61687

80067

61684

80009

P.45

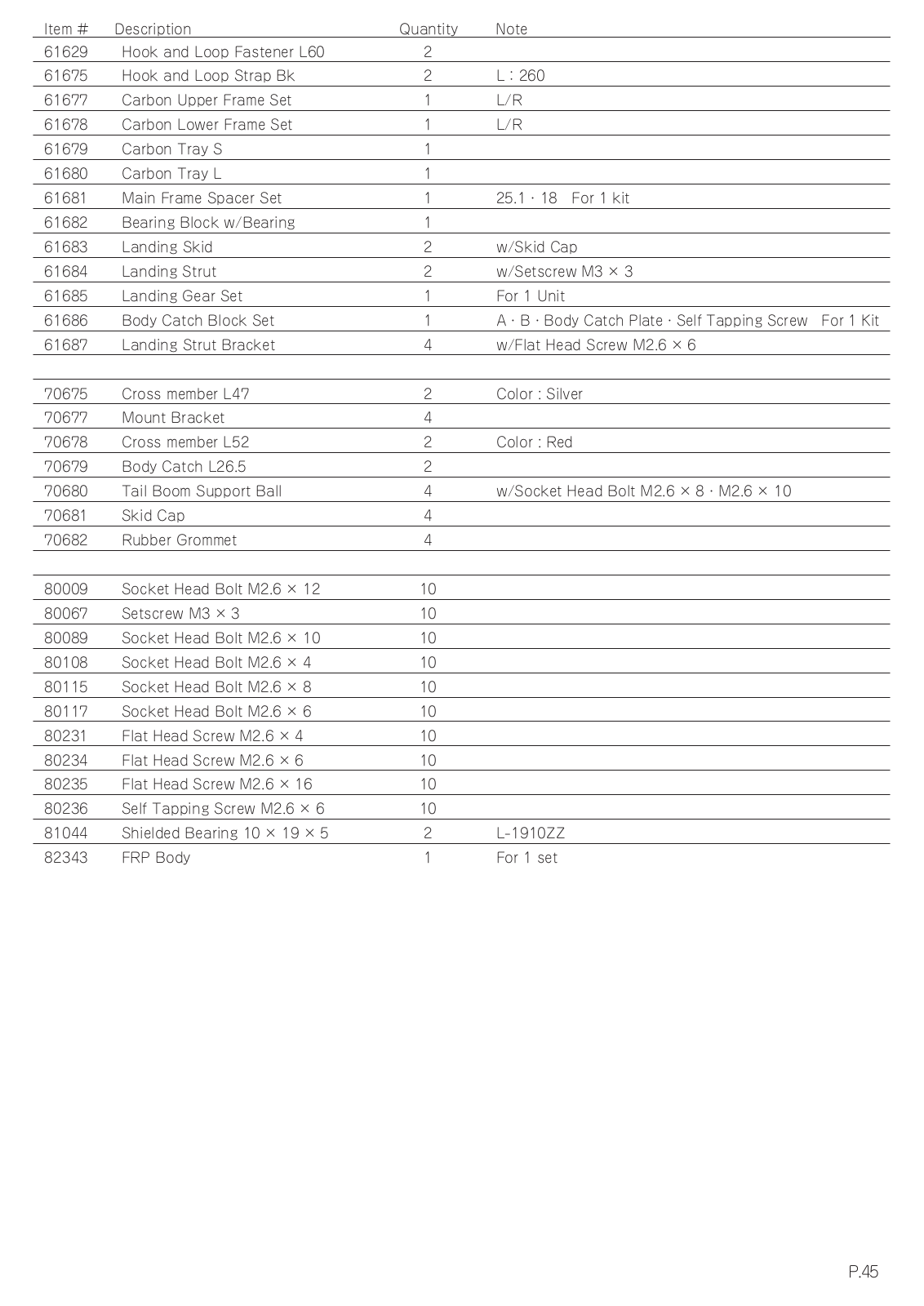

Item # Description Quantity Note
61629 Hook and Loop Fastener L60 2

61675 Hook and Loop Strap Bk 2 L：260
61677 Carbon Upper Frame Set 1 L/R
61678 Carbon Lower Frame Set 1 L/R
61679 Carbon Tray S 1
61680 Carbon Tray L 1
61681 Main Frame Spacer Set 1 25.1・18　For 1 kit
61682 Bearing Block w/Bearing 1
61683 Landing Skid 2 w/Skid Cap
61684 Landing Strut 2 w/Setscrew M3 × 3
61685 Landing Gear Set 1 For 1 Unit
61686 Body Catch Block Set 1
61687 Landing Strut Bracket 4 w/Flat Head Screw M2.6 × 6

70675 Cross member L47 2 Color : Silver
70677 Mount Bracket 4
70678 Cross member L52 2 Color : Red
70679 Body Catch L26.5 2
70680 Tail Boom Support Ball 4 w/Socket Head Bolt M2.6 × 8・M2.6 × 10
70681 Skid Cap 4
70682 Rubber Grommet 4

A・B・Body Catch Plate・Self Tapping Screw　For 1 Kit

80009 Socket Head Bolt M2.6 × 12 10
80067 Setscrew M3 × 3 10
80089 Socket Head Bolt M2.6 × 10 10
80108 Socket Head Bolt M2.6 × 4 10
80115 Socket Head Bolt M2.6 × 8 10
80117 Socket Head Bolt M2.6 × 6 10
80231 Flat Head Screw M2.6 × 4 10
80234 Flat Head Screw M2.6 × 6 10
80235 Flat Head Screw M2.6 × 16 10
80236 Self Tapping Screw M2.6 × 6 10
81044 Shielded Bearing 10 × 19 × 5 2 L-1910ZZ
82343 FRP Body 1 For 1 set

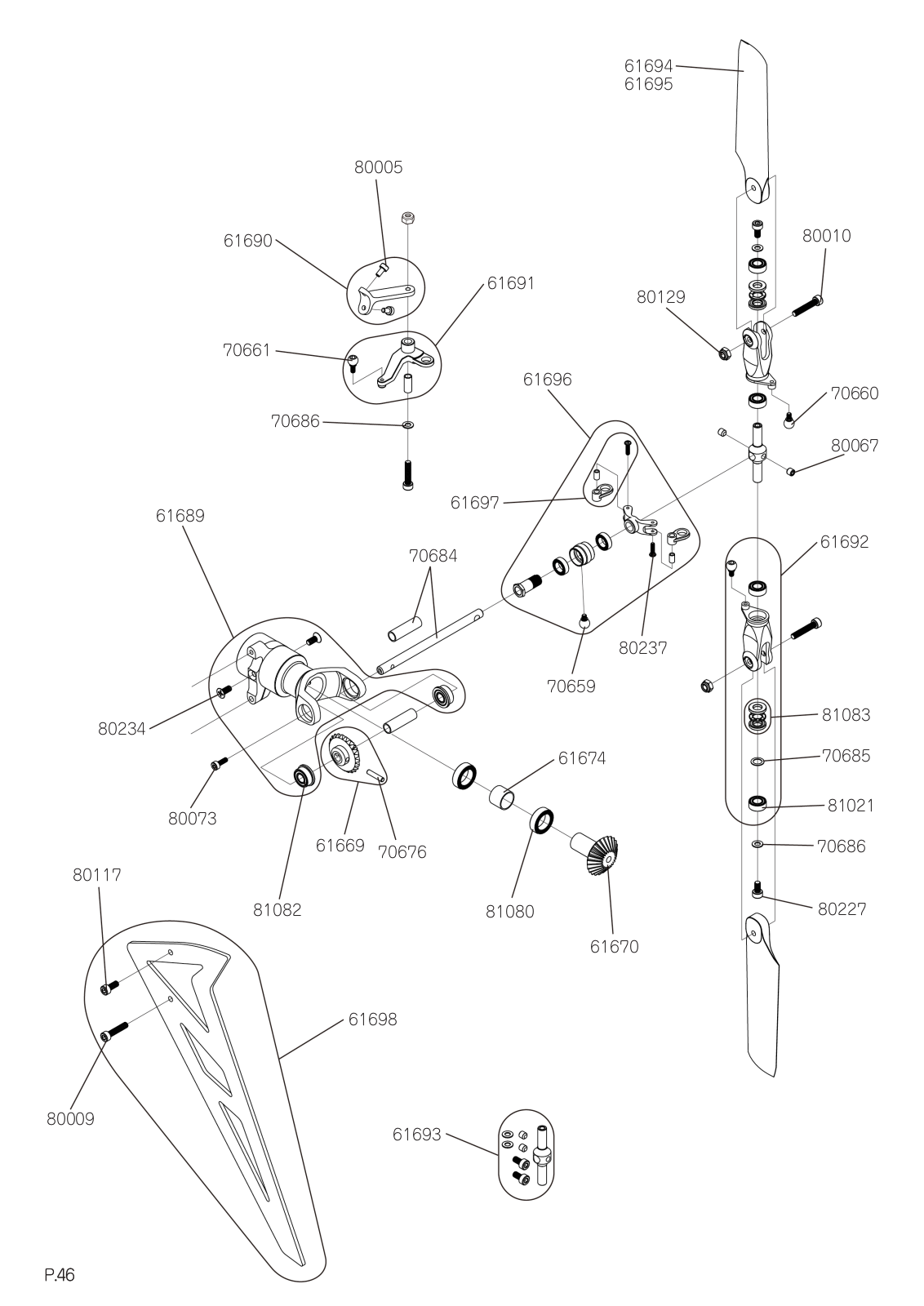

P.46

80005

61694
61695

61689

61690

70661

80010

61691

80129

61696

70660

70686

80067

61697

61692

70684

80237

80117

80009

80234

80073

81082

61669

61698

70676

61693

81080

70659

61674

81083

70685

81021

70686

80227

61670

P.47

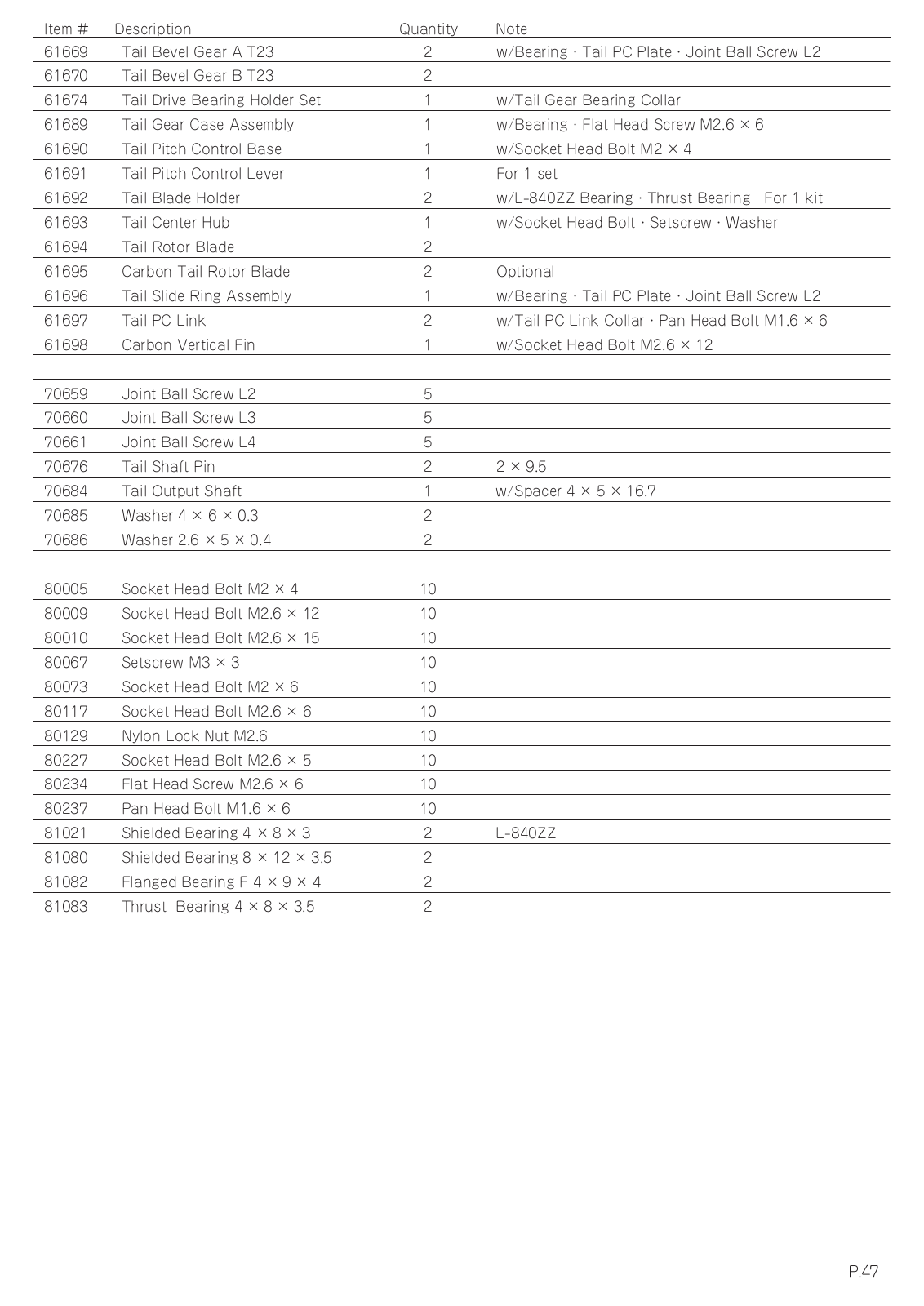

Item # Description Quantity Note
61669 Tail Bevel Gear A T23 2 w/Bearing・Tail PC Plate・Joint Ball Screw L2

61670 Tail Bevel Gear B T23 2
61674 Tail Drive Bearing Holder Set 1 w/Tail Gear Bearing Collar
61689 Tail Gear Case Assembly 1 w/Bearing・Flat Head Screw M2.6 × 6
61690 Tail Pitch Control Base 1 w/Socket Head Bolt M2 × 4
61691 Tail Pitch Control Lever 1 For 1 set
61692 Tail Blade Holder 2 w/L-840ZZ Bearing・Thrust Bearing　For 1 kit
61693 Tail Center Hub 1 w/Socket Head Bolt・Setscrew・Washer
61694 Tail Rotor Blade 2
61695 Carbon Tail Rotor Blade 2 Optional
61696 Tail Slide Ring Assembly 1 w/Bearing・Tail PC Plate・Joint Ball Screw L2
61697 Tail PC Link 2 w/Tail PC Link Collar・Pan Head Bolt M1.6 × 6
61698 Carbon Vertical Fin 1 w/Socket Head Bolt M2.6 × 12

70659 Joint Ball Screw L2 5
70660 Joint Ball Screw L3 5
70661 Joint Ball Screw L4 5
70676 Tail Shaft Pin 2 2 × 9.5
70684 Tail Output Shaft 1 w/Spacer 4 × 5 × 16.7
70685 Washer 4 × 6 × 0.3 2
70686 Washer 2.6 × 5 × 0.4 2

80005 Socket Head Bolt M2 × 4 10
80009 Socket Head Bolt M2.6 × 12 10
80010 Socket Head Bolt M2.6 × 15 10
80067 Setscrew M3 × 3 10
80073 Socket Head Bolt M2 × 6 10
80117 Socket Head Bolt M2.6 × 6 10
80129 Nylon Lock Nut M2.6 10
80227 Socket Head Bolt M2.6 × 5 10
80234 Flat Head Screw M2.6 × 6 10
80237 Pan Head Bolt M1.6 × 6 10
81021 Shielded Bearing 4 × 8 × 3 2 L-840ZZ
81080 Shielded Bearing 8 × 12 × 3.5 2
81082 Flanged Bearing F 4 × 9 × 4 2
81083 Thrust Bearing 4 × 8 × 3.5 2

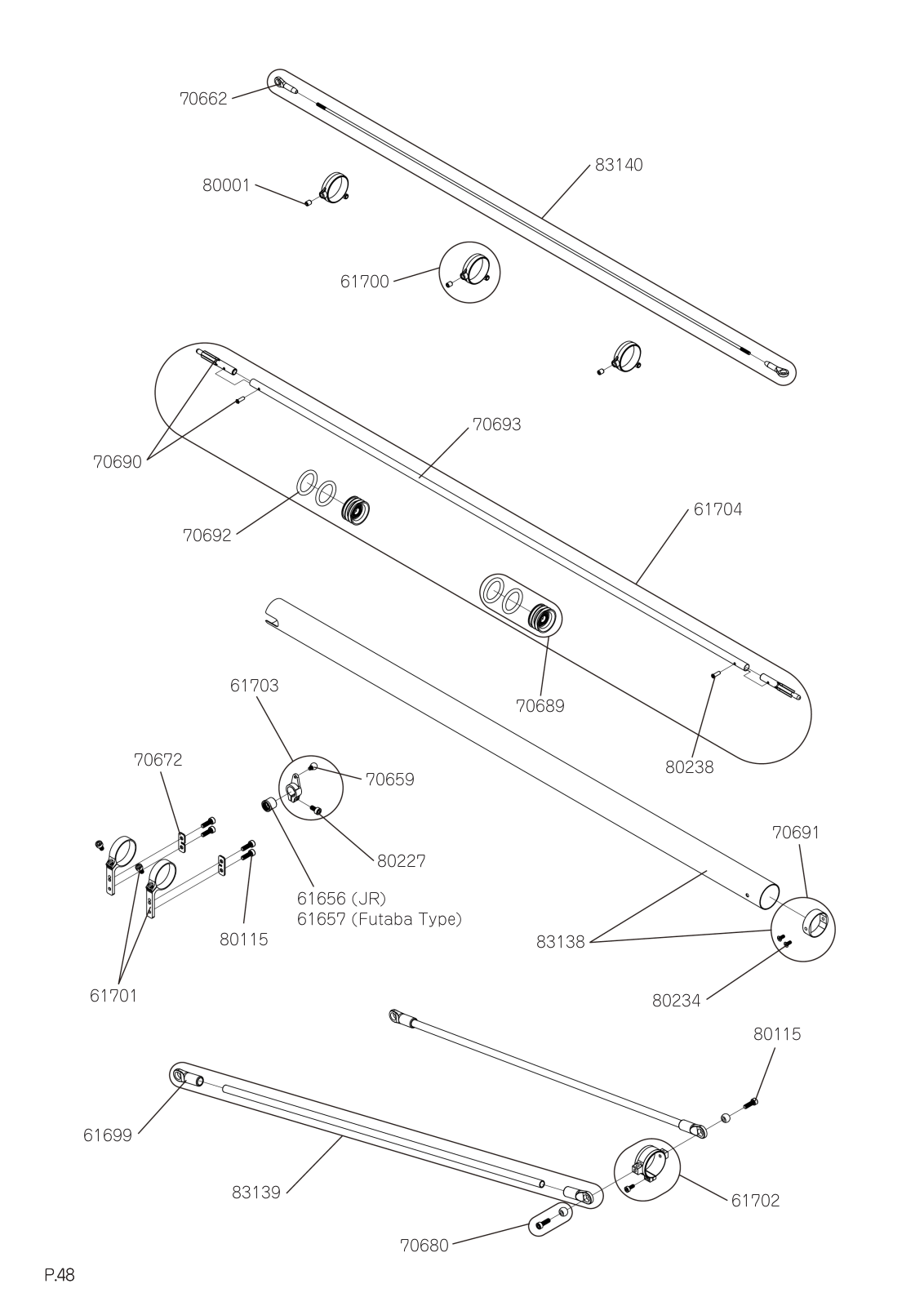

P.48

70690

70662

83140

80001

61700

70693

61704

70692

61701

70672

61703

80115

70689

80238

70659

70691

80227

61656 (JR)
61657 (Futaba Type)

83138

80234

80115

61699

83139

61702

70680

P.49

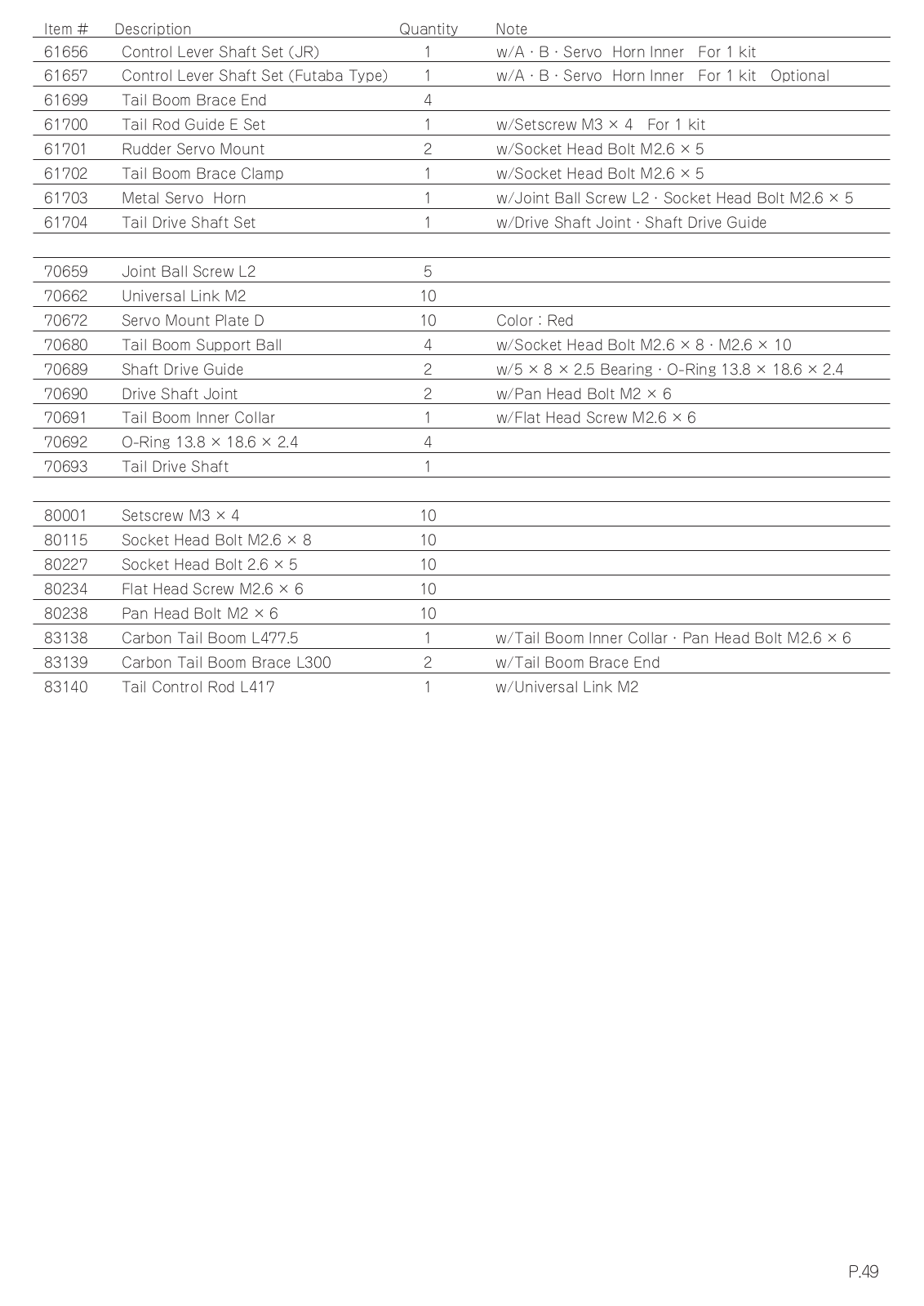

Item # Description Quantity Note
61656 Control Lever Shaft Set (JR) 1 w/A・B・Servo Horn Inner　For 1 kit

61657 Control Lever Shaft Set (Futaba Type) 1 w/A・B・Servo Horn Inner　For 1 kit　Optional
61699 Tail Boom Brace End 4
61700 Tail Rod Guide E Set 1 w/Setscrew M3 × 4　For 1 kit
61701 Rudder Servo Mount 2 w/Socket Head Bolt M2.6 × 5
61702 Tail Boom Brace Clamp 1 w/Socket Head Bolt M2.6 × 5
61703 Metal Servo Horn 1 w/Joint Ball Screw L2・Socket Head Bolt M2.6 × 5
61704 Tail Drive Shaft Set 1 w/Drive Shaft Joint・Shaft Drive Guide

70659 Joint Ball Screw L2 5
70662 Universal Link M2 10
70672 Servo Mount Plate D 10 Color：Red
70680 Tail Boom Support Ball 4 w/Socket Head Bolt M2.6 × 8・M2.6 × 10
70689 Shaft Drive Guide 2 w/5 × 8 × 2.5 Bearing・O-Ring 13.8 × 18.6 × 2.4
70690 Drive Shaft Joint 2 w/Pan Head Bolt M2 × 6
70691 Tail Boom Inner Collar 1 w/Flat Head Screw M2.6 × 6
70692 O-Ring 13.8 × 18.6 × 2.4 4
70693 Tail Drive Shaft 1

80001 Setscrew M3 × 4 10
80115 Socket Head Bolt M2.6 × 8 10
80227 Socket Head Bolt 2.6 × 5 10
80234 Flat Head Screw M2.6 × 6 10
80238 Pan Head Bolt M2 × 6 10
83138 Carbon Tail Boom L477.5 1 w/Tail Boom Inner Collar・Pan Head Bolt M2.6 × 6
83139 Carbon Tail Boom Brace L300 2 w/Tail Boom Brace End
83140 Tail Control Rod L417 1 w/Universal Link M2
