Page 1

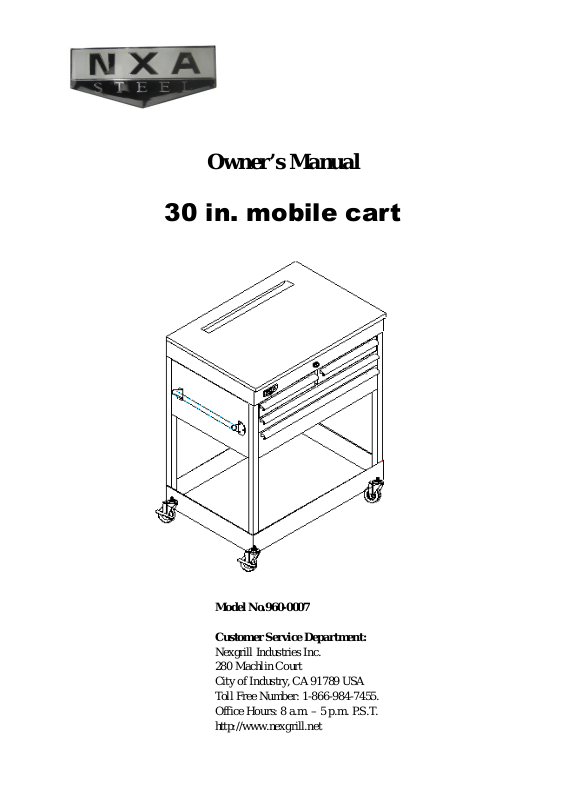

Owner’s Manual
30 in. mobile cart
Model No.960-0007
Customer Service Department:
Nexgrill Industries Inc.
280 Machlin Court
City of Industry, CA 91789 USA
Toll Free Number: 1-866-984-7455.
Office Hours: 8 a.m. – 5 p.m. P.S.T.
http://www.nexgrill.net
Page 2
1
Exploded View of 960-0007
Page 3
2
Part list
Part Name Quantity
1. Solid Birch Wood Top
Part number: 16000200A0
2. Side Handle
Part number: 20001269A0
3. Screw (1/4*12)
Part number: 06000484A0
4. Caster with Brake
Part number: 05000182A0
5. Hydraulic Lift
Part number: 05001141A0
6. Bottom drawer
Part number: 20001281A0
7. Key
Part number: 05001515A0
8. Top drawer
Part number: 20001270A0
9. Middle drawer
Part number: 20001271A0
10. Swivel Caster
Part number: 05000330A0
11. Small drawer handle
Part number: 12000622A0
12. Big drawer handle
Part number: 12000623A0
1
1
2
1
2
1
1
2
1
2
2
2
Page 4
3

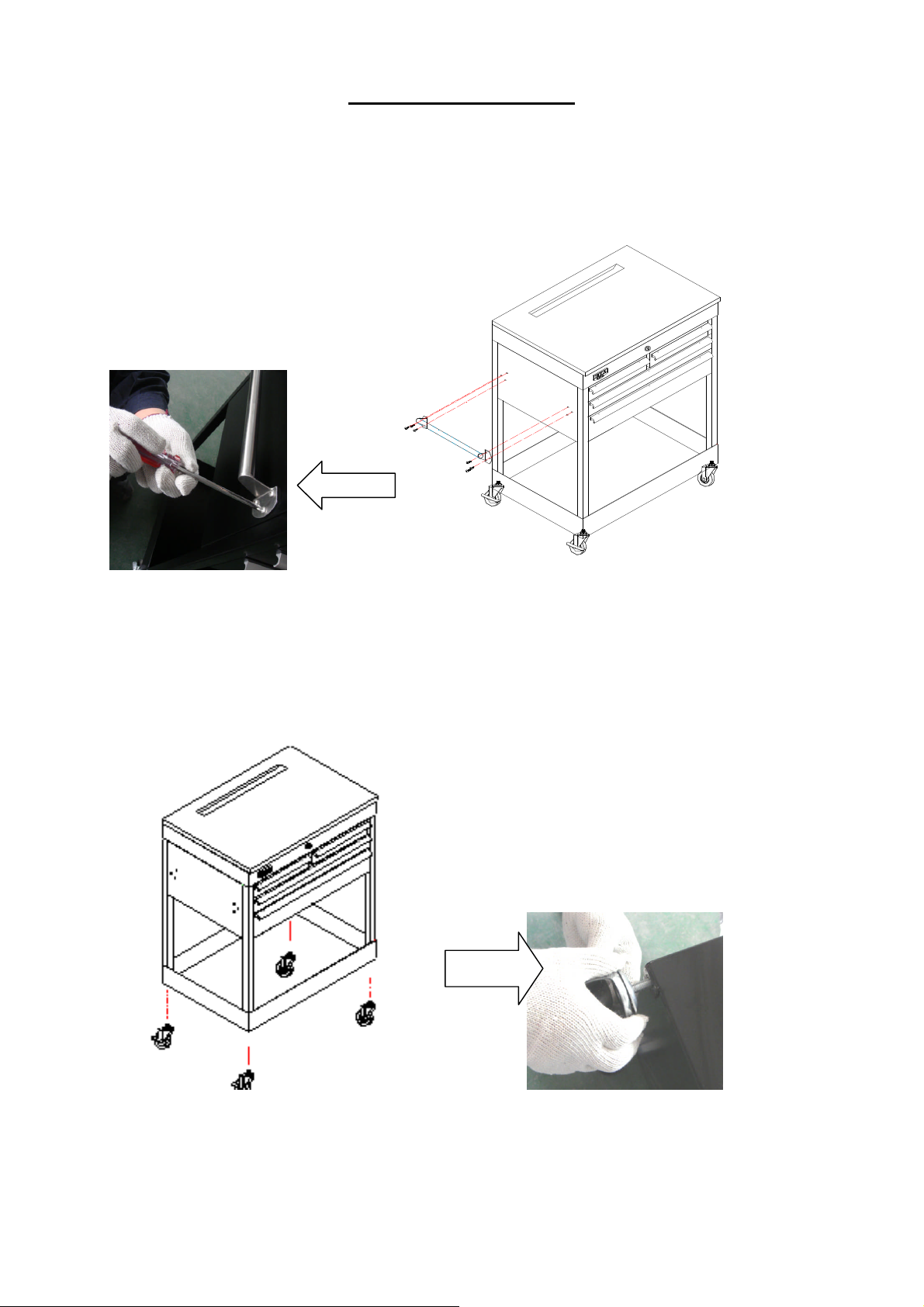

Assembly Instruction
1．Handle Installation:
Take out the 6 screws from the hardware pack, line up the handle with the holes,
insert the screws and firmly tighten the screws.
2. Wheels Installation:
Push the post on each cater in to the receptacle in each leg until it is firmly seated (2
casters with brake on the left hand side when facing the cart).
Page 5
4
-How to remove the drawer?
Slide the drawer out until it is fully extended. Note the black plastic levers on both
sides of the drawer. Depress the levers and then slide the drawer out.
CAUTION
Do not use the drawers when the lid is locked
Close the drawers before close the lid if you want to lock them.
Assemble the side handle to make it easier to move the mobile cart.
Page 6
5
**PLEASE DO NOT RETURN THIS PRODUCT TO THE RETAILER**
All consumer returns, parts orders, questions, and troubleshooting
a
ssistance
can
be acquired by calling 1
-
866-984-7455
.
should you encounter issues, are missing parts, or need operating assistance. The Grill Services
will be happy to send replacement parts and troubleshoot issues to help ensure your product is in
great quality for years to come. Simply call 866-984-7455 for great service between 8AM & 5PM,
Mon-Fri.
LIMITED WARRANTY, Model 960-0007
Nexgrill Industries warrants tothe original consumer-purchaser onlythat this product (Model #960-0007) shall be free from defects inworkmanship and materials after
correct assembly and under normal and reasonable home usefor the periods indicated below beginning on the date of purchase. The manufacturer reserves the right
to require that defective parts be returned, postage and or freight pre-paid, by the consumer, for review and examination. Please retain your receipt or proof of
purchase, as it may be needed as documentation that you are the original purchaser for extended warranty coverage.
All PARTS: 1 Year LIMITED warranty
Upon consumer supplying proof of purchase as provided herein, Manufacturer will repair orreplace theparts which are proven defective during the applicable warranty
period. Parts required to complete such repair or replacement shall be free of charge to you except for shipping costs, as long as the purchaser is within the warranty
period from the original date of purchase. The original consumer-purchaser will be responsible for all shipping charges (and customs charges in Canada) of
parts replaced under the terms of this limited warranty. This limited warranty is applicable in the United States and Canada only, is only available to the original
owner of the product and is not transferable. Manufacturer requires reasonable proof of your date of purchase. Therefore, you should retain your sales
receipt and/or invoice. Defective or missing parts subject to this limited warranty will not be replaced without registration or proof of purchase. This limited warranty
applies tothe functionalityof the product ONLYand doesnot covercosmetic issuessuch asscratches, dents,corrosions ordiscoloring byheat, abrasive and chemical
cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the discoloration of stainless steel surfaces. Surface rust, corrosion, or
powder paint chipping on metal parts thatdoes not affect the structural integrity of the productis not considered a defect in workmanship or material and is not covered
by this warranty. This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage. If an original replacement
part or product is not available, a comparable replacement part or product will be provided.
ITEMS MANUFACTURER WILL NOT PAY FOR:
1. Service calls to your home, business, or general location of the product.
2. Repairs when your product is used for other than normal, single-family household or residential use.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, and installation not in accordance with electrical or
plumbing codes or use of products not approved by the manufacturer; including incorrect installation or fuel conversions not performed by the manufacturer’s
designated service provider;
4. Any food loss due to product failures.
5. Replacement parts or repair labor costs for units operated outside the United States or Canada.
6. Pickup and delivery of your product.
7. Repairs to parts or systems resulting from unauthorized modifications made to the product.
8. The removal and/or reinstallation of your product.
9. Shipping and customs cost, standard or expedited, for warranty/non warranty and replacement parts; and shipping costs for photographic evidence or damaged
parts requested to verify need for warranty coverage.
DISCLAIMER OF IMPLIED WRRANTIES; LlMlTATlON OF REMEDIES
Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. Manufacturer will not be responsible for any consequential
or incidental damages arising from the breach of either this limited warranty or any applicable implied warranty, or for failure or damage resulting from acts of God,
improper care and maintenance, grease fire, accident, alteration, replacement of parts by anyone other than Manufacturer, misuse, transportation, commercial use,
abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper installation or installation not in accordance with local codes or printed
manufacturer instructions.
*Does not cover cosmetic issues like surface corrosion, scratches and rust.
THlS LIMITEDWARRANTY IS THESOLE EXPRESS WARRANTY GIVENBY THEMANUFACTURER. NO PRODUCT PERFORMANCE SPECIFICATION OR DESCRIPTION
WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET FORTH IN THlS LIMITED WARRANTY. ANY IMPLIED WARRANTY
PROTECTION ARISING UNDER THE LAWS OF ANY STATE, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
OR USE, IS HEREBY LIMITED IN DURATION TO THE DURATION OF THlS LIMITED WARRANTY.
Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies in addition to
or inconsistent with those stated above. Manufacturer's maximum liability,in any event, shall not exceed the documentedpurchase price of the product paid by the
original consumer. This warranty only applies to units purchased from an authorized retailer and or re-seller. NOTE: Some states do not allow an exclusion or
limitation of incidental or consequential damages, so some of the above limitations or exclusions may not apply to you; this limited warranty gives you specific legal
rights as set for herein. You may also have other rights which vary from state to state.
If you wish to obtain performance of any obligation under this limited warranty, you should write to:
(Via Postal Mail) Nexgrill Industries Customer Relations, 280 Machlin Court, City of Industry, CA 91789, USA
(Via Electronic Mail) [email protected]
